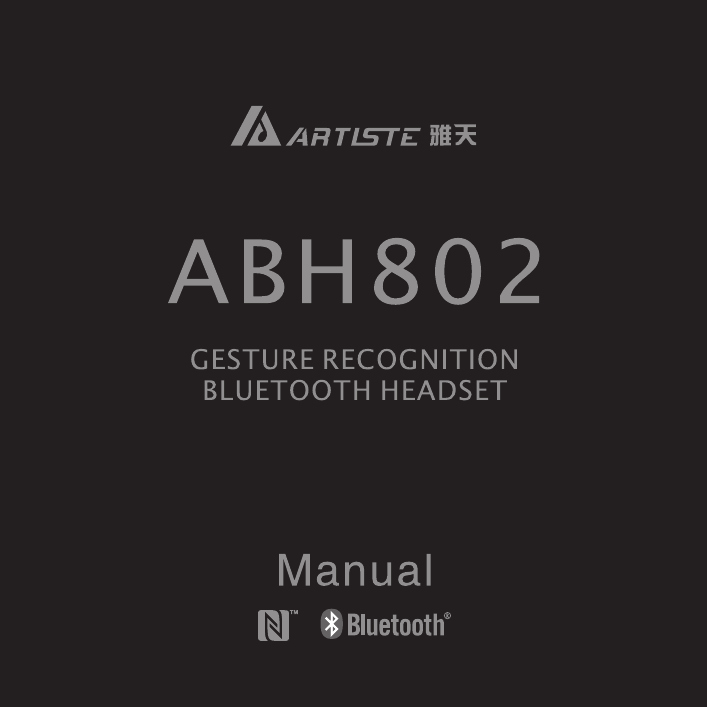

Uni Art Precise ABH802-AT0-1-N Bluetooth Headset User Manual

Uni-Art Precise Products Ltd Bluetooth Headset Users Manual

Contents

Manual

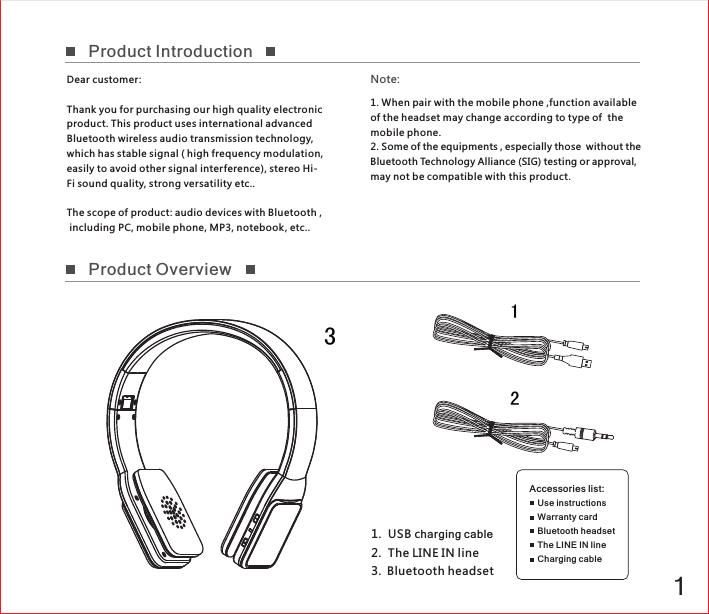

1Accessories list: Use instructions Warranty cardBluetooth headsetThe LINE IN lineCharging cable1 USB c 2. The LINE IN line3. Bluetooth headset.harging cable12Dear customer :Thank you for purchasing our high quality electronic product. This product uses international advanced Bluetooth wireless audio transmission technology, which has stable signal ( high frequency modulation, easily to avoid other signal interference), stereo Hi-Fi sound quality, strong versatility etc..The scope of product: audio devices with Bluetooth , including PC, mobile phone, MP3, notebook , etc..Note:Product IntroductionProduct Overview31. When pair with the mobile phone ,function of the headset may change according to type of the mobile phone. 2. Some of the equipments , especially those without the Bluetooth Technology Alliance (SIG) testing or approval, may not be compatible with this product.available

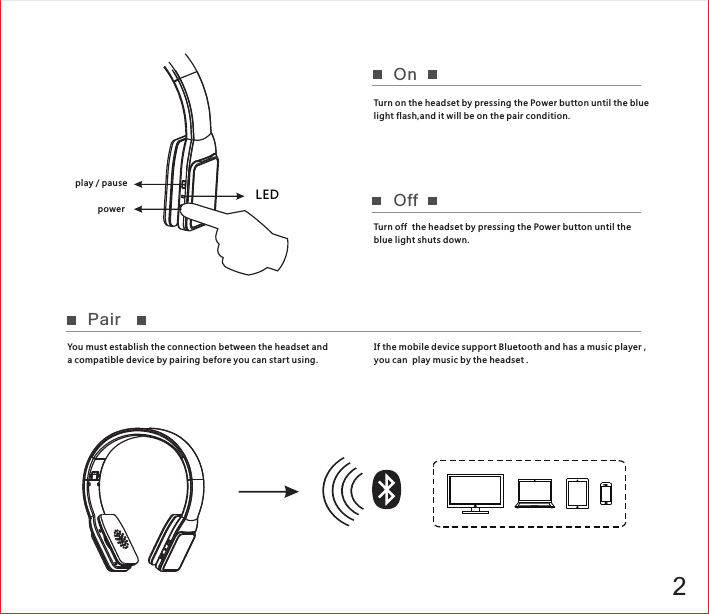

2Turn on the headset by pressing the Power button until the blue light flash,and it will be on the pair condition.OnYou must establish the connection between the headset and a compatible device by pairing before you can start using. LED OffTurn off the headset by pressing the Power button until the blue light shuts down.If the mobile device support Bluetooth and has a music player , you can play music by the headset . Pairpower play / pause

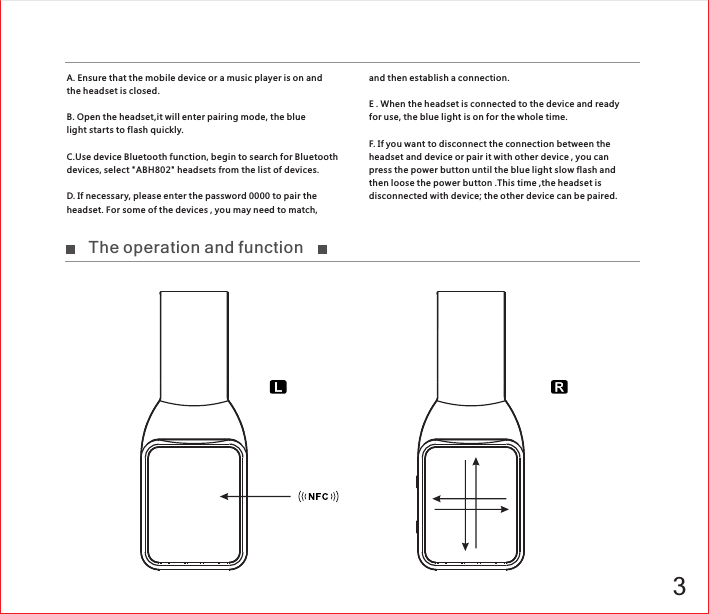

3A. Ensure that the mobile device or a music player is on and the headset is closed.B. Open the headset,it will enter pairing mode, the blue light star ts to flash quickly.C.Use device Bluetooth function, begin to search for Bluetooth devices, select "ABH802" headsets from the list of devices.D. If necessary, please enter the password 0000 to pair the headset. For some of the devices , you may need to match, and then establish a connection.E . When the headset is connected to the device and ready for use, the blue light is on for the whole time.F. If you want to disconnect the connection between the headset and device or pair it with other device , you can press the power button until the blue light slow flash and then loose the power button .This time ,the headset is disconnected with device; the other device can be paired.The operation and function

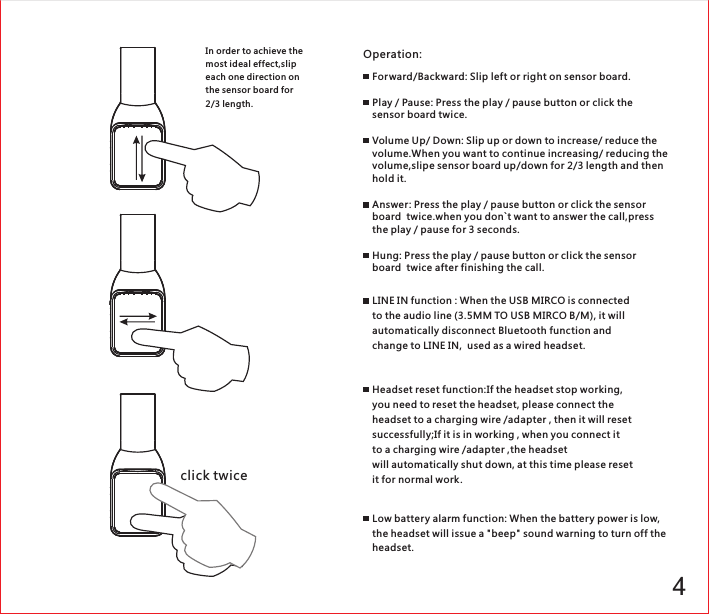

4click twiceIn order to achieve the most ideal effect,slip each one direction on the sensor board for 2/3 length.Forward/Backward: Slip left or right on sensor board. Play / Pause: Press the play / pause button or click the sensor board twice.Volume Up/ Down: Slip up or down to increase/ reduce the volume.When you want to continue increasing/ reducing thevolume,slipe sensor board up/down for 2/3 length and then hold it.Answer: Press the play / pause button or click the sensor board twice.when you don`t want to answer the call,press the play / pause for 3 seconds.Hung: Press the play / pause button or click the sensor board twice after finishing the call.LINE IN function : When the USB MIRCO is connectedto the audio line (3.5MM TO USB MIRCO B/M), it will automatically disconnect Bluetooth function and change to LINE IN, used as a wired headset. Low battery alarm function: When the batter y power is low, the headset will issue a "beep" sound warning to turn off the headset.Operation:Headset reset function:If the headset stop working, you need to reset the headset, please connect the headset to a charging wire /adapter , then it will resetsuccessfully;If it is in working , when you connect it to a charging wire /adapter ,the headset will automatically shut down, at this time please reset it for normal work.

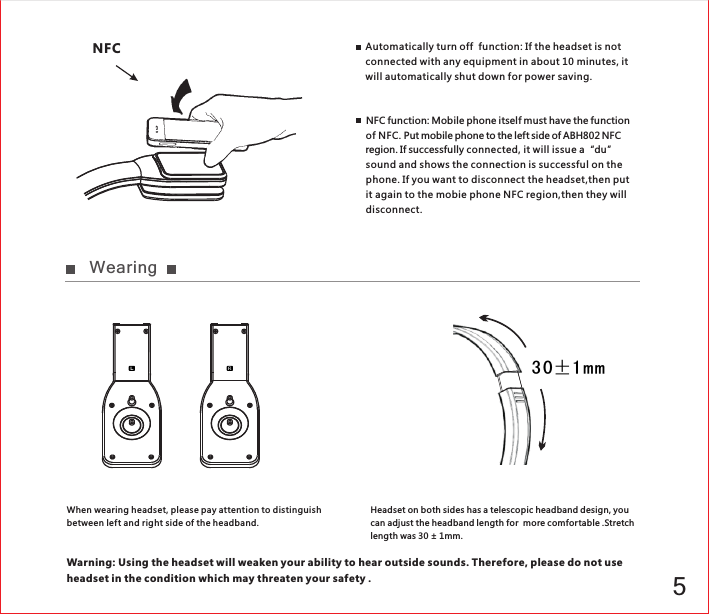

5When wearing headset, please pay attention to distinguishbetween left and right side of the headband.Headset on both sides has a telescopic headband design, youcan adjust the headband length for more comfortable .Stretch length was 30 ± 1mm.3 0±1 m mNFC Automatically turn off function: If the headset is not connected with any equipment in about 10 minutes, it will automatically shut down for power saving.WearingWarning: Using the headset will weaken your ability to hear outside sounds. Therefore, please do not use headset in the condition which may threaten your safety .NFC function: Mobile phone itself must have the function of NFC. Put mobile phone to the left side of ABH802 NFC region. If successfully connected, it will issue a“du”sound and shows the connection is successful on the phone. If you want to disconnect the headset,then put it again to the mobie phone NFC region,then they will disconnect.

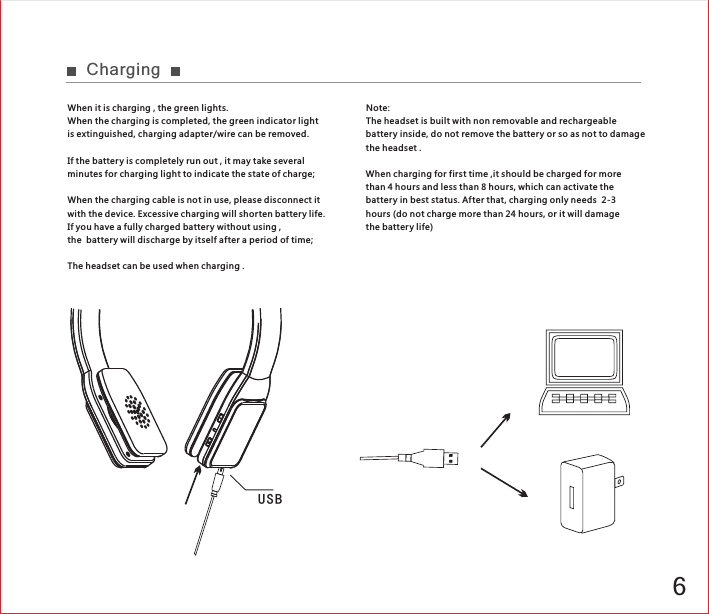

6U S BChargingWhen it is charging , the green lights.When the charging is completed, the green indicator light is extinguished, charging adapter/wire can be removed.If the battery is completely run out , it may take several minutes for charging light to indicate the state of charge;When the charging cable is not in use, please disconnect it with the device. Excessive charging will shor ten batter y life. If you have a fully charged battery without using ,the battery will discharge by itself after a period of time;The headset can be used when charging .Note:The headset is built with non removable and rechargeable battery inside, do not remove the battery or so as not to damage the headset .When charging for first time ,it should be charged for more than 4 hours and less than 8 hours, which can activate the battery in best status. Af ter that, charging only needs 2-3 hours (do not charge more than 24 hours, or it will damage the battery life)
7SafetyIn order to obtain the best sound effects, please pay attention to distinguish between left and right side of the headband.; do not disassemble the hardware; use dry and soft cotton to clean the headset etc.We recommend you take the following preventive measures to prevent hearing loss :If the volume is too large, may cause hearing loss.Adjust the appropriate volume from the minimum, increase slowly until the sound is comfortable, clear and without distor tion.If in a comfortable volume, you have tinnitus or discomfort , please turn down the volume or stop to listen and check the hearing status.Warning: Wireless transmission will produce electromagnetic signal, please pay attention to use the headphone when you have cardiac pacemaker or related auxiliar y instrument.TroublesA: Not successfully matched : 1. Confirm the connection device with Bluetooth function has been opened and work ; 2. Check whether the headset battery power is insufficient; 3. Do not open the too many Bluetooth headsets or Bluetooth devices at the same time, to prevent interference;4. Confirm the headset is in pairing state and input Bluetooth headset the password correctly;5. If the above method still can not solve this problem,reset the headset, pair it by description.B.Cannot listen to music or call by headset: 1. Increase the headset volume; 2. Confirmed the device has been successfully connected.

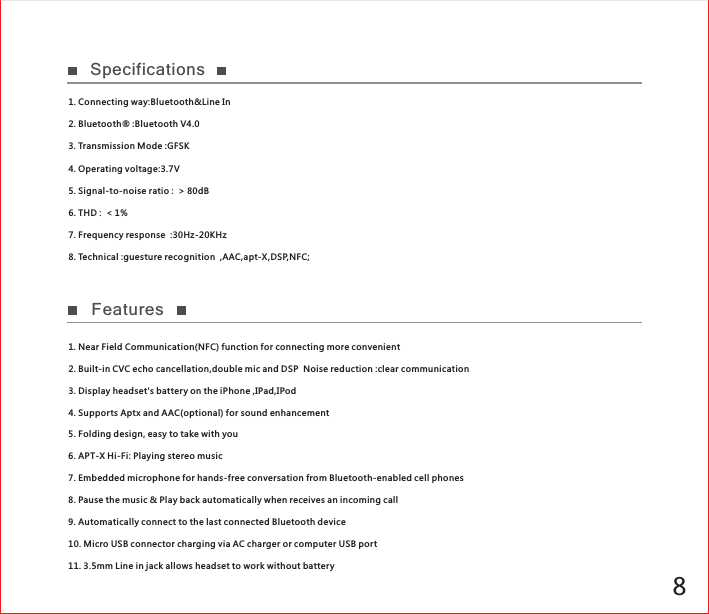

8Specifications 1. Connecting way:Bluetooth&Line In2. Bluetooth® :Bluetooth V4.03. Transmission Mode :GFSK4. Operating voltage:3.7V5. Signal-to-noise ratio : > 80dB6. THD : < 1% 7. Frequency response :30Hz-20KHz8. Technical :guesture recognition ,AAC,apt-X,DSP,NFC;1. Near Field Communication(NFC) function for connecting more convenient2. Built-in CVC echo cancellation,double mic and DSP Noise reduction :clear communication3. Display headset's batter y on the iPhone ,IPad,IPod4. Supports Aptx and AAC(optional) for sound enhancement5. Folding design, easy to take with you6. APT-X Hi-Fi: Playing stereo music7. Embedded microphone for hands-free conversation from Bluetooth-enabled cell phones8. Pause the music & Play back automatically when receives an incoming call9. Automatically connect to the last connected Bluetooth device10. Micro USB connector charging via AC charger or computer USB port11. 3.5mm Line in jack allows headset to work without batteryFeatures

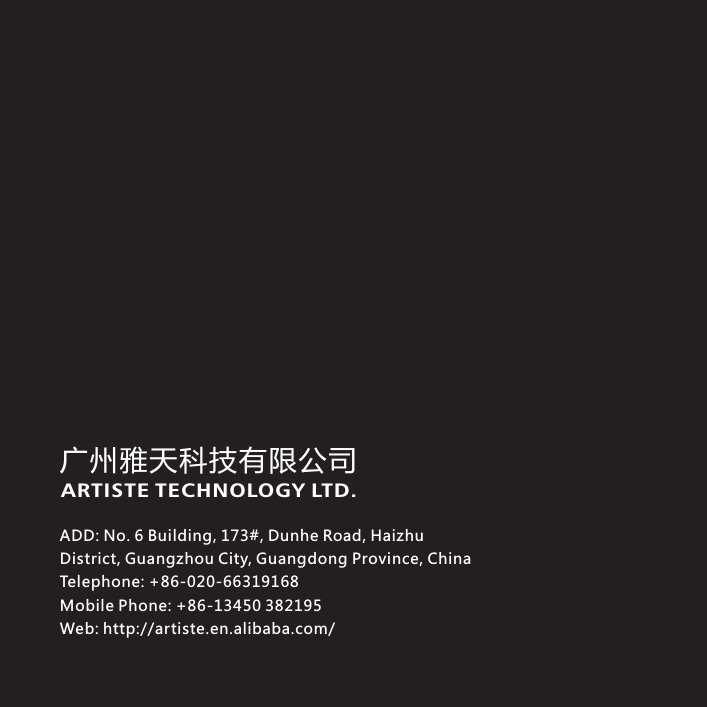

ADD: No. 6 Building, 173#, Dunhe Road, Haizhu District, Guangzhou City, Guangdong Province, ChinaTelephone: +86-020-66319168Mobile Phone: +86-13450 382195Web: http://artiste.en.alibaba.com/广州雅天科技有限公司ARTISTE TECHNOLOGY LTD.
