SP4890
Wireless Stereo 900MHz
Speaker System
User’s Manual
Please read before using the equipment
INTRODUCTION
This 900 MHz stereo wireless speaker system uses latest wireless technology that
enables you to enjoy music and TV sound anywhere inside or outside your home.
You can simply connect the system to any audio source such as Radio, TV, VCR,
Hi-Fi and iPod/iPhone/Smart Phone, and CD/MP3/VCD/DVD. Without
complicated wiring and installation with your Audio/Video equipments and rear
channel amplifier, the system enables you to enjoy thrilling, lifelike sound stereo in
minutes.
FEATURES
z Phase Lock Loop (PLL) transmission system on product.
z 900 MHz RF technology stereo speaker systems.
z RF technology lets you roam freely throughout your house.
z Operating distance up to 150 Feet (open area)
z No line of sight limitation.
z Virtually interference free stereo quality.
z ALC and RF transmission auto ON/OFF control.
z Auto tuning function.
PACKAGE INCLUDES
1 x Transmitter
1 x AC/DC 8V 200mA Power Adaptor for Transmitter
2 x Speakers
2 x AC/DC 9V 1.2A Power Adaptor for Speakers
1 x Audio Cable (RCA male to 3.5 mm stereo male plug)
1 x Short "Y-Cord" RCA Adapter Cable.

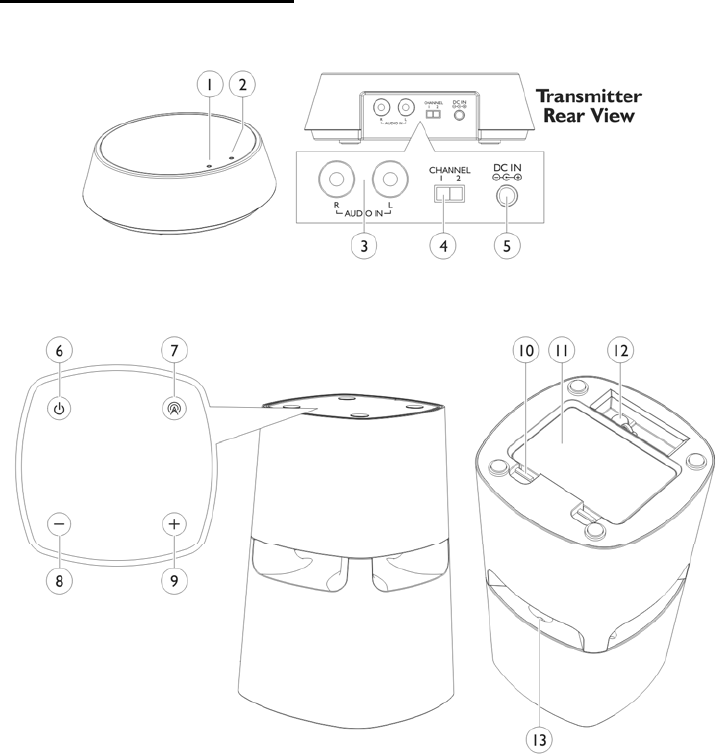

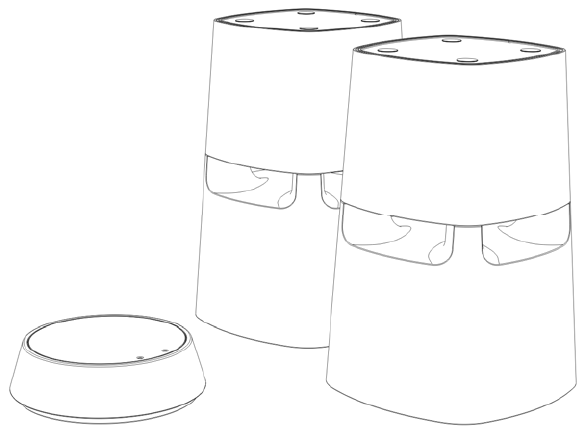

COMPONENT IDENTIFICATION
TRANSMITTER
SPEAKER RECEIVERS
1. Power LED Indicator
2. Signal LED Indicator
3. Audio In
4. Channel Selector
5. DC In For Transmitter
6. Power On/Off
7. Tune
8. Volume Down
9. Volume Up
10. Battery Door Lock
11. Battery Door
12. DC In, with rubber Cover
13. Power/Signal LED Indicator
INSTALLATION
TRANSMITTER
1. Plug the supplied 8V AC/DC power adaptor in the DC jack located on the rear of the transmitter.
2. Connect the supplied 8V AC/DC power adaptor to an electrical wall outlet. The Power LED
then glows.

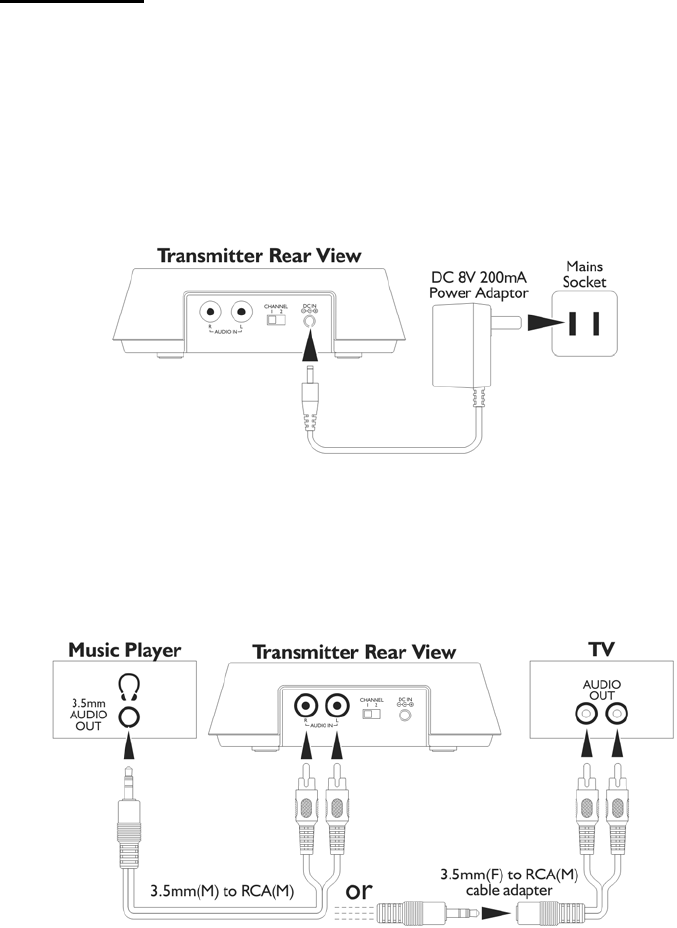

3. The transmitter can be connected to audio output jack of TV, Monitor, VCR, Radio, CD,
MP3/iPod/iPhone, Smart Phone, VCD or DVD players with the cables provided.
Having finished the above simple wiring, Signal LED glows when the transmitter
detects audio input signal played from the source.
SPEAKER RECEIVERS
1. Remove the Battery Door by pushing the Battery Door Lock.
2. Insert 6 pieces of ‘AA’ size ALKALINE batteries into the
battery compartment with correct polarity under the speakers,
then replace the door of battery compartment, or connect the
provided AC/DC 9V Adaptor to the DC input jack under the
speakers, then plug it to the wall AC outlet. Note that this
Speaker will not charge any batteries.
OPERATION
1. Turn on the audio source to which the transmitter is connected with. The Signal LED on
transmitter will light up.
2. Select a channel of the transmitter for best performance in your location.
3. Press the “POWER” button on the speaker to turn on the speaker. Press the “TUNE” button to
get the best tuning reception in the speakers. When the button is pressed, frequency tuning
starts automatically and it stops when a signal is detected.
4. Volume can be increased from the speaker by pressing “ + ” button or decreased by pressing the
button “ – “.
5. Tuning

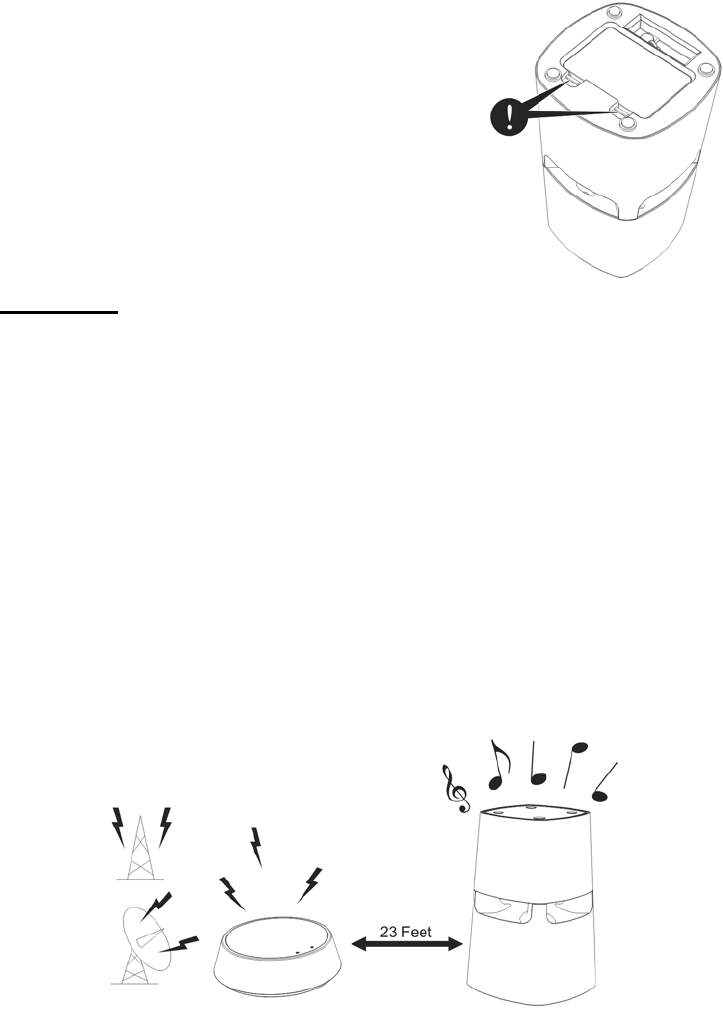

a) Keep a distance of approximately 23 feet between speaker and transmitter, and then
press the button “ TUNE “ button for best tuning reception.
b). Once the frequency is jammed, select another channel on the transmitter, then press
“ TUNE “ button again.
6. Switching Off
a) For protection of the transmitter and power saving, the transmitter will cut off
automatically if there is no/weak operation input signal from audio source for 4 about
minutes. In other words, if the signal comes back, the transmitter will work again
automatically.
b) Press the “POWER” button to turn off the speaker and the LED light goes off.
NOTE :
You should now be able to place the speakers freely from room to room without disruption. If
disruption should occur (signal breaks up), press the “TUNE” button under the speakers to maximize
best reception.
If you hear interference from other components, switch the channel control of transmitter, and then
move the speakers to other free location. You can re-adjust the tuning control by moving it among
channels of the transmitter, then pressing “TUNE” button of the speakers for best reception.
When transmitting / receiving over long distances, the signal from the system will become weaker.
TROUBLE SHOOTING
NO SOUND
z Ensure the AC adaptor is fully inserted into the AC outlet and the power connection input on the
transmitter.
z Ensure the speaker is switch ON.
z Speaker’s battery capacity is too low, replace with new batteries or connect the AC adaptors to
the speakers.
z Ensure the TV or audio component is ON.
z The connected audio / video equipment is not playing. Start playing the equipment.
z The volume of speaker is too low, adjust the volume to an appropriate level.
DISTORTED
z Press the “TUNE” button under the speakers until the frequency between the transmitter and
speakers are matched.
z Change the position of the channel selector on the transmitter. You must then press the
“TUNE” button on the speakers.
z Battery capacity is too low. Replace with the new battery.
z Ensure the volume level of speakers is adjusted properly.
z The speaker is too far away from transmitter, move them closer.
z The input level of the audio signal is too low. Turn up the volume of the audio source
equipment.
TECHNICAL SPECIFICATIONS
Transmission Mode : UHF stereo
Carrier Frequency : 900 MHz
Operation Voltage : Transmitter, AC/DC 8V 200mA Power Adaptor
Speaker, AC/DC 9V 1.2A Power Adaptor, or
6 X ‘AA’ size Alkaline Batteries (not included)
Frequency Response : 40Hz – 12KHz
Distortion : 1.5%
S/N Ratio : 65dB
Channel Separation : 30dB
Operation Distance : Up to 150 feet (open area)
Output Power : 2 x 4W (RMS)
