UniKit Electronics UX300 LOW POWER BROADCAST FM User Manual UX300 Instruction Manual USA
UniKit Electronics Corporation LOW POWER BROADCAST FM UX300 Instruction Manual USA
USERS MANUAL
This device complies with Part 15 of the FCC rules. Operation of this device is subject to
the following two conditions: (1) this device may not cause harmful interference; and (2)
this device must accept any interference received, including interference that may
cause undesired operation.
USA
UX300
USB FM TRANSMITTER
This device operates on the commercial FM band and signals transmitted can be
received on any standard FM receiver. Users should take great care when operating
this device in order to not cause any interference with reception of any commercial
transmission.
In the USA, the use of this device is governed by Part 15 of the FCC rules.
Details on these regulations and standards can be found on the internet at:
http://www.fcc.gov
Any modification of this device will void the user’s authority to operate this device under
these regulations and standards. UniKit Electronics Corporation, its shareholders,
directors, employees, parent companies, distributors or resellers are not responsible for
any financial loss or violation of local laws by the user when operating this device. Users
are urged to check their local communication and broadcasting laws.
WARNING
UniKit
www.unikit.com
Copyright © 2004 UniKit Electronics Corporation
All rights reserved
Manufactured by:
UniKit Electronics Corporation
#121 – 3823 Henning Drive
Burnaby • BC • V5C 6P3 • Canada
www.unikit.com
I
I
NTRODUCTION
NSTALLATION
The UX300 FM Transmitter is a USB device intended to transmit audio from your
desktop computer or notebook to nearby FM radios all over your home or office
without cables or wires.
The UX300 appears as a sound card to your computer and any audio produced by
the computer will be transmitted over the USB connection to the transmitter for
reception on any standard FM radio. Power for the UX300 is provided through the
USB port and therefore there are no batteries required.
The UX300 offers a choice of 7 frequencies selectable though an easy to change
DIP switch. The frequency is PLL (Phase-Locked-Loop) synthesized for high-
quality stereo reception. It also offers a stereo audio output jack so that you
continue to listen to the audio on your existing speakers at the same time as the
transmitter is connected to the computer.
Make sure your computer is turned on and has finished starting the operating
system. Then connect one end of the USB cable to a free USB port on your
computer and the other end to the USB port on the transmitter. Make sure of
the correct orientation of the cable.
The Ux300 is a truly plug-and-play device and is simply
connected to your computer via the supplied USB cable. No drivers are needed
for supported operating systems and the device installs itself within seconds as
soon as you plug it into your computer.
Transmit your MP3 music files or any other audio from
your computer to your home stereo system or FM radios around the house or
office.
Transmit internet radio stations from your computer to
standard FM radios around the house or office.
Transmit audio from your portable computer to your car stereo
system without complicated wiring
And many more ...
After a few seconds your computer should recognize the transmitter as a USB
audio device and should automatically configure a standard driver for it.
APPLICATIONS
MP3 Music Jukebox:
Internet Radios:
Car MP3 Player:
1.
2.
3.
4.
5.
6.
Once the transmitter has been fully recognized by the operating system the
“On Air” LED on the transmitter will light up indicating the transmitter has
been successfully detected and is now operational.

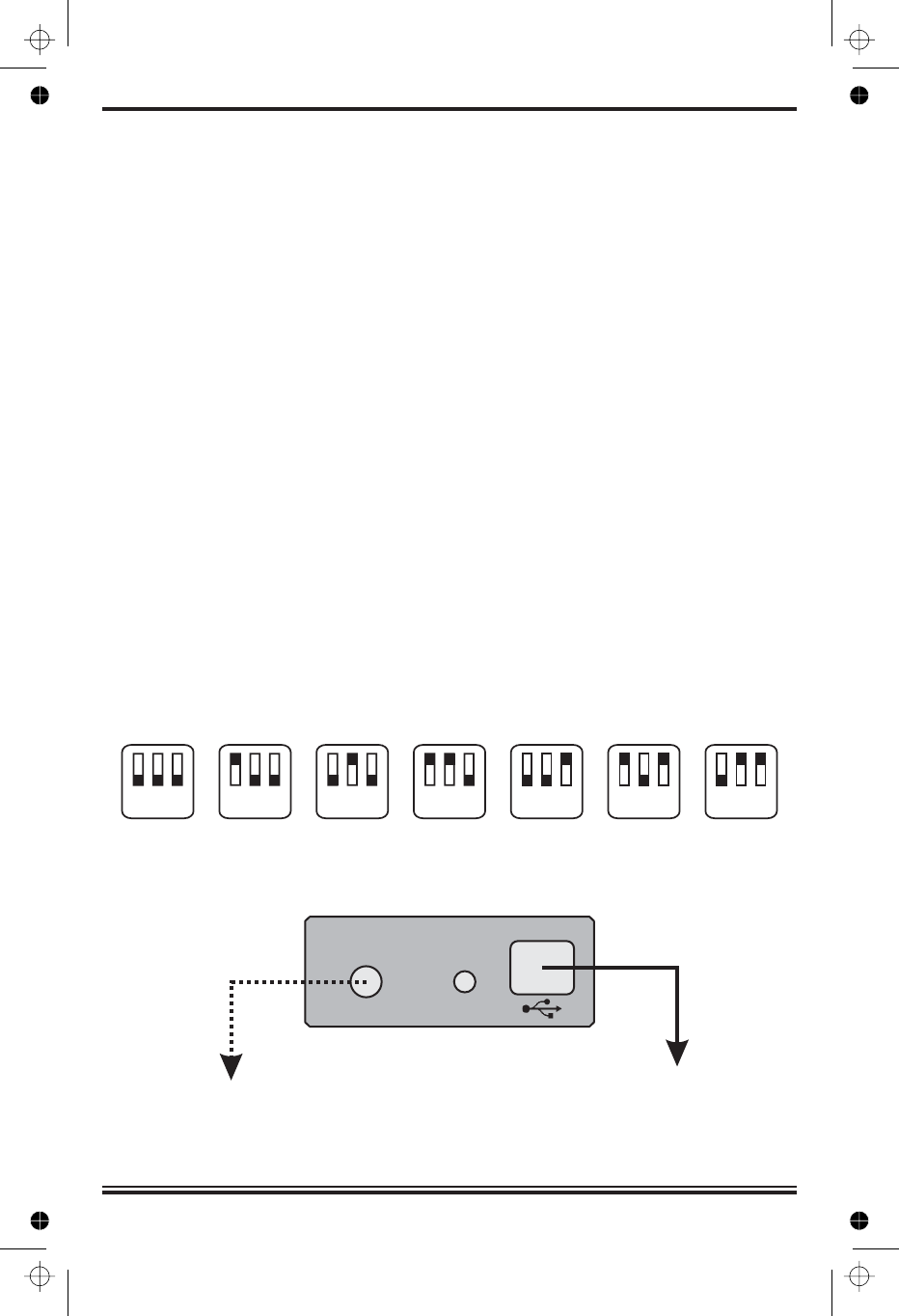

You can now set the transmitting frequency by setting the “FREQ” DIP switch
on the transmitter according to the following diagram. You should choose a
frequency on which no other commercial station is broadcasting.
Open your favorite music playback application and play something in order to
test the transmitter. Make sure the volume level on your computer is set to
around medium.
Extend the UX300 antenna fully and put it in the upright position. Now tune
any nearby FM radio to the frequency selected and listen to the audio. You
should adjust the volume level on the computer so that you have a distortion
free reception. Setting the computer volume too high may distort the
transmitted signal.
Note that when the UX300 is connected to your computer it will become your
primary sound card and all audio played back will go to the UX300. The
UX300 incorporates an audio output jack which can be connected to your
existing computer speakers if you would like to listen to the audio on the
computer speakers at the same time.
106.7 106.9 107.1 107.3 107.9107.7107.5
ON ON ON ON ONONON
1111 1112222 2223333 333
ON AIR
USB
AUDIO OUT
USB FM TRANSMITTER
TO COMPUTER
USB PORT
TO COMPUTER
SPEAKERS
(OPTIONAL)
TROUBLESHOOTING
Problem:
Solution:
Problem:
Solution:
Problem:
Solution:
UX300 is connected to the computer, but the “On Air” LED does not light up.
Check to make sure the USB cable is properly connected between the UX300 and
the computer.
Disconnect the USB cable from the computer, wait a few seconds and reconnect to
the computer making sure the USB plug is completely inserted into the computer
USB port with the correct orientation.
Try a different USB port if available.
If problem persists, restart the computer and try again.
UX300 is connected to the computer and the “On Air” LED lights up, but there is no
sound coming from the radio.
Check to make sure there is something playing on the computer and both the
volume level on the audio player application as well as the master computer
volume are set to medium.
Check to make sure the mute function of the audio player application has not been
accidentally enabled.
Check to make sure the frequency selection on the UX300 is the same as the
frequency tuned on the radio.
Restart the audio player application.
If problem persists, restart the computer and try again.
Distorted audio heard on the radio.
Adjust the volume level on the addio player application and/or master computer
volume.
