UniKit Electronics UX400 FM Announcement System User Manual UX400

UniKit Electronics Corporation FM Announcement System UX400

Users Manual

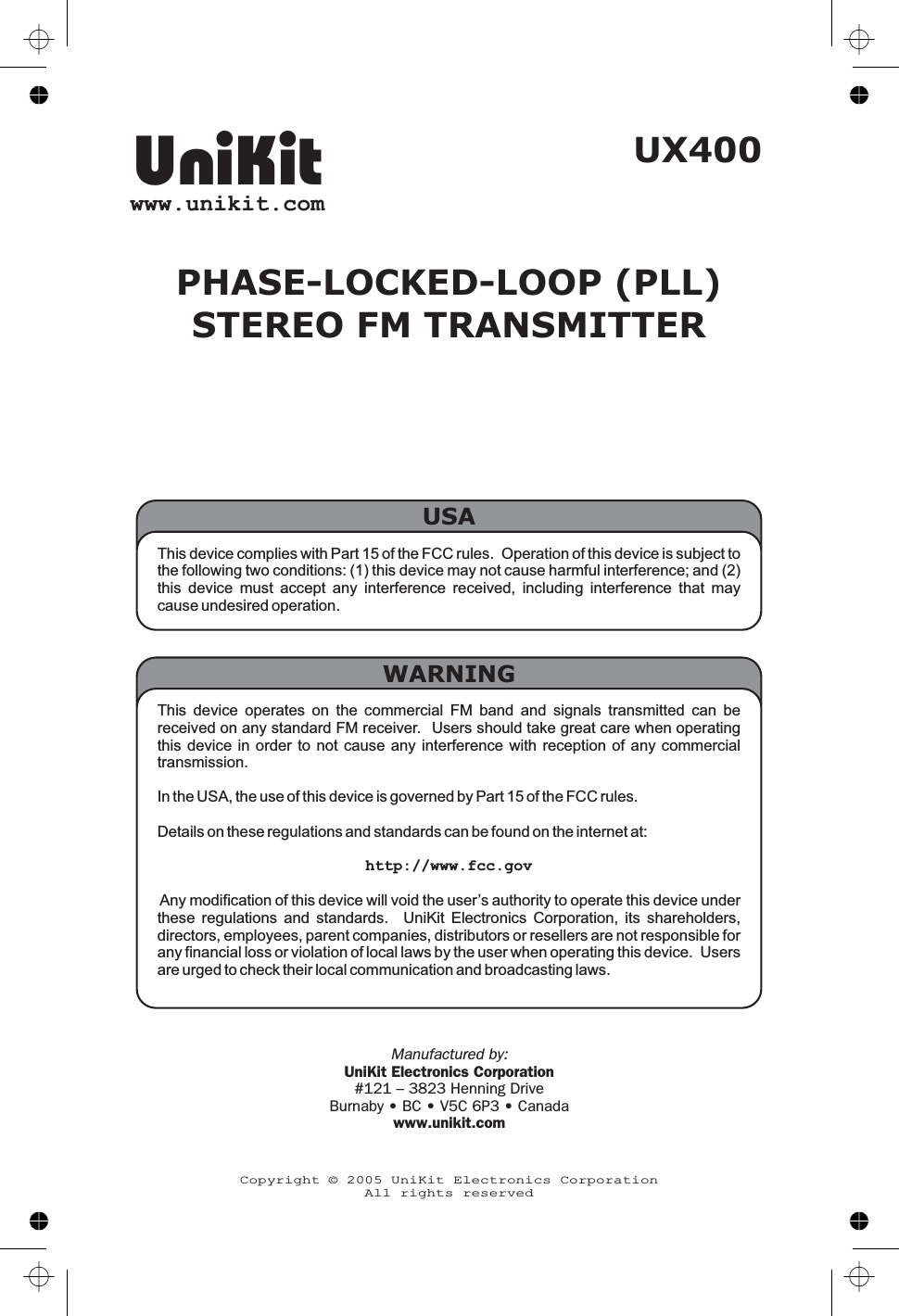

UX400PHASE-LOCKED-LOOP (PLL)STEREO FM TRANSMITTERUniKitwww.unikit.comCopyright © 2005 UniKit Electronics CorporationAll rights reservedManufactured by:UniKit Electronics Corporation#121 – 3823 Henning DriveBurnaby • BC • V5C 6P3 • Canadawww.unikit.comThis device complies with Part 15 of the FCC rules. Operation of this device is subject tothe following two conditions: (1) this device may not cause harmful interference; and (2)this device must accept any interference received, including interference that maycause undesired operation.USAThis device operates on the commercial FM band and signals transmitted can bereceived on any standard FM receiver. Users should take great care when operatingthis device in order to not cause any interference with reception of any commercialtransmission.In the USA, the use of this device is governed by Part 15 of the FCC rules.Details on these regulations and standards can be found on the internet at:http://www.fcc.govAny modification of this device will void the user’s authority to operate this device underthese regulations and standards. UniKit Electronics Corporation, its shareholders,directors, employees, parent companies, distributors or resellers are not responsible forany financial loss or violation of local laws by the user when operating this device. Usersare urged to check their local communication and broadcasting laws.WARNING

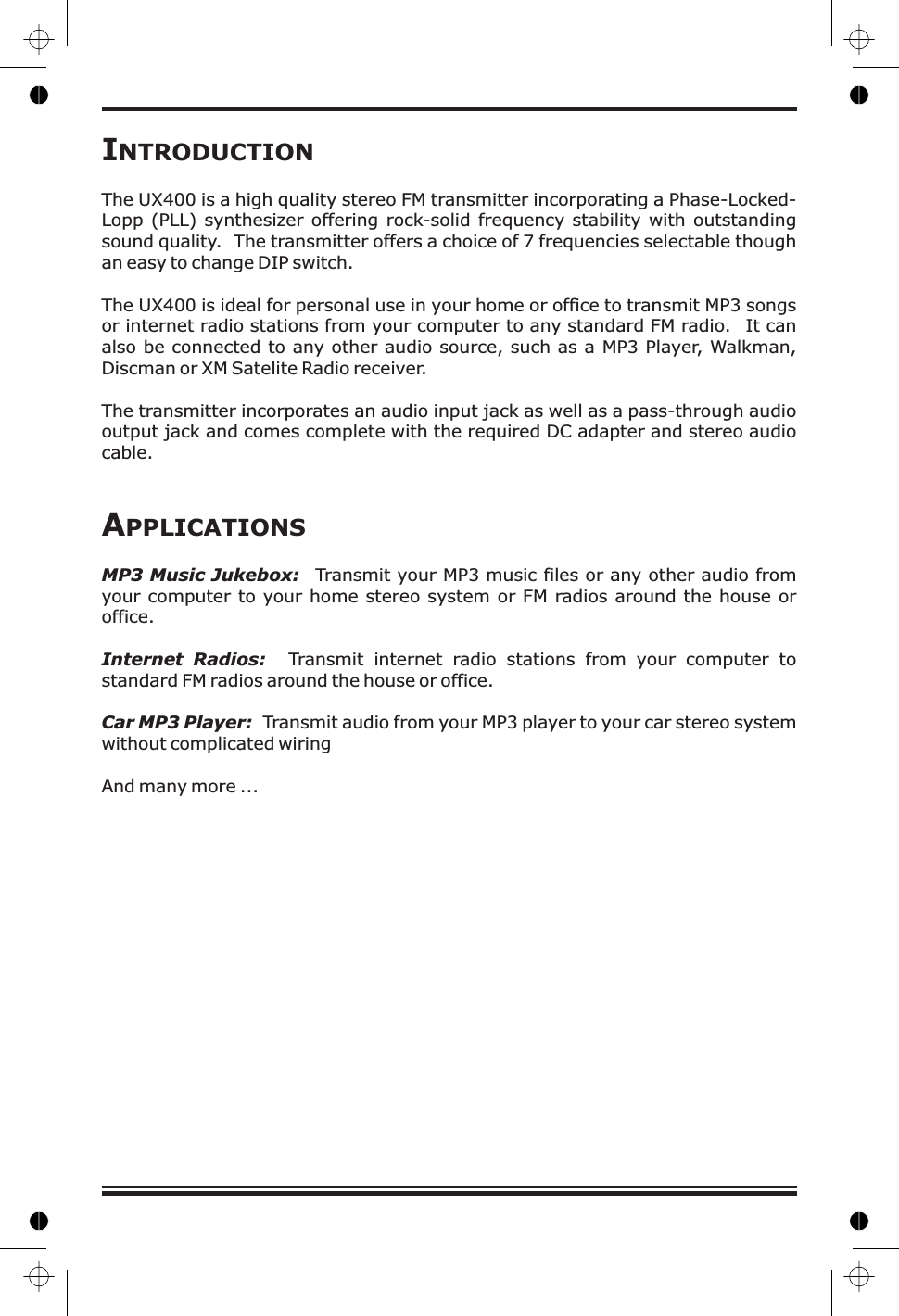

INTRODUCTIONThe UX 00offers a choice of 7 frequencies selectable thoughan easy to change DIP switch.The UX400 is ideal for personal use in your home or office to transmit MP3 songsor internet radio stations from your computer to any standard FM radio. It canalso be connected to any other audio source, such as a MP3 Player, Walkman,Discman or XM Satelite Radio receiver.The transmitter incorporates an audio input jack as well as a pass-through audiooutput jack and comes complete with the required DC adapter and stereo audiocable.4 is a high quality stereo FM transmitter incorporating a Phase-Locked-Lopp (PLL) synthesizer offering rock-solid frequency stability with outstandingsound quality. The transmitterTransmit your MP3 music files or any other audio fromyour computer to your home stereo system or FM radios around the house oroffice.Transmit internet radio stations from your computer tostandard FM radios around the house or office.Transmit audio from your MP3 player to your car stereo systemwithout complicated wiringAnd many more ...APPLICATIONSMP3 Music Jukebox:Internet Radios:Car MP3 Player:

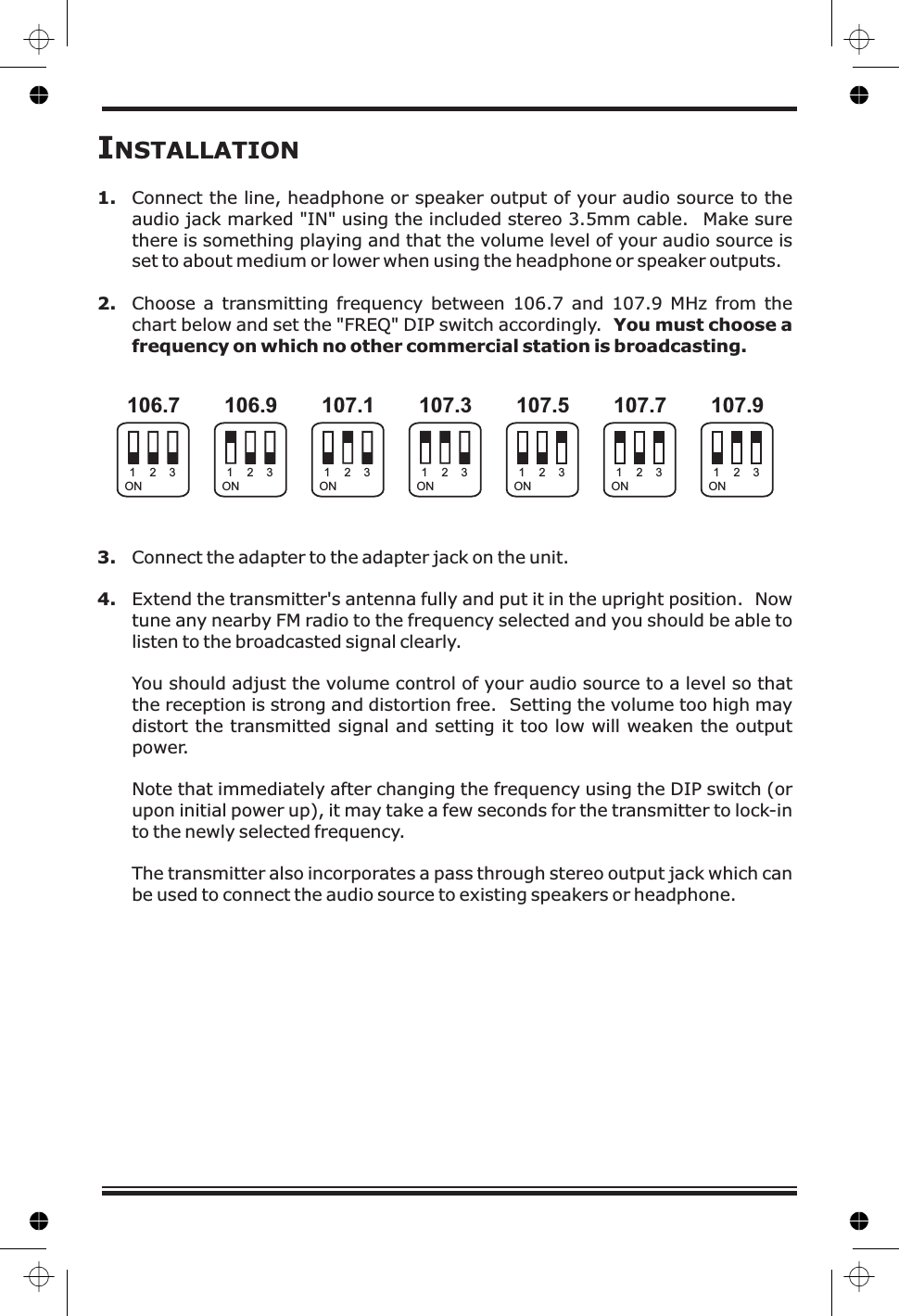

INSTALLATION1.2.You must choose afrequency on which no other commercial station is broadcasting.3.4.Connect the line, headphone or speaker output of your audio source to theaudio jack marked "IN" using the included stereo 3.5mm cable. Make surethere is something playing and that the volume level of your audio source isset to about medium or lower when using the headphone or speaker outputs.Choose a transmitting frequency between 106.7 and 107.9 MHz from thechart below and set the "FREQ" DIP switch accordingly.Connect the adapter to the adapter jack on the unit.Extend the transmitter's antenna fully and put it in the upright position. Nowtune any nearby FM radio to the frequency selected and you should be able tolisten to the broadcasted signal clearly.You should adjust the volume control of your audio source to a level so thatthe reception is strong and distortion free. Setting the volume too high maydistort the transmitted signal and setting it too low will weaken the outputpower.Note that immediately after changing the frequency using the DIP switch (orupon initial power up), it may take a few seconds for the transmitter to lock-into the newly selected frequency.The transmitter also incorporates a pass through stereo output jack which canbe used to connect the audio source to existing speakers or headphone.106.7 106.9 107.1 107.3 107.9107.7107.5ON ON ON ON ONONON1111 1112222 2223333 333

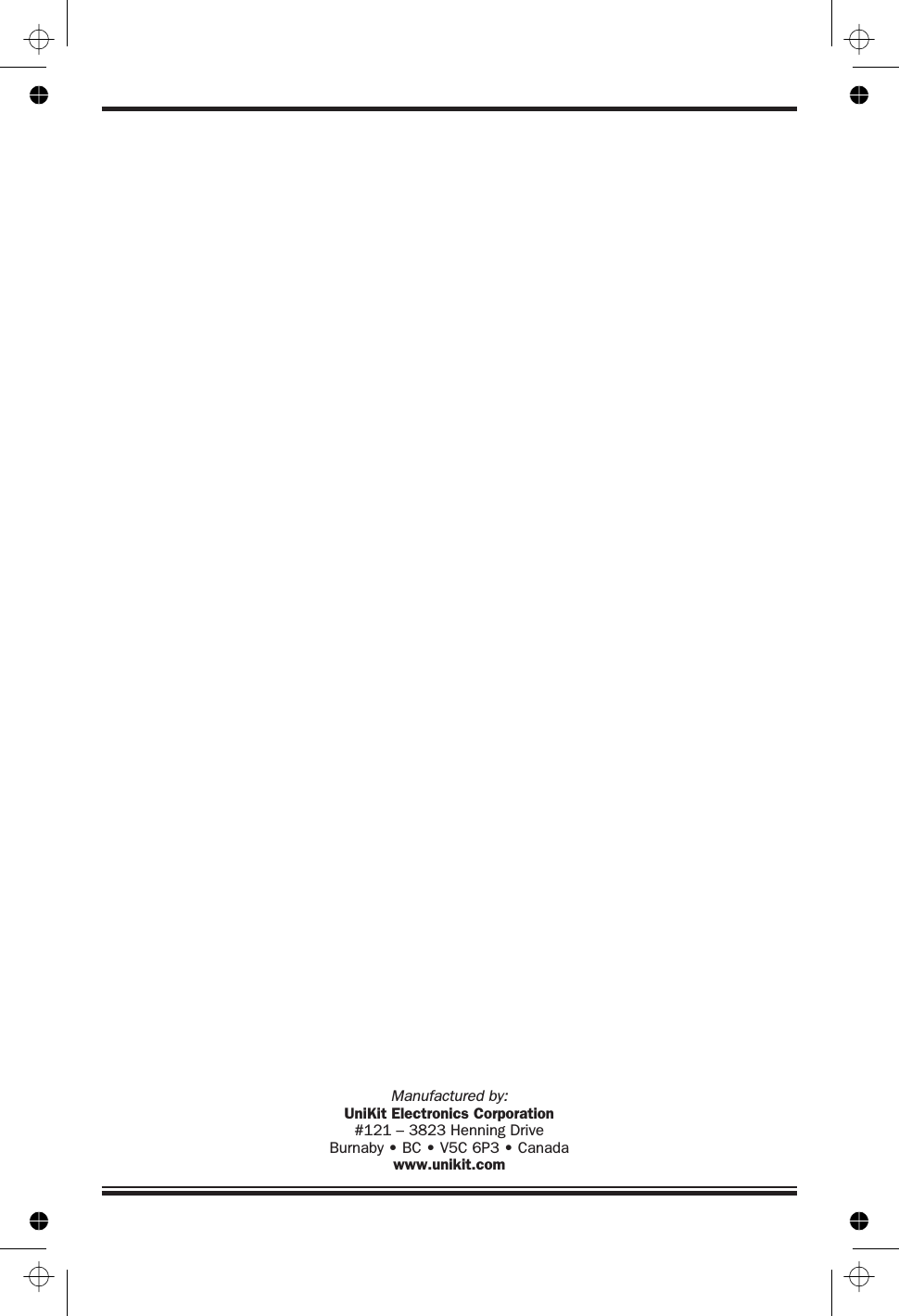

Manufactured by:UniKit Electronics Corporation#121 – 3823 Henning DriveBurnaby • BC • V5C 6P3 • Canadawww.unikit.com
