UniKit Electronics UX400 FM Announcement System User Manual UX400
UniKit Electronics Corporation FM Announcement System UX400
Users Manual
UX400
PHASE-LOCKED-LOOP (PLL)
STEREO FM TRANSMITTER
UniKit
www.unikit.com
Copyright © 2005 UniKit Electronics Corporation
All rights reserved
Manufactured by:
UniKit Electronics Corporation
#121 – 3823 Henning Drive
Burnaby • BC • V5C 6P3 • Canada
www.unikit.com
This device complies with Part 15 of the FCC rules. Operation of this device is subject to
the following two conditions: (1) this device may not cause harmful interference; and (2)
this device must accept any interference received, including interference that may
cause undesired operation.
USA
This device operates on the commercial FM band and signals transmitted can be
received on any standard FM receiver. Users should take great care when operating
this device in order to not cause any interference with reception of any commercial
transmission.
In the USA, the use of this device is governed by Part 15 of the FCC rules.
Details on these regulations and standards can be found on the internet at:
http://www.fcc.gov
Any modification of this device will void the user’s authority to operate this device under
these regulations and standards. UniKit Electronics Corporation, its shareholders,
directors, employees, parent companies, distributors or resellers are not responsible for
any financial loss or violation of local laws by the user when operating this device. Users
are urged to check their local communication and broadcasting laws.
WARNING
INTRODUCTION
The UX 00
offers a choice of 7 frequencies selectable though
an easy to change DIP switch.
The UX400 is ideal for personal use in your home or office to transmit MP3 songs
or internet radio stations from your computer to any standard FM radio. It can
also be connected to any other audio source, such as a MP3 Player, Walkman,
Discman or XM Satelite Radio receiver.
The transmitter incorporates an audio input jack as well as a pass-through audio
output jack and comes complete with the required DC adapter and stereo audio
cable.
4 is a high quality stereo FM transmitter incorporating a Phase-Locked-
Lopp (PLL) synthesizer offering rock-solid frequency stability with outstanding
sound quality. The transmitter
Transmit your MP3 music files or any other audio from
your computer to your home stereo system or FM radios around the house or
office.
Transmit internet radio stations from your computer to
standard FM radios around the house or office.
Transmit audio from your MP3 player to your car stereo system
without complicated wiring
And many more ...
APPLICATIONS
MP3 Music Jukebox:
Internet Radios:
Car MP3 Player:
INSTALLATION
1.
2.
You must choose a
frequency on which no other commercial station is broadcasting.
3.
4.
Connect the line, headphone or speaker output of your audio source to the
audio jack marked "IN" using the included stereo 3.5mm cable. Make sure
there is something playing and that the volume level of your audio source is
set to about medium or lower when using the headphone or speaker outputs.

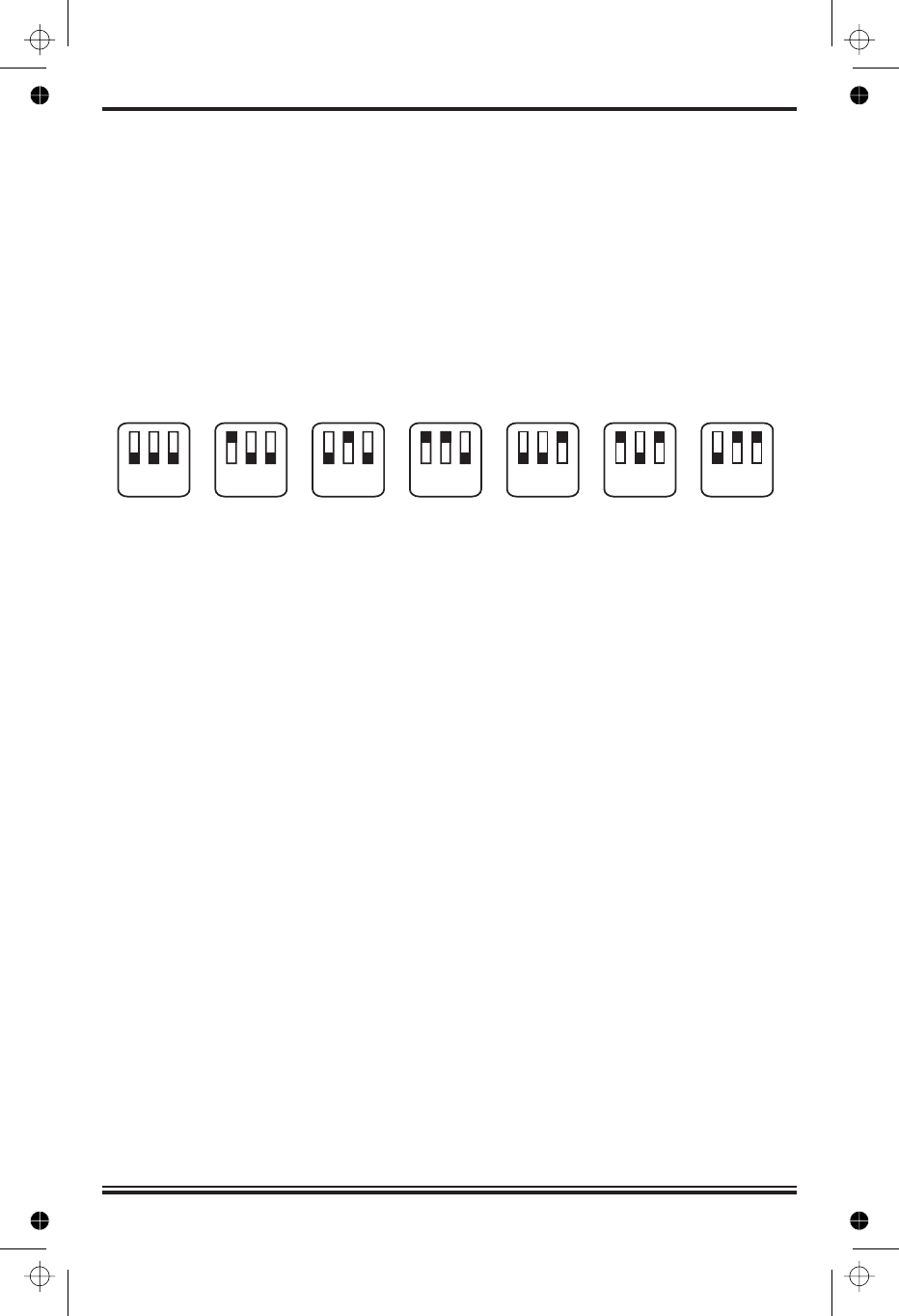

Choose a transmitting frequency between 106.7 and 107.9 MHz from the
chart below and set the "FREQ" DIP switch accordingly.
Connect the adapter to the adapter jack on the unit.
Extend the transmitter's antenna fully and put it in the upright position. Now
tune any nearby FM radio to the frequency selected and you should be able to
listen to the broadcasted signal clearly.
You should adjust the volume control of your audio source to a level so that
the reception is strong and distortion free. Setting the volume too high may
distort the transmitted signal and setting it too low will weaken the output
power.
Note that immediately after changing the frequency using the DIP switch (or
upon initial power up), it may take a few seconds for the transmitter to lock-in
to the newly selected frequency.
The transmitter also incorporates a pass through stereo output jack which can
be used to connect the audio source to existing speakers or headphone.
106.7 106.9 107.1 107.3 107.9107.7107.5
ON ON ON ON ONONON
1111 1112222 2223333 333
