User Guide
![](/img.php?id=1368513&img=bg1.png)
I. FCC PART 15 DECLARATION OF CONFORMITY .......................................................................... 1
II. SAFETY INFORMATION ..................................................................................................................... 2
III. ACKNOWLEDGEMENT ...................................................................................................................... 9
1. PREPARATION ................................................................................................................................... 10
1.1 CHARGING THE BATTERY .......................................................................................................... 10

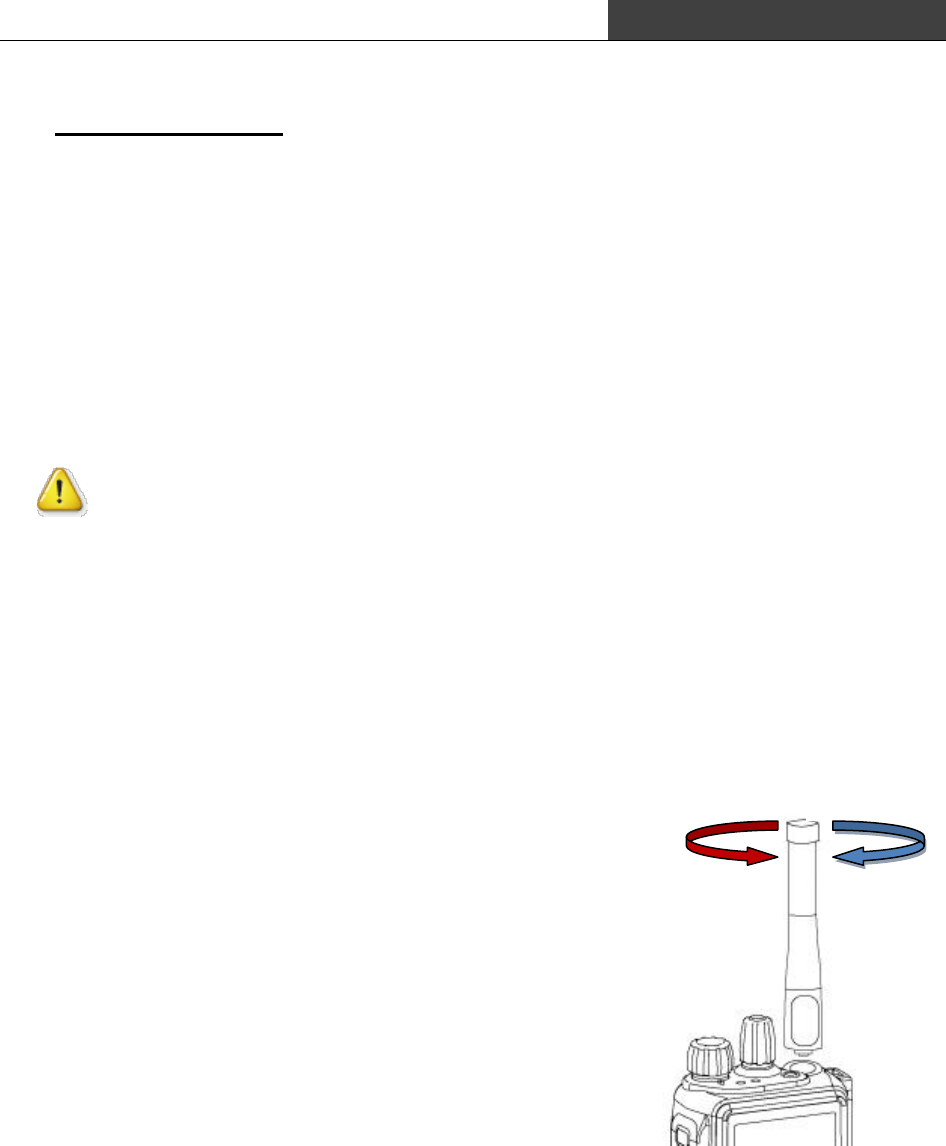

1.2 INSTALLING THE ANTENNA ...................................................................................................... 10
1.3 INSTALLING AND REMOVING THE ACCESSORY CONNECTOR COVER ......................... 11

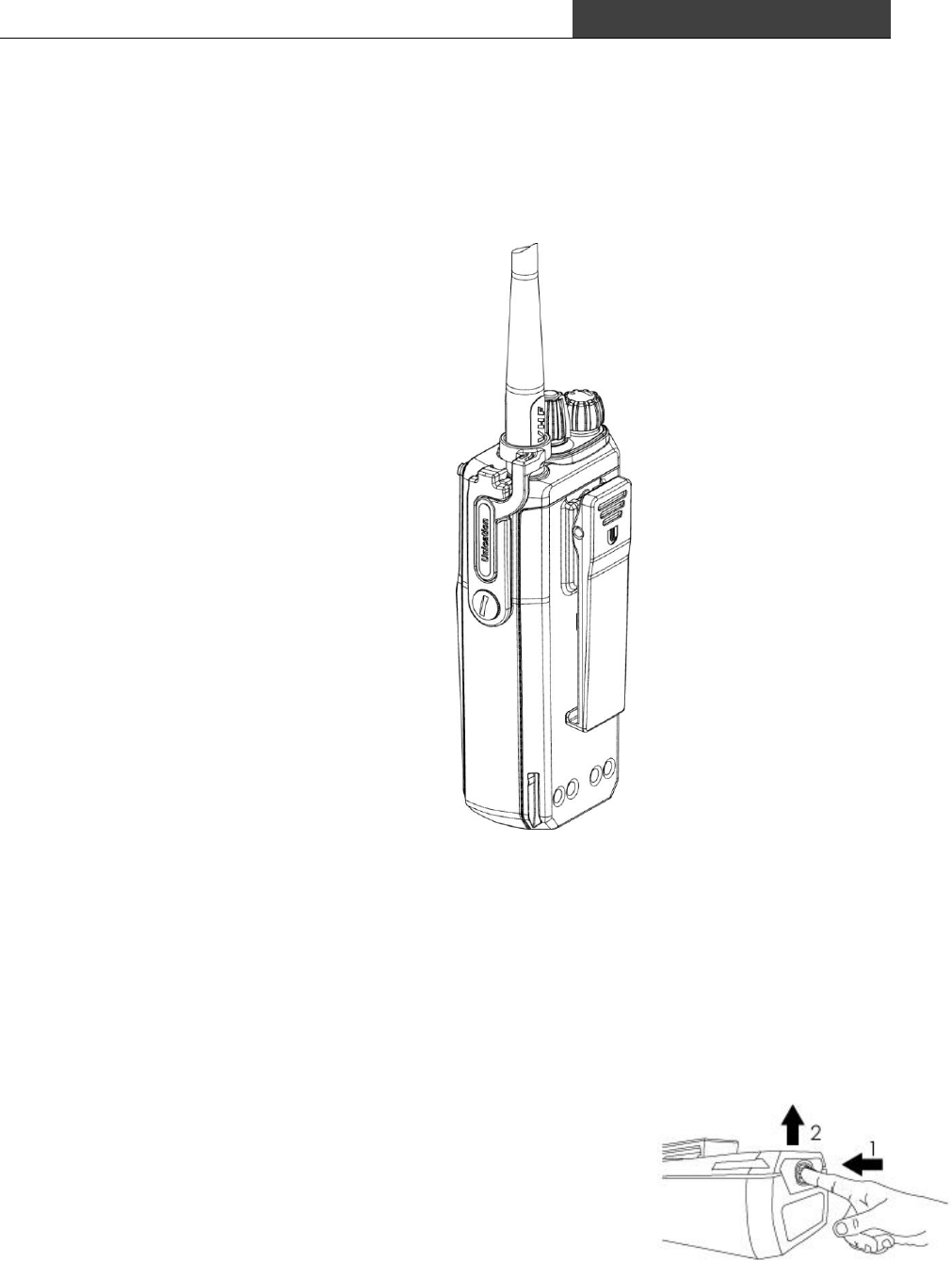

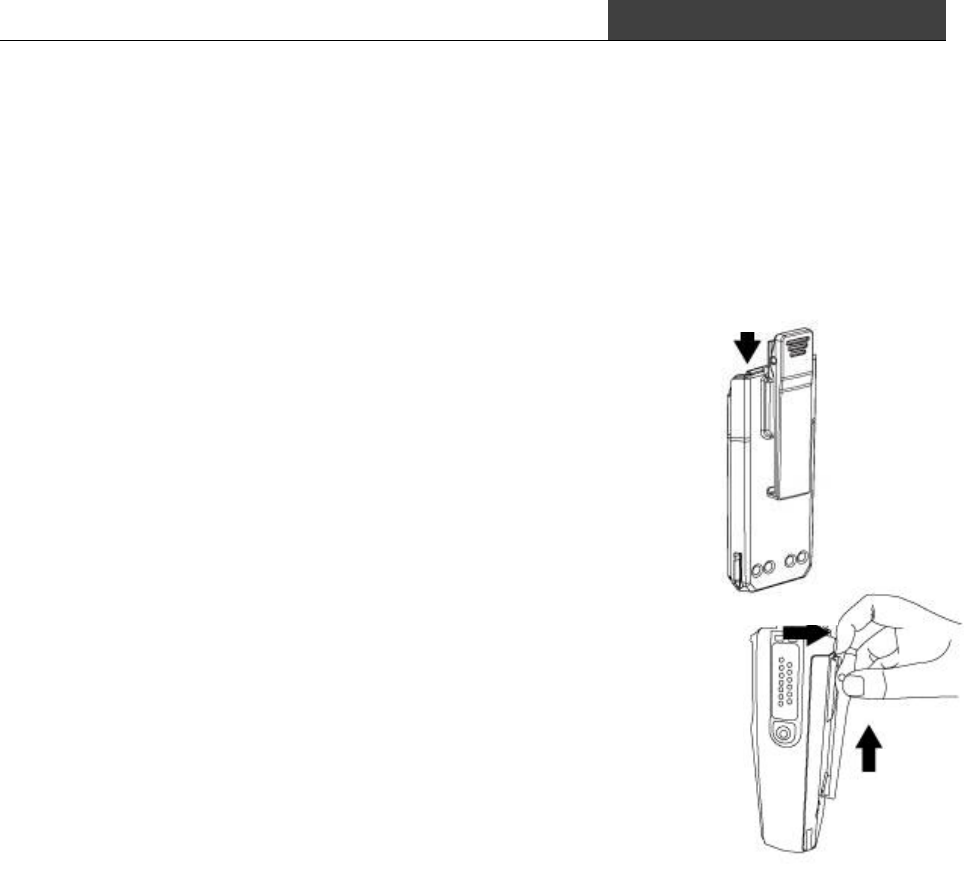

1.4 INSTALLING THE BATTERY PACK .............................................................................................. 11
2. RADIO OVERVIEW ............................................................................................................................ 13

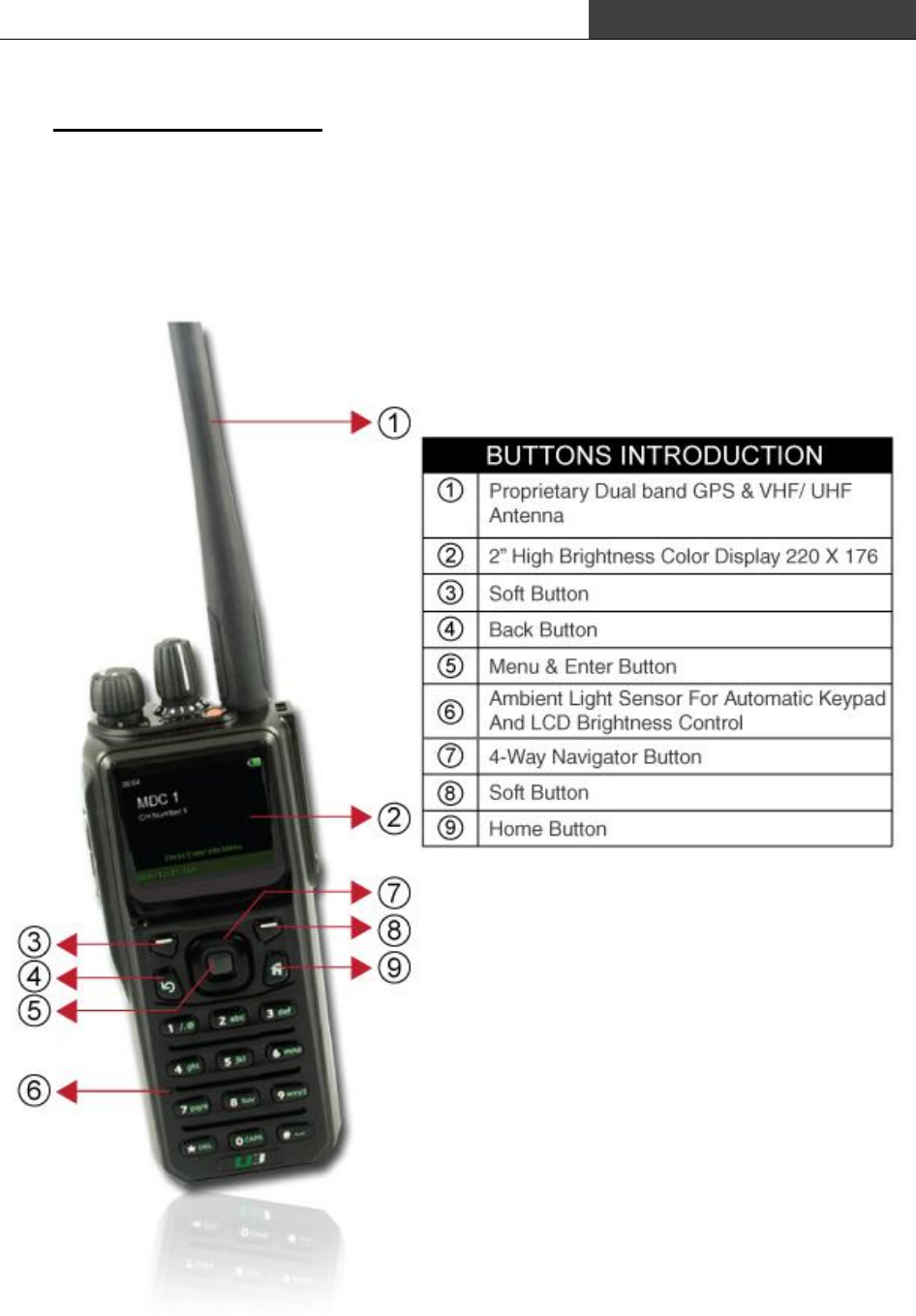

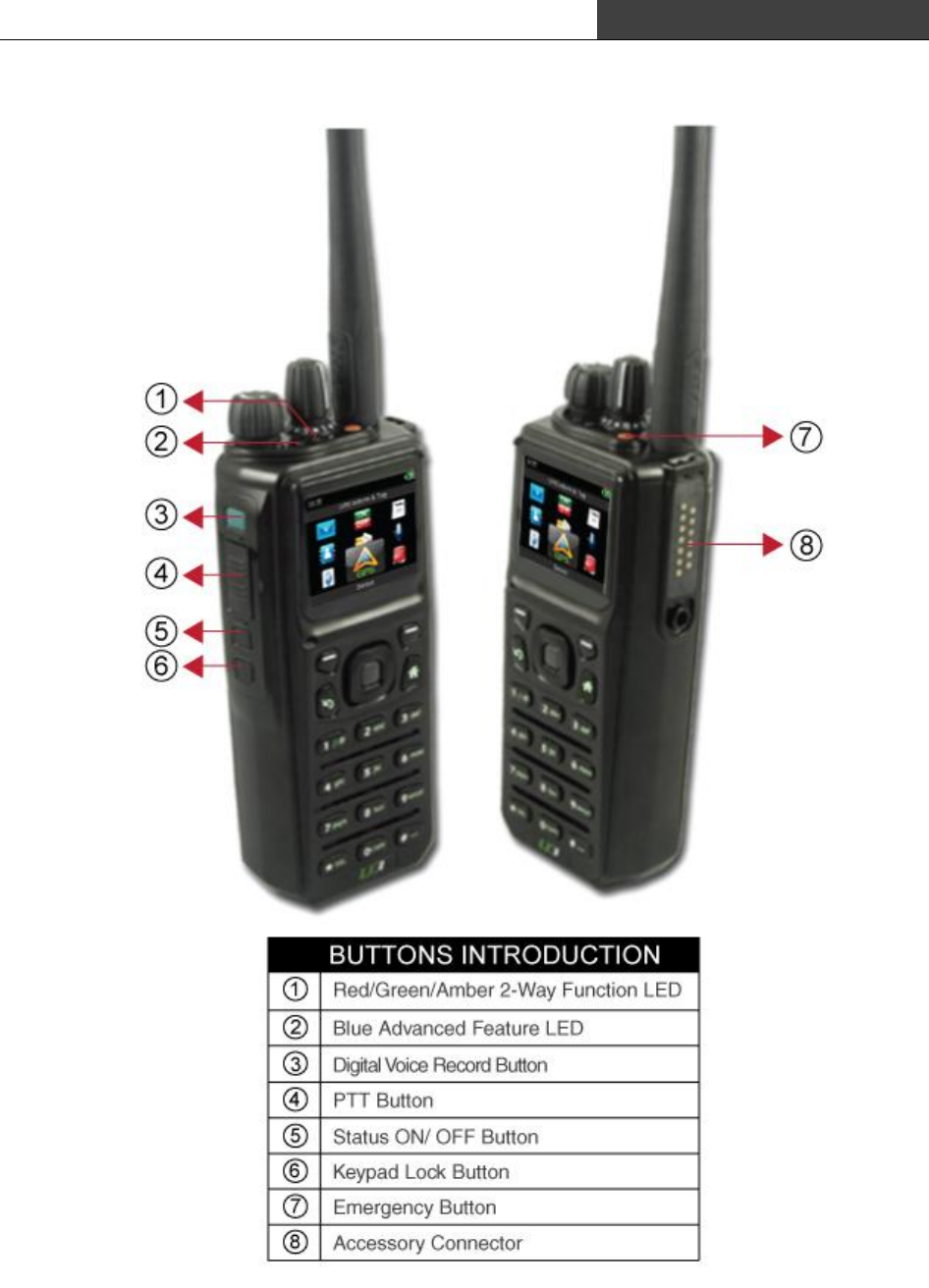

2.1 USER INTERFACE BUTTONS INTRODUCTION ...................................................................... 13

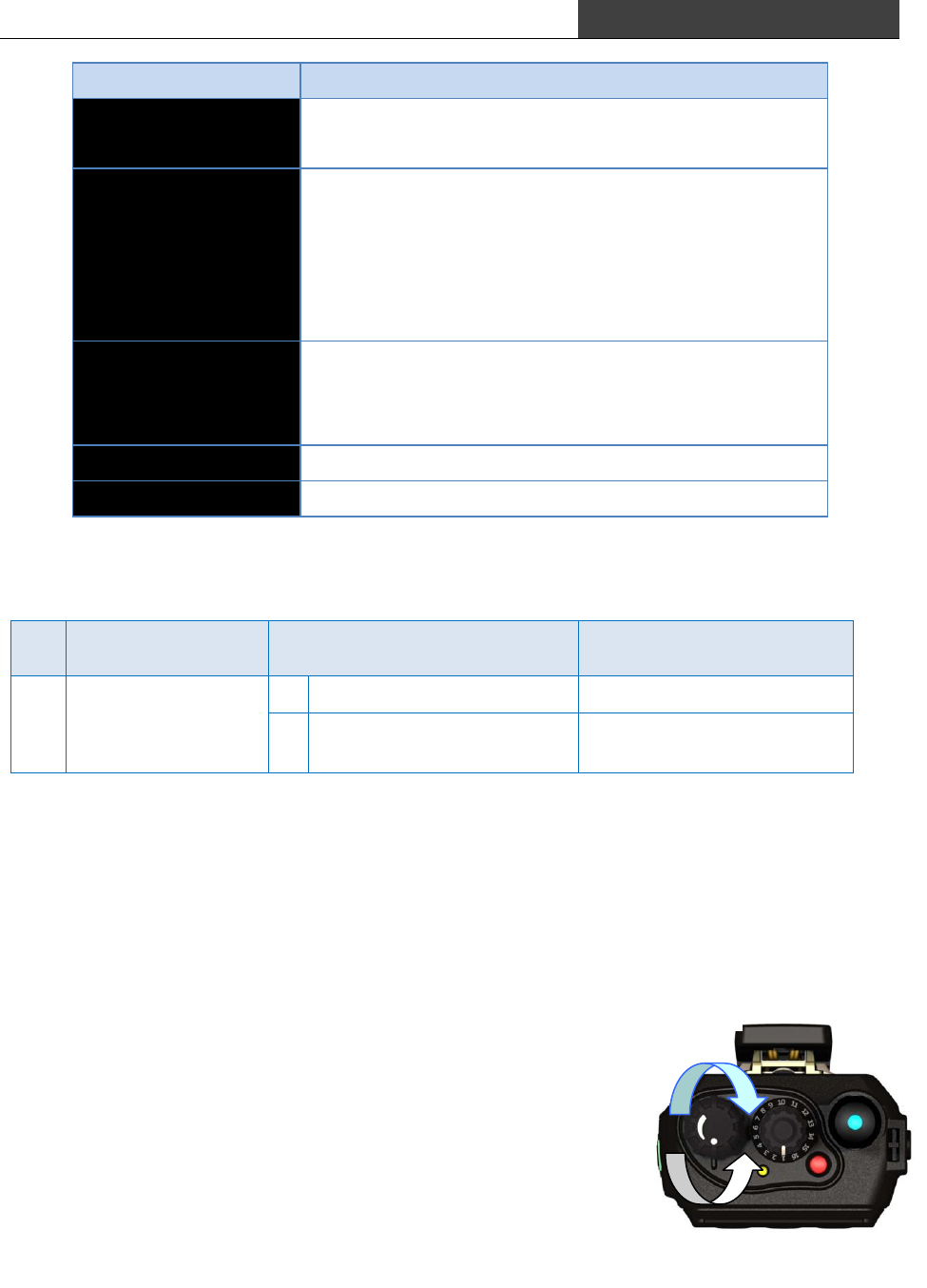

2.2 TURNING U3 ON AND OFF ........................................................................................................... 15
2.3 ADJUSTING THE SPEAKER VOLUME ....................................................................................... 16
2.4 SELECTING CHANNELS .............................................................................................................. 16

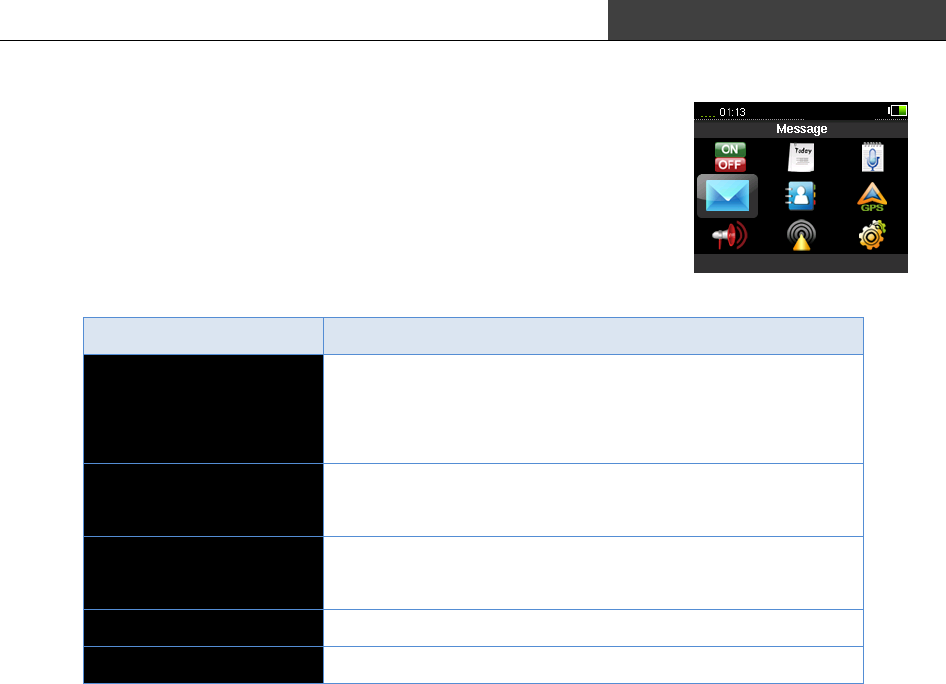

2.5 STANDBY AND MAIN MENU FUNCTION ................................................................................... 16
3. GETTING STARTED .......................................................................................................................... 19

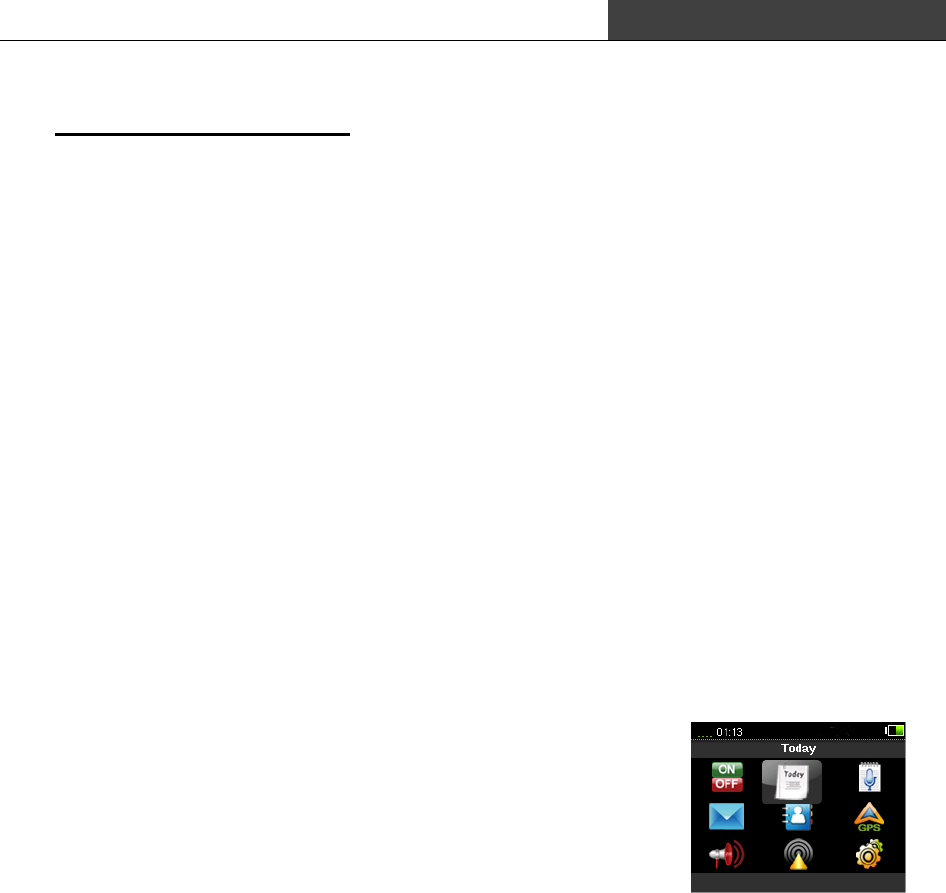

3.1 TODAY .............................................................................................................................................. 19

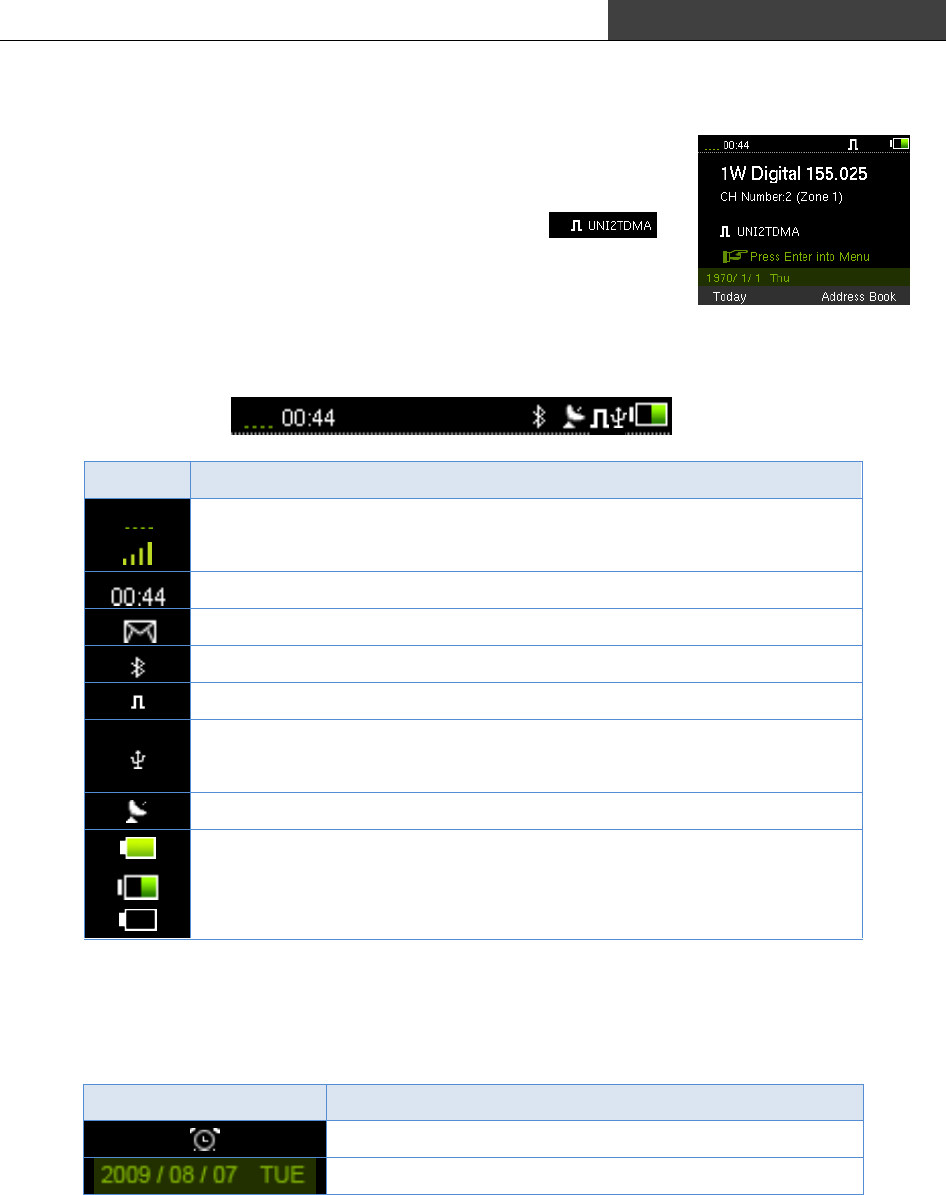

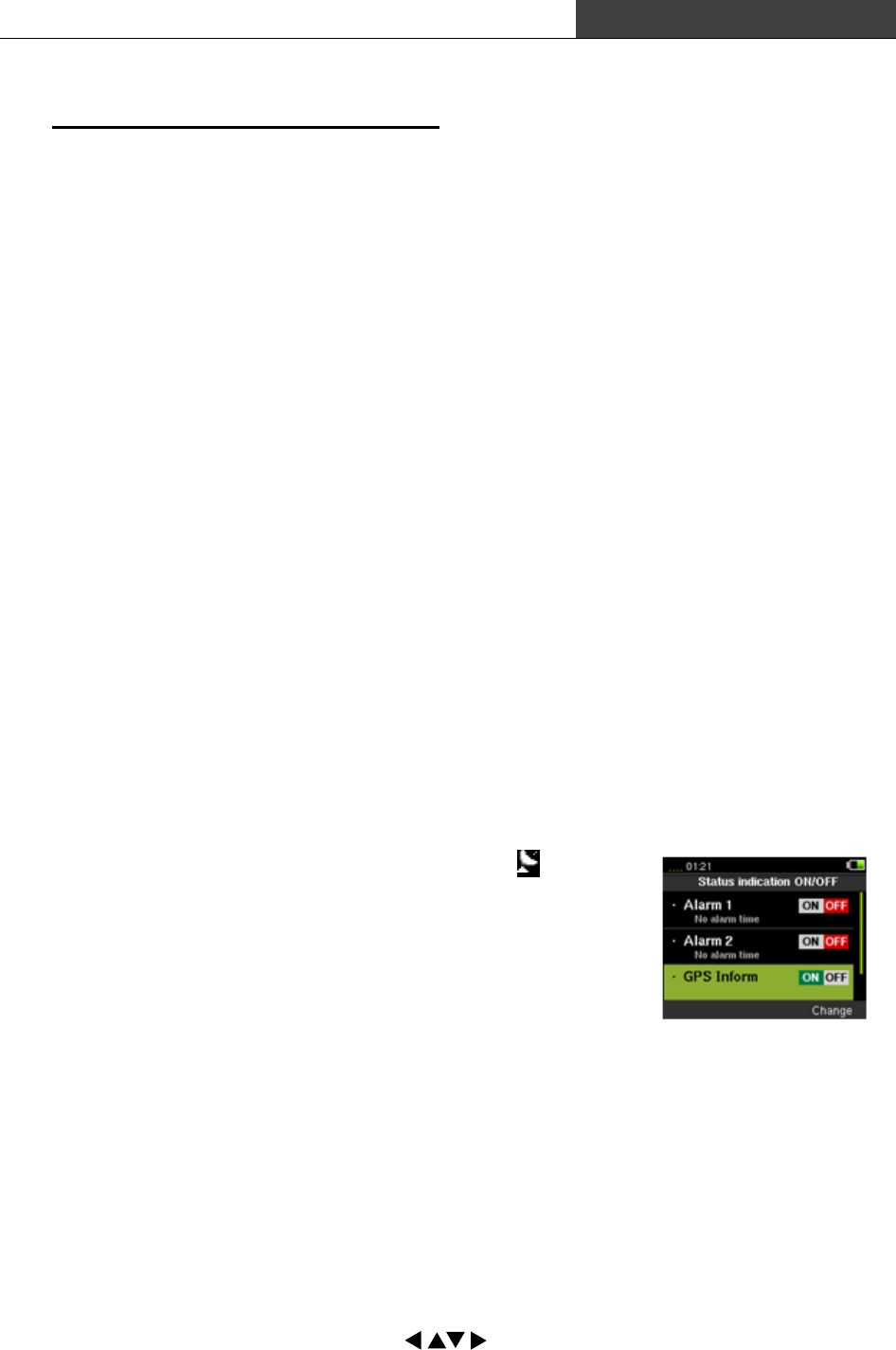

3.2 FUNCTION STATUS ....................................................................................................................... 20
4. VOICE CALLS .................................................................................................................................... 22

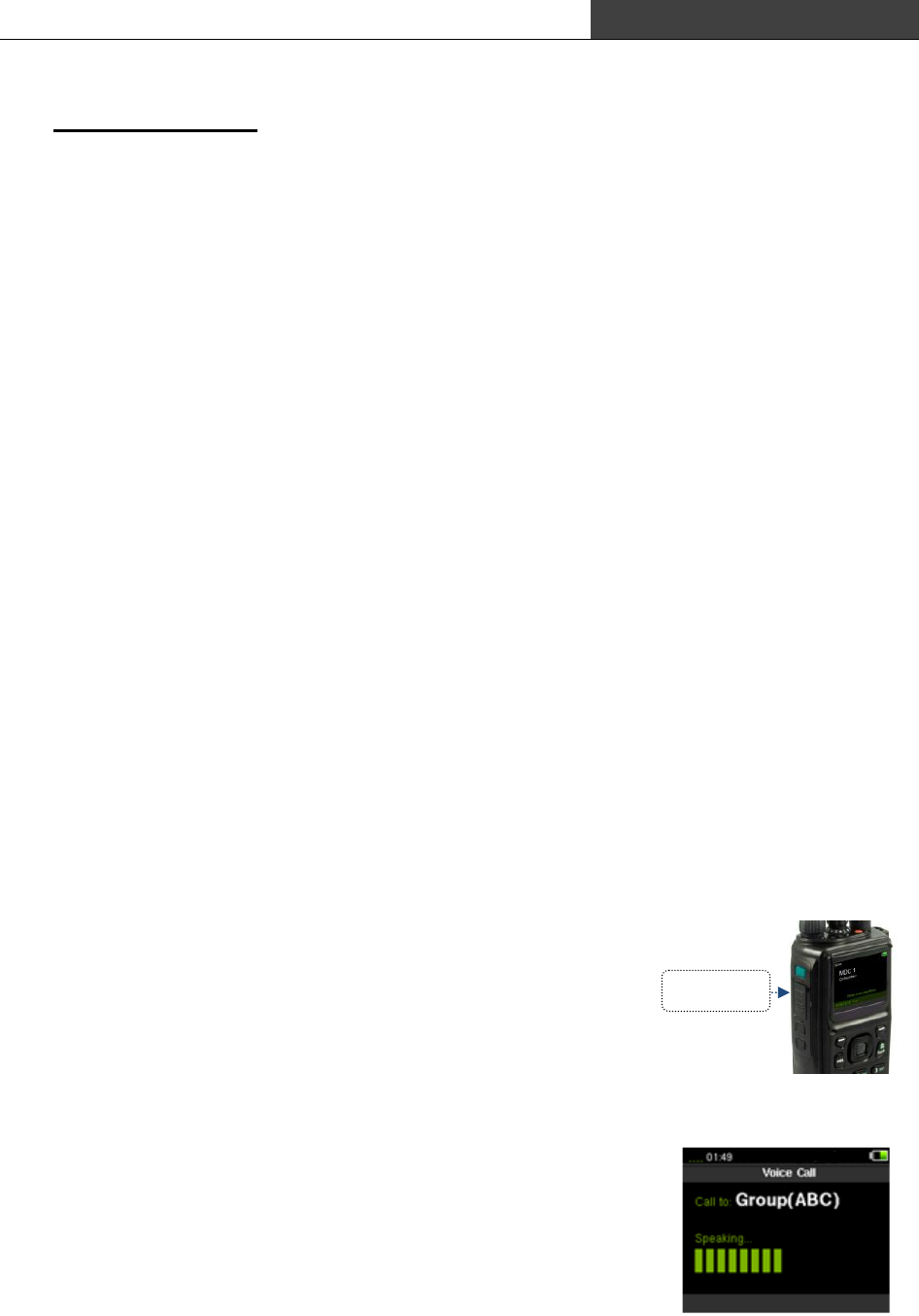

4.1 MAKING CALLS .............................................................................................................................. 22

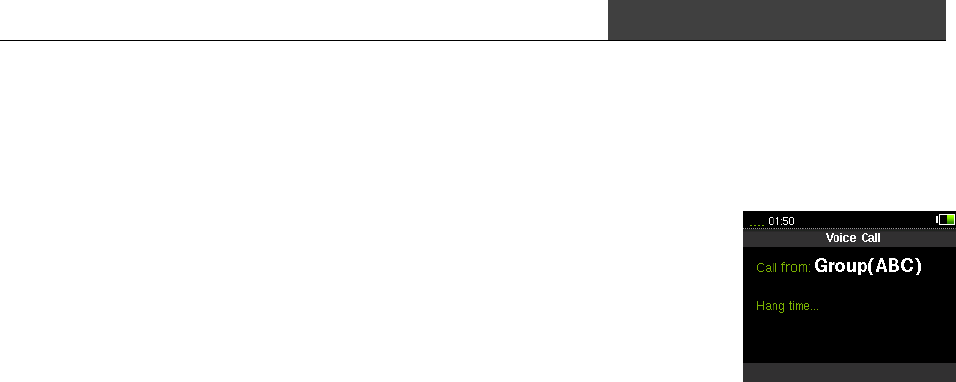

4.2 RECEIVING CALLS ........................................................................................................................ 23
4.3 VOICE CALL BACKGROUND OPERATION ............................................................................... 23
5. MESSAGES ........................................................................................................................................ 24

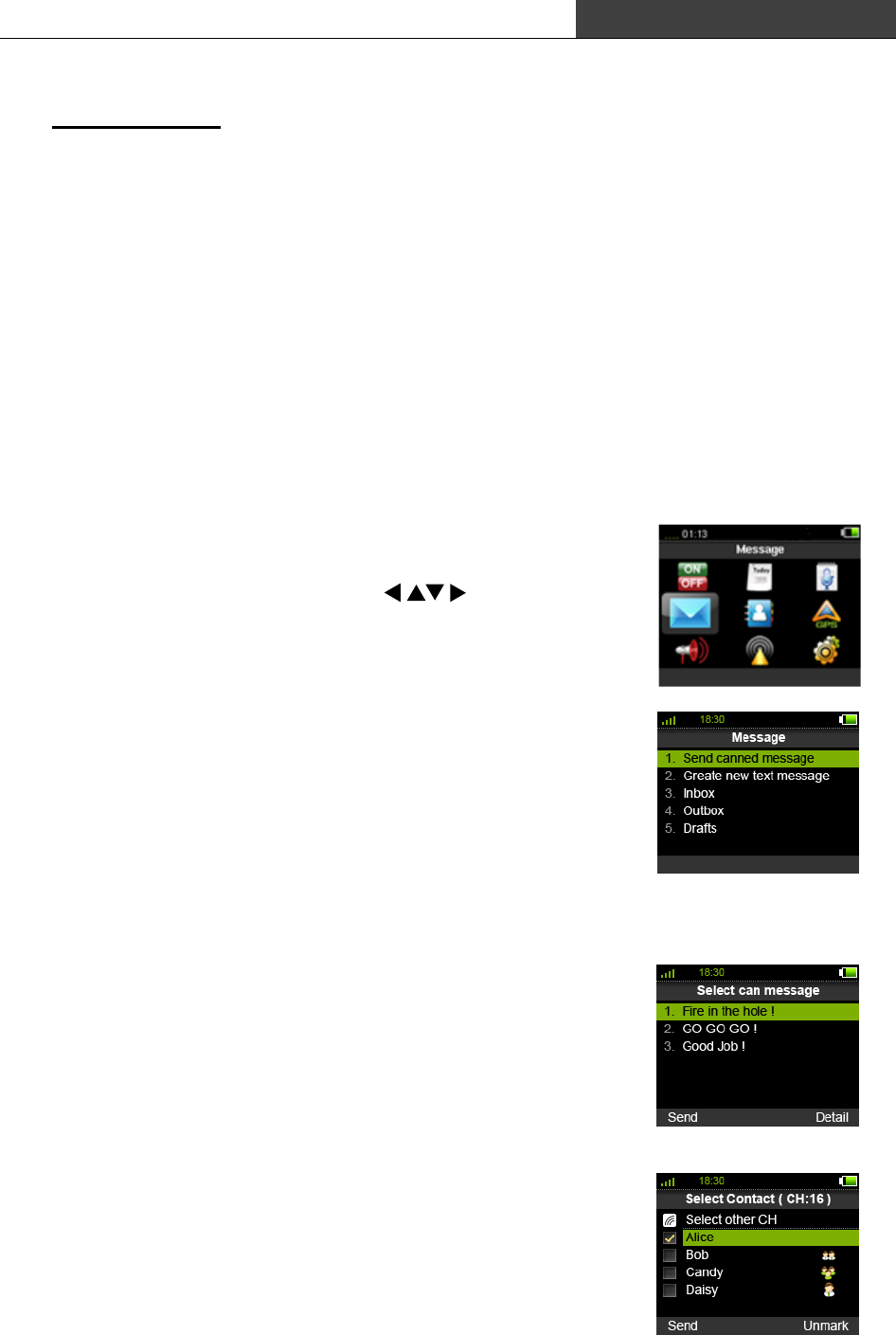

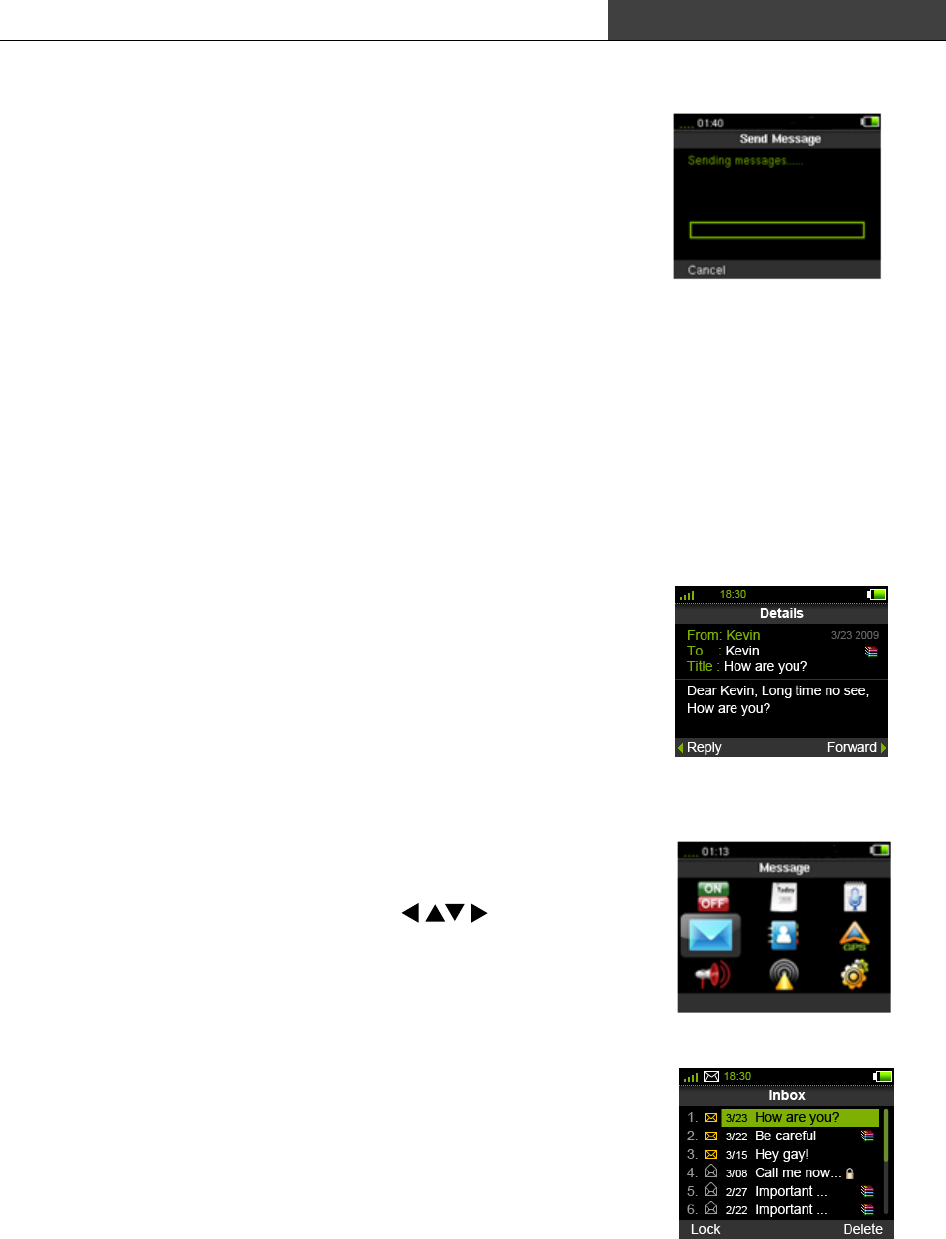

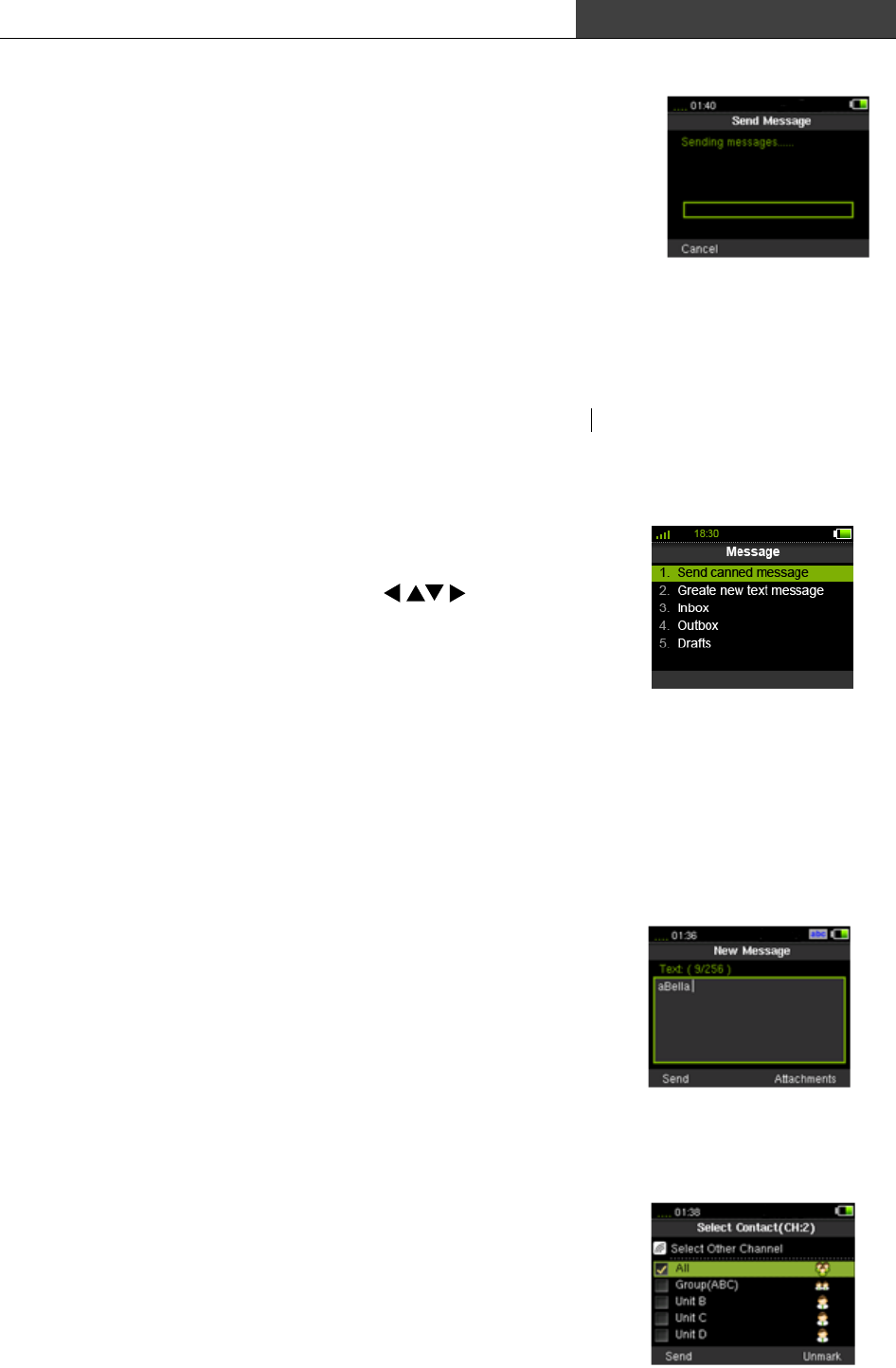

5.1 SENDING A CANNED MESSAGE ................................................................................................ 24
5.2 WRITING A MESSAGE .................................................................................................................. 25

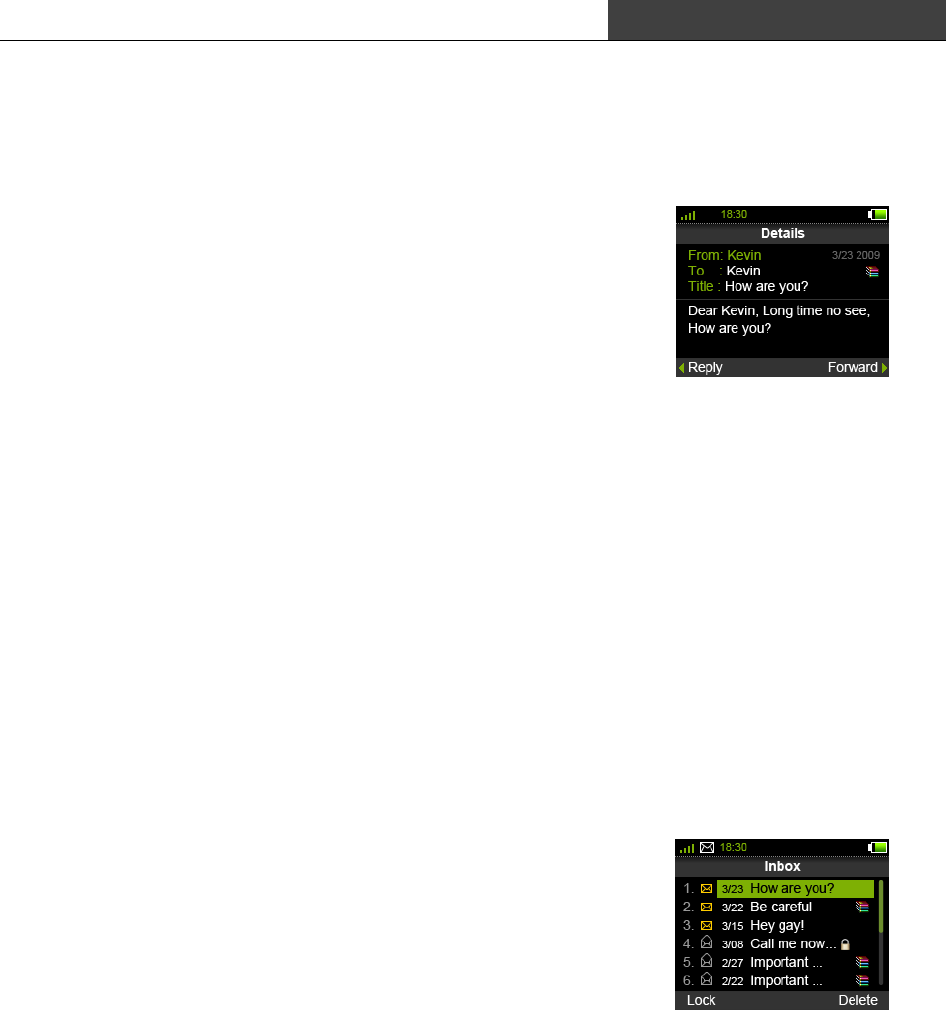

5.3 READING MESSAGES .................................................................................................................. 26
5.4 REPLY A MESSAGE ........................................................................................................................ 27
5.5 MANAGING YOUR CONTACTS .................................................................................................... 27
6. ADDRESS BOOK ............................................................................................................................... 28

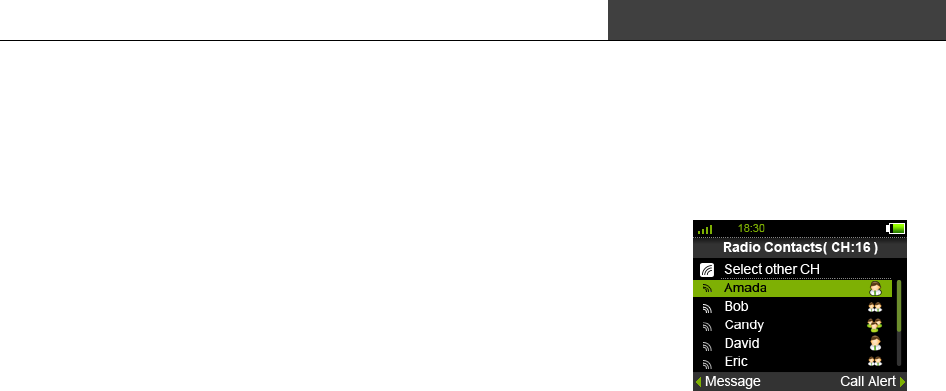

6.1 VIEWING ADDRESS BOOK .......................................................................................................... 28
6.2 MANAGING YOUR CONTACTS ................................................................................................... 29

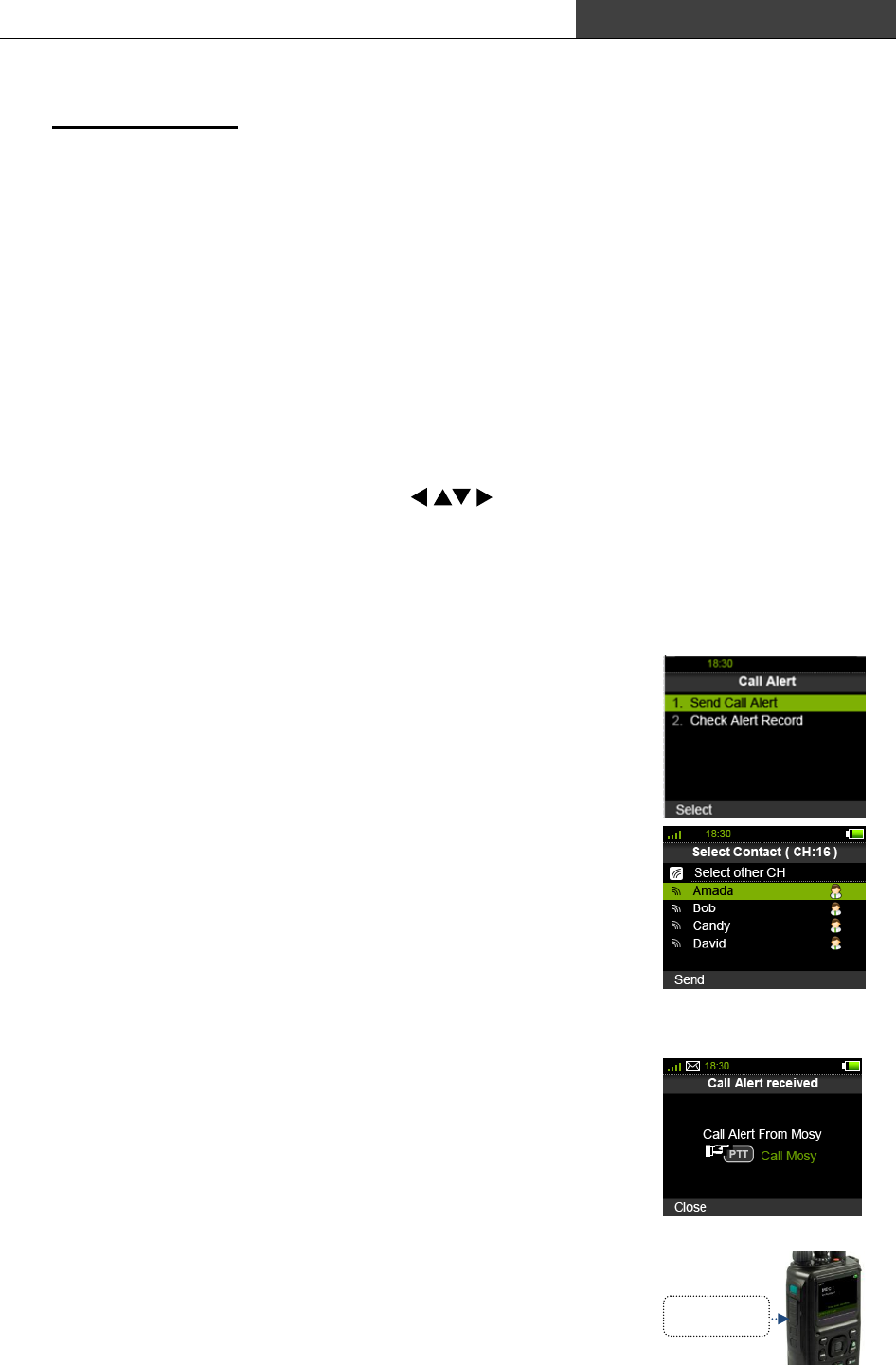

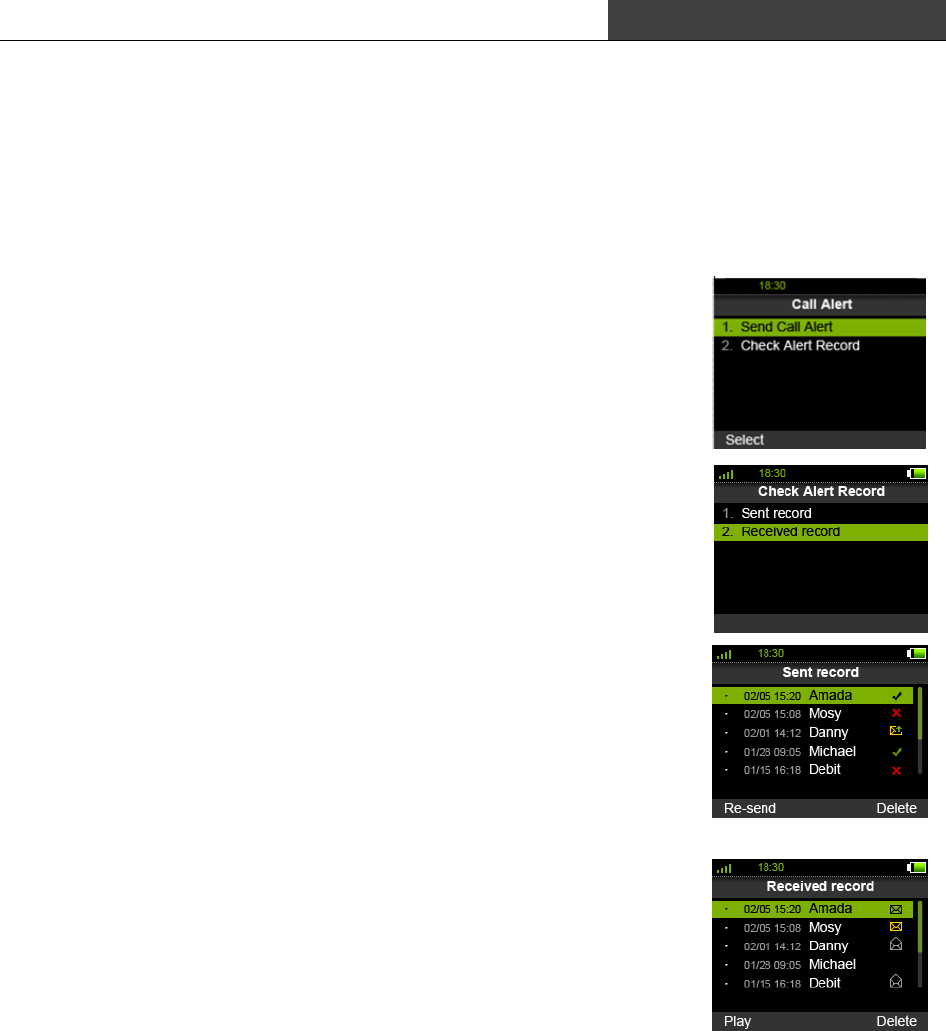

7. CALL ALERT ...................................................................................................................................... 30
7.1 SENDING A CALL ALERT .............................................................................................................. 30
7.2 RECEIVING A CALL ALERT .......................................................................................................... 30
7.3 CHECKING CALL ALERT RECORD ............................................................................................ 31
8. EMERGENCY ALARM ....................................................................................................................... 32
8.1 SENDING AN EMERGENCY ALARM .......................................................................................... 32
8.2 RECEIVING AN EMERGENCY ALARM....................................................................................... 32
9. RADIO POSITIONING (GPS) ............................................................................................................ 33
9.1 GPS LOCATION INFORM.............................................................................................................. 33

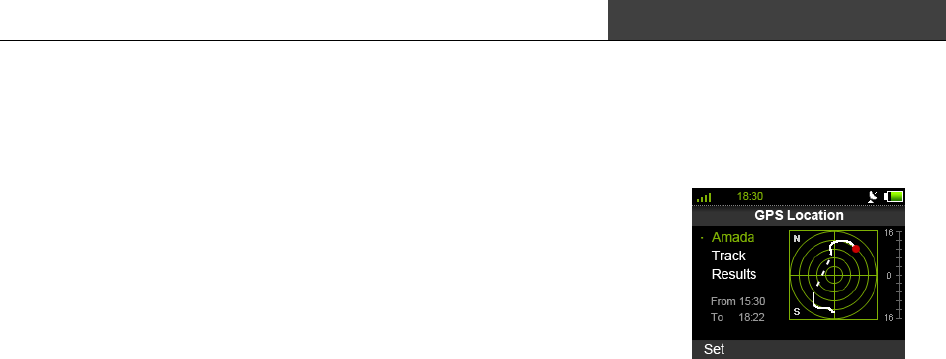

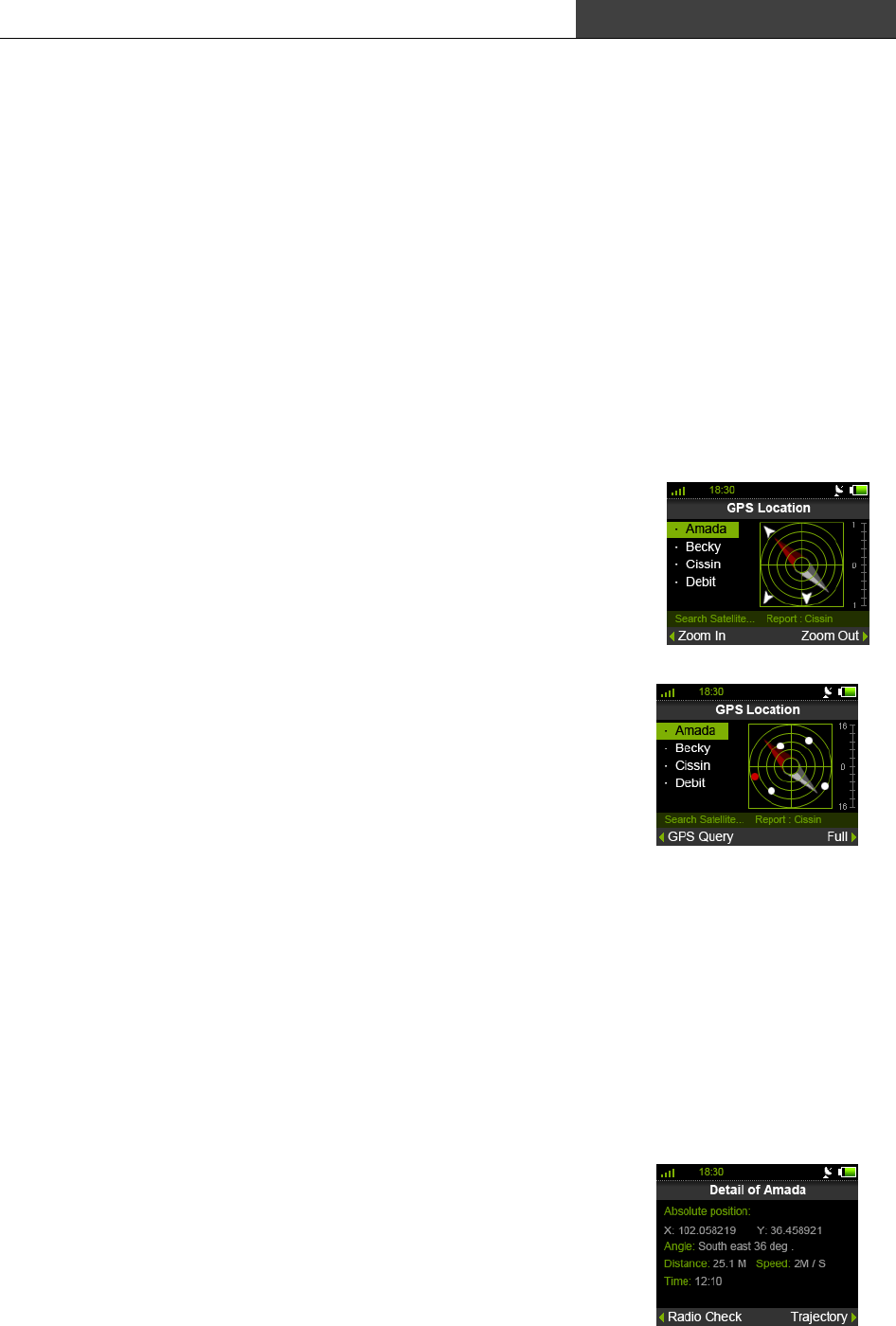

9.2 GPS LOCATION DISPLAY ............................................................................................................. 33
10. PERSONAL ASSISTANT .............................................................................................................. 36

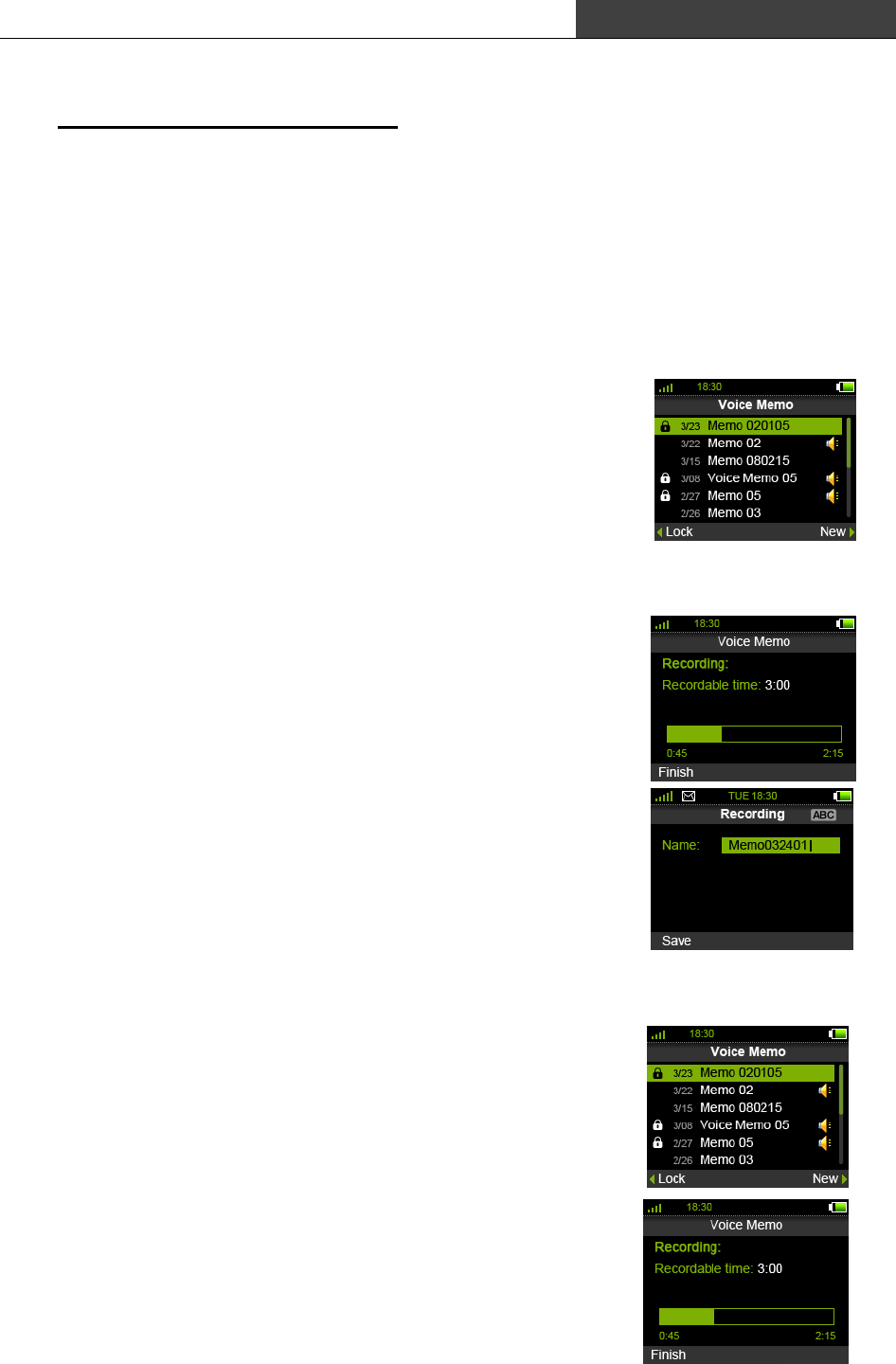

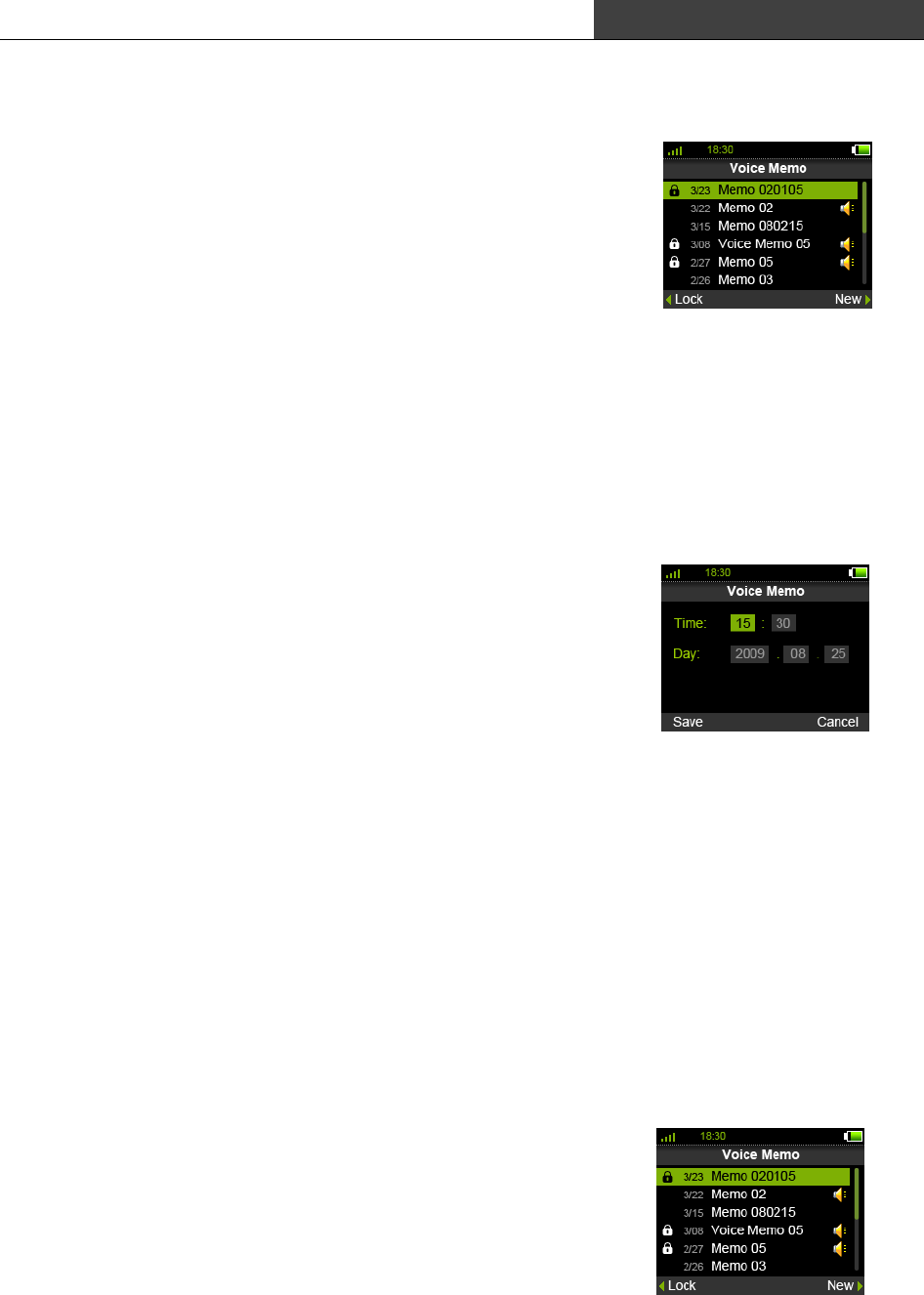

10.1 VOICE MEMO .................................................................................................................................. 36
11. RADIO CHECK .............................................................................................................................. 39

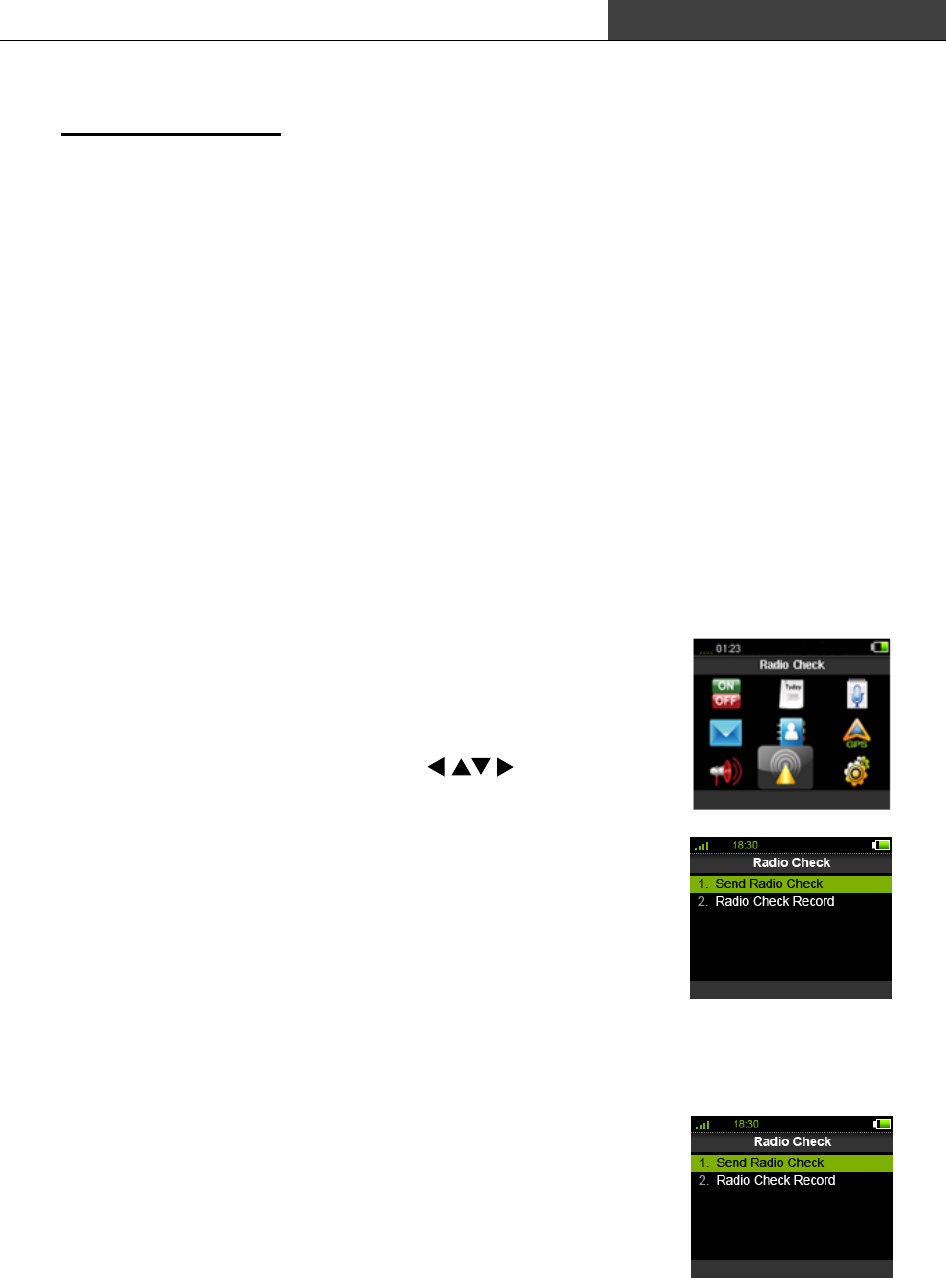

11.1 RADIO CHECK ................................................................................................................................ 39
12. TOOLS ............................................................................................................................................ 41
12.1 USING ALARM FUNCTION ........................................................................................................... 41
12.2 USING CLONE FUNCTION ........................................................................................................... 42

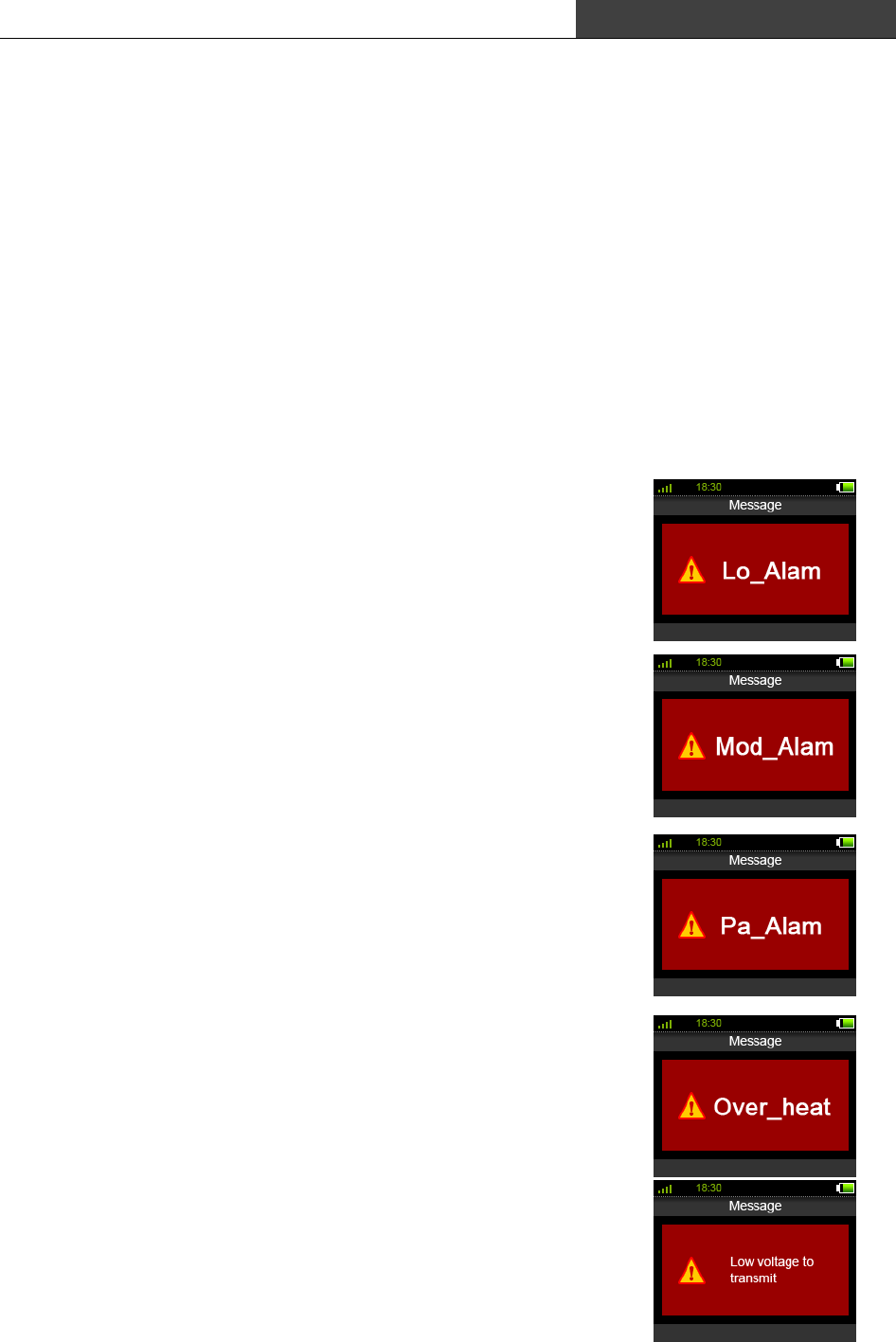

12.3 SYSTEM ALARM ............................................................................................................................. 42

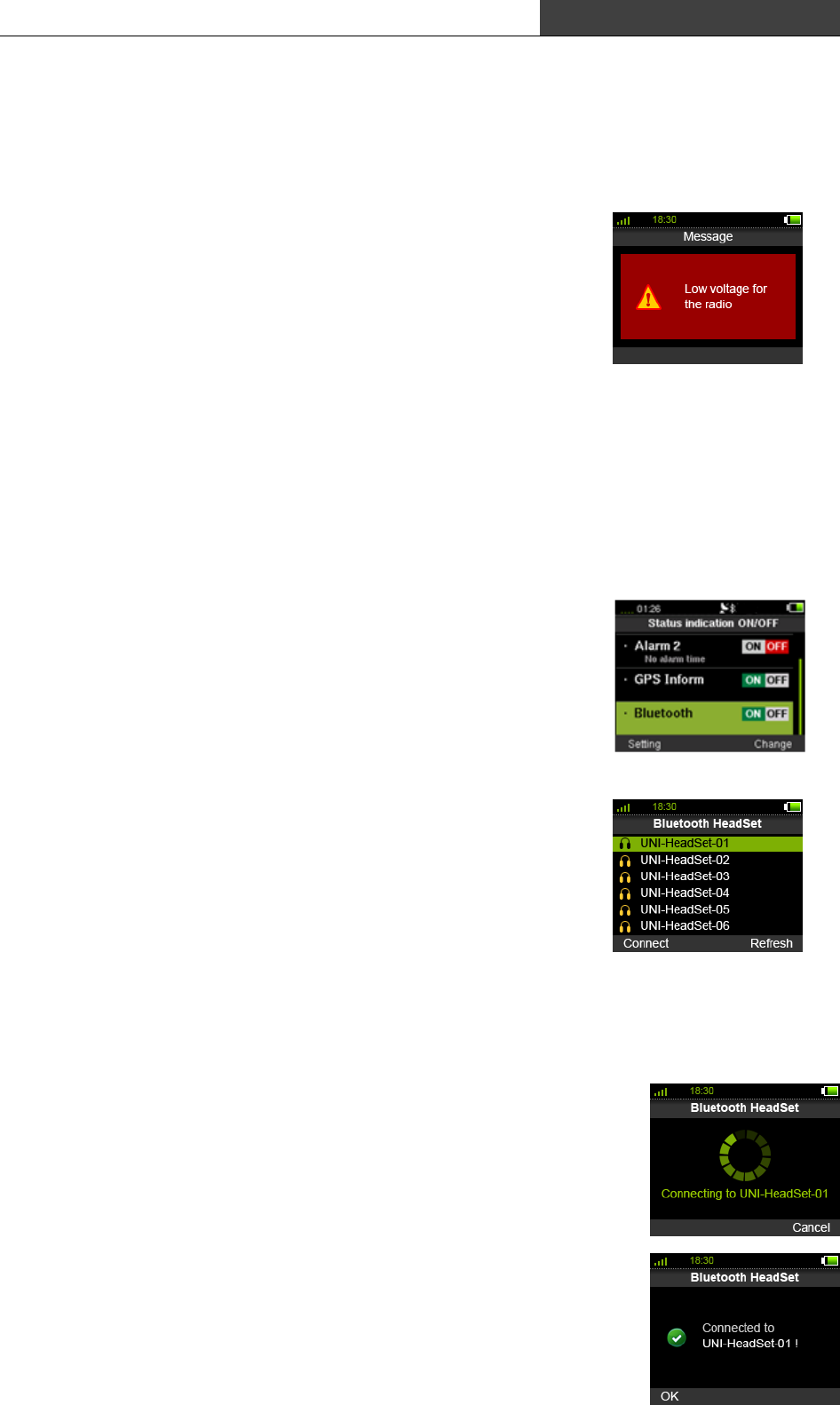

12.4 USING BLUETOOTH FUNCTION ................................................................................................ 43

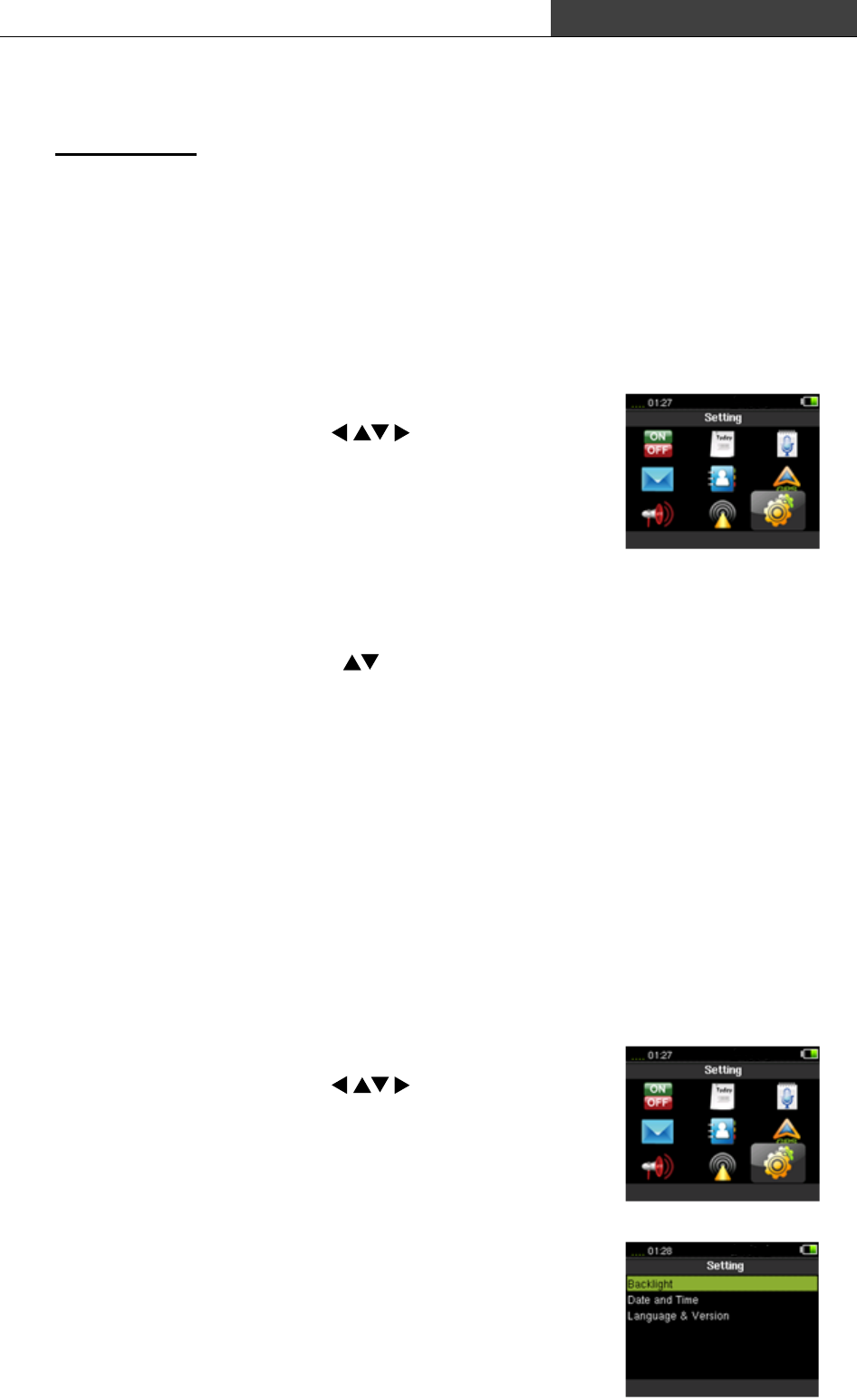

13. SETTINGS ...................................................................................................................................... 45
13.1 BACKLIGHT ..................................................................................................................................... 45
13.2 DATE AND TIME .............................................................................................................................. 45
13.3 LANGUAGE AND VERSION ......................................................................................................... 46
14. LIMITED WARRANTY AND SERVICE ........................................................................................ 47
![](/img.php?id=1368513&img=bg4.png)
U3 USER GUIDE
1
i. FCC Part 15 Declaration of Conformity
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions:
1. This device may not cause harmful interference, and
2. This device must accept any interference received, including interference that may
cause undesired operation.
Note: The changes or modifications not expressly approved by Unication could void the userās
authority to operate the equipment. The user should not modify or change this equipment
without written approval from Unication.
![](/img.php?id=1368513&img=bg5.png)
U3 USER GUIDE
2
ii. SAFETY INFORMATION
RF Energy Exposure Awareness and Control Information and Operational Instructions for
Occupational Use
NOTICE: This radio is intended for use in occupational/controlled conditions where users have full knowledge of their
exposure and can exercise control over their exposure to meet the occupational limits in FCC and
International standards. This radio device is NOT authorized for general population consumer use.
This two-way radio uses electromagnetic energy in the radio frequency (RF) spectrum to provide communications between two or
more users over a distance.
It applies radio waves or radio frequency (RF) energy to transmit and receive voice calls or data. RF energy is one form of
electromagnetic energy. Other forms include, but are not limited to, sunlight and x-rays. RF energy, however, should not be
confused with these other forms of electromagnetic energy, which when used improperly, can cause biological damage. Very high
levels of x-rays, for example, can damage tissues and genetic material.
Experts in science, engineering, medicine, health, and industry work with organizations to develop standards for safe exposure to
RF energy. These standards provide recommended levels of RF exposure for both workers and the general public. These
recommended RF exposure levels include substantial margins of protection.
All Unication two-way radios are designed, manufactured, and tested to ensure they meet government-established RF exposure
levels. Additionally, manufacturers also recommend specific operating instructions to users of two-way radios. These instructions
are essential as they inform users about RF energy exposure and provide simple procedures on how to control it.
Please refer to the following websites for more information on what RF energy exposure is and how to control your exposure to
assure compliance with established RF exposure limits:
http://www.fcc.gov/oet/rfsafety/rf-faqs.html
http://www.osha.gov/SLTC/radiofrequencyradiation/index.html
BEFORE USING THIS RADIO, PLEASE READ THIS BOOKLET WHICH CONTAINS IMPORTANT OPERATING
INSTRUCTIONS FOR SAFE USAGES AND RF ENERGY AWARENESS AND CONTROL INFORMATION AND
OPERATIONAL INSTRUCTIONS FOR COMPLIANCE WITH RF ENERGY EXPOSURE LIMITS IN APPLICABLE
NATIONAL AND INTERNATIONAL STANDARDS.
ALSO PLEASE READ THE OPERATIONAL INSTRUCTIONS FOR SAFE USAGE. FOR RADIOS THAT HAVE
BEEN APPROVED AS INTRINSICALLY SAFE, READ THE INSTRUCTIONS AND INFORMATION ON
INTRINSIC SAFETY ON PAGE 11 OF THIS BOOKLET.
![](/img.php?id=1368513&img=bg6.png)
U3 USER GUIDE
3
Federal Communication Commission (FCC) Regulations
The FCC rules require manufacturers to comply with the FCC RF energy exposure limits for portable two-way radios before they
can be marketed in the U.S. When two-way radios are used as a consequence of employment, the FCC requires users to be fully
aware of and able to control their exposure to meet occupational requirements. Exposure awareness can be facilitated by the use
of a product label directing users to specific user awareness information. Your Unication two-way radio has a RF Exposure Product
Label. Also, your Unication user manual and separate safety booklet includes information and operating instructions required to
control your RF exposure and to satisfy compliance requirements.
Compliance with RF Exposure Standards
Your Unication two-way radio is designed and tested to comply with a number of national and International standards and
guidelines (listed below) for human exposure to radio frequency electromagnetic energy. This radio complies with the IEEE (FCC)
and ICNIRP exposure limits for occupational/controlled RF exposure environments at operating duty factors of up to 50%
talk-50% listen and is authorized by the FCC for occupational use only. In terms of measuring RF energy for compliance with
these exposure guidelines, your radio generates measurable RF energy only while it is transmitting (during talking), not
when it is receiving (listening) or in standby mode.
NOTE: The approved batteries, supplied with this radio, are rated for a 5-5-90 duty factor (5% talk - 5% listen - 90% standby)
even though this radio complies with FCC occupational exposure limits and may operate at duty factors of up to 50%
talk.
Your Unication two-way radio complies with the following RF energy exposure standards and guidelines:
ā¢ United States Federal Communications Commission, Code of Federal Regulations; 47CFR part 2 sub-part J
ā¢ American National Standards Institute (ANSI) / Institute of Electrical and Electronic Engineers (IEEE) C95. 1-1992
ā¢ Institute of Electrical and Electronic Engineers (IEEE) C95.1-1999 Edition
ā¢ International Commission on Non-Ionizing Radiation Protection (ICNIRP) 1998
ā¢ Ministry of Health (Canada) Safety Code 6. Limits of Human Exposure to Radiofrequency Electromagnetic Fields in the
Frequency Range from 3 kHz to 300 GHz, 1999
ā¢ Australian Communications Authority Radio communications (Electromagnetic Radiation ā Human Exposure) Standard, 2003
ā¢ ANATEL ANNEX to Resolution No. 303 of July 2, 2002 "Regulation of limitation of exposure to electrical, magnetic and
electromagnetic fields in the radio frequency range between 9 KHz and 300 GHz" and "Attachment to resolution # 303 from
July 2, 2002"
RF Exposure Compliance and Control Guidelines and Operating Instructions
To control your exposure and ensure compliance with the occupational/controlled environment exposure limits, always adhere to
the following procedures.
Guidelines:
ā¢ Do not remove the RF Exposure Label from the device.
ā¢ User awareness instructions should accompany device when transferred to other users.
ā¢ Do not use this device if the operational requirements described herein are not met.
![](/img.php?id=1368513&img=bg7.png)
U3 USER GUIDE
4
Operating Instructions
ā¢ Transmit no more than the rated duty factor of 50% of the time. To transmit (talk), push the Push-To-Talk (PTT) button. To receive calls,
release the PTT button. Transmitting 50% of the time, or less, is important because this radio generates measurable RF energy
exposure only when transmitting (in terms of measuring for standards compliance).
ā¢ Hold the radio in a vertical position in front of the face with the microphone (and other parts of the radio including the antenna) at least
one inch (2.5 centimeters) away from the nose or lips. Antenna should be kept away from the eye. Keeping the radio at a proper
distance is important since RF exposures decrease with increasing distance from the antenna.
ā¢ When worn on the body, always place the radio in the Unication-approved belt clip for this product. Using approved bodyworn
accessories is important because the use of non-Unication-approved accessories may cause exposure levels, which exceed the FCC
occupational/controlled environment RF exposure limits.
ā¢ If you are not using a body-worn accessory and are not using the radio in the intended-use position in front of the face (one inch away),
ensure the antenna and the radio are kept at least 0.75 inches (1.9 centimeters) from the body when transmitting. Keeping the radio at a
proper distance is important because RF exposures decrease with increasing distance from the antenna.
Approved Accessories
ā¢ Use only Unication-approved supplied or replacement antennas, batteries, and accessories. Use of Non-Unication approved antennas,
batteries, and accessories may exceed the FCC (IEEE) and ICNIRP RF exposure guidelines.
ā¢ Here is a list of Unication-approved accessories: Belt Clip, External Speaker/Mic with wired earpiece, clone cable, USB cable, the
2400mAHr Lithium Polymer battery, and the cradle charger.
Electromagnetic Interference/Compatibility
NOTE: Nearly every electronic device is susceptible to electromagnetic interference (EMI) if inadequately shielded, designed,
or otherwise configured for electromagnetic compatibility.
Facilities
To avoid electromagnetic interference and/or compatibility conflicts, turn off your radio in any facility where posted notices instruct
you to do so. Hospitals or health care facilities may be using equipment that is sensitive to external RF energy.
Aircraft
When instructed to do so, turn off your radio when on board an aircraft. Any use of a radio must be in accordance with applicable
regulations per airline crew instructions.
Medical Devices
Pacemakers
![](/img.php?id=1368513&img=bg8.png)
U3 USER GUIDE
5
The Advanced Medical Technology Association (AdvaMed) recommends that a minimum separation of 6 inches (15 centimeters)
be maintained between a handheld wireless radio and a pacemaker. These recommendations are consistent with those of the U.S.
Food and Drug Administration.
Persons with pacemakers should:
ā¢ ALWAYS keep the radio more than 6 inches (15 centimeters) from their pacemaker when the radio is turned ON.
ā¢ Not carry the radio in the breast pocket.
ā¢ Use the ear opposite the pacemaker to minimize the potential for interference.
ā¢ Turn the radio OFF immediately if there is any reason to suspect that interference is taking place.
Hearing Aids
Some digital wireless radios may interfere with some hearing aids. In the event of such interference, you may want to consult your
hearing aid manufacturer to discuss alternatives.
Other Medical Devices
If any other personal medical devices are used, please consult the manufacturer of your device to determine if it is adequately
shielded from RF energy. Your physician may be able to assist you in obtaining this information.
Use of Communication Devices While Driving
Always check the laws and regulations on the use of radios in the areas where you drive.
ā¢ Give full attention to driving and to the road.
ā¢ Use hands-free operation, if available.
ā¢ Pull off the road and park before making or answering a call, if driving conditions or regulations so require.
![](/img.php?id=1368513&img=bg9.png)
U3 USER GUIDE
6
Operational Warnings
Operational Cautions
For Vehicle With Air Bags:
Refer to vehicle manufacturer's manual prior to installation of electronic equipment to avoid interference with air
bag wiring.
Do not place a portable radio in the area over an air bag or in the air bag deployment area. Air bags inflate with
great force. If a portable radio is placed in the air bag deployment area and the air bag inflates, the radio may be
propelled with great force and cause serious injury to occupants of the vehicle.
Potentially Explosive Atmospheres
(Explosive atmospheres refer to hazard classified locations that may contain hazardous gas, vapors, or dusts.)
Turn off your radio prior to entering any area with a potentially explosive atmosphere unless it is a portable radio
type especially qualified for use in such areas as Intrinsically Safe (for example, Factory Mutual, CSA, UL, or
CENELEC).
Do not remove, install, or charge batteries in such areas. Sparks in a potentially explosive atmosphere can cause
an explosion or fire resulting in bodily injury or even death.
The areas with potentially explosive atmospheres referred to above include fueling areas such as below decks on
boats, fuel or chemical transfer or storage facilities, and areas where the air contains chemicals or particles such
as grain, dust or metal powders. Areas with potentially explosive atmospheres are often, but not always, posted.
Blasting Caps and Blasting Areas
To avoid possible interference with blasting operations, turn off your radio when you are near electrical blasting
caps, in a blasting area, or in areas posted: "Turn off two-way radio." Obey all signs and instructions.
Antennas
ā¢ Do not use any portable radio that has a damaged antenna. If a damaged antenna comes into contact with
your skin, a minor burn can result.
ā¢ Do not hold onto the antenna when the radio is powered on. Always keep the antenna at least 0.75 inches
(1.9 cm) away from the body and 1 inch (2.54 cm) from the face when transmitting to ensure FCC RF
exposure compliance requirements are not exceeded.
Batteries
All batteries can cause property damage and/or bodily injury, such as burns, if a conductive material such as
jewelry, keys, or beaded chains touches exposed terminals. The conductive material may complete an electrical
circuit (short circuit) and become quite hot. Exercise care in handling any charged battery, particularly when
placing it inside a pocket, purse, or other container with metal objects.
![](/img.php?id=1368513&img=bga.png)
U3 USER GUIDE
7
Intrinsically Safe Radio Information
The Intrinsically safe approval unit refers to a product that has been approved as intrinsically safe by an approval agency (for
example FM Approvals, CSA, UL, or Cenelec) and certifies that a particular product meets the Agency's applicable intrinsic safety
standards for specific types of hazardous classified locations. A portable radio that has been approved for intrinsic safety will have
Approval label attached to the radio to identify the unit as being approved for specified hazardous atmospheres. This label specifies
the hazardous Class/Division/Group along with the part number of the battery that must be used. The Intrinsically Safe Approval
Label will be located on the portable radio unit.
Operational Cautions for Intrinsic Safe Equipment
Warnings for Radios Approved as Intrinsically Safe
Radios must ship from the Unication manufacturing facility with the hazardous atmosphere capability and the intrinsic safety
approval labeling (FM, UL, CSA, CENELEC). Radios will not be upgraded to this capability and labeled once they have been
shipped to the field.
A modification changes the unitās hardware from its original design configuration.
Modifications can only be made by the original product manufacturer.
ā¢ Do not operate radio communications equipment in a hazardous atmosphere unless it is a type especially
qualified (for example, FM, UL, CSA, or CENELEC approved). An explosion or fire may result.
ā¢ Do not operate a radio unit that has been approved as intrinsically safe product in a hazardous atmosphere if
it has been physically damaged (for example, cracked housing). An explosion or fire may result.
ā¢ Do not replace or charge batteries in a hazardous atmosphere. Contact sparking may occur while installing
or removing batteries and cause an explosion or fire.
ā¢ Do not replace or change accessories in a hazardous atmosphere. Contact sparking may occur while
installing or removing accessories and cause an explosion or fire.
ā¢ Turn the radio off before removing or installing a battery or accessory.
ā¢ Do not disassemble an intrinsically safe product in any way that exposes the internal circuits of the unit.
ā¢ Failure to use an intrinsically safe approved battery or Approved accessories specifically approved for the
radio unit may result in the dangerously unsafe condition of an unapproved radio combination being used in
a hazardous location.
ā¢ Unauthorized or incorrect modification of the intrinsically safe approved Product will negate the approval
rating of the product.
ā¢ Incorrect repair or relabeling of any intrinsically safe Agency approved radio could adversely affect the
Approval rating of the unit.
ā¢ Use of a radio that is not intrinsically safe in a hazardous atmosphere could result in serious injury or death.
![](/img.php?id=1368513&img=bgb.png)
U3 USER GUIDE
8
Repair
A repair constitutes something done internally to the unit that would bring it back to its original condition.
Items not considered as repairs are those in which an action is performed on a unit which does not require the outer casing of the
unit to be opened in a manner that exposes the internal electrical circuits of the unit.
Do Not Substitute Options or Accessories
The Unication communications equipment certified as intrinsically safe by the approving agency, (FM, UL, CSA, CENELEC) is
tested as a complete system which consists of the listed agency Approved portable, Approved battery, and Approved accessories
or options, or both. This Approved portable and battery combination must be strictly observed. There must be no substitution of
items, even if the substitute has been previously Approved with a different Unication communications equipment unit. Approved
configurations are listed by the Approving Agency (FM, UL, CSA, CENELEC).
The Intrinsically Safe Approval Label affixed to radio refers to the intrinsically safe classification of that radio product, and the
approved batteries that can be used with that system.
The manual PN referenced on the Intrinsically Safe Approval Label identifies the approved Accessories and or options that can be
used with that portable radio unit.
Using a non Unication intrinsically safe battery and or accessory with the Unication approved radio unit will void the intrinsically safe
approval of that radio unit.
REPAIRS FOR UNICATION PRODUCTS WITH INTRINSICALLY SAFE APPROVAL ARE THE
RESPONSIBILITY OF THE USER.
Repairs to an Unication FM approved radio product should only be done at a location that has been FM audited
under the FM 3605 repairs and service standard.
Contact Unication for assistance regarding repairs and service of Unication intrinsically safe equipment.
![](/img.php?id=1368513&img=bgc.png)
U3 USER GUIDE
9
iii. ACKNOWLEDGEMENT
Thank you for purchasing Unication U3 Radio. We believe that Unication professional two-way
radios will provide you a perfect communication solution for daily basis operation, emergency and
critical missions. .
Note: Please read this manual carefully to ensure you know how to properly operate the radio.
For the desired operating band, Unication U3 radio series provide you several models which are
shown below, please check the model information before using and your licensed operating
frequencies.
Band
Frequency range
VHF
136 ~ 174 MHz
UHF
403 ~ 470 MHz
STANDARD PACKAGE CONTENTS
1. U3 Radio
2. Li-Polymer Battery (2400 mAh)
3. 2-way radio antenna
For VHF model, U3 provides you following antenna options additionally, please contact your
dealer for more information to select one antenna to use.
4. Belt clip
5. Cradle Charger
6. User's Guide CD
7. Safety booklet
Band
Frequency range
VHF low
136 ~150 MHz
VHF medium
148 ~ 161 MHz
VHF high
161 ~ 174 MHz
![](/img.php?id=1368513&img=bgd.png)
U3 USER GUIDE
10
1. PREPARATION
1.1 CHARGING THE BATTERY
1.1.1 Before Attaching
Please make sure your U3 radio is turned off before attaching the battery pack. Before using,
please charge the battery pack with U3 cradle charger for a minimum of 16 hours. This ensures
maximum performance.
Warning:
1. Do not charge the battery pack in a hazardous environment: it may cause an explosion.
2. To avoid damaging the radio, NEVER release or attach the battery pack if the radio is wet
or covered with dust.
1.2 INSTALLING THE ANTENNA
1.2.1 Attaching The Antenna
1. Please make sure the radio is turned off while attaching
the antenna.
2. As the picture shown, hold the base of the antenna and
turn the antenna clockwise into the connector on top of
the radio.
3. Keep turning the antenna clockwise until secured.
Note: Never transmit without the antenna, this may damage the radio.
1.2.2 Detaching The Antenna
1. Please also make sure the radio is turned off while detaching the antenna.
2. As the picture shown, turn the antenna counter-clockwise to remove it from the radio.
Attach
Detach
![](/img.php?id=1368513&img=bge.png)
U3 USER GUIDE
11
1.3 INSTALLING AND REMOVING THE ACCESSORY CONNECTOR COVER
The accessory connector cover is located on the antenna side of the U3 portable radio.
The accessory connector is used to connect U3 accessories to the radio.
1. Insert the accessory port cover loop
over the previously installed antenna
and slide it down to the bottom of the
antenna.
2. Place the cover directly over the
accessory connector and turn the
thumbscrew to fasten the cover to the
radio.
3. Removal of the accessory port cover is
accomplished by turning the
thumbscrew counterclockwise, then
lifting the cover up, and finally sliding
the cover loop upwards beyond the top
end of the U3 antenna.
1.4 INSTALLING THE BATTERY PACK
1.4.1 Attaching The Battery Pack
1. Please make sure the radio is turned off.
2. Insert the top of battery pack into the radio first.
3. Then push the bottom of the battery pack towards the radio and
press down until you hear a click sound.
1.4.2 Removing The Battery Pack
1. To remove the battery pack, please turn the radio off first.
2. Press the release button on the bottom of the radio.
3. Once the battery pack is released, you can pull away
the battery pack from the radio.
![](/img.php?id=1368513&img=bgf.png)
U3 USER GUIDE
12
1.5 INSTALLING THE BELTCLIP
1.5.1 Installing The Belt Clip
1. Please remove the battery pack from the radio while
installing the belt clip.
2. Press the belt clip downward as the picture shown
until a click sound is heard.
1.5.2 Removing The Belt Clip
1. Please remove the battery pack from the radio while
removing the belt clip.
2. Press the belt clip tab away and slide the belt clip
upwards as the picture shown.
Detach
Attach
![](/img.php?id=1368513&img=bg10.png)
U3 USER GUIDE
13
2. RADIO OVERVIEW
2.1 USER INTERFACE BUTTONS INTRODUCTION
![](/img.php?id=1368513&img=bg11.png)
U3 USER GUIDE
14
![](/img.php?id=1368513&img=bg12.png)
U3 USER GUIDE
15
Side Buttons
Description
Digital Voice Record
(DVR) Button
Press this button to record voice communications.
Push-to-Talk (PTT)
Button
The PTT button on the left side of the radio is used to
transmit to other radios. When you want to speak,
press and hold the PTT button to activate the
microphone and transmit the voice. Release the PTT
button to listen.

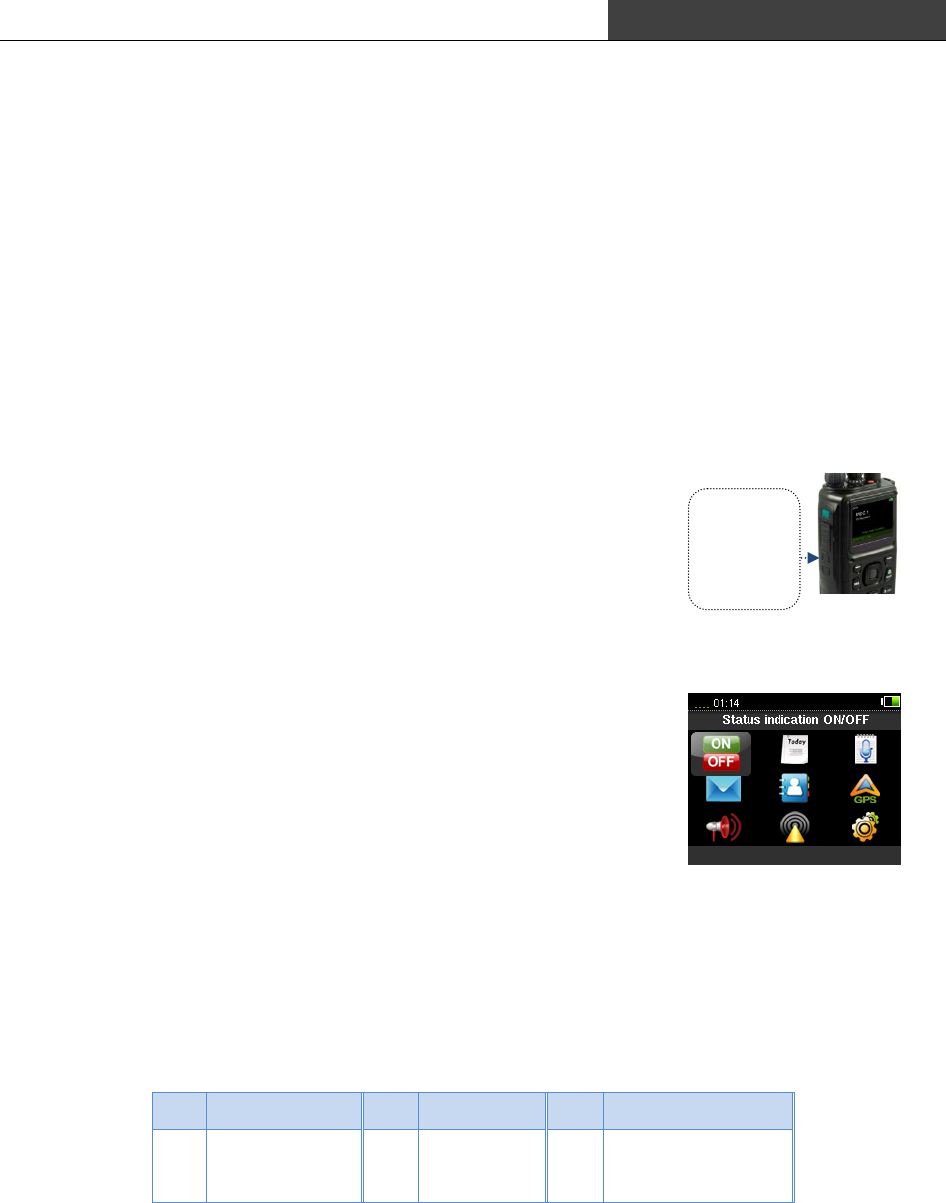

Function Status
Button
Press this button to enter Status indication ON/OFF
Button. You can have a quick overview and settings on
some common functions.
Keypad lock Button
Press this button to lock / unlock the keypad.
Emergency Button
Press this button to make an Emergency Alarm.
LED INDICATORS
No
LED
Behavior
definition
1
Green/Amber two-way
function LED
1-1
Flashing green
Radio transmitting
1-2
Solid Amber
Radio receiving

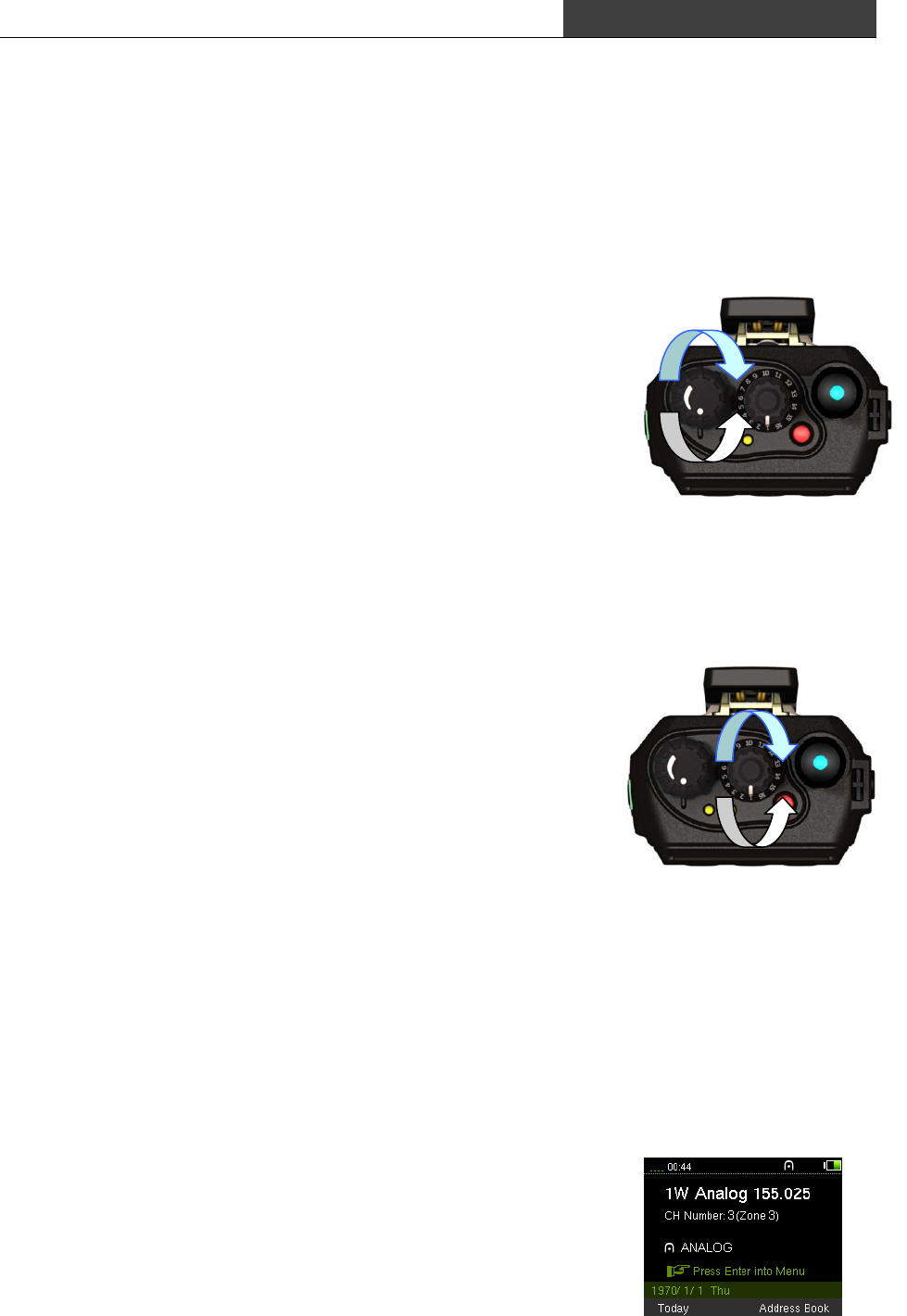

2.2 TURNING U3 ON AND OFF
2.2.1 Turning On
1. Rotate the power/ volume knob clockwise and a click sound
will be heard when the power is on.
2. Once the power is up, a self test program will automatically
start. If the test is successful, the display will play greeting
message on the screen.
3. After greeting message, the radio will automatically enter
Home screen.
Turn On
Turn Off
![](/img.php?id=1368513&img=bg13.png)
U3 USER GUIDE
16
2.2.2 Turning Off
1. To turn off radio, simply rotate the power/ volume knob
counterclockwise until a click sound is heard.
2. LED and screen will both be off when U3 is turned off.
2.3 ADJUSTING THE SPEAKER VOLUME
2.3.1 Adjusting Volume
1. Slowly rotate the power/ volume knob clockwise to increase
volume. You can rotate power/ volume knob
counterclockwise to lower the volume.
Note: Turning the knob counterclockwise until a click is heard
will turn off the radio.
2.4 SELECTING CHANNELS
In 2 way radio operation, users must select a channel for
transmitting or receiving voice or data messages. U3 radio
provides you up to 256 channels and these channels can be
programmed to a user member or a group via U3 Codeplug
Programming Software, CPS.
2.4.1 Using The Channel Selector Knob
1. Rotate the channel selector knob clockwise to next channel.
2. Rotate the channel selector knob counter wise to previous channel.
3. When different channel is selected, the channel information will be shown on the screen.
2.5 STANDBY AND MAIN MENU FUNCTION
2.5.1 Standby Function

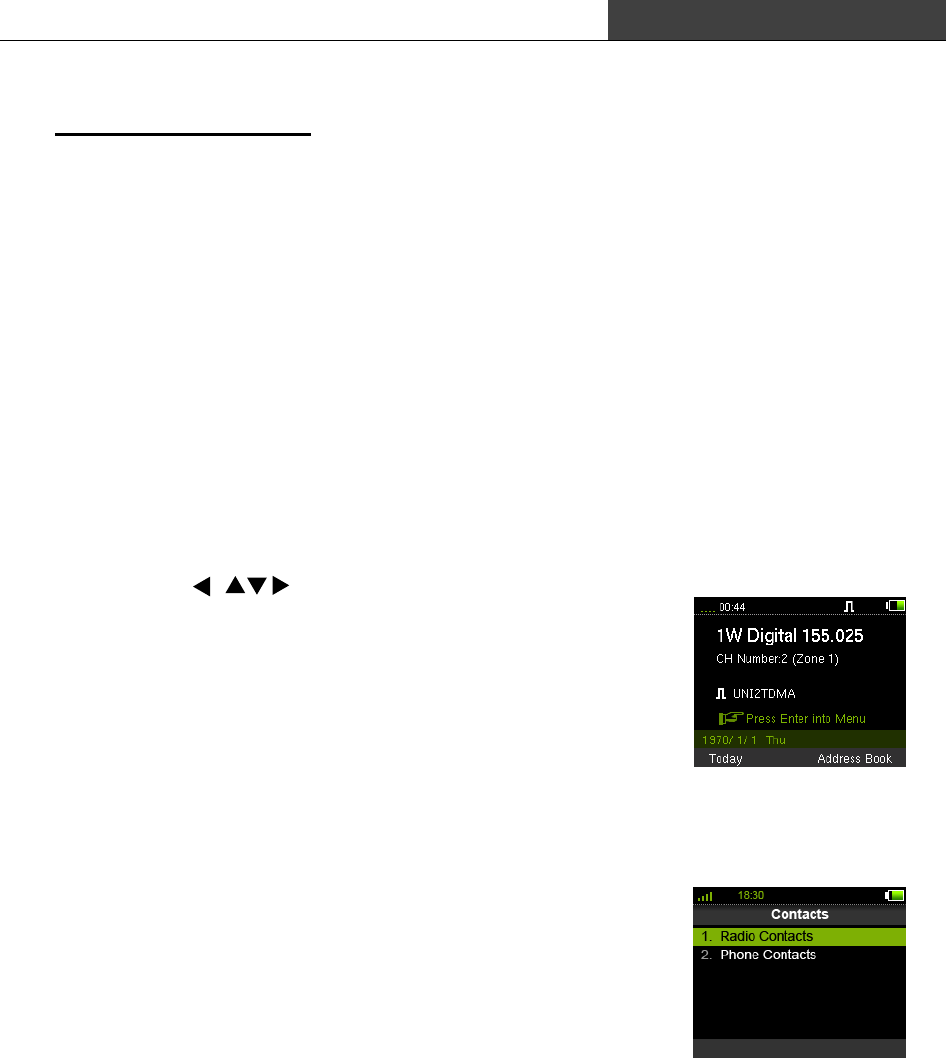

U3 provides you the most common used features on the
standby display. It will save you time to start or select the
functions. You can use:
1. Left soft Button: To enter Today function.
2. Menu & Enter: To enter Menu.
3. Right soft Button: To enter Contacts function.
Increase
Volume
Decrease
Volume
Switch to
Next Channel
Switch to
Previous Channel
![](/img.php?id=1368513&img=bg14.png)
U3 USER GUIDE
17
4. PTT button: To use the current channel to PTT call.
The U3 radio supports both analog and digital mode,
if the current channel is programmed as a digital mode,
Uni2TDMA, the home display will indicate this: .
On the top line of display is status bar, this bar indicates you the state of radio.
Icon
Description
Indicate the signal strength.
Indicate the current time.
Indicate you have a unread message.
Indicate the Bluetooth function is enabled.
Indicate the radio is programmed as digital mode.
Indicate the radio is connected with one accessory such as
Programming Cable or External Speaker Microphone.
Indicate GPS function is activated.
Indicate U3ās battery gauge.
On last two line of the display is second status bar. This bar also indicates you the
state of radio.
Icon
Description
Indicate alarm clock is activated.
Indicate the current date.
![](/img.php?id=1368513&img=bg15.png)
U3 USER GUIDE
18
2.5.2 Main Menu Function
Once press Menu & Enter button in standby display, U3 will
enter the main menu which is an entrance to all U3 radioās
functions.
You can use the buttons below to navigate the menu.
Button
Description
Left and Right Soft
Buttons
These buttons are used to execute specific functions
on the display. These functions vary from the radioās
state.
4-directional
navigation Button
The button is used to select or scroll through the
radioās items in the display.
Menu & Enter
Button
1. Enter main menu while at Home display.
2. Use this button to confirm a selection.
Back Button
Use this button to back to previous page.
Home Button
Use this button to return to home display.
![](/img.php?id=1368513&img=bg16.png)
U3 USER GUIDE
19
3. GETTING STARTED
After you have battery, antenna, and belt clip installed, you are ready to use U3 radio. In this
chapter, we will guide you through the common applied functions and settings.
3.1 TODAY
After turning on the radio, U3 provides you a Today menu which reminds you any unread message
or event.
3.1.1 To Enter Today Function
There are two ways to enter Today function.
1. Press left soft button āTodayā in standby mode
In standby mode, you can press left soft button to enter āTodayā function.
2. Enter Today function by main menu
a. In standby mode, press the Menu & Enter button to enter
main menu.
b. Use the 4-way Navigator button āā²ā¼āŗ to move
highlight bar to āTodayā function.
c. Press Menu & Enter button to confirm selection and enter
next menu
3.1.2 To Read Message From Today Function
1. Once entered Today menu, the highlight bar will stay at notice type.
2. Use the 4-way Navigator button ā²ā¼ to move to a type to enter. You have the following
menu to select:
a. Unread message
b. Voice memo
3. Press left soft button āopenā to enter submenu.
4. Use the 4-way Navigator button ā²ā¼ to move to a message what you want to read.
5. Press left soft button āOpenā to read the content.
6. You can press Back button to back to previous menu.
7. You can also press Home button to directly back to standby mode.
![](/img.php?id=1368513&img=bg17.png)
U3 USER GUIDE
20
3.2 FUNCTION STATUS
Some features in U3 radio, you only need to switch between ON/ OFF setting. U3 provides you a
short cut menu which is called Status indication ON/OFF to enter such features, you can see current
setting for these features and you can quickly change setting if you want.
3.2.1 To Enter Status indication ON/OFF Function
There are two ways to enter Status indication ON/OFF function.
1. Press Status indication ON/OFF button.
At standby mode, simply press Status indication ON/OFF
button on the left side of radio to enter Status indication
ON/OFF function.
2. Enter Status indication ON/OFF by main menu
a. In standby mode, press the Menu & OK button to enter
main menu.
b. Use the 4-way Navigator buttonāā²ā¼āŗto move to
āStatus indication ON/OFFā function.
c. Press Menu & OK button to confirm selection and enter
next menu.
3.2.2 How To Operate Status indication ON/OFF
You can switch between common and advanced function status menu, in Status indication
ON/OFF function, you have the following menu to select:
*some features may not be available in certain software version.
1. Switching between on/ off status
a. When you enter Function Status function, the highlight bar will stay at Auto reply.
b. Use the 4-way Navigator buttonāāŗto switch the status between ON and OFF.
The related icon on status bar will also be updated in the same time.
No.
Function
No.
Function
No.
Function
1
GPS Location
Inform
2
Bluetooth
Setting
3
Alarm
Indication
ON/OFF
Button
![](/img.php?id=1368513&img=bg18.png)
U3 USER GUIDE
21
c. Use the 4-way Navigator button ā²ā¼ to move to next item.
d. You can press āBackā button to return to previous menu.
e. You can also press Home button to directly back to standby mode.
2. Settings for certain feature in Status indication ON/OFF menu
If the setting features are available when selecting a certain feature, you can press right
soft button āSetā.
![](/img.php?id=1368513&img=bg19.png)
U3 USER GUIDE
22
4. VOICE CALLS
The radio can receive a voice call from others. The radio will inform whoās calling on the display if
pre-programmed. U3 can provide you to receive All Call, Group Call, and private Call after
pre-programmed in the CPS.
Here are call type definition.
1. All Call provides you to talk with everybody in one channel.
2. Group call provides you to talk with a group
3. Private call provides you to talk with one individual.
4.1 MAKING CALLS
4.1.1 To Select A Contact To Call
Your receiver side will determine the call type. You can select a group or person as your
receiver by following:
1. Channel selector knob
You can use the channel selector knob to select a contact if pre-programmed.
2. Use Address book from menu
Your radio provides address book function, please read the following pages to know how
to select a contact from address book.
4.1.2 To Make A Call
1. Make a All Call
a. To transmit a call, please press and hold the PTT button
on the left side of radio.
b. Release PTT button to stop transmitting
2. Make a Group Call or Private Call
a. To transmit a call, please press and hold the PTT button
on the left side of radio
3. Release PTT button to stop transmitting. And the radio will
automatically start a hang timer.
4. During the hang time, you can press and hold PTT button again
to talk back to your receiver.
5. You can also press right soft button āExitā to exit the call and
back to standby mode.
PTT Button
![](/img.php?id=1368513&img=bg1a.png)
U3 USER GUIDE
23
4.2 RECEIVING CALLS
4.2.1 To Receiving All Call
1. While receiving an All Call, every radio on the current channel will be
announced, the radio will show the channel alias with the solid
Amber LED indication.
2. After the calls, radio will return to standby mode.
3. You can press PTT button to respond to calls.
4.2.2 To Receiving Group Call Or Private Call
1. While receiving a group Call or Private Call, the radio will show the callerās alias with the
solid Amber LED indication.
2. After the calls, the radio will automatically start a hang time timer.
3. During the hang time, you can press PTT button to respond the call.
4.3 VOICE CALL BACKGROUND OPERATION
U3 provides you optional functions during voice call, you can turn on these functions in Status
indication ON/OFF menu, once the function is enabled, it will automatically work during a voice call,
you donāt have to do any additional operation.
You have the following optional functions:
4.3.1 Compander (Analog Mode Only):
The Compander feature is activated via the CPS PC Utility. The Compander will enhance voice
call quality. If the commander is enabled, radio will automatically expand signals while receiving,
and compress signals while transmitting.
![](/img.php?id=1368513&img=bg1b.png)
U3 USER GUIDE
24
5. MESSAGES
Besides voice communication, for different tasks on your duty, U3 also supports text messaging
using Uni2TDMA. U3 can transmit or receive canned or free text message to meet various
communication requirements.
5.1 SENDING A CANNED MESSAGE
U3 provides canned messaging. You can use this function to quickly answer to routine
feedbacks or to common requests.
5.1.1 To Enter Canned Message Function By Menu
1. In standby mode, press the Menu & Enter button to enter main
menu.
2. Use the 4-way Navigator button to move to
āMessageā function.
3. Press Menu & Enter button to confirm the selection and enter
next menu.
4. The highlight bar will stay at āSend canned messageā.
Press Menu & Enter button to confirm selection.
5.1.2 How To Send A Canned Message
1. Select a canned message
a. Use the 4-way Navigator button ā²ā¼ to move highlight bar
to a canned message you would like to send.
b. Press left soft button āSendā to transmit this message.
c. You can press right soft button āBackā to back to previous
menu.
2. Select recipients
a. Use the 4-way Navigator button ā²ā¼ to select recipients.
b. You can select many contacts as this messageās recipients,
press right soft button āMarkā to label the recipients.
![](/img.php?id=1368513&img=bg1c.png)
U3 USER GUIDE
25
c. Press āSendā soft key to confirm transmitting.
d. You can press left soft button āStopā to back to previous
menu.
e. If you want to cancel transmitting, you can also press
Home button to directly back to standby mode at any step.
5.2 WRITING A MESSAGE
U3 provides free text messaging so that you can use this feature to communicate irregular
messages or some suddenness with radio group or dispatcher.
5.2.1 To Enter Write A Message Function By Menu
1. In standby mode, press the Menu & OK button to enter main
menu.
2. Use the 4-way Navigator button to move highlight
bar to āMessageā function.
3. Press Menu & Enter button to confirm selection and enter next
menu.
4. The highlight bar will stay at āSend can messageā.
5. Use the 4-way Navigator buttonā²ā¼to move highlight bar to
āCreate a new text messageā function.
6. Press Menu & Enter button to confirm selection and enter next menu.
5.2.2 How To Send A Free Text Message
1. Write a message
a. Use the alphanumeric keypad to write your message.
You may press ā #ā to switch between the language inputs.
b. You can press ā *ā to delete the character after the cursor.
c. You can press Back hard button to back to previous
menu.
2. Select recipients
a. Use the 4-way Navigator button ā²ā¼ to select recipients.
b. You can select many contacts as this messageās
recipients, press left soft button āMarkā to label the
recipients.
![](/img.php?id=1368513&img=bg1d.png)
U3 USER GUIDE
26
c. Press Menu & Enter button to confirm transmitting.
d. You can press right soft button ācancelā to back to
previous menu.
e. If you want to cancel transmitting, you can also press
Home button to directly back to standby mode at any
step.
5.3 READING MESSAGES
5.3.1 To Read A Message After Receiving A Message
1. Your radio will automatically alert you have received a new message.
2. You can press āMenu & Enterā button to read this message.
3. Or you could press left soft button āQuitā to back to standby
mode.
4. You can read unread message in Today menu or you could
read all message in Inbox.
5.3.2 Read A Message In Inbox.
1. In standby mode, press the Menu & Enter button to enter
main menu.
2. Use the 4-way Navigator button to move highlight
bar to āMessageā function.
3. Press Menu & Enter button to confirm selection and enter
next menu.
4. The highlight bar will stay at āSend a canned messageā.
5. Use the 4-way Navigator button ā²ā¼ to move highlight bar
to āInboxā.
6. Press Menu & Enter button to confirm the selection.
7. Use the 4-way Navigator button ā²ā¼ to select a message to
open.
8. Press left soft button āEnterā to open this message.
![](/img.php?id=1368513&img=bg1e.png)
U3 USER GUIDE
27
5.4 REPLY A MESSAGE
5.4.1 To Reply A Message After Receiving A Message
1. On read message menu, if you press Menu & Enter button,
youāll open a menu to select replying options.
2. You can select:
a. Attachment: To view this messageās attachment.
b. Reply: To reply this message.
c. Forward: To forward this message.
5.4.2 To Reply A Message In Inbox
1. Please enter Inbox menu, and select a message to open as previous pages noted.
2. On read message menu, if you press Menu & Enter button, youāll open a menu to select
replying options.
3. The operation is the same as to reply a message after receiving a message.
5.5 MANAGING YOUR CONTACTS
5.5.1 To Manage A Message In Inbox Menu
1. In Inbox menu, if you press Menu & Enter button, youāll open a option function list.
2. You can select:
a. Open: To open this message.
b. Lock: To lock this message to avoid deleting message
unexpectedly.
c. Delete: To delete this message forever.
![](/img.php?id=1368513&img=bg1f.png)
U3 USER GUIDE
28
6. ADDRESS BOOK
Address Book is to store your radio and phone contacts information for communication purpose.
For reducing wrong contacts settings to cause failed communication, you can only edit contact
list in CPS. But, you can rename these contacts, and cannot delete this type of contacts.
6.1 VIEWING ADDRESS BOOK
There are two ways to enter Address book.
6.1.1 To Enter Address Book Function
1. Enter Address Book from menu
a. In standby mode, press Menu & Enter button to enter main menu, use 4-way Navigator
button to move highlight bar to āAddress bookā.
b. Please press Menu & Enter button to confirm selection and
enter next menu.
2. Press right soft button āAddress bookā in standby mode
a. In standby mode, press right soft button āAddress bookā to
enter Address book.
6.1.2 To View An ID And Alias
1. Each contact list will show name and category
(Private/Group/All).
2. The contact list will be organized alphabetically from A to Z,
you can use 4-way Navigator button ā²ā¼ to move highlight
bar to choose a contact list type.
3. Use āEnterā key to choose Radio Contacts.
![](/img.php?id=1368513&img=bg20.png)
U3 USER GUIDE
29
6.2 MANAGING YOUR CONTACTS
6.2.1 To Manage All/Group ID
1. In Address Book menu, please use 4-way Navigator button
ā²ā¼ to move to a All or Group ID.
2. At this time, you can press Menu & Enter button to open the
subfunction menu.
3. In this optional menu, you can do the following optional
functions to this ID:
a. Message:To send message to this ID.
b. Call alert:To send a call alert to this ID.
c. Press and hold PTT button to call this ID.
6.2.2 To Manage Private ID
1. The operation is similar as managing a All/Group ID, but for private ID, you have more
optional functions as following:
a. Message:To send message to this ID.
b. Call alert:To send a call alert to this ID.
c. Radio check: To send a radio check request to this ID.
d. Press and hold PTT button to call this ID.
![](/img.php?id=1368513&img=bg21.png)
U3 USER GUIDE
30
7. CALL ALERT
If you called someone without response, you can leave a call alert to the receiver, which can
remind the receiver to call back to you
7.1 SENDING A CALL ALERT
7.1.1 To Start To Send A Call Alert
There are two ways to initiate a call alert.
1. Enter Call Alert by Main Menu
a. In standby mode, press the Menu & Enter button to enter main menu.
b. Use the 4-way Navigator button to move to āCall alertā function.
c. Press Menu & Enter button to confirm selection and enter next menu.
2. Select Call Alert option from Address Book
7.1.2 Select A Contact To Send A Call Alert
1. In Call Alert menu, the highlight bar will stay at āSend Call Alertā,
please press Left soft key āSelectā to enter next menu.
2. Use the 4-way Navigator button ā²ā¼ to move to the contact
person you want to send.
3. Press Left soft button āSendā to send a call alert.
4. The radio will show a prompt page to notify you the
transmissions successful or not.
7.2 RECEIVING A CALL ALERT
7.2.1 Receiving A Call Alert
1. While receiving a call alert, the radio will alert you, you may
following options to respond:
a. Press and hold PTT button hard on the left side of the
radio to talk back to Call Alert sender.
b. Press left soft button āCloseā to end the alert prompt page.
PTT Button
![](/img.php?id=1368513&img=bg22.png)
U3 USER GUIDE
31
7.3 CHECKING CALL ALERT RECORD
When call alerts are sent or received, U3 will keep the record for you to call back quickly.
7.3.1 To Enter Call Alert Record
1. In Call alert menu, the highlight bar will stay at āSend Call alertā,
please Use the 4-way Navigator button ā²ā¼ to move to
āCheck Alert Recordā.
2. Press Left soft key āSelectā to enter next menu.
3. You can use the 4-way Navigator button ā²ā¼ to switch between
sent record and received record.
4. Please press Menu & Enter key to confirm the selection.
5. Sent Call Alert List and Received Call Alert List will be displayed.
7.3.2 Call Alert Record Options
In Sent Call Alert Record, you can use press ā²ā¼ button to move highlight bar to a contact
ID to do the following actions:
1. Resend: Resend a call alert to this ID (only in sent record).
![](/img.php?id=1368513&img=bg23.png)
U3 USER GUIDE
32
8. EMERGENCY ALARM
When you need any help or rescues from task operations, U3 provides Emergency call feature
for you. Once the feature is enabled, the radio will keep sending an emergency command in a
pre-set channel until receiving the control code.
8.1 SENDING AN EMERGENCY ALARM
8.1.1 How To Operate Emergency Alarm Function
U3 provides you one quick way to enable Emergency alarm function by holding down the
Emergency Button.

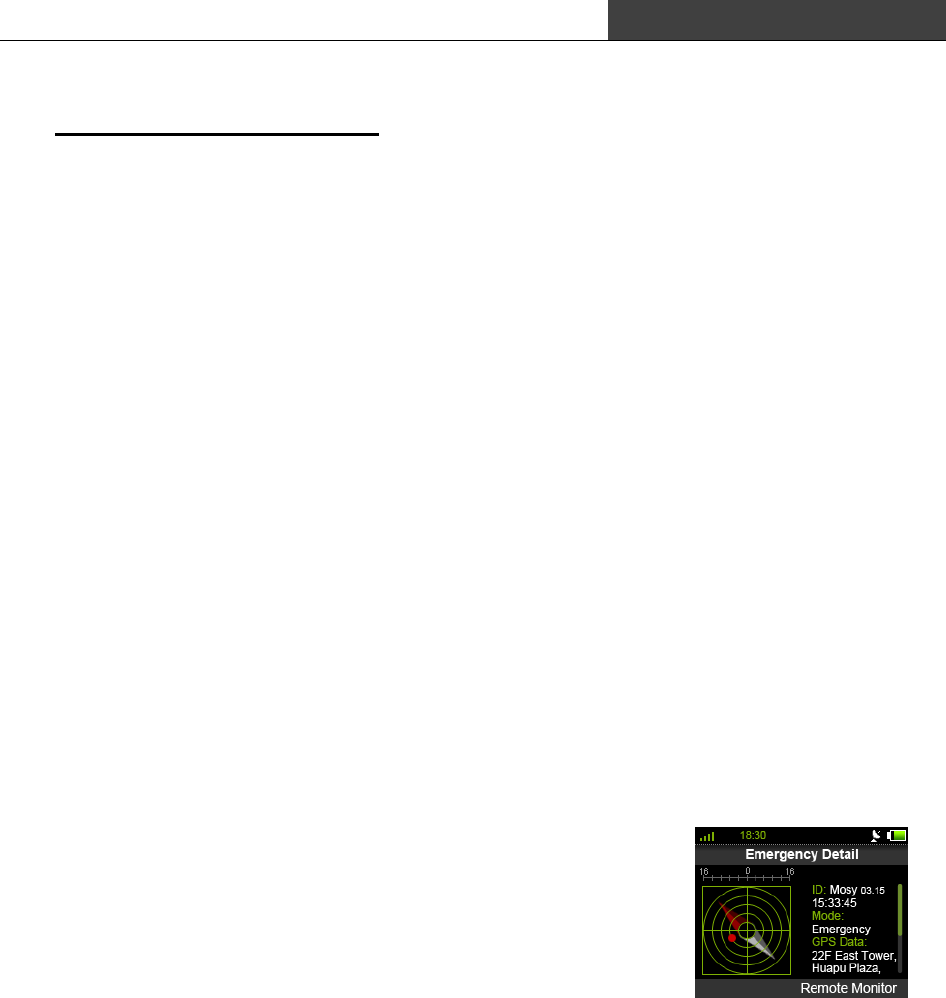

8.2 RECEIVING AN EMERGENCY ALARM
You can select some radios to receive Emergency Call, if your radio receives GPS data, the
radio will also show the relative position.
8.2.1 To Receive Emergency Alarm Function
1. If your radio receives an Emergency alarm, it will automatically
alert you.
2. Press Menu & Enter button to initiate the emergency call and
loading GPS data if available.
![](/img.php?id=1368513&img=bg24.png)
U3 USER GUIDE
33
9. RADIO POSITIONING (GPS)
This enables U3 devices to communicate, track and inform locations to one another. You can
read GPS settings in this chapter.
9.1 GPS LOCATION INFORM
Your radio provides you āGPS Location Informā function, which will automatically send GPS
location data and other status information (such as: Man down information) to the designated
radio or console in pre-set time interval.
9.1.1 To Enable GPS Location Inform
GPS Location Inform function can be enable by following two ways:
1. Enable GPS Location inform function from Function Status menu.
a. At any display, user can press āFunction Statusā button at the left side of the radio to
enter āFunction statusā.
b. Use the 4-way navigation Button ā²ā¼ to move highlight bar to āGPS Informā.
c. Use the 4-way navigation Button ā²ā¼ to enable āGPS Location Informā function to ON
status, if the current channel supports GPS inform, you can press the right soft button
āChangeā to enable this feature, if thereās no āChangeā button to press, please switch to
a new channel which supports GPS inform feature.
d. Once GPS inform is enabled, then youāll see icon
shown on the status bar.
9.2 GPS LOCATION DISPLAY
If GPS Location is enabled from Inform function, your radio will also provide a concentric
position diagram for you to check the relative positions of your members. This will help you to
check which direction is toward your target.
9.2.1 To Enter GPS Location Display
1. Enter Radio Check by main menu
a. In standby mode, press the Menu & Enter button to enter main menu.
b. Use the 4-way Navigator button to move to āGPS Location Displayā.
![](/img.php?id=1368513&img=bg25.png)
U3 USER GUIDE
34
c. Press Menu & Enter button to confirm selection and enter next menu.
9.2.2 To Use GPS Location Display
Once entered āGPS Location Displayā menu, your radio will try to search available satelite
information, the search time will be depend on your location, if the search time is over than 4
minutes and 30 seconds, then you may not be possible to use GPS function at current location,
please press Back or Home hard to exit.
If GPS location is available, then the radio will keep detecting GPS data at preset time interval,
and the position of your radio will be at center of concentric, other radios will show relative
position in this concentric diagram. You can use following optional functions:
1. Use the 4-way Navigator button ā²ā¼ to move the highlight bar
to a contact, then the position of selected contact will flash and
the spot color will change to red, while white spots means the
other unselected membersā relative position.
2. Press left or right soft button āzoom inā or āzoom outā to zoom
in or out the diagram.
3. Use 4-way Navigator button āāŗto switch the toolbar, then you can press left soft button
āGPS queryā to ask selected memberās position, or press right soft button āFullā to expand
GPS location to full screen display. Once the radio is at full screen state, you can press
right soft button āNormalā to set the radio back to normal screen state.
9.2.3 Check One Memberās Detailed Location
If you press Menu & OK button to select a team member, you can check related detailed
location.
1. Use the 4-way Navigator button āāŗto switch the toolbar to
the following options:

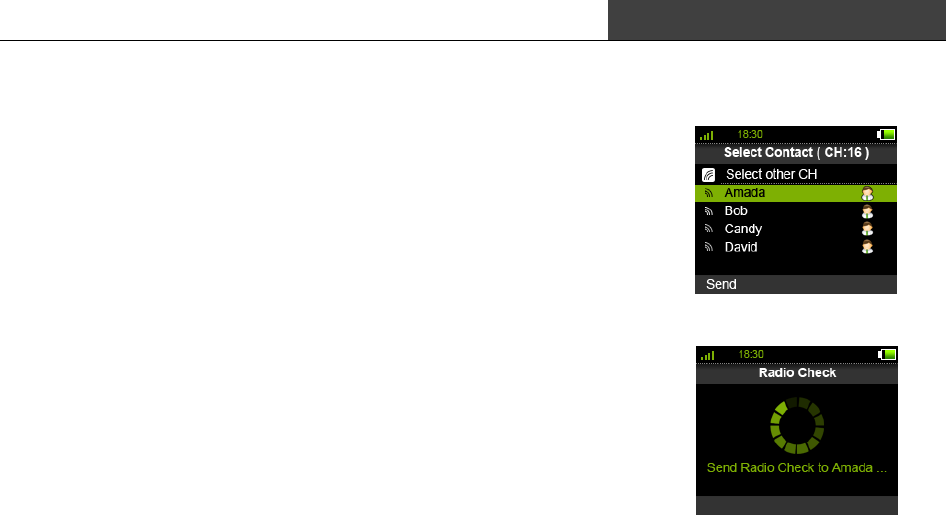

a. Radio Check: To send Radio Check command to a
selected member.
b. Trajectory: To track route of a selected member.
![](/img.php?id=1368513&img=bg26.png)
U3 USER GUIDE
35
c. Remote Monitor: To send Remote Monitor command
to a selected member.
2. If you press āTrajectoryā soft button, youāll see the memberās
route, and you can press āSetā soft button to set the start and
end time for the tracking.
3. You can press Back button to back to previous menu or
press Home button to directly back to standby mode.
![](/img.php?id=1368513&img=bg27.png)
U3 USER GUIDE
36
10. PERSONAL ASSISTANT
U3 provides useful voice recording functions for important communication records in daily
operations.
10.1 VOICE MEMO
10.1.1 Recording A New Memo
1. You may enter from menu and select āVoice Memoā .
2. After entering to Voice Memo, press right soft button āNewā or
simply press DVR button to record a new memo.
3. When it starts recording, the screen will show the recording
time bar.
4. You can end the recording by pressing left soft button
āFinishā to save the record.
5. If you press Finish key, the screen will show the default
filename
(usually it is put Memo + recording date + saving order).
6. You could press the 4-way Navigator buttonāāŗ to move
cursor and use Delete key to delete the default file name.
7. You can also use key pad to rename the file. The Input
method is T9. You can press Input Method Key to switch
different input options.
10.1.2 Listening A Voice Memo
1. Press Menu & Enter button to go to main menu and select
āVoice Memoā.
2. Use the 4-way Navigator button ā²ā¼ to select a voice
memo.
3. Press Menu & Enter button to play the voice memo.
4. Press left soft button āFinishā to end the play.
![](/img.php?id=1368513&img=bg28.png)
U3 USER GUIDE
37
10.1.3 Deleting A Voice Memo
1. Press Menu & Enter button go to main menu and select
āVoice Memoā.
2. Use the 4-way Navigator buttonāāŗto switch the toolbar to
the following sub-functions:
a. Lock
b. New (Add a new voice memo)
c. Rename
d. On/off alarm
e. Delete
3. Press āDeleteā button to delete the message.
10.1.4 Setting Reminder Alert To A Voice Memo.
1. Press Menu & Enter button go to main menu and select
āVoice Memoā.
2. Use the 4-way Navigator buttonāāŗ to switch the toolbar to
the following state.
a. Lock
b. New
c. Rename
d. On/off alarm
e. Delete
3. Press āOn/Off alarmā button to set the alarm.
4. You can use alphanumeric keypad to set the time and date.
5. Press āSaveā button to save the settings or press āCancelā button to cancel the settings.
10.1.5 Locking And Unlocking A Voice Memo
When a voice memo is locked, you will not be able to delete it. You will have to unlock the
message for deletion availability.
1. Use the 4-way Navigator button āāŗ to switch the toolbar to
the following sub-functions:
a. Lock
b. New
c. Rename
d. On/off alert
e. Delete
2. Press āLockā button to lock the selected message.
![](/img.php?id=1368513&img=bg29.png)
U3 USER GUIDE
38
3. When a voice memo is locked, a ālockerā icon will be shown on the front of voice memo in
the list.
4. When a locked voice memo is again unlocked, the locker icon will be disappeared.
![](/img.php?id=1368513&img=bg2a.png)
U3 USER GUIDE
39
11. RADIO CHECK
If you need to monitor all the communication in the channel or check the environment
surrounding around particular radio, you can manually monitor your own or other radioās current
channel, in order to fully understand if someoneās using the current channel or other team
membersā status.
11.1 RADIO CHECK
When you need to know your team members is inside or out of your signal range, you can use
the Radio Check function. Note that if there is no response, your team memberās radio could be
turned off, breakdown, or out of range.
11.1.1 To Enter Radio Check
2. Enter Radio Check by main menu
d. In standby mode, press the Menu & Enter button to enter
main menu.
e. Use the 4-way Navigator button to move to
āRadio Checkā.
f. Press Menu & Enter button to confirm selection and enter
next menu.
g. The highlight bar will stay at āRadio checkā., then Press
Menu & Enter button to confirm selection.
3. Enter Radio Check from Address Book menu
You can also enter āRadio Checkā menu from Address book menu, please read the
related page of Address Book.
11.1.2 To Using Radio Check
1. The highlight bar will stay at āSend Radio Checkā first, you can
do the followings:
a. Send Radio Check: To send a radio check command to a
radio.
b. Radio Check Record: To check the history record of Radio Check.
2. Please use the 4-way Navigator button ā²ā¼ to move highlight
bar to the option you want to use.
![](/img.php?id=1368513&img=bg2b.png)
U3 USER GUIDE
40
3. Press Menu & Enter key to confirm selection of āSend Radio Checkā,
the radio will go to next menu.
4. Please use the 4-way Navigator buttonā²ā¼ to select a private
ID ,and press left soft button āSendā to send a command of
Radio Check.
5. The radio will wait for the remote radioās response and show a
prompt message for the result.
6. You can press right soft button āBackā to return to previous
menu.
7. You can also press Home button to directly go back to standby
mode.
![](/img.php?id=1368513&img=bg2c.png)
U3 USER GUIDE
41
12. TOOLS

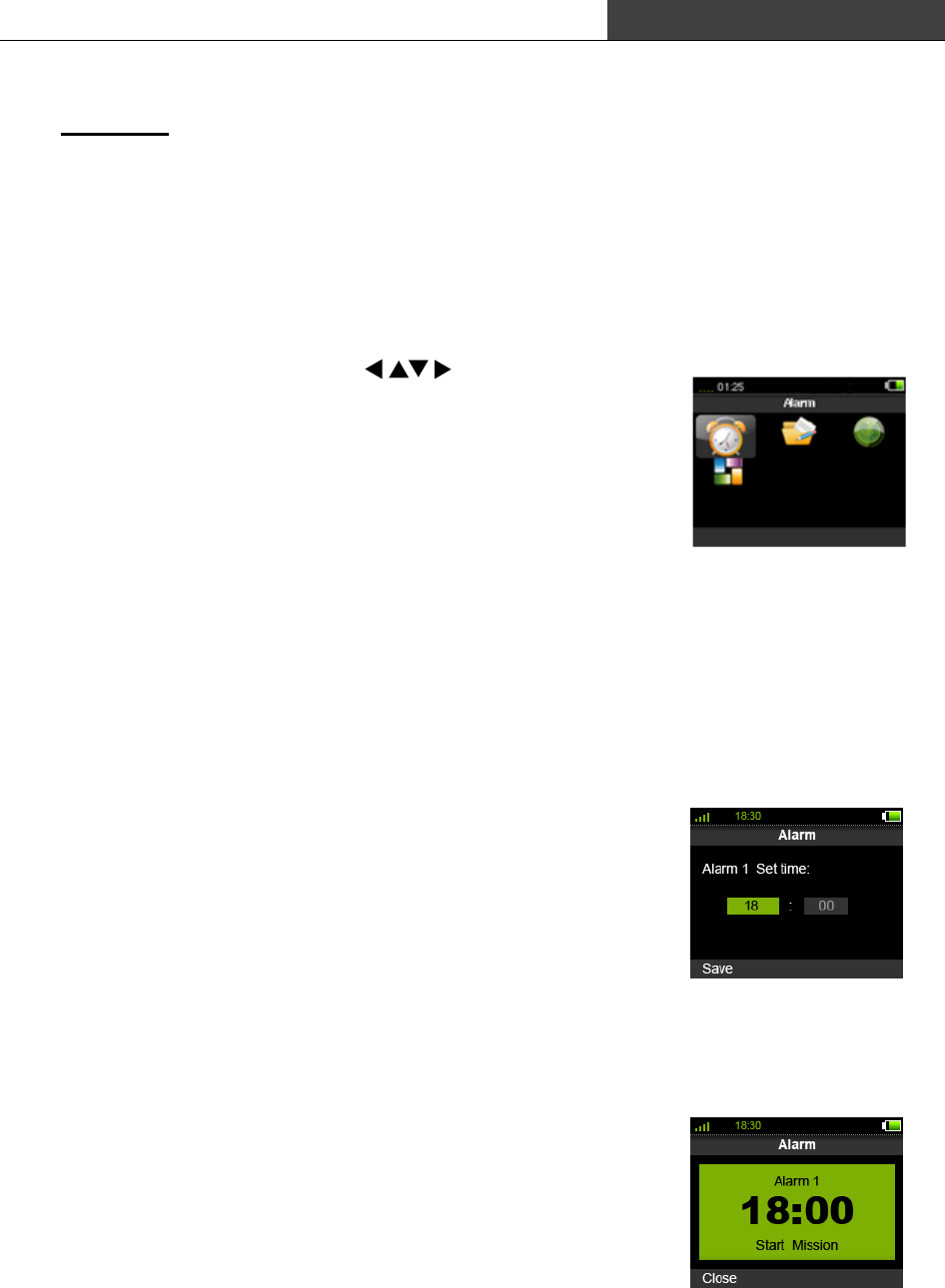

12.1 USING ALARM FUNCTION
12.1.1 To Enable Alarm Function
1. In standby mode, press the Menu button to enter main Menu.
2. Use 4-way Navigator button to move highlight bar to
āAlarmā function.
3. Press Menu & Enter button to confirm selection and enter next
menu.
4. You will be able to see two sets of alarms with ON/ OFF status.
If alarms have been set, it will show the set time. Press right
soft button āChangeā to enable the alarm by using 4-way Navigator button ā²ā¼ to select
ON status.
12.1.2 How To Set An Alarm
1. Press the 4-way Navigator button ā²ā¼ to select ON status.
2. Press Menu & Enter button to set Alarm.
3. The time settings will start with āHourā first by using key pad in
numeric format.
4. Use 4-way Navigator button āāŗ to switch between āHourā
and āMinuteā.
5. Press left soft button āNextā to go to next step.
6. Press Menu & OK button or wait for three seconds to go back
to the Alarm menu.
12.1.3 Response To A Time Alert
1. When the clock is on the set alarm time, it will trigger the alarm
and radio will sound alert.
2. If the alarm is not stopped in one minute, or press other
buttons other than āCloseā button, the alarm alert will
temporary close. The alert will trigger again after 10 minutes.
3. If user press āCloseā button to disable the alarm, it will not alert
within set date.
![](/img.php?id=1368513&img=bg2d.png)
U3 USER GUIDE
42
12.2 USING CLONE FUNCTION
Radio service personnel can clone a radio profile from one source radio to others.
.
12.3 SYSTEM ALARM
When system is in abnormal status while operating with U3 radios, U3 will indicate with flashing
red LED and continuously alert with low frequency tone.
12.3.1 RF Hardware Alarm Signals (MCU)
1. There are three alarms with RF Hardware problems:
a. Lo Alarm: When DSP has LO problem.
b. MOD Alarm: When DSP has MOD problem.
c. PA Alarm: When PA temperature is high.
12.3.2 RF Violation Alarm Signals (MCU)
1. There are two alarms with RF violation problems:
a. Temperature:
When radio has temperature problem.
ļ® Over-Heated
![](/img.php?id=1368513&img=bg2e.png)
U3 USER GUIDE
43
ļ® Low temperature
b. Low Voltage:
When the battery voltage is too low to:
ļ® Perform a transmission
ļ® Use the radio
12.4 USING BLUETOOTH FUNCTION
You can use Unication Bluetooth accessories including ear piece and PTT button with your U3
radios. You need to pair your Bluetooth accessories with your radio before using.

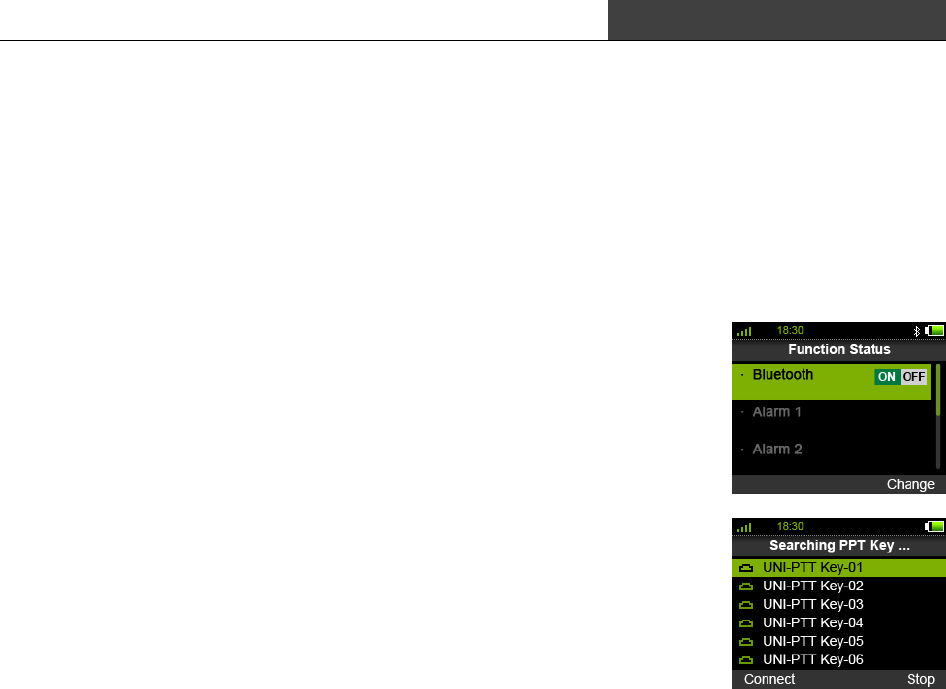

12.4.1 Turning on Bluetooth function
1. Please go to Status indication ON/OFF menu by main menu
or function status button to turn on the function.
2. Use 4-way Navigator button ā²ā¼ to select āBluetooth.ā
3. Press right soft button āChangeā to enter next menu.
4. The radio will automatically search available Bluetooth
accessories, if this is your first time to use Bluetooth function, it
will take more time to enter available Bluetooth devices list.
5. Please press left soft button to connect to a device, or press
right soft button āRefreshā to refresh the Bluetooth devices list.
12.4.2 Pairing on Bluetooth device
1. Use 4-way Navigator button ā²ā¼ to select a device and press left
soft button to connect.
2. Youāll need to wait until the radio is connected, once connected,
the radio will show a successful prompt shortly. If the radio failed to
connect to other devices, please try again or select another
![](/img.php?id=1368513&img=bg2f.png)
U3 USER GUIDE
44
available device.
12.4.3 Turning off Bluetooth function
1. To turn off the Bluetooth function, please go to Function status
menu by main menu or Status indication ON/OFF button to turn on
the function.
2. Use 4-way Navigator button ā²ā¼ to select āBluetooth.ā
3. Press right soft button āChangeā to enter next menu.
4. Then press right soft button to stop connection.
5. Once succefully disconnected, youāll see a short disconnected
prompt, then the radio will go back to Function status menu.
![](/img.php?id=1368513&img=bg30.png)
U3 USER GUIDE
45
13. SETTINGS
13.1 BACKLIGHT
You can adjust the backlight for saving power or ease to read.
13.1.1 To Entering Backlight Setting By Menu
1. In standby mode, press the Menu button.
2. Use 4-way Navigator button to move highlight bar to
āSettingā function.
3. Press Menu & Enter button to confirm selection and enter next
menu.
13.1.2 To Setting Backlight
1. Use 4-way Navigator button to adjust the backlight.
2. Press āOKā soft button to confirm setting and get back to previous menu. Or press āCancelā
soft button to cancel setting and get back to previous menu.
3. You can press Back button to back to previous menu. You can also press Home button to
directly return to standby mode.
13.2 DATE AND TIME
You can adjust the date and time setting when theyāre not correct.
13.2.1 To Entering Date And Time Setting By Menu
1. In standby mode, press the Menu button.
2. Use 4-way Navigator button to move highlight bar to
āSettingā function.
3. Press Menu & Enter button to confirm selection and enter next
menu.
13.2.2 To Setting Date and Time
1. After entering setting menu, the highlight bar will stay at
![](/img.php?id=1368513&img=bg31.png)
U3 USER GUIDE
46

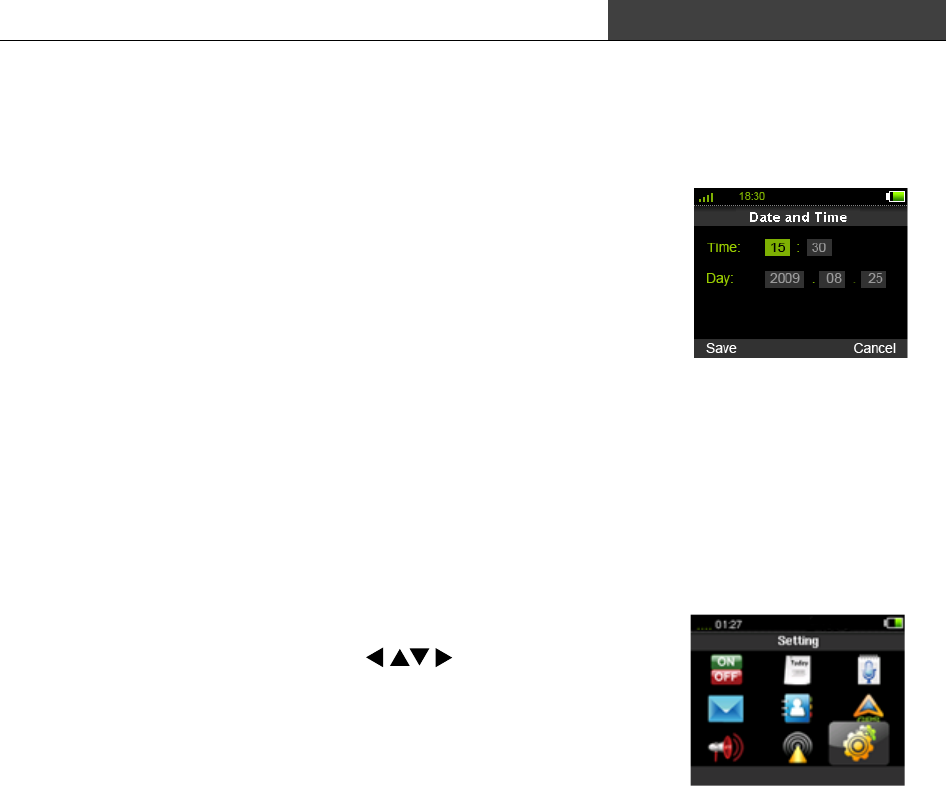

āBacklightā first, using 4-way Navigator button ā²ā¼ to select āDate and Timeā, and press
Menu & Enter button to enter next menu.
2. You can use alphanumeric keypad to set the time and date.
3. Press āSaveā button to save the setting or press āCancelā
button to cancel the setting.
4. You can press Back button to back to previous menu. You can
also press Home button to directly return to standby mode.
13.3 LANGUAGE AND VERSION
You can check the current language and version.
13.3.1 To Entering language and version By Menu
1. In standby mode, press the Menu button.
2. Use 4-way Navigator button to move highlight bar to
āSettingā function.
3. Press Menu & Enter button to confirm selection and enter next
menu.
13.3.2 To checking language and version
1. After entering, you can read language and version information.
2. You can press āQuitā soft button or Back button to back to previous menu. You can also
press Home button to directly return to standby mode.
![](/img.php?id=1368513&img=bg32.png)
U3 USER GUIDE
47
14. LIMITED WARRANTY AND SERVICE
Please contact our website or your local dealer for further service.
http://www.uni.com.tw http://www.unication.com
I. WHAT THIS WARRANTY COVERS AND FOR HOW LONG:
Unication warrants the Unication manufactured Communication Products listed below (āProductā)
against defects in material and workmanship under normal use and service for a period of time
from the date of purchase as scheduled below:
U3 Portable Units: One (1) Years
Product Accessories: One (1) Year
Unication, at its option, will at no charge either repair the Product (with new or reconditioned parts),
replace it (with a new or reconditioned Product), or refund the purchase price of the Product during
the warranty period provided it is returned in accordance with the terms of this warranty. Replaced
parts or boards are warranted for the balance of the original applicable warranty period. All
replaced parts of Product shall become the property of Unication.
This express limited warranty is extended by Unication to the original end user purchaser only and
is not assignable or transferable to any other party. This is the complete warranty for the Product
manufactured by Unication.
Unication assumes no obligations or liability for additions or modifications to this warranty
unless made in writing and signed by an officer of Unication. Unless made in a separate
agreement between Unication and the original end user purchaser, Unication does not
warrant the installation, maintenance or service of the Product.
Unication cannot be responsible in any way for any ancillary equipment not furnished by
Unication which is attached to or used in connection with the Product, or for operation of the
Product with any ancillary equipment and all such equipment is expressly excluded from this
warranty. Because each system which may use the Product is unique, Unication disclaims
liability for range, coverage, or operation of the system as a whole under this warranty.
II. GENERAL PROVISIONS:
This warranty sets forth the full extent of Unicationās responsibilities regarding the Product.
Repair, replacement or refund of the purchase price, at Unicationās option, is the exclusive
remedy. This warranty is given in lieu of all other express warranties. Implied warranties,
including without limitation, implied warranties of merchantability and fitness for a particular
![](/img.php?id=1368513&img=bg33.png)
U3 USER GUIDE
48
purpose, are limited to the duration of this limited warranty. In no event shall Unication be
liable for damages in excess of the purchase price of the product, for any loss of use, loss of
time, inconvenience, commercial loss, lost profits or savings or other incidental, special or
consequential damages arising out of the use or inability to use such product, to the full extent
such may be disclaimed by law.
III. STATE LAW RIGHTS:
Some states do not allow the exclusion or limitation of incidental or consequential damages or
limitation on how long an implied warranty lasts, so the above limitation or exclusions may not
apply.
This warranty gives specific legal rights, and there may be other rights which may vary from
state to state.
IV. HOW TO GET WARRANTY SERVICE:
You must provide proof of purchase (bearing the date of purchase and Product item serial
number) in order to receive warranty service and, also, deliver or send the Product item,
transportation and insurance prepaid, to an authorized warranty service location. Warranty
service will be provided by Unication through one of its authorized warranty service locations.
If you first contact the company which sold you the Product, it can facilitate your obtaining
warranty service. You can also call Unication at 817-303-9320 US/Canada.
V. WHAT THIS WARRANTY DOES NOT COVER:
1. Defects or damage resulting from use of the Product in other than its normal and customary
manner.
2. Defects or damage from misuse, accident, water, or neglect.
3. Defects or damage from improper testing, operation, maintenance, installation, alteration,
modification, or adjustment.
4. Breakage or damage to antennas unless caused directly by defects in material workmanship.
5. A Product subjected to unauthorized Product modifications, disassemblies or repairs (including,
without limitation, the addition to the Product of non- Unication supplied equipment) which
adversely affect performance of the Product or interfere with Unication 's normal warranty
inspection and testing of the Product to verify any warranty claim.
6. Product which has had the serial number removed or made illegible.
7. Rechargeable batteries if:
a. Any of the seals on the battery enclosure of cells are broken or show evidence of tampering.
b. The damage or defect is caused by charging or using the battery in equipment or service
other than the Product for which it is specified.
![](/img.php?id=1368513&img=bg34.png)
U3 USER GUIDE
49
8. Freight costs to the repair depot.
9. A Product which, due to illegal or unauthorized alteration of the software/ firmware in the
Product, does not function in accordance with Unicationās published specifications or the FCC
type acceptance labeling in effect for the Product at the time the Product was initially distributed
from Unication.
10. Scratches or other cosmetic damage to Product surfaces that does not affect the operation of
the Product.
11. Normal and customary wear and tear.
VI. PATENT AND SOFTWARE PROVISIONS:
Unication will defend, at its own expense, any suit brought against the end user purchaser to the
extent that it is based on a claim that the Product or parts infringe a United States patent, and
Unication will pay those costs and damages finally awarded against the end user purchaser in any
such suit which are attributable to any such claim, but such defense and payments are conditioned
on the following:
1. That Unication will be notified promptly in writing by such purchaser of any notice of such claim
2. That Unication will have sole control of the defense of such suit and all negotiations for its
settlement or compromise.
3. Should the Product or parts become, or in Unicationās opinion be likely to become, the subject
of a claim of infringement of a United States patent, that such purchaser will permit Unication, at
its option and expense, either to procure for such purchaser the right to continue using the
Product or parts or to replace or modify the same so that it becomes non-infringing or to grant
such purchaser a credit for the Product or parts as depreciated and accept its return. The
depreciation will be an equal amount per year over the lifetime of the Product or parts as
established by Unication.
Unication will have no liability with respect to any claim of patent infringement which is based upon
the combination of the Product or parts furnished hereunder with software, apparatus or devices
not furnished by Unication, nor will Unication have any liability for the use of ancillary equipment or
software not furnished by Unication which is attached to or used in connection with the Product.
The foregoing states the entire liability of Unication with respect to infringement of patents by the
Product or any parts thereof.
Laws in the United States and other countries preserve for Unication certain exclusive rights for
copyrighted Unication software such as the exclusive rights to reproduce in copies and distribute
copies of such Unication software. Unication software may be used in only the Product in which
the software was originally embodied and such software in such Product may not be replaced,
copied, distributed, modified in any way, or used to produce any derivative thereof. No other use
including, without limitation, alteration, modification, reproduction, distribution, or reverse
![](/img.php?id=1368513&img=bg35.png)
U3 USER GUIDE
50
engineering of such Unication software or exercise of rights in such Unication software is permitted.
No license is granted by implication, estoppels or otherwise under Unication patent rights or
copyrights.
VII. GOVERNING LAW:
This Warranty is governed by the laws of the State of Texas, USA.
![](/img.php?id=1368513&img=bg36.png)
U3 USER GUIDE
1
