Unication Co WS302 Digital Media Adapter User Manual
Unication Co Ltd Digital Media Adapter Users Manual
Users Manual
![](/img.php?id=682951&img=bg1.png)
Digital Media Adapter
![](/img.php?id=682951&img=bg2.png)
Version: V0.4 / Data: 2005 04 2
WS-302 Digital Media Adapter User’s Manual
Table of Contents
Table of Contents...................................................................................................................................... 2
1 Product Introduction ...................................................................................................................... 3
1.1. Features...............................................................................................................................3
1.2. Specifications......................................................................................................................3
1.3. System Application Diagram ............................................................................................4
2 Hardware Quick Installation Guide............................................................................................. 6
3 Hardware Connectors and LEDs................................................................................................. 8
4 Remote Control................................................................................................................................9
4.1. Remote Control keys falls into 5 groups:......................................................................10
4.2. User Interface ...................................................................................................................11
5 Operations Overview.................................................................................................................... 12
5.1. Launch the Home Menu..................................................................................................12
5.2. Structure Overview...........................................................................................................13
5.3. Play the Media Files Stored in the SC-203 for the first time......................................14
5.4. Play the Media Files Stored in the PC for the first time..............................................16
5.5. Play the USB Media Files...............................................................................................17
6 WS-302 User Interface (Complete UI Operations) ................................................................ 18
6.1. Remote...............................................................................................................................19
6.2. USB1..................................................................................................................................23
6.3. USB2..................................................................................................................................25
6.4. Settings..............................................................................................................................25
7 Additional Information ................................................................................................................. 41
Note: “SC-203" mentioned anywhere in the document refers to Unication’s Server Center which is sold
separately.
![](/img.php?id=682951&img=bg3.png)
1.1.Features
Support various TV modes
WiFi 802.11g & LAN connectivity
Video Streaming Play from PC without extra program
Multimedia Streaming Play from SC-203 or NAS
DVD navigation
USB storage plug-and-play
Home Theater Quality, better than watching on PC
Content Browsing: All playable files in the shared folder (and sub folders) of PC and SC-203.
Previous, Next, Play All , Repeat.
Trick Play: Pause, Stop, Fast forward, Fast Backward, Slow, Time seek, OSD, Mute, Volume
Support various stream & file formats : DivX-AVI, WMV9, MPEG1/2/4, VOB, DAT, MP3, WMA,
JPG, GIF, PNG
High-definition 1080i video display
Video-on-demand, supporting Content browsing & Trick Play
5.1 audio channel output
Remote Control
Multi-language
1.2. Specifications
SOC Sigma Design 8620L (WS-302D), 8621L (WS-302)
Memory DDR RAM 64MB, Flash ROM 64MB
LAN connectivity 1*100M LAN port (support stream data rate <10Mbps
WLAN connectivity: WiFi 802.11g (support stream data rate <4Mbps)
WLAN channel: This equipment marketed in the USA is restricted by firmware to only
operate on 2.4 GHz channel 1-11.
Content Protection Macrovision, CSS
DVD Player Can play DVD-R, DVD-R/W, CD, VCD
USB support: 2 USB 2.0 host hub ports
Connections : Dynamic IP (DHCP), Fixed IP
Streaming protocol : SAMBA
Streaming Files : MPEG-2 TS, MPEG-4, AVI, WMV9, WMV3, VOB, MP3, WMA
Decoders : MPEG1/2, MPEG4 (ASP/L5), DivX, XviD, WMV9, MPEG-4, AAC, AC3,
JPEG, GIF, PNG
HD video display : 480i (SD), 480p, 720i, 720p 1920x1080p (MPEG2), 1280x 720
(MPEG4, WMV9)
Video output : CVBS (composite), YPbPr (component), DVI (digital), VGA (with a
DVI-to-VGA converter), SCART(CVBS,RGB)
Display device : Legacy TV (NTSC, PAL) , LCD/Plasma TV (16:9, 4:3) (Use YPbPr or
DVI for SECAM TV) PC monitor (with DVI or VGA connector), Projector
Audio output : 2-channel, 5.1 channel, S/PDIF (digital) with a pre-amplifier (1 Watt
o/p)
Video-on-demand Select a file or a folder of files to play.
Operations: Pause, Play, Fast-forward (x2, x4, x6, x8), Fast-backward, Mute,
Zoom-in, OSD, Repeat, Search, Subtitle
Slide-show : Sequential or random play a folder of photos Sequential
Version: V0. / Data: 2005 04
3
WS-302 Digital Media Adapter User’s Manual
![](/img.php?id=682951&img=bg4.png)
Version: V0.4 / Data: 2005 04 4
WS-302 Digital Media Adapter User’s Manual
or random play a folder of MP3 files
Multi-language UI : English, French, German, Spanish, Japanese, Chinese
Power : 5V (WS-302) or 12V (WS-302D) DC universal
Switching power adapter (UL, C,E, PSE approved)
LEDs Power, CVBS, YPbPr, DVI, SCART
Certification FCC, CE
Requirement of PC : Windows (XP, 2000), Linux, LAN or WiFi connection

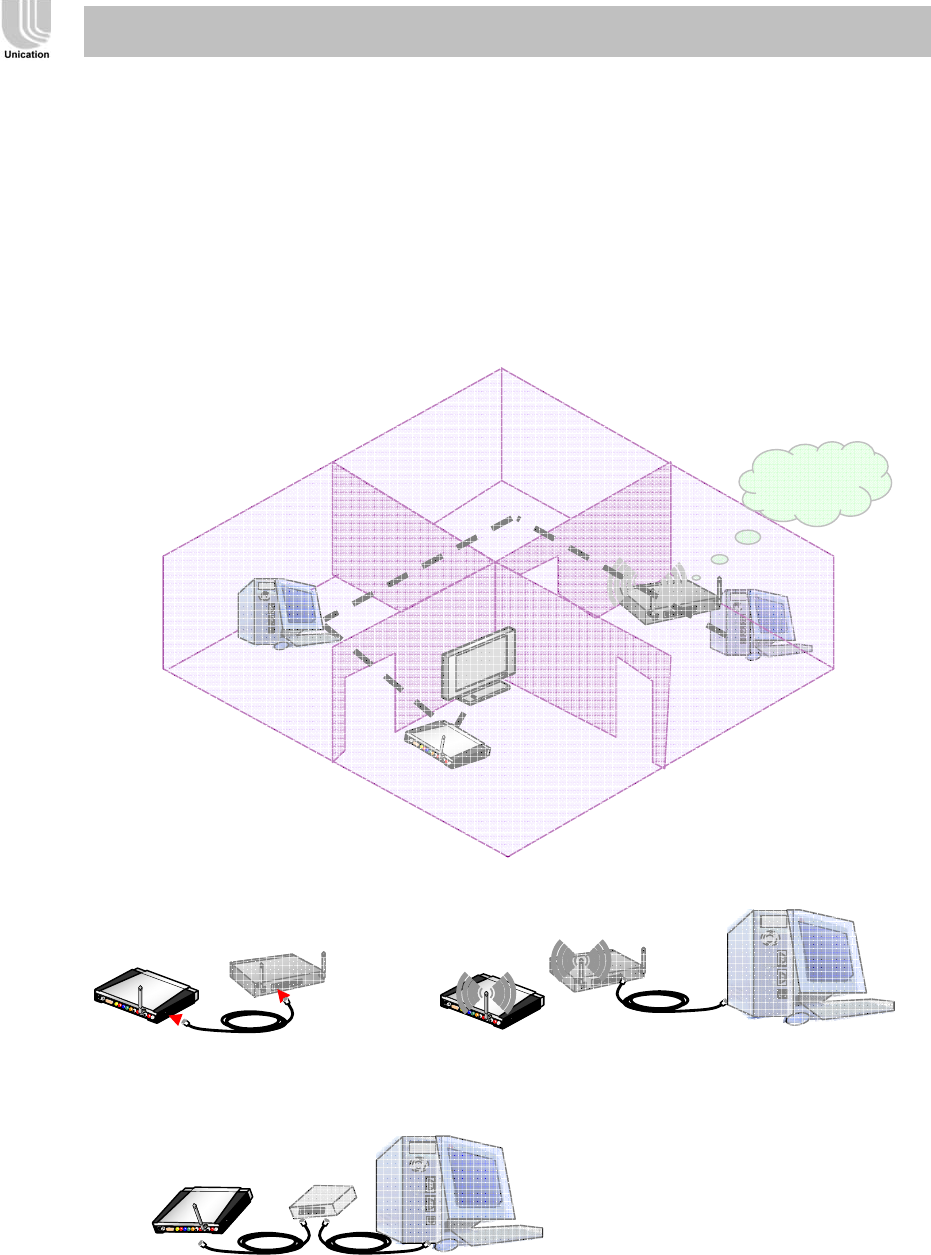

1.3. System Application Diagram
SC-203 SC-203
Hub
PC
WS-302 WS-302
WS-302
----- (1) LAN----- ---- (2) Wireless LAN-----
LAN LAN
Internet
TV
WS-302
PC1 PC2
SC-203
----- (3) LAN-----
![](/img.php?id=682951&img=bg5.png)
Version: V0.4 / Data: 2005 04 5
WS-302 Digital Media Adapter User’s Manual
D
De
es
sc
cr
ri
ip
pt
ti
io
on
ns
s
o
of
f
S
Sy
ys
st
te
em
m
A
Ap
pp
pl
li
ic
ca
at
ti
io
on
n
D
Di
ia
ag
gr
ra
am
m

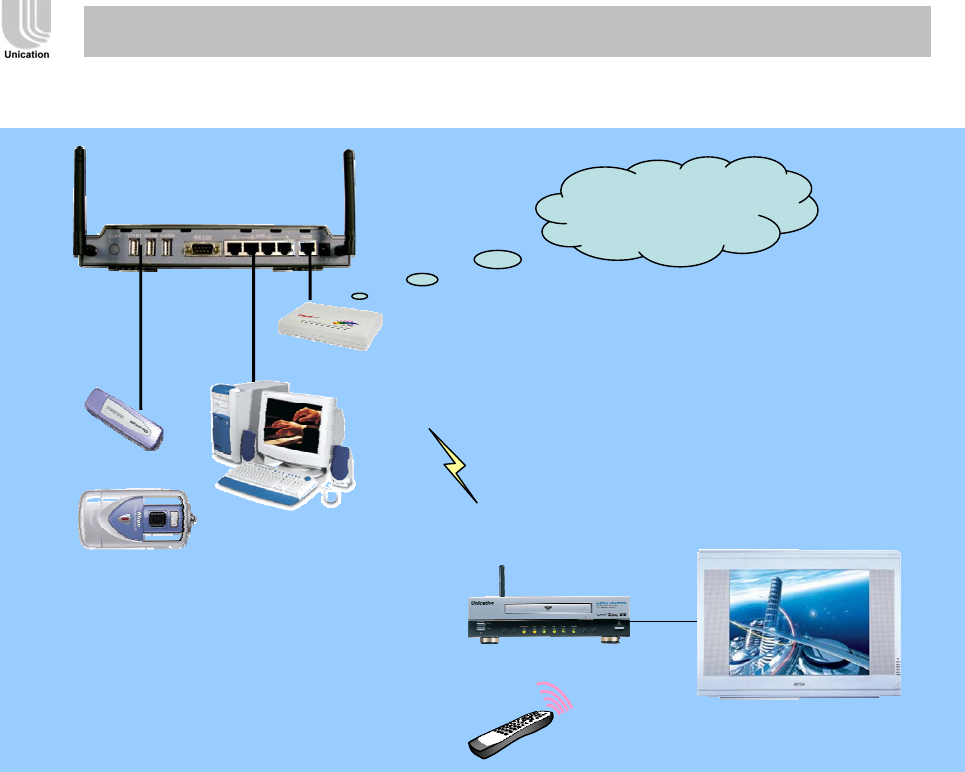

1. The functions of WS-302
Play images, audio or video stored in USB, DVD, remote PC, or Unication’s SC-203 to your
home stereo or TV.
2. The functions of PC or SC-203 connected to WS-302
The media storage for WS-302
3. WS-302 can be connected to a PC via a hub or SC-203.
![](/img.php?id=682951&img=bg6.png)
Version: V0.4 / Data: 2005 04 6
WS-302 Digital Media Adapter User’s Manual

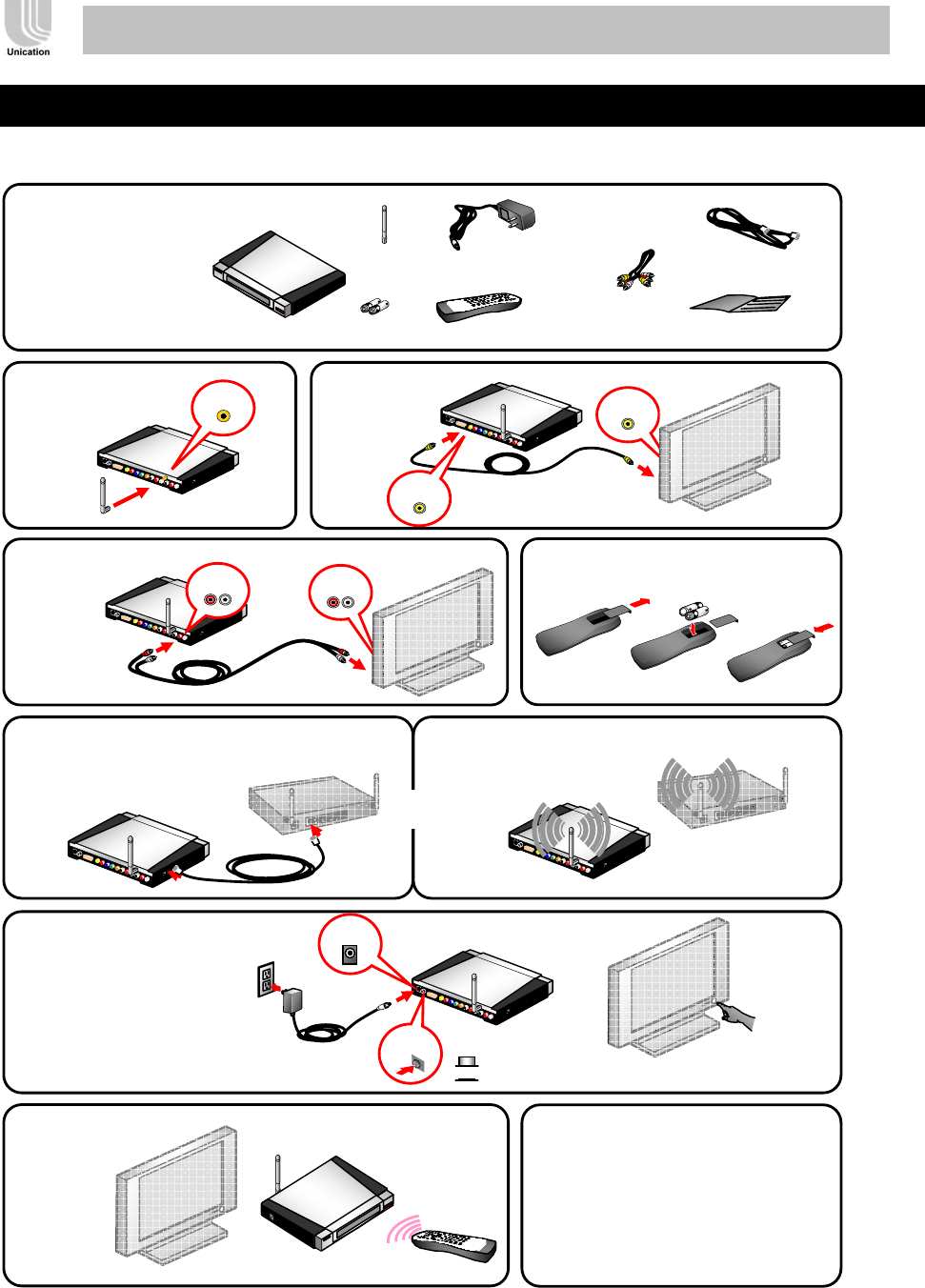

2 Hardware Quick Installation Guide
6 Power on
Connect power adapter and
push down power button.
DC in
5 Network
Connect network cable to hub or Unication’s SC-203
Home Sever Center
(If you have purchased). or
Connect to WiFi 802.11g Access Point or Unication’s Sever
Center
Power
button
Power off
Power on
(Select video input on TV. Ex, YPbPr
input)
7 Play and enjoy.
8 Read reference document
Advance installation guide.
Unication support web site:
http://www.uni-wlan.com
Quick Installation Guide
Start here
WS-302 AAA Batteries Remote control
AV cable
Network cable
5v DC Power adapter
A
ntenna
1 Antenna
Connect antenna to
WS-302
Antenna 2 Video
Connect video
to TV
CVBS
Video in
3 Audio
Connect audio
to TV
Audio
out
Audio in
(The first two connectors from right.) 4 Remote Control
Install the batteries in remote control
Quick Installation
Guide
(Be careful of the plenty of battery.)
![](/img.php?id=682951&img=bg7.png)
Version: V0.4 / Data: 2005 04 7
WS-302 Digital Media Adapter User’s Manual
S/PDIF audio out
S/PDIF digital audio data decoded by AC3/DTS
decoder.
L
R
LS
RS
SW
CEN
S/PDIF
S/PDIF
input
Audio output
6 channels
DVI to VGA
DVI ( high Definition) to VGA
adapter is requested. (If your
TV only supports VGA)
Left
Right
Center
Left Surround
Subwoofer
Right Surround

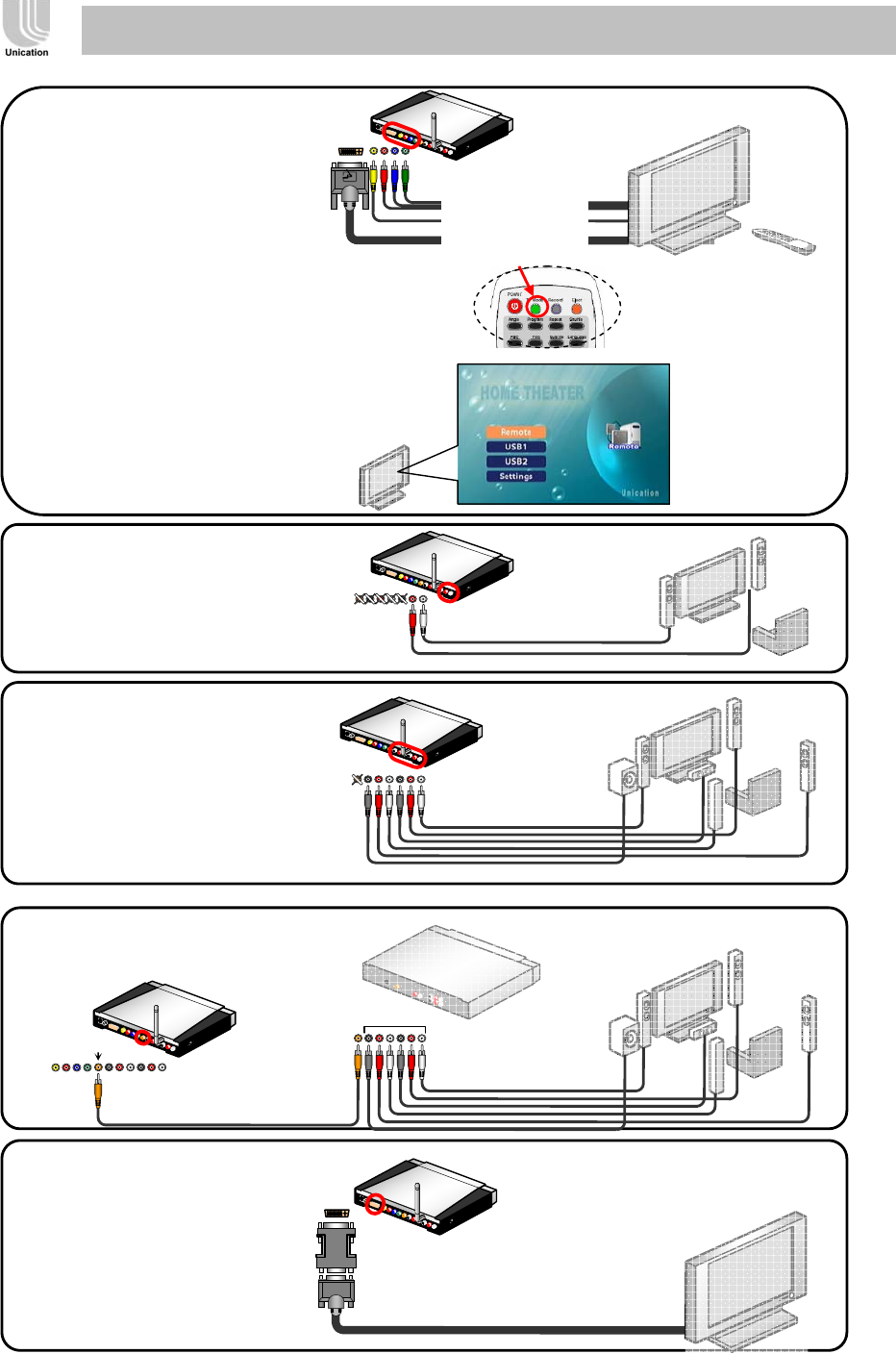

Advance Installation Guide
Select best video quality
1. DVI is better than YPbPr(component).
YPbPr is better than CVBS(composite).
Video out Quality
YPbPr Better
Composite Good
DVI Best
3. Use Remote Control to change video
output.. At the same time, change the TV video
input correspondingly.
4. Then press “TV mode” key of the
WS-302 Remote Control to displays the
Home menu.
2. Turn on the TV and change the display
mode of the TV to the Video or YPbPr, DVI
mode
or
R
Left
Right
Center
Left Surround
Right Surround
Subwoofer
(An audio amp is
requested between audio
output and speakers.)
Left
Right
Amplifier System
Stereo Audio output
2 channels audio output.
Connect the first 2 connectors from right.
5.1 channel Audio output
Connect all audio connectors to speaker system.
It could be 6 cables connecting to an amplifier
and then output to the speakers) L
R
LS
RS
SW
CEN
L
(An audio amp is requested
between audio output
and s
p
eakers.
)
![](/img.php?id=682951&img=bg8.png)
Version: V0.4 / Data: 2005 04 8
WS-302 Digital Media Adapter User’s Manual

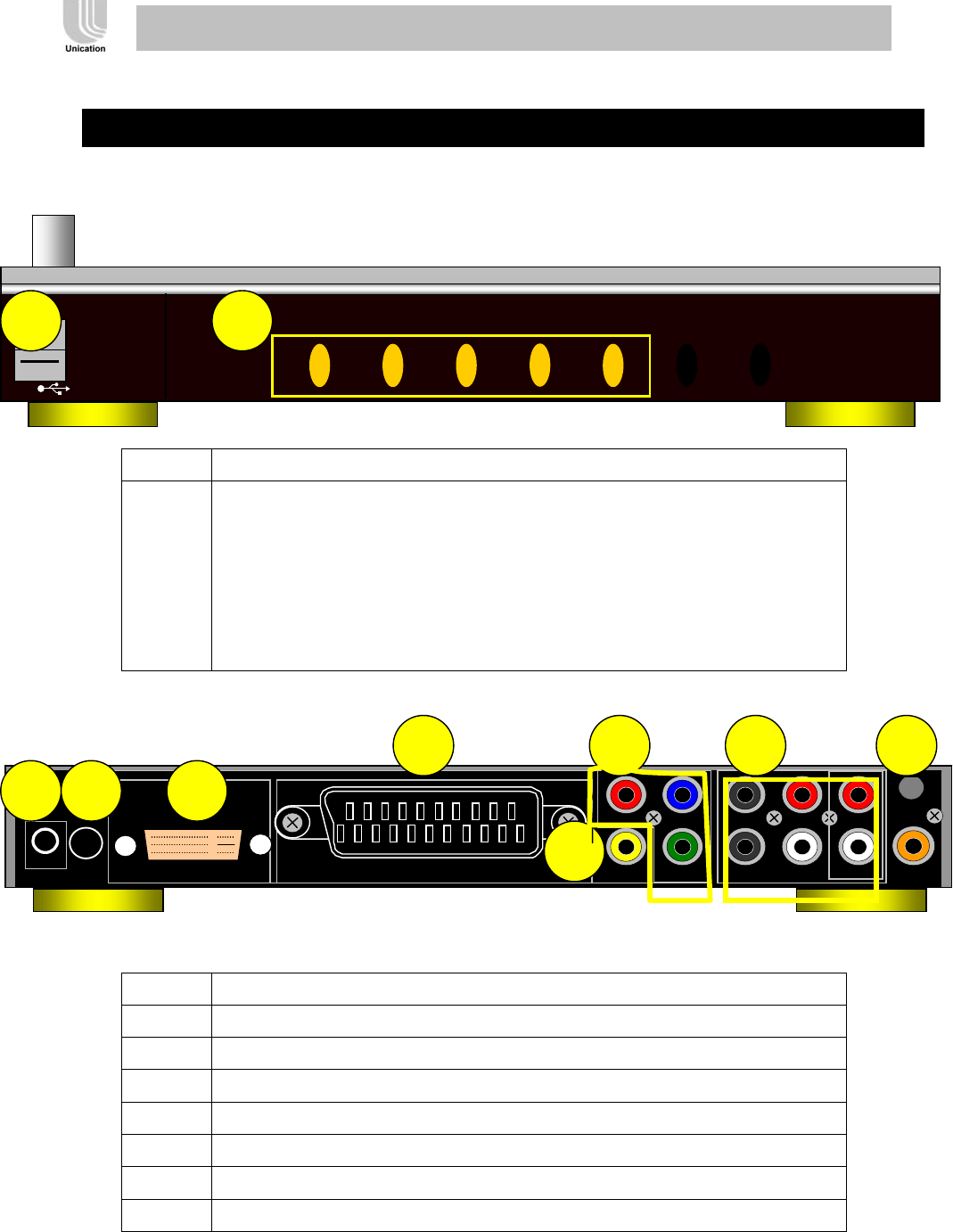

3 Hardware Connectors and LEDs
1 USB 2.0 Port
2 LED Indicator:
Power (Red/Orange): Device boots (Red), Operation (Orange)
DVI (Orange): Video output via DVI
CVBS: Video output via CVBS
YPbPr: Video output via YPbPr
SCART: Video output via SCART
1 Power Input
2 Power Switch
3 Video Output (DVI/VGA)
4 Video Output (SCART)
5 Video Output (YPbPr)
6 Video Output (CVBS)
7 Audio Output (5.1 channel), 2-channel stereo(R,L)
8 Digital Audio Output (S/PDIF)
DC 12V CVBS Y SW SL L S/PDIF
Pr Pb CEN SR R
DVI SCART
Power DVI CVBS YPbPr SCART
2
1 2 3
4 5
6
7
USB1
USB2
1
8
![](/img.php?id=682951&img=bg9.png)
Version: V0.4 / Data: 2005 04 9
WS-302 Digital Media Adapter User’s Manual

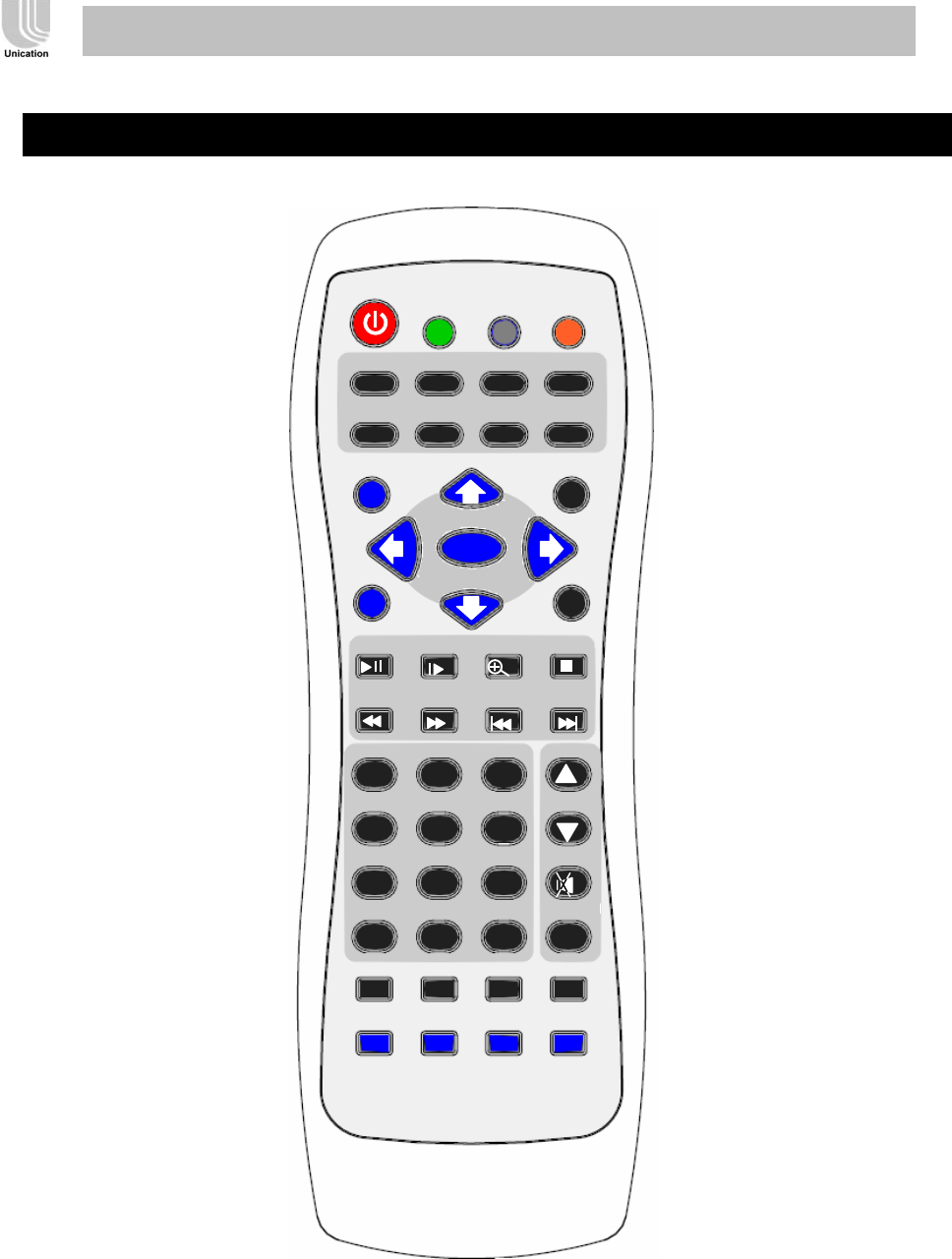

4 Remote Control
Power
Home MENU
OSD/
Play/Pause
Step Zoom Stop
F.R. F.F. PREV Next
1 2 3
4 5 6
7 8 9
VOL
TV Mode Record Eject
Angle Program Repeat Shuffle
PBC Title Subtitle Language
Enter
Return
@ . / : a b c d e f
g h i j k l m n o
p q r s t u v w x y z Mute
A/a + - * = Delete A-B
0
Unication
S.R. S.F. Clear Search
Help
Page up Page down URL TV/Browser
![](/img.php?id=682951&img=bga.png)
Version: V0.4 / Data: 2005 04 10
WS-302 Digital Media Adapter User’s Manual
4.1. Remote Control keys falls into 5 groups:
1. Device (workable at any time, including menu navigation and local & remote play)
-Power (Red) : UI clear, video clear
-Eject (Orange) : working in DVD mode
-TV mode (Green) NTSC/PAL/480/720/1080 (save in flash)
2. Menu (workable in menu navigation)
-Up, down, left, right, enter,
-Home : return to UI Home page “Welcome to Home Theater”
-Return : return to the previous level/page coming from
-Prev, Next (shared with those keys in Play group)
3. Play (workable in local and remote play) :
-Volume +, Volume -, Mute
-Play/Pause, Stop,
-FF, FB : x2, x4, x6, x8, x10, x12, x14, x16 (some file formats cannot be FF, FB)
-Zoom, (1, 2, 3, off);
-Program (adjust Contrast, Brightness, Saturation)
-OSD : transparent show played file attributes, and time counter
-Next, Prev : direct play the next or previous file
-Search : Time seeking
-S.F. (Slow Forward); S.B. (Slow Backward)
4. Alpha-numeric keys
-0, 1@, 2abc, 3def, 4ghi, 5jkl, 6mno, 7pqrs, 8tuv, 9wxyz (characters - . shared with 1)
-Aa : upper/lower case switching
-Delete
5. DVD keys: (workable for commercial DVD movie, not workable for CD/DVD file format)
-Menu : back to DVD home page; PBC (for VCD2.0 Karaok)
-1, 2, 3, 4, 5, 6, 7, 8, 9 (shared with those keys in Alpha-numeric ) : select chapter
-Language
-Angle, Program, PBC, Title, Subtitle
-A-B, Shuffle (random play all files), Repeat (repeat file one time, or repeat all files)
![](/img.php?id=682951&img=bgb.png)
Version: V0.4 / Data: 2005 04 11
WS-302 Digital Media Adapter User’s Manual

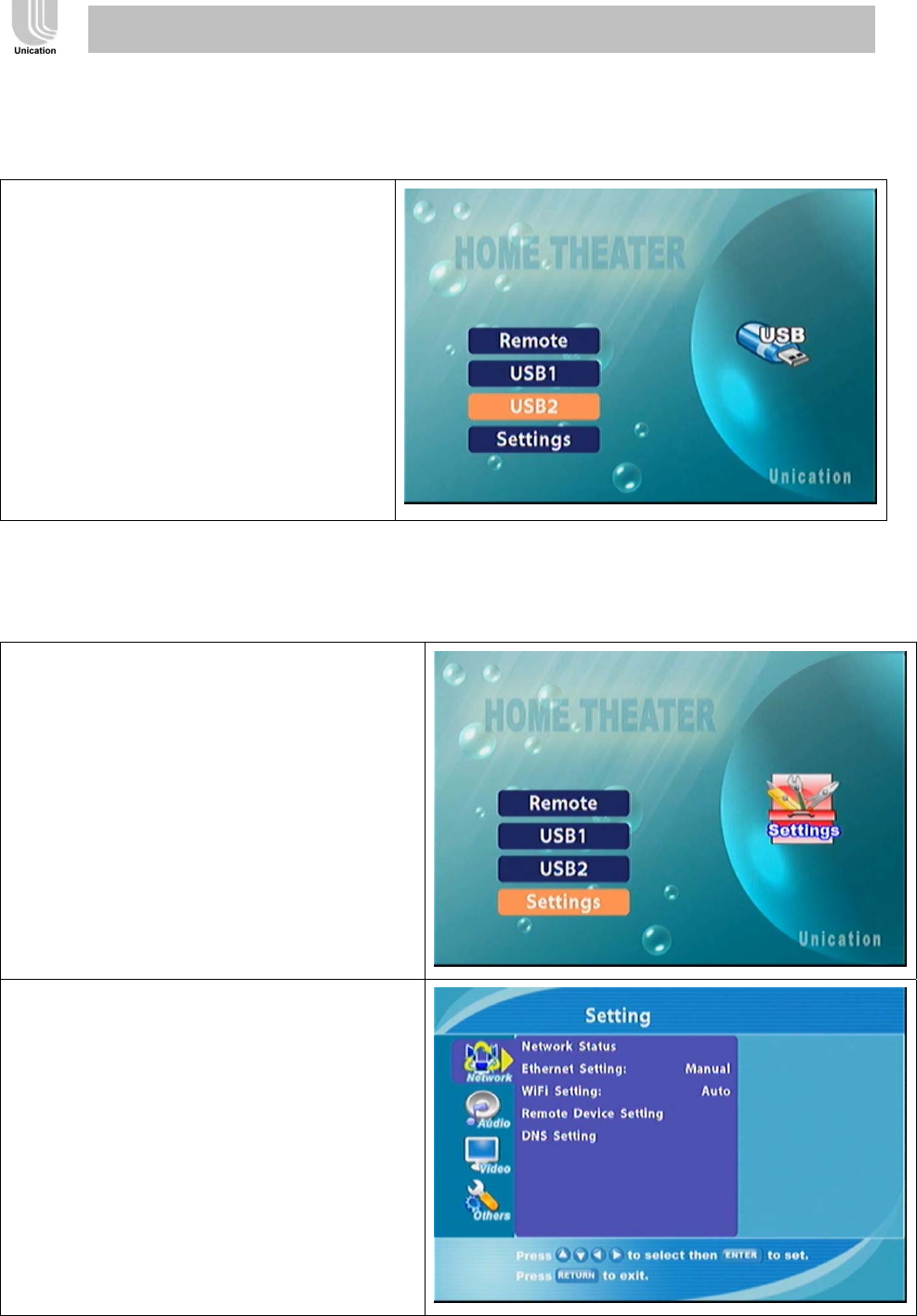

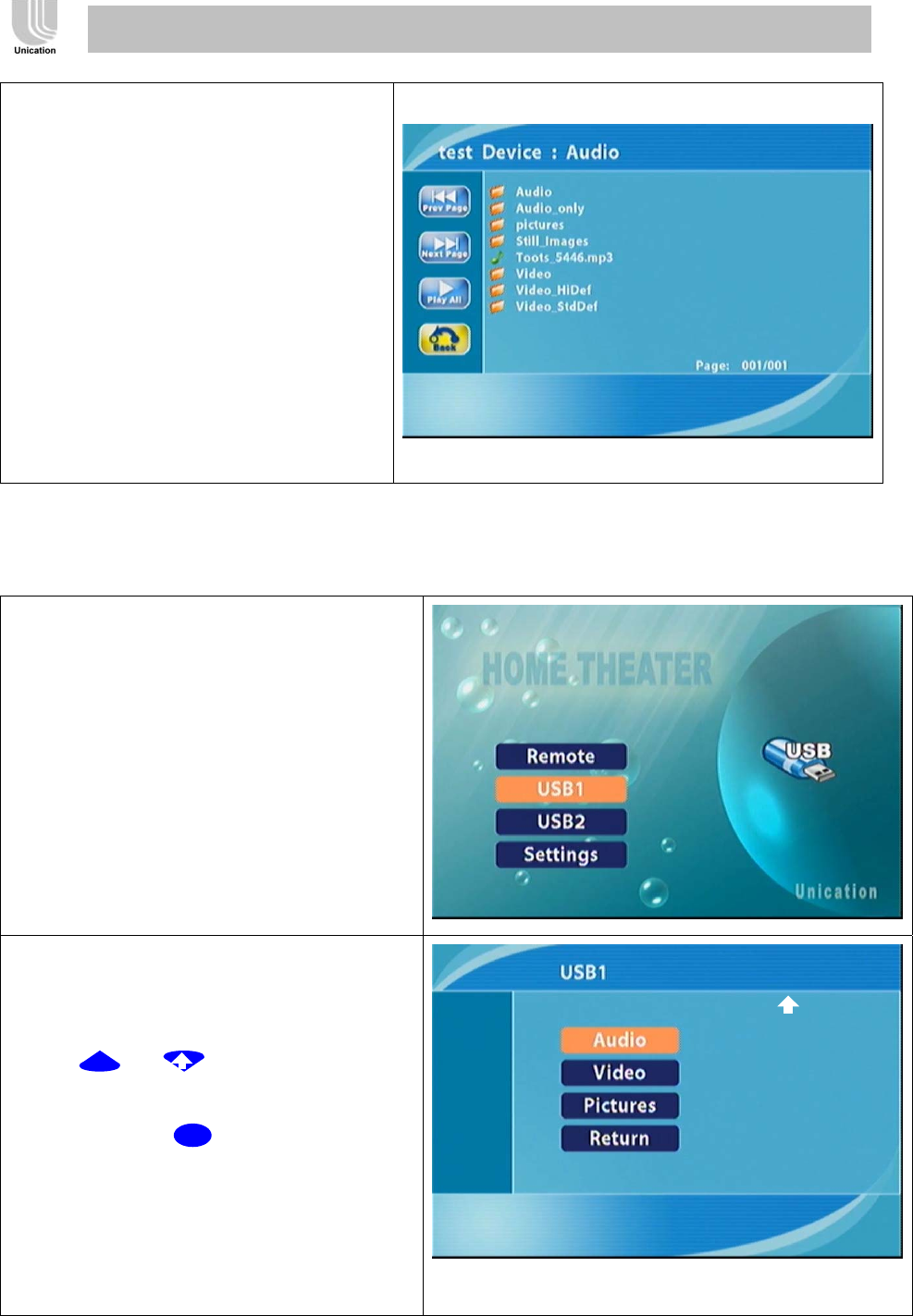

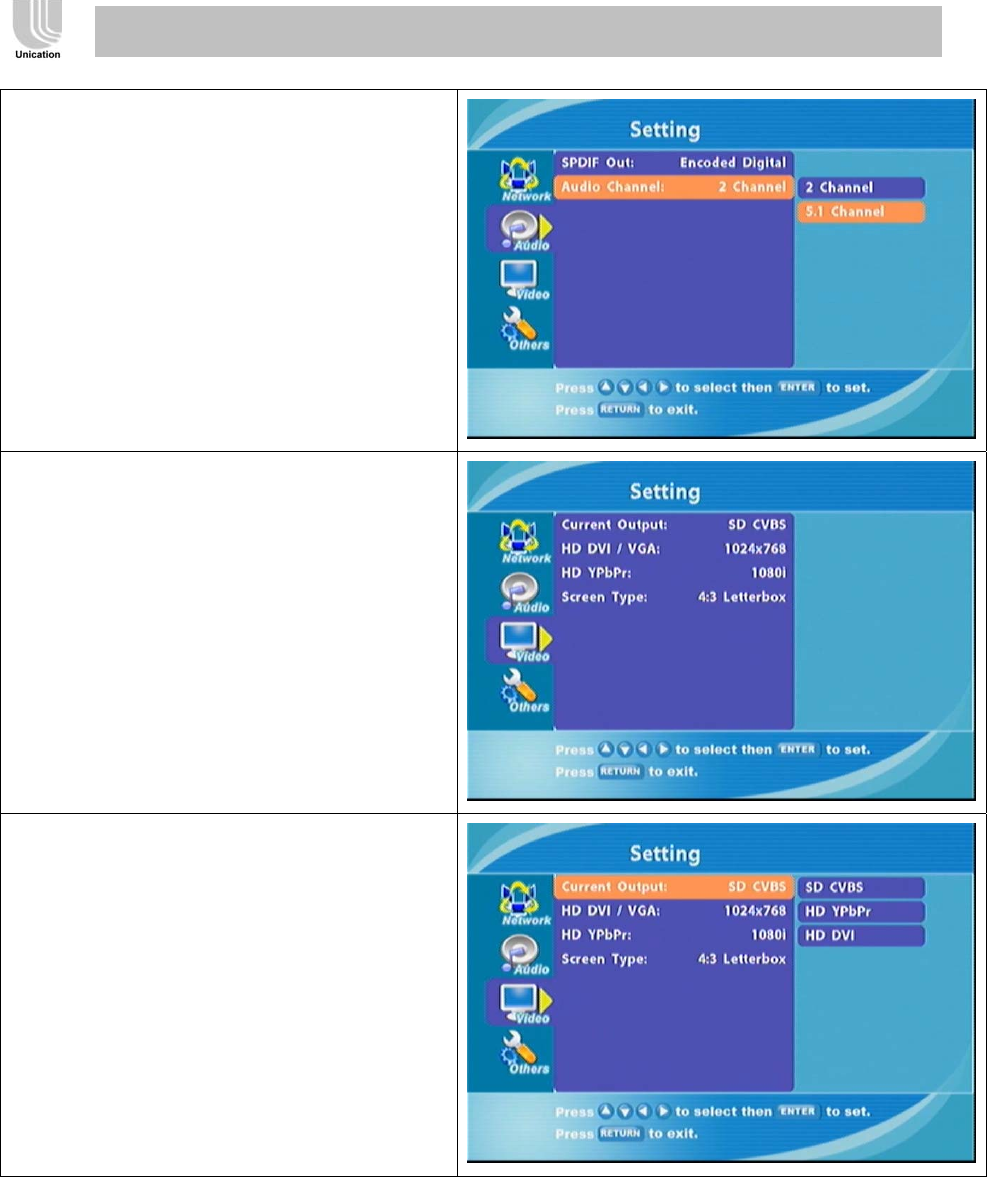

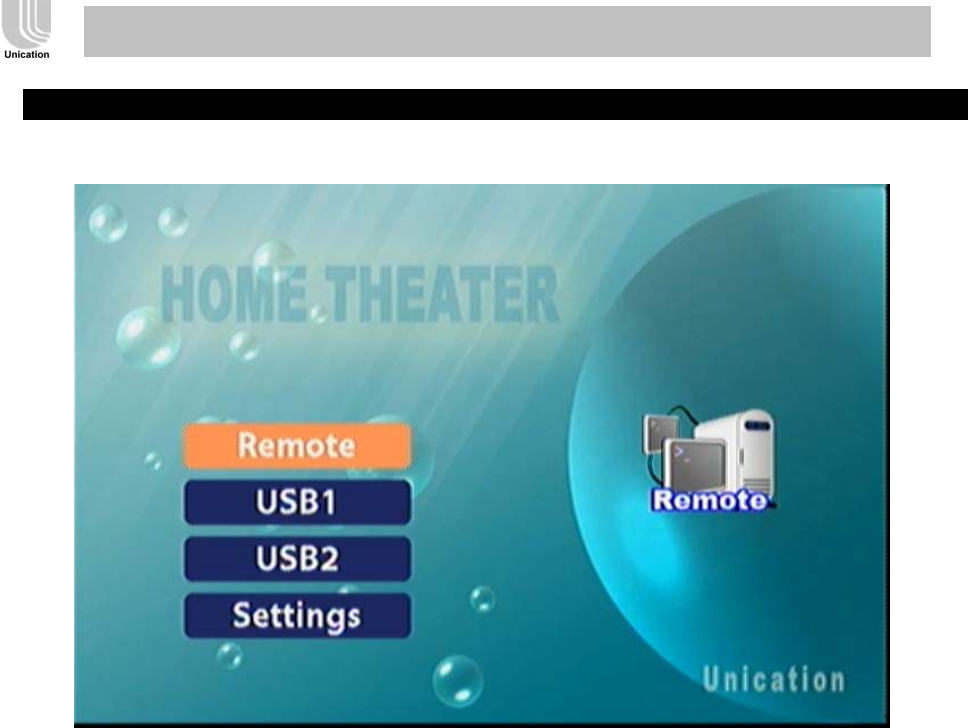

4.2. User Interface
(1) Remote
(2) USB1
(3) USB2
(4) DVD

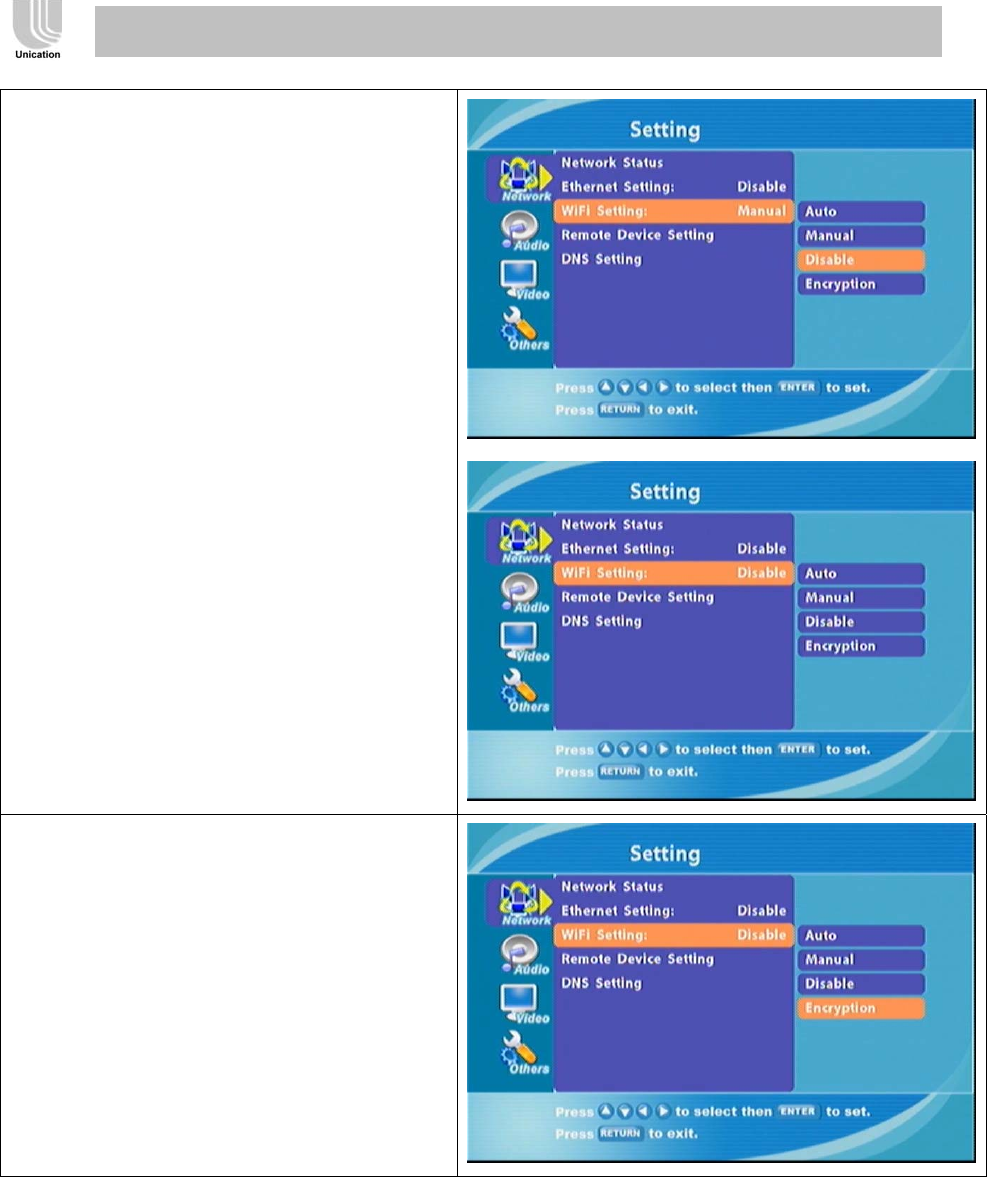

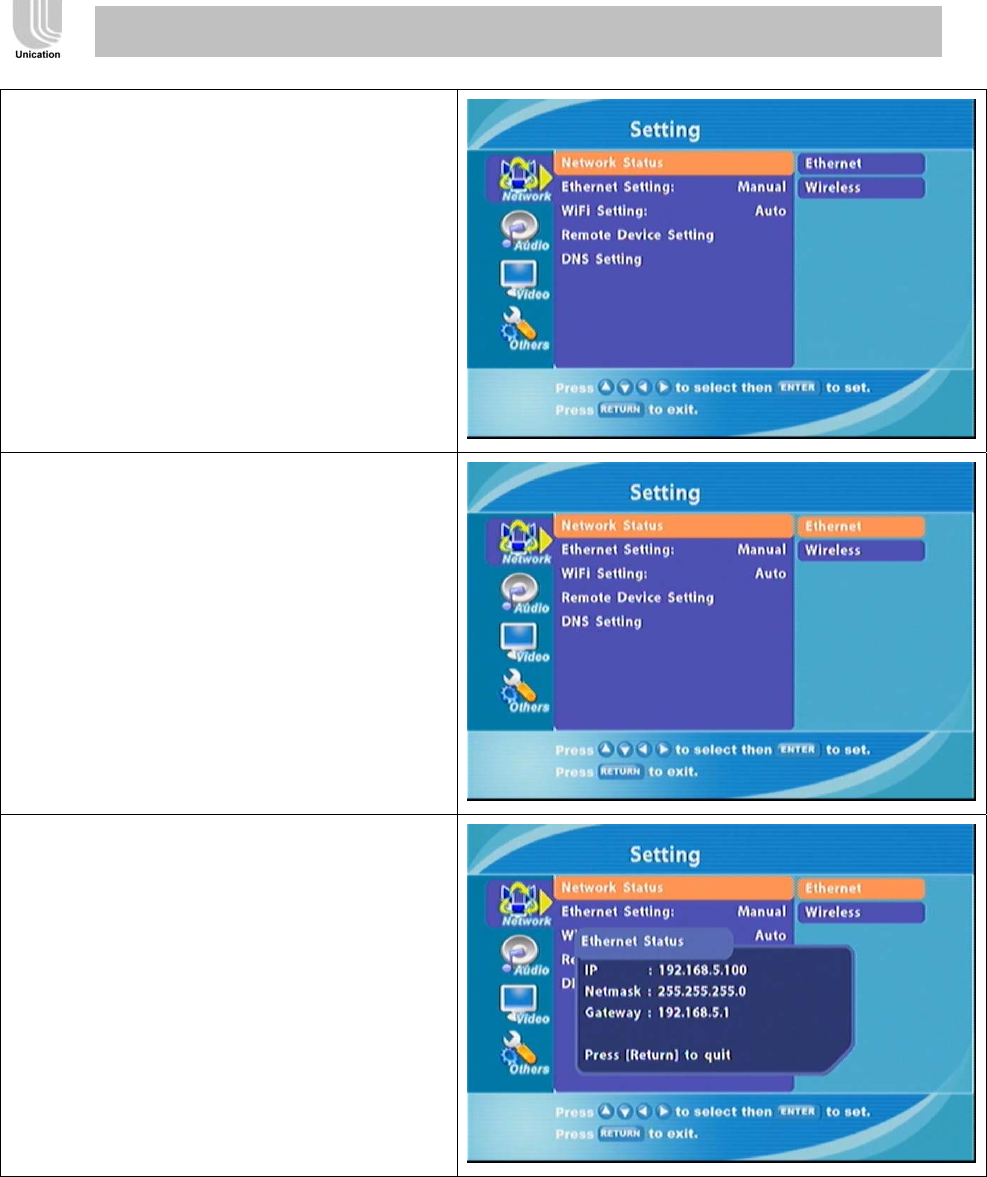

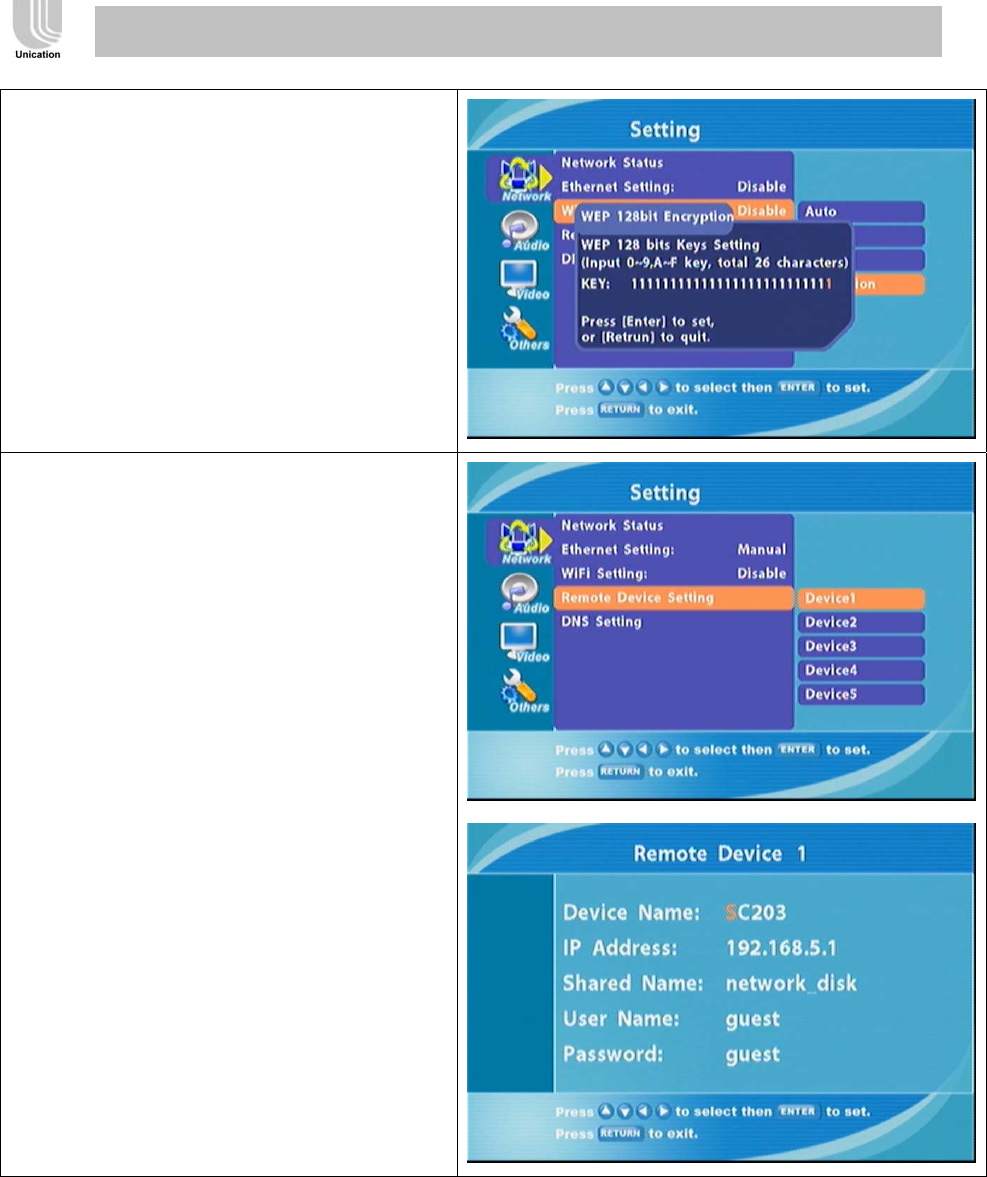

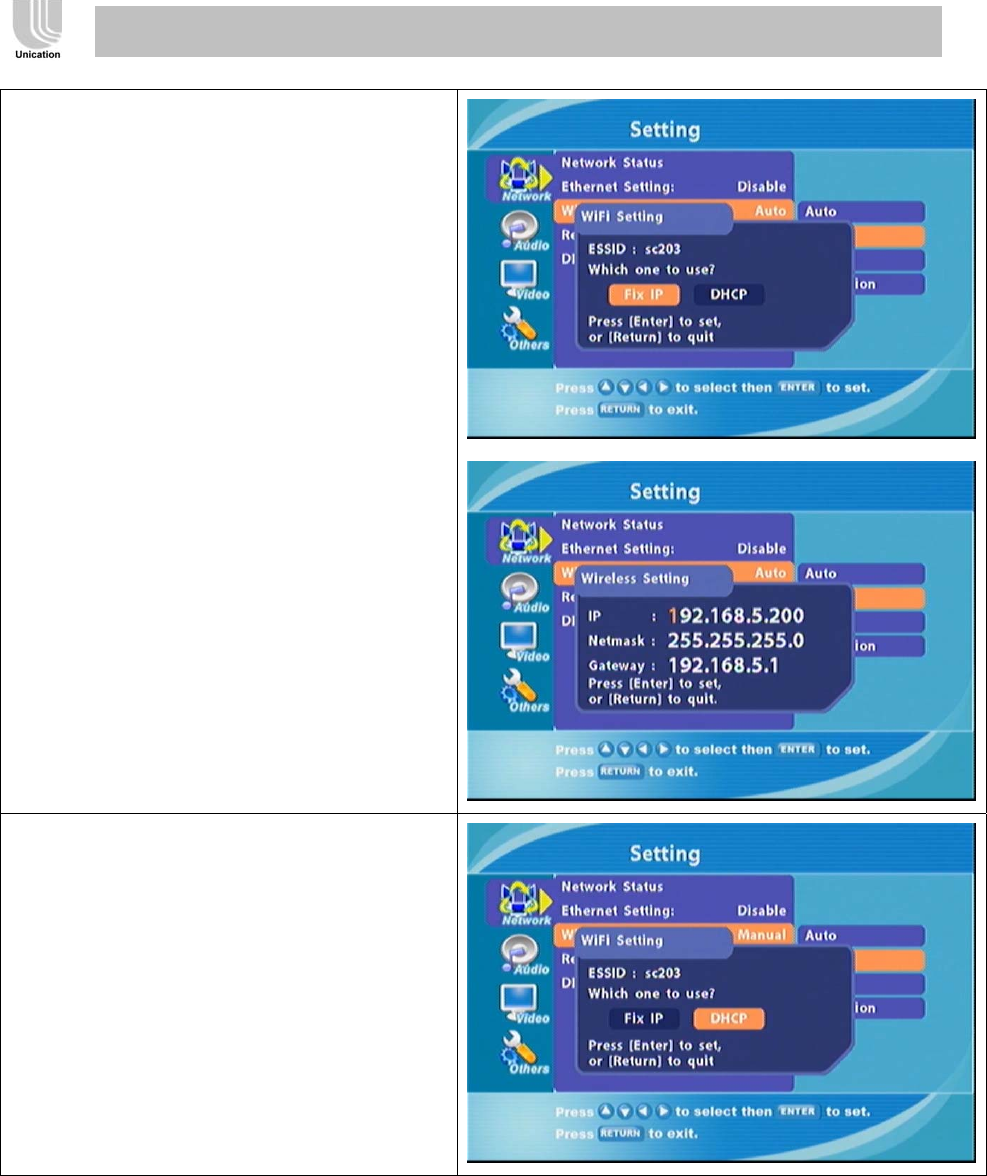

(5) Setting

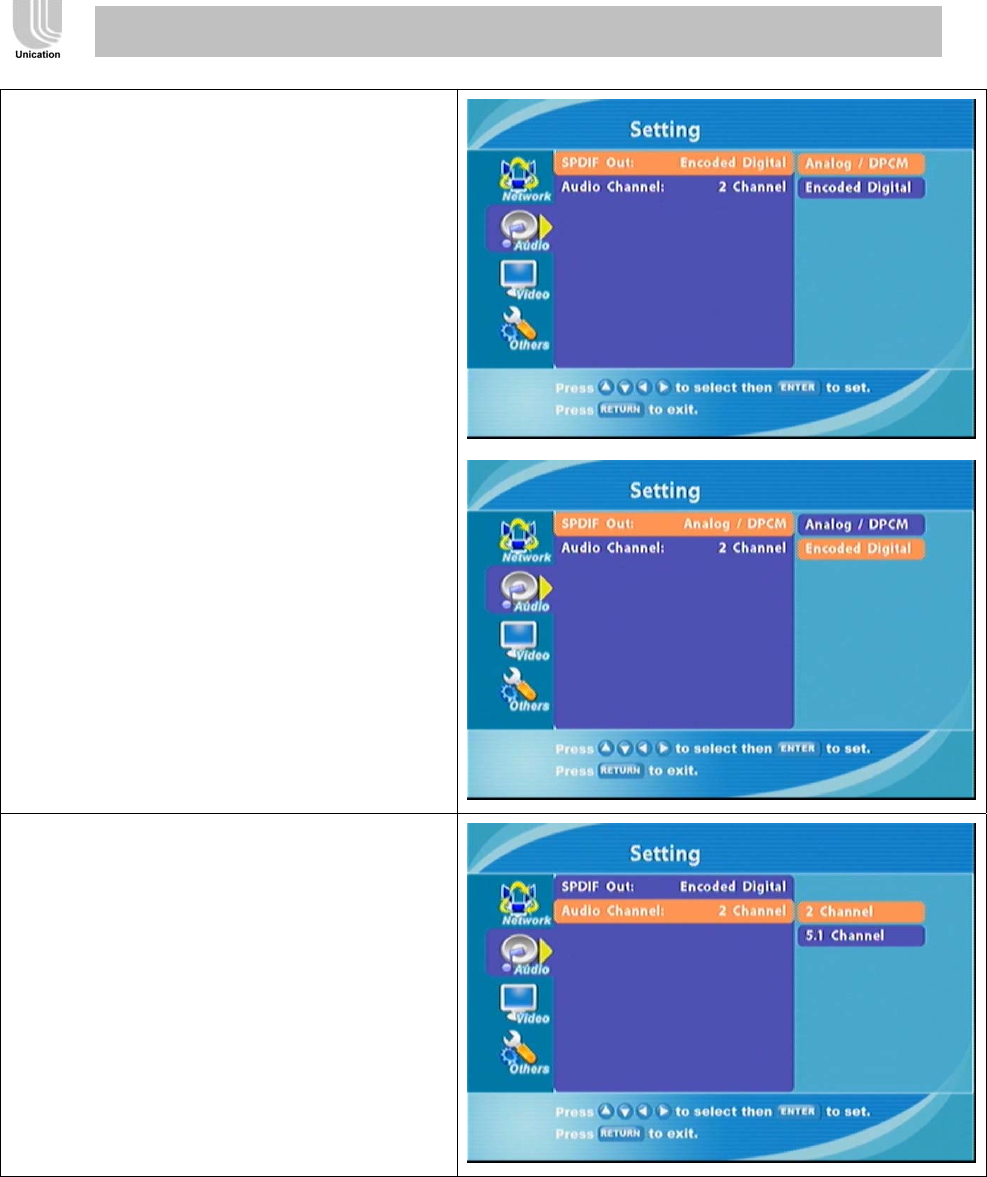

-Audio :
2 Channel or 5.1 Channel
S/PDIF encoded digital
(need external Dolby/DTS decoder) or DPCM

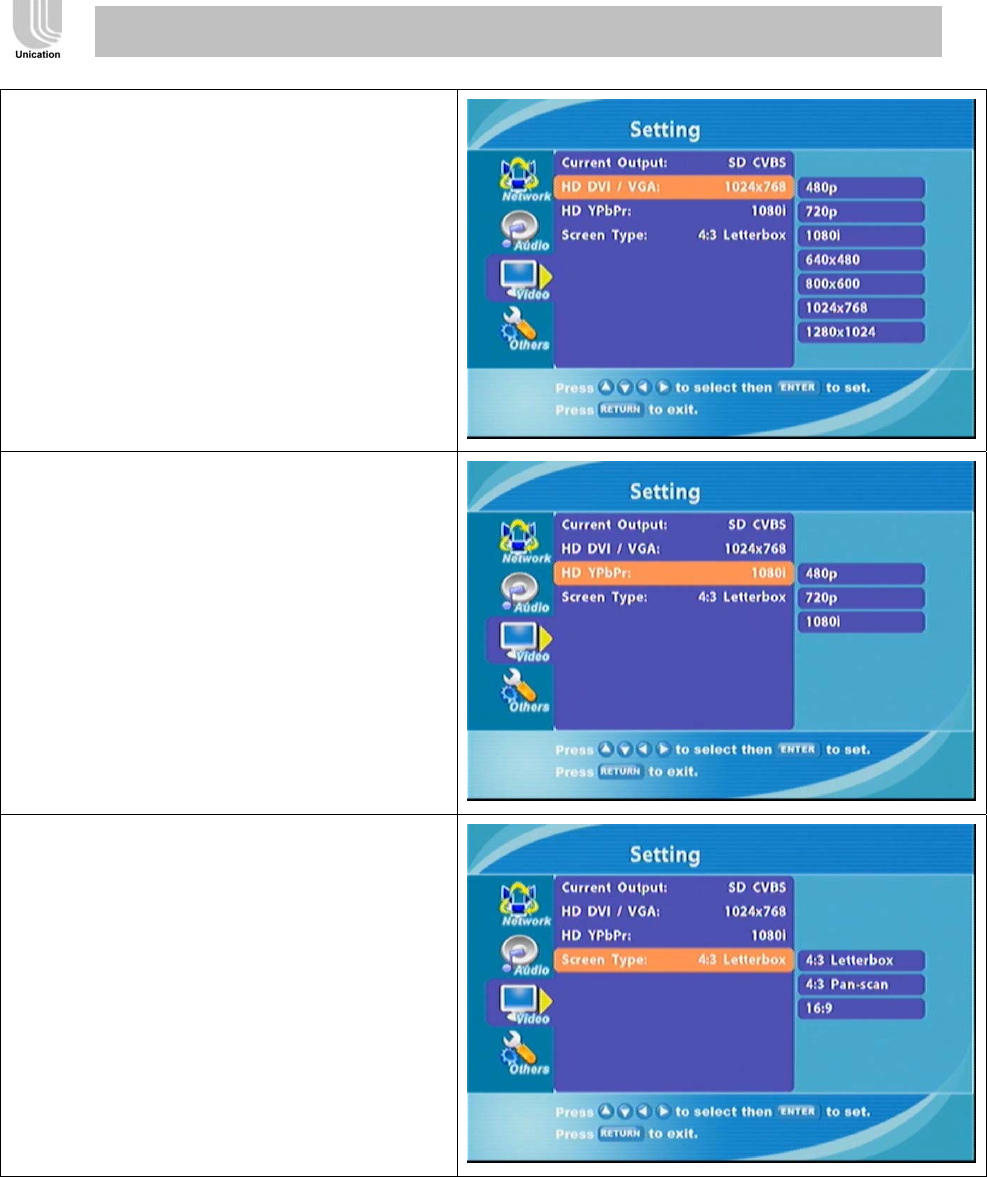

-Video
HD DVI, : 480p (progressive), 720p, 1080i, 1080p, 1024p
HD YpbPr, 1920x1080p (MPEG2), 1280x720 (MPEG4, WMV9)
SD CVBS : NTSC or PAL
Screen : 16:9, or 4:3
-Network
Current Status
Dynamic IP
Fix IP
WiFi (SSID, WEP-64/128 key)
-Remote Device
SC-203
Media Server
PC1
PC2
PC3
-Maintenance
DVD Parental Level
User Name / Password
Firmware Version
Firmware Upgrade
![](/img.php?id=682951&img=bgc.png)
Version: V0.4 / Data: 2005 04 12
WS-302 Digital Media Adapter User’s Manual
5 Operations Overview
Before you do the following operations, make sure that you have finished the hardware
installation as described in the “Hardware Quick Installation Guide” section.
5.1. Launch the Home Menu
1. Follow the “Hardware Installation” to connect all the necessary devices.
2. Turn on the TV and change the display mode of the TV to the Video or YPbPr, DVI mode,
and then press “TV mode” key of the WS-302 Remote Control to displays the Home menu.
Note: Default output is CVBS mode. So if you don’t have the CVBS mode, please
switch it via press “TV mode” key of the WS-302 Remote Control.
![](/img.php?id=682951&img=bgd.png)
Version: V0.4 / Data: 2005 04 13
WS-302 Digital Media Adapter User’s Manual
5.2. Structure Overview
Step1:
1. Digital Audio/Video files are created (movie in MPEG4, DivX or WMV9) or copied from
DVD-ROM or TV capture cards.
2. Put the files under share folder Network_Disk, with username “guest ”
3. Or upload the files to SC-203 public area with Samba by \\(sc203-domain name)
4. Or upload the files to SC-203 private area with HTTP by http://(sc203-domain name) and
login user account
Step2:
5. Content Copied from USB into public area
6. Content uploaded in public area
7. Content uploaded in private area
Step3:
8. Use Remote Control to set Network/Video/Audio
9. If Remote device is SC203, all default settings are valid (SSID=sc203, Remote
IP=192.168.5.1)
10. Use Remote Control to browse the content & do trick play (Pause, forward, Backward,
OSD Repeat, Time Seek…)
Internet
USB LAN WAN
ADSL/Cable Modem
Camera
Thumb Drive
Step1
Step2
Step3
WS-302
![](/img.php?id=682951&img=bge.png)
Version: V0.4 / Data: 2005 04 14
WS-302 Digital Media Adapter User’s Manual
5.3. Play the Media Files Stored in the SC-203 for the first time
1. Make sure you have WS-302 connected to SC-203 via wired LAN or wireless LAN after
Network Settings completed.
2. You need to enter the IP address of your device and SC-203 or Remote PC (More detail
please refer to chapter 5.5.4 Settings)
3. In SC-203, place the media files in the shared “network_disk” folder.

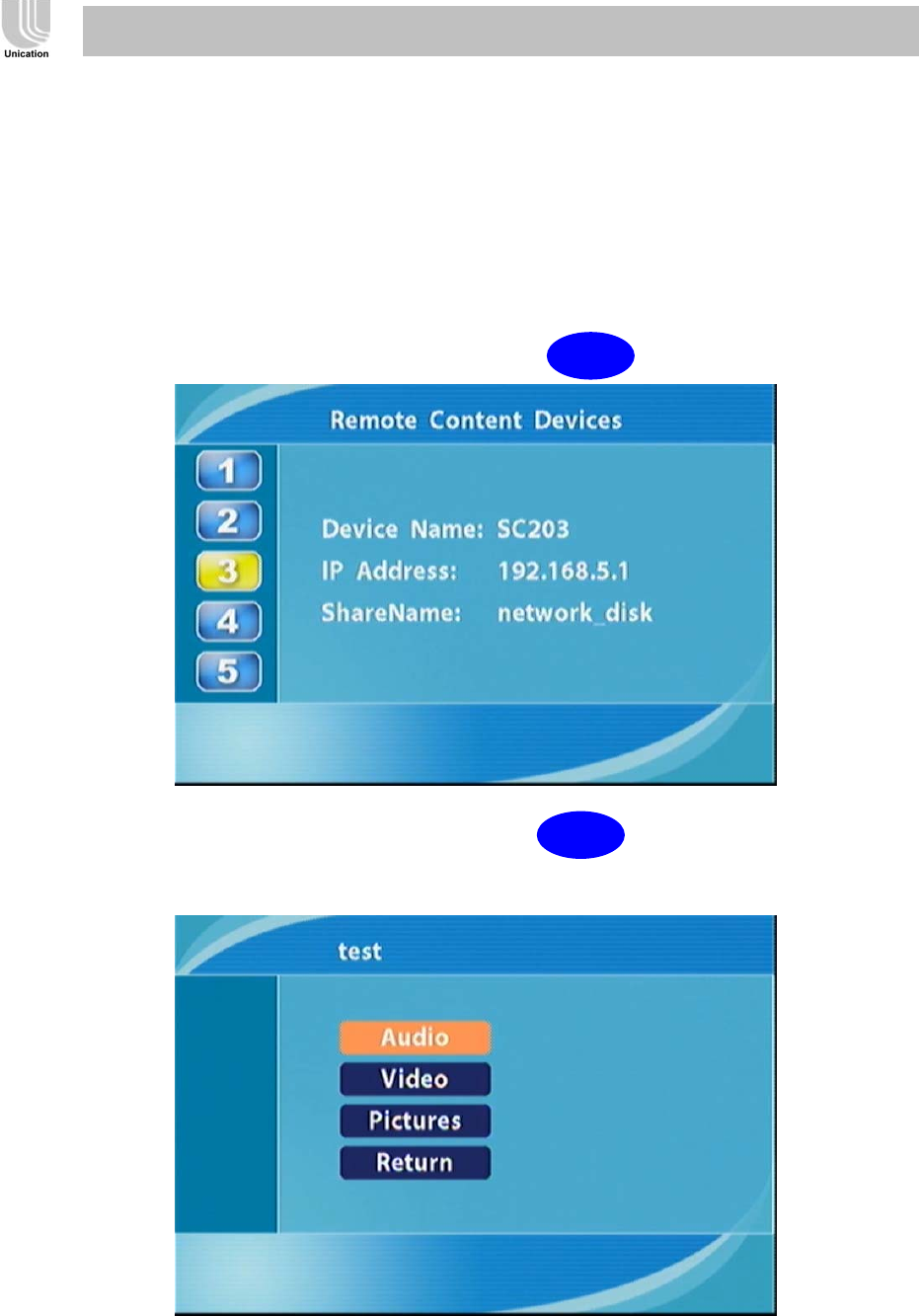

4. In the Home Menu, select “Remote” then press [Enter].

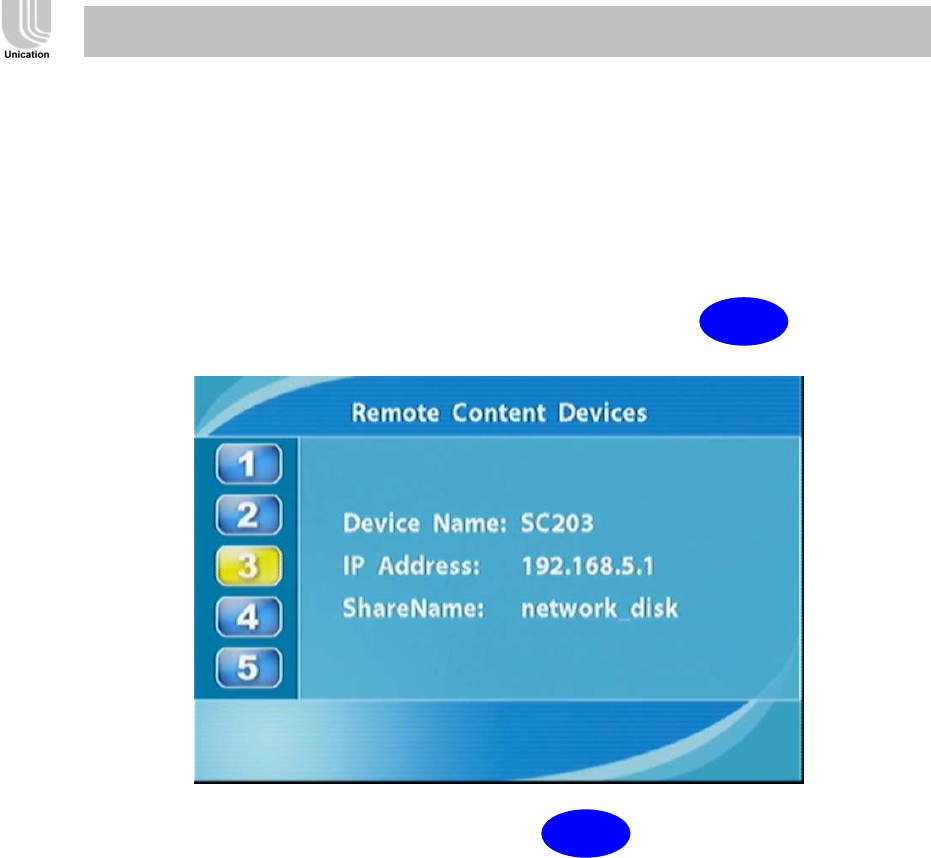

5. Select one of the Remote Devices, then press [Enter].
Enter
Enter
![](/img.php?id=682951&img=bgf.png)
Version: V0.4 / Data: 2005 04 15
WS-302 Digital Media Adapter User’s Manual
6. If you want to hear music, select “Audio” then press [Enter].

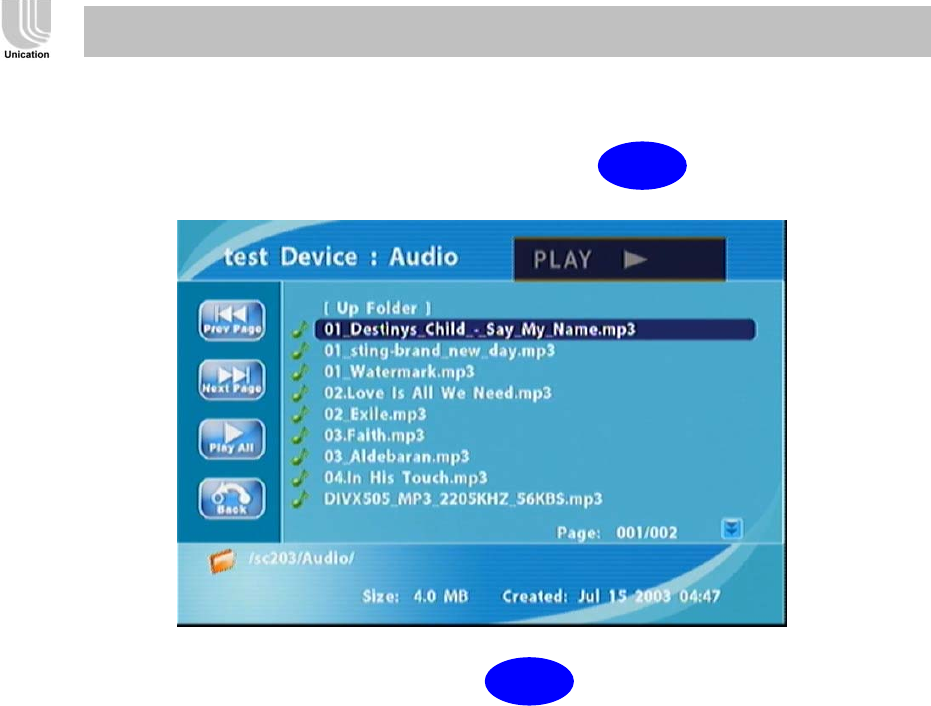

7. Use Remote to select the file then press [Enter] to start playing your choice of
file.
Enter
Enter
![](/img.php?id=682951&img=bg10.png)
Version: V0.4 / Data: 2005 04 16
WS-302 Digital Media Adapter User’s Manual
5.4. Play the Media Files Stored in the PC for the first time
1. Make sure you have the WS-302 connected to PC with wired cable or WiFi via SC-203 or
a hub after Network Settings.
2. In the remote PC, create a folder called “network_disk” and share it to the user whose
user name is “guest” and the password is “guest”
3. In the remote PC, place the media files in the “network_disk” folder.
4. In the Home Menu, select “Remote” then press “Enter” press [Enter].
5. Select the PC you want to connect then press [Enter]
6. Follow the step 5 of the “Play the Media Files Stored in the SC-203 for the first time”
section to play the music, see the last page.
Enter
Enter
![](/img.php?id=682951&img=bg11.png)
Version: V0.4 / Data: 2005 04 17
WS-302 Digital Media Adapter User’s Manual

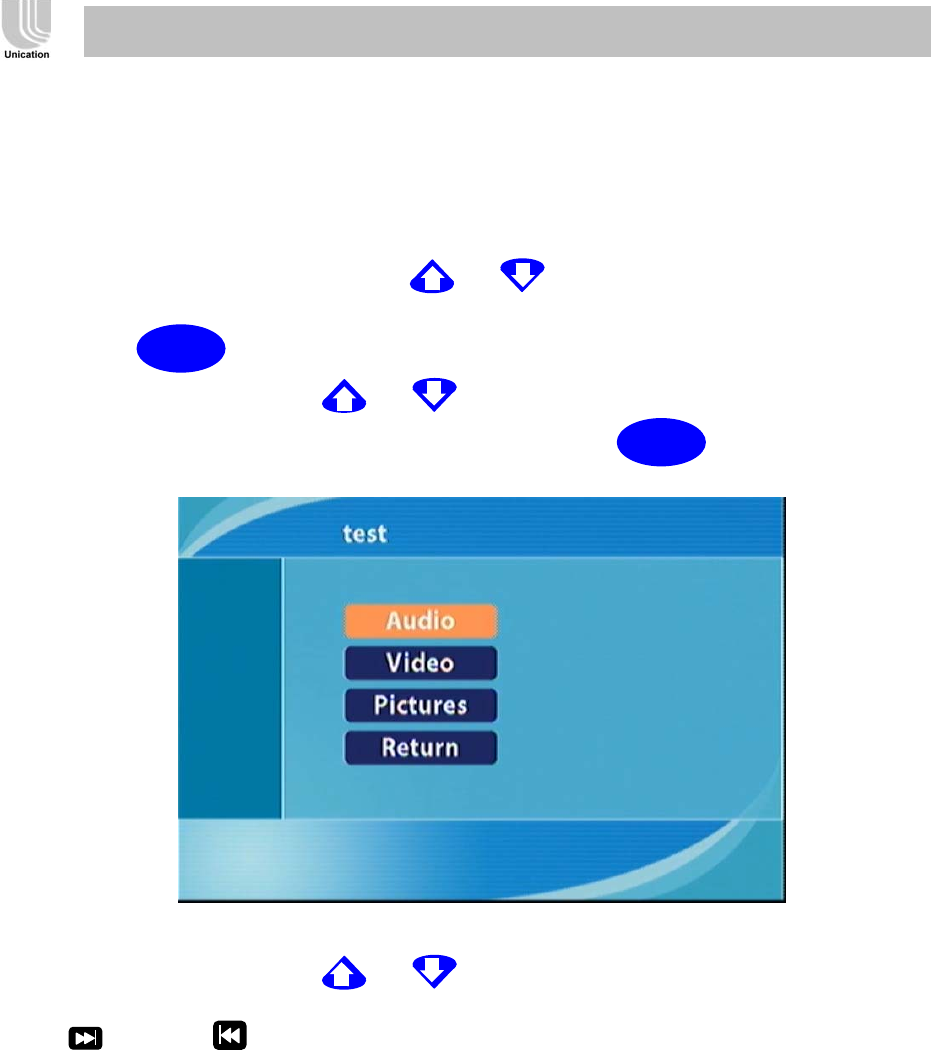

5.5. Play the USB Media Files
1. Plug in the USB storage device in the USB slot. (USB1 or USB 2 slot),.
2. Turn on your TV and change the display mode to “Video”, which displays the Home Menu
on the TV screen.
3. Use the WS-302 Remote Control or button to select USB1 or USB2.
4. Press [Enter], then the Audio/ Video/Pictures menu appears.
5. Use the Remote Control or button to select Audio, Video, or Pictures media
files, let’s say you select the “Pictures” and then press [Enter] when “Pictures” is
highlighted.
6. You will see a list of all image files and folders that contains the image files.
7. Use the Remote Control or button to select the file then press enter to view
the image
Press (Next) or (PREV) to view the next or the previous image file respectively.
Enter
Enter
![](/img.php?id=682951&img=bg12.png)
Version: V0.4 / Data: 2005 04 18
WS-302 Digital Media Adapter User’s Manual
6 WS-302 User Interface (Complete UI Operations)
Note: You can launch the Home Menu from any screen by pressing Home or Return key of the
WS-302 Remote Control.
You can launch the Home Menu from any screen by pressing Home or Return key of the
WS-302 Remote Control.
During the initial startup, the WS-302 displays the setup screen. Press [Enter] on the remote
control to enter the Remote screen.
![](/img.php?id=682951&img=bg13.png)
Version: V0.4 / Data: 2005 04 19
WS-302 Digital Media Adapter User’s Manual

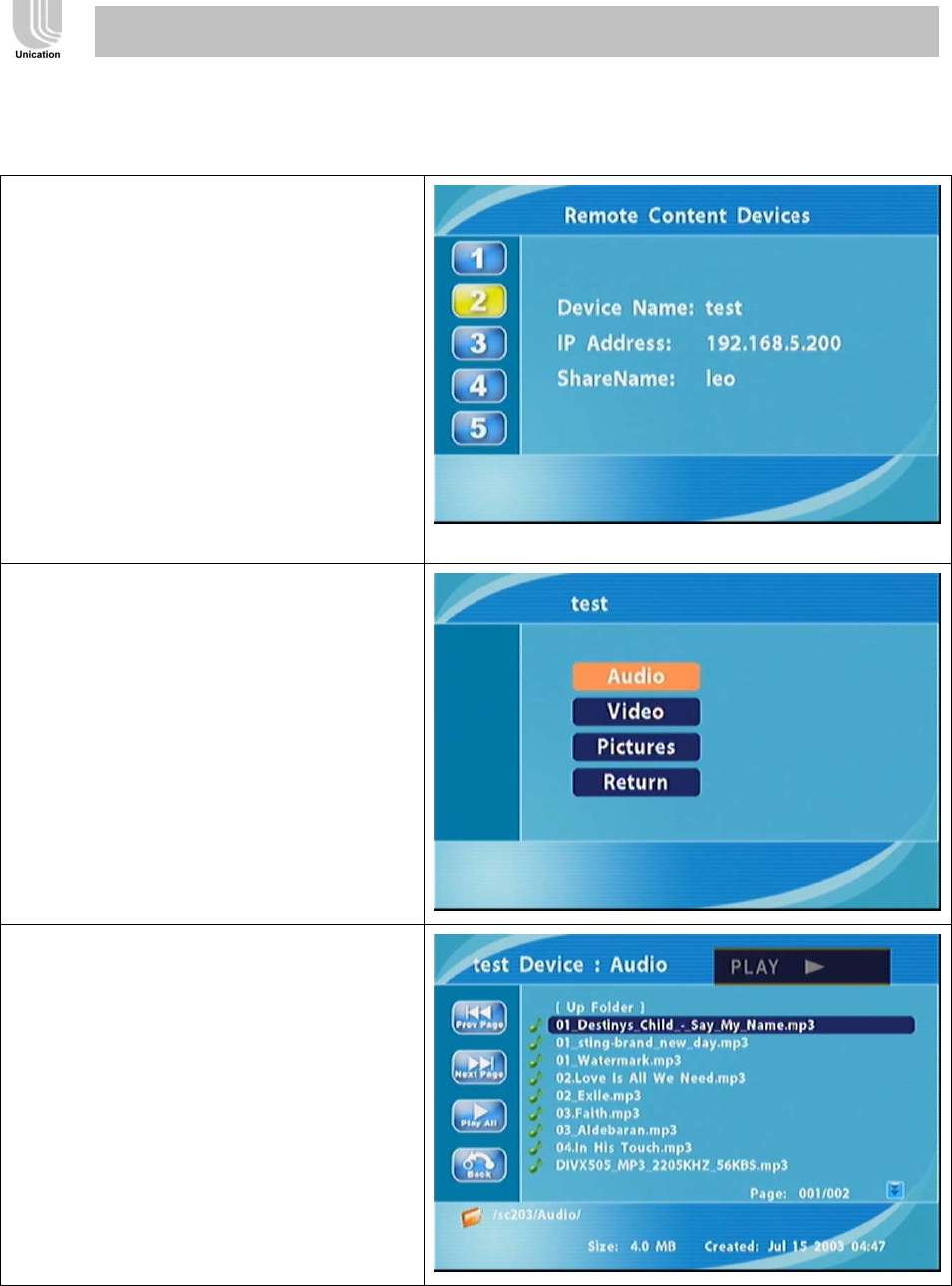

6.1. Remote
1. Make sure you have WS-302
connected to SC-203 (test) via
wired LAN or wireless LAN after
Network Settings. Currently the
SC-203 server is the Online
Service available on channel 2.
2. In the remote PC, create a folder
called “leo” and share it to the
user whose user name is “guest”
and the password is “guest”
3. In the remote PC, place the
media files in the “leo” folder.
Audio
4. Play the Audio Files. In the
SC203 (test) Menu, press “Enter”
on the remote control to play the
audio files.
Once you enter the Audio menu, there
are many audio files. Use the selection
arrows to navigate to the track you wish
to play. Once you have located the
appropriate track, high light it and press
[Enter] or [Play] on the remote control.
The track will begin playing on your
stereo or television speakers.
![](/img.php?id=682951&img=bg14.png)
Version: V0.4 / Data: 2005 04 20
WS-302 Digital Media Adapter User’s Manual

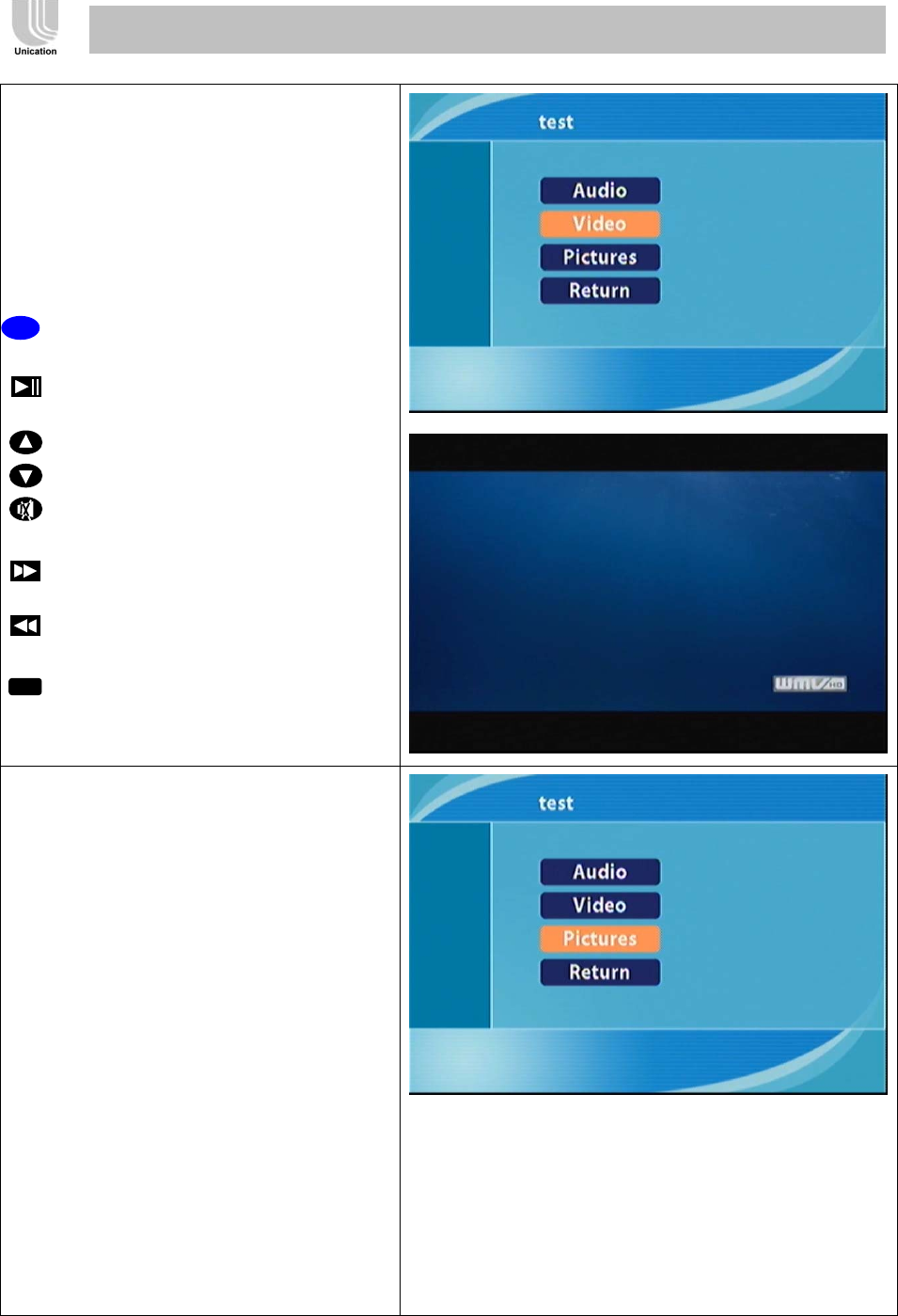

Video
5. Play the Video. In the SC203
(test) Menu, press “Enter” on the
remote control to play the Video
files.
Video (Continued)
Using the Remote Control with Video
files
Enter – Click Enter to play your
highlighted media files.
PLAY/PAUSE – Pause the video and
to resume playing the video.
(VOL) – To increase the volume.
(VOL) – To decrease the volume.
MUTE – To silence the audio portion
of the video.
FF – To fast forward through the
video.
FR – To fast backward through the
video.
REPEAT – To repeat the video.
6. Play the Pictures. In the SC203
(test) Menu, press [Enter] on the
remote control to play the
pictures.
Pictures (Continued)
Slideshow - To start playing a pictures
(include photos) slideshow, highlight a
folder and press the [Play] button. The
first picture will be displayed and then
followed by the next pictures in the
folder. All pictures in the folder will be
displayed.
Supported Pictures formats - JPEG
(The JPEG format is the Internet and
digital picture format standard used by
most digital cameras), GIF (Older format
still widely available on the internet for
pictures, web pages, and clip art), and
PNG (Portable Network Graphics
standard created in response to
limitations in the GIF file format).
Enter
![](/img.php?id=682951&img=bg15.png)
Version: V0.4 / Data: 2005 04 21
WS-302 Digital Media Adapter User’s Manual

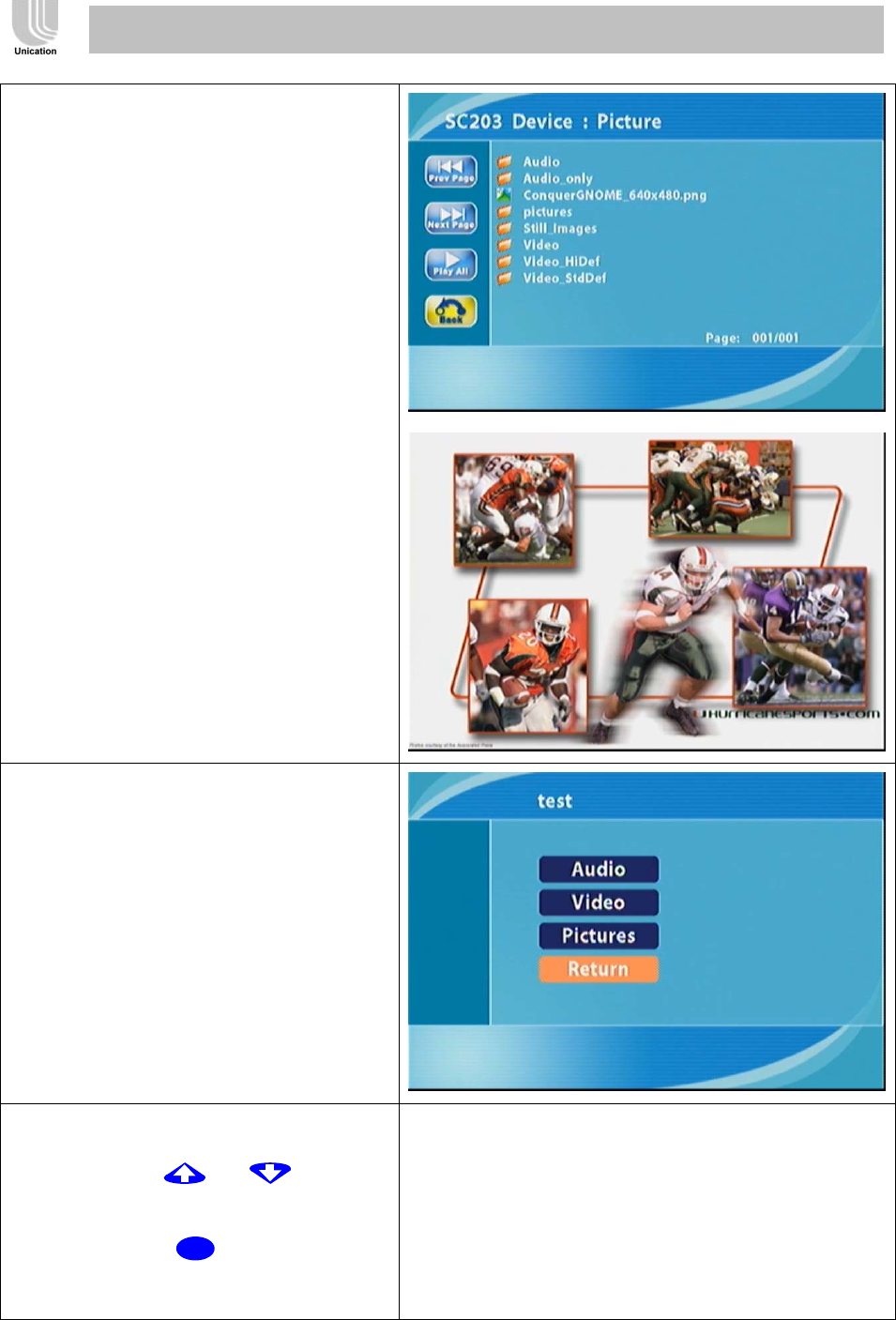

7. In the SC203 (test) Menu, use
the selection arrows to navigate
to the Return and press “Enter”
or press [Return] on the remote
control to Return the preceding
menu.
8. Once you enter the Audio menu,
you can view your list of audios.
Use the or to
navigate to the folder you wish to
view. Highlight the functions icon,
and press [Enter] to view
the audio folder.

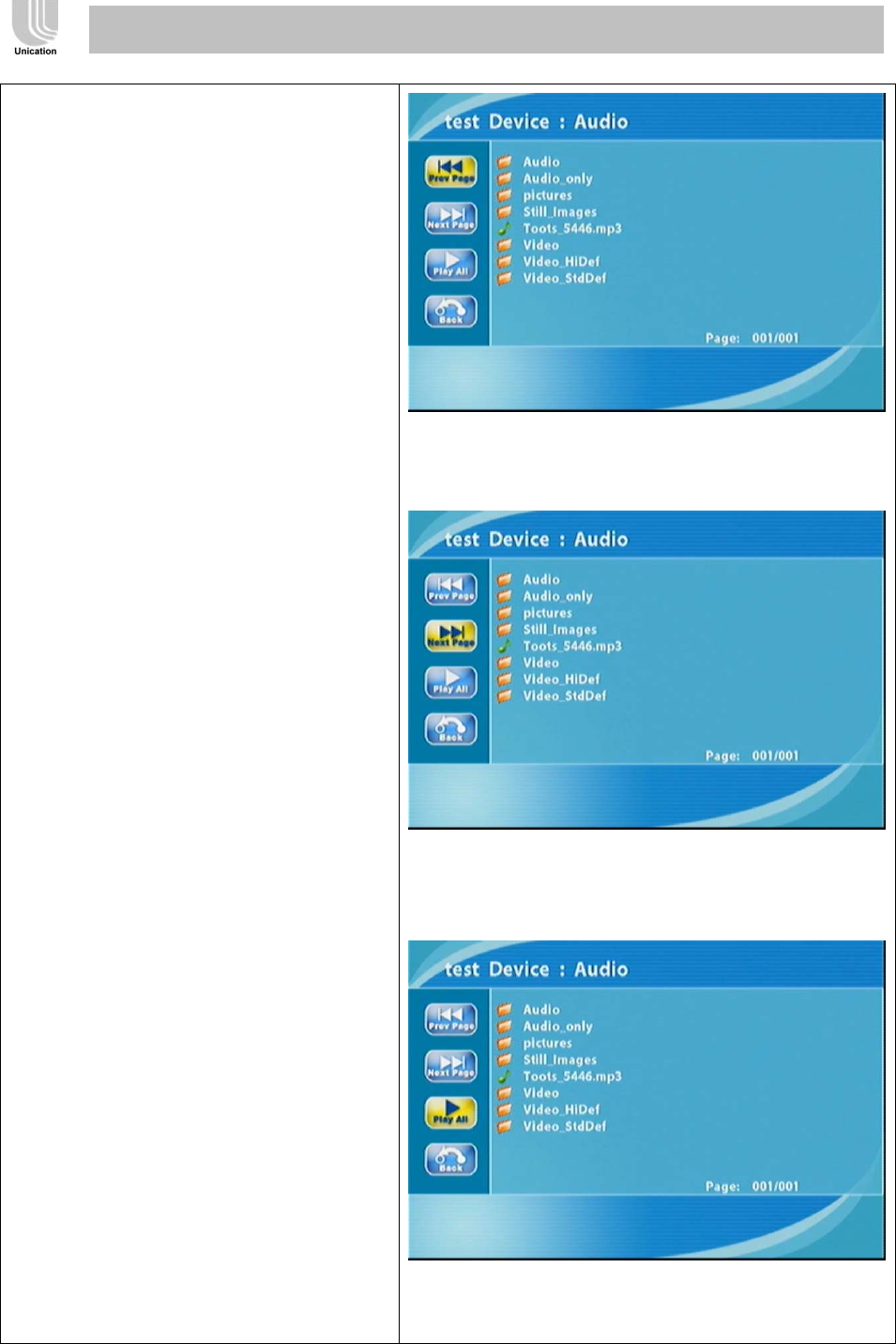

9. Below are the on-screen
Prev Page – View the previous page on the
Audio menu
Enter
![](/img.php?id=682951&img=bg16.png)
Version: V0.4 / Data: 2005 04 22
WS-302 Digital Media Adapter User’s Manual
indicators when a button is
pressed. These icons will appear
in the left of the screen
Next Page – View the next page on the Audio
menu
Play All – Play the continuous files of all on the
Audio menu
![](/img.php?id=682951&img=bg17.png)
Version: V0.4 / Data: 2005 04 23
WS-302 Digital Media Adapter User’s Manual
Back – Back to the last page

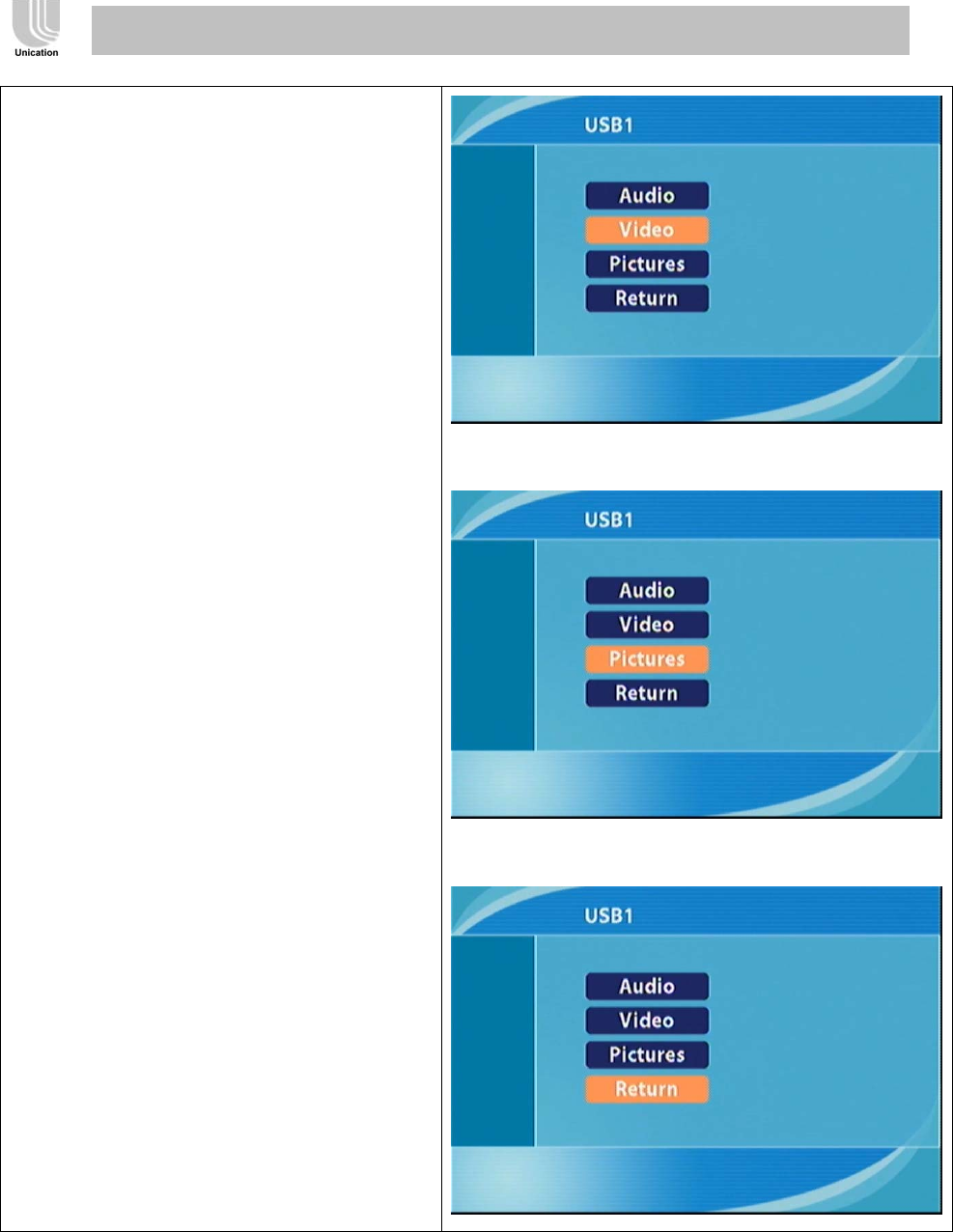

6.2. USB1
1. Make sure you insert the USB
storage device connected to the usb
port of WS-302’s front panel.
2. During the initial startup, the
WS-302 displays the setup screen
of USB1. Press [Enter] on the
remote control to enter the USB1
screen.
3. Then you can reference the
Remote’s operations to using.
4. Once you enter the Audio menu, you
can view your list of audios. Use the
or to navigate to the
folder you wish to view. Highlight the
functions icon, and press
[Enter] to view the audio folder.
5. Below are the on-screen indicators
when a button is pressed. These
icons will appear in the left of the
screen
6. The “Video”, “Pictures” folders have
the same operations as above.
Enter
![](/img.php?id=682951&img=bg18.png)
Version: V0.4 / Data: 2005 04 24
WS-302 Digital Media Adapter User’s Manual
7. Or press [Return] on the remote
control to Return the preceding
menu.
![](/img.php?id=682951&img=bg19.png)
Version: V0.4 / Data: 2005 04 25
WS-302 Digital Media Adapter User’s Manual
6.3. USB2
WS-302 supports 2 USB storage
devices to play. You can reference the
USB1’s operations to use.
6.4. Settings
Basically, you don’t need to change
default settings except to enter the IP
address of your device and SC-203 or
Remote PC. If you want to change the
configuration of your setup you can
press [Enter] on the screen of the
Settings button.
The following describe to change the
different settings:
Home screen Æ Settings Æ Network
![](/img.php?id=682951&img=bg1a.png)
Version: V0.4 / Data: 2005 04 26
WS-302 Digital Media Adapter User’s Manual
To check your Ethernet network settings
or Wireless network settings if it is
correct.
Home screen Æ Settings Æ Network Æ
Network Status
Home screen Æ Settings Æ Network Æ
Network Status Æ Ethernet
To see the Ethernet Status:
Home screen Æ Settings Æ Network Æ
Network Status Æ Ethernet (press
[Enter]).
Ex. ( IP : 192.168.5.100
Netmask: 255.255.255.0
Gateway: 192.168.5.1 )
It means you can access Intranet via the
Ethernet (LAN) network.
![](/img.php?id=682951&img=bg1b.png)
Version: V0.4 / Data: 2005 04 27
WS-302 Digital Media Adapter User’s Manual

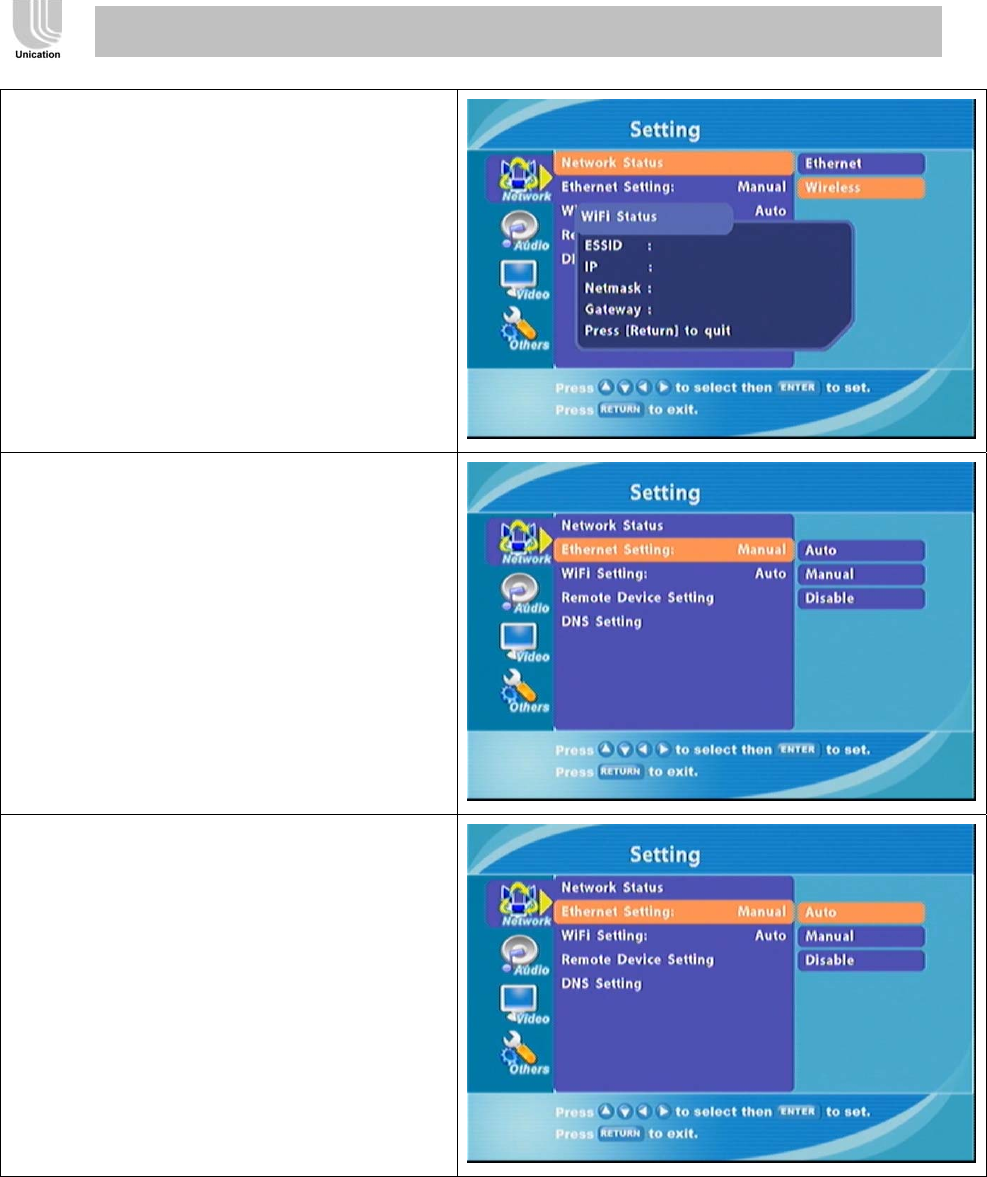

To see the WiFi Status:
Home screen Æ Settings Æ Network Æ
Network Status Æ Wireless (press
[Enter]).
There is no value on WiFi Status.
It means you can’t access Intranet via
the Wireless (WiFi) network.

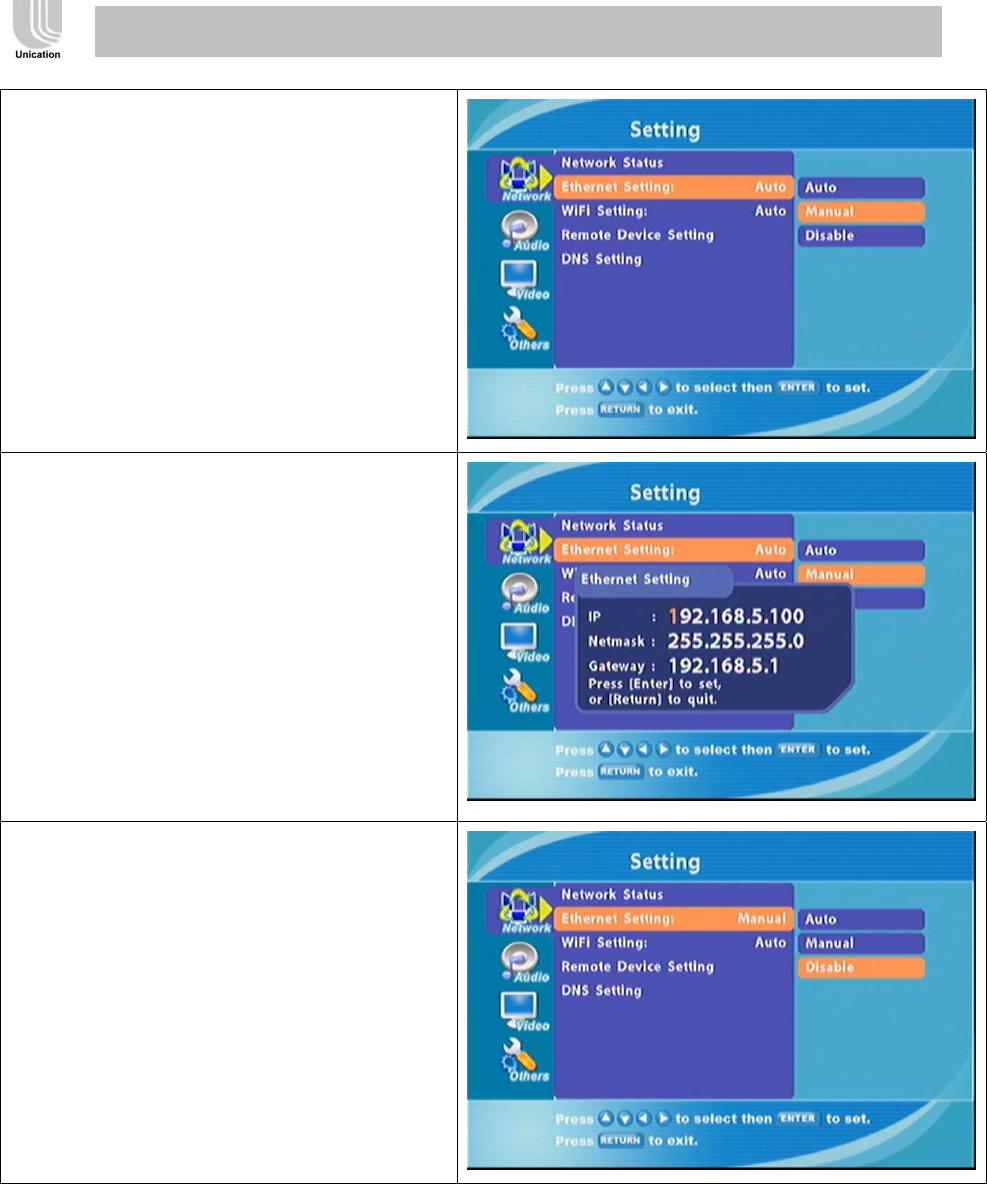

To configure Ethernet Setting:
You can select “Auto” to auto acquired a
IP or select “Manual” to configure
manually or select “Disable” to disable
the Ethernet’s function:
Home screen Æ Settings Æ Network Æ
Ethernet Setting
Select Auto to configure Ethernet
automatically.
Home screen Æ Settings Æ Network Æ
Ethernet Setting Æ Auto.
![](/img.php?id=682951&img=bg1c.png)
Version: V0.4 / Data: 2005 04 28
WS-302 Digital Media Adapter User’s Manual
Select Manual to configure Ethernet
manually.
Home screen Æ Settings Æ Network Æ
Ethernet Setting Æ Manual.
Home screen Æ Settings Æ Network Æ
Ethernet Setting Æ Manual. (press
[Enter]).
z IP: Enter the IP address of the WS-302
z Netmask: Enter the subnet mask of the
WS-302
z Gateway: Enter the IP address of the
router on your network
Ps. IP and Gateway are the same
subnetmask, so they are alike. (all
192.168.5.x)
Note: They can’t be the same
Select Disable to stop Ethernet
configurations.
Home screen Æ Settings Æ Network Æ
Ethernet Setting Æ Disable. (press
[Enter])
![](/img.php?id=682951&img=bg1d.png)
Version: V0.4 / Data: 2005 04 29
WS-302 Digital Media Adapter User’s Manual

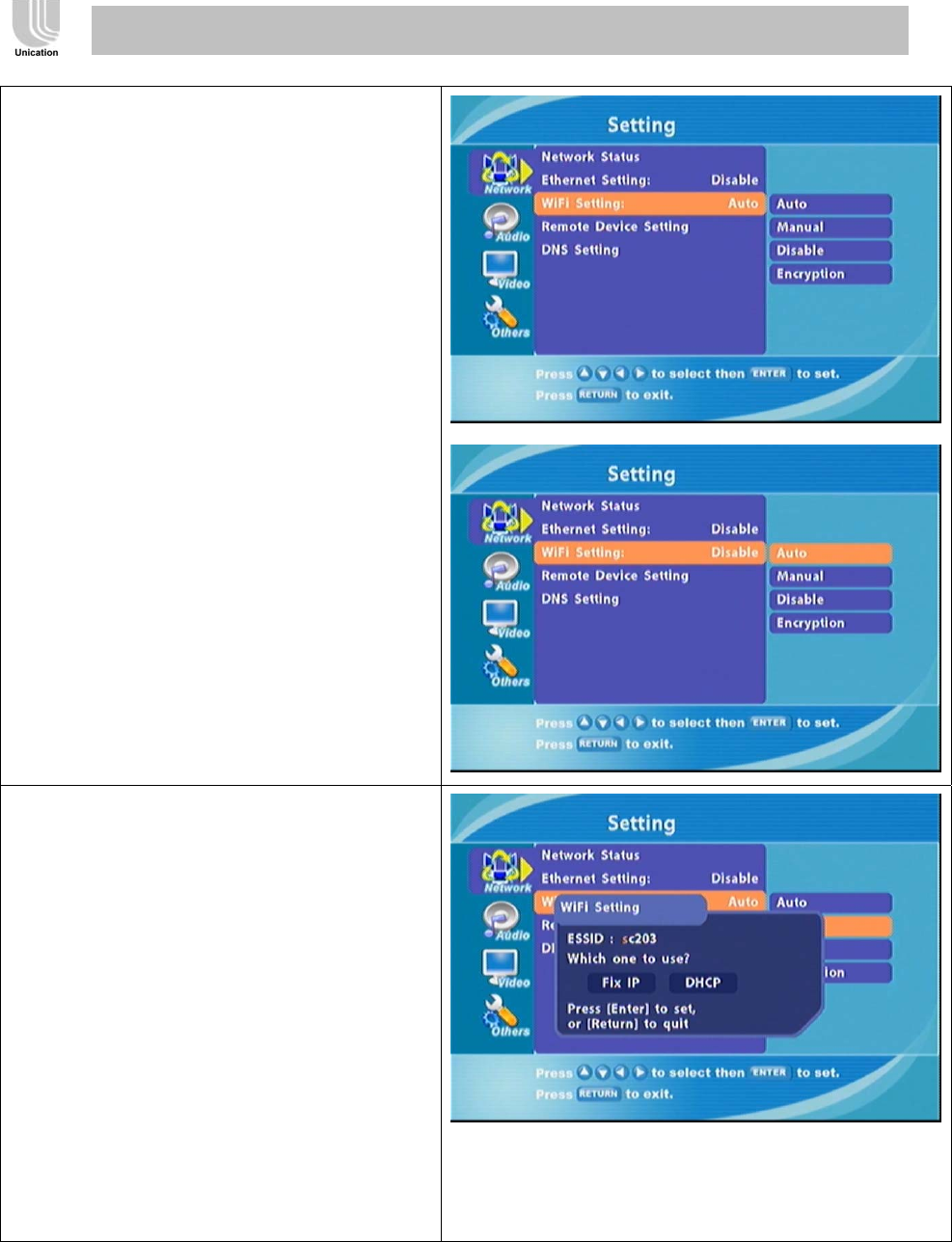

To configure WiFi Setting:
You can select “Auto” to auto acquired a
IP or select “Manual” to configure
manually or select “Disable” to disable
the WiFi’s function or select “Encryption”
to protect WiFi to avoid Intruder:
Select Auto to configure WiFi
automatically.
Home screen Æ Settings Æ Network Æ
WiFi Setting Æ Auto.
Select Manual to configure WiFi
manually.
Home screen Æ Settings Æ Network Æ
WiFi Setting Æ Manual.
SSID: Enter the SSID (Service Set
Identifier, or the name of the wireless
network) by pressing [Enter] on the remote
control when the field is highlighted. The
on-screen keyboard will appear and you
can manually enter an SSID
Which one to use: Fix IP is used for peer to
peer wireless networks that do not contain a
router or an access point. DHCP is used for
networks with an access point or router.
![](/img.php?id=682951&img=bg1e.png)
Version: V0.4 / Data: 2005 04 30
WS-302 Digital Media Adapter User’s Manual
Select “Fix IP” to configure IP manually
Fix IP is used for peer to peer wireless
networks that do not contain a router or an
access point.
Select “DHCP” to auto acquired a IP
address
DHCP is used for networks with an access
point or router.
![](/img.php?id=682951&img=bg1f.png)
Version: V0.4 / Data: 2005 04 31
WS-302 Digital Media Adapter User’s Manual
Select Disable to stop WiFi
configurations.
Home screen Æ Settings Æ Network Æ
WiFi Setting Æ Disable. (press [Enter])
Select Encryption to protect WiFi
configurations.
Home screen Æ Settings Æ Network Æ
WiFi Setting Æ Encryption. (press
[Enter])
![](/img.php?id=682951&img=bg20.png)
Version: V0.4 / Data: 2005 04 32
WS-302 Digital Media Adapter User’s Manual

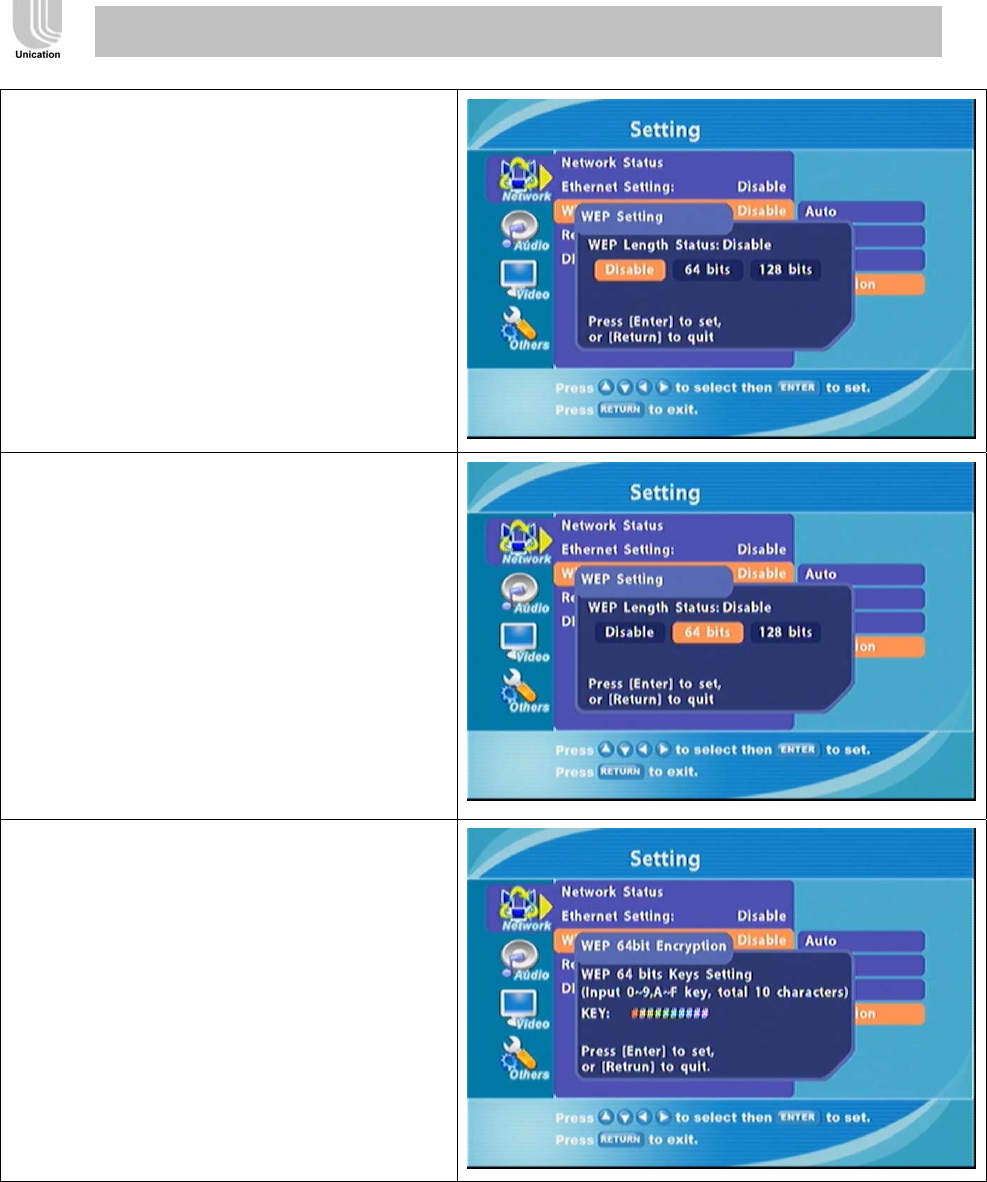

WEP (Wired Equivalent Privacy): An
industry standard encryption technology
used by 802.11b wireless devices. There
are three options configurable under this
setting, Disable, 64 bits, and 128 bits. To
toggle between the options, press the
[Enter] button when WEP is highlighted.
Key: To connect to an encrypted wireless
device, the key you enter here must match
the key of the device exactly. Press the
[Enter] button on the remote control with
this field highlighted to enter a key. The
on-screen keyboard will be displayed and
you can enter the key.
Keys must be entered in a specific
hexadecimal format. Numbers 0 through 9
and letters A through F are used and the
number of characters depends upon the
encryption type.
64 bits: A 64-bit encryption key must be
exactly 10 characters in length. (Example:
1234567890 is a valid string of 10
characters for 64 bits encryption)
![](/img.php?id=682951&img=bg21.png)
Version: V0.4 / Data: 2005 04 33
WS-302 Digital Media Adapter User’s Manual

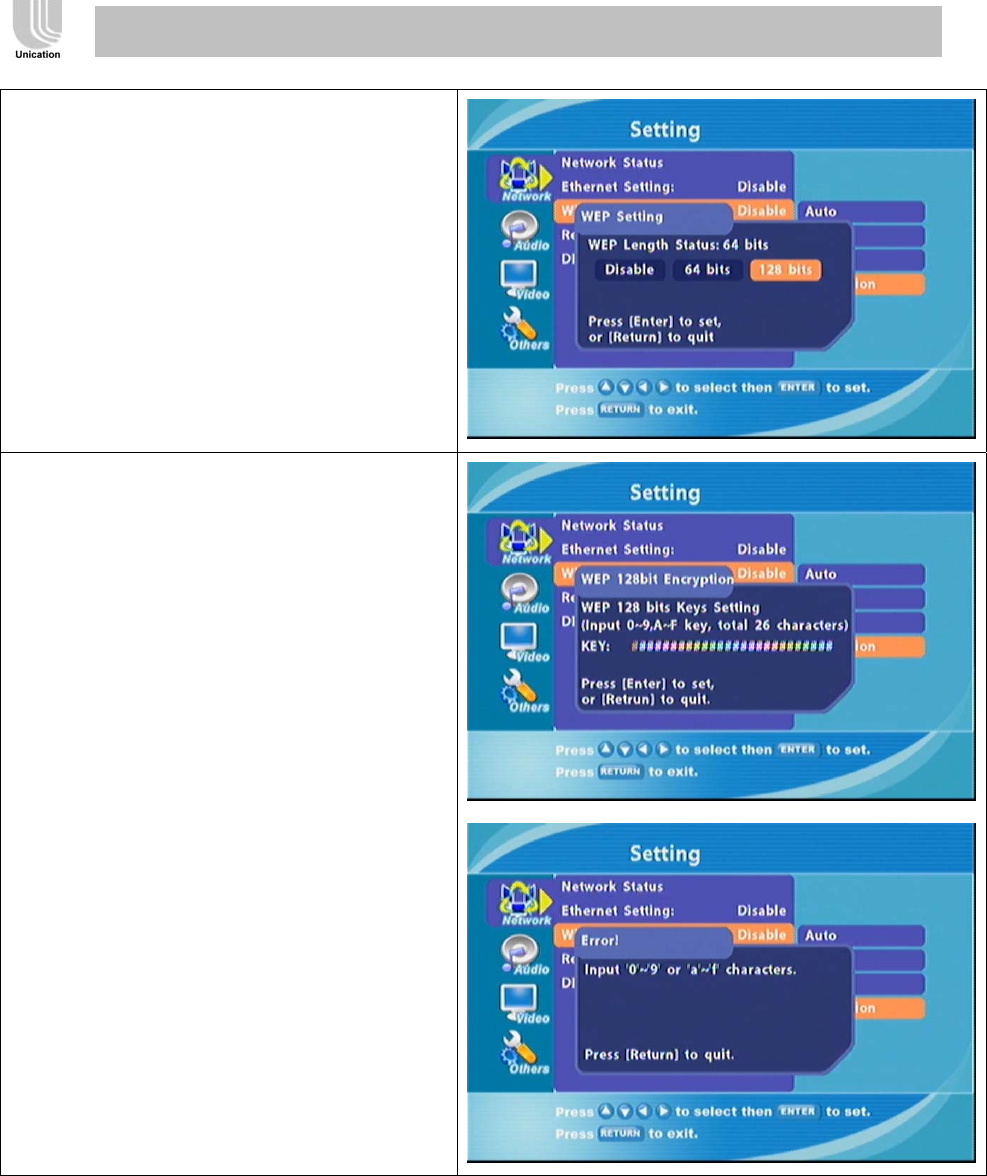

128 bits: A 128-bit encryption key must be
exactly 26 characters in length. (Example:
1234567890ABCDEFABCDEFABCD is a
valid string of 26 characters for 128 bits
encryption)
![](/img.php?id=682951&img=bg22.png)
Version: V0.4 / Data: 2005 04 34
WS-302 Digital Media Adapter User’s Manual
Select Remote Device Setting to setup
Remote.
Home screen Æ Settings Æ Network Æ
Remote Device Setting Æ Device1. (press
[Enter])
Remote Content Devices: Setup your
remote device its connection name, host
name (IP address), shared path name, user
name , and password. When done, press
[Enter].
Note:
1. Make sure you have WS-302
connected to other device via wired
LAN or wireless LAN after Network
Settings.
2. Then select a channel (Device1 –
Device5) to configure.
3. In the remote device(SC-203),
create a folder called “network_disk”
(Default folder) and share it to the
user whose user name is “guest”
and the password is “guest”
![](/img.php?id=682951&img=bg23.png)
Version: V0.4 / Data: 2005 04 35
WS-302 Digital Media Adapter User’s Manual

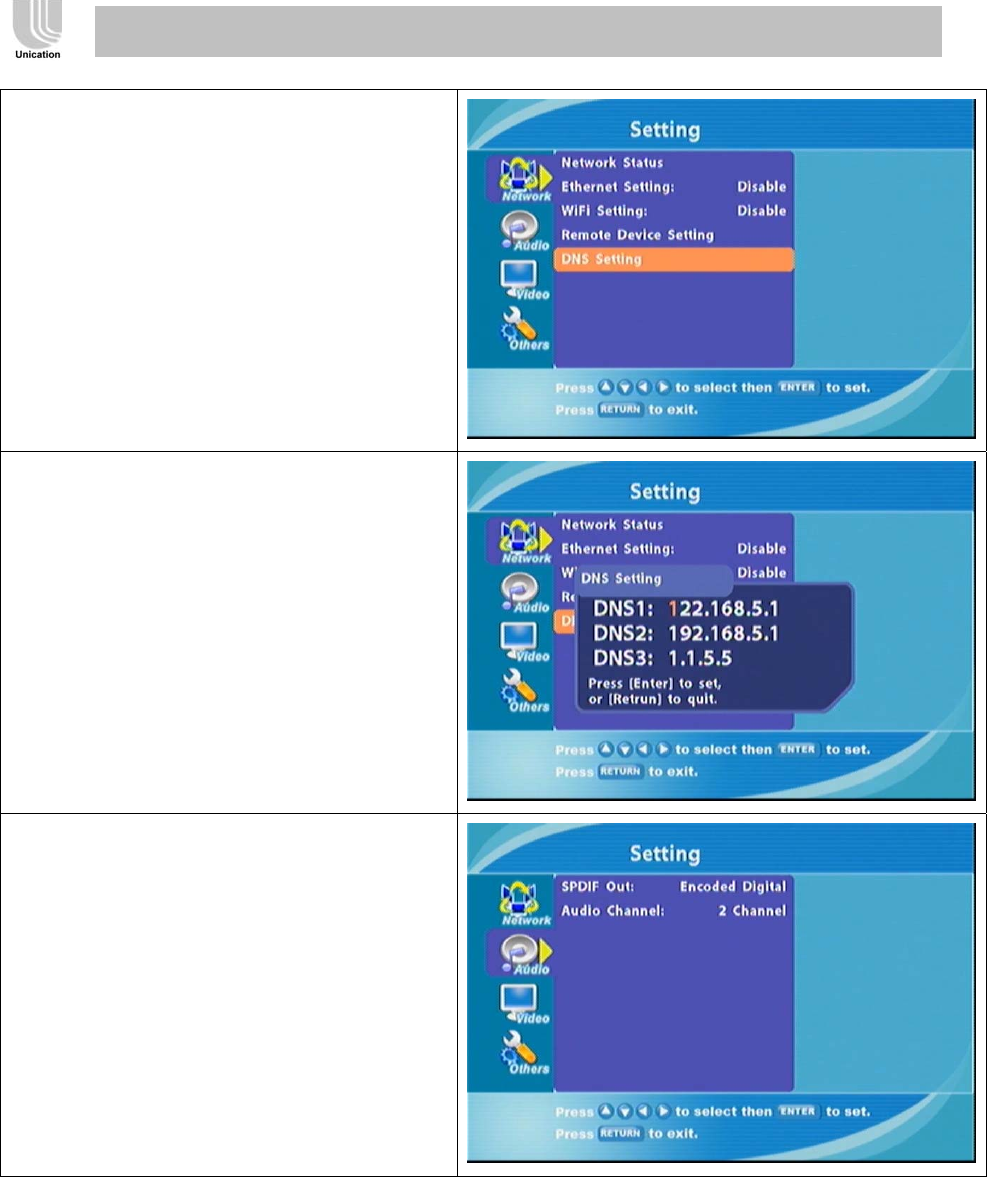

Select DNS Setting to setup Remote.
Home screen Æ Settings Æ Network Æ
Remote Device Setting Æ Device1.
(press [Enter])
DNS Setting: Enter the IP address of the
domain name server. If your WS-302 use
DNS (Domain Name Service) to Internet.
Audio Setting
Home screen Æ Settings Æ Audio.
![](/img.php?id=682951&img=bg24.png)
Version: V0.4 / Data: 2005 04 36
WS-302 Digital Media Adapter User’s Manual
Home screen Æ Settings Æ Audio Æ
SPDIF Out
Two Audio options for selection:
(1). SPDIF is digital output for high quality.
- Analog/DPCM: 2 Channel
- Encoded Digital: 5 Channel
(2). Audio is analog output:
- 2 Channel
- 5.1 Channel
z 2 Channel means 2
trumpets and
supports all media
files.
z 5.1 Channel supports
DVD media files.
![](/img.php?id=682951&img=bg25.png)
Version: V0.4 / Data: 2005 04 37
WS-302 Digital Media Adapter User’s Manual
Audio Setting
Home screen Æ Settings Æ Video.
(1). NTSC Active Output:
- SD CVBS
- HD YPbPr
- HD DVI
![](/img.php?id=682951&img=bg26.png)
Version: V0.4 / Data: 2005 04 38
WS-302 Digital Media Adapter User’s Manual
(2). HD DVI/VGA:
- 480P
- 720P
- 1080i
- 640x480
- 800x600
- 1024x768
- 1280x1024
(3). HD YPbPr:
- 480P
- 720P
- 1080i
(4). Screen Type: (select your TV screen
16:9 or 4:3)
- 4:3 Letterbox
- 4:3 Pan-scan
- 16:9
![](/img.php?id=682951&img=bg27.png)
Version: V0.4 / Data: 2005 04 39
WS-302 Digital Media Adapter User’s Manual

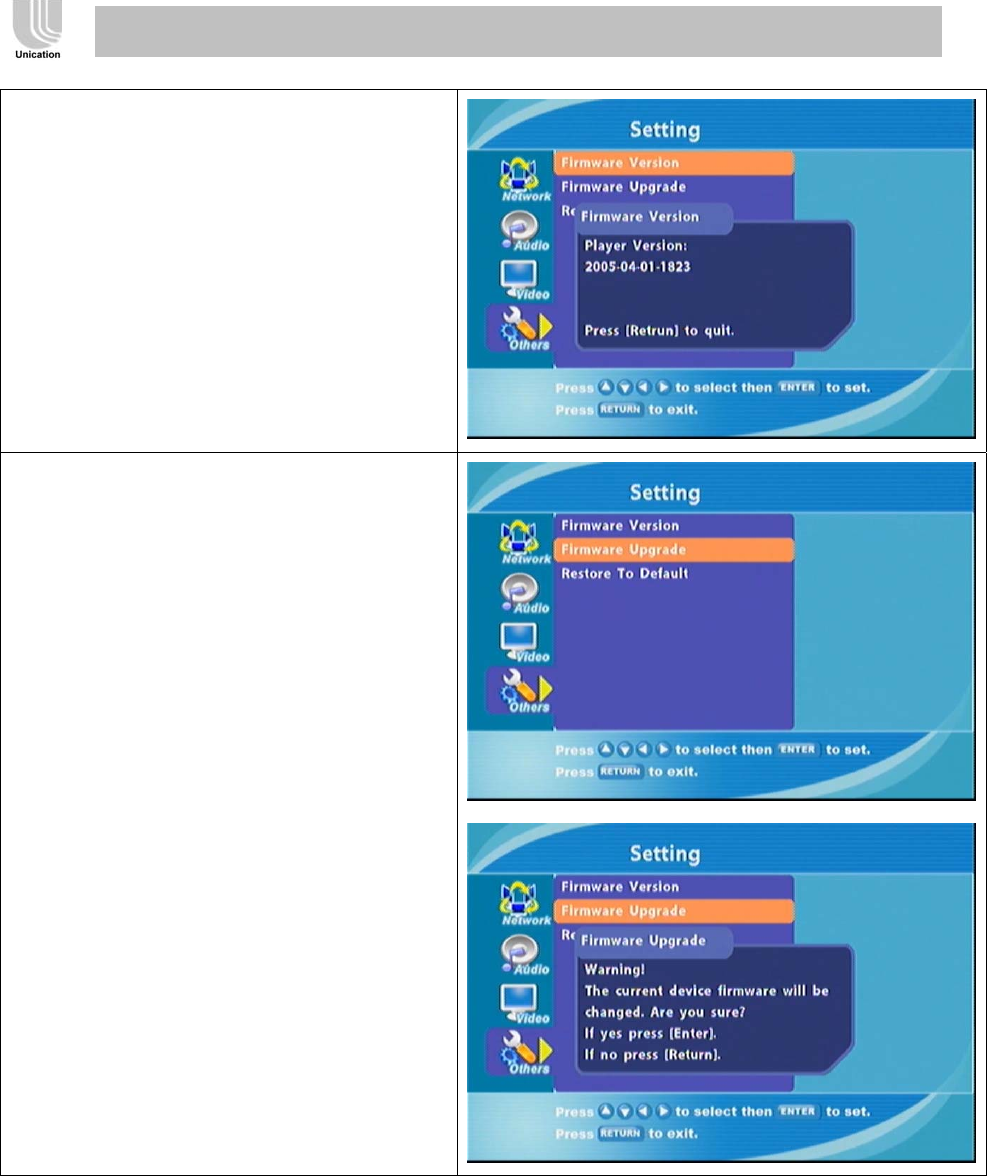

Select Firmware Version to see the
WS-302 currently version.
Home screen Æ Settings Æ Others Æ
Firmware Version
Select Firmware Upgrade to upgrade the
WS-302 currently firmware version.
Home screen Æ Settings Æ Others Æ
Firmware Upgrade
Note: New Firmware files stored in USB
flash then update to the device.
![](/img.php?id=682951&img=bg28.png)
Version: V0.4 / Data: 2005 04 40
WS-302 Digital Media Adapter User’s Manual

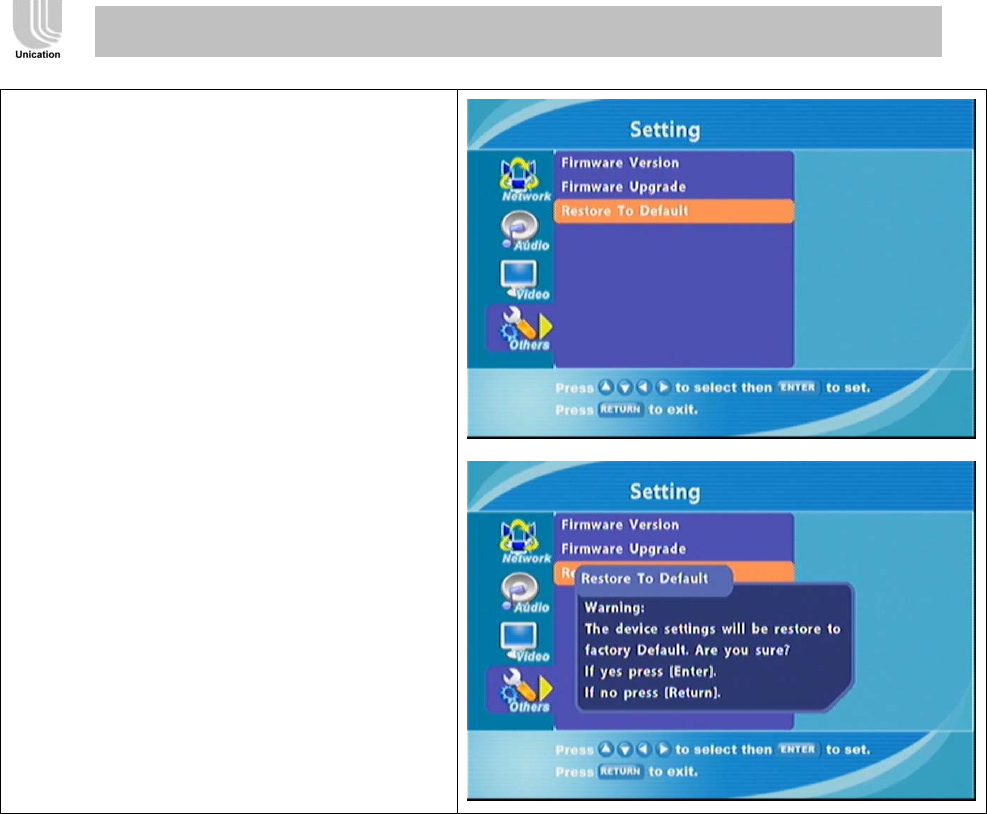

Select Restore to Default to reset the
WS-302 system.
Home screen Æ Settings Æ Others Æ
Restore to Default.
Restore to Default: You will lose all current
settings when selecting this option. The
Factory defaults will be restored and any
settings you have entered will be erased.
![](/img.php?id=682951&img=bg29.png)
Version: V0.4 / Data: 2005 04 41
WS-302 Digital Media Adapter User’s Manual
7 Additional Information
Unication Consumer Web Site FCC Statement
On www.uni.com.tw or ww.uni-wlan.com, This device complies with Part 15 of the
there is a Support Section where help and FCC rules. Operation is subject to the
tips are only a few clicks away. Here you following two conditions: (1) This device
find the latest software updates, guides to harmful interference, and (2) This device
use the products more efficiently. must accept any interference received
including interference that may cause
undesired operation.
Guidelines for Safe and Efficient Use
Please read this information before using the
product.
Recommendations
• Always treat your product with care and
keep it in a clean and dry place.
• Do not expose your product to liquid or
moisture or humidity.
• Do not expose your product to extreme
high or low temperatures.
• Do not expose your product to open flames
or lit tobacco products.
• Do not drop, throw or try to bend the
product.
• Do not attempt to disassemble the product.
![](/img.php?id=682951&img=bg2a.png)
Version: V0.4 / Data: 2005 04 42
WS-302 Digital Media Adapter User’s Manual
Headquarter:
Unication Co., Ltd. Tel.:886-2-22999678 Fax: 886-2-22997998
E-mail:salesenquiry@uni.com.tw Address: 5F., No.6, Wu-Kung 5Rd., Hsinchunag
City, Taipei, Taiwan, R.O.C
Unication USA:
Dallas Branch: Tel.:1-972-424-8908 Fax:1-214-245-4857 E-mail:kirk@uni.com.tw
All rights reserved. This document is published by Unication Co., Ltd. The
information contained in this document is the exclusive property of Unication Co.,
Ltd. It shall not be disclosed, distributed or reproduced in whole or in part without
written permission of Unication Co., LTD. The information in this document may
change without notice due to improvements to programs and/or equipment. Such
changes will be incorporated into new editions.
Enter
15.21
Federal Communications Commission (FCC) Statement
You are cautioned that changes or modifications not expressly approved by the
part responsible for compliance could void the user’s authority to operate the
equipment.
15.105(b)
Federal Communications Commission (FCC) Statement
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to part 15 of the FCC rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help.
You are cautioned that changes or modifications not expressly approved by the party
responsible for compliance could void your authority to operate the equipment.
Operation is subject to the following two conditions:
1) this device may not cause interference and
2) this device must accept any interference, including interference that may cause
undesired operation of the device.
FCC RF Radiation Exposure Statement:
1. This Transmitter must not be co-located or operating in conjunction with any other
antenna or transmitter.
2. This equipment complies with FCC RF radiation exposure limits set forth for an
uncontrolled environment. This equipment should be installed and operated with a
minimum distance of 20 centimeters between the radiator and your body.
