Unicorn Information System PVR HDD Multimedia Player User Manual

Unicorn Information System Co., Ltd. HDD Multimedia Player

Users Manual

Unicorn Information System1MVIX PVR PlayerVer 2.0User Guidewww.mvix.net

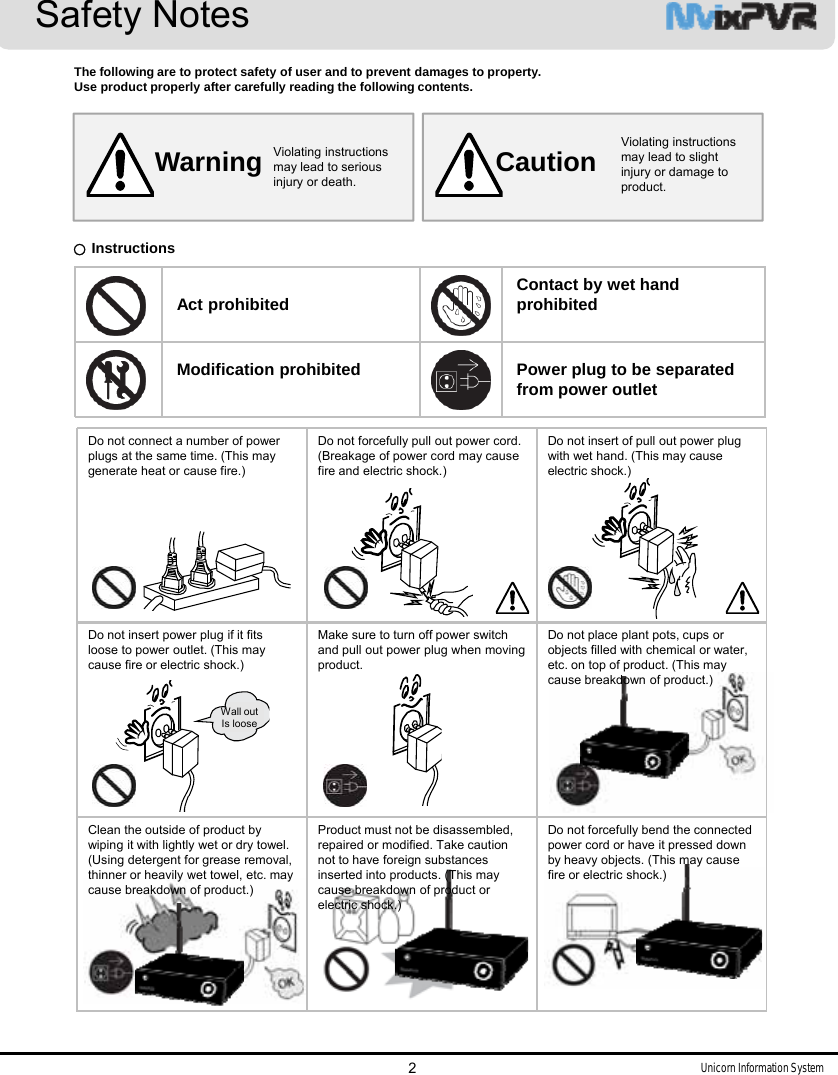

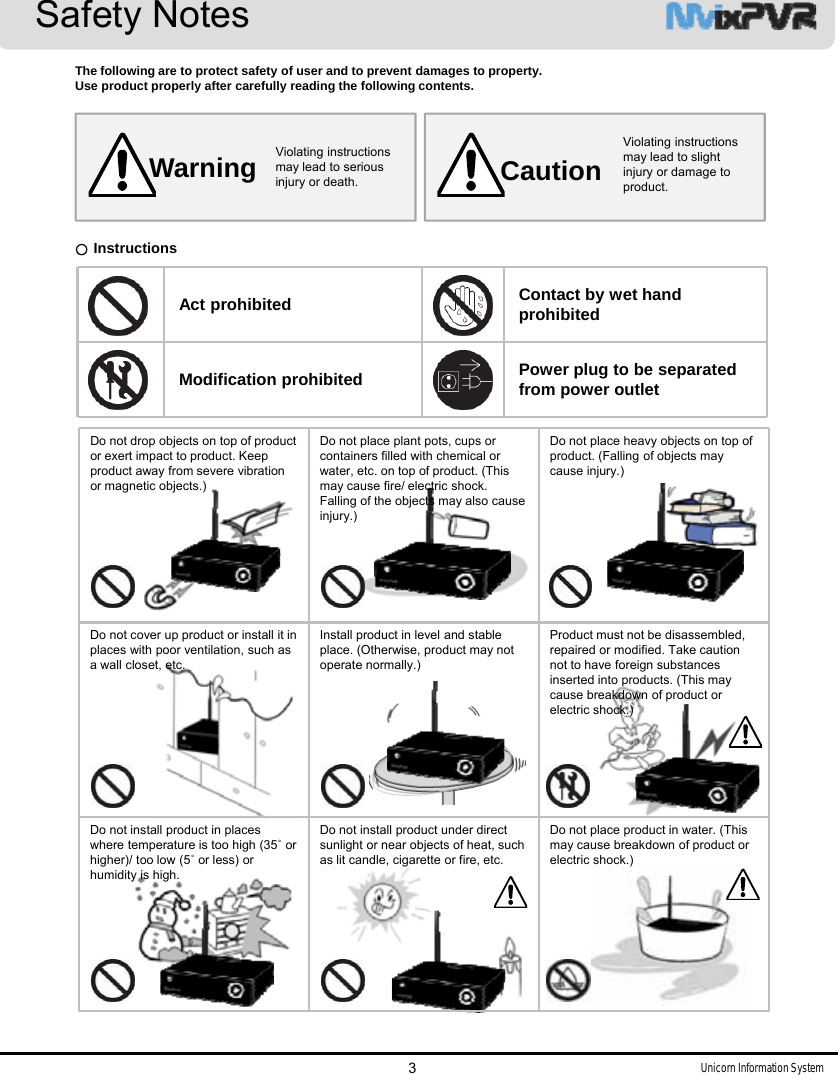

Unicorn Information SystemSafety Notes2Warning CautionAct prohibited Contact by wet hand prohibitedModification prohibited Power plug to be separated from power outlet○InstructionsThe following are to protect safety of user and to prevent damages to property.Use product properly after carefully reading the following contents.Do not connect a number of power plugs at the same time. (This may generate heat or cause fire.)Do not forcefully pull out power cord. (Breakage of power cord may cause fire and electric shock.)Do not insert of pull out power plug with wet hand. (This may cause electric shock.)Do not insert power plug if it fits loose to power outlet. (This may cause fire or electric shock.)Make sure to turn off power switch and pull out power plug when moving product.Do not place plant pots, cups or objects filled with chemical or water, etc. on top of product. (This may cause breakdown of product.)Clean the outside of product by wiping it with lightly wet or dry towel. (Using detergent for grease removal, thinner or heavily wet towel, etc. may cause breakdown of product.)Product must not be disassembled, repaired or modified. Take caution not to have foreign substances inserted into products. (This may cause breakdown of product or electric shock.)Do not forcefully bend the connected power cord or have it pressed down by heavy objects. (This may cause fire or electric shock.)Violating instructions may lead to serious injury or death.Violating instructions may lead to slight injury or damage to product.Wall outIs loose
Unicorn Information SystemDo not drop objects on top of product or exert impact to product. Keep product away from severe vibration or magnetic objects.)Do not place plant pots, cups or containers filled with chemical or water, etc. on top of product. (This may cause fire/ electric shock. Falling of the objects may also cause injury.)Do not place heavy objects on top of product. (Falling of objects may cause injury.)Do not cover up product or install it in places with poor ventilation, such as a wall closet, etc. Install product in level and stable place. (Otherwise, product may not operate normally.)Product must not be disassembled, repaired or modified. Take caution not to have foreign substances inserted into products. (This may cause breakdown of product or electric shock.)Do not install product in places where temperature is too high (35˚ or higher)/ too low (5˚ or less) or humidity is high.Do not install product under direct sunlight or near objects of heat, such as lit candle, cigarette or fire, etc.Do not place product in water. (This may cause breakdown of product or electric shock.)Safety Notes3Violating instructions may lead to serious injury or death.Violating instructions may lead to slight injury or damage to product.The following are to protect safety of user and to prevent damages to property.Use product properly after carefully reading the following contents.Warning Caution○InstructionsAct prohibited Contact by wet hand prohibitedModification prohibited Power plug to be separated from power outlet

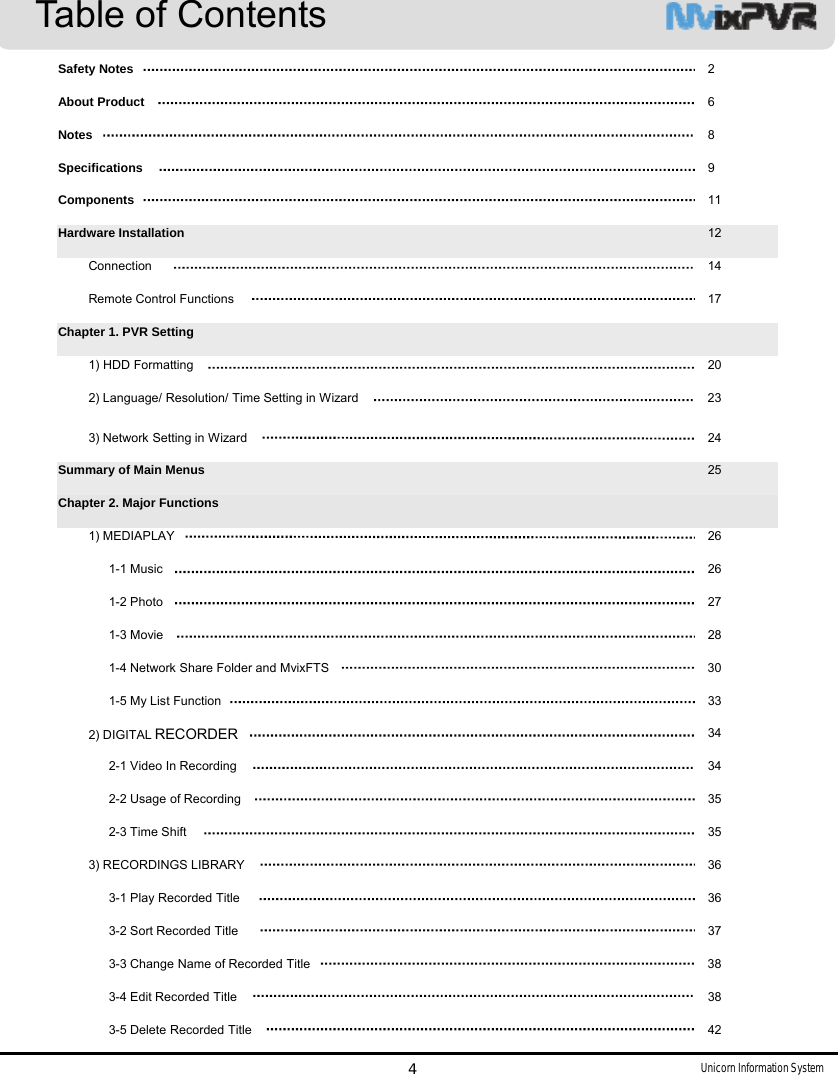

Unicorn Information System4Table of ContentsSafety Notes 2About Product 6Notes 8Specifications 9Components 11Hardware Installation 12Connection  14Remote Control Functions 17Chapter 1. PVR Setting1) HDD Formatting  202) Language/ Resolution/ Time Setting in Wizard 233) Network Setting in Wizard 24Summary of Main Menus 25Chapter 2. Major Functions1) MEDIAPLAY 261-1 Music 261-2 Photo 271-3 Movie 281-4 Network Share Folder and MvixFTS 301-5 My List Function  332) DIGITAL RECORDER 342-1 Video In Recording 342-2 Usage of Recording 352-3 Time Shift  353) RECORDINGS LIBRARY 363-1 Play Recorded Title  363-2 Sort Recorded Title 373-3 Change Name of Recorded Title 383-4 Edit Recorded Title 383-5 Delete Recorded Title 42

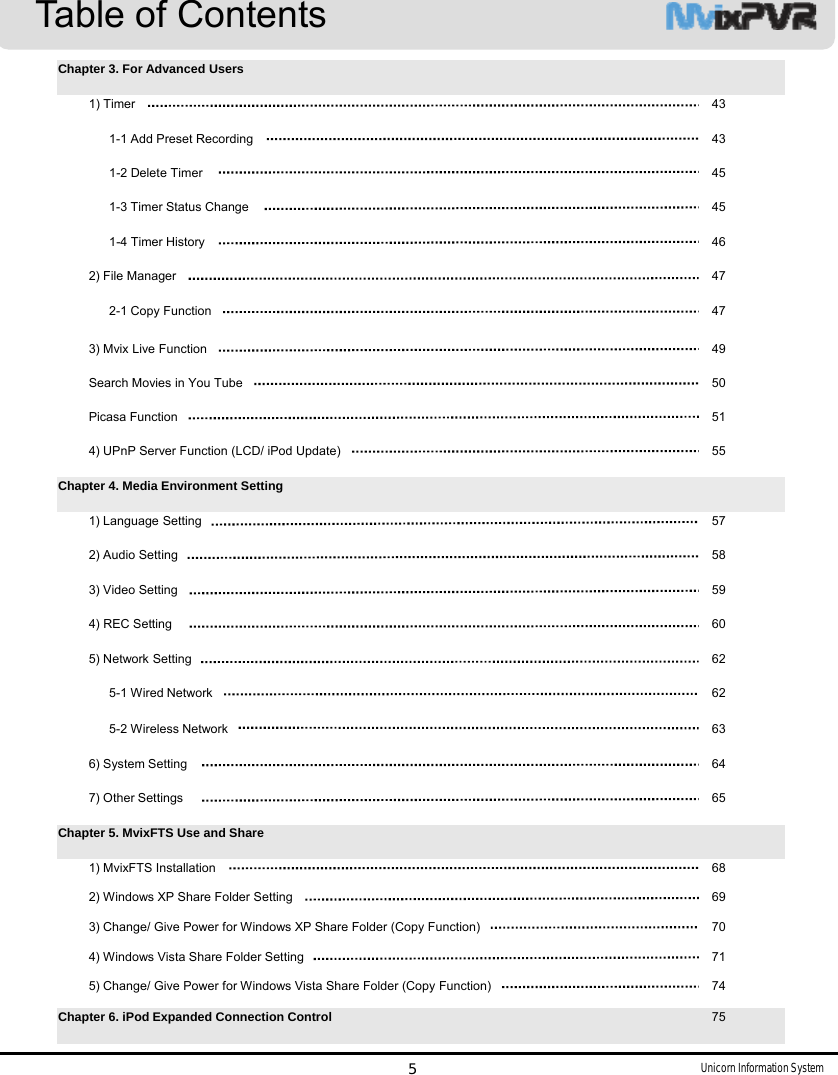

Unicorn Information SystemTable of ContentsChapter 3. For Advanced Users1) Timer 431-1 Add Preset Recording  431-2 Delete Timer  451-3 Timer Status Change 451-4 Timer History 462) File Manager 472-1 Copy Function  473) Mvix Live Function 49Search Movies in You Tube  50Picasa Function  514) UPnP Server Function (LCD/ iPod Update) 55Chapter 4. Media Environment Setting1) Language Setting 572) Audio Setting 583) Video Setting 594) REC Setting 605) Network Setting 625-1 Wired Network 625-2 Wireless Network 636) System Setting 647) Other Settings 65Chapter 5. MvixFTS Use and Share1) MvixFTS Installation 682) Windows XP Share Folder Setting 693) Change/ Give Power for Windows XP Share Folder (Copy Function) 704) Windows Vista Share Folder Setting 715) Change/ Give Power for Windows Vista Share Folder (Copy Function) 74Chapter 6. iPod Expanded Connection Control 755

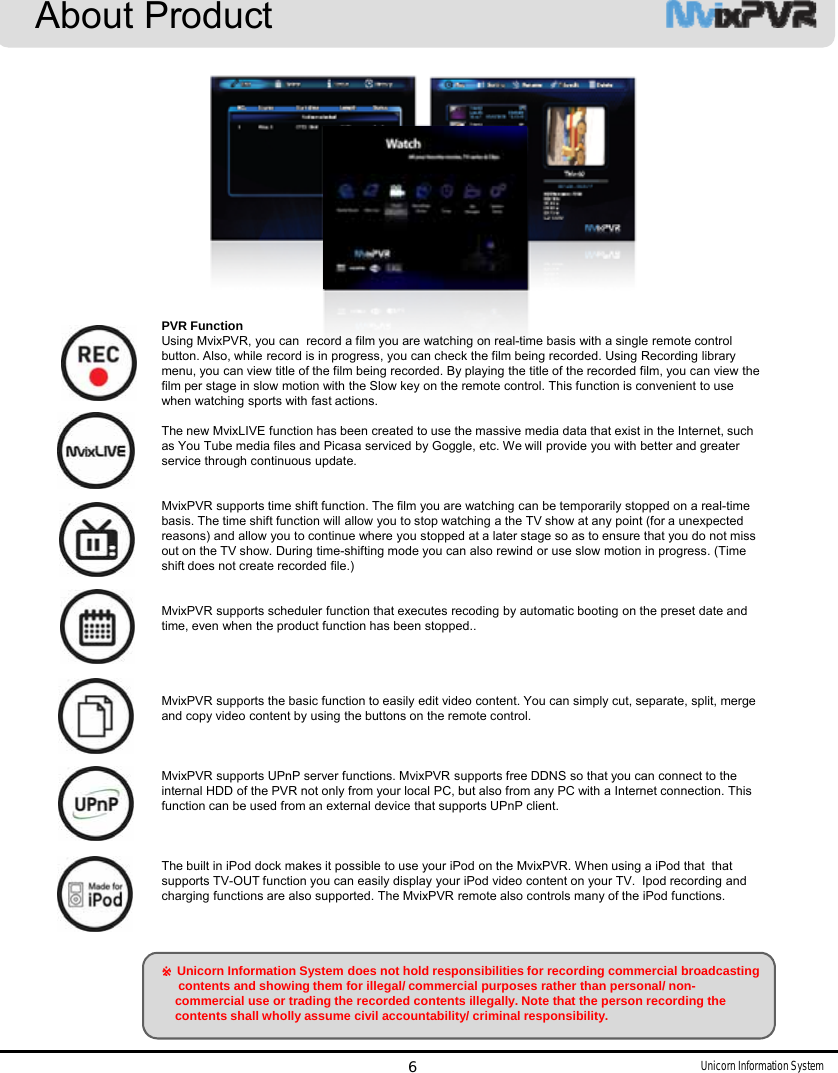

Unicorn Information System6About ProductPVR FunctionUsing MvixPVR, you can  record a film you are watching on real-time basis with a single remote control button. Also, while record is in progress, you can check the film being recorded. Using Recording library menu, you can view title of the film being recorded. By playing the title of the recorded film, you can view the film per stage in slow motion with the Slow key on the remote control. This function is convenient to use when watching sports with fast actions. The new MvixLIVE function has been created to use the massive media data that exist in the Internet, such as You Tube media files and Picasa serviced by Goggle, etc. We will provide you with better and greater service through continuous update.MvixPVR supports time shift function. The film you are watching can be temporarily stopped on a real-time basis. The time shift function will allow you to stop watching a the TV show at any point (for a unexpected reasons) and allow you to continue where you stopped at a later stage so as to ensure that you do not miss out on the TV show. During time-shifting mode you can also rewind or use slow motion in progress. (Time shift does not create recorded file.)MvixPVR supports scheduler function that executes recoding by automatic booting on the preset date and time, even when the product function has been stopped..MvixPVR supports the basic function to easily edit video content. You can simply cut, separate, split, merge and copy video content by using the buttons on the remote control.MvixPVR supports UPnP server functions. MvixPVR supports free DDNS so that you can connect to the internal HDD of the PVR not only from your local PC, but also from any PC with a Internet connection. This function can be used from an external device that supports UPnP client. The built in iPod dock makes it possible to use your iPod on the MvixPVR. When using a iPod that  that supports TV-OUT function you can easily display your iPod video content on your TV.  Ipod recording and charging functions are also supported. The MvixPVR remote also controls many of the iPod functions. ※Unicorn Information System does not hold responsibilities for recording commercial broadcasting    contents and showing them for illegal/ commercial purposes rather than personal/ non-commercial use or trading the recorded contents illegally. Note that the person recording the contents shall wholly assume civil accountability/ criminal responsibility.
Unicorn Information SystemAbout Product7Multimedia libraryHigh Resolution HD-level File Play: MvixPVR supports the max. of 1920X1080 interface scan to provide clear and high resolution picture quality. Supporting Diverse Movie Format TypesMvixPVR  supports a variety of HD files, such as TP, TS and TRP files, but also MPEG, Divx (3/4/5), Xvid, DAT, ISO, DVD (VOB, IFO) and MKV / WMV / ASF / MOV (if using MvixFTS), etc. You can conveniently enjoy watching movies anywhere as long as you have access to a display device, such as TV, etc. (supporting SD-level film play for MKV). Convenient Copy MvixPVR allows you to copy a recorded media file (with FAT32 partition) to a network-connected PC. Also, you can copy files by high-speed from PC to MvixPVR HDD or to USB storage device connected to MvixPVR.Supporting Diverse Music Files MvixPVR supports a variety of music sources, such as MP3, OGG, WAV, WMA, AC3 and DTS, etc. As the player supports fast rewind/ forward functions, you can quickly find the desired part you require for listening.  Digital Photo AlbumMvixPVR supports the upgraded JPEG and BMP image files. The entire family can enjoying watching the files through TV, etc. Also, vertically photographed filed can be rotated in screen for viewing without requiring modification. Network-shared File PlayFiles shared on a network can be played through wired/ wireless means without having to move them to the MvixPVR hard disk.. Supporting USB HostMvixPVR supports 2 USB2.0 hosts. By connecting USB external storage devices, you can easily add additional storage to the MvixPVR and play the files on the external USB devices. A USB type memory card reader, etc. can also be used. Supporting High Resolution HDMIBuilt in with HDMI terminal for digital signal output, MvixPVR enables you to enjoy video content with better picture quality..5.1CH Audio Output and Down Mix Function MvixPVR provides 5.1CH AC3 audio and DTS, etc. Also, down mix function lets you play 2CH audio through TV, etc. without requiring an additional decoding device, such as amplifier, etc. (optical, coaxial).
Unicorn Information System8Notes1 Contents with copyright, such as music sources or media contents, etc., are protected pursuant to the related laws and regulations, such as Copyright Act, etc. The legal responsibilities in violating copyright or intellectual property right by using this product shall be assumed by the user. 2 Make sure to check CODEC of the file to be played. This product does not support media files of all CODEC types. Only the playable CODEC files must be used. Change media file or CODEC that is not supported into the supported file by using specific utilities, etc. Even if CODEC is playable, the file may not be successfully played according to file characteristics oruser environment. 3 When removing USB after connection to a PC, make sure to protect data and prevent erroneous operation of product by removing safety device. Also, make sure to turn off power of product when connecting or disconnecting separate storage devices to USB host of product. Otherwise, it may cause erroneous operation of product. 4 For hard disk, use 3.5” SATA type HDD. It must be formatted by the format method used by product. So, make sure to complete formatting when using product for the first time. Format erases all data. Make sure to back up. 5 This product uses a Windows PC and network sharer function. Network sharer may not operate normally due to error in Windows program or user environment. Unicorn Information System is not liable for this. 6 Save data stored in this product separately in a safe location. Unicorn Information System does not assume responsibilities for loss of or damage to the stored data. 7 Do not drop or exert impact to product. This may cause breakdown of product. 8 Protect inside of product from metallic objects or combustible foreign substances, etc. This may cause fire or breakdown of product. 9 Do not randomly disassemble, modify or repair product. This may cause breakdown of product. After-sale service will be provided at cost for breakdowns caused by random disassembly, modification or repair. 10 Keep product not to be in contact with water or liquid. Also, do not use product in a humid area. This may cause fire, electric shock or breakdown of product. 11 Do not clean the surface of product with chemical substances or detergents. This may damage the surface of product. 12 Do not expose product to high heat or direct sunlight. Long-term storage or use in high temperature may cause breakdown or disable successful file play. Make sure to use product in a well-ventilated area. 13 Do not leave product near highly magnetic objects. This may lead to data loss and breakdown of product. 14 Connect all cables when power to MvixPVR and TV is turned off. Mvix can be used as a multimedia player and a mobile disk when connected to PC. However, both functions cannot be used simultaneously. 15 Product may not operate successfully if used for a long period of time or used in areas with harmful elements. If buffering occurs, stop operation and restart product. Or rebooting is also recommended.

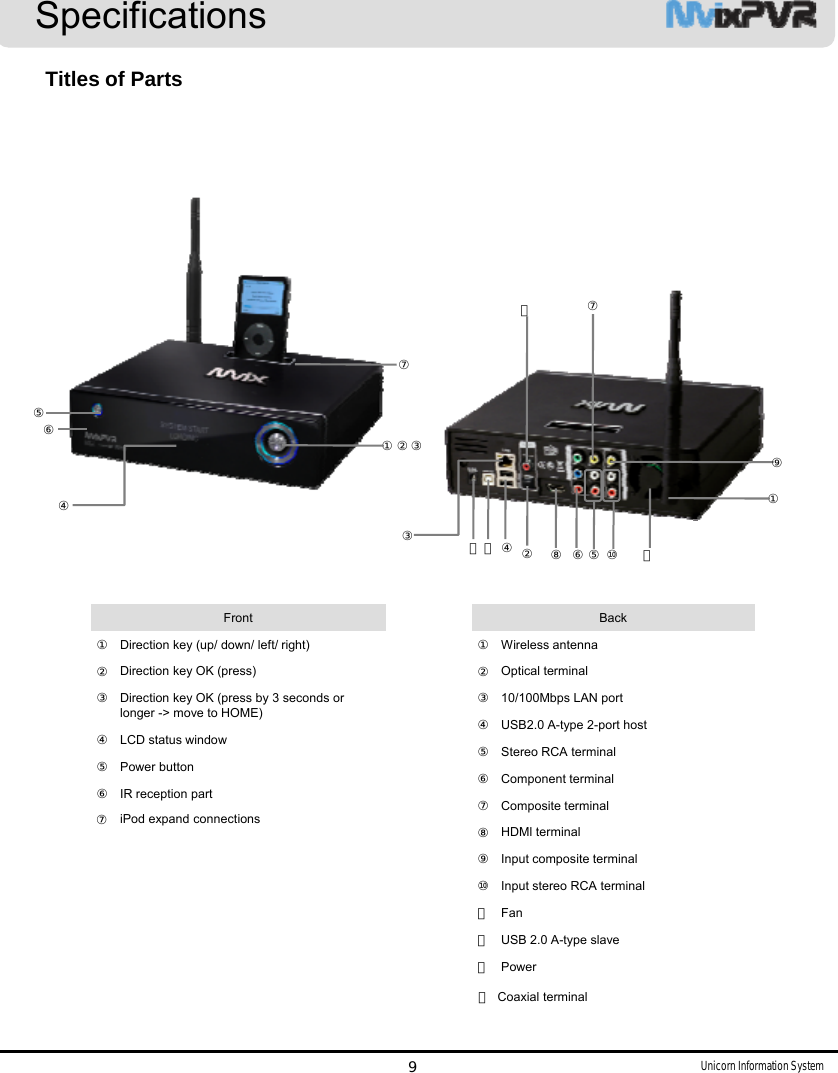

Unicorn Information System9SpecificationsTitles of PartsFront①Direction key (up/ down/ left/ right)②Direction key OK (press)③Direction key OK (press by 3 seconds or longer -> move to HOME)④LCD status window⑤Power button⑥IR reception partiPod expand connectionsBack①Wireless antenna②Optical terminal③10/100Mbps LAN port④USB2.0 A-type 2-port host⑤Stereo RCA terminal⑥Component terminal⑦Composite terminal⑧HDMl terminal⑨Input composite terminal⑩Input stereo RCA terminal⑪Fan⑫USB 2.0 A-type slave⑬Power⑦⑭Coaxial terminal②⑤①⑥③②⑦④①③⑬⑫④⑧⑥⑤⑩⑨⑦⑪⑭

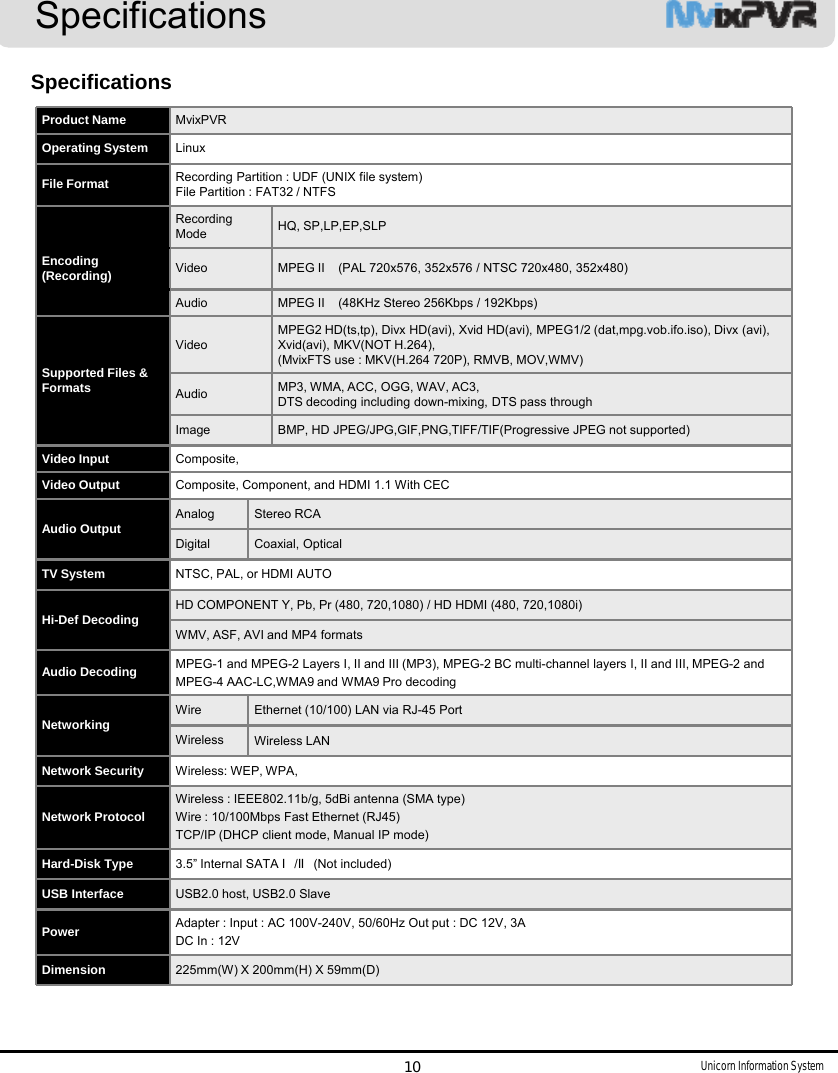

Unicorn Information System10SpecificationsSpecificationsProduct Name  MvixPVROperating System  Linux File Format Recording Partition : UDF (UNIX file system)File Partition : FAT32 / NTFSRecording Mode HQ, SP,LP,EP,SLPEncoding(Recording) Video MPEG II    (PAL 720x576, 352x576 / NTSC 720x480, 352x480)Audio MPEG II    (48KHz Stereo 256Kbps / 192Kbps)Supported Files &FormatsVideoMPEG2 HD(ts,tp), Divx HD(avi), Xvid HD(avi), MPEG1/2 (dat,mpg.vob.ifo.iso), Divx (avi),Xvid(avi), MKV(NOT H.264), (MvixFTS use : MKV(H.264 720P), RMVB, MOV,WMV)Audio MP3, WMA, ACC, OGG, WAV, AC3, DTS decoding including down-mixing, DTS pass through Image BMP, HD JPEG/JPG,GIF,PNG,TIFF/TIF(Progressive JPEG not supported)Video Input Composite,Video Output Composite, Component, and HDMI 1.1 With CECAudio Output Analog Stereo RCADigital Coaxial, Optical TV System NTSC, PAL, or HDMI AUTO Hi-Def Decoding HD COMPONENT Y, Pb, Pr (480, 720,1080) / HD HDMI (480, 720,1080i)WMV, ASF, AVI and MP4 formats Audio Decoding MPEG-1 and MPEG-2 Layers I, II and III (MP3), MPEG-2 BC multi-channel layers I, II and III, MPEG-2 and MPEG-4 AAC-LC,WMA9 and WMA9 Pro decodingNetworking Wire Ethernet (10/100) LAN via RJ-45 Port Wireless Wireless LANNetwork Security Wireless: WEP, WPA,Network ProtocolWireless : IEEE802.11b/g, 5dBi antenna (SMA type)Wire : 10/100Mbps Fast Ethernet (RJ45)TCP/IP (DHCP client mode, Manual IP mode)Hard-Disk Type 3.5” Internal SATA Ⅰ/Ⅱ(Not included) USB Interface USB2.0 host, USB2.0 SlavePower Adapter : Input : AC 100V-240V, 50/60Hz Out put : DC 12V, 3A DC In : 12VDimension 225mm(W) X 200mm(H) X 59mm(D)

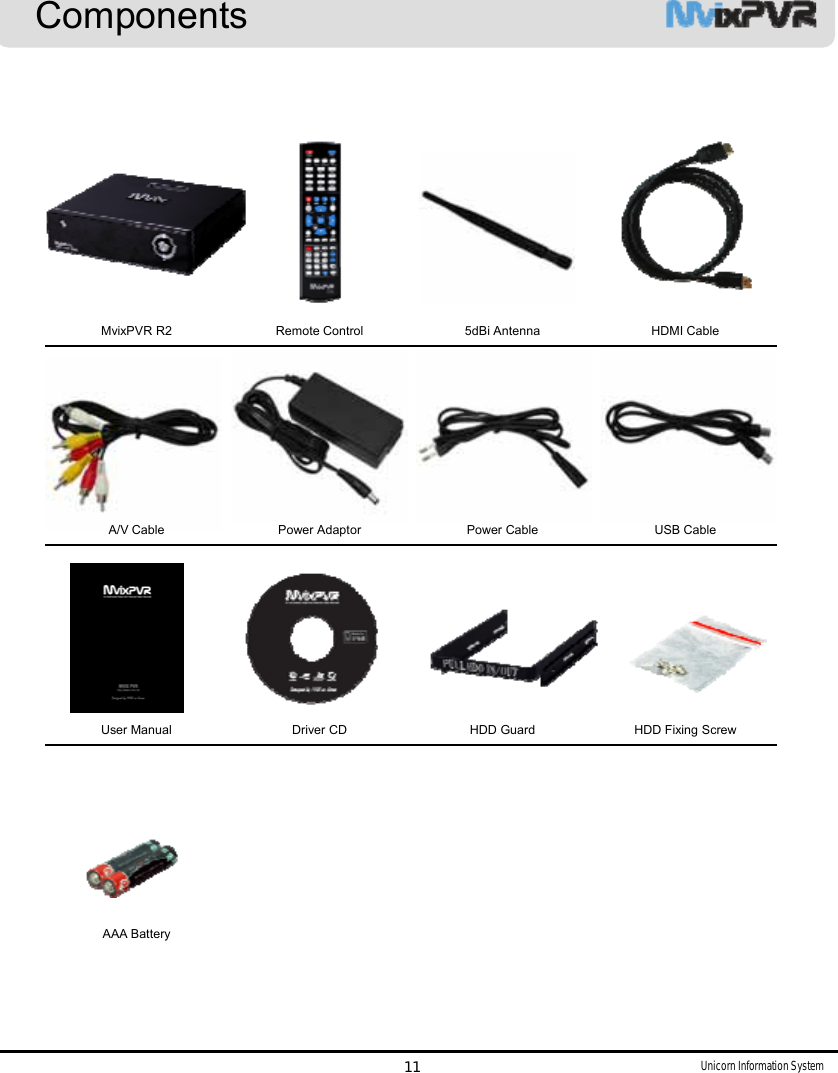

Unicorn Information SystemMvixPVR R2 Remote Control 5dBi Antenna HDMI CableA/V Cable Power Adaptor Power Cable USB CableUser Manual Driver CD HDD Guard HDD Fixing ScrewAAA Battery11Components

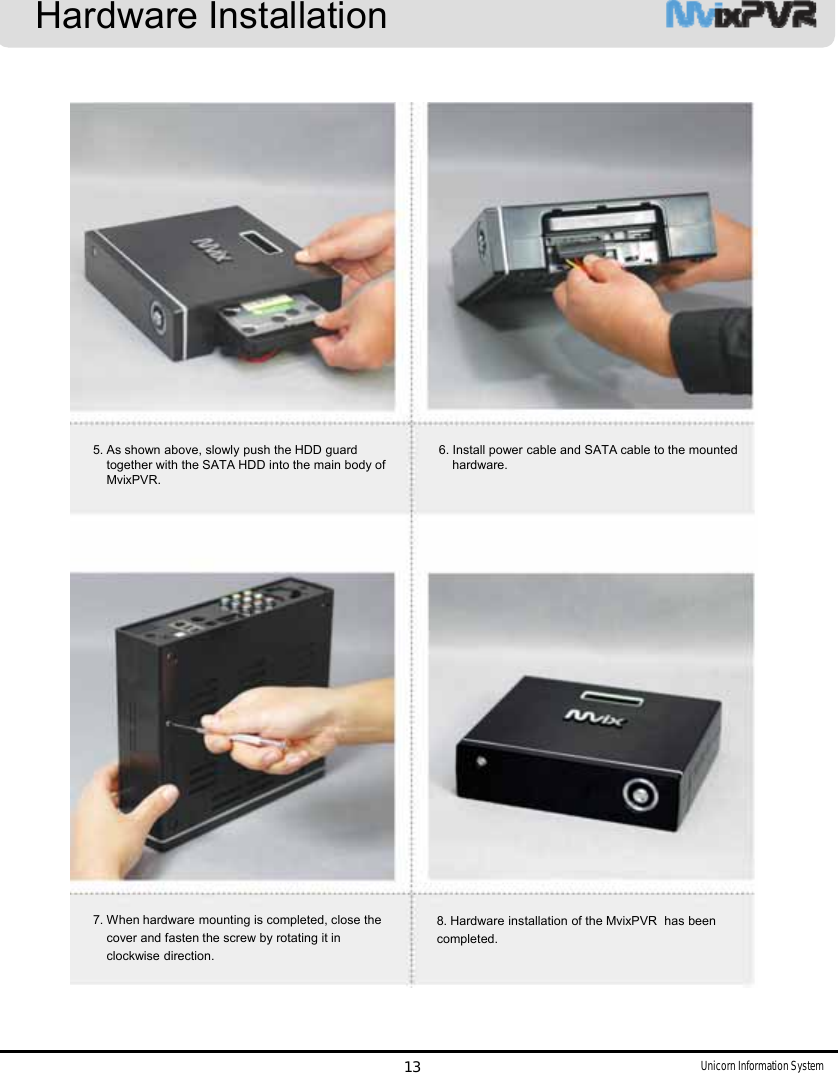

Unicorn Information System12Hardware Installation1. As shown above, unfasten the HDD cover screw and open the HDD cover on the side of product. 2. Remove the HDD cover on the side of product by  pressing it down in the middle as shown in the picture. 3. Separate the HDD guard from the main body of MvixPVR. 4. Connect the HDD guard and SATA HDD as shown In the picture. Fasten screws. HDD connection terminal must be on the left.
Unicorn Information System13Hardware Installation5. As shown above, slowly push the HDD guard   together with the SATA HDD into the main body of MvixPVR. 6. Install power cable and SATA cable to the mounted hardware. 7. When hardware mounting is completed, close the cover and fasten the screw by rotating it in clockwise direction. 8. Hardware installation of the MvixPVR  has been completed.

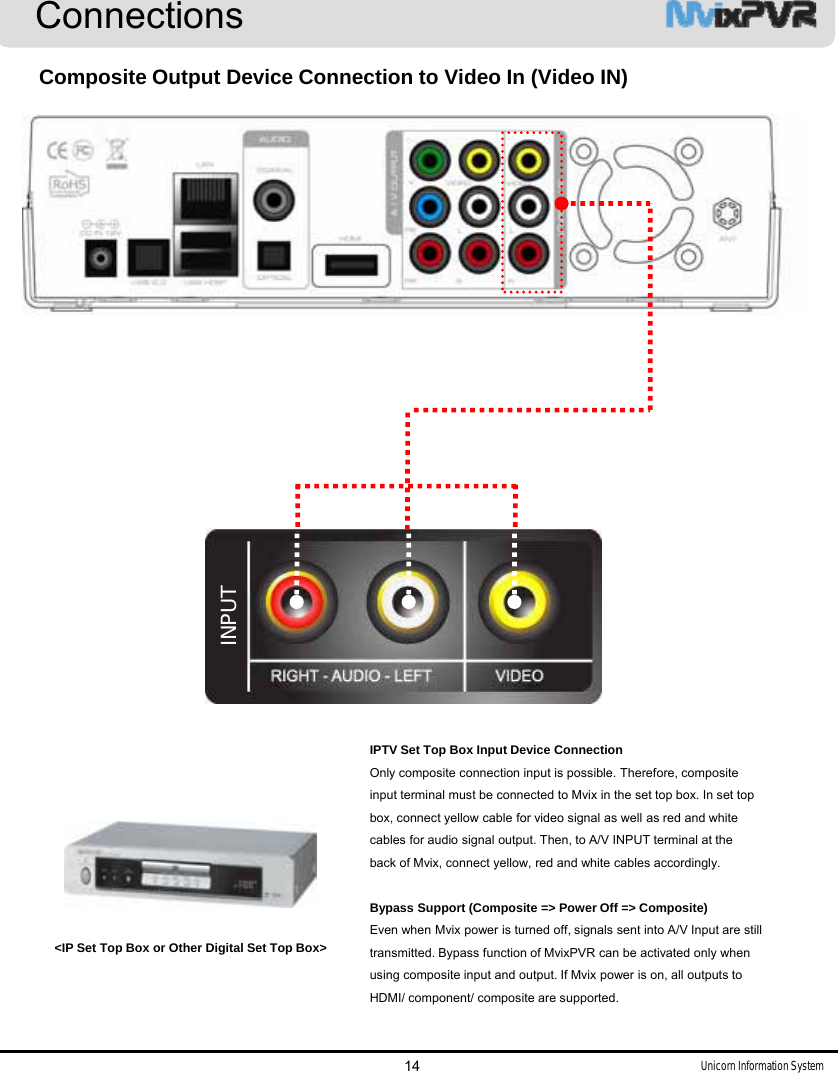

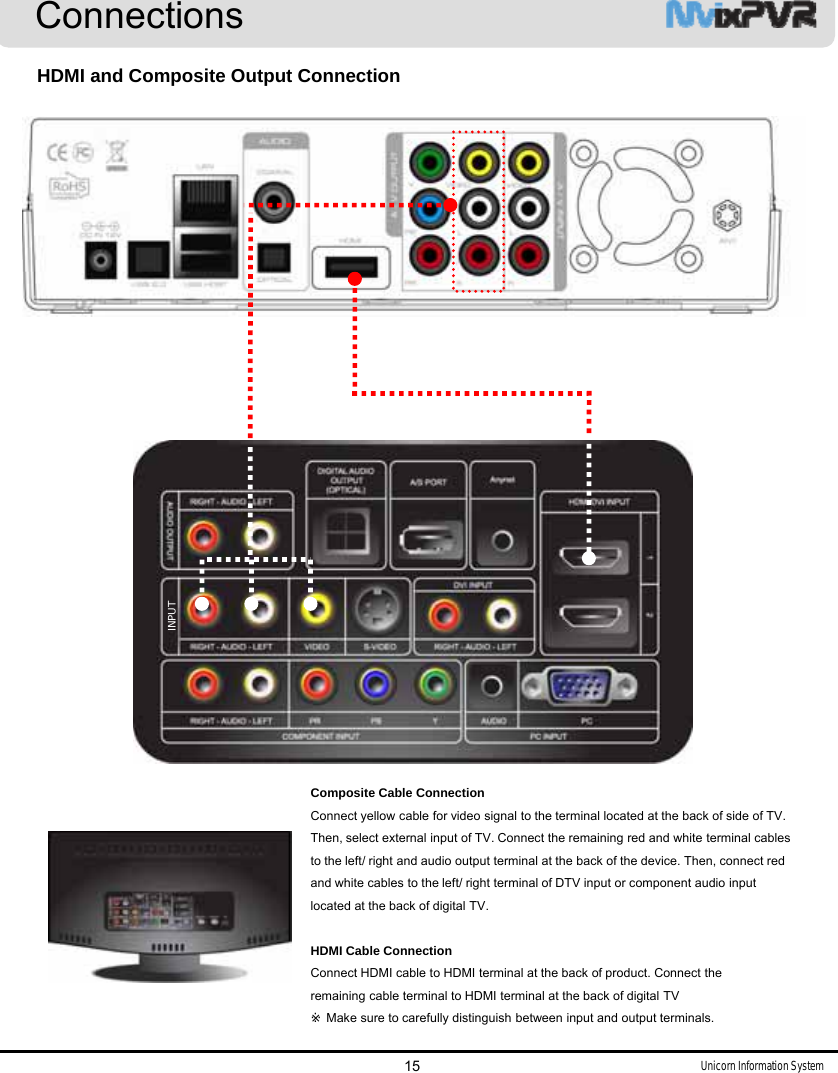

Unicorn Information System<IP Set Top Box or Other Digital Set Top Box>Composite Output Device Connection to Video In (Video IN)IPTV Set Top Box Input Device ConnectionOnly composite connection input is possible. Therefore, composite input terminal must be connected to Mvix in the set top box. In set topbox, connect yellow cable for video signal as well as red and white cables for audio signal output. Then, to A/V INPUT terminal at theback of Mvix, connect yellow, red and white cables accordingly.Bypass Support (Composite => Power Off => Composite)Even when Mvix power is turned off, signals sent into A/V Input are stilltransmitted. Bypass function of MvixPVR can be activated only whenusing composite input and output. If Mvix power is on, all outputs toHDMI/ component/ composite are supported.14ConnectionsINPUT
Unicorn Information SystemComposite Cable ConnectionConnect yellow cable for video signal to the terminal located at the back of side of TV. Then, select external input of TV. Connect the remaining red and white terminal cables to the left/ right and audio output terminal at the back of the device. Then, connect red and white cables to the left/ right terminal of DTV input or component audio input located at the back of digital TV.HDMI Cable Connection Connect HDMI cable to HDMI terminal at the back of product. Connect the remaining cable terminal to HDMI terminal at the back of digital TV ※Make sure to carefully distinguish between input and output terminals.HDMI and Composite Output Connection15ConnectionsINPUT

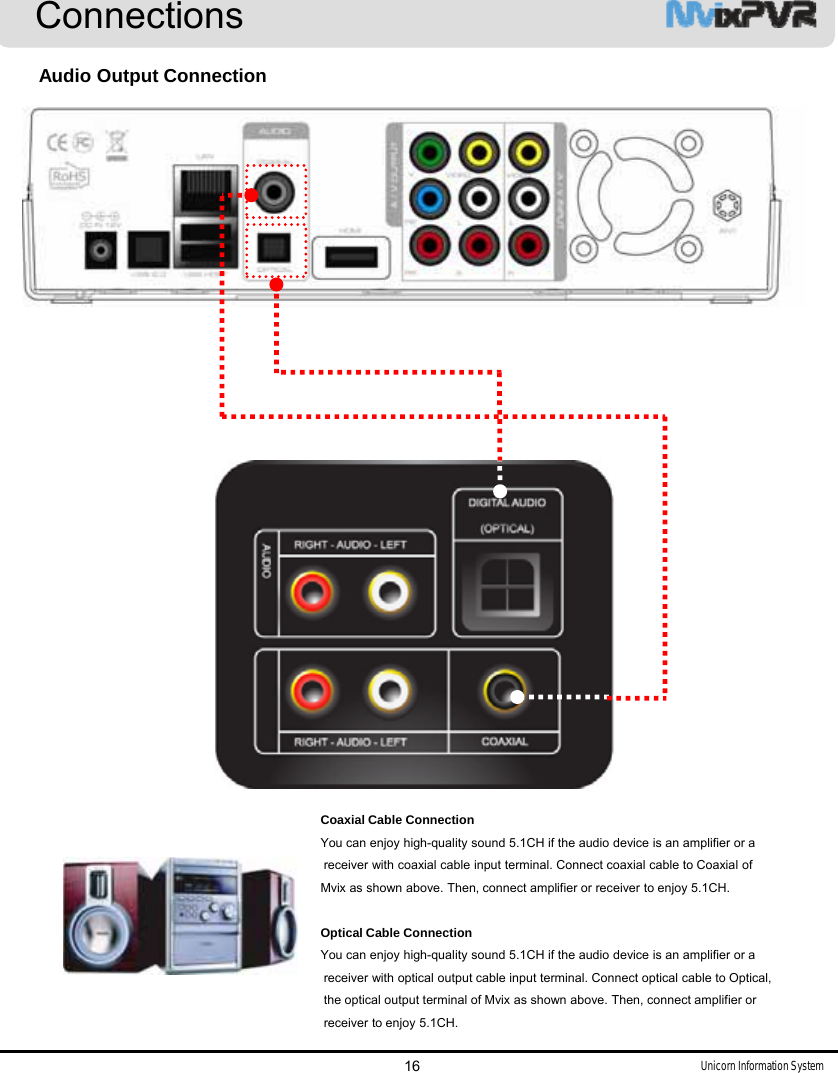

Unicorn Information SystemCoaxial Cable Connection You can enjoy high-quality sound 5.1CH if the audio device is an amplifier or areceiver with coaxial cable input terminal. Connect coaxial cable to Coaxial of Mvix as shown above. Then, connect amplifier or receiver to enjoy 5.1CH.Optical Cable ConnectionYou can enjoy high-quality sound 5.1CH if the audio device is an amplifier or areceiver with optical output cable input terminal. Connect optical cable to Optical,the optical output terminal of Mvix as shown above. Then, connect amplifier orreceiver to enjoy 5.1CH. Audio Output Connection16Connections
Unicorn Information System17Remote Control Functions

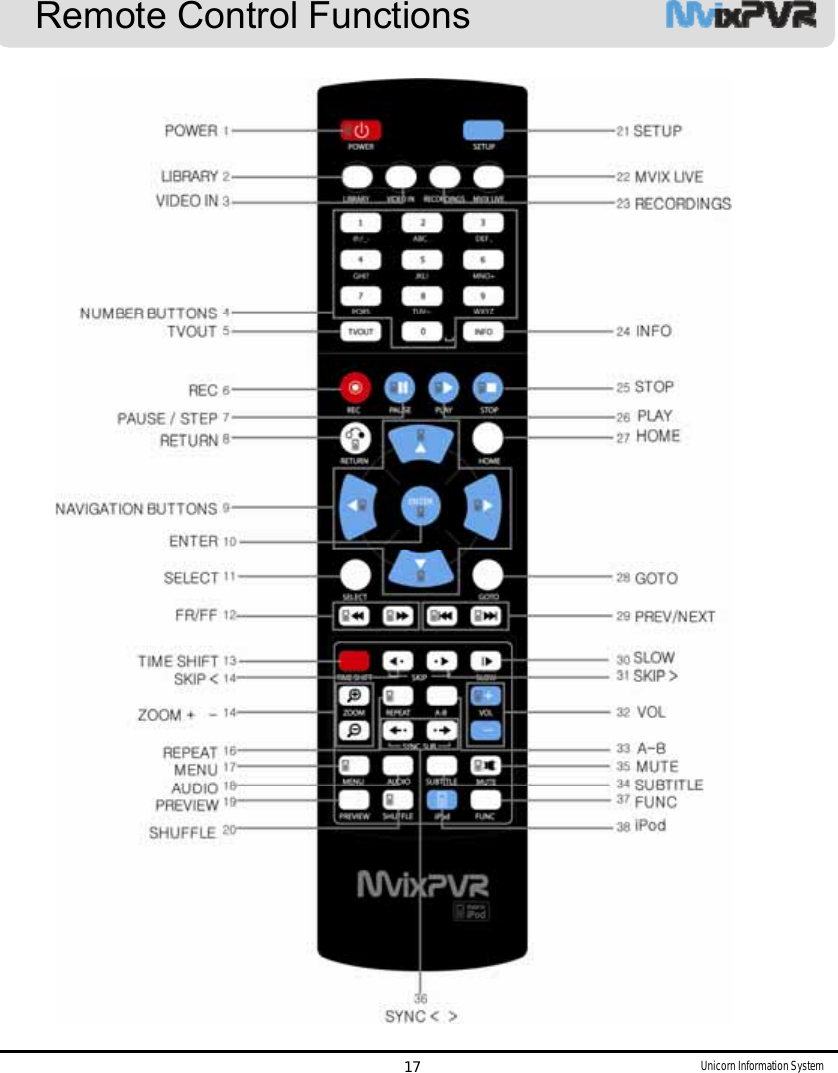

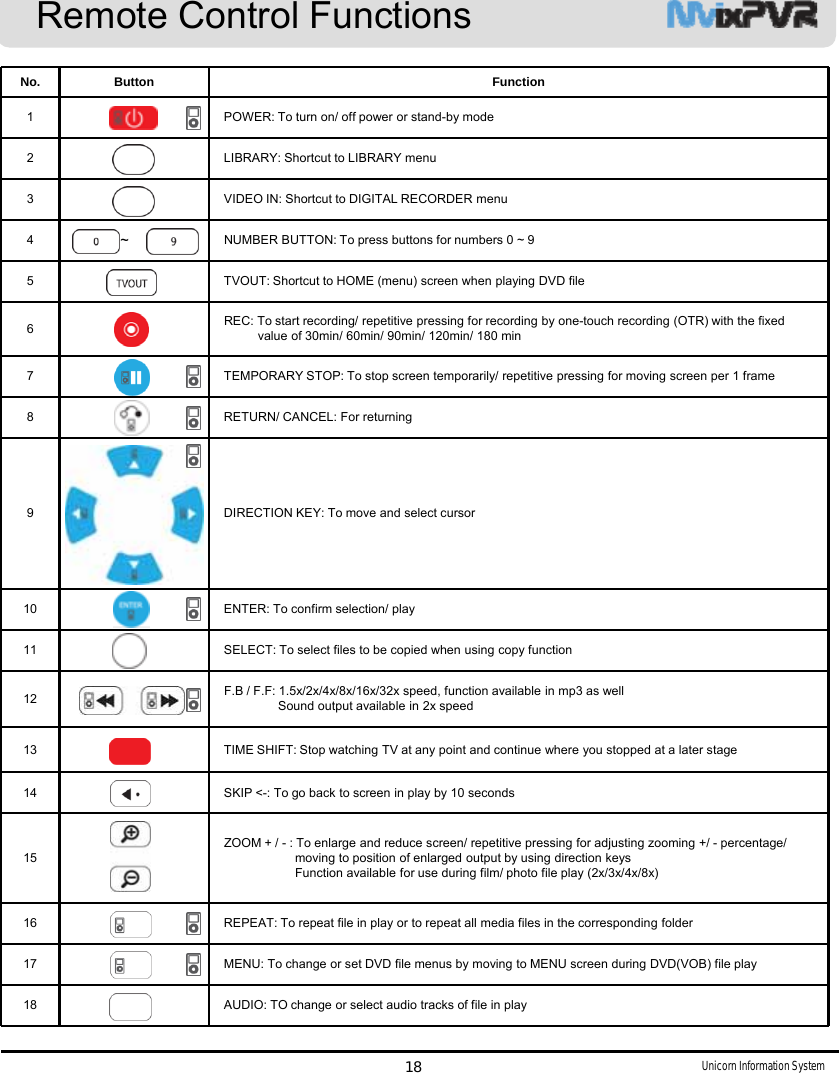

Unicorn Information System18Remote Control Functions No. Button Function 1 POWER: To turn on/ off power or stand-by mode2 LIBRARY: Shortcut to LIBRARY menu3 VIDEO IN: Shortcut to DIGITAL RECORDER menu4~NUMBER BUTTON: To press buttons for numbers 0 ~ 95 TVOUT: Shortcut to HOME (menu) screen when playing DVD file6REC: To start recording/ repetitive pressing for recording by one-touch recording (OTR) with the fixed value of 30min/ 60min/ 90min/ 120min/ 180 min7 TEMPORARY STOP: To stop screen temporarily/ repetitive pressing for moving screen per 1 frame 8 RETURN/ CANCEL: For returning 9 DIRECTION KEY: To move and select cursor10 ENTER: To confirm selection/ play11 SELECT: To select files to be copied when using copy function 12 F.B / F.F: 1.5x/2x/4x/8x/16x/32x speed, function available in mp3 as well Sound output available in 2x speed13 TIME SHIFT: Stop watching TV at any point and continue where you stopped at a later stage14 SKIP <-: To go back to screen in play by 10 seconds15ZOOM + / - : To enlarge and reduce screen/ repetitive pressing for adjusting zooming +/ - percentage/ moving to position of enlarged output by using direction keys Function available for use during film/ photo file play (2x/3x/4x/8x)16 REPEAT: To repeat file in play or to repeat all media files in the corresponding folder17 MENU: To change or set DVD file menus by moving to MENU screen during DVD(VOB) file play18 AUDIO: TO change or select audio tracks of file in play
Unicorn Information SystemRemote Control Functions19No. Button Function19 PREVIEW: To turn on/ off preview screen automatically displayed in media play file search mode20 Shuffle: To change play sequence to shuffle (for iPod only)21 SETUP: Function available when playing media file or using menu’s in VIDEO IN screenTo display various setup screens22 MVIXLIVE: Shortcut to MVIXLIVE menu23 RECORDINGS: Shortcut to RECORDINGS menu24INFO: To display the current statusFunction available while recording is in play/ repetitive pressing for displaying network status/ to hide or display OSD of TIME SHIFT function25 STOP: To stop file in play26 PLAY: To play the selected file27 HOME: To go to main screen or to display the projected main screen28 GOTO: To select file in the same title or to execute shortcut to the already designated chapter position/   shortcut to the desired time position 29 PREV/NEXT: To move to previous file (list) or next file (list)30 SLOW: Repetitive pressing for play in slow motion by 3/4x / 1/2x / 1/4x / 1/8x / 1/16x / 1x in sequence31 SKIP ->: To advance screen in play by 30 seconds32 VOL: To adjust volume33 A-B: To set zone repetition34 SUBTITLE: SUBTITLE: To change or select size of subtitle35 MUTE: For mute function36 SYNC <- / ->: To adjust sync of subtitle files played with film (100ms/ 0.1sec)37 FUNC: To implement the function of ~38 iPod: To convert remote control to iPod control mode/ repressing for returning to PVR mode※Accessible buttons in iPod mode

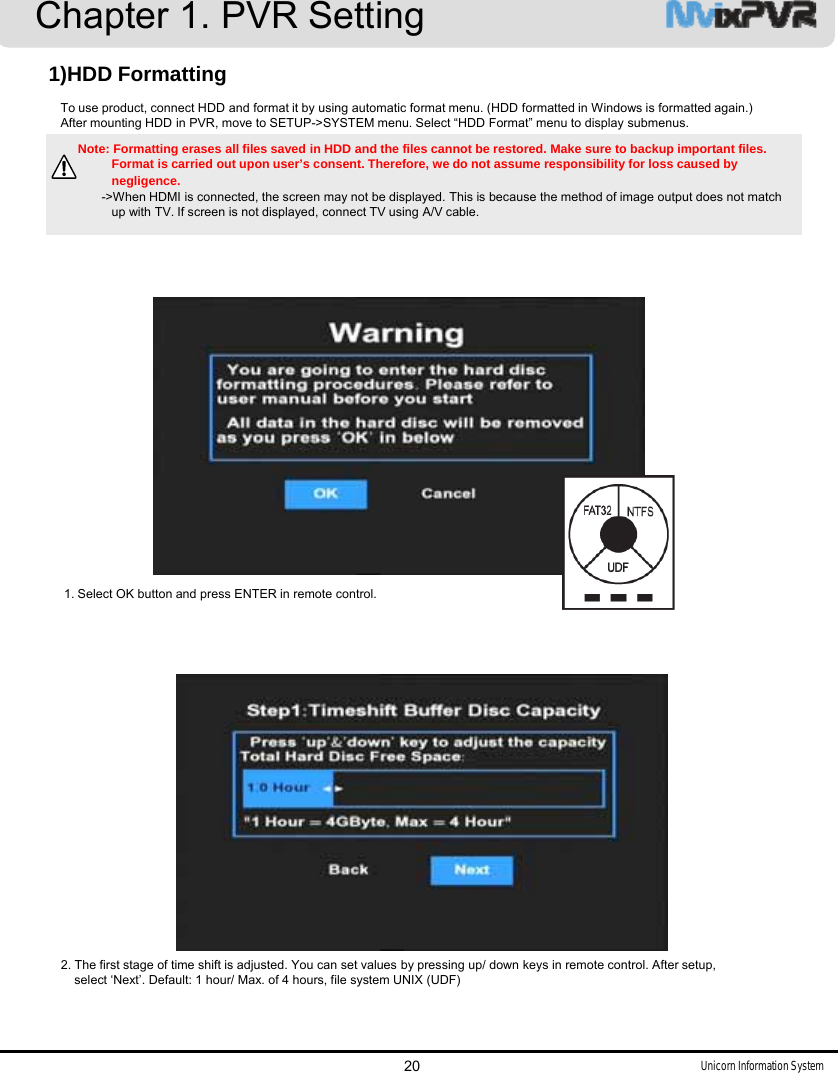

Unicorn Information System20Chapter 1. PVR Setting*주의 : 포맷을 진행하면 HDD에 저장된 모든 파일이 지워지며 복구가 불가능하므로 중요한 파일이 있을 경우 백업하시기 바랍니다. 사용자 동의로 이루어지는 포맷이므로 부주의로 인한 손실은 책임지지 않습니다.->HDMI를 연결하여 사용할 경우 해당화면이 보이지 않는 경우가 있습니다.이는 영상 출력방식이 TV와 일치되지 않아보이지 않는 경우입니다. 화면이 출력되지 않을 경우 A/V 케이블을 이용하여 연결 하시면 화면을 보실 수 있습니다.1)HDD Formatting To use product, connect HDD and format it by using automatic format menu. (HDD formatted in Windows is formatted again.)After mounting HDD in PVR, move to SETUP->SYSTEM menu. Select “HDD Format” menu to display submenus. Note: Formatting erases all files saved in HDD and the files cannot be restored. Make sure to backup important files.Format is carried out upon user’s consent. Therefore, we do not assume responsibility for loss caused by negligence.->When HDMI is connected, the screen may not be displayed. This is because the method of image output does not matchup with TV. If screen is not displayed, connect TV using A/V cable.  1. Select OK button and press ENTER in remote control.2. The first stage of time shift is adjusted. You can set values by pressing up/ down keys in remote control. After setup, select ‘Next’. Default: 1 hour/ Max. of 4 hours, file system UNIX (UDF)

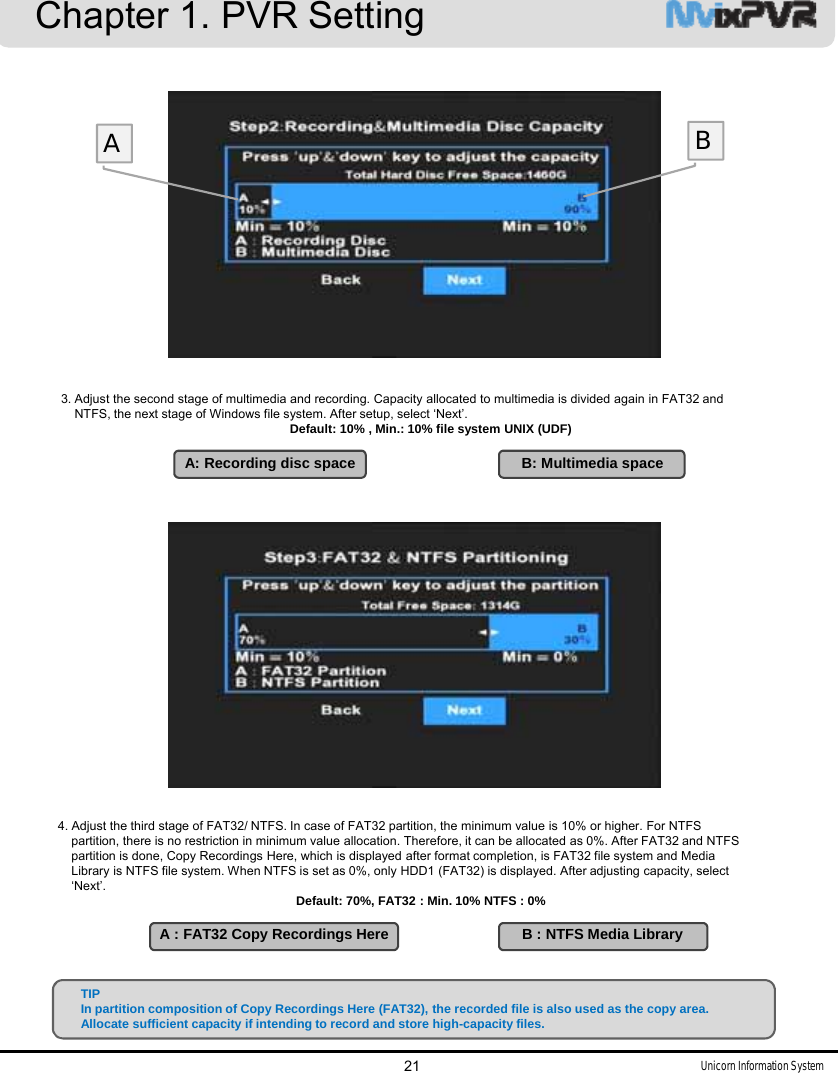

Unicorn Information SystemChapter 1. PVR Setting213. Adjust the second stage of multimedia and recording. Capacity allocated to multimedia is divided again in FAT32 and NTFS, the next stage of Windows file system. After setup, select ‘Next’.  Default: 10% , Min.: 10% file system UNIX (UDF)A: Recording disc space                                        B: Multimedia space4. Adjust the third stage of FAT32/ NTFS. In case of FAT32 partition, the minimum value is 10% or higher. For NTFSpartition, there is no restriction in minimum value allocation. Therefore, it can be allocated as 0%. After FAT32 and NTFSpartition is done, Copy Recordings Here, which is displayed after format completion, is FAT32 file system and MediaLibrary is NTFS file system. When NTFS is set as 0%, only HDD1 (FAT32) is displayed. After adjusting capacity, select‘Next’.   Default: 70%, FAT32 : Min. 10% NTFS : 0%A : FAT32 Copy Recordings Here                                B : NTFS Media LibraryTIPIn partition composition of Copy Recordings Here (FAT32), the recorded file is also used as the copy area. Allocate sufficient capacity if intending to record and store high-capacity files.AB

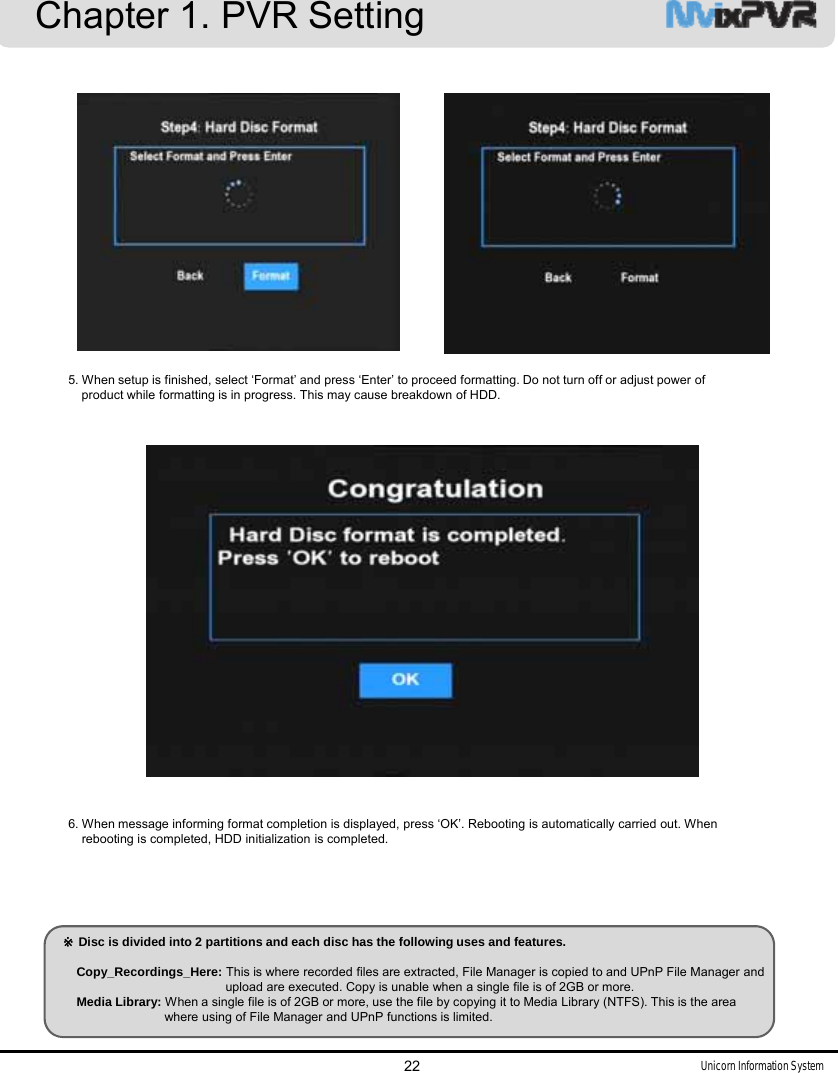

Unicorn Information System22Chapter 1. PVR Setting5. When setup is finished, select ‘Format’ and press ‘Enter’ to proceed formatting. Do not turn off or adjust power of product while formatting is in progress. This may cause breakdown of HDD. 6. When message informing format completion is displayed, press ‘OK’. Rebooting is automatically carried out. When rebooting is completed, HDD initialization is completed. ※Disc is divided into 2 partitions and each disc has the following uses and features. Copy_Recordings_Here: This is where recorded files are extracted, File Manager is copied to and UPnP File Manager andupload are executed. Copy is unable when a single file is of 2GB or more.Media Library: When a single file is of 2GB or more, use the file by copying it to Media Library (NTFS). This is the area where using of File Manager and UPnP functions is limited.

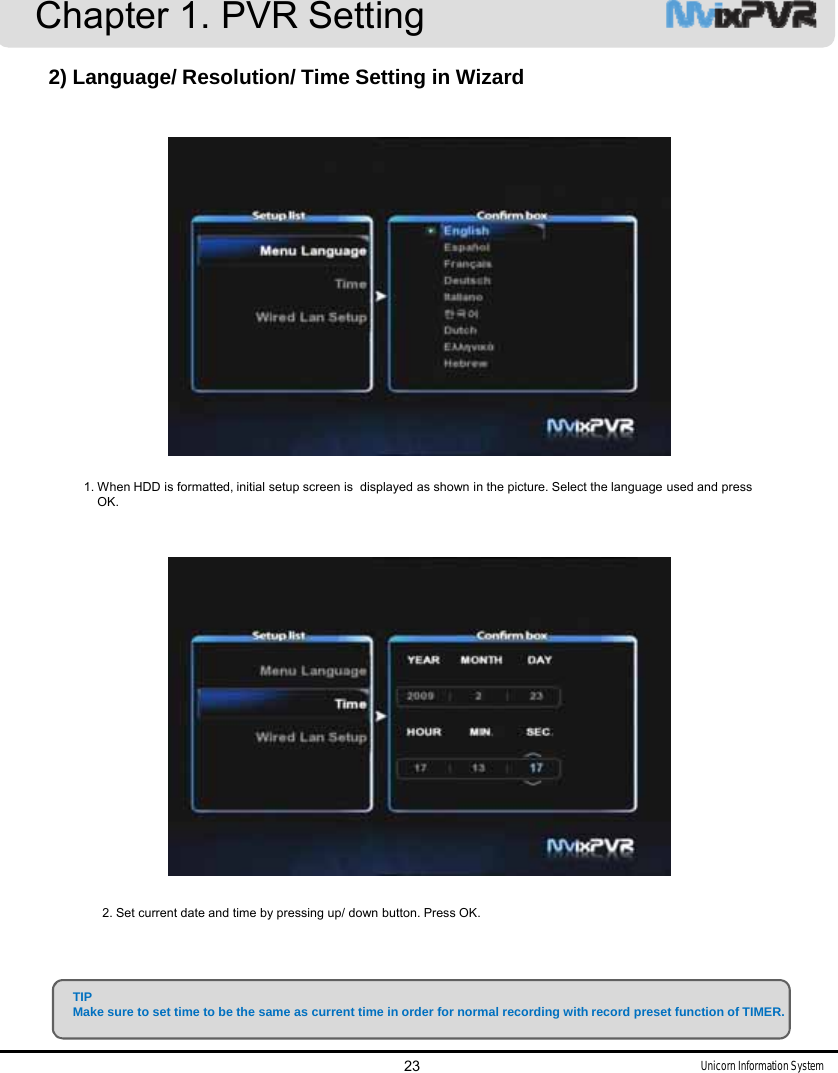

Unicorn Information System23Chapter 1. PVR Setting2) Language/ Resolution/ Time Setting in Wizard1. When HDD is formatted, initial setup screen is  displayed as shown in the picture. Select the language used and pressOK.2. Set current date and time by pressing up/ down button. Press OK. TIPMake sure to set time to be the same as current time in order for normal recording with record preset function of TIMER.

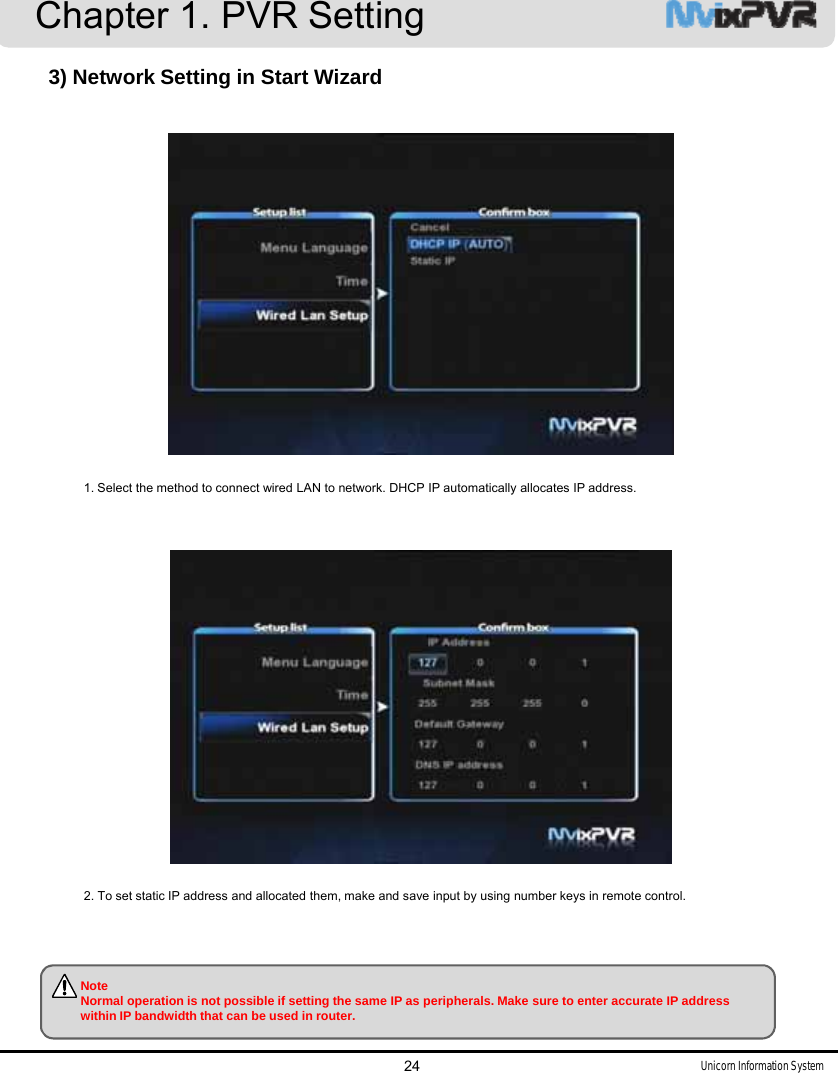

Unicorn Information SystemChapter 1. PVR Setting243) Network Setting in Start Wizard1. Select the method to connect wired LAN to network. DHCP IP automatically allocates IP address. 2. To set static IP address and allocated them, make and save input by using number keys in remote control. NoteNormal operation is not possible if setting the same IP as peripherals. Make sure to enter accurate IP address within IP bandwidth that can be used in router.

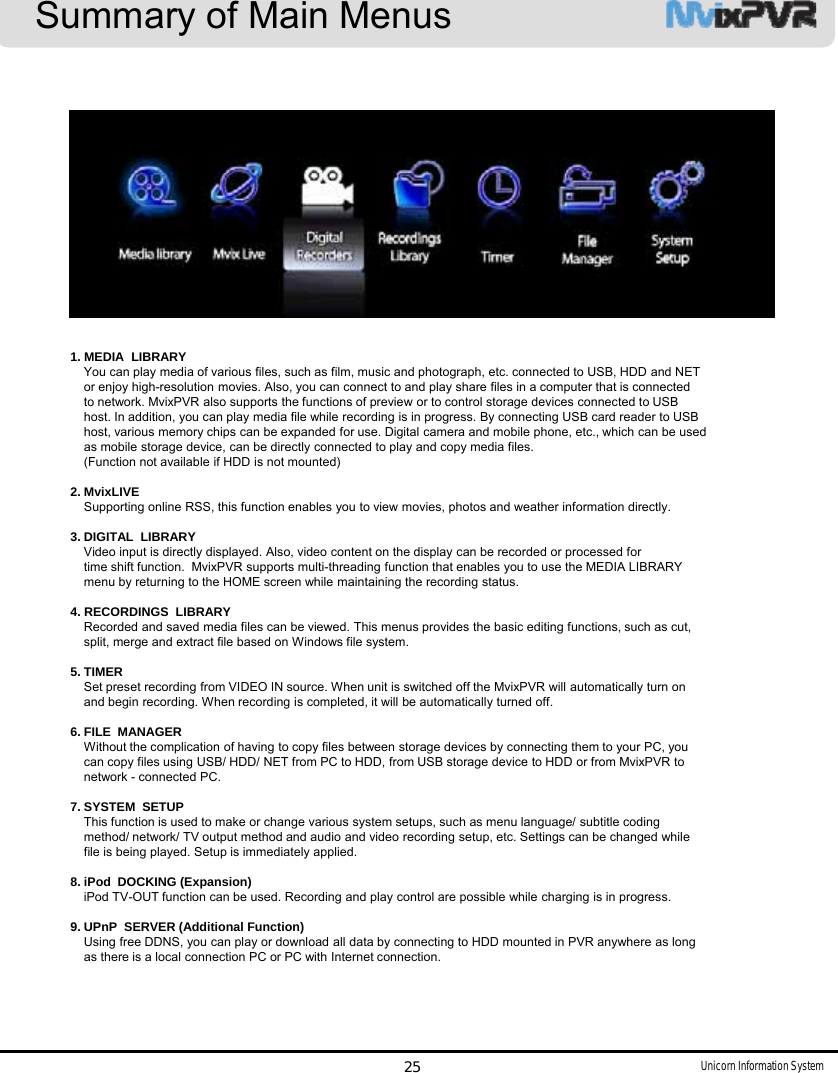

Unicorn Information System25Summary of Main Menus1. MEDIA  LIBRARYYou can play media of various files, such as film, music and photograph, etc. connected to USB, HDD and NET or enjoy high-resolution movies. Also, you can connect to and play share files in a computer that is connectedto network. MvixPVR also supports the functions of preview or to control storage devices connected to USB host. In addition, you can play media file while recording is in progress. By connecting USB card reader to USB host, various memory chips can be expanded for use. Digital camera and mobile phone, etc., which can be used as mobile storage device, can be directly connected to play and copy media files.(Function not available if HDD is not mounted)2. MvixLIVESupporting online RSS, this function enables you to view movies, photos and weather information directly. 3. DIGITAL  LIBRARYVideo input is directly displayed. Also, video content on the display can be recorded or processed for time shift function.  MvixPVR supports multi-threading function that enables you to use the MEDIA LIBRARY menu by returning to the HOME screen while maintaining the recording status. 4. RECORDINGS  LIBRARYRecorded and saved media files can be viewed. This menus provides the basic editing functions, such as cut, split, merge and extract file based on Windows file system. 5. TIMERSet preset recording from VIDEO IN source. When unit is switched off the MvixPVR will automatically turn on and begin recording. When recording is completed, it will be automatically turned off. 6. FILE  MANAGERWithout the complication of having to copy files between storage devices by connecting them to your PC, you can copy files using USB/ HDD/ NET from PC to HDD, from USB storage device to HDD or from MvixPVR to network - connected PC. 7. SYSTEM  SETUPThis function is used to make or change various system setups, such as menu language/ subtitle coding method/ network/ TV output method and audio and video recording setup, etc. Settings can be changed while file is being played. Setup is immediately applied. 8. iPod  DOCKING (Expansion)iPod TV-OUT function can be used. Recording and play control are possible while charging is in progress.9. UPnP  SERVER (Additional Function)Using free DDNS, you can play or download all data by connecting to HDD mounted in PVR anywhere as long as there is a local connection PC or PC with Internet connection.

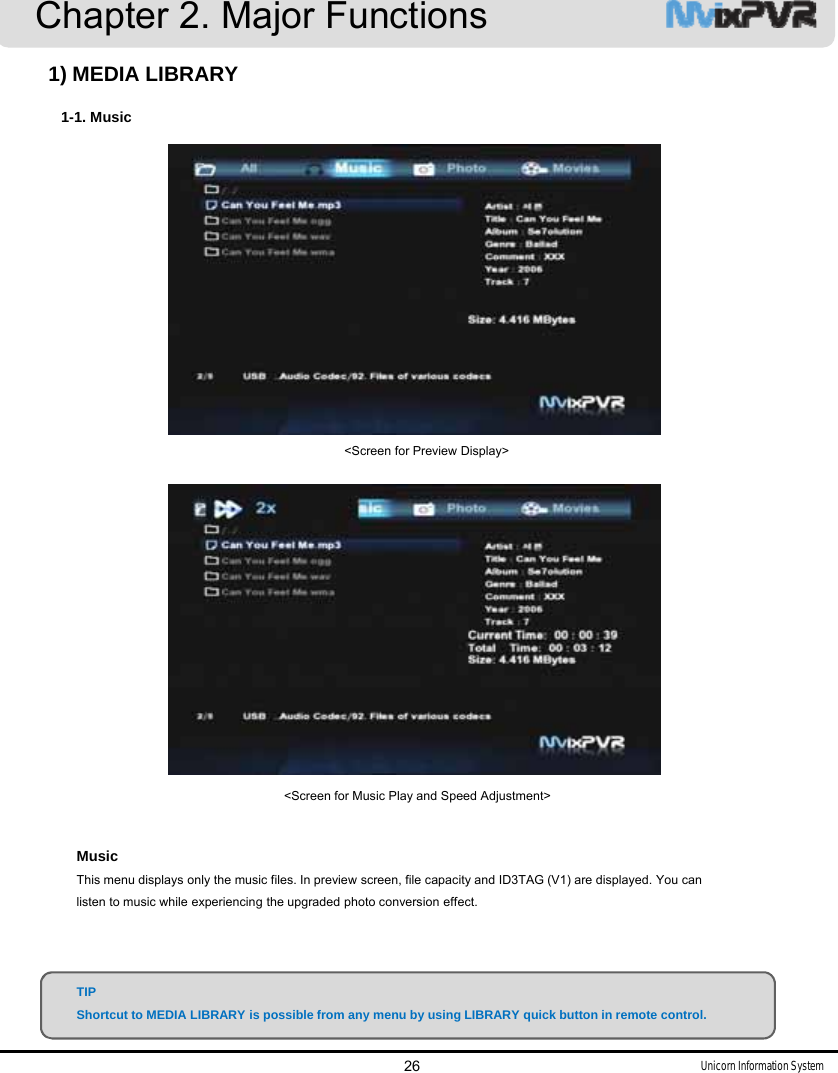

Unicorn Information SystemMusicThis menu displays only the music files. In preview screen, file capacity and ID3TAG (V1) are displayed. You can listen to music while experiencing the upgraded photo conversion effect.TIPShortcut to MEDIA LIBRARY is possible from any menu by using LIBRARY quick button in remote control.26Chapter 2. Major Functions1) MEDIA LIBRARY1-1. Music<Screen for Preview Display><Screen for Music Play and Speed Adjustment>
Unicorn Information SystemChapter 2. Major Functions271-2. Photo<Screen for Photo Preview> <Rotated Screen><Full Screen>PhotoThis menus displays only the photo files. Zooming function (2x/4x/6x/8x/16x/Fit) lets you expand photos and check their locations. Using <Left/ Right> keys, you can instantly rotate vertically taken photos without having to modify them (supporting BMP/ JPEG formats, progressive JPEG format not supported). All photos in folder are automatically displayed in slide show. The interval of slide show can be adjusted as 2/ 5/ 10/ 30 Seconds or 1/2minutes. A variety of conversion effects are also available. TIPYou can enjoy slide show with music and diverse effects by activating SETUP->SYSTEM -> MISC -> Transition Effect setup.<Enlarged Screen>

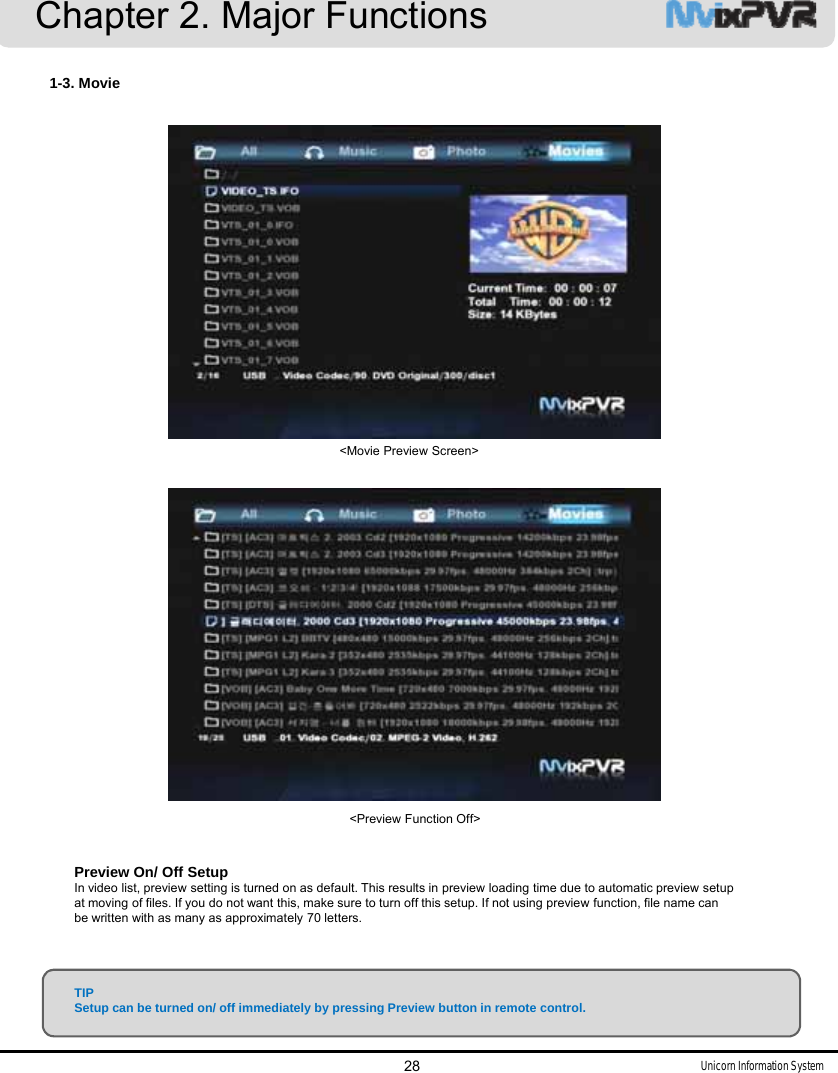

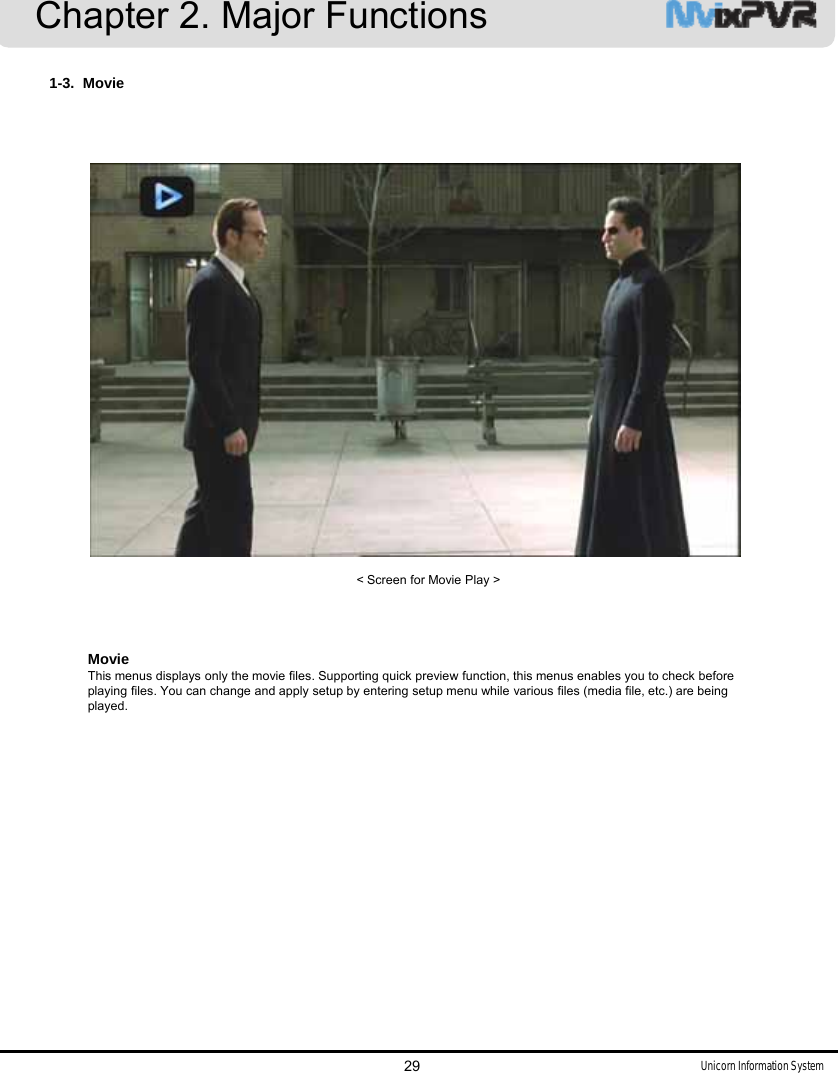

Unicorn Information System28Chapter 2. Major Functions1-3. Movie<Movie Preview Screen><Preview Function Off>Preview On/ Off SetupIn video list, preview setting is turned on as default. This results in preview loading time due to automatic preview setupat moving of files. If you do not want this, make sure to turn off this setup. If not using preview function, file name canbe written with as many as approximately 70 letters.TIPSetup can be turned on/ off immediately by pressing Preview button in remote control.
Unicorn Information SystemMovieThis menus displays only the movie files. Supporting quick preview function, this menus enables you to check before playing files. You can change and apply setup by entering setup menu while various files (media file, etc.) are being played.< Screen for Movie Play >Chapter 2. Major Functions1-3.  Movie29

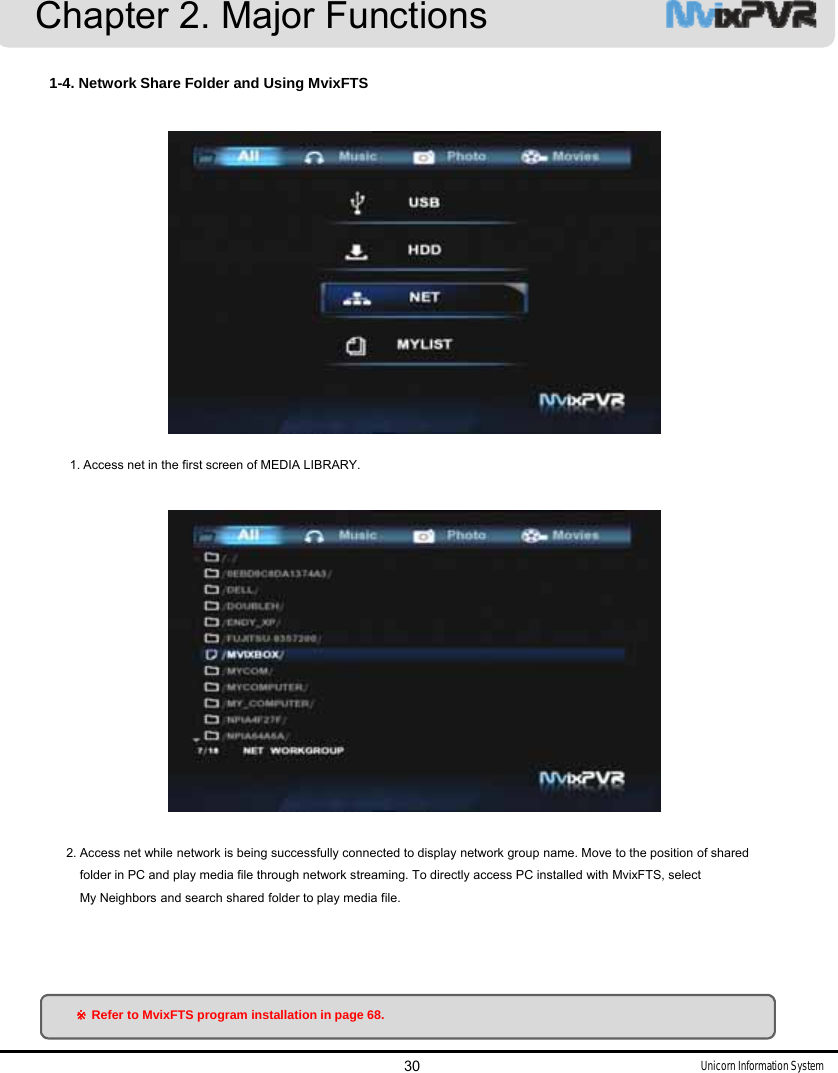

Unicorn Information SystemChapter 2. Major Functions301-4. Network Share Folder and Using MvixFTS1. Access net in the first screen of MEDIA LIBRARY.2. Access net while network is being successfully connected to display network group name. Move to the position of sharedfolder in PC and play media file through network streaming. To directly access PC installed with MvixFTS, select  My Neighbors and search shared folder to play media file. ※Refer to MvixFTS program installation in page 68.

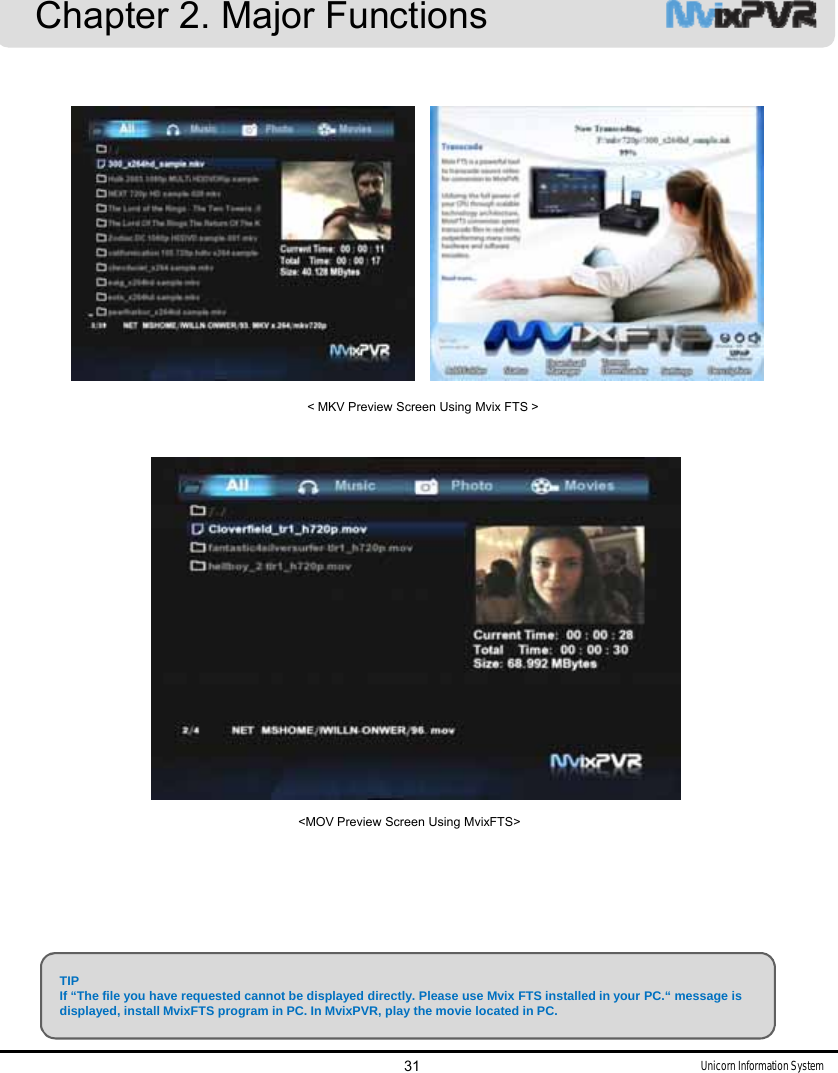

Unicorn Information SystemChapter 2. Major Functions31< MKV Preview Screen Using Mvix FTS ><MOV Preview Screen Using MvixFTS>TIPIf “The file you have requested cannot be displayed directly. Please use Mvix FTS installed in your PC.“ message is displayed, install MvixFTS program in PC. In MvixPVR, play the movie located in PC.

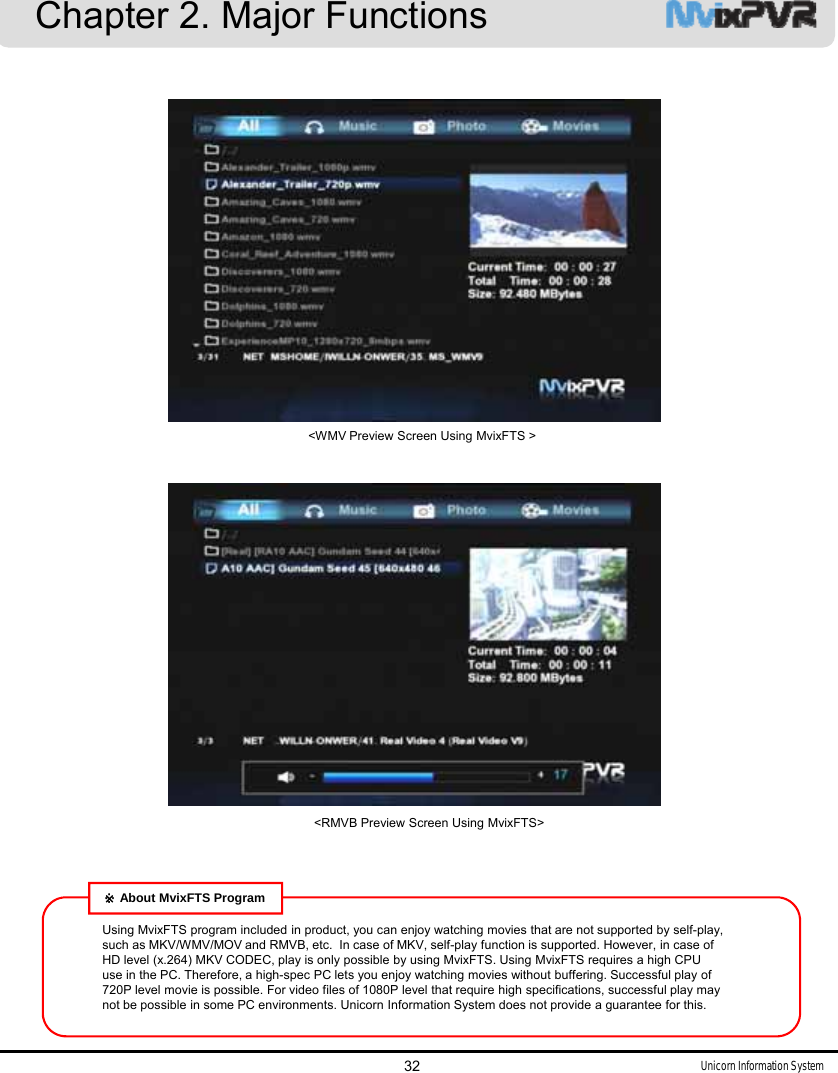

Unicorn Information SystemChapter 2. Major Functions32<WMV Preview Screen Using MvixFTS ><RMVB Preview Screen Using MvixFTS>Using MvixFTS program included in product, you can enjoy watching movies that are not supported by self-play, such as MKV/WMV/MOV and RMVB, etc.  In case of MKV, self-play function is supported. However, in case of HD level (x.264) MKV CODEC, play is only possible by using MvixFTS. Using MvixFTS requires a high CPU use in the PC. Therefore, a high-spec PC lets you enjoy watching movies without buffering. Successful play of 720P level movie is possible. For video files of 1080P level that require high specifications, successful play may not be possible in some PC environments. Unicorn Information System does not provide a guarantee for this.  ※About MvixFTS Program

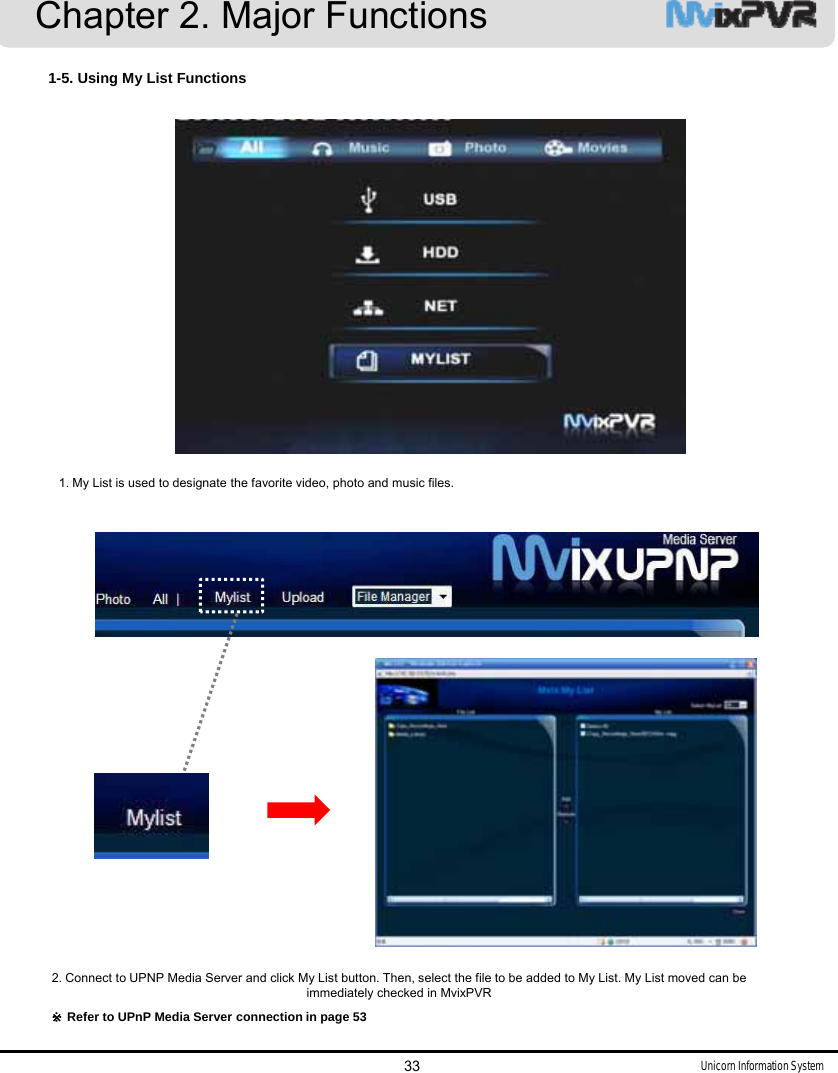

Unicorn Information System1. My List is used to designate the favorite video, photo and music files.1-5. Using My List Functions2. Connect to UPNP Media Server and click My List button. Then, select the file to be added to My List. My List moved can be immediately checked in MvixPVR33※Refer to UPnP Media Server connection in page 53Chapter 2. Major Functions

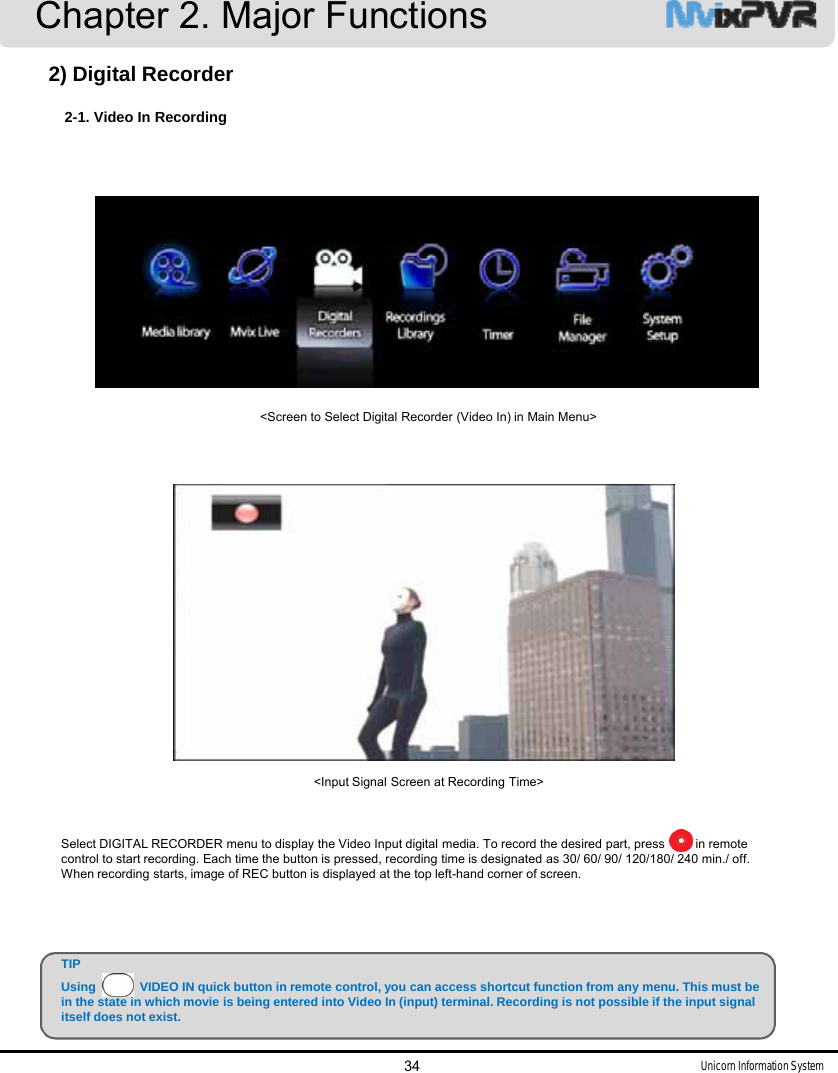

Unicorn Information System34Chapter 2. Major Functions2) Digital Recorder2-1. Video In Recording<Input Signal Screen at Recording Time>Select DIGITAL RECORDER menu to display the Video Input digital media. To record the desired part, press         in remote control to start recording. Each time the button is pressed, recording time is designated as 30/ 60/ 90/ 120/180/ 240 min./ off.When recording starts, image of REC button is displayed at the top left-hand corner of screen. TIPUsing             VIDEO IN quick button in remote control, you can access shortcut function from any menu. This must be in the state in which movie is being entered into Video In (input) terminal. Recording is not possible if the input signal itself does not exist. <Screen to Select Digital Recorder (Video In) in Main Menu>

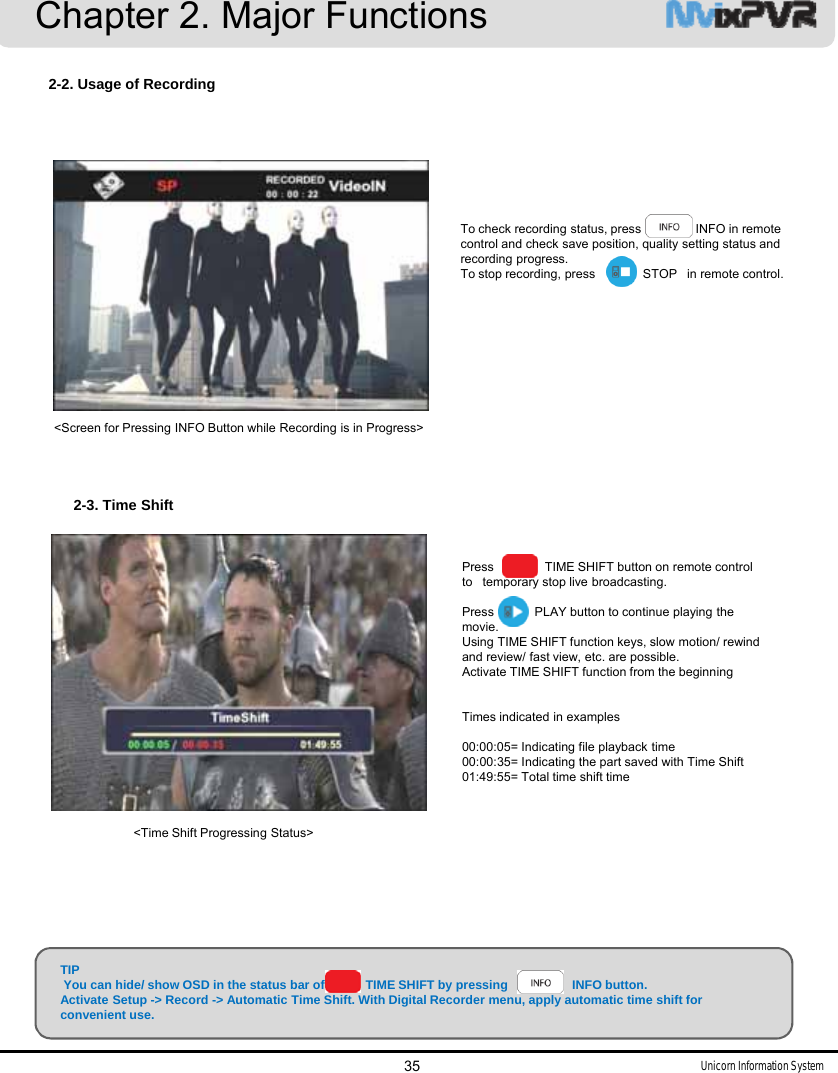

Unicorn Information System352-2. Usage of Recording<Screen for Pressing INFO Button while Recording is in Progress>2-3. Time Shift TIPYou can hide/ show OSD in the status bar of            TIME SHIFT by pressing                   INFO button. Activate Setup -> Record -> Automatic Time Shift. With Digital Recorder menu, apply automatic time shift for convenient use.To check recording status, press                INFO in remote control and check save position, quality setting status and recording progress. To stop recording, press              STOP   in remote control. Press               TIME SHIFT button on remote control to   temporary stop live broadcasting. Press            PLAY button to continue playing the movie.  Using TIME SHIFT function keys, slow motion/ rewind and review/ fast view, etc. are possible. Activate TIME SHIFT function from the beginning Times indicated in examples00:00:05= Indicating file playback time00:00:35= Indicating the part saved with Time Shift01:49:55= Total time shift time<Time Shift Progressing Status>Chapter 2. Major Functions

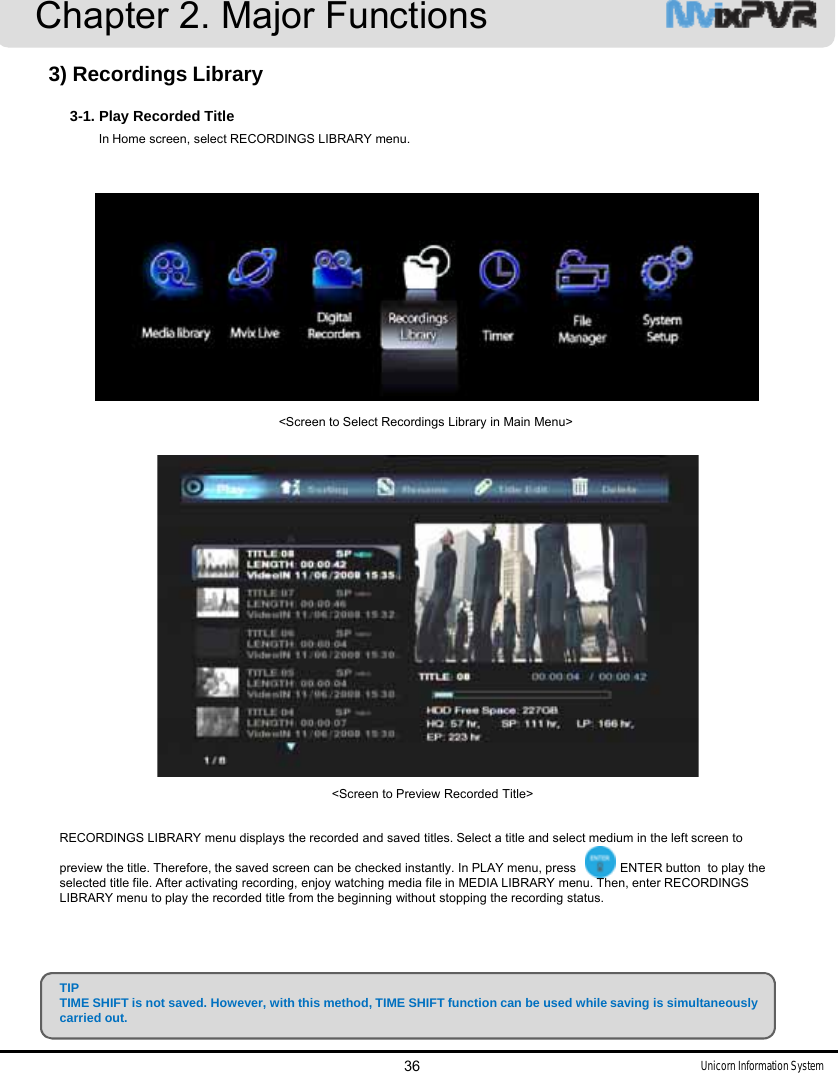

Unicorn Information System363) Recordings Library3-1. Play Recorded TitleIn Home screen, select RECORDINGS LIBRARY menu.RECORDINGS LIBRARY menu displays the recorded and saved titles. Select a title and select medium in the left screen to preview the title. Therefore, the saved screen can be checked instantly. In PLAY menu, press             ENTER button  to play the selected title file. After activating recording, enjoy watching media file in MEDIA LIBRARY menu. Then, enter RECORDINGS LIBRARY menu to play the recorded title from the beginning without stopping the recording status. TIPTIME SHIFT is not saved. However, with this method, TIME SHIFT function can be used while saving is simultaneously carried out. <Screen to Select Recordings Library in Main Menu><Screen to Preview Recorded Title>Chapter 2. Major Functions

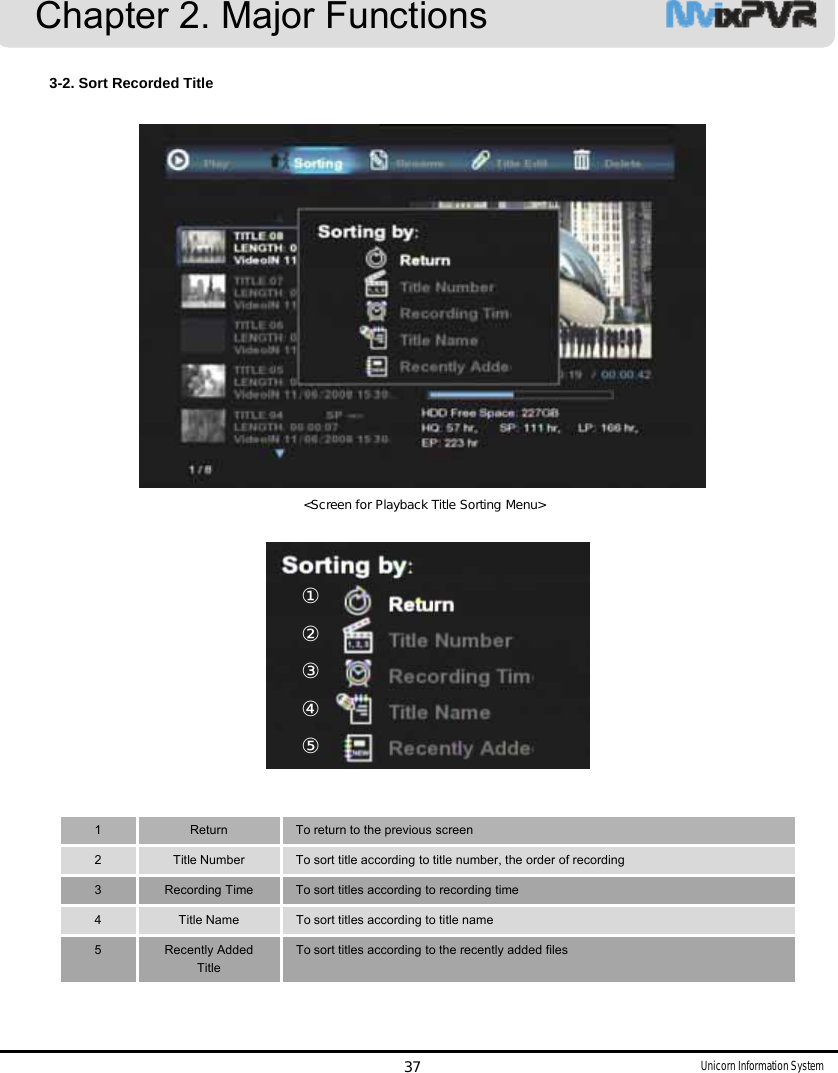

Unicorn Information System<Screen for Playback Title Sorting Menu>373-2. Sort Recorded Title①②③④⑤1 Return To return to the previous screen2 Title Number To sort title according to title number, the order of recording3 Recording Time To sort titles according to recording time4 Title Name To sort titles according to title name5 Recently AddedTitleTo sort titles according to the recently added filesChapter 2. Major Functions

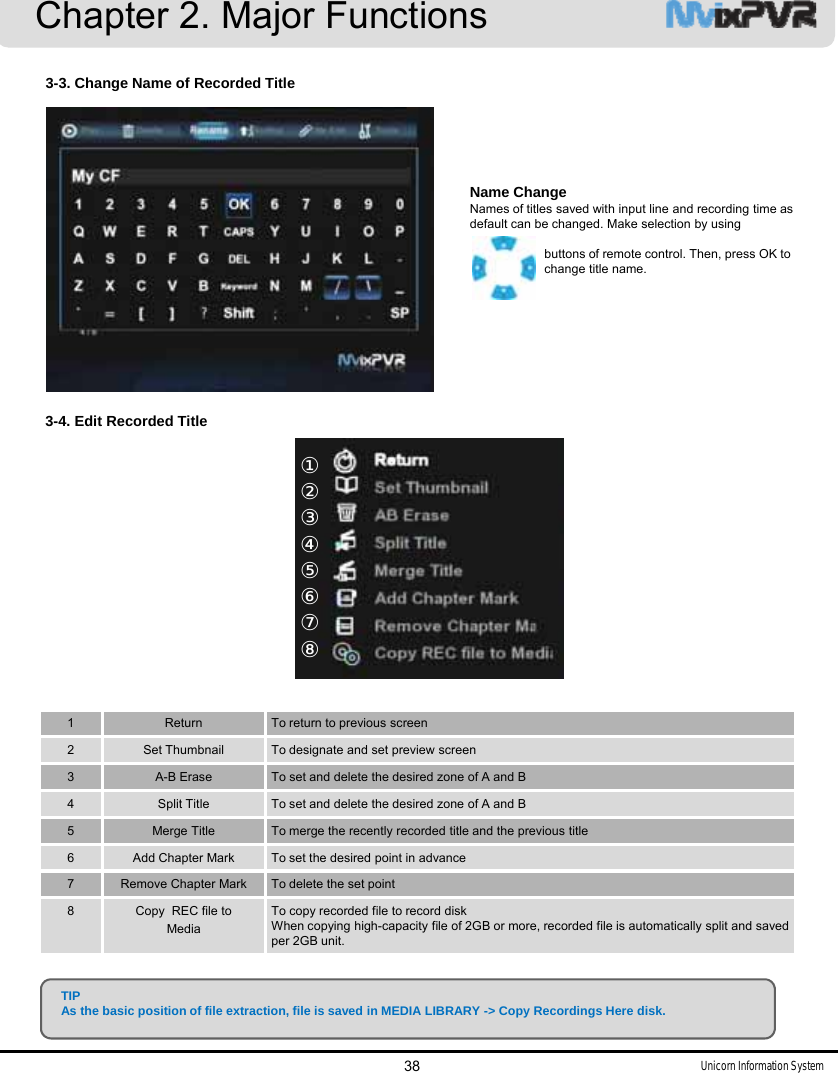

Unicorn Information System383-3. Change Name of Recorded TitleName ChangeNames of titles saved with input line and recording time as default can be changed. Make selection by using buttons of remote control. Then, press OK to change title name.  3-4. Edit Recorded TitleTIPAs the basic position of file extraction, file is saved in MEDIA LIBRARY -> Copy Recordings Here disk. ①②③④⑤⑥⑦⑧1 Return To return to previous screen2 Set Thumbnail To designate and set preview screen3 A-B Erase To set and delete the desired zone of A and B4 Split Title To set and delete the desired zone of A and B5 Merge Title To merge the recently recorded title and the previous title6 Add Chapter Mark To set the desired point in advance7 Remove Chapter Mark To delete the set point8 Copy  REC file to MediaTo copy recorded file to record diskWhen copying high-capacity file of 2GB or more, recorded file is automatically split and saved per 2GB unit.Chapter 2. Major Functions

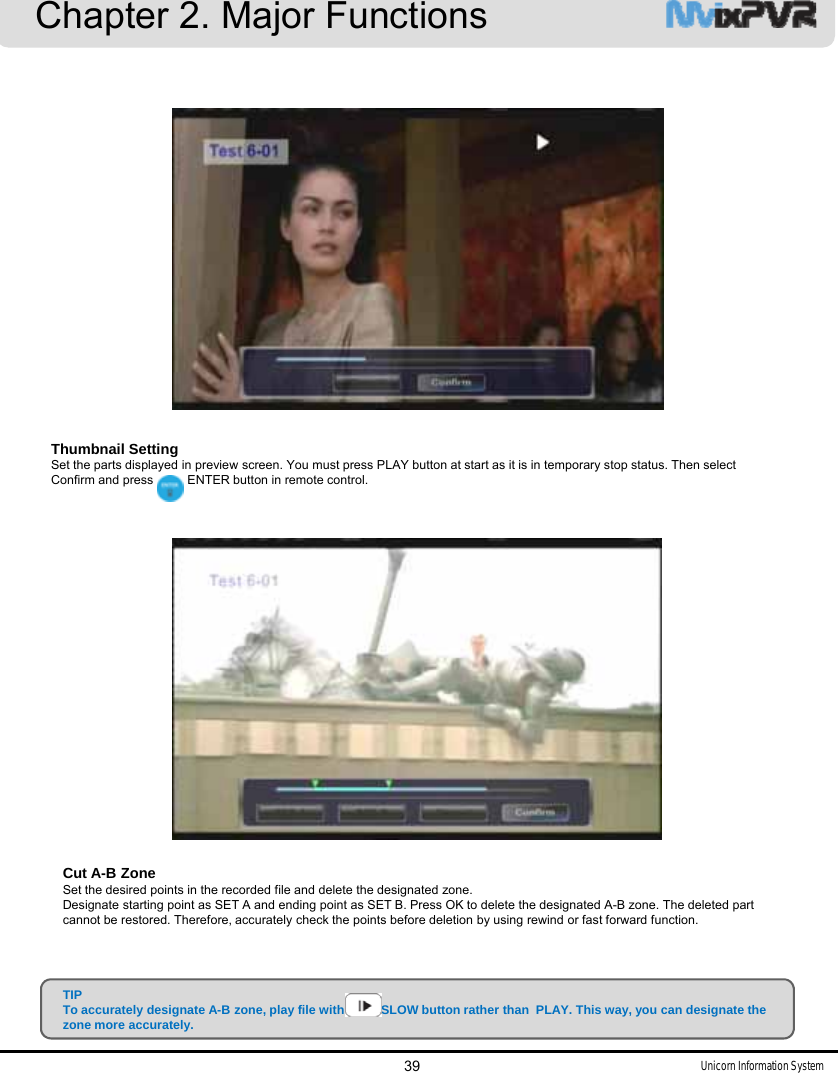

Unicorn Information System39Thumbnail SettingSet the parts displayed in preview screen. You must press PLAY button at start as it is in temporary stop status. Then selectConfirm and press          ENTER button in remote control. Cut A-B ZoneSet the desired points in the recorded file and delete the designated zone. Designate starting point as SET A and ending point as SET B. Press OK to delete the designated A-B zone. The deleted part cannot be restored. Therefore, accurately check the points before deletion by using rewind or fast forward function.  TIPTo accurately designate A-B zone, play file with           SLOW button rather than  PLAY. This way, you can designate the zone more accurately.  Chapter 2. Major Functions

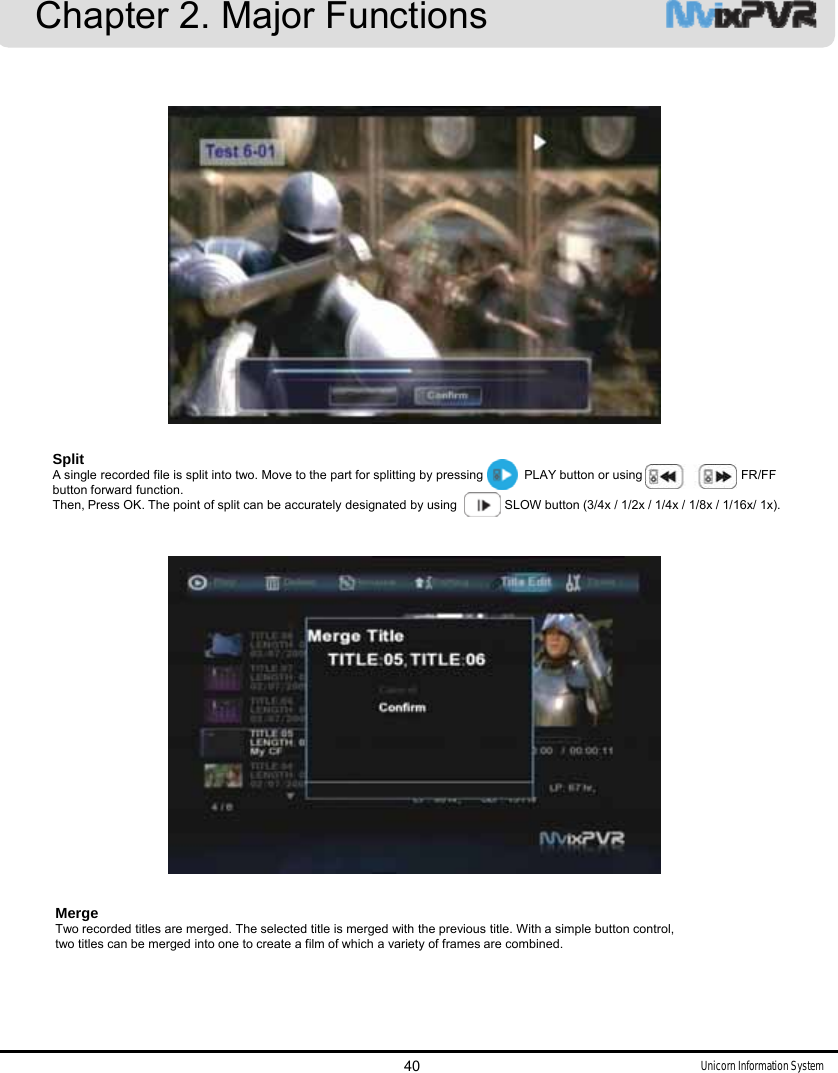

Unicorn Information System40SplitA single recorded file is split into two. Move to the part for splitting by pressing            PLAY button or using          FR/FF  button forward function. Then, Press OK. The point of split can be accurately designated by using              SLOW button (3/4x / 1/2x / 1/4x / 1/8x / 1/16x/ 1x). MergeTwo recorded titles are merged. The selected title is merged with the previous title. With a simple button control,two titles can be merged into one to create a film of which a variety of frames are combined.  Chapter 2. Major Functions

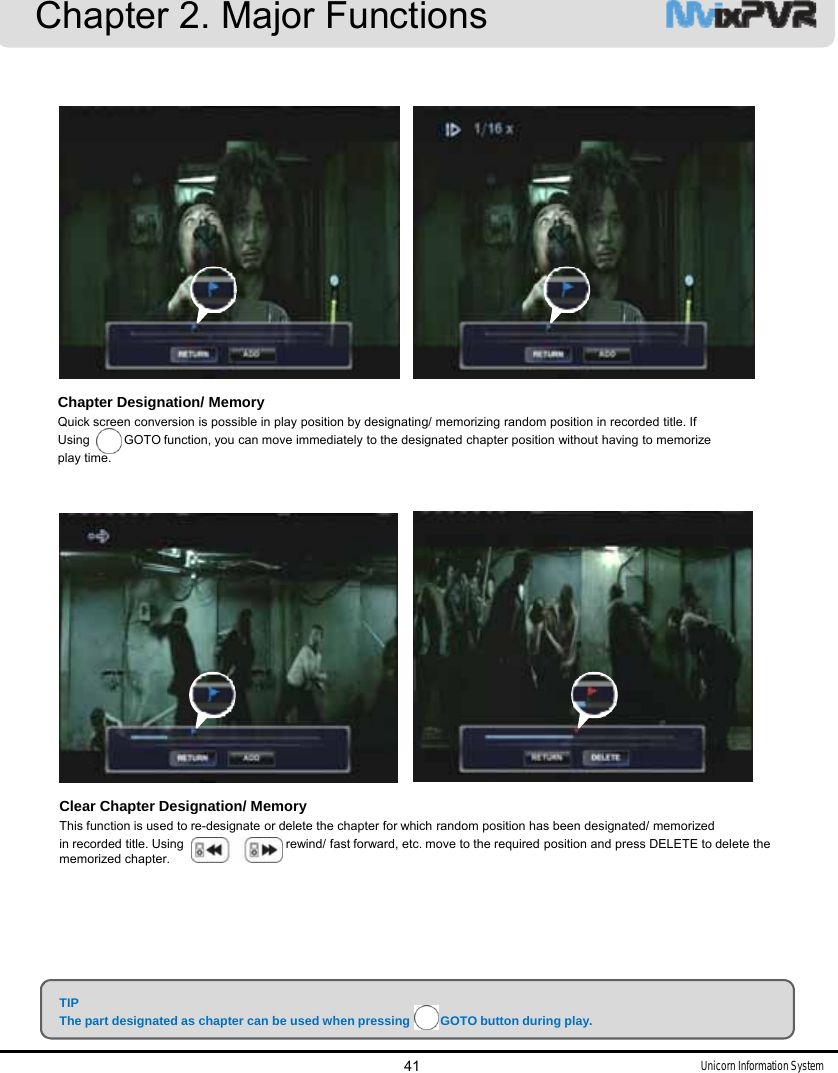

Unicorn Information System41Chapter Designation/ MemoryQuick screen conversion is possible in play position by designating/ memorizing random position in recorded title. If Using          GOTO function, you can move immediately to the designated chapter position without having to memorize play time. Clear Chapter Designation/ MemoryThis function is used to re-designate or delete the chapter for which random position has been designated/ memorized in recorded title. Using                              rewind/ fast forward, etc. move to the required position and press DELETE to delete the memorized chapter. TIPThe part designated as chapter can be used when pressing         GOTO button during play. Chapter 2. Major Functions

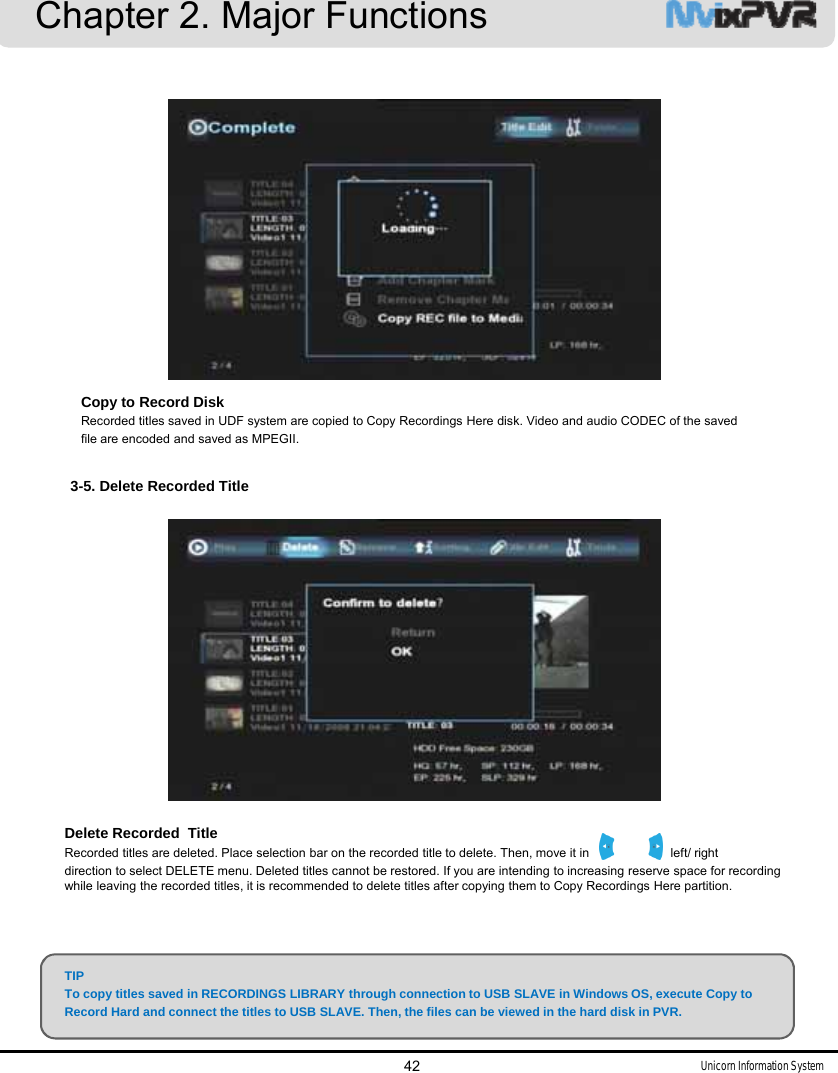

Unicorn Information System42Copy to Record DiskRecorded titles saved in UDF system are copied to Copy Recordings Here disk. Video and audio CODEC of the saved file are encoded and saved as MPEGII.3-5. Delete Recorded TitleDelete Recorded  TitleRecorded titles are deleted. Place selection bar on the recorded title to delete. Then, move it in                        left/ right direction to select DELETE menu. Deleted titles cannot be restored. If you are intending to increasing reserve space for recording while leaving the recorded titles, it is recommended to delete titles after copying them to Copy Recordings Here partition.  TIPTo copy titles saved in RECORDINGS LIBRARY through connection to USB SLAVE in Windows OS, execute Copy to Record Hard and connect the titles to USB SLAVE. Then, the files can be viewed in the hard disk in PVR. Chapter 2. Major Functions

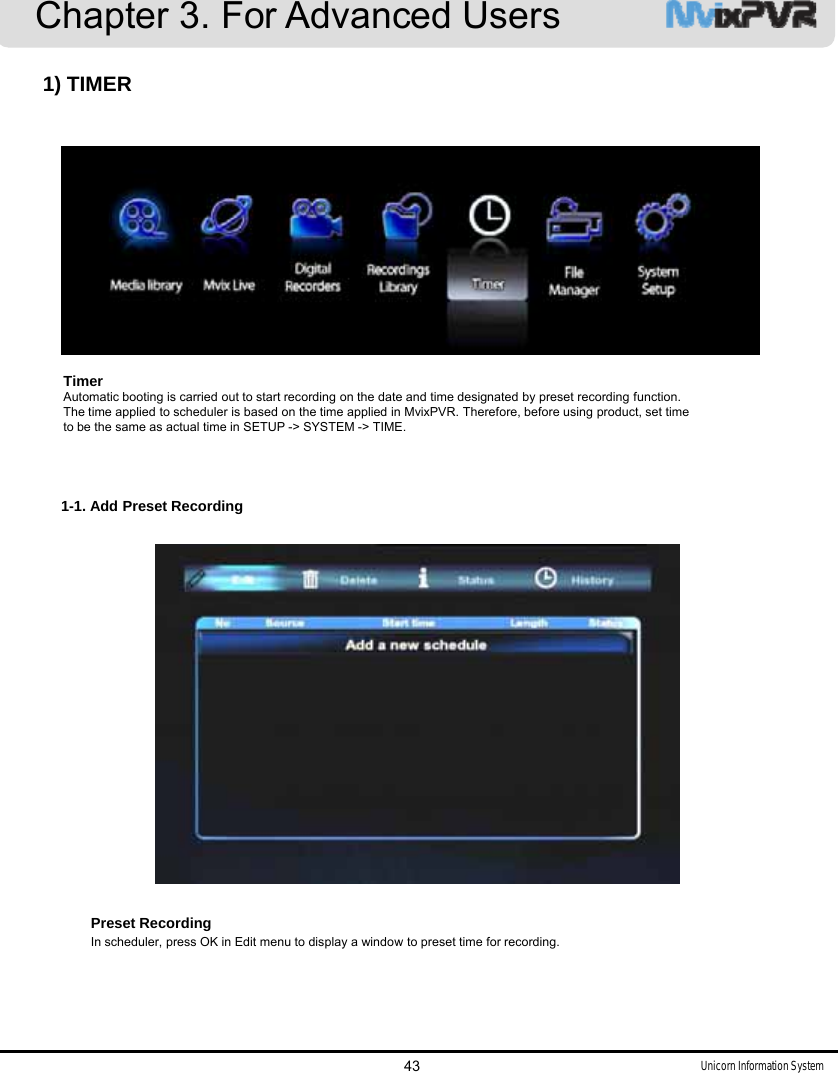

Unicorn Information SystemChapter 3. For Advanced Users1) TIMER43TimerAutomatic booting is carried out to start recording on the date and time designated by preset recording function. The time applied to scheduler is based on the time applied in MvixPVR. Therefore, before using product, set time to be the same as actual time in SETUP -> SYSTEM -> TIME. 1-1. Add Preset RecordingPreset RecordingIn scheduler, press OK in Edit menu to display a window to preset time for recording.
Unicorn Information System44Finish up preset recording time setting and press OK. Then a window is displayed to ask you whether to add the designated contents in scheduler. Select OK and apply the setting. TIPWhen preset recording schedule is saved and power is turned off, you will automatically enter standby mode. Then, the middle and right LEDs in the main body of PVR simultaneously start blinking. 23141 Screen to preset recording date and time is displayed. Preset recording date, time and recording time are designated in order. It is not necessary to add/ modify the designation each time. Setting is repetitively made in the order of once, daily, Monday ~ Friday, Monday ~ Saturday, Sunday, Monday, Tuesday, Wednesday, Thursday, Friday and Saturday.   2 Shows the time set in MvixPVR. 3 Displays the reserve space of HDD as time according to quality type. 4 Shows the current input screen. (For details on quality type, refer to page 60)Chapter 3. For Advanced Users

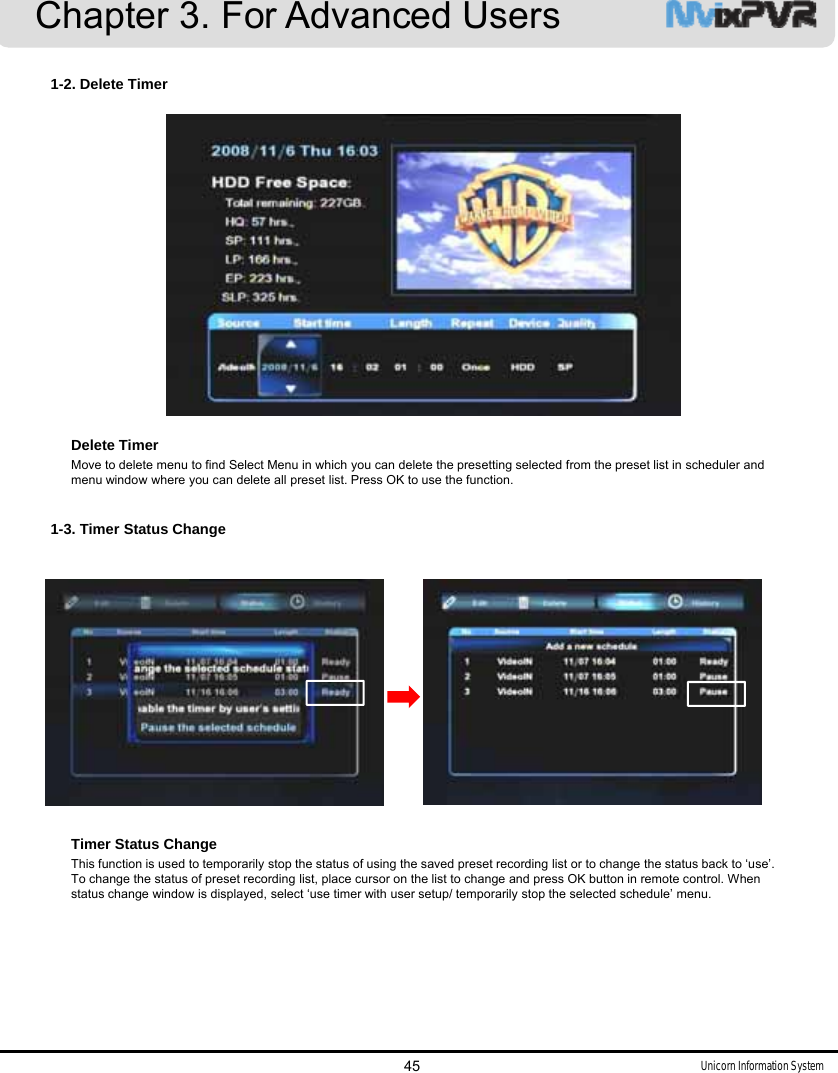

Unicorn Information System451-2. Delete Timer Delete TimerMove to delete menu to find Select Menu in which you can delete the presetting selected from the preset list in scheduler andmenu window where you can delete all preset list. Press OK to use the function. 1-3. Timer Status ChangeTimer Status Change This function is used to temporarily stop the status of using the saved preset recording list or to change the status back to ‘use’. To change the status of preset recording list, place cursor on the list to change and press OK button in remote control. Whenstatus change window is displayed, select ‘use timer with user setup/ temporarily stop the selected schedule’ menu. Chapter 3. For Advanced Users

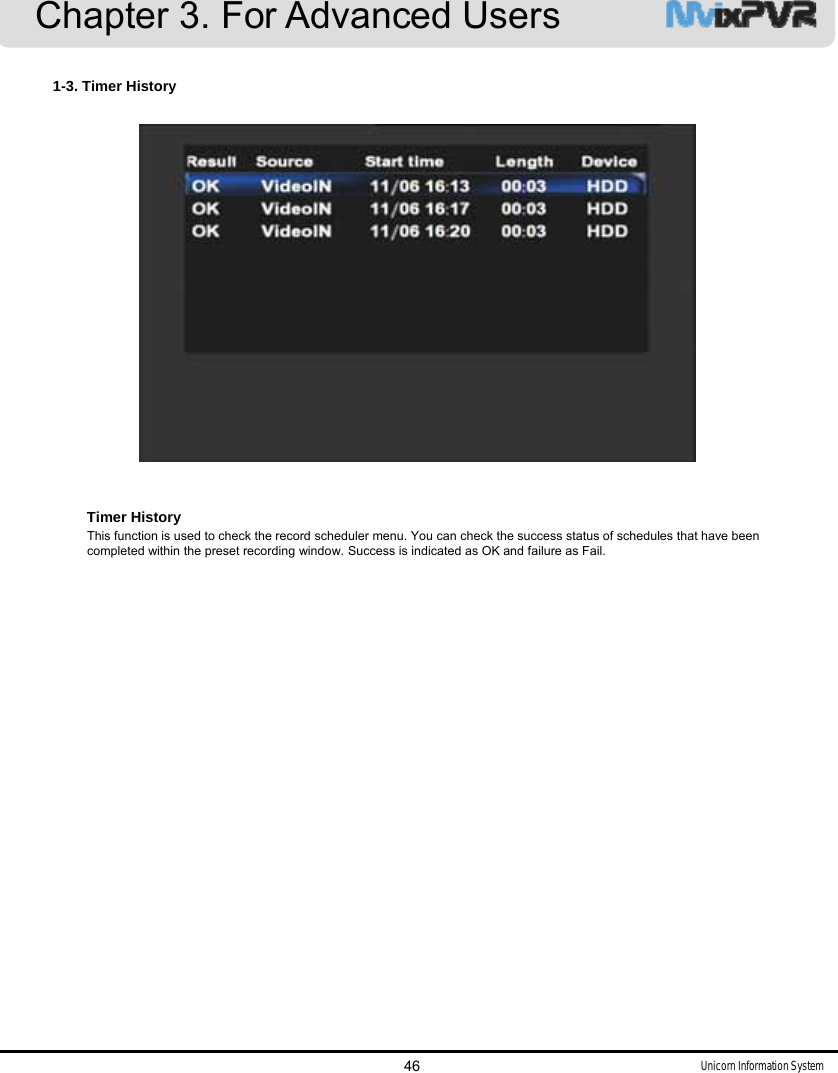

Unicorn Information System461-3. Timer HistoryTimer History This function is used to check the record scheduler menu. You can check the success status of schedules that have been completed within the preset recording window. Success is indicated as OK and failure as Fail. Chapter 3. For Advanced Users

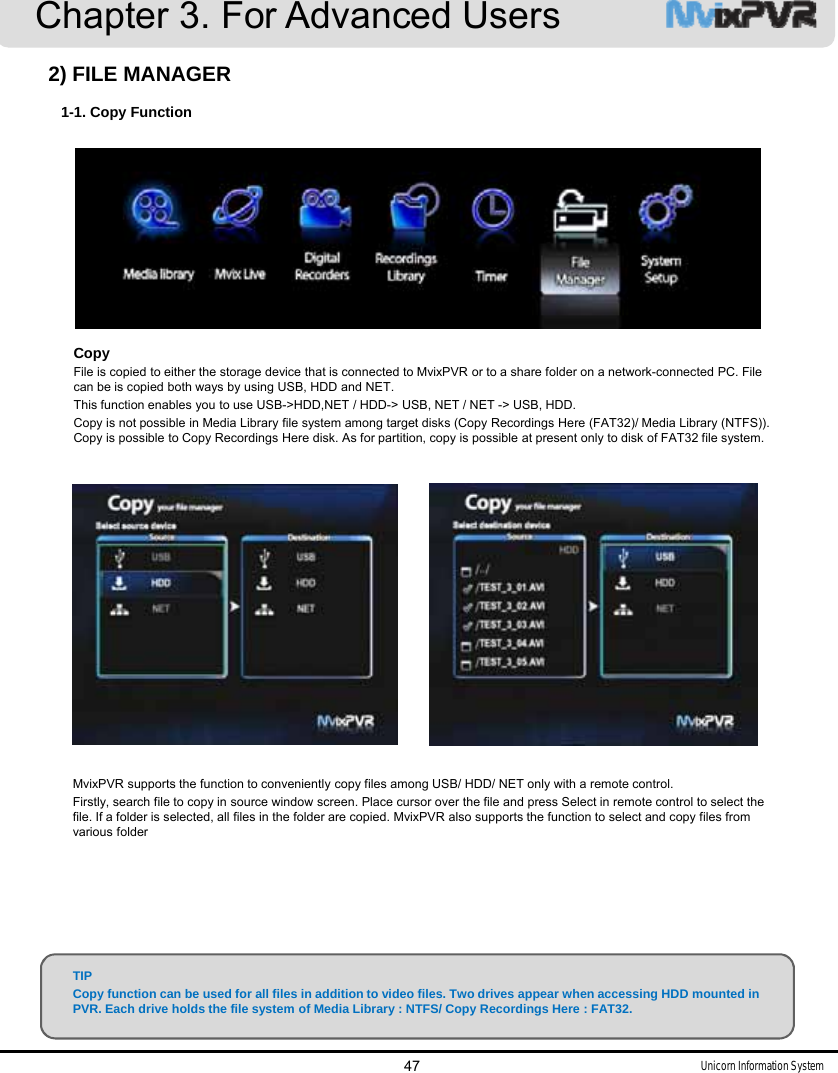

Unicorn Information System2) FILE MANAGER471-1. Copy Function Copy File is copied to either the storage device that is connected to MvixPVR or to a share folder on a network-connected PC. File can be is copied both ways by using USB, HDD and NET. This function enables you to use USB->HDD,NET / HDD-> USB, NET / NET -> USB, HDD. Copy is not possible in Media Library file system among target disks (Copy Recordings Here (FAT32)/ Media Library (NTFS)). Copy is possible to Copy Recordings Here disk. As for partition, copy is possible at present only to disk of FAT32 file system. MvixPVR supports the function to conveniently copy files among USB/ HDD/ NET only with a remote control. Firstly, search file to copy in source window screen. Place cursor over the file and press Select in remote control to select the file. If a folder is selected, all files in the folder are copied. MvixPVR also supports the function to select and copy files from various folder TIPCopy function can be used for all files in addition to video files. Two drives appear when accessing HDD mounted in PVR. Each drive holds the file system of Media Library : NTFS/ Copy Recordings Here : FAT32. Chapter 3. For Advanced Users

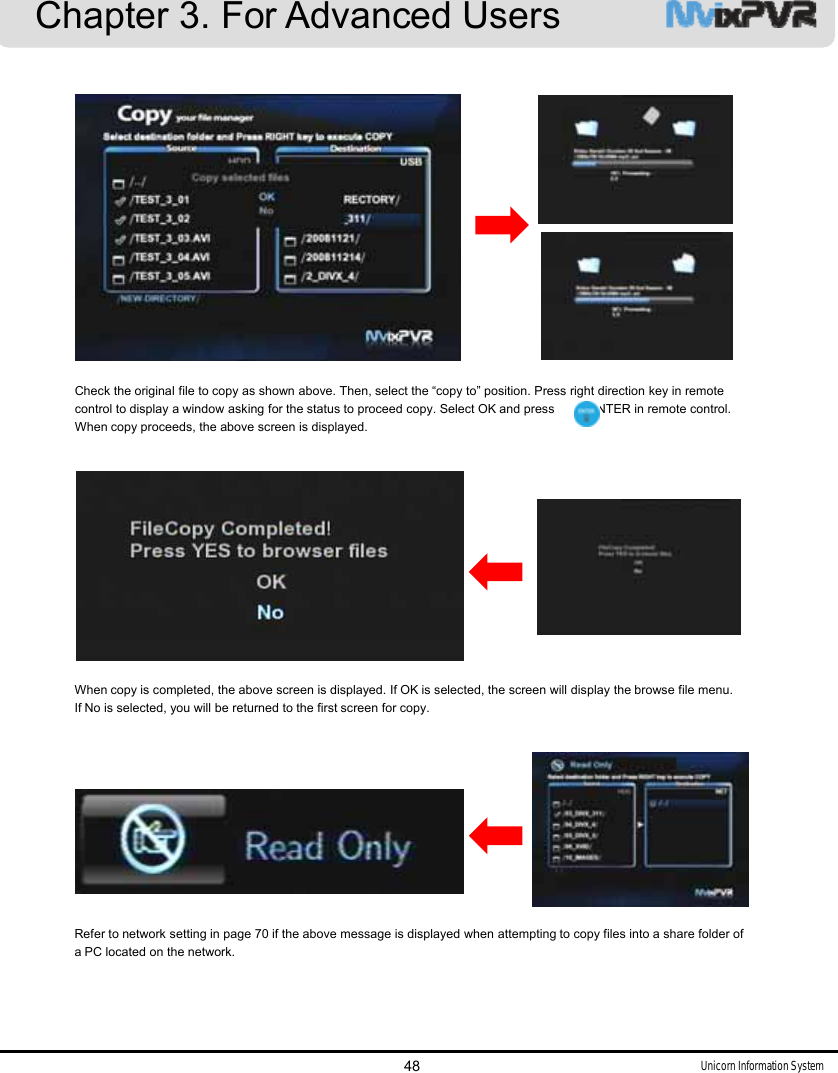

Unicorn Information System48Check the original file to copy as shown above. Then, select the “copy to” position. Press right direction key in remote control to display a window asking for the status to proceed copy. Select OK and press          ENTER in remote control. When copy proceeds, the above screen is displayed.  When copy is completed, the above screen is displayed. If OK is selected, the screen will display the browse file menu. If No is selected, you will be returned to the first screen for copy. Refer to network setting in page 70 if the above message is displayed when attempting to copy files into a share folder of a PC located on the network. Chapter 3. For Advanced Users

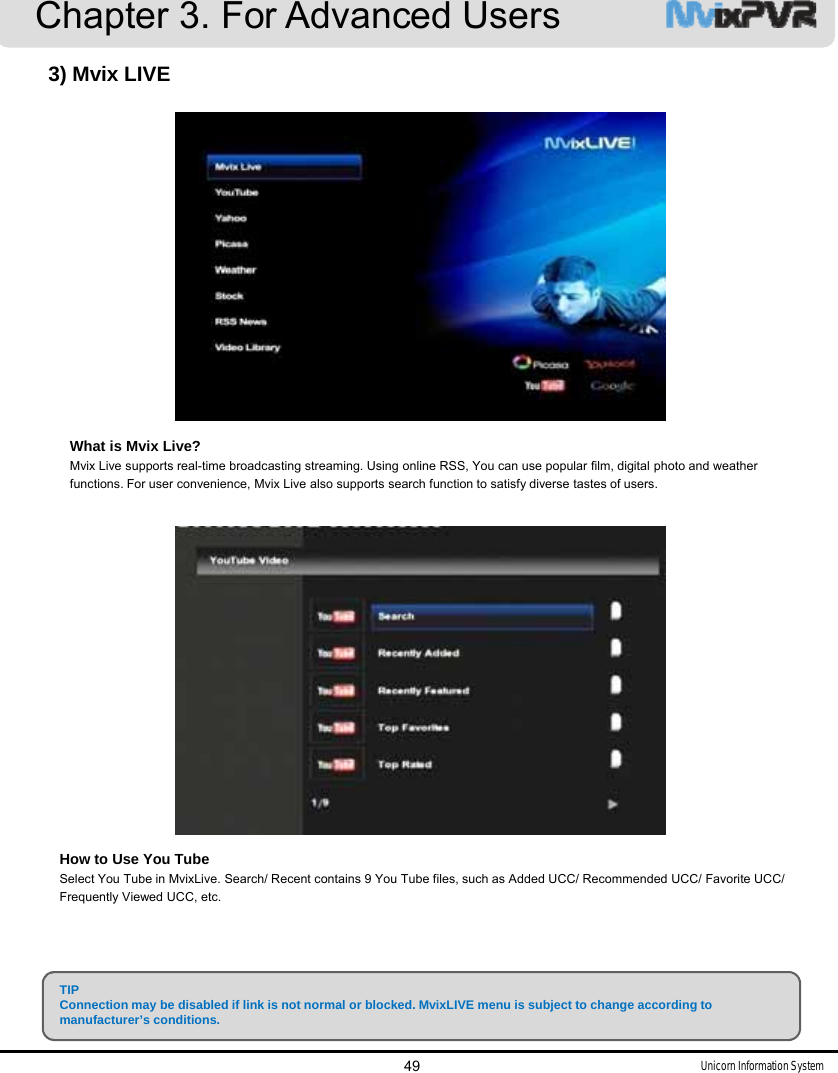

Unicorn Information System3) Mvix LIVE49What is Mvix Live?Mvix Live supports real-time broadcasting streaming. Using online RSS, You can use popular film, digital photo and weather functions. For user convenience, Mvix Live also supports search function to satisfy diverse tastes of users. TIPConnection may be disabled if link is not normal or blocked. MvixLIVE menu is subject to change according to manufacturer’s conditions.How to Use You TubeSelect You Tube in MvixLive. Search/ Recent contains 9 You Tube files, such as Added UCC/ Recommended UCC/ Favorite UCC/ Frequently Viewed UCC, etc.Chapter 3. For Advanced Users

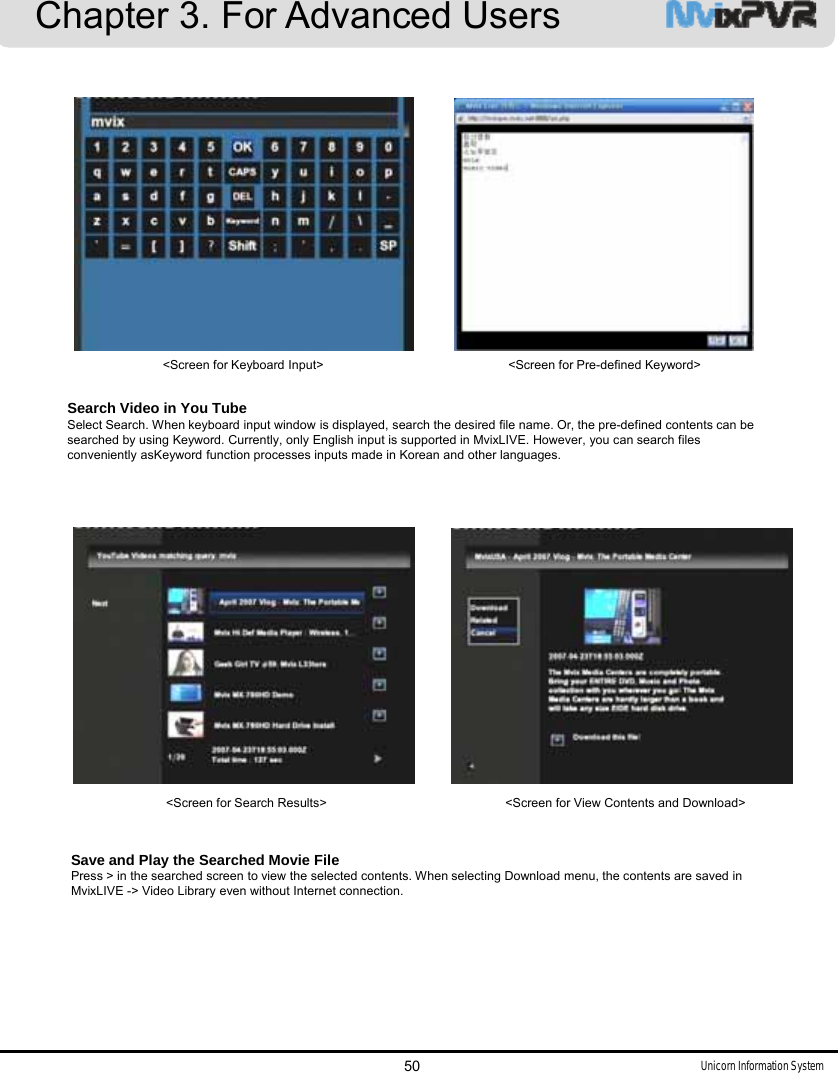

Unicorn Information SystemSearch Video in You TubeSelect Search. When keyboard input window is displayed, search the desired file name. Or, the pre-defined contents can be searched by using Keyword. Currently, only English input is supported in MvixLIVE. However, you can search files conveniently asKeyword function processes inputs made in Korean and other languages.<Screen for Keyboard Input> <Screen for Pre-defined Keyword><Screen for Search Results> <Screen for View Contents and Download>Save and Play the Searched Movie FilePress > in the searched screen to view the selected contents. When selecting Download menu, the contents are saved inMvixLIVE -> Video Library even without Internet connection.50Chapter 3. For Advanced Users

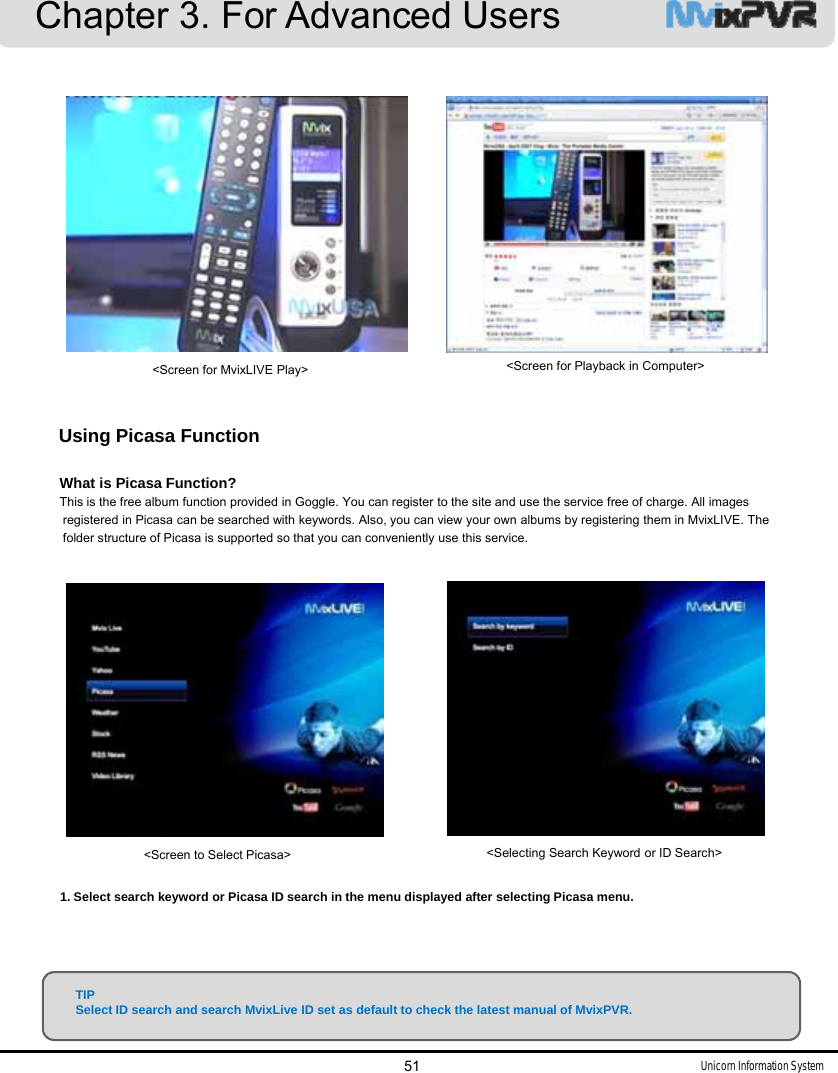

Unicorn Information System<Screen for MvixLIVE Play> <Screen for Playback in Computer>Using Picasa Function<Screen to Select Picasa> <Selecting Search Keyword or ID Search>What is Picasa Function?This is the free album function provided in Goggle. You can register to the site and use the service free of charge. All imagesregistered in Picasa can be searched with keywords. Also, you can view your own albums by registering them in MvixLIVE. Thefolder structure of Picasa is supported so that you can conveniently use this service.511. Select search keyword or Picasa ID search in the menu displayed after selecting Picasa menu.TIPSelect ID search and search MvixLive ID set as default to check the latest manual of MvixPVR.Chapter 3. For Advanced Users

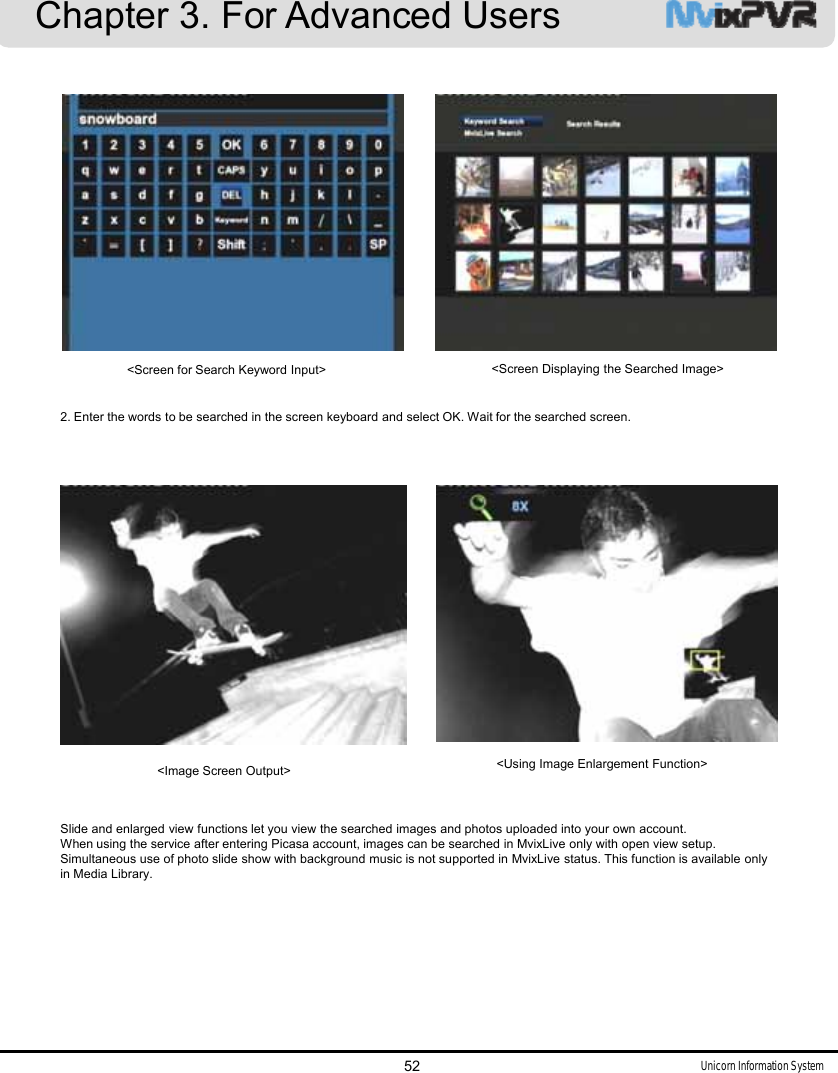

Unicorn Information System<Screen for Search Keyword Input> <Screen Displaying the Searched Image><Image Screen Output> <Using Image Enlargement Function>Slide and enlarged view functions let you view the searched images and photos uploaded into your own account. When using the service after entering Picasa account, images can be searched in MvixLive only with open view setup.Simultaneous use of photo slide show with background music is not supported in MvixLive status. This function is available onlyin Media Library.522. Enter the words to be searched in the screen keyboard and select OK. Wait for the searched screen.Chapter 3. For Advanced Users

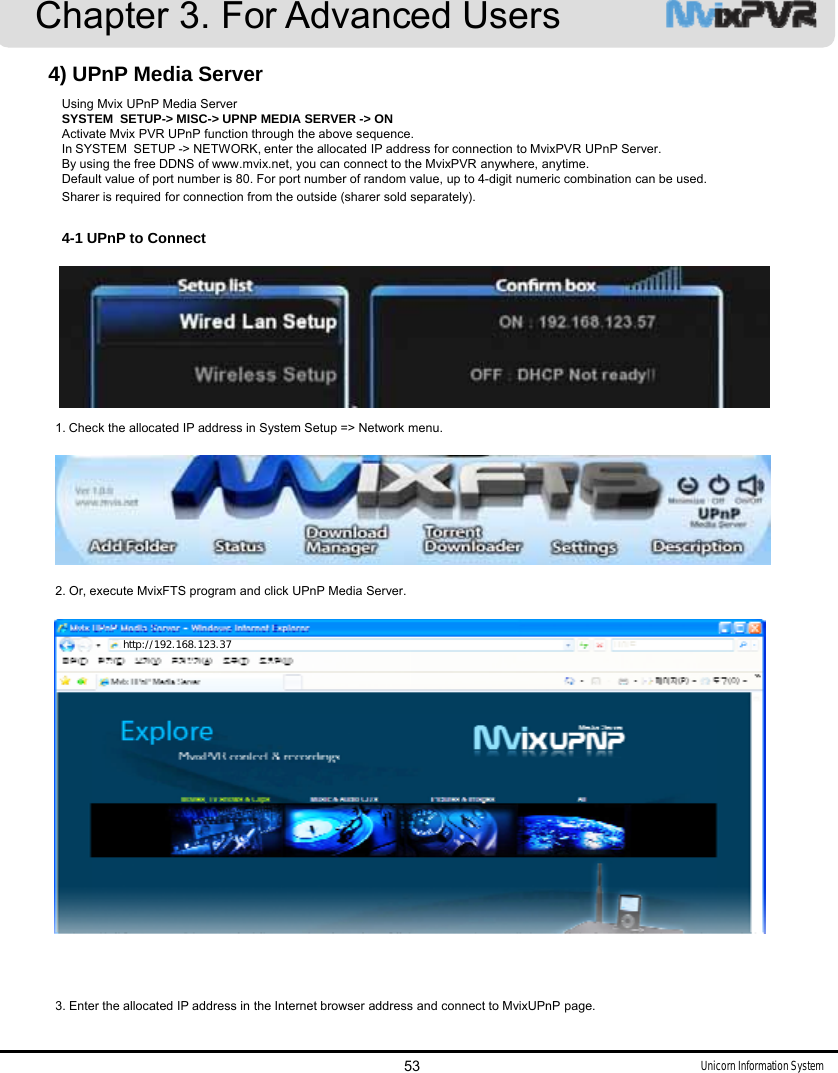

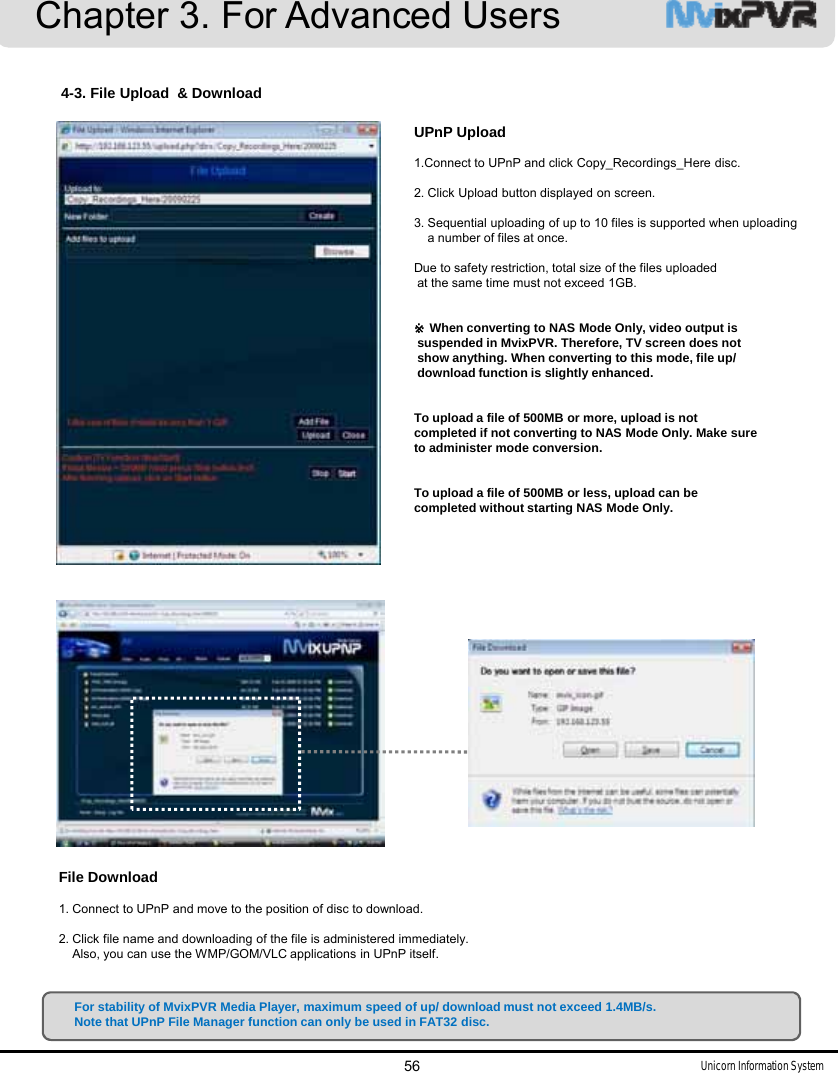

Unicorn Information Systemhttp://192.168.123.3753Using Mvix UPnP Media Server SYSTEM  SETUP-> MISC-> UPNP MEDIA SERVER -> ONActivate Mvix PVR UPnP function through the above sequence.In SYSTEM  SETUP -> NETWORK, enter the allocated IP address for connection to MvixPVR UPnP Server.By using the free DDNS of www.mvix.net, you can connect to the MvixPVR anywhere, anytime. Default value of port number is 80. For port number of random value, up to 4-digit numeric combination can be used.Sharer is required for connection from the outside (sharer sold separately).4-1 UPnP to Connect4) UPnP Media Server 1. Check the allocated IP address in System Setup => Network menu.3. Enter the allocated IP address in the Internet browser address and connect to MvixUPnP page.2. Or, execute MvixFTS program and click UPnP Media Server.Chapter 3. For Advanced Users

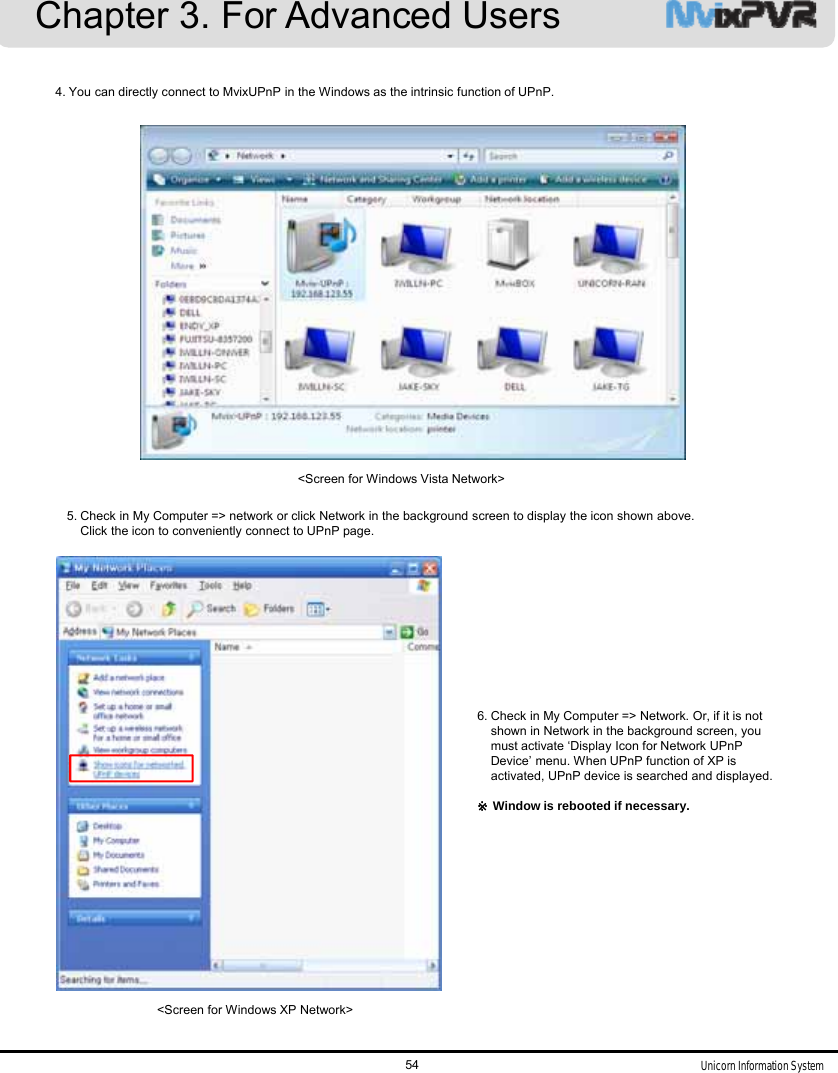

Unicorn Information System4. You can directly connect to MvixUPnP in the Windows as the intrinsic function of UPnP. 5. Check in My Computer => network or click Network in the background screen to display the icon shown above. Click the icon to conveniently connect to UPnP page. 6. Check in My Computer => Network. Or, if it is not shown in Network in the background screen, you must activate ‘Display Icon for Network UPnP Device’ menu. When UPnP function of XP is activated, UPnP device is searched and displayed.※Window is rebooted if necessary.54<Screen for Windows XP Network><Screen for Windows Vista Network>Chapter 3. For Advanced Users

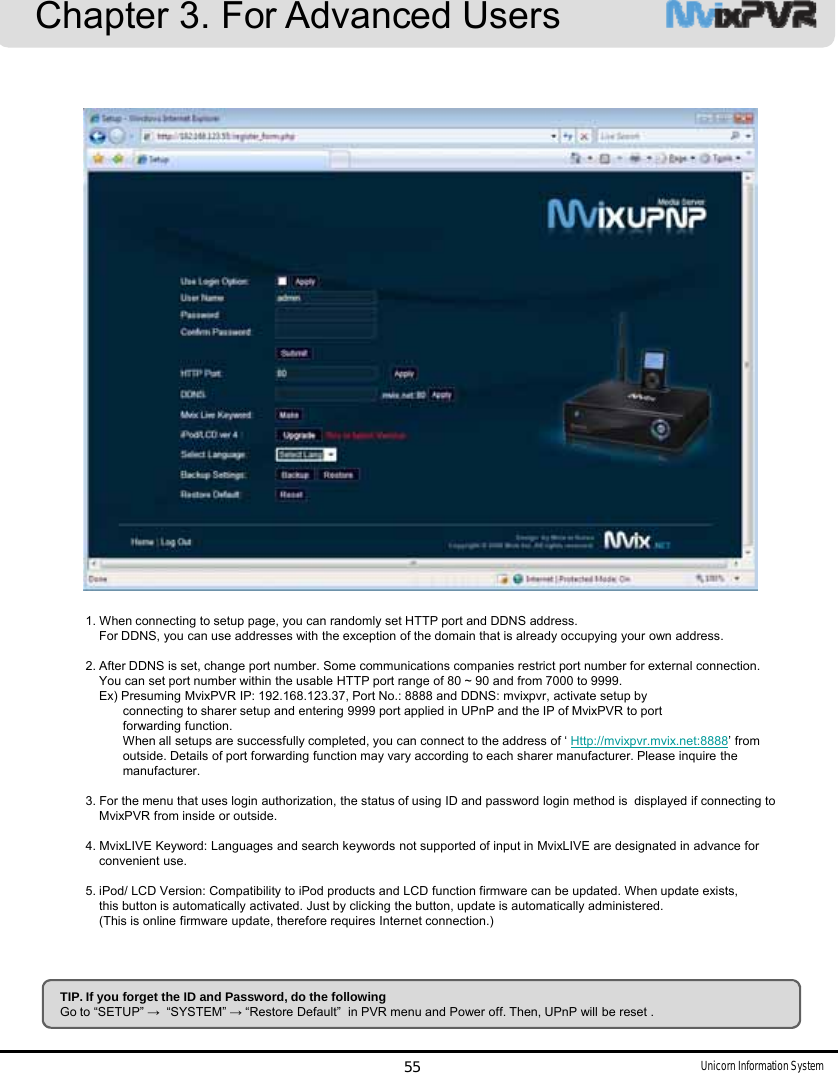

Unicorn Information System1. When connecting to setup page, you can randomly set HTTP port and DDNS address. For DDNS, you can use addresses with the exception of the domain that is already occupying your own address.2. After DDNS is set, change port number. Some communications companies restrict port number for external connection. You can set port number within the usable HTTP port range of 80 ~ 90 and from 7000 to 9999. Ex) Presuming MvixPVR IP: 192.168.123.37, Port No.: 8888 and DDNS: mvixpvr, activate setup byconnecting to sharer setup and entering 9999 port applied in UPnP and the IP of MvixPVR to portforwarding function. When all setups are successfully completed, you can connect to the address of ‘ Http://mvixpvr.mvix.net:8888’ from outside. Details of port forwarding function may vary according to each sharer manufacturer. Please inquire the manufacturer.3. For the menu that uses login authorization, the status of using ID and password login method is  displayed if connecting toMvixPVR from inside or outside. 4. MvixLIVE Keyword: Languages and search keywords not supported of input in MvixLIVE are designated in advance for convenient use.5. iPod/ LCD Version: Compatibility to iPod products and LCD function firmware can be updated. When update exists, this button is automatically activated. Just by clicking the button, update is automatically administered. (This is online firmware update, therefore requires Internet connection.)55TIP. If you forget the ID and Password, do the followingGo to “SETUP” →“SYSTEM” → “Restore Default”  in PVR menu and Power off. Then, UPnP will be reset .Chapter 3. For Advanced Users
Unicorn Information SystemUPnP Upload 1.Connect to UPnP and click Copy_Recordings_Here disc. 2. Click Upload button displayed on screen. 3. Sequential uploading of up to 10 files is supported when uploading a number of files at once. Due to safety restriction, total size of the files uploadedat the same time must not exceed 1GB.※When converting to NAS Mode Only, video output issuspended in MvixPVR. Therefore, TV screen does notshow anything. When converting to this mode, file up/download function is slightly enhanced.To upload a file of 500MB or more, upload is not completed if not converting to NAS Mode Only. Make sureto administer mode conversion. To upload a file of 500MB or less, upload can becompleted without starting NAS Mode Only. File Download1. Connect to UPnP and move to the position of disc to download.2. Click file name and downloading of the file is administered immediately. Also, you can use the WMP/GOM/VLC applications in UPnP itself. For stability of MvixPVR Media Player, maximum speed of up/ download must not exceed 1.4MB/s. Note that UPnP File Manager function can only be used in FAT32 disc. 56Chapter 3. For Advanced Users4-3. File Upload  & Download

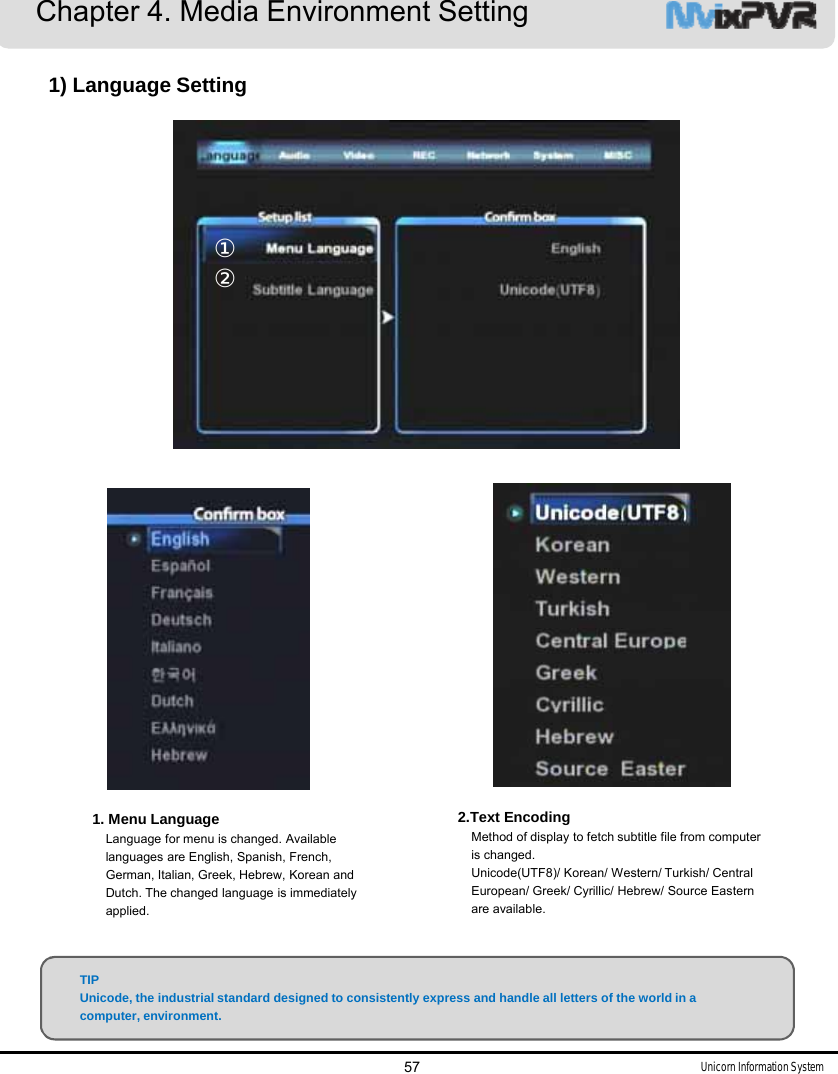

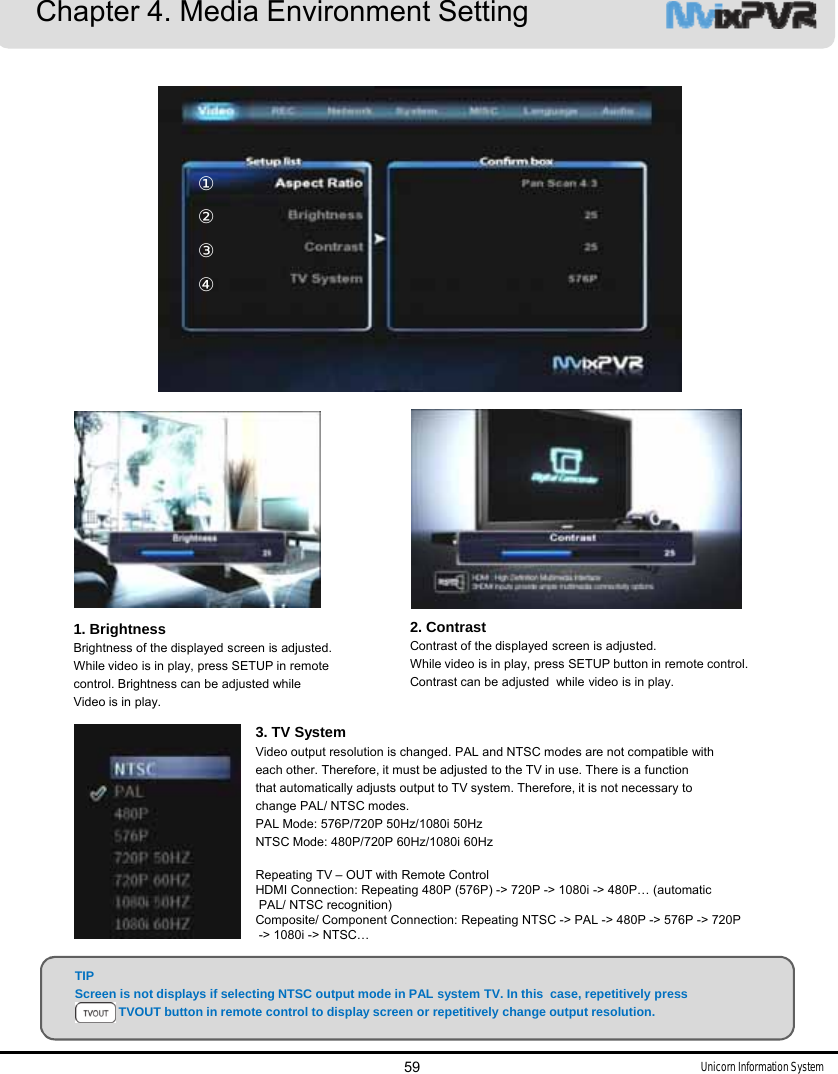

Unicorn Information SystemChapter 4. Media Environment Setting571) Language Setting1. Menu LanguageLanguage for menu is changed. Available languages are English, Spanish, French, German, Italian, Greek, Hebrew, Korean and Dutch. The changed language is immediately applied.  2.Text Encoding Method of display to fetch subtitle file from computer is changed. Unicode(UTF8)/ Korean/ Western/ Turkish/ Central European/ Greek/ Cyrillic/ Hebrew/ Source Eastern are available.TIPUnicode, the industrial standard designed to consistently express and handle all letters of the world in a computer, environment.  ①②

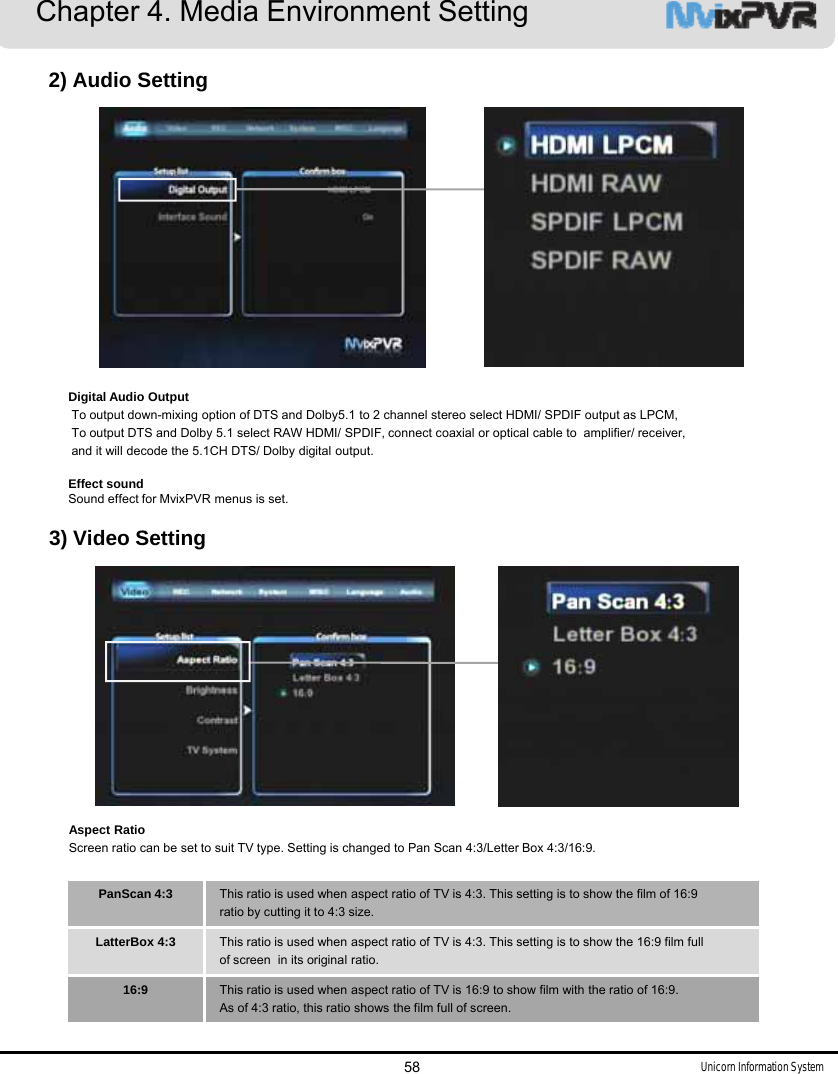

Unicorn Information System582) Audio SettingDigital Audio Output  To output down-mixing option of DTS and Dolby5.1 to 2 channel stereo select HDMI/ SPDIF output as LPCM, To output DTS and Dolby 5.1 select RAW HDMI/ SPDIF, connect coaxial or optical cable to  amplifier/ receiver, and it will decode the 5.1CH DTS/ Dolby digital output. Effect soundSound effect for MvixPVR menus is set.Aspect RatioScreen ratio can be set to suit TV type. Setting is changed to Pan Scan 4:3/Letter Box 4:3/16:9.3) Video SettingPanScan 4:3 This ratio is used when aspect ratio of TV is 4:3. This setting is to show the film of 16:9 ratio by cutting it to 4:3 size.LatterBox 4:3 This ratio is used when aspect ratio of TV is 4:3. This setting is to show the 16:9 film full of screen  in its original ratio. 16:9 This ratio is used when aspect ratio of TV is 16:9 to show film with the ratio of 16:9. As of 4:3 ratio, this ratio shows the film full of screen. Chapter 4. Media Environment Setting
Unicorn Information System591. Brightness Brightness of the displayed screen is adjusted. While video is in play, press SETUP in remote control. Brightness can be adjusted while Video is in play. 2. Contrast Contrast of the displayed screen is adjusted. While video is in play, press SETUP button in remote control. Contrast can be adjusted  while video is in play. 3. TV SystemVideo output resolution is changed. PAL and NTSC modes are not compatible with each other. Therefore, it must be adjusted to the TV in use. There is a function that automatically adjusts output to TV system. Therefore, it is not necessary to change PAL/ NTSC modes. PAL Mode: 576P/720P 50Hz/1080i 50HzNTSC Mode: 480P/720P 60Hz/1080i 60HzRepeating TV – OUT with Remote ControlHDMI Connection: Repeating 480P (576P) -> 720P -> 1080i -> 480P… (automaticPAL/ NTSC recognition)Composite/ Component Connection: Repeating NTSC -> PAL -> 480P -> 576P -> 720P-> 1080i -> NTSC…TIPScreen is not displays if selecting NTSC output mode in PAL system TV. In this  case, repetitively press           TVOUT button in remote control to display screen or repetitively change output resolution. ①②③④Chapter 4. Media Environment Setting

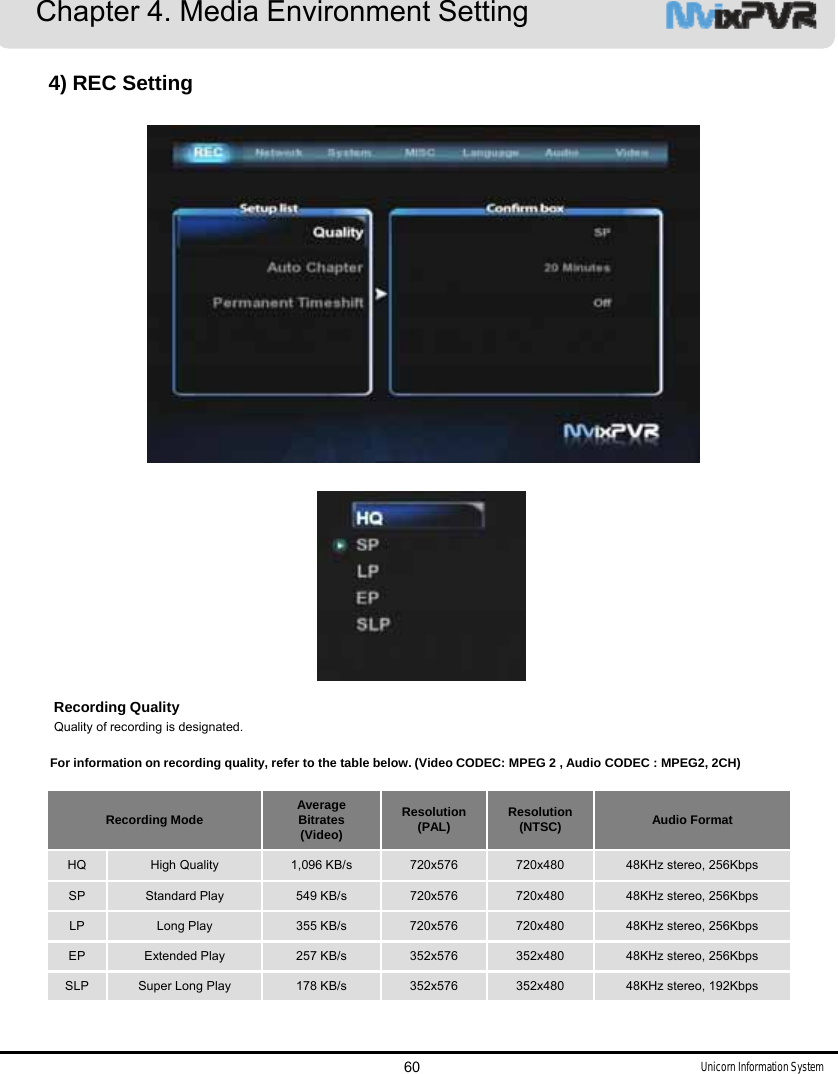

Unicorn Information SystemRecording Mode AverageBitrates(Video)Resolution(PAL) Resolution(NTSC) Audio FormatHQ High Quality 1,096 KB/s 720x576 720x480 48KHz stereo, 256KbpsSP Standard Play 549 KB/s 720x576 720x480 48KHz stereo, 256KbpsLP Long Play 355 KB/s 720x576 720x480 48KHz stereo, 256KbpsEP Extended Play 257 KB/s 352x576 352x480 48KHz stereo, 256KbpsSLP Super Long Play 178 KB/s 352x576 352x480 48KHz stereo, 192Kbps60Recording QualityQuality of recording is designated.For information on recording quality, refer to the table below. (Video CODEC: MPEG 2 , Audio CODEC : MPEG2, 2CH)4) REC SettingChapter 4. Media Environment Setting

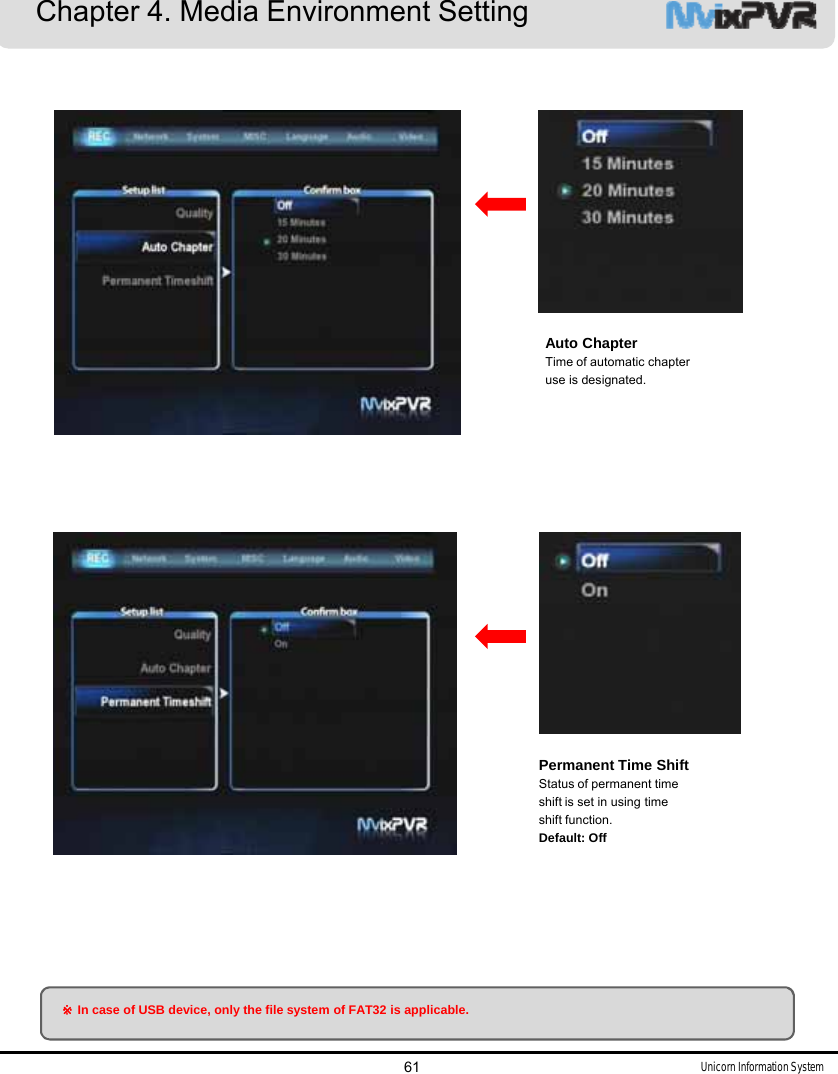

Unicorn Information System61Permanent Time ShiftStatus of permanent time shift is set in using time shift function.Default: OffAuto ChapterTime of automatic chapter use is designated. ※In case of USB device, only the file system of FAT32 is applicable.Chapter 4. Media Environment Setting

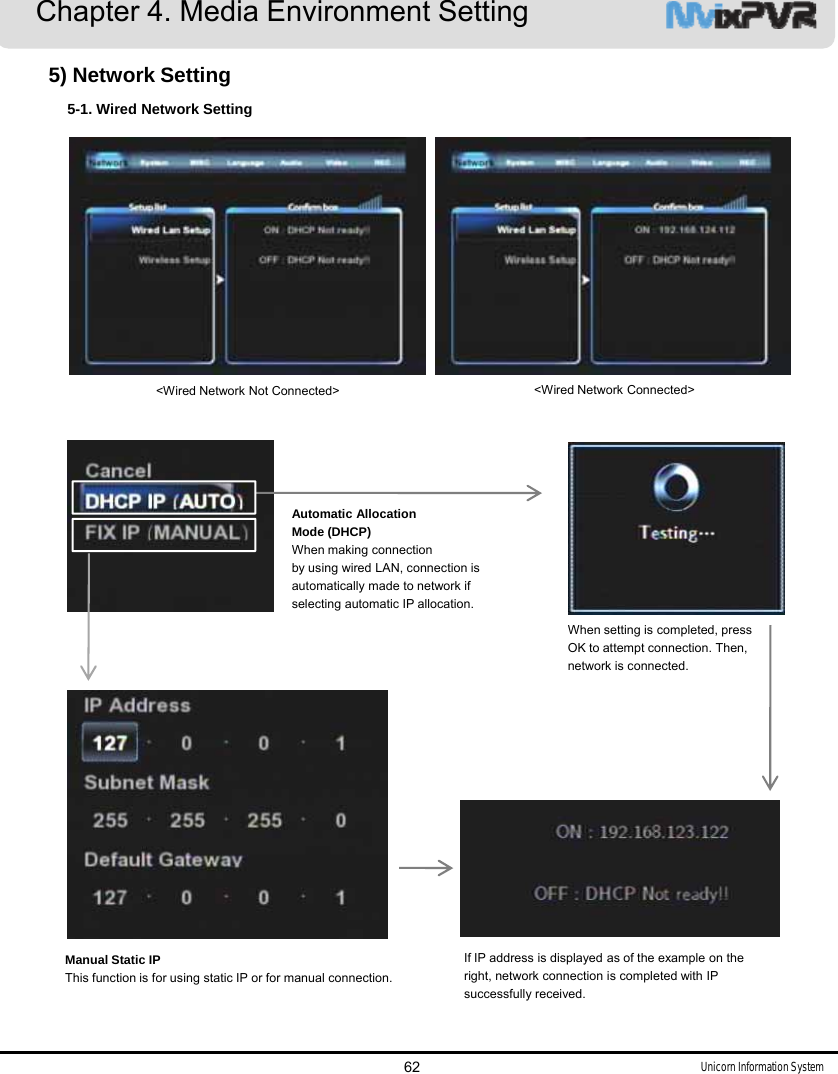

Unicorn Information System625) Network Setting5-1. Wired Network Setting<Wired Network Not Connected> <Wired Network Connected>Automatic Allocation Mode (DHCP) When making connection by using wired LAN, connection isautomatically made to network if selecting automatic IP allocation.Manual Static IPThis function is for using static IP or for manual connection.When setting is completed, press OK to attempt connection. Then, network is connected. If IP address is displayed as of the example on the right, network connection is completed with IP successfully received. Chapter 4. Media Environment Setting
Unicorn Information System635-2. Wireless Network Setting<Wireless Network Not Connected> <Wireless Network Connected>The following are descriptions on the method of wireless network connection by searching signals. To use wireless network, you need wired/ wireless sharer. Select Modify and move to the next step.※Only WEP encrypted connection is explained.Select signal search mode.Move to the next step.When SSID for connection is displayed, select it and move to the next step.Check the selected SSID. Press OK and move to the next step.Select wireless security encryption. WEP Auto (Open/Shared key) / WPA is supported.When encryption input screen is displayed, enter the accurate password and press OK to attempt  connection. Chapter 4. Media Environment Setting
Unicorn Information System6) System Setting1. Time Set time of MvixPVR that serves as the basis of using TIMER function. Using up/ down/ left/ right keys in remote control, set year/ month/ day/ hour/ minute/ second. Press OK to save the set values. 2. HDD FormatManual format is enabled when installing hard disk for the first time or replacing it. Formatting erases all data in hard disk. Caution is required as the erased data cannot be restored. 3. Restoring Default ValueAll set values are restored to default.Data in hard disk are not deleted or initialized. To initialize HDD, use HDD Format menu. 64①②③④⑤Chapter 4. Media Environment Setting

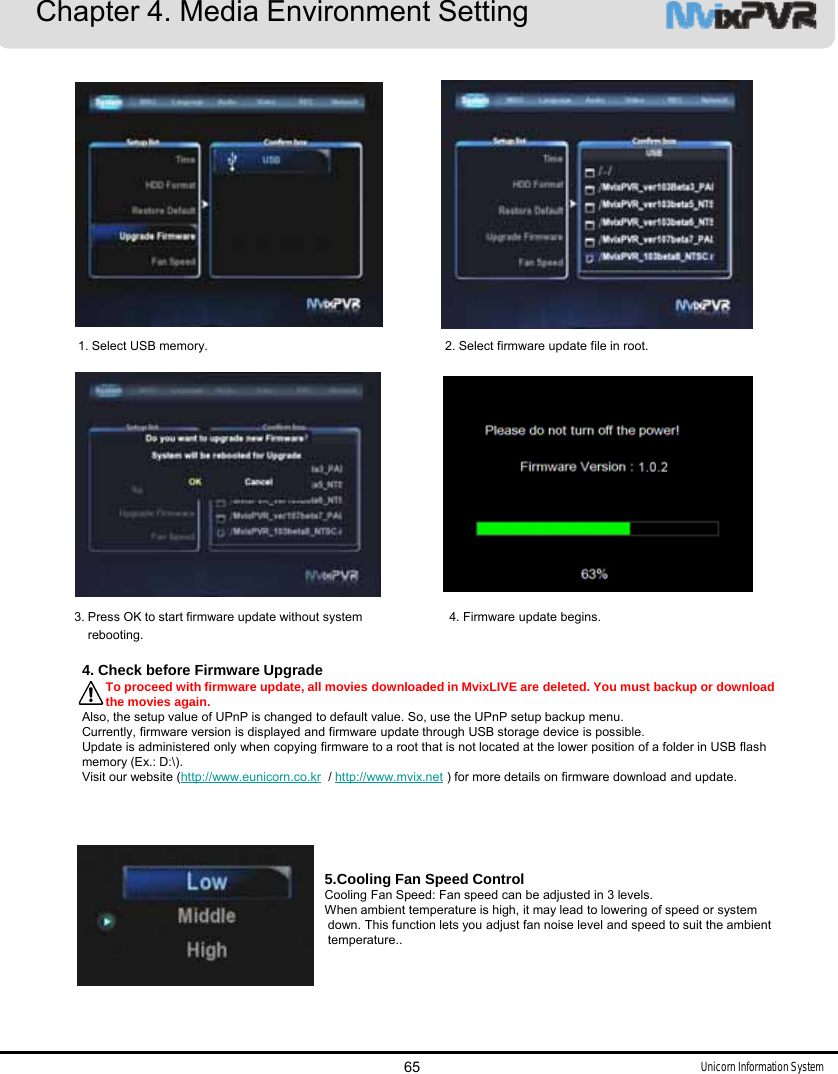

Unicorn Information System4. Check before Firmware UpgradeTo proceed with firmware update, all movies downloaded in MvixLIVE are deleted. You must backup or download the movies again.Also, the setup value of UPnP is changed to default value. So, use the UPnP setup backup menu.Currently, firmware version is displayed and firmware update through USB storage device is possible. Update is administered only when copying firmware to a root that is not located at the lower position of a folder in USB flash memory (Ex.: D:\).Visit our website (http://www.eunicorn.co.kr / http://www.mvix.net ) for more details on firmware download and update. 651. Select USB memory. 2. Select firmware update file in root. 3. Press OK to start firmware update without system rebooting.4. Firmware update begins.5.Cooling Fan Speed ControlCooling Fan Speed: Fan speed can be adjusted in 3 levels. When ambient temperature is high, it may lead to lowering of speed or systemdown. This function lets you adjust fan noise level and speed to suit the ambienttemperature.. Chapter 4. Media Environment Setting
Unicorn Information System667) Other Settings1.Slide Show TimeThis is to set the time of which display is produced and maintained when viewing photos. Time can be designated as off/ 2sec/ 5sec/ 10sec/ 30sec/ 1min/ 2min. 2.Transition EffectWhen viewing photos, transition effect to move to the next photo is set. Total of 7  effects are available. All other randomly applied effects are also supported. ①②③④⑤Chapter 4. Media Environment Setting

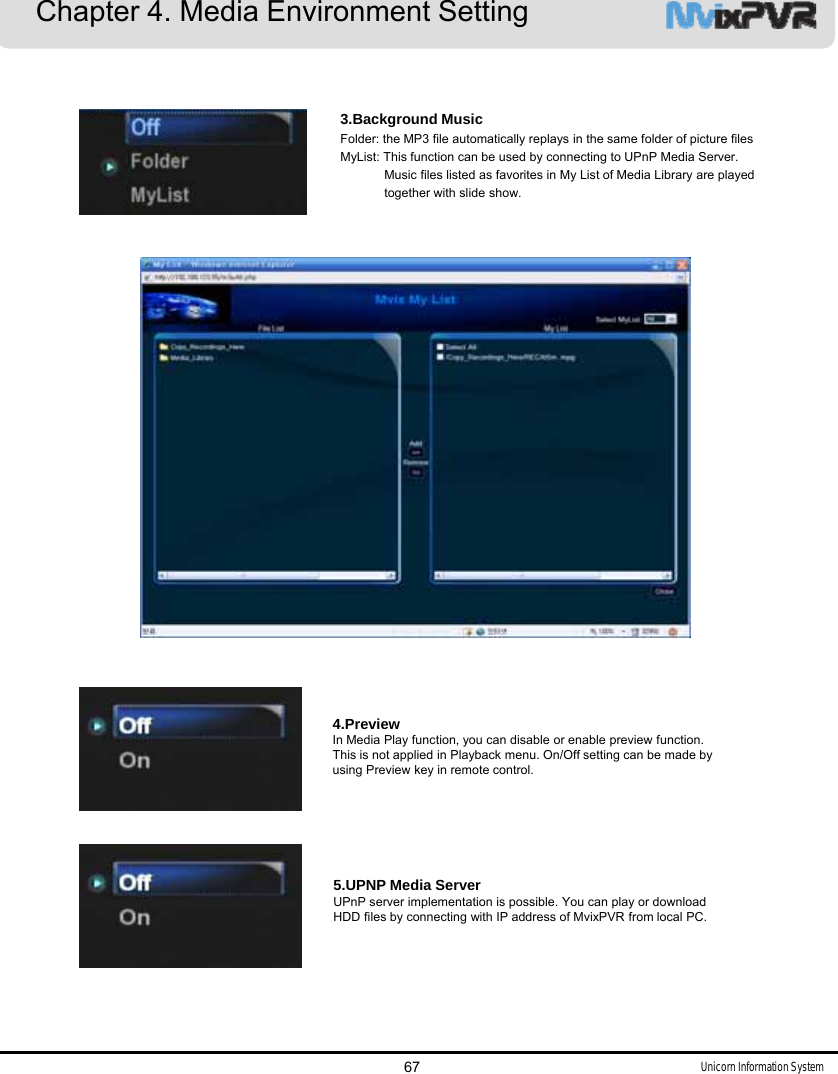

Unicorn Information System673.Background MusicFolder: the MP3 file automatically replays in the same folder of picture filesMyList: This function can be used by connecting to UPnP Media Server.Music files listed as favorites in My List of Media Library are played together with slide show.4.PreviewIn Media Play function, you can disable or enable preview function. This is not applied in Playback menu. On/Off setting can be made by using Preview key in remote control.5.UPNP Media ServerUPnP server implementation is possible. You can play or download HDD files by connecting with IP address of MvixPVR from local PC.Chapter 4. Media Environment Setting

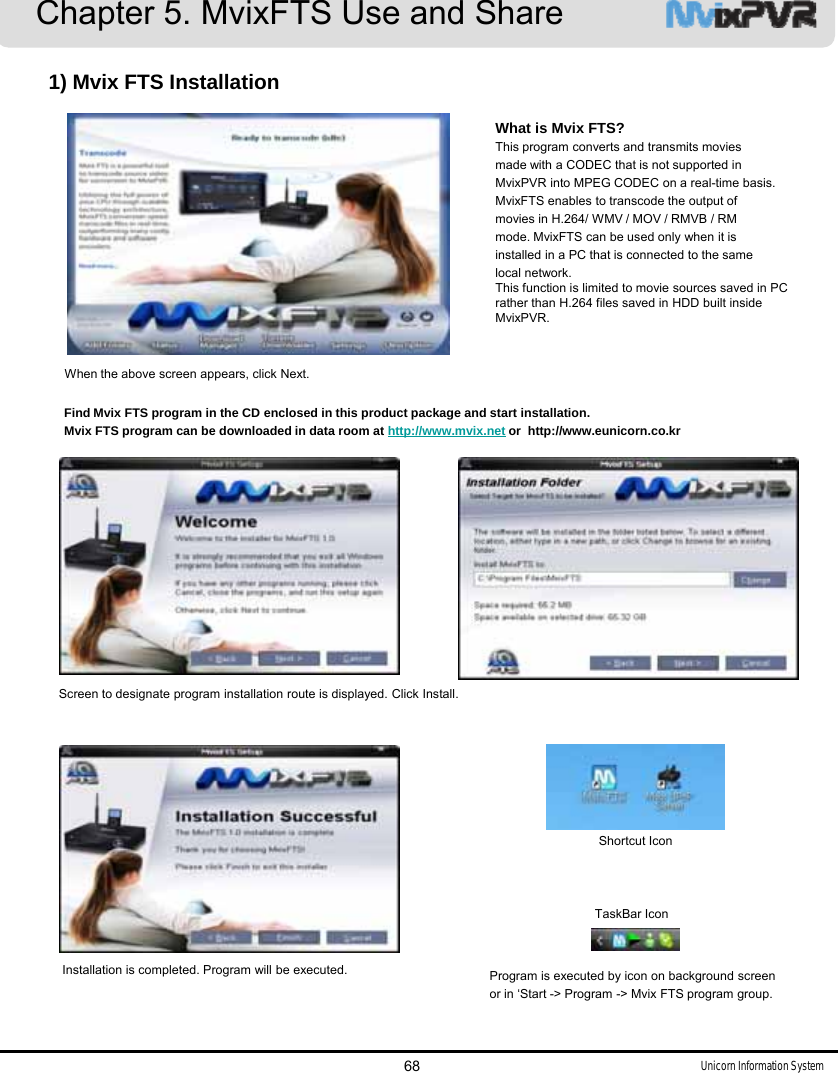

Unicorn Information System68Chapter 5. MvixFTS Use and Share1) Mvix FTS Installation What is Mvix FTS? This program converts and transmits movies made with a CODEC that is not supported in MvixPVR into MPEG CODEC on a real-time basis. MvixFTS enables to transcode the output of movies in H.264/ WMV / MOV / RMVB / RM mode. MvixFTS can be used only when it is installed in a PC that is connected to the same local network.This function is limited to movie sources saved in PC rather than H.264 files saved in HDD built inside MvixPVR.When the above screen appears, click Next.Find Mvix FTS program in the CD enclosed in this product package and start installation. Mvix FTS program can be downloaded in data room at http://www.mvix.net or  http://www.eunicorn.co.krScreen to designate program installation route is displayed. Click Install. Installation is completed. Program will be executed. Shortcut IconProgram is executed by icon on background screen or in ‘Start -> Program -> Mvix FTS program group. TaskBar Icon

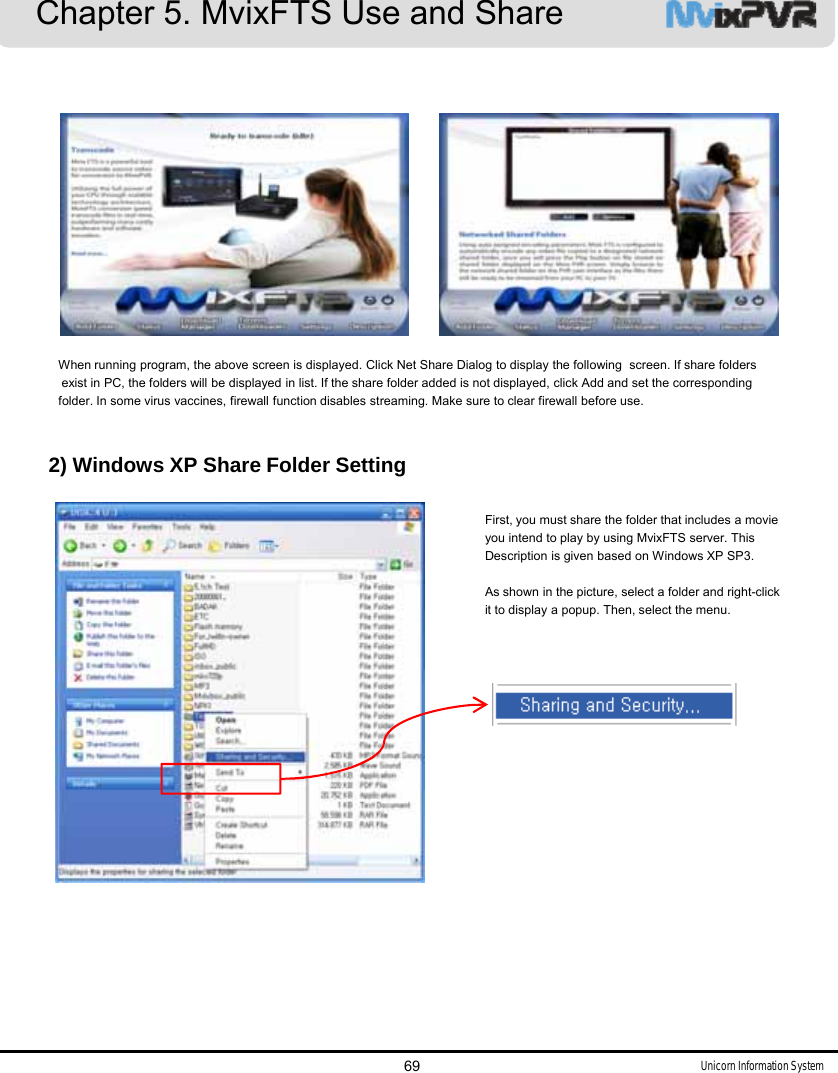

Unicorn Information System69When running program, the above screen is displayed. Click Net Share Dialog to display the following  screen. If share foldersexist in PC, the folders will be displayed in list. If the share folder added is not displayed, click Add and set the corresponding folder. In some virus vaccines, firewall function disables streaming. Make sure to clear firewall before use.2) Windows XP Share Folder SettingFirst, you must share the folder that includes a movie you intend to play by using MvixFTS server. This Description is given based on Windows XP SP3. As shown in the picture, select a folder and right-click it to display a popup. Then, select the menu. Chapter 5. MvixFTS Use and Share

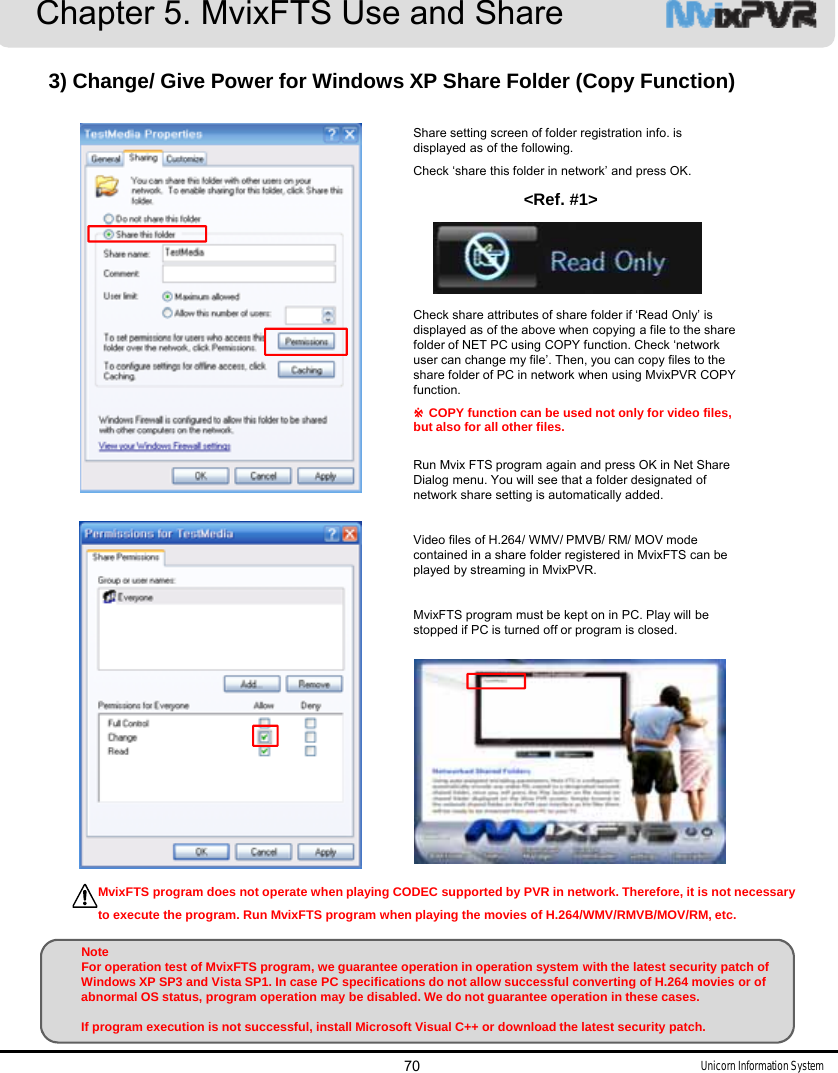

Unicorn Information System703) Change/ Give Power for Windows XP Share Folder (Copy Function)Share setting screen of folder registration info. is displayed as of the following. Check ‘share this folder in network’ and press OK. <Ref. #1>Check share attributes of share folder if ‘Read Only’ is displayed as of the above when copying a file to the share folder of NET PC using COPY function. Check ‘network user can change my file’. Then, you can copy files to the share folder of PC in network when using MvixPVR COPY function. ※COPY function can be used not only for video files, but also for all other files. Run Mvix FTS program again and press OK in Net Share Dialog menu. You will see that a folder designated of network share setting is automatically added. Video files of H.264/ WMV/ PMVB/ RM/ MOV mode contained in a share folder registered in MvixFTS can be played by streaming in MvixPVR.MvixFTS program must be kept on in PC. Play will be stopped if PC is turned off or program is closed. MvixFTS program does not operate when playing CODEC supported by PVR in network. Therefore, it is not necessary      to execute the program. Run MvixFTS program when playing the movies of H.264/WMV/RMVB/MOV/RM, etc.NoteFor operation test of MvixFTS program, we guarantee operation in operation system with the latest security patch of Windows XP SP3 and Vista SP1. In case PC specifications do not allow successful converting of H.264 movies or of abnormal OS status, program operation may be disabled. We do not guarantee operation in these cases. If program execution is not successful, install Microsoft Visual C++ or download the latest security patch.Chapter 5. MvixFTS Use and Share

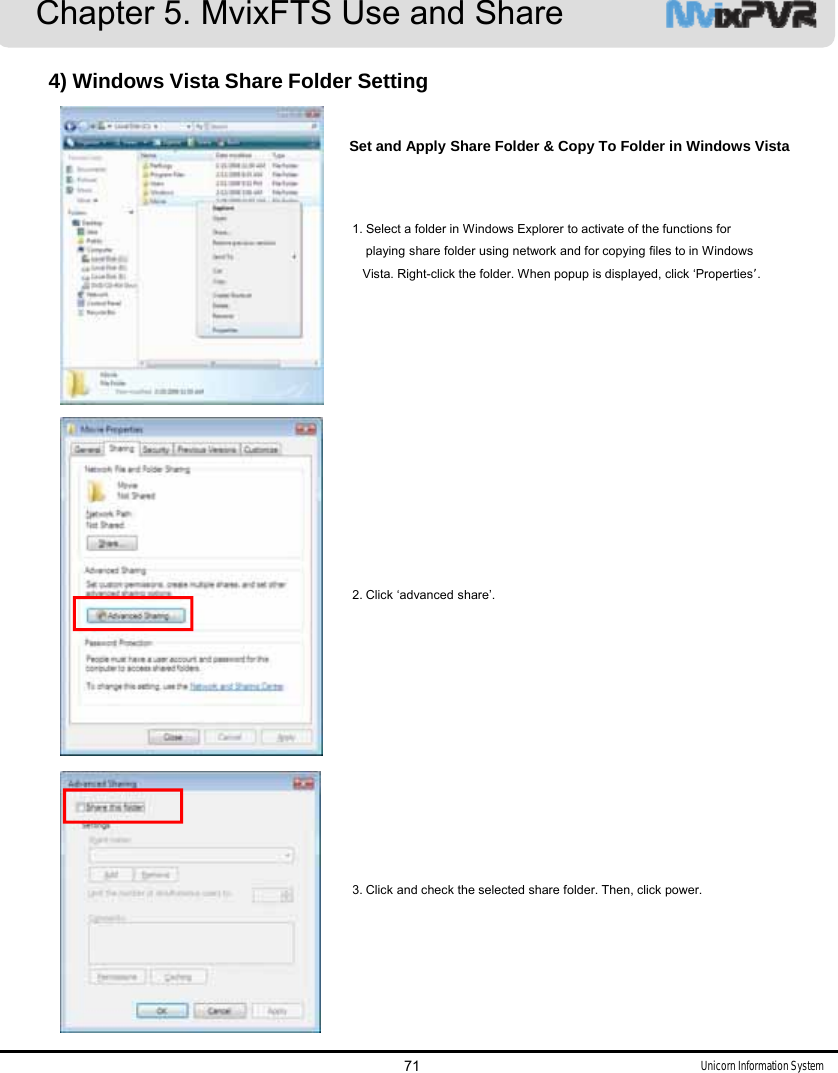

Unicorn Information System714) Windows Vista Share Folder SettingSet and Apply Share Folder & Copy To Folder in Windows Vista1. Select a folder in Windows Explorer to activate of the functions for playing share folder using network and for copying files to in Windows Vista. Right-click the folder. When popup is displayed, click ‘Properties’. 2. Click ‘advanced share’. 3. Click and check the selected share folder. Then, click power. Chapter 5. MvixFTS Use and Share

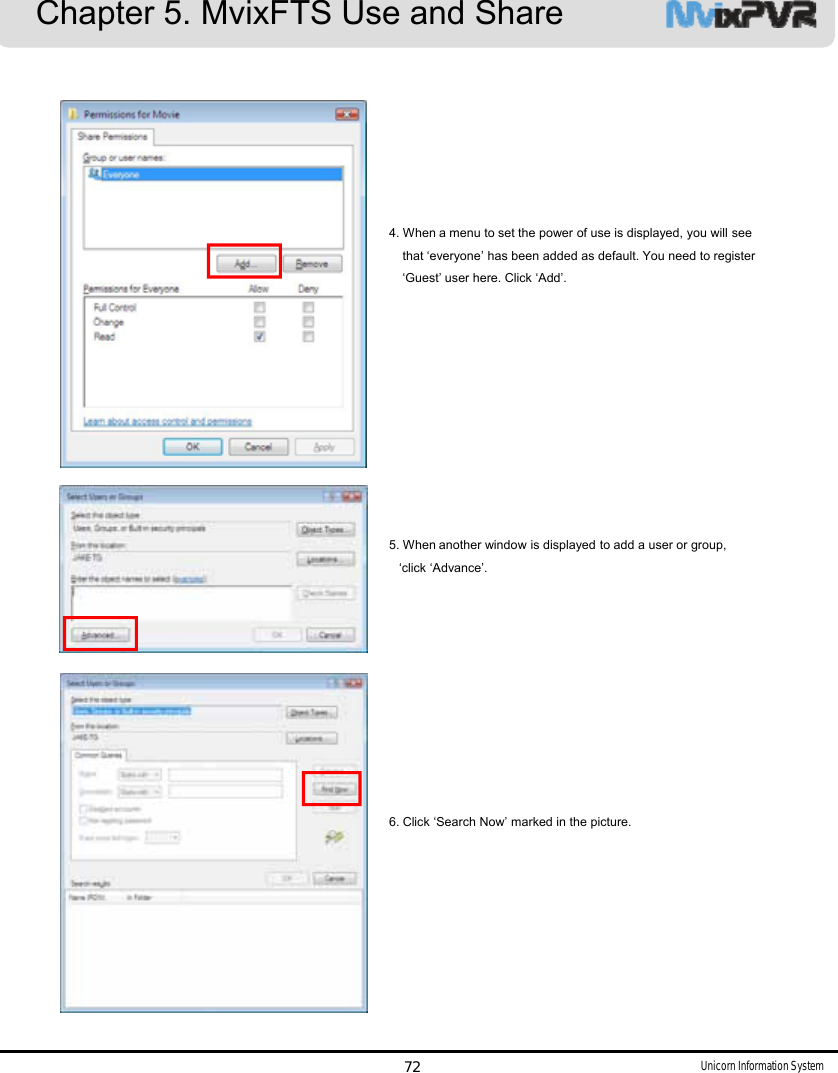

Unicorn Information System724. When a menu to set the power of use is displayed, you will seethat ‘everyone’ has been added as default. You need to register ‘Guest’ user here. Click ‘Add’. 5. When another window is displayed to add a user or group,‘click ‘Advance’. 6. Click ‘Search Now’ marked in the picture.Chapter 5. MvixFTS Use and Share

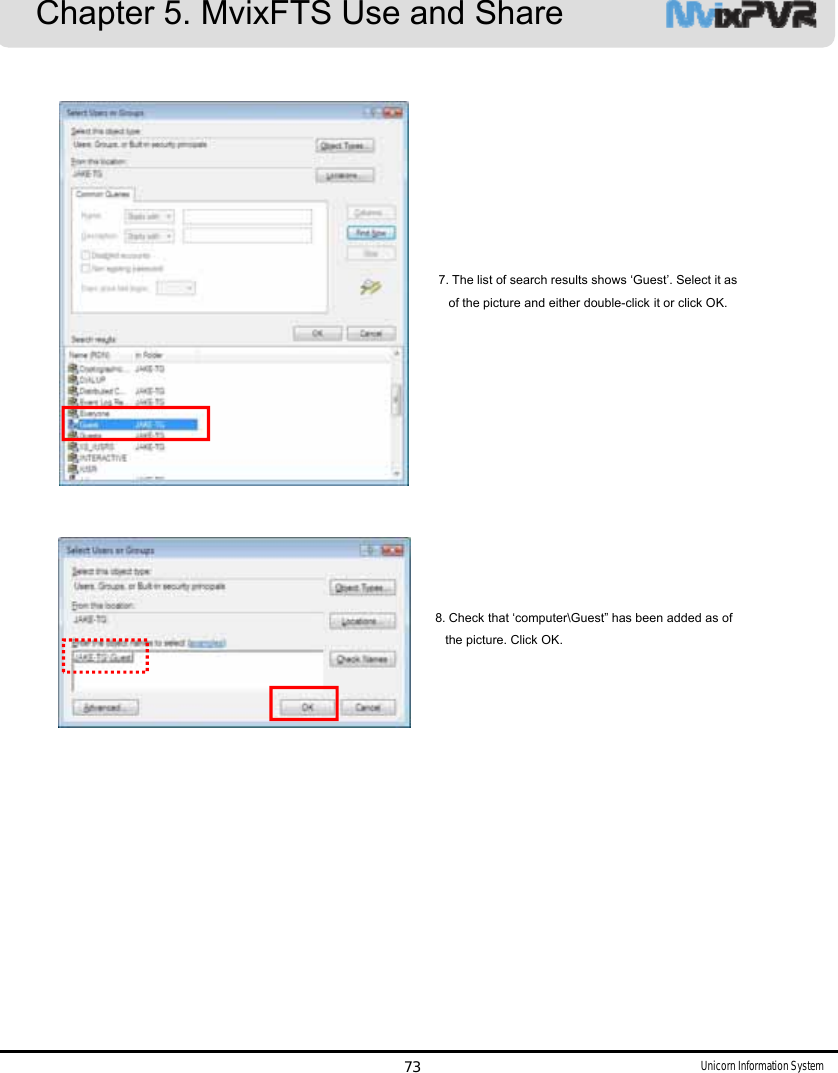

Unicorn Information System737. The list of search results shows ‘Guest’. Select it as of the picture and either double-click it or click OK. 8. Check that ‘computer\Guest” has been added as of the picture. Click OK. Chapter 5. MvixFTS Use and Share
Unicorn Information System745) Change/ Give Power for Windows Vista Share Folder (Copy Function)9. Check ‘Allow Change’ when guest account is added. When the following screen is displayed, press OK. Checking ‘Allow Change’ enables you to copy files to the corresponding folder when using   COPY function. Do not check it if you only intend to play media files through network share. Caution is required as all users of the same network status can access the folder and administer read/ modify/ write/ delete.10. Press OK or Apply if the procedure up to No. 9 has been successfully completed. Check if share folder has been added as in the picture. Complete the process of giving power for share folder in Windows Vista.※If file is not visible in Windows Vista, check setups as of the following. In Control Panel -> Network and Share Center, check setups for ‘Use File Sharing’ and ‘Not Password protected sharing’ as of theabove.Chapter 5. MvixFTS Use and Share

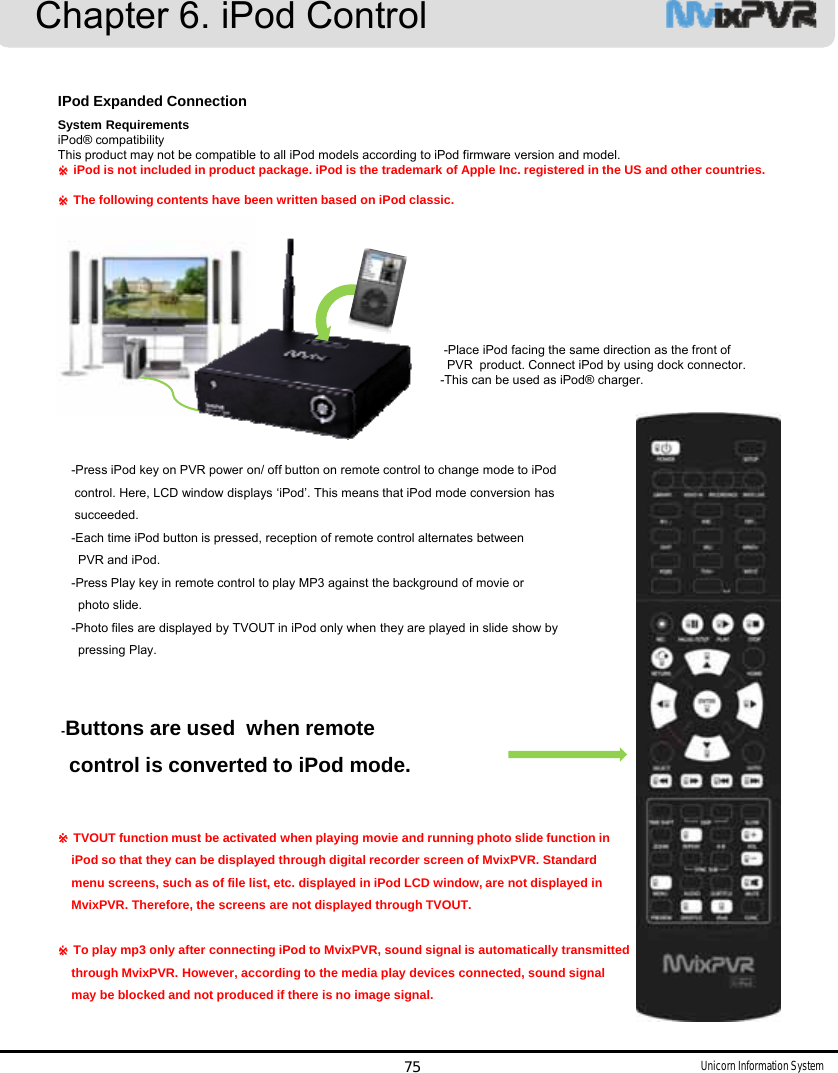

Unicorn Information SystemIPod Expanded ConnectionSystem RequirementsiPod® compatibility This product may not be compatible to all iPod models according to iPod firmware version and model. ※iPod is not included in product package. iPod is the trademark of Apple Inc. registered in the US and other countries. ※The following contents have been written based on iPod classic.-Place iPod facing the same direction as the front of PVR  product. Connect iPod by using dock connector. -This can be used as iPod® charger.-Press iPod key on PVR power on/ off button on remote control to change mode to iPod control. Here, LCD window displays ‘iPod’. This means that iPod mode conversion has succeeded. -Each time iPod button is pressed, reception of remote control alternates between PVR and iPod. -Press Play key in remote control to play MP3 against the background of movie or photo slide. -Photo files are displayed by TVOUT in iPod only when they are played in slide show by pressing Play. -Buttons are used  when remote control is converted to iPod mode.※TVOUT function must be activated when playing movie and running photo slide function in iPod so that they can be displayed through digital recorder screen of MvixPVR. Standard menu screens, such as of file list, etc. displayed in iPod LCD window, are not displayed in MvixPVR. Therefore, the screens are not displayed through TVOUT. ※To play mp3 only after connecting iPod to MvixPVR, sound signal is automatically transmitted through MvixPVR. However, according to the media play devices connected, sound signal may be blocked and not produced if there is no image signal. Chapter 6. iPod Control75

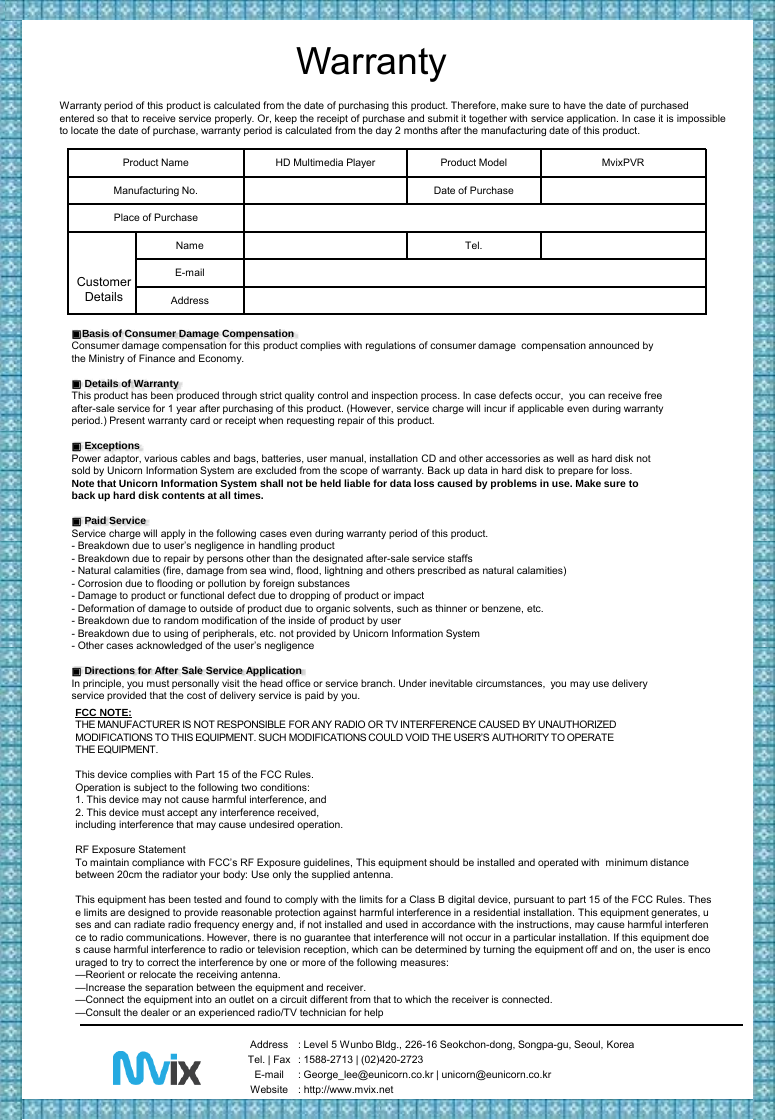

Unicorn Information System76Product Name HD Multimedia Player Product Model MvixPVRManufacturing No. Date of PurchasePlace of PurchaseName Tel.E-mailAddressWarrantyWarranty period of this product is calculated from the date of purchasing this product. Therefore, make sure to have the date of purchased entered so that to receive service properly. Or, keep the receipt of purchase and submit it together with service application. In case it is impossible to locate the date of purchase, warranty period is calculated from the day 2 months after the manufacturing date of this product.  CustomerDetails▣Basis of Consumer Damage CompensationConsumer damage compensation for this product complies with regulations of consumer damage  compensation announced by the Ministry of Finance and Economy. ▣Details of WarrantyThis product has been produced through strict quality control and inspection process. In case defects occur,  you can receive free after-sale service for 1 year after purchasing of this product. (However, service charge will incur if applicable even during warranty period.) Present warranty card or receipt when requesting repair of this product.  ▣Exceptions Power adaptor, various cables and bags, batteries, user manual, installation CD and other accessories as well as hard disk not sold by Unicorn Information System are excluded from the scope of warranty. Back up data in hard disk to prepare for loss. Note that Unicorn Information System shall not be held liable for data loss caused by problems in use. Make sure to back up hard disk contents at all times. ▣Paid ServiceService charge will apply in the following cases even during warranty period of this product. - Breakdown due to user’s negligence in handling product- Breakdown due to repair by persons other than the designated after-sale service staffs- Natural calamities (fire, damage from sea wind, flood, lightning and others prescribed as natural calamities)- Corrosion due to flooding or pollution by foreign substances- Damage to product or functional defect due to dropping of product or impact- Deformation of damage to outside of product due to organic solvents, such as thinner or benzene, etc.   - Breakdown due to random modification of the inside of product by user- Breakdown due to using of peripherals, etc. not provided by Unicorn Information System- Other cases acknowledged of the user’s negligence▣Directions for After Sale Service ApplicationIn principle, you must personally visit the head office or service branch. Under inevitable circumstances,  you may use deliveryservice provided that the cost of delivery service is paid by you.FCC NOTE:THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV INTERFERENCE CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS EQUIPMENT. SUCH MODIFICATIONS COULD VOID THE USER’S AUTHORITY TO OPERATE THE EQUIPMENT.This device complies with Part 15 of the FCC Rules.Operation is subject to the following two conditions:1. This device may not cause harmful interference, and2. This device must accept any interference received,including interference that may cause undesired operation.RF Exposure StatementTo maintain compliance with FCC’s RF Exposure guidelines, This equipment should be installed and operated with  minimum distancebetween 20cm the radiator your body: Use only the supplied antenna.This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:—Reorient or relocate the receiving antenna.—Increase the separation between the equipment and receiver.—Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.—Consult the dealer or an experienced radio/TV technician for helpAddress Tel. | FaxE-mailWebsite: Level 5 Wunbo Bldg., 226-16 Seokchon-dong, Songpa-gu, Seoul, Korea: 1588-2713 | (02)420-2723: George_lee@eunicorn.co.kr | unicorn@eunicorn.co.kr: http://www.mvix.net
