BC75XLT Owner’s
Manual
© 2012 Uniden America Corporation Printed in Vietnam
Fort Worth, Texas U01UB372ZZZ(0)
BC
2
PRECAUTIONS
Before you use this scanner, please read and observe the
following.
IMPORTANT
This scanning radio has been manufactured so that it will not
tune to the radio frequencies assigned by the FCC for cellular
telephone usage. The Electronic Communications Privacy Act
of 1986, as amended, makes it a federal crime to intentionally
intercept cellular or cordless telephone transmissions or
to market this radio when altered to receive them. The
installation, possession, or use of this scanning radio in a
motor vehicle may be prohibited, regulated, or require a
permit in certain states, cities, and/or local jurisdictions. Your
local law enforcement ocials should be able to provide you
with information regarding the laws in your community.
Changes or modications to this product not expressly
approved by Uniden, or operation of this product in any way
other than as detailed by this Operating Guide, could void
your authority to operate this product.
EARPHONE WARNING!
Be sure to use only a monaural earphone with this scanner.
You can also use an optional stereo headset. Use of an
incorrect earphone or mono headset might be potentially
hazardous to your hearing. The output of the phone jack is
monaural, but you will hear it in both headphones of a stereo
headset.
3
Set the volume to a comfortable audio level coming from
the speaker before plugging in the monaural earphone or
headset. Otherwise, you might experience some discomfort
or possible hearing damage if the volume suddenly becomes
too loud because of the volume control or squelch control
setting. This might be particularly true of the type of
earphone that is placed in the ear canal.
4
CONTENTS
PRECAUTIONS ......................................2
THE FCC WANTS YOU TO KNOW ......................7
SCANNING LEGALLY ................................... 8
INTRODUCTION ....................................10
BC75XLT FEATURE HIGHLIGHTS ....................... 10
FREQUENCY RANGE ..................................13
USA BAND PLAN .....................................14
CANADA BAND PLAN ................................. 16
SCANNING BASICS .................................17
WHAT IS SCANNING? .................................17
WHAT IS SEARCHING? ................................17
Conventional Scanning ............................18
Simplex Operation .................................18
Repeater Operation ................................19
WHAT ARE BANKS? ...................................19
Channel Storage Banks ............................19
Service Search Bands ..............................19
Custom Search Ranges ............................20
WHERE TO LEARN MORE ..............................20
SETUP .............................................21
WHAT’S IN THE BOX? .................................21
SETTING UP THE SCANNER ...........................22
Connect the Antenna ..............................22
Connect an Optional Earphone/Headphone ........23
Connecting an Optional Extension Speaker .........23
Adjusting the Belt Clip .............................23
POWERING THE SCANNER ............................23
Installing Non-Rechargeable Batteries ..............24
5
Installing Rechargeable Ni-MH Batteries ............24
Charging the Ni-MH Batteries through
USB Connection ...................................25
Low Battery Alert ..................................27
TURN ON THE SCANNER .............................27
Adjust Squelch ....................................28
Adjusting for Interference ..........................28
BC75XLT CONTROLS AND DISPLAY ..................29
HARDWARE DESCRIPTION ............................29
Keypad ............................................ 29
Scroll Control Knob ................................31
LCD DISPLAY .........................................32
OPERATION ........................................35
SEARCHING ..........................................35
Quick Search ......................................35
Custom Search ....................................36
Service Search .....................................37
STORING FREQUENCIES ..............................38
Erasing a Stored Frequency ........................39
SCANNING ...........................................39
Enabling/Disabling Channel Banks .................39
Scan the Stored Channels ..........................40
Manually Select a Channel .........................40
SPECIAL FEATURES .................................42
CLOSE CALL® RF CAPTURE ............................42
Close Call Operation Mode .........................42
Using Close Call Mode ............................43
LOCKING OUT CHANNELS AND FREQUENCIES ........44
Temporary Lock Out ...............................45
Permanent Lock Out ...............................45
6
Unlock ............................................45
PRIORITY .............................................46
DELAY ................................................47
KEYLOCK .............................................48
BACKLIGHT ...........................................49
PC PROGRAMMING ...................................49
TROUBLESHOOTING ...............................50
CARE AND MAINTENANCE ..........................53
RESETTING THE SCANNER ............................53
GENERAL USE ........................................53
LOCATION ............................................53
CLEANING ............................................54
REPAIRS ..............................................54
BIRDIES. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
SPECIFICATIONS ...................................56
ONEYEAR LIMITED WARRANTY ....................58
7
THE FCC WANTS YOU TO KNOW
WARNING! Uniden does not represent this unit to be
water proof. To reduce the risk of re or electrical
shock, do not expose this unit to rain or moisture.
Uniden® and Close Call® are registered trademarks of Uniden
America Corporation. Other trademarks used throughout
this manual are the property of their respective holders.
This scanner has been tested and found to comply with
the limits for a scanning receiver, pursuant to Part 15 of the
FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential
installation. This scanner generates, uses, and can radiate
radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful
interference to radio communications.
However, there is no guarantee that interference will not
occur in a particular installation. If this scanner does cause
harmful interference to radio or television reception, which
can be determined by turning the scanner on and o, you
are encouraged to try to correct the interference by one or
more of the following methods:
• Reorient or relocate the receiving antenna
• Increase the separation between the scanner and the
receiver
This device complies with Part 15 of the FCC Rules. Operation
is subject to the following two conditions: 1) This device
may not cause harmful interference, and 2) this device must
8
accept any interference received, including interference that
may cause undesired operation.
SCANNING LEGALLY
Your scanner covers frequencies used by many dierent
groups, including police and re departments, ambulance
services, government agencies, private companies, amateur
radio services, military operations, pager services, and
wireline (telephone and telegraph) service providers. It is
legal to listen to almost every transmission your scanner
can receive. However, there are some transmissions that you
should never intentionally listen to. These include:
• Telephone conversations (cellular, cordless, or other
private means of telephone signal transmission)
• Pager transmissions
• Any scrambled or encrypted transmissions
According to the Electronic Communications Privacy Act
(ECPA), you are subject to nes and possible imprisonment
for intentionally listening to, using, or divulging the contents
of such a conversation unless you have the consent of a
party to the conversation (unless such activity is otherwise
illegal). This scanner has been designed to prevent the
reception of cellular telephone transmissions and the
decoding of scrambled transmissions. This is done to comply
with the legal requirement that scanners be manufactured
so they are not easy to modify to pick up these transmissions.
Do not open your scanner’s case to make any modications
that could allow it to pick up transmissions that are illegal to
monitor. Modifying or tampering with your scanner’s internal
9
components or using it in a way other than as described in
this manual could invalidate your warranty and void your FCC
authorization to operate it.
In some areas, mobile use of this scanner is unlawful or
requires a permit. Check the laws in your area. It is also illegal
in many areas (and a bad idea everywhere) to interfere with
the duties of public safety ocials by traveling to the scene
of an incident without authorization.
10
INTRODUCTION
Thank you for purchasing a Uniden BC75XLT handheld
scanner. The scanner is versatile, compact, and easy to use.
In addition to its standard scanning features, your scanner
also includes Close Call® RF capture technology designed to
help you detect and identify strong local radio signals in your
area.
You can program up to 300 frequencies into the scanner’s
memory. The scanner lets you scan transmissions and is
preprogrammed with service bands for your convenience.
You can quickly search those frequencies most commonly
used by police and other agencies without tedious and
complicated programming. The scanner gives you direct
access to over 32,000 exciting frequencies.
Use your scanner to monitor:
• Police and re departments (including rescue and
paramedics)
• NOAA weather transmissions
• Business/Industrial radio
• Utilities
• Marine and amateur (ham radio) bands
• Aircraft band
BC75XLT FEATURE HIGHLIGHTS
Close Call® RF Capture Technology - you can set the
scanner so it detects and provides information about nearby
radio transmissions. See page 42 for more information on the
Close Call RF feature.
11
PC Programming - lets you program your scanner using
your PC.
Custom Search - lets you program up to 10 custom search
ranges and search any or all of those ranges.
Quick Search - allows you to enter a frequency and start
searching up or down from that frequency.
Turbo Search - increases the search speed from 100 to 300
steps per second automatically for bands with 5 kHz steps.
Search Lockout - allows you to lock out up to 200 search
frequencies (100 temporary and 100 permenant) in Custom,
Service, Close Call, or Quick Search modes.
Lock-Out Function - lets you set your scanner to skip
over specied channels or frequencies when scanning or
searching. You must manually unlock these channels.
Temporary Lock-Out Function - lets you set your scanner to
skip over specied channels or frequencies when scanning
or searching. This temporary lock-out releases when you
manually unlock the channels or frequencies or when you
power down the scanner.
Priority Channels - You can program one channel in each
bank (10 channels total) as a priority channel. The scanner
checks that channel every 2 seconds while it scans the
bank so you do not miss transmissions on those channels.
(Default=Priority O )
Priority Scan - lets you set the Priority feature to check each
channel every 2 seconds regardless of whether or not the
scanner is receiving transmissions.
12
Priority Scan with Do Not Disturb - lets you set the Priority
feature to check each channel every 2 seconds as long as the
scanner is not receiving transmissions.
Duplicate Channel Alert - lets you know when you have
entered a frequency that is already registered on another
channel.
Channel Storage Banks - the scanner has 10 banks. You can
store up to 30 frequencies into each bank (for a total of 300
frequencies), so you can more easily identify calls.
Two-Second Scan Delay - delays scanning for about 2
seconds before moving to another channel so you can hear
more replies that are made on the same channel.
Do Not Disturb prevents the scanner from interrupting
transmissions during receiving.
Ten Service Bands - frequencies are preset in separate
Weather, Police, Fire/Emergency, Marine, Racing, Civil Air,
HAM Radio, Railroad, CB Radio, and Other (Other = FRS/
GMRS/MURS) bands to make it easy to locate specic types
of calls.
Key Lock - lets you lock the scanner’s keys to help prevent
accidental changes to the scanner’s programming.
Direct Access - lets you directly access any channel.
Display Backlight - makes the scanner easy to read in low-
light situations.
Flexible Antenna with BNC Connector - provides adequate
reception in strong signal areas and is designed to help
prevent antenna breakage. You can also connect an external
antenna for better reception.
13
Memory Backup - keeps the frequencies stored in memory
for an extended time if the scanner loses power.
Three Power Options - Use the supplied USB cable to
charge the BC75XLT through your computer or other USB
charging port. You can also power the scanner using two
AA rechargeable Ni-MH batteries (not included) or optional
alkaline batteries.
Key Conrmation Tones - the scanner sounds a tone when
you perform an operation correctly, and an error tone if you
make an error.
Battery Low Alert - warns you when battery power gets
low. The Battery Low icon ashes ( ) and a battery low
tone sounds every 15 seconds until the scanner is recharged,
turned o, or drained completely.
Battery Save - works when there is no transmission for 1
minute in Scan Hold mode and in any Search Hold mode
(does not work in Priority Scan and Close Call Scan modes).
This feature turns o RF power for 1 second and turns it on in
300ms intervals to extend the battery live.
Scan/Search Delay/Resume - controls whether the scanner
pauses at the end of the transmission to wait for a reply. You
can set the Delay time for each Channel, Close Call Search,
Custom Search, and Service Search mode.
FREQUENCY RANGE
These tables list the frequency ranges, default frequency
step, default mode (AM or NFM), and type of transmissions
you can hear for each range for USA or Canadian bands.
14
Select the band plan (USA or Canada) when you turn on the
scanner (default = USA). Press and hold the key for 2-3
seconds to turn on the scanner while pressing and holding 1
for USA or 2 for Canada. The band plan will remain until you
change it again.
USA BAND PLAN
Frequency Range
(MHz)
Step
(kHz)
Mode Transmission
25.00000-27.99500 5.0 AM Citizens Band/
Business Band
28.00000-54.00000 5.0 NFM 10 Meter
Amateur Band
108.00000-136.99166 8.33 AM Aircraft Band
137.00000-150.77000 5.0 NFM Military Band
15
Frequency Range
(MHz)
Step
(kHz)
Mode Transmission
150.77500-150.81250 7.5 NFM
VHF High Band
150.81500-154.45250 7.5 NFM
154.45625-154.47875 7.5 NFM
154.48250-154.51250 7.5 NFM
154.51500-154.52500 5.0 NFM
154.52750-154.53500 7.5 NFM
154.54000-154.60750 7.5 NFM
154.61000-154.64750 7.5 NFM
154.65000-157.44750 7.5 NFM
157.45000-157.46500 5.0 NFM
157.47000-163.24500 7.5 NFM
163.25000-173.20000 12.5 NFM
173.20375-173.21000 6.25 NFM
173.21500-173.22000 5.0 NFM
173.22500-173.38750 12.5 NFM
173.39000-173.39625 6.25 NFM
173.40000-174.00000 5.0 NFM
406.00000-512.00000 6.25 NFM UHF
16
CANADA BAND PLAN
Frequency Range
(MHz)
Step
(kHz)
Mode Transmission
25.00000-27.99500 5.0 AM Citizens Band/
Business Band
28.00000-54.00000 5.0 NFM 10 Meter
Amateur Band
108.00000-136.99166 8.33 AM Aircraft Band
137.00000-174.00000 5.0 NFM Military Band
406.00000-512.00000 6.25 NFM UHF
17
SCANNING BASICS
This section provides a background on how scanning works.
You don’t really need to know all of this to use your scanner,
but some background knowledge will help you get the most
from your BC75XLT.
WHAT IS SCANNING?
Unlike standard AM or FM radio stations, most two-way
communications do not transmit continuously. Your
BC75XLT scans programmed channels until it nds an active
frequency, then stops on that frequency and remains on
that channel as long as the transmission continues. When
the transmission ends, the scanning cycle resumes until it
receives another transmission on a programmed channel.
WHAT IS SEARCHING?
The BC75XLT searches for active frequencies. This is dierent
from scanning because you are searching for frequencies
that have not been programmed into the scanner. When
you select frequency bands to search, the scanner searches
for any active frequency within the lower and upper limits
you specify for that band. When the scanner nds an
active frequency, it stops on that frequency as long as the
transmission lasts. If you think the frequency is interesting,
you can program it into one of the bands. If not, you can
continue to search.
18
Conventional Scanning
Conventional scanning is a relatively simple concept. Each
group of users in a conventional system is assigned a single
frequency (for simplex systems) or two frequencies (for
repeater systems). Any time one of them transmits, their
transmission always goes out on the same frequency. Up
until the late 1980’s this was the primary way that radio
systems operated.
Even today, there are many 2-way radio users who operate
using a conventional system:
• Aircraft
• Amateur radio
• FRS/GMRS users
• Broadcast AM/FM/TV stations
• Many business radio users
When you want to store a conventional system, all you need
to know are the frequencies they operate on. When you
are scanning a conventional system, the scanner stops very
briey on each channel to see if there is activity. If there isn’t,
the scanner quickly moves to the next channel. If there is,
then the scanner pauses on the transmission until it is over.
Simplex Operation
Simplex systems use a single frequency for both transmit
and receive. Most radios using this type of operation
are limited to line-of-sight operation. This type of radio
is frequently used at construction job sites and with
inexpensive consumer radios such as GMRS/FRS radios. The
range is typically 1-8 miles, depending upon the terrain and
many other factors.
19
Repeater Operation
Repeater systems use two frequencies: one transmits from
the radio to a central repeater; the other transmits from the
repeater to other radios in the system. With a repeater-based
system, the repeater is located on top of a tall building or
on a radio tower that provides great visibility to the area of
operation. When a user transmits (on an input frequency),
the signal is picked up by the repeater and retransmitted
(on an output frequency). The user’s radios always listen for
activity on the output frequency and transmit on the input
frequency. Since the repeater is located very high, there is
a very large line of sight. Typical repeater systems provide
coverage out to about a 25-mile radius from the repeater
location.
WHAT ARE BANKS?
Channel Storage Banks
To make it easier to identify and select the channels you
want to listen to, the 300 channels are divided into 10
channel storage banks containing 30 channels each. You
could use each channel storage bank to group frequencies
by department, location, area of interest, or any other way
you prefer. You can listen to any or all of the banks by using
the number keys to turn them on or o.
Service Search Bands
The scanner is preprogrammed with many of the frequencies
allocated to Weather, Police, Fire/Emergency, Marine,
Racing, Civil Air, HAM Radio, Railroad, CB radio, and Other
(Other = FRS/GMRS/MURS). Use the 10 bands allocated for
20
these service searches just like the channel storage banks,
searching the frequencies using Service Search mode (see
page 37).
Custom Search Ranges
Custom Search mode lets you program the upper and lower
limits of search ranges. You can then search these 10 custom
search ranges starting from the lowest frequency to the
highest frequency in the search range you entered. You can
turn o ranges you don’t want to search just like turning o
(disabling) channel storage banks in Scan mode.
Custom search ranges use the same LCD numbers on the
display as the 10 channel storage banks (see page 32).
WHERE TO LEARN MORE
By itself, this manual really only provides part of what you
need to know to have fun scanning – how to program and
use the scanner. The website, http://www.radioreference.
com, is the Internet’s premier source for user-supported
radio system information. You can nd lists of frequencies for
your area there. This web sites is not aliated with Uniden
Corporation.
For more information about Uniden and our other products,
visit http://www.uniden.com.
21
SETUP

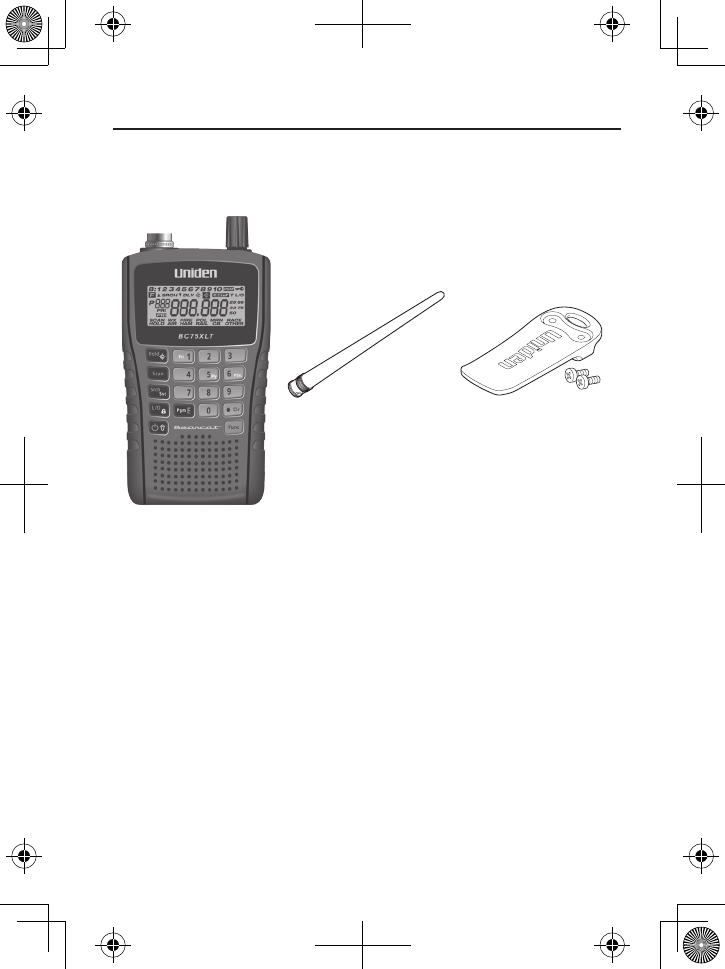

WHAT’S IN THE BOX?
BC75XLT Scanner Antenna Belt Clip
(attached)
Not shown:
• USB cable
• Strap
• Owner’s Manual
If any of these items are missing or damaged, immediately
contact your place of purchase or Uniden Customer Service
at: (800) 297-1023, 8:00 a.m. to 5:00 p.m., Central, Monday
through Friday.
22
SETTING UP THE SCANNER

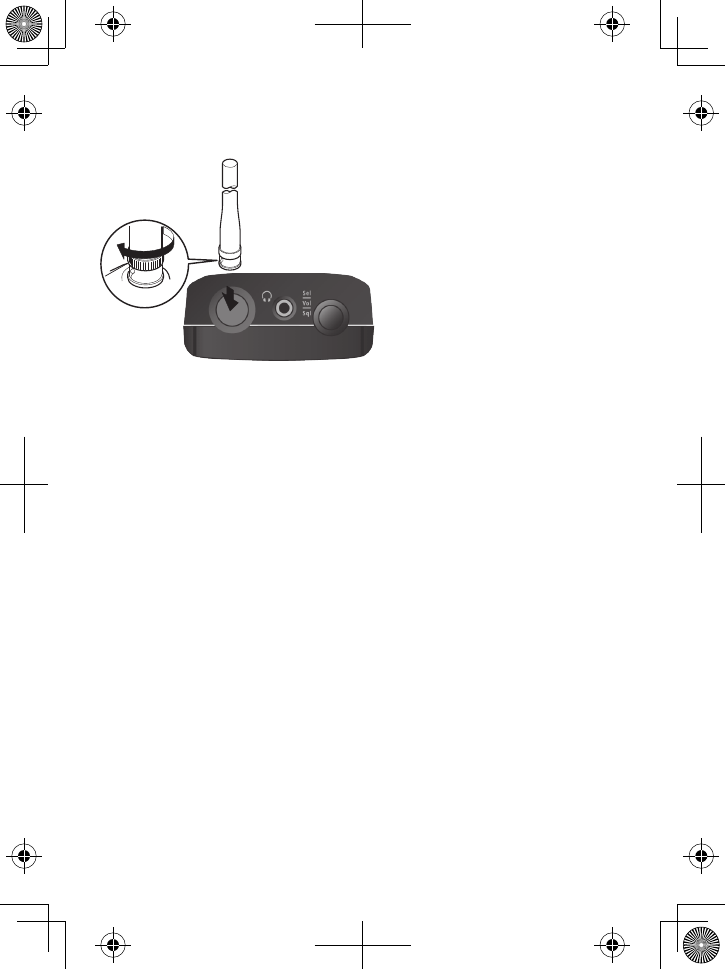

Connect the Antenna
1. Align the slots around the antenna’s connector with the
tabs on the scanner’s BNC connector.
2. Slide the antenna’s connector down over the scanner’s
connector.
3. Rotate the antenna connector’s outer ring clockwise
until it locks into place.
The scanner’s BNC connector makes it easy to connect a
variety of optional antennas, including an external mobile
antenna or outdoor base station antenna.
Note: Always use 50-ohm, RG-58, or RG-8, coaxial cable to
connect an outdoor antenna. If the antenna is over 50 feet from
the scanner, use RG-8 low-loss dielectric coaxial cable. If it is
less than 50 feet, use RG-58. You can get a BNC adapter at local
electronics stores.
23
Connect an Optional Earphone/Headphone
For private listening, you can plug a 1/8-inch (3.5 mm) mini-
plug earphone or stereo headphones (not supplied) into the
headphone jack on top of your scanner. This automatically
disconnects the internal speaker.
Connecting an Optional Extension Speaker
In a noisy area, an optional extension speaker, positioned in
the right place, might provide more comfortable listening.
Plug the speaker cable’s 1/8-inch (3.5-mm) mini-plug into
your scanner’s jack. If your speaker’s cable ends in a mono
plug, use a mono-to-stereo adapter to prevent shorting the
audio amplier and reducing volume.
WARNING! If you connect an external speaker to the
scanner’s headphone jack, never connect the audio
output line to a power supply and ground. This might
damage the scanner.
Adjusting the Belt Clip
The factory-attached belt clip makes it easier to carry the
scanner. Use a Phillips screwdriver to adjust (loosen) the
mounting screws or remove the belt clip completely.
POWERING THE SCANNER
Use the provided USB cable to connect your scanner to
your computer to charge the Ni-MH batteries (not included)
on initial installation and to recharge them. You can also
use a power adapter that provides USB charge power (not
included, but available at many retailers). You can also use
alkaline (ALK) non-rechargeable batteries (not included).
24
Inside the battery compartment is a switch; set the unit to
either ALK or Ni-MH to match the type of battery you’re
using.
WARNING! Non-rechargeable batteries can get hot or
burst if you try to charge them.
CAUTIONS:
• When ashes in the display and the scanner
beeps every 15 seconds, recharge or replace the
batteries.
• Use only fresh batteries of the required size and
recommended type.
• Always remove old or weak batteries. Batteries can
leak chemicals that destroy electronic circuits.
• Do not mix old and new batteries, dierent types of
batteries (standard, alkaline, or rechargeable), or
rechargeable batteries of dierent capacities.
Installing Non-Rechargeable Batteries
1. Make sure the power is turned o.
2. Slide the battery compartment cover o.
3. Use a pointed object such as a ballpoint pen to set the
battery selection switch inside the compartment to
ALK.
4. Insert the batteries as indicated by the polarity symbols
(+ and -) marked inside the battery compartment.
5. Replace the battery compartment cover.
Installing Rechargeable 2300mAh Ni-MH Batteries
You can also use two Ni-MH rechargeable batteries to power
your scanner.
25
1. Make sure the power is turned o.
2. Slide the battery compartment cover o.
3. Use a pointed object such as a ballpoint pen to set the
battery selection switch inside the compartment to
Ni-MH.
4. Install two batteries in the compartment as indicated by
the polarity symbols (+ and -) marked inside the battery
compartment.
5. Replace the battery compartment cover.
Note: To prevent damage to Ni-MH batteries, never charge
them in an area where the temperature is above 113°F (45°C) or
below 40°F (4°C).
Charging the Ni-MH Batteries through USB Connection
The scanner has a built-in circuit to charge the Ni-MH
batteries when a USB cable connects it to a computer (NOT
to a USB hub) or to an AC or DC adapter that provides USB
charging power. Verify that the battery selection switch is
set to Ni-MH and that only Ni-MH rechargeable batteries
are inserted in the scanner before connecting it to your
computer.
CAUTION: Never attempt to charge non-rechargeable
batteries or install non-rechargeable batteries when
the battery selection switch is set to Ni-MH.
1. Be sure the scanner is turned o. It will recharge only if
it is turned o, even with the USB cable connecting it to
a computer.
2. Connect the included USB cable to the scanner’s USB
port.
26
3. Connect the other end of the USB cable to the
computer’s USB port or to an AC or DC adapter that
provides USB charging power.
Note: If you connect to a computer’s USB port, the PC will
prompt you for the drivers for your scanner. To download and
install these drivers, go to http://info.uniden.com/UnidenMan4/
BC75XLT.
4. The scanner displays CHArg and the low battery icon
while it charges the batteries. The screen goes blank
after the scanner is completely charged.
Dierent status messages may display, depending on the
battery type and scanner status:
LCD Message Batt.
Type
Meaning Scanner
Cond.
CHArg Ni-MH Scanner is charging. Off
None Ni-MH Unit is charged. Off
None Ni-MH Scanner is not
charging (Battery
selection switch is
set to Alk.)
Off
Err CHArg Ni-MH Batteries cannot
be charged (dead
battery).
Off
ILEgAL Ni-MH USB external power
is out of range.
Off
If the batteries are good, the scanner charges the batteries.
and it operates normally. If the scanner cannot immediately
27
determine if the batteries are good and can be charged, it
checks them and displays the battery icon. If the scanner
judges the batteries are good, the scanner starts charging
and the battery icon disappears. If it cannot regard the
batteries as good in 60 seconds, the scanner stops checking
and the battery icon blinks.
Low Battery Alert
The Low Battery Alert tone sounds every 15 seconds and
the battery icon ashes when the battery voltage is low. If it
drops below the threshold, the scanner automatically shuts
o until the battery is recharged.
TURN ON THE SCANNER
Turn on the scanner after it has been completely charged
(Ni-MH batteries) or alkaline batteries have been installed.
Note: Make sure the antenna is connected before you turn on
the scanner.
1. You can select the band plan (USA or Canada) when you
turn on the scanner (default = USA). Press and hold the
key for 2-3 seconds to turn on the scanner and then
press and hold 1 for USA or 2 for Canada. The band plan
will remain until you change it again.
2. If this is the rst time you have turned on the scanner,
All LocOut displays. This means that no frequencies
have been saved into channels. Press Srch to begin
searching.
28
Adjust Squelch
The scanner recognizes signals as transmissions if they
exceed a signal strength threshold. Adjusting the squelch
sets this threshold level. Increasing squelch requires a signal
to be stronger to be seen as a transmission. If you set the
squelch too high, you will risk not receiving transmissions
that are lower than that threshold. Reducing the squelch
allows weaker signals to be accepted. However, if you lower
the squelch too much, you will hear white noise all the time.
1. Press Func and the press down and release the scroll
control knob. SqL and a number display.
2. Turn the knob until the interference is gone. Press the
scroll control knob again to set the level and return to
the previous function.
Adjusting for Interference
There are several options to adjust your scanner to minimize
interference. Try:
• Moving the scanner or its antenna away from the
source.
• Using an optional external antenna designed for multi-
band coverage. (You can purchase this type of antenna
at a local electronics store). If the optional antenna has
no cable, use 50-70 ohm coaxial cable for lead-in. An
adapter might be necessary for the optional antennas.
• Moving the scanner from high-moisture environments
such as the kitchen or bathroom.
• Moving the scanner from direct sunlight or near heating
elements or vents.
29
BC75XLT CONTROLS AND DISPLAY
HARDWARE DESCRIPTION

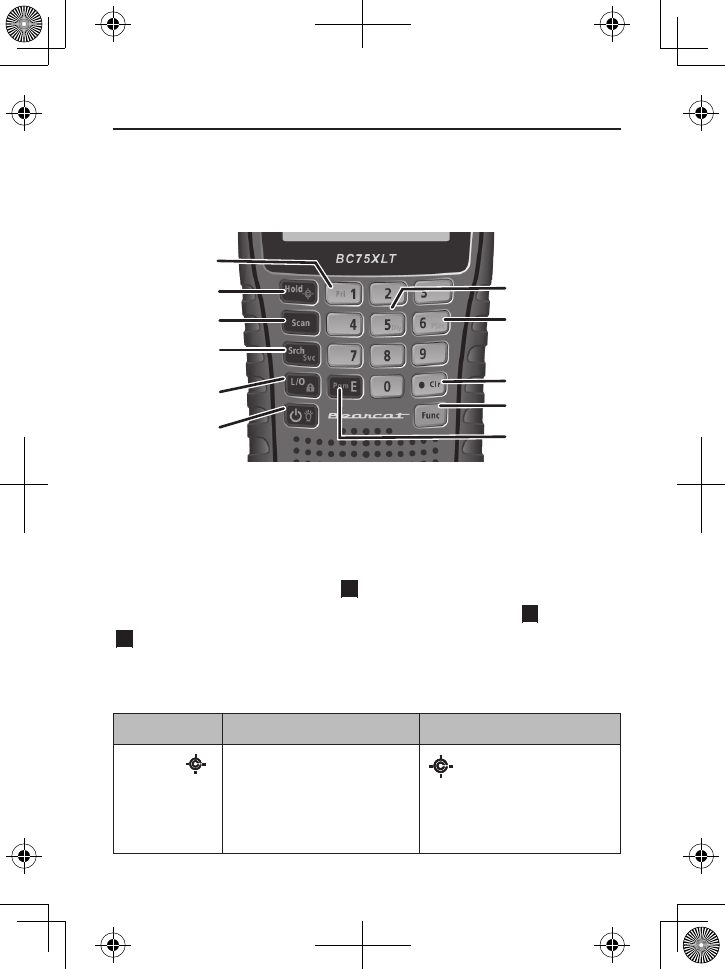

Keypad
Your scanner’s keys have various functions labeled on the
key tops.
To select the function labeled on a key, simply press the key.
To select the function labeled in smaller text on a key, rst
press Func then release it.
F
appears on the display. Press
the next key in the function key sequence while
F
displays.
F
appears or disappears as you press Func.
If your scanner’s keys seem confusing at rst, the following
information should help you understand each key’s function.
Key/Icon Primary Function Key
Hold / Hold - Stays on a
frequency until
released.
Close Call - lets
scanner lock into
nearby transmissions
(see page 42).
Program/
Enter
Function
PSrc
Delay
Priority
Hold/
Close Call
Scan
Search/
Service
Lockout/
Keypad Lock
Power/
Backlight
Clear
30
Key/Icon Primary Function Key
Scan Cycles through
channels looking
for transmissions on
stored frequencies
(see page 39).
NA
Srch/Svc Searches through
frequencies looking
for transmissions (see
page 35).
Service Search -
cycles through
preprogrammed
service bands (see
page 37).
L/O / Temporarily or
permanently
lockout a channel or
frequency (see page
44).
Locks the keypad (see
page 48).
/ Turn scanner on and
o.
Turns display
backlight on and o
(see page 49).
1/Pri Enter a numeric 1. Cycles through
Priority O, Priority
Do Not Disturb, and
Priority Scan (see
page 46).
5/Dly Enter a numeric 5. Turns the Delay
function on and
o for the current
channel (see page 47).
31
Key/Icon Primary Function Key
6/PSrc Enter a numeric 6. Sets the Program
Custom Search limits
(see page 36).
Pgm/E Sets Channel Program
mode.
Enter.
. Clr Press once: enters a
decimal.
Press twice: cancels a
numeric key input.
NA
Func Sets scanner in
Function mode.
Cancels Function
mode.

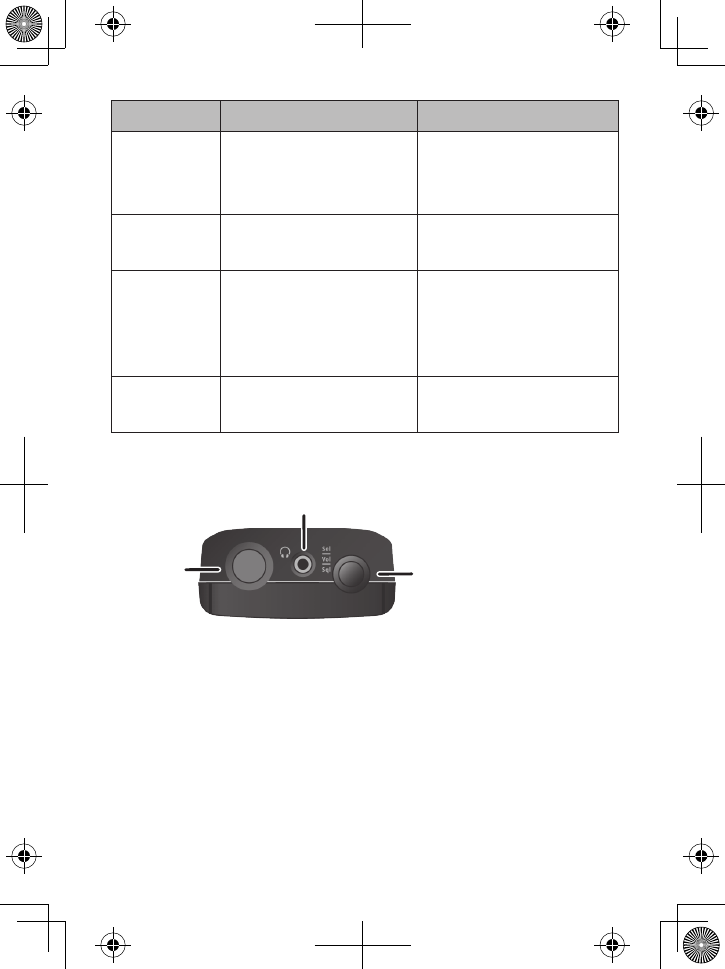

Scroll Control Knob
Scroll
control
knob
Audio
output
Antenna
The scroll control knob has three uses:
• Sel - Turn the knob to cycle through selections; press
down on the knob to select.
• Vol - Press down on the knob and then turn it to adjust
the volume. Press it down to select that level.
• Sql - Press Func, press down on the knob, and then turn
it to adjust the squelch level.
32
LCD DISPLAY
Line 1
Line 2
Line 3
Line 4
Line 5
The display has indicators that show the scanner’s current
operating status. The display information helps you
understand how your scanner operates.
Line Display Description
1B:1 - 10 Search mode: Custom Search
range.
Scan mode: Channel bank.
PGM Displays while you store a
frequency into a channel.
Displays when keypad is locked.
33
Line Display Description
2FDisplays when the Function mode
is on.
▲SEARCH▼Displays during Search mode.
DLY Displays when a 2-second delay
at the end of a transmission is on.
/ Displays when the scanner is set
to Close Call mode:
- Close Call Priority
- Close Call Do Not Disturb
Displays and blinks when the
battery power gets low.
Displays when the rechargeable
batteries are charging.
T L/O
L/O
Indicates a locked out frequency.
T L/O: Temporary Lock Out
L/O: Lock Out
3PDisplays when a Priority channel
is selected.
888 Current channel number.
PRI Displays when the Priority feature
is active.
888.888 Current frequency.
25, 33, 50, 66, 75 One of these numbers displays to
indicate the frequency step. For
example, “25” indicates 0.25kHz.
34
Line Display Description
4, 5 Scan Displays when you scan channels.
Hold Displays during Scan Hold and
Search Hold modes.
WX, AIR, FIRE,
HAM, POL,
RAIL, MRN, CB,
RACE, OTHER
Service bands. These will display
with an indicator for the current
service band during a Service
search.
35
OPERATION
SEARCHING
The BC75XLT has 10 preset search ranges that display as 1 -
10 across the top of the screen when you press Srch. It also
has 10 preset service bands that display in two rows across
the bottom of the screen when you press Func + Svc.
Note: Service Search is discussed on page 37.
When you press Srch, the BC75XLT begins searching the
search ranges until it nds activity. The search range number
ashes and it remains on that frequency until activity ends.
Press Srch at any time to continue.
Press a search range’s corresponding number to turn it o
and back on. For example, press 4 to turn search range #4
o. The number 4 will no longer display across the top of the
screen.
You can search these ranges through:
• Quick Search - Designate a starting point to search from.
• Custom Search - Designate and store upper and lower
frequency limits for each of 10 search ranges. The
scanner searches within this range.
Quick Search
Quick Search lets you designate a starting point for
searching. Once you are searching from this point, you can
stop the search and store frequencies in a channel.
1. If the scanner is scanning or searching, press Hold.
2. Enter the frequency using the number and . Clr keys.
The scanner automatically rounds the entered number
36
to the nearest valid frequency. For example, if you enter
151.473 (MHz), your scanner accepts it as 151.475.
However, if you enter a frequency that is out of range,
the scanner sounds an error tone and Error appears.
Enter another frequency.
3. Press Srch. The scanner searches, starting from the
frequency you just entered. (Turn the scroll control
knob to change the search direction.) The scanner also
automatically turns on the Delay function; DLY displays.
To turn o the function, press Func + Dly (see page 47).
Custom Search
You can adjust each preset search range’s upper and lower
frequency limits.
1. Press Func + Psrc. The scanner enters Custom Search
mode and displays SRCH and PGM. The upper and
lower frequencies for Custom Search range 1 alternate.
2. Turn the scroll control knob to scroll through the rest
of Custom Search ranges until you nd the one you
want. The search range numbers at the top of the screen
change as you cycle through them.
3. Enter the lower limit frequency and press E. The
frequency range ashes with the adjusted lower limit
frequency.
4. Enter the upper limit frequency and press E. The
adjusted frequency range ashes with the adjusted
upper limit frequency (both upper and lower
frequencies are now adjusted).
37
5. Press Srch to start searching your custom search range
or turn the scroll control knob to a dierent search
range and enter another frequency.
Service Search
You can search for Weather, Police, Fire/Emergency, Marine,
Racing, Civil Air, HAM Radio, Railroad, CB radio, and Other
(Other = FRS/GMRS/MURS) transmissions without knowing
the specic frequencies used in your area. The scanner is
preprogrammed with all the frequencies allocated to these
services. To use this feature, press Func + Svc. SRCH appears
and the scanner starts searching from the weather service
bands.
To select a dierent service search, repeatedly press Svc
as long as you are still in Function mode. If you are not in
Function mode, press Func to return and then press Svc.
Services are scanned in the following order: Weather,
Police, Fire/Emergency, Marine, Racing, Civil Air, HAM Radio,
Railroad, CB radio, and Other (Other = FRS/GMRS/MURS).
When the scanner stops on a transmission, press Hold to
stop searching and listen to the transmission. Hold displays.
In this mode, you can also turn the scroll control knob to step
through the frequencies.
To release the hold and continue searching, press Hold
again.
Note: Because there are many dierent frequencies allocated
to re and police departments, it can take several minutes to
search all the service frequencies.
38
STORING FREQUENCIES
To store frequencies in the rst available channel:
1. Press Hold.
2. Enter the frequency and press Hold and Func + Pgm.
3. The scanner alternates between the frequency you are
stopped on and the rst available channel number with
no frequency stored. Press E.
4. The scanner is now on that frequency, on Hold with the
Delay function automatically turned on (see page 47).
Press Srch or Scan again to continue.
Note: Refer to www.radioreference.com for a list of frequencies
in your area.
You can also store frequencies directly into a specic channel
in a specic channel bank.
1. From Search or Scan modes, press Hold.
2. Press Func + Pgm. The scanner displays the next
available channel number and alternates between O and
the frequency you’re holding on.
3. Press Func and turn the scroll control knob to change
channel banks if desired; press Func again to select that
channel bank.
4. Turn the scroll control knob to change channels within
that bank.
5. Press E to store the frequency in the displayed channel/
channel bank.
6. The scanner is now on that frequency, on Hold with the
Delay function automatically turned on (see page 47).
39
If you entered a frequency that has already been entered
elsewhere, the scanner sounds an error tone and displays the
channel that was duplicated. If you entered the frequency
by mistake, press .Clr twice to clear the frequency and enter
a dierent one. To enter the frequency anyway, press E to
accept.
Erasing a Stored Frequency
1. Find the frequency you want to erase. Press Hold.
2. Press Func + Pgm.
3. Press 0 and then press E.
4. The displayed frequency changes to all 0s.
SCANNING
When you store frequencies into channels, those channels
are grouped into banks. Each bank contains 30 channels. You
can store service channels and non-service channels in the
same bank. For example, you can store a city’s re, police,
marine, etc, together with utilities and other businesses.
There is no frequency range restriction per bank.
While you are scanning frequencies stored in the banks,
the word SCAN scrolls across the display. When it nds a
transmission, that frequency displays.
Enabling/Disabling Channel Banks
You can enable and disable each channel bank. When you
disable a bank, the scanner does not scan any of the 30
channels in that bank.
In Scan modes, press the number key that corresponds to
the bank you want to disable or enable. That bank number
40
displays at (or disappears from) the top of the screen,
showing the currently enabled banks.
The scanner scans all the channels within the displayed
banks that are not locked out. The bank number ashes
when the scanner scans a channel that belongs to that bank.
You can manually select any channel within a bank, even if
that bank is disabled. You cannot, however, disable all banks.
One bank must always be enabled.
Scan the Stored Channels
Press Scan. The scanner scans through all non-locked out
channels in enabled banks. (See page 44 for more information
on locking out channels.) When the scanner nds a
transmission, it stops on it. When the transmission ends, the
scanner resumes scanning.
Notes:
• If you have not stored frequencies into any channels,
the scanner does not scan.
• If the scanner picks up unwanted partial or very weak
transmissions, press Func and press the scroll control
knob. SqL displays. Turn the knob clockwise to decrease
the scanner’s sensitivity to these signals. To listen to a
weak or distant station, turn the knob counterclockwise.
• Adjust squelch until the audio mutes.
Manually Select a Channel
You can continuously monitor a single channel without
scanning. This is useful if you hear an emergency broadcast
on a channel and do not want to miss any details - even
though there might be periods of silence - or if you want to
monitor a specic channel.
41
To manually select a channel when in Scan mode, press
Hold, enter the channel number, and press Hold again.The
scanner moves to the frequency stored in that channel.
During scanning, if the radio stops at a channel you want to
listen to, press Hold once. (Rotate the scroll control knob to
step through stored channels.) Press Hold again or Scan to
resume automatic scanning.
42
SPECIAL FEATURES
CLOSE CALL® RF CAPTURE
Your scanner’s Close Call feature lets you set the scanner to
detect then display the frequency of a nearby strong radio
transmission such as mobile and handheld two-way radios
in areas with no other strong transmission sources. However,
if you are in an area with many transmission sources (such
as pager radio transmitters, multi-use radio towers, trac
control devices, etc.), Close Call mode might not nd
the transmission you are searching for, or it might nd a
transmission other than the one you are searching for.
Close Call mode works well for nding frequencies at venues
such as malls and sporting events. You can set the scanner
so that Close Call detection works “in the background” while
you are scanning other frequencies. You can turn o the
Close Call feature and scan normally as well as turn o the
scanning function and look for Close Call transmissions only.
Close Call Operation Mode
1. Press Func and hold until the following screen
displays:
B: 1 2 3 4
D LY
43
2. For the Close Call mode, frequencies are divided into
4 Close Call bands. Turn these bands on and o by
pressing 1 - 4 as indicated:
Band Range (MHz) To turn a Close Call
band on/o, press...
Low High
VHF Low 25.00000 54.00000 1
AIR 108.00000 136.99166 2
VHF High 137.00000 174.00000 3
UHF 406.00000 512.00000 4
You can set the scanner so it alerts you when the Close Call
feature detects a frequency. Program alert tones through
your PC (see page 49).
Notes:
• Close Call RF capture cannot detect frequencies outside the
scanner’s normal operating range.
• Close Call mode works better with some types of
transmissions than others. It might not correctly display
frequency information for transmitters using a highly
directive antenna (such as an amateur radio beam antenna),
if there are many transmitters operating at the same time in
the same area, or if the transmitter is a broadcast television
station.
Using Close Call Mode
Close Call mode has three operation modes:
44

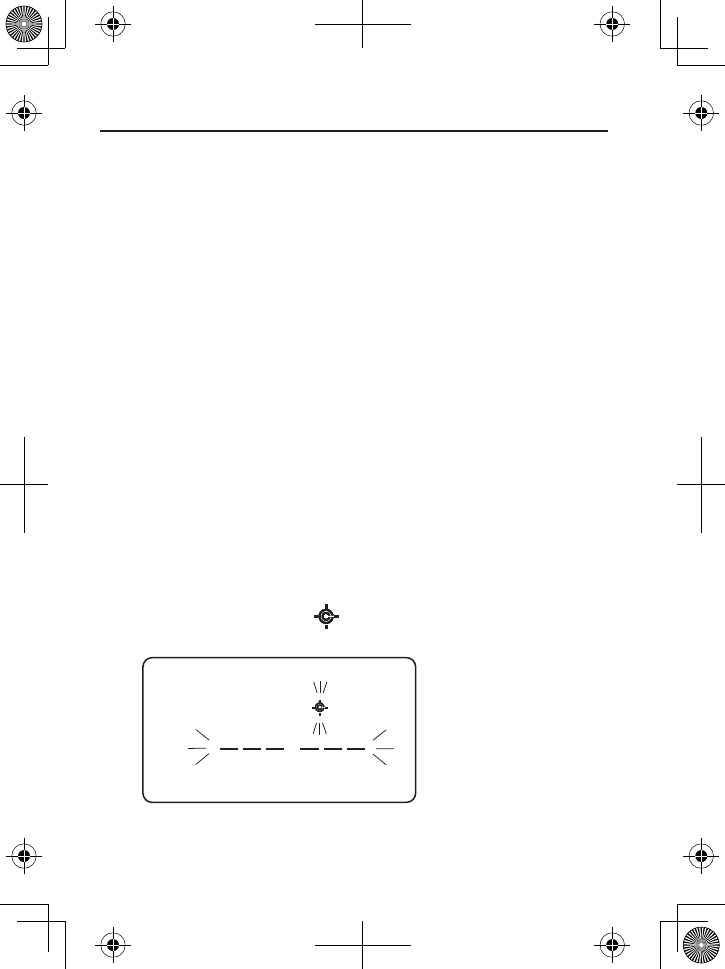

• Close Call DND. Close Call Do Not Disturb only checks
for close calls if it is not stopped on a transmission. The
icon displays.
• Close Call Priority. The scanner checks for close calls
regardless of whether it is stopped on a transmission.
The icon displays.
• Close Call O. The scanner does not check for close calls.
No icon displays.
Pressing Fnc + cycles through the Close Call functions in
this order: Close Call O/Close Call DND/ Close Call Priority.
To turn on Close Call mode, press Func + once except in
WX Search, Band Select, or Program mode.
Notes:
• Set the squelch tight (where only strong signals are
received) while using the Close Call feature.
• To continue scanning normally while the Close Call feature
is working, simply press Scan.
When the scanner nds a frequency, Found displays; it does
not display the frequency. Press any key to conrm the
displayed frequency. Press Scan to resume scanning. Every 2
seconds, the scanner checks for frequencies in the Close Call
band you specied (see page 43).
LOCKING OUT CHANNELS AND FREQUENCIES
You can skip any channel or up to 200 specied frequencies
during Search mode (100 permanent and 100 temporary).
This lets you avoid unwanted frequencies (Search/Close Call
modes), channels that have a continuous transmission (such
as a weather channel), or have static and interference.
45
Temporary Lock Out
To temporarily lock out a channel in Scan mode or a
frequency in Search and Close Call modes, manually select
the channel or frequency (see page 40) and then press L/O.
TL/O appears. You have TEMPORARILY locked out the
channel/frequency.
Permanent Lock Out
To permenantly lock out a frequency or channel, press L/O
twice while on that frequency. L/O displays.
Note: You can still manually select locked-out channels.
Unlock
Unlock Temporary Lock Out
1. Locate the temporarily locked out channel; press Hold.
2. Press L/O until the locked out status no longer displays.
3. Press Hold again to return to Scan or Search modes.
You can also turn the scanner o and back on. It will unlock
all channels that have been temporarily locked out
Unlock Permenant Lock Out
To unlock a permanently locked-out frequency/channel:
1. Manually enter the frequency/channel then press Hold.
The frequency and lockout status display.
2. Press L/O until the locked out status no longer displays.
3. Press Hold again to return to Scan or Search modes.
To unlock all registered channels in enabled banks, press
Hold to stop scanning, then press and hold L/O until the
46
scanner beeps twice and CLEAr displays. Press E to unlock
all.
Notes:
• You cannot lock out frequencies during WX service search.
• Locked out frequencies are shared between Service Search,
Custom Search, Quick Search, and Close Call modes. If
locked out frequencies are set in a specic mode, those
frequencies are also skipped in other Search (except WX
Service Search) and Close Call modes.
• If you selected all frequencies in a search band to be
skipped, the scanner beeps 3 times and does not search.
• You can skip 100 frequencies for Temporary Lockout and
100 frequencies for Permenant Lockout (200 locked out
frequencies total). After locking out 200 frequencies, the
next time you try to select a frequency to skip the scanner
displays Full and will not lock out that frequency.
• If you want to nd your locked-out frequencies, press Hold
and then turn the scroll control knob to cycle through
the frequencies. L/O or T/LO displays on the locked out
frequencies.
PRIORITY
The Priority feature lets you scan through the channels
and still not miss important or interesting calls on specic
channels. There are three Priority options available in Scan or
Scan Hold mode:
• Priority O (no display) : The scanner does not check for
priority channels.
• Priority DND (
PRI
displays) : In Priority Do Not
Disturb (DND), the scanner checks Priority channels
47
every 2 seconds only when it is not receiving
transmissions.
• Priority Scan (
PRI
displays) : The scanner checks
Priority channels every 2 seconds regardless of whether
or not it is receiving a transmission.
You can designate one channel in each bank as a priority
channel (10 total). The rst channel in each bank is the
default Priority channel.
Follow these steps to select a dierent channel in a bank as
the priority channel.
1. Manually select the channel you want for the Priority
channel.
2. Press Func + Pgm, then press Func + Pri. P appears to
the left of the selected channel number.
3. Repeat Steps 1 and 2 for other channels for each bank
you want to program as a priority channel.
From Scan Hold mode, press Func + Pri to cycle through the
Priority options.
DELAY
Sometimes a user might pause before replying to a
transmission. To avoid missing a reply on a specic channel,
you can program a 2-second delay into channels or searches.
The scanner continues to monitor the channel frequency for
an additional 2 seconds after the transmission stops before
resuming scanning or searching.
Mode Delay Specication
Scan Each channel can be set individually.
48
Mode Delay Specication
Search Custom Search: If one range is set, all
ranges are set.
Service Search: Each band can be set as a
unit.
Quick Search
and Close Call
Changes made to Delay assignment in one
mode are reflected in the other mode.
When the delay feature is on, DLY displays. If it is o, follow
one of these procedures to program a delay depending on
how the scanner is operating.
• If the scanner is scanning and stops on an active
channel where you want to program a delay, quickly
press Func + Dly before it continues scanning again.
DLY appears.
• If the desired channel is not selected, manually select
the channel, then press Func + Dly. DLY appears.
• If the scanner is searching, press Func + Dly. DLY
appears and the scanner automatically adds a 2-second
delay to every frequency it stops on in that band.
To turn o the 2-second delay, press Func + Dly while the
scanner is monitoring a channel, scanning, or searching. DLY
disappears.
KEYLOCK
Use the scanner’s keylock to protect it from accidental
program changes. When the scanner’s keys are locked, the
only controls that operate are scroll control knob (volume
only), Func, Hold, and .
49
To turn on keylock, press Func + . appears. To turn
o keylock, press Func + again. no longer displays.
Note: Using keylock does not prevent the scanner from
scanning channels.
BACKLIGHT
Pressing turns the display light on and o. It remains on
for 15 seconds and then turn o automatically.
PC PROGRAMMING
Connect your scanner to your PC through the USB cable to:
• Program channels into the scanner
• Set any setting
When you connect your scanner to your PC, a series of
screens will appear to assist you.
USB drivers and programming software are available for
download from http://info.uniden.com/UnidenMan4/
BC75XLT.
50
TROUBLESHOOTING
If your BC75XLT is not performing properly, try the following
steps.
Problem Possible Cause Suggestion
The scanner
doesn’t
work.
The scanner
might not be
receiving any
power.
Check the batteries
or make sure the USB
cable is connected
to the PC and to the
scanner.
Improper
reception.
The scanner’s
antenna might
need to be
adjusted.
Check the antenna
connection or move or
reposition the antenna.
Move the scanner.
You might be in a
remote area that
requires an optional
multi-band antenna.
Check with your dealer
or local electronics
store.
Scan won’t
stop.
The squelch
might need to be
adjusted.
Adjust the squelch
threshold. See page 28.
51
Problem Possible Cause Suggestion
Scan
won’t stop
(continued)
The antenna
might need to be
adjusted.
Check the antenna
connection.
One or more
channels might
be locked out.
Make sure the
channels you want to
scan are not locked
out.
The channel’s
frequency might
not be stored in
memory.
Make sure the
channel’s frequency is
stored in the scanner’s
memory.
The channel
might not be
active.
Wait for a transmission
on the channel.
52
Problem Possible Cause Suggestion
Scan won’t
start.
You must press
Scan to scan.
Press Scan.
The squelch
might need to be
adjusted.
Adjust the squelch
threshold. See page 28.
One or more
channels might
be locked out.
Make sure the
channels you want to
scan are not locked
out.
The antenna
might need to be
adjusted.
Check the antenna
connection.
Weather
scan
doesn’t
work.
The squelch
might need to be
adjusted.
Adjust the squelch
threshold. See page 28.
The antenna
might need to be
adjusted.
Check the antenna
connection.
53
CARE AND MAINTENANCE
RESETTING THE SCANNER
If the scanner’s display locks up or stops operating properly,
you might need to reset the scanner.
CAUTION: This procedure clears all the information
you have stored in the scanner. Before you reset
the scanner, try turning it o and back on to see if
it begins working properly. Reset the scanner only
when you are sure it is not working properly.
1. Turn o the scanner.
2. While holding down 2, 9, and Hold, turn on the scanner.
It takes about 3 seconds to initialize and CLEAr appears.
GENERAL USE
• Turn the scanner o before disconnecting the power.
• Always write down the programmed frequencies in the
event of memory loss.
• If memory is lost, simply reprogram each channel. The
display shows 000.0000 in all channels when there has
been a memory loss.
• Always press each button rmly until you hear the entry
tone for that key entry.
LOCATION
• Do not use the scanner in high-moisture environments
such as the kitchen or bathroom.
• Avoid placing the unit in direct sunlight or near heating
elements or vents.
54
• If the scanner receives strong interference or electrical
noise, move it away from the source of the noise. If
possible, a higher elevation might provide better
reception.
CLEANING
Keep the scanner dry. If it gets wet, wipe it dry immediately.
Use and store the scanner only in normal temperature
environments. Handle the scanner carefully: do not drop it.
Keep the scanner away from dust and dirt, and wipe it with a
damp cloth occasionally.
• Disconnect the power to the unit before cleaning.
• Clean the outside of the scanner with a mild detergent.
• To prevent scratches, do not use abrasive cleaners or
solvents. Be careful not to rub the LCD window.
• Do not use excessive amounts of water.
REPAIRS
Do not attempt any repair. The scanner contains no user
serviceable parts. Contact the Uniden Customer Service
Center or take it to a qualied repair technician.
BIRDIES
All radios can receive “birdies” (undesired signals). If your
scanner stops during Scan mode and no sound is heard, it
might be receiving a birdie. Birdies are internally generated
signals inherent in the electronics of the receiver.
Press L/O to lock out the channel, then press Scan to resume
scanning.
55
If you still cannot get satisfactory results while using your
scanner or if you want additional information, please call or
write the Uniden Parts and Service Division. The address and
phone number are listed in the Warranty at the end of this
manual. If you would like immediate assistance, please call
Customer Service at (800) 297-1023.
If you have Internet access, you can visit
http://www.uniden.com for additional information.
56
SPECIFICATIONS
Certied in accordance with FCC Rules and Regulations Part
15, Subpart C, as of date of manu facture.
Channels: ...................................................................................300
Banks: ...................................................... 10 (30 channels each)
Sensitivity (SINAD 12 dB)
25.005 MHz (AM) ............................................................. 0.3 µV
40.840 MHz (NFM) ...........................................................0.2 µV
53.980 MHz (NFM) ...........................................................0.2 µV
118.800 MHz (AM) ............................................................. 0.3 µV
127.175 MHz (AM) ............................................................. 0.3 µV
135.500 MHz (AM) ............................................................. 0.3 µV
138.150 MHz (NFM) ..........................................................0.3 µV
157.100 MHz (FM) .............................................................0.2 µV
161.985 MHz (NFM) .........................................................0.3 µV
173.225 MHz (NFM) .........................................................0.3 µV
406.875 MHz (NFM) ..........................................................0.3 µV
453.250 MHz (NFM) .........................................................0.3 µV
511.9125 MHz (NFM) .......................................................0.3 µV
Operating Temperature:
Normal ............................................................... –20°C to +60°C
Close Call ........................................................... –10°C to +50°C
Scan Rate ............................... 90 channels per second (max)
Search Rate (OSp7, #10)
Normal ........................................ 90 steps per second (max)
57
Hyper ......................................... 270 steps per second (max)
Priority Sampling ....................................................... 2 seconds
Scan Delay ....................................................................2 seconds
IF Rejection (at 453.25 MHz) ........................................... 80 dB
IF Frequencies
1st IF (25-512 MHz) ....................... 265.5050-265.6000 MHz
2nd IF ............................................................................. 21.3 MHz
3rd IF ................................................................................ 450 kHz
Internal Speaker ................................24 ohm, 0.8W Max (32 Ø)
Audio Output
Internal Speaker .......................... 360mW nominal (24 ohm)
Headphone (L-ch) ........................... 4mW nominal (32 ohm)
Current Drain
Squelched ......................................................................... 120 mA
Full Output ....................................................................... 280 mA
Power Requirements:
• 2 AA Alkaline Batteries (3V DC), or
• 2 AA Rechargeable Ni-MH Batteries (2.4V DC), or
• Connect to PC with USB cable (5.0V DC 500mA)
Antenna: ................................................50 ohms (Impedance)
External Jacks: ................................Antenna Jack (BNC Type)
Phone Jack (3.5mm)
USB Jack (5pin Mini USB B type)
Size: ........................67mm. (W) x 32.7mm. (D) x115mm (H)
Weight: ...............................175g (w/o antenna and battery)
58
ONEYEAR LIMITED WARRANTY
Important: Evidence of original purchase is required
for warranty service.
WARRANTOR: UNIDEN AMERICA CORPORATION
“UNIDEN”
ELEMENTS OF WARRANTY: Uniden warrants, for one year, to the original
retail owner, this Uniden Product to be free from defects in materials and
craftsmanship with only the limitations or exclusions set out below.
WARRANTY DURATION: This warranty to the original user shall terminate
and be of no further eect 12 months after the date of original retail sale.
The warranty is invalid if the Product is (A) damaged or not maintained
as reasonable or necessary, (B) modied, altered, or used as part of any
conversion kits, subassemblies, or any congurations not sold by Uniden,
(C) improperly installed, (D) serviced or repaired by someone other than an
authorized Uniden service center for a defect or malfunction covered by this
warranty, (E) used in any conjunction with equipment or parts or as part of
any system not manufactured by Uniden, or (F) installed or programmed by
anyone other than as detailed by the Operating Guide for this product.
STATEMENT OF REMEDY: In the event that the product does not conform
to this warranty at any time while this warranty is in eect, warrantor will
repair the defect and return it to you without charge for parts, service, or
any other cost (except shipping and handling) incurred by warrantor or its
representatives in connection with the performance of this warranty. THE
LIMITED WARRANTY SET FORTH ABOVE IS THE SOLE AND ENTIRE
WARRANTY PERTAINING TO THE PRODUCT AND IS IN LIEU OF AND
EXCLUDES ALL OTHER WARRANTIES OF ANY NATURE WHATSOEVER,
WHETHER EXPRESS, IMPLIED OR ARISING BY OPERATION OF LAW,
INCLUDING, BUT NOT LIMITED TO ANY IMPLIED WARRANTIES OF
MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. THIS
WARRANTY DOES NOT COVER OR PROVIDE FOR THE REIMBURSEMENT OR
PAYMENT OF INCIDENTAL OR CONSEQUENTIAL DAMAGES. Some states do
not allow this exclusion or limitation of incidental or consequential damages
so the above limitation or exclusion might not apply to you.
59
LEGAL REMEDIES: This warranty gives you specic legal rights, and you might
also have other rights which vary from state to state. This warranty is void
outside the United States of America.
PROCEDURE FOR OBTAINING PERFORMANCE OF WARRANTY:
If, after following the instructions in this Operating Guide you are certain that
the Product is defective, pack the Product carefully (preferably in its original
packaging). Include
evidence of original purchase and a note describing the defect that has caused
you to return it. The Product should be shipped freight prepaid, by
traceable means, or delivered, to warrantor at:
Uniden America Corporation
Parts and Service Division
4700 Amon Carter Boulevard
Fort Worth, TX 76155
(800) 297-1023, 8:00 a.m. to 5:00 p.m., Central, Monday through Friday
