Uniden America UP855 5.8GHz Digital CT with caller ID User Manual Users manual

Uniden America Corporation 5.8GHz Digital CT with caller ID Users manual

Users manual

1
Table of Contents
Welcome.......................................................................4
Accessibility .............................................................4
Manual Conventions ................................................ 5
Terminology Used in this Manual .............................5
Product Overview........................................................6
Features: ..................................................................6
Answering System Features: ...................................6
Parts of the Phone ................................................... 7
Using the Interface......................................................9
Reading the Display .................................................9
Using the Four-way Function Key ..........................10
Using the Handset Menus .....................................10

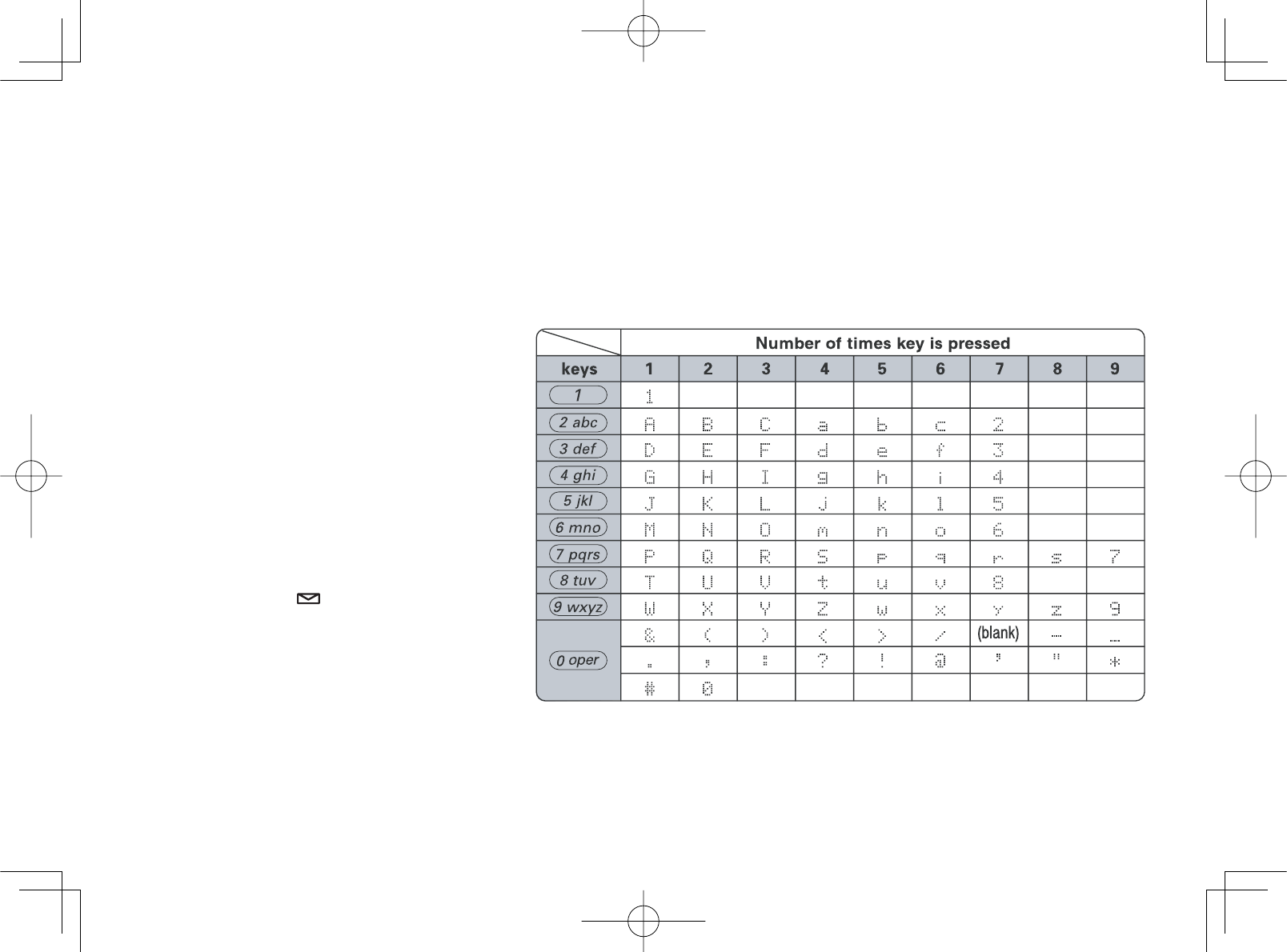

Entering Text from Your Handset ........................... 11
Installing the Phone ..................................................12
Choosing the Best Location ...................................12
Wall Mounting the Base .........................................13
Direct Wall Mounting ..............................................14

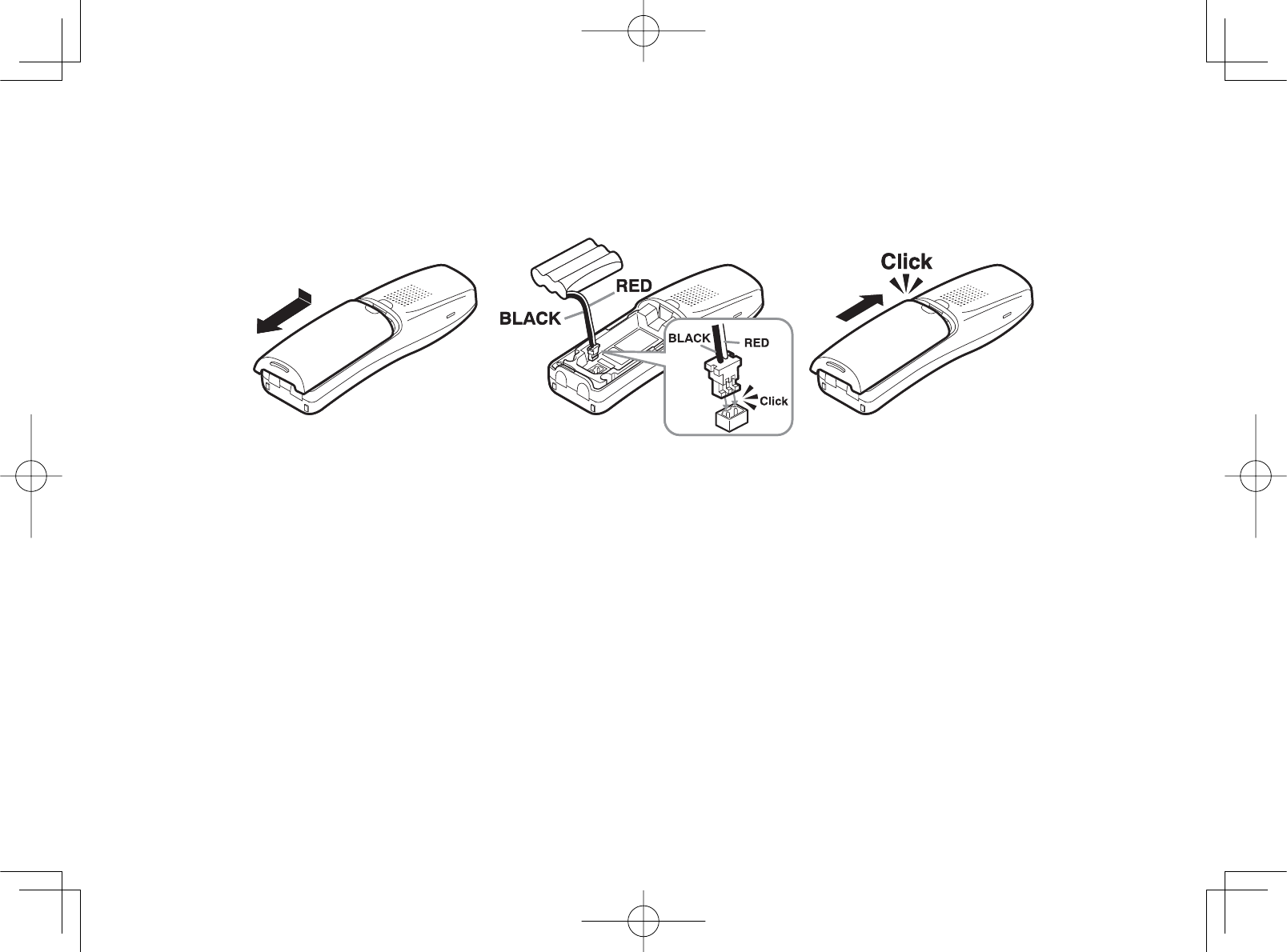

Installing the Battery ..............................................15

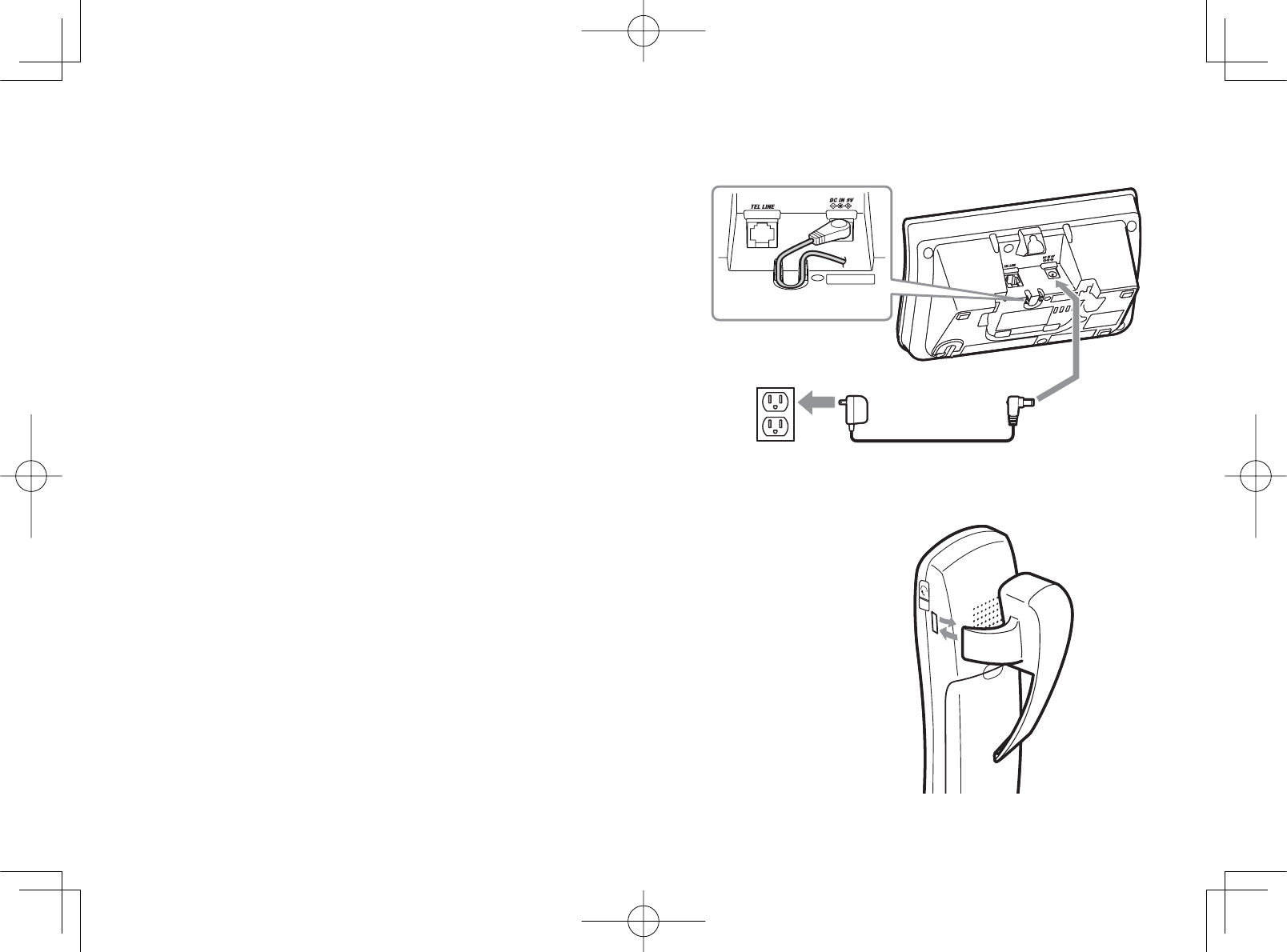

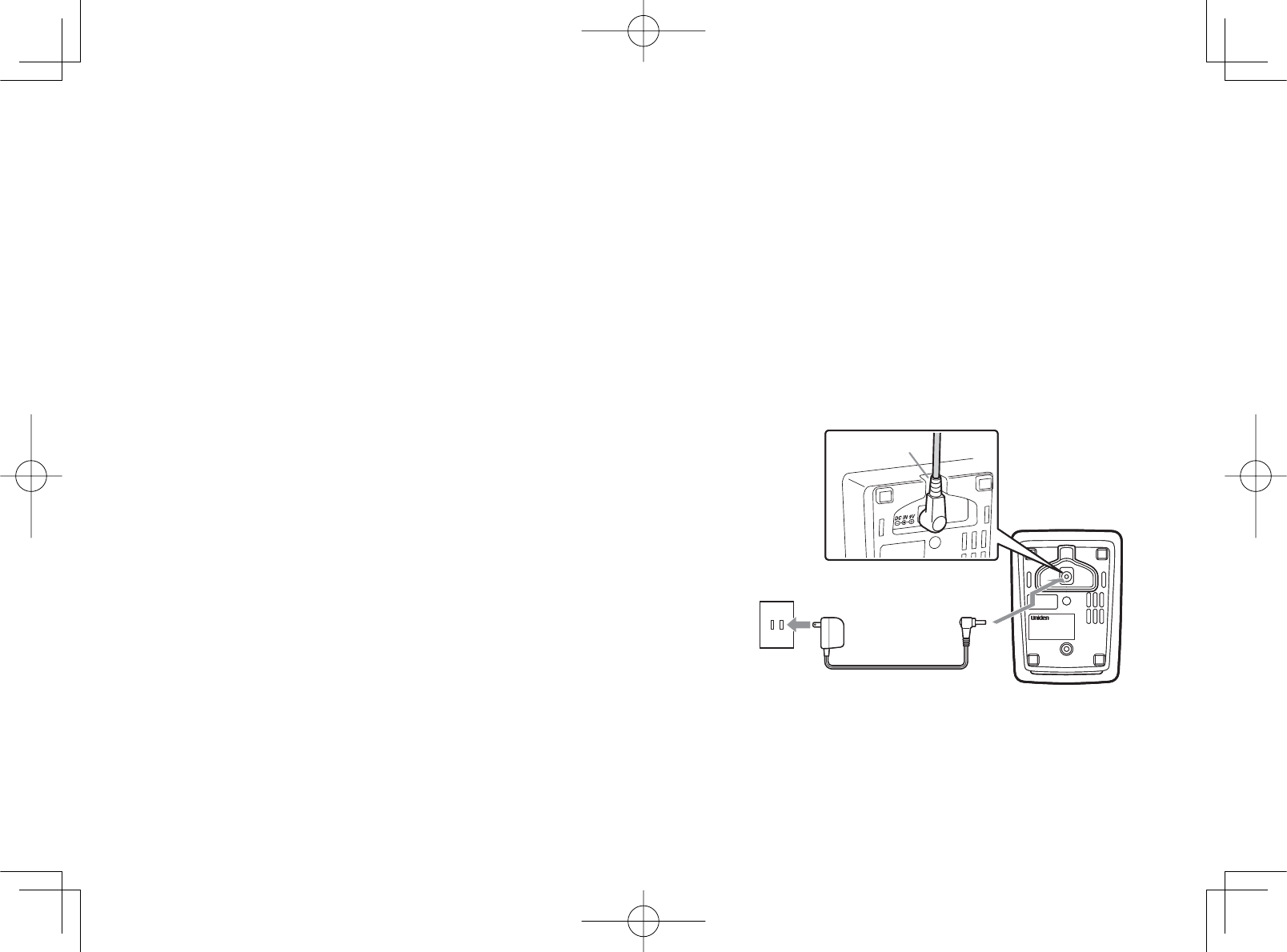

Connecting the Base and Charging the Handset ..16
Installing the Belt Clip ............................................16

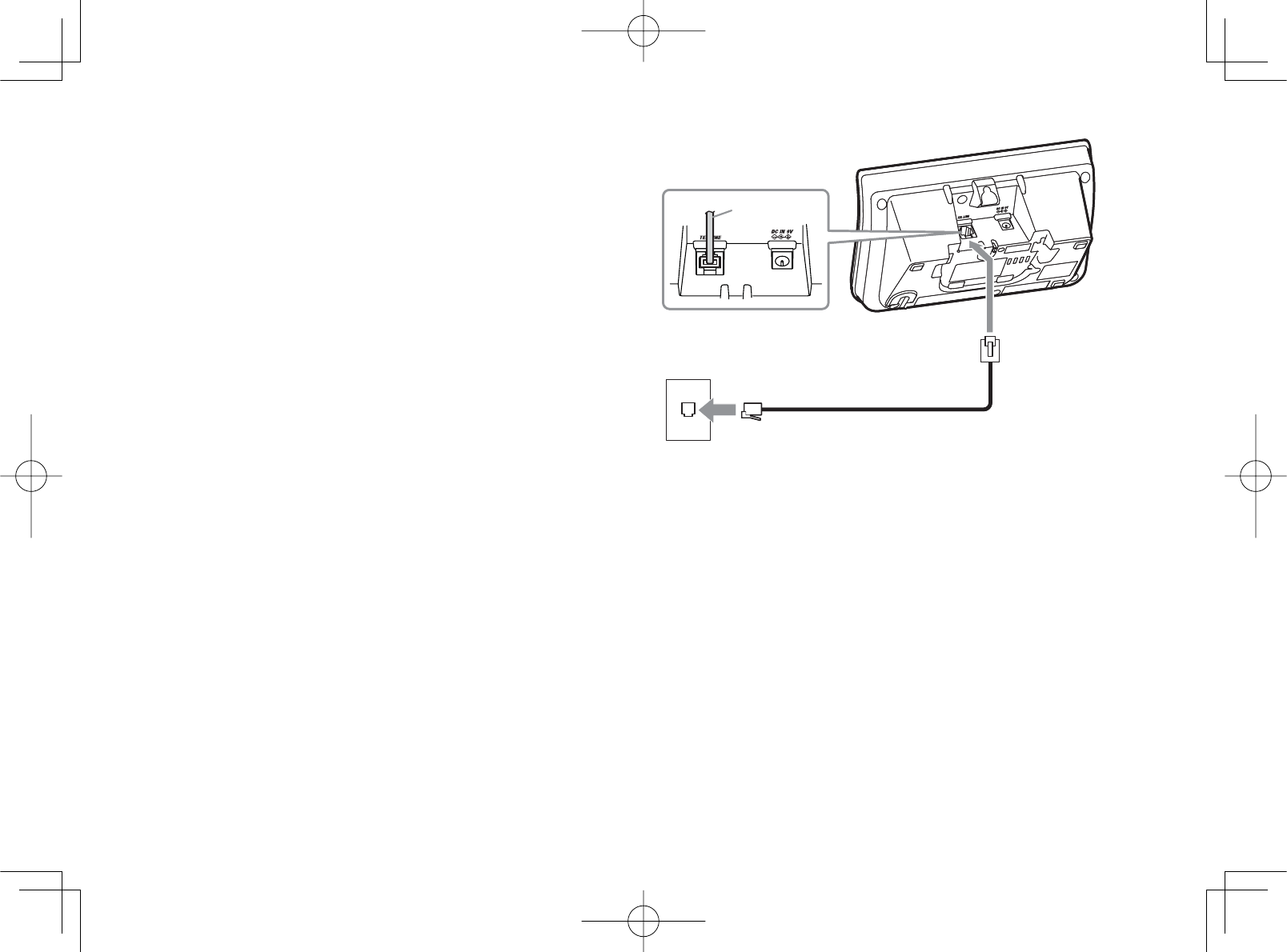

Connecting to the Phone Line ...............................17
Testing the Connection ..........................................17
Changing the Dial Mode ........................................18
Basic Setup................................................................19
Selecting a Language ............................................ 19
Activating Personal Ring ........................................19
Activating the Key Touch Tone ...............................20
Adding Accessory Handsets....................................21
Compatible Handsets ............................................21
Charging Accessory Handsets ...............................21
Registering TCX930 Accessory Handsets .............22
Resetting Handsets ...............................................23
Setting Up the Phonebook........................................24
Creating Phonebook Entries ..................................24
Finding a Phonebook Entry ...................................25
Editing an Existing Phonebook Entry .....................25
Storing Caller ID or Redial Numbers in the
Phonebook .............................................................26
Deleting Phonebook Entries ..................................26
Copying Phonebook Entries to Another Handset ..27
Programming Base Speed Dial Numbers................28
Deleting Base Speed Dial Numbers ......................28
Customizing Your Phone..........................................29
Selecting a Ring Tone (Handset only)....................29
Activating AutoTalk (Handset only) ........................29
Activating Any Key Answer (Handset only) ............29
2
Using Your Phone......................................................30
Making a Call from the Phonebook ........................31
Chain Dialing from the Phonebook ........................ 31
Switching to the Handset Speakerphone
During a Call .......................................................... 31
Using Caller ID, Call Waiting, and Redial Lists.......32
Using the Caller ID List ......................................... 32
Making a Call from a Caller ID Record ..................32
Deleting Caller ID Numbers ................................... 33
Using Call Waiting ..................................................33
Redialing a Number ............................................... 33
Deleting a Redial Record .......................................34
Adjusting the Ringer, Earpiece and
Speaker Volume.........................................................35
Adjusting the Ringer Volume .................................35
Adjusting the Earpiece Volume ..............................35
Adjusting the Speaker Volume ...............................35
Adjusting the Audio Tone .......................................36
Using the Clarity Boost Feature .............................36
Using Hold, Conference and Transfer.....................37
Placing a Call on Hold ...........................................37
Conferencing .........................................................37
Transferring a Call .................................................37
Answering a Transferred Call ................................38
Using Special Features.............................................39
Muting the Ringer (One call only) ..........................39
Muting the Microphone ..........................................39
Privacy Mode ......................................................... 39
Seven-Digit Dialing ................................................40
Using the Intercom .................................................40
Tone Dialing Switch Over .......................................41
Installing the Optional Headset ..............................41
Setting Up the Answering System...........................42
Features .................................................................42
Using the Answering System Interface .................. 43
Selecting the Language ......................................... 43
Setting the Number of Rings ..................................44
Setting the Day & Time .......................................... 44
Recording a Personal Greeting .............................45
Selecting a Greeting ..............................................45
Deleting Your Personal Greeting ...........................46
Setting the Record Time (orAnnounce only) ......... 46
Activating the Message Alert .................................47
Activating Call Screening .......................................47
Setting a Security Code or
3HUVRQDO,GHQWL¿FDWLRQ1XPEHU3,1 ....................47
Using the Answering System...................................48
Turning Your Answering System On and Off .........48
Screening Calls ......................................................50
Turning Off the Message Alert Tone.......................50
Operating the Answering System
While You Are Away from Home ............................ 50
3
Maintenance...............................................................52
6SHFL¿FDWLRQV .........................................................52
Battery Replacement and Handling ...................... 53

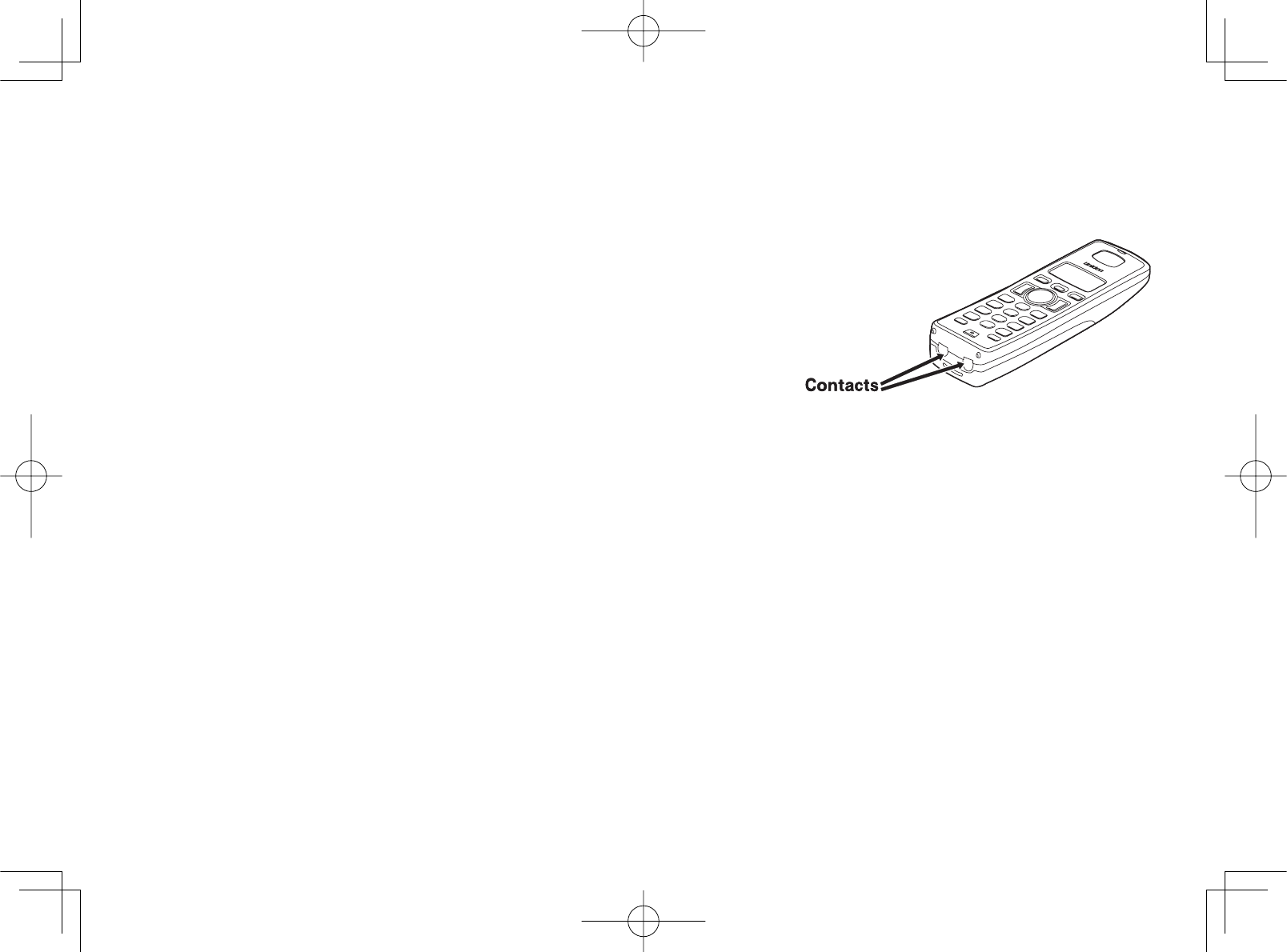

Cleaning the Battery Contacts ............................... 53
Low Battery Alert ...................................................54
Talk and Standby Times .........................................54
Troubleshooting ........................................................55
Resetting the Handset ...........................................55
Resetting the Handset Without the Base ...............56
Changing the Digital Security Code .......................56
Traveling Out of Range ..........................................56
Common Issues .....................................................57
Liquid Damage .......................................................60
Precautions! ..............................................................61
Rechargeable Nickel-Metal-Hydride Battery
Warning .................................................................61
The FCC Wants You To Know ..............................62
I.C. Notice .............................................................. 63
One Year Limited Warranty.......................................64
Index...........................................................................65
Remote Operation Card............................................68
At Uniden, we’ll take care of you!............................70
4
Welcome
Thank you for purchasing a Uniden Multi-Handset phone.
Note: Illustrations in this manual are used for explanation purposes. Some illustrations in this manual may differ
from the actual unit.
As an Energy Star®; Partner, Uniden has determined that this product or product models meets
WKH(QHUJ\6WDUJXLGHOLQHVIRUHQHUJ\HI¿FLHQF\(QHUJ\6WDU®; is a U.S. registered mark.
Uniden is a registered trademark of Uniden America Corporation. AutoStandby, DirectLink,
IntegriSound and Random Code are trademarks of Uniden America.
Accessibility
Uniden provides a customer service hotline for accessibility questions. If you have a disability and need customer
service assistance or if you have any questions about how Uniden’s products can accommodate persons with
disabilities, please call the accessibility voice/TTY line: 1-800-874-9314
Our customer care hours as well as accessibility information can be found on our website, www.uniden.com, under
the “Accessibility” link. If your call is received outside of our business hours, you can leave us a message and we will
call you back.
5
Standby The handset is not in use. If it is off the cradle, no line has been activated. No dial tone is present.
CID Caller ID is available from your Telephone provider and is offered to users on a subscription basis. With this
service and a display on your cordless phone, you will be able to see the incoming caller information such as
name and phone number.
CID/CW or
CIDCW
Caller ID with Call Waiting is available by subscription from your Telephone provider. With this service, you will
be able to view incoming caller information while on a call with another user.
This will allow you the ability to select to talk to this user and put your existing party on hold or make the
decision to ring them back.
Base The main part of the phone that connects to your phone line and lets you make and receive calls.
Charger A cradle that comes with an accessory handset and charges the handset battery.
It connects to power but does not connect to a phone line.
Accessory
Handsets This phone system is expandable and will support a total of ten (10) handsets to one base.
The TCX930 accessory handset is compatible with this model.
Global
settings Global Settings apply to all registered handsets and the base. If you change something under the global menu,
you change it for all handsets and the base. Only one handset or the base can change global settings at a
time, and you have to make sure the phone is not currently being used.
Station Any handset or the base.
Talk A telephone line has been activated on the handset or base, enabling a dial tone.
Manual Conventions
This manual uses several different type styles to help you distinguish between different parts of the phone:
lower case bold text with “[ ]” indicates a key or button on the phone
$//&$3,7$/6LQGLFDWHVWH[WRQWKHGLVSOD\VXFKDVPHQXRSWLRQVSURPSWVDQGFRQ¿UPDWLRQPHVVDJHV
lower case bold text indicates a status light on the phone base
•
•
•
Terminology Used in this Manual
6
Product Overview
Features:
5.8GHz FHSS Expandable System
Expands up to 10 Handsets
Integrated Digital Answering Machine
Caller ID/Call Waiting
Base Keypad
Store 30 Caller ID Numbers
Advanced Phonebook Features:
Store 70 Phonebook Entries
Alphabetical Search
Personalized Ring by Party
Transfer Single Listing or Entire Phonebook
•
•
•
•
•
•
••
•
•
•
10 Speed Dial Numbers
Speakerphone on Base & Handset
7 Ringer Options on Handset (3 Tones/4 Melodies)
Last 5 Number Redial on Handset,
the last Number Redial on Base
Bilingual Menu Displays
(for USA models: English and Spanish,
for Canadian models: English and French)
Call Transfer
Conferencing
Intercom
Speed dial on Base & Handset
•
•
•
•
•
•
•
•
•
Digital Tapeless Recording
Up to 14 Minutes of Recording Time
Call Screening
Personal or Pre-recorded Outgoing Messages
Bilingual Voice Prompts
(for USA models: English and Spanish,
for Canadian models: English and French)
•
•
•
•
•
Day and Time Announcement
Remote Message Retrieval
Toll Saver
Message Alert
Records Up to 59 messages
•
•
•
•
•
Answering System Features:
7
Parts of the Phone
The following illustrations show you all of the different parts of your phone.
Handset
1
5
6
7
8 15
17
19
20
21
22
10
12
13
14
2
3
4
11
16
9
18
Headset Jack Cover
Beltclip Hole
Speakerphone Speaker and Ringer
Handset Battery Compartment
New Message LED
Handset Earpiece
LCD Display
[menu/clear] key
[]key (up)
[ÀDVK@NH\WDONÀDVK
[]key (phonebook/left)
[
*
/tone] key
[hold/int’com/xfer] key (hold/intercom/transfer)
[redial/pause] key
[select/ ]key (select/messages)
[]key (caller ID/right)
[]key (end call)
[]key (down)
[#] key
[]key (speaker)
Handset Microphone
Handset Charging Contacts
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
14.
15.
16.
17.
18.
19.
20.
21.
22.
8
2523
42
36
37
38
353332 34
3130 44 454329
27 2824 26
414039
Base speaker
charge LED
Message counter LED
in use LED
>ÀDVK@ key
[]key (speaker)
Base charging contacts
[
*
/tone] key
[#] key
23.
24.
25.
26.
27.
28.
29.
30.
31.
[hold/intcom] key
(hold/intercom)
[]key (repeat)
[on/off] key
(answering system on/off)
[]key (play/stop)
[]key (skip)
[volume +/-] key
[]key (delete)
32.
33.
34.
35.
36.
37.
38.
[greeting] key (record/greeting)
[memory] key
[redial/pause] key
[mute] key
Base microphone
TEL LINE Jack
DC IN 9V Jack
39.
40.
41.
42.
43.
44.
45.
Base
9
Using the Interface
Reading the Display
The handset display uses icons to tell you the status of your phone. The table below lists the icons and what they
mean.
Icon Status Description
Standby/Talk The battery icon indicates the handset battery status:
full, medium, low, and empty.
1(( Standby The ringer off icon indicates that the ringer is turned off.
Talk The mute icon appears while the handset microphone is
muted.
Talk The boost icon appears when the Clarity Boost feature is
activated.
Talk The speaker icon appears when the handset speaker
phone is in use.
Talk The privacy icon appears when the Privacy Mode is
turned on.
10
The Standby Screen
When the phone is in standby, the handset display shows the following items:
*CPFUGV
0GY%+&
1((
Ringer off icon (when the ringer is off) / battery icon
Handset ID
Number of new Caller ID calls received
Using the Four-way Function Key
Your handset has a four-way function key that allows you to move the
cursor or pointer on the display and access the most commonly used
features at the touch of a button. By moving this key to the left, you open
the phonebook. Move the key to the right to access Caller ID information.
To use this four-way key, place your thumb over the key on the handset
and move to the four positions to get the feel of how it moves and
operates.
Using the Handset Menus
To open the menu, press [menu/clear]. Select the option you want by pressing the four-way function key. This
will move the cursor; the option currently selected has a triangle beside it. Activate the selected option by pressing
[select/ ]. To exit the menu and return to standby, press [ ].
If you do not press a key within 30 seconds, the phone will time out and exit the menu. When setting the day and
time, the time-out period is extended to two minutes.
Note: For ANSW. SETUP and GLOBAL SETUP menu options, make sure the line is not in use and the handsets
are within range of the base.
View the
phonebook
Four-way
Function Key
Up
View the
Caller ID
Down
View the
phonebook
Four-way
Function Key
Up
View the
Caller ID
Down
11
Entering Text from Your Handset
You can use the number keypad on your handset to enter text by referring to the letters printed on each number
NH\:KHQ\RXSUHVVWKHQXPEHUNH\LQDWH[WHQWU\¿HOGWKHSKRQHGLVSOD\VWKH¿UVWOHWWHUSULQWHGRQWKHQXPEHU
key. Press the number key twice to display the second letter and three times to display the third. Capital letters are
GLVSOD\HG¿UVWWKHQORZHUFDVHOHWWHUVWKHQWKHQXPEHURQWKHNH\
,IWZROHWWHUVLQDURZXVHWKHVDPHQXPEHUNH\HQWHUWKH¿UVWOHWWHUWKHQXVH[right] or [left] on the four-way
function key to move the cursor to the next position to enter the second letter. For example, to enter the word
“Movies”:
Press [6] once to enter M.
Use [right] on the four-way function
key to move the cursor to the right.
Press [6] six times to enter o.
Press [8] six times to enter v.
Press [4] six times to enter i.
Press [3]¿YHWLPHVWRHQWHUe.
Press [7] eight times to enter s.
Press [select/ ]to end your text
entry.
If you make a mistake while entering a name, use [right] or [left] on the four-way function key to move the cursor to
the incorrect character. Press [menu/clear] to erase the wrong character, and then enter the correct character. To
delete all characters, press and hold [menu/clear].
1)
2)
3)
4)
5)
6)
7)
8)
12
Installing the Phone
Choosing the Best Location
When choosing a location for your new phone, here are some important guidelines you should consider:
The location should be close to both a phone jack and a continuous power outlet (one which is not connected to a
switch).
The base and handset should be kept away from sources of electrical noise such as motors, microwave ovens,
DQGÀXRUHVFHQWOLJKWLQJ
For better reception, place the base as high as possible.
The base should be placed in an open area for optimum range and reception.
If your home has wired alarm equipment connected to a phone line, be sure that installing the system does
not disable your alarm equipment. If you have questions about what will disable alarm equipment, contact your
WHOHSKRQHFRPSDQ\RUDTXDOL¿HGLQVWDOOHU
Note: For maximum range:
Keep the antenna free of obstruction.
When the handset is not in use, place the handset in an upright position.
Do not hold the handset where you would block the signal.
Metal and reinforced concrete may affect cordless telephone performance.
•
•
•
•
•
•
•
•
•



13

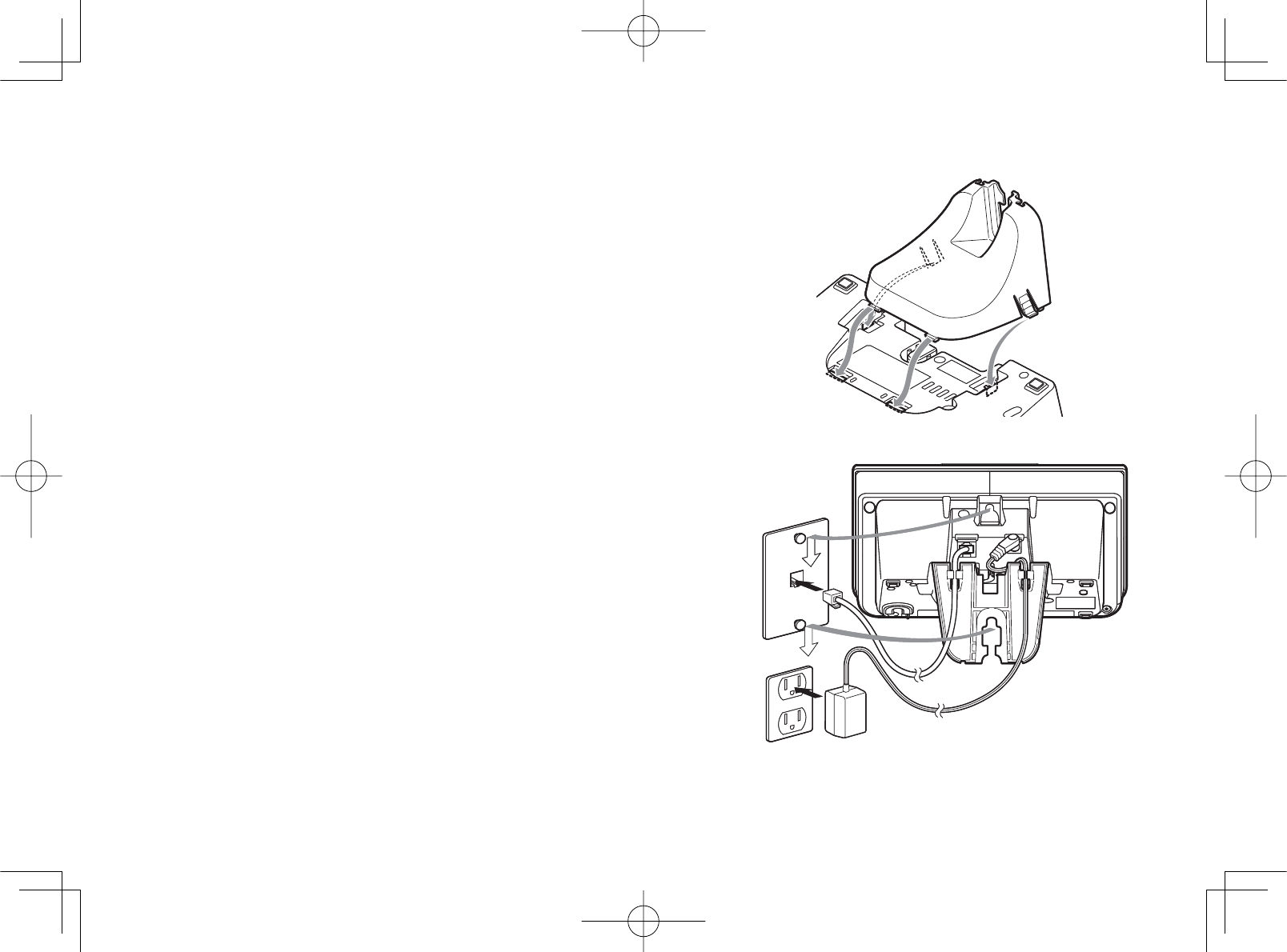

Wall Mounting the Base
This phone can be mounted on any standard wall plate.
Snap the wall mount adapter into the notches on the base top.
Plug the AC adapter into the DC IN 9V jack.
Wrap theAC adapter cord inside the molded wiring channel as
shown.
Plug the AC adapter into a standard 120V AC wall outlet.
Plug the telephone line cord into the TEL LINE jack.
Plug the telephone line cord into the telephone outlet.
Align the mounting slots on the base with the mounting posts on
WKHZDOO7KHQSXVKLQDQGGRZQXQWLOWKHSKRQHLV¿UPO\VHDWHG
Note: DO NOT use anAC outlet controlled by a wall switch.
1)
2)
3)
4)
5)
6)
7)






14
Direct Wall Mounting
If you don’t have a standard wall plate, you can mount your phone directly to the wall. Before doing this, consider the
following:
Avoid electrical cables, pipes, or other items behind the mounting location that could cause a hazard when
inserting screws into the wall.
Try to mount your phone within 5-feet of a working phone jack to avoid excessive wire lengths.
Make sure the wall material is capable of supporting the weight of the base and handset.
Use #10 screws with a minimum length of 1-3/8 inches, with anchoring devices suitable for the wall material
where the base unit will be placed.
Insert two mounting screws into the wall, using the appropriate
anchoring device, 3-15/16 inches apart. Allow about 1/8 inch between
the wall and screw heads for mounting the phone.
Refer to the steps on page 13 to complete the mounting process.
•
•
•
•
1)
2)
3-15/16 in.
1/8 in.
TOP
1-3/8 in.
3-15/16 in.
1/8 in.
TOP
1-3/8 in.
15
Installing the Battery
Use only the Uniden BT-1004 rechargeable battery pack supplied with your cordless telephone.
Follow the steps below to install the handset battery.
3UHVVLQRQWKHKDQGVHWEDWWHU\FDVHFRYHUXVHWKH¿QJHULQGHQWLRQIRUDEHWWHUJULSDQGVOLGHWKHFRYHU
downward to remove.
Plug the battery cable into the battery jack. Be sure to match the red and black wires to the label near the jack.
The cable should snap into place. Gently pull on the battery cable. If the battery connector comes lose, try
connecting again until the battery snaps into place.
Place the battery case cover back on the handset and slide it upwards until it clicks into place.
1)
2)
3)
16
Connecting the Base and Charging the Handset
Connect the AC adapter to the DC IN 9V jack.
&$87,217RDYRLGULVNRI¿UHDQGVKRFNRQO\XVHWKH
Uniden AD-800 AC adapter.
Connect the AC adapter to a standard 120V AC wall outlet.
DO NOT use anAC outlet controlled by a wall switch.
Place the handset in the base with the LCD screen facing
forward.
Make sure that the charge LED illuminates. If the LED does
not illuminate, check to see that the AC adapter is plugged
in and the handset makes good contact with the charging
contacts.
Charge your handset at least 15 to 20 hours before plugging
into the phone line.
Installing the Belt Clip
Line up the holes on each side of the handset. To attach the belt clip, insert into
the holes on each side of the handset. Press down until it clicks.
To remove the belt clip, pull either side of the belt clip to release the tabs from
the holes.
1)
2)
3)
4)
5)
To AC outlet
To DC IN 9V
AC adapter (supplied)
Route the cord.
To AC outlet
To DC IN 9V
AC adapter (supplied)
Route the cord.
17
Connecting to the Phone Line
Once the battery pack is fully charged, connect
the telephone cord to the TEL LINE jack and to a
telephone jack.
Testing the Connection
Try making a call. If your call does not connect or you cannot get a dial tone, try the following steps:
Make sure the AC adapter cord is securely connected to the DC IN 9V jack and a standard power outlet.
Check to make sure the battery is fully charged. (If you don’t see the “battery full” icon, check to make sure the
battery is properly connected).
Change the dial mode (instructions on page 18).
1)
2)
3)
To telephone outlet
To TEL LINE
Telephone line cord (supplied)
TEL Cord
To telephone outlet
To TEL LINE
Telephone line cord (supplied)
TEL Cord
18
Changing the Dial Mode
Your phone can communicate with the telephone network in two different ways: tone dialing or pulse dialing. These
days, most phone networks use a method called tone dialing, so your phone comes programmed for tone dialing. If
your phone company uses pulse dialing, you will need to change your phone’s dial mode. If you don’t get a dial tone
or can’t connect to the telephone network, please follow the steps below to modify your phone’s settings:
Press [menu/clear]. Select the GLOBAL SETUP menu, and then the
DIAL MODE submenu.
Scroll []to select PULSE.
Press [select/ ]<RXZLOOKHDUDFRQ¿UPDWLRQWRQH
If you ever need to change the dial mode back to tone dialing, follow the same procedure, but select TONE in step 2.
1)
2)
3)
&KCN/QFG
6QPG
2WNUG
&KCN/QFG
6QPG
2WNUG
19
Basic Setup
Selecting a Language
Your phone supports two languages: English and Spanish for USA models or English and French for Canadian
models. Once you select a language, the menus on the phone will display in that language. The default language is
English.
Press [menu/clear]. Select the HANDSET SETUP menu, and then
the HANDSET LANGUAGE submenu.
Move the cursor to choose a language.
for USA models: Choose ENGLISH or ESPAÑOL (Spanish).
for Canadian models: Choose ENGLISH or FRANÇAIS (French).
Press [select/ ]<RXZLOOKHDUDFRQ¿UPDWLRQWRQH
Activating Personal Ring
You can assign special ringer tones to anyone in your phonebook. When your phone gets a call, it looks up the
Caller ID information in your phonebook. If you’ve assigned a personal ringer to that number, the phone uses it so
you know who is calling. To turn on personal ringing, follow these steps:
Press [menu/clear]. Select the HANDSET SETUP menu, and then
the PERSONAL RING submenu.
Move the cursor to select ON or OFF.
Press [select/ ]<RXZLOOKHDUDFRQ¿UPDWLRQWRQH
1)
2)
3)
1)
2)
3)
*CPFUGV.CPIWCIG
'PINKUJ
'URC㩌QN
*CPFUGV.CPIWCIG
'PINKUJ
'URC㩌QN
*CPFUGV.CPIWCIG
'PINKUJ
(TCP㩟CKU
*CPFUGV.CPIWCIG
'PINKUJ
(TCP㩟CKU
2GTUQPCN4KPI
1P
1HH
2GTUQPCN4KPI
1P
1HH
for USA models
for Canadian models
20
Activating the Key Touch Tone
Key Touch Tone is the tone your keypad makes when keys are pressed. You can turn this tone on or off.
Press [menu/clear]. Select the HANDSET SETUP menu, and then
the KEY TOUCH TONE submenu.
Move the cursor to select ON or OFF.
Press [select/ ]<RXZLOOKHDUDFRQ¿UPDWLRQWRQH
1)
2)
3)
-G[6QWEJ6QPG
1P
1HH
-G[6QWEJ6QPG
1P
1HH
21
Adding Accessory Handsets
Your phone supports up to ten (10) handsets, including any handsets supplied with your phone. Accessory handsets
do not need to be connected to a phone jack. You can now place a fully-featured cordless handset anywhere AC
power is available to connect the handset charger. All the handsets ring when a call is received.
Compatible Handsets
Your phone is compatible with the TCX930. If you purchase an accessory handset, you must register the handset to
the base before use. Accessory handsets will not operate until they are registered.
Charging Accessory Handsets
The handset is powered by a rechargeable battery pack. The battery recharges automatically when the handset is
placed in the charger.
Connect the AC adapter to the DC IN 9V jack and to a 120V
AC outlet that is not controlled by a wall switch.
Caution: Use only the Uniden AD-0005 adapter.
Set the charger on a desk or tabletop, and place the handset
in the charger with the keypad facing forward.
Make sure that the charge LED illuminates. If the LED does
not illuminate, check to see that the AC adapter is plugged in
and the handset makes good contact with the base charging
contacts.
Charge the handset battery pack for at least 15-20 hours
EHIRUHXVLQJ\RXUQHZFRUGOHVVWHOHSKRQHIRUWKH¿UVWWLPH
1)
2)
3)
4)
Route the
cord.
To AC outlet To DC IN 9V
AC adapter (supplied)
Route the
cord.
To AC outlet To DC IN 9V
AC adapter (supplied)
22
Registering TCX930 Accessory Handsets
Your phone supports a total of ten (10) cordless handsets. Handset(s) supplied in the box with the phone base are
pre-registered at the factory. If you purchase an accessory handset, you need to register the handset before use.
Only one handset can be registered at a time. When charged, pre-registered handsets display a handset ID number.
Handsets that have not been registered display.
*CPFUGVPQV
TGIKUVGTGFRNCEG
JCPFUGVQPDCUG
ļ
VQTGIKUVGT
5GG[QWT1YPGTU
/CPWCNHQTJGNR
Before registering the TCX930 accessory handset, the battery pack MUST be charged for 15-20 hours.
To register the TCX930 handset:
Place the handset in the telephone base charging cradle to begin registration.
During the registration process, HANDSET REGISTERING will appear in the LCD. When REGISTRATION
COMPLETE is displayed, the handset has been registered to the base. If REGISTRATION FAILED appears,
please try these steps again. A handset ID will be automatically assigned when registration is complete.
Note: If an accessory handset has ever been registered to a base, you must reset the handset before you can
register it to a new base. See Resetting Handsets on page 23.
1)
2)
3)
23
Resetting Handsets
,I\RXZDQWWRUHJLVWHUWKHKDQGVHWWRDGLIIHUHQWEDVHRUUHSODFHDKDQGVHWZLWKDQRWKHURQH\RXPXVW¿UVWFOHDUWKH
registration information from the base and the handset.
To clear the registration information, please follow these steps:
Press and hold []and [#] for at least 5 seconds, until the SYSTEM RESET
menu appears.
Select the DEREGISTER HS submenu. WHICH HANDSET? appears in the
display.
Use []and [ ] to select the handset which you are operating, and then
press [select/ ]. DEREGISTER HS appears.
:KHQWKHSKRQHDVNV\RXWRFRQ¿UPPRYHWKHFXUVRUWRVHOHFW<(6DQGWKHQSUHVV[select/ ]. You will hear a
FRQ¿UPDWLRQWRQH
1RWH 7KHKDQGVHW¿UVWFOHDUVLWUHJLVWUDWLRQLQIRUPDWLRQIURPWKHEDVHDQGWKHQGHOHWHVWKHOLQNWRWKHEDVHIURPLWV
own memory. The handset will now display HANDSET NOT REGISTERED-PLACE HANDSET ON BASE TO
REGISTER. SEE YOUR OWNER'S MANUAL FOR HELP. If the handset cannot contact the base, it will
display UNAVAILABLE. If this happens, see Resetting the Handset Without the Base on page 56. For
instructions on registering the handset, see page 22.
1)
2)
3)
4)
9JKEJ*CPFUGV!
*CPFUGV
*CPFUGV
9JKEJ*CPFUGV!
*CPFUGV
*CPFUGV
24
Setting Up the Phonebook
Your handset can store up to 70 names and numbers in your phonebook. When all the phonebook entries are full,
you will hear a beep and MEMORY FULL appears. You cannot store any additional names and numbers unless you
delete some of the existing ones.
You can also use the phonebook entries to store a group of numbers (up to 20 digits) that you may need to enter
once your call connects. This is referred to as chain dialing. See Chain Dialing from the Phonebook on page 31.
Creating Phonebook Entries
To store names and numbers in your phonebook, please follow these steps:
When the phone is in standby mode, press [].
To create a new phonebook entry, move the cursor to select CREATE NEW,
and press [select/ ]. EDIT NAME appears.
Enter the name for this entry (EDIT NAME).
Use the keypad to enter a name for this entry; the name can contain up to 16 characters. (See Entering Text
from Your Handset on page 11 for instructions on entering text.) If you do not want to enter a name for this entry,
your phone will store this entry as <NO NAME>. Press [select/ ]ZKHQ\RXDUH¿QLVKHG
Enter the number for this entry (EDIT NUMBER).
Once you have stored a name, EDIT NUMBER appears next. Use the
number keypad to enter the phone number; the phone number can contain
up to 20 digits. If you need the phone to pause between digits when it’s
dialing (for example, to enter an extension or an access code), press [redial/
pause] to insert a two-second pause. You will see a P in the display. You can
also use more than one pause together if two seconds is not long enough.
Each pause counts as one digit.
1)
2)
3)
4)
'FKV0COG
㨫
'FKV0COG
㨫
'FKV0WODGT
㨫
'FKV0WODGT
㨫
25
Assign a personal ring tone for this entry (PERSONAL RING).
You can attach a special ring tone to each phonebook entry; the phone will
use this ring tone when this person calls. Use []and [ ] to select one
of the 7 different ring tone options (see Selecting a Ring Tone on page 29 for
a complete list of ring tones). As you scroll through the tones, you will hear
a sample of each tone. When you hear the ring tone you want to use, press
[select/ ]. If you do not want to use a personal ring tone for this phonebook
entry, choose NO SELECTION; the phone will use your standard ring tone
setting.
Finding a Phonebook Entry
Press [ ] to open the phonebook, and then select DIAL/EDIT or press [ ] again. Phonebook entries are stored in
alphabetical order. To scroll through the phonebook from A to Z, press []. To scroll trough the phonebook from Z to
A press [].
You can also use the letters on the number keys to jump to a name that starts with that letter. Press a number key
([2] through [0]RQFHIRUWKH¿UVWOHWWHUWZLFHIRUWKHVHFRQGOHWWHUDQGVRRQ7KHSKRQHERRNMXPSVWRWKH¿UVWHQWU\
that begins with the letter you entered; you can then use []and [ ] to scroll to other entries. For example, to
search for an entry beginning with the letter M, press 6once.
To close the phonebook, press []. During a call, press [ ] again instead of [ ] to close the phonebook.
Editing an Existing Phonebook Entry
With the phone in standby, press [ ] to open the phonebook.
Select DIAL/EDIT or press []again.
Find the entry you want to edit and press [select/ ].
Follow the steps for Creating Phonebook Entries on page 24. If you do not wish to change the information at any
step, simply press [select/ ]to go to the next step.
5)
1)
2)
3)
4)
2GTUQPCN4KPI
0Q5GNGEVKQP
(NKEMGT
2GTUQPCN4KPI
0Q5GNGEVKQP
(NKEMGT
26
Storing Caller ID or Redial Numbers in the Phonebook
You can store Caller ID records or redial numbers in the phonebook so you can use them later. Go to the Caller ID or
redial list and select the number you want to store. (If the Caller ID information did not include the number, then you
will not be able to store it.)
When the phone is in standby, press []to open the Caller ID list or [redial/pause] to open the redial list.
Use []and [ ] to scroll through the Caller ID records or redial numbers. When you come to the information
you want to store, press [select/ ]. EDIT NAME appears.
If the phone number is already stored in memory, you will hear a beep, and THIS DATA IS ALREADY SAVED!
appears in the display. The number will not be stored.
Continue by following the steps for Creating Phonebook Entries on page 24.
Deleting Phonebook Entries
You can delete individual phonebook entries or delete all the phonebook entries at once.
When the phone is in standby, press [].
To delete a single phonebook entry, move the cursor to select DIAL/EDIT,
and then press [select/ ]or press [ ] again.
Find the phonebook entry you want to delete and press [menu/clear].
DELETE ENTRY? appears in the display. Select YES, and then press
[select/ ].
<RXZLOOKHDUDFRQ¿UPDWLRQWRQHDQG'(/(7('DSSHDUVLQWKHGLVSOD\
Deleting all the phonebook entries at once
When the phone is in standby, press [ ].
Move the cursor to select DELETE ALL, and press [select/ ].
DELETE ALL? appears in the display. Select YES and then press [select/ ]<RXZLOOKHDUDFRQ¿UPDWLRQWRQH
and DELETED! appears in the display.
1)
2)
3)
1)
2)
3)
4)
5)
1)
2)
3)
2JQPGDQQM
%QR[
&GNGVG#NN
2JQPGDQQM
%QR[
&GNGVG#NN
27
Copying Phonebook Entries to Another Handset
If you have more than one handset, you can transfer phonebook entries from one handset to another without having
to re-enter names and numbers. You can transfer one phonebook entry at a time or all phonebook entries at once.
When the phone is in standby, press [].
Move the cursor to select COPY, and then press [select/ ].
Move the cursor to select the handset which you want to transfer the entries to and then press [select/ ].
Move the cursor to select ONE MEMORY or ALL MEMORY, and then press [select/ ].
If you select ALL MEMORY,ARE YOU SURE? appears on the display
screen. Move the cursor to select YES, and then press [select/ ].
,I\RXVHOHFW21(0(025<¿QGWKHSKRQHERRNHQWU\\RXZDQWWRWUDQVIHU
and then press [select/ ].
The phonebook entries will be transferred to the designated handset. During
the copy process, the receiving handset shows RECEIVING and the Handset
ID of the sending handset.
When the transfer is completed, DONE! appears on the handset.
Note: If your phonebook contains 70 entries, you cannot store any new phonebook entries. You will hear a beep,
and MEMORY FULL appears on the display. If the selected handset is out of range or data transfer is
cancelled, UNAVAILABLE appears in the display. Phonebook listings will not be transferred.
1)
2)
3)
4)
5)
6)
7)
8)
%QR[2JQPGDQQM
1PG/GOQT[
#NN/GOQT[
%QR[2JQPGDQQM
1PG/GOQT[
#NN/GOQT[
28
Programming Base Speed Dial Numbers
The base can store 10 speed dial numbers, [0] to [9]. Follow the steps below to store new speed dial numbers in the
base. (Handset speed dial numbers are stored as part of a phonebook entry. See Creating Phonebook Entries on
page 24 for information on programming handset speed dial numbers.)
With the phone in standby, press [memory].
Use the number keypad to enter the phone number; the phone number can contain up to 20 digits. If you need
the phone to pause between digits when it’s dialing (for example, to enter an extension or an access code),
press [redial/pause] to insert a two-second pause. You can also use more than one pause together if two
seconds is not long enough. Each pause counts as one digit.
Press [memory] again, and then press the number key [0] to [9] where you want to store this phone number.
<RXZLOOKHDUDFRQ¿UPDWLRQWRQH
Deleting Base Speed Dial Numbers
With the phone in standby, press [memory] twice.
Press the number key [0] to [9]WKDWFRQWDLQVWKHSKRQHQXPEHU\RXZDQWWRGHOHWH<RXZLOOKHDUDFRQ¿UPDWLRQ
tone.
1)
2)
3)
1)
2)
29
Customizing Your Phone
Selecting a Ring Tone (Handset only)
You may choose from 4 melodies or 3 tones for your phone’s
primary ring tone. Each handset can use a different ringer
tone or melody. The available ring tones are as listed:
Press [menu/clear]. Select the HANDSET SETUP menu, and then the
RINGER TONES submenu.
Move the cursor to select a ring tone. As each ring tone is selected, you will hear
a sample of the ring tone.
When you hear the tone you want to use, press [select/ ]. You will hear a
FRQ¿UPDWLRQWRQH
Activating AutoTalk (Handset only)
AutoTalk allows you to answer the phone simply by removing the handset from the cradle. You do not have to press
a button to answer the call.
Press [menu/clear].
Select the HANDSET SETUP menu, and then the AUTOTALK submenu.
Select ON or OFF, and press [select/ ]<RXZLOOKHDUDFRQ¿UPDWLRQWRQH
Activating Any Key Answer (Handset only)
Any Key Answer allows you to answer the phone by pressing any key on the dial pad.
Press [menu/clear].
Select the HANDSET SETUP menu, and then the ANY KEYANSWER submenu.
Select ON or OFF, and then press [select/ ]<RXZLOOKHDUDFRQ¿UPDWLRQWRQH
1)
2)
3)
1)
2)
3)
1)
2)
3)
Melodies
Fur Elise (ELISE) Ringers Flicker
We Wish You A Merry Clatter
Christmas (MERRY-XMAS) Wake Up
Aura Lee (AURA LEE)
Star Spangled Banner
(STAR SPNGL)
Melodies
Fur Elise (ELISE) Ringers Flicker
We Wish You A Merry Clatter
Christmas (MERRY-XMAS) Wake Up
Aura Lee (AURA LEE)
Star Spangled Banner
(STAR SPNGL)
4KPIGT6QPGU
(NKEMGT
%NCVVGT
4KPIGT6QPGU
(NKEMGT
%NCVVGT
#WVQ6CNM
1P
1HH
#WVQ6CNM
1P
1HH
#P[-G[#PUYGT
1P
1HH
#P[-G[#PUYGT
1P
1HH
30
Using Your Phone
From a cordless handset From a handset
speaker phone From the base
speaker phone
Making
a call
Remove the handset from
the charging cradle.
Press [ÀDVK@.
Listen for the dial tone.
Dial the number.
OR Remove the handset from
the charging cradle.
Dial the number.
Press [ÀDVK@.
1)
2)
3)
4)
1)
2)
3)
Remove the handset from
the charging cradle.
Press [].
Listen for the dial tone.
Dial the number.
OR Remove the handset from
the charging cradle.
Dial the number.
Press [].
1)
2)
3)
4)
1)
2)
3)
Press [].
Listen for the dial tone.
Dial the number.
1)
2)
3)
Answering
a call
Pick up the handset. (If
AutoTalk is on, the phone
will answer when you
remove the handset from
the charging cradle.)
Press [ÀDVK@. (If Any
Key Answer is on, you can
also press any key on the
twelve-number keypad.)
1)
2)
Pick up the handset. (If
AutoTalk is on, the phone
will answer when you
remove the handset from
the charging cradle.)
Press [].
1)
2)
Press [].
Hanging up Press []or return the handset
to the cradle. Press [ ] or return the handset
to the cradle. Press [].
31
Making a Call from the Phonebook
When the phone is in standby, press [ ] to open the phonebook.
Move the cursor to select DIAL/EDIT, and then press [select/ ].
Find the phonebook entry you want to call (see Finding a Phonebook Entry on page 25).
Press [ÀDVK@ or [ ] to dial the number.
Note: You can also press [ÀDVK@ or [ ] before you open the phonebook. When you come to the phone number
you want to dial, press [select/ ].
Chain Dialing from the Phonebook
You can use the phonebook entries to store a group of numbers (up to 20 digits) that you may need to enter once
your call connects. Once the call has connected you will then do the following:
Press []
Use []or [ ] to select the phonebook entry you want to call.
Press [select/ ]
Switching to the Handset Speakerphone During a Call
To switch a normal call to the speakerphone, press [ ] on the handset. To switch from a speakerphone call to a
normal call, press [].
1)
2)
3)
4)
1)
2)
3)
32
Using Caller ID, Call Waiting, and Redial Lists
If you subscribe to Caller ID from your phone company, your phone will show you the caller’s phone number and
name (if available) whenever a call comes in. If you subscribe to both Call Waiting and Caller ID, the phone also
shows you the name and the number of any call that comes in while you’re on the line.
If your telephone provider supports seven-digit dialing, you can save your local area code so it does
not display in the Caller ID list. See Seven-Digit Dialing on page 40 for more information.
Using the Caller ID List
You can store up to 30 Caller ID numbers in each handset. Caller ID records are stored from newest to oldest.
Once your Caller ID list is full and you receive an incoming call, the oldest record will be automatically deleted to
make room for the new record.
To open the Caller ID list, press [](on the right side of the four-way key). The phone will show the number of new
Caller ID records and the total number of stored records. Use []and [ ] to scroll through the list, or enter a
OHWWHURQWKHNH\SDGWRMXPSWRWKH¿UVW&DOOHU,'QDPHWKDWVWDUWVZLWKWKDWOHWWHU
Making a Call from a Caller ID Record
When the phone is in standby, press [ ] to open the Caller ID list.
Use []and [ ]WR¿QGWKH&DOOHU,'UHFRUG\RXZDQWWRGLDO
To add (or delete) a “1” to the beginning of the displayed phone number, press [
*
/tone].
Press [ÀDVK@ or [ ] to dial the number.
Note: You can also press [ÀDVK@ or [ ] before you open the caller ID list. When you come to the phone number
you want to dial, press [select/ ].
1)
2)
3)
4)
33
Deleting Caller ID Numbers
To delete only one Caller ID number, go to the Caller ID list and select the number you want to delete. Press [menu/
clear]:KHQWKHSKRQHDVNV\RXWRFRQ¿UPVHOHFW<(6
To delete all the Caller ID numbers, go to the Caller ID list and press [menu/clear]. Select YES when asked if you
want to DELETE ALL.
Note: When you delete a Caller ID number, you delete it permanently.
Using Call Waiting
If you have Call Waiting service and a second call comes in when you are on the phone, a call waiting tone will
sound. Press [ÀDVK@ on the handset or >ÀDVK@ on the base to accept the waiting call. There is a short pause, and
then you will hear the new caller. To return to the original caller, press [ÀDVK@on the handset or >ÀDVK@ on the base.
Note: You must subscribe through your telephone provider to receive Call Waiting services. Not all features are
available in all areas.
Redialing a Number
You can quickly redial the last 5 numbers dialed on each handset or the last number dialed on the base.
From the handset:
With the phone in standby, press the [redial/pause] to open the redial list.
Use []and [ ] or [redial/pause] to scroll through the redial list.
:KHQ\RX¿QGWKHQXPEHU\RXZDQWWRGLDOSUHVV[ÀDVK@ or [ ] on the handset to dial the number.
1RWH ,IWKHQXPEHUH[FHHGVGLJLWVRQO\WKH¿UVWGLJLWVDUHUHWDLQHGLQUHGLDOPHPRU\
• If the redial memory is empty, EMPTY appears in the display and you will hear a beep.
1)
2)
3)
34
From the base:
Press [].
Then press [redial/pause].
1RWH ,IWKHQXPEHUH[FHHGVGLJLWVRQO\WKH¿UVWGLJLWVDUHUHWDLQHGLQUHGLDOPHPRU\
Deleting a Redial Record
If you want to delete a phone number from the handset’s redial list, follow the steps below:
With the phone in standby, press [redial/pause].
Use []and [ ] to scroll through the redial list.
:KHQ\RX¿QGWKHUHGLDOQXPEHU\RXZDQWWRGHOHWHSUHVV[menu/clear].
Select YES, and press [select/ ]. The redial number is deleted.
1)
2)
1)
2)
3)
4)
35
Adjusting the Ringer, Earpiece and Speaker Volume
Adjusting the Ringer Volume
You can choose from four ringer volume settings on the handset (off, low, medium,
and high) and four options (off, low, medium, and high) on the base. With the phone
in standby, use []or [ ] on the handset or [volume +] or [volume
-
]on the
base to adjust the ringer volume.
Adjusting the Earpiece Volume
You can choose from six volume levels for the earpiece. To adjust the earpiece
volume while on a call, press [](to make it louder) or [ ] (to make it softer).
Adjusting the Speaker Volume
Handset Speakerphone: You can choose from six volume levels for the handset
speakerphone. To adjust the speaker volume while on a call, press [](to make it
louder) or [](to make it softer).
Base Speaker: You can choose from ten volume levels for the base speaker.
To adjust the speaker volume while call screening or playing messages, press
[volume +] (to make it louder) or [volume
-
](to make it softer).
36
Adjusting the Audio Tone
,I\RXDUHQ¶WVDWLV¿HGZLWKWKHDXGLRTXDOLW\RI\RXUSKRQH\RXFDQDGMXVWWKH$XGLR7RQHRIWKHHDUSLHFHZKLOHRQ
a call. Your phone gives you three audio tone options: low, natural and high; the default setting, Natural Tone, is
recommended for hearing aid users. Audio tone adjustments only apply to the earpiece, not the speakerphone.
To adjust the audio tone:
With the phone in talk mode, press [select/ ]to cycle through the three audio tone options.
When the desired option appears on the display, stop.
After two seconds, the displayed audio tone is set, and the display returns to normal.
Using the Clarity Boost Feature
If you encounter interference while using your phone, you can manually improve the sound by setting the clarity
booster to on. This works only when the phone is in use, so while you are on a call:
Press [menu/clear].
Move the cursor to CLARITY BOOST, and then press [select/ ]. BOOST ON and B appear in the display.
Use the same procedure to turn off clarity booster. BOOST OFF appears.
1)
2)
3)
1)
2)
37
Using Hold, Conference and Transfer
Placing a Call on Hold
During a call, press [hold/int'com/xfer] on the handset, or [hold/intcom] on the base to place the call on hold.
If you leave a caller on hold for more than ten seconds, the display screen will read, Line On Hold.
To return to the party on hold, press [ÀDVK@ or [ ] on a handset or [ ] on the base. The phone will return to
the holding party.
Note: • You can only place a caller on hold for 5 minutes. Once 5 minutes has passed, that party’s line will be
disconnected and the phone will return to standby.
• While a call is on hold, Caller ID and Call Waiting cannot be received.
Conferencing
If you have more than one handset, up to four people can participate in a conference call. A four-way conference call
consists of an outside line, the base speaker phone, and two handsets. You can easily join a call already in progress.
From the handset, press [ÀDVK@ or [ ] to join the call. From the base, press [ ].
To hang up, return the handset to the cradle or press []on the handset. On the base, press [ ]. The other
party will still be connected to the call.
Transferring a Call
You can transfer a call from one station to another.
From the handset:
During a call, press [hold/int’com/xfer].
Use []or [ ] to select the station you want to transfer the call to, then press [select/ ]. The call will
automatically be placed on hold, and a paging tone sounds. To cancel the transfer, press [ÀDVK@ or [ ].
When another handset accepts the transferred call, you will be disconnected. If you want to rejoin the call,
press [ÀDVK@ again or [ ].
1)
2)
1)
2)
1)
2)
3)
38
From the base:
During a call, press [hold/intcom].
Press [1] through [9],[0] to select the handset you want to talk with or press [
*
/tone] to page all registered
handsets. To cancel the transfer, press [hold/intcom].
When another handset accepts the transferred call, your call will disconnected. If you want to rejoin the call
press [].
Answering a Transferred Call
When a station receives a call transfer, it sounds a paging tone; handsets also show the ID of the station that is
paging. To accept the call transfer:
To answer the page and speak to the transferring station, press [ÀDVK@ or [hold/int’com/xfer] on the handset.
On the base, press []or [hold/intcom].
To accept the call and speak to the caller, press [ÀDVK@ on the handset or [ ] on the base.
When you accept the transferred call, the transferring station will be disconnected.
2QO\WKH¿UVWstation to answer the transfer page will be connected to the call. If the transfer page is not picked up
within one minute, the operation will be canceled.
1)
2)
3)
1)
2)
3)
39
Using Special Features
Muting the Ringer (One call only)
While the phone is ringing, press [ ] on the handset or [ ] on the base to mute the ringer for this call. The phone
will ring again on the next call.
Muting the Microphone
Mute turns off the microphone so the caller can’t hear you. This only works while you are on a call.
From the handset:
Press [menu/clear].
Move the cursor to select MUTE and then press [select/ ]. MUTE ON and appear in the display; remains
while muting is on.
To cancel muting, repeat the procedure, MUTE OFF appears.
From the base:
Press [mute]. The speaker LED blinks while muting is on.
To cancel muting, press [mute] again. The speaker LED stops blinking.
Privacy Mode
If you don’t want other stations to interrupt you while on a call, turn on privacy mode. As long as your handset
is in privacy mode, other stations can’t join your call or make any calls of their own: their displays will show
UNAVAILABLE.
While on a call, press [menu/clear].
Move the cursor to CALL PRIVACY, and then press [select/ ]. PRIVACY MODE ON appears in the display for
2 seconds; appears and remains in the display until the feature is turned off.
To turn privacy mode off, repeat the procedure listed above.
1)
2)
3)
1)
2)
1)
2)
40
Seven-Digit Dialing
In some areas, the telephone company may allow you to place a local call by dialing only 7 digits (instead of 10).
If this is the case in your area, you can program your local area code in your phone. Programming your area code
will allow you to see the caller’s 7-digit phone number which will allow you to easily return the local call without
modifying the number before dialing. If you get a call from outside your area code, you will see all 10 digits.
To program your local area code:
Press [menu/clear]. Select the GLOBAL SETUP menu, and then the AREA CODE submenu.
Use the number keypad ([0] through [9]) to enter a 3-digit area code. If an area code has already been stored,
it appears in the display. Press [menu/clear] to delete the stored code, and then enter a new one.
Press [select/ ]<RXZLOOKHDUDFRQ¿UPDWLRQWRQH
Using the Intercom
You can use the intercom to talk to another station without using the phone line.
Making an Intercom Page
From the handset:
With the phone in standby, press [hold/int’com/xfer].
Use []or [ ] to select the station you want to talk with, then press [select/ ]. Select ALL to page all other
station.
To cancel the intercom page, press [].
From the base:
With the phone in standby, press [hold/intcom].
Press [1] through [9],[0] to select the handset you want to talk with or press [
*
/tone] to page all registered
handsets.
To cancel the intercom, press [hold/intcom].
1)
2)
3)
1)
2)
3)
1)
2)
3)
41
Note: Intercom paging will be cancelled if any of the following things occur:
You receive an outside call or an intercom page while selecting the other handset.
You do not select a handset within 30 seconds.
The party does not answer the page within one minute.
The party is busy.
The party is out of range (UNAVAILABLE appears in the display).
Answering an Intercom Page
When the intercom page tone sounds, the display will show the ID of the station that is paging.
From the handset, press [ÀDVK@ or [hold/int’com/xfer]. If AutoTalk is on, the handset will automatically answer
the page when you remove the handset from the cradle.
From the base, press [hold/intcom] or [].
To hang up an intercom page from the handset, press []. To hang up an intercom page from the base, press
[hold/intcom].
Tone Dialing Switch Over
If your phone is set to pulse dialing, you can temporarily switch to tone dialing after the call connects. This feature
is useful when you need tone dialing to use automated menu systems, such as telephone bank tellers, telephone
SUHVFULSWLRQUH¿OOVFXVWRPHUVXSSRUWPHQXVHWF0DNH\RXUFDOOQRUPDOO\2QFH\RXUFDOOFRQQHFWVSUHVV[
*
/tone]
on the handset or base. Any digits you enter from then on will be sent with tone dialing. When this particular call
ends, the phone automatically returns to pulse dialing.
See Changing the Dial Mode on page 18 for instructions on setting your phone for pulse or tone dialing.
Installing the Optional Headset
Your phone may be used with an optional headset. To use this feature, insert the
headset plug into the headset jack. Your phone is ready for hands-free conversations.
(Headsets may be purchased by calling the Uniden Parts Department. See back cover
page for contact information.)
•
•
•
•
•
1)
2)
3)
42
Setting Up the Answering System
Your phone has a built-in answering system that answers and records incoming calls.
Features
Digital Tapeless Recording
Up to 14 Minutes of Recording Time
Call Screening
Personal or Pre-recorded Outgoing Messages
Bilingual Voice Prompts
(for USA models: English and Spanish,
for Canadian models: English and French)
•
•
•
•
•
Day and Time Announcement
Remote Message Retrieval
Toll Saver
Records Up to 59 messages.
•
•
•
•
Digital Tapeless Recording allows you to quickly review, save, or delete the messages you choose. You will never
have to worry about a tape wearing out, jamming, or resetting improperly.
43
Using the Answering System Interface
Handset operation
You can use your handset to operate your answering system from anywhere in your home. When the phone is in
standby, press [select/ ]on the handset to access the answering system. REMOTE ANSWERING MACHINE
OPERATION appears on the handset display, and the system announces the number of new and old messages.
Keep the following things in mind when you use your handset to access your answering system:
You can enter a command at any time during announcements.
$IWHUWKH¿UVWDQQRXQFHPHQW\RXKDYHVHFRQGVWRHQWHU\RXU¿UVWFRPPDQGEHIRUHWKHV\VWHPUHWXUQVWR
standby.
If you receive a call, the remote operation is cancelled.
If another handset makes a call, the remote operation is cancelled.
During the remote operation “ - -” appears on the base.
Selecting the Language
You can select the language (for USA models: English and Spanish, for Canadian models: English and French) of
your answering system announcements. The default system language is English.
From the handset:
Press [menu/clear]. Select ANSW. SETUP, and then the ANSW LANGUAGE submenu.
Move the cursor to choose a language.
for USA models: Choose ENGLISH or ESPAÑOL (Spanish).
for Canadian models: Choose ENGLISH or FRANÇAIS (French).
Press [select/ ]<RXZLOOKHDUDFRQ¿UPDWLRQWRQH
•
•
•
•
•
1)
2)
3)
44
Setting the Number of Rings
The ring time setting allows you to set the number of rings the caller hears before your answering system plays the
outgoing message. You can set the ring time to answer after two, four, or six rings. If you enable the Toll Saver (TS)
setting, the answering system picks up after two rings if you have new messages, and after four rings if there are
none. This way, if you make a long distance call to check your messages, you can hang up after the second ring to
avoid long distance billing charges.
From the handset:
Press [menu/clear]. Select the ANSW. SETUP menu, and then the RING TIME submenu.
Move the cursor to select a ring time (TOLL SAVER, 2 TIMES, 4 TIMES, or 6 TIMES).
Press [select/ ]<RXZLOOKHDUDFRQ¿UPDWLRQWRQH
Setting the Day & Time
If you do not set the clock on your answering system, your messages may not have the correct time and day stamp.
From the handset:
Press [menu/clear].
Move the cursor to ANSW. SETUP and press [select/ ].
Move the cursor to DAY & TIME and press [select/ ].
Use []and [ ] to select the day of the week, and press [select/ ].
Use the number keypad ([0] through [9]) to select the hour and minutes.
Use []and [ ] to select AM or PM, and press [select/ ]<RXKHDUDFRQ¿UPDWLRQWRQH
1)
2)
3)
1)
2)
3)
4)
5)
6)
45
Recording a Personal Greeting
Your answering system comes with a pre-recorded outgoing message or greeting that plays when you receive a
call: “Hello, no one is available to take your call. Please leave a message after the tone.” You can record your own
personal outgoing greeting. Your recorded greeting must be between two seconds and thirty seconds long.
From the base:
Press and hold [greeting].
The system announces, “Record greeting.” Begin recording after the announcement.
The message counter displays “- -”, then begins to count down 30 seconds.
:KHQ\RX¿QLVKUHFRUGLQJSUHVV[greeting] again or press []<RXZLOOKHDUDFRQ¿UPDWLRQWRQHDQG\RXU
recorded greeting plays back for you.
Selecting a Greeting
Once you have recorded a personal greeting, the phone automatically switches to your personal greeting. You can
also switch back and forth between the pre-recorded greeting and your own greeting at any time.
From the base:
With the phone in standby, press [greeting]. The system plays the current greeting.
To keep this greeting, do nothing.
To switch to the other greeting, press [greeting] while the system is playing the current greeting.
Each time you press [greeting], the system switches between the pre-recorded and the personal greeting. The
last greeting you hear is used as the current greeting.
1)
2)
3)
1)
2)
3)
4)
46
Deleting Your Personal Greeting
You can delete your personal greeting from the base. You cannot delete the pre-recorded greeting.
From the base:
With the phone in standby, press [greeting].
While the personal greeting is playing, press [].
The system announces “Greeting has been deleted,” and switches back to the pre-recorded greeting.
Setting the Record Time (or Announce only)
You can choose how long callers have to record a message. Set the record time to “1 minute” or “4 minutes” to limit
the time for incoming messages. If you set the record time to “Announce only,” the answering system answers the
call but prevents callers from leaving a message.
From the handset:
Press [menu/clear]. Select the ANSW. SETUP menu, and then the RECORD TIME submenu.
Move the cursor to select RECORD TIME (1 MINUTE, 4 MINUTES, orANNOUNCE ONLY).
Press [select/ ]<RXZLOOKHDUDFRQ¿UPDWLRQWRQH
While your answering system is set to “Announce only,” the message counter LED on the base displays “A.” If you
are using the prerecorded greeting, the system automatically switches to the following message: “Hello, no one is
available to take your call. Please call again.” If you are using a personal greeting, the system continues to use that
greeting.
1)
2)
3)
1)
2)
3)
47
Activating the Message Alert
The message alert feature sounds a short alert tone every 15 seconds whenever you have a new message.
To turn on the message alert:
From the handset:
Press [menu/clear]. Select the ANSW. SETUP menu, and then the MESSAGE ALERT submenu.
Move the cursor to select ON or OFF.
Press [select/ ]<RXZLOOKHDUDFRQ¿UPDWLRQWRQH
Activating Call Screening
Your phone allows you to listen to callers leaving you a message. This call screen feature can be turned on or off.
From the handset:
Press [menu/clear]. Select the ANSW. SETUP menu and then the CALL SCREEN submenu.
Move the cursor to select ON or OFF.
Press [select/ ]<RXZLOOKHDUDFRQ¿UPDWLRQWRQH
6HWWLQJD6HFXULW\&RGHRU3HUVRQDO,GHQWL¿FDWLRQ1XPEHU3,1
To play your messages from a remote location, you will need to enter a two-digit security code or Personal
,GHQWL¿FDWLRQ1XPEHU3,17KHGHIDXOWVHFXULW\FRGHLV
From the handset:
Press [menu/clear]. Select the ANSW. SETUP menu, and then the SECURITY CODE submenu.
Use the number keypad ([0] through [9]) to enter a two-digit security code (01-99).
Press [select/ ]<RXZLOOKHDUDFRQ¿UPDWLRQWRQH
1)
2)
3)
1)
2)
3)
1)
2)
3)
48
Using the Answering System
Turning Your Answering System On and Off
From the base From the handset
Turning On
With the phone in standby, press [on/off].
The system announces “Answering System
is on” and plays the current greeting.
The message counter displays the
number of messages stored in memory.
,IWKHFRXQWHUÀDVKHVWKHQ\RXKDYHQHZ
messages waiting.
1)
2)
3)
Press [menu/clear]. Select the ANSW.
SETUP menu, and then theANSWER
SETUP submenu.
Move the cursor to select ON.
Press [select/ ]. You will hear a
FRQ¿UPDWLRQWRQH
1)
2)
3)
Turning Off
With the phone in standby, press [on/off].
The phone announces “Answering System
is off.”
The message counter LED is no longer
illuminated.
1)
2)
3)
Press [menu/clear]. Select the ANSW.
SETUP menu, and then theANSWER
SETUP submenu.
Move the cursor to select OFF.
Press [select/ ]. You will hear a
FRQ¿UPDWLRQWRQH
1)
2)
3)
49
Reviewing Messages
The base message counter displays the number of messages stored in memory. When you have new messages, the
PHVVDJHFRXQWHUDQGWKHQHZPHVVDJH/('RQWKHKDQGVHWÀDVK7KHDQVZHULQJV\VWHPSOD\V\RXUQHZPHVVDJHV
¿UVW$IWHU\RXOLVWHQWRDOORI\RXUQHZPHVVDJHV\RXFDQWKHQSOD\\RXUROGPHVVDJHV<RXFDQUHYLHZ\RXU
messages from the base or from the handset:
From the base From the handset
Playing
messages
Press []. The system announces the
number of new and old messages. It announces
the message number, plays the message, then
announces the time and day it was received.
Press [select/ ]. The system announces the
number of new and old messages and then
play your messages. After playing the message,
the system announces the time and day that
message was received.
Repeating a
message Press [ ]once to go to the beginning of the
current message. Press []repeatedly to go
back to a previous message.
Press [1] once to go to the beginning of the
current message. Press [1] repeatedly to go
back to a previous message.
Skipping a
message Press []to go to the beginning of the next
message. Press [3] to go to the beginning of the next
message.
Deleting a
message While a message is playing, press []. The
message is permanently deleted. While a message is playing, press [4].
The message is permanently deleted.
Deleting all
messages While the phone is in standby, press []. When
WKHV\VWHPDVNV\RXWRFRQ¿UPSUHVV[]again.
All messages are permanently deleted.
Not available.
Ending the
message
review
Press []to stop the message playback and
return to standby. Press [5] to stop the message playback.
Press []to exit the system and return to
standby.
50
Screening Calls
If you activate the call screening feature, you can listen to callers leaving a message without answering the phone
(see Activating Call Screening on page 47). You can always hear callers from the base speaker. To screen an
incoming call from the handset:
Press [select/ ]when the system is answering. If another handset is screening a call, you will hear a beep and
you will not be able to screen the call.
To answer the call, press [ÀDVK@.
To stop screening the call, press [].
Turning Off the Message Alert Tone
When all new messages are played back, the message alert tone will automatically deactivate. The tone will not
deactivate until all new messages are played back. To quickly turn off the tone, press any key on the base.
Operating the Answering System While You Are Away from Home
You can access your answering system while you are away from home to check, play, and delete messages, or turn
your answering system on and off.
Note:
The answering machine will only playback messages for four minutes and then it returns to the command waiting
mode. To continue playing your messages, press [0] then [2] again within 15 seconds.
If you enter an incorrect security code three times, you will hear a beep and the answering machine will return to
standby.
•
•
•
•
•
51
To operate from a remote location, use any touch-tone telephone, and follow these steps:
Call your telephone number and wait for the system to answer. If the answering system is off, it will answer after
about 10 rings and sounds a series of beeps.
During the greeting or the beeps (if answering system is off), press [0] and enter your security code/PIN within
WZRVHFRQGVVHH6HWWLQJD6HFXULW\&RGHRU3HUVRQDO,GHQWL¿FDWLRQ1XPEHU3,1RQpage 47).
The answering system announces the current time and the number of messages stored in memory.
You hear “To play incoming messages, press zero-two. For help, press one-zero” followed by a beep.
(QWHUDUHPRWHFRPPDQGIURPWKHFKDUWEHORZ<RXKDYHVHFRQGVWRHQWHUWKH¿UVWFRPPDQGDIWHUWKH¿UVW
command, you have two seconds to enter each command.
Remote Commands
Command Function Command Function
[0] then [1] Repeat a message* [0] then [5] Stop operation
[0] then [2] Play incoming messages [0] then [6] Answering system on
[0] then [3] Skip a message [0] then [9] Answering system off
[0] then [4] Delete a message [1] then [0] Help
* If you press [0] then [1]LQWKH¿UVWIRXUVHFRQGVRIDPHVVDJHWKHV\VWHPVNLSVWRWKHSUHYLRXVPHVVDJH
If you press [0] then [1]DIWHUWKH¿UVWIRXUVHFRQGVRIDPHVVDJHWKHV\VWHPUHSHDWVWKHFXUUHQW
message.
:KHQ\RX¿QLVK\RXZLOOKHDULQWHUPLWWHQWEHHSVLQGLFDWLQJWKDWWKHV\VWHPLVLQWKHFRPPDQGZDLWLQJPRGH
Enter another command from the chart within 15 seconds.
Hang up to exit the system. The answering system automatically returns to its normal standby setting.
1)
2)
3)
4)
5)
6)
52
Maintenance
6SHFL¿FDWLRQV
Operating Temperature 32° F to 122° F (0° C to 50° C)
AC Adapter Part Number Base: AD-800
Charging Cradle: AD-0005
Input Voltage Base: 120V AC, 60 Hz
Charging Cradle: 120V AC, 60 Hz
Output Voltage Base: 9V DC @ 350mA
Charging Cradle: 9V DC @ 210mA
Battery Part Number BT-1004
Capacity 3.6V DC @ 500mAh
Notes:
Use only the supplied AD-800 and AD-0005 AC adapters.
Do not use any other AC adapter.
Do not place the power cord where it creates a trip hazard or where it could become chafed and
FUHDWHD¿UHRUHOHFWULFDOKD]DUG
Do not place the base in direct sunlight or subject it to high temperatures.
•
•
•
•
53
Battery Replacement and Handling
With average use, your phone’s battery should last approximately one year. To order replacement batteries, please
contact Uniden’s Parts Department. The contact information is listed on the back cover page.
Cleaning the Battery Contacts
To maintain a good charge, clean the charging contacts on the handset
once a month. Dampen a cloth with plain water. Gently rub the damp cloth
over the charging contacts until all visible dirt is removed. Dry the contacts
thoroughly before returning the handset to the charging cradle.
Caution: Do not use paint thinner, alcohol, or other chemical products.
'RLQJVRPD\GLVFRORUWKHVXUIDFHRIWKHWHOHSKRQHDQGGDPDJHWKH¿QLVK
Warning
7RDYRLGWKHULVNRISHUVRQDOLQMXU\RUSURSHUW\GDPDJHIURP¿UHRUHOHFWULFDOVKRFNXVHRQO\8QLGHQ$'
(9V 350mA) and AD-0005 AC adapters and Uniden BT-1004 battery pack with your phone.
Caution:
8VHRQO\WKHVSHFL¿HG8QLGHQEDWWHU\SDFN%7
Do not remove the batteries from the handset to charge them.
1HYHUWKURZWKHEDWWHU\LQWRD¿UHGLVDVVHPEOHRUKHDWWKHP
Do not remove or damage the battery casing.
A replacement Uniden adapter or battery may be purchased by calling Uniden’s Parts department. See back
cover page for contact information.
•
•
•
•
•
54
Low Battery Alert
When the battery pack is very low, the phone is programmed to eliminate functions in
order to save power. When LOW BATTERY appears in the display and the phone is in
standby, none of the keys will operate. If you are on a call, complete your conversation as
quickly as possible, and return the handset to the charging cradle.
The battery pack needs to be charged when the empty battery icon appears.
Talk and Standby Times
With average use, your handset battery provides approximately 5 hours of talk time and approximately 7 days of
standby time. When your handsets are not being used and are left off of their charging cradles, the battery will
gradually discharge. You can achieve optimum battery life and performance by returning the handset to the charging
cradle after each use. If the handset is left off of the charging cradle, the actual talk time duration will be reduced
respective to the amount of time the handset is off of the charging cradle.
.QY$CVVGT[.QY$CVVGT[
55
Troubleshooting
Resetting the Handset
You may need to reset your handset in the following instances:
When you want to change the digital security code.
You lose a handset and purchase a new one.
You get the message Registration Failed when you try to register the handset.
You are unable to register any handsets to the base.
When you register new handsets to the base, the handset IDs do not match. (For example, the handset registers
as “Handset #4” but you only have two handsets.)
When you are instructed to by one of Uniden’s call center representatives.
Press and hold []and [#] for more than 5 seconds. Select DEREGISTER HS.
Select the handset which you are operating, then press [select/ ].
7KHSKRQHZLOODVN\RXWRFRQ¿UPWKHGHUHJLVWUDWLRQ6HOHFW<(67KHVHOHFWHGKDQGVHWZLOOFOHDULWVUHJLVWUDWLRQ
information from the base, and then delete the link to the base from its own memory.
When the base information is deleted, the handset displays HANDSET NOT REGISTERED-PLACE HANDSET
ON BASE TO REGISTER. SEE YOUR OWNER'S MANUAL FOR HELP.
Re-register the handset to the base (see Registering Accessory Handsets on page 22).
If the handset cannot contact the base, it will display OUT OF RANGE. Make sure the handset is in range of the
base and the base is connected to power.
•
•
•
•
•
•
1)
2)
3)
4)
5)
56
Resetting the Handset Without the Base
If your original base is not available for some reason (for example, it is lost or somehow incapacitated), you can still
reset the handset and use it with another base.
Press and hold []and [#] for at least 5 seconds.
Move the cursor to select BASEUNAVAILABLE and then press [select/ ]. BASE UNAVAILABLE appears.
Move the cursor to select YES, and then press [select/ ]<RXKHDUDFRQ¿UPDWLRQWRQHDQGWKHKDQGVHW
deletes its own base information without contacting the base. The handset displays HANDSET NOT
REGISTERED-PLACE HANDSET ON BASE TO REGISTER. SEE YOUR OWNER'S MANUAL FOR HELP.
Register the handset to the new base (see Registering Accessory Handsets on page 22).
Changing the Digital Security Code
7KHGLJLWDOVHFXULW\FRGHLVDQLGHQWL¿FDWLRQFRGHXVHGWRFRQQHFWWKHKDQGVHWDQGWKHEDVH<RXUXQLWVKLSVIURPWKH
manufacturer with a preset security code. Resetting this code is not normally necessary. In the rare situation that you
suspect another cordless telephone is using the same security code or if you are instructed to change this code by a
manufacturer’s Call Center Representative, you can change the code. To change the digital security code:
Reset all of your handsets (see Resetting the Handset on page 55).
Re-register each handset (see Registering Accessory Handsets on page 22).
Traveling Out of Range
During a call, if you move your handset too far from your base, noise may increase. If you pass the range limit of the
base, the handset will beep, display OUT OF RANGE, and then go to standby. The base will maintain the connection
for 30 seconds after the handset goes out of range. If you move the handset back within range of the base within 30
seconds, press [ÀDVK@ or [ ] to pick up the call again.
1)
2)
3)
4)
1)
2)
57
Common Issues
,I\RXUSKRQHLVQRWSHUIRUPLQJWR\RXUH[SHFWDWLRQVSOHDVHWU\WKHVHVLPSOHVWHSV¿UVW,IWKHVHVWHSVGRQRWVROYH
your problem, please call our Customer Hotline (see At Uniden, we’ll take care of you! on page 70).
Symptom Suggestion
The charge LED won’t
illuminate when the
handset is placed in the
cradle.
Make sure the AC adapter is plugged into the base or the charger (if you have more
than one handset) and wall outlet.
Make sure the handset is properly seated in the cradle.
Make sure the charging contacts on the handset are clean.
•
•
•
The audio sounds weak. Move the handset and/or base away from metal objects or appliances and try again.
Make sure that you are not too far from the base.
•
•
Can’t make or receive
calls.
Make sure that you are not too far from the base.
Make sure the line is not in use. If an outside call is already using a line, you cannot
use that line to make another outside call.
Make sure your handset is registered to the main base unit.
Check both ends of the base telephone line cord.
Make sure the AC adapter is plugged into the base and wall outlet.
Disconnect the AC adapter and reconnect.
Change the Digital Security Code (see Changing the Digital Security Code on
page 56).
•
•
•
•
•
•
•
Severe noise interference. Keep the handset away from microwave ovens, computers, remote control toys,
ZLUHOHVVPLFURSKRQHVDODUPV\VWHPVLQWHUFRPVURRPPRQLWRUVÀXRUHVFHQWOLJKWV
and electrical appliances.
Move to another location or turn off the source of interference.
•
•
The Caller ID does not
display. The call was placed through a switchboard.
Call your telephone provider to verify your Caller ID service is current. There may be
a problem with your Caller ID service.
•
•
58
Symptom Suggestion
The handset doesn’t ring
or receive a page.
Make sure that you are not too far from the base.
Make sure that your handset is registered to the main base unit.
Charge the battery in the handset for 15 to 20 hours by placing the handset on the
base or charging cradle.
Change the Digital Security Code (see Changing the Digital Security Code on
page 56).
•
•
•
•
You cannot register the
handset at the base.
Charge the battery pack in the handset for 15 to 20 hours.
Change the Digital Security Code (see Changing the Digital Security Code on
page 56).
Try resetting the handset (see Resetting the Handset on page 55).
•
•
•
The handset doesn’t
communicate with other
handsets.
Change the Digital Security Code (see Changing the Digital Security Code on
page 56).
Make sure that you have registered all handsets (see Registering Accessory
Handsets on page 22).
•
•
An extra handset can’t
join the conversation. Make sure there are not two handsets already using the conference feature.
Make sure that another handset is not in privacy mode.
•
•
The answering system
does not work. Make sure the base is plugged in.
Make sure that the answering system is turned on.
Make sure that the message record time is not set to announce only.
•
•
•
Time stamp cannot be
heard. Make sure you have set the time (see Setting the Day and Time on page 43).•
Messages are incomplete. Incoming messages may be too long. Ask callers to leave a brief message.
The memory may be full. Delete some or all of the saved messages.
•
•
59
Symptom Suggestion
There is no sound on the
base or handset speaker
during call monitoring or
message review.
Adjust the speaker volume on the base or handset.
Make sure the call screen feature is set to on.
•
•
Cannot access answering
system from a remote
phone.
Make sure you are using the correct PIN number.
Make sure that the touch-tone phone you’re using can transmit the tone for at least
two seconds. If it cannot, try using a different touchtone phone.
•
•
60
Liquid Damage
Moisture and liquid can damage your cordless phone.
If the handset or base is exposed to moisture or liquid, but only the exterior plastic housing is affected, wipe off
the liquid, and use as normal.
If moisture or liquid has entered the plastic housing (i.e. liquid can be heard in the phone or liquid has entered the
handset battery compartment or vent openings on the base), follow the steps below:
Handset Base
Remove the battery cover and leave it off for
ventilation.
Disconnect the battery pack. Leave the battery
cover off and the battery pack disconnected for at
least 3 days.
Once the handset is completely dry, reconnect the
battery pack and the battery cover.
Recharge the handset’s battery pack for 15 to 20
hours before using.
1)
2)
3)
4)
Disconnect the AC adapter from the base, cutting
off electrical power.
Disconnect the telephone cord from the base.
Let dry for at least 3 days.
1)
2)
3)
IMPORTANT: You must unplug the telephone line while recharging the battery packs to avoid charge interruption.
CAUTION: DO NOT use a microwave oven to speed up the drying process. This will cause permanent
damage to the handset, base and the microwave oven. After following these steps, if your
cordless telephone does not work, please call our Customer Service Hotline (see back cover
page).
•
•
61
Precautions!
Before you read anything else, please observe the following:
Warning!
Uniden America Corporation DOES NOT represent this unit
WREHZDWHUSURRI7RUHGXFHWKHULVNRI¿UHHOHFWULFDOVKRFN
or damage to the unit, DO NOT expose this unit to rain or
moisture.
Rechargeable Nickel-Metal-Hydride
Battery Warning
This equipment contains a rechargeable Nickel-Metal-
Hydride battery.
The rechargeable batteries contained in this equipment
PD\H[SORGHLIGLVSRVHGRILQD¿UH
Nickel is a chemical known to state of California to cause
cancer.
Do not short-circuit the battery.
Do not charge the rechargeable battery used in this
equipment in any charger other than the one designed to
FKDUJHWKLVEDWWHU\DVVSHFL¿HGLQWKHRZQHUVPDQXDO
Using another charger may damage the battery or cause
the battery to explode.
Rechargeable Batteries Must Be Recycled or Disposed of
Properly.
Uniden works to reduce lead content in our PVC coated cords
in our products and accessories.
•
•
•
•
•
Warning!
The cords on this product and/or accessories contain lead, a
chemical known to the State of California to cause birth defects
or other reproductive harm. Wash hands after handling.
Important Safety Instructions
When using your telephone equipment, basic safety
SUHFDXWLRQVVKRXOGDOZD\VEHIROORZHGWRUHGXFHWKHULVNRI¿UH
electric shock and injury to persons, including the following:
Do not use this product near water, for example, near
a bath tub, wash bowl, kitchen sink or laundry tub, in a
wet basement or near a swimming pool.
Avoid using a telephone (other than a cordless type)
during an electrical storm. There may be a remote risk
of electric shock from lightning.
Do not use the telephone to report a gas leak in the
vicinity of the leak.
Use only the power cord and batteries indicated in
WKLVPDQXDO'RQRWGLVSRVHRIEDWWHULHVLQD¿UH7KH\
may explode. Check with local authorities for possible
battery disposal instructions.
Do not disassemble any component of this product.
SAVE THESE INSTRUCTIONS
CAUTION
Risk of explosion if battery is replaced by an incorrect type.
Dispose of used batteries according to the instructions. Do not
open or mutilate the battery, and disconnect the battery before
shipping this product.
1.
2.
3.
4.
5.
62
The FCC Wants You To Know
This equipment complies with Part 68 of the FCC rules and the
requirements adopted by the ACTA. On the bottom of this equipment
LVDODEHOWKDWFRQWDLQVDPRQJRWKHULQIRUPDWLRQDSURGXFWLGHQWL¿HU
in the format US: AAAEQ##TXXXX. If requested, this number must be
provided to the telephone company.
$QDSSOLFDEOH8QLYHUVDO6HUYLFH2UGHU&RGHV862&FHUWL¿FDWLRQ
for the jacks used in this equipment is provided (i.e., RJ11C) in the
packaging with each piece of approved terminal equipment. A plug
and jack used to connect this equipment to the premises wiring and
telephone network must comply with the applicable FCC Part 68 rules
and requirements adopted by the ACTA. A compliant telephone cord
and modular plug is provided with this product. It is designed to be
connected to a compatible modular jack that is also compliant. See
installation instructions for details.
The REN is used to determine the number of devices that may be
connected to a telephone line. Excessive RENs on a telephone line
may result in the devices not ringing in response to an incoming call. In
PRVWEXWQRWDOODUHDVWKHVXPRI5(1VVKRXOGQRWH[FHHG¿YH
To be certain of the number of devices that may be connected to a line,
as determined by the total RENs, contact the telephone provider. For
products approved after July 23, 2001, the REN for this product is part
RIWKHSURGXFWLGHQWL¿HUWKDWKDVWKHIRUPDW86$$$(47;;;;7KH
digits represented by ## are the REN without a decimal point (e.g., 03
is a REN of 0.3). For earlier products, the REN is separately shown on
the label.
If this equipment causes harm to the telephone network, the telephone
company will notify you in advance that temporary discontinuance
of service may be required. But if advance notice isn’t practical, the
telephone company will notify the customer as soon as possible. Also,
\RXZLOOEHDGYLVHGRI\RXUULJKWWR¿OHDFRPSODLQWZLWKWKH)&&LI\RX
believe it is necessary. The telephone company may make changes in
its facilities, equipment, operations or procedures that could affect the
operation of the equipment. If this happens the telephone company will
SURYLGHDGYDQFHQRWLFHLQRUGHUIRU\RXWRPDNHQHFHVVDU\PRGL¿FDWLRQV
to maintain uninterrupted service.
Please follow instructions for repairing, if any (e.g. battery replacement
section); otherwise do not substitute or repair any parts of the device
H[FHSWDVVSHFL¿HGLQWKLVPDQXDO&RQQHFWLRQWRSDUW\OLQHVHUYLFHLV
subject to state tariffs. Contact the state public utility commission, public
service commission or corporation commission for information. This
equipment is hearing aid compatible.
Should you experience trouble with this equipment, please contact
Uniden customer service at 800-297-1023. If the equipment is causing
harm to the telephone network, the telephone company may request that
you disconnect the equipment until the problem is resolved.
NOTICE: According to telephone company reports, AC electrical surges,
typically resulting from lightning strikes, are very destructive to telephone
equipment connected to AC power sources. To minimize damage from
these types of surges, a surge arrestor is recommended.
&KDQJHVRUPRGL¿FDWLRQVWRWKLVSURGXFWQRWH[SUHVVO\DSSURYHGE\
Uniden, or operation of this product in any way other than as detailed by
the owner’s manual, could void your authority to operate this product.
This device complies with part 15 of the FCC rules. Operation is subject
to the following two conditions: (1) This device may not cause harmful
interference, and (2) This device must accept any interference received,
including interference that may cause undesired operation. Privacy of
communications may not be ensured when using this phone.
To insure the safety of users, the FCC has established criteria for
the amount of radio frequency energy various products may produce
depending on their intended usage. This product has been tested
and found to comply with the FCC’s exposure criteria. For body worn
operation, the FCC RF exposure guidelines were also met when used
with the Uniden accessories supplied or designed for this product. Use
of other accessories may not ensure compliance with FCC RF exposure
guidelines and should be avoided.
The antenna(s) used for the base-unit must be installed to provide a
separation distance of at least 20 cm from all persons and must not
be collocated or operated in conjunction with any other antenna or
transmitter.
63
Radio Interference
Radio interference may occasionally cause buzzing and
humming in your cordless handset, or clicking noises in the
base. This interference is caused by external sources such
DV79UHIULJHUDWRUYDFXXPFOHDQHUÀXRUHVFHQWOLJKWLQJRU
electrical storm. Your unit is NOT DEFECTIVE. If these noises
continue and are too distracting, please check around your
home to see what appliances may be causing the problem.
In addition, we recommend that the base not be plugged into
a circuit that also powers a major appliance because of the
potential for interference. Be certain that the antenna on the
unit is fully extended when needed. In the unlikely event that
you consistently hear other voices or distracting transmissions
on your phone, you may be receiving radio signals from
another cordless telephone or other source of interference.
If you cannot eliminate this type of interference, you need to
change to a different channel.
Finally, it should be noted that some cordless telephones
operate at frequencies that may cause interference to nearby
TVs and VCRs. To minimize or prevent such interference, the
base of the cordless telephone should not be placed near or on
top of a TV or VCR. If interference is experienced, moving the
cordless telephone farther away from the TV or VCR will often
reduce or eliminate the interference.
Cordless Telephone Privacy
Cordless telephones are radio devices. Communications
between the handset and base of your cordless telephone
are accomplished by means of radio waves which are
broadcast over the open airways. Because of the inherent
physical properties of radio waves, your communications can
be received by radio receiving devices other than your own
cordless telephone unit. Consequently, any communications
using your cordless telephone may not be private.
I.C. Notice
Terminal Equipment
NOTICE: This equipment meets the applicable Industry
&DQDGD7HUPLQDO(TXLSPHQW7HFKQLFDO6SHFL¿FDWLRQV7KLVLV
FRQ¿UPHGE\WKHUHJLVWUDWLRQQXPEHU7KHDEEUHYLDWLRQ,&
EHIRUHWKHUHJLVWUDWLRQQXPEHUVLJQL¿HVWKDWUHJLVWUDWLRQZDV
performed based on a Declaration of Conformity indicating that
,QGXVWU\&DQDGDWHFKQLFDOVSHFL¿FDWLRQVZHUHPHW,WGRHVQRW
imply that Industry Canada approved the equipment.
NOTICE: The Ringer Equivalence Number (REN) for this
terminal equipment is marked on the equipment itself. The REN
assigned to each terminal equipment provides an indication
of the maximum number of terminals allowed to be connected
to a telephone interface. The termination on an interface may
consist of any combination of devices subject only to the
requirement that the sum of the Ringer Equivalence Numbers
RIDOOWKHGHYLFHVGRHVQRWH[FHHG¿YH
Radio Equipment
7KHWHUP³,&´EHIRUHWKHUDGLRFHUWL¿FDWLRQQXPEHURQO\VLJQL¿HV
WKDW,QGXVWU\&DQDGDWHFKQLFDOVSHFL¿FDWLRQVZHUHPHW
Operation is subject to the following two conditions: (1) this
device may not cause interference, and (2) this device must
accept any interference, including interference that may cause
undesired operation of the device. “Privacy of communications
may not be ensured when using this telephone.”
64
One Year Limited Warranty
Important: Evidence of original purchase is required for
warranty service. WARRANTOR: UNIDENAMERICA
CORPORATION (“Uniden”) ELEMENTS OF WARRANTY:
Uniden warrants, for one year, to the original retail owner,
this Uniden Product to be free from defects in materials and
craftsmanship with only the limitations or exclusions set out
below. WARRANTY DURATION: This warranty to the original
user shall terminate and be of no further effect 12 months
after the date of original retail sale. The warranty is invalid if
the Product is (A) damaged or not maintained as reasonable
RUQHFHVVDU\%PRGL¿HGDOWHUHGRUXVHGDVSDUWRIDQ\
FRQYHUVLRQNLWVVXEDVVHPEOLHVRUDQ\FRQ¿JXUDWLRQVQRWVROG
by Uniden, (C) improperly installed, (D) serviced or repaired by
someone other than an authorized Uniden service center for a
defect or malfunction covered by this warranty, (E)
used in any conjunction with equipment or parts or as part of
any system not manufactured by Uniden, or (F) installed or
programmed by anyone other than as detailed by the owner’s
manual for this product. STATEMENT OF REMEDY: In the
event that the product does not conform to this warranty at
any time while this warranty is in effect, warrantor will either,
at its option, repair or replace the defective unit and return
it to you without charge for parts, service, or any other cost
(except shipping and handling) incurred by warrantor or its
representatives in connection with the performance of this
warranty. Warrantor, at its option, may replace the unit with
a new or refurbished unit. THE LIMITED WARRANTY SET
FORTH ABOVE IS THE SOLE AND ENTIRE WARRANTY
PERTAINING TO THE PRODUCTAND IS IN LIEU OF
AND EXCLUDES ALL OTHER WARRANTIES OFANY
NATURE WHATSOEVER, WHETHER EXPRESS, IMPLIED
OR ARISING BY OPERATION OF LAW, INCLUDING,
BUT NOT LIMITED TOANY IMPLIED WARRANTIES OF
MERCHANTABILITY OR FITNESS FOR
A PARTICULAR PURPOSE. THIS WARRANTY DOES
NOT COVER OR PROVIDE FOR THE REIMBURSEMENT
OR PAYMENT OF INCIDENTAL OR CONSEQUENTIAL
DAMAGES.
Some states do not allow this exclusion or limitation of
incidental or consequential damages so the above limitation or
exclusion may not apply to you.
/(*$/5(0(',(67KLVZDUUDQW\JLYHV\RXVSHFL¿FOHJDO
rights, and you may also have other rights which vary from
state to state. This warranty is void outside the United States
of America and Canada. PROCEDURE FOR OBTAINING
PERFORMANCE OF WARRANTY: If, after following the
instructions in the owner’s manual you are certain that the
Product is defective, pack the Product carefully (preferably
in its original packaging). Disconnect the battery from the
Product and separately secure the battery in its own separate
packaging within the shipping carton. The Product should
include all parts and accessories originally packaged with the
Product. Include evidence of original purchase and a note
describing the defect that has caused you to return it. The
Product should be shipped freight prepaid, by traceable means,
to warrantor at:
Uniden America Service
4700 Amon Carter Blvd.
Fort Worth, TX 76155
65
Index
A
Accessibility ................................... 4
Answering calls............................ 30
Answering system ....................... 42
Using the answering system
interface ................................ 43
When away from home............. 50
Any key answer ........................... 29
Area code .................................... 40
AutoTalk ....................................... 29
B
Base
Installing ................................... 16
Parts of the base ........................ 8
Wall mounting ........................... 13
Battery
Installing ................................... 15
Low battery alert ....................... 54
Replacement and handling ....... 53
Talk and standby time ............... 54
Belt clip ........................................ 16
C
Call screening ........................ 46, 49
Call waiting .................................. 33
Caller ID....................................... 32
Deleting Caller ID records ........ 33
Making calls from...................... 32
Chain dialing ................................ 31
Clarity boost................................. 36
Conferencing ............................... 37
D
Day and time ............................... 44
Dial mode .............................. 18, 41
Digital security code .................... 56
F
FCC statements........................... 62
G
Greetings
Deleting .................................... 46
Recording ................................. 45
Selecting ................................... 45
H
Handset
Accessing the answering
system .................................... 48
Accessory handsets.................. 21
Choosing a ringer ..................... 28
Copying phonebook entries ...... 27
Displays and icons................ 9, 10
Entering text ..............................11
Parts of the handset ................... 7
Registering ............................... 22
Resetting ............................ 23, 55
Standby screen.......................... 10
Hanging up .................................. 30
Headset ....................................... 41
I
Installation ................................... 12
Intercom....................................... 40
K
Key touch tone............................. 20
M
Maintenance ................................ 52
Making calls ................................. 30
Using Caller ID ......................... 32
Using redial............................... 34
Using the phonebook................ 31
Message alert ........................ 47, 50
66
M
Mute
Microphone ............................... 39
Ringer ....................................... 39
O
Out of range................................. 56
P
3HUVRQDOLGHQWL¿FDWLRQQXPEHU
(PIN) ....................................... 47
Personal ring ............................... 19
Phonebook .................................. 24
Copying entries......................... 27
Creating new entries................. 24
Deleting entries......................... 26
Editing entries ........................... 25
Finding entries .......................... 25
Making calls from...................... 31
Storing Caller ID or redial
numbers ................................ 26
P
Privacy mode ............................... 39
Pulse dialing .......................... 18, 41
R
Redial
Deleting a record ...................... 34
Making calls with ...................... 34
Ringer
Choosing a handset ringer ....... 28
Muting ....................................... 39
Personal ring ............................ 19
S
Safety notices .............................. 61
Screening calls ...................... 47, 50
Security code
Answering system..................... 47
Seven-digit dialing ....................... 40
T
Text, entering ................................11
Tone dialing ........................... 18, 41
Transferring a call ........................ 37
V
Volume, adjusting ........................ 35
W
Wall mounting the base ............... 13
Warranty ...................................... 64
67
Memo
68
Remote Operation Card
CUT
Remote access
away from home
1. Call your phone number from a
touch-tone phone.
2. During the outgoing message,
press 0 and enter your PIN code.
The answering system announces
the number of messages stored in
memory and the voice prompts.
3. To quit, hang up the phone.
Turn on the answering
machine remotely
1. Call your phone and let it ring
10 times until you hear a beep.
2. Press 0 and then enter your
PIN code.
3. Press 0 then 5 to stop
the announcement.
4. Press 0 then 6 to turn the
answering system on.
CUT
Remote access
away from home
1. Call your phone number from a
touch-tone phone.
2. During the outgoing message,
press 0 and enter your PIN code.
The answering system announces
the number of messages stored in
memory and the voice prompts.
3. To quit, hang up the phone.
Turn on the answering
machine remotely
1. Call your phone and let it ring
10 times until you hear a beep.
2. Press 0 and then enter your
PIN code.
3. Press 0 then 5 to stop
the announcement.
4. Press 0 then 6 to turn the
answering system on.
CUT
Remote access
away from home
1. Call your phone number from a
touch-tone phone.
2. During the outgoing message,
press 0 and enter your PIN code.
The answering system announces
the number of messages stored in
memory and the voice prompts.
3. To quit, hang up the phone.
Turn on the answering
machine remotely
1. Call your phone and let it ring
10 times until you hear a beep.
2. Press 0 and then enter your
PIN code.
3. Press 0 then 5 to stop
the announcement.
4. Press 0 then 6 to turn the
answering system on.
CUT
Remote access
away from home
1. Call your phone number from a
touch-tone phone.
2. During the outgoing message,
press 0 and enter your PIN code.
The answering system announces
the number of messages stored in
memory and the voice prompts.
3. To quit, hang up the phone.
Turn on the answering
machine remotely
1. Call your phone and let it ring
10 times until you hear a beep.
2. Press 0 and then enter your
PIN code.
3. Press 0 then 5 to stop
the announcement.
4. Press 0 then 6 to turn the
answering system on.
69
CUT
 
Repeat a Message
Play Incoming Messages
Skip a Message
Delete a Message
Stop Operation
Answering System On
Answering System Off
Help
CUT
 
Repeat a Message
Play Incoming Messages
Skip a Message
Delete a Message
Stop Operation
Answering System On
Answering System Off
Help
CUT
 
Repeat a Message
Play Incoming Messages
Skip a Message
Delete a Message
Stop Operation
Answering System On
Answering System Off
Help
CUT
 
Repeat a Message
Play Incoming Messages
Skip a Message
Delete a Message
Stop Operation
Answering System On
Answering System Off
Help
70
At Uniden, we’ll take care of you!
Thank you for purchasing a Uniden product. if you have any questions or problems, please do not return
this product to the place of purchase.
Having trouble? Our customer care specialists are here to help you! Visit our web-site at
www.uniden.com or call our Customer Service Hotline at
1-800-297-1023 during regular business hours.*
Need a part? To order headsets, accessory handsets, replacement batteries, or other
accessories, visit our website at www.uniden.com or call
1-800-554-3988 during regular business hours.*
Help for our
customers with
special needs
If you need special assistance due to a disability or have questions on the
accessibility features of this product, please call
1-800-874-9314 (voice or TTY).
* Central Standard Time. Detailed customer service hours are available at www.uniden.com.
May be covered under one or more of the following U.S. patents:
4,797,916 5,426,690 5,434,905 5,491,745 5,493,605 5,533,010 5,574,727 5,581,598
5,650,790 5,660,269 5,661,780 5,663,981 5,671,248 5,696,471 5,717,312 5,732,355
5,754,407 5,758,289 5,768,345 5,787,356 5,794,152 5,801,466 5,825,161 5,864,619
5,893,034 5,912,968 5,915,227 5,929,598 5,930,720 5,960,358 5,987,330 6,044,281
6,070,082 6,125,277 6,253,088 6,314,278 6,418,209 6,618,015 6,671,315 6,714,630
6,782,098 6,788,920 6,788,953 6,839,550 6,889,184 6,901,271 6,907,094 6,914,940
6,953,118 7,023,176 7,030,819 7,146,160
Other patents pending.

Navigation menu
