Uniden America UT016 PORTABLE FRS/GMRS RADIO User Manual model GMR 1048 2CK english version

Uniden America Corporation PORTABLE FRS/GMRS RADIO model GMR 1048 2CK english version

model GMR 1048 2CK english version

GMR1048-2CK
*Range may vary depending on environmental and/or topographical conditions.
• 15 GMRS / 7 FRS Channels
• 99 Sub Codes
(CTCSS Tone and DCS Code)
• Up to 10 Mile Range*
•Scramble
• Internal VOX Circuitry
• 5 Selectable Call Tone Alerts
• Backlit LCD Display
• Optional Headset Accessories
• Headset Jack
• Roger Beep

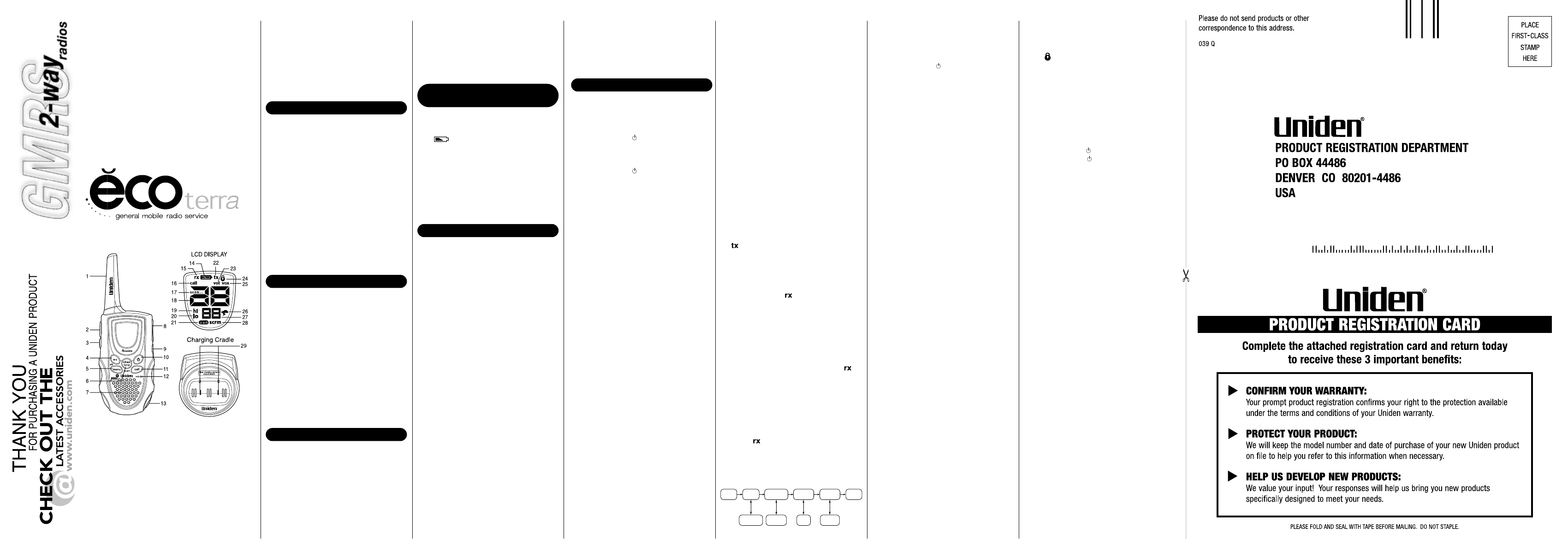

1 Antenna
2 PTT (Push-To-Talk) Button
3 Monitor Button
4 Weather/Alert Key
5Menu Key
6 Channel Tone/Scan Key
7 Speaker
8 Up/Down Button
9 Headset Jack
10 On/Off Key
11 Call Key
12 Microphone
13 DC IN 9V
14 Battery Level Meter
15 Receive Indicator
16 Call Indicator
17 Scan Indicator
18 Channel Indicator
19 Hi Power Indicator
20 Low Power Indicator
21 Alert Indicator
22 Transmit Indicator
23 Volume Setting Indicator
24 Keypad Lock Indicator
25 VOX Indicator
26 Weather Indicator
27 Sub Code Indicator
28 Scramble Indicator
29 Charging Contacts
Congratulations on your purchase of the Uniden
GMR1048-2CK (General Mobile Radio Service)
radio. This lightweight, palm-sized, radio is a
state-of-the-art device, equipped with many
valuable features. Use it at sporting events, to stay
in contact with family and friends, hiking, skiing,
outdoors, or in a neighborhood watch for vital
communication.
PACKAGE CONTENTS
Your package contains two GMR1048-2CK radios,
two rechargeable NiMH battery packs (#BP40), two
AC adapters (#AD-1004), two charging cradles
(#RC1041), two belt clips and this reference guide.
You can operate the unit using the rechargeable
NiMH battery pack or 4 AAA alkaline batteries
(not included). The following optional accessories
can be purchased by calling the Customer Hotline at
1-800-297-1023 (Mon-Fri 7 am to 7 pm,
Sat/Sun/holidays--except Thanksgiving and
Christmas--9 am to 5 pm, CST). Use only Uniden
accessories.
• NiMH Battery Pack - #BP40
• Charging Cradle - #RC1041
• Headset - #HS910/HS915
• AC Adapter - #AD-1004
GMRS LICENSE
The GMR1048-2CK radio operates on the
General Mobile Radio Service (GMRS)
frequencies when using Channels 1-7 and
channels 15-22. You must have a GMRS license
issued by the Federal Communications
Commission to legally use these channels.
For licensing information and application forms,
visit the FCC online at: www.fcc.gov/wtb/uls or
call the FCC hotline at 1-800-418-3676. If you
have any questions, you can contact the FCC
direct at 1-888-225-5322. No license is required
for operation on channels 8-14 or operation on
any channel in Canada.
INSTALL THE BATTERY
Your GMR1048-2CK radio uses a supplied NiMH
battery pack or 4 AAA alkaline batteries (not
included).
To install the NiMH battery pack:
1) Make sure your radio is OFF.
2) Remove the battery compartment door by
pressing the tab at the bottom of the
compartment door, and remove the cover.
3) Install the NiMH battery pack into the battery
USING THE RADIO
•Battery Charger
•Battery Level Meter
•Channel Monitor
•Channel Scan
•Keypad Lock
•NOAA Emergency /
Weather Channels
•Emergency Weather Alert
•DC IN 9V Jack
BATTERY LEVEL AND
LOW BATTERY ALERT
This unit has a battery level meter on the display to
indicate the status of the batteries. When the
battery in the unit is low, the battery level meter
icon flashes. Recharge the NiMH battery
pack immediately or if you are using the alkaline
batteries, you must replace the alkaline batteries in
order to continue using the radio.
Warning! To avoid the risk of personal injury or
property damage from fire or electrical shock, only
use the Uniden accessories specifically designated
for this product.
Normal Normal
Scramble
VOX Level Call Tone Key Lock
1-5
ON-OFF OFF, 1-5
ON-OFF
GMR1048-2CK RADIO
CHARGING THE RADIO
If you use the rechargeable NiMH battery pack, two
GMR1048-2CK radios can be charged directly or by
using the supplied charging cradle.
Charge by Using the Radio
1) Connect the AC adapter to DC IN 9V jack of the
radio and to a standard 120V wall outlet.
2) Charge the battery pack for 16 hours until the
battery indicator stop flashing.
Using the Charging Cradle
1) Connect the AC adapter to DC IN 9V jack and to
a standard 120V AC wall outlet.
2) Set the charging cradle on the desk or tabletop,
and place the radio in the charging cradle with
the keypad facing forward.
3) Charge the battery pack for 16 hours until the
battery indicator stops flashing. Then remove the
radio from the charging cradle after completing
charging.
Note:
• DC IN 9V Jack of the radio is for charge only.
Be sure to install the battery before charge.
• Use only the supplied battery and AC adapter or
approved accessories from Uniden.
• Charge time may vary depending on the battery
life remaining.
• Do not recharge alkaline batteries. Doing so can
create a safety hazard or damage the radio.
• For fastest charging, turn off the radio before
charging.
• Battery must be installed for operation, even from
external power.
compartment. Be certain to follow the
instructions written on the label on the battery
pack. Installing the battery pack incorrectly will
prevent the unit from operating.
4) Replace the battery compartment door.
In order to get the most out of your new radio, read
this reference guide completely before attempting to
operate the unit.
Turning the Radio On and Adjusting the Volume
1) Press and hold the key to turn the radio ON,
and increase the speaker volume by pressing the
▲key. To decrease the volume, press the ▼
key.
2) Press and hold the key again to turn the
radio OFF.
Adjusting the Sound (Key Beeps)
Your radio emits a beep each time one of the keys
(except for the PTT button and call key) is pressed.
To turn this sound OFF, press and hold the call key
while turning ON the radio. Repeat this step to turn
the sound ON.
Choosing a Channel
Your radio has 22 channels and 99 Sub codes you
can use to talk to others. In order to speak to
someone, each of you must be set to the same
channel and Sub code.
To choose a channel:
With the radio in "Normal" operating mode press
the chan tone/scan key and press the ▲or ▼key
to increase or decrease the channel number
displayed.
Note: Channels 1-7 have an typical range of up to
10 miles. Channels 8-14 have an typical range of
up to 5 miles. Channels 15-22 have an typical
range of up to 10 miles.You can know which GMRS
or FRS channel is active by the icon. hi icon is
displayed while scanning GMRS channels, and the
lo icon is displayed while scanning FRS channels.
Choosing a Sub Code
Each of the channels 1-22 may have any one of
the codes, OFF or 1-99 selected. Code oF (OFF)
indicates no Sub code selected and your radio can
receive a signal regardless of the code settings of
the transmitting radio.
1) Press chan tone/scan in channel select mode.
The subcode indicator will flash.
2) Press the ▲or ▼key to increase or decrease
the code number displayed. You can also select
oF (OFF) at this stage.
3) Exit the Menu.
Channel Scan Feature
Your GMR1048-2CK radio has a channel scan
feature that allows you to easily scan all 22
channels. When an active channel is detected, the
radio pauses on that channel until the channel is
clear. Then after a 2 second delay, the radio
continues scanning. Pressing the PTT button while
the scan is paused on a channel allows you to
transmit on that channel.
To turn ON channel scan:
Press and hold the chan tone/scan key until the
scan... icon is displayed. The channel number on
the display changes as the radio rapidly cycles
through the channels.
To turn OFF channel scan:
Press the call, PTT, wx/alert or menu key, or
press and hold the chan tone/scan key for 2
seconds.
Talking on Your Radio
To talk to others using the radio:
1) Press and hold the PTT button and speak in a
clear, normal voice about 2-3 inches away from
the microphone. While you are transmitting, the
icon appears on the display. To avoid cutting
off the first part of your transmission, pause
slightly after pressing the PTT button before you
start talking.
2) When you have finished speaking, release the
PTT button. You can now receive incoming calls.
While receiving, the icon appears on the
display.
Monitor Mode Feature
Your GMR1048-2CK radio allows you to listen for
weak signals on the current channel at the press of
a key.
To turn ON the Monitor Mode:
•For brief listening, press mon button. The
icon blinks.
•Press and hold mon button for 2 seconds untill
two beeps sound for continuous listening. The
receiver circuit stays open, letting both the noise
and weak signals to be heard.
To turn OFF Monitor Mode:
Press mon button to return to "Normal" mode,
and the icon stops blinking and disappears.
Navigating through the Menu
To access the advanced features of the GMR1048-
2CK, your radio has a Menu function.
1) To enter the Menu, press the menu key.
2) Additional presses of the menu key advances
you through the Menu until exiting to "Normal"
operating mode.
3) Other methods of exiting the Menu function are:
a. Press and hold the key again.
b. Press the PTT, mon, call, wx/alert, or chan
tone/scan key
c. Wait 10 seconds until the unit automatically
returns to “Normal”mode.
Setting Scramble
Scramble feature allows you to make a private
conversation. No one listening to your conversation
can understand what you are talking about. Be sure
that your party also sets their radio to the scramble
feature.
To set Scramble:
1) Enter the Menu.
2) Select on using ▲or ▼.
Voice Operated Transmission
Your GMR1048-2CK radio is equipped with a user
selectable Voice Operated Transmitter (VOX) that
can be used for automatic voice transmissions. The
VOX feature is designed to be used with a headset
with a microphone. Transmission is initiated by
speaking into the remote microphone instead of
pushing the PTT button.
To select the VOX level:
1) Enter the Menu. Advance through the Menu until
the vox icon appears on the display. The current
level (OFF, 1-5) will be indicated. Level oF (OFF)
disables VOX, while levels 1-5 set the
sensitivity of the VOX circuit.
2) Press either the ▲or ▼key to the desired VOX
sensitivity level. Use level 1 for increased
sensitivity to voice in normally quiet
environments, and use a higher level to reduce
undesired activation in very noisy environments.
Transmitting a Call Tone
Your GMR1048-2CK radio is equipped with 5
selectable call tones that are transmitted when the
call key is pressed.
To select a call tone:
1) Enter the Menu. Advance through the Menu until
the call icon is shown on the display. The current
call tone number (1-5) is indicated.
2) Press the ▲or ▼key to increase or decrease
the number to the desired call tone. Each tone
will be heard through the speaker.
To transmit the selected call tone, press the call
key. The selected tone will automatically be
transmitted for a fixed length of time. Call Tone will
be cancelled when the PTT button is pressed.
Key Lock
To lock the keypad:
1) Enter the Menu. Advance through the Menu until
the icon appears on the display. The current
Key Lock status oF (OFF) blinks on the display.
2) To switch the Key Lock mode from oF (OFF) to on,
press the ▲key.
3) To confirm the setting, press the menu key.
The radio returns to the "Normal" mode.
Note: If you exit the setting mode before confirming
your selection by pressing the menu key, the Key
Lock setting will be set tooF (OFF).
To unlock the keypad:
1) Press and hold the key to turn the radio OFF.
2) Press and hold the key again to turn the radio
ON. The keypad is unlocked.
Automatic Power Save Feature
Your GMR1048-2CK radio has a unique circuit
designed to dramatically extend the life of the
batteries. If there is no transmission nor an incoming
call within 3 seconds, your radio switches to the
Power Save mode. The radio is still able to receive
transmissions in this mode.
LCD Backlight
The LCD Backlight automatically turns ON when any
key (except the PTT button) is pressed. The LCD
display illuminates for 10 seconds before turning OFF.
Roger Beep
Roger Beep is a BEEP that is sent to notify the end of
transmission (both PTT and VOX transmission).
Roger Beep can be heard through the speaker when
both Roger beep and Key Beep are set to ON. When
Roger beep is set to ON and Key Beep OFF, Roger
Beep will not be heard from the speaker but it will be
transmitted to your party. When Roger Beep is set to
OFF, Roger Beep neither be herad nor transmitted.
To turn ON Roger Beep:
Press and hold the ▲key while turning ON the radio.
To turn OFF Roger Beep:
Press and hold the ▲key while turning ON the radio.
•If battery Power is low, you cannot operate the
radio even using external power. Allow the
batteries to charge before using. If you try to
transmit while power is low, the radio will
automatically turn off.
Channels 15 GMRS/7 FRS/7 Weather
Sub Codes 38 Sub-Audible Tones
61 DCS Codes
Operating Frequency
GMRS/FRS: 462.5500 - 467.7125 MHz
WX: 162.4000 - 162.5500 MHz
Power Source NiMH Battery Pack (BP40) or
4 AAA Alkaline Batteries
Range Channel 1-7 up to 10 miles
Channel 8-14 up to 5 miles
Channel 15-22 up to 10 miles
Battery Life 12 Hours typ. -
Alkaline Batteries
(5/5/90 duty cycle)
12 Hours typ. - NiMH
Battery Pack
Frequency Chart
Ch. Freq. Cross Ref. Ch. Freq. Cross Ref.
1 462.5625 FRS & GMRS 1 12 467.6625 FRS 12
2 462.5875 FRS & GMRS 2 13 467.6875 FRS 13
3 462.6125 FRS & GMRS 3 14 467.7125 FRS 14
4 462.6375 FRS & GMRS 4 15 462.5500 GMRS 11
5 462.6625 FRS & GMRS 5 16 462.5750 GMRS 8
6 462.6875 FRS & GMRS 6 17 462.6000 GMRS 12
7 462.7125 FRS & GMRS 7 18 462.6250 GMRS 9
8 467.5625 FRS 8 19 462.6500 GMRS 13
9 467.5875 FRS 9 20 462.6750 GMRS 10
10 467.6125 FRS 10 21 462.7000 GMRS 14
11 467.6375 FRS 11 22 462.7250 GMRS 15
This device complies with Part 15 of the FCC
Rules. Operation is subject to the following two
conditions:
(1) This device may not cause harmful interference.
(2) This device must accept any interference
received, including interference that may cause
undesired operation.
Important: Changes or modifications to this unit
not expressly approved by Uniden could void your
authority to operate this unit. Your radio is set up
to transmit a regulated signal on an assigned
frequency. It is against the law to alter or adjust the
settings inside the radio to exceed those limitations.
Any adjustments to your radio must be made by
qualified technicians.
To be safe and sure:
• Never open your radio’s case.
• Never change or replace anything in your radio
except the batteries.
Your radio might cause TV or radio interference
even when it is operating properly. To determine
whether your radio is causing the interference, turn
it off. If the interference goes away, your radio is
causing it. Try to eliminate the interference by
moving your radio away from the receiver. If you
cannot eliminate the interference, the FCC requires
that you stop using the radio.
Hazardous Environments: Do not operate the
radio in hazardous environments. Explosion or fire
may result. Do not operate the radio near
unshielded electrical blasting caps.
Under certain conditions, radios can interfere with
blasting operations and may cause an explosion.
Turn your radio OFF to prevent accidental
transmission when in a blasting area or in areas
posted: "Turn off two-way radio." Construction
crews often use remote control RF devices to set
off explosives.
Care and Safety: To clean the radio, use a soft
cloth dampened with water. Do not use cleaners or
solvents because they can harm the body of the
unit and leak inside, causing permanent damage.
Use a dry, lint-free cloth to clean the battery
contacts. Do not submerge the unit in water. If the
unit gets wet, turn it off and remove the batteries
immediately.
Dry the battery compartment with a soft cloth to
minimize potential water damage. Leave the battery
compartment cover off overnight to ensure
complete drying. Do not use the radio until the unit
is completely dry.
Important: Evidence of original purchase is
required for warranty service.
WARRANTOR: UNIDEN AMERICA
CORPORATION ("Uniden")
ELEMENTS OF WARRANTY: Uniden warrants, for
one year, to the original retail owner, this Uniden
Product to be free from defects in materials and
craftsmanship with only the limitations or exclusions
set out below.
WARRANTY DURATION: This warranty to the
original user shall terminate and be of no further
effect 12 months after the date of original retail
sale. The warranty is invalid if the Product is:
(A) damaged or not maintained as reasonable or
necessary, (B) modified, altered, or used as part
of any conversion kits, sub-assemblies, or any
configurations not sold by Uniden, (C) improperly
installed, (D) serviced or repaired by someone
other than an authorized Uniden service center for
a defect or malfunction covered by this warranty,
(E) used in any conjunction with equipment or parts
or as part of any system not manufactured by
Uniden, or (F) installed or programmed by anyone
other than as detailed by the owner’s manual for
this product.
STATEMENT OF REMEDY: In the event that the
product does not conform to this warranty at any
time while this warranty is in effect, warrantor will
either, at its option, repair or replace the defective
unit and return it to you without charge for parts,
service, or any other cost (except shipping and
handling) incurred by warrantor or its
representatives in connection with the performance
of this warranty. Warrantor, at its option, may
replace the unit with a new or refurbished unit.
THE LIMITED WARRANTY SET FORTH ABOVE
IS THE SOLE AND ENTIRE WARRANTY
PERTAINING TO THE PRODUCT AND IS IN LIEU
OF AND EXCLUDES ALL OTHER WARRANTIES
OF ANY NATURE WHATSOEVER, WHETHER
EXPRESS, IMPLIED OR ARISING BY
OPERATION OF LAW, INCLUDING, BUT NOT
LIMITED TO ANY IMPLIED WARRANTIES OF
MERCHANTABILITY OR FITNESS FOR A
PARTICULAR PURPOSE.THIS WARRANTY DOES
NOT COVER OR PROVIDE FOR THE
REIMBURSEMENT OVERPAYMENT OF
INCIDENTAL OR CONSEQUENTIAL DAMAGES.
Some states do not allow this exclusion or limitation
of incidental or consequential damages so the
above limitation or exclusion may not apply to you.
LEGAL REMEDIES: This warranty gives you
specific legal rights, and you may also have other
rights which vary from state to state. This warranty
is void outside the United States of America and
Canada.
PROCEDURE FOR OBTAINING PERFORMANCE
OF WARRANTY: If, after following the instructions
in the owner’s manual you are certain that the
Product is defective, pack the Product carefully
(preferably in its original packaging). Disconnect the
battery from the Product and separately secure the
battery in its own separate packaging within the
shipping carton. The Product should include all
parts and accessories originally packaged with the
Product. Include evidence of original purchase and
a note describing the defect that has caused you to
return it.The Product should be shipped freight
prepaid, by traceable means, to warrantor at:
ONE YEAR LIMITED WARRANTYREGULATORY INFORMATION
WARNING! Read this information before using
the radio. In August 1996 the Federal
Communications Commission (FCC) of the United
States with its action in Report and Order FCC
96-326 adopted an updated safety standard for
human exposure to radio frequency
electromagnetic energy emitted by FCC regulated
transmitters.
Those guidelines are consistent with the safety
standard previously set by both U.S. and
international standards bodies. The design of the
radio complies with the FCC guidelines and these
international standards.
Never allow children to operate the radio without
adult supervision and the knowledge of the
following guidelines.
WARNING! It is up to the user to properly operate
this radio transmitter to insure safe operation.
Please adhere to the following:
Use only the supplied or an approved antenna.
Unauthorized antennas, modifications, or
attachments could impair call quality, damage the
radio, or result in violation of FCC regulations.
Do not use the radio with a damaged antenna.
If a damaged antenna comes into contact with the
skin, a minor burn may result. Please contact your
local dealer for a replacement antenna.
Body-worn Operation
This device was tested for typical body-worn
operations using the supplied belt-clip.
To maintain compliance with FCC RF exposure
requirements, Body-worn operations are restricted
to the supplied belt-clip.
For hand-held operation, the radio should be held
1 inch from the user's face. The use of accessories
that do not satisfy these requirements may not
comply with FCC RF exposure requirements and
should be avoided.
For more information about RF exposure, please
visit the FCC web site at www.fcc.gov.
RF EXPOSURE INFORMATION
Covered under one or more of the following
U.S. patents:
4,684,870 4,734,049 5,203,015 5,214,789
5,491,745 5,497,508 5,517,677 5,557,606
5,574,994 5,610,946 5,613,201 5,625,870
5,627,876 5,628,059 5,634,196 5,634,205
5,678,176 5,697,096 5,717,312 5,722,070
5,787,345 5,901,341 6,021,326 6,084,861
6,163,691 6,195,415 6,353,730 6,839,550
Uniden America Service
4700 Amon Carter Blvd. Fort Worth, TX 76155
(800) 297-1023, 7:00 a.m. to 7:00 p.m. CST,
Monday through Friday: 9:00 a.m. to 5:00 p.m. CST,
Saturday, Sunday and Holidays (except
Thanksgiving and Christmas).
© 2006 Uniden America Corporation
All rights reserved Printed in China
UTZZ01016ZA(0)
SPECIFICATIONS
Your GMR1048-2CK radio can receive weather
broadcasts from the NOAA National Weather
Service. When in the Weather Radio Alert mode,
the system functions as it does in GMRS mode but
also monitors the selected weather channel for
alerts when not communicating.
While using the Weather Radio, you are not able to
receive GMRS communications.
1) To turn ON the Weather Radio Broadcast mode,
press the wx/alert key. The icon appears
on the display.
2) Press the chan tone/scan key, and press the ▲
or ▼key to increase or decrease the number to
the desired Weather Channel.
3) To exit the Weather Radio Broadcast mode,
press the wx/alert key. The icon
disappears from the display.
• To change the channel continuously, press and
hold the ▲or ▼key for more than 1 second.
• When in the Weather Radio Broadcast mode,
you can only set the Key Lock from the Menu
mode.
Choosing an Emergency/Weather Channel
There are 7 NOAA channel frequencies available
and these frequencies are common between the US
and Canada. You will need to know what
frequency is being transmitted in your location.
1) Press and hold the wx/alert key. The
icon appears on the display.
2) When the unit receives a warning signal, it beeps
for 5 seconds. The icon, the icon
and channel indicator blinks.
3) To turn OFF Weather Alert, press and hold the
wx/alert key. The icon disappears from
the display.
•When Weather Alert is activated, the highest priority
is given to this function. It checks the weather alert
signals every 7 seconds and switches to the warning
receive mode automatically.
•Weather Alert is activated even if key beep is
turned off.
USING THE WEATHER RADIO
NOAA Weather Radio Frequency List
Channel 1 162.550 MHz Channel 5 162.450 MHz
Channel 2 162.400 MHz Channel 6 162.500 MHz
Channel 3 162.475 MHz Channel 7 162.525 MHz
Channel 4 162.425 MHz
CTCSS Chart (Hz)
Code Freq. Code Freq.
oF OFF 20 131.8
1 67.0 21 136.5
2 71.9 22 141.3
3 74.4 23 146.2
4 77.0 24 151.4
5 79.7 25 156.7
6 82.5 26 162.2
7 85.4 27 167.9
8 88.5 28 173.8
9 91.5 29 179.9
10 94.8 30 186.2
11 97.4 31 192.8
12 100.0 32 203.5
13 103.5 33 210.7
14 107.2 34 218.1
15 110.9 35 225.7
16 114.8 36 233.6
17 118.8 37 241.8
18 123.0 38 250.3
19 127.3
Tone Octal
No. Code
39 23
40 25
41 26
42 31
43 32
44 43
45 47
46 51
47 54
48 65
49 71
50 72
51 73
52 74
53 114
54 115
55 116
56 125
57 131
58 132
59 134
60 143
Tone Octal
No. Code
61 152
62 155
63 156
64 162
65 165
66 172
67 174
68 205
69 223
70 226
71 243
72 244
73 245
74 251
75 261
76 263
77 265
78 271
79 306
80 311
81 315
82 331
Tone Octal
No. Code
83 343
84 346
85 351
86 364
87 365
88 371
89 411
90 412
91 413
92 423
93 431
94 432
95 445
96 464
97 465
98 466
99 503
--
--
--
--
--
DCS Code List

Navigation menu
