SAFETY NOTICE
The antenna used for this radio must be properly installed and
maintained and must provide a separation distance of at least 34 cm
(13.4 Inches) from all persons and must not be collocated or operated in
conjunction with any other antenna or transmitter. Never transmit if any
person is closer than the specified distance to the antenna.
Note that Uniden does not specify or supply any antenna with this
transceiver. While a 0 dBi gain antenna is normal for a typical installation,
the above limit applies to any antenna with up to 3 dBi gain.
L’appareil est conforme aux normes d’Industrie Canada. Son
fonctionnement est soumis aux deux conditions suivantes : (1) Ce
dispositif ne doit pas causer d’interférences et (2), il doit pouvoir accepter
les interférences, incluant celles pouvant nuire à son fonctionnement
normal.
Changes or modifications to this product or use of accessories not
expressly approved by Uniden, or operation of this product in any way
other than as provided in the Uniden Owner’s Manual could void your
authority to operate this product.
A complete Owner’s Manual in French can be downloaded from http://
www.uniden.com/.
UNPACKING
Your PC787 contains the following:
PC787 CB 2-way mobile radio
Microphone
Mounting Bracket Kit
DC Power Cord
Reference Guide
Part 95 Subpart D (FCC Rules)
If any items are missing or damaged, contact your place of purchase
immediately.
5
DESCRIPTION
Your PC787 represents the highest quality communications device
designed for use in the Citizens Band Radio Service. It will operate on any
of the 40 AM frequencies authorized by the Federal Communications
Commission (FCC).
The Citizens Band Radio Service is under the jurisdiction of the Federal
Communications Commission (FCC). Any adjustments or alterations
which would alter the performance of the transceiver's original FCC type
acceptance, or which would change the frequency determining method,
are strictly prohibited.
Replacement or substitution of crystal, transistors, ICs, regulator
diodes, or any other part of a unique nature, with parts other than those
recommend by Uniden, may cause violations of the technical regulations
in Part 95 of the FCC Rules or in violation of type acceptance requirements
in Part 2 of the rules.
FEATURES
CB AM 40 channels (4W)
7 weather channels with Weather Alert
Public Address function (External speaker required - not
provided)
Automatic Noise Limiter
Noise Blanker
Transmit/Receive LED (Red and yellow-green)
CH9 and CH19 direct tune
Dimmer control (High/Medium/Low)
Variable RF Gain
Variable MIC Gain
Variable Tone control
Multifunction Meter (RF, Signal Strength, and SWR)
Variable Volume control
Variable Squelch control
6-pin microphone jack
6
EMERGENCY OPERATION
1. Move the 9/19/NORM switch to 9; the radio automatically tunes
to Channel 9 and disables the channel selector.
2. Press and hold PTT and speak clearly. Release PTT after speaking.
3. If there is no response, move the 9/19/NORM switch to 19; the
radio automatically tunes to Channel 19.
4. Press and hold PTT and speak clearly. Release PTT after speaking.
5. If there is still no response, move the 9/19/NORM switch to
NORM and ask that party to relay your emergency broadcast on
Channel 9.
All channels except Channel 9 may be used for normal communication.
The FCC reserves Channel 9 for emergencies involving the immediate
safety of individuals or protection of property. Use Channel 9 to render
assistance to a motorist.
This is an FCC rule and applies to all CB radio operators.
CONTROLS AND FUNCTIONS
161412109 11 1513
2 8765431
1. Multifunction meter. When receiving, the meter shows the
received signal strength. Use CAL and SWR to tune an antenna for
best performance.
2. S/RF/CAL/SWR switch: Selects S/RF, CAL, and SWR to be
measured through the multifunction meter.
3. CB/WX/PA switch: Selects CB (Citizens Band) or WX (Weather)
modes, or activates the PA (Public Address) feature.
7
Do not use the PA function unless an external speaker is connected.
4. NB+ANL/ANL/OFF switch: Activates the Noise Blanker (NB) and
Automatic Noise Limiter (ANL) features. NB reduces external
noise and ANL reduces background noise from the car engine
and other sources. OFF turns o both the NB and ANL features.
5. 9/19/NORM switch: Move the switch to select emergency
channel 9, channel 19, or standard CB channels.
All channels except Channel 9 may be used for normal communication.
The FCC reserves Channel 9 for emergencies involving the immediate
safety of individuals or protection of property. Use Channel 9 to render
assistance to a motorist.
6. HIGH/MED/LOW switch: Adjust LCD backlight and all
illuminations brightness.
7. RX/TX LED: Indicates whether the radio is transmitting (red) or
receiving (yellow-green).
8. Channel Indicator: Displays the channel currently in use.
9. 6-Pin Microphone Jack: Connects the radio to the detachable
microphone (included).
10. Channel Selector knob: Turn this knob to select CB or Weather
channels.
11. RF Gain inner knob: Turn the inner knob to reduce interference in
strong signal areas.
12. MIC Gain outer knob: Turn the outer knob to adjust the
microphone sensitivity.
13. CAL inner knob: Turn the inner knob to calibrate the meter for
Standing Wave Ratio (SWR) measurements.
14. TONE outer knob: Turn the outer knob to change the tone quality.
15. VOL inner knob: Turn the inner knob to turn the radio on and o
and to adjust the volume.
16. SQUELCH outer knob: Turn the outer knob to reduce background
noise when there is no incoming signal.
8
17 18 19
20
21
22

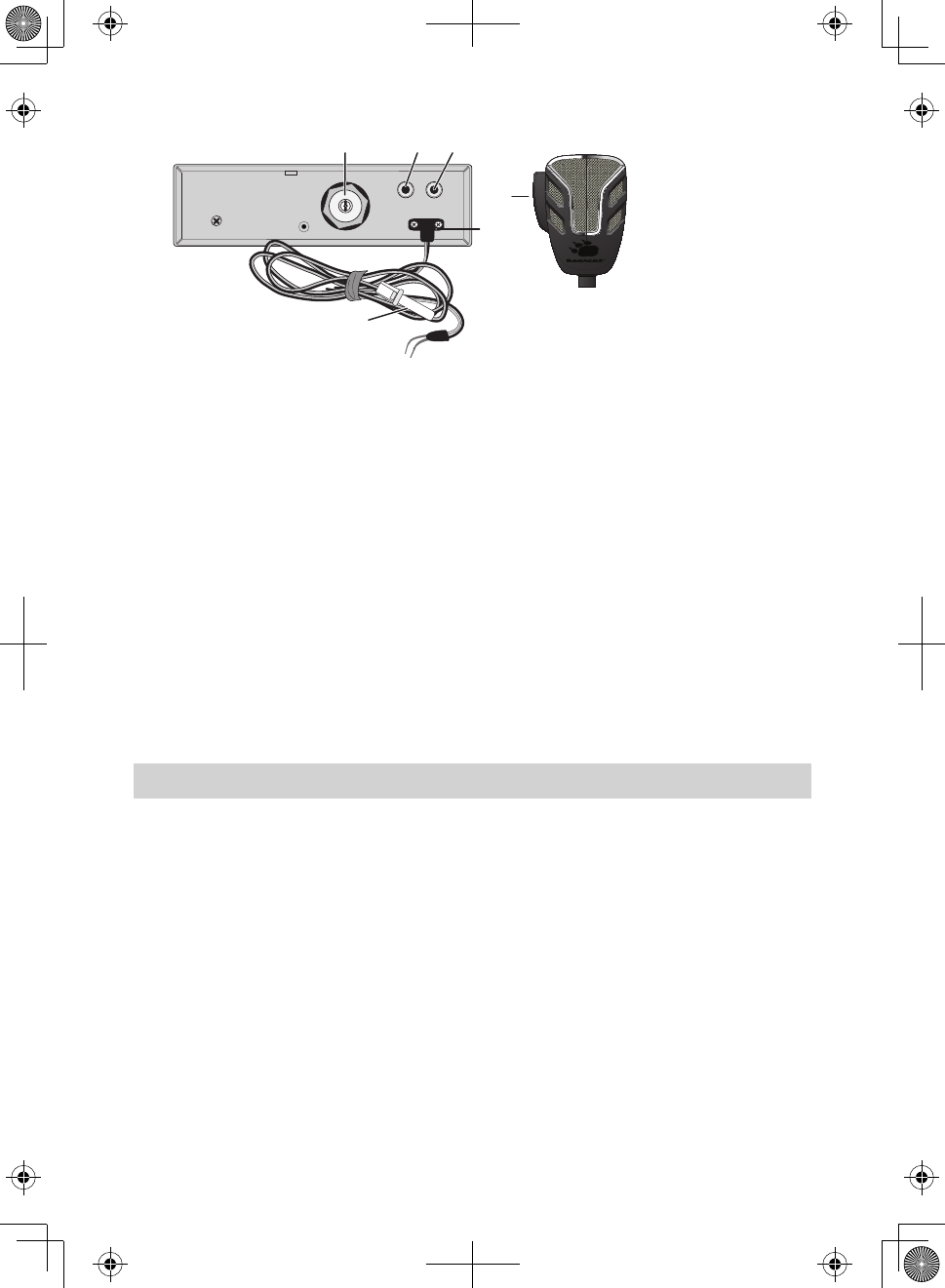

17. Antenna socket: Connects antenna to the unit.
18. PA SP: Connects optional external 8-ohm, over 5-watt speaker for
use as a public address system.
To prevent acoustic feedback, separate the microphone from the speaker
when operating the PA at high output levels.
19. EXT. SP: Connects optional external 8-ohm, over 5-watt speaker
for CB and WX operation.
When the external speaker is plugged in, the internal speaker is o.
20. POWER: Connects DC power to transceiver.
21. Fuse.
22. PTT: Push-to-Talk.
INSTALLATION
MOBILE INSTALLATION
Plan the location of the transceiver and microphone bracket before
beginning installation.
1. Select a location that is convenient for operating the radio but
does not interfere with the driver or passenger.
2. Install bracket with self-tapping screws provided.
3. Connect power cords (see page 9).
4. Attach the microphone bracket to side of the radio.
5. Attach radio to bracket.
9
Mobile Antenna
WARNING! The antenna used for this radio must be installed at least 13.4
inches (34 cm) away from all persons. The antenna must not be collocated
or used with any other antenna or transmitter.
CAUTION: Never operate your radio with no antenna or with a damaged
antenna cable. This can damage the radio.
You must purchase an antenna to operate this radio. Because the
maximum power output of the transmitter is limited by the FCC, the
quality of your antenna is very important. To achieve the maximum
transmission distance, Uniden strongly recommends that you install only
a high quality antenna. You have just purchased a superior transceiver -
don't diminish its performance by installing an inferior antenna.
Only a properly matched antenna system will allow maximum power
transfer from the 50 ohm transmission line to the radiating element.
Your Uniden dealer is qualified to help you select the proper antenna for
your requirements. A whip style antenna may be used for automobile
installation.
A short ‘loaded’ whip antenna is easier to install on an automobile, but its
efficiency is less than that of a full quarter-wave whip antenna.
Wireless CB Microphone Installation (Optional)
Your PC787 is compatible with Uniden’s BC906W Wireless CB
Microphone. With a range up to 300 feet, the BC906W allows you to use
your CB to communicate even when you need to get out of your vehicle.
Follow the instructions provided in the BC906W kit to install the wireless
microphone.
Connecting the Power Cords
Uniden recommends connecting the power lead to the Ignition Switch
Accessory Terminal. This way, the transceiver is automatically turned off
when the ignition switch is turned off.
As an alternative, the power cord may be connected to an available
terminal on the fuse block or to a point in the wiring harness. However,
10
caution must be taken to prevent a short circuit. If in doubt, contact your
vehicle dealer for information.
Ground Information
This transceiver may be installed and used in any 12-volt DC negative
ground system vehicle.
Negative Ground System
With a negative ground system, the negative (-) battery terminal is
usually connected to the vehicle motor block.

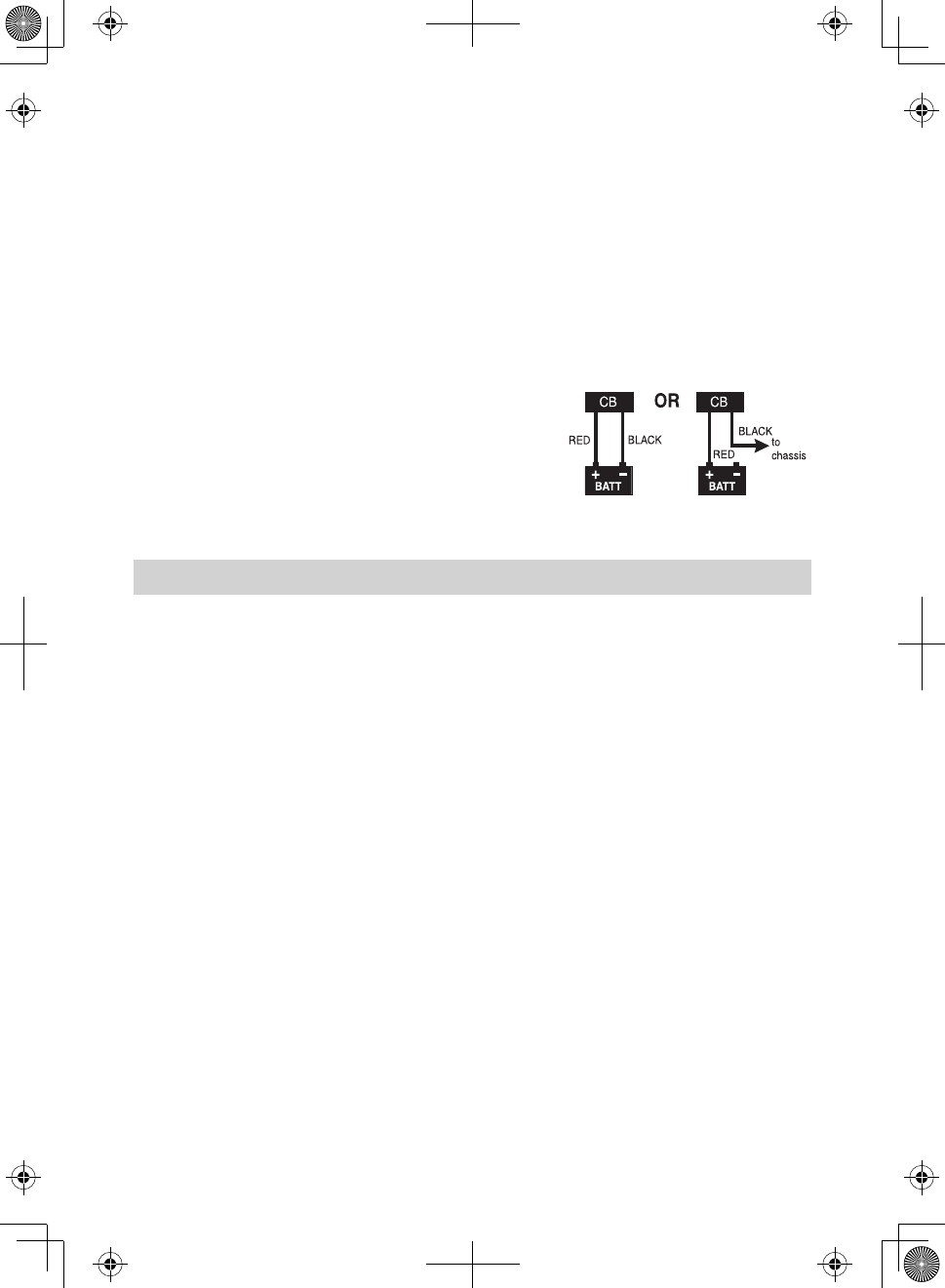

Connect the red DC power cord from the
transceiver to the positive (+) battery terminal
or other convenient point. Then connect the
black power cord to the vehicle chassis or negative (-) battery terminal.
USING YOUR PC787
TURN PC787 ON/OFF
Turn the VOL knob clockwise until the unit turns on and the display
backlight turns on.
Turn the VOL knob counter-clockwise to turn the unit off.
CB MODE
Be sure that the power source, antenna, and microphone are properly
connected before proceeding.
Basic Settings
1. Turn unit on. Set volume to a comfortable level.
2. Set switch to CB.
3. Select a CB channel (CH knob).
4. Set noise limitations as desired (ANL/NB switch).
5. Adjust squelch.
• Turn SQ knob fully clockwise so only strong signals can get
through.
11
• Turn SQ knob fully counterclockwise until you hear a hiss.
Everything gets through - noise, weak signals, and strong
signals
• Turn SQ knob clockwise until the hiss stops. Only clearer
signals get through.
Set SQUELCH only when the radio is not receiving a strong signal.
6. Set the S/RF/SWR/CAL switch to S/RF.
7. Press and hold PTT and check the multifunction meter. It will
show the RF output power. Adjust as needed.
8. Turn RF knob to set RF gain sensitivity. Normally, the knob is
turned clockwise to maximum.
9. Turn MIC knob to adjust microphone sensitivity for transmission.
Normally, the knob is turned clockwise to maximum.
10. Set the brightness (HIGH, MED, or LOW).
The Weather Alert system monitors the last weather channel you were on
before you changed to CB mode. It sounds a seven-second signal when it
decodes a severe weather alert issued for your area. Change to Weather
mode for details.
Calibrate Standing Wave Ratio (SWR)
SWR calibration monitors the coaxial cable quality and all RF connections.
Do not calibrate in an enclosed area such as a garage. Do not stand near
the antenna while calibrating.
1. Set CB/WX/PA to CB and select channel 20.
2. Set S/RF/SWR/CAL to CAL.
3. Press and hold PTT on the mic. The needle on the multipurpose
meter will begin to move.
4. Turn the CAL knob until the meter needle moved into the red
calibration block. When the needle moves towards the right-hand
side of the block, stop.
5. Still holding PTT, move the S/RF/SWR/CAL to SWR. The needle
should move back to the left-hand side of the meter. Ideally, it
should be as far left a possible. If the reading is higher than 3,
adjust the antenna height.
6. Release PTT.
12
7. Repeat the steps for channel 1 and channel 40 to complete
calibration.
The readings will be slightly higher for channel 1 and channel 40 than for
channel 20.
WEATHER MODE WX MODE
Your radio combines a CB radio with a Weather radio and a Weather Alert
system. The Weather radio continually broadcasts weather conditions
when you are in Weather mode.
Weather Alert function does not work in Weather mode.
1. Set the CB/WX/PA switch to WX. Your radio is now in Weather
radio mode.
2. Turn the channel selector knob to select 1 of 7 weather channels.
ANL and NB do not work in WX mode.
PA MODE
Using the PA mode requires an optional speaker.
1. Switch to PA.
2. Press and hold PTT to speak.
3. Release when nished.
To prevent acoustic feedback, separate the microphone from the speaker
when operating the PA at high output levels.
If you are in PA mode but not pressing PTT, the radio receives CB
transmissions and transmits them through the PA speaker. You cannot
respond to the transmission.
PREVENTIVE MAINTENANCE
Every six months:
1. Check the SWR.
2. Be sure all electrical connections are tight.
3. Inspect antenna coaxial cable for wear or breaks in shielding.
4. Be sure all screws and mounting hardware are tight.
13
MAINTENANCE
The PC787 is designed to give you years of trouble-free service. There are
no user-serviceable parts inside. Except for the fuse in the DC power cord,
no maintenance is required.
To replace a blown fuse:
1. Press ends of the fuse holder together. Twist to open. Carefully
separate the two pieces.
2. Remove the fuse and inspect. If blown, replace with the same
type fuse.
Use only the fuse specied for your PC787. Failure to do so may void your
warranty.
TROUBLESHOOTING
In the event of system malfunction, perform the following procedures:
Problem Suggestion
Unit does not power up Check power cord connections.
Check fuse.
Check vehicle electrical system.
No reception Check microphone connection.
Set CB/WX/PA to CB.
Check VOL and SQ.
Check antenna.
Check antenna connection.
Adjust RF Gain.
Poor Reception Check VOL and SQ.
Be sure antenna SWR is normal.
Adjust RF Gain.
No Transmission Set CB/WX/PA switch to CB.
Check microphone connection.
Adjust MIC Gain.
Low Transmission Adjust MIC Gain.
Calibration does not move the
meter needle to the left side
Adjust the antenna height.
Check all antenna connections.
14
If you do not get satisfactory results after performing these checks, call
the Uniden Customer Service Center at 1-800-297-1023, 8:00 a.m. to 5:00
p.m. CST, Monday through Friday.
SERVICING YOUR TRANSCEIVER
Technical information, diagrams, and charts are provided on request. It
is the user's responsibility to see that this radio is operating at all times
in accordance with the FCC Citizens Radio Service regulations. We highly
recommend that you consult a qualified radio/telephone technician for
servicing and aligning this CB radio product.
When ordering parts, be sure to specify the correct model number and
serial number of the unit.
SPECIFICATIONS
GENERAL
Channel: 40
Frequency Range: 26.965 - 27.405 MHz
Frequency Control: PLL Synthesizer
Antenna Impedance: 50 ohms
Power Input: 13.8VDC
Current Drain
TX: AM Full Modulation: 2.1A (max)
RX: At no signal: 400mA
Operating Temperature: -22°F to 140°F (-30°C to 60°C)
Accessories: DC Power Cord
Microphone
Microphone Hanger
Mounting Bracket
Size (W x D x H): 7.25 in. x 7.5 in. x 2.25 in.
(without knobs and jacks)
(184.149 mm x 190.50 mm x 57.15
mm)
Weight: 2.2 Pounds
TRANSMITTER
Output Power: 4 watts
15
TRANSMITTER (Cont’d)
Emission Type: 6A3
Hum and Noise: Better than 40 dB
Frequency Tolerance: ±0.002%
Modulation Percentage (Peak): 100%
Spurious Rejection: -70 dB
Output Impedance: 50 ohm, unbalanced
RECEIVER
Sensitivity at 10 dB S+N/N: 0.5 µV
Sensitivity at 500 mW Audio Output: 0.5 µV
Squelch Threshold: 0.5 µV
Antenna Impedance: 50 ohms
Squelch Tight: 1000 µV
Signal Meter S-9: 100 µV
Audio Output Power (max.): 5 watts
Audio Output (10% Dist.): 4 watts
Adjacent Channel Rejection: 60dB
Image Rejection: 90dB
Internal Speaker Impedance: 16 ohms
External Speaker Impedance: 8 ohms
PUBLIC ADDRESS
Output Power at 10% Distortion: 4 watts
Specications shown are typical and subject to change without notice.
RADIO CODE DEFINITIONS
10CODES
The following list contains common “10-Codes” used by CB radio
operators for faster communication and better understanding.
Code Meaning Code Meaning
10-1 Received poorly 10-34 Trouble at this station
10-2 Receiving well 10-35 Condential information
10-3 Stop transmitting 10-36 Correct time is
16
Code Meaning Code Meaning
10-4 OK, message received 10-37 Wrecker needed at
10-5 Relay message 10-38 Ambulance needed at
10-6 Busy, stand by 10-39 Your message is delivered
10-7 Out of service, leaving air 10-41 Please turn to channel
10-8 In service, subject to call 10-42 Trac accident at
10-9 Repeat message 10-43 Trac tie up at
10-10 Transmission completed,
standing by
10-44 I have a message for you
10-11 Talking too rapidly 10-45 All units within range please
report
10-12 Visitors present 10-50 Break channel
10-13 Advise Weather/ Road
conditions
10-60 What is next message number
10-16 Make pickup at 10-62 Unable to copy, use phone
10-17 Urgent business 10-63 Net directed to
10-18 Anything for us? 10-64 Net clear
10-19 Nothing for you, return to
base
10-65 Awaiting your next message/as-
signment
10-20 My location is 10-67 All units comply
10-21 Call by telephone 10-70 Fire at
10-22 Report in person to 10-71 Proceed with transmission in
sequence
10-23 Stand by 10-77 Negative contact
10-24 Completed last assignment 10-81 Reserve hotel room for
10-25 Can you contact 10-82 Reserve room for
10-26 Disregard last information 10-84 My telephone number is
10-27 I am moving to channel 10-85 My address is
10-28 Identify your station 10-91 Talk closer to microphone
10-29 Time is up for contact 10-93 Check my frequency on this
channel
10-30 Does not conform to FCC
rules
10-94 Please give me a long count
10-32 I will give you a radio check 10-99 Mission completed, all units
secure
17
Code Meaning Code Meaning
10-33 EMERGENCY TRAFFIC 10-200 Police needed at
FCC PART 15 INFORMATION
This device complies with part 15 of the FCC rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) This device must accept
any interference received, including interference that may cause undesired operation. Privacy of
communications may not be ensured when using this radio.
TWOYEAR EXTENDED WARRANTY
Important: Evidence of original purchase is required for warranty service.
WARRANTOR: UNIDEN AMERICA CORPORATION (“Uniden”)
ELEMENTS OF WARRANTY: Uniden warrants, for two years, to the original retail owner,
this Uniden Product to be free from defects in materials and craftsmanship with only the
limitations or exclusions set out below.
WARRANTY DURATION: This warranty to the original user shall terminate and be of
no further effect two years after the date of original retail sale. The warranty is invalid if
the Product is (A) damaged or not maintained as reasonable or necessary, (B) modified,
altered, or used as part of any conversion kits, subassemblies, or any configurations
not sold by Uniden, (C) improperly installed, (D) serviced or repaired by someone other
than an authorized Uniden service center for a defect or malfunction covered by this
warranty, (E) used in any conjunction with equipment or parts or as part of any system
not manufactured by Uniden, or (F) installed or programmed by anyone other than as
detailed by the owner’s manual for this product.
STATEMENT OF REMEDY: In the event that the product does not conform to this
warranty at any time while this warranty is in effect, warrantor will either, at its option,
repair or replace the defective unit and return it to you without charge for parts,
service, or any other cost (except shipping and handling) incurred by warrantor or
its representatives in connection with the performance of this warranty. Warrantor,
at its option, may replace the unit with a new or refurbished unit. THE LIMITED
WARRANTY SET FORTH ABOVE IS THE SOLE AND ENTIRE WARRANTY PERTAINING TO THE
PRODUCT AND IS IN LIEU OF AND EXCLUDES ALL OTHER WARRANTIES OF ANY NATURE
WHATSOEVER, WHETHER EXPRESS, IMPLIED OR ARISING BY OPERATION OF LAW,
INCLUDING, BUT NOT LIMITED TO ANY IMPLIED WARRANTIES OF MERCHANTABILITY
OR FITNESS FOR A PARTICULAR PURPOSE. THIS WARRANTY DOES NOT COVER OR
PROVIDE FOR THE REIMBURSEMENT OR PAYMENT OF INCIDENTAL OR CONSEQUENTIAL
DAMAGES.
18
Some states do not allow this exclusion or limitation of incidental or consequential
damages so the above limitation or exclusion may not apply to you.
LEGAL REMEDIES: This warranty gives you specific legal rights, and you may also have
other rights which vary from state to state. This warranty is void outside the United
States of America.
PROCEDURE FOR OBTAINING PERFORMANCE OF WARRANTY: If, after following the
instructions in the owner’s manual you are certain that the Product is defective, pack the
Product carefully (preferably in its original packaging). The Product should include all
parts and accessories originally packaged with the Product. Include evidence of original
purchase and a note describing the defect that has caused you to return it. The Product
should be shipped freight prepaid, by traceable means, to warrantor at:
Uniden America Corporation
743 Henrietta Creek Rd.
Roanoke, TX 76262
(800) 297-1023, 8 a.m. to 5 p.m., Central, Monday through Friday
