This transmitter will operate on channels/frequencies that have
restricted use in the United States. The channel assignments
include frequencies assigned for exclusive use of the U.S.
Coast Guard, use in Canada, and use in international waters.
Operation in these frequencies without proper authorization is
strictly forbidden. For frequencies/channels that are currently
for use in the U.S. without an individual license, please contact
the FCC Call Center at 1-888-CALL-FCC.
Maritime Radio Services Operation
Warning!
For individuals requiring a license, such as commercial users, you should obtain
a license application from your nearest FCC field office.
UT888ZL (POLARIS)-0805 8/5/02 4:50 PM Page ii
Uniden POLARIS....................................................................................2
Controls and Indicators...........................................................................3
Installation...............................................................................................6
Choosing a Location..........................................................................6
Engine Noise Suppression ................................................................7
Antenna Considerations ....................................................................7
Antenna Selection and Installation ....................................................7
Installing the POLARIS......................................................................8
Operation ................................................................................................9
Power On/Off.....................................................................................9
Squelch............................................................................................10
Triple Watch .....................................................................................11
Manual Tuning .................................................................................11
Instant Channel 16/Channel 9 Communications.............................12
Weather Scan..................................................................................12
MEM (Entering channel numbers into Memory Scan) ....................12
Weather Alert...................................................................................14
Transmitting .....................................................................................15
Setting TX Output ............................................................................15
Distress............................................................................................16
Menu Operation....................................................................................17
Digital Selective Calling (DSC)........................................................17
Individual ....................................................................................17
Group .........................................................................................18
All Ships .....................................................................................19
POS.Request .............................................................................20
Standby ......................................................................................21
Callwait.......................................................................................22
System.............................................................................................24
Contrast......................................................................................24
Lamp Adjust ...............................................................................25
Key Beep ...................................................................................26
LCD Color ..................................................................................27
Setup ...............................................................................................28
FIPS ...........................................................................................28
User MMSI .................................................................................30
Group MMSI...............................................................................32
U.I.C ...........................................................................................33
Contents
UT888ZL (POLARIS)-0805 8/5/02 4:50 PM Page iii
Directory.....................................................................................34
Auto. CH. SW.............................................................................38
POS.Reply .................................................................................39
WHAM........................................................................................41
CH Tag .......................................................................................43
Time Offset.................................................................................45
Alarm Clock................................................................................47
Rev.CH.MEM ........................................................................................50
Optional Accessories ............................................................................51
VHF FM Marine Radio Telephone
Channel and Functions (USA Channels) ........................................52
Channel and Functions (International Channels) ...........................53
Channel and Functions (Canadian Channels)................................54
Specification .........................................................................................55
Troubleshooting ....................................................................................56
Care and Maintenance .........................................................................57
Three Year Limited Warranty................................................................59
UT888ZL (POLARIS)-0805 8/5/02 4:50 PM Page iv
2
The Uniden POLARIS VHF marine radio transceiver has been designed
to give you a rugged, reliable instrument that will provide you with years
of trouble-free service.
With proper care and maintenance, your Uniden POLARIS could outlast
your present vessel and serve you well on-board. The full features and
flexibility designed into this quality transceiver will prevent it from
becoming obsolete regardless of changes in craft or geographic
locations.
The technical excellence of the Uniden POLARIS is demonstrated by
the multiplicity of uses for which it has been found acceptable by the
U.S. Federal Communications Commission. The Uniden POLARIS is
acceptable for compulsory use on "party boats," for use on vessels
subject to the Great Lakes Radio Agreement or bridge-to-bridge
requirements, for general pleasure and commercial vessels, and certain
land stations in marine service.
The Uniden POLARIS is of all solid-state design with conservatively
rated, rugged components and materials compatible with the marine
environment. The transceiver utilizes a number of gaskets, sealing
rings, waterproof membranes, and other sealants to effect a waterproof
housing for protection of the electronics. The unit may be mounted in
any number of convenient locations on your vessel by utilizing the
universal mounting bracket.
You are encouraged to thoroughly read the rest of this Operating Guide
to acquaint yourself with the characteristics and operation of your
transceiver so that you can contribute to the longevity of your
investment.
Keep your receipt as proof-of-purchase in case warranty service is
required.
Features, specifications, and availability of optional accessories are all
subject to change without notice.
Uniden POLARIS
UT888ZL (POLARIS)-0805 8/5/02 4:50 PM Page 2
3

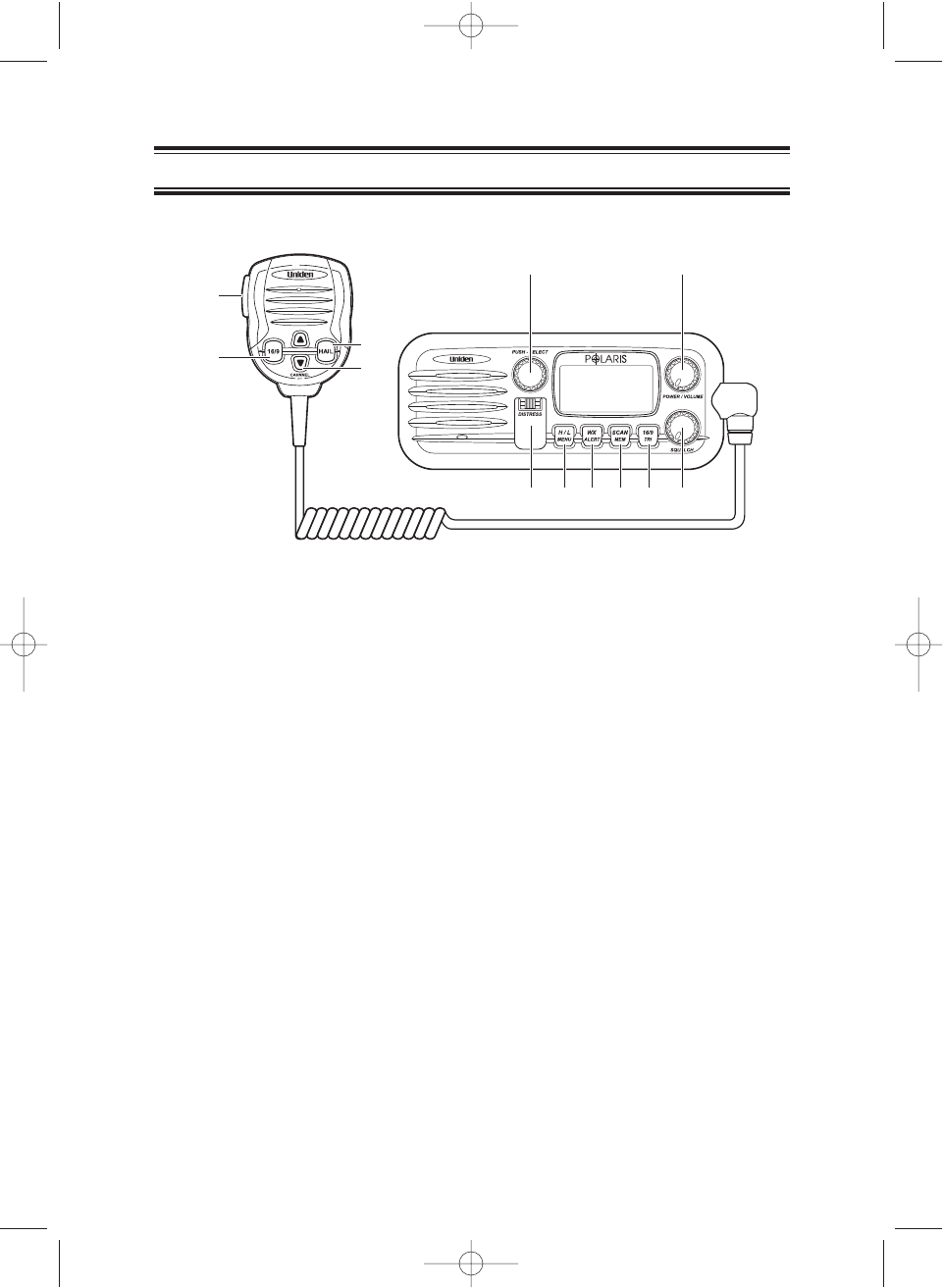

Front panel/Microphone
1. PTT Switch - Press to transmit and release to receive.
2. 16/9 - Change Channel 16 and Channel 9.
3. HAIL - Use as a public address system.
4. CHANNEL - Change channel number up/down. These buttons are used to
adjust the volume for Hail.
5. PUSH/SELECT - This is used to manually select the desired
Communication Channel (01-28 and 60-88), or Weather Channel (0-9). In
the MENU mode this is used to select the menu options. It also changes to
GPS mode. It is used to adjust the volume for HAIL.
6. POWER/VOLUME (On/Off/Volume) - Turns the unit On or Off and adjust
the audio output.
7. DISTRESS - Send a signal of distress in case of emergency.
8. H/L/MENU - Change output power Hi/Lo and select Menu mode. Press
this key to change output power High and Low. Press and hold the key for
2 seconds to enter the MENU mode.
9. WX/ALERT - Select weather channel and weather alert mode. Press this
key to listen the active NOAA weather channels.
Press and hold the key for 2 seconds to place the radio into the weather
alert mode.
10. SCAN/MEM - Select Scan mode and setup memory channel.
Press this key to activate scan operation. Press and hold the key for 2
seconds to select memory channel or cancel memory channel.
11. 16/9/TRI - Access channel 16/9, and setup Triple Watch function On/Off.
Press this key to access instant channel 16 and channel 9 communications.
Press and hold the key for 2 seconds to turn Triple Watch On/Off.
12. SQUELCH - Eliminate background noise when no signal is received.
Controls and Indicators
4
3
2
1
65
1287 9 10 11
UT888ZL (POLARIS)-0805 8/5/02 4:50 PM Page 3
4

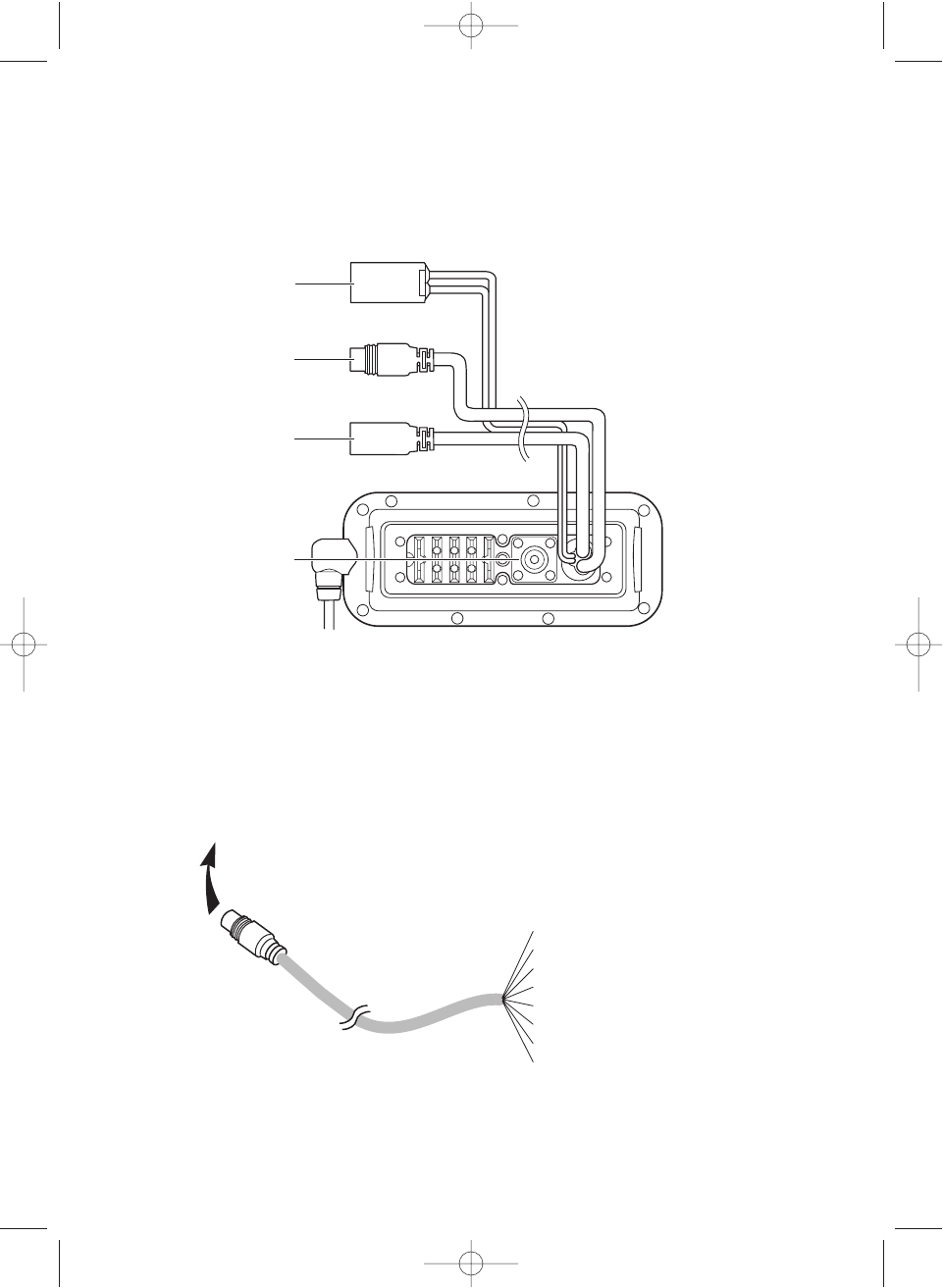

Rear Panel Connectors
2
3
4
1
1. DC Jack
2. ACC Connector
3. Remote Connector
4. Antenna Connector
To POLARIS
Bare Wire : GND
Black : External Speaker (
—
)
Yellow : GPS IN (
—
)
Blue : PA (+) Horn Speaker
Green : GPS IN (+)
Brown : PA (
—
) Horn Speaker
Red : DC +13.8V
Orange : External Speaker (+)
UT888ZL (POLARIS)-0805 8/5/02 4:50 PM Page 4
5

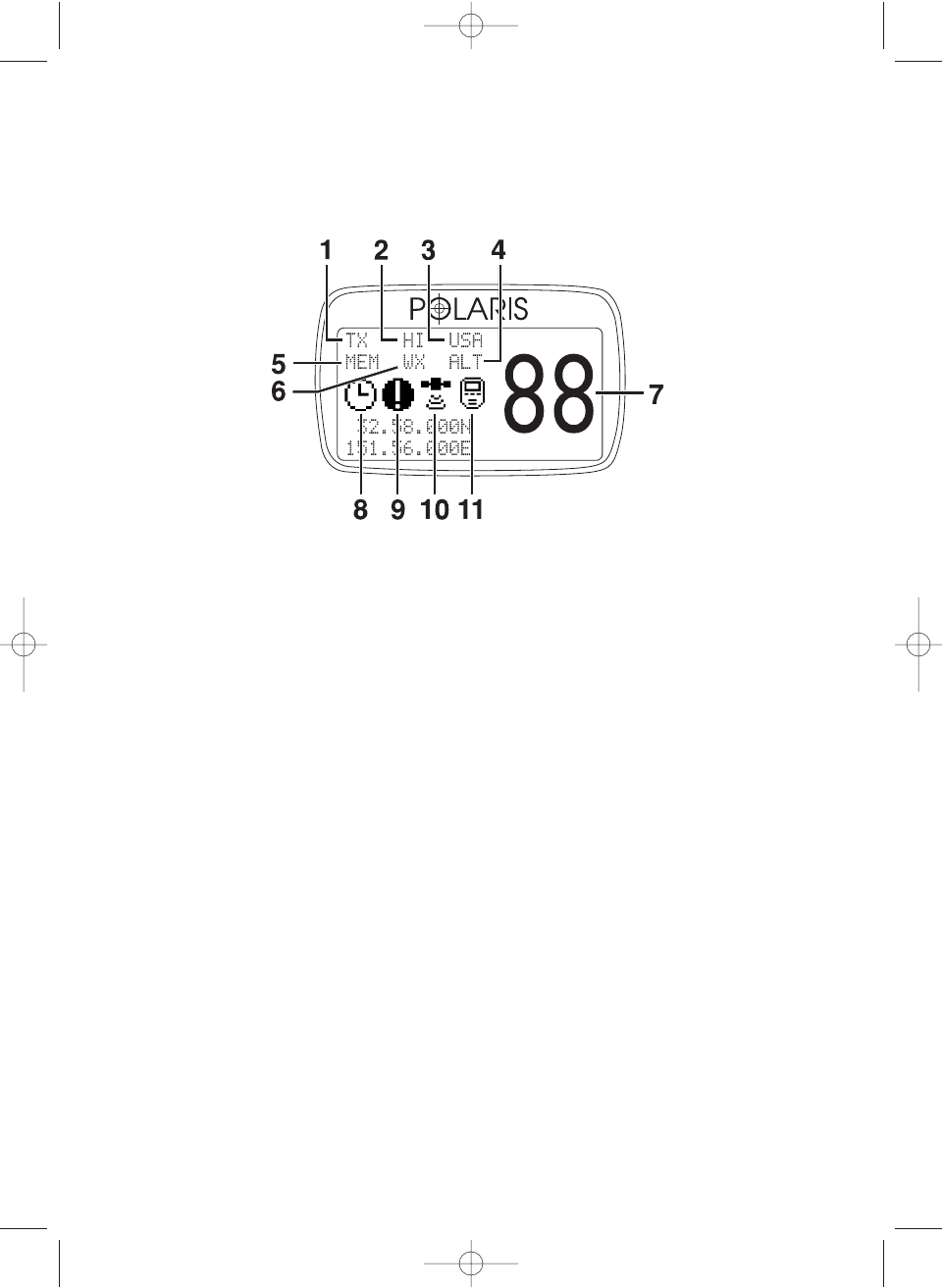

1. TX (Transmit) - Indicates transmitting.
TRI (Triple Watch) - Indicates Triple Watch Mode is in effect.
2. HI (High) - Indicates transmitted output is 25 Watts.
LO (Low) - Indicates transmitted output is 1 Watts.
3. USA - Indicates US Channel Mode.
CAN - Indicates Canada Channel Mode.
INT - Indicates International Channel Mode.
4. ALT - Indicates Weather Alert Mode has been activated.
5. MEM (Memory) - Indicates Memory Scan Mode status for each
channel selected.
6. WX - Indicate Weather Channel Mode has been activated.
7. Channel Display - Indicates Channel Number in use.
8. (Alarm mark) - It appears when the alarm is set.
9. (Exclamation mark) - It appears when it receives WX Alert.
10. (GPS mark) - It appears while GPS module is receiving the
data.
11. (WHAM mark) - It appears when it is connected to the base of
WHAM.
UT888ZL (POLARIS)-0805 8/5/02 4:50 PM Page 5
6
Installation
Caution: The POLARIS will only operate with nominal 12 volt negative
ground battery system.
It is important to carefully determine the most suitable location for your
POLARIS on your vessel. Electrical, mechanical, and environmental
considerations must all be taken into account. You should select the
optimum relationship among these considerations.
Keep in mind the flexibility designed into the POLARIS so that you can
most conveniently use your radio. Features which should be considered
are:
1. The universal mounting bracket may be installed on either the top
or bottom of a shelf, on a bulkhead, or for overhead mounting.
2. The REMOTE speaker jack can be used with an auxiliary
speaker.
3. All connections are "plug-in" type for easy removal of the radio.
4. Front fire internal speaker allows convenient in-dash mounting
using the optional bracket.
Choosing a Location
Some important factors to consider in selecting the location for your
POLARIS.
1. Select a location that is free from spray and splash.
2. Keep the battery leads as short as possible. Direct connection to
the battery is most desirable. If direct connection can not be
made with the supplied power lead, any extension should be
made with #10 AWG wire. Long extensions should use larger
gauge wire.
3. Keep the antenna lead as short as possible. Long antenna leads
can cause substantial loss of performance for both receiving and
transmitting.
4. Locate your antenna as high as possible and clear from metal
objects. The reliable range of coverage is a direct function of the
antenna height.
5. Select a location that does not allow the radio to be subjected to
direct sunlight (including that coming through windows).
6. Select a location that allows free air flow around the heat sink on
the rear of the radio.
7. Select a location well away from the ship’s compass. Auxiliary
speakers also should be located away from the compass.
UT888ZL (POLARIS)-0805 8/5/02 4:50 PM Page 6
7
Engine Noise Suppression
Interference from the noise generated by the electrical systems of
engines is sometimes a problem with radios. The POLARIS has been
designed to be essentially impervious to ignition noise and alternator
noise. However, in some installations it may be necessary to take
measures to further reduce the effect of noise interference. All DC
battery wires, antenna lead, and accessory cables should be routed
away from the engine and engine compartment, and from power cabling
carrying high currents.
In severe cases of noise interference, it may be necessary to install a
noise suppression kit. Contact your Uniden Dealer for more information.
Antenna Considerations
A variety of antennas are available from a number of quality suppliers.
It is recommended you draw upon the advice of your Uniden dealer in
determining a suitable antenna for your vessel and range requirements.
In general, communication range is increased by using a high-gain
antenna placed as high as possible above the water line. Antennas
should be located away from metal objects. Antennas should not have
excessively long coaxial feed cables.
Antenna Selection and Installation
Your Uniden Polaris radio has been designed to accomodate all of the
popular marine VHF antennas. However, the selection and the
installation of the antenna is the responsibility of the user or installer.
The FCC has determined that excessive radiation poses a health risk to
people near radio transmitting antennas. Therefore, the antenna used
with this radio should be installed using the following guidelines to insure
a suitable distance between the antenna and persons close by.
Small whip antennas (3 dB) or smaller should be installed keeping at
least three feet separation distance between the radiating element and
people.
Larger antennas (6 dB or 9 dB) should be installed keeping at least a six
foot separation distance.
No person should touch the antenna or come into the separation
distance when the radio is transmitting.
UT888ZL (POLARIS)-0805 8/7/02 1:04 PM Page 7
8
Installing the POLARIS
After you have carefully considered the various factors affecting your
choice of location, position the radio (with the bracket, microphone,
power cord, antenna and any auxiliary cables installed) into the selected
location to assure there is no interference with the surrounding items.

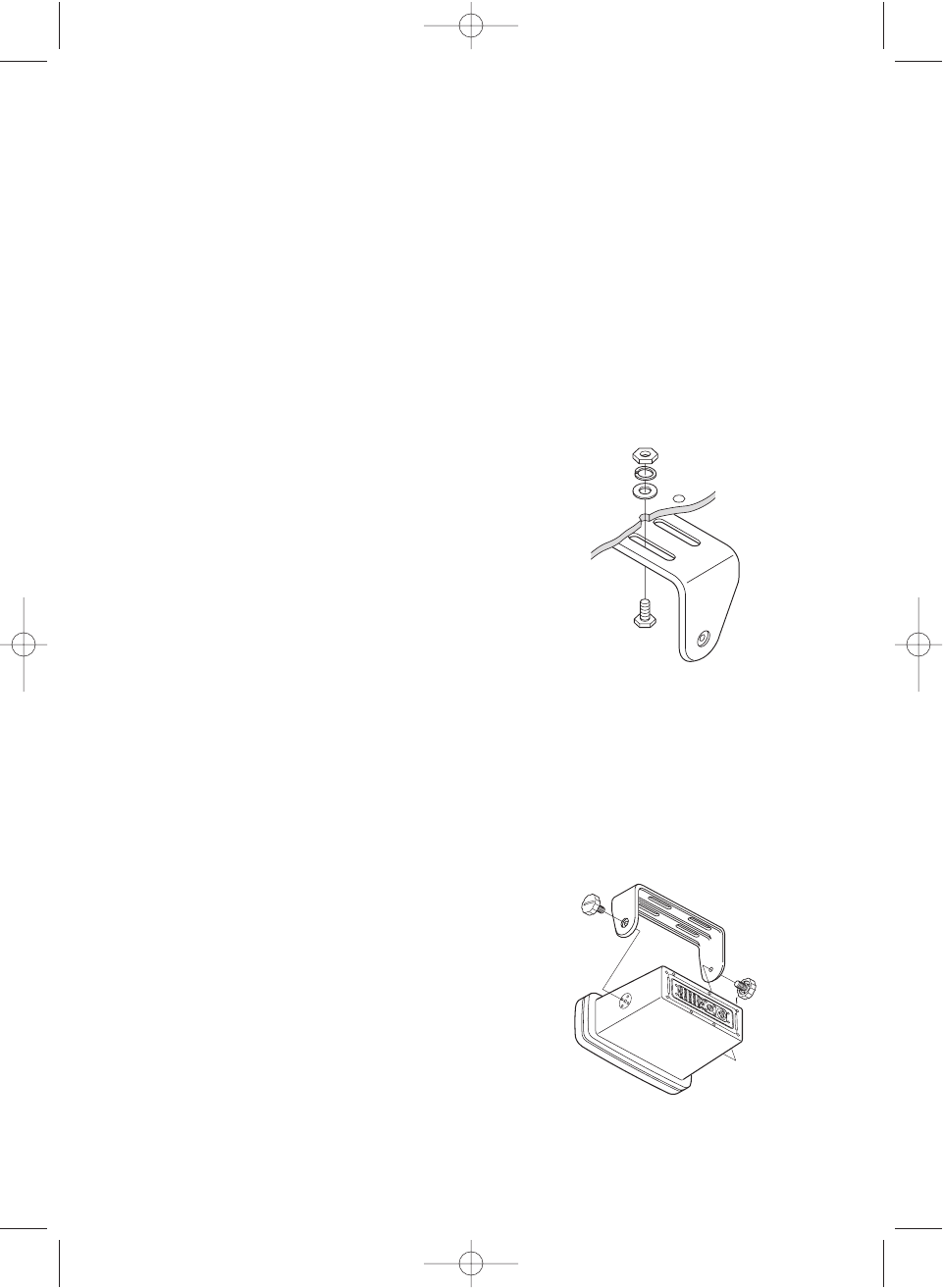

Mark the location of the mounting bracket. Remove the bracket from the
radio and use it as a template to mark the holes to be drilled for the
mounting hardware. Drill the holes and mount the bracket with
hardware compatible with the material of the mounting surface.
Note: This HEXAGON HEAD BOLT is
only for mounting the bracket
with hardware. Do not use it for
installing the radio in the
mounting bracket.
Connect the red wire of the supplied power cord to the positive (+)
battery supply. Connect the black wire of the power cord to ground.
The power cord is equipped with a fuse to protect the radio. Use only a
six (6) ampere fast blow fuse for replacement. Connect the power cord
to the keyed connector on the power "pigtail".
Connect the antenna and all other auxiliary cables and accessories.
Install the radio in the mounting bracket and connect all cables and
accessories to the appropriate jacks and connectors.
Note: Do not use any other mounting
knobs than the ones enclosed.
Do not insert the knobs without
attaching the bracket.
UT888ZL (POLARIS)-0805 8/5/02 4:50 PM Page 8
9
POWER ON/OFF
1. Turn the unit on by rotating the
POWER/VOLUME control clockwise.
Adjust the volume to a comfortable
level.
When you turn the unit On, you will hear a
beep and the greeting message below
appears on the LCD for 2 seconds.
Note: Polaris meets the JIS7 require ments.
Operation
UNIDEN
POLARIS
MARINE
RADIO
UT888ZL (POLARIS)-0805 8/5/02 4:50 PM Page 9
10

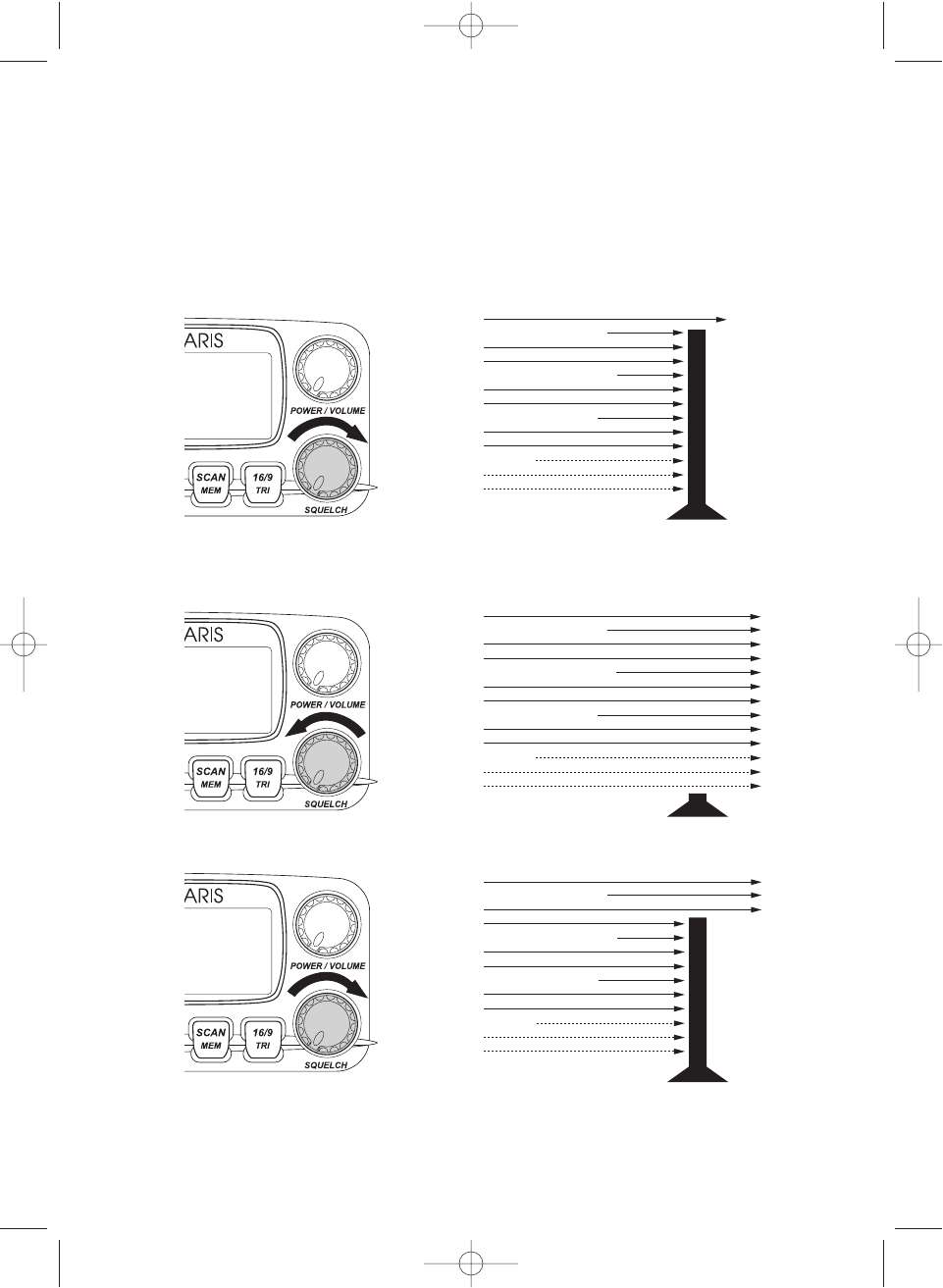

Think of squelch as a gate. turn SQUELCH fully clockwise. this raises
the “Squelch Gate” so high that only very strong signals can get through.
Turn SQUELCH fully counterclockwise until you hear a hiss. This lowers
the “Squelch Gate” so that everything gets through - noise, weak
signals, and strong signals.
Turn SQUELCH back clockwise until the hiss stops. Now the “Squelch
Gate” allows only strong signals through.
Strong Signals
Medium Signals
Weak Signals
Noise
Strong Signals
Medium Signals
Weak Signals
Noise
Strong Signals
Medium Signals
Weak Signals
Noise
SQUELCH
UT888ZL (POLARIS)-0805 8/5/02 4:50 PM Page 10
11
TRIPLE WATCH
Triple Watch monitors Channel 16, Channel 9, and current MRN
Channel for activity every two seconds while scanning or monitoring.
To activate Triple Watch, press 16/9/TRI for 2 seconds. TRI appears
on the LCD panel, indicating Triple Watch mode is in effect. If a signal is
received on either Channel 16 or Channel 9, the radio remains on that
channel unit the signal ends.
Press and hold 16/9/TRI for 2 seconds to cancel the Triple Watch Mode.
Note: While in Triple Watch mode, you can change the currently
selected channel using the PUSH – SELECT0 knob.

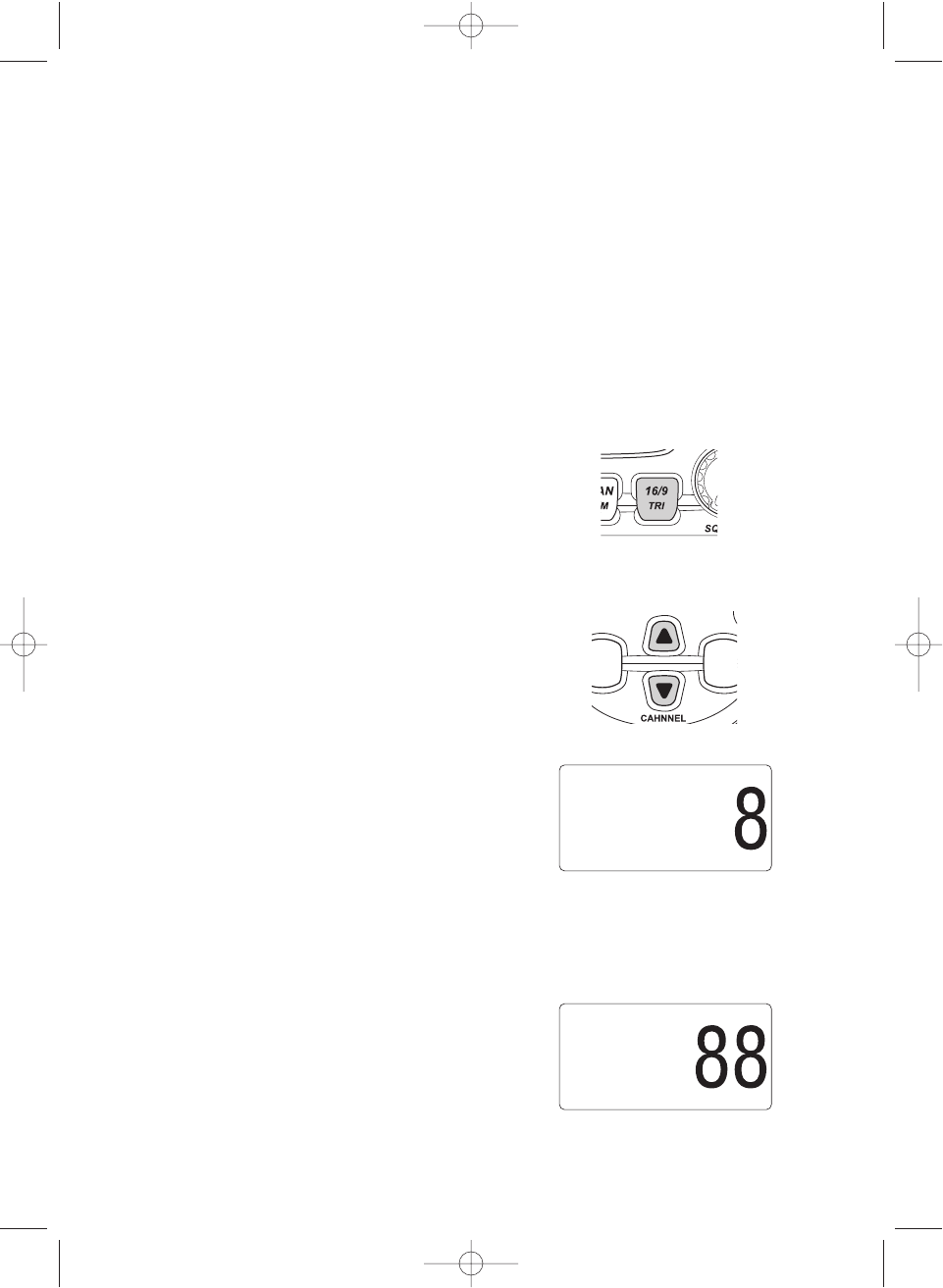

A momentary press of the 16/9/TRI button interrupts Triple
Watch mode and remains on 16, or on channel 9 if you press
once more. To return to the previous mode, simply press the
button again.
MANUAL TUNING
To manually select a channel, rotate PUSH – SELECT clockwise to
increase the number or counterclockwise to decrease the number and
select the desired channel. Communication channels are located on
channel 01-28 and 60-88. Weather channels are located on channels
0-9.
TRI HI CAN
MEM
TELEPHONE
UT888ZL (POLARIS)-0805 8/5/02 4:50 PM Page 11
12
INSTANT CHANNEL 16/CHANNEL 9 COMMUNICATIONS
To access instant Channel 16 or Channel 9 communications, press
16/9/TRI. This overrides the channel selected. The LCD display
indicates the unit is on Channel 16. Press 16/9/TRI again to access
Channel 9 communications. Press and release 16/9/TRI a third time to
return to the channel selected prior to accessing instant Channel
16/Channel 9 commnunications. The display will indicate the selected
channel.
To cancel Channel 16/Channel 9 communications:
●Press 16/9/TRI until the previous
channel setting appears.
--or--
●Press WX/ALERT.
WEATHER SCAN
To select Weather Channels 0-9, press
WX/ALERT. The radio will go to the last
selected weather channel. Press Up and
Down on the microphone to select a
different weather channel. It also can be
changed by the PUSH – SELECT knob on
the base.
To exit from weather channel:
●Press WX/ALERT. The radio returns
to the previous MRN channel.
MEM (Entering channel numbers into Memory Scan)
You can enter channels into Memory Scan for instant scanning at any
time. When a channel is selected for Memory Scan, MEM indicator will
appear on the LCD display.
To enter a channel into Memory Scan,
select the channel you want to store by
rotating the PUSH – SELECT knob, and
then press SCAN/MEM for 2 seconds the
channel is stored in memory scan and MEM
appears on the LCD display.
WX
HI CAN
MEM
TELEPHONE
UT888ZL (POLARIS)-0805 8/5/02 4:50 PM Page 12
13
Press and hold SCAN/MEM for 2 seconds and the MEM icon disappears.
NOTE:
The memory channel can be set independently in 3 regional mode
(USA, INT, and CAN). You cannot use this feature in WX mode or CH
70. You can select On/Off of memory channels even although you are
in the scan mode, Triple watch scan mode and Triple watch mode.
Memory Scan:
To scan channels stored in Memory Scan, press SCAN/MEM. In the
Memory Scan Mode, the POLARIS scans channel numbers previously
entered into Memory Scan. If a channel has not been entered into
Memory Scan, an error tone sounds and the LCD does not change.
Hail:

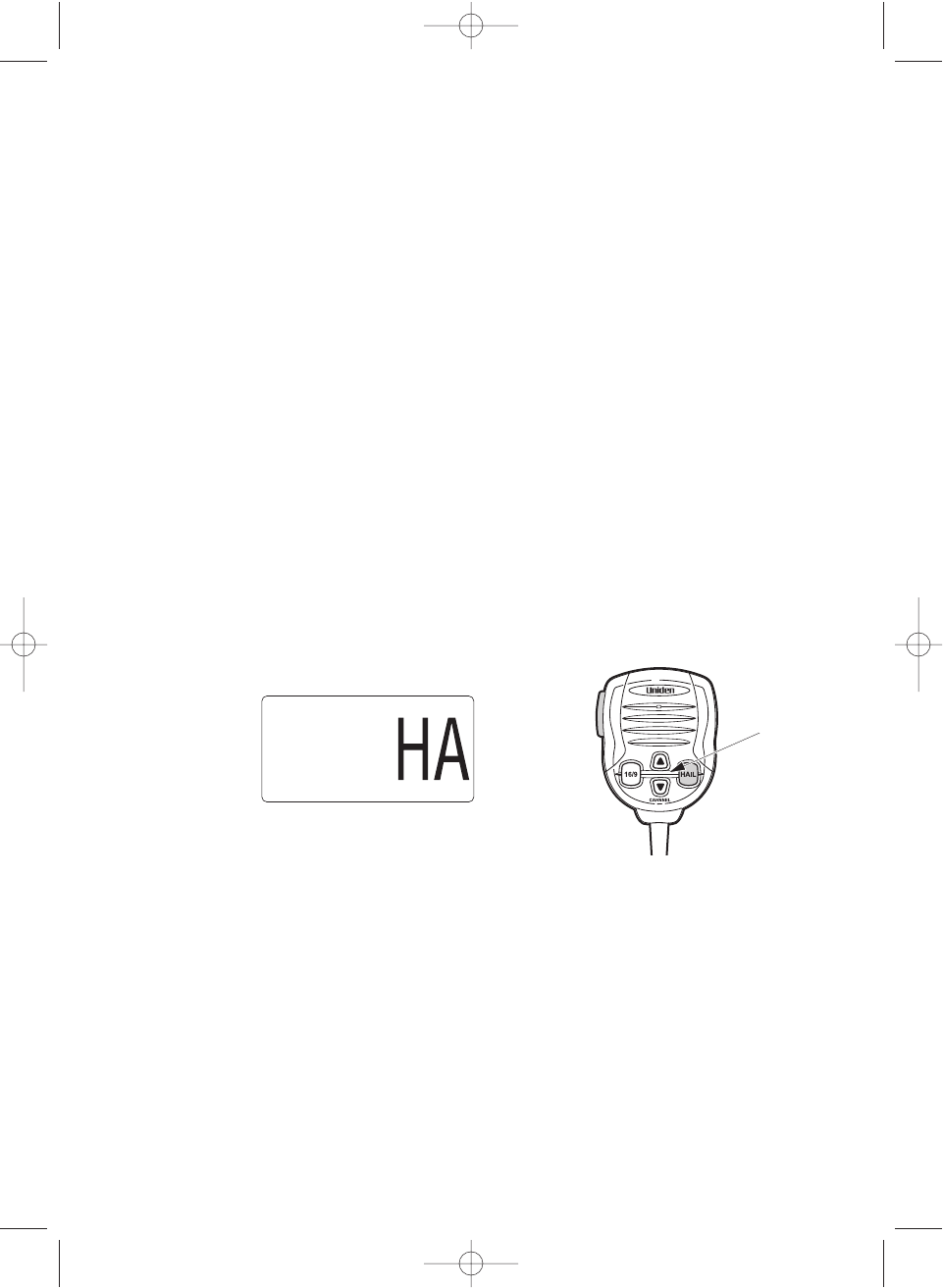

To access the Hail Mode, press HAIL on the microphone. The HA icon
appears in the display. Press the PTT switch on the microphone, hold
the microphone approximately two inches away from your mouth, and
speak clearly in a normal voice. To cancel Hail mode, press HAIL on
the microphone.
TX
VOL¡¡¡¡¡¡¡¡¡
Hail Volume Adjust:
While you are in the HAIL, you can adjust the volume pressing ▲/▼
keys on the microphone, or rotating the PUSH – SELECT knob on the
POLARIS.
UT888ZL (POLARIS)-0805 8/5/02 4:50 PM Page 13
14
1. Press WX/ALERT for 2 seconds if
WX/ALERT is Off, it is changed to
WX/ALERT On and the ALT icon
appears.

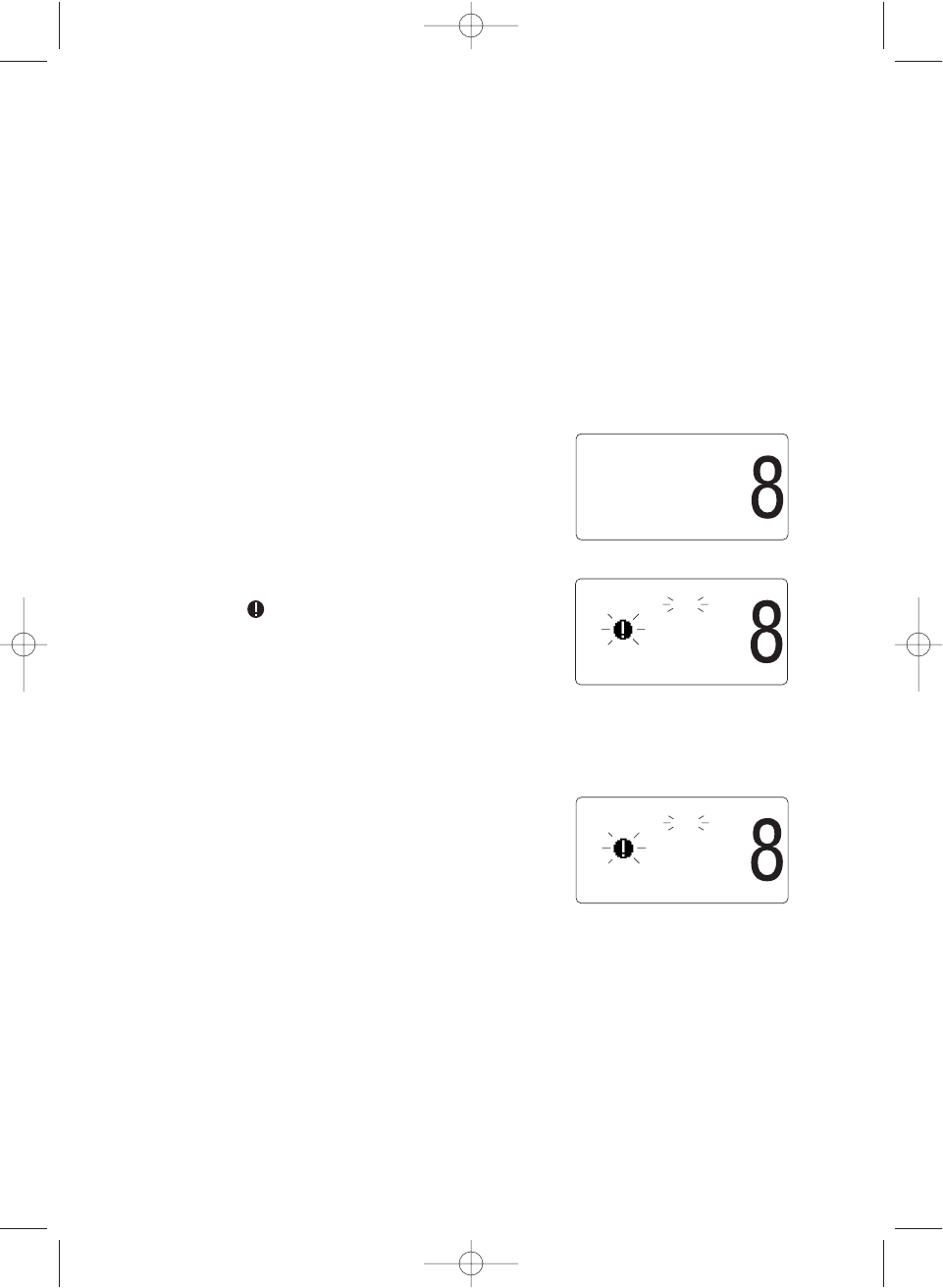

2. If the radio receives a 1050Hz tone,
the (Exclamation mark) and the
ALT icon will blink every other
second.

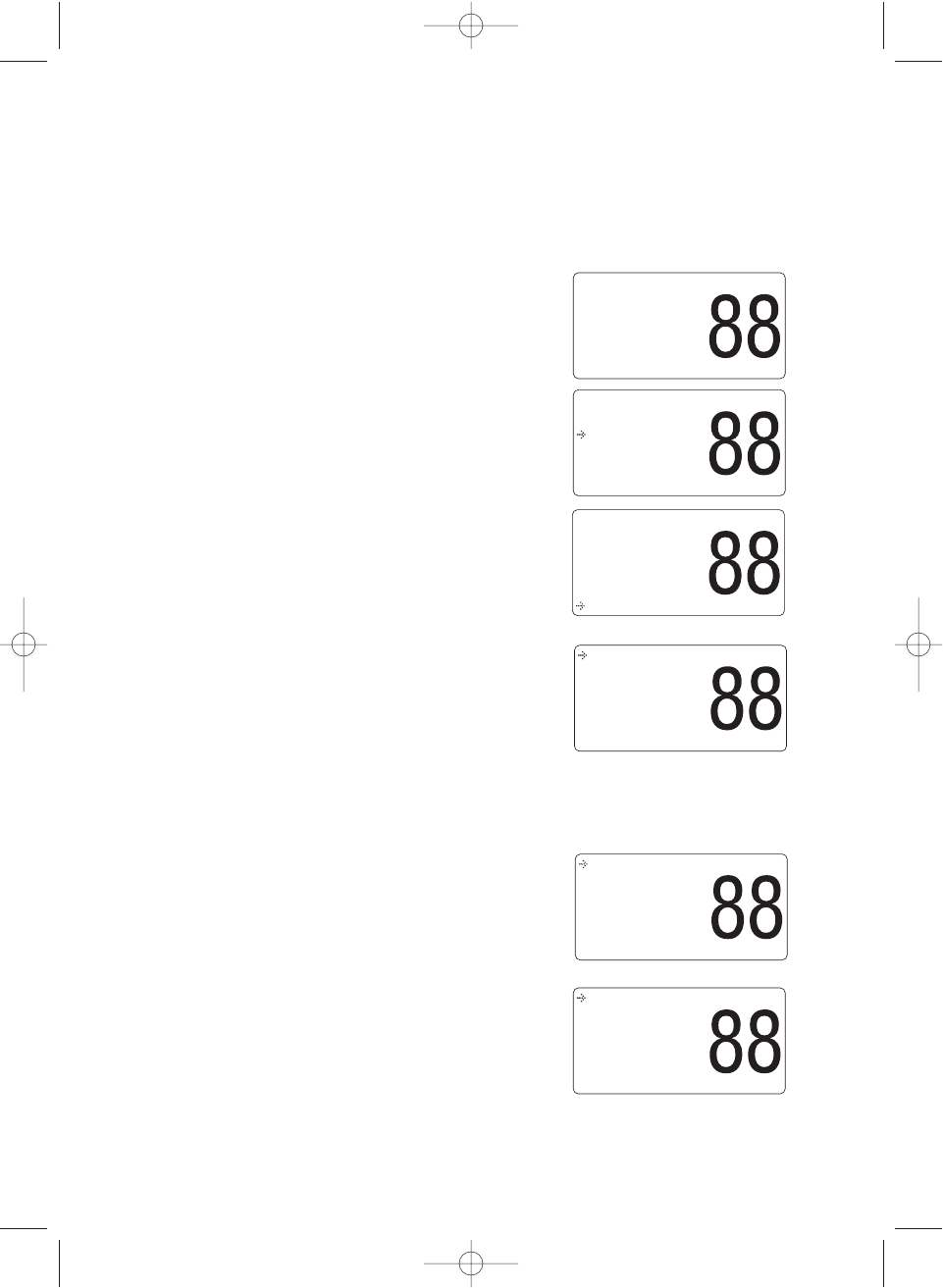

In the area where S.A.M.E. is
broadcasted, the following figures
are displayed.
3. When a WX ALERT signal is
received at the time WX ALERT
is on by scan mode, Triple watch,
PRI 16CH mode and PRI 9CH mode
are canceled.
When a S.A.M.E. signal is received
during transmission, decoding does
not carry out.
In order to stop the alarm press any
key. You can press and hold
WX/ALERT to cancel the
WX/ALERT mode.
WX ALT
WX ALT
WX ALT
WARNING
TSUNAMI
The ALT icon indicates the Weather Alert Mode is activated. To activate
the Weather Alert Mode:

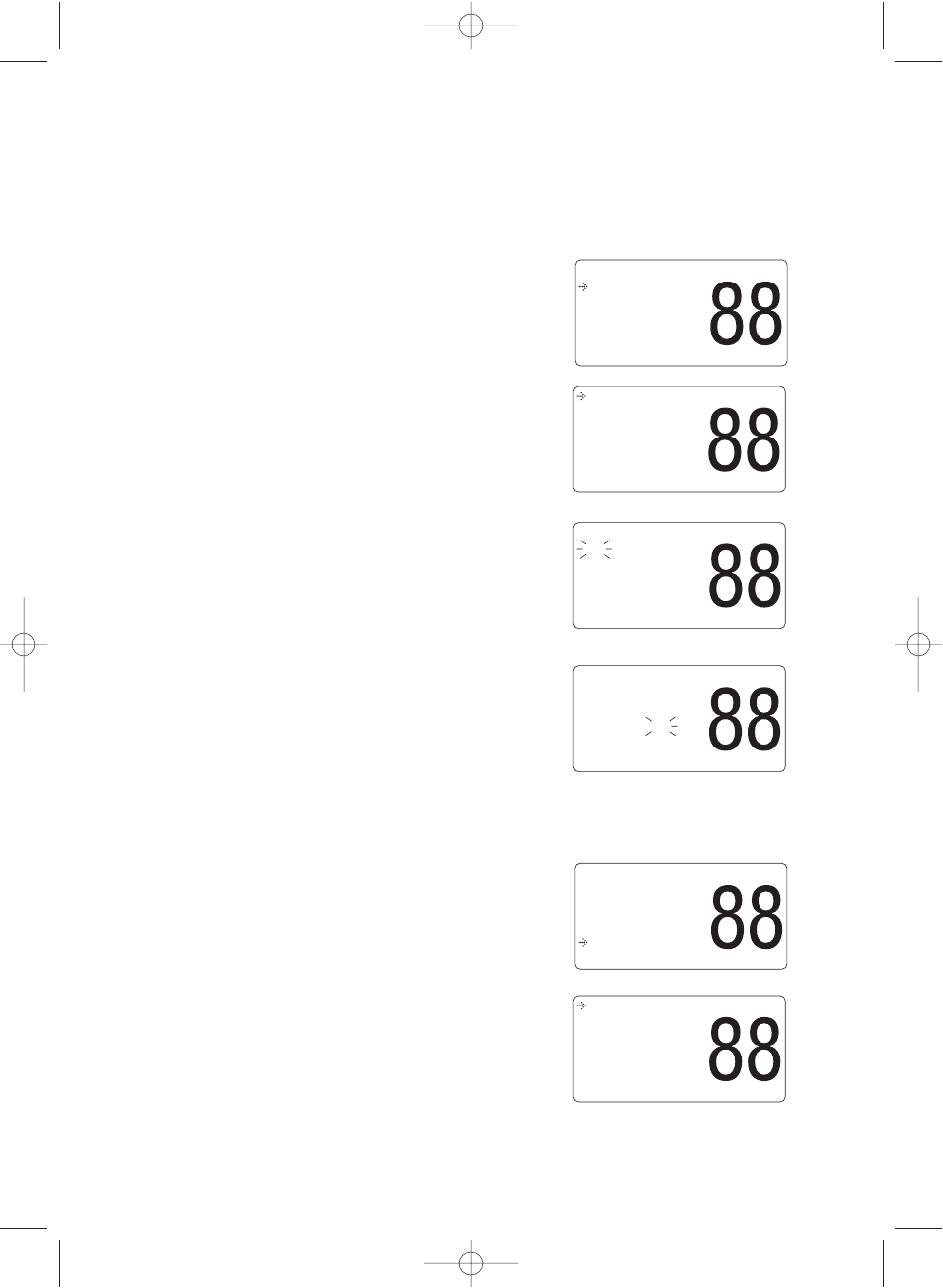

Weather Alert:
The Weather Alert Mode can be activated to alert you of dangerous
weather. When Weather Alert is turned On, and a warning signal is
received, an Emergency siren will sound at full volume, regardless of the
volume setting. When the signal stops, you will hear the active weather
channel broadcast at the normal volume.
UT888ZL (POLARIS)-0805 8/5/02 4:50 PM Page 14
15
TRANSMITTING
The POLARIS transmits on fifty-seven marine frequencies and
receives on eighty marine frequencies. Channel 70 of both the USA and
International frequencies, and channel 15, of the USA frequencies – are
for receiving only. The POLARIS transmit on 70 when sending DSC
information. Your radio will not transmit on these channels. For your
reference, a listing of all the available marine channels are located on
the back foldout.
SETTING TX OUTPUT
Caution: It is important to remember use the LO position in port or for
short range communications.
1. When you turn the POLARIS On, the
unit is automatically set to transmit at
25 watts (HI).
2. Press H/L/MENU, to change the
transmitter output to 1 watt (LO).
3. Press H/L/MENU again, to change
back to 25 watts (HI).
Note: Each time the H/L/MENU is pressed a short tone sounds.
CH13 is set as 1 watt (LO) channel; however, you can override
by pressing H/L/MENU during the call.
UT888ZL (POLARIS)-0805 8/5/02 4:50 PM Page 15
16

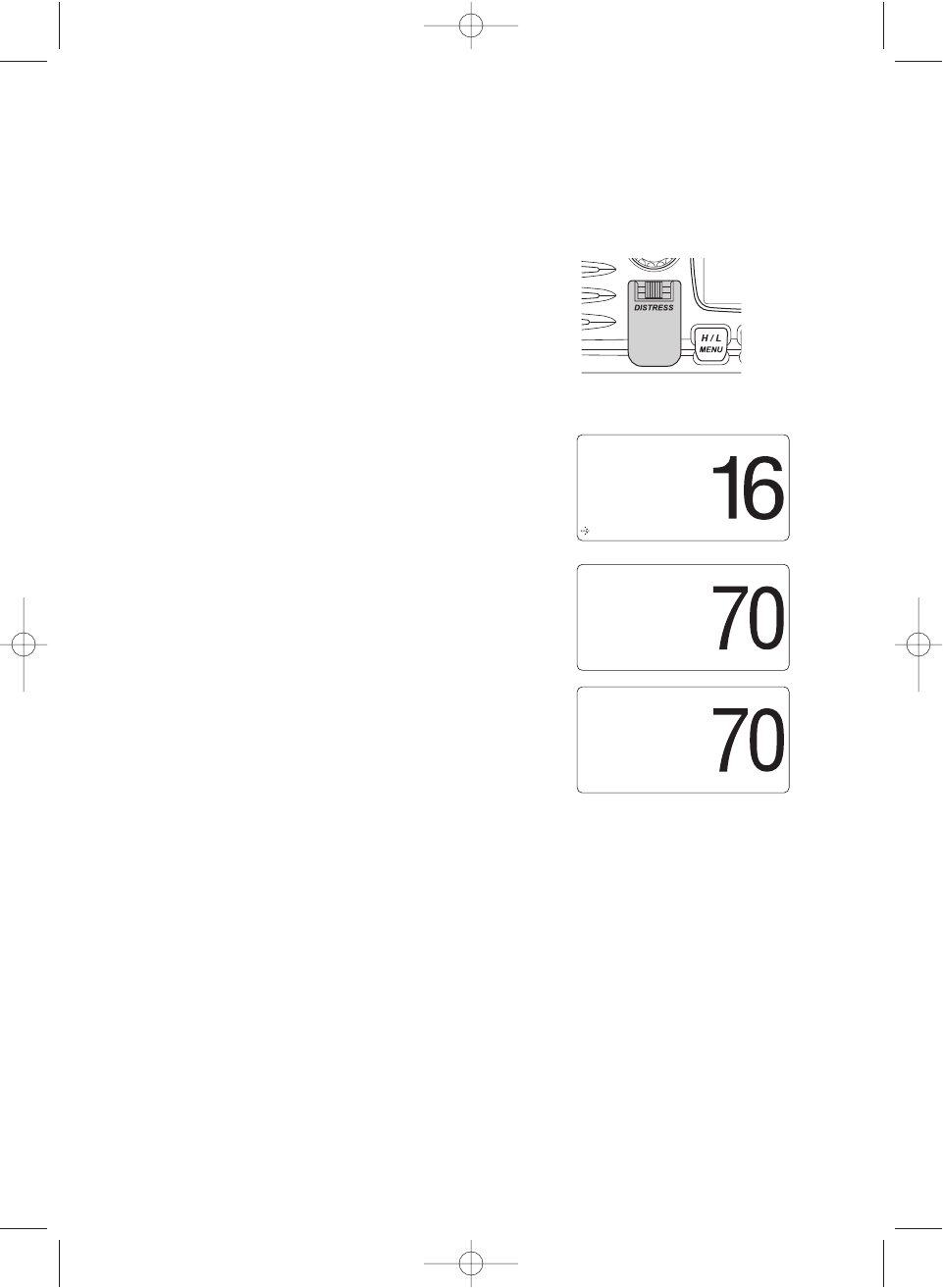

DISTRESS
This feature will allow the user to transmit a
distress call. In order to transmit a distress
call, push DISTRESS for 3 seconds. After
the Distress call has been sent, the Distress
alarm will sound. Distress call is
transmitted and it waits for about 180 - 270
seconds. This is continued eternally. The
transceiver "shadow-watches" for a
transmission between CH16 and CH70 until
an acknowledgment signal is received.
To cancel the Distress call, press the PUSH
– SELECT knob.
When the POLARIS receives a Distress
call, the following screen appears. If no
acknowledgment is received, the distress
call is repeated until an acknowledgment is
received.
Note: If POLARIS receives a distress
call, it will be displayed on the
LCD display. An emergency
alarm will sound. The name will
be displayed if it is the name
registered into the directory.
Otherwise, MMSI is displayed.
Latitude and Longitude
information will also be displayed
if the GPS module is carried in the
ship that transmitted DSC.
DISTRESS ACK
06/15 10:30A
WAITING
CANCEL
DISTRESS
06/15 10:30A
KENT NEWMAN
FIRE
70.00.000N
120.00.000W
DISTRESS
06/15 10:30A
PAUL HUBER
FIRE
70.40.000N
150.00.000E
UT888ZL (POLARIS)-0805 8/5/02 4:50 PM Page 16
17
1. DIGITAL SELECTIVE CALLING (DSC)
Digital Selective Calling is a process of establishing a radio call, it has
been chosen by the International Maritime Organization (IMO) as an
international standard for establishing VHF, MF and HF radio calls.
Digital Selective Calling has also been selected as part of the Global
Maritime Distress and Safety System (GMDSS).
This service will let you instantly send a distress call with GPS position
(when optional GPS receiver is connected to the transceiver) to the US
Coast Guard and other vessels within range of the transmission. DSC
will also let you initiate or receive distress, urgency, safety, position
information and routine calls to or from another vessel outfitted with a
DSC transceiver.
1. Press and hold the Menu key for 2
seconds when it is in the Channel
display mode, and the following
screen appears.
2. Press the PUSH – SELECT knob to select DSC CALL.
DSC CALL
SYSTEM
SETUP
REV.CH.MEM
EXIT
1-A. INDIVIDUAL
1. Press and hold Menu for 2 seconds.
2. Press the PUSH – SELECT knob at
DSC CALL, the DSC CALL menu
will appear.
3. Rotate the PUSH – SELECT knob to
select INDIVIDUAL.
Note: The user needs to select a open (unused) working channel
first, then make the call. After the acknowledgment, both radio
tune to the previously selected channel.
TRI HI CAN
MEM
TELEPHONE
DSC CALL
SYSTEM
SETUP
REV.CH.MEM
EXIT
INDIVIDUAL
GROUP
ALL SHIPS
POS.REQUEST
POS.SEND
STANDBY
Menu Operation
UT888ZL (POLARIS)-0805 8/5/02 4:50 PM Page 17
18
4. Press the PUSH – SELECT knob,
and the individual directory will
appear.
5. Rotate the PUSH – SELECT knob to
select the individual you want to
contact.
6. Press the PUSH – SELECT knob to
transmit the individual DSC signal.
7. When you receive the individual ACK
successfully, the following screen
appears.
8. When the calling vessel has already
set “STANDBY”, the following screen
appears.
Note: If there is not any data registrated in the directory, you cannot
proceed to the next step.
The user needs to select a open (unused) working channel
first, then make the call. After the acknowledgment, both radio
tune to the previously selected channel.
1-B. GROUP
1. Press and hold MENU for 2 seconds.
2. Press the PUSH – SELECT knob at
DSC CALL, the DSC CALL menu
will appear.
JUNE BRAWLEY
KENT NEWMAN
PAUL HUBER
EXIT
INDIVIDUAL
KENT NEWMAN
012345678
SEND
CANCEL
TRI HI CAN
MEM
TELEPHONE
DSC CALL
SYSTEM
SETUP
REV.CH.MEM
EXIT
INDVLACK
PAUL HUBER
012345678
COMPLETED
INDVLACK
PAUL HUBER
012345678
UNATTENDED
UT888ZL (POLARIS)-0805 8/5/02 4:50 PM Page 18
19
3. Rotate the PUSH – SELECT knob to
select GROUP.
4. Press the PUSH – SELECT knob,
and the MMSI code appears, you
can now call the group member.
Press the PUSH – SELECT knob.
5. If an acknowledgment is received,
COMPLETED and GROUP ACK
appears.
1-C. ALL SHIPS
1. Press and hold MENU for 2 seconds.
2. Press the PUSH – SELECT knob at
DSC CALL, the DSC CALL menu
will appear.
3. Rotate the PUSH – SELECT knob to
select ALL SHIPS.
4. Press the PUSH – SELECT knob,
and the ALL SHIPS directory
appears.
INDIVIDUAL
GROUP
ALL SHIPS
POS.REQUEST
POS.SEND
STANDBY
GROUP
123456789
SEND
CANCEL
GROUP ACK
123456789
COMPLETED
TRI HI CAN
MEM
TELEPHONE
DSC CALL
SYSTEM
SETUP
REV.CH.MEM
EXIT
INDIVIDUAL
GROUP
ALL SHIPS
POS.REQUEST
POS.SEND
STANDBY
Note: The user needs to select a open (unused) working channel
first, then make the call. After the acknowledgment, both radio
tune to the previously selected channel.
UT888ZL (POLARIS)-0805 8/5/02 4:50 PM Page 19
20
1-D. POS.REQUEST
This radio has the ability to request the position of a ship and it is
registered into the DIRECTORY.
1. Press and hold MENU for 2 seconds.
2. Press the PUSH – SELECT knob at
DSC CALL, the DSC CALL menu
appears.
5. Rotate the PUSH – SELECT knob to
select the nature of your call
(URGENCY, SAFETY, ROUTINE).
Note: ROUINE calls tune to the
previously selected channel.
6. Press the PUSH – SELECT knob to
transmit the ALL SHIPS DSC signal.
7. When sending either an URGENCY
or SAFETY message, both radios will
automatically move to channel 70
until all of the data is received.
8. After selecting URGENCY or SAFETY
All SHIPS call is transmitted, the
transceiver will switch to Channel 16.
The user should wait a few minutes
before transmitting the ALL SHIPS
Call information.
ALL SHIPS
URGENCY
SEND
CANCEL
TX HI CAN
DSC
ALL SHIPS
KENT NEWMAN
012345678
DISTRESS
TRI HI CAN
MEM
TELEPHONE
DSC CALL
SYSTEM
SETUP
REV.CH.MEM
EXIT
URGENCY
SAFETY
ROUTINE
EXIT
UT888ZL (POLARIS)-0805 8/5/02 4:50 PM Page 20
3. Rotate the PUSH – SELECT knob to
select POS.REQUEST.
21
4. Press the PUSH – SELECT knob,
and the individual directory appears.
5. Rotate the PUSH – SELECT knob to
select the name to request the
individual’s position.
6. Press the PUSH – SELECT knob,
following screen appears. Confirm if
the name and address is correct.
Press the PUSH – SELECT knob to
select SEND.
7. If the POLARIS did not detect the
acknowledgment, press the PUSH –
SELECT knob at SEND again in 10
seconds.
8. If the POLARIS had not detected the
acknowledgment again, the following
screen appears.
9. When the called radio sends the
position info the following screen
appears.
POS.REQUEST
KENT NEWMAN
654321000
SEND
CANCEL
POS.REPLY
KENT NEWMAN
654321000
WAITING
CANCEL
KENT NEWMAN
PAUL HUBER
JUNE BRAWLEY
EXIT
POS.REQUEST
KENT NEWMAN
654321000
SEND
CANCEL
INDIVIDUAL
GROUP
ALL SHIPS
POS.REQUEST
POS.SEND
STANDBY

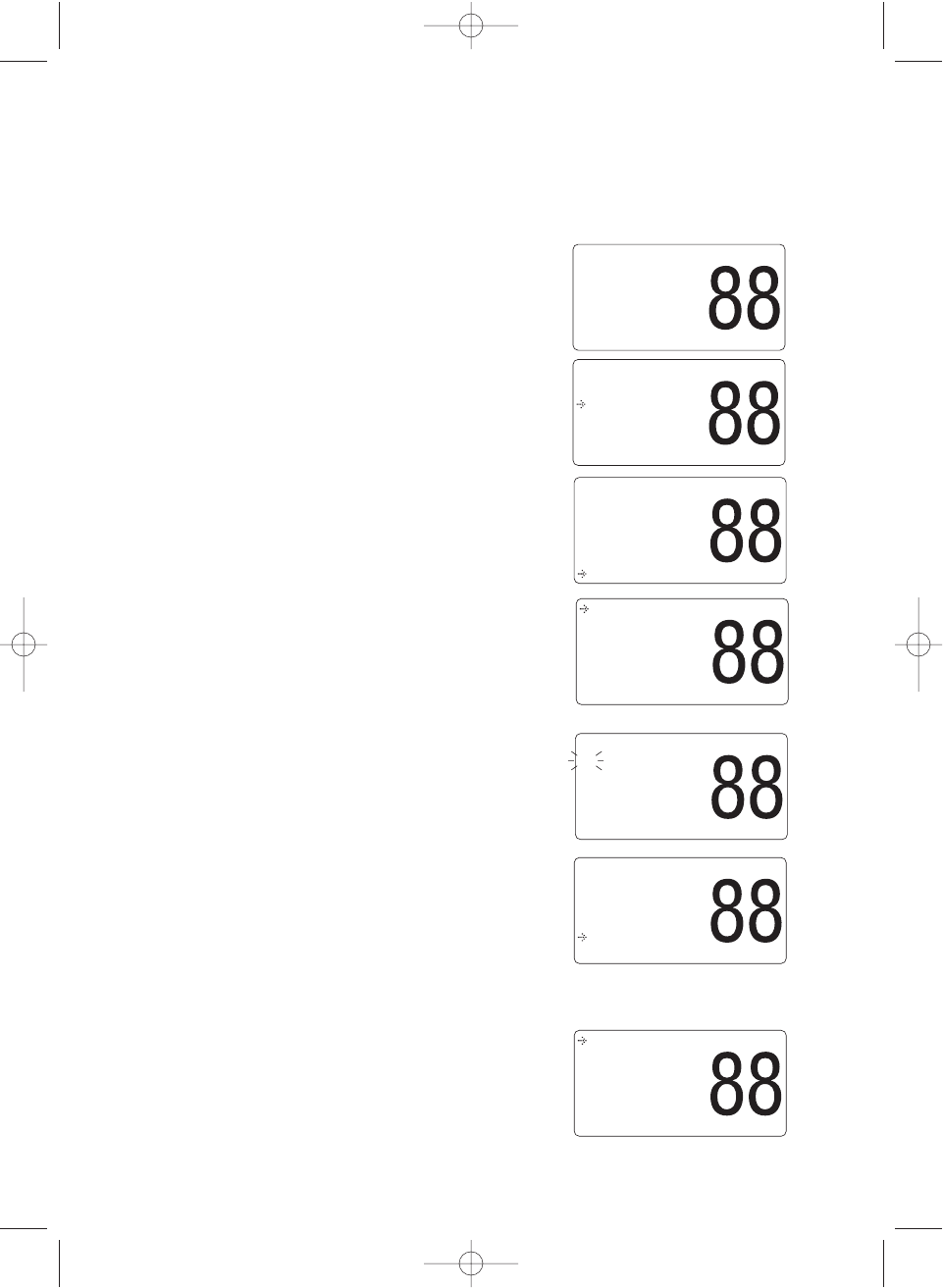

1-E. STANDBY
The DSC STANDBY function allows the transceiver to answer DSC calls
with the UNATTENDED message and record the calls for response at
another time. When you set the POLARIS to DSC STANDBY mode,
voice traffic may still be active on any chosen channel.
POS.REPLY
06/15 15:00P
KENT NEWMAN
70.00.000N
110.00.000E
UT888ZL (POLARIS)-0805 8/5/02 4:50 PM Page 21
22
4. Press the PUSH – SELECT knob,
and the STANDBY directory appears.
5. When an individual DSC call is
received, the radio will respond with
the UNATTENDED message when
an operator cannot answer the call.
The DSC call will be recorded into
the radio’s Call Waiting directory.
Note: If you press a key on the radio or the PTT key, this feature will
be canceled.
1-F. CALLWAIT
The DSC Call Waiting directory records 10 received distress calls, and
records 20 individual calls that are received and not answered within 5
minutes or while the radio is set to DSC Standby. Calls will be recorded
while you are busy with other communications as long as the transmitter
is not keyed at the time of the call. If the call is answered within 5
minutes the call will not be recorded. When a call is recorded, a
message will appear.
Note: When a DISTRES CALL is received, this call will be recorded
on the Distress Call Waiting directory. The DSC Distress in
must hold the received Distress calls for 23 1/2 hours.
These calls may be deleted by the user.
INDIVIDUAL
06/20 12:00P
KENT NEWMAN
ROUTINE
DSC STANDBY
UNATTEND
HI CAN
MEM
DSC STANDBY
UNATTEND
2. Press the PUSH – SELECT knob at
DSC CALL, the DSC CALL menu
appears.
3. Rotate the PUSH – SELECT knob to
select STANDBY.
GROUP
ALL SHIPS
POS.REQUEST
POS.SEND
STANDBY
CALL WAIT
DSC CALL
SYSTEM
SETUP
REV.CH.MEM
EXIT
TRI HI CAN
MEM
TELEPHONE
1. Press and hold MENU for 2 seconds.
UT888ZL (POLARIS)-0805 8/5/02 4:50 PM Page 22
23
4. Press the PUSH – SELECT knob,
and the CALL WAIT directory will
appear.
5. Rotate the PUSH – SELECT knob to
select the options you want to log.
6. Press the PUSH – SELECT knob.
7. Rotate the PUSH – SELECT knob to
get further information about the call
received.
8. Press the PUSH – SELECT knob.
9. If a DISTRESS call is received in
Call Wait, the following display
appears.
10. If an INDIVIDUAL call is received in
Call Wait, the following display
appears.
DISTRESS
06/15 10:30A
KENT NEWMAN
FIRE
70.40.00 N
150.00.00 E
INDIVIDUAL
06/20 12:00P
KENT NEWMAN
ROUTINE
SEND
CANCEL
DISTRESS
INDIVIDUAL
EXIT
KENT NEWMAN
PAUL HUBER
JUNE BRAWLEY
EXIT
3. Rotate the PUSH – SELECT knob to
select CALL WAIT.
GROUP
ALL SHIPS
POS.REQUEST
POS.SEND
STANDBY
CALL WAIT
Note: If a call has not been logged, the POLARIS will beep and you
will not be able to proceed to the next step.
2. Press the PUSH – SELECT at
DSC CALL, the DSC CALL menu
will appear.
DSC CALL
SYSTEM
SETUP
REV.CH.MEM
EXIT
TRI HI CAN
MEM
TELEPHONE
1. Press and hold MENU for 2 seconds.
UT888ZL (POLARIS)-0805 8/5/02 4:50 PM Page 23
24
2. SYSTEM

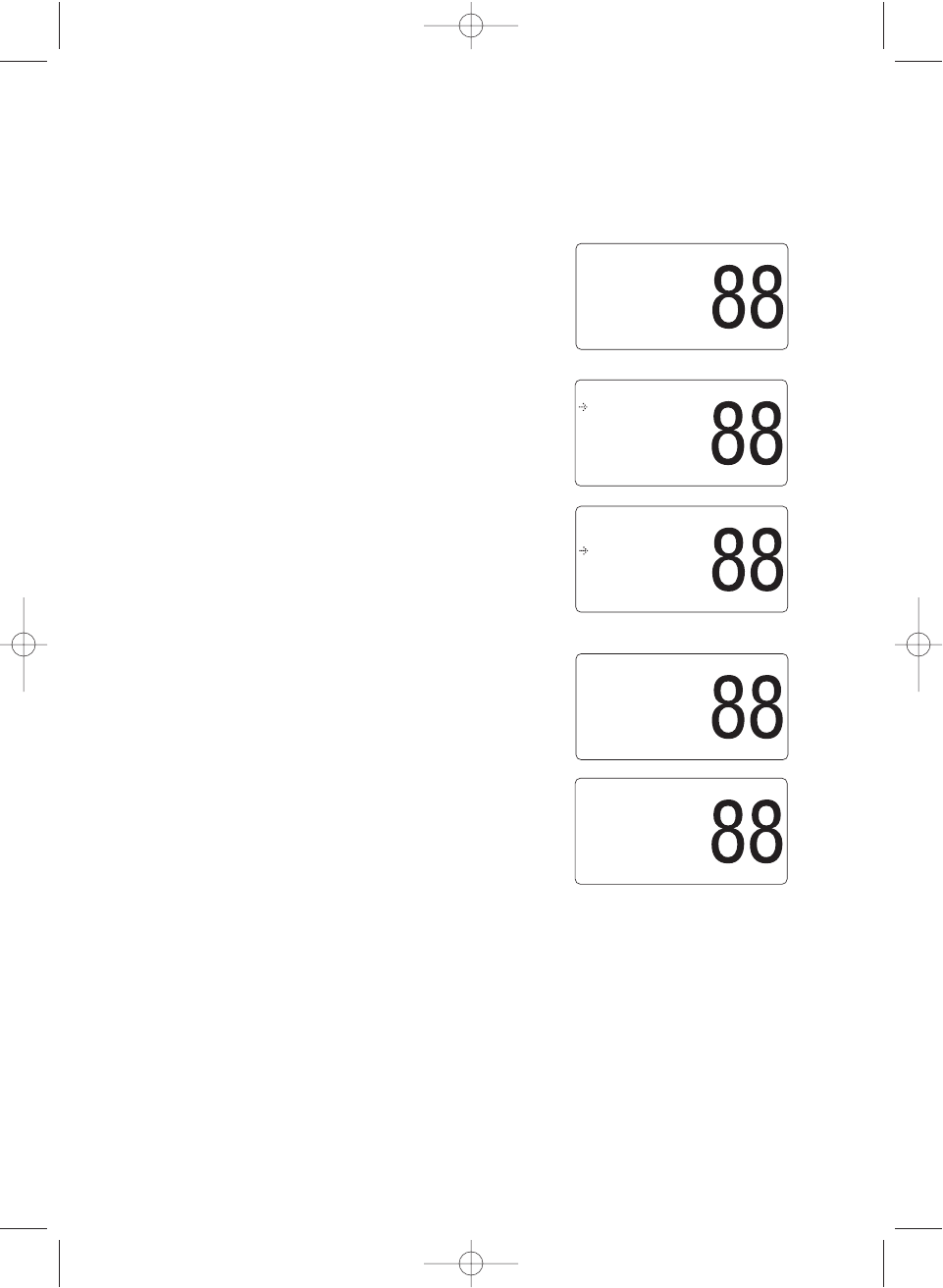

2-A. CONTRAST
1. Press and hold MENU for 2 seconds.
2. Press the PUSH – SELECT knob at
SYSTEM, the SYSTEM menu will
appear.
3. Rotate the PUSH – SELECT knob to
select CONTRAST.
4. Press the PUSH – SELECT knob,
and the following screen appears.
5. Rotate the PUSH – SELECT knob
counterclockwise to increase the
background brightness level.
(Default is set at 6).
Note: There are 9 contrast levels.
6. When you find the most favorable
brightness, press the PUSH –
SELECT knob and the POLARIS
returns to the channel display screen.
CONTRAST
LAMP ADJUST
KEY BEEP
ALARM CLOCK
LCD COLOR
EXIT
CONTRAST
¡¡¡¡¡
HI CAN
MEM
TELEPHONE
DSC CALL
SYSTEM
SETUP
REV.CH.MEM
EXIT
HI CAN
MEM
TELEPHONE
UT888ZL (POLARIS)-0805 8/5/02 4:50 PM Page 24
25

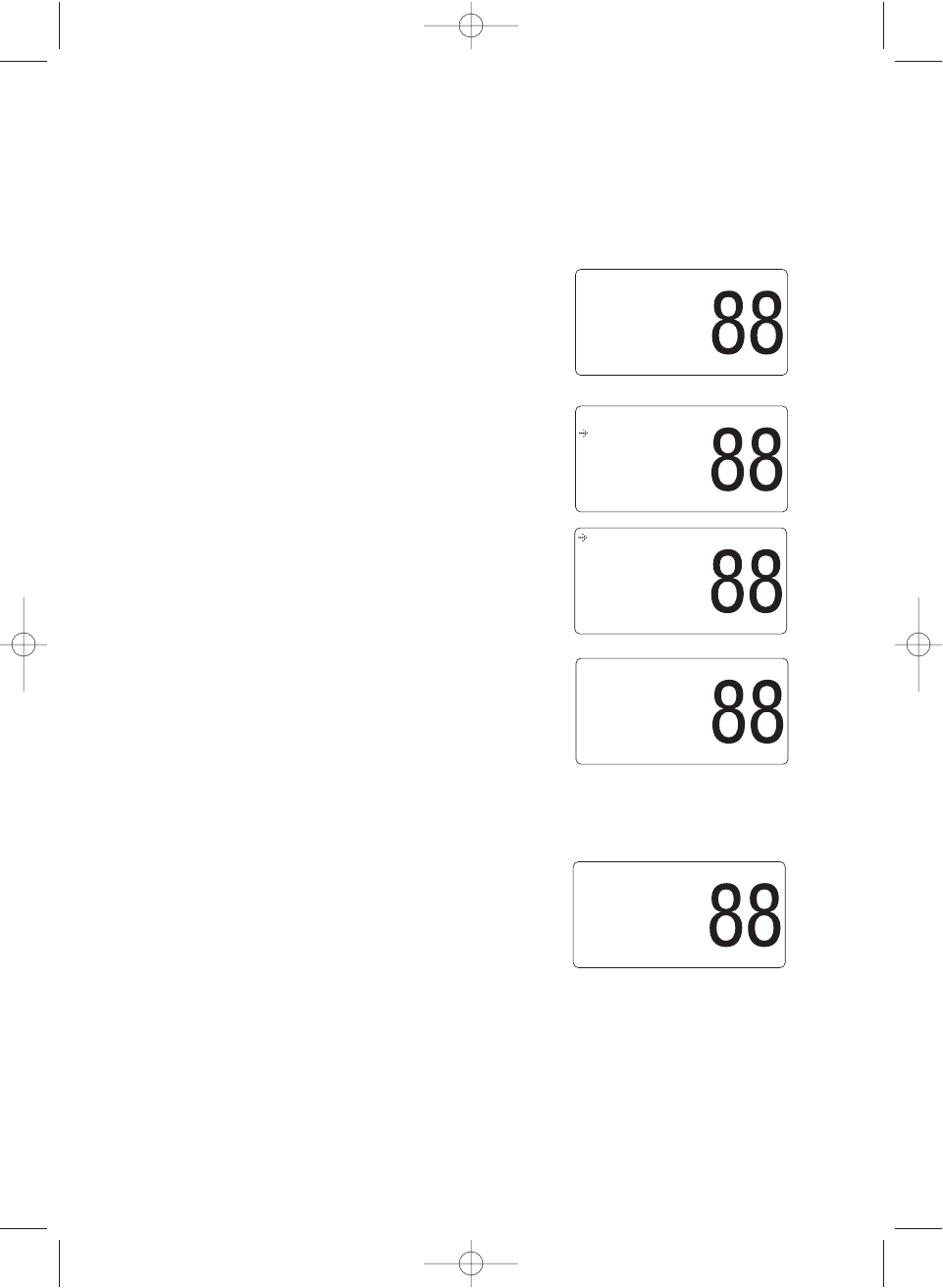

2-B. LAMP ADJUST
1. Press and hold MENU for 2 seconds.
2. Press the PUSH – SELECT knob at
SYSTEM, the SYSTEM menu will
appear.
3. Rotate the PUSH – SELECT knob to
select LAMP ADJUST.
4. Press the PUSH – SELECT knob,
and the following screen will appear.
5. Rotate the PUSH – SELECT knob to
select the backlight brightness level.
(Default is set to medium).
6. When you find the most favorable
brightness, press the PUSH –
SELECT knob and the POLARIS
returns to the channel display
screen.
HIGH
MEDIUM
LOW
OFF
HI CAN
MEM
TELEPHONE
HI CAN
MEM
TELEPHONE
CONTRAST
LAMP ADJUST
KEY BEEP
LCD COLOR
EXIT
DSC CALL
SYSTEM
SETUP
REV.CH.MEM
EXIT
UT888ZL (POLARIS)-0805 8/5/02 4:50 PM Page 25
26
2-C. KEY BEEP
1. Press and hold MENU for 2 seconds.
2. Press the PUSH – SELECT knob at
SYSTEM, the SYSTEM menu will
appear.
3. Rotate the PUSH – SELECT knob to
select KEY BEEP.
4. Press the PUSH – SELECT knob,
and the following screen will appear.
5. Rotate the PUSH – SELECT knob
clockwise to increase the volume, or
counterclockwise to decrease the
volume.
6. When you find the most favorable
volume, press the PUSH – SELECT
knob and the POLARIS returns to the
channel display screen.
Note: There are 9 volume levels.
HI CAN
MEM
TELEPHONE
CONTRAST
LAMP ADJUST
KEY BEEP
LCD COLOR
EXIT
KEY BEEP
¡¡¡¡¡
DSC CALL
SYSTEM
SETUP
REV.CH.MEM
EXIT
HI CAN
MEM
TELEPHONE
UT888ZL (POLARIS)-0805 8/5/02 4:50 PM Page 26
27
2-D. LCD COLOR
1. Press and hold MENU for 2 seconds.
2. Press the PUSH – SELECT knob at
SYSTEM, the SYSTEM menu will
appear.
3. Rotate the PUSH – SELECT knob to
select LCD COLOR.
4. Press the PUSH – SELECT knob,
and the following screen will appear.
5. Rotate the PUSH – SELECT knob to
select the color (green or red).
(Default is set as green).
6. When you find the most favorable
color, press the PUSH – SELECT
knob and the POLARIS returns to
the channel display screen.
Note: Only changes the display. The keys will stay green.
CONTRAST
LAMP ADJUST
KEY BEEP
ALARM CLOCK
LCD COLOR
HAIL VOLUME
GREEN
RED
HI CAN
MEM
TELEPHONE
DSC CALL
SYSTEM
SETUP
REV.CH.MEM
EXIT
HI CAN
MEM
TELEPHONE
UT888ZL (POLARIS)-0805 8/5/02 4:50 PM Page 27
28
3. SETUP
3-A. FIPS
The 6-digit Federal Information Processing System (FIPS) code
established by the National Weather Service (NWS) identifies
geographic areas in the United States. Programming FIPS code is
necessary to receive S.A.M.E. alerts about weather occurring in a
particular area.
To set FIPS code
1. Press and hold MENU for 2 seconds.
2. Press the PUSH – SELECT knob at
SETUP the SETUP menu will
appears.
3. Rotate the PUSH – SELECT knob to
select FIPS.
4. Press the PUSH – SELECT knob,
and the following screen will appear.
5. Rotate the PUSH – SELECT knob to
make your selection.
6. Press the PUSH – SELECT knob.
NEW
00.101000
01.101010
EXIT
FIPS
USER MMSI
GROUP MMSI
U.I.C.
DIRECTORY
AUTO.CH.SW
HI CAN
MEM
TELEPHONE
DSC CALL
SYSTEM
SETUP
REV.CH.MEM
EXIT
UT888ZL (POLARIS)-0805 8/5/02 4:50 PM Page 28
29
3-A-1. FIPS-
If you select NEW-
1. Press the PUSH – SELECT knob at
NEW, the following screen appears.
2. You can now enter the new FIPS
code. Rotate the PUSH – SELECT
knob clockwise to increase the
number, counterclockwise to
decrease. The number will be
entered when the PUSH – SELECT
knob is pressed, and the blinking
digit moves to the right. When you
finished entering the last digit, the
following confirmation screen
appears.
3. Rotate the PUSH – SELECT knob to
make your selection.
4. Press the PUSH – SELECT knob
and the POLARIS returns to the
following screen.
3-A-2. EDIT
If you select a number to EDIT.
1. Press the PUSH – SELECT knob at
the code that you want to edit.
2. Press the PUSH – SELECT knob at
EDIT, the following screen appears.
NEW
00.101000
01.101010
02.501100
EXIT
FIPS CODE
000000
FIPS CODE
501100
YES
NO
NEW
00.101000
01.101010
02.501100
EXIT
EDIT
DELETE
EXIT
UT888ZL (POLARIS)-0805 8/5/02 4:50 PM Page 29
30
3-A-3. DELETE
If you select DELETE
1. Press the PUSH – SELECT knob at
the code that you want to delete.
2. Press the PUSH – SELECT knob at
DELETE, the following screen
appears.
3. Rotate the PUSH – SELECT knob to
make your selection.
4. Press the PUSH – SELECT knob
and the POLARIS returns to the
following screen.
3-B. USER MMSI
A MMSI is a nine-digit number used on Marine Transceivers that are
able to use Digital Selective Calling (DSC). This number is used like a
telephone number to call other vessels.
NEW
00.101000
01.101010
EXIT
DELETE
501100
YES
NO
EDIT
DELETE
EXIT
3. You can now enter the correct FIPS
code. Rotate the PUSH – SELECT
knob clockwise to increase the
number, counterclockwise to
decrease. The number will be
entered when the PUSH – SELECT
knob is pressed, and the blinking
digit moves to the right.
FIPS CODE
501100
NEW
00.101000
01.101010
02.501100
EXIT
UT888ZL (POLARIS)-0805 8/5/02 4:50 PM Page 30
31
To set USER MMSI code
1. Press and hold MENU for 2 seconds.
2. Rotate the PUSH – SELECT knob to
select SETUP.
3. Press the PUSH – SELECT knob at
SETUP, the SETUP menu appears.
4. Rotate the PUSH – SELECT knob to
select USER MMSI, and press the
PUSH – SELECT knob, the following
screen appears.
5. You can now enter the USER MMSI
code. Rotate the PUSH – SELECT
knob clockwise to increase the
number, counterclockwise to
decrease. The number will be
entered when the PUSH – SELECT
knob is pressed, and the blinking digit
moves to the right.
6. After the final digit is entered, the
confirmation screen appears, and you
can make your selection by rotating
the PUSH – SELECT knob. Press
the PUSH – SELECT knob and the
POLARIS returns to the following
screen.
Note: You can program your POLARIS
twice. After that send your
POLARIS to Uniden for
programming.
USER MMSI
000000000
FIPS
USER MMSI
GROUP MMSI
U.I.C.
DIRECTORY
AUTO.CH.SW
HI CAN
MEM
TELEPHONE
DSC CALL
SYSTEM
SETUP
REV.CH.MEM
EXIT
USER MMSI
685749638
YES
NO
USER MMSI
685749638
FIPS
USER MMSI
GROUP MMSI
U.I.C.
DIRECTORY
AUTO.CH.SW
UT888ZL (POLARIS)-0805 8/5/02 4:50 PM Page 31
32
3-C. GROUP MMSI
1. Press and hold MENU for 2 seconds.
2. Rotate the PUSH – SELECT knob to
select SETUP.
3. Press the PUSH – SELECT knob at
SETUP, the SETUP menu appears.
4. Rotate the PUSH – SELECT knob to
select GROUP MMSI, and press the
PUSH – SELECT knob, and the
following screen appears.
5. You can now enter the GROUP
MMSI code. Rotate the PUSH –
SELECT knob clockwise to increase
the number, counterclockwise to
decrease. The number will be
entered when the PUSH – SELECT
knob is pressed, and the blinking
digit moves to the right.
6. After the final digit is entered, a
confirmation screen appears, you
can make your selection by rotating
the PUSH – SELECT knob.
7. Press the PUSH – SELECT knob
and the POLARIS returns to the
following screen.
GROUP MMSI
000000000
FIPS
USER MMSI
GROUP MMSI
U.I.C.
DIRECTORY
AUTO.CH.SW
HI CAN
MEM
TELEPHONE
DSC CALL
SYSTEM
SETUP
REV.CH.MEM
EXIT
GROUP MMSI
500049638
YES
NO
FIPS
USER MMSI
GROUP MMSI
U.I.C.
DIRECTORY
AUTO.CH.SW
UT888ZL (POLARIS)-0805 8/5/02 4:50 PM Page 32
33
3-D. U.I.C
The POLARIS can transmit and receive, USA, Canada, and
International frequencies. When you turn the POLARIS On, the USA is
set as default.
1. Press and hold MENU for 2 seconds.
2. Press the PUSH – SELECT knob at
SETUP, the SETUP menu appears.
3. Rotate the PUSH – SELECT knob to
select U.I.C..
4. Press the PUSH – SELECT knob
and the following screen appears.
5. Rotate the PUSH – SELECT knob to
make your selection.
6. Press the PUSH – SELECT knob
and the POLARIS will return to the
channel display screen.
DSC CALL
SYSTEM
SETUP
REV.CH.MEM
EXIT
HI CAN
DISTRESS
USA
INT
CAN
FIPS
USER MMSI
GROUP MMSI
U.I.C.
DIRECTORY
AUTO.CH.SW
HI CAN
MEM
TELEPHONE
UT888ZL (POLARIS)-0805 8/5/02 4:50 PM Page 33
34
3-E. DIRECTORY
1. Press and hold MENU for 2 seconds.
2. Press the PUSH – SELECT knob at
SETUP, the SETUP menu will
appear.
3. Rotate the PUSH – SELECT knob to
select DIRECTORY.
4. Press the PUSH – SELECT knob,
and the DIRECTORY will appear.
5. Rotate the PUSH – SELECT knob to
make your selection.
6. Press the PUSH – SELECT knob.
NEW
KENT NEWMAN
PAUL HUBER
COLLINS
EXIT
FIPS
USER MMSI
GROUP MMSI
U.I.C.
DIRECTORY
AUTO.CH.SW
HI CAN
MEM
TELEPHONE
DSC CALL
SYSTEM
SETUP
REV.CH.MEM
EXIT
UT888ZL (POLARIS)-0805 8/5/02 4:50 PM Page 34
35
3-E-1. NEW
If you select NEW-
1. Press the PUSH – SELECT at NEW,
the following screen appears.
2. You can now enter the person’s
name. Rotate the PUSH – SELECT
knob, and press the PUSH –
SELECT knob to choose the
alphabet.
3. After you entered the person’s name,
you can enter the directory code.
Rotate the PUSH – SELECT knob
clockwise to increase the number,
counterclockwise to decrease. The
number will be entered when the
PUSH – SELECT knob is pressed,
and the blinking digit moves to the
right.
4. After the directory data is entered, a
confirmation screen appears.
5. Press the PUSH – SELECT knob
and the POLARIS returns to the
following screen.
NEW
KENT NEWMAN
PAUL HUBER
COLLINS
EXIT
PERSONS NAME
MMSI
000000000
PERSONS NAME
COLLINS
MMSI
145678543
PERSONS NAME
COLLINS
MMSI
145678543
YES
NO
NEW
KENT NEWMAN
PAUL HUBER
COLLINS
EXIT
UT888ZL (POLARIS)-0805 8/5/02 4:50 PM Page 35
36
3-E-2. EDIT –
If you select a name to EDIT –
1. Press the PUSH – SELECT at the
individual you want to edit.
2. After you pressed PUSH – SELECT
knob at person’s name, the following
screen appears. Press the PUSH –
SELECT knob at EDIT.
NEW
KENT NEWMAN
PAUL HUBER
EXIT
EDIT
DELETE
EXIT
3. You can now enter the person’s
name. Rotate the PUSH – SELECT
knob, and press the PUSH –
SELECT knob to choose the
alphabet.
4. After you entered the person’s name,
you can enter the directory code.
Rotate the PUSH – SELECT knob
clockwise to increase the number,
counterclockwise to decrease. The
number will be entered when the
PUSH – SELECT knob is pressed,
and the blinking digit moves to the
right.
5. After the directory data is entered, a
confirmation screen appears.
6. Press the PUSH – SELECT knob
and the POLARIS returns to the
following screen.
PERSONS NAME
MMSI
000000000
PERSONS NAME
COLLINS
MMSI
145678543
PERSONS NAME
COLLINS
MMSI
145678543
YES
NO
NEW
KENT NEWMAN
PAUL HUBER
COLLINS
EXIT
UT888ZL (POLARIS)-0805 8/5/02 4:50 PM Page 36
37
3-E-3. DELETE –
If you select a name to DELETE –
1. Press the PUSH – SELECT knob at
the individual you want to delete.
2. Press the PUSH – SELECT knob at
DELETE.
3. Rotate the PUSH – SELECT knob to
make your selection.
4. Press the PUSH – SELECT knob
and the POLARIS returns to the
following screen.
EDIT
DELETE
EXIT
DELETE
KENT NEWMAN
123456734
YES
NO
NEW
KENT NEWMAN
PAUL HUBER
EXIT
NEW
KENT NEWMAN
PAUL HUBER
EXIT
UT888ZL (POLARIS)-0805 8/5/02 4:50 PM Page 37
38
3-F. AUTO. CH. SW
1. Press and hold MENU for 2 seconds.
2. Press the PUSH – SELECT knob at
SETUP, the SETUP menu will
appear.
3. Rotate the PUSH – SELECT knob to
select AUTO.CH.SW.
4. Press the PUSH – SELECT knob,
and the following screen will appear.
5. If you want to change this mode to
OFF, you can change it by rotating
the PUSH – SELECT knob.
(Default is set as ON.)
6. Press the PUSH – SELECT knob.
HI CAN
MEM
TELEPHONE
DSC CALL
SYSTEM
SETUP
REV.CH.MEM
EXIT
FIPS
USER MMSI
GROUP MMSI
U.I.C.
DIRECTORY
AUTO.CH.SW
ON
OFF
UT888ZL (POLARIS)-0805 8/5/02 4:50 PM Page 38
39
3-G. POS.REPLY
When the POLARIS has requested the position data, you can decide to
transmit an acknowledgment automatically or manually.
1. Press and hold MENU for 2 seconds.
2. Press the PUSH – SELECT knob at
SETUP, the SETUP menu will
appear.
3. Rotate the PUSH – SELECT knob to
select POS.REPLY.
4. Press the PUSH – SELECT knob,
and the following screen appears.
5. Rotate the PUSH – SELECT knob to
make your selection.
6. Press the PUSH – SELECT knob.
AUTO
MANUAL
USER MMSI
GROUP MMSI
U.I.C.
DIRECTORY
AUTO.CH.SW
POS.REPLY
HI CAN
MEM
TELEPHONE
DSC CALL
SYSTEM
SETUP
REV.CH.MEM
EXIT
UT888ZL (POLARIS)-0805 8/5/02 4:50 PM Page 39
40
7. MANUAL
When the POLARIS receives a
position request, the following screen
appears. Rotate the PUSH –
SELECT knob to make your
selection.
8. AUTO
When the POLARIS receives a
position request, the following screen
appears.
Note: If the POLARIS is set to MANUAL, you can select either
SEND or CANCEL.
If the POLARIS is set to AUTO, it will automatically reply to the
request, and COMPLETED appears.
POS REPLY
KENT NEWMAN
654321000
SEND
CANCEL
POS REPLY
KENT NEWMAN
654321000
COMPLETED
UT888ZL (POLARIS)-0805 8/5/02 4:50 PM Page 40
41
3-H. WHAM
1. Press and hold MENU for 2 seconds.
2. Press the PUSH – SELECT knob at
SETUP, the SETUP menu will
appear.
3. Rotate the PUSH – SELECT knob to
select WHAM.
4. Press the PUSH – SELECT knob,
and the following screen will appear.
3-H-1. BASE ID
1. When you press the PUSH –
SELECT knob at BASE ID, the
following screen appears and you
can enter the ID.
2. Rotate the PUSH – SELECT knob
clockwise to increase the number,
counterclockwise to decrease. The
number will be entered when the
PUSH – SELECT knob is pressed,
and the blinking digit moves to the
right. You can select the number
0000 to 9999.
3. After the BASE ID is entered, a
confirmation screen appears, and
you can select answer by rotating the
PUSH – SELECT knob, and then
press the PUSH – SELECT.
BASE ID
0000
U.I.C.
DIRECTORY
AUTO.CH.SW
POS.REPLY
CH TAG
WHAM
HI CAN
MEM
TELEPHONE
DSC CALL
SYSTEM
SETUP
REV.CH.MEM
EXIT
BASE ID
0001
YES
NO
BASE ID
LINK CH
EXIT
BASE ID
LINK CH
EXIT
UT888ZL (POLARIS)-0805 8/5/02 4:50 PM Page 41
42
3-H-2. LINK CH
1. When you press the PUSH –
SELECT knob at CHANNEL, the
following screen appears and you
now can input the ID.
Rotate the PUSH – SELECT knob
clockwise to increase the number,
counterclockwise to decrease. The
number will be entered when the
PUSH – SELECT knob is pressed,
and the blinking digit moves to the
right.
2. After the LINK CH is entered, a
confirmation screen appears, and
you can make your selection by
rotating the PUSH – SELECT knob,
and press the PUSH – SELECT
again.
LINK CH
05
LINK CH
05
YES
NO
UT888ZL (POLARIS)-0805 8/5/02 4:50 PM Page 42
43
3-I. CH TAG
This feature allows you to name each Marine channel.
1. Press and hold MENU for 2 seconds.
2. Press the PUSH – SELECT knob at
SETUP, the SETUP menu will
appear.
3. Rotate the PUSH – SELECT knob to
select CH TAG.
GROUP MMSI
U.I.C.
DIRECTORY
AUTO.CH.SW
POS.REPLY
CH TAG
HI CAN
MEM
TELEPHONE
DSC CALL
SYSTEM
SETUP
REV.CH.MEM
EXIT
4. Press the PUSH – SELECT knob,
the following screen appears.
5. Now you can select the channel that
you would like to EDIT or DELETE.
3-I-1. EDIT
1. Press the PUSH – SELECT knob at
the data you want to edit.
2. After you selected the channel,
EDIT, DELETE, or EXIT appears.
Select EDIT and press the PUSH –
SELECT knob.
CH01
CH03 PHONE
CH05 COMMUN
CH06 EMG
CH07
CH08
CH01
CH03 PHONE
CH05 COMMUN
CH06 EMG
CH07
CH08
EDIT
DELETE
EXIT
UT888ZL (POLARIS)-0805 8/5/02 4:50 PM Page 43
44
3. You can enter the name with the
PUSH – SELECT knob. Rotate the
PUSH – SELECT knob clockwise or
counterclockwise to select the
alphabet. The letter will be entered
when the PUSH – SELECT knob is
pressed, and the blinking digit moves
to the right.
4. After you have edited the data, a
confirmation screen appears. Rotate
the PUSH – SELECT knob to make
your selection. If you selected NO, it
returns to the display bofore edited.
If you selected YES, the data you
have edited is displayed.
CH01 TAG
KENT
YES
NO
CH01 TAG
3-I-2. DELETE
If you selected Delete -
1. press the PUSH – SELECT knob at
the channel you want to DELETE.
2. After you selected the channel,
EDIT, DELETE, or EXIT appears.
Select DELETE and press the PUSH
– SELECT knob.
3. After you selected DELETE, a
confirmation screen appears. If you
selected "YES", the name that you
have selected is deleted.
CH01 KENT
CH03 PHONE
CH05 COMMUN
CH06 EMG
CH07
CH08
DELETE
CH01
KENT
YES
NO
EDIT
DELETE
EXIT
UT888ZL (POLARIS)-0805 8/5/02 4:50 PM Page 44
45
3-J-1. STANDARD
This feature allows you to set up the time difference manually.
1. Press and hold MENU for 2 seconds.
2. Press PUSH – SELECT knob at
SETUP the, DELETE, SETUP menu
will appear.
3. Rotate the PUSH – SELECT knob to
select TIME OFFSET.
4. Press PUSH – SELECT knob at
STANDARD, the following screen
appears.
5. Rotate the PUSH – SELECT knob to
select the appropriate time offset
from GMT.
6. Press PUSH – SELECT knob.
The POLARIS return to the previous
MRN CH.
HI CAN
MEM
TELEPHONE
DSC CALL
SYSTEM
SETUP
REV.CH.MEM
EXIT
AUTO.CH.SW
POS.REPLY
CH TAG
WHAM
STANDARD
DAYLITE SAV
EXIT
-2
-1
0 GMT
+1
+2
+3
HI CAN
MEM
TELEPHONE
3-J. TIME OFFSET
This feature sets the time difference between local time and UTC Time.
UT888ZL (POLARIS)-0805 8/5/02 4:50 PM Page 45
46
3-J-2. DAYLITE SAV
This feature allows you to set up the difference automatically by using
GPS module.
1. Press and hold MENU for 2 seconds.
2. Press the PUSH – SELECT knob at
SETUP, the SETUP menu will
appear.
3. Rotate the PUSH – SELECT knob to
select TIME OFFSET.
4. Press PUSH – SELECT knob at
DAYLITE SAV.
5. The POLARIS returns to the previous
MRN CH.
HI CAN
MEM
TELEPHONE
DSC CALL
SYSTEM
SETUP
REV.CH.MEM
EXIT
AUTO.CH.SW
POS.REPLY
CH TAG
WHAM
STANDARD
DAYLITE SAV
EXIT
HI CAN
MEM
TELEPHONE
UT888ZL (POLARIS)-0805 8/5/02 4:50 PM Page 46
47
3-K. ALARMCLOCK
This feature is only available when the GPS is connected to the
NMEA0183 jack. If it is connected to the GPS, the alarms are set based
on the satellite.
3-K-1. ALARM ON
This feature allows you to turn the alarm ON.
1. Press and hold MENU for 2 seconds.
2. Press the PUSH – SELECT knob at
SETUP, the SETUP menu appears.
HI CAN
MEM
TELEPHONE
DSC CALL
SYSTEM
SETUP
REV.CH.MEM
EXIT
3. Rotate the PUSH – SELECT knob to
ALARM CLOCK.
4. Press the PUSH – SELECT knob,
the following screen appears.
5. Press the PUSH – SELECT knob at
ON. The POLARIS returns to the
previous MRN CH and icon
appears.
6. When the POLARIS reaches the
time the alarm was set for the alarm
sounds and the icon blinks.
HI CAN
TELEPHONE
DIRECTORY
AUTO.CH.SW
POS.REPLY
CH.TAG
WHAM
ALARM CLOCK
ON
OFF
ALARM SET
UT888ZL (POLARIS)-0805 8/5/02 4:50 PM Page 47
48
3-K-2. ALARM OFF
This feature allows you to turn the alarm OFF.
1. Press and hold MENU for 2 seconds.
2. Press the PUSH – SELECT knob at
SETUP, the SETUP menu will
appear.
3. Rotate the PUSH – SELECT knob to
select ALARM CLOCK.
4. Press the PUSH – SELECT knob,
the following screen appears.
5. Press the PUSH – SELECT knob at
OFF. The POLARIS returns to the
previous MRN CH and the icon
disappears.
HI CAN
MEM
TELEPHONE
DSC CALL
SYSTEM
SETUP
REV.CH.MEM
EXIT
DIRECTORY
AUTO.CH.SW
POS.REPLY
CH.TAG
WHAM
ALARM CLOCK
ON
OFF
ALARM SET
UT888ZL (POLARIS)-0805 8/5/02 4:50 PM Page 48
49
3-K-3. ALARM Set
This feature allows you to set the alarm.
1. Press and hold MENU for 2 seconds.
2. Press the PUSH – SELECT knob at
SETUP, the SETUP menu will
appear.
3. Rotate the PUSH – SELECT knob to
select ALARM CLOCK.
4. Press the PUSH – SELECT knob,
the following screen appears.
Press the PUSH – SELECT knob at
ALARM SET.
5. You can set the hour, minutes, select
am or pm by rotating the PUSH –
SELECT knob.
6. Press the PUSH – SELECT after you
have selected am or pm.
A confirmation screen appears.
The POLARIS returns to the ALARM
CLOCK MENU.
HI CAN
MEM
TELEPHONE
DSC CALL
SYSTEM
SETUP
REV.CH.MEM
EXIT
DIRECTORY
AUTO.CH.SW
POS.REPLY
CH.TAG
WHAM
ALARM CLOCK
ON
OFF
ALARM SET
ALARM SET
00:00 A
ALARM SET
10:00 P
SET
CANCEL
UT888ZL (POLARIS)-0805 8/5/02 4:50 PM Page 49
50
4. REV.CH.MEM
This feature allows you to review all of the channels that have been
programmed in memory scanning.
1. Press and hold MENU for 2 seconds.
2. Press the PUSH – SELECT knob to
select REV.CH.MEM, the following
screen appears.
3. Rotate the PUSH – SELECT knob to
select the registered channel.
4. Press the PUSH – SELECT knob to
move the registered channel.
5. Then you can move to the selected
channel.
Note: When there are no channels registered in memory, an error
tone beeps.
HI CAN
MEM
TELEPHONE
DSC CALL
SYSTEM
SETUP
REV.CH.MEM
EXIT
CH01
CH06
CH07
CH13
EXIT
HI CAN
MEM
BRG/BRG
UT888ZL (POLARIS)-0805 8/5/02 4:50 PM Page 50
51
•Flush mounting bracket for “in dash” installation.
Contact your Uniden Dealer for information.
Optional Accessories
UT888ZL (POLARIS)-0805 8/5/02 4:50 PM Page 51
52
VHF FM Marine Radio Telephone
Channel and Functions
(USA Channels)
CHANNEL FREQUENCY (MHz) TYPE OF SHIP SHIP PERMANENT
DESIG TRANSMIT RECEIVE TRAFFIC TO SHIP TO SHORE SCAN LIST
WX0 —163.275 NOAA Weather RX Only RX Only Weather
WX1 —162.550 NOAA Weather RX Only RX Only Weather
WX2 —162.400 NOAA Weather RX Only RX Only Weather
WX3 —162.475 NOAA Weather RX Only RX Only Weather
WX4 —162.425 NOAA Weather RX Only RX Only Weather
WX5 —162.450 NOAA Weather RX Only RX Only Weather
WX6 —162.500 NOAA Weather RX Only RX Only Weather
WX7 —162.525 NOAA Weather RX Only RX Only Weather
WX8 —161.650 Can. Weather RX Only RX Only Weather
WX9 —161.775 Can. Weather RX Only RX Only Weather
01 156.050 156.050 VTS Yes Yes
02
03 156.150 156.150 Port Ops Yes Yes
04
05 156.250 156.250 VTS Yes Yes
06 156.300 156.300 Safety Yes No Coast Guard
07 156.350 156.350 Com’lYesYes
08 156.400 156.400 Com’lYesNo
09 156.450 156.450 Com’l & Non Com’l Yes Yes Fish
10 156.500 156.500 Com’lYesYes
11 156.550 156.550 Com’lYesYes
12 156.600 156.600 Port Ops Yes Yes
13 156.650 156.650 Navigational, TX 1W only Yes Yes
14 156.700 156.700 Port Ops Yes Yes
15 —156.750 Environmental RX Only RX Only Environmental
16 156.800 156.800 Safety Calling Yes Yes
17 156.850 156.850 State Control Yes Yes
18 156.900 156.900 Com’lYesYes
19 156.950 156.950 Com’l Yes Yes,
20 157.000 157.000 Port Ops, RX Duplex Yes Yes
21 157.050 157.050 Coast Guard Yes Yes Coast Guard
22 157.100 157.100 Coast Guard Yes Yes Coast Guard
23 157.150 157.150 Coast Guard Yes Yes Coast Guard
24 157.200 161.800 Public Corresp,Duplex No Yes Busy Tel.
25 157.250 161.850 Public Corresp,Duplex No Yes Busy Tel.
26 157.300 161.900 Public Corresp,Duplex No Yes Busy Tel.
27 157.350 161.950 Public Corresp,Duplex No Yes Busy Tel.
28 157.400 162.000 Public Corresp,Duplex No Yes Busy Tel.
60
61 156.075 156.075
62
63 156.175 156.175
64 156.225 156.225
65 156.275 156.275 Port Ops Yes Yes
66 156.325 156.325 Port Ops Yes Yes
67 156.375 156.375 Com’l, TX 1W only Yes No
68 156.425 156.425 Non Com’l Yes Yes Fish
69 156.475 156.475 Non Com’l Yes Yes Fish
71 156.575 156.575 Non Com’l Yes Yes Fish
72 156.625 156.625 Non Com’l Yes No Fish
73 156.675 156.675 Port Ops Yes Yes
74 156.725 156.725 Port Ops Yes Yes
77 156.875 156.875 Port Ops Yes No
78 156.925 156.925 Non Com’l Yes Yes Fish
79 156.975 156.975 Com’lYesYes
80 157.025 157.025 Com’lYesYes
81 157.075 157.075 Coast Guard Yes Yes Coast Guard
82 157.125 157.125 US Govt Only Yes Yes
83 157.175 157.175 Coast Guard Yes Yes Coast Guard
84 157.225 161.825 Public Corresp,Duplex No Yes Busy Tel.
85 157.275 161.875 Public Corresp,Duplex No Yes Busy Tel.
86 157.325 161.925 Public Corresp,Duplex No Yes Busy Tel.
87 157.375 161.975 Public Corresp,Duplex No Yes Busy Tel.
88 157.425 157.425 Com’lYesNo
UT888ZL (POLARIS)-0805 8/5/02 4:50 PM Page 52
53
VHF FM Marine Radio Telephone
Channel and Functions
(International Channels)
CHANNEL FREQUENCY (MHz) TYPE OF SHIP SHIP PERMANENT
DESIG TRANSMIT RECEIVE TRAFFIC TO SHIP TO SHORE SCAN LIST
WXO —163.275 NOAA Weather RX Only RX Only Weather
WX1 —162.550 NOAA Weather RX Only RX Only Weather
WX2 —162.400 NOAA Weather RX Only RX Only Weather
WX3 —162.475 NOAA Weather RX Only RX Only Weather
WX4 —162.425 NOAA Weather RX Only RX Only Weather
WX5 —162.450 NOAA Weather RX Only RX Only Weather
WX6 —162.500 NOAA Weather RX Only RX Only Weather
WX7 —162.525 NOAA Weather RX Only RX Only Weather
WX8 —161.650 Can. Weather RX Only RX Only Weather
WX9 —161.775 Can. Weather RX Only RX Only Weather
01 156.050 160.650 VTS,Duplex Yes Yes
02 156.100 160.700 Port Ops,Duplex Yes Yes
03 156.150 160.750 Port Ops,Duplex Yes Yes
04 156.200 160.800 Port Ops,Duplex Yes Yes
05 156.250 160.850 VTS,Duplex Yes Yes
06 156.300 156.300 Safety Yes No
07 156.350 160.950 Com’,Duplexl Yes Yes
08 156.400 156.400 Com’lYesNo
09 156.450 156.450 Com’l & Non Com’l Yes Yes Fish
10 156.500 156.500 Com’lYesYes
11 156.550 156.550 Com’lYesYes
12 156.600 156.600 Port Ops Yes Yes
13 156.650 156.650 Navigational Yes Yes
14 156.700 156.700 Port Ops Yes Yes
15 156.750 156.750 Environmental Yes Yes Environmental
16 156.800 156.800 Safety Calling Yes Yes
17 156.850 156.850 State Control Yes Yes
18 156.900 161.500 Com’l,Duplex Yes Yes
19 156.950 161.550 Com’l,Duplex Yes Yes
20 157.000 161.600 Port Ops,Duplex Yes Yes
21 157.050 161.650 Coast Guard,Duplex Yes Yes
22 157.100 161.700 Coast Guard,Duplex Yes Yes
23 157.150 161.750 Coast Guard,Duplex Yes Yes
24 157.200 161.800 Public Corresp,Duplex No Yes Busy Tel.
25 157.250 161.850 Public Corresp,Duplex No Yes Busy Tel.
26 157.300 161.900 Public Corresp,Duplex No Yes Busy Tel.
27 157.350 161.950 Public Corresp,Duplex No Yes Busy Tel.
28 157.400 162.000 Public Corresp,Duplex No Yes Busy Tel.
60 156.025 160.625 Duplex
61 156.075 160.675 Duplex
62 156.125 160.725 Duplex
63 156.175 160.775 Duplex
64 156.225 160.825 Duplex
65 156.275 160.875 Port Ops,Duplex Yes Yes
66 156.325 160.925 Port Ops,Duplex Yes Yes
67 156.375 156.375 Com’lYesNo
68 156.425 156.425 Non Com’l Yes Yes Fish
69 156.475 156.475 Non Com’l Yes Yes Fish
71 156.575 156.575 Non Com’l Yes Yes Fish
72 156.625 156.625 Non Com’l Yes No Fish
73 156.675 156.675 Port Ops Yes Yes
74 156.725 156.725 Port Ops Yes Yes
77 156.875 156.875 Port Ops Yes No
78 156.925 161.525 Non Com’l,Duplex Yes Yes
79 156.975 161.575 Com’l,Duplex Yes Yes
80 157.025 161.625 Com’l,Duplex Yes Yes
81 157.075 161.675 Coast Guard,Duplex Yes Yes Coast Guard
82 157.125 161.725 US Govt Only,Duplex Yes Yes
83 157.175 161.775 Coast Guard,Duplex Yes Yes Coast Guard
84 157.225 161.825 Public Corresp,Duplex No Yes Busy Tel.
85 157.275 161.875 Public Corresp,Duplex No Yes Busy Tel.
86 157.325 161.925 Public Corresp,Duplex No Yes Busy Tel.
87 157.375 161.975 Public Corresp,Duplex No Yes Busy Tel.
88 157.425 162.025 Com’l,Duplex Yes No Busy Tel.
UT888ZL (POLARIS)-0805 8/5/02 4:50 PM Page 53
54
VHF FM Marine Radio Telephone
Channel and Functions
(Canadian Channels)
CHANNEL FREQUENCY (MHz) TYPE OF SHIP SHIP PERMANENT
DESIG TRANSMIT RECEIVE TRAFFIC TO SHIP TO SHORE SCAN LIST
WXO —163.275 NOAA Weather RX Only RX Only Weather
WX1 —162.550 NOAA Weather RX Only RX Only Weather
WX2 —162.400 NOAA Weather RX Only RX Only Weather
WX3 —162.475 NOAA Weather RX Only RX Only Weather
WX4 —162.425 NOAA Weather RX Only RX Only Weather
WX5 —162.450 NOAA Weather RX Only RX Only Weather
WX6 —162.500 NOAA Weather RX Only RX Only Weather
WX7 —162.525 NOAA Weather RX Only RX Only Weather
WX8 —161.650 Can. Weather RX Only RX Only Weather
WX9 —161.775 Can. Weather RX Only RX Only Weather
01 156.050 160.650 Duplex Yes Yes
02 156.100 160.700 Duplex Yes Yes
03 156.150 160.750 Duplex Yes Yes
04 156.200 156.200 Yes Yes
05 156.250 156.250 Yes Yes
06 156.300 156.300 Yes No
07 156.350 156.350 Yes Yes
08 156.400 156.400 Yes No
09 156.450 156.450 Yes Yes Fish
10 156.500 156.500 Yes Yes
11 156.550 156.550 Yes Yes
12 156.600 156.600 Yes Yes
13 156.650 156.650 1W Yes Yes
14 156.700 156.700 Yes Yes
15 156.750 156.750 1W Yes Yes Environmental
16 156.800 156.800 Yes Yes
17 156.850 156.850 1W Yes Yes
18 156.900 156.900 Yes Yes
19 156.950 156.950 Yes Yes
20 157.000 161.600 Duplex, 1W Yes Yes
21 157.050 157.050 Yes Yes
22 157.100 157.100 Yes Yes
23 157.150 161.750 Duplex Yes Yes
24 157.200 161.800 Duplex No Yes Busy Tel.
25 157.250 161.850 Duplex No Yes Busy Tel.
26 157.300 161.900 Duplex No Yes Busy Tel.
27 157.350 161.950 Duplex No Yes Busy Tel.
28 157.400 162.000 Duplex No Yes Busy Tel.
60 156.025 160.625 Duplex
61 156.075 156.075
62 156.125 156.125
63 ——
64 156.225 160.825 Duplex
65 156.275 156.275 Yes Yes
66 156.325 156.325 Yes Yes
67 156.375 156.375 Yes No
68 156.425 156.425 Yes Yes Fish
69 156.475 156.475 Yes Yes Fish
71 156.575 156.575 Yes Yes Fish
72 156.625 156.625 Yes No Fish
73 156.675 156.675 Yes Yes
74 156.725 156.725 Yes Yes
77 156.875 156.875 Yes No
78 156.925 156.925 Yes Yes
79 156.975 156.975 Yes Yes
80 157.025 157.025 Yes Yes
81 157.075 157.075 Yes Yes Coast Guard
82 157.125 157.125 Yes Yes
83 157.175 157.175 Yes Yes Coast Guard
84 157.225 161.825 Duplex No Yes Busy Tel.
85 157.275 161.875 Duplex No Yes Busy Tel.
86 157.325 161.925 Duplex No Yes Busy Tel.
87 157.375 161.975 Duplex No Yes Busy Tel.
88 157.425 162.025 Duplex Yes No Busy Tel.
UT888ZL (POLARIS)-0805 8/5/02 4:50 PM Page 54
55
General
Channels : Transmit 54
Receive 77 Marine/10 Weather
Controls : On-Off/Volume, Squelch
Status Indicators : TX (transmit), SCAN, TRI, U, I, C, HI, LO, MEM,
WX, and WX alert symbol on LCD Panel
Channel Display : LCD (Full DotMatrix)
Selector Switch : Channel Selector switch
Buttons : WX, 16/9, MEM, H/L, and STEP
Connectors : Antenna, remote ACC, and DC power
Size : 73 mmH x 181 mmW x 132 mmL
Weight : 1.1 kg (microphone: 180 g)
Supply Voltage : 13.8V DC negative ground
Standard Accessories : Mounting bracket and hardware, DC power cord,
microphone hanger, spare fuse
Antenna Impedance : 50 Ωnominal
Microphone : Rugged 2 kΩcondenser mic element with
coiled cord
Speaker : 1.82 inch, 8W
Operating Temperature Range : –20 °C to + 50 °C (–4 °F to +122 °F)
Shock and Vibration : Meets or exceeds EIA standards, RS152B and
RS204C
FCC Approvals : Type accepted under part 80 of the Rules; meets
Great Lakes Agreement and party boat
requirements
Transmitter
Power Output : 1 watt or 25 watt (switch selectable)
Power Requirement : Not rated on LO, 25 watts output: 4.5A@13.8V DC
Modulation : FM ±5 kHz deviation (FCC designator F3E)
Hum and Noise Signal-to-Noise : 45 dB@1 kHz, 3 kHz - Dev.
Audio Distortion : Less than 7% with 3 kHz deviation with 1000 Hz
modulating frequency (nominal)
Spurious Suppression : –16 dBm @ Hi, –18 dBm @ Lo
Output Power Stabilization : Built-in automatic level control (ALC)
Frequency Range : 156 to 158 MHz
Frequency Stability : ±10 ppm @ –20°C to + 50°C
Receiver
Frequency Range : 156 to 163 MHz
Sensitivity : 0.25 µV for 12 dB SINAD, 0.35 µV for 20 dB S/N
Circuit : Dual Conversion Super Heterodyne PLL
Squelch Sensitivity : 0.6 µV Threshold
Spurious Response : 65 dB
Adjacent Channel Selectivity : 60 dB @ ±25 kHz
Audio Output Power : 3.0 watts (10% Distortion)
Power Requirement : 400 mA @ 13.8V DC squelched, 0.7A @ 13.8V
DC at maximum audio output
IF Frequencies : 1st 21.4 MHz, 2nd –455 kHz
Specification
UT888ZL (POLARIS)-0805 8/5/02 4:50 PM Page 55
56
If the POLARIS does not perform to your expectations, try the
suggestions listed below. If you cannot get satisfactory results, call the
Uniden Customer Service Center at (800) 586-0409, 8:00 a.m. to 5:00
p.m., Central Standard Time, Monday through Friday.
Troubleshooting
CAUSE
No or low voltage.
Low current or
voltage.
Bad mic element.
A source of noise is
nearby.
An external noise is
being generated by
some device.
SYMPTOM
Won’t power On.
Reverts to Ch.16
when PTT key is
pressed.
When the PTT is
pressed - Tx light
comes on and
another radio can
hear a “click” but no
audio is heard.
While scanning, the
radio stops on a
particular channel all
of the time.
There is noise on
the receiver that the
squelch will not
eliminate.
REMEDY
Check for proper voltage
getting to the set.
Connect to a source of
12VDC that can supply at
least 4 Amps.
Send in for repair.
Eliminate the source of
the noise or delete the
channel from the
scanner.
Either turn off the
offending device or
contact that Mfg.
Regarding FCC part 15
“unintentional radiator”.
UT888ZL (POLARIS)-0805 8/5/02 4:50 PM Page 56
57
Your POLARIS is a precision of electronic equipment and you should
treat it accordingly. Due to the rugged design, very little maintenance is
required. However, a few precautions should be observed:
•If your radio has been accidentally subjected to spray or splash,
you should immediately wipe it down with a soft cloth dampened
with fresh water.
•If the antenna has been damaged, you should not transmit
except in the case of an emergency. A defective antenna may
cause damage to your radio.
•You are responsible for continued FCC technical compliance of
your radio.
•You are urged to arrange for periodic performance checks with
your Uniden Marine dealer.
Care and Maintenance
UT888ZL (POLARIS)-0805 8/5/02 4:50 PM Page 57
58
NOTE
UT888ZL (POLARIS)-0805 8/5/02 4:50 PM Page 58
59
WARRANTOR: UNIDEN AMERICA CORPORATION (“Uniden”)
ELEMENTS OF WARRANTY: Uniden warrants, for three years, to the original
retail owner, this Uniden Product to be free from defects in materials and
craftsmanship with only the limitations or exclusions set out below.
WARRANTY DURATION: This warranty to the original user shall terminate and
be of no further effect 36 months after the date of original retail sale. The
warranty is invalid if the Product is (A) damaged or not maintained as
reasonable or necessary, (B) modified, altered, or used as part of any
conversion kits, subassemblies, or any configurations not sold by Uniden,
(C) improperly installed, (D) serviced or repaired by someone other than an
authorized Uniden service center for a defect or malfunction covered by this
warranty, (E) used in any conjunction with equipment or parts or as part of any
system not manufactured by Uniden, or (F) installed or programmed by anyone
other than as detailed by the Operating Guide for this product.
STATEMENT OF REMEDY: In the event that the product does not conform to
this warranty at any time while this warranty is in effect, warrantor will repair the
defect and return it to you without charge for parts, service, or any other cost
(except shipping and handling) incurred by warrantor or its representatives in
connection with the performance of this warranty. THE LIMITED WARRANTY
SET FORTH ABOVE IS THE SOLE AND ENTIRE WARRANTY PERTAINING
TO THE PRODUCT AND IS IN LIEU OF AND EXCLUDES ALL OTHER
WARRANTIES OF ANY NATURE WHATSOEVER, WHETHER EXPRESS,
IMPLIED OR ARISING BY OPERATION OF LAW, INCLUDING, BUT NOT
LIMITED TO ANY IMPLIED WARRANTIES OF MERCHANTABILITY OR
FITNESS FOR A PARTICULAR PURPOSE. THIS WARRANTY DOES NOT
COVER OR PROVIDE FOR THE REIMBURSEMENT OR PAYMENT OF
INCIDENTAL OR CONSEQUENTIAL DAMAGES. Some states do not allow this
exclusion or limitation of incidental or consequential damages so the above
limitation or exclusion may not apply to you.
LEGAL REMEDIES: This warranty gives you specific legal rights, and you may
also have other rights which vary from state to state. This warranty is void
outside the United States of America.
PROCEDURE FOR OBTAINING PERFORMANCE OF WARRANTY: If, after
following the instructions in this Operating Guide you are certain that the Product
is defective, pack the Product carefully (preferably in its original packaging).
Include evidence of original purchase and a note describing the defect that has
caused you to return it. The Product should be shipped freight prepaid, by
traceable means, or delivered, to warrantor at:
Uniden America Corporation
Parts and Service Division
4700 Amon Carter Blvd.
Ft. Worth, TX 76155
(800) 235-3874, 8 AM to 5 PM Central,
Monday through Friday
Three Year Limited Warranty
UT888ZL (POLARIS)-0805 8/5/02 4:50 PM Page 59
Printed in the Philippines
UTZZ01888ZZ
UT888ZL (POLARIS)-0805 8/5/02 4:50 PM Page 60
