Contents

Users Manual RF Exposure Statement per CRN 7817

Choosing a Channel
Your radio has 22 channels and 38 CTCSS codes
you can use to talk to others. In order to speak to
someone, each of you must be set to the same
channel and CTCSS code.
To choose a channel:
With the radio in "Normal" operating mode press
the channel/scan ▲or ▼key to increase or
decrease the channel number displayed.
Note: Channels 1-14 have an expectancy range of
up to 2 miles. Channels 15-22 have an expectancy
range of up to 5 miles.
Choosing a CTCSS Code
Each of the channels 1-22 may have any one of
the codes, OFF or 1-38 selected. Code "OFF"
indicates no CTCSS code selected and your radio
can receive a signal regardless of the code settings
of the transmitting radio.
1) Enter the Menu. The CTCSS code on the LCD
display will flash.
2) Press the channel/scan ▲or ▼key to
increase or decrease the code number
displayed. You can also select “OFF” at this
stage.
3) Exit the Menu to return to “Normal” mode.
Talking on Your Radio
To talk to others using the radio:
1) Press and hold the PTT button and speak in a
clear, normal voice about 2-3 inches away from
the microphone. While you are transmitting, the
icon will appear on the display. To avoid
cutting off the first part of your transmission,
pause slightly after pressing the PTT button
before you start talking.
2) When you are finished speaking, release the PTT
button. You can now receive incoming calls. While
receiving, the icon will appear on the display.
Voice Operated Transmission
Your GMRS680 radio is equipped with a user
selectable Voice Operated Transmitter (VOX) that
can be used for automatic voice transmissions. The
VOX feature is designed to be used with a headset
with a microphone. Transmission is initiated by
speaking into the remote microphone instead of
pushing the PTT button.
GMRS680
* Range may vary depending on environmental and/or topographical conditions.
• 8 GMRS / 14 FRS Channels
• 38 CTCSS Codes
• Up to 5 Mile Range*
• Internal VOX Circuitry
• 5 Selectable Call Tone Alerts
• Backlit LCD Display
• Optional Headset Accessories
• Headset Jack
• Battery Recharge Circuit
• Optional NiMH Battery Pack
and Charger
1 Antenna
2 PTT (Push-To-Talk) Button
3 Channel/Scan Up Key
4 Call Key
5 Channel/Scan Down Key
6 Sel/ Key
7 Speaker
8 Mon Key
9 Volume Up Key
10 Volume Down Key
11 Battery Level Meter
12 Receive Indicator
13 Scan Indicator
14 Channel Indicator
15 Call Indicator
16 VOX Indicator
17 Keypad Lock Indicator
18 Transmit Indicator
19 Volume Setting Indicator
20 CTCSS Indicator
Congratulations on your purchase of the Uniden
GMRS680 (General Mobile Radio Service) radio.
This product is a lightweight, palm-sized radio.
Use it at sporting events to stay in contact with
family and friends, hiking, skiing, outdoors, or in
a neighborhood watch for vital communication.
This compact, state-of-the-art device is equipped
with many features.
OPTIONAL ACCESSORIES
Your package contains the GMRS680 radio, this

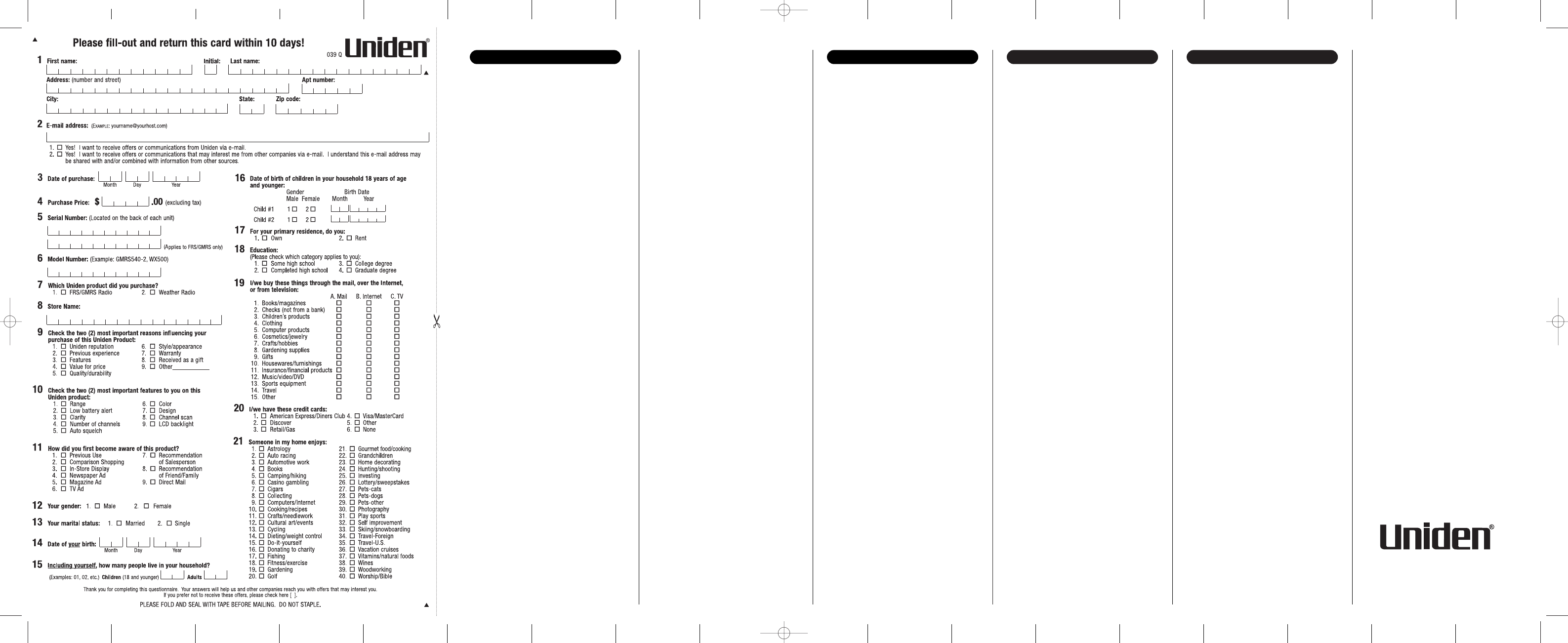

reference guide, including a product registration
card. You may operate the unit using 4 AAA alkaline
batteries or the rechargeable NiMH battery pack
(not included). The following optional accessories
may be purchased from your participating Uniden
dealer or call1-800-554-3988 or visit us on the web
at www.uniden.com. Use only Uniden accessories.
• NiMH Battery Pack - #BP38
• Recharging Cradle - #RC6248
• Dual Recharging Cradle
with AC Adapter - #CK6000
FCC GMRS LICENSE
The GMRS680 radio operates on the General
Mobile Radio Service (GMRS) frequencies which
require a Federal Communication Commission
license to operate. For licensing information and
application forms, visit the FCC online at:
www.fcc.gov/wtb/uls or call the FCC hotline at
1-800-418-3676. If you have any questions you
can contact the FCC direct at 1-888-225-5322.
INSTALL THE BATTERIES
Your GMRS680 radio uses 4 AAA alkaline batteries
or the optional NiMH battery pack (not included).
If alkaline batteries are used, we recommend using
high quality alkaline batteries.
To install the 4 AAA alkaline batteries:
1) Make sure your radio is OFF.
2) Remove the battery compartment door by
pressing the tab at the bottom of the
compartment door allowing the door to be
removed.
3) Install 4 AAA alkaline batteries (not included)
into the battery compartment. Be certain to
follow the + and – symbols in the compartment.
Installing the batteries incorrectly will prevent the
unit from operating.
4) Replace the battery compartment door.
USING THE RADIO
In order to get the most out of your new radio, read
this reference guide completely before attempting to
operate the unit.
Turning the Radio On and Adjusting the Volume
1) Press and hold the sel/ key to turn the unit
ON, and increase the speaker volume by
pressing the volume ▲key. To decrease the
volume, press the volume ▼key.
2) Press and hold the sel/ key again to turn the
unit OFF.
Adjusting the Sound (Key Beeps)
Your radio emits a beep each time one of the
buttons or keys (except for the PTT button and call
key) are pressed. To turn this sound OFF, press and
hold call while turning ON the radio. Repeat this
step to turn the sound ON.
Navigating through the Menu
To access the advanced features of the GMRS680,
your radio has a Menu function.
• Battery Level Meter
• Channel Monitor
• Channel Scan
• Keypad Lock
BATTERY LEVEL AND
LOW BATTERY ALERT
This unit has a battery level meter on the display to
indicate the status of the batteries. When the
batteries in the unit are low, the battery level meter
icon will flash. Replace the alkaline
batteries immediately or if you are using the NiMH
battery pack, you must recharge the batteries in
order to continue using the radio.
Warning! To avoid the risk of personal injury or
property damage from fire or electrical shock, only
use the Uniden accessories specifically designated
for this product.
1) To enter the Menu, press the sel/ key.
2) Additional presses of the sel/ key will
advance you through the Menu until exiting to
"Normal" operating mode.
3) Other methods of exiting the Menu function are:
a. Press and hold the sel/ key again.
b. Press PTT, mon, volume ▲/▼, and call.
c. Wait 10 seconds until the unit automatically
returns to “Normal”mode.
To select the VOX level:
1) Enter the Menu. Advance through the Menu until
the vox icon appears on the display. The current
level (off, 1-3) will be indicated. Level “oF”
disables VOX, while levels - set the
sensitivity of the VOX circuit.
2) Press either the channel/scan ▲or ▼key to
the desired VOX sensitivity level. Use level 1 for
increased sensitivity to voice in normally quiet
environments, and use a higher level to reduce
undesired activation in very noisy environments.
3) Exit the Menu.
Transmitting a Call Tone
Your GMRS680 radio is equipped with 5 selectable
call tones that will be transmitted when the call key
is pressed.
To select a call tone:
1) Enter the Menu. Advance through the Menu until
the call icon is shown on the display. The
current call tone number ( - ) will be
indicated.
2) Press the channel/scan ▲or ▼key to
increase or decrease the number to the desired
call tone. Each tone will be heard through the
speaker.
3) Exit the Menu.
To transmit the selected call tone, press the call
key. The selected tone will automatically be
transmitted for a fixed length of time.
Channel Scan Feature
Your GMRS680 radio has a channel Scan feature
that allows you to easily Scan all 22 channels.
When an active channel is detected, the unit will
pause on that channel until the channel is clear.
Then after a 2 second delay, the unit will continue
scanning. Pressing PTT while the Scan is paused
on a channel will allow you to transmit on that
channel.
To turn ON channel scanning:
Press and hold either the channel/scan ▲or ▼
key until the scan icon is displayed. The channel
number on the display will change as the radio
rapidly cycles through the channels.
To turn OFF channel scanning:
Press sel/ ,call, or PTT.
Normal NormalCTCSS VOX Level Call Tone Key Lock
1-5
off, 1-38 off, 1-3
ON-OFF
GMRS680 RADIO
Keypad Lock
To Lock the keypad:
1) Enter the Menu. Advance through the Menu until
the icon appears on the display. The current
key Lock status (OFF) blinks on the display.
2) To switch the key Lock mode from OFF to ON,
press the channel/scan ▲key.
3) To confirm the setting, press the sel/ key. The
radio returns to the "Normal" mode.
Note: If you exit the setting mode before confirming
your selection by pressing the sel/ key, the key
Lock setting will be set to OFF.
To Unlock the keypad:
1) Press and hold the sel/ key to turn the unit
OFF.
2) Press and hold the sel/ key again to turn the
unit ON. The keypad is unlocked.
Automatic Power Save Feature
Your GMRS680 radio has a unique circuit designed
to dramatically extend the life of the batteries.
If there is no transmission nor an incoming call
within 3 seconds, your radio switches to the Power
Save mode. The radio is still able to receive
transmissions in this mode.
LCD Backlight
The LCD backlight will automatically turn ON when
any key (except PTT button) is pressed. The LCD
display will illuminate for 10 seconds before turning
OFF.
Monitor Mode Feature
Your GMRS680 radio allows you to listen for weak
signals on the current channel at the press of
a key.
To turn ON the monitor mode:
•Press mon for brief listening, the icon will
blink.
•Press and hold mon for 2 seconds for
continuous listening. The receiver circuit will stay
open, and letting in both the noise & weak
signals.
To turn OFF monitor mode:
•Press mon to return to "Normal" mode, and the
icon stops blinking.
GMRS680_UT893ZH_UT01893ZA_0 3/19/03 2:24 PM Page 1
Channels 8 GMRS / 14 FRS
CTCSS Codes 38 Sub-Audible Tones
Operating Frequency UHF 462.5500-
467.7125 MHz
Power Source 4 AAA Alkaline Batteries or
NiMH Battery Pack
Range Channels 1-14 up to 2 miles
Channels 15-22 up to 5 miles
Battery Life 22 Hours typ. -
Alkaline Batteries
(5/5/90 duty cycle)
14 Hours typ. - NiMH
Battery Pack
Frequency Chart
Ch. Freq. Ch. Freq.
1 462.5625 12 467.6625
2 462.5875 13 467.6875
3 462.6125 14 467.7125
4 462.6375 15 462.5500
5 462.6625 16 462.5750
6 462.6875 17 462.6000
7 462.7125 18 462.6250
8 467.5625 19 462.6500
9 467.5875 20 462.6750
10 467.6125 21 462.7000
11 467.6375 22 462.7250
This device complies with Part 15 of the FCC
Rules. Operation is subject to the following two
conditions:
(1) This device may not cause harmful interference.
(2) This device must accept any interference
received, including interference that may cause
undesired operation.
Important: Changes or modifications to this unit
not expressly approved by Uniden could void your
authority to operate this unit. Your radio is set up
to transmit a regulated signal on an assigned
frequency. It is against the law to alter or adjust the
settings inside the radio to exceed those limitations.
Any adjustments to your radio must be made by
qualified technicians.
To be safe and sure:
• Never open your radio’s case.
• Never change or replace anything in your radio
except the batteries.
Your radio might cause TV or radio interference
even when it is operating properly. To determine
whether your radio is causing the interference, turn
it off. If the interference goes away, your radio is
causing it. Try to eliminate the interference by
moving your radio away from the receiver. If you
cannot eliminate the interference, the FCC requires
that you stop using the radio.
Hazardous Environments: Do not operate the
radio in hazardous environments. Explosion or fire
may result. Do not operate the radio near
unshielded electrical blasting caps.
Under certain conditions, radios can interfere with
blasting operations and may cause an explosion.
Turn your radio OFF to prevent accidental
transmission when in a blasting area or in areas
posted: "Turn off two-way radio." Construction
crews often use remote control RF devices to set
off explosives.
Care and Safety: To clean the radio, use a soft
cloth dampened with water. Do not use cleaners or
solvents because they can harm the body of the
unit and leak inside, causing permanent damage.
Use a dry, lint-free cloth to clean the battery
contacts. Do not submerge the unit in water. If the
unit gets wet, turn it off and remove the batteries
immediately.
Dry the battery compartment with a soft cloth to
minimize potential water damage. Leave the battery
compartment cover off overnight to ensure
complete drying. Do not use the radio until the unit
is completely dry.
Important: Evidence of original purchase is
required for warranty service.
WARRANTOR: UNIDEN AMERICA
CORPORATION ("Uniden")
ELEMENTS OF WARRANTY: Uniden warrants, for
one year, to the original retail owner, this Uniden
Product to be free from defects in materials and
craftsmanship with only the limitations or exclusions
set out below.
WARRANTY DURATION: This warranty to the
original user shall terminate and be of no further
effect 12 months after the date of original retail
sale. The warranty is invalid if the Product is:
(A) damaged or not maintained as reasonable or
necessary, (B) modified, altered, or used as part
of any conversion kits, sub-assemblies, or any
configurations not sold by Uniden, (C) improperly
installed, (D) serviced or repaired by someone
other than an authorized Uniden service center for
a defect or malfunction covered by this warranty,
(E) used in any conjunction with equipment or parts
or as part of any system not manufactured by
Uniden, or (F) installed or programmed by anyone
other than as detailed by the owner’s manual for
this product.
STATEMENT OF REMEDY: In the event that the
product does not conform to this warranty at any
time while this warranty is in effect, warrantor will
either, at its option, repair or replace the defective
unit and return it to you without charge for parts,
service, or any other cost (except shipping and
handling) incurred by warrantor or its
representatives in connection with the performance
of this warranty. Warrantor, at its option, may
replace the unit with a new or refurbished unit.
THE LIMITED WARRANTY SET FORTH ABOVE
IS THE SOLE AND ENTIRE WARRANTY
PERTAINING TO THE PRODUCT AND IS IN LIEU
OF AND EXCLUDES ALL OTHER WARRANTIES
OF ANY NATURE WHATSOEVER, WHETHER
EXPRESS, IMPLIED OR ARISING BY
OPERATION OF LAW, INCLUDING, BUT NOT
LIMITED TO ANY IMPLIED WARRANTIES OF
MERCHANTABILITY OR FITNESS FOR A
PARTICULAR PURPOSE.THIS WARRANTY DOES
NOT COVER OR PROVIDE FOR THE
REIMBURSEMENT OVERPAYMENT OF
INCIDENTAL OR CONSEQUENTIAL DAMAGES.
Some states do not allow this exclusion or limitation
of incidental or consequential damages so the
above limitation or exclusion may not apply to you.
LEGAL REMEDIES: This warranty gives you
specific legal rights, and you may also have other
rights which vary from state to state. This warranty
is void outside the United States of America and
Canada.
PROCEDURE FOR OBTAINING PERFORMANCE
OF WARRANTY: If, after following the instructions
in the owner’s manual you are certain that the
Product is defective, pack the Product carefully
(preferably in its original packaging). The Product
should include all parts and accessories originally
packaged with the Product. Include evidence of
original purchase and a note describing the defect
that has caused you to return it.The Product should
be shipped freight prepaid, by traceable means, to
warrantor:
ONE YEAR LIMITED WARRANTY
FCC INFORMATION
WARNING! Read this information before using
the radio In August 1996 the Federal
Communications Commission (FCC) of the United
States with its action in Report and Order FCC
96-326 adopted an updated safety standard for
human exposure to radio frequency
electromagnetic energy emitted by FCC regulated
transmitters.
Those guidelines are consistent with the safety
standard previously set by both U.S. and
international standards bodies. The design of the
radio complies with the FCC guidelines and these
international standards.
Never allow children to operate the radio without
adult supervision and the knowledge of the
following guidelines.
WARNING! It is up to the user to properly operate
this radio transmitter to insure safe operation.
Please adhere to the following:
Use only the supplied or an approved antenna.
Unauthorized antennas, modifications, or
attachments could impair call quality, damage the
radio, or result in violation of FCC regulations.
Do not use the radio with a damaged
antenna. If a damaged antenna comes into contact
with the skin, a minor burn may result. Please
contact your local dealer for a replacement
antenna.
Body-worn Operation
This device was tested for typical body-worn
operations using the supplied belt-clip.
To maintain compliance with FCC RF exposure
requirements, Body-worn operations are restricted
to the supplied belt-clip.
For hand-held operation, the radio should be held
1 inch from the user's face. The use of accessories
that do not satisfy these requirements may not
comply with FCC RF exposure requirements and
should be avoided.
For more information about RF exposure, please
visit the FCC web site at www.fcc.gov.
FCC RF EXPOSURE INFORMATION
Covered under one or more of the following
U.S. patents:
4,684,870 4,734,049 5,203,015 5,214,789
5,491,745 5,497,508 5,517,677 5,557,606
5,574,994 5,610,946 5,613,201 5,625,870
5,627,876 5,628,059 5,634,196 5,634,205
5,678,176 5,697,096 5,717,312 5,722,070
5,787,345 5,901,341 6,021,326 6,084,861
6,163,691 6,195,415 6,353,730
Uniden America Corporation
Parts and Service Division
4700 Amon Carter Blvd., Fort Worth, TX 76155
(800) 297-1023, 8 a.m. to 5 p.m. Central,
Monday through Friday
www.uniden.com
© 2003 Uniden America Corporation
All rights reserved Printed in China
UTZZ01893ZA
SPECIFICATIONS CTCSS Chart (Hz)
Code Freq. Code Freq.
oF OFF 20 131.8
1 67.0 21 136.5
2 71.9 22 141.3
3 74.4 23 146.2
4 77.0 24 151.4
5 79.7 25 156.7
6 82.5 26 162.2
7 85.4 27 167.9
8 88.5 28 173.8
9 91.5 29 179.9
10 94.8 30 186.2
11 97.4 31 192.8
12 100.0 32 203.5
13 103.5 33 210.7
14 107.2 34 218.1
15 110.9 35 225.7
16 114.8 36 233.6
17 118.8 37 241.8
18 123.0 38 250.3
19 127.3
GMRS680_UT893ZH_UT01893ZA_0 3/19/03 2:24 PM Page 2

Navigation menu
