Uniform UIC6811 Contactless Smart Card Reader Module User Manual UIC 681
Uniform Industrial Corp. Contactless Smart Card Reader Module UIC 681
Uniform >
Users Manual
UIC6811
Contactless Smart Card Reader Module
-RS232/USB/PS2 Interface-
Programmer’s Manual
Document #: PM0601-U
Revision A
July 10, 2007
UIC6811 Programmer’s Manual UDN PM0601-U Rev. A
NOTICE
The issuer of this manual has made every effort to provide accurate information contained
in this manual. The issuer shall not be held liable for any technical and editorial omissions
or errors made herein; nor for incidental consequential damages resulting from the
furnishing, performance or use of this material.
This document contains proprietary information protected by copyright. All rights are
reserved. No part of this document may be photocopied, reproduced, or translated without
the prior written permission of the issuer. The information provided in this manual is subject
to change without notice.
AGENCY APPROVED
- Specification for FCC Class B
- Specification for CE Class B, CISPR 22 Class B
NOTE: This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user
is encouraged to try to correct the interference by one or more of the following measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
—Consult the dealer or an experienced radio/ TV technician for help.
You are cautioned that any change or modifications to the equipment not expressly approve
by the party responsible for compliance could void your authority to operate such
equipment.
I
UIC6811 Programmer’s Manual UDN PM0601-U Rev. A
WARNING
You are cautioned that changes or modifications not expressly approved by the party
responsible for compliance could void your authority to operate the equipment.
WARRANTY
This product is served under one-year warranty of defects in material and functionality to
the original purchasers. Within the warranty period, if the product found to be defective will
be repaired or replaced. This warranty applies to the products only under the normal use of
the original purchasers, and in no circumstances covers incidental or consequential
damages through consumers’ misuse or modification of the product.
PREFACE
This manual provides detailed information relating to the overall operational, electrical,
mechanical, environmental and functional aspects of the UIC6811. This document should
be read and understood prior to initial operation of the product.
For ease of installation and programming use, we have addressed everything from its
attractive features to its various configurations.
When designing the UIC6811, we selected what we feel are the most useful features and
functions. If in some cases you find that your specific needs differ from our existing
products, we welcome your comments and suggestions. Custom-designed models are also
available.
If further questions do arise, please call for technical support, our FAE will assist you in any
way we can.
II
UIC6811 Programmer’s Manual UDN PM0601-U Rev. A
Table of Contents
Section1 : General Description................................................................. 1-1
Features................................................................................................................... 1-1
Application.............................................................................................................. 1-1
Part Number Description ....................................................................................... 1-2
Section2 : Configurations ......................................................................... 2-3
Dimensions of UIC6811 PCBA............................................................................... 2-3
Dimensions of Remote Antenna PCBA................................................................. 2-3
Accessories of UIC6811 ......................................................................................... 2-4
Section3 : Technical Specifications ......................................................... 3-5
Functional Specifications ...................................................................................... 3-5
Mechanical Specifications..................................................................................... 3-5
Dimension .................................................................................................................... 3-5
Electrical Specifications ........................................................................................ 3-6
Power Required ........................................................................................................... 3-6
Power Consumption..................................................................................................... 3-6
Communication............................................................................................................ 3-6
Communication Signal (RS232) .................................................................................. 3-6
Environmental Specifications................................................................................ 3-6
Temperature................................................................................................................. 3-6
Humidity ....................................................................................................................... 3-6
Pin Assignment....................................................................................................... 3-7
Communication....................................................................................................... 3-8
RS232 Interface Data Output ...................................................................................... 3-8
RS232 Interface Pass Through ................................................................................... 3-8
Transmission Protocol (RS232)................................................................................... 3-8
Section4 : Commands and Responses.................................................. 4-11
4.1 Reader default setting.....................................................................................4-11
4.2 Reader Command Description .......................................................................4-11
% (25H) – Retransmit ................................................................................................ 4-11
70 (3730H) or 90 (3930H) – Serial Number Report................................................... 4-11
71 (3731H) or 91 (3931H) – Copyright Report .......................................................... 4-11
72 (3732H) or 92 (3932H) – Reader Model Number Report ..................................... 4-12
73 (3733H) or 93 (3933H) – Reader PCB Number Report........................................ 4-12
74 (3734H) or 94 (3934H) – Contactless Smart Card Library Version Report .......... 4-12
III
UIC6811 Programmer’s Manual UDN PM0601-U Rev. A
75 (3735H) or 95 (3935H) – F/D Parameters List Report.......................................... 4-12
76 (3736H) or 96 (3936H) – Boot loader Version Number Report ............................ 4-12
77 (3737H) or 97 (3937H) – Reader Configuration Data Report............................... 4-12
78 (3738H) or 98 (3938H) – Reader Customer Configuration Data Report.............. 4-13
79 (3739H) or 99 (3939H) – Reader Manufacturing Configuration Data Report....... 4-13
9 (39H) – Version Report ........................................................................................... 4-14
? (3FH) – Select Verbose Responses Command...................................................... 4-14
$ (24H) – Reader Status Request.............................................................................. 4-14
L (4CH) – LED ON..................................................................................................... 4-15
l (6CH) – LED OFF .................................................................................................... 4-15
( (28H) – LED flash .................................................................................................... 4-15
# (23H) – Configuration Request............................................................................... 4-15
<CAN> (18H) – Pass through toggle......................................................................... 4-16
<7FH> – Warm Reset ................................................................................................ 4-16
<09H> – Configuration Setting .................................................................................. 4-16
4.3 Contactless Mag Stripe Command Description............................................4-18
P (50H) – Arm to Read............................................................................................... 4-18
p (70H) – Arm to Read (Used for Manufacturing Test Only )..................................... 4-18
<ESC> (1BH) – Abort Arm to Read ........................................................................... 4-18
Q (51H) – Transmit Track 1 data ............................................................................... 4-18
R (52H) – Transmit Track 2 data................................................................................ 4-18
4.4 Contactless Smart Card Command Descriptions.........................................4-19
G (47H) – ISO14443 type protocol select.................................................................. 4-19
H(48H) – PayPass/Express card auto read function disable/enable......................... 4-19
O (4FH) – Antenna power on..................................................................................... 4-19
o (6FH) – Antenna power OFF .................................................................................. 4-20
b (62H) – Request...................................................................................................... 4-20
c (63H) – Anticollision(type A)/Slot-Marker ................................................................ 4-20
f (65H) – Select(type A)/Attrib(type B) ....................................................................... 4-21
g (66H) – Mifare classical card authentication........................................................... 4-22
h (67H) – Mifare classical card read block................................................................. 4-22
i (68H) – Mifare classical card write block ................................................................. 4-23
t (74H) – Mifare Value Operation ............................................................................... 4-23
X (58H) – Mifare classical card activation.................................................................. 4-24
x (78H) – Card halt..................................................................................................... 4-24
J (6BH) – Activate PICC cpu card.............................................................................. 4-24
j (6BH) – Load Mifare key (Mifare classical card only) .............................................. 4-24
k(6CH) – Mifare Reader Chip Direct Control ............................................................. 4-25
y (79H) – Send DESELECT command...................................................................... 4-25
Z (41H) – I/O to contactless CPU card with APDU format......................................... 4-25
IV
UIC6811 Programmer’s Manual UDN PM0601-U Rev. A
Section1: General Description
This section presents general information about the basic characters of the UIC6811.
Features
The UIC6811 provides the following features:
1 Small footprint PCB size: 1.4L*1.7W (inch) without antenna board
2 Support ISO 14443 type A & B standard
3 Support Amex ExpressPay, MasterCard PayPass, Visa MSD applications.
4 Read/write Philips Mifare classical contactless smart card
5 Provide the options for the direct coupling antenna and the remote antenna
6 RS232, USB and PS/2 (optional) Interface
7 RS232 data pass through function
8 TTL F2F magnetic stripe decode data pass through (optional)
9 F2F decoder data emulation (optional)
10 Firmware upgradeable
Application
The contactless smart card reader module UIC6811 is mainly to support the contactless
payment systems. The small footprint size of the module makes it easily to integrate to the
current transaction system such as Point-of-Sale terminal, kiosk, and vending machine
station as the part of the system. The module communicates with a host computer or
terminal using a standard RS-232, USB or PS/2 interface.
At the meantime, UIC6811 offers both RS232, USB and PS/2 magnetic stripe decoder
pass-thru function to allow the terminal to share the same input port with other peripheral
devices. This benefits the existing system without change its hardware configuration to
catch up the future payment trend.
1-1
UIC6811 Programmer’s Manual UDN PM0601-U Rev. A

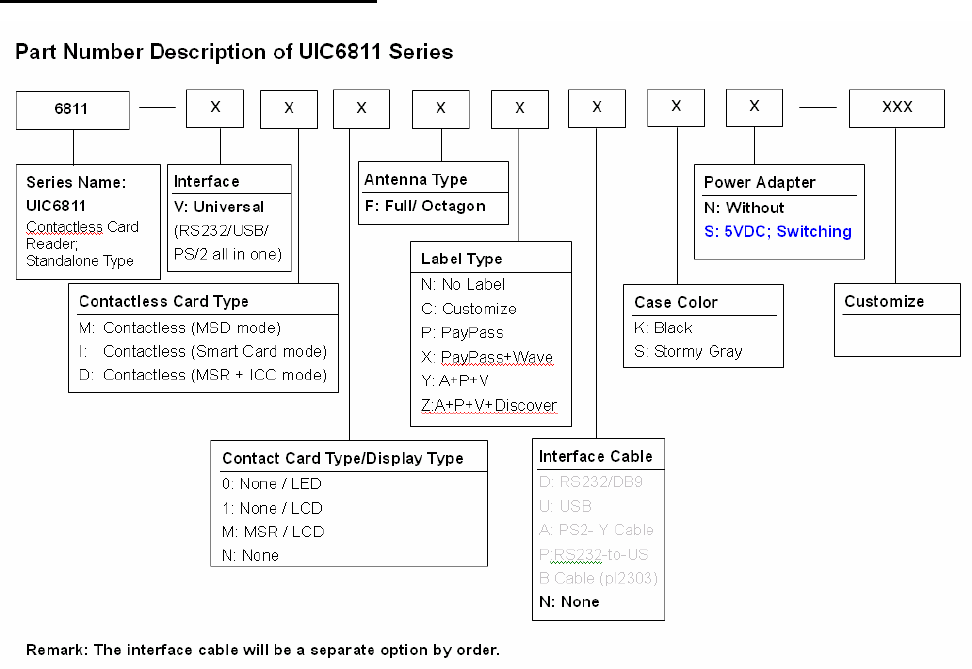

Part Number Description
1-2
UIC6811 Programmer’s Manual UDN PM0601-U Rev. A
Section2: Configurations
This section shows the dimensions, accessories and setup for the UIC6811.

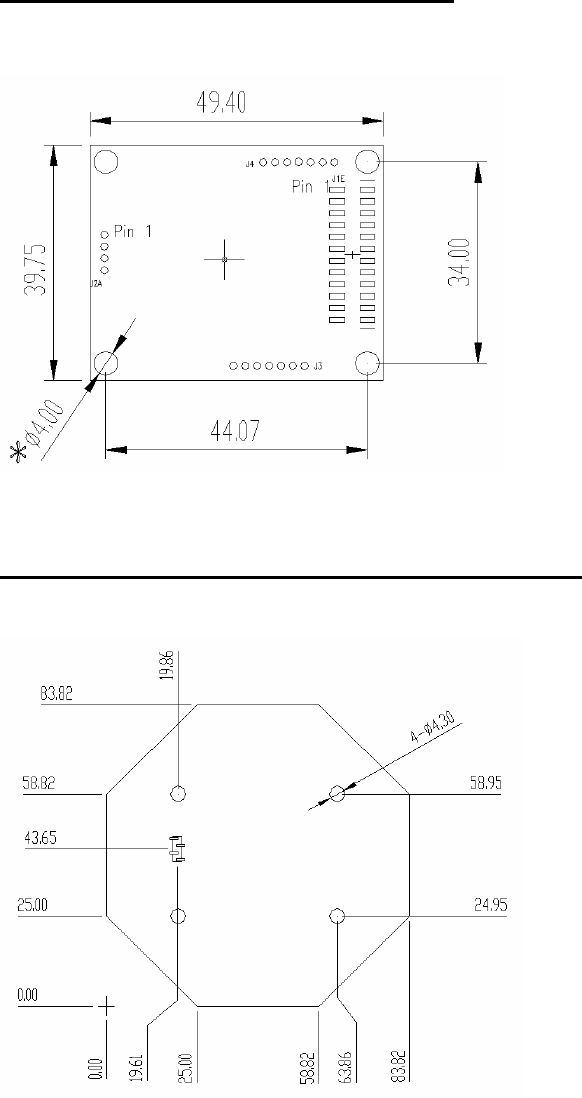

Dimensions of UIC6811 PCBA
Figure 2-1 Dimensions of UIC6811
Dimensions of Remote Antenna PCBA
Figure 2-2 Dimensions of Remote Antenna PCBA
2-3
UIC6811 Programmer’s Manual UDN PM0601-U Rev. A
Accessories of UIC6811
The following accessories should be supplied along with UIC6811. Make sure all the
following accessories are contained in your package.
1. Interface cable - DB9 male connector 1.5M
2. Programmer’s manual or Simple manual
3. Power adapter 5Vdc 500mA (RS232 interface only)
2-4
UIC6811 Programmer’s Manual UDN PM0601-U Rev. A
Section3: Technical Specifications
Functional Specifications
• Contactless communication at 13.56MHz
• Proximity operation distance of up to 100mm
• 4 output lines for external LED indication (support Paypass application)
• Audio buzzer
• Support RS232 data output baud rate up to 115.2K BPS
• Support RS232 pass through baud rate up to 38400 BPS
• Support TTL level for serial data output (optional)
• Support TTL level for F2F decoder data output emulation (optional)
• Support direct matching antenna
• Support Remote 50 ohm matching antenna (optional)
• Support all layers of 14443 including the type A and B communication scheme
• Support contactless communication using MIFARE higher baud rate up to 424KHz
• Support the fast MIFARE Classic security algorithm to authenticate MIFARE classic
products
• Support American Express ExpressPay transaction application
• Support MasterCard PayPass transaction application
• Support Visa MSD transaction application
Mechanical Specifications
• Dimension
With direct coupling antenna board
Length: 83.82mm
Width: 83.82
Without direct coupling antenna board
Length: 49.40 mm
Width: 39.75 mm
3-5
UIC6811 Programmer’s Manual UDN PM0601-U Rev. A
Electrical Specifications
• Power Required
5VDC
• Power Consumption
250mA in idle mode; 500mA in operating mode
• Communication
Standard RS232 signal level
USB signal level (optional)
PS/2 signal level (optional)
• Communication Signal (RS232)
Logic 1 = -3 volts to –15 volts or TTL level 5 volts
Logic 0 = +3 volts to +15 volts or TTL level 0 volt
Environmental Specifications
• Temperature
Operating: -10-50℃
Storage: -30-70℃
• Humidity
Operating: 10-85% (non condensing)
Storage: 10-90% (non condensing)
3-6
UIC6811 Programmer’s Manual UDN PM0601-U Rev. A
Pin Assignment
Table 3-1. Interface J3 Pin Assignment (RS232 level)
DB9 Signal Direction PCB-J1 Signal
5 GND 1 GND
2 RxD
Å
Serial data to host
2 TXD1
3 TxD
Æ
Serial data from host
3 RXD1
4 VCC
(Pass-thru function) 5 TXD2
(Pass-thru function) 6 RxD2
Shield 7 Shield
Table 3-2. Extension Port J1 Pin Assignment (TTL Level)
Pin Signal Comment
1 GND
2 VCC 5Vdc
3 Extended IO
4 Extended IO
5 Extended IO
6 Extended IO
7 Buzzer + output
8 Extended IO
9 Extended IO
10 Extended IO
11 Extended IO
12 Extended IO
13 Extended IO
14 Extended IO
15 Extended IO
16 Extended IO
17 Extended IO
18 Extended IO
19 Extended IO
20 Extended IO
Table 3-3. 50 RF Antenna Port J2B Pin Assignment
3-7
UIC6811 Programmer’s Manual UDN PM0601-U Rev. A
Contact number Signal
1 RF output
2 GND
Table 3-4. Direct Match Antenna Port J2A Pin Assignment
Contact number Signal
1 RX
2 TX
3 GND
4 GND
Communication
• RS232 Interface Data Output
Synchronization
The interface receives and transmits serial asynchronous data at voltage levels
compatible with the RS232 specification.
Baud Rate
9600 BPS default (optional: 1200/2400/4800/9600/19200/38400/56000/115.2K BPS)
• RS232 Interface Pass Through
Baud Rate
9600 BPS default (optional: 1200/2400/4800/9600/19200/38400 BPS)
• Transmission Protocol (RS232)
The user may select from three different protocols: Protocol 0, 1, and 2.
Upon reset, the reader sends the power-on response “:”, depending upon the configuration
setting. The reader then configures itself to the protocol of the first command from the host.
From this point on, the protocol is unchangeable until a reset occurs.
Protocol 0
In Protocol 0, all characters are transmitted and received using exactly the characters listed
in section 4. There are no headers and Block Check Characters (BCC). Protocol 0
3-8
UIC6811 Programmer’s Manual UDN PM0601-U Rev. A
presumes no transmission errors. If the host detects an error, it may request a
retransmission.
Table 3-3. Example for Protocol 0
Protocol 1
In Protocol 1, all messages are preceded by the ASCII character <STX> and terminated
with the ASCII character <ETX>, followed by a one byte <BCC>. <BCC> is an XOR of the 7
data bits, excluding parity, of each character in the entire message, including <STX>.
Format: <STX><MESSAGE><ETX><BCC>
where STX=02Hex and ETX=03Hex.
Table 3-4. Example for Protocol 1
Host Command Reader Response Comment
P Ready to read
^ Reader ACK
Host Command Reader Response Comment
02h 50h 03h 51h Ready to read
02h 5Eh 03h 5Fh Reader ACK
Protocol 2
In Protocol 2, all messages are preceded by the ASCII character <SOH>, followed by a one
byte reader address, one byte character count and terminated with a one byte <BCC>.
The <BCC> is an XOR of the characters (8 bits) in the entire message, including <SOH>.
Format: <SOH><ADDRESS><00Hex><COUNT><MESSAGE><BCC>
or
<SOH><ADDRESS><00Hex><00Hex><MESSAGE><EOT><BCC>
where STX=02Hex and ETX=03Hex.
Table 3-5. Example for Protocol 2
Host Command Reader Response Comment
01h 00h 00h 01h 50h 50h Ready to read
01h 00h 00h 01h 5Eh 5Eh Reader ACK
The <ADDRESS> field is for a multi-reader system. This function is not currently supported.
The recommended value for this field is NULL (00Hex), however, any value will work.
If the value of <COUNT> fields are zero, an <EOT>, followed by the <BCC>, completes the
message. The reader may, at its option, use NULL for COUNT when transmitting.
3-9
UIC6811 Programmer’s Manual UDN PM0601-U Rev. A
For Protocols 1 and 2, if the reader detects an error in an incoming transmission, it will
respond with a “Communications Error” message. If the host detects a transmission error, it
may request a retransmission. Both protocols enforce a 100mSec timeout between
characters.
For all Protocols, the host may, at any time, stop/start the reader transmission by using
software “handshake” (DC3/DC1).
3-10
UIC6811 Programmer’s Manual UDN PM0601-U Rev. A
Section4: Commands and Responses
4.1 Reader default setting
Output type: RS232
Data format: 9600-8-N-1
Pass through function: Disable
Pass through data format: 9600-8-N-1
Buzzer function: Enable
Protocol format: USI0
PnP function: Disable
Contactless smart card manual type: type A
Contactless self-arm mode: Disable
Contactless payment card reading: PayPass, ExpressPay, Visa MSD
Note 1: when “Contactless self-arm mode” turns on, UIC6811 will automatic read the card in
the reading zone for both type A and B cards.
Note 2: the manual contactless card operation commands are invalid when “Contactless
self-arm mode” is on. To switch manual operation mode, user needs to disable the
“Contactless self-arm mode” first.
4.2 Reader Command Description
• % (25H) – Retransmit
COMMENT Retransmits the last message sent by the reader.
NOTE Command is turned off in self-arm mode.
• 70 (3730H) or 90 (3930H) – Serial Number Report
COMMENT Transmit version and copyright information.
The Serial number will be stored in the EEPROM and stored as an eight-digit ASCII character
array.
Example: “00000000”
• 71 (3731H) or 91 (3931H) – Copyright Report
COMMENT Transmit version and copyright information.
4-11
UIC6811 Programmer’s Manual UDN PM0601-U Rev. A
Send this when you want to know the version and copyright of the Model UIC6811 firmware
currently loaded. The response is an ASCII string giving the firmware date (yymmdd), reader type and
the firmware version number followed by the firmware copyright statement. The firmware copyright
statement is absent in OEM version.
Example: “031226,UIC68110001A:V1.A”
• 72 (3732H) or 92 (3932H) – Reader Model Number Report
COMMENT Transmit reader configuration information.
The model number will be stored in the reader code area and stored as a three to eight-digit
ASCII string.
Example: “UIC6811”
• 73 (3733H) or 93 (3933H) – Reader PCB Number Report
COMMENT Transmit reader PCB number.
The PCB number will be stored in the EEPROM and stored as an eight-digit ASCII character
array.
Example: “681-REV1”
• 74 (3734H) or 94 (3934H) – Contactless Smart Card Library Version Report
COMMENT Transmit smart card library version.
The smart card library version may help determine if the current library has a particular feature
for contactless smart card. It will present as 3 bytes hex number.
Example: 00 01 01
• 75 (3735H) or 95 (3935H) – F/D Parameters List Report
COMMENT Transmit the parameters list of supported F/D
This command returns all the values of TA1 parameter (baud rate values) that are supported by
UIC360. About the values means please refer the ISO 14443-3 type A specification.
Example:
01 02 03 04 08 11 12 13 14 18 21 22 23 28 31 32
33 34 35 38 41 42 43 44 48 51 52 53 54 55 56 58
61 62 63 64 68 69 91 92 93 94 95 96 A1 A2 A3 A4
A5 A8 B1 B2 B3 B4 B5 B6 C1 C2 C3 C4 C5 C6 C8 D1
D2 D3 D4 D5 D6
• 76 (3736H) or 96 (3936H) – Boot loader Version Number Report
COMMENT Transmit bootloader version number.
Example: “1.0”
• 77 (3737H) or 97 (3937H) – Reader Configuration Data Report
4-12
UIC6811 Programmer’s Manual UDN PM0601-U Rev. A
COMMENT Transmit the reader configuration data.
The data from the reader configuration area will be transmitted to the host as hex values with the
command “77” [offset] [num]. The reader will return any or all the bytes from the reader
configuration. The offset is an optional byte and the available value is from 0x00 to 0x3F. The
num is an optional byte specifying the number of configuration bytes to be returned. If the offset
and length bytes are omitted then the current configuration starting at offset 0 is transmitted.
Example:
BE 0C 05 00 00 00 00 61 30 33 31 31 32 38 00 7D
28 54 4B 31 3A 3A 45 6E 64 29 28 54 4B 32 3A 3A
45 6E 64 29 28 54 4B 33 3A 3A 45 6E 64 29 00 00
00 00 00 00 00 00 00 00 3A 48 43 52 33 36 30 00
• 78 (3738H) or 98 (3938H) – Reader Customer Configuration Data Report
COMMENT Transmit the reader customer configuration data.
The data from the reader customer configuration area of the EEPROM will be transmitted to the
host as hex values with the command “78¨ [offset] [num]. The reader will return any or all the
bytes from the reader configuration. The offset is an optional byte and the available value is from
0x00 to 0x3F. The num is an optional byte specifying the number of configuration bytes to be
returned. If the offset and length bytes are omitted then the current configuration starting at
offset 0 is transmitted.
Example:
31 30 30 30 30 30 30 30 33 36 30 2D 52 45 56 33
FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF
FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF
FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF
• 79 (3739H) or 99 (3939H) – Reader Manufacturing Configuration Data Report
COMMENT Transmit the reader manufacturing configuration data.
The data from the reader manufacturing configuration area of the flash will be transmitted to the
host as hex values with the command “79” [offset] [num]. The reader will return any or all the
bytes from the reader configuration. The offset is an optional byte and the available value is from
0x00 to 0x7F. The num is an optional byte specifying the number of configuration bytes to be
returned to the host. If the offset and length bytes are omitted then the current configuration
starting at offset 0 is transmitted.
Example:
BE 0C 05 00 00 00 00 61 30 33 31 31 32 38 00 79
00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
00 00 00 00 00 00 00 00 3A 48 43 52 33 36 30 00
4-13
UIC6811 Programmer’s Manual UDN PM0601-U Rev. A
Note: Commands 70 to 79 were same as 90 to 99 and supported for previous version reader
compatible.
• 9 (39H) – Version Report
COMMENT Transmit version information.
Send this when you want to know the version of UIC360 firmware currently loaded. The response
is an ASCII string giving the firmware date (yymmdd), reader type and firmware version number.
Example: “031226,UIC6811:V1.A¨.
• ? (3FH) – Select Verbose Responses Command
COMMENT Most error responses until the reader receives a reset command will include a
short descriptive message.
EXAMPLE After sending a “?” to the reader then attempt to close the latch by sending the
“{“ command. Examples of responses that may be returned:
If success returns a ‘^’ as well.
If a card is partially inserted returns “!may only latch when card seated”.
• $ (24H) – Reader Status Request
COMMENT Interrogate the reader about its operational status. Two bytes of status
information will be returned.
First Status Byte
Bit Value: 0 Value: 1
0:0 Reserve for future use Reserve for future use
0:1 Reserve for future use Reserve for future use
0:2 Reserve for future use Reserve for future use
0:3 Reserve for future use Reserve for future use
0:4 Reserve for future use Reserve for future use
0:5 No Magnetic Stripe Card data Magnetic Stripe Card data
0:6 Not armed to read Armed to read
0:7 Reserve for future use Reserve for future use
Second Status Byte
Bit Value: 00 Value: 01 Value: 10 Value: 11
1:0 - 1:1 Reserved for
future use,
always 0.
1:2 - 1:3 Reserved for
future use,
always 0.
4-14
UIC6811 Programmer’s Manual UDN PM0601-U Rev. A
1:4 – 1:7 Reserved for future use, always zero
• L (4CH) – LED ON
• l (6CH) – LED OFF
• ( (28H) – LED flash
COMMENT
1.Turn first/second LED ON/OFF/Flash, as specified.
2.Transmits an acknowledgement "^" (5EH).
NOTE These commands are disabled in the self-arm mode.
• # (23H) – Configuration Request
COMMENT Return standard one byte or extended 16-byte string with configuration.
NOTE Using the configuration setting command to select standard or extended format.
Standard One Configuration Byte
Bit Value: 0 Value: 1
0 Track 1 not present Track 1 present
1 Track 2 not present Track 2 present
2 Track 3 not present Track 3 present
3 Reserved for future use, always
0.
4 Reserved for future use, always
0.
5 Reserved for future use, always
0.
6 Reserved for future use, always
0.
7 Reserved for future use, always
0.
Extended Configuration Bytes (16 bytes)
Byte 0 1 2 3 4 5 6 7-15
Remark Equip. 0
Equip. 1 Protocol Speed Address Reserved, set
to 00H
Reserved, set
to 00H
Reserved, set
to 00H
Protocol: 0=USI0; 1=USI1; 2=USI2.
Speed: 0=1200, 1=2400, 2=4800, 3=9600, 4=19.2k, 5=38.4k, 6=56k, and 7=115.2k bps.
Address: Always is 00H.
Actual Memory Card Type: See Memory Card Types table.
Default Memory Card Type: The memory card type after reader has been powered-up or reset.
4-15
UIC6811 Programmer’s Manual UDN PM0601-U Rev. A
Equip. 0 － Extended Configuration Byte 0
Bit Value: 0 Value: 1
0 User card connector not
present
User card connector present
1 Reserved for future use, always
0
2 SAM Board not present SAM Board present
3 CTS not present CTS present
4 Track 1 not present Track 1 present
5 Track 2 not present Track 2 present
6 Track 3 not present Track 3 present
7 Latch not present Latch present
Equip. 1 － Extended Configuration Byte 1
Bit Value: 0 Value: 1
0 Power fail not present Power fail present
1 - 7 Reserved for future use, always
0.
• <CAN> (18H) – Pass through toggle
COMMENT
Enable/Disable pass through function
FORMAT The command characters are followed by an ASCII ‘P’ to enable/disable the pass
through function.
• <7FH> – Warm Reset
COMMENT Abort all current actions and cause the device to execute all initialization
functions. The device will respond as it would for a "power up" cycle, but always returning a “:”
(3AH).
• <09H> – Configuration Setting
COMMENT This command is used to set configuration in EEPROM.
FORMAT The command (09H) is followed by an at least 3 byte configuration setting command to
set the configuration in EEPROM. TheUIC6811 configuration can be set by this command or by
the Configuration Setting Protocol. Please see “UIC6811 Configuration Guide” for details.
4-16
UIC6811 Programmer’s Manual UDN PM0601-U Rev. A
Following are brief introduction of configuration commands, please refer to “UIC6811
Configuration Guide” for the detail information.
BRx (42h 52h x) － Set Baud Rate. x = '0' ~ '7'.
DF0 (44h 46h 00h) － Set configuration to the Manufacture Default Setting.
ECx (45h 43h x) － Extended Configuration Report Enable/Disable. x is 'E' or 'D'.
ESx (45h 53h x) － ES & SS Enable/Disable. x is 'E' or 'D'.
(Only for Contactless MAG mode)
EV0 (45h 56h 00h) － EEPROM verify.
FAx (46h 41h x) － Set Track 1 Prefix Code, x can be up to 5 bytes
. (Only for Contactless MAG mode)
Fax (46h 61h x) － Set Track 1 Suffix Code, x can be up to 5 bytes.
(Only for Contactless MAG mode)
FBx (46h 42h x) － Set Track 2 Prefix Code, x can be up to 5 bytes.
(Only for Contactless MAG mode)
Fbx (46h 62h x) － Set Track 2 Suffix Code, x can be up to 5 bytes.
(Only for Contactless MAG mode)
LCx (4Ch 43h x) － LRC Enable/Disable, x = 'E' or 'D'. Note: The LRC will be always
disabled while the SS/ES was disabled.
(Only for Contactless MAG mode)
PCx (50h 43h x) － Set RS232 Protocol. x = '0' - '2'(30h - 32h).
PHx (50h 48h x) － Set Power On character, x default is ':'.
RE0 (52h 45h 00h) － Read all of EEPROM Data.
RP0 (52h 50h 00h) － Respond current used baud rate and Protocol.
SAx (53h 41h x) － Self-Arm Mode Enable/Disable, x is 'E' or 'D'.
(Only for Contactless MAG mode)
SPx (53h 50h x) － Set Track Separator. x = any one character.
(Only for Contactless MAG mode)
SNx (53h 4Eh x) － Set Serial Number, x is an 8-digits ASCII string.
TAx (54h 41h x) － Set Track 1 ID, x = any one character.
TBx (54h 42h x) － Set Track 2 ID, x = any one character.
TCx (54h 43h x) － Set Track 3 ID, x = any one character.
TKx (54h 4Bh x) － Set Transmitting Data Tracks
PEx (50h 54h x) – Set pass through function
ITx (49h 54h x) – Set output interface type
TDx (54h 44h x) – Set MSR TTL data output polarity
TCx (54h 43h x) – Set MSR TTL clock output polarity
BCx (42h 43h x) – Set COM2 baudrate
RNxxxx (52h 4Eh xxxx) – Set Random seed
4-17
UIC6811 Programmer’s Manual UDN PM0601-U Rev. A
4.3 Contactless Mag Stripe Command Description
• P (50H) – Arm to Read
COMMENT
1. Clear read data buffers.
2. Transmit command acknowledgement (“^” 7EH).
3. Wait for card insert/withdrawal.
4. Transmit read acknowledgement ("^" Magnetic Stripe Card or ">" other media type) after card
read. After an "Arm to Read" command is received and acknowledged the only commands that
will be accepted for execution are: <ESC> (Abort), ”$” (Status), LED control commands and
Reset command. In self-arm mode, it is not necessary to send this command, if sent it will
temporarily override self-arm mode.
• p (70H) – Arm to Read (Used for Manufacturing Test Only )
COMMENT
1. Clear read data buffers.
2. Transmit command acknowledgement (“^” 7EH).
3. Wait for card read.
4. If the card media is detected a "(" (28H) byte is sent, when media detect goes inactive a “)”
(29H) byte is sent.
5. If another media detected transmit read acknowledge ">" after card read.
This is similar to the 'P' command but send ‘(‘ at start of magnetic stripe card data and ‘)’ at end.
• <ESC> (1BH) – Abort Arm to Read
COMMENT
1. Clear read data buffers.
2. Abort Arm to Read Command.
3. Transmit command acknowledge (“^” 5EH).
• Q (51H) – Transmit Track 1 data
• R (52H) – Transmit Track 2 data
COMMENT
1. Detect the card type (ISO/AAMVA/DMV) automatically and process data in the read buffer
using detected card type format.
2. If error is detected, transmit proper error response ('*' or '+'), refer to “ The esponses to the
Host”.
3. Else, transmit data in ASCII.
4-18
UIC6811 Programmer’s Manual UDN PM0601-U Rev. A
4.4 Contactless Smart Card Command Descriptions
• G (47H) – ISO14443 type protocol select
COMMENT
Select ISO 14443 type A or B which manual command operated.
G[Type, 1 byte]
[Type]
0 (30h, ASCII Hex) - ISO14443 A
1 (30h, ASCII Hex) - ISO14443 B
Response: ‘^’ – acknowledgement
‘ *’ – No card response or No power on the antenna
• H(48H) – PayPass/Express card auto read function disable/enable
COMMENT
Disable auto read function temporary if Self-Arm is enabling
H [Enable/Disable, 1 byte]
[Enable/Disable]
0 (30h, ASCII Hex) - Self-Arm disable
1 (31h, ASCII Hex) - Self-Arm enable
Response: ‘^’ – acknowledgement
‘*’ – No card response or No power on the antenna
• O (4FH) – Antenna power on
COMMENT
Apply power on the antenna. This command is for manual command operation.
O[Baud rate, 1 byte]
[Baud rate] (optional)
0 (30h, ASCII Hex) – 106K (default, Mifare type A only)
1 (31h, ASCII Hex) – 212K (Mifare type A only)
2 (32h, ASCII Hex) – 424K (Mifare type A only)
3 (33h, ASCII Hex) – 848K (Mifare type A only)
4-19
UIC6811 Programmer’s Manual UDN PM0601-U Rev. A
Response: ‘^’ – acknowledgement
‘*’ – Failed, the reader is in Self-Arm mode. The antenna power can not be turned
off.
• o (6FH) – Antenna power OFF
COMMENT
Turn the antenna power off.
Response: ‘^’ – acknowledgement
‘*’ – Failed, the reader is in Self-Arm mode. The antenna power can not be turned
off.
• b (62H) – Request
COMMENT
Request command.
b[Method, 1 byte] - If reader is set to ISO14443 type A
[Method] (optional)
0 (30h, ASCII Hex) – Request All
1 (31h, ASCII Hex) – Request Idle
Note: if the [Method] field does not appear in the request command, reader will set the request
mode to “Request All” automatically.
b[AFI, 1 byte][Parameter, 1 byte] - If reader is set to ISO14443 type B
[AFI](optional) - Binary hex (00h to FFh), please refer to ISO 14443-3 for the detailed information
[Parameter](optional) - Binary hex (00h to FFh), please refer to 14443 for the detailed information.
Note: if the [AFI] and [Parameter] do not appear in the request command, reader will set the
request mode to “Request All” automatically.
Response: ATQA (2 bytes, type A, Binary Hex) or ATQB (16 bytes, type B, Binary Hex) if
command executed successfully
‘*’ – No card response or No power on the antenna
• c (63H) – Anticollision(type A)/Slot-Marker
COMMENT
In type A mode, the reader sends the Anticollision command to the card.
4-20
UIC6811 Programmer’s Manual UDN PM0601-U Rev. A
In type B mode, the reader sends the Slot-Marker command to the card.
c[Cascade level, 1 byte] – if reader is set to type A
[Cascade level](optional)
0(30h, ASCII Hex) – Level 1
1(31h, ASCII Hex) – Level 2
2(32h, ASCII Hex) – Level 3
Note: if [Cascade level] does not appear in the Anticollision command, the reader will set to
Level 1 automatically.
c[APn, 1 byte] – if reader is set to type B
[APn] – Binary hex (01h to 16h), please refer to 14443-3 for the detailed information.
Note: Slot-Marker is not a mandatory command for type B card.
Response: If the command executed successfully, the reader returns
PICC serial number for type A (4 bytes, Binary Hex)
Or
PICC send ATQB (12 bytes, Binary Hex) for type B
(PICC may not response ATQB, in this situation, reader respone ‘*’)
‘*’ – No card response
‘~’ – No power on the antenna
• f (65H) – Select(type A)/Attrib(type B)
COMMENT
In type A mode, the reader sends the SELECT command to the card.
In type B mode, the reader sends the ATTRIB command to the card.
f[Cascade level, 1 byte] – if reader is set to type A
[Cascade level](optional)
0(30h, ASCII Hex) – Level 1
1(31h, ASCII Hex) – Level 2
2(32h, ASCII Hex) – Level 3
Note: if [Cascade level] does not appear in the Select command, the reader will set to Level 1
automatically.
f[Parameter 1, 1 byte] [Parameter 2, 1 byte] [Parameter 3, 1 byte] [Parameter 4, 1 byte]
– if reader is set to type B
4-21
UIC6811 Programmer’s Manual UDN PM0601-U Rev. A
[Parameter 1](optional) – Binary Hex (00h to FFh)
[Parameter 2](optional) – Binary Hex (00h to FFh)
[Parameter 3](optional) – Binary Hex (00h to FFh)
[Parameter 4](optional) – Binary Hex (00h to FFh)
The setting of Parameter 1 to 4 should refer to ISO14443-3. If the [Parameter 1 – 4] do not appear
in Attrib command, the reader set to default value.
Response: If the command executed successfully, the reader returns
‘^’ + SAK( 1 byte)
Or
‘^’ + MBLI/CID(1 byte)
‘*’ – No card response or No power on the antenna
• g (66H) – Mifare classical card authentication
(Support Mifare classical card only)
COMMENT
Mifare classical card authentication.
f [Block number, 3 bytes][Key number, 1 byte] Authenticate the card with the key stored in
EEPROM.
Or
f[Block number, 3 bytes][Key, 12 bytes] Authenticate the card with the key in [key field].
[Block number]
000 to 255 (30h30h30h to 32h35h35h, ASCII Hex)
[Key number]
0 to 9 (30h to 39h, ASCII Hex)
[Key]
0 to 9 or A to F (30h - 39h or 41h - 46h, ASCII Hex)
Response: ‘^’ – acknowledgement
‘*’ – No card response or No power on the antenna
• h (67H) – Mifare classical card read block
(Support Mifare classical card only)
COMMENT
Mifare classical card read command.
4-22
UIC6811 Programmer’s Manual UDN PM0601-U Rev. A
g [Block number, 3 bytes]
[Block number]
000 to 255 (30h30h30h to 32h35h35h, ASCII Hex)
Response: block data (16 bytes, Binary Hex) if command executed successfully
‘*’ – No card response or No power on the antenna
• i (68H) – Mifare classical card write block
(Support Mifare classical card only)
COMMENT
Mifare classical card write command.
h[Block number, 3 bytes][Block data, 4 bytes or 16 bytes]
[Block number]
000 to 255 (30h30h30h to 32h35h35h, ASCII Hex)
[Block data]
Binary Hex from 0h to FFh
Note: 4 bytes block data are for Mifare Ultralight. Others should use 16 bytes block data.
Response: ‘^’ – acknowledgement
‘*’ – No card response or No power on the antenna
• t (74H) – Mifare Value Operation
(Support Mifare classical card only)
COMMENT
Mifare classical card value operation command.
t[Block number, 3 bytes][Operation mode, 1 byte][Value, 4 bytes]
[Block number]
000 to 255 (30h30h30h to 32h35h35h, ASCII Hex)
[Operation mode]
0 (30h, ASCII Hex) –Decrement
1 (31h, ASCII Hex) – Increment
2 (32h, ASCII Hex) – Restore
[Value]
Binary Hex from 0h to FFh
4-23
UIC6811 Programmer’s Manual UDN PM0601-U Rev. A
Response: ‘^’ – acknowledgement
‘*’ – No card response or No power on the antenna
• X (58H) – Mifare classical card activation
(Support Mifare classical card only)
COMMENT
Perform request/anticollision/select command to activate the card.
Response: ATQA/serial number (6 bytes, Binary Hex) if command executed successfully
‘*’ – No card response or No power on the antenna
• x (78H) – Card halt
COMMENT
Card halt command.
Response: ‘^’ – acknowledgement
‘*’ – No card response or No power on the antenna
• J (6BH) – Activate PICC cpu card
COMMENT
Activate PICC cpu card command. The Antenna POWER ON command has to be sent first.
Response: ATS (type A) or PUPI (type B) if command executed successfully
‘*’ – No card response or No power on the antenna
• j (6BH) – Load Mifare key (Mifare classical card only)
COMMENT
Save up to 10 key sets for Mifare classical card application
Note. For security reason, there is no way to retrieve the key back.
i[Key number, 1 byte][Key data, 12 bytes]
[Key number]
0 to 9 (30h to 39h, ASCII Hex)
[Key data]
0 to 9 or A to F (30h - 39h or 41h - 46h, ASCII Hex)
4-24
UIC6811 Programmer’s Manual UDN PM0601-U Rev. A
Response: ‘^’ – acknowledgement
‘*’ – No card response or No power on the antenna
• k(6CH) – Mifare Reader Chip Direct Control
COMMENT
Direct control the internal setting of Mifare reader chip
k[Command, 1 bytes]
[Command]
0 (30h, ASCII Hex) - chip’s serial number. Return 4 bytes hex binary string
1 (31h, ASCII Hex) - chip’s product information field. Return 16 bytes hex binary string.
2 (32h, ASCII Hex) - chip’s register initial setting parameter. Return 32 bytes hex binary string.
Response: ‘^’ – acknowledgement
‘*’ – No card response or No power on the antenna
• y (79H) – Send DESELECT command
COMMENT
Send ISO14443 layer 4 DESELECT command to card
Response: ‘^’ – acknowledgement
‘*’ – No card response or No power on the antenna
• Z (41H) – I/O to contactless CPU card with APDU format
COMMENT
The command is used to pass an APDU to the card where both data and an ISO status are
expected in the response.
Z[APDU, variant, 262 bytes max]
[APDU] Binary hex (00h to FFh)
If an APDU is included with command it is transmitted to the ICC, otherwise an
acknowledgement (“^” 5EH) is returned and the reader will wait until the APDU is sent in the
following message.
If successful, the data from the ICC and the two byte SW1/SW2 ISO 7816-4 response are
returned.
If unsuccessful, reader transmits '*'.
APDU Command Structure
CLA INS P1 P2 P3 Data
4-25
UIC6811 Programmer’s Manual UDN PM0601-U Rev. A
Lc or Le (If Lc present)
APDU Response Structure
Data (optional) SW1 SW2
• z (7AH) – I/O to contactless card for block data exchange
COMMENT
The command is used to pass a block data to a card.
z[CRC mode, 1 bytes][Wait time, 4 bytes][Block data, 384 bytes max.]
[CRC mode]
0 (30h, ASCII Hex) – Block data contain 2 bytes CRC and enable CRC transmission.
1 (31h, ASCII Hex) – No CRC in block data and disable CRC transmission.
[Wait time]
0000 to 9999 (30h30h30h30h to 39h39h39h39h, ASCII Hex) Waiting time in ms.
[Block data]
Binary hex (00h to FFh), Maximum accept 384 bytes.
If successful, the data from the ICC are returned.
If unsuccessful, reader transmits '*'.
4-26
UIC6811 Programmer’s Manual UDN PM0601-U Rev. A
3.6 Responses to the Host
^ (5EH) Acknowledge. Acknowledges correct completion of most recent command
* (2AH) Command was received correctly. But could not be completed.
+ (2BH) No Magnetic Stripe Card Data. Command was received correctly.
? (3FH) Communication Error. Command was not received correctly.
! (21H) Invalid Command.
: (3AH) Power On report.
~ (7Eh) Unavailable Hardware not available to complete this request
4-27
