   WirelessUSB™ - UGWR2US Solutions for a Real Time World   Data Sheet Re-Tek - 1236  1  45388 Warm Springs Blvd. Fremont, CA 94539 support@unigen.com    TEL: (510) 668.2088 FAX: (510) 661.2788 http://www.unigen.com    Toll Free: (800) 826.0808 Copyright Unigen Corporation, 2004      UNIGEN CORP. WIRELESS MODULE PRODUCTS PART NUMBER FAMILY:  UGWR2US SERIES JUNO-LPA WIRELESSUSB™ RADIO MODULE Issue Date: 17 June 2004 Revision:  0.96 Revision History Rev. No.  History  Issue Date Remarks 0.80  Draft Release  4 May 2004   0.81  Eng. Rev. 0.01  19 May 2004  Pin assignment, radio characteristics update 0.82  Eng. Rev. 0.02  4 June 2004  Electrical Characteristics update 0.90      Final Draft 10 June 2004 Radio Parameters Update, final draft text 0.91  FDraft Revised  11 June 2004  Minor text corrections 0.95  FDraft Revised 2  15 June 2004  Update Reference Documents, Functional Description  0.96 FDraft Revised 3 17 June 2004 Minor text corrections  THIS DOCUMENT IS PROVIDED “AS IS” WITH NO WARRANTIES WHATSOEVER, INCLUDING ANY WARRANTY OF MERCHANTABILITY, NON-INFRINGEMENT, FITNESS FOR ANY PARTICULAR PURPOSE, OR ANY WARRANTY OTHERWISE ARISING OUT OF ANY PROPOSAL, SPECIFICATION OR SAMPLE.   Unigen Corporation disclaims all liability, including liability for infringement of any proprietary rights, relating to use of information in this document.  No license, expressed or implied, by estoppel or otherwise, to any intellectual property rights is granted herein. *Third-party brands, names, and trademarks are the property of their respective owners. Copyright © Unigen Corporation, 2004

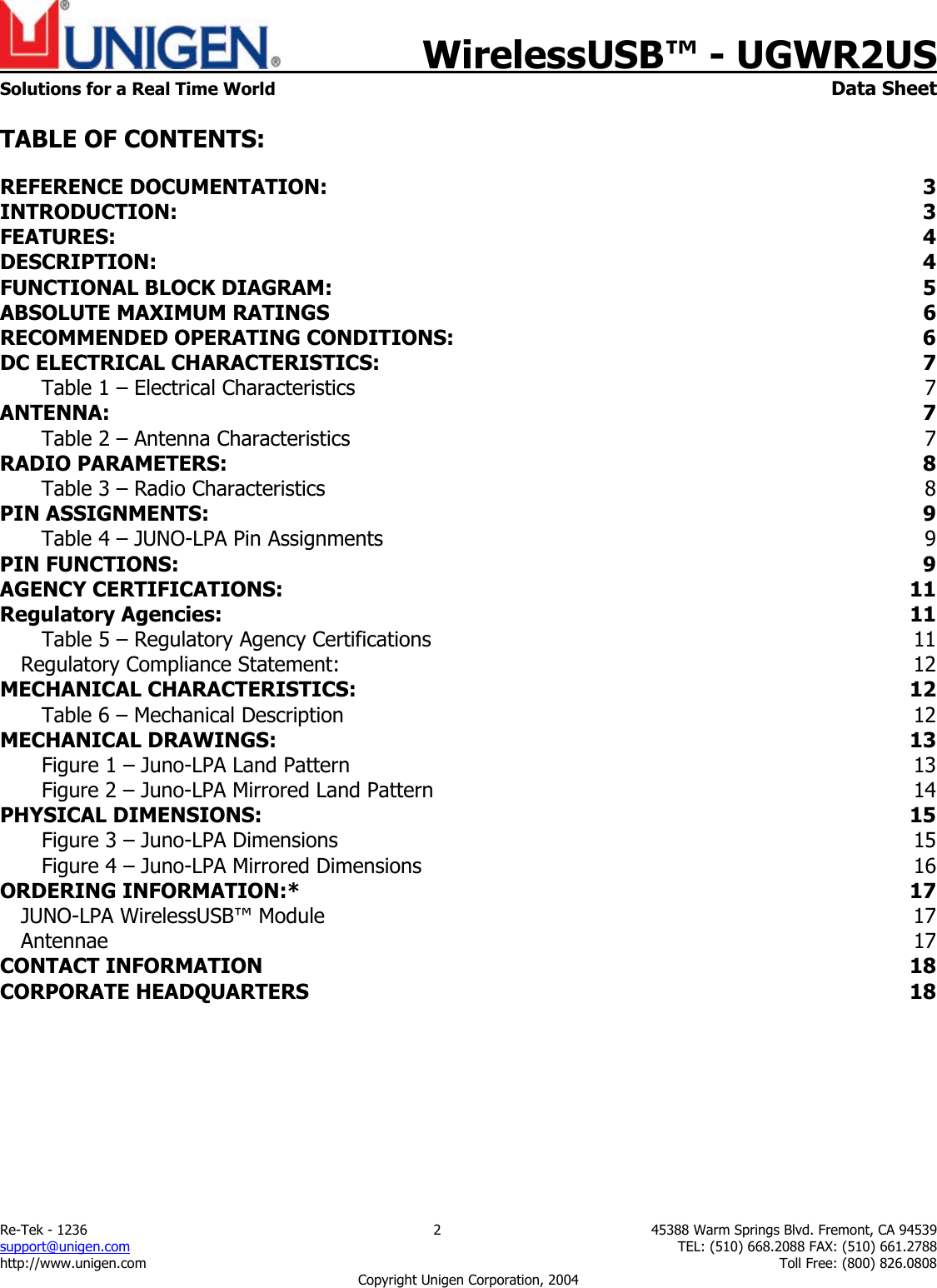

   WirelessUSB™ - UGWR2US  Solutions for a Real Time World   Data Sheet Re-Tek - 1236  2  45388 Warm Springs Blvd. Fremont, CA 94539 support@unigen.com    TEL: (510) 668.2088 FAX: (510) 661.2788 http://www.unigen.com    Toll Free: (800) 826.0808 Copyright Unigen Corporation, 2004  TABLE OF CONTENTS: REFERENCE DOCUMENTATION:  3 INTRODUCTION:  3 FEATURES:  4 DESCRIPTION:  4 FUNCTIONAL BLOCK DIAGRAM:  5 ABSOLUTE MAXIMUM RATINGS  6 RECOMMENDED OPERATING CONDITIONS:  6 DC ELECTRICAL CHARACTERISTICS: 7 Table 1 – Electrical Characteristics  7 ANTENNA:  7 Table 2 – Antenna Characteristics  7 RADIO PARAMETERS:  8 Table 3 – Radio Characteristics  8 PIN ASSIGNMENTS:  9 Table 4 – JUNO-LPA Pin Assignments  9 PIN FUNCTIONS:  9 AGENCY CERTIFICATIONS:  11 Regulatory Agencies:  11 Table 5 – Regulatory Agency Certifications  11 Regulatory Compliance Statement:  12 MECHANICAL CHARACTERISTICS:  12 Table 6 – Mechanical Description  12 MECHANICAL DRAWINGS:  13 Figure 1 – Juno-LPA Land Pattern  13 Figure 2 – Juno-LPA Mirrored Land Pattern  14 PHYSICAL DIMENSIONS:  15 Figure 3 – Juno-LPA Dimensions  15 Figure 4 – Juno-LPA Mirrored Dimensions  16 ORDERING INFORMATION:*  17 JUNO-LPA WirelessUSB™ Module  17 Antennae  17 CONTACT INFORMATION  18 CORPORATE HEADQUARTERS  18
   WirelessUSB™ - UGWR2US Solutions for a Real Time World   Data Sheet Re-Tek - 1236  3  45388 Warm Springs Blvd. Fremont, CA 94539 support@unigen.com    TEL: (510) 668.2088 FAX: (510) 661.2788 http://www.unigen.com    Toll Free: (800) 826.0808 Copyright Unigen Corporation, 2004 REFERENCE DOCUMENTATION: The Unigen JUNO-LPA WirelessUSB™ UGWRL2US module adaptation of the Cypress Semiconductor CYWUSB6935 LR 2.4GHz DSSS Radio SOC with the addition of a power amplifier is represented in this document.  The detail provided is information for using JUNO-LPA in a digital electronic device and is only a “companion” document to Cypress Semiconductors’ documentation for the above noted part. The CYWUSB6935 LR 2.4GHz DSSS Radio SOC information and technical details (ex. register settings, timing, application interfaces, clocking and power management, etc.) may be obtained from the  Cypress Semiconductor web site or contacting Cypress’s authorized sales representatives. The following is a list of required documents and locations known at the time of publication that accompany this datasheet. • The CYWUSB6935 LR 2.4GHz DSSS Radio SOC Datasheet – CUWUSB6935.pdf  http://www.cypress.com/cfuploads/img/products/cywusb6935.pdf  • The JUNO-LPA WirelessUSB™ Radio Module User Manual – USBWR2US User Manual_v10.pdf http://www.unigen.com/download/USBWR2US%20User%20Manual_v0911.pdf Additional documentation for the Cypress Semiconductor CYWUSB6935 LR 2.4GHz DSSS Radio SOC device and the Unigen JUNO-LPA WirelessUSB™ UGWRL2US module may be obtained by contacting agents or representatives of the respective companies. INTRODUCTION: Unigen JUNO-LPA WirelessUSB™ UGWRL2US modules represent the convergence of emerging wireless connectivity solutions and the USB “Plug-N-Play” ease of operation.  WirelessUSB, as created by Cypress Semiconductor, is a low-cost, 2.4GHz communication protocol designed for use in commercial, industrial, consumer, and computer product applications needing highly reliable data connectivity.   JUNO-LPA modules combine Cypress Semiconductor’s wireless and USB expertise with Unigen’s module design, manufacturing, and testing proficiency to create production ready, pre-certified modules that are easily integrated into existing, and new product designs. JUNO-LPA modules offer immediate, drop-in design solutions and use the native Operating System HID drivers to seamlessly enumerate and operate mouse, keyboard, and gaming devices, or other devices using the HID specification for communication with the host systems.
   WirelessUSB™ - UGWR2US Solutions for a Real Time World   Data Sheet Re-Tek - 1236  4  45388 Warm Springs Blvd. Fremont, CA 94539 support@unigen.com    TEL: (510) 668.2088 FAX: (510) 661.2788 http://www.unigen.com    Toll Free: (800) 826.0808 Copyright Unigen Corporation, 2004 FEATURES: • CYWUSB6935 LR 2.4GHz DSSS Radio SOC  • Operates in the 2.4 to 2.483GHz, unlicensed frequency range  (ISM – Industrial, Scientific and Medical) • -95dBm receive sensitivity • Up to +23dBm Output Power • Range of up to 1000+ meters with appropriate antenna • Data Rate of 62.5kbits/sec • SPI interface  (up to 2MHz data rate)  • Operating Voltage Requirement 2.7 – 3.6Vdc  • Dual DSSS reconfigurable Baseband Correlators • Small PCBA Design: UGWR1US  1.29″ (32.76mm) by 1.30″ (33.02mm) • Complete Radio Module  Just add a tested antenna. PN. – UGADL1B1M1 or UGADA0B1M1 • Agency Pre-Certification FCC/EU/ETSI/Industry Canada Module certified to FCC/EU compliance specifications limiting your agency compliance time and cost. • FCC Radio Certification Grandfathered to end-device manufactures  DESCRIPTION: JUNO-LPA WirelessUSB™UGWR2US Module is a tightly integrated, low-cost, high-reliability 2.4GHz TX/RX radio module for use in commercial, industrial, consumer, and computer product applications.   JUNO-LPA uses the Cypress Semiconductor CYWUSB6935 LR 2.4GHz DSSS Radio SOC device coupled with precise RF power amplifier to achieve highly reliable data communication at 1000 meter distances. JUNO-LPA is a complete solution requiring only integration into an existing, or new device.  A WirelessUSB device may require no additional software drivers, as it can use the OS native USB device drivers to enable supported device classes.   JUNO-LPA is less than 1.5”sq and is available for horizontal or vertical mounting directly to the device PCB.  JUNO-LPA is also available in bare-board configuration for alternate application. Regulatory Compliance:  JUNO-LPA modules are 100% tested for functional operation and pre-certified for regulatory compliance.  The JUNO-LPA is FCC certified for “Modular Approval”.  Details for product application and use of this certification are noted in the JUNO-LPA User Manual.  Digital electronic device makers need only submit to the appropriate agencies for their customary certification. JUNO-LPA is certified for operation with an antenna of up to 2db gain, and the certification is available from the Federal Communications Commission web site for documentation purposes.  Approved antennae, noted in the Ordering Section are available from Unigen.

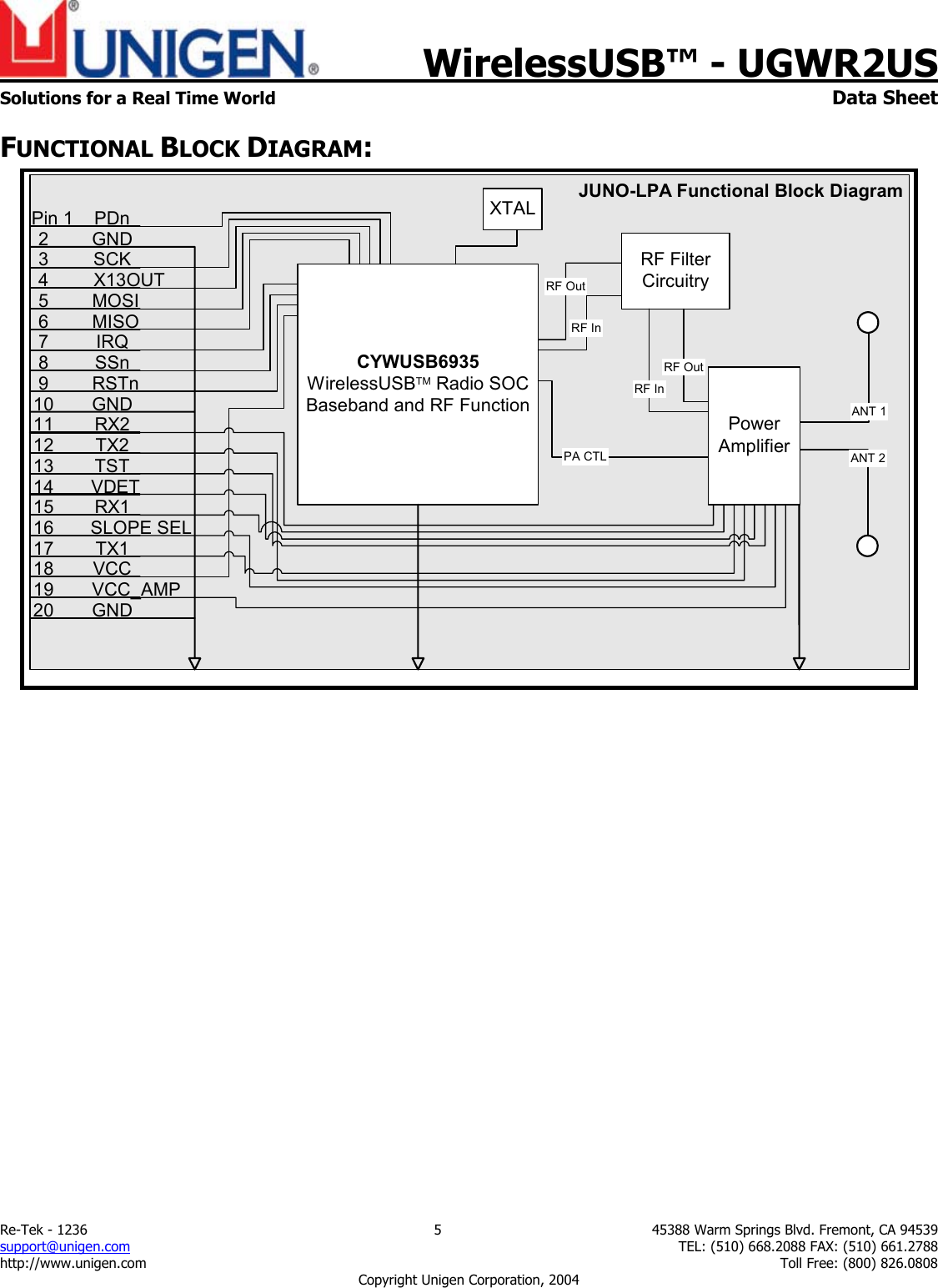

   WirelessUSB™ - UGWR2US Solutions for a Real Time World   Data Sheet Re-Tek - 1236  5  45388 Warm Springs Blvd. Fremont, CA 94539 support@unigen.com    TEL: (510) 668.2088 FAX: (510) 661.2788 http://www.unigen.com    Toll Free: (800) 826.0808 Copyright Unigen Corporation, 2004 FUNCTIONAL BLOCK DIAGRAM: JUNO-LPA Functional Block DiagramCYWUSB6935WirelessUSBTM Radio SOCBaseband and RF FunctionPin 120PDnVCC_AMPGNDGNDGND1918171615141312111098765432MISOMOSIX13OUTSCKRSTnSSnIRQVCCVDETTSTTX2RX2TX1RX1SLOPE SELANT 1ANT 2PowerAmplifierRF OutRF InPA CTLRF FilterCircuitryRF InRF OutXTAL

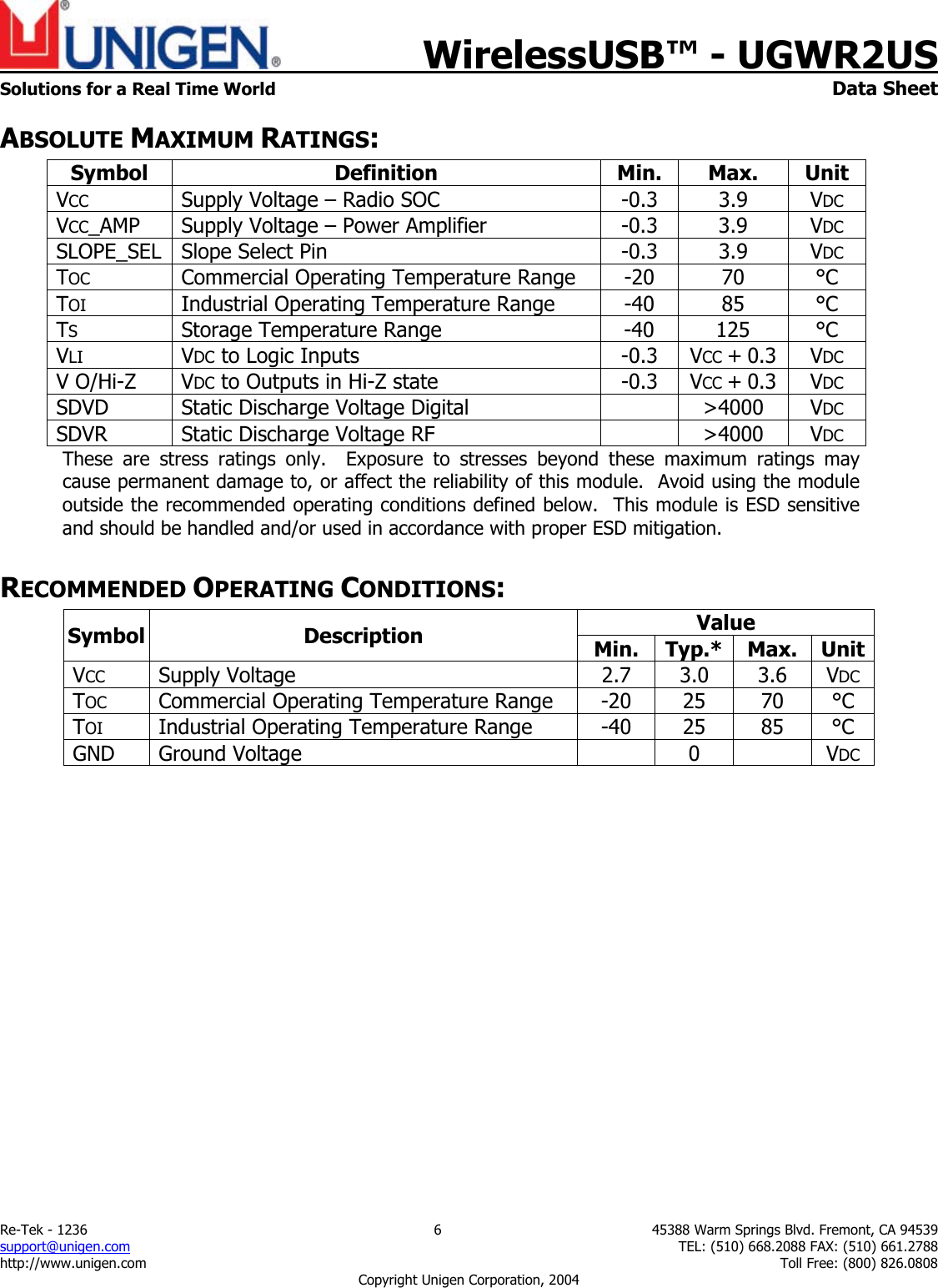

   WirelessUSB™ - UGWR2US  Solutions for a Real Time World   Data Sheet Re-Tek - 1236  6  45388 Warm Springs Blvd. Fremont, CA 94539 support@unigen.com    TEL: (510) 668.2088 FAX: (510) 661.2788 http://www.unigen.com    Toll Free: (800) 826.0808 Copyright Unigen Corporation, 2004 ABSOLUTE MAXIMUM RATINGS: Symbol Definition Min. Max. Unit VCC  Supply Voltage – Radio SOC  -0.3  3.9  VDC VCC_AMP  Supply Voltage – Power Amplifier  -0.3  3.9  VDC SLOPE_SEL  Slope Select Pin  -0.3  3.9  VDC TOC  Commercial Operating Temperature Range  -20  70  °C TOI  Industrial Operating Temperature Range  -40  85  °C TS Storage Temperature Range  -40 125 °C VLI VDC to Logic Inputs  -0.3  VCC + 0.3 VDC V O/Hi-Z  VDC to Outputs in Hi-Z state  -0.3  VCC + 0.3 VDC SDVD  Static Discharge Voltage Digital    >4000  VDC SDVR  Static Discharge Voltage RF    >4000  VDC These are stress ratings only.  Exposure to stresses beyond these maximum ratings may cause permanent damage to, or affect the reliability of this module.  Avoid using the module outside the recommended operating conditions defined below.  This module is ESD sensitive and should be handled and/or used in accordance with proper ESD mitigation. RECOMMENDED OPERATING CONDITIONS: Value Symbol Description  Min. Typ.* Max. UnitVCC Supply Voltage  2.7 3.0 3.6 VDC TOC  Commercial Operating Temperature Range  -20  25  70  °C TOI  Industrial Operating Temperature Range  -40  25  85  °C GND Ground Voltage    0    VDC

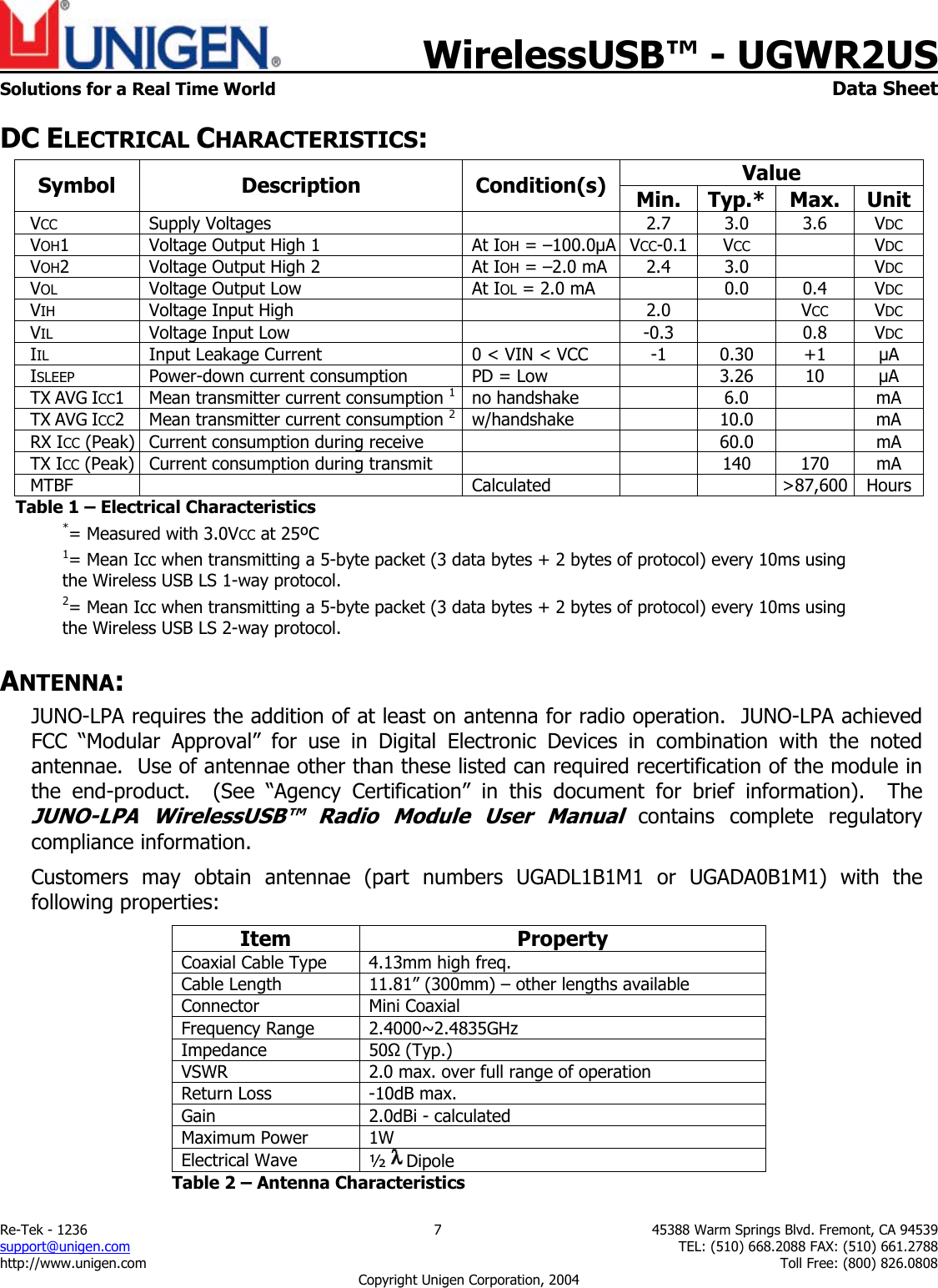

   WirelessUSB™ - UGWR2US  Solutions for a Real Time World   Data Sheet Re-Tek - 1236  7  45388 Warm Springs Blvd. Fremont, CA 94539 support@unigen.com    TEL: (510) 668.2088 FAX: (510) 661.2788 http://www.unigen.com    Toll Free: (800) 826.0808 Copyright Unigen Corporation, 2004 DC ELECTRICAL CHARACTERISTICS: Value Symbol Description Condition(s) Min. Typ.* Max. UnitVCC Supply Voltages    2.7 3.0 3.6 VDC VOH1  Voltage Output High 1  At IOH = –100.0µA VCC-0.1 VCC  VDC VOH2  Voltage Output High 2  At IOH = –2.0 mA  2.4  3.0    VDC VOL  Voltage Output Low  At IOL = 2.0 mA    0.0  0.4  VDC VIH  Voltage Input High    2.0    VCC VDC VIL  Voltage Input Low    -0.3    0.8  VDC IIL  Input Leakage Current  0 < VIN < VCC  -1  0.30  +1  µA ISLEEP  Power-down current consumption   PD = Low    3.26  10  µA TX AVG ICC1  Mean transmitter current consumption 1no handshake    6.0    mA TX AVG ICC2  Mean transmitter current consumption 2w/handshake   10.0  mA RX ICC (Peak)  Current consumption during receive      60.0    mA TX ICC (Peak)  Current consumption during transmit      140  170  mA MTBF   Calculated      >87,600 Hours Table 1 – Electrical Characteristics *= Measured with 3.0VCC at 25ºC 1= Mean Icc when transmitting a 5-byte packet (3 data bytes + 2 bytes of protocol) every 10ms using the Wireless USB LS 1-way protocol. 2= Mean Icc when transmitting a 5-byte packet (3 data bytes + 2 bytes of protocol) every 10ms using the Wireless USB LS 2-way protocol. ANTENNA: JUNO-LPA requires the addition of at least on antenna for radio operation.  JUNO-LPA achieved FCC “Modular Approval” for use in Digital Electronic Devices in combination with the noted antennae.  Use of antennae other than these listed can required recertification of the module in the end-product.  (See “Agency Certification” in this document for brief information).  The JUNO-LPA WirelessUSB™ Radio Module User Manual contains complete regulatory compliance information. Customers may obtain antennae (part numbers UGADL1B1M1 or UGADA0B1M1) with the following properties: Item Property Coaxial Cable Type  4.13mm high freq. Cable Length  11.81” (300mm) – other lengths available Connector Mini Coaxial Frequency Range  2.4000~2.4835GHz Impedance 50Ω (Typ.) VSWR  2.0 max. over full range of operation Return Loss  -10dB max. Gain  2.0dBi - calculated Maximum Power  1W Electrical Wave  ½Dipole Table 2 – Antenna Characteristics

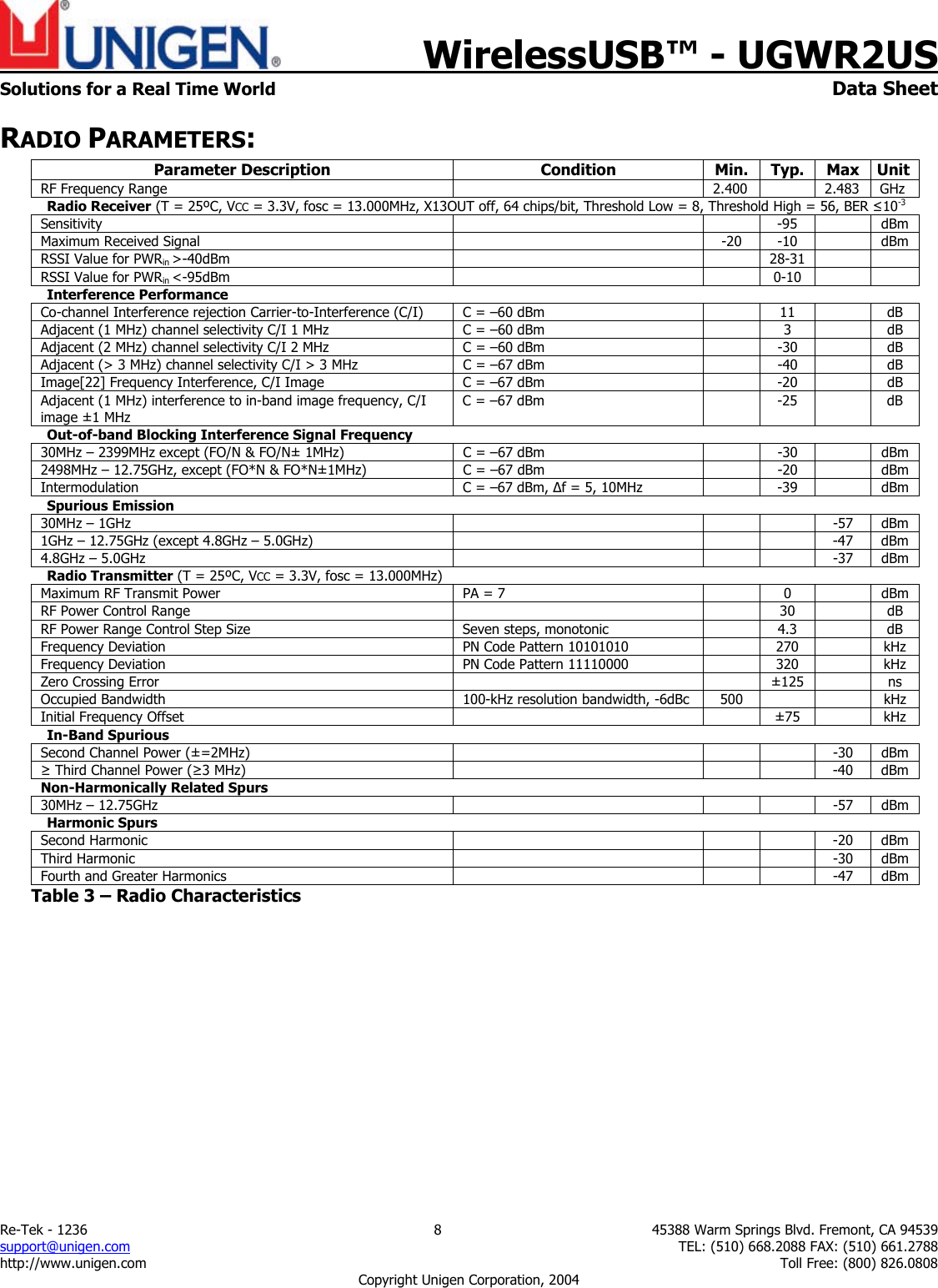

   WirelessUSB™ - UGWR2US  Solutions for a Real Time World   Data Sheet Re-Tek - 1236  8  45388 Warm Springs Blvd. Fremont, CA 94539 support@unigen.com    TEL: (510) 668.2088 FAX: (510) 661.2788 http://www.unigen.com    Toll Free: (800) 826.0808 Copyright Unigen Corporation, 2004 RADIO PARAMETERS: Parameter Description  Condition Min. Typ. Max UnitRF Frequency Range    2.400    2.483  GHz Radio Receiver (T = 25ºC, VCC = 3.3V, fosc = 13.000MHz, X13OUT off, 64 chips/bit, Threshold Low = 8, Threshold High = 56, BER ≤10-3 Sensitivity   -95  dBm Maximum Received Signal    -20  -10    dBm RSSI Value for PWRin >-40dBm    28-31   RSSI Value for PWRin <-95dBm    0-10   Interference Performance Co-channel Interference rejection Carrier-to-Interference (C/I)  C = –60 dBm    11    dB Adjacent (1 MHz) channel selectivity C/I 1 MHz  C = –60 dBm    3    dB Adjacent (2 MHz) channel selectivity C/I 2 MHz  C = –60 dBm    -30    dB Adjacent (> 3 MHz) channel selectivity C/I > 3 MHz  C = –67 dBm    -40    dB Image[22] Frequency Interference, C/I Image  C = –67 dBm    -20    dB Adjacent (1 MHz) interference to in-band image frequency, C/I image ±1 MHz C = –67 dBm    -25    dB Out-of-band Blocking Interference Signal Frequency 30MHz – 2399MHz except (FO/N & FO/N± 1MHz)  C = –67 dBm    -30    dBm 2498MHz – 12.75GHz, except (FO*N & FO*N±1MHz)  C = –67 dBm    -20    dBm Intermodulation  C = –67 dBm, ∆f = 5, 10MHz    -39    dBm Spurious Emission 30MHz – 1GHz        -57  dBm 1GHz – 12.75GHz (except 4.8GHz – 5.0GHz)        -47  dBm 4.8GHz – 5.0GHz        -37  dBm Radio Transmitter (T = 25ºC, VCC = 3.3V, fosc = 13.000MHz) Maximum RF Transmit Power  PA = 7    0    dBm RF Power Control Range      30    dB RF Power Range Control Step Size  Seven steps, monotonic    4.3    dB Frequency Deviation  PN Code Pattern 10101010    270    kHz Frequency Deviation  PN Code Pattern 11110000    320    kHz Zero Crossing Error      ±125    ns Occupied Bandwidth  100-kHz resolution bandwidth, -6dBc  500      kHz Initial Frequency Offset      ±75    kHz In-Band Spurious Second Channel Power (±=2MHz)        -30  dBm ≥ Third Channel Power (≥3 MHz)        -40  dBm Non-Harmonically Related Spurs 30MHz – 12.75GHz        -57  dBm Harmonic Spurs Second Harmonic        -20  dBm Third Harmonic        -30  dBm Fourth and Greater Harmonics        -47  dBm Table 3 – Radio Characteristics

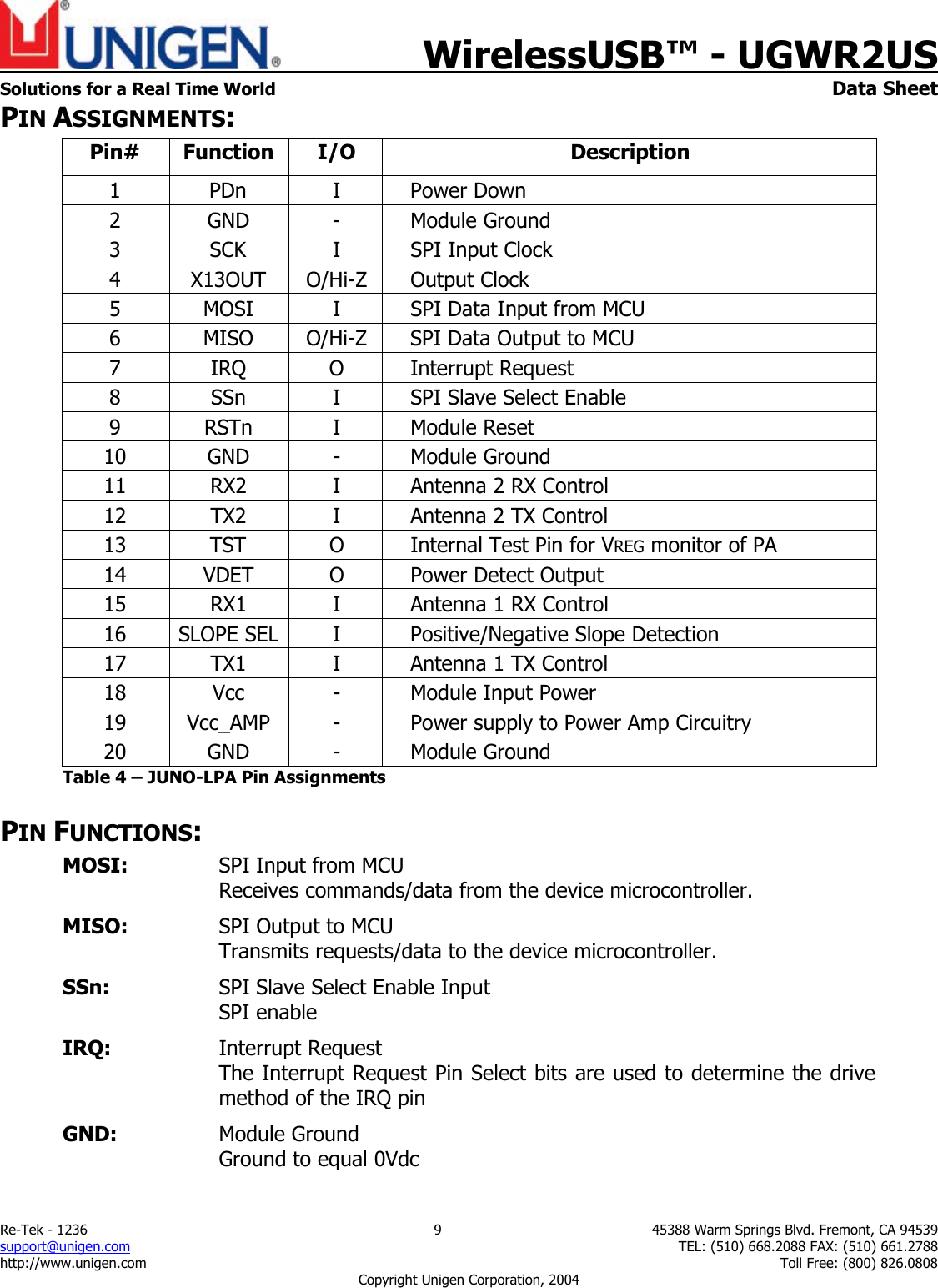

   WirelessUSB™ - UGWR2US  Solutions for a Real Time World   Data Sheet Re-Tek - 1236  9  45388 Warm Springs Blvd. Fremont, CA 94539 support@unigen.com    TEL: (510) 668.2088 FAX: (510) 661.2788 http://www.unigen.com    Toll Free: (800) 826.0808 Copyright Unigen Corporation, 2004 PIN ASSIGNMENTS: Pin# Function I/O  Description 1 PDn I Power Down 2 GND - Module Ground 3  SCK  I  SPI Input Clock 4 X13OUT O/Hi-Z Output Clock 5  MOSI  I  SPI Data Input from MCU 6  MISO  O/Hi-Z  SPI Data Output to MCU 7 IRQ O Interrupt Request 8  SSn  I  SPI Slave Select Enable 9 RSTn I Module Reset 10 GND - Module Ground 11  RX2  I  Antenna 2 RX Control 12  TX2  I  Antenna 2 TX Control 13  TST  O  Internal Test Pin for VREG monitor of PA 14  VDET  O  Power Detect Output 15  RX1  I  Antenna 1 RX Control 16  SLOPE SEL  I  Positive/Negative Slope Detection 17  TX1  I  Antenna 1 TX Control 18  Vcc  -  Module Input Power 19  Vcc_AMP  -  Power supply to Power Amp Circuitry 20 GND - Module Ground Table 4 – JUNO-LPA Pin Assignments PIN FUNCTIONS: MOSI:   SPI Input from MCU     Receives commands/data from the device microcontroller. MISO:   SPI Output to MCU     Transmits requests/data to the device microcontroller. SSn:    SPI Slave Select Enable Input     SPI enable IRQ:    Interrupt Request     The Interrupt Request Pin Select bits are used to determine the drive method of the IRQ pin GND:  Module Ground    Ground to equal 0Vdc

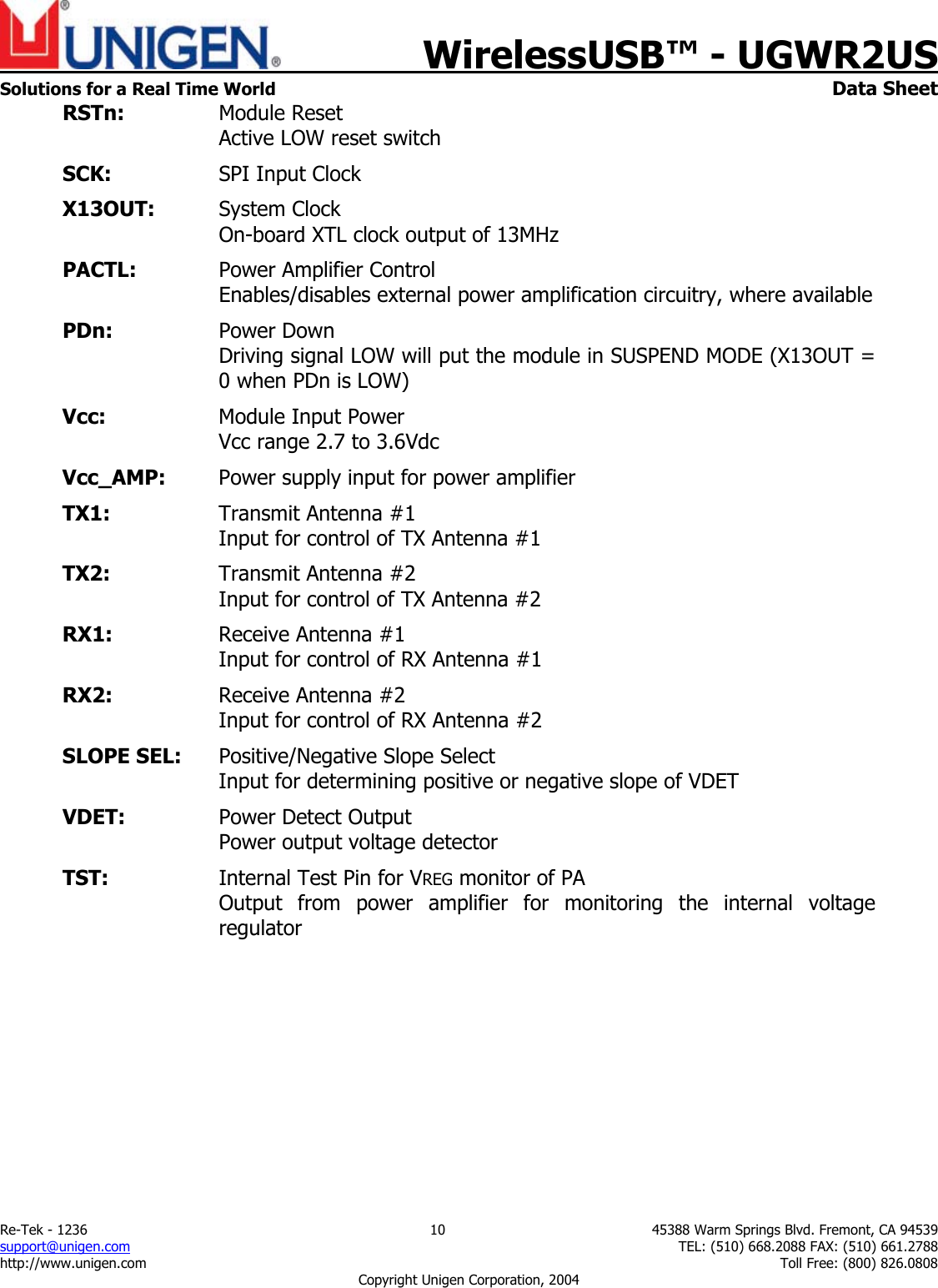

   WirelessUSB™ - UGWR2US  Solutions for a Real Time World   Data Sheet Re-Tek - 1236  10  45388 Warm Springs Blvd. Fremont, CA 94539 support@unigen.com    TEL: (510) 668.2088 FAX: (510) 661.2788 http://www.unigen.com    Toll Free: (800) 826.0808 Copyright Unigen Corporation, 2004 RSTn:   Module Reset     Active LOW reset switch SCK:   SPI Input Clock X13OUT:   System Clock     On-board XTL clock output of 13MHz PACTL:  Power Amplifier Control  Enables/disables external power amplification circuitry, where available PDn:  Power Down   Driving signal LOW will put the module in SUSPEND MODE (X13OUT = 0 when PDn is LOW) Vcc:    Module Input Power   Vcc range 2.7 to 3.6Vdc Vcc_AMP:  Power supply input for power amplifier TX1:    Transmit Antenna #1  Input for control of TX Antenna #1 TX2:  Transmit Antenna #2    Input for control of TX Antenna #2 RX1:  Receive Antenna #1    Input for control of RX Antenna #1 RX2:  Receive Antenna #2    Input for control of RX Antenna #2 SLOPE SEL:  Positive/Negative Slope Select     Input for determining positive or negative slope of VDET   VDET:    Power Detect Output    Power output voltage detector TST:  Internal Test Pin for VREG monitor of PA     Output from power amplifier for monitoring the internal voltage regulator

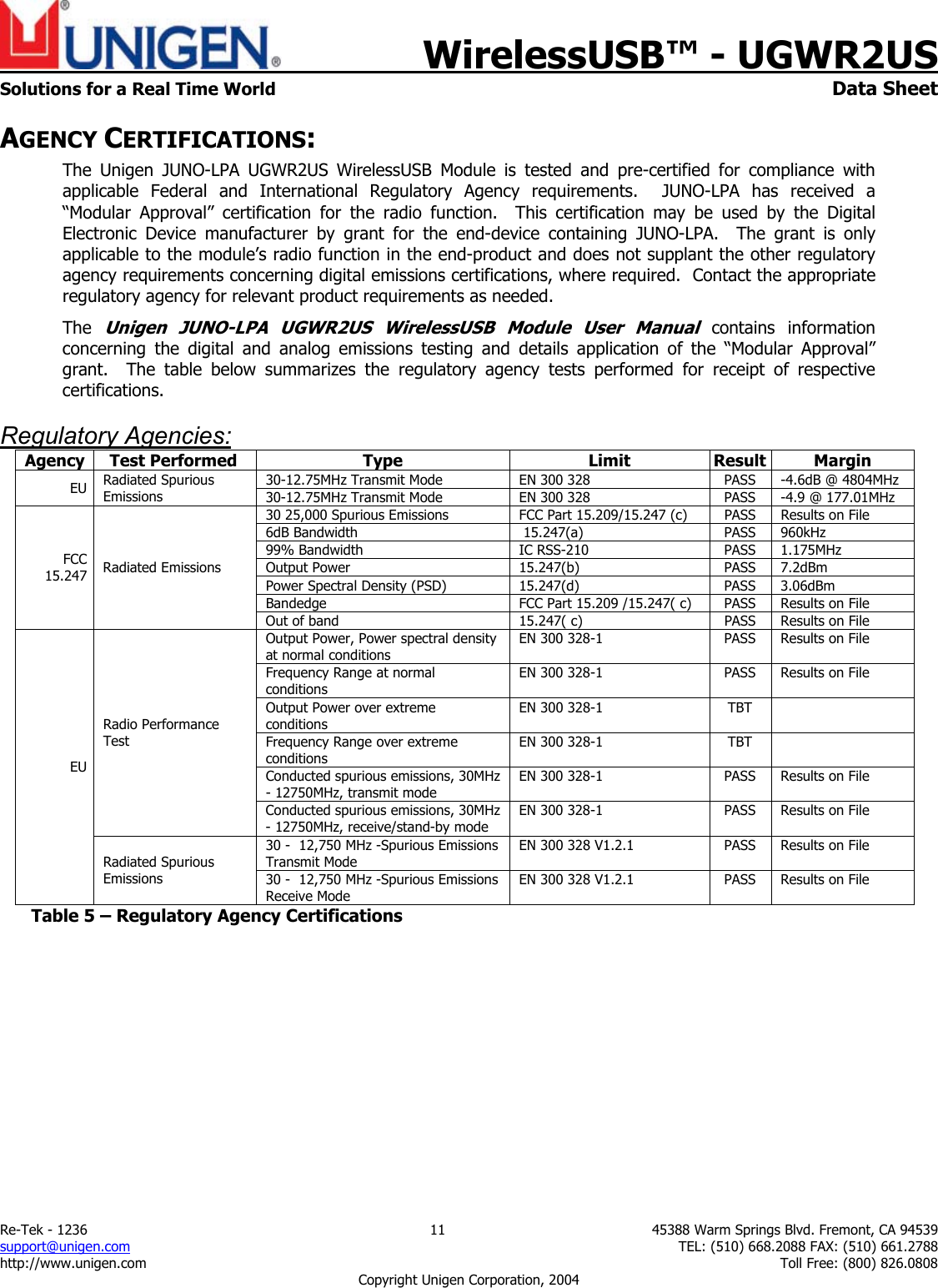

   WirelessUSB™ - UGWR2US  Solutions for a Real Time World   Data Sheet Re-Tek - 1236  11  45388 Warm Springs Blvd. Fremont, CA 94539 support@unigen.com    TEL: (510) 668.2088 FAX: (510) 661.2788 http://www.unigen.com    Toll Free: (800) 826.0808 Copyright Unigen Corporation, 2004 AGENCY CERTIFICATIONS: The Unigen JUNO-LPA UGWR2US WirelessUSB Module is tested and pre-certified for compliance with applicable Federal and International Regulatory Agency requirements.  JUNO-LPA has received a “Modular Approval” certification for the radio function.  This certification may be used by the Digital Electronic Device manufacturer by grant for the end-device containing JUNO-LPA.  The grant is only applicable to the module’s radio function in the end-product and does not supplant the other regulatory agency requirements concerning digital emissions certifications, where required.  Contact the appropriate regulatory agency for relevant product requirements as needed.  The Unigen JUNO-LPA UGWR2US WirelessUSB Module User Manual contains information concerning the digital and analog emissions testing and details application of the “Modular Approval” grant.  The table below summarizes the regulatory agency tests performed for receipt of respective certifications. Regulatory Agencies:Agency Test Performed  Type  Limit  Result  Margin 30-12.75MHz Transmit Mode  EN 300 328  PASS  -4.6dB @ 4804MHz EU  Radiated Spurious Emissions   30-12.75MHz Transmit Mode  EN 300 328  PASS  -4.9 @ 177.01MHz 30 25,000 Spurious Emissions  FCC Part 15.209/15.247 (c)  PASS  Results on File 6dB Bandwidth   15.247(a)  PASS  960kHz 99% Bandwidth  IC RSS-210  PASS  1.175MHz Output Power  15.247(b)  PASS  7.2dBm Power Spectral Density (PSD)  15.247(d)  PASS  3.06dBm Bandedge  FCC Part 15.209 /15.247( c)  PASS  Results on File FCC 15.247  Radiated Emissions Out of band  15.247( c)  PASS  Results on File Output Power, Power spectral density at normal conditions EN 300 328-1  PASS  Results on File Frequency Range at normal conditions EN 300 328-1  PASS  Results on File Output Power over extreme conditions EN 300 328-1  TBT   Frequency Range over extreme conditions EN 300 328-1  TBT   Conducted spurious emissions, 30MHz - 12750MHz, transmit mode EN 300 328-1  PASS  Results on File Radio Performance Test Conducted spurious emissions, 30MHz - 12750MHz, receive/stand-by mode EN 300 328-1  PASS  Results on File 30 -  12,750 MHz -Spurious Emissions Transmit Mode EN 300 328 V1.2.1  PASS  Results on File EU Radiated Spurious Emissions  30 -  12,750 MHz -Spurious Emissions Receive Mode EN 300 328 V1.2.1  PASS  Results on File Table 5 – Regulatory Agency Certifications

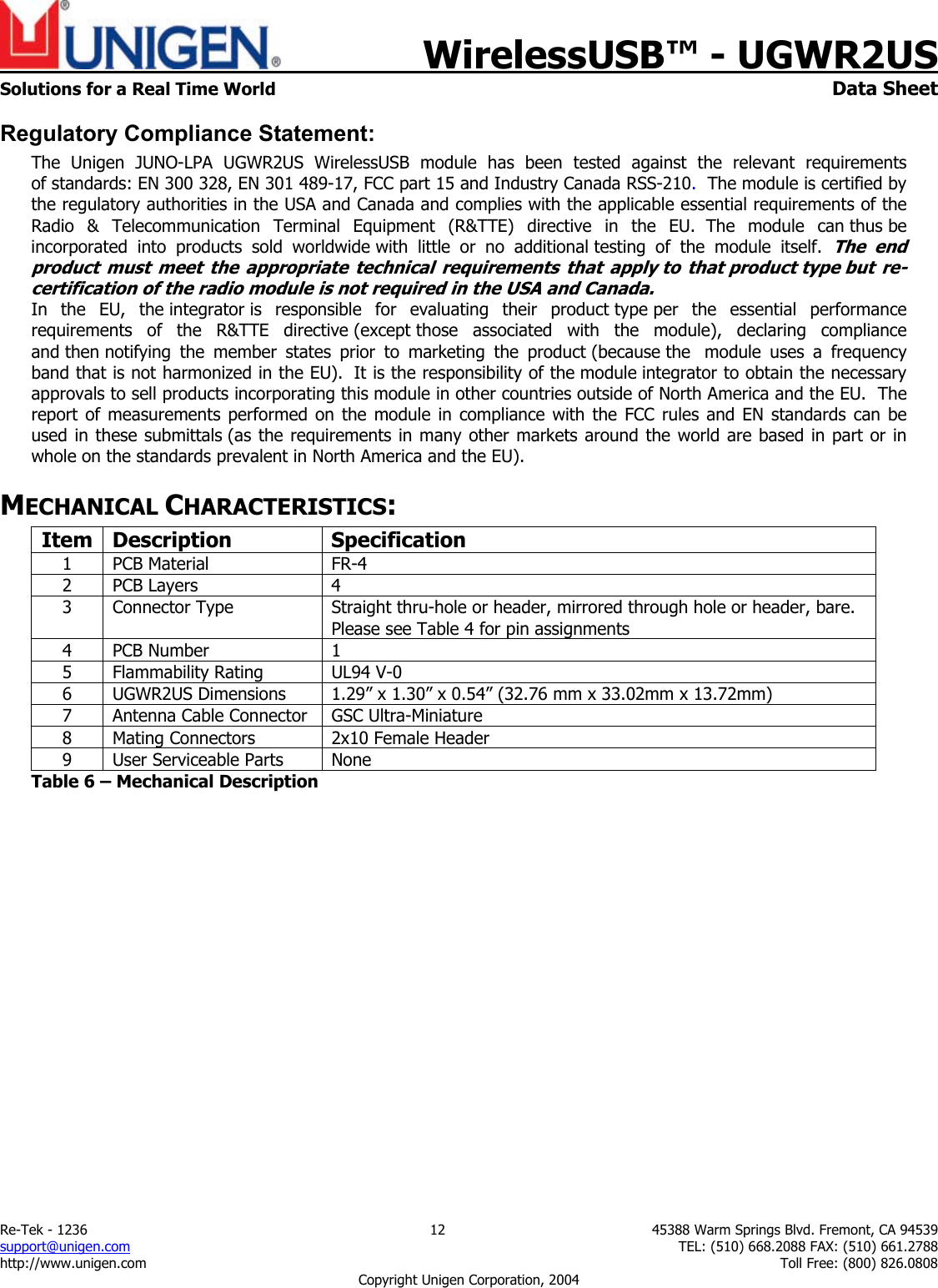

   WirelessUSB™ - UGWR2US  Solutions for a Real Time World   Data Sheet Re-Tek - 1236  12  45388 Warm Springs Blvd. Fremont, CA 94539 support@unigen.com    TEL: (510) 668.2088 FAX: (510) 661.2788 http://www.unigen.com    Toll Free: (800) 826.0808 Copyright Unigen Corporation, 2004 Regulatory Compliance Statement: The Unigen JUNO-LPA UGWR2US WirelessUSB module has been tested against the relevant requirements of standards: EN 300 328, EN 301 489-17, FCC part 15 and Industry Canada RSS-210.  The module is certified by the regulatory authorities in the USA and Canada and complies with the applicable essential requirements of the Radio & Telecommunication Terminal Equipment (R&TTE) directive in the EU.  The  module  can thus be incorporated into products sold worldwide with little or no additional testing of the module itself.  The end product must meet the appropriate technical requirements that apply to that product type but re-certification of the radio module is not required in the USA and Canada.   In the EU, the integrator is responsible for evaluating their product type per the essential performance requirements of the R&TTE directive (except those associated with the module), declaring compliance and then notifying the member states prior to marketing the product (because the  module uses a frequency band that is not harmonized in the EU).  It is the responsibility of the module integrator to obtain the necessary approvals to sell products incorporating this module in other countries outside of North America and the EU.  The report of measurements performed on the module in compliance with the FCC rules and EN standards can be used in these submittals (as the requirements in many other markets around the world are based in part or in whole on the standards prevalent in North America and the EU).   MECHANICAL CHARACTERISTICS: Item Description  Specification 1 PCB Material  FR-4 2 PCB Layers  4 3  Connector Type  Straight thru-hole or header, mirrored through hole or header, bare.  Please see Table 4 for pin assignments 4 PCB Number  1 5 Flammability Rating  UL94 V-0 6  UGWR2US Dimensions  1.29” x 1.30” x 0.54” (32.76 mm x 33.02mm x 13.72mm) 7  Antenna Cable Connector  GSC Ultra-Miniature 8  Mating Connectors  2x10 Female Header 9  User Serviceable Parts  None Table 6 – Mechanical Description

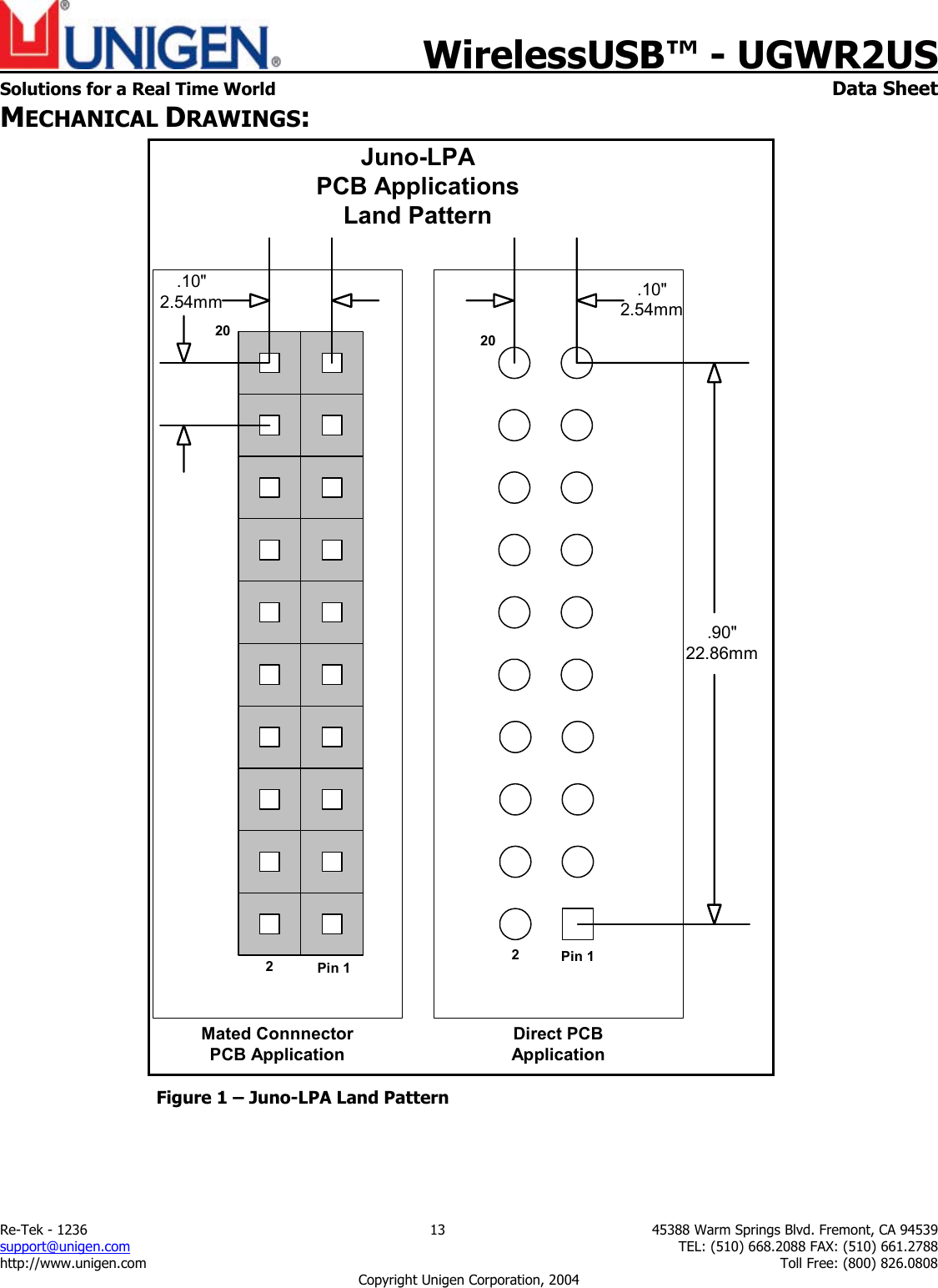

   WirelessUSB™ - UGWR2US  Solutions for a Real Time World   Data Sheet Re-Tek - 1236  13  45388 Warm Springs Blvd. Fremont, CA 94539 support@unigen.com    TEL: (510) 668.2088 FAX: (510) 661.2788 http://www.unigen.com    Toll Free: (800) 826.0808 Copyright Unigen Corporation, 2004 MECHANICAL DRAWINGS: Juno-LPAPCB ApplicationsLand PatternPin 12202Pin 120Mated ConnnectorPCB Application.90"22.86mm.10"2.54mm.10"2.54mmDirect PCBApplication Figure 1 – Juno-LPA Land Pattern

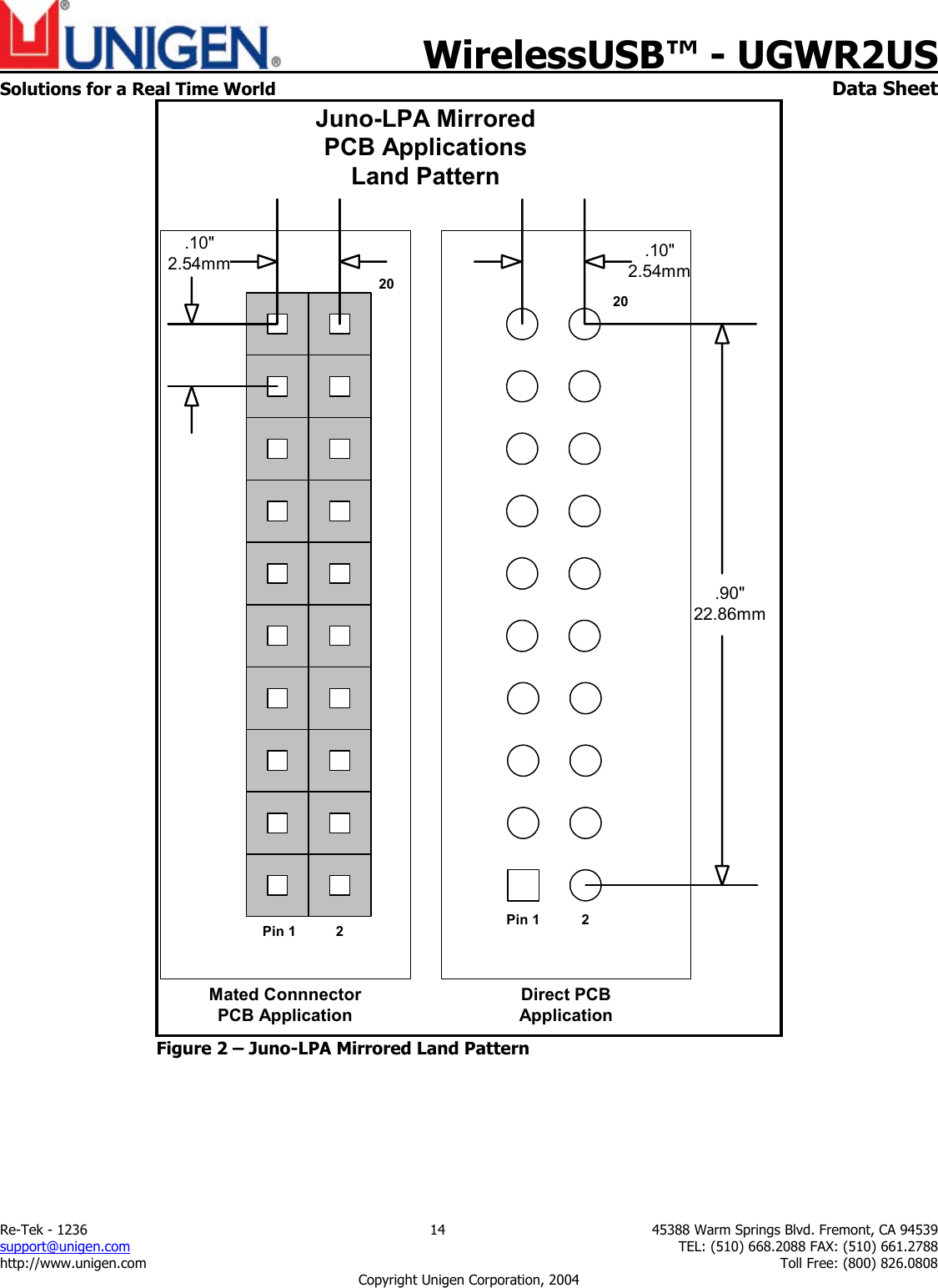

   WirelessUSB™ - UGWR2US  Solutions for a Real Time World   Data Sheet Re-Tek - 1236  14  45388 Warm Springs Blvd. Fremont, CA 94539 support@unigen.com    TEL: (510) 668.2088 FAX: (510) 661.2788 http://www.unigen.com    Toll Free: (800) 826.0808 Copyright Unigen Corporation, 2004 Juno-LPA MirroredPCB ApplicationsLand PatternPin 1 2202Pin 120Mated ConnnectorPCB Application.90"22.86mm.10"2.54mm.10"2.54mmDirect PCBApplication Figure 2 – Juno-LPA Mirrored Land Pattern

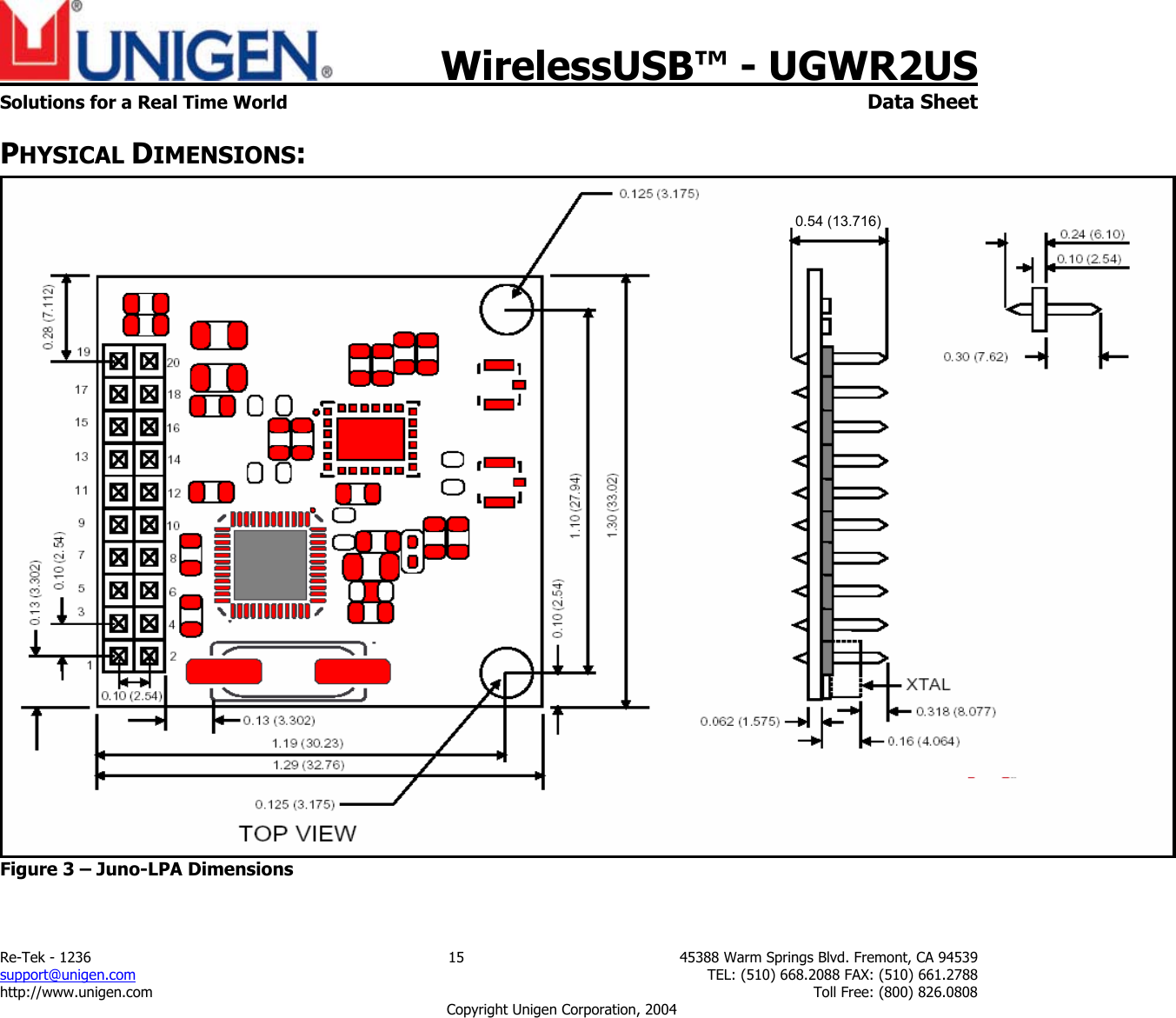

   WirelessUSB™ - UGWR2US Solutions for a Real Time World   Data Sheet Re-Tek - 1236  15  45388 Warm Springs Blvd. Fremont, CA 94539 support@unigen.com    TEL: (510) 668.2088 FAX: (510) 661.2788 http://www.unigen.com    Toll Free: (800) 826.0808 Copyright Unigen Corporation, 2004 PHYSICAL DIMENSIONS:  Figure 3 – Juno-LPA Dimensions  0.54 (13.716)

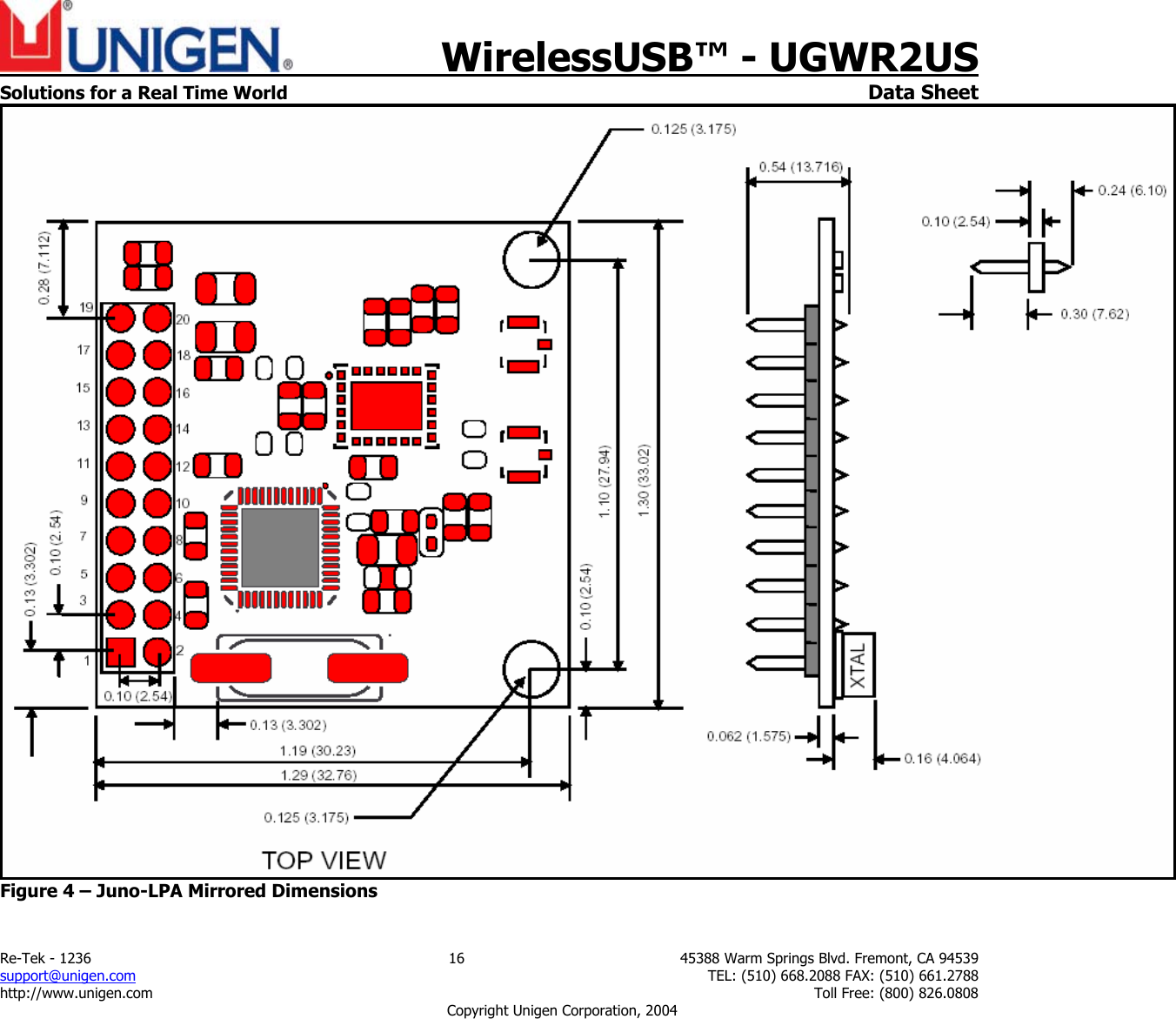

   WirelessUSB™ - UGWR2US  Solutions for a Real Time World   Data Sheet Re-Tek - 1236  16  45388 Warm Springs Blvd. Fremont, CA 94539 support@unigen.com    TEL: (510) 668.2088 FAX: (510) 661.2788 http://www.unigen.com    Toll Free: (800) 826.0808 Copyright Unigen Corporation, 2004  Figure 4 – Juno-LPA Mirrored Dimensions

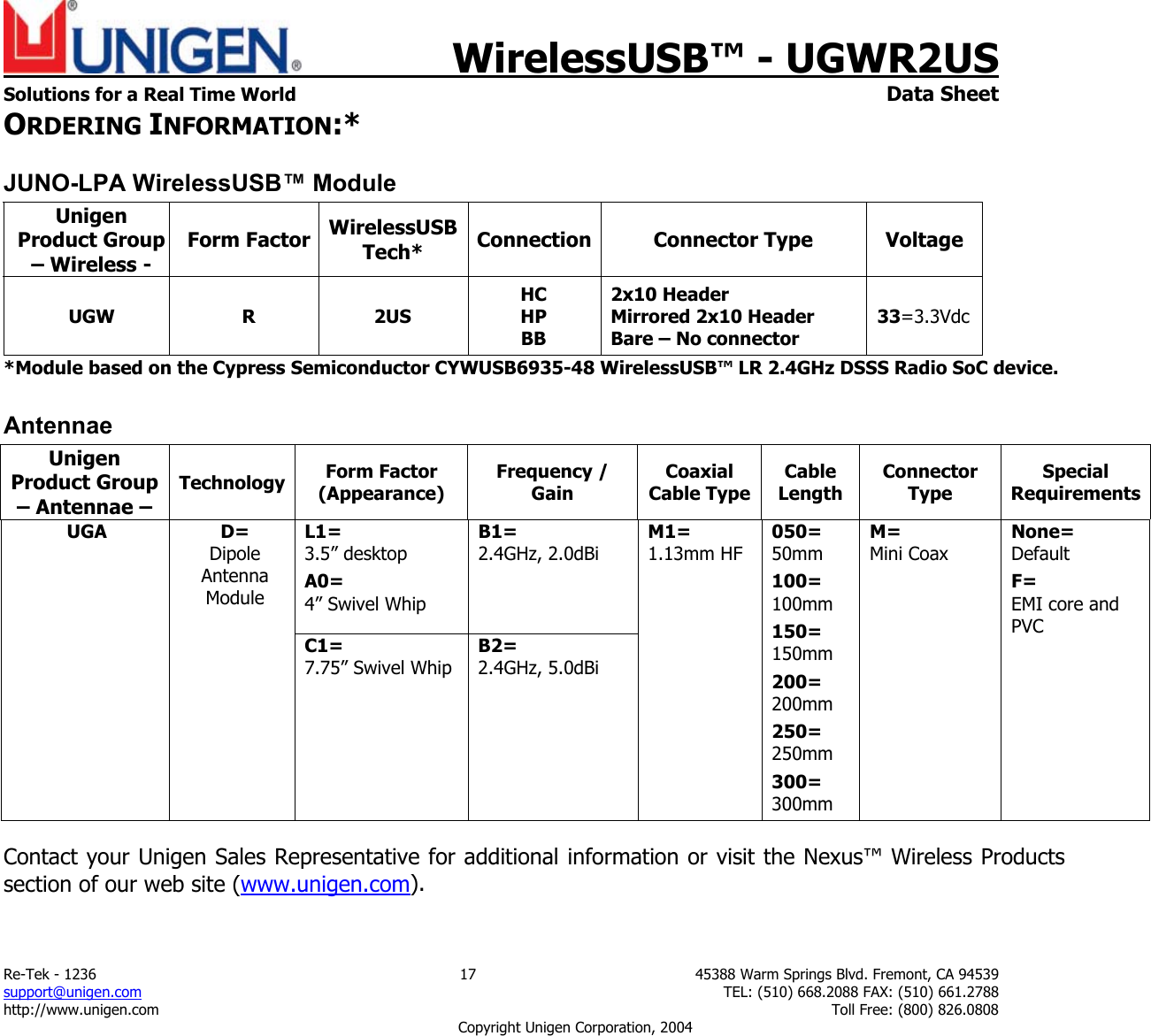

   WirelessUSB™ - UGWR2US  Solutions for a Real Time World   Data Sheet Re-Tek - 1236  17  45388 Warm Springs Blvd. Fremont, CA 94539 support@unigen.com    TEL: (510) 668.2088 FAX: (510) 661.2788 http://www.unigen.com    Toll Free: (800) 826.0808 Copyright Unigen Corporation, 2004 ORDERING INFORMATION:* JUNO-LPA WirelessUSB™ Module Unigen Product Group – Wireless -  Form Factor  WirelessUSB Tech*  Connection Connector Type  Voltage UGW R 2US HC HP BB 2x10 Header Mirrored 2x10 Header Bare – No connector 33=3.3Vdc *Module based on the Cypress Semiconductor CYWUSB6935-48 WirelessUSB™ LR 2.4GHz DSSS Radio SoC device.   Antennae Unigen Product Group – Antennae – Technology  Form Factor (Appearance) Frequency / Gain Coaxial Cable Type Cable Length Connector Type Special RequirementsL1= 3.5” desktop A0= 4” Swivel Whip B1= 2.4GHz, 2.0dBi  UGA D= Dipole Antenna Module C1= 7.75” Swivel Whip B2= 2.4GHz, 5.0dBi  M1= 1.13mm HF 050= 50mm 100= 100mm 150= 150mm 200= 200mm 250= 250mm 300= 300mm M= Mini Coax None= Default F= EMI core and PVC Contact your Unigen Sales Representative for additional information or visit the Nexus™ Wireless Products section of our web site (www.unigen.com).

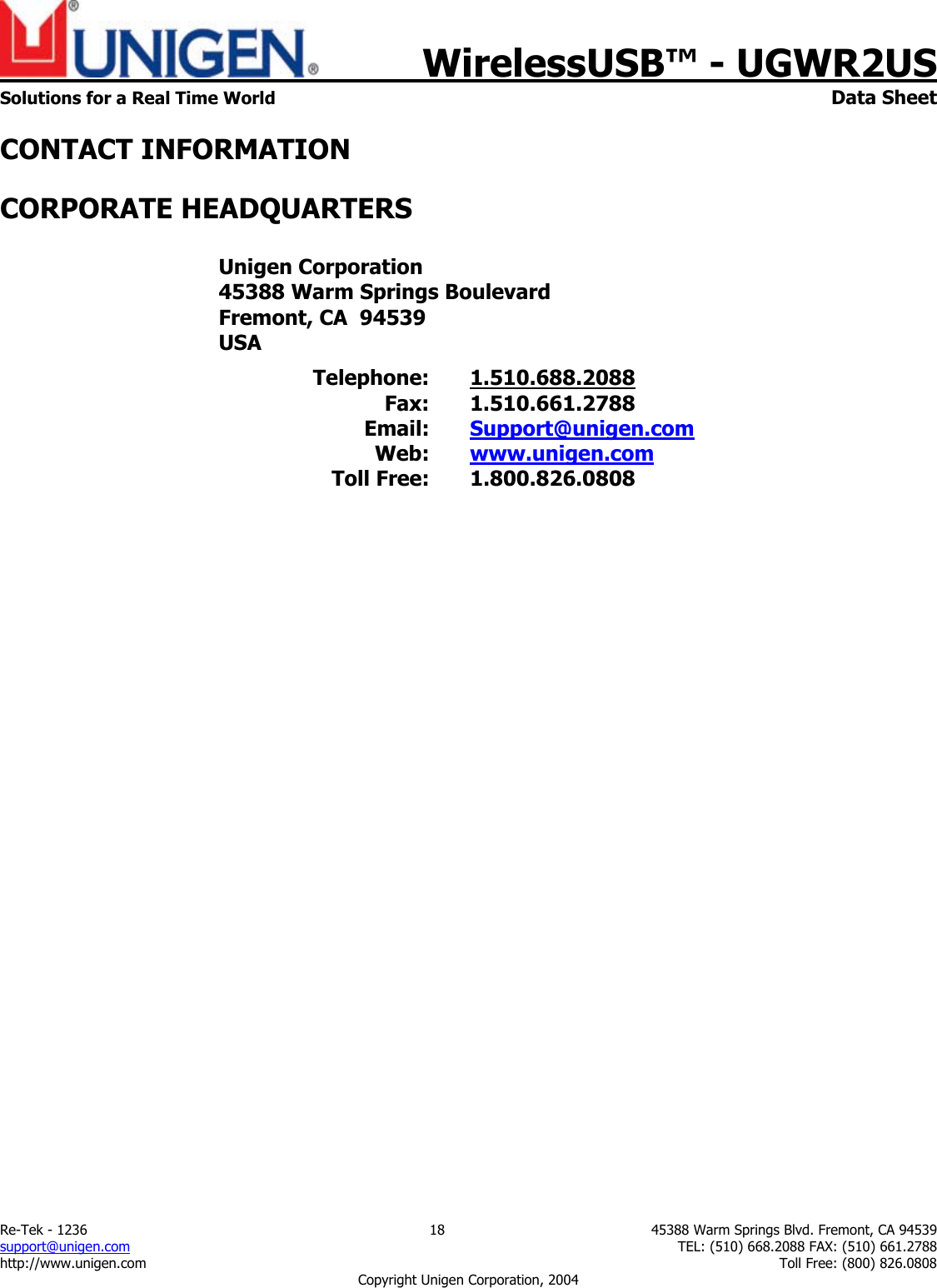

   WirelessUSB™ - UGWR2US Solutions for a Real Time World   Data Sheet Re-Tek - 1236  18  45388 Warm Springs Blvd. Fremont, CA 94539 support@unigen.com    TEL: (510) 668.2088 FAX: (510) 661.2788 http://www.unigen.com    Toll Free: (800) 826.0808 Copyright Unigen Corporation, 2004 CONTACT INFORMATION CORPORATE HEADQUARTERS  Unigen Corporation 45388 Warm Springs Boulevard Fremont, CA  94539 USA Telephone: 1.510.688.2088 Fax: 1.510.661.2788 Email:  Support@unigen.com Web:  www.unigen.com Toll Free:  1.800.826.0808
