Unisen KP-810-21BTL Bluetooth Keyboard User Manual

Unisen Limited Bluetooth Keyboard

user manual

instructions
Mini Bluetooth Keyboard
迷你蓝牙键盘
使用指南
(KP-810-21BTL)
FN+Touch the board the scrollbar
look through the web
ope n playe rs
ope n mail bo x
mut e
mou se left
ope n searc hing
ope n my comp uter
ope n the bro wser
hom e gape
mou se righ t
FN+ Lock Se lecti on
Adj ustab le mous e speed
two sp eed can b e adju stable
Power Switch
To avoid injury,death of personnel or damage to the
equipment the operator must refer to the explanations
in this User ’s Manual
Battery:There is a lithium-ion rechargeable battery
in this device.Dont water this device,or put it in a
humid environment for a long time or the device will
be damaged.
Attention to traffic safety
(CAR PC):Do not use the device while driving.When
you want to use it,please park your car.
Safety Precautions
Safety Matters
In vicinity of dangerous goods to be shut down
In gas station and close to fuel and chemical agents
and other hazardous materials areas,please turn
the device off.
Accessories
Only use factory specified parts.Please use the
supplied travel charging cable.the use of other
charging devices may be dangerous.
Overview
This is a wonderful combo,Mini Bluetooth QWERTY
keyboard,TouchPad combo,with USB interface Adapter
For the lectuer,sales manager,presenter,from within
a 30' radius make a presentation and operate PC
Bluetoothly.Change slides and screen options,write
on the screen,emphasize words and objects just by
using this wireless Mini Keyboard and Mouse with
Touch Pad.
This product was added to the innovative function
Of the mouse wheel,when you press the Fn button
With your fingers Touch anywhere in the sliding
region,can facilitate the realization of the mouse
wheel functions.This human design,it can be easier
for to browse the web better,edit documents.
The keyboard also features an auto sleep and auto
wake mode.If there is a long period of inactivity,the
keyboard will automatically go into a sleep mode.
During the sleep mode,the user can wake the unit
up by pressing any key.
Introduction
Auto sleep and wake feature
Interference
After finishing using the keyboard,push the switch
to the off position.This turns off the power,of the
keyboard.The USB receiver should be plugged out
from the PC and then inserted back in the keyboard
so it is being kept safely.

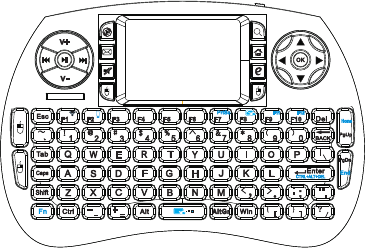

Product overview
Touchpad
The device with built-in lithium-ion battery,please
use only approved data lines and chargers.
Fully charge the unit before operating for the
first time.This device can be used when charging,
but will extend the charging time;
When the battery is low,the low-voltage light will
flash to warn the user.The unit will automatically
turn off the battery has been depleted.
Charging the battery(Only for Configure A)
Computer system requirements
Windows
Mac OS
Android/iOS OS
Measurements(LxWxH): 146.8x97.5x19mm
Weight(grams): 110g
Operational Range: up to 10 meters
Transmit power: +5db Max
Operation voltage: 3.3V
Operation current: <50mA
Charging current: <300mA
Sleep current: <1mA
Appendix
Technical parameters
Specification
Notes : This product has the configuration of A and
B configuration can choose
Configure A: lithium battery version,this version built
in rechargeable lithium battery,additional charge
USB line.
Configure B: Install AAA* 2 battery,this version dose
not support the charging function. Do not attempt to disassemble the device or replace
rechargeable battery.Doing so will void the warranty.
The battery will discharge if stored for a long period
of time without usage.
Use the specified charger.Disconnect the device
after the battery has been fully charged.Overcharging
the battery.
Do not expose the device in extreme heat or cold.
Extreme temperatures will cause the life span of
the battery to shorten.
Use only a damp cloth with mild soap to clean the
device.Solvents and other cleaning agents may
cause damage to the device.
Maintenance
Below are some basic troubleshooting scenarios for
the device.Please contact support from the place of
purchase if you are unable to resolve any issuse with
the device.Problem Possible issue Solution
Troubleshooting
Windows XP/2000
Let's take Microsoft Bluetooth Software as an example
to describe Bluetooth Search,Pairing and Connection,
other Bluetooth software please refer to its own user
manual.
1.Insert Bluetooth adaptor into any vacant USB port
on your computer, please be patient to wait system
search and install new hard driver. Then bluetooth
icon will appear on the taskbar.
If your computing device has integrated bluetooth
receiver refer to the user manual to enable that
receiver.
Pairing and establishing connection with computer .
Bluetooth icon
2.Turn on unit by moving the power switch to ON,
press key BLUETOOTH RESET indicated till LED3
blink then release it(about 2-5 seconds) ,that means
your unit is ready and searching other Bluetooth
device for pairing.
Bluetooth
Reset
LED3
Note: during operation, do not press this key, or your
bluetooth keyboard will be disconnected from your
computer
3.Click “Start”,“Control Panel”(make sure you're in Classic
View),and then double-click Bluetooth Devices.Select
“Add”.
4.In the Add Bluetooth Device Wizard,select the “My
device is set up and ready to be found check box”,and
then click“Next”.
5. After icon of “Bluetooth Keyboard” appear ,click
“Bluetooth Keyboard”,and then click “Next”.
6.When the wizard asks you which passkey you want to
use,click “Choose a passkey for me”.Then click “Next”.
7.After you are prompted to enter your passkey, please
type the passkey on Bluetooth Keyboard,and then press
Enter.You also can choose no passkey to go next step.
PLEASE DO REMEMBER TO USE THE KEY OF
BLUETOOTH KEYBOARD WHEN INPUT PASSKEY.
8.In the final page of the wizard, click Finish, it maybe
take a few seconds for new hardware driver installation
before click finish. So please be patient.
Your Bluetooth Keyboard should now be successfully
paired with your PC and ready to use.
Bluetooth Keyboard
New Device
9.LED3 will goes out when connection is established
successfully.
NOTE: keyboard functions WILL NOT work until a
bluetooth connection with the computing device is
completed.

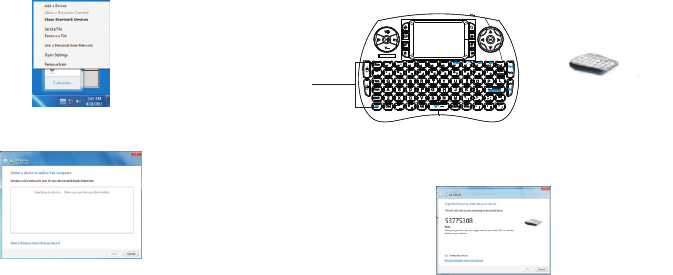

Windows 7
Plug bluetooth receiver into any vacan USB port on
your computer, please be patient to wait the system
recognize your device, it maybe take several minutes.
When new hardware has finished driver installation,
an icon will appear in the task bar.
Right click icon of bluetooth, select “Add a Device
(Bluetooth Receiver is not included)
An window like below will popup indicating that system
is search a devie to add...
Turn keyboard on by sliding the power switch to ON,
LED3 will flash one time, then press key “bluetooth
reset” till LED3 flash. And Bluetooth Keyboard will
appear in the window. Select it and click “Next
Then you will be required to input a pass code for
your device, please do type the code with bluetooth
keyboard, then press Enter
Bluetooth
keybaord
Blue tooth K eyboa rd
NOTE:1.
2.keyboard functions WILL NOT work until a bluetooth
connection with the computing device is completed.
Do not tap key “Bluetooth Reset” or you will
disconnect its connection during operation.
Bluetooth
Reset
CONNECT TO iPAD/ iPhone
1.Turn your Bluetooth Keyboard on by switch button
to on, press Bluetooth Reset key till LED3 flash.
2.Turn on your iPhone,tapsettings=>Bluetooth,
then your iPhone will search the other Bluetooth for
pairing, “Bluetooth keyboard” will be listed when
system find your Bluetooth keyboad.
3.Tap “Bluetooh keyboard,then system will install
driver and prompt you to input pass code you must
type the pass code with your Bluetooth keyboard.
4.When it is connected to your iPhone, Bluetooth
keyboard will appear in the list.
5.For re-connect to your iPhone:turn your Bluetooth
keyboard on,then go to “Bluetooth” device list,and
tap “ Bluetooth keyboard, then connection will be
built again.
Bluetooth keyboard would
like to pair with your iPad
Enter the passkey”136956 on
“bluetooth keyboard, foll owed by
the return or enter key.
Cancel
Connect to other smart mobile with Android O.S
1.Activate bluetooth device of your mobile and make
sure it is searchable and be able to pair
2. Tap search menu to make it in searching state.
3. Turn on keyboard and press bluetooth Reset key
till LED3 flash
4.Icon of Bluetooth Keyboard will appear in the list
when bluetooth keyboard is found,tap this icon for
pairing
5.Tap “Bluetooth Keyboard,then system will install
driver and prompt you to input pass code you must
type the pass code with your bluetooth keyboard.
- Please be noted that your mobile cant be connected
and cant be used if your mobile have no HID profile
or contact our service dept.
- Please be noted if the android device requests to
type in its codes on keyboard,please follow and
disregard above instructions.
1.Click “Settings” 2.Click “Bluetooth 3.Turn onBluetooth,
Search for devices
4.Enter Keyboard “9376",
Press “Enter
5.Connected successfully
unit does
not respond
Keyboard can not
establish a
connection to
the receiver.
The mouse
pointer moves
erratically and/or
unresponsive.
The unit does
not charge
(only for Configure A)
1.Low battery power.
2.Unit is not turned on.
1.The receiver may not be
inserted correctly
1.Device may not be within
optimal range of the receiver
2.Low voltage
3.Dust or oil on the touching.
1.Defective battery.
2.Check connections
1.Conntact your local dealer for replacements.
2.Verify if the device is
securely connected to the charger.
1.Bring the unit closer to the receiver.
2.Please recharge(for Configure A) or replace
the battery(for Configure B)
3.Clean the touchpad with a damp cloth.
1.Disconnect and reconnect
the receiver to the USB port.
1.Configure A:charge the device for at
least 15minutes.Configure B:Replacement of
the AAA.2 battery
2.Check if the switch selected to theONposition.
This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference,
and (2) this device must accept any interference received, including
interference that may cause undesired operation.
Any Changes or modifications not expressly approved by the party responsible
for compliance could void the user's authority to operate the equipment.
Note: This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates uses and can radiate radio
frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one or more of
the following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help.

Navigation menu
