Unitech Electronics MS340BT BT CCD Scanner User Manual

unitech is a registered trademark of unitech Electronics Co., Ltd

BT CCD Scanner

- FCC ID: HLEMS340BT -

UsUser's Manual

Version 1.1

unitech is a registered trademark of unitech Electronics Co., Ltd

Change Log.

Date Change Description Version

2016/1/11 first published version 1.0

2016/1/22 Add 1.4.2 Installing the battery 1.1

i

unitech is a registered trademark of unitech Electronics Co., Ltd.

Preface

About This Manual

Thank you for purchasing the unitech product.

This manual explains how to install, operate and maintain our product.

No part of this publication may be reproduced or used in any form, or by any

electrical or mechanical means, such as photocopying, recording, or

information storage and retrieval systems, without permission in writing from

the manufacturer. The material in this manual is subject to change without

notice.

Regulatory Compliance Statements

FCC Warning Statements

This device has been tested and found to comply with the limits for a Class B

digital device, pursuant to part 15 of the FCC rules. These limits are designed

to provide reasonable protection against harmful interference in a residential

installation. This equipment generates, uses and can radiate radio frequency

energy and, if not installed and used in accordance with the instructions, may

cause harmful interference with radio communications. However, there is no

guarantee that interference will not occur in a particular installation. If this

equipment does cause harmful interference with radio or television reception,

which can be determined by turning the equipment off and on, the user is

encouraged to try to correct the interference by one or more of the following

measures:

–Reorient or relocate the receiving antenna.

–Increase the separation between the equipment and receiver.

–Connect the equipment into an outlet on a circuit different from that to

which the receiver is connected.

–Consult the dealer or an experienced radio/TV technician for help.

1. This transmitter must not be co-located or operating in conjunction with

any other antenna or transmitter.

2. This device complies with FCC RF radiation exposure limits set forth for

an uncontrolled environment. To maintain compliance with FCC RF

exposure requirements, avoid direct contact to the transmitting antenna

during transmitting.

3. Any changes or modifications (including the antennas) made to this

device that are not expressly approved by the manufacturer may void the

user’s authority to operate the equipment.

FCC Label Statement

This device complies with part 15 of the FCC rules. Operation is subject to the

following two conditions:

1. This device may not cause harmful interference, and

2. This device must accept any interference received, including interference

that may cause undesired operation.

Canadian Compliance Statement

This Class B Digital apparatus meets all requirements of the Canadian

Interference-Causing Equipment Regulations.

Cet appareil numerique de la classe B respecte les exigences du Reglement

sur le material broilleur du Canada.

ii

unitech is a registered trademark of unitech Electronics Co.,Ltd

iii

unitech is a registered trademark of unitech Electronics Co., Ltd.

European Conformity Statement

unitech Electronics co., Ltd herewith declares that the unitech product is in

compliance with the essential requirements and all other provisions of the

R&TTE 1999/5/EC directive, the EMC 2004/108/EC directive and the Low

Voltage 2006/95/EC directive.

The declaration of conformity is available for download at :

https://portal.unitech.eu/public/Safetyregulatorystatement

RoHS Statement

This device conforms to RoHS (Restriction of

Hazardous Substances) European Union regulations

that set maximum concentration limits on hazardous

materials used in electrical and electronic

equipment.

Waste electrical and electronic equipment (WEEE)

unitech has set up a policy and process to meet the EU

directive 2002/96/EC and update 2003/108/EC

concerning electronic waste disposal.

For more detailed information of the electronic waste

disposal of the products you have purchased from

unitech directly or via unitech’s resellers, you shall either

contact your local supplier or visit us at :

https://portal.unitech.eu/public/WEEE

iv

unitech is a registered trademark of unitech Electronics Co., Ltd.

Taiwan NCC Warning Statement

交通部電信總局低功率電波輻射性電機管理辦法

第十二條：經型式認證合格之低功率射頻電機，非經許可，公司、商號或使用者

均不得擅自變更頻率、加大功率或變更原設計之特性及功能。

第十四條：低功率射頻電機之使用不得影響飛航安全及干擾合法通信；經發現有

干擾現象時，應立即停用，並改善至無干擾時方得繼續使用。

低功率射頻電機需忍受合法通信或工業、科學及醫療用電波輻射性電機設備

之干擾。

注意事項:

1. 使用過度恐傷害視力。

2. 使用30分鐘請休息10分鐘；2歲以下幼兒不看螢幕，2歲以上每天看螢幕不要超過

1小時。

v

unitech is a registered trademark of unitech Electronics Co., Ltd.

Laser Information

The unitech product is certified in the U.S. to conform to the requirements of

DHHS/CDRH 21CFR Subchapter J and to the requirements of IEC 825-1.

Class II and Class 2 products are not considered to be hazardous. The unitech

product contains internally a Visible Laser Diode (VLD) whose emissions do

not exceed the maximum limits as set forth in the above regulations. The

scanner is designed so that there is no human access to harmful laser light

during normal operation, user maintenance or prescribed service operations.

The laser safety warning label required by the DHHS/IEC for the unitech

product’s optional laser scanner module is located on the memory

compartment cover, on the back of the unit.

* Laser information only applies to the products with laser components.

CAUTION! Use of controls or adjustments or performance of procedures

other than those specified herein may result in hazardous laser

light. Use of optical instruments with the scanner, including

binoculars, microscopes, and magnifying glasses, with will

increase eye damage. This does not include eyeglasses worn by

the user.

LED Information

The unitech product contains LED indicator(s) or LED ring whose luminance is

not harmful to human eyes during normal operation, user maintenance or

prescribed service operations.

*LED information only applies to the products with LED components.

vi

unitech is a registered trademark of unitech Electronics Co., Ltd.

Battery Notice

1. To guarantee optimal performance, it is recommended that rechargeable

batteries be replaced every year, or after 500 charging cycles are

completed. It is normal for the battery to balloon or expand after one year

or 500 cycles. Although it does not cause damage, it cannot be used

again and must be disposed of according to the location's safe battery

disposal procedures.

2. If a battery performance decreases more than 20%, the battery is at the

end of its life cycle. Stop use and ensure the battery is disposed of

properly.

3. The length of time that a battery lasts depends on the battery type and

how the device is used. Conserve the battery life by doing the following:

 Avoid fully uncharging the battery because this places additional

strain on it. Several partial uncharges with frequent charges are better

than a fully uncharged battery. Charging a partially charged battery

does not cause harm to the unit.

 Keep the battery cool. Avoid hot vehicles. For prolonged

storage, keep the battery at a 40% charge level.

 Do not leave the battery uncharged and unused for an extended

period of time, the battery will wear out and the longevity of the

battery will be at least half of one with frequent charges.

4. Protect battery life by not over or under charging the battery.

5. Please do not leave battery unused for long time without charging it.

Despite unitech’s safety precautions, the battery pack may begin to

change shape. If so, stop using it immediately. Please check to see if you

are using a proper power adapter to charge the battery or contact your

service provider for service.

6. If you cannot charge the battery after it has been idle for an extended

period of time and it begins to heat up, please do not try to charge it. It

may not be functional anymore.

7. Please only use the original battery from unitech. Using a third party

battery can damage our products. Please note that when such damage

occurs, it is not covered by unitech’s warranty policy

vii

unitech is a registered trademark of unitech Electronics Co., Ltd.

 RISK OF EXPLOSION IF BATTERY IS

REPLACED INCORRECTLY.

DISPOSE OF USED BATTERIES ACCORDING

TO THE INSTRUCTIONS..

 如果更換不正確之電池行事會有爆炸的風險

請依製造商說明書處理用過之電池

CAUTION!

 如果更换不正确之电池行事会有爆炸的风险

请依制造商说明书处理用过之电池

Battery charge notice

It is important to consider temperature when the battery pack is charging.

Charging is most efficient at normal room temperature or in a slightly cooler

environment. It is essential that batteries are charged within the stated range of

0°C to 40°C. Charging batteries outside of the specified range could damage

the batteries and shorten their life cycle.

CAUTION! Do not charge batteries at a temperature lower than 0°C. This will

and make the batteries unstable and dangerous. Please use a

battery temperature detecting device for a charger to ensure a

safe charging temperature range.

Storage and safety notice

Although charged batteries may be left unused for several months, their

capacity may be depleted due to build up of internal resistance. If this happens,

they will require recharging prior to use. Batteries may be stored at

temperatures between -20°C to 60°C, however they may deplete more rapidly

at higher temperatures. It is recommended to store batteries at room

temperature.

* The message above only applies to the usage of the removable batteries.

For the products with non-removable batteries / without batteries, please refer to

the specification of each product.

Product Operation and Storage Notice

The unitech product has applicable operation and storage temperature

conditions. Please follow the limitation of suggested temperature conditions to

avoid failure, damage or malfunction.

*For applicable temperature conditions, please refer to the specification of each

product.

viii

unitech is a registered trademark of unitech Electronics Co., Ltd.

Adapter Notice

1. Please do not leave the power adapter in the socket when it is not

connected to your unitech product for charging.

2. Please remove the power adapter when the battery is fully recharged.

3. The bundled power adapter that comes with your unitech product is not

meant to be used outdoors. An adapter exposed to water or rain, or a very

humid environment can cause damage to both the adapter and the

product.

4. Please only use the bundled power adapter or same specification of

adapter to charge your unitech product. Using the wrong power adapter

can damage your unitech product.

* The message above only applies to the product connected to the adapter.

For the products without using the adapters, please refer to the specification of

each product.

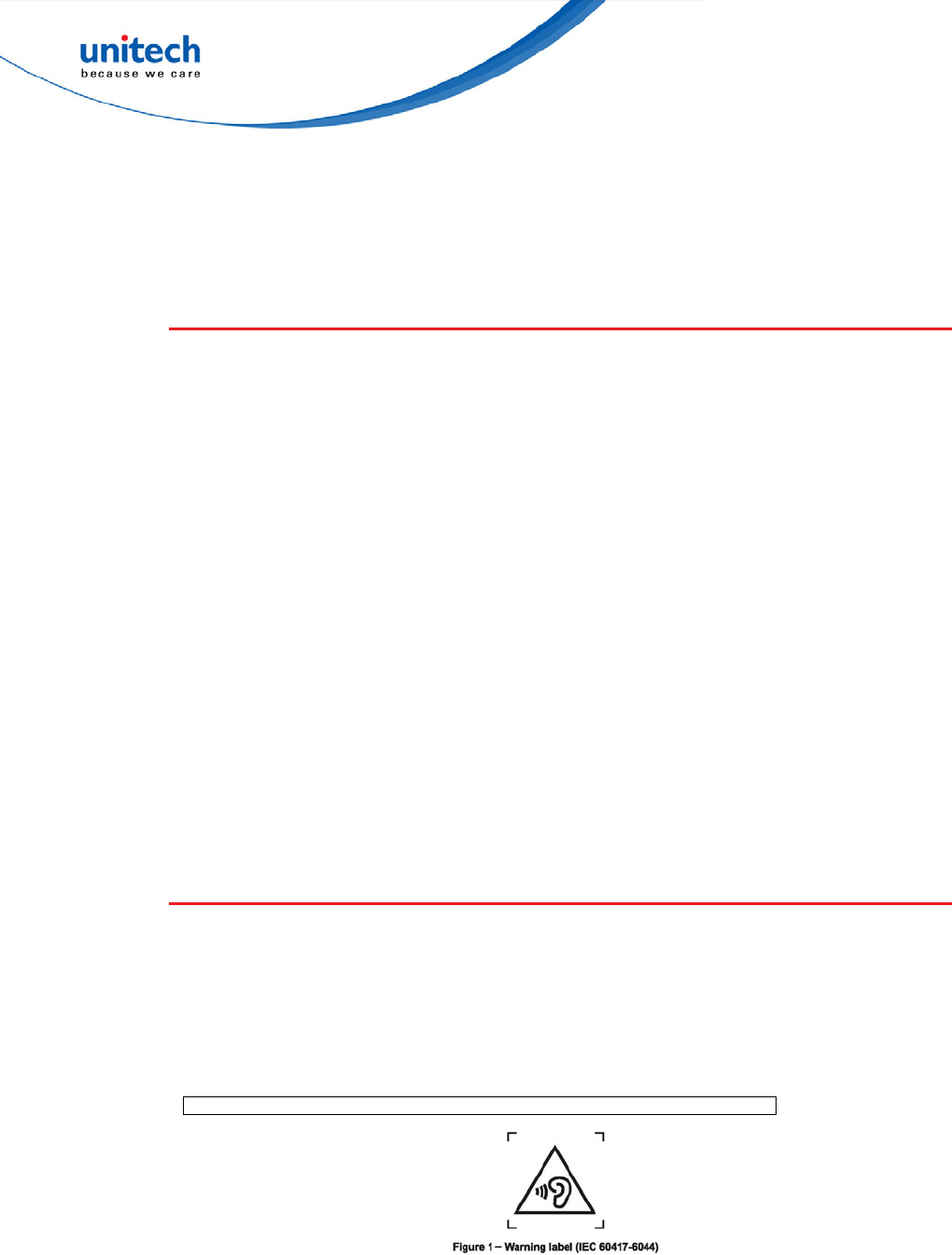

Hearing Damage Warning

Zx.3 Warning

The warning shall be placed on the equipment, or on the packaging, or in the instruction manual and shall consist of

the following:

- the symbol of Figure 1 with a minimum height of 5 mm; and

- the following wording, or similar :

To prevent possible hearing damage, do not listen at high volume levels for long periods.

Alternatively, the entire warning may be given through the equipment display during use, when the user is asked to

acknowledge activation of the higher level.

ix

unitech is a registered trademark of unitech Electronics Co., Ltd.

Worldwide Support

unitech’s professional support team is available to quickly answer questions or

assist with technical-related issues. Should an equipment problem occur,

please contact the nearest unitech regional service representative.

For complete contact information please visit the Web sites listed below:

Taipei, Taiwan – Headquarters Europe

Tel: +886-2-89121122 Tel: +31-13-4609292

E-mail: info@hq.ute.com E-mail: info@eu.ute.com

Address: 5F, No. 136, Lane 235, Baoqiao Road, Xindian

District, New Taipei City 231, Taiwan (R.O.C.)

Website: http://www.ute.com

Address:

Website:

Kapitein Hatterasstraat 19, 5015 BB,

Tilburg, the Netherlands

http://eu.ute.com

China Japan

Tel: +86-59-2310-9966 Tel: +81-3-35232766

E-mail: info@cn.ute.com E-mail: info@jp.ute.com

Address:

Website:

Room401C, 4F, RIHUA International Mansion,

Xinfeng 3nd Road, Huoju Hi-tech District,

Xiamen, Fujan , China

http://cn.ute.com

Address:

Website:

Kayabacho Nagaoka Building 8F.,1-5-19

Shinkawa, Chuo-Ku,

Tokyo, 104-0033, Japan

http://jp.ute.com

Asia & Pacific / Middle East Latin America

Tel: +886-2-27911556 Tel: +52-55-5171-0528

E-mail: info@apac.ute.com

info@india.ute.com

info@mideast.ute.com

E-mail:

Address:

info@latin.ute.com

17171 Park Row, Suite 210

Houston, TX 77084USA (Rep.)

Address: 4F., No. 236, ShinHu 2nd Rd.,

NeiHu Chiu, 114, Taipei,Taiwan

Website: http://latin.ute.com

Website: http://apac.ute.com / http://mideast.ute.com

North America

Tel: +1-714-8916400

E-mail:

Address:

Website:

info@us.ute.com / info@can.ute.com

6182 Katella Ave, Cypress, CA 90630, USA

http://us.ute.com / http://can.ute.com

x

unitech is a registered trademark of unitech Electronics Co., Ltd.

Warranty Policy

The items covered under the unitech Limited Warranty are free from defects

during normal use.

The warranty period is varied from each country. Please consult with your

supplier or unitech local office for actual length of warranty period to your

purchased product.

Warranty becomes void if equipment is modified, improperly installed or used,

damaged by accident or neglect, or if any parts are improperly installed or

replaced by the user.

xi

unitech is a registered trademark of unitech Electronics Co., Ltd.

Table of Contents

Preface...........................................................................................................i

About This Manual ........................................................................................i

Regulatory Compliance Statements ..............................................................i

Laser Information .........................................................................................v

LED Information ...........................................................................................v

Battery Notice.............................................................................................. vi

Adapter Notice............................................................................................viii

Hearing Damage Warning ..........................................................................viii

Worldwide Support...................................................................................... ix

Warranty Policy ............................................................................................x

Chapter 1 - Overview................................................................................1

1.1 Package .................................................................................................1

1.2 Scanner & Cradle Detail.........................................................................2

1.3 Specifications .........................................................................................3

1.4 Getting Started .......................................................................................6

1.5 Battery Charging ..................................................................................10

1.6 LED Indicator / Beeper Sequence........................................................ 11

Chapter 2 – Configuration-General ....................................................13

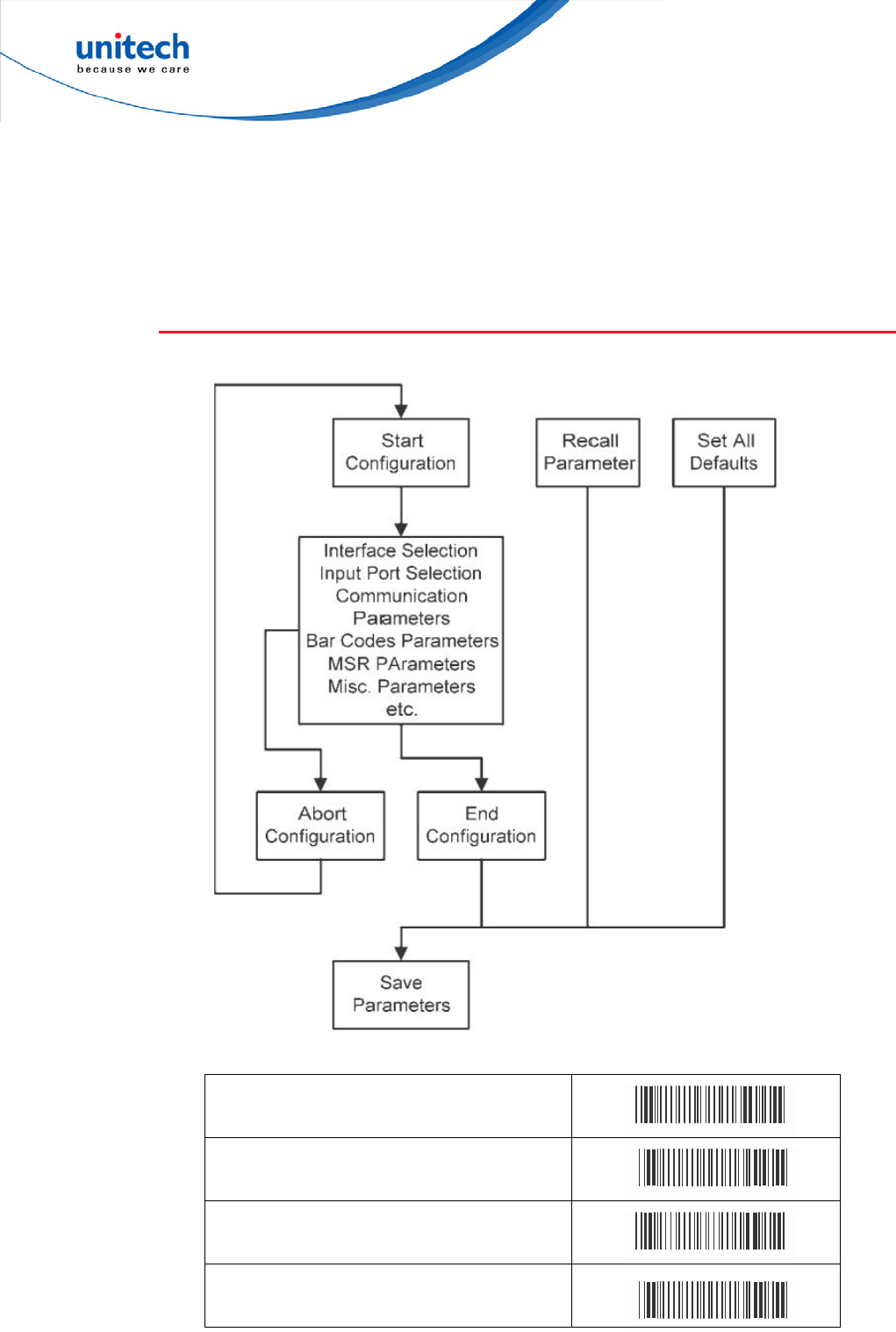

2.1 Flow Chart............................................................................................13

2.2 Loop of Programming...........................................................................14

2.3 Factory Default Settings .......................................................................14

2.4 Main Page of Configuration..................................................................15

Chapter 3 –Bar Codes & Others..........................................................16

3.1 SymboIogies Selection.........................................................................16

3.2 UPC/EAN/JAN Parameters ..................................................................18

3.3 Code 39 Parameters ............................................................................20

3.4 Code 128 Parameters ..........................................................................21

3.5 Interleave 25 Parameters .....................................................................22

3.6 Industrial 25 Parameters ......................................................................23

3.7 Matrix 25 Parameters...........................................................................24

3.8 CODABAR/NW7 Parameters ...............................................................25

3.9 Code 93 Parameters ............................................................................27

3.10 Code 11 Parameters...........................................................................28

xii

unitech is a registered trademark of unitech Electronics Co., Ltd.

3.11 MSI/PLESSEY Code Parameters.......................................................29

3.12 Code 2 of 6 Parameters .....................................................................30

3.13 LCD25 Parameters.............................................................................31

3.14 Telepen Parameters ...........................................................................32

3.15 GS1 Databar ......................................................................................33

3.16 Bar Code ID........................................................................................34

Chapter 4 – Command Setting.............................................................37

4.1 Interface & Reading Mode Selection....................................................37

4.2 Communication Parameters.................................................................39

4.3 Language Selection..............................................................................42

4.4 Reading Level ......................................................................................43

4.5 Accuracy...............................................................................................44

4.6 Buzzer Beep Tone ................................................................................44

4.7 Sensitivity of Continuous Reading Mode..............................................45

4.8 Reverse Output Characters..................................................................46

4.9 Setup Deletion......................................................................................46

4.10 Setup Insertion ...................................................................................49

4.11 PAN Configuration ..............................................................................52

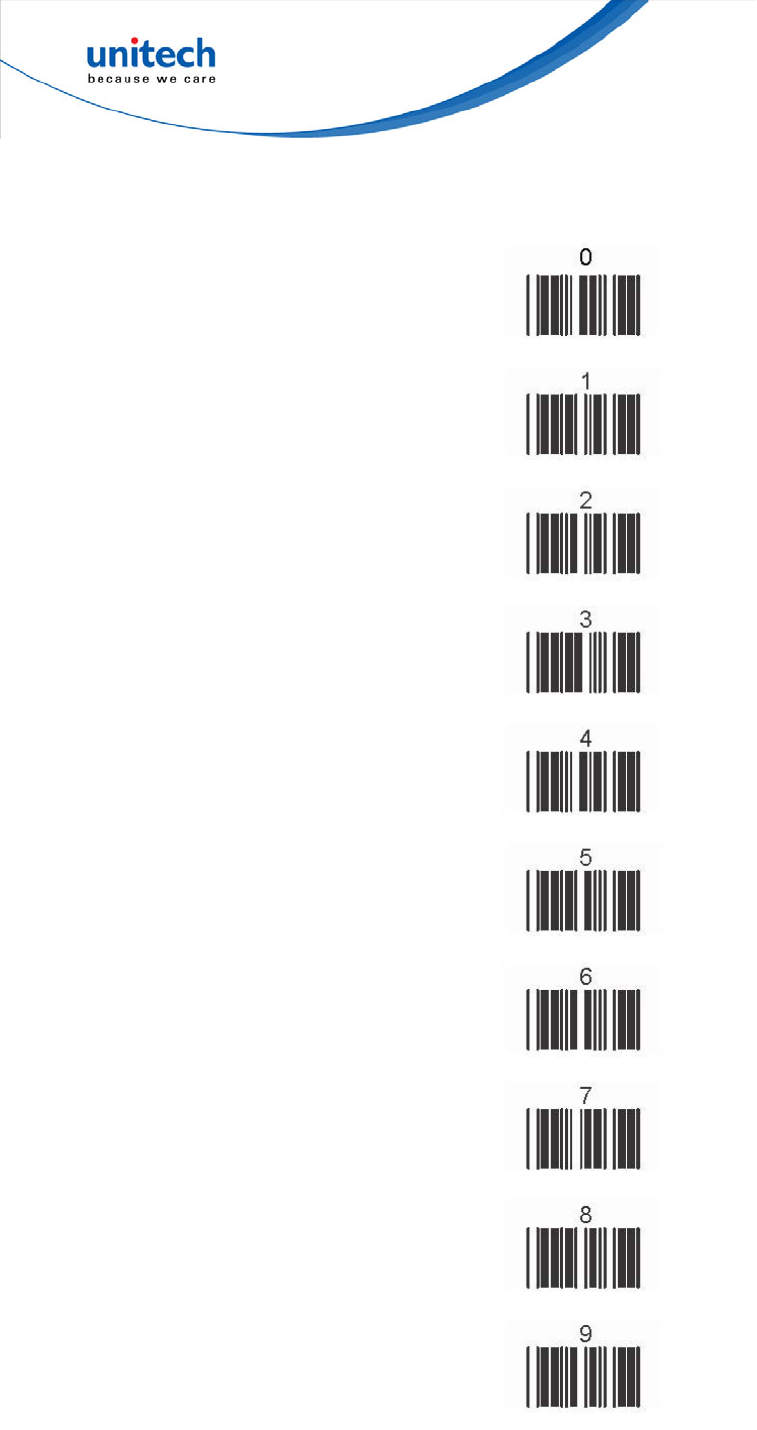

Appendix A –Numeric Bar Codes........................................................55

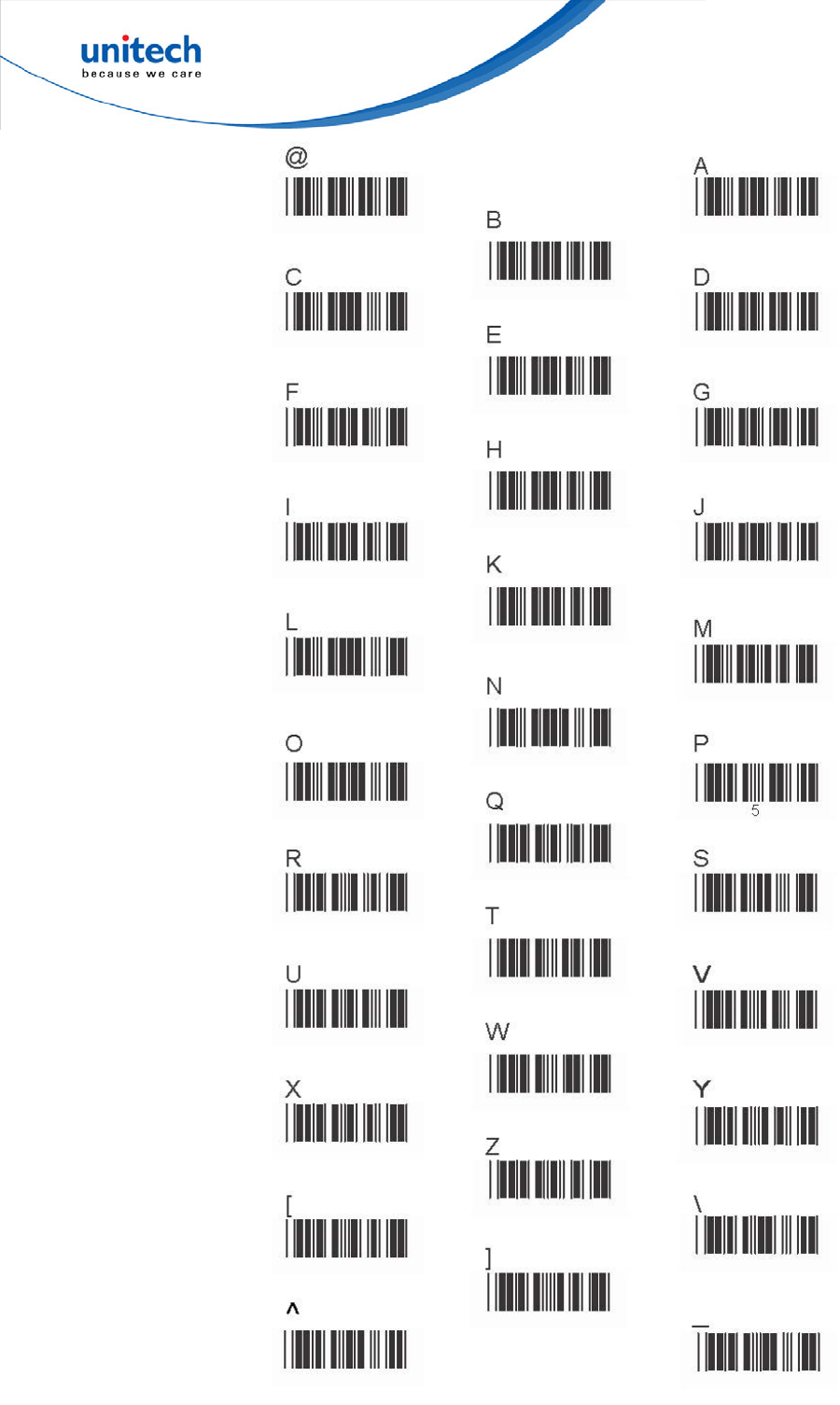

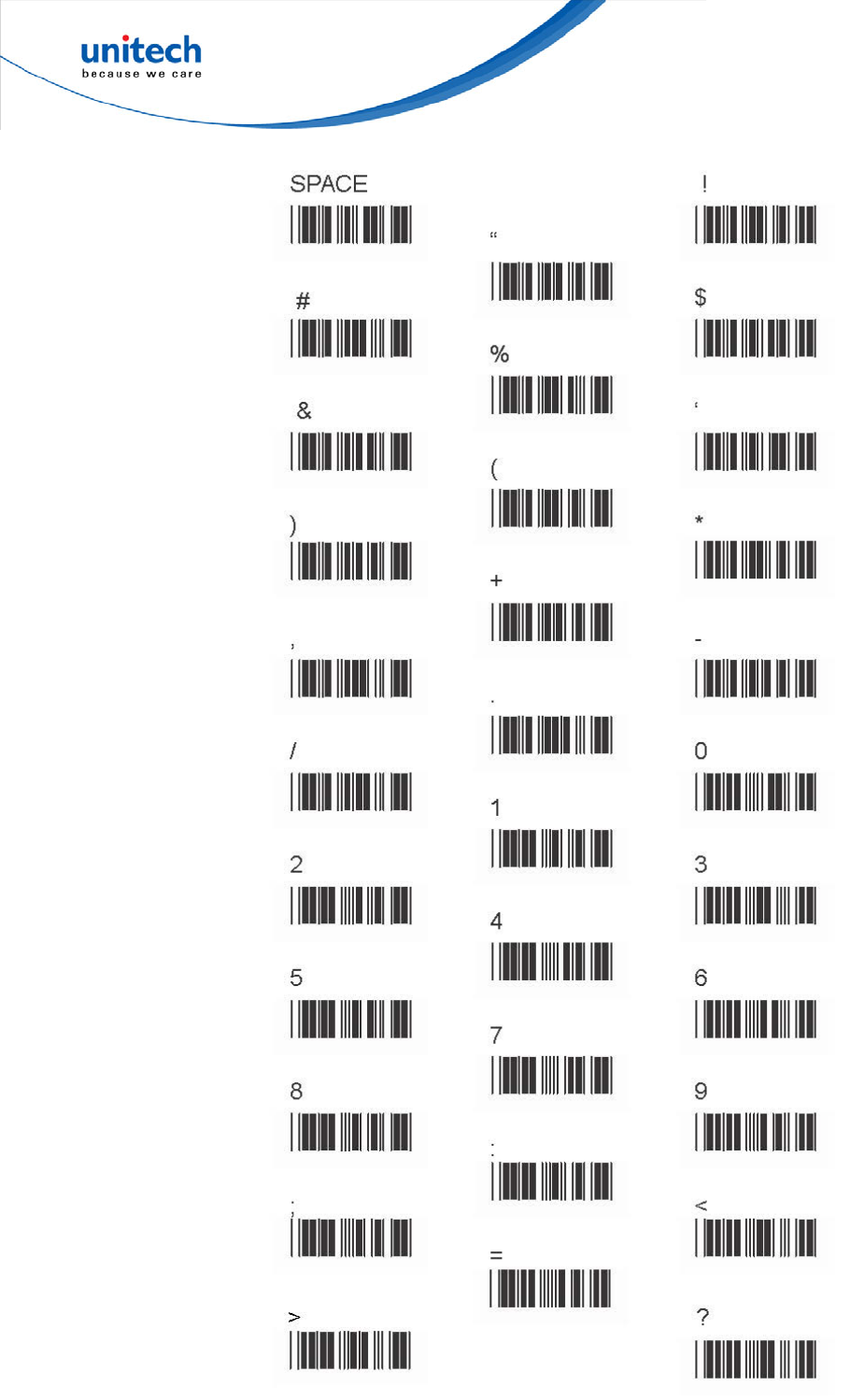

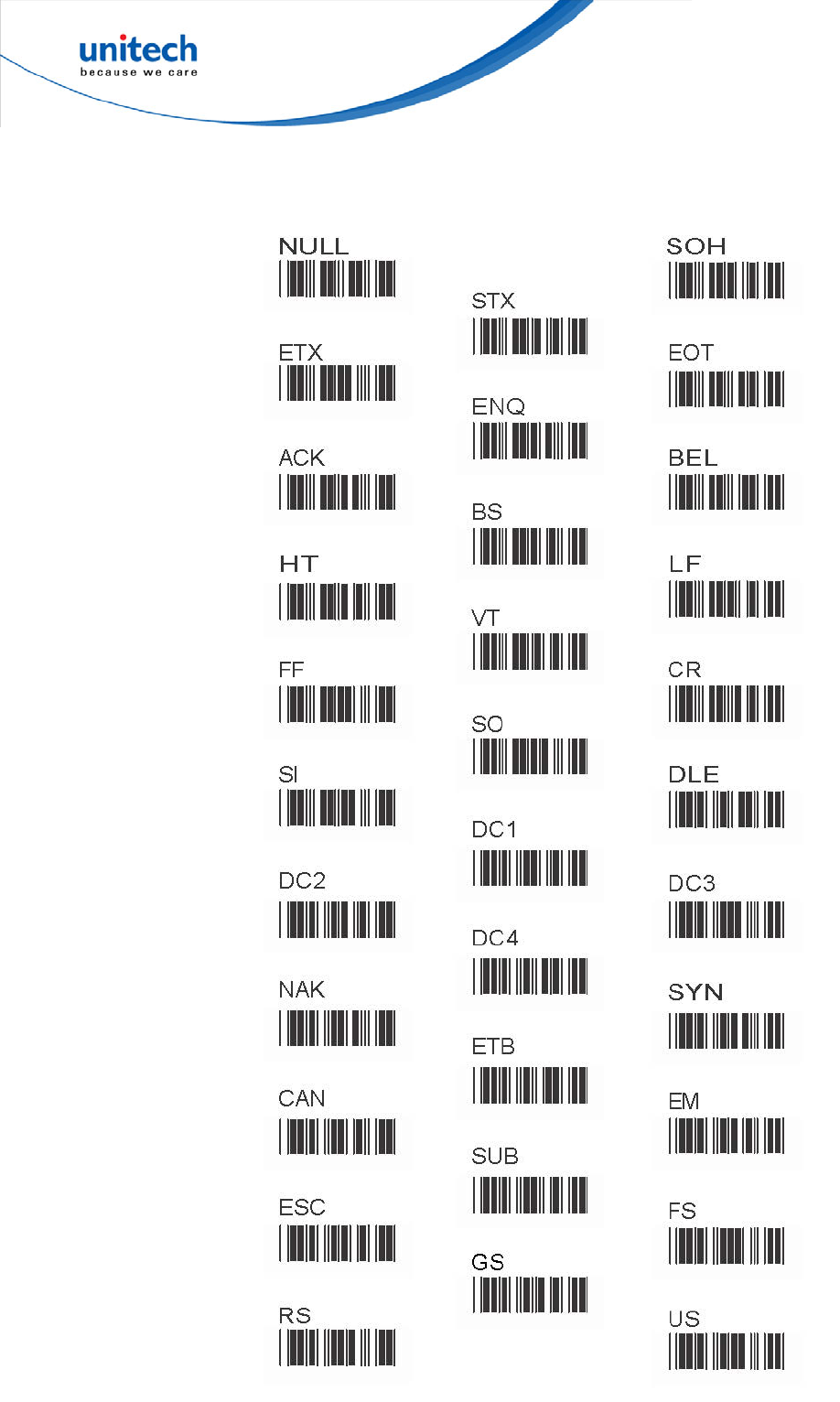

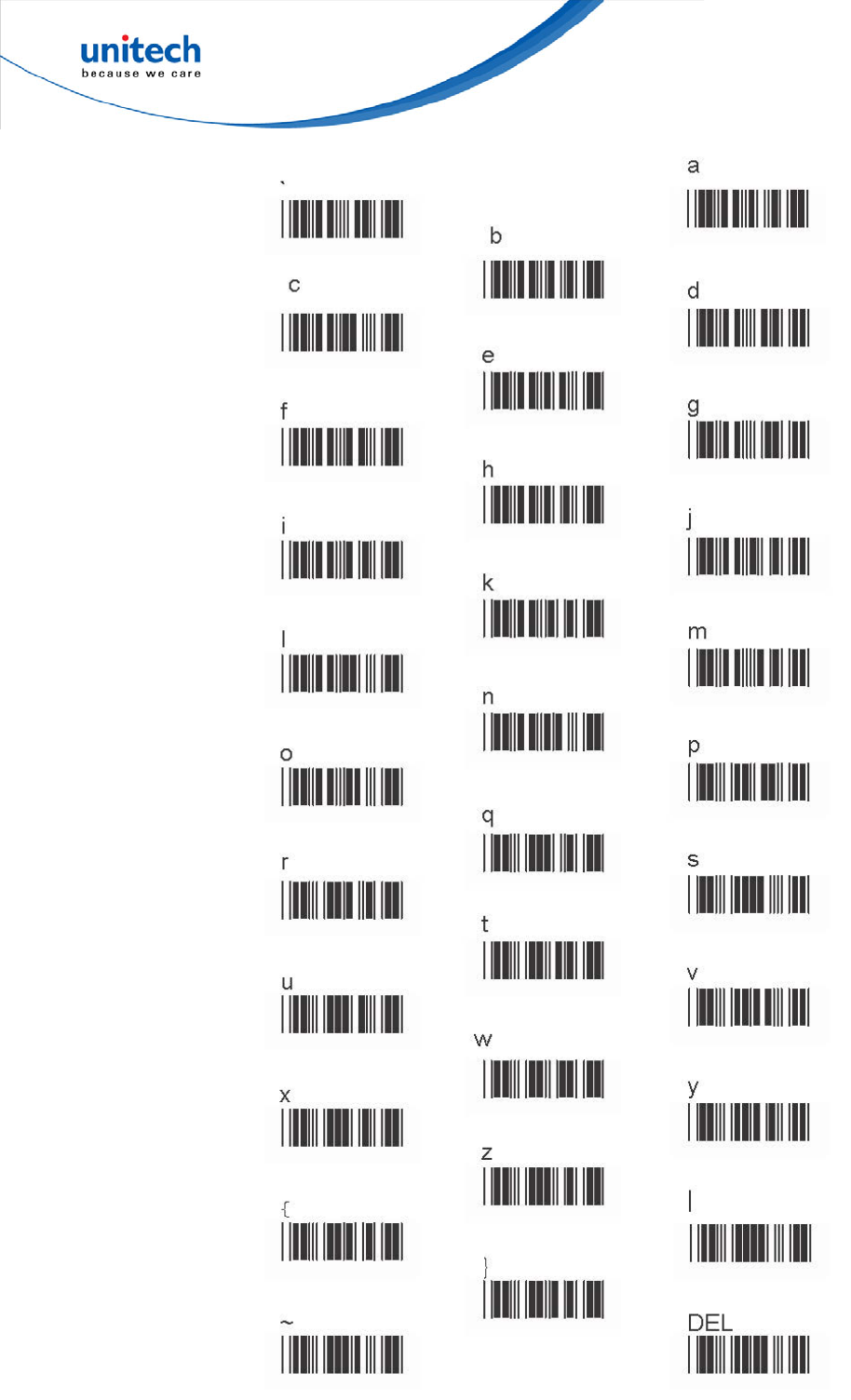

Appendix B –ASCII Table.......................................................................56

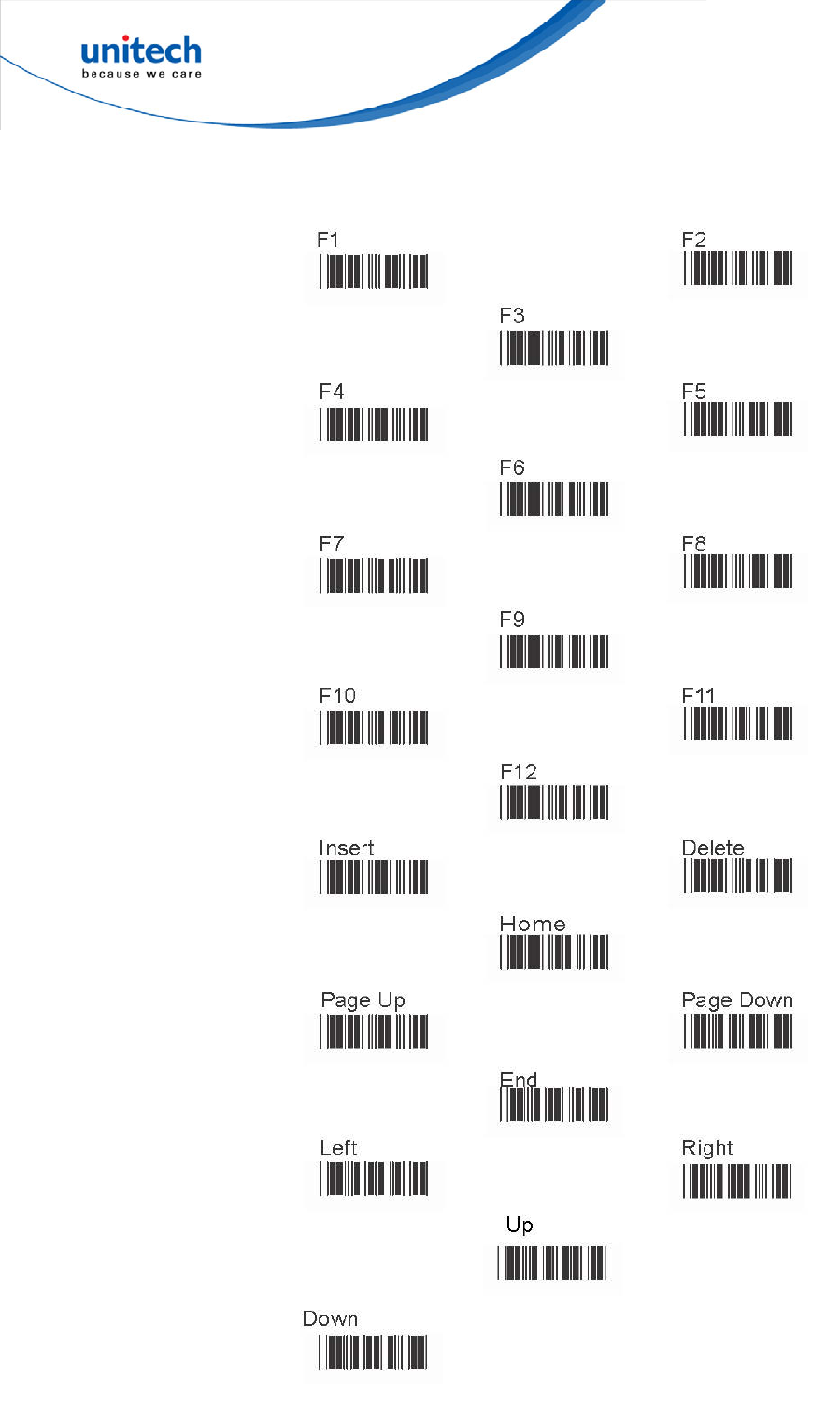

Appendix C –Function Key Table........................................................60

Appendix D–Numeric Bar Codes2.......................................................61

1

unitech is a registered trademark of unitech Electronics Co., Ltd.

Chapter 1 - Overview

1.1 Package

Please make sure the following contents are in the MS340B gift box.

If something is missing or damaged, please contact your unitech

representative.

The standard package contents:

 MS340B Scanner

 Quick Start Guide

 Regulatory Compliance Statements

 Cable

 Cradle

 Adapter

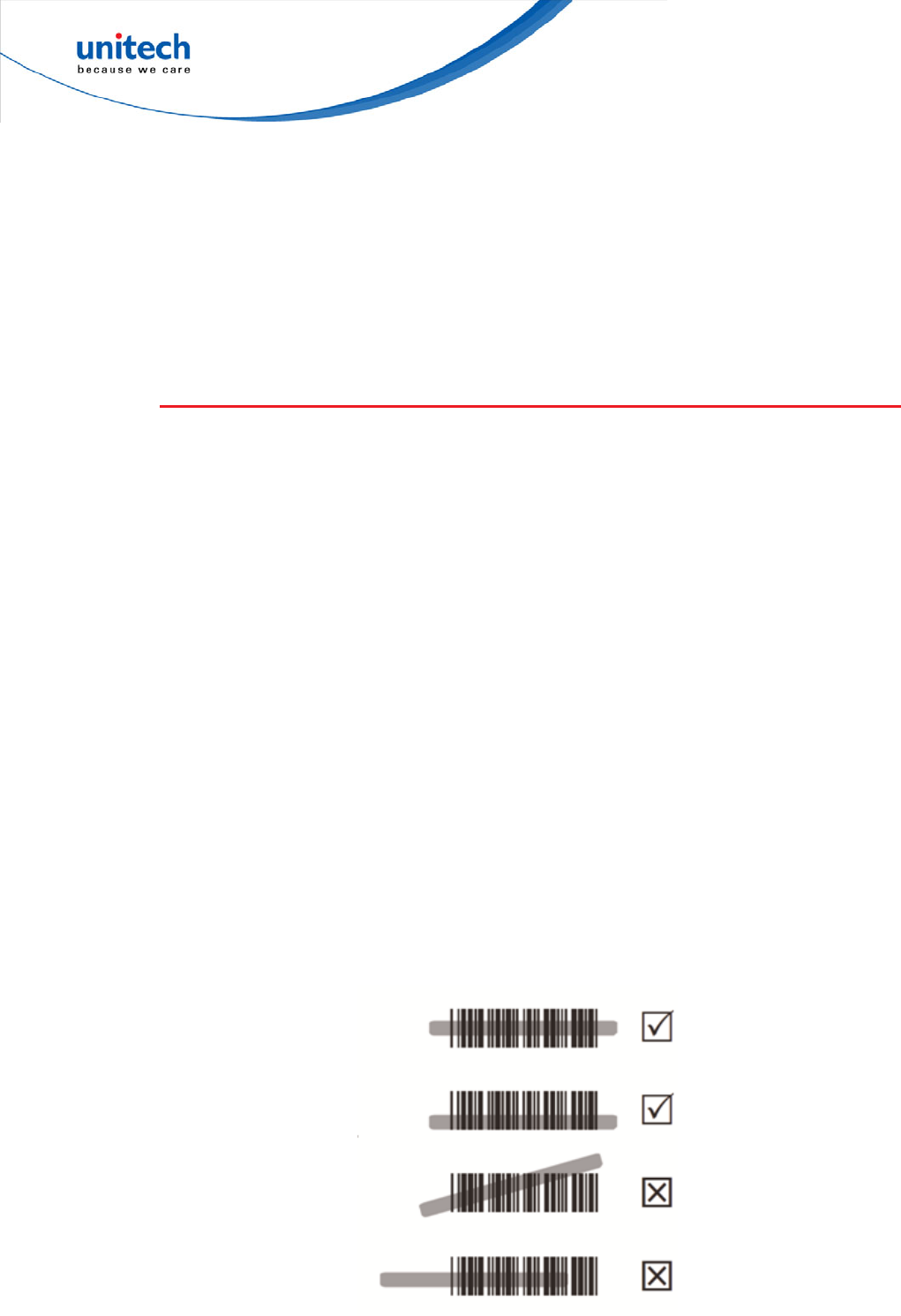

Note: To scan a barcode, make sure the aiming beam crosses every bar and

space of the barcode.

unitech is a registered trademark of unitech Electronics Co.,Ltd

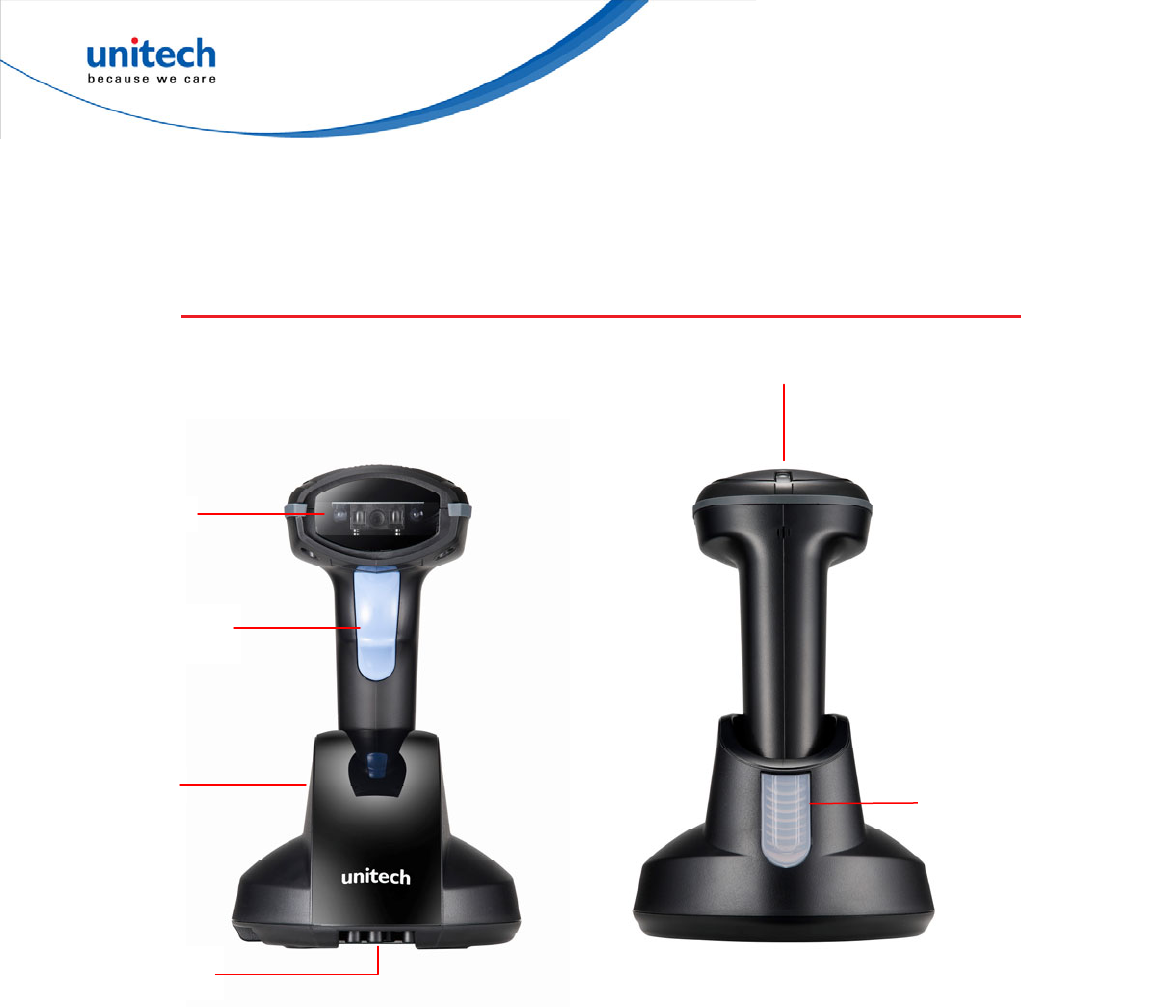

1.2 Scanner & Cradle Detail

Scan Window

Trigger

Cable connector

S

canner L

ED

i

n

di

cato

r

C

ra

dl

e L

ED

i

n

di

cato

r

Cradle

unitech is a registered trademark of unitech Electronics Co.,Ltd

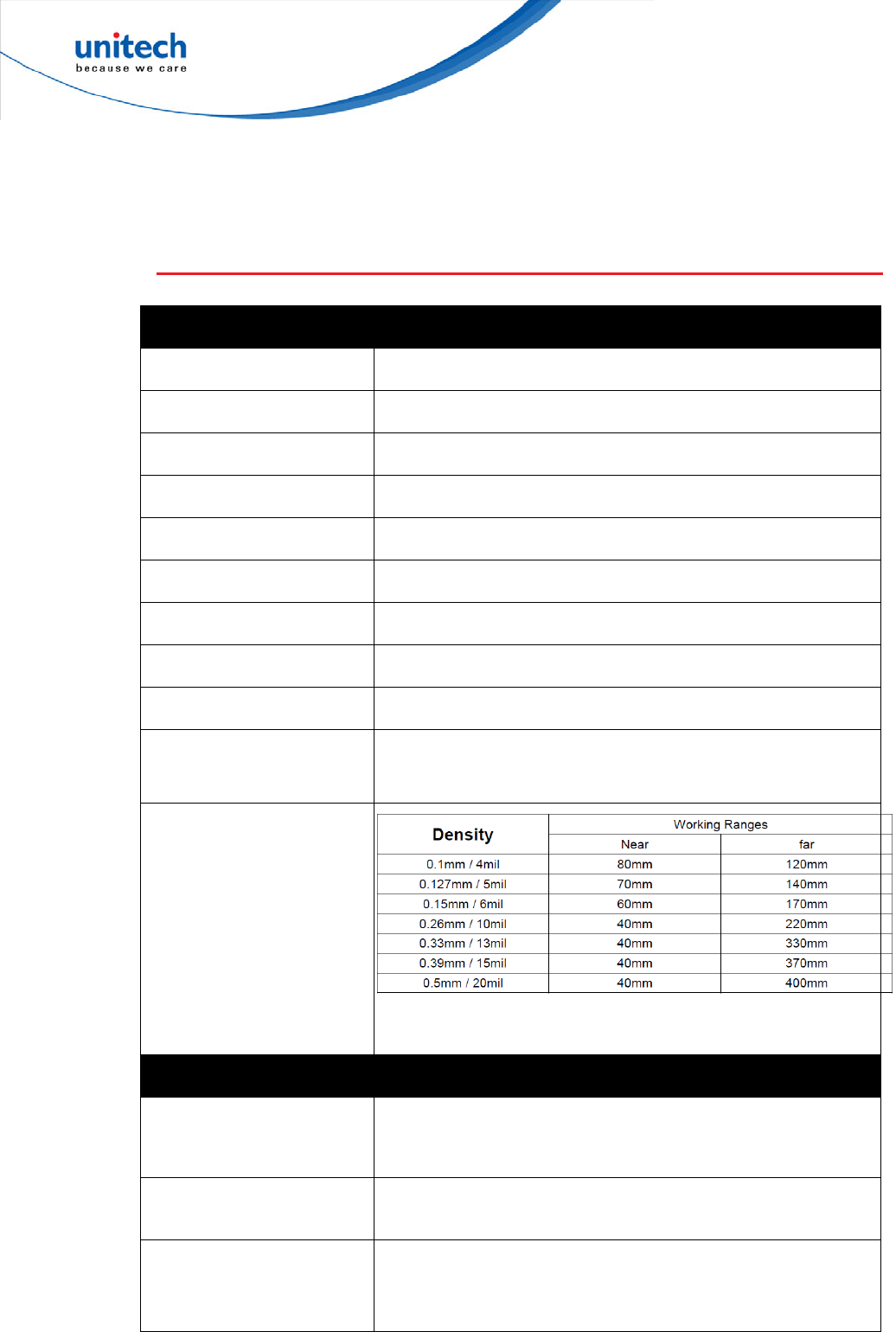

1.3 Specifications

Optical & Performance

Sensor Linear Imager

Visual Indicators Beep and LED (Good read Green)

System Interface USB

Light Source 635 nm Visible Red LED

Max. Resolution 4mil (0.1mm) PCS90%, Code39

Scan Rate Up to 500 scans/second

Skew Angle ±60° (±5°)

Pitch Angle ±10°~65° (±5°)

Printing Contrast Scale minimum 30%

Decoding Supports most standard 1D bar code, GS1 Databar

linear and stacked Codes

Depth of Field

(DOF Code39

PCS=90% )

Communication

Radio Frequency Bluetooth V2.1 EDR, (smaller 10mW)

Frequency Band 2.402GHz~2.480 GHz

Transmission Range Up to 100m (328.08 FT.) line of sight

unitech is a registered trademark of unitech Electronics Co.,Ltd

Mechanical

Dimensions 72 x 70 x 164 mm (length x width x height)

Weight 174g (Scanner only)

Switch life 1,000,000 times

Electrical

Input Voltage 5VDC

Operating Power <200mA

Standby Power < 60mA

Battery Li-ion 3.7V/2600 mAh

Charging time Approx. 5 hours

Reads per charge 50,000 times

Environmental

Light Levels Max 100,000 Lux

Mechanical Shock 1.5m onto concrete (scanner only)

IP Rate IP42

Operating

Temperature 0°C to 50°C

Storage Temperature -20°C to 70°C

Relative Humidity 20% to 95% non-condensing

Regulation Approvals

CE, FCC, BSMI, VCCI, NCC, TELEC

unitech is a registered trademark of unitech Electronics Co.,Ltd

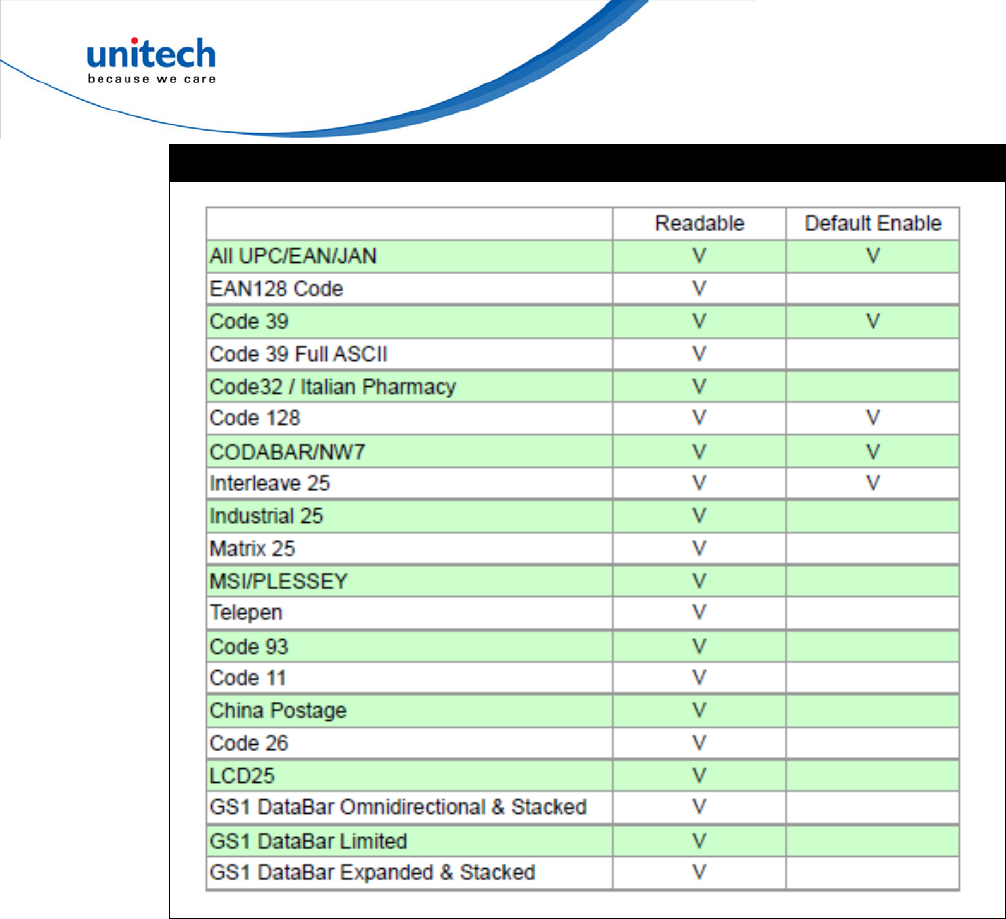

Readable Symbologies

unitech is a registered trademark of unitech Electronics Co.,Ltd

1.4 Getting Started

Please scan below barcode to set default for BT parameter.

For configuration, please refer to 2.1 Flow Chart.

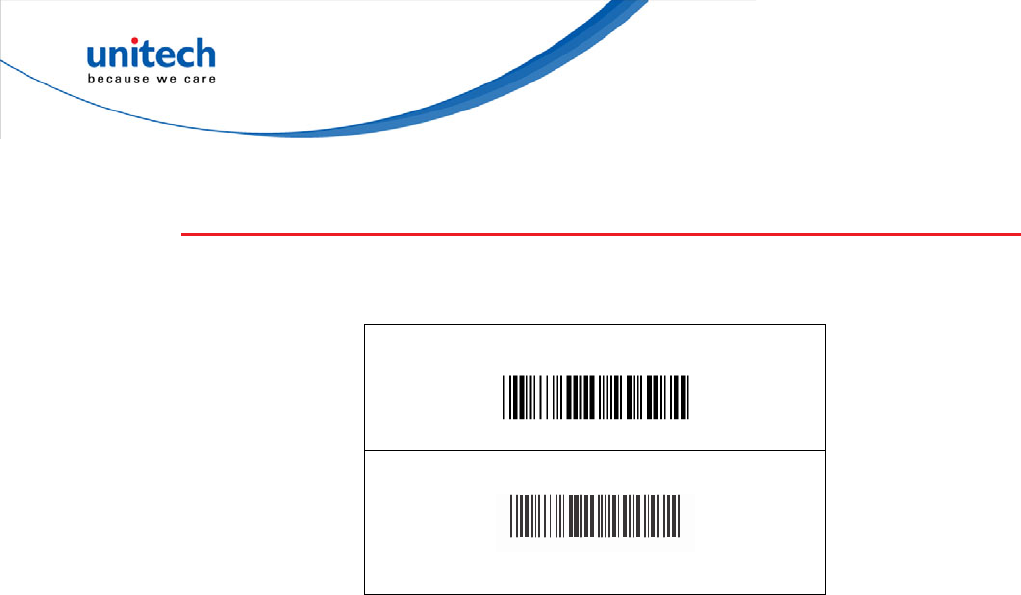

BT Parameter Set Default

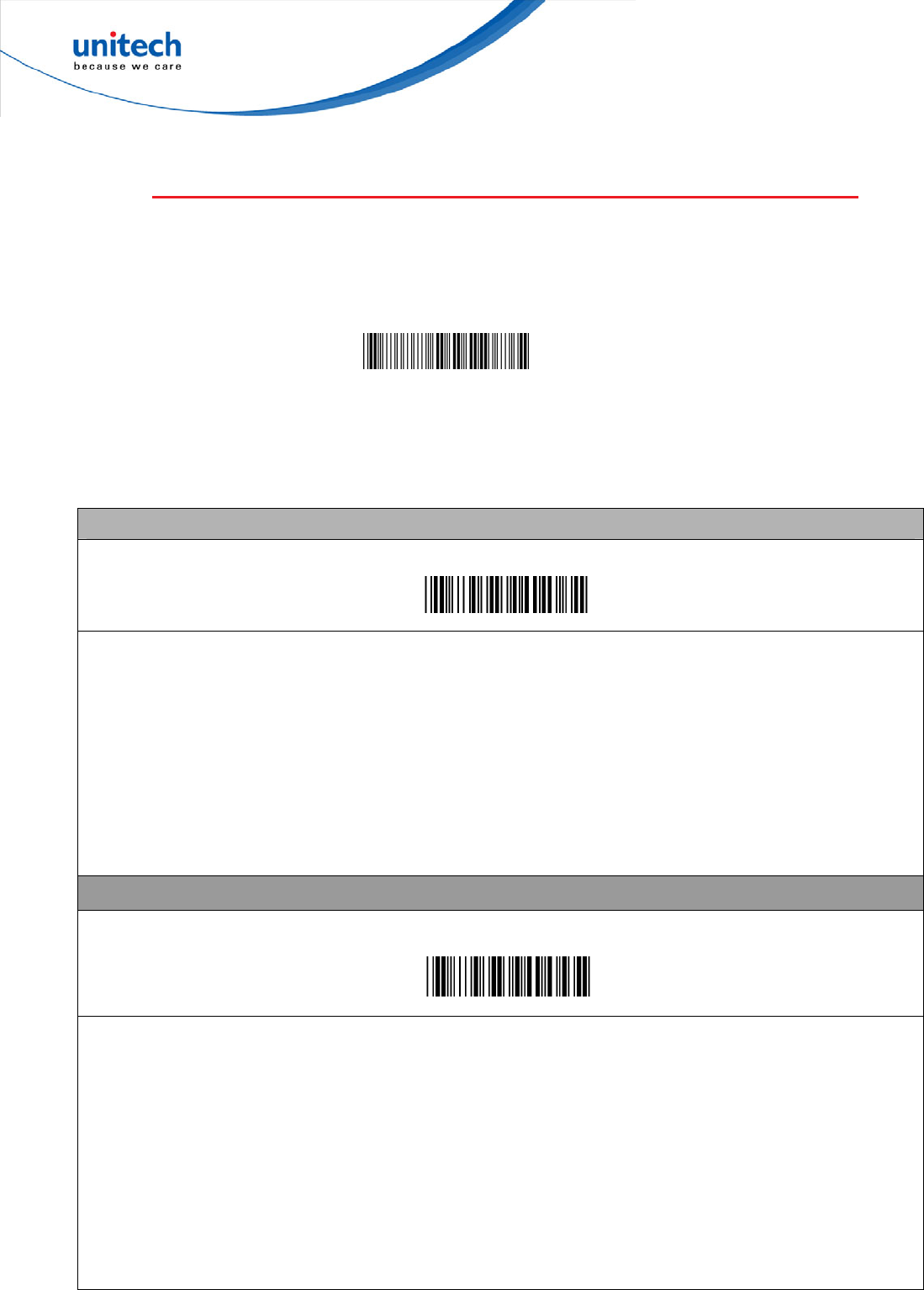

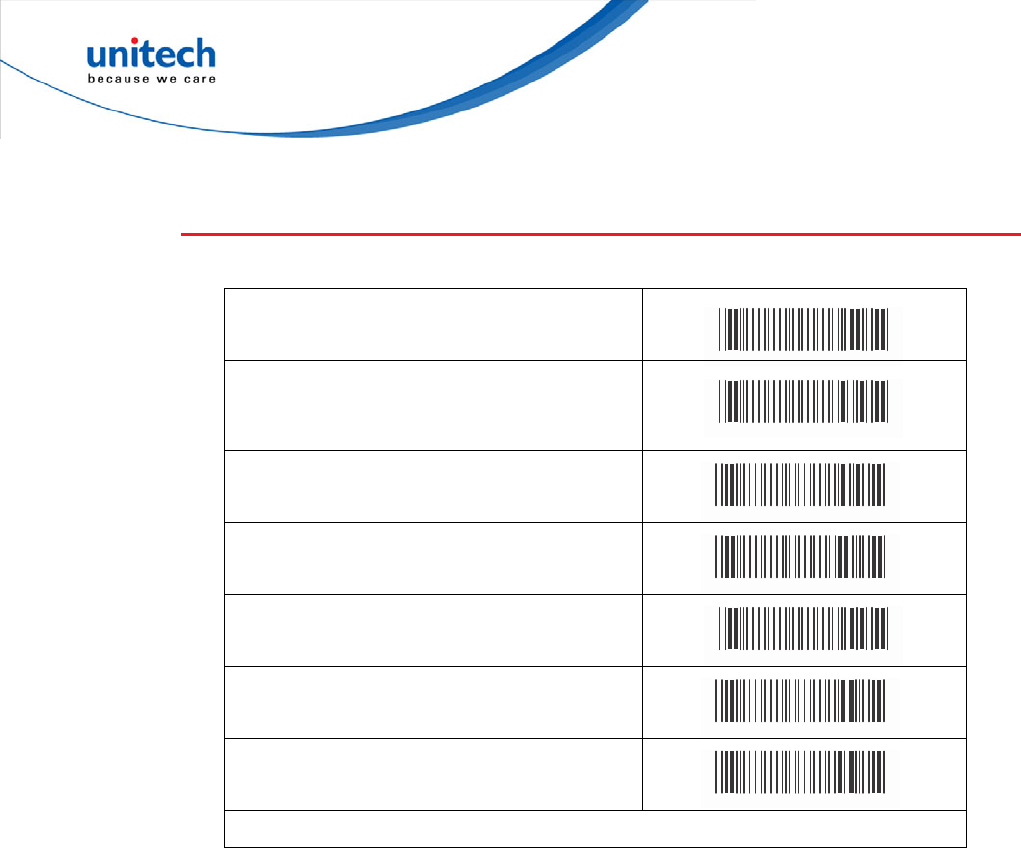

1.4.1 Scanner Mode

There are three different scanner modes. Please follow the instructions below.

A. Setup SPP Master Mode* (Default option)

SPP Master Mode*

Please follow the below steps to setup the communication between the scanner and cradle.

1) The scanner must scan “SPP Master Mode” barcode to set the scanner in master mode.

2) Scan the BT MAC address code located on the bottom of the cradle.

3) When the BT MAC address code was successfully scanned, scanner will sound 3 short

beeps with green LED flash once.

4) Wait approximately five seconds for completing the connection process with up-tone.

5) If successful, blue LED of scanner will slow flash and the cradle will be continued on.

B. Setup SPP Slave Mode

SPP Slave Mode

Please follow the below steps to setup the communication between the scanner and BT

application device.

1) The scanner must scan “SPP Slave Mode” barcode, to set the scanner in slave mode.

2) When control the BT device to search the scanner, enter pin code (default 00:00:00) to

setup comport.

3) When scanner is successful connected, the scanner blue LED will also blink with up-tone.

Blue LED will slowly flash to finish the setup.

unitech is a registered trademark of unitech Electronics Co.,Ltd

C. Setup HID Slave Mode

HID Slave Mode

Please follow the steps to setup the communication between the scanner and Bluetooth HID

profile application device.

1) The scanner must scan “HID Slave Mode” barcode to set the scanner in HID slave mode.

2) When control the BT device to search the scanner, enter pin code (default 00:00:00) to

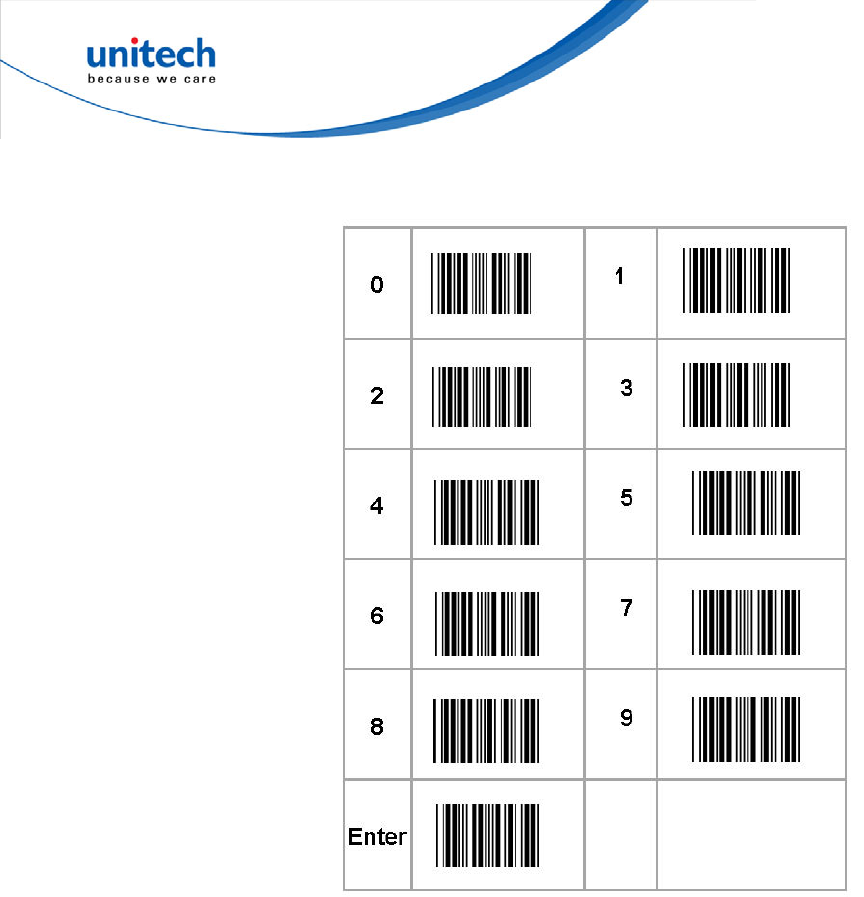

setup pairing. You can scan number barcode on Appendix D, “Numeric Bar Codes 2 ”

number 0~9, to setup.

3) When scanner is successful connected, scanner blue LED will also blink with up-tone.

Blue LED will slowly flash to finish the setup.

unitech is a registered trademark of unitech Electronics Co.,Ltd

1.4.2 Installing battery

To install the scanner battery, please follow the instructions below.

1. Use screwdriver to loosen the

screw on the bottom of the scanner

and remove the battery cover.

2. Slide and position the battery, make

sure the battery contacts are aligned

with the contacts in the scanner.

3. Replace the battery cover and use the screwdriver to tighten the screw on the bottom

of the scanner.

+

-

unitech is a registered trademark of unitech Electronics Co.,Ltd

1.4.3 Switching Cable

Before removing the cable from the cradle, it is recommended that

the power on the host system is off and the power supply has been

disconnected from the unit.

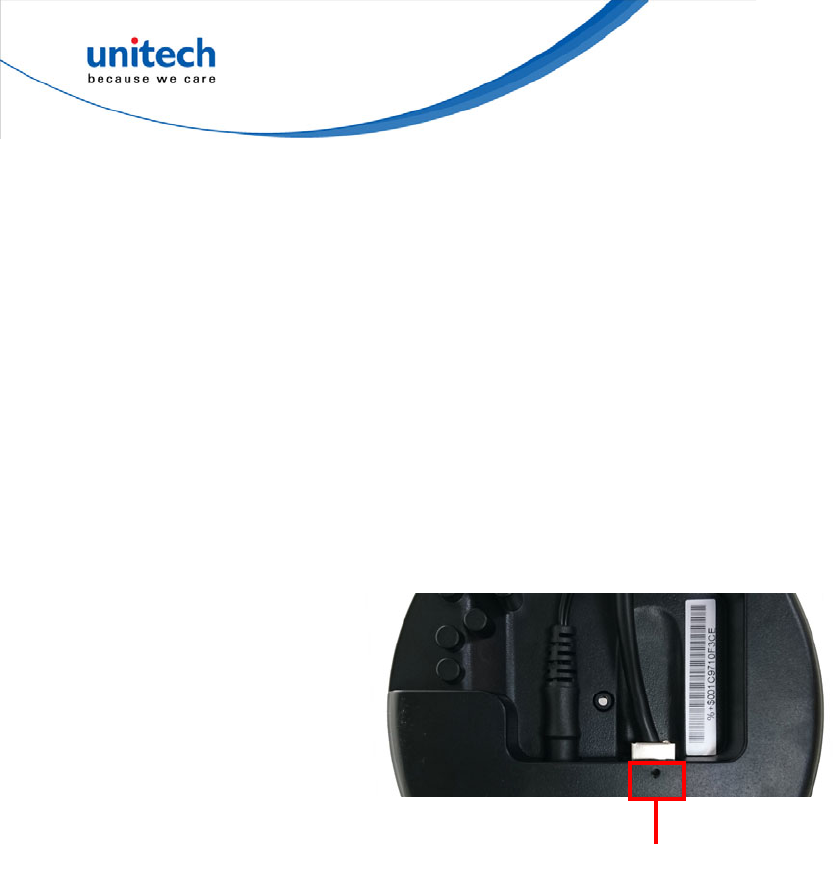

1. Find the small "Pin-hole" on the bottom of the cradle. (Please see the photo as below)

2. Use a bended regular paperclip and insert the tip into the hole.

3. You will hear a "click", then gently pull out the strain-relief of the cable.

Pin-hole

unitech is a registered trademark of unitech Electronics Co.,Ltd

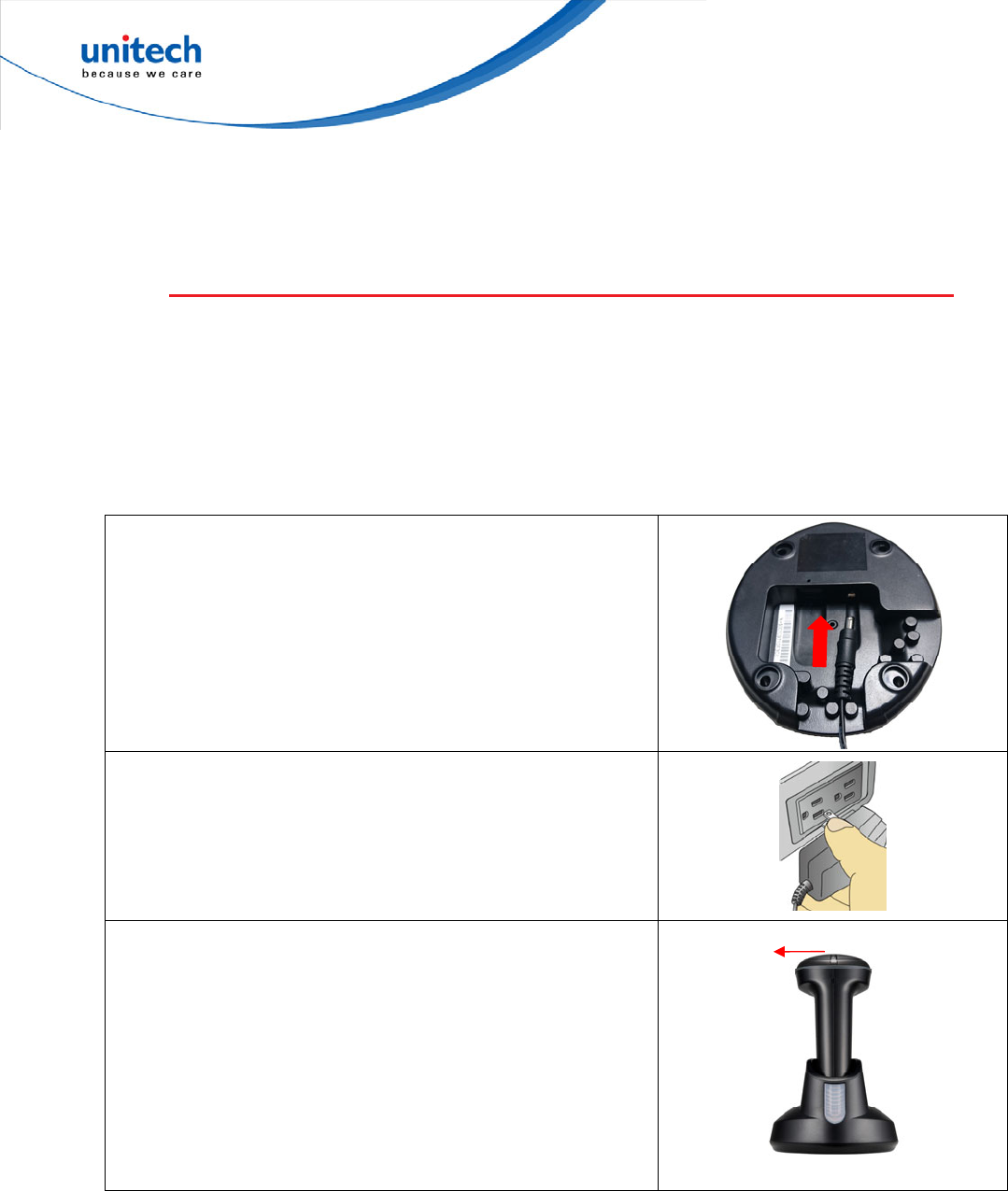

1.5 Battery Charging

The battery is in advance loaded into the compartment of the scanner and may

not be fully charged before shipment. When you receive the package and use

the MS340B for the first time, you will need to fully charge the battery.

It takes approximately 5 hours to fully charge the battery.

To chage the scanner with a cradle, please follow the instructions below.

1. Plug the adapter cable into the power socket on the

bottom of cradle.

2. Plug the AC adapter cord into an electrical outlet.

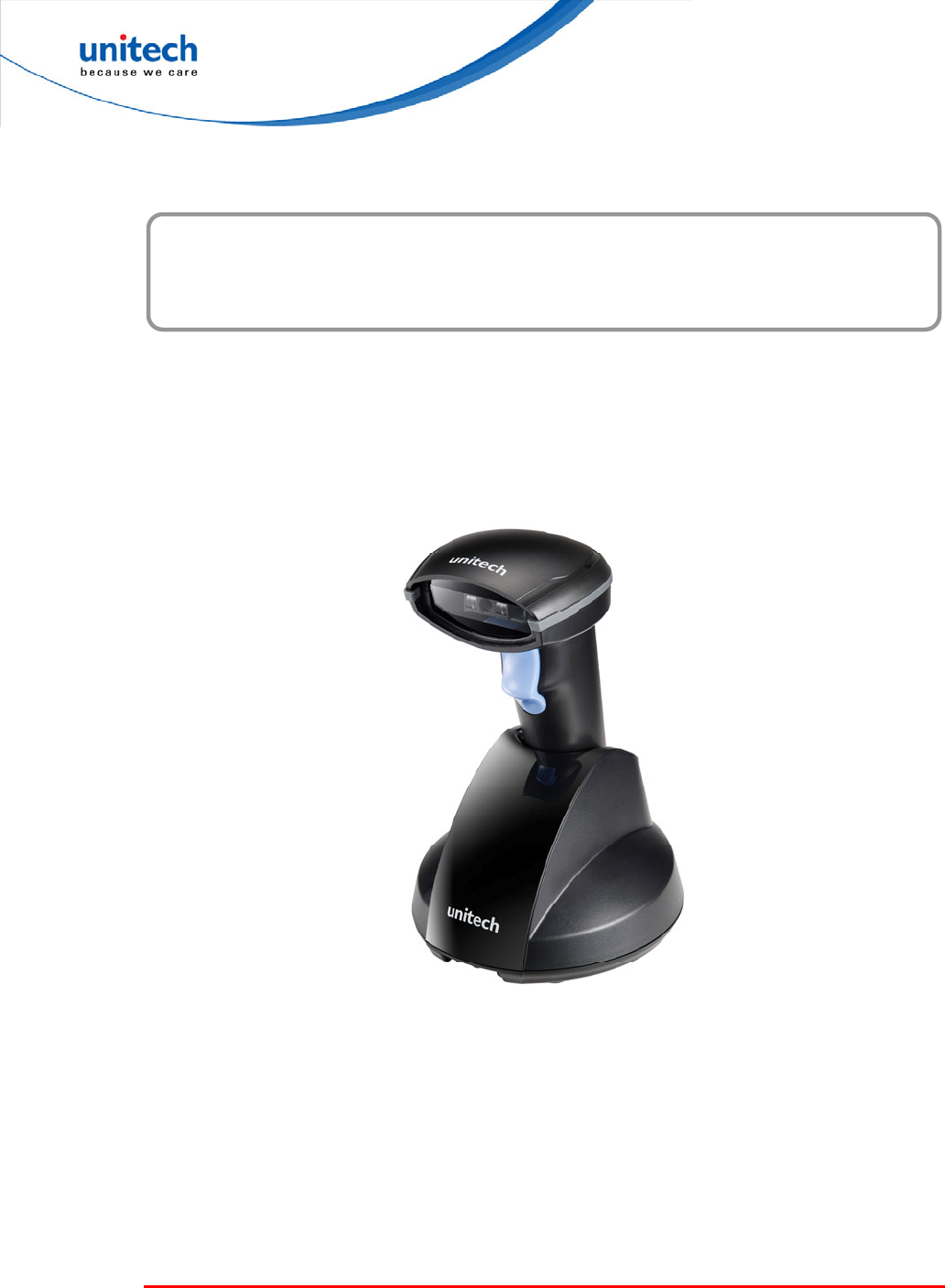

3. Place the scanner in the cradle. The scanner LED

will be red to indicate charging and turn green

when it is fully charged.

Scanner LED

indicator

unitech is a registered trademark of unitech Electronics Co.,Ltd

1.6 LED Indicator / Beeper Sequence

￭ Scanner LED Status

Action/Status

LEDforBarcode

reading&

Communication

BeepTone

Good read and transmitted Green light blinks once One beep

Good read and save on

memory (BT disconnect) Green light blinks once One beep

Good Read but Transmit Fail Green light blinks twice Two beeps

Battery fully charged Solid green light No action

Memory full Red light blinks twice Two beeps

Low Battery warning Red light blinks once

every 20 seconds One beep

In charging Solid red light No action

BT disconnect Blue light blinks twice

(continuously)

No action

BT disconnect

before sleep No action Low beep

BT connected Blue light blinks once

every two seconds High beep

Setting ok Green light blinks once No action

Start charging Solid red light No action

Battery changed

Blue light blinks once

then green light blinks

twice

No action

unitech is a registered trademark of unitech Electronics Co.,Ltd

￭ Cradle LED Status

Action/Status

LED for Barcode

reading &

Communication

Good read and transmitted Green light blinks once

BT disconnect (continuously) Blue light blinks twice

BT connected Solid blue light

unitech is a registered trademark of unitech Electronics Co.,Ltd

Chapter 2 – Configuration-General

2.1 Flow Chart

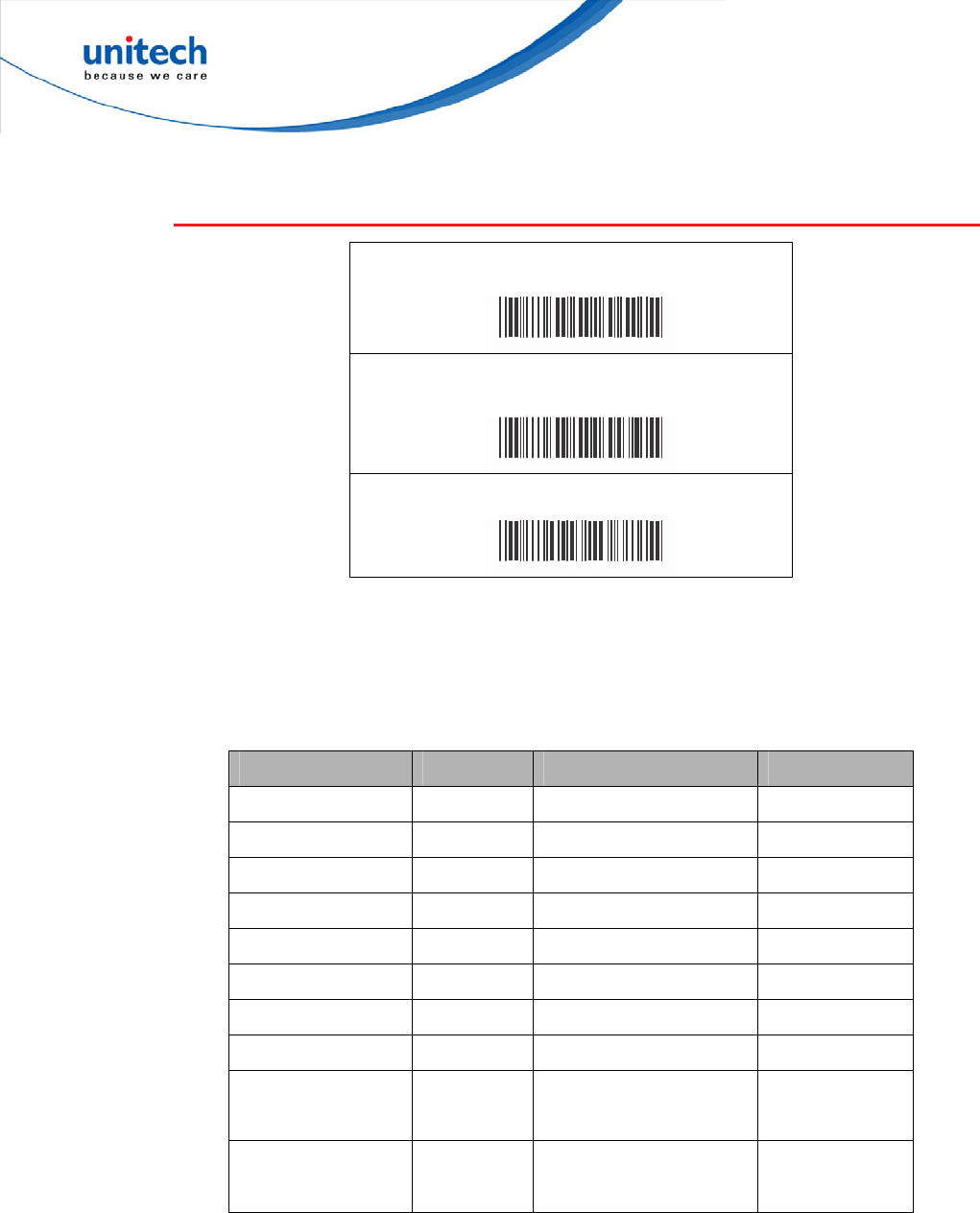

*Please scan the following barcodes for configuration

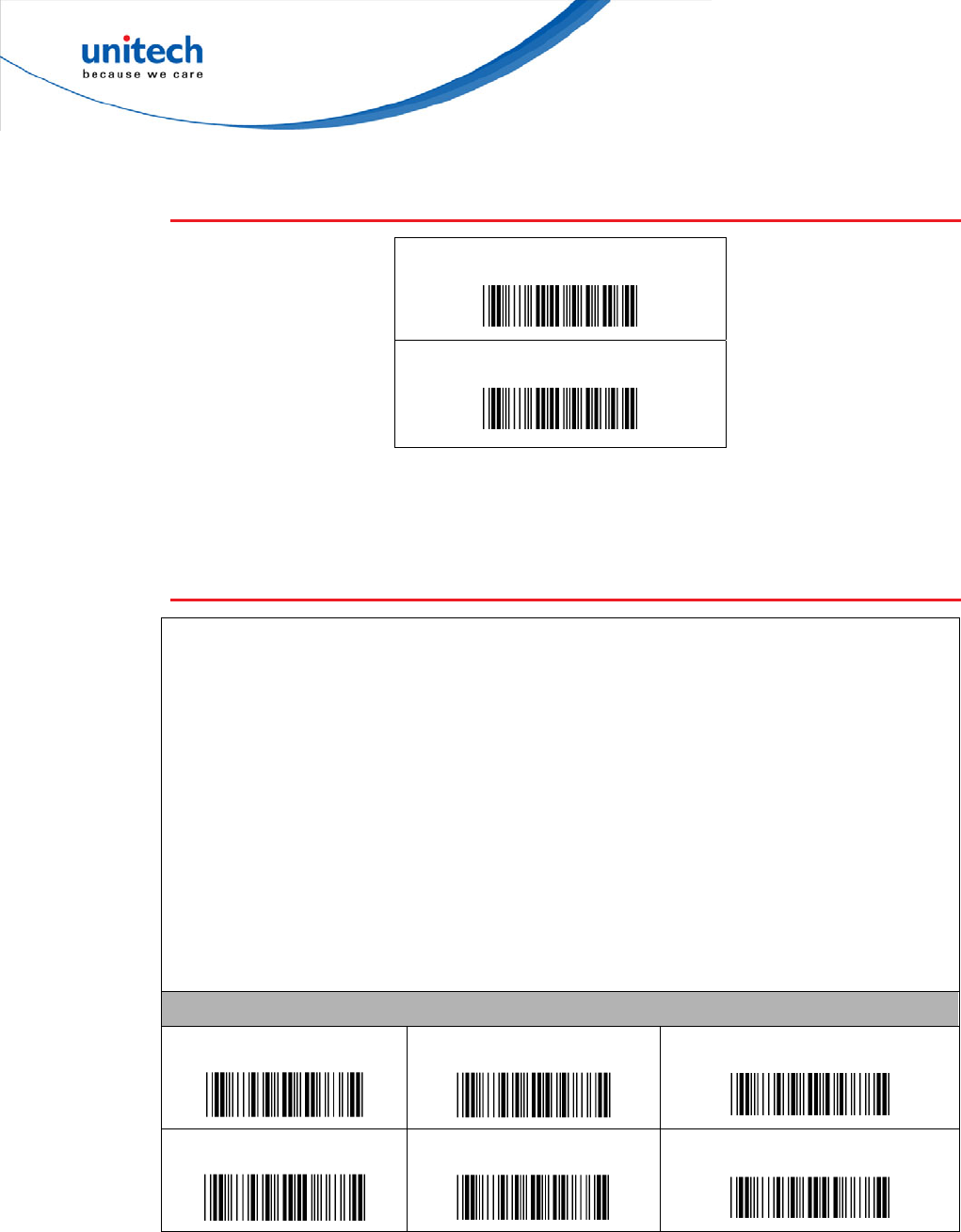

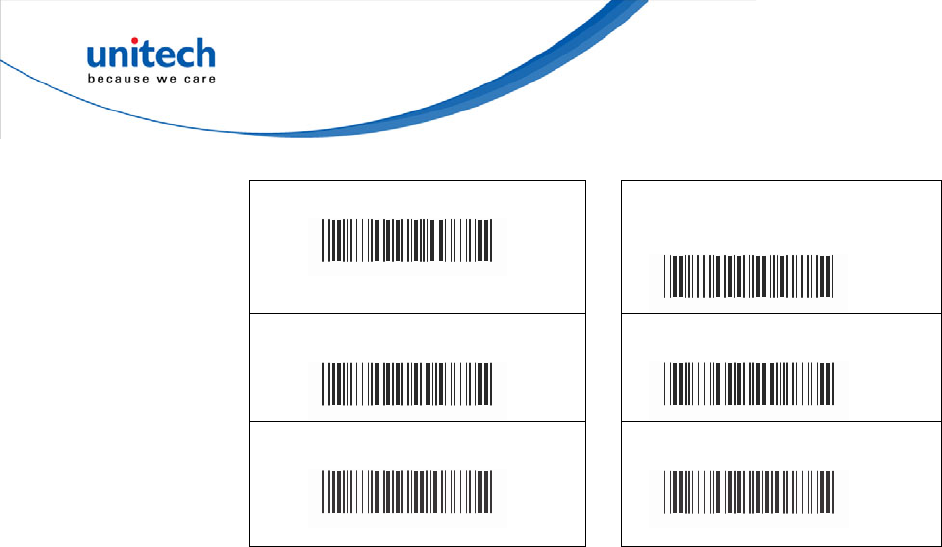

Start Configuration

End Configuration

Abort Configuration

Save Parameters

unitech is a registered trademark of unitech Electronics Co.,Ltd

2.2 Loop of Programming

The philosophy of programming parameters has been shown on the flow chart

of 2.1. Basically user should :

1. Scan Start of Configuration.

2. Scan all necessary labels for parameters that meet applications.

3. Scan End of Configuration to end the programming.

4. To permanently save the settings you programmed, just scan label for

Save Parameters.

5. To go back to the Default Settings, just scan label for Set All Defaults.

( Please refer to 2.4 – Main Page of Configuration)

2.3 Factory Default Settings

The barcode with an asterisk (*) which appears in the following chapters

indicates that it is the default option for the corresponding setting.

The barcode with two asterisks (**) indicate that it is the quick setting

label.

You can make your own settings by following the procedures in this manual. If

you want to save the settings permanently, you should scan the label of “Save

Parameters” in chapter 2.4, otherwise the settings will not be saved after the

decoder power is off, and all settings will go back to previous settings.

By scanning “Set All Default” label, the settings will go back to the factory

default settings. ( Please refer to 2.4 – Main Page of Configuration)

unitech is a registered trademark of unitech Electronics Co.,Ltd

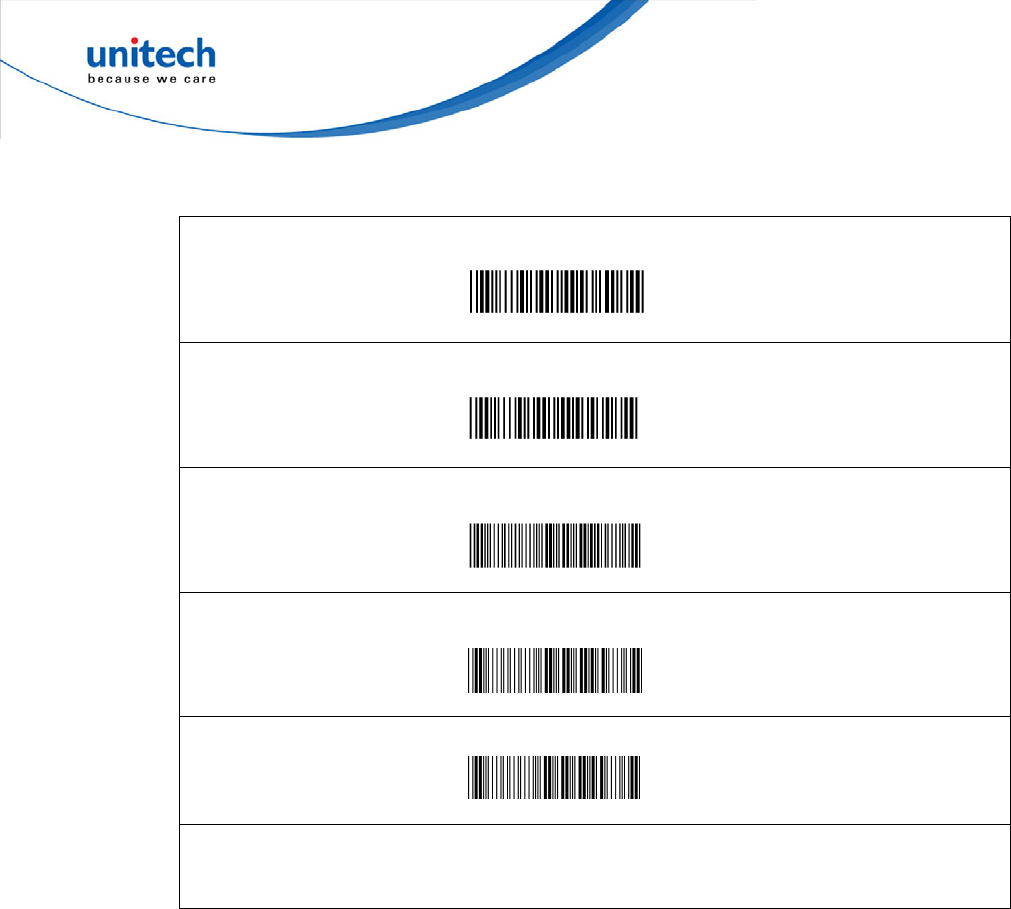

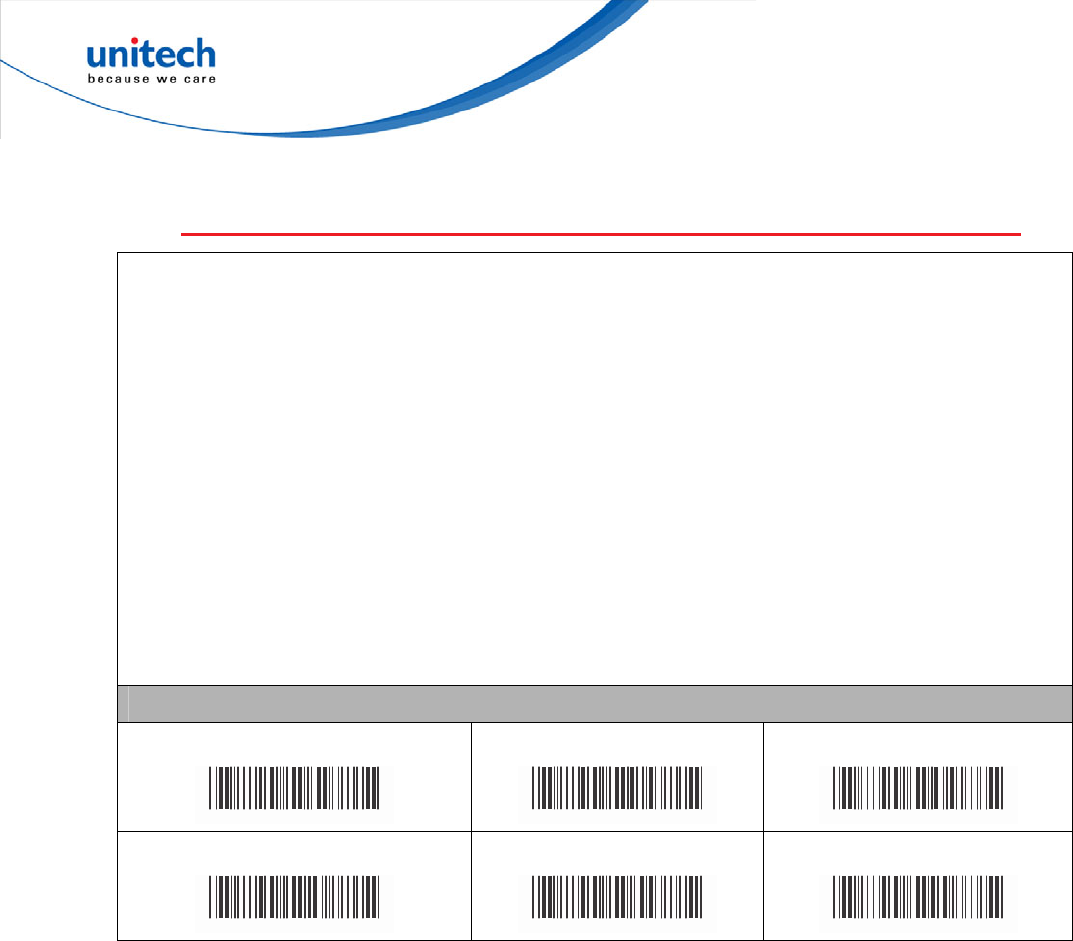

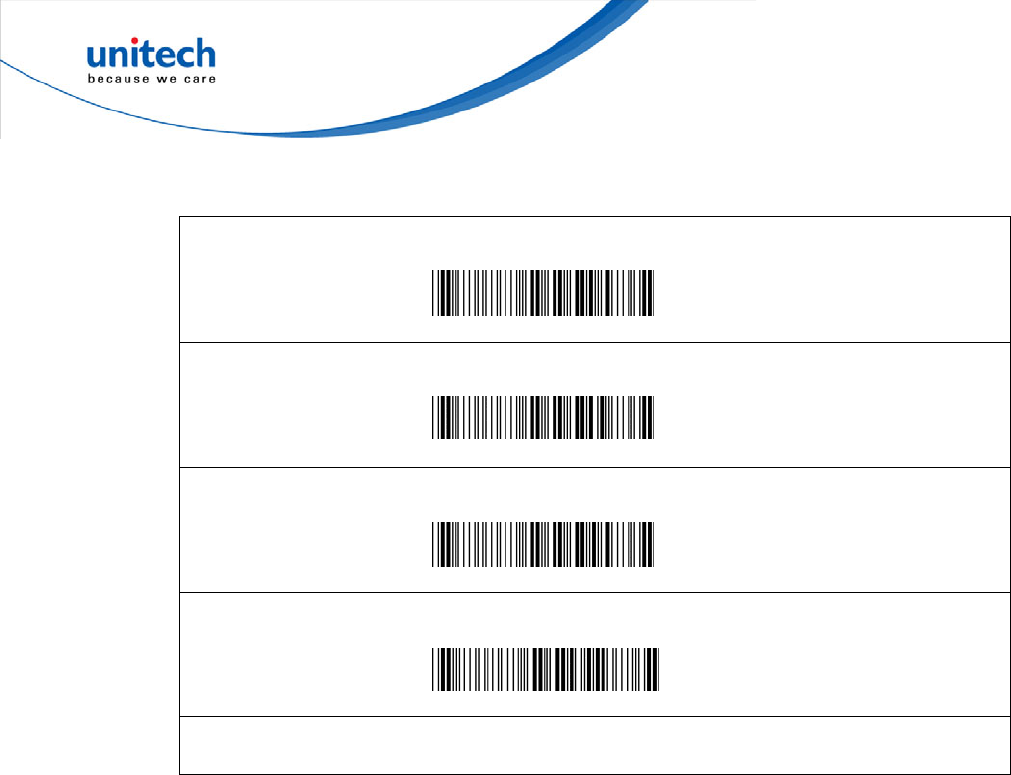

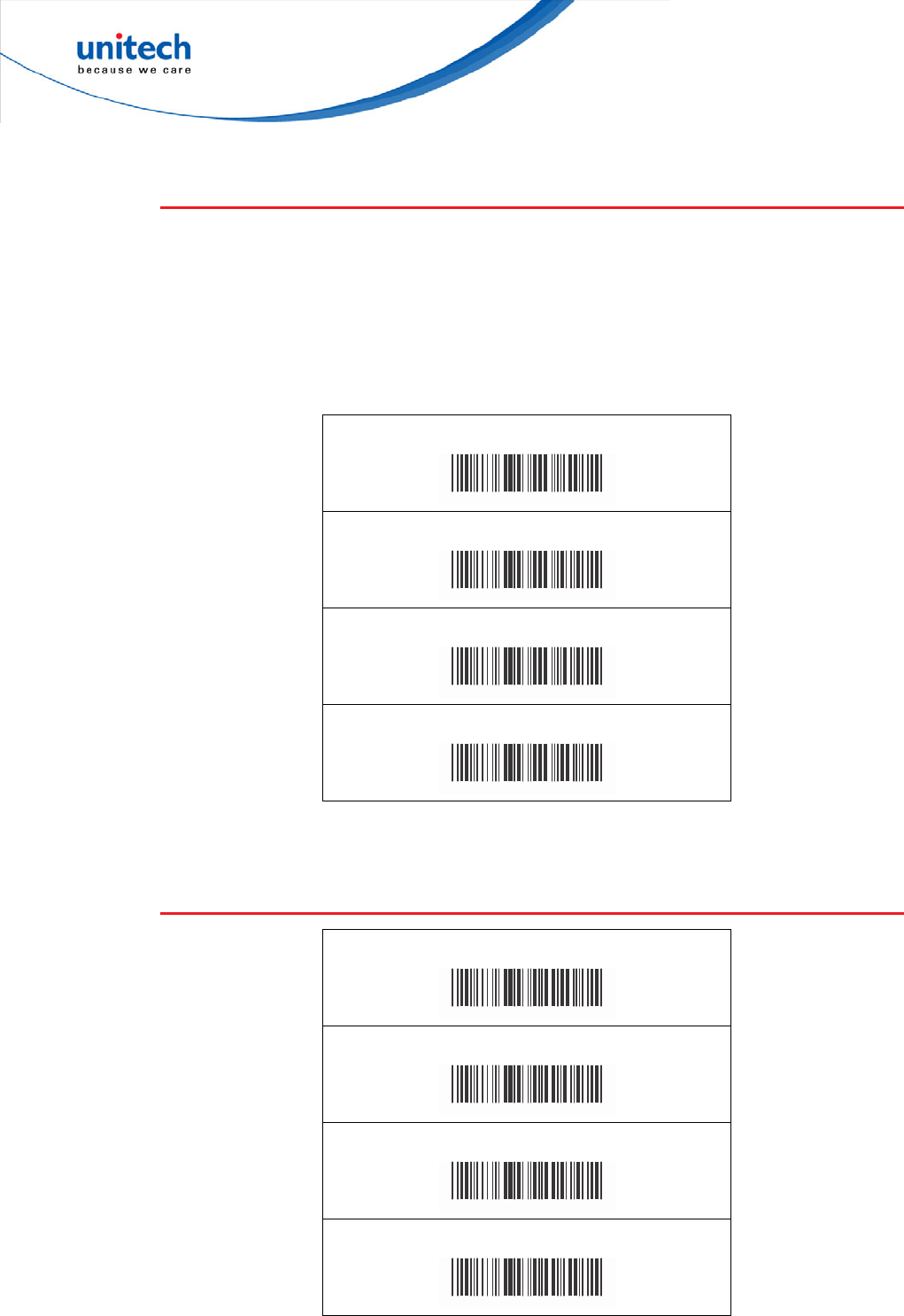

2.4 Main Page of Configuration

Save Parameters

Recall Stored Parameters

Set All Defaults**

Start Configuration

End Configuration

Abort Configuration

Version Information**

** : Quick Setting Label

Save Parameters -The parameter settings will be saved permanently.

Recall Stored Parameters - Replace the current parameters by the

parameters you saved last time.

Set AII Defaults - Set all the parameters to the factory default settings.

Abort Configuration - Terminate current programming status.

Version Information - Display the decoder version information and date code.

unitech is a registered trademark of unitech Electronics Co.,Ltd

Chapter 3 –Bar Codes & Others

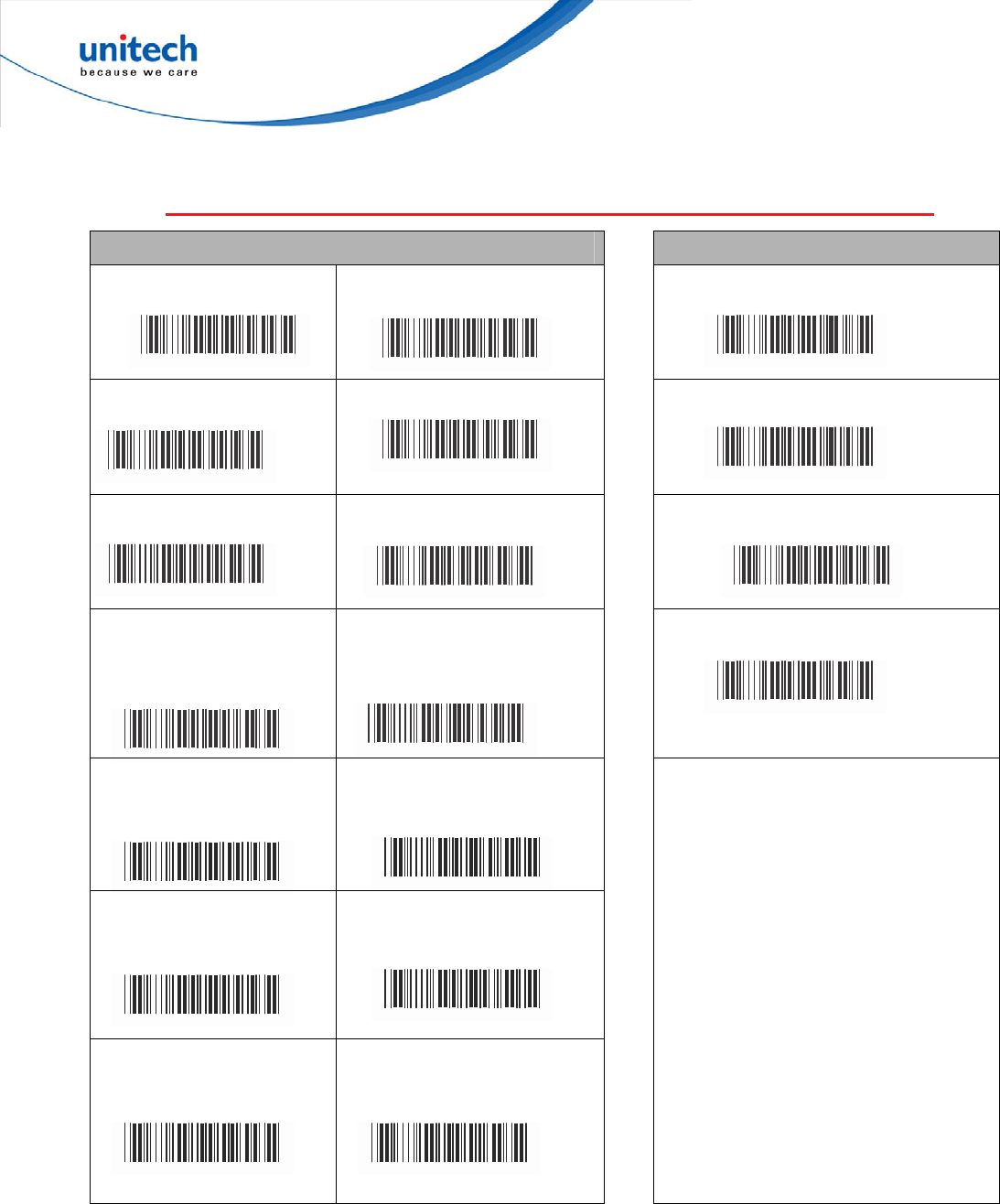

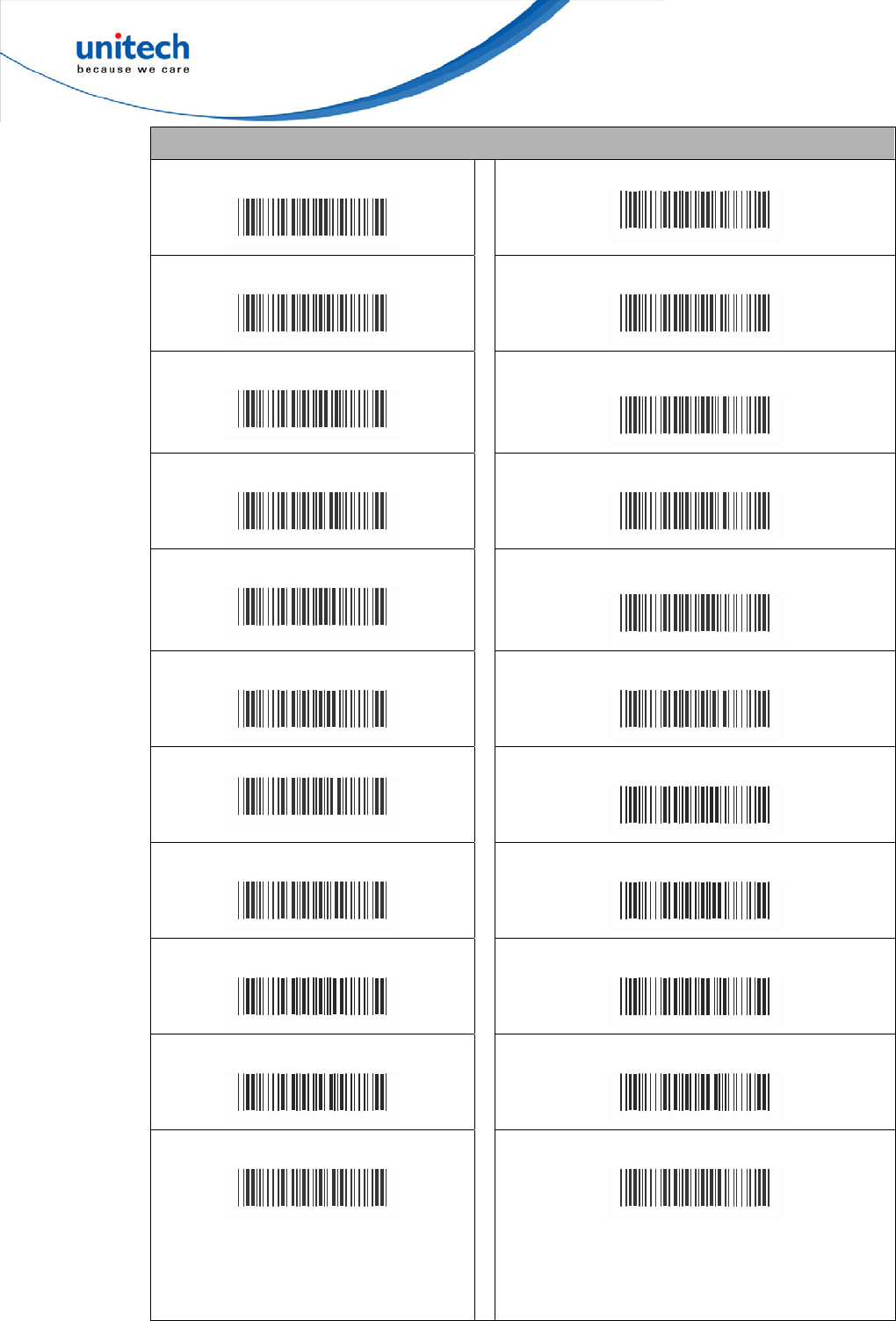

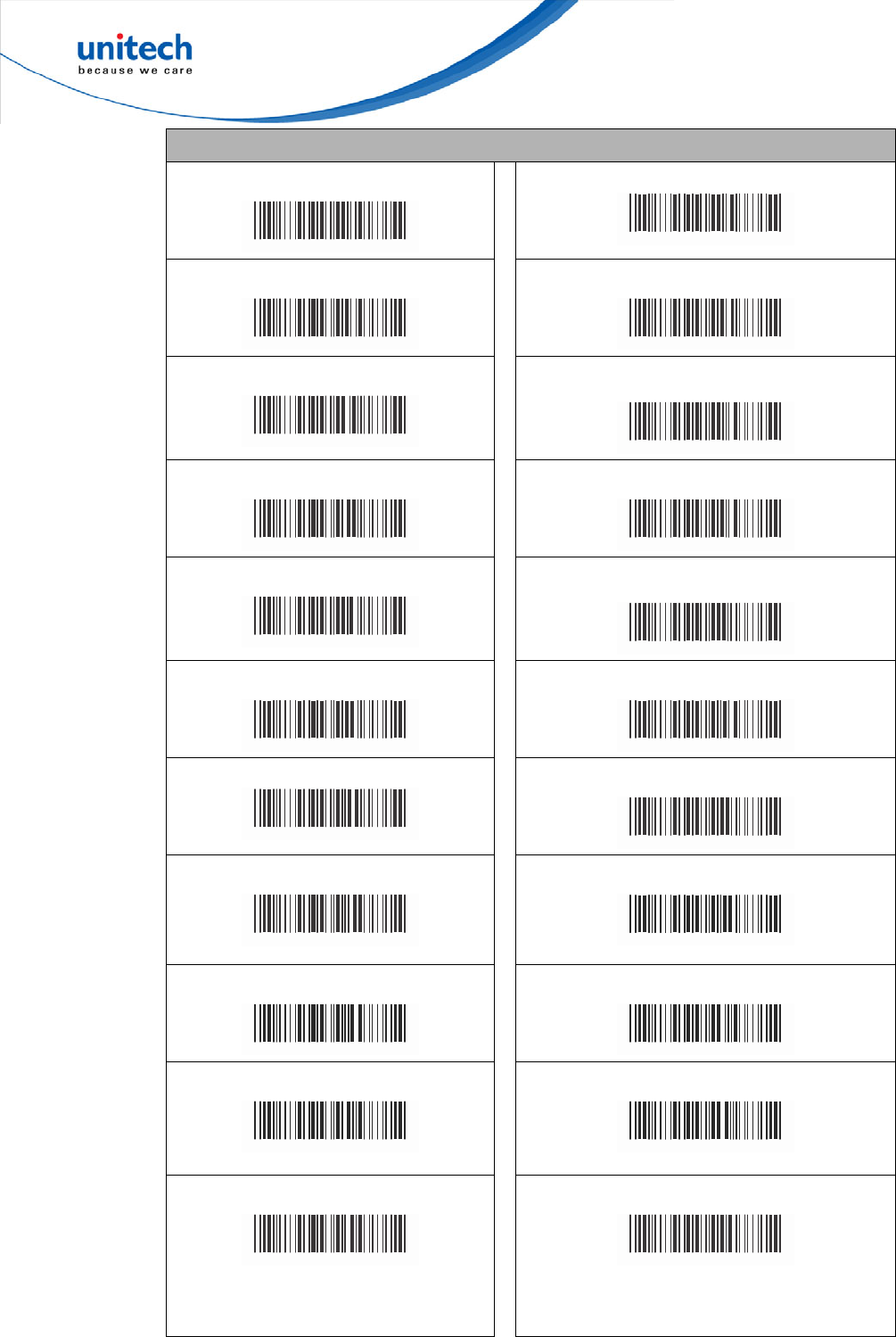

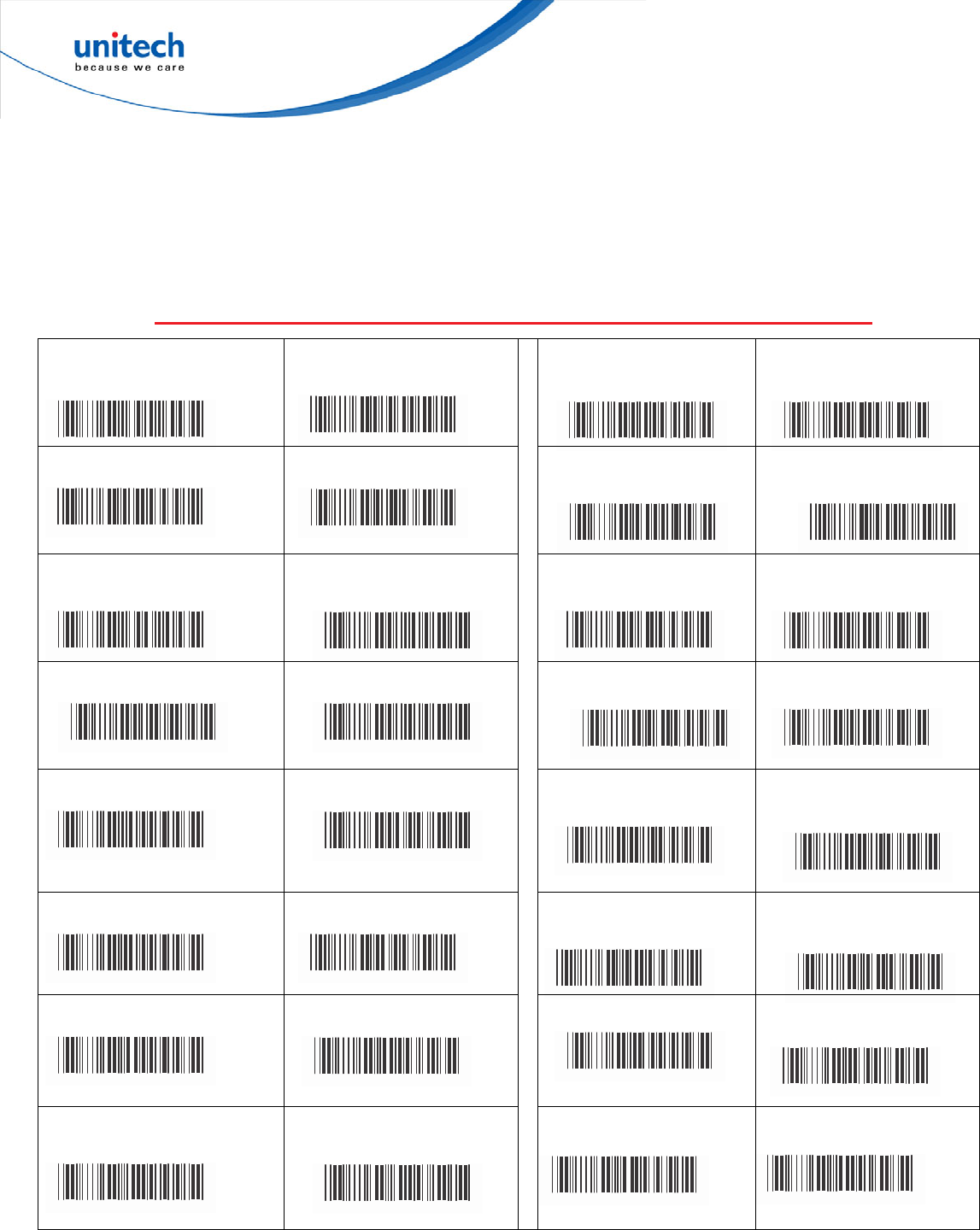

3.1 SymboIogies Selection

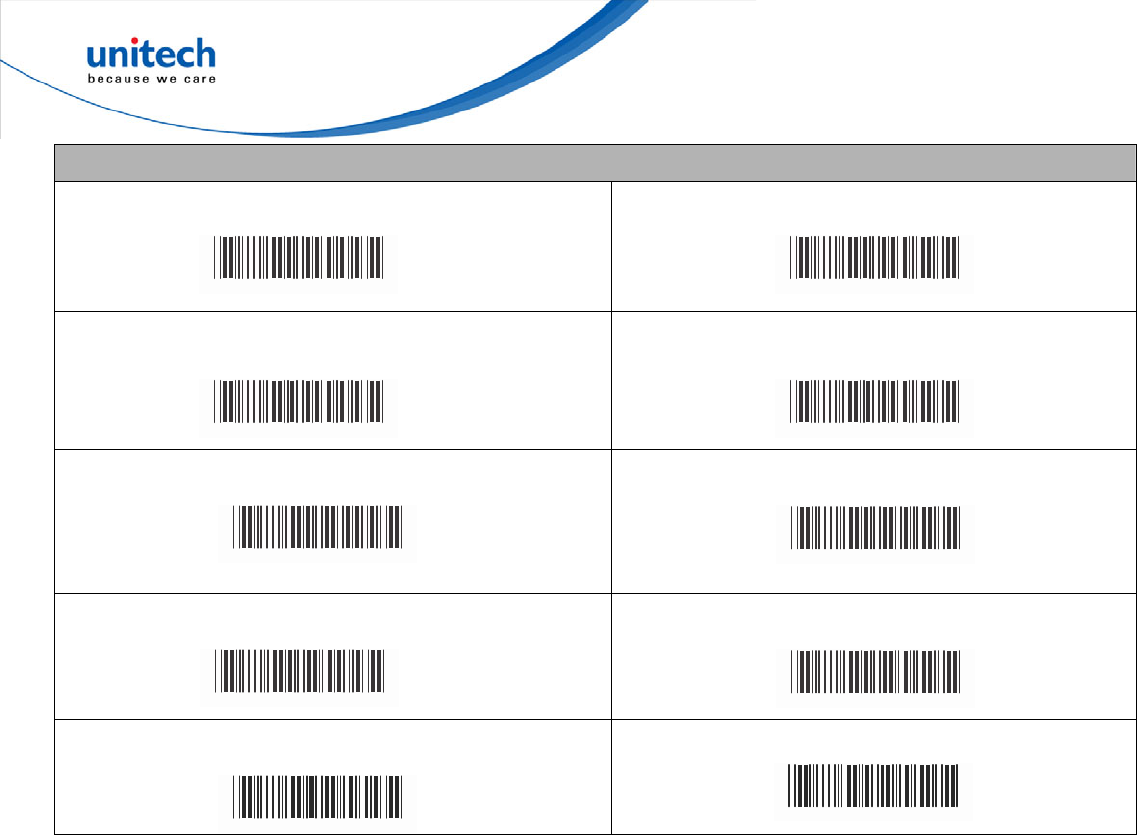

UPC-A ON *

UPC-A OFF Industrial 25 ON Industrial 25 OFF *

UPC-E ON *

UPC-E OFF

Matrix 25 ON

Matrix 25 OFF *

EAN-13/JAN-13/ISBN-13

ON *

EAN-13/JAN-13/ISBN-13

OFF

CODE 93 ON

CODE 93 OFF *

EAN-8/JAN-8 ON *

EAN-8/JAN-8 OFF

CODE 11 ON

CODE 11 OFF *

CODE 39 ON *

CODE 39 OFF

China Postage ON

China Postage OFF *

CODE 128 ON *

CODE 128 OFF

MSI/PLESSEY

ON

MSI/PLESSEY

OFF *

CODABAR/NW7 ON *

CODABAR/NW7 OFF

Code 2 of 6 ON

Code 2 of 6 OFF *

Interleave 25 ON *

Interleave 25 OFF

LCD25 ON

LCD25 OFF *

unitech is a registered trademark of unitech Electronics Co.,Ltd

Telepen ON

Telepen OFF *

GS1 DataBar

Omnidirectional ON

GS1 DataBar Omnidirectional

OFF *

Reserved5 ON

Reserved5 OFF * GS1 DataBar Limited

ON

GS1 DataBar Limited OFF *

Reserved6 ON

Reserved6 OFF *

GS1 DataBar

Expanded ON

GS1 DataBar Expanded OFF *

Select All Bar Codes

unitech is a registered trademark of unitech Electronics Co.,Ltd

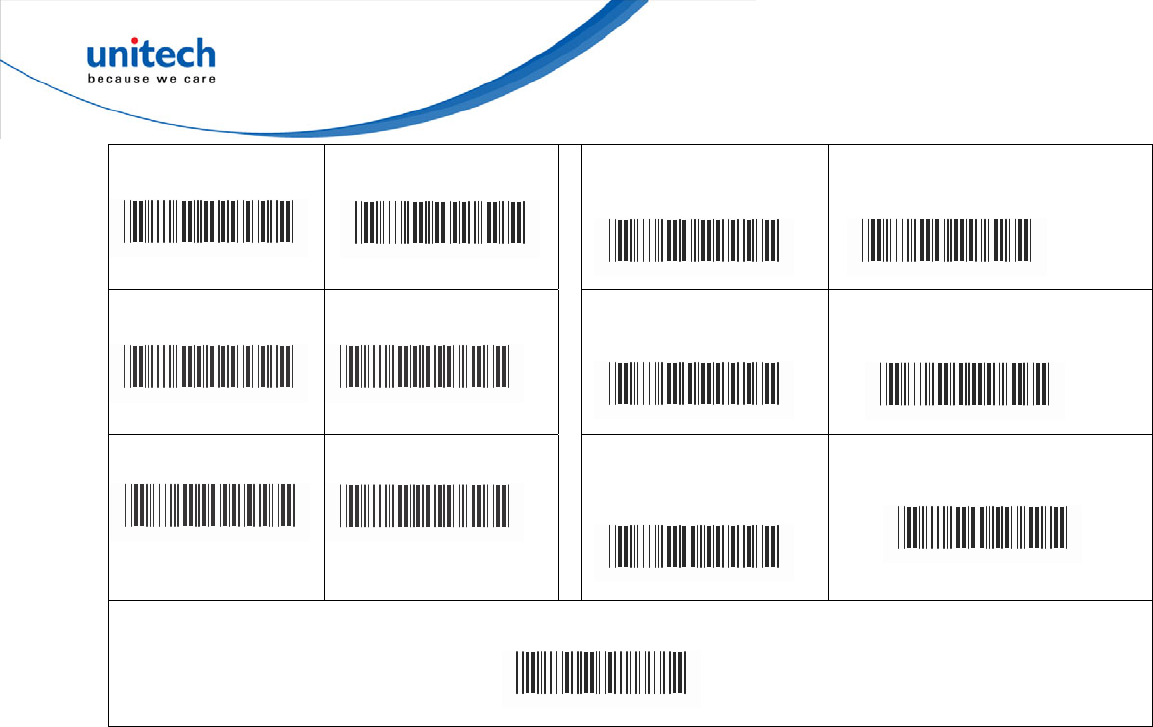

3.2 UPC/EAN/JAN Parameters

A. Reading Type B. Supplemental Set Up

UPCA=EAN13 ON

UPCA=EAN13 OFF *

Not Transmit *

ISBN-10 Enable

ISBN-13 Enable *

Transmit 2 Code

ISSN Enable

ISSN Disable * Transmit 5 Code

Decode with

Supplement

Auto discriminate

Supplement *

Transmit 2&5 Code

Expand UPC-E

Enable

Expand UPC-E Disable *

EAN8=EAN13

Enable

EAN8=EAN13 Disable *

GTIN Format

Enable

GTIN Format

Disable *

unitech is a registered trademark of unitech Electronics Co.,Ltd

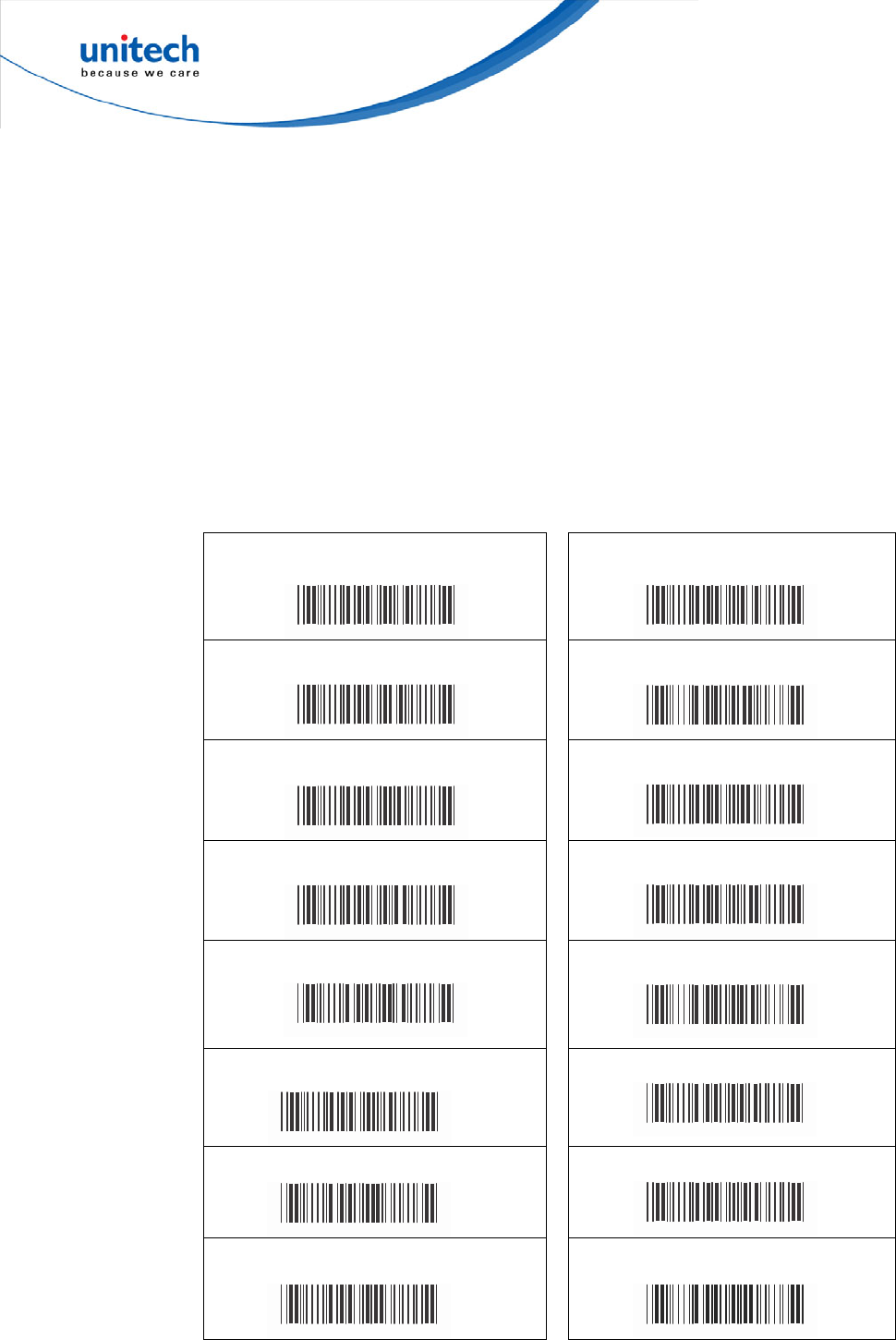

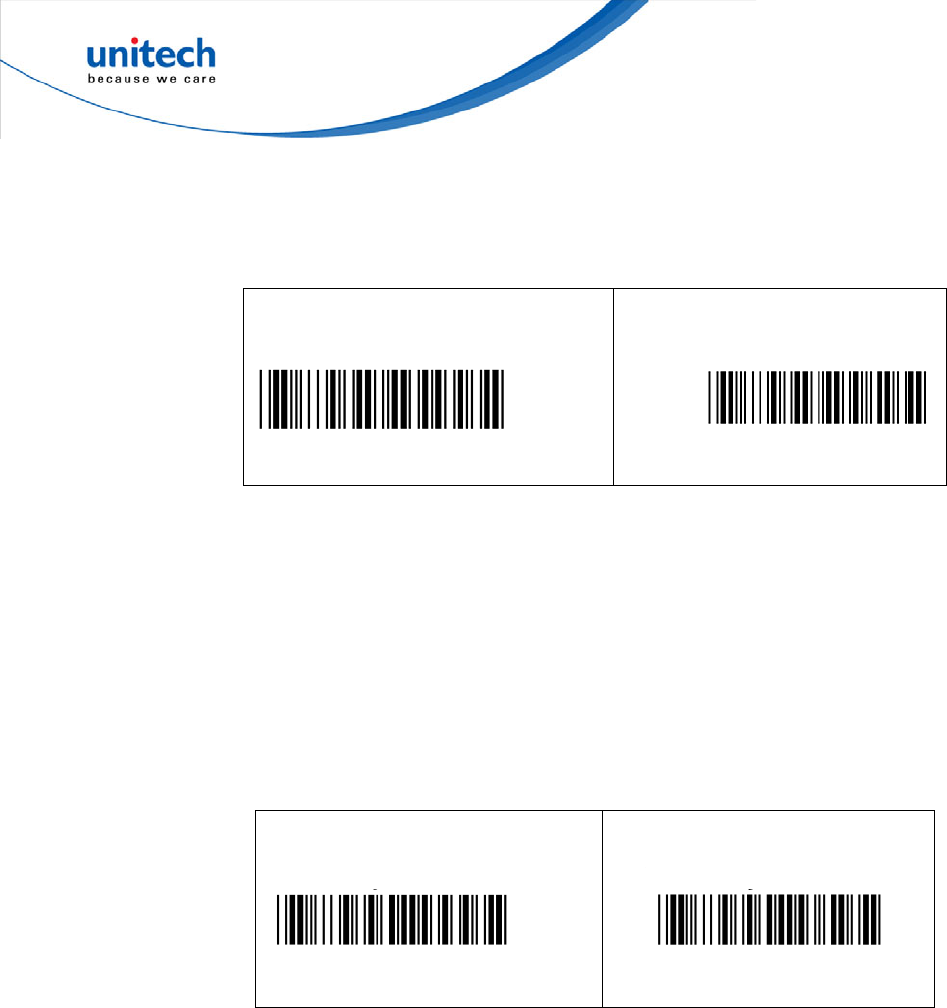

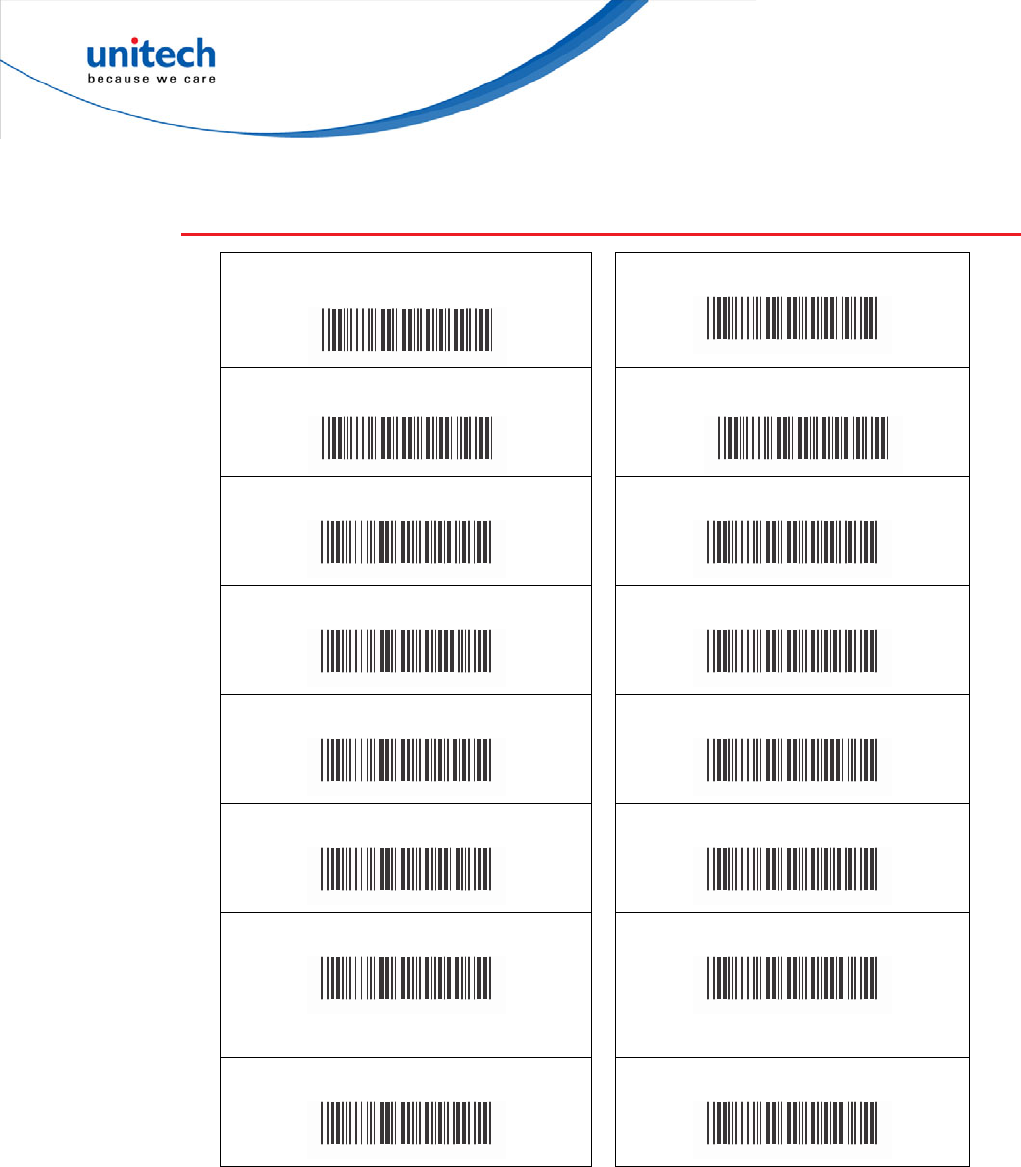

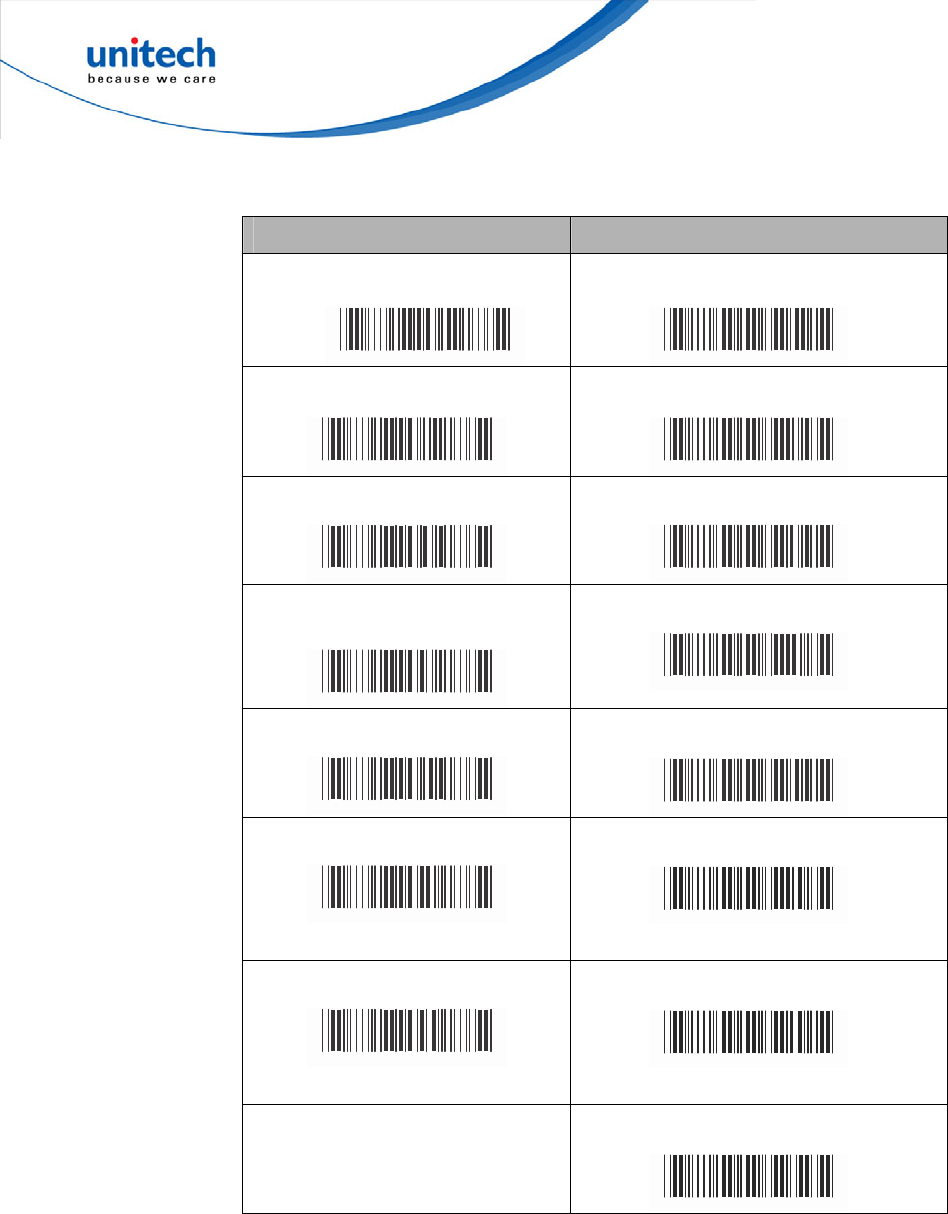

C. Check Digit Transmission

UPC-A Check Digit Transmission ON *

UPC-A Check Digit Transmission OFF

UPC-E Check Digit Transmission ON *

UPC-E Check Digit Transmission OFF

EAN-8 Check DigitTransmission ON *

EAN-8 Check DigitTransmission OFF

EAN-13 Check Digit Transmission ON *

EAN-13 Check Digit Transmission OFF

ISSN Check Digit Transmission ON *

ISSN Check Digit Transmission OFF

unitech is a registered trademark of unitech Electronics Co.,Ltd

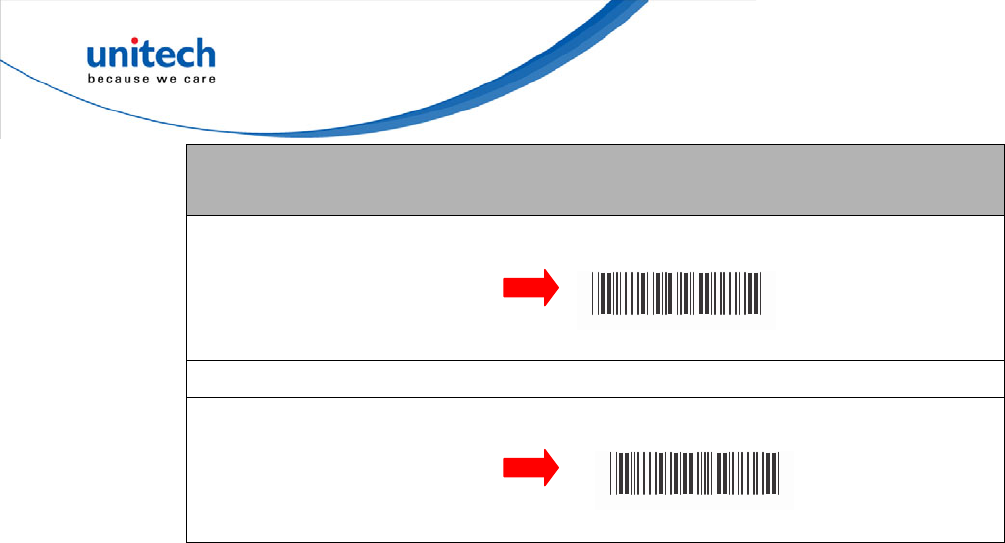

3.1st Set Complete

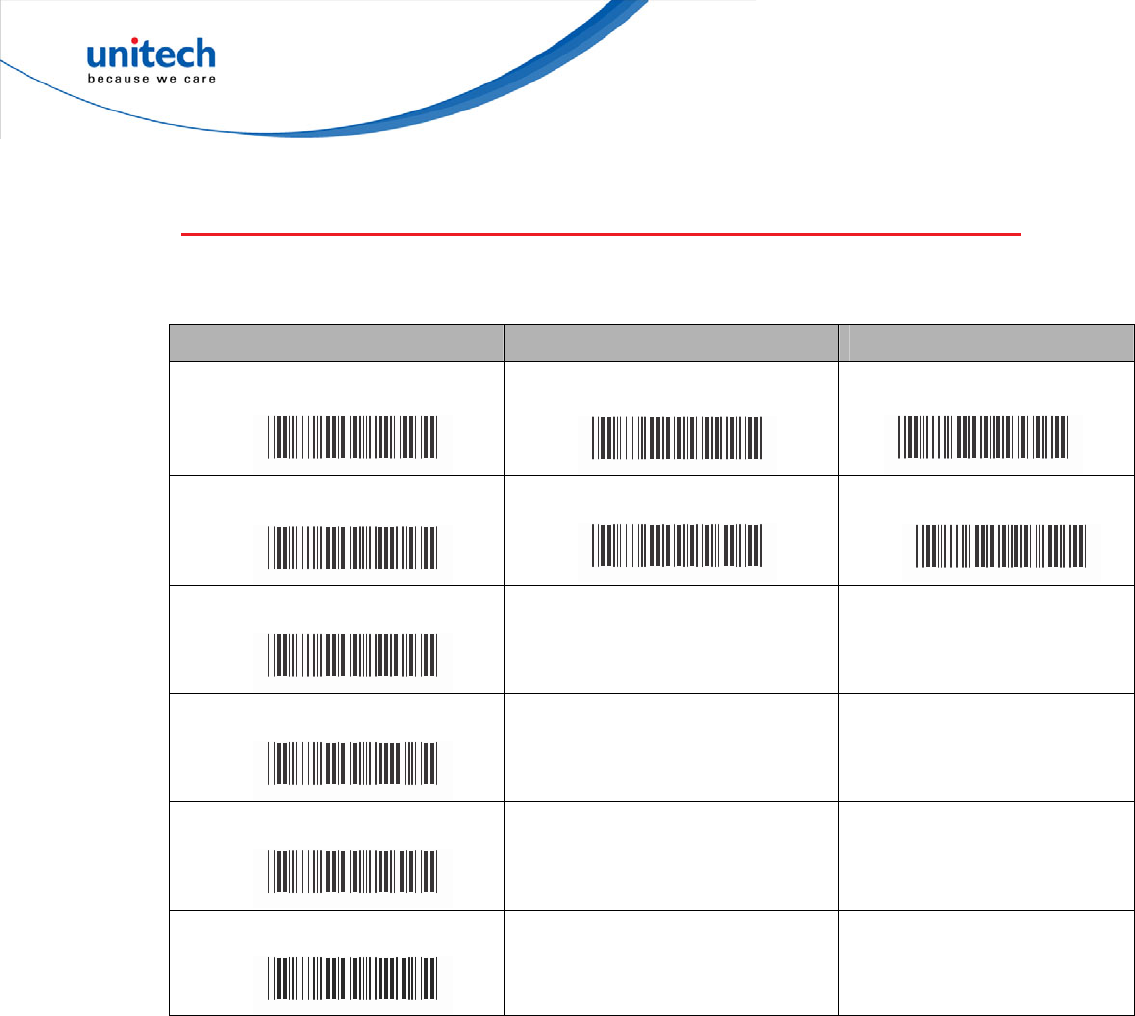

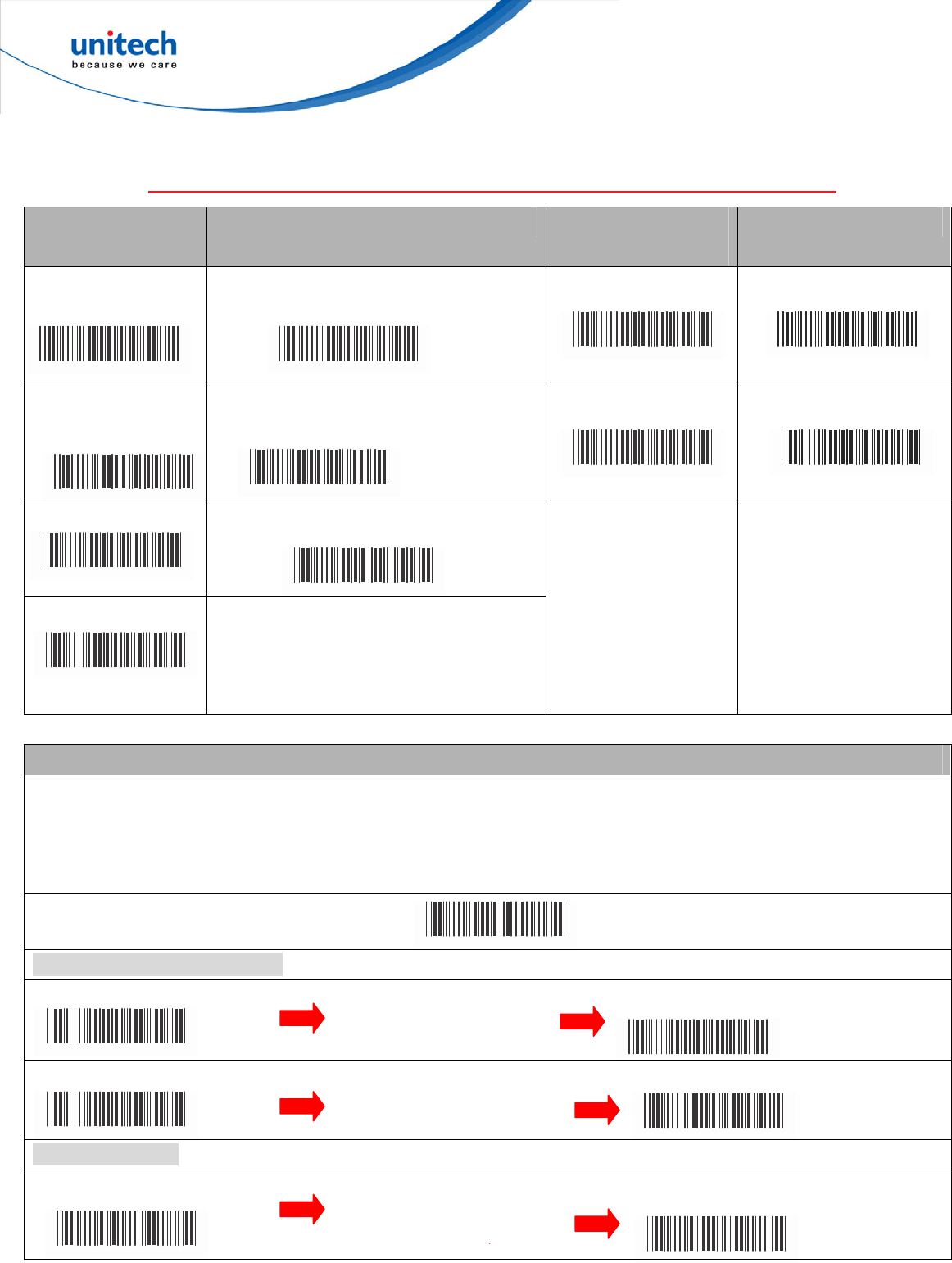

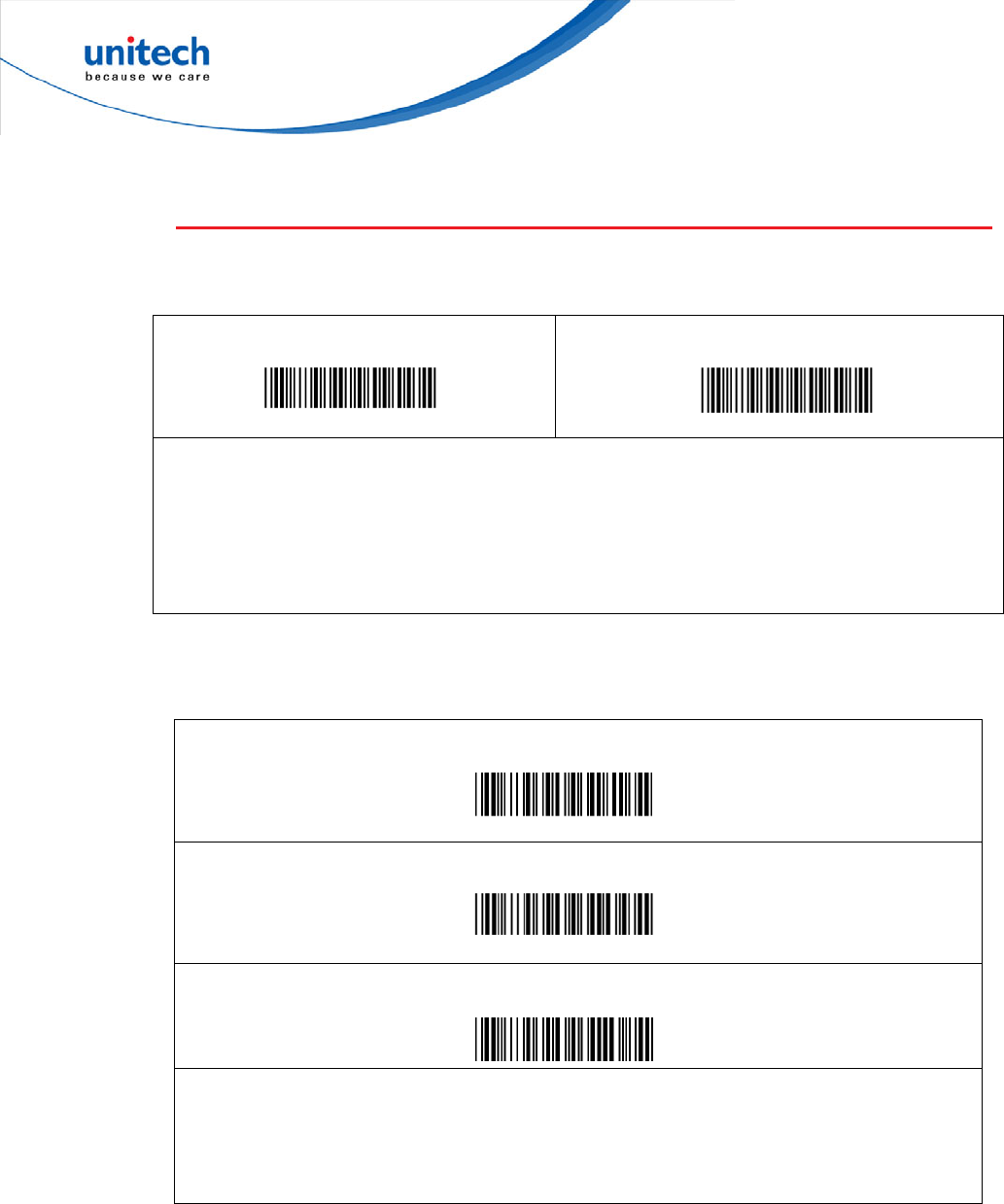

3.3 Code 39 Parameters

A. Type of Code B. Check Digit Transmission C. Output Start/Stop

Character

D. Decode Asterisk

Italian Pharmacy/

Code 32 OFF *

Do Not Calculate Check Digit *

Disable *

Italian Pharmacy/

Code 32 ON

Calculate Check Digit & Transmit Enable

Enable

Standard * Calculate Check Digit & Not Transmit

Full ASCII

E. Set Up Code Length

To set the fixed length:

1. Scan the “Begin“ label of the desired set.

2. Go to Numeric Bar Codes in Appendix A, scan label(s) that represents the length to be read.

3. Scan the “Complete“ label of the desired set. Repeat the steps 1 - 3 to set additional lengths.

Variable *

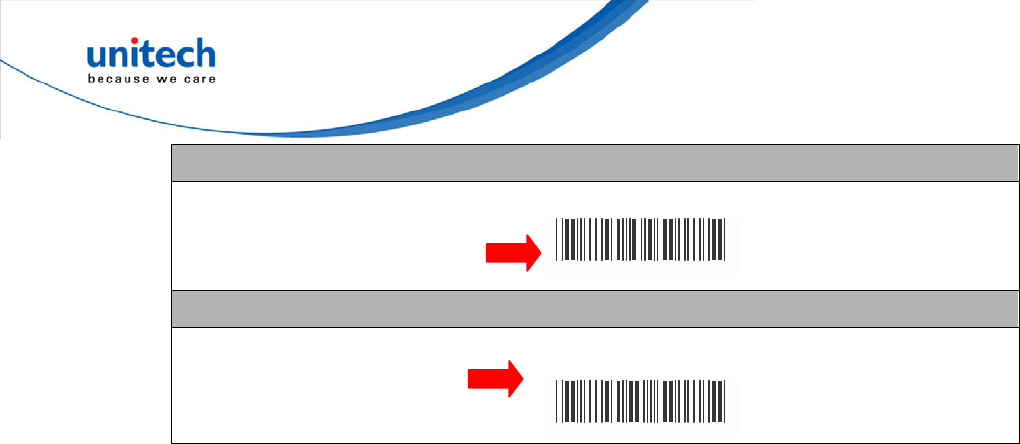

Fix Length (2 Sets Available)

1. 1st Set Begin

3. 2nd Set Begin 3. 2

nd Set Complete

Minimum Length

1. Begin 3. Complete

2. Numeric Bar

Codes (Appendix A)

2. Numeric Bar

Codes

(

A

pp

endix A

)

2. Numeric Bar

Codes

(

A

pp

endix A

)

unitech is a registered trademark of unitech Electronics Co.,Ltd

2. Numeric Bar

Codes (Appendix A)

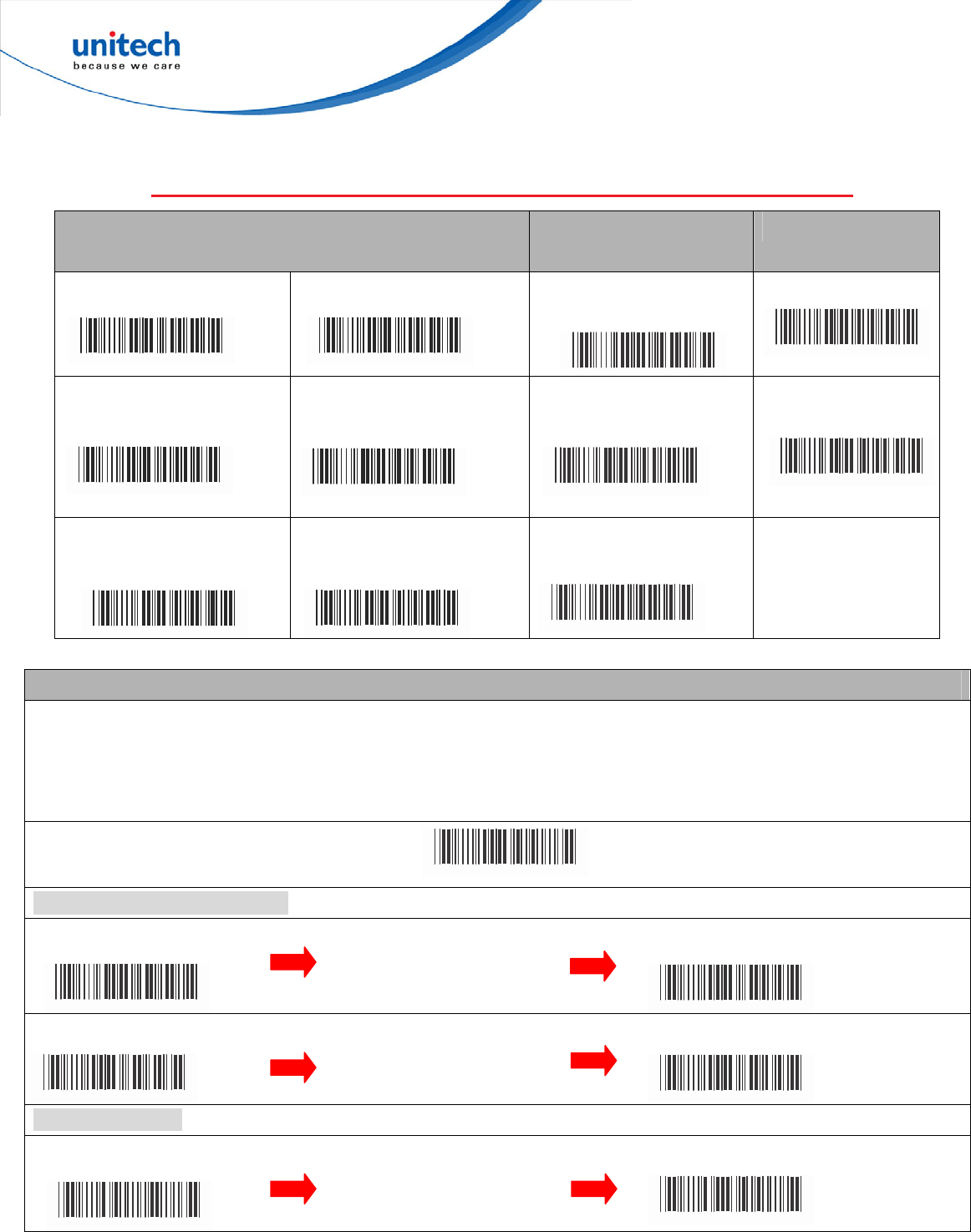

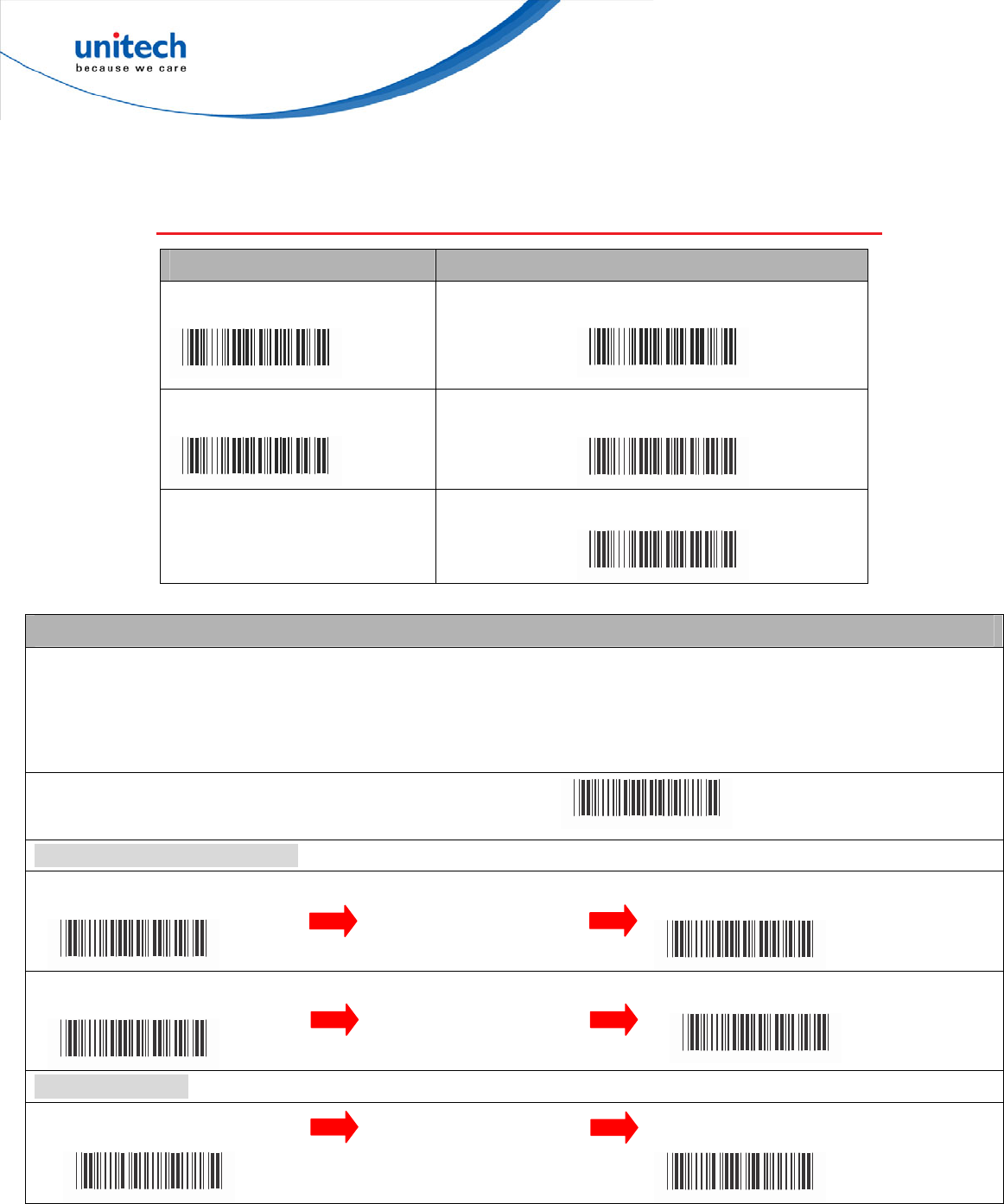

3.4 Code 128 Parameters

A. Reading Type B. Check Digit

Transmission

C. Append FNC2

UCC/EAN-128 Disable * UCC/EAN-128 Enable

Calculate Check

Digit& Not Transmit *

OFF*

Enable ‘]C1‘Code

Format *

Disable ‘]C1‘Code

Format

Calculate Check Digit

& Transmit

ON

Enable Code128

Group Separators(GS) *

Disable Code128

Group Separators(GS)

Do Not Calculate

Check Digit

D. Set Up Code Length

To set the fixed length:

1. Scan the “Begin“ label of the desired set.

2. Go to Numeric Bar Codes in Appendix A, scan label(s) that represents the length to be read.

3. Scan the “Complete“ label of the desired set. Repeat the steps 1 - 3 to set additional lengths.

Variable *

Fix Length (2 Sets Available)

1. 1st Set Begin 3. 1

st Set Complete

1. 2nd Set Begin 3. 2

nd Set Complete

Minimum Length

1. Begin 3. Complete

2. Numeric Bar

Codes (Appendix A)

2. Numeric Bar

Codes (Appendix A)

unitech is a registered trademark of unitech Electronics Co.,Ltd

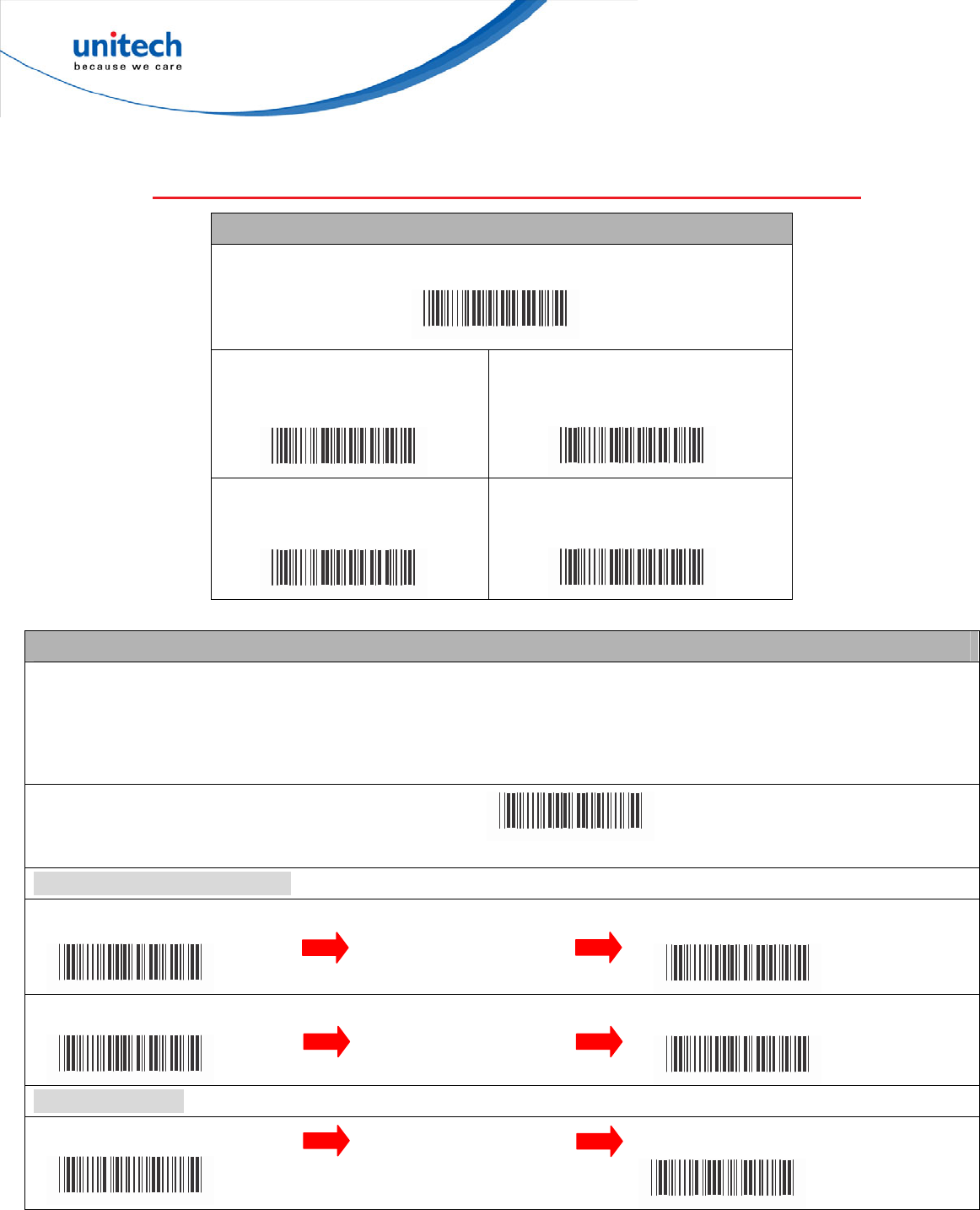

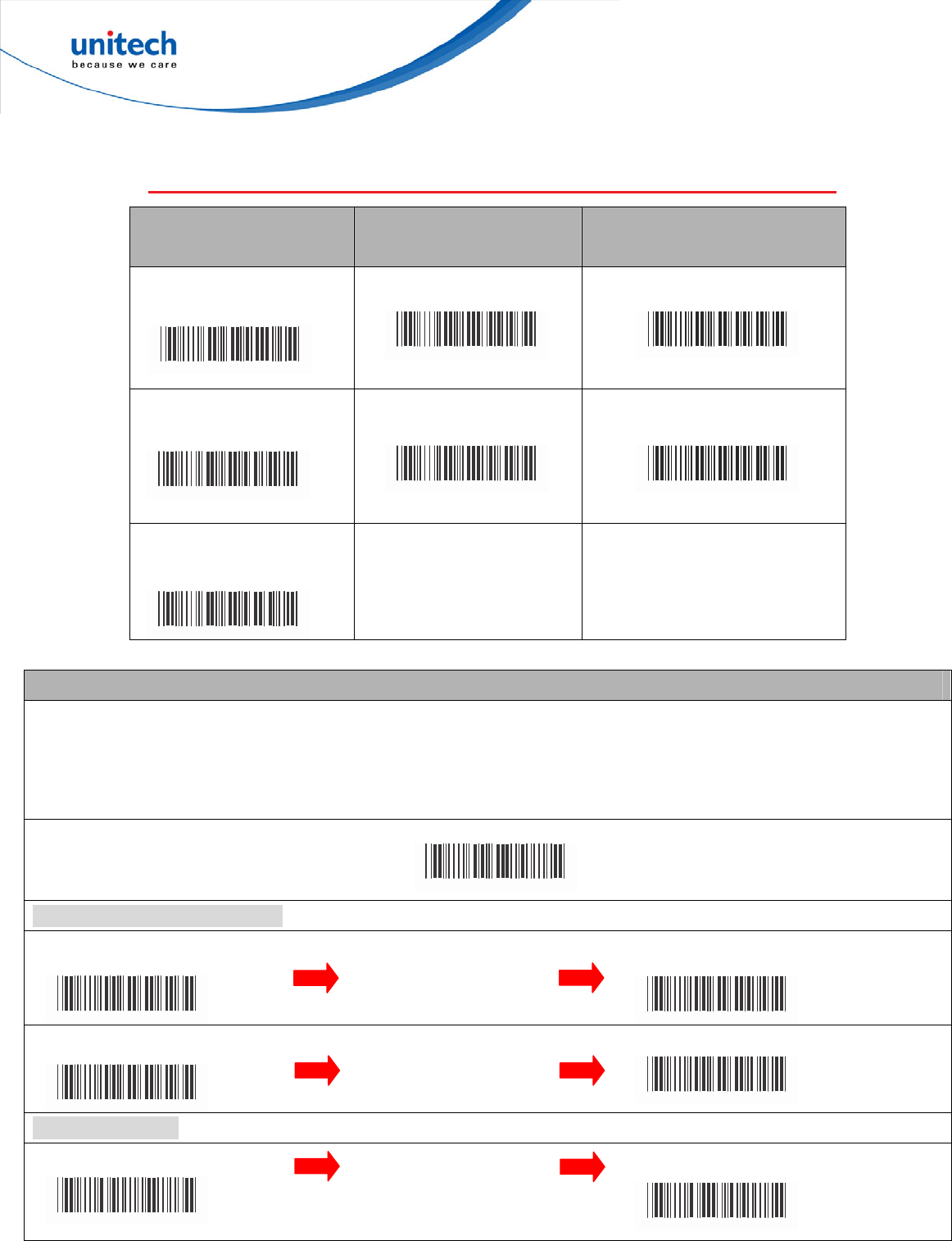

3.5 Interleave 25 Parameters

A. Check Digit

Transmission

B. Set Up Number of

Character

C. Brazilian Banking Code

Do Not Calculate

Check Digit *

Even *

Disable *

Calculate Check Digit &

Transmit

Odd

Enable

Calculate Check Digit &

Not Transmit

D. Set Up Code Length

To set the fixed length:

1. Scan the “Begin“ label of the desired set.

2. Go to Numeric Bar Codes in Appendix A, scan label(s) that represents the length to be read.

3. Scan the “Complete“ label of the desired set. Repeat the steps 1 - 3 to set additional lengths.

Variable *

Fix Length (2 Sets Available)

1. 1st Set Begin 3. 1

st Set Complete

1. 2nd Set Begin 3. 2

nd Set Complete

Minimum Length

1. Begin 3. Complete

2. Numeric Bar

Codes (Appendix A)

2. Numeric Bar

Codes (Appendix A)

2. Numeric Bar

Codes (Appendix A)

unitech is a registered trademark of unitech Electronics Co.,Ltd

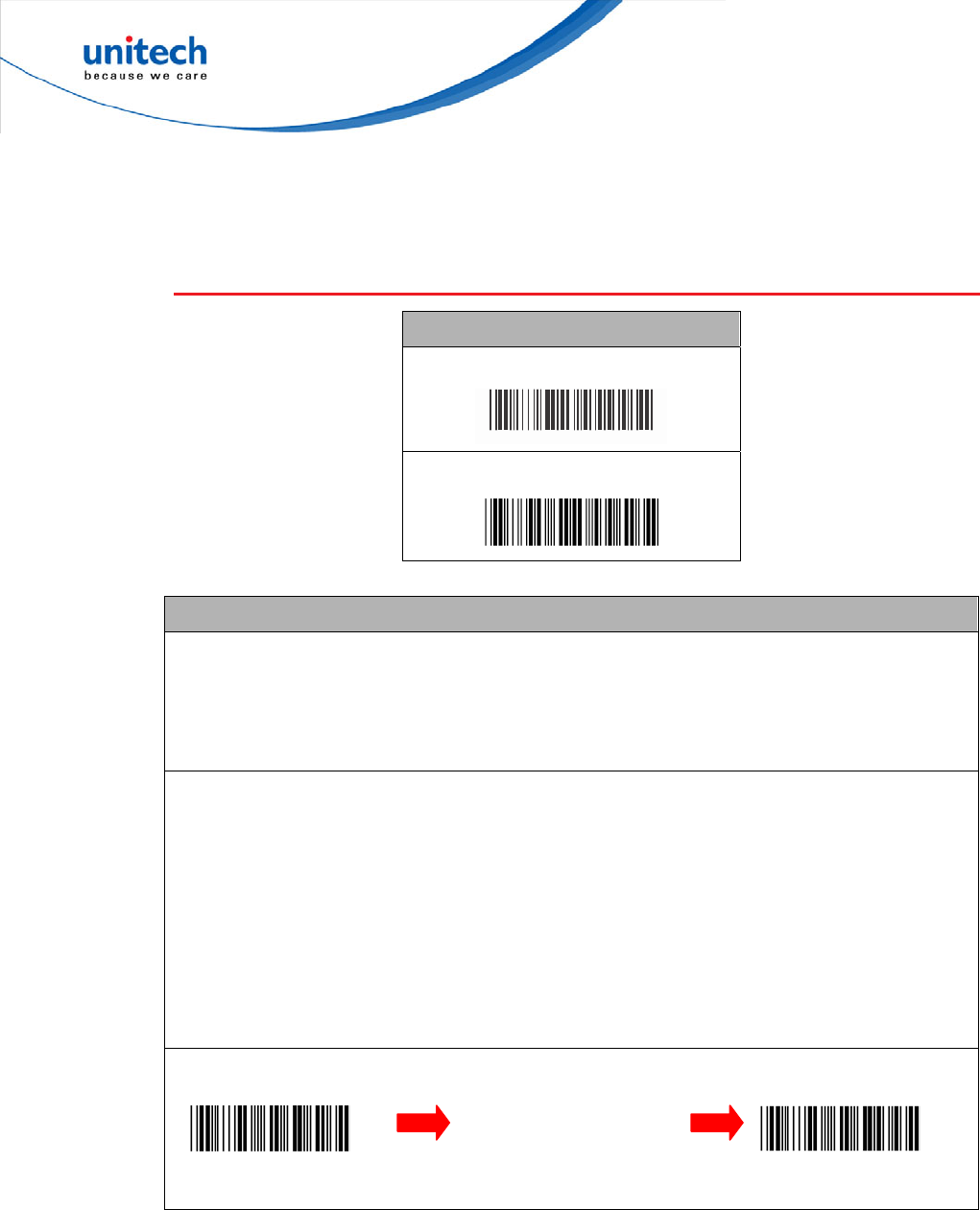

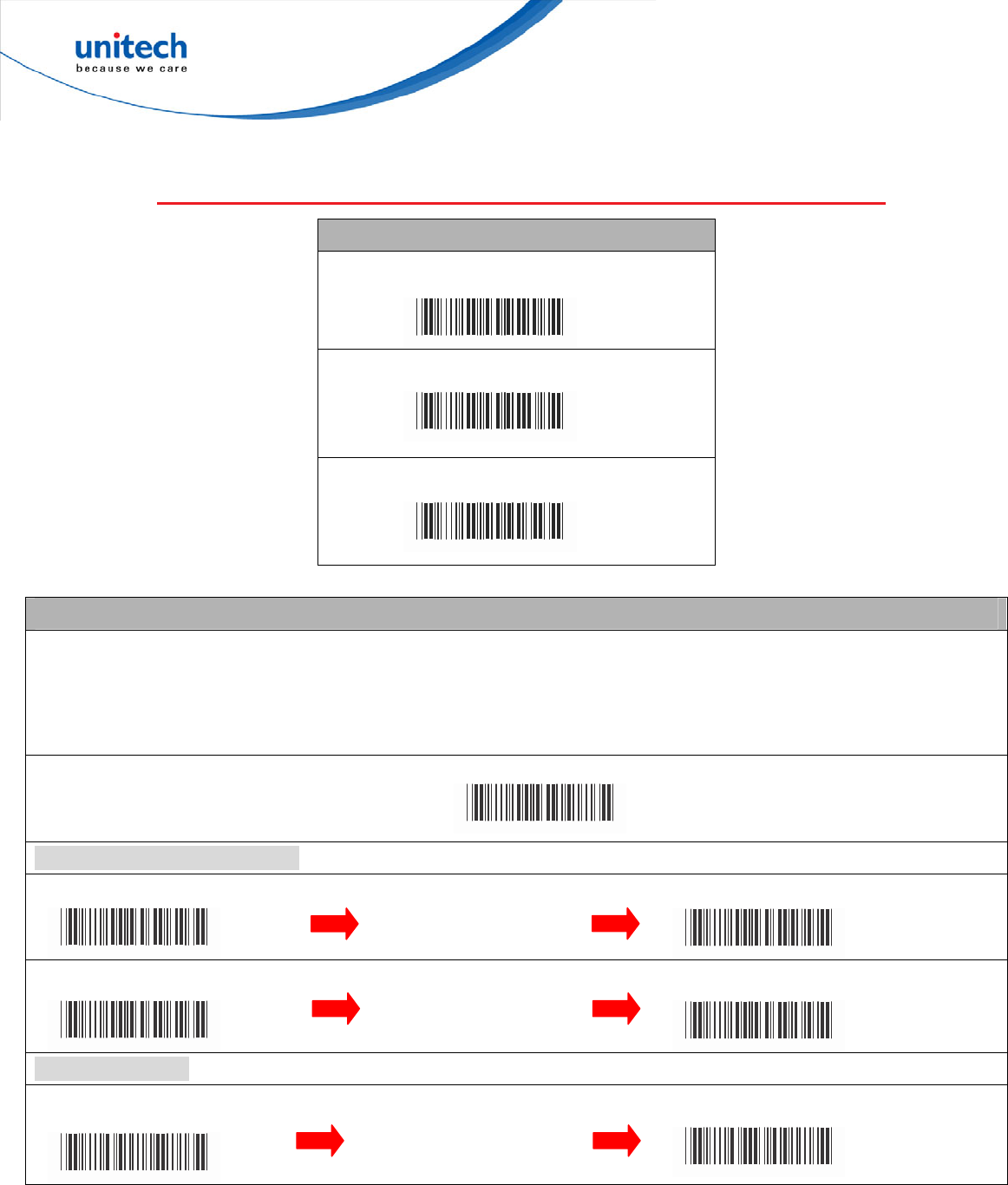

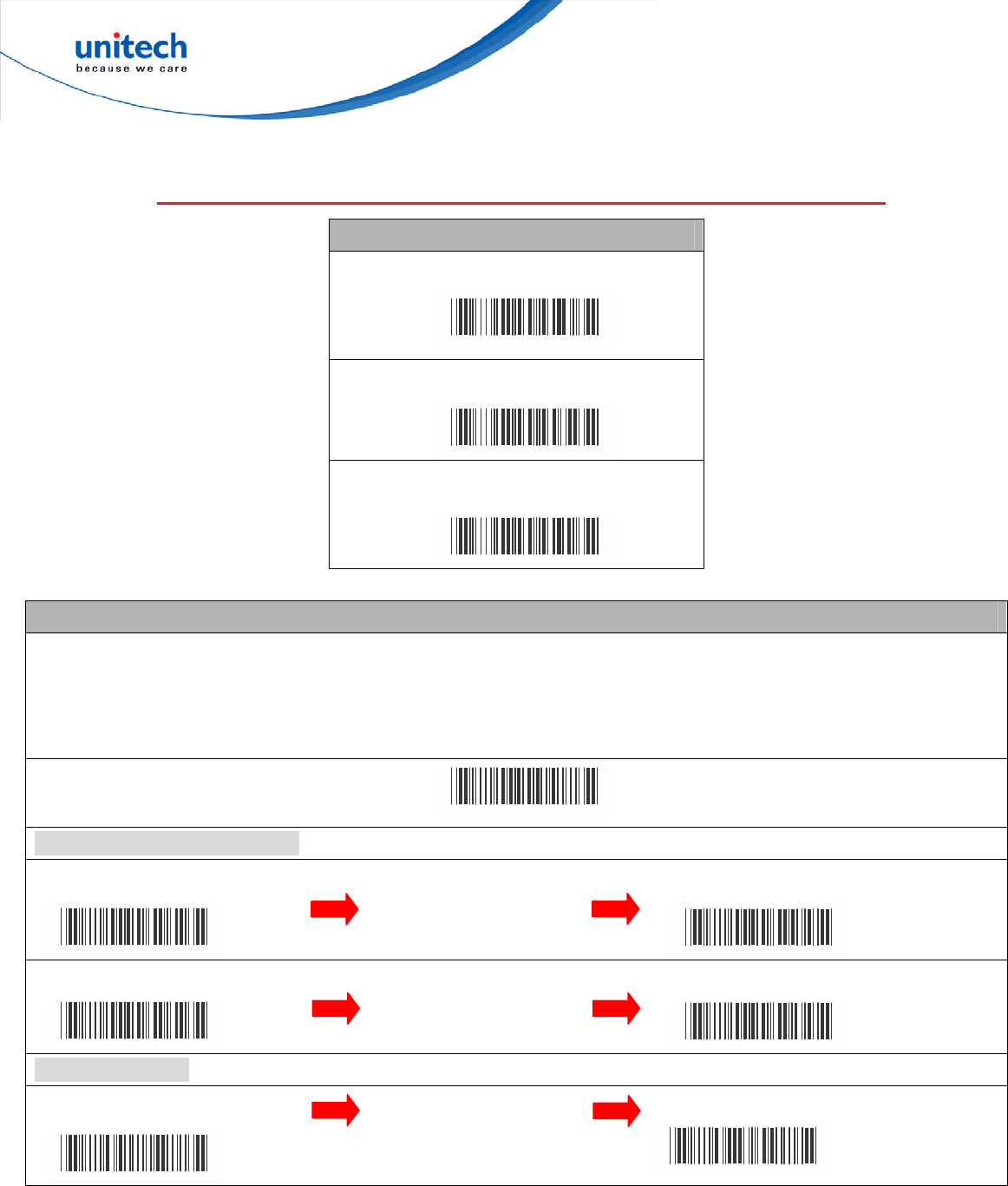

3.6 Industrial 25 Parameters

A. Reading Type B. Check Digit Transmission

IATA25 Disable *

Do Not Calculate Check Digit *

IATA25 Enable

Calculate Check Digit & Transmit

Calculate Check Digit & Not Transmit

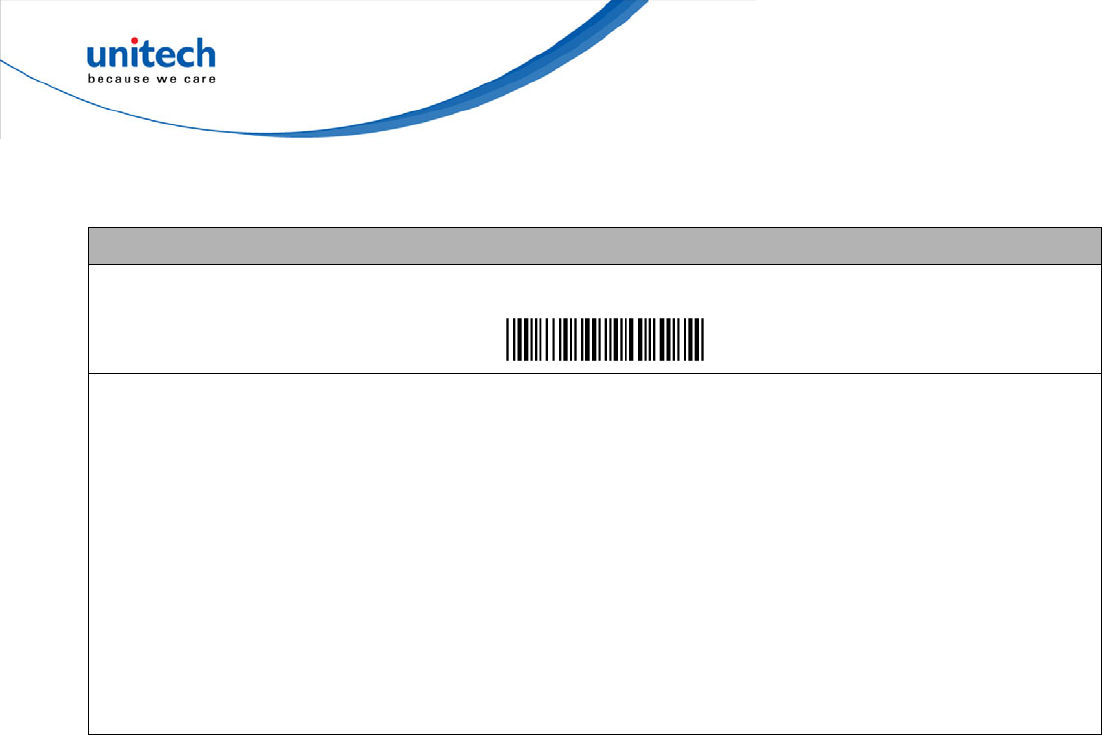

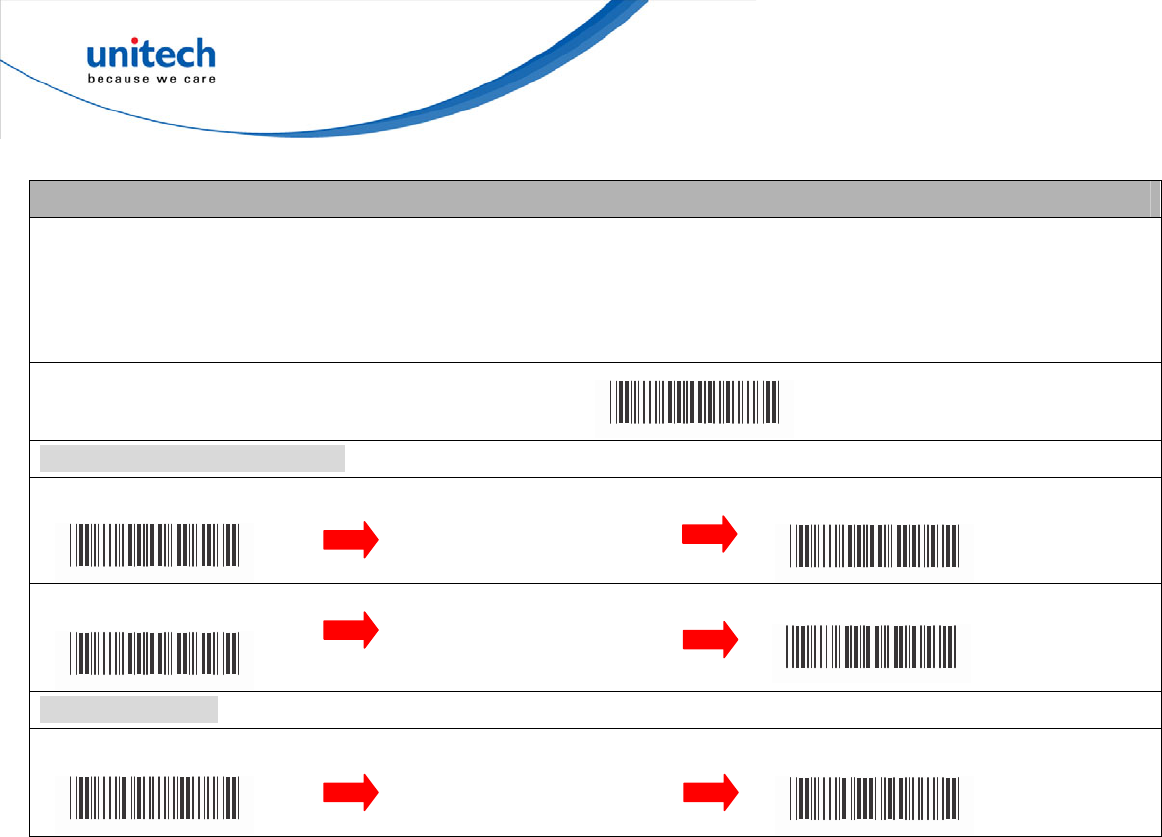

C. Set Up Code Length

To set the fixed length:

1. Scan the “Begin“ label of the desired set.

2. Go to Numeric Bar Codes in Appendix A, scan label(s) that represents the length to be read.

3. Scan the “Complete“ label of the desired set. Repeat the steps 1 - 3 to set additional lengths.

Variable *

Fix Length (2 Sets Available)

1. 1st Set Begin 3. 1

st Set Complete

1. 2nd Set Begin 3. 2

nd Set Complete

Minimum Length

1. Begin 3. Complete

2. Numeric Bar

Codes (Appendix A)

2. Numeric Bar

Codes (Appendix A)

2. Numeric Bar

Codes (Appendix A)

unitech is a registered trademark of unitech Electronics Co.,Ltd

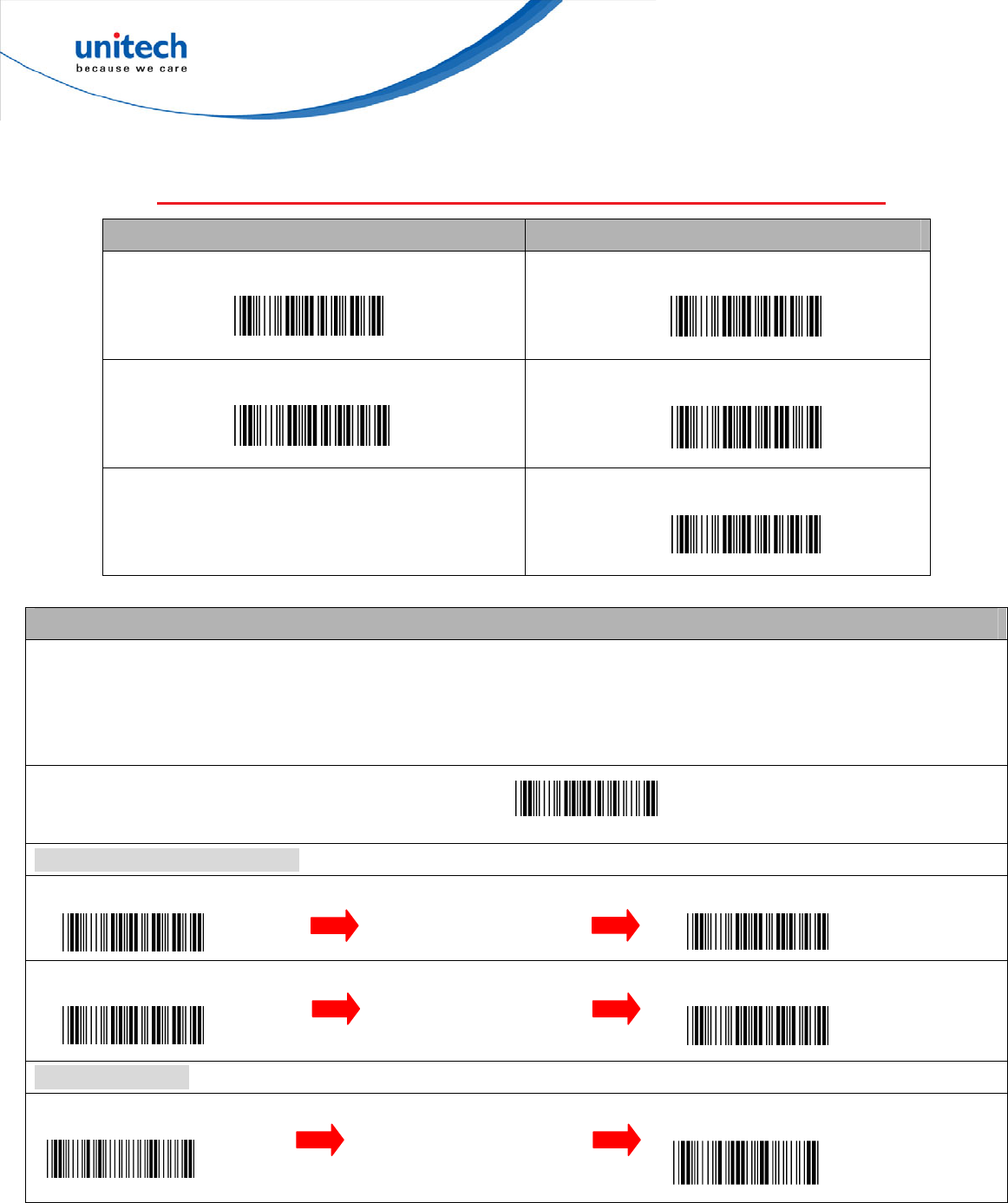

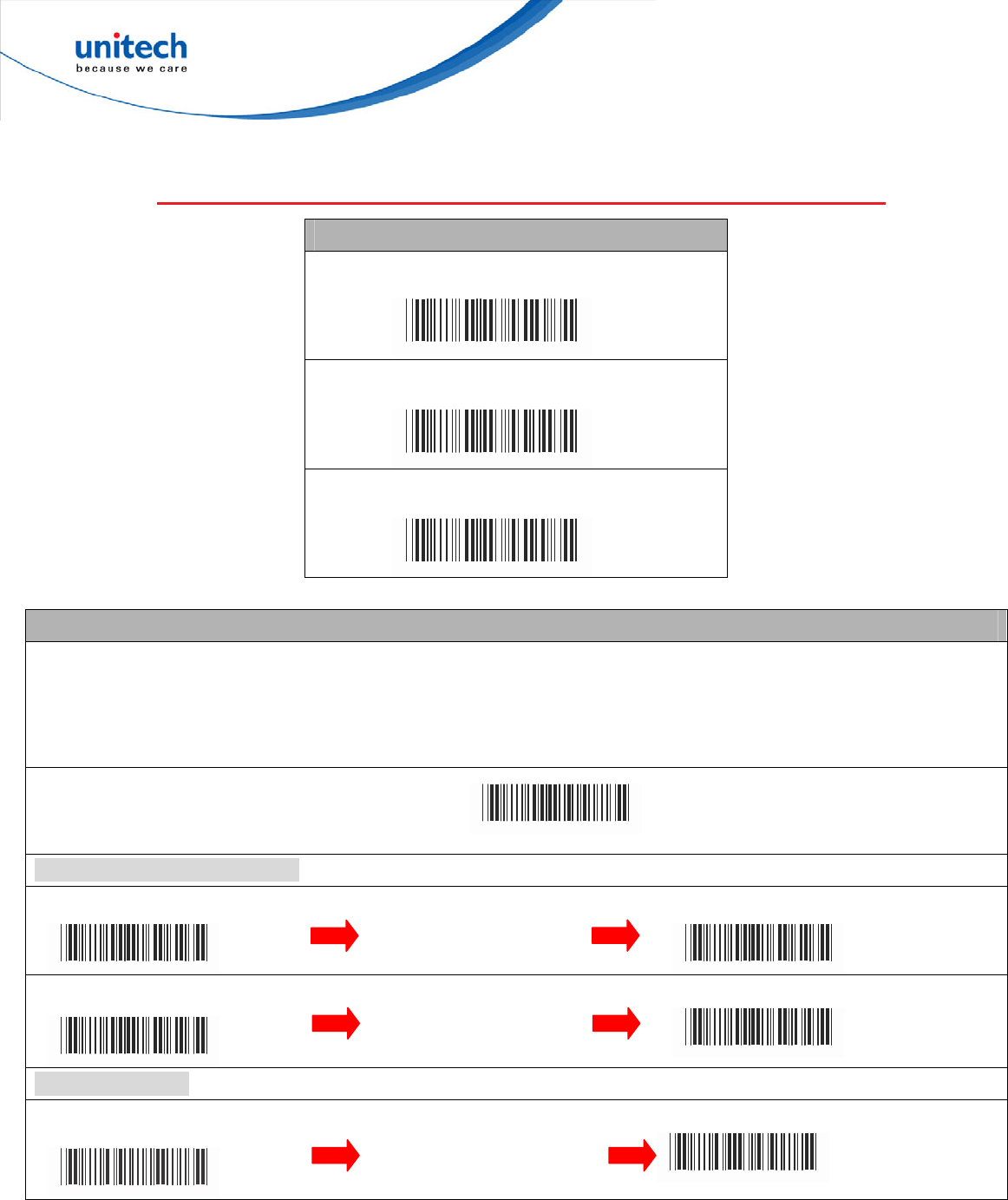

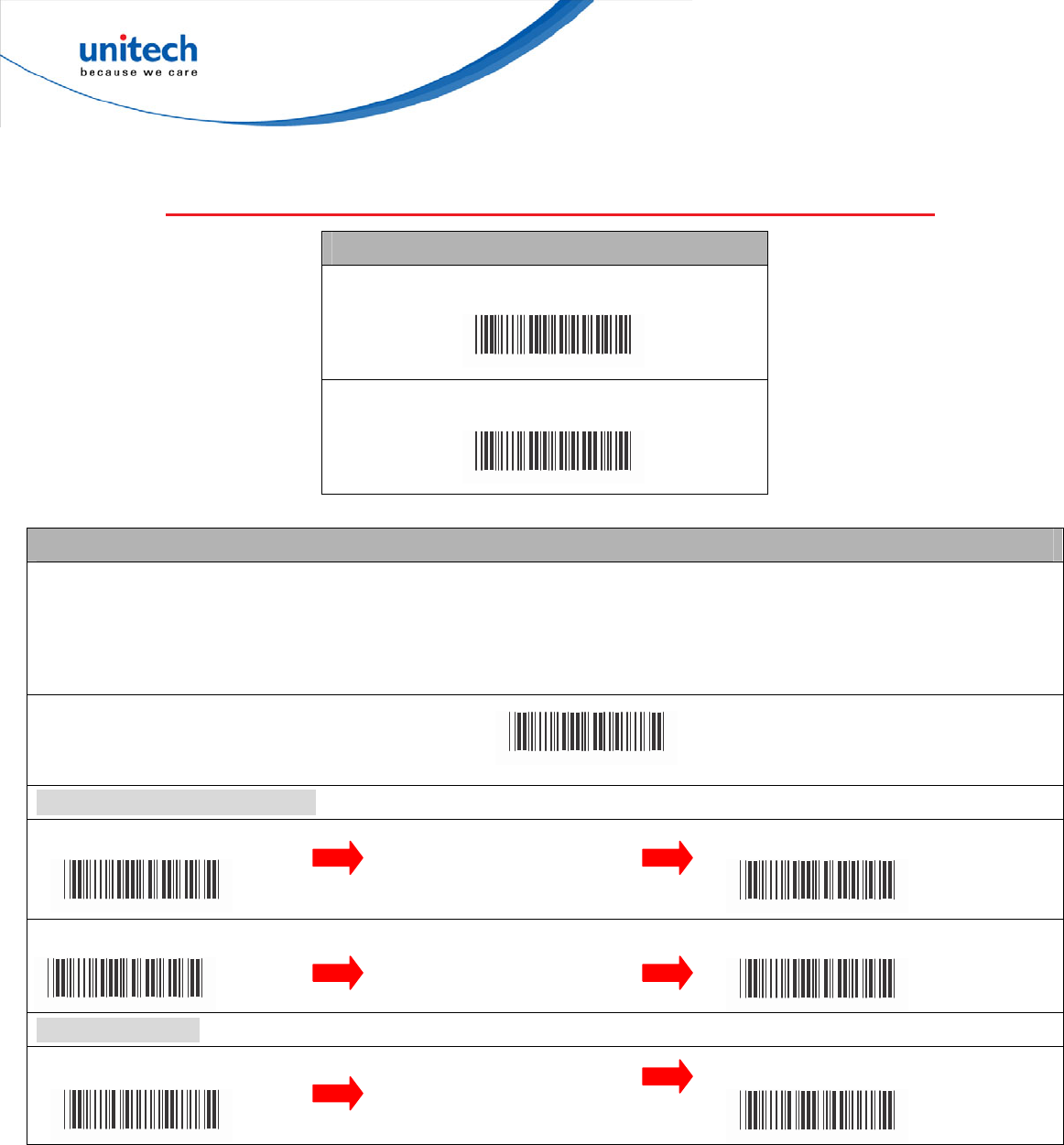

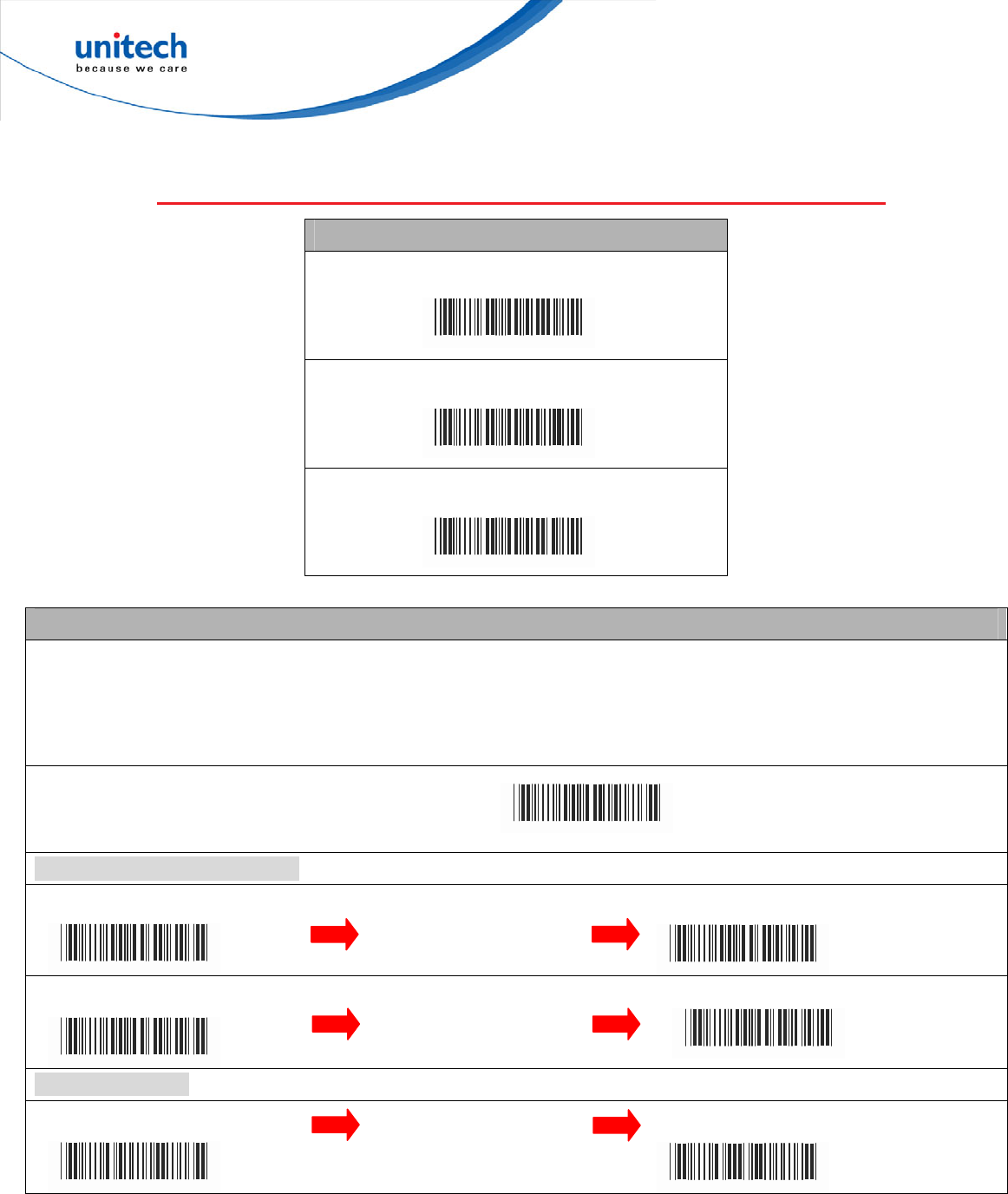

3.7 Matrix 25 Parameters

A. Check Digit Transmission

Do Not Calculate Check Digit *

Calculate Check Digit & Transmit

Calculate Check Digit & Not Transmit

B. Set Up Code Length

To set the fixed length:

1. Scan the “Begin“ label of the desired set.

2. Go to Numeric Bar Codes in Appendix A, scan label(s) that represents the length to be read.

3. Scan the “Complete“ label of the desired set. Repeat the steps 1 - 3 to set additional lengths.

Variable *

Fix Length (2 Sets Available)

1. 1ST Set Begin 3. 1

ST Set Complete

1. 2nd Set Begin 3. 2

nd Set Complete

Minimum Length

1. Begin 3. Complete

2. Numeric Bar

Codes (Appendix A)

2. Numeric Bar

Codes (Appendix A)

2. Numeric Bar

Codes (Appendix A)

unitech is a registered trademark of unitech Electronics Co.,Ltd

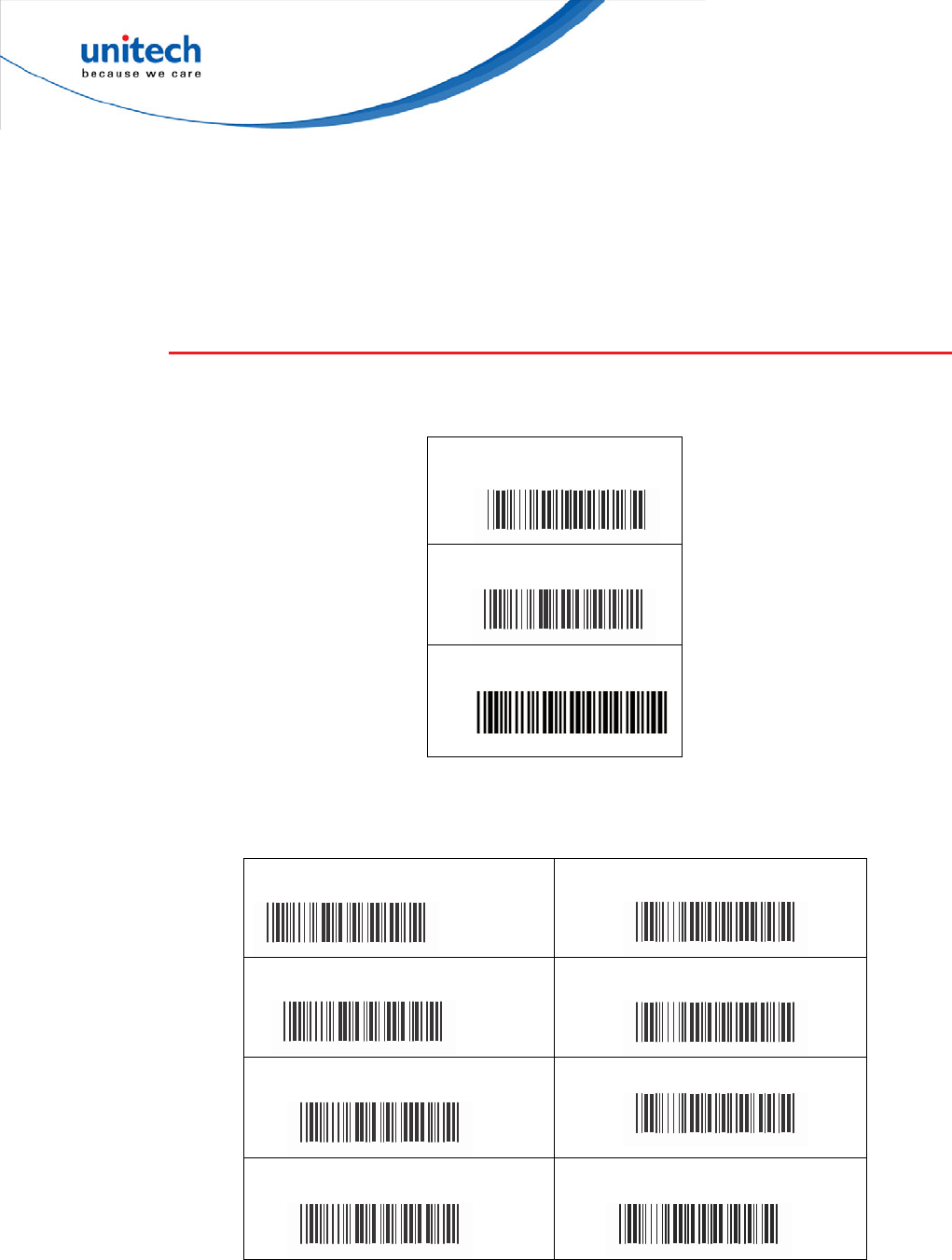

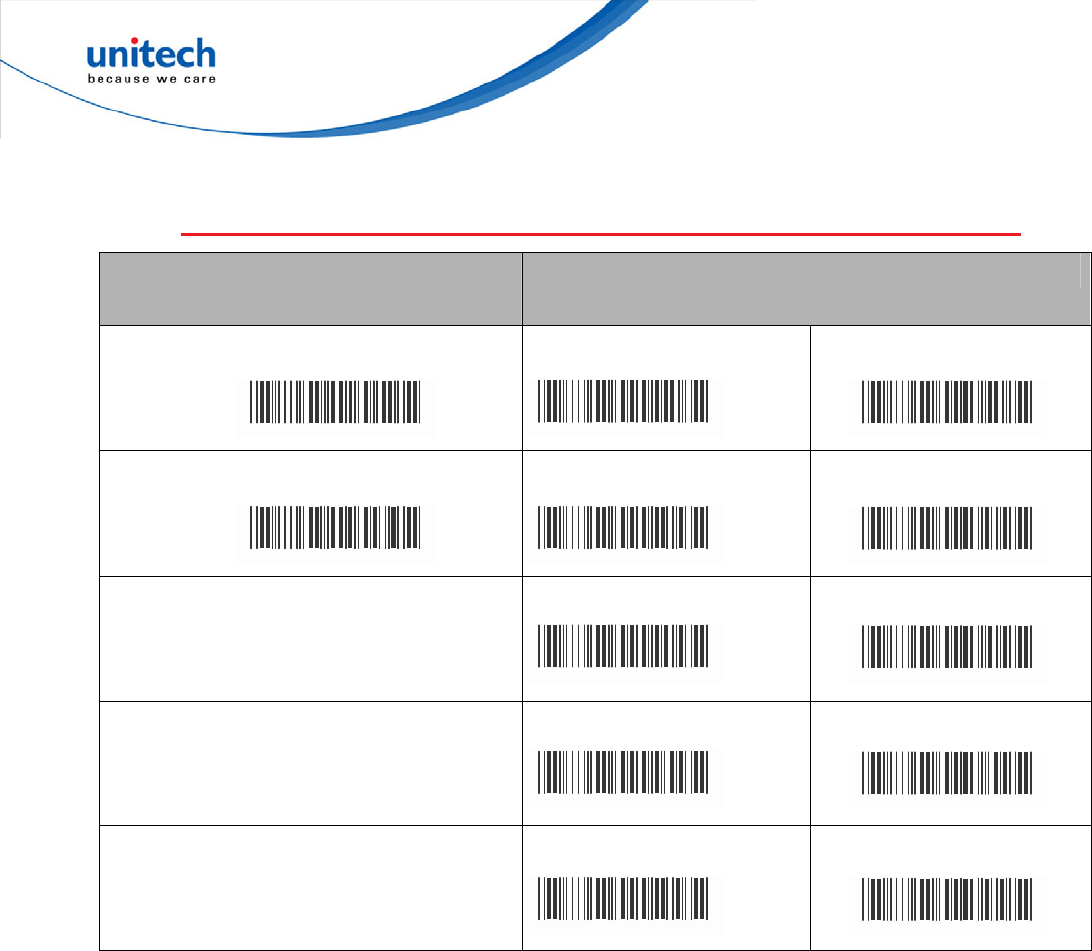

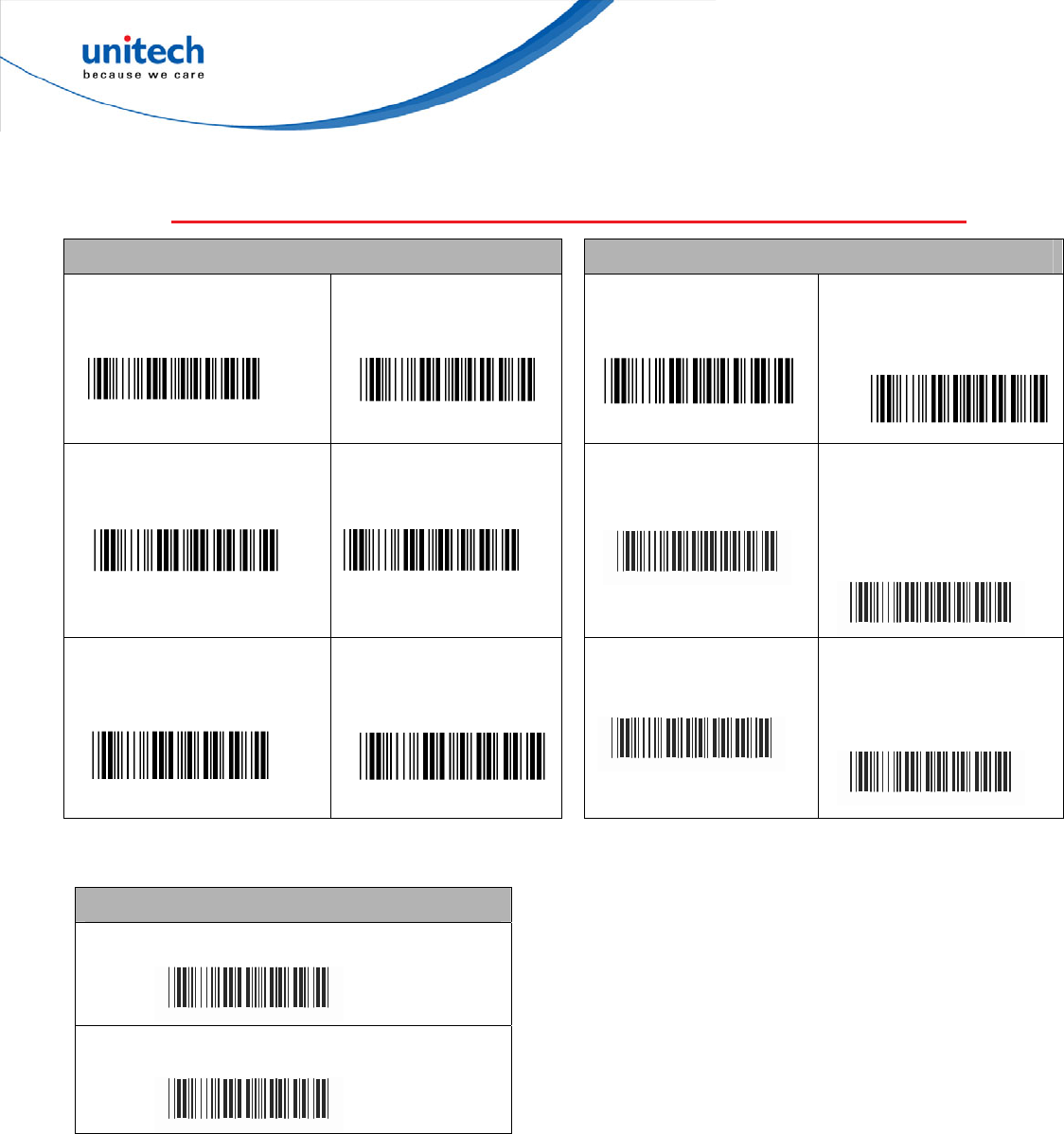

3.8 CODABAR/NW7 Parameters

A. Set Up Start/

Stop Characters Upon Transmission

B. Transmission Type of Start/Stop

OFF * A/B/C/D Start * A/B/C/D Stop *

ON A Start A Stop

B Start B Stop

C Start C Stop

D Start D Stop

unitech is a registered trademark of unitech Electronics Co.,Ltd

C. Set Up Code Length

To set the fixed length:

1. Scan the “Begin“ label of the desired set.

2. Go to Numeric Bar Codes in Appendix A, scan label(s) that represents the length to be read.

3. Scan the “Complete“ label of the desired set. Repeat the steps 1 - 3 to set additional lengths.

Variable *

Fix Length (2 Sets Available)

1. 1st Set Begin 3. 1

st Set Complete

1. 2nd Set Begin 3. 2

nd Complete

Minimum Length

1. Begin 3. Complete

2. Numeric Bar

Codes (Appendix A)

2. Numeric Bar

Codes (Appendix A)

2. Numeric Bar

Codes (Appendix A)

unitech is a registered trademark of unitech Electronics Co.,Ltd

3.9 Code 93 Parameters

A. Check Digit Transmission

Calculate Check 2 Digits & Not Transmit *

Do Not Calculate Check Digit

B. Set Up Code Length

To set the fixed length:

1. Scan the “Begin“ label of the desired set.

2. Go to Numeric Bar Codes in Appendix A, scan label(s) that represents the length to be read.

3. Scan the “Complete“ label of the desired set. Repeat the steps 1 - 3 to set additional lengths.

Variable*

Fix Length (2 Sets Available)

1. 1st Set Begin 3. 1

st Set Complete

1. 2nd Set Begin 3. 2

nd Set Complete

Minimum Length

1. Begin 3. Complete

2. Numeric Bar

Codes (Appendix A)

2. Numeric Bar

Codes (Appendix A)

2. Numeric Bar

Codes (Appendix A)

unitech is a registered trademark of unitech Electronics Co.,Ltd

3.10 Code 11 Parameters

A. Check Digit Transmission

Do Not Calculate Check Digit *

Calculate Check 1

Digit & Transmit

Calculate Check 1

Digit & Not Transmit

Calculate Check 2

Digit & Transmit

Calculate Check 2

Digit & Not Transmit

B. Set Up Code Length

To set the fixed length:

1. Scan the “Begin“ label of the desired set.

2. Go to Numeric Bar Codes in Appendix A, scan label(s) that represents the length to be read.

3. Scan the “Complete“ label of the desired set. Repeat the steps 1 - 3 to set additional lengths.

Variable *

Fix Length (2 Sets Available)

1. 1st Set Begin 3. 1

st Set Complete

1. 2nd Set Begin 3. 2

nd Set Complete

Minimum Length

1. Begin 3. Complete

2. Numeric Bar

Codes (Appendix A)

2. Numeric Bar

Codes (Appendix A)

2. Numeric Bar

Codes (Appendix A)

unitech is a registered trademark of unitech Electronics Co.,Ltd

3.11 MSI/PLESSEY Code Parameters

A. Check Digit Transmission

Calculate Check Digit & Not Transmit *

Do Not Calculate Check Digit

Calculate Check Digit & Transmit

B. Set Up Code Length

To set the fixed length:

1. Scan the “Begin“ label of the desired set.

2. Go to Numeric Bar Codes in Appendix A, scan label(s) that represents the length to be read.

3. Scan the “Complete“ label of the desired set. Repeat the steps 1 - 3 to set additional lengths.

Variable *

Fix Length (2 Sets Available)

1. 1st Set Begin 3. 1

st Set Complete

1. 2nd Set Begin 3. 2

nd Set Complete

Minimum Length

1. Begin 3. Complete

2. Numeric Bar

Codes (Appendix A)

2. Numeric Bar

Codes (Appendix A)

2. Numeric Bar

Codes (Appendix A)

unitech is a registered trademark of unitech Electronics Co.,Ltd

3.12 Code 2 of 6 Parameters

A. Check Digit Transmission

Do Not Calculate Check Digit *

Calculate Check Digit & Transmit

Calculate Check Digit & Not Transmit

B. Set Up Code Length

To set the fixed length:

1. Scan the “Begin“ label of the desired set.

2. Go to Numeric Bar Codes in Appendix A, scan label(s) that represents the length to be read.

3. Scan the “Complete“ label of the desired set. Repeat the steps 1 - 3 to set additional lengths.

Variable *

Fix Length (2 Sets Available)

1.1st Set Begin 3. 1

st Set Complete

1. 2nd Set Begin 3. 2

nd Set Complete

Minimum Length

1. Begin 3. Complete

2. Numeric Bar

Codes (Appendix A)

2. Numeric Bar

Codes (Appendix A)

2. Numeric Bar

Codes (Appendix A)

unitech is a registered trademark of unitech Electronics Co.,Ltd

3.13 LCD25 Parameters

A. Check Digit Transmission

Do Not Calculate Check Digit *

Calculate Check Digit & Transmit

Calculate Check Digit & Not Transmit

B. Set Up Code Length

To set the fixed length:

1. Scan the “Begin“ label of the desired set.

2. Go to Numeric Bar Codes in Appendix A, scan label(s) that represents the length to be read.

3. Scan the “Complete“ label of the desired set. Repeat the steps 1 - 3 to set additional lengths.

Variable *

Fix Length (2 Sets Available)

1. 1st Set Begin 3. 1

st Set Complete

1. 2nd Set Begin 3. 2

nd Set Complete

Minimum Length

1. Begin 3. Complete

2. Numeric Bar

Codes (Appendix A)

2. Numeric Bar

Codes (Appendix A)

2. Numeric Bar

Codes (Appendix A)

unitech is a registered trademark of unitech Electronics Co.,Ltd

3.14 Telepen Parameters

A. Type of Code B. Check Digit Transmission

Full ASCII Mode *

Calculate Check Digit & Not Transmit*

Compressed Numeric Mode Do Not Calculate Check Digit

Calculate Check Digit & Transmit

C. Set Up Code Length

To set the fixed length:

1. Scan the “Begin“ label of the desired set.

2. Go to Numeric Bar Codes in Appendix A, scan label(s) that represents the length to be read.

3. Scan the “Complete“ label of the desired set. Repeat the steps 1 - 3 to set additional lengths.

Variable *

Fix Length (2 Sets Available)

1. 1st Set Begin 3. 1

ST Set Complete

1. 2nd Set Begin 3. 2

nd Set Complete

Minimum Length

1. Begin 3. Complete

2. Numeric Bar

Codes (Appendix A)

2. Numeric Bar

Codes (Appendix A)

2. Numeric Bar

Codes (Appendix A)

unitech is a registered trademark of unitech Electronics Co.,Ltd

3.15 GS1 Databar

A. GS1 DataBar Omnidirectional B. GS1 DataBar Limited Parameters

Transmit Check Digit * Don’t Transmit

Check Digit

Transmit Check

Digit *

Don’t Transmit

Check Digit

Transmit

Application ID *

Don’t Transmit

Application ID

Transmit Application

ID*

Don’t Transmit

Application ID

Don’t Transmit

Symbology ID *

Transmit

Symbology ID

Don’t Transmit

Symbology ID *

Transmit Symbology

ID

C. GS1 DataBar Expanded Parameters

Don’t Transmit Symbology ID *

Transmit Symbology ID

unitech is a registered trademark of unitech Electronics Co.,Ltd

3.16 Bar Code ID

OFF *

ON

Default

With this function ON, a leading character will be added to the output string

while scanning code, user may refer to the following table to know what kind of

bar code is being scanned.

Please refer to the table below for matching code ID of codes read in.

Code Type ID Code Type ID

UPC-A A UPC-E B

EAN-8 C EAN-13 D

CODE 39 E CODE 128 F

Interleave 25 G Industrial 25 H

Matrix 25 I Codabar/NW7 J

CODE 93 K CODE 11 L

China Postage M MSI / PLESSEY N

Code 2 of 6 P LCD 25 Q

Telepen T GS1 DataBar

Omnidirectional

U

GS1 DataBar

Limited

V GS1 DataBar

Expanded

W

unitech is a registered trademark of unitech Electronics Co.,Ltd

User Define Code ID

To set the code ID:

1. Scan the symbologies label.

2. Go to the ASCII Tables in Appendix B, scan label that represents the desired

code ID.

Note :

User define code ID will override default value. Program will not check the

conflict. It is possible to have more than two symbologies which have same

code ID.

UPC-A

UPC-E

EAN-13/JAN-13

EAN-8/JAN-8

CODE 39 CODE 128

CODABAR/NW7

Interleave 25

Industrial 25

Matrix 25

CODE 93 CODE 11

ChinaPostage

MSI/PLESSEY

Code 2 of 6

Telepen

unitech is a registered trademark of unitech Electronics Co.,Ltd

LCD25 GS1 DataBar

Omnidirectional ON

GS1 DataBar Limited ON GS1 DataBar Expanded ON

Reserved5 Reserved6

unitech is a registered trademark of unitech Electronics Co.,Ltd

Chapter 4 – Command Setting

4.1 Interface & Reading Mode Selection

4.1.1 Cradle Interface Selection

USB Mode *

RS232 Mode

Virtual COM

4.1.2 Reading Mode Selection

Trigger ON/OFF *

Good Read OFF

Continuous/Trigger OFF

Testing

Continuous/Auto Power On

Flash

Flash/Auto Power On Presentation

unitech is a registered trademark of unitech Electronics Co.,Ltd

4.1.3 BT Auto Connection

Enable*

Disable

4.1.4 iOS Hotkey Function

When enabling iOS Hotkey, you may simply double-click the trigger to

toggle the iPhone/iPad Touch Keyboard.

Note: This function is only available for iPhone/iPad.

Enable

Disable*

unitech is a registered trademark of unitech Electronics Co.,Ltd

4.2 Communication Parameters

4.2.1 RS232 Communication Parameters

A. Set Up BAUD Rate B. Set Up Data Bits C. Set Up Stop Bits

9600 *

8 Data Bits * 1 Bit*

1200 7 Data Bits 2 Bits

2400

4800

19200

38400

unitech is a registered trademark of unitech Electronics Co.,Ltd

D. Set Up Parity E. Handshaking

None *

RTS/CTS Disable * RTS/CTS Enable

Even

ACK/NAK Disable * ACK/NAK Enable

Odd

XON/XOFF Disable * XON/XOFF Enable

Mark

Space

unitech is a registered trademark of unitech Electronics Co.,Ltd

4.2.2 Output Characters Parameters

A. Select Terminator B. Time-out Between Characters

CR* 0 ms *

None 5 ms

CR +LF 10 ms

LF 25 ms

Space 50 ms

HT(TAB)

100 ms

STX-ETX

200 ms

300 ms

unitech is a registered trademark of unitech Electronics Co.,Ltd

4.3 Language Selection

US English *

Hungarian

UK English

Janpanese

Italian

Belgium

Spanish

Portuguese

French

Denmark

German

Netherlands

Swedish

Turkey

Switzerland

Reserved 2

unitech is a registered trademark of unitech Electronics Co.,Ltd

4.4 Reading Level

The Polarity can be sent as standard with black bars high, or reversed with

white bars high.

Black Bars High *

White Bars High

unitech is a registered trademark of unitech Electronics Co.,Ltd

4.5 Accuracy

This setting is to provide the assurance of barcode consistency and to prevent

the misread outcome before the data is sent to the host.Scan the barcode

below to choose how many times you would like to verify the data.

Note: It will cause the scanning process to slow down by choosing more than 1 time to verify

the data.

1 Time *

2 Times

3 Times

4 Times

4.6 Buzzer Beep Tone

High *

Medium

Low

Off

unitech is a registered trademark of unitech Electronics Co.,Ltd

4.7 Sensitivity of Continuous Reading

Mode

A. Quick Setting

Fast *

Slow

B. Same Code Delay Reading Interval

Following code sequences represent the length of time before a barcode can

be rescanned at continuous and flash reading mode. The value can be

defined from 1-50 and they represent 100ms to 5 seconds in100ms interval.

Default value is 3 (0.3 seconds).

To setup same code delay reading interval:

1. Scan the "Begin" label

2. Go the Numeric Bar Codes in Appendix A, Scan label(s),that represents

the same code delay reading interval. They are ranged form 1-50.One step

is represented 0.1second.So the interval is from 0.1 to 5 seconds.

3. Scan the "Complete" label

Repeat the steps 1-3 to set time out of same symbol

1. Begin 3. Complete

2. Numeric Bar

Codes (Appendix A)

unitech is a registered trademark of unitech Electronics Co.,Ltd

4.8 Reverse Output Characters

Disable *

Enable

4.9 Setup Deletion

To setup the deletion of output characters:

1. Scan the label of the desired set below.

2. Scan the label of the desired symbology.

3. Go to the Numeric Bar Codes in Appendix A, scan label(s) that represents

the desired position to be deleted.

4. Scan the “Complete” label of “Character Position to be Deleted”.

5. Go to the Numeric Bar Codes in Appendix A, scan label(s) that represents

the number of characters to be deleted.

6. Scan the “Complete” label of “Number of Characters to be Deleted”.

Repeat the steps 1 – 6 to set additional deletion.

A. Select Deletion Set Number

1st Set

2nd Set

3rd Set

4th Set

5th Set

6th Set

unitech is a registered trademark of unitech Electronics Co.,Ltd

B. Symbologies Selection

UPC-A

Industrial 25

UPC-E

Matrix 25

EAN-13/JAN-13/ISBN-13

CODE 93

EAN-8/JAN-8

CODE 11

CODE 39

China Postage

CODE 128

MSI/PLESSEY

CODABAR/NW7

Code 2 of 6

Interleave 25

Telepen

LCD25

GS1 DataBar Omnidirectional

GS1 DataBar Limited

GS1 DataBar Expanded

None

All Codes

unitech is a registered trademark of unitech Electronics Co.,Ltd

C. Character Position to be Deleted

2. Complete

D. Number of Characters to be Deleted

2. Complete

1. Numeric Bar Codes

(Appendix A)

1. Numeric Bar Codes

(Appendix A)

unitech is a registered trademark of unitech Electronics Co.,Ltd

4.10 Setup Insertion

To setup the insertion of output characters :

1. Scan the label of the desired set.

2. Scan the label of the desired symbology.

3. Go to the Numeric Bar Codes in Appendix A, scan label(s) that represents the

desired position to be inserted.

4. Scan the “Complete” label of “Character Position to be Inserted”.

5. Go to the ASCII Tables in Appendix B or Function Key Tables in Appendix C, scan

label(s) that represents the desired characters to be inserted. Scan the “Complete”

label of “Number of Characters to be Deleted”.

6. Scan the “Complete” label of “Characters to be inserted”.

Repeat the steps 1 – 6 to set additional insertion.

A. Select Insertion Set Number

1st Set

2nd Set

3rd Set

4th Set

5th Set

6th Set

unitech is a registered trademark of unitech Electronics Co.,Ltd

B. Symbologies Selection

UPC-A

Industrial 25

UPC-E

Matrix 25

EAN-13/JAN-13/ISBN-13

CODE 93

EAN-8/JAN-8

CODE 11

CODE 39

China Postage

CODE 128

MSI/PLESSEY

CODABAR/NW7

Code 2 of 6

Interleave 25

Telepen

LCD25

GS1 DataBar Omnidirectional

GS1 DataBar Limited

GS1 DataBar Expanded

None

All Codes

unitech is a registered trademark of unitech Electronics Co.,Ltd

C. Character Position to be Inserted

2. Complete

D. Characters to be Inserted

2. Complete

1. ASCII Table

(Appendix B)

1. Numeric Bar Codes

(Appendix A)

unitech is a registered trademark of unitech Electronics Co.,Ltd

4.11 PAN Configuration

4.11.1 Auto Mode

Auto Mode Enable *

Auto Mode Disable

When “Auto Mode” function is enabled, and the scanner is working at out of

transmission range, the scanned data will be stored to out-of-range memory.

Memory size is approximately 25,000 sets of EAN13 barcode type. The all stored

data will be transmitted to device when the link is reconnected, and the all data

stored in out-of-range memory will be cleared.

4.11.2 Sleep Mode

Sleep Mode OFF*

Sleep Mode 1 min. ON

Sleep Mode10 min. ON

The scanner is equipped with sleep mode function to save battery energy

when the scanner is not used for 1 minute or 10 minutes. During sleep

mode, all the functions and connection will be halted until pressing the

trigger button. The communication with cradle or Bluetooth device will be

reconnected.

unitech is a registered trademark of unitech Electronics Co.,Ltd

4.11.3 Batch Mode

Batch Mode OFF*

Batch Mode ON

Delete Last Data **

Batch Data Read **

Batch Data Clear **

** : Quick Setting Label

The function can be executed directly by scanning barcode instead of doing

the general programming process.

unitech is a registered trademark of unitech Electronics Co.,Ltd

4.11.4 Firmware Version

Scanner Firmware Version**

Cradle Firmware Version**

Scanner MAC Address**

Cradle MAC Address**

** : Quick Setting Label

Display the firmware version of the scanner, please scan above barcode.

unitech is a registered trademark of unitech Electronics Co.,Ltd

Appendix A –Numeric Bar Codes

unitech is a registered trademark of unitech Electronics Co.,Ltd

Appendix B –ASCII Table

unitech is a registered trademark of unitech Electronics Co.,Ltd

Appendix C –Function Key Table

unitech is a registered trademark of unitech Electronics Co.,Ltd

Appendix D–Numeric Bar Codes2

Unitech Electronics MS340BT BT CCD Scanner User Manual

Unitech Electronics Co., Ltd. BT CCD Scanner

User Manual
