Unitech Electronics PA969BTP PDA Scanner User Manual PA969 UM V10

Unitech Electronics Co., Ltd. PDA Scanner PA969 UM V10

Users Manual

Copyright 2011 unitech Electronics Co., Ltd. All rights reserved. Unitech is a registered trademark of unitech Electronics Co., Ltd. PA969 PDA Scanner - PA969 - User’s Manual Version 1.0

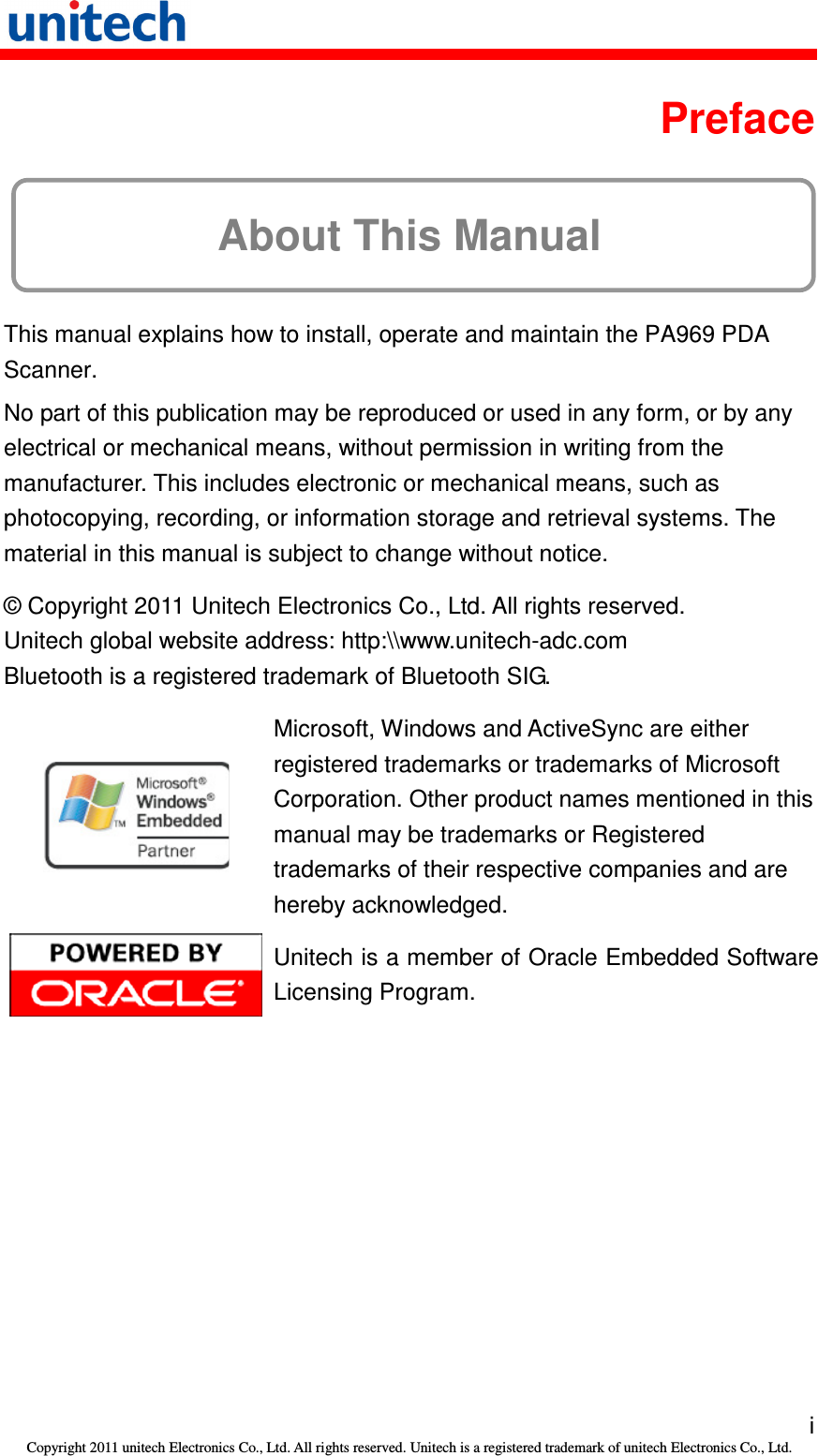

$i Copyright 2011 unitech Electronics Co., Ltd. All rights reserved. Unitech is a registered trademark of unitech Electronics Co., Ltd. Preface About This Manual This manual explains how to install, operate and maintain the PA969 PDA Scanner. No part of this publication may be reproduced or used in any form, or by any electrical or mechanical means, without permission in writing from the manufacturer. This includes electronic or mechanical means, such as photocopying, recording, or information storage and retrieval systems. The material in this manual is subject to change without notice. © Copyright 2011 Unitech Electronics Co., Ltd. All rights reserved. Unitech global website address: http:\\www.unitech-adc.com Bluetooth is a registered trademark of Bluetooth SIG. Microsoft, Windows and ActiveSync are either registered trademarks or trademarks of Microsoft Corporation. Other product names mentioned in this manual may be trademarks or Registered trademarks of their respective companies and are hereby acknowledged. Unitech is a member of Oracle Embedded Software Licensing Program.$

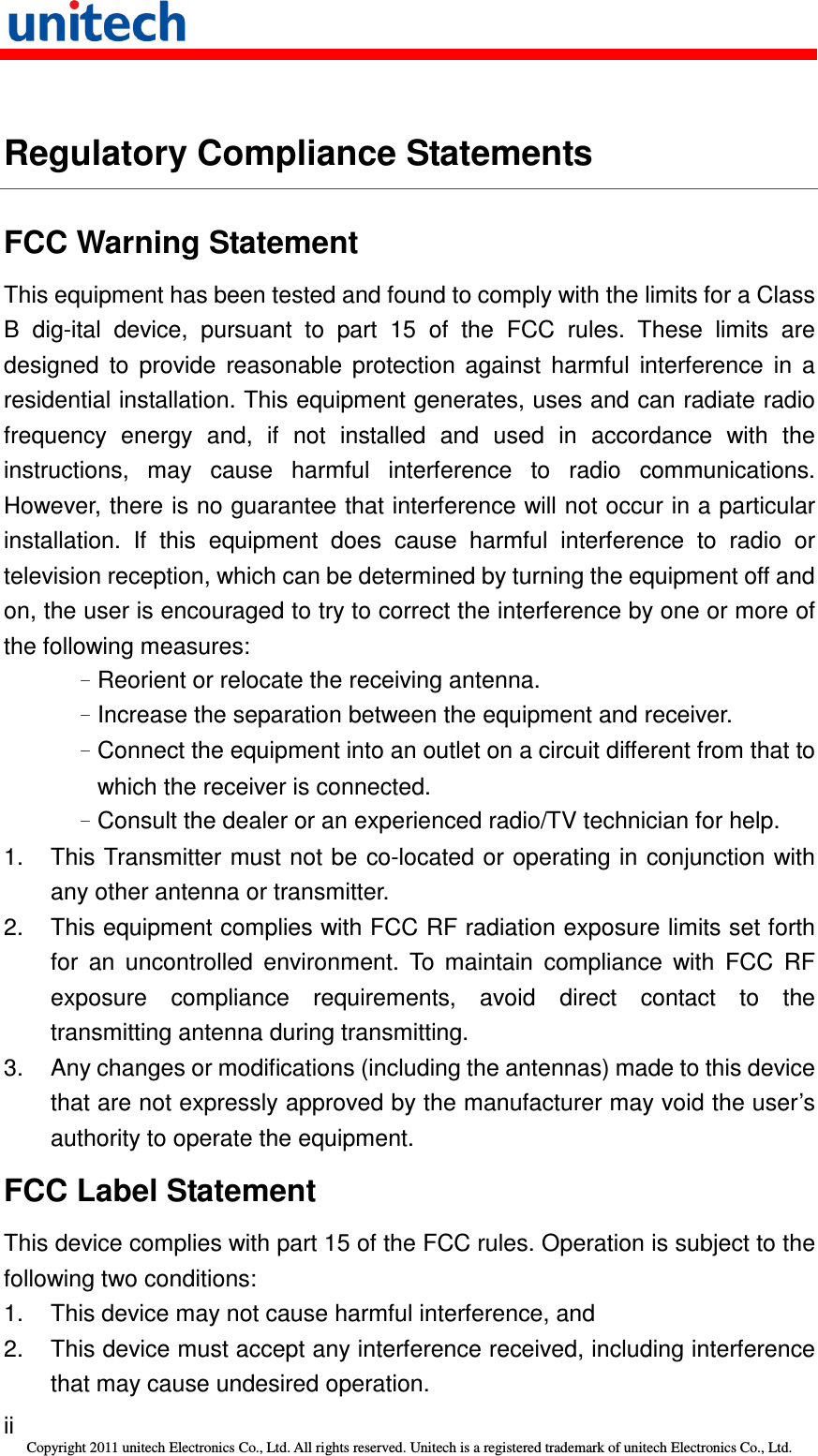

ii Copyright 2011 unitech Electronics Co., Ltd. All rights reserved. Unitech is a registered trademark of unitech Electronics Co., Ltd. Regulatory Compliance Statements FCC Warning Statement This equipment has been tested and found to comply with the limits for a Class B dig-ital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: –Reorient or relocate the receiving antenna. –Increase the separation between the equipment and receiver. –Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. –Consult the dealer or an experienced radio/TV technician for help. 1. This Transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. 2. This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. To maintain compliance with FCC RF exposure compliance requirements, avoid direct contact to the transmitting antenna during transmitting. 3. Any changes or modifications (including the antennas) made to this device that are not expressly approved by the manufacturer may void the user’s authority to operate the equipment. FCC Label Statement This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation.

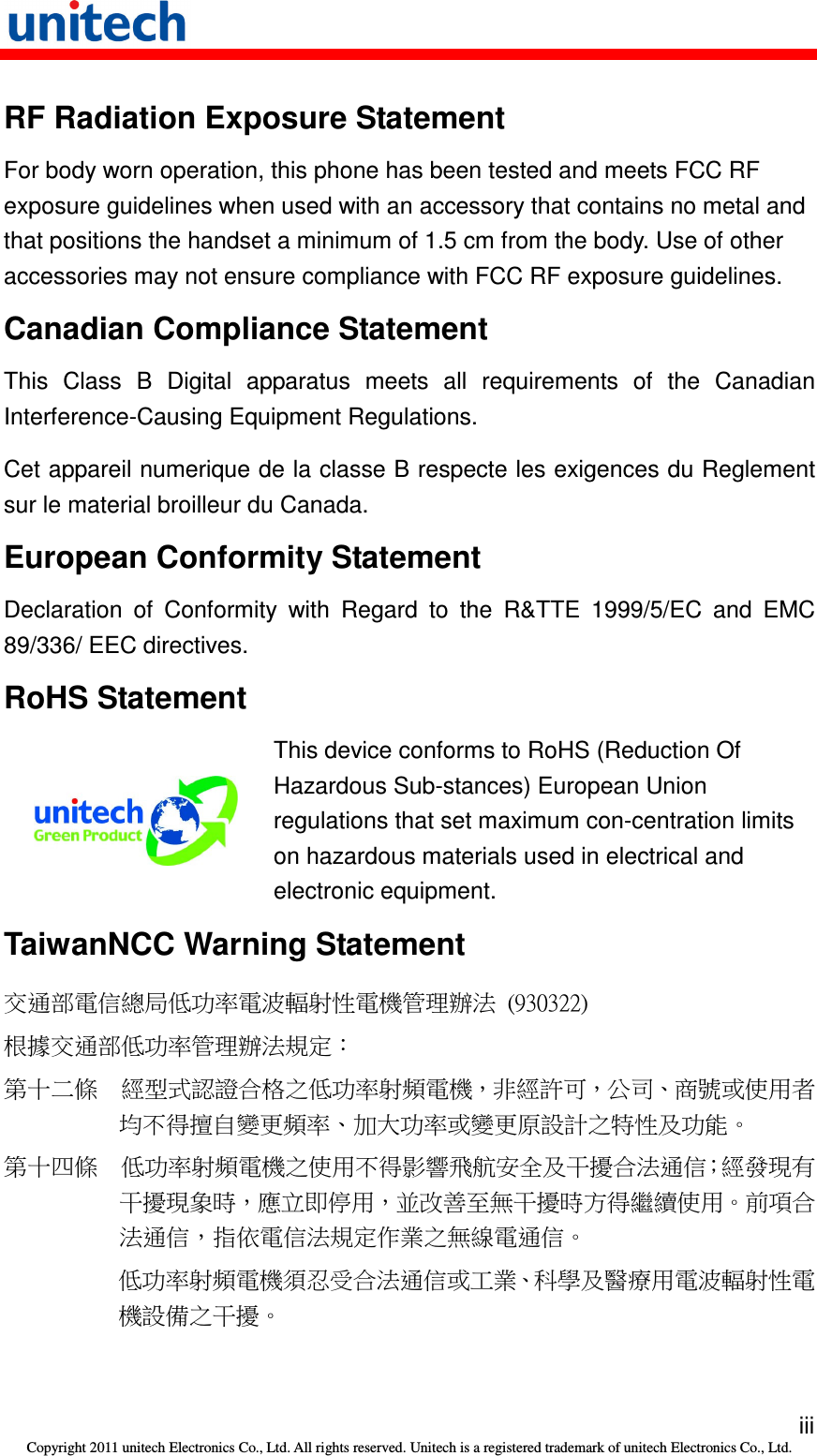

iii Copyright 2011 unitech Electronics Co., Ltd. All rights reserved. Unitech is a registered trademark of unitech Electronics Co., Ltd. RF Radiation Exposure Statement For body worn operation, this phone has been tested and meets FCC RF exposure guidelines when used with an accessory that contains no metal and that positions the handset a minimum of 1.5 cm from the body. Use of other accessories may not ensure compliance with FCC RF exposure guidelines. Canadian Compliance Statement This Class B Digital apparatus meets all requirements of the Canadian Interference-Causing Equipment Regulations. Cet appareil numerique de la classe B respecte les exigences du Reglement sur le material broilleur du Canada. European Conformity Statement Declaration of Conformity with Regard to the R&TTE 1999/5/EC and EMC 89/336/ EEC directives. RoHS Statement This device conforms to RoHS (Reduction Of Hazardous Sub-stances) European Union regulations that set maximum con-centration limits on hazardous materials used in electrical and electronic equipment. TaiwanNCC Warning Statement 交通部電信總局低功率電波輻射性電機管理辦法 (930322) 根據交通部低功率管理辦法規定：第十二條經型式認證合格之低功率射頻電機，非經許可，公司、商號或使用者均不得擅自變更頻率、加大功率或變更原設計之特性及功能。第十四條低功率射頻電機之使用不得影響飛航安全及干擾合法通信；經發現有干擾現象時，應立即停用，並改善至無干擾時方得繼續使用。前項合法通信，指依電信法規定作業之無線電通信。低功率射頻電機須忍受合法通信或工業、科學及醫療用電波輻射性電機設備之干擾。

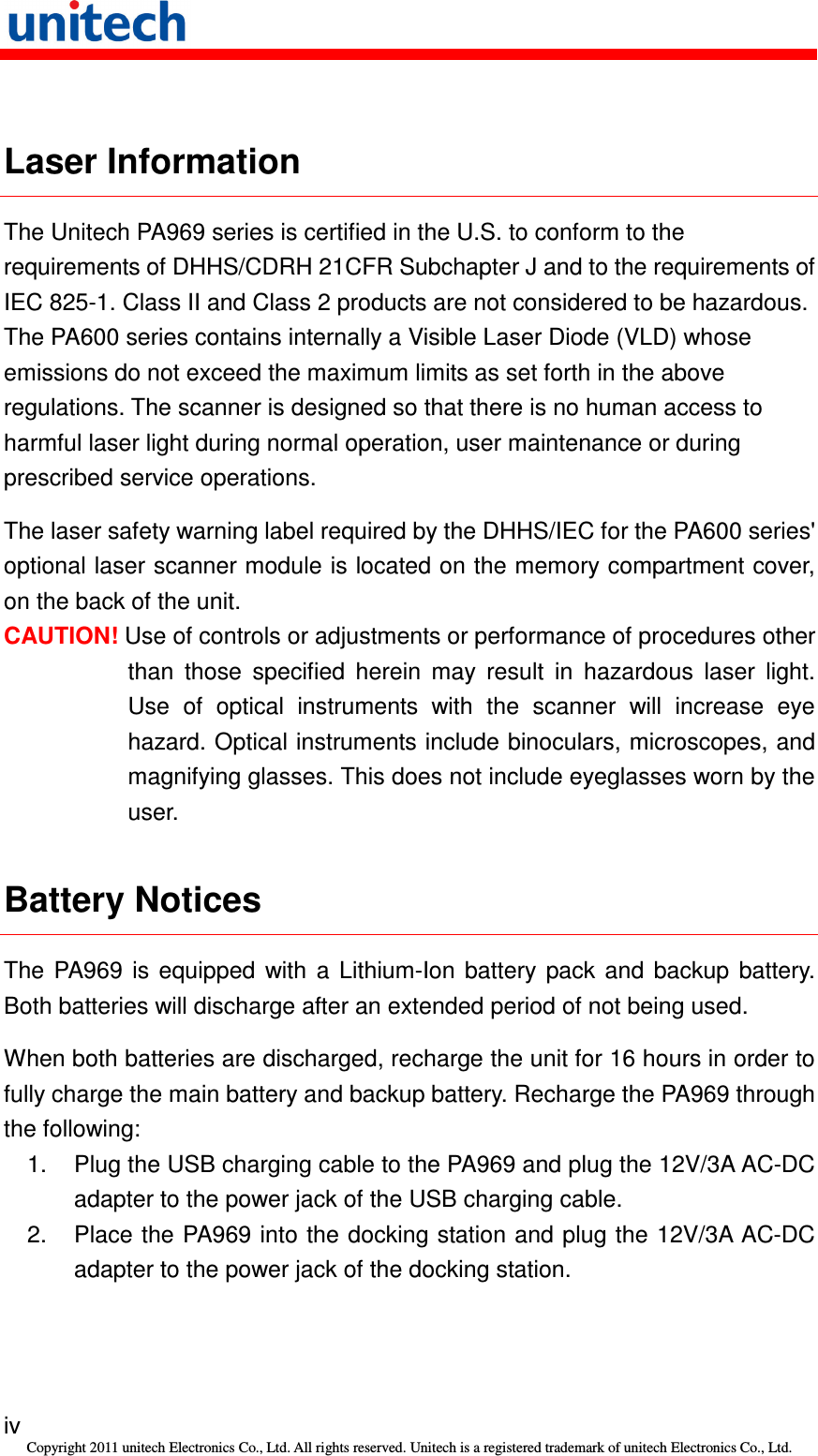

iv Copyright 2011 unitech Electronics Co., Ltd. All rights reserved. Unitech is a registered trademark of unitech Electronics Co., Ltd. Laser Information The Unitech PA969 series is certified in the U.S. to conform to the requirements of DHHS/CDRH 21CFR Subchapter J and to the requirements of IEC 825-1. Class II and Class 2 products are not considered to be hazardous. The PA600 series contains internally a Visible Laser Diode (VLD) whose emissions do not exceed the maximum limits as set forth in the above regulations. The scanner is designed so that there is no human access to harmful laser light during normal operation, user maintenance or during prescribed service operations. The laser safety warning label required by the DHHS/IEC for the PA600 series' optional laser scanner module is located on the memory compartment cover, on the back of the unit. CAUTION! Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous laser light. Use of optical instruments with the scanner will increase eye hazard. Optical instruments include binoculars, microscopes, and magnifying glasses. This does not include eyeglasses worn by the user. Battery Notices The PA969 is equipped with a Lithium-Ion battery pack and backup battery. Both batteries will discharge after an extended period of not being used. When both batteries are discharged, recharge the unit for 16 hours in order to fully charge the main battery and backup battery. Recharge the PA969 through the following: 1. Plug the USB charging cable to the PA969 and plug the 12V/3A AC-DC adapter to the power jack of the USB charging cable. 2. Place the PA969 into the docking station and plug the 12V/3A AC-DC adapter to the power jack of the docking station.

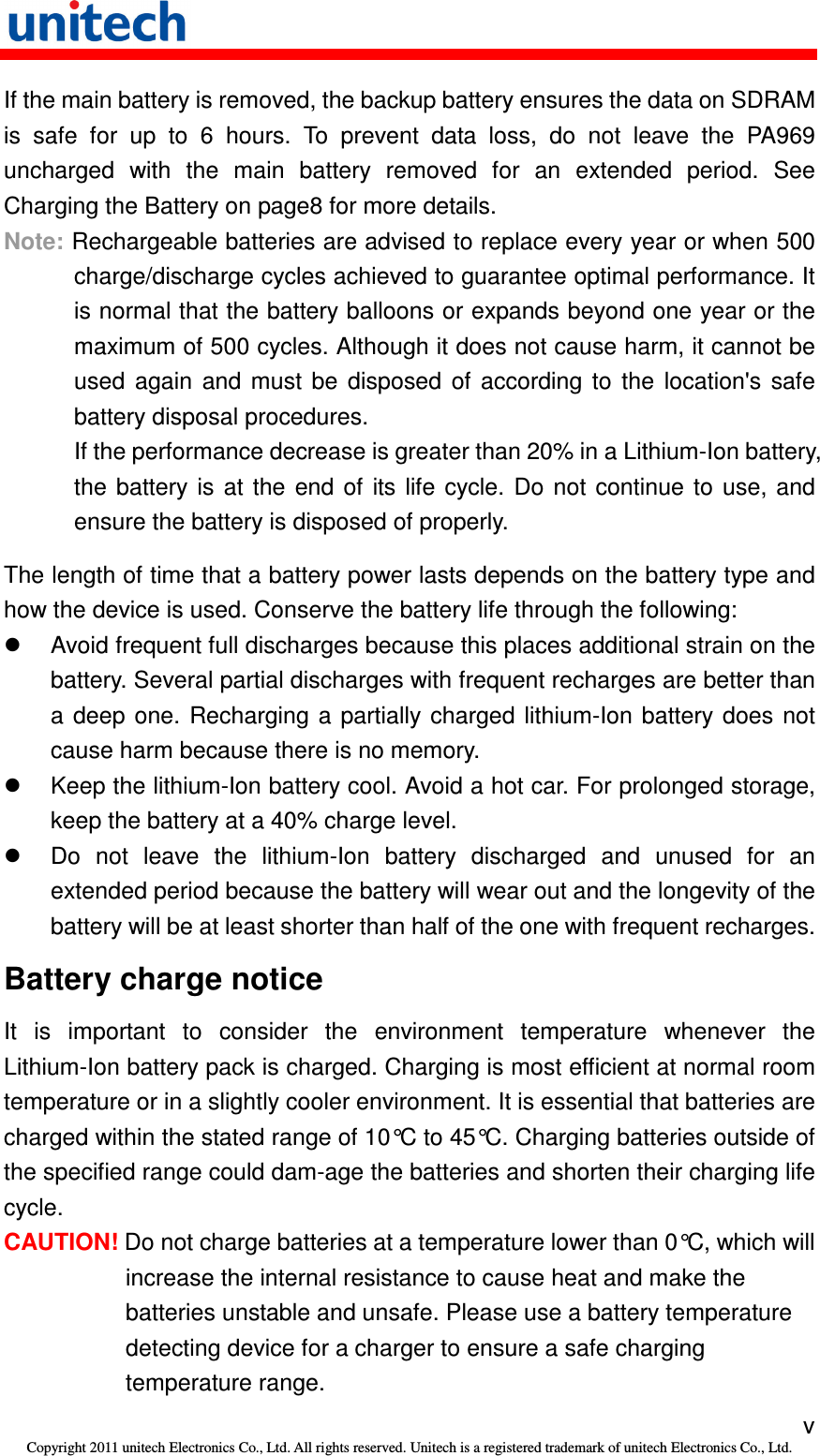

v Copyright 2011 unitech Electronics Co., Ltd. All rights reserved. Unitech is a registered trademark of unitech Electronics Co., Ltd. If the main battery is removed, the backup battery ensures the data on SDRAM is safe for up to 6 hours. To prevent data loss, do not leave the PA969 uncharged with the main battery removed for an extended period. See Charging the Battery on page8 for more details. Note: Rechargeable batteries are advised to replace every year or when 500 charge/discharge cycles achieved to guarantee optimal performance. It is normal that the battery balloons or expands beyond one year or the maximum of 500 cycles. Although it does not cause harm, it cannot be used again and must be disposed of according to the location's safe battery disposal procedures. If the performance decrease is greater than 20% in a Lithium-Ion battery, the battery is at the end of its life cycle. Do not continue to use, and ensure the battery is disposed of properly. The length of time that a battery power lasts depends on the battery type and how the device is used. Conserve the battery life through the following:  Avoid frequent full discharges because this places additional strain on the battery. Several partial discharges with frequent recharges are better than a deep one. Recharging a partially charged lithium-Ion battery does not cause harm because there is no memory.  Keep the lithium-Ion battery cool. Avoid a hot car. For prolonged storage, keep the battery at a 40% charge level.  Do not leave the lithium-Ion battery discharged and unused for an extended period because the battery will wear out and the longevity of the battery will be at least shorter than half of the one with frequent recharges. Battery charge notice It is important to consider the environment temperature whenever the Lithium-Ion battery pack is charged. Charging is most efficient at normal room temperature or in a slightly cooler environment. It is essential that batteries are charged within the stated range of 10°C to 45°C. Charging batteries outside of the specified range could dam-age the batteries and shorten their charging life cycle. CAUTION! Do not charge batteries at a temperature lower than 0°C, which will increase the internal resistance to cause heat and make the batteries unstable and unsafe. Please use a battery temperature detecting device for a charger to ensure a safe charging temperature range.

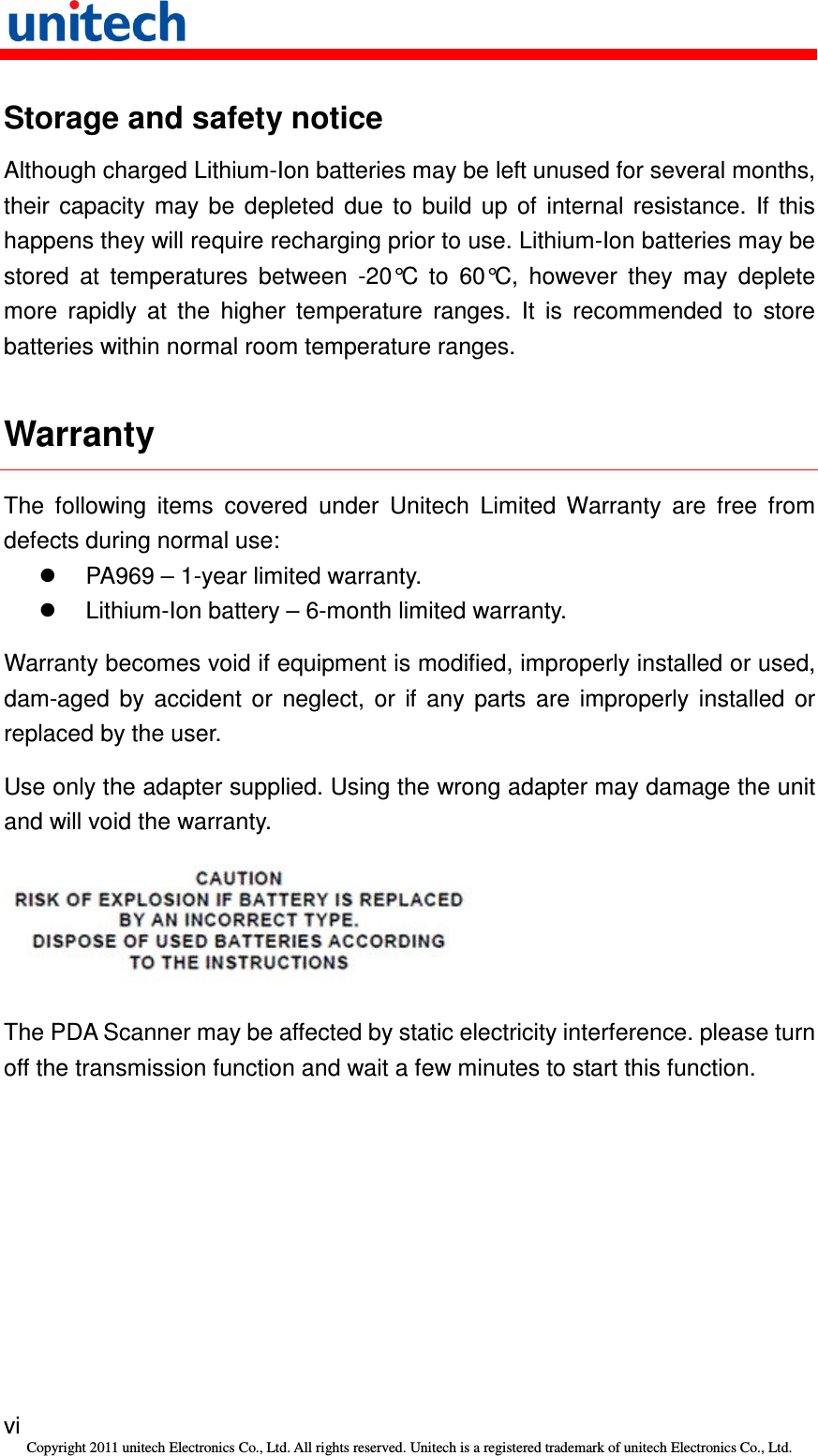

vi Copyright 2011 unitech Electronics Co., Ltd. All rights reserved. Unitech is a registered trademark of unitech Electronics Co., Ltd. Storage and safety notice Although charged Lithium-Ion batteries may be left unused for several months, their capacity may be depleted due to build up of internal resistance. If this happens they will require recharging prior to use. Lithium-Ion batteries may be stored at temperatures between -20°C to 60°C, however they may deplete more rapidly at the higher temperature ranges. It is recommended to store batteries within normal room temperature ranges. Warranty The following items covered under Unitech Limited Warranty are free from defects during normal use:  PA969 – 1-year limited warranty.  Lithium-Ion battery – 6-month limited warranty. Warranty becomes void if equipment is modified, improperly installed or used, dam-aged by accident or neglect, or if any parts are improperly installed or replaced by the user. Use only the adapter supplied. Using the wrong adapter may damage the unit and will void the warranty. The PDA Scanner may be affected by static electricity interference. please turn off the transmission function and wait a few minutes to start this function.

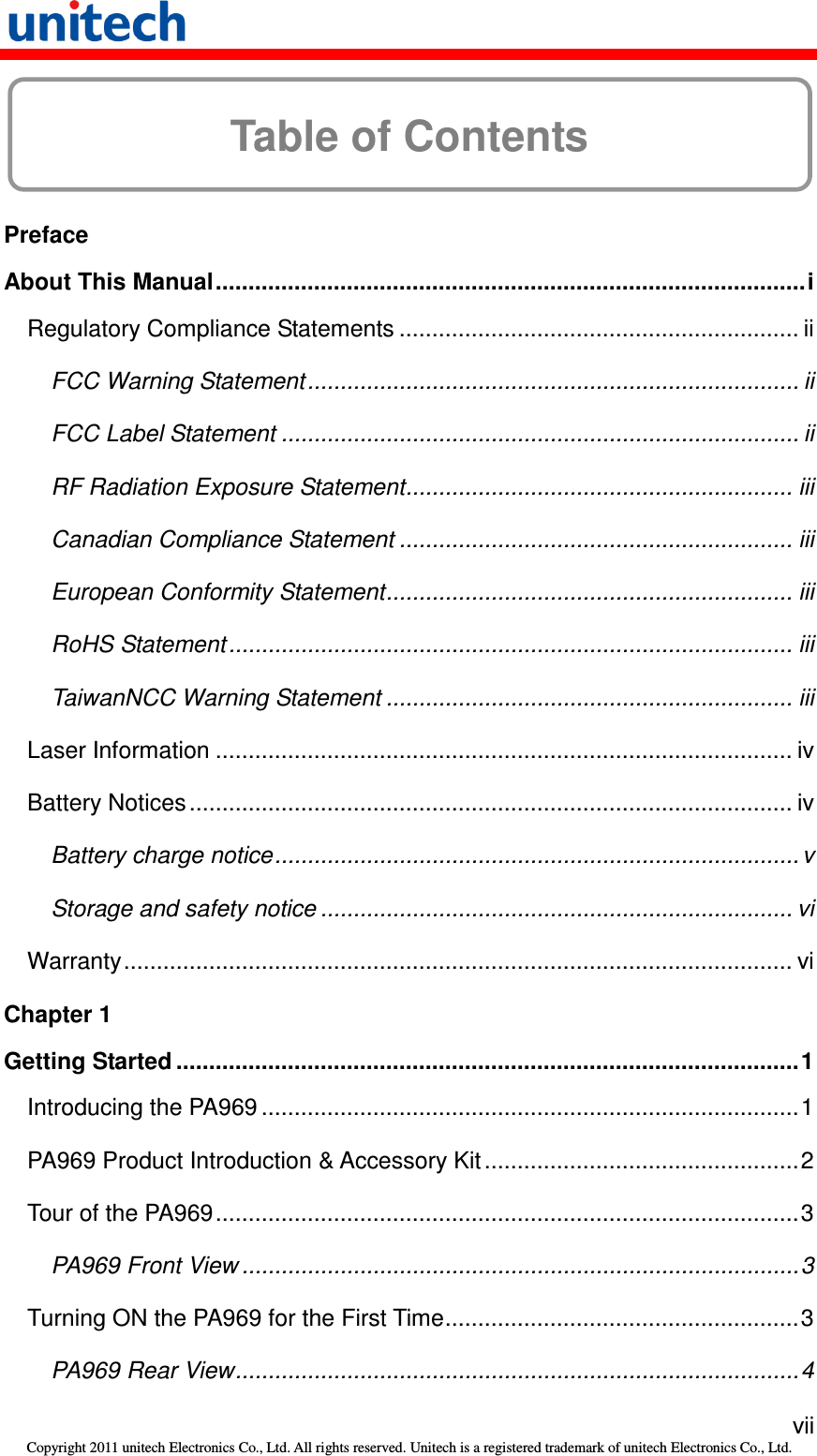

vii Copyright 2011 unitech Electronics Co., Ltd. All rights reserved. Unitech is a registered trademark of unitech Electronics Co., Ltd. Table of Contents Preface About This Manual..........................................................................................i Regulatory Compliance Statements ............................................................. ii FCC Warning Statement........................................................................... ii FCC Label Statement ............................................................................... ii RF Radiation Exposure Statement........................................................... iii Canadian Compliance Statement ............................................................ iii European Conformity Statement.............................................................. iii RoHS Statement...................................................................................... iii TaiwanNCC Warning Statement .............................................................. iii Laser Information ........................................................................................ iv Battery Notices............................................................................................ iv Battery charge notice................................................................................ v Storage and safety notice ........................................................................ vi Warranty...................................................................................................... vi Chapter 1 Getting Started ...............................................................................................1 Introducing the PA969 ..................................................................................1 PA969 Product Introduction & Accessory Kit................................................2 Tour of the PA969.........................................................................................3 PA969 Front View .....................................................................................3 Turning ON the PA969 for the First Time......................................................3 PA969 Rear View......................................................................................4

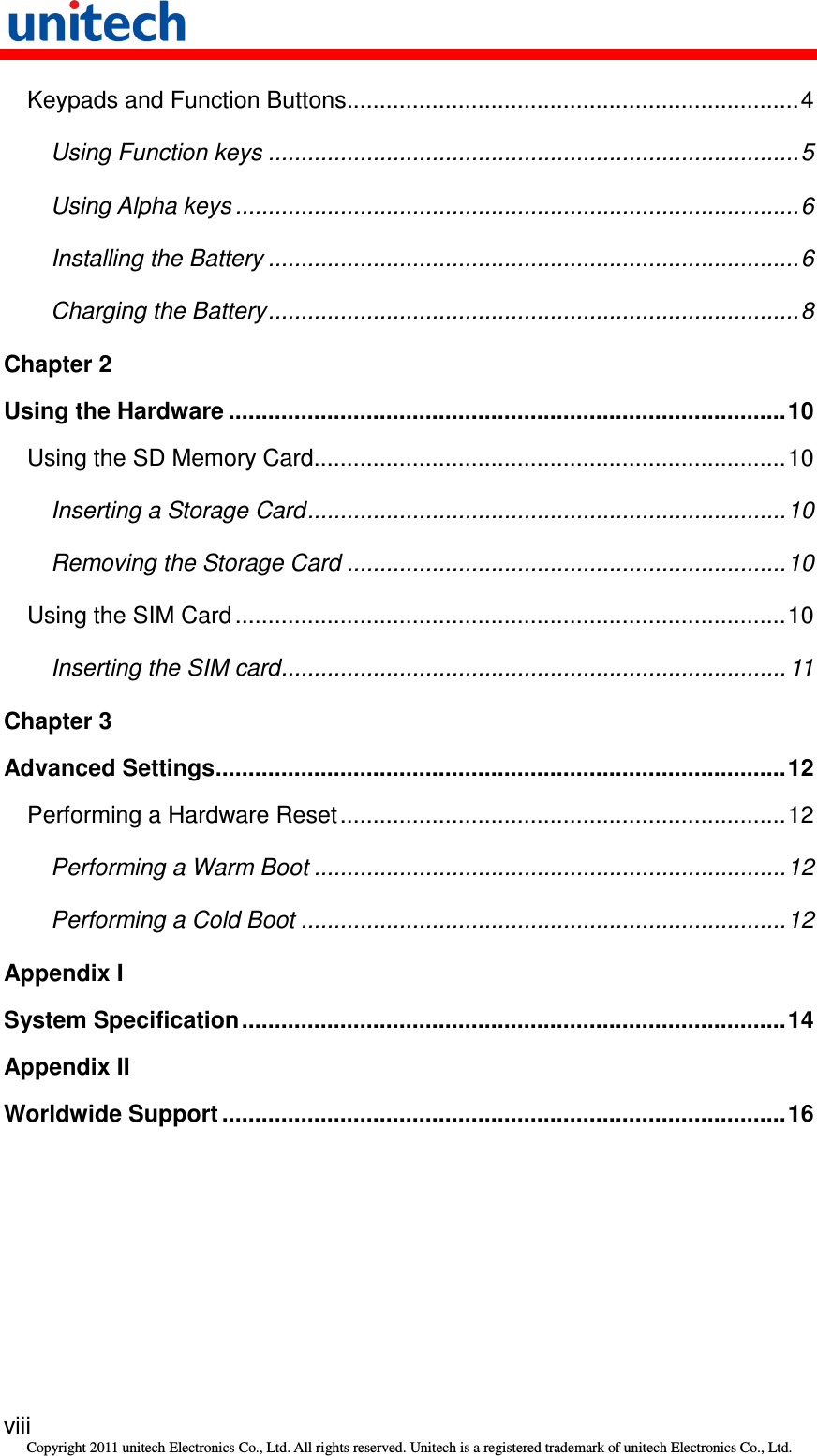

viii Copyright 2011 unitech Electronics Co., Ltd. All rights reserved. Unitech is a registered trademark of unitech Electronics Co., Ltd. Keypads and Function Buttons.....................................................................4 Using Function keys .................................................................................5 Using Alpha keys ......................................................................................6 Installing the Battery .................................................................................6 Charging the Battery.................................................................................8 Chapter 2 Using the Hardware .....................................................................................10 Using the SD Memory Card........................................................................10 Inserting a Storage Card.........................................................................10 Removing the Storage Card ...................................................................10 Using the SIM Card ....................................................................................10 Inserting the SIM card............................................................................. 11 Chapter 3 Advanced Settings.......................................................................................12 Performing a Hardware Reset....................................................................12 Performing a Warm Boot ........................................................................12 Performing a Cold Boot ..........................................................................12 Appendix I System Specification...................................................................................14 Appendix II Worldwide Support ......................................................................................16

ix Copyright 2011 unitech Electronics Co., Ltd. All rights reserved. Unitech is a registered trademark of unitech Electronics Co., Ltd.

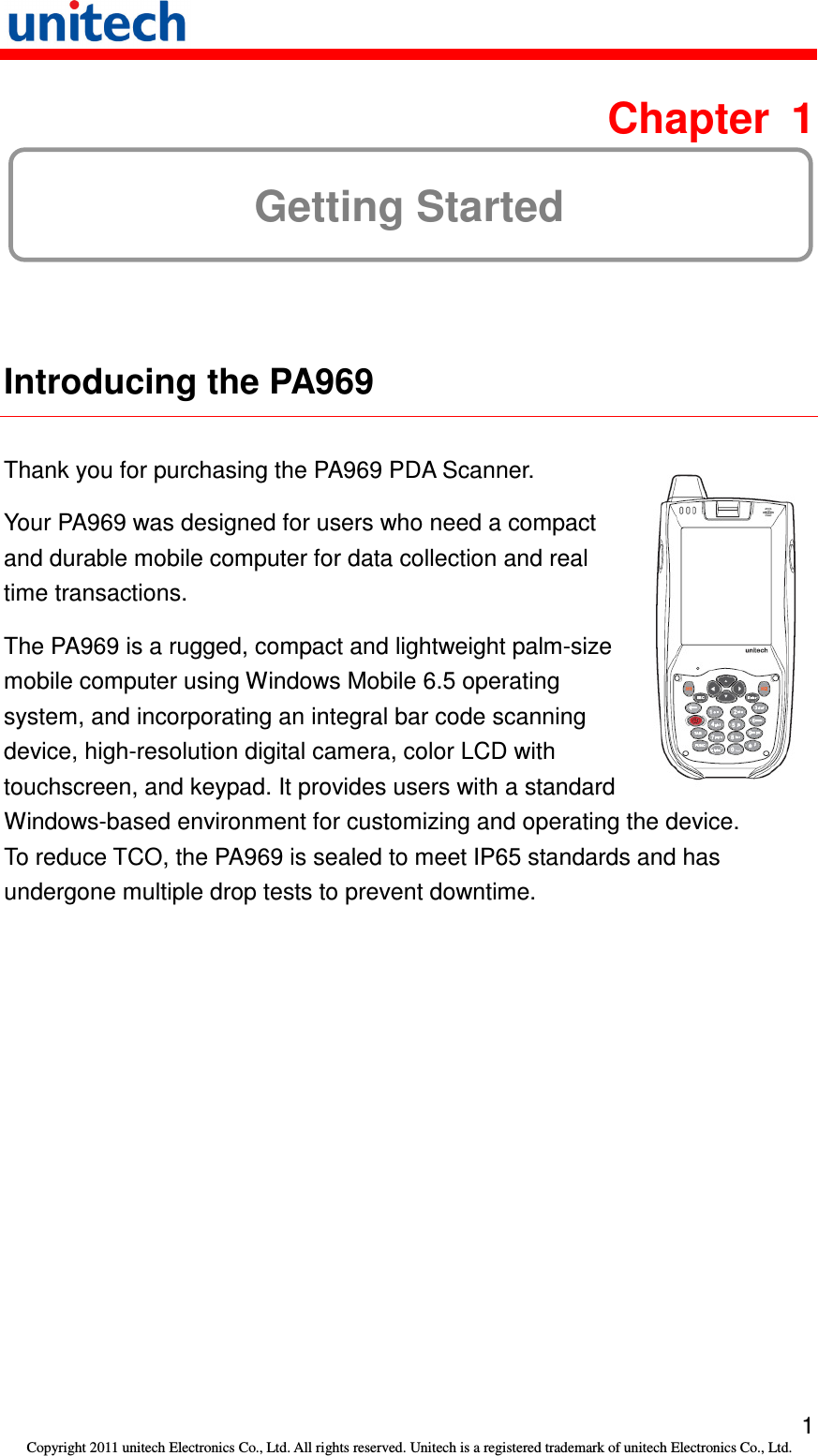

1 Copyright 2011 unitech Electronics Co., Ltd. All rights reserved. Unitech is a registered trademark of unitech Electronics Co., Ltd. Chapter 1 Getting Started Introducing the PA969 Thank you for purchasing the PA969 PDA Scanner. Your PA969 was designed for users who need a compact and durable mobile computer for data collection and real time transactions. The PA969 is a rugged, compact and lightweight palm-size mobile computer using Windows Mobile 6.5 operating system, and incorporating an integral bar code scanning device, high-resolution digital camera, color LCD with touchscreen, and keypad. It provides users with a standard Windows-based environment for customizing and operating the device. To reduce TCO, the PA969 is sealed to meet IP65 standards and has undergone multiple drop tests to prevent downtime.

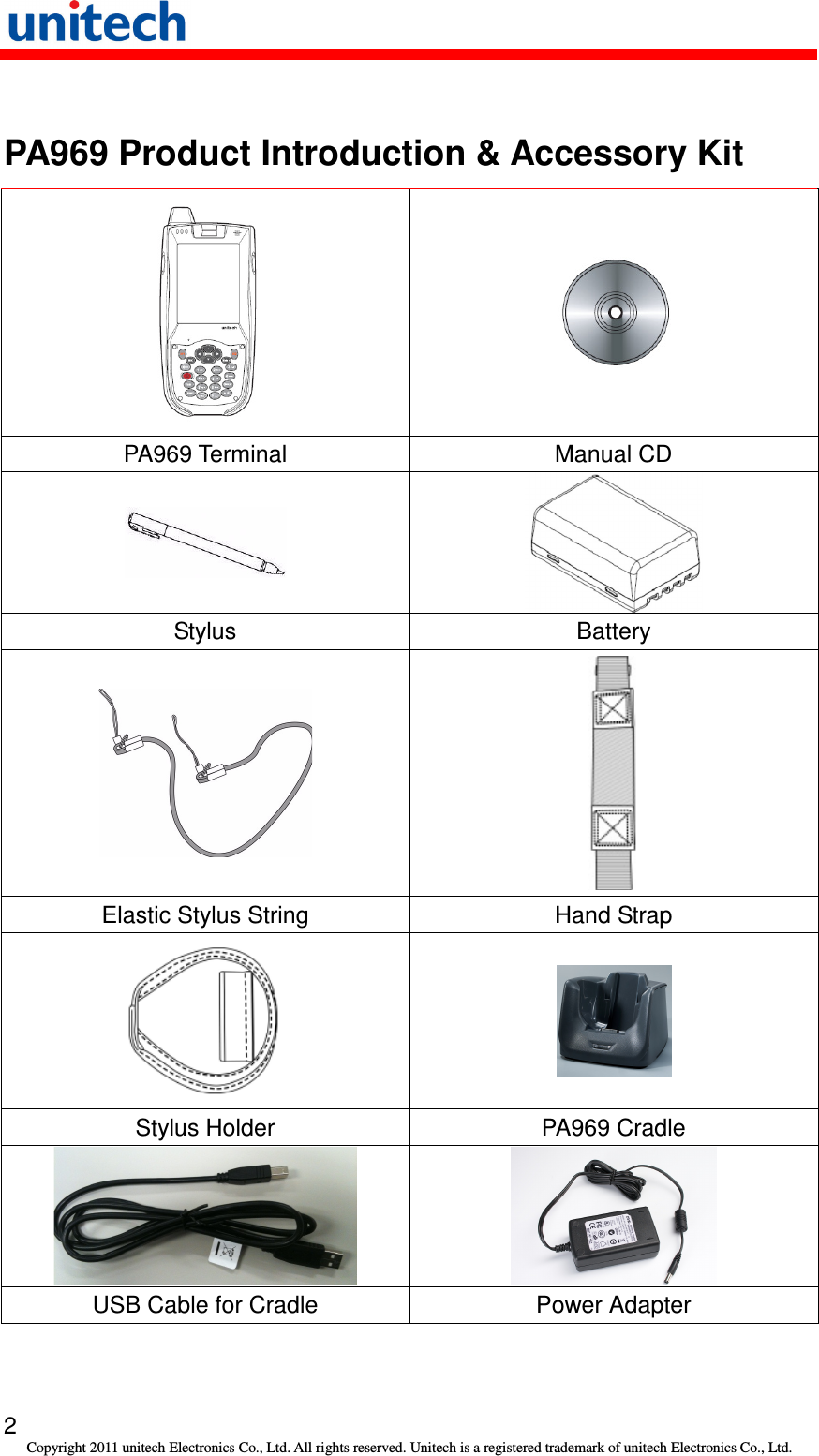

2 Copyright 2011 unitech Electronics Co., Ltd. All rights reserved. Unitech is a registered trademark of unitech Electronics Co., Ltd. PA969 Product Introduction & Accessory Kit PA969 Terminal Manual CD Stylus Battery Elastic Stylus String Hand Strap Stylus Holder PA969 Cradle USB Cable for Cradle Power Adapter

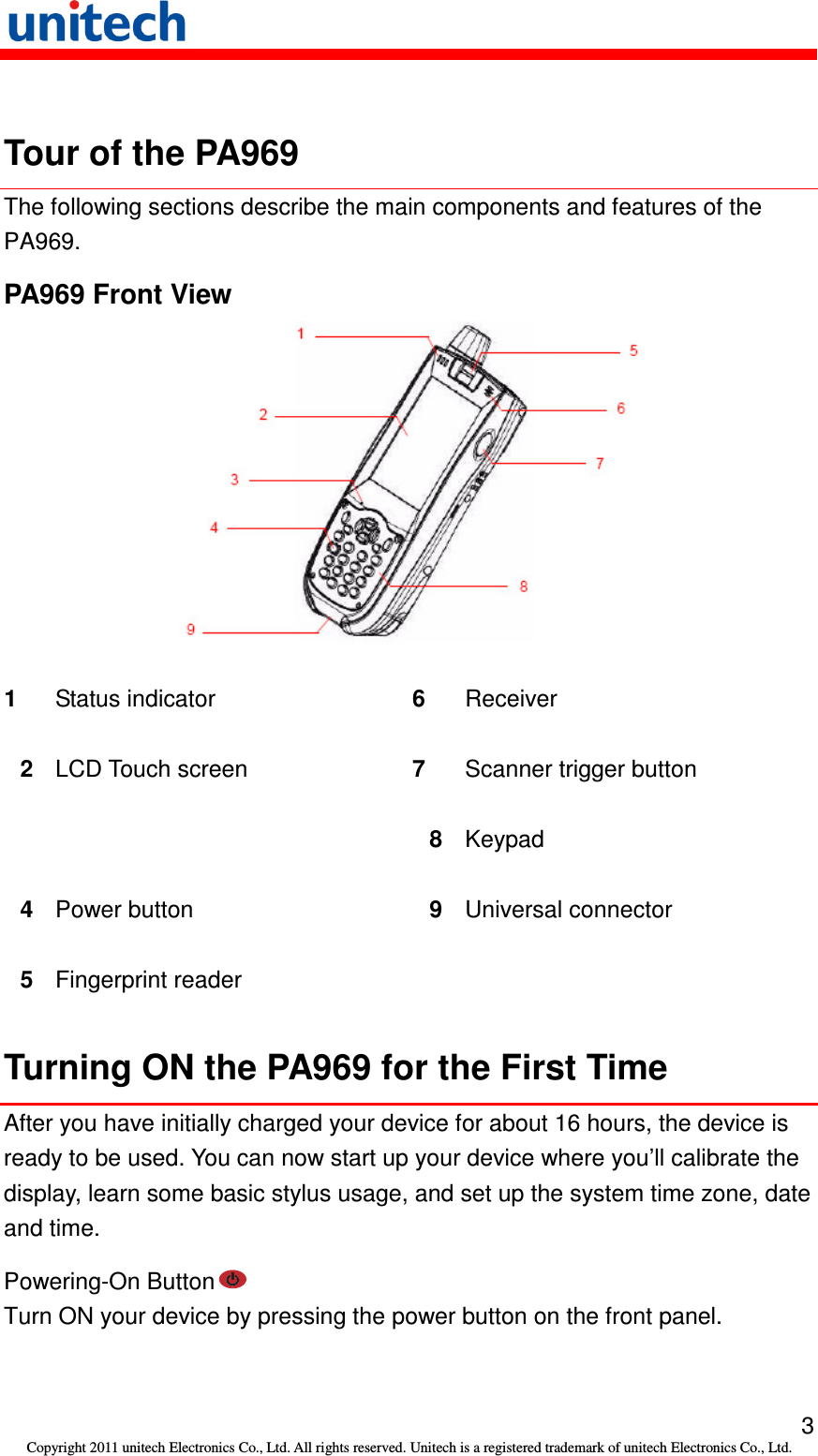

3 Copyright 2011 unitech Electronics Co., Ltd. All rights reserved. Unitech is a registered trademark of unitech Electronics Co., Ltd. Tour of the PA969 The following sections describe the main components and features of the PA969. PA969 Front View 1 Status indicator 6 Receiver 2 LCD Touch screen 7 Scanner trigger button 8 Keypad 4 Power button 9 Universal connector 5 Fingerprint reader Turning ON the PA969 for the First Time After you have initially charged your device for about 16 hours, the device is ready to be used. You can now start up your device where you’ll calibrate the display, learn some basic stylus usage, and set up the system time zone, date and time. Powering-On Button Turn ON your device by pressing the power button on the front panel.

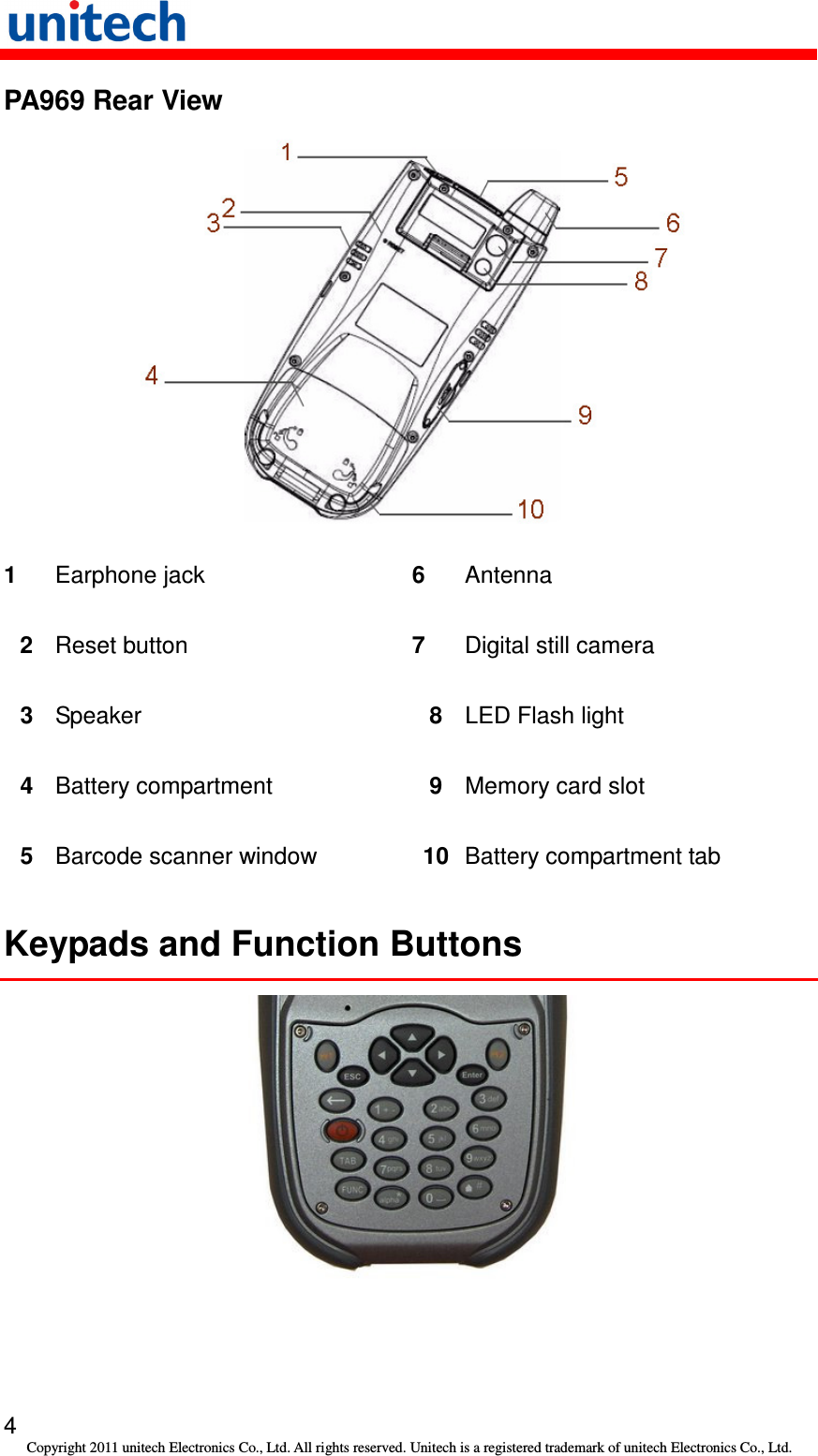

4 Copyright 2011 unitech Electronics Co., Ltd. All rights reserved. Unitech is a registered trademark of unitech Electronics Co., Ltd. PA969 Rear View 1 Earphone jack 6 Antenna 2 Reset button 7 Digital still camera 3 Speaker 8 LED Flash light 4 Battery compartment 9 Memory card slot 5 Barcode scanner window 10 Battery compartment tab Keypads and Function Buttons

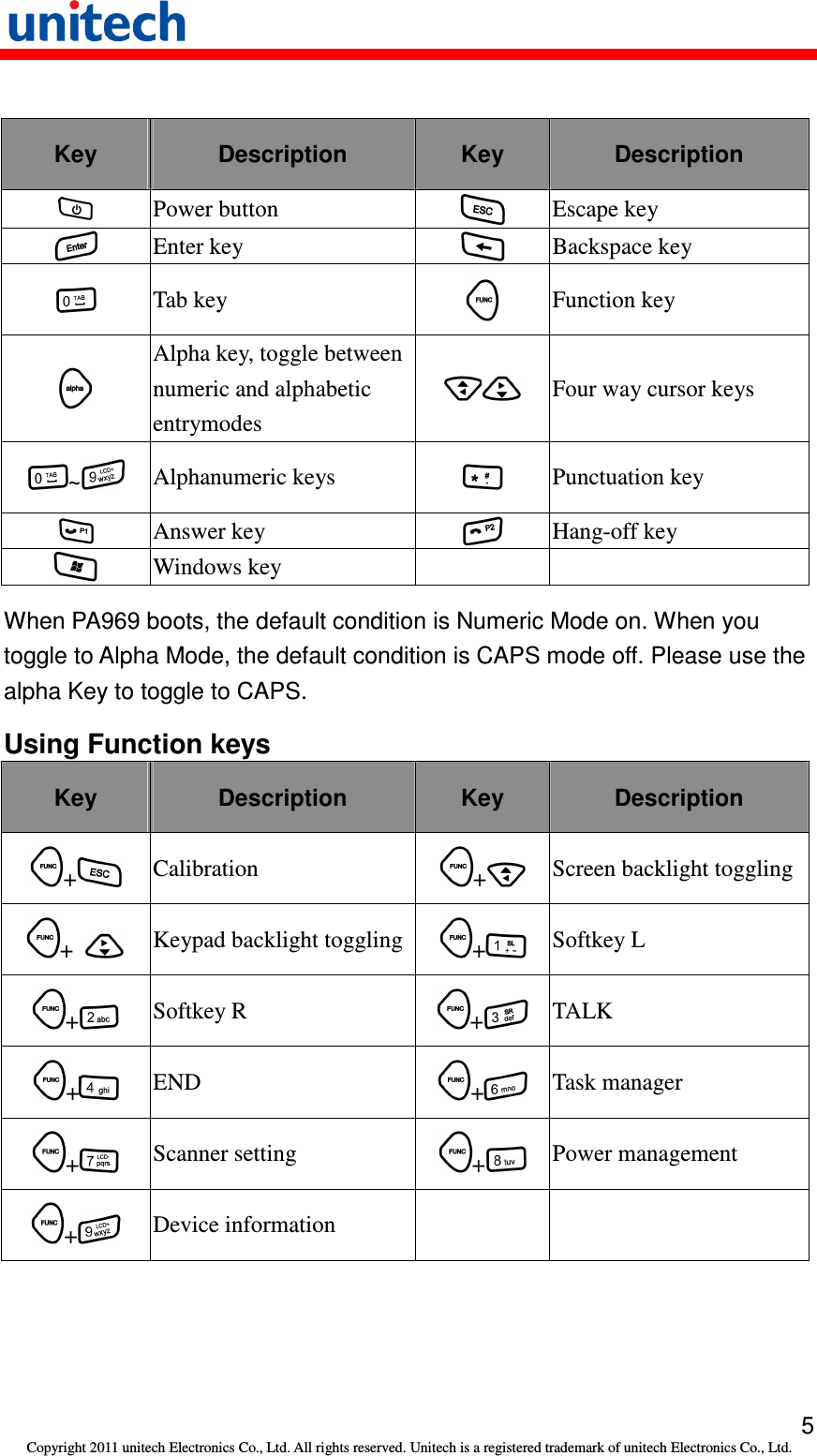

5 Copyright 2011 unitech Electronics Co., Ltd. All rights reserved. Unitech is a registered trademark of unitech Electronics Co., Ltd. Key Description Key Description Power button Escape key Enter key Backspace key Tab key Function key Alpha key, toggle between numeric and alphabetic entrymodes Four way cursor keys ~ Alphanumeric keys Punctuation key Answer key Hang-off key Windows key When PA969 boots, the default condition is Numeric Mode on. When you toggle to Alpha Mode, the default condition is CAPS mode off. Please use the alpha Key to toggle to CAPS. Using Function keys Key Description Key Description + Calibration + Screen backlight toggling + Keypad backlight toggling + Softkey L + Softkey R + TALK + END + Task manager + Scanner setting + Power management + Device information

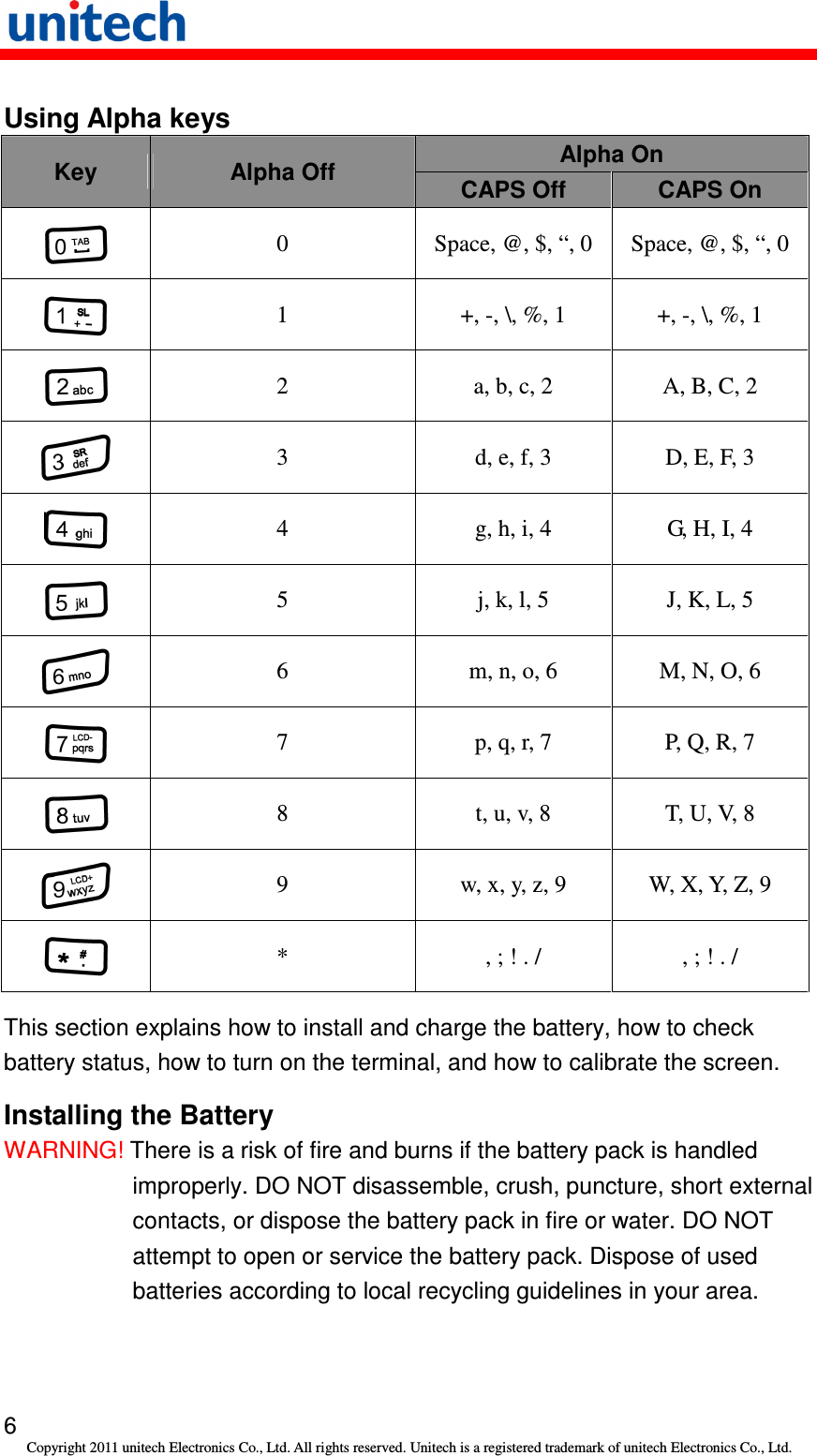

$6 Copyright 2011 unitech Electronics Co., Ltd. All rights reserved. Unitech is a registered trademark of unitech Electronics Co., Ltd. Using Alpha keys Alpha On Key Alpha Off CAPS Off CAPS On 0 Space, @, $, “, 0 Space, @, $, “, 0 1 +, -, \, %, 1 +, -, \, %, 1 2 a, b, c, 2 A, B, C, 2 3 d, e, f, 3 D, E, F, 3 4 g, h, i, 4 G, H, I, 4 5 j, k, l, 5 J, K, L, 5 6 m, n, o, 6 M, N, O, 6 7 p, q, r, 7 P, Q, R, 7 8 t, u, v, 8 T, U, V, 8 9 w, x, y, z, 9 W, X, Y, Z, 9 * , ; ! . / , ; ! . / This section explains how to install and charge the battery, how to check battery status, how to turn on the terminal, and how to calibrate the screen. Installing the Battery WARNING! There is a risk of fire and burns if the battery pack is handled improperly. DO NOT disassemble, crush, puncture, short external contacts, or dispose the battery pack in fire or water. DO NOT attempt to open or service the battery pack. Dispose of used batteries according to local recycling guidelines in your area.$
