Users Manual

PA969 PDA Scanner

- PA969 -

User’s Manual

Version 1.0

Preface

About This Manual

This manual explains how to install, operate and maintain the PA969 PDA

Scanner.

No part of this publication may be reproduced or used in any form, or by any

electrical or mechanical means, without permission in writing from the

manufacturer. This includes electronic or mechanical means, such as

photocopying, recording, or information storage and retrieval systems. The

material in this manual is subject to change without notice.

Unitech global website address: http:\\www.unitech-adc.com

Bluetooth is a registered trademark of Bluetooth SIG.

Microsoft, Windows and ActiveSync are either

registered trademarks or trademarks of Microsoft

Corporation. Other product names mentioned in this

manual may be trademarks or Registered

trademarks of their respective companies and are

hereby acknowledged.

Unitech is a member of Oracle Embedded Software

Licensing Program.

Regulatory Compliance Statements

FCC Warning Statement

This equipment has been tested and found to comply with the limits for a Class

B dig-ital device, pursuant to part 15 of the FCC rules. These limits are

designed to provide reasonable protection against harmful interference in a

residential installation. This equipment generates, uses and can radiate radio

frequency energy and, if not installed and used in accordance with the

instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular

installation. If this equipment does cause harmful interference to radio or

television reception, which can be determined by turning the equipment off and

on, the user is encouraged to try to correct the interference by one or more of

the following measures:

–Reorient or relocate the receiving antenna.

–Increase the separation between the equipment and receiver.

–Connect the equipment into an outlet on a circuit different from that to

which the receiver is connected.

–Consult the dealer or an experienced radio/TV technician for help.

1. This Transmitter must not be co-located or operating in conjunction with

any other antenna or transmitter.

2. This equipment complies with FCC RF radiation exposure limits set forth

for an uncontrolled environment. To maintain compliance with FCC RF

exposure compliance requirements, avoid direct contact to the

transmitting antenna during transmitting.

3. Any changes or modifications (including the antennas) made to this device

that are not expressly approved by the manufacturer may void the user’s

authority to operate the equipment.

FCC Label Statement

This device complies with part 15 of the FCC rules. Operation is subject to the

following two conditions:

1. This device may not cause harmful interference, and

2. This device must accept any interference received, including interference

that may cause undesired operation.

iii

RF Radiation Exposure Statement

For body worn operation, this phone has been tested and meets FCC RF

exposure guidelines when used with an accessory that contains no metal and

that positions the handset a minimum of 1.5 cm from the body. Use of other

accessories may not ensure compliance with FCC RF exposure guidelines.

Canadian Compliance Statement

This Class B Digital apparatus meets all requirements of the Canadian

Interference-Causing Equipment Regulations.

Cet appareil numerique de la classe B respecte les exigences du Reglement

sur le material broilleur du Canada.

European Conformity Statement

Declaration of Conformity with Regard to the R&TTE 1999/5/EC and EMC

89/336/ EEC directives.

RoHS Statement

This device conforms to RoHS (Reduction Of

Hazardous Sub-stances) European Union

regulations that set maximum con-centration limits

on hazardous materials used in electrical and

electronic equipment.

TaiwanNCC Warning Statement

交通部電信總局低功率電波輻射性電機管理辦法 (930322)

根據交通部低功率管理辦法規定：

第十二條經型式認證合格之低功率射頻電機，非經許可，公司、商號或使用者

均不得擅自變更頻率、加大功率或變更原設計之特性及功能。

第十四條低功率射頻電機之使用不得影響飛航安全及干擾合法通信；經發現有

干擾現象時，應立即停用，並改善至無干擾時方得繼續使用。前項合

法通信，指依電信法規定作業之無線電通信。

低功率射頻電機須忍受合法通信或工業、科學及醫療用電波輻射性電

機設備之干擾。

Laser Information

The Unitech PA969 series is certified in the U.S. to conform to the

requirements of DHHS/CDRH 21CFR Subchapter J and to the requirements of

IEC 825-1. Class II and Class 2 products are not considered to be hazardous.

The PA600 series contains internally a Visible Laser Diode (VLD) whose

emissions do not exceed the maximum limits as set forth in the above

regulations. The scanner is designed so that there is no human access to

harmful laser light during normal operation, user maintenance or during

prescribed service operations.

The laser safety warning label required by the DHHS/IEC for the PA600 series'

optional laser scanner module is located on the memory compartment cover,

on the back of the unit.

CAUTION! Use of controls or adjustments or performance of procedures other

than those specified herein may result in hazardous laser light.

Use of optical instruments with the scanner will increase eye

hazard. Optical instruments include binoculars, microscopes, and

magnifying glasses. This does not include eyeglasses worn by the

user.

Battery Notices

The PA969 is equipped with a Lithium-Ion battery pack and backup battery.

Both batteries will discharge after an extended period of not being used.

When both batteries are discharged, recharge the unit for 16 hours in order to

fully charge the main battery and backup battery. Recharge the PA969 through

the following:

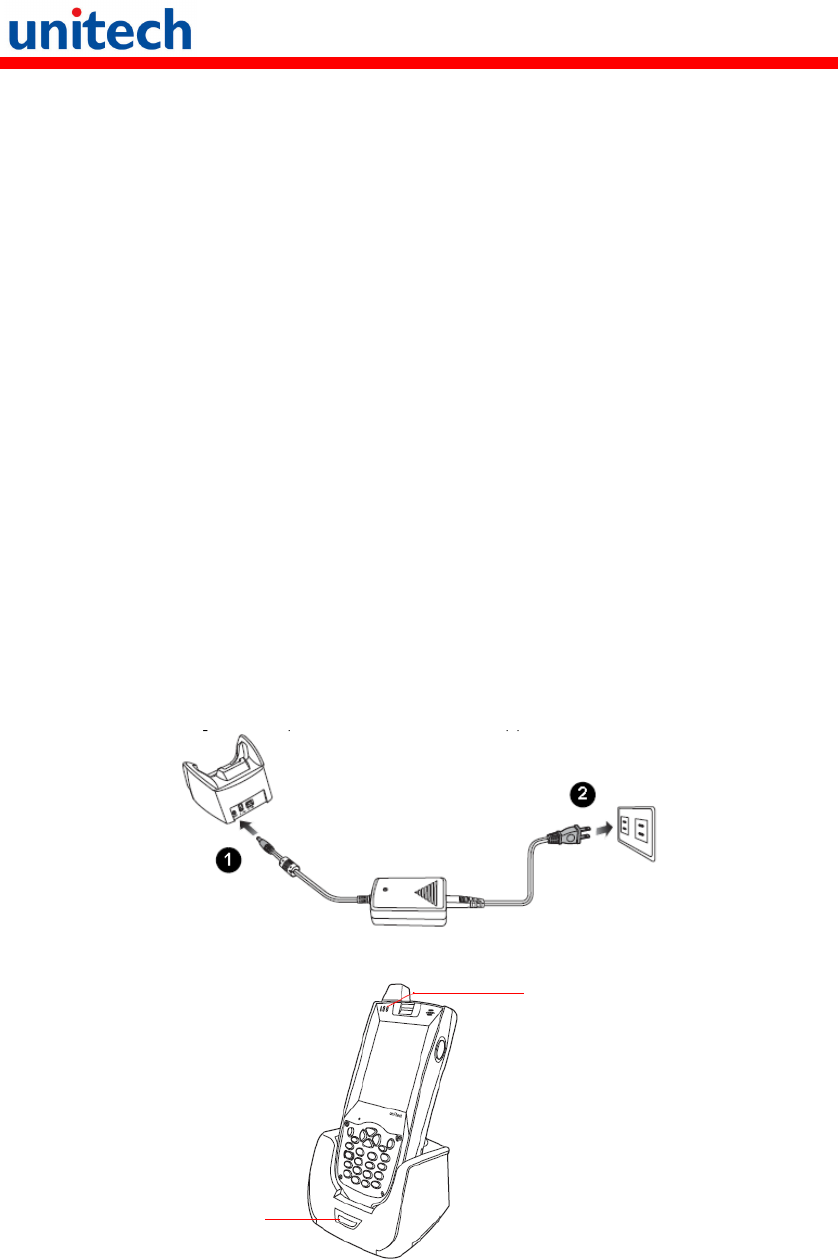

1. Plug the USB charging cable to the PA969 and plug the 12V/3A AC-DC

adapter to the power jack of the USB charging cable.

2. Place the PA969 into the docking station and plug the 12V/3A AC-DC

adapter to the power jack of the docking station.

If the main battery is removed, the backup battery ensures the data on SDRAM

is safe for up to 6 hours. To prevent data loss, do not leave the PA969

uncharged with the main battery removed for an extended period. See

Charging the Battery on page8 for more details.

Note: Rechargeable batteries are advised to replace every year or when 500

charge/discharge cycles achieved to guarantee optimal performance. It

is normal that the battery balloons or expands beyond one year or the

maximum of 500 cycles. Although it does not cause harm, it cannot be

used again and must be disposed of according to the location's safe

battery disposal procedures.

If the performance decrease is greater than 20% in a Lithium-Ion battery,

the battery is at the end of its life cycle. Do not continue to use, and

ensure the battery is disposed of properly.

The length of time that a battery power lasts depends on the battery type and

how the device is used. Conserve the battery life through the following:

 Avoid frequent full discharges because this places additional strain on the

battery. Several partial discharges with frequent recharges are better than

a deep one. Recharging a partially charged lithium-Ion battery does not

cause harm because there is no memory.

 Keep the lithium-Ion battery cool. Avoid a hot car. For prolonged storage,

keep the battery at a 40% charge level.

 Do not leave the lithium-Ion battery discharged and unused for an

extended period because the battery will wear out and the longevity of the

battery will be at least shorter than half of the one with frequent recharges.

Battery charge notice

It is important to consider the environment temperature whenever the

Lithium-Ion battery pack is charged. Charging is most efficient at normal room

temperature or in a slightly cooler environment. It is essential that batteries are

charged within the stated range of 10°C to 45°C. Charging batteries outside of

the specified range could dam-age the batteries and shorten their charging life

cycle.

CAUTION! Do not charge batteries at a temperature lower than 0°C, which will

increase the internal resistance to cause heat and make the

batteries unstable and unsafe. Please use a battery temperature

detecting device for a charger to ensure a safe charging

temperature range.

Storage and safety notice

Although charged Lithium-Ion batteries may be left unused for several months,

their capacity may be depleted due to build up of internal resistance. If this

happens they will require recharging prior to use. Lithium-Ion batteries may be

stored at temperatures between -20°C to 60°C, however they may deplete

more rapidly at the higher temperature ranges. It is recommended to store

batteries within normal room temperature ranges.

Warranty

The following items covered under Unitech Limited Warranty are free from

defects during normal use:

 PA969 – 1-year limited warranty.

 Lithium-Ion battery – 6-month limited warranty.

Warranty becomes void if equipment is modified, improperly installed or used,

dam-aged by accident or neglect, or if any parts are improperly installed or

replaced by the user.

Use only the adapter supplied. Using the wrong adapter may damage the unit

and will void the warranty.

The PDA Scanner may be affected by static electricity interference. please turn

off the transmission function and wait a few minutes to start this function.

vii

Table of Contents

Preface

About This Manual..........................................................................................i

Regulatory Compliance Statements ............................................................. ii

FCC Warning Statement........................................................................... ii

FCC Label Statement ............................................................................... ii

RF Radiation Exposure Statement........................................................... iii

Canadian Compliance Statement ............................................................ iii

European Conformity Statement.............................................................. iii

RoHS Statement...................................................................................... iii

TaiwanNCC Warning Statement .............................................................. iii

Laser Information ........................................................................................ iv

Battery Notices............................................................................................ iv

Battery charge notice................................................................................ v

Storage and safety notice ........................................................................ vi

Warranty...................................................................................................... vi

Chapter 1

Getting Started ...............................................................................................1

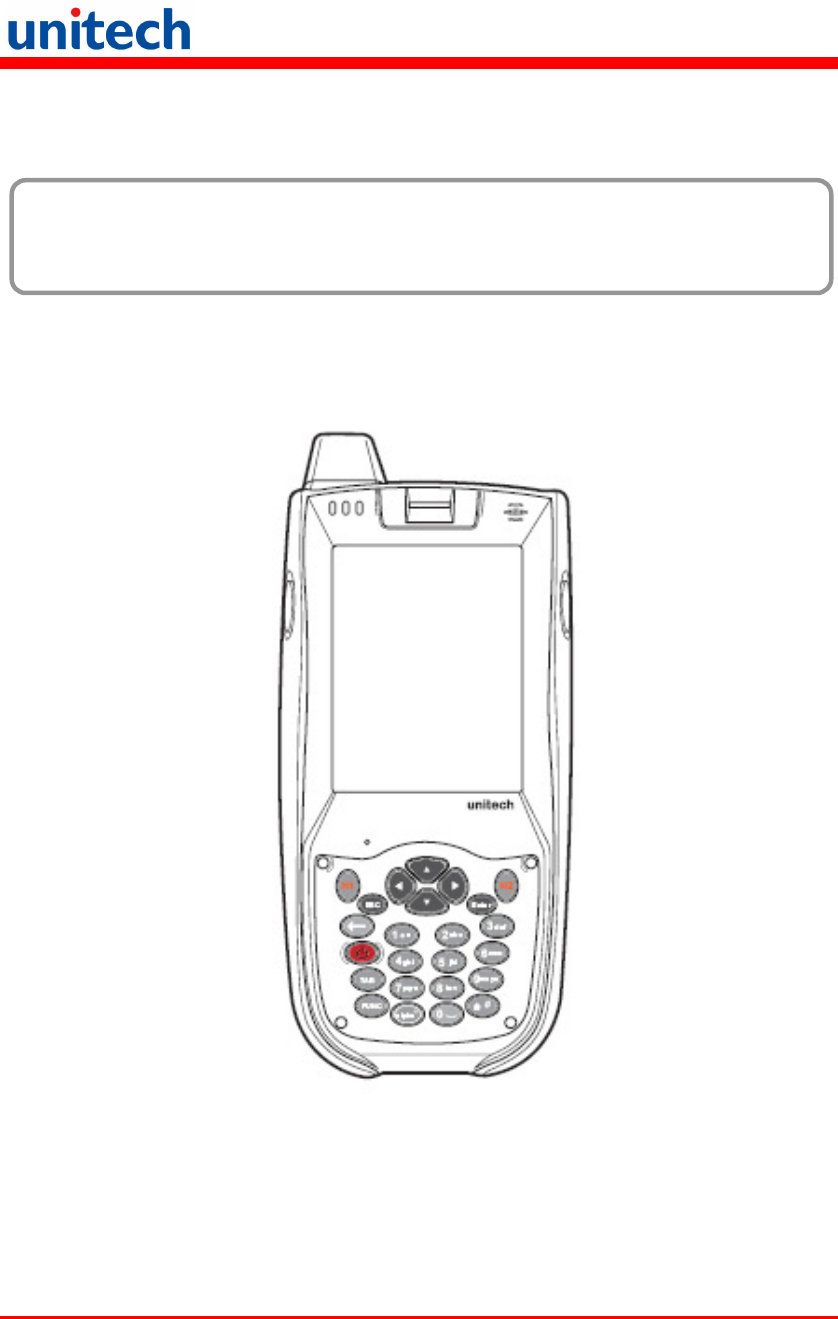

Introducing the PA969 ..................................................................................1

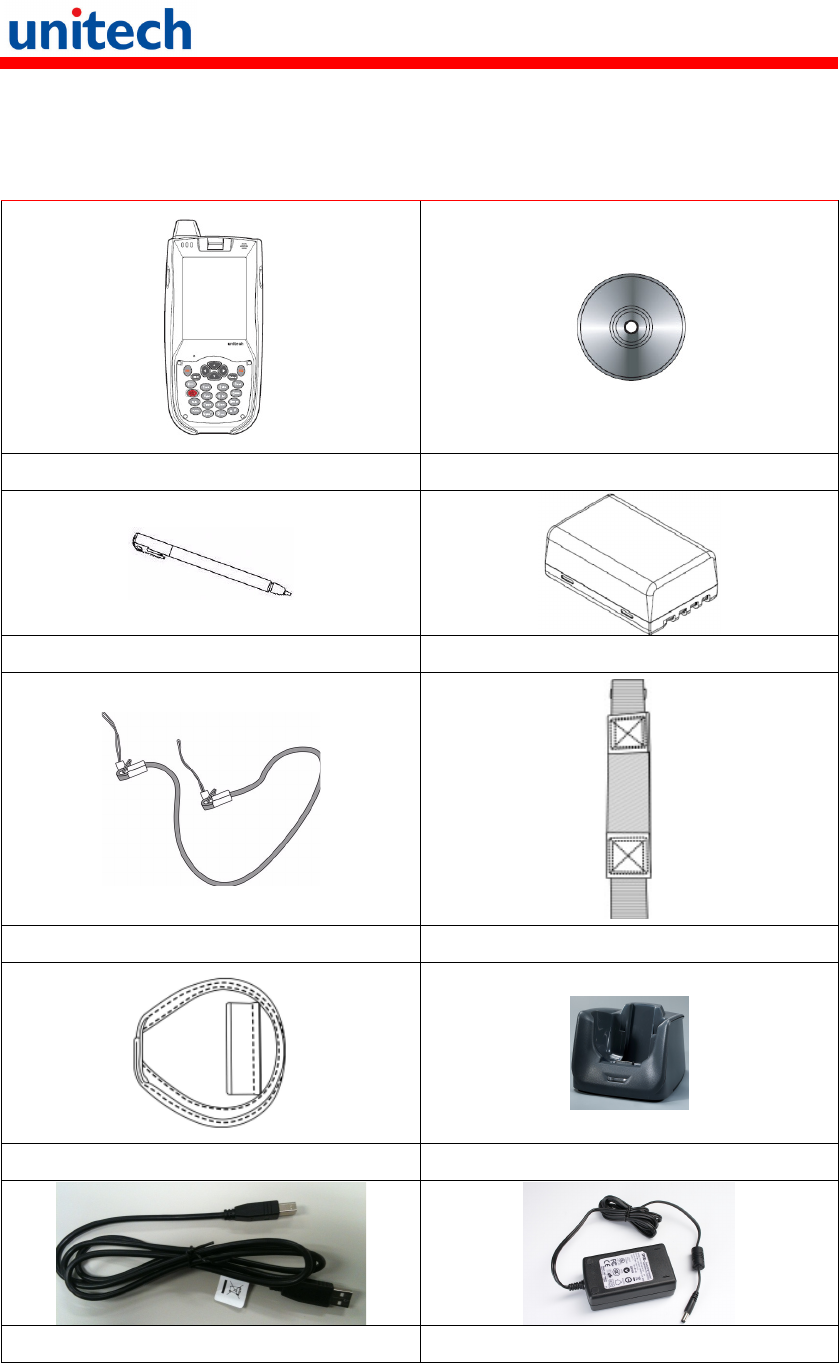

PA969 Product Introduction & Accessory Kit................................................2

Tour of the PA969.........................................................................................3

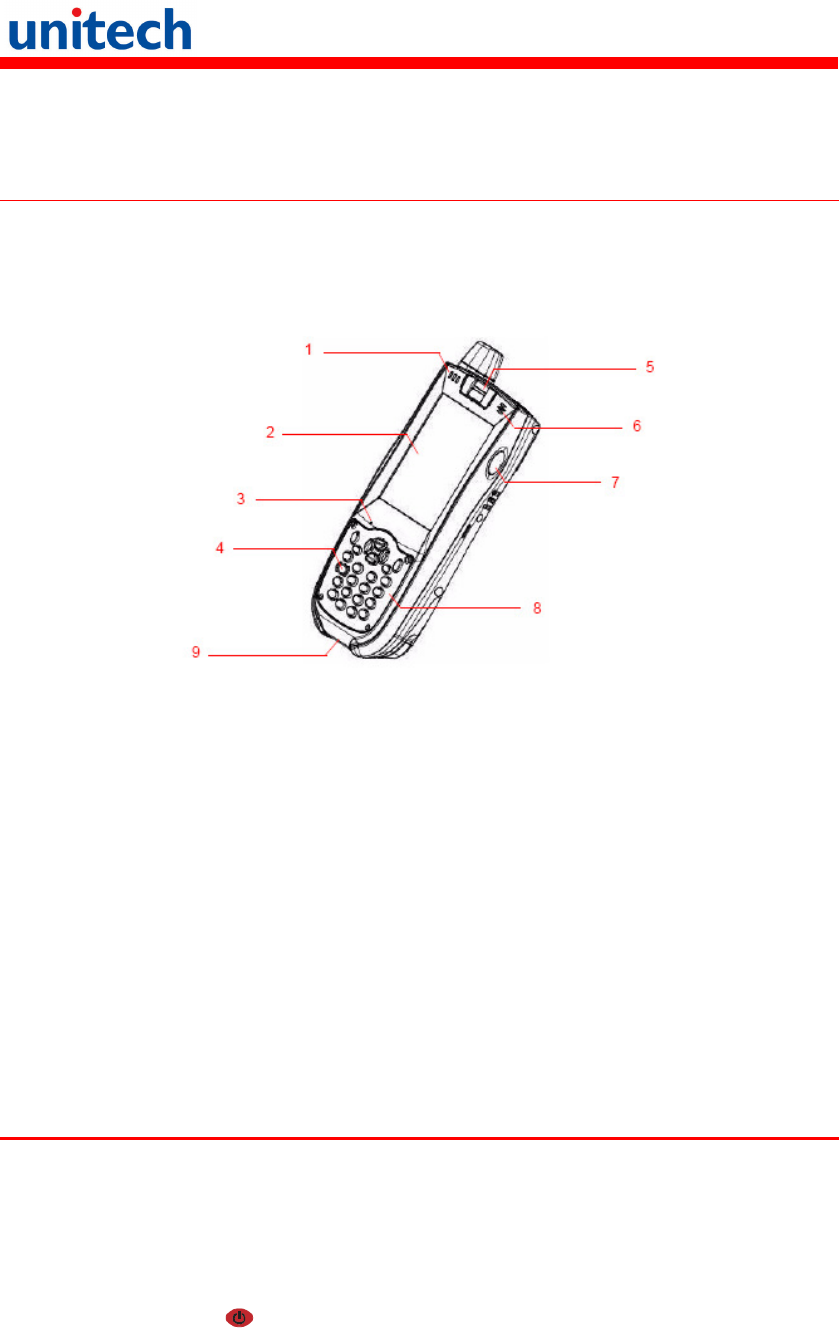

PA969 Front View .....................................................................................3

Turning ON the PA969 for the First Time......................................................3

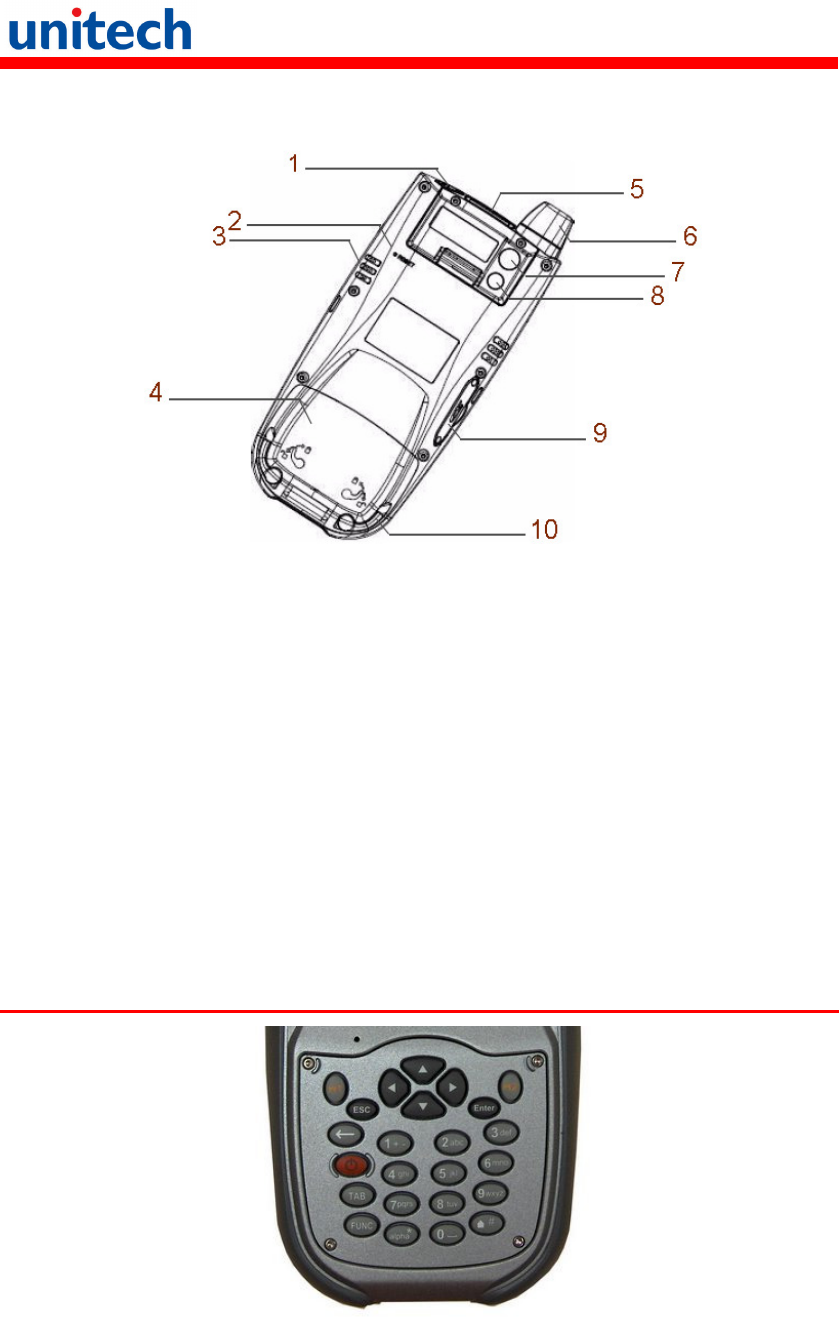

PA969 Rear View......................................................................................4

viii

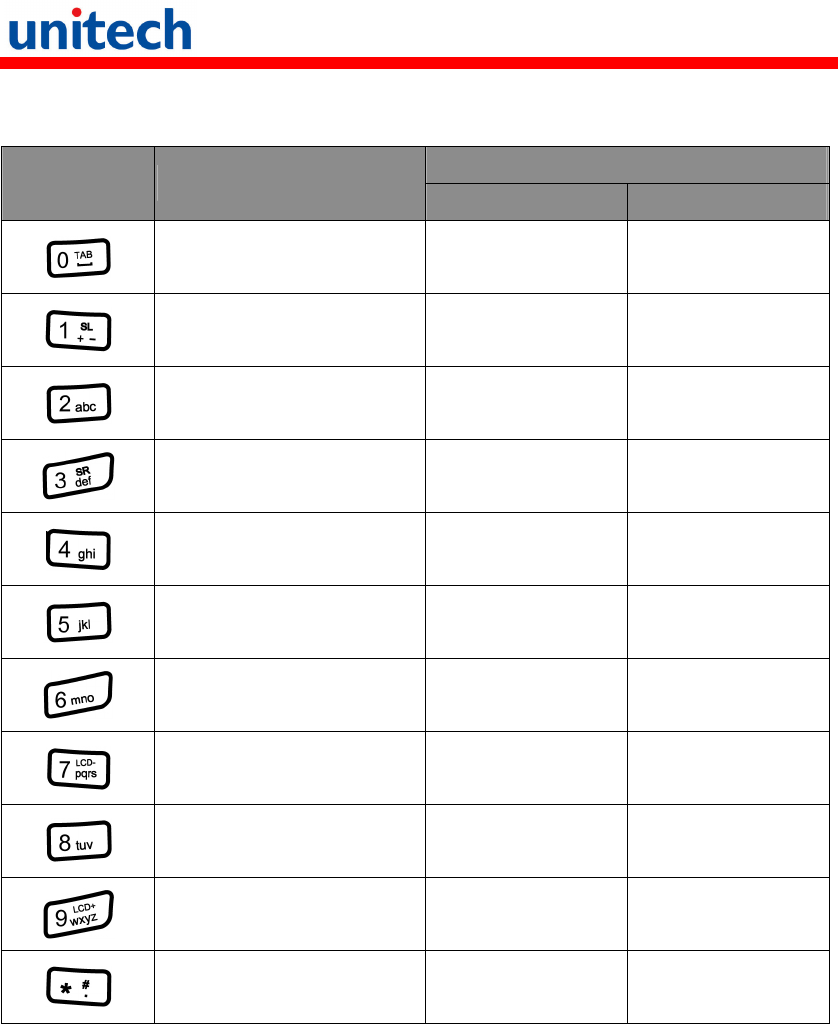

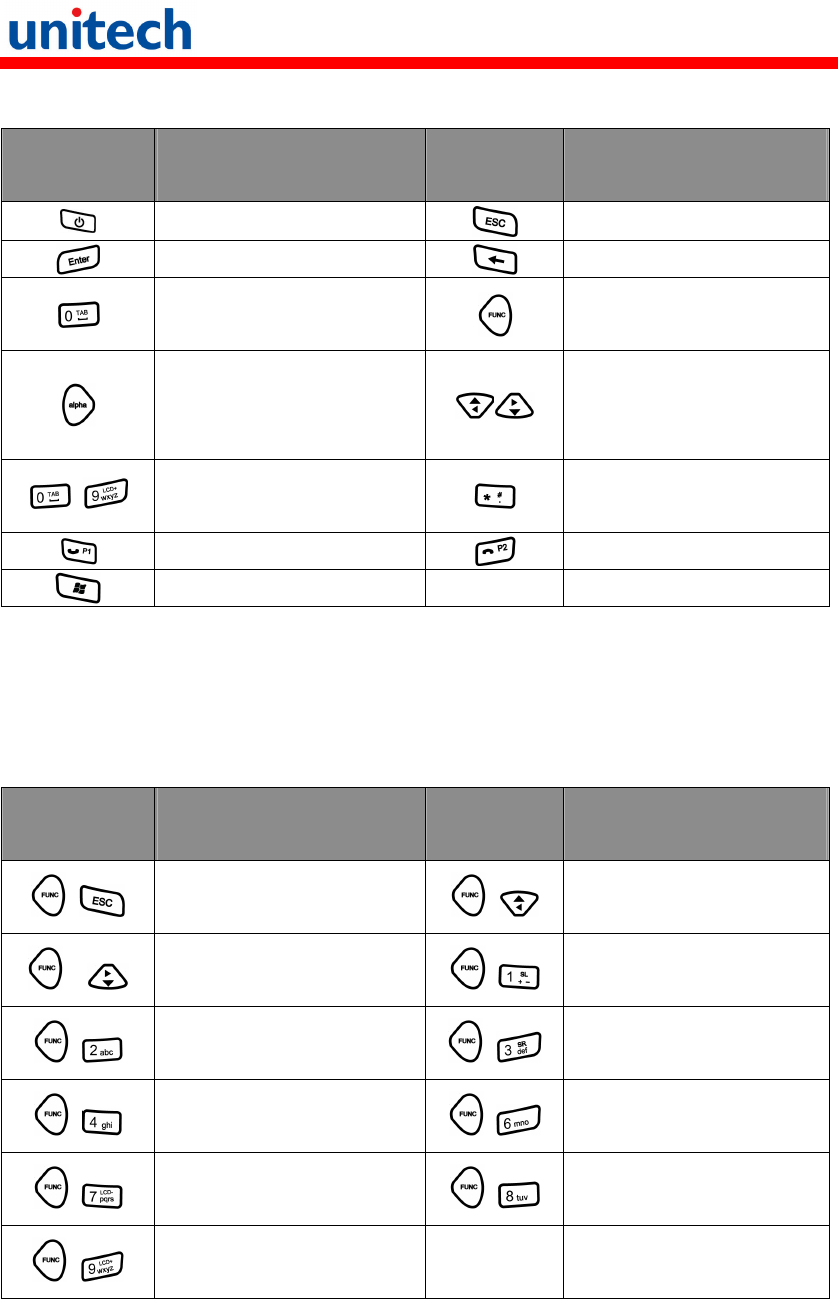

Keypads and Function Buttons.....................................................................4

Using Function keys .................................................................................5

Using Alpha keys ......................................................................................6

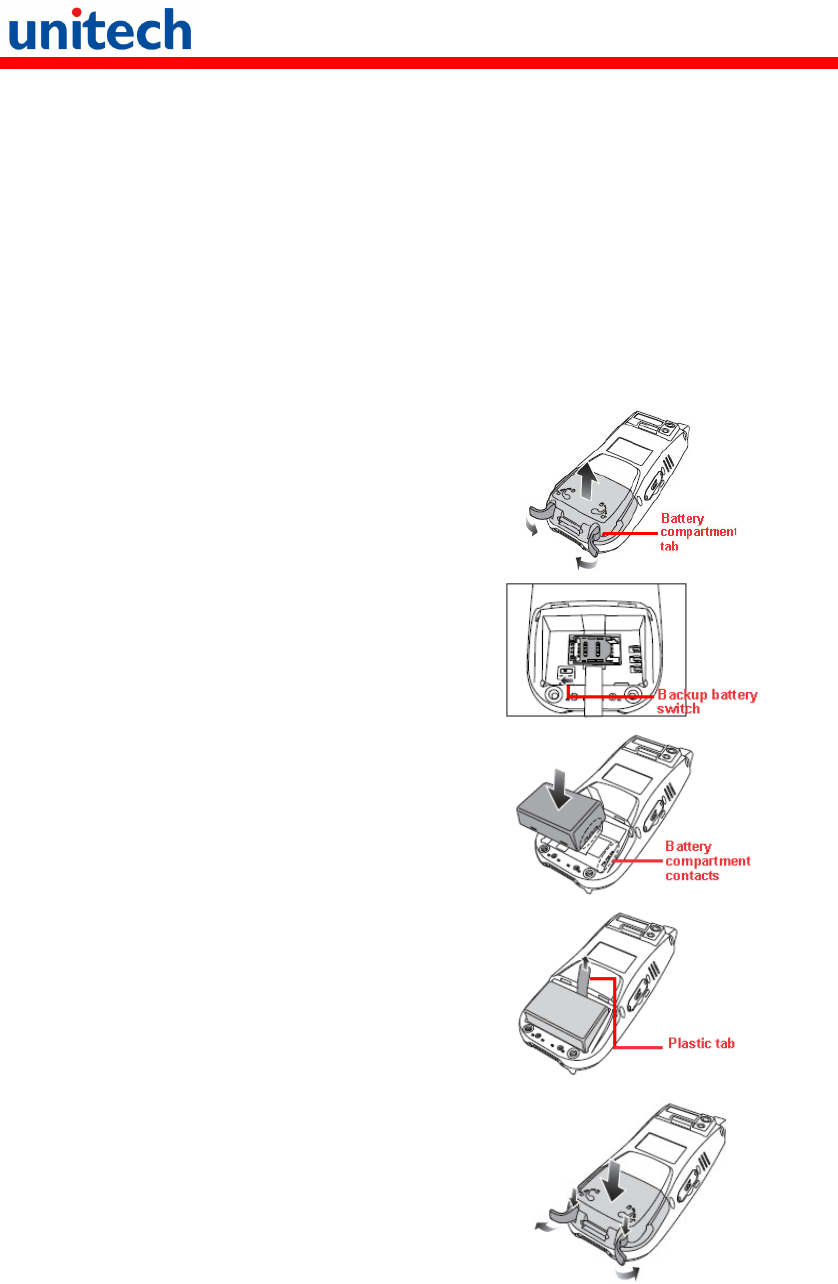

Installing the Battery .................................................................................6

Charging the Battery.................................................................................8

Chapter 2

Using the Hardware .....................................................................................10

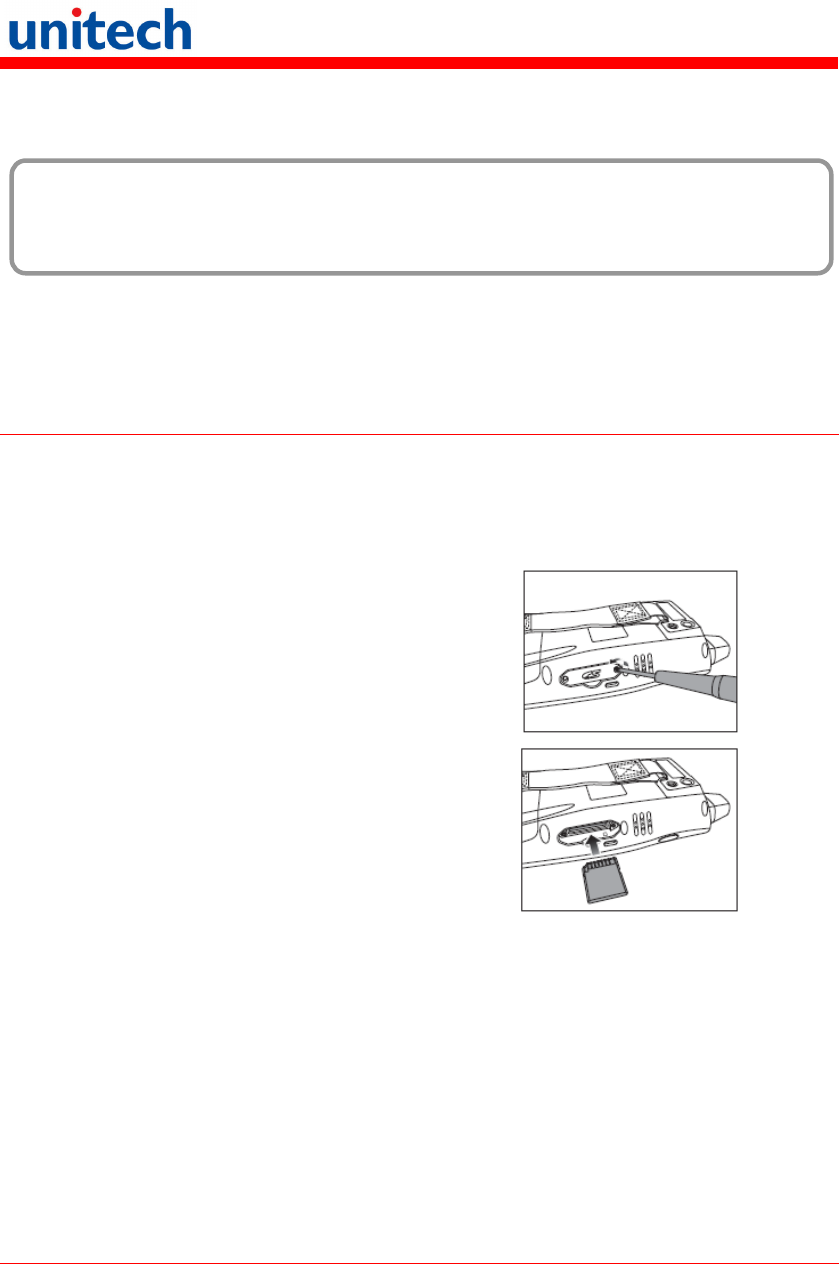

Using the SD Memory Card........................................................................10

Inserting a Storage Card.........................................................................10

Removing the Storage Card ...................................................................10

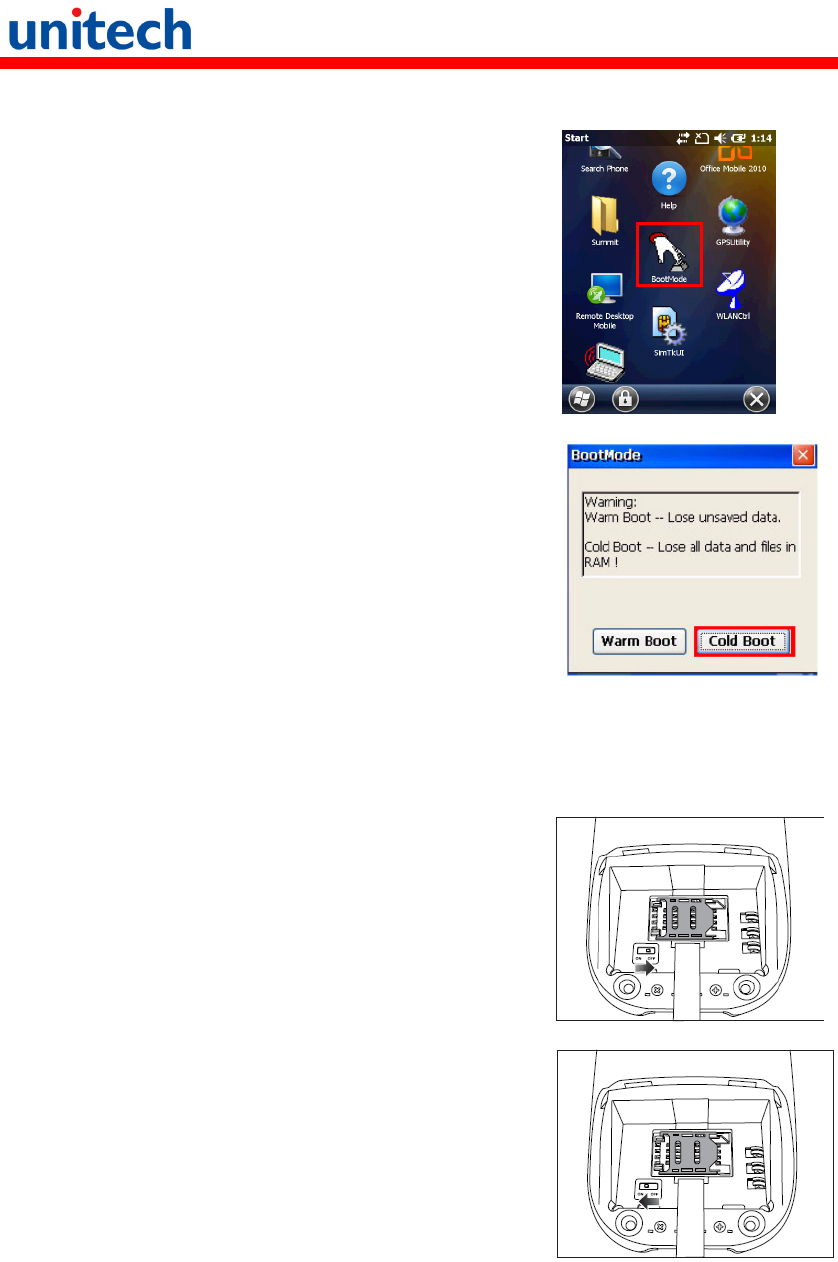

Using the SIM Card ....................................................................................10

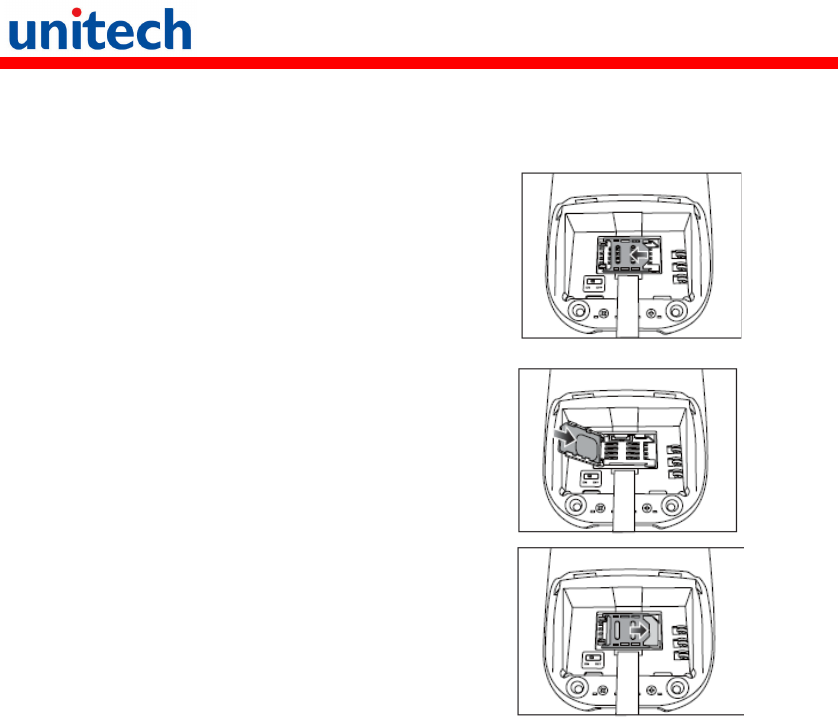

Inserting the SIM card............................................................................. 11

Chapter 3

Advanced Settings.......................................................................................12

Performing a Hardware Reset....................................................................12

Performing a Warm Boot ........................................................................12

Performing a Cold Boot ..........................................................................12

Appendix I

System Specification...................................................................................14

Appendix II

Worldwide Support ......................................................................................16

Chapter 1

Getting Started

Introducing the PA969

Thank you for purchasing the PA969 PDA Scanner.

Your PA969 was designed for users who need a compact

and durable mobile computer for data collection and real

time transactions.

The PA969 is a rugged, compact and lightweight palm-size

mobile computer using Windows Mobile 6.5 operating

system, and incorporating an integral bar code scanning

device, high-resolution digital camera, color LCD with

touchscreen, and keypad. It provides users with a standard

Windows-based environment for customizing and operating the device.

To reduce TCO, the PA969 is sealed to meet IP65 standards and has

undergone multiple drop tests to prevent downtime.

PA969 Product Introduction & Accessory Kit

PA969 Terminal Manual CD

Stylus Battery

Elastic Stylus String Hand Strap

Stylus Holder PA969 Cradle

USB Cable for Cradle Power Adapter

Tour of the PA969

The following sections describe the main components and features of the

PA969.

PA969 Front View

1 Status indicator 6 Receiver

2 LCD Touch screen 7 Scanner trigger button

8 Keypad

4 Power button 9 Universal connector

5 Fingerprint reader

Turning ON the PA969 for the First Time

After you have initially charged your device for about 16 hours, the device is

ready to be used. You can now start up your device where you’ll calibrate the

display, learn some basic stylus usage, and set up the system time zone, date

and time.

Powering-On Button

Turn ON your device by pressing the power button on the front panel.

PA969 Rear View

1 Earphone jack 6 Antenna

2 Reset button 7 Digital still camera

3 Speaker 8 LED Flash light

4 Battery compartment 9 Memory card slot

5 Barcode scanner window 10

Battery compartment tab

Keypads and Function Buttons

Key Description Key Description

Power button Escape key

Enter key Backspace key

Tab key Function key

Alpha key, toggle between

numeric and alphabetic

entrymodes

Four way cursor keys

~ Alphanumeric keys Punctuation key

Answer key Hang-off key

Windows key

When PA969 boots, the default condition is Numeric Mode on. When you

toggle to Alpha Mode, the default condition is CAPS mode off. Please use the

alpha Key to toggle to CAPS.

Using Function keys

Key Description Key Description

+ Calibration + Screen backlight toggling

+ Keypad backlight toggling

+ Softkey L

+ Softkey R + TALK

+ END + Task manager

+ Scanner setting + Power management

+ Device information

Using Alpha keys

Alpha On

Key Alpha Off CAPS Off CAPS On

0 Space, @, $, “, 0 Space, @, $, “, 0

1 +, -, \, %, 1 +, -, \, %, 1

2 a, b, c, 2 A, B, C, 2

3 d, e, f, 3 D, E, F, 3

4 g, h, i, 4 G, H, I, 4

5 j, k, l, 5 J, K, L, 5

6 m, n, o, 6 M, N, O, 6

7 p, q, r, 7 P, Q, R, 7

8 t, u, v, 8 T, U, V, 8

9 w, x, y, z, 9 W, X, Y, Z, 9

* , ; ! . / , ; ! . /

This section explains how to install and charge the battery, how to check

battery status, how to turn on the terminal, and how to calibrate the screen.

Installing the Battery

WARNING! There is a risk of fire and burns if the battery pack is handled

improperly. DO NOT disassemble, crush, puncture, short external

contacts, or dispose the battery pack in fire or water. DO NOT

attempt to open or service the battery pack. Dispose of used

batteries according to local recycling guidelines in your area.

A backup battery cell is embedded into your device to prevent data loss when

the removable battery pack is removed or completely discharged. This backup

battery will keep the data and system setting for up to 8 hour if the main battery

is removed.

NOTE: To enable the internal battery cell to provide backup power supply,

charge your device with the main battery pack for at least 16 hours.

NOTE: To power on the device properly, make sure replacing the battery

compartment cover after installing the battery.

1. Open the battery compartment

cover by sliding the tabs on both

sides in the direction of the arrows

shown and lift the cover up.

2. Turn ON the Backup Battery

Switch.

3. Position the battery pack, making

sure the battery contacts are

aligned with the contacts in the

compartment and the battery is

placed on top of the plastic tab.

4. Slide the battery pack while

simultaneously pulling the plastic

tab until the battery clicks into

place.

5. Replace the battery compartment

cover, push down the tabs and

slide them back into place as

shown.

NOTE: Make sure the battery compartment cover is securely closed, or you

may be unable to turn ON the terminal.

Charging the Battery

Before using the terminal for the first time, you need to charge it for about 16

hours. After that, you can charge the terminal for 4 hours to recharge the

battery to full capacity. Charge the terminal using the USB charging cable or

the docking station.

CAUTION! Operating the terminal for the first time without the AC adapter, and

without fully charging the backup battery may result in loss of data

stored in RAM memory. When the main battery is removed, the

backup battery retains RAM data in memory for 8 hours. Please

charge the battery for the period to avoid data loss in RAM

memory.

NOTE: Turn the backup battery switch on before charging the battery. Data

you entered may not be properly stored until the built-in backup battery

has been fully charged.

Charging the battery with the cradle

1. Plug the AC adapter cable into the power jack of the cradle (1).

2. Plug the AC adapter cord into an electrical outlet (2).

3. Slide the terminal into the cradle until it clicks into place.

Terminal LED indicators

from left to right:

-- GPRS/Bluetooth

Communication

-- Scan

-- Power

Cradle Power/Communication

LED indicator

4. The connection is secure when the bottom edge of the terminal is aligned

with the cradle, and the LED indicator on the terminal lights up red.

Checking the LED status

LED Status Description

Flashing Yellow

GPRS module is enabled.

GPRS/Bluetooth Flashing Blue Bluetooth module is

enabled.

Solid Red Ready for Reading Scan

Solid Green Successful reading

Solid Red Being charged

Terminal

Power

Solid Green Fully charged

Solid Green Power is on

Cradle Power/Communication

Flashing Green

Data synchronization is

active.

Checking the Battery Status

If the battery level becomes low in the course of normal use, a status icon

appears on the device screen indicating low or very low battery status. In both

cases, perform an ActiveSync operation to back up your data, then recharge

your device as soon as possible.

CAUTION! Once the device is shut down, you should recharge the device

within 48 hours. Otherwise you will lose all data including files

stored in the RAM memory.

Chapter 2

Using the Hardware

Using the SD Memory Card

PA969 has an expansion slot compatible with a range of SD storage cards,

which are primarily used to backup or transfer files and data.

Inserting a Storage Card

Remove the two screws on the SD

compartment cover and remove

the cover.

2. Insert the SD card with the

notched corner as shown.

3. Push the card into the slot until you feel the SD card click into place.

4. Screw the SD compartment cover.

Removing the Storage Card

1. Remove the two screws from the SD compartment cover and remove the

cover.

2. Press the card in and release. The card pops out.

3. Remove the card from the slot.

Using the SIM Card

The PA969 has a slot for GPRS SIM card inside the battery compartment.

CAUTION! Before installing the SIM card, please backup your data to prevent

data loss because of a low backup battery.

Inserting the SIM card

1. Remove the battery compartment cover and the main battery.

2. Slide the cover of the SIM card

slot to the left to release the latch.

3. Lift the cover and insert the SIM

card into the cover with notched

corner up, contacts down as

shown.

4. Put down the cover on the slot,

and then slide the cover to the

right to lock the SIM card.

5. Put the battery back into the battery compartment and replace the battery

compartment cover.

Chapter 3

Advanced Settings

Performing a Hardware Reset

You may have to perform a reset if the device freezes (i.e., the device no

longer responds to the buttons or tapping on the screen).

A soft reset allows your device to get a fresh start, similar to rebooting a

computer.

This will restart your device and adjust memory allocation. All records and

entries are retained after a soft reset. Unsaved data in open programs may be

lost.

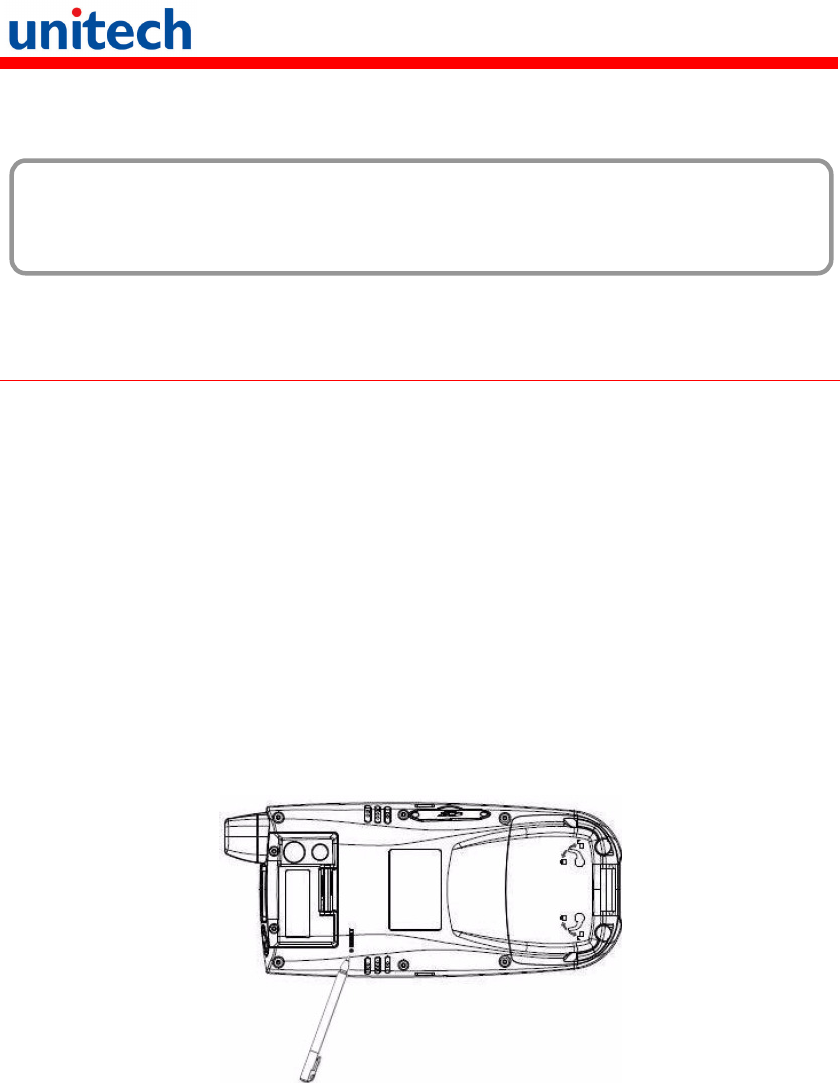

Performing a Warm Boot

1. Remove the stylus from its holder.

2. Lightly press the tip of the stylus to the reset button located at the rear side

of the terminal.

Performing a Cold Boot

A cold boot will erase all data and all programs you have added, and will

restore the device to the default factory settings.

Never perform a cold boot unless a warm boot does not correct your problem.

When you perform your next ActiveSync operation, you can restore any data

that you previously synchronized to your computer or you can restore data that

you backed up to a storage card.

Method 1: From Windows Mobile

1. Tap Start → BootMode.

The BootMode Screen appears.

2. Tap Cold Boot.

The system is reset and you will lose all data

including all files in the RAM memory.

Method 2: From Hardware

1. Remove the battery compartment cover and the main battery. See the

section of Installing the Battery.

2. Turn the backup battery switch off.

3. Turn the backup battery switch on.

4. Put the battery back into the battery

compartment and replace the battery

compartment cover.

System will cold boot.

NOTE: When you perform hard reset, the data and

time settings will not be retained. Formats,

preferences, and other settings are

restored to their default factory settings.

Appendix I

System Specification

CPU Samsumg S3C6410 800Mhz

Memory RAM 256 MB RAM

ROM 512 MB ROM (Nand mDoc)

OS Microsoft® Windows CE6 R3

Keypad Modularized backlight keypad with 24 keys or 44 keys

Display Full VGA (480 x 640), 3.5” TFT Color Transflective Touch

Panel and backlight, supporting QVGA and VGA modes

Code Engine

1D Laser scanner engine2D Imager (optional)

Indicators

3 LEDs for charging status, scan status, WWAN

communication

Vibration (calls, good read)

Audio Speaker, Headset Connector (in/out)

Address

Locating GPS (Optional)

Memory Slot SD slot standard (up to 2 GB) (16GB)

Main battery 13.69 Watts Li-ion battery pack

Power Source

Backup battery One Ni-MH backup battery

rechargeable

Weight 500g with battery

Enclosure Dimension

Approximately 199.5mm (H) X

88mm (W) X 43.3mm (T) (Antenna

length excluded)

Operating temperature -10 °C ~ 50 °C

Charging temperature 10 °C ~ 40 °C

Storage temperature -20 °C ~ 60 °C

Relative humidity 5% ~ 95% (non-condensing)

Drop test to concrete 1.5 Meter

Environmental

Environmental sealing IP65

Models

Basic Option; 2D Imager, BT (No GPS, No 3.5GWAN, No

camera, No WLAN installed)

Limit Option; 2D Imager, 3.5GWAN, BT (No GPS, No camer

No WLAN installed)

Full Option; 2D Imager, GPS, 3.5GWAN, BT (No camera, No

WLAN installed)

Regulatory

Approvals CE, FCC, UL, RoHS compliant

Accessories

Stylus

Handstrap

Single Slot Ethernet cradle

AC adaptor (with regional power cord)

Appendix II

Worldwide Support

Unitech’s professional support team is available to quickly answer questions or

technical-related issues. Should an equipment problem occur, please contact

the nearest Unitech regional service representative. For complete contact

information please visit the Web sites listed below:

Region Web Site

Global Operation Center http://www.ute.com

Unitech Taiwan http://tw.ute.com

Unitech Asia Pacific & Middle East http://apac.ute.com

;

http://india.ute.com

Greater China Division http://cn.ute.com

Unitech Japan http://jp.ute.com

Unitech America http://us.ute.com ; http://can.ute.com

Unitech Latin America http://latin.ute.com

Unitech Europe http://eu.ute.com

Unitech Electronics PA969BTP PDA Scanner User Manual PA969 UM V10

Unitech Electronics Co., Ltd. PDA Scanner PA969 UM V10

Users Manual

Navigation menu

Namespaces

Views

Navigation
