Wireless AI Transducer User's Manual
Product Name: Wireless AI Transducer
Model No: WAT-110
Input Power: 4~ 20mA
Features Description ::
1. WAT-110(Wireless AI Transducer) is connected to the industrial control instrument.
2. Wireless transmission of 4 ~ 20mA analog signal.
3. Wireless analog signal converter WAT-110 and the wiring is 4 ~ 20mA signal loop serial.
4. WAT-110(Wireless AI Transducer) is By 4 ~ 20mA current signal conversion work out 3V DC
power supply.
5. Easy to install and configure, Linked with the instrumentation wiring. In the initial use of the
back simply click on Settings button connected with the repeater.
6. WAT-110(Wireless AI Transducer) has a magnet base, can be adsorbed on the iron outside the
box. Foundation stop plate can be fixed on the pillar approach.

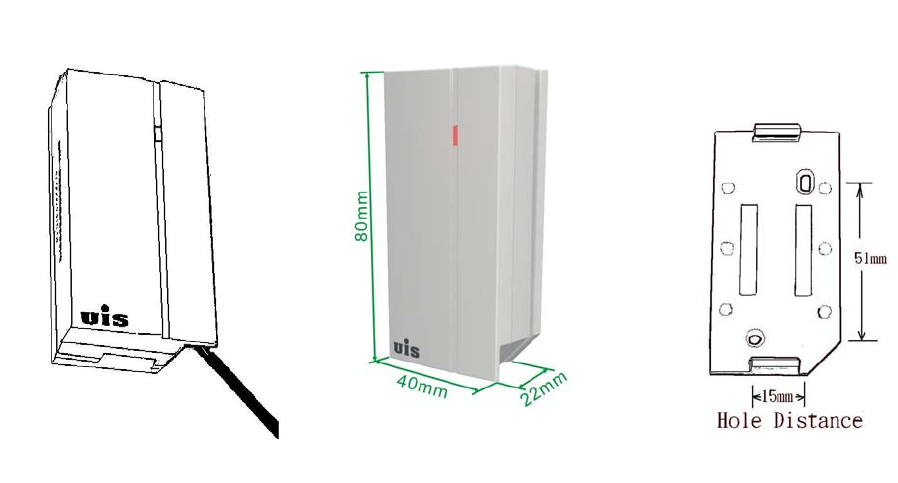

Outline Dimensions :
Feature Locator :
Installation Hints :
1. Need to first WAT-110 (Wireless AI Transducer) and industrial control instrumentation of 4 ~
20mA signal loop connecting thread, we will then start using.
2. WAT-110 (Wireless AI Transducer) leads two features excellent line and described as follows:
a. Black wire Signal input 4~ 20mA (negative)
b. Red wire Signal input 4~ 20mA (positive)

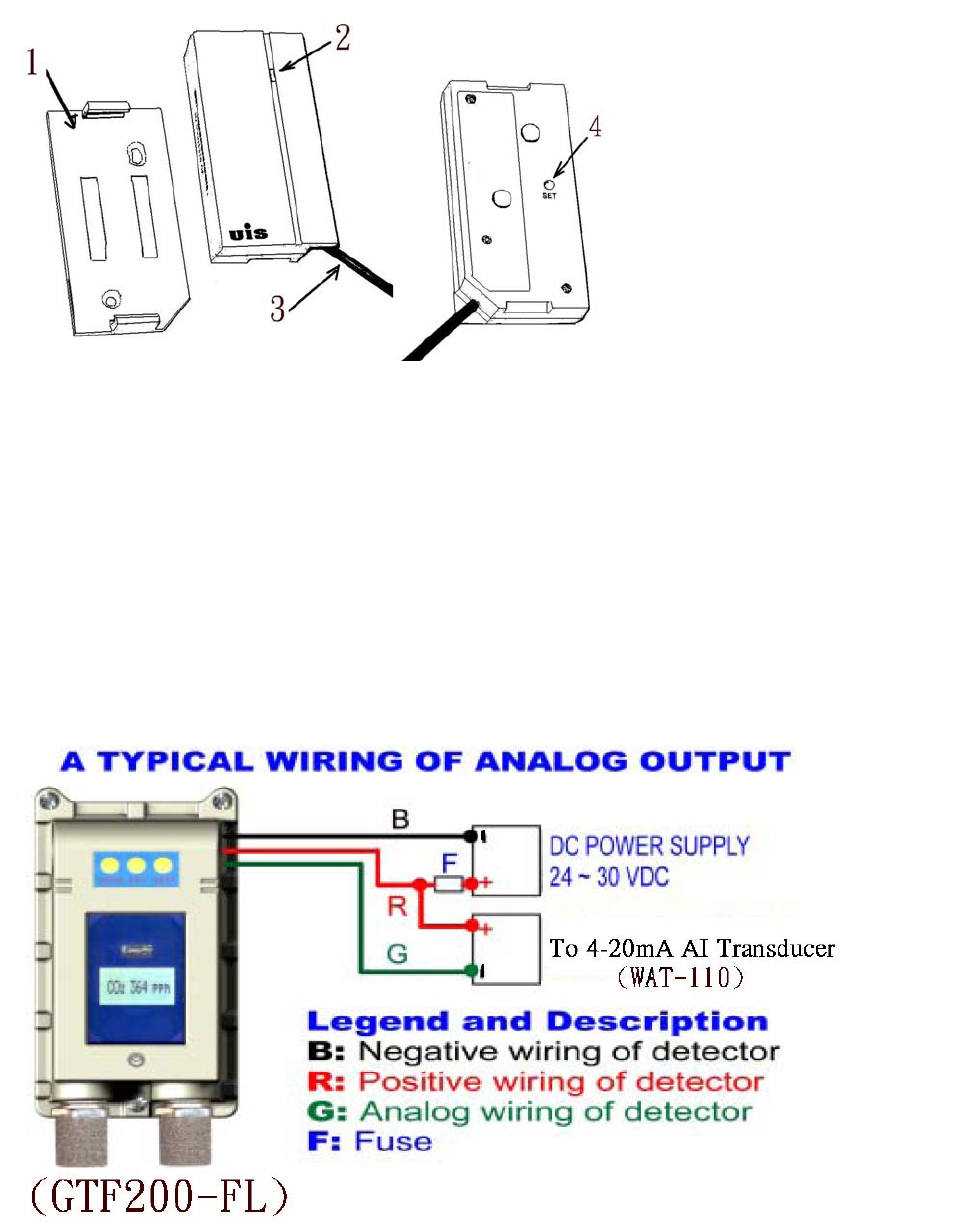

2. To match GTF200-FL (Gas detection equipment) as an example, the wiring diagram that is as
follows:
3. The WAT-110 (Wireless AI Transducer) properly then after the loop, after the first power, such
as 3 to 5 minutes to allow (WAT-110) within the first Gold capacitor charging, and then press
(WAT-110) of the SET button at the bottom of, Then press the setting button of WR-110
(Wireless repeater) bottom. Wait for 30 seconds to 1 minute. If LED indicator light flash three
times that means linking success. If LED indicator light flash two times that means fail.
1. Foundation stop plate
2. State of LED window
3. Outlet wires
4. (SET) Setting button
4. Join to link with Gateway, please reference user manual of WCC-110 (Wireless console
controller).

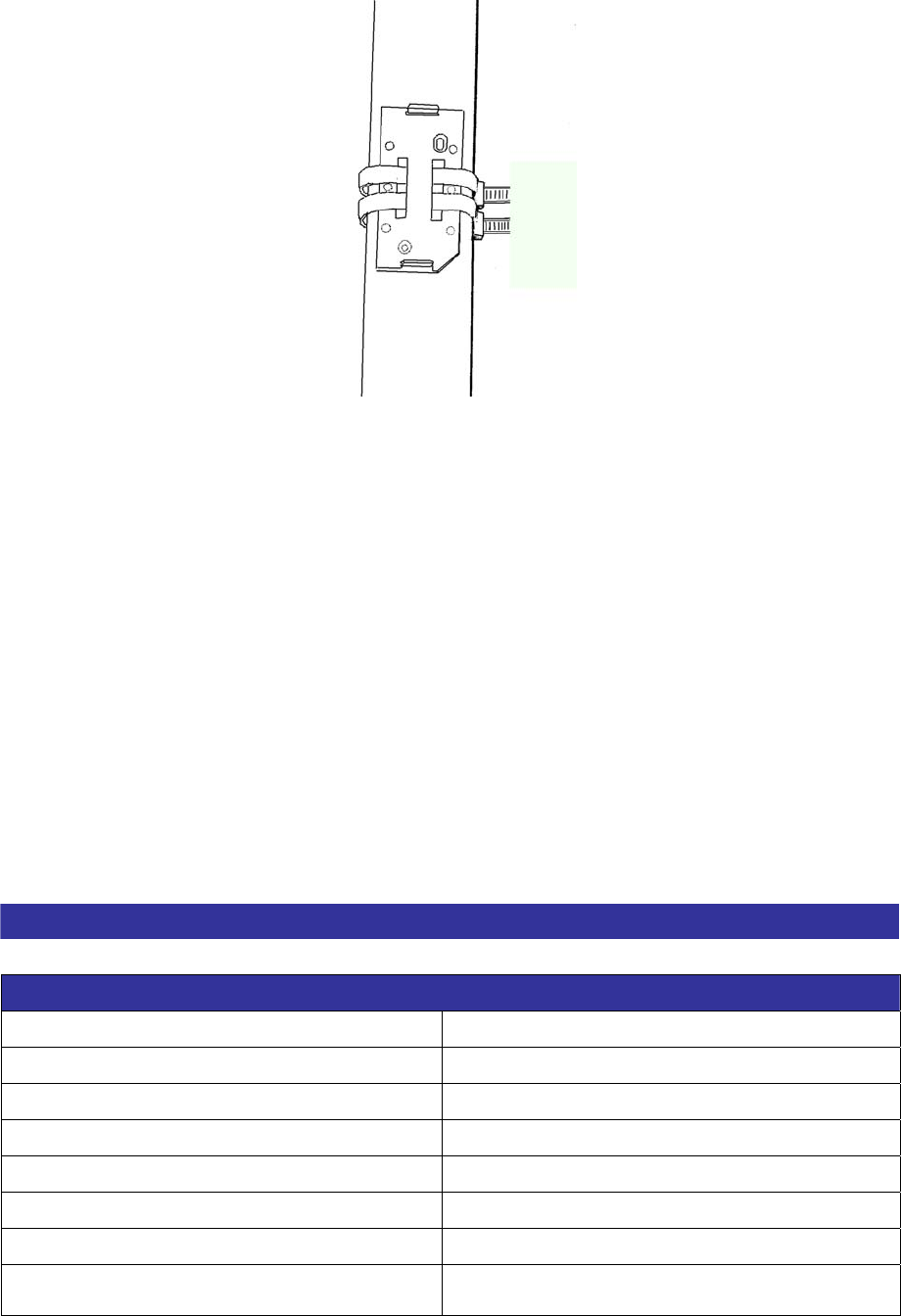

5. Foundation stop plate can be fixed on the pillar approach, the fixed as follows plans:
Troubleshooting:
1. Problem
: When link with WR-110 (Wireless repeater), there is no display of LED indicator
light for WAT-110 (Wireless AI Transducer) to flash two or three times.
Solution : a. .Need to confirm with the industrial control instrumentation of the 4 ~ 20mA
signal loop lines connected to a good wiring is correct and there is 4 ~ 20mA
signals, the supply of electricity.
b. May be not press set button, need to link with repeater again.
c. If the above handles are invalid, please contact with agency.
2. Problem : Unable to link with WR-110 (wireless repeater).
Solution: a. It needs to confirm the distance between WAT-110 (Wireless AI Transducer)
and WR-110 (Wireless repeater). Wireless connects in non-camouflage straight
line effective range 10 meters. May pull closer between both distance test to have
a look first, whether to have the improvement segment condition.
Specification:
Wireless AI Transducer
Model No. WAT-110
Electrical Specification
Transmit Frequency 2.4GHz
Modulation GFSK
Transmit Power 0 dBm
Channel spacing 1 MHz
Channel NO. 81 Channel(2401~2481Mhz)
Range of operation 10 meters
Operating voltage 3.0V DC (Power from Current Loop)
Current (typical) Working: 14mA Peak
Standby: 1 uA Max
Input Signal (Current ) 4-20mA *1
Display Type Red LED indicator
Operation Interface Push button switch for setting
Environmental Requirement
Operating temperature -20°C to 60°C
Storage temperature -20°C to 70°C
Humidity 90% RH Max. Non-Condensing
Mechanical Specification
Dimension (WxHxD, mm) 40x80x22
Weight 36g
Pin Assignment
Pin 1- (Red ) Positive 4-20mA Signal Input
Pin 2- (White) Negative 4-20mA Signal Input
