United Integrated Services WCC-120 Wireless Console Controller User Manual UIS Quick Guide WCC120 V0 1 20100709

United Integrated Services CO., LTD. Wireless Console Controller UIS Quick Guide WCC120 V0 1 20100709

user manual

Confidential 1
WCC-120
Quick Installation Guide
Confidential 2

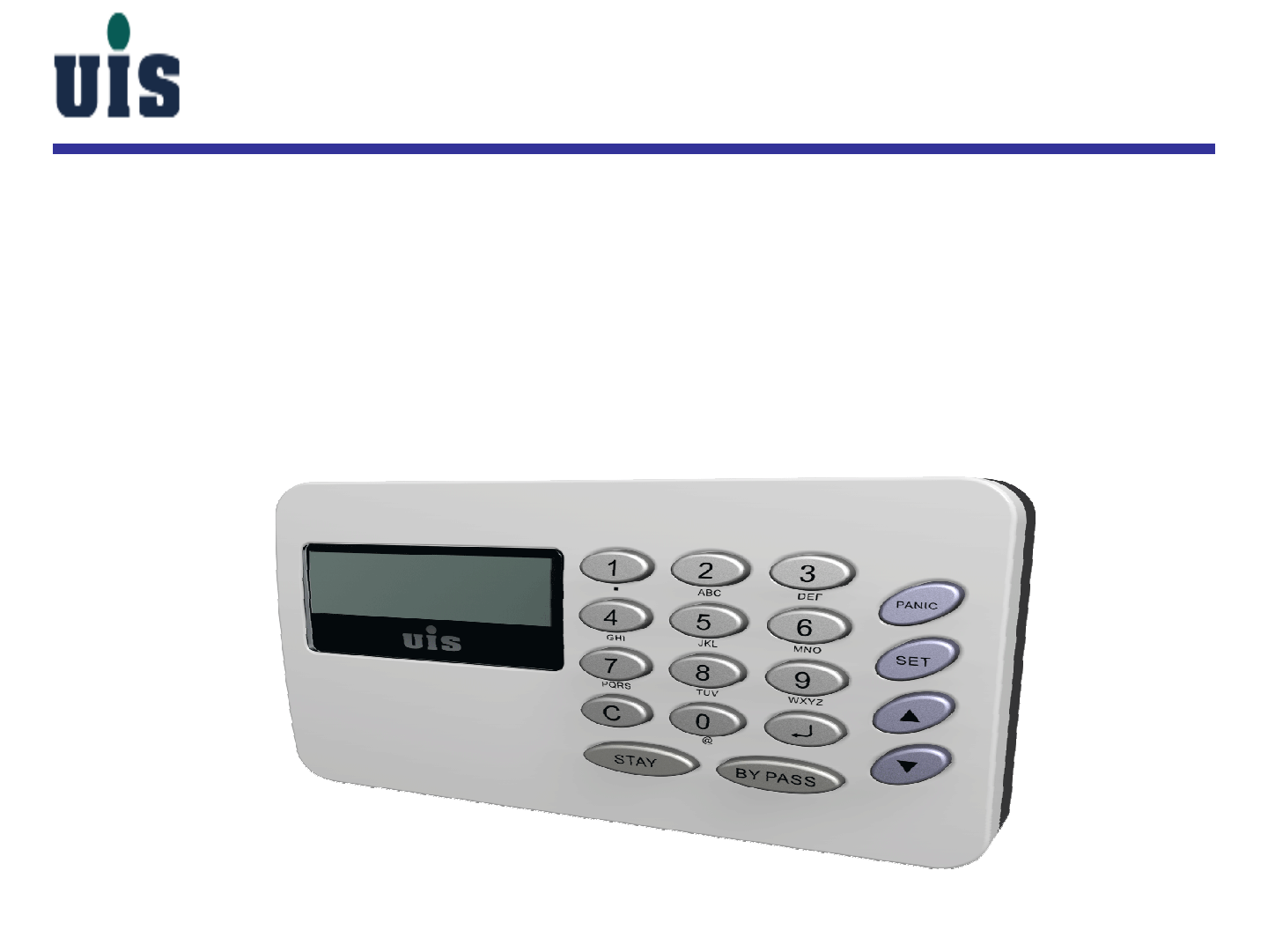

WCC-120 / Front View
Emergency
key
Up / Down key
Cancel key
Key to change ARM
mode (Full/Partial)
Key to bypass sensor
error state while arming
Enter key
LCD Display
Reset button
Set button
Layout Introduction
Configuration
key
*
Configuration mode could be activated in
disarm mode only
.
Confidential 3
Tamper-proof detection once unplugged
from bracket unexpectedly !
Wall-Mount Bracket
Adapter Port
Battery
WCC-120 / Rear View
Confidential 4

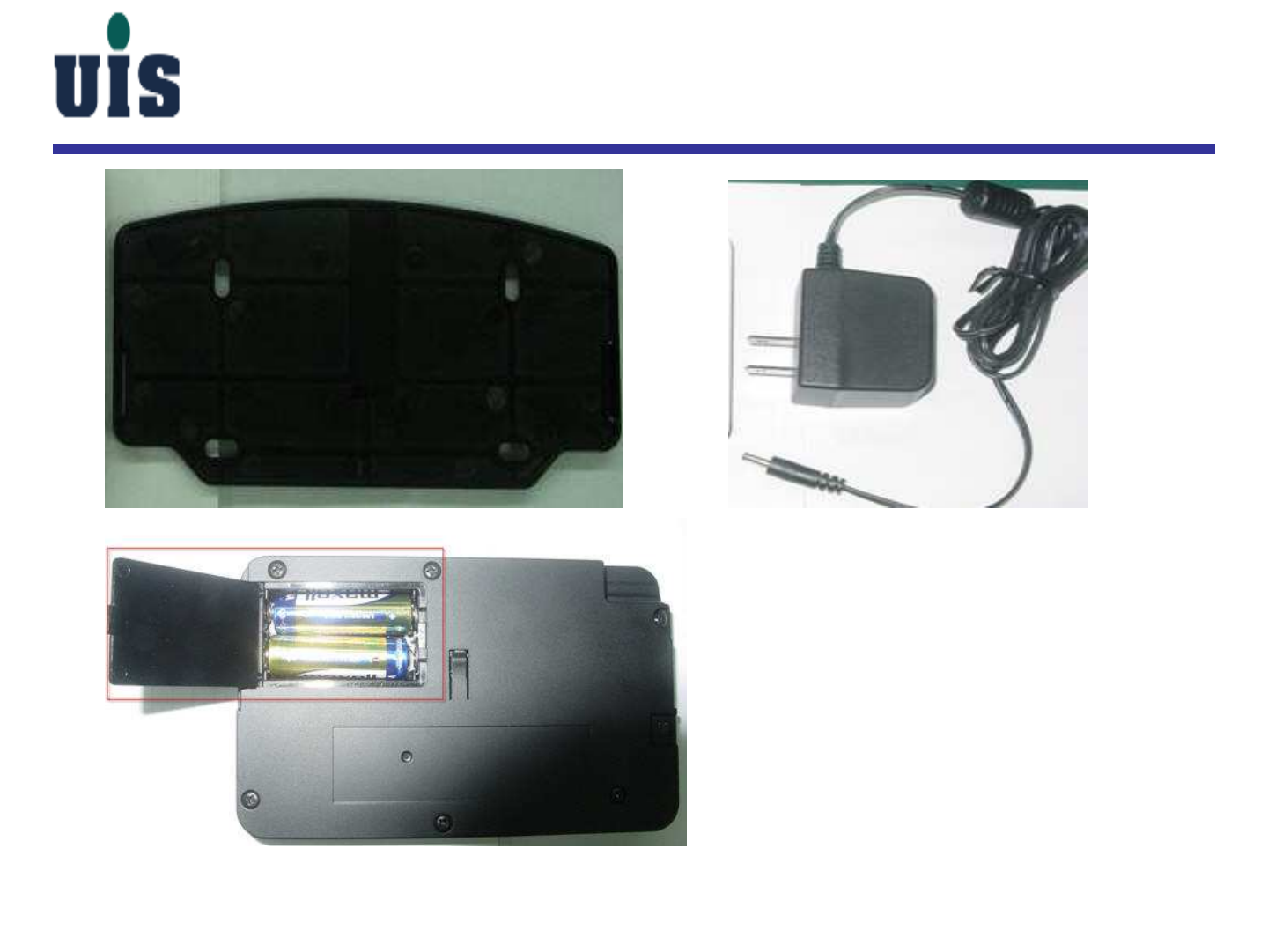

WCC-120 / Accessory
Bracket
Battery
Adaptor
*
Alkaline AA battery x 2, non-chargeable
Confidential 5

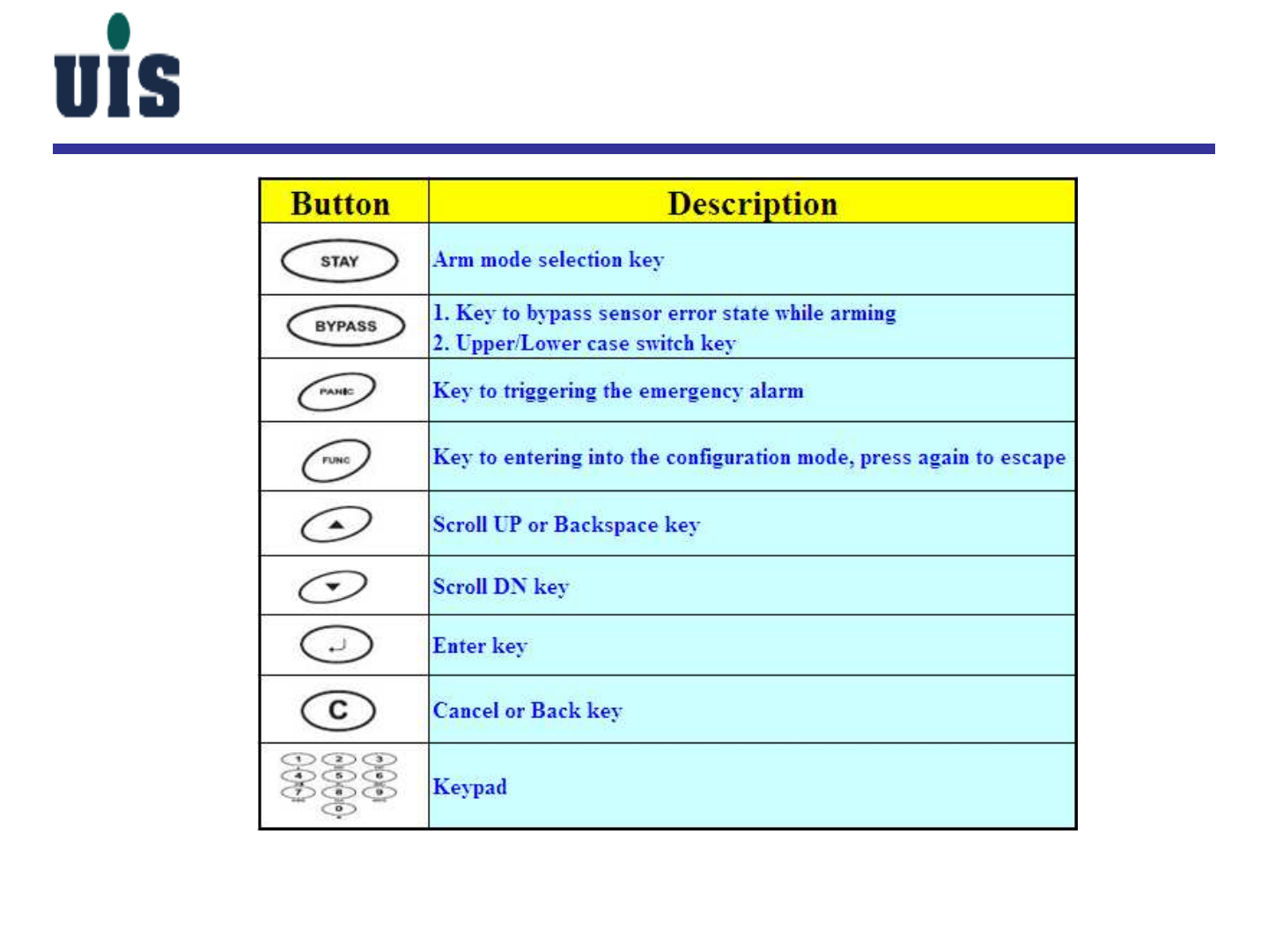

Key Definition
Confidential 6
Device Binding
Binding...Fail!
1. Press WCC-120 “SET” button for 5 seconds
2. Press WG-110 “SET” button for 2 seconds
3. WG-110 Alarm (RED) light ON shortly
4. Waiting for WCC-120 to show “Binding…OK!”
5. If WCC-120 shows “ Binding…..Fail!“, please
repeat above steps until binding completed
Binding...OK!
Binding...Fail!
1
2
SET button Alarm light
SET button
Confidential 7
Power ON
1. Please plug in battery or power adapter or both together, the power source is assigned as below:
a. battery only – battery power
b. power adapter only – DC power
c. both – DC power/primary, battery/secondary
2. Complete the device binding procedure as described on last slide
3. Press any key to turn on the power, the screen will show “self testing” while starting to connect to
WG-110
4. The screen will show “self testing ….OK” to mean the successful connectivity with WG-110
5. The screen will be entering into the sleeping (screen save) mode automatically by:
a. idle timeout(20sec) in configuration mode
b. idle timeout(10sec) in non-configuration mode
6. In sleeping mode, you can recall the system by pressing any key
Self Testing.
OK
Self Testing.
Confidential 8
Operation Tips
Enter Arm (Stay) Mode
20 sec later
Press “STAY” key to choose ARM(STAY means Partial ARM, ARM means Full ARM) mode
ARM Password
***
STAY Password
*** or
A w a y, P l e a s e !
Waiting !!!
Away, Please !
key in password to activate !
ARM Password
***
You can choose 0/10/20/30 sec of Alarm Delay Time in Arm/Disarm configuration mode
Press key to cancel the setting while counting down
Confidential 9
Operation Tips
Deactivate ARM / STAY mode
Password error!
Disarm waiting…
Waiting to Disarm…
ARM Mode STAY Modeor
Waiting to entering into the disarm mode
Wrong password, please try it again
Type in password to deactivate
Confidential 10
Operation Tips
1. Press “PANIC” to trigger emergency alarm immediately
2. Type in password to turn off and return to disarm mode
PANIC ALARM!
Press “FUNC” to entering into the system configuration mode
>System
Network
WCS-00001E
Please Check!
Press “BYPASS” to ignore the error sensor state
( Only for WCS--110 sensor )
PANIC ALARM!
*** password
Confidential 11
Operation Tips
Low Battery!
TAMPER ALARM!
LOW Battery !: When the battery power is below 2.7V, the screen will auto display “ Low Battery! “ to alert.
TAMPER ALARM ! : While taking off the wall-mount bracket during ARM / STAY mode, the siren will
be triggered automatically. Type in password directly to turn it off.
TAMPER ALARM!
***
Password
Join WG-110
Timeout!
Connect Failed : After the power turned on and doing the self-testing, it will try to connect to the gateway
automatically. The screen will display “Timeout” once failed and going into the sleeping
mode.
Self Testing…
Confidential 12
Main Menu
Configure the WLAN interfaceWLAN
Set the Arm Delay Time while arming the systemArm Delay TimeArm/Disarm
Display the connected repeater list
Repeater listRepeater
Configure the WAN interfaceWAN
Network
Re-start the systemReboot
Restore to the factory defaultReset
English/ChineseLanguage
System Date/TimeClock
The default password is “123”, you may change it once
required.
Password
System
DescriptionSub-MenuMain Function
WCC-120 Configuration
Confidential 13
Main Menu
Configure E-mail notification settingEmail
Configure SMS notification settingSMS
Notification
Sensor Remove
Sensor List
Set the alarm delay time while triggering the selected
sensors
Delay Time
Sensor AL Delay
Display and configure the sensorsSensor listSensor
DescriptionSub-MenuMain Function
WCC-120 Configuration
Confidential 14
Breakdown Menu
Yes >CancelRebootReboot
Yes >CancelResetReset
English/Chinese (up/down key)LanguageLanguage
2010/05/20 15:48 (up/down/bypass key)System TimeClock
NumberNew PasswordNew Password
NumberOld PasswordOld Password
Password
System
Value (key in)Title (Display)Sub-Tree3Sub-Tree2Sub-Tree1Main Function
WCC-120 Configuration
Confidential 15
Breakdown Menu
NumberNetwork Key
Network
Key
Text/NumberSSIDSSID
WLAN
Text/NumberAPNAPN
Text/NumberISPISP
3GPP
0.0.0.0DNSDNS
0.0.0.0GatewayGateway
255.255.255.0Static MaskStatic Mask
0.0.0.0Static IPStatic IP
Static
Text/NumberPPPoE PasswordPPPoE Password
Text/Number
PPPoE
UserName
PPPoE
UserName
PPPoE
DHCP/PPPoE/Static/3GPP
(up/down key)
WAN ModeWAN Mode
WAN
Network
Value (key in)Title (Display)Sub-Tree3
Sub-
Tree2
Sub-
Tree1
Main
Function
WCC-120 Configuration
Confidential 16
Breakdown Menu
Yes >CancelDel?00000000002CRP-00000000002C
Yes >CancelDel?00000000002ARP-00000000002A
Repeater
0/10/20/30 (up/down key)Arm Delay TimeArm Delay Time
Arm/Disarm
Value (key in)Title (Display)Sub-Tree3Sub-Tree2Sub-Tree1Main Function
WCC-120 Configuration
Confidential 17
Breakdown Menu
Yes >CancelDel?WMS-000001WMS Del
Yes >CancelRemove?WPC000004WLC-000004
. . .. . .. . .
Yes >CancelRemove?WPC000002WPC-000002
WMS Linked
Yes >CancelAdd?WLC-000005WLC-000005
WPC-000004
. . .. . .. . .
WPC-000002
Yes >CancelAdd?WLC-000001WLC-000001
WMS Link
0/10/20/30 (up/down key)WMS Alarm TimerWMS Alarm Timer
Enable >DisableWMS Partial ArmWMS Partial Arm
Text/NumberName:WMS-000001WMS Name
WMS-000001
Sensor
Value (key in)Title (Display)Sub-Tree3Sub-Tree2Sub-Tree1Main Function
WCC-120 Configuration
Confidential 18
Breakdown Menu
Yes >CancelDel?WTS-000002WTS Del
Yes >CancelRemove?WPC-000004WLC-000004
. . .. . .. . .
Yes >CancelRemove?WPC-000002WPC-000002
WTS Linked
Yes >CancelAdd?WLC-000005WPC-000005
WLC-000004
. . .. . .. . .
WPC-000002
Yes >CancelAdd?WLC-000001WLC-000001
WTS Link
81<=26<=140
(up/down/bypass key)
WTS ValueWTS Value
oC >oFWTS F/CWTS F/C
Enable >DisableWTS Siren AlarmWTS Siren Alarm
Text/NumberName:WTS-000002WTS Name
WTS-000002
Sensor
Value (key in)Title (Display)Sub-Tree3Sub-Tree2Sub-Tree1Main Function
WCC-120 Configuration
Confidential 19
Breakdown Menu
Yes >CancelDel?WCS-000003WCS Del
Yes >CancelRemove?WPC-000004WLC-000004
. . .. . .. . .
Yes >CancelRemove?WPC-000002WPC-000002
WCS Linked
Yes >CancelAdd?WLC-000005WPC-000005
WLC-000004
. . .. . .. . .
WPC-000002
Yes >CancelAdd?WLC-000001WLC-000001
WCS Link
Enable >DisableWCS Partial ArmWCS Partial Arm
Text/NumberName:WCS-000003WCS Name
>Open CloseWCS StatusWCS Status
WCS-000003
Sensor
Value (key in)Title (Display)Sub-Tree3Sub-Tree2Sub-Tree1Main Function
WCC-120 Configuration
Confidential 20
Breakdown Menu
Yes >CancelDel?WAT-000004WAT Del
Yes >CancelRemove?WPC-000004WLC-000004
. . .. . .. . .
Yes >CancelRemove?WPC-000002WPC-000002
WAT Linked
Yes >CancelAdd?WLC-000005WPC-000005
WLC-000004
. . .. . .. . .
WPC-000002
Yes >CancelAdd?WLC-000001WLC-000001
WAT Link
NumberWAT ThresholdWAT Threshold
12<= 11<=52
(up/down/bypass key)
WAT ValueWAT Value
Enable >DisableWAT Siren AlarmWAT Siren Alarm
Text/NumberName:WAT-000003WAT Name
WAT-000004
Sensor
Value (key in)Title (Display)Sub-Tree3Sub-Tree2Sub-Tree1Main Function
WCC-120 Configuration
Confidential 21
Breakdown Menu
Yes >CancelDel?WDT-000005WDT Del
Yes >CancelRemove?WLC-000004WLC-000004
. . .. . .. . .
Yes >CancelRemove?WPC-000002WPC-000002
WDT Linked
Yes >CancelAdd?WPC-000005WPC-000005
WLC-000004
. . .. . .. . .
WPC-000002
Yes >CancelAdd?WLC-000001WLC-000001
WDT Link
Enable >DisableWDT Siren AlarmWDT Siren Alarm
Text/NumberName:WDT-000005WDT Name
WDT-000005
Sensor
Value (key in)Title (Display)Sub-Tree3Sub-Tree2Sub-Tree1Main Function
WCC-120 Configuration
Confidential 22
Breakdown Menu
Yes >CancelRemove?WMS000001WMS-000001Sensor Remove
Yes >CancelAdd?WCS-000003WCS-000003
WMS-000001
Sensor List
0/30/45/60 (up/down key)Delay TimeDelay Time
Sensor AL Delay
Yes >CancelDel?WSS-000006WSS Del
Yes >CancelRemove?WLC-000004WLC-000004
. . .. . .. . .
Yes >CancelRemove?WPC-000002WPC-000002
WSS Linked
Yes >CancelAdd?WPC-000005WPC-000005
WLC-000004
. . .. . .. . .
WPC-000002
Yes >CancelAdd?WLC-000001WLC-000001
WSS Link
Text/NumberName:WSS-000006WSS Name
WSS-000006
Sensor
Value (key in)Title (Display)Sub-Tree3Sub-Tree2Sub-Tree1Main Function
WCC-120 Configuration
Confidential 23
Breakdown Menu
Email 4
Email 3
Email 2
Text/NumberEmail AddressEmail Address
Text/NumberPasswordPassword
Text/NumberUser NameUser Name
Enable >DisableAuthenticationAuthentication
Text/NumberSMTP ServerSMTP Server
Enable >DisableServiceService
Email 1
Email
NumberPhoneNo.4PhoneNo.4
NumberPhoneNo.3PhoneNo.3
NumberPhoneNo.2PhoneNo.2
NumberPhoneNo.1PhoneNo.1
Enable >DisableSMS EnableSMS Enable
SMS
Notification
Value (key in)Title (Display)Sub-Tree3Sub-Tree2Sub-Tree1Main Function
WCC-120 Configuration
