User Guide
Quantum™
In-the-ear (ITE)
hearing aid guide
Your hearing aids
Hearing healthcare professional:_______________
__________________________________________
Telephone: _________________________________
Model: ____________________________________
Serial number:______________________________
Replacement batteries:
Size 10 Size 312 Size 13
Warranty: __________________________________
Program 1 is for: ____________________________
Program 2 is for: ____________________________
Program 3 is for: ____________________________
Program 4 is for: ____________________________
Date of purchase: ___________________________
Thank you
Thank you for choosing Unitron ITE hearing
aids.
At Unitron, we care deeply about people with
hearing loss. We work closely with hearing
healthcare professionals to make advanced,
purpose-driven solutions available to
everyone. Because hearing matters.
Quick reference
Changing batteries Low battery
warning
2 beeps
every
30 minutes
Battery size
10
312
13
On/Off
Rotary dial or scroll wheel
volume control;
up=louder, down=softer
comfort-clarity control;
up=clarity, down=comfort
Push button
switching programs
volume control;
right aid=louder; left aid=softer
comfort clarity control;
right aid=clarity, left aid=comfort
Table of contents
Your hearing aid at a glance....................................................2
Putting your hearing aids in your ears....................................4
Turning your hearing aids on and off .....................................6
Battery information .................................................................7
Tips for wearing hearing aids for the first time .....................10
Operating instructions...........................................................12
Using the telephone ..............................................................19
Caring for your hearing aids..................................................22
Cleaning your hearing aids....................................................23
Signature features of your hearing aids ...............................24
Assistive listening devices ....................................................26
Troubleshooting guide ..........................................................28
Warnings ...............................................................................32
Warning to hearing aid dispensers (to comply with the U.S.
Food and Drug Administration (FDA) regulations) ............37
Compliance information........................................................40
Client feedback......................................................................44
Plus (+) Signs
Plus (+) Signs
on off open
FPO FPO
FPO FPO
Full Shell or Full Shell Power
Half Shell or Half Shell Power
2 3
Your hearing aid at a glance
1Microphone - sound enters your hearing aid via the
microphones. Microphone shield - protects
microphones from dirt & debris
2Push button - switches between listening programs or
changes the volume level or comfort-clarity level,
depending on your customized fitting.
3Battery door/on & off - close the door to turn on your
hearing aid, partly open the door to turn off your
hearing aid. Opening the door all the way gives you
access to change the battery
4Rotary dial - controls either the volume or comfort-
clarity, depending on your customized fitting
5Vent - aids in the reduction of occlusion making your
own voice sound better
6Removal handle - assists in removing the completely-
in-the-canal (CIC) hearing aids from the ear canal
7Scroll wheel - controls either the volume or comfort-
clarity, depending on your customized fitting
Canal or Power Canal
Mini Canal or
Power Mini Canal
Completely-in-the-Canal
(CIC) or Power CIC
1
2
3
4
5
1
2
3
5
5
4
2
3
1
1
6
3
5
1
2
3
4
5
7
FPO
FPO
FPO
Removing your hearing aid
1. If your hearing aid is a CIC, gently
pull on the removal handle. To
remove an ITE hearing aid, grasp
it with your thumb and index
finger.
2. Move your jaw up and down or
apply pressure to the back of
your ear to help loosen the
hearing aid.
Note: Do not use the controls or the
battery door to remove your hearing aids.
Putting your hearing aids in your ears
Your in-the-ear (ITE) hearing aids may be
color-coded either on the shell or on a label
on the hearing aid:
red = right ear; blue = left ear.
Inserting your hearing aid
1. Hold the hearing aid between
your thumb and index finger
with the battery door away from
your ear.
2. If your hearing aid is a CIC,
insert by holding the hearing aid
with the removal handle at the
bottom.
3. Gently insert the canal portion
of the hearing aid into your ear
using your index finger to push
back and tuck the hearing aid
completely into place.
4 5
1.
2.
3.
1.
2.
3. OPEN: Fully open the
battery door to access and
change the battery.
Battery information
To replace the battery, fully open the battery
door for access to the battery compartment.
Low battery warning
Two long beeps indicate the hearing aid
battery is low. After the low battery warning,
you may experience some reduction in sound
quality. This is normal and can be remedied by
inserting fresh batteries into the hearing aids.
If you are not able to hear the low battery
warning, your hearing healthcare professional
can change the pitch or loudness of the low
battery warning. If you prefer, it can be turned
off entirely.
Turning your hearing aids on and off
Your hearing aids have a three-position
battery door that acts as an off/on switch and
that allows access to the battery
compartment.
1. ON: Close the battery
door fully.
Note: It may take 5 seconds
before the hearing aid turns
on. Your hearing healthcare
provider can additionally
increase the start up delay if required.
2. OFF: Partially open the
battery door.
6 7
on
off
open
1.
2.
3.
3. Insert the new battery into the battery
compartment with the plus (+) sign on the
battery facing the same way as the plus (+)
sign on the edge of the battery door. This
will ensure that the battery door closes
properly.
Note: If the battery is inserted incorrectly, the
hearing aid will not turn on.
4. Close the battery door.
Caring for batteries
Always discard batteries in a safe and
environmentally friendly way.
To prolong battery life, remember to turn your
hearing aids off when not in use.
Remove the batteries and keep the battery
door open while hearing aids are not in use.
This will allow internal moisture to evaporate.
Your hearing aids are designed to generate a low
battery warning every 30 minutes until you
change the batteries, but depending on the
condition of the batteries, they may die before
another low battery warning occurs. Therefore, it
is recommended that the batteries are replaced
as soon as possible once you hear the low
battery warning.
Replacing the battery
1. Gently swing out the battery door with
your fingernail.
2. Grasp the battery with your thumb and
index finger and remove.
8 9
Plus (+) Signs
Plus (+) Signs
6. Make notes at the back of this booklet,
write down difficult situations and describe
what any unpleasant noises were like. This
information will help your hearing
healthcare professional to fine-tune the
devices better for you.
7. Involve your family and friends in this
familiarization period. For example, ask
someone to set the television to a
comfortable volume.
8. When you are beginning to get used to
wearing the hearing aids, wear them in
more difficult listening environments such
as the office, at parties or in restaurants.
This can be difficult even for people who
can hear normally. Give yourself time to
regain your ability to hear in these difficult
situations.
9. Make your hearing aids part of your
everyday life and be patient with yourself
until you have retrained yourself to
interpret the sounds correctly.
Tips for wearing hearing aids for the
first time
1. Start in a quiet room at home first to get
used to the new sound quality. Sounds like
the ticking of a clock, the humming of the
computer, the beep of the microwave or the
rustling of clothes or paper may seem loud
to you at first, because you have not been
hearing them properly for a long time.
2. Read aloud to yourself and learn to correct
the volume of your own voice when you are
wearing the hearing aids.
3. Talk to different people and learn how to
distinguish between different sound
patterns again.
4. It will take some time before you are
completely used to your hearing aids and
can fully enjoy the benefits.
5. Wear your hearing aids for as many hours
a day as you can, and for a little longer
each day.
10 11
backward away from your nose or the scroll
wheel slowly downward towards the floor to
decrease the volume. The optional remote
control also allows you to adjust your volume
levels; please refer to the remote control user
guide for more information.
As you change the volume level, your hearing
aids will beep.
Comfort-clarity control
If the rotary dial or scroll wheel has been
configured as a comfort-clarity control, rotate
the rotary dial slowly forward towards your
nose or the scroll wheel slowly upward
towards the ceiling to improve the clarity of
sounds in front of you, such as speech. For
Operating instructions
Your ITE hearing aid may come with two
controls that allow you to further adjust your
hearing aid – a rotary dial or scroll wheel and
a push button.
Rotary dial/scroll wheel
The rotary dial or scroll wheel on
your hearing aid can be set up as
either a volume control, or comfort-
clarity control.
Volume control
If the rotary dial or scroll wheel has been
configured as a volume control, you can
adjust the loudness of your hearing aids by
rotating the rotary dial slowly forward
towards your nose or the scroll wheel slowly
upward towards the ceiling to increase the
volume. Rotating the rotary dial slowly
12 13
Volume setting Beeps
Recommended volume level 1 beep
Turning volume up short beep
Turning volume down short beep
Maximum volume level 2 beeps
Minimum volume level 2 beeps
Push button
Your hearing aids may be equipped
with a push button which can be set
for switching between programs, to
adjust your volume, or to adjust comfort-clarity.
Program control
If the push button has been configured as a
program control, each time you push the
button, you will move to a new hearing aid
program.
Your hearing aids beep to indicate which
program you are in.
greater overall listening comfort in noisy
listening situations, rotate the rotary dial
control slowly backward away from your nose
or the scroll wheel slowly downward towards
the floor. Each step will change the hearing
aid performance. Sometimes multiple steps
are required to achieve the desired listening
results. After each step wait for about 4-5
seconds to allow the hearing aid to adjust to
the new setting.
As you change the comfort-clarity control
level, your hearing aids will beep.
Note: As the comfort-clarity control moves
toward the midpoint section, the effect on sound
is minimized.
14
Program 1
(e.g. automatic program) 1 beep
Program 2
(e.g. speech in noise) 2 beeps
Program 3
(e.g. easy-t/telephone) 3 beeps
Program 4 (e.g. music) 4 beeps
Easy-t/telephone (see pg 19) short melody
Easy-DAI short melody
DuoLink (if enabled) Opposite ear beeps the
(see pg 17) same as side being adjusted
Comfort-clarity control setting Beeps
Ideal comfort and clarity level 1 beep
Increase sound clarity level short beep
Increase listening comfort short beep
Maximum sound clarity level 2 beeps
Maximum listening comfort level 2 beeps
15
Each step will change the hearing aid
performance. Sometimes multiple steps are
required to achieve the desired listening
results. After each press wait for about 4-5
seconds to allow the hearing aids to adjust to
the new setting.
As you change the comfort-clarity control, your
hearing aids will beep.
Note: As the comfort-clarity control moves
toward the midpoint section, the effect on sound
is minimized.
Volume control
If the push button has been configured as a
volume control:
• Push the button on your right hearing aid to
increase the volume in both hearing aids.
• Push the button on your left hearing aid to
decrease the volume in both hearing aids.
Comfort-clarity control
If the push button has been configured as a
comfort clarity control:
• Push the button on your right hearing aid
to increase the clarity of speech.
• Push the button on your left hearing aid to
improve listening comfort.
16 17
Volume setting Beeps
Recommended volume level 1 beep
Turning volume up short beep
Turning volume down short beep
Maximum volume level 2 beeps
Minimum volume level 2 beeps
Comfort-clarity control setting Beeps
Ideal comfort and clarity level 1 beep
Increase sound clarity level short beep
Increase listening comfort short beep
Maximum sound clarity level 2 beeps
Maximum listening comfort level 2 beeps
Remote control
Your hearing aids may also come with an
optional remote control which allows you to
switch between different listening programs,
and change your volume or comfort-clarity
settings.
DuoLink
If DuoLink is enabled, then changing the
volume, program or comfort-clarity settings
on one hearing aid, will automatically make
the change to both hearing aids at the same
time. DuoLink works for the push button and
the rotary dial or scroll wheel.
For example, if your push button is configured
as a program control and DuoLink is enabled,
when you push the button on your right
hearing aid, the program will change in both
hearing aids.
Learning
Your hearing aids will learn your adjustments
in different environments, if this feature is
available and has been enabled by your
hearing healthcare professional. Over time,
the hearing aids will adjust the default volume
and comfort-clarity settings to the levels that
you typically use.
18 19
hearing aid it will automatically return to the
previous listening program. If DuoLink is
enabled on your hearing aids for the
automatic telephone program, both hearing
aids are synchronized and the listening
program for the opposite ear will also change
when the automatic telephone program is
activated. If the hearing aid does not switch to
the telephone program automatically when
the telephone receiver is placed in proximity,
the magnet for easy-t hearing aids should be
attached to the telephone receiver. The
magnet is designed to strengthen the
magnetic field at the ear piece of hearing aid
compatible telephones.
To affix the optional easy-t magnet:
1. Clean the telephone receiver.
Using the telephone
As telephones do not all work the same, you
may experience different results from different
phones. You can use many phones by simply
holding the receiver to your ear, without the
need to change to a dedicated telephone
program on your hearing aid. Remember to
move the handset slightly up or back to find
the position that sounds best to you.
Depending on the phone type you use, your
hearing healthcare professional might have
selected a dedicated phone program on your
hearing aids. Your hearing aid may have an
automatic telephone program (easy-t
feature), which automatically switches to a
dedicated telephone program when a
telephone receiver is brought close to one of
your hearing aids. You will hear a short
melody to indicate you are in the telephone
(easy-t) program.
When the receiver is moved away from the
2120
1.
If your hearing aids are configured to work
with the wireless uDirect™neck worn
accessory, you might benefit from a
Bluetooth®hands free option. Refer to the
uDirect user guide for more information.
Your hearing healthcare professional may
also have set up a phone program that you
can access through the push button on your
hearing aids, or through your optional remote
control.

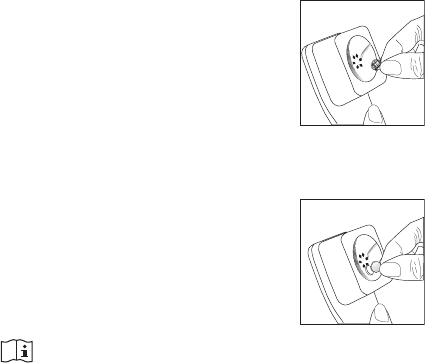

2. Hold the magnet near the
“listening end” of your
telephone receiver and
release it. The magnet will
flip to the appropriate side
and seek the optimal position
on the telephone receiver.
3. Place the double-sided tape
in this optimal position on
the telephone receiver and
attach the magnet to the
tape .
Your hearing healthcare professional may also
set up a phone program that you can access via
the push button on your hearing aid or via your
remote control (optional).
22 23
®Bluetooth is a registered trademark of Bluetooth SIG Inc.
2.
3.
Cleaning your hearing aids
Ear wax is natural and common. Ensuring
your hearing aids are free of ear wax is an
important step in your daily cleaning and
maintenance routine.
Using the brush that was provided with your
hearing aids, clean ear wax from your hearing
aids everyday.
Never use alcohol to clean your hearing aids.
Do not use sharp tools to dislodge ear wax.
Sticking household items into your hearing
aids can seriously damage them.
Talk to your hearing healthcare professional
about regular appointments to have the wax
removed from your hearing aids.
Caring for your hearing aids
Open the battery door when not in use.
Always remove your hearing aids when using
hair care products. The hearing aids can
become clogged and cease to function properly.
Do not wear your hearing aids in the bath or
shower or immerse them in water.
If your hearing aids do become wet, do not
attempt to dry them in an oven or microwave.
Do not adjust any controls. Open the battery
doors immediately, and allow your hearing
aids to dry naturally for 24 hours.
Protect your hearing aids from excessive heat
(hair dryer, vehicle glove box or dashboard).
Regular use of a dehumidifier, such as a Dri-
Aid kit, can help prevent corrosion and
prolong the life of your hearing aids.
Do not drop your hearing aids or knock them
against hard surfaces.
24 25
As you adjust the comfort-clarity control, your
Quantum hearing aids will gradually learn
your preferred comfort-clarity settings.
DuoLink
With DuoLink, your hearing aids wirelessly
communicate with each other. As you make a
program, comfort-clarity or volume change on
one hearing aid, the other hearing aid
automatically changes as well.
Binaural Phone
The Binaural Phone feature enables you to
hold a landline or mobile phone to one ear
and hear the sound clearly in both ears,
automatically. No accessories are required.
uDirect™and uTV™
The uDirect and uTV are optional accessories
for Quantum hearing aids.
• uDirect provides easy, hands-free access
to Bluetooth enabled devices, such as
Signature features of your hearing aids
Comfort-clarity control
Your hearing aids automatically adjust to
focus on hearing speech more clearly or
providing comfort in noisy situations. Some
Quantum hearing aid models provide a
control to adjust your comfort-clarity settings.
• Adjusting the comfort-clarity control up
causes your hearing aids to focus more on
speech clarity.
• Adjusting the comfort-clarity control down
causes your hearing aids to soften
background noise, providing more
comfort.
Comfort-clarity control adjustments can be
made using the controls on your hearing aids
or a remote control. Please talk with your
hearing healthcare professional to find out
which controls have been programmed for the
comfort-clarity control.
26 27
2928
mobile phones. It also has a wired audio
jack to plug in devices like MP3 players.
• uTV is used with the uDirect to transmit
sound from your TV directly to your
hearing aids. The uTV can also transmit
sound from stereo systems, computers
and other audio sources.
For more information on using the uDirect or
uTV, please see your user guide. For
information on how to get a uDirect or uTV
accessory, please contact your hearing
healthcare professional.
Assistive listening devices
Listening in public places
Telecoils pick up electromagnetic
energy and convert it into sound.
Your hearing aid’s telecoil option
can help you listen in public
places equipped with telecoil compatible
assistive listening devices such as a loop
system. When you see this symbol, it means
that there is loop system installed; this loop
system is compatible with your hearing aid.
Please contact your hearing healthcare
professional for more information on loop
systems.
Connecting to external audio sources
You can connect to external audio sources by
using the uDirect optional wireless accessory.
Ask your hearing healthcare professional for
information about uDirect.
Cause Possible remedy
Not loud enough
Low volume
Low battery
Hearing aids not
inserted properly
Change in hearing
Hearing aids blocked
with ear wax
Turn up volume; see
hearing healthcare
professional for models
without a manual
volume control or if
problem persists.
Replace battery
See “Putting your
hearing aids in your
ears”. Reinsert carefully.
Consult your hearing
healthcare professional
See “Cleaning your
hearing aids”. Use
cleaning pin to dislodge
ear wax in slim tubes.
Consult your hearing
healthcare professional.
Troubleshooting guide
Cause Possible remedy
No sound
Not turned on
Low/dead battery
Poor battery contact
Battery upside down
Hearing aids blocked
with ear wax
Turn on
Replace battery
Consult your hearing
healthcare professional
Insert battery plus (+)
side up
See “Cleaning your
hearing aids”. Consult
your hearing healthcare
professional.
30 31
33
Intermittent
Low battery
Dirty battery contact
Two long beeps
Low battery
Whistling
Hearing aids not
inserted properly
Volume too loud
Hand/clothing
near ear
Poorly fitting
hearing aids
Replace battery
Consult your hearing
healthcare professional
Replace battery
See “Putting your
hearing aids in your
ears”. Reinsert carefully.
Turn down volume
Remove hand/clothing
from ear
Consult your hearing
healthcare professional
Cause Possible remedy
Not clear, distorted
Poorly fitting
hearing aids
Hearing aids blocked
with ear wax
Change in hearing
Low battery
Weak on the telephone
Low volume
Telephone not
positioned properly
Hearing aid requires
adjustment
For any problems not listed in the guide, contact your hearing
healthcare professional. If you do not have a hearing health-
care professional, please contact the nearest office listed on
the back page of this booklet.
Consult your hearing
healthcare professional
See “Cleaning your hear-
ing aids”. Consult your
hearing healthcare pro-
fessional.
Consult your hearing
healthcare professional
Replace battery
Turn up volume
Move telephone receiver
around ear for clearer
signal. See “Using the
telephone”.
Consult your hearing
healthcare professional
Cause Possible remedy
32
Remove your hearing aids for CT and MRI
scans or for other electromagnetic
procedures.
Special care should be exercised in
wearing hearing aids when maximum
sound pressure levels exceed 132 decibels.
There may be a risk of impairing your
remaining hearing. Speak with your
hearing healthcare professional to ensure
the maximum output of your hearing aids
is suitable for your particular hearing loss.
Easy-t magnet warnings
Be sure the magnet is securely affixed to
the telephone.
Keep loose magnets out of reach of children
and pets.
If the magnet falls into your ear, contact
your hearing healthcare professional.
If the magnet is swallowed, contact your
physician immediately.
Warnings
Hearing aids should only be used as
directed by your physician or hearing
healthcare professional.
Hearing aids will not restore normal
hearing and will not prevent or improve a
hearing impairment resulting from organic
conditions.
Do not use your hearing aids in explosion
hazard areas.
Allergic reactions to hearing aids are
unlikely. However, if you experience
itching, redness, soreness, inflammation or
a burning sensation in or around your ears,
inform your hearing healthcare
professional and contact your physician.
In the unlikely case that any parts remain
in the ear canal after the removal of the
hearing aid, contact a physician
immediately.
34 35
Precautions
The use of hearing aids is only part of
hearing rehabilitation; auditory training
and lip reading instruction may be required
as well.
In most cases, infrequent use of hearing
aids does not provide full benefit. Once
you have become accustomed to your
hearing aids, wear your hearing aids
everyday all day.
Your hearing aids use the most modern
components to provide the best possible
sound quality in every listening situation.
However, communication devices such as
digital cell phones can create interference
(a buzzing sound) in hearing aids. If you
experience interference from a cell phone
being used close by, you can minimize this
interference in a number of ways. Switch
The magnet may affect some medical
devices or electronic systems. Always keep
the magnet (or the telephone equipped
with the magnet) at least 30 cm (12”) away
from pacemakers, credit cards, floppy disks
or other magnetically sensitive devices.
Too high distortion during dialing or
phoning may mean that the phone handset
is stressed by the magnet. To avoid any
damage, please move the magnet to
another place on the telephone receiver.
Battery warnings
Never leave hearing aids or batteries where
small children and pets can reach them.
Never put hearing aids or batteries in your
mouth. If a hearing aid or battery is
swallowed, call a physician immediately.
36 37
Warning to hearing aid dispensers
(to comply with the U.S. Food and Drug Administration
(FDA) regulations)
A hearing aid dispenser should advise a prospective hearing aid
user to consult promptly with a licensed physician (preferably an
ear specialist) before dispensing a hearing aid if the hearing aid
dispenser determines through inquiry, actual observation, or
review of any other available information concerning the
prospective user, that the prospective user has any of the
following conditions: (i) Visible congenital or traumatic deformity
of the ear. (ii) History of active drainage from the ear within the
previous 90 days. (iii) History of sudden or rapidly progressive
hearing loss within the previous 90 days. (iv) Acute or chronic
dizziness. (v) Unilateral hearing loss of sudden or recent onset
within the previous 90 days. (vi) Audiometric air-bone gap equal
to or greater than 15 decibels at 500 hertz (Hz), 1,000 Hz, and
2,000 Hz. (vii) Visible evidence of significant cerumen
accumulation or a foreign body in the ear canal. (viii) Pain or
discomfort in the ear. Special care should be exercised in
selecting and fitting a hearing aid whose maximum sound
pressure level exceeds 132 decibels because there may be risk of
impairing the remaining hearing of the hearing aid user. [This
provision is required only for those hearing aids with a maximum
sound pressure capability greater than 132 decibels (dB).]
Important notice for prospective hearing aid users
Good health practice requires that a person with a hearing loss
have a medical evaluation by a licensed physician (preferably a
physician who specializes in diseases of the ear) before
purchasing a hearing aid.
your hearing aids to another program, turn
your head in a different direction or locate
the cell phone and move away from it.
Labeling
The serial number and year of manufacture
are located inside the battery door.
38 39
Children With Hearing Loss
In addition to seeing a physician for a medical evaluation, a child
with a hearing loss should be directed to an audiologist for
evaluation and rehabilitation since hearing loss may cause
problems in language development and the educational and
social growth of a child. An audiologist who is qualified by
training and experience to assist in the evaluation and
rehabilitation of a child with hearing loss is recommended.
Licensed physicians who specialize in diseases of the ear are
often referred to as otolaryngologists, otologists or
otorhinolaryngologists. The purpose of medical evaluation is to
assure that all medically treatable conditions that may affect
hearing are identified and treated before the hearing aid is
purchased. Following the medical evaluation, the physician will
give you a written statement that states that your hearing loss
has been medically evaluated and that you may be considered a
candidate for a hearing aid. The physician will refer you to an
audiologist or a hearing aid dispenser, as appropriate, for a
hearing aid evaluation. The audiologist or hearing aid dispenser
will conduct a hearing aid evaluation to assess your ability to
hear with and without a hearing aid. The hearing aid evaluation
will enable the audiologist or dispenser to select and fit a hearing
aid to your individual needs. If you have reservations about your
ability to adapt to amplification, you should inquire about the
availability of a trial-rental or purchase-option program. Many
hearing aid dispensers now offer programs that permit you to
wear a hearing aid for a period of time for a nominal fee after
which you may decide if you want to purchase the hearing aid.
Federal law restricts the sale of hearing aids to those individuals
who have obtained a medical evaluation from a licensed
physician. Federal law permits a fully informed adult to sign a
waiver statement declining the medical evaluation for religious or
personal beliefs that preclude consultation with a physician. The
exercise of such a waiver is not in your best health interest and
its use is strongly discouraged.
40 41
Notice 3
This device has been tested and found to comply with the limits
for a Class B digital device, pursuant to Part 15 of the FCC Rules
and ICES-003 of Industry Canada. These limits are designed to
provide reasonable protection against harmful interference in a
residential installation. This device generates, uses and can
radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this
device does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference
by one or more of the following measures:
• Reorient or relocate the receiving antenna
• Increase the separation between the equipment and receiver
• Connect the device into an outlet on a circuit different from
that to which the receiver is connected
• Consult the dealer or an experienced radio/TV technician for
help
Compliance information
Declaration of conformity
Hereby Unitron declares that this Unitron product meets the
requirements of the Medical Devices Directive 93/42/EEC as well
as the Radio and Telecommunications Terminal Equipment
Directive 1999/5/EC. The full text of the Declaration of Conformity
can be obtained from the manufacturer.
The hearing aid described in this user guide is certified under:
Standard hearing system
USA FCC ID: VMY-UWITE1
Canada IC: 2756A-UWITE1
Notice 1
This device complies with Part 15 of the FCC Rules and with RSS-
210 of Industry Canada. Operation is subject to the following two
conditions:
1) this device may not cause harmful interference, and
2) this device must accept any interference received, including
interference that may cause undesired operation.
Notice 2
Changes or modifications made to this device not expressly
approved by Unitron may void the FCC authorization to operate
this device.
42 43
4544
Additional notes
..................................................................................................................
..................................................................................................................
..................................................................................................................
..................................................................................................................
..................................................................................................................
..................................................................................................................
..................................................................................................................
..................................................................................................................
..................................................................................................................
Client feedback
Record your specific needs or concerns and bring to
your first office visit after getting your hearing aids.
This will help your hearing healthcare professional to
address your needs.
...........................................................................................
...........................................................................................
...........................................................................................
...........................................................................................
...........................................................................................
...........................................................................................
...........................................................................................
...........................................................................................
...........................................................................................
...........................................................................................
Unitron Hearing Ltd.
20 Beasley Drive, P.O. Box 9017,
Kitchener, ON N2G 4X1 Canada
Unitron distributors
Corporate Office/International
20 Beasley Drive, P.O. Box 9017, Kitchener, ON N2G 4X1 Canada
Australia
Level 2, Norwest Quay,
21 Solent Circuit,
Baulkham Hills, NSW,
NSW 2153
Belgium
Baron de Vironlaan, 60
b-1700 Dilbeek
Canada
20 Beasley Drive,
P.O. Box 9017, Kitchener,
ON N2G 4X1
China
No. 78, Qi Ming Road,
Export Processing Zone
District B, Suzhou
Industrial Park, P.R.
215021
Denmark
Nitivej 10, DK-2000
Frederiksberg
Germany & European
Representative
Daimlerstrasse 22,
70736 Fellbach-
Oeffingen, Germany
France
5 bis, rue Maryse
Bastié - BP 15
69671 Bron Cedex
India
B-308, Everest Grande,
Mahakali Caves Road,
Andheri East,
Mumbai-400 093
Netherlands
Ir. D.S. Tuijnmanweg 10,
4131 PN
VIANEN
New Zealand
10/215 Rosedale Rd.,
M277 Private Bag,
300987, Albany,
Auckland
Russia
Tverskaya str. 16,
bldg. 3, 1st floor
Moscow, 125009
South Africa
First Floor –
Selborne House,
Fourways Golf Park,
Roos Street, Fourways,
Johannesburg
Spain
Avenida de la
Industria nº13/15,
Polígono de
Canastell,
03690 Sant Vicent
del Raspeig. Alicante,
España
Sweden
Förmansvägen 2, 4 tr
SE-11743, Stockholm
United Kingdom
St. George House,
Cygnet Court,
Centre Park,
Warrington, Cheshire
WA1 1PD
U.S.A.
Suite A, 2300
Berkshire Lane
North, Plymouth, MN
55441
www.unitron.com
10-047 029-5857-02
Distributor
