POWER+DAT

GND

CONSOLE

ENGLISH

WiMAX Outdoor CPE

User Manual

Important Safety Notices

Safety Information

1. Read this user manual and follow all operating and safety instructions.

2. Keep all product information for future reference.

3. Installation of the system must be contracted to a professional installer.

4. The outdoor unit must not be located near power lines or other electrical

power circuits.

5. The system must be properly grounded to protect against power surges

and accumulated static electricity. It is the user's responsibility to install this

device in accordance with the local electrical codes: correct installation

procedures for grounding of the outdoor unit, mast, lead-in wire and dis-

charge unit, location of discharge unit, size of grounding conductors and

connection requirements for grounding electrodes.

6. This device must be properly grounded using proper wire grounding tech-

niques in accordance with local electric codes:

The cable ground shall be connected to the grounding system of the

building, as close to the point of cable entry as is practical.

7. To conform to the over voltage safety requirements of telecommunications

cables, a minimum 26 AWG telecommunication line cable must be used.

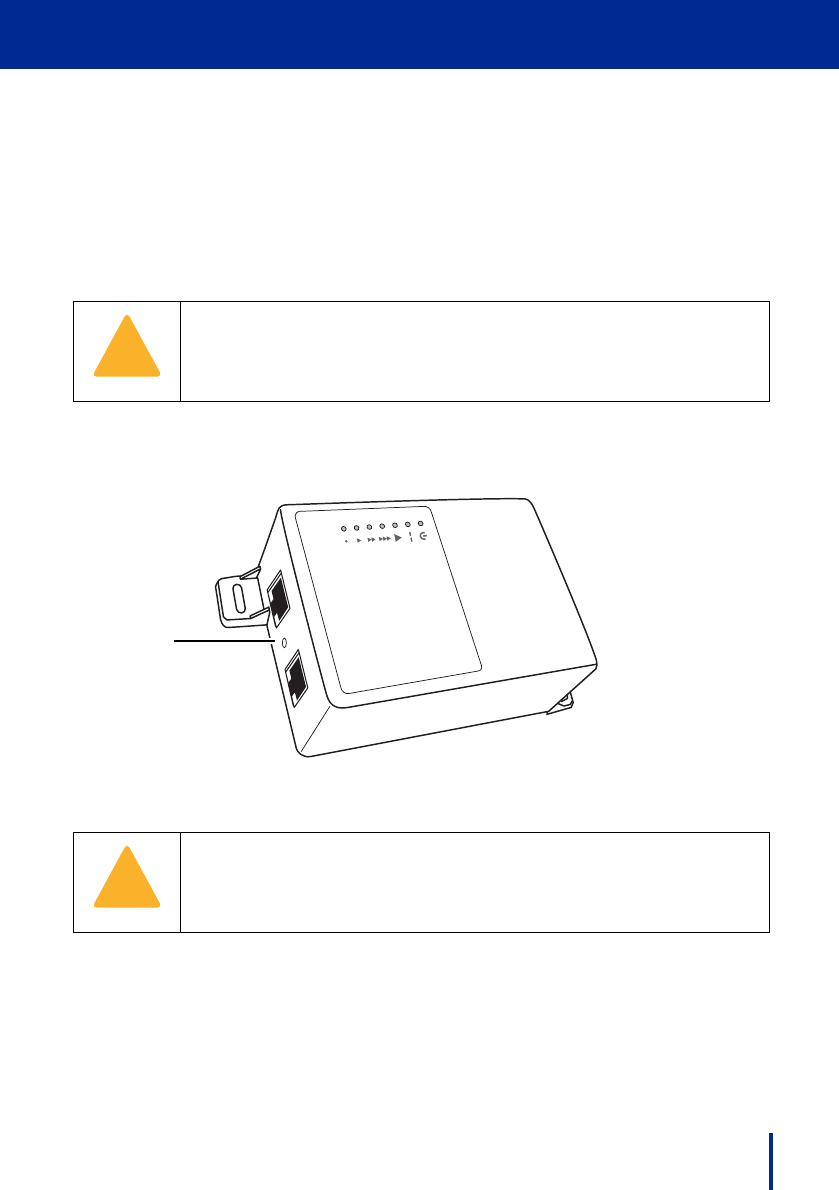

8. When installing the device using cross-over Ethernet cables:

•

DO NOT press the reset button on the PoE adapter for more than 5 seconds.

•DO NOT plug in the cross-over cable while the 5 RSSI LEDS on the PoE

adapter are blinking.

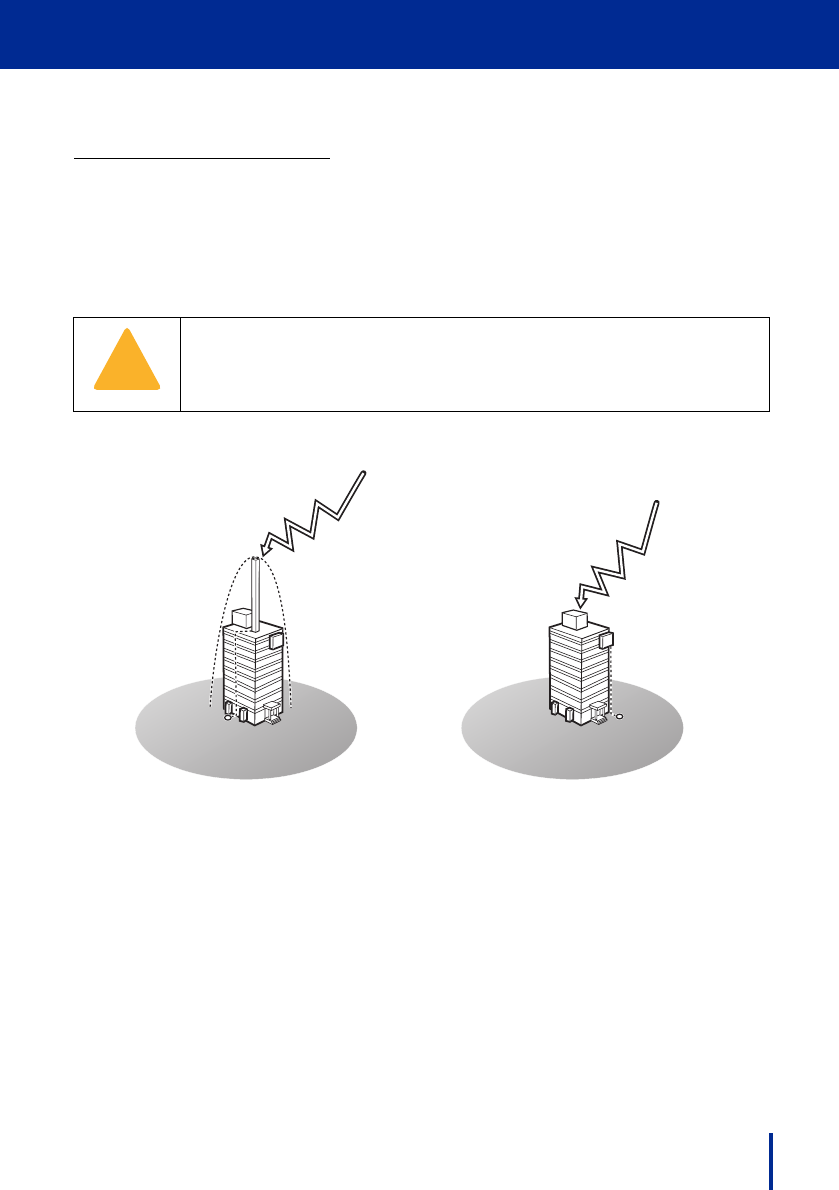

ii Lightning Strike and Surge Protection

Important Safety Notices

Lightning Strike and Surge Protection

This device should be properly protected against lightning strikes and power

surges.

For recommendations on the design and installation of lightning-protection sys-

tems, please see the following standards:

•LPI-175—Standard of Practice for the Design-Installation-Inspection of

Lightning Protection Systems, issued by the Lightning Protection Institute

•NFPA 780—Standard for the Installation of Lightning Protection Systems,

issued by the National Fire Protection Association

•UL 96A—Standard for Installation Requirements for Lightning Protection

Systems, issued by Underwriters Laboratories (UL) Inc.

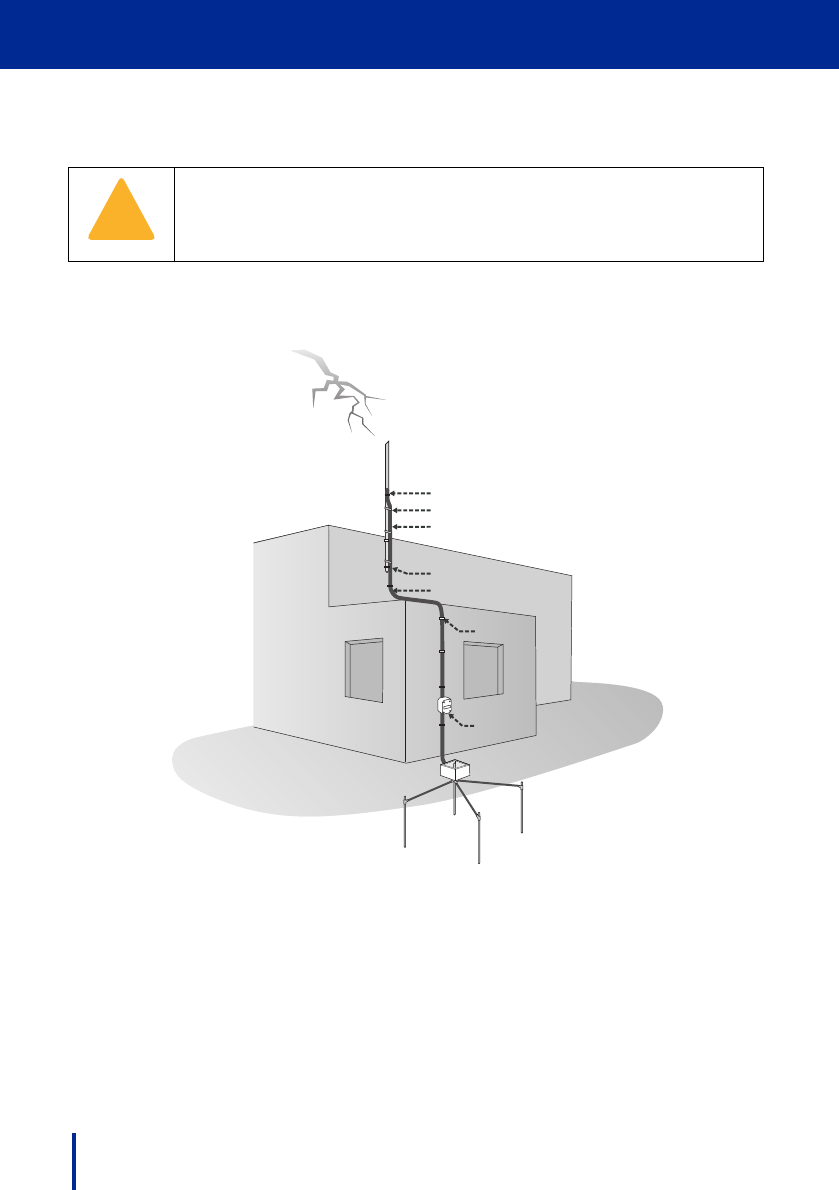

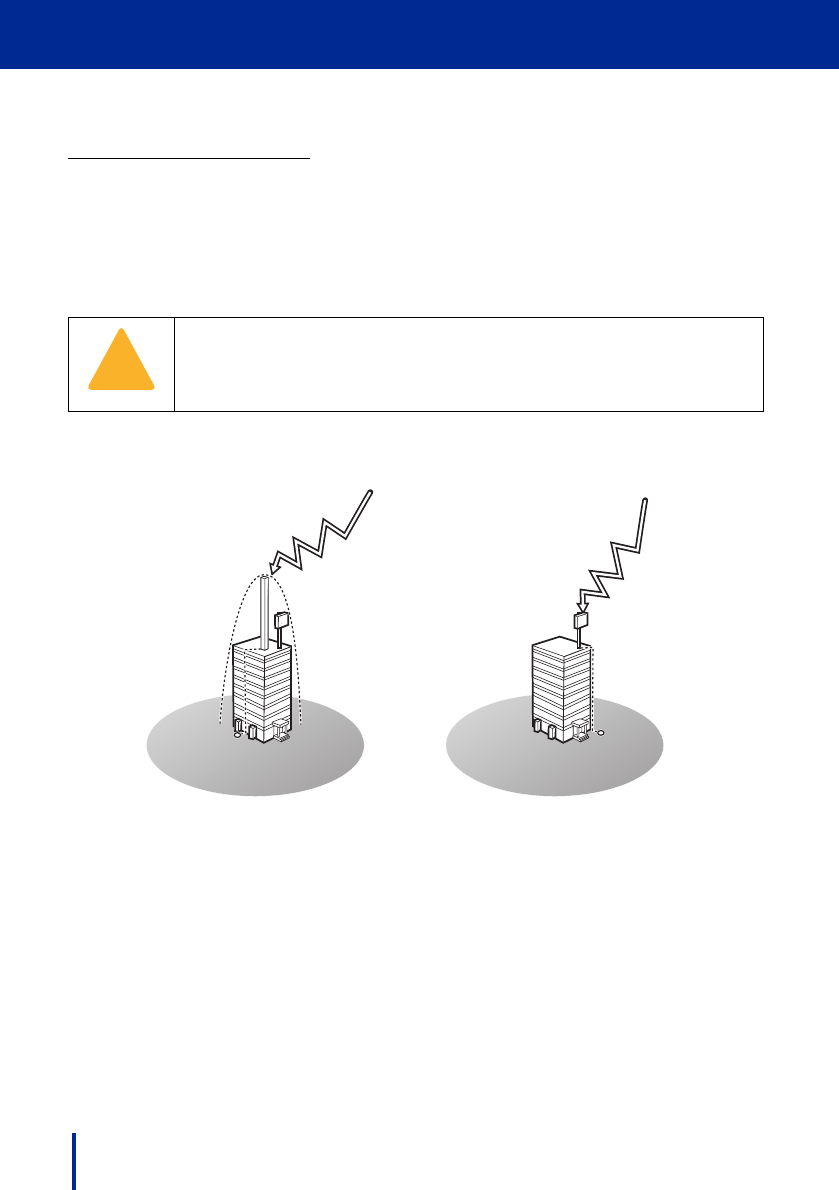

Protection System Design

Additionally, the system design must include:

•Grounding system—designed as a result of soil resistivity analysis and

including the following considerations:

– Local Standards compliance as listed above

– Available space/location

– Use of suitable grounding rods

•Down conductor route—should avoid other services (parallel routing not

closer than 2m or 80 inches), not exceed accepted bending angles (500

mm or 20 inches radius), minimize conductor length, and meet or exceed

securing requirements (fixings not more than 1m (or 40 inches) apart for

the top 10% of the route and 2m (or 80 inches) for the remaining 90% of the

route.

•Terminal—use a terminal suitable to environmental conditions that meet or

exceed the mast height and protection level requirements.

CAUTION: ALL WORK MUST BE COMPLETED BY CERTIFIED

INSTALLERS.

CAUTION: INSTALL THE PROTECTION SYSTEM DURING STORM-

FREE PERIODS.

Important Warning Symbols iii

Important Safety Notices

Important Warning Symbols

The following symbols may be encountered during installation or troubleshooting.

Note:

The following NOTE symbol is placed after material to offer suggestions or

comments for ease of use. See the Note as follows.

Warning:

The preceding WARNING is placed before an item of importance that requires

attention to prevent damage to equipment or loss of data.

Caution:

The preceding CAUTION symbol is placed before material that requires atten-

tion to prevent personal injury or even death.

Conformance Documents

R&TTE Directive 1999/5/EC - Declarations of conformity are available at the

following web site address: http://www.rtte.net/Directive.htm

NOTE: Useful information and tips regarding the CPE and networking.

WARNING: Important information appears before the text it references

and should not be ignored as the content may prevent damage to the

machine.

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, ONLY

QUALIFIED SERVICE PERSONNEL SHOULD SERVICE THIS EQUIP-

MENT.

N te

WARNING

iv Federal Communication Commission Interference Statement

Important Safety Notices

Federal Communication Commission Interference

Statement

FCC Part 15 Description

This equipment has been tested and found to comply with the limits for a Class

B digital device, pursuant to Part 15 of the FCC Rules. These limits are

designed to provide reasonable protection against harmful interference in a

residential installation. This equipment generates, uses and can radiate radio

frequency energy and, if not installed and used in accordance with the instruc-

tions, may cause harmful interference to radio communications. However, there

is no guarantee that interference will not occur in a particular installation. If this

equipment does cause harmful interference to radio or television reception,

which can be determined by turning the equipment off and on, the user is

encouraged to try to correct the interference by one of the following measures:

•Reorient or relocate the receiving antenna.

•Increase the separation between the equipment and receiver.

•Connect the equipment into an outlet on a circuit different from that to

which the receiver is connected.

•Consult the dealer or an experienced radio/TV technician for help.

FCC Caution: Any changes or modifications not expressly approved by the

party responsible for compliance could void the user's authority to operate this

equipment.

This device complies with Part 15 of the FCC Rules. Operation is subject to the

following two conditions: (1) This device may not cause harmful interference,

and (2) this device must accept any interference received, including interfer-

ence that may cause undesired operation.

RF Exposure statement for mobile device without SAR

measurement

IMPORTANT NOTE:

FCC Radiation Exposure Statement:

This equipment complies with FCC radiation exposure limits set forth for an

uncontrolled environment. This equipment should be installed and operated

with minimum distance 20cm between the radiator & your body.

This transmitter must not be co-located or operating in conjunction with any

other antenna or transmitter.

Underwriters Laboratories (UL) Information v

Important Safety Notices

Underwriters Laboratories (UL) Information

1. This device must be properly grounded using proper wire grounding techniques

in accordance with local electric codes:

The cable ground shall be connected to the grounding system of the

building, as close to the point of cable entry as is practical.

2. To conform to the over voltage safety requirements of telecommunications

cables, a minimum 26 AWG telecommunication line cable must be used.

R&TTE Directive 1999/5/EC Statements

Installation

The transceiver and antenna equipment must be installed by a qualified profes-

sional installer and must be installed in compliance with regional, national, and

local regulations. It is the responsibility of the system installer and/or system

operator to ensure the installed system does not exceed any operational con-

straints identified by local regulations. Refer to the sections in this product User

Guide for detailed information about the correct installation steps to ensure

power and frequency settings are set correctly before connecting the antenna.

National Interface documents may identify, among other parameters, a maxi-

mum output power for the system, expressed in terms of an EIRP level that

must not be exceeded. Any use of a combination of output power and antenna

resulting in an EIRP level above the national limit may be considered illegal and

is outside the scope of the R&TTE Directive 1999/5/EC compliance declaration.

WEEE Product Return Process

In accordance with the WEEE (Waste from Electrical and Elec-

tronic Equipment) directive, 2002/96/EC, this equipment is marked

with the logo shown. The WEEE directive seeks to increase recy-

cling and re-use of electrical and electronic equipment. This sym-

bol indicates that this product should not be disposed of as part of

the local municipal waste program.

vi WEEE Product Return Process

Important Safety Notices

Important Service Information

1. Refer all repairs to qualified service personnel. Do not remove the covers

or modify any part of this device, as this voids the warranty.

2. Disconnect the power to this product and return it for service if the following

conditions apply:

– The unit does not function after following the operating instructions out-

lined in this manual.

– The product has been dropped or the housing is damaged.

3. Record the CPE serial numbers for future reference.

Version 1.1.0.0, October 2008

Table of Contents

Important Safety Notices ......................................... i

Safety Information ...................................................................................... i

Lightning Strike and Surge Protection ....................................................... ii

Important Warning Symbols ...................................................................... iii

Conformance Documents .......................................................................... iii

Federal Communication Commission Interference Statement ................. iv

Underwriters Laboratories (UL) Information .............................................. v

R&TTE Directive 1999/5/EC Statements .................................................. v

WEEE Product Return Process ................................................................. v

1 Product Overview ................................................. 1

1.1 Introduction .......................................................................................... 1

1.1.1 IEEE 802.16 WiMAX Compliance ...................................................... 1

1.2 Main Features ..................................................................................... 2

1.3 Package Contents Checklist ............................................................... 3

1.3.1 Optional Contents Checklist .............................................................. 4

1.4 Connection Description ....................................................................... 5

2 Basic Installation .................................................. 7

2.1 Safety Measures ................................................................................. 7

2.2 System Requirements ......................................................................... 7

2.3 Deployment Models ............................................................................. 8

2.3.1 Lightning Strike and Surge Protection................................................. 8

2.3.2 Grounding Protection...................................................................... 12

2.4 Hardware Installation ......................................................................... 13

2.4.1 Choosing a Location....................................................................... 13

2.4.2 Grounding the CPE ........................................................................ 16

2.4.3 Preparing the Outdoor LAN Cable.................................................... 17

viii

Table of Contents

2.5 Aligning the Antenna ......................................................................... 19

2.5.1 Using the Optional Signal Detector .................................................. 22

2.6 Connecting the CPE to the LAN ........................................................ 24

2.6.1 Connecting the CPE to a Stand Alone PC ........................................ 26

2.7 Completing the Installation ................................................................ 27

2.8 Installing the Antennas ...................................................................... 28

2.9 Powering Off the CPE ....................................................................... 29

2.10 Rebooting the CPE ......................................................................... 29

2.11 Resetting the CPE ........................................................................... 29

3 Features and Web GUI Configuration ................. 31

3.1 Logging In ......................................................................................... 32

3.2 Using the System Page ..................................................................... 34

3.2.1 LAN Settings ................................................................................. 34

3.2.2 NTP Settings ................................................................................. 36

3.2.3 VLAN Tagging ............................................................................... 37

3.3 Using the Band Page ........................................................................ 38

3.3.1 Band Settings................................................................................ 38

3.3.2 FFT Settings ................................................................................. 39

3.4 Using the Security Page .................................................................... 40

3.4.1 Changing Login Details................................................................... 40

3.4.2 PKM Settings ................................................................................ 41

3.5 Using the Status Page ...................................................................... 42

3.5.1 System Status ............................................................................... 42

3.5.2 LAN Status.................................................................................... 43

3.5.3 Forwarding Status.......................................................................... 44

3.5.4 Connection Status.......................................................................... 45

3.6 Using the Tools Page ........................................................................ 46

3.6.1 Upgrading the Firmware ................................................................. 46

3.6.2 Restoring Factory Defaults.............................................................. 48

3.6.3 Rebooting the CPE ........................................................................ 49

4 Troubleshooting .................................................. 51

4.1 Common Issues ................................................................................ 52

Glossary .................................................................. 55

Index ....................................................................... 59

Product Overview

1.1 Introduction

This CPE is designed for harsh outdoor conditions providing IP-65 grade

waterproofing, dust and salt erosion protection, and a cost effective outdoor

solution for large WiMAX deployment.

Featuring IEEE 802.16-2005 (802.16e) WiMAX Compliant technology, this

CPE supports MIMO (1X2) technology with consistent connection performance

operating at 2.3, 2.5, or 3.5 GHz frequency bands, supporting global and long

range remote side deployment.

Combining the integrated PoE (Power over Ethernet), wall/pole mount kit and

the optional signal detector, the CPE assures ease of deployment in the most

challenging of outdoor conditions where power lines are unavailable.

Additionally, the user friendly web-based configuration tool provides simple

setup and configuration.

1.1.1 IEEE 802.16 WiMAX Compliance

The IEEE 802.16e-2005 specifications describe a point-to-multipoint (PMP)

broadband wireless access standard for devices that operate between the fre-

quencies 2-11 GHz and 10-66 GHz. Both the Media Access Control (MAC) and

the physical (PHY) layers descriptions are regulated by IEEE 802.16e-2005

certification.

NOTE: The operating frequency band is dependent on the product

purchased.

NOTE: This CPE device compliance applies to a specific revision

of the 802.16 standard which is subject to amendment.

This CPE device does not support mesh communication (direct

subscriber-to-subscriber).

N te

2 Main Features

Product Overview

1.2 Main Features

•IEEE 802.16e-2005 compliance

•Operating Frequency 2.3, 2.5, or 3.5 GHz

•Support TDD

•OFDMA modulation, 512 1024 FFT points QPSK, 16QAM, 64QAM

•Security support for 3DES, AES(CCMP), EAP-TLS/EAP-TTLS, PKMv2 and

X.509

•IP-65 level waterproof enclosure

•802.3af compliant Power Over Ethernet (PoE) support

•One RJ-45 Console port

•Two 7dBi dipole antennas

•High output power: Typical 25.5dBm (antenna port)

•Surge protection

•(Optional) Console detector

•MIMO 1Tx/2Rx support

•Ease of use web interface for management and configuration

Package Contents Checklist 3

Product Overview

1.3 Package Contents Checklist

Once unpacked, ensure that all contents are included. Refer to the list below for

the materials list.

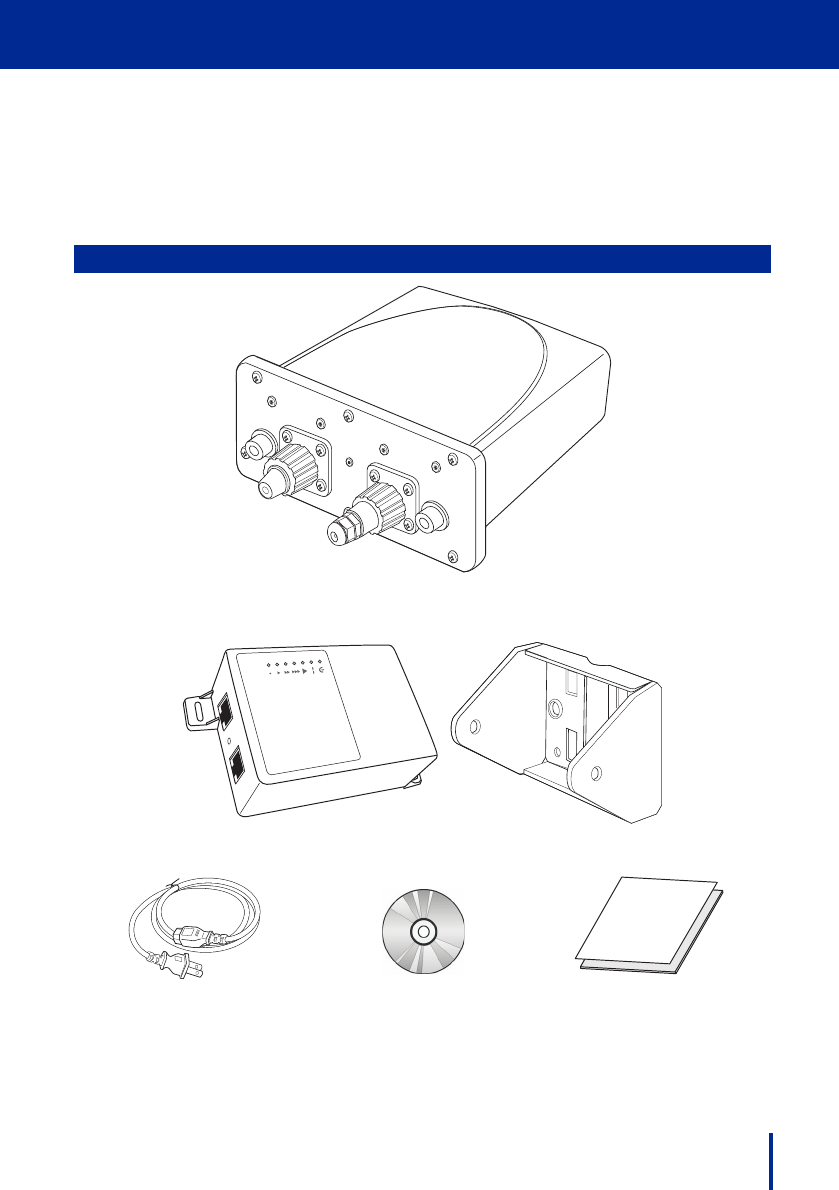

Contents List

CPE

PoE Adapter Wall Mounting Bracket

Power Cable

CD containing this

User Manual

Quick Installation Guide

POWER+DATA

GND

CONSOLE

DATA OUT DATA IN

Quick Installation Guide

4 Package Contents Checklist

Product Overview

1.3.1 Optional Contents Checklist

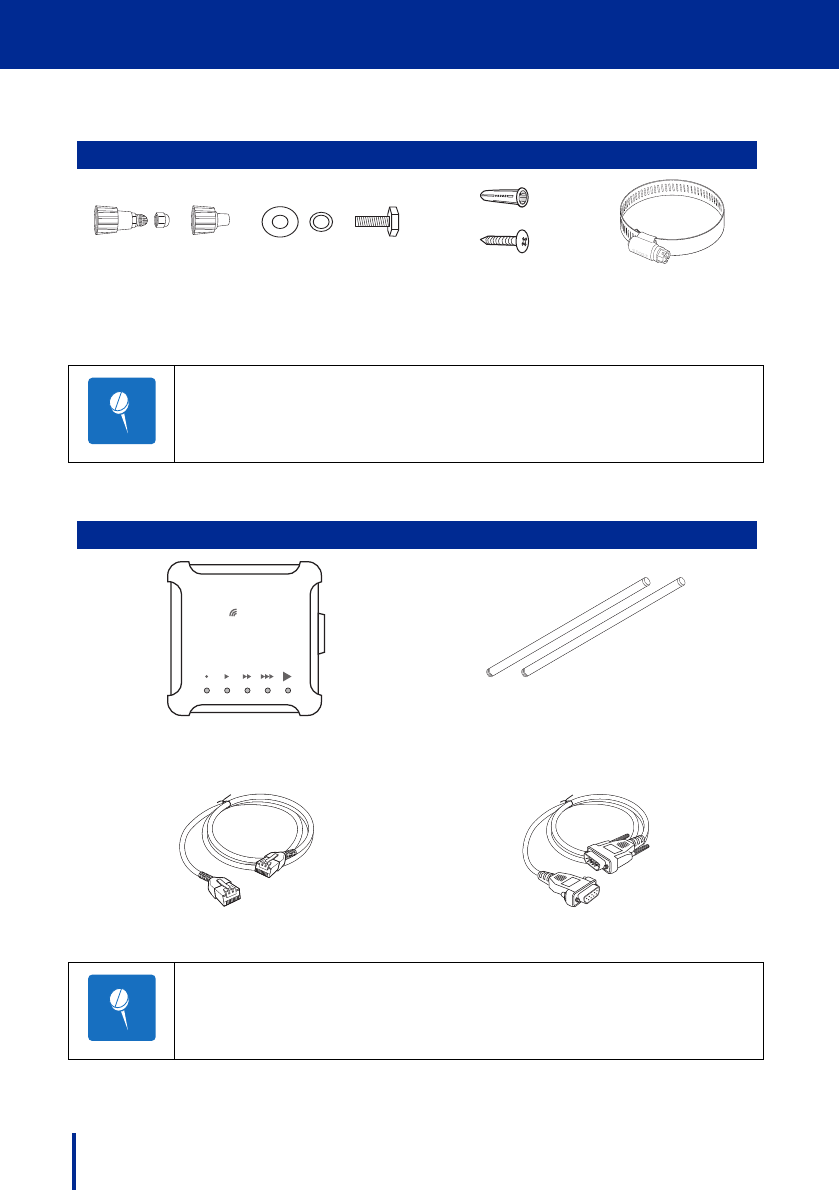

Accessories List

Waterproof

Sealing Caps

2 x Bracket

Screws and

Washers

4 x Wall Mounting

Screws and

Plugs

2 x Pole

Mounting Rings

NOTE: Please check that all the listed items are present and in good

condition. If there is anything missing or damaged, contact the dealer

immediately.

Optional Materials List

Signal Detector

2 x 7 dBi External Antennas

(dependent on model purchased)

RJ-45 Cable (optional) D-Sub9 Cable (optional)

NOTE: Contact the dealer for information on obtaining optional items

N te

detector

for installation

N te

Connection Description 5

Product Overview

1.4 Connection Description

Label Item Description

1. Antenna

Connector

Connect the external 7 dBi antennas

2. Grounding

Connector

Route to approved grounding or earth

3. PoE and Data

Port

Insert RJ-45 Ethernet cable and connect to PoE

Adapter.

See Connecting the CPE to the LAN on

page 24

4. Console port Insert RJ-45 Ethernet cable for configuration and

signal testing

POWER+DATA

GND

CONSOLE

This page left blank intentionally.

Basic Installation

This chapter contains information on safety and installation procedures for the

CPE. Follow the recommendations outlined in this chapter to ensure the cor-

rect operation of the CPE and reduce the risk of damage to the device or per-

sonal injury.

2.1 Safety Measures

Before installing and using the CPE, take note of the following precautions:

•Read all instructions carefully

•Use only the Power over Ethernet adapter supplied

•Follow all warnings and cautions in this manual and on the unit case

2.2 System Requirements

Proper installation of the CPE requires the following minimal configuration:

•A PC with an Ethernet (10/100Base-TX) port

•A Web browser installed such as Microsoft Internet Explorer® version 6.0,

Firefox®version 2.0, or Safari® version 3.0.3.

NOTE: The browser versions listed are the minimum requirement. Later

versions of the software are also acceptable.

N te

8 Deployment Models

Basic Installation

2.3 Deployment Models

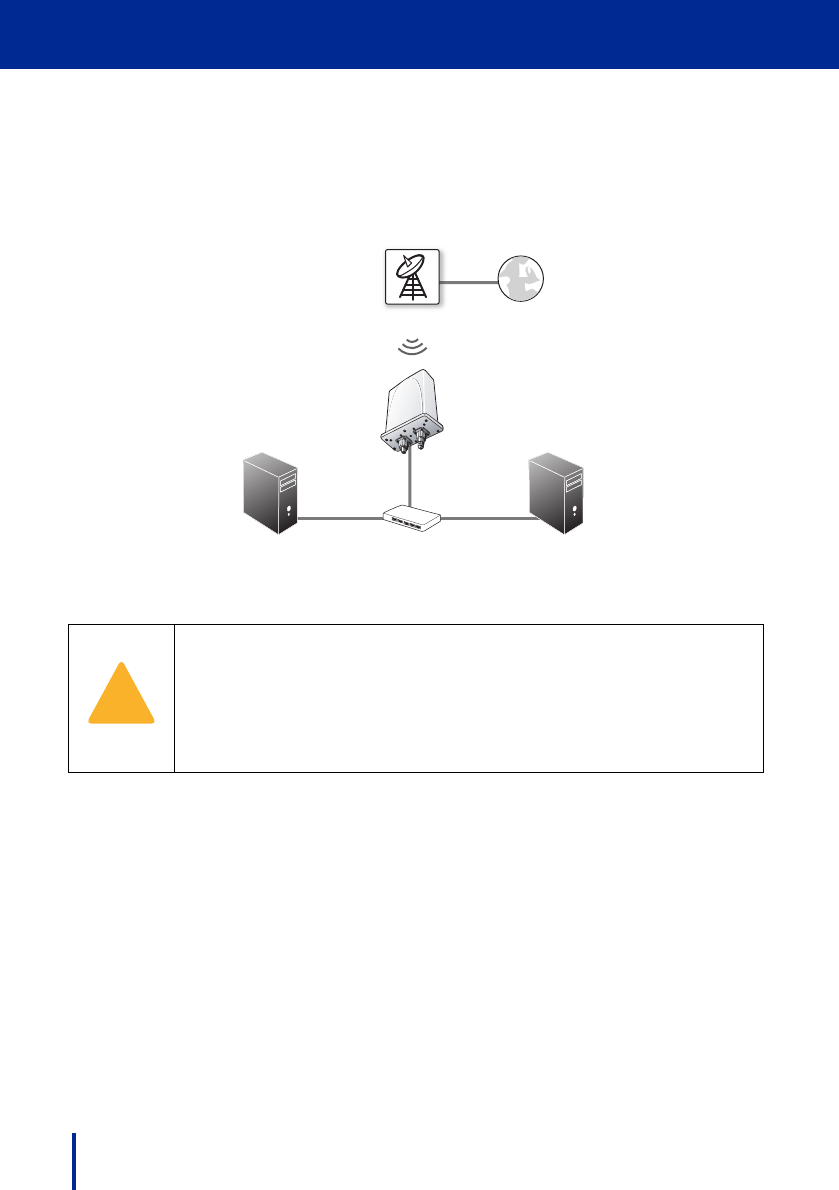

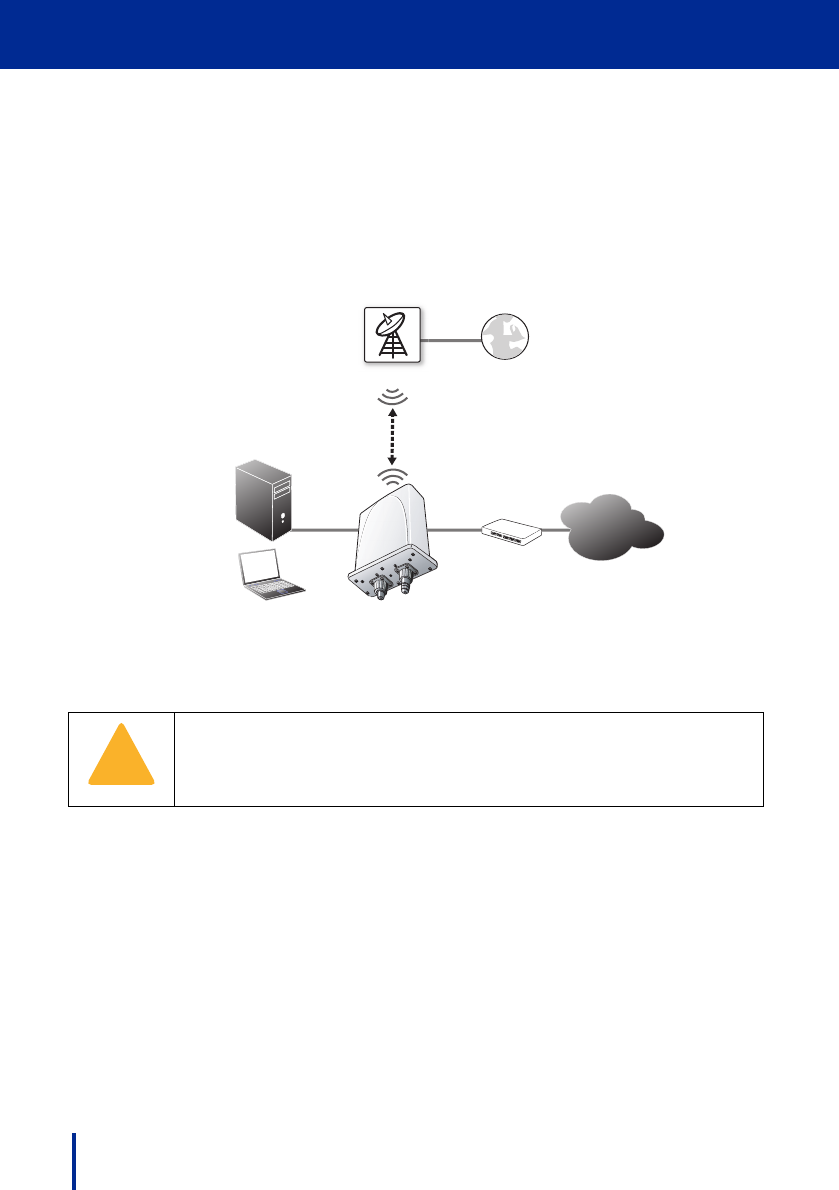

This section describes the different deployment models supported by the CPE.

The subscriber station, in this case the CPE, receives signal directly from the

Base Transceiver Station (BTS) providing WAN access to standalone comput-

ers or devices on the LAN, whether in a business or residential setup.

2.3.1 Lightning Strike and Surge Protection

Protection against lightning strikes is an essential consideration when installing

any kind of antenna. Lightning strikes fall into two broad categories—Direct and

Indirect strikes—and require specific measures to safeguard against damage to

property and individuals including the following items:

•Grounding system—designed as a result of soil resistivity analysis and

including the following considerations:

– Local Standards compliance as listed below

– Available space/location

– Use of suitable grounding rods

CAUTION: THE INFORMATION SUPPLIED HERE IS FOR REFER-

ENCE ONLY. ALL INSTALLATIONS SHOULD BE UNDERTAKEN BY

CERTIFIED PROFESSIONALS.

WiMAX BTS Internet

Desktop PC

Notebook

LAN

CPE

Deployment Models 9

Basic Installation

•Down conductor route—should avoid other services (parallel routing not

closer than 2m or 80 inches), not exceed accepted bending angles (500

mm or 20 inches radius), minimize conductor length, and meet or exceed

securing requirements (fixings not more than 1m (or 40 inches) apart for

the top 10% of the route and 2m (or 80 inches) for the remaining 90% of the

route.

•Terminal—use a terminal suitable to environmental conditions that meet or

exceed the mast height and protection level requirements.

For recommendations on the design and installation of lightning-protection sys-

tems, please see the following standards:

•LPI-175—Standard of Practice for the Design-Installation-Inspection of

Lightning Protection Systems, issued by the Lightning Protection Institute

•NFPA 780—Standard for the Installation of Lightning Protection Systems,

issued by the National Fire Protection Association

•UL 96A—Standard for Installation Requirements for Lightning Protection

Systems, issued by Underwriters Laboratories (UL) Inc.

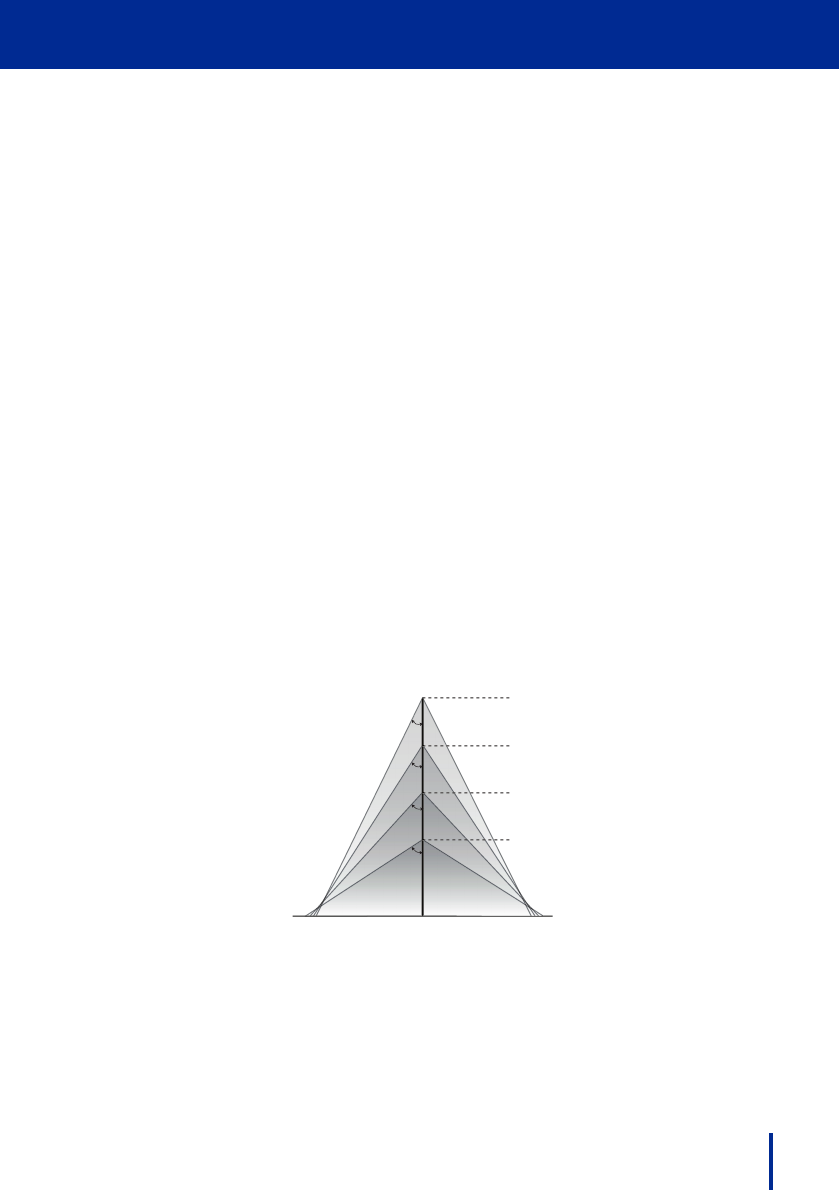

The effectiveness of a lightning rod also depends on it’s height. The protection

umbrella narrows as mast height increases. The following illustration describes

approximately the height to coverage ratio.

So, for example, at 30 meters mast height the angle of coverage is 45 degrees.

60m

25o

35o

45o

55o

45m

30m

20m

10 Deployment Models

Basic Installation

DIRECT STRIKE PROTECTION

A direct lightning strike, as the name suggests, describes an electrical dis-

charge directly to a lightning rod or the CPE itself.

The CPE must be installed within the lightning rod’s protection umbrella or have

sufficient grounding and surge protection installed.

See Grounding Protection on page 12 for more information on grounding spec-

ifications.

DISCLAIMER: CONSULT A QUALIFIED PROFESSIONAL TO

DETERMINE THE CORRECT PROTECTION METHOD FOR YOUR

INSTALLATION.

Direct Strike

w/o lightning rod

Outdoor CPE

Ground cable

lightning

Ground cable

Direct Strike

w/ lightning rod

Lightning

Rod Outdoor CPE

Protection

Umbrella

Deployment Models 11

Basic Installation

INDIRECT STRIKE PROTECTION

Indirect lightning strikes affect equipment in proximity with the strike, for exam-

ple devices installed in enclosures or under roofs.

The CPE must be installed within the lightning rod’s protection umbrella or have

sufficient grounding and surge protection installed.

See Grounding Protection on page 12 for more information on grounding spec-

ifications.

DISCLAIMER: CONSULT A QUALIFIED PROFESSIONAL TO

DETERMINE THE CORRECT PROTECTION METHOD FOR YOUR

INSTALLATION.

Non-direct Strike

w/o lightning rod

Outdoor CPE

lightning

Ground cable

lightning

Ground cable

Non-direct Strike

w/ lightning rod

Lightning

Rod

Outdoor CPE

Protection

Umbrella

12 Deployment Models

Basic Installation

2.3.2 Grounding Protection

The diagram below describes a typical grounding scenario, including the light-

ning rod and event counter.

CAUTION: THE INFORMATION SUPPLIED HERE IS FOR REFER-

ENCE ONLY. ALL INSTALLATIONS SHOULD BE UNDERTAKEN BY

CERTIFIED PROFESSIONALS.

Inline Coupling

Stainless Steel Cable Tie

Metallic Lower Mast

Downconductor

Saddle

Lightning

Event

Counter

Inspection Pit

Grounding

Rods

Mounting Brackets

Downconductors

Hardware Installation 13

Basic Installation

2.4 Hardware Installation

This section describes the proper steps required to install the CPE, and to align

the antenna.

2.4.1 Choosing a Location

To make optimal use of the CPE, a suitable location is important. The range of

the CPE largely depends upon the position of the antenna. It is recommended

that an overall survey be performed, observing the following requirements,

before installing the CPE:

•Do not place the CPE near the floor or near metal objects, such as drain

pipes

•The location must allow easy disconnection of power to the CPE if neces-

sary

•Air must be able to flow freely around the hardware

•The CPE unit must be kept away from vibration and excessive heat

•The installation must conform with national and local electrical codes

WARNING: Before installing and using this product, see Important

Safety Notices on page i of this manual.

NOTE: Be sure to read the Release Notes file on the product CD as it

contains software version and driver information that may not have been

available when this document was produced.

WARNING

N te

14 Hardware Installation

Basic Installation

WALL MOUNTING

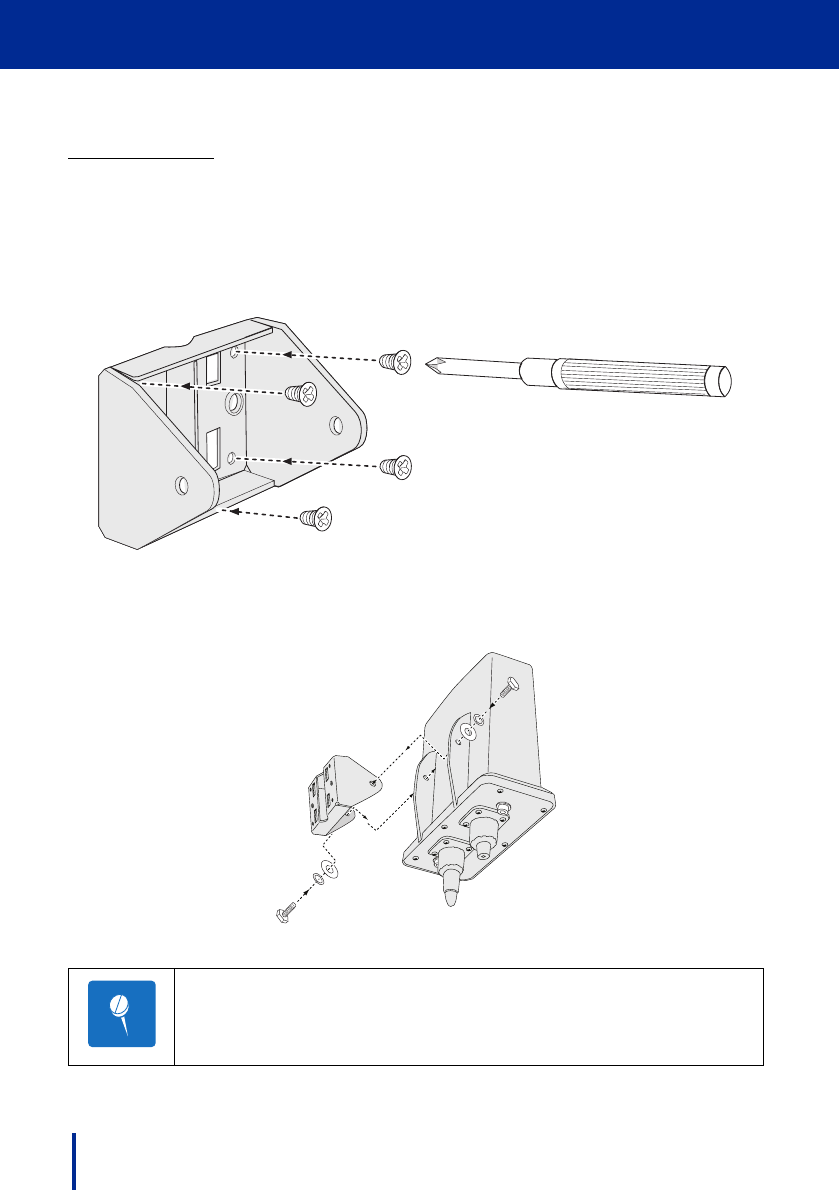

To wall mount the CPE, perform the following steps:

1. Locate a clean, even wall space with adequate room for cabling.

2. Drill four holes and insert the supplied wall fixing plugs.

3. Insert the supplied screws as shown until flush with the mounting bracket.

4. Align the CPE as shown and secure the four washers and two mounting

screws.

NOTE: Do not over tighten the screws at this stage, the CPE may need

adjustment to obtain good signal strength.

N te

Hardware Installation 15

Basic Installation

POLE MOUNTING

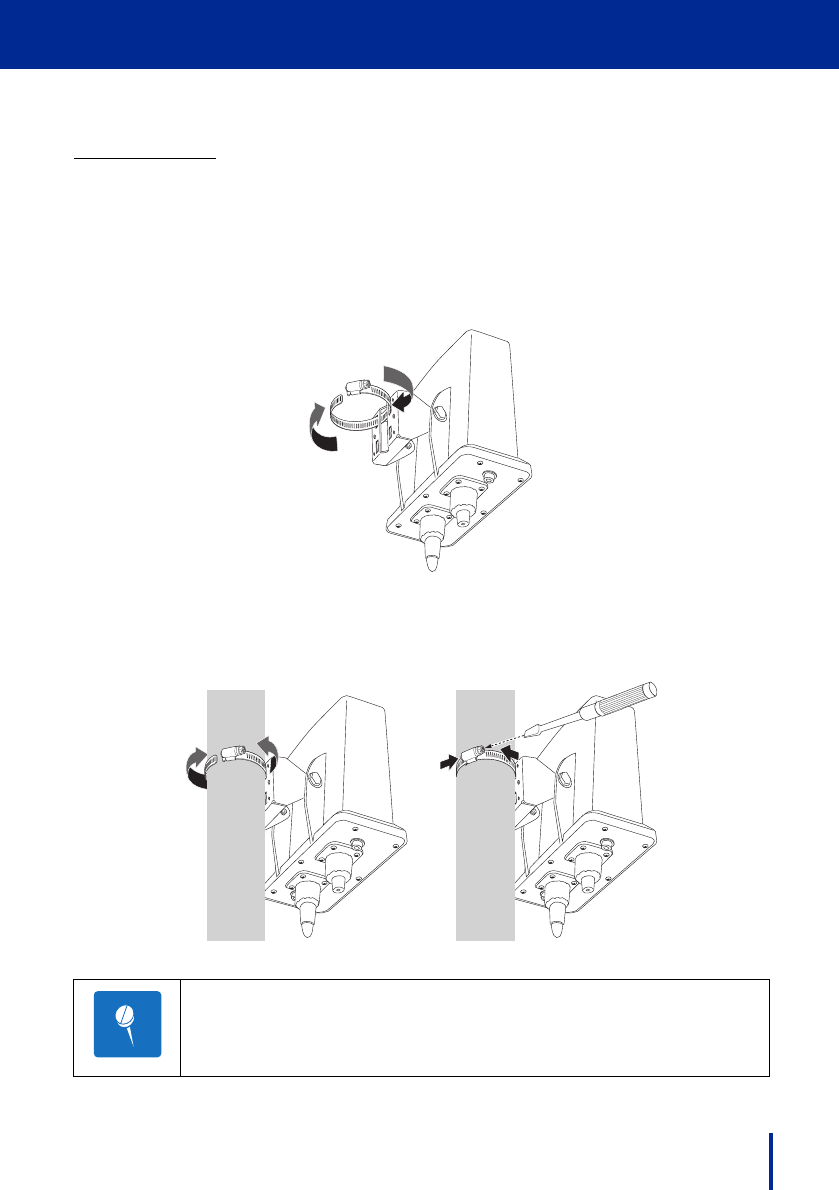

To pole mount the CPE, perform the following steps:

1. Ensure that the pole intended for installation is securely attached to a solid

base.

2. Slide the securing ring through the mounting bracket as shown.

3. Place the securing ring around the pole as shown. Insert the end of the

securing ring into the fastening clip and tighten the screw.

NOTE: Do not over-tighten the screws at this stage, the CPE may need

adjustment to obtain good signal strength.

N te

16 Hardware Installation

Basic Installation

4. Repeat the process for the second securing ring.

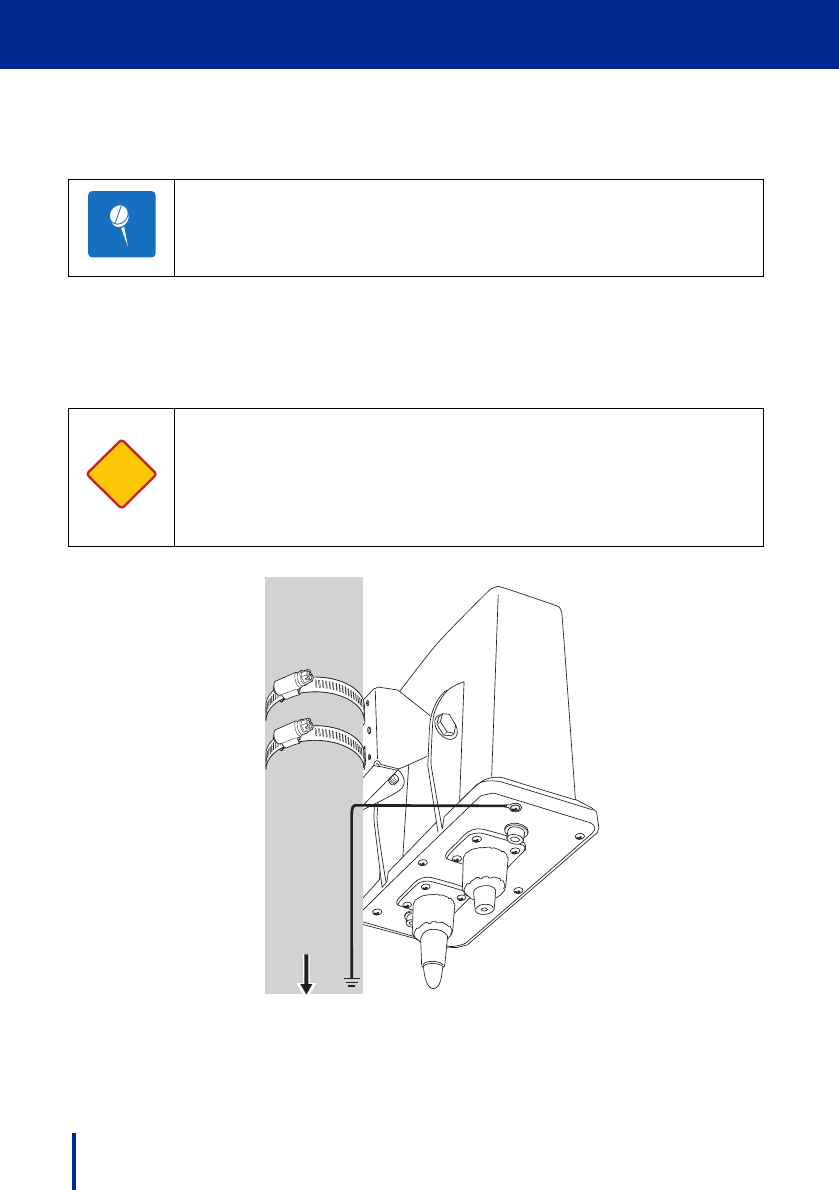

2.4.2 Grounding the CPE

To ensure proper grounding, attach a ground wire of at least 26 AWG stranded

to the CPE as shown:

See Grounding Protection on page 12 for termination information.

NOTE: The serial number is required to obtain support from the vendor.

Maintain this information in a safe place for future reference.The serial

number is on the bottom label of the CPE and on the side of the package.

If technical assistance is required, the serial number is necessary.

WARNING: Use proper wire grounding techniques in accordance with

local electric codes:

The cable ground shall be connected to the grounding sys-

tem of the building, as close to the point of cable entry as is

practical.

N te

WARNING

To regulation

grounding

Hardware Installation 17

Basic Installation

2.4.3 Preparing the Outdoor LAN Cable

The CPE must be connected using an outdoor-rated 24 AWG CAT5 cable (not

supplied) with a diameter between 0.114 and 0.250 inches (2.9 to 6.4 mm) to

the Power-over-Ethernet (PoE) adapter.

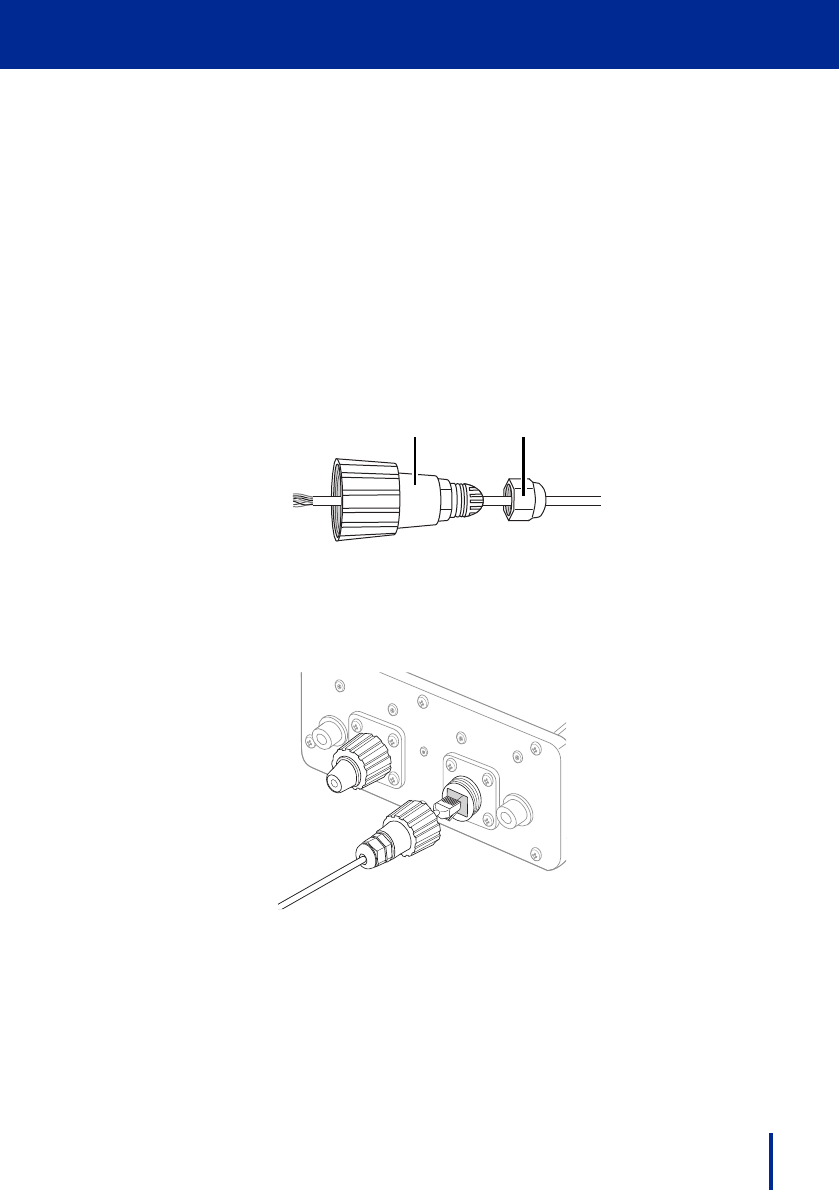

To prepare the cable and assemble the waterproofing cable cover, perform the

following steps:

1. Slide the lock nut (1) and sealing cap (2) over the bare end of the CAT5

cable.

2. Terminate the CAT5 cable with a standard RJ-45 connector.

3. Insert the RJ-45 into the PoE port on the CPE.

POWER+DATA

GND

CONSOLE

18 Hardware Installation

Basic Installation

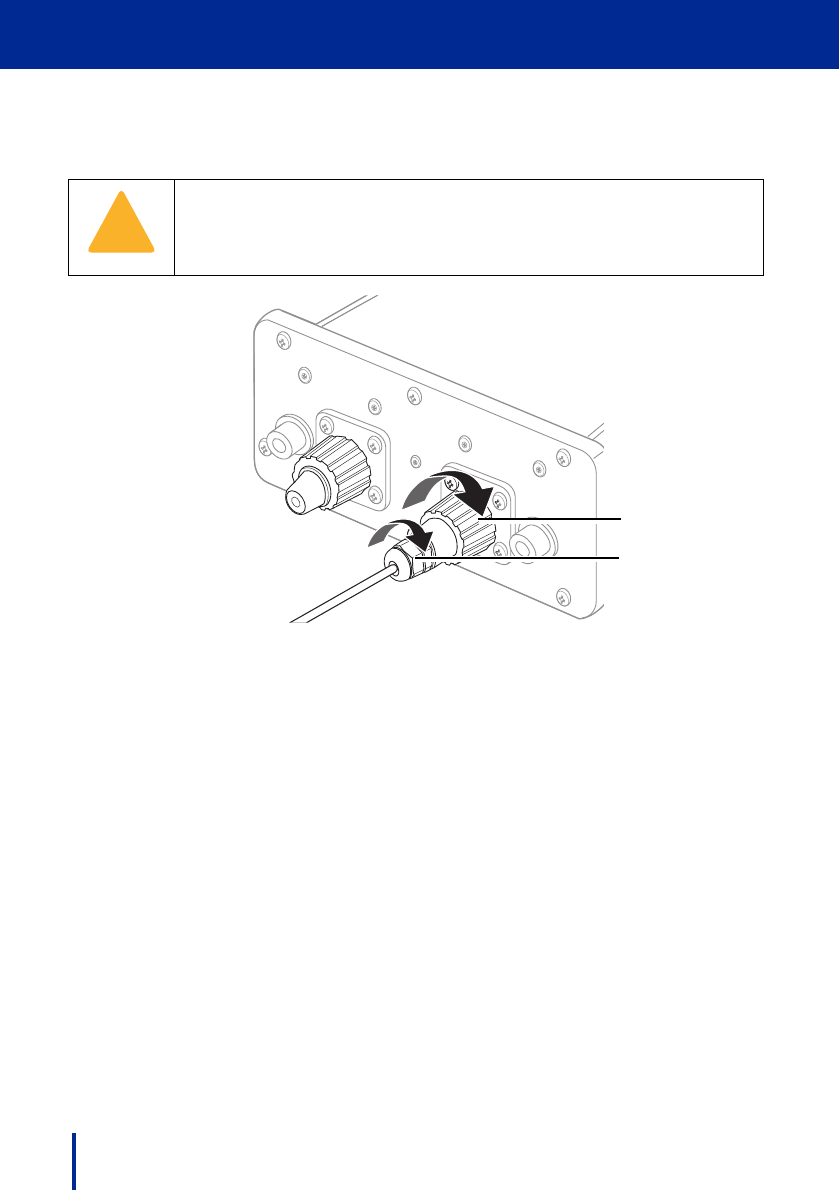

4. Tighten the sealing cap (1) first, then the locking nut (2) as shown.

CAUTION: THE LOCKING NUT (2) MUST NOT BE FULLY TIGHTENED

UNTIL THE SEALING CAP (1) HAS BEEN TIGHTENED DURING FINAL

INSTALLATION ON PAGE 27; OTHERWISE, THE ETHERNET CABLE

MAY TWIST AND DAMAGE.

GND

CONSOLE

POWER+DATA

Aligning the Antenna 19

Basic Installation

2.5 Aligning the Antenna

Antenna alignment ensures that the best possible link is established between

the CPE receiver and base transceiver station (BTS). The antenna alignment

process is usually performed during installation and after major repairs.

The PoE adapter is used to align the antenna before continuing with the instal-

lation procedure. After locating the CPE, perform the following steps to align the

antenna:

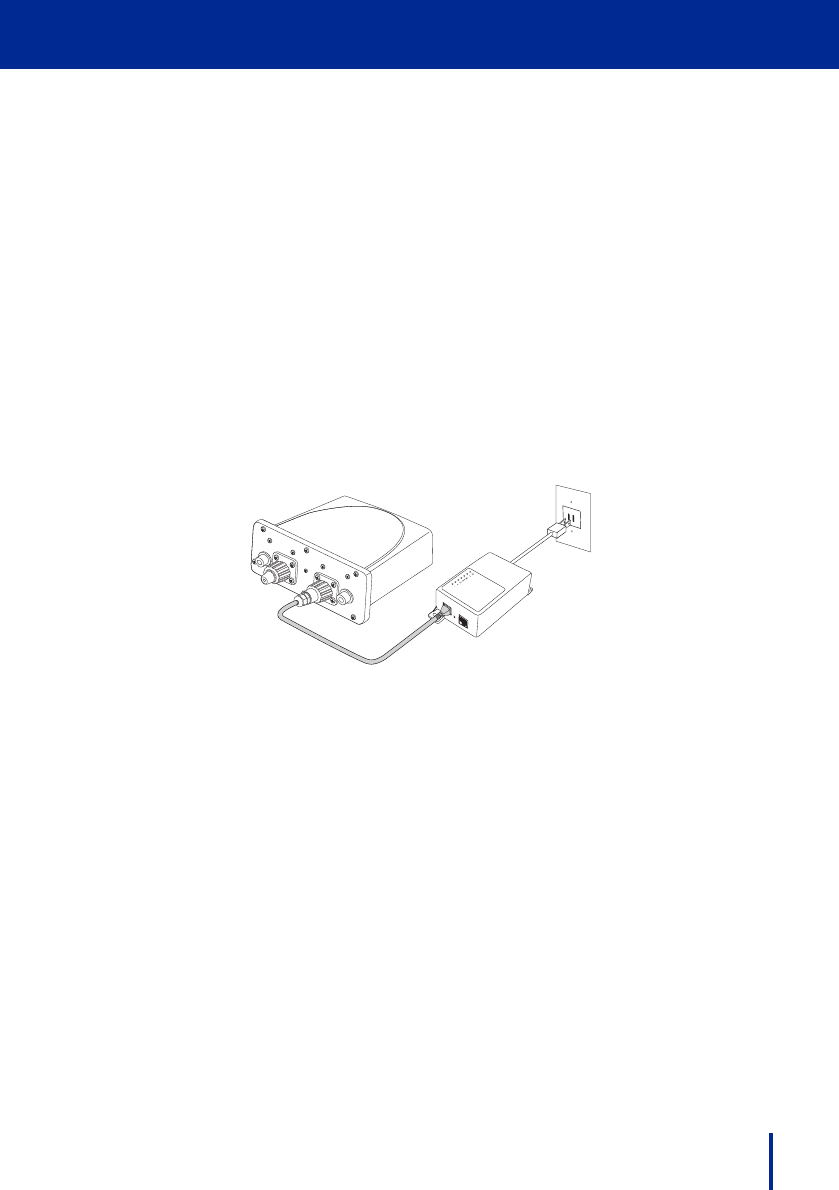

1. Plug the CAT5 Ethernet cable from the CPE into the DATA OUT port on the

PoE.

2. Connect the PoE to a power outlet.

DATA OUT

DATA IN

20 Aligning the Antenna

Basic Installation

After connecting the PoE to an electrical outlet, a diagnostic routine takes

place. When startup is complete, the LEDs lights on the PoE display the

unit’s operational state.

There are a total of seven LEDS. A description of their function is listed as fol-

lows:

CAUTION: WHEN INSTALLING THE DEVICE USING CROSS-OVER

ETHERNET CABLES:

•DO NOT press the reset button on the PoE adapter for more

than 5 seconds.

•DO NOT plug in the cross-over cable while the 5 RSSI LEDS

on the PoE adapter are blinking.

LED Description LED Description

Lights green when

powered on

Lights green when

Ethernet is active

Five RSSI LEDs display connec-

tion strength:

Excellent signal

Strong signal

Normal signal

Weak signal

No signal

DATA OUT DATA IN

Aligning the Antenna 21

Basic Installation

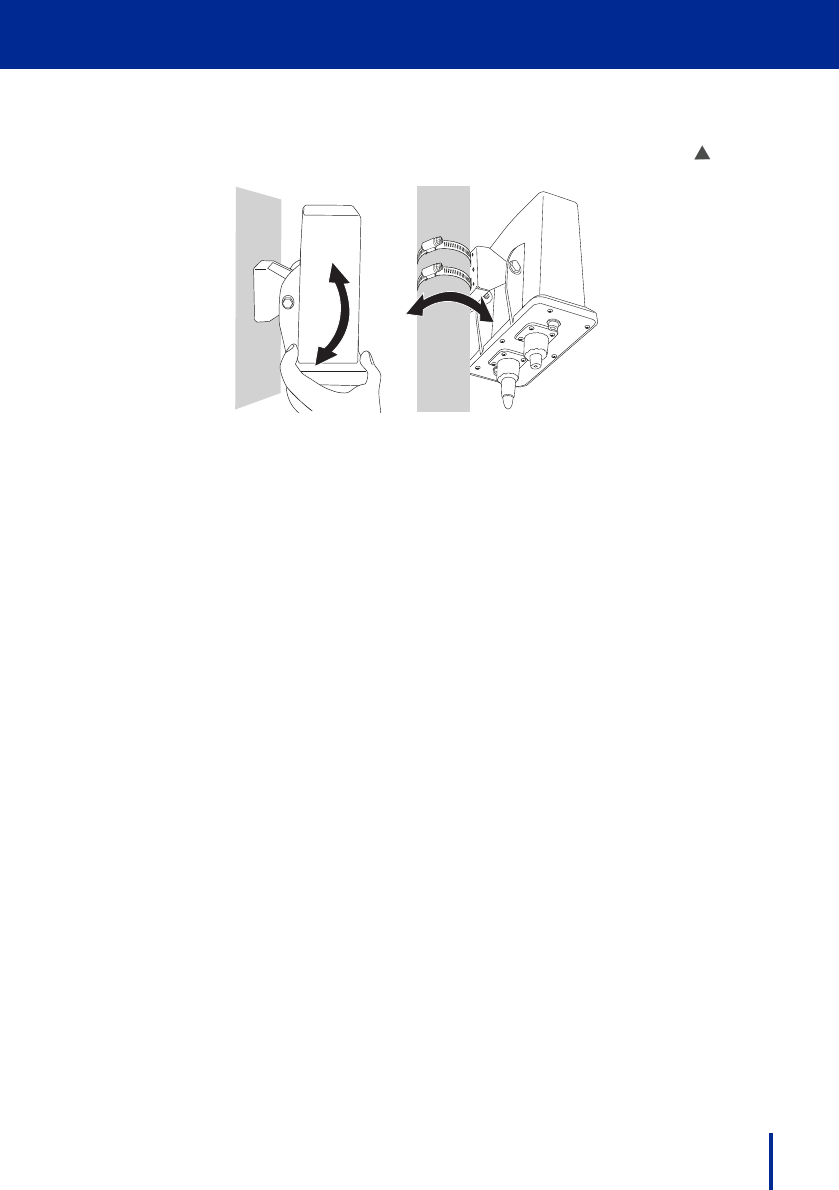

3. Physically adjust the CPE to obtain the strongest possible signal ( ).

4. When the strongest possible signal is received, disconnect the PoE and

continue with the installation process.

22 Aligning the Antenna

Basic Installation

2.5.1 Using the Optional Signal Detector

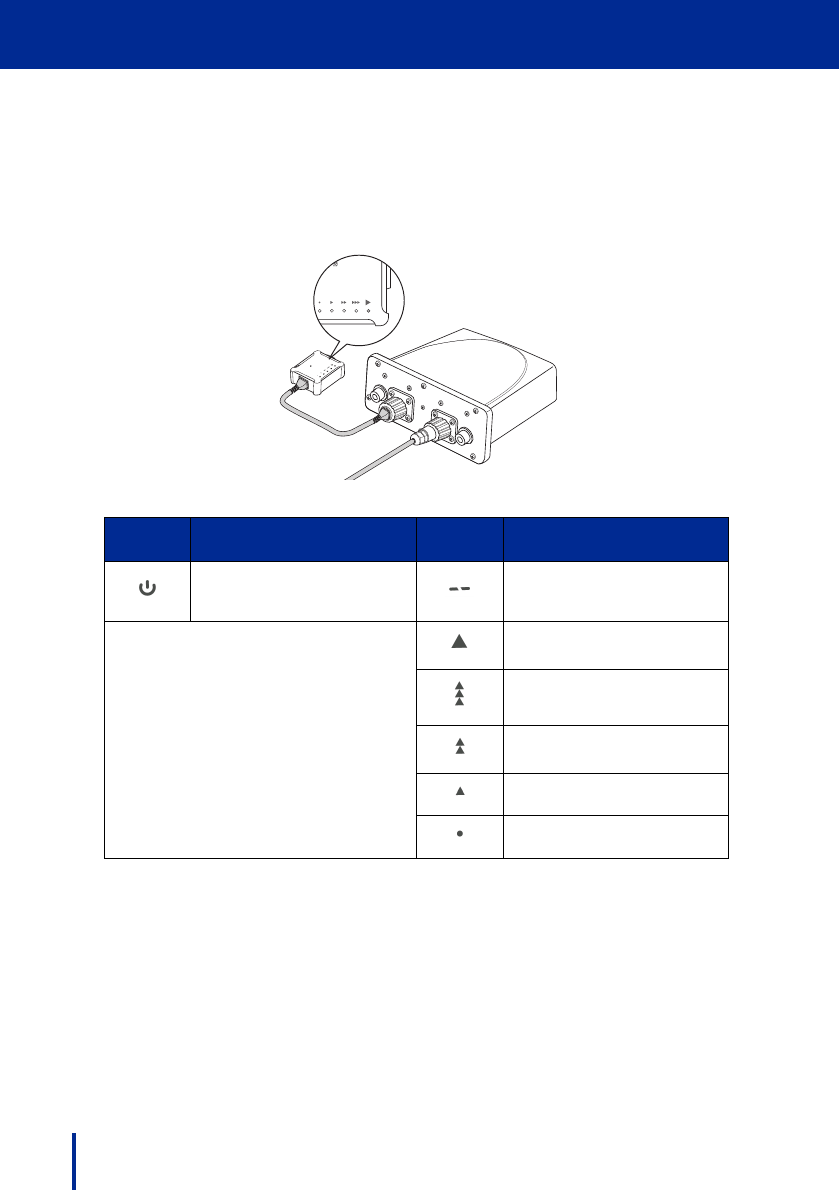

Alternatively, connect the optional signal detector (not supplied) to the configu-

ration port to verify antenna alignment.

LED Description LED Description

Lights green when

powered on

Lights green when

Ethernet is active

Five RSSI LEDs display connec-

tion strength:

Excellent signal

Strong signal

Normal signal

Weak signal

No signal

detector

for installation

detector

for installation

Aligning the Antenna 23

Basic Installation

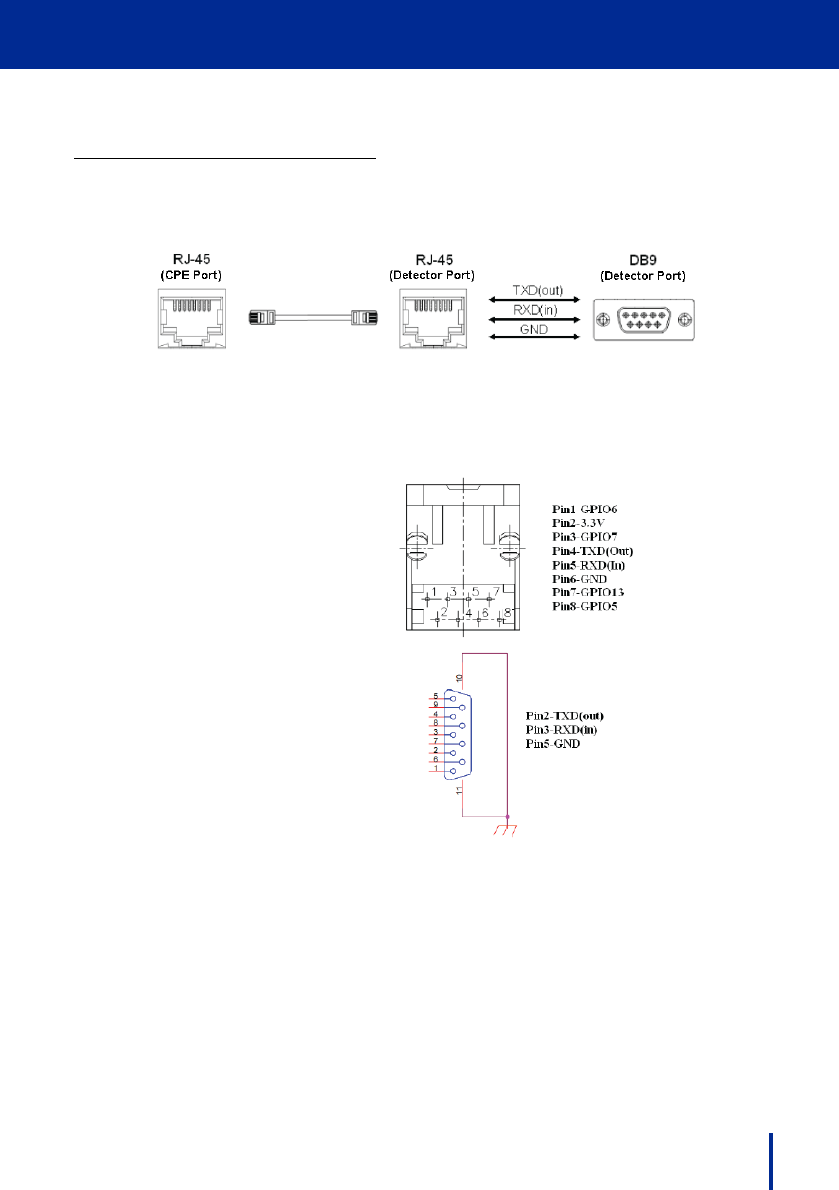

SIGNAL DETECTOR SPECIFICATIONS

The optional signal detector supports connection to the CPE through either an

RJ-45 Ethernet cable or a D-Sub9 cable as shown in the diagram.

Pin Assignment

The signal detector pin assignments are as follows.

RJ-45 Ethernet

Cable

D-Sub9 Cable

24 Connecting the CPE to the LAN

Basic Installation

2.6 Connecting the CPE to the LAN

The following diagram shows a typical CPE setup incorporating a Local Area

Network (LAN).

CAUTION: WHEN INSTALLING THE DEVICE USING CROSS-OVER

ETHERNET CABLES:

•DO NOT press the reset button on the PoE adapter for more

than 5 seconds.

•DO NOT plug in the cross-over cable while the 5 RSSI LEDS

on the PoE adapter are blinking.

WiMAX BASE Internet

Desktop PC Desktop PC

Router or Switch

Connecting the CPE to the LAN 25

Basic Installation

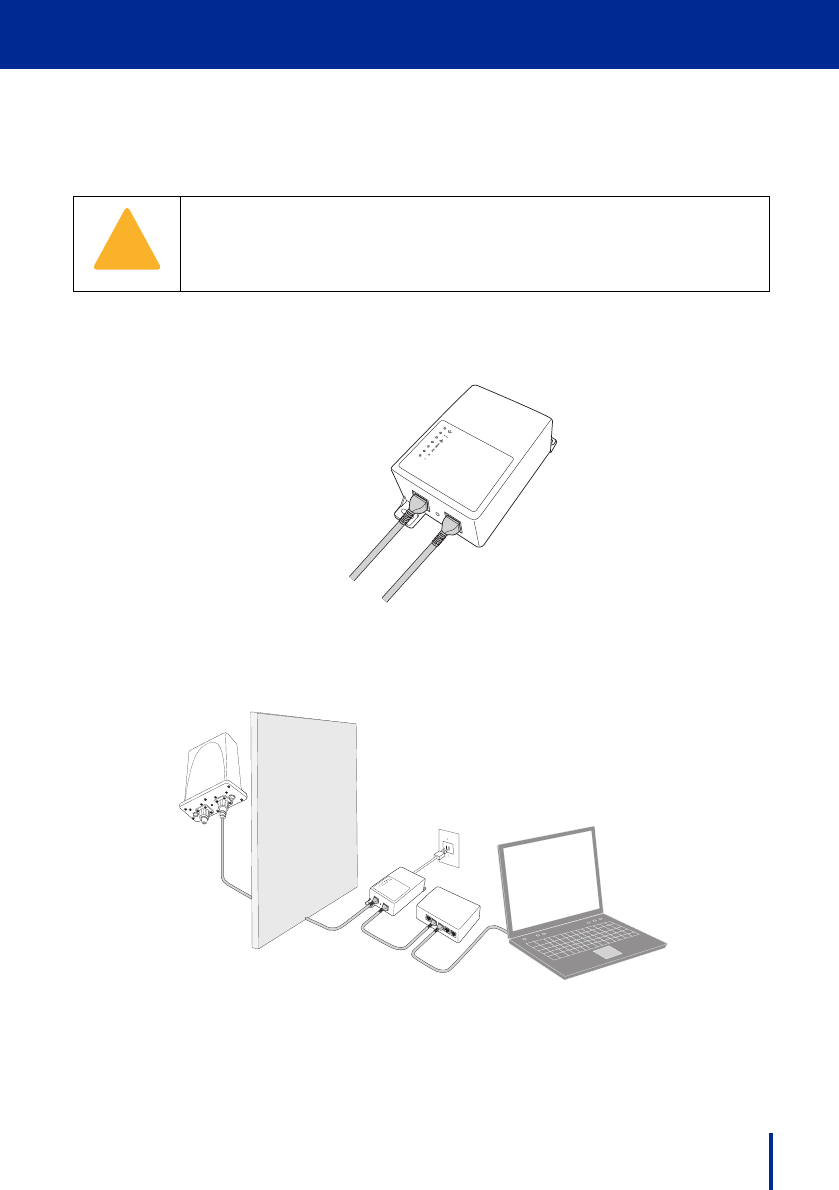

To connect the CPE through a hub or a switch to a computer, perform the fol-

lowing steps:

1. Connect the CAT5 Ethernet cable to the DATA OUT port on the PoE, and a

standard Ethernet cable to the DATA IN port.

2. Connect the Ethernet cable from the DATA IN port to the LAN switch or hub

as shown.

3. Connect an Ethernet cable between the switch and the computer.

4. Connect the PoE to an electrical outlet.

CAUTION: THE PoE (PSE) MUST BE INSTALLED INDOORS.

DATA OUT DATA IN

CAT5 Ethernet

Cable

Ethernet

Cable

DATA OUT

DATA IN

26 Connecting the CPE to the LAN

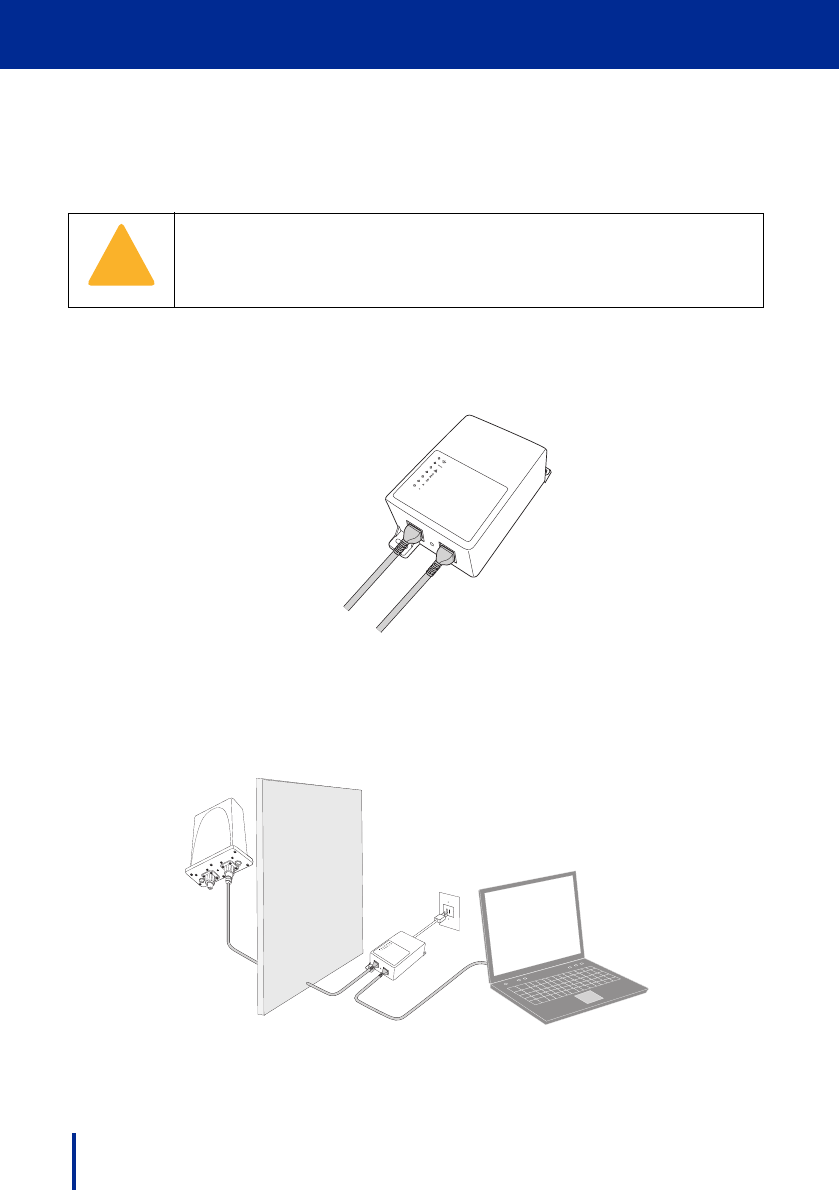

Basic Installation

2.6.1 Connecting the CPE to a Stand Alone PC

To connect the CPE directly to a computer, perform the following steps:

1. Connect the CAT5 Ethernet cable to the DATA OUT port on the PoE, and a

standard Ethernet cable to the DATA IN port.

2. Connect the Ethernet cable from the DATA IN port to the computer as

shown.

3. Connect the PoE to an electrical outlet.

CAUTION: THE PoE (PSE) MUST BE INSTALLED INDOORS.

DATA OUT DATA IN

CAT5 Ethernet

Cable

Ethernet

Cable

DATA OUT

DATA IN

Completing the Installation 27

Basic Installation

2.7 Completing the Installation

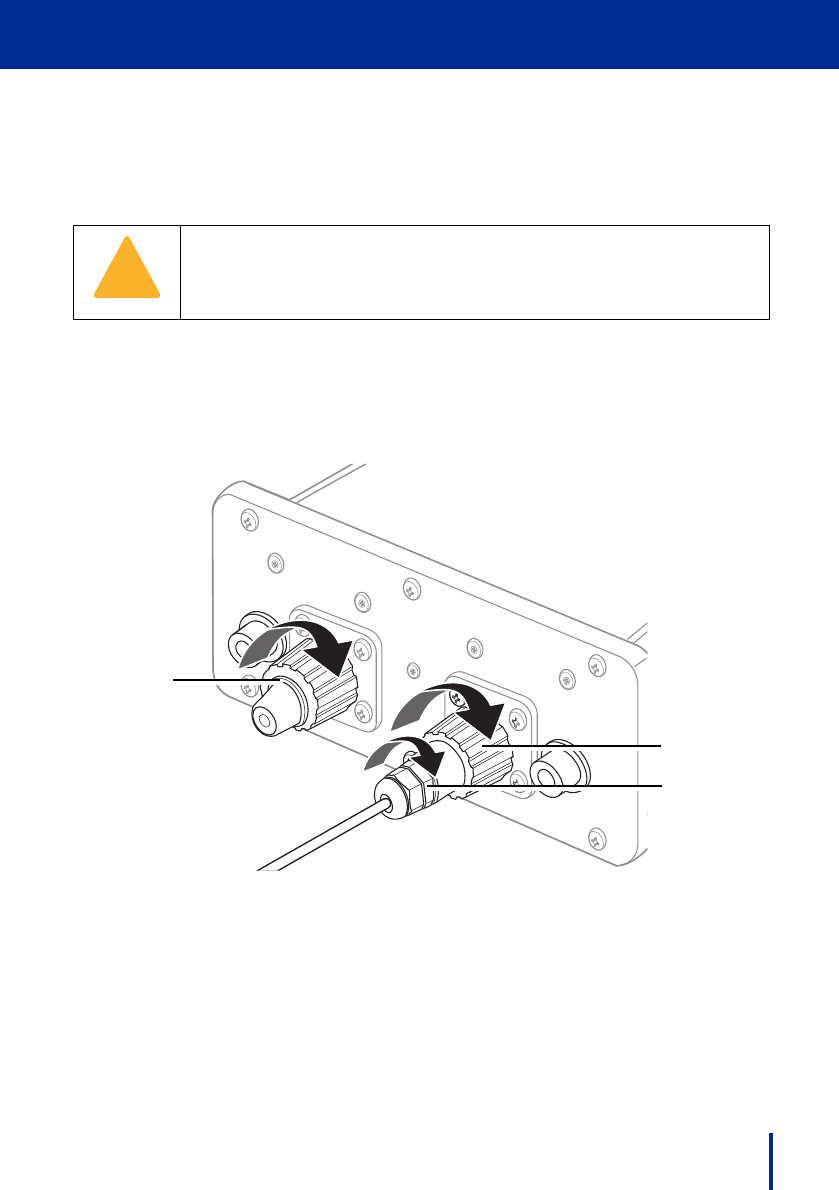

Perform the following steps to complete the initial installation procedure:

1. Tighten the sealing cover on the configuration port (1).

2. Tighten the sealing cap (2) on Ethernet port.

3. Tighten the locking nut (3) to secure the sealing cap.

CAUTION: DO NOT OVER-TIGHTEN! OVER-TIGHTENING CAN

CRUSH THE CAT5 CABLE AND SUBSEQUENTLY DAMAGE THE PoE

OR THE CPE.

28 Installing the Antennas

Basic Installation

2.8 Installing the Antennas

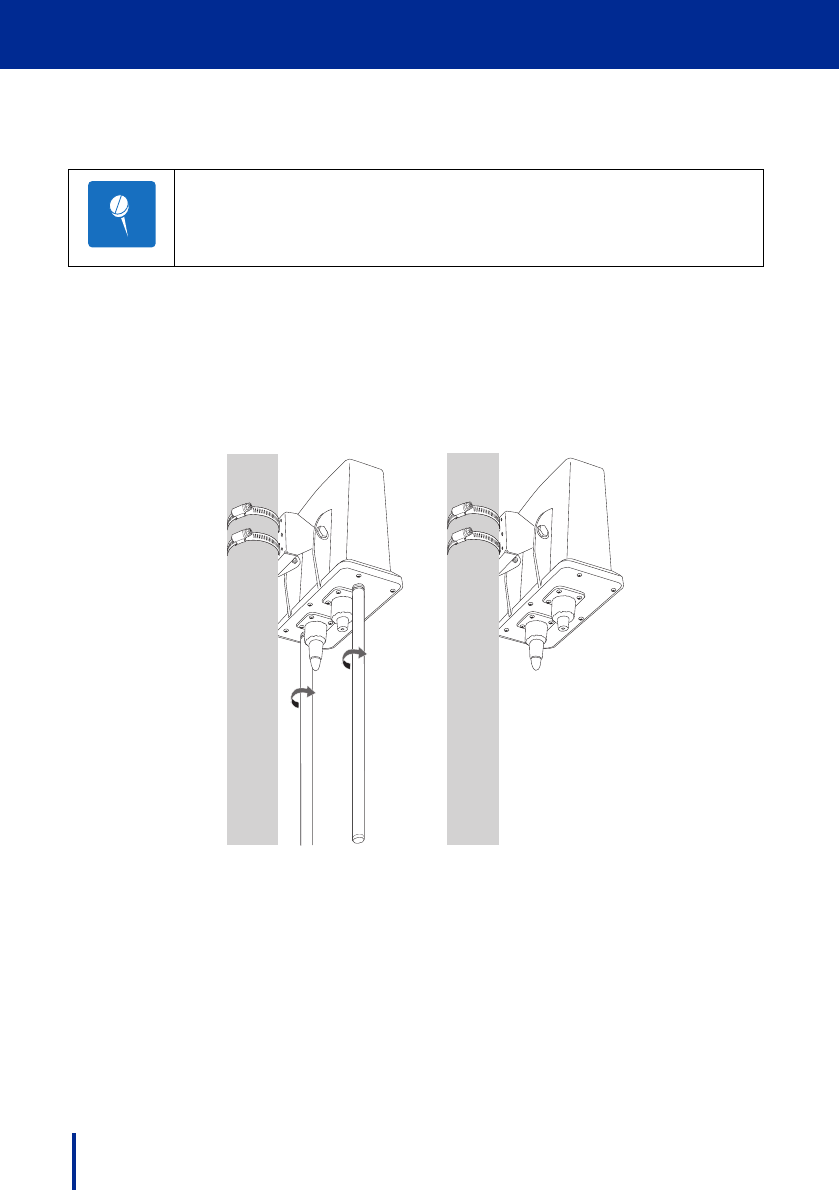

The CPE is supplied with two antennas to improve signal strength. Once the

CPE is correctly installed, perform the following steps to attach the antennas:

1. Locate the two antenna connectors on the underside of the CPE.

2. Attach the antennas by turning clockwise to secure them to the CPE as

shown.

N te

External 7 dBi Antenna

Model

Powering Off the CPE 29

Basic Installation

2.9 Powering Off the CPE

The CPE does not incorporate a power switch. To remove power, unplug the

PoE adapter cable from the electrical outlet or disconnect the RJ-45 connector

from the DATA OUT port on the PoE adapter.

2.10 Rebooting the CPE

A dual function reset button is available on the PoE for reset purposes. Press

the reset button as shown to reboot the CPE.

2.11 Resetting the CPE

Press and hold the reset button for 3 seconds to restart the CPE and restore

the factory default settings.

CAUTION: WHEN THE DEVICE IS INSTALLED USING CROSS-OVER

ETHERNET CABLES:

•DO NOT press the reset button on the PoE adapter for more

than 5 seconds.

CAUTION: WHEN THE DEVICE IS INSTALLED USING CROSS-OVER

ETHERNET CABLES:

•DO NOT press the reset button on the PoE adapter for more

than 5 seconds.

DATA OUT DATA IN

Reset

Button

This page left blank intentionally.

Features and Web GUI

Configuration

This chapter contains a list of features and connection configuration specifica-

tions as well as information on the Web-based Graphical User Interface (GUI).

The CPE’s GUI enables quick and simple setup, and the configuration of the

following options:

•Connection of the CPE to a WiMAX base station

•Network setting changes, such as internal IP address, IP address pool,

DHCP settings, and more

•Internal password change

•Default settings reset

•Firmware updates

32 Logging In

Features and Web GUI Configuration

3.1 Logging In

To log in to the GUI, perform the following steps:

1. Ensure the installation described in Chapter 2 is complete. Check the that

the CPE has power and that the signal strength is good.

2. Launch an Internet browser on the administrator’s PC.

3. Enter the default IP address 192.168.0.10 in the browser address field and

press Enter.

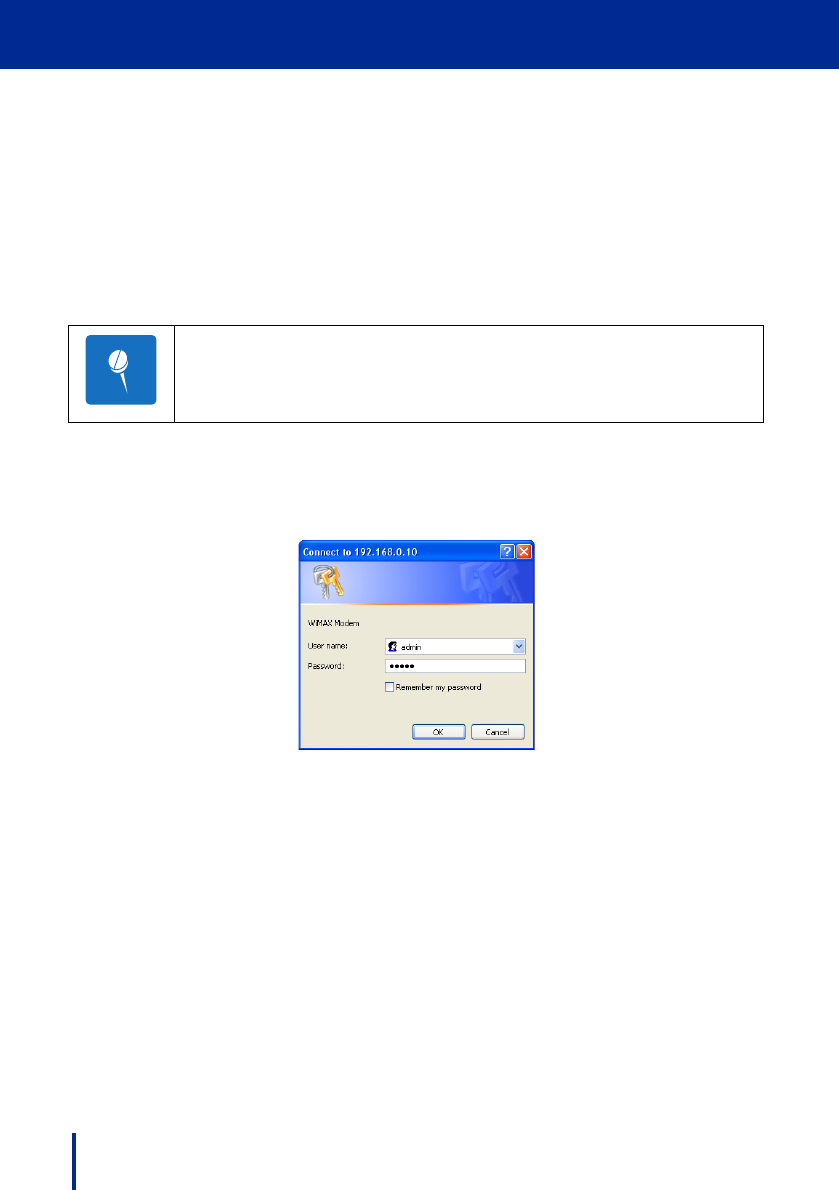

The login screen appears.

4. Input the default user name and password and press Enter.

Username: admin

Password: admin

NOTE: Ensure that an up-to-date browser is installed to correctly

display the GUI. Safari® users must install v3.0.3 or later to guar-

antee functionality.

N te

Logging In 33

Features and Web GUI Configuration

The CPE configuration homepage appears.

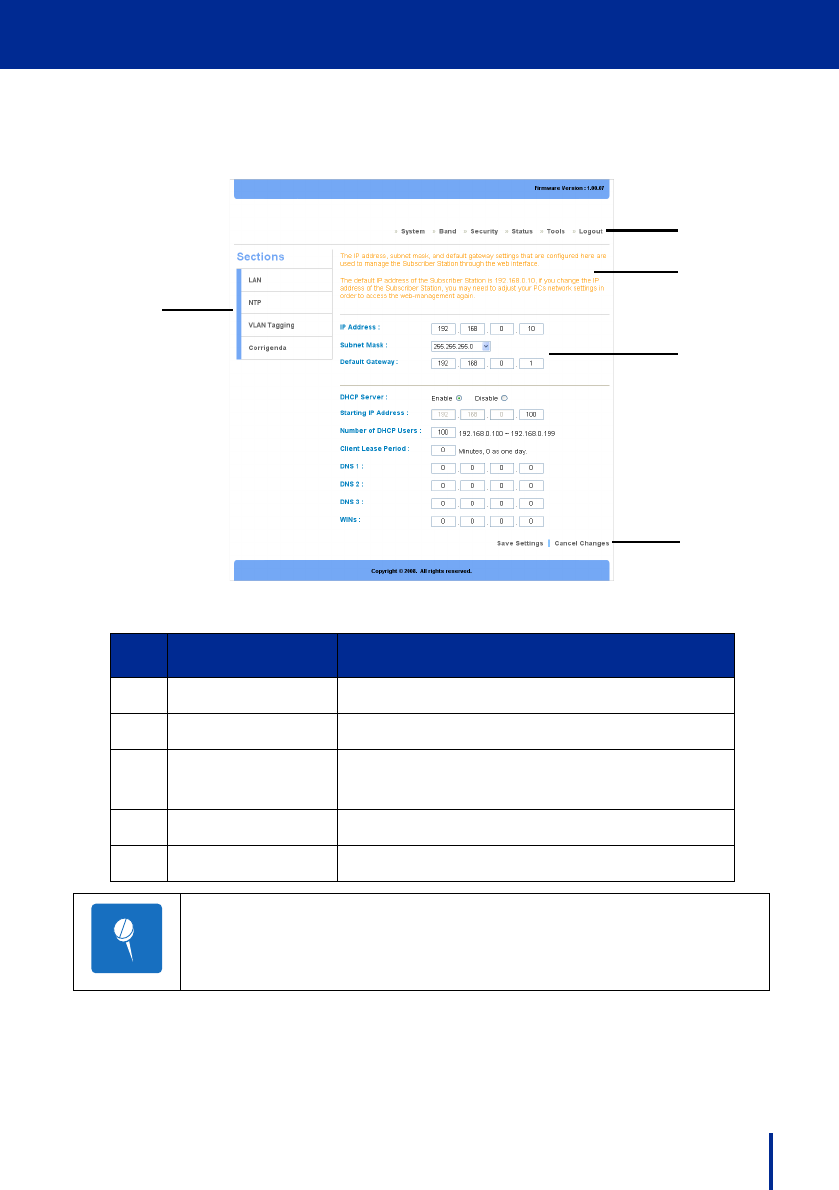

The Web configuration homepage shows:

No. Item Description

1. Navigation Bar Select the desired submenu.

2. Menu Bar

Select the desired main menu.

3. Description

Panel

A brief description of the current menu and

settings.

4. Settings Panel Enter or modify configuration settings.

5. Action Buttons Perform context sensitive actions.

NOTE: Only one administrator at a time can log into the CPE to

make changes to settings.

N te

34 Using the System Page

Features and Web GUI Configuration

3.2 Using the System Page

The System page is used to configure CPE basic settings such as the CPE’s

LAN address, DHCP settings, CPE time and date synchronization, and avail-

able managed VLAN devices.

3.2.1 LAN Settings

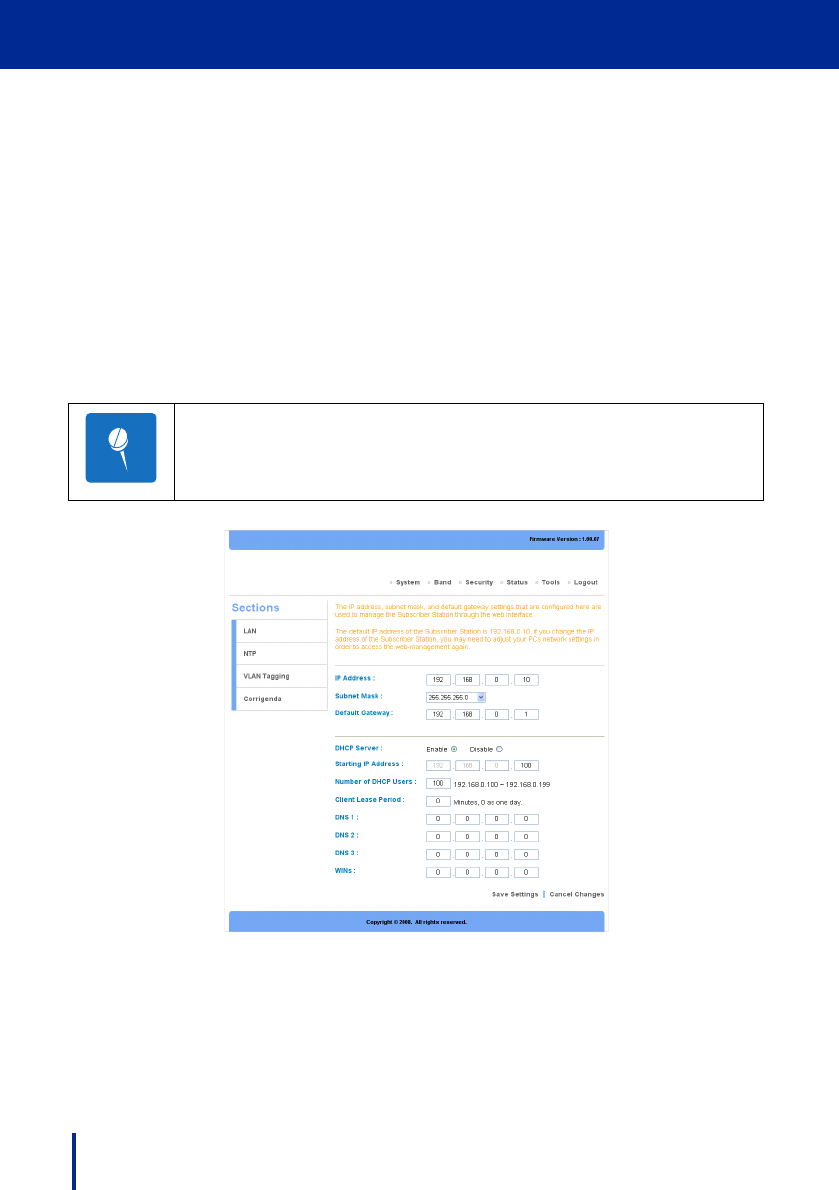

LAN Settings is the default GUI page after logon. The default IP address, sub-

net mask, default gateway, and DHCP/DNS settings are displayed in the LAN

Settings page.

To make changes to the default settings, perform the following steps:

1. Make any desired modifications to the IP, subnet mask, and default gate-

way fields.

2. Click Save Settings.

NOTE: Making changes to the default IP address may cause GUI con-

nection problems.

N te

Using the System Page 35

Features and Web GUI Configuration

DHCP SERVER SETTINGS

Disabled by default, Dynamic Host Configuration Protocol (DHCP) assigns

reusable IP addresses to DHCP client devices connected to the LAN. Enable or

Disable DHCP by selecting the appropriate button.

To configure DHCP, enter the following information:

1. Starting IP Address—enter the starting range of IP addresses available for

distribution. The default value is 192.168.0.100.

2. Number of DHCP Users—enter the maximum number of available IP

addresses for distribution. The default value is 100.

3. Client Lease Period—enter the length of time (minutes) that the DHCP

server reserves IP addresses before recycling them. The default period is

one day, represented by 0.

4. DNS 1 to 3—enter Domain Name System (DNS) information in the sup-

plied fields. The ISP may supply this information.

5. WINs—enter Windows Internet Name Service (WINs) information in the

supplied field. The ISP may supply this information.

6. Click Save Settings.

NOTE: If the CPE DHCP function is enabled and a DHCP server is

already present on the LAN, either disable the DHCP function on the

CPE or DHCP server, or ensure that the available IP Pools do not over-

lap. If both the CPE and the existing DHCP server are active, both

devices may fail to provide services to the network.

NOTE: The full range displays to the right of the field,

192.168.0.100 - 192.168.0.199 in the example.

N te

36 Using the System Page

Features and Web GUI Configuration

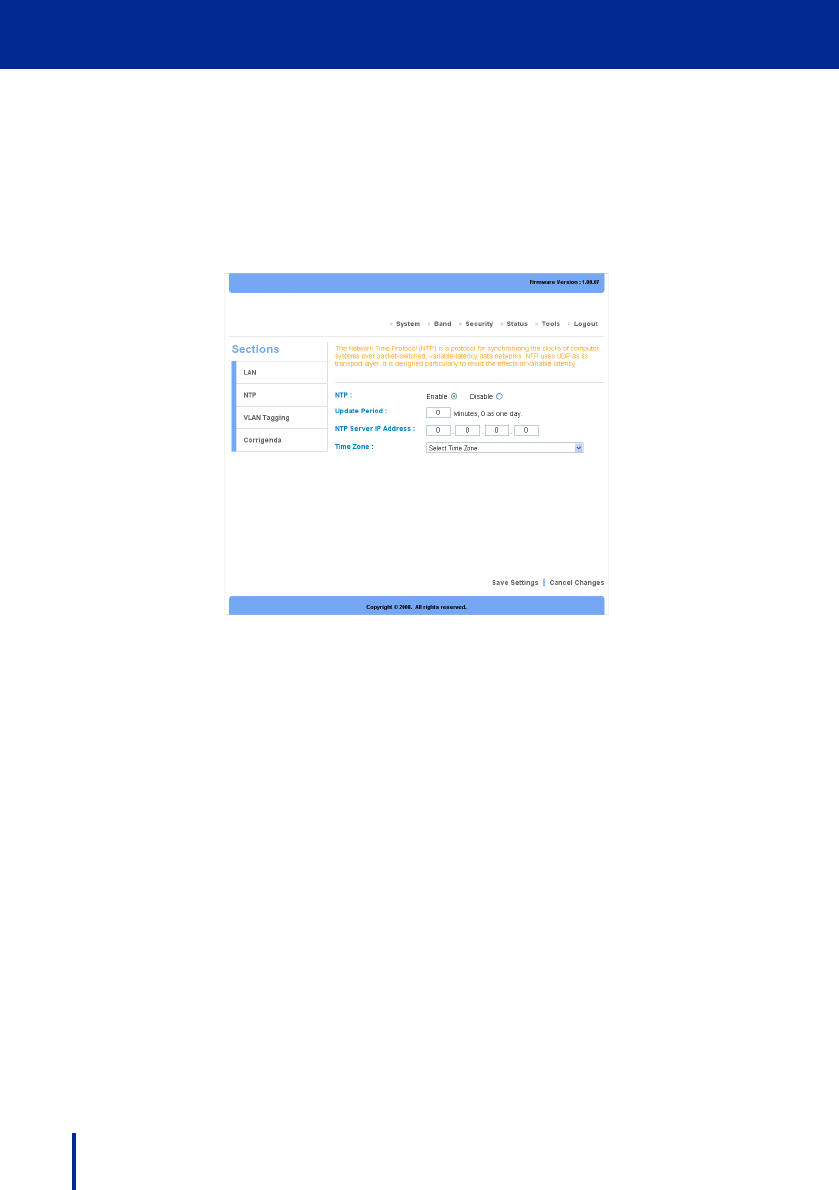

3.2.2 NTP Settings

Network Time Protocol (NTP) is used to synchronize the CPE date and time

with a third party NTP server. Synchronization is automatic, updating at specific

time intervals. NTP is disabled by default.

To configure NTP, perform the following steps:

1. Select Enable to access the configuration fields.

2. Enter a synchronization update period in minutes, or enter 0 to synchronize

once every 24 hours.

3. Enter an NTP Server IP Address in the fields provided. Many third party

NTP service providers are available. Contact the ISP for more details.

4. Select the current time zone from the drop down menu.

5. Click Save Settings.

Using the System Page 37

Features and Web GUI Configuration

3.2.3 VLAN Tagging

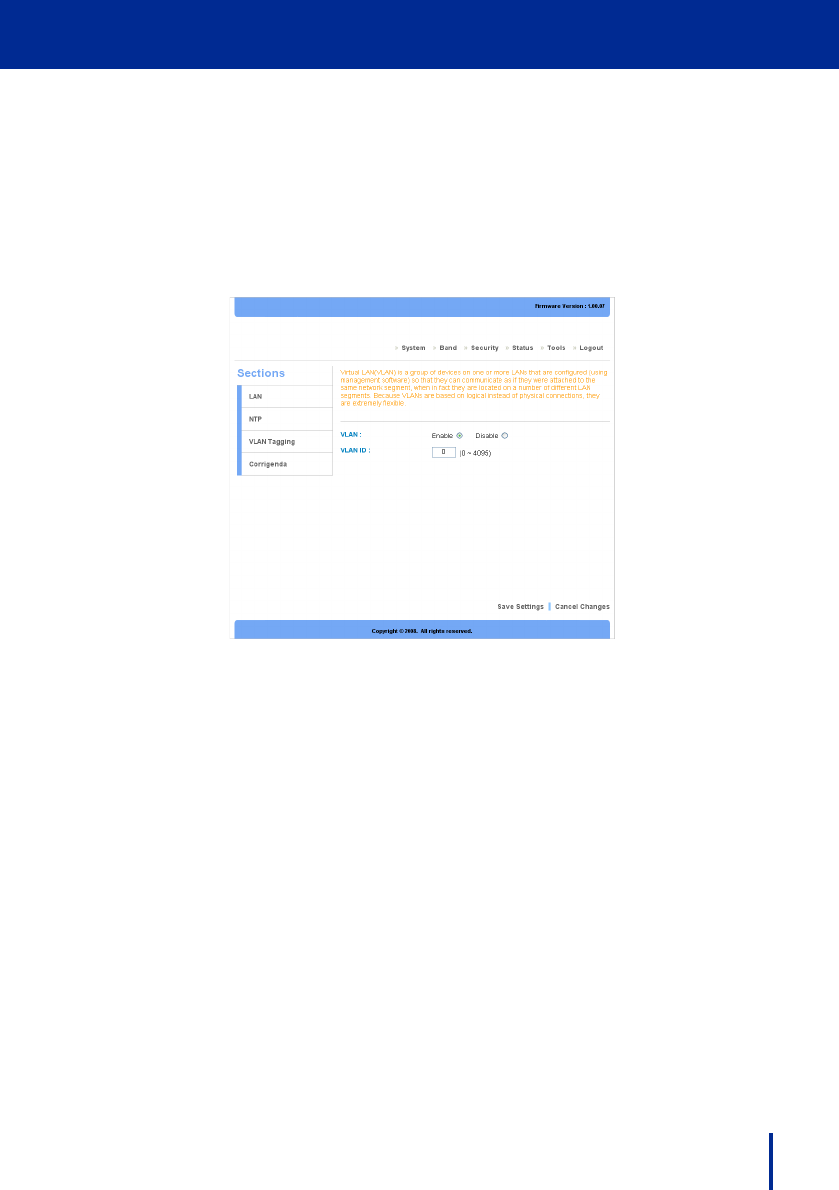

Virtual LAN (VLAN) describes a group of devices on one or more LANs that are

configured (using management software) to communicate as if they were

located on the same network segment, regardless of their actual network loca-

tion. VLAN Tagging is disabled by default.

To configure VLAN, perform the following steps:

1. Select Enable to access the configuration fields.

2. Enter a unique VLAN ID in the field provided.

3. Click Save Settings.

38 Using the Band Page

Features and Web GUI Configuration

3.3 Using the Band Page

The Band page is used to set WiMAX scan frequencies as provided by the ISP,

and to set the Fast Fourier Transform rate.

3.3.1 Band Settings

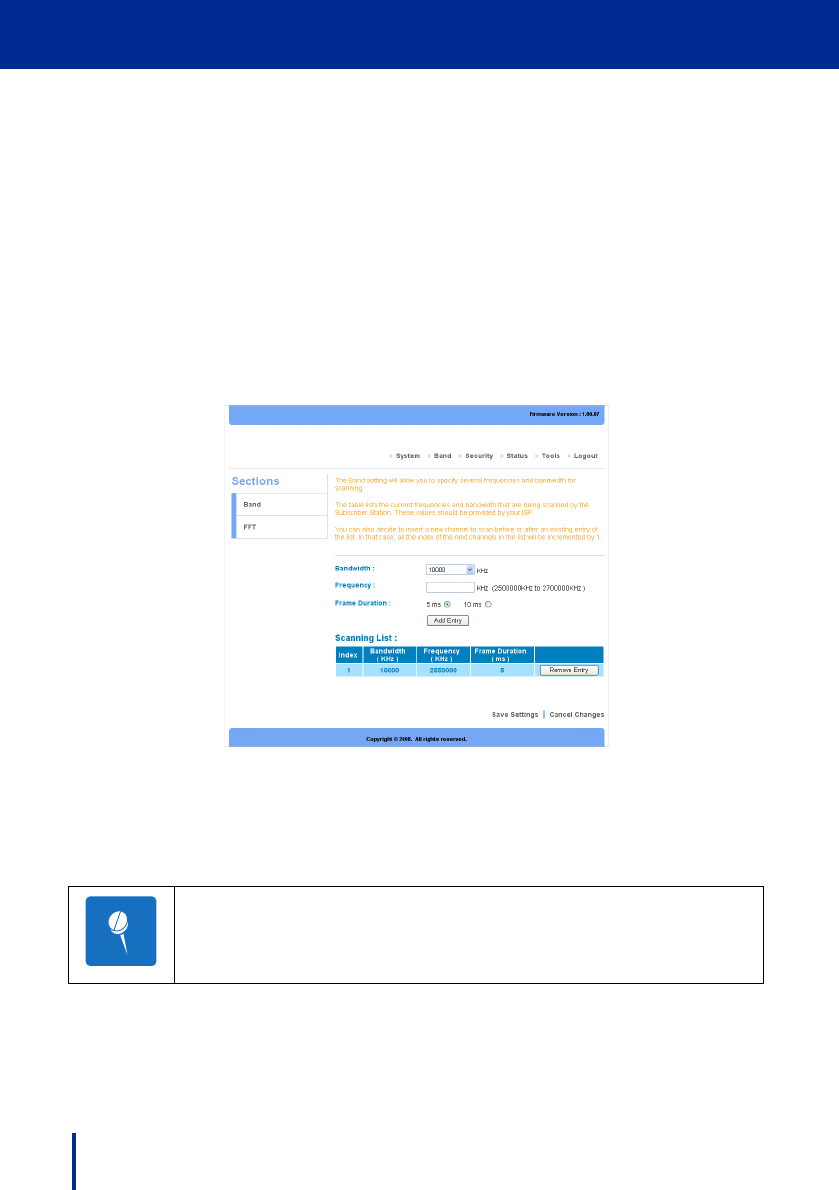

Band Settings are used to enter the frequencies and bandwidths supplied by

the ISP, allowing the CPE to connect successfully to the BTS. The Scanning

List describes the bandwidths and frequencies currently scanned for connec-

tion.

To enter band settings manually, perform the following steps:

1. Select a bandwidth from the drop down menu as supplied by the ISP.

2. Enter a frequency between 2500000 and 2700000 KHz or 3400000 and

3600000 KHz as supplied by the ISP.

3. Select the Frame Duration in milliseconds as supplied by the ISP.

4. Click Add Entry to refresh the Scanning List.

5. Click Save Settings.

NOTE: The operating frequency band is dependent on the product

purchased.

N te

Using the Band Page 39

Features and Web GUI Configuration

3.3.2 FFT Settings

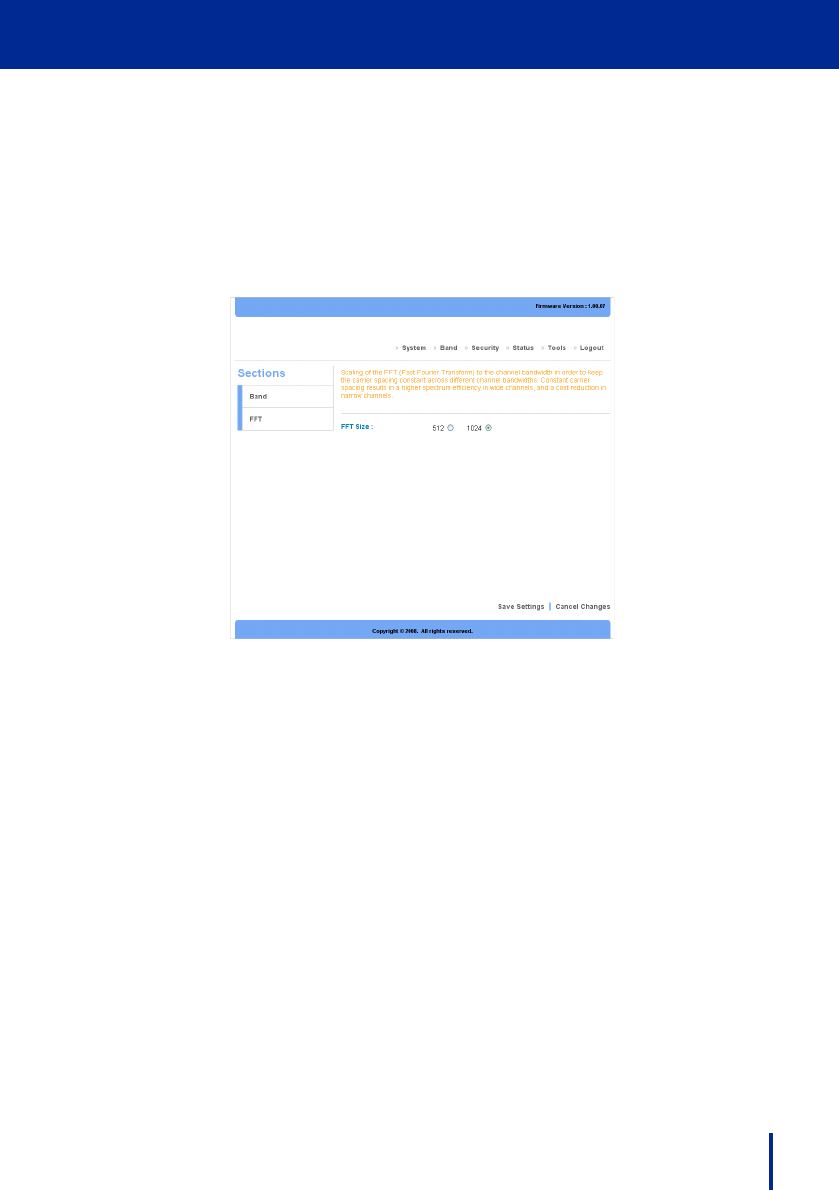

Fast Fourier Transform (FFT) scaling to the current channel bandwidth helps

keep the carrier spacing constant across different channel bandwidths, result-

ing in higher spectrum efficiency in wide channels and cost reductions in nar-

row channels. The default FFT size is 1024.

Select 512 or 1024 as instructed by the ISP and click Save Settings.

40 Using the Security Page

Features and Web GUI Configuration

3.4 Using the Security Page

The Security page is used to manage all aspects of CPE access security,

including login details, Privacy Key Management (PKM), and Simple Network

Management Protocol (SNMP).

3.4.1 Changing Login Details

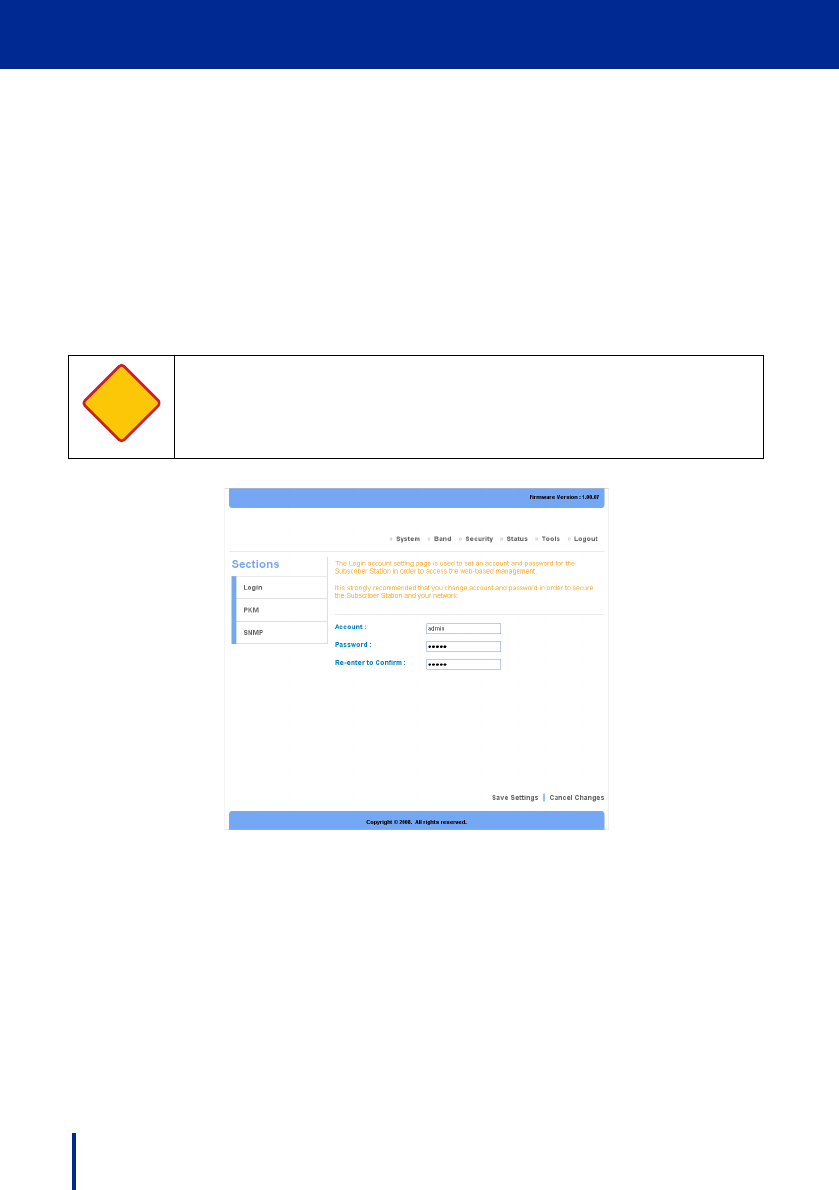

The CPE GUI management login details are modified using the Login page.

To change the login details, perform the following steps:

1. Enter an account name or use the default admin.

2. Enter a new password and re-enter it in the confirm field.

3. Click Save Settings.

WARNING: It is strongly recommended that the login user name and

password are changed after the first instance of login in order to secure

the CPE and network.

WARNING

Using the Security Page 41

Features and Web GUI Configuration

3.4.2 PKM Settings

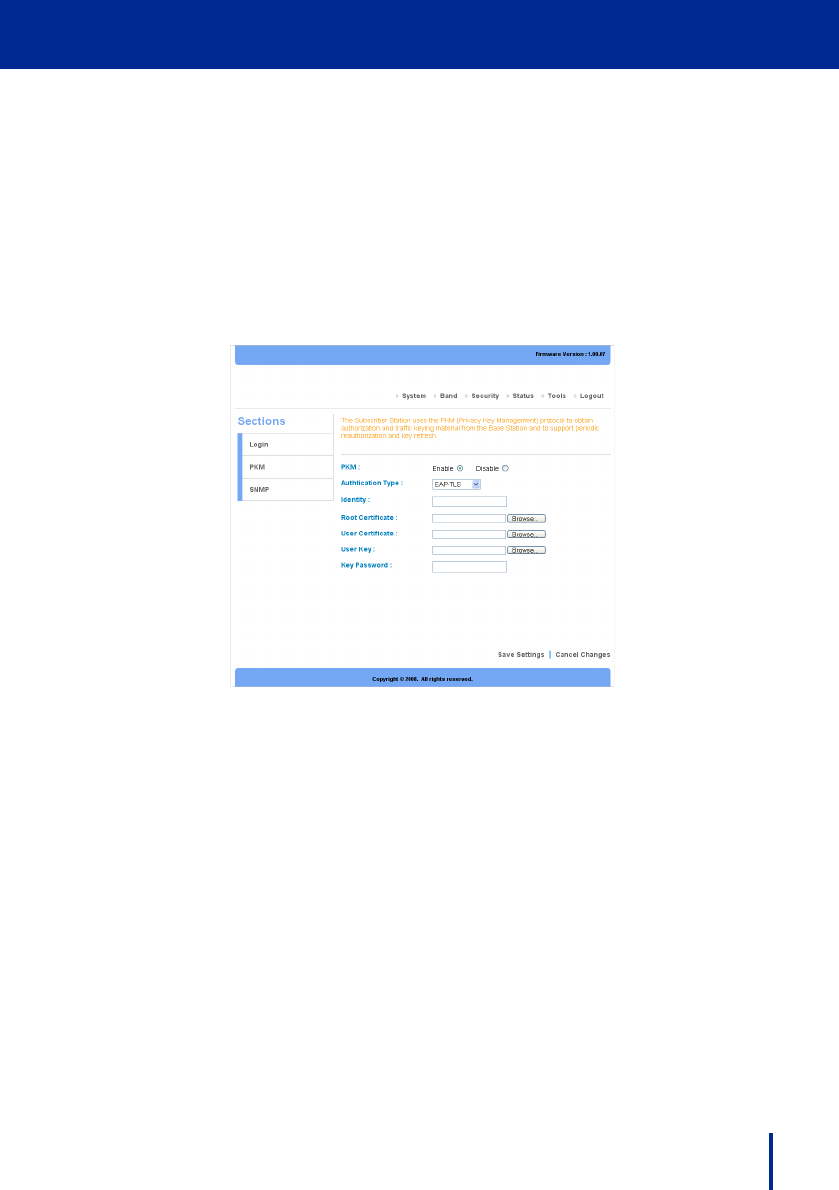

The CPE uses Privacy Key Management (PKM) to obtain authorization and

traffic key material from the BTS and to periodically reauthorize and refresh the

user key and certificates. PKM is disabled by default.

The ISP provides all the necessary PKM information as well as the required

certificates.

To configure PKM, perform the following steps:

1. Select Enable to access the configuration fields.

2. Select the Authentication Type from the drop down menu.

3. Enter the Identity as supplied by the ISP.

4. Click Browse to locate the Root Certificate, User Certificate, User Key,

and Key Password supplied by the ISP.

5. Click Save Settings.

Contact the ISP for more information.

42 Using the Status Page

Features and Web GUI Configuration

3.5 Using the Status Page

The Status page displays useful information in the form of easy to read tables

including System, LAN, Forwarding, and Connection Status pages.

3.5.1 System Status

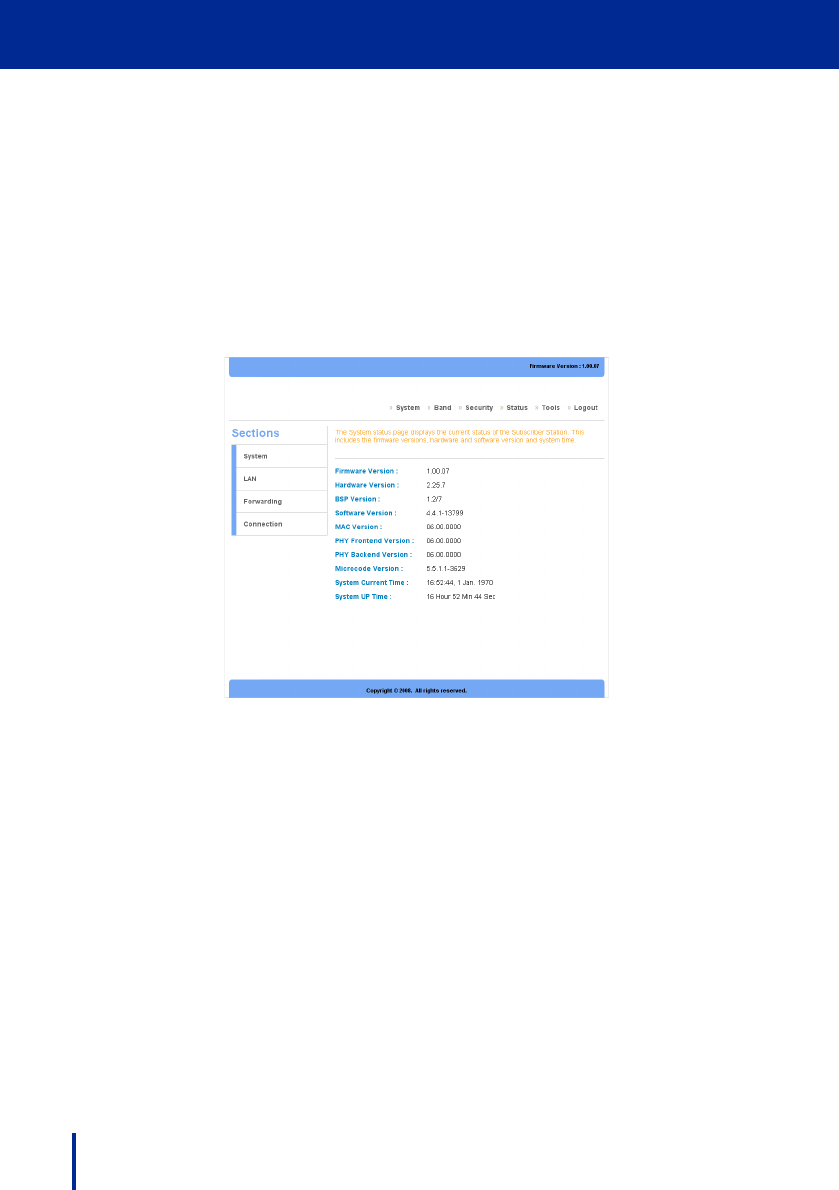

The System Status page displays the current status of the CPE including firm-

ware version, software version, date and time, and total running time.

Information on the System Status page is read only, it is not possible to modify

the display.

Using the Status Page 43

Features and Web GUI Configuration

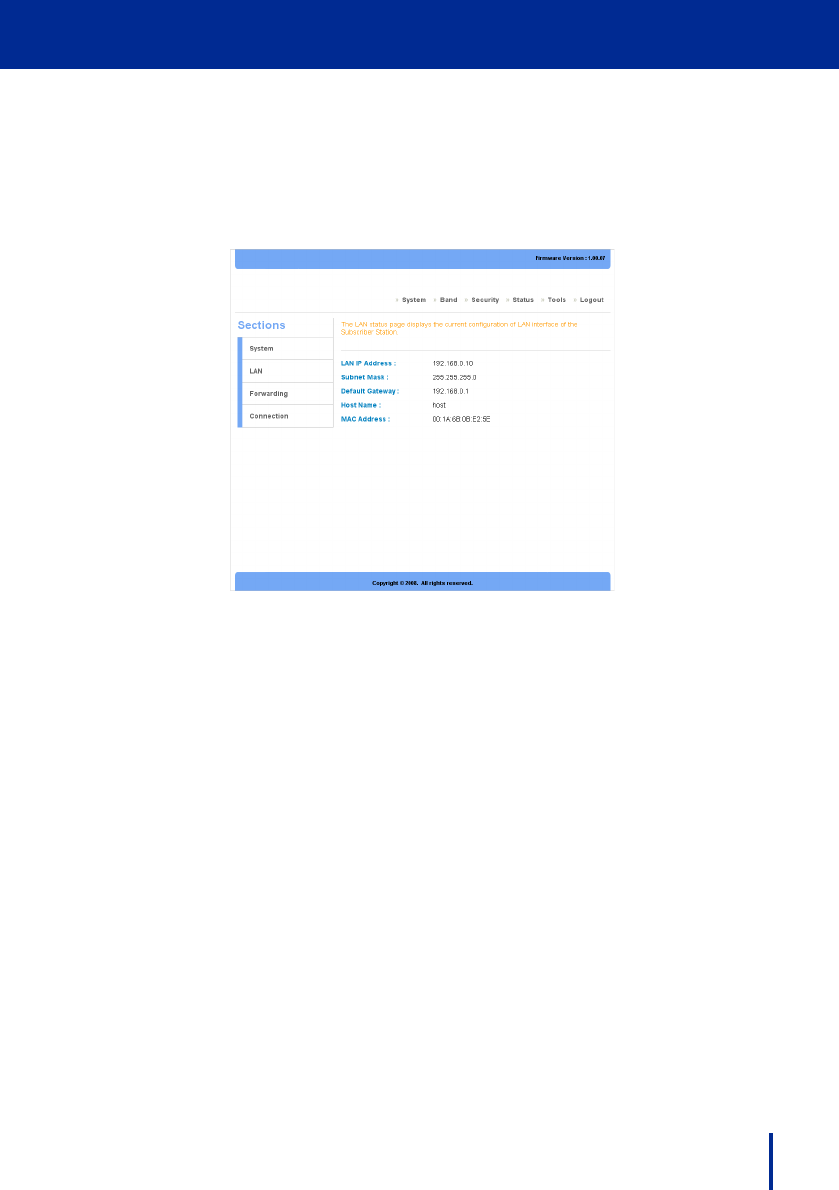

3.5.2 LAN Status

The LAN Status page displays the current LAN information including IP

address, Host Name (if applicable), and MAC address.

Information on the LAN Status page is read only, it is not possible to modify the

display.

44 Using the Status Page

Features and Web GUI Configuration

3.5.3 Forwarding Status

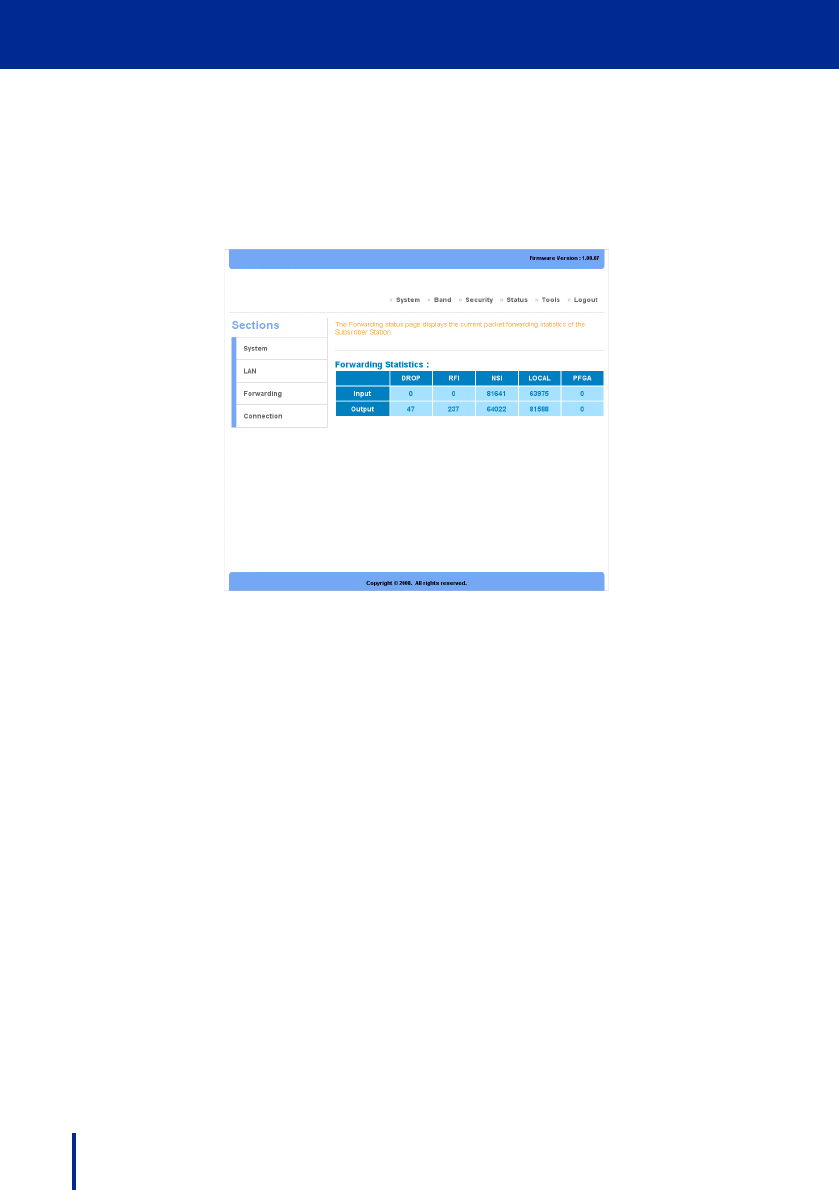

The Forwarding Status page displays the current packet forwarding statistics of

the CPE. Both incoming and outgoing statistics are displayed.

The column headings are described as follows:

•DROP—the total number of packets discarded.

•RFI—the total number of requests for information (RFI).

•NSI—the total number of network side interface (NSI) packets.

•LOCAL—the total number of local packets forwarded.

•PFGA—the total number of PFGA packets forwarded.

Information on the Forwarding Status page is read only, it is not possible to

modify the display.

Using the Status Page 45

Features and Web GUI Configuration

3.5.4 Connection Status

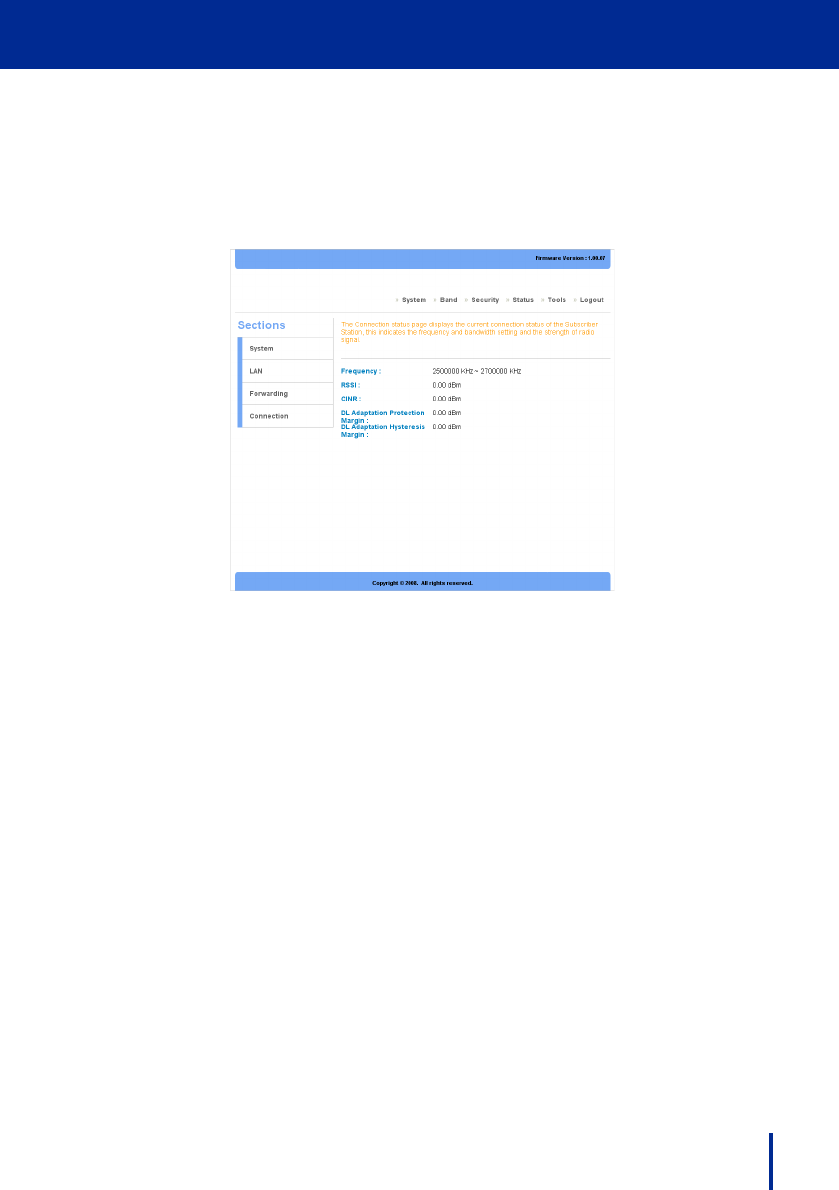

The Connection Status page displays the current connection status of the CPE

including the frequency, bandwidth, and signal strength (RSSI).

Information on the Connection Status page is read only, it is not possible to

modify the display.

46 Using the Tools Page

Features and Web GUI Configuration

3.6 Using the Tools Page

The Tools page is used to perform maintenance tasks and upgrades including

rebooting the CPE and resetting the CPE to the factory supplied defaults.

3.6.1 Upgrading the Firmware

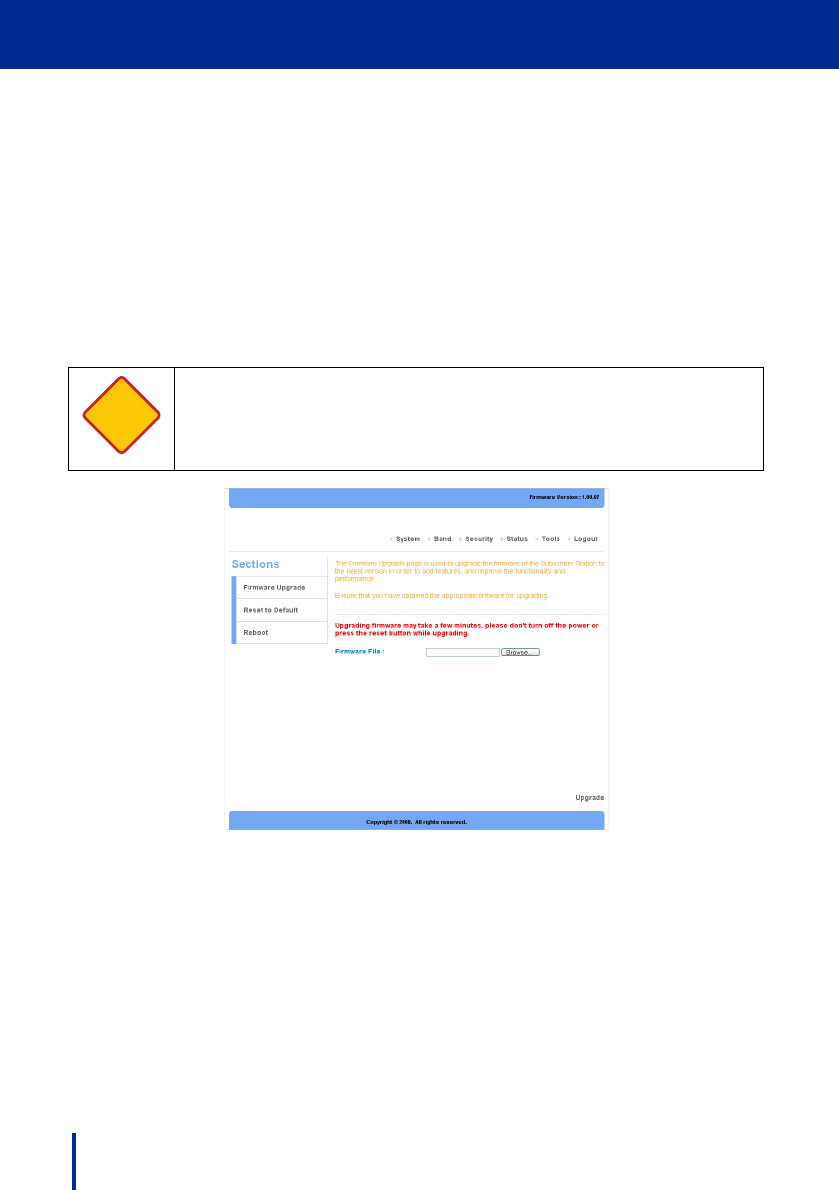

The Firmware Upgrade page is used to upload newer versions of the firmware

to the CPE. Firmware upgrades are released from time-to-time to correct bugs

or add functionality to devices.

To upgrade the CPE firmware, perform the following steps:

1. Enter the file path of the firmware upgrade or click Browse to locate the

file.

WARNING: To avoid major system malfunction, ensure the selected firm-

ware version is newer than the currently installed version.

WARNING

Using the Tools Page 47

Features and Web GUI Configuration

2. Click Upgrade to start the firmware upload.

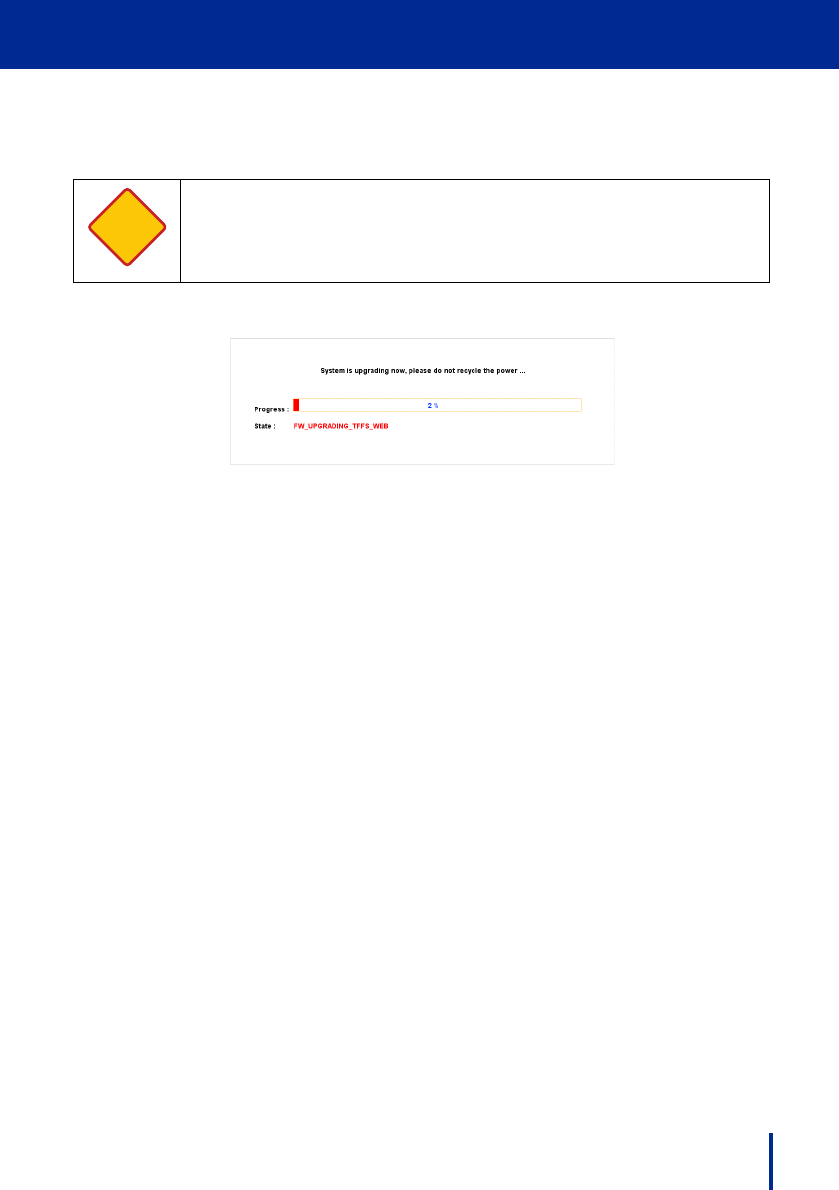

A progress page displays the upgrade status.

3. Follow the onscreen prompts to complete the upgrade.

WARNING: The upgrade may take a few minutes: Do not power off or

reset the CPE during the upgrade procedure.

WARNING

48 Using the Tools Page

Features and Web GUI Configuration

3.6.2 Restoring Factory Defaults

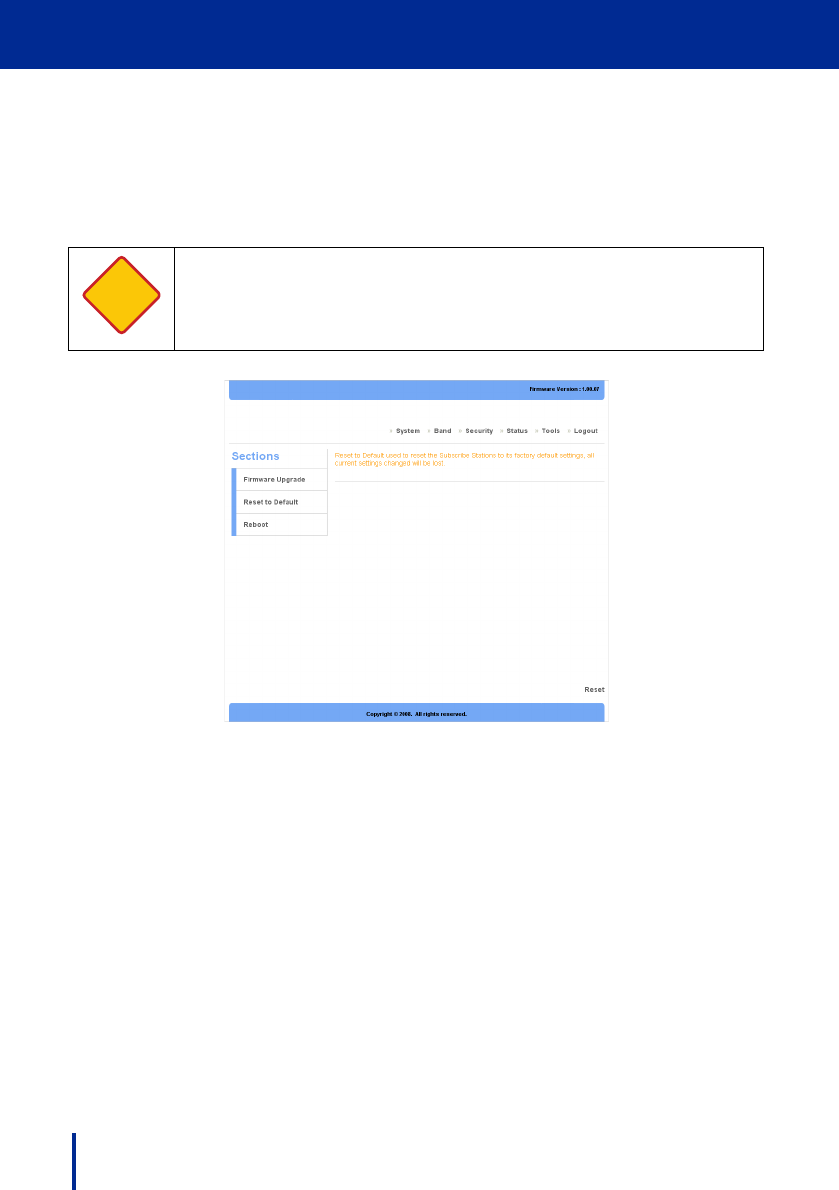

The Restore Factory Defaults screen is used to restore the CPE to the factory

supplied defaults.

To reset the CPE to the factory defaults, click Reset and follow the onscreen

prompts.

WARNING: All settings changes are lost when factory defaults are

restored.

WARNING

Using the Tools Page 49

Features and Web GUI Configuration

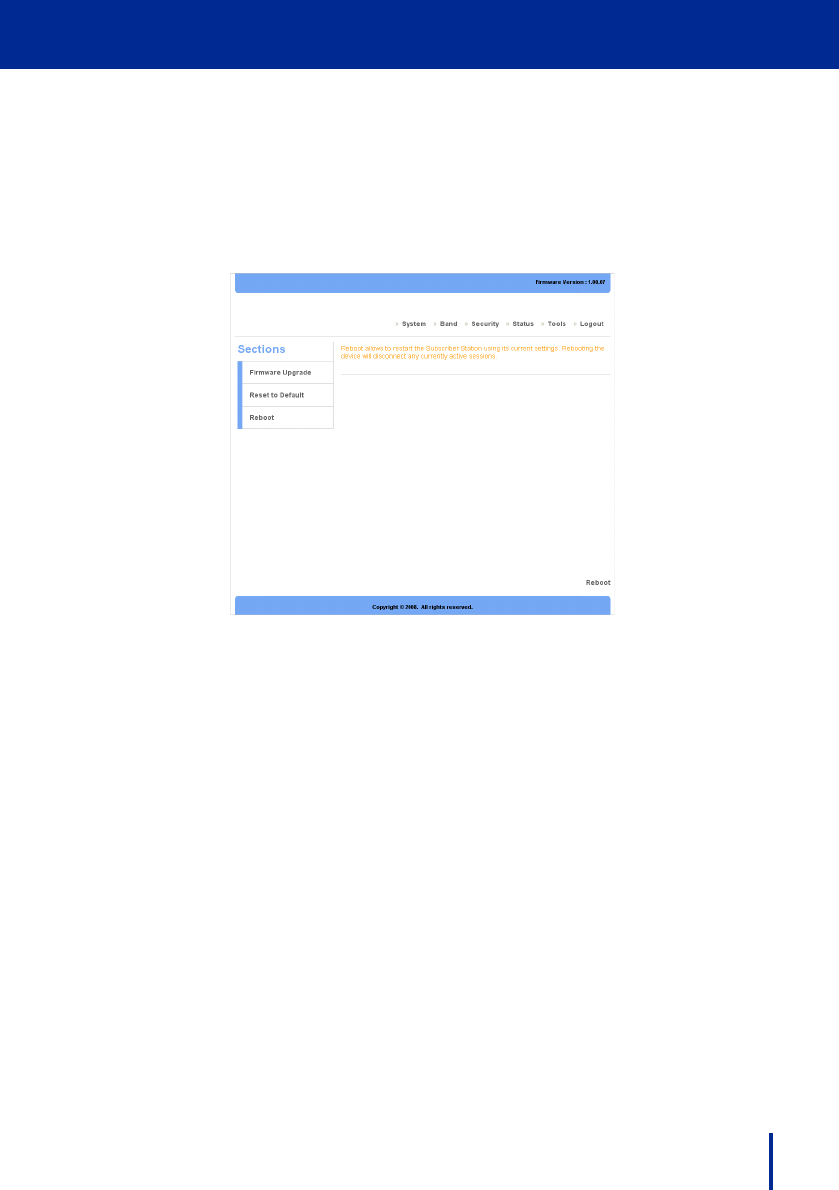

3.6.3 Rebooting the CPE

The Reboot screen is used to reboot the CPE from a desktop computer without

disconnecting the power or pressing reset. Restarting the CPE does not affect

any configuration changes.

To reboot the CPE, click Reboot and follow the onscreen prompts.

This page left blank intentionally.

Troubleshooting

This appendix contains troubleshooting and fault finding information for the

CPE in the form of common questions and answers.

Before beginning, perform the following basic troubleshooting sequence to

confirm all the hardware is functioning correctly:

1. Make sure that the CPE is powered on. The Power LED should be green

and not flashing.

2. If the Power LED is flashing, then power off all network devices, including

the modem and computers.

3. Power on each device in the following order:

•Router or switch (if present)

•CPE

•Computer(s)

4. Check all cable connections.

52 Common Issues

Troubleshooting

4.1 Common Issues

Why can't I connect to the CPE to perform web configuration?

1. Check if the device is properly connected to the power adapter.

2. Ensure the PC IP address is in the same network segment as the device

address. For example, the PC IP address is 192.168.0.x while the default

device's IP address is 192.168.0.10.

3. Restore the factory default settings and re-log onto the CPE's web-based

configuration page.

How do I reset my password if I've forgotten it?

•Call the Internet service provider (ISP).

How do I restore my CPE to the factory default settings?

1. Launch an Internet browser and access the CPE configuration webpage at

the default address: http://192.168.0.10

2. Go to Tools´ Reset to Default and follow the on screen prompts.

How can I find out the CPE's MAC address?

1. Launch an Internet browser and access the CPE configuration webpage at

the default address: http://192.168.0.10

2. The MAC address is displayed under Status´ LAN on the status page.

How do I set up an IP Address for my PC with Windows XP/2000 installed?

1. The CPE is set to DHCP server enabled by default.

2. Ensure that the target PC is set to obtain an IP address automatically by

going to Start´ Control Panel´ Network Connections´

Local Area Connection´ Properties´ Internet Protocol (TCP/IP)´

Properties and select Obtain an IP address automatically,

NOTE: If the CPE DHCP function is enabled and a DHCP server is

already present on the LAN, either disable the DHCP function on the

CPE or DHCP server, or ensure that the available IP Pools do not over-

lap. If both the CPE and the existing DHCP server are active, both

devices may fail to provide services to the network.

N te

Common Issues 53

Troubleshooting

1. Go to Properties as described in step 2 above and select Use the follow-

ing IP address.

2. Enter a static IP address in the same segment of the device's address. For

example, the PC IP address is 192.168.0.x while the default device's IP

address is 192.168.0.10.

How can I login to the GUI if DHCP cannot assign my computer an IP address?

•If the default log in IP address doesn’t respond, use 169.254.1.1 as an

alternative.

Why can't I use LAN ports to connect to the Internet?

1. Check if the device is properly connected to the power adapter.

2. Check the CPE RSSI LED and make sure the WiMAX signal strength is

good.

3. Configure the PC with a static IP address within the same segment of the

device's address. For example, the PC IP address is 192.168.0.x while the

default device's IP address is 192.168.0.10.

4. Log in to the web configuration page and go to Status´ Connection.

Check that Connection Status is good between the device and the WiMAX

base transceiver station (BTS). If the connection is not OK, contact the ISP.

5. If the WiMAX connection is OK in the above step, but devices still can not

connect to the Internet, ensure DHCP service is enabled and correctly con-

figured in System Setting´ DHCP Server.

Why can’t my computer connect wirelessly to the network?

•Check the computer wireless security method and key is the same as the

CPE.

This page left blank intentionally.

Glossary

This section defines or identifies technical terms, abbreviations, and acronyms

used through out this document.

Administrator

An administrator performs the service of maintaining a network. In the case of

this CPE, the person who sets up the network connections and makes changes

to the settings.

BTS

Base Transceiver Station. The WiMAX service provider base transmitter pro-

viding the WiMAX signal.

Client

A device on the network that uses the services of the CPE, for example a com-

puter accessing the internet.

DHCP

Dynamic Host Configuration Protocol. When enabled, this protocol automati-

cally configures the TCP/IP settings of every computer on the network.

Dial-Up

A connection which uses the public telephone network.

DNS Server Address

DNS stands for Domain Name System, which allows Internet host computers

to have a domain name and one or more IP addresses (such as 192.168.0.20).

A DNS server keeps a database of host computers and their respective domain

names and IP addresses, so that when a domain name is requested (as in typ-

ing easyDNS.com into an Internet browser), the user is sent to the proper IP

Glossary

address. The DNS server address used by the computers on the home network

is the location of the DNS server the ISP has assigned.

DSL Modem

DSL stands for Digital Subscriber Line. A DSL modem uses an existing phone

lines to transmit data at high speeds.

Ethernet

A standard for computer networks. Ethernet networks are connected by special

cables and hubs, and move data around at up to 10 million bits per second

(Mbps).

Firewall

An electronic boundary that prevents unauthorized users from accessing cer-

tain files or computers on a network.

Firmware

Software stored in memory. Essential programs that remain even when the sys-

tem is turned off. Firmware is easier to change than hardware but more perma-

nent than software stored on a disk.

IP Address

IP stands for Internet Protocol. An IP address consists of a series of four num-

bers separated by periods, that identifies a single, unique Internet computer

host. Example: 192.34.45.8

ISP

Internet Service Provider. An ISP is a business that provides connectivity to the

Internet for individuals and other businesses or organizations.

LAN

Local Area Network. A LAN is a group of computers and devices connected

together in a relatively small area (such as a house or an office). A home net-

work is considered a LAN.

MAC Address

MAC stands for Media Access Control. A MAC address is the hardware

address of a device connected to a network.

Glossary

MTU

Maximum Transmission Unit. The largest unit of data that can be transmitted on

any particular physical medium.

NAT

Network Address Translation. This process allows all of the computers on the

home network to use one IP address. Using the NAT capability of the Home-

Connect home network gateway, access is available to the Internet from any

computer on the home network without having to purchase more IP addresses

from the ISP.

Port

A logical channel that is identified by its unique port number. Applications listen

on specific ports for information that may be related to it.

SNTP

Simple Network Time Protocol. A communication standard that allows for the

transmission of real time information over a network or the Internet.

SPI

Stateful Packet Inspection. SPI is the type of corporate-grade Internet security

provided by a HomeConnect home network gateway. Using SPI, the gateway

acts as a firewall, protecting the network from computer hackers.

Subnet Mask

A subnet mask, which may be a part of the TCP/IP information provided by the

ISP, is a set of four numbers configured like an IP address. It is used to create

IP address numbers used only within a particular network (as opposed to valid

IP address numbers recognized by the Internet, which must assigned by Inter-

NIC).

TCP

Transmission Control Protocol. The most common Internet transport layer pro-

tocol. TCP is connection-oriented and stream-oriented, and provides for reli-

able communication over packet-switched networks.

TCP / IP

Transmission Control Protocol over Internet Protocol. This is the standard pro-

tocol for data transmission over the Internet.

Glossary

UDP

User Datagram Protocol. Communications protocol for the Internet network

layer, transport layer, and session layer, which makes it possible to send a dat-

agram message from one computer to an application running in another com-

puter. Unlike TCP, UDP is connectionless and does not guarantee reliable

communication; the application itself must process any errors and check for

reliable delivery.

Index

Antenna

Adjusting 21

Alignment 19

Signal Strength 20

Band

Changing 38

Band Settings 38

Changing 40

Channel and Frequency

Band Settings 38

FFT Settings 39

Choosing a Location 13

Conformance

IEEE 802.16 1

R&TTE v

UL Information v

WEEE v

Conformance Documents iii

Connection

LAN 24

Stand Alone PC 26

Connection Status 45

CPE

Powering Down 29

Resetting 29

Deployment Models 8

DHCP 35

Factory Defaults 48

Fast Fourier Transform 39

FFT Settings 39

Firmware 46

Forwarding Status 44

GUI Password 40

Installation

Deployment 8

Grounding 16

Hardware 13

LAN Connection 24

Location 13

Pole Mounting 15

Safety Measures 7

Stand Alone PC Connection 26

System Requirements 7

Wall Mounting 14

Index

LAN Settings 34

LAN Status 43

Network Time Protocol 36

NTP 36

Optional Signal Detector

Using 22

Outdoor LAN Cable

Preparation 17

Password 40

Privacy Key Management

Using 41

Rebooting 49

Safety

Information i

Notices i

Security Settings

PKM Settings 41

Using 40

Signal Detector 22

Specifications 23

Status Pages

Connection Status 45

Forwarding Status 44

LAN Status 43

System Status 42

System Settings

Changing 34

DHCP Server Settings 35

LAN Settings 34

NTP Settings 36

VLAN Tagging 37

System Status 42

System Tools

Rebooting the Gateway 49

Restoring Factory Defaults 48

Upgrading 46

Using 46

System Tour

External Connections 5

Main Features 2

Package Contents 3

Tools 46

Troubleshooting

Basics 51

Common Issues 52

Upgrading Firmware 46

VLAN 37

Warning Symbols

Caution iii

Note iii

Warning iii

Web Configuration

Homepage 33

Logging In 32

Navigating 33

Web GUI Configuration

Introduction 31

Universal Scientific ODX200B WiMAX 16e Outdoor CPE User Manual USI ODU

Universal Scientific Industrial Co., Ltd. WiMAX 16e Outdoor CPE USI ODU

Manual

Navigation menu

Namespaces

Views

Navigation
