Universal Scientific UNA900 WWAN Module User Manual User Guide UNA900 v1 1 20120417
Universal Scientific Industrial Co., Ltd. WWAN Module User Guide UNA900 v1 1 20120417
user manual
The information contained herein is the exclusive property of Universal Scientific Industrial Co., Ltd. and shall not be
distributed, reproduced, or disclosed in whole or in part without prior written permission of USI Co., Ltd.
User Guide for UNA Module & Socket EVB
USI P/N 8500-002990-00
Department
MP
Date 2012/04/16
Version V1.1
The information contained herein is the exclusive property of Universal Scientific Industrial Co., Ltd. and shall not be
distributed, reproduced, or disclosed in whole or in part without prior written permission of USI Co., Ltd.
Content
1.
FCC Regulations..................................................................................................1
2.
RF Exposure Information..................................................................................2
3.
Information of Installed Module.......................................................................3
4.
Guide to Use .........................................................................................................4
1)
Function of Socket EVB V21 ..........................................................................4
2)
Configure the Socket EVB ..............................................................................6
3)
Insert the SIM card............................................................................................8
4)
Place the Module ...............................................................................................9
5)
Connect the antenna ......................................................................................10
6)
Download setting.............................................................................................11
7)
Manual control module model.....................................................................12
8)
Rework list for PCM Codec...........................................................................13
The information contained herein is the exclusive property of Universal Scientific Industrial Co., Ltd. and shall not be
distributed, reproduced, or disclosed in whole or in part without prior written permission of USI Co., Ltd.
1. FCC Regulations
This device complies with part 15 of the FCC Rules. Operation is subject to
the following two conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
This device has been tested and found to comply with the limits for a Class
B digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiated
radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a
particular installation If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
Changes or modifications not expressly approved by the party responsible for
compliance could void the user‘s authority to operate the equipment.
The information contained herein is the exclusive property of Universal Scientific Industrial Co., Ltd. and shall not be
distributed, reproduced, or disclosed in whole or in part without prior written permission of USI Co., Ltd.
2. RF Exposure Information
This Modular Approval is limited to OEM installation for mobile and fixed
applications only. The antenna installation and operating configurations of this
transmitter, including any applicable source-based time-averaging duty factor,
antenna gain and cable loss must satisfy MPE categorical Exclusion
Requirements of §2.1091.
The antenna(s) used for this transmitter must be installed to provide a
separation distance of at least 20 cm from all persons, must not be collocated
or operating in conjunction with any other antenna or transmitter, except in
accordance with FCC multi-transmitter product procedures.
The end user has no manual instructions to remove or install the device and a
separate approval is required for all other operating configurations, including
portable configurations with respect to 2.1093 and different antenna
configurations.
Maximum antenna gain allowed for use with this device is 2 dBi.
When the module is installed in the host device, the FCC ID label must be
visible through a window on the final device or it must be visible when an
access panel, door or cover is easily re-moved. If not, a second label must be
placed on the outside of the final device that contains the following text:
“Contains FCC ID: IXM-UNA900”.
The information contained herein is the exclusive property of Universal Scientific Industrial Co., Ltd. and shall not be
distributed, reproduced, or disclosed in whole or in part without prior written permission of USI Co., Ltd.
3. Information of Installed Module
Module Name
UNA_900
FCC ID
IXM-UNA900
HW Version
V2.1
SW Version
MAUI.11A.W11.12.MP.V67.F1
GSM Band
GSM 850, E-GSM 900, DCS 1800, PCS 1900
UMTS Band
FDD I, FDD VIII
GSM Feature
Release 99
GPRS
Release 6, Multi-slot class 12
EDGE
Release 6, Multi-slot class 12
UMTS Feature
HSDPA, HSUPA (UMTS Release 6)
AT Command
3GPP TS 27.007, 27.005
SIM/USIM
Support 3V and 1.8V
Interface
USB 2.0 high speed
Operating Temperature
Frequency Stability covers operating
temperature range of -20° to +50°C
Operating Voltage
3.5 ~ 4.2V
The information contained herein is the exclusive property of Universal Scientific Industrial Co., Ltd. and shall not be
distributed, reproduced, or disclosed in whole or in part without prior written permission of USI Co., Ltd.
4. Guide to Use

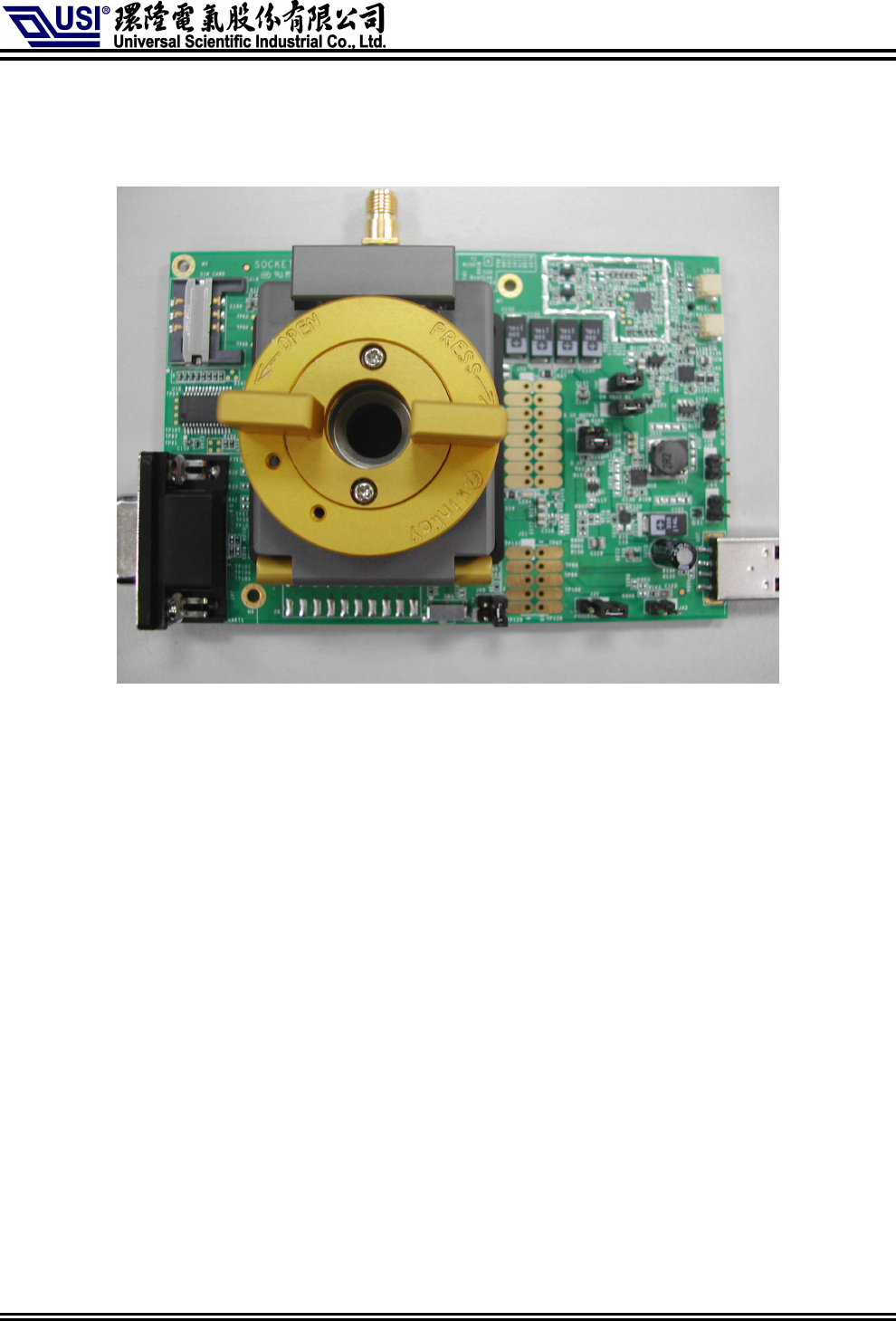

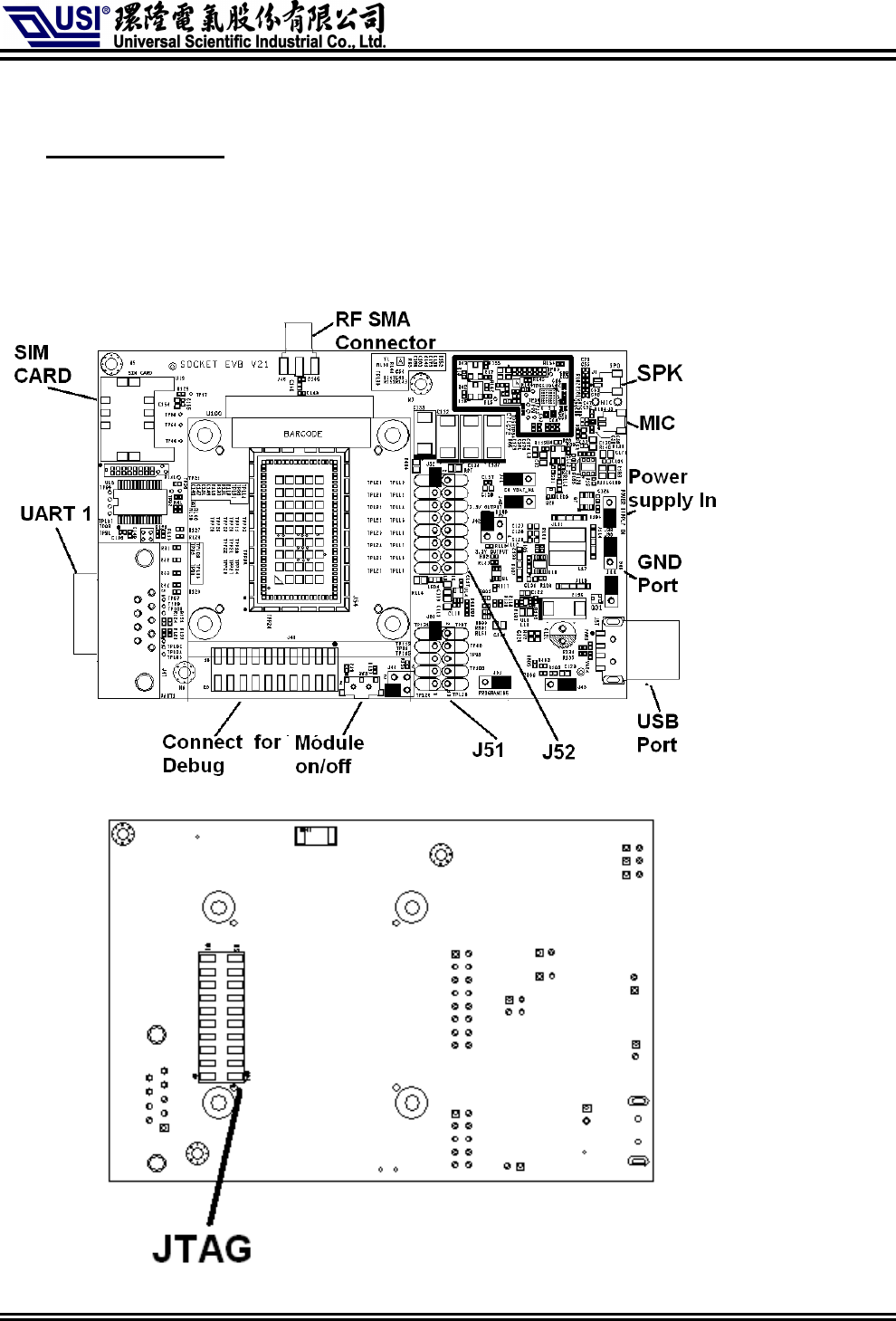

1) Function of Socket EVB V21
The information contained herein is the exclusive property of Universal Scientific Industrial Co., Ltd. and shall not be
distributed, reproduced, or disclosed in whole or in part without prior written permission of USI Co., Ltd.
Function Description Available Unavailable
USB PORT Connect to Host PC V
Power supply IN Optional Connect to external Power supply input V
UART1 Download Firmware V
RF SMA connector Connect to external Antenna V
Connector for Debug Connector for Debug V
Module on/off Switch for module on/off V
SIM card Connect to SIM card V
JTAG Connect to JTAG Debug tool V
MICK IN Connect to MIC V
SPK OUT Connect to Line out V
J51 MP test connector V
J52 MP test connector V
The information contained herein is the exclusive property of Universal Scientific Industrial Co., Ltd. and shall not be
distributed, reproduced, or disclosed in whole or in part without prior written permission of USI Co., Ltd.
2) Configure the Socket EVB
Default JUMP Setting :
Component reference Function Jump 1-2 Jump 3-4
(Default) Output +3.3V for module Yes
J42 Output +4.2V for module
a. Required : Select either J42 Jump1-2 or Jump 3-4
Component reference Function Jump 4-3
J45 PWRKEY low level input to turn on Module Yes
Download Key :
Component reference Function Jump 1-2
J31 Enable Download through USB Yes
a. Follow software download user guide
Component reference Function Jump 1-2
J40 (Default) Enable VBAT_M1 Yes
J41 (Default) Enable POSCAP in Circuit on VBAT_M1 Yes
The information contained herein is the exclusive property of Universal Scientific Industrial Co., Ltd. and shall not be
distributed, reproduced, or disclosed in whole or in part without prior written permission of USI Co., Ltd.

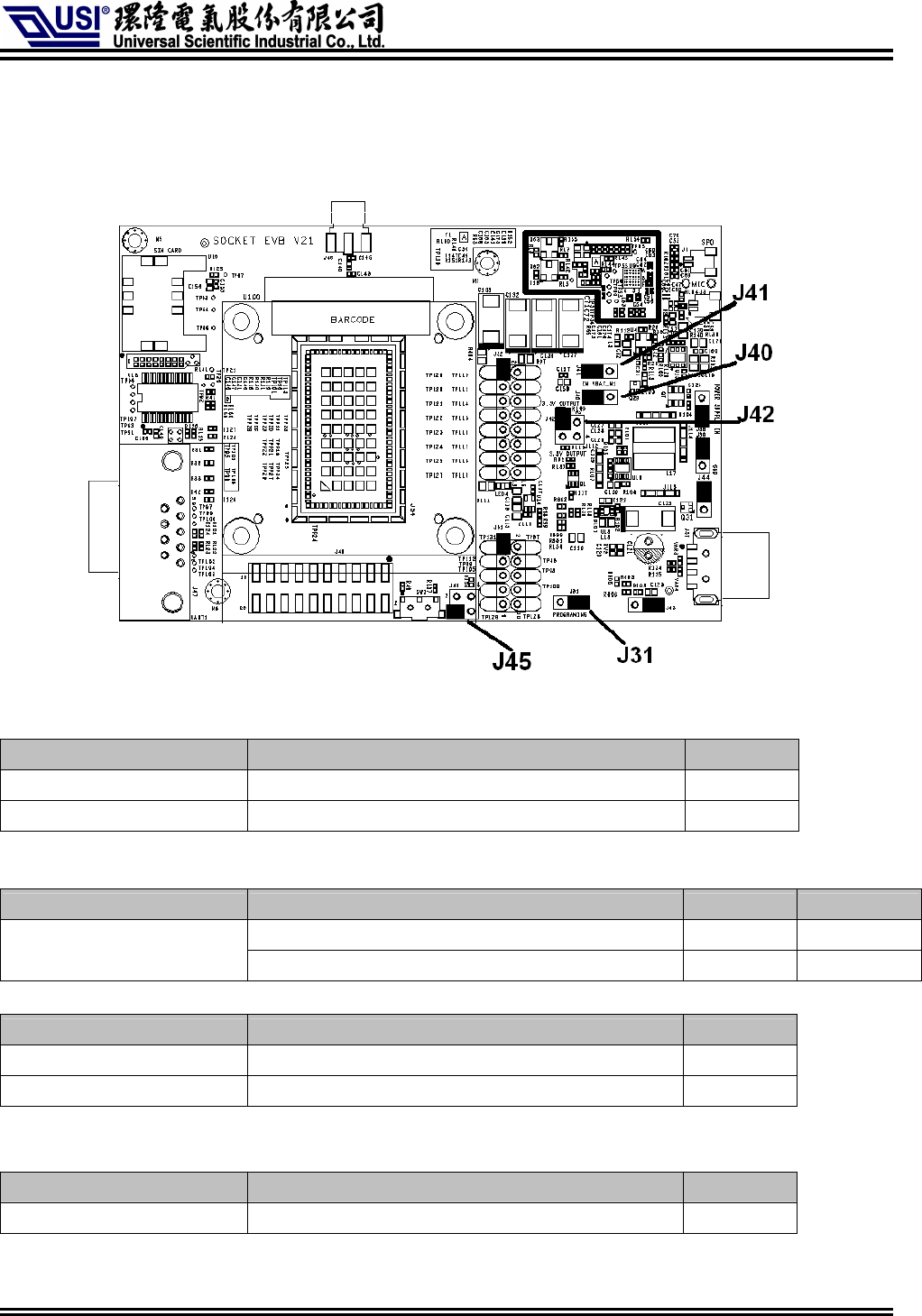

Jump setting reference:
The information contained herein is the exclusive property of Universal Scientific Industrial Co., Ltd. and shall not be
distributed, reproduced, or disclosed in whole or in part without prior written permission of USI Co., Ltd.

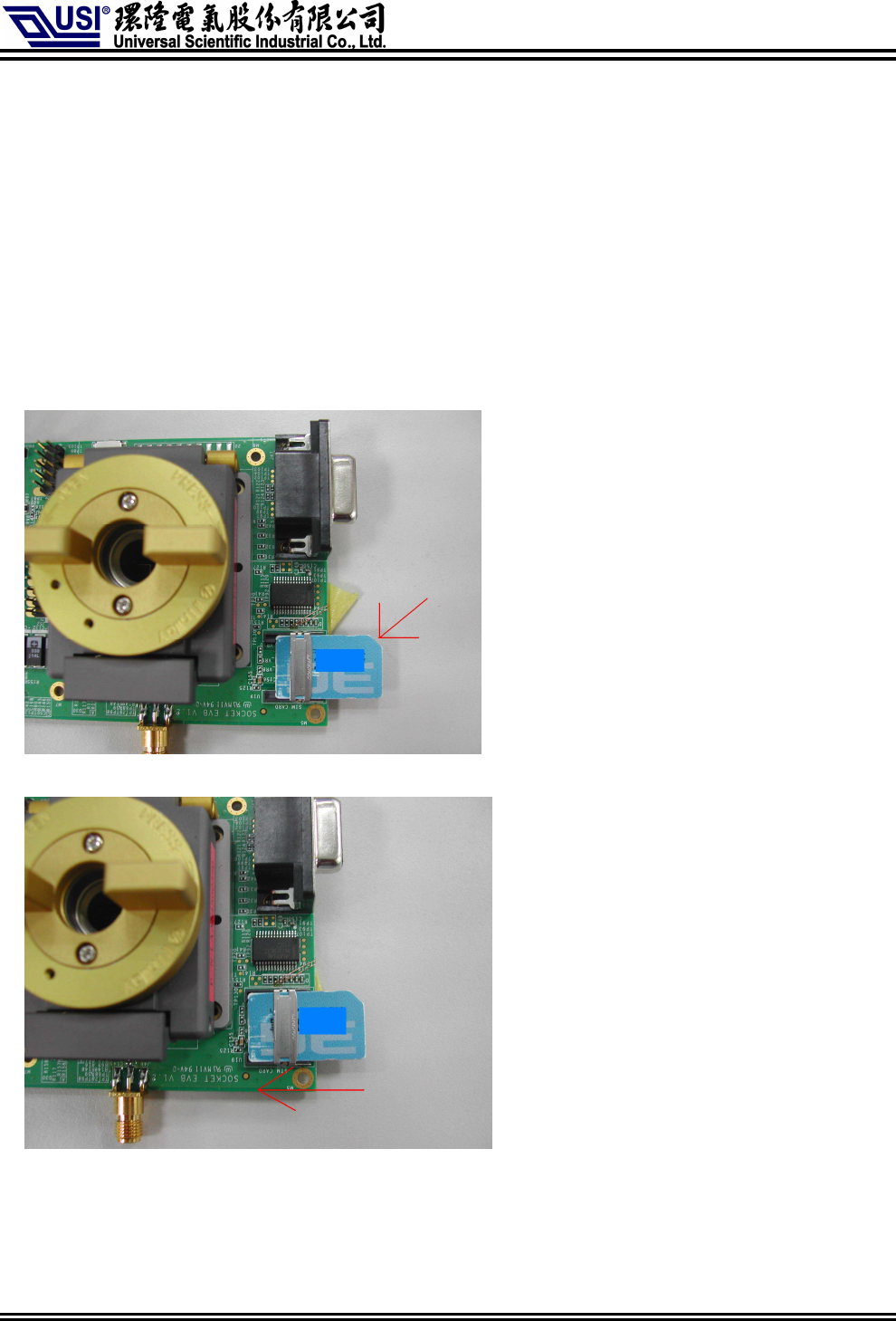

3) Insert the SIM card
To use a UNA module, you need to install:
a. A live SIM card (with an active account), or
b. A test SIM card for use with call box (for example ,an Agilent 8960 ..)
To install the SIM card:
a. Place the Socket EVB face-up(as shown) – the SIM slot is on right side.
b. Note the location of the notched corner of the card in the following image.
b. Inset the SIM card into the slot.
The information contained herein is the exclusive property of Universal Scientific Industrial Co., Ltd. and shall not be
distributed, reproduced, or disclosed in whole or in part without prior written permission of USI Co., Ltd.

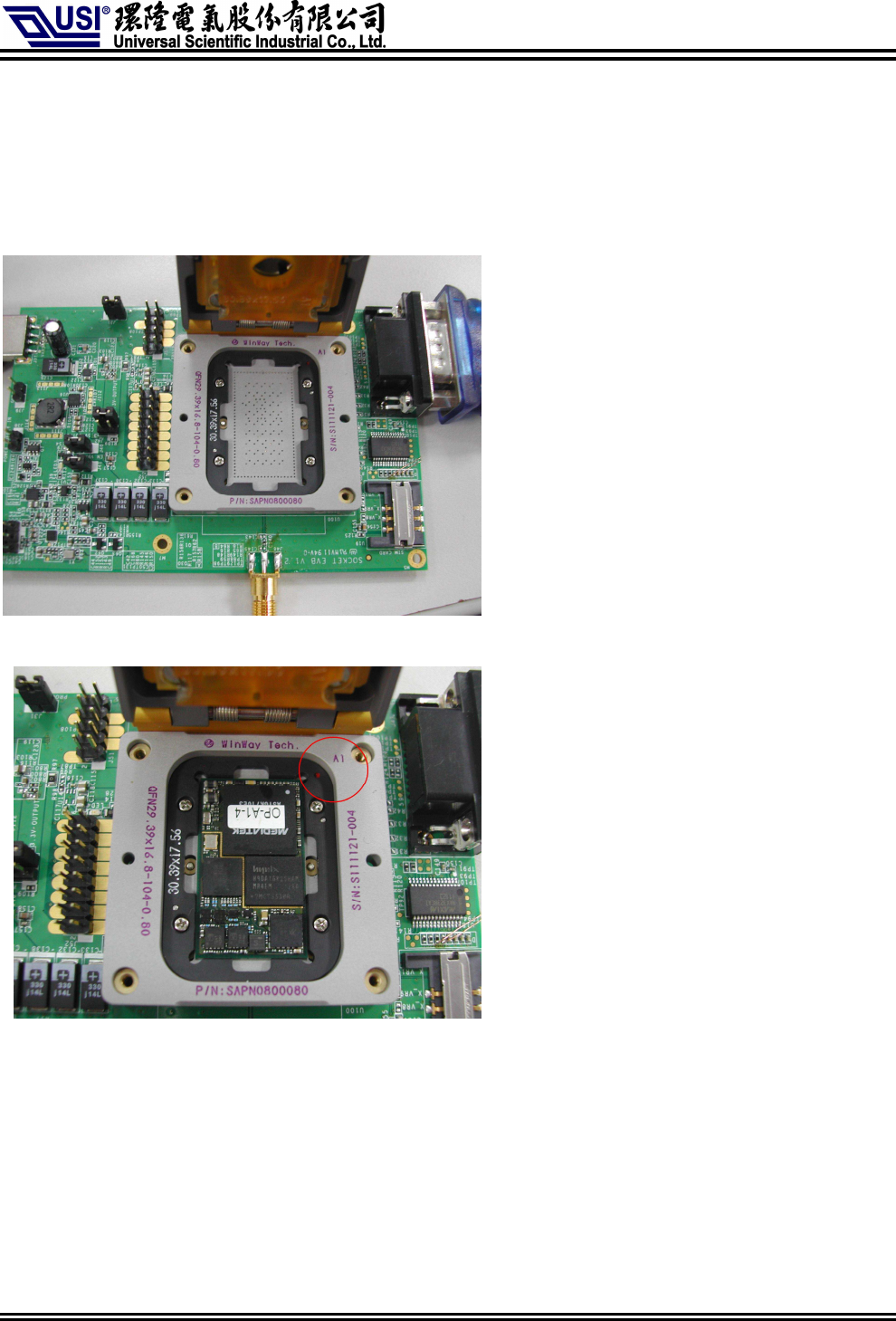

4) Place the Module
After inserting the SIM card, insert the module:
a. Place the Socket EVB face-up(as shown) – the socket is in the center.
b. Notice the pin 1 location on the socket.
The information contained herein is the exclusive property of Universal Scientific Industrial Co., Ltd. and shall not be
distributed, reproduced, or disclosed in whole or in part without prior written permission of USI Co., Ltd.

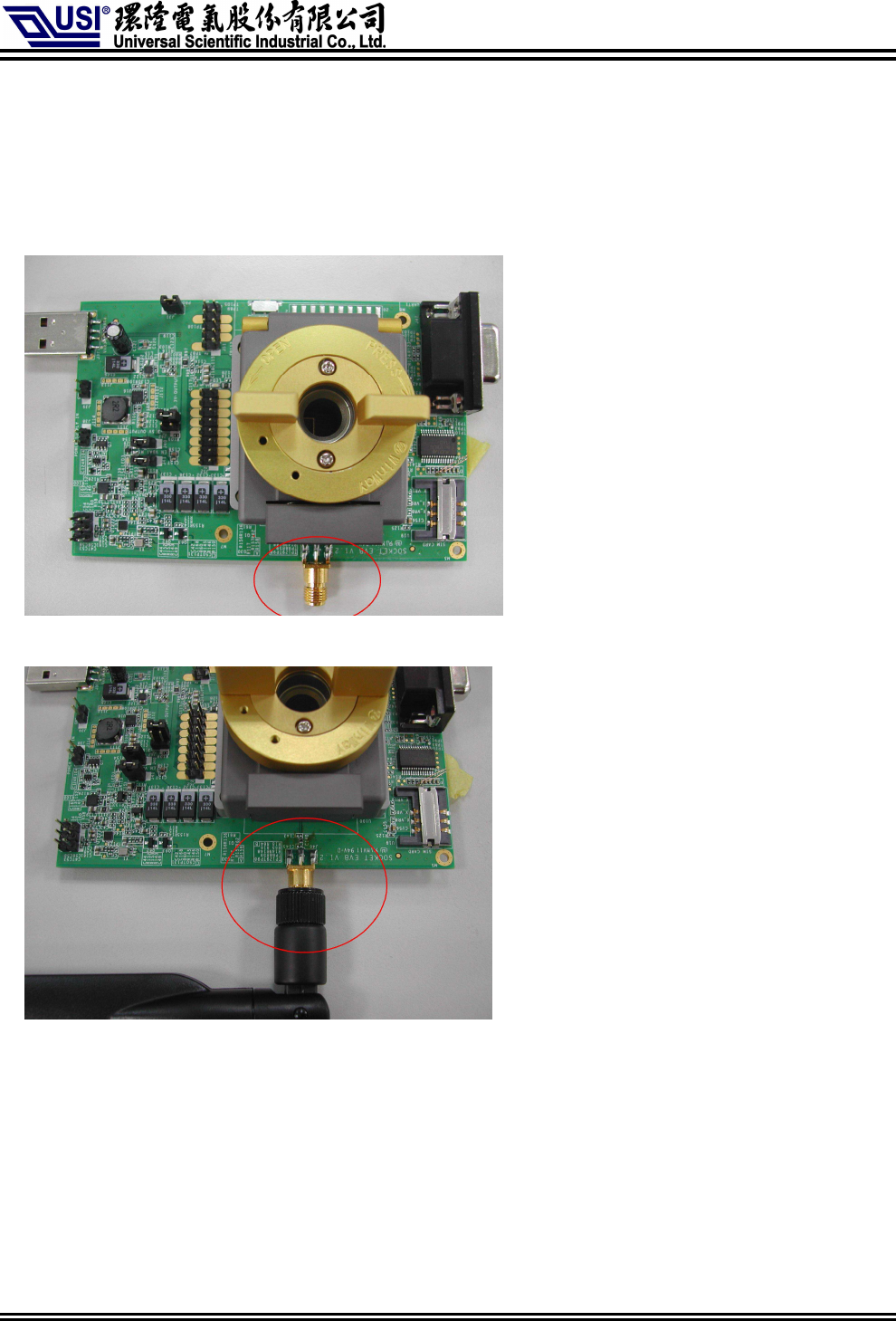

5) Connect the antenna
After installing the Module ,connect the supplied antenna to the EVB
a. Place the Socket EVB face-up. The antenna connector on the bottom side.
b. Connect the antenna to the adapter.
The information contained herein is the exclusive property of Universal Scientific Industrial Co., Ltd. and shall not be
distributed, reproduced, or disclosed in whole or in part without prior written permission of USI Co., Ltd.

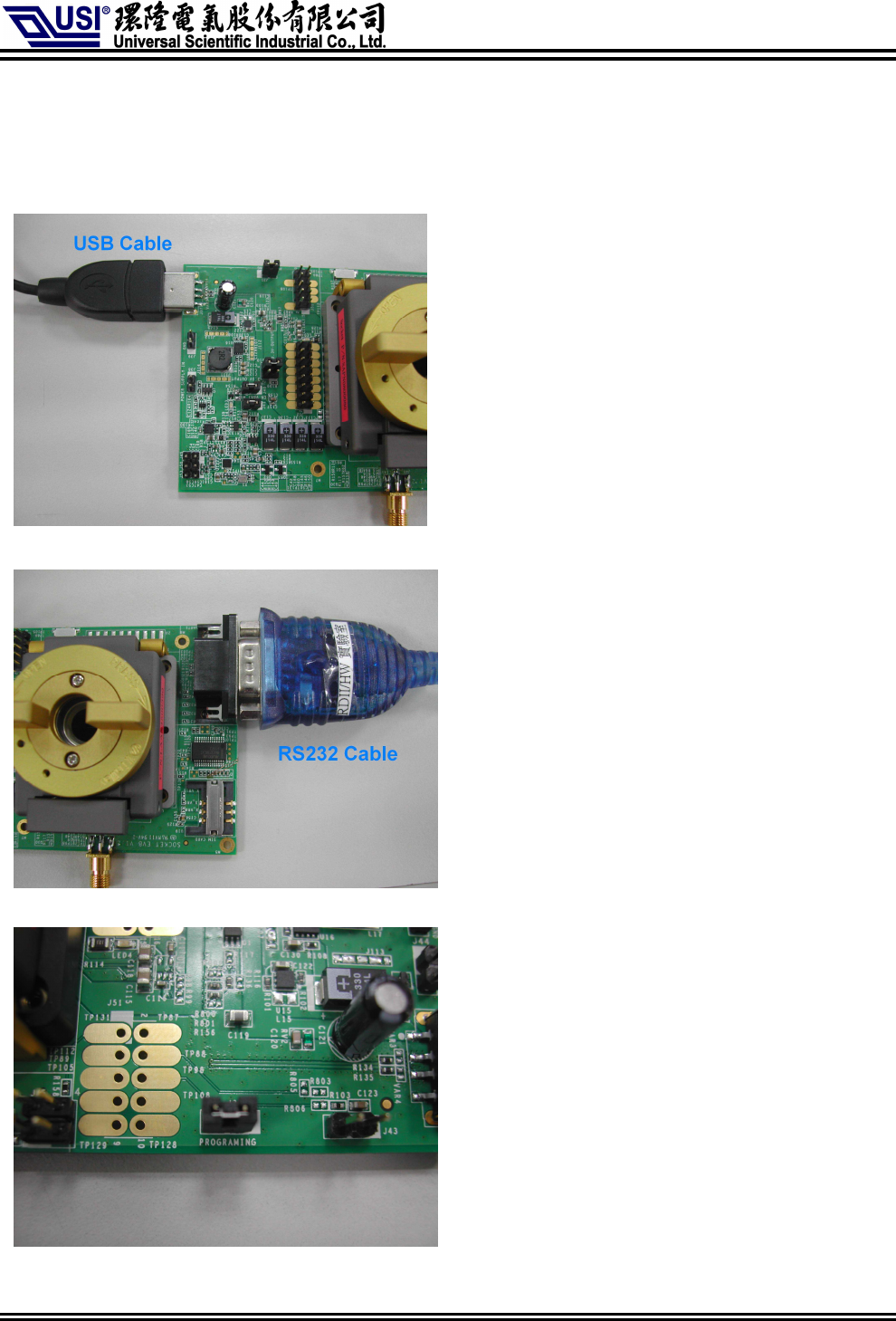

6) Download setting
a. Connect the USB cable between EVB & PC.
b. Connect the RS232 cable between EVB UART & PC.
c. Plug in the Jump.
The information contained herein is the exclusive property of Universal Scientific Industrial Co., Ltd. and shall not be
distributed, reproduced, or disclosed in whole or in part without prior written permission of USI Co., Ltd.

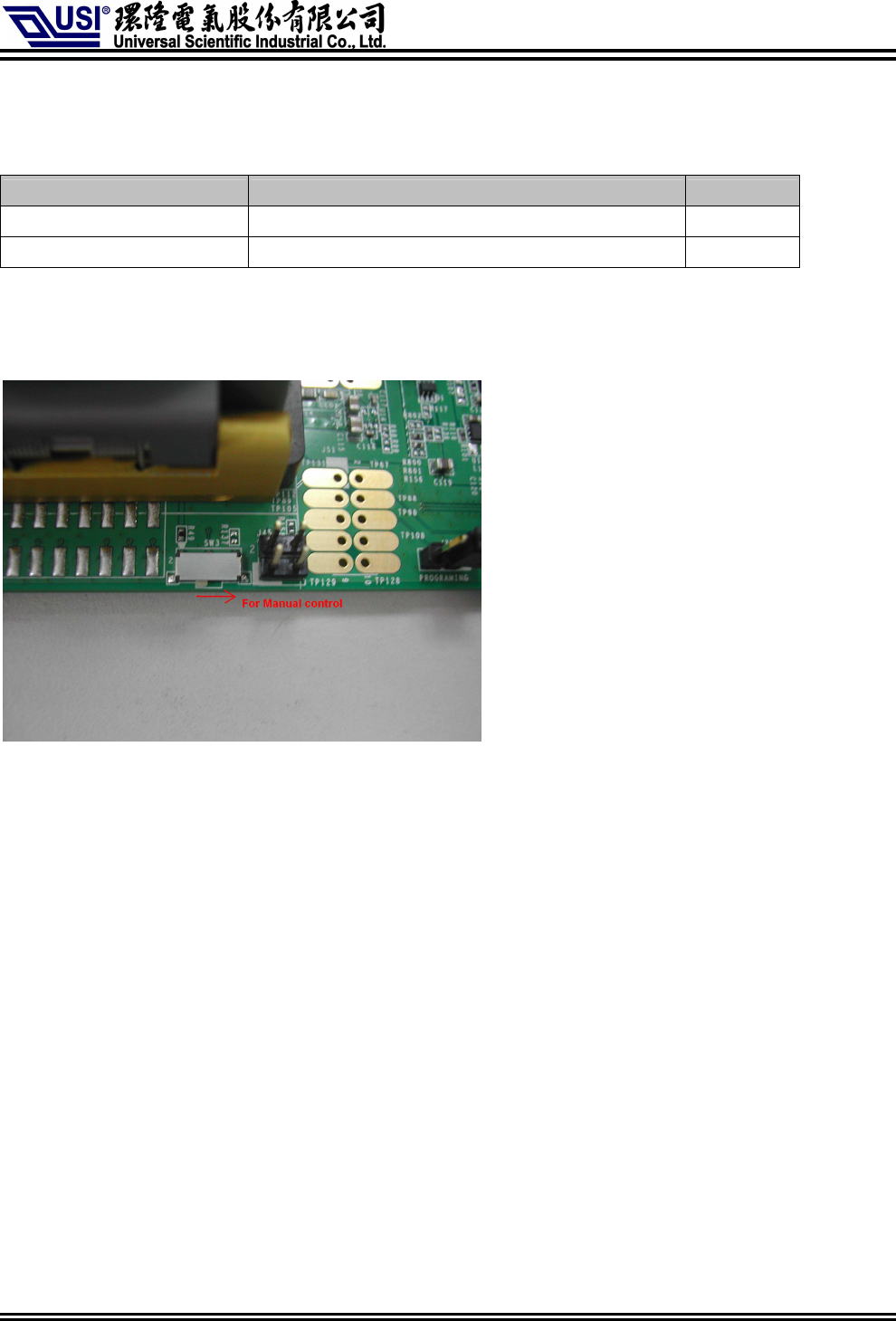

7) Manual control module model
Component reference Function Jump 4-3
J45-4 PWRKEY input to turn on Module
J45-2 USB_EN control pin to turn on Module
a. Follow UNA IO application design notes
b. Switch Module on/off (SW3) from left side to right side to off auto control before use
manual control.
The information contained herein is the exclusive property of Universal Scientific Industrial Co., Ltd. and shall not be
distributed, reproduced, or disclosed in whole or in part without prior written permission of USI Co., Ltd.

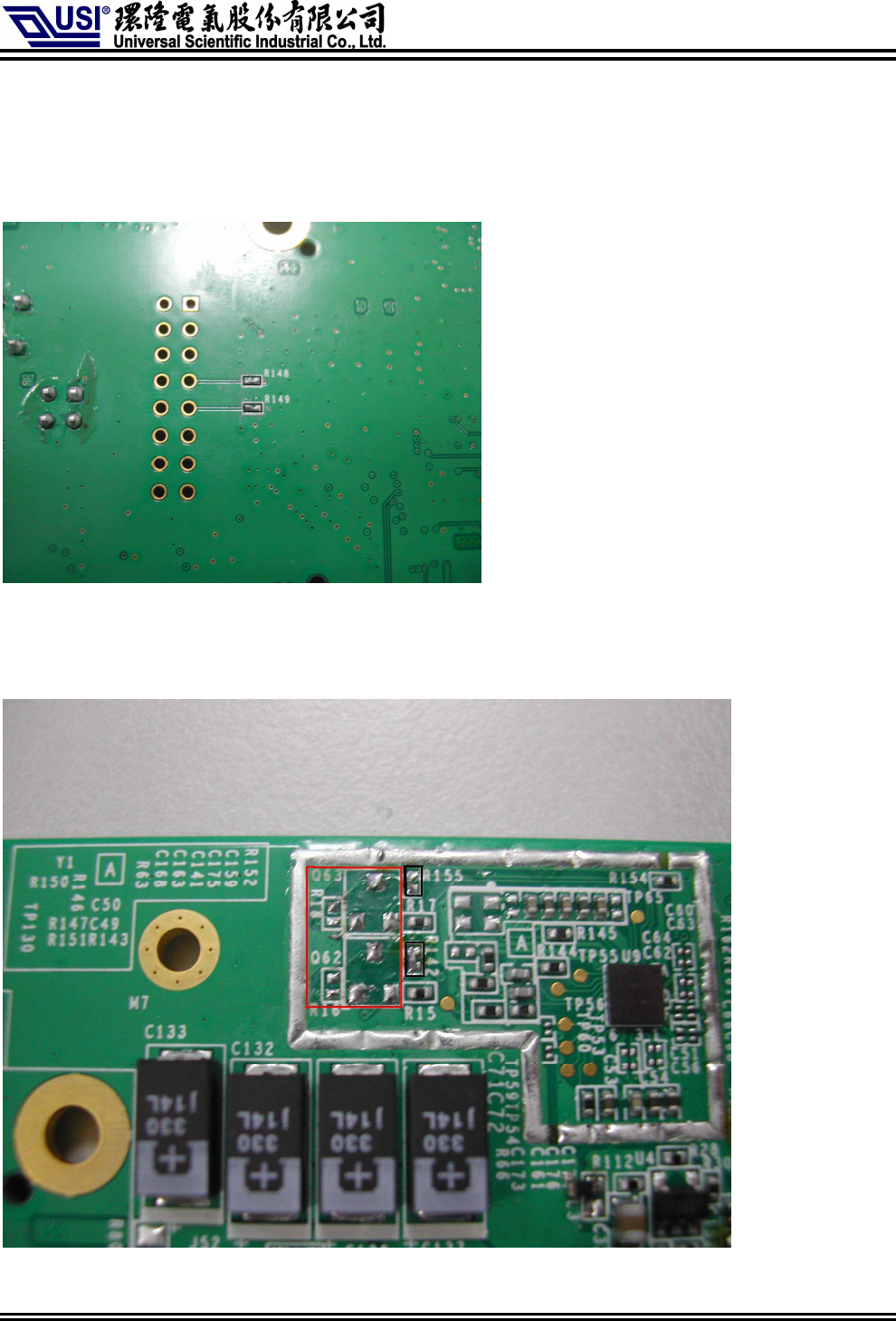

8) Rework list for PCM Codec
a. Place 0R on R148 & R149 on bottom side.
b. Take off R18,R16 ,Q63,Q62 as red block . Place 0R on R155,R142 as black block.
