Universal Scientific USB114401 WLAN USB Adapter User Manual y 5

Universal Scientific Industrial Co., Ltd. WLAN USB Adapter y 5

Contents

Users Manual

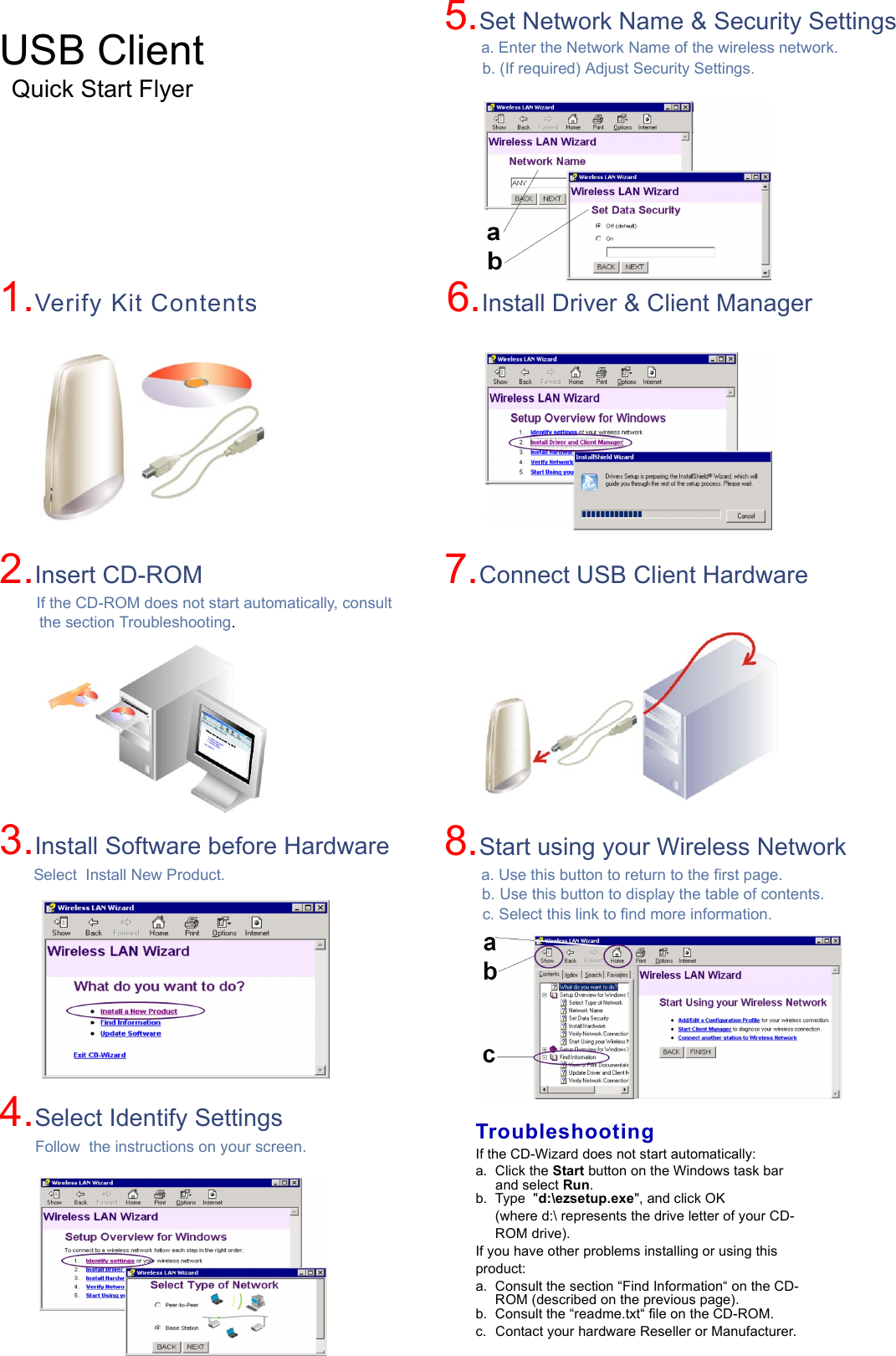

USB ClientQuick Start Flyer5.Set Network Name & Security Settings1.Verify Kit Contents 6.Install Driver & Client ManagerIf the CD-ROM does not start automatically, consult the section Troubleshooting.Select Install New Product.2.Insert CD-ROMFollow the instructions on your screen.7.Connect USB Client Hardware a. Enter the Network Name of the wireless network. b. (If required) Adjust Security Settings.3.Install Software before Hardware 8.Start using your Wireless Network4.Select Identify Settings a. Use this button to return to the first page.b. Use this button to display the table of contents.c. Select this link to find more information.TroubleshootingIf the CD-Wizard does not start automatically:a. Click the Start button on the Windows task bar and select Run.b. Type "d:\ezsetup.exe", and click OK (where d:\ represents the drive letter of your CD-ROM drive).If you have other problems installing or using this product:a. Consult the section “Find Information“ on the CD-ROM (described on the previous page).b. Consult the “readme.txt“ file on the CD-ROM.c. Contact your hardware Reseller or Manufacturer.

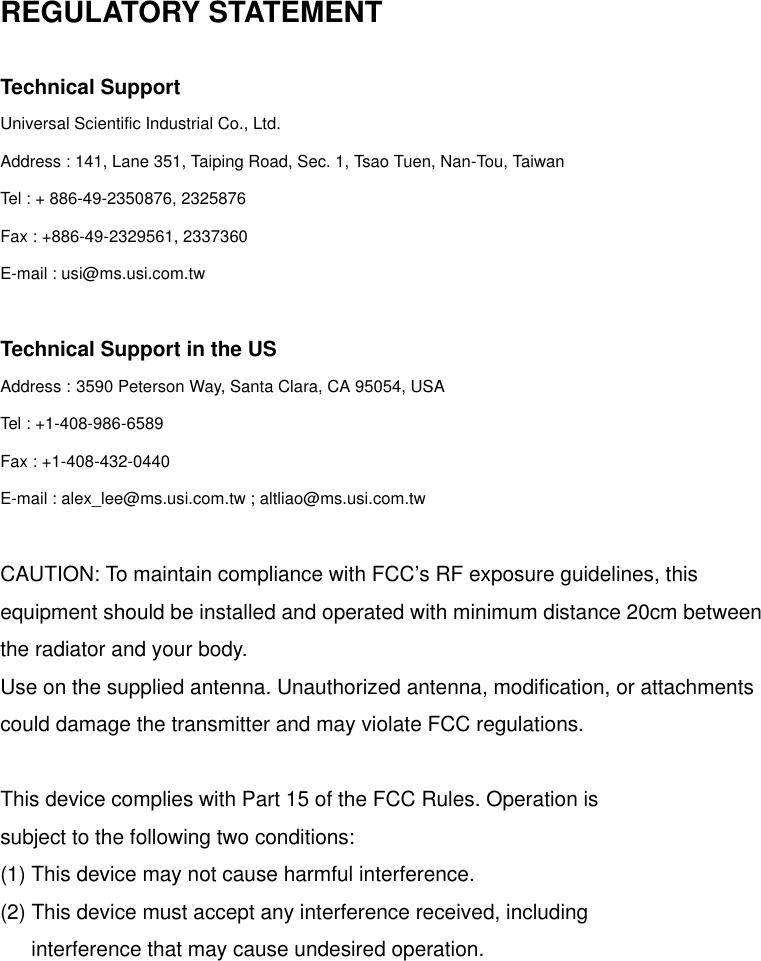

REGULATORY STATEMENTTechnical SupportUniversal Scientific Industrial Co., Ltd. Address : 141, Lane 351, Taiping Road, Sec. 1, Tsao Tuen, Nan-Tou, TaiwanTel : + 886-49-2350876, 2325876 Fax : +886-49-2329561, 2337360E-mail : usi@ms.usi.com.tw Technical Support in the USAddress : 3590 Peterson Way, Santa Clara, CA 95054, USATel : +1-408-986-6589Fax : +1-408-432-0440E-mail : alex_lee@ms.usi.com.tw ; altliao@ms.usi.com.twCAUTION: To maintain compliance with FCC’s RF exposure guidelines, thisequipment should be installed and operated with minimum distance 20cm betweenthe radiator and your body.Use on the supplied antenna. Unauthorized antenna, modification, or attachmentscould damage the transmitter and may violate FCC regulations.This device complies with Part 15 of the FCC Rules. Operation issubject to the following two conditions:(1) This device may not cause harmful interference.(2) This device must accept any interference received, including interference that may cause undesired operation.

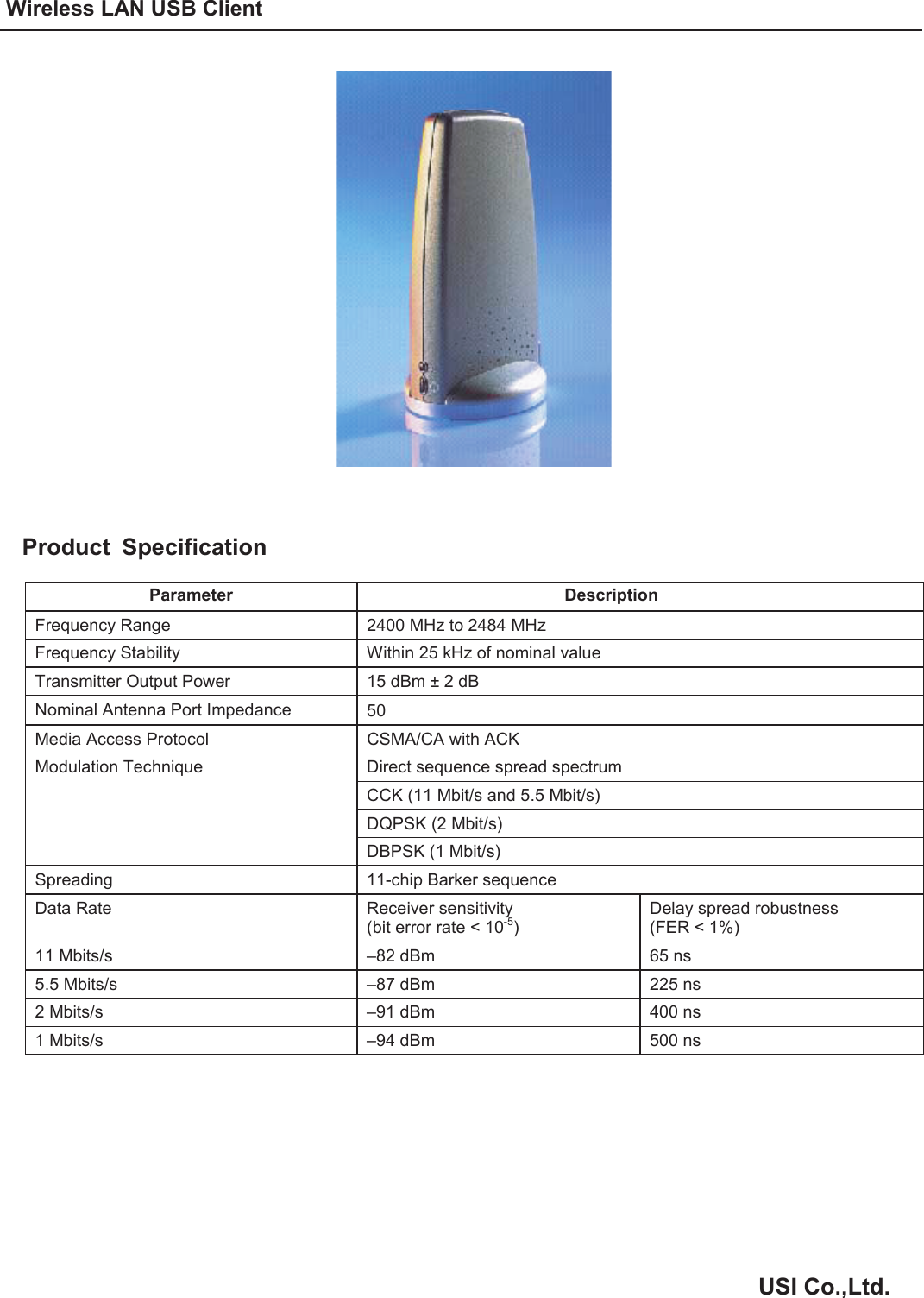

Wireless LAN USB Client Product SpecificationParameter Description Frequency Range 2400 MHz to 2484 MHz Frequency Stability Within 25 kHz of nominal value Transmitter Output Power 15 dBm ± 2 dB Nominal Antenna Port Impedance 50  Media Access Protocol CSMA/CA with ACK Direct sequence spread spectrum CCK (11 Mbit/s and 5.5 Mbit/s) DQPSK (2 Mbit/s) Modulation Technique DBPSK (1 Mbit/s) Spreading 11-chip Barker sequence Data Rate Receiver sensitivity (bit error rate < 10-5) Delay spread robustness (FER < 1%) 11 Mbits/s –82 dBm 65 ns 5.5 Mbits/s –87 dBm 225 ns 2 Mbits/s –91 dBm 400 ns 1 Mbits/s –94 dBm 500 ns USI Co.,Ltd.
