Universal Scientific USB114401 WLAN USB Adapter User Manual y 5

Universal Scientific Industrial Co., Ltd. WLAN USB Adapter y 5

Contents

Users Manual

USB Client

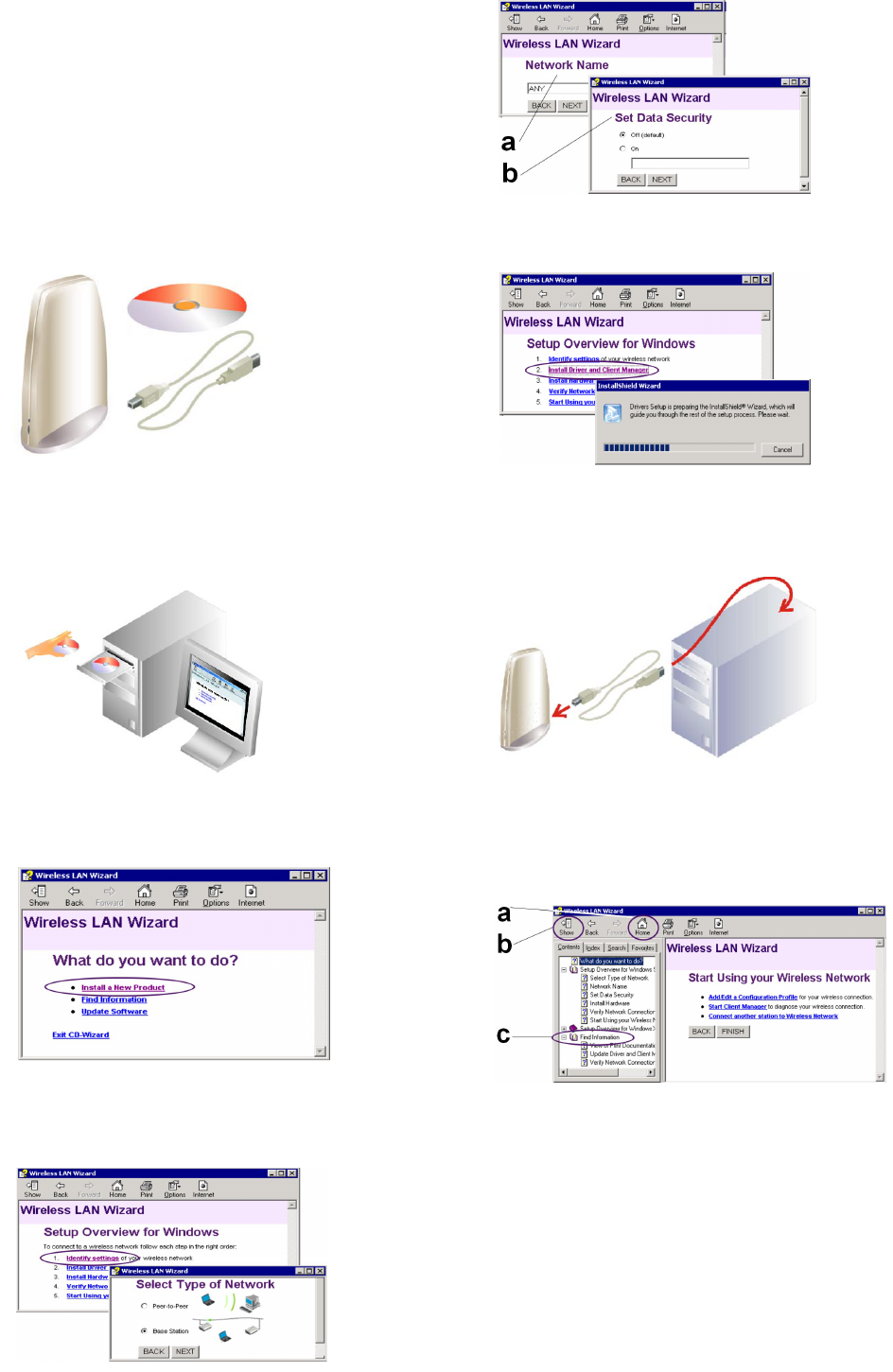

Quick Start Flyer
5.Set Network Name & Security Settings
1.Verify Kit Contents 6.Install Driver & Client Manager
If the CD-ROM does not start automatically, consult
the section Troubleshooting.
Select Install New Product.
2.Insert CD-ROM
Follow the instructions on your screen.
7.Connect USB Client Hardware
a. Enter the Network Name of the wireless network.
b. (If required) Adjust Security Settings.
3.Install Software before Hardware 8.Start using your Wireless Network
4.Select Identify Settings
a. Use this button to return to the first page.
b. Use this button to display the table of contents.
c. Select this link to find more information.
Troubleshooting
If the CD-Wizard does not start automatically:
a. Click the Start button on the Windows task bar
and select Run.
b. Type "d:\ezsetup.exe", and click OK
(where d:\ represents the drive letter of your CD-
ROM drive).
If you have other problems installing or using this
product:
a. Consult the section “Find Information“ on the CD-
ROM (described on the previous page).
b. Consult the “readme.txt“ file on the CD-ROM.
c. Contact your hardware Reseller or Manufacturer.
REGULATORY STATEMENT
Technical Support
Universal Scientific Industrial Co., Ltd.
Address : 141, Lane 351, Taiping Road, Sec. 1, Tsao Tuen, Nan-Tou, Taiwan
Tel : + 886-49-2350876, 2325876
Fax : +886-49-2329561, 2337360
E-mail : usi@ms.usi.com.tw
Technical Support in the US
Address : 3590 Peterson Way, Santa Clara, CA 95054, USA
Tel : +1-408-986-6589
Fax : +1-408-432-0440
E-mail : alex_lee@ms.usi.com.tw ; altliao@ms.usi.com.tw
CAUTION: To maintain compliance with FCC’s RF exposure guidelines, this
equipment should be installed and operated with minimum distance 20cm between
the radiator and your body.
Use on the supplied antenna. Unauthorized antenna, modification, or attachments
could damage the transmitter and may violate FCC regulations.
This device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions:
(1) This device may not cause harmful interference.
(2) This device must accept any interference received, including
interference that may cause undesired operation.
Wireless LAN USB Client
Product Specification
Parameter Description
Frequency Range 2400 MHz to 2484 MHz
Frequency Stability Within 25 kHz of nominal value
Transmitter Output Power 15 dBm ± 2 dB
Nominal Antenna Port Impedance 50
Media Access Protocol CSMA/CA with ACK
Direct sequence spread spectrum
CCK (11 Mbit/s and 5.5 Mbit/s)
DQPSK (2 Mbit/s)
Modulation Technique
DBPSK (1 Mbit/s)
Spreading 11-chip Barker sequence
Data Rate Receiver sensitivity
(bit error rate < 10-5)
Delay spread robustness
(FER < 1%)
11 Mbits/s –82 dBm 65 ns
5.5 Mbits/s –87 dBm 225 ns
2 Mbits/s –91 dBm 400 ns
1 Mbits/s –94 dBm 500 ns
USI Co.,Ltd.
