APPLICATION:
Gas red hot water heating boiler for indoor installations. Approved for closet or alcove installations. For
use with natural or liqueed petroleum gases (LP/propane) LP conversion kit provided with the boiler. Wall
mounted, optional oor mount kit available. Constructed and hydrostatically tested for maximum allowable
working pressure of 150 PSIG (pounds per square inch gauge) in accordance with ASME boiler and pressure
vessel code, section IV, rules for construction of heating boilers.
BOILERS INCLUDE:
• Wall Mount Bracket
• Boiler Control Module
XLine voltage/intermittent direct spark ignition. Replaceable fuse /extra spare fuse shipped with the
control.
XControlling premix modulating gas valve and blower.
XUser interface with LCD screen display English text—boiler status indication.
XFunction Programming Keys - Reset, Menu, Enter and arrow s (+ - ).
XCentral Heating CH and Domestic Hot Water DHW setpoints. Domestic hot water priority with
programmable maximum priority time.
X Outdoor air sensor. Programmable reset curves and warm weather shutdown or xed water
temperature operation.
XBoost function temperature setting and adjustable boost time .
XIntegral multiple boiler control capability up to 15 boilers. Requires an optional system sensor
XService reminder status.
• Boiler Combustion System
X Premix Gas valve and blower assembly with 20-100% modulating ring rate. Turn down ratio (5:1) gas input.
X Stainless Steel Fiber Mesh Burner
X Flame Sensor
P/N 240010478 REV B, [06/2014]

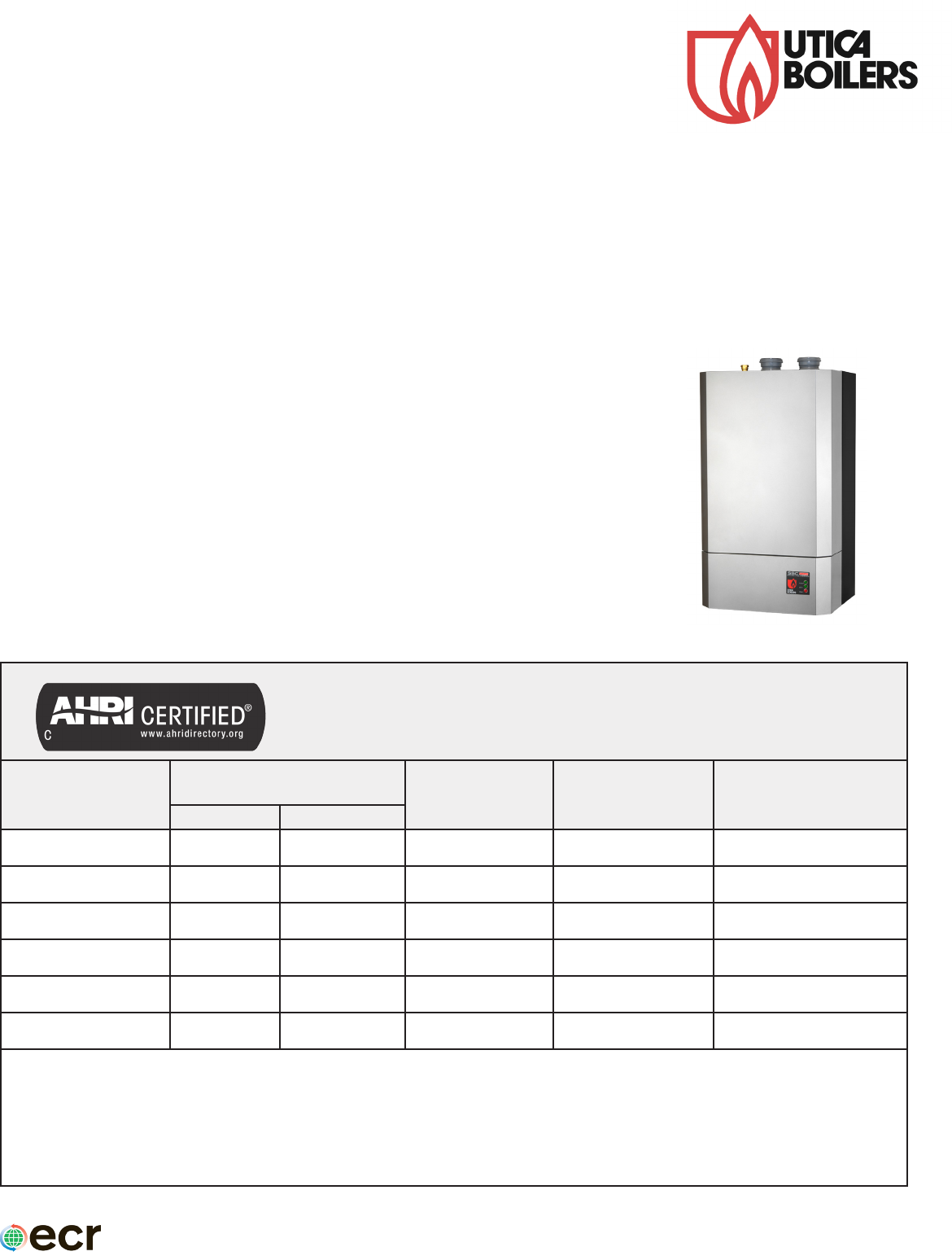

Models & Capacities
Size
Boiler Input Rate (MBH)(1) Heating
Capacity (MBH)
(1)(2)
Net AHRI
Rating, Water
(MBH)(1)(3) AFUE(2)
Maximum Minimum
UBSSC-050 50 10 46 40 95.0
UBSSC-075 75 15 69 60 95.0
UBSSC-100 100 20 91 79 95.0
UBSSC-150 150 30 139 121 95.0
UBSSC-200 200 40 185 161
95.0
UBSSC-299 299 60 273 239
95.0
* The UBSSC Models are ENERGY STAR rated products.
(1) 1000 Btu/hr (British Thermal Units Per Hour)
(2) Heating Capacity and AFUE (Annual Fuel Utilization Efciency) are based on DOE (Department of Energy) test
procedures.
(3)
Net AHRI Ratings based on piping and pickup allowance of 1.15. Contact Technical Support before selecting boiler for installations
having unusual piping and pickup requirements, such as intermittent system operation, extensive piping systems, etc.
• UL listed probe type low water cutoff with status indicator lights and test feature.
• Heat Exchanger Assembly
XVertically mounted single piece helical n tube coil. Manufactured out of 316L stainless steel tubing
with 444 stainless steel ns welded onto the coil with a laser automated process. ASME stamped with
a 150 psi maximum allowable working pressure. A 30psi safety relief valve is standard.
XBuilt-in Primary/Secondary manifold and piping system and heat exchanger pump.
XNon-metallic ue gas collector with built in condensate drain trap .
• Electrical
XRemovable low voltage terminal strip.
XLine voltage junction box with DWH Pump and CH Pump connections.
OPTIONAL EQUIPMENT:
• Floor mounting stand
• Multiple boiler system sensor
2201 Dwyer Ave. Utica, NY 13501 www.UticaBoilers.com
P/N 240010478 REV B, [06/2014]
2201 Dwyer Ave. Utica, NY 13501 www.UticaBoilers.com

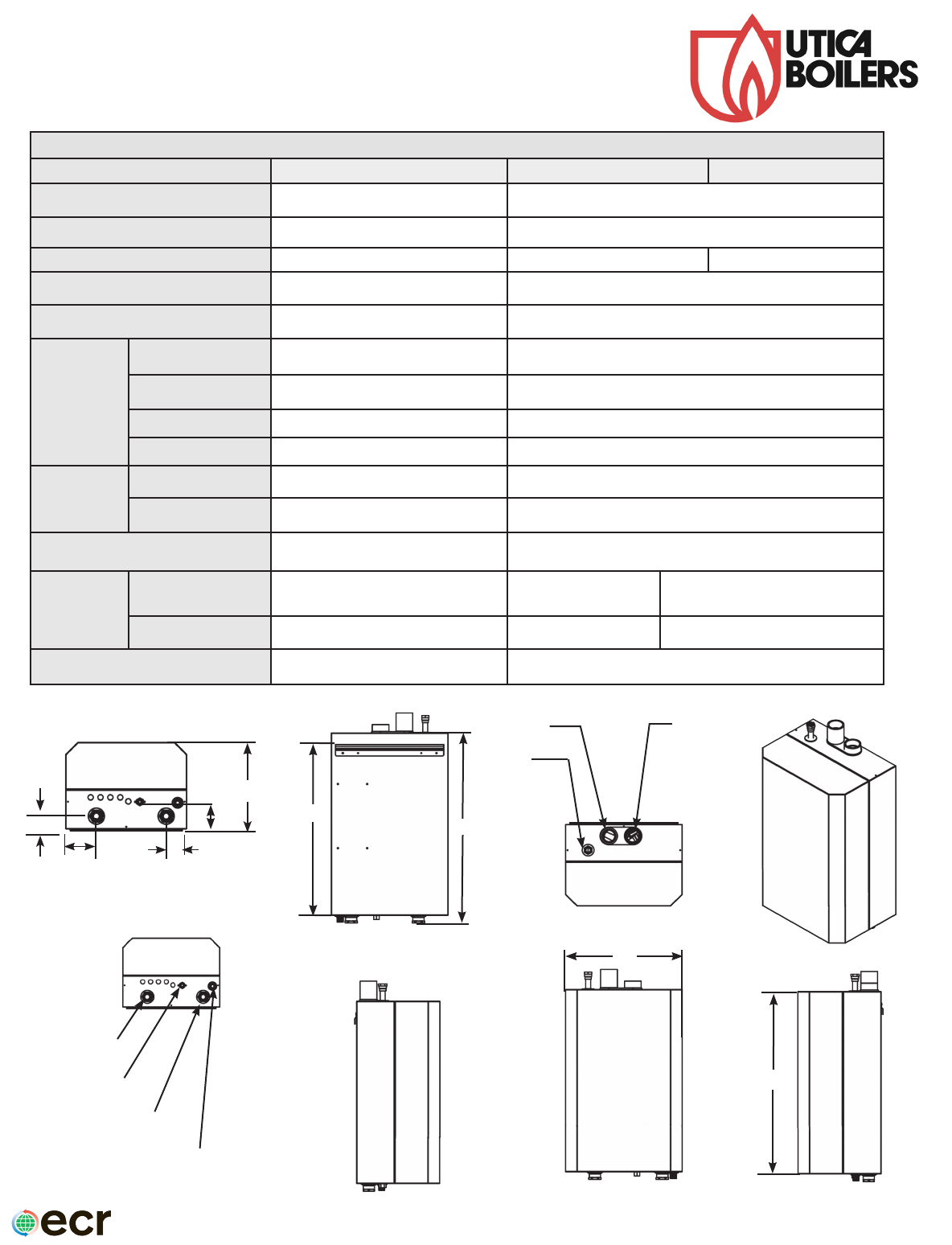

Physical Data
Models
050/075/100 150/200 299
Width (A) 20" (508mm)
23" (584mm)
Height (B) 30" (762mm)
41" (1041mm)
Depth (C) 14" (356mm)
16.0" (406mm) 18.3" (465mm)
Bracket (D) 28" (711mm)
40" (1016mm)
Height (E) 31" (787mm)
42" (1092mm)
Water
Connections
Size (F) 1-1/4" NPT 1-1/4" NPT
Location (G) 2" (51mm)
2" (51mm)
Location (H) 5" (127mm)
3" (76mm)
Location (I) 3" (76mm)
4-½"
(114mm)
Gas
Connection
Location (J) 4-1/2" (114mm) 4-1/2" (114mm)
Size (K) 1/2" NPT
3/4" NPT
Condensate Drain Connection
(L) 3/4" NPT
3/4" NPT
Weight
Shipping 111 lb (50 kg) ~182 lb (83 kg) ~225 lb (102 kg)
Unit 91 lb (41 kg) ~157 lb (71kg) ~195 lb (89 kg)
Vent Connector 2" (51mm) 3" (76mm)
(D)
Wall Hanging
Bracket
(D)
(A)
(E)
Vent Connector Combustion Air
Safety Relief
Valve
Connection
(¾ NPT)
(B)
(G)
(C)
(J)
(H) (I)
Condensate Drain
Connection
(L)
Return Water
(F)
Supply Water (F)
Gas Connection
(K)
P/N 240010478 REV B, [06/2014]
2201 Dwyer Ave. Utica, NY 13501 www.UticaBoilers.com

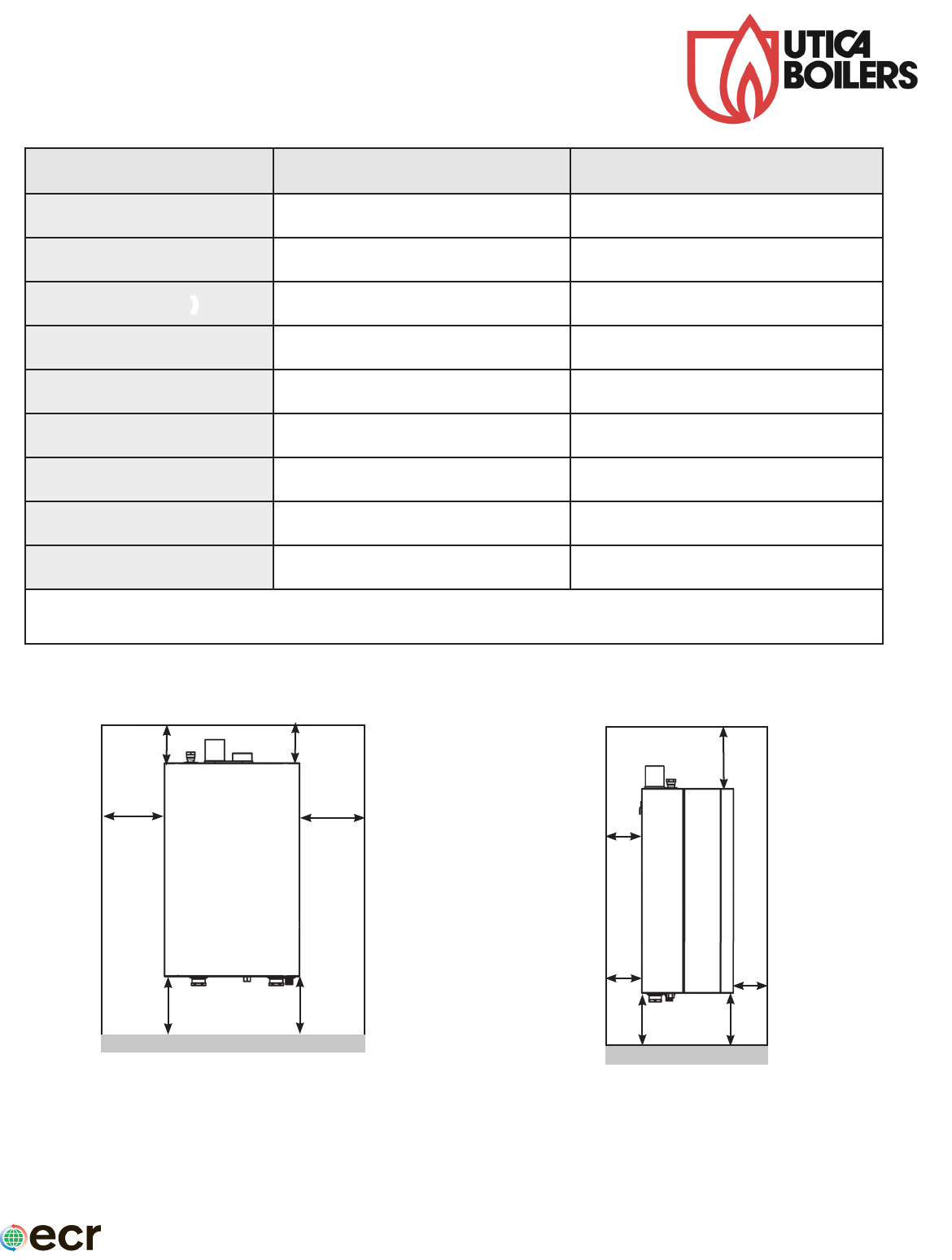

Dimension Combustible Materials (1) Service(1)(2)
Model 050/075/100/150/200/299 050/075/100/150/200/299
Top (A)
0" (0 cm) 14" (36 cm)
Left Side (B)
0" (0 cm) 0" (0 cm)
Right Side (C)
0" (0 cm) 0" (0 cm)
Front (D)
0" (0 cm) 6" (16 cm)
Back (E) 0" (0 cm) 0" (0 cm)
Bottom (F) 0" (0 cm) 12" (32 cm)
Combustion Air/Vent Piping
0" (0 cm) 6" (16 cm)
Hot Water Piping
See local code 6" (16 cm)
(1) Required distances measured from boiler jacket.
(2) Service, proper operation clearance recommendation.
CLEARANCES
A
C
B
A
FLOOR
FF
E
E
D
FLOOR
F
F
Front View Side View
P/N 240010478 REV B, [06/2014]
2201 Dwyer Ave. Utica, NY 13501 www.UticaBoilers.com
VENTING
Flue Gas Location Combustion Air Location Flue Gas Terminals
Roof
Roof
Two Pipe
Concentric
Side Wall Single Pipe
Inside Air Single Pipe
Side Wall
Roof Single Pipe
Side Wall
Two Pipe
Concentric
Inside Air Single Pipe
Minimum/Maximum Vent Lengths
2” Pipe 3” Pipe 4” Pipe
Model 050 075/100 075/100 150/200 299 299
Minimum 6 ft.
(1.8 m)
6 ft.
(1.8 m)
6 ft.
(1.8 m)
6 ft.
(1.8 m)
6 ft.
(1.8 m)
6 ft.
(1.8 m)
Maximum 100 ft. (30.5 m) 50 ft.
(15.2 m)
100 ft.
(30.5 m)
100 ft.
(30.5 m)
25 ft.
(7.7 m)
100 ft.
(30.5 m)
Equivalent Length of Venting Components
Component Feet Meters
90° Elbow 5 1.6
45° Elbow 3 ½ 1.1
2" x 4" Adapter 0 0
3" x 4" Adapter 0 0
Concentric Vent Kit 5 1.6
Polypropylene Flexible Pipe per Foot 2 5/8 0.8
Note: Allowable Venting Materials - Polypropylene, PVC, CPVC and ABS. Tables shown are for vent systems utilizing PVC .
Refer to IOM and vent pipe manufacturer’s instructions for equivalent vent lengths and additional information.
P/N 240010478 REV B, [06/2014]
2201 Dwyer Ave. Utica, NY 13501 www.UticaBoilers.com
