1 Introduction
1.1 Scope
This document gives an overview about electrical, mechanical and functional detail of the peiker LTE-
NAD v1140-xxx.
1.2 Audience
Information to integrate the module in other applications.
1.3 Contact information, Support
peiker acustic GmbH & Co KG
Max-Planck Street 32
D-61381 Friedrichsdorf / Ts.
Germany
http://www.peiker.de
info@peiker.de
1.4 Related Documents
None.
_______________________________________________________________________________________________________________ Seite 6
peiker acustic GmbH & Co. KG, Max-Planck-Straße 32, D-61381 Friedrichsdorf, Amtsgericht Bad Homburg HRA 1897
phG: peiker Verwaltungs GmbH, Vorsitzender der Geschäftsführung: Andreas Peiker, Geschäftsführer: Stephan Graf von der Schulenburg, Amtsgericht Bad Homburg 1369
Vorsitzender des Aufsichtsrates: Prof. Dr. Agilolf Lamperstorfer Ein Unternehmen der peiker Firmengruppe
2 Overview
2.1 Product Variants
The LTE-NAD is available in multiple product variants:
Peiker product # Module configuration
2189-140-100-00 (V1140-100) LTE EU configuration
2189-140-101-00 (V1140-101) LTE North America configuration
2189-140-103-00 (V1140-103) 2G/3G EU/RoW configuration
2189-140-104-00 (V1140-104) LTE Asia Pacific configuration
2189-140-105-00 (V1140-105) 2G/3G North America configuration
2189-140-106-00 (V1140-106) 2G/3G China configuration
All variants include Quad band GSM/GPRS/EDGE (850, 900, 1800, 1900 MHz)
V1140-100
LTE Bands B3, B7, B20
WCDMA Bands FDD1, FDD8
V1140-101
LTE Bands B2, B4, B5, B17
WCDMA Bands FDD2, FDD5
V1140-103
LTE Bands No LTE support
WCDMA Bands FDD1, FDD2, FDD5, FDD6, FDD8
V1140-104
LTE Bands B1, B3, B5, B7, B19
WCDMA Bands FDD1, FDD5, FDD6, FDD8
V1140-105
LTE Bands No LTE support
WCDMA Bands FDD2, FDD5
V1140-106
LTE Bands No LTE support
WCDMA Bands FDD1
_______________________________________________________________________________________________________________ Seite 7
peiker acustic GmbH & Co. KG, Max-Planck-Straße 32, D-61381 Friedrichsdorf, Amtsgericht Bad Homburg HRA 1897
phG: peiker Verwaltungs GmbH, Vorsitzender der Geschäftsführung: Andreas Peiker, Geschäftsführer: Stephan Graf von der Schulenburg, Amtsgericht Bad Homburg 1369
Vorsitzender des Aufsichtsrates: Prof. Dr. Agilolf Lamperstorfer Ein Unternehmen der peiker Firmengruppe
2.2 Features
Features
- Same footprint and pin-out for all modules
- Voice and data calls are supported in all modules
- GSM (R99, GPRS and EDGE) for all modules
- WCDMA (R99, R5 HSDPA, R6 HSUPA and R7 HSPA+) for all modules
- WCDMA (R8 DC-HSPA+) for all modules except for V1140-101 and V1140-105
- LTE (Rel.9 Cat3 FDD) for LTE capable modules
- DTM/eDTM
- eCall inband modem
- Standalone GPS, GLONASS, AGPS (MS-Assisted and MS-Based)
Data rates
- GSM: DL/UL – 14.4kbps / 14.4kbps
GPRS: Multislot class 12, DL/UL – 85.6kbps / 42.8kbps
EDGE: Multislot class 12, DL/UL – 236.8kbps / 118.4kbps
- WCDMA: DL/UL up to 384kbps
HSPA+:
Category 24 in DL using 64 QAM and Dual-Cell; Up to 42 Mbps – Not supported by
V1140-101 and V1140-105
Category 14 in DL using 64 QAM; Up to 21 Mbps
Category 6 in UL using 16 QAM; Up to 5.76 Mbps
- LTE-FDD Category 3: Up to 100 Mbps in DL, up to 50 Mbps in UL
Power Classes
- LTE: All supported bands, Power Class 3
- WCDMA: All supported bands, Power Class 3
- EDGE: 850 MHz / 900 MHz / 1800 MHz/ 1900MHz, Power Class E2
- GSM / GPRS: 850 MHz / 900MHz, Power Class 4
- GSM / GPRS: 1800 MHz / 1900MHz, Power Class 1
Dimension and Weight
- Dimensions: 31mm x 46mm x 4mm
- Weight < 10 grams
2.3 Approvals
- R&TTE directive
- CE, GCF
- FCC, IC, PTCRB
- AT&T
_______________________________________________________________________________________________________________ Seite 8
peiker acustic GmbH & Co. KG, Max-Planck-Straße 32, D-61381 Friedrichsdorf, Amtsgericht Bad Homburg HRA 1897
phG: peiker Verwaltungs GmbH, Vorsitzender der Geschäftsführung: Andreas Peiker, Geschäftsführer: Stephan Graf von der Schulenburg, Amtsgericht Bad Homburg 1369
Vorsitzender des Aufsichtsrates: Prof. Dr. Agilolf Lamperstorfer Ein Unternehmen der peiker Firmengruppe
3 Overview
3.1 HW Features
- Qualcomm SoC (system on chip)
o LTE capable modules V1140-100, V1140-101 and V1140-104
MDM9215 Baseband / PMIC8018 Power management / WTR1605L
o Non-LTE modules V1140-103, V1140-105 and V1140-106
MDM8215 Baseband / PMIC8018 Power management / WTR1605
- Cortex A5 Core up to 550 MHz
- 3 DSPs for modem and low power audio sub systems
- RPM Resource and power manager
- 2Gb NAND Flash x16,
- 2Gb Low Power Mobile DDR SDRAM x32
- 19.2MHz clock reference
- Dedicated heat sink in center area underneath the PCB
- GPS/GLONASS operation, GPS antenna biasing and diagnostics
3.2 Connectors
3.2.1 Module Signal and RF Connectors
The LTE-NAD has 172 signal pins (2xAA and 2xBB) connector pads with 1.0mm pitch. The signal pads
are located close to the board edges.
There are three antenna pads, each collocated by RF GND connectors
- Main transmit and receive antenna – pin LGA_PRX_ANT
- Diversity antenna for WCDMA respective MIMO antenna for LTE – pin LGA_DRX_ANT_IN
- GNSS antenna for both GPS and GLONASS – pin LGA_GPS_DRX_ANT
3.2.2 Ground and Heat Dissipation Connectors
To support the usage of module under complicated thermal conditions, there are a number of large
grounded pads in the center of PCB. These pads are dedicated ground pads to transfer heat dissipation
to a carrier board.
This should be especially considered by customer designs. A reference design showing landing patterns
and PCB stack-up is available on request.
3.3 Main Interfaces
3.3.1 USB
The NAD has one USB2.0 OTG high speed (480MBit) compliant interface including the PHY. The IF
consists of 5 signals:
_______________________________________________________________________________________________________________ Seite 9
peiker acustic GmbH & Co. KG, Max-Planck-Straße 32, D-61381 Friedrichsdorf, Amtsgericht Bad Homburg HRA 1897
phG: peiker Verwaltungs GmbH, Vorsitzender der Geschäftsführung: Andreas Peiker, Geschäftsführer: Stephan Graf von der Schulenburg, Amtsgericht Bad Homburg 1369
Vorsitzender des Aufsichtsrates: Prof. Dr. Agilolf Lamperstorfer Ein Unternehmen der peiker Firmengruppe
- USB_D_P: USB Data Plus signal
- USB_D_M: USB Data Minus signal
- USB_ID: Master/Slave Configuration1
- USB_VBUS: USB Voltage Supply
- VREG_USB3_3V075 USB Voltage Output
A dynamic reconfiguration between USB-Host or USB-Device is not foreseen, the NAD can be configured
to USB-Host or USB-Device by the insertion of a resistor on the USB_ID line.
3.3.2 SIM Interface
The NADs SIM interface is compatible to 1.8V and 3V SIM Cards, the necessary voltage and level shifting
is handle by LTE-NAD automatically. The IF consists of the following signals:
VREG_USIM
USIM_CLK
USIM_DATA
USIM_RESET
The data speed on the SIM IF is up to 4 Mbps, so HW designers should take care of the length and
routing of the SIM IF to prevent potential EMC problems.
3.3.3 Power on
The signal PON_N is used switch on the NAD-Module. PON_N is pulled against VMAIN on the
LTE-NAD internally.
Due to this fact it is recommended to pull this input against GND using an open collector or
open drain output only.
3.3.4 Reset
EXT_RESIN_N is used to reset the LTE-NAD-Module, see table of LTE-NAD signal pins.
There are further reset signals available, please check .
RES_IN is pulled against VMAIN power on the LTE-NAD internally. Therefore, it is
recommended to pull this input against GND using an open collector or open drain output only.
3.3.5 GPIOs
1 The LTE-NAD is configured in the slave mode. For other configuration of the USB – Interface please contact
peiker acustic GmbH & Co.KG.
_______________________________________________________________________________________________________________ Seite 10
peiker acustic GmbH & Co. KG, Max-Planck-Straße 32, D-61381 Friedrichsdorf, Amtsgericht Bad Homburg HRA 1897
phG: peiker Verwaltungs GmbH, Vorsitzender der Geschäftsführung: Andreas Peiker, Geschäftsführer: Stephan Graf von der Schulenburg, Amtsgericht Bad Homburg 1369
Vorsitzender des Aufsichtsrates: Prof. Dr. Agilolf Lamperstorfer Ein Unternehmen der peiker Firmengruppe
There are 51 GPIOs on the LTE-NAD module available. Most of them are part of the 5 GSBIs provided
in next chapter. They are used for different interfaces (see Table 1 and the following chapters). For
allocation of GPIOs/GSBIs to different configurations please contact peiker acustics GmbH & Co.KG
GPIOs and GSBIs share the same output pins and may not available when used as GSBI configuration.
The following GPIOs are not belonging to a GSBI bundle:
GPIO 47, 72, 82, 25, 28, 26, 27, 84, 80, 21, 23, 22, 24, 20, 1, 78, 79, 85, 86, 69, 0, 77, 65, 61, 68, 51, 54,
73, 48, 49, 53.
The following GPIOs are belonging to a GSBI bundle:
GPIO 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 29, 30.
3.3.6 GSBIs
Each GSBI (General Serial Bus Interface) consists of a bundle of 4 GPIOs. 5 GSBI are available.
The reference voltage is of the GSBIs is 1.8V.
Available signals on GSBI bundles at the board to board connector:
- GSBI1: GSBI1_0, GSBI1_1, GSBI1_2, GSBI1_3 (GPIO_29, 30, 2, 3)
- GSBI2: GSBI2_0, GSBI2_1, GSBI2_2, GSBI2_3 (GPIO_4, 5, 6, 7)
- GSBI3: GSBI3_0, GSBI3_1, GSBI3_2, GSBI3_3 (GPIO_8, 9, 10, 11)
- GSBI4: GSBI4_0, GSBI4_1, GSBI4_2, GSBI4_3 (GPIO_12, 13, 14, 15)
- GSBI5: GSBI5_0, GSBI5_1, GSBI5_2, GSBI5_3 (GPIO_16, 17, 18, 19)
For the standard configuration of the GSBIs see the following Fehler! Verweisquelle konnte nicht
gefunden werden. 3.
_______________________________________________________________________________________________________________ Seite 11
peiker acustic GmbH & Co. KG, Max-Planck-Straße 32, D-61381 Friedrichsdorf, Amtsgericht Bad Homburg HRA 1897
phG: peiker Verwaltungs GmbH, Vorsitzender der Geschäftsführung: Andreas Peiker, Geschäftsführer: Stephan Graf von der Schulenburg, Amtsgericht Bad Homburg 1369
Vorsitzender des Aufsichtsrates: Prof. Dr. Agilolf Lamperstorfer Ein Unternehmen der peiker Firmengruppe
Figure 1 V1140-xxx General Serial Bus Interface GSBI interface configuration
3.3.7 Module Pin-out
Table 1 Module Pin-out
Signal
Direction related
to LTE-NAD
Comment
GND
Input Power
Main ground connection, Corner pad
GND
Input Power
Main ground connection
GPIO47
Input
WDOG_DISABLE
JTAG_TDI
Input
JTAG Interface
JTAG_TDO
Output
JTAG Interface
GPIO_72
IN/OUT
JTAGTMS
Input
JTAG Interface
JTAG_TRST_N
Input
JTAG Interface
_______________________________________________________________________________________________________________ Seite 12
peiker acustic GmbH & Co. KG, Max-Planck-Straße 32, D-61381 Friedrichsdorf, Amtsgericht Bad Homburg HRA 1897
phG: peiker Verwaltungs GmbH, Vorsitzender der Geschäftsführung: Andreas Peiker, Geschäftsführer: Stephan Graf von der Schulenburg, Amtsgericht Bad Homburg 1369
Vorsitzender des Aufsichtsrates: Prof. Dr. Agilolf Lamperstorfer Ein Unternehmen der peiker Firmengruppe
Signal
Direction related
to LTE-NAD
Comment
JTAG_RTCK
Output
JTAG Interface
GND
Input Power
Main ground connection
JTAG_TCK
Input
JTAG Interface
JTAG_RESOUT_N
Input
JTAG Interface
GPIO82
Output
NAD – Runnig, Controll signal
JTAG_PS_HOLD
Input
JTAG Interface
EXT_RESIN_N
Input
Input Reset for LTE-NAD module
GND
Input Power
Main ground connection
RESOUT_N
Output
Output Reset
GPIO29_ SDC2_CMD
IN/OUT
SD Card CMD
GPIO25_ SDC2_D0
IN/OUT
SD Card Data 0
GPIO28_ SDC2_D3
IN/OUT
SD Card Data 3
GPIO30_ SDC2_CLK
Output
SD Card Clock
GND
Input Power
Main ground connection
GPIO26_ SDC2_D1
IN/OUT
SD Card Data 1
GPIO27_ SDC2_D2
IN/OUT
SD Card Data 2
PM_GPIO4
IN/OUT
GPIO84
Output
Reset of the Codec
GND
Input Power
Main ground connection
SDC1_CMD
IN/OUT
SD Card CMD
SDC1_DATA0
IN/OUT
SD Card Data 0
SDC1_DATA3
IN/OUT
SD Card Data 3
SDC1_CLK
Output
SD Card Clock
GPIO80_SDC1_DET_N
IN/OUT
GND
Input Power
Main ground connection, Corner pad
SDC1_DATA2
IN/OUT
SD Card Data 2
SDC1_DATA1
IN/OUT
SD Card Data 1
GPIO21_ I2S_WS
Output
I²S - Word Select
GPIO23_ I2S_DOUT
Output
I²S – Data Output
GPIO22_ I2S_DIN
Input
I²S - Data Input
GPIO24_ I2S_MCLK
Output
I²S - Master Clock
GND
Input Power
Main ground connection
GPIO20_ I2S_CLK
Output
I²S - Clock
GPIO19_GSBI5_3
Output
2 – Pin – UART TXD 3
GPIO17_GSBI5_1
IN/OUT
I²C – Serial Data
GPIO18_GSBI5_2
Input
2 – Pin – UART RXD 3
GPIO15_GSBI4_3
Output
4 – Pin – UART TXD 1
GND
Input Power
Main ground connection
USB_D_P
IN/OUT
High – Speed USB Device for
communication
USB_D_M
IN/OUT
High – Speed USB Device for
communication
GND
Input Power
Main ground connection
GPIO14_GSBI4_2
Input
4 – Pin – UART RXD 1
_______________________________________________________________________________________________________________ Seite 13
peiker acustic GmbH & Co. KG, Max-Planck-Straße 32, D-61381 Friedrichsdorf, Amtsgericht Bad Homburg HRA 1897
phG: peiker Verwaltungs GmbH, Vorsitzender der Geschäftsführung: Andreas Peiker, Geschäftsführer: Stephan Graf von der Schulenburg, Amtsgericht Bad Homburg 1369
Vorsitzender des Aufsichtsrates: Prof. Dr. Agilolf Lamperstorfer Ein Unternehmen der peiker Firmengruppe
Signal
Direction related
to LTE-NAD
Comment
GPIO13_GSBI4_1
Input
4 – Pin – UART Clear To Send 1
GPIO16_GSBI5_0
Output
I²C - Clock
USB_ID
Input
GPIO12_GSBI4_0
Output
4 – Pin – UART Ready For Receive 1
GND
Input Power
Main ground connection
USB_VBUS
Input
High – Speed USB Device for
communication
GPIO11_GSBI3_3
Output
2 – Pin – UART TXD 2
GPIO10_GSBI3_2
Input
2 – Pin – UART RXD 2
GPIO9_GSBI3_1
IN/OUT
GPIO8_GSBI3_0
IN/OUT
GPIO6_ UIM2_CLK
IN/OUT
GND
Input Power
Main ground connection
GPIO2_ UIM1_CLK
Output
SIM Card - Clock
GPIO5_ UIM2_RST
IN/OUT
GPIO7_ UIM2_DATA
IN/OUT
GPIO4_ UIM2_DET
IN/OUT
GND
Input Power
Main ground connection, Corner pad
HSIC_DATA
IN/OUT
Connection to Ethernet Controller
GND
Input Power
Main ground connection
HSIC_STROBE
IN/OUT
Connection to Ethernet Controller
GND
Input Power
Main ground connection
GPIO3_ UIM1_DATA
Output
SIM Card – Data 1
GPIO1_ UIM1_RST
Output
SIM Card – Reset 1
GPIO78
IN/OUT
GPIO79_ HSIC_RDY
Output
Reset of Ethernet Controller
GPIO85
Output
Time synchronization
GPIO86_
GPS_EXT_LNA_EN
IN/OUT
GND
Input Power
Main ground connection
VREG_USB3_3V075
Output Power
Output Power to USB
GND
Input Power
Main ground connection
VREG_MSME_1V8
Output Power
Output Power
GND
Input Power
Main ground connection
VREG_UIM2
Output Power
Output Power to SIM Card 2
VREG_SDC1_2V95
Output Power
Output Power to SD Card 1
GND
Input Power
Main ground connection
VREG_UIM1
Output Power
Output Power to SIM Card 1
GND
Input Power
Main ground connection
GND
Input Power
Main ground connection
VMAIN
Input Power
Main power
VMAIN
Input Power
Main power
VMAIN
Input Power
Main power
VMAIN
Input Power
Main power
_______________________________________________________________________________________________________________ Seite 14
peiker acustic GmbH & Co. KG, Max-Planck-Straße 32, D-61381 Friedrichsdorf, Amtsgericht Bad Homburg HRA 1897
phG: peiker Verwaltungs GmbH, Vorsitzender der Geschäftsführung: Andreas Peiker, Geschäftsführer: Stephan Graf von der Schulenburg, Amtsgericht Bad Homburg 1369
Vorsitzender des Aufsichtsrates: Prof. Dr. Agilolf Lamperstorfer Ein Unternehmen der peiker Firmengruppe
Signal
Direction related
to LTE-NAD
Comment
GND
Input Power
Main ground connection
GND
Input Power
Main ground connection
PON
Input
Power On
HW-REV-RESISTOR
Output
PM_GPIO3
IN/OUT
GND
Input Power
Main ground connection
PM_MPP5
Input
PM – ADC – channel
PM_MPP1
Input
PM – ADC – channel
GND
Input Power
Main ground connection
GPIO69
Output
Switch between main and back up
antenna
GPIO0_ UIM1_DET
Input
SIM Card – Detection 1
GPIO77
Output
Reset signal of SDC2
GPIO65
Output
NAD – Wake up
GPIO61
Input
NAD – Update
PON_N
Input
Power On
GND
Input Power
Main ground connection
GPIO68
Output
PS-3V8-Hold
GPIO51
Input
BOOT_CONFIG3
GPIO54
Input
BOOT_CONFIG0
GND
Input Power
Main ground connection
PM_MPP2
Input
PM – ADC - channel
PM_GPIO2
IN/OUT
PM_GPIO1
IN/OUT
PM_GPIO6
IN/OUT
GND
Input Power
Main ground connection
GPIO73
IN/OUT
GND
Input Power
Main ground connection, Corner pad
GPIO48
Input
BOOT_CONFIG6
GPIO49
Input
BOOT_CONFIG5
GPIO53
Input
BOOT_CONFIG1
GND
Input Power
Main ground connection
LGA_PRX_ANT
Connection to the antenna switch
GND
Input Power
Main ground connection
LGA_GPS_DRX_ANT
Connection to the antenna connector
GND
Input Power
Main ground connection
LGA_DRX_ANT_IN
Input
Connection to the antenna switch
LGA_DRX_ANT_OUT
GND
Input Power
Main ground connection
_______________________________________________________________________________________________________________ Seite 15
peiker acustic GmbH & Co. KG, Max-Planck-Straße 32, D-61381 Friedrichsdorf, Amtsgericht Bad Homburg HRA 1897
phG: peiker Verwaltungs GmbH, Vorsitzender der Geschäftsführung: Andreas Peiker, Geschäftsführer: Stephan Graf von der Schulenburg, Amtsgericht Bad Homburg 1369
Vorsitzender des Aufsichtsrates: Prof. Dr. Agilolf Lamperstorfer Ein Unternehmen der peiker Firmengruppe
Note: Pins should be grounded when not used in design.
3.4 Supply Voltage
The external supply voltage is applied to LTE-NAD by 8 Pins on modules signal connectors.
PINs 109, 110, 111, 112 for VMAIN
PINs 107, 108, 113, 114 for the corresponding GND
Please note that there are further main ground connection that should be connected to ensure
proper NAD function.
TA = -40°C … +85°C
Absolute minimum/maximum supply voltages
3.6V ~ 4.0V
Nominal supply voltage
3.8V
Recommended supply voltage
3.8V
Voltage drop @ GSM power burst (33dBm)
<100mV
During Hi RF Power GSM bursts the power amplifier can draw peak currents > 2Amps at
VMAIN. The voltage drop during the GSM burst shall not exceed 100mV.
3.5 Power Consumption
TA = +25°C, VPH_PWR =3.8V
Output Power
Output Power
max. (typ. 23dBm)
0 dBm
Voice call WCDMA BC1
~530mA
~145mA
Voice call WCDMA BC2
~570mA
~145mA
Voice call WCDMA BC5
~630mA
~140mA
Voice call WCDMA BC8
~580mA
~140mA
PCL 5 (typ. 32.5 dBm)
PCL 19 (typ. 5dBm)
Voice call GSM850
~260mA
~65mA
Voice call GSM900
~270mA
~65mA
PCL 0 (typ.30.5dBm)
PCL 15 (typ.0dBm)
Voice call GSM1800
~165mA
~65mA
Voice call GSM1900
~165mA
~65mA
Standby current GSM
DRX = 5
Tbd mA
Standby current WCDMA
DRX = 7
Tbd mA
Standby current LTE
DRX = 7
_______________________________________________________________________________________________________________ Seite 16
peiker acustic GmbH & Co. KG, Max-Planck-Straße 32, D-61381 Friedrichsdorf, Amtsgericht Bad Homburg HRA 1897
phG: peiker Verwaltungs GmbH, Vorsitzender der Geschäftsführung: Andreas Peiker, Geschäftsführer: Stephan Graf von der Schulenburg, Amtsgericht Bad Homburg 1369
Vorsitzender des Aufsichtsrates: Prof. Dr. Agilolf Lamperstorfer Ein Unternehmen der peiker Firmengruppe
Output Power
Output Power
LTE data call B3
LTE data call B7
LTE data call B20
3.6 Transmitter
Tbd.
3.7 Receiver
Tbd.
3.8 Environmental Specification
3.8.1 Temperature Range
Range
Operating temp. range
-20°C … +65°C
3GPP spec. conform
Operating temp. range
-40°C … +85°C Note 1
Operational
Performance might slightly
deviate from 3GPP spec.
Storage temp. range
-40°C … +85°C
Note 1: Due to temperature specification of the chipset, the temperature of the power manager and the
temperature of the modem chip shall not exceed +85°C.
_______________________________________________________________________________________________________________ Seite 17
peiker acustic GmbH & Co. KG, Max-Planck-Straße 32, D-61381 Friedrichsdorf, Amtsgericht Bad Homburg HRA 1897
phG: peiker Verwaltungs GmbH, Vorsitzender der Geschäftsführung: Andreas Peiker, Geschäftsführer: Stephan Graf von der Schulenburg, Amtsgericht Bad Homburg 1369
Vorsitzender des Aufsichtsrates: Prof. Dr. Agilolf Lamperstorfer Ein Unternehmen der peiker Firmengruppe
4 Evaluation Kit
4.1
Overview
For the NAD V1140-xxx, there is an evaluation board available.
Features:
- On board 12V DC power supply (alternatively 3,8V DC direct connected, unbuffered).
- USB port type B
- SIM card tray
- 20 pin JTAG header for debugging
- 2 UART ports connected to DB9
- CODEC supported by I2S and I2C interfaces
Using the evaluation board with an external power supply
By default the module can be supplied by a switching regulator at 12V DC input voltage or by the module
VCC at 3.8V.
3.8V supply should be able to deliver 3.5A max. Sense contacts are for supplies which support the
corresponding feature.
Using the evaluation board with on board 3.8V regulator
For use at 3.8V simply disconnect the 12V supply and plug on 3.8V.
Note: Make sure that the external power supply is not generating spikes or
hazards higher than 4.0V. LTE-NAD Module gets damaged when spikes or
hazards above 4.0V are applied
RF Connector
- For RF measurements use main antenna connector
_______________________________________________________________________________________________________________ Seite 18
peiker acustic GmbH & Co. KG, Max-Planck-Straße 32, D-61381 Friedrichsdorf, Amtsgericht Bad Homburg HRA 1897
phG: peiker Verwaltungs GmbH, Vorsitzender der Geschäftsführung: Andreas Peiker, Geschäftsführer: Stephan Graf von der Schulenburg, Amtsgericht Bad Homburg 1369
Vorsitzender des Aufsichtsrates: Prof. Dr. Agilolf Lamperstorfer Ein Unternehmen der peiker Firmengruppe

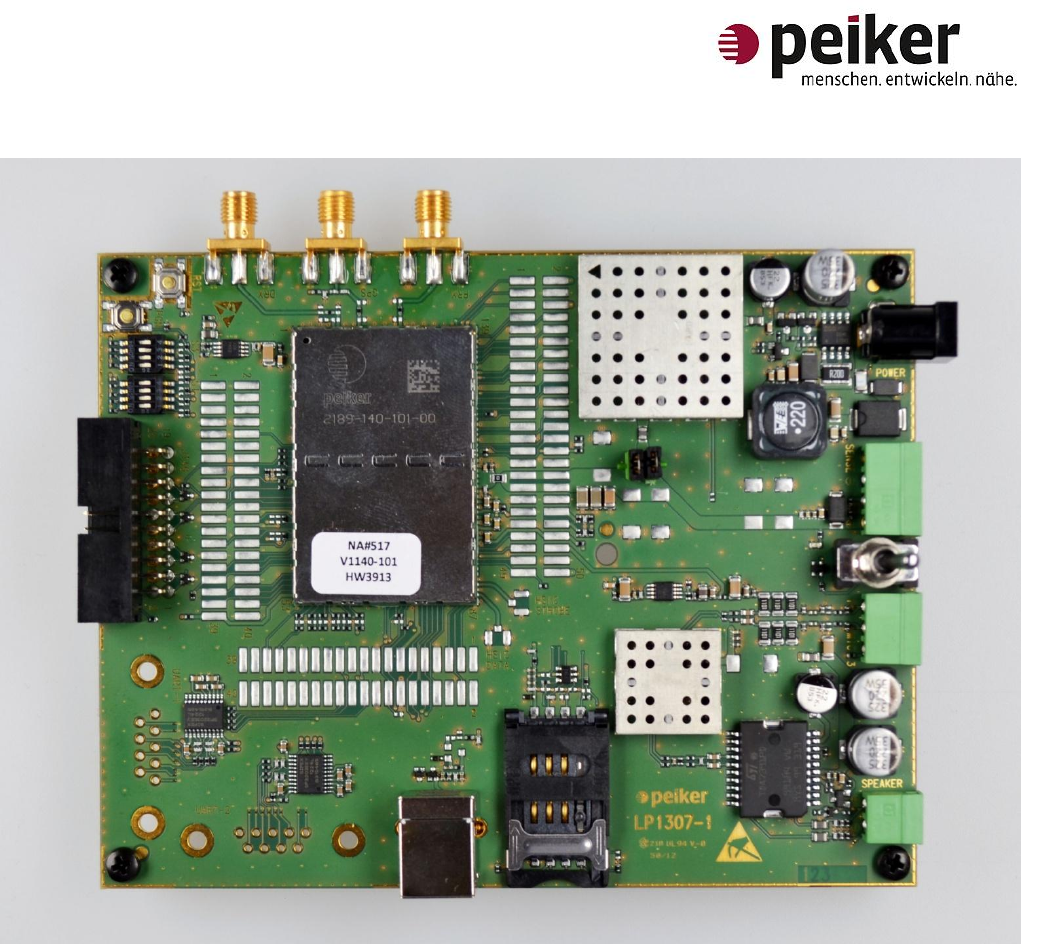

Figure 2 Evaluation Kit for V1140-xxx.
_______________________________________________________________________________________________________________ Seite 19
peiker acustic GmbH & Co. KG, Max-Planck-Straße 32, D-61381 Friedrichsdorf, Amtsgericht Bad Homburg HRA 1897
phG: peiker Verwaltungs GmbH, Vorsitzender der Geschäftsführung: Andreas Peiker, Geschäftsführer: Stephan Graf von der Schulenburg, Amtsgericht Bad Homburg 1369
Vorsitzender des Aufsichtsrates: Prof. Dr. Agilolf Lamperstorfer Ein Unternehmen der peiker Firmengruppe

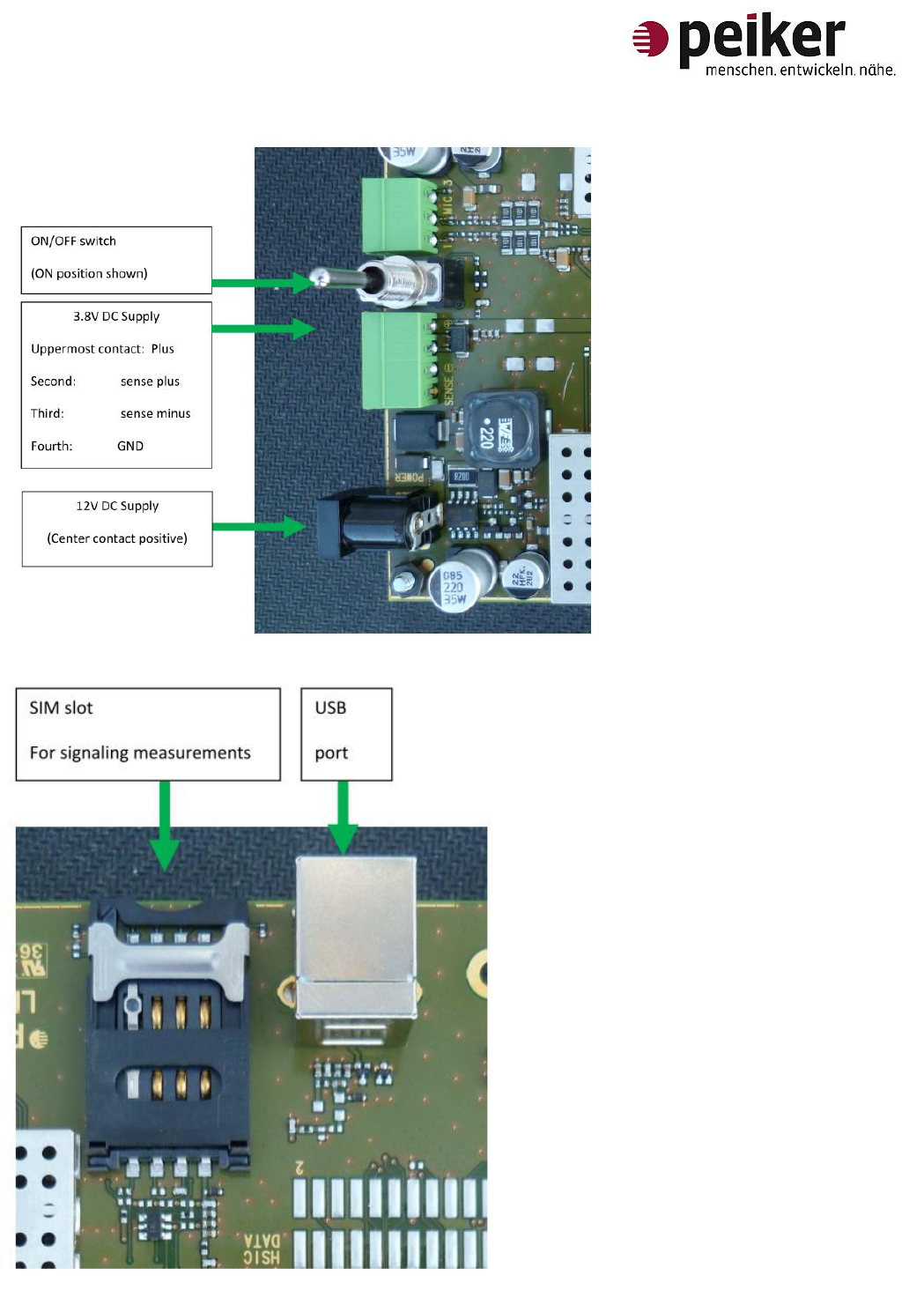

Figure 3 Power supply for Evaluation Kit for V1140-xxx.
Figure 4 SIM card and USB interfaces for Evaluation Kit for V1140-xxx.
_______________________________________________________________________________________________________________ Seite 20
peiker acustic GmbH & Co. KG, Max-Planck-Straße 32, D-61381 Friedrichsdorf, Amtsgericht Bad Homburg HRA 1897
phG: peiker Verwaltungs GmbH, Vorsitzender der Geschäftsführung: Andreas Peiker, Geschäftsführer: Stephan Graf von der Schulenburg, Amtsgericht Bad Homburg 1369
Vorsitzender des Aufsichtsrates: Prof. Dr. Agilolf Lamperstorfer Ein Unternehmen der peiker Firmengruppe
Figure 5 RF interfaces for Evaluation Kit for V1140-xxx.
Figure 6 Loudspeaker and microphone interfaces for Evaluation Kit for V1140-101.
_______________________________________________________________________________________________________________ Seite 21
peiker acustic GmbH & Co. KG, Max-Planck-Straße 32, D-61381 Friedrichsdorf, Amtsgericht Bad Homburg HRA 1897
phG: peiker Verwaltungs GmbH, Vorsitzender der Geschäftsführung: Andreas Peiker, Geschäftsführer: Stephan Graf von der Schulenburg, Amtsgericht Bad Homburg 1369
Vorsitzender des Aufsichtsrates: Prof. Dr. Agilolf Lamperstorfer Ein Unternehmen der peiker Firmengruppe
4.2
Firmware Update
For Firmware (FW) update the Windows software tool swupd.exe is available. To run a FW update
following preconditions should be fulfilled:
- Evaluation board is power-on and connected to laptop or PC
- Qualcomm HS-USB Diagnostics 9025 Driver, version 2.0.9.1d or higher, is installed
- Virtual COM port of Qualcomm HS-USB Diagnostics 9025 is identified
Note: Please ensure to have a backup of your module configuration file
4.2.1 Identify Qualcomm Diagnostics Port Number
Please use the Windows Device Manager to identify virtual COM port number

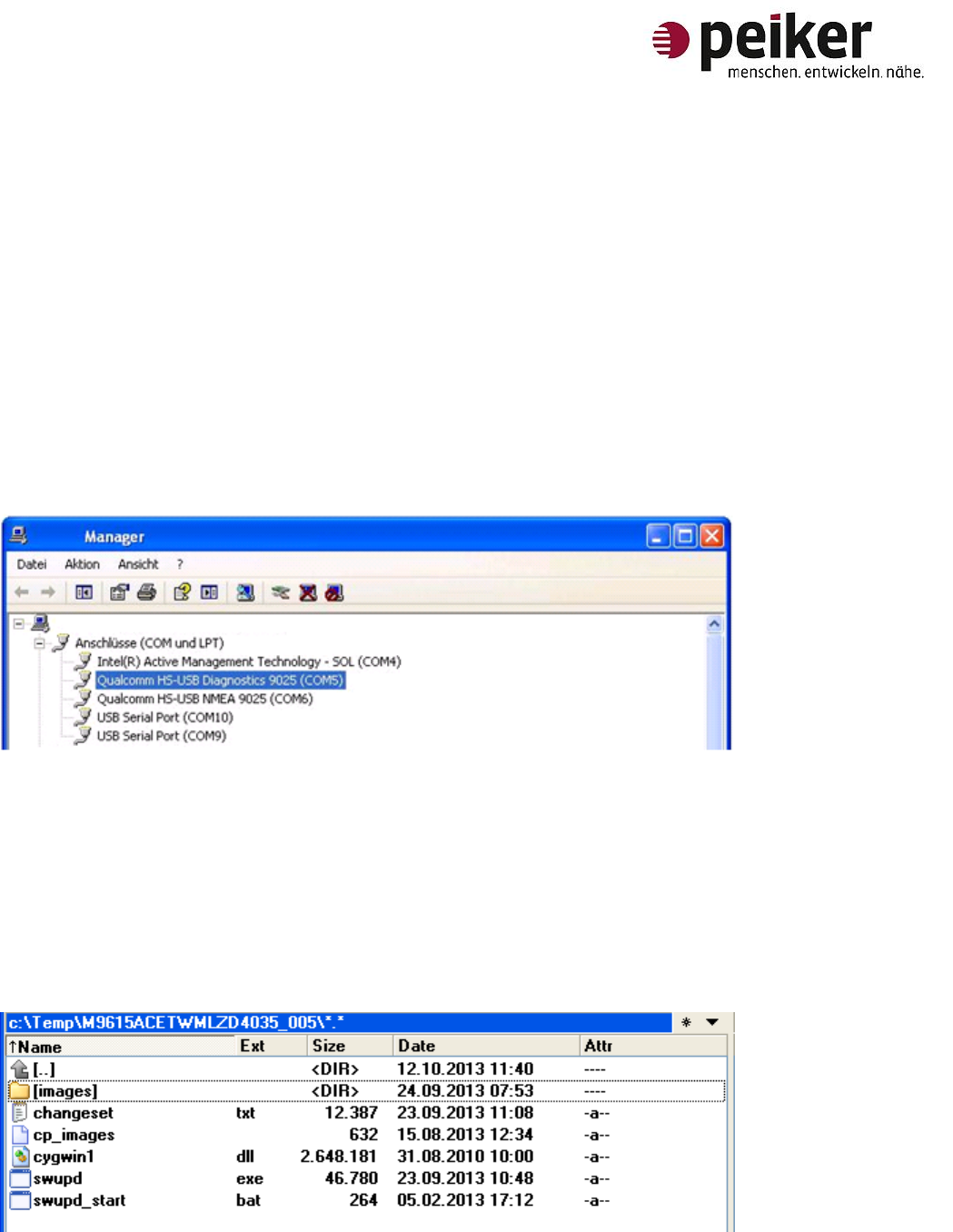

Figure 7 Identify Virtual COM port number of Qualcomm HS-USB Diagnostics 9025 using Windows Device Manager – in provided
example COM5
4.2.2 Install and Run FW Executable
There is no dedicated software installation required. Please copy all files received with FW update to
folder of your choice and ensure that all components are available
Figure 8 Components of FW update tool
Important: Before starting FW update ensure to have backup QCN file of your evaluation board.
_______________________________________________________________________________________________________________ Seite 22
peiker acustic GmbH & Co. KG, Max-Planck-Straße 32, D-61381 Friedrichsdorf, Amtsgericht Bad Homburg HRA 1897
phG: peiker Verwaltungs GmbH, Vorsitzender der Geschäftsführung: Andreas Peiker, Geschäftsführer: Stephan Graf von der Schulenburg, Amtsgericht Bad Homburg 1369
Vorsitzender des Aufsichtsrates: Prof. Dr. Agilolf Lamperstorfer Ein Unternehmen der peiker Firmengruppe
To start update process please run the batch file swupd_start.bat and enter Virtual COM port number
identified in previous step.

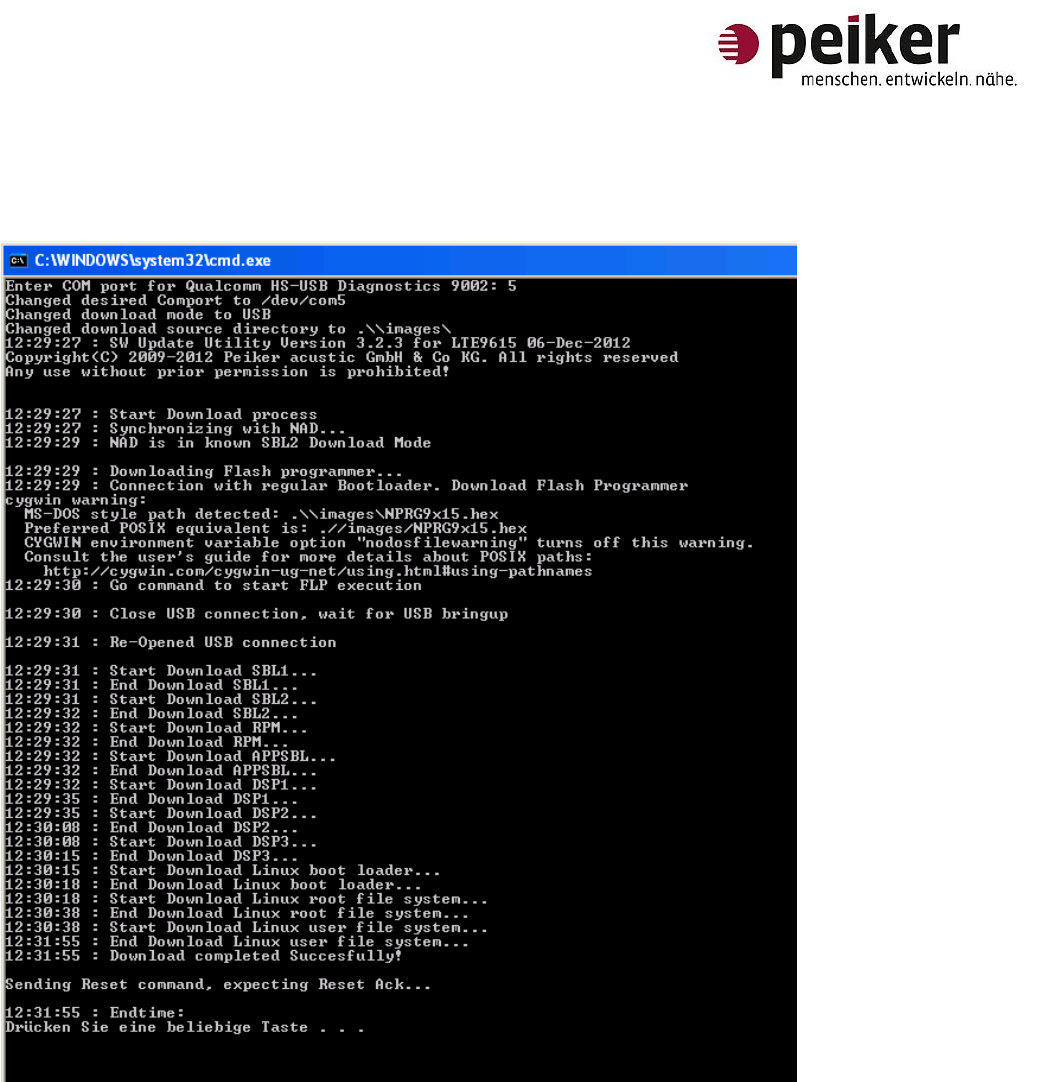

Figure 9 Complete FW update
A complete FW update will take about 2:30 minutes. Please note that there are other options to run FW
update. To learn more please run swupd.exe /h.
4.2.3 Known Issues
Sometimes a timeout occurs. Please simply re-run the batch file in that case.
Please inform us if you experience problems updating the FW on Evaluation Board.
Please check if access to Qualcomm HS-USB Diagnostics port is blocked by other program.
_______________________________________________________________________________________________________________ Seite 23
peiker acustic GmbH & Co. KG, Max-Planck-Straße 32, D-61381 Friedrichsdorf, Amtsgericht Bad Homburg HRA 1897
phG: peiker Verwaltungs GmbH, Vorsitzender der Geschäftsführung: Andreas Peiker, Geschäftsführer: Stephan Graf von der Schulenburg, Amtsgericht Bad Homburg 1369
Vorsitzender des Aufsichtsrates: Prof. Dr. Agilolf Lamperstorfer Ein Unternehmen der peiker Firmengruppe
4.3
Windows 7 Driver Installation
4.3.1 Driver installation
The released 64-bit Windows 7 USB host driver package is Qualcomm’s HK11-NA430-7_1.00.22 or
higher revision, where 7_1.00.22 is the revision number.
Driver can be obtained from Qualcomm. Following the license conditions, peiker is not allowed to
distribute this driver.
Note: There could be certificates to be installed.
4.3.2 Available interfaces
The interfaces provided in Fig. 9 in Windows Device Manager will appear once
- the USB driver is installed properly,
- the USB cable connects EvalBoard and computer, and
- the Evaluation Board is powered-up.

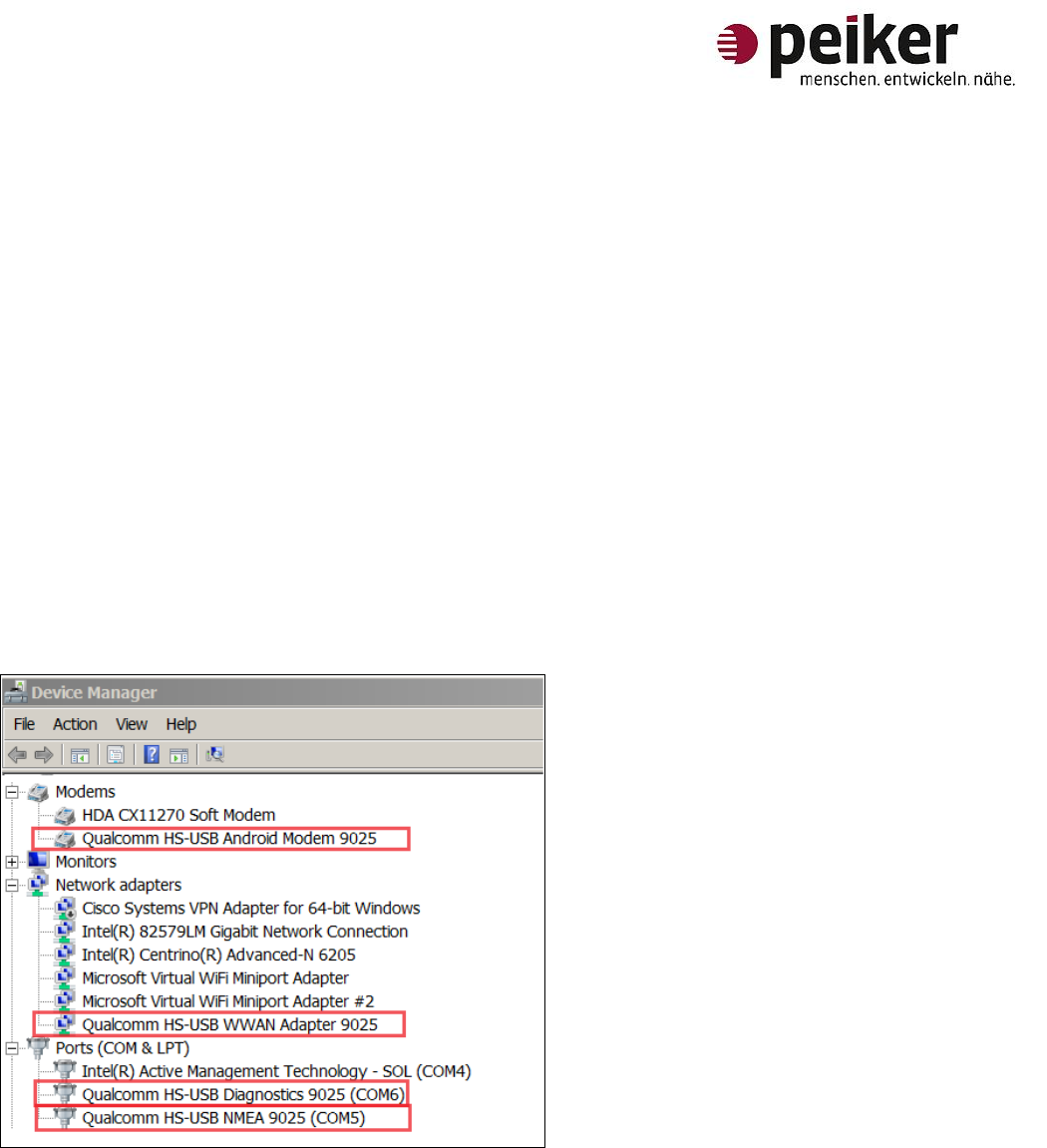

Figure 10 Interfaces provided by Evaluation Board for OS Windows 7
In following chapters provide some information on how these interfaces could be used.
4.3.3 AT Command interface and PPP Dial-up Modem connection
AT commands are used to control to some extent the modem. To send AT commands to the Modem such
tools as PuTTY or similar are used.
To setup PuTTY the virtual COM port can be read from Modem property information – right click in
Device Manager the Modem string and select “Properties”. The assigned virtual COM port is shown in
“Modem” dialog box, see in Figure 11 – Port COM7.
_______________________________________________________________________________________________________________ Seite 24
peiker acustic GmbH & Co. KG, Max-Planck-Straße 32, D-61381 Friedrichsdorf, Amtsgericht Bad Homburg HRA 1897
phG: peiker Verwaltungs GmbH, Vorsitzender der Geschäftsführung: Andreas Peiker, Geschäftsführer: Stephan Graf von der Schulenburg, Amtsgericht Bad Homburg 1369
Vorsitzender des Aufsichtsrates: Prof. Dr. Agilolf Lamperstorfer Ein Unternehmen der peiker Firmengruppe

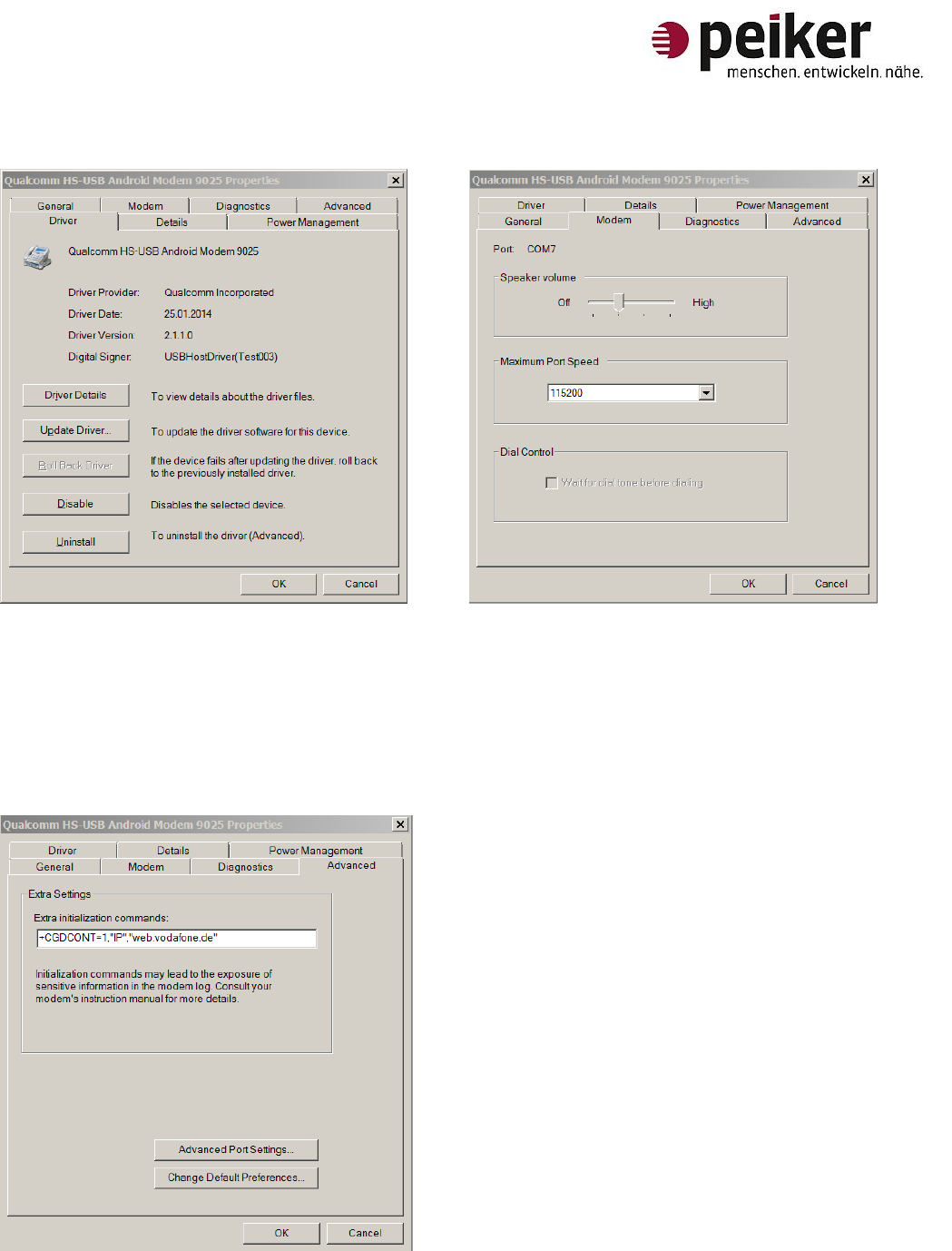

Figure 11 Modem Property dialog box
Figure 12 Virtual COM port and modem settings
Furthermore, it is recommended to add the APN string in Modem property box as shown in Figure 12.
Alternatively, the APN string can be set by AT command AT+CGDCONT=1,"IP","web.vodafone.de"
(Note: The latter is the special APN valid for Vodafone Germany only). Please check with your Provider
the correct APN string.
Figure 13 Enter the APN delivered by your MNO in Modem Property dialog
_______________________________________________________________________________________________________________ Seite 25
peiker acustic GmbH & Co. KG, Max-Planck-Straße 32, D-61381 Friedrichsdorf, Amtsgericht Bad Homburg HRA 1897
phG: peiker Verwaltungs GmbH, Vorsitzender der Geschäftsführung: Andreas Peiker, Geschäftsführer: Stephan Graf von der Schulenburg, Amtsgericht Bad Homburg 1369
Vorsitzender des Aufsichtsrates: Prof. Dr. Agilolf Lamperstorfer Ein Unternehmen der peiker Firmengruppe
Select in “Network and Sharing Center” of “Control Panel” the option “Set Up a Connection or
Network” and enter here the “Connect to the Internet” option. Follow the instructions to setup a new dial-
up connection.
Once the connection is setup, the Dial-up Connection is available under Network Connections. Using the
Windows context menu, the connection maybe activated or deactivated.

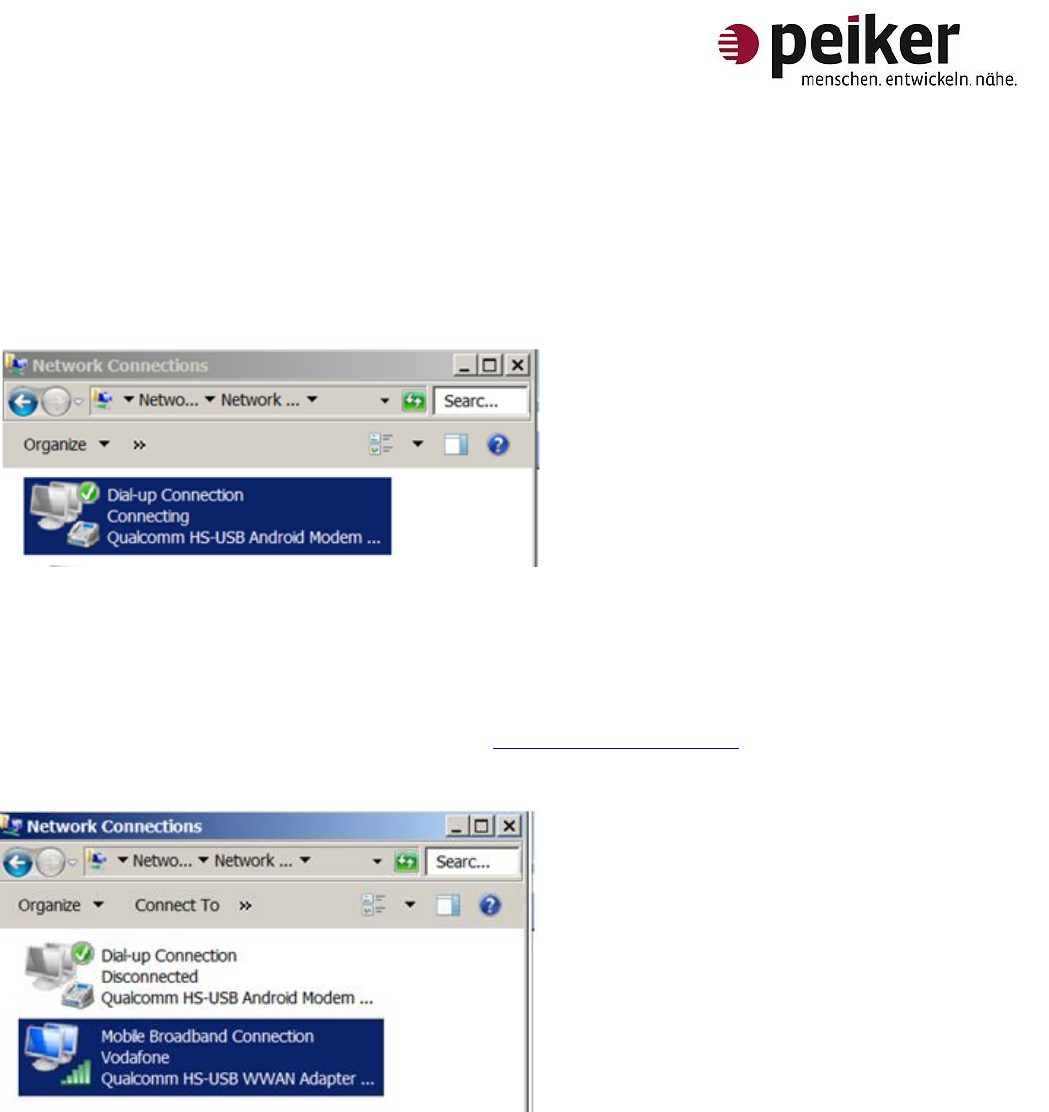

Figure 14 Dial-up Connection is available under Network Connections.
Note: Prior to use this connection, a valid APN for your Mobile Network Operator must be entered, see
explanation above.
LTE-NAD AT command set is provided in chapter 5 AT Command interface
4.3.4 RmNet NDIS connection as Network Interface Card
Figure 15 The USB driver provides a NIC (Network Interface Card).
Currently according to Qualcomm proprietary information on x86, x64/AMD64, and ARM (Win8 only,
for WoA/WoS) architectures following NDIS versions are supported (Source: Qualcomm Solution
00007808):
NDIS 5.1: Windows XP, Server 2003, CE
NDIS 5.2: Windows Server 2003 SP2
NDIS 6.0: Windows Vista
NDIS 6.1: Windows Vista SP1, Server 2008
NDIS 6.20: Windows 7, Server 2008 R2
Note: If NIC connection is not available please check with your Service Engineer if NV# 3534 is
properly set.
_______________________________________________________________________________________________________________ Seite 26
peiker acustic GmbH & Co. KG, Max-Planck-Straße 32, D-61381 Friedrichsdorf, Amtsgericht Bad Homburg HRA 1897
phG: peiker Verwaltungs GmbH, Vorsitzender der Geschäftsführung: Andreas Peiker, Geschäftsführer: Stephan Graf von der Schulenburg, Amtsgericht Bad Homburg 1369
Vorsitzender des Aufsichtsrates: Prof. Dr. Agilolf Lamperstorfer Ein Unternehmen der peiker Firmengruppe
Note: Especially for LTE the NIC interface provides much more data throughput as the PPP Dial-up
Modem connection.
4.3.5 Diagnostics interface
The Diagnostics Interface can be used with special Qualcomm Tools that are matter of dedicated license
agreement with Qualcomm. Therefore, there is no additional information provided in this document.
Note: Diagnostics Port is used for Firmware Updates as explained in chapter Firmware Update
4.3.6 NMEA GNSS interface
The virtual NMEA COM port provides NMEA information, delivered by build-in GNSS receiver of LTE-
NAD Module.
LTE-NAD provides GPS and GLONASS location information. Please contact peiker for GALILEO
support.
5 AT Command Set
The modules supports standard AT command as listed below. Commands are compliant to 3GPP TS
27.007 and TS 27.005
Command
Description
Comment
AT+CMGF
Message Format
AT+CSCA
Service Centre Address
AT+CMGS
Send Message
AT+CGMI
Manufacturer Identification
AT+CGMM
Request model identification
AT+CGMR
Request revision identification
AT+CGSN
Request product serial number
AT+CIMI
Request international mobile subscriber
identification
AT+CMOD
Call mode
Only one Parameter is supported by the
device.
AT+CHUP
Hang up call
ATD
Initiate a CS or PS call or supplementary service
ATA
Answer incoming CS call command
ATH
Hangup CS call command
AT+CBST
Select bearer service type
AT+CEER
Extended error report
AT+CVHU
Voice hangup control
AT+CREG
Network registration
AT+COPS
PLMN selection
AT+CLCK
Facility lock
AT+CPWD
Change password
AT+CLIP
Calling line identification presentation
AT+CLIR
Calling line identification restriction
_______________________________________________________________________________________________________________ Seite 27
peiker acustic GmbH & Co. KG, Max-Planck-Straße 32, D-61381 Friedrichsdorf, Amtsgericht Bad Homburg HRA 1897
phG: peiker Verwaltungs GmbH, Vorsitzender der Geschäftsführung: Andreas Peiker, Geschäftsführer: Stephan Graf von der Schulenburg, Amtsgericht Bad Homburg 1369
Vorsitzender des Aufsichtsrates: Prof. Dr. Agilolf Lamperstorfer Ein Unternehmen der peiker Firmengruppe
Command
Description
Comment
AT+CCWA
Call waiting
AT+CHLD
Call related supplementary services
AT+CUSD
Unstructured supplementary service data
AT+CLCC
List current calls
AT+CPOL
Preferred PLMN list
AT+CPAS
Phone active status
AT+CFUN
Set phone functionality
AT+CPIN
Enter PIN
AT+CSQ
Signal quality
AT+CMER
Mobile termination event reporting
AT+CSIM
Generic SIM access
AT+CRSM
Restricted SIM access
AT+CMEE
Report mobile termination error
AT+CGDCONT
Define PDP context
AT+CGEQREQ
Request 3G quality of service profile
AT-CGATT
PS attach or detach
AT+CGACT
PDP context activate or deactivate
AT+CGPADDR
Show PDP address
AT+CGSMS
Select service for MO SMS messages
ATE
Character Echo ON/OFF
AT+CSMS
Check Message Service support
AT+CSMP
Set Text Mode Parameters
AT+CSDH
Show Text Mode Parameters
AT+CSCB
Select Cell Broadcast Message Types
AT+CSAS
Save Settings
Only one Parameter is supported by the
device.
AT+CRES
Restore Settings
Only one Parameter is supported by the
device.
AT+CMGL
List messages
AT+CNMA
New message acknowledgement
AT+CMGC
Send Command
AT+CMMS
More Messages to Send
AT+ATV
DCE response format
AT+ATX
Result code selection and call progress
monitoring control
AT+CNMI
New Message Indications to TE
AT+CPMS
Preferred Message Storage
AT+CMGW
Write Message to Memory
AT+CMSS
Send Message from Storage
AT+CMGD
Delete Messages
AT+CNUM
Get MSISDN
AT+CPBS
Select phonebook memory storage
AT+CPBR
Read phonebook entries
AT+CPBW
Writephonebook entry
_______________________________________________________________________________________________________________ Seite 28
peiker acustic GmbH & Co. KG, Max-Planck-Straße 32, D-61381 Friedrichsdorf, Amtsgericht Bad Homburg HRA 1897
phG: peiker Verwaltungs GmbH, Vorsitzender der Geschäftsführung: Andreas Peiker, Geschäftsführer: Stephan Graf von der Schulenburg, Amtsgericht Bad Homburg 1369
Vorsitzender des Aufsichtsrates: Prof. Dr. Agilolf Lamperstorfer Ein Unternehmen der peiker Firmengruppe
6 Safety Recommendations according to EN60950-1
This device must be supplied by a limited power source according to EN 60950-1.
The clearance and creepage distances required by the end product must be withheld when the
module is installed.
The cooling of the end product shall not negatively be influenced by the installation of the
module.
_______________________________________________________________________________________________________________ Seite 29
peiker acustic GmbH & Co. KG, Max-Planck-Straße 32, D-61381 Friedrichsdorf, Amtsgericht Bad Homburg HRA 1897
phG: peiker Verwaltungs GmbH, Vorsitzender der Geschäftsführung: Andreas Peiker, Geschäftsführer: Stephan Graf von der Schulenburg, Amtsgericht Bad Homburg 1369
Vorsitzender des Aufsichtsrates: Prof. Dr. Agilolf Lamperstorfer Ein Unternehmen der peiker Firmengruppe
7 List of Acronyms
3GPP
3 rd Generation Partnership Project
ADC
Analog Digital Converter
ADN
Abbreviated Dialing Number
A-GPS
Assisted GPS
AMR
Adaptive Multi Rate
AT
Attention Command
AWS
Advanced Wireless Services
BER
Bit Error Rate
CLIP
Calling Line Identification Presentation
CLIR
Calling Line Identification Restriction
CSD
Circuit Switch Data
DARP
Downlink Advanced Receiver Performance
DTMF
Dual Tone Multi Frequency
FDN
Fixed Dialing Number
FTP
File Transfer Protocol
GSM
Global System for Mobile communication
GPIO
General Purpose Input Output
GPRS
General Packet Radio Service
GPS
Global Positioning System
HSPA
High Speed Uplink Packet Access
HW
Hardware
LED
Led Emitting Diode
MO
Mobile Originated
MT
Mobile Terminated
OEM
Original Equipment Manufacturer
PCB
Printed Circuit Board
PCM
Pulse Code Modulation
PDU
Protocol Data Unit
PIN
Personal Identification Number
RF
Radio Frequency
RoHs
Restriction of Hazardous Substances
UART
Universal Asynchronous Receiver and Transmitter
USB
Universal Serial Bus
USIM
Universal Subscriber Identity Module
UMTS
Universal Mobile Telecommunications System
WCDMA
Wideband Code Division Multiple Access
_______________________________________________________________________________________________________________ Seite 30
peiker acustic GmbH & Co. KG, Max-Planck-Straße 32, D-61381 Friedrichsdorf, Amtsgericht Bad Homburg HRA 1897
phG: peiker Verwaltungs GmbH, Vorsitzender der Geschäftsführung: Andreas Peiker, Geschäftsführer: Stephan Graf von der Schulenburg, Amtsgericht Bad Homburg 1369
Vorsitzender des Aufsichtsrates: Prof. Dr. Agilolf Lamperstorfer Ein Unternehmen der peiker Firmengruppe
8 Regulatory Certifications
In the context of sections 8.1 and 8.1.1, the terms “equipment” and “device” refer
equally to either V1140-100, V1140-101, V1140-103 or V1140-105.
In the context of section 8.2, the terms “apparatus”, “device” and “appareil” refer equally
to either V1140-101, V1140-103 or V1140-105.
8.1 USA (FCC)
This device complies with Part 15 of the FCC rules. Operation is subject to the
following two conditions:
(1) The device may not cause harmful interference, and
(2) The device must accept any interference received, including interference that
may cause undesired operation.
8.1.1 FCC Warnings and Notices
WARNING: The FCC requires the user to be notified that any changes or
modifications made to this device that are not expressly approved by peiker acustic
GmbH & Co. KG could void the user's authority to operate this equipment.
NOTICE: This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference to
radio communications. However, there is no guarantee that interference will not occur in
a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following
measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
_______________________________________________________________________________________________________________ Seite 31
peiker acustic GmbH & Co. KG, Max-Planck-Straße 32, D-61381 Friedrichsdorf, Amtsgericht Bad Homburg HRA 1897
phG: peiker Verwaltungs GmbH, Vorsitzender der Geschäftsführung: Andreas Peiker, Geschäftsführer: Stephan Graf von der Schulenburg, Amtsgericht Bad Homburg 1369
Vorsitzender des Aufsichtsrates: Prof. Dr. Agilolf Lamperstorfer Ein Unternehmen der peiker Firmengruppe
8.2 Canada (IC)
This Class b digital apparatus comply with Canadian ICES-003.
Cet appareil numérique de la classe b est conforme à la norme NMB-003 du
Canada.
This device complies to Industry Canada license-exempt RSS standard(s).
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including
interference that may cause undesired operation.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux
appareils radio exempts de licence. L'exploitation est autorisée aux deux
conditions suivantes:
(1) l'appareil ne doit pas produire de brouillage, et
(2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi,
meme si le brouillage est susceptible d'en compromettre le fonctionnement.
8.3 OEM Responsibilities
Antenna
- The antenna gain, including cable loss and based on the capabilities of the
module’s transmitter mounted on the PCBs specified in the related FCC filings,
must not exceed 1,47dBd at 700 MHz & 850 MHz, 6dBi at 1700 MHz , 3.01dBi at
1900 MHz and 9,21 dBi at 2600 MHz for satisfying FCC RF exposure compliance.
- The antenna gain, including cable loss and based on the capabilities of the
module’s transmitter in a stand-alone configuration, must not exceed 0,77dBd at
700 MHz & 850 MHz, 5dBi at 1700 MHz, 2.01dBi at 1900 MHz and 8,01 dBi at
2600 MHz for satisfying FCC RF exposure compliance.
- The systems antenna(s) must be installed such that 20 cm is maintained between
the antenna(s) and the body of the user or nearby persons.
- This transmitter must not be co-located or operating in conjunction with any other
antenna or transmitter. The preceding statement must be included as a Caution
statement in OEM product manuals in order to alert users of FCC RF Exposure
compliance.
_______________________________________________________________________________________________________________ Seite 32
peiker acustic GmbH & Co. KG, Max-Planck-Straße 32, D-61381 Friedrichsdorf, Amtsgericht Bad Homburg HRA 1897
phG: peiker Verwaltungs GmbH, Vorsitzender der Geschäftsführung: Andreas Peiker, Geschäftsführer: Stephan Graf von der Schulenburg, Amtsgericht Bad Homburg 1369
Vorsitzender des Aufsichtsrates: Prof. Dr. Agilolf Lamperstorfer Ein Unternehmen der peiker Firmengruppe
Power Regulation
- The host equipment must provide power regulation circuitry to ensure that the
module is supplied with stable 3.8VDC.
FCC Labeling
- The V1140-100 module is labeled with its own FCC ID Number. If the FCC ID is
not visible when the V1140-100 module is installed inside another device, then the
host device must contain the FCC ID number with the statement such as the
following: "Contains Transmitter Module FCC ID: QWY-V1140-100" or "Contains
FCC ID: QWY-V1140-100"
- The V1140-101 module is labeled with its own FCC ID Number. If the FCC ID is
not visible when the V1140-101 module is installed inside another device, then the
host device must contain the FCC ID number with the statement such as the
following: "Contains Transmitter Module FCC ID: QWY-V1140-101" or "Contains
FCC ID: QWY-V1140-101"
- The V1140-103 module is labeled with its own FCC ID Number. If the FCC ID is
not visible when the V1140-103 module is installed inside another device, then the
host device must contain the FCC ID number with the statement such as the
following: "Contains Transmitter Module FCC ID: QWY-V1140-103" or "Contains
FCC ID: QWY-V1140-103"
- The V1140-105 module is labeled with its own FCC ID Number. If the FCC ID is
not visible when the V1140-105 module is installed inside another device, then the
host device must contain the FCC ID number with the statement such as the
following: "Contains Transmitter Module FCC ID: QWY-V1140-105" or "Contains
FCC ID: QWY-V1140-105"
IC Labeling
- The V1140-101 module is labeled with its own IC ID Number. If the IC ID is not
visible when the V1140-101 module is installed inside another device, then the
host device must contain the IC ID number with the statement such as the
following: "Contains Transmitter Module IC: 6588A-V1140101" or "Contains IC:
6588A-V1140101".
- The V1140-103 module is labeled with its own IC ID Number. If the IC ID is not
visible when the V1140-103 module is installed inside another device, then the
host device must contain the IC ID number with the statement such as the
following: "Contains Transmitter Module IC: 6588A-V1140103" or "Contains IC:
6588A-V1140103".
- The V1140-105 module is labeled with its own IC ID Number. If the IC ID is not
visible when the V1140-105 module is installed inside another device, then the
host device must contain the IC ID number with the statement such as the
_______________________________________________________________________________________________________________ Seite 33
peiker acustic GmbH & Co. KG, Max-Planck-Straße 32, D-61381 Friedrichsdorf, Amtsgericht Bad Homburg HRA 1897
phG: peiker Verwaltungs GmbH, Vorsitzender der Geschäftsführung: Andreas Peiker, Geschäftsführer: Stephan Graf von der Schulenburg, Amtsgericht Bad Homburg 1369
Vorsitzender des Aufsichtsrates: Prof. Dr. Agilolf Lamperstorfer Ein Unternehmen der peiker Firmengruppe
following: "Contains Transmitter Module IC: 6588A-V1140105" or "Contains IC:
6588A-V1140105".

Navigation menu
