User manual
LTE-NAD V1140-10x-1
Peiker product IDs: 2189-140-133-00 (V1140-103-1)
2189-140-170-00 (V1140-100-1)
2189-140-174-00 (V1140-104-1)
2189-140-176-00 (V1140-106-1)
2189-140-181-00 (V1140-101-1)
Revision: 1.3
Date: March 2016
Status: Release
_______________________________________________________________________________________________________________ Seite 2
peiker acustic GmbH & Co. KG, Max-Planck-Straße 32, D-61381 Friedrichsdorf, Amtsgericht Bad Homburg HRA 1897
phG: peiker Verwaltungs GmbH, Vorsitzender der Geschäftsführung: Andreas Peiker, Geschäftsführer: Stephan Graf von der Schulenburg, Amtsgericht Bad Homburg 1369
Vorsitzender des Aufsichtsrates: Prof. Dr. Agilolf Lamperstorfer Ein Unternehmen der peiker Firmengruppe
History:
Date
Revision
Name
Comment
30.11.2015
1.0
Phse
Initial document based on V1140-xxx documents
12.01.2016
1.1
Phse
Added some missing Product IDs on the cover page
Corrected the FCC ID and IC ID of V1140-103-1 in section 8.3
20.01.2016
1.2
Phse
Removed LTE B8 support for V1140-100-1
22.03.2016
1.3
Phse
Updated sections 2.3 and 8.3
_______________________________________________________________________________________________________________ Seite 3
peiker acustic GmbH & Co. KG, Max-Planck-Straße 32, D-61381 Friedrichsdorf, Amtsgericht Bad Homburg HRA 1897
phG: peiker Verwaltungs GmbH, Vorsitzender der Geschäftsführung: Andreas Peiker, Geschäftsführer: Stephan Graf von der Schulenburg, Amtsgericht Bad Homburg 1369
Vorsitzender des Aufsichtsrates: Prof. Dr. Agilolf Lamperstorfer Ein Unternehmen der peiker Firmengruppe
Content
1 Introduction .......................................................................................................................................... 4
1.1 Scope .................................................................................................................................................. 4
1.2 Audience ............................................................................................................................................ 4
1.3 Contact information, Support ......................................................................................................... 4
1.4 Related Documents .......................................................................................................................... 4
2 Overview ............................................................................................................................................... 5
2.1 Product Variants................................................................................................................................ 5
2.2 Features ............................................................................................................................................. 6
2.3 Approvals ........................................................................................................................................... 6
3 Overview ............................................................................................................................................... 7
3.1 HW Features ...................................................................................................................................... 7
3.2 Connectors ......................................................................................................................................... 7
3.2.1 Module Signal and RF Connectors .......................................................................................... 7
3.2.2 Ground and Heat Dissipation Connectors.............................................................................. 7
3.3 Main Interfaces ................................................................................................................................. 8
3.3.1 USB .............................................................................................................................................. 8
3.3.2 SIM Interface ............................................................................................................................. 8
3.3.3 Power on ..................................................................................................................................... 8
3.3.4 Reset ........................................................................................................................................... 8
3.3.5 GPIOs .......................................................................................................................................... 9
3.3.6 GSBIs ........................................................................................................................................... 9
3.3.7 Module Pin-out ......................................................................................................................... 10
3.4 Supply Voltage ................................................................................................................................ 14
3.5 Power Consumption ....................................................................................................................... 14
3.8 Environmental Specification .......................................................................................................... 15
3.8.1 Temperature Range ................................................................................................................ 15
4 Evaluation Kit ..................................................................................................................................... 16
5 AT Command interface ..................................................................................................................... 19
6 Safety Recommendations according to EN60950-1 ..................................................................... 21
7 List of Acronyms ................................................................................................................................ 22
8 Regulatory Certifications .................................................................................................................. 23
8.1
USA (FCC)
........................................................................................................................................ 23
8.2
Canada (IC)
..................................................................................................................................... 23
8.3
OEM Responsibilities
...................................................................................................................... 24
_______________________________________________________________________________________________________________ Seite 4
peiker acustic GmbH & Co. KG, Max-Planck-Straße 32, D-61381 Friedrichsdorf, Amtsgericht Bad Homburg HRA 1897
phG: peiker Verwaltungs GmbH, Vorsitzender der Geschäftsführung: Andreas Peiker, Geschäftsführer: Stephan Graf von der Schulenburg, Amtsgericht Bad Homburg 1369
Vorsitzender des Aufsichtsrates: Prof. Dr. Agilolf Lamperstorfer Ein Unternehmen der peiker Firmengruppe
1 Introduction
1.1 Scope
This document gives an overview about electrical, mechanical and functional detail of the peiker LTE-
NAD V1140-10x-1 modules.
1.2 Audience
Information to integrate the module in other applications.
1.3 Contact information, Support
peiker acustic GmbH & Co KG
Max-Planck Street 32
D-61381 Friedrichsdorf / Ts.
Germany
http://www.peiker.de
info@peiker.de
1.4 Related Documents
None.
_______________________________________________________________________________________________________________ Seite 5
peiker acustic GmbH & Co. KG, Max-Planck-Straße 32, D-61381 Friedrichsdorf, Amtsgericht Bad Homburg HRA 1897
phG: peiker Verwaltungs GmbH, Vorsitzender der Geschäftsführung: Andreas Peiker, Geschäftsführer: Stephan Graf von der Schulenburg, Amtsgericht Bad Homburg 1369
Vorsitzender des Aufsichtsrates: Prof. Dr. Agilolf Lamperstorfer Ein Unternehmen der peiker Firmengruppe
2 Overview
2.1 Product Variants
LTE-NAD module is available in multiple variants:
Peiker product # Module configuration
2189-140-170-00 (V1140-100-1) LTE EU configuration
2189-140-181-00 (V1140-101-1) LTE North America configuration
2189-140-133-00 (V1140-103-1) 2G/3G EU/RoW configuration
2189-140-154-00 (V1140-104-1) LTE Asia Pacific configuration
2189-140-176-00 (V1140-106-1) 2G/3G China configuration
V1140-100-1
GSM Bands 900MHz and 1800MHz
WCDMA Bands FDD1 and FDD8
LTE Bands eFDD3, eFDD7 and eFDD20
V1140-101-1
GSM Bands 850MHz and 1900MHz
WCDMA Bands FDD2 and FDD5
LTE Bands eFDD2, eFDD4, eFDD5 and eFDD17
V1140-103-1
GSM Bands 850MHz, 900MHz, 1800MHz and 1900MHz
WCDMA Bands FDD1, FDD2, FDD5, FDD6 and FDD8
LTE Bands No LTE support
V1140-104-1
GSM Bands 850MHz, 900MHz, 1800MHz and 1900MHz
WCDMA Bands FDD1, FDD5, FDD6 and FDD8
LTE Bands eFDD1, eFDD3, eFDD5, eFDD7 and eFDD19
V1140-106-1
GSM Bands 900MHz and 1800MHz
WCDMA Bands FDD1
LTE Bands No LTE support
_______________________________________________________________________________________________________________ Seite 6
peiker acustic GmbH & Co. KG, Max-Planck-Straße 32, D-61381 Friedrichsdorf, Amtsgericht Bad Homburg HRA 1897
phG: peiker Verwaltungs GmbH, Vorsitzender der Geschäftsführung: Andreas Peiker, Geschäftsführer: Stephan Graf von der Schulenburg, Amtsgericht Bad Homburg 1369
Vorsitzender des Aufsichtsrates: Prof. Dr. Agilolf Lamperstorfer Ein Unternehmen der peiker Firmengruppe
2.2 Features
Features
- Same footprint and pin-out for all modules
- Voice and data calls are supported in all modules
- GSM (R99, GPRS and EDGE) for all modules
- WCDMA (R99, R5 HSDPA, R6 HSUPA and R7 HSPA+) for all modules
- WCDMA (R8 DC-HSPA+) for all modules except for V1140-101-1
- LTE (Rel.9 Cat3 FDD) for LTE capable modules
- DTM/eDTM
- eCall inband modem
- Standalone GPS/GALILEO/GLONASS, A-GPS CP (MS-Assisted and MS-Based)
- IMS/VoLTE supported by V1140-101-1 only
Data rates
- GSM: DL/UL – 14.4kbps / 14.4kbps
GPRS: Multislot class 12, DL/UL – 85.6kbps / 42.8kbps
EDGE: Multislot class 12, DL/UL – 236.8kbps / 118.4kbps
- WCDMA: DL/UL up to 384kbps
HSPA+:
Category 24 in DL using 64 QAM and Dual-Cell; Up to 42 Mbps – Not supported by
V1140-101-1
Category 14 in DL using 64 QAM; Up to 21 Mbps
Category 6 in UL using 16 QAM; Up to 5.76 Mbps
- LTE-FDD Category 3: Up to 100 Mbps in DL, up to 50 Mbps in UL
Power Classes
- LTE: All supported bands, Power Class 3
- WCDMA: All supported bands, Power Class 3
- EDGE: 850/900/1800/1900, Power Class E2
- GSM/GPRS: 850/900, Power Class 4
- GSM/GPRS: 1800/1900, Power Class 1
Dimension and Weight
- Dimensions: 31mm x 46mm x 4mm
- Weight < 10 grams
2.3 Approvals
GCF
R&TTE
PTCRB
FCC/IC
AT&T
MNO Approval
V1140-100-1
Planned
Planned
V1140-101-1
Planned
Planned
Planned
V1140-103-1
Planned
Planned
Planned
V1140-104-1
Planned
Planned
V1140-106-1
Planned
_______________________________________________________________________________________________________________ Seite 7
peiker acustic GmbH & Co. KG, Max-Planck-Straße 32, D-61381 Friedrichsdorf, Amtsgericht Bad Homburg HRA 1897
phG: peiker Verwaltungs GmbH, Vorsitzender der Geschäftsführung: Andreas Peiker, Geschäftsführer: Stephan Graf von der Schulenburg, Amtsgericht Bad Homburg 1369
Vorsitzender des Aufsichtsrates: Prof. Dr. Agilolf Lamperstorfer Ein Unternehmen der peiker Firmengruppe
3 Overview
3.1 HW Features
- Qualcomm SoC (system on chip)
MDM9215 Baseband / PMIC8018 Power management / WTR1605L
- Cortex A5 Core up to 550 MHz
- 3 DSPs for modem and low power audio sub systems
- RPM Resource and power manager
- 2Gb NAND Flash x16,
- 2Gb Low Power Mobile DDR SDRAM x32
- 19.2MHz clock reference
- Dedicated heat sink in center area underneath the PCB
- GPS/GLONASS operation, GPS antenna biasing and diagnostics
3.2 Connectors
3.2.1 Module Signal and RF Connectors
The LTE-NAD has 172 signal pins (2xAA and 2xBB) connector pads with 1.0mm pitch. The signal pads
are located close to the board edges.

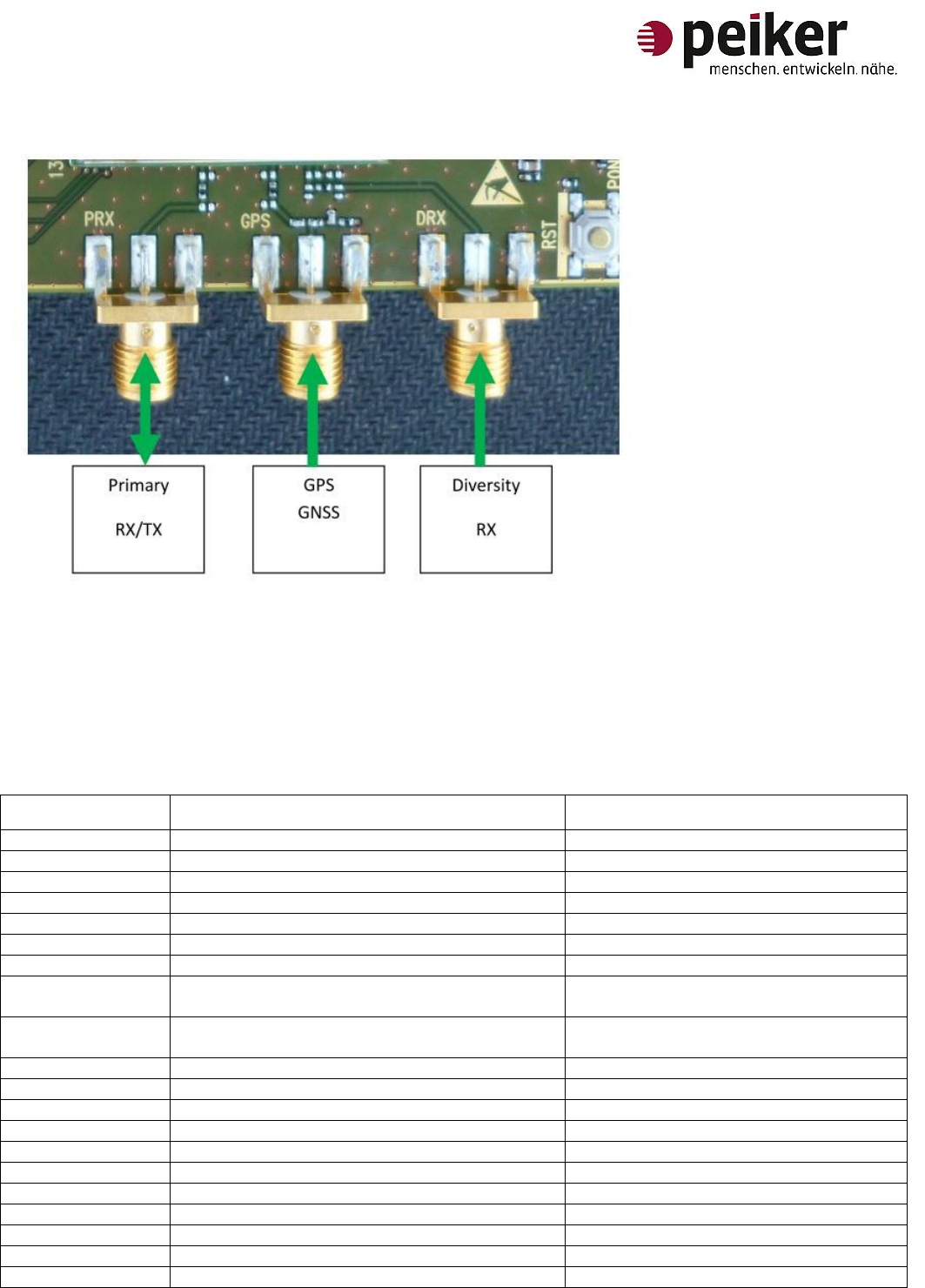

There are three antenna pads, each collocated by RF GND connectors
- Main transmit and receive antenna – pin LGA_PRX_ANT
- Diversity antenna for WCDMA respective MIMO antenna for LTE – pin LGA_DRX_ANT_IN
- GNSS antenna for both GPS and GLONASS – pin LGA_GPS_DRX_ANT
3.2.2 Ground and Heat Dissipation Connectors
To support the usage of module under complicated thermal conditions, there are a number of large
grounded pads in the center of PCB. These pads are dedicated ground pads to transfer heat dissipation
to a carrier board.
This should be especially considered by customer designs. A reference design showing landing patterns
and PCB stack-up is available on request.
_______________________________________________________________________________________________________________ Seite 8
peiker acustic GmbH & Co. KG, Max-Planck-Straße 32, D-61381 Friedrichsdorf, Amtsgericht Bad Homburg HRA 1897
phG: peiker Verwaltungs GmbH, Vorsitzender der Geschäftsführung: Andreas Peiker, Geschäftsführer: Stephan Graf von der Schulenburg, Amtsgericht Bad Homburg 1369
Vorsitzender des Aufsichtsrates: Prof. Dr. Agilolf Lamperstorfer Ein Unternehmen der peiker Firmengruppe
3.3 Main Interfaces
3.3.1 USB
The NAD has one USB2.0 OTG high speed (480MBit) compliant interface including the PHY. The IF
consists of 5 signals:
- USB_D_P: USB Data Plus signal
- USB_D_M: USB Data Minus signal
- USB_ID: Master/Slave Configuration1
- USB_VBUS: USB Voltage Supply
- VREG_USB3_3V075 USB Voltage Output
A dynamic reconfiguration between USB-Host or USB-Device is not foreseen, the NAD can be configured
to USB-Host or USB-Device by the insertion of a resistor on the USB_ID line.
3.3.2 SIM Interface
The NADs SIM interface is compatible to 1.8V and 3V SIM Cards, the necessary voltage and level shifting
is handle by LTE-NAD automatically. The IF consists of the following signals:
VREG_USIM
USIM_CLK
USIM_DATA
USIM_RESET
The data speed on the SIM IF is up to 4 Mbps, so HW designers should take care of the length and
routing of the SIM IF to prevent potential EMC problems.
3.3.3 Power on
The signal PON_N is used switch on the NAD-Module. PON_N is pulled against VMAIN on the
LTE-NAD internally.
Due to this fact it is recommended to pull this input against GND using an open collector or
open drain output only.
3.3.4 Reset
EXT_RESIN_N is used to reset the LTE-NAD-Module, see table of LTE-NAD signal pins.
There are further reset signals available, please check.
1 The LTE-NAD is configured in the slave mode. For other configuration of the USB – Interface please contact
peiker acustic GmbH & Co.KG.
_______________________________________________________________________________________________________________ Seite 9
peiker acustic GmbH & Co. KG, Max-Planck-Straße 32, D-61381 Friedrichsdorf, Amtsgericht Bad Homburg HRA 1897
phG: peiker Verwaltungs GmbH, Vorsitzender der Geschäftsführung: Andreas Peiker, Geschäftsführer: Stephan Graf von der Schulenburg, Amtsgericht Bad Homburg 1369
Vorsitzender des Aufsichtsrates: Prof. Dr. Agilolf Lamperstorfer Ein Unternehmen der peiker Firmengruppe
RES_IN is pulled against VMAIN power on the LTE-NAD internally. Therefore, it is
recommended to pull this input against GND using an open collector or open drain output only.
3.3.5 GPIOs
There are 51 GPIOs on the LTE-NAD module available. Most of them are part of the 5 GSBIs provided
in next chapter. They are used for different interfaces (see Table 1 and the following chapters). For
allocation of GPIOs/GSBIs to different configurations please contact peiker acustics GmbH & Co.KG
GPIOs and GSBIs share the same output pins and may not available when used as GSBI configuration.
The following GPIOs are not belonging to a GSBI bundle:
GPIO 47, 72, 82, 25, 28, 26, 27, 84, 80, 21, 23, 22, 24, 20, 1, 78, 79, 85, 86, 69, 0, 77, 65, 61, 68, 51, 54,
73, 48, 49, 53.
The following GPIOs are belonging to a GSBI bundle:
GPIO 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 29, 30.
3.3.6 GSBIs
Each GSBI (General Serial Bus Interface) consists of a bundle of 4 GPIOs. 5 GSBI are available.
The reference voltage is of the GSBIs is 1.8V.
Available signals on GSBI bundles at the board to board connector:
- GSBI1: GSBI1_0, GSBI1_1, GSBI1_2, GSBI1_3 (GPIO_29, 30, 2, 3)
- GSBI2: GSBI2_0, GSBI2_1, GSBI2_2, GSBI2_3 (GPIO_4, 5, 6, 7)
- GSBI3: GSBI3_0, GSBI3_1, GSBI3_2, GSBI3_3 (GPIO_8, 9, 10, 11)
- GSBI4: GSBI4_0, GSBI4_1, GSBI4_2, GSBI4_3 (GPIO_12, 13, 14, 15)
- GSBI5: GSBI5_0, GSBI5_1, GSBI5_2, GSBI5_3 (GPIO_16, 17, 18, 19)
_______________________________________________________________________________________________________________ Seite 10
peiker acustic GmbH & Co. KG, Max-Planck-Straße 32, D-61381 Friedrichsdorf, Amtsgericht Bad Homburg HRA 1897
phG: peiker Verwaltungs GmbH, Vorsitzender der Geschäftsführung: Andreas Peiker, Geschäftsführer: Stephan Graf von der Schulenburg, Amtsgericht Bad Homburg 1369
Vorsitzender des Aufsichtsrates: Prof. Dr. Agilolf Lamperstorfer Ein Unternehmen der peiker Firmengruppe
Figure 1 V1140-xxx General Serial Bus Interface GSBI interface configuration
3.3.7 Module Pin-out
Table 1 Module Pin-out
PIN
Signal
Direction related
to LTE-NAD
Comment
1
GND
Input Power
Main ground connection, Corner pad
2 – 22
GND
Input Power
Main ground connection
23
GPIO47
Input
WDOG_DISABLE
24
JTAG_TDI
Input
JTAG Interface
25
JTAG_TDO
Output
JTAG Interface
26
GPIO_72
IN/OUT
27
JTAGTMS
Input
JTAG Interface
28
JTAG_TRST_N
Input
JTAG Interface
_______________________________________________________________________________________________________________ Seite 11
peiker acustic GmbH & Co. KG, Max-Planck-Straße 32, D-61381 Friedrichsdorf, Amtsgericht Bad Homburg HRA 1897
phG: peiker Verwaltungs GmbH, Vorsitzender der Geschäftsführung: Andreas Peiker, Geschäftsführer: Stephan Graf von der Schulenburg, Amtsgericht Bad Homburg 1369
Vorsitzender des Aufsichtsrates: Prof. Dr. Agilolf Lamperstorfer Ein Unternehmen der peiker Firmengruppe
PIN
Signal
Direction related
to LTE-NAD
Comment
29
JTAG_RTCK
Output
JTAG Interface
30
GND
Input Power
Main ground connection
31
JTAG_TCK
Input
JTAG Interface
32
JTAG_RESOUT_N
Input
JTAG Interface
33
GPIO82
Output
NAD – Runnig, Controll signal
34
JTAG_PS_HOLD
Input
JTAG Interface
35
EXT_RESIN_N
Input
Input Reset for LTE-NAD module
36
GND
Input Power
Main ground connection
37
RESOUT_N
Output
Output Reset
38
GPIO29_ SDC2_CMD
IN/OUT
SD Card CMD
39
GPIO25_ SDC2_D0
IN/OUT
SD Card Data 0
40
GPIO28_ SDC2_D3
IN/OUT
SD Card Data 3
41
GPIO30_ SDC2_CLK
Output
SD Card Clock
42
GND
Input Power
Main ground connection
43
GPIO26_ SDC2_D1
IN/OUT
SD Card Data 1
44
GPIO27_ SDC2_D2
IN/OUT
SD Card Data 2
45
PM_GPIO4
IN/OUT
46
GPIO84
Output
Reset of the Codec
47
GND
Input Power
Main ground connection
48
SDC1_CMD
IN/OUT
SD Card CMD
49
SDC1_DATA0
IN/OUT
SD Card Data 0
50
SDC1_DATA3
IN/OUT
SD Card Data 3
51
SDC1_CLK
Output
SD Card Clock
52
GPIO80_SDC1_DET_N
IN/OUT
53
GND
Input Power
Main ground connection, Corner pad
54
SDC1_DATA2
IN/OUT
SD Card Data 2
55
SDC1_DATA1
IN/OUT
SD Card Data 1
56
GPIO21_ I2S_WS
Output
I²S - Word Select
57
GPIO23_ I2S_DOUT
Output
I²S – Data Output
58
GPIO22_ I2S_DIN
Input
I²S - Data Input
59
GPIO24_ I2S_MCLK
Output
I²S - Master Clock
60
GND
Input Power
Main ground connection
61
GPIO20_ I2S_CLK
Output
I²S - Clock
62
GPIO19_GSBI5_3
Output
2 – Pin – UART TXD 3
63
GPIO17_GSBI5_1
IN/OUT
I²C – Serial Data
64
GPIO18_GSBI5_2
Input
2 – Pin – UART RXD 3
65
GPIO15_GSBI4_3
Output
4 – Pin – UART TXD 1
66
GND
Input Power
Main ground connection
67
USB_D_P
IN/OUT
High – Speed USB Device for
communication
68
USB_D_M
IN/OUT
High – Speed USB Device for
communication
69
GND
Input Power
Main ground connection
70
GPIO14_GSBI4_2
Input
4 – Pin – UART RXD 1
_______________________________________________________________________________________________________________ Seite 12
peiker acustic GmbH & Co. KG, Max-Planck-Straße 32, D-61381 Friedrichsdorf, Amtsgericht Bad Homburg HRA 1897
phG: peiker Verwaltungs GmbH, Vorsitzender der Geschäftsführung: Andreas Peiker, Geschäftsführer: Stephan Graf von der Schulenburg, Amtsgericht Bad Homburg 1369
Vorsitzender des Aufsichtsrates: Prof. Dr. Agilolf Lamperstorfer Ein Unternehmen der peiker Firmengruppe
PIN
Signal
Direction related
to LTE-NAD
Comment
71
GPIO13_GSBI4_1
Input
4 – Pin – UART Clear To Send 1
72
GPIO16_GSBI5_0
Output
I²C - Clock
73
USB_ID
Input
74
GPIO12_GSBI4_0
Output
4 – Pin – UART Ready For Receive 1
75
GND
Input Power
Main ground connection
76
USB_VBUS
Input
High – Speed USB Device for
communication
77
GPIO11_GSBI3_3
Output
2 – Pin – UART TXD 2
78
GPIO10_GSBI3_2
Input
2 – Pin – UART RXD 2
79
GPIO9_GSBI3_1
IN/OUT
80
GPIO8_GSBI3_0
IN/OUT
81
GPIO6_ UIM2_CLK
IN/OUT
82
GND
Input Power
Main ground connection
83
GPIO2_ UIM1_CLK
Output
SIM Card - Clock
84
GPIO5_ UIM2_RST
IN/OUT
85
GPIO7_ UIM2_DATA
IN/OUT
86
GPIO4_ UIM2_DET
IN/OUT
87
GND
Input Power
Main ground connection, Corner pad
88
HSIC_DATA
IN/OUT
Connection to Ethernet Controller
89
GND
Input Power
Main ground connection
90
HSIC_STROBE
IN/OUT
Connection to Ethernet Controller
91
GND
Input Power
Main ground connection
92
GPIO3_ UIM1_DATA
Output
SIM Card – Data 1
93
GPIO1_ UIM1_RST
Output
SIM Card – Reset 1
94
GPIO78
IN/OUT
95
GPIO79_ HSIC_RDY
Output
Reset of Ethernet Controller
96
GPIO85
Output
Time synchronization
97
GPIO86_
GPS_EXT_LNA_EN
IN/OUT
98
GND
Input Power
Main ground connection
99
VREG_USB3_3V075
Output Power
Output Power to USB
100
GND
Input Power
Main ground connection
101
VREG_MSME_1V8
Output Power
Output Power
102
GND
Input Power
Main ground connection
103
VREG_UIM2
Output Power
Output Power to SIM Card 2
104
VREG_SDC1_2V95
Output Power
Output Power to SD Card 1
105
GND
Input Power
Main ground connection
106
VREG_UIM1
Output Power
Output Power to SIM Card 1
107
GND
Input Power
Main ground connection
108
GND
Input Power
Main ground connection
109
VMAIN
Input Power
Main power
110
VMAIN
Input Power
Main power
111
VMAIN
Input Power
Main power
112
VMAIN
Input Power
Main power
_______________________________________________________________________________________________________________ Seite 13
peiker acustic GmbH & Co. KG, Max-Planck-Straße 32, D-61381 Friedrichsdorf, Amtsgericht Bad Homburg HRA 1897
phG: peiker Verwaltungs GmbH, Vorsitzender der Geschäftsführung: Andreas Peiker, Geschäftsführer: Stephan Graf von der Schulenburg, Amtsgericht Bad Homburg 1369
Vorsitzender des Aufsichtsrates: Prof. Dr. Agilolf Lamperstorfer Ein Unternehmen der peiker Firmengruppe
PIN
Signal
Direction related
to LTE-NAD
Comment
113
GND
Input Power
Main ground connection
114
GND
Input Power
Main ground connection
115
PON
Input
Power On
116
HW-REV-RESISTOR
Output
117
PM_GPIO3
IN/OUT
118
GND
Input Power
Main ground connection
119
PM_MPP5
Input
PM – ADC – channel
120
PM_MPP1
Input
PM – ADC – channel
121
GND
Input Power
Main ground connection
122
GPIO69
Output
Switch between main and back up
antenna
123
GPIO0_ UIM1_DET
Input
SIM Card – Detection 1
124
GPIO77
Output
Reset signal of SDC2
125
GPIO65
Output
NAD – Wake up
126
GPIO61
Input
NAD – Update
127
PON_N
Input
Power On
128
GND
Input Power
Main ground connection
129
GPIO68
Output
PS-3V8-Hold
130
GPIO51
Input
BOOT_CONFIG3
131
GPIO54
Input
BOOT_CONFIG0
132
GND
Input Power
Main ground connection
133
PM_MPP2
Input
PM – ADC - channel
134
PM_GPIO2
IN/OUT
135
PM_GPIO1
IN/OUT
136
PM_GPIO6
IN/OUT
137
GND
Input Power
Main ground connection
138
GPIO73
IN/OUT
139
GND
Input Power
Main ground connection, Corner pad
140
GPIO48
Input
BOOT_CONFIG6
141
GPIO49
Input
BOOT_CONFIG5
142
GPIO53
Input
BOOT_CONFIG1
143 –
152
GND
Input Power
Main ground connection
153
LGA_PRX_ANT
Connection to the antenna switch
154 –
160
GND
Input Power
Main ground connection
161
LGA_GPS_DRX_ANT
Connection to the antenna connector
162 –
164
GND
Input Power
Main ground connection
165
LGA_DRX_ANT_IN
Input
Connection to the antenna switch
166
LGA_DRX_ANT_OUT
167 –
172
GND
Input Power
Main ground connection
_______________________________________________________________________________________________________________ Seite 14
peiker acustic GmbH & Co. KG, Max-Planck-Straße 32, D-61381 Friedrichsdorf, Amtsgericht Bad Homburg HRA 1897
phG: peiker Verwaltungs GmbH, Vorsitzender der Geschäftsführung: Andreas Peiker, Geschäftsführer: Stephan Graf von der Schulenburg, Amtsgericht Bad Homburg 1369
Vorsitzender des Aufsichtsrates: Prof. Dr. Agilolf Lamperstorfer Ein Unternehmen der peiker Firmengruppe
Note: Pins should be grounded when not used in design.
3.4 Supply Voltage
The external supply voltage is applied to LTE-NAD by 8 Pins on modules signal connectors.
PINs 109, 110, 111, 112 for VMAIN
PINs 107, 108, 113, 114 for the corresponding GND
Please note that there are further main ground connections that should be connected to ensure
proper NAD function.
TA = -40°C … +85°C
Absolute minimum/maximum supply voltages
3.6V ~ 4.0V
Nominal supply voltage
3.8V
Recommended supply voltage
3.8V
Voltage drop @ GSM power burst (33dBm)
<100mV
During Hi RF Power GSM bursts the power amplifier can draw peak currents > 2Amps at
VMAIN. The voltage drop during the GSM burst shall not exceed 100mV.
3.5 Power Consumption
TA = +25°C, VPH_PWR =3.8V
Output Power
Output Power
max. (typ. 23dBm)
0 dBm
Voice call WCDMA BC1
~530mA
~145mA
Voice call WCDMA BC2
~570mA
~145mA
Voice call WCDMA BC5
~630mA
~140mA
Voice call WCDMA BC8
~580mA
~140mA
PCL 5 (typ. 32.5 dBm)
PCL 19 (typ. 5dBm)
Voice call GSM850
~260mA
~65mA
Voice call GSM900
~270mA
~65mA
PCL 0 (typ.30.5dBm)
PCL 15 (typ.0dBm)
Voice call GSM1800
~165mA
~65mA
Voice call GSM1900
~165mA
~65mA
Standby current GSM
DRX = 5
Tbd mA
Standby current WCDMA
DRX = 7
Tbd mA
Standby current LTE
DRX = 7
_______________________________________________________________________________________________________________ Seite 15
peiker acustic GmbH & Co. KG, Max-Planck-Straße 32, D-61381 Friedrichsdorf, Amtsgericht Bad Homburg HRA 1897
phG: peiker Verwaltungs GmbH, Vorsitzender der Geschäftsführung: Andreas Peiker, Geschäftsführer: Stephan Graf von der Schulenburg, Amtsgericht Bad Homburg 1369
Vorsitzender des Aufsichtsrates: Prof. Dr. Agilolf Lamperstorfer Ein Unternehmen der peiker Firmengruppe
Output Power
Output Power
LTE data call B3
LTE data call B7
LTE data call B20
3.8 Environmental Specification
3.8.1 Temperature Range
Range
Operating temp. range
-20°C … +65°C
3GPP spec. conform
Operating temp. range
-40°C … +85°C Note 1
Operational
Performance might slightly
deviate from 3GPP spec.
Storage temp. range
-40°C … +85°C
Note 1: Due to temperature specification of the chipset, the temperature of the power manager and the
temperature of the modem chip shall not exceed +85°C.
_______________________________________________________________________________________________________________ Seite 16
peiker acustic GmbH & Co. KG, Max-Planck-Straße 32, D-61381 Friedrichsdorf, Amtsgericht Bad Homburg HRA 1897
phG: peiker Verwaltungs GmbH, Vorsitzender der Geschäftsführung: Andreas Peiker, Geschäftsführer: Stephan Graf von der Schulenburg, Amtsgericht Bad Homburg 1369
Vorsitzender des Aufsichtsrates: Prof. Dr. Agilolf Lamperstorfer Ein Unternehmen der peiker Firmengruppe
4 Evaluation Kit
For the NAD V1140-10x-1, there is an evaluation board available.
Features:
- On board 12V DC power supply (alternatively 3,8V DC direct connected, unbuffered).
- USB port type B
- SIM card tray
- 20 pin JTAG header for debugging
- 2 UART ports connected to DB9
- CODEC supported by I2S and I2C interfaces
Using the evaluation board with an external power supply
By default the module can be supplied by a switching regulator at 12V DC input voltage or by the module
VCC at 3.8V.
3.8V supply should be able to deliver 3.5A max. Sense contacts are for supplies which support the
corresponding feature.
Using the evaluation board with on board 3.8V regulator
For use at 3.8V simply disconnect the 12V supply and plug on 3.8V.
Note: Make sure that the external power supply is not generating spikes or
hazards higher than 4.0V. LTE-NAD Module gets damaged when spikes or
hazards above 4.0V are applied
RF Connector
- For RF measurements use main antenna connector
_______________________________________________________________________________________________________________ Seite 17
peiker acustic GmbH & Co. KG, Max-Planck-Straße 32, D-61381 Friedrichsdorf, Amtsgericht Bad Homburg HRA 1897
phG: peiker Verwaltungs GmbH, Vorsitzender der Geschäftsführung: Andreas Peiker, Geschäftsführer: Stephan Graf von der Schulenburg, Amtsgericht Bad Homburg 1369
Vorsitzender des Aufsichtsrates: Prof. Dr. Agilolf Lamperstorfer Ein Unternehmen der peiker Firmengruppe

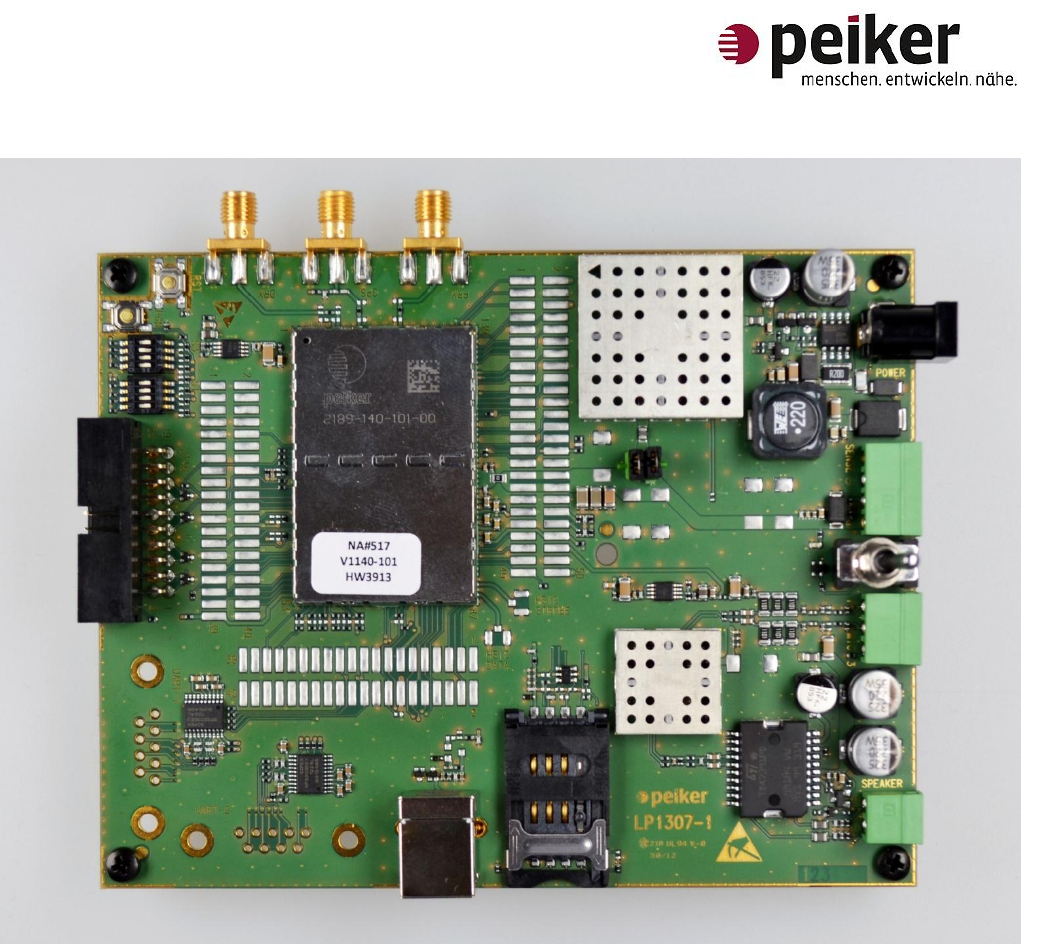

Figure 2 Evaluation Kit for V1140-10x-1.
_______________________________________________________________________________________________________________ Seite 18
peiker acustic GmbH & Co. KG, Max-Planck-Straße 32, D-61381 Friedrichsdorf, Amtsgericht Bad Homburg HRA 1897
phG: peiker Verwaltungs GmbH, Vorsitzender der Geschäftsführung: Andreas Peiker, Geschäftsführer: Stephan Graf von der Schulenburg, Amtsgericht Bad Homburg 1369
Vorsitzender des Aufsichtsrates: Prof. Dr. Agilolf Lamperstorfer Ein Unternehmen der peiker Firmengruppe

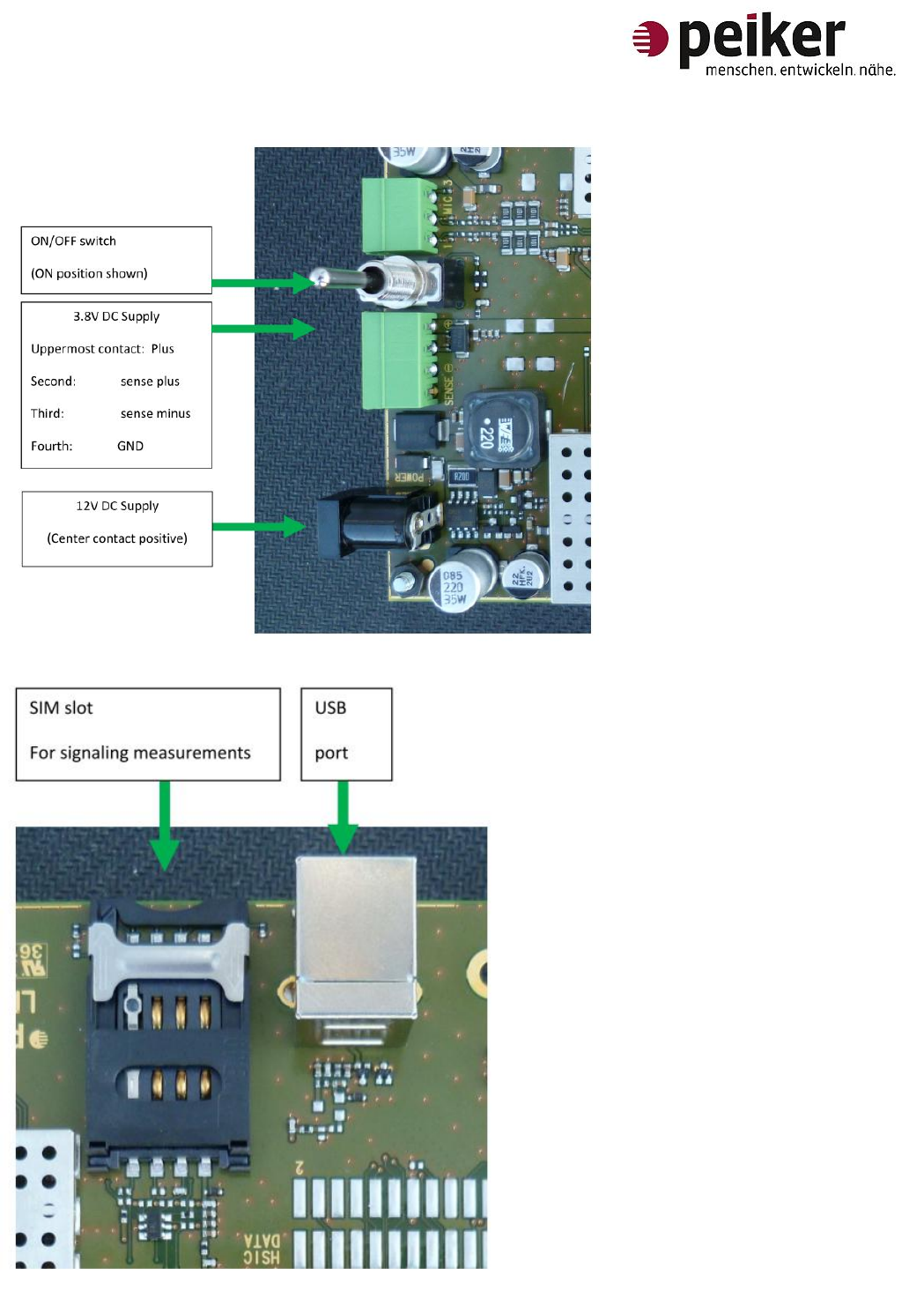

Figure 3 Power supply for Evaluation Kit for V1140-xxx.
Figure 4 SIM card and USB interfaces for Evaluation Kit for V1140-xxx.
_______________________________________________________________________________________________________________ Seite 19
peiker acustic GmbH & Co. KG, Max-Planck-Straße 32, D-61381 Friedrichsdorf, Amtsgericht Bad Homburg HRA 1897
phG: peiker Verwaltungs GmbH, Vorsitzender der Geschäftsführung: Andreas Peiker, Geschäftsführer: Stephan Graf von der Schulenburg, Amtsgericht Bad Homburg 1369
Vorsitzender des Aufsichtsrates: Prof. Dr. Agilolf Lamperstorfer Ein Unternehmen der peiker Firmengruppe
Figure 5 RF interfaces for Evaluation Kit for V1140-xxx.
5 AT Command interface
The modules supports standard AT command as listed below. Commands are compliant to 3GPP TS
27.007 and TS 27.005
Command
Description
Comment
AT+CMGF
Message Format
AT+CSCA
Service Centre Address
AT+CMGS
Send Message
AT+CGMI
Manufacturer Identification
AT+CGMM
Request model identification
AT+CGMR
Request revision identification
AT+CGSN
Request product serial number
AT+CIMI
Request international mobile subscriber
identification
AT+CMOD
Call mode
Only one Parameter is supported by the
device.
AT+CHUP
Hang up call
ATD
Initiate a CS or PS call or supplementary service
ATA
Answer incoming CS call command
ATH
Hangup CS call command
AT+CBST
Select bearer service type
AT+CEER
Extended error report
AT+CVHU
Voice hangup control
AT+CREG
Network registration
AT+COPS
PLMN selection
AT+CLCK
Facility lock
AT+CPWD
Change password
_______________________________________________________________________________________________________________ Seite 20
peiker acustic GmbH & Co. KG, Max-Planck-Straße 32, D-61381 Friedrichsdorf, Amtsgericht Bad Homburg HRA 1897
phG: peiker Verwaltungs GmbH, Vorsitzender der Geschäftsführung: Andreas Peiker, Geschäftsführer: Stephan Graf von der Schulenburg, Amtsgericht Bad Homburg 1369
Vorsitzender des Aufsichtsrates: Prof. Dr. Agilolf Lamperstorfer Ein Unternehmen der peiker Firmengruppe
Command
Description
Comment
AT+CLIP
Calling line identification presentation
AT+CLIR
Calling line identification restriction
AT+CCWA
Call waiting
AT+CHLD
Call related supplementary services
AT+CUSD
Unstructured supplementary service data
AT+CLCC
List current calls
AT+CPOL
Preferred PLMN list
AT+CPAS
Phone active status
AT+CFUN
Set phone functionality
AT+CPIN
Enter PIN
AT+CSQ
Signal quality
AT+CMER
Mobile termination event reporting
AT+CSIM
Generic SIM access
AT+CRSM
Restricted SIM access
AT+CMEE
Report mobile termination error
AT+CGDCONT
Define PDP context
AT+CGEQREQ
Request 3G quality of service profile
AT-CGATT
PS attach or detach
AT+CGACT
PDP context activate or deactivate
AT+CGPADDR
Show PDP address
AT+CGSMS
Select service for MO SMS messages
ATE
Character Echo ON/OFF
AT+CSMS
Check Message Service support
AT+CSMP
Set Text Mode Parameters
AT+CSDH
Show Text Mode Parameters
AT+CSCB
Select Cell Broadcast Message Types
AT+CSAS
Save Settings
Only one Parameter is supported by the
device.
AT+CRES
Restore Settings
Only one Parameter is supported by the
device.
AT+CMGL
List messages
AT+CNMA
New message acknowledgement
AT+CMGC
Send Command
AT+CMMS
More Messages to Send
AT+ATV
DCE response format
AT+ATX
Result code selection and call progress
monitoring control
AT+CNMI
New Message Indications to TE
AT+CPMS
Preferred Message Storage
AT+CMGW
Write Message to Memory
AT+CMSS
Send Message from Storage
AT+CMGD
Delete Messages
AT+CNUM
Get MSISDN
AT+CPBS
Select phonebook memory storage
AT+CPBR
Read phonebook entries
AT+CPBW
Writephonebook entry
_______________________________________________________________________________________________________________ Seite 21
peiker acustic GmbH & Co. KG, Max-Planck-Straße 32, D-61381 Friedrichsdorf, Amtsgericht Bad Homburg HRA 1897
phG: peiker Verwaltungs GmbH, Vorsitzender der Geschäftsführung: Andreas Peiker, Geschäftsführer: Stephan Graf von der Schulenburg, Amtsgericht Bad Homburg 1369
Vorsitzender des Aufsichtsrates: Prof. Dr. Agilolf Lamperstorfer Ein Unternehmen der peiker Firmengruppe
6 Safety Recommendations according to EN60950-1
This device must be supplied by a limited power source according to EN 60950-1.
The clearance and creepage distances required by the end product must be withheld when the
module is installed.
The cooling of the end product shall not negatively be influenced by the installation of the
module.
_______________________________________________________________________________________________________________ Seite 22
peiker acustic GmbH & Co. KG, Max-Planck-Straße 32, D-61381 Friedrichsdorf, Amtsgericht Bad Homburg HRA 1897
phG: peiker Verwaltungs GmbH, Vorsitzender der Geschäftsführung: Andreas Peiker, Geschäftsführer: Stephan Graf von der Schulenburg, Amtsgericht Bad Homburg 1369
Vorsitzender des Aufsichtsrates: Prof. Dr. Agilolf Lamperstorfer Ein Unternehmen der peiker Firmengruppe
7 List of Acronyms
3GPP
3 rd Generation Partnership Project
ADC
Analog Digital Converter
ADN
Abbreviated Dialing Number
A-GPS
Assisted GPS
AMR
Adaptive Multi Rate
AT
Attention Command
AWS
Advanced Wireless Services
BER
Bit Error Rate
CLIP
Calling Line Identification Presentation
CLIR
Calling Line Identification Restriction
CSD
Circuit Switch Data
DARP
Downlink Advanced Receiver Performance
DTMF
Dual Tone Multi Frequency
FDN
Fixed Dialing Number
FTP
File Transfer Protocol
GSM
Global System for Mobile communication
GPIO
General Purpose Input Output
GPRS
General Packet Radio Service
GPS
Global Positioning System
HSPA
High Speed Uplink Packet Access
HW
Hardware
LED
Led Emitting Diode
MO
Mobile Originated
MT
Mobile Terminated
OEM
Original Equipment Manufacturer
PCB
Printed Circuit Board
PCM
Pulse Code Modulation
PDU
Protocol Data Unit
PIN
Personal Identification Number
RF
Radio Frequency
RoHs
Restriction of Hazardous Substances
UART
Universal Asynchronous Receiver and Transmitter
USB
Universal Serial Bus
USIM
Universal Subscriber Identity Module
UMTS
Universal Mobile Telecommunications System
WCDMA
Wideband Code Division Multiple Access
_______________________________________________________________________________________________________________ Seite 23
peiker acustic GmbH & Co. KG, Max-Planck-Straße 32, D-61381 Friedrichsdorf, Amtsgericht Bad Homburg HRA 1897
phG: peiker Verwaltungs GmbH, Vorsitzender der Geschäftsführung: Andreas Peiker, Geschäftsführer: Stephan Graf von der Schulenburg, Amtsgericht Bad Homburg 1369
Vorsitzender des Aufsichtsrates: Prof. Dr. Agilolf Lamperstorfer Ein Unternehmen der peiker Firmengruppe
8 Regulatory Certifications
8.1 USA (FCC)
This device complies with Part 15 of the FCC rules. Operation is subject to the following
two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may
cause undesired operation.
8.1.2 FCC Warnings and Notices
WARNING:
The FCC requires the user to be notified that any changes or modifications
made to this device that are not expressly approved by peiker acustic GmbH & Co. KG
could void the user's authority to operate the equipment.
NOTICE:
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference to
radio communications. However, there is no guarantee that interference will not occur in
a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following
measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
8.2 Canada (IC)
This Class b digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe b est conforme à la norme NMB-003 du Canada.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils
radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1)
l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter
tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre
le fonctionnement.
_______________________________________________________________________________________________________________ Seite 24
peiker acustic GmbH & Co. KG, Max-Planck-Straße 32, D-61381 Friedrichsdorf, Amtsgericht Bad Homburg HRA 1897
phG: peiker Verwaltungs GmbH, Vorsitzender der Geschäftsführung: Andreas Peiker, Geschäftsführer: Stephan Graf von der Schulenburg, Amtsgericht Bad Homburg 1369
Vorsitzender des Aufsichtsrates: Prof. Dr. Agilolf Lamperstorfer Ein Unternehmen der peiker Firmengruppe
8.3 OEM Responsibilities
Antenna
- The gain of the internal antenna to be used in conjunction with the ATM-01 R2-US-4G
host, including cable loss, must not exceed -1,05 dBd at 700 MHz, -0,85 dBd at 850
MHz, 1,8dBi at 1700 MHz and 2,0 dBi at 1900 MHz.
- The gain of the external antenna to be used in conjunction with the ATM-01 R2-US-
4G host, including cable loss, must not exceed -0,34 dBd at 700 MHz, 0,64 dBd at 850
MHz, 2,4 dBi at 1700 MHz and 1,9 dBi at 1900 MHz.
- The gain of the external antenna to be used in conjunction with the ATM-01 T2-US-
4G and TCB4G-01 T2-US-4G hosts, including cable loss, must not exceed -1,15 dBd at
700 MHz & 850 MHz and 1 dBi at 1700MHz & 1900 MHz
- The systems antenna(s) must be installed such that 20 cm is maintained between the
antenna(s) and the body of the user or nearby persons.
- This transmitter must not be co-located or operating in conjunction with any other
antenna or transmitter. The preceding statement must be included as a Caution
statement in OEM product manuals in order to alert users of FCC RF Exposure
compliance.
Power Regulation
- The host equipment must provide power regulation circuitry to ensure that the
module is supplied with stable 3.8VDC.
FCC Labeling
FCC labeling of V1140-101-1:
V1140-101-1 is labeled with its own FCC ID Number. If the FCC ID is not visible
when V1140-101-1 is installed inside another device, then the host device must
contain the FCC ID number with the statement such as the following: "Contains
Transmitter Module FCC ID: QWY-V1140-101-1" or "Contains FCC ID: QWY-
V1140-101-1"
FCC labeling of V1140-103-1:
V1140-103-1 is labeled with its own FCC ID Number. If the FCC ID is not visible
when V1140-103-1 is installed inside another device, then the host device must
contain the FCC ID number with the statement such as the following: "Contains
Transmitter Module FCC ID: QWY-V1140-103" or "Contains FCC ID: QWY-V1140-
103"
_______________________________________________________________________________________________________________ Seite 25
peiker acustic GmbH & Co. KG, Max-Planck-Straße 32, D-61381 Friedrichsdorf, Amtsgericht Bad Homburg HRA 1897
phG: peiker Verwaltungs GmbH, Vorsitzender der Geschäftsführung: Andreas Peiker, Geschäftsführer: Stephan Graf von der Schulenburg, Amtsgericht Bad Homburg 1369
Vorsitzender des Aufsichtsrates: Prof. Dr. Agilolf Lamperstorfer Ein Unternehmen der peiker Firmengruppe
FCC labeling of V1140-104-1:
V1140-104-1 is labeled with its own FCC ID Number. If the FCC ID is not visible
when V1140-101-1 is installed inside another device, then the host device must
contain the FCC ID number with the statement such as the following: "Contains
Transmitter Module FCC ID: QWY-V1140-104-1" or "Contains FCC ID: QWY-
V1140-104-1"
IC Labeling
IC labeling of V1140-101-1:
V1140-101-1 is labeled with its own IC ID Number. If the IC ID is not visible when
V1140-101-1 is installed inside another device, then the host device must contain
the IC ID number with the statement such as the following: "Contains Transmitter
Module IC 6588A-V11401011" or "Contains IC 6588A-V11401011".
IC labeling of V1140-103-1:
V1140-103-1 is labeled with its own IC ID Number. If the IC ID is not visible when
V1140-103-1 is installed inside another device, then the host device must contain
the IC ID number with the statement such as the following: "Contains Transmitter
Module IC 6588A-V1140103" or "Contains IC 6588A-V1140103".
IC labeling of V1140-104-1:
V1140-104-1 is labeled with its own IC ID Number. If the IC ID is not visible when
V1140-104-1 is installed inside another device, then the host device must contain
the IC ID number with the statement such as the following: "Contains Transmitter
Module IC 6588A-V11401041" or "Contains IC 6588A-V11401041".
