VELUX America 833429 Remote Control User Manual 1
VELUX America Inc. Remote Control 1
Contents
- 1. User manual 1
- 2. User manual 2
User manual 1
VAS 452169-2009-12
VSE/VCE
KLR 100
ENGLISH: User manual
ESPAÑOL: Manual del usuario
FRANÇAIS : Notice d'utilisation
2 VELUX VELUX 3
English
User manual 4-73
Español
Manual del usuario 74-143
Français
Notice d'utilisation 144-212
4 VELUX VELUX 5
ENGLISH ENGLISH
Important information / Warnings 6-7
Getting started
Initial set-up 8-9
Remote control functions 10-11
Operation
Locating and operating a product 12-14
- One skylight 12
- More than one skylight 13-14
Closing the skylight automatically 15
Choosing positions 16
Disabling rain sensor 17
Menu functions
Menu guide 18
Navigating through the menus 19
Changing language 20
Room, Group and Zone 21
- Creating a Room 22-23
- Editing a Room 24-25
- Creating a Group 26-27
Naming 28-29
Programs 30-41
- My program 31-35
- Program under Shortcut P1/P2 36-41
Time and date 42
Keypad lock 43
Contents
Display 44-45
- Display light 46
- Sleep mode 45
Rearranging order 46-47
Access code 48
Software version 49
Clearing remote control settings 50
Extending the system
Registering new products 52-53
Using additional activation controls 54-59
- Copying to a new remote control 56-57
- Copying to a remote control in operation 58-59
Security key 60-61
Resetting
Resetting and preparing for registration 62
Resetting the remote control 63
Adjusting the opening 64-65

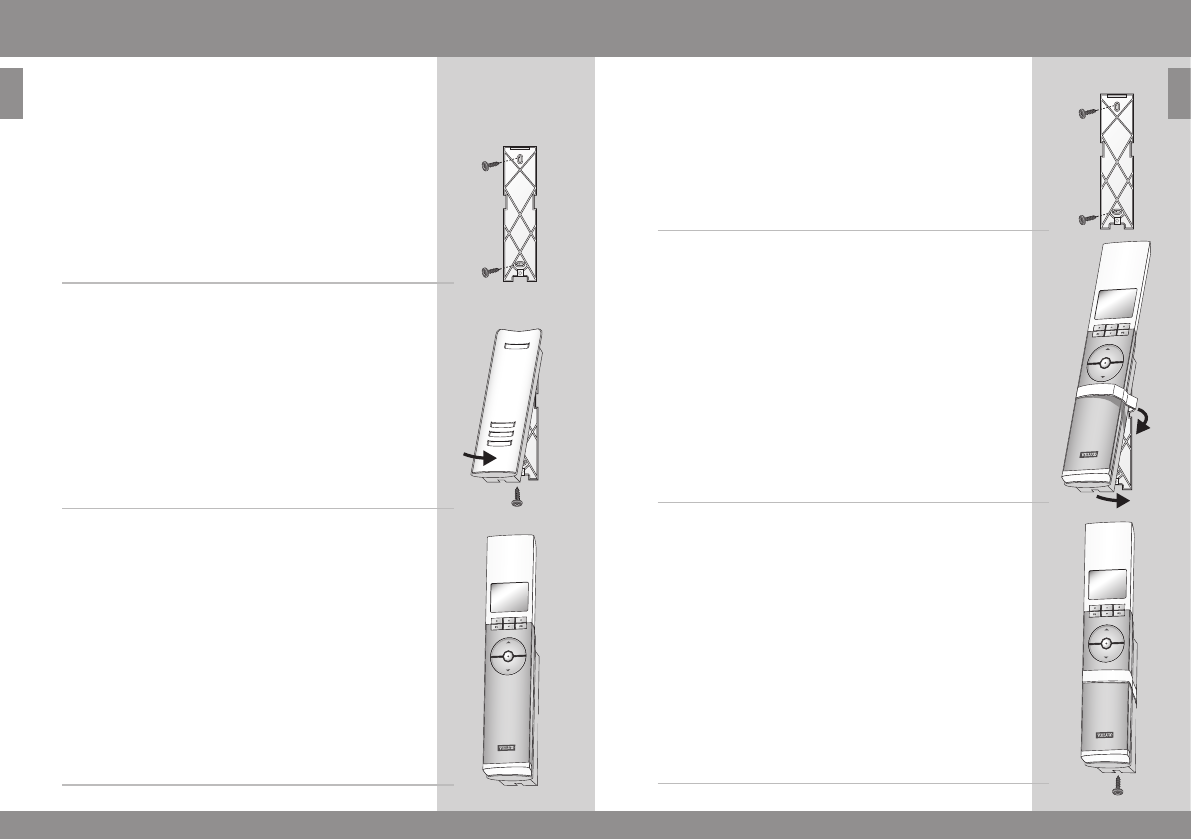

Fitting of holder for remote control 66-67
Use and maintenance
Power failure / Mislaid remote control 68
Maintenance 69
Further information

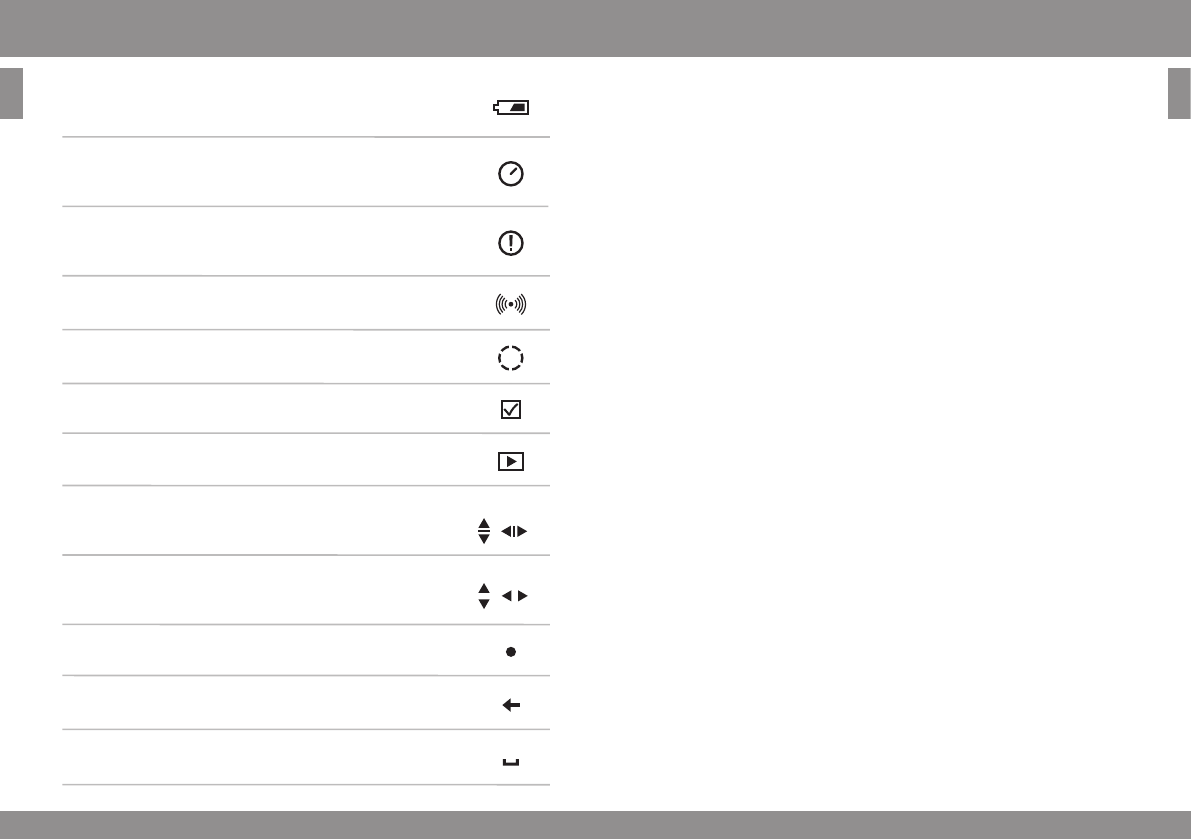

Display symbols 70
Display texts 71
Glossary 72
Congratulations on your new VELUX product
In order to make the best use of your product please read these instructions on
operation and maintenance.
6 VELUX VELUX 7
ENGLISH ENGLISH
Please keep instructions for future reference and hand them over to any new
user.
Safety
• Before operating ensure that the skylight with electrical products can be
and is operated without risk of damage to property or injury to people or
animals.
• For personnel safety never have head, hand, arm or any other body part out
of or through the opening of the skylight without first having switched o
main power supply.
• Children must not be allowed to play with the skylight and its electrical
products. The remote control should be kept out of reach of children. Do not
allow children near an open skylight.
• If repair or adjustment work is needed, disconnect from main power supply
and ensure that it cannot be reconnected unintentionally.
• The main power supply cable is for indoor use only.
• It is recommended that a remote control be placed in the room where the
skylight and its electrical products have been installed.
• If the skylight is positioned within reach, the opening of the skylight opera-
tor must be adjusted to reduce the maximum size of the opening (see section
Adjusting the opening). Failure to make such adjustment can result in serious
injury or death.
• Make sure that the insect screen is installed before putting the skylight into use.
Function
• If the rain sensor gets wet, the skylight automatically closes.
• Disabling the rain sensor while the skylight is open creates a risk of water to
the interior of the building.
• To prevent the skylight from closing because of very fine/weak rain, fog or
dew, the rain sensor is equipped with a heating element to keep the surface
dry.
• If the rain sensor is activated, the skylight will close within approximately
30 seconds. If the skylight is activated with the remote control or another
activation control, it will take up to one minute until the skylight is com-
pletely closed. Therefore, in case of sudden rain, water may enter the room
before the skylight is closed.
• In case of snow and/or ice, the operation of the skylight may be blocked
resulting in damage to the skylight.
Important information / Warnings
Product
• This product has been designed for use with genuine VELUX products.
Connection to or use with other products may cause damage, malfunction
or injury.
• Electrical products must be disposed of in conformity with all local codes,
ordinances, rules and regulations for electronic waste and not with house-
hold waste.
• Used remote control batteries have to be disposed of in conformity with the
relevant environmental regulations and ordinances.
• Expected lifetime of the remote control battery: Approx 1 year.
• The packaging can be disposed of with usual household waste.
• Radio frequency band: 2.4 GHz.
• Radio frequency range: 110 yards (100 m) free field. Depending on building
construction, the indoor range is approx 30 ft (10 m). However, construc-
tions with reinforced concrete, metal ceilings and plaster walls with steel
members may reduce the range.
Maintenance and service
• Disconnect from main power supply before carrying out any maintenance,
repair, adjustment or service work to the skylight or products connected to it
and ensure that it cannot be reconnected unintentionally during this time.
• Maintenance and installation must be carried out in consideration to Health
and Safety at work requirements.
• If main power supply cable is damaged, it must be replaced by a qualified
electrical installer in accordance with all local codes, ordinances, rules and
regulations.
• Spare parts are available through VELUX. Please provide information from
the data plate.
• If you have any technical questions, please contact VELUX.
FCC ID: XSG833429 and IC ID: 8642A-863765: Remote control
FCC ID: XSG863765 and IC ID: 8642A-863765: Skylight operator
This device complies with part 15 of the FCC and RSS-210 of the IC rules.
Operation is subject to the following two conditions: (1) This device may not
cause harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
8 VELUX VELUX 9
Menu
Locate
Register Info
P1 P2
P1 P2
Enter
P1 P2
ENGLISH ENGLISH

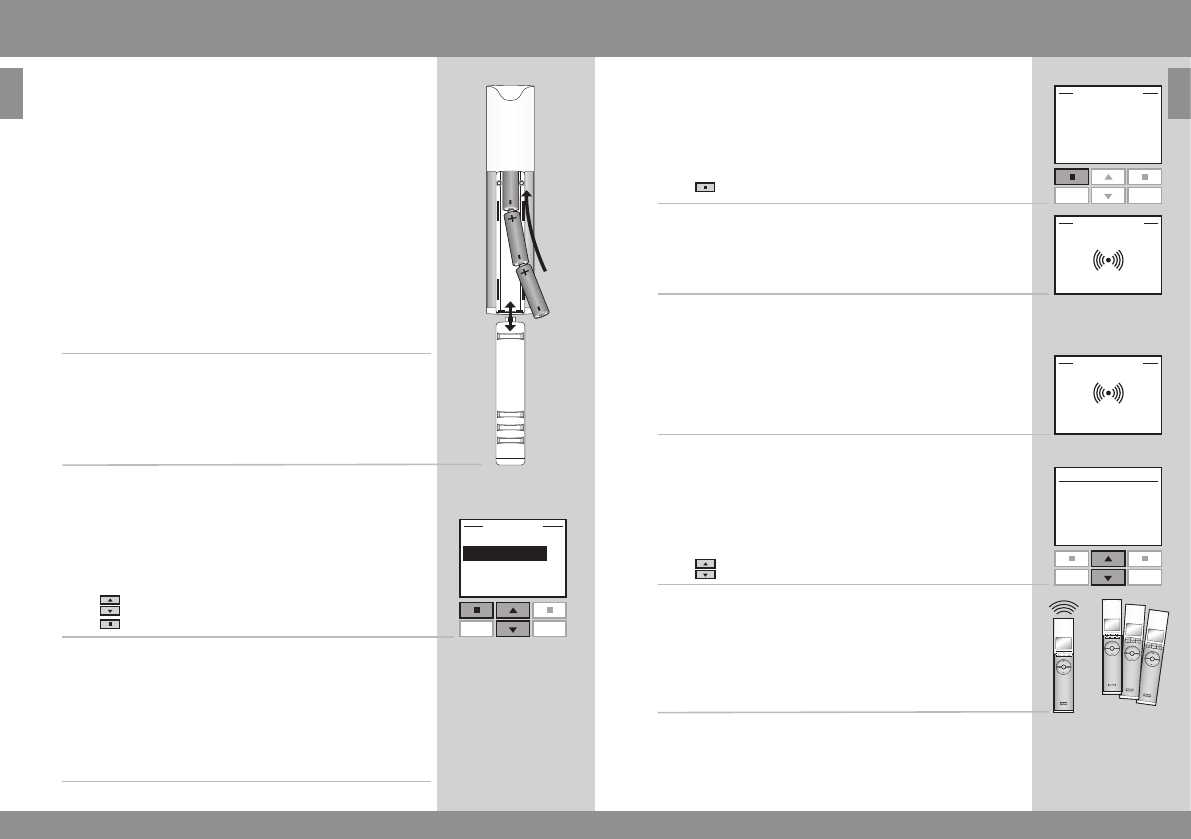

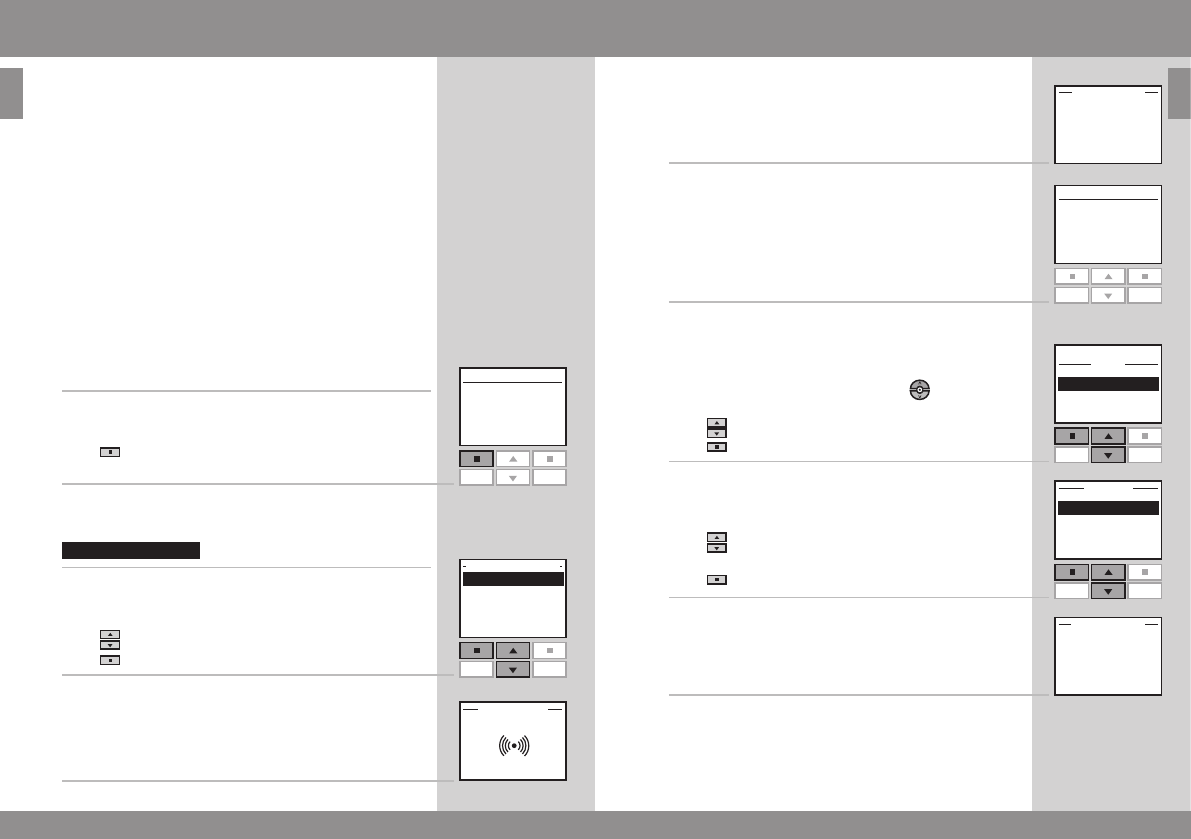

Initial set-up
5 Press "Register" to start registration.
6 Registration is running. This can take up to two minutes.
7 The display shows "Completed" when all products have
been registered.
Note: If the display shows "Failed", remove the batteries
from the remote control. Prepare the products for registra-
tion, see section Resetting and preparing for registration.
Repeat the initial set-up.
8 The display shows one of the registered products.
Press to see the other registered products.
For use of more than one remote control, all products must
be registered in one of the remote controls, see above.
Then the information must be copied from this remote
control to the other remote controls, see section Using
additional activation controls.
Note: The opening of the skylight operator must be
adjusted if your skylight is positioned within reach, see
section Adjusting the opening.
Products to be operated with the remote control must be
registered in the remote control. Registration, however,
depends on whether the remote control is new or whether
it is already used for operating other products.
1 • If the remote control is already in operation, proceed
with section Registering new products.
• If the remote control is new, proceed as follows.
When the initial set-up has been completed, the registered
products will appear in the display.
2 Slide o the battery cover of remote control as shown.
Insert the three batteries supplied (type AA, 1.5 volt).
Replace cover.
3 Choose language:
Press to highlight your language.
Press "Enter" to confirm your choice.
4 Prepare products for registration.
Disconnect the main power supply to the products for
1 minute and then reconnect it. The products can now be
registered in the remote control within the next 10 min-
utes.
10 VELUX VELUX 11
P1 P2
P1 P2
P1
Menu
Locate
P1 P2
P2
Menu
Locate
ENGLISH ENGLISH

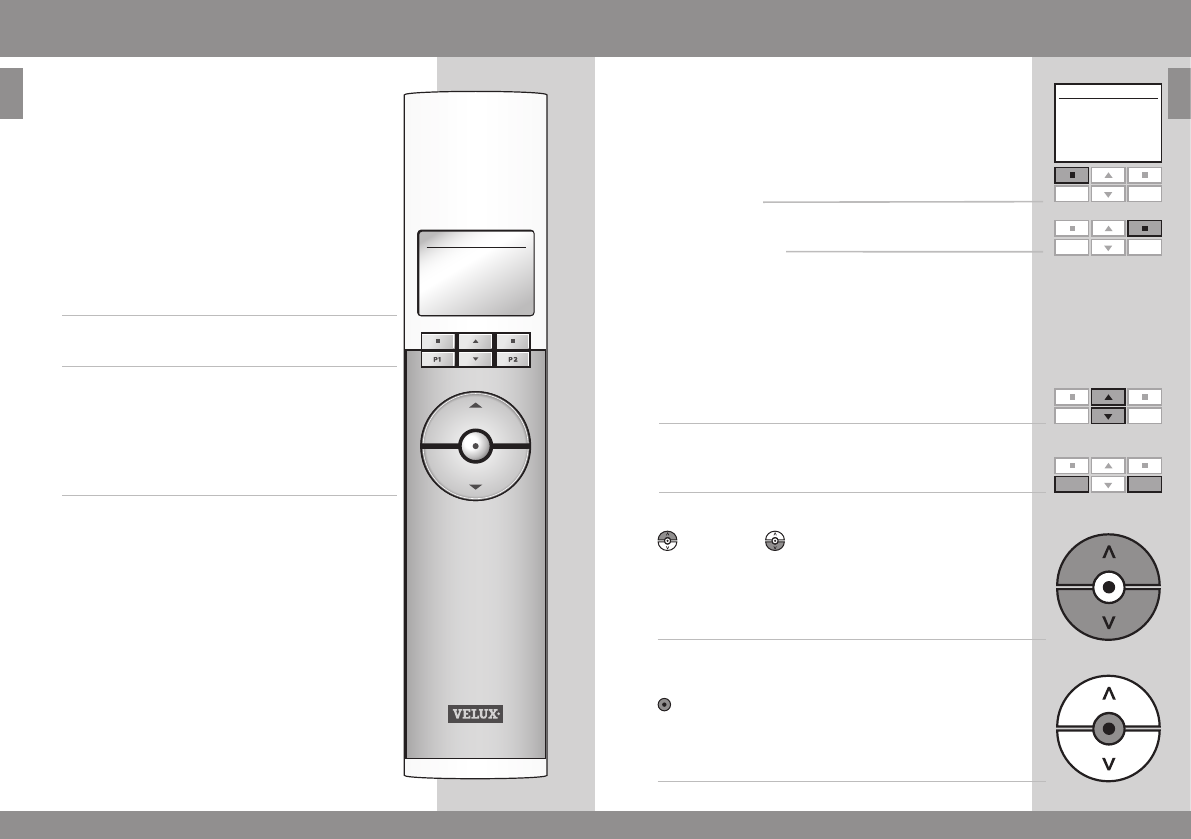

Remote control functions
The display indicates which product is being oper-
ated, which menu function is being used etc. The
top line of the display states the chosen area. Prod-
ucts are as default shown under the area House.
The bottom line of the display states the function
of the two selection keys.
Note: The display shows the last product operated.
The word "Window" is used for both windows and
skylights.
Selection, navigation and program keys
Keys for operating the product chosen
Selection keys
- for activating the menu and confirming the chosen
menu function.
- for locating the Room, the Group, the Zone or the prod-
uct to be operated.
The current function of the individual selection key is
stated directly above in the display.
Navigation keys
- for scrolling up and down in the product or menu list.
- for scrolling through the time intervals to set the
remote control to close the skylight automatically.
Shortcut keys P1/P2
- for activating a program by pressing just one key.
Keys for operating a product or a Group of products
OPEN/UP or CLOSE/DOWN
Short key pressure: Product will travel to maximum top or
bottom position.
Long key pressure: Product will travel to pre-set position.
See section Choosing positions.
Stop and status key
STOP / STATUS
Short key pressure: The product in operation stops or the
status is shown.
Long key pressure: All products in operation stop.
12 VELUX VELUX 13
Menu
Locate
Menu
Locate
Menu
Locate
P1 P2
P1 P2
31 2
ENGLISH ENGLISH
To be able to operate a product (eg a roller shade), you first
have to locate the product in question in the display.
The examples show the easiest way to find the product
you want to operate.

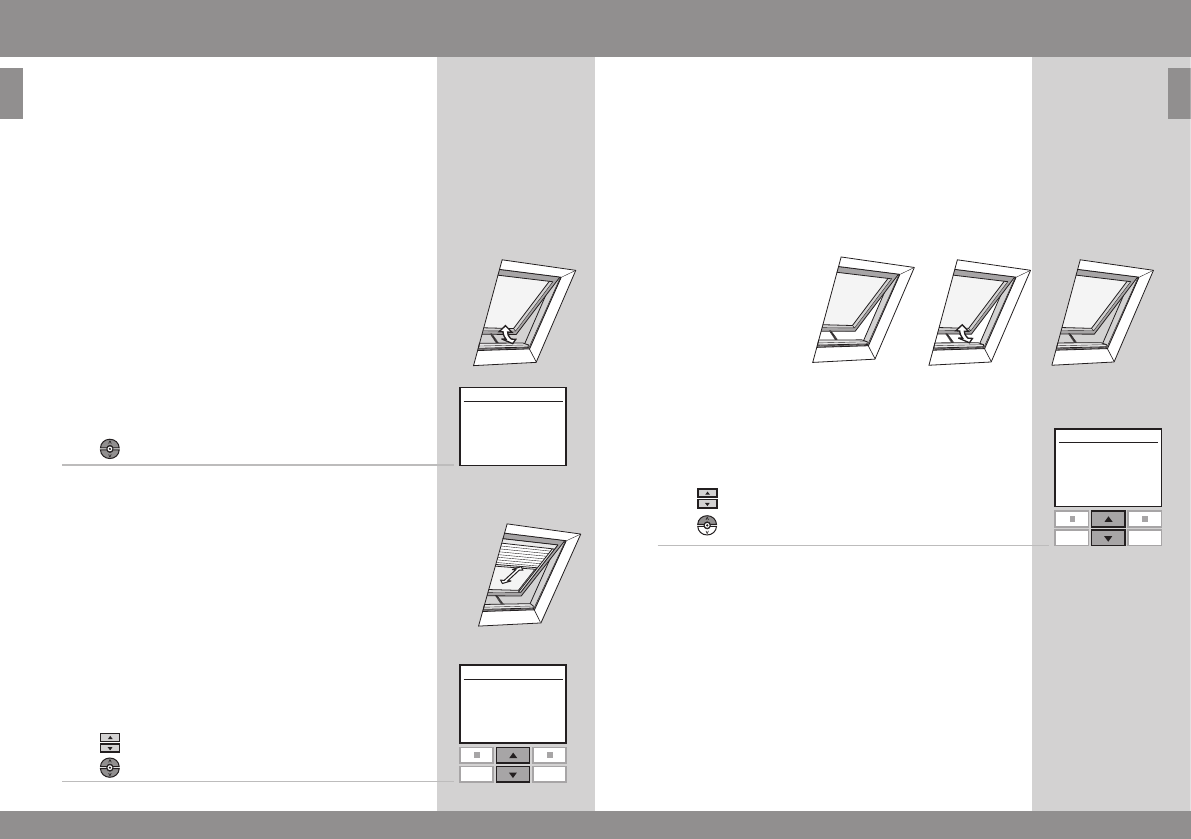

One skylight
With one electrical product
The skylight (indicated as "Window" in the remote display)
is equipped with a skylight operator only and therefore you
do not have to locate the product first.
Press to start operation.
With more than one electrical product
The skylight is equipped with a skylight operator and a
roller shade.
The example shows how to locate and operate the roller
shade.
Press to find the roller shade (indicated as "Blind").
Press to start operation.

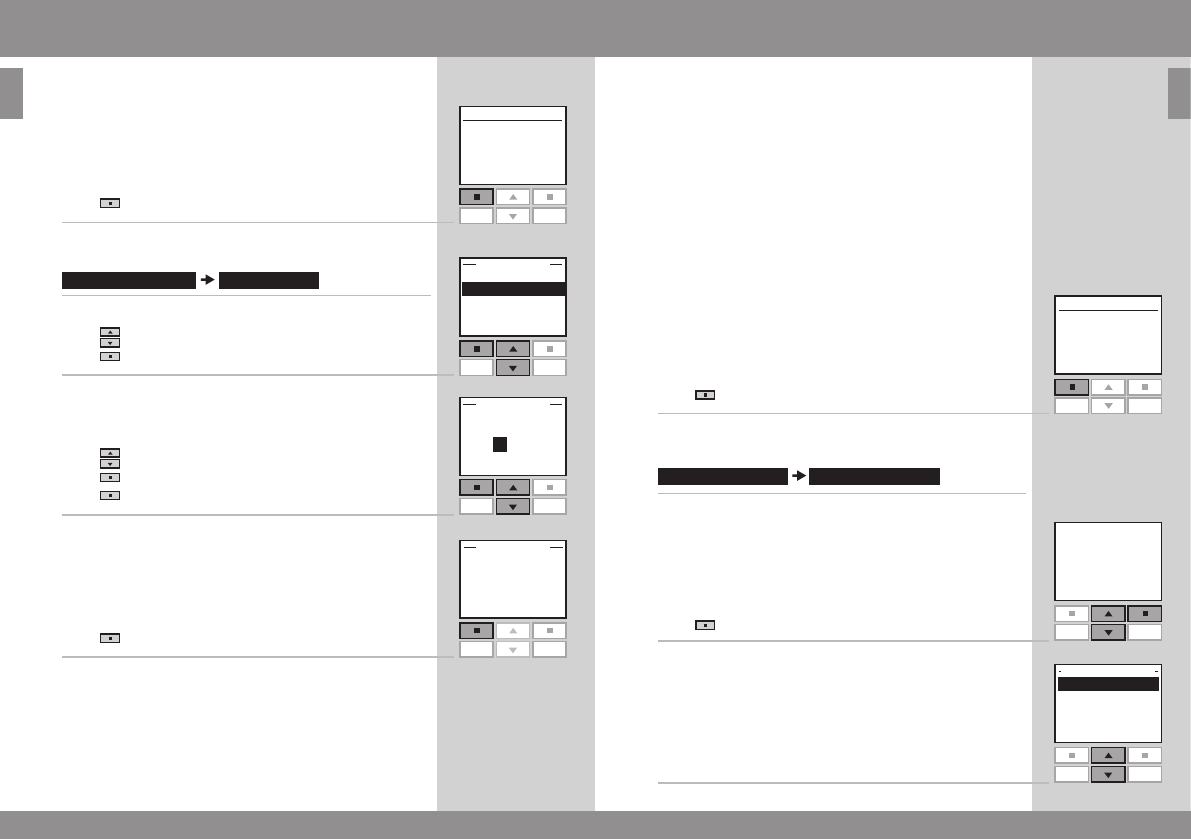

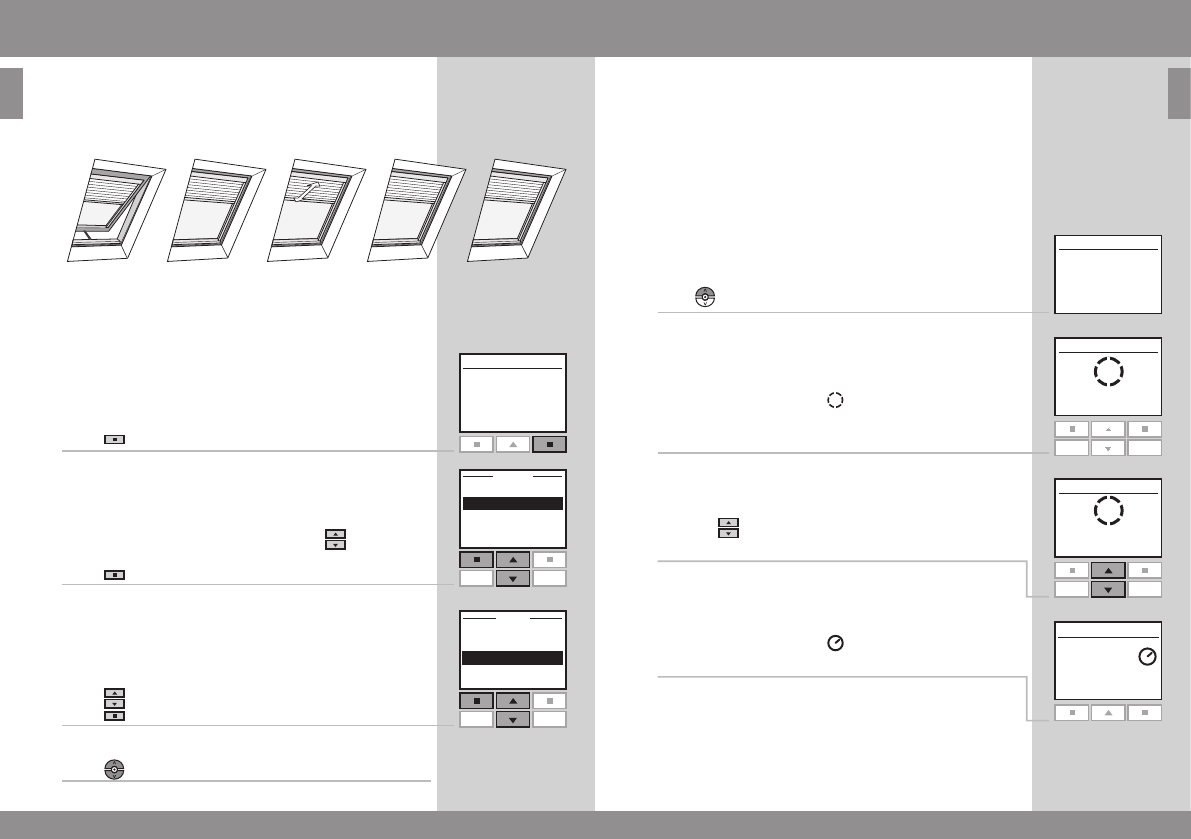

Locating and operating a product
More than one skylight
With one electrical product
Three skylights are equipped with skylight operators only.
The example shows how to locate and open skylight No. 2.
Press to find skylight No. 2 (indicated as "Window").
Press to open the skylight.
Note: You can rearrange the order of the individual
products, Groups, Rooms and Zones displayed, see section
Rearranging order.
14 VELUX VELUX 15
Enter Back
Menu
Locate
Enter Back
P1 P2
P1 P2
Menu
Locate
P1 P2
P1 P2
Menu
Locate
23
1 54
ENGLISH ENGLISH
Locating and operating a product
More than one skylight
With more than one electrical product
One skylight is equipped with a skylight operator. In
addition, all five skylights are each equipped with a roller
shade.
The example shows how to locate and operate roller
shade No. 3.
1 Press "Locate".
2 Displays the list of product types within the area House.
To operate one of the roller shades, press and high-
light "Blind".
Press "Enter".
3 Press to highlight roller shade "No. 3".
Press "Enter".
4 Press to start operation.
Closing the skylight automatically
When a skylight has been opened with the remote control,
you can set it to close again automatically after a certain
time.
For instance you might want to air your house briefly
when returning home. The possible settings are: Disabled,
5 min, 10 min, 15 min, 20 min, 30 min, 45 min and 60 min.
The example shows how to time skylight No. 1 (indi-
cated as "Window" in the remote display) to close after
10 minutes.
1 Locate skylight No. 1 (indicated as "Window").
Press to open the skylight.
2 The display shows the icon and the text "Auto Close".
Start item 3 within 5 seconds, otherwise the skylight will
not close automatically.
3 Scroll via through the time options and choose
"in: 10 min".
4 The display shows the icon and counts down until the
skylight is closed.
If you close the skylight earlier than chosen, the function
will be cancelled.
Note: Registered products can be set to operate auto-
matically via Programs.
16 VELUX VELUX 17
Menu
Locate
P1 P2
Menu
Locate
P1 P2
Yes No
ENGLISH ENGLISH

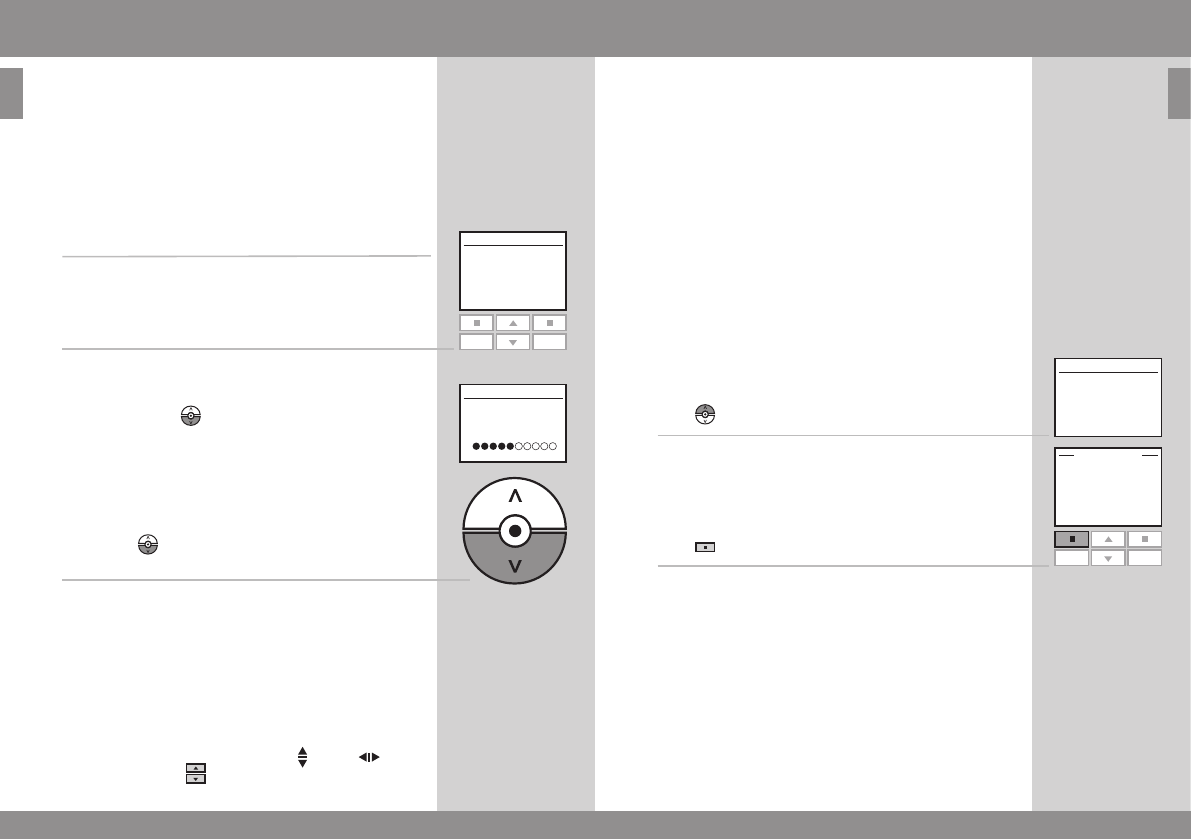

A product or a Group of products can be set to travel to
a certain position.
The example shows how to set a roller shade to close by
50%.
1 Locate the product in question, see section Locating and
operating a product.
2 Product chosen is displayed. The example shows roller
shade No. 2 (indicated as "Blind").
3 Press and hold key and watch the display. Each black
spot corresponds to the roller shade closing in 10% incre-
ments. Five black spots thus correspond to it closing by
50%.
Release key and the roller shade will travel to the pos-
ition chosen.
Note: A short key pressure will make the roller shade travel
to maximum top or bottom position.
Some decoration and sunscreening products can be
operated in two ways. For instance, a Venetian blind can
be drawn up and down and its slats can be tilted. Once the
product has been located, choose Tilt or Turn with
the navigation keys .
Choosing positions Disabling rain sensor
If the rain sensor gets wet, the skylight operator auto-
matically closes the skylight within 30 seconds.
If you want to open the skylight even if it is raining, you
must disable the rain sensor. When the rain sensor is dis-
abled, the skylight can only open up to 50% of its normal
opening distance.
The example shows how skylight No. 1 (indicated as "Win-
dow" in the remote display) is opened even if it is raining.

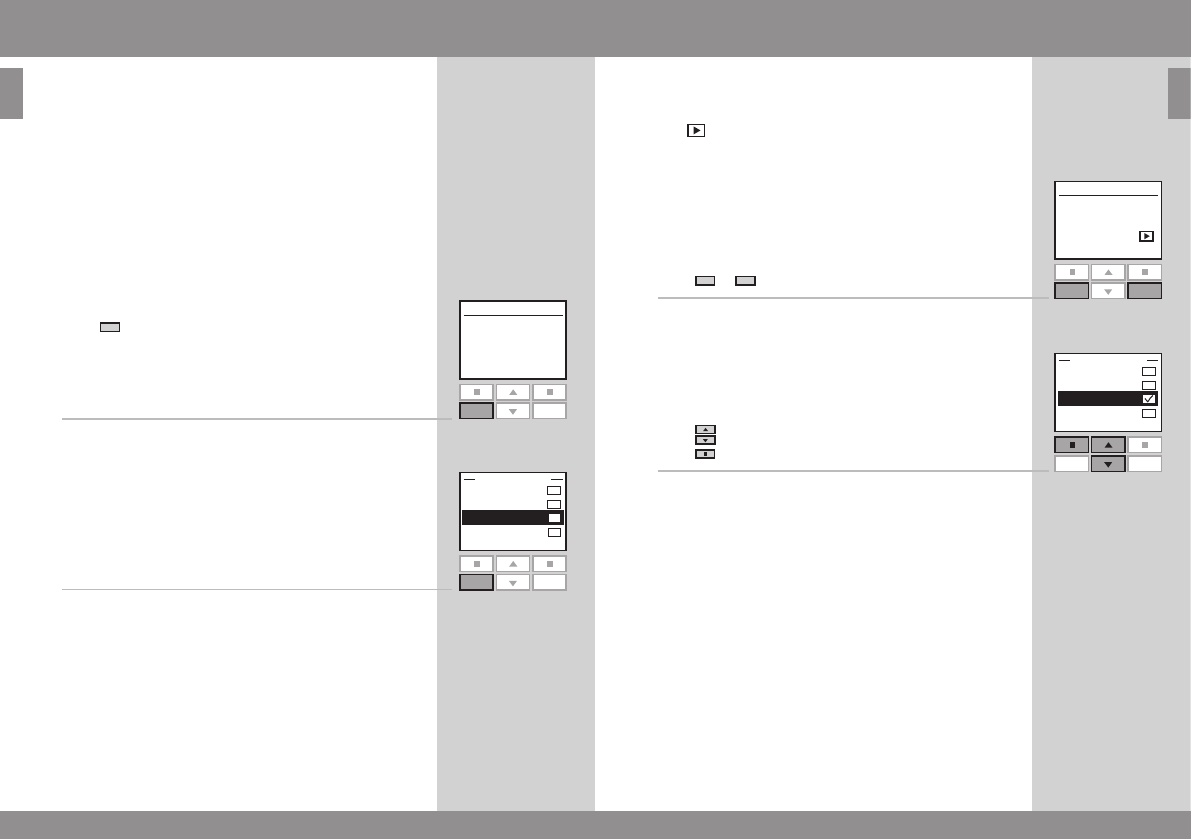

Note: If the rain sensor is disabled and "Auto Close" is not
set, see section Closing the skylight automatically, the
skylight will not close automatically for a period of
60 minutes. After this period, the skylight will remain
open as long as the rain sensor is dry.
1 Locate the skylight (indicated as "Window").
Press to open the skylight.
2 The display shows that the operation cannot be executed
because the skylight operator has been limited by the rain
sensor. You are asked whether the rain sensor is to be
disabled temporarily.
Press "Yes" to disable the rain sensor temporarily.
The rain sensor will now be disabled for 60 minutes.
When the skylight is closed, the rain sensor will be en-
abled again.
If the skylight is set to close automatically, the rain sensor
will only be disabled until the skylight is closed automatic-
ally.
Note: It is recommended to set the skylight to close
automatically to reduce the risk of water to the interior of
the building.
18 VELUX VELUX 19
Menu
Locate
Enter Back
Menu
Locate
P1 P2
Enter Back
P1 P2
Menu
Locate
P1 P2
Enter Back
Enter Back
Enter Back
Enter Back
Enter Back
P1 P2
ENGLISH ENGLISH

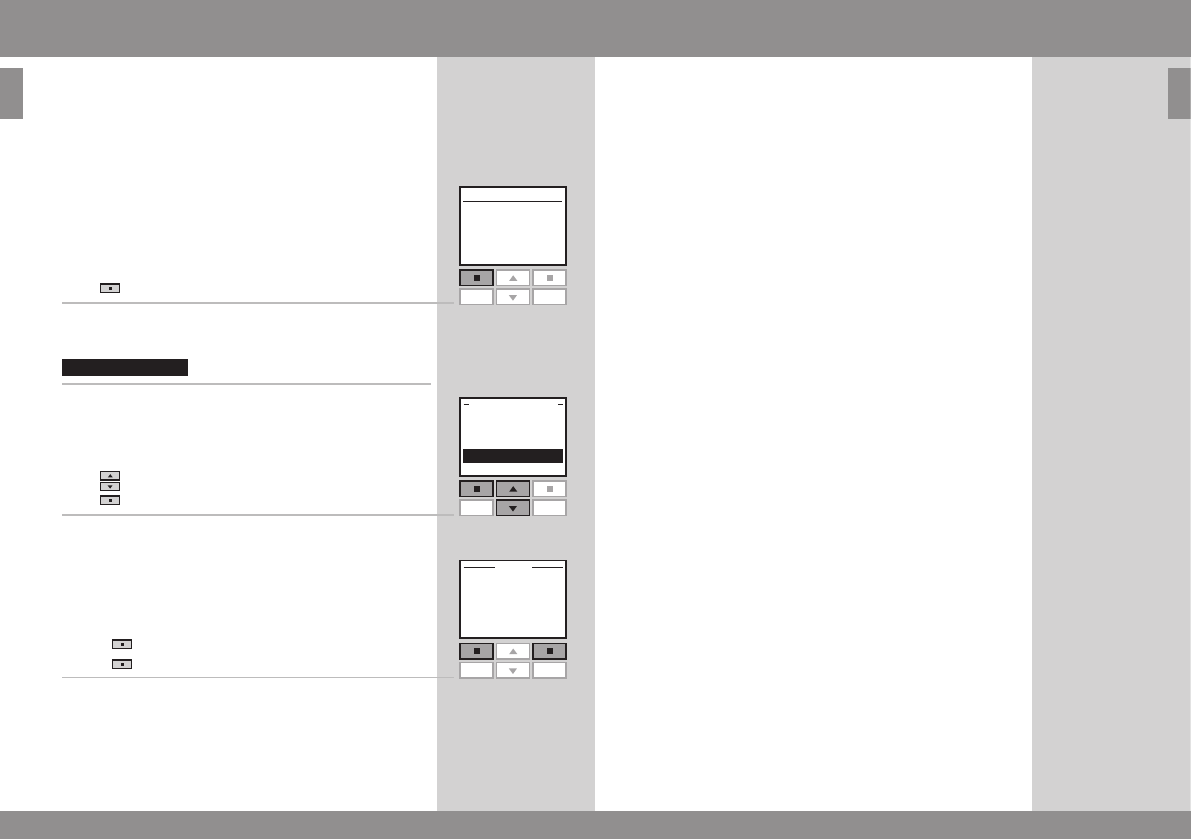

Menu guide
Guide to the menu functions of the remote control.
Additional information about the individual function is provided in the
relevant section.
Navigating through the menus
The example shows how to find the menu item Room by
means of menu choices.
1 Press "Menu".
2 Displays a list of menu items under Menu.
Press to highlight "House settings".
Press "Enter" to confirm your choice.
3 Displays a list of menu items under House settings.
Press to highlight "Room".
Press "Enter" to confirm your choice.
You can now proceed with the menu functions under menu
item Room.
This way of choosing menu items is shown as follows
in the rest of the instructions:

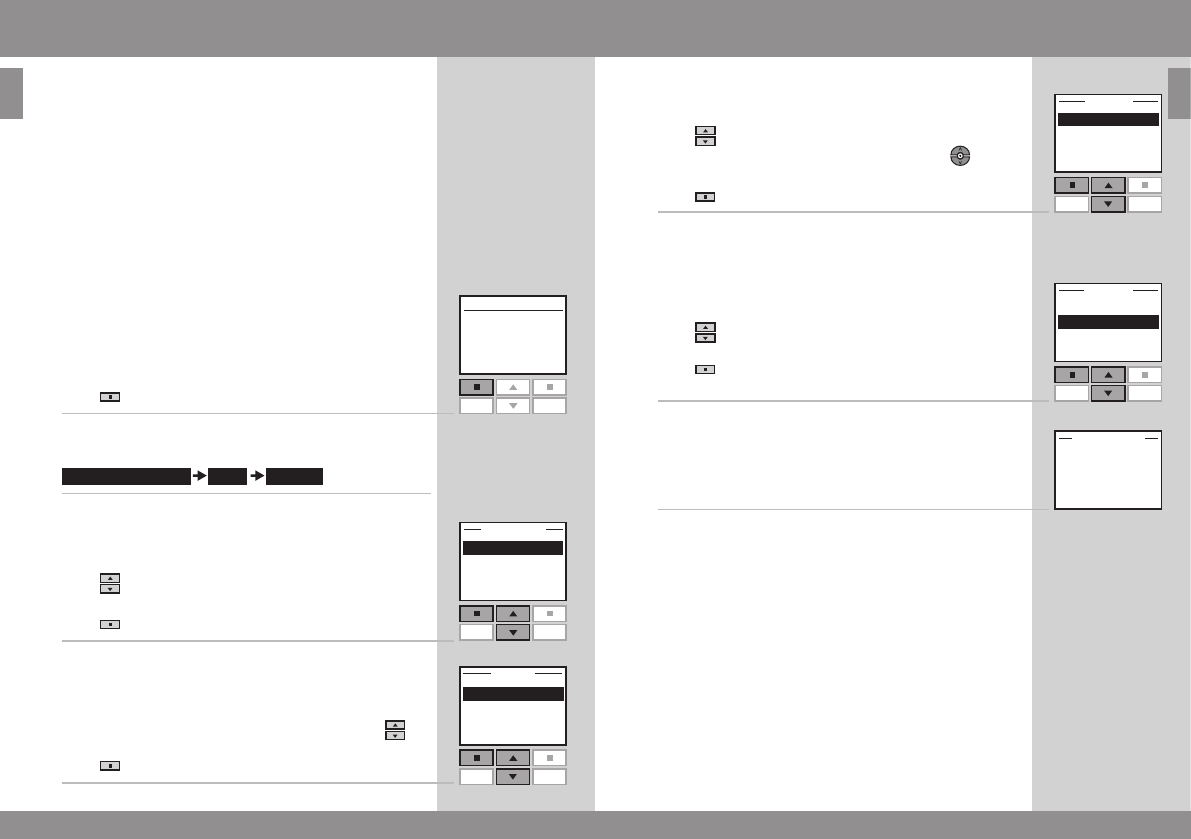

1 Press "Menu".
2 Scroll through the menus:
p. 42
p. 44-45
p. 20
p. 43
p. 48
p. 46-47
p. 26-27
p. 22-25
p. 50
p. 28-29
p. 60-61
p. 56-57
p. 52-53
p. 31-39
p. 49
20 VELUX VELUX 21
Menu
Locate
P1 P2
P1 P2
Enter Back
P1 P2
Enter
Back
ENGLISH ENGLISH

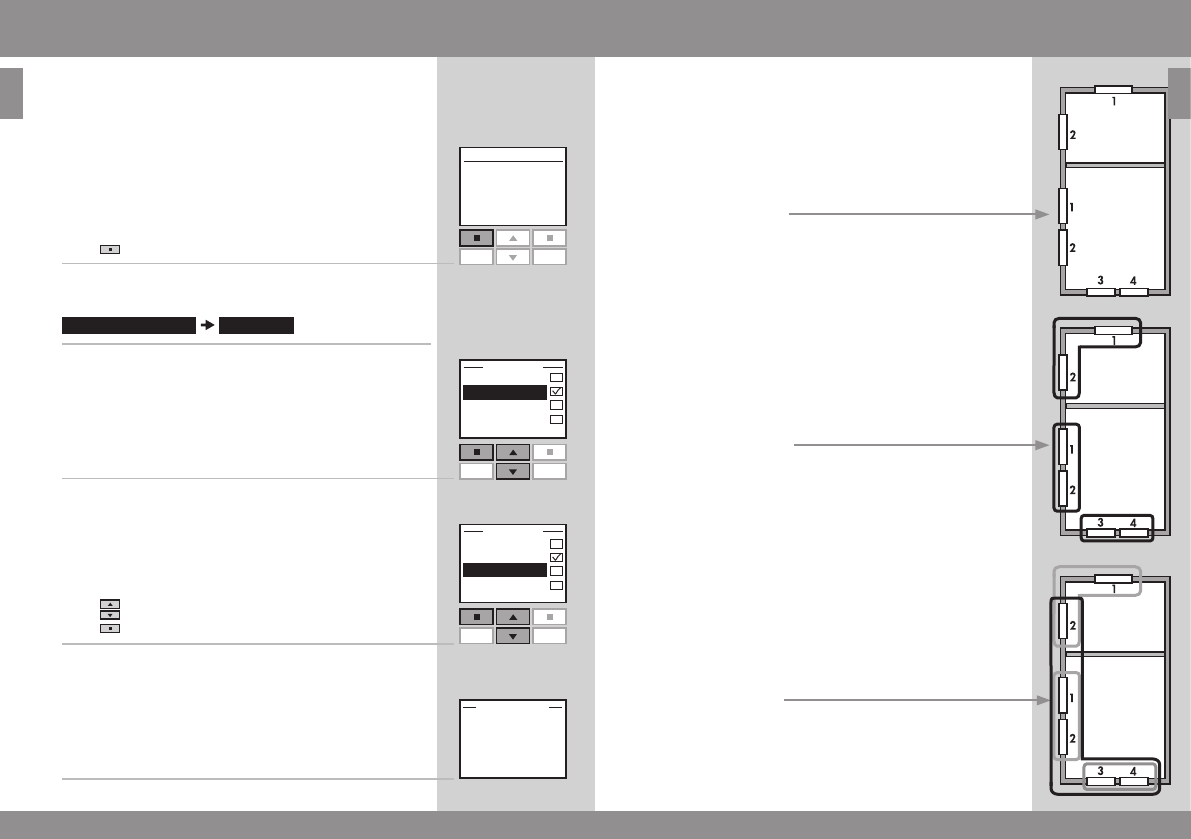

Room, Group and Zone
To make it easier to locate and operate the products it
is recommended to link each product to a Room and/or
a Group. Products are as default shown under the area
House.
Definition of Room
A Room consists of one or more products of any type
located in the same physical room, eg bedroom or kitchen.
A product can be assigned to one Room only.
Definition of Group
A Group consists of at least two products of the same type
(eg two roller shades).
In each Room, a Group "All" with all products of the same
type is automatically created to make it easier to locate
and operate products of the same type simultaneously.
Groups created across more Rooms are called Zones.
Definition of Zone
A Group created across more Rooms.
You can create a Zone consisting of for instance all roller
shades on the skylights of the house facing west and
south.

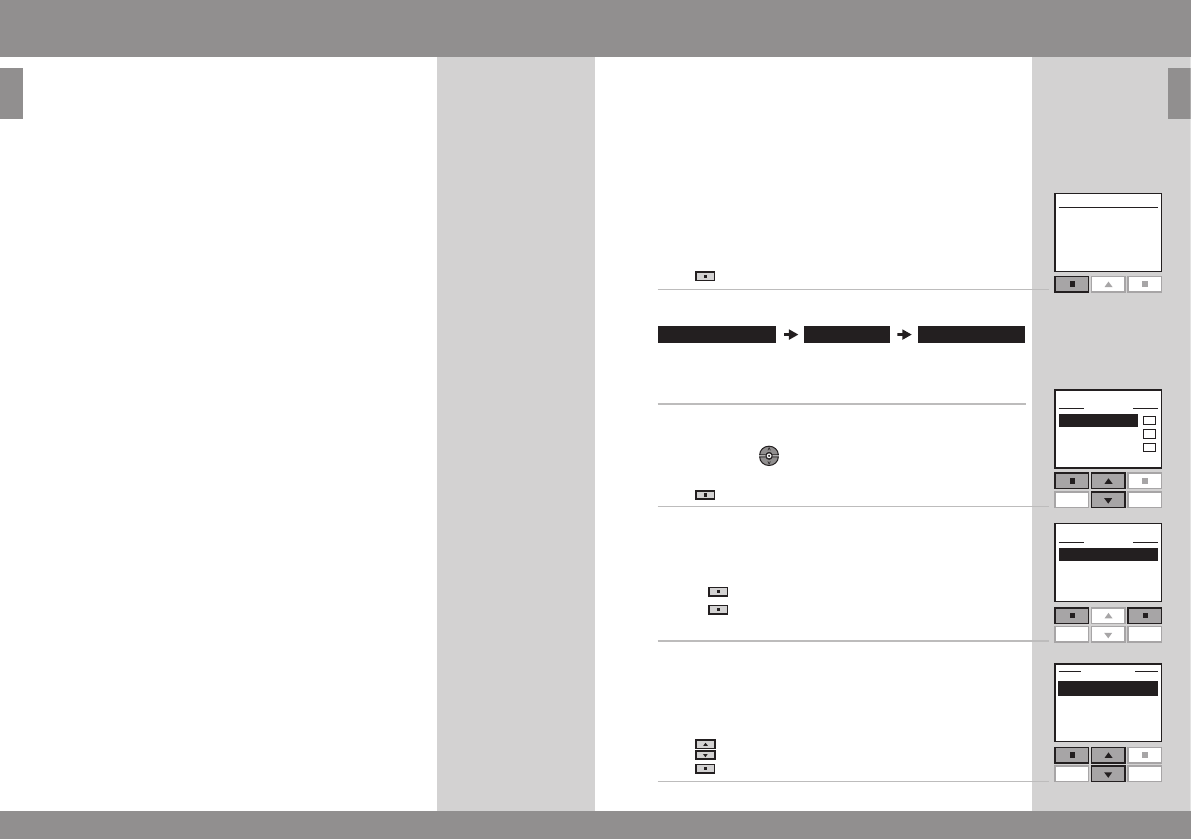

Changing language
You can change the display text language.
The example shows how to change it into French.
1 Press "Menu".
2 Scroll through the menus:
3 The display shows a list of languages. The current lan-
guage has been ticked.
4 Press to highlight a new language.
Press "Enter" to confirm your choice.
5 The display shows that the change has been saved.
Room 1
Room 2
Room 1
Room 2
Room 1
Room 2
22 VELUX VELUX 23
Menu
Locate
Enter
P1 P2
Back
Enter
P1 P2
Back
Enter Back
P1 P2
Yes No

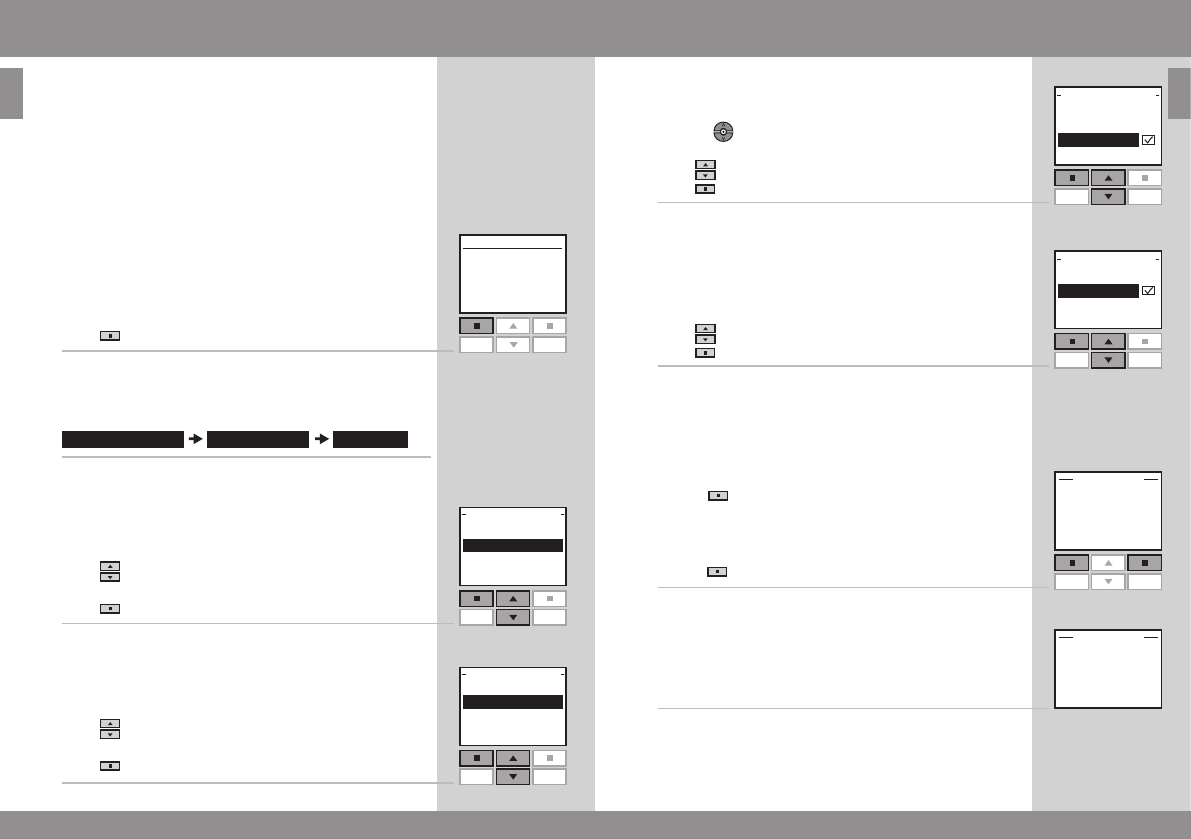

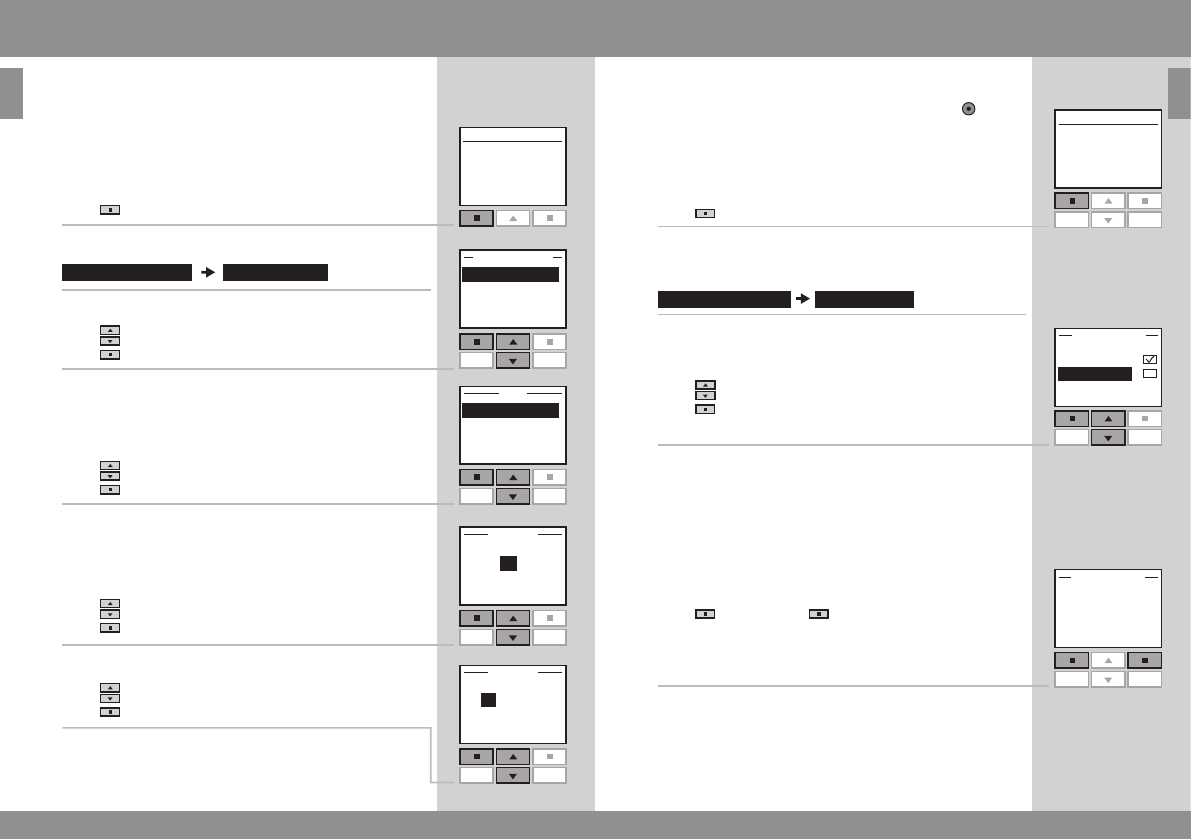

Rooms are created to make it easier to locate and operate
your products.
The example shows two rooms
with two skylights (indicated as
"Window" in the remote display)
in each. Below it is shown how
to create Room 1 by moving the
relevant products from House to
Room 1.
1 Press "Menu".
2 Scroll through the menus:
3 Displays the areas, here the area House.
Press to highlight the area with the product to be as-
signed to Room 1 first.
Press "Enter" to confirm your choice.
4 Displays a list of all products in House. The product type,
in this case skylights (indicated as "Window"), appears in
the display. The individual products can be identified by
pressing for a short period of time. This will activate
the product briefly.
Press to highlight the product to be moved to Room 1.
Press "Enter" to confirm your choice.
5 Displays the product chosen.
• Press "More" to move additional products to Room 1.
You will return to the list in item 4. Repeat items 4-5 until
the relevant products have been moved to Room 1.
• Press "Continue" to proceed.
6 Displays a list of options.
Press to highlight "Save new Room".
Press "Enter" to confirm your choice.
Highlight one of the other options to undo your choice.
7 The display shows that a new Room has been created.
8 The display asks whether you want the remaining products
to be assigned to the next Room.
• Press "Yes" to save the remaining products in
Room 2.
• Press "No" to return automatically to the list in
item 3 and possibly create more Rooms.
Note: When creating Room 1, Room 2 will automatically
be created.
9 The display shows that a new Room has been created.
Note: Numbers are assigned in
the order in which the products
are moved to the Room in ques-
tion.
More
P1 P2
Continue
ENGLISH ENGLISH
Creating a Room
24 VELUX VELUX 25
Enter Back
Enter Back
Enter Back
P1 P2
Menu
Locate
P1 P2
Enter Back
P1 P2
P1 P2
P1 P2
ENGLISH ENGLISH

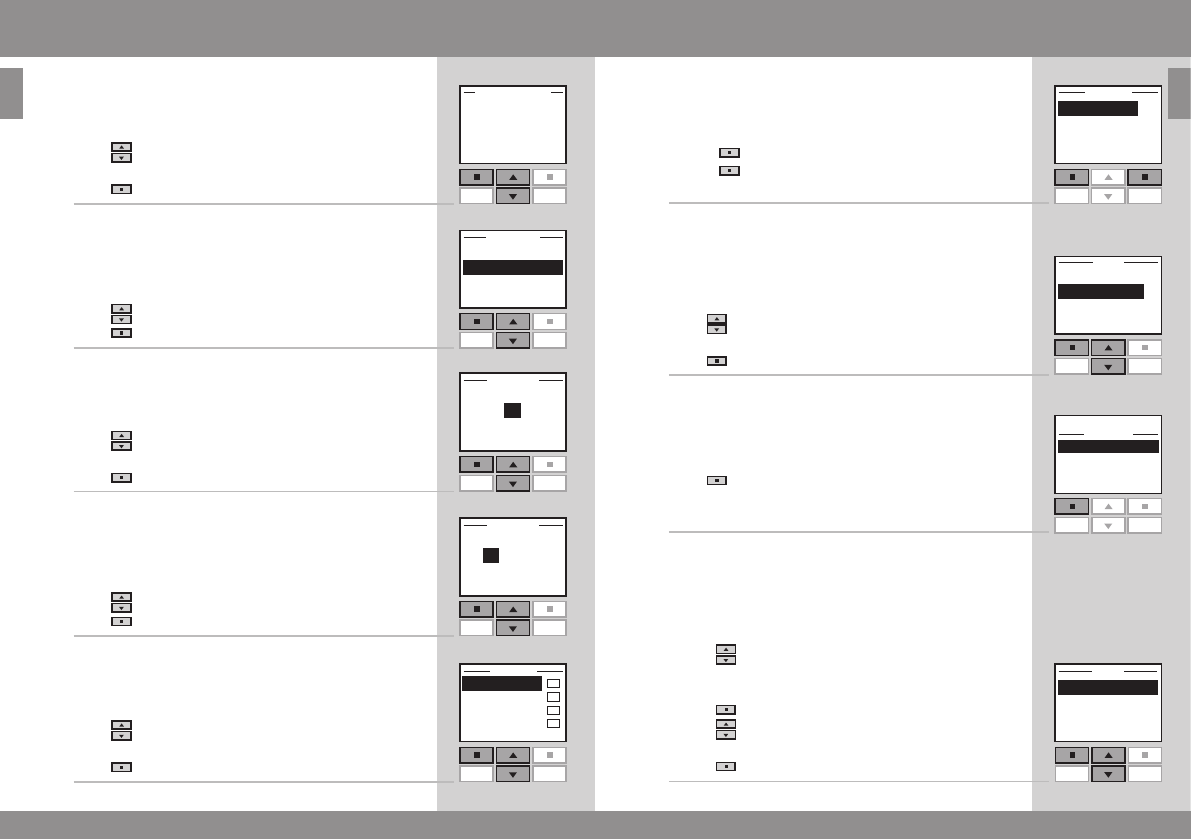

You can edit the Rooms you have created, ie one or more
products can be moved from one Room to another.
The example shows how the skylight operator in skylight
No. 1 (indicated as "Window" in the remote display) can be
moved from Room 1 to Room 2.
1 Press "Menu".
2 Scroll through the menus:
3 Displays a list of the Rooms created.
Press to highlight the Room from which the product is
to be moved.
Press "Enter" to confirm your choice.
4 Displays a list of product types in the Room from which the
product is to be moved.
To choose the product type skylight operator, press
and highlight "Window".
Press "Enter" to confirm your choice.
Editing a Room
5 Displays a list of the individual products within the product
type in question.
Press to highlight the product to be moved. The in-
dividual products can be identified by pressing for a
short period of time. This will activate the product briefly.
Press "Enter" to confirm your choice.
6 Displays a list of Rooms in which the product can be
placed.
Press to highlight the Room in which the product is to
be placed.
Press "Enter" to confirm the new location of the
product.
7 The display shows that several Rooms have been modified.
Groups are edited according to the same principle as
Rooms.
Note: Numbers are assigned in the order in which the
products are moved to the Room in question.
26 VELUX VELUX 27
Enter Back
P1 P2
More Save
P1 P2
Creating a Group
Menu
Locate
P1 P2
Enter Back
P1 P2
Enter Back
P1 P2
ENGLISH ENGLISH
5 Displays a list of the individual products within the product
type in question.
Press to highlight the product to be included in Group 1.
The individual products can be identified by pressing
for a short period of time. This will activate the product
briefly.
Press "Enter" to confirm your choice.
6 The display asks whether additional products are to be
moved to Group 1.
• Press "More" to move additional products to Group
1. You will return to the list in item 5. Repeat items 5-6
until these products have been moved to Group 1.
• Press "Save" to create Group 1.
7 The display shows that Group 1 has been created in
Room 1.
Groups are edited according to the same principle as
Rooms.
Note: When operating Groups a delayed execution of
commands might occur. If you want a particular product to
respond at once, this product must be operated individu-
ally.
2
1
3
4

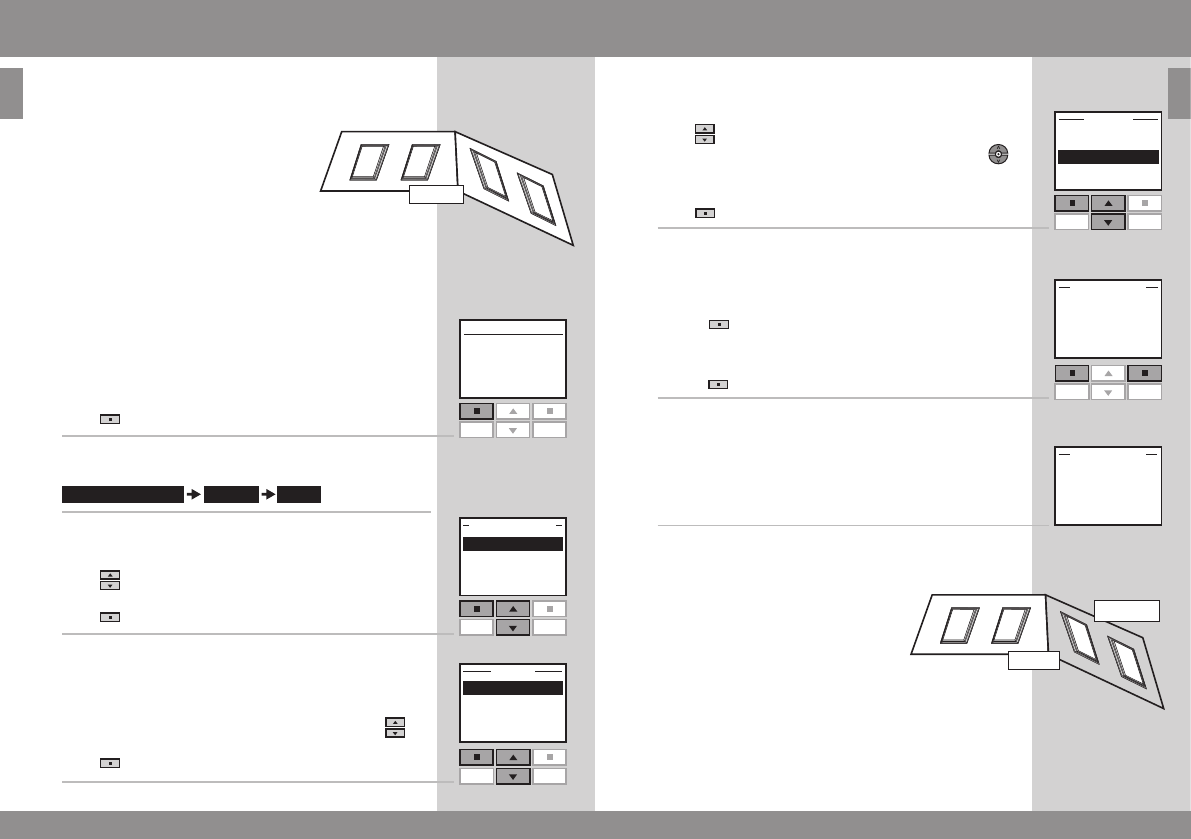

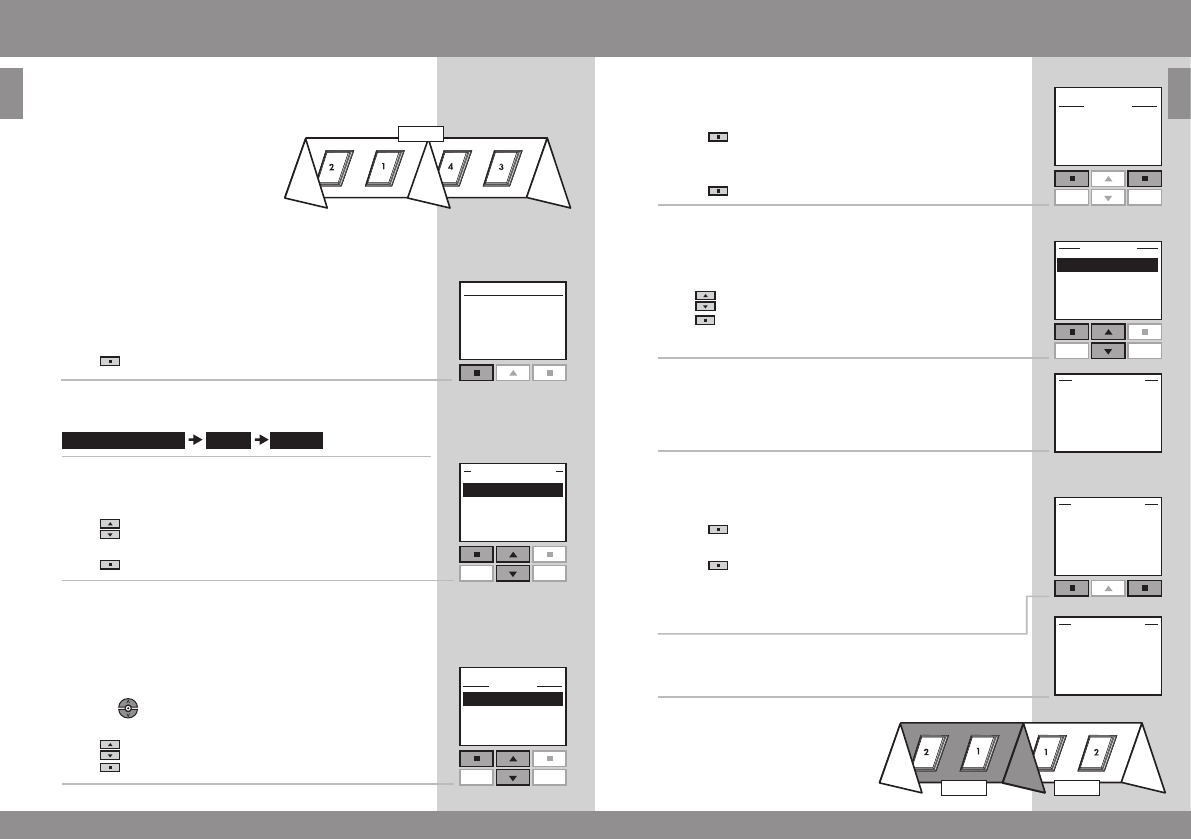

To make it easier to locate and operate products of the
same type simultaneously, you can create a Group.
The example shows a room with four
skylights, each with a skylight oper-
ator. It is shown how to create Group
1 consisting of the skylight operators
on the two skylights No. 3 and No. 4
(indicated as "Window" in the remote
display). The example presupposes
that Room 1 has been created.
Note: A number of Groups, "All" each consisting of all
products of the same type in the Room in question, was
created automatically when Room 1 was created, see sec-
tion Room, Group and Zone.
A Group created across more Rooms is shown in the
display as a Zone.
1 Press "Menu".
2 Scroll through the menus:
3 Displays a list of the Rooms created.
Press to highlight the Room in which Group 1 is to be
created.
Press "Enter" to confirm your choice.
4 Displays a list of the product types in Room 1.
To choose the product type skylight operator, press to
highlight "Window".
Press "Enter" to confirm your choice.
2
1
3
4
R1
28 VELUX VELUX 29
Menu
Locate
P1 P2
Enter Back
P1 P2
Enter Back
P1 P2
Enter Back
P1 P2
Enter Back
P1 P2
Enter Back
P1 P2
ENGLISH ENGLISH
Naming
You can change the name of House and the names of the
automatically numbered Rooms, Zones, Groups, products
and Programs into more personal names.
The example shows how to change Room 1 into Kitchen.
Note: When you have used the function Rename, auto-
matic renumbering is disabled.
1 Press "Menu".
2 Scroll through the menus:
3 Displays a list with House, Room, Zone, Group and Product.
Press to highlight "Room".
Press "Enter" to confirm your choice.
4 Displays a list of the names automatically given to the
Rooms.
Press to highlight "Room 1".
Press "Enter" to confirm your choice.
5 Displays a list of characters including the save function ,
the delete function and the space character .
6 Enter the new name using the list of characters.
Press to highlight the character required.
Press "Enter" after each character.
7 Save the new name by choosing in the list when the
last character has been entered.
Press "Enter".
8 The display shows that the new name has been
saved.
30 VELUX VELUX 31
Enter Back
P1 P2
Menu
Locate
Enter
Edit
P1 P2
P1 P2
Select Back
ENGLISH ENGLISH
Programs
A program contains a sequence of commands on how and
when the products are to be operated.
There are three dierent program types:
• My program
A personal program that will be activated automatically
without using the remote control.
For instance you can record a morning program to
run up the roller shades in the bedroom and open the
skylights between 7 and 7.15 am on weekdays from
October to April.
• Program under Shortcut P1/P2
A personal program that can be activated by using the
shortcut keys.
For instance you can record and save a program under
shortcut key P1 to close all skylights in the house and
draw all blinds down by 50%.
• Synergy program
A pre-defined program for control of exterior
sunscreening products optimised for the European
countries and based on local conditions.
My program is an automatically activated program which
contains a sequence of operating commands for one or
more products. The sequence is automatically activated at
a pre-set time within a period defined by a starting date
and an end date.
The example shows how to program skylight No. 1 (indi-
cated as "Window" in the remote display) to open
at 6.30 pm and close again at 10.00 pm each Monday for
12 months.
1 Press "Menu".
2 Scroll through the menus:
Note: If the current time and date has not been set
already, please do so before choosing "My program", see
section Time and date.
3 Locate the skylight. The relevant product can be identi-
fied by pressing for a short period of time. This will
activate the product briefly.
Press "Select" to choose the product.
4 The display shows the selected product.
• Press "Enter" to confirm your choice.
• Press "Edit" to select additional products from the
list.
5 Press to highlight "Set position".
Press "Enter" to confirm your choice.
My program
32 VELUX VELUX 33
P1 P2
Select Back
P1 P2
Enter Edit
P1 P2
Enter Back
P1 P2
Enter Edit
Enter Back
P1 P2
Enter Back
P1 P2
Enter Back
P1 P2
Enter Back
P1 P2
Enter Back
P1 P2
6 Press to set the opening position of the skylight.
100% corresponds to fully open.
Press "Enter" to confirm your setting.
7 Press to highlight "Save position".
Press "Enter" to confirm your choice.
8 Press to set the time for the skylight to be opened.
First choose minutes.
Press "Enter" to change to hours.
9 Press to set hours.
Press "Enter" to confirm your setting.
10 Press to select the day of the week for the skylight
to be opened.
Press "Select".
ENGLISH ENGLISH
My program
11 The display shows the chosen day of the week.
• Press "Enter" to confirm your choice.
• Press "Edit" to return to item 10 in case of addi-
tions or changes.
12 The display shows various options.
Press to highlight "Add functions" to set the closing
position of the skylight plus the day and time for closing.
Press "Enter" to confirm your choice.
13 The display shows the latest selected product.
Press "Enter" to continue.
Repeat items 5-11, only this time applied to the closing
settings.
14 The display shows various options.
• Press to highlight "Add functions" to add add-
itional operating commands for the skylight or other
products to the program.
Press "Enter" to return to item 13.
• Press to highlight "Save program" to save the
program as it is.
Press "Enter" to save the program.
34 VELUX VELUX 35
Enter Back
P1 P2
Select Back
P1 P2
Enter Edit
P1 P2
Enter Edit
P1 P2
ENGLISH ENGLISH
My program
15 The display automatically suggests the name "My
program 1".
Press "Enter" to save the name.
Follow the instructions in section Naming to change this
name.
16 The display asks whether to enable the program or to
keep it disabled.
Press to highlight "Enable".
Press "Select" to confirm your choice.
Set starting and end date to enable the program.
Starting date:
17 Press "Edit" to choose a starting date.
Press "Enter" to confirm your setting.
End date:
18 Press "Edit" to choose an end date.
Press "Enter" to confirm your setting.
19 The display shows that My program 1 is enabled in the
chosen period.
Choose "Enable" under menu item Program settings
to get a full list of all recorded programs that can be
activated automatically. The list comprises both enabled
and disabled programs. The enabled programs have been
ticked and the disabled programs can be enabled any
time you want.
Note: For solar products, automatically activated pro-
grams may result in a quick discharge of the battery due
to frequent operation of the products.
36 VELUX VELUX 37
Menu
Locate
Select
P1 P2
Back
Enter Back
P1 P2
Enter Back
P1 P2
Back
P1 P2
Enter Back
P1 P2
Enter Back
P1 P2
Enter Back
P1 P2
Enter
Enter
P1 P2
Edit
ENGLISH ENGLISH
Program under Shortcut P1/P2
A program under Shortcut P1/P2 contains a sequence
of operating commands for one or more products. The
sequence is activated by pressing shortcut key P1 or P2.
You can record up to eight programs, four under each of
the shortcut keys. The programs can be set to be execut-
ed immediately, with a delay or at a certain time.
The example shows how to program skylight No. 1
(indicated as "Window" in the remote display) to open
immediately and close again after 1 hour and 30 minutes
(delay) by a single pressure on shortcut key P1.
1 Press "Menu".
2 Scroll through the menus:
Note: If the current time and date has not been set al-
ready, please do so before choosing "Shortcut P1/P2", see
section Time and date.
3 Locate the skylight. The relevant product can be identi-
fied by pressing for a short period of time. This will
activate the product briefly.
Press "Select" to select the product.
4 The display shows the selected product.
• Press "Enter" to confirm your choice.
• Press "Edit" to select additional products from the
list.
5 Press to highlight "Set position".
Press "Enter" to confirm your choice.
6 Press to set the opening position of the skylight.
100% corresponds to fully open.
Press "Enter" to confirm your setting.
7 Press to highlight "Save position".
Press "Enter" to confirm your choice.
8 The display shows two time setting options.
Press to highlight "Delay", ie the time that will pass
from pressing P1 till the product will be activated.
Press "Enter" to confirm your choice.
9 Press to set the relevant delay. First choose minutes.
Choose 0 minutes if you want the skylight to open im-
mediately.
Press "Enter" to change to hours.
10 Press to set hours.
Press "Enter" to confirm your setting.
38 VELUX VELUX 39
P1 P2
Enter Edit
Enter Back
P1 P2
Enter Back
P1 P2
Enter Back
P1 P2
Enter Back
P1 P2
Enter Back
P1 P2
Enter Back
P1 P2
Enter Back
P1 P2
Enter Back
P1 P2
ENGLISH ENGLISH
Program under Shortcut P1/P2
11 The display shows various options.
Press to highlight "Add functions" to set the closing
position and time of the skylight.
Press "Enter" to confirm your choice.
12 The display shows the latest selected product.
Press "Enter" to continue.
13 Press to highlight "Set position".
Press "Enter" to confirm your choice.
14 Press to set the closing position of the skylight. 0%
corresponds to fully closed.
Press "Enter" to confirm your setting.
15 The display shows two time setting options.
Press to highlight "Delay", ie the time that will pass
from pressing P1 till the product will be activated.
Press "Enter" to confirm your choice.
16 Press to set the delay. First choose minutes.
Press "Enter" to change to hours.
17 Press to set hours.
Press "Enter" to confirm your setting.
18 The display shows various options.
• Press to highlight "Add functions" to add add-
itional operating commands for the skylight or other
products to the program.
Press "Enter" to return to item 12.
• Press to highlight "Save program" to save the
program as it is.
Press "Enter" to save the program.
19 The display automatically suggests the name
"Shortcut 1".
Press "Enter" to save the name.
Follow the instructions in section Naming to change this
name.
20 The display shows that Shortcut 1 has been saved.
40 VELUX VELUX 41
Menu
Locate
P1 P2
Start Back
P1 P2
Menu
Locate
P1 P2
Stop Back
P1 P2
ENGLISH ENGLISH
Program under Shortcut P1/P2
Activating a program under Shortcut P1/P2
You can activate any one of the personal shortcut
programs by pressing the shortcut key P1 or P2. You can
still use the various functions of the remote control at the
same time as one or more programs have been activated.
Below four shortcut programs have been recorded under
shortcut key P1. The example shows how to activate the
program under Shortcut 3 via shortcut key P1.
1 Press P1 three times to activate the program under
Shortcut 3.
Note: Max time interval between each key pressure:
2 seconds. Otherwise the shortcut program that happens
to be highlighted will be activated.
2 Shortcut 3 is highlighted in the display and the program
automatically starts.
Interrupting a program under Shortcut P1/P2
Icon indicates that a program has been activated. A
shortcut program in progress can be interrupted as
follows:
1 Press P1 or P2 to find the shortcut program in progress.
2 The activated shortcut program has been ticked.
Press to highlight the program in question.
Press "Stop" to interrupt the program.
42 VELUX VELUX 43
Enter Back
P1 P2
Menu
Locate
P1
Enter Back
P2
P1 P2
Menu
Menu
Locate
Locate
P1 P2
Enter
Back
Back
Enter
Menu
Locate
P1 P2
P1 P2
Enter Back
P1 P2
ENGLISH ENGLISH

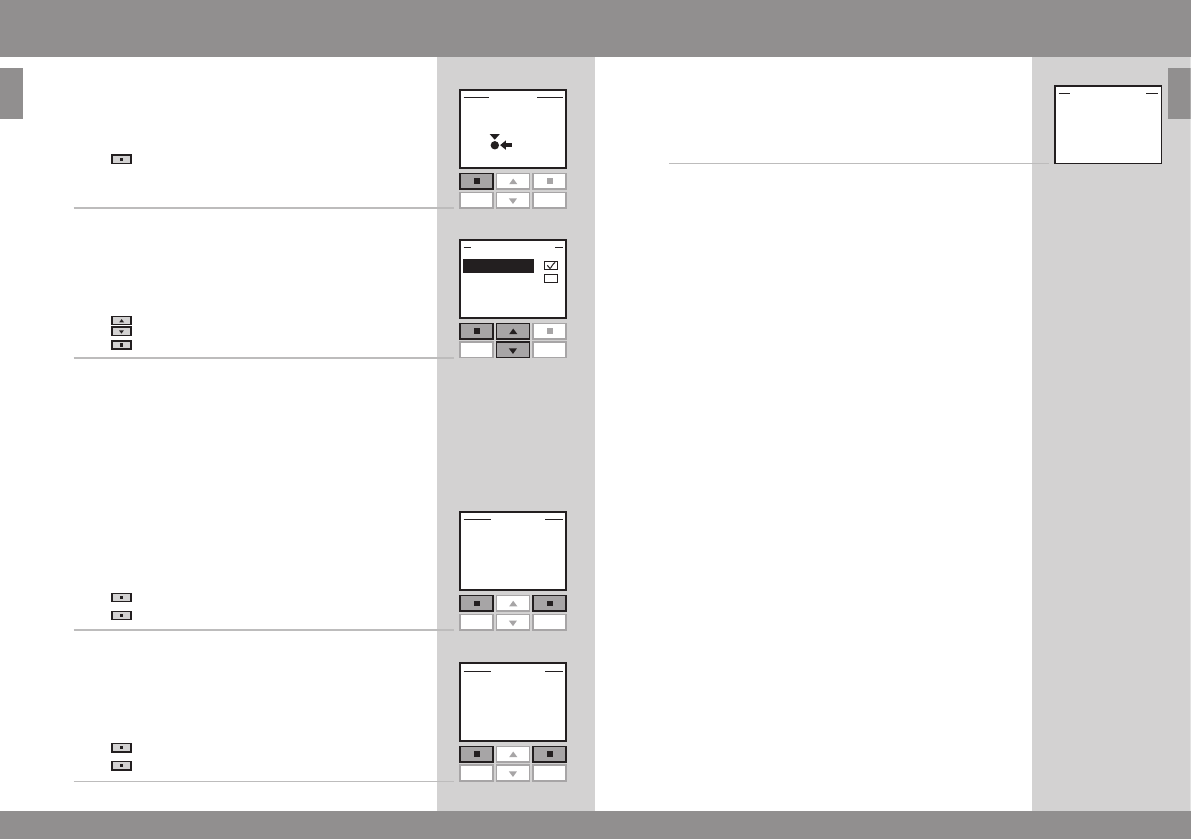

Keypad lock
The keypad can be locked so that products cannot be oper-
ated without unlocking the keypad. The stop key can
still be used.
1 Press "Menu".
2 Scroll through the menus:
3 Press to highlight "Enable".
Press "Enter" to confirm your choice.
The keypad lock is immediately activated.
Using the keypad even if it is locked:
Message as shown.
Press "Menu". Press "Locate".
The keypad has temporarily been unlocked.
The keypad will automatically be locked again 20 seconds
after it has been used.
Note: The keypad lock can be deactivated by choosing
"Disable" in item 3.
Time and date
Time and date must be set manually the first time the
remote control is to be used. The time and date format
can be set in item 4 by choosing "Set format".
The example shows how to set the time. The date is set
correspondingly by choosing "Date" in item 3.
1 Press "Menu".
2 Scroll through the menus:
3 Press to highlight "Clock".
Press "Enter" to confirm your choice.
4 Press to highlight "Set time".
Press "Enter" to confirm your choice.
5 Press to set minutes.
Press "Enter" to change to hours.
6 Press to set hours.
Press "Enter" to confirm your settings.
Time is shown automatically when the remote control is
in sleep mode. See section Display.
44 VELUX VELUX 45
Enter Back
Menu
Locate
P1 P2
P1 P2
P1 P2
Enter Back
Menu
Locate
Enter Back
P1 P2
Enter Back
P1 P2
ENGLISH ENGLISH
Display
Display light
In standard settings, the light in the display is turned on
when the keypad is activated and turned o again after
20 seconds. If you do not want any light in the display and
you want to prolong the battery lifetime, you can opt out
of this.
The example shows how to turn o the light in the display.
1 Press "Menu".
2 Scroll through the menus:
3 Press to highlight "Display light".
Press "Enter" to confirm your choice.
4 Press to highlight "O".
Press "Enter" to confirm your choice.
Note: The light in the display can be turned on by choosing
"On" in item 4.
Sleep mode
The life of the batteries can be prolonged by setting the
remote control to go into sleep mode. When it has been
set to go into sleep mode, the light in the display will be
turned o 20 seconds after the latest key pressure. Time
is shown.
Press any key to activate the remote control again. How-
ever, the stop key can be used at any time.
The example shows how to set the remote control to go
into sleep mode.
1 Press "Menu".
2 Scroll through the menus:
3 Press to highlight "Sleep mode".
Press "Enter" to confirm your choice.
4 Press to highlight "On".
Press "Enter" to confirm your choice.
5 When the remote control is in sleep mode, time is shown.
Note: Choose "O" in item 4 if you do not want the
remote control to go into sleep mode.
46 VELUX VELUX 47
Menu
Locate
P1 P2
P1 P2
Enter Back
P1 P2
Enter Back
P1 P2
Enter Back
P1 P2
Enter Back
P1 P2
Save More
ENGLISH ENGLISH
You can rearrange the order of the individual products,
Groups, Rooms and Zones displayed.
In the example, three Rooms have been created. It shows
how to rearrange the order of the roller shades (indicated
as "Blind" in the remote display) in Room 2.
1 Press "Menu".
2 Scroll through the menus:
3 Displays a list of the Rooms created containing the prod-
ucts in question.
Press to highlight the Room in which the order of the
individual products is to be rearranged.
Press "Enter" to confirm your choice.
4 Displays a list of the product types in Room 2.
Press to highlight the product type where the order of
the individual products is to be rearranged.
Press "Enter" to confirm your choice.
Rearranging order
5 Displays a list of the individual products of the chosen
product type. The individual products can be identified by
pressing for a short period of time. This will activate
the product briefly.
Press to highlight the product in question.
Press "Enter" to confirm your choice.
6 The list of the individual products of the chosen product
type is still displayed.
Press to move the chosen product.
Press "Enter" to confirm the rearranged order.
7 The display asks whether the order of more products is to
be rearranged or whether the changes made until now are
to be saved.
• Press "More" to rearrange the order of more prod-
ucts. You will return to the list in item 5. Repeat items
5-7 until the required order of products has been
obtained.
• Press "Save" to save the rearranged product order.
8 The display shows that the order has been rearranged.
48 VELUX VELUX 49
Menu
Locate
Enter Back
Enter Back
Save Back
P1 P2
P1 P2
P1 P2
P1 P2
Menu
Locate
P1 P2
Back
P1 P2
Enter Back
P1 P2
ENGLISH ENGLISH
Access code
You can choose a personal access code to protect your
personal settings, for instance against unintentional dele-
tion of programs. The access code must consist of four
digits from 0 to 9.
1 Press "Menu".
2 Scroll through the menus:
3 Press to highlight "Select/Change".
Press "Enter" to confirm your choice.
4 Press to choose the first digit.
Press "Enter" to go to the next digit.
Press "Enter" when the last digit has been chosen.
5 Press "Save" to confirm and save the code.
Every time you now choose Menu, you must enter the ac-
cess code before you can proceed.
Note: The access code can be cancelled by choosing
"Delete" in item 3.
When addressing technical inquiries to VELUX, you will be
asked to provide the version number of the software in the
remote control. To find this proceed as follows:
1 Press "Menu".
2 Scroll through the menus:
3 The display shows a code, for instance 004.XXX.XXX.XXX.
The first three digits are the version number.
Press "Back" to return to the previous menu.
4 The display shows the previous menu.
Software version
50 VELUX VELUX 51
Menu
Locate
P1 P2
Yes No
P1 P2
Enter Back
P1 P2
ENGLISH ENGLISH
Clearing remote control settings
When clearing the remote control settings, all personal
settings for eg Rooms, Zones, Groups and Programs and
all personal names are deleted. The products, however,
remain registered in the remote control.
1 Press "Menu".
2 Select the submenu:
3 Displays a list of menu items.
Press to highlight "Clear".
Press "Enter" to confirm your choice.
4 The display asks whether you want to clear all Groups,
Rooms, Zones, Programs and personal names you might
have created.
• Press "Yes" to confirm your choice.
• Press "No" to cancel your choice.
The remote control settings are cleared.
52 VELUX VELUX 53
Menu
Locate
P1 P2
Enter Back
P1 P2
Menu
Locate
P1 P2
Enter
P1 P2
Enter Back
P1 P2
ENGLISH ENGLISH
Registering new products
When a new additional product has been installed, it can
be registered in a remote control already in operation.
This new product can for instance be another skylight, a
Venetian blind or a roller shade.
The example shows how to register a new roller shade
(indicated as "Blind" in the remote display) in the remote
control and place it in Room 1.

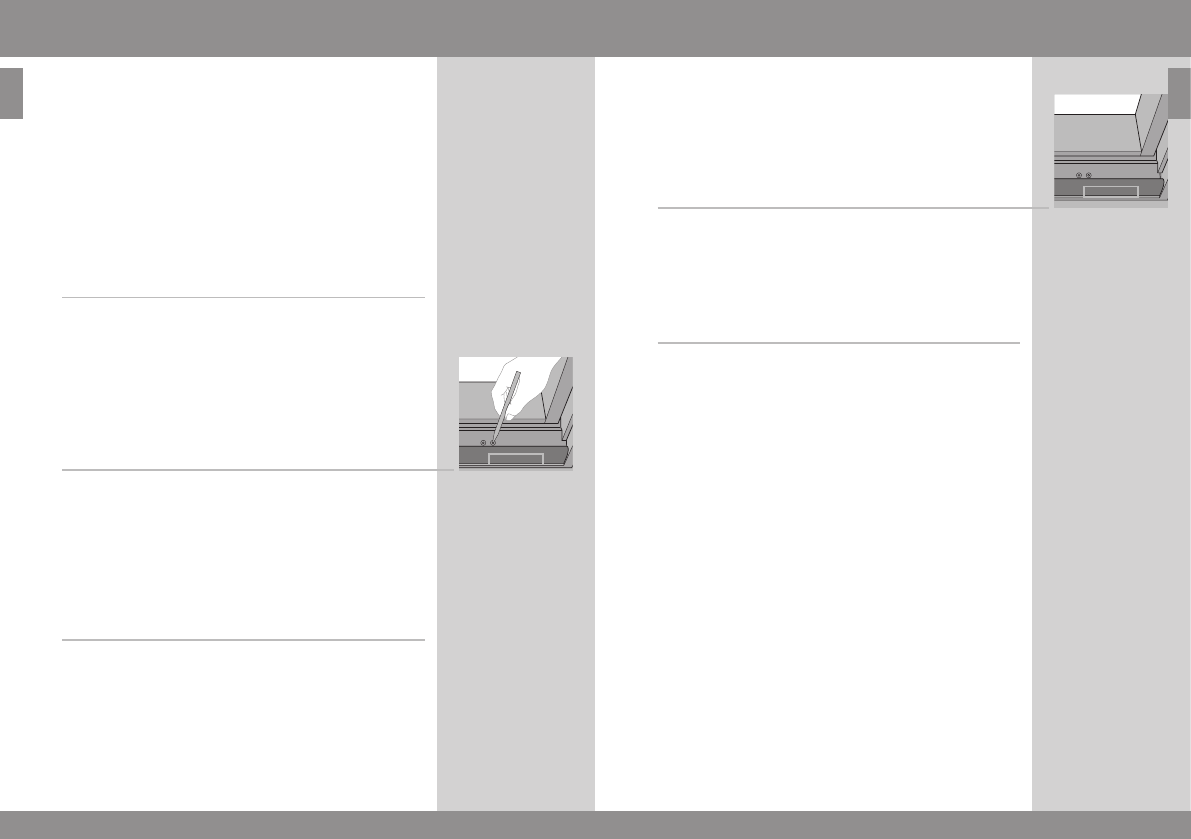

1 Prepare the product for registration.
Disconnect the main power supply for 1 minute and then
reconnect it. The product can now be registered in the
remote control within the next 10 minutes.
2 Press "Menu" in the remote control already in oper-
ation.
3 Select the submenu:
4 Press to highlight "Register product".
Press "Enter" to confirm your choice.
5 Registration is running. This can take up to two minutes.
6 The display shows that the new product has been regis-
tered.
Now the product must be placed.
7a If no Rooms have been created, the product is automat-
ically placed in House.
Operation can start.
7b If Rooms have been created, the product has to be
placed in the appropriate Room.
The display shows a list of new products. The individual
products can be identified by pressing for a short
period of time. This will activate the product briefly.
Press to highlight the product to be placed.
Press "Enter" to confirm your choice.
8 Displays a list of the Rooms created.
Press to highlight the Room in which the product is
to be placed.
Press "Enter" to confirm your choice.
9 The display shows that the Room has been modified.
Operation can start.
Where more than one remote control is used, new prod-
ucts can also be operated with these. To do this, register
the new products in each remote control by repeating
items 2-9 for each of them.
54 VELUX VELUX 55
ENGLISH ENGLISH

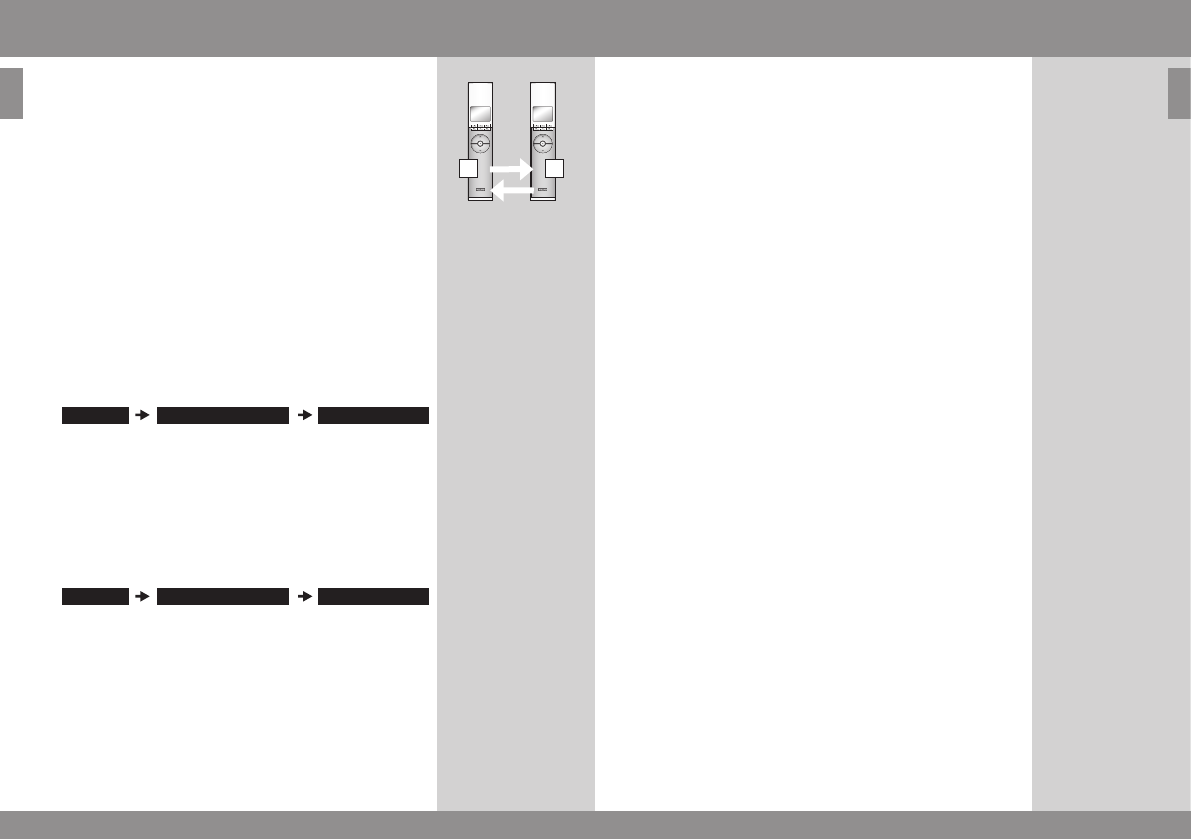

Using additional activation controls
Products and remote control settings can be copied
from one remote control to another. Copying depends
on whether the remote control to be copied to is new or
already in operation.
• Copying to a new remote control
How to copy the contents from one remote control to
another remote control not yet in operation.
• Copying to a remote control in operation
How to copy the contents from one remote control to
another remote control where the two remote controls
have not registered the same products.
Note: When copying between two VELUX remote
controls, all registered products and personal settings
are copied, apart from personal programs that cannot be
copied.
56 VELUX VELUX 57
Menu
Locate
P1 P2
A B
Enter
P1 P2
Register Info
Enter Back
B
ENGLISH ENGLISH

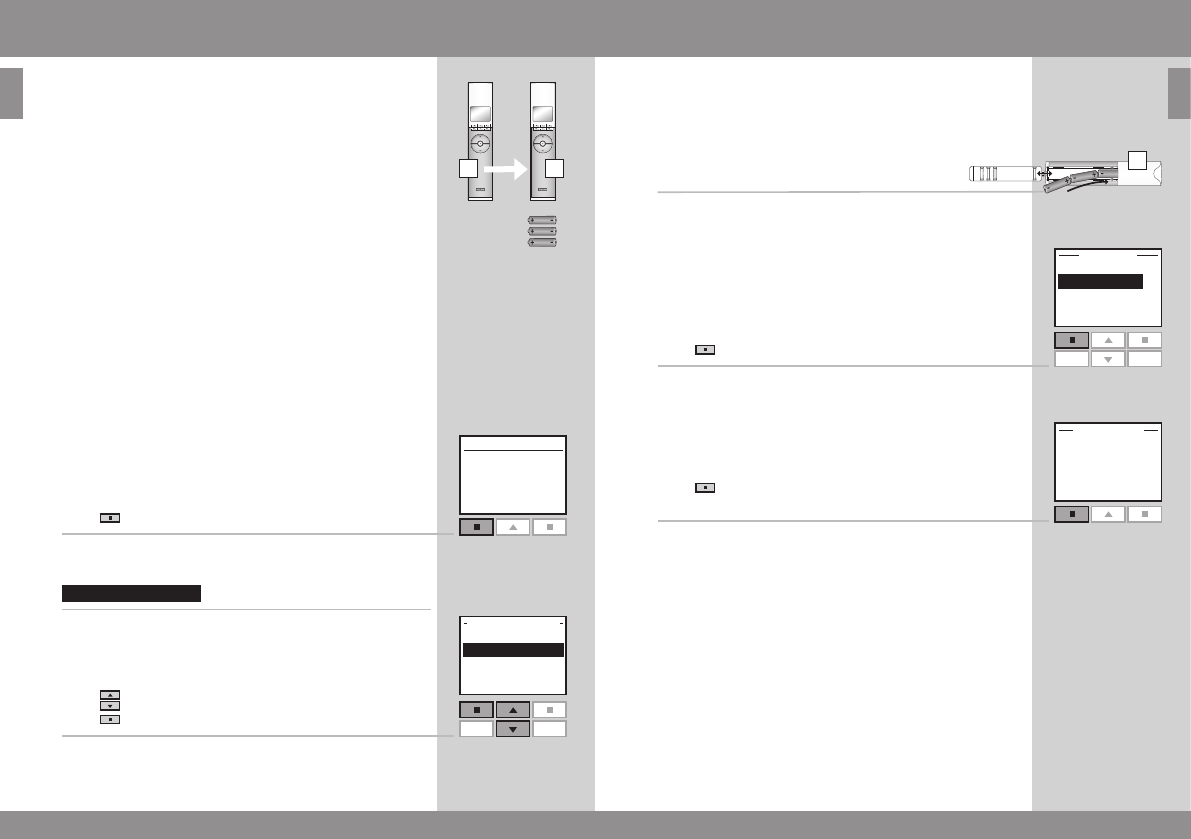

Copying to a new remote control
You can copy the contents from a remote control already in
operation to a new one so that the latter can also operate
the products registered.
The example shows how to copy the products and the
personal settings from a remote control A in operation to a
new remote control B not yet in operation.
Step 1: Prepare remote control A for copying
1 Press "Menu".
2 Select the submenu:
3 Press to highlight "Copy system".
Press "Enter" to confirm your choice.
Step 2 must now be completed within the next two min-
utes.
Step 2: Register products in remote control B

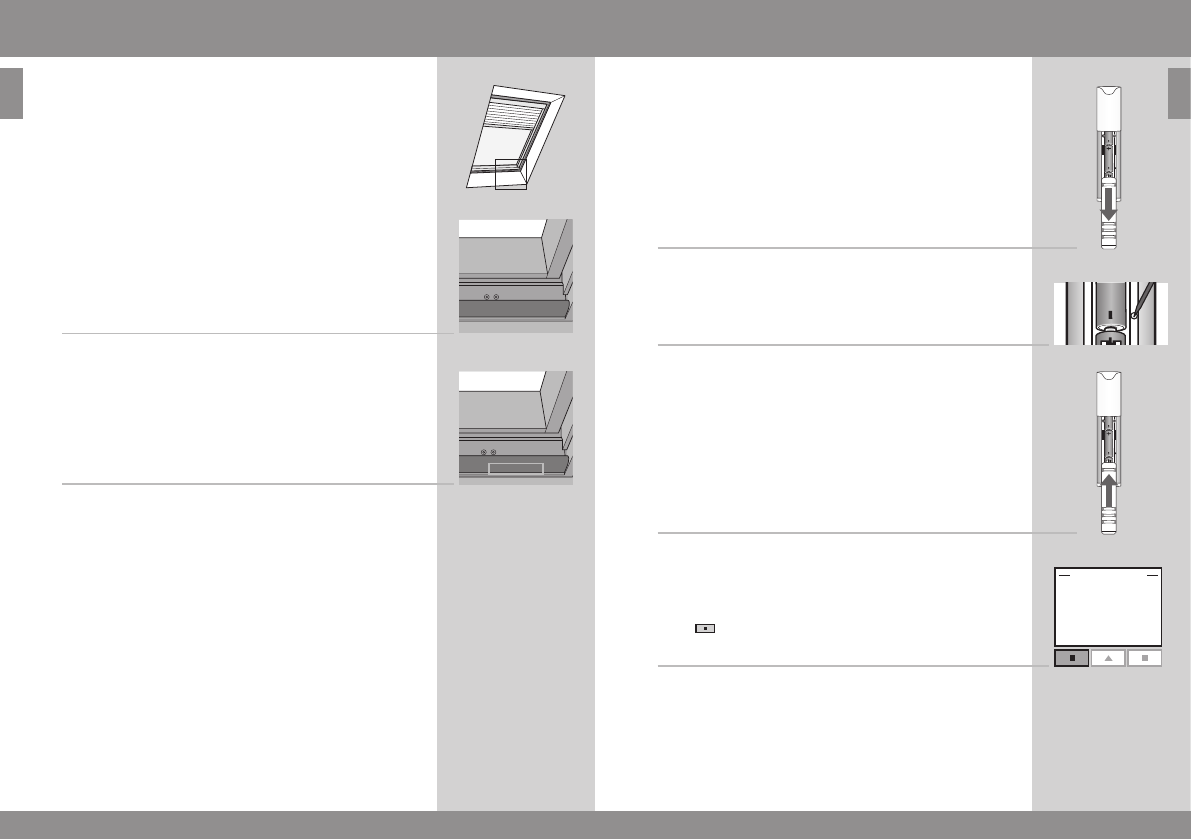

4 Insert the three batteries supplied
(type AA, 1.5 volt) into the remote
control as shown.
5 The language chosen in remote control A is automatically
chosen for remote control B.
Press "Enter".
6 Press "Register" to start registration of each product.
Please disregard the information in the display.
The display now indicates that copying is in progress.
Remote control B can now operate the same products as
remote control A.
58 VELUX VELUX 59
A B
ENGLISH ENGLISH
If you have two remote controls with dierent products
registered in them, you can copy the contents from one to
the other and vice versa. Then all products can be oper-
ated with both remote controls.
The example shows how to copy the products from re-
mote control A to remote control B and at the same time
maintain the settings and the programs of both remote
controls.
Step 1: Change security key in remote controls A and B
Change the security key in both remote controls so that
they have the same security key, see section Security key.
Step 2: Register the products in remote control A
Register all products in remote control A by choosing:
If in doubt, see section Registering new products.
Remote control A can now operate both the products
from remote control B and the products it could already
operate.
Step 3: Register the products in remote control B
Register all products in remote control B by choosing:
Remote control B can now also operate both the products
from remote control A and the products it could already
operate.
After this both remote controls can operate all products.
Copying to a remote control in operation
Note: With the shown procedure, only the products are
copied from remote control A to remote control B and
vice versa. If you want an exact copy of remote control
A with all personal settings such as Names, Rooms and
Groups, you must proceed dierently after step 2. First
reset remote control B, see section Resetting the remote
control. Then copy from remote control A as described in
section Copying to a new remote control.
60 VELUX VELUX 61
Menu
Locate
Enter Back
P1 P2
Yes No
ABAB
Menu
Locate
Enter Back
P1 P2
ENGLISH ENGLISH
Security key
Each remote control and each product have a security key.
To allow for communication between remote control and
products, they must have the same security key. This also
ensures that external activation controls cannot commu-
nicate with the products and thus operate the products
unintentionally.
The example shows how to change the security key in
remote control A and in the products registered in A
(step 1). If you have more than one remote control, the
new security key must also be transferred to these
(step 2).
Step 1: Change security key in remote control A
1 Press "Menu".
2 Scroll through the menus:
3 Press to highlight "Change".
Press "Enter" to confirm your choice.
The display now indicates that the security key has been
changed.
4 The display asks whether the security key of other remote
controls is to be changed.
• Press "No" to finish if this is the only remote control
being changed.
• Press "Yes" if there are other remote controls.
Execute step 2 for these.
Step 2: Change security key in remote control B (and
other)
1 Press "Menu".
2 Scroll through the menus:
3 Press to highlight "Receive".
Press "Enter" to confirm your choice.
The display indicates that the security key is being trans-
ferred from remote control A to remote control B.
62 VELUX VELUX 63
AB
AB
Yes No
ENGLISH ENGLISH
Resetting and preparing for registration
The skylight can be reset to its initial factory settings
and then be prepared for registration.
1 To reset the skylight, make sure that it has been closed
by inserting a pointed object in the skylight operator
cover hole marked A and pressing briefly.
2 When the skylight is closed, press with a pointed
object through the operator cover hole marked A for
at least 5 seconds. The skylight operator and other
electrical products connected to the skylight will run
briefly back and forth indicating that they are ready to
be registered.
Note: A reset removes the connection between the
skylight with its electrical products and all remote
controls. Therefore the products cannot be operated
until they have been registered in a remote control
again. To reinstate the connection between product
and remote control after reset, please refer to the
instructions in section Initial set-up.
The remote control can be reset to its initial factory set-
tings if you want to delete all registered products and all
programming and start afresh.
1 Slide o the battery cover as shown.
2 Press the button on the right side of the remote control
with a pointed object for at least 5 seconds.
3 Replace the battery cover.
4 Press "Yes" to confirm that you want to reset the
remote control.
The remote control has now been reset. To reinstate the
connection between remote control and products, please
refer to the instructions in section Initial set-up.
Resetting the remote control
64 VELUX VELUX 65
AB
AB
ENGLISH ENGLISH
4 When the skylight is closed, press with a pointed
object through the operator cover hole marked A for
at least 5 seconds. The skylight operator and other
electrical products connected to the skylight will run
briefly back and forth indicating that they are ready to
be registered.
5 To reinstate the connection between skylight and
remote control, register the skylight with its electrical
products in the remote control again. Please refer to
the instructions in section Initial set-up or Registering
new products.
Note: The same procedure applies to a change of
opening from in-reach to out-of-reach applications.
The skylight can be adjusted to two dierent open-
ings, depending on the installation height. By default
the opening is about 12" (300 mm), but for in-reach
applications where the skylight is installed less than
8 ft. (2.5 m) from the floor, the shorter 4" (100 mm)
opening must be used.
1 To change the opening, reset the skylight as described
in items 1 and 2 in section Resetting and preparing for
registration.
2 Disconnect the main power supply for more than
60 seconds. Reconnect the power, insert a pointed
object in the skylight operator cover hole marked B
and press for at least 10 seconds or until the skylight
opens. Button B must be pressed within 30 seconds
of reconnecting power. The skylight will open to the
opening that was already set in the skylight operator.
3 When the skylight stops, press briefly with a pointed
object through operator cover hole marked B to
change this opening to the alternative length. When
the skylight has stopped at the desired opening, press
briefly with a pointed object through operator cover
hole marked A to accept the new opening setting. The
skylight closes.
Adjusting the opening
66 VELUX VELUX 67
Fitting of holder for remote control
ENGLISH ENGLISH
If required, the remote control can be fastened with
screws to the holder.
1 Fit the back section to the wall with the two screws sup-
plied.
2 Place the remote control in the front section. Clip the
white strap around the assembled unit. Hook the as-
sembled unit to the back section at the top. Ensure that
the strap fits into the openings in the sides of the back
section. Lock the unit into place at the bottom.
3 Fix the unit with screw at the bottom.
The remote control is provided with a wall-mounted
holder, which can be fitted anywhere in your home.
Note: Check that the remote control can operate the
relevant products from the proposed position before it is
fastened to the holder.
1 Fit the back section to the wall with the two screws sup-
plied.
2 Hook the front section onto the back section at the top,
click it into place at the bottom and fix it with a screw.
3 Place the remote control in the holder. It is secured by
means of built-in magnets.
68 VELUX VELUX 69
AB
ENGLISH ENGLISH

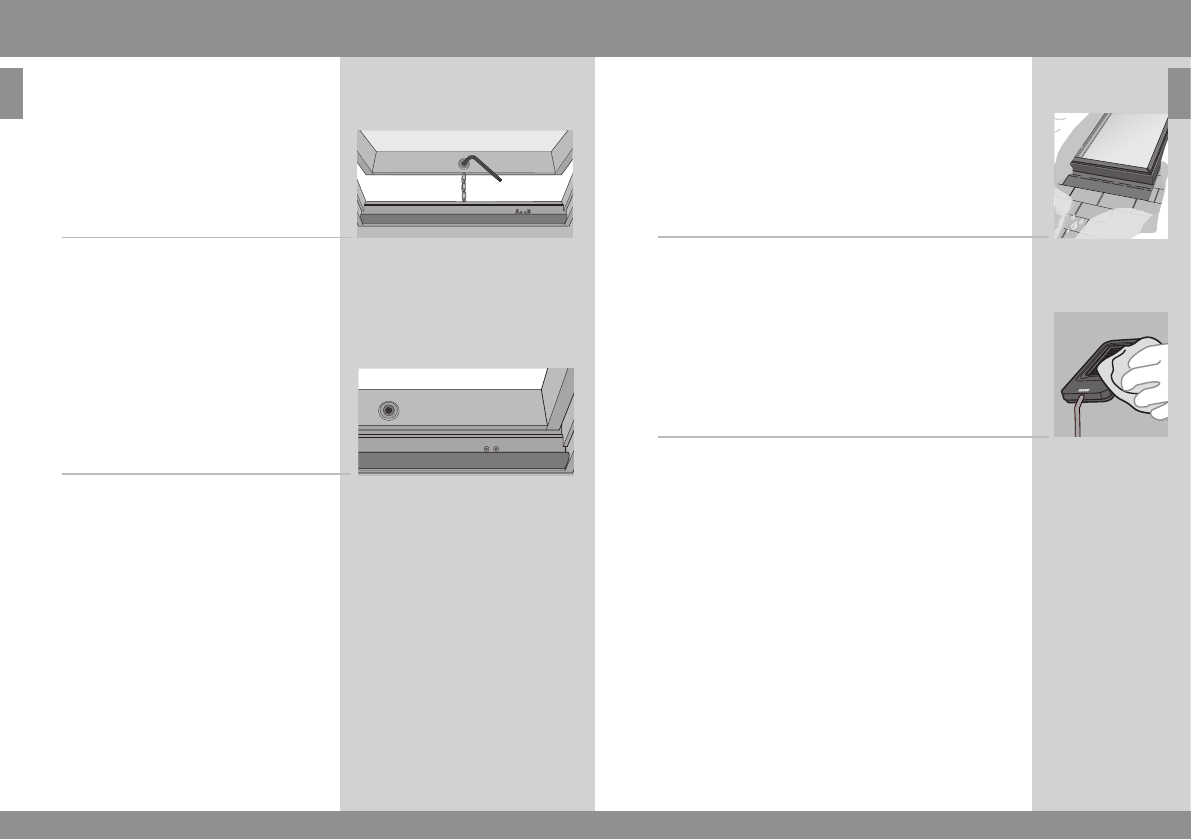

Closing skylights
In case of power failure
The chain can be disengaged by removing
the plug in the center of the bottom sash
and turning the screw, with the provided
2.5 mm hex key, clockwise until it stops.
Note: The chain can be re-engaged by
executing the above procedure in reverse
order.
If the remote control has been mislaid
The sash can be closed by inserting a
pointed object in the operator cover hole
marked A and pressing briefly.
Note: A battery backup unit can be con-
nected. Please contact VELUX for further
information.
Power failure / Mislaid remote control Maintenance
Switch off the main power supply before proceeding!
1 Snow and ice
Remove snow and ice to allow melt water to drain o from
and around the skylight.
2 Cleaning the rain sensor
Dirt on the rain sensor may cause operating problems.
Therefore, it is recommended to clean the rain sensor with
a soft wet cloth once or twice a year or when needed.
70 VELUX VELUX 71
ENGLISH ENGLISH
Batteries must be changed within 2 weeks (type AA, 1.5
volt).
Automatic closing has been activated for the product in
question.
Automatic closing has been activated for one of the products
in the remote control.
Automatic registration of product(s) is running.
Operation of a product.
The product or function requested has been ticked.
A program has been activated.
Slats/louvres of a decoration and sunscreening product can
be tilted/turned from 0 to 100%.
A decoration and sunscreening product can be drawn up/
down or opened/closed from 0 to 100%.
A name can be saved, see section Naming.
Deletion of character, see section Naming.
Space character, see section Naming.
Battery level low: The batteries in the remote control are running out of
power.
Blocked: Unknown object obstructs operation of product. Remove obstruc-
tion to obtain normal operation.
Limited by rain sensor: It is raining and the rain sensor has been activated.
You can disable the rain sensor temporarily and operate the skylight.
Manual operation: The skylight has been opened manually. Close the sky-
light manually to allow for electrical operation.
Operational defect: The product has stopped during operation. Check the
product.
Reduced power supply: The power supply to the product has been reduced.
Limited operation.
Display symbols Display texts
72 VELUX VELUX 73
ENGLISH ENGLISH
Activation control: An object by which you can actively operate an electric-
al product by means of pressing one or several buttons/keys.
Adjustment: VELUX electrical decoration and sunscreening products are not
adjusted to the skylight size on delivery. When operated the first time, they
will therefore run from bottom to top of the skylight or vice versa without
interruption. After adjustment the product is ready for use.
Configuration: See Preparation for registration.
Memory: The following functions occupy the memory of the remote control:
Room, Group, Rename and Programs. Use of these functions will reduce the
total memory.
Preparation for registration: A product must be registered in an activation
control before it can be operated. When a new product is connected to main
power supply, it will search for an activation control for 10 minutes.
Product: A product, which can be operated with the remote control, such as
a skylight, a roller shade or a Venetian blind.
Registration: A product is registered in an activation control when the
security key of the activation control is assigned to the product.
Repeater: A unit increasing the range of the remote control.
Glossary
