VIA Technologies, Inc. Door Station QG SHP D01 with spec ENG pub
User Manual
Quick Guide
SHP-D01
Door Station

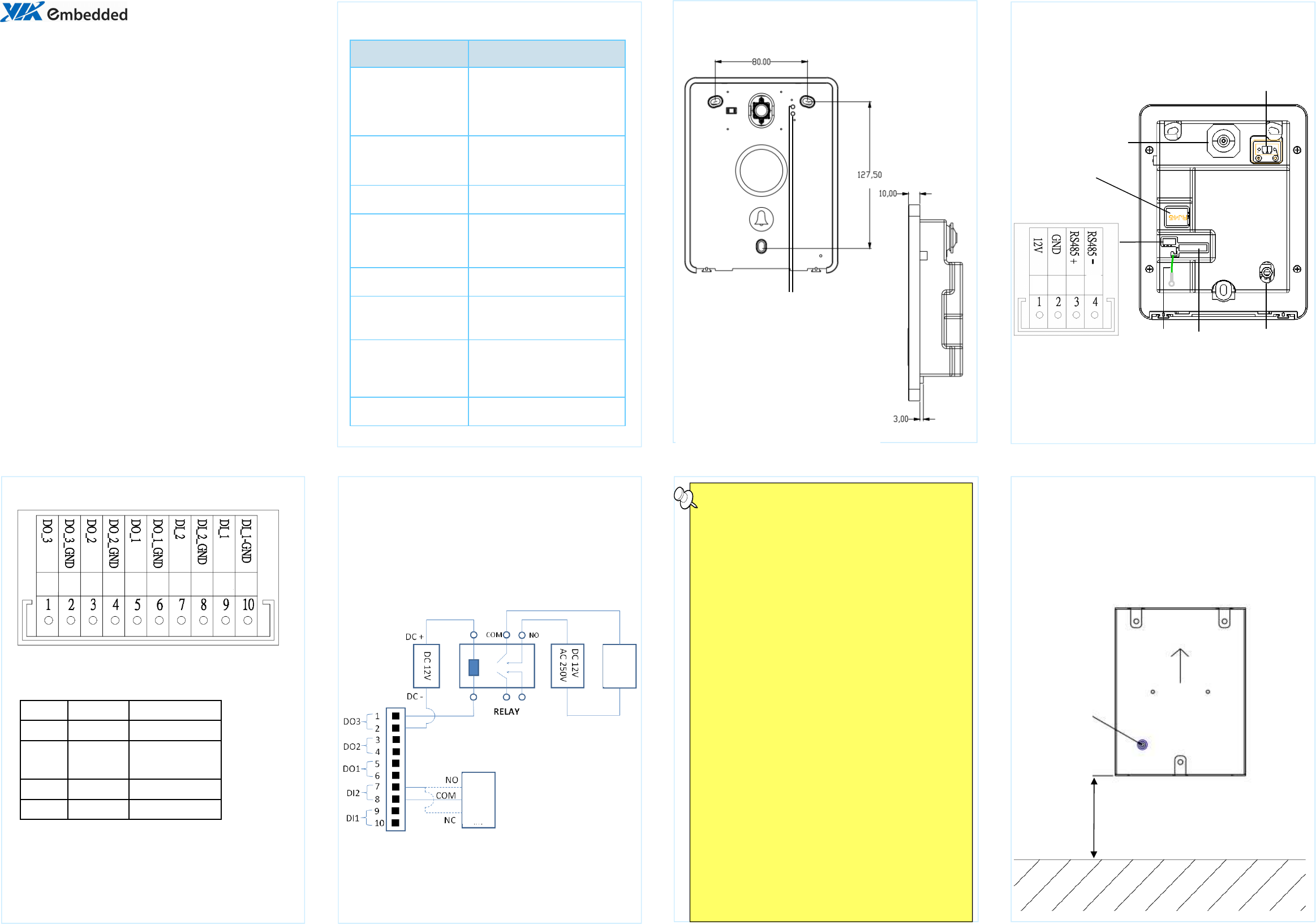

2. SHP-D01 Front/Side panel
Product Information
Product InformationProduct Information
Product Information
Model:
Model: Model:
Model: SHP-D01
Package Lists:
Package Lists:Package Lists:
Package Lists:
-SHP-D01 door station X 1
-RS485 cable X 1
-DIO cable X 1
-M4 * 30mm screw X 3
-8mm brass pipe + spring X 1
-Quick Guide X 1
5. SHP-D01 Installation steps
1. Put brass pipe + spring on the embedded box,
as indicated in the ○
1.
2. Distance between bottom of the embedded
box and the ground is 132 cm.
Front panel and size
Side panel
and size
○
1
132 cm
RJ45 port
RS485 port
3. SHP-D01 back panel
mm
mm
mm
mm
DC-In power
Adjustment of
camera
switch
ring
DI1 reserved reserved
DI2 reserved reserved
DO1 Open the
door
Connect NO
Relay default status
is On
DO2 reserved reserved
DO3 reserved reserved
DIO pin definition
DIO definition
4. Relay connection (use
OMRON MY2-J Relay as an
example)
Green LED Red LED
Green LED ON: normal operation
Green LED flash: booting
Red LED ON: ○
1
Enable home or
egress security
○
2
Anti-dismantle has been triggered
○
3
Security has been triggered
○
4
Force status has been triggered
DIO port
Note
NoteNote
Note:
::
:
1. This diagram is for reference only, please
see DIO definition for actual connection.
2. Max. value of motion for DIO is 400mA.
3. DI can externally connect to spring switch
and NC of the dry contact. If the same DI
needs to use 2 or more spring switches,
connect by series.
4. DI that externally connects to switch (eg,
doorbell, emergency pressure deduction) and
gas detector, can connect to NO. To use 2 or
more devices, connect by series.
5. If DI2 of the door station is not connected
to door detector, please short DI2 and
DI2GND.
6. When DO connects to electric lock, power
supply locks, interruption of power supply
unlocks.
7. When DO connects to alarm, alarm
connects to Relay NO, motion on Relay will
enable the alarm.
1. SHP-D01 Specifications
Item Description
Camera 500 megapixel wide-
angle color lens
Brightness exposure LED
Reader (RFID) Support 13.56MHz,
ISO14443A standard
Network Interface RJ-45
Network transmis-
sion rate
10/100M
Power DC-12V
Power consump-
tion
<10W
Operating tem-
perature
0~40°
Humidity 0~95%, non-condensing
Alarm
speaker
Dry Contact
switch
black
brow
Red
Orange
Yellow
Green
Bleu
Purple
Grey
White
Red
black
brow
Purple
For more information on this and
other VIA products, please visit :
www.viatech.com/en/

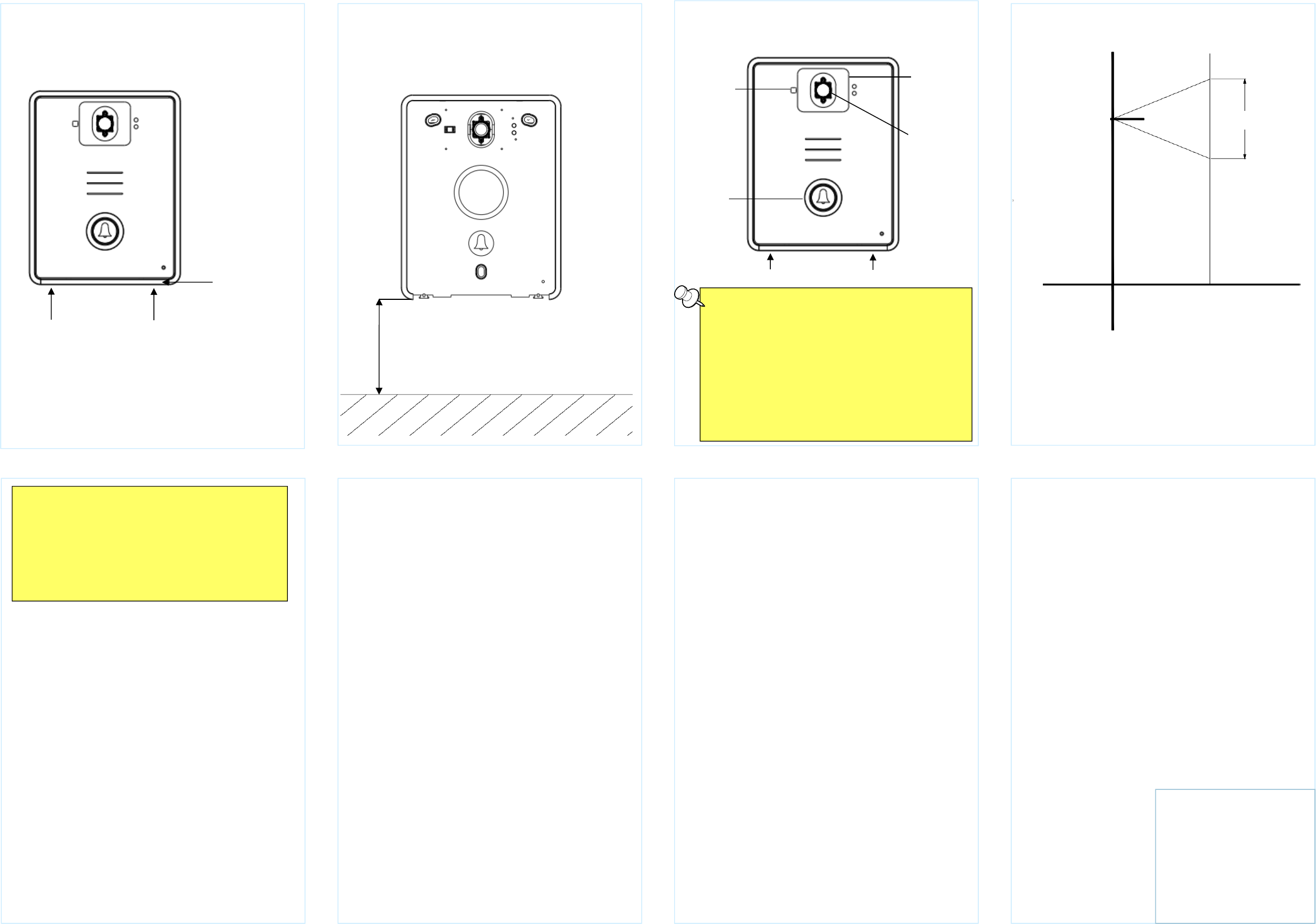

6. SHP-D01 installation diagram
60 cm
Distance between
lens and subject
145 cm
Height between
lens and ground
Angle of view 60°
179.6 cm
69.2 cm
110.4 cm
6. Put the front plaque and plate back. Fix the
bottom with two M2 screws.
M2 screw M2 screw
Note
NoteNote
Note:
::
:
1. Be careful of the orientation during
installation.
2. Please do not install any other device
close to the door station, keep at least 10 cm
of distance.
Assistant
Exposure
light
key
lens
RFID area
(within
rectangular
area )
4. Use M4 screw to fix the main part.
5. Distance between bottom of the door station
and the ground is 131 cm. Please consider the
thickness of the tile or marble.
131 cm
3. Remove two M2 screws from the bottom of
the plaque. Take off the plate in order to separate
the plaque and the main part.
M2 screw M2 screw
plate
VIA Technologies, Inc.
VIA Technologies, Inc.VIA Technologies, Inc.
VIA Technologies, Inc.
1F, 531, Zhong-zheng Road,
Xindian District, New Taipei City
231, Taiwan
Tel: 886-2-2218-5452
Fax: 886-2-2218-5453
Copyright © 2015 VIA Technologies, Inc. All rights reserved.
This device complies with part 15 of the FCC Rules. Operation is
subject to the following two conditions:
(1) This device may not cause harmful interference.
(2) This device must accept any interference received, including
interference that may cause.
CAUTION! To prevent shock, do not remove cover. No user
serviceable parts inside. Refer servicing to qualified personnel.
