Outdoors Insight, Inc.www.iballhitchcam.comCall Toll Free 1-(877)-298-20551) Monitor2) Select Up Down3) Menu4) *Picture Rotate. 5) Power6) Fuse Cap7) Camera8) Adjustment Knobs9) Power On Button10) USB Charging Port11) USB Charging Cable*Your model may have either of the following two buttons: or for the Picture Rotate buttonWarranty Information: Your iBall Wireless Camera System comes with the following warranty coverage:• 30 Day Money Back Guarantee : If you are unsatised for any reason, send your system back within 30 days of the original purchase date for a full refund (less shipping).• One Year Warranty: If your iBall Wireless Camera System fails due to a manufacturing defect within one year of the original purchase date, we will gladly repair or replace.1198213456710695 iBall manual 2016.indd 1 10/16/15 10:32 AMVT-C6110

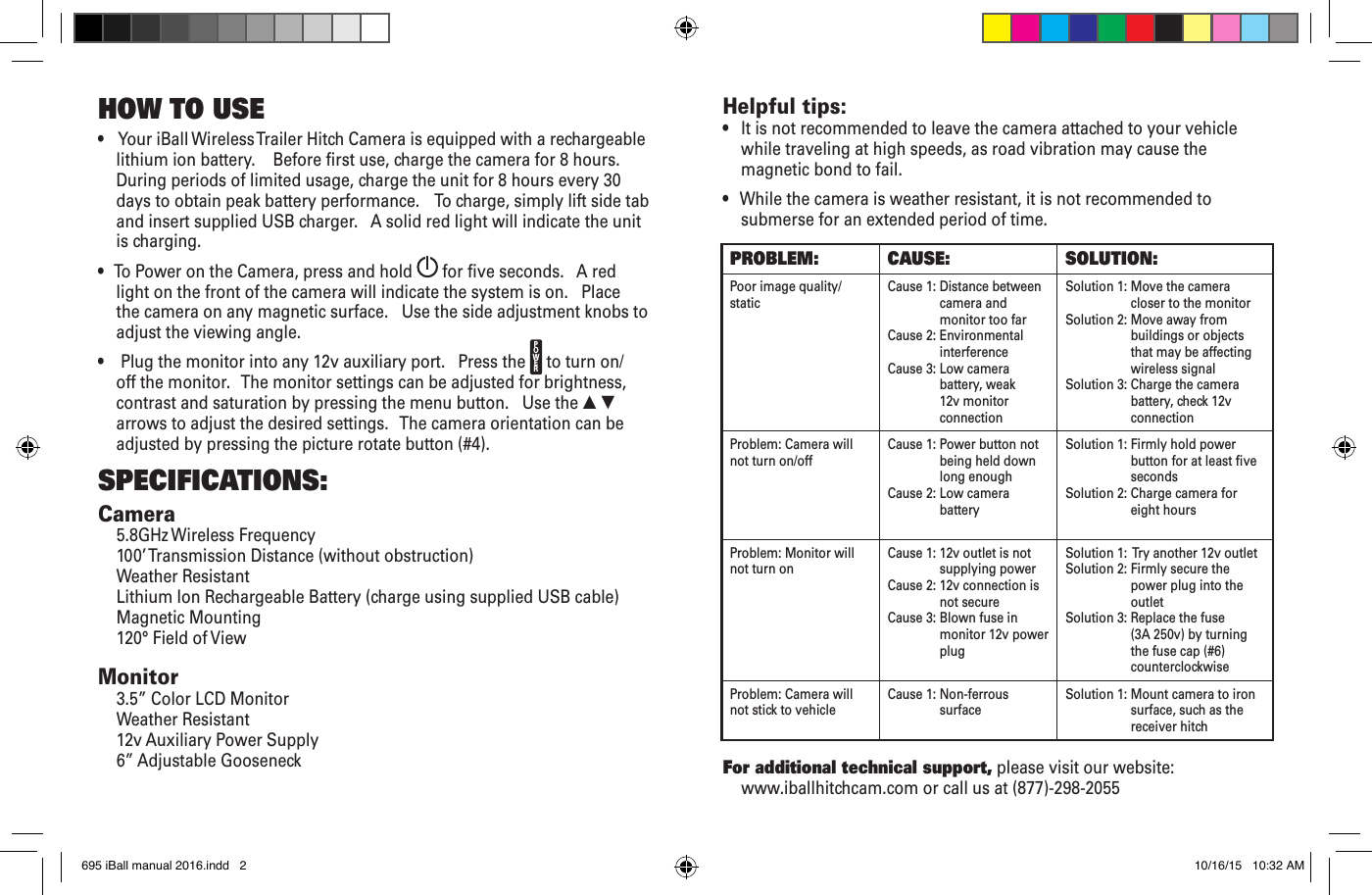

• Your iBall Wireless Trailer Hitch Camera is equipped with a rechargeable lithium ion battery. Before rst use, charge the camera for 8 hours. During periods of limited usage, charge the unit for 8 hours every 30 days to obtain peak battery performance. To charge, simply lift side tab and insert supplied USB charger. A solid red light will indicate the unit is charging.• To Power on the Camera, press and hold for ve seconds. A red light on the front of the camera will indicate the system is on. Place the camera on any magnetic surface. Use the side adjustment knobs to adjust the viewing angle.• Plug the monitor into any 12v auxiliary port. Press the to turn on/off the monitor. The monitor settings can be adjusted for brightness, contrast and saturation by pressing the menu button. Use the ▲ ▼ arrows to adjust the desired settings. The camera orientation can be adjusted by pressing the picture rotate button (#4).SPECIFICATIONS:Camera5.8GHz Wireless Frequency 100’ Transmission Distance (without obstruction)Weather ResistantLithium Ion Rechargeable Battery (charge using supplied USB cable)Magnetic Mounting120° Field of ViewMonitor3.5” Color LCD MonitorWeather Resistant 12v Auxiliary Power Supply6” Adjustable GooseneckHOW TO USE Helpful tips:• It is not recommended to leave the camera attached to your vehicle while traveling at high speeds, as road vibration may cause the magnetic bond to fail.• While the camera is weather resistant, it is not recommended to submerse for an extended period of time.For additional technical support, please visit our website: www.iballhitchcam.com or call us at (877)-298-2055PROBLEM: CAUSE: SOLUTION:Poor image quality/static Cause 1: Distance between camera and monitor too farCause 2: Environmental interference Cause 3: Low camera battery, weak 12v monitor connectionSolution 1: Move the camera closer to the monitorSolution 2: Move away from buildings or objects that may be affecting wireless signalSolution 3: Charge the camera battery, check 12v connectionProblem: Camera will not turn on/off Cause 1: Power button not being held down long enoughCause 2: Low camera battery Solution 1: Firmly hold power button for at least ve secondsSolution 2: Charge camera for eight hoursProblem: Monitor will not turn on Cause 1: 12v outlet is not supplying powerCause 2: 12v connection is not secureCause 3: Blown fuse in monitor 12v power plugSolution 1: Try another 12v outletSolution 2: Firmly secure the power plug into the outletSolution 3: Replace the fuse (3A 250v) by turning the fuse cap (#6) counterclockwiseProblem: Camera will not stick to vehicle Cause 1: Non-ferrous surface Solution 1: Mount camera to iron surface, such as the receiver hitchPOWER695 iBall manual 2016.indd 2 10/16/15 10:32 AM

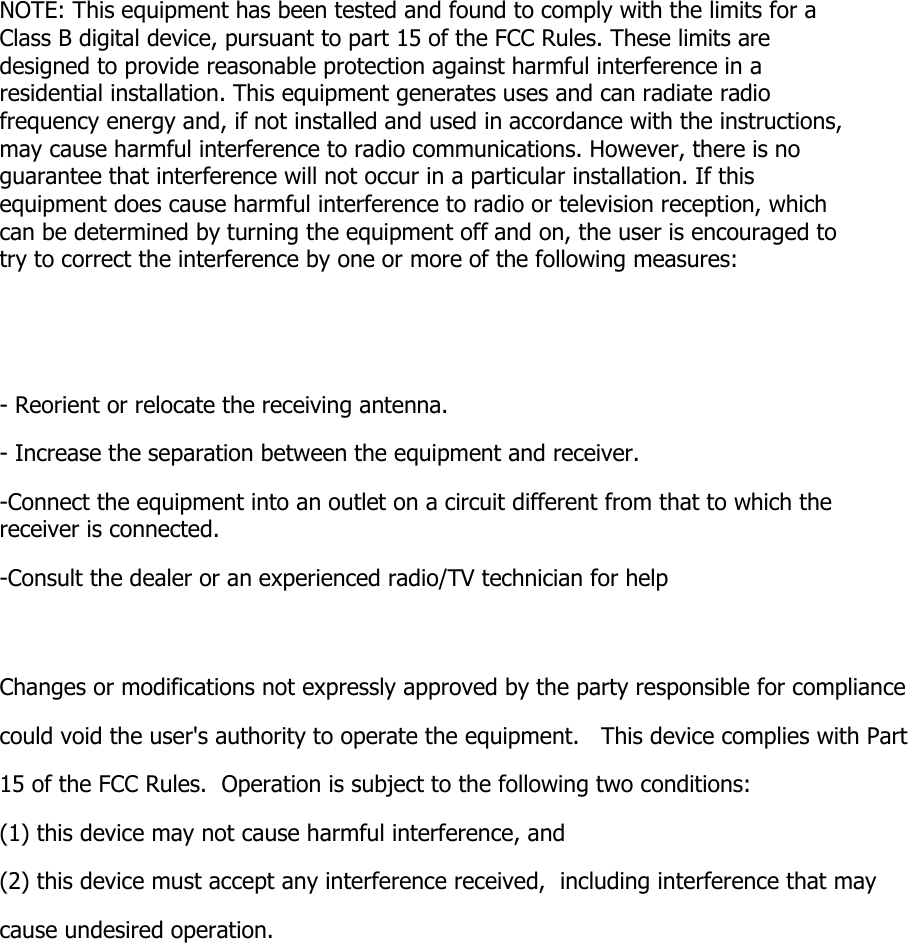

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
