VIEWPAKER TECHNOLOGY E270HMG ALL-IN-ONE Monitor User Manual
SHENZHEN VIEWPAKER TECHNOLOGY., LTD ALL-IN-ONE Monitor Users Manual
User manual
：
：
：、，。
。
：/
70G
23
III. Mount the independent graphics card (not applic
able for models with integrated graphic cards)
1. Insert the independent graphics card into the PC slot
on the PC main-board and attach the independent gra
phics card onto the graphics card bracket with a PWM
3*8 screw.
IV. Install the CD-ROM (built-in SATA notebook
drive)
1. First use a knife to cut the connecting rubber and rem
ove the burrs at the six positions marked with an arro
w in the figure.
2 .Fix the CD-ROM bracket on the drive with the PM2x5
screws.
3. Insert the DVD assembly into the DVD slot on the
middle cover and fix it with PWB3x8 screws.
V. Mount the HHD
1. Fix the HHD bracket with a damping
ring onto the HHD with hex step scre
ws in the right direction.
2. Align the HHD assembly with the screw
holes for the HHD and fix it with screws.
Product View
Microphone
Camera
Power
Pilot
Lam HHD Pilot Lamp
Function Key
ON/OF
Increase Brightness
Reduce Brightness
Restart
CD-ROM
1
Requirements of pollution control markings on China electronic information
products
In order to control and reduce the environmental pollution caused by the wastes of electronic information
products, promote the production and sales of low-pollution electronic information products, and protect the
environment and human health, only toxic and hazardous substances contained by the products are given below
according to the Regulations of the Chinese Government for Electronic Information Products Pollution Control:
Part name
Upper and lower covers
Machine engine (aluminum or aluminum
-magnesium alloys)
Lens
Plastic assemblies
Metal parts (SECC/SPTE/SPCC)
Springs(SUS/SUP)
Spring sheet (fast cut phosphor bronze)
Rubber assemblies
Fan assemblies
Base board assembly
Cable and wire
Power cord
Power socket assemblies
Metal and plastic bracket frameworks
Label/Name Plate
CD/Manual
Mylar
Toxic and hazardous substances or elements
Lead (Pb) Hg Cd Chromium
VI (Cr(Vl) PBB PBDE
: It means that the content of this hazardous substance in all homogeneous materials of the part is lower than the
limit value stipulated in SJ/T11363-2006.
X: It means that the content of this hazardous substance in at least one homogeneous material of the component is
reater than the limit value stipulated in SJ/T11363-2006 Electronic Information Product.
Duration of service of the electronic information products under normal use conditions described in
the manual shall be 10 years, which includes no leakage of toxic and harmful substances that would c
ause environmental pollution or harm to human body and property.
Description of environmental service duration
The product is only applicable within an area of 2000M.
Statement
This is a Class A product. In a domestic environment, it may cause radio interference,
in this case the user may be required to take practical measures against interference.

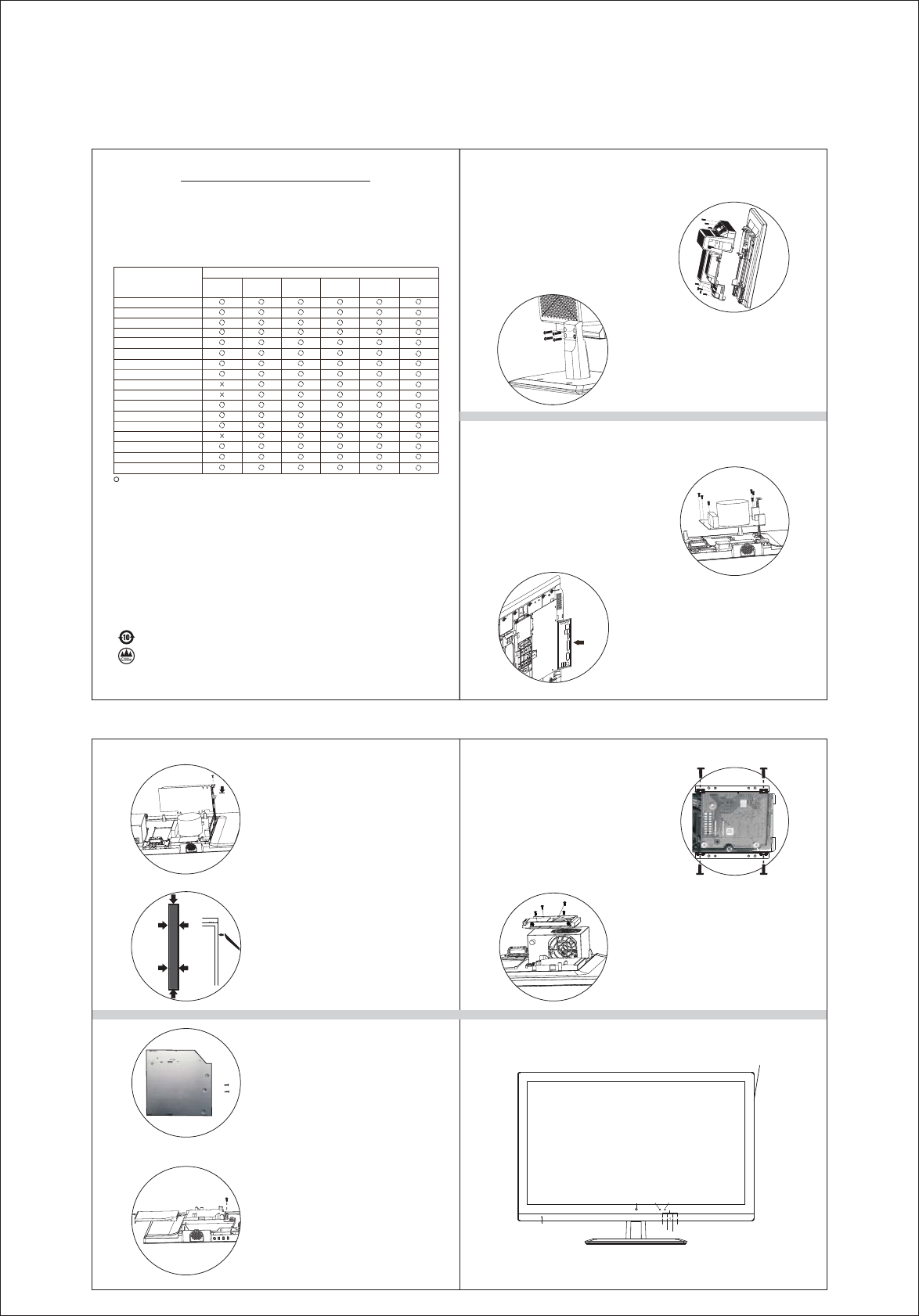

Installation steps
1. Remove the base and back cover
1. Loosen the four screws on the base
and remove the base.
2. Loosen the eight screws on the back
cover and remove the back cover.
II. Mount the motherboard (compatible with 240x240mm ATX and below MIC
ROATX/ITX/MINIITX motherboards, compatible with 60mm or below cooling
modules.
1. Mount the I/O board according to
the figure.
2. Align the PC main-board with the screws
on the motherboard and fix it with six PW
M3x8 machine screws.
ALL-IN-ONE Monitor
USER INSTALLATION MANUAL
