Congratulations
on purchasing your new VTech product.
Before using this telephone, please read
the Important safety instructions
on page 44 of this manual.
This manual has all the feature operations and troubleshooting necessary
to install and operate your new VTech telephone. Please review this manual
thoroughly to ensure proper installation and operation of this innovative and
feature rich VTech product. For support, shopping, and everything new at
VTech, visit our website at www.vtechphones.com.
In Canada, please visit www.vtechcanada.com.
The ENERGY STAR® program (www.energystar.gov) recognizes and encourages
the use of products that save energy and help protect our environment. We are
proud to mark this product with the ENERGY STAR® label indicating it meets the
latest energy efficiency guidelines.
w w w .v tech ph ones.com
T ab le of contents
ii
G etting started . . . . . . . . . . . . . . . . . 1
Parts checklist . . . . . . . . . . . . . . . . . . 1
Telephone base installation . . . . . . . . . . . 2
Battery installation and charging . . . . . . . . . 3
Handset layout . . . . . . . . . . . . . . . . . . 4
Telephone base layout . . . . . . . . . . . . . . 5
T eleph one settings . . . . . . . . . . . . . . . 6
Ringer volume - handset . . . . . . . . . . . . . 6
Ringer tone . . . . . . . . . . . . . . . . . . . . 7
Key tone . . . . . . . . . . . . . . . . . . . . . 8
Language . . . . . . . . . . . . . . . . . . . . . 8
Clear voice mail. . . . . . . . . . . . . . . . . . 9
T eleph one operation . . . . . . . . . . . . . . 10
Make a call . . . . . . . . . . . . . . . . . . . . 10
Answer a call . . . . . . . . . . . . . . . . . . . 10
End a call . . . . . . . . . . . . . . . . . . . . . 10
Speakerphone . . . . . . . . . . . . . . . . . . 10
Mute . . . . . . . . . . . . . . . . . . . . . . . 11
Ringer mute. . . . . . . . . . . . . . . . . . . . 11
Call waiting . . . . . . . . . . . . . . . . . . . . 11
Volume . . . . . . . . . . . . . . . . . . . . . . 12
Find handset . . . . . . . . . . . . . . . . . . . 12
Directory . . . . . . . . . . . . . . . . . . . . . 13
Store a directory entry . . . . . . . . . . . . . . 14
Character chart . . . . . . . . . . . . . . . . . . 15
Search the directory . . . . . . . . . . . . . . . 16
Dial a directory entry . . . . . . . . . . . . . . . 16
Edit a directory entry . . . . . . . . . . . . . . . 17
Delete from the directory . . . . . . . . . . . . . 18
About caller ID . . . . . . . . . . . . . . . . . . 19
Call log . . . . . . . . . . . . . . . . . . . . . . 20
Review the call log . . . . . . . . . . . . . . . . 21
Make a call log entry ready to dial . . . . . . . . 22
Dial a call log entry . . . . . . . . . . . . . . . . 22
Save an entry to the directory . . . . . . . . . . 23
Delete from the call log . . . . . . . . . . . . . . 24
Call log display screen messages . . . . . . . . 25
Redial list . . . . . . . . . . . . . . . . . . . . . 26
Dial a redial entry . . . . . . . . . . . . . . . . . 26
Delete from redial. . . . . . . . . . . . . . . . . 26
A nsw ering system . . . . . . . . . . . . . . . 27
Message capacity . . . . . . . . . . . . . . . . 27
Activate the answering system . . . . . . . . . . 28
Set the clock . . . . . . . . . . . . . . . . . . . 28
w w w .v tech ph ones.com iii
T ab le of contents
Answering system set up . . . . . . . . . . . . . 29
Set number of rings. . . . . . . . . . . . . . . . 29
Set telephone base ringer . . . . . . . . . . . . 30
Set remote access code . . . . . . . . . . . . . 30
Set message alert tone . . . . . . . . . . . . . . 31
O utgoing announcement . . . . . . . . . . . . . 32
Record your own announcement . . . . . . . . . 32
Play your announcement . . . . . . . . . . . . 33
Delete your announcement . . . . . . . . . . . . 33
New message indication . . . . . . . . . . . . . 34
Message playback . . . . . . . . . . . . . . . . 34
O ptions during playback . . . . . . . . . . . . . 34
Delete all messages . . . . . . . . . . . . . . . 35
Record and play memos . . . . . . . . . . . . . 35
Record a memo. . . . . . . . . . . . . . . . . . 35
Memo playback . . . . . . . . . . . . . . . . . . 35
Call screening . . . . . . . . . . . . . . . . . . 36
Call intercept . . . . . . . . . . . . . . . . . . . 36
Message window displays . . . . . . . . . . . . 37
Remote access . . . . . . . . . . . . . . . . . . 38
A ppend ix . . . . . . . . . . . . . . . . . . . . . 39
Handset display screen messages . . . . . . . . 39
Handset and telephone base indicators . . . . . 41
Battery . . . . . . . . . . . . . . . . . . . . . . 43
Important safety instructions . . . . . . . . . . . 44
Troubleshooting. . . . . . . . . . . . . . . . . . 45
O perating range . . . . . . . . . . . . . . . . . 54
Maintenance . . . . . . . . . . . . . . . . . . . 54
About cordless telephones . . . . . . . . . . . . 55
The RBRC® seal . . . . . . . . . . . . . . . . . 55
Warranty . . . . . . . . . . . . . . . . . . . . . 56
FCC, ACTA and IC regulations . . . . . . . . . . 58
Technical specifications . . . . . . . . . . . . . 60
Index . . . . . . . . . . . . . . . . . . . . . . . 61
w w w .v tech ph ones.com 1
G etting started B asic operation
To purchase
a replacement
battery or power
adapter, visit our
website at www.
vtechphones.
com or call
1 (800) 595-9511.
In Canada, go to
www.vtechcanada.
com or call 1 (800)
267-7377.
•
8. User’s manual
1. Quick start guide
2. Handset
Telephone base3.
7. Telephone base
power adapter
6. Telephone line cord5. Battery
4. Battery
compartment
cover

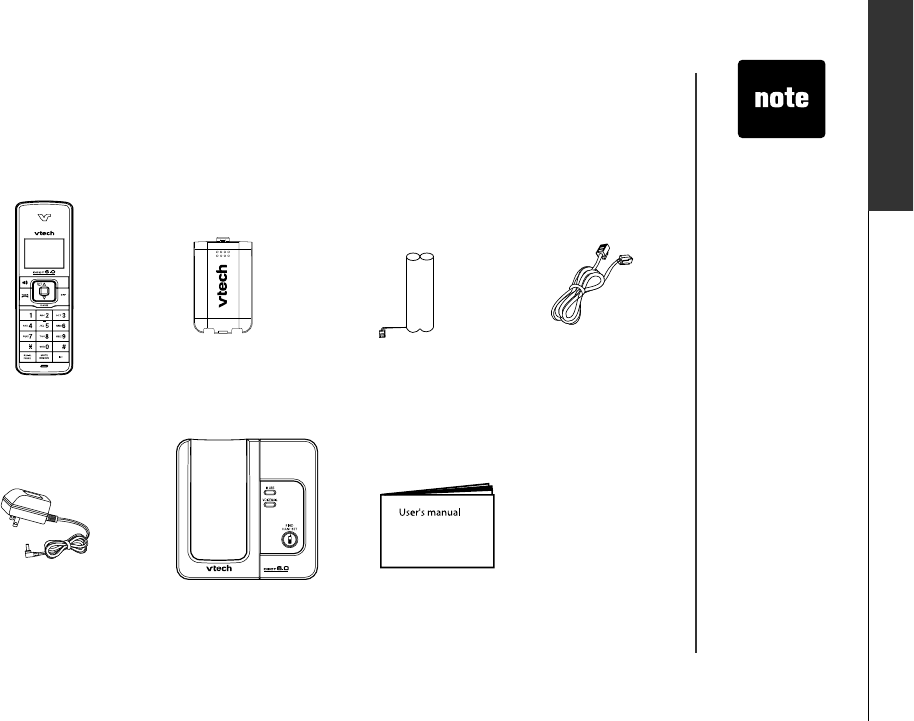

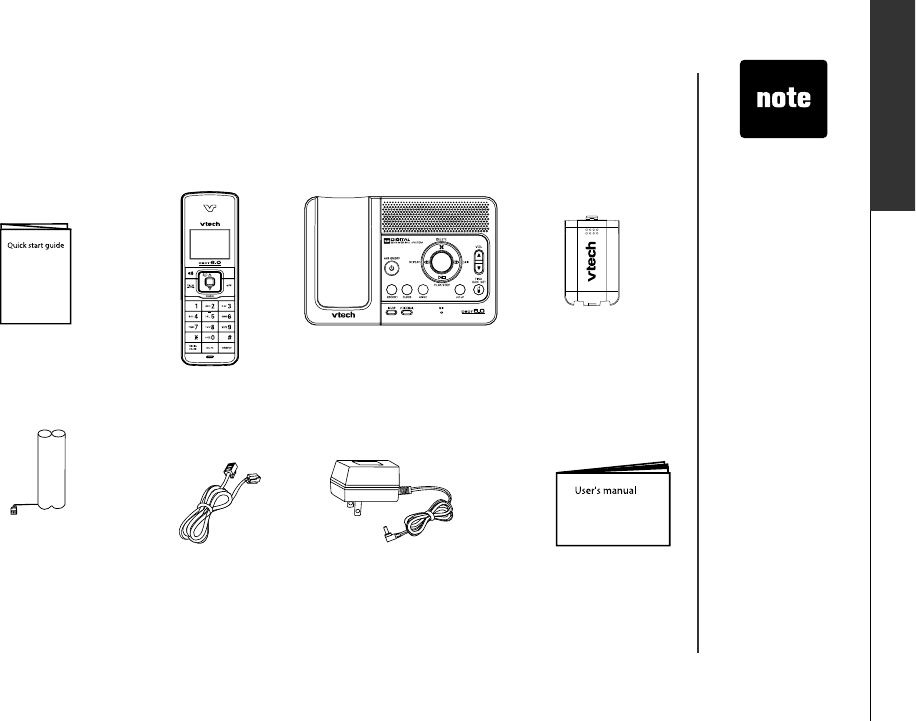

P arts ch eck list
Your telephone contains the following items. Save your sales receipt and original
packaging in the event warranty service is necessary.
FLASH
CLEAR
SELECT
MENU
CID
VOL
G etting started
w w w .v tech ph ones.com
2
G etting started
Use only the
power adapter
supplied with this
product. To order
a replacement,
visit our website at
www.vtechphones.
com or call
1 (800) 595-9511.
In Canada, go to
www.vtechcanada.
com or call 1 (800)
267-7377.
The power adapter
is intended to be
correctly oriented
in a vertical
or fl oor m ou nt
position. The
prongs are not
designed to hold
the plug in place
if it is plugged into
a ceiling or an
under-the-table/
cabinet outlet.
•
•
Telephone base
Telephone line cord
Electrical outlet
not controlled by
a wall switch
Telephone base
power adapter
Telephone
wall jack
D S L filter (not inclu d ed )
required if you have
DSL high-speed
internet service
T eleph one b ase installation

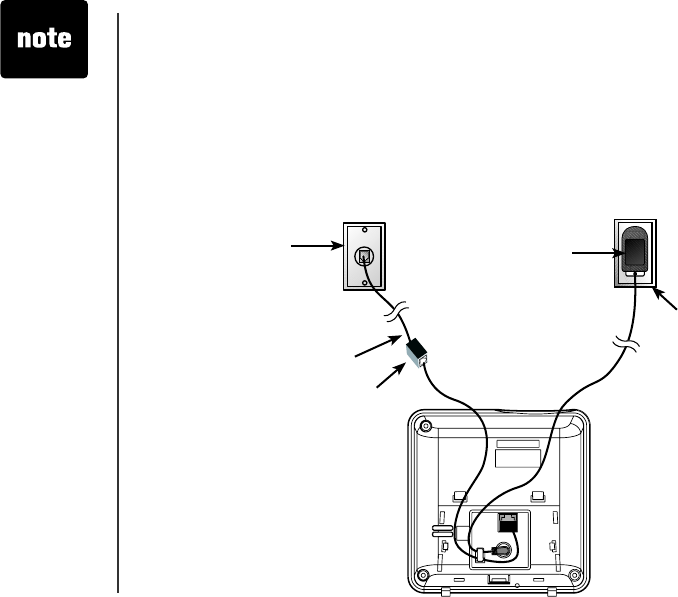

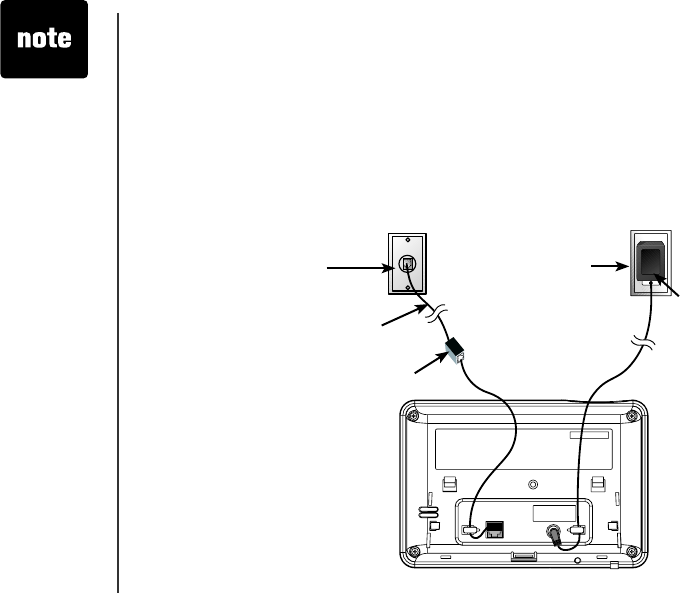

Install the telephone base as shown below. Make sure that the electrical outlet
is not controlled by a wall switch. If you subscribe to high-speed internet service
(Digital Subscriber Line - DSL) through your telephone lines, you must have a
D S L filter b etw een the telephone b ase and the telephone w all jack . The filter w ill
prevent noise and caller ID problems caused by DSL interference. Please contact
y ou r D S L serv ice prov id er for m ore inform ation ab ou t D S L filters.
w w w .v tech ph ones.com 3
G etting started B asic operation
G etting started
If the handset
will not be used
for a long time,
disconnect and
remove the battery
to prevent possible
leakage.
To purchase a
replacement
battery, visit our
website at www.
vtechphones.
com or call
1 (800) 595-9511.
In Canada, go to
www.vtechcanada.
com or call 1 (800)
267-7377.
•
•
B attery installation and ch arging

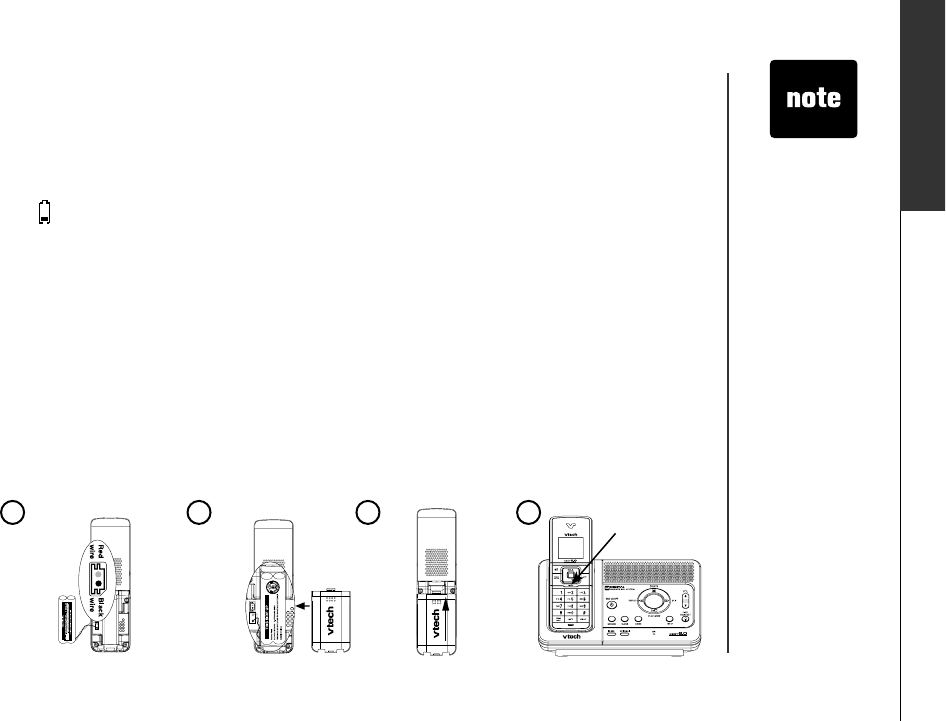

Install the battery as shown below. The battery may have enough charge for short
calls. For best performance, charge the handset for at least 16 hours. When the
battery power is low, the handset will beep, LO W B A T T E R Y will be displayed
and w ill fl ash on the hand set screen. P lace the hand set in the telephone b ase
to charge the battery when not in use. When fully charged, the handset battery
provides approximately eight hours of talk time or four or a half days of standby
time.
Insert the plug of the battery as indicated. Make sure it is plugged securely
and matches the color-coded label inside the battery compartment.
Place the battery with the label T H IS S ID E U P facing up and the wires inside
the battery compartment.
A lig n the b attery com partm ent cov er fl at ag ainst the b attery com partm ent,
then slide it upwards until it clicks into place.
Charge the handset by placing it in the telephone base. The handset charge
light will be on when charging.
1.
2.
3.
4.
FLASH
C LE AR
SELE C T
MENU
CID
VOL
1234CH A R G E light
w w w .v tech ph ones.com
4

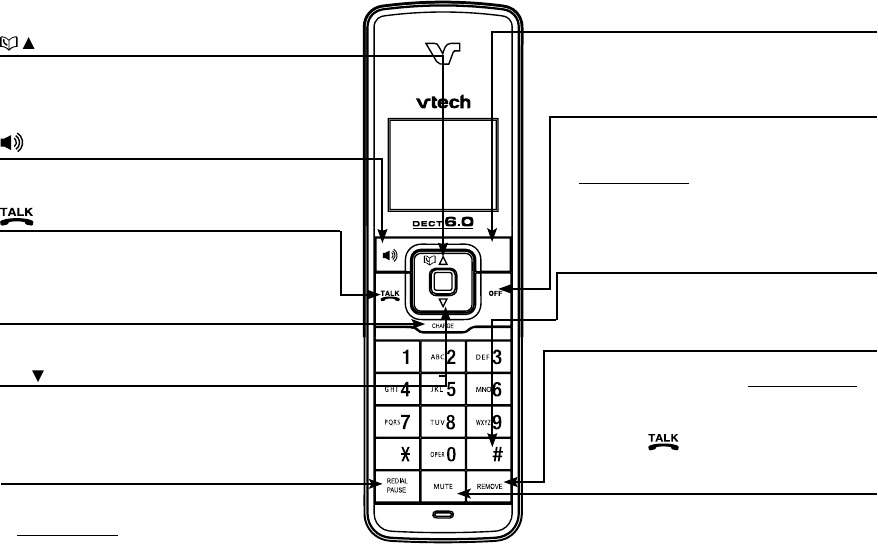

CID (Caller ID )
• Press to review the call log when the phone is
not in use.
While in the menu, press to scroll down.
Press to lower the listening volume during a call.
•
•
/FLA S H
• Press to make or answer a call.
• During a call, press to answer a second call
when you hear a call waiting alert.
(D irectory)
• Press to display the directory when the phone is
not in use.
While in the menu, press to scroll up.
Press to raise the listening volume during a call.
•
•
FLASH
CLEAR
SELECT
ME NU
CID
VO L
M E N U /S E LE CT
• Press to display the menu.
• When in the menu, press to select an item,
or save an entry or setting.
O FF/CLE A R
• During a call, press to hang up.
• While the handset is ringing, press to
silence the ringer.
•
Press and hold when the phone is not in
use to erase the M IS S E D CA LLS display.
• During programming, press to return to
previous menu without making changes.
R E D IA L/P A U S E
• Press to review the redial list.
• While dialing or entering numbers into the directory,
press and hold to insert a dialing pause.
CH A R G E ligh t
• O n when the handset is charging in the
telephone base.
#
• Press repeatedly to display other dialing
options when reviewing the call log.
R E M O V E
• While reviewing the call log, press to delete
an individual entry, or press and hold to
delete the entire call log.
•
Press to delete digits when predialing
(entering the phone number before
pressing /FLA S H ).
(S peak erph one)
Press to activate the handset speakerphone.
Press again to resume normal handset use.
•
•
M U T E
•
While on a call, press to mute the
microphone.

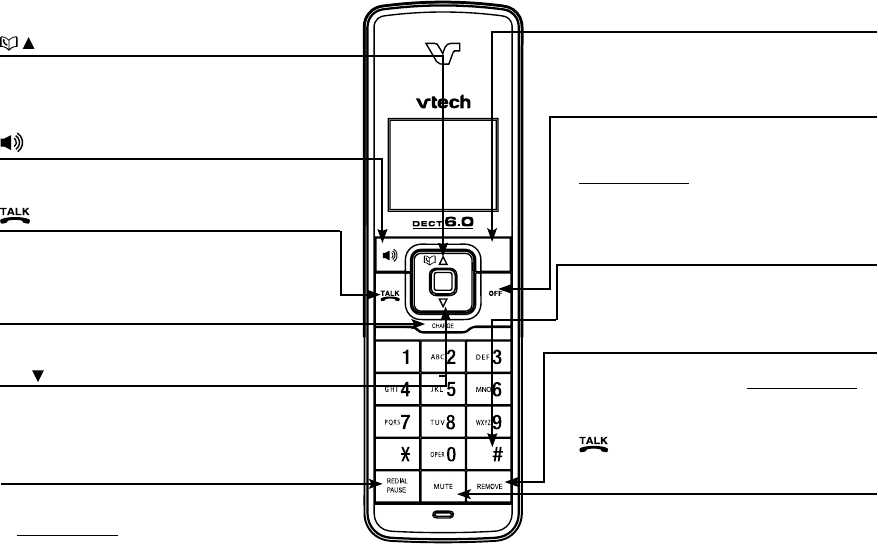

H and set layout
G etting started
w w w .v tech ph ones.com 5
G etting started B asic operation
G etting started

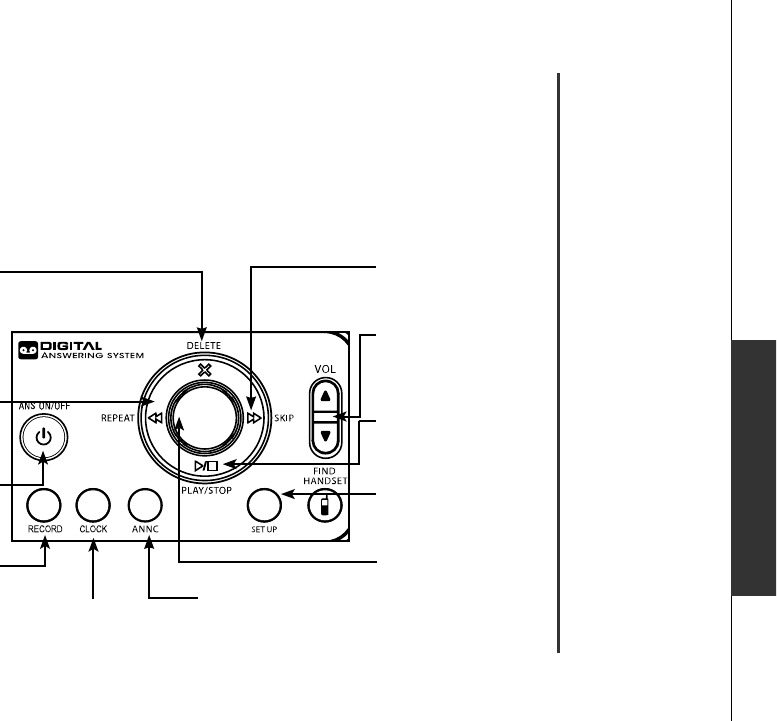

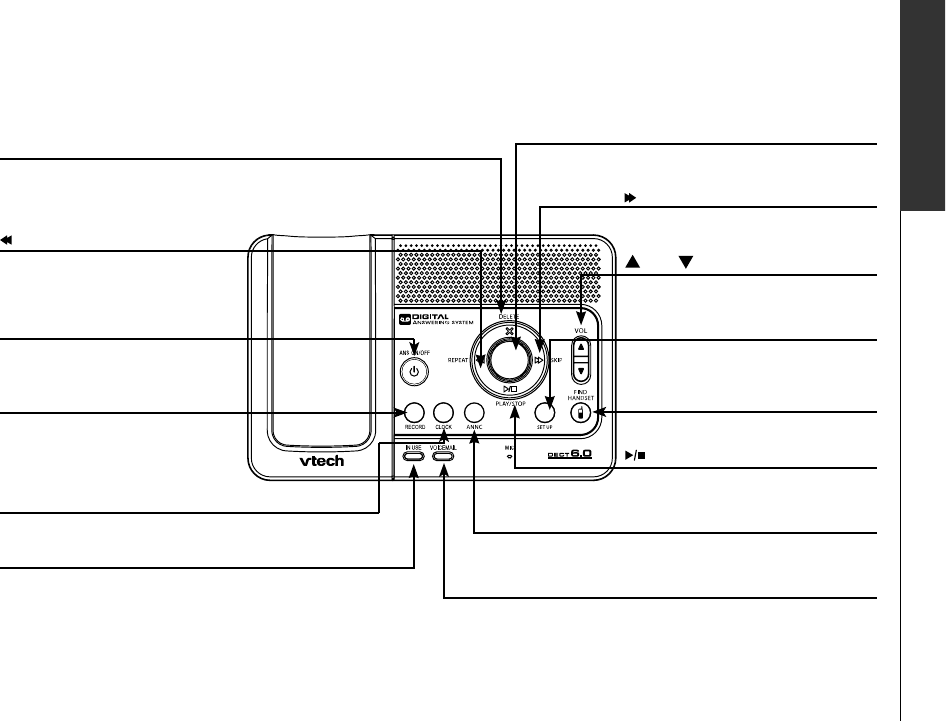

T eleph one b ase layout
/R E P E A T
Press to repeat a message or
press twice to play previous
message (page 34).
•
M essage w ind ow
Displays the number of messages plus other
answering system information. (page 37).
•
R E CO R D
Press to record a memo (page
35) or an announc ement
(page 32).
•
CLO CK
Press to set the clock (page 28).• A N N C
Press to enter announcement mode (pages 32-33).•
S E T U P
Press to enter the set up menu
(pages 29-31).
•
/S K IP
Press to skip to the next message
(page 34).
•
X /D E LE T E
Press to delete message currently playing (page 34).
When the phone is not in use, press twice to delete all
previously reviewed messages (page 35).
•
•
A N S O N /O FF
Press to turn the answering
system on or off (page 28).
•
/P LA Y /S T O P

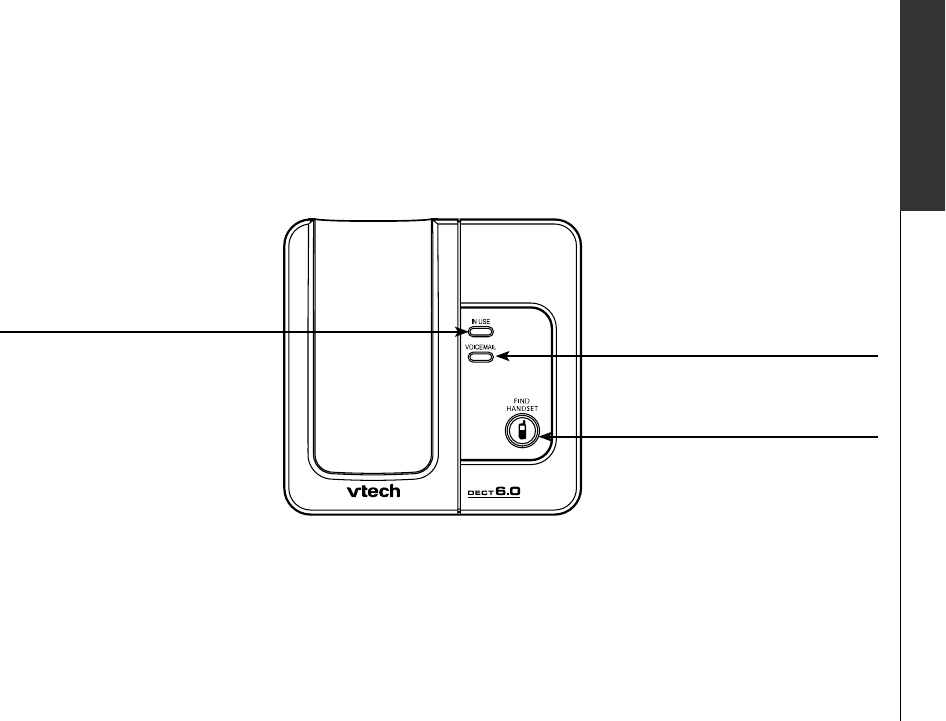

Press to play messages (page 34).
Press to stop message playback.
•
•
FIN D H A N D S E T
Press to page the handset.•
IN U S E ligh t
Flashes when there is an incoming call or
another telephone on the same line is in use.
O n when the handset is in use.
•
•
V O ICE M A IL ligh t
Flashes when there is new voice mail from your local
telephone company.
•
V O L/ V O L
Press to adjust the volume during
playback (page 34).
•
w w w .v tech ph ones.com
6
T eleph one settings
R inger v olume - h and set
You can change the handset ringer volume to a comfortable
level. The ringer can also be turned off so the handset does
not ring when there are incoming calls.
To adjust the ringer volume:
Press M E N U /S E LE CT to display the menu when the
handset is not in use.
Press or to select >R IN G E R V O LU M E , then press
M E N U /S E LE CT .
Press or to adjust the volume. A sample of each volume
level will be played when scrolling through the choices.
Press M E N U /S E LE CT to save your selection. You will hear
a confirm ation tone.
1.
2.
3.
4. RINGER VOLUME
>RINGER VOLUME
RINGER TONE
The ringer will
be off if the
volume is set to
the lowest level,
and a ringer off
icon will be
displayed.
The telephone
base ringer
volume is a
separate setting.
See page 30 for
details.
•
•
w w w .v tech ph ones.com 7
B asic operation
T eleph one settings
T eleph one settings
RINGER TONE
1
>RINGER TONE
KEY TONE
R inger tone
This menu allows you to choose from different ringer tones.
To choose a ringer tone:
Press M E N U /S E LE CT to display the menu when the
handset is not in use.
Press or to select >R IN G E R T O N E , then press
M E N U /S E LE CT .
Press or to select the desired ringer tone. A sample
of each ringer tone will be played when scrolling through
the choices.
Press M E N U /S E LE CT to save your selection. You will hear
a confirm ation tone.
1.
2.
3.
4.
If the ringer is
turned off while
scrolling through
the options in the
R IN G E R T O N E
menu, the sample
of the ringer will
not be heard.
•
w w w .v tech ph ones.com
8
T eleph one settings
>KEY TONE
LANGUAGE
K ey tone
The handset beeps as you press keys. You may turn the key
tone feature on or off. To change the setting:
Press M E N U /S E LE CT to display the menu when the
handset is not in use.
Press or to select >K E Y T O N E , then press
M E N U /S E LE CT .
Press or to choose O N or O FF.
Press M E N U /S E LE CT to save your selection. You will hear
a confirm ation tone.
Language
You can select E N G LIS H , FR A N Ç A IS or E S P A Ñ O L to be
used for the handset display. To change the setting:
Press M E N U /S E LE CT to display the menu when the
handset is not in use.
Press or to select >LA N G U A G E , then press
M E N U /S E LE CT .
Press or to select the desired language.
Press M E N U /S E LE CT to save your selection. You will hear
a confirm ation tone.
1.
2.
3.
4.
1.
2.
3.
4.
KEY TONE
ON
LANGUAGE
ENGLISH
>LANGUAGE
CLR VOICE MAIL
w w w .v tech ph ones.com 9
B asic operation
T eleph one settings
T eleph one settings
>CLR VOICE MAIL
DIRECTORY
TURN INDICATOR
OFF?
Clear v oice mail
If you subscribe to voice mail service provided by your local telephone company,
N E W V O ICE M A IL and will appear on the handset, and the V O ICE M A IL
lig ht on the telephone b ase w ill fl ash w hen y ou hav e new v oice m ail m essag es.
Please contact your local telephone company for more information about voice
mail service.
After you have listened to all new voice mail messages, the indicators on both
the handset and telephone base will be turned off automatically.
To manually turn off these indicators:
Press M E N U /S E LE CT to display the menu when the
handset is not in use.
Press or to select >CLR V O ICE M A IL, then press
M E N U /S E LE CT .
The screen displays T U R N IN D ICA T O R O FF?
Press M E N U /S E LE CT to confirm y ou r selection. Y ou w ill
hear a confirm ation tone.
Clearing the VMWI (visual message waiting indication) only turns off the indicators;
it does not delete voice mail message(s). Use this feature if the telephone indicates
there is voice mail when you have none, or if you have accessed your voice mail
from a different telephone line (while away from home). If there actually are new
voice mail messages, your local telephone company will continue to send the
signals which will turn the indicators back on.
1.
2.
3.
4.
Your telephone
service provider
may alert you to
new messages
with a stutter
(broken) dial tone.
Contact your
service provider
for details.
•
w w w .v tech ph ones.com
10
T eleph one operation
M ak e a call
Press /FLA S H or .
Dial the number.
-O R -
Dial the number.
Press /FLA S H or .
A nsw er a call
Press /FLA S H , or any of the dialing key (0-9, #, *).
E nd a call
Press O FF/CLE A R , or put the handset in the telephone
base or charger.

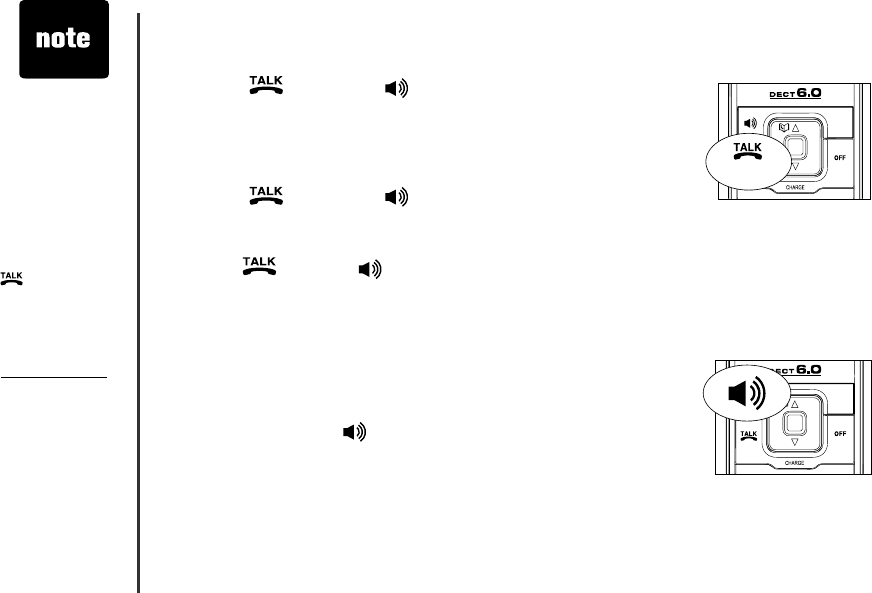

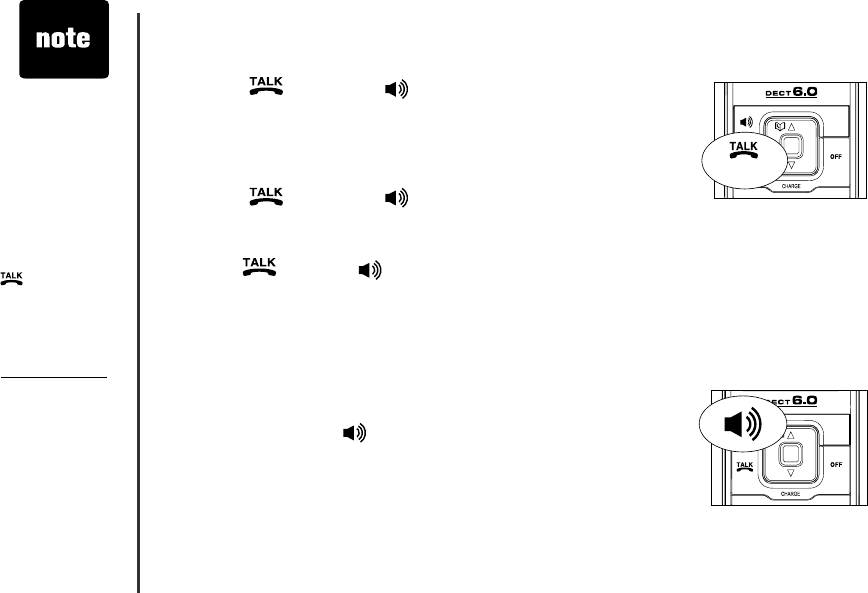

S peak erph one
During a call, press to switch between speakerphone and
normal handset use.
1.
2.
1.
2.
•
•
FLASH
CLEAR
SELECT
ME NU
CID
VO L
FLASH
FLASH
CLEAR
SELECT
ME NU
CID
VO L
The screen
displays the
elapsed time as
you talk (in hours,
minutes and
seconds).
When predialing
(entering the
phone number
before pressing
/FLA S H ),
press R E M O V E
or O FF/CLE A R to
backspace and
delete;
press and hold
R E D IA L/P A U S E
to insert a dialing
pause.
•
•
w w w .v tech ph ones.com 11
B asic operation
T eleph one operation
T eleph one operation
PHONE 0:00:00
MUTE

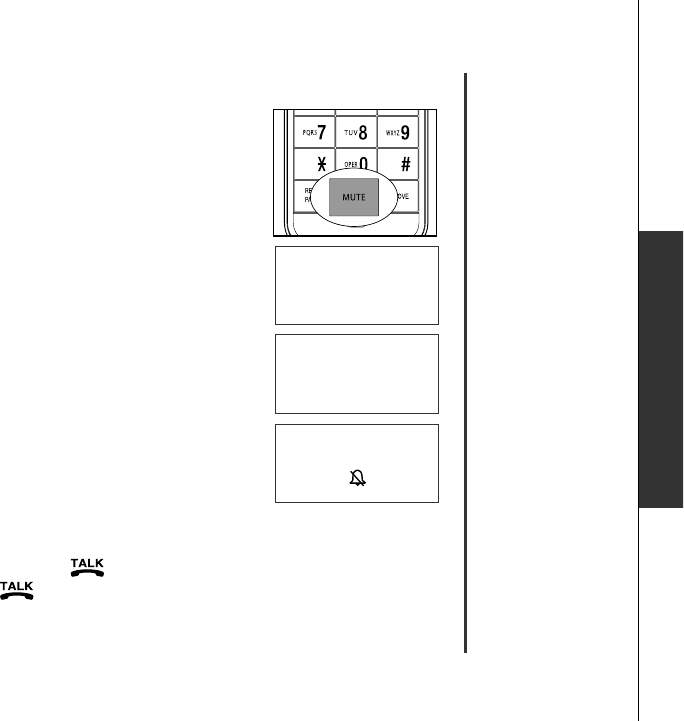

M ute

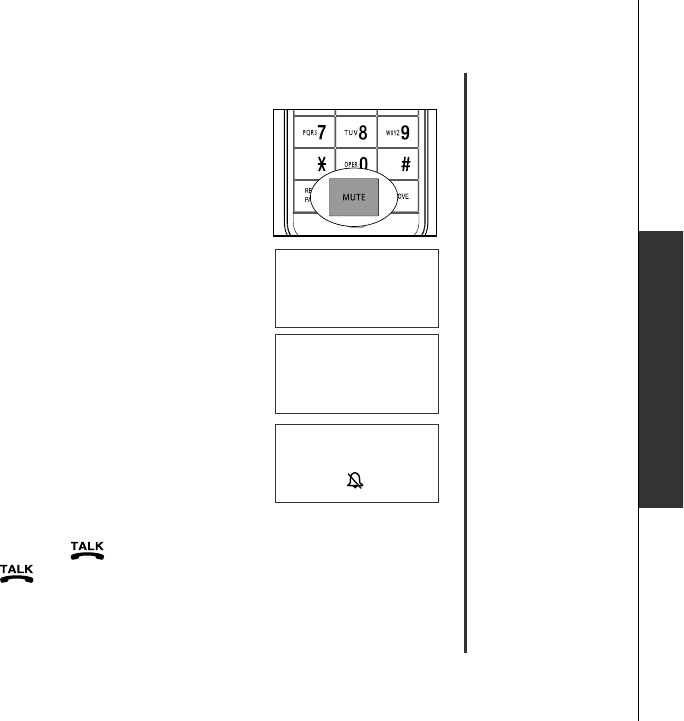

The mute feature allows you to hear the other party while the
other party cannot hear you.
During a call, press M U T E on the handset. M U T E D will
be temporarily displayed on the screen, along with the
smaller M U T E icon.
Press M U T E again to resume the conversation.
M ICR O P H O N E O N will be temporarily displayed on the
screen.
R inger mute
You can mute the ringer temporarily when the telephone is
ringing.
Press O FF/CLE A R or M U T E to temporarily silence the
ringer. The next call will ring normally.
Call w aiting
If you subscribe to call waiting service from your telephone
company, you will hear an alert tone if there is an incoming
call while you’re on another call. Press /FLA S H to answer
the new incoming call. Press /FLA S H again to return to
the original call.
1.
2.
•
RINGER MUTE
PHONE 0:00:00
MUTED
MUTE
w w w .v tech ph ones.com
12
T eleph one operation
** PAGING **
V olume
During a call, press V O L or V O L to adjust the listening
volume to a comfortable level.

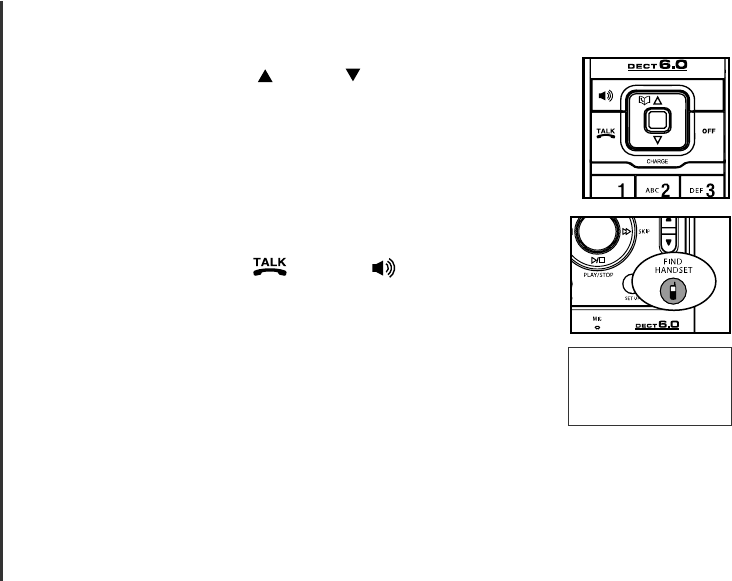

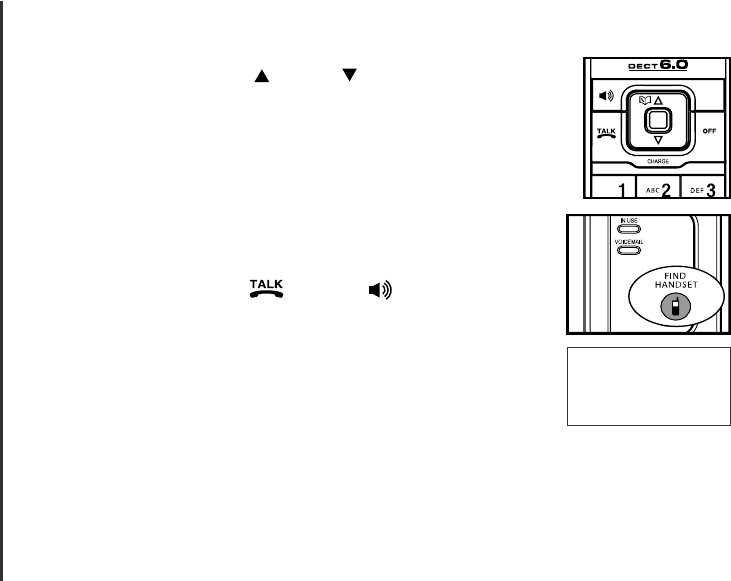

Find h and set
This feature allows the telephone base to page the handset.
Press FIN D H A N D S E T on the telephone base. The
handset will ring and its screen displays ** P A G IN G **.
Press FIN D H A N D S E T again on the telephone base to
stop paging, or press /FLA S H , or any dialing key
(0-9, #, *) on the handset.
1.
2.
FLASH
CLEAR
SELECT
ME NU
CID
VO L
w w w .v tech ph ones.com 13
B asic operation
T eleph one operation
T eleph one operation
D irectory
The directory can store up to 50 entries. Each entry may have
up to 30 digits and 15 characters.
The directory can be accessed when the handset is not
in use by pressing once or M E N U /S E LE CT three
times.
The screen displays D IR E CT O R Y E M P T Y if there are no
records in the directory.
When the directory is full and you attempt to save an entry,
the screen will display LIS T FU LL.
If you attempt to save a number already stored in the
directory, the screen will display A LR E A D Y S A V E D .
•
•
•
•
DIRECTORY EMPTY
LIST FULL
w w w .v tech ph ones.com
14
T eleph one operation
>DIRECTORY
CALL LOG
>STORE
REVIEW
ENTER NUMBER
_
ENTER NAME
_
S tore a d irectory entry
Press M E N U /S E LE CT twice when the handset is not in
use.
Press or to select >S T O R E , then press M E N U /S E LE CT .
The screen displays E N T E R N U M B E R .
Use the dialing keys to enter the number.
Press R E M O V E to backspace and erase a character.
Press and hold R E M O V E to erase the entire entry.
Press to move the cursor to the left or to the right.

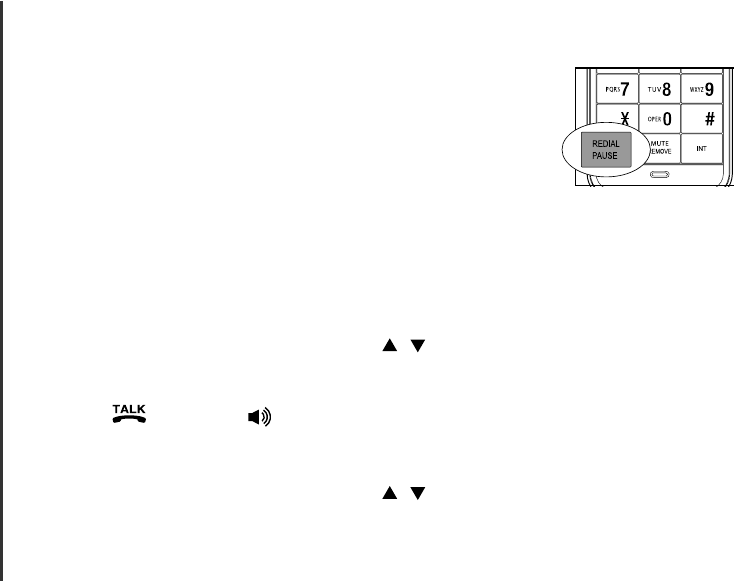

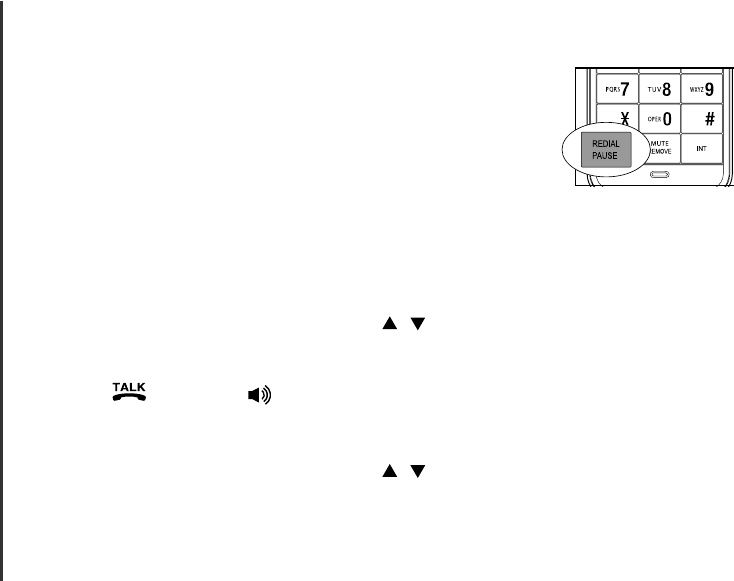

Press and hold R E D IA L/P A U S E to insert a dialing pause.
Press M E N U /S E LE CT to enter the name. The screen
displays E N T E R N A M E .
Use the dialing keys (see the Ch aracter ch art on page 15)
to enter the name.
Press R E M O V E to backspace and erase a character.
Press and hold R E M O V E to erase the entire entry.
Press to move the cursor to the left or to the right.
Press # to insert a space.
Press M E N U /S E LE CT to save your entry. You will hear a
confirm ation tone.
1.
2.
3.
•
•
•
•
4.
5.
•
•
•
•
6.
w w w .v tech ph ones.com 15
B asic operation
T eleph one operation
T eleph one operation
Ch aracter ch art
Use the dial pad and the chart below to enter a name (up to 15 characters). Each press
of a particular key causes the characters to be displayed in the following order:
Press M U T E /R E M O V E to backspace and erase when entering characters.
Press and hold M U T E /R E M O V E to delete the entire entry.
•
•
Number key Characters by number of key presses
123456789
11 # ,, - . &
2A B C 2 a b c
3D E F 3 d e f
4G H I 4 g h i
5J K L 5 j k l
6M N O 6 m n o
7P Q R S 7 p q r s
8T U V 8 t u v
9W X Y Z 9 w x y z
00
* *? fl / ( ) @
#space
When entering
a name in the
directory, the
first letter of
each word will
be capitalized
automatically.
•
w w w .v tech ph ones.com
16
T eleph one operation
S earch th e d irectory
Entries are sorted alphabetically.
To search the directory:
Press once, or M E N U /S E LE CT three times to enter
the directory.
Press or to scroll through the directory.
To start an alphabetical search:
Press once, or M E N U /S E LE CT three times to enter the directory.
U se the d ialing k ey s to enter the first letter associated w ith the nam e. F or
example, press 5 (J K L ) once to find J enny, tw ice to find K risten, or three tim es
to find L ind a. If there is no nam e entry m atching y ou r search, the nex t closest
matching entry in alphabetical order will be displayed. If necessary, scroll
or to find the d esired entry .
D ial a d irectory entry
Press once, or M E N U /S E LE CT three times to enter the directory.
Press or to scroll to the desired entry, or use the alphabetical search to
find it.
Press /FLA S H or to dial the entry.
1.
2.
1.
2.
1.
2.
3.
>REVIEW
STORE
VTECH
800-595-9511
w w w .v tech ph ones.com 17
B asic operation
T eleph one operation
T eleph one operation
EDIT NAME
VTECH_
E d it a d irectory entry
Press once, or M E N U /S E LE CT three times to enter the directory.
Press or to scroll to the desired entry, or use the alphabetical search to
find it.
Press M E N U /S E LE CT to confirm your selection. The
screen displays E D IT N U M B E R .
Use the dialing keys to edit the number.
Press R E M O V E to backspace and erase a character.
Press and hold R E M O V E to erase the entire entry.
Press to move the cursor to the left or to the right.
Press and hold R E D IA L/P A U S E to insert a dialing pause.
Press M E N U /S E LE CT to move on to the name. The screen
displays E D IT N A M E .
Use the dialing keys (see the Ch aracter ch art on page 15)
to edit the name.
Press R E M O V E to backspace and erase a character.
Press and hold R E M O V E to erase the entire entry.
Press to move the cursor to the left or to the right.
Press # to insert a space.
Press M E N U /S E LE CT to sav e y ou r ed its. Y ou w ill hear a confirm ation tone.
1.
2.
3.
4.
•
•
•
•
5.
6.
•
•
•
•
7.
EDIT NUMBER
595-9511_
w w w .v tech ph ones.com
18
T eleph one operation
D elete from th e d irectory
Press once, or M E N U /S E LE CT three times to enter the directory.
Press or to scroll to the desired entry, or use the alphabetical search to
find it.
Press M U T E /R E M O V E to remove the displayed entry. You will hear a
confirm ation tone.
1.
2.
3.
w w w .v tech ph ones.com 19
B asic operation
T eleph one operation
T eleph one operation
A b out caller ID
The caller ID with call waiting feature in this telephone lets you see the name and
telephone number of the caller before answering the call, even when already on a
call. These features require services provided by your local telephone company.
Contact your telephone company if:
you have both caller ID and call waiting, but as separate services (you may need
combined service);
you have only caller ID service, or only call waiting service; or
you do not subscribe to any caller ID or call waiting services but wish to
subscribe.
You can use this telephone with regular caller ID service, and you can use its
other features without subscribing to either caller ID or combined caller ID with
call waiting service. There may be fees for these services, and these services
may not be available in all areas.
The caller ID features will work only if both you and the caller are in areas offering
caller ID service, and if both telephone companies use compatible equipment.
•
•
•
w w w .v tech ph ones.com
20
T eleph one operation
Due to regional
service
differences,
the caller ID
information
may not be
available for
every incoming
call. In addition,
the callers may
intentionally
block their names
and/or telephone
numbers.
The time on
the handset is
automatically set
and updated with
incoming caller ID
information.
•
•
CALL LOG EMPTY
Call log
If you subscribe to caller ID service, information about each
caller w ill b e d isplay ed after the first or second ring .
The call log can store up to 50 entries.
You can review, redial, and copy an entry into the directory.
Entries are displayed in reverse chronological order, i.e.
from the most recent entry to the earliest entry.
When the call log is full, the earliest entry is deleted to make
room for new incoming call information.
X X M IS S E D CA LL(S ) and the N E W icon will be displayed
if there are new call log entries (including missed and
unreviewed calls).
CA LL LO G E M P T Y will be displayed if there are no records
in the call log.
•
•
•
•
•
•
HANDSET X
XX MISSED CALLS
w w w .v tech ph ones.com 21
B asic operation
T eleph one operation
T eleph one operation
R ev iew th e call log
Press CID when the handset is not in use.
Press or to browse through the call log.
-O R -
Press M E N U /S E LE CT when the handset is not in use.
Press or to select >CA LL LO G .
Press M E N U /S E LE CT .
Press or to browse through the call log.
The name (if available), telephone number, date and time
of all incoming calls are displayed on the screen.
There will be a double beep when the list reaches the
beginning or end of the call log.
1.
2.
1.
2.
3.
4.
•
•
VTECH
595-9511
3:45
AM 1/02
>CALL LOG
RINGER VOLUME
w w w .v tech ph ones.com
22
T eleph one operation
800-595-9511
1-800-595-9511
595-9511
1-595-9511
M ak e a call log entry read y to d ial
Although the call log entries received have 10 digits (the
area code plus the seven-digit number), in some areas, you
may need to dial only the seven digits, or a 1 plus the seven
digits, or a 1 plus the area code plus the seven digits. You
can change the number of digits that you dial from or store
in the call log.
While reviewing the call log, press # repeatedly to display
these dialing options for local and long distance numbers
before dialing or saving the telephone number. See the
example on the right.
D ial a call log entry
When in the call log, press or to scroll to the desired
entry.
If the displayed number is not ready to dial, press # until it
is in the correct format.
Press /FLA S H or to dial the entry.
1.
2.
3.
w w w .v tech ph ones.com 23
B asic operation
T eleph one operation
T eleph one operation
S av e an entry to th e d irectory
When in the call log, press or to scroll to the desired
entry.
Press M E N U /S E LE CT .
You can edit the phone number, if necessary. Make sure
the number is in the correct dialing format for your area.
Press M E N U /S E LE CT when done. Now, edit the name.
Press M E N U /S E LE CT when done.
If the entry is already saved in the directory, the screen
will display A LR E A D Y S A V E D .
If there is no caller ID information, the screen will display
U N A B LE T O S A V E .
Successful programming is indicated by S A V E D on the
hand set d isplay along w ith a confirm ation tone.
1.
2.
•
•
•
3.
SAVED
UNABLE TO SAVE
ALREADY SAVED
w w w .v tech ph ones.com
24
T eleph one operation
D elete from th e call log
To delete one entry:
When in the call log, press or to scroll to the desired
entry.
Press R E M O V E to delete the selected entry. You will hear
a confirm ation tone.
To delete all entries:
When in the call log, press or to scroll to the desired
entry.
Press and hold R E M O V E to delete the entire call log.
The screen displays D E LE T E A LL CA LLS ?
Press M E N U /S E LE CT to confirm. You will hear a
confirm ation tone.
- O R -
Press O FF/CLE A R to return to the previous menu if you
want to cancel the deletion.
1.
2.
1.
2.
3.
4. DELETE ALL
CALLS?
w w w .v tech ph ones.com 25
B asic operation
T eleph one operation
T eleph one operation
D isplays: W h en:
PRIVATE NAME The caller is blocking the name information.
PRIVATE NUMBER The caller is blocking the telephone number
information.
PRIVATE CALLER The caller is blocking the name and number
information.
UNKNOWN NAME This caller’s name is unavailable.
UNKNOWN NUMBER
This caller’s number is unavailable.
UNKNOWN CALLER No call information is available about this caller.
LONG DISTANCE This is a long distance call.
Call log d isplay screen messages
w w w .v tech ph ones.com
26
T eleph one operation
R ed ial list
The telephone stores the fiv e m ost recently d ialed nu m b ers
on the redial list.
O nce there are fiv e nu m b ers stored on the red ial list, the
oldest entry will be deleted to make room for the new
entry.
Entries are displayed in reverse chronological order, i.e.
from the newest entry to the oldest entry.
The redial list can be accessed by pressing R E D IA L/P A U S E when the handset
is not in use.
D ial a red ial entry
Press R E D IA L/P A U S E , then press , or R E D IA L/P A U S E repeatedly to
scroll to the desired number. You will hear an error tone when you reach the
beginning or end of the redial list.
Press /FLA S H or to dial the number.
D elete from red ial
Press R E D IA L/P A U S E , then press , or R E D IA L/P A U S E repeatedly to
scroll to the desired number.
Press M U T E /R E M O V E to d elete the selected entry. Y ou w ill hear a confirm ation
tone.
•
•
1.
2.
1.
2.
w w w .v tech ph ones.com 27
B asic operation
A nsw ering system
A nsw ering system
M essage capacity
The answering system can record and store up to 99 messages. A message can
be up to four minutes in length. The total storage capacity for the announcement,
messages and memos is approximately 14 minutes. Messages will remain available
for replay until they are deleted.
Press to play or stop
messages (page 34).
Pr es s to r e pe at a
m e s s a g e . P r e s s
twice to play back the
pr ev i ou s m es s ag e
(page 34).
Displays the number
of messages plus
o t h e r a n s w er i n g
system information
(page 37).
Pres s to re cor d a
memo (page 35) or
an an no un ce men t
(page 32).
Press to set the
clock (page 28).
Press to enter
announcement mode
(pages 32-33).
Press to enter the
set up menu (pages
29-31).
Pr e s s t o t u r n t h e
answering system on
or off (page 28).
P r e s s t o a d j u s t
the volume during
playback (page 34).
Press to skip to the
next message (page
34).
P r e s s t o d e l e t e
me ssag e cu rren tly
playing (page 34).
Press twice to delete
all old messages when
the phone is not in use
(page 35).
w w w .v tech ph ones.com
28
A nsw ering system
If you have caller
ID service, the
clock will be set
automatically with
incoming calls,
but you will need
to make sure the
year is correct.
See S et th e clock
for instructions
on how to set the
year, time and day
manually.
Press and hold
/S K IP or
/R E P E A T while
setting the minutes
or year to advance
or decrease by
increments of ten.
•
•
A ctiv ate th e answ ering system
The answering system must be turned on to answer and record messages. Press
A N S O N /O FF to turn the answering system on or off. If the answering system is
turned on, it will announce “C a lls w ill b e a n s w e re d ,” and the A N S O N /O FF light
will be on. If the answering system is turned off, it will announce “C a lls w ill n o t
b e a n s w e re d ,” and the A N S O N /O FF light will be off.
S et th e clock
Prior to playing a message, the answering system announces when it was
received. Before using the answering system, set the year, time and day, so that
messages are dated correctly. If the clock is not set before new messages are
recorded, the system will announce “T im e a n d d a y n o t s e t,” before each message
is played to remind you to set the clock.
Press CLO CK . The system announces the clock setting (e.g. year, time and
day), then announces: “T o s e t th e c lo c k , p re s s CLOCK.”
Press CLO CK . The system announces the current year.
Press /S K IP or /R E P E A T until the system announces the correct year, then
press CLO CK . The system announces the current hour.
Press /S K IP or /R E P E A T until the system announces the correct hour, then
press CLO CK . The system announces the current minute.
Press /S K IP or /R E P E A T until the system announces the correct minute,
then press CLO CK . The system announces the current day.
1.
2.
3.
4.
5.
w w w .v tech ph ones.com 29
B asic operation
A nsw ering system
A nsw ering system
A nsw ering system set up
The answering system uses voice prompts to guide you through feature set up.
Press /P LA Y /S T O P anytime to save and exit the S E T U P menu.
S et numb er of rings
This feature allows you to select the number of rings before the answering system
answers. You can choose from two, four or six rings or toll saver. With toll saver
selected, the answering system answers after two rings if there are no new
messages, and after four rings if there are no new messages.
To set the number of rings:
Press S E T U P when the phone is not in use. The system announces the current
number of rings setting.
Press /S K IP or /R E P E A T until the system announces the desired setting,
then press S E T U P to save the setting and go to the next setting, or press
/P LA Y /S T O P to save and exit set up mode.
1.
2.
Press /S K IP or /R E P E A T until the system announces the correct day, then
press CLO CK . A fter a confirm ation tone, the sy stem annou nces the new clock
setting and exits programming mode.
6.
w w w .v tech ph ones.com
30
A nsw ering system
S et teleph one b ase ringer
This feature allows you to select the telephone base ringer volume level. You
can choose from H I (high), O F (off) or LO (low).
Press S E T U P when the phone is not in use, until the system announces the
telephone base ringer setting.
Press /S K IP or /R E P E A T until the system announces the desired telephone
base ringer volume level, then press S E T U P to save the setting and go to the
next setting, or press /P LA Y /S T O P to save and exit set up mode.
S et remote access cod e
A two-digit security code is required to access the answering system remotely
from any touch tone telephone. The preset code is 19. You can set the code
from 10 to 99.
To set the remote access code:
Press S E T U P when the phone is not in use, until the system announces the
remote access code setting.
Press /S K IP or /R E P E A T to change the remote access code by one, or
press and hold /S K IP or /R E P E A T to change it by increments of ten. Press
S E T U P to save the setting and go to the next setting, or press /P LA Y /S T O P
to save and exit set up mode.
1.
2.
1.
2.
w w w .v tech ph ones.com 31
B asic operation
A nsw ering system
A nsw ering system
S et message alert tone
This feature programs the system to beep every 10 seconds to alert you of new
messages. The tone will stop when all new messages have been reviewed.
To set the message alert tone:
Press S E T U P when in idle mode until the system announces the message
alert tone setting.
Press /S K IP or /R E P E A T to select on or off, then press S E T U P to save
the setting and go to the next setting, or press /P LA Y /S T O P to save and
exit set up mode.
1.
2.
The answering
system must be
turned on for the
message alert
tone to function.
•
w w w .v tech ph ones.com
32
A nsw ering system
O utgoing announcement
The outgoing announcement is the greeting callers hear when calls are answered
by the answering system.
The telephone is preset with a greeting that answers calls with “H e llo , p le a s e
le a v e a m e s s a g e a fte r th e to n e .” You can use this preset announcement, or
replace it with your own. While in the A N N C menu, press A N N C again to exit
at anytime.
R ecord your ow n announcement
Press A N N C when the phone is not in use, and the system will announce
“A n n o u n c e m e n t. P re s s P LA Y o r p re s s R E COR D .”
Press R E CO R D and the system announces, “R e c o rd a fte r th e to n e . P re s s
S T OP w h e n y o u a re d o n e .”
After the tone, speak towards the microphone at the bottom front of the
telephone base from about nine inches away.
Press /P LA Y /S T O P w hen finished .
The answering system will automatically playback the newly recorded
announcement. Press /P LA Y /S T O P to stop the playback at anytime.
Press /P LA Y /S T O P again to replay the recorded announcement. Press
R E CO R D to record again (follow steps 2 through 4) if desired. Press A N N C
to exit programming mode.
1.
2.
3.
4.
5.
6.
Your
announcement
can be up to 90
seconds in length.
Announcements
shorter than two
seconds will not
be recorded.
•
•
w w w .v tech ph ones.com 33
B asic operation
A nsw ering system
A nsw ering system
P lay your announcement
Press A N N C when the phone is not in use and the system will announce
“A n n o u n c e m e n t. P re s s P LA Y o r p re s s R E COR D .”
Press /P LA Y /S T O P to play. You can press /P LA Y /S T O P again to stop
the playback.
D elete your announcement
Press A N N C when the handset is not in use, and the system will announce
“A n n o u n c e m e n t. P re s s P LA Y o r p re s s R E COR D .”
Press X /D E LE T E and the system will announce “A n n o u n c e m e n t d e le te d .”
1.
2.
1.
2.
When your
announcement
is deleted, calls
will be answered
with the preset
announcement.
•
w w w .v tech ph ones.com
34
A nsw ering system
N ew message ind ication
The m essag e d isplay cou nter w ill fl ash w hen there are new answ ering sy stem
messages.
If the new message alert tone is turned on, the telephone base will beep every
ten seconds when there are unreviewed messages.
M essage playb ack
Press /P LA Y /S T O P to listen to messages.
Press /P LA Y /S T O P again to stop playback.
If y ou hav e new m essag es, y ou w ill hear only the new m essag es (old est first). If
there are no new m essag es, the sy stem w ill play b ack all m essag es (old est first).
When playback begins, the total number of messages is announced, followed
b y the d ay and tim e of the first m essag e to b e play ed .
O ptions d uring playb ack
Press V O L / to adjust the speaker volume.
Press /S K IP to skip to the next message.
Press /R E P E A T to repeat the message currently playing. Press /R E P E A T
twice to listen to the previous message.
Press X /D E LE T E to delete the current message. The system will advance to
the next message.
1.
2.
•
•
•
•
If the system
has less than
fiv e m inu tes of
recording time left,
the remaining time
will be announced.
If F is fl ashing
in the message
window, the
memory is full.
You will have
to delete some
messages before
new ones can be
recorded.
O nly old
messages can be
deleted. Messages
can only be
deleted after they
are played.
•
•
•
w w w .v tech ph ones.com 35
B asic operation
A nsw ering system
A nsw ering system
D elete all messages
Press X /D E LE T E when the phone is not in use. The system will announce “T o
d e le te a ll o ld m e s s a g e s , p re s s D E LE T E a g a in .” Press X /D E LE T E again. All
previously heard messages will be erased.
R ecord and play memos
Memos are your own recorded messages used as reminders for yourself or others
using the same answering system. They are saved, played back and deleted in
the same way as incoming messages.
R ecord a memo
Press R E CO R D when the phone is not in use. The system announces, “R e c o rd
a fte r th e to n e . P re s s S T OP w h e n y o u a re d o n e .”
After the tone, speak towards the microphone at the bottom front of the
telephone base from about nine inches away.
Press /P LA Y /S T O P w hen finished record ing . The sy stem w ill annou nce
“R e c o rd e d .”
M emo playb ack
Press /P LA Y /S T O P when the phone is not in use. See O ptions d uring playb ack
on page 34 for other options.
1.
2.
3.
“M e m o ry is fu ll,”
will be announced
if you press
R E CO R D when
the memory is
full.
Each memo can
be up to four
minutes in length.
Memos shorter
than two seconds
will not be
recorded.
•
•
•
w w w .v tech ph ones.com
36
A nsw ering system
Call screening
You can listen at the telephone base to a caller leaving a message. However, if
you want to silence the telephone base when messages are being recorded, set
the telephone base volume to its lowest level (1). Remember to raise the volume
in order to hear your messages during playback.
Call intercept
If you want to answer a call while a message is being recorded, press
/FLA S H on the handset.
w w w .v tech ph ones.com 37
B asic operation
A nsw ering system
A nsw ering system
W ind ow d isplays: D escriptions:
0No messages.
1-99 Total number of old message(s) recorded.
0-98 (fl ashing ) Total number of new and old message(s) recorded.
The telephone base may have lost and regained power.
The clock needs to be set.
99 & F (alternating) Memory is full with total number of messages recorded.
1-99 (counting) Elapsed time while recording memo or announcement (up to 90
seconds).
99 (fl ashing ) Recording time exceeds 99 seconds.
1-99 (fl ashing ) Current message number during new message playback.
1-99 Current message number during old message playback.
1-8Current volume level while adjusting.
10-99 Current remote access code while setting.
02, 04, 06, tS Current number of rings before answering while setting.
-- System is answering a call, or the time and date are being set, or being
accessed remotely.
-- (fl ashing ) System is being programmed or initialized.
H I, LO or O F The telephone base ringer level while in set up mode.
M essage w ind ow d isplays
If the memory is
full, the system
will answer
after 10 rings
and announce,
“M e m o ry is fu ll.
E n te r th e re m o te
a c c e s s c o d e .”
•
w w w .v tech ph ones.com
38
A nsw ering system
If no key is pressed
after entering
remote access, new
messages will be
played automatically.
If there are no new
messages, all old
messages will be
played automatically.
O nce the new
messages have
been played,
the system will
announce the help
menu options. If
no key is pressed
within 20 seconds,
the remote access
call is automatically
disconnected.
When the answering
system is turned
off, the telephone
will answer after 10
rings, and announce
“P le a s e e n te r y o u r
re m o te a c c e s s
c o d e .”
•
•
•
R emote access
A two-digit security code is required to access the system remotely from any
touch tone telephone. The preset code is 19; see page 30 to change it.
Dial your telephone number from any touch tone telephone.
When the system answers and begins playing your announcement, enter the
two-digit security code.
After hearing a double beep, enter one of the following remote commands.
Hang up or press 8 to end the call.
1.
2.
3.
4.
Command Function
1 Play all messages.
2 Play only new messages.
3 Delete the current message (during playback).
33 Delete all messages.
4 Repeat the current message (during playback).
5 Stop.
*5 Hear a list of remote commands.
6 Skip to the next message (during playback).
*7 Record a new announcement.
8 End the call.
0 Turn the answering system on or off.
w w w .v tech ph ones.com 39
A ppend ix
H and set d isplay screen messages
ALREADY SAVED The telephone number you have entered is already stored in the
directory.
CALL LOG EMPTY There are no call log entries.
CONNECTING... The cordless handset is searching for the telephone base.
CHARGING The handset with low battery has been placed in the telephone base
or charger to recharge.
DIRECTORY EMPTY There are no directory entries.
ENDED You have just ended a call.
INCOMING CALL There is an incoming call.
LINE IN USE The handset or another telephone on the same line is in use.
LIST FULL The directory is full.
LOW BATTERY The battery needs to be recharged.
MICROPHONE ON M U T E has been turned off and the person on the other end can hear
you.
MUTED The microphone is muted temporarily during a conversation.
NEW VOICE MAIL There are new voice mail message(s) from the local telephone
company.
NO LINE There is no telephone line connected.
w w w .v tech ph ones.com
40
H and set d isplay screen messages
NO SIGNAL, CALL ENDED Communication between the handset and telephone base is lost during
a call.
**PAGING** FIN D H A N D S E T on the telephone base has been pressed.
PHONE The handset is in use.
PLACE IN CHARGER The battery is very low. The handset should be placed in the telephone
base to recharge.
RINGER MUTE The ringer is muted temporarily during incoming call.
SAVED Your operation has been saved.
SPEAKER The handset speakerphone is in use.
UNABLE TO SAVE You are attempting to save caller ID entry with no name or number.
WARNING
CHECK BATTERY!
The battery is not installed or not installed properly in the handset.
-O R -
The battery needs to be replaced.
-O R -
An incorrect battery has been installed. Use only the supplied VTech
battery or equivalent.
XX MISSED CALLS There are unreviewed calls in your call log.
w w w .v tech ph ones.com 41
A ppend ix
H and set and teleph one b ase ind icators
T eleph one b ase ligh ts
H and set ligh ts
IN U S E Flashes when there is an incoming call or another telephone on
the same line is in use.
O n when the handset is in use.
•
•
V O ICE M A IL Flashes when there is a new message stored in your telephone
company voice mail service.
•
A N S O N /O FF O n when the answering system is on.•
O n when the handset speakerphone is in use.•
CH A R G E O n when the handset is in the telephone base and is charging.•
w w w .v tech ph ones.com
42
H and set icons
M U T E Microphone is muted.•
Ringer off.•
N E W New call log entries.•
N E W V O ICE M A IL New voicemail received from the local telephone company.•
S P E A K E R In speakerphone mode.•
B attery ind icator
Cycles (low, medium, and full) when handset battery is
charging.
Flashes when the battery is low and needs charging.
•
•
H and set and teleph one b ase ind icators
w w w .v tech ph ones.com 43
A ppend ix
B attery
It tak es up to 16 h ours for th e b attery to b e fully ch arged . W h en it is fully ch arged , you can ex pect th e follow ing
performance:
O peration O perating time
While in use (talking) Eight hours
While not in use (standby*) Four and a half days
*Handset is off the telephone base but not in use.
The battery needs charging when:
A new battery is installed in the handset.
The handset beeps.
LO W B A T T E R Y is d isplay ed and the b attery ind icator on the hand set screen is fl ashing .
CA U T IO N :
To red u ce the risk of fire or inju ry , read and follow these instru ctions:
Use only the battery provided or equivalent. To order a replacement, visit our website at www.vtechphones.com or call
1 (800) 595-9511. In Canada, go to www.vtechcanada.com or call 1 (800) 267-7377.
D o not d ispose of the b attery in a fire. They m ay ex plod e. C heck w ith local w aste m anag em ent cod es for special d isposal
instructions.
Do not open or mutilate the battery. Released electrolyte is corrosive and may cause burns or injury to the eyes or skin.
The electrolyte may be toxic if swallowed.
Exercise care in handling batteries in order not to create a short circuit with conductive materials such as rings, bracelets,
and keys. The battery and/or conductor may overheat and cause burns.
C harg e the b attery prov id ed w ith or id entified for u se w ith this prod u ct only in accord ance w ith the instru ctions and
lim itations specified in this m anu al.
W A R N IN G :
TO PREVENT FIRE O R SHO CK HAZARD, DO NO T EXPO SE THIS PRO DUCT TO WATER O R ANY TYPE O F MO ISTURE.
•
•
•
•
•
•
•
•
w w w .v tech ph ones.com
44
Important safety instructions
W hen u sing y ou r telephone eq u ipm ent, b asic safety precau tions shou ld alw ay s b e follow ed to red u ce the risk of fire, electric shock and
injury, including the following:
Read and understand all instructions.
Follow all warnings and instructions marked on the product.
Unplug this product from the wall outlet before cleaning. Do not use liquid or aerosol cleaners. Use a damp cloth for cleaning.
Do not use this product near water (for example, near a bathtub, kitchen sink, or swimming pool).
Do not place this product on an unstable table, shelf, stand or other unstable surfaces.
Slots and openings in the back or bottom of the telephone base and handset are provided for ventilation. To protect them from overheating,
these openings must not be blocked by placing the product on a soft surface such as a bed, sofa or rug. This product should never be
placed near or over a radiator or heat register. This product should not be placed in any area where proper ventilation is not provided.
This product should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power
supply in your home, consult your dealer or local power company.
Do not allow anything to rest on the power cord. Do not install this product where the cord may be walked on.
Never push objects of any kind into this product through the slots in the telephone base or handset because they may touch dangerous
voltage points or create a short circuit. Never spill liquid of any kind on the product.
To reduce the risk of electric shock, do not disassemble this product, but take it to an authorized service facility. O pening or removing
parts of the telephone b ase or hand set other than specified access d oors m ay ex pose y ou to d ang erou s v oltag es or other risk s. Incorrect
reassembling can cause electric shock when the product is subsequently used.
Do not overload wall outlets and extension cords.
Unplug this product from the wall outlet and refer servicing to an authorized service facility under the following conditions:
When the power supply cord or plug is damaged or frayed.
If liquid has been spilled onto the product.
If the product has been exposed to rain or water.
If the product does not operate normally by following the operating instructions. Adjust only those controls that are covered by the
operation instructions. Improper adjustment of other controls may result in damage and often requires extensive work by an authorized
technician to restore the product to normal operation.
If the product has been dropped and the telephone base and/or handset has been damaged.
If the product exhibits a distinct change in performance.
Avoid using a telephone (other than cordless) during an electrical storm. There is a remote risk of electric shock from lightning.
Do not use the telephone to report a gas leak in the vicinity of the leak.
O nly put the handset of your telephone next to your ear when it is in normal talk mode.
The pow er ad apter is intend ed to b e correctly oriented in a v ertical or fl oor m ou nt position. The prong s are not d esig ned to hold the
plug in place if it is plugged into a ceiling or an under-the-table/cabinet outlet.
S A V E T H E S E IN S T R U CT IO N S
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
A.
B.
C.
D.
E.
F.
13.
14.
15.
16.
w w w .v tech ph ones.com 45
A ppend ix
T roub lesh ooting
If y ou hav e d ifficu lty w ith y ou r telephone, please try the su g g estions b elow . F or C u stom er S erv ice, v isit
our website at www.vtechphones.com, or call 1 (800) 595-9511; in Canada, call 1 (800) 267-7377.
Problem Suggestion
My telephone does not
work at all.
Make sure the battery is installed and charged correctly (page 3). For optimum daily
performance, return the handset to the telephone base after use.
Make sure the power adapter is securely plugged into an outlet not controlled by a wall switch.
M ak e su re the telephone line cord is plu g g ed firm ly into the telephone b ase and the telephone
wall jack.
Unplug the electrical power to the telephone base. Wait for approximately 15 seconds,
then plug it back in. Allow up to one minute for the cordless handset and telephone base to
synchronize.
Charge the battery in the handset for up to 16 hours.
Remove and re-insert the battery. If that still does not work, it may be necessary to purchase
a new battery.
Disconnect the telephone base from the telephone wall jack and plug in a working telephone.
If the other telephone does not work, the problem is probably in the wiring or the local service.
Call the local telephone company.
•
•
•
•
•
•
•
LO W B A T T E R Y i s
displayed on screen.
Place the handset in the telephone base for recharging.
Remove and re-install the battery and use it normally until fully discharged, then recharge the
handset on the telephone base for up to 16 hours.
If the above measures do not correct the problem, the battery may need to be replaced.
•
•
•
w w w .v tech ph ones.com
46
T roub lesh ooting
Problem Suggestion
The battery does not
charge in the handset or
the handset battery does
not accept charge
.
Make sure the handset is placed in the telephone base correctly. The CH A R G E light on the
handset should be on.
Remove and reinstall the battery, then charge for up to 16 hours.
If the handset is in the telephone base but the CH A R G E light on the handset is not on, refer
to T h e CH A R G E ligh t is off in this section.
It may be necessary to purchase a new battery. Please refer to the B attery section (page 43)
of this user’s manual.
The telephone might be malfunctioning. Please refer to the W arranty section (page 56) of this
user’s manual for further instruction.
•
•
•
•
•
The CH A R G E light is
off.
Clean the charging contacts on the handset and telephone base each month using a pencil
eraser or a dry non-abrasive fabric.
Make sure the power adapter and telephone line cord are plugged in correctly and securely.
Unplug the power adapter. Wait for 15 seconds before plugging it back in. Allow up to one
minute for the handset and telephone base to reset.
The telephone might be malfunctioning. Please refer to the W arranty section (page 56) of this
user’s manual for further instruction.
•
•
•
•
There is no dial tone. First, try all the above suggestions.
Move the handset closer to the telephone base. It might be out of range.
The telephone line cord might be malfunctioning. Try installing a new telephone line cord.
Disconnect the telephone base from the telephone wall jack and connect a different telephone.
If there is no dial tone on this telephone either, the problem is in your wiring or local service.
Contact your local telephone company.
•
•
•
•
w w w .v tech ph ones.com 47
A ppend ix
T roub lesh ooting
Problem Suggestion
The telephone does not
ring when there is an
incoming call.
Make sure the handset ringer is on (page 6) and the telephone base ringer is on (page 30).
Make sure the telephone line cord and power adapter are plugged in properly (page 2).
The handset may be too far from the telephone base. Move it closer to the telephone base.
There may be too many extension phones on the telephone line to allow all of them to ring
simultaneously. Try unplugging some of them.
If the other telephones in your home are having the same problem, the problem is in the wiring
or local service. Contact the local telephone company (charges may apply).
O ther electronic products can cause interference to your cordless telephone. Try installing your
telephone as far away as possible from the following electronic devices: wireless routers, radios,
radio towers, pager towers, cellular telephones, digital telephones, intercoms, room monitors,
televisions, VCRs, personal computers, kitchen appliances, and other cordless telephones.
Test a working telephone at the telephone wall jack. If another telephone has the same problem,
the problem is in the telephone wall jack. Contact your local telephone company (charges may
apply).
The telephone line cord might be malfunctioning. Try installing a new telephone line cord.
Re-install the battery and place the handset in the telephone base.
Wait for the handset to synchronize with the telephone base. Allow up to one minute for this
to take place.
•
•
•
•
•
•
•
•
•
•
w w w .v tech ph ones.com
48
T roub lesh ooting
Problem Suggestion
I cannot dial out. First, try all the above suggestions.
Make sure there is a dial tone before dialing. It is normal if the handset takes a second or two
to synchronize with the telephone before producing a dial tone. Wait an extra second before
dialing.
If the other telephones in your home are having the same problem, the problem is in the wiring
or local service. Contact your local telephone company (charges may apply).
Eliminate any background noise. Noise from a television, radio, or other appliances may cause
the telephone not to d ial ou t properly . If y ou cannot elim inate the b ack g rou nd noise, first try
muting the cordless handset before dialing, or dialing from another room in your home with
less background noise.
•
•
•
•
My handset beeps
and is not performing
normally.
Make sure the power cord is securely plugged into the telephone base. Plug the telephone
base into a different working electrical outlet not controlled by a wall switch.
Move the handset closer to the telephone base. It may be out of range.
Reset the telephone base by unplugging the electrical power to the base. Wait for 15 seconds
and plug it back in again. Allow up to one minute for the cordless handset and the telephone
base to synchronize.
O ther electronic products can cause interference to your cordless telephone. Try installing
your telephone as far away from these electronic devices as possible: wireless routers, radios,
radio towers, pager towers, cellular telephones, intercoms, room monitors, televisions, personal
computers, kitchen appliances and other cordless telephones.
•
•
•
•
w w w .v tech ph ones.com 49
A ppend ix
T roub lesh ooting
Problem Suggestion
There is interference
durin g a tele phone
conversation.
My calls fade out when
I am using the cordless
handset.
The handset may be out of range. Move it closer to the telephone base.
D o y ou hav e D S L serv ice? If y es, y ou need to hav e a D S L filter installed at ev ery telephone
wall jack that has a telephone connected to it (page 2). Contact your DSL service provider for
filter inform ation.
Appliances or other cordless telephones plugged into the same circuit as the telephone base
can cause interference. Try moving the appliance or telephone base to another outlet.
O ther electronic products can cause interference to your cordless telephone. Try installing your
telephone as far away as possible from the following electronic devices: wireless routers, radios,
radio towers, pager towers, cellular telephones, digital telephones, intercoms, room monitors,
televisions, VCRs, personal computers, kitchen appliances, and other cordless telephones.
If your telephone is plugged in with a modem or a surge protector, plug the telephone (or
modem/surge protector) into a different location. If this solves the problem, re-locate your
telephone or modem farther apart from each other, or use a different surge protector.
The lay ou t of y ou r hom e or office m ig ht b e lim iting the operating rang e. Try m ov ing the telephone
base to another location, preferably a higher location for better reception.
Disconnect the telephone base from the telephone wall jack and plug in a corded telephone.
If calls are still not clear, the problem is probably in the wiring or local service. Contact your
local service company (charges may apply).
If the other telephones in your home are having the same problem, the problem is in the wiring
or local service. Contact the local telephone company (charges may apply).
•
•
•
•
•
•
•
•
w w w .v tech ph ones.com
50
T roub lesh ooting
Problem Suggestion
I hear other calls when
using the telephone.
Disconnect the telephone base from the telephone wall jack. Plug in a different telephone. If
you still hear other calls, the problem is probably in the wiring or local service. Call your local
telephone company.
•
I hear noise on the
cordless handset, and
none of the keys or
buttons works.
Make sure the telephone line cord is plugged in securely.•
My caller ID features are
not working properly.
Caller ID is a subscription service. You must subscribe to this service from your local telephone
company for this feature to work on your telephone.
The caller may not be calling from an area which supports caller ID.
Both you and the caller’s telephone companies must use equipment which are compatible
with the caller ID service.
If y ou su b scrib e to D S L serv ice, install a D S L filter to the telephone line b etw een the telephone
b ase and the telephone line jack . C ontact y ou r D S L serv ice prov id er for filter inform ation.
•
•
•
•
The system does not
receive caller ID or
the system does not
display caller ID during
call waiting.
Make sure you subscribe to caller ID with call waiting features provided by the local telephone
company.
The caller may not be calling from an area which supports caller ID.
Both you and the caller’s telephone companies must use equipment which are compatible
with caller ID service.
If y ou su b scrib e to D S L serv ice, install a D S L filter to the telephone line b etw een the telephone
b ase and the telephone line jack . C ontact y ou r D S L serv ice prov id er for filter inform ation.
•
•
•
•
w w w .v tech ph ones.com 51
A ppend ix
T roub lesh ooting
Problem Suggestion
Caller ID entries do not
match the numbers I
need to dial.
Although the call log entries you receive have 10 digits, (the area code plus the seven-digit
number), in some areas, you may need to dial only the seven digits, or a 1 plus the seven digits,
or a 1 plus the area code plus the seven digits. You can change the number of digits that you
dial from or store in the call log.
While reviewing the call log, press # repeatedly to display these dialing options for local and
long distance numbers before dialing or saving the telephone number.
•
•
CO N N E CT IN G ... is
shown in the handset
display window. Why
don’t I get a dial tone
when I try to use this
telephone?
The handset may be out of range. Move it closer to the telephone base.
The handset may be de-registered accidentally. Try to register the handset again.
Place the handset in the telephone base that is connected to a power outlet. If P R E S S FIN D
H S 4 S E C O N B A S E does not appear on the screen after a few seconds, lift up the handset
and place it in the telephone base again.
Press and hold FIN D H A N D S E T on the telephone base for four seconds. Release
FIN D H A N D S E T once the IN U S E light comes on.
After a while, the handset will emit a series of tones. The newly registered handset will be
assigned as H A N D S E T when successfully registered. Repeat steps 1 and 2 if the handset is
not successfully registered to the telephone base within two minutes.
•
•
1.
2.
w w w .v tech ph ones.com
52
T roub lesh ooting
Problem Suggestion
The answering system
does not answer after
the number of rings
which I programmed it.
Make sure the answering system is on. When the answering system is on, the red light on the
A N S O N /O FF key should be lit.
If Toll Saver is selected, the number of rings changes to two when there are new messages
waiting (page 29).
If the memory is full or if the answering system is off, the system will answer after ten rings.
In some cases, the answering system will be affected by the ringing system used by the local
telephone company.
•
•
•
•
The outgoing
announcement is not
clear.
When recording the announcement, make sure you speak in a normal tone of voice about nine
inches from the telephone base.
M ak e su re there is no b ack g rou nd noise (telev ision, m u sic, traffic, etc.) w hen record ing .
•
•
The messages on the
sy stem are v ery d ifficu lt
to hear.
Press V O L on the telephone base to increase the speaker volume.•
The answering system
does not record
messages.
Make sure the answering system is on.
If the answering machine memory is full, it will not record new messages until some old
messages are deleted.
•
•
The messages on the
answering system are
incomplete.
If a caller leaves a very long message, part of it may be lost when the system disconnects the
call after four minutes.
If the memory on the system becomes full during a message, the system stops recording and
disconnects the call.
If the caller’s voice is very soft, the system may stop recording and disconnect the call.
•
•
•
w w w .v tech ph ones.com 53
A ppend ix
T roub lesh ooting
Problem Suggestion
The answering system
does not respond to
remote commands.
Make sure your remote access code is correct (page 30).
Make sure you are calling from a touch-tone telephone. When dialing a number, there should
be tones. If there are clicks, then it is not a touch-tone telephone and cannot activate the
answering system.
The answering system may not detect the remote access code when your announcement is
playing. Wait until the announcement is over before entering the code.
There m ay b e interference on the telephone line y ou are u sing . P ress the d ial pad k ey s firm ly
when dialing.
•
•
•
•
Common cure for
electronic equipment.
If the telephone is not responding normally, try putting the cordless handset in the telephone
base or the charger. If it does not respond, try the following (in the order listed):
Disconnect the power to the telephone base.
Disconnect the battery on the cordless handset.
Wait a few minutes before connecting power to the telephone base.
Re-install the battery and place the cordless handset in the telephone base.
Wait for the cordless handset to synchronize its connection with the telephone base. Allow up
to one minute for this to take place.
•
•
•
•
•
•
w w w .v tech ph ones.com
54
O perating range
This cordless telephone operates with the maximum power allowed by the Federal Communications Commission (FCC). Even so, this handset
and telephone base can communicate over only a certain distance - which can vary with the locations of the telephone base and handset, the
w eather, and the lay ou t of y ou r hom e or office.
When the handset is out of range, the handset will display CO N N E CT IN G ...
If there is a call while the handset is out of range, it might not ring; or if it does ring, the call might not connect well when you press /FLA S H .
Move closer to the telephone base, then press /FLA S H to answer the call.
If the handset moves out of range during a telephone conversation, there might be interference.
To improve reception, move closer to the telephone base.
M aintenance
T ak ing care of your teleph one
Your cordless telephone contains sophisticated electronic parts, so it must be treated with care.
A v oid rough treatment
Place the handset down gently. Save the original packing materials to protect your telephone if you ever need to ship it.
A v oid w ater
Your telephone can be damaged if it gets wet. Do not use the handset outdoors in the rain, or handle it with wet hands. Do not install the
telephone base near a sink, bathtub or shower.
E lectrical storms
Electrical storms can sometimes cause power surges harmful to electronic equipment. For your own safety, take caution when using electrical
appliances during storms.
Cleaning your teleph one
Your telephone has a durable plastic casing that should retain its luster for many years. Clean it only with a soft cloth slightly dampened with
water or a mild soap. Do not use excess water or cleaning solvents of any kind.
Remember that electrical appliances can cause serious injury if used when you are wet or standing in the water. If the telephone base should
fall into the water, DO NO T RETRIEVE IT UNTIL YO U UNPLUG THE PO WER CO RD AND TELEPHO NE LINE CO RDS FRO M THE WALL.
Then pull the unit out by the unplugged cords.
w w w .v tech ph ones.com 55
A ppend ix
A b out cord less teleph ones
P riv acy: The same features that make a cordless telephone convenient create some limitations. Telephone calls are transmitted between
the telephone base and the cordless handset by radio waves, so there is a possibility that the cordless telephone conversations could be
intercepted by radio receiving equipment within range of the cordless handset. For this reason, you should not think of cordless telephone
conversations as being as private as those on corded telephones.
E lectrical pow er: The telephone base of this cordless telephone must be connected to a working electrical outlet. The electrical outlet
should not be controlled by a wall switch. Calls cannot be made from the cordless handset if the telephone base is unplugged or switched
off, or if the electrical power is interrupted.
P otential T V interference: Some cordless telephones operate at frequencies that may cause interference to televisions and VCRs. To
minimize or prevent such interference, do not place the telephone base of the cordless telephone near or on top of a TV or VCR. If interference
is experienced, moving the cordless telephone farther away from the TV or VCR will often reduce or eliminate the interference.
R ech argeab le b atteries: This product contains either nickel-cadmium or nickel-metal-hydride rechargeable batteries. Exercise care in
handling batteries in order not to create a short circuit with conducting material such as rings, bracelets, and keys. The battery or conductor
may overheat and cause harm. O bserve proper polarity between the battery and the battery charger.
N ick el-metal h yd rid e rech argeab le b atteries: Dispose of these batteries in a safe manner. Do not burn or puncture the battery. Like
other batteries of this type, if burned or punctured, they could release caustic material which could cause injury.
•
•
•
•
•
The RBRC® seal on the nickel-metal-hydride battery indicates that VTech Communications, Inc. is voluntarily participating
in an industry program to collect and recycle these batteries at the end of their useful lives, when taken out of service
within the United States and Canada.
The RBRC® program provides a convenient alternative to placing used nickel-metal-hydride batteries into the trash or
municipal waste, which may be illegal in your area.
VTech’s participation in RBRC® makes it easy for you to drop off the spent battery at local retailers participating in the
RBRC® program or at authorized VTech product service centers. Please call 1-800-8-B A T T E R Y T M for information on
Ni-MH battery recycling and disposal bans/restrictions in your area. VTech’s involvement in this program is part of its
commitment to protecting our environment and conserving natural resources.
R B R C® is a registered trad emark of R ech argeab le B attery R ecycling Corporation.
T h e R B R C® seal
w w w .v tech ph ones.com
56
W arranty
W h at d oes th is limited w arranty cov er?
The manufacturer of this VTech Product warrants to the holder of a valid proof of purchase (“Consumer” or “you”) that the Product and all
accessories provided in the sales package (“Product”) are free from defects in material and workmanship, pursuant to the following terms
and conditions, when installed and used normally and in accordance with the Product operating instructions. This limited warranty extends
only to the Consumer for Products purchased and used in the United States of America and Canada.
W h at w ill V T ech d o if th e P rod uct is not free from d efects in materials and w ork mansh ip d uring th e limited w arranty period
(“ M aterially D efectiv e P rod uct” )?
During the limited warranty period, VTech’s authorized service representative will repair or replace at VTech’s option, without charge, a
Materially Defective Product. If we repair the Product, we may use new or refurbished replacement parts. If we choose to replace the Product,
we may replace it with a new or refurbished Product of the same or similar design. We will retain defective parts, modules, or equipment.
Repair or replacement of the Product, at VTech’s option, is your exclusive remedy. VTech will return the repaired or replacement Products
to you in working condition. You should expect the repair or replacement to take approximately 30 days.
H ow long is th e limited w arranty period ?
The limited warranty period for the Product extends for O NE (1) YEAR from the date of purchase. If VTech repairs or replaces a Materially
Defective Product under the terms of this limited warranty, this limited warranty also applies to repaired or replacement Product for a period
of either (a) 90 days from the date the repaired or replacement Product is shipped to you or (b) the time remaining on the original one-year
warranty; whichever is longer.
W h at is not cov ered b y th is limited w arranty?
This limited warranty does not cover:
1. Product that has been subjected to misuse, accident, shipping or other physical damage, improper installation, abnormal operation or
hand ling , neg lect, inu nd ation, fire, w ater or other liq u id intru sion; or
2 . P rod u ct that has b een d am ag ed d u e to repair, alteration or m od ification b y any one other than an au thoriz ed serv ice representativ e of
VTech; or
3. Product to the extent that the problem experienced is caused by signal conditions, network reliability, or cable or antenna systems; or
4. Product to the extent that the problem is caused by use with non-VTech accessories; or
5. Product whose warranty/quality stickers, product serial number plates or electronic serial numbers have been removed, altered or rendered
illegible; or
6. Product purchased, used, serviced, or shipped for repair from outside the United States of America or Canada, or used for commercial or
institutional purposes (including but not limited to Products used for rental purposes); or
7. Product returned without a valid proof of purchase (see item 2 below); or
w w w .v tech ph ones.com 57
A ppend ix
8. Charges for installation or set up, adjustment of customer controls, and installation or repair of systems outside the unit.
H ow d o you get w arranty serv ice?
To obtain warranty service in the United States of America, please call 1 (800) 595-9511. In Canada, please call 1 (800) 267-7377. NO TE:
Before calling for service, please review the user’s manual - a check of the Product’s controls and features may save you a service call.
Except as provided by the applicable law, you assume the risk of loss or damage during transit and transportation and are responsible for
delivery or handling charges incurred in the transport of the Product(s) to the service location. VTech will return repaired or replaced Product
under this limited warranty to you, transportation, delivery or handling charges prepaid. VTech assumes no risk for damage or loss of the
Product in transit. If the Product failure is not covered by this limited warranty, or proof of purchase does not meet the terms of this limited
warranty, VTech will notify you and will request that you authorize the cost of repair prior to any further repair activity. You must pay for the
cost of repair and return shipping costs for the repair of Products that are not covered by this limited warranty.
W h at must you return w ith th e P rod uct to get w arranty serv ice?
1. Return the entire original package and contents including the Product to the VTech service location along with a description of the
m alfu nction or d ifficu lty ; and
2. Include a “valid proof of purchase” (sales receipt) identifying the Product purchased (Product model) and the date of purchase or
receipt; and
3. Provide your name, complete and correct mailing address, and telephone number.
O th er Limitations
This warranty is the complete and exclusive agreement between you and VTech. It supersedes all other written or oral communications
related to this Product. VTech provides no other warranties for this Product. The warranty exclusively describes all of VTech’s responsibilities
reg ard ing the P rod u ct. There are no other ex press w arranties. N o one is au thoriz ed to m ak e m od ifications to this lim ited w arranty and y ou
shou ld not rely on any su ch m od ification.
S tate/P rov incial L aw R ig hts: This w arranty g iv es y ou specific leg al rig hts, and y ou m ay also hav e other rig hts, w hich v ary from state to state
or province to province.
L im itations: Im plied w arranties, inclu d ing those of fitness for a particu lar pu rpose and m erchantab ility (an u nw ritten w arranty that the P rod u ct
is fit for ord inary u se) are lim ited to one y ear from the d ate of pu rchase. S om e states/prov inces d o not allow lim itations on how long an im plied
warranty lasts, so the above limitation may not apply to you. In no event shall VTech be liable for any indirect, special, incidental, consequential,
or sim ilar d am ag es (inclu d ing , b u t not lim ited to lost profits or rev enu e, inab ility to u se the P rod u ct or other associated eq u ipm ent, the cost
of substitute equipment, and claims by third parties) resulting from the use of this Product. Some states/provinces do not allow the exclusion
or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you.
P lease retain your original sales receipt as proof of purch ase.
W arranty
w w w .v tech ph ones.com
58
FCC, A CT A and IC regulations
FCC P art 15
This equipment has been tested and found to comply with the requirements for a Class B digital device under Part 15 of the Federal Com-
munications Commission (FCC) rules. These requirements are intended to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance
with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur
in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turn-
ing the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
C hang es or m od ifications to this eq u ipm ent not ex pressly approv ed b y the party responsib le for com pliance cou ld v oid the u ser’s au thority to
operate the equipment.
This device complies with Part 15 of the FCC rules. O peration is subject to the following two conditions: (1) this device may not cause
harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired
operation. Privacy of communications may not be ensured when using this telephone.
To ensure safety of users, the FCC has established criteria for the amount of radio frequency energy that can be safely absorbed by a user or
bystander according to the intended usage of the product. This product has been tested and found to comply with the FCC criteria. The handset
may be safely held against the ear of the user. The telephone base shall be installed and used such that parts of the user’s body other than
the hands are maintained at a distance of approximately 20 cm (8 inches) or more. If you choose to use a clipping device, please make sure to
only use the supplied VTech belt clip.
This Class B digital apparatus complies with Canadian ICES-003.
FCC P art 68 and A CT A
This equipment complies with Part 68 of the FCC rules and with technical requirements adopted by the Administrative Council for Terminal
A ttachm ents (A C TA ). The lab el on the b ack or b ottom of this eq u ipm ent contains, am ong other thing s, a prod u ct id entifier in the form at U S :
A A A E Q # # TX X X X . This id entifier m u st b e prov id ed to y ou r local telephone com pany u pon req u est.
The plug and jack used to connect this equipment to premises wiring and the telephone network must comply with applicable Part 68 rules and
technical requirements adopted by ACTA. A compliant telephone cord and modular plug is provided with this product. It is designed to be con-
nected to a compatible modular jack that is also compliant. An RJ11 jack should normally be used for connecting to a single line and an RJ14
•
•
•
•
w w w .v tech ph ones.com 59
A ppend ix
FCC, A CT A and IC regulations
jack for two lines. See Installation Instructions in the user’s manual.
The Ringer Equivalence Number (REN) is used to determine how many devices you may connect to your telephone line and still have them
ring w hen y ou are called . The R E N for this prod u ct is encod ed as the 6 th and 7 th characters follow ing the U S : in the prod u ct id entifier (e.g ., if
# # is 0 3 , the R E N is 0 .3 ). In m ost, b u t not all areas, the su m of all R E N s shou ld b e fiv e (5 .0 ) or less. F or m ore inform ation, please contact y ou r
local telephone company.
This equipment may not be used with Party Lines. If you have specially wired alarm dialing equipment connected to your telephone line, ensure
the connection of this equipment does not disable your alarm equipment. If you have questions about what will disable alarm equipment, consult
your telephone company or a qualified installer.
If this equipment is malfunctioning, it must be unplugged from the modular jack until the problem has been corrected. Repairs to this tele-
phone equipment can only be made by the manufacturer or its authorized agents. For repair procedures, follow the instructions outlined under
the Limited Warranty.
If this equipment is causing harm to the telephone network, the telephone company may temporarily discontinue your telephone service.
The telephone company is required to notify you before interrupting service. If advance notice is not practical, you will be notified as soon as
possible. You will be given the opportunity to correct the problem and the telephone company is required to inform you of your right to file a
complaint with the FCC. Your telephone company may make changes in its facilities, equipment, operation, or procedures that could affect the
proper functioning of this product. The telephone company is required to notify you if such changes are planned.
If this product is equipped with a corded or cordless handset, it is hearing aid compatible.
If this product has memory dialing locations, you may choose to store emergency telephone numbers (e.g., police, fire, medical) in these loca-
tions. If you do store or test emergency numbers, please:
Remain on the line and briefly explain the reason for the call before hanging up.
Perform such activities in off-peak hours, such as early morning or late evening.
Industry Canada
Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any
interference, including interference that may cause undesired operation.
The term ‘’IC: ‘’ before the certification/registration number only signifies that the Industry Canada technical specifications were met.
The Ringer Equivalence Number (REN) for this terminal equipment is 0.1. The REN is an indication of the maximum number of devices al-
lowed to be connected to a telephone interface. The termination on an interface may consist of any combination of devices subject only to the
requirement that the sum of the RENs of all the devices does not exceed five.
This product meets the applicable Industry Canada technical specifications.
www.vtechphones.com
60
Technical specifications
Frequency control Crystal controlled PLL synthesizer
Transmit frequency H andset: 1921.536-1928.448 M H z
Telephone base: 1921.536-1928.448 M H z
Channels 5
Nominal effective range M aximum power allowed by FCC and IC. A ctual operating range may vary according
to environmental conditions at the time of use.
Size H andset: 6.20in X 1.81in X 0.74in (157.5mm X 46.0mm X 18.9mm)
Telephone base: 6.87in X 4.47in X 4.06in (174.5mm X 113.5mm X 103.0mm)
Weight H andset: 3.59oz (101.8g) (including battery)
Telephone base: 9.83oz (278.6g)
Power requirements H andset: 2.4V DC 500mA h Ni-M H battery
Telephone base: 6V DC @ 400mA
M emory H andset directory: 50 memory locations; up to 30 digits and 15 characters
H andset call log: 50 memory locations; up to 24 digits and 15 characters
www.vtechphones.com 61
Ind ex
A
A ctivate the answering system 28
A nswer a call 10
A nswering system set up 29
B
B attery 3, 43
C
Call intercept 36
Call log 20-22
Call log display screen messages 25
Call screening 36
Call waiting 11
Caller ID 19
Character chart 15
Charging 3
Clear voice mail 9
D
Delete messages from
answering system 34, 35
Delete from redial 26
Delete from the directory 18
Delete from the call log 24
Delete your announcement 33
Dial a call log entry 22
Dial a directory entry 16
Dial a redial entry 26
Directory 13
D S L filter 2
E
Edit a directory entry 17
End a call 10
F
FCC, A CTA and IC regulations 58
Find handset 12
H
H andset indicators 41
H andset display screen messages 39
K
K ey tone 8
L
Language 8
M
M aintenance 54
M ake a call 10
M ake a call log entry ready to dial 22
M emo playback 35
M essage capacity 27
M essage playback 34
M essage window displays 37
M ute 11
N
New message indication 34
O
Operating range 54
Options during playback 34
Outgoing announcement 32
P
Parts checklist 1
Play your announcement 33
www.vtechphones.com
62
R
RB RC® seal 55
Record and play memos 35
Record your own announcement 32
Redial list 26
Remote access 38
Review the call log 21
Ringer mute 11
Ringer tone 7
Ringer volume - handset 6
S
Save an entry to the directory 23
Search the directory 16
Set message alert tone 31
Set number of rings 29
Set remote access code 30
Set telephone base ringer 30
Set the clock 28
Speakerphone 10
Store a directory entry 14
T
Technical specifications 60
Telephone base indicators 41
Telephone base installation 2
Troubleshooting 45
V
V oice mail 9
V olume 6, 12
W
Warranty 56
Ind ex
V TECH TELECOM M U NICA TIONS LTD.
A member of TH E V TECH G ROU P OF COM PA NIES.
Distributed in the U .S.A . by V Tech Communications, Inc. B eaverton, Oregon
Distributed in Canada by V Tech Telecommunications Canada, Ltd., Richmond, B .C.
Copyright © 2007 for V TECH TELECOM M U NICA TIONS LTD.
Printed in China.
91-001612-010-100
U ser’s manual
w w w . v t e c h p h o n e s . c o m
M odel: LS6125
i
Congratulations
on purchasing your new VTech product.
Before using this telephone, please read
the Important safety instructions
on page 32 of this manual.
This manual has all the feature operations and troubleshooting necessary
to install and operate your new VTech telephone. Please review this manual
thoroughly to ensure proper installation and operation of this innovative and
feature rich VTech product. For support, shopping, and everything new at
VTech, visit our website at www.vtechphones.com.
In Canada, please visit www.vtechcanada.com.
The ENERGY STAR® program (www.energystar.gov) recognizes and encourages
the use of products that save energy and help protect our environment. We are
proud to mark this product with the ENERGY STAR® label indicating it meets the
latest energy efficiency guidelines.
w w w .v tech ph ones.com
Tab le of contents
ii
G etting started . . . . . . . . . . . . . . . . . 1
Parts checklist . . . . . . . . . . . . . . . . . . 1
Telephone base installation . . . . . . . . . . . 2
Battery installation and charging . . . . . . . . . 3
Handset layout . . . . . . . . . . . . . . . . . . 4
Telephone base layout . . . . . . . . . . . . . . 5
Teleph one settings . . . . . . . . . . . . . . . 6
Ringer volume . . . . . . . . . . . . . . . . . . 6
Ringer tone . . . . . . . . . . . . . . . . . . . . 7
Key tone . . . . . . . . . . . . . . . . . . . . . 8
Language . . . . . . . . . . . . . . . . . . . . . 8
Clear voice mail. . . . . . . . . . . . . . . . . . 9
Teleph one operation . . . . . . . . . . . . . . 10
Make a call . . . . . . . . . . . . . . . . . . . . 10
Answer a call . . . . . . . . . . . . . . . . . . . 10
End a call . . . . . . . . . . . . . . . . . . . . . 10
Speakerphone . . . . . . . . . . . . . . . . . . 10
Mute . . . . . . . . . . . . . . . . . . . . . . . 11
Ringer mute. . . . . . . . . . . . . . . . . . . . 11
Call waiting . . . . . . . . . . . . . . . . . . . . 11
Volume . . . . . . . . . . . . . . . . . . . . . . 12
Find handset . . . . . . . . . . . . . . . . . . . 12
Directory . . . . . . . . . . . . . . . . . . . . . 13
Store a directory entry . . . . . . . . . . . . . . 14
Character chart . . . . . . . . . . . . . . . . . . 15
Search the directory . . . . . . . . . . . . . . . 16
Dial a directory entry . . . . . . . . . . . . . . . 16
Edit a directory entry . . . . . . . . . . . . . . . 17
Delete from the directory . . . . . . . . . . . . . 18
About caller ID . . . . . . . . . . . . . . . . . . 19
Call log . . . . . . . . . . . . . . . . . . . . . . 20
Review the call log . . . . . . . . . . . . . . . . 21
Make a call log entry ready to dial . . . . . . . . 22
Dial a call log entry . . . . . . . . . . . . . . . . 22
Save an entry to the directory . . . . . . . . . . 23
Delete from the call log . . . . . . . . . . . . . . 24
Call log display screen messages . . . . . . . . 25
Redial list . . . . . . . . . . . . . . . . . . . . . 26
Dial a redial entry . . . . . . . . . . . . . . . . . 26
Delete from redial. . . . . . . . . . . . . . . . . 26
Append ix . . . . . . . . . . . . . . . . . . . . . 27
Handset display screen messages . . . . . . . . 27
w w w .v tech ph ones.com iii
Tab le of contents
Handset and telephone base indicators . . . . . 29
Battery . . . . . . . . . . . . . . . . . . . . . . 31
Important safety instructions . . . . . . . . . . . 32
Troubleshooting. . . . . . . . . . . . . . . . . . 33
O perating range . . . . . . . . . . . . . . . . . 41
Maintenance . . . . . . . . . . . . . . . . . . . 41
About cordless telephones . . . . . . . . . . . . 42
The RBRC® seal . . . . . . . . . . . . . . . . . 42
Warranty . . . . . . . . . . . . . . . . . . . . . 43
FCC, ACTA and IC regulations . . . . . . . . . . 45
Technical specifications . . . . . . . . . . . . . 47
Index . . . . . . . . . . . . . . . . . . . . . . . 48
w w w .v tech ph ones.com 1
G etting started Basic operation
To purchase
a replacement
battery or power
adapter, visit our
website at www.
vtechphones.
com or call
1 (800) 595-9511.
In Canada, go to
www.vtechcanada.
com or call 1 (800)
267-7377.
•
7. User’s manual
1. Handset
Telephone base 6.5. Telephone base
power adapter
4. Telephone line cord3. Battery2. Battery compartment
cover
Parts ch eck list
Your telephone contains the following items. Save your sales receipt and original
packaging in the event warranty service is necessary.
FLASH
CLEAR
SELECT
MENU
CID
VOL
G etting started
w w w .v tech ph ones.com
2
G etting started
Use only the
power adapter
supplied with this
product. To order
a replacement,
visit our website at
www.vtechphones.
com or call
1 (800) 595-9511.
In Canada, go to
www.vtechcanada.
com or call 1 (800)
267-7377.
The power adapter
is intended to be
correctly oriented
in a vertical
or fl oor m ou nt
position. The
prongs are not
designed to hold
the plug in place
if it is plugged into
a ceiling or an
under-the-table/
cabinet outlet.
•
•
Telephone base
Telephone line cord
Electrical outlet
not controlled by
a wall switch
Telephone base
power adapter
Telephone
wall jack
D S L filter (not inclu d ed )
required if you have
DSL high-speed
internet service
Teleph one b ase installation
Install the telephone base as shown below. Make sure that the electrical outlet
is not controlled by a wall switch. If you subscribe to high-speed internet service
(Digital Subscriber Line - DSL) through your telephone lines, you must have a
D S L filter b etw een the telephone b ase and the telephone w all jack . The filter w ill
prevent noise and caller ID problems caused by DSL interference. Please contact
y ou r D S L serv ice prov id er for m ore inform ation ab ou t D S L filters.
w w w .v tech ph ones.com 3
G etting started Basic operation
G etting started
If the handset
will not be used
for a long time,
disconnect and
remove the battery
to prevent possible
leakage.
To purchase a
replacement
battery, visit our
website at www.
vtechphones.
com or call
1 (800) 595-9511.
In Canada, go to
www.vtechcanada.
com or call 1 (800)
267-7377.
•
•
Battery installation and ch arging
Install the battery as shown below. The battery may have enough charge for short
calls. For best performance, charge the handset for at least 16 hours. When the
battery power is low, the handset will beep, LOW BATTERY will be displayed
and w ill fl ash on the hand set screen. P lace the hand set in the telephone b ase
to charge the battery when not in use. When fully charged, the handset battery
provides approximately eight hours of talk time or four and a half days of standby
time.
Insert the plug of the battery as indicated. Make sure it is plugged securely
and matches the color-coded label inside the battery compartment.
Place the battery with the label THIS SIDE U P facing up and the wires inside
the battery compartment.
A lig n the b attery com partm ent cov er fl at ag ainst the b attery com partm ent,
then slide it upwards until it clicks into place.
Charge the handset by placing it in the telephone base. The handset charge
light will be on when charging.
1.
2.
3.
4.
1234
FLASH
C LE AR
SELE C T
MENU
CID
VOL
Charge light
w w w .v tech ph ones.com
4
G etting started
CID (Caller ID)
• Press to review the call log when the phone is
not in use.
While in the menu, press to scroll down.
Press to lower the listening volume during a call.
•
•
/FLASH
• Press to make or answer a call.
• During a call, press to answer a second call
when you hear a call waiting alert.
(Directory)
• Press to display the directory when the phone is
not in use.
While in the menu, press to scroll up.
Press to raise the listening volume during a call.
•
•
FLASH
CLEAR
SELECT
ME NU
CID
VO L
MEN U /SELECT
• Press to display the menu.
• When in the menu, press to select an item,
or save an entry or setting.
OFF/CLEAR
• During a call, press to hang up.
• While the handset is ringing, press to
silence the ringer.
•
Press and hold when the phone is not in
use to erase the MISSED CALLS display.
• During programming, press to exit without
making changes.
REDIAL/PAU SE
• Press to review the redial list.
• While dialing or entering numbers into the directory,
press and hold to insert a dialing pause.
CHARG E ligh t
• O n when the handset is charging in the
telephone base.
#
• Press repeatedly to display other dialing
options when reviewing the call log.
REMOVE
• While reviewing the call log, press to delete
an individual entry, or press and hold to
delete the entire call log.
•
Press to delete digits when predialing
(entering the phone number before pressing
/FLASH).
(Speak erph one)
Press to activate the handset speakerphone.
Press again to resume normal handset use.
•
•
MU TE
•
While on a call, press to mute the
microphone.
Hand set layout
w w w .v tech ph ones.com 5
G etting started Basic operation
G etting started
FIN D HAN DSET
Press to page the handset.•
IN U SE ligh t
Flashes when there is an incoming
call or another telephone on the
same line is in use.
O n when the handset is in use.
•
•
VOICEMAIL ligh t
Flashes when there is new voice mail
from your local telephone company.
•
Teleph one b ase layout
w w w .v tech ph ones.com
6
Teleph one settings
Ringer v olume
You can change the handset ringer volume to a comfortable
level. The ringer can also be turned off so the telephone does
not ring when there are incoming calls.
To adjust the ringer volume:
Press MEN U /SELECT to display the menu when the
handset is not in use.
Press or to select >RIN G ER VOLU ME, then press
MEN U /SELECT.
Press or to adjust the volume. A sample of each volume
level will be played when scrolling through the choices.
Press MEN U /SELECT to save your selection. You will hear
a confirm ation tone.
1.
2.
3.
4. RINGER VOLUME
>RINGER VOLUME
RINGER TONE
The ringer will
be off if the
volume is set to
the lowest level,
and a ringer off
icon will be
displayed.
•
w w w .v tech ph ones.com 7
Basic operation
Teleph one settings
Teleph one settings
If the ringer is
turned off while
scrolling through
the options in the
RIN G ER TON E
menu, the sample
of the ringer will
not be heard.
•
RINGER TONE
1
>RINGER TONE
KEY TONE
Ringer tone
This menu allows you to choose from different ringer tones.
To choose a ringer tone:
Press MEN U /SELECT to display the menu when the
handset is not in use.
Press or to select >RIN G ER TON E, then press
MEN U /SELECT.
Press or to select the desired ringer tone. A sample
of each ringer tone will be played when scrolling through
the choices.
Press MEN U /SELECT to save your selection. You will hear
a confirm ation tone.
1.
2.
3.
4.
w w w .v tech ph ones.com
8
Teleph one settings
>KEY TONE
LANGUAGE
Key tone
The handset beeps as you press keys. You may turn the key
tone feature on or off. To change the setting:
Press MEN U /SELECT to display the menu when the
handset is not in use.
Press or to select >KEY TON E, then press
MEN U /SELECT.
Press or to choose ON or OFF.
Press MEN U /SELECT to save your selection. You will hear
a confirm ation tone.
Language
You can select EN G LISH, FRAN Ç AIS or ESPAÑ OL to be
used for the handset display. To change the setting:
Press MEN U /SELECT to display the menu when the
handset is not in use.
Press or to select >LAN G U AG E, then press
MEN U /SELECT.
Press or to select the desired language.
Press MEN U /SELECT to save your selection. You will hear
a confirm ation tone.
1.
2.
3.
4.
1.
2.
3.
4.
KEY TONE
ON
LANGUAGE
ENGLISH
>LANGUAGE
CLR VOICE MAIL
w w w .v tech ph ones.com 9
Basic operation
Teleph one settings
Teleph one settings
>CLR VOICE MAIL
DIRECTORY
TURN INDICATOR
OFF?
Clear v oice mail
If you subscribe to voice mail service provided by your local telephone company,
N EW VOICE MAIL and will appear on the handset, and the VOICEMAIL
lig ht on the telephone b ase w ill fl ash w hen y ou hav e new v oice m ail m essag es.
Please contact your local telephone company for more information about voice
mail service.
After you have listened to all new voice mail messages, the indicators on both
the handset and telephone base will be turned off automatically.
To manually turn off these indicators:
Press MEN U /SELECT to display the menu when the
handset is not in use.
Press or to select >CLR VOICE MAIL, then press
MEN U /SELECT.
The screen displays TU RN IN DICATOR OFF?
Press MEN U /SELECT to confirm y ou r selection. Y ou w ill
hear a confirm ation tone.
Clearing the VMWI (visual message waiting indication) only turns off the indicators;
it does not delete voice mail message(s). Use this feature if the telephone indicates
there is voice mail when you have none, or if you have accessed your voice mail
from a different telephone line (while away from home). If there actually are new
voice mail messages, your local telephone company will continue to send the
signals which will turn the indicators back on.
1.
2.
3.
4.
Your telephone
service provider
may alert you to
new messages
with a stutter
(broken) dial tone.
Contact your
service provider
for details.
•
w w w .v tech ph ones.com
10
Teleph one operation
Mak e a call
Press /FLASH or .
Dial the number.
-OR-
Dial the number.
Press /FLASH or .
Answ er a call
Press /FLASH, or any of the dialing key (0-9, #, *).
End a call
Press OFF/CLEAR, or put the handset in the telephone
base.
Speak erph one
During a call, press to switch between speakerphone and
normal handset use.
1.
2.
1.
2.
•
•
FLASH
CLEAR
SELECT
ME NU
CID
VO L
FLASH
FLASH
CLEAR
SELECT
ME NU
CID
VO L
The screen
displays the
elapsed time as
you talk (in hours,
minutes and
seconds).
When predialing
(entering the
phone number
before pressing
/FLASH),
press REMOVE
or OFF/CLEAR to
backspace and
delete;
press and hold
REDIAL/PAU SE
to insert a dialing
pause.
•
•
w w w .v tech ph ones.com 11
Basic operation
Teleph one operation
Teleph one operation
PHONE 0:00:00
MUTE
RINGER MUTE
Mute
The mute feature allows you to hear the other party while the
other party cannot hear you.
During a call, press MU TE on the handset. MU TED will
be temporarily displayed on the screen, along with the
smaller MU TE icon.
Press MU TE again to resume the conversation.
MICROPHON E ON will be temporarily displayed on the
screen.
Ringer mute
You can mute the ringer temporarily when the telephone is
ringing.
Press OFF/CLEAR or MU TE/REMOVE to temporarily
silence the ringer. The next call will ring normally.
Call w aiting
If you subscribe to call waiting service from your telephone
company, you will hear an alert tone if there is an incoming
call while you’re on another call. Press /FLASH to answer
the new incoming call. Press /FLASH again to return to
the original call.
1.
2.
•
PHONE 0:00:00
MUTED
MUTE
w w w .v tech ph ones.com
12
Teleph one operation
** PAGING **
Volume
During a call, press VOL or VOL to adjust the listening
volume to a comfortable level.
Find h and set
This feature allows the telephone base to page the
handset.
Press FIN D HAN DSET on the telephone base. The
handset will ring and its screen displays ** PAG IN G **.
Press FIN D HAN DSET again on the telephone base to
stop paging, or press /FLASH, or any dialing key
(0-9, #, *) on the handset.
1.
2.
FLASH
CLEAR
SELECT
ME NU
CID
VO L
w w w .v tech ph ones.com 13
Basic operation
Teleph one operation
Teleph one operation
Directory
The directory can store up to 50 entries. Each entry may have
up to 30 digits and 15 characters.
The directory can be accessed when the handset is not in use
by pressing once or MEN U /SELECT three times.
The screen displays DIRECTORY EMPTY if there are no
records in the directory.
When the directory is full and you attempt to save an entry,
the screen will display LIST FU LL.
If you attempt to save a number already stored in the
directory, the screen will display ALREADY SAVED.
•
•
•
•
DIRECTORY EMPTY
LIST FULL
ALREADY SAVED
w w w .v tech ph ones.com
14
Teleph one operation
>DIRECTORY
CALL LOG
>STORE
REVIEW
ENTER NUMBER
_
ENTER NAME
_
Store a d irectory entry
Press MEN U /SELECT twice when the handset is not in
use.
Press or to select >STORE, then press MEN U /SELECT.
The screen displays EN TER N U MBER.
Use the dialing keys to enter the number.
Press REMOVE to backspace and erase a character.
Press and hold REMOVE to erase the entire entry.
Press to move the cursor to the left or to the right.
Press and hold REDIAL/PAU SE to insert a dialing pause.
Press MEN U /SELECT to enter the name. The screen
displays EN TER N AME.
Use the dialing keys (see the Ch aracter ch art on page 15)
to enter the name.
Press REMOVE to backspace and erase a character.
Press and hold REMOVE to erase the entire entry.
Press to move the cursor to the left or to the right.
Press # to insert a space.
Press MEN U /SELECT to save your entry. You will hear a
confirm ation tone.
1.
2.
3.
•
•
•
•
4.
5.
•
•
•
•
6.
w w w .v tech ph ones.com 15
Basic operation
Teleph one operation
Teleph one operation
Ch aracter ch art
Use the dial pad and the chart below to enter a name (up to 15 characters). Each press
of a particular key causes the characters to be displayed in the following order:
Press REMOVE to backspace and erase when entering characters.
Press and hold REMOVE to delete the entire entry.
•
•
Number key Characters by number of key presses
123456789
11 # ,, - . &
2A B C 2 a b c
3D E F 3 d e f
4G H I 4 g h i
5J K L 5 j k l
6M N O 6 m n o
7P Q R S 7 p q r s
8T U V 8 t u v
9W X Y Z 9 w x y z
00
* *? fl / ( ) @
#space
When entering
a name in the
directory, the
first letter of
each word will
be capitalized
automatically.
•
w w w .v tech ph ones.com
16
Teleph one operation
Search th e d irectory
Entries are sorted alphabetically.
To search the directory:
Press once, or MEN U /SELECT three times to enter
the directory.
Press or to scroll through the directory.
To start an alphabetical search:
Press once, or MEN U /SELECT three times to enter the directory.
U se the d ialing k ey s to enter the first letter associated . F or ex am ple, press 5
(J K L ) once to find J enny, tw ice to find K risten, or three tim es to find L ind a. If
there is no name entry matching your search, the next closest matching entry
in alphabetical order will be displayed. If necessary, scroll or to find the
desired entry.
Dial a d irectory entry
Press once, or MEN U /SELECT three times to enter the directory.
Press or to scroll to the desired entry, or use the alphabetical search to
find it.
Press /FLASH or to dial the entry.
1.
2.
1.
2.
1.
2.
3.
>REVIEW
STORE
VTECH
800-595-9511
w w w .v tech ph ones.com 17
Basic operation
Teleph one operation
Teleph one operation
EDIT NAME
VTECH_
Ed it a d irectory entry
Press once, or MEN U /SELECT three times to enter the directory.
Press or to scroll to the desired entry, or use the alphabetical search to
find it.
Press MEN U /SELECT to confirm y ou r selection. The
screen displays EDIT N U MBER.
Use the dialing keys to edit the number.
Press REMOVE to backspace and erase a character.
Press and hold REMOVE to erase the entire entry.
Press to move the cursor to the left or to the right.
Press and hold REDIAL/PAU SE to insert a dialing pause.
Press MEN U /SELECT to move on to the name. The screen
displays EDIT N AME.
Use the dialing keys (see the Ch aracter ch art on page 15)
to edit the name.
Press REMOVE to backspace and erase a character.
Press and hold REMOVE to erase the entire entry.
Press to move the cursor to the left or to the right.
Press # to insert a space.
Press MEN U /SELECT to sav e y ou r ed its. Y ou w ill hear a confirm ation tone.
1.
2.
3.
4.
•
•
•
•
5.
6.
•
•
•
•
7.
EDIT NUMBER
595-9511_
w w w .v tech ph ones.com
18
Teleph one operation
Delete from th e d irectory
Press once, or MEN U /SELECT three times to enter the directory.
Press or to scroll to the desired entry, or use the alphabetical search to
find it.
Press REMOVE to rem ov e the d isplay ed entry . Y ou w ill hear a confirm ation
tone.
1.
2.
3.
w w w .v tech ph ones.com 19
Basic operation
Teleph one operation
Teleph one operation
Ab out caller ID
The caller ID with call waiting feature in this telephone lets you see the name and
telephone number of the caller before answering the call, even when already on a
call. These features require services provided by your local telephone company.
Contact your telephone company if:
you have both caller ID and call waiting, but as separate services (you may need
combined service),
you have only caller ID service, or only call waiting service, or
you do not subscribe to any caller ID or call waiting services but wish to
subscribe.
You can use this telephone with regular caller ID service, and you can use its
other features without subscribing to either caller ID or combined caller ID with
call waiting service. There may be fees for these services, and these services
may not be available in all areas.
The caller ID features will work only if both you and the caller are in areas offering
caller ID service, and if both telephone companies use compatible equipment.
•
•
•
w w w .v tech ph ones.com
20
Teleph one operation
CALL LOG EMPTY
Call log
If you subscribe to caller ID service, information about each
caller w ill b e d isplay ed after the first or second ring .
The call log can store up to 50 entries.
You can review, redial, and copy an entry into the directory.
Entries are displayed in reverse chronological order, i.e.
from the most recent entry to the earliest entry.
When the call log is full, the earliest entry is deleted to make
room for new incoming call information.
X X MISSED CALL(S) and the N EW icon will be displayed
if there are new call log entries (including missed and
unreviewed calls).
CALL LOG EMPTY will be displayed if there are no records
in the call log.
•
•
•
•
•
•
HANDSET X
XX MISSED CALLS
Due to regional
service
differences,
the caller ID
information may
not be available
for every incoming
call. In addition,
the callers may
intentionally
block their names
and/or telephone
numbers.
The time on
the handset is
automatically set
and updated with
incoming caller ID
information.
•
•
w w w .v tech ph ones.com 21
Basic operation
Teleph one operation
Teleph one operation
Rev iew th e call log
Press CID when the handset is not in use.
Press or to browse through the call log.
-OR-
Press MEN U /SELECT when the handset is not in use.
Press or to select >CALL LOG .
Press MEN U /SELECT.
Press or to browse through the call log.
The name (if available), telephone number, date and time
of all incoming calls are displayed on the screen.
There will be a double beep when the list reaches the
beginning or end of the call log.
1.
2.
1.
2.
3.
4.
•
•
VTECH
595-9511
3:45
AM 1/02
>CALL LOG
RINGER VOLUME
w w w .v tech ph ones.com
22
Teleph one operation
800-595-9511
1-800-595-9511
1-595-9511
595-9511
Mak e a call log entry read y to d ial
Although the call log entries received have 10 digits (the
area code plus the seven-digit number), in some areas, you
may need to dial only the seven digits, or a 1 plus the seven
digits, or a 1 plus the area code plus the seven digits. You
can change the number of digits that you dial from or store
in the call log.
While reviewing the call log, press # repeatedly to display
these dialing options for local and long distance numbers
before dialing or saving the telephone number. See the
example on the right.
Dial a call log entry
When in the call log, press or to scroll to the desired
entry.
If the displayed number is not ready to dial, press # until it
is in the correct format.
Press /FLASH or to dial the entry.
1.
2.
3.
w w w .v tech ph ones.com 23
Basic operation
Teleph one operation
Teleph one operation
Sav e an entry to th e d irectory
When in the call log, press or to scroll to the desired
entry.
Press MEN U /SELECT.
You can edit the phone number, if necessary. Make sure
the number is in the correct dialing format for your area.
Press MEN U /SELECT when done. Now, edit the name.
Press MEN U /SELECT when done.
If the entry is already saved in the directory, the screen
will display ALREADY SAVED.
If there is no caller ID information, the screen will display
U N ABLE TO SAVE.
Successful programming is indicated by SAVED on the
hand set d isplay along w ith a confirm ation tone.
1.
2.
•
•
•
3.
SAVED
UNABLE TO SAVE
ALREADY SAVED
w w w .v tech ph ones.com
24
Teleph one operation
Delete from th e call log
To delete one entry:
When in the call log, press or to scroll to the desired
entry.
Press REMOVE to delete the selected entry. You will hear
a confirm ation tone.
To delete all entries:
When in the call log, press or to scroll to the desired
entry.
Press and hold REMOVE to delete the entire call log
.
The screen displays DELETE ALL CALLS?
Press MEN U /SELECT to confirm. You will hear a
confirm ation tone.
- OR -
Press OFF/CLEAR to return to the previous menu if you
want to cancel the deletion.
1.
2.
1.
2.
3.
4. DELETE ALL
CALLS?
w w w .v tech ph ones.com 25
Basic operation
Teleph one operation
Teleph one operation
Displays: Wh en:
PRIVATE NAME The caller is blocking the name information.
PRIVATE NUMBER The caller is blocking the telephone number
information.
PRIVATE CALLER The caller is blocking the name and number
information.
UNKNOWN NAME This caller’s name is unavailable.
UNKNOWN NUMBER
This caller’s number is unavailable.
UNKNOWN CALLER No call information is available about this caller.
LONG DISTANCE This is a long distance call.
Call log d isplay screen messages
w w w .v tech ph ones.com
26
Teleph one operation
Red ial list
The telephone stores the fiv e m ost recently d ialed nu m b ers
on the redial list.
O nce there are fiv e nu m b ers stored on the red ial list, the
oldest entry will be deleted to make room for the new entry.
Entries are displayed in reverse chronological order, i.e.
from the newest entry to the oldest entry.
The redial list can be accessed by pressing REDIAL/PAU SE when the handset
is not in use.
Dial a red ial entry
Press REDIAL/PAU SE, then press , or REDIAL/PAU SE repeatedly to
scroll to the desired number. You will hear an error tone when you reach the
beginning or end of the redial list.
Press /FLASH or to dial the number.
Delete from red ial
Press REDIAL/PAU SE, then press , or REDIAL/PAU SE repeatedly to
scroll to the desired number.
Press REMOVE to d elete the selected entry. Y ou w ill hear a confirm ation
tone.
•
•
1.
2.
1.
2.
w w w .v tech ph ones.com 27
Append ix
Hand set d isplay screen messages
ALREADY SAVED The telephone number you have entered is already stored in the
directory.
CALL LOG EMPTY There are no call log entries.
CONNECTING... The cordless handset is searching for the telephone base.
CHARGING A handset with low battery has been placed in the telephone base or
charger to recharge.
DIRECTORY EMPTY There are no directory entries.
ENDED You have just ended a call.
INCOMING CALL There is an incoming call.
LINE IN USE A handset or another telephone on the same line is in use.
LIST FULL The directory is full.
LOW BATTERY The battery needs to be recharged.
MICROPHONE ON MU TE has been turned off and the person on the other end can hear
you.
MUTED The microphone is muted temporarily during a conversation.
NEW VOICE MAIL There are new voice mail message(s) from the local telephone
company.
w w w .v tech ph ones.com
28
NO LINE There is no telephone line connected.
NO SIGNAL, CALL
ENDED
Communication between handset and telephone base is lost during a
call.
**PAGING** FIN D HAN DSET on the telephone base has been pressed.
PHONE The handset is in use.
PLACE IN CHARGER The battery is very low. The handset should be placed in the telephone
base or charger.
RINGER MUTE The ringer is muted temporarily during incoming call.
SAVED Your operation has been saved.
SPEAKER The handset speakerphone is in use.
UNABLE TO SAVE You are attempting to save caller ID entry with no name or number.
WARNING
CHECK BATTERY!
The battery is not installed or not installed properly in the handset.
-OR -
The battery needs to be replaced.
-OR -
An incorrect battery has been installed. Use only the supplied VTech
battery or equivalent.
XX MISSED CALLS There are unreviewed calls in your call log.
Hand set d isplay screen messages
w w w .v tech ph ones.com 29
Append ix
Hand set and teleph one b ase ind icators
Teleph one b ase ligh ts
Hand set ligh ts
IN U SE Flashes when there is an incoming call or another telephone on the same
line is in use.
O n when the handset is in use.
•
•
VOICEMAIL Flashes when there is a new message stored in your telephone company
voice mail service.
•
O n when the handset speakerphone is in use.•
CHARG E O n when the handset is in the telephone base and is charging.•
w w w .v tech ph ones.com
30
Hand set icons
MU TE Microphone is muted.•
Ringer off.•
N EW New call log entries.•
N EW VOICE MAIL New voice mail received from the local telephone company.•
SPEAKER In speakerphone mode.•
Battery ind icator
Cycles (low, medium, and full) when handset battery is
charging.
Flashes when the battery is low and needs charging.
•
•
Hand set and teleph one b ase ind icators
w w w .v tech ph ones.com 31
Append ix
Battery
It tak es up to 16 h ours for th e b attery to b e fully ch arged . Wh en it is fully ch arged , you can ex pect th e follow ing
performance:
O peration O perating time
While in use (talking) Eight hours
While not in use (standby*) Four and a half days
*Handset is off the telephone base but not in use.
The battery needs charging when:
A new battery is installed in the handset.
The handset beeps.
LOW BATTERY is d isplay ed and the b attery ind icator on the hand set screen is fl ashing .
CAU TION :
To red u ce the risk of fire or inju ry , read and follow these instru ctions:
Use only the battery provided or equivalent. To order a replacement, visit our website at www.vtechphones.com or call 1
(800) 595-9511. In Canada, go to www.vtechcanada.com or call 1 (800) 267-7377.
D o not d ispose of the b attery in a fire. They m ay ex plod e. C heck w ith local w aste m anag em ent cod es for special d isposal
instructions.
Do not open or mutilate the battery. Released electrolyte is corrosive and may cause burns or injury to the eyes or skin.
The electrolyte may be toxic if swallowed.
Exercise care in handling batteries in order not to create a short circuit with conductive materials such as rings, bracelets,
and keys. The battery and/or conductor may overheat and cause burns.
C harg e the b attery prov id ed w ith or id entified for u se w ith this prod u ct only in accord ance w ith the instru ctions and
lim itations specified in this m anu al.
WARN IN G :
TO PREVENT FIRE O R SHO CK HAZARD, DO NO T EXPO SE THIS PRO DUCT TO WATER O R ANY TYPE O F MO ISTURE.
•
•
•
•
•
•
•
•
w w w .v tech ph ones.com
32
Important safety instructions
W hen u sing y ou r telephone eq u ipm ent, b asic safety precau tions shou ld alw ay s b e follow ed to red u ce the risk of fire, electric shock and
injury, including the following:
Read and understand all instructions.
Follow all warnings and instructions marked on the product.
Unplug this product from the wall outlet before cleaning. Do not use liquid or aerosol cleaners. Use a damp cloth for cleaning.
Do not use this product near water (for example, near a bathtub, kitchen sink, or swimming pool).
Do not place this product on an unstable table, shelf, stand or other unstable surfaces.
Slots and openings in the back or bottom of the telephone base and handset are provided for ventilation. To protect them from overheating,
these openings must not be blocked by placing the product on a soft surface such as a bed, sofa or rug. This product should never be
placed near or over a radiator or heat register. This product should not be placed in any area where proper ventilation is not provided.
This product should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power
supply in your home, consult your dealer or local power company.
Do not allow anything to rest on the power cord. Do not install this product where the cord may be walked on.
Never push objects of any kind into this product through the slots in the telephone base or handset because they may touch dangerous
voltage points or create a short circuit. Never spill liquid of any kind on the product.
To reduce the risk of electric shock, do not disassemble this product, but take it to an authorized service facility. O pening or removing
parts of the telephone b ase or hand set other than specified access d oors m ay ex pose y ou to d ang erou s v oltag es or other risk s. Incorrect
reassembling can cause electric shock when the product is subsequently used.
Do not overload wall outlets and extension cords.
Unplug this product from the wall outlet and refer servicing to an authorized service facility under the following conditions:
When the power supply cord or plug is damaged or frayed.
If liquid has been spilled onto the product.
If the product has been exposed to rain or water.
If the product does not operate normally by following the operating instructions. Adjust only those controls that are covered by the
operation instructions. Improper adjustment of other controls may result in damage and often requires extensive work by an authorized
technician to restore the product to normal operation.
If the product has been dropped and the telephone base and/or handset has been damaged.
If the product exhibits a distinct change in performance.
Avoid using a telephone (other than cordless) during an electrical storm. There is a remote risk of electric shock from lightning.
Do not use the telephone to report a gas leak in the vicinity of the leak.
O nly put the handset of your telephone next to your ear when it is in normal talk mode.
The pow er ad apter is intend ed to b e correctly oriented in a v ertical or fl oor m ou nt position. The prong s are not d esig ned to hold the
plug in place if it is plugged into a ceiling or an under-the-table/cabinet outlet.
SAVE THESE IN STRU CTION S
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
A.
B.
C.
D.
E.
F.
13.
14.
15.
16.
w w w .v tech ph ones.com 33
Append ix
Troub lesh ooting
If y ou hav e d ifficu lty w ith y ou r telephone, please try the su g g estions b elow . F or C u stom er S erv ice, v isit
our website at www.vtechphones.com, or call 1 (800) 595-9511; in Canada, call 1 (800) 267-7377.
Problem Suggestion
My telephone does not
work at all.
Make sure the battery is installed and charged correctly (page 3). For optimum daily
performance, return the handset to the telephone base after use.
Make sure the power adapter is securely plugged into an outlet not controlled by a wall switch.
M ak e su re the telephone line cord is plu g g ed firm ly into the telephone b ase and the telephone
wall jack.
Unplug the electrical power to the telephone base. Wait for approximately 15 seconds,
then plug it back in. Allow up to one minute for the cordless handset and telephone base to
synchronize.
Charge the battery in the handset for up to 16 hours.
Remove and re-insert the battery. If that still does not work, it may be necessary to purchase
a new battery.
Disconnect the telephone base from the telephone wall jack and plug in a working telephone.
If the other telephone does not work, the problem is probably in the wiring or the local service.
Call the local telephone company.
•
•
•
•
•
•
•
LOW BATTERY i s
displayed on screen.
Place the handset in the telephone base for recharging.
Remove and re-install the battery and use it normally until fully discharged, then recharge the
handset on the telephone base for up to 16 hours.
If the above measures do not correct the problem, the battery may need to be replaced.
•
•
•
w w w .v tech ph ones.com
34
Troub lesh ooting
Problem Suggestion
The battery does not
charge in the handset or
the handset battery does
not accept charge
.
Make sure the handset is placed in the telephone base correctly. The CHARG E light on the
handset should be on.
Remove and reinstall the battery, then charge for up to 16 hours.
If the handset is in the telephone base but the CHARG E light on the handset is not on, refer
to Th e CHARG E ligh t is off in this section.
It may be necessary to purchase a new battery. Please refer to the Battery section (page 31)
of this user’s manual.
The telephone might be malfunctioning. Please refer to the Warranty section (page 43) of this
user’s manual for further instruction.
•
•
•
•
•
The CHARG E light is
off.
Clean the charging contacts on the handset and telephone base each month using a pencil
eraser or a dry non-abrasive fabric.
Make sure the power adapter and telephone line cord are plugged in correctly and securely.
Unplug the power adapter. Wait for 15 seconds before plugging it back in. Allow up to one
minute for the handset and telephone base to reset.
The telephone might be malfunctioning. Please refer to the Warranty section (page 43) of this
user’s manual for further instruction.
•
•
•
•
There is no dial tone. First, try all the above suggestions.
Move the handset closer to the telephone base. It might be out of range.
The telephone line cord might be malfunctioning. Try installing a new telephone line cord.
Disconnect the telephone base from the telephone wall jack and connect a different telephone.
If there is no dial tone on this telephone either, the problem is in your wiring or local service.
Contact your local telephone company.
•
•
•
•
w w w .v tech ph ones.com 35
Append ix
Troub lesh ooting
Problem Suggestion
The telephone does not
ring when there is an
incoming call.
Make sure the ringer is on (page 6).
Make sure the telephone line cord and power adapter are plugged in properly (page 2).
The handset may be too far from the telephone base. Move it closer to the telephone base.
There may be too many extension phones on the telephone line to allow all of them to ring
simultaneously. Try unplugging some of them.
If the other telephones in your home are having the same problem, the problem is in the wiring
or local service. Contact the local telephone company (charges may apply).
O ther electronic products can cause interference to your cordless telephone. Try installing your
telephone as far away as possible from the following electronic devices: wireless routers, radios,
radio towers, pager towers, cellular telephones, digital telephones, intercoms, room monitors,
televisions, VCRs, personal computers, kitchen appliances, and other cordless telephones.
Test a working telephone at the telephone wall jack. If another telephone has the same problem,
the problem is in the telephone wall jack. Contact your local telephone company (charges may
apply).
The telephone line cord might be malfunctioning. Try installing a new telephone line cord.
Re-install the battery and place the handset in the telephone base.
Wait for the handset to synchronize with the telephone base. Allow up to one minute for this
to take place.
•
•
•
•
•
•
•
•
•
•
w w w .v tech ph ones.com
36
Troub lesh ooting
Problem Suggestion
I cannot dial out. First, try all the above suggestions.
Make sure there is a dial tone before dialing. It is normal if the handset takes a second or two
to synchronize with the telephone before producing a dial tone. Wait an extra second before
dialing.
If the other telephones in your home are having the same problem, the problem is in the wiring
or local service. Contact your local telephone company (charges may apply).
Eliminate any background noise. Noise from a television, radio, or other appliances may cause
the telephone not to d ial ou t properly . If y ou cannot elim inate the b ack g rou nd noise, first try
muting the cordless handset before dialing, or dialing from another room in your home with
less background noise.
•
•
•
•
My handset beeps
and is not performing
normally.
Make sure the power cord is securely plugged into the telephone base. Plug the telephone
base into a different working electrical outlet not controlled by a wall switch.
Move the handset closer to the telephone base. It may be out of range.
Reset the telephone base by unplugging the electrical power to the base. Wait for 15 seconds
and plug it back in again. Allow up to one minute for the cordless handset and the telephone
base to synchronize.
O ther electronic products can cause interference to your cordless telephone. Try installing
your telephone as far away from these electronic devices as possible: wireless routers, radios,
radio towers, pager towers, cellular telephones, intercoms, room monitors, televisions, personal
computers, kitchen appliances and other cordless telephones.
•
•
•
•
w w w .v tech ph ones.com 37
Append ix
Troub lesh ooting
Problem Suggestion
There is interference
durin g a tele phone
conversation.
My calls fade out when
I am using the cordless
handset.
The handset may be out of range. Move it closer to the telephone base.
D o y ou hav e D S L serv ice? If y es, y ou need to hav e a D S L filter installed at ev ery telephone
wall jack that has a telephone connected to it (page 2). Contact your DSL service provider for
filter inform ation.
Appliances or other cordless telephones plugged into the same circuit as the telephone base
can cause interference. Try moving the appliance or telephone base to another outlet.
O ther electronic products can cause interference to your cordless telephone. Try installing your
telephone as far away as possible from the following electronic devices: wireless routers, radios,
radio towers, pager towers, cellular telephones, digital telephones, intercoms, room monitors,
televisions, VCRs, personal computers, kitchen appliances, and other cordless telephones.
If your telephone is plugged in with a modem or a surge protector, plug the telephone (or
modem/surge protector) into a different location. If this solves the problem, re-locate your
telephone or modem farther apart from each other, or use a different surge protector.
The lay ou t of y ou r hom e or office m ig ht b e lim iting the operating rang e. Try m ov ing the telephone
base to another location, preferably a higher location for better reception.
Disconnect the telephone base from the telephone wall jack and plug in a corded telephone.
If calls are still not clear, the problem is probably in the wiring or local service. Contact your
local service company (charges may apply).
If the other telephones in your home are having the same problem, the problem is in the wiring
or local service. Contact the local telephone company (charges may apply).
•
•
•
•
•
•
•
•
w w w .v tech ph ones.com
38
Troub lesh ooting
Problem Suggestion
I hear other calls when
using the telephone.
Disconnect the telephone base from the telephone wall jack. Plug in a different telephone. If
you still hear other calls, the problem is probably in the wiring or local service. Call your local
telephone company.
•
I hear noise on the
cordless handset, and
none of the keys or
buttons works.
Make sure the telephone line cord is plugged in securely.•
My caller ID features are
not working properly.
Caller ID is a subscription service. You must subscribe to this service from your local telephone
company for this feature to work on your telephone.
The caller may not be calling from an area which supports caller ID.
Both you and the caller’s telephone companies must use equipment which are compatible
with the caller ID service.
If y ou su b scrib e to D S L serv ice, install a D S L filter to the telephone line b etw een the telephone
b ase and the telephone line jack . C ontact y ou r D S L serv ice prov id er for filter inform ation.
•
•
•
•
The system does not
receive caller ID or
the system does not
display caller ID during
call waiting.
Make sure you subscribe to caller ID with call waiting features provided by the local telephone
company.
The caller may not be calling from an area which supports caller ID.
Both you and the caller’s telephone companies must use equipment which are compatible
with caller ID service.
If y ou su b scrib e to D S L serv ice, install a D S L filter to the telephone line b etw een the telephone
b ase and the telephone line jack . C ontact y ou r D S L serv ice prov id er for filter inform ation.
•
•
•
•
w w w .v tech ph ones.com 39
Append ix
Troub lesh ooting
Problem Suggestion
Caller ID entries do not
match the numbers I
need to dial.
Although the call log entries you receive have 10 digits, (the area code plus the seven-digit
number), in some areas, you may need to dial only the seven digits, or a 1 plus the seven digits,
or a 1 plus the area code plus the seven digits. You can change the number of digits that you
dial from or store in the call log.
While reviewing the call log, press # repeatedly to display these dialing options for local and
long distance numbers before dialing or saving the telephone number.
•
•
CON N ECTIN G ... is
shown in the handset
display window. Why
don’t I get a dial tone
when I try to use this
telephone?
The handset may be out of range. Move it closer to the telephone base.
The handset may be de-registered accidentally. Try to register the handset again.
Place the handset in the telephone base that is connected to a power outlet. If PRESS FIN D
HS 4 SEC ON BASE does not appear on the screen after a few seconds, lift up the handset
and place it in the telephone base again.
Press and hold FIN D HAN DSET on the telephone base for four seconds. Release
FIN D HAN DSET once the IN U SE light comes on.
After a while, the handset will emit a series of tones. The newly registered handset will be
assigned as HAN DSET when successfully registered. Repeat steps 1 and 2 if the handset is
not successfully registered to the telephone base within two minutes.
•
•
1.
2.
w w w .v tech ph ones.com
40
Troub lesh ooting
Problem Suggestion
Common cure for
electronic equipment.
If the telephone is not responding normally, try putting the cordless handset in the telephone
base. If it does not respond, try the following (in the order listed):
Disconnect the power to the telephone base.
Disconnect the battery on the cordless handset.
Wait a few minutes before connecting power to the telephone base.
Re-install the battery and place the cordless handset in the telephone base.
Wait for the cordless handset to synchronize its connection with the telephone base. Allow up
to one minute for this to take place.
•
•
•
•
•
•
w w w .v tech ph ones.com 41
Append ix
Operating range
This cordless telephone operates with the maximum power allowed by the Federal Communications Commission (FCC). Even so, this handset
and telephone base can communicate over only a certain distance - which can vary with the locations of the telephone base and handset, the
w eather, and the lay ou t of y ou r hom e or office.
When the handset is out of range, the handset will display CON N ECTIN G ...
If there is a call while the handset is out of range, it might not ring; or if it does ring, the call might not connect well when you press /FLASH.
Move closer to the telephone base, then press /FLASH to answer the call.
If the handset moves out of range during a telephone conversation, there might be interference.
To improve reception, move closer to the telephone base.
Maintenance
Tak ing care of your teleph one
Your cordless telephone contains sophisticated electronic parts, so it must be treated with care.
Av oid rough treatment
Place the handset down gently. Save the original packing materials to protect your telephone if you ever need to ship it.
Av oid w ater
Your telephone can be damaged if it gets wet. Do not use the handset outdoors in the rain, or handle it with wet hands. Do not install the
telephone base near a sink, bathtub or shower.
Electrical storms
Electrical storms can sometimes cause power surges harmful to electronic equipment. For your own safety, take caution when using electrical
appliances during storms.
Cleaning your teleph one
Your telephone has a durable plastic casing that should retain its luster for many years. Clean it only with a soft cloth slightly dampened with
water or a mild soap. Do not use excess water or cleaning solvents of any kind.
Remember that electrical appliances can cause serious injury if used when you are wet or standing in the water. If the telephone base should
fall into the water, DO NO T RETRIEVE IT UNTIL YO U UNPLUG THE PO WER CO RD AND TELEPHO NE LINE CO RDS FRO M THE WALL.
Then pull the unit out by the unplugged cords.
w w w .v tech ph ones.com
42
Ab out cord less teleph ones
Priv acy: The same features that make a cordless telephone convenient create some limitations. Telephone calls are transmitted between
the telephone base and the cordless handset by radio waves, so there is a possibility that the cordless telephone conversations could be
intercepted by radio receiving equipment within range of the cordless handset. For this reason, you should not think of cordless telephone
conversations as being as private as those on corded telephones.
Electrical pow er: The telephone base of this cordless telephone must be connected to a working electrical outlet. The electrical outlet
should not be controlled by a wall switch. Calls cannot be made from the cordless handset if the telephone base is unplugged or switched
off, or if the electrical power is interrupted.
Potential TV interference: Some cordless telephones operate at frequencies that may cause interference to televisions and VCRs. To
minimize or prevent such interference, do not place the telephone base of the cordless telephone near or on top of a TV or VCR. If interference
is experienced, moving the cordless telephone farther away from the TV or VCR will often reduce or eliminate the interference.
Rech argeab le b atteries: This product contains either nickel-cadmium or nickel-metal-hydride rechargeable batteries. Exercise care in
handling batteries in order not to create a short circuit with conducting material such as rings, bracelets, and keys. The battery or conductor
may overheat and cause harm. O bserve proper polarity between the battery and the battery charger.
N ick el-metal h yd rid e rech argeab le b atteries: Dispose of these batteries in a safe manner. Do not burn or puncture the battery. Like
other batteries of this type, if burned or punctured, they could release caustic material which could cause injury.
•
•
•
•
•
The RBRC® seal on the nickel-metal-hydride battery indicates that VTech Communications, Inc. is voluntarily participating
in an industry program to collect and recycle these batteries at the end of their useful lives, when taken out of service
within the United States and Canada.
The RBRC® program provides a convenient alternative to placing used nickel-metal-hydride batteries into the trash or
municipal waste, which may be illegal in your area.
VTech’s participation in RBRC® makes it easy for you to drop off the spent battery at local retailers participating in the
RBRC® program or at authorized VTech product service centers. Please call 1-800-8-BATTERY TM for information on
Ni-MH battery recycling and disposal bans/restrictions in your area. VTech’s involvement in this program is part of its
commitment to protecting our environment and conserving natural resources.
RBRC® is a registered trad emark of Rech argeab le Battery Recycling Corporation.
Th e RBRC® seal
w w w .v tech ph ones.com 43
Append ix
Warranty
Wh at d oes th is limited w arranty cov er?
The manufacturer of this VTech Product warrants to the holder of a valid proof of purchase (“Consumer” or “you”) that the Product and all
accessories provided in the sales package (“Product”) are free from defects in material and workmanship, pursuant to the following terms
and conditions, when installed and used normally and in accordance with the Product operating instructions. This limited warranty extends
only to the Consumer for Products purchased and used in the United States of America and Canada.
Wh at w ill VTech d o if th e Prod uct is not free from d efects in materials and w ork mansh ip d uring th e limited w arranty period
(“ Materially Defectiv e Prod uct” )?
During the limited warranty period, VTech’s authorized service representative will repair or replace at VTech’s option, without charge, a
Materially Defective Product. If we repair the Product, we may use new or refurbished replacement parts. If we choose to replace the Product,
we may replace it with a new or refurbished Product of the same or similar design. We will retain defective parts, modules, or equipment.
Repair or replacement of the Product, at VTech’s option, is your exclusive remedy. VTech will return the repaired or replacement Products
to you in working condition. You should expect the repair or replacement to take approximately 30 days.
How long is th e limited w arranty period ?
The limited warranty period for the Product extends for O NE (1) YEAR from the date of purchase. If VTech repairs or replaces a Materially
Defective Product under the terms of this limited warranty, this limited warranty also applies to repaired or replacement Product for a period
of either (a) 90 days from the date the repaired or replacement Product is shipped to you or (b) the time remaining on the original one-year
warranty; whichever is longer.
Wh at is not cov ered b y th is limited w arranty?
This limited warranty does not cover:
1. Product that has been subjected to misuse, accident, shipping or other physical damage, improper installation, abnormal operation or
hand ling , neg lect, inu nd ation, fire, w ater or other liq u id intru sion; or
2 . P rod u ct that has b een d am ag ed d u e to repair, alteration or m od ification b y any one other than an au thoriz ed serv ice representativ e of
VTech; or
3. Product to the extent that the problem experienced is caused by signal conditions, network reliability, or cable or antenna systems; or
4. Product to the extent that the problem is caused by use with non-VTech accessories; or
5. Product whose warranty/quality stickers, product serial number plates or electronic serial numbers have been removed, altered or rendered
illegible; or
6. Product purchased, used, serviced, or shipped for repair from outside the United States of America or Canada, or used for commercial or
institutional purposes (including but not limited to Products used for rental purposes); or
7. Product returned without a valid proof of purchase (see item 2 below); or
w w w .v tech ph ones.com
44
8. Charges for installation or set up, adjustment of customer controls, and installation or repair of systems outside the unit.
How d o you get w arranty serv ice?
To obtain warranty service in the United States of America, please call 1 (800) 595-9511. In Canada, please call 1 (800) 267-7377. NO TE:
Before calling for service, please review the user’s manual - a check of the Product’s controls and features may save you a service call.
Except as provided by applicable law, you assume the risk of loss or damage during transit and transportation and are responsible for delivery
or handling charges incurred in the transport of the Product(s) to the service location. VTech will return repaired or replaced Product under
this limited warranty to you, transportation, delivery or handling charges prepaid. VTech assumes no risk for damage or loss of the Product
in transit. If the Product failure is not covered by this limited warranty, or proof of purchase does not meet the terms of this limited warranty,
VTech will notify you and will request that you authorize the cost of repair prior to any further repair activity. You must pay for the cost of repair
and return shipping costs for the repair of Products that are not covered by this limited warranty.
Wh at must you return w ith th e Prod uct to get w arranty serv ice?
1. Return the entire original package and contents including the Product to the VTech service location along with a description of the
m alfu nction or d ifficu lty ; and
2. Include a “valid proof of purchase” (sales receipt) identifying the Product purchased (Product model) and the date of purchase or
receipt; and
3. Provide your name, complete and correct mailing address, and telephone number.
Oth er Limitations
This warranty is the complete and exclusive agreement between you and VTech. It supersedes all other written or oral communications
related to this Product. VTech provides no other warranties for this Product. The warranty exclusively describes all of VTech’s responsibilities
reg ard ing the P rod u ct. There are no other ex press w arranties. N o one is au thoriz ed to m ak e m od ifications to this lim ited w arranty and y ou
shou ld not rely on any su ch m od ification.
S tate/P rov incial L aw R ig hts: This w arranty g iv es y ou specific leg al rig hts, and y ou m ay also hav e other rig hts, w hich v ary from state to state
or province to province.
L im itations: Im plied w arranties, inclu d ing those of fitness for a particu lar pu rpose and m erchantab ility (an u nw ritten w arranty that the P rod u ct
is fit for ord inary u se) are lim ited to one y ear from the d ate of pu rchase. S om e states/prov inces d o not allow lim itations on how long an im plied
warranty lasts, so the above limitation may not apply to you. In no event shall VTech be liable for any indirect, special, incidental, consequential,
or sim ilar d am ag es (inclu d ing , b u t not lim ited to lost profits or rev enu e, inab ility to u se the P rod u ct or other associated eq u ipm ent, the cost
of substitute equipment, and claims by third parties) resulting from the use of this Product. Some states/provinces do not allow the exclusion
or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you.
Please retain your original sales receipt as proof of purch ase.
Warranty
w w w .v tech ph ones.com 45
Append ix
FCC, ACTA and IC regulations
FCC Part 15
This equipment has been tested and found to comply with the requirements for a Class B digital device under Part 15 of the Federal
Communications Commission (FCC) rules. These requirements are intended to provide reasonable protection against harmful interference in
a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance
with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur
in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
C hang es or m od ifications to this eq u ipm ent not ex pressly approv ed b y the party responsib le for com pliance cou ld v oid the u ser’s au thority to
operate the equipment.
This device complies with Part 15 of the FCC rules. O peration is subject to the following two conditions: (1) this device may not cause harmful
interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Privacy
of communications may not be ensured when using this telephone.
To ensure safety of users, the FCC has established criteria for the amount of radio frequency energy that can be safely absorbed by a user or
bystander according to the intended usage of the product. This product has been tested and found to comply with the FCC criteria. The handset
may be safely held against the ear of the user. The telephone base shall be installed and used such that parts of the user’s body other than
the hands are maintained at a distance of approximately 20 cm (8 inches) or more. If you choose to use a clipping device, please make sure to
only use the supplied VTech belt clip.
This Class B digital apparatus complies with Canadian ICES-003.
FCC Part 68 and ACTA
This equipment complies with Part 68 of the FCC rules and with technical requirements adopted by the Administrative Council for Terminal
A ttachm ents (A C TA ). The lab el on the b ack or b ottom of this eq u ipm ent contains, am ong other thing s, a prod u ct id entifier in the form at U S :
A A A E Q # # TX X X X . This id entifier m u st b e prov id ed to y ou r local telephone com pany u pon req u est.
The plug and jack used to connect this equipment to premises wiring and the telephone network must comply with applicable Part 68 rules
and technical requirements adopted by ACTA. A compliant telephone cord and modular plug is provided with this product. It is designed to be
connected to a compatible modular jack that is also compliant. An RJ11 jack should normally be used for connecting to a single line and an
•
•
•
•
w w w .v tech ph ones.com
46
FCC, ACTA and IC regulations
RJ14 jack for two lines. See Installation Instructions in the user’s manual.
The Ringer Equivalence Number (REN) is used to determine how many devices you may connect to your telephone line and still have them
ring w hen y ou are called . The R E N for this prod u ct is encod ed as the 6 th and 7 th characters follow ing the U S : in the prod u ct id entifier (e.g ., if
# # is 0 3 , the R E N is 0 .3 ). In m ost, b u t not all areas, the su m of all R E N s shou ld b e fiv e (5 .0 ) or less. F or m ore inform ation, please contact y ou r
local telephone company.
This equipment may not be used with Party Lines. If you have specially wired alarm dialing equipment connected to your telephone line, ensure
the connection of this equipment does not disable your alarm equipment. If you have questions about what will disable alarm equipment, consult
y ou r telephone com pany or a q u alified installer.
If this equipment is malfunctioning, it must be unplugged from the modular jack until the problem has been corrected. Repairs to this telephone
equipment can only be made by the manufacturer or its authorized agents. For repair procedures, follow the instructions outlined under the
Limited Warranty.
If this equipment is causing harm to the telephone network, the telephone company may temporarily discontinue your telephone service.
The telephone com pany is req u ired to notify y ou b efore interru pting serv ice. If ad v ance notice is not practical, y ou w ill b e notified as soon as
possib le. Y ou w ill b e g iv en the opportu nity to correct the prob lem and the telephone com pany is req u ired to inform y ou of y ou r rig ht to file a
complaint with the FCC. Your telephone company may make changes in its facilities, equipment, operation, or procedures that could affect the
proper functioning of this product. The telephone company is required to notify you if such changes are planned.
If this product is equipped with a corded or cordless handset, it is hearing aid compatible.
If this prod u ct has m em ory d ialing locations, y ou m ay choose to store em erg ency telephone nu m b ers (e.g ., police, fire, m ed ical) in these
locations. If you do store or test emergency numbers, please:
R em ain on the line and b riefl y ex plain the reason for the call b efore hang ing u p.
Perform such activities in off-peak hours, such as early morning or late evening.
Industry Canada
O peration is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any
interference, including interference that may cause undesired operation.
The term ‘’IC : ‘’ b efore the certification/reg istration nu m b er only sig nifies that the Ind u stry C anad a technical specifications w ere m et.
The Ringer Equivalence Number (REN) for this terminal equipment is 0.1. The REN is an indication of the maximum number of devices allowed to
be connected to a telephone interface. The termination on an interface may consist of any combination of devices subject only to the requirement
that the su m of the R E N s of all the d ev ices d oes not ex ceed fiv e.
This prod u ct m eets the applicab le Ind u stry C anad a technical specifications.
w w w .v tech ph ones.com 47
Append ix
Technical specifications
Frequency control Crystal controlled PLL synthesizer
Transmit frequency Handset: 1921.536-1928.448 MHz
Telephone base: 1921.536-1928.448 MHz
Channels 5
Nominal effective range Maximum power allowed by FCC and IC. Actual operating range may vary according
to environmental conditions at the time of use.
Size Handset: 6.20in X 1.81in X 0.74in (157.5mm X 46.0mm X 18.9mm)
Telephone base: 4.60in X 4.42in X 4.10in (117.0mm X 112.3mm X 104.2mm)
Weight Handset: 3.59oz (101.8g) (including battery)
Telephone base: 6.06oz (171.7g)
Power requirements Handset: 2.4V DC 500mAh Ni-MH battery
Telephone base: 6V DC @ 300mA
Memory Handset directory: 50 memory locations; up to 30 digits and 15 characters
Handset call log: 50 memory locations; up to 24 digits and 15 characters
w w w .v tech ph ones.com
48
Ind ex
A
Answer a call 10
B
Battery 3, 31
C
Call log 20, 21, 22
Call log display screen messages 25
Call waiting 11
Caller ID 19
Character chart 15
Charging 3
Clear voice mail 9
D
Delete from redial 26
Delete from the directory 18
Delete from the call log 24
Dial a call log entry 22
Dial a directory entry 16
Dial a redial entry 26
Directory 13
D S L filter 2
E
Edit a directory entry 17
End a call 10
F
FCC, ACTA and IC regulations 45
Find handset 12
H
Handset indicators 29, 30
Handset display screen messages 27
K
Key tone 8
L
Language 8
M
Maintenance 41
Make a call 10
Make a call log entry ready to dial 22
Mute 11
O
O perating range 41
P
Parts checklist 1
R
RBRC® seal 42
Redial list 26
Review the call log 21
Ringer mute 11
Ringer tone 7
Ringer volume 6
S
Save an entry to the directory 23
Search the directory 16
Speakerphone 10
Store a directory entry 14
T
Technical specifications 47
Telephone base indicators 29
Telephone base installation 2
Troubleshooting 33
V
Voice mail 9
Volume 6, 12
W
Warranty 43
VTECH TELECO MMUNICATIO NS LTD.
A member of THE VTECH GRO UP O F CO MPANIES.
Distributed in the U.S.A. by VTech Communications, Inc. Beaverton, O regon
Distributed in Canada by VTech Telecommunications Canada, Ltd., Richmond, B.C.
Copyright © 2007 for VTECH TELECO MMUNICATIO NS LTD.
Printed in China.
91-001611-010-100
User’s manual
w w w . v t e c h p h o n e s . c o m
Model:
LS6115
C OV E R
