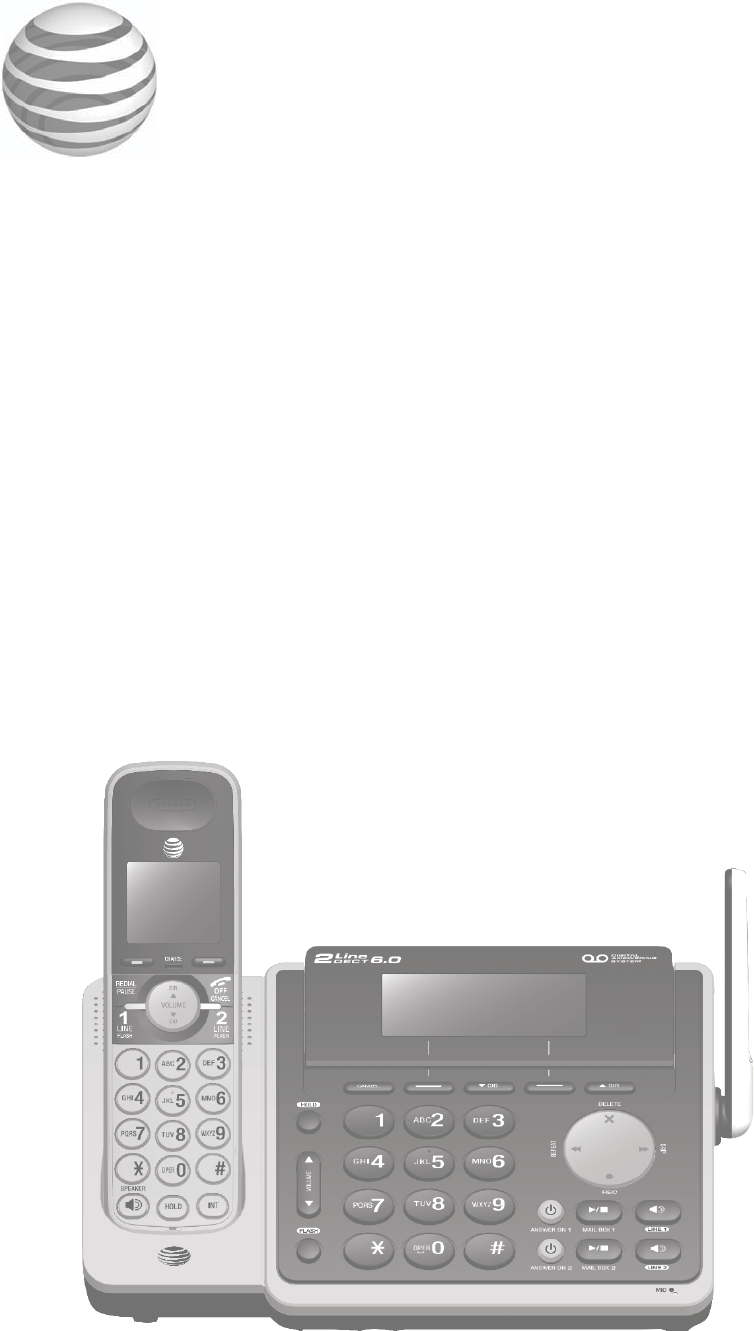

User manual
User’s manual
TL88102/TL88202
DECT 6.0 2-line
cordless telephone/
answering system with
caller ID/call waiting
Congratulations
on your purchase of this AT&T product. Before using this AT&T product,
please read the Important safety information section on pages 93-94 of
this manual. Please thoroughly read this user’s manual for all the
feature operations and troubleshooting information necessary to install
and operate your new AT&T product. You can also visit our website at
www.telephones.att.com or call 1 (800) 222-3111. In Canada,
dial 1 (866) 288-4268.
This telephone meets the California Energy Commission regulations for
energy consumption. Your telephone is set up to comply with the energy-
conserving standards right out of the box. No further action is necessary.

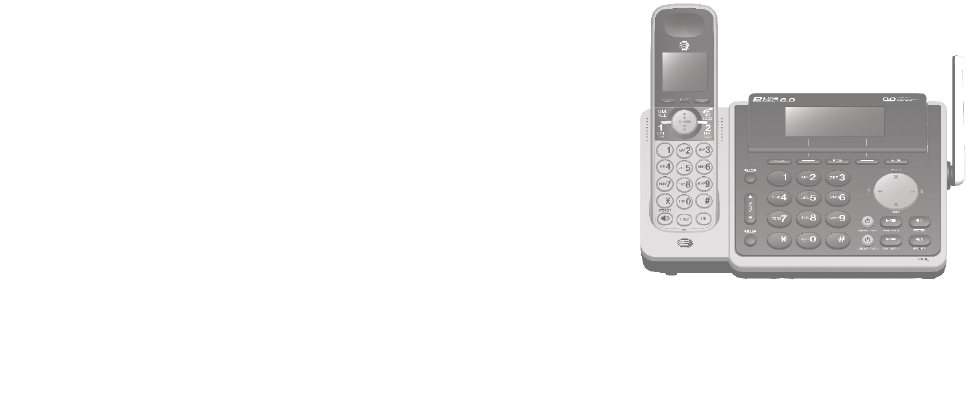

Model number: TL88102 (one handset)
TL88202 (two handsets)
Type: DECT 6.0 2-line cordless telephone/answering system
with caller ID/call waiting
Serial number: __________________________________________________________
Purchase date: __________________________________________________________
Place of purchase: _______________________________________________________
Both the model and serial numbers of your AT&T product can be found on
the bottom of the telephone base.
Save your sales receipt and original packaging in case it is necessary to
return your telephone for warranty service.
Telephones identified with this logo have reduced noise and interference
when used with most T-coil equipped hearing aids and cochlear implants. The
TIA-1083 Compliant Logo is a trademark of the Telecommunications Industry
Association. Used under license.
© 2012-2016 Advanced American Telephones. All Rights Reserved. AT&T and
the AT&T logo are trademarks of AT&T Intellectual Property licensed to
Advanced American Telephones, San Antonio, TX 78219. Printed in China.
T
Compatible with
Hearing Aid T-Coil
TIA-1083
Parts checklist
Your telephone package contains the following items. Save your sales receipt
and original packaging in the event warranty service is necessary.
Cordless handset
(1 for TL88102)
(2 for TL88202)
Charger for cordless handset
with power adapter installed
(1 for TL88202)
Battery compartment
cover
(1 for TL88102)
(2 for TL88202)
Telephone line cords (2) Power adapter for
telephone base
Telephone base
Battery for cordless
handset
(1 for TL88102)
(2 for TL88202)
User’s manual Quick start guide
Belt clip
(1 for TL88102)
(2 for TL88202)
User’s manual
TL88102/TL88202
DECT 6.0 2-line
cordless telephone/
answering system with
caller ID/call waiting
Telephone base installation
This quick start guide provides you with basic instructions only.
For more complete instructions, refer to your user’s manual
provided in the package, or see the online user’s manual at
www.telephones.att.com/manuals.
Quick start guide
TL88102/TL88202
Plug one end of the black telephone
line cord into the 2-line telephone wall
jack or a DSL filter.
Plug the large end of the telephone
base power adapter into a power
outlet not controlled by a wall
switch.
A DSL filter (not included) is
required if you have DSL high-
speed Internet service.
The DSL filter must be plugged
into the telephone wall jack.
Plug the other end of the black
telephone line cord into the
LINE 1/L1+L2 telephone jack
at the back of the telephone
base.
Raise the
antenna.
Option 1: Installation with 2-line jack
THIS SIDE UP / CE CÔTÉ VERS LE HAUT
Battery Pack / Bloc-piles :
BT183342/BT283342 (2.4V 400mAh Ni-MH)
WARNING / AVERTISSEMENT :
DO NOT BURN OR PUNCTURE BATTERIES.
NE PAS INCINÉRER OU PERCER LES PILES.
Made in China / Fabriqué en chine CR1349
User’s manual
TL88102/TL88202
DECT 6.0 2-line
cordless telephone/
answering system with
caller ID/call waiting
Table of contents
Getting started
Quick reference guide - handset ....... 1
Quick reference guide - telephone
base ............................................................ 3
Installation .................................................... 5
Telephone base and charger
installation .............................................. 6
Telephone base installation ........... 6
Charger installation ............................ 7
Battery installation and charging ...... 8

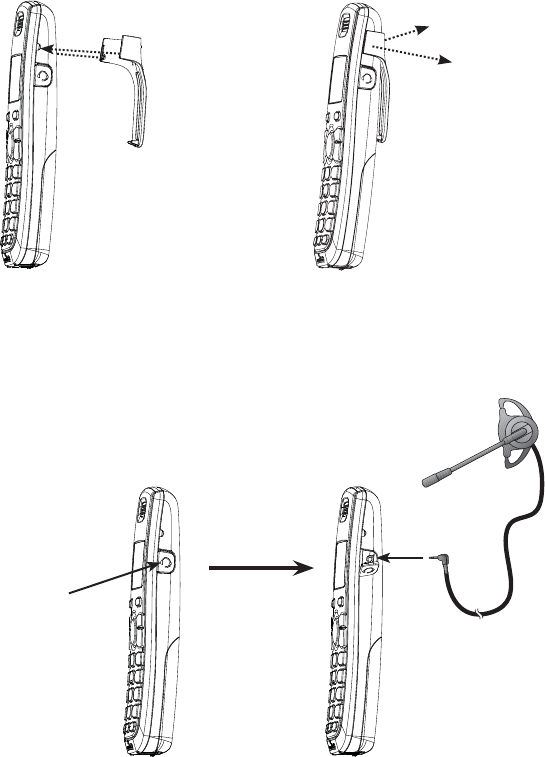

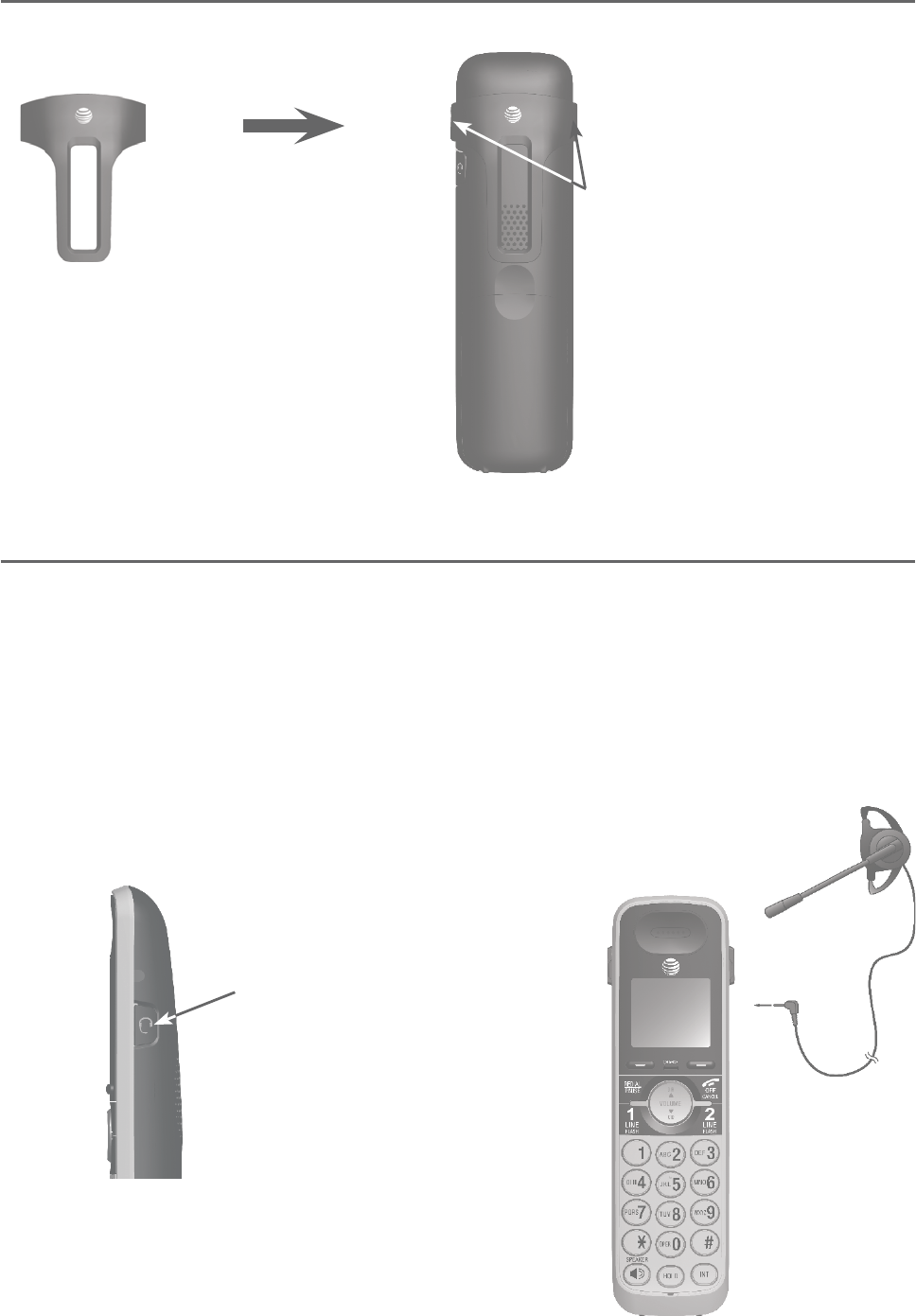

Belt clip and optional headset .........10
Belt Clip ..................................................10
Headset ...................................................10
Telephone settings
Handset settings ......................................11
Ringer volume .....................................12
Ringer tone ...........................................12
LCD language ......................................13
Voicemail (visual message
waiting) indicator ...............................13
Clear voicemail indicator ...............13
Key tone .................................................14
Set date/time ......................................15
Home area code .................................16
Telephone base settings ......................17
Ringer volume .....................................18
Ringer tone ...........................................18
LCD language ......................................19
Voicemail (visual message
waiting) indicator ...............................19
Clear voicemail indicator ...............19
Key tone .................................................20
Set date/time ......................................21
Home area code .................................22
Telephone operation
Telephone operation..............................23
Make, answer or end a call .........23
Silence the ringer ..............................24
Handset speakerphone ...................24
Last number redial ............................24
Options while on call ............................27
Volume Control ...................................27
Call waiting ...........................................27
Mute .........................................................27
Hold ..........................................................28
Chain dialing ........................................29
Multiple Handset use
Multiple handset use .............................31
Join a call in progress .....................31
Handset locator ..................................31
Intercom .......................................................32
Answer an incoming call during
an intercom call .................................33
Call Transfer using intercom ..............34
Transfer a call ......................................34
Conference Call........................................36
Share an outside call .......................36
Conference line 1 and line 2
calls ..........................................................36
Answer an incoming call during
a conference call ...............................38
Directory
About the directory ................................39
Shared directory .................................39
Capacity ..................................................39
Character chart ...................................39
Create directory entries .......................40
Create a new directory entry.......40
Review the directory ..............................42
Review directory entries ................42
Search by name ..................................43
Dial, delete or edit directory
entries .....................................................44
Dial a directory entry .......................44
Delete a directory entry .................44
Edit a directory entry .......................44
Speed dial ...................................................46
Assign a speed dial number .........46
Review the speed dial entries .....48
Dial a speed dial entry ....................48
Edit a speed dial entry ....................49
Reassign a speed dial entry .........50
Delete a speed dial entry ..............50
Caller ID
About caller ID .........................................51
Information about caller ID with
call waiting ...........................................51
Caller ID history .......................................52
How the caller ID history
(call log) works ...................................52
Missed (new) call indicator ...........52
Caller ID operation .................................53
Memory match ....................................53
Review the caller ID history .........54
View dialing options .........................55
Dial a call log entry ..........................55
Save a call log entry to the
directory .................................................56
Delete from the call log .................57
Reasons for missing caller
information ...........................................58
Answering system
Answering system settings .................59
Announcement ....................................59
Answer ON/OFF .................................63
Call screening ......................................64
Number of rings .................................65
Remote access code ........................66
Message alert tone ...........................67
About the answering system.............68
Answering system and
voicemail indicators ..........................68
Using the answering system and
voicemail together ............................68
Message capacity ..............................69
New message indicator ..................69
Voice prompts .....................................69
Call screening ......................................69
Call intercept .......................................70
Base ringer ............................................70
Temporarily turning off the
message alert tone ...........................70
Message playback ...................................71
Message playback .............................71
Delete all messages .........................72
Recording and playing memos .........73
Record a memo ..................................73
Play back a memo ............................74
Remote access ..........................................75
Appendix
Adding and registering handsets ....76
Register a handset to the
telephone base ...................................76
Deregistering handsets ........................77
Deregister all handsets from
the telephone base...........................77
Handset and telephone base
indicators ...............................................78
Handset screen icons ......................78
Telephone base screen icons ......79
Alert tones and lights ...........................80
Handset alert tones ..........................80
Telephone base alert tones ..........80
Handset lights .....................................81
Telephone base lights .....................81
Screen display messages ....................82
Screen messages ...............................82
Troubleshooting .......................................84
Maintenance...............................................92
Important safety information ............93
Safety information .............................93
Especially about cordless
telephones ............................................94
Precautions for users of
implanted cardiac pacemakers .... 94
Pacemaker patients ..........................94
Especially about telephone
answering systems ............................94
For C-UL compliance .............................95
Mesures de sécurité
importantes...........................................95
FCC Part 68 and ACTA..........................98
FCC Part 15 ................................................99
California Energy Commission
battery charging testing
instructions ........................................100
Limited warranty ...................................101
Technical specifications ....................103
DECT 6.0 digital technology ......103
Telephone operating range .......103
Redefining long range
coverage and clarity......................103
Index
Index ...........................................................104
1
Quick reference guide - handset
REDIAL/PAUSE
Press to review the redial list
(page 24).
While dialing or entering
numbers into the directory,
press and hold to insert a
dialing pause (pages 23 and 40).
•
•
DIR/VOLUME
Press to enter the directory
when the telephone is not in
use (page 42).
Press to scroll up while in
menus.
During a call or message
playback, press to increase
the listening volume
(pages 27 and 71).
While entering names or
numbers, press to move the
cursor to the right.
•
•
•
•
LINE 1/FLASH
Press to make or answer a call
on line 1 (page 23).
During a call, press to answer
an incoming call on line 1 when
you receive a call waiting alert
(page 27).
•
•
CID/VOLUME
Press to review the call log
when the telephone is not in
use (page 54).
Press to scroll down while in
menus.
During a call or message
playback, press to decrease
the listening volume
(pages 27 and 71).
While entering names or
numbers, press to move the
cursor to the left.
•
•
•
•
1
While reviewing a call log
entry, press repeatedly to
add or remove 1 in front of
the telephone number before
dialing or saving it in the
directory (page 55).
•
/SPEAKER
Press to make or join a call
using the first available line,
starting with line 1 (page 24).
Press to answer a call using the
speakerphone (page 23).
During a call, press to switch
between speakerphone and
handset use (page 24).
•
•
•
CHARGE light
On when the handset is charging
in the telephone base or charger
(page 9).
•
OFF/CANCEL
During a call, press to hang up
(page 23).
Press and hold while the
telephone is not in use to
erase the missed calls
indicator (page 52).
Press to delete a digit or
character while entering a
number or name.
While in a menu, press to
cancel an operation, back up to
the previous menu, or exit the
menu display; or press and hold
to return to the idle mode.
•
•
•
•
Soft keys (2)
Press to select a menu item displayed above
the key.
•
LINE 2/FLASH
Press to make or answer a call
on line 2 (page 23).
During a call, press to answer
an incoming call on line 2 when
you receive a call waiting alert
(page 27).
•
•
# (pound key)
Press repeatedly to show other
dialing options when reviewing
a call log entry (page 55).
•
INT
Press to initiate an intercom
conversation (page 32) or
transfer a call (page 34).
•
HOLD
Press to put a call on
hold (page 28).
•
Getting started
2
Getting started
MENU
HANDSET
12:45am 12/31
Main menu
Main menu
ANSWERING SYS (page 59)
DIRECTORY (page 39)
CALL LOG (page 51)
RINGERS (page 12)
SETTINGS (page 11)
•
•
•
•
•
Using menus:
Press the MENU soft key to show the menu.
Press TCID or SDIR to scroll through menu items.
Press the SELECT soft key to confirm or save changes to a highlighted
menu item.
Press the BACK soft key or OFF/CANCEL to cancel an operation, back to
the previous menu without making any changes, or exit the menu display.
•
•
•
•
Quick reference guide - handset
3
Getting started
Quick reference guide - telephone base
X/DELETE
Press to delete messages (pages 71 and 72).
/REPEAT
Press to repeat a message or press twice to
play the previous message (page 71).
/SKIP
Press to skip to the next message (page 71).
•/REC
Press to record a memo (page 73) or an
outgoing announcement (page 60).
•
•
•
•
/MAIL BOX 2
Press to start or stop
message playback of the
mailbox of line 2 (page 71).
•
/ANSWER ON 2
Press to turn the answering system
of line 2 on or off (page 63).
•
/LINE 2
Press to make or
answer a call on
line 2 (page 23).
•
HOLD
Press to put a call on hold
(page 28).
•
/VOLUME/
During a call,
press to adjust the
speakerphone volume
(page 27).
Press to adjust
the volume during
message playback
(page 71).
While the telephone
base is ringing, press
the increase or
decrease the ringer
volume.
When the telephone
is not in use, press to
adjust the telephone
base ringer volume
for all lines (page 70).
•
•
•
•
# (pound key)
Press repeatedly to show other
dialing options when reviewing a
call log entry (page 55).
•
/ANSWER ON 1
Press to turn the answering system
of line 1 on or off (page 63).
•
/MAIL BOX 1
Press to start or stop
message playback of the
mailbox of line 1 (page 71).
•
/LINE 1
Press to make or
answer a call on
line 1 (page 23).
•
1
While reviewing a call log entry,
press repeatedly to add or remove
1 in front of the
telephone number
before dialing
or saving it in the
directory (page 55).
•
FLASH
During a call, press to
answer an incoming
call when you receive
a call waiting alert
(page 27).
•
Large tilt display
Move the top of
the display forward
or backward to
adjust the angle
of the screen for
maximum visibility.
•
4
Getting started
BASE
12:45am 12/31
REDIAL MENU
BASE
12:45am 12/31
REDIAL MENU
Main menu
Answering sys (page 59)
Directory (page 39)
Call log (page 51)
Page all HS (page 31)
Intercom (page 32)
Ringers (page 18)
Settings (page 17)
•
•
•
•
•
•
•
Using menus:
Press the MENU soft key to show the menu.
Press TCID or SDIR to scroll through menu items.
Press the SELECT soft key to confirm or save changes to a highlighted
menu item.
Press the BACK soft key or CANCEL to cancel an operation, back to the
previous menu without making any changes, or exit the menu display.
•
•
•
•
Quick reference guide - telephone base
DIR
Press to enter the directory
when the telephone is not in use
(page 42).
Press to scroll up while in menus.
While entering names or numbers,
press to move the cursor to the
right.
•
•
•
CID
Press to review the call log when the
telephone is not in use (page 54).
Press to scroll down while in menus.
While entering names or numbers,
press to move the cursor to the left.
•
•
•
CANCEL
While in a menu setting item, press to
exit without making changes or press
and hold to return to idle mode.
While the telephone base is ringing,
press to silence the ringer temporarily
(page 24).
Press and hold to erase the missed
calls indicator while the telephone is
not in use (page 52).
While entering names or numbers,
press to delete a character or a digit.
•
•
•
•
Soft keys (2)
Press to select a menu
item displayed above
the key.
•
5
Getting started
Installation
Install the telephone base close to a telephone jack and a power outlet not
controlled by a wall switch. For optimum range and better reception, place
the telephone base in a central and open location.
If you subscribe to high-speed Internet service (DSL - digital subscriber
line) through your telephone line, you must install a DSL filter between the
telephone line cord and the telephone wall jack (see pages 6-7). The filter
prevents noise and caller ID problems caused by DSL interference. Please
contact your DSL service provider for more information about DSL filters.
Your product may be shipped with protective stickers covering the handset
and telephone base displays - remove them before use.
For customer service or product information, visit our website at
www.telephones.att.com or call 1 (800) 222-3111. In Canada, dial
1 (866) 288-4268.
Avoid placing the telephone base too close to:
Communication devices such as television sets, VCRs, or other
cordless telephones.
Excessive heat sources.
Noise sources such as a window with traffic outside, motors, microwave
ovens, refrigerators, or fluorescent lighting.
Excessive dust sources such as a workshop or garage.
Excessive moisture.
Extremely low temperature.
Mechanical vibration or shock such as on top of a washing machine
or workbench.
•
•
•
•
•
•
•
See pages 8-9 for
easy instructions.
You must install and
charge the battery before
using the telephone. STOP!
6
Getting started
Telephone base and charger installation
Telephone base installation
If you subscribe to digital subscriber line (DSL) high-speed Internet service
through your telephone line, you must install a DSL filter between each
telephone line cord and telephone wall jack. The filter prevents noise and
caller ID problems caused by DSL interference. Contact your DSL service
provider for more information about DSL filters.
If you have a 2-line wall jack, install the telephone base, as shown in
Option 1 below.
If you have separate wall jacks for each line, install the telephone base, as
shown in Option 2 on the next page.
Option 1: Installation with 2-line jack
Plug one end of the black telephone
line cord into the 2-line telephone wall
jack or a DSL filter.
Plug the large end of the telephone
base power adapter into a power
outlet not controlled by a wall
switch.
A DSL filter (not included)
is required if you have DSL
high-speed Internet service.
The DSL filter must be
plugged into the telephone
wall jack.
Route the power adapter
cord through this slot.
Plug the small end of the telephone base
power adapter into the power adapter jack
on the back of the telephone base.
Plug the other end of the
black telephone line cord into
the LINE 1/L1+L2 telephone
jack at the back of the
telephone base.
Raise the
antenna.
7
Getting started
Telephone base and charger installation
Option 2: Installation with separate line jacks
IMPORTANT INFORMATION
Use only the power adapter(s) supplied with this product. To order a replacement
power adapter, visit our website at www.telephones.att.com or call
1 (800) 222-3111. In Canada, dial 1 (866) 288-4268.
The power adapters are intended to be correctly oriented in a vertical or floor
mount position. The prongs are not designed to hold the plug in place if it is
plugged into a ceiling, under-the-table or cabinet outlet.
•
•
Plug the power adapter into a power outlet not
controlled by a wall switch.
Charger installation
DSL filters (not
included) are required
if you have DSL high-
speed Internet service.
The DSL filter must
be plugged into the
telephone wall jack.
Plug one end of the clear telephone
line cord into the line 1 telephone
wall jack or a DSL filter.
Plug one end of the black
telephone line cord into the line 2
telephone wall jack or a DSL filter.
Plug the large end of the
telephone base power
adapter into a power outlet
not controlled by a wall
switch.
Raise the antenna.
Route the power
adapter cord through
this slot.
Plug the small end of the telephone base
power adapter into the power adapter jack
on the back of the telephone base.
Plug the other end of the clear telephone line
cord into the LINE 1/L1+L2 telephone jack at
the back of the telephone base.
Plug the other end of
the black telephone
line cord into the
LINE 2 telephone jack
at the back of the
telephone base.
8
Getting started
Battery installation and charging
Install the battery, as shown below. Once you have installed the battery, the
screen indicates the battery status (see the following table). If necessary,
place the handset in the telephone base or charger to charge the battery. For
best performance, keep the handset in the telephone base or charger when
not in use. The battery is fully charged after 16 hours of continuous charging.
If the screen shows Place handset in charger and flashes, you need to
charge the handset without interruption for at least 30 minutes to give the
handset enough charge to use the telephone for a short time. The following
table summarizes the battery charge indicators and actions to take.
Battery indicators Battery status Action
The screen is blank, or
shows Place handset in
charger and (flashing).
Battery has no or very little
charge. The handset cannot
be used.
Charge without interruption
(at least 30 minutes).
The screen shows
Low battery and (flashing).
Battery has enough charge
to be used for a short time.
Charge without interruption
(at least 30 minutes).
The screen shows
HANDSET X.
Battery is charged. To keep the battery charged,
place it in the telephone base or
charger when not in use.
Step 1
Plug the battery connector securely into the socket inside the handset
battery compartment. Insert the supplied battery with the label THIS SIDE UP
facing up, as indicated.
NOTE: If you are on a phone call in low battery mode, you hear four short beeps every
minute.
THIS SIDE UP / CE CÔTÉ VERS LE HAUT
Battery Pack / Bloc-piles :
BT183342/BT283342 (2.4V 400mAh Ni-MH)
WARNING / AVERTISSEMENT :
DO NOT BURN OR PUNCTURE BATTERIES.
NE PAS INCINÉRER OU PERCER LES PILES.
Made in China / Fabriqué en chine BY 1021
THIS SIDE
Battery Pack / Bloc
BT183342/BT283342
WARNING / AVERTISS
DO NOT BURN OR PUN
NE PAS INCINÉRER O
Made in China / Fa
9
Getting started
Step 2
Align the cover flat against the battery compartment, then slide it upwards
until it clicks into place.
Battery installation and charging
Step 3
Charge the handset by placing it face forward
in the telephone base or charger. The CHARGE
light under the screen of the handset is on during
charging.
IMPORTANT INFORMATION
Use only the supplied rechargeable battery or replacement battery (model BT183342/
BT283342). To order, visit our website at www.telephones.att.com or call
1 (800) 222-3111. In Canada, dial 1 (866) 288-4268.
If you do not use the handset for a long time, disconnect and remove the battery
to prevent possible leakage.
•
•
CHARGE light
After you install your telephone or power returns following a power outage,
you have to reset the date and time. For instructions, see Set date/time on
pages 15 and 21.
LE HAUT
21
10
Getting started
Belt clip and optional headset
Belt Clip
Lift the plastic
cover.
Plug a 2.5mm headset into
the jack on the side of the
handset (beneath the small
plastic cover).
To remove the belt clip:
Gently lift either of the
belt clip tabs outwards to
remove the belt clip from
the handset.
To attach the belt clip:
Snap the belt clip into
the slots on both sides
of the handset.
Headset
For handsfree telephone conversation, you can use any industry standard
2.5mm headset (purchased separately). For best results, use an AT&T 2.5mm
headset. To purchase a headset, visit our website at
www.telephones.att.com or call 1 (800) 222-3111. In Canada, dial
1 (866) 288-4268.
Side view of handset
11
Handset settings
Use the menu to change the telephone settings.
1. Press the MENU soft key on the handset to enter the
main menu when the handset is not in use.
2. Press TCID or SDIR to scroll to SETTINGS, then press the
SELECT soft key.
3. Press TCID or SDIR to scroll to the desired item, then
press the SELECT soft key.
4. When you successfully change a setting, there is a
confirmation tone and the screen returns to the previous
menu.
NOTE: Press OFF/CANCEL or the BACK soft key to cancel an operation, back up to the
previous menu or exit the menu display. Press and hold OFF/CANCEL to return to idle mode.
MENU
HANDSET
12:45am 12/31
BACK SELECT
SETTINGS
Telephone settings
12
Telephone settings
Handset settings
Ringer volume
You can set the ringer volume level to one of six levels or turn the ringer off.
1. Press the MENU soft key when the handset is not in use.
2. Use TCID or SDIR to scroll to RINGERS, then press the
SELECT soft key.
3. Press the SELECT soft key again to select Ringer volume.
4. Press TCID or SDIR to choose Line 1, Line 2 or
Lines 1&2, then press the SELECT soft key.
5. Press TCID or SDIR to adjust the volume. A sample
of each ringer volume plays as you scroll through the
choices. Press the OFF soft key to turn off the ringer
and Ringer muted shows on the screen.
6. Press the SET soft key to save your setting or press
OFF/CANCEL to exit to the previous menu.
NOTES:
The handset ringer volume also determines the ringer volume for intercom calls.
If the ringer volume is set to off, that handset is silenced for all incoming calls.
If you turn off the ringer, a ringer off icon,
1
1,
1
2, or 1
2
1
of the respective phone line(s)
flashes on the screen.
Ringer tone
You can choose one of ten ringer tones.
1. Press the MENU soft key when the handset is not in use.
2. Use TCID or SDIR to scroll to RINGERS, then press the
SELECT soft key.
3. Press TCID or SDIR to scroll to Ringer tone, then press
the SELECT soft key.
4. Press TCID or SDIR to choose Line 1, Line 2 or
Lines 1&2, then press the SELECT soft key.
5. Press TCID or SDIR to sample each ringer tone.
6. Press the SET soft key to save your setting or press the
BACK soft key to exit to the previous menu.
NOTE: If you turn off the ringer volume, you will not hear ringer tone samples.
•
•
•
BACK SELECT
RINGERS
Ringer volume
Ringer tone
BACK SELECT
RINGER VOLUME
Line 1
Line 2
Lines 1&2
RINGER VOLUME
OFF SET
BACK SELECT
RINGERS
Ringer volume
Ringer tone
BACK SELECT
RINGER TONE
Line 1
Line 2
Lines 1&2
BACK
RINGER TONE
31
2
3
SET
13
Telephone settings
Handset settings
LCD language
You can select the language used for all screen displays.
1. Press the MENU soft key when the handset is not in use.
2. Press TCID or SDIR to scroll to SETTINGS, then press the
SELECT soft key.
3. Press the SELECT soft key to select LCD language.
4. Press TCID or SDIR to choose English, Français or
Español. Press the SET soft key to save your setting, or
press the BACK soft key to exit to the previous menu.
Voicemail (visual message waiting) indicator
If you subscribe to voicemail service offered by your telephone service
provider, the icon and a line number appear on both the handset and
telephone base when you have new voicemail messages. Contact your
telephone service provider for more information and assistance about using
your voicemail service.
Clear voicemail indicator
Use the clear voicemail indicator feature when the telephone indicates that
there is new voicemail but there are none (for example, when you have
accessed your voicemail while away from home). The clear voicemail feature
only turns off the indicators; it does not delete your voicemail messages. As
long as you have new voicemail messages, your telephone service provider
continues to send the signal that turns on the indicators.
1. Press the MENU soft key when the handset is not in use.
2. Press TCID or SDIR to scroll to SETTINGS, then press the
SELECT soft key.
3. Press TCID or SDIR to scroll to Clear voicemail, then
press the SELECT soft key.
4. Press TCID or SDIR to choose Line 1, Line 2, or
Lines 1&2, then press the SELECT soft key. The screen
shows Turn off indicator?.
5. Press the YES soft key to confirm, or press the NO soft
key to exit to the previous menu.
NOTES:
This feature does not indicate new messages recorded on your phone’s built-in answering
system.
For more information about the difference between your answering system and voicemail, see
page 68.
•
•
YES
Clear voicemail
Line 1
Line 2
Lines 1&2
BACK SELECT
NO
Turn off
indicator?
BACK SELECT
SETTINGS
LCD language
Clear voicemail
Key tone
BACK SELECT
SETTINGS
LCD language
Clear voicemail
Key tone
BACK SET
LCD LANGUAGE
3English
Francais
Espanol
,
~
14
Telephone settings
Handset settings
Key tone
You can turn the key tone feature on or off. If you turn off the key tone, there
are no beeps when you press keys.
1. Press the MENU soft key when the handset is not in use.
2. Press TCID or SDIR to scroll to SETTINGS, then press the
SELECT soft key.
3. Press TCID or SDIR to scroll to Key tone, then press the
SELECT soft key.
4. Press TCID or SDIR to choose On or Off.
5. Press the SET soft key to save your setting, or press the
BACK soft key to exit to the previous menu.
SETTINGS
Clear voicemail
Key tone
Set date/time
BACK SELECT
BACK SET
KEY TONE
3On
Off
15
Telephone settings
Handset settings
Set date/time
The answering system announces the day and time of each message prior
to playing it. If you subscribe to caller ID service, the day, month and time
are set automatically with each incoming call. The year must be set so that
the day of the week can be calculated from the caller ID information. Before
using the answering system, set the date and time as follows.
1. Press the MENU soft key when the handset is not in use.
2. Press TCID or SDIR to scroll to SETTINGS, then press the SELECT soft key.
3. Press TCID or SDIR to scroll to Set date/time, then press
the SELECT soft key.
4. Use the dialing keys (0-9) to enter the month in two-
digit format, or press TCID or SDIR to choose the correct
setting, then press the SET soft key to move to set the
day.
5. Use the dialing keys (0-9) to enter the day in two-digit
format, or press TCID or SDIR to choose the correct
setting, then press the SET soft key to move to set the
year.
6. Use the dialing keys (0-9) to enter the year in two-digit
format, or press TCID or SDIR to choose the correct
setting, then press the SET soft key to move to set the
hour.
7. Use the dialing keys (0-9) to enter the hour in two-digit format, or press
TCID or SDIR to choose the correct setting, then press the SET soft key to
move to set the minute.
8. Use the dialing keys (0-9) to enter the minute in two-digit format, or press
TCID or SDIR to choose the correct setting, then press the SET soft key.
9. Press TCID or SDIR to choose between AM or PM, then press the SET soft
key to confirm.
NOTE: If the clock is not set when a message is recorded, the system announces, “Time
and day not set,” before it plays the message.
BACK SET
SET TIME
03:45 AM
BACK SET
SET DATE
12/31/09
MM/DD/YY
SETTINGS
Key tone
Set date/time
Home area code
BACK SELECT
16
Telephone settings
Handset settings
Home area code
If you dial seven digits to make a local call (no area code required), enter
your area code into the telephone as the home area code. When you receive
a call from within your home area code, the caller ID history only displays the
seven digits of the telephone number.
This feature makes it easy for you to place a call from the caller ID history.
If you dial ten digits to make a local phone call, do not use this home area
code feature. If you do, you cannot place local calls from your caller ID
history, as they will have only seven digits.
To set the home area code:
1. Press the MENU soft key when the handset is not in use.
2. Press TCID or SDIR to scroll to SETTINGS, then press the
SELECT soft key.
3. Press TCID or SDIR to scroll to Home area code, then
press the SELECT soft key.
4. Use the dialing keys (0-9) to enter a three-digit home area
code. Press OFF/CANCEL to delete a digit.
5. Press the SET soft key to save your setting, or press the
BACK soft key to exit to the previous menu.
NOTE: If, in the future, your telephone service provider requires you to dial the area code
when making a local call, or, if you move to a location that requires it, delete the home
area code you have already programmed following the steps mentioned above. After you
have deleted the home area code, _ _ _ appears in the display.
SETTINGS
Key tone
Set date/time
Home area code
BACK SELECT
BACK SET
HOME AREA CODE
___
17
Telephone settings
Telephone base settings
Use the menu to change the telephone settings.
1. Press the MENU soft key on the telephone base to enter
the main menu when the telephone base is not in use.
2. Press TCID or SDIR to scroll to Settings, then press the
SELECT soft key.
3. Press TCID or SDIR to scroll to the desired item, then
press the SELECT soft key.
4. When you successfully change a setting, there is a
confirmation tone and the screen returns to the previous
menu.
NOTE: Press CANCEL or the BACK soft key to cancel an operation, back up to the previous
menu or exit the menu display. Press and hold CANCEL to return to idle mode.
SELECT
Intercom
Ringers
Settings
BASE
12:45am 12/31
REDIAL MENU
18
Telephone settings
Telephone base settings
Ringer volume
You can set the ringer volume level to one of six levels or turn the ringer off.
1. Press the MENU soft key when the telephone base is
not in use.
2. Use TCID or SDIR to scroll to Ringers, then press the
SELECT soft key.
3. Press the SELECT soft key again to select
Ringer volume.
4. Press TCID or SDIR to choose Line 1, Line 2 or
Lines 1&2, then press the SELECT soft key.
5. Press TCID or SDIR to adjust the volume. A sample
of each ringer volume plays as you scroll through the
choices. Press the OFF soft key to turn off the ringer
and Ringer muted shows on the screen.
6. Press the SET soft key to save your setting or press CANCEL to exit to the
previous menu.
NOTES:
The telephone base ringer volume also determines the ringer volume for intercom calls.
If the ringer volume is set to off, the telephone base is silenced for all incoming calls.
If you turn off the ringer, a ringer off icon,
1
1,
1
2, or 1
2
1
of the respective phone line(s)
flashes on the screen.
Ringer tone
You can choose one of the ten ringer tones.
1. Press the MENU soft key when the handset is not in use.
2. Use TCID or SDIR to scroll to Ringers, then press the
SELECT soft key.
3. Press TCID or SDIR to scroll to Ringer tone, then press
the SELECT soft key.
4. Press TCID or SDIR to choose Line 1, Line 2 or
Lines 1&2, then press the SELECT soft key.
5. Press TCID or SDIR to sample each ringer tone.
6. Press the SET soft key to save your setting or press
CANCEL to exit to the previous menu.
NOTE: If you turn off the ringer volume, you will not hear ringer tone samples.
•
•
•
RINGER VOLUME
OFF SET
Ringer volume
Ringer tone
SELECT
Line 1
Line 2
Lines 1&2
SELECT
RINGER TONE
31
2
SET
Ringer volume
Ringer tone
SELECT
Line 1
Line 2
Lines 1&2
SELECT
19
Telephone settings
Telephone base settings
LCD language
You can select the language used for all screen displays.
1. Press the MENU soft key when the telephone base is
not in use.
2. Press TCID or SDIR to scroll to Settings, then press the
SELECT soft key.
3. Press the SELECT soft key to select LCD language.
4. Press TCID or SDIR to choose English, Français or
Español. Press the SET soft key to save your setting, or
press CANCEL to exit to the previous menu.
Voicemail (visual message waiting) indicator
If you subscribe to voicemail service offered by your telephone service
provider, the icon and a line number appear on both the handset and
telephone base when you have new voicemail messages. Contact your
telephone service provider for more information and assistance about using
your voicemail service.
Clear voicemail indicator
Use the clear voicemail indicator feature when the telephone indicates that
there is new voicemail but there are none (for example, when you have
accessed your voicemail while away from home). The clear voicemail feature
only turns off the indicators; it does not delete your voicemail messages. As
long as you have new voicemail messages, your telephone service provider
continues to send the signal that turns on the indicators.
1. Press the MENU soft key when the handset is not in use.
2. Press TCID or SDIR to select Settings, then press the
SELECT soft key.
3. Press TCID or SDIR to select Clear voicemail, then
press the SELECT soft key.
4. Press TCID or SDIR to choose Line 1, Line 2, or
Lines 1&2, then press the SELECT soft key. The screen
shows Turn off indicator?.
5. Press the YES soft key to save, or press the NO soft key
to exit to the previous menu.
NOTES:
This feature does not indicate new messages recorded on your phone’s built-in answering
system.
For more information about the difference between your answering system and voicemail, see
page 68.
•
•
Turn off
indicator?
YES NO
Clear voicemail
Line 1
Line 2
SET
LCD language
Clear voicemail
Key tone
SELECT
,
LCD LANGUAGE
3English
Francais
SET
LCD language
Clear voicemail
Key tone
SELECT
20
Telephone settings
Telephone base settings settings
Key tone
You can turn the key tone feature on or off. If you turn off the key tone, there
are no beeps when you press keys.
1. Press the MENU soft key when the telephone base is
not in use.
2. Press TCID or SDIR to scroll to Settings, then press the
SELECT soft key.
3. Press TCID or SDIR to scroll to Key tone, then press the
SELECT soft key.
4. Press TCID or SDIR to choose On or Off.
5. Press the SET soft key to save your setting or press
CANCEL to exit to the previous menu.
Clear voicemail
Key tone
Set date/time
SELECT
KEY TONE
3On
Off
SET
21
Telephone settings
SET TIME
03:45 AM
SET
SET
SET DATE
12/31/09
MM/DD/YY
Key tone
Set date/time
Home area code
SELECT
Telephone base settings
Set date/time
The answering system announces the day and time of each message prior
to playing it. If you subscribe to caller ID service, the day, month and time
are set automatically with each incoming call. The year must be set so that
the day of the week can be calculated from the caller ID information. Before
using the answering system, set the date and time as follows.
1. Press the MENU soft key when the telephone base is not in use.
2. Press TCID or SDIR to scroll to Settings, then press the SELECT soft key.
3. Press TCID or SDIR to select Set date/time, then press
the SELECT soft key.
4. Use the dialing keys (0-9) to enter the month in two-
digit format, or press TCID or SDIR to choose the
correct setting, then press the SET soft key to move to
set the day.
5. Use the dialing keys (0-9) to enter the day in two-digit
format, or press TCID or SDIR to choose the correct
setting, then press the SET soft key to move to set the
year.
6. Use the dialing keys (0-9) to enter the year in two-digit
format, or press TCID or SDIR to choose the correct
setting, then press the SET soft key to move to set the hour.
7. Use the dialing keys (0-9) to enter the hour in two-digit format, or press
TCID or SDIR to choose the correct setting, then press the SET soft key to
move to set the minute.
8. Use the dialing keys (0-9) to enter the minute in two-digit format, or press
TCID or SDIR to choose the correct setting, then press the SET soft key.
9. Press TCID or SDIR to choose between AM or PM, then press the SET soft
key to confirm.
NOTE: If the clock is not set when a message is recorded, the system announces, “Time
and day not set,” before it plays the message.
22
Telephone settings
Telephone base settings
Home area code
If you dial seven digits to make a local call (no area code required), enter
your area code into the telephone as the home area code. When you receive
a call from within your home area code, the caller ID history only displays the
seven digits of the telephone number.
This feature makes it easy for you to place a call from the caller ID log. If you
dial ten digits to make a local phone call, do not use this home area code
feature. If you do, you cannot place local calls from your caller ID log, as they
will have only seven digits.
To set the home area code:
1. Press the MENU soft key when the handset is not in use.
2. Press TCID or SDIR to scroll to Settings, then press the
SELECT soft key.
3. Press TCID or SDIR to scroll to Home area code, then
press the SELECT soft key.
4. Use the dialing keys (0-9) to enter a three-digit home
area code. Press CANCEL to delete a digit.
5. Press the SET soft key to save or press the BACK soft
key to exit to the previous menu.
NOTE: If, in the future, your telephone service provider requires you to dial the area code
when making a local call, or, if you move to a location that requires it, delete the home
area code you have already programmed following the steps mentioned above. After you
have deleted the home area code, _ _ _ appears in the display.
HOME AREA CODE
___
BACK SET
Key tone
Set date/time
Home area code
SELECT
23
Telephone operation
Make, answer or end a call
Using the handset:
To make a call:
Press LINE 1/FLASH, LINE 2/FLASH or /SPEAKER, then enter the
telephone number.
To predial a call:
Enter the telephone number, then press LINE 1/FLASH, LINE 2/FLASH or
/SPEAKER to call.
To answer a call:
Press LINE 1/FLASH, LINE 2/FLASH or /SPEAKER to answer.
NOTES:
Pressing /SPEAKER picks the first available line, starting with line 1. Line 1 is selected first
when both lines are in use or on hold.
The screen shows the elapsed time as you talk (in hours, minutes and seconds).
When predialing (preview numbers before dialing), press OFF/CANCEL on the handset to
backspace and delete; press and hold REDIAL/PAUSE on the handset to insert a dialing
pause (a p appears).
To end a call:
Press OFF/CANCEL or return the handset to the telephone base or
charger to hang up.
Using the telephone base:
To make a call:
Press /LINE 1 or /LINE 2, then enter the telephone number.
To predial a call:
Enter the telephone number, then press /LINE 1 or /LINE 2.
To answer a call:
Press /LINE 1 or /LINE 2 to answer.
NOTES:
The screen shows the elapsed time as you talk (in hours, minutes and seconds).
When predialing (preview numbers before dialing), press CANCEL on the telephone base to
backspace and delete; press the PAUSE soft key on the telephone base to insert a dialing
pause (a p appears).
To end a call:
Press /LINE 1 or /LINE 2.
•
•
•
•
•
•
•
•
•
•
•
•
•
Telephone operation
24
Telephone operation
Telephone operation
Silence the ringer
When the telephone is ringing, you can temporarily silence the ringer of the
handset or telephone base without disconnecting the call. The next call rings
normal at the preset volume.
To silence the ringer when there is an incoming call:
Press the SILENCE soft key on the handset or telephone
base. The screen temporarily shows Ringer muted for a
few seconds.
-OR-
Press CANCEL on the telephone base. The screen
temporarily shows Ringer muted for a few seconds.
Handset speakerphone
During a call, press /SPEAKER to switch between
speakerphone and normal handset use.
After ending a call on line 1, there may be a few seconds
delay before the /SPEAKER key can accurately
determine the availability of line 1. During this time,
pressing /SPEAKER may select line 2 automatically.
Last number redial
The redial list stores up to 20 entries on each of the
handsets and the telephone base. When there are already
20 entries, the oldest entry is deleted to make room for
the new entry. Entries are shown in reverse chronological
order.
To view the 20 most recently dialed numbers:
Press REDIAL/PAUSE on the handset or the REDIAL soft
key on the telephone base when it is not in use.
Press TCID or SDIR on the handset or on the telephone
base to browse the redial list.
•
•
•
•
SILENCE
Line 1
Incoming
call
Ringer muted
1
BASE
12:45am 12/31
REDIAL MENU
25
Telephone operation
Telephone operation
To redial a number
Using the handset:
1. Press REDIAL/PAUSE when the handset is not in use.
2. Press TCID or SDIR to scroll to the desired number.
3. Press LINE 1/FLASH, LINE 2/FLASH or /SPEAKER to dial.
Using the telephone base:
1. Press the REDIAL soft key and then press TCID or SDIR to scroll to the
desired number.
2. Press /LINE1 or /LINE2 to dial.
To save a redial entry to the directory
Using the handset:
1. Press REDIAL/PAUSE when the handset is not in use.
2. Press TCID or SDIR to scroll to the desired number, then press the SAVE
soft key.
3. The screen shows ENTER NUMBER. Use the dialing keys to edit the
number, if necessary.
4. Press the NEXT soft key to move to the name.
5. The screen displays ENTER NAME. Use the dialing keys to enter the name.
6. Press the SAVE soft key and Saved to Directory displays for a few
seconds.
Using the telephone base:
1. Press the REDIAL soft key when the telephone base is not in use.
2. Press TCID or SDIR to scroll to the desired number, then press the SAVE
soft key.
3. The screen shows ENTER NUMBER. Use the dialing keys to edit the
number, if necessary.
4. Press the NEXT soft key to move to the name.
5. The screen displays ENTER NAME. Use the dialing keys to enter the name.
6. Press the SAVE soft key and Saved to Directory displays for a few seconds.
26
Telephone operation
Telephone operation
To delete a redial entry
Using the handset:
1. Press REDIAL/PAUSE and then press TCID or SDIR to scroll to the desired
number.
2. Press the DELETE soft key to delete the displayed entry.
Using the telephone base:
1. Press the REDIAL soft key and then press TCID or SDIR to scroll to the
desired number.
2. Press the DELETE soft key to delete the displayed entry.
27
Telephone operation
Options while on call
Volume Control
During a call, you can adjust the listening volume on the handset or
telephone base.
To adjust the listening volume of the handset:
Press /VOLUME/ on the handset while on a call.
To adjust the listening volume of the telephone base:
Press /VOLUME/ on the telephone base while on a call.
Call waiting
If you subscribe to call waiting service from your telephone service provider,
and someone calls while you are already on a call on the same line, you hear
an alert tone.
Press the corresponding line button, LINE 1/FLASH or LINE 2/FLASH, on the
handset or FLASH on the telephone base to put your current call on hold
and take the new call.
Press the corresponding line button, LINE 1/FLASH or LINE 2/FLASH on the
handset or FLASH on the telephone base at any time to switch back and
forth between calls.
NOTE: Missed call waiting calls are not counted as missed calls.
Mute
During a call, the mute function enables you to turn off the microphone. You
can hear the caller, but the caller cannot hear you.
To mute a call on the handset or telephone base:
Press the MUTE soft key to turn off the microphone.
The screen temporarily shows Microphone off for a few
seconds and MUTE appears.
To take the handset or telephone base off mute:
Press the UNMUTE soft key to resume the conversation.
The screen temporarily shows Microphone ON for a few
seconds.
•
•
•
•
•
•
1
MUTE
MUTE OPTION
Line 1 0:05:35
800-595-9511
12:45am 12/31
1
UNMUTE OPTION
Line 1 0:05:35
800-595-9511
12:45am 12/31
28
Telephone operation
Options while on call
Hold
During a call, you can place a call on hold. You hear an alert tone if you have
not taken the call off of hold after 14 minutes. You hear another alert tone
30 seconds later. At 15 minutes on hold, the call automatically disconnects.
To place a call on hold using the handset or telephone base:
Press HOLD on the handset or telephone base.
L1)ON HOLD appears on the screen while you are on
a call on line 1.
1
flashes on the handset and the
telephone base.
L2)ON HOLD appears on the screen while you are on
a call on line 2.
2
flashes on the handset and the
telephone base.
To resume a call on hold using the handset or telephone base:
On the handset, press the corresponding line button, LINE 1/FLASH or
LINE 2/FLASH, to resume the call.
On the telephone base, press the corresponding line button, /LINE 1 or
/LINE 2, to resume the call.
•
•
•
•
L1)ON HOLD
L2)ON HOLD
12:45am 12/31
MENU
L1)ON HOLD
L2)ON HOLD
12:45am 12/31
12
REDIAL MENU
12
29
Telephone operation
Options while on call
Chain dialing
Use this feature to initiate a dialing sequence from numbers stored in the
directory, call log or redial while you are on a call.
Chain dialing can be useful if you wish to access other numbers (such as
bank account information or access codes) from the directory, call log or
redial list.
To access a number in the directory while on a call:
Press SDIR on the telephone base and then press TCID or SDIR to select
the desired entry. Press the DIAL soft key to dial the displayed number or
press CANCEL to cancel the chain dialing.
-OR-
1. Press the OPTION soft key on the handset or telephone base.
2. Press TCID or SDIR on the handset or on the telephone base to select
Directory, then press the SELECT soft key.
3. Press TCID or SDIR on the handset or on the telephone base to select the
desired entry.
4. Press the DIAL soft key to dial the displayed number; or press the BACK
soft key twice on the handset or CANCEL twice on the telephone base to
cancel the chain dialing.
To access a number in the call log while on a call:
Press TCID on the telephone base and then press TCID or SDIR to select
the desired entry. Press the DIAL soft key to dial the displayed number or
press CANCEL to cancel the chain dialing.
-OR-
1. Press the OPTION soft key on the handset or telephone base.
2. Press TCID or SDIR on the handset or on the telephone base to select
Call log. Then, press the SELECT soft key.
3. Press TCID or SDIR on the handset or on the telephone base to select the
desired entry.
4. Press the DIAL soft key to dial the displayed number; or press the BACK
soft key twice on the handset or CANCEL twice on the telephone base to
cancel the chain dialing.
30
Telephone operation
Options while on call
To access the last number redial while on a call:
Press REDIAL/PAUSE on the handset to display the last number dialed. Press
the DIAL soft key to dial the displayed number or press the BACK soft key to
cancel the chain dialing.
-OR-
1. Press the OPTION soft key on the handset or telephone base.
2. Press TCID or SDIR on the handset or on the telephone base to select
Redial last #, then press the SELECT soft key on the handset or telephone
base.
3. Press the DIAL soft key to dial the displayed number; or press the BACK
soft key twice on the handset or CANCEL twice on the telephone base to
cancel the chain dialing.
NOTES:
You cannot edit a directory entry while on a call. For more details about the directory, see
page 39.
You cannot copy a call log entry into the directory while on a call. For more details about call
log, see page 51.
If you press REDIAL/PAUSE on the handset while on a call, you can only view the most recent
call and cannot erase the entry. For more details about the redial memory, see Last number
redial on pages 24-26.
•
•
•
31
Multiple handset use
Join a call in progress
You can use up to four system handsets, or three system handsets and the
telephone base at the same time on an outside call. If a handset or the
telephone base is already on a call on line 1 or line 2 and you would like to
join the call, press the corresponding line button on another handset
(LINE 1/FLASH or LINE 2/FLASH) or telephone base ( /LINE 1 or /LINE 2)
to join the call.
To end the call, press OFF/CANCEL on the handset, place the handset in the
telephone base or charger, or press /LINE 1 or /LINE 2 on the telephone
base. The call will not be terminated until all handsets and/or the telephone
base hang up.
Handset locator
This feature helps you find a misplaced handset.
To start paging:
1. Press the MENU soft key when the telephone base is not in use.
2. Press TCID or SDIR to scroll to Page all HS, then
press the SELECT soft key on the telephone base. The
telephone base shows Paging all handsets and the
handset shows **Paging**.
To end paging:
Press the STOP soft key on the telephone base.
-OR-
Press OFF/CANCEL, LINE 1/FLASH, LINE 2/FLASH, /SPEAKER, INT, TCID,
SDIR, REDIAL/PAUSE, HOLD or any dialing keys (0-9, #, ) on the handset.
•
•
Call log
Page all HS
Intercom
SELECT
Multiple Handset use
Multiple Handset use
32
Intercom
Use the intercom feature for conversations between a handset and the
telephone base or between two handsets. You can buy additional expansion
handsets (model TL88002) for this telephone system. You can register up to
12 handsets to the telephone base (page 76).
To initiate an intercom call with a handset:
1. Press INT when the handset is not in use.
2. When you have only one system handset, your handset shows Calling
base and the telephone base rings and shows Handset is calling.
-OR-
When you have more than one system handset, the
originating handset shows INTERCOM TO:, press TCID or
SDIR to select a destination and then press the SELECT
soft key.
If you are calling the telephone base, your handset shows Calling base
and the telephone base rings and shows Handset X is calling.
If you are calling another handset, your handset shows Calling handset
X and the destination handset rings and shows Other handset is calling
or Handset X is calling.
To initiate an intercom call from the telephone base
1. Press the MENU soft key when the telephone base is not in use.
2. Press TCID or SDIR to scroll to Intercom and then press the SELECT
soft key.
3. When you have only one system handset, your telephone base shows
Calling handset and the handset rings and shows Base is calling.
-OR-
When you have more than one system handset, your
telephone base shows
INTERCOM TO:, p
ress
TCID or
SDIR
to select a destination handset and then press
the SELECT soft key. The telephone base shows Calling
handset X
. The destination handset rings and its screen
shows Base is calling.
To answer an intercom call at the handset:
Press LINE1/FLASH, LINE2/FLASH or INT to answer. Both screens
show Intercom.
To answer an intercom call at the telephone base:
Press /LINE 1 or /LINE 2. Both screens show Intercom.
•
•
•
•
INTERCOM TO:
BASE
Handset 2
BACK SELECT
INTERCOM TO:
Handset 1
Handset 2
SELECT
Multiple Handset use
33
Intercom
To silence the ringer of an intercom call:
Press the SILENCE soft key on the destination handset or telephone base.
To end an intercom call:
1. Press the END soft key, CANCEL, /LINE 1 or /LINE 2 on the
telephone base; or press the END soft key, INT or OFF/CANCEL on the
handset, or place the handset back in the telephone base or charger.
2. Both screens show Intercom ended.
NOTES:
You can cancel the intercom call before it is answered by pressing OFF/CANCEL or INT on
your originating handset; or CANCEL on the telephone base.
If the destination handset or telephone base does not answer the intercom call within 100
seconds, or if the handset is in the directory or call log, or out of range, your originating
handset or telephone base shows Unable to call try again and returns to idle mode.
You can use a maximum of four handsets, or three handsets and the telephone base, at a
time. When two handsets are used on an intercom call, use two other system handsets for an
outside call.
Answer an incoming call during an intercom call
If you receive an incoming call during an intercom call, there will be an
alert tone.
Using the handset:
To answer the call, press
LINE 1/FLASH for line 1 or LINE 2/FLASH for line 2.
The intercom call ends automatically.
-OR-
Press the BACK soft key to continue with the intercom call without answering
the incoming call. Instead, the answering system answers the call.
Using the telephone base:
To answer the call, press /LINE 1 or /LINE 2. The intercom call ends
automatically.
-OR-
Press the BACK soft key to continue with the intercom call without answering
the incoming call. Instead, the answering system answers the call.
•
•
•
•
Multiple Handset use
34
Call Transfer using intercom
Using the intercom feature to transfer an outside call to another system
handset or the telephone base. You can also share an outside call with
another system handset or the telephone base.
Transfer a call
From the handset:
1. During a call, press INT.
2. When you have only one system handset, your handset shows Calling base
and the telephone base rings and shows Handset is calling. The outside
call is put on hold automatically.
-OR-
When you have more than one system handset, the originating handset
shows INTERCOM TO:, press TCID or SDIR to select a destination and then
press the SELECT soft key. The outside call is put on hold automatically.
If you are calling the telephone base, your handset shows Calling base
and the telephone base rings and shows Handset X is calling.
If you are calling another handset, your handset shows Calling handset X
and the destination handset rings and shows Other handset is calling or
Handset X is calling.
3. To answer the intercom call, press /LINE 1 or /LINE 2 on the
telephone base, or press LINE 1/FLASH, LINE 2/FLASH, /SPEAKER or
INT on the handset. The outside call is still on hold. Both the originating
handset and the destination handset or the telephone base now show
Intercom. You can now have a private conversation between the handset
and the telephone base or between the two handsets.
NOTES:
If you want to cancel an intercom call and reconnect to the outside call before the
destination handset or telephone base answers, press the corresponding line button,
LINE 1/FLASH or LINE 2/FLASH, on your originating handset.
If the destination handset or telephone base does not answer the intercom call within 100
seconds, or if the handset is in the directory or call log, or out of range, your originating
handset shows Unable to call try again and the outside call is still on hold. Press the
corresponding line button, LINE 1/FLASH or LINE 2/FLASH, on your originating handset
to reconnect to the outside call.
4. Press OFF/CANCEL or the END soft key on the originating handset. Both
screens show Intercom ended.
5. The originating handset and the destination handset or telephone base
show L1)ON HOLD if the call is on line 1. Press LINE 1/FLASH on the
destination handset or press /LINE 1 on the telephone base. The same
procedures apply if the call is on line 2.
•
•
•
•
Multiple Handset use
35
Call Transfer using intercom
At the telephone base:
1. During a call, press HOLD and the outside call is put on hold. Press the
MENU soft key and then press TCID or SDIR to scroll to Intercom, then
press the SELECT soft key.
-OR-
During a call, press the OPTION soft key and then press TCID or SDIR to
scroll to Intercom, then press the SELECT soft key. The outside call is put
on hold automatically.
2. When you have only one system handset, your telephone base shows
Calling handset and the handset rings and shows Base is calling.
-OR-
When you have more than one system handset, your telephone base
shows INTERCOM TO:, press TCID or SDIR to select a destination
handset and then press the SELECT soft key. The telephone base shows
Calling handset X. The destination handset rings and its screen shows
Base is calling.
3. To answer the intercom call on the destination handset, press
LINE 1/FLASH, LINE 2/FLASH, /SPEAKER or INT. The outside call is
still on hold. Both telephone base and the destination handset now
show Intercom. You can now have a private conversation between the
telephone base and the destination handset.
NOTES:
If you want to cancel an intercom call and reconnect to the outside call before the
destination handset answers, press the corresponding line button, /LINE 1 or
/LINE 2, on your telephone base.
If the destination handset does not answer the intercom call within 100 seconds, or if the
handset is in the directory or call log, or out of range, your telephone base shows Unable
to call try again and the outside call is still on hold. Press the corresponding line button,
/LINE 1 or /LINE 2, on your telephone base to reconnect to the outside call.
4. Press CANCEL or the END soft key on the telephone base. Both screens
show Intercom ended.
5. The telephone base and the destination handset show L1)ON HOLD if the
call is on line 1. Press LINE 1/FLASH on the destination handset to connect
the call on line 1. The same procedures apply if the call is on line 2.
•
•
Multiple Handset use
36
Conference Call
Share an outside call
You can let another system handset or telephone base join you on an outside
call. That call continues until all participants hang up.
During a call on line 1, press LINE 1/FLASH on the handset or /LINE 1
on the telephone base to join the call.
During a call on line 2, press LINE 2/FLASH on the handset or /LINE 2
on the telephone base to join the call.
NOTE: You cannot press /SPEAKER on the handset to join the outside call. Instead,
pressing /SPEAKER on the handset picks the first available line to make a new call.
Conference line 1 and line 2 calls
While you are on a call on line 1, and line 2 is on hold or in use, you can
conference line 1 and line 2 using the handset or the telephone base.
To conference both line 1 and line 2 calls:
1. While on a call, press the OPTION soft key on the
handset or the telephone base.
2. Press the SELECT soft key to select Conference. The
handset or the telephone base shows Lines 1 and 2 in
conference for a few seconds.
To select an option while on a conference call:
1. Press the OPTION soft key on the handset or telephone
base.
2. Press TCID or SDIR on the handset or on the telephone
base to select one of the following options:
End line 1 - external parties originally on line 1 ended
End line 2 - external parties originally on line 2 ended
End Conference
Intercom - option on the telephone base only
Directory
Call log
Redial last #
3. Press the SELECT soft key.
•
•
•
•
•
•
•
•
•
MUTE OPTION
Conf. 0:05:35
800-595-9511
12:45am 12/31
12
Conf. 0:05:35
800-624-5688
12:45am 12/31
MUTE OPTION
12
Multiple Handset use
37
Conference Call
To initiate an intercom call while on a conference call:
When you initiate an intercom call during a conference call, it places all
participants in the conference call on hold.
1. Press INT on the handset (see To initiate an intercom call with a handset
on page 32).
-OR-
Select Intercom in the OPTION menu on the telephone base, then press
the SELECT soft key (see To initiate an intercom call from the telephone
base on page 32).
2. To reconnect to the conference call, press the END soft key, INT or
OFF/CANCEL on the handset to end the intercom call.
-OR-
Press the END soft key, CANCEL, /LINE 1 or /LINE 2 on the telephone
base to end the intercom call.
3. Press LINE 1/FLASH or LINE 2/FLASH on the handset or /LINE 1 or
/LINE 2 on the telephone base to reconnect to the conference call.
To end a conference call:
Press OFF/CANCEL on the handset or put the handset back in the
telephone base or charger.
-OR-
Press the OPTION soft key on the handset or telephone base. Then,
press TCID or SDIR on the handset or on the telephone base to select
End Conference.
-OR-
Press /LINE 1 or /LINE 2 on the telephone base.
•
•
•
Multiple Handset use
38
Conference Call
Answer an incoming call during a conference call
If you subscribe to call waiting service from your telephone service provider,
and someone calls while you are already on a conference call on the same
line, you hear a beep. When you subscribe to caller ID service with your
telephone service provider, you see the incoming call information either on
line 1 or line 2.
To answer the incoming call while on a conference call:
On the handset, press the corresponding line button, LINE 1/FLASH or
LINE 2/FLASH.
-OR-
On the telephone base, press FLASH once to answer the call waiting call
on line 1, press FLASH a second time to answer the call waiting call on
line 2, and press FLASH a third time to return all original parties to the
conference call.
NOTES:
When you answer the incoming call during a conference call, the new party joins in the
conference call and places the line’s original party on hold.
Contact your telephone service provider for more information about call waiting (page 27),
caller ID (page 51) and voicemail service (page 68).
To end the call while on a conference call:
Press the corresponding line button, LINE 1/FLASH or LINE 2/FLASH, on the
handset. The original party of that line joins back the conference call.
-OR-
Press FLASH on the telephone base to end the call. Press FLASH again to
reconnect the original party of that line to join back the conference call.
•
•
•
•
•
•
39
Directory
About the directory
Shared directory
Directory entries are stored at the telephone base and shared by all system
handsets. Any changes made on the handset or the telephone base apply
to all.
NOTE: Only one handset or the telephone base can review the directory at a time. If
another device tries to enter the directory, its screen shows Not available at this time.
Capacity
The directory can store up to 50 entries with up to 30 digits for each phone
number and 15 characters for each name.
If you try to save an entry when there are already 50 entries, the screen
shows Directory is full. You cannot store a new number until you delete one.
Character chart
Use the dialing keys and the chart shown below to enter a name (up to
15 characters). Each press of a particular key causes the characters to be
displayed in the following order:
NOTE: When entering a name in the directory, the first letter of each word is automatically
capitalized.
Dialing key Characters by number of key presses
123456789
11# ,,-.&
2ABC2abc
3DEF3de f
4GH I 4gh i
5JKL5j k l
6MNO 6m n o
7PQRS7pq r s
8TUV8 t uv
9WX Y Z 9w x y z
00
*?!/()@
#space
40
Directory
Create directory entries
Create a new directory entry
Using the handset:
1. Press the MENU soft key when the handset is not in use.
2. Press TCID or SDIR to scroll to DIRECTORY and then
press the SELECT soft key.
3. Press TCID or SDIR to scroll to Add contact, then press
the SELECT soft key. The screen shows ENTER NUMBER.
4. Use the dialing keys (0-9) to enter the number.
Press OFF/CANCEL to backspace and erase a digit.
Press TCID to move the cursor to the left or SDIR to
the right.
Press and hold REDIAL/PAUSE to insert a dialing pause
(a p appears).
5. Press the NEXT soft key to move to the name. The
screen displays Already saved if the number is already in
the directory. You cannot save the same number twice.
6. The screen shows ENTER NAME. See the Character
chart on page 39. Use the dialing keys to enter the
name.
Press OFF/CANCEL to backspace and erase a character.
Press TCID to move the cursor to the left or SDIR to the right.
7. Press the SAVE soft key on the handset to save. There is a confirmation
tone and the screen shows the saved entry.
Using the telephone base:
1. Press the MENU soft key when the telephone base is not in use.
2. Press TCID or SDIR to scroll to Directory and then
press the SELECT soft key.
3. Press TCID or SDIR to scroll to Add contact, then
press the SELECT soft key. The screen shows ENTER
NUMBER.
4. Use the dialing keys (0-9) to enter the number.
Press CANCEL to backspace and erase a digit.
Press TCID to move the cursor to the left or SDIR
to the right.
Press the PAUSE soft key to insert a dialing pause
(a p appears).
•
•
•
•
•
•
•
•
DIRECTORY
Review
Add contact
Speed dial
BACK SELECT
BACK SELECT
DIRECTORY
BACK SAVE
ENTER NAME
__
BACK NEXT
ENTER NUMBER
_
ENTER NUMBER
_
PAUSE NEXT
Review
Add contact
Speed dial
SELECT
Answering sys
Directory
Call log
SELECT
41
Directory
Create directory entries
5. Press the NEXT soft key to move to the name. The screen displays
Already saved if the number is already in the directory. You cannot save
the same number twice.
6. The screen shows ENTER NAME. See the Character
chart on page 39. Use the dialing keys to enter the
name.
Press CANCEL to backspace and erase a character.
Press TCID to move the cursor to the left or SDIR to the right.
7. Press the SAVE soft key on the telephone base to save. There is a
confirmation tone and the screen shows the saved entry.
•
•
ENTER NAME
_
BACK SAVE
42
Directory
Review the directory
Review directory entries
Using the handset:
1. Press SDIR when the handset is not in use.
-OR-
Press the MENU soft key when the handset is not in
use. Press TCID or SDIR to scroll to DIRECTORY and
then press the SELECT soft key. Press the SELECT soft
key again to select Review.
2. Press TCID or SDIR to browse. Entries are sorted
alphabetically.
Using the telephone base:
1. Press SDIR when the telephone base is not in use.
-OR-
Press the MENU soft key when the telephone base is
not in use. Press TCID or SDIR to scroll to Directory
and then press the SELECT soft key. Press the SELECT
soft key again to select Review.
2. Press TCID or SDIR to browse. Entries are sorted
alphabetically.
NOTE: Directory empty appears if there are no directory entries.
DIRECTORY
Review
Add contact
Speed dial
BACK SELECT
Review
Add contact
Speed dial
SELECT
43
Directory
Review the directory
Search by name
1. Follow the steps in Review directory entries to enter the directory.
2. When an entry appears, press the dialing keys (0-9) to start a name
search. The directory shows the first name beginning with the first letter
associated with the dialing key, if there is an entry in the directory
beginning with that letter. Press TCID or SDIR to scroll through the
directory.
3. To see other names starting with the letters on the same dialing key, keep
pressing the key. The names appear in alphabetical order.
For example, if you have the names Jennifer, Jessie, Kevin and Linda in
your directory:
If you press 5 (JKL) once, you see Jennifer.
If you press 5 (JKL) twice, you see Jessie.
If you press 5 (JKL) three times, you see Kevin.
If you press 5 (JKL) four times, you see Linda.
If you press 5 (JKL) five times, you see Jennifer again.
NOTES:
If there is no name matching the first letter of the key you press, the directory shows a name
matching the following letters of the key.
If you press a key (0-9) and no name starts with any of the letters on that key, the directory
shows the entry matching the next letter in the directory.
•
•
•
•
•
•
•
44
Directory
Dial, delete or edit directory entries
Dial a directory entry
Using the handset:
1. Search for the desired entry in the directory (see Review the directory on
pages 42-43).
2. Press LINE 1/FLASH, LINE 2/FLASH or /SPEAKER.
Using the telephone base:
1. Search for the desired entry in the directory (see Review the directory on
pages 42-43).
2. Press /LINE 1 or /LINE 2.
Delete a directory entry
1. Search for the desired entry in the directory (see Review
the directory on pages 42-43).
2. When the desired entry appears, press the DELETE soft
key. There is a confirmation tone and the screen shows
the next alphabetical entry in the directory. You cannot
retrieve a deleted entry.
Edit a directory entry
Using the handset:
1. Search for the desired entry in the directory (see Review
the directory on pages 42-43).
2. When the desired entry appears, press the EDIT soft key.
The screen shows EDIT NUMBER.
3. Use the dialing keys (0-9) to edit the number.
Press OFF/CANCEL to backspace and erase a digit.
Press TCID to move the cursor to the left or SDIR to
the right.
Press and hold REDIAL/PAUSE to insert a dialing pause
(a p appears).
4. Press the NEXT soft key to move to the name. The screen
shows EDIT NAME.
5. Use the dialing keys (see page 39) to edit the name.
Press OFF/CANCEL to backspace and erase a character.
Press TCID to move the cursor to the left or SDIR to
the right.
•
•
•
•
•
DELETE EDIT
Robert Brown
888-883-2445
DELETE EDIT
Linda Miller
888-722-7702
BACK SAVE
EDIT NAME
Robert Brown_
BACK NEXT
EDIT NUMBER
8
88-883-2445_
Robert Brown
888-883-2445
DELETE EDIT
DELETE EDIT
Robert Brown
888-883-2445
45
Directory
Dial, delete or edit directory entries
6. Press the SAVE soft key on the handset to save. There is a confirmation
tone and the screen shows the edited entry.
Using the telephone base:
1. Search for the desired entry in the directory (see Review the directory on
pages 42-43).
2. When the desired entry appears, press the EDIT soft key.
The screen shows EDIT NUMBER.
3. Use the dialing keys (0-9) to edit the number.
Press CANCEL to backspace and erase a digit.
Press TCID to move the cursor to the left or SDIR to
the right.
Press the PAUSE soft key to insert a dialing pause (a
p appears).
4. Press the NEXT soft key to move to the name. The
screen shows EDIT NAME.
5. Use the dialing keys (see page 39) to edit the name.
Press CANCEL to backspace and erase a character.
Press TCID to move the cursor to the left or SDIR to
the right.
6. Press the SAVE soft key on the telephone base to save. There is a
confirmation tone and the screen shows the edited entry.
•
•
•
•
•
Robert Brown
888-883-2445
DELETE EDIT
Linda Miller
888-722-7702
DELETE EDIT
ENTER NAME
Robert Brown_
BACK SAVE
ENTER NUMBER
888-883-2445_
PAUSE NEXT
46
Directory
Speed dial
The telephone system has 10 speed dial locations (0-9) where you can store
the telephone numbers you wish to dial more quickly. You can store up to
30 digits in each location. Speed dial assignments can only be selected from
existing directory entries.
Assign a speed dial number
Using the handset:
1. Press the MENU soft key when the handset is not in use.
2. Press TCID or SDIR to scroll to DIRECTORY, then press
the SELECT soft key.
3. Press TCID or SDIR to scroll to Speed dial, then press
the SELECT soft key. The screen shows a list from
1:<empty> to 0:<empty>.
4. Press TCID or SDIR to choose your desired speed dial
location (0-9), then press the REPLACE soft key. The
screen shows the directory listed in chronological order.
5. Press TCID or SDIR to scroll to the phone number you
wish to assign to the selected speed dial location.
6. Press ASSIGN to save the setting. There is a confirmation
tone and the screen returns to the speed dial list.
-OR-
1. Press and hold any dialing keys (0-9) when the telephone
is not in use.
2. Press TCID or SDIR to choose your desired speed dial
location (0-9), then press the REPLACE soft key. The screen shows the
directory listed in chronological order.
3. Press TCID or SDIR to scroll to the phone number you wish to assign to
the selected speed dial location.
4. Press the ASSIGN soft key to save the setting. There is a confirmation
tone and the screen returns to the speed dial list.
Using the telephone base:
1. Press the MENU soft key when the telephone base is
not in use.
2. Press TCID or SDIR to scroll to Directory, then press
the SELECT soft key.
3. Press TCID or SDIR to scroll to Speed dial, then press
the SELECT soft key. The screen shows a list from
1:<empty> to 0:<empty>.
DELETE REPLACE
SPEED DIAL
1:Robert Brown
2:<empty>
3:<empty>
DELETE REPLACE
SPEED DIAL
1:<empty>
2:<empty>
3:<empty>
DIRECTORY
Review
Add contact
Speed dial
BACK SELECT
ASSIGN
Robert Brown
888-883-2445
SPEED DIAL
1:<empty>
2:<empty>
DELETE REPLACE
Review
Add contact
Speed dial
SELECT
47
Directory
Speed dial
4. Press TCID or SDIR to choose your desired speed dial
location (0-9), then press the REPLACE soft key. The
screen shows the directory listed in chronological order.
5. Press TCID or SDIR to scroll to the phone number you
wish to assign to the selected speed dial location.
6. Press ASSIGN to save the setting. There is a
confirmation tone and the screen returns to the speed
dial list.
-OR-
1. Press and hold any dialing keys (0-9) when the
telephone is not in use.
2. Press TCID or SDIR to choose your desired speed dial location (0-9),
then press the REPLACE soft key. The screen shows the directory listed in
chronological order.
3. Press TCID or SDIR to scroll to the phone number you wish to assign to
the selected speed dial location.
4. Press the ASSIGN soft key to save the setting. There is a confirmation
tone and the screen returns to the speed dial list.
SPEED DIAL
1:<empty>
2:<empty>
DELETE REPLACE
Robert Brown
888-883-2445
ASSIGN
SPEED DIAL
1:Robert Brown
2:<empty>
DELETE REPLACE
48
Directory
Speed dial
Review the speed dial entries
Using the handset:
1. Press the MENU soft key when the handset is not in use.
2. Press TCID or SDIR to scroll to DIRECTORY, then press
the SELECT soft key.
3. Press TCID or SDIR to scroll to Speed dial, then press
the SELECT soft key.
4. Press TCID or SDIR to browse.
Using the telephone base:
1. Press the MENU soft key when the telephone base is
not in use.
2. Press TCID or SDIR to scroll to Directory, then press
the SELECT soft key.
3. Press TCID or SDIR to scroll to Speed dial, then press
the SELECT soft key.
4. Press TCID or SDIR to browse.
Dial a speed dial entry
Using the handset:
1. When the handset is not in use, press and hold the dialing key (0-9)
corresponding to the assigned location you wish to call.
-OR-
Follow the steps in Review the speed dial entries to select the desired
entry.
2. Press LINE 1/FLASH, LINE 2/FLASH or /SPEAKER to call.
Using the telephone base:
1. When the telephone base is not in use, press and hold the dialing key
(0-9) corresponding to the assigned location you wish to call.
-OR-
Follow the steps in Review the speed dial entries to select the desired
entry.
2. Press /LINE 1 or /LINE 2 to call.
DIRECTORY
Review
Add contact
Speed dial
BACK SELECT
Review
Add contact
Speed dial
SELECT
49
Directory
Speed dial
Edit a speed dial entry
Using the handset:
1. When the handset is not in use, press and hold the
dialing key (0-9) corresponding to the assigned location
you wish to edit.
2. When the desired entry appears, press the EDIT soft key.
The screen shows EDIT NUMBER. Use the dialing keys
(0-9) to edit the number.
Press OFF/CANCEL to backspace and erase a digit.
Press TCID to move the cursor to the left or SDIR to
the right.
Press and hold REDIAL/PAUSE to insert a dialing pause
(a p appears).
3. Press the NEXT soft key to move to the name. The
screen shows EDIT NAME.
4. Use the dialing keys (see page 39) to edit the name.
Press OFF/CANCEL to backspace and erase a character.
Press TCID to move the cursor to the left or SDIR to
the right.
5. Press the SAVE soft key to save. There is a confirmation tone and the
screen shows the edited entry.
Using the telephone base:
1. When the telephone base is not in use, press and hold
the dialing key (0-9) corresponding to the assigned
location you wish to edit.
2. When the desired entry appears, press the EDIT soft key.
The screen shows EDIT NUMBER.
3. Use the dialing keys (0-9) to edit the number.
Press CANCEL to backspace and erase a digit.
Press TCID to move the cursor to the left or SDIR to
the right.
Press the PAUSE soft key to insert a dialing pause
(a p appears).
4. Press the NEXT soft key to move to the name. The screen shows
EDIT NAME.
•
•
•
•
•
•
•
•
BACK NEXT
EDIT NUMBER
8
88-722-7702_
BACK SAVE
EDIT NAME
Linda Miller_
EDIT
Robert Brown
888-883-2445
EDIT
Linda Miller
888-722-7702
EDIT NAME
Linda Miller_
BACK SAVE
EDIT NUMBER
888-722-7702_
PAUSE NEXT
Robert Brown
888-883-2445
EDIT
50
Directory
Speed dial
5. Use the dialing keys (see page 39) to edit the name.
Press CANCEL to backspace and erase a character.
Press TCID to move the cursor to the left or SDIR to
the right.
6. Press the SAVE soft key to save. There is a confirmation
tone and the screen shows the edited entry.
Reassign a speed dial entry
You can reassign a speed dial entry using a handset or the
telephone base.
1. Search for the desired speed dial entry (see Review the
speed dial entries on page 48).
2. When the desired entry appears, press the REPLACE soft
key. The screen shows the directory listed in chronological
order.
3. Press TCID or SDIR on the handset or on the telephone
base to scroll to the desired entry, then press the ASSIGN
soft key to confirm your selection. There is confirmation
tone.
4. Press OFF/CANCEL on the handset or CANCEL on the
telephone base to exit to the previous menu.
Delete a speed dial entry
You can delete a speed dial entry using a handset or the telephone base.
Once a speed dial entry is deleted, it cannot be retrieved.
1. Search for the desired speed dial entry (see Review the
speed dial entries on page 48).
2. When the desired entry appears, press the DELETE soft
key to confirm. There is confirmation tone.
•
•
DELETE REPLACE
SPEED DIAL
1:Robert Brown
2:<empty>
3:<empty>
DELETE REPLACE
SPEED DIAL
1:Linda Miller
2:<empty>
3:<empty>
ASSIGN
Robert Brown
888-883-2445
DELETE REPLACE
SPEED DIAL
1:Robert Brown
2:<empty>
3:<empty>
Linda Miller
888-722-7702
EDIT
51
About caller ID
This product supports caller ID services offered by most telephone service
providers. Caller ID allows you to see the name, number, date and time of calls.
The available caller ID information will appear after the first or second ring.
Information about caller ID with call waiting
Caller ID with call waiting lets you see the name and telephone number of
the caller before answering the call, even while on another call.
It may be necessary to change your telephone service to use this feature.
Contact your telephone service provider if:
You have both caller ID and call waiting, but as separate services (you may
need to combine these services).
You have only caller ID service, or only call waiting service.
You don’t subscribe to caller ID or call waiting services.
There are fees for caller ID services. In addition, services may not be available
in all areas.
This product can provide information only if both you and the caller are in
areas offering caller ID service and if both telephone service providers use
compatible equipment. The time and date, along with the call information,
are from the telephone service provider.
Caller ID information may not be available for every incoming call. Callers
may intentionally block their names and/or telephone numbers. You can only
view a maximum of 15 digits of every caller ID log entry. To view caller ID log
entries with numbers between 16 and 24 digits, you must save the entry to
the directory (see page 56).
NOTE: You can use this product with regular caller ID service, or you can use this product’s
other features without subscribing to caller ID or combined caller ID with call waiting
service.
•
•
•
Caller ID
52
Caller ID
Caller ID history
How the caller ID history (call log) works
If you subscribe to caller ID service provided by your telephone service
provider, information about each caller will appear after the first or second
ring. If you answer a call before the caller information appears on the
screen, it is not saved in the call log.
The call log stores up to 50 entries. Each entry may have up to 24 digits
for the phone number and 15 characters for the name.
You can review, redial, and copy an entry into the directory.
Entries appear in reverse chronological order.
When the call log is full, the oldest entry is deleted to make room for new
incoming call information.
L1)X Missed and/or L2)X Missed displays when there are new call log
entries that have not been reviewed.
Call log empty shows when there are no records in the call log.
Only one handset or the telephone base can review the call log at a
time. If a handset tries to enter the call log while another handset or the
telephone base is already in it, its screen shows Not available at this
time.
NOTE: If the phone number has more than 24 digits, it will not be saved or shown in
the call log.
Missed (new) call indicator
When there are calls that have not been reviewed in the
call log, the corresponding line message, L1)X Missed or
L2)X Missed, shows on the handset and the telephone base.
Each time you review a new caller ID log entry (indicated by
NEW on the screen), the number of missed calls decreases
by one.
If you do not want to review the missed calls one by one,
but still want to keep them in the caller ID history, you
can press and hold OFF/CANCEL on the handset for
four seconds when the handset is idle, or press and hold CANCEL on the
telephone base for four seconds when the telephone base is idle. You will
hear a confirmation tone. All the entries in the caller ID history become old
(reviewed already), and the missed calls message goes away.
•
•
•
•
•
•
•
NEW
DELETE SAVE
Robert Brown
888-883-2445
12:45am 12/31
1
MENU
Handset
L1)X Missed
L2)X Missed
12:45am 12/31
1
53
Caller ID
Caller ID operation
Memory match
If the incoming telephone number matches the last seven digits of a
telephone number in your directory, the name that appears on the screen
matches the corresponding name in your directory.
For example, when Christine Smith calls, her name appears as Chris if this is
how you entered it into your directory.
NOTE: The number shown in the call log is in the format sent by the telephone service
provider. The telephone service provider usually delivers 10-digit phone numbers (area
code plus phone number). If the last 7-digit of an incoming telephone number does not
match a number in your directory, the name appears as it is delivered by the telephone
service provider.
54
Caller ID
Caller ID operation
Review the caller ID history
Review the caller ID history to find out who called, to return the call, or
to copy the caller’s name and number into your directory. Call log empty
displays on the screen if there are no records in the caller ID log.
Using the handset:
1. Press TCID when the handset is not in use.
2. Press TCID or SDIR to browse.
-OR-
1. Press the MENU soft key when the handset is not
in use.
2. Press TCID or SDIR to select CALL LOG, then press
the SELECT soft key.
3. Press the SELECT soft key again to select Review.
4. Press TCID or SDIR to browse.
Using the telephone base:
1. Press TCID when the telephone base is
not in use.
2. Press TCID or SDIR to browse.
-OR-
1. Press the MENU soft key when the
telephone base is not in use.
2. Press TCID or SDIR to select Call log, then press the
SELECT soft key.
3. Press the SELECT soft key again to select Review.
4. Press TCID or SDIR to browse.
NOTES:
The name (if available), telephone number, date and time of all incoming calls are shown on
the screen.
You hear a double beep when you have reached the beginning or end of the call log.
•
•
BACK SELECT
CALL LOG
Review
Del all calls
SELECT
Review
Del all calls
55
Caller ID
Caller ID operation
View dialing options
Although the call log entries received have 10 digits (the area code plus the
seven-digit number), in some areas, you may need to dial only the seven digits,
1 plus the seven digits, or 1 plus the area code plus the seven digits. You can
change and store the number of digits that you dial in the caller ID log.
While reviewing the call log, press
# (pound key) repeatedly to show different
dialing options for local and long distance
numbers before dialing or saving the telephone
number in the directory.
Press 1 repeatedly if you need to add or remove
1 in front of the telephone number before
dialing or saving it in the directory.
When the number is shown in the correct
format for dialing, press LINE 1/FLASH, LINE 2/FLASH or /SPEAKER on the
handset; or /LINE 1 or /LINE 2 on the telephone base to call the number.
Dial a call log entry
Using the handset:
1. Search for the desired entry in the call log (see Review the caller ID
history on page 54).
2. When the desired entry appears and is in the correct format for dialing,
press LINE 1/FLASH, LINE 2/FLASH or /SPEAKER to dial the entry.
Using the telephone base:
1. Search for the desired entry in the call log (see Review the caller ID
history on page 54).
2. When the desired entry appears and is in the correct format for dialing,
press /LINE 1 or /LINE 2 to dial the entry.
595-9511
1-595-9511
800-595-9511
1-800-595-9511
800-595-9511
1-800-595-9511
595-9511
1-595-9511
Press #
Press 1
56
Caller ID
Caller ID operation
Save a call log entry to the directory
Using the handset:
1. Select a desired entry in the call log (see Review the
caller ID history on page 54).
2. When the desired entry appears, press the SAVE soft key.
The screen shows EDIT NUMBER.
3. Use the dialing keys (0-9) to edit the number.
Press OFF/CANCEL to backspace and erase a digit.
Press TCID to move the cursor to the left or SDIR to
the right.
Press and hold REDIAL/PAUSE to insert a dialing pause
(a p appears).
4. Press the NEXT soft key to move to the name. The
screen displays EDIT NAME.
5. Use the dialing keys (see page 39) to edit the name.
Press OFF/CANCEL to backspace and erase a
character.
Press TCID to move the cursor to the left or SDIR to
the right.
6. Press the SAVE soft key. There is a confirmation tone and the screen
shows the saved entry.
Using the telephone base:
1. Select a desired entry in the call log (see Review the
caller ID history on page 54).
2. When the desired entry appears, press the SAVE soft
key. The screen shows EDIT NUMBER.
3. Use the dialing keys (0-9) to edit the number.
Press CANCEL to backspace and erase a digit.
Press TCID to move the cursor to the left or SDIR to
the right.
Press the PAUSE soft key to insert a dialing pause (a
p appears).
4. Press the NEXT soft key to move to the name. The screen displays EDIT
NAME.
5. Use the dialing keys (see page 39) to edit the name.
Press CANCEL to backspace and erase a character.
Press TCID to move the cursor to the left or SDIR to the right.
•
•
•
•
•
•
•
•
•
•
BACK NEXT
EDIT NUMBER
888-883-2445
BACK SAVE
EDIT NAME
Christine Smith
EDIT
Christine Smith
888-883-2445
DELETE SAVE
Christine Smith
888-883-2445
12:45am 12/31
1
DELETE
Christine Smith
888-883-2445
12:45am 12/31
DELETE SAVE
1
EDIT NAME
Christine Smith_
BACK SAVE
EDIT NUMBER
888-883-2445
PAUSE NEXT
57
Caller ID
Caller ID operation
6. Press the SAVE soft key. There is a confirmation tone
and the screen shows the saved entry.
NOTES:
If you try to save a call log entry to the directory that is already saved in the directory, the
telephone base or handset shows Already saved.
If you try to save a call log entry without caller ID information, the telephone base or handset
shows Unable to save.
Delete from the call log
To delete a single entry:
1. Select the desired entry in the call log using a handset or the telephone
base (see Review the caller ID history on page 54).
2. When the desired entry appears, press the DELETE soft key on the
handset or the telephone base to confirm. There is a confirmation tone.
To delete all entries:
Using the handset:
1. Press the MENU soft key when the handset is not in use.
2. Press TCID or SDIR to scroll to CALL LOG, then press the
SELECT soft key.
3. Press TCID or SDIR to scroll to Del all calls, then press
the SELECT soft key. The screen shows Delete all calls?.
4. Press the YES soft key to confirm. There is a confirmation
tone. You can also press the NO soft key to exit to the
previous menu.
Using the telephone base:
1. Press the MENU soft key when the telephone base is
not in use.
2. Press TCID or SDIR to scroll to Call log and then press
the SELECT soft key.
3. Press TCID or SDIR to scroll to Del all calls, then press
the SELECT soft key. The screen shows Delete all calls?.
4. Press the YES soft key to confirm. There is a
confirmation tone. You can also press the NO soft key
to exit to the previous menu.
•
•
Christine Smith
888-883-2445
EDIT
DELETE
Delete all
calls?
YES NO
Review
Del all calls
SELECT
YES NO
CALL LOG
Review
Del all calls
BACK SELECT
Delete all
calls?
58
Caller ID
Reasons for missing caller information
There are occasions when other information or no information shows for
various reasons:
On-screen message Reason
Private number The caller prefers not to show the phone number.
Private name The caller prefers not to show the name.
Private caller The caller prefers not to show the phone number and name.
Unknown number Your telephone service provider cannot determine the
caller’s number.
Unknown name Your telephone service provider cannot determine the
caller’s name.
Unknown caller Your telephone service provider cannot determine the caller’s
name and telephone number.
Calls from other countries may also generate this message.
Long distance
OR L (before the caller’s
number)
It is a long distance call.
59
Answering system settings
Use the answering system menu of a system handset or the telephone base
to set up the announcement message, turn on or off the answering system or
message alert tone, activate call screening, or change the number of rings, or
remote access code.
Announcement
Your outgoing announcement plays when calls are answered by the
answering system. The telephone is preset with a greeting that answers calls
with “Hello, please leave a message after the tone.” You may use this preset
announcement, or replace it with your own.
To play your current outgoing announcement:
Using the telephone base:
1. Press the MENU soft key when the telephone base is
not in use.
2. Press the SELECT soft key to selectto select Answering sys.
3. Press TCID or SDIR to choose Mailbox 1 or Mailbox 2,
then press the SELECT soft key. The corresponding icon,
1 or 2, flashes on the screen.
4. Press TCID or SDIR to scroll to Ans sys setup and then
press the SELECT soft key.
5. Press TCID or SDIR to scroll to Announcement and
then press the SELECT soft key.
6. The telephone base announces, “To play, press 2. To
record, press 7.” Press 2 to play and the screen shows Announcement
playback, or press CANCEL to exit to the previous menu.
Using the handset:
1. Press the MENU soft key when the handset is not in use.
2. Press the SELECT soft key to select ANSWERING SYS.
3. Press TCID or SDIR to choose Mailbox 1 or Mailbox 2,
then press the SELECT soft key. The corresponding icon,
1 or 2, flashes on the screen, respectively.
4. Press TCID or SDIR to scroll to Ans sys setup, then press
the SELECT soft key.
5. Press TCID or SDIR to scroll to Announcement, then
press the SELECT soft key.
6. The handset announces, “To play, press 2. To record, press
7.” Press 2 to play and the screen shows Announcement
playback, or press the BACK soft key to exit to the
previous menu.
1
1
1
Announcement
playback
DELETE STOP
Call screening
Announcement
# of rings
SELECT
ANNOUNCEMENT
2-Play 3-Delete
7-Record
1
1
1
DELETE STOP
Announcement
playback
BACK
ANNOUNCEMENT
2-Play 3-Delete
7-Record
BACK SELECT
ANS SYS SETUP
Call screening
Announcement
# of rings
Answering system
60
Answering system
Answering system settings
To record a new outgoing announcement:
Using the telephone base:
1. Press •/REC while the telephone base is not in use.
2. Press TCID or SDIR to choose Announcement, then
press the SELECT soft key.
3. Press TCID or SDIR to choose Mailbox 1 or Mailbox 2,
then press the SELECT soft key. The corresponding icon,
1 or 2, flashes on the screen.
4. The telephone base announces, “Record after the tone.
Press 5 when you are done.” After the tone, speak
towards the telephone base. Press 5 or the STOP soft
key when finished recording.
5. The answering system automatically plays back the newly recorded
announcement. Press 5 to stop the playback at any time.
-OR-
1. Press the MENU soft key when the telephone base is not in use.
2. Press the SELECT soft key to select to select Answering sys.
3. Press
TCID or SDIR
to choose Mailbox 1 or Mailbox 2,
then press the
SELECT soft key. The corresponding icon, 1 or 2, flashes on the
screen.
4. Press TCID or SDIR to scroll to Ans sys setup, then press the SELECT soft
key.
5. Press TCID or SDIR to scroll to Announcement, then
press the SELECT soft key.
6. The telephone base announces, “To play, press 2. To
record, press 7.” Press 7 to record and the screen
shows Recording announcement..., or press CANCEL to
exit to the previous menu.
7. The telephone base announces,
“Record after the tone.
Press 5 when you are done.”
After the tone, speak
towards the telephone base. Press 5 or the STOP soft
key when finished recording.
8. The answering system automatically plays back
the newly recorded announcement. Press 5 to stop
the playback at any time; 2 to replay the recorded
announcement; or 7 to record again, if desired.
NOTES:
Your announcement can be up to 90 seconds in length.
Announcements shorter than two seconds are not recorded.
•
•
1
1
1
1
Announcement
playback
Recording
announcement...
STOP
Call screening
Announcement
# of rings
SELECT
ANNOUNCEMENT
2-Play 3-Delete
7-Record
RECORD
Memo
Announcement
SELECT
61
Answering system
Answering system settings
Using the handset:
1. Press the MENU soft key menu when the handset is not in use.
2. Press the SELECT soft key to select ANSWERING SYS.
3. Press TCID or SDIR to choose Mailbox 1 or Mailbox 2, then press the
SELECT soft key. The corresponding icon, 1 or 2, flashes on the screen.
4. Press TCID or SDIR to scroll to Ans sys setup, then press
the SELECT soft key.
5. Press TCID or SDIR to scroll to Announcement, then
press the SELECT soft key.
6. The handset announces, “To play, press 2. To record,
press 7.” Press 7 to record and the screen shows
Recording announcement..., or press the BACK soft key
to exit to the previous menu.
7. The handset announces, “
Record after the tone. Press 5
when you are done.”
After the tone, speak towards the
handset.
8. Press 5 or the STOP soft key when finished recording.
9. The answering system automatically plays back the newly
recorded announcement. Press 5 to stop the playback at
any time; 2 to replay the recorded announcement; or 7 to
record again, if desired.
NOTES:
Your announcement can be up to 90 seconds in length.
Announcements shorter than two seconds are not recorded.
•
•
1
1
1
STOP
Recording
announcement...
BACK
ANNOUNCEMENT
2-Play 3-Delete
7-Record
BACK
1
BACK
Announcement
playback
SELECT
ANS SYS SETUP
Call screening
Announcement
# of rings
62
Answering system
Answering system settings
To delete your announcement
Using the telephone base:
1. Press the MENU soft key when the telephone base is not in use.
2. Press the SELECT soft key to select to select Answering sys.
3. Press TCID or SDIR to choose Mailbox 1 or Mailbox 2, then press the
SELECT soft key. The corresponding icon, 1 or 2, flashes on the screen.
4. Press TCID or SDIR to scroll to Ans sys setup, then press the SELECT
soft key.
5. Press TCID or SDIR to scroll to Announcement, then press the SELECT
soft key.
6. The telephone base announces, “To play, press 2. To
record, press 7.” Press 3 to delete your own recorded
announcement. The telephone base announces,
“Announcement deleted.”
Using the handset:
1. Press the MENU soft key when the handset is not in use.
2. Press the SELECT soft key to select ANSWERING SYS.
3. Press TCID or SDIR to choose Mailbox 1 or Mailbox 2, then press the
SELECT soft key. The corresponding icon, 1 or 2, flashes on the screen.
4. Press TCID or SDIR to scroll to Ans sys setup, then press the SELECT
soft key.
5. Press TCID or SDIR to scroll to Announcement, then press the SELECT
soft key.
6. The handset announces, “To play, press 2. To record, press
7.” Press 3 to delete your own recorded announcement.
The handset announces, “Announcement deleted.”
7. Press the BACK soft key to exit to the previous menu.
NOTE: When your announcement is deleted, calls are answered with the
preset announcement.
1
ANNOUNCEMENT
2-Play 3-Delete
7-Record
1
BACK
ANNOUNCEMENT
2-Play 3-Delete
7-Record
63
Answering system
Answering system settings
Answer ON/OFF
You must turn on the answering system for answering and recording messages.
To turn the answering system on or off:
Using the telephone base:
Press /ANSWER ON 1 and/or /ANSWER ON 2 to turn
on the corresponding answering system. The telephone
base announces and shows, “Calls will be answered.” The
/ANSWER ON 1 light and/or /ANSWER ON 2 light will
be on, respectively.
Press /ANSWER ON 1 and/or /ANSWER ON 2 to turn off the
corresponding answering system. The telephone base announces and
shows, “Calls will not be answered.” The /ANSWER ON 1 light and/or
/ANSWER ON 2 light will be off, respectively.
Using the handset:
1. Press the MENU soft key when the handset is not in use.
2. Press the SELECT soft key to select ANSWERING SYS.
3. Press TCID or SDIR to choose Mailbox 1 or Mailbox 2,
then press the SELECT soft key. The corresponding icon,
1 or 2, flashes on the screen.
4. Press TCID or SDIR to scoll to Ans sys setup, then press
the SELECT soft key.
5. Press the SELECT soft key again to select
Answer ON/OFF.
6. Press TCID or SDIR to select On or Off, then press
the SET soft key to confirm your setting. There is a
confirmation tone. You can also press the BACK soft key
to exit to the previous menu without making any changes.
7. The screen displays AnS1
ON
or
AnS
ON
2 when the answering system of line 1 or line
2 is turned on, respectively. The screen displays
AnS1
ON
2 when the answering
systems of both lines 1 and 2 are turned on.
•
•
1
1
1
BACK SET
ANSWER ON/OFF
3On
Off
ANS SYS SETUP
Answer ON/OFF
Call screening
Announcement
BACK SELECT
ANSWERING SYS
Delete all old
Record memo
Ans sys setup
BACK SELECT
64
Answering system
Answering system settings
Call screening
The call screening feature lets you listen at the telephone base to a caller
leaving a message. You can turn this feature on or off with either your
handset or telephone base. Unless you change it, the call screening feature is
preset to on.
Using the telephone base:
1. Press the MENU soft key when the telephone base is not in use.
2. Press the SELECT soft key to select Answering sys.
3. Press
TCID or SDIR
to choose Mailbox 1 or
Mailbox 2,
then press the SELECT soft key. The
corresponding icon, 1 or 2, flashes on the screen.
4. Press TCID or SDIR to scroll to Ans sys setup, then
press the SELECT soft key.
5. Press the SELECT soft key again to select
Call screening.
6. Press TCID or SDIR to select On or Off, then press
the SET soft key to confirm your setting. There is a
confirmation tone. You can also press CANCEL to exit
to the previous menu without making any changes.
Using the handset:
1. Press the MENU soft key when the handset is not in use.
2. Press the SELECT soft key to select ANSWERING SYS.
3. Press TCID or SDIR to choose Mailbox 1 or Mailbox 2, then press the
SELECT soft key. The corresponding icon 1 or 2, flashes on the
screen.
4. Press TCID or SDIR to scroll to Ans sys setup, then press
the SELECT soft key.
5. Press TCID or SDIR to scroll to Call screening, then
press the SELECT soft key.
6. Press TCID or SDIR to select On or Off, then press
the SET soft key to confirm your setting. There is a
confirmation tone. You can also press the BACK soft key
to exit to the previous menu without making any changes.
1
1
BACK SET
CALL SCREENING
3On
Off
ANS SYS SETUP
Answer ON/OFF
Call screening
Announcement
BACK SELECT
SET
1
CALL SCREENING
3On
Off
1
Delete all old
Record memo
Ans sys setup
SELECT
1
Call screening
Announcement
# of rings
SELECT
65
Answering system
Answering system settings
Number of rings
You can set the answering system to answer an incoming call after two,
four or six rings; or toll saver. With toll saver selected, the answering system
answers after two rings when you have new messages, and after four
rings when you have no new messages. This enables you to check for new
messages and avoid paying unnecessary long distance charges if you are
calling from out of your local area.
Using the telephone base:
1. Press the MENU soft key when the telephone base is not in use.
2. Press the SELECT soft key to select to select Answering sys.
3. Press
TCID or SDIR
to choose Mailbox 1 or Mailbox 2,
then press the
SELECT soft key. The corresponding icon, 1 or 2, flashes on the screen.
4. Press TCID or SDIR to scroll to Ans sys setup, then
press the SELECT soft key.
5. Press TCID or SDIR to scroll to # of rings, then press
the SELECT soft key.
6. Press TCID or SDIR to choose 2, 4, 6, or Toll saver,
then press the SET soft key to confirm your setting.
There is a confirmation tone. You can also press
CANCEL to exit to the previous menu without making
any changes.
Using the handset:
1. Press the MENU soft key when the handset is not in use.
2. Press the SELECT soft key to select ANSWERING SYS.
3. Press TCID or SDIR to choose Mailbox 1 or Mailbox 2, then press the
SELECT soft key. The corresponding icon, 1 or 2, flashes on the
screen.
4. Press TCID or SDIR to scroll to Ans sys setup, then press
the SELECT soft key.
5. Press TCID or SDIR to scroll to # of rings, then press the
SELECT soft key.
6. Press TCID or SDIR to choose 2, 4, 6, or Toll saver, then
press the SET soft key to confirm your setting. There is a
confirmation tone. You can also press the BACK soft key
to exit to the previous menu without making any changes.
1
Announcement
# of rings
Remote code
SELECT
1
# OF RINGS
2
34
SELECT
1
BACK
1
BACK SET
# OF RINGS
2
34
6
SELECT
ANS SYS SETUP
Announcement
# of rings
Remote code
66
Answering system
Answering system settings
Remote access code
A two-digit security code is required to access the answering system
remotely from any touch-tone telephone. The preset code is 19. You can set
the code to any number from 00 to 99.
Using the telephone base:
1. Press the MENU soft key when the telephone base is not in use.
2. Press the SELECT soft key to select to select Answering sys.
3. Press
TCID or SDIR
to choose Mailbox 1 or Mailbox 2,
then press the
SELECT soft key. The corresponding icon, 1 or 2, flashes on the screen.
4. Press TCID or SDIR to scroll to Ans sys setup, then
press the SELECT soft key.
5. Press TCID or SDIR to scroll toto scroll to Remote code, then
press the SELECT soft key.
6. Use the dialing keys
(0-9)
to enter a two-digit code.
Press CANCEL to delete a digit.
7. Then, p
ress
the SET soft key to confirm your setting.
There is a confirmation tone.
Using the handset:
1. Press the MENU soft key when the handset is not in use.
2. Press the SELECT soft key to select ANSWERING SYS.
3. Press TCID or SDIR to choose Mailbox 1 or Mailbox 2, then press the
SELECT soft key. The corresponding icon, 1 or 2, flashes on the screen.
4. Press TCID or SDIR to scroll to Ans sys setup, then press
the SELECT soft key.
5. Press TCID or SDIR to scroll to Remote code, then press
the SELECT soft key.
6. Use the dialing keys to enter a two-digit code.
Press
OFF/CANCEL to delete a digit.
7. Then, press
the SET soft key to confirm your setting.
There is a confirmation tone. You can also press the
BACK soft key to exit to the previous menu without
making any changes.
NOTE: If you change the remote access code setting on either Mailbox 1 or Mailbox 2, it
applies to both mailboxes in your answering system.
1
# of rings
Remote code
Msg alert tone
SELECT
1
REMOTE CODE
__
SET
1
1
BACK SELECT
ANS SYS SETUP
# of rings
Remote code
Msg alert tone
BACK SET
REMOTE CODE
__
67
Answering system
Answering system settings
Message alert tone
When the answering system is turned on, the telephone base beeps every
10 seconds to alert you of new messages. The alert stops when all new
messages have been reviewed.
Using the telephone base:
1. Press the MENU soft key when the telephone base is not in use.
2. Press the SELECT soft key to select to select Answering sys.
3. Press
TCID or SDIR
to choose Mailbox 1 or Mailbox 2,
then press the
SELECT soft key. The corresponding icon,. The corresponding icon, 1 or 2, flashes on the
screen.
4. Press TCID or SDIR to scroll to Ans sys setup, then
press the SELECT soft key..
5. Press TCID or SDIR to scroll to Msg alert tone, then
press the SELECT soft key..
6. Press TCID or SDIR to choose On or Off, then
press
the SET soft key to confirm your setting. There is a
confirmation tone. You can also press CANCEL to exit to
the previous menu without making any changes.
Using the handset:
1. Press the MENU soft key when the handset is not in use.
2. Press the SELECT soft key to select ANSWERING SYS.
3. Press TCID or SDIR to choose Mailbox 1 or Mailbox 2, then press the
SELECT soft key. The corresponding icon, 1 or 2, flashes on the screen.
4. Press TCID or SDIR to scroll to Ans sys setup, then
press the SELECT soft key.
5. Press TCID or SDIR to scroll to Msg alert tone, then
press the SELECT soft key.
6. Press TCID or SDIR to choose On or Off,
then press
the SET soft key to confirm your setting. There is a
confirmation tone. You can also press the BACK soft key
to exit to the previous menu without making any changes.
1
# of rings
Remote code
Msg alert tone
SELECT
1
MSG ALERT TONE
3On
Off
SET
1
1
BACK SET
MSG ALERT TONE
3On
Off
BACK SELECT
ANS SYS SETUP
# of rings
Remote code
Msg alert tone
68
Answering system
About the answering system
Answering system and voicemail indicators
Your telephone has separate indicators for two different types of voice
messages: those left on its built-in answering system and those left on your
telephone service provider’s voicemail (fees may apply). Your telephone’s
built-in answering system messages and voicemail messages are separate.
Each alerts you to new messages differently.
If the icon and a line number appear on the handset and telephone
base, your telephone service provider is indicating that it has new
voicemail for you. To listen to your voicemail, dial an access number
provided by your telephone service provider, followed by a security code
or PIN.
If the /MAIL BOX 1 or /MAIL BOX 2 button on the telephone base
flashes, your digital answering system has new messages for you. To listen
to the messages, press the flashing mailbox button.
Some telephone service providers bundle or combine multiple services like
voicemail and call waiting, so you may not be aware that you have voicemail.
To check what services you have and how to access them, contact your
telephone service provider.
To use your voicemail service rather than the answering system, turn off the
answering system. To use the answering system rather than your voicemail
service, contact your telephone service provider to deactivate your voicemail
service.
Using the answering system and voicemail together
You can also use the telephone answering system and voicemail together by
setting your built-in answering system to answer before voicemail answers,
as described below. To learn how to program your voicemail settings, contact
your telephone service provider. Then, if you are on a call, or if the answering
system is busy recording a message and you receive another call, the second
caller can leave a voicemail message.
Set your answering system to answer calls at least two rings earlier than
your voicemail is set to answer. For example, if your voicemail answers
after six rings, set your answering system to answer after four rings. Some
voicemail providers may program the delay before answering calls in seconds
instead of rings; in this case, allow six seconds per ring when determining the
appropriate setting.
•
•
69
Answering system
About the answering system
Message capacity
The answering system of line 1 and line 2 can each record and store up to
99 messages. Each message can be up to four minutes in length. The total
storage capacity of each telephone line for the announcement, messages and
memos is approximately 14 minutes. The actual recording time depends on
individual message characteristics. Messages remain available for replay until
you delete them.
New message indicator
When there are new messages on the answering system of
line 1, L1)X New Msgs and 1display on the handset and
1 on the telephone base. /MAIL BOX 1 flashes on
the telephone base.
When there are new messages on the answering system of
line 2, L2)X New Msgs and 2display on the handset and
telephone base. /MAIL BOX 2 flashes on the telephone
base.
When there are new messages on the answering system of both line 1 and
line 2, L1)X New Msgs, L2)X New Msgs and 1
2display on the handset and
12 on the telephone base. /MAIL BOX 1 and /MAIL BOX 2 flash on
the telephone base.
Voice prompts
The system provides voice prompts to guide you through the setup
procedures at the telephone base, message playback, remote access and
recording outgoing announcements.
Call screening
To screen a call at the telephone base:
If the answering system and call screening are on (see Call screening on
page 64), the announcement and the incoming message broadcast at the
telephone base when a call is answered by the answering system.
Options while a message is being recorded:
Press T/VOLUME/S on the telephone base to adjust the call screening
volume.
Press the STOP soft key, CANCEL, /MAIL BOX 1 or /MAIL BOX 2 to
stop the recording.
Press /LINE 1 or /LINE 2 to answer the call.
•
•
•
BACK
1 2
L1) X New Msgs
L2) X New Msgs
12:45pm 12/31
BACK SELECT
SAVE
L1) X New Msgs
L2) X New Msgs
12:45pm 12/31
1
2
70
Answering system
About the answering system
Call intercept
If you want to talk to the caller who is leaving a message on line 1, press
LINE 1/FLASH on the handset or press /LINE 1 on the telephone base.
If you want to talk to the caller who is leaving a message on line 2, press
LINE 2/FLASH on the handset or press /LINE 2 on the telephone base.
Base ringer
Press T/VOLUME/S on the telephone base to adjust the ringer volume of
both line 1 and line 2 when the telephone is not in use.
You hear a sample of the ringer while adjusting the volume. The telephone
base shows Ringer muted when you turn the ringer off.
Temporarily turning off the message alert tone
If the message alert tone is turned on, the telephone base beeps every
10 seconds when there are new messages. Pressing any telephone base
key temporarily silences the message alert tone.
71
Answering system
Message playback
Message playback
If you have new messages, the telephone plays only the new messages
(oldest first). If there are no new messages, the telephone plays back all
messages (oldest first).
When playback begins, the total number of messages is announced. Before
each message, you hear the day and time of the recording. If the date and
time are not set, you hear, “Time and date not set,” before playback. After the
last message, the telephone announces, “End of messages.”
To listen to messages at the telephone base:
1. Press /MAIL BOX 1 for line 1 or /MAIL BOX 2 for
line 2 to listen to messages.
Options during playback:
Press /VOLUME/ to adjust the speaker volume.
Press /SKIP to skip to the next message.
Press /REPEAT to repeat the message currently playing. Press
/REPEAT twice to listen to the previous message.
Press X/DELETE to delete the current message. The system advances to
the next message.
Press /MAIL BOX 1 for line 1 or /MAIL BOX 2 for line 2 to stop
listening to messages.
Press CANCEL to exit to the previous menu.
To listen to messages on the handset:
1. Press the MENU soft key when the handset is not in use.
2. Press the SELECT soft key to select ANSWERING SYS.
3. Press
TCID or SDIR
to choose Mailbox 1 or Mailbox 2. Press the SELECT
soft key.
4. Press TCID or SDIR to scroll to Play messages, then press the SELECT
soft key.
Options during playback:
Press /VOLUME/ to adjust the speaker volume.
Press 6 to skip to the next message.
Press 4 to repeat the message currently playing. Press 4 twice to listen
to the previous message.
Press 3 to delete the current message. The system advances to the next
message.
•
•
•
•
•
•
•
•
•
•
72
Answering system
Message playback
Press 5 to stop.
Press the BACK soft key to exit to the previous menu.
NOTE: When the memory of the answering system is full on line 1 or line 2, the
corresponding line message, L1)Ans Sys Full or L2)Ans Sys Full, displays on both the
handset and the telephone base. Delete some messages to make room for new messages.
Delete all messages
You can only delete old (reviewed) messages. You cannot delete new
messages until you review them. You cannot retrieve deleted messages.
Using the telephone base:
1. Press
X/DELETE
when the telephone base is not in use.
2. Press TCID or SDIR to choose Mailbox 1 or Mailbox 2, then press the
SELECT soft key.
3. The telephone base shows Delete all old messages?. Press the YES soft
key to confirm or press the NO soft key to return to the previous menu.
-OR-
1. Press the MENU soft key when the telephone base is not in use.
Press the
SELECT soft key to select Answering sys.
2. Press TCID or SDIR to choose Mailbox 1 or Mailbox 2, then press the
SELECT soft key.
3. Press the SELECT soft key again to select Delete all old.
4. The telephone base shows Delete all old messages?. Press the YES soft
key to confirm or press the NO soft key to return to the previous menu.
Using the handset:
1. Press the MENU soft key when the handset is not in use.
2. Press the SELECT soft key to select ANSWERING SYS.
3. Press TCID or SDIR to choose Mailbox 1 or Mailbox 2, then press the
SELECT soft key.
4. Press TCID or SDIR to scroll to Delete all old, then press the SELECT
soft key.
5. The handset shows Delete all old messages?. Press the YES soft key
to confirm or press the NO soft key to return to the previous menu.
•
•
73
Answering system
Recording and playing memos
Record a memo
Memos are your own recorded messages used as reminders for yourself or
others who use the same answering system. You can record your own memos
using the handset or telephone base. Playback and delete them the same
way as incoming messages.
Using the telephone base:
1. Press •/REC while the telephone base is not in use.
2. Press the SELECT soft key to select Memo.
3. Press TCID or SDIR to choose Mailbox 1 or Mailbox 2,
then press the SELECT soft key.
4. The telephone base announces, “Record after the
tone. Press 5 when you are done.” The telephone base
displays Recording memo.... After the tone, speak towards the telephone
base. Press 5 or the STOP soft key when finished recording. The telephone
base announces, “Recorded.”
-OR-
1. Press the MENU soft key when the telephone base is not in use.
2. Press the SELECT soft key to select Answering sys.
3. Press TCID or SDIR to choose Mailbox 1 or Mailbox 2, then press the
SELECT soft key.
4. Press TCID or SDIR to scroll to Record memo, then
press the SELECT soft key.
5. The telephone base announces, “Record after the
tone. Press 5 when you are done.” The telephone base
displays Recording memo.... After the tone, speak
towards the telephone base. Press 5 or the STOP
soft key when finished recording. The telephone base
announces, “Recorded.”
1
1
Recording
memo...
STOP
Delete all old
Record memo
Ans sys setup
SELECT
RECORD
Memo
Announcement
SELECT
74
Answering system
Recording and playing memos
Using the handset:
1. Press the MENU soft key when the handset is not in use.
2. Press the SELECT soft key to select ANSWERING SYS.
3. Press
TCID or SDIR
to choose Mailbox 1 or Mailbox 2. Press the SELECT
soft key.
4. Press TCID or SDIR to scroll to Record memo. Press the
SELECT soft key.
5. The handset announces, “Record after the tone. Press
5 when you are done.” The handset screen displays
Recording memo.... After the tone, speak towards the
handset.
6. Press 5 or the STOP soft key when finished recording.
The handset announces, “Recorded.”
NOTES:
“Memory is full” is announced if you record a memo when the memory is full.
Each memo can be up to four minutes in length.
Memos shorter than one second are not recorded.
Play back a memo
Play memos the same way as messages. See Message playback on page 71.
•
•
•
1
BACK SELECT
ANSWERING SYS
Play messages
Delete all old
Record memo
1
STOP
Recording
memo...
75
Answering system
Remote access
You can reach your answering system remotely by dialing your home
telephone number from any touch-tone telephone.
1. Dial your telephone number from any touch-tone telephone.
2. When the system plays your announcement, enter the two-digit
security code (19 is the default code. See page 66 to change it).
3. Once the new messages have played, you can also enter one of the
following remote commands.
4. Hang up or press 8 to end the call.
NOTES:
If you do not press any key after you enter the remote access code, all new messages play. If
there are no new messages, all old messages play.
Once the new messages have played, the telephone announces the help menu options. If you
do not press any key within 20 seconds, the remote access call automatically disconnects.
When the answering system is turned off, the telephone answers after 10 rings, and
announces, “Please enter your remote access code.”
When the memory is full, the answering system answers incoming calls after 10 rings and
announces, “Memory is full. Enter the remote access code.”
•
•
•
•
Command Function
1Play all messages.
2Play only new messages.
3Delete the current message (during playback).
33 Delete all old messages.
4Repeat the current message (during playback).
44 Skip to the previous message (during playback).
5Stop.
*5 Hear a list of remote commands.
6Skip to the next message (during playback).
*7 Record a new announcement.
8End the call.
0Turn the answering system on or off.
76
Adding and registering handsets
The handset provided with your telephone system is already registered
as HANDSET. Additional handsets registered to the telephone system are
assigned in sequential order. If you register another new handset to your
telephone system, the new registered handset is assigned HANDSET 2.
Then, your first handset is renamed as HANDSET 1. This telephone system
accommodates up to 12 handsets.
You can add new handsets (TL88002, purchased separately) to your
telephone system, but each handset must be registered with the telephone
base before use. When first purchased, each expansion handset shows
Press [HOLD] on base for 4 sec, then press [#] on handset
. You may need
to charge the handset before registering to the telephone base. For more
details on battery charging, see the table on page 8.
Register a handset to the telephone base
1. Before you begin registration, make sure the handset displays Press
[HOLD] on base for 4 sec, then press [#] on handset.
2. Place the unregistered handset in the telephone base.
3. Press and hold HOLD on the telephone base for about four seconds until
the telephone base displays Registering handset.... Then, release the
HOLD button. While the handset is still in the telephone base, press #
(pound key) on the handset. The handset shows Registering... Please wait
and it takes up to 60 seconds to complete the registration. The handset
and the telephone base show HANDSET X Registered (X represents the
handset number assigned) and you hear a beep when the registration
completes.
NOTES:
If the registration fails, the handset shows Registration failed. To reset the handset, unplug
the power from the telephone base and the battery from the handset for a few seconds, then
plug them back in. Try the registration process again.
You cannot register a handset if any other system handset is in use.
•
•
Appendix
#
HOLD
77
Appendix
Deregistering handsets
You may need to deregister your handsets if:
You have 12 registered handsets and need to replace a handset.
-OR-
You wish to change the designated handset number of your registered
handsets.
You must first deregister ALL handsets, and then register each handset you
wish to use again, one at a time.
Please read carefully through all the instructions on this page before
beginning the deregistration process.
Deregister all handsets from the telephone base
1. Remove any handset from the telephone base. Press and hold HOLD on
the telephone base for about 10 seconds until the telephone base displays
Deregister all handsets?. Release the HOLD button.
2. Press the YES soft key. There is a confirmation tone.
3. The deregistration process takes about 10 seconds to complete. All
handsets show Press [HOLD] on base for 4 sec, then press [#] on
handset when the deregistration completes.
If deregistration fails, you may need to reset the telephone and try again.
To reset:
1. Pick up the registered handset and then press LINE 1/FLASH or
LINE 2/FLASH.
2. Press OFF/CANCEL and then place the handset back in the telephone base.
-OR-
Unplug the power adapter from the telephone base, then plug it back in.
NOTES:
You cannot deregister a handset if any system handset or telephone base is in use.
Even if the battery is depleted, you can still deregister the handsets by following the steps
mentioned above. After the handset is charged for at least 10 minutes, the screen shows
Press [HOLD] on base for 4 sec, then press [#] on handset.
•
•
•
•
78
Appendix
Handset and telephone base indicators
Handset screen icons
Handset battery is charging (animated displayed).
Becomes solid when the battery is fully charged.
Flashes when the battery is low and needs charging.
1Line 1 is in use.
2Line 2 is in use.
1
1Handset ringer of line 1 is turned off.
1
2Handset ringer of line 2 is turned off.
1
Handset ringers of line 1 and line 2 are turned off.
1New voicemail received on line 1 from the telephone
service provider.
2New voicemail received on line 2 from the telephone
service provider.
1
2New voicemail received on lines 1 and 2 from the telephone service
provider.
1New answering system message(s) on line 1.
2New answering system message(s) on line 2.
New answering system messages on lines 1 and 2.
AnS1
ON
Answering system of line 1 is turned on.
AnS
ON
2
Answering system of line 2 is turned on.
AnS1
ON
2
Answering systems of line 1 and line 2 are turned on.
Speakerphone is in use.
A wired headset is being used.
NEW New missed call(s) in call log.
MUTE Microphone is muted.
1
2
1
2
79
Appendix
Handset and telephone base indicators
Telephone base screen icons
1Line 1 is in use.
2Line 2 is in use.
1
1
Base ringer of line 1 is turned off.
1
2Base ringer of line 2 is turned off.
1
1
2Base ringers of lines 1 and 2 are turned off.
1New voicemail received on line 1 from the telephone
service provider.
2New voicemail received on line 2 from the telephone
service provider.
1 2 New voicemail received on lines 1 and 2 from the telephone service
provider.
1New answering system message(s) on line 1.
2New answering system message(s) on line 2.
1 2 New answering system messages on lines 1 and 2.
NEW New missed call(s) in call log.
MUTE Microphone is muted.
80
Appendix
Alert tones and lights
Handset alert tones
One short beep Tone of each key press, if key tone is turned on.
One long beep Indication to begin recording a message, memo or announcement.
Two short beeps You are pressing TCID or SDIR on a cordless handset when the
volume is already at its highest or lowest setting.
-OR-
Call waiting tone.
-OR-
Error tone.
-OR-
Registration failure tone.
Confirmation tone
(three rising tones)
The system has completed the command successfully.
Four beeps The other party has ended your intercom call.
-OR-
The handset has gone out of range from the base during a call.
Four short beeps Low battery warning.
Telephone base alert tones
One short beep Tone of each key press, if key tone is turned on.
One long beep Indication to begin recording a message, memo or announcement.
Two short beeps You are pressing T/VOLUME/S on the telephone base when the
volume is already at its highest or lowest setting.
-OR-
Call waiting tone.
-OR-
Error tone.
-OR-
Registration slots are full.
Confirmation tone
(three rising tones)
The system has completed the command successfully.
Four beeps The other party has ended your intercom call.
81
Appendix
Alert tones and lights
Handset lights
Telephone base lights
CHARGE
On when the
handset is charging
in the telephone
base or charger.
Lighted display
Lighted key pad
/SPEAKER
On when the
speakerphone is on.
/ANSWER ON 1 and
/ANSWER ON 2
On when the answering
system of the corresponding
line is on.
•
/MAIL BOX 1 and
/MAIL BOX 2
On when a message of the
corresponding line is playing.
Flashes when there are new
messages in the mail box of
the corresponding line.
•
•
/LINE 1 and /LINE 2
On when the speakerphone
of the corresponding line
is on.
Flashes quickly when there
is an incoming call on the
corresponding line.
Flashes slowly when a call
on the corresponding line is
on hold.
•
•
•
Large tilt lighted
display
82
Appendix
Screen display messages
Screen messages
Already saved The telephone number entered is already stored in
the directory.
Base is calling Telephone base is calling.
Call log empty There are no call log entries.
Calling base A system handset is calling the
telephone base.
Calling handset
(for model with one handset)
Calling handset X
(for model with two or more handsets)
Another system handset or the telephone base is
calling a system handset.
Directory empty There are no directory entries.
Directory is full The directory is full.
Ended You have just ended a call.
Handset is calling
(for model with one handset)
Handset X is calling
(for model with two or more handsets)
The telephone base is called by a
system handset.
Other handset is calling
(for model with two handsets)
Handset X is calling
(for model with three or more handsets)
A system handset is called by another
system handset.
Intercom A system handset or the telephone base is on an
intercom call.
Intercom ended You have just ended an intercom call.
L1)X Missed There are calls that have not been reviewed in your
call log on line 1.
L2)X Missed There are calls that have not been reviewed in your
call log on line 2.
L1)Ans Sys Full Answering system of line 1 is full.
L2)Ans Sys Full Answering system of line 2 is full.
L1)IN USE Line 1 is in use.
L2)IN USE Line 2 is in use.
L1)X New Msg(s) There are new voicemail messages from your
telephone service provider on line 1.
L2)X New Msg(s) There are new voicemail messages from your
telephone service provider on line 2.
L1)NO LINE There is no telephone line connected on line 1.
L2)NO LINE There is no telephone line connected on line 2.
83
Appendix
Screen display messages
L1)ON HOLD Line 1 is on hold.
L2)ON HOLD Line 2 is on hold.
Line 1 Incoming call There is an incoming call on line 1.
Line 2 Incoming call There is an incoming call on line 2.
Microphone ON MUTE is turned off and the person on the other end
can hear you.
Microphone off You have turned off the handset microphone. The
other party cannot hear you but you can hear the
other party.
No signal, call ended Communication between the system handset and
telephone base is lost during a call.
Not available at this time One system handset or the telephone base is
already viewing the call log or directory and another
handset/telephone base attempts to review it.
Out of range OR
no power at base
The system handset cannot communicate with the
telephone base. Check the telephone base power
connection or move closer.
Paging all handsets The telephone base is paging handset(s).
**Paging** The system handset is paged.
Place handset in charger The battery is very low. Place the system handset in
the telephone base for recharging.
Ringer muted The ringer is muted temporarily during an incoming
call.
Saved Your selection has been saved.
Unable to call try again You try to make an intercom call but the system
handset/telephone base you are calling is in the
directory, in the call log, on an outside call, or the
system handset is out of range.
Unable to save You try to save a caller ID entry with no name or
number.
84
Appendix
Troubleshooting
If you have difficulty with your phone, please try the following suggestions.
For Customer Service, visit our website at www.telephones.att.com or
call 1 (800) 222-3111. In Canada, dial 1 (866) 288-4268.
My telephone doesn’t work at all.
Make sure the power cord is securely plugged in.
Make sure you plug the battery connector securely into the cordless handset.
Make sure you plug the telephone line cord securely and firmly into the
telephone base and the telephone wall jack.
Charge the battery in the cordless handset for at least 16 hours. For
optimum daily performance, return the cordless handset to the telephone
base or charger when not in use.
If the battery is depleted, it may take approximately 30 minutes to charge
the handset before it shows Low battery. See page 8 for details.
Reset the telephone base. Unplug the electrical power. Wait for
approximately 15 seconds, then plug it back in. Allow up to one minute for
the cordless handset and telephone base to reset.
You may need to purchase a new battery. Please refer to
Battery installation and charging in this user’s manual on pages 8-9.
The display shows L1>NO LINE or L2>NO LINE. I cannot get a dial tone.
Try all the suggestions mentioned above.
If the previous suggestions do not work, disconnect the telephone line
cord from your telephone and connect the telephone line cord to another
telephone.
If there is no dial tone on that other telephone either, your telephone
line cord may be defective. Install a new telephone line cord.
If changing the telephone line cord does not help, the wall jack (or the
wiring to this wall jack) may be defective. Try using a different wall jack
in your home to connect your TL88102/TL88202 telephone, or contact
your telephone service provider (charges may apply).
I cannot dial out.
Try all the suggestions mentioned above.
Make sure you have a dial tone before dialing. The cordless handset may
take a second or two to find the telephone base and produce a dial tone.
This is normal. Wait an extra second before dialing.
Eliminate any background noise. Noise from a television, radio or other
appliances may cause the phone to not dial out properly. If you cannot
eliminate the background noise, first try muting the cordless handset
before dialing, or dialing from another room with less background noise.
•
•
•
•
•
•
•
•
•
•
•
•
•
•
85
Appendix
Troubleshooting
If other phones in your home are having the same problem, contact your
telephone service provider (charges may apply).
My cordless handset isn’t performing normally.
Make sure you plug the power cord securely into the telephone base. Plug the
power adapter into a different working electrical outlet without a wall switch.
Move the cordless handset closer to the telephone base. You may have
moved out of range.
Reset the telephone base. Unplug the electrical power. Wait for 15
seconds, then plug it back in. Allow up to one minute for the cordless
handset and telephone base to reset.
Other electronic products such as HAM radios and other DECT phones, can
cause interference with your cordless phone. Try installing your phone as
far away as possible from these types of electronic devices.
Out of range OR no power at base appears on my cordless handset.
Ensure you plug the telephone base in properly and the power is on.
Place the cordless handset in the telephone base for one minute to allow
the cordless handset and base to synchronize.
Move the cordless handset closer to the telephone base. You may have
moved out of range.
Reset the telephone base. Unplug the electrical power. Wait for 15
seconds, then plug it back in. Allow up to one minute for the cordless
handset and telephone base to reset.
Other electronic products such as HAM radios and other DECT phones, can
cause interference with your cordless phone. Try installing your phone as
far away as possible from these types of electronic devices.
The batteries do not hold a charge.
If the cordless handset is in the telephone base or charger and the charge
light is not on, refer to The charge light is off (page 88).
Charge the battery in the cordless handset for at least 16 hours. For
optimum daily performance, return the cordless handset to the telephone
base or charger when not in use.
If the battery is depleted, it may take approximately 30 minutes to charge
the handset before it shows Low battery. Refer to the table on page 8 for
details.
You may need to purchase a new battery. Please refer to
Battery installation and charging in this user’s manual on page 8-9.
•
•
•
•
•
•
•
•
•
•
•
•
•
•
86
Appendix
Troubleshooting
I get noise, static, or weak signals even when I’m near the telephone base.
If you subscribe to high-speed Internet service (DSL - digital subscriber
line) through your telephone line, you must install a DSL filter between
the telephone line cord and the telephone wall jack (pages 6-7). The filter
prevents noise and caller ID problems as a result of DSL interference.
Please contact your DSL service provider for more information about
DSL filters.
You may be able to improve the performance of your cordless phone
by installing your new telephone base as far as possible from any other
existing cordless telephone system that may already be installed.
Other electronic products such as HAM radios and other DECT phones, can
cause interference with your cordless phone. Try installing your phone as
far away as possible from these types of electronic devices.
Do not install this phone near a microwave oven or on the same electrical
outlet. You may experience decreased performance while the microwave
oven is operating.
If you plug your phone in with a modem or a surge protector, plug the
phone (or modem/surge protector) into a different location. If this does
not solve the problem, relocate your phone or modem farther apart from
one another, or use a different surge protector.
Move your phone to a higher location. The phone may have better
reception in a high area.
If other phones in your home are having the same problem, contact your
telephone service provider (charges may apply).
I experience poor sound quality when using the handset speakerphone.
For increased sound quality while using the handset speakerphone, place
the handset on a flat surface with the dial pad facing up.
I hear other calls while using my phone.
Disconnect the telephone base from the telephone jack, and plug in a
different telephone. If you still hear other calls, call your telephone
service provider.
My cordless handset does not ring when I receive a call.
Make sure that the ringer is not off. Refer to Ringer volume on page 12 in
this user’s manual.
Make sure you plug in the telephone line cord securely into the telephone
base and the telephone jack. Make sure you plug in the power cord securely.
The cordless handset may be too far from the telephone base.
•
•
•
•
•
•
•
•
•
•
•
•
87
Appendix
Troubleshooting
Charge the battery in the cordless handset for at least 16 hours. For
optimum daily performance, return the cordless handset to the telephone
base or charger when not in use.
You may have too many extension phones on your telephone line to
allow all of them to ring simultaneously. Try unplugging some of the
other phones.
The layout of your home or office may be limiting the operating range. Try
moving the telephone base to another location, preferably to a
higher location.
If other phones in your home are having the same problem, contact your
telephone service provider (charges may apply).
Test a working phone at the phone jack. If another phone has the same
problem, contact your telephone service provider (charges may apply).
Other electronic products can cause interference with your cordless
phone. Try installing your phone as far away as possible from electronic
devices such as television sets, VCRs, or other cordless telephones.
Remove the battery. Install the battery again and place the cordless
handset into the telephone base. Wait for the cordless handset to
reestablish its connection with the telephone base. Allow up to one minute
for this to take place.
Your line cord may be defective. Try installing a new line cord.
My calls cut in and out while I’m using my cordless handset.
Other electronic products such as HAM radios and other DECT phones, can
cause interference with your cordless phone. Try installing your phone as
far away as possible from these types of electronic devices.
Do not install this phone near a microwave oven or on the same electrical
outlet. You may experience decreased performance while the microwave
oven is operating.
If you plug your phone in with a modem or surge protector, plug the
phone (or modem/surge protector) into a different location. If this does
not solve the problem, relocate your phone or modem farther apart from
one another, or use a different surge protector.
Move your telephone base to a higher location. The phone may have
better reception when installed in a high area.
If other phones in your home are having the same problem, contact your
telephone service provider (charges may apply).
•
•
•
•
•
•
•
•
•
•
•
•
•
88
Appendix
Troubleshooting
The charge light is off.
Make sure you plug the power and line cords in correctly and securely.
Unplug the electrical power. Wait for 15 seconds, then plug it back in.
Allow up to one minute for the cordless handset and telephone base
to reset.
Clean the cordless handset, charger and telephone base charging contacts
each month with a pencil eraser or cloth.
My caller ID isn’t working.
Caller ID is a subscription service. You must subscribe to this service from
your telephone service provider for this feature to work on your phone.
The caller may be calling from an area that supports caller ID.
Both your and your caller’s telephone service providers must use caller ID
compatible equipment.
If you subscribe to high-speed Internet service (DSL - digital subscriber
line) through your telephone line, you must install a DSL filter between
the telephone line cord and the telephone wall jack (pages 6-7). The filter
prevents noise and caller ID problems resulting from DSL interference.
Please contact your DSL service provider for more information about
DSL filters.
System does not receive caller ID when on a call.
Make sure you subscribe to caller ID with call waiting features from your
telephone service provider. Caller ID features works only if both you and
the caller are in areas offering caller ID service, and if both telephone
service providers use compatible equipment.
Incomplete messages.
If a caller leaves a very long message, part of it may be lost when the
system disconnects the call after the maximum recording time you have set.
If the caller pauses for longer than seven seconds, the system stops
recording and disconnects the call.
If the system’s memory becomes full during a message, the system stops
recording and disconnects the call.
If the caller’s voice is very soft, the system may stop recording and
disconnect the call.
•
•
•
•
•
•
•
•
•
•
•
•
89
Appendix
Troubleshooting
Difficulty hearing messages.
Press VOLUME/S to increase the telephone base speaker volume.
Press SDIR/VOLUME to adjust the message playback volume on
a handset.
System does not answer after the correct number of rings.
• Make sure that the answering system is on. AnS1
ON
,
AnS
ON
2 or
AnS1
ON
2 should show on
the handset and the /ANSWER ON 1 and/or /ANSWER ON 2 light on
the telephone base should be on.
• If toll saver is activated, the number of rings changes to two when you
have new messages stored (page 65).
• If the memory is full or the system is off, the system will answer after
ten rings.
In some cases, the answering system is affected by the ringing system
used by your telephone service provider.
If you subscribe to voicemail service, change the number of rings so
that your answering system answers before your voicemail (page 65). To
determine how many rings activate your voicemail, contact your telephone
service provider.
If there is a fax machine connected to the same telephone line, try
disconnecting the fax machine. If that solves the problem, consult your
fax machine documentation for information on compatibility with
answering systems.
System does not respond to remote commands.
• Make sure to enter your remote access code correctly (page 66).
• Make sure you are calling from a touch-tone phone. When you dial a
number, you should hear tones. If you hear clicks, the phone is not a
touch-tone telephone and cannot activate the answering system.
• The answering system may not detect the remote access code while your
announcement is playing. Try waiting until the announcement is over
before entering the code.
• There may be interference on the phone line you are using. Press dialing
keys firmly.
•
•
•
•
•
90
Appendix
Troubleshooting
System does not record messages.
• Make sure the answering system is on. AnS1
ON
,
AnS
ON
2 or
AnS1
ON
2 should show on the
handset and the /ANSWER ON 1 and/or /ANSWER ON 2 light on the
telephone base should be on.
• Make sure the memory of the answering system is not full.
If you subscribe to voicemail service, change the number of rings so
that your answering system answers before your voicemail (page 65). To
determine how many rings activate your voicemail, contact your telephone
service provider.
If there is a fax machine connected to the same telephone line, try
disconnecting the fax machine. If that solves the problem, consult your
fax machine documentation for information on compatibility with
answering systems.
System announces, “Time and day not set.”
• You need to reset the system clock (page 15 or 21).
Outgoing announcement is not clear.
• When you record your announcement, make sure you speak in a normal
tone of voice, about nine inches from the handset or the telephone base.
• Make sure there is no background noise (TV, music, etc.) while recording.
An icon and a line number appear on the handset and telephone base
screen and I don’t know why.
•
Your telephone has voicemail indication that is separate from the built-in
answering system. If the
icon and a line number appear on the display,
your telephone has received a signal from your telephone service provider
that you have a voicemail message waiting for you to retrieve from them.
Contact your telephone service provider for more information on how to
access your voicemail.
I cannot retrieve voicemail messages.
•
Your telephone has both a built-in answering system and voicemail
indication. They are independent features and each alerts you to new
messages differently (page 68). If you subscribe to voicemail service from
your telephone service provider, contact your telephone service provider
for more information on how to access your voicemail.
•
•
91
Appendix
Troubleshooting
I subscribe to a nontraditional telephone service that uses my computer
to establish connections, and my telephone doesn’t work.
Make sure your computer is powered on.
Make sure your Internet connection is working properly.
Make sure that the software is installed and running for your
nontraditional telephone service.
Make sure to plug your USB telephone adapter into a dedicated USB
port on your computer. Do not plug it into a multiple port USB hub (USB
splitter) that is not powered.
In a few rare instances, the USB port on your computer may not have
enough power. Try using a USB hub with its own external power supply.
If you are using a firewall, it may prevent access to your
nontraditional telephone service provider. Contact your service
provider for more information.
Common cure for electronic equipment.
If the telephone does not seem to be responding normally, try putting the
cordless handset in the telephone base or charger. If it does not fix the
problem, do the following (in the order listed):
Disconnect the power to the telephone base.
Disconnect the cordless handset battery.
Wait a few minutes.
Connect power to the telephone base.
Remove the battery. Replace the battery and place the cordless handset
into the telephone base or charger.
Wait for the cordless handset to reestablish its connection with the
telephone base. Allow up to one minute for this to take place.
•
•
•
•
•
•
1.
2.
3.
4.
5.
6.
92
Appendix
Maintenance
Taking care of your telephone
Your cordless telephone contains sophisticated electronic parts, so you
must treat it with care.
Avoid rough treatment.
Place the handset down gently.
Save the original packing materials to protect your telephone if you ever
need to ship it.
Avoid water
You can damage your telephone if it gets wet. Do not use the handset in
the rain, or handle it with wet hands. Do not install the telephone base
near a sink, bathtub or shower.
Electrical storms
Electrical storms can sometimes cause power surges harmful to electronic
equipment. For your own safety, take caution when using electric
appliances during storms.
Cleaning your telephone
Your telephone has a durable plastic casing that should retain its luster for
many years. Clean it only with a soft cloth slightly dampened with water
or mild soap.
Do not use excess water or cleaning solvents of any kind.
•
•
•
•
•
•
•
•
Remember that electrical appliances can cause serious injury if used when you are wet or
standing in water. If the telephone base should fall into water, DO NOT RETRIEVE IT UNTIL
YOU UNPLUG THE POWER CORD AND TELEPHONE LINE CORDS FROM THE WALL. Then,
pull the unit out by the unplugged cords.
93
Appendix
Important safety information
This symbol is to alert you to important operating or servicing instructions that may
appear in this user’s manual. Always follow basic safety precautions when using this
product to reduce the risk of injury, fire, or electric shock.
Safety information
Read and understand all instructions in the user’s manual. Observe all markings on the
product.
Avoid using a telephone during a thunderstorm. There may be a slight chance of electric
shock from lightning.
Do not use a telephone in the vicinity of a gas leak. Under certain circumstances, a spark
may be created when the adapter is plugged into the power outlet, or when the handset is
replaced in its cradle. This is a common event associated with the closing of any electrical
circuit. In an inadequately ventilated environment, the user should not plug the phone into
a power outlet, nor put a charged handset into the cradle where there are concentrations
of flammable or flame-supporting gases. A spark in such an environment could create a
fire or explosion. Such environments may include: medical use of oxygen without adequate
ventilation; industrial gases (cleaning solvents; gasoline vapors; etc.); a leak of natural gas;
etc.
Do not use this product near water or when you are wet. For example, do not use it in a wet
basement or shower, nor next to a swimming pool, bathtub, kitchen sink, and laundry tub. Do
not use liquids or aerosol sprays for cleaning. If the product comes in contact with any liquid,
unplug any line or power cord immediately. Do not plug the product back in until it has dried
thoroughly.
Install this product in a protected location where no one can trip over any line or power
cords. Protect cords from damage or abrasion.
If this product does not operate normally, see the Troubleshooting section on pages 84-91
of this user’s manual. If you cannot solve the problem, or if the product is damaged, refer to
the Limited warranty section on pages 101-102. Do not open this product except as directed
in your user’s manual. Opening the product or reassembling it incorrectly may expose you to
hazardous voltages or other risks.
Replace batteries only, as described in your user’s manual (pages 8-9). Do not burn or
puncture batteries — they contain caustic chemicals.
The power adapters are intended to be correctly oriented in a vertical or floor mount
position. The prongs are not designed to hold the plug in place if it is plugged into a ceiling,
under-the-table or cabinet outlet.
CAUTIONS:
Use only the power adapters provided with this product. To obtain a replacement, visit our
website at www.telephones.att.com or call 1 (800) 222-3111. In
Canada, dial 1 (866) 288-4268.
Use only the supplied rechargeable battery or replacement battery (model BT183342/
BT283342). To order, visit our website at www.telephones.att.com or call
1 (800) 222-3111. In Canada, dial 1 (866) 288-4268.
To prevent risk of fire or battery explosion, replace with the correct battery type. Dispose of
used batteries according to the instructions.
•
•
•
•
•
•
•
•
•
•
•
94
Appendix
Important safety information
Especially about cordless telephones
Privacy: The same features that make a cordless telephone convenient create some
limitations. Telephone calls are transmitted between the telephone base and the handset
by radio waves, so there is a possibility that your cordless telephone conversations could
be intercepted by radio receiving equipment within range of the cordless handset. For this
reason, you should not think of cordless telephone conversations as being as private as those
on corded telephones.
Electrical power: The telephone base of this cordless telephone must be connected to a
working electrical outlet which is not controlled by a wall switch. Calls cannot be made from
the handset if the telephone base is unplugged, switched off or if the electrical power is
interrupted.
Potential TV interference: Some cordless telephones operate at frequencies that may cause
interference to TVs and VCRs. To minimize or prevent such interference, do not place the
telephone base of the cordless telephone near or on top of a TV or VCR. If interference
is experienced, moving the cordless telephone farther away from the TV or VCR will often
reduce or eliminate the interference.
Rechargeable batteries: This product contains nickel-metal hydride rechargeable batteries.
Exercise care in handling batteries in order not to create a short circuit with conductive
material such as rings, bracelets and keys. The battery or conductor may overheat and cause
harm. Observe proper polarity between the battery and the battery charger.
Nickel-metal hydride rechargeable batteries: Dispose of these batteries in a safe manner. Do
not burn or puncture. Like other batteries of this type, if burned or punctured, they could
release caustic material which could cause injury.
The RBRC® Seal means that the manufacturer is voluntarily participating in an
industry program to collect and recycle nickel-metal hydride rechargeable batteries
when taken out of service within the United States. These batteries may be taken
to a participating local retailer of replacement batteries or recycling center. You
may call 1-800-8-BATTERY® for locations accepting spent Ni-MH batteries.
RBRC® and 1-800-8-BATTERY® are registered trademarks of the Rechargeable
Battery Recycling Corporation.
Precautions for users of implanted cardiac pacemakers
Cardiac pacemakers (applies only to digital cordless telephones):
Wireless Technology Research, LLC (WTR), an independent research entity, led a multidisciplinary
evaluation of the interference between portable wireless telephones and implanted cardiac
pacemakers. Supported by the U.S. Food and Drug Administration, WTR recommends to
physicians that:
Pacemaker patients
Should keep wireless telephones at least six inches from the pacemaker.
Should NOT place wireless telephones directly over the pacemaker, such as in a breast
pocket, when it is turned ON.
Should use the wireless telephone at the ear opposite the pacemaker.
WTR’s evaluation did not identify any risk to bystanders with pacemakers from other persons
using wireless telephones.
Especially about telephone answering systems
Two-way recording: This unit does not sound warning beeps to inform the other party that the
call is being recorded. To ensure that you are in compliance with any federal or state regulations
regarding recording a telephone call, you should start the recording process and then inform the
other party that you are recording the conversation.
SAVE THESE INSTRUCTIONS
•
•
•
•
•
•
•
•
95
Appendix
For C-UL compliance
In compliance with the bilingual requirements for safety, caution, and warning markings of
Canadian Federal and Provincial/Territorial statutes and regulations, the French version of
Important safety information is included.
Mesures de sécurité importantes
Ce symbole vous alertera d’informations importantes ou d’instructions d’entretien
pouvant apparaître dans ce guide d’utilisation. Respectez toujours les mesures de
sécurité et de sécurité de base lorsque vous utilisez ce produit, afin de réduire les
risques de blessures, d’incendie, ou d’électrocution.
Information relative à la sécurité
Veuillez lire et comprendre toutes les instructions de ce guide d’utilisation. Relectez toutes les
inscriptions apparaissant sur le produit.
Évitez d’utiliser le téléphone pendant un orage. Il pourrait y avoir un faible risque
d’électrocution.
N’utilisez pas un téléphone près d’une fuite de gaz. Dans certaines circonstances, une
flammèche pourrait se produire lorsque l’adaptateur est branché à une prise de courant, ou
lorsque le combiné est déposé sur son chargeur. Ceci est un événement fréquent associé
avec la fermeture d’un circuit électrique. L’utilisateur ne devrait pas brancher un téléphone
dans une prise de courant, et ne devrait pas déposer un combiné chargé dans le chargeur,
si le téléphone se trouve dans un environnement comportant une concentration de gaz
inflammables ou ignifuges, à moins de se trouver dans un endroit où la ventilation est
adéquate. Une flammèche dans de tels environnements pourrait provoquer une explosion. De
tels environnements peuvent comprendre : les endroits où de l’oxygène à des fins médicales
est utilisé sans ventilation adéquate; des endroits où se trouvent des gaz industriels
(dissolvants de nettoyage, des vapeurs de gazoline, etc.), une fuite de gaz naturel, etc.
N’utilisez pas ce produit près de l’eau ou lorsque vous êtes mouillés. Par exemple, ne
l’utilisez pas dans des sous-sols humides ou sous la douche, ou près d’une piscine,
d’un bain, d’un évier de cuisine, ou d’une cuve de lavage. N’utilisez pas de liquides, ou
de vaporisateurs aérosol de nettoyage. Si le produit entre en contact avec du liquide,
débranchez immédiatement le fil téléphonique ou le cordon d’alimentation. Ne rebranchez
pas le produit avant qu’il soit complètement sec.
Installez cet appareil dans un endroit protégé où personne ne peut trébucher sur les cordons
d’alimentation ou la ligne téléphonique. Protégez les câbles contre les dommages ou
l’abrasion.
Si le produit ne fonctionne pas correctement, consultez la section Dépannage
(Troubleshooting) des pages 84-91 de ce guide d’utilisation. Si vous ne pouvez pas régler le
problème, ou si le produit est endommagé, consultez la section Garantie limitée (Limited
warranty) des pages 101-102. N’ouvrez pas ce produit, sauf tel qu’indiqué dans le guide
d’utilisation. L’ouverture du produit ou le remontage inadéquat pourrait vous exposer à des
tensions dangereuses ou autres dangers.
Remplacez les piles uniquement tel que décrit dans votre guide d’utilisation (pages 8-
9). N’incinérez pas et ne percez pas les piles — elles contiennent des produits chimiques
caustiques.
Les adaptateurs secteurs sont conçus pour être orientés verticalement ou installés sur
le plancher. Les broches ne sont pas conçues pour se maintenir en place si la fiche est
branchée dans une prise de courant au plafond, sous la table ou sous une armoire.
•
•
•
•
•
•
•
•
96
Appendix
For C-UL compliance
MISES EN GARDE:
N’utilisez que les adaptateurs inclus avec ce produit. Pour obtenir une pièce de rechange,
visitez notre site Web au
www.telephones.att.com ou composez le
1 (800)-222-3111. Au Canada, composez le 1 (866)-288-4268.
N’utilisez que la pile de rechargeable incluse ou une pile de rechange (modèle BT183342/
BT283342). Pour commander, visitez notre site Web www.telephones.att.com ou
composez le 1 (800)-222-3111. Au Canada, composez le 1 (866)-288-4268.
Afin de prévenir les risques d’incendie ou d’explosion de la pile, replacez la pile avec une pile
du même type. Jetez les piles épuisées en respectant les instructions.
Spécifiquement en rapport avec les téléphones sans fil
Confidentialité : Les mêmes caractéristiques qui rendent les téléphones sans fil si pratiques
créent également des restrictions. Les appels téléphoniques sont transmis entre le socle
du téléphone et le combiné par le biais d’ondes radio, et il se peut que vos conversations
téléphoniques soient interceptées par d’autres équipements de réception d’ondes radio au
sein de la portée du téléphone sans fil. Pour cette raison, vous ne devez pas considérer les
conversations sur un téléphone sans fil comme étant aussi confidentielles que celles d’un
téléphone à cordon.
Alimentation électrique : La base de ce téléphone sans fil doit être branchée à une prise
de courant électrique fonctionnelle. La prise électrique ne doit pas être contrôlée par un
interrupteur mural. Les appels ne peuvent pas être effectués à partir du combiné si la base
n’est pas branchée, si elle est hors fonction ou si le courant électrique est coupé.
Interférences potentielles aux téléviseurs : Certains téléphones sans fil fonctionnent sur
des fréquences pouvant causer des interférences aux téléviseurs et magnétoscopes. Pour
réduire ou prévenir de tels parasites, ne pas déposer la base du téléphone sans fil à proximité
d’un téléviseur ou magnétoscope, ni directement sur celui-ci. Si votre téléviseur affiche des
interférences, éloignez le téléphone sans fil de celui-ci afin de réduire les parasites.
Piles rechargeables : Ce produit comporte des piles rechargeables à l’hydrure métallique de
nickel. Usez de prudence lorsque vous manipulez de telles piles et veillez à ne pas les
court-circuiter avec des matériaux conducteurs, tels que des bagues, bracelets et clés. La pile
ou le conducteur peut surchauffer et vous brûler. Respectez la polarité adéquate entre les
piles et le chargeur de piles.
Piles rechargeables à l’hydrure métallique de nickel : Jetez ces piles de manière sécuritaire.
N’incinérez pas et ne peercez pas les piles. Comme pour les autres piles du même type, si
elles sont brûlées ou percées, des matières corrosives peuvent s’en échapper, ce qui risque
de causer des brûlures ou autres blessures corporelles.
Le sceau de l’organisme de recyclage RBRCMD sur les piles à l’hydrure métallique
de nickel signifie que le fabricant de cet appareil participe volontairement au
programme industriel visant à reprendre et recycler ce type de piles lorsqu’elles
ne servent plus, au sein du territoire des États-Unis et du Canada. Vous devez
apporter ces piles chez un détaillant participant ou le centre de recyclage le
plus près de chez vous. Ou vous pouvez composer le 1-800-8-BATTERYMD afin
de connaître les endroits qui acceptent les piles à l’hydrure métallique de nickel
mortes.
RBRCMD et 1-800-8-BATTERYMD sont des marques déposées de Rechargeable
Battery Recycling Corporation.
•
•
•
•
•
•
•
•
97
Appendix
For C-UL compliance
Mesures préventives pour les utilisateurs de stimulateurs cardiaques implantés dans
l’organisme
Stimulateurs cardiaques (ne s’applique qu’aux téléphones sans fil numériques) :
L’organisme ‘Wireless Technology Research, LLC (WTR)’, une firme de recherche indépendante,
a mené une évaluation pluridisciplinaire des interférences entre les téléphones sans fil portatifs
et les stimulateurs cardiaques implantés dans l’organisme. Appuyée par l’Administration des
aliments et drogues (FDA) des États-unis, la firme WTR recommande aux médecins :
Avis aux détenteurs de stimulateurs cardiaques
Ils doivent tenir le téléphone sans fil à une distance d’au moins six pouces du stimulateur
cardiaque.
Ils ne doivent PAS placer le téléphone sans fil directement sur le stimulateur cardiaque,
tel que dans une poche de chemise, lorsque celui-ci est en fonction.
Ils doivent utiliser le téléphone sans fil en l’appuyant sur l’oreille qui se trouve dans la
direction opposée au stimulateur cardiaque.
L’étude effectuée par l’organisme WRS n’a pas identifié de risque pour les détenteurs de
simulateurs cardiaques causé par les gens qui utilisent un téléphone sans fil à proximité de
ceux-ci.
Spécifiquement en rapport avec les répondeurs téléphoniques
Enregistrement deux voies : Cet appareil n’émet pas de bips d’avertissement qui permettent de
prévenir l’autre partie que vous enregistrez la conversation. Pour assurer votre conformité aux
règlements fédéraux ou provinciaux en rapport avec les enregistrements des conversations
téléphoniques, vous devriez informer l’autre partie lorsque vous activez l’enregistrement.
CONSERVEZ CES INSTRUCTIONS
•
•
•
98
Appendix
FCC Part 68 and ACTA
This equipment complies with Part 68 of the FCC rules and with technical requirements adopted
by the Administrative Council for Terminal Attachments (ACTA). The label on the back or bottom of
this equipment contains, among other things, a product identifier in the format US:AAAEQ##TXXXX.
This identifier must be provided to your telephone service provider upon request.
The plug and jack used to connect this equipment to premises wiring and the telephone network
must comply with the applicable Part 68 rules and technical requirements adopted by ACTA. A
compliant telephone cord and modular plug is provided with this product. It is designed to be
connected to a compatible modular jack that is also compliant. An RJ11 jack should normally
be used for connecting to a single line and an RJ14 jack for two lines. See the installation
instructions in the user’s manual.
The Ringer Equivalence Number (REN) is used to determine how many devices you may connect
to your telephone line and still have them ring when you are called. The REN for this product is
encoded as the 6th and 7th characters following the US: in the product identifier (e.g., if ## is
03, the REN is 0.3). In most, but not all areas, the sum of all RENs should be five (5.0) or less. For
more information, please contact your telephone service provider.
This equipment must not be used with Party Lines. If you have specially wired alarm dialing
equipment connected to your telephone line, ensure the connection of this equipment does
not disable your alarm equipment. If you have questions about what will disable the alarm
equipment, consult your telephone service provider or a qualified installer.
If this equipment is malfunctioning, it must be unplugged from the modular jack until the
problem has been corrected. Repairs to this telephone equipment can only be made by the
manufacturer or its authorized agents. For repair procedures, follow the instructions outlined
under the Limited warranty section.
If this equipment is causing harm to the telephone network, the telephone service provider may
temporarily discontinue your telephone service. The telephone service provider is required to
notify you before interrupting service. If advance notice is not practical, you will be notified as
soon as possible. You will be given the opportunity to correct the problem and the telephone
service provider is required to inform you of your right to file a complaint with the FCC.
Your telephone service provider may make changes in its facilities, equipment, operation, or
procedures that could affect the proper functioning of this product. The telephone service
provider is required to notify you if such changes are planned.
If this product is equipped with a corded or cordless handset, it is hearing aid compatible.
If this product has memory dialing locations, you may choose to store emergency telephone
numbers (e.g., police, fire, medical) in these locations. If you do store or test emergency
numbers, please:
Remain on the line and briefly explain the reason for the call before hanging up.
Perform such activities in off-peak hours, such as early morning or late evening.
Industry Canada
This device complies with Industry Canada licence-exempt RSS standard(s).
Operation is subject to the following two conditions: (1) this device may not cause harmful
interference, and (2) this device must accept any interference received, including interference
that may cause undesired operation.
Privacy of communications may not be ensured when using this telephone.
The term ‘’IC:‘’ before the certification/registration number only signifies that the Industry
Canada technical specifications were met.
The Ringer Equivalence Number (REN) for this terminal equipment is 1.0. The REN is an indication
of the maximum number of devices allowed to be connected to a telephone interface. The
termination on an interface may consist of any combination of devices subject only to the
requirement that the sum of the RENs of all the devices does not exceed five.
This product meets the applicable Innovation, Science and Economic Development Canada
technical specifications.
•
•
99
Appendix
FCC Part 15
This equipment has been tested and found to comply with the requirements for a Class B
digital device under Part 15 of the Federal Communications Commission (FCC) rules. These
requirements are intended to provide reasonable protection against harmful interference in
a residential installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
Consult the dealer or an experienced radio/TV technician for help.
Changes or modifications to this equipment not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) this device may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause undesired operation. Privacy of
communications may not be ensured when using this telephone.
To ensure safety of users, the FCC has established criteria for the amount of radio frequency
energy that can be safely absorbed by a user or bystander according to the intended usage
of the product. This product has been tested and found to comply with the FCC criteria. The
handset may be safely held against the ear of the user. The telephone base shall be installed
and used such that parts of the user’s body other than the hands are maintained at a distance of
approximately 20 cm (8 inches) or more.
This Class B digital apparatus complies with Canadian requirement:
CAN ICES-3 (B)/NMB-3(B)
For body worn operation, this handset has been tested and meets the FCC RF exposure
guidelines when used with an accessory that contains no metal and that positions the handset a
minimum of 0mm from the body. Use of other accessories may not ensure compliance with FCC
RF exposure guidelines.
•
•
•
•
100
Appendix
California Energy Commission battery charging testing instructions
This telephone is set up to comply with the energy-conserving standards right out of the box. These
instructions are intended for California Energy Commission (CEC) compliance testing only. When the
CEC battery charging testing mode is activated, all telephone functions, except battery charging, will be
disabled.
To activate the CEC battery charging testing mode:
1. When the phone is not in use, press MENU, , 2, 3, 2, 7, 3, 8, # and then the left soft key on the
telephone base.
2. The CEC battery charging testing mode will be activated in about 60 seconds. You hear a
confirmation tone from the telephone base.
When the phone successfully enters the CEC battery charging testing mode, all cordless
handsets will be deregistered. All handsets show Press [HOLD] on base for 4 sec, then press
[#] on handset.
When the phone fails to enter this mode, repeat the steps mentioned above.
To deactivate the CEC battery charging testing mode:
1. Unplug the telephone base power adapter from the power outlet, then plug it back in. The
telephone base is powered up as normal.
2. Register your handsets back to the telephone base. See page 76 for handset registration
instructions.
BC
101
Appendix
Limited warranty
The AT&T brand is used under license - any repair, replacement or warranty service, and all questions
about this product should be directed to our website at www.telephones.att.com or
call 1 (800) 222-3111. In Canada, dial 1 (866) 288-4268.
What does this limited warranty cover?
The manufacturer of this AT&T branded product warrants to the holder of a valid proof of
purchase (“CONSUMER” or “you”) that the product and all accessories provided in the sales
package (“PRODUCT”) are free from defects in material and workmanship, pursuant to the
following terms and conditions, when installed and used normally and in accordance with the
PRODUCT operating instructions. This limited warranty extends only to the CONSUMER for
products purchased and used in the United States of America and Canada.
What will be done if the PRODUCT is not free from defects in materials and workmanship
during the limited warranty period (“materially defective PRODUCT”)?
During the limited warranty period, the manufacturer’s authorized service representative
will repair or replace at the manufacturer’s option, without charge, a materially defective
PRODUCT. If the manufacturer repairs the PRODUCT, they may use new or refurbished
replacement parts. If the manufacturer chooses to replace the PRODUCT, they may replace
it with a new or refurbished PRODUCT of the same or similar design. The manufacturer will
retain defective parts, modules, or equipment. Repair or replacement of the PRODUCT, at
the manufacturer’s option, is your exclusive remedy. The manufacturer will return repaired
or replacement products to you in working condition. You should expect the repair or
replacement to take approximately 30 days.
How long is the limited warranty period?
The limited warranty period for the PRODUCT extends for ONE (1) YEAR from the date of
purchase. If the manufacturer repairs or replaces a materially defective PRODUCT under the
terms of this limited warranty, this limited warranty also applies to repaired or replacement
PRODUCT for a period of either (a) 90 days from the date the repaired or replacement
PRODUCT is shipped to you or (b) the time remaining on the original one-year limited
warranty; whichever is longer.
What is not covered by this limited warranty?
This limited warranty does not cover:
PRODUCT that has been subjected to misuse, accident, shipping or other physical damage,
improper installation, abnormal operation or handling, neglect, inundation, fire, water, or
other liquid intrusion; or
PRODUCT that has been damaged due to repair, alteration, or modification by anyone
other than an authorized service representative of the manufacturer; or
PRODUCT to the extent that the problem experienced is caused by signal conditions,
network reliability or cable or antenna systems; or
PRODUCT to the extent that the problem is caused by use with non-AT&T accessories; or
PRODUCT whose warranty/quality stickers, PRODUCT serial number plates or electronic
serial numbers have been removed, altered or rendered illegible; or
PRODUCT purchased, used, serviced, or shipped for repair from outside the United States
of America or Canada, or used for commercial or institutional purposes (including but not
limited to products used for rental purposes); or
PRODUCT returned without valid proof of purchase (see item 6); or
Charges for installation or setup, adjustment of customer controls, and installation or
repair of systems outside the unit.
1.
2.
3.
4.
•
•
•
•
•
•
•
•
102
Appendix
Limited warranty
5. How do you get warranty service?
To obtain warranty service, visit our website at www.telephones.att.com or call
1 (800) 222-3111. In Canada, dial 1 (866) 288-4268.
NOTE: Before calling for service, please review the user’s manual; a check of the PRODUCT’s
controls and features may save you a service call.
Except as provided by applicable law, you assume the risk of loss or damage during transit
and transportation and are responsible for delivery or handling charges incurred in the
transport of the PRODUCT(s) to the service location. The manufacturer will return repaired
or replaced PRODUCT under this limited warranty to you. Transportation, delivery or
handling charges are prepaid. The manufacturer assumes no risk for damage or loss of the
PRODUCT in transit. If the PRODUCT failure is not covered by this limited warranty, or proof
of purchase does not meet the terms of this limited warranty, the manufacturer will notify
you and will request that you authorize the cost of repair prior to any further repair activity.
You must pay for the cost of repair and return shipping costs for the repair of products that
are not covered by this limited warranty.
6. What must you return with the PRODUCT to get warranty service?
You must:
Return the entire original package and contents including the PRODUCT to the service
location along with a description of the malfunction or difficulty; and
Include a “valid proof of purchase” (sales receipt) identifying the PRODUCT purchased
(PRODUCT model) and the date of purchase or receipt; and
Provide your name, complete and correct mailing address, and telephone number.
7. Other limitations
This warranty is the complete and exclusive agreement between you and the manufacturer
of this AT&T branded PRODUCT. It supersedes all other written or oral communications
related to this PRODUCT. The manufacturer provides no other warranties for this PRODUCT.
The warranty exclusively describes all of the manufacturer’s responsibilities regarding the
PRODUCT. There are no other express warranties. No one is authorized to make modifications
to this limited warranty and you should not rely on any such modification.
State/Provincial Law rights: This warranty gives you specific legal rights, and you may also
have other rights which vary from state to state or province to province.
Limitations: Implied warranties, including those of fitness for a particular purpose and
merchantability (an unwritten warranty that the PRODUCT is fit for ordinary use) are limited
to one year from date of purchase. Some states/provinces do not allow limitations on how
long an implied warranty lasts, so the limitation mentioned above may not apply to you. In
no event shall the manufacturer be liable for any indirect, special, incidental, consequential,
or similar damages (including, but not limited to lost profits or revenue, inability to use the
PRODUCT or other associated equipment, the cost of substitute equipment, and claims by
third parties) resulting from the use of this PRODUCT. Some states/provinces do not allow
the exclusion or limitation of incidental or consequential damages, so the limitation or
exclusion mentioned above may not apply to you.
Please retain your original sales receipt as proof of purchase.
•
•
•
103
Appendix
Technical specifications
RF frequency band 1921.536MHz - 1928.448MHz
Channels 5
Operating temperature 32°F - 122°F
0°C - 50°C
Telephone base voltage
(AC voltage, 60Hz)
96Vrms - 129Vrms
Telephone base voltage
(AC adapter output)
6V DC @ 600mA
Handset voltage 2.4VDC - 3.2VDC
Charger voltage
(AC adapter output)
6V AC @ 300mA
Operation Operating time*
Talk time (cordless handset) Up to seven hours
Talk time (cordless handset speakerphone) Up to four hours
Standby Up to five days
* Operating times vary depending on your actual use and the age of the battery.
DECT 6.0 digital technology
The AT&T DECT 6.0 products offer unsurpassed range performance and sound clarity. This is
achieved through a unique antenna design and advances in noise-filtering technology. An
independent laboratory has confirmed that AT&T DECT 6.0 products perform up to 45% better in
range competitions against similarly equipped phones of the leading competition. Now, calls can
be taken in the basement, backyard and garage with exceptional sound quality.
Telephone operating range
This cordless telephone operates within the maximum power allowed by the Federal
Communications Commission (FCC). Even so, this handset and telephone base can communicate
over a certain distance — which can vary with the locations of the telephone base and handset,
the weather, and the construction of your home or office.
Redefining long range coverage and clarity
This telephone base comes with an antenna which gives much better clarity and covers a longer
range than before.
104
Index
Index
A
Add a handset 76
Alert tones
handset 67, 80
message alert tone 67, 70
telephone base 67, 80
Announcement 59–62
Answer an incoming call during an
intercom call 33
Answering calls 23
Answering system 59–75
Answer ON/OFF 63
Area code 16, 22
B
Battery
charging 9
installation 8–9
Belt Clip 10
C
Call intercept 70
Call screening 64, 69
Call transfer 34–35
Call waiting 27
Caller ID (CID)
add entries to phone directory 56
delete entries 57
dial entries 55
review entries 54
Chain dialing 29–30
Character chart 39
Charger installation 7
Clear voicemail indicator
handset 13
telephone base 19
Clock
handset 15
telephone base 21
Conference Call 38
D
Day and time
handset 15
telephone base 21
Delete
a caller ID log entry 57
a directory entry 44
all old messages 72
an announcement 62
a speed dial number 50
Deregister handsets 77
Dial
from a record in the caller ID
history 55
from the directory 44
Directory
dial a number 44
edit entries 44–45
name search 43
new entries 40–41
DSL 6–7
E
Ending a call 23
F
Find handset 31
H
Handset
handset locator 31
quick reference guide 1–2
ringer tone 12
ringer volume 12
screen icons 78
speakerphone 24
temporary ringer silencing 24
voicemail indicator 68
Headset 10
Hold 28
Home area code
handset 16
telephone base 22
105
Index
Index
I
Important safety information 93–94
Installation 5–9
Intercom 32–35
K
Key tone
handset 14
telephone base 20
L
Last number redial 24–26
LCD language 13, 19
Lights 81
Limited warranty 101–102
M
Maintenance 92
Making calls 23
Memo 73–74
Memory match 53
Message
alert tone 67, 70
capacity 69
indicator 69
playback 71–72
Missed call indicator 52
Multiple handset use 31
Mute 27
N
Number of rings 65
O
Outgoing announcement 59–62
P
Phonebook 39
Power adapter 6–7
Predialing 23
Q
Quick reference guide 1–4
R
Reassign a speed dial number 50
Receving calls 23
Recharging 9
Redial 24–26
Remote access 66, 75
Remote access code 66
Ringer silencing 24
Ringer volume
handset 12
telephone base 18
Ring tone options
handset 12
telephone base 18
S
Safety information 93–94
Screen display message 82–83
Settings
answering system 59–67
handset 11–16
telephone base 17–22
Share an outside call 36
Silence the ringer 24
Speakerphone 24
Speed dial
assign a number 46
delete a number 50
edit a number 49–50
enter a number 46–47
T
Technical specifications 103
Telephone base
quick reference guide 3
ringer tone 18
ringer volume 18, 70
screen icons 79
voicemail indicator 19
Index
106
Temporary ringer silencing 24
Time
handset 15
telephone base 21
Transfer a call 34–35
Troubleshooting 84–91
V
Visual message waiting indicator 13,
19
Voicemail 68
Voice prompts 69
Volume control
handset 27, 71
telephone base 27, 70, 71
W
Warranty 101–102
Index
Use the wallet card to help you remember commands to control your answering
system from any touch-tone telephone.
Remote access wallet card
Fold here.
Cut along dotted line.
Action Remote command
Play all messages ..................1
Play new messages ...............2
Delete the message ..............3
Delete all old messages .....33
Repeat or go back .................4
Stop ...............................................5
Help menu ................................. 5
Skip the message ...................6
Record announcement ........ 7
End remote access call ......8 (or hang up)
Turn system off or on ..........0
Call your phone number, then
enter your two-digit access code
(preset to 19).
Models: TL88102/TL88202
Type: DECT 6.0 2-line cordless telephone/answering systemDECT 6.0 2-line cordless telephone/answering system
with caller ID/call waiting
© 2012-2016 Advanced American Telephones. All Rights Reserved.
AT&T and the AT&T logo are trademarks of AT&T Intellectual Property
licensed to Advanced American Telephones, San Antonio, TX 78219.
Printed in China.
© 2012-2016 Advanced American Telephones. All Rights Reserved.
AT&T and the AT&T logo are trademarks of AT&T Intellectual Property licensed to
Advanced American Telephones, San Antonio, TX 78219.
RBRC® and 1-800-8-BATTERY® are registered trademarks of the
Rechargeable Battery Recycling Corporation.
Printed in China. Issue 6.0 AT&T 07/16.
www.telephones.att.com
