1
Parts checklist

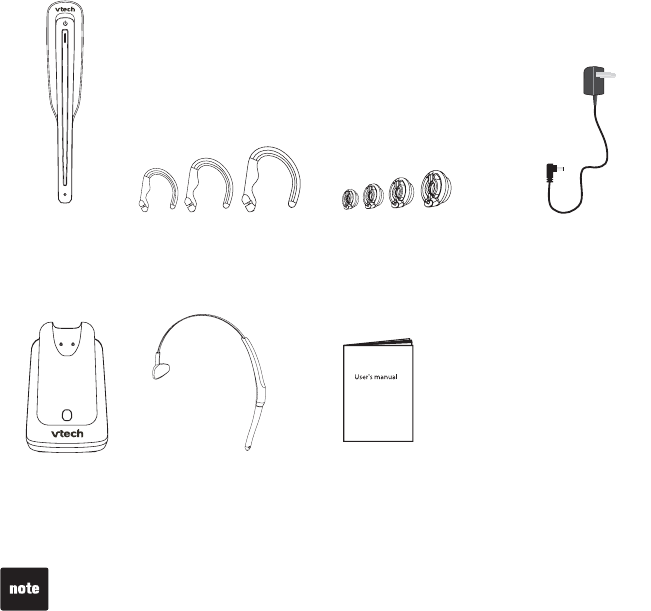

Your headset package contains the following items. Save your sales receipt and
original packaging in the event warranty service is necessary.
User’s manual
To purchase a replacement power adapter, visit our website at www.vtechphones.com
or call 1 (800) 595-9511. In Canada, go to www.vtechcanada.com or call
1 (800) 267-7377.
Cordless
headset with
a earbud
attached
Headset
charger
Headset charger
power adapter
Head band
Getting started
Ear hooks (3)
(Three different sizes)
Earbuds (4)
(One earbud attaches
to the headset and
three more in different
sizes)
Getting started
2
(on/off)
Press and hold for two seconds to power on or off.
Press to answer or end a call (page 12).
On in red when charging in the headset charger.
On in blue when fully charged in the headset charger.
Flashes twice every three seconds in blue while on a call.
Flashes once every 10 seconds in blue when in idle mode.
Flashes once every 10 seconds in red when in low battery mode.
Flashes quickly and alternately in red and blue while being registered.
Flashes quickly in blue when there is an incoming call.
Headset layout
MUTE/FLASH
While on a call, press to
mute the microphone (page 13).
While on a call, press and hold
to answer an incoming call when
you receive a call waiting alert
(page 13).
When there is an incoming call,
press to silence the ringer in the
earpiece temporarily.
Microphone
Earpiece
Rotating clip
Connect the ear hook
or head band.
+/-/VOLUME
While on a call, press to adjust
the listening volume (page 13).
When the headset is not in
use, press to adjust the ringer
volume (page 13).
RESET
inset button
3
Getting started
Headset charger installation
Install the headset charger as shown below.
Headset charger
Plug the small end of
the headset charger
power adapter into
the power jack of the
headset charger.
Plug the big end of the headset
charger power adapter into an
electrical outlet not controlled by a
wall switch.
Power on the headset
Being using the headset, you need to power it on. Place the headset in the headset
charger or press and hold for two seconds. The NKIJVƀCUJGUVJTGGVKOGUKPDNWG
CPFVJGPƀCUJGUUNQYN[CPFCNVGTPCVGN[KPTGFCPFDNWG
Headset charging
After installing the headset charger,
charge the headset as shown below.
The headset is fully charged after
three hours of continuous charging.
If the light does not turn on while
charging, you need to charge the
headset without interruption for at least
15 minutes to give the headset enough
charge to use for a short time. For
best performance, keep the headset in
the headset charger when not in use.
See the table on page 16 for battery
operating times.
If the headset will not be used for a long time, press and hold for two seconds to
power off the headset. The NKIJVƀCUJGUVJTGGVKOGUKPTGF
1. Place the tip of the headset
in the small cradle on the
headset charger.
2. The magnet holds
the top of the
headset in place.
The light turns
on when charging.
Getting started
4
Add and register a headset
Each newly purchased headset (IS6100) must be registered to a VTech DECT 6.0
EQTFNGUUVGNGRJQPGU[UVGODGHQTGWUG6QſPFQWVCNNOQFGNUQH86GEJ&'%6
cordless telephone system that are compatible with the headset, please visit our
website at www.vtechphones.com.
The telephone base recognizes and counts a headset the same as a handset. You can
place the headset charger anywhere you have an available power outlet.
Refer to your telephone user’s manual for a maximum number of headsets that
you can register to the telephone base. If you already have the maximum number
of handsets registered, you need to follow the deregistration information in your
telephone user’s manual before adding a new headset.
To register a headset:
Place the unregistered headset in the headset charger and allow it to charge for
at least 15 minutes before beginning registration. Remove the headset from the
headset charger. The NKIJVƀCUJGUUNQYN[CPFCNVGTPCVGN[KPTGFCPFDNWG
On the telephone base of the cordless telephone, press and hold
/FIND HANDSET for about four seconds until the red IN USE light turns on and
then release the button.
Immediately place the headset in the headset charger. It takes about 60 seconds
to complete the registration. The light turns red and the red IN USE light on the
telephone base turns off when the registration completes.
When the registration is complete, press on the headset and you hear a dial tone.
If the registration fails, press and you hear “Not registered”. The NKIJVƀCUJGU
slowly and alternately in red and blue. To reset the headset, remove it from the
headset charger and then place it back into the headset charger. Try the registration
process again.
1.
2.
3.
You cannot register a headset if any other system handset or headset is in use. You
can only register one headset to the telephone base at a time.
The headset must be deregistered before registering it to another telephone system.
•
•
Getting started
5
Replace a headset
If you want to replace a headset or reassign the designated headset number of a
registered headset, you must deregister all handsets and headsets that are registered
to the same telephone base. Then register each handset and headset individually.
To make deregistration easier, read all of the instructions on this page before
you begin.
To deregister all headsets:
Press and hold /FIND HANDSET on the telephone base for about 10 seconds
until the IN USENKIJVQPVJGVGNGRJQPGDCUGVWTPUQPCPFUVCTVUVQƀCUJ6JGP
release /FIND HANDSET.
Immediately press and release /FIND HANDSET again while the IN USE light is
UVKNNƀCUJKPI6JGIN USENKIJVƀCUJGUHQTCRRTQZKOCVGN[UGXGPUGEQPFU
The deregistration process takes up to 10 seconds to complete. There is a
EQPſTOCVKQPVQPGHTQOVJGVGNGRJQPGDCUG6JG NKIJVƀCUJGUUNQYN[CPF
alternately in red and blue when the deregistration completes.
When the deregistration is complete, press on the handset and you hear
“Not registered”. If the deregistration fails, press and you hear a dial tone. You may
need to reset the telephone and try again.
To reset:
Pick up the registered headset and press the RESET inset button with a paperclip
or similar object.
-OR-
Unplug the power from the telephone base, then plug it back in.
1.
2.
3.
•
•
You cannot deregister a headset if any system handset or headset is in use.
6
Getting started
Headset attachments
Earbud
There are four sizes of earbud provided and one of them has been attached to the
headset.
To remove the earbud from the headset earpiece:
Holding both sides of the earbud and then pull the earbud until it separates from
the earpiece.
To attach the earbud to the headset earpiece:
Choose an appropriate earbud.
Press the earbud towards the earpiece until it clicks into place. Move the earbud
around so that the protruding bump on the earbud is pointing towards your mouth
when placed on your ear.
1.
2.
Getting started
7
Headset attachments (continued)
Ear hook
There are three sizes of ear hook provided.
To attach the ear hook to the headset:
Remove any headset attachment (earbud excluded) connected to the headset.
Choose an appropriate ear hook.

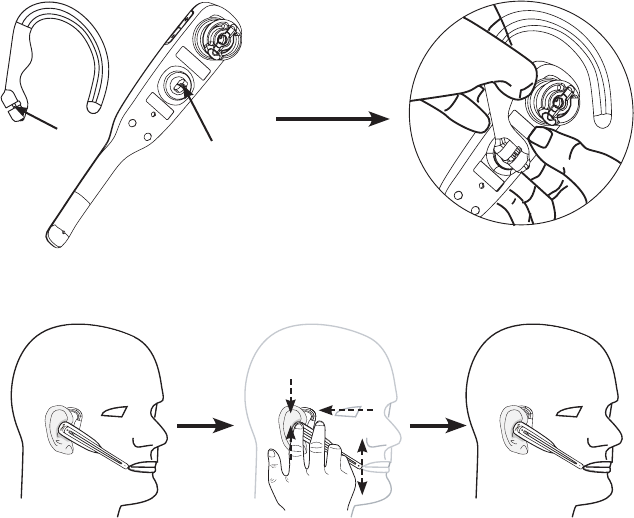

Insert the ear hook [A] into the rotating clip [B] on the headset until it clicks
into place.
Hook the headset on the right ear. Adjust the angle of the headset until the
microphone is pointing towards your mouth. Firmly grip the earpiece with one hand
whenever adjusting the headset microphone up or down.
1.
2.
3.
4.
[A]
[B]
Getting started
8
Headset attachments (continued)

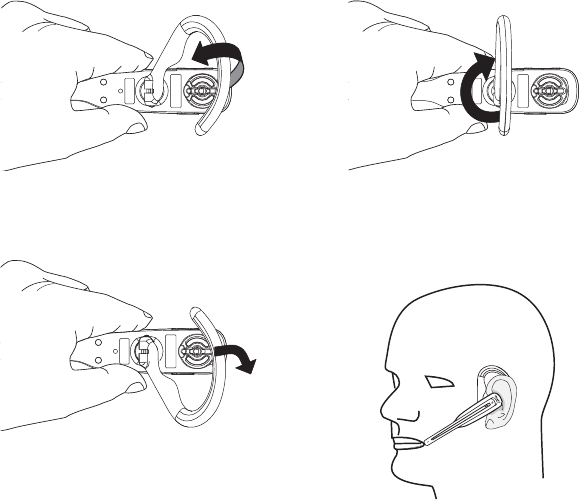

To adjust the headset to wear on the left ear:
1. Hold the headset with one hand.
Lift the ear hook upward.
2. Twist the ear hook 180 o in a clockwise
direction.
3. Push the ear hook downward. 4. Hook the headset on the left ear. Adjust
the angle of the headset until the
microphone is pointing towards your
mouth.
Getting started
9
Headset attachments (continued)

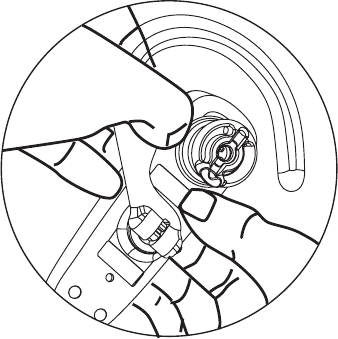

To remove the ear hook from the headset:
Hold the headset with one hand and the ear hook with the other hand.
Pull the end of the ear hook up until it separates from the rotating clip on
the headset.
1.
2.
Getting started
10
Headset attachments (continued)
Head band

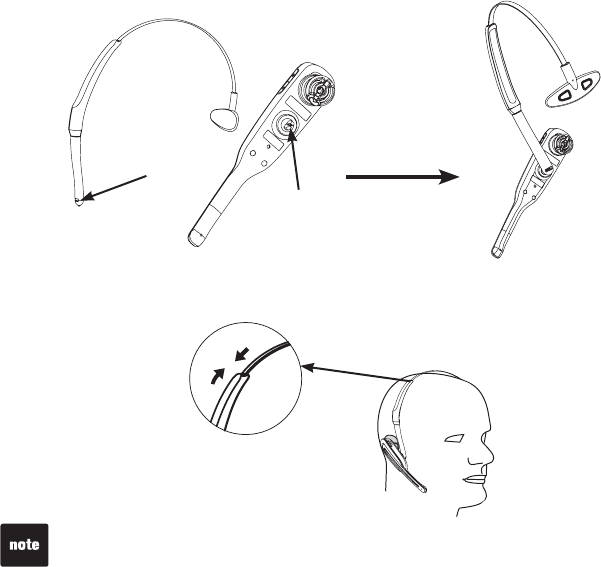

To attach the head band to the headset:
To wear on the left ear, hold the headset on one hand and the head band with the other
hand. Rotate the head band within the rotating clip on the headset.

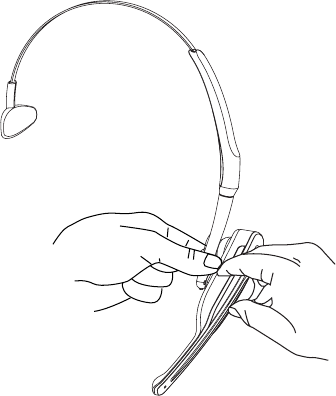

1. Remove any headset attachment (earbud excluded) connected to the headset.
2. To wear the headset on the right ear, insert the head band [A] into the rotating
clip [B] on the headset until it clicks into place.
#FLWUVVJGJGCFDCPFVQſV[QWTJGCF#FLWUVCPFTQVCVGVJGCPINGQHVJGJGCFUGV
until the microphone is pointing towards your mouth. Firmly grip the earpiece with
one hand whenever adjusting the headset microphone up or down.
[A]
[B]
Getting started
11
Headset attachments (continued)
To remove the head band from the headset:
Hold the headset with one hand and the head band with the other hand. Pull the end
of the head band until it separates from the rotating clip on the headset.
12
Make a call
Follow the instructions in your telephone user’s manual for making calls.
Press on the headset at any time to join the call.
After you join the call on the headset, you can hang up the telephone and continue
the call on the headset.
Answer a call
Press on the headset.
End a call
Press on the headset or place the headset in the headset charger.
Ringer
The headset does not have an external ringer. When there is an incoming call, the
headset earpiece rings.
If you have telephones connected to the same telephone line, you can rely on the
ringers of those telephones to alert you to incoming calls.
Temporary ringer silencing
When there is an incoming call, you can temporarily silence the ringer in the
headset earpiece without disconnecting the call. The next call rings normally at the
preset volume.
To silence the headset ringer:
Press MUTE/FLASH on the headset.
1.
2.
3.
•
If you have more than one headsets registered to the telephone base, all headset
earpieces ring when there is an incoming call. Press MUTE/FLASH on one headset only
silences the ringer of that headset.
•
Headset operation
13
Headset operation
Volume control
To adjust the ringer volume:
When the headset is not in use, press +/-/VOLUME on the side of the headset.
To adjust the listening volume:
During a call, press +/-/VOLUME on the side of the headset.
Call waiting
When you subscribe to call waiting service from your telephone service provider, you
hear an alert tone from the headset earpiece if there is an incoming call while you are
on another call.
Press and hold MUTE/FLASH for two seconds to put your current call on hold and
take the new call.
Press and hold MUTE/FLASH for two seconds at any time to switch back and forth
between calls.
Mute
The mute function allows you to hear the other party but the other party cannot
hear you.
During a call, press MUTE/FLASH on the headset. The headset announces,
“Mute on.”
The headset beeps every 30 seconds until the mute function is
turned off.
Press MUTE/FLASH again to resume the conversation. The headset announces,
“Mute off.”
Switch a call between a handset and a headset
To switch from a cordless handset to a headset during a call, press on the
headset, then hang up the cordless handset.
To switch from a headset to a cordless handset during a call, press the button you
use to answer call on the handset, then press on the headset.
•
•
1.
2.
•
•
When the volume reaches the minimum or maximum setting, you will hear two
quick beeps.
•
14
Headset operation
Multiple headset/handset use
Headset(s) and handset(s) on the same phone line can join an outside call at the
same time. The number of headset(s) and handset(s) that can join may be limited by
your telephone system. See your telephone user’s manual for more information.
To share an outside call:
When a headset or handset is already on a call, press on another headset to join
the call.
To exit the call, press again or place the headset in the headset charger. The call
continues until all handsets and/or headsets hang up.
Answer an intercom call
Follow the instructions in your telephone user’s manual for initiating an intercom call.
When there is an intercom call request from a cordless telephone to a headset, the
headset earpiece rings if it is not in use.
To answer an intercom call:
Press on the headset to answer the intercom call.
Answer an incoming call during an intercom call
If you receive an incoming outside call during an intercom call, there will be an
alert tone.
To answer the call, press and hold MUTE/FLASH for two seconds. The intercom call
ends automatically.
To end the intercom call without answering the incoming call, press on the
headset. The telephone continues to ring.
End an intercom call
Press on the headset or place the headset in the headset charger.
•
•
•
•
15
Headset indicators
Headset alert tones
One beep Headset key tone.
One beep every 30 seconds Muted headset microphone alert tone.
Two low beeps Error alert tone.
Two rapid beeps every 20 seconds Low battery warning.
Three rapid beeps every 10 seconds Out of range while the headset is on a call.
A non-registered headset with a charged
battery.
•
•
Ringer tone Incoming call alert tone.
Headset lights
Red On when the headset is charging in the headset charger.
Flashes once every 10 seconds to indicate the battery is low.
Flashes three times when the headset is being power off.
•
•
•
Blue On when the headset is fully charged in the headset charger.
Flashes once every 10 seconds when the fully charged headset is
in idle mode.
Flashes twice every three seconds when the headset is in use.
Flashes three times when the headset is being power on.
Flashes quickly when there is an incoming call.
•
•
•
•
•
Red and blue Flashes quickly and alternately when the headset is trying to
register to a telephone base.
Flashes slowly and alternately when the headset is not registered.
•
•
Off The headset battery is depleted.
The headset has been powered off.
•
•
Appendix
16
Appendix
Headset battery
It takes up to three hours for the battery to be fully charged. When it is fully charged, you
can expect the following performance:
Operation Operating time
While in use (talking*) Up to nine hours
While not in use (standby**) Up to 90 hours
*Operating times vary depending on your actual use and the age of the battery.
**Headset is not charging or in use.
The battery needs charging when:
The headset beeps twice every 20 seconds.
The light is off when in idle mode.
The NKIJVƀCUJGUGXGT[UGEQPFUKPTGF
The light is off when placing in the headset charger.
Conserve battery life:
If the headset will not be used for a long period of time, press and hold on the headset for
two seconds to power off the headset and conserve the headset battery life. The NKIJVƀCUJGU
three times in red when the headset is being power off.
CAUTION:
6QRTGXGPVſTGQTUJQEMJC\CTFFQPQVGZRQUGVJKURTQFWEVVQYCVGTQTCP[V[RGQHOQKUVWTG
•
•
•
•
17
Appendix
Troubleshooting
+H[QWJCXGFKHſEWNV[YKVJ[QWTVGNGRJQPGRNGCUGVT[VJGUWIIGUVKQPUDGNQY
For customer service, visit our website at www.vtechphones.com, or call
1 (800) 595-9511. In Canada, go to www.vtechcanada.com or call 1 (800) 267-7377.
My headset does not work at all.
Make sure the telephone line cord is plWIIGFſTON[KPVQVJGVGNGRJQPGDCUGCPFVJGVGNGRJQPG
Charge the headset in the headset charger for up to three hours.
Make sure the headset charger power adapter is securely plugged into an electrical outlet
(pages 3). For optimum daily performance, return the headset to the headset charger
after use.
Unplug the electrical power to the telephone base. Wait for approximately 15 seconds,
then plug it back in. Allow up to one minute for the cordless headset and telephone base to
synchronize.
Other electronic products such as HAM radios and other DECT phones can cause interference
with your cordless phone. Try installing your phone as far away as possible from these types
of electronic devices.
If the headset battery is completely depleted, it may take up to 15 minutes to charge the
headset before the headset has enough charge to use for a short time.enough charge to use for a short time.
The headset battery may be wearing out. Contact our customer service for assistance.
I cannot dial out.
You must use a telephone on the same line to dial out. Once you have dialed the number, you
can press on the headset to take the call. After the headset is activated, you can hang up
the telephone from which you dialed from.
If other telephones in your home are having the same problem, the problem is in your wiring or
telephone service. Contact your telephone service provider (charges may apply).
6JGTGFQTDNWGNKIJVMGGRUƀCUJKPIQPVJGheadset key.
&KHHGTGPVƀCUJKPIRCVVGTPUQHVJGTGFCPFQTDNWGNKIJVUKPFKECVGFKHHGTGPVEQPFKVKQPUQHVJG
headset. Refer to Headset lights on page 15.
The other party cannot hear my voice during a call.
Make sure the mute feature is not turned on during a call (page 13).
•
•
•
•
•
•
•
•
•
•
•
18
Appendix
Troubleshooting
The headset does not charge in the headset charger.
Make sure the headset charger power adapter is securely plugged into an electrical outlet
(pages 3). For optimum daily performance, return the headset to the headset charger
after use.
Make sure the cordless headset is placed in the headset charger correctly. The headset
light should be on.
Unplug the headset charger and then plug it back, then charge for up to three hours.
If the cordless headset is in the headset charger and the headset light is not on, refer tois not on, refer to
The light on the headset is off while charging is off while charging below.
If the battery is completely depleted, it may take up to up to 15 minutes to charge the headset
before it has enough charge to be used for a short time. For optimum daily performance,
return the cordless headset to the headset charger when not in use.
The headset battery may be wearing out. Contact our customer service for assistance.
The light on the headset is off while charging.
Make sure the headset charger power adapter is correctly and securely plugged in the
electrical outlet.
Make sure the headset is sitting properly in the headset charger to charge.
Clean the charging contacts on the headset and headset charger each month with a pencil
eraser or a dry non-abrasive fabric.
Unplug the headset charger power adapter. Wait for 15 seconds before plugging it back in.
My cordless headset is not performing normally.
Make sure the power cord is correctly and securely plugged into the headset charger. Plug the
telephone base into a different working electrical outlet not controlled by a wall switch.
Move the cordless headset closer to the telephone base. It may be out of range.
Other electronic products such as HAM radios and other DECT phones can cause interference
with your cordless phone. Try installing your phone as far away as possible from these types
of electronic devices.
If your have tried the above suggestions and the headset is still not performing normally, press
the RESET inset button with a paperclip or similar object once to restart the headset.
•
•
•
•
•
•
•
•
•
•
•
•
•
•
19
Appendix
Troubleshooting
I cannot hear any ring tone from the cordless headset when there is an
incoming call.
The headset does not have an external ringer. The ring tone can only be heard through the
headset earpiece.
If you have pressed MUTE/FLASH on the cordless headset when it is ringing, it mutes the ring
tone of the headset. The ring tone resumes on the next call.
The headset may be too far from the telephone base. Move it closer to the telephone base.
You may have too many extension phones on the telephone line to allow all of them to ring
simultaneously. Unplug some of them.
6JGNC[QWVQH[QWTJQOGQTQHſEGOC[DGNKOKVKPIVJGQRGTCVKPITCPIG6T[OQXKPIVJG
telephone base to another location, preferably on a higher location.
If other telephones in your home are having the same problem, the problem is in the wiring or
telephone service. Contact your telephone service provider.
Other electronic products such as HAM radios and other DECT phones can cause interference
with your cordless phone. Try installing your phone as far away as possible from these types
of electronic devices.
Test a working telephone at the telephone wall jack. If another telephone has the same
problem, there may be problem with the telephone wall jack. Contact your telephone
service provider.
The telephone line cord may be defective. Install a new telephone line cord.
There is interference during a telephone conversation.
My calls fade out when I am using the cordless headset.
The cordless headset may be out of range. Move it closer to the telephone base.
If you subscribe to high-speed Internet service (digital subscriber line - DSL) through your
VGNGRJQPGNKPG[QWOWUVKPUVCNNC&5.ſNVGTDGVYGGPVJGVGNGRJQPGNKPGEQTFCPFVJGVGNGRJQPG
YCNNLCEM6JGſNVGTRTGXGPVUPQKUGCPFECNNGT+&RTQDNGOUECWUGFD[&5.KPVGTHGTGPEG
%QPVCEV[QWT&5.UGTXKEGRTQXKFGTHQTOQTGKPHQTOCVKQPCDQWV&5.ſNVGTU
Appliances or other cordless telephones plugged into the same circuit as the telephone base
can cause interference. Try moving the appliance or telephone base to another outlet.
Other electronic products such as HAM radios and other DECT phones can cause interference
with your cordless phone. Try installing your phone as far away as possible from these types
of electronic devices.
If your telephone is plugged in with a modem or a surge protector, plug the telephone (or
modem/surge protector) into a different location. If this doesn’t solve the problem, relocate
your telephone or modem farther apart from each other, or use a different surge protector.
•
•
•
•
•
•
•
•
•
•
•
•
•
•
20
Appendix
Troubleshooting
The location of your telephone base can impact the performance of your cordless headset. For
DGVVGTTGEGRVKQPKPUVCNNVJGVGNGRJQPGDCUGKPCEGPVTCNK\GFNQECVKQPYKVJKP[QWTJQOGQTQHſEG
away from walls or other obstructions. In many environments, relocating the telephone base to
a higher location improves overall performance.
Disconnect the telephone base from the telephone wall jack and plug in a corded telephone. If
calls are still not clear, the problem is probably in the wiring or telephone service. Contact your
telephone service provider (charges may apply).
If other telephones in your home are having the same problem, the problem is in the wiring or
telephone service. Contact your telephone service provider.
I hear other calls when using my cordless headset.
Disconnect the telephone base from the telephone wall jack. Plug in a different telephone. If
you still hear other calls, the problem is probably in the wiring or telephone service. Call your
telephone service provider.
I cannot register the headset.
Only one headset can be registered at a time. If you have multiple headsets to register, please
follow the instructions on page 4HQTVJGſTUVJGCFUGV1PEGCJGCFUGVJCUDGGPUWEEGUUHWNN[
registered, repeat the steps for each headset that needs to be registered.
If you have already registered the maximum numbers of handsets and/or headsets that the
telephone system accommodates, you need to follow the deregistration instructions before
registering a headset. Refer to Add and register a headset on page 4 and Replace a
headset on page 5.
Make sure that all registered handsets, registered headsets and telephone base are in idle
mode when registering a headset.
Follow the steps on page 21 for the common cure for electronic equipment, then try again to
register a headset.
I want to use my cordless headset with a different telephone base.
You need to deregister the headset from the current telephone base (page 5) and then
register it to the new telephone base.
Make sure the power cord is securely plugged into the telephone base. Use a working
electrical outlet not controlled by a wall switch.
Reset your telephone by unplugging the power adapter from the telephone base.
Other electronic products such as HAM radios and other DECT phones can cause interference
with your cordless phone. Try installing your phone as far away as possible from these types
of electronic devices.
•
•
•
•
•
•
•
•
•
•
•
•
21
Appendix
Common cure for electronic equipment.
If the unit is not responding normally, put the cordless headset in its charger. If it does not
respond, try the following (in the order listed):
- Disconnect the power to the telephone base.
- Wait a few minutes before connecting power to the telephone base.
- Remove and place the cordless headset in its charger.
- Wait for the cordless headset to synchronize with the telephone base. Allow up to one
minute for this to take place.
•
Troubleshooting
22
Appendix
Important safety instructions
When using your telephone equipment, basic safety precautions should always be followed to reduce the risk
QHſTGGNGEVTKEUJQEMCPFKPLWT[KPENWFKPIVJGHQNNQYKPI
Read and understand all instructions.
Follow all warnings and instructions marked on the product.
Unplug this product from the wall outlet before cleaning. Do not use liquid or aerosol cleaners. Use a damp
cloth for cleaning.
Do not use this product near water.
Do not place this product on an unstable table, shelf, stand or other unstable surfaces.
Slots and openings in the back or bottom of the telephone base and handset are provided for ventilation.
To protect them from overheating, these openings must not be blocked by placing the product on a soft
surface such as a bed, sofa or rug. This product should never be placed near or over a radiator or heat
register. This product should not be placed in any area where proper ventilation is not provided.
This product should be operated only from the type of power source indicated on the marking label. If
[QWCTGPQVUWTGQHVJGV[RGQHRQYGTUWRRN[KP[QWTJQOGQTQHſEGEQPUWNV[QWTFGCNGTQTNQECNRQYGT
company.
Do not allow anything to rest on the power cord. Do not install this product where the cord may be
walked on.
Never push objects of any kind into this product through the slots in the headset charger or headset
because they may touch dangerous voltage points or create a short circuit. Never spill liquid of any kind on
the product.
To reduce the risk of electric shock, do not disassemble this product, but take it to an authorized
service facility. Opening or removing parts of the headset charger and headset may expose you to
dangerous voltages or other risks. Incorrect reassembling can cause electric shock when the product is
subsequently used.
Do not overload wall outlets and extension cords.
Unplug this product from the wall outlet and refer servicing to an authorized service facility under the
following conditions:
When the power supply cord or plug is damaged or frayed.
If liquid has been spilled onto the product.
If the product has been exposed to rain or water.
If the product does not operate normally by following the operating instructions. Adjust only those
controls that are covered by the operation instructions. Improper adjustment of other controls may
result in damage and often requires extensive work by an authorized technician to restore the product
to normal operation.
If the product has been dropped and the headset charger and/or headset has been damaged.
If the product exhibits a distinct change in performance.
Avoid using a telephone (other than cordless) during an electrical storm. There is a remote risk of electric
shock from lightning.
Do not use the telephone to report a gas leak in the vicinity of the leak.
6JGRQYGTCFCRVGTKUKPVGPFGFVQDGEQTTGEVN[QTKGPVGFKPCXGTVKECNQTƀQQTOQWPVRQUKVKQP6JGRTQPIUCTG
not designed to hold the plug in place if it is plugged into a ceiling under-the-table or cabinet outlet.
SAVE THESE INSTRUCTIONS
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
A.
B.
C.
D.
E.
F.
13.
14.
15.
23
Appendix
Precautions for users of implanted cardiac pacemakers
Cardiac pacemakers (applies only to digital cordless telephones):
Wireless Technology Research, LLC (WTR), an independent research entity, led a multidisciplinary evaluation
of the interference between portable wireless telephones and implanted cardiac pacemakers. Supported by
the U.S. Food and Drug Administration, WTR recommends to physicians that:
Pacemaker patients
Should keep wireless telephones at least six inches from the pacemaker.
Should NOT place wireless telephones directly over the pacemaker, such as in a breast pocket, when it is
turned ON.
Should use the wireless telephone at the ear opposite the pacemaker.
WTR’s evaluation did not identify any risk to bystanders with pacemakers from other persons using wireless
telephones.
Operating range
This cordless headset operates with the maximum power allowed by the Federal Communications
Commission (FCC). Even so, this headset and telephone base can communicate over only a certain distance
- which can vary with the locations of the telephone base and headset, the weather, and the layout of your
JQOGQTQHſEG
When the headset is out of range, the headset earpiece rapidly beeps three times every 10 seconds.
If there is a call while the headset is out of range, it may not ring, or if it does ring, the call may not connect
well when you press on the handset. Move closer to the telephone base, then press on the headset to
answer the call.
If the headset moves out of range during a telephone conversation, there may be interference.
To improve reception, move closer to the telephone base.
•
•
•
24
Appendix
About cordless headset
Privacy: The same features that make a cordless headset convenient create some limitations. Telephone
calls are transmitted between the telephone base and the cordless headset by radio waves, so there is a
possibility that the cordless telephone conversations could be intercepted by radio receiving equipment
within range of the cordless headset. For this reason, you should not think of cordless telephone
conversations as being as private as those on corded telephones.
Electrical power: The telephone base of this cordless headset must be connected to a working electrical
outlet. The electrical outlet should not be controlled by a wall switch. Calls cannot be made from the
cordless headset if the telephone base is unplugged, switched off or if the electrical power is interrupted.
Potential TV interference: Some cordless headsets operate at frequencies that may cause interference to
televisions and VCRs. To minimize or prevent such interference, do not place the telephone base of which
the cordless headset id registered near or on top of a TV or VCR. If interference is experienced, moving the
cordless headset farther away from the TV or VCR often reduces or eliminates the interference.
•
•
•
Maintenance
Taking care of your telephone
Your cordless headset contains sophisticated electronic parts, so it must be treated with care.
Avoid rough treatment
Place the headset down gently. Save the original packing materials to protect your headset if you ever need to
ship it.
Avoid water
Your headset can be damaged if it gets wet. Do not use the headset outdoors in the rain, or handle it with wet
hands. Do not install the headset charger near a sink, bathtub or shower.
Electrical storms
Electrical storms can sometimes cause power surges harmful to electronic equipment. For your own safety,
take caution when using electrical appliances during storms.
Cleaning your headset
Your headset has a durable plastic casing that should retain its luster for many years. Clean it only with a soft
cloth slightly dampened with water or a mild soap. Do not use excess water or cleaning solvents of any kind.
25
Appendix
Warranty
What does this limited warranty cover?
The manufacturer of this VTech Product warrants to the holder of a valid proof of purchase (“Consumer” or
“you”) that the Product and all accessories provided in the sales package (“Product”) are free from defects in
material and workmanship, pursuant to the following terms and conditions, when installed and used normally
and in accordance with the Product operating instructions. This limited warranty extends only to the Consumer
for Products purchased and used in the United States of America and Canada.
What will VTech do if the Product is not free from defects in materials and workmanship during the
limited warranty period (“Materially Defective Product”)?
During the limited warranty period, VTech’s authorized service representative will repair or replace at VTech’s
option, without charge, a Materially Defective Product. If we repair the Product, we may use new or refurbished
replacement parts. If we choose to replace the Product, we may replace it with a new or refurbished Product of
the same or similar design. We will retain defective parts, modules, or equipment. Repair or replacement of the
Product, at VTech’s option, is your exclusive remedy. VTech will return the repaired or replacement Products
to you in working condition. You should expect the repair or replacement to take approximately 30 days.
How long is the limited warranty period?
The limited warranty period for the Product extends for ONE (1) YEAR from the date of purchase. If VTech
repairs or replaces a Materially Defective Product under the terms of this limited warranty, this limited warranty
also applies to the repaired or replacement Product for a period of either (a) 90 days from the date the
repaired or replacement Product is shipped to you or (b) the time remaining on the original one-year warranty;
whichever is longer.
What is not covered by this limited warranty?
This limited warranty does not cover:
1. Product that has been subjected to misuse, accident, shipping or other physical damage, improper
KPUVCNNCVKQPCDPQTOCNQRGTCVKQPQTJCPFNKPIPGINGEVKPWPFCVKQPſTGYCVGTQTQVJGTNKSWKFKPVTWUKQPQT
2TQFWEVVJCVJCUDGGPFCOCIGFFWGVQTGRCKTCNVGTCVKQPQTOQFKſECVKQPD[CP[QPGQVJGTVJCPCPCWVJQTK\GF
service representative of VTech; or
3. Product to the extent that the problem experienced is caused by signal conditions, network reliability, or
cable or antenna systems; or
4. Product to the extent that the problem is caused by use with non-VTech accessories; or
5. Product whose warranty/quality stickers, product serial number plates or electronic serial numbers have
been removed, altered or rendered illegible; or
6. Product purchased, used, serviced, or shipped for repair from outside the United States of America or
Canada, or used for commercial or institutional purposes (including but not limited to Products used for
rental purposes); or
7. Product returned without a valid proof of purchase (see item 2 below); or
8. Charges for installation or set up, adjustment of customer controls, and installation or repair of systems
outside the unit.
26
Appendix
How do you get warranty service?
To obtain warranty service in the United States of America, visit www.vtechphones.com or call
1 (800) 595-9511. In Canada, go to www.vtechcanada.com or call 1 (800) 267-7377.
NOTE: Before calling for service, please review the user’s manual - a check of the Product’s controls and
features may save you a service call.
Except as provided by applicable law, you assume the risk of loss or damage during transit and transportation
and are responsible for delivery or handling charges incurred in the transport of the Product(s) to the service
location. VTech will return repaired or replaced Product under this limited warranty. Transportation, delivery
or handling charges are prepaid. VTech assumes no risk for damage or loss of the Product in transit. If the
Product failure is not covered by this limited warranty, or proof of purchase does not meet the terms of this
limited warranty, VTech will notify you and will request that you authorize the cost of repair prior to any further
repair activity. You must pay for the cost of repair and return shipping costs for the repair of Products that are
not covered by this limited warranty.
What must you return with the Product to get warranty service?
Return the entire original package and contents including the Product to the VTech service location along
YKVJCFGUETKRVKQPQHVJGOCNHWPEVKQPQTFKHſEWNV[CPF
Include a “valid proof of purchase” (sales receipt) identifying the Product purchased (Product model) and
the date of purchase or receipt; and
3. Provide your name, complete and correct mailing address, and telephone number.
Other limitations
This warranty is the complete and exclusive agreement between you and VTech. It supersedes all other
written or oral communications related to this Product. VTech provides no other warranties for this Product.
The warranty exclusively describes all of VTech’s responsibilities regarding the Product. There are no other
GZRTGUUYCTTCPVKGU0QQPGKUCWVJQTK\GFVQOCMGOQFKſECVKQPUVQVJKUNKOKVGFYCTTCPV[CPF[QWUJQWNFPQVTGN[
QPCP[UWEJOQFKſECVKQP
5VCVG2TQXKPEKCN.CY4KIJVU6JKUYCTTCPV[IKXGU[QWURGEKſENGICNTKIJVUCPF[QWOC[CNUQJCXGQVJGTTKIJVU
which vary from state to state or province to province.
.KOKVCVKQPU+ORNKGFYCTTCPVKGUKPENWFKPIVJQUGQHſVPGUUHQTCRCTVKEWNCTRWTRQUGCPFOGTEJCPVCDKNKV[CP
WPYTKVVGPYCTTCPV[VJCVVJG2TQFWEVKUſVHQTQTFKPCT[WUGCTGNKOKVGFVQQPG[GCTHTQOVJGFCVGQHRWTEJCUG
Some states/provinces do not allow limitations on how long an implied warranty lasts, so the above limitation
may not apply to you. In no event shall VTech be liable for any indirect, special, incidental, consequential,
QTUKOKNCTFCOCIGUKPENWFKPIDWVPQVNKOKVGFVQNQUVRTQſVUQTTGXGPWGKPCDKNKV[VQWUGVJG2TQFWEVQTQVJGT
associated equipment, the cost of substitute equipment, and claims by third parties) resulting from the use
of this Product. Some states/provinces do not allow the exclusion or limitation of incidental or consequential
damages, so the above limitation or exclusion may not apply to you.
Please retain your original sales receipt as proof of purchase.
1.
2.
Warranty (continued)
27
Appendix
FCC, ACTA and IC regulations
FCC Part 15
This equipment has been tested and found to comply with the requirements for a Class B digital device under
Part 15 of the Federal Communications Commission (FCC) rules. These requirements are intended to provide
reasonable protection against harmful interference in a residential installation. This equipment generates, uses
and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no guarantee that interference will
not occur in a particular installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
%JCPIGUQTOQFKſECVKQPUVQVJKUGSWKROGPVPQVGZRTGUUN[CRRTQXGFD[VJGRCTV[TGURQPUKDNGHQTEQORNKCPEG
could void the user’s authority to operate the equipment.
This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1)
this device may not cause harmful interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation. Privacy of communications may not be ensured
when using this telephone.
To ensure safety of users, the FCC has established criteria for the amount of radio frequency energy that can
be safely absorbed by a user or bystander according to the intended usage of the product. This product has
been tested and found to comply with the FCC criteria. The headset may be safely held against the ear of the
user. The telephone base shall be installed and used such that parts of the user’s body other than the hands
are maintained at a distance of approximately 20 cm (8 inches) or more.
This Class B digital apparatus complies with Canadian ICES-003.
FCC Part 68 and ACTA
This equipment complies with Part 68 of the FCC rules and with technical requirements adopted by the
Administrative Council for Terminal Attachments (ACTA). The label on the back or bottom of this equipment
EQPVCKPUCOQPIQVJGTVJKPIUCRTQFWEVKFGPVKſGTKPVJGHQTOCV75###'36::::6JKUKFGPVKſGTOWUVDG
provided to your telephone service provider upon request.
The plug and jack used to connect this equipment to premises wiring and the telephone network must comply
with applicable Part 68 rules and technical requirements adopted by ACTA. A compliant telephone cord and
modular plug is provided with this product. It is designed to be connected to a compatible modular jack that is
also compliant. An RJ11 jack should normally be used for connecting to a single line and an RJ14 jack for two
lines. See Installation Instructions in the user’s manual.
•
•
•
•
28
Appendix
The Ringer Equivalence Number (REN) is used to determine how many devices you may connect to your
telephone line and still have them ring when you are called. The REN for this product is encoded as the 6th
CPFVJEJCTCEVGTUHQNNQYKPIVJG75KPVJGRTQFWEVKFGPVKſGTGIKHKUVJG4'0KU+POQUVDWVPQV
CNNCTGCUVJGUWOQHCNN4'0UUJQWNFDGſXGQTNGUU(QTOQTGKPHQTOCVKQPRNGCUGEQPVCEV[QWTVGNGRJQPG
service provider.
This equipment may not be used with Party Lines. If you have specially wired alarm dialing equipment
connected to your telephone line, ensure the connection of this equipment does not disable your alarm
equipment. If you have questions about what will disable alarm equipment, consult your telephone service
RTQXKFGTQTCSWCNKſGFKPUVCNNGT
If this equipment is malfunctioning, it must be unplugged from the modular jack until the problem has been
corrected. Repairs to this telephone equipment can only be made by the manufacturer or its authorized agents.
For repair procedures, follow the instructions outlined under Warranty.
If this equipment is causing harm to the telephone network, your telephone service provider may temporarily
discontinue your telephone service. Your telephone service provider is required to notify you before
KPVGTTWRVKPIUGTXKEG+HCFXCPEGPQVKEGKUPQVRTCEVKECN[QWYKNNDGPQVKſGFCUUQQPCURQUUKDNG;QWYKNNDG
given the opportunity to correct the problem and your telephone service provider is required to inform you of
[QWTTKIJVVQſNGCEQORNCKPVYKVJVJG(%%;QWTVGNGRJQPGUGTXKEGRTQXKFGTOC[OCMGEJCPIGUKPKVUHCEKNKVKGU
equipment, operation, or procedures that could affect the proper functioning of this product. Your telephone
service provider is required to notify you if such changes are planned.
If this product is equipped with a corded or cordless handset, it is hearing aid compatible.
If this product has memory dialing locations, you may choose to store emergency telephone numbers (e.g.,
RQNKEGſTGOGFKECNKPVJGUGNQECVKQPU+H[QWFQUVQTGQTVGUVGOGTIGPE[PWODGTURNGCUG
4GOCKPQPVJGNKPGCPFDTKGƀ[GZRNCKPVJGTGCUQPHQTVJGECNNDGHQTGJCPIKPIWR
Perform such activities in off-peak hours, such as early morning or late evening.
Industry Canada
Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2)
this device must accept any interference, including interference that may cause undesired operation.
6JGVGTOŎŏ+%ŎŏDGHQTGVJGEGTVKſECVKQPTGIKUVTCVKQPPWODGTQPN[UKIPKſGUVJCVVJG+PFWUVT[%CPCFCVGEJPKECN
URGEKſECVKQPUYGTGOGV
The Ringer Equivalence Number (REN) for this terminal equipment is 0.1. The REN is an indication of the
maximum number of devices allowed to be connected to a telephone interface. The termination on an interface
may consist of any combination of devices subject only to the requirement that the sum of the RENs of all the
FGXKEGUFQGUPQVGZEGGFſXG
6JKURTQFWEVOGGVUVJGCRRNKECDNG+PFWUVT[%CPCFCVGEJPKECNURGEKſECVKQPU
FCC, ACTA and IC regulations (continued)
29
Appendix
RE frequency band 1921.536-1928.448 MHz
Channels 5
Nominal effective range Maximum power allowed by FCC and IC. Actual operating range
might vary according to environmental conditions at the time
of use.
Operating temperature 32°F - 122°F
0°C - 50°C
Headset charger voltage
(AC voltage, 60Hz)
96 - 127 Vrms
Headset charger voltage
(AC adapter output)
6V DC @ 400mA
Headset voltage 3.2 - 4.2 VDC
6GEJPKECNURGEKſECVKQPU
30
Index
A
About cordless headset 24
Add a headset 4
Adjust the ear hook 8
Adjust the head band 10
Alert tones 15
Answer a call 12
Answer an incoming call during
an intercom call 14
Answer an intercom call 14
Answer a transferred call 14
Attachment 7, 10
Attach the earbud 6
Attach the ear hook 7
Attach the head band 10
B
Battery 16
C
Call waiting 13
Charging headset 3
D
Deregister a headset 5
E
Earbud installation 6
Ear hook attachment 7
Earpiece 2
End a call 12
End an intercom call 14
End a transferred call 14
F
FCC, ACTA and IC regulations 27
H
Head band attachment 10
Headset alert tones 15
Headset battery 16
Headset charger installation 3
Headset charging 3
Headset earpiece 2
Headset indicators 15
Headset layout 2
Headset lights 15
I
Implanted cardiac pacemakers 23
Important safety instructions 22
Installation 3, 6
L
Layout 2
Listening volume 13
M
Maintenance 24
Make a call 12
Multiple headset/handset use 14
Mute 13
O
Operating range 23
P
Parts checklist 1
Precautions for users of implanted
cardiac pacemakers 23
31
Index
R
Range 23
Register a headset 4
Remove the earbud 6
Remove the ear hook 9
Remove the head band 11
Replace a headset 5
Ringer 12
Ringer volume 13
S
Safety instructions 22
Share outside call 14
Switch a call between handset
and headset 13
T
6GEJPKECNURGEKſECVKQPU29
Temporary ringer silencing 12
Troubleshooting 17
V
Volume control 13
W
Warranty 25
VTECH TELECOMMUNICATIONS LTD.
A member of THE VTECH GROUP OF COMPANIES.
Distributed in the U.S.A. by VTech Communications, Inc., Beaverton, Oregon 97008
Distributed in Canada by VTech Technologies Canada, Ltd., Richmond, B.C. V6W 1L5
Copyright © 2010 for VTECH TELECOMMUNICATIONS LTD.
Printed in China.
91-003694-010-100
