Models:
VM321/VM321-2
Baby monitor
User’s manual
i
Congratulations
on purchasing your new VTech product. Before using this
product, please read Important safety instructions on the
following page of this manual.
This manual has all the feature operations and troubleshooting
necessary to install and operate your new VTech product.
Please review this manual thoroughly to ensure proper
installation and operation of this innovative and feature rich
VTech product. For support, shopping, and everything new at
VTech, visit our website at www.vtechbabymonitors.com. In
Canada, please visit www.vtechcanada.com.
Product introduction
VM321 is a baby monitor which consists of one parent
unit (VM321 PU) and one baby unit (VM321 BU).
VM321-2 is a baby monitor which consists of one parent
unit (VM321-2 PU) and two baby units (VM321-2 BU).
ii
Important safety instructions
When using your equipment, basic safety precautions should always
be followed to reduce the risk of re, electric shock and injury, including
the following:
Follow all warnings and instructions marked on the product.
Unplug this product from the wall outlet before cleaning. Do not use
liquid or aerosol cleaners. Use a damp cloth for cleaning.
Do not use this product near water such as near a bath tub,
wash bowl, kitchen sink, laundry tub or swimming pool, or in a wet
basement or shower.
Use only the adapters included with this product. Incorrect adapter
polarity or voltage can seriously damage the product.
Baby unit power adapter:
Input 100-120V AC 50/60 Hz; output: 6V DC 800 mA
Parent unit power adapter:
Input 100-120V AC 50/60 Hz; output: 6V DC 800 mA
Use only the batteries indicated in this manual. Do not dispose of
batteries in a re. They may explode. Check with local codes for
possible special disposal instructions.
Do not place this product on an unstable table, shelf, stand or other
unstable surfaces.
Slots and openings in the back or bottom of this product are
provided for ventilation. To protect them from overheating, these
openings must not be blocked by placing the product on a soft
surface such as a bed, sofa or rug. This product should never be
placed near or over a radiator or heat register. This product should
not be placed in any area where proper ventilation is not provided.
This product should be operated only from the type of power
source indicated on the marking label. If you are not sure of the
type of power supply in your home, consult your dealer or local
power company.
Do not allow anything to rest on the power cord. Do not install this
product where the cord may be walked on or crimped.
Never push objects of any kind into this product through the slots
because they may touch dangerous voltage points or create a
short circuit. Never spill liquid of any kind on the product.
To reduce the risk of electric shock, do not disassemble this
product, but take it to an authorized service facility. Opening or
removing parts of the product other than specied access doors
may expose you to dangerous voltages or other risks. Incorrect
reassembling can cause electric shock when the product is
subsequently used.
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
iii
Important safety instructions (continued)
Do not overload wall outlets or use an extension cord.
The power adapters are intended to be correctly oriented in a
vertical or oor mount position. The prongs are not designed to
hold the plug in place if it is plugged into a ceiling, under-the-table
or cabinet outlet.
14. CAUTION: There may be a risk of explosion if a wrong type of
battery is used for the parent unit. Use only the supplied
rechargeable battery (BT298555) or replacement battery
pack (BT298555). Dispose of used battery according to the
information in The RBRC® seal in the user’s manual.
This product is not intended for use as a medical monitor.
Adult setup is required.
You should test the sound reception every time you turn on the
units or move one of the components.
Periodically examine all components for damage.
Be aware of possible loss of privacy: Conversations may be picked
up by other nursery monitors, cordless phones, scanners, etc.
SAVE THESE INSTRUCTIONS
12.
13.
15.
16.
17.
18.
19.
iv
Warning
Read this user manual carefully before you use the product and save it
for future reference.
This baby monitor is intended as an aid. It is not a substitute for
responsible and proper adult supervision and should not be used
as such.
Never immerse any part of the baby monitor in water or any
other liquid.
Check that the voltage indicated on the included power adapters
corresponds to the voltage of your power outlets before you
connect the product.
Only use the included power adapters to connect the parent and
baby units to your power outlets.
Do not cut off the power adapters to replace them with other plugs,
as this causes a hazardous situation.
If the power adapters are damaged, please only replace them
with the same type in order to avoid a hazard. For the correct
type of power adapter, please visit our website at
www.vtechbabymonitors.com or call 1 (800) 595-9511. In Canada,
go to www.vtechcanada.com or call 1 (800) 267-7377.
Never use the baby monitor in moist places or close to water.
In order to prevent electric shock, do not open the housing of the
baby unit or parent unit except for the battery compartment covers.
Except for the battery compartments, do not open the housing of
the baby units or parent unit in order to prevent electric shock.
The product is not intended for use by persons (including children)
with reduced physical, sensory or mental capabilities, or lack
of experience and knowledge, unless they have been given
supervision or instruction concerning use of the appliance by a
person responsible for their safety.
Children should be supervised to ensure that they do not play with
the product.
Use only the specied type of battery. To purchase replacement
battery, visit our website at www.vtechbabymonitors.com or call
1 (800) 595-9511. In Canada, go to www.vtechcanada.com or call
1 (800) 267-7377.
If the product will not be used for a long time, unplug the power
adapters from the wall outlets, and unplug the rechargeable battery
packs from the parent units.
Unplug the power cords before replacing batteries.
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
v
Cautions
Use and store the product at a temperature between 32oF and
104oF.
Do not expose the product to extreme cold, heat or direct sunlight.
Do not put the product close to a heating source.
Make sure the baby unit and the adapter cord are always out of
reach of the baby, at least 3 feet away from the baby or crib, to
avoid a possible strangulation hazard.
Never place the baby unit inside the baby’s crib or playpen.
Never cover the baby unit or parent unit with anything such as a
towel or a blanket.
Always use the included rechargeable batteries for the parent unit
to avoid a hazard.
Other electronic products may prevent the baby unit and the
parent unit from communicating with each other. Install the baby
monitor as far away from these electronic devices as possible:
wireless routers, radios, cellular telephones, intercoms, room
monitors, televisions, personal computers, kitchen appliances and
cordless telephones.
Batteries should not be exposed to excessive heat such as bright
sunshine or re.
Electromagnetic elds (EMF)
This VTech product complies with all standards regarding
electromagnetic elds (EMF). If handled properly and according to the
instructions in this user’s manual, the product is safe to be used based
on scientic evidence available today.
1.
2.
3.
4.
5.
6.
7.
8.
vi
Table of contents
Getting started ................. 1
Parts checklist ...................1
Baby unit overview ............2
Parent unit overview ..........4

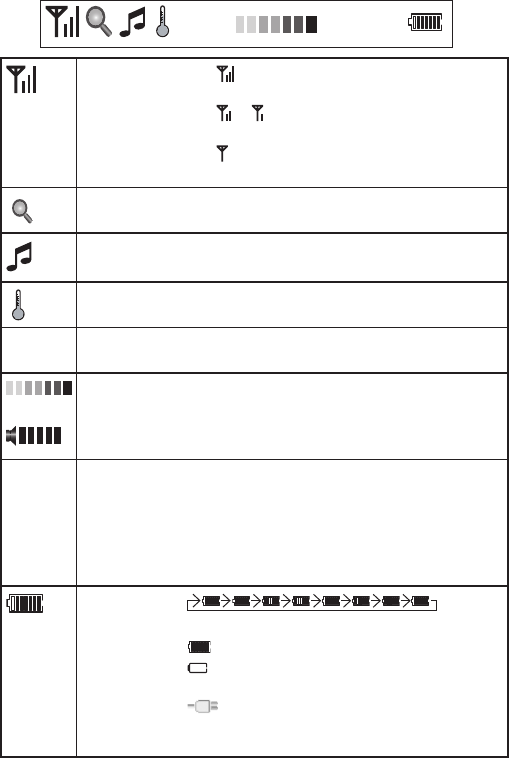

Parent unit display
screen icon .....................6
Baby unit installation..........7
Parent unit installation .......8
Baby unit battery
installation ......................9
Parent unit battery
installation ....................11
Parent unit battery
charging .......................13
Positioning and
operating range ............14
Test your baby monitor
before use ....................15

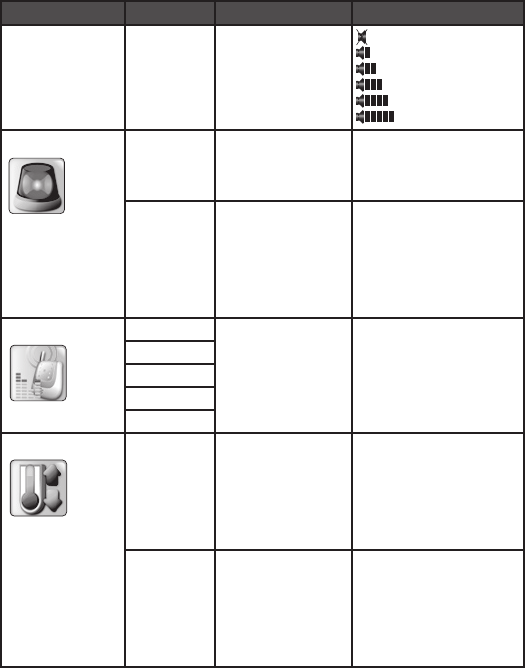

Baby unit default
settings .........................15
Parent unit default
settings .........................16
Using the menu ...............18
Speakerphone volume.....18
Alert tone .........................18
Parent unit settings ....... 18
Sensitivity ........................19
Temperature ....................20
Lullaby auto play..............21
VOX mode .......................21
LCD brightness ................22
Pair/Unpair.......................22
Language.........................23
Baby unit operation ....... 24
Power on or off the
baby unit.......................24
Speakerphone volume.....24
Lullaby playback on
the baby unit.................24
Night vision ......................24

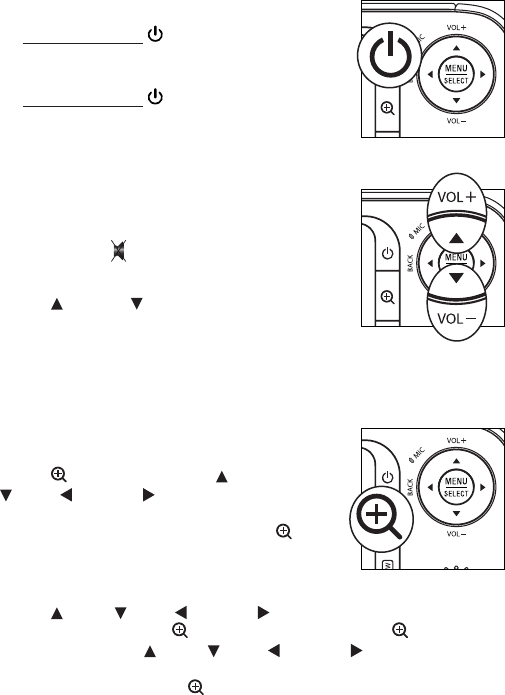

Parent unit operation .... 25
Power on or off the
parent unit ....................25
Speakerphone volume.....25
Zoom ...............................25

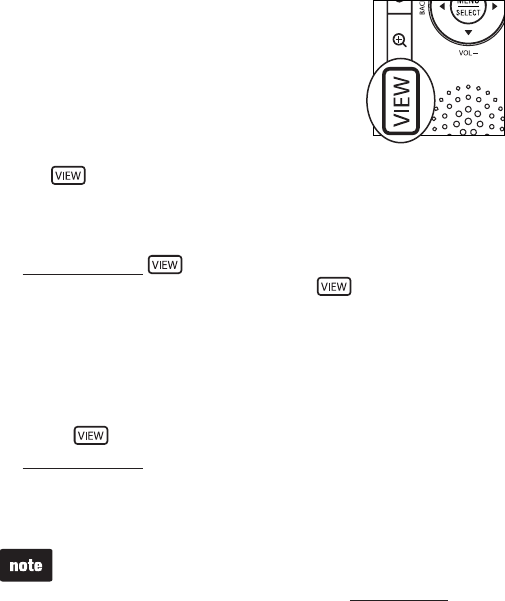

View .................................26
Talk to the baby unit ........26
Night vision ......................26
Appendix ........................ 27
Parent unit display
screen messages .........27
Parent unit battery ...........28
Expand your baby
monitor system .............29
Add or replace a baby
unit (optional) ...............29
Remove a baby unit.........30
Troubleshooting ...............31
Operating range...............35
Maintenance ....................35
The RBRC® seal ..............36
Limited warranty ..............37
FCC and IC regulations ...40
Technical specications...42
Index ............................... 43
1

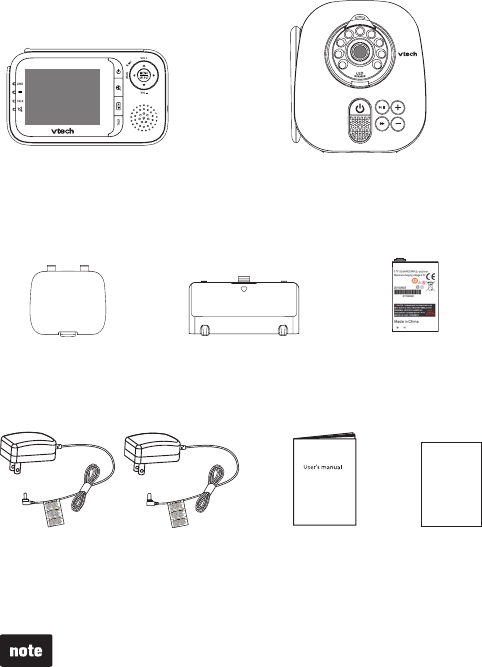

Parts checklist
Your baby monitor package contains the following items. Save
your sales receipt and original packaging in the event warranty
service is necessary.
User’s manual
To purchase a replacement battery or power adapters,
visit our website at www.vtechbabymonitors.com or call
1 (800) 595-9511. In Canada, go to www.vtechcanada.com
or call 1 (800) 267-7377.
Helpful
guidelines
Helpful
guidelines
Baby unit
(VM321 BU/VM321-2 BU)
(1 for VM321 and 2 for VM321-2)
Parent unit
(VM321 PU/VM321-2 PU)
Baby unit
power adapter
(1 for VM321 and
2 for VM321-2)
Parent unit battery
compartment cover
Battery for
Parent unit
Parent unit
power adapter
Baby unit battery
compartment cover
(1 for VM321 and
2 for VM321-2)
Getting started
2
Getting started
+ (volume)
Press to increase
the listening
volume.

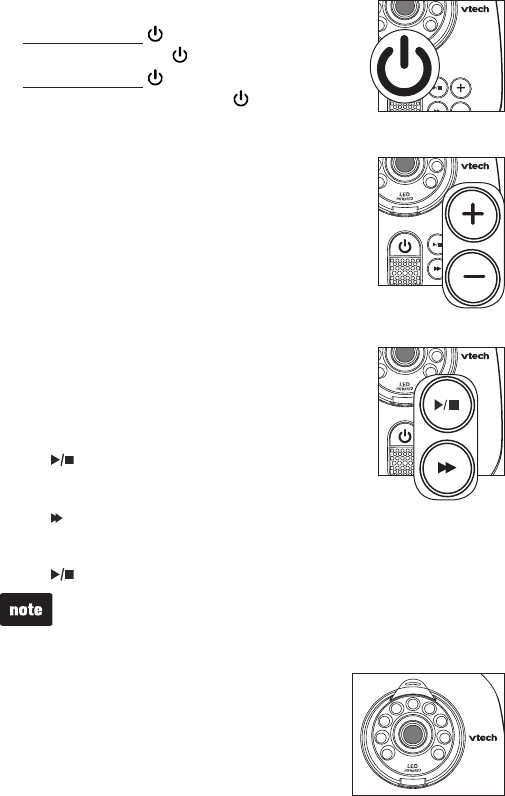

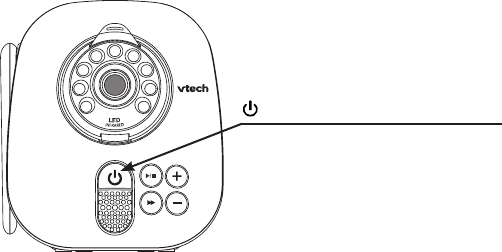

Baby unit overview
Power jack
Temperature
sensor
(on/off)
Press and hold to
turn ON or OFF.
Microphone
Antenna
(skip)
Press to skip to the
next lullaby.
(play/stop)
Press to play lullaby.
Press to stop lullaby
playback.
_ (volume)
Press to
decrease
the
listening volume.
Camera
Camera adjuster
Pull to adjust
camera angle.
Battery
compartment
cover
Speaker
3
Getting started
Baby unit lights
Baby unit overview
(on/off)
On in red when the baby unit is
powered by the battery.
On in white when the baby unit is
powered by A/C power.
On in red and white when the baby
unit is not paired to the parent unit.
Flashes in red when the baby unit
battery is low.
Flashes alternately in red and white
when the baby unit is in searching
mode.
4
Getting started
Parent unit overview
MIC (microphone)
TALK
While in single-CAM mode,
press and hold to talk to the
selected baby unit.
Antenna
/VOL+
Press to increase the
speakerphone volume.
While in a menu, press to scroll up.
While in mode, press to move
the zoom area upward.
While in all-CAM mode, press
to change baby unit selection.
/VOL-
Press to decrease the
speakerphone volume.
While in a menu, press to
scroll down.
While in mode, press
to move the zoom area
downward.
While in all-CAM
mode, press to change
baby unit selection.
While in mode, press
to move the zoom area
rightward.
While in all-CAM
mode, press to change
baby unit selection.
(view)
Press to see different baby unit,
or change between single-CAM
and all-CAM mode.
Press and hold to turn off the
screen and press to turn it on.
(zoom)
While in
single-CAM mode,
press to zoom in
or out.
(on/off)
Press and hold to turn
on or off.
/BACK
While in a menu, press to return to
the previous menu.
While in mode, press to move the
zoom area leftward.
While in all-CAM mode, press to
change baby unit selection.
MENU/SELECT
Press to enter the menu.
While in a menu, press
to choose an item, or
save a setting.
While in all-CAM
mode, press to select
the desired baby unit.
Speaker
5
Getting started

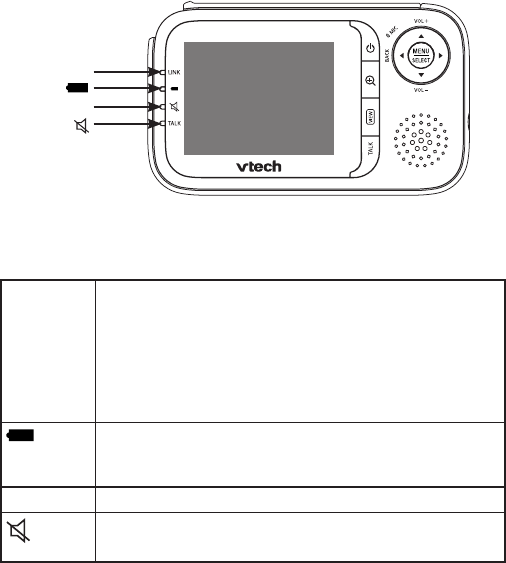

Parent unit lights
LINK On when strong signal strength is detected between
the parent unit and the selected baby unit.
Flashes slowly when moderate signal strength is
detected between the parent unit and the selected
baby unit.
Flashes quickly when the parent unit cannot link to the
selected baby unit.
On when the parent unit pack is being charged.
Off when the parent unit is fully charged, or when no
battery is installed.
TALK On when the parent unit is talking to the baby unit.
On when the parent unit is in all-CAM mode.
On when the speakerphone volume is turned off.
Parent unit overview
LINK
TALK
6
Getting started
Parent unit display screen icon
Connection status - displays when strong signal strength is
detected between the baby unit and the parent unit.
Connection status - or displays when moderate signal
strength is detected between the baby unit and the parent unit.
Connection status - displays when the link between the
baby unit and the parent unit os lost.
Zoom - displays when the camera at the selected baby unit
has zoomed in.
Lullaby - displays when a lullaby is playing by the baby unit
that is being viewed.
Temperature alert - displays when the temperature alert is set
to on.
570FReal-time temperature - displays the real-time temperature
from the selected baby unit.
or
Sound level indicators - lights up accordingly to the scales of
loudness when there is sound transmitted from the baby unit.
Speakerphone volume - lights up when adjusting the
speakerphone volume level.
CAM1 or
CAM2 or
CAM3 or
CAM4
Current view status - displays the number of the baby unit that
is being viewed when in single-CAM view mode.
Current view status - displays the highlighted baby unit when
in all-CAM view mode.
Current view status - this icon does not appear when the
parent unit has no paired baby unit.
Battery status - animates
when the battery is charging.
Battery status - displays when the battery is fully charged.
Battery status - displays when the battery is low and needs
charging.
Battery status - displays when no battery is installed but
operates using AC power, or the battery has been installed
incorrectly.
CAM1
57OF
7
Getting started

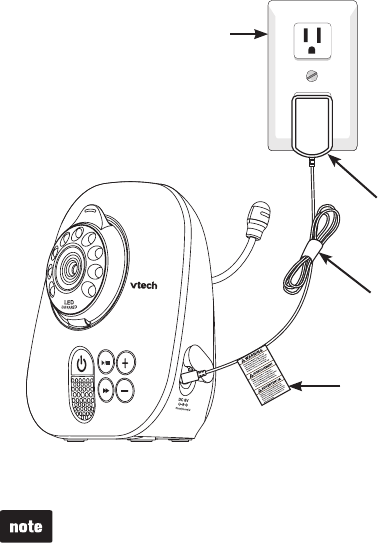

Baby unit installation
Install the baby unit as shown below.
Make sure that the power outlet is not controlled by a wall
switch. Keep the power adapter cord away from children’s
reach and bundle the adapter cord neatly with the attached
self-adhesive strap.
Use only the baby unit power adapters supplied with this
product. To order a replacement, visit our website at
www.vtechbabymonitors.com or call 1 (800) 595-9511.
In Canada, go to www.vtechcanada.com or call
1 (800) 267-7377.
The baby unit power adapters are intended to be correctly
oriented in a vertical or oor mount position. The prongs are
not designed to hold the plug in place if it is plugged into a
ceiling, under-the-table or cabinet outlet.
•
•
Baby unit
Power outlet not
controlled by a
wall switch
Baby unit
power adapter
Warning tag
Self-adhesive strap
8
Getting started

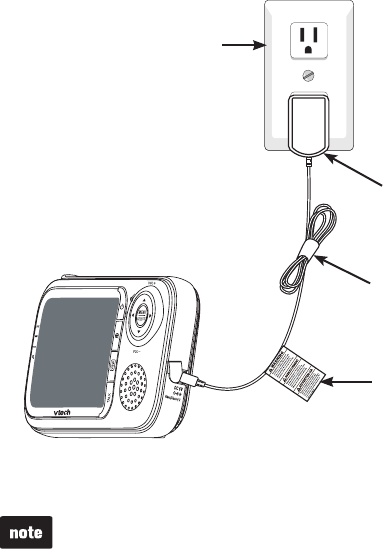

Parent unit installation
Install the parent unit as shown below.
Make sure that the power outlet is not controlled by a wall
switch. Keep the adapter cord away from children’s reach
and bundle the adapter cord neatly with the attached
self-adhesive strap.
Parent unit
Use only the parent unit power adapter supplied with this
product. To order a replacement, visit our website at
www.vtechbabymonitors.com or call 1 (800) 595-9511.
In Canada, go to www.vtechcanada.com or call
1 (800) 267-7377.
The parent unit power adapter is intended to be correctly
oriented in a vertical or oor mount position. The prongs are
not designed to hold the plug in place if it is plugged into a
ceiling, under-the-table or cabinet outlet.
•
•
Power outlet
not controlled
by a wall switch
Parent unit
power adapter
Warning tag
Self-adhesive strap
9
Getting started
Baby unit battery installation
You can power up the baby unit by connecting it to AC power
or to the 1.5V AA batteries. Even if the baby unit is connected
to AC power, we recommend you also install the 1.5V AA
batteries. This guarantees automatic backup in case of a
power outage.
Install the batteries as shown below.
Unplug the baby unit power adapter from the power outlet.
Unplug the small end of the power adapter from the power
jack on the baby unit.

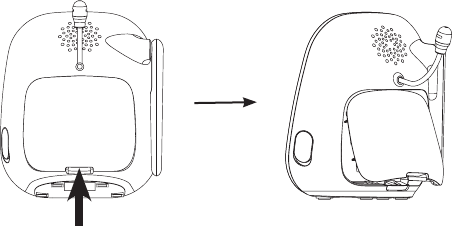

If the battery compartment cover is on the baby unit, push
the tab and then pull up until the battery compartment
releases.
1.
2.
10
Getting started
Baby unit battery installation (continued)

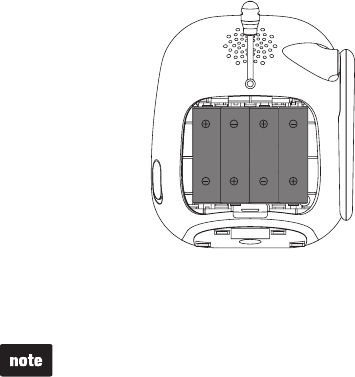

Insert 4 pcs 1.5V AA Alkaline batteries (not supplied) into
the battery compartment, noting the proper polarity (+ and -)
markings between the battery and metallic contacts inside
the battery compartment. Then replace the battery
compartment cover.
Plug the small end of the baby unit power adapter to the
power jack on the baby unit. Then plug the baby unit power
adapter into the power outlet.
3.
4.
If the baby unit will not be used for a long time, disconnect
and remove the battery to prevent possible leakage.
Baby unit cannot charge any rechargeable AA batteries but
you can use rechargeable AA batteries for the baby unit.
•
•
11
Getting started
Parent unit battery installation
You can power up the parent unit by connecting it to AC power
or to the rechargeable battery provided. Even if the parent
unit is connected to AC power, we recommend you also install
the battery. This guarantees continued operation in case of a
power outage.
Install the battery as shown below.
Unplug the parent unit power adapter from the power outlet.
Unplug the small end of the power adapter from the power
jack on the parent unit.

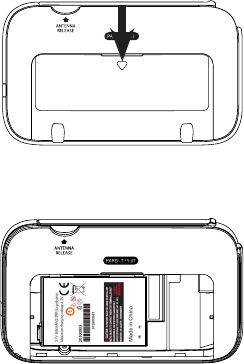

If the battery compartment cover is on the parent unit, press
on the grooved tab and slide to detach.
Place the battery into the battery compartment as shown.
1.
2.
3.
12
Getting started

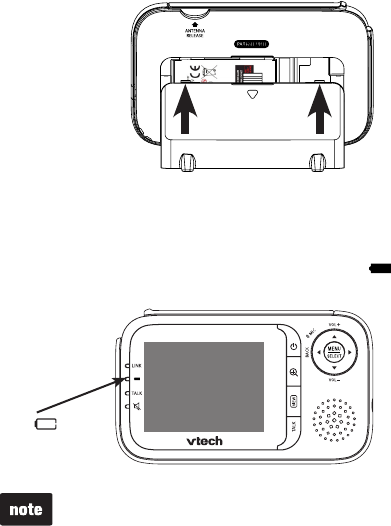

Parent unit battery installation (continued)
Replace the battery compartment cover. Align the cover at
against the battery compartment, then slide it towards the
center of the parent unit until it clicks into place.
Plug the small end of the power adapter from the power
jack on the parent unit. Then plug the parent unit power
adapter into the power outlet.
When the battery is correctly installed, the light on the
parent unit turns on when charging.
4.
5.
6.
The light
turns on when
charging.
If the parent unit will not be used for a long time, disconnect
and remove the battery to prevent possible leakage.
Use only the battery supplied with this product. To purchase
replacement battery, visit our website at
www.vtechbabymonitors.com or call 1 (800) 595-9511.
In Canada, go to www.vtechcanada.com or call
1 (800) 267-7377.
•
•
13
Getting started
Parent unit battery charging
Once you have installed the parent unit battery and connect
the parent unit power adapter to a power outlet, the screen
is still off. Press (on/off) for 2 seconds to turn on the parent
unit. The icon indicates the battery status (see the table
below). The parent unit battery is fully charged after XX hours
of continuous charging. See the table on page 28 for battery
operating times.
When the parent unit is operating in battery mode and the
battery is low, you need to charge the parent unit without
interruption for at least 30 minutes to give the parent unit
enough charge to use for a short time. When operating with a
low battery, the parent unit displays BATTERY LOW AT
PARENT UNIT along with the icon. The light ashes and
it plays short beeps to alert you.
The following table summarizes the battery charge indicators
and actions to take.
Battery indicators Battery status Action
The battery icon is
off and displays.
No battery is installed.
The parent unit can
only be used if it is
connected to a power
outlet.
Install the parent
unit battery. Charge
without interruption
(at least 30 minutes).
The screen displays
BATTERY LOW AT
PARENT UNIT and
the light ash.
Battery has very little
charge and may be
used for only a short
time.
Charge
without
interruption
(about
30 minutes).
The battery icon
becomes solid .
Battery is fully
charged.
To keep the battery
charged, connect it
to a power source
when not in use.
When you charge the battery initially or it is not used for a long
period of time, charge it for XX hours continuously. It takes
longer to charge the battery when the parent unit is turned on.
To shorten the charging time, turn the parent unit off.
14
Getting started
Positioning and operating range
Positioning the baby monitor
Place the baby unit at least 3 feet away from your baby.
Place the parent unit within the operating range (see below)
of the baby unit. Make sure the parent unit is at least 3 feet
away from the baby unit or other parent unit to avoid acoustic
feedback.
Operating range
The operating range of the baby monitor is up to 1000 feet
outdoors or 150 feet indoors. The actual operating range may
vary depending on the environmental conditions and other
interferences such as walls, doors and other obstructions.
At least 3 feet
15
Getting started
Test your baby monitor before use
Place the parent unit and the baby unit in the same room
to test the product. Make sure the baby unit is at least 3 feet
away from the parent unit.
Press and hold on the baby unit until the (on/off) light
turns on.
Press and hold on the parent unit until the screen displays
Waiting for linking.
When the parent unit is linked to the baby unit, the screen
displays an image from the baby unit. Your baby monitor is
now ready for use.
1.
2.
3.
4.
If the parent unit cannot link to the selected baby unit, the
screen displays No link at CAM# and .
Baby unit default settings
Default settings are indicated by an asterisk(*).
Setting Function Options
VOLUME Set the speakerphone volume.
Set the lullaby playback
volume while the lullaby is
playing.
Level 1
Level 2
Level 3*
Level 4
Level 5
LULLABY Lullaby playback in
chronological order.
Lullaby 1*
Lullaby 2
Lullaby 3
Lullaby 4
Lullaby 5
16
Getting started
Parent unit default settings
Default settings are indicated by an asterisk(*).
Main setting Setting Function Options
VOLUME -Set the
speakerphone
volume of the
parent unit.
(Volume off)
(Volume 1)
(Volume 2)
(Volume 3)*
(Volume 4)
(Volume 5)
ALERT TONE LOW
BATTERY
TONE
Set whether the
parent unit beeps
whenever the
battery is low.
On*
Off
NO LINK
ALERT
Set whether the
parent unit beeps
whenever the
link between the
parent unit and
the baby unit is
lost.
On*
Off
SENSITIVITY ALL CAM Set the sound
sensitivity level of
the baby unit.
Level 1
Level 2
Level 3*
Level 4
Level 5
CAM 1
CAM 2
CAM 3
CAM 4
TEMPERATURE MINIIMUM
- ALL CAM
- CAM 1
- CAM 2
- CAM 3
- CAM 4
Set the desired
minimum
temperature
detected for
the room where
the baby unit is
located.
Fahrenheit:
52OF - 69OF (57OF*)
Celsius:
11OC - 20OC
MAXIMUM
- ALL CAM
- CAM 1
- CAM 2
- CAM 3
- CAM 4
Set the desired
maximum
temperature
detected for the
room where
the baby unit is
located.
Fahrenheit:
70OF - 86OF (85OF*)
Celsius:
21OC - 30OC
17
Getting started
Main setting Setting Function Options
TEMPERATURE ALERT
- ALL CAM
- CAM 1
- CAM 2
- CAM 3
- CAM 4
Set whether the
parent unit beeps
whenever the
temperature is
not within the
set temperature
range.
On
Off*
FORMAT Set the type of
temperature scale
of the baby unit.
Fahrenheir*
Celsius
LULLABY
AUTO PLAY ALL CAM Set whether the
baby unit can
automatically play
lullabies when the
noise near the
baby unit reaches
the set sensitivity
level.
On
Off*
CAM 1
CAM 2
CAM 3
CAM 4
VOX MODE -Set whether
the parent unit
screen wakes up
from sleep mode
whenever there
is any sound
detected by the
baby unit.
On*
Off
LCD
BRIGHTNESS
-Set the brightness
of the parent unit
screen.
Level 1
Level 2
Level 3*
Level 4
Level 5
PAIR/UNPAIR Pair CAM Register a baby
unit to the selected
CAM slot.
CAM1 (EMPTY/PAIRED)
CAM2 (EMPTY/PAIRED)
CAM3 (EMPTY/PAIRED)
CAM4 (EMPTY/PAIRED)
Unpair
CAM
Deregister a baby
unit from the
selected CAM
slot.
LANGUAGE Set the screen
display language.
ENGLISH*
FRANCAIS
ESPANOL
Parent unit default settings (continued)
18
To return to the previous menu, press /BACK.
Parent unit settings
Using the menu
To enter the parent unit menu:
Press MENU/SELECT when the parent unit is not in use.
Press /VOL+ or /VOL- until the feature you desire is
highlighted in the list on the left side of the screen. Press
MENU/SELECT to enter that feature menu.
Press /VOL+ or /VOL- until the feature or option you desire
is highlighted in the list on the right side of the screen. Press
MENU/SELECT to enter that feature menu or conrm your
selection. Repeat step 3 until the desired feature is set.
Speakerphone volume
You can change the speakerphone volume or turn it off. When
the speakerphone volume is off, appears on the screen and
the light turns on.
To adjust the speakerphone volume:
Press /VOL+ or /VOL- at any time on the parent unit.
Alert tone
You can turn the low battery tone alert and/or no link
alert on or off.
To set the low battery tone alert of the parent unit:
Press MENU/SELECT when the parent unit is not in use.
Press /VOL+ or /VOL- to choose ALERT TONE, then press
MENU/SELECT.
Press MENU/SELECT again to choose LOW BATTERY TONE.
Press /VOL+ or /VOL- to choose ON or OFF, then press
MENU/SELECT.
1.
2.
3.
1.
2.
3.
4.
Low battery tone alert turns on only for the selected baby unit
while in single-CAM mode. Low battery tone alert turns on
for all baby units while in all-CAM mode.
Parent unit settings
19
The baby unit must be turned on when accessing the
SENSITIVITY menu of the parent unit.
When the sensitivity level is set to Level 5, any sounds
received from the baby unit will always be transmitted to
the parent unit.
•
•
Alert tone (continued)
To set the no link alert of the parent unit:
Press MENU/SELECT when the parent unit is not
in use.
Press /VOL+ or /VOL- to choose ALERT TONE, then press
MENU/SELECT.
Press /VOL+ or /VOL- to choose NO LINK ALERT, then
press MENU/SELECT.
Press /VOL+ or /VOL- to choose ON or OFF, then press
MENU/SELECT to conrm your selection.
Sensitivity
You can change the sound sensitivity level of the
baby unit from the parent unit. The higher the sound
sensitivity level is set at the parent unit, the more
sensitive the baby unit is in collecting sounds and transmit to
the parent unit.
To set the sound sensitivity level of the baby unit:
Press MENU/SELECT when the parent unit is not in use.
Press /VOL+ or /VOL- to choose SENSITIVITY, then press
MENU/SELECT.
Press /VOL+ or /VOL- to choose the desired baby unit,
then press MENU/SELECT.
Press /VOL+ or /VOL- to choose the desired sensitivity
level, then press MENU/SELECT to conrm your selection.
1.
2.
3.
4.
1.
2.
3.
4.
Parent unit settings
20
Temperature
To set the minimum temperature of the baby unit:
Press MENU/SELECT when the parent unit is not
in use.
Press /VOL+ or /VOL- to choose TEMPERATURE, then
press MENU/SELECT.
Press /VOL+ or /VOL- to choose MINIMUM, then press
MENU/SELECT.
Press /VOL+ or /VOL- to choose the desired baby unit,
then press MENU/SELECT.
Press /VOL+ or /VOL- to choose the desired temperature,
then press MENU/SELECT to conrm your selection.
To set the maximum temperature of the baby unit:
Press MENU/SELECT when the parent unit is not in use.
Press /VOL+ or /VOL- to choose TEMPERATURE, then
press MENU/SELECT.
Press /VOL+ or /VOL- to choose MAXIMUM, then press
MENU/SELECT.
Press /VOL+ or /VOL- to choose the desired baby unit,
then press MENU/SELECT.
Press /VOL+ or /VOL- to choose the desired temperature,
then press MENU/SELECT to conrm your selection.
To set the temperature alert of the baby unit:
Press MENU/SELECT when the parent unit is not in use.
Press /VOL+ or /VOL- to choose TEMPERATURE, then
press MENU/SELECT.
Press /VOL+ or /VOL- to choose ALERT, then press
MENU/SELECT.
Press /VOL+ or /VOL- to choose the desired baby unit,
then press MENU/SELECT.
Press /VOL+ or /VOL- to choose ON or OFF, then press
MENU/SELECT to conrm your selection.
1.
2.
3.
4.
5.
1.
2.
3.
4.
5.
1.
2.
3.
4.
5.
Parent unit settings
21
Temperature (continued)
To set the type of temperature scale:
Press MENU/SELECT when the parent unit is not
in use.
Press /VOL+ or /VOL- to choose TEMPERATURE, then
press MENU/SELECT.
Press MENU/SELECT again to choose FORMAT.
Press /VOL+ or /VOL- to choose FAHRENHEIT or CELSIUS,
then press MENU/SELECT to conrm your selection.
Lullaby auto play
You can set whether the lullaby auto play turns on
automatically when the sound level from the baby
unit reaches the preset sensitivity sound level. The
total duration of lullaby playback is about 15 minutes
and it plays from where you stopped.
To set the lullaby auto play of the parent unit:
Press MENU/SELECT when the parent unit is not in use.
Press /VOL+ or /VOL- to choose LULLABY AUTO PLAY,
then press MENU/SELECT.
Press /VOL+ or /VOL- to choose the desired baby unit, then
press MENU/SELECT.
Press /VOL+ or /VOL- to choose ON or OFF, then press
MENU/SELECT to conrm your selection.
VOX mode
You can set whether the parent unit turns on
automatically whenever there is any sound detected
by the baby unit. When the screen is turned off and
VOX mode is set to On, the screen turns on for 30 seconds
whenever any sound is detected by the baby units and then
turns off automatically.
To set the VOX mode of the parent unit:
Press MENU/SELECT when the parent unit is not in use.
Press /VOL+ or /VOL- to choose VOX MODE, then press
MENU/SELECT.
Press /VOL+ or /VOL- to choose ON or OFF, then press
MENU/SELECT to conrm your selection.
1.
2.
3.
4.
1.
2.
3.
4.
1.
2.
3.
Parent unit settings
22
Any new baby unit paired to an occupied baby unit slot will
unpair the current baby unit.
LCD brightness
You can change the brightness of the parent
unit screen.
To set the brightness of the parent unit screen:
Press MENU/SELECT when the parent unit is not in use.
Press /VOL+ or /VOL- to choose LCD BRIGHTNESS, then
press MENU/SELECT.
Press /VOL+ or /VOL- to scroll through the choices, the
brightness of the parent unit screen changes as you scroll
through the choices.
Press MENU/SELECT to conrm your selection.
Pair/Unpair
You can pair a maximum of four baby units to your
parent unit.
To pair a baby unit:
Press MENU/SELECT when the parent unit is not in use.
Press /VOL+ or /VOL- to choose PAIR/UNPAIR, then
press MENU/SELECT.
Press MENU/SELECT again to choose PAIR CAM.
Press /VOL+ or /VOL- to choose the desired baby unit slot,
then press MENU/SELECT. The screen displays Please
press both [ ] and [+] key on CAM side until POWER
indicator ashes Red and White light alternately. Then
press and hold and + for 5 seconds on the new baby unit
at the same time. on the new baby unit ashes red and
white alternately.
When pairing is successful, the screen displays the newly
paired baby unit. The light on the new baby unit turns
red when it is powered by battery or turns white when it is
powered by AC power.
1.
2.
3.
4.
1.
2.
3.
4.
5.
Parent unit settings
23
Pair/Unpair (continued)
To unpair a baby unit:
Press MENU/SELECT when the parent unit is not
in use.
Press /VOL+ or /VOL- to choose PAIR/UNPAIR, then
press MENU/SELECT.
Press /VOL+ or /VOL- to choose UNPAIR CAM.
Press /VOL+ or /VOL- to choose the desired baby unit,
then press MENU/SELECT.
Press and then press MENU/SELECT.
When unpairing is successful, the screen displays the next
paired baby unit or return to the previous baby unit viewing
screen. If all baby units are unpaired, the screen displays
No CAM paired.
Language
You can select English, Français or Español to be
used in all screen displays.
To change the screen language:
Press MENU/SELECT when the parent unit is not in use.
Press /VOL+ or /VOL- to choose LANGUAGE, then press
MENU/SELECT.
Press /VOL+ or /VOL- to scroll through the choices.
Press MENU/SELECT to conrm your selection.
1.
2.
3.
4.
5.
6.
1.
2.
3.
4.
24
Baby unit operation
Power on or off the baby unit
Press and hold for 2 seconds to turn on
the baby unit. The light turns on.
Press and hold for 2 seconds again to
turn off the baby unit. The light turns off.
Speakerphone volume
You can change the speakerphone volume.
Changing the speakerphone volume also
changes the lullaby playback volume. The
lowest speakerphone volume is Level 1 and
the highest speakerphone volume is Level 5.
To adjust the speakerphone volume:
Press + or - at any time on the baby unit.
Lullaby playback on the baby unit
The total duration of lullaby playback is about
15 minutes and it plays from where you
stopped
To turn on lullaby playback:
Press on the baby unit.
To skip to the next lullaby:
Press on the baby unit to skip to the next lullaby.
To turn off lullaby playback from the baby unit:
Press on the baby unit to stop.
Night vision
When the baby unit is turned on in a dark
room, the baby unit automatically uses its
infrared LED’s to transmit a clear image of
baby to parent units, so you can monitor
your baby at night.
•
•
Lullaby playback is paused when the parent unit is talking to
the baby unit in TALK mode. Lullaby playback resumes when
the parent unit nishes using the TALK feature.
25
Power on or off the parent unit
Press and hold for 2 seconds to turn
on the parent unit. The display screen
turns on.
Press and hold for 2 seconds again
to turn off the parent unit. The display
screen turns off.
Speakerphone volume
You can change the speakerphone volume
or turn it off. When the speakerphone
volume is off, appears on the screen.
To adjust the speakerphone volume:
Press /VOL+ or /VOL- at any time on the
parent unit.
Zoom
You can zoom in and out of any baby unit.
To zoom in and out while in single-CAM
view mode:
Press to zoom in. Press /VOL+,
/VOL-, /BACK or to move the zoomed
image upwards, downwards, leftwards or
rightwards correspondingly. Press again
to zoom out.
To zoom in and out while in all-CAM view mode:
Press /VOL+, /VOL-, /BACK or to choose the desired
baby unit, then press or MENU/SELECT. Press again
to zoom in. Press /VOL+, /VOL-, /BACK or to move the
zoomed image upwards, downwards, leftwards or rightwards
correspondingly. Press again to zoom out.
•
•
Parent unit operation
26
Parent unit operation
View
You can change the screen to view the video
from different baby units. When the screen
is turned off and VOX mode is set to On, the
screen turns on for 30 seconds whenever
any sounds is detected by the baby units
and then turns off automatically.
To view different baby units:
Press to scroll to the desired baby units. Baby units
are in chronological order: CAM1, CAM2, CAM3, CAM4 and
all-CAM mode.
To turn the screen on or off:
Press and hold for 2 seconds to turn off the screen.
When the screen is turned off, press to turn it on.
Talk to the baby unit
You can broadcast messages from the parent unit to the
speakerphone of the desired baby unit.
To talk to the baby unit:
Press to choose the desired baby unit.
Press and hold TALK when the parent unit is in single-CAM
view mode. Speak towards the MIC (microphone) on the
parent unit. The TALK light is on when the voice connection
to the baby unit is made. Your voice is broadcast to the
baby unit.
Night vision
When the baby unit is turned on in a dark room, the baby unit
automatically uses its infrared LEDs to transmit a clear image of
baby to parent units, so you can monitor your baby at night.
However, images transmitted from the baby unit’s infrared LEDs
are in black and white only.
•
•
1.
2.
The TALK feature does not work in all-CAM mode.
If the speakerphone volume of the parent unit is set to OFF, it will
be reset to the default volume when you press and hold TALK.
Lullaby playback is paused when the parent unit is talking the
baby unit in TALK mode. Lullaby playback resumes when the
parent unit nishes using the TALK feature.
•
•
•
27
Battery low at CAM# When the baby unit is powered
by batteries, the selected baby
unit batteries need to be changed.
It will be powered off after 30
seconds automatically.
Battery low at parent unit When the parent unit is powered
by the battery, it needs to be
recharged.
Battery empty at parent unit When the parent unit is powered
by the battery, is almost out of
power and needs to be recharged.
It will be powered off after 10
seconds automatically.
Battery empty
Powering off...
Parent unit is being powered off.
No link at CAM# The selected baby unit is not
linked to the parent unit.
Sound detected at CAM# Sound detected from the selected
baby unit is above the set
sensitivity level.
Temperature too low at CAM# Temperature detected from the
selected baby unit is below the set
minimum temperature.
Temperature too high at CAM# Temperature detected from the
selected baby unit is above the
set maximum temperature.
Waiting for linking The link between the parent unit
and the selected baby unit is lost,
or the parent unit is out of range
of the selected baby unit. The
screen turns off after 10 seconds
automatically.
Appendix
Parent unit display screen messages
28
Appendix
Parent unit battery
It takes up to 12 hours for the battery to be fully charged. When it
is fully charged, you can expect the following performance:
Operation Operating time
While in standby* mode Up to X days
While in monitoring** mode Up to X hours
*Parent unit is not charging or in TALK mode. There is not any kind of
detection from the baby unit.
**The sensitivity level is set at Level 3. Monitoring times vary
depending on your actual use and the age of the battery.
The battery needs charging when:
A new battery is installed in the parent unit.
The parent unit beeps.
The battery is properly installed and no battery icon displays on the
screen.
BATTERY LOW AT PARENT UNIT and displays on the parent
unit screen.
CAUTION:
To reduce the risk of re or injury, read and follow these instructions:
Use only the battery provided or equivalent. To order a replacement,
visit our website at www.vtechbabymonitors.com or call
1 (800) 595-9511. In Canada, go to www.vtechcanada.com or call
1 (800) 267-7377.
Do not dispose of the battery in a re. Check with local waste
management codes for special disposal instructions.
Do not open or mutilate the battery. Released electrolyte is corrosive
and may cause burns or injury to the eyes or skin. The electrolyte
may be toxic if swallowed.
Exercise care in handling the battery in order not to create a short
circuit with conductive materials.
Charge the battery provided with or identied for use with this
product only in accordance with the instructions and limitations
specied in this manual.
Observe proper polarity orientation between the battery and
metallic contacts.
To prevent re or shock hazard, do not expose this product to water
or any type of moisture.
•
•
•
•
•
•
•
•
•
•
•
29
Appendix
Expand your baby monitor system
The baby units and parent unit provided with your baby
monitor system are already paired. This baby monitor system
accommodates up to four baby units.
Add or replace a baby unit (optional)
You can add or replace baby units (VM301, purchased
separately) to your baby monitor system. Each baby unit must
be paired to the parent unit before use. You need to power on
the baby unit (pages 7, 9 and 25) and the parent unit (pages 8,
11 and 25) before pairing.
To add or replace a baby unit:
Press MENU/SELECT when the parent unit is not in use.
Press /VOL+ or /VOL- to choose PAIR/UNPAIR, then
press MENU/SELECT.
Press MENU/SELECT again to choose PAIR CAM.
Press /VOL+ or /VOL- to choose the desired baby unit
slot, then press MENU/SELECT. The screen displays Please
press both [ ] and [+] key on CAM side until POWER
indicator ashes Red and White light alternately. Then
press and hold and + for 5 seconds on the new baby unit
at the same time. on the new baby unit ashes red and
white alternately.
When pairing is successful, the screen displays the newly
paired baby unit in single-view mode. The light on the
new baby unit turns red when it is powered by battery or
turns white when it is powered by AC power.
If pairing fails, the screen displays Pairing failed. Try the
pairing process again.
1.
2.
3.
4.
5.
Any new baby unit paired to an occupied baby unit slot will
unpair the current baby unit.
30
Appendix
Remove a baby unit
If you want to remove a baby unit, you need to power on the
baby unit (pages 7, 9 and 25) and the parent unit (pages 8, 11
and 25) before unpairing.
To remove a baby unit:
Press MENU/SELECT when the parent unit is not in use.
Press /VOL+ or /VOL- to choose PAIR/UNPAIR, then
press MENU/SELECT.
Press /VOL+ or /VOL- to choose UNPAIR CAM, then press
MENU/SELECT.
Press /VOL+ or /VOL- to choose the desired baby unit,
then press MENU/SELECT.
Press [zoom] and then press MENU/SELECT to conrm
your selection.
When unpairing is successful, the screen displays the next
paired baby unit or returns to the previous baby unit viewing
screen. If all baby units are unpaired, the screen displays
No CAM paired.
If unpairing fails, you need to reset the baby monitor and then
try the unpairing process again.
To reset:
Power off the baby unit and the parent unit.
Unplug the power and/or batteries from the baby unit and
the parent unit, then plug them back in.
Power on the baby unit and the parent unit.
1.
2.
3.
4.
5.
6.
1.
2.
3.
31
Appendix
Troubleshooting
If you have difculty with your baby monitor, please try the
suggestions below. For customer service, visit our website at
www.vtechbabymonitors.com or call 1 (800) 595-9511. In
Canada, go to www.vtechcanada.com or call 1 (800) 267-7377.
My baby monitor does not work at all.
Make sure the baby unit, parent unit and the batteries are installed and
charged correctly (pages 7 to 13). For optimum daily performance,
charge the parent unit after use.
Make sure the power adapters are securely plugged into the outlet
not controlled by a wall switch.
Make sure the adapter cords are plugged rmly into the baby unit and
parent unit.
Make sure the baby unit and the parent unit are turned on.
The parent unit may be too far away from the baby unit. Move the parent
unit closer to the baby unit (but not less than 3 feet).
Unplug the electrical power to the baby unit and parent unit. Wait for
approximately 15 seconds, then plug it back in. Turn on the baby unit
and the parent unit. Allow up to one minute for the baby unit and the
parent unit to synchronize.
Install the correct type of batteries in the baby unit and watch carefully
the proper polarity (+ and -) markings between the battery and metallic
contacts inside the battery compartment.
Charge the battery in the parent unit for up to XX hours.
If the parent unit battery is completely depleted, it may take up to 30
minutes to charge the parent unit before BATTERY LOW AT PARENT
UNIT appears on the screen (page 13).
Completely remove and install the batteries again. If that still does
not work, it may be necessary to purchase new batteries.
Signicant amount of obstructions between baby unit and parent unit
such as walls, ceilings and buildings. Try moving the baby unit to another
part of the room.
Other electronic products may prevent the baby unit and the parent
unit from communicating with each other. Install the baby monitor as far
away from these electronic devices as possible: wireless routers, radios,
cellular telephones, intercoms, room monitors, televisions, personal
computers, kitchen appliances and cordless telephones.
•
•
•
•
•
•
•
•
•
•
•
•
32
Appendix
Troubleshooting
The icon and BATTERY LOW AT PARENT UNIT display
on the parent unit screen.
Charge the battery in the parent unit for up to XX hours.
Completely remove and install the battery again and use it until
fully depleted, then recharge the battery in the parent unit for up to
XX hours.
If the above measures do not correct the problem, replace the battery.
The battery does not charge in the parent unit or the
parent unit battery does not accept charge.
Make sure the battery is installed in the parent unit battery compartment
correctly. The light on the parent unit should be on when charging.
Completely remove and install the battery again, then charge for up to
XX hours.
If the icon and the light on the parent unit are not on, refer to
The light on the parent unit is off below.
If the battery is completely depleted, it may take up to 30 minutes to
charge the parent unit before BATTERY LOW AT PARENT UNIT
appears on the screen (page 13).
Purchase a new battery. Refer to Parent unit battery on page 28.
The light on the parent unit is off.
Make sure the parent unit battery is installed correctly (page 6).
When the parent unit is powered on by AC power, the light is off
even the battery is fully charged.
My parent unit does not play any sound when there is
noise from the baby unit.
Make sure the parent unit is turned on.
The parent unit may be too far away from the baby unit. Move the parent
unit closer to the baby unit (but not less than 3 feet).
If the parent unit is powered on by battery, make sure there is sufcient
charge on the parent unit battery. Charge the battery in the parent unit
for up to XX hours.
Make sure the parent unit speakerphone volume is not set to OFF
(pages 18 and 25).
Make sure the sound sensitivity level of the baby unit is not set to the
lowest level (page 19).
Make sure the power adapters are plugged in properly (pages 7 and 8).
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
33
Appendix
Troubleshooting
Signicant amount of obstructions between baby unit and parent unit
such as walls, ceilings and buildings. Try moving the baby unit to another
part of the room.
Other electronic products may prevent the baby unit and the parent
unit from communicating with each other. Install the baby monitor as far
away from these electronic devices as possible: wireless routers, radios,
cellular telephones, intercoms, room monitors, televisions, personal
computers, kitchen appliances and cordless telephones.
Completely remove and install the battery again. Turn on the baby
unit and the parent unit. Allow up to one minute for the parent unit
and the baby unit to synchronize.
My parent unit beeps and is not performing normally.
Move the parent unit closer to the baby unit (but not less than 3 feet).(but not less than 3 feet)..
The parent unit may be out of range.
If the parent unit is powered on by battery, it may be running out of
battery. Charge the battery in the parent unit for up to XX hours.
Reset the parent unit and the baby units by turning them off, unplugging
the electrical power to the parent unit and the baby units. Wait for 15
seconds and plug them back in again. Turn on the baby units and the
parent unit. Allow up to one minute for the parent unit and the baby units
to synchronize.
Other electronic products may prevent the baby unit and the parent
unit from communicating with each other. Install the baby monitor as far
away from these electronic devices as possible: wireless routers, radios,
cellular telephones, intercoms, room monitors, televisions, personal
computers, kitchen appliances and cordless telephones.
The link between the baby unit and the parent unit is
lost every now and then, and I’m experiencing sound
interruptions.
Move the parent unit closer to the baby unit (but not less than 3 feet).
The parent unit may be out of range.
Reset the parent unit and the baby units by turning them off unplugging
the electrical power to the parent unit and the baby units. Wait for 15
seconds and plug them back in again. Turn on the baby units and the
parent unit. Allow up to one minute for the parent unit and the baby units
to synchronize.
•
•
•
•
•
•
•
•
•
34
Appendix
Troubleshooting
Common cure for electronic equipment.
If the baby monitor is not responding normally, try the following (in the
order listed):
- Disconnect the power to the baby unit and the parent unit.
- Completely remove and install the battery again.
- Wait a few minutes before connecting power back to the baby unit
and the parent unit.
- Charge the parent unit battery for up to 12 hours.
- Wait for the parent unit to synchronize with the baby unit. Allow up to
one minute for this to take place.
•
35
Appendix
Operating range
This baby monitor operates with the maximum power allowed by the
Federal Communications Commission (FCC). Even so, this baby unit
and parent unit can communicate over only a certain distance - which
can vary with the locations of the baby unit, parent unit, the weather,
and the layout of your home.
When the parent unit is out of range, the parent unit displays
Waiting for linking.
To improve reception, move closer to the baby unit (but not less than
3 feet).
Maintenance
Taking care of your baby monitor
Your baby monitor contains sophisticated electronic parts, so it must
be treated with care.
Avoid rough treatment
Place the baby unit and parent unit down gently. Save the original
packing materials to protect your baby monitor if you ever need to
ship it.
Avoid water
Your baby monitor can be damaged if it gets wet. Do not use the
parent unit and/or baby unit outdoors in the rain, or handle it with wet
hands. Do not install the baby monitor near a sink, bathtub or shower.
Electrical storms
Electrical storms can sometimes cause power surges harmful to
electronic equipment. For your own safety, use caution when using
electrical appliances during storms.
Cleaning your baby monitor
Your baby monitor has a durable plastic casing that should retain its
luster for many years. Clean it only with a soft cloth slightly dampened
with water or mild soap. Do not use excess water or cleaning solvents
of any kind.
Remember that electrical appliances can cause serious injury if used when you
are wet or standing in water. If the baby units and/or parent unit should fall into
water, DO NOT RETRIEVE IT UNTIL YOU UNPLUG THE POWER CORDS
FROM THE WALL. Then pull the units out by the unplugged cords.
36
Appendix
The RBRC® seal
The RBRC® seal on the lithium-ion battery indicates
that VTech Communications, Inc. is voluntarily
participating in an industry program to collect and
recycle these batteries at the end of their useful
lives, when taken out of service within the United
States and Canada.
The RBRC® program provides a convenient
alternative to placing used lithium-ion batteries into
the trash or municipal waste, which may be illegal in
your area.
VTech’s participation in RBRC® makes it easy for
you to drop off the spent battery at local retailers
participating in the RBRC® program or at authorized
VTech product service centers. Please call 1 (800)
8 BATTERYTM for information on Li-ion battery
recycling and disposal bans/restrictions in your
area. VTech’s involvement in this program is part of
its commitment to protecting our environment and
conserving natural resources.
RBRC® is a registered trademark of
Rechargeable Battery Recycling Corporation.
37
Appendix
Limited warranty
What does this limited warranty cover?
The manufacturer of this VTech Product warrants to the holder of a
valid proof of purchase (“Consumer” or “you”) that the Product and all
accessories provided in the sales package (“Product”) are free from
defects in material and workmanship, pursuant to the following terms
and conditions, when installed and used normally and in accordance
with the Product operating instructions. This limited warranty extends
only to the Consumer for Products purchased and used in the United
States of America and Canada.
What will VTech do if the Product is not free from defects in
materials and workmanship during the limited warranty period
(“Materially Defective Product”)?
During the limited warranty period, VTech’s authorized service
representative will repair or replace at VTech’s option, without charge,
a Materially Defective Product. If we repair the Product, we may use
new or refurbished replacement parts. If we choose to replace the
Product, we may replace it with a new or refurbished Product of the
same or similar design. We will retain defective parts, modules, or
equipment. Repair or replacement of the Product, at VTech’s option, is
your exclusive remedy. VTech will return the repaired or replacement
Products to you in working condition. You should expect the repair or
replacement to take approximately 30 days.
How long is the limited warranty period?
The limited warranty period for the Product extends for ONE (1) YEAR
from the date of purchase. If VTech repairs or replaces a Materially
Defective Product under the terms of this limited warranty, this limited
warranty also applies to the repaired or replacement Product for a
period of either (a) 90 days from the date the repaired or replacement
Product is shipped to you or (b) the time remaining on the original one-
year warranty; whichever is longer.
What is not covered by this limited warranty?
This limited warranty does not cover:
1. Product that has been subjected to misuse, accident, shipping or
other physical damage, improper installation, abnormal operation or
handling, neglect, inundation, re, water or other liquid intrusion; or
2. Product that has been damaged due to repair, alteration
or modication by anyone other than an authorized service
representative of VTech; or
3. Product to the extent that the problem experienced is caused by
signal conditions, network reliability, or cable or antenna systems; or
38
Appendix
4. Product to the extent that the problem is caused by use with non-
VTech accessories; or
5. Product whose warranty/quality stickers, product serial number
plates or electronic serial numbers have been removed, altered or
rendered illegible; or
6. Product purchased, used, serviced, or shipped for repair from
outside the United States of America or Canada, or used for
commercial or institutional purposes (including but not limited to
Products used for rental purposes); or
7. Product returned without a valid proof of purchase (see item 2
below); or
8. Charges for installation or set up, adjustment of customer controls,
and installation or repair of systems outside the unit.
How do you get warranty service?
To obtain warranty service in the United States of America, visit
www.vtechbabymonitors.com or call 1 (800) 595-9511. In Canada,
go to www.vtechcanada.com or call 1 (800) 267-7377. NOTE: Before
calling for service, please review the user’s manual - a check of the
Product’s controls and features may save you a service call.
Except as provided by applicable law, you assume the risk of loss
or damage during transit and transportation and are responsible for
delivery or handling charges incurred in the transport of the Product(s)
to the service location. VTech will return repaired or replaced Product
under this limited warranty. Transportation, delivery or handling
charges are prepaid. VTech assumes no risk for damage or loss of the
Product in transit. If the Product failure is not covered by this limited
warranty, or proof of purchase does not meet the terms of this limited
warranty, VTech will notify you and will request that you authorize the
cost of repair prior to any further repair activity. You must pay for the
cost of repair and return shipping costs for the repair of Products that
are not covered by this limited warranty.
What must you return with the Product to get warranty service?
Return the entire original package and contents including the
Product to the VTech service location along with a description of the
malfunction or difculty; and
Include a “valid proof of purchase” (sales receipt) identifying the
Product purchased (Product model) and the date of purchase or
receipt; and
Provide your name, complete and correct mailing address, and
telephone number.
1.
2.
3.
Limited warranty (continued)
39
Appendix
Other limitations
This warranty is the complete and exclusive agreement between you
and VTech. It supersedes all other written or oral communications
related to this Product. VTech provides no other warranties for
this Product. The warranty exclusively describes all of VTech’s
responsibilities regarding the Product. There are no other express
warranties. No one is authorized to make modications to this limited
warranty and you should not rely on any such modication.
State/Provincial Law Rights: This warranty gives you specic legal
rights, and you may also have other rights, which vary from state to
state or province to province.
Limitations: Implied warranties, including those of tness for a
particular purpose and merchantability (an unwritten warranty that the
Product is t for ordinary use) are limited to one year from the date of
purchase. Some states/provinces do not allow limitations on how long
an implied warranty lasts, so the above limitation may not apply to you.
In no event shall VTech be liable for any indirect, special, incidental,
consequential, or similar damages (including, but not limited to lost
prots or revenue, inability to use the Product or other associated
equipment, the cost of substitute equipment, and claims by third
parties) resulting from the use of this Product. Some states/provinces
do not allow the exclusion or limitation of incidental or consequential
damages, so the above limitation or exclusion may not apply to you.
Please retain your original sales receipt as proof of purchase.
Limited warranty (continued)
40
Appendix
FCC and IC regulations
FCC Part 15
This equipment has been tested and found to comply with the
requirements for a Class B digital device under Part 15 of the Federal
Communications Commission (FCC) rules. These requirements are
intended to provide reasonable protection against harmful interference
in a residential installation. This equipment generates, uses and
can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment
does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the
following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
Changes or modications to this equipment not expressly approved by
the party responsible for compliance could void the user’s authority to
operate the equipment.
This device complies with Part 15 of the FCC rules. Operation is
subject to the following two conditions: (1) this device may not cause
harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
To ensure safety of users, the FCC has established criteria for the
amount of radio frequency energy that can be safely absorbed by a
user or bystander according to the intended usage of the product. This
product has been tested and found to comply with the FCC criteria.
The baby unit shall be installed and used such that parts of the baby’s
body are maintained at a distance of approximately 20 cm (8 inches)
or more.
This Class B digital apparatus complies with Canadian ICES-003.
•
•
•
•
41
Appendix
Industry Canada
Operation is subject to the following two conditions: (1) this device
may not cause harmful interference, and (2) this device must accept
any interference, including interference that may cause undesired
operation.
The term ‘’IC:‘’ before the certication/registration number only signies
that the Industry Canada technical specications were met.
This product meets the applicable Industry Canada technical
specications.
RF radiation exposure statement
Baby unit complies with FCC RF radiation exposure limits set forth
for an uncontrolled environment. Baby unit should be installed and
operated with a minimum distance of 20 cm (8 inches) between the
baby unit and the baby’s body. Use of other accessories may not
ensure compliance with FCC RF exposure guidelines. This transmitter
must not be co-located or operating in conjunction with any other
antenna or transmitter. This equipment complies also with Industry
Canada RSS-102 with respect to Canada’s Health Code 6 for
Exposure of Humans to RF Fields.
FCC and IC regulations (continued)
42
Appendix
Frequency
Control
Crystal controlled PLL synthesizer
Transmit
frequency
Baby unit: 2402 - 2478.5 MHz
Parent unit: 2402 -2478.5 MHz
Channels 52
Nominal effective
range
Maximum power allowed by FCC and IC.
Actual operating range might vary according to
environmental conditions at the time of use.
Power
requirements
Baby unit: 4 x AA Alkaline batteries
Parent unit: 3.7V Li-polymer battery
Baby unit power adapter:
Input: 100-120V AC 50/60Hz
Output: 6V DC @ 800mA
Parent unit power adapter:
Input: 100-120V AC 50/60Hz
Output: 6V DC @ 800mA
Technical specications
43
Index
A
Add a baby unit 29
Add or replace a baby unit 29
Alert tone 18
B
Baby unit battery installation 9
Baby unit default settings 15
Baby unit installation 7
Baby unit lights 3
Baby unit operation 24
Baby unit overview 2
Battery 28
Battery charging 13
Battery installation 9, 11
Brightness 22
C
Cautions v
Charging 13
D
Default settings 15, 16
Deregister a baby unit 23, 30
Display screen icon 6
Display screen messages 27
E
Electromagnetic Fields (EMF) v
Expand your baby monitor
system 29
F
FCC and IC regulations 40
I
Important safety
instructions ii, iii
Installation 7, 8, 9, 11
L
Language 23
Layout 2, 4
LCD brightness 22
LCD language 23
LCD sleep mode 21
Lights 3, 5
Limited warranty 37
Low battery tone alert 18
Lullaby 21
Lullaby auto play 21
Lullaby playback on the
baby unit 24
Lullaby playback volume 24
M
Maintenance 35
Maximum temperature 20
Minimum temperature 20
All-CAM view mode 25
N
Night vision 24, 26
Noise sensitivity 19
No link alert 19
O
Operating range 14, 35
Operation 24, 25
44
Index
P
Pair/Unpair 22
Pair a baby unit 22
Pair a new baby unit 29
Parent unit battery 28
Parent unit battery charging 13
Parent unit battery installation 11
Parent unit default settings 16
Parent unit display screen icon 6
Parent unit display screen
messages 27
Parent unit installation 8
Parent unit lights 5
Parent unit operation 25
Parent unit overview 4
Parent unit settings 18
Parts checklist 1
Positioning the baby monitor 14
Power off the baby unit 24
Power off the parent unit 25
Power on the baby unit 24
Power on the parent unit 25
Product introduction i
R
Range 14, 35
Register a baby unit 22
Remove a baby unit 23, 30
Replace a baby unit 29
S
Safety instructions ii, iii
Screen messages 27
Self-adhesive strap 7, 8
Sensitivity 19
Settings 18
Single-CAM view mode 25
Sound sensitivity 19
Speakerphone
volume 18, 24, 25
Strap 7, 8
T
Talk to the baby unit 26
Technical specications 42
Temperature 20
Temperature alert 20
Temperature scale 21
Test your baby monitor
before use 15
Troubleshooting 31
Turn off the baby unit 24
Turn off the parent unit 25
Turn on the baby unit 24
Turn on the parent unit 25
U
Unpair a baby unit 23, 30
V
View 26
Volume 18, 24, 25
VOX mode 21
W
Warning iv
Warranty 37
Z
Zoom 25
91-004422-010-100
VTECH TELECOMMUNICATIONS LTD.
A member of THE VTECH GROUP OF COMPANIES.
Distributed in the U.S.A. by VTech Communications,Inc.,
Beaverton, Oregon 97008.
Distributed in Canada by VTech Technologies Canada Ltd.,
Richmond, B.C. V6W 1L5.
Copyright © 2011 for VTECH TELECOMMUNICATIONS LTD.
VTech is the registered trademark of VTech Holdings Limited.
Printed in China.
