User Manual
E713CC Amplied Big Button
Cordless Phone with Corded
Digital Answering Machine
User Guide
2
3
WARNINGS: PRIVACY OF COMMUNICATIONS MAY NOT BE
ENSURED WHEN USING THIS PHONE.
To maintain the compliance with the FCC’s RF exposure guideline, place
the base unit at least 20 cm from nearby persons. To reduce the risk of
re or injury to persons, read and follow these instructions.
1. Read and understand all instructions.
2. Follow all warnings and instructions marked on the telephone.
3. Avoid contact with liquids. Do not locate base unit or handset near water, for
example, near a bathtub, wash basin, sink or laundry tub, in a wet basement or near
a swimming pool.
4. Avoid using a telephone (other than a cordless type) during a storm. There may be a
remote risk of electrical shock from lightning.
5. Do not use the telephone to report a gas leak in the vicinity of the leak.
6. Unplug this telephone from the wall outlets before cleaning. Do not use liquid
cleaners or aerosol cleaners on the telephone. Use a damp cloth for cleaning.
7. Place this telephone on a stable surface. Serious damage and/or injury may result if
the telephone falls.
8. Do not cover the slots and openings on this telephone. This telephon should never
be placed near or over a radiator or heat register. This telephone should not be
placed in a built-in installation unless proper ventilation is provided.
9. Operate this telephone using the electrical voltage as stated on the base unit or the
owner’s manual. If you are not sure of the voltage in your home, consult your dealer
or local power company.
10. Do not allow anything to rest on the power cord or locate this product in an area
where the power cord is likely to be damaged by furniture or foot trafc.
11. Do not overload wall outlets or extension cords as this can increase the risk of re
or electrical shock.
12. Never push any objects through the slots in the telephone. They can touch danger-
ous voltage points or short out parts that could result in a risk of re or electrical
shock. Never spill liquid of any kind on the telephone.
IMPORTANT SAFETY INSTRUCTIONS
13. To reduce the risk of electrical shock, do not take this phone apart. Opening or
removing covers may expose you to dangerous voltages or other risks. Incorrect
reassembly can cause electric shock when the appliance is subsequently used.
14. Unplug this product from the wall outlet and refer servicing to the manufacturer
under the following conditions: when the power supply cord or plug is frayed or
damaged; if liquid has been spilled into the product; if the telephone has been
exposed to rain or water; if the telephone has been dropped or the case has been
damaged; if the telephone exhibits a distinct change in performance; if the telephone
does not operate normally by following the operating instructions. Adjust only
those controls that are covered by the operating instructions. Improper adjustment
may require extensive work by a qualied technician to restore the telephone to
normal operation; if the telephone does not operate normally by following the
operating instructions.
15. Never install telephone wiring during a lightning storm.
16. Never install telephone jacks in wet locations unless the jack is specically designed
for wet locations.
17. Never touch uninsulated telephone wires or terminals unless the telephone line has
been disconnected at the network interface.
18. Use caution when installing or modifying telephone lines.
19. This product should be operated only from the type of power source indicated on
the marking label. If you are not sure of the type of power supply to your home,
consult your local power company.
20. Do not attempt to open the AC adapter. There are potentially dangerous voltages
inside, and there are no serviceable parts.
21. Discontinue use of product and contact Clarity if the product overheats, has a dam-
aged cord or plug, if the product has been dropped or damaged or if the product has
come into contact with liquids.
22. Use only the AC adapter provided with this product or a replacement AC adapter
provided by Clarity.
23. This phone amplies sound to loud volumes. To prevent hearing damage, all users
of the phone should be informed of the high volume capability of the phone and
children should only use the phone when supervised by an adult.
IMPORTANT SAFETY INSTRUCTIONS
Package contains the following items:
• Answering Machine base station with corded handset
• AC power adapter for Answering Machine base station
• Telephone line cord for Answering Machine base station
• Cordless Handset
• Charging base for cordless handset
• Belt clip for cordless handset
• (2) Rechargeable batteries for cordless handset
• User Manual
• Warranty/FCC Requirements booklet
Installation Location
For maximum coverage and reduce the interference, here are some guidelines you
should consider when you place the base unit,
• Place it at a convenient, high, and central location with no obstructions between the
handset and base unit in an indoor environment.
• Place it away from electronic appliances such as televisions, microwave ovens, radios,
personal computers, wireless devices or other cordless phones.
• Avoid facing radio frequency transmitters, such as external antennas of mobile phone
cell stations.
• Avoid plugging it into the same circuit as other major household electrical appliances
because of the potential for interference. Try moving the appliance or the base unit to
another power outlet.
If the reception for a base unit location is not satisfactory, move it to another location
for better reception. Depending on the surrounding conditions as well as spatial
and structural factors, the range may be reduced. The range indoors is normally less
than outdoors.
PACKAGING CONTENTS/LOCATION
7
CONNECTING THE ANSWERING MACHINE BASE STATION
1 – Connect the corded handset to the base station as shown below.
2 – Plug the power supply cord into the jack located on the back of the base station.
Plug the other end of power supply line cord into an electrical outlet.
Always use the cables provided in the box.
WARNINGS: Use only the power adapter provided for the base station.
Always use the cables provided in the box, others may not be compatible.
NOTE: The base unit needs mains power for normal operation, and the cordless handset
will not work without it.
If you have a Broadband line (ADSL)
If you connect your telephone to a line with a broadband (ADSL) connection, you
will need to insert a micro-lter between the telephone and the telephone line, other-
wise you may get interference between the telephone and the broadband, which could
cause problems.
In a home with broadband, every telephone must have a micro-lter connected, not
just the one at the telephone point that your modem is connected to. If you need more
broadband (ADSL) micro-lters, contact your broadband supplier.
CONNECTING CORDED BASE
8
ANSWERING MACHINE BASE STATION
BOOST
PAGE
FLASH
OK MENU
M1
M2
M3
M4
M5
RD/P
ON/OFF
ANSWER
1 2 3
4 5 6
7 8
0
9
#
INT
CLEAR
MUTE
19
18
17
15
14
12
11
10
9
8
7
13
16
6
5
2
1
4
3
GETTING TO KNOW YOUR CORDED BASE
9
GETTING TO KNOW YOUR CORDED BASE
1 RINGER INDICATION
• Flashes when ringing.
• In idle mode: ON if Answering machine is on; OFF if Answering
machine is off.
2 LCD DISPLAY
3 MEMORY KEYS
• Inial mode: Long press to store the Store the number
entered from idle mode.
• In idle mode: Press to dial out to the number stored in the
memory key.
4 CLEAR/MUTE
• In main menu mode: Press to go back to idle screen.
• In sub-menu mode: Press to go back to previous level.
• In sub-menu mode: Press and hold to go back to idle screen.
• In editing/predialing mode: Press to clear a character / digit.
• In editing/predialing mode: Press and hold to delete all the
characters/digits.
• During a call: Press to mute/unmute the microphone.
• In ringing: Press to silence.
5 OK/MENU
• In idle mode: Press to access the main menu.
• In sub-menu mode: Press to conrm the selection.
• In Redial List/Call log: Press to store the number into Directory.
6 DIGIT KEYPAD (0-9, *, #)
• In predial or editing mode: Press to enter a digit or character.
• In predial or editing mode: Press and hold to insert a pause.
• In idle mode: Long press 1 to dial to the preset voice mail number.
(Network service subscription is required)
10
7 REPEAT/REDIAL/PAUSE ( /RD/P)
• In Idle mode: Press to access the redial list.
• In predial or editing mode: Press and hold to insert a pause.
• In TAM message playback mode: Press to go back to
previous message
8 DELETE (X)
• In editing mode: Short press to backspace one digit, long press
to clear whole strings.
• In Directory list/Redial list/Call log view mode: Press to
delete an entry.
• In TAM message playing mode: Press to delete a message.
9 UP KEY ( )
• In Idle mode: Press to access the Directory (list of saved records)
• In menu mode: Press to scroll up the menu items
• In Directory list/Redial list/Call log: Press to scroll up the list
10 FORWARD/INTERCOM ( /INT)
• In Idle mode: Press (followed by handset number) to start a call with
the handset.
• In TAM message playback mode: Press to skip to next message.
11 DOWN KEY ( )
• In idle mode: Press to access the call log
• In menu mode: Press to scroll down the menu items
• In Directory list/Redial list/Call log view mode: Press to
scroll down the list
• In editing mode: Press to move the cursor one character to the left.
12 PLAY/STOP ( )
• In idle mode: Press to playback messages.
• During TAM message playback: Press to stop playing messages.
GETTING TO KNOW YOUR CORDED BASE
11
13 FLASH/PAGE
• During a call: Press to insert a Flash.
• In Idle mode: Press to page handsets. Press and hold to enter
registration mode.
14 ANSWER ON/OFF ( )
• In Idle: Press to switch the answering machine ON or OFF.
• During message playback: Press to stop message playback.
15 VOLUME DOWN (VOL -)
• During a call or TAM message playback: Press to decrease
the volume
16 VOLUME UP (VOL +)
• During a call or TAM message playback: Press to increase
the volume
17 BOOST ( )
• During a call: Press to activate/deactivate the booster function.
18 SPEAKERPHONE ( )
• In Idle mode or Directory/Call log/Redial list view mode:
Press to make a call with speakerphone.
19 SPEAKERPHONE ON/OFF INDICATION
• On steady when the speakerphone is turned on.
GETTING TO KNOW YOUR CORDED BASE
12
LCD Display
Icons Description
This will display when there is a new CID entry or if
one is being viewed.
This will display when you have a new Voice Mail
message. Will disappear when all the visual messages
have been read. (Network dependent)
This shows how many messages you have on your
local anwering system.
Indicates that the ringer is switched off.
Indicates the time format.
GETTING TO KNOW YOUR CORDED BASE
13
Menu Structure
In idle mode, press <OK/MENU> to access the menu. Press <UP> or <DOWN>
to navigate the menu. Refer to the following for the menu structure.
Main Menu Play Messages Answering Sys Directory Caller ID Log
Sub menu
OK - plays msg Announcement Add contact Review
Delete all old Review Delete all calls
Record memo Speed dial
Answer on/off
Ans sys setup
Msg alert tone
Recording time
Voice language
Main Menu Ringers Set Date/Time Settings
Sub menu
Ringer volume LCD Language
Ringer tone Voicemail #
DIAL MODE Clr voicemail
FLASH TIME Keytone
KEY TONE Home area code
Dial Mode
The following menus can be accessed by pressing relevant keys in idle mode:
Keys UP key DOWN key RD/P key INT (+ HS#)
List Empty List Empty or List Empty or Intercom Call
or Display Display CID log Display Redial list to handset #
Directory
Sub menu
ADD TO PB? ADD TO PB?
(exist if
DELETE? DELETE?
there are
DELETE ALL? DELETE ALL?
entries)
KEY PRESS <MENU> <UP/DOWN>
<UP/DOWN>
<UP/DOWN> <UP/DOWN>
GETTING TO KNOW YOUR CORDED BASE
14
GETTING TO KNOW YOUR CORDED BASE
Text and Digit Entry Table
The following tables show you where each letter and punctuation character can be
found. Respective character table will be used when corresponding menu language is
selected. This will be helpful when storing a name in the directory and renaming
your phone.
In editing mode, a cursor is displayed to indicate the current text entry position. It is
positioned at the right of the last character entered.
Writing Tips:
1. Once a character is selected, the cursor will move to the next position after
a short pause.
2. You can move the cursor within the text by <Directory> or <CALL
LOG> to amend the text entry.
3. Press <CLEAR/MUTE> to delete the last character.
4. Press and hold <CLEAR/MUTE> to delete the entire text string.

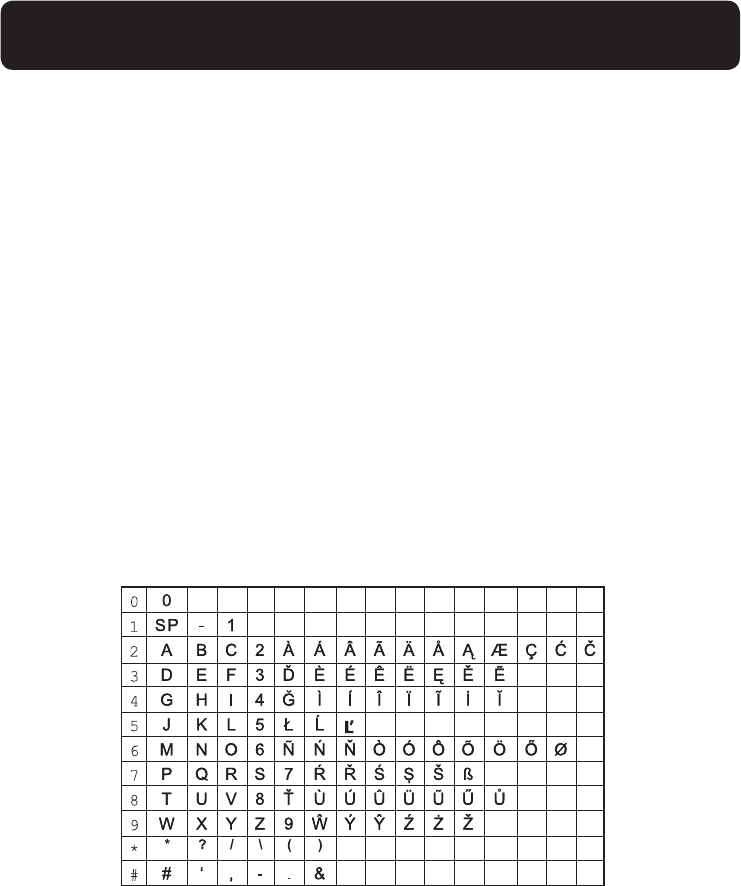

Latin character table
15
MAKE AN EXTERNAL CALL
Preparatory dialing
Enter the phone number and lift up the corded handset or press <SPEAKER-
PHONE> to dial the number. Press <CLEAR/MUTE> to clear the entry when
entering the number.
Note: To insert a pause in the dialling sequence, press and hold the <RD/P> button, the
screen will then show a “P” in the number.
Direct dialing
Lift up the corded handset or press <SPEAKERPHONE> to take the line and enter
the phone number.
Call from the directory
Press <UP> to access the Directory and press <UP/DOWN> to select the desired
directory entry. Lift up the corded handset or press <SPEAKERPHONE> to dial
out to the selected directory entry. Alternatively, press <OK/MENU> to access the
directory to get the desired directory entry.
Call from the CID
Press <DOWN> to access the CID and press <UP/DOWN> to select the desired
CID entry. Lift up the corded handset or press <SPEAKERPHONE> to dial out to
the selected CID entry. Alternatively, press <OK/MENU> to access the CID from the
main menu.
NOTE: see sections on Caller Display and Settings for further details on CID.
Call from the redial list
Press <RD/P> to access the redial list and press <UP/DOWN> to select the desired
redial number. Lift up the corded handset or press <SPEAKERPHONE> to dial out
to the selected redial number.
Call timer
Your phone automatically times the duration of every call. The call timer will display a
few seconds after the call has made. It is shown in hours, minutes and seconds format
(HH:MM:SS).
USING YOUR CORDED BASE
16
Answer a Call
When there is an incoming ring, pick up the corded handset or press <SPEAKER-
PHONE> to answer the call.
End a Call
During a call connection, put the corded handset on the base station to end the call. Or
press <SPEAKERPHONE> if you have a call in handsfree mode.
Adjust Earpiece and Handsfree Volume
During a call, you can adjust the earpiece volume from a selection of 5 volume levels
(Level 1 to Level 5). If you are in a speakerphone mode, you can choose the speaker
volume from a selection of 5 volume levels (Level 1 to Level 5).
During a call:
Press <UP/DOWN> to increase or decrease the volume level respectively. The
current setting is shown. When you end the call, the settings will remain at the last
selected level.
Boost
During a call, you can activate the booster function with the volume of earpiece
increased by several dBs by pressing <BOOST>, “BOOST” displays on the screen. To
cancel it, press <BOOST> again.
Mute a Call
You can talk to someone nearby without letting the caller hear you during a call.
During a call:
Press <CLEAR/MUTE> to mute the microphone and “MUTED” is displayed on
the LCD. Your caller cannot hear you. Press <CLEAR/MUTE> again to unmute the
microphone. “MUTED” is disappeared and the display will show “LINE IN USE”.
Memory Keys
There are 5 memory keys (from M1 to M5) on the corded base for you to store frequent
use numbers. After a number is stored in any of these memory keys, you can simply
press once on one of these memory keys to dial out to the number stored in it directly
Store a number into a memory key
1. In idle mode, enter the telephone number you want to store.
USING YOUR CORDED BASE
17
2. Press and hold any memory key for more than 2 seconds, until you hear the
conrmation tone to indicate the number has been stored.
Note: If there is already a number stored before, the old number will be replaced directly.
Dial the number in a memory key
In idle mode, press <M1>/ <M2>/ <M3>/ <M4>/ <M5>, the phone will auto-
matically dial out the telephone number stored in the selected memory key in
speakerphone mode.
Emergency Call without main power
The E713CC corded base unit can make an emergency call with the corded handset
when the mains AC power is disconnected.
Pick up the corded handset and wait for several seconds to get the dial tone and then
enter the phone number to make a call.
Remarks: It is not possible to dial numbers from memories when the mains power is off.
When the mains power is off, you can also answer an incoming call with the
corded handset.
When the phone rings, pick up the corded handset to talk to the caller.
Redial
You can redial up to 10 of the last numbers called. If you have stored a name in the
directory to go with the number, the name will be displayed instead.
Redial a number from the redial list
1. In idle mode, press <RD/P> to view the redial list.
2. Press <UP/DOWN> to browse the redial list.
3. Pick up the corded handset or press <SPEAKERPHONE> to dial to the selected
redial number.
Note: If there are no numbers in the redial list, the display will show “EMPTY”.
Store a redial number into the directory
1. Follow steps 1 and 2 in section Redial a number from the redial list.
2. Press <OK/MENU> twice.
3. Edit the number, then press <OK/MENU>.
USING YOUR CORDED BASE
18
4. Enter the name; edit, then press <OK/MENU>to save; display shows Saved,
then returns to Redial list.
Delete a redial number
1. Follow steps 1 and 2 in section Redial a number from the redial list.
2. Press < X > to delete; number will be deleted immediately.
Find the Handset
You can locate the handset by operation on the base station as below.
1. In idle mode, press <PAGE/FLASH> to page all handsets; “PAGING” will ash on
the base screen.
All handsets registered to the base will produce the paging tone and “PAGING”
ashes on the screen. You can stop the paging by pressing <TALK> / <SPEAKER-
PHONE> on any handset or <PAGE/FLASH> on the base to stop paging.
Make an Internal Call
This feature allows you to make internal calls and make conference calls.
Intercom
Using the corded base:
1. In idle mode, press <INT> and the number of the registered handset you wish to
call; press “<INT> 9” to call all cordless handsets.
2. The called handset rings, showing “Handset 7 is calling” (Handset 7 is the designated
name for the corded base). Press <TALK> on the called handset to establish the
internal call.
Note: If only one cordless handset is registered to the base station, press <INT> will call
the cordless handset immediately.
Make a 3-way Conference Call
The conference call feature allows one external call to be shared with the corded base
and cordless handset or two cordless handsets. The three parties can share the conver-
sation and no network subscription is required.
Using the corded base during the external call: press TALK on a registered handset to join
the call.
Note: Any party (corded base or cordless handset) hangs up during a conference call will
leave the other party still in connection with the external call.
USING YOUR CORDED BASE
19
PRIVATE PHONEBOOK (DIRECTORY)
Your phone can store up to 50 private directory entries with names and numbers in
the corded base. Each directory entry can have a maximum of 20 digits for the phone
number and 15 characters for the name. Directory entries are stored alphabetically
by name.
The directory is shared across your system (corded base and registered cordless
handsets). When a new directory entry is added, the system will update all units with
the new entry as soon as the entry is saved in memory.
Add a New Directory Entry
In idle:
1. PRESS <OK/MENU>, THEN <UP> OR <DOWN> to select Directory;
press <OK/MENU> TO ENTER THE DIRECTORY MENU.
2. Press <OK/MENU> to select Add contact.
3. Press <OK/MENU> and the display shows Enter number.
4. Key in the number using the digit keys (maximum 20 digits). If you make any mistakes,
press <CLEAR/MUTE> to backspace a digit. Press <UP> OR <DOWN> TO
INSERT CHARACTERS.
5. Press the <OK/MENU> button to conrm; display shows Enter name.
6. Key in the name using the digit keys (maximum 15 characters). If you make any
mistakes, press <CLEAR/MUTE> to backspace a character. Press <UP> OR
<DOWN> TO INSERT CHARACTERS.
When you have nished editing, press <OK/MENU> to conrm; the display
shows “Saved” and returns to previous screen.
Edit a Directory Entry
In idle:
1. PRESS <OK/MENU>, THEN <UP> OR <DOWN> to select Directory;
press <OK/MENU> TO ENTER THE DIRECTORY MENU.
2. Press <UP/DOWN> to select Review.
Display shows “Entries in DIR” briey, then displays the rst entry in alphabetical
order; press <UP/DOWN> to select the desired entry to be edited.
3. Press <OK/MENU> and and the display shows Enter number.
USING YOUR CORDED BASE
20
4. Edit the name or press <CLEAR/MUTE> to backspace a character if necessary.
5. Use <DOWN> to move cursor to the left, <UP> to move cursor to the right.
6. Press <OK/MENU> to save the number and and the display shows Enter name.
7. Edit the name or press <CLEAR/MUTE> to backspace a digit if necessary. Use
<DOWN> to move cursor to the left, <UP> to move cursor to the right.
8. Press <OK/MENU> to conrm and the display will show “Saved”, then returns to
the list of Directory entries.
OR
In idle:
1. Press <UP>; display shows “Entries in DIR” briey, then displays the rst entry in
alphabetical order; press <UP/DOWN> to select the desired entry to be edited.
2. Follow steps 4-8 in process above.
View a Directory Entry
In idle:
1. Press <OK/MENU>, then <UP> or <DOWN> to select Directory; press
<OK/MENU> to enter the Directory menu.
2. Press <UP/DOWN> to see Review.
3. Display shows “Entries in DIR” briey, then displays the rst entry in alphabetical
order; press <UP/DOWN> to review the entries.
OR
In idle:
Press <UP>; display shows “Entries in DIR” briey, then displays the rst entry in
alphabetical order; press <UP/DOWN> to select the desired entry.
Delete a Directory Entry
In idle:
1. Press <UP>
OR
Press <OK/MENU>, then <UP> or <DOWN> to select Directory; press
<OK/MENU> to enter the Directory menu.
2. Press <UP/DOWN> to see Review.
USING YOUR CORDED BASE
21
3. Display shows “Entries in DIR” briey, then displays the rst entry in alphabetical
order; press <UP/DOWN> to select the desired entry to be deleted.
4. Press < X > and display shows “Delete contact?”.
5. Press <OK/MENU> to conrm or <CLEAR/MUTE> to cancel.
Assign Speed Dials
Your corded base has 9 speed dial available, corresponding to keys “0, 2-9” on your nu-
meric dialpad. When these speed dial locations are set up, you can dial these numbers by
press-and-holding the numeric key. For example - to dial the number set up in speed dial
4, press and hold key “4” for 2 seconds. To set up the speed dial buttons, you must rst
add that number/contact to the directory.
In idle:
1. Press <OK/MENU>, then <UP> or <DOWN> to select Directory; press
<OK/MENU> to enter the Directory menu.
2. Press <UP/DOWN> to see Speed dial.
3. Display shows the rst speed dial location, 0; press <UP> or <DOWN> to see all
available locations. The available (not yet set) locations will show <unassigned>; the
set locations will show the name of the contact. Press <OK/MENU> to select a
speed dial location.
4. Display shows “Copy from DIR”, followed by the rst entry in your directory. Use
<UP> or <DOWN> to select the entry you wish to assign to your speed dial loca-
tion; press <OK/MENU> to select the entry.
5. You can further edit this entry if needed; press <OK/MENU> to conrm.
6. You will hear a conrmation beep when nished, display returns to the Speed Dial list
of records.
Note: You can reassign Speed Dial locations - follow steps above and choose the Speed Dial
you want to change; display shows “Reassing SD”; press <OK/MENU> to conrm.
Note: Speed Dial “1” is reserved for Voicemail access (separate features, available from
your local phone service provider”. See section PHONE SETTINGS for setting up Voice-
mail speed dial and for directions on how to clear the voicemail icon.
CALLER DISPLAY (NETWORK DEPENDENT)
This feature is available if you have subscribed the Caller Line Identication service with
your network service provider. Your phone can store up to 10 received calls with date/
USING YOUR CORDED BASE
22
time information in the base CID. The number will be shown on the LCD when the
phone is ringing. If the number matches with one of the entries in your Private Directory,
the caller’s name stored in the private directory will be displayed with the number.
If the caller number is disabled to send caller information, “WITHHELD” will display.
If the caller number is not provided, “OUT OF AREA” will display.
If you’ve got new Caller Display records, the base will have “NEW X” on its display,
where X is the number of new calls.
View the CID
All unanswered calls are saved in calls log with the latest call putting at the top of the list.
When the CID is full, the oldest call will be replaced by a new call. The unanswered call
which has not been read is marked with <NEW> icon and the number of new calls is
shown at the top right of the screen.
1. Press <OK/MENU> and <UP/DOWN> to select Caller ID log.
2. Press <OK/MENU> twice to review the entries; display shows the most
recent entry.
3. Press <UP/DOWN> to review the list of entries.
Note: In idle, you can press <DOWN> to see the most recent record in the missed CID
list directly.
4. Press <UP/DOWN> to scroll through the CID list.
Note: The <NEW> icon will be displayed in the idle screen until all new calls have been
reviewed in the CID list.
Store a CID Number into the Directory
1. Follow steps from 1 to 3 in section View the CID.
2. Press <OK/MENU> to select the record to be stored; the record will now be
edited before being saved to your directory.
3. Display shows “Edit number”; key in the number using the digit keys (maximum 20
digits) OR press <OK/MENU> if no changes are needed. If you make any mistakes,
press <CLEAR/MUTE> to backspace a digit. Press <UP> or <DOWN> to
insert characters.
4. Press the <OK/MENU> button to conrm.
5. Display shows “Edit name”; key in the name using the digit keys (maximum 15 charac
ters). If you make any mistakes, press <CLEAR/MUTE> to backspace a character.
USING YOUR CORDED BASE
23
Press <UP> or <DOWN> to insert characters.
6. When you have nished editing, press <OK/MENU> to conrm, and the display
shows “Saved”, then it returns to the list of CID records.
Delete an Entry in the CID
1. Follow steps from 1 to 3 in section View the CID.
2. Press < X > to delete the record displayed on the screen. The record will be
deleted immediately.
Delete All Entries in the CID
1. Press <OK/MENU> and <UP/DOWN> to select Caller ID log; press
<OK/MENU>.
2. Press <UP/DOWN> to select Delete all calls; press <OK/MENU>.
3. Display shows “Delete all?” Press <OK/MENU> to conrm, or
<CLEAR/MUTE> to cancel.
PHONE SETTINGS
Your phone comes with a selection of settings that you can change to personalize your
phone the way you like it to work.
Set Date and Time
The format for the date is MM-DD-YY, and the time is HH:MM in either 12-hour or
24-hour format.
1. Press <OK/MENU> and <UP/DOWN> to select Set date/time.
2. Press <OK/MENU> to show Date: ; use numeric keypad to enter date
(MM-DD-YY).
3. Press <OK/MENU> to conrm; display shows Time:; use numeric keypad to enter
time (HH:MM), use .<UP/DOWN> TO SET AM/PM.
4. Press <OK/MENU> to conrm and you will hear a beep, display returns to menu.
Set the Base Language
In Idle:
1. Press <OK/MENU> and <UP/DOWN> to select Settings.
2. Press <UP/DOWN> to select LCD Language.
USING YOUR CORDED BASE
24
3. Press <OK/MENU> to conrm the setting; display shows Saved, you will hear a
beep; display goes back to the previous menu.
RINGER SETUP
Change Ringer Volume and Tone
1. Press <OK/MENU> and <UP/DOWN> to select Ringers.
2. Press <OK/MENU>; display shows Ringer Volume.
3. Press <UP/DOWN> to select the ringer volume that best suits your needs; phone
rings to indicate current level.
Note: If ringer volume is OFF, display shows the ringer off icon.
1. Press <OK/MENU> to save; display shows Saved, then returns to previous screen.
2. Press <UP/DOWN> button to go to Ringer Tone; press <OK/MENU> to
change the ringer tone.
3. Press <UP/DOWN> button to scroll through the ringer tone list (from Tone 1 to
Tone 10).
4. Press <OK/MENU> to conrm the setting; display shows Saved, you will hear a
beep; display goes back to the previous screen; press <CLEAR/MUTE> to return
to previous menu.
Note: The respective ringer melody will be played during your selection.
De-register Handsets
You may need to do this if you need to replace a faulty handset. You will need to deregis-
ter all handsets, then re-register each handset individually.
1. Press and hold <PAGE/FLASH> for 10 seconds, until display shows De-register?
(display will show Registering... after approx. 4 seconds; keep pressing the button until
De-register? is displayed) .
2. Press <OK/MENU> to conrm; display shows “Please wait” while de-registration
process is in progress.
Note: Press <CLEAR/MUTE> to return to the previous menu at any time.
Set the Dial Mode
You should normally leave the dialling mode at its default setting of TONE (also called
DTMF) unless the phone is connected to an old exchange that only recognizes
PULSE dialling.
USING YOUR CORDED BASE
25
In Idle:
1. Press <OK/MENU> and <UP/DOWN> to select Settings.
2. Press <OK/MENU> and <UP/DOWN> to select Dial mode.
3. Press <OK/MENU> and <UP/DOWN> to select TONE or PULSE.
4. Press <OK/MENU> to conrm; display briey shows “Saved”, then it returns to
previous menu
Set the Key Tone
The Key Tone is a conrmation beep when you press any key. It is set on by default, but
can be turned off, if desired.
In Idle:
1. Press <OK/MENU> and <UP/DOWN> to select Settings.
2. Press <OK/MENU> and <UP/DOWN> to select Key Tones.
3. Press <OK/MENU> and <UP/DOWN> to select On or Off.
4. Press <OK/MENU> to conrm; display briey shows “Saved”, then it returns to
previous menu.
Set the Home Area Code
In Idle:
1. Press <OK/MENU> and <UP/DOWN> to select Settings.
2. Press <OK/MENU> and <UP/DOWN> to select Home area code.
3. Use numeric keypad to enter your local 3-digit area code.
4. Press <OK/MENU> to conrm; display briey shows “Saved”, then it returns to
previous menu.
Set the Voicemail access number (in Speed Dial location “1”)
In Idle:
1. Press <OK/MENU> and <UP/DOWN> to select Settings.
2. Press <OK/MENU> and <UP/DOWN> to select Voicemail #.
3. Use numeric keypad to enter the Voicemail access phone number (separate service,
available from your local phone service provider).
4. Press <OK/MENU> to conrm; display briey shows “Saved”, then it returns to
previous menu.
USING YOUR CORDED BASE
26
Note: You can now access your Voicemail service by press-and-holding key “1” on your
numeric keypad.
Clear the voicemail icon on your screen
Note: This feature applies if you have voicemail service from your local phone service pro-
vider; it refers to the small envelope icon on your screen.
In Idle:
1. Press <OK/MENU> and <UP/DOWN> to select Settings.
2. Press <OK/MENU> and <UP/DOWN> to select Clr voicemail; display shows
“Reset VM icon?”
3. Press <OK/MENU> to conrm (or <CLEAR/MUTE> to cancel); display returns to
previous menu.
Note: You can now access your Voicemail service by press-and-holding key “1” on your
numeric keypad.
REGISTRATION
IMPORTANT: When you purchase a phone system, all handsets are
already registered to your base, so you do not need to register them.
Handset registration is only necessary when you buy extra handsets or if a handset has
become faulty.
You can register additional handsets to have up to ve handsets per base unit, with each
handset’s number (1 to 5) shown on its display.
To check whether a handset is registered, make sure mains power to the base unit is
switched on and the handset is within range. The handset’s display should show its
number and the <Antenna icon> should be steadily on. If the display shows “UNREG”,
you need to register the handset again using the following process:
On the cordless handset:
1. Press <MENU/SELECT> and <UP/DOWN> to select Settings; press
<MENU/SELECT>.
2. Press <UP/DOWN> TO SELECT “REGISTER”; DISPLAY SHOWS
“PRESS AND HOLD PAGE BUTTON”.
On the base:
3. At the same time, press and hold <PAGE/FLASH> for 4 seconds until the display
shows “Registering...”.
USING YOUR CORDED BASE
27
4. Handset displays “Registering... Please wait”
5. When process is nished, handset display shows “Handset registered” briey, after
which it shows Handset X (X is the handset number).
ANSWERING SYSTEM
Your phone includes a telephone answering machine that records unanswered calls when
it is on. The answering machine can store up to 59 messages within the maximum re-
cording time of approximately 25 minutes. As well as recording incoming messages, you
can record memos for other users of your phone. The base will also display “TAM FULL“.
Using the direct key
If the answering machine is turned off, the <ON/OFF ANSWER> Indicator will be
turned off if there are no new messages.
1. Press <ON/OFF ANSWER> to switch the answering machine on.
2. When the answering machine is switched on, the ON/OFF ANSWER Indicator will
be turned on.
Switch off the answering machine
If the answering machine is already switched on, in idle, press <ON/OFF ANSWER>
to switch the answering machine off. The answering system ON/OFF Indicator will be
turned off if there are no new messages.
Using the menu
Alternatively, you can switch the answering system ON or OFF using the Base menu.
1. Press <OK/MENU> and <UP/DOWN> to select Answering sys.
2. Press <OK/MENU> and <UP/DOWN> to go to Answer ON/OFF.
3. Press <OK/MENU> and <UP/DOWN> to select between ON and OFF.
4. Press <OK/MENU> to conrm.
OGM SETTINGS
Record your Outgoing Message (Announcement)
When you record your own announcement, it will be used when the answering machine
answers the call. If your personalized announcement is deleted, the pre-set announce-
ment will be restored automatically.
USING YOUR CORDED BASE
28
Record/play/delete personalized announcement
1. Press <OK/MENU> and <UP/DOWN> to select Answering sys.
2. Press <OK/MENU> and <UP/DOWN> to select Announcement. Display
shows Play (2) Del (3) Rec (7)
3. To record your announcement, press 7; wait for the beep and start speaking; press 5
when nished.
4. To play the current announcement, press 2; you will hear your announcement (if
recorded) or the pre-loaded default announcement.
5. To delete (restore default announcement), press 3; you will hear a conrmation beep,
the display shows Annc deleted.
ANSWERING MACHINE MESSAGES
Play messages on the answering machine
If you have new messages, the display will show e.g. 01/02 MSGS, which means you have
1 new message out of total 2 messages. New messages are played rst, and then are
saved as old messages, until they are deleted. Old messages are played again after all new
messages are played completely.
Using the direct key
In idle
1. Press <PLAY/STOP> to listen to messages and memos.
2. Press <PLAY/STOP> if you want to stop the playback.
3. Press <REPEAT / RD/P> once if you want to repeat the current message from
the beginning, or press twice to skip back to the previous message during
message playback.
4. Press <SKIP FORWARD / INT> if you want to skip forward to the next
message during message playback.
5. Press < X > if you want to delete the current message being played.
Note: You cannot delete New Messages, so you will have to play them before trying
to delete.
USING YOUR CORDED BASE
29
Remarks
a. The rst received new message will be played rst and then the second received new
message will be played and so on (if more than one new message is received).
b. When all the new messages are played, it will playback the old messages.
Record a memo on the Answering Machine
You can record your memos for another user. When you record a memo, the message
counter will increase by one and the memo can be played back in the same way as
answering machine messages. Memo recording can still function even when the answer-
ing machine is turned off.
Using the menu
1. Press <OK/MENU> and <UP/DOWN> to select Answering sys.
2. Press <OK/MENU> and <UP/DOWN> to select Record memo.
3. Press <OK/MENU>, wait for the beep to start recording the memo, press 5 when
nished; you will hear “Recorded” followed by a beep.
Note: If the memory is full, during the memo recording, you will hear a tone and the display
will return to idle mode.
Incoming Call Messages (ICM)
If the answering machine is ON, when there is an incoming call, the answering machine
will answer it and play the OGM, followed by a beep sound. The caller can then leave a
message of up to 1, 2 or 3 minutes, or of unlimited length up to the available memory on
the answering machine. If Call screening is set to on (see section 9.6.5), the caller’s voice
will also be played through the loudspeaker to allow you to screen the call and decide if
you want to leave the answering machine to record the message, or talk to the
caller directly.
At any time if you want to pick up the call, you can lift up the corded handset or press
<SPEAKERPHONE> to intercept the call and talk to the caller directly. The
message recording will be stopped automatically. If the answering machine is in the pro-
cess of recording, the message already stored will be saved.
You can use the corded handset, the speakerphone or the cordless handset to intercept
the call to speak to the caller during ICM recording. Then the message that is currently
being recorded will be saved as a new message unless the user presses STOP during the
message, and then the message will not be saved as a new message.
USING YOUR CORDED BASE
30
ANSWERING MACHINE SYSTEM
Set the Answer Delay
You can set the number of rings before the answering machine answers and starts playing
your announcement. You can set the answering system to answer after two to six rings
or TIME SAVER.
When you ring in to access your messages remotely, if your answering machine is set
to toll saver, it will answer after 2 rings if you have new messages. It will answer after 6
rings if you do not have any new messages, so if you call in and don’t get an answer after
2 rings, you can hang up and save on call charges.
1. Press <OK/MENU> and <UP/DOWN> to select Answering sys.
2. Press <OK/MENU> and <UP/DOWN> to select Ans sys setup.
3. Press <OK/MENU> and <UP/DOWN> to select # of rings.
4. Scroll <OK/MENU> and <UP/DOWN> to select the desired answer delay from
the available options 2, 3, 4 (default), 5, 6 or Toll Saver.
5. Press <OK/MENU> to conrm; display shows Saved.
Set the Recording Time of Incoming Message
You can set the maximum length of the recording time of the incoming messages.
1. Press <OK/MENU> and <UP/DOWN> to select Answering sys.
2. Press <OK/MENU> and <UP/DOWN> to select Ans sys setup.
3. Press <OK/MENU> and <UP/DOWN> to select Recording time.
4. Press <OK/MENU> and <UP/DOWN> to select your desired recording time
from the available options 1 min, 2 min (default), 3 min.
5. Press <OK/MENU> to conrm; display shows Saved.
Set the Outgoing Message Language
The answering machine announces the outgoing message when it answers a call. There is
a pre-set OGM for each of ANS & REC mode or ANSWER ONLY mode. You are able
to select your desired OGM language to playback.
1. Press <OK/MENU> and <UP/DOWN> to select Answering sys.
2. Press <OK/MENU> and <UP/DOWN> to select Ans sys setup.
3. Press <OK/MENU> and <UP/DOWN> to select Voice language.
4. Press <OK/MENU> and <UP/DOWN> to select your desired language.
USING YOUR CORDED BASE
31
5. Press <OK/MENU> to conrm; display shows Saved.
Turn On or Off the Call Screening
You can select to turn on or off the call screening on base.
1. Press <OK/MENU> and <UP/DOWN> to select Answering sys.
2. Press <OK/MENU> and <UP/DOWN> to select Ans sys setup.
3. Press <OK/MENU> and <UP/DOWN> to select Call screening
4. Press <OK/MENU> and <UP/DOWN> to select ON or OFF.
5. Press <OK/MENU> to conrm; display shows Saved.
Change remote access code
Your phone lets you check your messages or operate your answering machine by
calling the answering machine when you are away from home and the Remote Access
is turned on.
1. Press <OK/MENU> and <UP/DOWN> to select Answering sys.
2. Press <OK/MENU> and <UP/DOWN> to select Ans sys setup.
3. Press <OK/MENU> and <UP/DOWN> to select Remote code.
4. Press <OK/MENU> and use the numeric keypad to enter a new 2-digit remote
access code.
5. Press <OK/MENU> to conrm; you will hear a conrmation beep.
Turn On of Off the Message Alert Tone
You can select to turn on or off the message alert (for missed calls).
1. Press <OK/MENU> and <UP/DOWN> to select Answering sys.
2. Press <OK/MENU> and <UP/DOWN> to select Ans sys setup.
3. Press <OK/MENU> and <UP/DOWN> to select Msg alert tone.
4. Press <OK/MENU> and <UP/DOWN> to select ON or OFF.
5. Press <OK/MENU> to conrm; display shows Saved.
USING YOUR CORDED BASE
32
Step 1: Connecting the charging base station
• Locate the charging station (A) in close proximity to the corded base station and plug
the power supply cord into an electrical outlet.
Step 2: Install rechargeable batteries
• Remove the battery compartment cover (B) by pushing down with thumb and sliding
the cover towards the rear of the handset.
• Insert the batteries (C) by aligning the positive and negative end of batteries with the
appropriate matching battery compartment contacts. Positive contact (+) to the at
contact of the battery compartment, and negative contact (–) to the spring contact
of compartment.
• Replace the battery compartment cover by sliding and pushing upward with thumb
until the cover snaps into place.
Step 3: Insert handset on base to charge batteries
• Position the handset on the charging base and charge for 16 hours rst time.
A beep indicates that the handset is properly placed on the base or charger.
NOTE: Use only NiMH rechargeable batteries. Please refer to the Battery
Safety Instructions on page 5 for proper use and disposal of the batteries.
C
A
B
C
CORDLESS HANDSET INSTALLATION
33
2
13
14
15
16
3
4
5
7
8
6
9
10
11
17
12
1
GETTING TO KNOW YOUR CORDLESS HANDSET
34
1 RD/P (REDIAL/PAUSE)
• In idle mode: Press repeatedly to view the last numbers dialed.
• While entering numbers: Press and hold to insert a dialing pause (P).
2 BOOST
• During a call: Press to enhance the clarity and loudness of your
caller’s voice.
3 MUTE / X (REMOVE)
• During a call: Press to mute the microphone.
• While predialing: press to delete a digit.
• While reviewing the redial list, directory, speed dial list or
caller ID history: Press to delete and individual entry.
• When ringing: Press to turn off the handset ringer temporarily.
4 VOLUME UP / DIRECTORY / SCROLL UP
• In menu mode: Press to scroll up the menu items.
• During a call: Press to increase listening volume.
• In idle mode: Press to access the directory.
• While entering names or numbers in the directory: Press to
move the cursor to the right.
5 TALK OFF / CLEAR
• During a call: Press to end the call.
• While using menus: Press to cancel an operation, return to the
previous menu, or standby mode.
• In idle mode: Press and hold to erase the missed calls indicator.
• When ringing: Press to turn off the handset ringer temporarily.
6 VOLUME DOWN / CALL LOG / SCROLL DOWN
• In menu mode: Press to scroll down the menu items.
• During a call: Press to decrease listening volume.
• In idle mode: Press to access the call list.
• While entering names or numbers in the directory: Press to
move the cursor to the left.
GETTING TO KNOW YOUR CORDLESS HANDSET
35
7 ALPHANUMERIC KEYPAD, * (STAR), # (POUND)
• In idle or editing mode: Press to insert a digit/character.
• 0 key: While entering the directory names, press to insert a space.
• 1 key: While reviewing a caller ID history entry, press repeatedly to
add or remove 1 in front of the telephone number before dialing or
saving it in the directory.
• * key during a call: Press to send touch-tone signals temporarily.
• # key When reviewing a caller ID history entry: Press repeatedly
to view the dialing options.
8 MICROPHONE
9 TALK ON / FLASH
• Press to make or answer a call.
• During a call: Press to answer an incoming call when you receive a
call waiting alert.
10 MENU / SELECT
• In idle mode: Press to access menu items
• In menu mode: Press to select an items, save an entry or setting.
11 SPEAKER (ON/OFF)
• In idle / pre-dial mode: Press to make a call with the speakerphone.
• During a call: Press to toggle between the speakerphone and
the earpiece.
• In Call List / directory/redial list entry: Press to make a call with
the speakerphone.
• During ringing: Press to answer a call with the speakerphone.
12 TONE
• During a call: Press to change the quality of the audio to best suits
your hearing.
13 VISUAL RINGER LIGHT
• Flashes when there is an incoming outside call or the telephone base is
paging all handsets.
GETTING TO KNOW YOUR CORDLESS HANDSET
36
GETTING TO KNOW YOUR CORDLESS HANDSET
14 EARPIECE
15 VOLUME UP / DIRECTORY / SCROLL UP
• Refer to point 4 for the key instruction
16 VOLUME DOWN / DIRECTORY / SCROLL DOWN
• Refer to point 6 for the key instruction
17 HEADSET JACK
• We recommend the Plantronics™ headsets M210C©, M214©.
37
GETTING TO KNOW YOUR CORDLESS HANDSET
The screen display gives you information on the current status of
the telephone.
Icons Description
The speakerphone is turned on.
While reviewing the call list history, missed calls that
have not been reviewed.
The ringer is switched off.
New message in the answering system.
Answering system is turned on.
New voicemail received from the telephone
service provider. (network subscription is required).
The audio boost feature is on.
The microphone is muted.
2/3 battery power level.
1/3 battery power level.
Flashes when low battery power level is detected,
needs charging.
Animation in cycle, battery is charging.
38
MENU STRUCTURE
In idle mode, press <MENU/SELECT>, then <UP/DOWN> to browse the menu
items. Refer to the following for the menu structure.
GETTING TO KNOW YOUR CORDLESS HANDSET
Main Play Answering Call
Menu Messages System Directory Log Intercom
Sub Announcement Review Review (Displayed
Menu Delete all old Add content Delete only when
Record memo Speed dial all calls two or more
Answer ON/OFF handsets
Answer sys setup registered
Main
Menu Ringers Settings Registration
Sub Ringer volume LCD language
Menu Ringer tone CLR voicemail
Key tone
Set date/time
Home area code
Dial mode
39
GETTING TO KNOW YOUR CORDLESS HANDSET
The following table shows you where each letter and punctuation character can be
found. This will be helpful when storing a name in the directory.
In editing mode, a cursor is displayed to indicate the current text entry position. It is
positioned at the right of the last character entered.
Writing Tips:
1. Once a character is selected, the cursor will move to the next position after a
short pause.
2. You can move the cursor within the text by <UP/DOWN> to amend the text entry.
3. Press <MUTE/X> to delete the last character / digit.
4. Press and hold <MUTE/X> to delete the entire text string.
Keystroke table
NOTE: When entering a name in the directory, the rst letter of each word will be
automatically capitalized.
Number
key
Characters by number of key presses
1234567891011
1 1 . - ' ( ) * # & / ,
2 A B C a b c 2
3 D E F d e f 3
4 G H I g h i 4
5 J K L j k l 5
6 M N O m n o 6
7 P Q R S p q r s 7
8 T U V t u v 8
9 W X Y Z w x y z 9
0Space 0
40
AUDIO TONE SETTINGS
Use this feature to change the quality of the audio of the handset to best suit
your hearing.
While you are on a call, press TONE repeatedly to select an equalizer setting: Bass,
Natural, Treble 1 or Treble 2, (the default setting is Natural). The tone setting remains
set until you change it again.
Audio Boost
Use the audio boost feature to enhance the clarity and loudness of your caller’s voice on
the handset earpiece - up to 35dB of amplication.
To turn on this feature
1. While you are on a call using the handset earpiece, press AUDIO BOOST. The
AUDIO BOOST icon appears until you turn off this feature.
2. You must press AUDIO BOOST every time you want to activate the feature.
To turn off this feature
1. Press AUDIO BOOST.
–OR–
2. Audio boost ends when you switch from the handset earpiece (normal handset use)
to the speakerphone.
Note: Audio Boost ends when you end the call. If you end a call when the audio boost
feature is on, the handset earpiece listening volume automatically resets to level 1 (the mini-
mum setting) for the next call.
Volume Control (earpiece and speakerphone)
During a call
Press <UP/DOWN> to increase or decrease the listening volume. The current setting
is shown. When the volume reaches the minimum or maximum setting, you hear two
beeps. When you end the call, the setting will remain at the last selected level.
Note: The handset earpiece volume setting (1-5) and speakerphone volume setting (1-6)
are independent.
Mute
Use the mute function to turn off the microphone while on a call. You can hear the
caller, but the caller does not hear you.
USING YOUR CORDLESS HANDSET
41
To mute the call
During a call, Press <MUTE/X>. When mute is on, the handset screen shows Muted
for a few seconds and the MUTE icon appears until you turn off mute. Or mute is auto-
matically canceled when you end the call.
Note: Mute will also be canceled automatically when you press <TALK ON/ FLASH> to
answer the second waiting call.
To un-mute the call
When mute is on, press <MUTE/X> and then resume speaking. When mute is off,
Microphone on appears temporarily on the handset screen.
MAKE A CALL
Pre-dialing
Enter the phone number rst, then press <TALK ON/FLASH> or <SPEAKER>
to dial out the number. Press <TALK OFF/CLEAR> or <MUTE/X> to clear
the entry.
Direct Dialing
Press <TALK ON/FLASH> or <SPEAKER> to access dial tone, then enter the
phone number.
Dial a speed dial number
1. In idle mode, press and hold a dial pad key (0 through 9) to display the desired speed
dial entry.
2. The handset automatically dials out the displayed number.
–OR–
3. Press <TALK OFF/CLEAR> to stop dialing the displayed number.
Note: You need to set the speed dial number rst. If the speed dial location you
selected is empty, the screen shows the speed dial list instead.
Call from Directory
1. In idle mode, press <UP> to access the directory. Alternatively, press
<MENU/SELECT> to access the directory from the main menu.
2. Press <UP> or <DOWN> to select the desired directory entry.
3. Press <TALK ON/FLASH> or <SPEAKER> to dial out to the selected entry.
USING YOUR CORDLESS HANDSET
42
Call from the CID
1. In idle mode, press <DOWN> to access the CID. Alternatively, press <MENU/
SELECT> to access the CID from the main menu.
2. Press <UP/DOWN> to select the desired CID entry.
3. Press <TALK ON / FLASH> or <SPEAKER> to dial out to the selected entry.
Call from the Redial List
1. In idle mode, press <RD/P> to access the redial list.
2. Press <UP> or <DOWN> to select the desired redial number.
3. Press <TALK ON/FLASH> or <SPEAKER> to dial out to the
selected number.
Note: Your handset automatically times the duration of every call. The call timer will
display a few seconds after the call has been made. It is shown in hours, minutes and
seconds format.
Temporary Tone Dialing
If you have pulse (rotary) dialing service only, you can temporarily switch from pulse to
touch-tone dialing during a call.
During a call, press <*>. Buttons pressed after this send touch-tone signals.
The telephone automatically returns to pulse dialing mode after you end the call.
Answer a Call
When the phone rings, press <TALK ON / FLASH> to use the earpiece
–OR–
Press <SPEAKER > to use the speakerphone.
End a Call
During a call connection on handset, press <TALK OFF/ CLEAR> to end the call.
–OR–
Put the handset on the base station to end the call.
Chain dialing
This feature allows you to initiate a dialing sequence from numbers stored in the
directory, CID or redial list while you are on a call.
USING YOUR CORDLESS HANDSET
43
Chain dialing can be useful if you wish to access numbers other than phone numbers
(such as bank account information or access codes) from the directory, CID or
redial list.
To access a number in the directory while on a call
1. Press <MENU/SELECT>, then <UP/DOWN> to select Directory.
2. Press <MENU/SELECT>, then <UP/DOWN> or press the dial pad keys (0
through 9) to nd the desired entry.
3. Press <MENU/SELECT>. The telephone automatically dials the displayed number.
To access a number in the CID history while on a call
1. Press <MENU/SELECT>, then <UP/DOWN> to select CID.
2. Press <MENU/SELECT>, then <UP/DOWN> to scroll to the desired entry.
(Press # to view the dialing options, if necessary.)
3. Press <MENU/SELECT>. The telephone automatically dials the displayed number.
To access the redial list while on a call
1. Press <RD/P>. The screen shows the number most recently called. If it is not the
desired number, Press <UP/DOWN> to scroll to the desired number.
2. Press <MENU/SELECT>. The handset dials the displayed number.
Note: Press <TALK OFF/CLEAR> to exit the directory, CID history or redial list and
return to the call without dialing the displayed number.
Redial list
You can redial up to 20 of the last numbers called. If you have stored a name in the
directory to go with the number, the name will be displayed instead. The most recent
last number will display at the top of the redial list.
To Review the redial list entry
1. In idle mode, press <RD/P> to access redial list.
2. Press <UP/DOWN>, or press <RD/P> repeatedly to review the redial list entry.
To Redial a Number from the Redial List
Follow the steps in the previous section.
1. Press <TALK ON/FLASH> or <SPEAKER> to dial the selected redial number.
USING YOUR CORDLESS HANDSET
44
To Store a Redial Number into the Directory
Follow the steps in the section under “Review the redial list entry” above.
1. Press <MENU/SELECT> twice, then use the keypad to edit the number
if necessary,
2. Press <MENU/SELECT> and use the keypad to enter the name
3. Press <MENU/SELECT> to save.
To Delete a Redial Number
Follow the steps in the section under “Review the redial list entry”.
While reviewing a number in the redial list, press <MUTE /X> to delete the selected
entry. A conrmation tone sounds.
Find the Handset
You can use the handset locator feature to nd misplaced handsets.
To start the paging tone
Press <FIND> on the telephone base. All the registered handsets will ring, and the
** Paging** is ashing on handset screen.
To stop the paging tone
Press <TALK ON / FLASH>, <SPEAKER>, or any dial pad key (0-9 *, or #) on
the handset(s).
–OR–
Press <FIND> on the telephone base or put the handset in the telephone base
or charge.
Make an Internal Call
This feature is only applicable when there are at least two registered handsets. It allows
you to make internal calls, transfer external calls from one handset to another handset
and make conference calls.
Intercom Another Handset
1. In idle mode, press <MENU/SELECT>, then <UP/DOWN> to select Intercom.
2. Press <MENU/SELECT>:
If you have two handsets, your handset screen shows Calling other handset. The
other handset rings and its screen shows Other handset is calling.
USING YOUR CORDLESS HANDSET
45
If you have more than two registered handsets, your screen shows Intercom to:
Use the dial pad keys to select the other handset. Your handset screen shows Calling
HANDSET X. The other handset rings and its screen shows HANDSET X
is calling.
3. The called handset rings. Press <TALK ON/FLASH> or <SPEAKER> on the
called handset to establish the internal call.
Transfer an External Call from Handset to Handset
During an external call
1. Press <MENU/SELECT>, then <UP/DOWN> to select Intercom.
2. Press <MENU/SELECT>.
If you have two handsets, the outside call is put on hold and your handset screen shows
Calling other handset. The other handset rings and its screen shows Other
handset is calling.
If you have more than two registered handsets, your screen shows Intercom to: Use
the dial pad keys to enter a handset number. The outside call is put on hold and your
handset screen shows Calling HANDSET X. The other handset rings and its screen
shows HANDSET X is calling.
The external call is put on hold automatically and the called handset rings.
1. Press <TALK ON/FLASH> or <SPEAKER> on the called handset to establish
an internal call.
2. Press <TALK OFF/CLEAR> on the calling handset or put the calling handset on
the charging cradle to end the current call with the external party. The external call is
transferred to the called handset.
Make a 3-way Conference Call
The conference call feature allows one external call to be shared with two handsets or a
handset and base. The three parties can share the conversation and no network sub-
scription is required.
During an external call, press <TALK/FLASH> or <SPEAKER> on the handset to
establish the conference call if another handset has answered the call.
NOTE: Any handset that hangs up during a call will leave the rest of the handsets still in
connection with the external caller.
Your phone can store up to 100 directory entries with names and numbers.
USING YOUR CORDLESS HANDSET
46
Each directory entry can have a maximum of 30 digits for the phone number and 15
characters for the name.
ADD A NEW DIRECTORY ENTRY
In idle mode, press <MENU/SELECT>, then <UP/DOWN> to select Directory.
1. Press <MENU/SELECT>, then <UP/DOWN> to select Add contact.
2. Press <MENU/SELECT>, then use the keypad to enter the number.
–OR–
Copy a number from redial list
1. Press <RD/P>.
2. Press <UP/DOWN> or press <RD/P> repeatedly to locate the number to copy.
3. Press <MENU/SELECT> to copy the number.
4. Press <MENU/SELECT>, then use the keypad to enter the name.
5. Press <MENU/SELECT> to store the directory entry.
Note:
When entering the number and name
1. Press <UP> OR <DOWN> to move the cursor to the right or left.
2. Press and hold <RD/P> to enter a dialing pause (a P appears).
3. Press <MUTE/X> to erase a digit or character.
4. Press and hold <MUTE/X> to erase all digits or characters.
View a Directory Entry
1. In idle mode, press <UP> to access the directory.
–OR–
2. Press <MENU/SELECT>, then <UP/DOWN> to select Directory, then press
<MENU/SELECT> twice to select Review.
3. Press <UP/DOWN> or to view the directory entries. Entries appear alphabetically
by the rst letter in the name.
Search a Directory Entry by Name
1. In idle mode, press <UP> to show the rst entry in the directory.
2. When an entry appears, press the dial pad keys (0-9) to start a name search.
USING YOUR CORDLESS HANDSET
47
(alphabetical search). The directory shows the rst name beginning with the rst
letter associated with the dial pad key if there is an entry in the directory that begins
with that letter. Press <UP/DOWN> to scroll through the entries beginning with
that letter.
3. To see other names that start with the letters on the same dial pad key, keep pressing
the key until the desired letter is shown. The names appear in alphabetical order.
For example, if you have the names Jennifer, Jessie, Kevin and Linda in your directory:
If you press 5 (JKL) once, J and then Jennifer displays.
If you press 5 (JKL) once, J displays. Press <DOWN>. Jessie displays.
If you press 5 (JKL) twice, K and then Kevin displays.
If you press 5 (JKL) three times, L and then Linda displays.
If you press 5 (JKL) ve times, J displays and then Jennifer displays again.
Note: If you press a key (0-9) and no name starts with the letters on that key, the directory
shows the entry that matches the next letter in the directory.
Edit a Directory Entry
1. In idle mode, press <UP> to access the directory.
–OR–
Press <MENU/SELECT>, then <UP/DOWN> to select Directory, then press
<MENU/SELECT> twice to select Review.
2. Press <UP/DOWN> to select the directory entry or search a directory entry by
name.
3. Press <MENU/SELECT>, then use the keypad to edit the number if necessary.
4. Press <MENU/SELECT>, then use the keypad to edit the name if necessary.
5. Press <MENU/SELECT> to save.
Delete a Directory Entry
1. In idle mode, press <UP> to access the directory.
–OR–
Press <MENU/SELECT>, then <UP/DOWN> to select Directory, then press
<MENU/SELECT> twice to select Review.
2. Press <UP/DOWN> to select the desired directory entry.
3. Press <MUTE/X>; the screen shows Delete contact?
USING YOUR CORDLESS HANDSET
48
USING YOUR CORDLESS HANDSET
4. Press <MENU/SELECT> to conrm. Or Press <TALK OFF/CLEAR> to exit
without deleting the selected entry.
Note: If the directory entry you deleted is also in the speed dial location, the telephone will
automatically clear the speed dial location that entry occupied.
This telephone has 10 speed dial locations where you can assign telephone numbers from
the directory you wish to dial numbers by pressing and holding the respective digits keys
from idle mode.
ADD A SPEED DIAL NUMBER
1. In idle mode, press <MENU/SELECT>, then <UP/DOWN> to select Directory.
2. Press <MENU/SELECT>, then <UP/DOWN> to select Speed dial.
3. Press <MENU/SELECT>, then <UP/DOWN> to select an empty speed
dial location.
4. Press <MENU/SELECT> to access the directory list, then press <UP/DOWN>
to select the desired directory entry.
5. Press <MENU/SELECT> to save. The name of the desired directory entry
appears in the selected speed dial location.
Note: If the directory is empty, when you press MENU/SELECT in step 4, the screen
shows DIRECTORY EMPTY.
If the speed dial location you selected is occupied, the new directory entry you selected
replaces the old one. Take caution not to replace entries you do not wish to delete from
the speed dial locations.
Dial the Speed Dial Number
1. In idle mode, press and hold a dial pad key (0 through 9) to display the desired speed
dial entry. The handset automatically dials out the displayed number.
–OR–
2. Press <TALK OFF/CLEAR> within one second to stop dialing the
displayed number.
Note: If the speed dial location you selected is empty, the screen shows the speed dial
list instead.
Delete the Speed Dial Number
1. In idle mode, press <MENU/SELECT>, then <UP/DOWN> to select Directory.
49
2. Press <MENU/SELECT>, then <UP/DOWN> to select Speed dial.
3. Press <MENU/SELECT>, then <UP/DOWN> to scroll to a speed dial location.
4. Press <MUTE/X> to delete the selected speed dial location. A conrmation
tone sounds. Deleting speed dial locations does not affect entries in the directory.
CALLER ID DISPLAY (NETWORK DEPENDENT)
This product supports caller ID services offered by most telephone service providers.
If you have subscribed to Caller ID service, and provided the identity of the caller is not
withheld, the number of the caller will be displayed together with the date and time of
the call (if provided by the network).
The telephone stores caller ID information about the last 50 incoming calls in the CID.
Each entry may have up to 30 digits for the telephone number and 15 characters for
the name. Entries are stored in reverse chronological order. The telephone deletes the
oldest entry when the log is full to make room for new calls. If you have more than one
handset, this information is common to all handsets, so changes made in any handset are
reected in all other handsets. If you answer a call before the information appears on the
screen, it does not show in the caller ID history.
Note: The caller ID information might not be available for every incoming call. The callers
might intentionally block their names and/or telephone numbers.
Missed (new) calls indicator
When you have calls that have not been reviewed, the handset idle screen shows
XX missed calls.
All entries that have not been reviewed are counted as missed (new) calls. Each time you
review a caller ID history entry marked NEW, the number of missed calls decreases by
one. If you do not want to review the missed (new) calls one by one, but you still want to
keep them in the caller ID history, you can press and hold <TALK OFF/ CLEAR> for
four seconds when the handset is idle. All the entries in the caller ID history are consid-
ered old (reviewed), and the missed calls message goes away.
USING YOUR CORDLESS HANDSET
50
Reasons for missing caller ID information
SCREEN MESSAGE REASON
Private name The caller prefers not to show the name
Private number The caller prefers not to show the telephone number.
Private caller The caller prefers not to show the name and telephone number
Unknown name Your telephone service provider cannot determine the caller’s name
Unknown number Your telephone service provider cannot determine the caller’s tele-
phone number
Unknown caller
Your telephone service provider cannot determine the caller’s name
and telephone number. Calls from other countries may also generate
this message.
View the CID Entries
Review the CID to nd out who called, to return the call or to copy the caller’s name
and number into your directory. CID empty appears if there are no records in the CID.
When a handset is in idle mode, press <DOWN> to review the CID entries in reverse
chronological order starting with the most recent call.
1. Press <DOWN> to access the CID.
–OR–
2. Press <MENU/SELECT>, then <UP/DOWN> to select CID
3. Press <MENU/SELECT> twice to select Review.
4. Press <UP/DOWN> to browse the CID entries.
Note: When reviewing an entry from the calls list, press KEY# repeatedly to display the
number in a different format.
For example, if a caller number is displayed as 123-456-7890, the various formats
will be:
456-7890
1-456-7890
123-456-7890
1-123-456-7890
USING YOUR CORDLESS HANDSET
51
USING YOUR CORDLESS HANDSET
You may choose the desired number format for local and long distance numbers before
dialing or saving it into the directory.
The NEW icon is removed once the new call has been viewed.
Store a CID number into the Directory
Follow Steps 1 and 2 in the View the CID Entries section.
1. Press <MENU/SELECT>, then use the keypad to edit the number if necessary.
2. Press <MENU/SELECT> to enter the name.
3. Press <MENU/SELECT> to conrm.
Delete an Entry in the CID
Follow Steps 1 and 2 in the View the CID Entries section.
Press <MENU/X> to delete the selected entry. The handset shows “Deleting...”
with a conrmation tone. Once deleted, you cannot retrieve that entry.
Delete the Entire List of the CID
1. In idle mode, press <MENU/SELECT>, then <UP/DOWN> to select CID.
2. Press <MENU/SELECT>, then <UP/DOWN> to select Del all calls.
3. Press <MENU/SELECT> to conrm. It displays “Delete all calls?”
4. Press <MENU/SELECT> to re-conrm.
HANDSET SETTINGS
Your phone comes with a selection of settings that you can change to personalize your
phone the way you like it to work.
LCD Language Settings
You can select the language used for all screen displays.
1. In idle mode, press <MENU/SELECT>, then <UP/DOWN> to select Settings.
2. Press <MENU/SELECT>, then <UP/DOWN> to select LCD language.
3. Press <MENU/SELECT>, then <UP/DOWN> to select English, Français
or Español.
4. Press <MENU/SELECT> to save.
52
USING YOUR CORDLESS HANDSET
Voicemail waiting (visual message waiting) indicator
If you subscribe to a voicemail service offered by your telephone service provider, this
feature provides a visual indication when you have new voicemail messages. New voice-
mail and appear on the handset screen.
Clear voicemail indication
Use this feature when the telephone indicates there is new voicemail but there is none.
This may occur, for example, when you have accessed your voicemail while away from
home. This feature only turns off the displayed
New voicemail message and icon; it does not delete your voicemail messages. As
long as you have new voicemail messages, your telephone service provider continues to
send the signal to turn on the indicator.
To manually turn off the new voicemail indicator
1. In idle mode, press <MENU/SELECT>, then <UP/DOWN> to select Settings.
2. Press <MENU/SELECT>, then <UP/DOWN> to select Clr voicemail.
3. Press <MENU/SELECT>. The screen shows Turn off indicator?
4. Press <MENU/SELECT> to turn the voicemail indication off. A conrmation
tone sounds.
–OR–
5. Press <TALK OFF/CLEAR> to cancel the procedure.
Note: For information about using your voicemail service, contact your telephone service
provider for assistance
Set the Date and Time
You will need to set the correct time and date so that you know when you received call
list entries.
1. Press <MENU/SELECT>, then <UP/DOWN> to select Settings.
2. Press <MENU/SELECT>, then <UP/DOWN> to select Set date / time.
3. Press <MENU/SELECT>, then <UP/DOWN> to select Date & time.
4. Press <MENU/SELECT>, then use the keypad to enter the date ( MM/DD/YY).
5. Press <MENU/SELECT>, then use the keypad to enter the time (HH:MM).
Press <UP> OR <DOWN> to choose AM or PM.
6. Press <MENU/SELECT> to conrm.
53
USING YOUR CORDLESS HANDSET
CID time synchronization
CID time sync is programmed to be on. If you subscribe to caller ID service, the day,
month and time are set automatically with each incoming call. You can turn CID time sync
off so the system uses the date and time that you set.
1. In idle mode, press <MENU/SELECT>, then <UP/DOWN> to select Settings.
2. Press <MENU/SELECT>, then <UP/DOWN> to select Set date/time.
3. Press <MENU/SELECT>, then <UP/DOWN> to select CID time sync.
4. Press <MENU/SELECT>, then <UP/DOWN> to select On or Off.
5. Press <MENU/SELECT> to save your preference.
Set the Ringer Tone
1. Press <MENU/ SELECT>, then <UP/DOWN> to select Ringers.
2. Press <MENU/SELECT>, then <UP/DOWN> to select Ringer tone.
3. Press <MENU/SELECT>, then <UP/DOWN> to select the desired ringer tone
(a total of 10 melodies for your selection) for setting ringer tone for external calls.
Note: The respective ringer tone will be played while browsing the tone list.
4. Press <MENU/SELECT> to conrm.
Set the Ringer Volume
1. Press <MENU/ SELECT>, then <UP/DOWN> to select Ringers.
2. Press <MENU/SELECT>, then <UP/DOWN> to select Ringer volume.
3. Press <MENU/SELECT>, then <UP/DOWN> to set the ringer volume (Off,
Level 1 to Level 6).
Note: The respective ringer volume will be played during your selection. If OFF is
selected, icon will display.
4. Press <MENU/SELECT> to conrm.
Set Key Tone
A single beep is emitted when you press a key. You can turn on or off the key tone.
1. Press <MENU / SELECT>, then <UP/DOWN> to select Settings.
2. Press <MENU / SELECT>, then <UP/DOWN> to select Key tone.
3. Press <MENU / SELECT>, then <UP/DOWN> to select On or Off.
4. Press <MENU/SELECT> to conrm.
54
USING YOUR CORDLESS HANDSET
REGISTER/DEREGISTER HANDSETS
Your telephone can support up to ve cordless handsets. The handset needs to register
with the telephone base before use. You must register each handset separately.
The handsets provided within your product box are already registered as
HANDSET 1 and so forth. Additional handsets are assigned numbers in the order
they are registered (HANDSET 2 to HANDSET 5).
When rst purchased, all expansion handsets alternately display:
1. Press <PAGE/FLASH> on base 4 sec
– and –
2. Then press # on handset.
The new handset should be charged without interruption for at least 30 minutes before
registering to the telephone base.
Register a handset
1. In idle mode, press <MENU/SELECT>, then <UP/DOWN> to
select Registration.
2. Press <MENU/SELECT> and screen will alternately show
3. Press <PAGE/FLASH> on base 4 sec
– and –
4. Then press # on handset
5. Press and hold <PAGE/FLASH> on the telephone base for about four seconds,
until you hear a beep.
6. Press # (pound key) on the handset. The screen shows “Registering...
Please wait”.
Note: NO LED indication and Alert Tone to indicate the base is under registration mode.
When the handset is registered successfully, “HANDSET” registered and then
“HANDSET X” appears on the screen, with X being the handset number (1-5).
If the registration is not successful, the handset screen shows “Registration failed”.
Please start again from step 1 above.
Note: You cannot register a handset if any other system handset is in use. To register an
expansion handset, follow from the step 3 as above.
55
USING YOUR CORDLESS HANDSET
Deregister all handsets
You can deregister handsets. You may need to deregister your handsets if:
• You have ve registered handsets and need to replace a handset.
– OR –
• You wish to change the designated handset number of your registered handsets.
• You must rst deregister ALL the handsets, and then register each handset you wish
to use again, one at a time.
1. Press and hold <PAGE/FLASH> on the telephone base for about 10 seconds -
display shows Deregistering....
2. When complete, the handset screen alternately shows:
“Press PAGE on base 4 sec”.
– and –
“Then press # on handset”
To register the handset(s) to the telephone base again, follow the registration instruc-
tions in the Register a handset section.
Note: There are no visual or audible alerts to indicate the base is under registration mode.
Note: If the deregistration process is not successful, you might need to reset the system and
try again. To reset, unplug the power from the telephone base and plug it back in.You cannot
deregister the handset(s) if any system handset is in use.
56
If you have difculty with your Answering Machine or Cordless Handset,
please try the following suggestions.
The unit does not record new messages.
• Check that the power cord is plugged-in to a working electrical outlet.
• Ensure that the answering machine is powered-on.
The caller cannot leave a message.
• The answering machine is turned off. Check power switch.
• Message memory is full. Erase unnecessary messages.
I cannot operate the answering machine remotely.
• You are entering the wrong remote access code. Reset to default settings.
• You are pressing the dial keys too quickly.
• The answering machine is turned off.
• You are using a pulse telephone.
While recording an outgoing message or listening to messages, the unit
rings and recording stops.
• A call is being received. Answer the incoming call and try again to record your
outgoing message later.
No dialing tone when pressing <TALK> key.
• The phone cord of the answering machine is not plugged in. Check that the telephone
line cord has been plugged into the back of the unit and the phone wall jack.
• The power cord is not plugged in correctly to an electrical outlet.
• The line is busy, as another handset is used.
• Wrong phone cord. Use the original phone cord supplied with the unit.
When connecting to a PBX, no and/or wrong connection after dialing.
• Dialing prex is needed. Insert the correct dialing prex.
ANSWERING MACHINE
TROUBLESHOOTING
57
“SEARCHING” is displayed.
• Answering machine is out of range. Reduce the range.
The call does not work.
• Service not activated, or wrong operator, or wrong setting. Check your Subscription
with network or change the dial mode.
No display.
• Recharge battery
My cordless handset doesn’t work at all
• Make sure the power cord to the cordless handset charger base unit is securely
plugged into a working electrical outlet.
• Make sure the telephone line cord is securely and rmly plugged into the answering
machine and the telephone wall jack.
• Make sure the power cord to the answering machine is securely plugged into a working
electrical outlet.
• Charge the battery in the cordless handset for at least 16 hours. For optimum daily
performance, return the cordless handset to the charger base when not in use.
• If the battery is depleted, it may take approximately 30 minutes to charge the handset
before it shows Low Battery.
• Reset the telephone base. Unplug the electrical power. Wait for approximately 15
seconds, then plug it back in. Allow up to one minute for the cordless handset and
telephone base to reset.
• You may need to purchase a new battery. Use only the rechargeable battery supplied
with the unit, or contact the customer service helpline found in this User Guide to
purchase the correct replacement batteries.
I cannot get a dial tone
• First try all the suggestions previously listed.
• Move the cordless handset closer to the answering machine. You may have moved out
of range.
CORDLESS HANDSET
TROUBLESHOOTING
58
• If the previous suggestions don’t work, disconnect the answering machine from the
telephone wall jack and connect to a different telephone. If there is no dial tone on
that telephone either, the problem is in your wiring or telephone service. Contact your
telephone service provider (charges may apply).
• Your telephone line cord might be malfunctioning. Try installing a new telephone
line cord.
I cannot dial out
• First try all the suggestions in listed under the “I cannot get a dial tone”.
• Make sure you have a dial tone before dialing. The cordless handset may take a second
or two to nd the telephone base and produce a dial tone. This is normal. Wait an
extra second before dialing.
• Check that all the telephones connected to the same telephone line are “hung-up”.
• Make sure to set the dial mode to the correct setting (pulse dialing or tone dialing) for
the service in your area.
• Eliminate any background noise. Noise from a television, radio or other appliances may
cause the telephone to not dial out properly. If you cannot eliminate the background
noise, rst try muting the cordless handset before dialing, or dialing from another
room in your home with less background noise.
• If the other telephones in your home are having the same problem, the problem is in
your wiring or telephone service. Contact your telephone service provider (charges
may apply).
My cordless handset isn’t performing normally
• Make sure the power cord from the charger base unit is securely plugged into a
working electrical outlet.
• Plug the power adapter into a different electrical outlet not controlled by a wall switch.
• Move the cordless handset and charger base closer to the answering machine. You may
have moved out of range.
• Reset the answering machine. Unplug the electrical power. Wait for 15 seconds then
plug it back in. Allow up to one minute for the cordless handset and answering machine
to reset.
• Other electronic products such as HAM radios and other DECT phones can cause
interference with your cordless telephone. Try installing your telephone as far away as
possible from these types of electronic devices.
TROUBLESHOOTING
59
“Out of range or no pwr at base” appears on my cordless handset
• Ensure that the cordless charger base is powered up.
• Place the cordless handset in the charging base for one minute to allow the cordless
handset and base to synchronize.
• Move the cordless handset closer to the telephone base. You might have moved out
of range.
• Reset the telephone base. Unplug the electrical power. Wait for 15 seconds then plug
it back in. Allow up to one minute for the cordless handset and answering machine
base station to reset.
• Other electronic products such as HAM radios and other DECT phones can cause
interference with your cordless telephone. Try installing your telephone as far away as
possible from these types of electronic devices.
I experience poor sound quality when using the speakerphone
• For increased sound quality while using the speakerphone, place the handset on a at
surface with the dial pad facing up.
• When using a speakerphone, controlling background noise in your environment is
essential. While you are listening to your party, press MUTE/X to temporarily turn
your microphone off. When it is your turn to speak, remember to press MUTE/X
again to turn the microphone on.
• Excessive background noise will cause a speakerphone to fade in and out.
• Try controlling the background noise by turning off any audio devices near the speaker-
phone. Also, try to avoid interrupting the person at the other end of the conversation
while they are speaking. If background noise cannot be controlled, you should
terminate speakerphone operation and return to normal handset mode.
I hear other calls while using my telephone
• Disconnect the answering machine from the telephone wall jack, and plug in a diffe-
rent telephone. If you still hear other calls, the problem is probably in your wiring
or telephone service. Call your telephone service provider (charges may apply).
My cordless handset does not ring when I receive a call
• Make sure that the ringer is not turned off.
• Make sure the telephone line cord is plugged securely into the answering machine
TROUBLESHOOTING
60
and the telephone wall jack. Make sure the power cord is securely connected to an
electrical outlet.
• The cordless handset may be too far from the telephone base.
• Charge the battery in the cordless handset for at least 16 hours. For optimum daily
performance, return the cordless handset to the telephone base or charger when not
in use.
• You may have too many extension telephones on your telephone line to allow all of
them to ring simultaneously. Try unplugging one telephone at a time until the tele-
phone starts ringing.
• The layout of your home or ofce might be limiting the operating range. Try moving
the answering machine and cordless unit to another location.
• If the other telephones in your home are having the same problem, the problem is in
your wiring or telephone service. Contact your telephone service provider (charges
may apply).
• Test a working telephone at the telephone wall jack. If another telephone has the same
problem, the problem is the telephone wall jack. Contact your telephone service pro-
vider (charges may apply).
• Other electronic products such as HAM radios and other DECT phones can cause
interference with your cordless telephone. Try installing your telephone as far away as
possible from these types of electronic devices.
• Completely remove then replace the battery. Place the cordless handset in the
charging base. Wait for the cordless handset to reestablish its connection with the
answering machine. Allow up to one minute for this to take place.
• Your telephone line cord might be malfunctioning. Try installing a new telephone
line cord.
My caller ID isn’t working
• Caller ID is a subscription service. You must subscribe to this service from your tele-
phone service provider for this feature to work on your telephone.
• Your caller must be calling from an area that supports caller ID.
• Both your and your caller’s telephone service providers must use caller ID com-
patible equipment.
• If you subscribe to high-speed Internet service (DSL– Digital Subscriber Line) through
your telephone line, you must install a DSL lter between the telephone line cord and
TROUBLESHOOTING
61
the telephone wall jack. The lter prevents noise and caller ID problems caused by
DSL interference. Please contact your DSL service provider for more information
about DSL lters.
My telephone does not receive caller ID when on a call
• Make sure you subscribe to caller ID with call waiting features provided by your tele-
phone service provider. Caller ID features work only if both you and the caller are in
areas offering caller ID service, and if both telephone service providers use com-
patible equipment.
New voicemail and icon show on the display and I don’t know why
• Your telephone has voicemail indication. If “New voicemail” and appear on the
display, then your telephone has received a signal from your telephone service provider
that you have a voicemail message waiting for you to retrieve from your telephone
service provider. Contact your telephone service provider for more information on
how to access your voicemail.
Please contact the technical support of the network provider for further information.
WARNING: This telephone is not equipped with a grounding function!
Therefore some of the functions may be limited when used in
PBX systems.
TROUBLESHOOTING
63
Clarity, a Division of Plantronics, Inc.
6131 Preservation Drive
Chattanooga,TN 37416
Tel: 800-426-3738 Fax: 800-325-8871
E-mail: claritycs@plantronics.com
Website: www.clarityproducts.com
©2012 Clarity, a Division of Plantronics, Inc.All rights reserved. Clarity, E713CC, Smart for Seniors, D703HS
are trademarks or registered trademarks of Plantronics, Inc.
Rev. A (5-12)
Printed in China
© 2012 Clarity, a Division of Plantronics, Inc. All rights reserved.
Regulatory Compliance and
Warranty Information
Conformité réglementaire et
renseignements relatifs à la
garantie
Conformidad con los reglamentos e
información sobre la garantía
1
REGULATORY COMPLIANCE
PARTY RESPONSIBLE FOR REGULATORY
COMPLIANCE:
Clarity, a Division of Plantronics, Inc.
6131 Preservation Dr.
Chattanooga, TN 37416
Phone: 800-426-3738
Part 68 of FCC Rules Information
a) This equipment complies with Part 68 of the FCC rules and the
requirements adopted by the ACTA. On the bottom of this equipment
is a label that contains, among other information, a product identier in
the format US:AAAEQ##TXXXX. If requested, this number must be
provided to the telephone company.
b) A plug and jack used to connect this equipment to the premises wiring
and telephone network must comply with the applicable FCC Part 68
rules and requirements adopted by the ACTA. A compliant telephone
cord and modular plug, RJ11C USOC, is provided with this product. It
is designed to be connected to a compatible modular jack that is also
compliant. See installation instructions for details.
c) The REN is used to determine the number of devices that may be
connected to a telephone line. Excessive RENs on a telephone line may
result in the devices not ringing in response to an incoming call. In most
but not all areas, the sum of RENs should not exceed ve (5.0). To be
certain of the number of devices that may be connected to a line, as
determined by the total RENs, contact the local telephone company. For
products approved after July 23, 2001, the REN for this product is part
of the product identier that has the format US:AAAEQ##TXXXX. The
digits represented by ## are the REN without a decimal point (e.g., 03 is
a REN of 0.3).
2
For earlier products, the REN is separately shown on the label.
d) If this telephone equipment causes harm to the telephone network,
the telephone company will notify you in advance that temporary
discontinuance of service may be required. But if advance notice isn’t
practical, the telephone company will notify the customer as soon as
possible. Also, you will be advised of your right to le a complaint with the
FCC if you believe it is necessary.
e) The telephone company may make changes in its facilities, equipment,
operations or procedures that could affect the operation of the
equipment. If this happens the telephone company will provide advance
notice in order for you to make necessary modications to maintain
uninterrupted service.
f) If trouble is experienced with this telephone equipment, for repair
or warranty information, please contact Clarity, 800-426-3738. If the
equipment is causing harm to the telephone network, the telephone
company may request that you disconnect the equipment until the
problem is resolved.
g) This telephone equipment is not intended to be repaired and it
contains no repairable parts. Opening the equipment or any attempt to
perform repairs will void the warranty. For service call 800-426-3738.
h) Connection to party line service is subject to state tariffs. Contact the
state public utility commission, public service commission or corporation
commission for information.
i) If your home has specially wired alarm equipment connected to the
telephone line, ensure the installation of this telephone equipment does
not disable your alarm equipment. If you have questions about what will
disable alarm equipment, consult your telephone company or a qualied
installer.
j) This telephone equipment is hearing aid compatible.
REGULATORY COMPLIANCE
3
Customer-Owned Coin/Credit Card Phones
To comply with state tariffs, the telephone company must be given
notication prior to connection. In some states, the state public utility
commission, public service commission or corporation commission must
give prior approval of connection.
Part 15 of FCC Rules Information
This device complies with Part 15 of the FCC Rules. Operation is subject
to the following two conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation. Privacy of
communications may not be ensured when using this telephone.
To ensure safety of users, the FCC has established criteria for the amount
of radio frequency energy that can be safely absorbed by a user or
bystander according to the intended usage of the product. This product
has been tested and found to comply with the FCC criteria. The handset
may be safely held against the ear of the user. For body worn operation,
this handset has been tested and meets the FCC RF exposure guidelines
when used with the Clarity accessories supplied or designated for this
product. Use of other accessories may not ensure compliance with FCC
RF exposure guidelines. The telephone base shall be installed and used
such that parts of the user’s body other than the hands are maintained at
a distance of approximately 20cm (8 inches) or more.
Your equipment has been tested and found to comply with the limits of a
Class B digital device, pursuant to Part 15 of FCC rules. These limits are
designed to provide reasonable protection against harmful interference in
residential installation.
This equipment generates, uses and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions, may
REGULATORY COMPLIANCE
4
cause harmful interference to radio communications. However, there is
no guarantee that interference will not occur in a particular installation;
if this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and
on, you are encouraged to try to correct the interference by one of the
following measures:
1. Where it can be done safely, reorient the receiving television or radio
antenna.
2. To the extent possible, relocate the television, radio or other receiver
with respect to the telephone equipment. (This increases the separation
between the telephone equipment and the receiver.)
3. Connect the telephone equipment into an outlet on a circuit different
from that to which the television, radio, or other receiver is connected.
4. Consult the dealer or an experienced Radio/TV Technician for help.
WARNING: Changes or modications not expressly approved by the
manufacturer responsible for compliance could void the user’s authority
to operate the equipment.
Industry Canada Technical Specications
This product meets the applicable Industry Canada
technical specications.
This Class B digital apparatus complies with Canadian ICES-003.
Before installing this equipment, users should ensure that it is permissible
to be connected to the facilities of the local telecommunications company.
The equipment must also be installed using an acceptable method of
connection. In some cases, the company’s inside wiring associated with
a single line individual service may be extended by means of a certied
REGULATORY COMPLIANCE
5
connector assembly (telephone extension cord). The customer should
be aware that compliance with the above conditions may not prevent
degradation of service in some situations. Repairs to certied equipment
should be made by an authorized Canadian maintenance facility
designated by the supplier.
Any repairs or alterations made by the user to this equipment, or
equipment malfunctions, may give the telecommunications company cause
to request the user to disconnect the equipment.
Users should ensure for their own protection that the electrical ground
connections of the power utility, telephone lines and internal metallic
water pipe system, if present, are connected together. This precaution may
be particularly important in rural areas.
WARNING: Users should not attempt to make such connections
themselves, but should contact the appropriate electrical inspection
authority, or electrician, as appropriate.
The Ringer Equivalence Number is an indication of the maximum number
of terminals allowed to be connected to a telephone interface. The
termination on an interface may consist of any combination of devices
subject only to the requirement that the sum of the Ringer Equivalence
Numbers of all the devices does not exceed ve.
This Class B digital apparatus complies with Canadian ICES-003.
(The term “IC:” before the certication/registration number only signies
that the Industry Canada technical specications were met.)
Incidental or Consequential Damages: Neither Clarity nor
your retailer dealer or selling distributors has any responsibility for
any incidental or consequential damages including without limitation,
commercial loss or prot, or for any incidental expenses, expenses,
loss of time, or inconvenience. Some states do not allow exclusion or
WARRANTY SERVICE INFORMATION
6
limitation of incidental or consequential damage, so the above limitation
or exclusion may not apply to you.
Other Legal Rights: This warranty gives you specic legal rights and
you may also have other rights which vary from state to state.
To obtain warranty service, please prepay shipment and return the unit to
the appropriate facility listed below.
Clarity Service Center
6131 Preservation Dr.,
Chattanooga, TN 37416
Tel: 423-629-3500 or 800-426-3738
Fax: 423-622-7646 or 800-325-8871
Plantronics Service Centre
151 Hymus
Pointe Claire, Quebec H9R 1E9
Tel: 800-540-8363 or 514-956-8363
Fax: 514-956-1825
Please use the original container, or pack the unit(s) in a sturdy carton
with sufcient packing material to prevent damage. Include the following
information:
• A proof-of-purchase indicating model number and date of purchase;
• Bill-to address;
• Ship-to address;
• Number and description of units shipped;
• Name and telephone number of person to call, should contact be
necessary;
WARRANTY SERVICE INFORMATION
7
• Reason for return and description of the problem.
Damage occurring during shipment is deemed the responsibility of the
carrier, and claims should be made directly with the carrier.
The following warranty and service information applies only to products
purchased and used in the U.S. and Canada. For warranty information in
other countries, please contact your local retailer or distributor.
Limited Warranty: Clarity, a division of Plantronics, Inc. (“Clarity”)
warrants to the original consumer purchaser that, except for limitations
and exclusions set forth below, this product shall be free from defects in
materials and workmanship for a period of one (1) year from the date
of original purchase (“Warranty Period”). The obligation of Clarity under
this warranty shall be at Clarity’s option, without charge, of any part or
unit that proves to be defective in material or workmanship during the
Warranty Period.
Exclusions from Warranty: This warranty applies only to defects
in factory materials and factory workmanship. Any condition caused by
accident, abuse, misuse or improper operation, violation of instructions
furnished by Clarity, destruction or alteration, improper electrical voltages
or currents, or repair or maintenance attempted by anyone other than
Clarity or an authorized service center, is not a defect covered by this
warranty. Telephone companies manufacture different types of equipment
and Clarity does not warrant that its equipment is compatible with the
equipment of a particular phone company.
Implied Warranties: Under state law, you may be entitled to the
benet of certain implied warranties. These implied warranties will
continue in force only during the warranty period. Some states do allow
limitations on how long an implied warranty lasts, so the above limitation
may not apply to you.
WARRANTY SERVICE INFORMATION
8
PARTIE RESPONSABLE DE LA CONFORMITÉ
RÉGLEMENTAIRE :
Clarity, une division de Plantronics, Inc.
6131 Preservation Dr.,
Chattanooga, TN 37416
Téléphone : 800-426-3738
Renseignements sur la section 68 du règlement FCC
a) Cet équipement est conforme à la section 68 des lois et règlements
du FCC et aux exigences adoptées par l’ACTA. Sous cet équipement
se trouve une étiquette indiquant, entre autres informations, le code
d’identication du produit au format américain : AAAEQ##TXXXX. S’il
est requis, ce numéro doit être fourni à la compagnie de téléphonie.
b) Les ches et les prises utilisées pour connecter cet équipement au
câblage et au réseau téléphonique des lieux doivent être conformes à
la section 68 des exigences et règlements applicables du FCC et aux
exigences adoptées par l’ACTA. Un cordon téléphonique et une che
modulaire, RJ11C USOC, conformes sont fournis avec ce produit. Il est
conçu pour être branché à une prise modulaire compatible qui soit aussi
conforme. Consultez les instructions d’installation pour plus de détails.
c) L’IES est utilisé an de déterminer le nombre d’appareils qui peuvent
être connectés à une ligne téléphonique. Un IES excessif sur une même
ligne téléphonique peut empêcher les appareils de sonner lors de l’entrée
d’un appel. Dans la plupart mais pas dans toutes les régions, la somme
des IES ne doit pas excéder cinq (5,0). Pour connaître avec certitude
le nombre d’appareils pouvant être connectés à une ligne comme
déterminé par l’IES total, contactez la compagnie de téléphonie locale.
Pour les produits approuvés après le 23 juillet 2001, l’IES du produit fait
partie du code d’identication du produit qui est au format américain :
AAAEQ##TXXXX. Les chiffres représentés par ## correspondent à
l’IES sans virgule décimal (par ex. 03 correspond à un IES de 0,3). Pour les
produits plus récents, l’IES est afché séparément sur l’étiquette.
CONFORMITÉ RÉGLEMENTAIRE
9
CONFORMITÉ RÉGLEMENTAIRE
d) Si cet équipement téléphonique endommage le réseau téléphonique,
la compagnie de téléphonie vous informera à l’avance du besoin possible
de procéder à une interruption temporaire du service. Dans l’éventualité
où il s’avèrerait impossible d’aviser le client à l’avance, la compagnie de
téléphonie informera ce dernier dès que possible. Vous serez également
informé(e) de votre droit de déposer une plainte auprès du FCC si vous
le jugez nécessaire.
e) La compagnie de téléphonie peut apporter des modications à ses
installations, son équipement, ses opérations ou ses procédures qui
peuvent affecter le fonctionnement de l’équipement. Si cela se produit,
la compagnie de téléphonie vous avisera à l’avance an que vous puissiez
prendre les mesures nécessaires pour garantir un service ininterrompu.
f) Veuillez contacter Clarity au 800-426-3738 si vous rencontrez des
difcultés avec cet équipement téléphonique ou pour obtenir des
renseignements sur les réparations et la garantie. Si l’équipement
est à l’origine de dommages sur réseau téléphonique, la compagnie
de téléphonie peut exiger que vous le débranchiez jusqu’à ce que le
problème soit résolu.
g) Cet équipement téléphonique n’est pas destiné à être réparé et
contient des pièces irréparables. L’ouverture de l’équipement ou toute
tentative de procéder à des réparations rendront nulle la garantie. Pour
un entretien ou des réparations, appelez le 800-426-3738.
h) Le branchement à un service de lignes partagées est sujet aux tarifs
provinciaux. Contactez la commission provinciale ou nationale de services
publics ou la commission des sociétés pour plus de renseignements.
i) Si votre domicile est équipé d’un système d’alarme câblé connecté à
votre ligne téléphonique, assurez-vous que l’installation de cet équipement
téléphonique ne désactive pas votre alarme. Si vous avez des questions
sur ce qui désactive le système d’alarme, consultez votre compagnie de
téléphonie ou un installeur qualié.
j) Cet équipement téléphonique est compatible avec les prothèses
auditives.
10
CONFORMITÉ RÉGLEMENTAIRE
Téléphones privés à pièces de monnaie/cartes de crédit
An de se conformer aux tarifs provinciaux, la compagnie de téléphonie
doit être avisée à l’avance de toute connexion. Dans certaines provinces,
la commission provinciale ou nationale des services publics ou la
commission des sociétés doit approuver la connexion au préalable.
Renseignements sur la section 15 du règlement FCC
Cet équipement est conforme à la section 15 du règlement FCC. Son
fonctionnement est sujet aux deux conditions suivantes : (1) Cet appareil
ne doit provoquer aucune interférence nuisible et (2) cet appareil doit
accepter toute interférence reçue, y compris les interférences pouvant
causer un fonctionnement indésirable. L’intimité des communications ne
peut être assurée à l’aide de ce téléphone.
Pour assurer la sûreté des utilisateurs, la FCC a établi des critères
pour la quantité d’énergie de radiofréquence qui peut être sans risque
absorbée par un utilisateur ou un spectateur selon l’utilisation prévue
du produit. Ce produit a été examiné et avéré pour être conforme aux
critères de FCC. Le combiné peut être sans risque tenu contre l’oreille
de l’utilisateur. Pour le fonctionnement du corps usé, ce combiné a été
testé et répond aux directives de la FCC d’exposition RF lorsqu’il est
utilisé avec les accessoires Clarity fournis ou conçus pour ce produit.
La base de téléphone sera installée et a employé tels que des parties du
corps d’utilisateur autre que les mains sont maintenues à une distance
approximativement de 20cm (8 pouces) ou davantage.
Votre équipement a été vérié et jugé conforme aux limites s’appliquant
aux appareils numériques de Classe B, conformément à la section 15 de
la règlementation FCC. Ces limites ont été établies de manière à fournir
une protection raisonnable contre les interférences nuisibles lors d’une
installation en milieu résidentiel.
11
Cet équipement génère, utilise et peut émettre de l’énergie de
radiofréquence. S’il n’est pas installé et utilisé conformément aux
instructions fournies, il peut provoquer des interférences qui affecteront
les communications radio. Il est toutefois impossible de garantir
qu’aucune interférence ne surviendra dans une installation donnée. Si cet
appareil cause des interférences nuisibles à la réception de la radio ou
de la télévision, ce qui peut être déterminé en éteignant et en allumant
l’appareil, vous êtes encouragé à essayer de corriger l’interférence au
moyen d’une des mesures suivantes :
1. S’il est possible de le faire en toute sécurité, réorientez ou déplacez
l’antenne de réception du téléviseur ou de la radio.
2. Dans la mesure du possible, déplacez le téléviseur, la radio ou tout
autre récepteur par rapport à l’équipement téléphonique. (Cela permet
d’accroître la distance entre l’équipement téléphonique et le récepteur.)
3. Branchez l’équipement téléphonique sur une prise de courant faisant
partie d’un circuit différent de celui sur lequel est branché le téléviseur, la
radio ou tout autre récepteur.
4. Obtenez l’aide du détaillant ou d’un technicien expérimenté en radio/
télévision.
AVERTISSEMENT : Les changements ou modications non autorisés
expressément par le fabricant responsable de la conformité peuvent
annuler le droit de l’utilisateur à se servir de cet équipement.
Spécications techniques d’Industrie Canada
Ce produit satisfait aux spécications techniques appli-
cables d’Industrie Canada.
Cet appareil de classe B est conforme avec les normes canadiennes ICES-
003.
Avant d’installer cet équipement, l’utilisateur doit s’assurer qu’il
lui est permis de se raccorder aux installations de l’entreprise de
CONFORMITÉ RÉGLEMENTAIRE
12
télécommunication locale. L’équipement doit également être installé
en suivant une méthode acceptable de raccordement. Dans certains
cas, le câblage interne de l’entreprise associé à un service de ligne
particulier peut être prolongé au moyen d’un connecteur homologué
(cordon prolongateur téléphonique). L’abonné doit être conscient que la
conformité aux conditions stipulées précédemment ne peut empêcher
une dégradation éventuelle du service dans certaines circonstances.
Les réparations effectuées sur l’équipement homologué doivent être
conées au centre canadien d’entretien autorisé ayant été désigné par le
fournisseur.
L’entreprise de télécommunications pourrait exiger que l’utilisateur
déconnecte l’équipement suite à des réparations ou modications
apportées par celui-ci ou tout mauvais fonctionnement de l’équipement.
Pour sa propre protection, l’utilisateur doit s’assurer que les ls de
mise à la terre du secteur, des lignes téléphoniques et les canalisations
métalliques internes d’eau, le cas échéant, soient raccordées ensemble.
Cette précaution est particulièrement importante dans les zones rurales.
AVERTISSEMENT : Les utilisateurs ne doivent pas tenter de
procéder eux-mêmes à de tels raccordements, mais doivent contacter le
service d’inspection des installations électriques ou à un électricien, selon
le cas.
L’Indice d’Équivalence de la Sonnerie est une indication du nombre
maximum de dispositifs autorisés à être branchés à une interface
téléphonique. Le raccordement d’une interface peut être constitué d’une
combinaison de dispositifs, à la seule condition que la somme des indices
d’équivalence de la sonnerie de l’ensemble des dispositifs ne dépasse pas
cinq.
Cet appareil numérique de classe B est conforme à la norme canadienne
ICES-003.
CONFORMITÉ RÉGLEMENTAIRE
13
(Les lettres « IC: » apparaissant devant le numéro de certication/
d’enregistrement signient seulement que les spécications techniques
d’Industrie Canada sont respectées.)
Dommages accessoires ou indirects : Ni Clarity, ni votre détaillant
ou distributeur ne peut être tenu responsable des dommages accessoires
ou indirects, y compris, mais sans s’y limiter, les pertes commerciales
ou de prot, les frais accessoires, les dépenses, les arrêts de travail ou
les inconvénients. Certaines provinces ne permettent pas l’exclusion
ou la limitation des dommages accessoires ou indirects, la limitation ou
l’exclusion stipulée ci-dessus peut donc ne pas s’appliquer dans votre cas.
Autres droits reconnus par la loi : La présente garantie vous
confère des droits juridiques particuliers et vous pouvez également avoir
d’autres droits selon la province.
Pour faire réparer l’appareil dans le cadre de la présente garantie, veuillez
l’envoyer au centre de réparation approprié indiqué ci-dessous en veillant
à prépayer les frais d’expédition.
Centre de réparation Clarity
6131 Preservation Dr.
Chattanooga, Tennessee 37416
Tél. : (423) 629-3500 ou (800) 426-3738
Téléc. : (423) 622-7646 ou (800) 325-8871
Centre de réparation Plantronics
151 Hymus
Pointe Claire, Québec H9R 1E9
Tél. : (800) 540-8363 ou (514) 956-8363
Téléc. : (514) 956-1825
Veuillez utiliser l’emballage original ou placer le(s) unité(s) dans une boîte
robuste en carton et le(s) emballer de manière à prévenir tout dommage.
RENSEIGNEMENTS RELATIFS À LA GARANTIE
14
RENSEIGNEMENTS RELATIFS À LA GARANTIE
Veuillez fournir les renseignements suivants :
• Une preuve d’achat stipulant le numéro de modèle et la date
d’achat ;
• L’adresse de facturation ;
• L’adresse d’expédition ;
• Le nombre et la description des unités envoyées ;
• Le nom et le numéro de téléphone de la personne à contacter, le
cas échéant ;
• La raison du retour et la description du problème.
Tout dommage survenu au cours de l’expédition relève de la respon-
sabilité du transporteur et les réclamations à ce sujet devront lui être
envoyées directement.
La garantie et les informations de service suivantes s’appliquent
uniquement aux produits achetés et utilisés aux États-Unis et au Canada.
Pour les informations relatives à la garantie dans d’autres pays, veuillez
contacter votre détaillant ou distributeur local.
Garantie limitée : Clarity, une division de Plantronics, Inc. (« Clarity »)
garantit à l’acheteur original qu’à l’exception des limitations et exclusions
énoncées ci-dessous, ce produit sera exempt de tout défaut matériel et
de fabrication pour une période d’un (1) an à partir de la date d’achat ini-
tiale (« Période de garantie »). Clarity sera tenue aux ns de la présente
garantie à remplacer ou réparer sans frais et à sa seule discrétion, toute
pièce ou unité présentant un défaut matériel ou de fabrication au cours
de la période de garantie.
Exclusions de la garantie : Cette garantie ne s’applique qu’aux
défauts matériels et de fabrication en usine. Toute condition résultant
d’un accident, d’un abus, d’une utilisation inappropriée, d’une violation des
instructions fournies par Clarity, d’une destruction ou d’une altération,
de tensions ou courants inadéquats ou d’une tentative de réparation ou
15
d’entretien effectuée par une autre personne qu’un employé de Clarity
ou un centre de réparation autorisé, ne sera pas couverte par cette
garantie.
Les compagnies de téléphonie fabriquent différents types d’équipement
et Clarity ne peut garantir que son équipement sera compatible avec
l’équipement d’une compagnie de téléphonie particulière.
Garanties implicites : Vous pourriez être en droit de bénécier de
certaines garanties implicites en vertu d’une loi provinciale. Ces garanties
implicites ne demeureront en force que pour la durée de la période
de garantie. Certaines provinces permettent de limiter la durée d’une
garantie implicite, la limitation ci-dessus pourrait donc ne pas s’appliquer
dans votre cas.
RENSEIGNEMENTS RELATIFS À LA GARANTIE
16
CONFORMIDAD CON LOS REGLAMENTOS
EMPRESA RESPONSABLE DEL CUMPLIMIENTO DE LAS
NORMAS:
Clarity, una División de Plantronics, Inc.
6131 Preservation Dr.
Chattanooga, TN 37416
Teléfono: 800-426-3738
Información sobre la Parte 68 de los reglamentos de la FCC
(Comisión Federal de Comunicaciones)
a) Este equipo cumple con las normas y requisitos establecidos en la
Parte 68 de la FCC, adoptada por la Asociación de Operadores de
Telecomunicaciones de los Estados Unidos (ACTA, por sus siglas en
inglés). En la parte inferior de este equipo se encuentra una etiqueta que
provee, entre otras informaciones, un identicador de producto con el
formato US:AAAEQ##TXXXX. Debe proporcionar este número a la
compañía telefónica si se lo solicitan.
b) El enchufe y tomacorriente utilizados para conectar este equipo al
cableado del edicio y a la red telefónica deben cumplir con las normas
y requisitos correspondientes de la Parte 68 de la FCC, adoptada por
la ACTA. Con este producto se suministran un cable de teléfono y un
enchufe modular RJ11C USOC, que cumple con los requisitos. Está
diseñado para ser conectado a un tomacorriente modular compatible,
que también cumpla con los requisitos. Vea las instrucciones de instalación
para obtener más detalles.
c) El REN (Número de Equivalencia de Timbres) se utiliza para determinar
la cantidad de aparatos que pueden conectarse a una línea telefónica.
Una cantidad excesiva de REN en una línea telefónica puede hacer que
los dispositivos no suenen cuando se reciba una llamada entrante. En la
mayoría de las áreas, no en todas, la suma del REN no debería superar el
número cinco (5.0). Contacte a su compañía telefónica local para estar
17
CONFORMIDAD CON LOS REGLAMENTOS
seguro de la cantidad de aparatos que puede conectar a una línea, según
el total del REN. Para los productos aprobados después del 23 de julio de
2001, el REN forma parte del identicador del producto bajo el formato
US:AAAEQ##TXXXX. Los dígitos representados por ## corresponden
al REN sin el punto decimal (por ejemplo, 03 signica un REN de 0.3). En
los productos más antiguos, el REN aparece en la etiqueta por separado.
d) Si este equipo de teléfono provoca daños a la red telefónica, la
compañía le noticará con anticipación que es necesario efectuar una
interrupción temporal del servicio. En caso de que no sea posible avisar
con anticipación, la compañía telefónica lo noticará al cliente lo más
pronto posible. Además, le avisarán de sus derechos de presentar una
queja ante la FCC si lo considera necesario.
e) La compañía telefónica puede realizar cambios en sus instalaciones,
equipos, operaciones o procedimientos que podrían afectar el
funcionamiento del equipo. Si esto ocurriera, la compañía telefónica
avisará con anticipación para que usted realice las modicaciones
necesarias para mantener el servicio sin interrupciones.
f) Si se presentara algún problema con este equipo, necesita alguna
reparación o recibir información sobre la garantía, contacte con Clarity
al 800-426-3738. Si el equipo está provocando daños en la red telefónica,
la compañía de teléfonos puede pedirle que desconecte su aparato hasta
que se solucione el problema.
g) Este equipo telefónico no está diseñado para ser reparado y, por tanto,
no contiene partes reparables. La apertura del equipo o cualquier intento
de realizar reparaciones invalidarán la garantía. Para comunicarse con el
servicio de reparaciones, llame al 800-426-3738.
h) La conexión a servicios de línea compartida está sujeta a las tarifas
estatales. Para más información, póngase en contacto con la comisión
de empresas de servicios públicos, la comisión de servicios públicos o la
comisión de corporaciones.
i) Si tiene instalado un equipo de alarma conectado a la línea telefónica,
18
CONFORMIDAD CON LOS REGLAMENTOS
asegúrese de que la instalación de este teléfono no desconecte su sistema
de alarma. Si tiene dudas sobre las circunstancias que pueden desconectar
su sistema de alarma, consulte a su compañía telefónica o a un instalador
calicado.
j) Este equipo telefónico es compatible con audífonos.
Teléfonos de monedas/Tarjetas de crédito propiedad del
cliente
Para cumplir con las tarifas jadas por el estado, se debe noticar a la
compañía telefónica antes de realizar la conexión. En algunos estados, la
comisión de servicios públicos estatales, la comisión de servicios públicos
o la comisión de corporaciones deben autorizar la conexión.
Información sobre la Parte 15 de los reglamentos de la FCC
Este aparato cumple con la Parte 15 de los reglamentos de la FCC.
Su funcionamiento está sujeto a las dos condiciones siguientes: 1)
Este equipo no puede ocasionar interferencia perjudicial y 2) debe
aceptar cualquier interferencia recibida, aunque ésta pudiera causar un
funcionamiento no deseado. La aislamiento de comunicaciones no puede
ser asegurada al usar este teléfono.
Para asegurar la seguridad de usuarios, la FCC ha establecido los criterios
para la cantidad de energía de la radiofrecuencia que se puede absorber
con seguridad por un usuario o una persona presente según el uso
previsto del producto. Este producto se ha probado y se ha encontrado
para conformarse con los criterios de la FCC. El microteléfono se puede
sostener con seguridad contra el oído del usuario. Para usarlo en el
cuerpo, este teléfono ha sido probado y cumple con los lineamientos de
la FCC de exposición a RF cuando se utiliza con los accesorios Clarity
suministrados o designados para este producto.
19
La base del teléfono será instalada y utilizó tales que mantienen a las
partes del cuerpo de usuario con excepción de las manos en una distancia
de los aproximadamente 20cm (8 pulgadas) o más.
Su equipo ha sido probado y se comprobó que cumple con los límites
para los dispositivos digitales de Clase B, en conformidad con la Parte
15 de los reglamentos de la FCC. Se jaron estos límites para proveer
una protección razonable contra la interferencia perjudicial en las
instalaciones residenciales.
Este equipo genera, utiliza y puede irradiar energía de radiofrecuencia.
Si su instalación y uso no se realiza según las instrucciones, puede
producirse una interferencia perjudicial en las comunicaciones de radio.
Sin embargo, no existen garantías de que no ocurrirán interferencias
en una instalación en particular; si este equipo causara interferencia
perjudicial en la recepción de radio o televisión, lo cual se determinará
apagando y encendiendo el equipo, puede tratar de corregirla mediante
uno de los siguientes procedimientos:
1. Si puede hacerlo sin correr peligro, reoriente la antena receptora de
radio o televisión.
2. En la medida de lo posible, reubique la televisión, la radio u otro
receptor respecto del teléfono. (De este modo aumentará el espacio de
separación entre el teléfono y el aparato receptor).
3. Conecte el teléfono a una toma o circuito diferente del que utiliza para
enchufar la televisión, la radio u otros receptores.
4. Pida ayuda al distribuidor o a un técnico de radio y televisión con
experiencia.
ADVERTENCIA: Los cambios o modicaciones no aprobados expresa-
mente por el fabricante responsable de cumplir con las normas pertinen-
tes podrían anular la autorización para que el usuario opere el equipo.
CONFORMIDAD CON LOS REGLAMENTOS
20
CONFORMIDAD CON LOS REGLAMENTOS
Especicaciones técnicas de Industry Canada
Este producto cumple con las especicaciones técnicas
pertinentes de Industry Canada.
Este aparato digital de la clase B se conforma con ICES-003 canadiense.
Antes de instalar el equipo, los usuarios deben vericar que está
permitido conectarlo a la red de la compañía telefónica local. Además,
la instalación debe realizarse utilizando un método de conexión
aceptable. En algunos casos, se puede extender el cableado interno de
la compañía asociado a un servicio individual de línea única, por medio
de una conexión certicada (extensión). El cliente debe ser consciente
de que es posible que el cumplimiento de las condiciones mencionadas
anteriormente no evite el deterioro del servicio en determinadas
situaciones. Las reparaciones de los equipos certicados deben realizarlas
un servicio de mantenimiento canadiense, designado por el proveedor.
Ante cualquier reparación o modicación que realice el usuario, o el mal
funcionamiento del equipo, la compañía de telecomunicaciones puede
solicitar al usuario que desconecte el aparato.
Por su propia seguridad, los usuarios deben asegurarse de que las
conexiones a tierra de la empresa de servicios públicos, las líneas
telefónicas y el sistema metálico de cañerías de agua internas del edicio
estén conectadas entre sí. Esta precaución es particularmente importante
en las zonas rurales.
ADVERTENCIA: Los usuarios no deben intentar realizar dichas
conexiones por sí mismos, sino ponerse en contacto con la autoridad
de inspección eléctrica correspondiente o con un electricista, según
corresponda.
El Número de Equivalencia de Timbres es un indicador de la cantidad
máxima de terminales que se permite conectar a una interfaz de telefonía.
21
La terminación en una interfaz puede estar constituida por cualquier
combinación de aparatos sujetos únicamente al requisito de que la suma
de los Números de Equivalencia de Timbres de todos los aparatos no
exceda de cinco.
Este aparato digital de Clase B cumple con la norma canadiense ICES-003.
(El término “IC:” antes del número de certicación/registro signica
únicamente que cumple con las especicaciones técnicas de Industry
Canada).
CONFORMIDAD CON LOS REGLAMENTOS
22
Daños imprevistos o derivados: Clarity, su distribuidor minorista
o los distribuidores de venta no tienen ninguna responsabilidad por
cualquier daño imprevisto o derivado que incluye, sin limitaciones: pérdida
o ganancia comercial, gastos imprevistos, gastos, pérdida de tiempo o
molestias. Algunos estados no permiten la exclusión o limitación de los
daños imprevistos o derivados, de modo que la exclusión o limitación
mencionada puede no ser aplicable en su caso.
Otros derechos legales: Esta garantía le otorga derechos legales
especícos y es posible que cuente además con otros derechos, que
varían de un estado a otro.
Para obtener el servicio de garantía, pague por adelantado el envío y el
retorno de la unidad a la instalación correspondiente que se detalla abajo.
Clarity Service Center
6131 Preservation Dr.
Chattanooga, Tennessee 37416
Tel: 423-629-3500 ó 800-426-3738
Fax: 423-622-7646 ó 800-325-8871
Plantronics Service Centre
151 Hymus
Pointe Claire, Quebec H9R 1E9
Tel: 800-540-8363 ó 514-956-8363
Fax: 514-956-1825
INFORMACIÓN SOBRE EL SERVICIO DE GARANTÍA
23
INFORMACIÓN SOBRE EL SERVICIO DE GARANTÍA
Use la caja original o empaque la(s) unidad(es) en un cartón resistente,
con suciente material de embalaje para evitar daños. Incluya la siguiente
información:
• Un comprobante de compra, indicando el número de modelo y la
fecha de compra;
• Domicilio de facturación;
• Domicilio de envío;
• Número y descripción de las unidades enviadas;
• Nombre y número de teléfono de la persona con la que se debe
contactar, en caso de que sea necesario;
• Motivo de la devolución y descripción del problema.
Los daños que pudieran ocurrir durante el transporte se consideran
responsabilidad del transportista; los reclamos deberán efectuarse
directamente a éste.
La garantía siguiente y la información sobre servicio se aplican únicamente
a productos comprados y utilizados en los Estados Unidos y Canadá.
Para obtener información sobre la garantía en otros países, contacte a su
distribuidor o comerciante minorista local.
Garantía limitada: Clarity, una división de Plantronics, Inc. (“Clarity”)
garantiza al comprador original que, con excepción de las exclusiones y
limitaciones que se describen abajo, este producto no tendrá defectos
de materiales ni mano de obra durante un período de un (1) año a partir
de la fecha de compra original (“Período de garantía”). La obligación de
Clarity bajo las condiciones de esta garantía se ejercerá, a opción de
Clarity, sin cargo para cualquier pieza o unidad que se compruebe con
defectos en el material o mano de obra durante el Período de garantía.
24
INFORMACIÓN SOBRE EL SERVICIO DE GARANTÍA
Exclusiones de la garantía: Esta garantía se aplica únicamente
a defectos en los materiales o la mano de obra. Cualquier condición
provocada por accidente, negligencia, uso incorrecto o inadecuado,
incumplimiento de las instrucciones provistas por Clarity, destrucción o
modicación, aplicación de corrientes o voltajes inadecuados, o maniobras
de reparación o mantenimiento realizadas por otras personas que no
pertenezcan a Clarity o a un centro de servicio autorizado, no será
cubierta por esta garantía. Las compañías telefónicas fabrican diferentes
tipos de aparatos y Clarity no garantiza que este equipo sea compatible
con el de una compañía telefónica en particular.
Garantías implícitas: Según la ley estatal, usted puede tener derecho
a beneciarse con determinadas garantías implícitas. Estas garantías
implícitas seguirán vigentes únicamente durante el período de garantía.
Algunos estados permiten limitaciones sobre el período de vigencia
de una garantía implícita, de modo que es posible que la limitación
mencionada no se aplique en su caso.
25
Clarity, a Division of Plantronics, Inc.
6131 Preservation Drive
Chattanooga,TN 37416
Tel: 800-426-3738 Fax: 800-325-8871
E-mail: claritycs@plantronics.com • Website: www.clarityproducts.com
RevF (5-2012)
PRINTED IN CHINA
