User Manual
User’s manual
TL86103
DECT 6.0 2-line
corded/cordless telephone/
answering system with
BLUETOOTH® wireless technology
BC
Congratulations
on your purchase of this AT&T product. Before using this AT&T product, please
read the Important safety information section on pages 148-149 of this
manual. Please thoroughly read this user’s manual for all the feature operations
and troubleshooting information necessary to install and operate your new
AT&T product. You can also visit our website at
www.telephones.att.com or call 1 (800) 222-3111.
In Canada, dial 1 (866) 288-4268.
This telephone system is compatible with certain AT&T DECT 6.0 cordless
headsets. Visit www.telephones.att.com/headsets for a list of
compatible cordless headsets.
Model number: TL86103
Type: DECT 6.0 2-line corded/cordless telephone/
answering system with BLUETOOTH® wireless technology
Serial number: _____________________________________________________________
Purchase date: ____________________________________________________________
Place of purchase: _________________________________________________________
Both the model and serial numbers of your AT&T product can be found on the
bottom of the telephone base.
Save your sales receipt and original packaging in case it is necessary to return
your telephone for warranty service.
The Bluetooth® word mark and logos are owned by Bluetooth SIG, Inc. and any use of such marks
by Advanced American Telephones and its parent, VTech Holdings Limited, is under license. VTech
Holdings Limited is a member of Bluetooth SIG, Inc. Other trademarks and trade names are those
of their respective owners.
© 2013 Advanced American Telephones. All Rights Reserved. AT&T and
the AT&T logo are trademarks of AT&T Intellectual Property licensed to
Advanced American Telephones, San Antonio, TX 78219. Printed in China.
T
Compatible with
Hearing Aid T-Coil
TIA-1083
Telephones identified with this logo have reduced noise and interference
when used with most T-coil equipped hearing aids and cochlear implants. The
TIA-1083 Compliant Logo is a trademark of the Telecommunications Industry
Association. Used under license.
The ENERGY STAR® program (www.energystar.gov) recognizes and encourages
the use of products that save energy and help protect our environment. We are
proud to mark this product with the ENERGY STAR® label indicating it meets
the latest energy efficiency guidelines.
Parts checklist
Your telephone package contains the following items. Save your sales receipt
and original packaging in the event warranty service is necessary.
Telephone line cords
(one black and one clear)
Power adapter for
telephone base
Telephone base
Battery for cordless
handset
Battery compartment
cover
Cordless handset
User’s manual Quick start guide
Basic steps to set up & operate your phone
This quick start guide provides you with basic instructions
only. For more complete instructions, refer to the Abridged
user’s manual provided in the package, or see the online user’s
manual at www.telephones.att.com/manuals.
Quick start guide
TL86103
Parts checklist
Handset
Charger with power adapter
Corded handset
Telephone base
Telephone line cord
Telephone base power adapter
Battery compartment cover
2 Batteries
Wall mount bracket
Abridged user’s manual
Quick start guide
•
•
•
•
•
•
•
•
•
•
•
Your package contains:
Corded handset with
coiled handset cord
attached
Charger for cordless
handset with power
adapter installed
Belt clip for
cordless handset
User’s manual
TL86103
DECT 6.0 2-line
corded/cordless telephone/
answering system with
BLUETOOTH® wireless technology
USB cable
CD-ROM
TL86103•
User’s manual
TL86103
DECT 6.0 2-line
corded/cordless telephone/
answering system with
BLUETOOTH® wireless technology
Table of contents
Getting started
Installation ..................................................... 1
Quick reference guide - handset ........ 2
Quick reference guide -
telephone base ............................................ 5
Telephone base and charger
installation ..................................................... 9
Telephone base installation ............ 9
Charger installation ...........................10
Connect your telephone base
to PC ...............................................................11
Installation of AT&T Unified Call
Manager on PC ...................................11
Audio Settings ......................................12
Battery installation and charging .....13
Installation options ..................................14
Tabletop to wall mount
installation .............................................14
Wall mount to tabletop
installation .............................................15

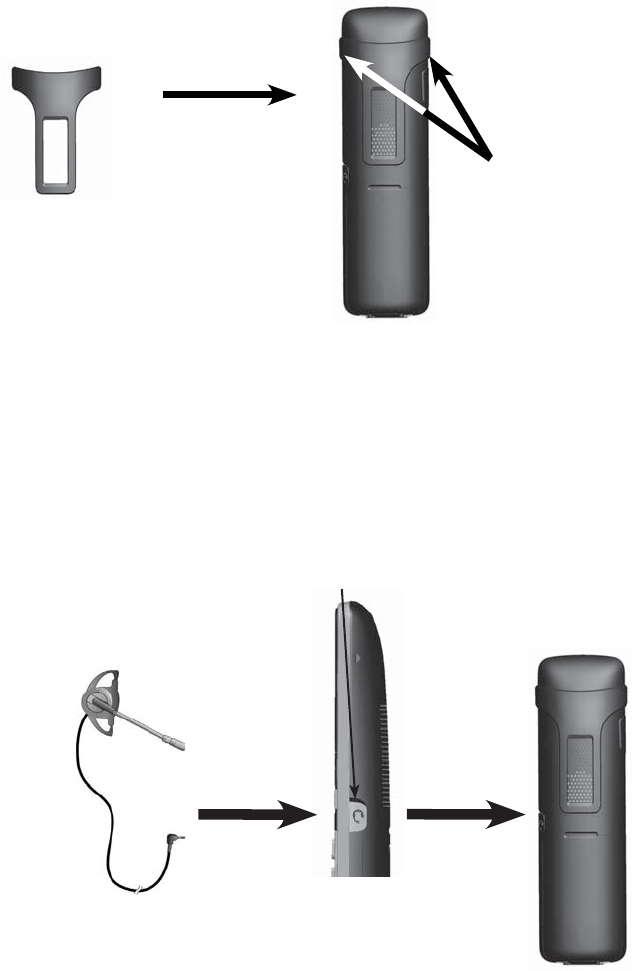

Belt clip & optional handset ...............16
Bluetooth
Introducing Bluetooth ............................17
Connect to Cell™ application ........19
Glossary of terms .....................................20
Bluetooth setup ........................................21
Add a cell phone ................................21
Add a headset ......................................23
Auto connection ..................................25
Bluetooth connection from idle
mode .........................................................25
Device list and connection ............25
Review the device list ......................25
Connect/disconnect an
active device .........................................26
Remove a paired device ..................26
Replace an active device ................27
Download directory ...........................28
Interruption to directory
download ................................................30
View the directory download
information ............................................30
Change PIN ............................................31
Cell ringer ...............................................31
Telephone settings
Handset and telephone base
settings ..........................................................32
Ringer volume ......................................33
Ringer tone ............................................34
LCD language .......................................35
Set date/time .......................................36
Caller ID announce ............................38
Set speed dial voicemail
number.....................................................39
Voicemail (visual message waiting)
number.....................................................41
Clear voicemail indication ..............41
Key tone ..................................................42
Use caller ID to automatically set
date and time .......................................42
Home area code ..................................43
Cell area code ......................................45
Dial mode ...............................................47
Line preference ....................................47
QUIET mode ..........................................48
Web address .........................................48
No line alert ..........................................49
Cell alert ................................................49
Telephone operation
Telephone operation...............................50
Make, answer or end a line 1 or
line 2 call ................................................50
Call waiting on line 1 or line 2 ....52
Make, answer or end a cell
call .............................................................53
Call waiting on the cell line ..........54
Answer an incoming cell call
while on line 1 or line 2 .................55
Answer an incoming call on
line 1 or line 2 while on a
cell call ....................................................56
Make, answer or end a
softphone call ......................................57
Voice command ...................................58
Conference calls .......................................59
Conference calls on line 1 and
line 2 .........................................................59
Conference calls on line 1 or
line 2 with cell calls ..........................60
Options while on calls ...........................62
Silencing the ringer ...........................62
Page all devices ..................................62
Speakerphone ......................................63
Join a call in progress ......................63
Volume control ....................................64
Mute ..........................................................64
Temporary tone dialing ...................65
Hold ...........................................................65
Equalizer ..................................................66
Chain dialing .........................................67
Redial..............................................................69
Review the redial list ........................69
Dial a redial entry ...............................69
Save a redial entry to the
directory ..................................................71
Delete a redial entry from the
directory ..................................................72
Intercom ........................................................73
Answer an incoming call during an
intercom call .........................................75
Call transfer using intercom ...............76
Push-to-talk (PTT) ....................................78
Turn PTT on or off ..............................78
PTT call to a single device .............79
PTT call to multiple devices ..........81
Answer a PTT call ...............................82
Change a one-to-one PTT call to
an intercom call ..................................83
Answer an incoming call during a
PTT call ....................................................83
Make an outgoing call during PTT
call .............................................................84
End or leave a PTT call ....................84
Directory
About the directory .................................85
Create directory entries ........................86
Create a new entry in the home
directory ..................................................86
Dialing keys ...........................................88
Add a predialed telephone number
to the directory....................................89
Review the directory ...............................90
Review directory entries .................90
Review the directory ...............................91
Search the directory ...............................92
3-character alphabetical search .92
Dial, edit or delete a directory
entry................................................................93
Dial a directory entry ........................93
Edit a directory entry ........................93
Edit the type of a directory
entry ..........................................................95
Delete a directory entry ..................95
Remove a downloaded
directory ..................................................96
Caller ID
About caller ID ..........................................97
Information about caller ID with
call waiting ............................................97
Caller ID log ................................................98
How the caller ID log works .........98
Missed (new) call indicator ............98
Memory match .....................................98
Caller ID operation ..................................99
Review the caller ID log ..................99
View dialing options .......................100
Dial a caller ID log entry .............100
Save a caller ID log entry to the
directory ...............................................101
Delete caller ID log entries ........103
Reasons for missing caller ID
information ...............................................104
Answering system
Answering system settings ...............105
Announcement .................................105
Answer on/off ...................................108
Call screening ....................................109
Number of rings ...............................110
Remote access code ......................111
Message alert tone .........................112
Message recording time ...............113
About the answering system...........114
Answering system and voicemail
indicators .............................................114
Using the answering system and
voicemail together ..........................114
Message capacity ............................115
Voice prompts ...................................115
Temporarily turning off the
message alert tone .........................115
Call screening ......................................116
Call intercept .....................................116
Message playback .................................117
Options during playback ..............118
Delete all old messages ...............120
Recording and playing memos .......121
Record a memo ................................121
Playback a memo ............................121
Remote access ........................................122
To remotely access the answering
system ...................................................122
Appendix
Adding and registering cordless
handsets/headsets/wireless
speakers .....................................................124
Register a cordless handset to
your telephone base ......................124
Deregister cordless handsets ..........125
Deregister all cordless handsets
from the telephone base .............125
Alert tones and lights .........................126
Handset screen icons ....................126
Telephone base screen icons ....127
Handset alert tones ........................128
Telephone base alert tones ........129
Lights .....................................................130
Display screen messages ..................131
Screen messages .............................131
Troubleshooting .....................................135
Important safety information ..........148
Safety information ...........................148
Especially about cordless
telephones ..........................................149
Precautions for users of
implanted cardiac
pacemakers ........................................149
ECO mode ...........................................149
Especially about telephone
answering systems ..........................149
Energy-saving charging mode ........150
FCC Part 68 and ACTA........................151
FCC Part 15 ..............................................152
Limited warranty ....................................153
Technical specifications .....................155
DECT 6.0 digital technology .......155
Telephone operating range ........155
Redefining long range coverage
and clarity ...........................................155
HD audio ..............................................155
Simulated full duplex handset
speakerphone ....................................155
Index
Index ............................................................156
Remote access wallet card ..............158
1
Installation
Install the telephone base close to a telephone jack and a power outlet not
controlled by a wall switch. The telephone base can be placed on a flat surface
or vertically mounted on the wall (page 14-15). For optimum range and better
reception, place the telephone base in a central and open location.
You may hear interference if your cellular phone is too close to the telephone
base during a CELLULAR call. Make sure that your Bluetooth enabled cellular
phone is within 15 feet of the telephone base in order to maintain a clear and
consistent connection between your Bluetooth cell phone, telephone base and
cell tower.
If you subscribe to high-speed Internet service (digital subscriber line - DSL)
through your telephone line, you must install a DSL filter between the telephone
line cord and the telephone wall jack (page 9-10). The filter prevents noise and
caller ID problems caused by DSL interference. Please contact your DSL service
provider for more information about DSL filters.
Your product may be shipped with a protective sticker covering the handset or
telephone base display - remove it before use.
For customer service or product information, visit our website at
www.telephones.att.com or call 1 (866) 288-4268.
In Canada, dial 1 (866) 288-4268.
Avoid placing the telephone base too close to:
Communication devices such as television sets, VCRs, or other
cordless telephones.
Excessive heat sources.
Noise sources such as a window with traffic outside, motors, microwave
ovens, refrigerators, or fluorescent lighting.
Excessive dust sources such as a workshop or garage.
Excessive moisture.
Extremely low temperature.
Mechanical vibration or shock such as on top of a washing machine
or workbench.
•
•
•
•
•
•
•
Getting started
See page 13 for easy
instructions.
You must install and
charge the battery before
using the telephone. STOP!
2
Getting started
Quick reference guide - handset
CHARGE light
On when the handset is charging in the charger.
Softkeys (2)
Press to select the menu item displayed above the key (page 4)
While in a menu, press to select an item or save an entry
or setting.
A Cell/ B Cell
Press to make or answer a cell call (page 53).
During a call, press to answer an incoming Cell A/B call
when you hear a call waiting alert (page 54).
HOLD
During a call, press to put the current call on hold (page 65).
LINE 1/FLASH/LINE 2/FLASH
Press LINE 1/FLASH to make or answer a call on line 1 (page 50)
During a call, press to answer an incoming line 1 call
when you hear a call waiting alert (page 46).
Press LINE 2/FLASH to make or answer a call on line 2 (page 50)
During a call, press to answer an incoming line 2 call
when you hear a call waiting alert (page 46).
1
While reviewing a caller ID history entry, press repeatedly
to add or remove 1 in front of the telephone number
before dialing or saving it in the directory (page 100).
Press and hold to set (page 39) or dial your voicemail number.
TONE /a>A
Press to switch to tone dialing temporarily during a call if you
have pulse service (page 65).
Press to switch between upper case and lower case while
entering characters.
/SPEAKER
Press to make a call on line 1 or line 2 using the handset
speakerphone (page 50).
Press to answer a call on line 1 or line 2 or a cell call using the
handset speakerphone (pages 50, or 53).
Press to turn on the handset speakerphone. Press again to
resume normal handset use (page 58).
REDIAL/PAUSE
Press to view the last 10 numbers dialed (page 61).
While entering numbers, press and hold to insert a dialing pause
(page 86).
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
3
Getting started
Quick reference guide - handset
DIR/VOLUME
Press to scroll up while in menus (page 90).
Press to show directory entries when the telephone is not
in use.
While entering names or numbers in the directory, press to
move the cursor to the right.
Press to increase the listening volume when on a call
(page 64), or to increase the message playback volume
(page 118).
CID/VOLUME
Press to scroll down while in menus. (page 90).
Press to show the caller ID history when the telephone is not
in use.
While entering names or numbers in the directory, press to
move the cursor to the left.
Press to decrease the listening volume when on a call
(page 64), or to decrease the message playback volume
(page 118).
OFF/CANCEL
While using menus, press to cancel an operation, back up to
the previous menu, or exit the menu display, or press and hold
this button to return to idle mode.
During a call, press to hang up (pages 50).
When the handset is ringing , press to mute the ringer
temporarily (page 64).
Press and hold while the telephone is not in use to erase the
missed call indicator.
QUIET # (pound key)
Press repeatedly to display other dialing options when
reviewing a caller ID log entry (page 100).
Press and hold to enter the QUIET mode setting screen, or to
deactivate QUIET mode (page 48).
Press to toggle the name order when saving a caller ID log
entry into directory.
MUTE/DELETE
During a call, press to mute the microphone (page 64).
While the telephone base is ringing, press to silence the
ringer temporarily (page 64).
While predialing, press to delete digits.
While reviewing the redial list, directory or caller ID history,
press to delete an individual entry.
While entering or editing a directory entry, press to erase
a digit or character, or press and hold to erase all digits or
characters.
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
4
Getting started
Handset
side view
Quick reference guide - handset
Using menus:
Press MENU to show the menu.
Press CID or DIR to scroll through menu items.
Press SELECT to confirm or save changes to a highlighted menu item.
Press OFF/CANCEL to cancel an operation, back up to the previous menu, or
exit the menu display.
•
•
•
•
PUSH TO TALK
Press to initiate a one-to-one (page 79).
Press and hold to broadcast to a group of
system devices (page 73).
•
•
Main menu
The selected menu item
is highlighted.
Feature menu
Play messages (page 117)
Directory (page 85)
Caller ID log (page 97)
Intercom (page 73)
Ringers (page 33)
Set date/time (page 36)
Settings (page 32)
Web address (page 48)
Voice command (page 58)
•
•
•
•
•
•
•
•
•
Menu
5
Getting started
Quick reference guide - telephone base
/VOLUME/
Press to adjust the volume
during message playback
(page 64).
Press to adjust the
listening volume during a
call (page 118).
When the phone is not in
use, press to adjust the
telephone base ringer
volume for all lines.
•
•
•
TONE /a>A
Press to switch to tone dialing
temporarily during a call if you have
pulse service.
Switch between upper case and lower
case while entering characters.
•
•
PTT
Press to display the PTT menu to begin a
PTT call (page 79).
Press and hold to begin a one-to-group
broadcast when the phone is not in use
(page 73).
•
•
1
While reviewing a caller ID history entry,
press repeatedly to add or remove 1 in
front of the telephone number before
dialing or saving it in the directory
(page 100).
Press and hold to set or dial your
voicemail number (page 39).
•
•
QUIET # (pound key)
Press repeatedly to display
other dialing options when
reviewing a caller ID log entry.
Press and hold to enter the
QUIET mode setting screen,
or to deactivate QUIET mode
(page 48).
•
•
During a call, press to put the current
call on hold (page 65).
•
HOLD
During a call, press to answer an
incoming call when you receive a call
waiting alert (page 46).
•
FLASH
6
Getting started
Quick reference guide - telephone base
Press to make or answer a call
on line 1 or line 2 (page 50).
During a call, press to answer an
incoming line 1 or line 2 call
when you hear a call waiting
alert. (page 46).
•
•
CANCEL
While in a menu, press
to exit without making
changes or press and hold
to return to idle mode.
Press and hold while the
telephone is not in use
to erase the displayed
messages (XX Missed calls,
page 98).
•
•
CELL A light
On when the telephone
base is paired and
connected with a Bluetooth
cell phone on Cell A line
(page 20).
Flash alternately while
pairing a Bluetooth device.
•
•
CID
Press to scroll down while
in a menu.
Press to review the caller
ID log when the telephone
is not in use.
While entering names or
numbers, press to move the
cursor to the left.
•
•
•
DIR
Press to scroll up while in a menu.
Press to show directory entries
when the telephone is not in use.
While entering names or numbers,
press to move the cursor to the right.
•
•
•
Softkeys (2)
Press to select the menu
item displayed above the key.
•
CELL B/HEADSET light
On when the telephone
base is paired and
connected with a Bluetooth
device on Cell B line
(page 20).
Flash alternately while
pairing a Bluetooth device.
•
•
REDIAL/PAUSE
Press repeatedly to view the last 10
numbers dialed (page 61).
While entering numbers, press and
hold to insert a dialing pause.
•
•
1 LINE/2 LINE
CELL A /CELL B
Press to make or answer a cell call
(page 53).
During a cell call, press to answer an incoming
call when you hear a call waiting alert (page 54).
Flashes quickly when there is an incoming cell call.
Flashes slowly when a cell call is on hold.
•
•
•
•
SPEAKER
Press to make a call on
line 1 or line 2 using the
speakerphone (page 50).
Press to answer a call on
line 1 or line 2 or a cell
call using the handset
speakerphone.
Press to switch between
the speakerphone and
corded handset.
•
•
•
7
Getting started
Quick reference guide - telephone base
/SKIP
During message playback, press
to skip to the next message
(page 118).
Press to show the remaining
digits on the left.
•
•
/DELETE
Press to delete the message currently
playing (page 118).
When the phone is not in use, press
twice to delete all previously reviewed
messages (page 120).
While entering names or numbers,
press to delete a digit or a character.
While reviewing the redial list,
directory or caller ID history, press to
delete an individual entry.
While predialing, press to delete
a digit.
•
•
•
•
•
/REPEAT
Press to repeat a message
(page 118).
Press twice to play the
previous message.
Press to show the remaining
digits on the left.
•
•
•
/LINE 1 ANS ON/OFF
/LINE 2 ANS ON/OFF
/RECORD
Press to record an
announcement or a memo
(page 121).
•
Press to turn the answering
systems of line 1 or line 2 on or
off (page 108).
•
Press to play line 1 or line 2
messages (page 117).
Press to stop playing
line 1 or line 2 messages
(page 118).
•
•
/LINE 1 MAILBOX
/LINE 2 MAILBOX
USB ports
Two standard size USB ports in the telephone base are
used for charging your cell phones.
Small USB port
A standard size USB port in the telephone base is used
for connection to PC.
8
Getting started
Using menus:
Press MENU in idle mode to show the main menu.
Press CID, DIR, /RECORD or /DELETE to scroll through menu items.
Press SELECT to confirm or save changes to a highlighted menu item.
Press CANCEL to cancel an operation, back up to the previous menu, or exit
the menu display.
•
•
•
•
Quick reference guide - telephone base
Main menu
The selected menu item is highlighted.
Feature menu
Answering system (page 105)
Directory (page 85)
Caller ID log (page 97)
Intercom (page 73)p
Page all devices (page 62)
Bluebooth (page 17)
Ringers (page 33)
Set date/time (page 36)
Caller ID Annc (page 38)
Settings (page 32)
Web address (page 48)
Voice command (page 58)
•
•
•
•
•
•
•
•
•
•
•
•
Menu
9
Getting started
Telephone base and charger installation
Install the telephone base and charger as shown below.
The telephone base is ready for tabletop use. If you want to change to wall
mounting, see Installation options on page 14 for details.
Telephone base installation
Rotate the wall mount bracket down and push it into the telephone base
until it clicks into place. Plug the end of the corded handset cord into the
telephone jack at the back of the telephone base. Plug the small end of
the telephone base power adapter into the power line jack at the back of
the telephone base and route the cord through the slot.
2. Rotate the wall mount bracket up and push it into the telephone base until
it clicks into place.
3. Plug the telephone line(s) according to the instructions below.
Option 1: If you have separate wall jacks for each line, plug the telephone
lines as shown below.
1.
Plug one end of the clear
telephone line cord into the
LINE 2 telephone jack at the
bottom of the telephone base.
Route the cords through the
slots.
Line 1 telephone
wall jack
Line 2 telephone
wall jack
Plug the other ends of
the telephone line cords
into the telephone wall
jack, or into DSL filters if
you have DSL high-speed
Internet service.
Plug one end of the black
telephone line cord into the
LINE 1/L1+L2 telephone jack
at the bottom of the telephone
base.
Raise the antenna.
12
10
Getting started
Telephone base and charger installation
Option 2: If you have a 2-line wall jack, plug the 4-conductor telephone line
as shown below.
Charger installation
IMPORTANT INFORMATION:
Use only the power adapter(s) provided with this product. To obtain a replacement, visit our
website at www.telephones.att.com or call 1 (800) 222-3111.
In Canada, dial 1 (866) 288-4268. For more detailed instructions, refer to the online
Complete user’s manual at www.telephones.att.com/manuals.
The power adapters are intended to be correctly oriented in a vertical or floor mount position.
The prongs are not designed to hold the plug in place if it is plugged into a ceiling, under-the-
table or cabinet outlet.
•
•
Plug the power adapter into an electrical outlet not
controlled by a wall switch.
Route the cord through the
slot.
Raise the antenna.
Line 1 + line 2
telephone wall jack
Plug one end of the black
telephone line cord into the
LINE 1/L1+L2 telephone jack
at the bottom of the telephone
base.
Plug the other end of the
black telephone line cord
into the telephone wall
jack, or into a DSL filter if
you have DSL high-speed
Internet service.
11
Getting started
Plug the small end of the
USB cable into the small
port on the right side of
the telephone base.
•
Connect your telephone base to PC
Your new AT&T TL86103 allows you receive or make softphone calls by
connecting the telephone base to your computer using the USB cable. You can
make and answer Voice over IP (VoIP) calls through SkypeTM or Microsoft Lync
®
,
landline calls or cell calls using the AT&T Unified Call Manager.You can also
use the voice command feature to make calls (see page 52) after you have
installed the AT&T Unified Call Manager.
To connect the telephone base to your computer:
Plug the USB cable into your computer as shown below. Wait for your
computer to indicate that it has recognized the telephone base.
•
Installation of AT&T Unified Call Manager on PC
To install AT&T Unified Call Manager:
Put the CD-ROM that comes with the package into your computer. Open My
computer, and then double click to open the disk drive. Double click the
installation file to begin the InstallShield Wizard.
If any security warning window pops up, click the appropriate button to
authorize the installation of the software. Click Run.
Choose your desired setup language, Click Next> to proceed to installation
preparation. After that, a welcome screen appears.
Click Next>. Read the license agreement, and then accept the terms by
pressing the upper checkbox. Press Next> to continue.
The default installation path is C:\Program.files\AT&T\AT&T Softphone Call
Manager. Click the Browse... button to change the path if necessary. Click Next>.
Click Install to begin installation.
When the installation is done, press Finish to exit the installation program.
If you want to launch the AT&T Softphone Call Manager after installation,
tick the option checkbox before pressing Finish.
1.
2.
3.
4.
5.
6.
SkypeTM
is a trademark of Skype.
Microsoft Lync
®
is a registered trademark of Microsoft Corporation
Plug the large end
of the USB cable
into a USB port on
your computer.
•
12
Getting started
Connecting your telephone base to PC
Audio Settings
After you have installed the AT&T Unified Call Manager, check to make sure
the audio setting is properly configured in your Windows system. If you have
installed Skype or Microsoft Lync and want to use them with your telephone
base, make sure the audio settings are configured correctly in the programs as
well.
a) Audio settings in Microsoft® Windows® system:
For Windows XP® users:
Click Start menu and choose Control Panel.
Click Sounds, Speech, and Audio Devices and then click Sounds and
Audio Devices.
Click the Audio tab.
Make sure AT&T DECT 6.0 Telephone is selected under the Sound
playback and Sound recording settings.
For Windows 7 users:
Click Start menu and choose Control Panel.
Click Hardware and Sound and then click Manage
audio devices under the Sound menu.
Click the Playback tab and make sure AT&T DECT 6.0 Telephone is
set as the default speaker.
Click the Recording tab and make sure AT&T DECT 6.0 Telephone is
set as the default microphone.
b) Audio settings in Skype:
Launch the Skype program.
Click on Tools, and then Options.
Click on Audio settings.
Make sure AT&T DECT 6.0 Telephone is selected under the speakers
and microphone settings.
c) Audio settings in Microsoft Lync:
Launch the Microsoft Lync program.
Click on Options, and then Audio device.
Make sure AT&T DECT 6.0 Telephone is selected under the Audio
device setting.
IMPORTANT
Periodically check for software updates. Go to the ABOUT tab under the Settings panel in the
AT&T Unified Call Manager, and then click CHECK UPDATED. For more details, refer to the
Software updates section in the Installation and Operation Guide, available in the
CD-ROM which comes with the package.
Windows® and Windows XP® are registered trademarks of Microsoft Corporation.
i.
ii.
iii.
iv.
i.
ii.
iii.
iv.
i.
ii.
iii.
iv.
i.
ii.
iii.
13
Getting started
Battery installation and charging
Install the battery as shown below. Once you have installed the battery, the
screen indicates the battery status (see table below). For best performance,
keep the cordless handset in charger when not in use. The battery is fully
charged after 11 hours of continuous charging. See the table in the Technical
specifications section on page 155 for battery operating times.
Battery indicators Battery status Action
The screen is blank or
shows Place in charger
and flashes.
The battery has no or
very little charge. The
handset cannot be used.
Charge without interruption (at least 30
minutes).
The screen shows
Low battery and
flashes.
Battery has enough
charge to be used for a
short time.
Charge without interruption (at least 30
minutes).
The screen shows
HANDSET X.
Battery is charged. To keep the battery charged, place it in
charger when not in use.
Step 1
Plug the battery connector
securely into the socket
inside the handset battery
compartment. Insert the
supplied battery with the
label THIS SIDE UP facing
up as indicated.
Step 2
Align the cover flat
against the battery
compartment, and then
slide it upwards until it
clicks into place.
IMPORTANT INFORMATION:
Use only the supplied rechargeable battery or replacement battery (model BT184342/
BT284342). To order, visit our website at www.telephones.att.com or call
1 (800) 222-3111. In Canada, dial 1 (866) 288-4268.
If you do not use the handset for a long time, disconnect and remove the battery to prevent
possible leakage.
•
•
Step 3
Charge the cordless handset by placing it face forward in
the charger. The CHARGE light on the top of the handset
is on during charging.
CHARGE light
14
Getting started
Installation options
Your telephone base is ready for tabletop use. If you want to mount your
telephone on a wall, follow the steps below to connect the telephone base
with a standard dual-stud telephone wall mounting plate. You may need a
professional to install the wall mounting plate.
Tabletop to wall mount installation
Unplug the power adapter from the power outlet. Unplug the telephone
line cord from the wall jack (or DSL filter).
Put the handset aside. Hold down the switch hook on the telephone base,
and then slide the handset tab upwards to remove it from the slot. Rotate
the handset tab by 180 degrees. Then replace the handset tab into the
slot until it locks into position.
Press down on the tabs of the wall mount bracket as indicated to release
it from tabletop orientation.
Rotate the wall mount bracket down and push it into the telephone base
until it clicks into place.
Plug the telephone line cord (or DSL filter) into the wall jack. Plug the
power adapter into a power outlet not controlled by a wall switch. Align
the slots on the back of the telephone base with the studs of the wall
mounting plate.
Slide the telephone base down until it locks securely. Bundle the
telephone line cord and power adapter cord neatly with twist ties.
1.
2.
3.
4.
5.
6.
1
5
46
23
15
Getting started
Installation options
Wall mount to tabletop installation
To change the telephone base from the wall mount position to tabletop
position, follow the steps below.
Unplug the power adapter from the power outlet. Unplug the telephone
line cord from the wall jack (or DSL filter). If the telephone line cord and
power adapter cord are bundled, untie them first. Push the telephone base
up to remove it from wall.
Put the handset aside. Hold down the switch hook on the telephone base,
and then slide the handset tab upwards to remove it from the slot. Rotate
the handset tab by 180 degrees. Then replace the handset tab into the
slot until it locks into position.
Gently pull upward to release the wall mount bracket. Rotate the wall
mount bracket up to tabletop position and push it into the telephone base
until it clicks into place.
Plug the telephone line cord (or DSL filter) into the wall jack. Plug the power
adapter into a power outlet not controlled by a wall switch. Bundle the
telephone line cord and power adapter cord neatly with twist ties if necessary.
1.
2.
3.
4.
3
1
4
2
16
Getting started
Belt clip & optional handset
To attach the belt clip:
Snap the belt clip into
the slots on both sides
of the handset as shown
in the figure.
To remove the belt clip:
Gently lift either of the
belt clip tabs, shown in
the figure, outwards to
remove the belt clip from
the handset.
For handsfree telephone conversations, you can use any industry standard
2.5 mm headset (purchased separately). For best results, use an AT&T 2.5 mm
headset. To purchase a headset, visit our website
www.telephones.att.com or call 1 (800) 222-3111. In Canada, dial 1
(866) 288-4268.
Plug a 2.5 mm headset (not
included) into the jack on the
side of handset (beneath the
small plastic cover).
Lift the plastic
cover here.
Side the handset
17
Introducing Bluetooth
Your new AT&T TL86103 telephone system with Bluetooth wireless technology
has the following features:
Pair up to 4 Bluetooth enabled devices (cell phones or headsets) with the
telephone base.
Connect a maximum of 2 cell phones to make and receive cell calls. Both
cell phones can be active on a call at a time.
Connect a Bluetooth enabled headset for making and receiving calls on line
1 or line 2.
Conference any combination of cell and line 1 or line 2 calls.
Make and receive calls using your cell phone service with your telephone
base or system handsets.
Download phonebook entries from your cell phone.
Ringtone share feature allows you to set your telephone to play your
iPhone® (iOS 4.1 or later) ringtone.
IMPORTANT INFORMATION
After plugging in the telephone base, wait at least 20 seconds before
connecting a Bluetooth device. The screen shows Bluetooth system busy if
you try to connect too soon.
Refer to the user’s manual of your Bluetooth enabled cell phone or headset
for more information about how that device uses Bluetooth connectivity.
Bluetooth wireless technology operates within a short range (up to 30 feet)
from the telephone base. Keep connected cell phones and headsets within
this range.
If your cell phone has poor reception in your home, the TL86103 cannot
improve the reception. However, if there is a location in your house with
better reception, you can leave your cell phone at that location while you
use the TL86103 cell line. For optimal performance, the cell phone must be
within 15 feet of the telephone base.
iPhone® is a registered trademark of Apple. Inc.
•
•
•
•
•
•
•
•
•
•
•
Bluetooth
18
Bluetooth
Introducing Bluetooth
If you experience poor sound quality, it may be caused by the distance
between your cell phone and the telephone base. To improve the
performance, place your cell phone closer to the telephone base (within
15 feet) and make sure that there are no physical obstacles such as large
furniture or thick wall in between.
Charge your cell phone while it is connected to the telephone base. Your
cell phone’s battery discharges faster while it is connected to the telephone
base via Bluetooth wireless technology.
Monitor your cell phone’s usage because minutes may be deducted from
your cellular plan for the duration of all cell calls, depending on the terms
of your plan.
Refer to the Bluetooth setup section (pages 21-31) to learn how to set up
your Bluetooth device. Refer to the Telephone operation section (pages
page 50-58) on how to operate your Bluetooth devices with your new AT&T
TL86103 telephone system with Bluetooth wireless technology. Refer to the
Troubleshooting section (pages page 135-147) if you experience difficulty
when using the telephone system.
The Bluetooth® word mark and logos are owned by Bluetooth SIG, Inc. and any use of such marks by
Advanced American Telephones and its parent, VTech Holdings Limited, is under license. VTech Holdings Limited is
a member of Bluetooth SIG, Inc. Other trademarks and trade names are those of their respective owners.
•
•
•
DECT 6.0 Cellular
signal
15 feet
19
Bluetooth
Introducing Bluetooth
Connect to Cell™ application
If you are using Bluetooth-enabled cell phones with Android® OS 2.3 or above,
you can further extend the flexibility of your TL86103 with use of the free
Connect to Cell application.
Connect to Cell comprises Caller ID manager and Alerts manager that help
integrate your cell phone with the AT&T telephone system.
Caller ID manager (Caller ID share) allows you:
To view your AT&T phone’s caller ID log on your Android cell phone;
To use your Android cell phone to call back or send messages to individuals
who have called to line 1 or line 2 on the AT&T telephone;
To store callers’ names and numbers to your Android phone’s directory for
future use.
Alerts manager (Mobile notification) allows you to extend your Android
phone’s alerts to your AT&T telephone system. Your AT&T telephone will notify
you whenever you receive certain text messages, e-mails or social media
updates on your Android phone, so you will always be kept up to date.
To use Caller ID manager and Alerts manager, you must first
download Connect to Cell to your Android cell phone using
the Google Play® Store app. Scan the QR code on the right to
download the application.
Connect to cellTM is a trademark of Advanced American Telephones.
Android® and Google Play® are registered trademarks of Google Inc.
•
•
•
20
Bluetooth
Glossary of terms
Below are some terms used in this user’s manual to help you become familiar
with using your Bluetooth devices and your new AT&T telephone system.
Active devices the Device list has two active slots for two cell phones, or one
cell phone and one headset. When a device in the list is active it will have a A:
or B: in front of the device name. In order to use a Bluetooth device on a call, it
must be in an active slot and be connected.
Bluetooth cell phone - refers to a mobile Bluetooth enabled cellular telephone.
CELL line - the telephone line associated with your cell phone service. On your
TL86103, press A Cell or B Cell on a handset, or Cell A or Cell B on
the telephone base to use the cell line.
Connected - when you pair a Bluetooth device to the TL86103 it is placed in
an active slot and automatically connected. When a device is connected,
a A and/or B will display on screens of the handset and the telephone
base, and the CELL A and/or CELL B/HEADSET light on the telephone base
will be on. If a device loses its connection to the telephone base, it must be
reconnected before you can use the device with the telephone system.
Device list - The list of devices connected to the telephone.
Disconnected - when a device is disconnected, A and/or B displays on the
screens of handsets and the telephone base, and the CELL A and/or
CELL B/HEADSET light on the telephone base is off.
Discoverable mode - before a Bluetooth enabled device can be paired, it must
be set to this mode. When pairing your cell phone, the telephone base is set to
this mode. Depending on the cell phone manufacturer, this mode is sometimes
referred to as Find Me or Visibility.
LINE 1 and LINE 2 - your conventional telephone land lines. On your TL86103,
press LINE 1/FLASH or LINE 2/FLASH on a handset or 1 LINE or 2 LINE on the
base to use the corresponding line.
Paired devices - The Bluetooth enabled devices (cell phones or headsets) that
have shared registration information with the telephone base. A total of four
Bluetooth enabled devices can be paired to the telephone base. However, only
two paired devices can communicate with the base at a time.
Pairing - sometimes referred to as bonding. The process of sharing registration
information between two Bluetooth enabled devices. Your Bluetooth enabled
cell phone or headset must first be paired to the telephone base in order to
use it with this telephone system.
PIN - by default, the PIN is 0000 for the telephone base and for most
Bluetooth devices. PIN information may be exchanged between Bluetooth
devices before they can be used. This is also known as a Passkey or Passcode.
/
/
21
Bluetooth
Bluetooth setup
To use a Bluetooth enabled cellular phone or headset with your telephone, you
must first pair and connect your Bluetooth cellular phone or headset with the
telephone base. The TL86103 can then be used to make or answer calls on
the cell phone line.
Bluetooth wireless technology operates within a short range (up to 30 feet).
When you pair a Bluetooth cell phone or Bluetooth headset to the telephone
base, keep the device within 15 feet of the telephone base for optimal
performance.
Add a cell phone
Before you begin, make sure that you have cellular coverage and your
Bluetooth enabled cell phone is not connected to any other Bluetooth device.
Refer to your cell phone user's manual to learn how to search for or add new
Bluetooth devices.
To pair and connect a cell phone:
Using the telephone base:
Press MENU on the telephone base in idle mode to enter
the main menu.
Press CID, DIR, /RECORD or /DELETE to highlight
Bluetooth, and then press SELECT .
Press SELECT to choose Add device.
Press SELECT to choose Add cellular. The screen
displays Please wait..., followed by 1. If cell is connected
to BT device, please disconnect it.
If there are already 4 paired devices on the device
list, the 4th device on the device list will be
automatically removed, regardless of whether the
new device pairing is successful or not.
If there are already 2 active devices on the device list
with prefix A: or B:, the telephone base shows Cell
phone A is deactivated for adding a new device.
5. Press NEXT . The screen displays 2. Place cell phone
next to base.
All devices that are connected to the telephone base are disconnected
until the pairing process is completed.
6. Press NEXT to turn on the telephone base discoverable mode. The screen
displays Set cell to search base: AT&T DECT 6.0 PIN: 0000. Promptly turn on
the Bluetooth feature of your cell phone and search for or add new devices.
1.
2.
3.
4.
•
•
•
BLUETOOTH
Add device
Device list
Download dir
BACK SELECT
Caller ID log
Intercom
Page all devices
Bluetooth
BACK SELECT
ADD DEVICE
Add cellular
Add headset
BACK SELECT
Set cell to
search base:
AT&T DECT 6.0
discoverable
PIN:0000
22
Bluetooth
Bluetooth setup
7. Once your cell phone finds your AT&T phone (AT&T
DECT 6.0), press the appropriate key on your cell phone
to continue the pairing process.
Your cell phone may require a passcode. In this case,
the telephone base displays Check cellular. ENTER
PASS CODE. Enter the cell phone passcode (typically
0000) into the telephone base and press SET.
Enter the PIN of the telephone base (the default PIN
is 0000) into your cell phone to continue the pairing
process if required. The telephone base displays Adding Cell Phone A.
8. When a device is successfully connected, the telephone base displays
Cell Phone A is added and connected to base. You hear a confirmation
tone. The corresponding status icon (A or B) displays. The
corresponding device light on the telephone base (CELL A and/or
CELL B/HEADSET ) turns on.
If you have trouble pairing your cell phone, it may not be compatible with
your TL86103. Check the Bluetooth compatibility list at
www.telephones.att.com.
NOTES:
The pairing process may take up to one minute. If the pairing process fails, turn off the
bluetooth feature on your cell phone and on the TL86103 by pressing A or B. Then repeat
the steps in the user’s manual to pair and connect again. In some cases, it may take you a few
attempts to complete the pair process.
The steps for the pairing process may vary for different cell phones. If this happens, follow the
prompts on your cell phone and your TL86103 to complete the pairing process.
Refer to the user’s manual of your cell phone on how to search for or add a new Bluetooth device.
•
•
•
•
•
Adding
Cell Phone A
Cell Phone A
is added and
connected to
base.
23
Bluetooth
Bluetooth setup
Add a headset
Before you begin, make sure that your Bluetooth enabled headset is not
connected to any other Bluetooth device. Refer to your headset user's manual
to learn how to search for or add new Bluetooth devices.
To pair and connect a headset:
Using the telephone base:
Press MENU on the telephone base in idle mode to
enter the main menu.
Press CID, DIR, /RECORD or /DELETE to highlight
Bluetooth, and then press SELECT .
Press SELECT to choose Add device.
Press CID, DIR, /RECORD or /DELETE to
highlight Add headset, and then press SELECT. The
screen displays If headset is connected to cell, please
disconnect it.
If there are already 4 paired devices on the device
list, the 4th device on the device list will be
automatically removed, regardless of whether the
new device pairing is successful or not.
If there is another headset already active, the screen
will show Only BT devices in slot 1 or 2 can be
ready for connection and prompts you to replace an
existing paired device.
If there are already 2 active devices on the device
list with prefix A: or B:, the screen shows Only 2
devices can be ready for connection. The screen
prompts you too deactivate an active device.
5. Press NEXT . The screen displays Pls set headset to
discoverable mode. Set your headset to discoverable
mode (refer to the user’s manual of your headset), and
then press NEXT.
All devices that are connected tot the telephone
base are temporarily disconnected.
6. The screen displays Searching for Bluetooth headsets...
7. When the screen displays the found devices, press
CID, DIR, /RECORD or /DELETE to highlight your
headset if neccessary then press SELECT .
Enter the PIN of your headset if required. The PIN for most Bluetooth devices
is 0000 (refer to the user’s manual of your headset), and then press NEXT.
1.
2.
3.
4.
•
•
•
•
•
BLUETOOTH
Add device
Device list
Download dir
BACK SELECT
Caller ID log
Intercom
Page all devices
Bluetooth
BACK SELECT
Pls set headset to
discoverable mode
BACK NEXT
BACK NEXT
DEVICE LIST
Add cellular
Add headset
BACK SELECT
Searching for
Bluetooth
headsets...
FOUND DEVICES
Headset A
Headset B
BACK SELECT
Adding Headset A
BACK
24
Bluetooth
Bluetooth setup
8. The screen displays Adding Headset A when the base is
connecting to your headset.
9. When a device is successfully connected, the telephone
base displays Headset A is added and connected to
base and the corresponding status icon ( B ) displays.
You hear a confirmation tone. CELL B/HEADSET light on the telephone
base turns on.
If you have trouble pairing your cell phone or headset, it may not be
compatible with your TL86103. Check the Bluetooth compatibility list at
www.telephones.att.com/bluetooth.
NOTES:
The pairing process may take up to one minute. If the pairing process fails, try again.
When a connected headset is charging, it may disconnect from the telephone base and the
corresponding light on the telephone base (
CELL B/HEADSET
) turns off. For some headset
models, you may need to turn on the headset and reconnect it to the telephone base again.
•
•
Headset A is
added and
connected to
base.
25
Bluetooth
Bluetooth setup
Auto connection
When an active device moves within Bluetooth range of the telephone base,
or is turned on within range, the telephone base tries to connect to the device.
When the device moves out of range, it is disconnected. Your device might
make a connect or disconnect sound.
A connected device could also be disconnected by:
Turning off the Bluetooth device.
Turning off the Bluetooth feature of the device.
Disconnecting through the telephone base Device list. If you disconnect
through the Device list, the telephone base will not attempt to reconnect
until your device is moved out of range and then moves back in range
again.
Bluetooth connection from idle mode
When you have active devices that are not connected, CONNECT appears
on the telephone base in idle mode. Press CONNECT on the telephone base
to start connecting an active device. When there are two active devices, the
screen will prompt you to choose one before connection
Device list and connection
Up to 4 devices can be paired to the telephone base. All paired devices are
shown on the device list. To use a paired device, it must be in an active slot (A:
or B:) on the device list and connected. Two Bluetooth cell phones can be on
a call at a time. While you are on a cell line call, you can also use a Bluetooth
headset to make or answer a call on line 1 or line 2.
Once you have paired a device with the telephone base, you do not need
to repeat the pairing procedure again unless you delete the device from the
device list.
Review the device list
Press MENU on the telephone base in idle mode.
Press CID, DIR, /RECORD or /DELETE to highlight Bluetooth, and
then press SELECT .
Press CID, DIR, /RECORD or /DELETE to highlight Device list, and
then press SELECT .
•
•
•
1.
2.
3.
NOTE: When connecting a Bluetooth device to the device list, all connected devices will be
temporarily disconnected until the procedure is complete. It may take up to 2 minutes to
reconnect.
26
Bluetooth
Bluetooth setup
Connect/disconnect an active device
While in the device list menu, you may connect or disconnect your
active device.
Press MENU on the telephone base in idle mode to enter the main menu.
Press CID, DIR, /RECORD or /DELETE to highlight Bluetooth, and
then press SELECT .
Press CID, DIR, /RECORD or /DELETE to highlight Device list, and
then press SELECT .
Press CID, DIR, /RECORD or /DELETE to highlight a device, and then
press OPTION .
Press CID, DIR, /RECORD or /DELETE to highlight Connect/
Disconnect (whichever is applicable), and then press SELECT. The
telephone base displays Device connected/Device disconnected. You hear
a confirmation tone.
Remove a paired device
When you already have a maximum of 4 paired devices on the device list and you
want to add another device, you must first delete a device from the device list.
To remove a paired device:
Press MENU on the telephone base in idle mode to
enter the main menu.
Press CID, DIR, /RECORD or /DELETE to highlight
Bluetooth, and then press SELECT .
Press CID, DIR, /RECORD or /DELETE to highlight
Device list, and then press SELECT .
Press CID, DIR, /RECORD or /DELETE to highlight
the desired device, and then press OPTION .
Press CID, DIR, /RECORD or /DELETE to highlight
Remove, and then press SELECT .
6. The handset displays Remove Cell Phone A? Press YES
to confirm. The telephone base displays Device removed
from device list and you hear a confirmation tone.
1.
2.
3.
4.
5.
1.
2.
3.
4.
5.
NOTE:
When your active device is connected, you are prompted to select
Disconnect. When
your active device is disconnected, you are prompted to select Connect.
BLUETOOTH
Add device
Device list
Download dir
BACK SELECT
Cell Phone A
Connect
Remove
BACK SELECT
Remove
Cell Phone A
?
NO YES
Device removed
fr o m
device list
DEVICE LIST
A:Cell Phone A
B:Headset A
BACK OPTION
27
Bluetooth
Bluetooth setup
Replace an active device
If you already have 2 active devices on the device list and you want to activate
a different device, you must deactivate one of the 2 active devices.
To replace an active device:
Press MENU on the telephone base in idle mode.
Press CID, DIR, /RECORD or /DELETE to highlight
Bluetooth, and then press SELECT .
Press CID, DIR, /RECORD or /DELETE to highlight
Device list, and then press SELECT .
Press CID, DIR, /RECORD or /DELETE to highlight
the device you want to activate without a prefix A: or B:
then press OPTION .
Press CID, DIR, /RECORD or /DELETE to highlight
Connect, and then press SELECT . The handset displays
Only BT devices in slot 1 or 2 can be ready for
connection and then a list of devices for deactivation.
Press CID, DIR, /RECORD or /DELETE to highlight
the device to be deactivated, and then press NEXT .
The screen displays Cell Phone A is deactivated and
you hear a confirmation tone. The screen then displays
Connecting Cell Phone B to the base...
Depending on your cell phone settings, you may
need to press a key on your cell phone to confirm
the connection. When the new device is successfully
activated and connected, the handset displays
Device connected. You hear a confirmation tone.
1.
2.
3.
4.
5.
6.
7.
BLUETOOTH
Add device
Device list
Download dir
BACK SELECT
DEVICE LIST
A:Cell Phone A
B:Headset A
Cell Phone B
BACK OPTION
DEACTIVATE
A:Cell Phone A
B:Headset A
BACK NEXT
Connecting
Cell Phone B
to the base...
DEVICE LIST
A:Cell Phone B
B:Headset A
Cell Phone A
BACK OPTION
Only BT devices
in slot 1 or 2
can be ready
for co nne ction
NOTE:
When adding removing, or replacing a Bluetooth device on the
active devices list, all connected devices are temporarily disconnected
until the procedure is complete. It may take up to 2 minutes to
reconnect.
28
Bluetooth
Bluetooth setup
Download directory
You can download up to 4 cell phone directories (phonebooks) to your
TL86103 telephone system via Bluetooth wireless technology. Each
downloaded directory can store up to 1,500 entries with up to 30 digits for
each phone number and 15 characters for each name.
Before downloading a directory, make sure the cell phone is paired, active, and
connected to your TL86103 telephone system.
Place your cell phone next to the telephone base when you download a cell
phone directory to your TL86103 telephone system.
To download a cell phone directory:
Using the telephone base:
Press MENU on the telephone base in idle mode.
Press CID, DIR, /RECORD or /DELETE to highlight
Bluetooth, and then press SELECT .
Press CID, DIR, /RECORD or /DELETE to highlight
Download dir, and then press SELECT .
If there is no cell phone paired to the system, the
telephone base displays Device list is empty. Press
OK to return to the Bluetooth menu.
If there are two active devices on the device list,
press CID, DIR, RECORD or DELETE to
highlight the desired device, and then press SELECT .
If the selected device is active but disconnected,
the telephone base displays Cellular phone not
connected. Press CONNECT.
Press CID, DIR, RECORD or DELETE to highlight
one of the following options:
Phone memory - download all contacts stored in
your phone memory.
SIM card only - download all contacts stored in your
SIM card.
Phone and SIM - download all contacts stored in
both your phone memory and SIM card.
Press SELECT to continue. During the download, the
telephone displays CL) Downloading. All other idle
system handsets display CL) Downloading...
Your cell phone may require you to press a key to
confirm the directory download.
Your cell phone may require a passcode. In this case
1.
2.
3.
•
•
•
4.
•
•
•
•
•
Caller ID log
Intercom
Page all devices
Bluetooth
BACK SELECT
BLUETOOTH
Add device
Device list
Download dir
BACK SELECT
DOWNLOAD DIR
A:Cell Phone A
B:Cell Phone B
BACK SELECT
DOWNLOAD FROM
Phone memory
SIM card only
Phone and SIM
BACK SELECT
Cell Phone A
Downloading
entry #0001...
STOP
Cell Phone A
Downloading
entry #0001...
STOP
Download ended
XXXX
entries saved.
BACK OK
29
Bluetooth
Bluetooth setup
If the selected device’s directory has already been downloaded to
TL86103 before, the handset displays the date of the last download
from your cell phone. The directory stored on the TL86103 for that cell
phone will be erased and replaced with the current cell phone directory.
If you have edited the downloaded entries, those changes will be lost.
Press NEXT to start the download.
If you already have 4 downloaded directories, the telephone base
displays Memory is full. Replace existing directory? Press YES
if replace an existing directory. Highlight the cell phone directory
replaced and press SELECT. The screen displays Replace Cell Phone A
directory? Press YES to confirm.
5. When the downloading process is complete, the handset displays
Download ended XXXX entries saved. You hear a confirmation tone. Press
OK to return to the Bluetooth menu.
NOTES:
Certain cell hones do not support SIM card download. If this is the case, transferr the contacts
from your SIM card to your cell phone memory first, and then download from your cell phone
memory. For more information on how to transfer contacts from your SIM card to your cell
phone memory, see the user’s manual of your cell phone.
If Phone memory is chosen but with no entries saved, the telephone base displays No entries
found. Download from SIM only? Press YES to confirm. If SIM card only is chosen but with no
entries saved, the handset displays No entries found. Download from Phone only? Press YES
to confirm. If Phone and SIM are chosen but with no entries saved in either or both directories,
the telephone base displays No entries found. Download from Phone only? Press YES to
confirm.
When downloading the directory from your Bluetooth enabled cell phone, some data may not
transfer. For example, if you have home, mobile and work numbers for a particular contact, the
three categories may not transfer to your TL86103.
For certain cell phones, you may need to press a key to confirm the directory download.
•
•
•
•
•
•
30
Bluetooth
Bluetooth setup
Interruption to directory download
If you are downloading a directory from a cell phone and the phone receives a
call, the download process stops and the telephone base displays
Download failed and all the handsets display CL) Download fail. When you
try to view the downloaded directory, the telephone base and handsets display
Last Download failed: MM/DD/YY. You need to download the directory again
(see page 28).
When you are downloading a directory from a cell phone and you wish to
stop the download process, you may press STOP . The telephone base displays
Download directory cancelled. The telephone base displays
CL) Download fail when it returns to idle mode.
NOTE: During the download process, do not attempt to make changes to your cell
phone directory.
View the directory download information
Press MENU on the telephone base in idle mode to enter
the main menu.
Press CID, DIR, /RECORD or /DELETE to highlight
Directory, and then press SELECT .
Press CID, DIR, /RECORD or /DELETE to choose
the desired downloaded directory, and then press
OPTION .
Press CID, DIR, /RECORD or /DELETE to highlight
Last update, and then press SELECT .
The telephone base displays Cell phone A Last
Update: MM/DD/YY Total #XXXX.
-OR-
The telephone base displays Cell phone A Last
Download failed: MM/DD/YY if there was an interruption during that
directory download.
Press OK to exit.
NOTE: If a handset tries to access the directory while a Bluetooth directory download is in
progress, the screen shows Not available at this time.
1.
2.
3.
4.
•
•
5.
CELL PHONE A
Cell area code
Last update
Remove dir
BACK SELECT
CELL PHONE A
Last update
29/07/13
Total #0159
BACK OK
Answering sys
Directory
Caller ID log
Intercom
BACK SELECT
31
Bluetooth
Bluetooth setup
Change PIN
You may be required to enter a PIN when establishing a Bluetooth connection.
The default PIN of your telephone base is 0000.
To change the PIN:
1. Press MENU on the telephone base in idle mode to enter
the main menu.
2. Press CID, DIR, /RECORD or /DELETE to highlight
Bluetooth, and then press SELECT .
3. Press CID, DIR, /RECORD or /DELETE to highlight
Change PIN, and then press SELECT . The telephone base
displays ENTER NEW PIN and the existing PIN.
4. Use the dialing keys to enter a new 4-digit code.
Press /DELETE to erase a digit.
Press and hold /DELETE to erase all digits.
Press CID or /REPEAT to move the cursor to the left. Press DIR or
/SKIP to move the cursor to the right.
5. Press SET to save.
Cell ringer
If this feature is on and you have connected an iPhone (iOS 4.1 or later) to your
telephone system, the telephone plays your iPhone ringtone when there is
incoming call.
1. Press MENU on the telephone base in idle mode to
enter the main menu.
2. Press CID, DIR, /RECORD or /DELETE to highlight
Bluetooth, and then press SELECT .
3. Press CID, DIR, /RECORD or /DELETE to
highlight Cell ringer, and then press SELECT .
If there is more than one paired device on the
device list, press CID, DIR, /RECORD or
/DELETE to highlight the desired device, and
then press SELECT .
4. Press CID, DIR, /RECORD or /DELETE to choose On or Off, and then
press SET .
NOTE: The quality of ringtone played on your telephone is subject to individual ringtone
characteristics.
•
•
•
•
BLUETOOTH
Device list
Download dir
Change PIN
BACK SELECT
ENTER NEW PIN
0000
BACK SET
BLUETOOTH
Download dir
Change PIN
Cell ringer
BACK SELECT
CELL RINGER
On
Offf
BACK SET
32
Handset and telephone base settings
Use the menu to change the telephone base or cordless handset settings.
Using a cordless handset:
Press MENU when the cordless handset is not in use to enter the
main menu.
Press CID or DIR to highlight the feature to be changed. When scrolling
through the menu, the selected menu item is highlighted.
Press SELECT to select the highlighted item.
Using the telephone base:
Press MENU when the telephone base is not in use to enter the
main menu.
Press CID, DIR, /RECORD or /DELETE to highlight the feature to
be changed. When scrolling through the menu, the selected menu item is
highlighted.
Press SELECT to select the highlighted item.
NOTE: Press OFF/CANCEL on the handset or CANCEL on the telephone base to cancel an
operation, back up to the previous menu or exit the menu display. Press and hold OFF/CANCEL
on the handset or CANCEL on the telephone base to return to idle mode.
1.
2.
3.
1.
2.
3.
Telephone settings
33
Telephone settings
Handset and telephone base settings
Ringer volume
You can select the ringer volume for incoming calls on all lines.
Using a cordless handset:
Press MENU in idle mode to enter the main menu.
Press CID or DIR to highlight Ringers, and then press
SELECT .
Press SELECT to choose Ringer volume.
Press CID or DIR to highlight All lines, Line 1, Line 2,
Cell A, Cell B or PC call, and then press SELECT .
Press CID or DIR to sample each ringer volume.
Press SET to save. Your hear a confirmation tone and the
screen returns to the previous menu.
Using the telephone base:
Press MENU in idle mode to enter the main menu.
Press CID, DIR, /RECORD or /DELETE to highlight
Ringers, and then press SELECT .
Press SELECT to choose Ringer volume.
Press CID, DIR, /RECORD or /DELETE to highlight
All lines, Line 1, Line 2, Cell A, Cell B or PC call, and
then press SELECT .
Press CID, DIR, /RECORD or /DELETE to sample
each ringer volume.
Press SET to save. Your hear a confirmation tone and the
screen returns to the previous menu.
-OR-
Press /VOLUME/ on the telephone base to set the
ringer volume while the telephone base is in idle mode to set the ringer
volume of the telephone base.
Press SET to confirm and you hear a confirmation tone.
NOTES:
Changing the handset ringer volume does not affect the base ringer volume.
If the ringer volume is set to off, that handset is silenced for all incoming calls.
The ringer volume level also determines the ringer levels of intercom calls (page 73).
If the ringer volume is set to off, the caller ID will not be announced and the screen will briefly display
Caller ID won’t be announced.
1.
2.
3.
4.
5.
6.
1.
2.
3.
4.
5.
6.
1.
2.
•
•
•
•
RINGER VOLUME
BACK
S
BACK SET
RINGERS
Ringer volume
Ringer tone
BACK SELECT
RINGERS
All lines
Line 1
Line 2
BACK SELECT
RINGERS
Ringer volume
Ringer tone
SELECT
BACK
RINGERS
SELECT
BACK
34
Telephone settings
Handset and telephone base settings
Ringer tone
You can select the ringer tones for incoming home and cell calls.
Using a cordless handset:
Press MENU in idle mode to enter the main menu.
Press CID or DIR to highlight Ringers, and then press
SELECT .
Press CID or DIR to highlight Ringer tone, and then
press SELECT .
Press CID or DIR to highlight All lines, Line 1, Line 2,
Cell A, Cell B or PC call, and then press SELECT .
Press CID or DIR to sample each ringer tone. A sample
of each ringer tone plays as you scroll through the choices.
Press SELECT to save. You hear a confirmation tone and the
screen returns to the previous menu.
Using the telephone base:
Press MENU in idle mode to enter the main menu.
Press CID, DIR, /RECORD or /DELETE to highlight
Ringers, and then press SELECT .
Press CID, DIR, /RECORD or /DELETE to highlight
Ringer tone, and then
press SELECT .
Press CID, DIR, /RECORD or /DELETE to highlight
All lines, Line 1, Line 2, Cell A, Cell B or PC call, and
then press SELECT .
Press CID, DIR, /RECORD or /DELETE to sample each ringer tone. A
sample of each ringer tone plays as you scroll through the choices.
Press SELECT to save. You hear a confirmation tone and the screen returns
to the previous menu.
NOTE: When you turn off the ringer volume, you will not hear ringer tone.
1.
2.
3.
4.
5.
6.
1.
2.
3.
4.
5.
6.
RINGER TONE
All lines
Line 1
Line 2
BACK SELECT
RINGERS
1
2
3
BACK SELECT
RINGER TONE
All lines
Line 1
Line 2
SELECT
BACK
RINGER TONE
1
2
32
35
Telephone settings
Handset and telephone base settings
LCD language
You can select English, French, or Spanish to be used for all screen displays.
Using a cordless handset:
Press MENU in idle mode to enter the main menu.
Press CID or DIR
to highlight Settings, and then
press SELECT .
Press SELECT to choose LCD language.
Press CID or DIR
to choose from English, Français or
Español, and then press SELECT . The screen prompts
Set English/Français/Español as LCD language?
Press YES
to confirm. Your hear a confirmation tone and
the screen returns to the previous menu.
Press NO to cancel the operation.
Using the telephone base:
Press MENU in idle mode to enter the main menu.
Press CID, DIR, /RECORD or /DELETE
to highlight
Settings, and then press SELECT .
Press SELECT to choose LCD language.
Press CID, DIR, /RECORD or /DELETE
to choose
from English, Français or Español, and then press
SELECT . The screen prompts Set English/Français/
Español as LCD language?
Press YES
to confirm. Your hear a confirmation tone and
the screen returns to the previous menu.
Press NO to cancel the operation.
1.
2.
3.
4.
5.
1.
2.
3.
4.
5.
LCD LANGUAGE
E nglish
Francais
Espanol
,
BACK SELECT
SETTINGS
LCD language
Voicemail #
Clear voicemail
BACK SELECT
NOTE: If you accidentally change the LCD language to French or Spanish, you can reset it back
to English without going through the French or Spanish menus. Press MENU on the handset or
telephone base in idle mode, and then enter 364#. To reset the LCD language back to English
during a call, press OPTION on the handset or telephone base, and then enter 364#.
SETTINGS
LCD language
Voicemail #
Clr voicemail
SELECT
BACK
LCD LANGUAGE
English
Francais
Espanol
,
36
Telephone settings
Handset and telephone base settings
Set date/time
The answering system announces the day and time of each message prior to
playing it. If you subscribe to caller ID service, the day, month and time are
set automatically with each incoming call. If you do not want to set the date
and time automatically with caller ID information, turn this feature off (see
Use caller ID to automatically set date and time on page 42). However, the
year must be correct so that the day of the week can be calculated from the
caller ID information. Before using the answering system, set the date and
time as follows.
After handset registration or a power failure, the handset or telephone base
will prompt you to set the date and time. Follow the steps below to set the
month, day, year and time.
Using a cordless handset:
To set the date and time manually:
Press MENU in idle mode to enter the main menu.
Press CID or DIR to highlight Set date/time, and then
press SELECT .
Press CID or DIR to choose the month, and then press
NEXT, or enter the 2-digit number using the dialing keys.
Press CID or DIR to choose the day, and then press NEXT,
or enter the 2-digit number using the dialing keys.
Press CID or DIR to choose the year, or enter the 2-digit
number using the dialing keys, and then press NEXT to move
on to set the time.
Press CID or DIR to choose the hour, and then press SAVE, or enter the
2-digit number using the dialing keys.
Press CID or DIR to choose the minute, and then press SAVE, or enter
the
2-digit number using the dialing keys.
Press CID or DIR to highlight AM or PM, or press 2 for AM or 7 for PM,
and then press SAVE to confirm. You hear a confirmation tone and the
screen returns to the previous menu.
1.
2.
3.
4.
5.
6.
7.
8.
SET DATE
07/29/13
MM/DD/YY K
S
BACK SELECT
SET TIME
0 5:41 P M K
S
BACK SELECT
37
Telephone settings
SET DATE
07/29/13
MM/DD/YY
NEXT
BACK
SET TIME
05:41 PM
SAVE
BACK
Handset and telephone base settings
Using the telephone base:
To set the date and time manually:
Press MENU in idle mode to enter the main menu.
Press CID, DIR, /RECORD or /DELETE to highlight
Set date/time, and then press SELECT .
Press CID, DIR, /RECORD or /DELETE to choose
the month, and then press NEXT, or enter the 2-digit
number using the dialing keys.
Press CID, DIR, /RECORD or /DELETE to choose
the day, and then press NEXT, or enter the 2-digit
number using the dialing keys.
Press CID, DIR, /RECORD or /DELETE to choose the year, or enter the
2-digit number using the dialing keys, and then press NEXT to move on to
set the time.
Press CID, DIR, /RECORD or /DELETE to choose the hour, and then
press SAVE, or enter the 2-digit number using the dialing keys.
Press CID, DIR, /RECORD or /DELETE to choose the minute, and then
press SAVE, or enter the 2-digit number using the dialing keys.
Press CID, DIR, /RECORD or /DELETE to highlight AM or PM, or
press 2 for AM or 7 for PM, and then press SAVE to confirm. You hear a
confirmation tone and the screen returns to the previous menu.
NOTE: If the clock is not set when a message is recorded, the system announces, “Time and day
not set,” before it plays the message.
1.
2.
3.
4.
5.
6.
7.
8.
38
Telephone settings
Handset and telephone base settings
Caller ID announce
The caller ID announce feature lets you know who’s calling without having to
look at the display. When you have an incoming call, the handset and/or base
speaks “Call from...” and the name of the caller based on the directory or caller
ID information. If the caller’s name is private or unknown, the phone number up
to the last 11 digits will be spoken. If the caller’s phone number is also private
or unknown, no information will be spoken. By default, the caller ID announce
feature is programmed On.
To turn on/off the caller ID announce:
Using the telephone base:
Press MENU in idle mode to enter the main menu.
Press CID, DIR, /RECORD or /DELETE to highlight
Caller ID Annc, and then press SELECT .
Press CID, DIR, /RECORD or /DELETE to choose
On or Off, and then press SELECT . You hear a
confirmation tone and the screen shows CID Annc
ON/OFF on all HS & BS briefly before returning to
the previous menu.
NOTES:
To use the caller ID announce feature, you must subscribe to caller ID service from your
telephone service provider.
When there are up to five handsets registered, the telephone system supports caller ID
announce for all handsets. If six or more handsets are registered, the system supports caller ID
announce for the first four registered handsets only.
This feature does not announce information for call waiting calls.
When this feature is on, the telephone plays both the caller ID information and the ringer at the
same time when there is an incoming call.
It takes at least two rings for the phone to receive caller ID information and announce it. If the
phone is answered before the end of the second ring, the phone won’t have time to announce
the caller’s information.
Pronunciation of names may vary with this feature. Not all names may be pronounced correctly.
Caller ID announce is available in English only.
When this feature is on, the telephone plays both the caller ID information and the ringer at the
same time when there is an incoming call.
1.
2.
3.
•
•
•
•
•
•
•
•
Bluetooth
Ringers
Set date/time
Caller ID Annc
BACK SELECT
CALLER ID ANNC
Off
On
BACK SELECT
39
Telephone settings
Handset and telephone base settings
Set speed dial voicemail number
This feature lets you save your voicemail number for easy access when you
press and hold the 1 key.
To set your voicemail number:
Using a cordless handset:
1. Press MENU in idle mode to enter the main menu.
2. Press CID or DIR to highlight Settings, and then
press SELECT.
3. Press CID or DIR to highlight Voicemail #, and then
press SELECT.
4. Press CID or DIR to highlight Line 1 or Line 2, and then
press SELECT.
5. Use the dialing keys to enter the voicemail access number
provided by your telephone service provider (up to 30
digits) when prompted.
Press CID or DIR to move the cursor to the left or right.
Press MUTE/DELETE to erase a digit.
Press and hold MUTE/DELETE to erase all digits.
Press and hold REDIAL/PAUSE to enter a dialing pause
(a p appears).
6. Press
SAVE to confirm. There is a confirmation tone and the screen displays
Voicemail # saved then returns to the previous menu.
•
•
•
•
VOICEMAIL #
LINE 1
LINE 2
BACK SELECT
VOICEMAIL #
800-222-311-
BACKSP
SAVE
SETTINGS
Voicemail #
Clear voicemail
Key Tone
BACK SELECT
40
Telephone settings
Handset and telephone base settings
Using a the telephone base:
1. Press MENU in idle mode to enter the main menu.
2. Press CID, DIR, /RECORD or /DELETE to highlight
Settings, and then press SELECT.
3. Press CID, DIR, /RECORD or /DELETE to highlight
Voicemail #, and then press SELECT.
4. Press CID, DIR, /RECORD or /DELETE to highlight
Line 1 or Line 2, and then press SELECT.
5. Use the dialing keys to enter the voicemail access
number provided by your telephone service provider
(up to 30 digits) when prompted.
Press CID or /REPEAT to move the cursor to the left. Press DIR or
/SKIP to move the cursor to the right.
Press /DELETE to erase a digit.
Press and hold /DELETE to erase all digits.
Press and hold REDIAL/PAUSE on the telephone base to enter a dialing
pause (a p appears).
6. Press
SAVE to confirm. There is a confirmation tone and the screen displays
Voicemail # saved then returns to the previous menu.
•
•
•
•
41
Telephone settings
Handset and telephone base settings
Voicemail (visual message waiting) number
If you subscribe to a voicemail service offered by your telephone service
provider, New voicemail and the icon appear on the telephone base and
handset screens when you have new voicemail messages. Contact your service
provider for more information and assistance about using your voicemail service.
NOTES:
This feature does not indicate new messages recorded on your phone’s built-in answering system.
For more information about the difference between your answering system and voicemail, see
page 114.
Clear voicemail indication
Use this feature when the telephone indicates there is new voicemail but there is
none. For example, when you have accessed your voicemail while away from home.
This feature only turns off the displayed New voicemail and the icon; it does not
delete your voicemail messages. As long as you have new voicemail messages, your
telephone service provider continues to send the signal to turn on the indicator.
To manually turn off the new voicemail indicator:
Using a cordless handset:
Press MENU in idle mode to enter the main menu.
Press CID or DIR to highlight Settings, and then press
SELECT .
Press CID or DIR to highlight Clear voicemail, and then
press SELECT . The screen shows Reset Voicemail
Indication?
Press YES to turn the voicemail indicator off. You hear
a confirmation tone and the screen returns to the
previous menu.
Using the telephone base:
Press MENU in idle mode to enter the main menu.
Press CID, DIR, /RECORD or /DELETE to highlight
Settings, and then press SELECT .
Press CID, DIR, /RECORD or /DELETE to highlight
Clear voicemail, and then press SELECT . The screen
shows Reset Voicemail Indication?
Press YES to turn the voicemail indicator off. You hear
a confirmation tone and the screen returns to the
previous menu.
NOTES:
Your telephone service provider voicemail might alert you to new messages with a stutter
(broken) dial tone. Contact your telephone service provider for more details.
•
•
1.
2.
3.
4.
1.
2.
3.
4.
•
Reset voicemail
indication?
NO YES
SETTINGS
LCD language
Voicemail #
Clear voicemail
BACK SELECT
SETTINGS
LCD language
Voicemail #
Clear voicemail
BACK SELECT
Reset voicemail
indication?
NO YES
42
Telephone settings
Handset and telephone base settings
Key tone
The telephone base and handset are set to beep with each key
press. You can adjust the key tone volume or turn it off. If you
turn off the key tone, there are no beeps when you press keys.
Using a cordless handset:
Press MENU in idle mode to enter the main menu.
Press CID or DIR to highlight Settings, and then
press SELECT.
Press CID or DIR to highlight Key tone, and then
press SELECT .
Press CID or DIR to select the desired volume or Off.
Press SET to confirm. You hear a confirmation tone and the screen returns
to the previous menu.
Using the telephone base:
Press MENU in idle mode to enter the main menu.
Press CID or DIR to highlight Settings, and then
press SELECT.
Press CID or DIR to highlight Key tone, and then
press SELECT .
Press CID or DIR to select the desired volume or Off.
Press SET to confirm. You hear a confirmation tone and
the screen returns to the previous menu.
Use caller ID to automatically set date and time
If you subscribe to caller ID service, the date and time will be set automatically
by the caller ID information. Follow the steps below to turn the CID time sync
feature on or off. The default setting is On.
Using the telephone base:
Press MENU in idle mode to enter the main menu.
Press CID, DIR, /RECORD or /DELETE to highlight
Settings, and then press SELECT .
Press CID, DIR, /RECORD or /DELETE to highlight
CID time sync, and then press SELECT .
Press CID, DIR, /RECORD or /DELETE to select
On or Off, and then press SELECT to save. You hear a
confirmation tone and the screen returns to the
previous menu.
1.
2.
3.
4.
5.
1.
2.
3.
4.
5.
1.
2.
3.
4.
SELECT
BACK
SETTINGS
Clear voicemail
Key tone
CID time sync
SELECT
BACK
SETTINGS
Key tone
CID time sync
Dial mode
SETTINGS
Voicemail #
Clear voicemail
Key tone
BACK SELECT
KEY TONE
BACK
S
BACK SET
KEY TONE
SET
BACK
CID TIME SYNC
On
Off
SELECT
BACK
43
Telephone settings
Handset and telephone base settings
Home area code
If you dial seven digits to make a local call (no area code required), enter your
area code into the telephone as the home area code. When you receive a call
from within your home area code, the caller ID history only displays the seven
digits of the telephone number.
This feature makes it easy for you to place a call from the caller ID log. If you
dial 10 digits to make a local phone call, do not use this home area code
feature. If you do, you cannot place local calls from your caller ID log, as they
will have only seven digits.
Using a cordless handset:
Press MENU in idle mode to enter the main menu.
Press CID or DIR to highlight Directory, and then press
SELECT .
Press OPTION to choose Home.
Press CID or DIR to highlight Home area code, and then
press SELECT . The screen briefly shows Only for 7 digits
dialing from Caller ID log.
Use the dialing keys to enter a three-digit home area
code.
Press MUTE/DELETE to erase a digit.
Press and hold MUTE/DELETE to erase all digits.
Press CID or DIR to move the cursor to the left or right.
Press SAVE to confirm. You hear a confirmation tone and the screen shows
Area code will not show in Caller ID log briefly before returning to the
previous menu.
NOTE:
If in the future, your telephone service provider requires you to dial ten digits to make a local
call (area code plus telephone number), you need to delete your home area code. With the
home area code displayed, press and hold MUTE/DELETE on the handset or press and hold
/DELETE on the telephone base until the digits are deleted, and then presson the telephone base until the digits are deleted, and then press SAVE
. The home
area code is now restored to its default setting of _ _ _ (empty).
1.
2.
3.
4.
5.
•
•
•
6.
•
HOME AREA CODE
---
SAVE
BACKSP
HOME AREA CODE
- - -
BACKSP
SAVE
44
Telephone settings
Handset and telephone base settings
Using the telephone base:
Press MENU in idle mode to enter the main menu.
Press CID, DIR, /RECORD or /DELETE to highlight Directory, and
then press SELECT .
Press OPTION to choose Home.
Press CID, DIR, /RECORD or /DELETE to highlight Home area code,
and then press SELECT . The screen briefly shows Only for 7 digits dialing
from Caller ID log.
Use the dialing keys to enter a three-digit home area code.
Press /DELETE base to erase a digit.
Press and hold /DELETE to erase all digits.
Press CID or /REPEAT to move the cursor to the left. Press DIR or
/SKIP to move the cursor to the right.
Press SAVE to confirm. You hear a confirmation tone and the screen shows
Area code will not show in Caller ID log briefly before returning to the
previous menu.
1.
2.
3.
4.
5.
•
•
•
6.
45
Telephone settings
Handset and telephone base settings
Cell area code
Most cell phone entries are stored in a 10-digit format. If all of your cell phone
entries are stored this way, you do not need to program your cell area code.
If your cell phone stores entries in a 7-digit format, we recommend that you
program your cell area code so that your 7-digit directory entries can be dialed
correctly using your line 1 or line 2.
Using a cordless handset:
Press MENU in idle mode to enter the main menu.
Press CID or DIR to highlight Directory, and then press
SELECT .
Press CID or DIR to highlight a desired downloaded
directory, and then press OPTION .
Press CID or DIR to highlight Cell area code, and then
press SELECT . The screen briefly shows Only for 7 digits dialing from
Caller ID log.
Use the dialing keys to enter a three-digit home area code.
Press MUTE/DELETE to erase a digit.
Press and hold MUTE MUTE/DELETE to erase all digits.
Press CID or DIR to move the cursor to the left or right.
Press SAVE to confirm. You hear a confirmation tone and the screen shows
Area code will not show in Caller ID log briefly before returning to the
previous menu.
1.
2.
3.
4.
5.
•
•
•
6.
CELL AREA CODE
- - -
BACKSP
SAVE
46
Telephone settings
Handset and telephone base settings
Using the telephone base:
Press MENU in idle mode to enter the main menu.
Press CID, DIR, /RECORD or /DELETE to highlight
Directory, and then press SELECT .
Press CID, DIR, /RECORD or /DELETE to highlight
a desired downloaded directory, and then press OPTION .
Press CID, DIR, /RECORD or /DELETE to highlight Cell area code,
and then press SELECT . The screen briefly shows Only for 7 digits dialing
from Caller ID log.
Use the dialing keys to enter a three-digit home area code.
Press /DELETE base to erase a digit.
Press and hold /DELETE to erase all digits.
Press CID or /REPEAT to move the cursor to the left. Press DIR or
/SKIP to move the cursor to the right.
Press SAVE to confirm. You hear a confirmation tone and the screen shows
Area code will not show in Caller ID log briefly before returning to the
previous menu.
1.
2.
3.
4.
5.
•
•
•
6.
CELL AREA CODE
---
SAVE
BACKSP
47
Telephone settings
Handset and telephone base settings
Dial mode
The dial mode is preset to tone dialing. If you have pulse (rotary) service, you
must change the dial mode to pulse dialing before using the telephone.
Using the telephone base:
Press MENU in idle mode to enter the main menu.
Press CID, DIR, /RECORD or /DELETE to
highlight Settings, and then press SELECT .
Press CID, DIR, /RECORD or /DELETE to
highlight Dial mode, and then press SELECT .
Press CID, DIR, /RECORD or /DELETE to choose
Touch-tone or Pulse, and then press SELECT. The screen
shows Dial mode is touch-tone or Dial mode is pulse.
You hear a confirmation tone and the screen returns to
the previous menu.
Line preference
The line preference setting determines the default line for the corded handset
and speakerphone on a cordless handset and the telephone base for outgoing
calls.
Using the telephone base:
1. Press MENU in idle mode to enter the main menu.
2. Press CID, DIR, /RECORD or /DELETE to highlight Settings, and then
press SELECT .
3. Press CID, DIR, /RECORD or /DELETE to highlight Line preference,
and then press SELECT .
4. Press CID, DIR, /RECORD or /DELETE to highlight Auto, Line 1 or
Line 2, and then press SELECT .
5. Press SELECT to save. You hear a confirmation tone and the screen returns
to the previous menu.
NOTE: If both line 1 and line 2 are in use or on hold, the telephone system will take line 1.
1.
2.
3.
4.
SELECT
BACK
SETTINGS
LCD language
Line preference
Voicemail #
SELECT
BACK
DIAL MODE
Auto
Line 12
Line 2
48
Telephone settings
Handset and telephone base settings
QUIET mode
When QUIET mode is turned on, the telephone silences all sounds during the
set period of time (1-12 hours). However, the handset locator paging tone and
any sound-generating operations initiated by users, such as making calls using
the speakerphone or setting ringer volume, will sound as normal. After you turn
on QUIET mode, this feature activates immediately and the answering system
turns on automatically.
When QUIET mode is on, the answering system takes calls and records
messages without broadcasting them.
To turn QUIET mode on:
1. Press and hold QUIET # in idle mode to enter the QUIET mode setting
screen. The screen shows SET QUIET MODE DURATION (1 to 12 hours) _ _.
2. Use the dialing keys to enter the desired number of hours (1-12) you would
like to turn on QUIET mode, and then press SELECT. Your screen briefly shows
Answering sys is ON during quiet mode and then in the idle screen.
To turn QUIET mode off:
While QUIET mode is on, press and hold QUIET #. The screen then shows
Quiet mode is off and you hear a confirmation tone.
NOTES:
If you change the base ringer, handset ringer, ringer volume, key tone, or caller ID announce features
when QUIET mode is on, the sample plays but the feature is still muted after saving the setting.
After QUIET mode is turned off or the set period of time has expired, all muted features will be activated again.
The PTT function is not available when QUIET mode is on.
Web address
You can use this feature to view the AT&T website address.
Using a cordless handset:
Press MENU in idle mode to enter the main menu.
Press CID or DIR to highlight Web address, and then
press SELECT . The screen shows the AT&T website
address.
Press OK to exit.
Using the telephone base:
Press MENU in idle mode to enter the main menu.
Press CID, DIR, /RECORD or /DELETE to highlight Web address, and
then press SELECT . The screen shows the
AT&T website address.
Press OK to exit.
•
•
•
•
1.
2.
3.
1.
2.
3.
SELECT
BACK
Caller ID Annc
Settings
Web address
Voice commmad
49
Telephone settings
Handset and telephone base settings
No line alert
If there is no telephone line connected to line 1 and/or line 2 of the telephone
base, the screens show L1) No line and/or L2) No line. If you do not want to
display this message on the screens (for example, if you use the cell line only),
you can turn the No line alert off using the code described below.
To turn off the No line alert:
Press MENU on the handset or telephone base in idle mode, and then enter
662#. You hear a confirmation tone.
To turn the No line alert back on:
Press MENU on the handset or telephone base in idle mode, and then enter
661#. You hear a confirmation tone.
Cell alert
If you have downloaded the Connect to Cell application and use the Alerts
manager (page 18), there are message notifications sent to your telephone
system. Your telephone system beeps once when your Android cell phone
receives text messages, e-mails or social media updates. You can turn the alert
tone on or off using the code described below.
To turn the alert tone off:
Press MENU on the handset or telephone base in idle mode, and then enter
252#. You hear a confirmation tone.
To turn the alert tone back on:
Press MENU on the handset or telephone base in idle mode, and then enter
251#. You hear a confirmation tone.
50
Telephone operation
Telephone operation
Make, answer or end a line 1 or line 2 call
The TL86103 telephone base can be used to make or answer calls on
2 individual landlines. You can connect a maximum of 2 telephone lines to the
telephone base.
Using a cordless handset:
To make a call on line 1 or line 2:
Press LINE 1/FLASH, LINE 2/FLASH or /SPEAKER, and then enter the
telephone number.
To predial a call on line 1 or line 2:
Enter the telephone number, and then press LINE 1/FLASH, LINE 2/FLASH or
/SPEAKER.
To answer a call on line 1 or line 2:
Press LINE 1/FLASH, LINE 2/FLASH, /SPEAKER, or any dialing key (0-9 or
TONE ).
To end a call on line 1 or line 2:
Press OFF/CANCEL, or put the cordless handset into the charger.
Using the telephone base:
To make a call on line 1 or line 2:
Press 1 LINE, 2 LINE, SPEAKER , or lift the corded handset, and then enter
the telephone number.
To predial a call on line 1 or line 2:
Enter the telephone number, and then press 1 LINE, 2 LINE or /SPEAKER.
To answer a call on line 1 or line 2:
Press 1 LINE, 2 LINE, SPEAKER , any dialing key (0-9 or TONE ), or lift the
corded handset.
To end a call on line 1 or line 2:
Press the corresponding cell button, 1 LINE or 2 LINE.
-OR-
Press SPEAKER or return the corded handset to the telephone base.
NOTES:
The screen shows the elapsed time as you talk (in hours, minutes and seconds).
When predialing (preview numbers before dialing), press MUTE/DELETE on the handset or
/DELETE on the telephone base to backspace and delete; press and hold REDIAL/PAUSE on
the handset or REDIAL/PAUSE on the telephone base to insert a dialing pause (a p appears).
You cannot answer a call on line 1 or line 2 using your connected cell phone.
•
•
•
Telephone operation
51
Telephone operation
Telephone operation
Using a Bluetooth, headset, DECT headset or a wireless speaker:
You can use a Bluetooth headset, a DECT headset or a wireless speaker for
calls on line 1 or line 2. However, you need to keep the device within 15 feet of
the telephone base for optimal performance. Please see the user’s manual of
your Bluetooth headset for more information of Bluetooth headset.
To answer or end a call on line 1 or line 2 using a Bluetooth headset:
Press the call key on your bluetooth headset.
To answer or end a call on line 1 or line 2 using a DECT headset:
Press ON/OFF on your DECT headset.
To answer or end a call on line 1 or line 2 using a Wireless speaker:
Press PHONE on your wireless speaker.
If you make or answer a call on line 1 or line 2 on a handset, you can transfer
the call to your headset. The handset remains active, but the handset earpiece
and microphone are muted. If you hang up the handset, the call ends.
To transfer a call from a handset to a Bluetooth headset:
Using the telephone base:
Press OPTION during a call on line 1 or line 2.
Press CID, DIR, /RECORD or /DELETE to highlight Use BT headset,
and then press SELECT. The telephone base displays Transferring audio to
Headset A, the message disappears if the call is successfully transferred to
the Bluetooth
headset.
To transfer a call from a handset to a DECT headset or a wireless speaker:
Using a cordless handset or the telephone base:
Press OPTION during a call on line 1 or line 2.
Press CID or DIR on a handset, or CID, DIR, /RECORD or /DELETE
on the telephone base, to highlight Intercom, and then press SELECT.
Press CID or DIR on a handset, or CID, DIR, /RECORD or /DELETE
on the telephone base, to highlight <HDST/SPK X>, and then
press SELECT.
Press CID or DIR on a handset, or CID, DIR, /RECORD or /DELETE
on the telephone base, to highlight Transfer, and then press SELECT.
•
•
•
•
•
•
52
Telephone operation
Telephone operation
To transfer a call from the Bluetooth/DECT headset or wireless speaker
back to the handset:
Using the telephone base:
Press OPTION, and then press CID, DIR, /RECORD or /DELETE to
highlight Use handset and press SELECT.
To end a call that started at the handset:
Using a cordless handset:
Press OFF/CANCEL, or put the cordless handset into the charger.
Call waiting on line 1 or line 2
If you subscribe to call waiting service from your telephone service provider,
you hear a tone if someone calls while you are already on a call.
Press the corresponding line button, LINE 1/FLASH or LINE 2/FLASH on the
handset, or press FLASH on the telephone base to put your current call
on hold and take the new call.
Press the same key at any time to switch back and forth between calls.
•
•
•
53
Telephone operation
Telephone operation
Make, answer or end a cell call
The TL86103 can be used to make or answer calls on the cell line. You can
connect a maximum of 2 Bluetooth enabled cell phones to the telephone base.
Both cell phones can be used on cell calls at the same time.
Using a cordless handset:
To make a cell call:
Press A Cell or B Cell, and then enter the telephone number.
Press DIAL or /SPEAKER.
To predial a cell call:
Enter the telephone number, and then press A Cell or B Cell.
To answer a cell call:
Press /SPEAKER, A Cell or B Cell.
To end a cell call:
Press OFF/CANCEL, or put the cordless handset into the charger.
Using the telephone base:
To make a cell call:
Press Cell A or Cell B , and then enter the telephone number.
2. Press DIAL or SPEAKER , or lift the corded handset.
To predial a cell call:
Enter the telephone number, and then press Cell A or Cell B .
To answer a cell call:
Press SPEAKER , Cell A or Cell B , or lift the corded handset.
To end a cell call:
Press the corresponding cell button, Cell A or Cell B .
-OR-
Press SPEAKER or return the corded handset to the telephone base.
NOTES:
You can also use your cell phone to answer the call. If you answer with your cell phone, it
disconnects from the telephone base.
If you do not want to answer the call, press REJECT .
When you try to make a cell call but your cell phone is not connected to the base, the telephone
base displays Cellular phone not connected. Please connect to proceed. Press CONNECT on the
telebase base to connect your cell phone to the telephone system. Refer to Bluetooth connection
from idle mode on page 25 and Connect/disconnect an active device on page 26.
1.
2.
1.
•
•
•
54
Telephone operation
Telephone operation
Call waiting on the cell line
If you subscribe to call waiting service from your cell phone service provider,
you hear a beep if someone calls while you are already on a call.
To answer the incoming call from the same cell line:
Using a cordless handset:
Press SWAP, A Cell or B Cell on the handset. The original call is put
on hold and you take the new call.
Press OPTION on the handset. Press CID or DIR to highlight
Swap. Press SELECT to resume the original call. The other incoming cell
call is put on hold.
-OR-
Using the telephone base:
Press SWAP, Cell A or Cell B on the telephone base. The original call
is put on hold and you take the new call.
Press OPTION on the telephone base. Press CID or DIR to highlight
Swap. Press SELECT to resume the original call. The other incoming cell
call is put on hold.
To answer the incoming call from the a different cell line:
Using a cordless handset:
Press A Cell or B Cell to put your current call on hold and take the
new call.
Press A Cell or B Cell at any time to switch back and forth
between calls.
Using the telephone base:
Press Cell A or Cell B to put your current call on hold and take the
new call.
Press Cell A or Cell B at any time to switch back and forth
between calls.
NOTE:
If you do not want to answer the incoming call from a different cell line, press REJECT .
•
•
•
•
•
•
•
•
•
55
Telephone operation
Telephone operation
Answer an incoming cell call while on line 1 or line 2
If you are on a call using line 1 or line 2 and you receive an incoming cell call,
you hear a beep and A, B , or A B displays on the cordless handset or
telephone base you are using. The telephone base and all other handsets ring.
To answer the incoming cell call:
Using a cordless handset:
Press A Cell or B Cell to answer the incoming cell call. The call on line 1
or line 2 is automatically placed on hold, all other handsets and the telephone
base display L1) On hold and/or L2) On hold. At the same time, the screens
will display CL) A In use, CL) B In use, or CL) A&B In use.
Using the telephone base:
Press Cell A or Cell B to answer the incoming cell call. The call on line 1
or line 2 is automatically placed on hold, all handsets and the telephone base
display L1) On hold and/or L2) On hold. At the same time, the screens will
display CL) A In use, CL) B In use, or CL) A&B In use.
To end the cell call:
Using a cordless handset:
Press OFF/CANCEL. Line 1 or line 2 is still on hold. The telephone base and all
other handsets display L1) On hold and/or L2) On hold.
Using the telephone base:
Press Cell A or Cell B . Line 1 or line 2 is still on hold. All handsets display
L1) On hold and/or L2) On hold.
To resume the call on line 1 or line 2 On hold:
Using a cordless handset:
Press LINE 1/FLASH or LINE 2/FLASH on the handset.
Using the telephone base:
Press 1 LINE or 2 LINE on the telephone base.
56
Telephone operation
Telephone operation
Answer an incoming call on line 1 or line 2 while on a cell call
If you are on a cell call and you receive an incoming call on line 1 or line 2,
you hear a beep, and then , , or , and Incoming call displays on
the handset or telephone base you are using. The telephone base and all other
handsets ring.
To answer the incoming call on line 1 or line 2:
Using a cordless handset:
Press
LINE 1/FLASH or LINE 2/FLASH
on the cordless handset to answer the
incoming call on line 1 or line 2. The cell call is automatically placed on hold.
All screens display CL) A On hold, CL) B On hold, or CL) A&B On hold. At the
same time, the screens will display L1) In use and/or L2) In use.
Using the telephone base:
Press
1 LINE or 2 LINE
on the telephone base to answer the incoming call on
line 1 or line 2. The cell call is automatically placed on hold. All screens display
CL) A On hold, CL) B On hold, or CL) A&B On hold. At the same time, the
screens will display L1) In use and/or L2) In use.
To end the call on line 1 or line 2:
Using a cordless handset:
Press OFF/CANCEL
on the cordless handset.
The cell line is still on hold.
All
devices display CL) A On hold, CL) B On hold,
or
CL) A&B On hold
.
Using the telephone base:
Press 1 LINE or 2 LINE
on the telephone base
. The cell line is still on hold.
All
devices display either CL) A On hold, CL) B On hold,
or
CL) A&B On hold
.
To resume the cell call On hold:
Using a cordless handset:
Press A Cell or B Cell on the handset.
Using the telephone base:
Press Cell A or Cell B on the telephone base.
NOTE: If you have turned on your answering system and you do not answer the incoming call
on line 1 or line 2, the call is answered by your answering system.
57
Telephone operation
Telephone operation
Make, answer or end a softphone call
You can receive or make calls on the traditional landlines, cell lines, or
VoIP calls through Skype or Microsoft Lync when the phone system base
is connected to the AT&T Unified Call Manager software installed on your
computer.
Install the AT&T Unified Call Manager using the CD-ROM provided in the
package (see page 11). For detailed installation and operation instructions of
the software, refer to the Installation and Operation Guide which can also be
found in the CD-ROM provided.
To make a softphone call:
Using a cordless handset or the telephone base:
Enter the telephone number in idle mode.
Press
PC CALL
to dial a softphone call.
To answer the incoming softphone call:
Using a cordless handset:
Press /SPEAKER or
ANSWER
to answer the incoming softphone call.
Using the telephone base:
Press SPEAKER or lift the corded handset to answer the incoming softphone
call.
To hold a softphone call:
Using a cordless handset or the telephone base:
Press HOLD to hold the softphone line. The screen displays PC CALL ON HOLD.
Press
PC CALL
to resume the call.
To end a softphone call:
Using a cordless handset:
Press OFF/CANCEL, or put the cordless handset into the charger.
Using the telephone base:
Press SPEAKER or return the corded handset to the telephone base.
NOTES:
During a incoming call, the screens display Skype and Lync without any specfic details about
the name and number of the caller. If the caller ID announce (page 38) is turned on, the
telephone will announce Call from Skype or Call from Lync.
If you do not want to answer the call, press REJECT .
Missed call from softphone is logged in the caller ID log of the telephone system. Skype or Lync is
stored as the name of the caller id log entry.
The cordless handset or the telephone base screens display P
C
when the ringer of PC call is
turned off.
1.
2.
•
•
•
•
58
Telephone operation
Telephone operation
Voice command
TL86103 supports voice command recognition (VR) when the phone system
is connected to AT&T Unified Call Manager at PC (see page 11). You can
make calls through the voice command (name dialing) function using cordless
handset, telephone base, DECT headset or wireless speaker while the phone
system is idle and all lines are not in use.
To make a call using voice command:
Using a cordless handset:
Press MENU in idle mode.
Press CID or DIR to highlight Voice Command, and then press SELECT .
The screen displays Processing Voice command...
Speak the name of a directory entry to dial.
Using the telephone base:
Press MENU in idle mode.
Press CID, DIR, /RECORD or /DELETE to highlight Voice Command,
and then press SELECT . The screen displays Processing Voice command...
Speak the name of a directory entry to dial.
NOTES:
When there is an incoming call from any line, the VR will be stopped immediately.
To say a command again when processing, press STOP and select Voice Command again from
the menu.
If the voice command setting is set “Disable” in the AT&T Unified Call Manager,
voice command requests will be rejected.
1.
2.
3.
1.
2.
3.
•
•
•
59
Telephone operation
Conference calls
Conference calls on line 1 and line 2
While you are on a call on line 1, and line 2 is on hold or in use, you can
conference line 1 and line 2 using a handset or telephone base.
To conference both line 1 and line 2:
Using a cordless handset:
Press OPTION.
Press CID or DIR to highlight Conference.
Press SELECT . The conferencing device’s screen displays Conf.
Using the telephone base:
Press OPTION.
Press CID, DIR, /RECORD or /DELETE to highlight Conference.
Press SELECT . The conferencing device’s screen displays Conf.
To select an option while on a conference call:
Using a cordless handset:
Press
OPTION
.
Press CID or DIR to highlight one of the following options:
End Line 1
End Line 2
Equalizer
Caller ID log
Directory
Press SELECT .
Using the telephone base:
Press
OPTION
.
Press CID, DIR, /RECORD or /DELETE to highlight one of the
following options:
End Line 1
End Line 2
Equalizer
Caller ID log
Directory
Press SELECT .
NOTE: The option ‘Use BT headset’ will appear in the options menu on the telephone base if
there is an active headset in the Bluetooth device list.
1.
2.
3.
1.
2.
3.
1.
2.
•
•
•
•
•
3.
1.
2.
•
•
•
•
•
3.
60
Telephone operation
Conference calls
To end a conference call:
Using a cordless handset:
Press OFF/CANCEL, or put the cordless handset into the charger. The call
continues until all people hang up.
Using the telephone base:
Press 1 LINE, 2 LINE, or put the corded handset back to the telephone base.
The call continues until all people hang up.
Conference calls on line 1 or line 2 with cell calls
When you have calls established on line 1 or line 2, and the cell line, you can
create a 3-way conference.
To conference line 1 or line 2 with cell calls:
Using a cordless handset:
Press OPTION.
Press CID or DIR to highlight Conference.
Press SELECT . The conferencing device’s screen displays Conf.
Using the telephone base:
Press OPTION.
Press CID, DIR, /RECORD or /DELETE to highlight Conference.
Press SELECT . The conferencing device’s screen displays Conf.
To select an option while on a conference call:
Using a cordless handset:
Press
OPTION
.
Press CID or DIR to highlight one of the following options:
End Line 1/2
End Cell A/B line
Equalizer
Caller ID log
Directory
Press SELECT .
1.
2.
3.
1.
2.
3.
1.
2.
•
•
•
•
•
3.
61
Telephone operation
Conference calls
Using the telephone base:
Press
OPTION
.
Press CID, DIR, /RECORD or /DELETE to highlight one of the
following options:
End Line 1/2
End Cell A/B line
Equalizer
Caller ID log
Directory
Press SELECT .
NOTE: The option ‘Use BT headset’ will appear in the options menu on the telephone base if
there is an active headset in the Bluetooth device list.
To end a conference call:
Using a cordless handset:
Press OFF/CANCEL, or put the cordless handset into the charger. The call
continues until all people hang up.
Using the telephone base:
Press 1 LINE, 2 LINE, Cell A , Cell B , or put the corded handset back to
the telephone base. The call continues until all people hang up.
Using line 1 or line 2 and cell lines together:
You can be on two different calls at the same time using a cell line and line
1 or line 2 with two handsets.
You can be on a call using the cell line and a Bluetooth headset via line 1
or line 2 at the same time.
If you are on a call using the cell line, you cannot join the call using your
paired cell phone. However, you can join the call using another TL86103
device. Your cell phone is being used for the phone call so only features
that are normally available during a call can be used.
1.
2.
•
•
•
•
•
3.
•
•
•
62
Telephone operation
Options while on calls
Silencing the ringer
When the telephone is ringing, you can temporarily silence the ringer of the
handset or telephone base without disconnecting the call. The next call rings
normally at the preset volume.
To silence the handset ringer:
Using a cordless handset:
Press SILENCE, OFF/CANCEL, MUTE/DELETE or QUIET #. The handset screen
shows Ringer muted.
To silence the base ringer:
Using the telephone base:
Press SILENCE, CANCEL or QUIET #. The telephone base screen shows Ringer
muted.
Page all devices
This feature helps you find the misplaced devices.
To start paging:
Using the telephone base:
Press MENU in idle mode.
Press Page all devices, and then press SELECT to start the paging tone on
all handsets for 60 seconds. All idle handsets ring and display ** Paging **
To stop the paging tone on a cordless handset:
Press SILENCE, MUTE/DELETE, QUIET # or OFF/CANCEL.
To end paging:
Using a cordless handset:
Press
STOP
on the telephone base, or LINE 1/FLASH, LINE 2/FLASH,
/SPEAKER,
or any dialing key
(0-9 or TONE )
on the handset.
Using the telephone base:
Press
1 LINE, 2 LINE,
CANCEL or QUIET #
on the telephone base.
NOTES:
If the handset ringer volume is set to off, the handset still rings when paged.
If there is no response after 60 seconds, the paging ends.
1.
2.
•
•
63
Telephone operation
Options while on calls
Speakerphone
If you are on speakerphone, displays on the handset or telephone base you
are using.
Using a cordless handset:
During a call, press /SPEAKER on the cordless handset to switch between
the speakerphone and normal cordless handset use.
Using a corded handset:
During a call, press SPEAKER on the telephone base to swtich between the
speakerphone and normal corded handset use.
Using the telephone base:
During a call, press SPEAKER on the telephone base to end a call.
Join a call in progress
Another handset can join you on an outside call. The call continues until all
people hang up. You can share an outside call with telephone base and up to 4
system handsets.
To join a call on line 1 or line 2:
Using a cordless handset:
Press LINE 1/FLASH, LINE 2/FLASH or /SPEAKER on another handset to join
the call.
Using the telephone base:
Press 1 LINE, 2 LINE or SPEAKER to join the call.
To join a cell call:
Using a cordless handset:
Press A CELL or B CELL on another handset to join the call.
Using the telephone base:
Press Cell A or Cell B to join the call.
64
Telephone operation
Options while on calls
Volume control
While on a call, you can adjust the listening volume on the handset or
telephone base.
If it is a cell call and the volume is too loud, too quiet or drops out, try
changing the volume on your cell phone. On some cell phones, changing the
volume on the cell phone affects your cell call volume on a TL86103 cordless
handset or telephone base.
To adjust the listening volume of a cordless handset:
Press CID/VOLUME or DIR/VOLUME while on a call.
To adjust the listening volume of the telephone base:
Press /VOLUME/ while on a call.
NOTE: The handset earpiece volume setting (1-6) and speakerphone volume setting (1-6)
are independent. The speakerphone volume setting of the telephone base (1-8) is also
independent.
Mute
Use the mute function to turn off the microphone. You can hear the caller, but
the caller cannot hear you.
Using a cordless handset:
To mute a call:
While on a call, press MUTE/DELETE on the handset. When mute is on, the
handset screen shows Microphone off for a few seconds and the MUTE icon
appears until the mute function is turned off.
To take a call off mute:
Press MUTE/DELETE on the handset and resume speaking, the MUTE icon
disappears, and the screen shows Microphone on for a few seconds. Mute is
automatically canceled when you end the call.
Using the telephone base:
To mute a call:
While on a call, press
MUTE
on the telephone base. When mute is on, the
handset screen shows Microphone off for a few seconds and the MUTE icon
appears until the mute function is turned off.
To take a call off mute:
Press
MUTE
on the telephone base and resume speaking, the MUTE icon
disappears, and the screen shows Microphone on for a few seconds. Mute is
automatically canceled when you end the call.
65
Telephone operation
Options while on calls
Temporary tone dialing
If you have pulse (rotary) service only, you can switch from pulse to touch-tone
dialing temporarily during a call. This is useful if you need to send touch-tone
signals to access your telephone banking or long distance services.
During a call:
1. Press TONE on the handset or telephone base.
2. Use the dialing keys to enter the desired number. The telephone sends
touch-tone signals.
3. The telephone automatically returns to pulse dialing after you end the call.
Hold
You can place any call on hold. You hear an alert tone at the telephone base if
you have not taken the call off of hold after 14 minutes. You hear another alert
tone at the telephone base 30 seconds later. At 15 minutes on hold, the call on
hold automatically disconnects.
To place a call on line 1 or line 2 On hold:
Press HOLD on a handset or the telephone base. L1) On hold and/or
L2) On hold appears on the handsets and telephone base. ,
,
or
flashes on the screens of handsets and the telephone base.
To resume a call on line 1 or line 2 On hold:
Press LINE 1/FLASH or LINE 2/FLASH on handsets, or 1 LINE or 2 LINE on
the telephone base.
To place a cell call On hold:
Press HOLD a the handset or the telephone base. CL) A On hold,
CL) B On hold, or CL) A&B On hold appears on the handsets and telephone
base. A, B, or A B flashes on the screens of handsets and the
telephone base.
To resume a cell call On hold:
Press A CELL or B CELL on the handset or CELL A or CELL B on the
telephone base.
•
•
•
•
66
Telephone operation
Options while on calls
Equalizer
The equalizer feature enables you to change the audio quality to best suit
your hearing.
Using a cordless handset:
While on a call on line 1 or line 2 or cell call, press OPTION.
Press CID or DIR to highlight Equalizer, and then press SELECT .
Press CID or DIR to select Treble 1, Treble 2, Bass or Natural (the
default setting), and then press SELECT .
Using the telephone base:
While on a call on line 1 or line 2 or cell call, press OPTION.
Press CID, DIR, /RECORD or /DELETE to highlight Equalizer, and
then press SELECT .
Press CID, DIR, /RECORD or /DELETE to select Treble 1, Treble 2,
Bass or Natural (the default setting), and then press SELECT .
NOTES:
If you switch the call between the cordless handset and speakerphone pressing
/SPEAKER, or between the corded handset and speakphone by or SPEAKER ,
the audio setting remains unchanged.
The current equalizer setting remains unchanged until a new setting is selected.
1.
2.
3.
1.
2.
3.
•
•
67
Telephone operation
Options while on calls
Chain dialing
Use this feature to initiate a dialing sequence from numbers stored in the
directory, caller ID log or redial list while you are on a call.
Chain dialing can be useful if you wish to access other numbers (such as bank
account numbers or access codes) from the directory, caller ID log or redial list.
To access a number in the directory while on a call:
Using a cordless handset:
To access the directory while on a call:
1. Press OPTION.
2. Press CID or DIR to highlight Directory, and then press SELECT.
3. Press CID or DIR to highlight the desired directory, and then press REVIEW.
4. Press CID or DIR to highlight the desired entry or perform an alphabetical
search (page 92).
5. Press DIAL to dial the number shown.
To access the caller ID log while on a call:
1. Press OPTION.
2. Press CID or DIR to highlight Caller ID log, and then press SELECT.
3. Press CID or DIR to highlight the desired number.
4. Press CALL to dial the number shown.
To access the redial list while on a call:
1. Press REDIAL/PAUSE to show the most recently dialed number.
2. Press CID or DIR to highlight the desired number.
3. Press DIAL to dial the number shown.
68
Telephone operation
Options while on calls
Using the telephone base:
To access the directory while on a call:
1. Press OPTION.
2. Press CID, DIR, /RECORD or /DELETE to highlight Directory and then
press SELECT.
3. Press CID, DIR, /RECORD or /DELETE to highlight the desired
directory, and then press REVIEW.
4. Press CID, DIR, /RECORD or /DELETE to highlight the desired entry.
Press DIAL to dial the number shown.
To access the caller ID log while on a call:
1. Press OPTION.
2. Press CID, DIR, /RECORD or /DELETE to highlight Caller ID log, and
then press SELECT.
3. Press CID, DIR, /RECORD or /DELETE to highlight the desired number.
4. Press CALL to dial the number shown.
To access the redial list while on a call:
1. Press REDIAL/PAUSE to show the most recently dialed number.
2. Press CID, DIR, /RECORD or /DELETE to highlight the desired number.
3. Press DIAL to dial the number shown.
NOTES:
You cannot edit a directory entry while on a call. For more details about the directory,
see pages 85-86.
You cannot copy a caller ID entry into the directory while on a call. For more details about the caller
ID log, see pages 96-95.
If you press REDIAL/PAUSE on a cordless handset while on a call, you can only view the ten most
recently dialed numbers but you cannot erase the entries. If you press REDIAL/PAUSE on the
telephone base while on a call, you can delete the entries by pressing /DELETE. For more details
about the redial memory, see pages 69-72.
Press OFF/CANCEL on a cordless handset or CANCEL on the telephone base to exit redial, directory
or caller ID log when on a call.
•
•
•
•
69
Telephone operation
Redial
The telephone base and each cordless handset store the last 10 dialed
numbers (up to 30 digits each) in the redial list. The redial entries of each
cordless handset and the telephone base are independent.
Review the redial list
Using a cordless handset:
Press REDIAL/PAUSE in idle mode.
Press
CID, DIR or REDIAL/PAUSE
repeatedly
to browse until the desired number displays.
The
handset beeps twice at the end of the list.
Press OFF/CANCEL to exit.
Using the telephone base:
Press REDIAL/PAUSE in idle mode.
Press
CID, DIR, /RECORD or /DELETE or REDIAL/PAUSE
repeatedly to
browse until the desired number displays. The telephone base beeps twice
at the end of the list.
Press CANCEL to exit.
Dial a redial entry
Using a cordless handset:
Press REDIAL/PAUSE in idle mode.
Press
CID, DIR or REDIAL/PAUSE
repeatedly to browse until the desired
number displays.
The handset beeps twice at the end of the list.
Press LINE 1/FLASH, LINE 2/FLASH or
/SPEAKER to dial using line 1 or
line 2,
or press A Cell or B Cell to dial using the cell line.
-OR-
Press LINE 1/FLASH, LINE 2/FLASH or
/SPEAKER to dial using line 1 or
line 2,
or press A Cell or B Cell to dial using the cell line, and then
press REDIAL/PAUSE .
Press
CID, DIR or REDIAL/PAUSE
repeatedly to browse until the desired
number displays.
The handset beeps twice at the end of the list.
If you are using the cell line, press INSERT to select the desired
number.
3. Press DIAL to dial the number displayed.
1.
2.
1.
2.
1.
2.
3.
1.
2.
•
70
Telephone operation
Redial
Using the telephone base:
Press REDIAL/PAUSE in idle mode.
Press
CID, DIR, /RECORD or /DELETE
to browse until the desired
number displays. The telephone base beeps twice at the end of the list.
Press LINE 1, LINE 2 or SPEAKER
to dial using line 1 or line 2,
or press
Cell A or Cell B to dial using the cell line.
-OR-
Press LINE 1, LINE 2 or
SPEAKER
to dial using line 1 or line 2,
or press Cell A or Cell B to dial using the cell line, and then
press REDIAL/PAUSE.
Press
CID, DIR, /RECORD or /DELETE,
or
REDIAL/PAUSE
repeatedly
to browse until the desired number displays.
The handset beeps twice at the
end of the list.
If you are using the cell line, press INSERT to select the desired
number.
3. Press DIAL to dial the number displayed.
NOTES:
You can enter the area code in idle mode first, and then use the instructions above to highlight
the desired entry, and press INSERT . The area code will be added in front of the selected redial
number.
1.
2.
3.
1.
2.
•
•
71
Telephone operation
Redial
Save a redial entry to the directory
Using a cordless handset:
Press REDIAL/PAUSE in idle mode.
Press
CID, DIR
, or
REDIAL/PAUSE
repeatedly to browse until the desired
number displays.
Press SAVE.
The handset displays EDIT NUMBER. Use the dialing keys to edit the
number, if necessary.
Press MUTE/DELETE to erase a digit.
Press and hold MUTE/DELETE to erase all digits.
Press CID or DIR to move the cursor to the right or left.
Press and hold REDIAL/PAUSE to insert a dialing pause (a p appears).
5 Press NEXT.
6. Press CID, DIR to select one of the following types:
Home
Cell
Work
Other
7. Press
NEXT. The screen displays ENTER NAME. Use the dialing keys
(page 88) to enter a name.
Press MUTE/DELETE to erase a character.
Press and hold MUTE/DELETE to erase all characters.
Press CID or DIR to move the cursor to the right or left.
8. Press SAVE. The screen displays Saved. You hear a confirmation tone.
1.
2.
3.
4.
•
•
•
•
•
•
•
•
•
•
•
72
Telephone operation
Redial
Using the telephone base:
Press REDIAL/PAUSE in idle mode.
Press
CID, DIR, /RECORD, /DELETE,
or
REDIAL/PAUSE
repeatedly
to
browse until the desired number displays.
Press SAVE.
The handset displays EDIT NUMBER. Use the dialing keys to edit the
number, if necessary.
Press /DELETE to erase a digit.
Press and hold /DELETE to erase all digits.
Press CID or /REPEAT to move the cursor to the left. Press DIR or
/SKIP to move the cursor to the right.
Press and hold REDIAL/PAUSE to insert a dialing pause (a p appears).
5 Press
NEXT.
6. Press CID, DIR, /RECORD or /DELETE to highlight one of the following
types:
Home
Cell
Work
Other
7. Press
NEXT. The screen displays ENTER NAME. Use the dialing keys
(page 88) to enter a name.
Press /DELETE to erase a character.
Press and hold /DELETE to erase all characters.
Press CID or /REPEAT to move the cursor to the left. Press DIR or
/SKIP to move the cursor to the right.
8. Press SAVE. The screen displays Saved. You hear a confirmation tone.
Delete a redial entry from the directory
Using a cordless handset:
Press
REDIAL/PAUSE
in idle mode.
Press CID or DIR or
REDIAL/PAUSE
repeatedly to browse until the
desired number displays.
Press MUTE/DELETE to delete the displayed number. You hear a
confirmation tone.
Using a the telephone base:
Press REDIAL/PAUSE in idle mode.
Press CID, DIR, /RECORD, /DELETE, or REDIAL/PAUSE repeatedly to
browse until the desired number displays.
Press /DELETE or DELETE to delete the displayed number. You hear a
confirmation tone.
1.
2.
3.
4.
•
•
•
•
•
•
•
•
•
•
•
1.
2.
3.
1.
2.
3.
73
Multiple handset use
Intercom
Use the intercom feature for conversations between two devices, or a device
and the telephone base. You can buy additional expansion handsets (model
AT&T TL86003) for this telephone base to expand your telephone system (up
to 12 handsets).
To initiate, answer, and end an intercom call:
Using a cordless handset:
1. Press MENU in idle mode to enter the main menu. Press
CID or DIR to highlight Intercom, and then press SELECT.
If you have one handset, the handset shows Calling base.
If you have more than one handset, the handset shows
INTERCOM TO: Use the dialing keys to eenter a specific
device number (0 for the telephone base, 1-9 for handsets
1-9, TONE followed by 0-2 for handsets 10-12, TONE
followed by # for all devices; # for a single DECT headset,
# followed by 1 or 2 for DECT headset/speaker 1 or DECT
headset/speaker 2 respectively), or press CID or DIR
to highlight the desired device and press SELECT. Your handset screen
shows Calling HANDSET X, Calling Base or Calling all.
The destination device(s) rings and shows HANDSET X is calling or
HANDSET X is calling all (HANDSET represents the handset name,
X represents the handset number).
2. To answer the intercom call, press LINE 1/FLASH, LINE 2/FLASH,
/SPEAKERSPEAKER, A CELL, B CELL, any dialing key (0-9, TONE ), or press
ANSWER on the destination handset. Both devices now show Intercom.
3. To end the intercom call, press END, OFF/CANCEL, or put the cordless handset
into the charger; or ppress END on the telephone base. Both devices display
Intercom ended.
•
•
Play messages
Directory
Caller ID log
Intercom
BACK SELECT
INTERCOM TO:
BASE 0
HANDSET 2
BACK SELECT
74
Multiple handset use
Intercom
Using the telephone base:
1. Press MENU in idle mode to enter the main menu. Press
CID, DIR, /RECORD, or /DELETE to highlight
Intercom, and then press SELECT.
If you have one handset, the telephone base shows
Calling HANDSET X.
If you have more than one handset, the telephone
base shows INTERCOM TO: Use the dialing keys to
enter a specific handset number (1-9 for handsets
1-9, TONE followed by 0-2 for handsets 10-12,
TONE followed by # for all devices; # for a single
DECT headset, # followed by 1 or 2 for
DECT headset/speaker 1 or DECT headset/speaker 2 respectively), or press
CID, DIR, /RECORD, or /DELETE to highlight the desired handset
and press SELECT. The telephone base shows Calling HANDSET X or
Calling all.
The destination handset(s) rings and shows Base is calling,
BASE is calling or BASE is calling all.
2. To answer the intercom call, press 1 LINE, 2 LINE, SPEAKER ,
CELL A , CELL B , any dialing key (0-9, TONE ), ANSWER, or lift the
corded handset. Both devices now show Intercom.
3. To end the intercom call, press END, OFF/CANCEL, or put the cordless handset
into the charger; or ppress END on the telephone base. Both devices display
Intercom ended.
NOTES:
Before the intercom call is answered, you can cancel it by pressing OFF/OFF/CANCEL on the handset or
END on the telephone base..
If the called device is not answered within 100 seconds, or accessing the directory or caller ID log,
or is on a call, or is out of range, the initiating device shows No answer. Try again.
To temporarily silence the intercom ringer, press OFF/CANCEL or MUTE/DELETE on the
handset, or press CANCEL or /DELETE on the telephone base.
You can only use one pair of devices at a time to make intercom calls.
•
•
•
•
•
•
Answering sys
Directory
Caller ID log
Intercom
SELECT
BACK
INTERCOM TO:
HANDSET 1
HANDSET 2
All
SELECT
BACK
75
Multiple handset use
Intercom
Answer an incoming call during an intercom call
When you receive an incoming call on line 1 or line 2 during an intercom call,
the two devices on the intercom call hear an alert tone. The screens display
, , or , and Incoming call, and then the caller ID. The telephone
base rings and all other handsets ring.
To answer a call on line 1 or line 2 during an intercom call:
Using a cordless handset:
Press LINE 1/FLASH, LINE 2/FLASH, or /SPEAKERSPEAKER to answer the call on
line 1 or line 2. The intercom call ends automatically.
Press OFF/CANCEL to end the intercom call without answering the incoming
call. The telephone continues to ring.
Using the telephone base:
Press 1 LINE, 2 LINE, SPEAKER , or lift the corded handset to answer the
call on line 1 or line 2. The intercom call ends automatically.
Press BACK and then END to end the intercom call without answering the
incoming call. The telephone continues to ring.
When you receive an incoming cell call during an intercom call, the two devices
on the intercom call hear an alert tone, and their screens display A, B , or
A B, and then the caller ID. The telephone base rings and all other handsets
ring.
To answer a cell call during an intercom call:
Using a cordless handset:
Press A CELL or B CELL to answer the cell call and the intercom call
ends automatically.
Press OFF/CANCEL to end the intercom call without answering the incoming
call. The telephone continues to ring.
Using the telephone base:
Press CELL A or CELL B to answer the cell call. The intercom call
ends automatically.
Press BACK and then END to end the intercom call without answering the
incoming call. The telephone continues to ring.
NOTES:
During an intercom on the DECT headset/wireless Speaker, press ON/OFF on the DECT headset and
PHONE on the wireless Speaker to end the intercom session, and then the ringer of the imcoming
call rings. Press ON/OFF on the DECT headset and PHONE on the wireless Speaker to answer the
incoming call.
•
•
•
•
•
•
•
•
•
76
Multiple handset use
Call transfer using intercom
Use the intercom feature to transfer an outside call to another system device
or the telephone base. You can also share an outside call with another system
device or the telephone base.
To transfer an outside call:
Using a cordless handset:
When on an outside call, press OPTION.
Press SELECT to choose Intercom. The call is automatically
put on hold.
If you have one handset, the outside call is put on hold
and your handset displays Calling base. The telephone
base rings and displays HANDSET is calling.
If you have more than one handset, your handset
displays INTERCOM TO:
Press CID or DIR to select a destination handset
and then press SELECT. Your handset displays Calling
HANDSET X or Calling BASE. The destination device
rings and displays HANDSET X is calling.
-OR-
Press 1-9 for HANDSET 1-9, TONE and 0 for HANDSET 10, TONE
and 1 for HANDSET 11 or TONE and 2 for HANDSET 12; press # for a
single DECT headset, # followed by 1 or 2 for DECT headset/speaker 1
or DECT headset/speaker 2 respectively.
The destination handset rings and displays HANDSET X is calling.
3. To answer the intercom call on the other device, press ANSWER,
LINE 1/FLASH, LINE 2/FLASH, /SPEAKERSPEAKER, A CELL, B CELL or any
dialing key (0-9 or TONE ) on the destination handset, or press 1 LINE, 2
LINE, SPEAKER on the telephone base. Both handsets and the telephone
base show Intercom and the outside call is still on hold.
4. From this intercom call, you have the following options:
You can transfer the call. Press OPTION and then press SELECT to select
Transfer on the calling handset. Your screen shows Call transferred. The
other handset automatically connects to the outside call.
You can let the other device join you on the outside call in a 3-way
conversation. Press OPTION, and then CID or DIR to highlight Share
call, and press SELECT.
You can end the intercom call and continue the outside call with your
handset. Press OFF/CANCEL, END , LINE 1/FLASH, LINE 2/FLASH,
/SPEAKERSPEAKER, A CELL, B CELL on your handset (the outside call
will automatically go off hold and reconnect with your handset).
NOTES:
If you want to cancel an intercom call and reconnect to the outside call before the destination
handset answers, press OFF/CANCEL or END on the originating handset.
If the called device is not answered within 100 seconds, or accessing the directory or caller ID log, or is on
a call, or is out of range, the initiating device shows No answer. Try again. and returns to the outside call.
1.
2.
•
•
•
•
•
•
•
•
•
Intercom
Equalizer
Directory
Caller ID log
BACK SELECT
INTERCOM TO:
BASE 0
HANDSET 2
All
BACK SELECT
77
Multiple handset use
Call transfer using intercom
To transfer an outside call:
Using the telephone base:
When on an outside call, press OPTION.
Press SELECT to choose Intercom. The call is
automatically put on hold.
If you have one handset, the outside call is put on
hold and your handset displays Calling HANDSET.
The telephone base rings and displays BASE is
calling.
If you have more than one handset, your base
displays INTERCOM TO:
Press CID, DIR, /RECORD, or /DELETE to
select a destination handset and then press SELECT.
Your telephone base displays Calling HANDSET
X or Calling BASE. The destination device rings and displays BASE is
calling.
-OR-
Press 1-9 for HANDSET 1-9, TONE and 0 for HANDSET 10, TONE
and 1 for HANDSET 11 or TONE and 2 for HANDSET 12; press # for a
single DECT headset, # followed by 1 or 2 for DECT headset/speaker 1
or DECT headset/speaker 2 respectively.
The destination handset rings and displays BASE is calling.
3. To answer the intercom call on any destination handset, press ANSWER,
LINE 1/FLASH, LINE 2/FLASH, /SPEAKERSPEAKER, A CELL, B CELL or any
dialing key (0-9 or TONE ) on the destination handset. Both handsets and
the telephone base show Intercom and the outside call is still on hold.
4. From this intercom call, you have the following options:
You can transfer the call. Press OPTION and then press SELECT to select
Transfer on the telephone base. Your screen shows Call transferred. The
other handset automatically connects to the outside call.
You can let the other device join you on the outside call in a 3-way
conversation. Press OPTION, and then CID, DIR, /RECORD, or
/DELETE to highlight Share call, and press SELECT.
You can end the intercom call and continue the outside call with your
handset. Press CANCEL, END, 1 LINE, 2 LINE, SPEAKER , CELL A
or CELL B on the telephone base, or return the corded handset in the
telephone base (the outside call will automatically go off hold and reconnect
with the telephone base).
NOTES:
If you want to cancel an intercom call and reconnect to the outside call before the destination
handset answers, press CANCEL or END on the telephone base.
If the called device is not answered within 100 seconds, or accessing the directory or caller ID log, or is on
a call, or is out of range, the initiating device shows No answer. Try again. and returns to the outside call.
1.
2.
•
•
•
•
•
•
•
•
•
Answering sys
Directory
Caller ID log
Intercom
SELECT
BACK
INTERCOM TO:
HANDSET 1
HANDSET 2
All
SELECT
BACK
78
Multiple handset use
Push-to-talk (PTT)
You can directly broadcast messages from one handset or
telephone base to the speakerphone of one or a group of other
devices. Press and hold PUSH TO TALK on a handset or PTT on
the telephone base to begin a two-way communication.
Only one device can talk at a time. While talking to another
device, press and hold PUSH TO TALK on the handset or PTT
on the telephone base.
You must release PUSH TO TALK on the handset or PTT on the telephone base,
so the other person can respond.
Only one PTT session can be active at a time.
While PTT is in use between two devices, other devices cannot use the
intercom feature but can access the answering system.
When you attempt to place a PTT call to another device which is accessing
the answering system or on an intercom call or outside call, your device
screen shows Not available at this time.
NOTE: The PTT function is not available when QUIET mode is on.
Turn PTT on or off
Using a cordless handset:
1. Press PUSH TO TALK when the handset is not in use. The PUSH TO TALK
menu displays.
2. Press CID or DIR to highlight PTT On/Off, and then press SELECT.
3. Press CID or DIR to choose On or Off, and then press SELECT.
Using the telephone base:
1. Press PTT when the telephone base is not in use. The PUSH TO TALK
menu displays.
2. Press CID, DIR, /RECORD or /DELETE to highlight PTT On/Off, and
then press SELECT.
3. Press CID, DIR, /RECORD or /DELETE to choose On or Off, and then
press SELECT.
NOTE: The handset or the telephone base screen displays PTT when PTT is
turned off.
•
•
•
•
•
/
PTT
79
Multiple handset use
Push-to-talk (PTT)
PTT call to a single device
Using a cordless handset:
1. There are a few ways to begin a PTT call to a single device. When the hand-
set is not in use:
If you have one handset, press and hold PUSH TO TALK.
If you have more than one handset:
Press PUSH TO TALK on the handset, and then use the dialing keys to
enter the destination device number.
-OR-
Press PUSH TO TALK on the handset. Press CID or DIR to highlight
the destination device number, and then press SELECT or PUSH TO
TALK.
The handset shows Connecting to HANDSET X...
(HANDSET represents the
handset name, X represents the destination handset number) or Connecting
to BASE 0... (BASE 0 represents the base name)
for a few seconds. When the
connection is made, both your and the destination device screens display
Press and hold [PTT] to talk.
2. Press and hold PUSH TO TALK. A chirp indicates your microphone is on.
Speak towards the device. Your voice is broadcast to the destination device.
While you are speaking, your handset shows PTT To HANDSET X or
PTT To BASE 0.
3. Release PUSH TO TALK after speaking. Both devices beep once again and
the screens show Press and hold [PTT] to talk, and then you can
press and hold PUSH TO TALK to continue speaking or the destination
device can respond (see Answer a PTT call on page 82).
4. To end the PTT call, press OFF/CANCEL or END, or place the handset in the
charger. The handset shows Push to talk ended.
NOTE: After PUSH TO TALK is released, the PTT call remains open for a short time. If no one
presses PUSH TO TALK within 10 seconds, the PTT call ends automatically.
•
•
80
Multiple handset use
Push-to-talk (PTT)
Using the telephone base:
1. There are a few ways to begin a PTT call to a single handset. When the tele-
phone base is not in use:
If you have one handset, press and hold PTT.
If you have more than one handset:
Press PTT, and then use the dialing keys to enter the destination
handset number.
-OR-
Press CID, DIR, /RECORD or /DELETE to highlight the destination
handset number, and then press SELECT or PTT.
The telephone base shows Connecting to HANDSET X...
(HANDSET represents
the handset name, X represents the destination handset number)
for a
few seconds. When the connection is made, both the telephone base and
destination handset display Press and hold [PTT] to talk.
2. Press and hold PTT. A chirp indicates your microphone is on. Speak towards
the telephone base. Your voice is broadcast to the destination handset. While
you are speaking, the telephone base shows PTT To HANDSET X.
3. Release PTT after speaking. Both devices beep once again and the screens
show Press and hold [PTT] to talk, and then you can press and hold PTT to
continue speaking or the destination device can respond (see Answer a PTT
call on page 82).
4. To end the PTT call, press CANCEL or END. The telephone base shows
Push to talk Ended for a few seconds.
NOTE: After PTT is released, the PTT call remains open for a short time. If no one presses
PTT within 10 seconds, the PTT call ends automatically.
•
•
81
Multiple handset use
Push-to-talk (PTT)
PTT call to multiple devices
When there are multiple handsets registered to the phone system, PTT supports
one-to-group calls. PTT supports a maximum of one-to-four calls when one to
five handsets are registered, and a maximum of one-to-three calls when six or
more handsets are registered. The first three or four registered handsets will be
able to use this feature. Other handsets can only use PTT for one-to-one calls.
To call multiple devices:
Using a cordless handset:
1. You have two ways to call multiple devices. When the handset is not in use:
Press and hold PUSH TO TALK until the handset shows
Connecting to group...
Press PUSH TO TALK. Press CID or DIR to choose Group. Press
SELECT or press PUSH TO TALK and your handset shows Connecting
to group...
When the connection is made, both the caller and the destination parties hear
a beep. The speakerphones on all other devices automatically activate.
2. You need to press and hold PUSH TO TALK when you want to speak. Speak
towards the handset. Your voice is broadcast to all devices.
3. Release PUSH TO TALK after speaking.
4. Any extension can reply (see Answer a PTT call on page 74).
NOTE: After PUSH TO TALK is released, the PTT call remains open for a short time. If no one
presses PUSH TO TALK within ten seconds, the PTT call ends automatically.ne.
Using the telephone base:
1. You have two ways to call multiple handsets. When the telephone base is
not in use:
Press and hold PTT until the screen shows Connecting to group...
Press PTT. Press CID, DIR, /RECORD or /DELETE to choose Group.
Press SELECT or PTT and the telephone base shows Connecting to group...
When the connection is made, both the caller and the destination parties hear
a beep. The speakerphones on all other devices automatically activate.
2. You need to press and hold PTT when you want to speak. Speak towards the
telephone base. Your voice is broadcast to all devices.
3. Release PTT after speaking.
4. Any extension can reply (see Answer a PTT call on page 82).
NOTE: After PTT is released, the PTT call remains open for a short time. If no one presses PTT
within ten seconds, the PTT call ends automatically.
•
•
•
•
82
Multiple handset use
Push-to-talk (PTT)
Answer a PTT call
You can respond to a PTT call as described below.
Using a handset or the telephone base:
When your device receives a PTT call, it beeps and shows Press and hold
[PTT] to talk.
When the other party is speaking, your speakerphone light is on, and your
device shows:
PTT From HANDSET X To devices: X (the first X represents the
initiating handset number, and the second X represents your handset
number; a maximum of four handset numbers appear).
-OR-
PTT From BASE 0 To devices: X (the X represents your handset
number; a maximum of four handset numbers appear).
When your speakerphone light is off (the screen shows Press and hold
[PTT] to talk), press and hold PUSH TO TALK on your handset or PTT on
your telephone base. You will hear a chirp. Speak towards the device.
While you are speaking, your device shows PTT To Handset: X
(X represents the handset numbers of one or more destination handsets; a
maximum of four handset numbers appear) or
PTT To devices: X (X represents the handset numbers of one or more
destination handsets; a maximum of four handset numbers appear).
Your voice is broadcast to all destination devices.
After speaking, release PUSH TO TALK on your handset or PTT on your
telephone base. Your device will beep. After the beep, if your speakerphone
light is off, you can press and hold PUSH TO TALK on your handset or PTT
on your telephone base to continue speaking, or the destination device can
respond.
1.
2.
•
•
3.
•
•
83
Multiple handset use
Push-to-talk (PTT)
Change a one-to-one PTT call to an intercom call
You can convert a one-to-one PTT session to an intercom call.
Using a cordless handset or the telephone base:
When your device shows Press and hold [PTT] to talk, press
INTCOM. The screen shows Switch to Intercom?
Press SELECT. Your device displays Calling BASE or
Calling HANDSET X. The destination device briefly shows Push to talk
Ended and then HANDSET X is calling or BASE is calling. The destination
device rings.
Press LINE 1/FLASH, LINE 2/FLASH or any dialing keys (0-9, or TONE ) on
the destination handset, or press 1 LINE, 2 LINE or any dialing keys (0-9, or
TONE ) on the telephone base to answer the intercom call. Both devices
now show Intercom.
To end the intercom call, press OFF/CANCEL or END on your cordless
handset, or place the cordless handset in the charger; or press END on the
telephone base. Both screens show Intercom ended.
Answer an incoming call during a PTT call
When you receive an outside call during PTT, there is an alert tone.
Using a cordless handset or the telephone base:
During a one-to-one PTT, press LINE 1/FLASH, LINE 2/FLASH, A CELL
or B CELL on the initiating or destination handset, or press 1 LINE, 2
LINE, CELL A or CELL B on the telephone base. The PTT call ends
automatically and the outside call is answered.
During a one-to-group PTT call, press LINE 1/FLASH, LINE 2/FLASH,
A CELL or B CELL on the initiating handset, or press LINE 1, LINE2,
CELL A or CELL B on the telephone base. The PTT call ends
automatically and the outside call is answered.
During a one-to-group PTT call, press LINE 1/FLASH, LINE 2/FLASH,
A CELLor B CELL on any one of the destination handsets, or press
1 LINE, 2 LINE, CELL A or CELL B on the telephone base. That device
answers the outside call. The PTT call continues for the rest of the PTT
participants.
To leave the PTT call without answering the incoming call, press
OFF/CANCEL on your handset or CANCEL on your telephone base. The
telephone continues to ring.
1.
2.
3.
4.
•
•
•
•
84
Multiple handset use
Push-to-talk (PTT)
Make an outgoing call during PTT call
Using a cordless handset or the telephone base:
During a one-to-one PTT call, press LINE 1/FLASH or LINE 2/FLASH on your
handset or 1 LINE or 2 LINE on the telephone base to get a dial tone. The
PTT call ends automatically.
During a one-to-group PTT call, press LINE 1/FLASH or LINE 2/FLASH on the
initiating handset or 1 LINE or 2 LINE on the telephone base. The PTT call
ends automatically and you get a dial tone.
During a one-to-group PTT call, press LINE 1/FLASH or LINE 2/FLASH on any
one of the destination handsets or 1 LINE or 2 LINE on the telephone base.
That device gets a dial tone. The PTT call continues for the rest of the PTT
participants.
End or leave a PTT call
Using a cordless handset or the telephone base:
For one-to-one PTT calls, both initiating and destination devices can end the
PTT call. For PTT calls to multiple devices, the initiating device can end the PTT
call. If any one of the destination devices leaves the PTT call, the call continues
until all participants or the initiator hangs up.
Press OFF/CANCEL or END on the handset, or press CANCEL or END on the
telephone base. The screens show Push to talk Ended.
-OR-
Place the cordless handset in the charger, and then the handset returns to
idle mode. The telephone base screen shows Push to talk Ended.
NOTE: After PUSH TO TALK on the handset or PTT on the telephone base is released, the PTT
call remains open for a short time. If no one presses PUSH TO TALK on the handset or PTT on
the telephone base within ten seconds, the PTT call ends automatically.
•
•
•
85
About the directory
The home directory stores up to 200 entries with up to 30 digits for each
phone number and 15 characters for each name. Each of the downloaded
directories stores up to 1,500 entries with up to 30 digits for each phone
number and 15 characters for each name.
Directory entries are stored at the telephone base and shared by all system
handsets. Any changes made on one device apply to all.
Only one device can review the directory at a time. If another device tries to
enter the directory, its screen shows Not available at this time.
When there are no records in the directory, the screen shows
Directory empty.
When the directory is full and you try to save an entry, the screen shows
Directory full.
When you try to save a number already stored in the directory, the screen
shows Number already saved.
All of the instructions on pages 78-86 for the directories apply to the home
directory and all downloaded directories. Creating a new entry on pages 78-81
only applies to the home directory.
You cannot create new entries in your downloaded directories from the
TL86103 handset. Entries must be downloaded from your cell phone (see
Download directory on pages 28-29).
•
•
•
•
•
Directory
86
Directory
Create directory entries
Create a new entry in the home directory
Using a cordless handset:
1. Press MENU on the handset in idle mode to enter the main menu.
2. Press CID or DIR to highlight Directory, and then press SELECT.
3. Press OPTION to choose Home.
4. Press SELECT to choose Add contact. The screen displays ENTER NUMBER.
5. Use the dialing keys to entser a telephone number.
Press CID or DIR to move the cursor to the left or right.
Press MUTE/DELETE to erase a digit.
Press and hold MUTE/DELETE to erase all digits.
Press and hold
REDIAL/PAUSE
to enter a dialing pause (a p appears).
-OR-
Copy a number from the redial list. Press REDIAL/PAUSE and then CID or
DIR, or REDIAL/PAUSE repeatedly to locate the number. Press INSERT to
copy the displayed number.
6. Press NEXT.
7. Press CID or DIR to highlight one of the following types:
Home
Cell
Work
Other
8. Press NEXT. The screen displays ENTER NAME.
9. Use the dialing keys (see page 88) to enter a name (up to 15 characters).
Press CID or DIR to move the cursor to the left or right.
Press 0 to add a space.
Press MUTE/DELETE to erase a character.
Press and hold MUTE/DELETE to erase all characters.
Press a>A to change the next letter to upper or lower case.
10. Press SAVE to confirm and the screen shows Saved. You hear a
confirmation tone.
•
•
•
•
•
•
•
•
•
•
•
•
•
87
Directory
Create directory entries
Using the telephone base:
1. Press MENU on the telephone base in idle mode to enter the main menu.
2. Press CID, DIR, /RECORD or /DELETE to highlight Directory, and then
press SELECT.
3. Press OPTION to choose Home.
4. Press SELECT to choose Add contact. The screen displays ENTER NUMBER.
5. Use the dialing keys to enter a telephone number.
Press CID or /REPEAT to move the cursor to the left. Press DIR or
/SKIP to move the cursor to the right.
Press /DELETE to erase a digit.
Press and hold /DELETE to erase all digits.
Press and hold
REDIAL/PAUSE
to enter a dialing pause (a p appears).
-OR-
Copy a number from the redial list. Press REDIAL/PAUSE and then CID or
DIR, or REDIAL/PAUSE repeatedly to locate the number. Press INSERT to
copy the displayed number.
6. Press NEXT.
7. Press CID, DIR, /RECORD or /DELETE to highlight one of the
following types:
Home
Cell
Work
Other
8. Press NEXT. The screen displays ENTER NAME.
9. Use the dialing keys (see page 88) to enter a name (up to 15 characters).
Press CID or /REPEAT to move the cursor to the left. Press DIR or
/SKIP to move the cursor to the right.
Press 0 to add a space.
Press /DELETE to erase a character.
Press and hold /DELETE to erase all characters.
Press a>A to change the next letter to upper or lower case.
10. Press SAVE to confirm and the screen shows Saved. You hear a
confirmation tone.
•
•
•
•
•
•
•
•
•
•
•
•
•
88
Directory
Create directory entries
Dialing keys
NOTE: When entering a name in the directory, the first letter of each word is
automatically capitalized.
Dialing
keys
Characters by number of key presses
1234567891011
11.-‘()*#&/,
2ABCabc2
3DEFdef3
4GHI ghi 4
5JKLjkl5
6MNOmno6
7PQRSpqr s7
8TUVtuv8
9WXY Zwxy z 9
0space 0
*
#
89
Directory
Create directory entries
Add a predialed telephone number to the directory
You can save a predialed telephone number to the directory.
Using a cordless handset:
1. Enter the telephone number when in idle mode, and then press SAVE to
move on to edit the number and then press NEXT.
2. Press CID or DIR to highlight one of the following types:
Home
Cell
Work
Other
3. Press NEXT. The screen displays ENTER NAME.
4. Use the dialing keys to edit the name.
Press CID or DIR to move the cursor to the left or right.
Press MUTE/DELETE to erase a character.
Press and hold MUTE/DELETE to erase all characters.
5. Press SAVE to save the entry. There is a confirmation tone and the screen
shows Saved.
Using the telephone base:
1. Enter the telephone number when in idle mode, and then press SAVE to
move on to edit the number and then press NEXT.
2. Press CID, DIR, /RECORD or /DELETE to highlight one of the
following types:
Home
Cell
Work
Other
3. Press NEXT. The screen displays ENTER NAME.
4. Use the dialing keys to edit the name.
Press CID or /REPEAT to move the cursor to the left. Press DIR or
/SKIP to move the cursor to the right.
Press /DELETE to erase a character.
Press and hold /DELETE to erase all characters.
5. Press SAVE to save the entry. There is a confirmation tone and the screen
shows Saved.
•
•
•
•
•
•
•
•
•
•
•
•
•
•
90
Directory
Review the directory
Review directory entries
Using a cordless handset:
1. Press DIR when in idle mode.
2. Press CID or DIR to highlight a directory, and then press REVIEW.
3. Press CID or DIR to browse.
-OR-
1. Press MENU when in idle mode.
2. Press CID or DIR to highlight Directory, and then press SELECT.
3. Press CID or DIR to highlight a directory, and then press REVIEW.
4. Press CID or DIR to browse.
-OR-
1. Press OPTION while on a call.
2. Press CID or DIR to highlight Directory, and then press SELECT.
3. Press CID or DIR to highlight a directory, and then press REVIEW.
4. Press CID or DIR to browse.
91
Directory
Review the directory
Using the telephone base:
1. Press DIR when in idle mode.
2. Press CID, DIR, /RECORD or /DELETE to highlight a directory, and
then press REVIEW.
3. Press CID, DIR, /RECORD or /DELETE to browse.
-OR-
1. Press MENU when in idle mode.
2. Press CID, DIR, /RECORD or /DELETE to highlight Directory, and then
press SELECT.
3. Press CID, DIR, /RECORD or /DELETE to highlight a directory, and
then press REVIEW.
4. Press CID, DIR, /RECORD or /DELETE to browse.
-OR-
1. Press OPTION while on a call.
2. Press CID, DIR, /RECORD or /DELETE to highlight Directory, and then
press SELECT.
3. Press CID, DIR, /RECORD or /DELETE to highlight a directory, and
then press REVIEW.
4. Press CID, DIR, /RECORD or /DELETE to browse.
NOTES:
When the desired entry displays, press # (pound key) on the handset or telephone base
repeatedly to show different dialing options.
Directory empty appears if there are no directory entries.
•
•
92
Directory
Search the directory
3-character alphabetical search
You can use the enhanced 3-character search to find your contacts quickly and
efficiently.
Using a cordless handset or the telephone base:
1. Follow the steps in Review directory entries on the previous page to enter
the directory.
2. When an entry appears, use the dialing keys to enter the letters associated
with the name (see page 88). You can enter up to 3 letters for the search.
The letters will show at the top left hand corner of the screen. After you
have entered one to three letters, the system starts searching in the
directory. If there is no name matching the letter(s) entered, the next closest
match in alphabetical order appears. If necessary, press CID or DIR on the
cordless handset, or CID, DIR, /RECORD or /DELETE on the telephone
base to browse.
NOTE: The cursor automatically moves to the next position 2 seconds after you enter
a letter. If you do not enter another letter in the coming 2 seconds, the system starts
searching in the directory.
93
Directory
Dial, edit or delete a directory entry
Dial a directory entry
You can dial a directory entry on any line.
To dial a directory entry:
1. Search for the desired entry in the directory (see Review directory entries
and 3-character alphabetical search on pages 90-92).
2. When the desired entry appears, press # (pound key)
repeatedly on the handset or telephone base to show
different dialing options.
3. When the displayed number is in the correct format, press LINE 1/FLASH,
LINE 2/FLASH or /SPEAKER on the handset, or 1 LINE, 2 LINE, SPEAKER
on the telephone base, or lift the corded handset to use line 1 or line 2. Press
CELL A or CELL B on the handset or CELL A or CELL B on the
telephone base to use the cell line.
Edit a directory entry
You can edit any directory entry. However, be aware that if you download a
directory from a cell phone again, the directory is erased and replaced with
the current cell phone directory. If you have edited the downloaded entries
on the TL86103, those changes are lost. To avoid losing changes made to the
downloaded directory, we suggest that you edit numbers in your cell phone,
and then download the directory.
Using a cordless handset:
1. Search for the desired entry in the directory (see Review directory entries
and 3-character alphabetical search on pages 90-92).
2. When a directory entry displays, press EDIT. The screen shows EDIT NUMBER
along with the phone number to be edited.
3. Use the dialing keys to edit the number:
Press CID or DIR to move the cursor to the left or right.
Press MUTE/DELETE to erase a digit.
Press and hold MUTE/DELETE to erase all digits.
Press and hold REDIAL/PAUSE to add a dialing pause (a p appears).
4. Press NEXT.
5. Press CID or DIR to highlight one of the following types.
Home
Cell
Work
Other
6. Press NEXT. The screen displays EDIT NAME.
•
•
•
•
•
•
•
•
888-883-2445
1-888-883-2445
883-2445
1-883-2445
94
Directory
Dial, edit or delete a directory entry
7. Use the dialing keys to edit the name.
Press CID or DIR to move the cursor to the left or right.
Press MUTE/DELETE to erase a character.
Press and hold MUTE/DELETE to erase all characters.
8. Press SAVE to save the entry. There is a confirmation tone and the screen
shows Saved.
Using the telephone base:
1. Search for the desired entry in the directory (see Review directory entries
and 3-character alphabetical search on pages 90-92).
2. When a directory entry displays, press EDIT. The screen shows EDIT NUMBER
along with the phone number to be edited.
3. Use the dialing keys to edit the number:
Press CID or /REPEAT to move the cursor to the left. Press DIR or
/SKIP to move the cursor to the right.
Press /DELETE to erase a digit.
Press and hold /DELETE to erase all digits.
Press and hold REDIAL/PAUSE to add a dialing pause (a p appears).
4. Press NEXT.
5. Press CID, DIR, /RECORD or /DELETE to highlight one of the
following types.
Home
Cell
Work
Other
6. Press NEXT. The screen displays EDIT NAME.
7. Use the dialing keys to edit the name.
Press CID or /REPEAT to move the cursor to the left. Press DIR or
/SKIP to move the cursor to the right.
Press /DELETE to erase a character.
Press and hold /DELETE to erase all characters.
8. Press SAVE to save the entry. There is a confirmation tone and the screen
shows Saved.
•
•
•
•
•
•
•
•
•
•
•
•
•
•
95
Directory
Dial, edit or delete a directory entry
Edit the type of a directory entry
If you only want to edit the type of a directory entry:
1. Search for the desired entry in the directory (see Review directory entries
and 3-character alphabetical search on pages 90-92).
2. When a directory entry displays, press LABEL on a handset or TONE on the
telephone base.
3. Enter the corresponding shortcut keys shown in the below table.
Type Press
Home 1
Cell 2
Work 3
Other 4
-OR-
Press CLEAR to erase the assigned label.
Delete a directory entry
Using a cordless handset or the telephone base:
1. Search for the desired entry in the directory (see Review directory entries
and 3-character alphabetical search on pages 90-92).
2. When the desired entry appears, press MUTE/DELETE on the handset, or
/DELETE or DELETE on the telephone base. The screen displays Delete
contact? and the name of the entry. Press YES to confirm.
3. The screen displays Contact deleted and then the next alphabetical entry in
the directory. You hear a confirmation tone.
NOTE: Once a directory entry is deleted, it cannot not be retrieved.
96
Directory
Dial, edit or delete a directory entry
Remove a downloaded directory
Using a cordless handset:
Search for the desired downloaded directory in the directory menu (see
Review directory entries and 3-character alphabetical search on
pages 82-83).
When the desired downloaded directory is chosen, press OPTION , and then
press CID or DIR to highlight Remove dir.
Press SELECT . The screen displays Directory Cell Phone A will be erased.
Press YES to confirm. The screen displays Erasing directory... You hear
a confirmation tone.
Using the telephone base:
Search for the desired downloaded directory in the directory menu (see
Review directory entries and 3-character alphabetical search on
pages 82-83).
When the desired downloaded directory is chosen, press OPTION , and then
press CID, DIR, /RECORD or /DELETE to highlight Remove dir.
Press SELECT . The screen displays Directory Cell Phone A will be erased.
Press YES to confirm. You hear a confirmation tone.
1.
2.
3.
4.
1.
2.
3.
4.
97
About caller ID
This product supports caller ID services offered by most telephone service
providers. Caller ID allows you to see the name, number, date and time of calls.
The available caller ID information will appear after the first or second ring.
Information about caller ID with call waiting
Caller ID with call waiting lets you see the name and telephone number of the
caller before answering the call, even while on another call.
It may be necessary to change your telephone service to use this feature.
Contact your telephone service provider if:
You have both caller ID and call waiting, but as separate services (you may
need to combine these services).
You have only caller ID service, or only call waiting service.
You don’t subscribe to caller ID or call waiting services.
There are fees for caller ID services. In addition, services may not be available
in all areas.
This product can provide information only if both you and the caller are in
areas offering caller ID service and if both telephone service providers use
compatible equipment. The time and date, along with the call information, are
from the telephone service provider.
Caller ID information may not be available for every incoming call. Callers may
intentionally block their names and/or telephone numbers. You can only view a
maximum of 15 digits of every caller ID log entry.
NOTE: You can use this product with regular caller ID service, or you can use this product’s
other features without subscribing to caller ID or combined caller ID with call waiting
service.
•
•
•
Caller ID
98
Caller ID
Caller ID log
How the caller ID log works
The telephone stores caller ID information about the last 50 incoming calls
in the telephone base. Entries are stored in reverse chronological order. The
phone deletes the oldest entry when the log is full to make room for new
calls. This information is common to the telephone base and all handsets,
so changes made using any handset or the telephone base are reflected in
all other devices. If you answer a call before the information appears on the
screen, it does not show in the caller ID log.
NOTE: Each entry may have up to 24 digits for the phone number and 15 characters for the
name.
Missed (new) call indicator
When a handset or the telephone base is in idle mode and has new or missed
calls, its screen shows XX Missed calls. If there are more than 99 missed calls,
the handset screen will show XXX Missed calls.
All new and missed entries are counted as missed calls. Each time you review
a new caller ID log entry (indicated by NEW on the screen), the number of
missed calls decreases by one.
If you do not want to review the missed calls one by one, but still want to keep
them in the caller ID log, you can press and hold OFF/CANCEL on the handset
for four seconds when the handset is idle, or press and hold CANCEL on the
telephone base for four seconds when the telephone base is idle. You will hear
a confirmation tone. All the entries in the caller ID log become old (reviewed
already), and the missed calls message goes away.
Memory match
If the incoming telephone number matches the last 7 digits of a telephone number
in your directory, the name that appears on the screen matches the corresponding
name in your directory.
For example, if Christine Smith calls, her name appears as Chris if this is how
you entered it into your directory.
NOTE: The number shown in the caller ID log will be in the format sent by the telephone
service provider. The telephone service provider usually delivers ten-digit phone numbers
(area code plus telephone number). If the telephone number of the caller does not match
a number in your directory, the name will appear as it is delivered by the telephone service
provider.
99
Caller ID
Caller ID operation
Review the caller ID log
Review the caller ID log to find out who called, to return the call, or to copy the
caller’s name and number into your directory. Caller ID log empty appears if
there are no records in the caller ID log.
Using a cordless handset or the telephone base:
1. When a handset or the telephone base is in idle mode,
press CID on the handset or on the telephone base to
review the caller ID log in reverse chronological
order starting with the most recent call.
-OR-
Review the caller ID log by pressing MENU.
Press CID or DIR on the handset or CID, DIR,
/RECORD or /DELETE on the telephone base to
highlight Caller ID log, and then press SELECT twice to
select Review.
2. Press CID or DIR on the handset or CID, DIR,
/RECORD or /DELETE on the telephone base to
scroll through the list.
NOTE: Only one handset or the telephone base can review the caller ID log at a time.
If another device tries to enter the directory or caller ID log, it shows Not available at
this time.
CID
CALLER ID
CHARLIE
JOHNSON
888-883-2445
5:32am 8/06
SA8VE
NEW
CHARLIE JOHNSON
888-883-2445
5:32am 8/06
BACK SAVE
NEW
SAVE
BACK
Caller’s name
Caller’s number
Time of call
Appears if it is a
new or missed call.
Date of call
Caller’s name
Caller’s number
Time of call
Appears if it is a
new or missed call.
Date of call
Line source of the call
Line source of the call
100
Caller ID
Caller ID operation
View dialing options
Although the incoming caller ID log entries have ten digits (the area code plus
the seven-digit number), in some areas, you may need to dial only the 7 digits,
1 plus the seven digits, or 1 plus the area code plus the seven digits. You can
change and store the number of digits that you dial in the caller ID log.
While reviewing the caller ID log, press # (pound
key) repeatedly to show different dialing options
for local and long distance numbers before
dialing or saving the telephone number in the
directory.
Press 1 repeatedly if you need to add or
remove 1 in front of the telephone number
before dialing or saving it in the directory.
When the number is in the correct format
for dialing.
Press LINE 1/FLASH, LINE 2/FLASH or /SPEAKER on a cordless handset, or
press 1 LINE, 2 LINE, or SPEAKER on the on the telephone base, or lift the
corded handset to call the number using line 1 or line 2.
-OR-
Press CELL A or CELL B on a cordless handset or CELL A or CELL B
on the telephone base to call the number using the cell line.
Dial a caller ID log entry
Using a cordless handset or the telephone base:
1. When in the caller ID log, press CID or DIR on the handset, or CID,
DIR, /RECORD or /DELETE, on the telephone base to browse.
2. Press LINE 1/FLASH, LINE 2/FLASH or /SPEAKER on the handset, or
1 LINE, 2 LINE or SPEAKER on the telephone base, or lift the corded
handset to dial the displayed entry using line 1 or line 2.
-OR-
Press CELL A or CELL B on the handset or CELL A or CELL B on
the telephone base to dial the display entry using the cell line.
888-883-2445
1-888-883-2445
883-2445
1-883-2445
888-883-2445
1-888-883-2445
883-2445
1-883-2445
Press #
(pound key)
Press 1
101
Caller ID
Caller ID operation
Save a caller ID log entry to the directory
Caller ID log entries can only be saved to the Home directory.
Using a cordless handset:
1. Select a desired entry in the caller ID log (see Review the caller ID log on
page 99).
2. When the desired entry appears, press # (pound key) repeatedly to show
different dialing options.
3. When the number is in correct format, press SAVE. The screen displays
EDIT NUMBER.
4. Use the dialing keys to edit the number.
Press CID or DIR to move the cursor to the left or right.
Press MUTE/DELETE to backspace and erase a digit.
Press and hold MUTE/DELETE to erase the entire entry.
Press and hold REDIAL/PAUSE to insert a dialing pause (a p appears).
5. Press NEXT.
6. Press CID or DIR to highlight one of the following types:
Home
Cell
Work
Other
7. Press NEXT. The handset displays EDIT NAME.
8. Use the dialing keys (page 80) to edit the name.
Press CID or DIR to move the cursor to the left or right.
Press MUTE/DELETE to erase a character.
Press and hold MUTE/DELETE to erase all characters.
Press # (pound key) to move the last word to the front. For example,
Johnson Charlie becomes Charlie Johnson when you press # (pound key).
9. Press SAVE to confirm. The screen shows Saved.
•
•
•
•
•
•
•
•
•
•
•
•
102
Caller ID
Caller ID operation
Using the telephone base:
1. Select a desired entry in the caller ID log (see Review the caller ID log on
page 99).
2. When the desired entry appears, press # (pound key) repeatedly to show
different dialing options.
3. When the number is in correct format, press SAVE. The telephone base
displays EDIT NUMBER.
4. Use the dialing keys to edit the number.
Press CID or /REPEAT to move the cursor to the left. Press DIR or
/SKIP to move the cursor to the right.
Press /DELETE to backspace and erase a digit.
Press and hold /DELETE to erase the entire entry.
Press and hold REDIAL/PAUSE to insert a dialing pause (a p appears).
5. Press NEXT.
6. Press CID, DIR, /RECORD or /DELETE to highlight one of the
following types:
Home
Cell
Work
Other
7. Press NEXT. The telephone base displays EDIT NAME.
8. Use the dialing keys (page 80) to edit the name.
Press CID or /REPEAT to move the cursor to the left. Press DIR or
/SKIP to move the cursor to the right.
Press /DELETE to erase a character.
Press and hold /DELETE to erase all characters.
Press # (pound key) to move the last word to the front. For example,
Johnson Charlie becomes Charlie Johnson when you press # (pound key).
9. Press SAVE to confirm. The telephone base shows Saved.
NOTES:
If the caller’s name you received from the telephone service provider is all in capital letters, the first
letter of every word remains a capital letter, while other letters become lowercase. However, the
next letter after the prefix “Mac”, “Mc”, “D’”, “C’” or “O’”, is kept as a capital letter. For example, the
“D” in “MacDonald” is kept as a capital letter. Another exception is that “VAN DER” will be changed
to “Van der”.
If the telephone number from the caller ID information has already been saved in the directory
under a different name, the new name will overwrite the old one.
•
•
•
•
•
•
•
•
•
•
•
•
•
•
103
Caller ID
Caller ID operation
Delete caller ID log entries
To delete an entry:
Using a cordless handset:
Press MUTE/DELETE on the handset.
Using the telephone base:
Press /DELETE or DELETE the telephone base to delete the shown entry.
To delete all entries:
Using a cordless handset:
1. Press MENU when in idle mode.
2. Press CID or DIR to highlight Caller ID log, and then press SELECT.
3. Press CID or DIR to highlight Delete all calls, and then press SELECT.
4. When the screen shows Delete all calls?, press YES to confirm. There is a
confirmation tone and the screen returns to the previous menu.
Using the telephone base:
1. Press MENU when in idle mode.
2. Press CID, DIR, /RECORD or /DELETE to highlight Caller ID log, and
then press SELECT.
3. Press CID, DIR, /RECORD or /DELETE to highlight Delete all calls,
and then press SELECT.
4. When the screen shows Delete all calls?, press YES to confirm. There is a
confirmation tone and the screen returns to the previous menu.
104
Caller ID
Reasons for missing caller ID information
There are occasions when other information or no information shows for
various reasons:
On-screen message Reason
PRIVATE NUMBER The caller prefers not to show the phone number.
PRIVATE NAME The caller prefers not to show the name.
PRIVATE CALLER The caller prefers not to show the phone number and name.
UNKNOWN NUMBER Your telephone service provider cannot determine the
caller’s number.
UNKNOWN NAME Your telephone service provider cannot determine the
caller’s name.
UNKNOWN CALLER Your telephone service provider cannot determine the caller’s
name and telephone number.
Calls from other countries may also generate this message.
105
Answering system settings
Use the answering system menu of the telephone base to set up the
announcement message, turn the answering system or message alert tone on
or off, activate call screening, or change the number of rings, remote access
code or message recording time. If you turn off the answering system and you
change any setting in the answering system setup menu, the answering system
automatically turns on again.
Announcement
Your outgoing announcement plays when calls are answered by the
answering system.
The telephone has a default outgoing announcement, “Hello, please leave a
message after the tone.” You can use this default announcement, or record
your own.
You can record an announcement up to 90 seconds. The system does not
record any announcement shorter than two seconds.
To play a new outgoing announcement:
Using the telephone base:
1. When the telephone base is in idle mode, press MENU to
enter the main menu.
2. Press CID, DIR, /RECORD or /DELETE to highlight
Answering system, and then press SELECT ..
3. Press CID, DIR, /RECORD or /DELETE to highlight
Mailbox 1 or Mailbox 2, and then press SELECT.
4. Press SELECT again to select Announcement.
5. Press SELECT to select Play annc, and then press
SELECT.
Answering system
ANSWERING SYSTEM
Announcement
Delete all old
Record memo
SELECT
BACK
Playing
announcement
STOP
RECORD
106
Answering system
Answering system settings
To record a new outgoing announcement:
Using the telephone base:
1. When the telephone base is in idle mode, press MENU
to enter the main menu.
2. Press CID, DIR, /RECORD or /DELETE to
highlight Answering system, and then press SELECT ..
3. Press CID, DIR, /RECORD or /DELETE to
highlight Mailbox 1 or Mailbox 2, and then
press SELECT.
4. Press SELECT again to select Announcement.
5. Press SELECT to select Record annc. The system announces, “Record after
the tone. Press STOP when you are done.”
6. Speak towards the telephone base to record your announcement. Press
STOP to end recording. Your recorded announcement plays.
-OR-
1. When the telephone base is in idle mode, press /RECORD.
2. Press CID, DIR, /RECORD or /DELETE to highlight Announcement,
and then press SELECT ..
3. Press CID, DIR, /RECORD or /DELETE to highlight Mailbox 1 or
Mailbox 2, and then press SELECT.The system announces, “Record after the
tone. Press STOP when you are done.”
4. Speak towards the telephone base to record your announcement. Press
STOP to end recording. Your recorded announcement plays.
To listen to the recorded announcement again, scroll to Play annc and
press SELECT.
Recording
announcement
STOP
107
Answering system
Answering system settings
To delete or reset your outgoing announcement:
Using the telephone base:
1. When the telephone base is in idle mode, press MENU to enter the
main menu.
2. Press CID, DIR, /RECORD or /DELETE to highlight Answering system,
and then press SELECT ..
3. Press CID, DIR, /RECORD or /DELETE to highlight Mailbox 1 or
Mailbox 2, and then press SELECT.
4. Press SELECT again to select Announcement.
5. Press CID, DIR, /RECORD or /DELETE to highlight Play annc, and
then press SELECT..
6. While the announcement is playing, press /DELETE to delete the
announcement. The system announces “Announcement
deleted” and the screen shows Annc. Reset.
-OR-
1. When the telephone base is in idle mode, press MENU to
enter the main menu.
2. Press CID, DIR, /RECORD or /DELETE to
highlight Answering system, and then press
SELECT ..
3. Press CID, DIR, /RECORD or /DELETE to
highlight Mailbox 1 or Mailbox 2, and then press SELECT.
4. Press SELECT again to select Announcement.
5. Press CID, DIR, /RECORD or /DELETE to highlight Reset annc, and
then press SELECT. The screen shows Reset to default annc?
6. Press YES to confirm. The system announces “Announcement deleted” and
the screen shows Announcement reset to default.
When your announcement is deleted, the system answers calls with the
default announcement described on page 105. You cannot delete the default
announcement.
Reset to
default annc?
YES
NO
Announcement
reset to default
108
Answering system
Answering system settings
Answer on/off
Unless you change it, the answering system is on and ready to record
messages. You can turn the answering system off, but if you do so, the
answering system does not answer calls and record incoming messages.
To turn the answering system on or off:
Using the telephone base:
Press /LINE 1 ANS ON/OFF or /LINE 2 ANS ON/OFF to
turn the corresponding answering system on or off. If the
answering system is turned on, it announces, “Calls will be
answered.” If the answering system is turned off,
it announces, “Calls will not be answered.”
-OR-
1. When the telephone base is in idle mode, press MENU to
enter the main menu.
2. Press CID, DIR, /RECORD or /DELETE to highlight
Answering system, and then press SELECT ..
3. Press CID, DIR, /RECORD or /DELETE to highlight
Mailbox 1 or Mailbox 2, and then press SELECT.
4. Press CID, DIR, /RECORD or /DELETE to highlight
Answer ON/OFF, and then press SELECT.
5. Press CID, DIR, /RECORD or /DELETE to highlight
On or Off, and then press SELECT to save the setting.
You hear a confirmation tone.
NOTE: If the answering system is off and there is an incoming call, the system answers
after ten rings and announces, “Please enter your remote access code.” For more
information about remote access, see page 122.
Play messages
Answering system
Directory
Caller ID log
SELECT
BACK
ANSWERING SYSTEM
Delete all old
Record memo
Answer ON/OFF
SELECT
BACK
ANSWER ON/OFF
On
Off
SELECT
BACK
109
Answering system
Call screening
Use this feature to choose whether incoming messages can be heard over the
speaker when they are being recorded. If you turn call screening on, you hear
the incoming message. While monitoring an incoming message, you can answer
the call by pressing LINE 1/FLASH, LINE 2/FLASH or /SPEAKER on the handset,
or pressing 1 LINE, 2 LINE or SPEAKER on the telephone base, or lift the
corded handset to answer the incoming call.
Answering system settings
To change the setting:
Using the telephone base:
1. When the telephone base is in idle mode, press MENU to
enter the main menu.
2. Press CID, DIR, /RECORD or /DELETE to highlight
Answering system, and then press SELECT ..
3. Press CID, DIR, /RECORD or /DELETE to highlight
Mailbox 1 or Mailbox 2, and then press SELECT..
4. Press CID, DIR, /RECORD or /DELETE to highlight
Ans system setup, and then press SELECT.
5. Press SELECT to select Call screening.
6. Press CID, DIR, /RECORD or /DELETE to choose On
or Off.
7. Press SELECT to save the setting. You hear a confirmation tone.
NOTE: For more information on call screening, see page 116.
ANS SYSTEM SETUP
Call screening
# of rings
Remote code
BACK SELECT
CALL SCREENING
On
Off
BACK SELECT
110
Answering system
Answering system settings
Number of rings
You can set the answering system to answer an incoming call after two, three,
four, five or six rings. You can also select toll saver. If toll saver is selected, the
answering system answers a call after two rings when you have new messages,
and after four rings when there are no new messages. This feature allows you
to check for new messages and avoid paying long distance charges when
calling from out of your local area. By default, the answering system answers
an incoming call after four rings.
To set the number of rings:
Using the telephone base:
1. When the telephone base is in idle mode, press MENU to
enter the main menu.
2. Press CID, DIR, /RECORD or /DELETE to highlight
Answering system, and then press SELECT ..
3. Press CID, DIR, /RECORD or /DELETE to highlight
Mailbox 1 or Mailbox 2, and then press SELECT.
4. Press CID, DIR, /RECORD or /DELETE to highlight
Ans system setup, and then press SELECT.
5. Press CID, DIR, /RECORD or /DELETE to highlight # of rings, and
then press SELECT.
6. Press CID, DIR, /RECORD or /DELETE to choose among 2, 3, 4, 5, 6
or Toll saver.
7. Press SELECT to save the setting. You hear a confirmation tone.
NOTE: If you set the number of rings for the answering system as 2 or 3 rings, the caller ID
announce feature may not have enough time to announce the caller’s full information.
ANS SYSTEM SETUP
Call screening
# of rings
Remote code
BACK SELECT
# OF RINGS
6
5
4
BACK SELECT
111
Answering system
Answering system settings
Remote access code
To access your answering system remotely from any touch-tone phone, you
need to enter a two-digit number (00-99). By default, the remote access code
is 19.
Using the telephone base:
1. When the telephone base is in idle mode, press MENU to
enter the main menu.
2. Press CID, DIR, /RECORD or /DELETE to highlight
Answering system, and then press SELECT ..
3. Press CID, DIR, /RECORD or /DELETE to highlight
Mailbox 1 or Mailbox 2, and then press SELECT.
4. Press CID, DIR, /RECORD or /DELETE to highlight
Ans system setup, and then press SELECT.
5. Press CID, DIR, /RECORD or /DELETE to highlight
Remote code, and then press SELECT.
6. Use the dialing keys to enter a two-digit number. Press /DELETE to
backspace and delete a digit.
7. Press SAVE to save the setting. You hear a confirmation tone.
ANS SYSTEM SETUP
Call screening
# of rings
Remote code
BACK SELECT
REMOTE CODE
19
BACK SAVE
112
Answering system
Answering system settings
Message alert tone
When the message alert tone is set to On, and there is at least one new
message, the telephone base beeps every ten seconds. Unless you change it,
the message alert tone is set to off.
There is no audible alert at the handset.
To change the setting:
Using the telephone base:
1. When the telephone base is in idle mode, press MENU to
enter the main menu.
2. Press CID, DIR, /RECORD or /DELETE to highlight
Answering system, and then press SELECT ..
3. Press CID, DIR, /RECORD or /DELETE to highlight
Mailbox 1 or Mailbox 2, and then press SELECT.
4. Press CID, DIR, /RECORD or /DELETE to highlight
Ans system setup, and then press SELECT.
5. Press CID, DIR, /RECORD or /DELETE to highlight Msg alert tone,
and then press SELECT.
6. Press CID, DIR, /RECORD or /DELETE to choose On or Off.
7. Press SELECT to save the setting. You hear a confirmation tone.
NOTES:
The message alert tone beeps only if all the conditions below are met:
- Answering system is on.
- Message alert tone setting is on.
- There are new messages.
To temporarily turn off the message alert tone, see page 115.
•
•
ANS SYSTEM SETUP
# of rings
Remote code
Msg alert tone
BACK SELECT
MSG ALERT TONE
On
Off
BACK SELECT
113
Answering system
Answering system settings
Message recording time
You can set the recording time allowed for incoming messages. The message
length is three minutes by default.
To change the setting:
Using the telephone base:
1. When the telephone base is in idle mode, press MENU to
enter the main menu.
2. Press CID, DIR, /RECORD or /DELETE to highlight
Answering system, and then press SELECT ..
3. Press CID, DIR, /RECORD or /DELETE to highlight
Mailbox 1 or Mailbox 2, and then press SELECT.
4. Press CID, DIR, /RECORD or /DELETE to highlight
Ans system setup, and then press SELECT.
5. Press CID, DIR, /RECORD or /DELETE to highlight
Recording time, and then press SELECT.
6. Press CID, DIR, /RECORD or /DELETE to choose 3 minutes, 2 minutes
or 1 minute, and then press SELECT to save the setting. You hear a confirma-
tion tone.
ANS SYSTEM SETUP
Remote code
Msg alert tone
Recording time
BACK SELECT
RECORDING TIME
3 minutes
2 minutes
1 minute
BACK SELECT
114
Answering system
About the answering system
Answering system and voicemail indicators
Your telephone has separate indicators for two different types of voice
messages: those recorded on its built-in answering system and those recorded
in your service provider’s voicemail (fees may apply). Your telephone’s built-in
answering system messages and voicemail messages are separate. Each alerts
you to new messages differently.
If and L1) XX New msgs and/or L2) XX New msgs display on the
telephone base and handsets, there are new messages in the built-in
answering system. To listen to messages recorded on your digital answering
system, press /LINE 1 MAIL BOX or /LINE 2 MAIL BOX on the telephone
base. To listen to messages with a handset, see To listen to messages on a
cordless handset on page 117.
If , , or , and L1) Voicemail and/or L2) Voicemail display on
telephone base and handsets, your telephone service provider is indicating
that it has new voicemail for you. To listen to your voicemail, you typically
dial an access number provided by your telephone service provider,
followed by a security code or PIN.
Some service providers bundle or combine multiple services like voicemail and
call waiting, so you may not be aware that you have voicemail. To check what
services you have and how to access them, contact your telephone
service provider.
To use your voicemail service rather than your answering system, turn off your
answering system. To use your answering system rather than your voicemail
service, contact your telephone service provider to deactivate your
voicemail service.
Using the answering system and voicemail together
You can also use your telephone answering system and voicemail together
by setting your built-in answering system to answer before voicemail answers
as described below. To learn how to program your voicemail settings, contact
your telephone service provider. Then, if you are on a call, or if the answering
system is busy recording a message and you receive another call, the second
caller can leave a voicemail message.
Set your answering system to answer calls at least two rings earlier than your
voicemail is set to answer. For example, if your voicemail answers after six
rings, set your answering system to answer after four rings. Some voicemail
providers may program the delay before answering calls in seconds instead of
rings. In this case, allow six seconds per ring when determining the
appropriate setting.
•
•
115
Answering system
About the answering system
Message capacity
The answering system can record and store up to 99 messages. Each message
can be up to 3 minutes in length depending on the message length set.
The total storage capacity for the announcement, messages and memos is
approximately 14 minutes. The actual recording time depends on individual
message characteristics. Messages remain available for replay until you
delete them.
When there are new messages (including memos) on the answering system, the
number of messages stored shows in the message counter.
If the answering system has less than three minutes of recording time left, it
announces, “Less than three minutes to record,” before message playback at
the handset or the telephone base. L1) Rec mem low and/or L2) Rec mem low
displays on the device screen in idle mode. When you turn on the answering
system at the telephone base, it announces, “Calls will be answered. Less than
three minutes to record.”
If the memory is full, the answering system announces, “Memory is full,” before
message playback. The device screen displays L1) Rec mem full and/or
L2) Rec mem full in idle mode. Once the memory is full, you cannot turn the
answering system back on if it has been turned off, nor can you record new
messages until old ones have been deleted. Memory full displays if you want
to turn on the answering system on the handset but there is no memory.
Voice prompts
The system provides voice prompts to guide you through the setup procedures
at the telephone base, message playback, remote access and recording
outgoing announcements.
Temporarily turning off the message alert tone
If the message alert tone is turned on, the telephone base beeps every
ten seconds when there are new messages. Pressing any telephone base
key temporarily silences the message alert tone.
The message alert tone resumes when you receive another message.
116
Answering system
About the answering system
Call screening
To screen a call at the telephone base:
If the answering system and call screening are on (see Call screening on
page 109), the announcement and the incoming message broadcast at the
telephone base when a call is answered by the answering system.
Options while a message is being recorded:
Press /VOLUME/ on the telephone base to adjust the call
screening volume.
Press /LINE 1 MAIL BOX, /LINE 2 MAIL BOX or SILENCE to
temporarily silence the call screening.
Press /LINE 1 MAIL BOX, /LINE 2 MAIL BOX or SCREEN to
temporarily turn on the call screening if call screening is set to off.
Press 1 LINE, 2 LINE, SPEAKER , or lift the corded handset to answer the
call.
To screen a call at the handset:
If the answering system is on and your answering system is recording a message,
press SCREEN to screen the call on your handset and the screen displays the
caller ID information. If you do not subscribe to caller ID service, the handset
shows Incoming call.
Options while a message is being recorded:
Press CID/VOLUME or DIR/VOLUME on the handset to adjust the call
screening volume.
Press OFF/CANCEL or SILENCE to temporarily silence the call screening.
Press SCREEN to temporarily turn on the call screening if call screening is set
to off.
Press /SPEAKERSPEAKER to broadcast the announcement and the incoming message
through the speakerphone. Press again to turn off the speakerphone.
Call intercept
When a caller is leaving a message on your answering system, you can
stop recording and talk to the caller by pressing the corresponding line button
LINE 1/FLASH or LINE 2/FLASH, or /SPEAKER on the handset. You can also
press the corresponding line button 1 LINE or 2 LINE, or SPEAKER on the
telephone base; or lift the corded handset.
•
•
•
•
•
•
•
•
117
Answering system
Message playback
If you have both new and old messages, you can play either new or old
messages. The caller ID information displays on the screens when you play
messages and you can call back the caller.
When playback begins, the handset and telephone base screens display the
message status, caller ID information, and time and date of the message
recorded. You hear the total number of messages followed by the day and
time of the message. After the last message, the telephone announces, “End of
messages.”
and the screen displays End of messages.
To listen to messages at the telephone base:
1. Press /LINE 1 MAIL BOX or /LINE 2 MAIL BOX on the telephone base
to listen to the messages.
If there are new and old messages, news messages will play automatically.
If there are only new or only old messages, they will play automatically.
When the handset is playing a message, its screen shows [2]-Call info and the
caller’s name or number. If the caller’s information is unavailable, the handset
shows No caller info.
The system announces the number of messages, and then begins playback.
The message sequence is shown on the telephone base. If there are no
recorded messages, the telephone base shows No messages and you hear,
“You have no message.”
To listen to messages on a cordless handset:
1. When the handset is in idle mode, press MENU to enter the main menu.
2. Press SELECT to select Play messages.
3. Press CID or DIR to highlight Mailbox 1 or Mailbox 2, and then press
SELECT.
If there are new and old messages, press CID or DIR to select
Play new msgs or Play old msgs, and then press SELECT.
If there are only new or only old messages, they will play automatically.
The system announces the number of messages, and then begins playback.
The message sequence is shown on the handset. If there are no recorded
messages, the handset shows No messages and you hear, “You have no
messages.”
•
•
•
•
118
Answering system
Message playback
Options during playback
When a message is playing, you can adjust the playback volume, skip, repeat,
pause or delete the message.
When messages are playing on the telephone base:
Press /VOLUME/ to adjust the speaker volume.
Press /SKIP or SKIP to skip to the next message.
Press /REPEAT or REPEAT to repeat the message currently playing.
Press /REPEAT or REPEAT twice to listen to the previous message.
Press /DELETE to delete the current message. The system advances to
the next message.
Press 2 to pause the playback and show the caller ID information.
Press 1 LINE, 2 LINE, SPEAKER or CALL to use line 1 or line 2, or
press Cell A or Cell B to use the cell line to call back the caller.
If necessary, press QUIET # (pound key) or 1 to show different dialing
options.
Press CANCEL or BACK to restart the playback. If you do not call back
within 10 seconds, message playback restarts.
Press 1 LINE, 2 LINE, Cell A or Cell B to pause the message
playback. The telephone base screen displays Call back? with the caller ID
information. If the dialing format used is not correct, press QUIET # (pound
key) or 1 to show different dialing options. Press CALL to call back the
caller, or BACK to restart the message playback. If the dialing format used
is not correct, and then use the option above to choose the correct format
before calling back the caller.
Press /LINE 1 MAIL BOX, /LINE 2 MAIL BOX or CANCEL to stop the
playback.
•
•
•
•
•
•
•
•
•
119
Answering system
Message playback
When messages are playing on a cordless handset:
Press /SPEAKER to play the messages through the handset earpiece.
Press /SPEAKER again to return to playing messages through the
speakerphone.
Press CID/VOLUME or DIR/VOLUME to adjust the speakerphone volume.
Press SKIP to skip to the next message.
Press REPEAT to repeat the message currently playing. Press REPEAT twice
to listen to the previous message.
Press DELETE to delete the current message.
Press 2 to pause the playback and show the caller ID information.
Press LINE 1/FLASH, LINE 2/FLASH, /SPEAKER or CALL to use line
1 or line 2, or press A Cell or B Cell to use the cell line to call
back the caller. If necessary, press # (pound key) or 1 to show different
dialing options.
Press OFF/CANCEL or BACK to restart the playback. If you do not call
back within 10 seconds, message playback restarts.
Press LINE 1/FLASH, LINE 2/FLASH, A Cell or B Cell to pause the
message playback. The handset displays Call back? with the caller ID
information. If the dialing format used is not correct, press QUIET # (pound
key) or 1 to show different dialing options. Press CALL to call back the
caller, or BACK to restart the message playback. If the dialing format used
is not correct, and then use the option above to choose the correct format
before calling back the caller.
Press OFF/CANCEL to stop the playback.
•
•
•
•
•
•
•
•
•
•
120
Answering system
Message playback
Delete all old messages
You can only delete old (reviewed) messages. You cannot delete new messages
until you review them. You cannot retrieve deleted messages.
To delete all old messages on the telephone base:
1. When the telephone is idle, press /DELETE.
2. Press CID, DIR, /RECORD or /DELETE to highlight Mailbox 1
or Mailbox 2, and then press SELECT. The screen shows Delete all
old messages?
3. Press YES to confirm. The screen displays Deleting then All old msgs
deleted! You hear a confirmation tone.
-OR-
1. Press MENU when in idle mode to enter the main menu.
2. Press CID, DIR, /RECORD or /DELETE to highlight Answering system,
and then press SELECT .
3. Press CID, DIR, /RECORD or /DELETE to highlight Mailbox 1 or
Mailbox 2, and then press SELECT.
4. Press CID, DIR, /RECORD or /DELETE to highlight Delete all old, and
then press SELECT. The screen shows Delete all old messages?
5. Press YES to confirm. The screen displays Deleting then All old msgs
deleted! You hear a confirmation tone.
121
Answering system
Recording and playing memos
Memos are your own recorded messages used as reminders for yourself or
others using the same answering system. You can record your own memos
using the telephone base. Play and delete them the same way as incoming
messages.
Record a memo
Using the telephone base:
1. When the telephone base is in idle mode, press MENU to
enter the main menu.
2. Press /DELETE to highlight Answering system, and
then press SELECT .
3. Press CID, DIR, /RECORD or /DELETE to highlight
Mailbox 1 or Mailbox 2, and then press SELECT.
4. Press CID, DIR, /RECORD or /DELETE to high-
light Record memo, and then press SELECT. The system
announces, “Record after the tone. Press STOP when you
are done.”
5. Speak towards the handset to record a memo.
6. Press STOP to stop recording. The systems announces, “Recorded.” and the
returns to the previous menu.
-OR-
1. When the telephone base is in idle mode, press /RECORD.
2. Press CID, DIR, /RECORD or /DELETE to highlight Memo, and then
press SELECT ..
3. Press CID, DIR, /RECORD or /DELETE to highlight Mailbox 1 or
Mailbox 2, and then press SELECT.The system announces, “Record after
the tone. Press STOP when you are done.”
4. Speak towards the handset to record a memo.
5. Press STOP to stop recording. The systems announces, “Recorded.” and the
returns to the previous menu.
NOTES:
The system announces “Memory is full,” if you attempt to record a memo when the memory is full.
Each memo can be up to four minutes in length.
Memos shorter than two seconds are not recorded.
Playback a memo
Play memos the same way as messages. See Message playback on
pages page 117-120.
•
•
•
ANSWERING SYSTEM
Announcement
Delete all old
Record memo
BACK SELECT
Recording
memo
STOP
122
Answering system
Remote access
You can reach your answering system remotely by dialing your home telephone
number from any touch-tone telephone.
To remotely access the answering system
Dial your telephone number from any touch-tone telephone.
When the system plays your announcement, enter the two-digit remote
access code (19 is the default code, see page 111 to change it).
The system automatically announces the number of new or old
messages (if any), and then begins to play them.
You can also enter the following remote commands.
Remote commands
Hang up or press 8 to end the call.
1.
2.
•
3.
4.
1Press to listen to all messages.
2Press to listen to new messages only.
3Press to delete the current message (during playback).
33 Press twice to delete all old messages.
4Press to repeat the current message (during playback).
44 Press twice to listen to the previous message.
5Press to stop.
*5 Press to listen to a list of remote commands.
6Press to skip to the next message (during playback).
*7 Press to record a new announcement.
8Press to hang up the call.
0Press to turn the answering system on or off.
123
Answering system
Remote access
Cut out and carry the remote access wallet card at the back of this user’s
manual for quick reference.
NOTES:
If you do not press any keys after you enter the remote access code, all new messages play. If there
are no new messages, all old messages play.
Once the new messages have played, the telephone announces the help menu options. If you do
not press any key within 20 seconds, the remote access call automatically disconnects.
When the answering system is turned off, the telephone answers after 10 rings, and announces,
“
Please enter your remote access code.”
When the memory is full, the answering system answers incoming calls after 10 rings and announces,
“
Memory is full. Enter the remote access code.”
•
•
•
•
124
Adding and registering cordless handsets/headsets/
wireless speakers
Your telephone can support up to 12 DECT 6.0 cordless handsets (AT&T model
TL86003, sold separately), or up to ten cordless handsets and two DECT
cordless headsets and wireless speakers (sold separately). Visit
www.telephones.att.com/headsets for a list of compatible DECT 6.0
cordless headsets. Each new handset, headset or wireless speaker must be
registered to the telephone base before use. You must register each handset,
headset or wireless speaker separately.
To register a cordless headset to this telephone system, please refer to the
user’s manual of the cordless headset for more details. To register a cordless
handset, see below.
The handsets provided within your product box are already registered as
HANDSET 1 and so forth. Additional handsets are assigned numbers in the
sequential order they are registered (up to HANDSET 12).
Register a cordless handset to your telephone base
Using the telephone base:
Before you begin registration, make sure the handset is out of
the charger and shows To register, see user manual.
Press MENU on the telephone base in idle mode.
Press CID, DIR, /RECORD or /DELETE to highlight
Settings, and then press SELECT .
Press CID, DIR, /RECORD or /DELETE to
highlight Registration, and then press SELECT .
The telephone base shows Registering... Please wait.
Press # on the cordless handset for registration, and
the handset shows Registering... Please wait. It takes about 90 seconds to
complete the registration process. Both the telephone base and cordless
handset display HANDSET X Registered (X represents the registered
handset number), and beep when registration completes.
If registration fails, the system will automatically try to register again. If
registration fails after the third try, the handset displays Registration failed,
and then To register, see user manual. This may take up five minutes to occur.
Please start again from Step 1 above.
NOTE: You cannot register a handset if any other system handset is in use.
1.
2.
3.
4.
5.
6.
Appendix
Registering...
Plea s e w ait
BACK
Registering...
Plea s e w ait
125
Appendix
Deregister cordless handsets
You may need to deregister your handsets if:
You have 12 registered handsets and need to replace a handset.
-OR-
You wish to reassign the designated handset number of your registered
handsets.
You must first deregister ALL handsets, and then register each handset you
wish to use again, one at a time.
Please read carefully through all the instructions on this page before
beginning the deregistration process.
Deregister all cordless handsets from the telephone base
Make sure that all handsets are out of the charger
before you begin deregistration.
Press and hold HOLD on the telephone base for about
10 seconds. The telephone base shows Deregister all
devices? Release HOLD.
Quickly press HOLD again or press YES within 5
seconds. If the telephone base returns to the idle
screen, start again with Step 1 above.
The telephone base shows Deregistered all devices
and then returns to the idle screen. All system handsets
show To register, see user manual and you hear a
confirmation tone when the deregistration completes.
The deregistration process takes about 10 seconds to
complete.
After deregistering, register each handset again individually following the
registrations on the previous page.
NOTES:
If the deregistration process fails, you may need to reset the system and try again. To reset,
unplug the power from the telephone base and plug it back in.
You cannot deregister the handsets if any other system handset is in use.
•
•
1.
2.
3.
4.
•
•
Deregister
all devices?
NO YES
126
Appendix
Alert tones and lights
Handset screen icons
Line 1 or Line 2 - On steadily when line 1 and/or line 2 is in use or there is
an incoming call on line 1 and/or line 2.
A
B
A B
CELL A or Cell B- On steadily when Cell A line and/or Cell B line is in use or
there is an incoming call on Cell A line and/or Cell B line.
A
B
Bluetooth connected devices - There are Bluetooth connected devices on
the active devices list.
A
B
Bluetooth disconnected devices - There are Bluetooth disconnected devices
on the active devices list.
2Wireless Bluetooth headset - On steadily when a wireless Bluetooth
headset is in use on line 1 or line 2.
Battery status - Battery is charging (animated display).
Battery status - The battery icon flashes when the battery is low and needs
charging.
Speakerphone - The speakerphone is in use.
New voicemail - You have new voicemail on line 1 and/or line 2 from your
telephone service provider.
Message - New message in the built-in answering system.
ECO ECO mode - Activates automatically to reduce power consumption when the
handset is within range from the telephone base.
NEW New caller ID log - New and missed calls.
MUTE MUTE - The handset microphone is off.
Ringer off - The handset ringer is off.
PTT NO INCOMING PTT - The incoming PTT function on the handset is off.
P
CPC CALL ringer off - The handset ringer for PC call is off.
/
/
/
127
Appendix
Alert tones and lights
Telephone base screen icons
LINE 1 or LINE 2 - On steadily when line 1 and/or line 2 is in use or there is
an incoming call on line 1 and/or line 2.
A
B
A B
CELL A or Cell B- On steadily when Cell A line and/or Cell B line is in use or
there is an incoming call on Cell A line and/or Cell B line.
A
B
Bluetooth connected devices - There are Bluetooth connected devices on
the active devices list.
A
B
Bluetooth disconnected devices - There are Bluetooth disconnected
devices on the active devices list.
2Wireless Bluetooth headset - On steadily when a wireless Bluetooth
headset is in use on line 1 or line 2.
New voicemail - You have new voicemail on line 1 and/or line 2 from your
telephone service provider.
New answering system message - New message in the answering system.
NEW New caller ID log - Missed and new calls.
MUTE Mute - Microphone is muted.
Directory Search Bar - 3-Character Search
XNumber of missed call - Missed call indication for Home and Cell lines
Ringer off - The telephone base ringer is off.
PTT NO INCOMING PTT - The incoming PTT function on the telephone base is off.
P
CPC CALL ringer off - The telephone base ringer for PC call is off.
/
/
/
128
Appendix
Alert tones and lights
Handset alert tones
One short beep Tone of each key press, if key tone is turned on.
One long beep Indication to begin recording a message, memo or announcement.
Two short beeps You are pressing CID/VOLUME or DIR/VOLUME on a cordless
handset when the volume is already at its highest or lowest setting.
-OR-
Call waiting tone.
-OR-
Error tone.
-OR-
Registration slots are full.
Confirmation tone
(three rising tones)
The system has completed the command successfully.
Four beeps The other party has ended your intercom call.
-OR-
The handset has gone out of range from the base during a call.
Four short beeps Low battery warning.
Four rising tones Your Android cell phone has received mobile notifications.
129
Appendix
Telephone base alert tones
One short beep Tone of each key press, if key tone is turned on.
One long beep Indication to begin recording a message, memo or announcement.
Indicates the start of message recording during call screening or
the end of a message playback session.
Two short beeps You are pressing /VOLUME/ on the telephone base when the
volume is already at its highest or lowest setting.
-OR-
Call waiting tone.
-OR-
Error tone.
-OR-
Registration slots are full.
Confirmation tone
(three rising tones)
The system has completed the command successfully.
Four beeps The other party has ended your intercom call.
Four short beeps Registration failure tone.
Four rising tones Your Android cell phone has received mobile notifications.
Beeps every ten seconds Message alert.
Alert tones and lights
130
Appendix
Alert tones and lights
Lights
Keypad
SPEAKER
On when the
speakerphone is in use.
CHARGE light
On when the
handset is charging
in the charger. High contrast
lighted display
/SPEAKERSPEAKER
On when the
speakerphone is on.
/LINE 1 MAIL BOX/ /LINE2 MAIL BOX
On when the answering system is playing
recorded messages.
Flash when there are new messages.
•
•
1 LINE/2 LINE
On when line 1 or line 2 is
in use.
Flash quickly when there is
an incoming call on line 1
or line 2.
Flash slowly when the call
on line 1 or line 2 is on
hold.
•
•
•
CELL A/
CELL B/HEADSET lights
On when the telephone
base is paired and
connected with a Bluetooth
device.
Flash alternately while
pairing a Bluetooth device.
Flash quickly when there is
an incoming cell call.
•
•
•
/LINE 1 ANS ON/OFF/
/LINE 2 ANS ON/OFF
On when the answering
system is on.
131
Appendix
Display screen messages
Screen messages
Answering sys in On
during quite mode
QUIET mode is turned on.
The answering system is automatically turned on.
BASE is calling The telephone base is calling.
BASE is calling all The telephone base is calling all devices (for intercom calls).
Bluetooth
system busy
You are trying to make a cell call or access the Bluetooth
menu when the Bluetooth link is already being used.
Call
transferred
You have transferred an outside call to another device.
Caller ID log
empty
There are no entries in the caller ID log.
Calling
BASE 0
The handset is calling the telephone base (for intercom calls).
Calling
HANDSET X
The handset or telephone base is calling another handset (for
intercom calls).
The telephone base is transferring an outside call to a
handset.
CELL A Cell A line is on a call.
CELL B Cell B line is on a call.
CL) A:<Application> The cell phone that you paired with this telephone received a
mobile notification.
CL) A In use Cell A line is being used
CL) A low batt Message received from Alerts manager that your cell phone’s
battery is low.
CL) A On hold A call on Cell A line has been put on hold.
CL) A Ringer off The ringer of Cell A line is turned off.
CL) B:<Application> The cell device that you paired with this telephone received a
mobile notification.
CL) B In use Cell B line is being used
CL) B low batt Message received from Alerts manager that your cell device’s
battery is low.
CL) B On hold A call on Cell B line has been put on hold.
CL) B Ringer off The ringer of Cell B line is turned off.
CL) Ringers off The ringers of both cell lines are turned off.
CL) A&B In use Both cell lines are being used.
CL) A&B On hold Calls on both cell lines have been put on hold.
CL) Downloading The system is downloading a directory from a cell phone.
CL) Downloading... The system is downloading a directory from a cell phone.
Connection failed A Bluetooth device failed to establish a connection with your
telephone system.
132
Appendix
Display screen messages
Screen messages
Contact deleted A directory entry is deleted.
Directory empty There are no directory entries.
Directory full The directory is full. You cannot save any new entries unless you
delete some current entries.
Ended You have just ended a call.
HANDSET X
is calling
Another system handset is calling.
HANDSET X
is calling all
The handset is calling all devices.
Intercom The device is on an intercom call.
Intercom ended The intercom call has just ended.
L1) Ans sys off The answering system of line 1 is turned off.
L1) In use Line 1 is being used.
L1) No line There is no telephone line connection to line 1.
L1) On hold A call on line 1 has been put on hold.
L1) Rec mem full The system recording time for line 1 is full.
L1) Rec mem low The system recording time for line 1 is low.
L1) Ringer off The ringer of line 1 is turned off.
LI) Voicemail A new voicemail is detected in line 1.
L1) XX New msgs Displays on telephone base screen when you have new
messages in the answering system of line 1.
L2) Ans sys off The answering system of line 2 is turned off.
L2) In use Line 2 is being used.
L2) No line There is no telephone line connection to line 1.
L2) On hold A call on line 2 has been put on hold.
L2) Rec mem full The system recording time for line 2 is full.
L2) Rec mem low The system recording time for line 2 is low.
L2) Ringer off The ringer of line 2 is turned off.
L2) Voicemail A new voicemail is detected in line 2.
L2) XX New msgs Displays on telephone base screen when you have new
messages in the answering system of line 2.
Line 1 Line 1 is on a call.
Line 2 Line 2 is on a call.
Low battery The battery is low. You should charge the battery.
133
Appendix
Display screen messages
Screen messages
Microphone ON Mute is off so the other party can hear your voice.
Muted The microphone is off. The other party cannot hear you.
No answer.
Try again
The device(s) you are trying to transfer a call to is out of range,
off hook, or has no power.
No battery The handset in the charger has no battery installed.
No Bluetooth
device is ready
for connection.
There is no Bluetooth device paired to the telephone system
when you press CELL A/CELL B/HEADSET on the telephone
base or handset.
No caller info The caller information is unavailable.
No entries
found.
Download from
SIM only ?
There are no entries found when you download a cell phone
directory from the cell memory.
No entries
found.
Download from
Phone only ?
There are no entries found when you download a cell phone
directory from your SIM card.
There are no entries found in either the cell or SIM card when
you download a cell phone directory from both memories.
No messages There are no messages in the answering system.
No signal.
Call ended.
The phone lost connection with the telephone base or did not
have a strong enough signal and the phone call ended.
Not available
at this time
Someone else is already using the directory or caller ID log.
When a handset tries to access the answering system or
Bluetooth menu during battery backup mode.
Number
already saved
The telephone number you have entered is already in the
directory.
Out of range
OR no power
at base
The telephone base has lost power, or the handset is out
of range.
** Paging ** The cordless handset is paged by the telephone base.
Paging all devices The telephone base is paging all devices.
PC CALL PC line is on a call.
PC CALL On hold A call on PC line has been put on hold.
Place in charger The battery is very low. The handset should be charged.
PTT From
HANDSET X
To devices:
X
One handset has started a PTT session to another handset and
telephone base.
134
Appendix
Display screen messages
Screen messages
PTT To
HANDSET X
You have started the PTT process with a handset.
PTT To
BASE 0
You have started the PTT process with the telephone base.
Push to talk
Ended
The PTT session is ended.
Quiet mode is off QUIET mode is turned off.
Registering...
Please wait
The handset is registering to the telephone base.
Registeration
slots are full
The telephone base has the maximum of 12 handsets registered
to it.
Registration failed The handset registration is not successful.
Ringer muted The ringer is off temporarily while the device is ringing.
Saved An entry has been successfully saved in the directory.
To register HS,
see manual.
Screen display before handset registration.
Unable to call.
Try again
You try to join a call when there are already four handsets on that call.
You try to make an outside call when another device is
transferring a call with the intercom feature.
XX Missed calls There are missed calls in the caller ID log.
XXX Missed calls There are more than 99 missed calls in the caller ID log.
135
Appendix
Troubleshooting
If you have difficulty with your phone, please try the suggestions below. For
Customer Service, visit our website at www.telephones.att.com or call
1 (800) 222-3111. In Canada, dial 1 (866) 288-4268.
I cannot pair my cell phone to the telephone base.
Make sure you have cellular coverage.
Make sure your cell phone is compatible with your telephone system. Check
the Bluetooth compatibility list at
www.telephones.att.com/bluetooth.
Make sure the Bluetooth function of your cell phone is turned on. See the
user’s manual of your cell phone for more information.
Make sure that you set your cell phone to search for devices.
If the telephone systems in your cell phone device history list, delete it and
try pairing again.
Carefully follow the pairing instructions on pages 21-31 and make sure that
your cell phone is not connected to any other Bluetooth device.
Turn off your cell phone, and then turn it on again.
Reset the telephone base. Unplug the unit’s electrical power. Wait for
approximately 15 seconds, and then plug it back in. Repeat the above
suggestions.
I cannot pair my headset to the telephone base.
Make sure that your Bluetooth headset is in discoverable mode when pairing
with the telephone base. See the user’s manual of your headset for more
information on how to set your headset to discoverable mode.
Make sure your headset is compatible with your telephone system. Check
the Bluetooth compatibility list at
www.telephones.att.com/bluetooth.
Carefully follow the pairing instructions on pages 23-24 and make sure that
your headset is not connected to any other Bluetooth device.
Reset the telephone base. Unplug the unit’s electrical power. Wait for
approximately 15 seconds, and then plug it back in. Repeat the above
suggestions.
•
•
•
•
•
•
•
•
•
•
•
•
136
Appendix
Troubleshooting
I cannot connect my cell phone with the telephone base.
Make sure that the Bluetooth function of your cell phone is turned on.
See the user’s manual of your cell phone for more information.
Make sure that your Bluetooth cell phone is not connected to any other
Bluetooth device.
Turn off your cell phone, and then turn it on again.
Make sure that your cell phone is on the active devices list.
For some cell phones, you must authorize the TL86103 device in your cell
phone’s Bluetooth feature. See the user’s manual of your cell phone for
more information.
Manually connect your cell phone to your telephone system. Refer to the
user’s manual of your cell phone for more information.
I cannot connect my headset with the telephone base.
Make sure that your Bluetooth headset is not connected to any other
Bluetooth device.
Make sure that your headset is on the active devices list.
I cannot put my headset in discoverable mode.
Refer to the user’s manual of your headset for information on how to set
your headset to discoverable mode.
Make sure that the headset is not connected to any other Bluetooth device
in order to successfully pair and connect to the telephone base.
Carefully follow the pairing process on pages 23-24.
Reset the telephone base. Unplug the unit’s electrical power. Wait for
approximately 15 seconds, and then plug it back in. Repeat the above
suggestions.
I don’t know how to search for or add new devices on my cell phone.
Most cell phones have the Bluetooth feature in the connection or setup
menus. Please refer to the user’s manual of your cell phone.
In general, press the menu key on your cell phone, and then look for the
Bluetooth menu in the settings or connection menu. In the Bluetooth menu,
select the option to search for or add new devices.
My cell phone disconnects with the telephone base.
Turn off your cell phone, and then turn it on again.
Make sure that you are not using your cell phone when on a cell call.
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
137
Appendix
Troubleshooting
My cell phone is connected to the telephone base, but I cannot make a cell
call.
Make sure that your cell phone is not in use when you are trying to make a
cell call.
For some smartphones, make sure that the cellular function is turned on.
Bluetooth system busy appears on the display.
Make sure that your cell phone is not in use when connected and on the
active devices list.
Make sure that your cell phone or headset is not connected to any other
Bluetooth device.
Your telephone system can only use one Bluetooth device at a time.
The PIN on the telephone base does not work.
The default PIN is 0000.
If you have changed the PIN, it will appear on the telephone base in the
pairing process.
I cannot hear any audio on my telephone system when on a cell call.
Make sure that your cell phone’s volume is not too low or muted.
Reset the telephone base. Unplug the unit’s electrical power. Wait for
approximately 15 seconds, and then plug it back in.
Turn off your cell phone, and then turn it on again.
I cannot download contacts from my cell phone to my TL86103.
Make sure that your cell phone is paired and connected to the base.
Make sure you place your cell phone next to the base while downloading.
If your cell phone does not support the download, you can send the directory
from your cell phone. The system can receive the directory automatically. See
the user’s manual of your cell phone for more information.
I see duplicate entries in my downloaded directory.
If you see duplicate directory entries, you can delete them manually. Another
option is to download again either your SIM card or phone memory, but not
both.
•
•
•
•
•
•
•
•
•
•
•
•
•
•
138
Appendix
Troubleshooting
Some of my cell phone contacts were not imported to my TL86103.
Try copying the contacts from your SIM card to your cell phone memory
first, and then download from your phone memory. If that doesn’t work, try
copying the contacts from your cell phone memory to your SIM card, and
then download from your SIM card. For more information on how to transfer
contacts between your SIM card and your phone memory, refer to the user’s
manual of your cell phone.
Can the TL86103 help the poor cell phone reception in my house?
If your cell phone has poor reception in your home, the TL86103 cannot
improve the reception. However, if you have a location in your house with
better reception, you can leave your cell phone in that location while you
use TL86103 cell line. In order for this to work, the cell phone must be
within 30 feet of the telephone base for optimal performance.
The listening volume of my cell call is too loud or quiet.
During a cell call, if the listening volume is too loud or quiet, try changing the
volume on your cell phone. On some cell phones, changing the volume on the
cell phone affects your cell call volume on the TL86103 handset.
The phone doesn’t play my iPhone ringtone when there is an incoming call.
Make sure the operating system of your iPhone is iOS 4.1 or later.
Make sure you have turned on the Cell ringer feature (page 32).
The iPhone ringtone played is unclear or too loud with noise.
The quality of ringtone played on your telephone is subject to individual
ringtone characteristics.
Try using another iPhone ringtone to test the quality.
•
•
•
•
•
•
139
Appendix
Troubleshooting
My phone doesn’t work at all.
Make sure the power cord is securely plugged in.
Make sure that the battery connector is securely plugged into the handset.
Make sure the telephone line cord is securely and firmly plugged into the
telephone base and the telephone wall jack.
Charge the battery in the handset for at least 11 hours. For optimum daily
performance, return the handset to the telephone base or charger when not
in use.
If the battery is depleted, charge the handset for at least 30 minutes before
you use it. Refer to page 10 for details.
Reset the telephone base. Unplug the electrical power. Wait for
approximately 15 seconds, and then plug it back in. Allow up to one minute
for the handset and telephone base to reset.
You may need to purchase a new battery. Please refer to Battery
installation and charging (page 13) in this user’s manual.
I cannot get a dial tone.
Try all the suggestions above.
Move the cordless handset closer to the telephone base. You may have
moved out of range.
If the previous suggestions do not work, disconnect the telephone base from
the telephone jack and connect to a different phone. If there is no dial tone
on that phone either, the problem is in your wiring or telephone service.
Contact your telephone service provider.
Your line cord may be defective. Try installing a new line cord.
I cannot dial out.
Try all the suggestions above.
Make sure you have a dial tone before dialing. The cordless handset may
take a second or two to find the telephone base and produce a dial tone.
This is normal. Wait an extra second before dialing.
Eliminate any background noise. Noise from a television, radio or other
appliances may cause the phone to not dial out properly. If you cannot
eliminate the background noise, first try muting the cordless handset before
dialing, or dialing from another room with less background noise.
If other phones in your home are having the same problem, contact your
telephone service provider (charges may apply).
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
140
Appendix
Troubleshooting
During power outage, I put a handset in the charger but the system fails to
power up.
Make sure the handset you placed in the charger base has enough charge to
power up the system.
Try removing and re-installing the handset’s battery. Place the handset in the
charger again.
My cordless handset isn’t performing normally.
Make sure the power cord is securely plugged into the telephone base. Plug
the power adapter into a different working electrical outlet not controlled by
a wall switch.
Move the handset closer to the telephone base. You might have moved out
of range.
Reset the telephone base. Unplug the electrical power. Wait for 15 seconds,
and then plug it back in. Allow up to one minute for the handset and
telephone base to reset.
Other electronic products such as HAM radios and other DECT phones can
cause interference to your cordless telephone. Try installing your telephone
as far away as possible from these types of electronic devices.
Out of range appears on my cordless handset.
Ensure you plug the telephone base in properly and the power is on.
Move the cordless handset closer to the telephone base. You may have
moved out of range.
Reset the telephone base. Unplug the electrical power. Wait for 15 seconds,
and then plug it back in. Allow up to one minute for the cordless handset
and telephone base to reset.
Other electronic products such as HAM radios and other DECT phones can
cause interference with your cordless phone. Try installing your phone as far
away as possible from these types of electronic devices.
•
•
•
•
•
•
•
•
•
•
141
Appendix
Troubleshooting
The batteries do not hold a charge.
If the cordless handset is in the charger and the charge light is not on, refer
to The charge light is off (page 143).
Charge the battery in the cordless handset for at least ten hours. For
optimum daily performance, return the cordless handset to the telephone
base or charger when not in use.
If the battery is depleted, it may take approximately 30 minutes to charge
the handset before it shows Low battery. Refer to the table on page 13 for
details.
You may need to purchase a new battery. Please refer to
Battery installation and charging in this user’s manual on page 13.
I get noise, static, or weak signals even when I’m near the telephone base.
If you subscribe to high-speed Internet service (DSL - digital subscriber
line) through your telephone line, you must install a DSL filter between the
telephone line cord and the telephone wall jack (page 9). The filter prevents
noise and caller ID problems as a result of DSL interference. Please contact
your DSL service provider for more information about
DSL filters.
You may be able to improve the performance of your cordless phone by
installing your new telephone base as far as possible from any other existing
cordless telephone system that may already be installed.
Other electronic products such as HAM radios and other DECT phones can
cause interference with your cordless phone. Try installing your phone as far
away as possible from these types of electronic devices.
Do not install this phone near a microwave oven or on the same electrical
outlet. You may experience decreased performance while the microwave
oven is operating.
If you plug your phone in with a modem or a surge protector, plug the
phone (or modem/surge protector) into a different location. If this does not
solve the problem, relocate your phone or modem farther apart from one
another, or use a different surge protector.
Move your phone to a higher location. The phone may have better reception
in a high area.
If other phones in your home are having the same problem, contact your
telephone service provider (charges may apply).
I hear other calls while using my phone.
Disconnect the telephone base from the telephone jack, and plug in a
different telephone. If you still hear other calls, call your telephone
service provider.
•
•
•
•
•
•
•
•
•
•
•
142
Appendix
Troubleshooting
I experience poor sound quality when using the handset speakerphone.
For increased sound quality while using the handset speakerphone, place the
handset on a flat surface with the dial pad facing up.
When using a speakerphone, controllinh background noise in your
environment is essential. While you are listening to your party, press
MUTE/DELETE to temporarily turn your microphone off. When it is your turn
to speak, remember to press MUTE/DELETE again to turn the midrophone on.
Excessive background noise will cause a speakerphone to fade in and out.
Try controlling the background noise by turning off and audio devices near
the speakerphone. Also, try to avoid interrupting the person at the other
end of the conversation while they are speaking. If background noise cannot
be controlled, you should terminate speakerphone operation and return to
normal handset mode.
My cordless handset does not ring when I receive a call.
Make sure that the ringer is not off. Refer to Ringer volume on page 32 in
this user’s manual.
Make sure you plug in the telephone line cord securely into the telephone
base and the telephone jack. Make sure you plug in the power cord securely.
The cordless handset may be too far from the telephone base.
Charge the battery in the cordless handset for at least ten hours. For
optimum daily performance, return the cordless handset to the telephone
base or charger when not in use.
You may have too many extension phones on your telephone line to
allow all of them to ring simultaneously. Try unplugging some of the
other phones.
The layout of your home or office may be limiting the operating range. Try
moving the telephone base to another location, preferably to a
higher location.
If other phones in your home are having the same problem, contact your
telephone service provider (charges may apply).
Test a working phone at the phone jack. If another phone has the same
problem, contact your telephone service provider (charges may apply).
Other electronic products can cause interference with your cordless phone.
Try installing your phone as far away as possible from electronic devices
such as television sets, VCRs, or other cordless telephones.
Remove the battery. Install the battery again and place the cordless handset
into the telephone base. Wait for the cordless handset to reestablish its
connection with the telephone base. Allow up to one minute for this to take
place.
Your line cord may be defective. Try installing a new line cord.
•
•
•
•
•
•
•
•
•
•
•
•
•
•
143
Appendix
My calls cut in and out while I’m using my cordless handset.
Other electronic products such as HAM radios and other DECT phones can
cause interference with your cordless phone. Try installing your phone as far
away as possible from these types of electronic devices.
Do not install this phone near a microwave oven or on the same electrical
outlet. You may experience decreased performance while the microwave
oven is operating.
If you plug your phone in with a modem or surge protector, plug the phone
(or modem/surge protector) into a different location. If this does not solve
the problem, relocate your phone or modem farther apart from one another,
or use a different surge protector.
Move your telephone base to a higher location. The phone may have better
reception when installed in a high area.
If other phones in your home are having the same problem, contact your
telephone service provider (charges may apply).
The charge light is off.
Make sure you plug the power and line cords in correctly and securely.
Unplug the electrical power. Wait for 15 seconds, and then plug it back in.
Allow up to one minute for the cordless handset and telephone base
to reset.
Clean the cordless handset, charger and telephone base charging contacts
each month with a pencil eraser or cloth.
A blinking CHARGE light is an indication that the battery is not connected to
the handset or is missing completely. Ensure that the battery is
installed properly.
My caller ID isn’t working.
Caller ID is a subscription service. You must subscribe to this service from
your telephone service provider for this feature to work on your phone.
The caller may be calling from an area that supports caller ID.
Both your and your caller’s telephone service providers must use caller ID
compatible equipment.
If you subscribe to high-speed Internet service (DSL - digital subscriber
line) through your telephone line, you must install a DSL filter between the
telephone line cord and the telephone wall jack (page 9). The filter prevents
noise and caller ID problems resulting from DSL interference. Please contact
your DSL service provider for more information about
DSL filters.
•
•
•
•
•
•
•
•
•
•
•
•
•
Troubleshooting
144
Appendix
Troubleshooting
I cannot retrieve voicemail messages.
You
r telephone has both a built-in answering system and voicemail
indication. They are independent features and each alerts you to new
messages differently (page 112). If you subscribe to voicemail service from
your telephone service provider, contact your telephone service provider for
more information on how to access your voicemail.
I’
ve set my LCD language to Spanish or French and I don’t know how to
change it back to English.
Press MENU on your handset or base in idle mode, and then enter 364# on
the handset or base. You hear a confirmation tone.
I subscribe to a nontraditional telephone service that uses my computer to
establish connections, and my telephone doesn’t work.
Make sure your computer is powered on.
Make sure your Internet connection is working properly.
Make sure that the software is installed and running for your nontraditional
telephone service.
If you are using a firewall, it may prevent access to your
nontraditional telephone service provider. Contact your service
provider for more information.
Common cure for electronic equipment.
If the telephone does not seem to be responding normally, try putting the
cordless handset in the charger. If it does not fix the problem, do the following
(in the order listed):
Disconnect the power to the telephone base.
Disconnect the cordless handset battery.
Wait a few minutes.
Connect power to the telephone base.
Remove the battery. Replace the battery and place the cordless handset
into the telephone base or charger.
Wait for the cordless handset to reestablish its connection with the
telephone base. Allow up to one minute for this to take place.
•
•
•
•
•
•
1.
2.
3.
4.
5.
6.
145
Appendix
Troubleshooting
Taking care of your telephone
Your cordless telephone contains sophisticated electronic parts, so you must
treat it with care.
Avoid rough treatment.
Place the handset down gently.
Save the original packing materials to protect your telephone if you ever
need to ship it.
Avoid water
You can damage your telephone if it gets wet. Do not use the handset in the
rain, or handle it with wet hands. Do not install the telephone base near a
sink, bathtub or shower.
Electrical storms
Electrical storms can sometimes cause power surges harmful to electronic
equipment. For your own safety, take caution when using electric appliances
during storms.
Cleaning your telephone
Your telephone has a durable plastic casing that should retain its luster for
many years. Clean it only with a soft cloth slightly dampened with water or
mild soap.
Do not use excess water or cleaning solvents of any kind.
Remember that electrical appliances can cause serious injury if used when you are wet or
standing in water. If the telephone base should fall into water, DO NOT RETRIEVE IT UNTIL YOU
UNPLUG THE POWER CORD AND TELEPHONE LINE CORDS FROM THE WALL. Pull the unit out
by the unplugged cords.
•
•
•
•
•
•
•
•
146
Appendix
Troubleshooting
System does not receive caller ID when on a call.
Make sure you subscribe to caller ID with call waiting features from your
telephone service provider. Caller ID features works only if both you and the
caller are in areas offering caller ID service, and if both telephone service
providers use compatible equipment.
Incomplete messages.
If a caller leaves a very long message, part of it may be lost when the system
disconnects the call after the maximum recording time you have set.
If the caller pauses for longer than seven seconds, the system stops
recording and disconnects the call.
If the system’s memory becomes full during a message, the system stops
recording and disconnects the call.
If the caller’s voice is very soft, the system may stop recording and
disconnect the call.
Difficulty hearing messages.
Press VOLUME/ to increase the telephone base speaker volume.
Press /VOLUME to adjust the message playback volume on
a handset.
System does not answer after the correct number of rings.
• Make sure the answering system is on. L1) Ans sys off or L2) Ans sys off
should not appear on the handset screen and the /LINE 1 ANS ON/OFF or
/LINE 2 ANS ON/OFF light on the telephone base should be on.
• If toll saver is activated, the number of rings changes to two when you have
new messages stored (pages 107).
• If the memory is full or the system is off, the system will answer after
ten rings.
In some cases, the answering system is affected by the ringing system used
by your telephone service provider.
If you subscribe to voicemail service, change the number of rings so
that your answering system answers before your voicemail answers
(pages 107). To determine how many rings activate your voicemail, contact
your telephone service provider.
If there is a fax machine connected to the same telephone line, try
disconnecting the fax machine. If that solves the problem, consult your
fax machine documentation for information on compatibility with answering
systems.
•
•
•
•
•
•
•
•
•
•
147
Appendix
Troubleshooting
System does not respond to remote commands.
• Make sure to enter your remote access code correctly (page 122).
• Make sure you are calling from a touch-tone phone. When you dial a
number, you should hear tones. If you hear clicks, the phone is not a touch-
tone telephone and cannot activate the answering system.
• The answering system may not detect the remote access code while your
announcement is playing. Try waiting until the announcement is over before
entering the code.
• There may be interference on the phone line you are using. Press dialing
keys firmly.
System does not record messages.
• Make sure the answering system is on. Ans sys off should not show on the
handset and the /LINE 1 or /LINE 2 light on the telephone base should
be on.
• Make sure the memory of the answering system is not full.
If you subscribe to voicemail service, change the number of rings so
that your answering system answers before your voicemail answers
(pages 107). To determine how many rings activate your voicemail, contact
your telephone service provider.
If there is a fax machine connected to the same telephone line, try
disconnecting the fax machine. If that solves the problem, consult your
fax machine documentation for information on compatibility with answering
systems.
System announces, “Time and day not set.”
• You need to reset the system clock (page 36).
Outgoing announcement is not clear.
• When you record your announcement, make sure you speak in a normal
tone of voice, about nine inches from the handset or the telephone base.
• Make sure there is no background noise (TV, music, etc.) while recording.
New voicemail and show on the screens, and I don’t know why.
•
Your telephone has both a built-in answering system and voicemail
indication. If New voicemail and appear on the screens, and then your
telephone has received a signal from your telephone service provider that
you have a voicemail message waiting for you to retrieve from them. Contact
your telephone service provider for more information on how to access your
voicemail.
•
•
148
Appendix
Important safety information
Safety information
Read and understand all instructions in the user’s manual. Observe all markings on the product.
Avoid using a telephone during a thunderstorm. There might be a slight chance of electric shock
from lightning.
Do not use a telephone in the vicinity of a gas leak. Under certain circumstances, a spark may
be created when the adapter is plugged into the power outlet, or when the handset is replaced
in its cradle. This is a common event associated with the closing of any electrical circuit. The
user should not plug the phone into a power outlet, and should not put a charged handset into
the cradle, if the phone is located in an environment containing concentrations of flammable or
flame-supporting gases, unless there is adequate ventilation. A spark in such an environment
could create a fire or explosion. Such environments might include: medical use of oxygen
without adequate ventilation; industrial gases (cleaning solvents; gasoline vapors; etc.); a leak of
natural gas; etc.
Do not use this product near water, or when you are wet. For example, do not use it in a wet
basement or shower, or next to a swimming pool, bathtub, kitchen sink, or laundry tub. Do not
use liquids or aerosol sprays for cleaning. If the product comes in contact with any liquids,
unplug any line or power cord immediately. Do not plug the product back in until it has dried
thoroughly.
Install this product in a protected location where no one can trip over any line or power cords.
Protect cords from damage or abrasion.
If this product does not operate normally, read the Troubleshooting section on pages 135-147
of this user’s manual. If you cannot solve the problem, or if the product is damaged, refer to the
Limited warranty section on pages 153-154. Do not open this product except as may be directed
in your user’s manual. Opening the product or reassembling it incorrectly may expose you to
hazardous voltages or other risks.
Replace batteries only as described in your user’s manual (page 13). Do not burn or puncture
batteries — they contain caustic chemicals.
The power adapters are intended to be correctly oriented in a vertical or floor mount position.
The prongs are not designed to hold the plug in place if it is plugged into a ceiling, under-the-
table or cabinet outlet.
•
•
•
•
•
•
•
•
This symbol is to alert you to important operating or servicing instructions that may
appear in this user’s manual. Always follow basic safety precautions when using this
product to reduce the risk of injury, fire, or electric shock.
CAUTION: Use only the power adapter provided with this product. To obtain a
replacement, visit our website at www.telephones.att.com, or call
1 (800) 222–3111. In Canada, dial 1 (866) 288-4268.
For more detailed instructions, refer to the online Complete user’s manual at
www.telephones.att.com/manuals.
149
Appendix
Important safety information
Especially about cordless telephones
Privacy: The same features that make a cordless telephone convenient create some limitations.
Telephone calls are transmitted between the telephone base and the handset by radio waves,
so there is a possibility that your cordless telephone conversations could be intercepted by
radio receiving equipment within range of the cordless handset. For this reason, you should not
think of cordless telephone conversations as being as private as those on corded telephones.
Electrical power: The telephone base of this cordless telephone must be connected to a
working electrical outlet which is not controlled by a wall switch. Calls cannot be made from
the handset if the telephone base is unplugged, switched off or if the electrical power
is interrupted.
Potential TV interference: Some cordless telephones operate at frequencies that may cause
interference to TVs and VCRs. To minimize or prevent such interference, do not place the
telephone base of the cordless telephone near or on top of a TV or VCR. If interference is
experienced, moving the cordless telephone farther away from the TV or VCR will often reduce
or eliminate the interference.
Rechargeable batteries: This product contains nickel-metal hydride rechargeable batteries.
Exercise care in handling batteries in order not to create a short circuit with conductive material
such as rings, bracelets, and keys. The battery or conductor may overheat and cause harm.
Observe proper polarity between the battery and the battery charger.
Nickel-metal hydride rechargeable batteries: Dispose of these batteries in a safe manner. Do not
burn or puncture. Like other batteries of this type, if burned or punctured, they could release
caustic material which could cause injury.
The RBRC™ Seal means that the manufacturer is voluntarily participating in
an industry program to collect and recycle nickel-metal hydride rechargeable
batteries when taken out of service within the United States. These batteries
may be taken to a participating local retailer of replacement batteries or
recycling center. Or you may call 1 (800) 8-BATTERY for locations accepting
spent Ni-MH batteries.
Precautions for users of implanted cardiac pacemakers
Cardiac pacemakers (applies only to digital cordless telephones): Wireless Technology Research,
LLC (WTR), an independent research entity, led a multidisciplinary evaluation of the interference
between portable wireless telephones and implanted cardiac pacemakers. Supported by the U.S.
Food and Drug Administration, WTR recommends to physicians that:
Pacemaker patients:
Should keep wireless telephones at least six inches from the pacemaker.
Should NOT place wireless telephones directly over the pacemaker, such as in a breast pocket,
when it is turned ON.
Should use the wireless telephone at the ear opposite the pacemaker.
WTR’s evaluation did not identify any risk to bystanders with pacemakers from other persons using
wireless telephones.
ECO mode
This power conserving technology reduces power consumption for optimal battery performance. The
ECO mode activates automatically whenever the handset is synchronized with the telephone base.
Especially about telephone answering systems
Two-way recording: This unit does not sound warning beeps to inform the other party that the
call is being recorded. To ensure that you are in compliance with any federal or state regulations
regarding recording a telephone call, you should start the recording process and then inform the
other party that you are recording the conversation.
SAVE THESE INSTRUCTIONS
•
•
•
•
•
•
•
•
150
Appendix
Energy-saving charging mode
When this mode is activated, all functions of the cordless handsets, except handset battery
charging, will be disabled.
To activate the energy-saving charging mode:
Press and hold HOLD on the telephone base for about 10 seconds in idle mode. The
telephone base shows Deregister all devices? Release HOLD.
Quickly press HOLD again or press YES within 5 seconds.
When the handsets successfully enter the energy-saving charging mode, all handset
screens display To register, see user manual.
When the handsets fail to enter this mode, repeat Step 1 to Step 2 above.
To deactivate the energy-saving charging mode:
Register your handsets back to the telephone base. See page 124 for handset registration
instructions.
1.
2.
151
Appendix
FCC Part 68 and ACTA
This equipment complies with Part 68 of the FCC rules and with technical requirements adopted
by the Administrative Council for Terminal Attachments (ACTA). The label on the back or bottom of
this equipment contains, among other things, a product identifier in the format US:AAAEQ##TXXXX.
This identifier must be provided to your telephone service provider upon request.
The plug and jack used to connect this equipment to premises wiring and the telephone network
must comply with the applicable Part 68 rules and technical requirements adopted by ACTA. A
compliant telephone cord and modular plug is provided with this product. It is designed to be
connected to a compatible modular jack that is also compliant. An RJ11 jack should normally be
used for connecting to a single line and an RJ14 jack for two lines. See Installation Instructions in
the user’s manual.
The Ringer Equivalence Number (REN) is used to determine how many devices you may connect
to your telephone line and still have them ring when you are called. The REN for this product is
encoded as the 6th and 7th characters following the US: in the product identifier (e.g., if ## is 03,
the REN is 0.3). In most, but not all areas, the sum of all RENs should be five (5.0) or less. For more
information, please contact your telephone service provider.
This equipment may not be used with Party Lines. If you have specially wired alarm dialing
equipment connected to your telephone line, ensure the connection of this equipment does not
disable your alarm equipment. If you have questions about what will disable the alarm equipment,
consult your telephone service provider or a qualified installer.
If this equipment is malfunctioning, it must be unplugged from the modular jack until the problem
has been corrected. Repairs to this telephone equipment can only be made by the manufacturer
or its authorized agents. For repair procedures, follow the instructions outlined under the Limited
Warranty.
If this equipment is causing harm to the telephone network, the telephone service provider may
temporarily discontinue your telephone service. The telephone service provider is required to notify
you before interrupting service. If advance notice is not practical, you will be notified as soon
as possible. You will be given the opportunity to correct the problem and the telephone service
provider is required to inform you of your right to file a complaint with the FCC. Your telephone
service provider may make changes in its facilities, equipment, operation, or procedures that could
affect the proper functioning of this product. The telephone service provider is required to notify
you if such changes are planned.
If this product is equipped with a corded or cordless handset, it is hearing aid compatible.
If this product has memory dialing locations, you may choose to store emergency telephone
numbers (e.g., police, fire, medical) in these locations. If you do store or test emergency numbers,
please:
Remain on the line and briefly explain the reason for the call before hanging up.
Perform such activities in off-peak hours, such as early morning or late evening.
Industry Canada
Operation is subject to the following two conditions: (1) this device may not cause harmful
interference, and (2) this device must accept any interference, including interference that may
cause undesired operation.
The term ‘’IC:‘’ before the certification/registration number only signifies that the Industry Canada
technical specifications were met.
The Ringer Equivalence Number (REN) for this terminal equipment is 1.0. The REN is an indication of
the maximum number of devices allowed to be connected to a telephone interface. The termination
on an interface may consist of any combination of devices subject only to the requirement that the
sum of the RENs of all the devices does not exceed five.
This product meets the applicable Industry Canada technical specifications.
•
•
152
Appendix
FCC Part 15
This equipment has been tested and found to comply with the requirements for a Class B digital
device under Part 15 of the Federal Communications Commission (FCC) rules.
These requirements are intended to provide reasonable protection against harmful interference in
a residential installation. This equipment generates, uses and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not occur in a
particular installation.
If this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
Consult the dealer or an experienced radio/TV technician for help.
Changes or modifications to this equipment not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
This device complies with Part 15 of the FCC rules. Operation is subject to the following two
conditions: (1) this device may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause undesired operation. Privacy of
communications may not be ensured when using this telephone.
To ensure safety of users, the FCC has established criteria for the amount of radio frequency energy
that can be safely absorbed by a user or bystander according to the intended usage of the product.
This product has been tested and found to comply with the FCC criteria. The handset may be safely
held against the ear of the user. The telephone base shall be installed and used such that parts
of the user’s body other than the hands are maintained at a distance of approximately 20cm (8
inches) or more.
This Class B digital apparatus complies with Canadian requirement:
CAN ICES-3 (B)/NMB-3(B)
For body worn operation, this handset has been tested and meets the FCC RF exposure guidelines
when used with the accessories supplied or designated for this product. Use of other accessories
may not ensure compliance with FCC RF exposure guidelines.
•
•
•
•
153
Appendix
Limited warranty
The AT&T brand is used under license - any repair, replacement or warranty service, and all
questions about this product should be directed to our website at
www.telephones.att.com or call 1 (800) 222-3111. In Canada, dial
1 (866) 288-4268.
For more detailed instructions, refer to the online Complete user’s manual at
www.telephones.att.com/manuals.
What does this limited warranty cover?
The manufacturer of this AT&T branded product warrants to the holder of a valid proof of
purchase (“CONSUMER” or “you”) that the product and all accessories provided in the sales
package (“PRODUCT”) are free from defects in material and workmanship, pursuant to the
following terms and conditions, when installed and used normally and in accordance with the
PRODUCT operating instructions. This limited warranty extends only to the CONSUMER for
products purchased and used in the United States of America and Canada.
What will be done if the PRODUCT is not free from defects in materials and workmanship
during the limited warranty period (“materially defective PRODUCT”)?
During the limited warranty period, the manufacturer’s authorized service representative repairs
or replaces at the manufacturer’s option, without charge, a materially defective PRODUCT. If the
manufacturer repairs the PRODUCT, they may use new or refurbished replacement parts. If the
manufacturer chooses to replace the PRODUCT, they may replace it with a new or refurbished
PRODUCT of the same or similar design. The manufacturer will retain the defective parts,
modules, or equipment. Repair or replacement of the PRODUCT, at the manufacturer’s option, is
your exclusive remedy. The manufacturer returns the repaired or replacement products to you in
working condition. You should expect the repair or replacement to take approximately 30 days.
How long is the limited warranty period?
The limited warranty period for the PRODUCT extends for ONE (1) YEAR from the date of
purchase. If the manufacturer repairs or replaces a materially defective PRODUCT under the
terms of this limited warranty, this limited warranty also applies to repaired or replacement
PRODUCT for a period of either (a) 90 days from the date the repaired or replacement
PRODUCT is shipped to you or (b) the time remaining on the original one-year limited warranty;
whichever is longer.
What is not covered by this limited warranty?
This limited warranty does not cover:
PRODUCT that has been subjected to misuse, accident, shipping or other physical damage,
improper installation, abnormal operation or handling, neglect, inundation, fire, water, or
other liquid intrusion; or
PRODUCT that has been damaged due to repair, alteration, or modification by anyone other
than an authorized service representative of the manufacturer; or
PRODUCT to the extent that the problem experienced is caused by signal conditions, network
reliability or cable or antenna systems; or
PRODUCT to the extent that the problem is caused by use with non-AT&T accessories; or
PRODUCT whose warranty/quality stickers, PRODUCT serial number plates or electronic
serial numbers have been removed, altered or rendered illegible; or
PRODUCT purchased, used, serviced, or shipped for repair from outside the United States
of America or Canada, or used for commercial or institutional purposes (including but not
limited to products used for rental purposes); or
PRODUCT returned without a valid proof of purchase (see item 6 below); or
Charges for installation or setup, adjustment of customer controls, and installation or repair
of systems outside the unit.
1.
2.
3.
4.
•
•
•
•
•
•
•
•
154
Appendix
How do you get warranty service?
To obtain warranty service in the United States of America, visit
www.telephones.att.com or call 1 (800) 222-3111. In Canada, please
dial 1 (866) 288-4268.
For more detailed instructions, refer to the online Complete user’s manual at
www.telephones.att.com/manuals.
NOTE: Before calling for service, please review the user’s manual. A check of the PRODUCT’s
controls and features might save you a service call.
Except as provided by applicable law, you assume the risk of loss or damage during transit and
transportation and are responsible for delivery or handling charges incurred in the transport
of the PRODUCT(s) to the service location. The manufacturer will return repaired or replaced
PRODUCT under this limited warranty. Transportation, delivery or handling charges are prepaid.
The manufacturer assumes no risk for damage or loss of the PRODUCT in transit. If the
PRODUCT failure is not covered by this limited warranty, or proof of purchase does not meet the
terms of this limited warranty, the manufacturer notifies you and requests that you authorize the
cost of repair prior to any further repair activity. You must pay for the cost of repair and return
shipping costs for the repair of products that are not covered by this limited warranty.
What must you return with the PRODUCT to get warranty service?
You must:
Return the entire original package and contents including the PRODUCT to the service
location along with a description of the malfunction or difficulty; and
Include “valid proof of purchase” (sales receipt) identifying the PRODUCT purchased
(PRODUCT model) and the date of purchase or receipt; and
Provide your name, complete and correct mailing address, and telephone number.
Other limitations
This warranty is the complete and exclusive agreement between you and the manufacturer of
this AT&T branded PRODUCT. It supersedes all other written or oral communications related to
this PRODUCT. The manufacturer provides no other warranties for this PRODUCT. The warranty
exclusively describes all of the manufacturer’s responsibilities regarding the PRODUCT. There are
no other express warranties. No one is authorized to make modifications to this limited warranty
and you should not rely on any such modification.
State/Provincial Law Rights: This warranty gives you specific legal rights, and you might also
have other rights that vary from state to state or province to province.
Limitations: Implied warranties, including those of fitness for a particular purpose and
merchantability (an unwritten warranty that the PRODUCT is fit for ordinary use) are limited to
one year from date of purchase. Some states/provinces do not allow limitations on how long
an implied warranty lasts, so the above limitation might not apply to you. In no event shall the
manufacturer be liable for any indirect, special, incidental, consequential, or similar damages
(including, but not limited to lost profits or revenue, inability to use the PRODUCT or other
associated equipment, the cost of substitute equipment, and claims by third parties) resulting
from the use of this PRODUCT. Some states/provinces do not allow the exclusion or limitation
of incidental or consequential damages, so the above limitation or exclusion might not apply
to you.
Please retain your original sales receipt as proof of purchase.
5.
6.
a.
b.
c.
7.
Limited warranty
155
Appendix
Technical specifications
RF frequency band DECT frequency: 1921.536 — 1928.448 MHz
Bluetooth frequency: 2402.000 — 2480.000 MHz
Channels DECT channel: 5
Bluetooth channel: 79
Operating temperature 32°F — 122°F
0°C — 50°C
Telephone base voltage
(AC voltage, 60Hz)
96 — 129 Vrms
Telephone base voltage
(AC adapter output)
6VDC @ 600mA
5.1VDC @1000mA
Handset battery 2.4VDC 400mAh, AAAx2, Ni-MH
Charger voltage
(AC adapter output)
6VAC @300mA
Operation Operating time*
Talk time (cordless handset) up to 7 hours
Talk time (cordless handset speakerphone) up to 5 hours
Standby up to 7 days
* Operating times vary depending on your actual use and the age of the battery.
DECT 6.0 digital technology
The AT&T DECT 6.0 products offer unsurpassed range performance and sound clarity.
This is achieved through a unique antenna design and advances in noise-filtering
technology. An independent laboratory has confirmed that AT&T DECT 6.0 products
perform up to 45% better in range competitions against similarly equipped phones of
the leading competition. Now calls can be taken in the basement, backyard and garage
with exceptional sound quality. can be taken in the basement, backyard and garage with
exceptional sound quality.
Telephone operating range
This cordless telephone operates within the maximum power allowed by the Federal
Communications Commission (FCC). Even so, this handset and telephone base can
communicate over only a certain distance — which can vary with the locations of the
telephone base and handset, the weather, and the construction of your home or office.
Redefining long range coverage and clarity
This telephone base comes with an antenna which gives much better clarity and covers
a longr range than before.
HD audio
HD audio improves sound quality by expanding and rebuilding frequencies that are lost
with traditional phone calls. There is no additional telephone service requirement to
use HD audio. It is designed to work with standard telephone service. Your system will
automatically enhance all received sound with HD audio.
Simulated full duplex handset speakerphone
The simulated full duplex speakerphone on your handset allows both ends of a call to
speak and be heard at the same time. Optimal performance is subject to external factors
and individual usage.
156
A
Add a Bluetooth headset 23, 25, 27
Add a cell phone 21
Alert tones
telephone base 119, 120
Announcement 96
Answer a cell call 47
Answer a cell call while on a home
call 49
Answer a home call 44
Answer an incoming call
during PTT 75
Answering system and voicemail 105
Answering system settings 96–99
B
Battery charging 13
Battery installation 13
Bluetooth 17–22
Bluetooth features 17
Bluetooth setup 21–24
C
Caller ID (CID)
add entries to phone directory 94
dial entries 91
Call waiting on the cell line 48
Cell call 47–48
Cell phone download directory 28, 29
Connect an active device 30
D
Delete all old messages 111
Delete a message 109–110
Dialing from a record in the
caller ID history 91
Directory 77–92
edit entries 84
name search 83
Download directory 28, 29
DSL 9, 10
E
End a cell call 47
End a home call 44
End mute 57
Energy-saving charging mode 141
Expand your telephone system 115
F
Find handset 55
H
HD audio 146
Headset 23
Hold 58
Home directory 77
I
Important safety information 139–
140
Intercom 65–67, 67–69
L
Limited warranty 144–145
Listening volume 57, 58
M
Make a cell call 47
Make a home call 44
Make an outgoing call during PTT 76
Memory match 89
Memos 112
Message
alert tone 103
playback 108–111
Message capacity 106
Mute 57, 59
O
Operating range 146
P
Paging 55
Phonebook 77
PTT 70–73
Pulse dialing 40
Push-to-talk 70–73
Index
Index
157
Index
Q
Quick reference guide 5–9
R
Record announcement 96, 97
Remote access code 113
Repeat messages 109, 110
Replace a handset 116
Ringtone share 17
S
Safety information 139–140
Share an outside call 56
Skip messages 109, 110
Softphone call 57
Speakerphone 55
Stop messages 109, 110
T
Take a call off mute 57
Telephone base
screen icons 118
Telephone base installation 9, 10
Telephone operating range 146
Troubleshooting 126–138
U
USB port 7, 11
V
Voice command 58
Voicemail 105
Volume 32, 57, 58
W
Wall mounting 14
Warranty 144–145
Website 41
Index
Remote access wallet card
The wallet card below lists the commands needed to control
your answering system from any touch-tone telephone.
Fold here.
Cut along dotted line.
Action Remote command
Play all messages .....................1
Play new messages ..................2
Delete the message .................3 (during message
playback)
Delete all old messages ........33
Repeat or go back ....................4
Call your telephone number, and then
enter
your 2-digit remote access code
Model: TL86103
Type: DECT 6.0 cordless telephone/answering system
with BLUETOOTH® wireless technology® wireless technology
© 2013 Advanced American Telephones. All Rights Reserved.
AT&T and the AT&T logo are trademarks of AT&T Intellectual Property
licensed to Advanced American Telephones, San Antonio, TX 78219.
Printed in China.
Stop ..................................................5
Help menu ....................................*5
Skip the message ......................6
Record announcement ...........*7
Turn system on or off .............0
End remote access call ..........8 (or hang up)
The Bluetooth® word mark and logos are owned by Bluetooth SIG, Inc. and any use of such marks by Advanced
American Telephones and its parent, VTech Holdings Limited, is under license. VTech Holdings Limited is a
member of Bluetooth SIG, Inc. Other trademarks and trade names are those of their respective owners.
© 2013 Advanced American Telephones. All Rights Reserved.
AT&T and the AT&T logo are trademarks of AT&T Intellectual Property licensed to
Advanced American Telephones, San Antonio, TX 78219.
Connect to Cell™ is a trademark of Advanced American Telephones.
Android® and Google Play® are registered trademarks of Google Inc.
iPhone® is a registered trademark of Apple, Inc.
Printed in China. Issue 1 AT&T 09/13.
91-007268-010-100
www.telephones.att.com
