User Manual
Complete user’s manual
CL83215/CL83315/CL83415/
CL83465/CL83565
DECT 6.0 cordless telephone/
answering system with
caller ID/call waiting
Congratulations
on your purchase of this AT&T product. Before using this AT&T product,
please read the Important safety information section on pages 123-118
of this manual. Please thoroughly read this user’s manual for all the
feature operations and troubleshooting information necessary to install
and operate your new AT&T product. You can also visit our website at
www.telephones.att.com or call 1 (800) 222-3111.
In Canada, dial 1 (866) 288-4268.
This telephone meets the California Energy Commission regulations for
energy consumption. Your telephone is set up to comply with the energy-
conserving standards right out of the box. No further action is necessary.
This telephone system is compatible with certain AT&T DECT 6.0 cordless
headsets. Visit www.telephones.att.com/accessories for a list of
compatible cordless headsets and speakerphones.

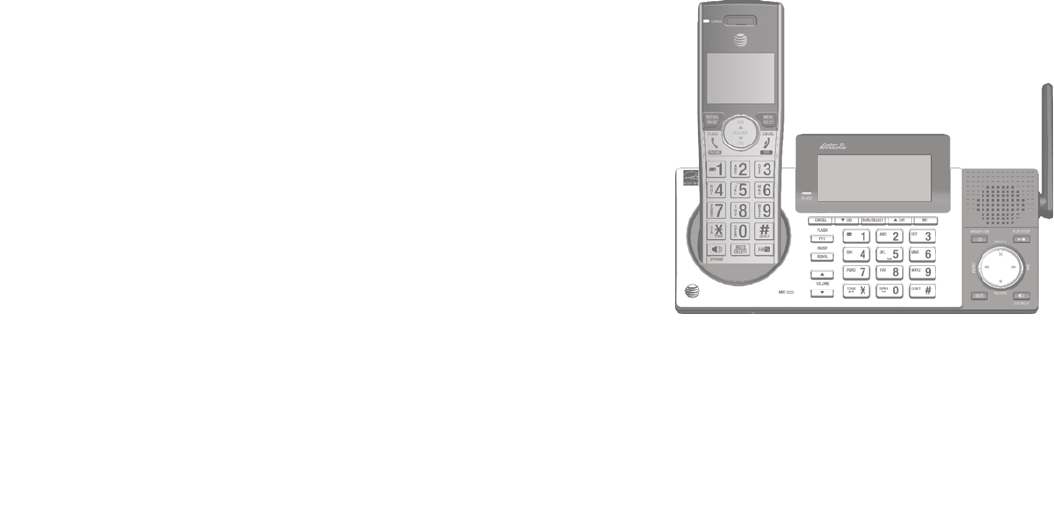

Model number: CL83215 (two handsets)
CL83315 (three handsets)
CL83415/CL83465 (four handsets)
CL83565 (five handsets)
Type: DECT 6.0 cordless telephone/answering system with
caller ID/call waiting
Serial number:
Purchase date:
Place of purchase:
Both the model and serial numbers of your AT&T product can be found on
the bottom of the telephone base.
Save your sales receipt and original packaging in case it is necessary to
return your telephone for warranty service.
© 2015 Advanced American Telephones. All Rights Reserved. AT&T and
the AT&T logo are trademarks of AT&T Intellectual Property licensed to
Advanced American Telephones, San Antonio, TX 78219. Printed in China.
Telephones identified with this logo have reduced noise and interference
when used with most T-coil equipped hearing aids and cochlear implants. The
TIA-1083 Compliant Logo is a trademark of the Telecommunications Industry
Association. Used under license.
The ENERGY STAR® program (www.energystar.gov) recognizes and encourages
the use of products that save energy and help protect our environment. We
are proud to mark this product with the ENERGY STAR® label indicating it
meets the latest energy efficiency guidelines.

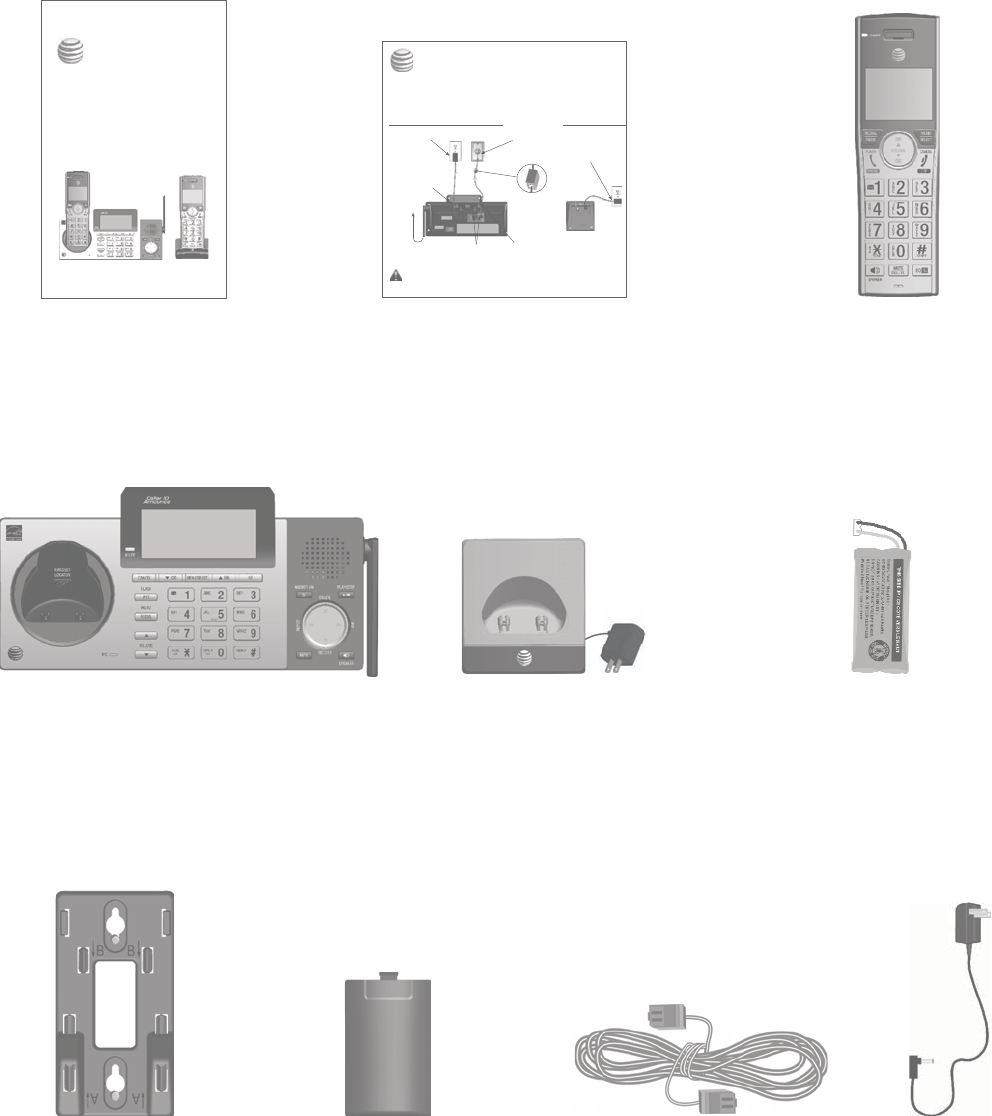

Parts checklist
Your telephone package contains the following items. Save your sales receipt
and original packaging in the event warranty service is necessary.
Cordless handset
(2 for CL83215)
(3 for CL83315)
(4 for CL83415/CL83465)
(5 for CL83565)
Charger for cordless handset
with power adapter installed
(1 for CL83215)
(2 for CL83315)
(3 for CL83415/CL83465)
(4 for CL83565)
Battery compartment cover
(2 for CL83215)
(3 for CL83315)
(4 for CL83415/CL83465)
(5 for CL83565)
Telephone line cord Power adapter for
telephone base
Telephone base Battery for cordless handset
(2 for CL83215)
(3 for CL83315)
(4 for CL83415/CL83465)
(5 for CL83565)
Abridged
User’s manual
Quick start guide
Caution: Use only the power adapter provided with this product. To obtain a replacement,
visit our website at www.telephones.att.com or call 1 (800) 222-3111. In
Canada, dial 1 (866) 288-4268.
Telephone base installation
This quick start guide provides you with basic instructions only.
For more complete instructions, refer to your Abridged user’s
manual provided in the package, or see the online Complete
user’s manual at www.telephones.att.com/manuals.
Quick start guide
CL83215/CL83315/CL83415/CL83465/CL83565
Raise the
antenna.
Plug the power cord and
the telephone line cord
into the jacks.
Plug one end of the
telephone line cord
into a telephone
jack or a DSL filter.
Charger installation
Plug the power
adapter into a
power outlet not
controlled by a wall
switch.
Complete user’s manual
CL83215/CL83315/CL83415/
CL83465/CL83565
DECT 6.0 cordless telephone/
answering system with
caller ID/call waiting Plug the large
end of the power
adapter into a
power outlet not
controlled by a wall
switch.
Route the power
adapter cord
through this slot.
If you have DSL
high-speed Internet
service, a DSL filter
(not included) is
required.
Route the
telephone line cord
through this slot.
Wall-mount bracket
Complete user’s manual
CL83215/CL83315/CL83415/
CL83465/CL83565
DECT 6.0 cordless telephone/
answering system with
caller ID/call waiting
Table of contents
Getting started
Quick reference guide - handset ........1
Quick reference guide -
telephone base ......................................4
Installation .....................................................7
Telephone base and charger
installation ...............................................8
Telephone base installation ............8
Charger installation .............................8
Battery installation and charging .......9
Battery backup mode ............................ 11
To activate the mode ...................... 11
Operation ............................................... 11
Installation options ................................. 12

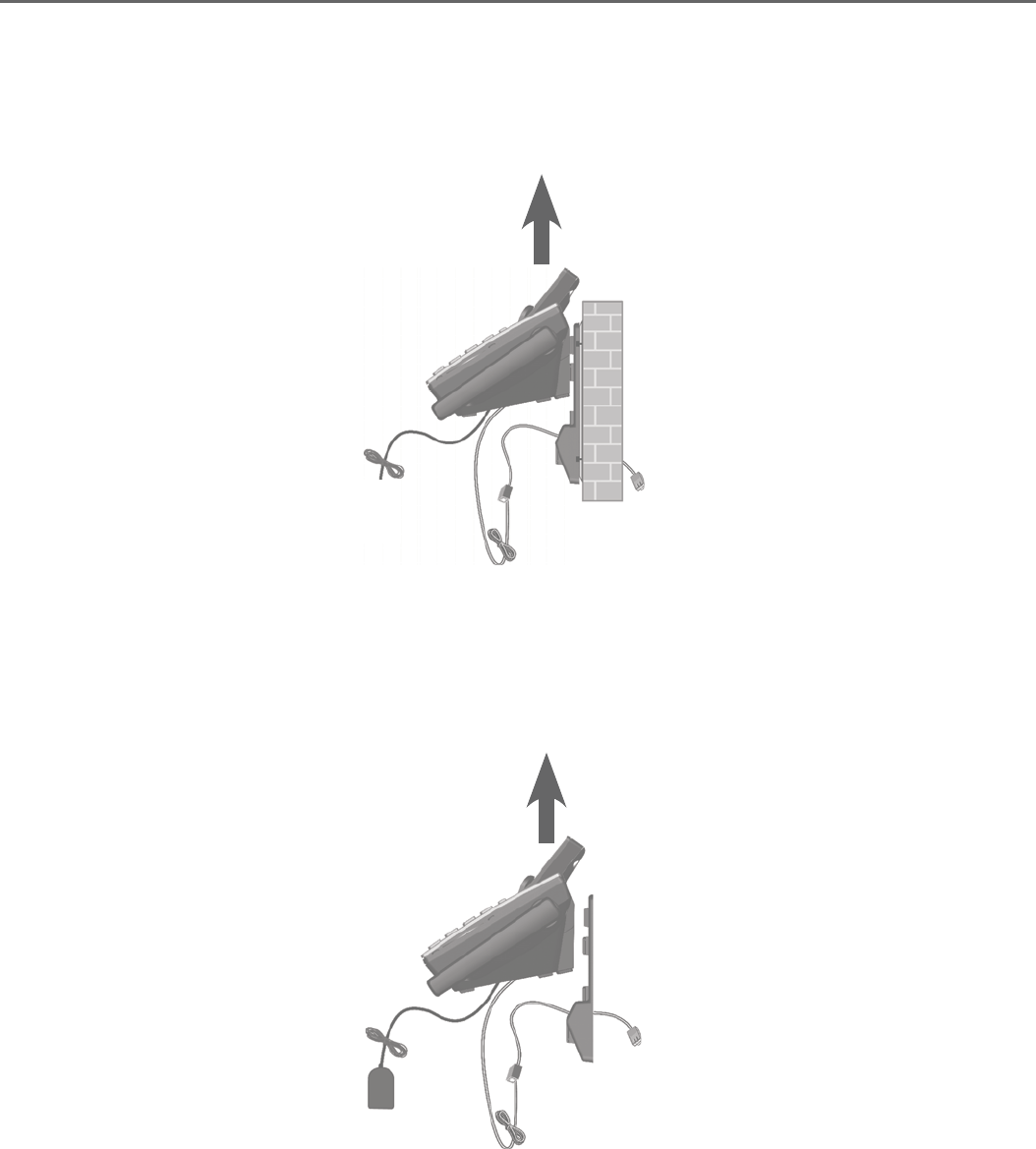

Tabletop to wall-mount
installation.......................................... 12
Wall-mount to tabletop
installation.......................................... 13
Telephone settings
Handset settings ...................................... 14
Ringer volume ..................................... 15
Ringer tone ........................................... 15
Set date/time ...................................... 16
LCD language ...................................... 17
Caller ID announce ........................... 18
Set speed dial voicemail
number ................................................. 19
Voicemail (visual message
waiting) indicator ............................ 19
Clear voicemail indication ........... 20
Rename handset ............................. 21
Key tone ................................................. 21
Use caller ID to automatically
set date and time ........................... 22
Home area code ................................. 22
Dial mode .............................................. 23
Web address ........................................ 23
QUIET mode ......................................... 24
Telephone base settings ...................... 25
Ringer volume ..................................... 26
Ringer tone ........................................... 26
Set date/time ...................................... 27
LCD language ...................................... 28
Caller ID announce ........................... 29
Set speed dial voicemail
number ................................................. 30
Voicemail (visual message
waiting) indicator ............................ 30
Clear voicemail indication ........... 31
Rename base ....................................... 32
Key tone ................................................. 32
Use caller ID to automatically
set date and time ........................... 33
Home area code ................................. 33
Dial mode .............................................. 34
Web address ........................................ 34
Telephone operation
Telephone operation.............................. 35
Making a call ........................................ 35
On hook dialing (predialing) ........ 35
Answering a call ................................ 35
Ending a call ........................................ 36
Auto off .................................................. 36
Temporary ringer silencing ........... 36
Handset speakerphone ................... 37
Last number redial ............................ 37
Equalizer ................................................. 39
Options while on calls .......................... 40
Volume control ................................... 40
Call waiting ........................................... 40
Mute ......................................................... 41
Chain dialing ........................................ 42
Temporary tone dialing .................. 44
Blind transfer ....................................... 44
Multiple handset use
Multiple handset use ............................. 46
Handset locator .................................. 46
Join a call in progress ..................... 46
Intercom ....................................................... 47
Answer an incoming call during
an intercom call .............................. 49
Call transfer using intercom .............. 50
Push-to-talk (PTT) ................................... 51
Turn PTT on or off ............................. 51
PTT call to a single device ............ 52
PTT call to multiple devices ......... 54
Answer a PTT call .............................. 56
Change a one-to-one PTT call
to an intercom call ........................ 57
Answer an incoming call during
a PTT call ............................................ 57
Make an outgoing call during
PTT call ................................................ 58
End or leave a PTT call ................... 58
Directory
About the directory ................................ 59
Shared directory ................................. 59
Capacity .................................................. 59
Create directory entries ....................... 60
Create a new directory entry ...... 60
Add a predialed telephone
number to the directory .............. 61
Review the directory .............................. 62
Review directory entries ................ 62
Search by name.................................. 63
Dial, delete or edit directory
entries ..................................................... 64
Display dial ........................................... 64
Delete a directory entry ................. 64
Edit a directory entry ....................... 65
Speed dial ................................................... 66
Assign a speed dial number......... 66
Assign your voicemail speed
dial number ....................................... 67
Reassign a speed dial number .... 67
Delete a speed dial number......... 68
Make a call using speed dial ....... 68
Check your voicemail using
speed dial ........................................... 68
Caller ID
About caller ID ......................................... 69
Information about caller ID
with call waiting .............................. 69
Caller ID history ....................................... 70
How the caller ID history
(caller ID log) works ...................... 70
Missed (new) call indicator ........... 70
Caller ID operation ................................. 71
Memory match .................................... 71
Review the caller ID log ................. 72
View dialing options ......................... 73
Dial a caller ID log entry ............... 73
Delete caller ID log entries .......... 73
Save a caller ID log entry to the
directory .............................................. 74
Reasons for missing caller ID
information ........................................... 75
Call block
Call block .................................................... 76
Add a call block entry ..................... 77
Review the call block list .............. 78
Save a caller ID log entry to
call block list ..................................... 78
Edit a call block entry ..................... 79
Delete a call block entry ............... 80
Block calls without number ......... 80
Mute first ring of blocked calls ... 80
Answering system
Answering system settings ................. 81
Announcement ................................... 81
Answer on/off ..................................... 84
Voice guide ........................................... 85
Call screening ...................................... 86
Number of rings ................................. 87
Remote access code ........................ 88
Message alert tone ........................... 89
Message recording time ................. 90
About the answering system............. 91
Answering system and voicemail
indicators ............................................ 91
About the answering system............. 92
Using the answering machine
and voicemail together ............... 92
Message capacity .............................. 92
Voice prompts ..................................... 93
Call screening ...................................... 93
Call intercept ....................................... 94
Base ringer ........................................... 94
Temporarily turning off the
message alert tone ........................ 94
Message playback ................................... 95
Options during playback ................ 96
Delete all old messages ................. 98
Recording and playing memos ......... 99
Record a memo .................................. 99
Recording and playing memos .......100
Play back a memo ..........................100
Base message counter displays .....101
Message counter displays ...........101
Remote access ........................................102
Adding and registering handsets/
headsets/speakerphones ............104
Register a handset to the
telephone base ..............................104
Deregistering handsets ......................106
Deregister all handsets from
the telephone base .....................106
Alert tones and lights .........................107
Handset screen icons ....................107
Telephone base screen icons ....107
Handset alert tones ........................108
Telephone base alert tones ........108
Lights .....................................................109
Screen display messages ..................110
Screen messages .............................110
Troubleshooting .....................................113
Maintenance.............................................122
Important safety information ..........123
Safety information ...........................123
Especially about cordless
telephones .......................................124
Precautions for users of implanted
cardiac pacemakers ...........................125
Pacemaker patients ........................125
ECO mode ...........................................125
Especially about telephone
answering systems .......................125
FCC Part 68 and ACTA........................126
FCC Part 15 ..............................................127
California Energy Commission
battery charging testing
instructions .........................................128
Limited warranty ....................................129
Technical specifications .....................131
DECT 6.0 digital technology .......131
Telephone operating range ........131
Redefining long range
coverage and clarity....................131
HD audio ..............................................131
Simulated full-duplex handset
and base speakerphones ..........131
Index
Index ............................................................132
CHARGE light
On when the handset is charging in the telephone
base or charger.
TCID/VOLUME
Press TCID to show caller ID history when the
handset is not in use (page 71).
Press to scroll down while in menus.
While entering names or numbers, press to
move the cursor to the left.
Press to decrease the listening volume when
on a call (page 40), or to decrease the message
playback volume (page 97).
•
•
•
•
/SPEAKERSPEAKER
Press to make or answer a call using the
speakerphone (page 35).
Press to switch between the speakerphone and
the handset (page 36).
•
•
TONE /a>A
Press to switch to tone dialing temporarily
during a call if you have pulse service (page 43).
While entering names, press to change the next
letter to upper or lower case.
•
•
1
While reviewing a caller ID log entry, press
repeatedly to add or remove 1 in front of the
telephone number before dialing or saving it in
the directory.
Press and hold to set (page 19) or to dial your
voicemail number (page 68).
•
•
FLASH/ PHONE
Press to make or answer a call (page 35).
During a call, press to answer an incoming call
when you receive a call waiting alert (page 40).
During message playback, press to call back the
caller if the caller’s number is available (page 97).
•
•
•
REDIAL/PAUSE
Press repeatedly to view the last ten numbers
dialed (page 37).
While entering numbers, press and hold to insert
a dialing pause (page 60).
•
•
Quick reference guide - handset
Getting started
1
Quick reference guide - handset
SDIR/VOLUME
Press SDIR to show directory entries when the handset
is not in use (page 62).
Press to scroll up while in menus.
While entering names or numbers, press to move the
cursor to the right.
Press to increase the listening volume when on a call
(page 39), or to increase the message playback volume
(page 90).
•
•
•
•
MENU/SELECT
When the handset is not in use, press to show the
menu.
While in the menu, press to select an item or save an
entry or setting.
•
•
CANCEL/ OFF
During a call, press to hang up (page 35).
While in a menu, press to cancel an operation, back up
to the previous menu, or exit the menu display, or
press and hold this button to exit to idle mode.
When the handset is ringing, press to mute the ringer
temporarily (page 36).
Press and hold while the telephone is not in use to erase
the missed call indicator.
•
•
•
•
QUIET# (pound key)
Press repeatedly to display other dialing options when
reviewing a caller ID log entry (page 73).
Press and hold to enter the QUIET mode setting screen,
or to deactivate QUIET mode (page 23).
•
•
MUTE/DELETE
During a call, press to mute the microphone (page 41).
When the handset is ringing, press to mute the ringer
temporarily (page 36).
While reviewing the caller ID history, the directory or the
redial memory, press to delete an individual entry.
While predialing, press to delete digits.
During message or announcement playback, press
to delete the playing message or the recorded
announcement.
•
•
•
•
•
EQ
During an outside call, intercom call, message or
announcement playback, press to change the audio
quality to best suit your hearing (page 39).
Getting started
2
3
Quick reference guide - handset
Main menu
Play messages (page 89)
Answering sys (page 81)
Directory (page 59)
Caller ID log (page 71)
Intercom (page 47)
Ringers (page 15)
Set date/time (page 16)
Settings (page 17)
Web address (page 23)
•
•
•
•
•
•
•
•
•
Using menus:
Press MENU/SELECT to show the menu.
Press TCID or SDIR to scroll through menu items.
Press MENU/SELECT to confirm or save changes to a highlighted menu item.
Press CANCEL/ OFF to cancel an operation, back up to the previous
menu, or exit the menu display.
•
•
•
•
The > symbol highlights
a menu item.
>Play messages
Answering sys
Main menu
Getting started
PUSH TO TALK
Press to initiate a one-to-one (page 52) or
one-to-group broadcast (page 54).
Press and hold to broadcast to a group of
system devices (page 54).
•
•
Handset
side view
4
Getting started
Quick reference guide - telephone base
IN USE light
On when the telephone is in use,
or when the answering system is
answering an incoming call.
On when a handset is being
registered.
Flashes when there is an incoming
call or when all handsets are being
deregistered.
Flashes when another telephone is
in use on the same line.
•
•
•
•
PTT/FLASH
Press to initiate a one-to-one
(page 53) or one-to-group
broadcast (page 54).
Press and hold to broadcast to
a group of system devices
(page 54).
REDIAL/PAUSE
Press repeatedly to view the last
10 numbers dialed (page 37).
While entering numbers,
press and hold to insert a
dialing pause.
•
•
•
•
/HANDSET LOCATOR
While the phone is idle, press to page
all handsets (page 46).
T/VOLUME/S
During message playback or
call screening, press to adjust
the listening volume (page 96
or page 93).
While in idle mode, press to
adjust the base ringer volume.
When on a call, press to
adjust the listening volume.
•
•
•
MIC
Microphone
1
Press and hold to
set (page 29) or to
dial your voicemail
number (page 68).
MENU/SELECT
When the telephone base is not in use,
press to show the menu.
While in the menu, press to confirm or
save an entry or setting.
SDIR
Press to display the directory when the
phone is not in use (page 62).
Press to scroll up while in menus and lists.
While entering names or numbers, press to
move the cursor to the right.
INT
Press to initiate an intercom conversation or
transfer a call.
•
•
•
•
•
CANCEL
While in a menu, press to cancel an
operation, back up to the previous menu or
exit the menu display.
Press and hold to go back to idle mode.
When the telephone base is ringing, press to
mute the ringer temporarily.
TCID
Press to display the caller ID log when the
phone is not in use.
Press to scroll down while in menus and lists.
While entering names or numbers, press to
move the cursor to the left.
•
•
•
•
•
•
Getting started
5
Quick reference guide - telephone base
•/RECORD
Press to record a memo (page 93) or an announcement
(page 76).
/REPEAT
During playback, press to repeat the playing
message (page 89).
During playback, press twice to play the previous
message (page 89).
/SKIP
Press to skip a message (page 89).
/PLAY/STOP
Press to start or stop message playback (page 89).
X/DELETE
While reviewing the caller ID history, the directory
or the redial memory, press to delete an individual
entry.
While predialing, press to delete digits.
During message or announcement playback, press
to delete the playing message or announcement.
Press twice to delete all old messages when the
phone is not in use.
/ANSWER ON
Press to turn the built-in answering system on or off
(page 78).
MUTE
During a call, press to mute the microphone
(page 40).
When the phone is ringing, press to mute the ringer
temporarily.
/SPEAKER
Press to make or answer a call using the
speakerphone.
•
•
•
•
•
•
•
•
6
Getting started
Main menu
Play messages (page 95)
Answering sys (page 81)
Directory (page 59)
Caller ID log (page 71)
Call block
Intercom (page 47)
Ringers (page 26)
Set date/time (page 27)
Settings (page 28)
Web address (page 34)
•
•
•
•
•
•
•
•
•
•
Using menus:
Press MENU/SELECT to show the menu.
Press TCID or SDIR to scroll through menu items.
Press MENU/SELECT to confirm or save changes to a highlighted menu item.
Press CANCEL to cancel an operation, back up to the previous menu, or
exit the menu display.
•
•
•
•
The > symbol highlights
a menu item.
>Play messages
Answering sys
S
T
Main menu
Quick reference guide - telephone base
Getting started
7
See pages 9-10 for
easy instructions.
You must install and
charge the battery before
using the telephone. STOP!
Installation
Install the telephone base close to a telephone jack and a power outlet
not controlled by a wall switch. The telephone base can be placed on a flat
surface or vertically mounted on the wall (see page 12). For optimum range
and better reception, place the telephone base in a central and open location.
If you subscribe to high-speed Internet service (DSL - digital subscriber line)
through your telephone line, you must install a DSL filter between the telephone
line cord and the telephone wall jack (see the following page). The filter prevents
noise and caller ID problems caused by DSL interference. Please contact your DSL
service provider for more information about DSL filters.
Your product may be shipped with protective stickers covering the handset
and telephone base displays - remove them before use.
For customer service or product information, visit our website at
www.telephones.att.com or call 1 (800) 222-3111. In Canada,
dial 1 (866) 288-4268.
Avoid placing the telephone base too close to:
Communication devices such as television sets, VCRs, or other
cordless telephones.
Excessive heat sources.
Noise sources such as a window with traffic outside, motors, microwave
ovens, refrigerators, or fluorescent lighting.
Excessive dust sources such as a workshop or garage.
Excessive moisture.
Extremely low temperature.
Mechanical vibration or shock such as on top of a washing machine
or workbench.
•
•
•
•
•
•
•
8
Getting started
Telephone base and charger installation
Install the telephone base and charger, as shown below.
The telephone base is ready for tabletop use. If you want to change to wall-
mounting, see Installation options on page 12 for details.
IMPORTANT INFORMATION
Use only the power adapter(s) supplied with this product. To order a replacement
power adapter, visit our website at www.telephones.att.com or call
1 (800) 222-3111. In Canada, dial 1 (866) 288-4268.
The power adapters are intended to be correctly oriented in a vertical or floor
mount position. The prongs are not designed to hold the plug in place if it is
plugged into a ceiling, under-the-table or cabinet outlet.
•
•
Plug the power adapter into a power outlet not
controlled by a wall switch.
Charger installation
Telephone base installation
Raise the antenna.
Plug the other end of the
telephone line cord into the
telephone jack on the back
of the telephone base.
Route the power adapter
cord through these slots.
Plug the large end of the
telephone base power
adapter into a power
outlet not controlled by a
wall switch.
Plug one end of the
telephone line cord into a
telephone jack or a DSL filter.
If you have DSL high-speed
Internet service, a DSL filter
(not included) is required.
Route the telephone line
cord through this slot.
Plug the small end of
the telephone base
power adapter into the
power adapter jack
on the back of the
telephone base.
Getting started
9
Battery installation and charging
Install the battery, as shown below. Once you have installed the battery, the
screen indicates the battery status (see the following table). If necessary,
place the handset in the telephone base or charger to charge the battery.
For best performance, keep the handset in the telephone base or charger
when not in use. The battery is fully charged after ten hours of continuous
charging. See the table on page 134 for battery operating times.
If the screen shows Place in charger and flashes, you need to charge the
handset without interruption for at least 30 minutes to give the handset
enough charge to use the telephone for a short time. The following table
summarizes the battery charge indicators and actions to take.
Battery indicators Battery status Action
The screen is blank, or
shows Place in charger
and (flashing).
Battery has no or very
little charge. The handset
cannot be used.
Charge without interruption
(at least 30 minutes).
The screen shows
Low battery and
(flashing).
Battery has enough charge
to be used for a short time.
Charge without interruption
(at least 30 minutes).
The screen shows
HANDSET X.
Battery is charged. To keep the battery charged,
place it in the telephone base or
charger when not in use.
Step 1
Plug the battery connector securely into the socket inside the handset
battery compartment. Insert the supplied battery with the label THIS SIDE UP
facing up, as indicated.
NOTE: If you are on a phone call in low battery mode, you hear four short beeps
every minute.
THIS SIDE UP / CE CÔTÉ VERS LE HAUT
Battery Pack / Bloc-piles :
BT183342/BT283342 (2.4V 400mAh Ni-MH)
WARNING / AVERTISSEMENT :
DO NOT BURN OR PUNCTURE BATTERIES.
NE PAS INCINÉRER OU PERCER LES PILES.
Made in China / Fabriqué en chine
Batter
BT16234
WARNING
DO NOT BUR
NE PAS INCINÉ
Made in China / F
10
Getting started
Battery installation and charging
IMPORTANT INFORMATION
Use only the supplied rechargeable battery or replacement battery (model BT183342/
BT283342). To order, visit our website at www.telephones.att.com or call
1 (800) 222-3111. In Canada, dial 1 (866) 288-4268.
If you do not use the handset for a long time, disconnect and remove the battery
to prevent possible leakage.
•
•
SET DATE
MM/DD/YY
SET TIME
HH:MM --
Step 3
Charge the handset by placing it face forward
in the telephone base or charger. The CHARGE
light on the handset is on during charging.
Step 2
Align the cover flat against the battery compartment, then slide it upwards
until it clicks into place.
HAUT
i-MH)
S.
After you install your telephone or power returns following
a power outage, the handset and telephone base will prompt
you to set the date and time. For instructions, see
Set date/time on page 16 or page 27. To skip setting the
date and time, press CANCEL/ OFF on the handset or
CANCEL on the telephone base.
After the date and time setting is done or skipped, the
telephone base will prompt if you want to set up the
answering system. Press MENU/SELECT to start the
answering system setup via voice guide. For more details,
see Voice guide on page 85. To skip the setup, press
CANCEL on the telephone base.
Voice guide to
set up Ans sys?
CHARGE light
Getting started
11
Battery backup mode
Battery backup mode allows your telephone to function in the event of power
outage. The telephone system uses stored power from the handset’s battery to
operate.
To activate the mode
After the power goes out, if there is already a handset with
enough charge placed in the telephone base, the telephone
system enters battery backup mode automatically. That
handset screen shows Powering base... Don’t pick up. All
other handset screens show Pwr outage mode.
-OR-
If there is no handset placed in the telephone base after
the power goes out, all handsets show Out of range OR
No power at base and Put HS on base to power base
alternatively. Place any handset with enough charge in the
telephone base. Its screen shows Powering base... Don’t pick
up. All other handset screens show Pwr outage mode.
NOTE: A handset which does not have enough charge to power up
the base, its screen shows Out of range OR No power at base and
Not enough batt to power base alternatively after the power goes out.
Find another system handset that has enough charge to activate the mode.
Operation
During battery backup mode, the telephone base and answering system will
be disabled. The operating time is subject to the battery level of the handset
placed in the telephone base and the actual usage. For optimal performance,
you are not recommended to use the handset placed in the telephone base
when this mode is on.
Using other system handsets (Recommended):
Operate the handsets the same way as usual, except the answering system
which will be disabled.
Using the handset placed in the telephone base:
To maximize the operating time, you are not advised to use this handset. If
you do have to use it, make sure you do not lift it from the telephone base.
All operations should be done with the handset placed in the telephone base.
In this case, calls can only be made and received using the speakerphone.
Out of range OR
No pwr at base
Put HS on base
to power base
HANDSET 2
Pwr outage mode
Getting started
Installation options
Your telephone base is ready for tabletop use. If you want to mount your
telephone on a wall, follow the steps on this page to connect the telephone
base with a standard dual-stud telephone wall-mounting plate. You may need
a professional to install the mounting plate.
Tabletop to wall-mount installation
1. Plug the power cord and telephone line into the telephone base. If you
are using a DSL filter, plug the other end of the telephone line into the
filter. Route the telephone line cord (or DSL filter) through the wall-mount
bracket hole.
2. Position the telephone base, as shown below. Insert the extended tabs
(marked B in the following illustration) of the wall-mount bracket into the
slots on the back of the telephone base. Push the telephone base down
until it is securely in place.
3. Plug the telephone line cord (or DSL filter) into the wall jack. Plug the
power adapter into a power outlet not controlled by a wall switch.
4. Align the holes on the wall-mount bracket with the standard wall plate
and slide the wall-mount bracket down until it locks securely. Bundle the
telephone line cord and power adapter cord neatly with twist ties.
1
4
2
3
12
Getting started
Installation options
Wall-mount to tabletop installation
1. Unplug the large end of the power adapter from the electrical outlet.
2. If the telephone line cord and power adapter cord are bundled, untie
them first. Slide the wall-mount bracket up and remove it from the wall-
mounting plate.
3. Unplug the telephone line cord or the DSL filter from the telephone wall
jack. Push the telephone base up and away from the wall-mount bracket
to detach it from the wall-mount bracket.
4. See Telephone base and charger installation on page 6.
13
Telephone settings
Handset settings
Use the menu to change the telephone settings.
1. Press MENU/SELECT on the handset when it is not in use to
enter the main menu.
2. Press TCID or SDIR to scroll to the feature to be changed.
When scrolling through the menu, the > symbol indicates
the selected menu item.
3. Press MENU/SELECT to select the highlighted item.
NOTE: Press OFF/CANCEL to cancel an operation, back up to the previous menu or exit
the menu display. Press and hold OFF/CANCEL to return to idle mode.
>Play messages
Answering sys
14
Handset settings
Ringer volume
You can set the ringer volume level to one of six levels or
turn the ringer off. When the ringer is off, appears on
the screen.
1. Press MENU/SELECT in idle mode to enter the main menu.
2. Use TCID or SDIR to scroll to Ringers, then press
MENU/SELECT.
3. Press MENU/SELECT again to select Ringer volume.
4. Press TCID or SDIR to sample each volume level.
5. Press MENU/SELECT to save your preference. There is a
confirmation tone and the screen returns to the previous menu.
NOTES:
The handset ringer volume also determines the ringer volume for
intercom calls.
If the ringer volume is set to off, that handset is silenced for all incoming calls.
If the ringer volume is set to off, the caller ID will not be announced and the screen will briefly
display Caller ID won’t be announced.
Ringer tone
You can choose one of ten ringer tones.
1. Press MENU/SELECT in idle mode to enter the main menu.
2. Use TCID or SDIR to scroll to Ringers, then press
MENU/SELECT.
3. Press TCID or SDIR to scroll to Ringer tone, then press
MENU/SELECT.
4. Press TCID or SDIR to sample each ringer tone.
5. Press MENU/SELECT to save your preference. There is
a confirmation tone and the screen returns to the
previous menu.
NOTE: If you turn off the ringer volume, you will not hear ringer tone samples.
•
•
•
RINGER TONE
>
Tone 1
>
Ringer tone
Ringer volume
>
Ringer volume
Ringer tone
>Ringers
Intercom
RINGER VOLUME
Telephone settings
15
16
Handset settings
Set date/time
The answering system announces the day and time of each message prior
to playing it. Before using the answering system, set the date and time as
follows. If you subscribe to caller ID service, the day, month and time are
set automatically with each incoming call. The year must be set so that the
day of the week can be calculated from the caller ID information. You can
turn off the date and time settings of the caller ID service and set the date
and time manually (see Use caller ID to automatically set date and time
on page 22).
After a power failure or handset registration, the system prompts you to set
the date and time.
To set the date and time manually:
When the handset is in idle mode, press MENU/SELECT to
enter the main menu.
Press TCID or SDIR to scroll to Set date/time and then
press MENU/SELECT.
Press TCID or SDIR to select the month, then press
MENU/SELECT, or enter the number using the dialing keys.
Press TCID or SDIR to select the day, then press
MENU/SELECT, or enter the number using the dialing keys.
Press TCID or SDIR to select the year, or enter the number
using the dialing keys, then press MENU/SELECT to move on
to set the time.
Press TCID or SDIR to select the hour, then press
MENU/SELECT, or enter the number using the dialing keys.
Press TCID or SDIR to select the minute, then press
MENU/SELECT, or enter the number using the dialing keys.
Press TCID or SDIR to highlight AM or PM, or press 2 for AM or
7 for PM. Press MENU/SELECT to confirm. There is a confirmation tone and
the screen returns to the previous menu.
NOTE: If the clock is not set when a message is recorded, the system announces, “Time and
day not set,” before it plays the message.
1.
2.
3.
4.
5.
6.
7.
8.
SET DATE
MM/DD/YY
SET TIME
HH:MM --
Ringers
>Set date/time
Telephone settings
Handset settings
LCD language
You can select the language used for all screen displays.
1. Press MENU/SELECT in idle mode to enter the main menu.
2. Use TCID or SDIR to scroll to Settings, then press
MENU/SELECT.
3. Press MENU/SELECT to choose LCD language.
4. Press TCID or SDIR to highlight English, Français or
Español, then press MENU/SELECT. The screen prompts
Set English/Français/Español as LCD language?.
5. Press MENU/SELECT to save your preference. There is a
confirmation tone and the screen returns to the previous menu.
NOTE: If you accidentally change the LCD language to French or Spanish, you can reset it
back to English without going through the French or Spanish menus. Press MENU/SELECT on
the handset in idle mode, then enter 364#. There is a confirmation tone.
LCD LANGUAGE
>
English
Set Francais as
LCD language?
Telephone settings
17
Telephone settings
18
Handset settings
Caller ID announce
The caller ID announce feature lets you know who’s calling
without having to look at the display. When you have an
incoming call, the handset and/or base speaks “Call from...”
and the name of the caller based on the directory or caller
ID information. If the caller’s name is private or unknown, the
phone number up to the last 11 digits will be announced.
If the caller’s phone number is also private or unknown, no
information will be announced. The default setting is On.
To turn on or off the caller ID announce feature:
1. Press MENU/SELECT in idle mode to enter the main menu.
2. Use TCID or SDIR to scroll to Settings, then press
MENU/SELECT.
3. Use TCID or SDIR to scroll to Caller ID annc, then
press MENU/SELECT.
4. Use TCID or SDIR to highlight the desired option, then press MENU/SELECT.
Set all On/Off - Change the setting for the base and all handsets.
Local handset - Change the setting for that handset only.
Base - Change the setting for the telephone base only.
5. Use TCID or SDIR to highlight On or Off, then press MENU/SELECT.
There is a confirmation tone and the screen returns to the previous menu.
If you change the setting to Set all On/Off, the screen shows
CID Annc ON/OFF on all HS & BS.
NOTES:
To use the caller ID announce feature, you must subscribe to caller ID service from your
telephone service provider.
If you have paired an AT&T TL80133 DECT 6.0 cordless speakerphone to the telephone base, the
caller ID announce setting for all devices also applies to the cordless speakerphone. When the
setting is On, the cordless speakerphone speaks “Call from...” and the name of the caller based
on the directory or caller ID information during an incoming call. If the caller’s name is
unavailable, the phone number up to the last 11 digits will be announced.
When there are up to five handsets registered, the telephone system supports caller ID announce
for all handsets. If six or more handsets are registered, the system supports caller ID announce for
the first four registered handsets only.
This feature does not announce information for call waiting calls.
It takes at least two rings for the phone to receive caller ID information and announce it. If the
phone is answered before the end of the second ring, the phone won’t have time to announce
the caller’s information.
Pronunciation of names may vary with this feature. Not all names may be pronounced correctly.
Caller ID announce is available in English only.
•
•
•
•
•
•
•
•
•
•
SET ALL HS & BS
>On
CALLER ID ANNC
>Set all On/Off
LCD language
>Caller ID annc
19
Telephone settings
Handset settings
Set speed dial voicemail number
This feature lets you save your voicemail number for easy access when you
press and hold the 1 key.
To save your voicemail number:
1. Press MENU/SELECT in idle mode to enter the main menu.
2. Use TCID or SDIR to scroll to Settings, then press
MENU/SELECT.
3. Use TCID or SDIR to scroll to Voicemail #, then press
MENU/SELECT.
4. Use the dialing keys to enter the voicemail access number
provided by your telephone service provider (up to 30
digits) when prompted.
Press TCID or SDIR to move the cursor to the left or right.
Press MUTE/DELETE on the handset to erase a digit.
Press and hold MUTE/DELETE on the handset to erase
all digits.
Press REDIAL/PAUSE to enter a three-second dialing
pause (a p appears).
5. Press MENU/SELECT to save. There is a confirmation tone and the screen
displays Voicemail # saved, then returns to the previous menu.
Voicemail (visual message waiting) indicator
If you subscribe to a voicemail service offered by your
telephone service provider, this feature provides a visual
indication when you have new voicemail messages.
New voicemail and the icon appear on the handset screen.
NOTES:
This feature does not indicate new messages recorded on your phone’s built-in answering system.
For more information about the difference between your answering system and voicemail, see
page 92.
•
•
•
•
•
•
VOICEMAIL #
800-222-3111_
Caller ID annc
>Voicemail #
Voicemail #
saved
HANDSET 1
New voicemail
10:21PM 2/11
Handset settings
Clear voicemail indication
Use this feature when the telephone indicates there is new voicemail but
there is none. For example, when you have accessed your voicemail while
away from home. This feature only turns off the displayed New voicemail
and the icon; it does not delete your voicemail messages. As long as you
have new voicemail messages, your telephone service provider continues to
send the signal to turn on the indicators.
To manually turn off the new voicemail indicators:
1. Press MENU/SELECT when in idle mode to enter the
main menu.
2. Use TCID or SDIR to scroll to Settings, then press
MENU/SELECT.
3. Use TCID or SDIR to scroll to Clr voicemail, then press
MENU/SELECT. The screen shows Reset Voicemail
Indicator?.
4. Press MENU/SELECT again to turn the voicemail indication
off. There is a confirmation tone and the screen returns to
the previous menu.
NOTES:
Your telephone service provider voicemail may alert you to new messages with a stutter (broken)
dial tone. Contact your telephone service provider for more details.
For information about using your voicemail service, contact your telephone service provider.
•
•
Reset Voicemail
Indicator?
Voicemail #
>Clr voicemail
20
Telephone settings
Handset settings
Rename handset
You can edit the handset name for each system handset.
1. When the handset is idle, press MENU/SELECT.
2. Use TCID or SDIR to scroll to Settings, then press
MENU/SELECT.
3. Use TCID or SDIR to scroll to Rename handset, then
press MENU/SELECT.
4. Change the handset name when prompted.
Press TCID or SDIR to move the cursor to the left
or right.
Use the dialing keys to enter a name (up to 11 characters). Each time
you press a key, a character on that key appears. Additional key presses
produce other characters on that key. See the chart on page 61.
Press MUTE/DELETE to backspace and delete a character.
Press and hold MUTE/DELETE to delete all characters.
5. Press MENU/SELECT to save the setting and return to the previous menu.
There is a confirmation tone.
Key tone
The handset is set to beep with each key press. You can adjust the key tone
volume or turn it off. If you turn off the key tone, there are no beeps when
you press the keys.
1. Press MENU/SELECT in idle mode to enter the main menu.
2. Use TCID or SDIR to scroll to Settings, then press
MENU/SELECT.
3. Use TCID or SDIR to scroll to Key tone, then press
MENU/SELECT.
4. Use TCID or SDIR to select the desired volume or Off.
5. Press MENU/SELECT to save your preference. There is a
confirmation tone and the screen returns to the
previous menu.
•
•
•
•
Rename handset
>
Key tone
KEY TONE
Clr voicemail
>
Rename handset
RENAME HANDSET
HANDSET____
21
Telephone settings
22
Handset settings
Use caller ID to automatically set date and time
If you subscribe to caller ID service, the day, month and time are set
automatically with each incoming call. Follow the steps to turn the
CID time sync feature on or off. The default setting is On.
1. When the handset is in idle mode, press MENU/SELECT to
enter the main menu.
2. Press TCID or SDIR to scroll to Settings, then press
MENU/SELECT.
3. Press TCID or SDIR to scroll to CID time sync, then press
MENU/SELECT.
4. Press TCID or SDIR to highlight On or Off, then press
MENU/SELECT to save. There is a confirmation tone and the
screen returns to the previous menu.
Home area code
If you dial seven digits to make a local call (no area code required), enter
your area code into the telephone as the home area code. When you receive
a call from within your home area code, the caller ID history only displays the
seven digits of the telephone number.
This feature makes it easy for you to place a call from the caller ID log. If you
dial ten digits to make a local phone call, do not use this home area code
feature. If you do, you cannot place local calls from your caller ID log, as they
will have only seven digits.
To set the home area code:
1. Press MENU/SELECT in idle mode to enter the main menu.
2. Use TCID or SDIR to scroll to Settings, then press
MENU/SELECT.
3. Use TCID or SDIR to scroll to Home area code, then press
MENU/SELECT. The screen briefly shows
Only for 7digit dial from CID.
4. Use the dialing keys to enter a three-digit home area code.
Press MUTE/DELETE to delete a digit.
Press and hold MUTE/DELETE to delete all digits.
5. Press MENU/SELECT to save. There is a confirmation tone
and the screen shows Area code will not show in CID briefly before
returning to the previous menu.
•
•
Key tone
>CID time sync
CID TIME SYNC
>On
CID time sync
>Home area code
HOME AREA CODE
___
Telephone settings
Telephone settings
Handset settings
NOTE: If in the future, your telephone service provider requires you to dial ten digits to
make a local call (area code plus telephone number), you need to delete your home
area code and dial out locally from the call ID log. With the home area code displayed,
press and hold MUTE/DELETE until the digits are deleted, and then press MENU/SELECT.
The home area code is now restored to its default setting of _ _ _ (empty).
Dial mode
The dial mode is preset to tone dialing. If you have pulse (rotary) service, you
must change the dial mode to pulse dialing before using the telephone.
To set the dial mode:
1. Press MENU/SELECT in idle mode to enter the main menu.
2. Use TCID or SDIR to scroll to Settings, then press
MENU/SELECT.
3. Use TCID or SDIR to scroll to Dial mode, then press
MENU/SELECT.
4. Use TCID or SDIR to highlight Touch-tone or Pulse, then
press MENU/SELECT. There is a confirmation tone and the
screen returns to the previous menu.
Web address
Use this feature to view the AT&T website address.
1. Press MENU/SELECT in idle mode to enter the main menu.
2. Use TCID or SDIR to scroll to Web address, then press
MENU/SELECT.
www.telephones.
att.com
>
Web address
Settings
DIAL MODE
>Touch-tone
Home area code
>Dial mode
23
Telephone settings
24
Handset settings
QUIET mode
When QUIET mode is turned on, the telephone silences all sounds during
the set period of time (1-12 hours). However, the handset locator paging
tone and any sound-generating operations initiated by users, such as making
calls using the speakerphone or setting ringer volume, will sound as normal.
After you turn on QUIET mode, this feature activates immediately and the
answering system turns on automatically. When QUIET mode is on,
the answering system takes calls and records messages without
broadcasting them.
To turn QUIET mode on:
1. Press and hold QUIET # in idle mode to enter the QUIET mode setting
screen. The screen shows Quiet: _ _ hours (1-12 hours).
2. Use the dialing keys to enter the desired number of hours (1-12) you
would like to turn on QUIET mode, then press MENU/SELECT. Your screen
briefly shows Answering sys is ON and then Quiet mode on.
To turn QUIET mode off:
While QUIET mode is on, press and hold QUIET #. The screen shows
Quiet mode is off and you hear a confirmation tone.
NOTES:
If you change the base ringer, handset ringer, ringer volume, key tone, or caller ID announce
features when QUIET mode is on, the sample plays but the feature is still muted after saving the
setting.
After QUIET mode is turned off or the set period of time has expired, all muted features will be
activated again.
The PTT function is not available when QUIET mode is on.
When QUIET mode is on, the handset does not ring when there is an incoming intercom call, but
the handset which initiates the intercom call does have the calling tone as normal.
•
•
•
•
•
25
Telephone settings
Telephone base settings
Use the menu to change the telephone settings.
1. Press MENU/SELECT on the telephone base when it is
not in use to enter the main menu.
2. Press TCID or SDIR to scroll to the feature to be
changed. When scrolling through the menu, the
> symbol indicates the selected menu item.
3. Press MENU/SELECT to select the highlighted item.
NOTE: Press CANCEL to cancel an operation, back up to the previous menu or exit the
menu display. Press and hold CANCEL to return to idle mode.
>Play messages
Answering sys
S
T
Telephone settings
26
Telephone base settings
Ringer volume
You can set the ringer volume level to one of six levels or turn the ringer off.
When the ringer is off, appears on the screen.
1. Press MENU/SELECT in idle mode to enter the
main menu.
2. Use TCID or SDIR to scroll to Ringers, then press
MENU/SELECT.
3. Press MENU/SELECT again to select Ringer volume.
4. Press TCID or SDIR to sample each volume level.
5. Press MENU/SELECT to save your preference. There is
a confirmation tone and the screen returns to the
previous menu.
NOTES:
The telephone base ringer volume also determines the ringer volume for intercom calls.
If the ringer volume is set to off, the telephone base is silenced for all incoming calls.
If the ringer volume is set to off, the caller ID will not be announced and the screen will briefly
display Caller ID won’t be announced.
Ringer tone
You can choose one of ten ringer tones.
1. Press MENU/SELECT in idle mode to enter the
main menu.
2. Use TCID or SDIR to scroll to Ringers, then press
MENU/SELECT.
3. Press TCID or SDIR to scroll to Ringer tone, then
press MENU/SELECT.
4. Press TCID or SDIR to sample each ringer tone.
5. Press MENU/SELECT to save your preference. There is a confirmation tone
and the screen returns to the previous menu.
NOTE: If you turn off the ringer volume, you will not hear ringer tone samples.
•
•
•
>
Ringer tone
Ringer volume
S
T
RINGER TONE
>
Tone 1
S
T
>
Ringer volume
RINGER VOLUME
S
T
Ringer tone
S
T
27
Telephone settings
Telephone base settings
Set date/time
The answering system announces the day and time of each message prior
to playing it. Before using the answering system, set the date and time as
follows. If you subscribe to caller ID service, the day, month and time are set
automatically with each incoming call. The year must be set so that the day
of the week can be calculated from the caller ID information. You can turn
off the date and time settings of the caller ID service and set the date and
time manually (see Use caller ID to automatically set date and time on
page 33).
After a power failure, the system prompts you to set the date and time.
To set the date and time manually:
1. When the telephone base is in idle mode, press MENU/SELECT to enter the
main menu.
2. Press TCID or SDIR to scroll to Set date/time and
then press MENU/SELECT.
3. Press TCID or SDIR to select the month, then press
MENU/SELECT, or enter the number using the
dialing keys.
4. Press TCID or SDIR to select the day, then press
MENU/SELECT, or enter the number using the
dialing keys.
5. Press TCID or SDIR to select the year, or enter the
number using the dialing keys, then press
MENU/SELECT to move on to set the time.
6. Press TCID or SDIR to select the hour, then press
MENU/SELECT, or enter the number using the dialing keys.
7. Press TCID or SDIR to select the minute, then press MENU/SELECT, or
enter the number using the dialing keys.
8. Press TCID or SDIR to highlight AM or PM, or press 2 for AM or 7 for
PM. Press MENU/SELECT to confirm. There is a confirmation tone and the
screen returns to the previous menu.
NOTE: If the clock is not set when a message is recorded, the system announces, “Time
and day not set,” before it plays the message.
SET DATE
MM/DD/YY
S
T
SET TIME
HH:MM --
S
T
Ringers
>Set date/time
S
T
Telephone settings
28
Telephone base settings
LCD language
You can select the language used for all screen displays.
1. Press MENU/SELECT in idle mode to enter the
main menu.
2. Use TCID or SDIR to scroll to Settings, then press
MENU/SELECT.
3. Press MENU/SELECT to choose LCD language.
4. Press TCID or SDIR to highlight English, Français
or Español, then press MENU/SELECT. The screen
prompts Set English/Français/Español as LCD
language?.
5. Press MENU/SELECT to confirm and save your preference. There is a
confirmation tone and the screen returns to the previous menu.
NOTE: If you accidentally change the LCD language to French or Spanish, you can reset it
back to English without going through the French or Spanish menus. Press MENU/SELECT on
the base in idle mode, then enter 364#. There is a confirmation tone.
LCD LANGUAGE
>
English
S
T
Set Francais as
LCD language?
S
T
29
Telephone settings
Telephone base settings
Caller ID announce
The caller ID announce feature lets you know who’s calling without having
to look at the display. When you have an incoming call, the handset and/or
base speaks “Call from...” and the name of the caller based on the directory
or caller ID information. If the caller’s name is private or unknown, the phone
number up to the last 11 digits will be announced. If the caller’s phone
number is also private or unknown, no information will be announced. The
default setting is On.
To turn on or off the caller ID announce feature:
1. Press MENU/SELECT in idle mode to enter the
main menu.
2. Use TCID or SDIR to scroll to Settings, then press
MENU/SELECT.
3. Use TCID or SDIR to scroll to Caller ID annc, then
press MENU/SELECT.
4. Use TCID or SDIR to highlight the desired option, then
press MENU/SELECT.
Set all On/Off - Change the setting for the base and all handsets.
Base - Change the setting for the telephone base only.
5. Use TCID or SDIR to highlight On or Off, then press MENU/SELECT. There
is a confirmation tone and the screen returns to the previous menu. If you
change the setting to Set all On/Off, the screen shows CID Annc
ON/OFF on all HS & BS.
NOTES:
To use the caller ID announce feature, you must subscribe to caller ID service from your
telephone service provider.
If you have paired an AT&T TL80133 DECT 6.0 cordless speakerphone to the telephone base, the
caller ID announce setting for all devices also applies to the cordless speakerphone. When the
setting is On, the cordless speakerphone speaks “Call from...” and the name of the caller based
on the directory or caller ID information during an incoming call. If the caller’s name is
unavailable, the phone number up to the last 11 digits will be announced.
This feature does not announce information for call waiting calls.
It takes at least 2 rings for the phone to receive caller ID information and announce it. If the
phone is answered before the end of the second ring, the phone won’t have time to announce
the caller’s information.
Pronunciation of names may vary with this feature. Not all names may be pronounced correctly.
Caller ID announce is available in English only.
•
•
•
•
•
•
•
•
BS CID ANNOUNCE
>On
S
T
LCD language
>Caller ID annc
S
T
Telephone settings
30
Telephone base settings
Set speed dial voicemail number
This feature lets you save your voicemail number for easy access when you
press and hold the 1 key.
To save your voicemail number:
1. Press MENU/SELECT in idle mode to enter the
main menu.
2. Use TCID or SDIR to scroll to Settings, then press
MENU/SELECT.
3. Use TCID or SDIR to scroll to Voicemail #, then press
MENU/SELECT.
4. Use the dialing keys to enter the voicemail access
number provided by your telephone service provider
(up to 30 digits) when prompted.
Press TCID or SDIR to move the cursor to the left
or right.
Press X/DELETE on the telephone base to erase
a digit.
Press and hold X/DELETE on the telephone base to erase all digits.
Press REDIAL/PAUSE to enter a three-second dialing pause
(a p appears).
5. Press MENU/SELECT to save. There is a confirmation tone and the screen
displays Voicemail # saved, then returns to the previous menu.
Voicemail (visual message waiting) indicator
If you subscribe to a voicemail service offered by your
telephone service provider, this feature provides a visual
indication when you have new voicemail messages.
New voicemail and the icon appear on the telephone
base screen.
NOTES:
This feature does not indicate new messages recorded on your phone’s built-in answering system.
For more information about the difference between your answering system and voicemail, see
page 84.
•
•
•
•
•
•
Voicemail #
saved
Caller ID annc
>Voicemail #
S
T
VOICEMAIL #
800-233-3111_
BASE
New voicemail
10:21AM
2/11
MSG
#
0
31
Telephone settings
Telephone base settings
Clear voicemail indication
Use this feature when the telephone indicates there is
new voicemail but there is none. For example, when you
have accessed your voicemail while away from home. This
feature only turns off the displayed New voicemail and
the icon; it does not delete your voicemail messages.
As long as you have new voicemail messages, your
telephone service provider continues to send the signal to
turn on the indicators.
To manually turn off the new voicemail indicators:
1. Press MENU/SELECT when in idle mode to enter the main menu.
2. Use TCID or SDIR to scroll to Settings, then press MENU/SELECT.
3. Use TCID or SDIR to scroll to Clr voicemail, then press MENU/SELECT.
The screen shows Reset Voicemail Indicator?.
4. Press MENU/SELECT again to turn the voicemail indication off. There is a
confirmation tone and the screen returns to the previous menu.
NOTES:
Your telephone service provider voicemail may alert you to new messages with a stutter (broken)
dial tone. Contact your telephone service provider for more details.
For information about using your voicemail service, contact your telephone service provider.
•
•
Reset Voicemail
Indicator?
>
Clr voicemail
Rename base
S
T
Telephone settings
32
Telephone base settings
Rename base
You can edit the name for the telephone base.
1. When the telephone is idle, press MENU/SELECT.
2. Use TCID or SDIR to scroll to Settings, then press
MENU/SELECT.
3. Use TCID or SDIR to scroll to Rename base, then
press MENU/SELECT.
4. Change the telephone base name when prompted.
Press TCID or SDIR to move the cursor to the left
or right.
Use the dialing keys to enter a name (up to 11 characters). Each time
you press a key, a character on that key appears. Additional key presses
produce other characters on that key. See the chart on page 61.
Press X/DELETE to backspace and delete a character.
Press and hold X/DELETE to delete all characters.
5. Press MENU/SELECT to save the setting and return to the previous menu.
There is a confirmation tone.
Key tone
The telephone base is set to beep with each key press. You can adjust the
key tone volume or turn it off. If you turn off the key tone, there are no
beeps when you press keys.
1. Press MENU/SELECT in idle mode to enter the
main menu.
2. Use TCID or SDIR to scroll to Settings, then press
MENU/SELECT.
3. Use TCID or SDIR to scroll to Key tone, then press
MENU/SELECT.
4. Use TCID or SDIR to select the desired volume
or Off.
5. Press MENU/SELECT to save your preference. There is a
confirmation tone and the screen returns to the previous menu.
•
•
•
•
Rename base
>
Key tone
S
T
KEY TONE
S
T
Clr voicemail
>
Rename base
S
T
RENAME BASE
BASE_______
33
Telephone settings
Telephone base settings
Use caller ID to automatically set date and time
If you subscribe to caller ID service, the day, month and time are set
automatically with each incoming call. Follow the steps, as mentioned below,
to turn the CID time sync feature on or off. The default setting is On.
1. When the telephone is in idle mode, press
MENU/SELECT to enter the main menu.
2. Press TCID or SDIR to scroll to Settings, then press
MENU/SELECT.
3. Press TCID or SDIR to scroll to CID time sync, then
press MENU/SELECT.
4. Press TCID or SDIR to highlight On or Off, then press
MENU/SELECT to save. There is a confirmation tone
and the screen returns to the previous menu.
Home area code
If you dial seven digits to make a local call (no area code required), enter
your area code into the telephone as the home area code. When you receive
a call from within your home area code, the caller ID history only displays the
seven digits of the telephone number.
This feature makes it easy for you to place a call from the caller ID log. If you
dial ten digits to make a local phone call, do not use this home area code
feature. If you do, you cannot place local calls from your caller ID log, as they
will have only seven digits.
To set the home area code:
1. Press MENU/SELECT in idle mode to enter the main menu.
2. Use TCID or SDIR to scroll to Settings, then press
MENU/SELECT.
3. Use TCID or SDIR to scroll to Home area code, then
press MENU/SELECT. The screen briefly shows
Only for 7digit dial from CID.
4. Use the dialing keys to enter a three-digit home
area code.
Press X/DELETE to delete a digit.
Press and hold X/DELETE to delete all digits.
5. Press MENU/SELECT to save. There is a confirmation tone and the screen
shows Area code will not show in CID briefly before returning to the
previous menu.
•
•
Key tone
>CID time sync
S
T
CID TIME SYNC
>On
S
T
CID time sync
>Home area code
S
T
HOME AREA CODE
___
Telephone settings
34
Telephone base settings
NOTE: If in the future, your telephone service provider requires you to dial ten digits to
make a local call (area code plus telephone number), you need to delete your home
area code and dial out locally from the caller ID log. With the home area code displayed,
press and hold X/DELETE until the digits are deleted, and then press MENU/SELECT.
The home area code is now restored to its default setting of _ _ _ (empty).
Dial mode
The dial mode is preset to tone dialing. If you have pulse (rotary) service, you
must change the dial mode to pulse dialing before using the telephone.
To set the dial mode:
1. Press MENU/SELECT in idle mode to enter the
main menu.
2. Use TCID or SDIR to scroll to Settings, then press
MENU/SELECT.
3. Use TCID or SDIR to scroll to Dial mode, then press
MENU/SELECT.
4. Use TCID or SDIR to highlight Touch-tone or Pulse,
then press MENU/SELECT. There is a confirmation tone
and the screen returns to the previous menu.
Web address
Use this feature to view the AT&T website address.
1. Press MENU/SELECT in idle mode to enter the
main menu.
2. Use TCID or SDIR to scroll to Web address, then
press MENU/SELECT.
www.telephones.
att.com
>
Web address
Settings
S
T
DIAL MODE
>Touch-tone
S
T
Home area code
>Dial mode
S
T
35
Telephone operation
Making a call
Using a cordless handset:
Press PHONE/FLASH or /SPEAKERSPEAKER, then enter the
telephone number.
The screen displays the elapsed time as you talk (in hours,
minutes and seconds).
Using the telephone base:
Press /SPEAKERSPEAKER, then enter the telephone number.
The screen displays the elapsed time as you talk (in
hours, minutes and seconds).
NOTE: Pressing PHONE/FLASH or /SPEAKERSPEAKER to access
services from your telephone service provider does not affect the elapsed time.
On hook dialing (predialing)
Using a cordless handset:
1. Enter the telephone number. Press MUTE/DELETE to make corrections
when entering the phone number.
2. Press PHONE/FLASH or /SPEAKERSPEAKER to dial.
Using the telephone base:
1. Enter the telephone number. Press X/DELETE to make corrections when
entering the phone number.
2. Press /SPEAKERSPEAKER to dial.
Answering a call
Using a cordless handset:
Press PHONE/FLASH or /SPEAKERSPEAKER.
-OR-
Press any dialing key (0-9, TONE or #).
Using the telephone base:
Press /SPEAKERSPEAKER.
-OR-
Press any dialing key (0-9, TONE or #).
•
•
•
•
•
•
Speaker 0:00:30
6:30
AM
8/06
Telephone operation
Elapsed time
Phone 0:00:30
6:30
AM
8/06
Elapsed time
Telephone operation
36
Telephone operationoperation
Ending a call
Using a cordless handset:
Press OFF/CANCEL or return the handset to the telephone base or charger.
Using the telephone base:
Press /SPEAKERSPEAKER.
Auto off
A call ends automatically when you put the handset in the telephone base
or charger.
Temporary ringer silencing
Using a cordless handset:
Press OFF/CANCEL or MUTE/DELETE while the telephone is
ringing to silence the ringer temporarily on that handset only.
This turns off the ringer without disconnecting the call. The
next incoming call rings normally at the preset volume.
Using the telephone base:
Press CANCEL or MUTE while the telephone is ringing
to silence the ringer temporarily on the telephone base
only. This turns off the ringer without disconnecting
the call. The next incoming call rings normally at the
preset volume.
NOTE: The telephone base and all handsets ring when there is an incoming call unless
the ringer volume is turned off on that device.
•
•
Ringer muted
Ringer muted
Telephone operation
37
Telephone operation
Handset speakerphone
During a call, press /SPEAKERSPEAKER to switch between handsfree speakerphone
and normal handset use. Press OFF/CANCEL to hang up.
The speakerphone on the telephone activates as long as you make or answer
calls by pressing the /SPEAKERSPEAKER. Press /SPEAKERSPEAKER to hang up.
NOTES:
When you use the speakerphone on the handset, the key pad and the /SPEAKER button on
the handset are lit. When you use the speakerphone on the telephone base, the /SPEAKER
button on the telephone base is lit.
The speakerphone uses more power than the normal handset. If the handset battery becomes
very low while you are using the speakerphone, the call remains in speakerphone mode until you
hang up or the battery becomes depleted.
After installing a battery into the handset, the screen may show Low battery. If you use the
speakerphone at this time, the battery may become depleted. Follow the instructions in the
Battery installation and charging section on pages 9-10.
Last number redial
Each handset and the telephone base stores the last ten telephone numbers
dialed (up to 30 digits each).
To view the ten most recently dialed numbers:
Using a cordless handset:
To display the most recently called number, press
REDIAL/PAUSE.
To view up to ten recently called numbers, press
REDIAL/PAUSE, then TCID, SDIR or REDIAL/PAUSE repeatedly.
The handset beeps twice at the end of the list. Press
OFF/CANCEL to exit.
•
•
•
•
•
Redial #1/10
888-883-2445
Telephone operation
38
Telephone operation
Using the telephone base:
To display the most recently called number, press
REDIAL/PAUSE.
To view up to ten recently called numbers,
press REDIAL/PAUSE, then TCID, SDIR or
REDIAL/PAUSE, repeatedly.
The telephone base beeps twice at the end of the list. Press CANCEL to exit.
To redial a number:
Using a cordless handset:
To dial the displayed number, press PHONE/FLASH or /SPEAKERSPEAKER.
-OR-
Press PHONE/FLASH or /SPEAKERSPEAKER, then press REDIAL/PAUSE
repeatedly to view the redial memory. Press MENU/SELECT to dial the
displayed number.
Using the telephone base:
To dial the displayed number, press /SPEAKERSPEAKER.
-OR-
Press /SPEAKERSPEAKER, then press REDIAL/PAUSE repeatedly to view the
redial memory. Press MENU/SELECT to dial the displayed number.
To delete a redial entry:
Using a cordless handset:
While the screen displays the desired number, press MUTE/DELETE to
delete the number from the redial memory.
Using the telephone base:
While the screen displays the desired number, press X/DELETE to delete
the number from the redial memory.
•
•
•
•
•
•
•
•
Redial #1/10
888-883-2445
S
T
Telephone operation
39
Telephone operation
Equalizer
The handset equalizer enables you to change the quality
of the audio to best suit your hearing.
While on a call or intercom call, or listening to a message
or announcement, press EQ to select the equalizer
setting Treble 1, Treble 2, Bass or Natural (the default
setting). The current setting is shown on the handset
screen for two seconds.
NOTES:
If you switch the call between the handset and the speakerphone by
pressing /SPEAKER, the audio setting remains unchanged.
The current equalizer setting remains unchanged until a new setting
is selected.
•
•
Natural
6:30
AM
8/06
Bass
6:30
AM
8/06
Treble 2
6:30
AM
8/06
Treble 1
6:30
AM
8/06
Telephone operation
40
Volume control
Using a cordless handset:
You can set the listening volume to one of six levels.
While on a call, press TCID/VOLUME to decrease or
press SDIR/VOLUME to increase the listening volume.
Using the telephone base:
You can set the listening volume to one of eight levels.
While on a call, press T/VOLUME to decrease or
VOLUME/S to increase the listening volume.
NOTES:
Handset and speakerphone volume settings are independent.
When the volume reaches the minimum or maximum setting, you hear
two beeps.
Call waiting
If you subscribe to call waiting service from your telephone service provider,
and someone calls while you are already on a call, you hear two beeps.
Press PHONE/FLASH on the handset or FLASH on the telephone base to
put your current call on hold and take the new call.
Press PHONE/FLASH on your handset or FLASH on your telephone base
at any time to switch back and forth between calls.
NOTE: Missed call waiting calls are not counted as missed calls.
•
•
•
•
Options while on calls
Telephone operation
41
Options while on calls
Mute
Use the mute function to turn off the microphone. You
can hear the caller, but the caller cannot hear you.
Using a cordless handset:
To mute a call:
• While on a call, press MUTE/DELETE. When mute is on,
the handset shows Muted for a few seconds and MUTE
icon displays until you turn off mute.
To end mute a call:
• Press MUTE/DELETE again. When mute is off,
Microphone ON appears temporarily on the handset.
Using the telephone base:
To mute a call:
• While on a call, press MUTE. When mute is on, the
telephone base shows Muted for a few seconds.
To end mute a call:
• Press MUTE again. When mute is off, Microphone ON
appears temporarily on the telephone base.
Muted
MUTE
6:30
AM
8/06
Microphone ON
6:30
AM
8/06
Muted
6:30
AM
8/06
6:30
AM
8/06
Microphone ON
Telephone operation
42
Options while on calls
Chain dialing
Use this feature to initiate a dialing sequence from the numbers in the
directory, caller ID history or redial memory while you are on a call.
Chain dialing is useful when you wish to access other numbers (such as bank
account numbers or access codes) from the directory, caller ID history or
redial list.
Using a cordless handset:
To access the directory while on a call:
1. Press MENU/SELECT.
2. Press TCID or SDIR to scroll to Directory and then press
MENU/SELECT.
3. Press TCID or SDIR to scroll to the desired number.
4. Press MENU/SELECT to dial the number shown.
To access the caller ID log while on a call:
1. Press MENU/SELECT.
2. Press TCID or SDIR to scroll to Caller ID log, then press
MENU/SELECT.
3. Press TCID or SDIR to scroll to the desired number.
4. Press MENU/SELECT to dial the number shown.
To access the redial list while on a call:
1. Press REDIAL/PAUSE to show the most recently
dialed number.
2. Press TCID or SDIR to scroll to the desired number,
or press REDIAL/PAUSE repeatedly to find the desired
number. Press. Press MENU/SELECT to dial the number shown.
>Directory
Intercom
888-883-2445
Charlie Johnson
REDIAL #1/10
800-360-4121
Phone 0:01:20
Charlie Johnson
6:30
AM
8/06
Telephone operation
43
Options while on calls
Using the telephone base:
To access the directory while on a call:
1. Press MENU/SELECT.
2. Press TCID or SDIR to scroll to Directory and then
press MENU/SELECT.
3. Press TCID or SDIR to scroll to the desired number.
4. Press MENU/SELECT to dial the number shown.
To access the caller ID log while on a call:
1. Press MENU/SELECT.
2. Press TCID or SDIR to scroll to Caller ID log, then
press MENU/SELECT.
3. Press TCID or SDIR to scroll to the desired number.
4. Press MENU/SELECT to dial the number shown.
To access the redial list while on a call:
1. Press REDIAL/PAUSE to show the most recently
dialed number.
2. Press TCID or SDIR to scroll to the desired number,
or press REDIAL/PAUSE repeatedly to find the desired
number. Press Press MENU/SELECT to dial the number shown.
NOTES:
You cannot edit a directory entry while on a call. For more details about the directory,
see pages 58-67.
You cannot copy a caller ID entry into the directory while on a call. For more details about the
caller ID history, see pages 68-74.
If you press REDIAL/PAUSE while on a call, you can only view the ten most recently dialed
numbers but you cannot erase the entries. For more details about the redial memory, see
pages 36-37.
Press OFF/CANCEL on the handset or CANCEL on the telephone base to exit redial, directory
or caller ID history when on a call.
•
•
•
•
REDIAL #1/10
800-360-4121
S
T
>Directory
Intercom
888-883-2445
Charlie Johnson
S
T
Speaker 0:01:20
Charlie Johnson
6:30
AM
8/06
Telephone operation
44
Options while on calls
Temporary tone dialing
If you have pulse (rotary) service only, you can switch from pulse to touch-tone
dialing temporarily during a call. This is useful if you need to send touch-tone
signals to access your telephone banking or long distance services.
1. During a call, press TONE .
2. Use the dialing keys to enter the desired number. The telephone sends
touch-tone signals.
3. The telephone automatically returns to pulse dialing after you end the call.
Blind transfer
While on an outside call, you can transfer the call to a specific device or any
device without notifying them.
To transfer an outside call from a handset:
1. During the call, press MENU/SELECT.
2. Press MENU/SELECT to choose Transfer.
If you have one handset and no other registered devices,
the outside call is put on hold and your handset shows
Transferring call.... The telephone base rings and shows
Transfer from HANDSET X.
If you have other registered device(s) or more than one
handset, your screen shows TRANSFER TO:. Use the
dialing keys to eenter a specific device number (0 for the
telephone base, 1-9 for handsets 1-9, TONE followed
by 0-2 for handsets 10-12, or TONE followed by #
for all devices), or presspress TCID or SDIR to scroll to the
desired device and press MENU/SELECT. The outside
call is put on hold and your handset screen shows
Transferring call... or Transferring call to all.... The
other device rings and shows Transfer from HANDSET X (HANDSET
represents the handset name, X represents the handset number).
3. To answer the call on the destination handset, press, press PHONE/FLASH or
/SPEAKERSPEAKER. To answer the call on the telephone base, pressTo answer the call on the telephone base, press, press
/SPEAKERSPEAKER. The initiating handset shows Call transferred and goes to
idle mode.
•
•
>Transfer
Intercom
TRANSFER TO:
>Handset 2
Phone 0:00:12
6:30
AM
8/06
Telephone operation
45
Options while on calls
To transfer an outside call from the telephone base:
1. During the call, press MENU/SELECT.
2. Press MENU/SELECT to choose Transfer.
If your have one handset and no other registered
devices, the outside call is put on hold and the
telephone base shows Transferring call.... The
handset rings and shows Transfer from BASE 0
(BASE represents the base name).
If you have other registered device(s) or more than
one handset, the telephone base shows TRANSFER
TO: Use the dialing keys to eenter a specific handset
number (1-9 for handsets 1-9, TONE followed by
0-2 for handsets 10-12, or TONE followed by #
for all handsets), or presspress TCID or SDIR to scroll to
the desired handset and press MENU/SELECT. The outside call is put on
hold and the telephone base shows Transferring call... or Transferring
call to all.... The other handset(s) rings and shows Transfer from BASE 0
(BASE represents the base name).
3. To answer the call on the destination handset, press, press PHONE/FLASH or
/SPEAKERSPEAKER. The telephone base shows Call transferred and goes to
idle mode.
NOTES:
To cancel the transfer and return to the external call before the blind transfer call is answered,
press OFF/CANCEL, PHONE/FLASH or /SPEAKERSPEAKER on your handset, or CANCEL or
/SPEAKERSPEAKER on your telephone base.
If the other device does not answer the transfer within 30 seconds, the transfer ends and the
initiating device rings while showing No response to transfer. If it does not pick up within 30
seconds, the device returns to idle mode and the outside call ends.
•
•
•
•
>Transfer
Intercom
S
T
Speaker 0:00:12
6:30
AM
8/06
TRANSFER TO:
>Handset 2
S
T
Multiple handset use
Handset locator
The handset locator feature is useful if you misplace
any handsets.
To start the paging tone:
Press /HANDSET LOCATOR on the telephone
base to start the paging tone on all handsets for
60 seconds.
NOTE: If you press OFF/CANCEL or MUTE/DELETE on a
handset, the ringer of that handset stops, but the paging
to the rest of the handsets continues.
To stop the paging tone:
Press PHONE/FLASH, /SPEAKERSPEAKER, or any dialing key
(0-9, TONE or #) on the handset(s).
-OR-
Press /HANDSET LOCATOR, MUTE or CANCEL on the
telephone base.
Join a call in progress
When a handset or the telephone base is already on a call and you would
like to join the call, press PHONE/FLASH or /SPEAKERSPEAKER on your handset or
/SPEAKERSPEAKER on your telephone base.
To end the call using a handset, press OFF/CANCEL or place the handset
in the telephone base or charger. To end the call using the telephone
base, press /SPEAKERSPEAKER. The call does not end until all handsets and the
telephone base hang up.
NOTE: You can use up to four system handsets and the telephone base at the same time
on an outside call.
•
•
•
46
Multiple handset use
**Paging**
Multiple handset use
Intercom
Use the intercom feature for conversations between two handsets, a handset
and the telephone base, or a handset/telephone base and a cordless
headset/speakerphone (sold separately). You can buy additional expansion
handsets (model AT&T CL80115), cordless headsets and speakerphones for
this telephone base to expand your telephone system (up to 12 handsets or
10 cordless handsets and two cordless headsets/speakerphones).
Using a cordless handset:
1. Press MENU/SELECT in idle mode to enter the main menu.
Press TCID or SDIR to scroll to Intercom, then press
MENU/SELECT.
If you have one handset and no other registered
devices, the handset shows Calling base.
If you have cordless headset(s)/speakerphone(s) or more
than one handset, the handset shows INTERCOM TO:
Use the dialing keys to eenter a specific device number
(0 for the telephone base, 1-9 for handsets 1-9, TONE
followed by 0-2 for handsets 10-12, # for a single
headset/speakerphone, # followed by 1 or 2 for
headset/speakerphone 1 or 2, or TONE followed by #
for all devices), or presspress TCID or SDIR to scroll to the
desired device and press MENU/SELECT. Your handset
screen shows Calling HANDSET X, Calling BASE 0,
Calling headset or Calling all devices.
The destination device(s) rings and shows HANDSET X is calling or
HANDSET X is calling all (HANDSET represents the handset name, X
represents the handset number).
2. To answer the intercom call, press PHONE/FLASH, /SPEAKERSPEAKER or any
dialing key (0-9, TONE , or #) on the called device. Both devices now
show Intercom.
3. To end the intercom call, one party presses OFF/CANCEL, or place the
handset back in the telephone base or charger; or presses CANCEL on the
telephone base. The other party hears four beeps. Both devices display The other party hears four beeps. Both devices display
Intercom ended.
•
•
Calling
Base 0
HANDSET X
is calling
Intercom
11:35AM 12/02
47
Multiple handset use
Intercom
Using the telephone base:
1. Press MENU/SELECT in idle mode to enter the main
menu. Press TCID or SDIR to scroll to Intercom, then
press MENU/SELECT.
If you have one handset and no other registered
devices, the telephone base shows
Calling HANDSET X.
If you have cordless headset(s)/speakerphone(s) or
more than one handset, the telephone base shows
INTERCOM TO: Use the dialing keys to eenter a
specific handset number (1-9 for handsets
1-9, TONE followed by 0-2 for handsets 10-12, #
for a single headset/speakerphone, # followed by
1 or 2 for headset/speakerphone 1 or 2, or
TONE followed by # for all devices), or presspress TCID or SDIR to scroll to
the desired handset and press MENU/SELECT. The telephone base shows
Calling HANDSET X or Calling all handsets.
The destination device(s) rings and shows Base 0 is calling or
BASE 0 is calling all.
2. To answer the intercom call, press PHONE/FLASH, /SPEAKERSPEAKER or any
dialing key (0-9, TONE , or #) on the destination handset. Both the base
and the handset now show Intercom.
3. To end the intercom call, one party presses OFF/CANCEL, or places the
handset back in the telephone base or charger; or presses CANCEL on the
telephone base. The other party hears four beeps. Both devices display The other party hears four beeps. Both devices display
Intercom ended.
NOTES:
Before the intercom call is answered, you can cancel it by pressing OFF/CANCELCANCEL on the
handset or CANCEL on the telephone base..
If the called device is not answered within 100 seconds, or if it is accessing the directory, caller ID
log, on a call or out of range, the initiating device shows No answer. Try again.
To temporarily silence the intercom ringer, press OFF/CANCEL or MUTE/DELETE on the
handset, or press CANCEL or MUTE on the telephone base.
You can only use one pair of devices at a time to make intercom calls.
For cordless headsets and speakerphones, refer to the corresponding user’s manual on how to
answer and end an intercom call.
If a total of two cordless headset(s) and/or speakerphone(s) are registered to the telephone base,
they appear as HEADSET 1 and HEADSET 2, respectively, in the intercom menu.
•
•
•
•
•
•
•
•
Calling
HANDSET X
Intercom
Base 0
is calling
48
Multiple handset use
Intercom
Answer an incoming call during an intercom call
If you receive an outside call during an intercom call, there is a two-beep call
waiting tone.
To answer the call, press PHONE/FLASH or /SPEAKERSPEAKER on the
handset, or /SPEAKERSPEAKER on the telephone base. The intercom call ends
automatically. The party on the intercom call hears four beeps. Other system
devices can also answer the incoming call by pressing PHONE/FLASH or
/SPEAKERSPEAKER on the handset or /SPEAKERSPEAKER on the telephone base.
To end the intercom call without answering the incoming call, press
OFF/CANCEL on the handset or CANCEL on the telephone base.
NOTE: For cordless headsets and speakerphones, refer to the corresponding user’s manual
on how to answer an incoming call during an intercom call.
•
•
49
Multiple handset use
Call transfer using intercom
Use the intercom feature to transfer an outside call to another system
handset or the telephone base. You can also share an outside call with
another system handset or the telephone base.
To transfer or share an outside call using intercom:
Using a cordless handset:
1. During the call, press MENU/SELECT.
2. Press TCID or SDIR to scroll to Intercom and press MENU/SELECT.
3. Choose the device(s) you would like to transfer the call to using the
options from Step 1 on page 47.
4. When the destination device picks up, your handset shows Intercom and
the outside call is put on hold. You have the following options:
You can transfer the call. Press MENU/SELECT twice
to choose Transfer. The handset shows
Call transferred. The other device automatically
connects to the outside call.
You can let the other device join you on the outside
call in a three-way conversation. Press MENU/SELECT.
Press TCID or SDIR to highlight Share call, then press MENU/SELECT.
You can end the intercom call and continue the outside call with your
handset. Press PHONE/FLASH on your handset (the ended intercom call
party hears four beeps).
Using the telephone base:
1. During the call, press MENU/SELECT.
2. Press TCID or SDIR to scroll to Intercom and press MENU/SELECT.
3. Choose the handset(s) you would like to transfer the call to using the
options from Step 1 on page 48.
4. When the destination handset(s) picks up, the telephone base shows Intercom
and the outside call is put on hold. You have the following options:
You can transfer the call. Press MENU/SELECT
twice to choose Transfer. The telephone base shows
Call transferred. The other handset automatically
connects to the outside call.
You can let the other handset join you on the
outside call in a three-way conversation. Press MENU/SELECT. Press
TCID or SDIR to highlight Share call, then press MENU/SELECT.
You can end the intercom call and continue the outside call with the
telephone base. Press CANCEL on the telephone base (the ended
intercom call party hears four beeps).
•
•
•
•
•
•
>Transfer
Share call
>Transfer
Share call
S
T
50
Multiple handset use
Push-to-talk (PTT)
You can directly broadcast messages to the speakerphone
of any device. Press and hold PUSH TO TALK on a
handset or PTT on the telephone base to begin two-way
communication.
Only one device can talk at a time. While talking to
another device, press and hold PUSH TO TALK on the
handset or PTT on the telephone base.
You must release PUSH TO TALK on the handset or PTT
on the telephone base, so the other person can respond.
Only one PTT session can be active at a time.
While PTT is in use between two devices, other devices
cannot use the intercom feature but can access the answering system.
When you attempt to place a PTT call to another device which is accessing
the answering system or on an intercom call or outside call, your device
screen shows Not available at this time.
NOTE: The PTT function is not available when QUIET mode is on.
Turn PTT on or off
Using a cordless handset:
1. Press PUSH TO TALK when the handset is not in use. The
PUSH TO TALK menu displays.
2. Press TCID or SDIR to highlight PTT On/Off, then press
MENU/SELECT.
3. Press TCID or SDIR to choose On or Off, then press MENU/SELECT.
Using the telephone base:
1. Press PTT when the telephone base is not in use. The
PUSH TO TALK menu displays.
2. Press TCID or SDIR to highlight PTT On/Off, then
press MENU/SELECT.
3. Press TCID or SDIR to choose On or Off, then press MENU/SELECT.
NOTE: The handset or the telephone base screen displays No Incoming PTT when PTT is
turned off.
•
•
•
•
•
PUSH TO TALK
>PTT On/Off
PUSH TO TALK
>PTT On/Off
S
T
51
PTT
Multiple handset use
Push-to-talk (PTT)
PTT call to a single device
Using a cordless handset:
1. There are a few ways to begin a PTT call to a single device.
When the handset is not in use:
If you have one handset, press and hold PUSH TO TALK.
If you have more than one handset:
Press PUSH TO TALK on the handset, then use the
dialing keys to enter the destination device number.
-OR-
Press PUSH TO TALK on the handset. Press TCID or
SDIR to highlight the destination device number, then
press MENU/SELECT or PUSH TO TALK.
The handset shows Connecting to HANDSET X...
(HANDSET represents the handset name, X represents the
destination handset number) or Connecting to BASE 0...
(BASE represents the base name)
for a few seconds. When
the connection is made, both your and the destination
device screens display Press and hold [PTT] to talk.
2. Press and hold PUSH TO TALK. A chirp indicates your
microphone is on. Speak towards the device. Your voice is
broadcast to the destination device.
While you are speaking, your handset shows
PTT To handset: X or PTT To base.
3. Release PUSH TO TALK after speaking. Both devices beep once again and
the screens show Press and hold [PTT] to talk, then you can
press and hold PUSH TO TALK to continue speaking or the destination
device can respond (see Answer a PTT call on page 56).
4. To end the PTT call, press OFF/CANCEL or place the handset in the
telephone base or charger. The handset shows Push to talk ended.
•
•
PTT To
handset: X
PUSH TO TALK
>HANDSET X
Connecting to
HANDSET X...
Press and hold
[PTT] to talk
52
Multiple handset use
Push-to-talk (PTT)
Using the telephone base:
1. There are a few ways to begin a PTT call to a single
handset. When the telephone base is not in use:
If you have one handset, press and hold PTT.
If you have more than one handset:
Press PTT, then use the dialing keys to enter the
destination handset number.
-OR-
Press TCID or SDIR to highlight the destination
handset number, then press MENU/SELECT or PTT.
The telephone base shows Connecting to HANDSET X...
(HANDSET represents the handset name, X represents
the destination handset number)
for a few seconds. When the connection is
made, both the telephone base and destination handset display Press and
hold [PTT] to talk.
2. Press and hold PTT. A chirp indicates your microphone
is on. Speak towards the telephone base. Your voice is
broadcast to the destination handset.
While you are speaking, the telephone base shows
PTT To handset: X.
3. Release PTT after speaking. Both devices beep once again and the screens
show Press and hold [PTT] to talk, then you can press and hold PTT to
continue speaking or the destination device can respond (see Answer a
PTT call on page 56).
4. To end the PTT call, press CANCEL. The telephone base shows
Push to talk Ended for a few seconds.
•
•
PTT To
handset: X
PUSH TO TALK
>HANDSET X
S
T
Connecting to
HANDSET X...
Press and hold
[PTT] to talk
53
Multiple handset use
Push-to-talk (PTT)
PTT call to multiple devices
When there are multiple handsets registered to the phone system, PTT
supports one-to-group calls. PTT supports a maximum of one-to-five calls
when one to five handsets are registered, and a maximum of one-to-four
calls when six or more handsets are registered. The first four registered
handsets will be able to use this feature. Other handsets can only use PTT for
one-to-one calls.
To call multiple devices:
Using a cordless handset:
1. You have three ways to call multiple devices. When the handset is not in use:
Press and hold PUSH TO TALK until the handset shows
Connecting to group....
Press PUSH TO TALK. Press TCID or SDIR to choose Group. Press
MENU/SELECT or press PUSH TO TALK and your handset shows
Connecting to group....
Press PUSH TO TALK. Press TONE followed by # (pound key). The
handset shows Connecting to group....
When the connection is made, both the caller and the destination parties
hear a beep. The speakerphones on all other devices automatically activate.
2. You need to press and hold PUSH TO TALK when you want to speak.
Speak towards the handset. Your voice is broadcast to all devices.
3. Release PUSH TO TALK after speaking.
4. Any extension can reply (see Answer a PTT call on page 56).
•
•
•
54
Multiple handset use
Push-to-talk (PTT)
Using the telephone base:
1. You have three ways to call multiple handsets. When the telephone base is
not in use:
Press and hold PTT until the screen shows Connecting to group....
Press PTT. Press TCID or SDIR to choose Group. Press MENU/SELECT or
press PTT and the telephone base shows Connecting to group....
Press PTT. Press TONE followed by # (pound key). The screen shows
Connecting to group....
When the connection is made, both the caller and the destination parties
hear a beep. The speakerphones on all other devices automatically activate.
2. You need to press and hold PTT when you want to speak. Speak towards
the telephone base. Your voice is broadcast to all devices.
3. Release PTT after speaking.
4. Any extension can reply (see Answer a PTT call on page 56).
NOTE: After PUSH TO TALK on the handset or PTT on the telephone base is released, the PTT
call remains open for a short time. If no one presses PUSH TO TALK on the handset or PTT on
the telephone base within ten seconds, the PTT call ends automatically.
•
•
•
55
Multiple handset use
Push-to-talk (PTT)
Answer a PTT call
You can respond to a PTT call, as described below.
When your device receives a PTT call, it beeps and shows Press and hold
[PTT] to talk.
When the other party is speaking, your speakerphone light is on, and your
device shows:
PTT From HS X To HS X (the first X represents the initiating handset
number, and the second X represents your handset number; a
maximum of four handset numbers appear).
-OR-
PTT From HS X To Base & HS X (the first X represents the initiating
handset number, and the second X represents your handset number;
a maximum of four handset numbers appear).
-OR-
PTT From Base To HS X (the X represents your handset number; a
maximum of five handset numbers appear).
When your speakerphone light is off (the screen shows Press and hold
[PTT] to talk), press and hold PUSH TO TALK on your handset or PTT on
your telephone base. You will hear a chirp. Speak towards the device.
While you are speaking, your device shows PTT To Handset: X
(X represents the handset numbers of one or more destination handsets;
a maximum of five handset numbers appear) or
PTT To Base & Handset: X (X represents the handset numbers of one or
more destination handsets; a maximum of four handset numbers appear).
Your voice is broadcast to all destination devices.
After speaking, release PUSH TO TALK on your handset or PTT on
your telephone base. Your device will beep. After the beep, if your
speakerphone light is off, you can press and hold PUSH TO TALK on
your handset or PTT on your telephone base to continue speaking, or the
destination device can respond.
1.
2.
•
•
•
3.
•
•
56
Multiple handset use
Push-to-talk (PTT)
Change a one-to-one PTT call to an intercom call
You can convert a one-to-one PTT session to an intercom call.
When your device shows Press and hold [PTT] to talk, press
MENU/SELECT. The screen shows Intercom.
Press MENU/SELECT. Your device displays Calling BASE 0 or
Calling HANDSET X. The destination device briefly shows Push to
talk Ended and then HANDSET X is calling or BASE 0 is calling. The
destination device rings.
Press PHONE/FLASH or any dialing keys (0-9, # or TONE ) on the
destination handset, or press /SPEAKER or any dialing keys (0-9, # or
TONE ) on the telephone base to answer the intercom call. Both devices
now show Intercom.
To end the intercom call, press OFF/CANCEL on your handset or place
the handset in the telephone base or charger, or press CANCEL on the
telephone base. Both screens show Intercom ended.
Answer an incoming call during a PTT call
When you receive an outside call during PTT, there is an alert tone.
During a one-to-one PTT, press PHONE/FLASH on the initiating or
destination handset. The PTT call ends automatically and the outside call
is answered.
During a one-to-group PTT call, press PHONE/FLASH on the initiating
handset or /SPEAKER on the initiating telephone base. The PTT call
ends automatically and the outside call is answered.
During a one-to-group PTT call, press PHONE/FLASH on any one of the
destination handsets, or press /SPEAKER on the destination telephone
base. That device answers the outside call. The PTT call continues for the
rest of the PTT participants.
To leave the PTT call without answering the incoming call, press
OFF/CANCEL on your handset or CANCEL on your telephone base. The
telephone continues to ring.
1.
2.
3.
4.
•
•
•
•
57
Multiple handset use
Push-to-talk (PTT)
Make an outgoing call during PTT call
During a one-to-one PTT call, press PHONE/FLASH on your handset or
/SPEAKER on your telephone base to get a dial tone. The PTT call
ends automatically.
During a one-to-group PTT call, press PHONE/FLASH on the initiating
handset or /SPEAKER on the initiating telephone base. The PTT call
ends automatically and you get a dial tone.
During a one-to-group PTT call, press PHONE/FLASH on any one of the
destination handsets or press /SPEAKER on the destination telephone
base. That device gets a dial tone. The PTT call continues for the rest of
the PTT participants.
End or leave a PTT call
For one-to-one PTT calls, both initiating and destination devices can end the
PTT call. For PTT calls to multiple devices, the initiating device can end the
PTT call. If any one of the destination devices leaves the PTT call, the call
continues until all participants or the initiator hangs up.
Press OFF/CANCEL on the handset, or press CANCEL on the telephone
base. The screen shows Push to talk Ended.
-OR-
Place the handset in the telephone base or charger, then the handset
return to idle mode.
NOTE: After PUSH TO TALK on the handset or PTT on the telephone base is released, the
PTT call remains open for a short time. If no one presses PUSH TO TALK on the handset or
PTT on the telephone base within ten seconds, the PTT call ends automatically.
•
•
•
58
About the directory
Shared directory
The directory is shared by all handsets and the telephone
base. Changes made to the directory from any device apply
to all.
NOTE: Only one handset or the telephone base can review the directory
at a time. If another device tries to enter the directory, the screen shows
Not available at this time.
Capacity
The directory can store up to 50 entries, with a maximum of 15
alphanumeric characters (including spaces) for names and 30 digits for
telephone numbers. A convenient search feature can help you find and dial
numbers quickly (page 63).
If you try to save an entry when there are already 50 entries, the screen
shows Directory full. You cannot store a new number until you delete one.
Charlie Johnson
888-883-2445
Directory
59
Create directory entries
Create a new directory entry
1. Press MENU/SELECT in idle mode to enter the main menu.
2. Press TCID or SDIR to scroll to Directory, then press
MENU/SELECT.
3. Press TCID or SDIR to highlight Add contact.
4. Press MENU/SELECT.
5. Use the dialing keys to enter a telephone number (up to
30 digits) when prompted.
Press TCID or SDIR to move the cursor to the left
or right.
Press MUTE/DELETE on the handset or X/DELETE on the
telephone base to erase a digit.
Press and hold MUTE/DELETE on the handset or
X/DELETE on the telephone base to erase all digits.
Press and hold REDIAL/PAUSE to enter a three-second
dialing pause (a p appears).
-OR-
Copy a number from the redial list by pressing
REDIAL/PAUSE, then TCID, SDIR, or pressing
REDIAL/PAUSE repeatedly to locate the number. Press
MENU/SELECT to copy the number.
6. Press MENU/SELECT to move on to the name.
The display shows Number already saved if the number
is already in the directory. You cannot save the same
number twice.
7. Use the dialing keys to enter a name (up to 15 characters)
when prompted. Each time you press a key, the character on that key
appears. Additional key presses produce other characters on that key.
See the chart on next page.
Press TCID or SDIR to move the cursor to the left or right.
Press 0 to add a space.
Press MUTE/DELETE on the handset or X/DELETE on the telephone base
to erase a character.
Press and hold MUTE/DELETE on the handset or X/DELETE on the
telephone base to erase all characters.
Press TONE to change the next letter to upper or lower case.
•
•
•
•
•
•
•
•
•
•
ENTER NAME
Robert Brown_
Saved
ENTER NUMBER
888-883-2445
_
Review
>Add contact
Answering sys
>Directory
Directory
60
Directory
Create directory entries
NOTE: The first letter of every word is a capital letter. The remaining letters in a word start as
lower case letters, as shown in the chart below.
8. Press MENU/SELECT to store your new directory entry. There is a
confirmation tone and the screen shows Saved. To change the entry later,
see page 65.
Add a predialed telephone number to the directory
You can save a predialed telephone number to the directory.
1. Enter the telephone number when in idle mode.
2. Follow the steps in Edit a directory entry on page 65.
Dialing
keys
Characters by number of key presses
1234567891011
11.-‘()*#&/,
2ABCabc2
3DEFdef3
4GHI ghi4
5JKLjkl5
6MNOmno6
7PQRSpqr s7
8TUVtuv8
9WXY Zwxy z9
0space 0
*
#
61
800-222-3111
6:30
AM
8/06
Directory
Review the directory
Review directory entries
1. Press SDIR when in idle mode. The summary screen shows briefly and
then the first entry in the directory shows.
-OR-
Press MENU/SELECT when in idle mode, then press TCID or SDIR to scroll
to Directory. Press MENU/SELECT twice.
2. Press TCID or SDIR to browse through the directory. Entries appear
alphabetically by the first letter in the name.
NOTES:
If the telephone number in the directory exceeds 15 digits, < appears in front of the telephone
number. Press TONE to move towards the end of the telephone number or press # (pound key)
to move towards the beginning of the telephone number.
If there are no directory entries, Directory empty appears briefly on the screen, followed by
Add contact?. If you would like to add a new contact, press MENU/SELECT and refer to pages
60-61 for instructions on creating a new directory entry. Otherwise, press OFF/CANCEL on the
handset or CANCEL on the telephone base to cancel.
•
•
62
Directory
Search the directory
Search by name
1. Press SDIR in idle mode to show the first listing in the directory.
2. When an entry appears, press the dialing keys (0-9) to start a name search.
The directory shows the first name beginning with the first letter associated
with the dialing key, if there is an entry in the directory beginning with that
letter. Press TCID or SDIR to scroll through the directory.
3. To see other names starting with the letters on the same dialing key, keep
pressing the key. The names appear in alphabetical order.
For example, if you have the names Jennifer, Jessie, Kevin and Linda in
your directory:
If you press 5 (JKL) once, you see Jennifer. Press TCID and you
see Jessie.
If you press 5 (JKL) twice, you see Kevin.
If you press 5 (JKL) three times, you see Linda.
If you press 5 (JKL) four times, you see 5 and then the directory entry
beginning with 5 or the next closest entry after 5.
If you press 5 (JKL) five times, you see Jennifer again.
NOTES:
If there is no name matching the first letter of the key you press, the directory shows a name
matching the following letters of the key.
If you press a key (0-9) and no name starts with any of the letters on that key, the directory
shows the entry matching the next letter in the directory.
•
•
•
•
•
•
•
63
Directory
Dial, delete or edit directory entries
To dial, delete or edit a directory entry (name and number), the entry must
be displayed on the screen. Use Review the directory (page 62) or
Search by name (page 63) to show an entry.
Display dial
To dial a displayed number from the directory, press PHONE/FLASH or
/SPEAKERSPEAKER on the handset, or /SPEAKERSPEAKER on the telephone base.
Delete a directory entry
Using a cordless handset:
To delete the displayed directory entry, press MUTE/DELETE.
Press MENU/SELECT to confirm. You cannot retrieve a
deleted entry.
Using the telephone base:
To delete the displayed directory entry, press X/DELETE.
Press MENU/SELECT to confirm. You cannot retrieve a
deleted entry.
Robert Brown
Delete contact?
Robert Brown
Delete contact?
64
Directory
Dial, delete or edit directory entries
Edit a directory entry
1. When a directory entry displays, press MENU/SELECT. The screen shows
EDIT NUMBER along with the phone number to be edited. If you only want
to edit the name, skip to Step 3.
2. To edit the number:
Press the dialing keys to add digits.
Press TCID or SDIR to move the cursor to the left
or right.
Press MUTE/DELETE on the handset or X/DELETE on
the telephone base to erase a digit.
Press and hold MUTE/DELETE on the handset or
X/DELETE on the telephone base to erase all digits.
Press and hold REDIAL/PAUSE to add a three-second
dialing pause (a p appears).
3. Press MENU/SELECT to move on to the name. The screen
shows EDIT NAME along with the name to be edited.
4. To edit the name:
Press the dialing keys to add characters (page 61).
Press TCID or SDIR to move the cursor to the left
or right.
Press MUTE/DELETE on the handset or X/DELETE on the
telephone base to erase a character.
Press and hold MUTE/DELETE on your handset or
X/DELETE on your telephone base to erase all characters.
5. Press MENU/SELECT to save the entry. There is a confirmation tone and
the screen shows Saved.
•
•
•
•
•
•
•
•
•
EDIT NUMBER
888-883-2445_
EDIT NAME
Robert Brown_
Robert Brown
888-883-2445
Linda Miller
888-722-7702
65
Directory
Speed dial
The telephone system has nine speed dial locations (2-9, 0)
and a voicemail access location 1 where you can store
the telephone numbers you wish to dial more quickly.
You can store up to 30 digits in each location. Speed
dial assignments can only be selected from the existing
directory entries. The voicemail access number must be
manually entered. In the directory, speed dial locations
are indicated by their number on the bottom right hand
corner of the entry.
Assign a speed dial number
1. When the telephone is idle, press MENU/SELECT.
2. Press TCID or SDIR to scroll to Directory. Press MENU/SELECT.
3. Press TCID or SDIR to scroll to Speed dial. Press MENU/SELECT.
4. Press TCID or SDIR to choose your desired speed dial
location (0 or 2-9), then press MENU/SELECT. The screen
briefly shows Copy from Directory..., then displays the
directory list.
5. Press TCID or SDIR to scroll to the phone number you
wish to assign to the selected speed dial location.
6. Press MENU/SELECT to save the setting and return to
the previous menu. There is a confirmation tone and the
screen returns to the speed dial list.
-OR-
1. When the telephone is idle, press and hold any dialing keys
(0 or 2-9).
2. Press TCID or SDIR to choose your desired speed dial location (0 or 2-9),
then press MENU/SELECT. The screen briefly shows Copy from Directory...,
then displays the directory list.
3. Press TCID or SDIR to scroll to the phone number you wish to assign to
the selected speed dial location.
4. Press MENU/SELECT to save the setting and return to the previous menu.
There is a confirmation tone and the screen returns to the speed dial list.
Add contact
>Speed dial
>2:Robert Brown
3:<Unassigned>
Answering sys
>Directory
Speed dial location
Robert Brown
888-883-2445
2
Robert Brown
888-883-2445
S
T
2
Speed dial location
66
Directory
Speed dial
Assign your voicemail speed dial number
To assign your voicemail speed dial number to location 1, see page 19
or page 29. The voicemail speed dial entry does not show in the bottom
right corner.
Reassign a speed dial number
1. When the telephone is idle, press MENU/SELECT.
2. Press TCID or SDIR to scroll to Directory. Press MENU/SELECT.
3. Press TCID or SDIR to scroll to Speed dial. Press
MENU/SELECT.
4. Press TCID or SDIR to choose the location you wish
to reassign, then press MENU/SELECT to show the
directory entry.
5. Press MENU/SELECT again.
6. Scroll to Change SD and then press MENU/SELECT. The
screen briefly shows Copy from Directory..., then displays
the directory list.
7. Press TCID or SDIR to scroll to the phone number you
wish to reassign to the selected speed dial location.
8. Press MENU/SELECT to save the setting and return to the
speed dial list. There is a confirmation tone.
Copy from
Directory...
Robert Brown
888-883-2445
2
Linda Miller
888-722-7702
2
67
Directory
Speed dial
Delete a speed dial number
1. When the telephone is idle, press MENU/SELECT.
2. Press TCID or SDIR to scroll to Directory. Press
MENU/SELECT.
3. Press TCID or SDIR to scroll to Speed dial. Press
MENU/SELECT.
4. Press TCID or SDIR to scroll to the location you wish
to delete the speed dial number from, then:
Press MUTE/DELETE on the handset or X/DELETE on
the telephone base to delete the displayed speed dial
number. There is a confirmation tone and the screen
shows Speed dial empty before returning to the speed
dial list.
-OR-
i. Press MENU/SELECT to show the directory entry.
ii. Press MENU/SELECT again.
iii. Scroll to Clear SD and then press MENU/SELECT to delete the displayed
speed dial number. There is a confirmation tone and the screen shows
Speed dial empty before returning to the speed dial list.
Make a call using speed dial
When in idle mode, press and hold the dialing key (0 or 2-9) corresponding
to the assigned location you wish to call.
-OR-
1. Press MENU/SELECT when in idle mode.
2. Press TCID or SDIR to scroll to Directory, then press MENU/SELECT.
3. Press TCID or SDIR to scroll to Speed dial, then press MENU/SELECT.
4. Press TCID or SDIR to scroll to the desired location (0 or 2-9) and then
press PHONE/FLASH or /SPEAKERSPEAKER on the handset, or /SPEAKERSPEAKER on
the telephone base.
Check your voicemail using speed dial
When in idle mode, press and hold 1 to dial the voicemail number you
have set. See page 19 or page 29 to set your voicemail speed dial number.
•
Speed dial
empty
Linda Miller
888-722-7702
2
>2:<Unassigned>
3:<
Unassigned
>
68
About caller ID
This product supports caller ID services offered by most telephone service
providers. Caller ID allows you to see the name, number, date and time of calls.
The available caller ID information will appear after the first or second ring.
Information about caller ID with call waiting
Caller ID with call waiting lets you see the name and
telephone number of the caller before answering the call,
even while on another call.
It may be necessary to change your telephone service to
use this feature. Contact your telephone service provider if:
You have both caller ID and call waiting, but as separate
services (you may need to combine these services).
You have only caller ID service, or only call waiting service.
You don’t subscribe to caller ID or call waiting services.
There are fees for caller ID services. In addition, services may
not be available in all areas.
This product can provide information only if both you and
the caller are in areas offering caller ID service and if both
telephone service providers use compatible equipment. The
time and date, along with the call information, are from the
telephone service provider.
Caller ID information may not be
available for every incoming call.
Callers may intentionally block
their names and/or telephone
numbers. You can only view a
maximum of 15 digits of every
caller ID log entry. To view caller
ID log entries with numbers
between 16 and 24 digits, you must save the entry to the directory (see
page 74).
NOTE: You can use this product with regular caller ID service, or you can use this
product’s other features without subscribing to caller ID or combined caller ID with call
waiting service.
•
•
•
Caller ID
69
CHRISTINE SMITH
888-883-2445
NEW
10/15
10:01AM
CHRISTINE SMITH
888-883-2445
NEW
10/15 10:01 AM
T
Caller ID
70
Caller ID history
How the caller ID history (caller ID log) works
The telephone stores caller ID information about the last 50 incoming calls
in the telephone base. Entries are stored in reverse chronological order. The
phone deletes the oldest entry when the log is full to make room for new
calls. This information is common to the telephone base and all handsets,
so changes made using any handset or the telephone base are reflected
in all other devices. If you answer a call before the information appears on
the screen, it does not show in the caller ID log.
NOTE: Each entry may have up to 24 digits for the phone number and 15 characters for
the name.
Missed (new) call indicator
When a handset or the telephone base is in idle mode and
has new or missed calls, its screen shows XX Missed calls.
All new and missed entries are counted as missed calls. Each
time you review a new caller ID log entry (indicated by NEW
on the screen), the number of missed calls decreases by one.
If you do not want to review the missed calls one by one,
but still want to keep them in the caller ID history, you
can press and hold OFF/CANCEL on the handset for
four seconds when the handset is idle, or press and hold
CANCEL on the telephone base for four seconds when
the telephone base is idle. You will hear a confirmation
tone. All the entries in the caller ID history become old
(reviewed already), and the missed calls message
goes away.
Robert Brown
888-883-2445
NEW
10/15
09:30 AM
Robert Brown
888-883-2445
10/15 09:30
NEW
AM
AM
BASE
6 Missed calls
10/15
MSG
#
1
S
T
10:01AM
HANDSET 1
10/15
6 Missed calls
10:01AM 10/15
HANDSET 1
Caller ID
Caller ID operation
Memory match
If the incoming telephone number matches the last 7 digits
of a telephone number in your directory, the name
that appears on the screen matches the corresponding name
in your directory.
For example, if Christine Smith calls, her name appears as
Chris if this is how you entered it into your directory.
NOTE: The number shown in the caller ID log will be in the format
sent by the telephone service provider. The telephone service
provider usually delivers ten-digit phone numbers (area code plus
telephone number). If the telephone number of the caller does not
match a number in your directory, the name will appear as it is
delivered by the telephone service provider.
71
Chris
888-883-2445
NEW
10/15
10:01AM
Chris
888-883-2445
NEW
10/15 10:01 AM
T
Caller ID
Caller ID operation
Review the caller ID log
Review the caller ID log to find out who called, to return
the call, or to copy the caller’s name and number into your
directory. Caller ID log empty appears if there are no records
in the caller ID log.
1. When the handset or the telephone base is in idle
mode, press TCID to review the caller ID log in reverse
chronological order starting with the most recent call.
-OR-
Review the caller ID log by pressing MENU/SELECT.
Press TCID or SDIR to scroll to Caller ID log, then press
MENU/SELECT twice to select Review.
2. Press TCID or SDIR to scroll through the list.
3. Press OFF/CANCEL on the handset or CANCEL on the
telephone base to exit the caller ID history.
You hear a double beep when the list reaches the
beginning or end of the caller ID log.
NOTE: Only one handset or the telephone base can review the
caller ID history at a time. If another device tries to enter the
directory or caller ID log, it shows Not available at this time.
CHRISTINE SMITH SMITH
888-883-2445
NEW
10:01AM
10:01AM 10/15
Caller’s name
Caller’s number
Appears if it is a new or
missed call.
Date of call
Time of call
CHRISTINE SMITH SMITH
888-883-2445
NEW
10/15
Date of call
Caller’s name
Caller’s number
Appears if it is a new
and missed call.
Time of call
Directory
>Caller ID log
Directory
>Caller ID log
S
T
72
HANDSET 1
6 Missed calls
10:01AM 10/15
AM
BASE
6 Missed calls
10/15 10:01
MSG
#
1
AM
S
T
Caller ID
Caller ID operation
View dialing options
Although the incoming caller ID log entries have ten digits (the area code plus
the seven-digit number), in some areas, you may need to dial only the 7 digits,
1 plus the seven digits, or 1 plus the area code plus the seven digits. You can
change and store the number of digits that you dial in the caller ID log.
While reviewing the caller ID log, press # (pound
key) repeatedly to show different dialing options for
local and long distance numbers before dialing or
saving the telephone number in the directory.
Press 1 repeatedly if you need to add or remove 1
in front of the telephone number before dialing or
saving it in the directory.
When the number is in the correct format for
dialing, press PHONE/FLASH or /SPEAKERSPEAKER on
the handset, or /SPEAKER on the telephone
base to call the number.
To save the number to the directory, see Save a caller ID log entry to the
directory on the next page.
Dial a caller ID log entry
1. When in the caller ID log, press TCID or SDIR to browse.
2. Press PHONE/FLASH or /SPEAKERSPEAKER on the handset, or /SPEAKER on
the telephone base to dial the displayed entry.
Delete caller ID log entries
To delete an entry:
Press MUTE/DELETE on the handset or X/DELETE on the
telephone base to delete the shown entry.
To delete all entries:
1. Press MENU/SELECT when in idle mode.
2. Press TCID or SDIR to scroll to Caller ID log, then
press MENU/SELECT.
3. Press TCID or SDIR to scroll to Del all calls, then press
MENU/SELECT.
4. When the screen shows Delete all calls?, press MENU/SELECT to confirm.
There is a confirmation tone and the screen returns to the previous menu.
•
883-2445
1-883-2445
888-883-2445
1-888-883-2445
883-2445
1-883-2445
888-883-2445
1-888-883-2445
Press #
Press 1
Review
>Del all calls
Review
>Del all calls
S
T
73
Caller ID operation
Save a caller ID log entry to the directory
1. When in the caller ID log, press TCID or SDIR to browse.
2. Press MENU/SELECT to select an entry. On the telephone base, you need
to press MENU/SELECT again to select Directory.
3. When the screen displays EDIT NUMBER, use the dialing keys to edit
the number.
Press TCID or SDIR to move the cursor to the left or right.
Press MUTE/DELETE on the handset or X/DELETE on the telephone
base to backspace and erase a digit.
Press and hold MUTE/DELETE on the handset or X/DELETE on the
telephone base to erase the entire entry.
Press and hold REDIAL/PAUSE to insert a three-second dialing pause
(a p appears).
4. Press MENU/SELECT to move to the name.
5. When the screen displays EDIT NAME, use the dialing keys (page 61) to
edit the name.
Press TCID or SDIR to move the cursor to the left or right.
Press MUTE/DELETE on the handset or X/DELETE on the telephone
base to erase a character.
Press and hold MUTE/DELETE on the handset or X/DELETE on the
telephone base to erase all characters.
Press # (pound key) to move the last word to the front. For example,
Johnson Charlie becomes Charlie Johnson when you press
# (pound key).
6. Press MENU/SELECT when done. The screen shows Saved.
NOTES:
You may need to change how a caller ID number is dialed if the entry does not appear in the
correct format. Caller ID numbers may appear with an area code that is not necessary for local
calls, or without a 1 that is necessary for long distance calls (see View dialing options on
page 73).
If the caller’s name you received from the telephone service provider is all in capital letters, the
first letter of every word remains a capital letter, while other letters become lower case. However,
the next letter after the prefix “Mac”, “Mc”, “D’”, “C’” or “O’”, is kept as a capital letter. For
example, the “D” in “MacDonald” is kept as a capital letter. Another exception is that “VAN DER”
will be changed to “Van der”.
If the telephone number from the caller ID information has already been saved in the directory
under a different name, the new name will overwrite the old one.
•
•
•
•
•
•
•
•
•
•
•
74
Caller ID
Reasons for missing caller ID information
There are occasions when other information or no information shows for
various reasons:
On-screen message Reason
PRIVATE NUMBER The caller prefers not to show the phone number.
PRIVATE NAME The caller prefers not to show the name.
PRIVATE CALLER The caller prefers not to show the phone number and name.
UNKNOWN NUMBER Your telephone service provider cannot determine the
caller’s number.
UNKNOWN NAME Your telephone service provider cannot determine the
caller’s name.
UNKNOWN CALLER Your telephone service provider cannot determine the caller’s
name and telephone number.
Calls from other countries may also generate this message.
75
Caller ID
Call block
Call block
If you have subscribed to caller ID service, you can use the call block feature
to reject certain calls automatically. The call block list stores up to 20 entries.
The telephone system can reject calls automatically according to:
Numbers saved into the call block list
Incoming calls without numbers
This feature is only available on the telephone base.
NOTE: The blocked calls are displayed as Blocked call in the caller ID log.
•
•
Blocked call
888-722-7702
76
Call block
Call block
Add a call block entry
1. When the telephone base is in idle mode, press MENU/SELECT.
2. Press TCID or SDIR to scroll to Call block, then press MENU/SELECT.
3. Press MENU/SELECT to choose Block list.
4. Press TCID or SDIR to scroll to Add new entry, then
press MENU/SELECT.
5. Use the dialing keys to enter a telephone number
(up to 30 digits) when prompted.
Press TCID or SDIR to move the cursor to the left
or right.
Press X/DELETE to erase a digit.
Press and hold X/DELETE to erase all digits.
Press and hold REDIAL/PAUSE to enter a three-
second dialing pause (a p appears).
-OR-
Copy a number from the redial list by pressing REDIAL/PAUSE, then TCID,
SDIR, or pressing REDIAL/PAUSE repeatedly to locate the number.
Press MENU/SELECT to copy the number.
6. Press MENU/SELECT to move on to the name.
The display shows Number already saved if the number is already in
the call block list. You cannot save the same number twice.
7. Use the dialing keys keys to enter a name (up to 15 characters) when
prompted. Press a key repeatedly until the desired character shows on
the screen.
Press TCID or SDIR to move the cursor to the left or right.
Press 0 to add a space.
Press X/DELETE to erase a character.
Press and hold X/DELETE to erase all characters.
Press TONE to change the next letter to upper or lower case.
8. Press MENU/SELECT to store your call block entry.
•
•
•
•
•
•
•
•
•
•
>Block list
Calls w/o num
S
T
Caller ID log
>Call block
S
T
Review
>Add new entry
S
T
77
Call block
Call block
Review the call block list
1. When the telephone base is in idle mode, press MENU/SELECT.
2. Press TCID or SDIR to scroll to Call block, then press MENU/SELECT.
3. Press MENU/SELECT again to choose Block list.
4. Press MENU/SELECT again to choose Review.
5. Press TCID or SDIR to browse through the call block
entries.
NOTE: Block list is empty appears if there are no call block entries.
Save a caller ID log entry to call block list
1. Search for the desired caller ID log entry (see Review the caller ID log on
page 70).
2. When the desired entry displays, press MENU/SELECT.
3. Press TCID or SDIR to scroll to Call block, then press MENU/SELECT.
4. When the screen displays EDIT NUMBER, use the dialing keys to edit
the number.
Press TCID or SDIR to move the cursor to the left or right.
Press X/DELETE on the telephone base to backspace and erase a digit.
Press and hold X/DELETE on the telephone base to erase the
entire entry.
Press and hold REDIAL/PAUSE to insert a three-second dialing pause
(a p appears).
5. Press MENU/SELECT to move on to the name.
6. When the screen displays EDIT NAME, use the dialing keys to edit the name.
Press TCID or SDIR to move the cursor to the left or right.
Press 0 to add a space.
Press X/DELETE on the telephone base to erase a character.
Press and hold X/DELETE on the telephone base to erase all characters.
Press # (pound key) to move the last word to the front. For example,
Johnson Charlie becomes Charlie Johnson when you press #
(pound key).
7. Press MENU/SELECT when done. The screen shows Saved.
•
•
•
•
•
•
•
•
•
>Review
Add new entry
S
T
78
Call block
Call block
Edit a call block entry
1. Search for the desired call block entry (see Review the call block list on
page 78).
2. When the desired entry displays, press MENU/SELECT.
The screen shows
EDIT NUMBER along with the phone number to be
edited. If you only
want to edit the name, skip to Step 4.
3. To edit the number:
Use the dialing keys to enter digits.
Press TCID or SDIR to move the cursor to the left
or right.
Press X/DELETE to erase a digit.
Press and hold X/DELETE to erase all digits.
Press and hold REDIAL/PAUSE to add a three-second
dialing pause (a p appears).
4. Press MENU/SELECT to move on to the name. The screen shows EDIT
NAME along with the name to be edited.
5. To edit the name:
Use the dialing keys to enter characters.
Press TCID or SDIR to move the cursor to the left or right.
Press 0 to add a space.
Press X/DELETE to erase a character.
Press and hold X/DELETE to erase all characters.
Press TONE to change the next letter to upper or lower case.
6. Press MENU/SELECT to save the entry. The screen shows Saved.
•
•
•
•
•
•
•
•
•
•
•
Salesman
888-722-7702
S
T
EDIT NUMBER
888-722-7702_
S
T
EDIT NUMBER
TV Salesman_
S
T
79
Call block
Call block
Delete a call block entry
1. Search for the desired call block entry (see Review the call block list on
page 78).
2. When the desired entry displays, press X/DELETE on the telephone base.
3. The screens shows Deleted. Then, the next entry displays. You cannot
retrieve a deleted entry.
Block calls without number
You can use this feature to reject all incoming calls which are “out of area”
or with numbers set to “Private”.
1. When the telephone base is in idle mode, press
MENU/SELECT.
2. Press TCID or SDIR to scroll to Call block, then
press MENU/SELECT.
3. Press TCID or SDIR to scroll to Calls w/o num,
then press MENU/SELECT.
4. Press TCID or SDIR to select Not block or Block,
then press MENU/SELECT.
Mute first ring of blocked calls
An incoming call will ring once and then the system will check if the call
should be blocked. You can mute the first ring of blocked calls.
1. When the telephone base is in idle mode, press
MENU/SELECT.
2. Press 7464#.
3. Press TCID or SDIR to scroll to select On or Off,
then press MENU/SELECT.
>Not block
Block
S
T
Block list
>Calls w/o num
S
T
MUTE FIRST RING
>On
S
T
80
Answering system settings
Use the answering system menu of a system handset or
the telephone base to set up the announcement message,
turn on or off the answering system or message alert tone,
activate call screening, or change the number of rings,
remote access code or message recording time. If you turn
off the answering system and you change any setting in the answering system
setup menu, the answering machine automatically turns on again.
1. When the device is in idle mode, press MENU/SELECT to enter the main menu.
2. Press TCID or SDIR to scroll to Answering sys, then press MENU/SELECT.
Announcement
Your outgoing announcement plays when calls are answered by the
answering system.
The telephone has a default outgoing announcement, “Hello. Please leave a
message after the tone.” You can use this announcement, or record your own.
You can record an announcement up to 90 seconds. The system does not
record any announcement shorter than two seconds.
To play your current outgoing announcement:
Using a cordless handset:
1. When the handset is in idle mode, press MENU/SELECT to
enter the main menu.
2. Press TCID or SDIR to scroll to Answering sys, then press
MENU/SELECT.
3. Press MENU/SELECT again to select Announcement.
4. Press TCID or SDIR to scroll to Play annc, then press
MENU/SELECT.
Using the telephone base:
1. When the telephone base is in idle mode, press
MENU/SELECT to enter the main menu.
2. Press TCID or SDIR to scroll to Answering sys, then
press MENU/SELECT.
3. Press MENU/SELECT again to select Announcement.
4. Press TCID or SDIR to scroll to Play annc, then press
MENU/SELECT.
Play messages
>Answering sys
>
Announcement
Delete all old
Record annc
>Play annc
Record annc
>Play annc
S
T
>
Announcement
Delete all old
S
T
Answering system
81
Answering system
Answering system settings
To record a new outgoing announcement:
Using a cordless handset:
1. When the handset is in idle mode, press MENU/SELECT to enter the
main menu.
2. Press TCID or SDIR to scroll to Answering sys, then press MENU/SELECT.
3. Press MENU/SELECT again to select Announcement.
4. Press MENU/SELECT to select Record annc. The system
announces, “Record after the tone. Press 5 when you are
done.”
5. Speak towards the handset to record your announcement.
Press 5 to end recording. Your recorded announcement plays.
To listen to the recorded announcement again, scroll to Play annc and press
MENU/SELECT.
Using the telephone base:
1. When the telephone base is in idle mode, press
MENU/SELECT to enter the main menu.
2. Press TCID or SDIR to scroll to Answering sys, then
press MENU/SELECT.
3. Press MENU/SELECT again to select Announcement.
4. Press MENU/SELECT again to select Record annc. The system announces,
“Record after the tone. Press 5 when you are done.”
5. Speak towards the telephone base to record your announcement. Press 5
to end recording. Your recorded announcement plays.
To listen to the recorded announcement again, scroll
to Play annc and press MENU/SELECT.
-OR-
1. When the telephone base is in idle mode, press
•/RECORD.
2. Press TCID or SDIR to scroll to Announcement and
press MENU/SELECT. The system announces, “Record
after the tone. Press 5 when you are done.”
3. Speak towards the telephone base to record your
announcement. Press 5 to end recording. Your recorded
announcement plays.
>Record annc
Play annc
Play annc
>Record annc
S
T
82
Record memo
>Announcement
S
T
Answering system
Answering system settings
To delete or reset your outgoing announcement:
Using a cordless handset:
1. When the handset is in idle mode, press MENU/SELECT to enter the
main menu.
2. Press TCID or SDIR to scroll to Answering sys, then press MENU/SELECT.
3. PressPress MENU/SELECT again to select Announcement.
4. Press TCID or SDIR to scroll to Play annc, then press MENU/SELECT.
5. While the announcement is playing, press MUTE/DELETE to delete the
announcement. The system announces “Announcement deleted” and the
screen shows Annc. Deleted.
-OR-
1. When the handset is in idle mode, press MENU/SELECT to enter the main menu.
2. Press TCID or SDIR to scroll to Answering sys, then press MENU/SELECT.
3. PressPress MENU/SELECT again to select Announcement.
4. Press TCID or SDIR to scroll to Reset annc, then press MENU/SELECT. The
screen shows Reset to default annc?.
5. PressPress MENU/SELECT again to confirm. The screen shows
Annc. reset to default.
Using the telephone base:
1. When the telephone base is in idle mode, press MENU/SELECT to enter the
main menu.
2. Press TCID or SDIR to scroll to Answering sys, then press MENU/SELECT.
3. PressPress MENU/SELECT again to select Announcement.
4. Press TCID or SDIR to scroll to Play annc, then press MENU/SELECT
5. While the announcement is playing, press X/DELETE to delete the
announcement. The system announces “Announcement deleted” and the
screen shows Annc. Deleted.
When your announcement is deleted, the system answers calls with the
default announcement described on page 81. You cannot delete the default
announcement.
83
Answering system
Answering system settings
Answer on/off
Unless you change it, the answering system is on and ready to record
messages. You can turn the answering system off, but if you do so, the
answering system does not answer calls and record incoming messages.
To turn the answering system on or off:
Using a cordless handset:
1. When the handset is in idle mode, press MENU/SELECT to
enter the main menu.
2. Press TCID or SDIR to scroll to Answering sys, then
press MENU/SELECT.
3. Press TCID or SDIR to scroll to Answer ON/OFF, then
press MENU/SELECT.
4. Press TCID or SDIR to highlight On or Off, then
press MENU/SELECT to save the setting. You hear a
confirmation tone.
When the answering system is on, the handset shows
ANS ON.
Using the telephone base:
Press /ANSWER ON to turn the answering system on
or off. If the answering system is turned on, it announces,
“Calls will be answered.” If the answering system is
turned off, it announces, “Calls will not be answered.”
-OR-
1. When the telephone base is in idle mode, press MENU/SELECT to enter the
main menu.
2. Press TCID or SDIR to scroll to Answering sys, then press MENU/SELECT.
3. Press TCID or SDIR to scroll to Answer ON/OFF, then press MENU/SELECT.
4. Press TCID or SDIR to highlight On or Off, then press MENU/SELECT to
save the setting. You hear a confirmation tone.
NOTE: If the answering system is off and there is an incoming call, the system answers
after ten rings and announces, “Please enter your remote access code.” For more
information about remote access, see page 102.
•
Play messages
>Answering sys
Record memo
>Answer ON/OFF
ANSWER ON/OFF
>On
84
Answering system
85
Answering system settings
Voice guide
This feature is an alternative way for you to do the basic setup of the
answering system. You can follow the voice guide to record your own
announcement, set the number of rings, and set the message alert tone.
This feature is only available in the telephone base.
When the telephone base is in idle mode, press MENU/SELECT.
Press TCID or SDIR to scroll to Answering sys, then
press MENU/SELECT.
Press TCID or SDIR to scroll to Voice guide, then
press MENU/SELECT.
You hear a voice prompt “Hello! This voice guide will
assist you with the basic setup of your answering
system.“
Set up your answering system by inputting the
designated numbers, as instructed in the voice guide.
NOTES:
You can press CANCEL to quit the voice guide at any time.
If the system does not receive any input, it will play an alert message. If there is still no input,
it will announce “Sorry, I still have not received any input. If you want to restart the voice
guide, please enter the menu and select Voice guide under Answering system. Good bye.”
After a power outage, the system prompts you to set the date and time. After the date and
time setting is done or skipped, the system will prompt if you want to set up the answering
system via voice guide. Press MENU/SELECT to start the setup.
1.
2.
3.
4.
5.
•
•
•
Answer ON/OFF
>Voice guide
S
T
Setup Ans sys
...
Answering system
Call screening
Use this feature to choose whether incoming messages
can be heard over the speaker when they are being
recorded. If you turn call screening on, you hear the
incoming message. While monitoring an incoming message,
you can answer the call by pressing PHONE/FLASH on
the handset, or /SPEAKERSPEAKER on the telephone base.
To change the setting:
Using a cordless handset or the telephone base:
1. When the handset or telephone base is in idle mode,
press MENU/SELECT to enter the main menu.
2. Press TCID or SDIR to scroll to Answering sys, then
press MENU/SELECT.
3. Press TCID or SDIR to scroll to Ans sys setup, then
press MENU/SELECT.
4. Press MENU/SELECT to select Call screening.
5. Press TCID or SDIR to choose On or Off.
6. Press MENU/SELECT to save the setting. You hear a
confirmation tone.
NOTE: For more information on call screening, see page 93.
Answering system settings
Answer ON/OFF
>Ans sys setup
>
Call screening
# of rings
CALL SCREENING
>On
Answer ON/OFF
>Ans sys setup
S
T
>
Call screening
# of rings
S
T
CALL SCREENING
>On
S
T
86
Answering system
Answering system settings
Number of rings
You can set the answering system to answer an incoming call after two, three,
four, five or six rings. You can also select toll saver. If toll saver is selected, the
answering system answers a call after two rings when you have new messages,
and after four rings when there are no new messages. This feature allows you
to check for new messages and avoid paying long distance charges when
calling from out of your local area. By default, the answering system answers
an incoming call after four rings.
To set the number of rings:
Using a cordless handset or the telephone base:
1. When the handset or telephone base is in idle mode, press
MENU/SELECT to enter the main menu.
2. Press TCID or SDIR to scroll to Answering sys, then press
MENU/SELECT.
3. Press TCID or SDIR to scroll to Ans sys setup, then press
MENU/SELECT.
4. Press TCID or SDIR to scroll to # of rings, then press
MENU/SELECT.
5. Press TCID or SDIR to choose among 2, 3, 4, 5, 6 or
Toll saver.
6. Press MENU/SELECT to save the setting. You hear a
confirmation tone.
NOTES:
If you subscribe to voicemail service through your telephone service
provider, see Answering system and voicemail indicators on page 91.
If you set the number of rings for the answering system as two or three rings, the caller ID
announce feature may not have enough time to announce the caller’s full information.
•
•
Call screening
># of rings
# OF RINGS
>4
Call screening
># of rings
S
T
# OF RINGS
>4
S
T
87
Answering system
Answering system settings
Remote access code
To access your answering system remotely from any touch-
tone phone, you need to enter a two-digit number (00-99). By
default, the remote access code is 19.
To change the remote access code:
Using a cordless handset or the telephone base:
1. When the handset or telephone base is in idle mode,
press MENU/SELECT to enter the main menu.
2. Press TCID or SDIR to scroll to Answering sys, then
press MENU/SELECT.
3. Press TCID or SDIR to scroll to Ans sys setup, then
press MENU/SELECT.
4. Press TCID or SDIR to scroll to Remote code, then press
MENU/SELECT.
5. Use the dialing keys to enter a two-digit number. Press
MUTE/DELETE on the handset or X/DELETE on the
telephone base to backspace and delete a digit.
6. Press
MENU/SELECT to save the setting. You hear a
confirmation tone.
REMOTE CODE
19
Answer ON/OFF
>Ans sys setup
Play messages
>Answering sys
Play messages
>Answering sys
S
T
Voice guide
>Ans sys setup
S
T
REMOTE CODE
19
88
Answering system
Answering system settings
Message alert tone
When the message alert tone is set to On, and there is at least one new
message, the telephone base beeps every ten seconds. Unless you change it,
the message alert tone is set to off.
There is no audible alert at the handset.
To change the setting:
Using a cordless handset or the telephone base:
1. When the handset or telephone base is in idle mode, press
MENU/SELECT to enter the main menu.
2. Press TCID or SDIR to scroll to Answering sys, then
press MENU/SELECT.
3. Press TCID or SDIR to scroll to Ans sys setup, then
press MENU/SELECT.
4. Press TCID or SDIR to scroll to Msg alert tone, then
press MENU/SELECT.
5. Press TCID or SDIR to choose On or Off.
6. Press MENU/SELECT to save the setting. You hear a
confirmation tone.
NOTES:
The message alert tone beeps only if all the following conditions are met:
- Answering system is on.
- Message alert tone setting is on.
- There are new messages.
To temporarily turn off the message alert tone, see page 94.
•
•
MSG ALERT TONE
>On
Remote code
>
Msg alert tone
MSG ALERT TONE
>On
S
T
Remote code
>
Msg alert tone
S
T
89
Answering system
Answering system settings
Message recording time
You can set the recording time allowed for incoming messages. The message
length is three minutes by default.
To change the setting:
Using a cordless handset or the telephone base:
1. When the handset or telephone base is in idle mode, press
MENU/SELECT to enter the main menu.
2. Press TCID or SDIR to scroll to Answering sys, then
press MENU/SELECT.
3. Press TCID or SDIR to scroll to Ans sys setup, then
press MENU/SELECT.
4. Press TCID or SDIR to scroll to Recording time, then
press MENU/SELECT.
5. Press TCID or SDIR to choose 3 minutes, 2 minutes or
1 minute, then press MENU/SELECT to save the setting.
You hear a confirmation tone.
RECORDING TIME
>3 minutes
>Recording time
Msg alert tone
RECORDING TIME
>3 minutes
S
T
>Recording time
Msg alert tone
S
T
90
Answering system
About the answering system
Answering system and voicemail indicators
Your telephone has separate indicators for two different types of voice
messages: those left on its built-in digital answering system and those
left at your telephone service provider’s voicemail (fees may apply). Your
telephone’s built-in digital answering system messages and voicemail
messages are separate. Each alerts you to new messages differently.
If and XX New messages show on the handset and
the telephone base, there are new messages in the built-in
answering system. To listen to messages recorded on your
digital answering system, press /PLAY/STOP on the
telephone base (page 95).
If and New voicemail display on the handset
and the telephone base, your telephone service
provider is indicating that it has new voicemail
for you. To listen to your voicemail, dial an access
number provided by your telephone service
provider, followed by a security code or PIN.
Some telephone service providers bundle or combine
multiple services like voicemail and call waiting,
so you may not be aware that you have voicemail.
To check what services you have and how to access them, contact your
telephone service provider.
To use your voicemail service rather than the answering system, turn off the
answering system. To use the answering system rather than your voicemail
service, contact your telephone service provider to deactivate the voicemail
service.
NOTE: After reviewing all new messages, the number of old messages appears on the
message counter.
•
•
91
HANDSET 1
1 New message
10/15
10:01AM
ANS ON
Answering system
About the answering system
Using the answering machine and voicemail together
You can also use your telephone answering system and voicemail together
by setting your built-in answering system to answer before voicemail
answers, as described below. To learn how to program your voicemail
settings, contact your telephone service provider. If you are on a call, or the
answering system is busy recording a message and you receive another call,
the second caller can leave a voicemail message.
Set the answering system to answer calls at least two rings earlier than your
voicemail is set to answer. For example, if your voicemail answers after six
rings, set the answering system to answer after four rings. Some voicemail
providers may program the delay before answering calls in seconds instead
of rings. In this case, allow six seconds per ring when determining the
appropriate setting.
Message capacity
The answering system can record up to 99 messages, depending on the
length of each message. Individual messages can be up to three minutes,
and the maximum recording time is approximately 22 minutes. The actual
recording time depends on individual message characteristics. Messages
remain available for replay until you delete them.
When there are new messages (including memos) on the answering system,
the number of messages stored shows in the message counter.
If the answering system has less than three minutes of recording time
left, it announces, “Less than three minutes to record,” before message
playback at the handset or the telephone base. Rec mem low displays on
the device screen in idle mode. When you turn on the answering system at
the telephone base, it announces, “Calls will be answered. Less than three
minutes to record.”
If the memory is full, the answering system announces, “Memory is full,”
before message playback. The device screen displays Rec mem full in idle
mode. Once the memory is full, you cannot turn the answering system back
on if it has been turned off, nor can you record new messages until old
ones have been deleted. Memory full displays if you want to turn on the
answering system on the handset but there is no memory.
92
Answering system
About the answering system
Voice prompts
The system provides voice prompts to guide you through the setup procedures
at the telephone base, message playback, remote access and recording
outgoing announcements.
Call screening
To screen a call at the telephone base:
If the answering system and call screening are on (see Call screening on
page 86), the announcement and the incoming message broadcast at the
telephone base when a call is answered by the answering system.
Options while a message is being recorded:
Press T/VOLUME/S on the telephone base to adjust the call
screening volume.
Press /PLAY/STOP or CANCEL to temporarily silence the
call screening.
Press /PLAY/STOP to temporarily turn on the call screening if call
screening is set to off.
Press /SPEAKERSPEAKER to answer the call.
To screen a call at the handset:
If the answering system is on, you can hear the announcement and the
incoming message with the handset when a call is answered by the answering
system. While a message is being recorded, the handset shows
To screen call, press [SELECT]. Press MENU/SELECT to screen the call.
Options while a message is being recorded:
Press TCID/VOLUME or SDIR/VOLUME on the handset to adjust the call
screening volume.
Press OFF/CANCEL to temporarily silence the call screening.
Press MENU/SELECT to temporarily turn on the call screening if call
screening is set to off.
Press /SPEAKERSPEAKER to broadcast the announcement and the incoming
message through the speakerphone. Press again to turn off the speakerphone.
•
•
•
•
•
•
•
•
93
Answering system
About the answering system
Call intercept
While screening a call, you can stop recording and speak to the caller by pressing
PHONE/FLASH on the handset or /SPEAKERSPEAKER on the telephone base.
Base ringer
Press T/VOLUME/S on the telephone base to adjust the ringer volume
when the telephone is not in use.
You hear a sample of the ringer while adjusting the volume. The telephone
base shows Ringer off when you set the volume to 0.
Temporarily turning off the message alert tone
If the message alert tone is turned on, the telephone base beeps every
ten seconds when there are new messages. Pressing any telephone base
key (except /HANDSET LOCATOR) temporarily silences the message
alert tone.
If you press X/DELETE when in idle mode to temporarily turn off the
message alert tone, there is a voice prompt directing you to press X/DELETE
again to delete all old messages. The message alert tone is temporarily off.
Only press X/DELETE a second time if you wish to erase all old messages in
your answering system.
The message alert tone resumes when you receive another message.
94
Answering system
Message playback
If you have new messages, you hear only the new messages in chronological
order. If there are no new messages, the system plays back all the messages
(in chronological order). If there are both new and old messages, you have
the option of playing the new or old messages.
When playback begins, the total number of messages is announced. Before
each message, you hear the day and time of the recording. If the date and
time are not set, you hear, “Time and date not set,” before playback. After
the last message, you hear, “End of messages.” If the recording time is less
than three minutes, you hear, “Less than three minutes to record” before
playback (see Message capacity on page 92).
To listen to messages at the telephone base:
Press /PLAY/STOP on the telephone base to listen to
the messages.
If there are new and old messages, press TCID or
SDIR to select Play new msgs or Play old msgs, then
press MENU/SELECT or /PLAY/STOP.
If there are only new or only old messages, they will
play automatically.
-OR-
1. When the telephone base is in idle mode, press
MENU/SELECT to enter the main menu.
2. Press MENU/SELECT again to select Play messages.
If there are new and old messages, press TCID or
SDIR to select Play new msgs or Play old msgs,
then press MENU/SELECT or /PLAY/STOP.
If there are only new or only old messages, they
will play automatically.
The system announces the number of messages, then
begins playback. The message sequence is shown on
the telephone base. If there are no recorded messages,
the telephone base shows No messages and you hear,
“You have no message.”
•
•
•
•
>Play messages
Answering sys
S
T
>Play new msgs
Play old msgs
S
T
Charlie Johnson
NEW MSG #1/3
10:01AM
10/15
NEW
3 New messages
You have:
95
Answering system
Message playback
To listen to messages on a cordless handset:
1. When the handset is in idle mode, press MENU/SELECT to
enter the main menu.
2. Press MENU/SELECT again to select Play messages.
If there are new and old messages, press TCID or SDIR
to select Play new msgs or Play old msgs, then press
MENU/SELECT.
If there are only new or only old messages, they will
play automatically.
The system announces the number of messages, then
begins playback. The message sequence is shown on the
handset. If there are no recorded messages, the handset
shows No messages and you hear, “You have no message.”
Options during playback
When a message is playing, you can adjust the playback volume, skip, repeat,
pause or delete the message.
When messages are playing on the telephone base:
Press T/VOLUME/S to adjust the message playback volume.
Press /SKIP to skip to the next message.
Press /REPEAT to repeat the message. Press twice to hear the
previous message.
Press X/DELETE to delete the message.
Press /PLAY/STOP to stop the playback.
Press /SPEAKERSPEAKER to stop playback. The screen shows Call back?, then
press MENU/SELECT, or /SPEAKERSPEAKER to call back the caller if the caller’s
number is available. If the dialing format used is not correct, then use the
option, as mentioned below, to choose the correct dialing format before
calling back the caller.
Press MENU/SELECT to pause playback and show the caller ID information
if available. From here, you can press CANCEL to resume playback,
or press # (pound key) repeatedly to show the desired dialing option
(page 73), then press /SPEAKERSPEAKER to call back the caller. If you do not
call back within ten seconds, message playback resumes automatically.
•
•
•
•
•
•
•
•
•
>Play new msgs
Play old msgs
ANS ON
3 New messages
ANS ON
You have:
Charlie Johnson
4-Repeat 6-Skip
MSG#
1/3
10:01AM
NEW
ANS ON
96
Answering system
Message playback
When messages are playing on the handset:
Press TCID/VOLUME or SDIR/VOLUME to adjust the message
playback volume.
Press EQ to adjust the message playback audio quality.
Press 6 to skip to the next message.
Press 4 to repeat the message. Press twice to hear the previous message.
Press MUTE/DELETE to delete the message.
Press 5 or OFF/CANCEL to stop the playback.
Press /SPEAKERSPEAKER to switch between speakerphone mode and
handset mode.
Press PHONE/FLASH to stop playback. The screen shows Call back?,
then press MENU/SELECT, PHONE/FLASH, or /SPEAKERSPEAKER to call back
the caller if the caller’s number is available. If the dialing format used
is not correct, then use the option, as mentioned below, to choose the
correct dialing format before calling back the caller.
Press MENU/SELECT to pause playback and show the caller ID information
if available. From here, you can press # (pound key) repeatedly to show
the desired dialing option (page 73), then press PHONE/FLASH to call
back the caller. You can also press OFF/CANCEL to resume playback.
If you do not call back within ten seconds, message playback resumes
automatically.
NOTE: The equalizer stays on the same settings until you change it by pressing EQ .
•
•
•
•
•
•
•
•
•
97
Answering system
Message playback
Delete all old messages
You can only delete old (reviewed) messages. You cannot delete new messages
until you review them. You cannot retrieve deleted messages.
To delete all old messages on the telephone base:
1. When the telephone is idle, press X/DELETE. The system announces, “To
delete all old messages, press DELETE again.”
2. Press X/DELETE again. The system announces, “All old messages deleted.”
-OR-
1. Press MENU/SELECT when in idle mode to enter the
main menu.
2. Press TCID or SDIR to scroll to Answering sys. Press
MENU/SELECT.
3. Press TCID or SDIR to highlight Delete all old,
then press MENU/SELECT. The screen shows
Delete all old messages?.
4. Press MENU/SELECT again to confirm. The screen
displays Deleting..., then All old msgs deleted!. There
is a confirmation tone.
To delete all old messages on the handset:
1. Press MENU/SELECT when in idle mode to enter the
main menu.
2. Press TCID or SDIR to scroll to Answering sys. Press
MENU/SELECT.
3. Press TCID or SDIR to highlight Delete all old, then
press MENU/SELECT. The screen shows
Delete all old messages?.
4. Press MENU/SELECT again to confirm. The screen
displays Deleting..., then All old msgs deleted!. There
is a confirmation tone.
Announcement
>Delete all old
Delete all
old messages?
Deleting...
Announcement
>Delete all old
S
T
Delete all
old messages?
Deleting...
98
Answering system
Recording and playing memos
Memos are your own recorded messages used as reminders for yourself or
others using the same answering system. You can record your own memos
using a system handset or the telephone base. Play and delete them in the
same way as incoming messages.
Record a memo
Using a cordless handset:
1. When the handset is in idle mode, press MENU/SELECT to
enter the main menu.
2. Press TCID or SDIR to scroll to Answering sys. Press
MENU/SELECT.
3. Press TCID or SDIR to highlight Record memo, then press
MENU/SELECT. The system announces, “Record after the
tone. Press 5 when you are done.” You can record a memo
for up to four minutes.
4. Speak towards the handset to record a memo.
5. Press 5 to stop recording. The system announces,
“Recorded.” The system does not save memos shorter than
two seconds.
Play messages
>Answering sys
>Record memo
Delete all old
5-Stop
RECORD MEMO...
99
Recording and playing memos
Using the telephone base:
1. When the telephone base is in idle mode, press
MENU/SELECT to enter the main menu.
2. Press TCID or SDIR to scroll to Answering sys. Press MENU/SELECT.
3. Press TCID or SDIR to highlight Record memo, then
press MENU/SELECT. The system announces, “Record
after the tone. Press 5 when you are done.” You can
record a memo for up to four minutes.
4. Speak towards the telephone base to record a memo.
5. Press 5 to stop recording. The system announces,
“Recorded.” The system does not save memos shorter
than two seconds.
-OR-
1. When the telephone base is in idle mode, press
•/RECORD.
2. Press •/RECORD again or press MENU/SELECT to select
Record memo. The system announces, “Record after the
tone. Press 5 when you are done.”
3. Speak towards the telephone base to record a memo.
4. Press 5 to end recording. The system announces,
“Recorded.” The system does not save memos shorter than two seconds.
Play back a memo
Play memos the same way as messages. See Message playback on page 95.
Delete all old
>Record memo
S
T
>Record memo
Announcement
S
T
100
Answering system
Base message counter displays
The base message counter shows the total number of answering system
messages. See the following table for other message counter displays.
Message counter displays
0No messages.
1-99 Total number of messages and memos.
--
The system is answering a call, or someone is trying to
reach it remotely.
The system is in program mode.
101
Answering system
Answering system
Remote access
You can reach your answering system remotely by dialing your home
telephone number from any touch-tone telephone.
To remotely reach your answering system:
1. Dial your telephone number from any touch-tone telephone.
2. When the system answers, enter the two-digit remote access code (19 is
the default code. See page 88 to change it).
The system automatically announces the number of new or old
messages (if any), and then begins to play them.
3. You can also enter the following remote commands:
Remote commands
1Press to listen to all messages.
2Press to listen to new messages only.
3Press to delete the current message (during playback).
33 Press twice to delete all old messages.
4Press to repeat the current message (during playback).
5Press to stop any operation (including recording).
*5Press to listen to a list of remote commands.
6Press to skip to the next message (during playback).
*7Press to record a new announcement.
8 Press to end remote access (the call will be terminated).
0Press to turn the answering system on or off.
4. Hang up or press 8 to end the calls.
•
102
Answering system
Remote access
Cut out and carry the remote access wallet card at the back of this user’s
manual for quick reference.
NOTES:
If you do not enter a valid remote access code, the system answers the call automatically.
If you pause for more than four seconds during remote access, you hear a help menu listing
all features and commands. If there is no command for another 20 seconds, the call ends
automatically.
If the memory is full, the answering system answers after ten rings and announces, “Memory is
full. Enter the remote access code.” Enter your remote access code to access the messages and
announcements.
•
•
•
103
Adding and registering handsets/headsets
Your telephone can support up to 12 DECT 6.0 cordless handsets (AT&T model
CL80115, sold separately) or up to ten cordless handsets and two cordless
headsets or speakerphones (sold separately). Visit
www.telephones.att.com/accessories for a list of compatible DECT
6.0 cordless headsets and speakerphones. Each new handset, headset or
speakerphone must be registered to the telephone base before use. You must
register each handset, headset or speakerphone separately.
To register a cordless headset or speakerphone to this telephone system,
please refer to the corresponding user’s manual for more details. To register
a cordless handset, see below.
The handsets provided within your product box are already registered as
HANDSET 1, and so forth. Additional handsets are assigned numbers in the
sequential order they are registered (up to HANDSET 12).
Register a handset to the telephone base
1. Before you begin registration, make sure the handset is out
of the telephone base or charger and shows To register HS,
see manual.
2. Put the handset you wish to register on the telephone
base cradle.
3. Both the handset and the telephone base show
Registering... Please wait and the IN USE light on the
telephone base turns on. HANDSET X Registered appears
on both the handset and the telephone base screens
(HANDSET represents the handset name, X represents the
handset number). Both the handset and the telephone base
beep and the IN USE light turns off. The handset is now
registered with the telephone base.
To register HS,
see manual.
Registering...
Please wait
HANDSET X
Registered
Appendix
104
Appendix
105
Adding and registering handsets/headsets
If registration fails, the system will automatically try to register again. If
registration fails after the third try, Registration failed appears on both
screens. The handset shows To register HS, see manual and the telephone
base returns to idle mode. This may take up to five minutes to occur. Please
start again from Step 1.
NOTES:
You cannot register a handset if any other system handset is in use.
If you try to register more than 12 handsets to the telephone base, the telephone base shows
Registration slots are full and sounds two beeps.
•
•
For registration, put the handset on the
telephone base, not the handset charger.
Appendix
106
Deregistering handsets
You may need to deregister your handsets if:
You have 12 registered handsets and need to replace a handset.
-OR-
You wish to change the designated handset number of your
registered handsets.
You must first deregister ALL handsets, and then register each handset you
wish to use again, one at a time.
Please read carefully through all the instructions on this page before
beginning the deregistration process.
Deregister all handsets from the telephone base
In addition to the cordless handsets, this operation will also deregister all
cordless headsets and speakerphones registered to your telephone base.
1. Make sure that all handsets are out of the telephone
base and chargers before you begin deregistration.
2. Press and hold /HANDSET LOCATOR on the
telephone base for about ten seconds (until the
IN USE light starts to flash). The telephone base screen
shows Registering... Please wait for five seconds, then
it shows Deregister all devices?. Release /HANDSET LOCATOR.
3. Immediately press /HANDSET LOCATOR while the IN USE light is still
flashing. (If the light stops flashing, start again with Step 1.)
4. It takes up to ten seconds to complete the deregistration process. Before
registering the handset again, wait for the cordless handset screen to
display To register HS, see manual.
5. To register the handset(s) to the telephone base again, follow the
registration instructions on the previous page.
NOTES:
If the deregistration process fails, you may need to reset the system and try again. To reset,
unplug the power from the telephone base and plug it back in.
You cannot deregister the handsets if any other system handset is in use.
Even if the battery is depleted, you can still deregister the handsets by following the steps
mentioned above. After the handset is charged for at least ten minutes, the screen shows
To register HS, see manual.
If in Step 2 you already have 12 registered handsets, the telephone base shows Registration
slots are full and sounds two beeps. Continue holding /HANDSET LOCATOR until
Deregister all devices? displays.
•
•
•
•
•
•
Appendix
107
Alert tones and lights
Handset screen icons
Battery status - battery is charging (animated display).
Battery status - low battery (flashing); place the handset
in telephone base or charger to recharge.
Speakerphone - the speakerphone is in use.
Ringer off - the handset ringer is off.
New voicemail - you have new voicemail from your
telephone service provider.
ANS ON Answering system on - the answering system is turned
on to answer calls.
Message - new message in the built-in answering system.
NEW New caller ID log - new and missed calls.
MUTE MUTE - the handset microphone is off.
Telephone base screen icons
Ringer off - the telephone base ringer is off.
New voicemail - you have new voicemail from your
telephone service provider.
NEW New caller ID log - new and missed calls.
Message counter - total number of messages.
MSG
#
1
10:21AM
2/11
MSG
#
1
NEW
S
T
10:01AM
NEW
ANS ON
MUTE
12/17
Appendix
108
Alert tones and lights
Handset alert tones
One short beep Tone of each key press, if key tone is turned on.
One long beep Indication to begin recording a message, memo or announcement.
Two short beeps You are pressing TCID or SDIR on a cordless handset when the
volume is already at its highest or lowest setting.
-OR-
Call waiting tone.
-OR-
Error tone.
Confirmation tone
(three rising tones)
The system has completed the command successfully.
Four beeps The other party has ended your intercom call.
-OR-
The handset has gone out of range from the base during a call.
Four short beeps Low battery warning.
Telephone base alert tones
One short beep Tone of each key press, if key tone is turned on.
One long beep Indication to begin recording a message, memo or announcement.
Indicates the start of message recording during call screening or
the end of a message playback session.
Two short beeps You are pressing T/VOLUME/S on the telephone base when the
volume is already at its highest or lowest setting.
-OR-
Call waiting tone.
-OR-
Error tone.
-OR-
Registration slots are full.
Confirmation tone
(three rising tones)
The system has completed the command successfully.
Four beeps The other party has ended your intercom call.
Four short beeps Registration failure tone.
Beeps every
ten seconds
Message alert.
Appendix
109
Alert tones and lights
Lights
IN USE
On when the telephone
base is in use, or when
the answering system is
answering an incoming
call.
On when a handset is
being registered.
Flashes quickly when
there is an incoming call
or when handsets are
being deregistered.
Flashes when another
telephone is in use on
the same line.
•
•
•
•
CHARGE light
On when the
handset is charging
in the telephone
base or charger.
Big lighted buttons
/SPEAKERSPEAKER
On when the
speakerphone is on.
/ANSWER ON
On when the
answering system
is on.
Extra large display
/PLAY/STOP
On when a
message is
playing.
MUTE
On when the microphone
is muted.
/SPEAKERSPEAKER
On when the
speakerphone
is on.
Lighted display
Appendix
110
Screen display messages
Screen messages
BASE 0
is calling
The telephone base is calling.
Blocked call An incoming is blocked.
Block list
is empty
There are no call block entries.
Call
transferred
You have transferred an outside call to another device.
Caller ID log
empty
There are no entries in the caller ID history.
Calling
BASE 0
The handset is calling the telephone base (for intercom calls).
Calling
HANDSET X
The handset or telephone base is calling another handset (for
intercom calls).
The telephone base is transferring an outside call to a handset.
Call answered The answering system has answered an incoming call.
Contact deleted A directory entry is deleted.
Directory empty There are no directory entries.
Directory full The directory is full. You cannot save any new entries unless
you delete some current entries.
Ended You have just ended a call.
HANDSET X
is calling
Another system handset is calling.
Incoming call There is a call coming in.
Intercom The device is on an intercom call.
Intercom ended The intercom call has just ended.
INTERCOM TO: You have started the intercom process, and need to enter the
number of the device you wish to call.
Line in use An extension phone, or one of the devices is in use.
Low battery The battery is low. You should charge the battery.
Microphone ON Mute is off so the other party can hear your voice.
Muted The microphone is off. The other party cannot hear you.
New voicemail There are new voicemail messages from your telephone
service provider.
Appendix
111
Screen display messages
Screen messages
No answer. Try
again
The device(s) you are trying to transfer a call to is out of range,
off hook, or has no power.
No battery The handset in the charger has no battery installed.
No caller info The caller information is unavailable.
No line There is no telephone line connection.
Number already
saved
The telephone number you have entered is already in the
directory.
Not available
at this time
Someone else is already using the directory or caller ID history.
No Incoming PTT The incoming PTT function is turned off. The handset will not
receive PTT calls.
Out of range OR
No pwr at base
The telephone base has lost power, or the handset is out
of range.
** Paging ** The cordless handset is paged by the telephone base.
Paging all
handsets
The telephone base is paging all cordless handsets.
Phone The handset is on a call.
Place in charger The battery is very low. The handset should be charged.
Quiet mode on QUIET mode is on.
Quiet mode is off QUIET mode is turned off.
Rec mem full The system recording time is full.
Rec mem low The system recording time is low.
Recording message The telephone is recording a message.
Registering...
Please wait
The handset is registering to the telephone base.
Registeration
slots are full
The telephone base has the maximum of 12 handsets
registered to it.
Registration failed The handset registration is not successful.
Ringer off The ringer is turned off.
Ringer muted The ringer is off temporarily while the device is ringing.
Saved An entry has been successfully saved in the directory.
Appendix
112
Screen display messages
Screen messages
Setup Ans sys... The telephone base is playing voice guide.
Speaker The handset or telephone base speakerphone is in use.
TRANSFER TO: You have started transferring a call, and need to enter the
desired device number or choose all devices.
To register HS,
see manual.
Screen display before handset registration.
To screen call,
press [SELECT]
Press MENU/SELECT to activate call screening.
Unable to call.
Line in use
Failed phone call (the telephone line is in use).
Unable to call.
Try again
You try to join a call when there are already four handsets on that call.
You try to make an outside call when another device is
transferring a call with the intercom feature.
XX Missed calls There are new calls in the caller ID history.
XX New messages There are new messages in the answering system.
Appendix
113
Troubleshooting
If you have difficulty with your phone please try the following suggestions.
For Customer Service, visit our website at www.telephones.att.com or
call 1 (800) 222-3111. In Canada, dial 1 (866) 288-4268.
My telephone doesn’t work at all.
Make sure the power cord is securely plugged in.
Make sure you plug the battery connector securely into the cordless handset.
Make sure you plug the telephone line cord securely and firmly into the
telephone base and the telephone wall jack.
Charge the battery in the cordless handset for at least ten hours. For
optimum daily performance, return the cordless handset to the telephone
base or charger when not in use.
If the battery is depleted, it may take approximately 30 minutes to charge
the handset before it shows Low battery. See page 9 for details.
Reset the telephone base. Unplug the electrical power. Wait for
approximately 15 seconds, then plug it back in. Allow up to one minute for
the cordless handset and telephone base to reset.
You may need to purchase a new battery. Please refer to
Battery installation and charging in this user’s manual on pages 9-10.
The display shows No line. I cannot get a dial tone.
Try all the suggestions mentioned above.
If the previous suggestions do not work, disconnect the telephone line
cord from your telephone and connect the telephone line cord to another
telephone.
If there is no dial tone on that other telephone either, your telephone
line cord may be defective. Install a new telephone line cord.
If changing the telephone line cord does not help, the wall jack (or the
wiring to this wall jack) may be defective. Try using a different wall jack
in your home to connect your CL83215/CL83315/CL83415/CL83465/
CL83565 telephone, or contact your telephone service provider (charges
may apply).
•
•
•
•
•
•
•
•
•
•
•
Appendix
114
Troubleshooting
I cannot dial out.
Try all the suggestions mentioned above.
Make sure you have a dial tone before dialing. The cordless handset may
take a second or two to find the telephone base and produce a dial tone.
This is normal. Wait an extra second before dialing.
Eliminate any background noise. Noise from a television, radio or other
appliances may cause the phone to not dial out properly. If you cannot
eliminate the background noise, first try muting the cordless handset
before dialing, or dialing from another room with less background noise.
If other phones in your home are having the same problem, contact your
telephone service provider (charges may apply).
My cordless handset isn’t performing normally.
Make sure you plug the power cord securely into the telephone base. Plug the
power adapter into a different working electrical outlet without a wall switch.
Move the cordless handset closer to the telephone base. You may have
moved out of range.
Reset the telephone base. Unplug the electrical power. Wait for 15
seconds, then plug it back in. Allow up to one minute for the cordless
handset and telephone base to reset.
Other electronic products such as HAM radios and other DECT phones, can
cause interference with your cordless phone. Try installing your phone as
far away as possible from these types of electronic devices.
Out of range OR No pwr at base appears on my cordless handset.
Ensure you plug the telephone base in properly and the power is on.
Place the cordless handset in the telephone base for one minute to allow
the cordless handset and base to synchronize.
Move the cordless handset closer to the telephone base. You may have
moved out of range.
Reset the telephone base. Unplug the electrical power. Wait for 15
seconds, then plug it back in. Allow up to one minute for the cordless
handset and telephone base to reset.
Other electronic products such as HAM radios and other DECT phones, can
cause interference with your cordless phone. Try installing your phone as
far away as possible from these types of electronic devices.
•
•
•
•
•
•
•
•
•
•
•
•
•
Appendix
115
Troubleshooting
The batteries do not hold a charge.
If the cordless handset is in the telephone base or charger and the charge
light is not on, refer to The charge light is off or blinking (page 117).
Charge the battery in the cordless handset for at least ten hours. For
optimum daily performance, return the cordless handset to the telephone
base or charger when not in use.
If the battery is depleted, it may take approximately 30 minutes to charge
the handset before it shows Low battery. Refer to the table on page 9
for details.
You may need to purchase a new battery. Please refer to
Battery installation and charging in this user’s manual on pages 9-10.
I get noise, static, or weak signals even when I’m near the telephone base.
If you subscribe to high-speed Internet service (DSL - digital subscriber
line) through your telephone line, you must install a DSL filter between
the telephone line cord and the telephone wall jack (page 8). The filter
prevents noise and caller ID problems as a result of DSL interference.
Please contact your DSL service provider for more information about
DSL filters.
You may be able to improve the performance of your cordless phone
by installing your new telephone base as far as possible from any other
existing cordless telephone system that may already be installed.
Other electronic products such as HAM radios and other DECT phones, can
cause interference with your cordless phone. Try installing your phone as
far away as possible from these types of electronic devices.
Do not install this phone near a microwave oven or on the same electrical
outlet. You may experience decreased performance while the microwave
oven is operating.
If you plug your phone in with a modem or a surge protector, plug the
phone (or modem/surge protector) into a different location. If this does
not solve the problem, relocate your phone or modem farther apart from
one another, or use a different surge protector.
Move your phone to a higher location. The phone may have better
reception in a high area.
If other phones in your home are having the same problem, contact your
telephone service provider (charges may apply).
•
•
•
•
•
•
•
•
•
•
•
Appendix
116
Troubleshooting
I experience poor sound quality when using the handset speakerphone.
For increased sound quality while using the handset speakerphone, place
the handset on a flat surface with the dial pad facing up.
I hear other calls while using my phone.
Disconnect the telephone base from the telephone jack, and plug in a
different telephone. If you still hear other calls, call your telephone
service provider.
My cordless handset does not ring when I receive a call.
Make sure that the ringer is not off. Refer to Ringer volume on page 15 in
this user’s manual.
Make sure you plug in the telephone line cord securely into the telephone
base and the telephone jack. Make sure you plug in the power cord securely.
The cordless handset may be too far from the telephone base.
Charge the battery in the cordless handset for at least ten hours. For
optimum daily performance, return the cordless handset to the telephone
base or charger when not in use.
You may have too many extension phones on your telephone line to
allow all of them to ring simultaneously. Try unplugging some of the
other phones.
The layout of your home or office may be limiting the operating range.
Try moving the telephone base to another location, preferably to a
higher location.
If other phones in your home are having the same problem, contact your
telephone service provider (charges may apply).
Test a working phone at the phone jack. If another phone has the same
problem, contact your telephone service provider (charges may apply).
Other electronic products can cause interference with your cordless phone.
Try installing your phone as far away as possible from electronic devices
such as television sets, VCRs, or other cordless telephones.
Remove the battery. Install the battery again and place the cordless
handset into the telephone base. Wait for the cordless handset to
reestablish its connection with the telephone base. Allow up to one minute
for this to take place.
Your line cord may be defective. Try installing a new line cord.
•
•
•
•
•
•
•
•
•
•
•
•
•
Appendix
117
My calls cut in and out while I’m using my cordless handset.
Other electronic products such as HAM radios and other DECT phones, can
cause interference with your cordless phone. Try installing your phone as
far away as possible from these types of electronic devices.
Do not install this phone near a microwave oven or on the same electrical
outlet. You may experience decreased performance while the microwave
oven is operating.
If you plug your phone in with a modem or surge protector, plug the
phone (or modem/surge protector) into a different location. If this does
not solve the problem, relocate your phone or modem farther apart from
one another, or use a different surge protector.
Move your telephone base to a higher location. The phone may have
better reception when installed in a high area.
If other phones in your home are having the same problem, contact your
telephone service provider (charges may apply).
The charge light is off or blinking.
Make sure you plug the power and line cords in correctly and securely.
Unplug the electrical power. Wait for 15 seconds, then plug it back in.
Allow up to one minute for the cordless handset and telephone base
to reset.
Clean the cordless handset, charger and telephone base charging contacts
each month with a pencil eraser or cloth.
A blinking CHARGE light is an indication that the battery is not connected
to the handset or is missing completely. Ensure that the battery is
installed properly.
•
•
•
•
•
•
•
•
•
Troubleshooting
Appendix
118
My caller ID isn’t working.
Caller ID is a subscription service. You must subscribe to this service from
your telephone service provider for this feature to work on your phone.
The caller may be calling from an area that supports caller ID.
Both your and the caller’s telephone service providers must use caller ID
compatible equipment.
If you subscribe to high-speed Internet service (DSL - digital subscriber
line) through your telephone line, you must install a DSL filter between
the telephone line cord and the telephone wall jack (page 8). The filter
prevents noise and caller ID problems resulting from DSL interference.
Please contact your DSL service provider for more information about
DSL filters.
System does not receive caller ID when on a call.
Make sure you subscribe to caller ID with call waiting features from your
telephone service provider. Caller ID features works only if both you and
the caller are in areas offering caller ID service, and if both telephone
service providers use compatible equipment.
Incomplete messages.
If a caller leaves a very long message, part of it may be lost when the
system disconnects the call after the maximum recording time you have set.
If the caller pauses for longer than seven seconds, the system stops
recording and disconnects the call.
If the system’s memory becomes full during a message, the system stops
recording and disconnects the call.
If the caller’s voice is very soft, the system may stop recording and
disconnect the call.
Difficulty hearing messages.
Press VOLUME/S to increase the telephone base speaker volume.
Press SDIR/VOLUME to adjust the message playback volume on
a handset.
•
•
•
•
•
•
•
•
•
•
•
Troubleshooting
Appendix
119
Troubleshooting
System does not answer after the correct number of rings.
• Make sure that the answering system is on. ANS ON should show on
the handset and the /ANSWER ON light on the telephone base should
be on.
• If toll saver is activated, the number of rings changes to two when you
have new messages stored (pages 87).
• If the memory is full or the system is off, the system will answer after
ten rings.
In some cases, the answering system is affected by the ringing system
used by your telephone service provider.
If you subscribe to voicemail service, change the number of rings so
that your answering system answers before your voicemail (pages 87). To
determine how many rings activate your voicemail, contact your telephone
service provider.
If there is a fax machine connected to the same telephone line, try
disconnecting the fax machine. If that solves the problem, consult your
fax machine documentation for information on compatibility with
answering systems.
System does not respond to remote commands.
• Make sure to enter your remote access code correctly (page 88).
• Make sure you are calling from a touch-tone phone. When you dial a
number, you should hear tones. If you hear clicks, the phone is not a
touch-tone telephone and cannot activate the answering system.
• The answering system may not detect the remote access code while your
announcement is playing. Try waiting until the announcement is over
before entering the code.
• There may be interference on the phone line you are using. Press dialing
keys firmly.
System does not record messages.
• Make sure the answering system is on. ANS ON should show on the
handset and the /ANSWER ON light on the telephone base should
be on.
• Make sure the memory of the answering system is not full.
•
•
•
Appendix
120
Troubleshooting
If you subscribe to voicemail service, change the number of rings so
that your answering system answers before your voicemail (pages 87). To
determine how many rings activate your voicemail, contact your telephone
service provider.
If there is a fax machine connected to the same telephone line, try
disconnecting the fax machine. If that solves the problem, consult your
fax machine documentation for information on compatibility with
answering systems.
System announces, “Time and day not set.”
• You need to reset the system clock (page 16 or page 27).
Outgoing announcement is not clear.
• When you record your announcement, make sure you speak in a normal
tone of voice, about nine inches from the handset or the telephone base.
• Make sure there is no background noise (TV, music, etc.) while recording.
New voicemail and show on the screens, and I don’t know why.
•
Your telephone has both a built-in answering system and voicemail
indication. If New voicemail and appear on the screens, then your
telephone has received a signal from your telephone service provider
that you have a voicemail message waiting for you to retrieve from them.
Contact your telephone service provider for more information on how to
access your voicemail.
I cannot retrieve voicemail messages.
•
Your telephone has both a built-in answering system and voicemail
indication. They are independent features and each alerts you to new
messages differently (page 91). If you subscribe to voicemail service from
your telephone service provider, contact your telephone service provider
for more information on how to access your voicemail.
I’ve set my LCD language to Spanish or French and I don’t know how to
change it back to English.
Press MENU/SELECT on your handset or base in idle mode, then enter
364# on the handset or base. You hear a confirmation tone.
•
•
•
Appendix
121
Troubleshooting
I subscribe to a nontraditional telephone service that uses my computer
to establish connections, and my telephone doesn’t work.
Make sure your computer is powered on.
Make sure your Internet connection is working properly.
Make sure that the software is installed and running for your
nontraditional telephone service.
Make sure to plug your USB telephone adapter into a dedicated USB
port on your computer. Do not plug it into a multiple port USB hub (USB
splitter) that is not powered.
In a few rare instances, the USB port on your computer may not have
enough power. Try using a USB hub with its own external power supply.
If you are using a firewall, it may prevent access to your
nontraditional telephone service provider. Contact your service
provider for more information.
Common cure for electronic equipment.
If the telephone does not seem to be responding normally, try putting the
cordless handset in the telephone base or charger. If it does not fix the
problem, do the following (in the order listed):
Disconnect the power to the telephone base.
Disconnect the cordless handset battery.
Wait a few minutes.
Connect power to the telephone base.
Remove the battery. Replace the battery and place the cordless handset
into the telephone base or charger.
Wait for the cordless handset to reestablish its connection with the
telephone base. Allow up to one minute for this to take place.
•
•
•
•
•
•
1.
2.
3.
4.
5.
6.
Appendix
122
Maintenance
Taking care of your telephone
Your cordless telephone contains sophisticated electronic parts, so you
must treat it with care.
Avoid rough treatment.
Place the handset down gently.
Save the original packing materials to protect your telephone if you ever
need to ship it.
Avoid water
You can damage your telephone if it gets wet. Do not use the handset in
the rain, or handle it with wet hands. Do not install the telephone base
near a sink, bathtub or shower.
Electrical storms
Electrical storms can sometimes cause power surges harmful to electronic
equipment. For your own safety, take caution when using electric
appliances during storms.
Cleaning your telephone
Your telephone has a durable plastic casing that should retain its luster for
many years. Clean it only with a soft cloth slightly dampened with water
or mild soap.
Do not use excess water or cleaning solvents of any kind.
•
•
•
•
•
•
•
•
Remember that electrical appliances can cause serious injury if used when you are wet or
standing in water. If the telephone base should fall into water, DO NOT RETRIEVE IT UNTIL
YOU UNPLUG THE POWER CORD AND TELEPHONE LINE CORDS FROM THE WALL. Pull the
unit out by the unplugged cords.
Appendix
123
Important safety information
This symbol is to alert you to important operating or servicing instructions that may
appear in this user’s manual. Always follow basic safety precautions when using this
product to reduce the risk of injury, fire, or electric shock.
Safety information
Read and understand all instructions in the user’s manual. Observe all markings on the product.
Avoid using a telephone during a thunderstorm. There may be a slight chance of electric
shock from lightning.
Do not use a telephone in the vicinity of a gas leak. Under certain circumstances, a spark
may be created when the adapter is plugged into the power outlet, or when the handset is
replaced in its cradle. This is a common event associated with the closing of any electrical
circuit. The user should not plug the phone into a power outlet, and should not put a charged
handset into the cradle, if the phone is located in an environment containing concentrations
of flammable or flame-supporting gases, unless there is adequate ventilation. A spark in such
an environment could create a fire or explosion. Such environments may include: medical use
of oxygen without adequate ventilation; industrial gases (cleaning solvents; gasoline vapors;
etc.); a leak of natural gas; etc.
Do not use this product near water, or when you are wet. For example, do not use it in a
wet basement or shower, or next to a swimming pool, bathtub, kitchen sink, or laundry tub.
Do not use liquids or aerosol sprays for cleaning. If the product comes in contact with any
liquid, unplug any line or power cord immediately. Do not plug the product back in until it
has dried thoroughly.
Install this product in a protected location where no one can trip over any line or power
cords. Protect cords from damage or abrasion.
If this product does not operate normally, see the Troubleshooting section on pages 113-
121 of this user’s manual. If you cannot solve the problem, or if the product is damaged,
refer to the Limited warranty section on pages 132-133. Do not open this product except
as directed in your user’s manual. Opening the product or reassembling it incorrectly may
expose you to hazardous voltages or other risks.
Replace batteries only as described in your user’s manual (pages 9-10). Do not burn or
puncture batteries — they contain caustic chemicals.
The power adapters are intended to be correctly oriented in a vertical or floor mount
position. The prongs are not designed to hold the plug in place if it is plugged into a ceiling,
under-the-table or cabinet outlet.
Caution: Use only the power adapters provided with this product. To obtain a
replacement, visit our website at www.telephones.att.com or call
1 (800) 222-3111. In Canada, dial 1 (866) 288-4268.
•
•
•
•
•
•
•
•
Appendix
124
Important safety information
Especially about cordless telephones
Privacy: The same features that make a cordless telephone convenient create some
limitations. Telephone calls are transmitted between the telephone base and the handset
by radio waves, so there is a possibility that your cordless telephone conversations could
be intercepted by radio receiving equipment within range of the cordless handset. For this
reason, you should not think of cordless telephone conversations as being as private as those
on corded telephones.
Electrical power: The telephone base of this cordless telephone must be connected to a
working electrical outlet which is not controlled by a wall switch. Calls cannot be made from
the handset if the telephone base is unplugged, switched off or if the electrical power
is interrupted.
Potential TV interference: Some cordless telephones operate at frequencies that may cause
interference to TVs and VCRs. To minimize or prevent such interference, do not place the
telephone base of the cordless telephone near or on top of a TV or VCR. If interference
is experienced, moving the cordless telephone farther away from the TV or VCR will often
reduce or eliminate the interference.
Rechargeable batteries: This product contains nickel-metal hydride rechargeable batteries.
Exercise care in handling batteries in order not to create a short circuit with conductive
material such as rings, bracelets and keys. The battery or conductor may overheat and cause
harm. Observe proper polarity between the battery and the battery charger.
Nickel-metal hydride rechargeable batteries: Dispose of these batteries in a safe manner. Do
not burn or puncture. Like other batteries of this type, if burned or punctured, they could
release caustic material which could cause injury.
The RBRC® Seal means that the manufacturer is voluntarily participating in an
industry program to collect and recycle nickel-metal hydride rechargeable batteries
when taken out of service within the United States. These batteries may be taken
to a participating local retailer of replacement batteries or recycling center. Or you
may call 1-800-8-BATTERY® for locations accepting spent Ni-MH batteries.
RBRC® and 1-800-8-BATTERY® are registered trademarks of the Rechargeable
Battery Recycling Corporation.
•
•
•
•
•
Appendix
125
Important safety information
Precautions for users of implanted cardiac pacemakers
Cardiac pacemakers (applies only to digital cordless telephones):
Wireless Technology Research, LLC (WTR), an independent research entity, led a multidisciplinary
evaluation of the interference between portable wireless telephones and implanted cardiac
pacemakers. Supported by the U.S. Food and Drug Administration, WTR recommends to
physicians that:
Pacemaker patients
Should keep wireless telephones at least six inches from the pacemaker.
Should NOT place wireless telephones directly over the pacemaker, such as in a breast pocket,
when it is turned ON.
Should use the wireless telephone at the ear opposite the pacemaker.
WTR’s evaluation did not identify any risk to bystanders with pacemakers from other persons
using wireless telephones.
ECO mode
This power conserving technology reduces power consumption for optimal battery performance. The
ECO mode activates automatically whenever the handset is synchronized with the telephone base.
Especially about telephone answering systems
Two-way recording: This unit does not sound warning beeps to inform the other party that the
call is being recorded. To ensure that you are in compliance with any federal or state regulations
regarding recording a telephone call, you should start the recording process and then inform the
other party that you are recording the conversation.
SAVE THESE INSTRUCTIONS
For C-UL compliance
In compliance with the bilingual requirements for safety, caution, and warning markings of Canadian
Federal and Provincial/Territorial statutes and regulations, the French version of Important safety
information is included.
Mesures de sécurité importantes
Ce symbole vous alertera d’informations importantes ou d’instructions d’entretien pouvant
apparaître dans ce guide d’utilisation. Respectez toujours les mesures de sécurité et de
sécurité de base lorsque vous utilisez ce produit, afin de réduire les risques de blessures,
d’incendie, ou d’électrocution.
Information relative à la sécurité
Veuillez lire et comprendre toutes les instructions de ce guide d’utilisation. Relectez toutes les
inscriptions apparaissant sur le produit.
Évitez d’utiliser le téléphone pendant un orage. Il pourrait y avoir un faible risque d’électrocution.
N’utilisez pas un téléphone près d’une fuite de gaz. Dans certaines circonstances, une flammèche
pourrait se produire lorsque l’adaptateur est branché à une prise de courant, ou lorsque le
combiné est déposé sur son chargeur. Ceci est un événement fréquent associé avec la fermeture
d’un circuit électrique. L’utilisateur ne devrait pas brancher un téléphone dans une prise de
courant, et ne devrait pas déposer un combiné chargé dans le chargeur, si le téléphone se
trouve dans un environnement comportant une concentration de gaz inflammables ou ignifuges,
à moins de se trouver dans un endroit où la ventilation est adéquate. Une flammèche dans
de tels environnements pourrait provoquer une explosion. De tels environnements peuvent
comprendre : les endroits où de l’oxygène à des fins médicales est utilisé sans ventilation
adéquate; des endroits où se trouvent des gaz industriels (dissolvants de nettoyage, des vapeurs
de gazoline, etc.), une fuite de gaz naturel, etc.
N’utilisez pas ce produit près de l’eau ou lorsque vous êtes mouillés. Par exemple, ne l’utilisez
pas dans des sous-sols humides ou sous la douche, ou près d’une piscine, d’un bain, d’un évier
de cuisine, ou d’une cuve de lavage. N’utilisez pas de liquides, ou de vaporisateurs aérosol
de nettoyage. Si le produit entre en contact avec du liquide, débranchez immédiatement le
fil téléphonique ou le cordon d’alimentation. Ne rebranchez pas le produit avant qu’il soit
complètement sec.
Installez cet appareil dans un endroit protégé où personne ne peut trébucher sur les cordons
d’alimentation ou la ligne téléphonique. Protégez les câbles contre les dommages ou l’abrasion.
Si le produit ne fonctionne pas correctement, consultez la section Dépannage (Troubleshooting)
des pages 106-115 de ce guide d’utilisation. Si vous ne pouvez pas régler le problème, ou si le
produit est endommagé, consultez la section Garantie limitée (Limited warranty) des
pages 125-126. N’ouvrez pas ce produit, sauf tel qu’indiqué dans le guide d’utilisation.
L’ouverture du produit ou le remontage inadéquat pourrait vous exposer à des tensions
dangereuses ou autres dangers.
Remplacez les piles uniquement tel que décrit dans votre guide d’utilisation (pages 6-7).
N’incinérez pas et ne percez pas les piles — elles contiennent des produits chimiques caustiques.
Les adaptateurs secteurs sont conçus pour être orientés verticalement ou installés sur le
plancher. Les broches ne sont pas conçues pour se maintenir en place si la fiche est branchée
dans une prise de courant au plafond, sous la table ou sous une armoire.
•
•
•
•
•
•
•
•
Appendix
126
For C-UL compliance
MISES EN GARDE:
N’utilisez que les adaptateurs inclus avec ce produit. Pour obtenir une pièce de rechange, visitez
notre site Web au www.telephones.att.com ou composez le
1-800-222-3111. Au Canada, composez le 1-866-288-4268.
N’utilisez que la pile de rechargeable incluse ou une pile de rechange (modèle BT183342/
BT283342). Pour commander, visitez notre site Web www.telephones.att.com ou
composez le 1-800-222-3111. Au Canada, composez le 1-866-288-4268.
Afin de prévenir les risques d’incendie ou d’explosion de la pile, replacez la pile avec une pile du
même type. Jetez les piles épuisées en respectant les instructions.
Spécifiquement en rapport avec les téléphones sans fil
Confidentialité : Les mêmes caractéristiques qui rendent les téléphones sans fil si pratiques créent
également des restrictions. Les appels téléphoniques sont transmis entre le socle du téléphone
et le combiné par le biais d’ondes radio, et il se peut que vos conversations téléphoniques
soient interceptées par d’autres équipements de réception d’ondes radio au sein de la portée
du téléphone sans fil. Pour cette raison, vous ne devez pas considérer les conversations sur un
téléphone sans fil comme étant aussi confidentielles que celles d’un téléphone à cordon.
Alimentation électrique : La base de ce téléphone sans fil doit être branchée à une prise de
courant électrique fonctionnelle. La prise électrique ne doit pas être contrôlée par un interrupteur
mural. Les appels ne peuvent pas être effectués à partir du combiné si la base n’est pas branchée,
si elle est hors fonction ou si le courant électrique est coupé.
Interférences potentielles aux téléviseurs : Certains téléphones sans fil fonctionnent sur des
fréquences pouvant causer des interférences aux téléviseurs et magnétoscopes. Pour réduire ou
prévenir de tels parasites, ne pas déposer la base du téléphone sans fil à proximité d’un téléviseur
ou magnétoscope, ni directement sur celui-ci. Si votre téléviseur affiche des interférences,
éloignez le téléphone sans fil de celui-ci afin de réduire les parasites.
Piles rechargeables : Ce produit comporte des piles rechargeables à l’hydrure métallique de
nickel. Usez de prudence lorsque vous manipulez de telles piles et veillez à ne pas les court-
circuiter avec des matériaux conducteurs, tels que des bagues, bracelets et clés. La pile ou le
conducteur peut surchauffer et vous brûler. Respectez la polarité adéquate entre les piles et le
chargeur de piles.
Piles rechargeables à l’hydrure métallique de nickel : Jetez ces piles de manière sécuritaire.
N’incinérez pas et ne peercez pas les piles. Comme pour les autres piles du même type, si elles
sont brûlées ou percées, des matières corrosives peuvent s’en échapper, ce qui risque de causer
des brûlures ou autres blessures corporelles.
Le sceau de l’organisme de recyclage RBRCMD sur les piles à l’hydrure métallique de
nickel signifie que le fabricant de cet appareil participe volontairement au programme
industriel visant à reprendre et recycler ce type de piles lorsqu’elles ne servent plus,
au sein du territoire des États-Unis et du Canada. Vous devez apporter ces piles chez
un détaillant participant ou le centre de recyclage le plus près de chez vous. Ou vous
pouvez composer le 1-800-8-BATTERYMD afin de connaître les endroits qui acceptent
les piles à l’hydrure métallique de nickel mortes.
RBRCMD et 1-800-8-BATTERYMD sont des marques déposées de Rechargeable Battery
Recycling Corporation.
•
•
•
•
•
•
•
•
Appendix
127
Appendix
128
For C-UL compliance
Mesures préventives pour les utilisateurs de stimulateurs cardiaques implantés dans l’organisme
Stimulateurs cardiaques (ne s’applique qu’aux téléphones sans fil numériques) :
L’organisme ‘Wireless Technology Research, LLC (WTR)’, une firme de recherche indépendante, a
mené une évaluation pluridisciplinaire des interférences entre les téléphones sans fil portatifs et les
stimulateurs cardiaques implantés dans l’organisme. Appuyée par l’Administration des aliments et
drogues (FDA) des États-unis, la firme WTR recommande aux médecins :
Avis aux détenteurs de stimulateurs cardiaques
Ils doivent tenir le téléphone sans fil à une distance d’au moins six pouces du stimulateur cardiaque.
Ils ne doivent PAS placer le téléphone sans fil directement sur le stimulateur cardiaque, tel que dans
une poche de chemise, lorsque celui-ci est en fonction.
Ils doivent utiliser le téléphone sans fil en l’appuyant sur l’oreille qui se trouve dans la direction
opposée au stimulateur cardiaque.
L’étude effectuée par l’organisme WRS n’a pas identifié de risque pour les détenteurs de simulateurs
cardiaques causé par les gens qui utilisent un téléphone sans fil à proximité de ceux-ci.
Mode ECO
Lorsque le socle communique avec le combiné, le mode ECO sera activé automatiquement. Ceci
réduit la consommation d’énergie selon la distance entre le socle du téléphone et le combiné.
Spécifiquement en rapport avec les répondeurs téléphoniques
Enregistrement deux voies : Cet appareil n’émet pas de bips d’avertissement qui permettent de
prévenir l’autre partie que vous enregistrez la conversation. Pour assurer votre conformité aux
règlements fédéraux ou provinciaux en rapport avec les enregistrements des conversations
téléphoniques, vous devriez informer l’autre partie lorsque vous activez l’enregistrement.
CONSERVEZ CES INSTRUCTIONS
Appendix
129
FCC Part 68 and ACTA
This equipment complies with Part 68 of the FCC rules and with technical requirements adopted by
the Administrative Council for Terminal Attachments (ACTA). The label on the back or bottom of this
equipment contains, among other things, a product identifier in the format US:AAAEQ##TXXXX. This
identifier must be provided to your telephone service provider upon request.
The plug and jack used to connect this equipment to premises wiring and the telephone network
must comply with the applicable Part 68 rules and technical requirements adopted by ACTA. A
compliant telephone cord and modular plug is provided with this product. It is designed to be
connected to a compatible modular jack that is also compliant. An RJ11 jack should normally be
used for connecting to a single line and an RJ14 jack for two lines. See the installation instructions
in the user’s manual.
The Ringer Equivalence Number (REN) is used to determine how many devices you may connect
to your telephone line and still have them ring when you are called. The REN for this product is
encoded as the 6th and 7th characters following the US: in the product identifier (e.g., if ## is 03,
the REN is 0.3). In most, but not all areas, the sum of all RENs should be five (5.0) or less. For more
information, please contact your telephone service provider.
This equipment may not be used with Party Lines. If you have specially wired alarm dialing
equipment connected to your telephone line, ensure the connection of this equipment does not
disable your alarm equipment. If you have questions about what will disable the alarm equipment,
consult your telephone service provider or a qualified installer.
If this equipment is malfunctioning, it must be unplugged from the modular jack until the problem
has been corrected. Repairs to this telephone equipment can only be made by the manufacturer or
its authorized agents. For repair procedures, follow the instructions outlined under the
Limited warranty.
If this equipment is causing harm to the telephone network, the telephone service provider may
temporarily discontinue your telephone service. The telephone service provider is required to notify
you before interrupting service. If advance notice is not practical, you will be notified as soon
as possible. You will be given the opportunity to correct the problem and the telephone service
provider is required to inform you of your right to file a complaint with the FCC. Your telephone
service provider may make changes in its facilities, equipment, operation, or procedures that could
affect the proper functioning of this product. The telephone service provider is required to notify
you if such changes are planned.
If this product is equipped with a corded or cordless handset, it is hearing aid compatible.
If this product has memory dialing locations, you may choose to store emergency telephone
numbers (e.g., police, fire, medical) in these locations. If you do store or test emergency
numbers, please:
Remain on the line and briefly explain the reason for the call before hanging up.
Perform such activities in off-peak hours, such as early morning or late evening.
Industry Canada
This device complies with Industry Canada license-exempt RSS standard(s).
Operation is subject to the following two conditions: (1) this device may not cause harmful
interference, and (2) this device must accept any interference received, including interference that
may cause undesired operation.
Privacy of communications may not be ensured when using this telephone.
The term ‘’IC:‘’ before the certification/registration number only signifies that the Industry Canada
technical specifications were met.
The Ringer Equivalence Number (REN) for this terminal equipment is 1.0. The REN is an indication
of the maximum number of devices allowed to be connected to a telephone interface. The
termination on an interface may consist of any combination of devices subject only to the
requirement that the sum of the RENs of all the devices does not exceed five.
This product meets the applicable Industry Canada technical specifications.
Appendix
FCC Part 15
This equipment has been tested and found to comply with the requirements for a Class B
digital device under Part 15 of the Federal Communications Commission (FCC) rules. These
requirements are intended to provide reasonable protection against harmful interference in
a residential installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
Consult the dealer or an experienced radio/TV technician for help.
Changes or modifications to this equipment not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) this device may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause undesired operation. Privacy of
communications may not be ensured when using this telephone.
To ensure safety of users, the FCC has established criteria for the amount of radio frequency
energy that can be safely absorbed by a user or bystander according to the intended usage
of the product. This product has been tested and found to comply with the FCC criteria. The
handset may be safely held against the ear of the user. The telephone base shall be installed
and used such that parts of the user’s body other than the hands are maintained at a distance of
approximately 20 cm (8 inches) or more.
This Class B digital apparatus complies with Canadian requirement:
CAN ICES-3 (B)/NMB-3(B)
•
•
•
•
130
Appendix
California Energy Commission battery charging testing instructions
This telephone is set up to comply with the energy-conserving standards right out of the box. These
instructions are intended for California Energy Commission (CEC) compliance testing only. When the
CEC battery charging testing mode is activated, all telephone functions, except battery charging, will
be disabled.
To activate the CEC battery charging testing mode:
1. Unplug the telephone base power adapter from the power outlet. Make sure all cordless handsets
are plugged with charged batteries and out of the chargers before proceeding.
2. While you press and hold /HANDSET LOCATOR, plug the telephone base power adapter back to
the power outlet.
3. After about 20 seconds, when the IN USE light starts flashing, release /HANDSET LOCATOR and then
press it again within two seconds.
The process takes up to one minute to complete. When the cordless handsets successfully
enter the CEC battery charging testing mode, the IN USE light turns off and all handsets
display To register HS, see manual. You hear a confirmation tone.
When the cordless handsets fail to enter this mode, repeat the steps mentioned above.
Note: The telephone base will be powered up as normal if you fail to press /HANDSET LOCATOR
within two seconds in Step 3.
To deactivate the CEC battery charging testing mode:
1. Unplug the telephone base power adapter from the power outlet, then plug it back in. The
telephone base is powered up as normal.
2. Register your handsets back to the telephone base. See pages 104-105 for handset
registration instructions.
BC
131
Appendix
Limited warranty
The AT&T brand is used under license - any repair, replacement or warranty service, and all questions
about this product should be directed to our website at www.telephones.att.com or
call 1 (800) 222-3111. In Canada, dial 1 (866) 288-4268.
What does this limited warranty cover?
The manufacturer of this AT&T branded product warrants to the holder of a valid proof of
purchase (“CONSUMER” or “you”) that the product and all accessories provided in the sales
package (“PRODUCT”) are free from defects in material and workmanship, pursuant to the
following terms and conditions, when installed and used normally and in accordance with the
PRODUCT operating instructions. This limited warranty extends only to the CONSUMER for
products purchased and used in the United States of America and Canada.
What will be done if the PRODUCT is not free from defects in materials and workmanship
during the limited warranty period (“materially defective PRODUCT”)?
During the limited warranty period, the manufacturer’s authorized service representative
will repair or replace at the manufacturer’s option, without charge, a materially defective
PRODUCT. If the manufacturer repairs the PRODUCT, they may use new or refurbished
replacement parts. If the manufacturer chooses to replace the PRODUCT, they may replace
it with a new or refurbished PRODUCT of the same or similar design. The manufacturer will
retain defective parts, modules, or equipment. Repair or replacement of the PRODUCT, at
the manufacturer’s option, is your exclusive remedy. The manufacturer will return repaired
or replacement products to you in working condition. You should expect the repair or
replacement to take approximately 30 days.
How long is the limited warranty period?
The limited warranty period for the PRODUCT extends for ONE (1) YEAR from the date of
purchase. If the manufacturer repairs or replaces a materially defective PRODUCT under the
terms of this limited warranty, this limited warranty also applies to repaired or replacement
PRODUCT for a period of either (a) 90 days from the date the repaired or replacement
PRODUCT is shipped to you or (b) the time remaining on the original one-year limited
warranty; whichever is longer.
What is not covered by this limited warranty?
This limited warranty does not cover:
PRODUCT that has been subjected to misuse, accident, shipping or other physical damage,
improper installation, abnormal operation or handling, neglect, inundation, fire, water, or
other liquid intrusion; or
PRODUCT that has been damaged due to repair, alteration, or modification by anyone
other than an authorized service representative of the manufacturer; or
PRODUCT to the extent that the problem experienced is caused by signal conditions,
network reliability or cable or antenna systems; or
PRODUCT to the extent that the problem is caused by use with non-AT&T accessories; or
PRODUCT whose warranty/quality stickers, PRODUCT serial number plates or electronic
serial numbers have been removed, altered or rendered illegible; or
PRODUCT purchased, used, serviced, or shipped for repair from outside the United States
of America or Canada, or used for commercial or institutional purposes (including but not
limited to products used for rental purposes); or
PRODUCT returned without valid proof of purchase (see item 6 on next page); or
Charges for installation or setup, adjustment of customer controls, and installation or
repair of systems outside the unit.
1.
2.
3.
4.
•
•
•
•
•
•
•
•
132
Appendix
Limited warranty
5. How do you get warranty service?
To obtain warranty service, visit our website at www.telephones.att.com or call
1 (800) 222-3111. In Canada, dial 1 (866) 288-4268.
NOTE: Before calling for service, please review the user’s manual; a check of the PRODUCT’s
controls and features may save you a service call.
Except as provided by applicable law, you assume the risk of loss or damage during transit
and transportation and are responsible for delivery or handling charges incurred in the
transport of the PRODUCT(s) to the service location. The manufacturer will return repaired
or replaced PRODUCT under this limited warranty to you. Transportation, delivery or
handling charges are prepaid. The manufacturer assumes no risk for damage or loss of the
PRODUCT in transit. If the PRODUCT failure is not covered by this limited warranty, or proof
of purchase does not meet the terms of this limited warranty, the manufacturer will notify
you and will request that you authorize the cost of repair prior to any further repair activity.
You must pay for the cost of repair and return shipping costs for the repair of products that
are not covered by this limited warranty.
6. What must you return with the PRODUCT to get warranty service?
You must:
Return the entire original package and contents including the PRODUCT to the service
location along with a description of the malfunction or difficulty; and
Include a “valid proof of purchase” (sales receipt) identifying the PRODUCT purchased
(PRODUCT model) and the date of purchase or receipt; and
Provide your name, complete and correct mailing address, and telephone number.
7. Other limitations
This warranty is the complete and exclusive agreement between you and the manufacturer
of this AT&T branded PRODUCT. It supersedes all other written or oral communications
related to this PRODUCT. The manufacturer provides no other warranties for this PRODUCT.
The warranty exclusively describes all of the manufacturer’s responsibilities regarding the
PRODUCT. There are no other express warranties. No one is authorized to make modifications
to this limited warranty and you should not rely on any such modification.
State/Provincial Law rights: This warranty gives you specific legal rights, and you may also
have other rights which vary from state to state or province to province.
Limitations: Implied warranties, including those of fitness for a particular purpose and
merchantability (an unwritten warranty that the PRODUCT is fit for ordinary use) are limited
to one year from date of purchase. Some states/provinces do not allow limitations on how
long an implied warranty lasts, so the above limitation may not apply to you. In no event
shall the manufacturer be liable for any indirect, special, incidental, consequential, or similar
damages (including, but not limited to lost profits or revenue, inability to use the PRODUCT
or other associated equipment, the cost of substitute equipment, and claims by third parties)
resulting from the use of this PRODUCT. Some states/provinces do not allow the exclusion or
limitation of incidental or consequential damages, so the above limitation or exclusion may
not apply to you.
Please retain your original sales receipt as proof of purchase.
•
•
•
133
Appendix
Technical specifications
Operation Operating time*
Talk time (cordless handset) Up to 7 hours
Talk time (cordless handset speakerphone) Up to 5 hours
Standby Up to 7 days
* Operating times vary depending on your actual use and the age of the battery.
DECT 6.0 digital technology
The AT&T DECT 6.0 products offer unsurpassed range performance and sound clarity. This is
achieved through a unique antenna design and advances in noise-filtering technology. An
independent laboratory has confirmed that AT&T DECT 6.0 products perform up to 45% better in
range competitions against similarly equipped phones of the leading competition. Now, calls can
be taken in the basement, backyard and garage with exceptional sound quality.
Telephone operating range
This cordless telephone operates within the maximum power allowed by the Federal
Communications Commission (FCC). Even so, this handset and telephone base can communicate
over a certain distance — which can vary with the locations of the telephone base and handset,
the weather, and the construction of your home or office.
Redefining long range coverage and clarity
This telephone base comes with an antenna which gives much better clarity and covers a longer
range than before.
HD audio
HD audio improves sound quality by expanding and rebuilding frequencies that are lost with
traditional phone calls. There is no additional telephone service requirement to use HD audio.
It is designed to work with standard telephone service. Your system will automatically enhance
all received sound with HD audio.
Simulated full-duplex handset and base speakerphones
The simulated full-duplex speakerphones on your handset and telephone base allow both ends
of a call to speak and be heard at the same time. Optimal performance is subject to external
factors and individual usage.
RF frequency band 1921.536MHz - 1928.448MHz
Channels 5
Telephone base voltage
(AC voltage, 60Hz)
96Vrms - 130Vrms
Telephone base voltage
(AC adapter output)
6VDC @ 600mA
Handset voltage 2.4V 400mAh, 2xAAA Ni-MH
Charger voltage
(AC adapter output)
6VDC @ 100mA
134
Index
Index
A
Alert tones
handset, 101
telephone base, 101
Announcement, 75
Answer an incoming call
during an intercom call, 48
during PTT, 56
Answering calls, 34
Answering system, 75–96
Assign a speed dial number, 65
Auto off, 35
B
Battery charging, 10
Battery installation, 9
Blind transfer, 43
C
Caller ID (CID)
add entries to phone directory, 73
delete entries, 72
dial entries, 72
review entries, 71
Caller ID announce
telephone base, 28
Call transfer, 49
Chain dialing, 41–42
Charger installation, 8
Clear voicemail indication
handset, 19
telephone base, 30
Clock
handset, 15
telephone base, 26
D
Day and time
handset, 15
telephone base, 26
Delete
a caller ID log entry, 72
a directory entry, 63
a speed dial number, 67
Dialing
from a record in the caller ID
history, 72
from the directory, 63
Directory
dial a number, 63
edit entries, 64
name search, 62
new entries, 59
Display dial, 63
DSL, 3, 8
E
Elapsed time, 34
Ending a call, 35
H
Handset
handset locator, 45
quick reference guide, 1–3
ringer tone, 14
ringer volume, 14
screen icons, 100
speakerphone, 36
temporary ringer silencing, 35
voicemail indicator, 19
HD audio, 124
135
Index
Index
I
Important safety information, 116–
118
Installation, 7–12
Intercom, 46–49
L
Last number redial, 36
LCD language, 16, 27
reset LCD language, 16, 27
Lights, 102
Limited warranty, 122–123
M
Maintenance, 115
Make an outgoing call during PTT, 57
Making calls, 34
Memory match, 70
Message
alert tone, 82
counter display, 94
playback, 88–91
Mute, 40
N
Names
enter into directory, 59
search, 62
Number of rings, 80
O
On-hook dialing (predialing), 34
Outgoing announcement, 75
P
Paging tone, 45
Phonebook, 58
Power adapter, 8
Predialing, 34
Push-to-talk, 50–57
Q
Quiet mode, 23
Quick reference guide, 1–6
R
Reassign a speed dial number, 66
Receiving calls, 34
Recharging, 10
Redial, 36–37
Remote access, 95–96
Ringer silencing, 35
Ring tone options
handset, 14
telephone base, 25
S
Safety information, 116–118
Screen display message, 103–105
Speakerphone, 36
Speed dial
delete a number, 67
edit a number, 66
enter a number, 65
136
Index
Index
Index
T
Technical specifications, 124
Telephone base
quick reference guide, 4–6
ringer tone, 25
ringer volume, 25
screen icons, 100
voicemail indicator, 29
Temporary ringer silencing, 35
Time
handset, 15
telephone base, 26
Troubleshooting, 106–114
V
Visual message waiting indicator
handset, 18
telephone base, 29
Voice announce caller ID
telephone base, 28
Voicemail, 18, 29, 84
quick access, 67
Voice prompts, 86
Volume control
handset, 14, 39, 89
telephone base, 25, 39, 89
W
Wall-mount installation, 11
Warranty, 122–123
137
Index
Use the wallet card to help you remember commands to control your
answering system from any touch-tone telephone.
Fold here.
Cut along dotted line.
Action Remote command
Play all messages ..................1
Play new messages ...............2
Delete the message ..............3
Delete all old messages .....33
Repeat or go back .................4
Stop ...............................................5
Help menu .................................*5
Skip the message ...................6
Record announcement ........*7
End remote access call ......8 (or hang up)
Turn system off or on ..........0
Call your phone number,
then enter your two-digit
access code (preset to 19).
Models: CL83215/CL83315/CL83415/CL83465/CL83565
Type: DECT 6.0 cordless telephone/answering system withDECT 6.0 cordless telephone/answering system with
caller ID/call waiting
© 2015 Advanced American Telephones. All Rights Reserved.
AT&T and the AT&T logo are trademarks of AT&T Intellectual Property
licensed to Advanced American Telephones, San Antonio, TX 78219.
Printed in China.
Remote access wallet card
© 2015 Advanced American Telephones. All Rights Reserved.
AT&T and the AT&T logo are trademarks of AT&T Intellectual Property licensed to
Advanced American Telephones, San Antonio, TX 78219.
RBRC® and 1-800-8-BATTERY® are registered trademarks of the
Rechargeable Battery Recycling Corporation.
Printed in China. Issue 0.0 AT&T 01/15.
www.telephones.att.com
