4000192-07
PORTRAIT
DECORATIVE
WARNING: If the information in these
instructions is not followed exactly, a re
or explosion may result causing property
damage, personal injury or loss of life.
WHAT TO DO IF YOU SMELL GAS
• Do not try to light the appliance.
• Do not touch any electrical switch; do not
use any phone in your building.
• Immediately call your gas supplier from
a neighbor’s phone. Follow the gas
supplier’s instructions.
• If you cannot reach your gas supplier, call
the re department.
This appliance is only for use with the type
of gas indicated on the rating plate. This
appliance is not convertible for use with
other gases, unless a certi ed kit is used.
This appliance is a domestic room-heating
appliance. It must not be used for any other
purposes such as drying clothes, etc.
This appliance is suitable for installation in a
bedroom or bed sitting room.
Manufactured by
MILES INDUSTRIES LTD.
British Columbia, Canada
www.miles replaces.com
Installation & Operating Instructions
Do not store or use gasoline or other
ammable vapors and liquids in the vicinity
of this or any other appliance.
Installation and service must be performed
by a quali ed installer, service agency or the
gas supplier.
This appliance may be installed in an
after-market permanently located,
manufactured (mobile) home where not
prohibited by local codes.
Models 922ECN/ECP
Decorative Vented Gas Fireplace
With Coal effect fuel
INSTALLER: Leave this manual with the appliance.
CONSUMER: Retain this manual for future reference.
Massachusetts: The piping and nal
gas connection must be performed by a
licensed plumber or gas tter in the State of
Massachusetts.
Please read this manual BEFORE installing and operating this appliance.
©2008, Miles Industries Ltd. All rights reserved.
2
Designed and Manufactured by
Miles Industries Ltd.
190 – 2255 Dollarton Highway, North Vancouver B.C., CANADA V7H 3B1
Tel. 604-984-3496 Fax 604-984-0246
www.milesreplaces.com
© Copyright Miles Industries Ltd., 2008
2
Thank You ...
For purchasing a Valor by Miles Industries. Your new radiant gas heater is a technical
appliance that must be installed by a qualied dealer. Each Valor is fully tested during
the production process for your safety and comfort.
Your unit has been professionally installed by:
Dealer Name _______________________________________
Phone Number ______________________________________
Should you encounter an operational problem, call your dealer immediately.
Do not try to repair the unit as you may cause an injury or damage the replace.
The information contained in this installation manual is believed to be correct at
the time of printing. Miles Industries Ltd. reserves the right to change or modify any
information or specications without notice. Miles Industries Ltd. grants no warranty,
implied or stated, for the installation or maintenance of your heater, and assumes no
responsibility for any consequential damage(s).
We recommend that our gas
hearth products be installed
and serviced by professionals
who are certied in the United
States by NFI (National Fireplace
Institute®).
33
Table of Contents
Safety and Warning Information ..............................................................4
Specications ............................................................................................5
Choice of Fronts ........................................................................................6
Options .......................................................................................................6
Location in the room .................................................................................7

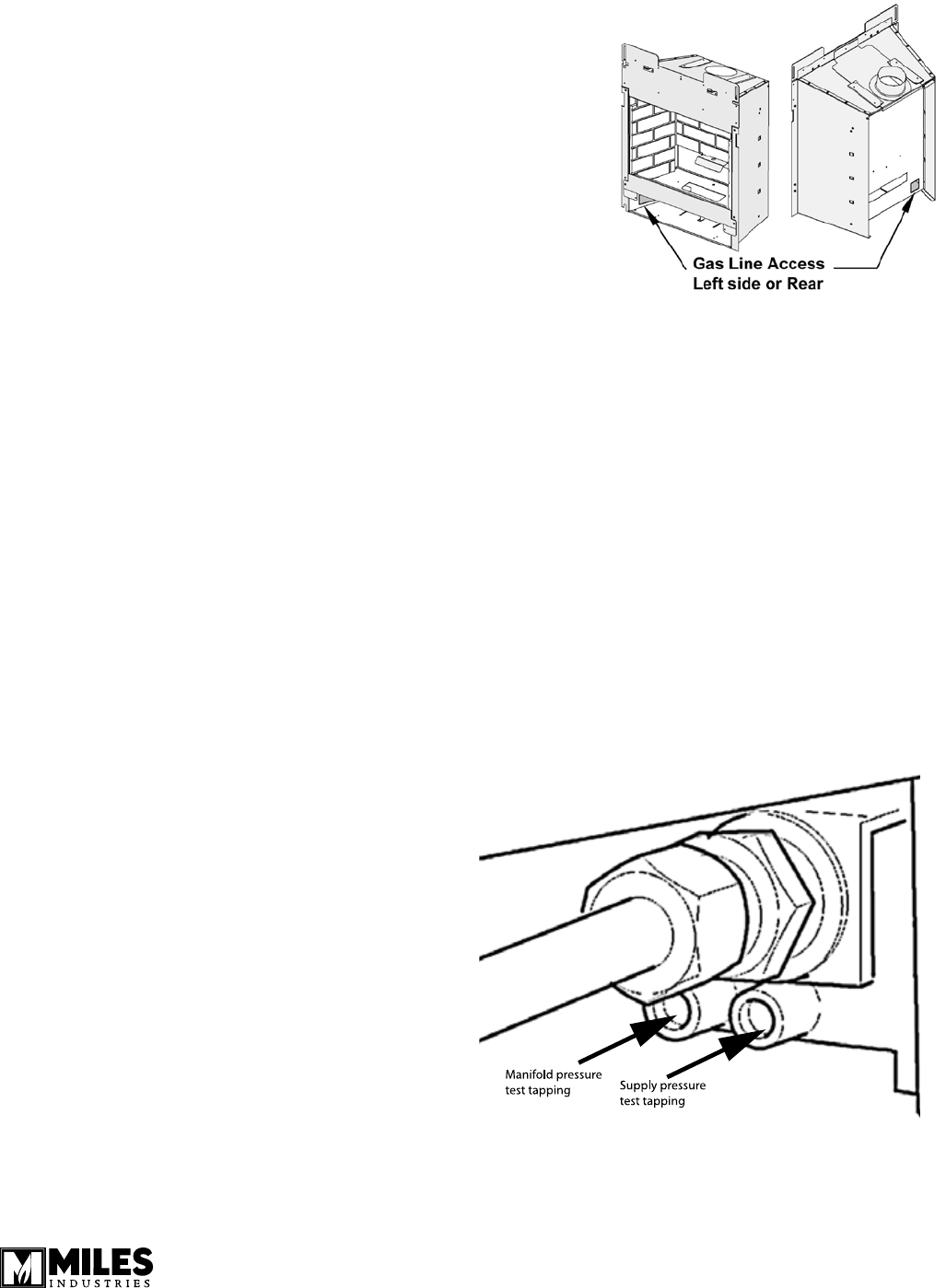

Gas Supply Installation ...........................................................................10

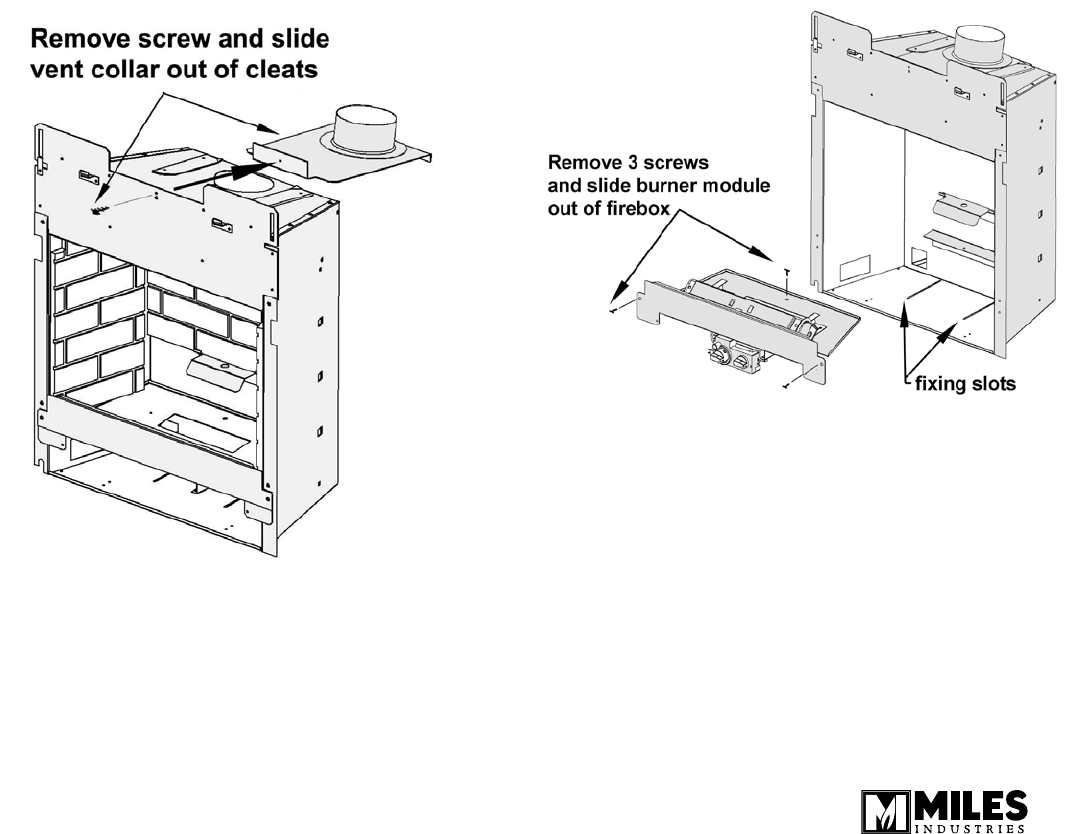

Firebox Installation (insert application only) ........................................11

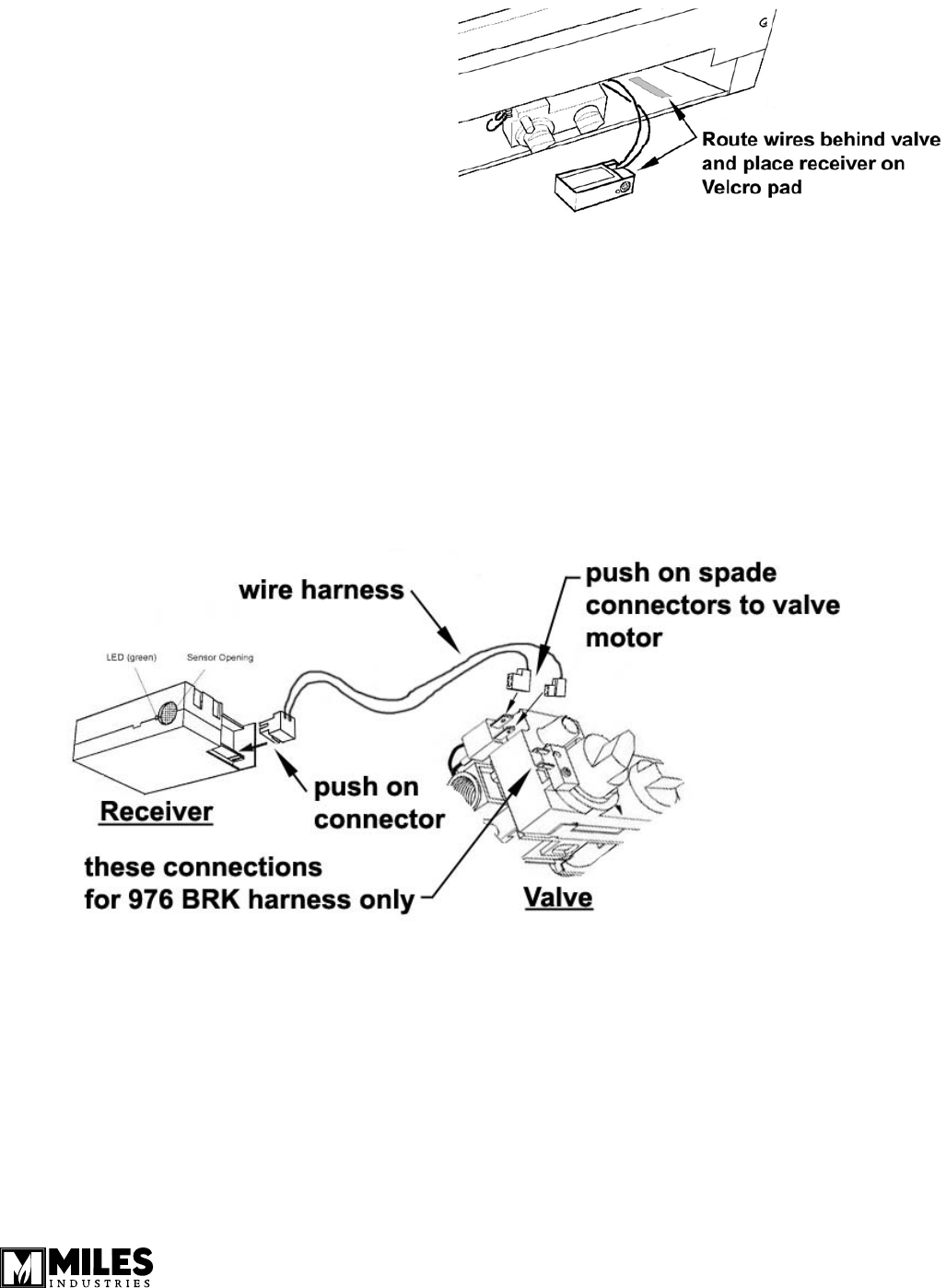

Remote Control Installation ....................................................................12

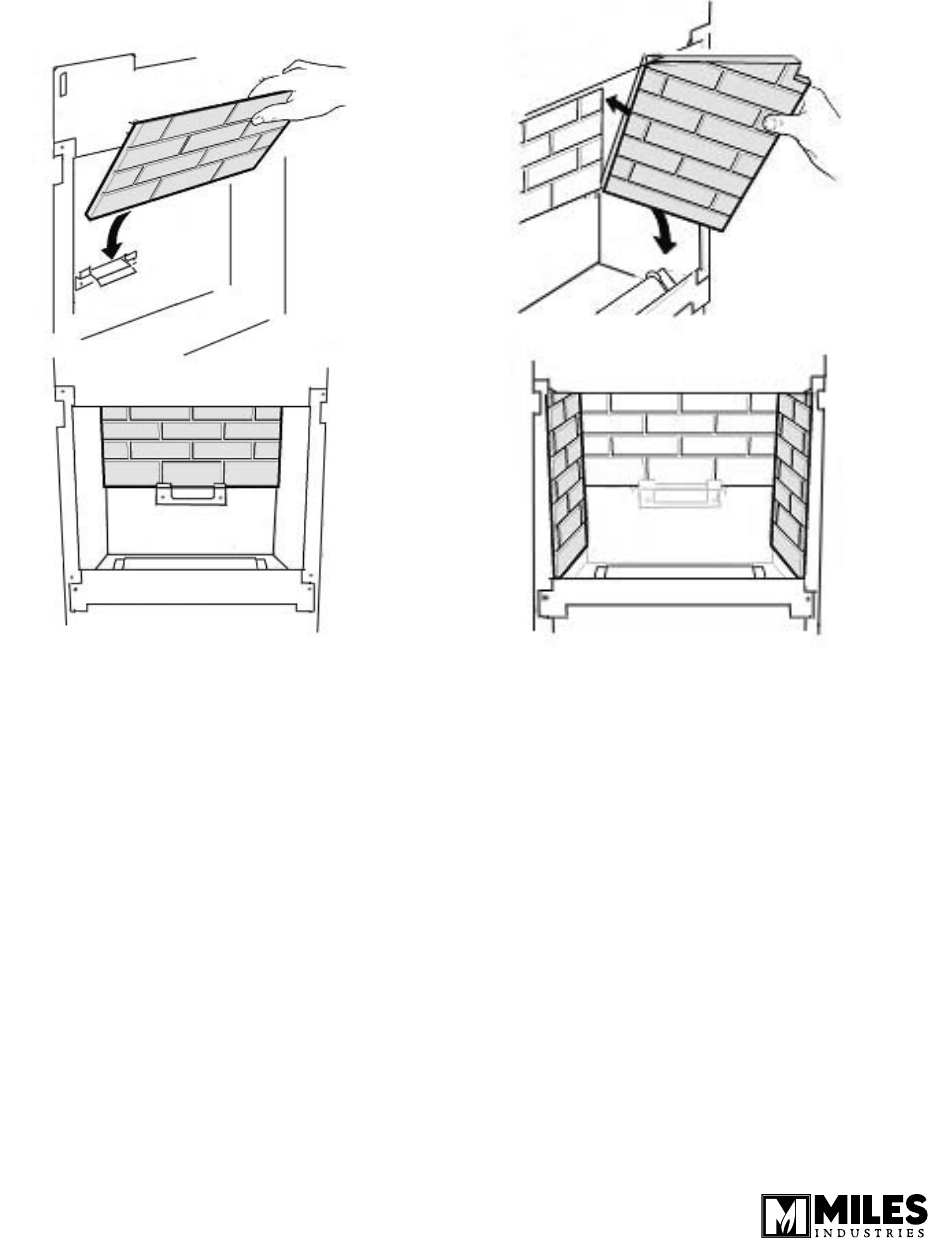

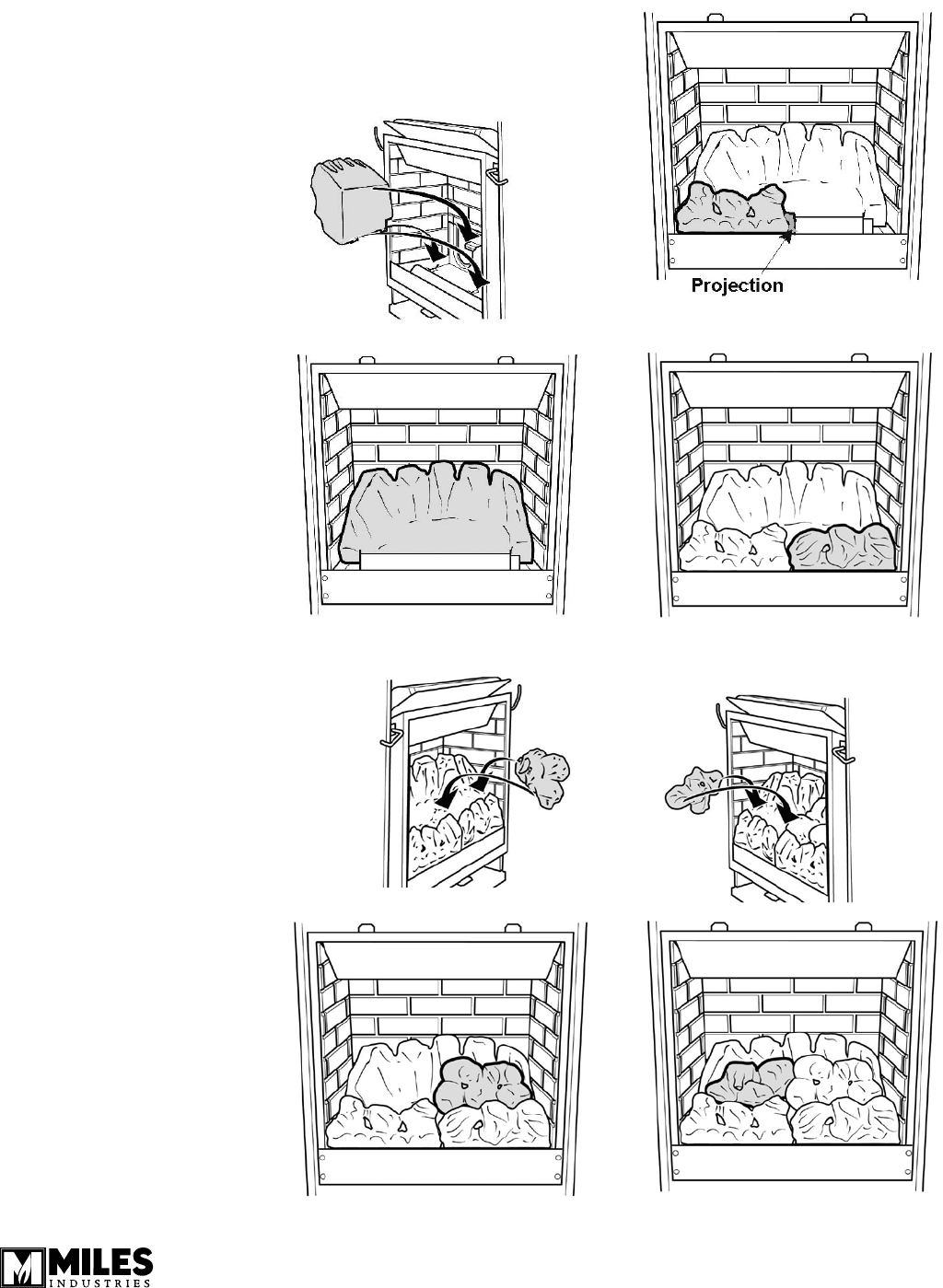

Ceramic Fuel Bed Installation ................................................................13
923ACF Adorn Cast Front Installation ...................................................15

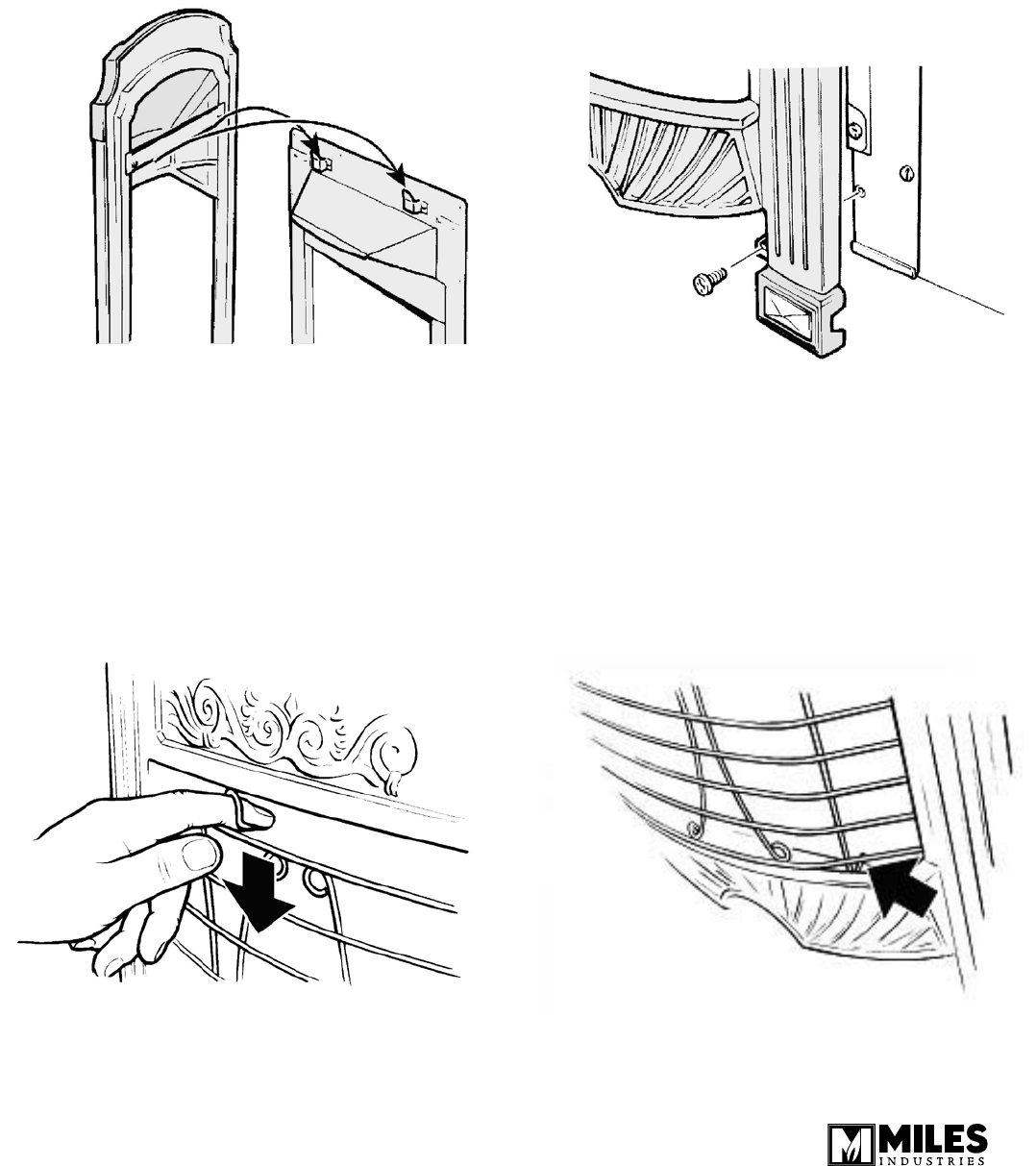

Adorn Safety Guard Fitting .....................................................................15
Operation Checks ....................................................................................16
Owners Information .................................................................................17
Lighting Instructions ...............................................................................19
Warranty ...................................................................................................20
Replacement Parts ..................................................................................21
44
Safety and Warning Information
Children and adults should be ALERTED to the
hazards of high surface temperature and should
STAY AWAY to avoid burns or clothing ignition. Young
children should be CAREFULLY SUPERVISED when
they are in the same room as the appliance.
DO NOT place furniture or any other combustible
household objects within 36” of the replace front.
READ and UNDERSTAND all instructions carefully
before starting the installation. FAILURE TO FOLLOW
these installation instructions may result in possible re
hazard and will void the warranty.
Prior to the rst ring of the replace, READ the
Owner’s Information section of this manual.
DO NOT USE this appliance if any part has been under
water. Immediately, CALL a qualied service technician
to inspect the unit and to replace any part of the control
system and any gas control that has been under water.
THIS UNIT IS NOT FOR USE WITH SOLID FUEL.
Installation and repair should be PERFORMED by a
qualied service person. The appliance and venting
system should be INSPECTED before initial use and at
least annually by a professional service person. More
frequent cleaning may be required due to excessive
lint from carpeting, bedding, etc. It is IMPERATIVE that
the unit’s control compartment, burner, and circulating
air passageways BE KEPT CLEAN to provide for
adequate combustion and ventilation air.
Always KEEP the appliance clear and free from
combustible materials, gasoline, and other ammable
vapors and liquids.
NEVER OBSTRUCT the ow of combustion and
ventilation air. Keep the front of the appliance CLEAR
of all obstacles and materials for servicing and proper
operation.
Due to the high temperature, the appliance should
be LOCATED out of trafc areas and away from
furniture and draperies. Clothing or ammable material
SHOULD NOT BE PLACED on or near the appliance.
This unit MUST be used with a vent system as
described in this installation manual. NO OTHER vent
system or components MAY BE USED.
This gas replace and vent assembly MUST be vented
directly to the outside and MUST NEVER be attached
to a chimney serving a separate solid fuel burning
appliance. Each gas appliance MUST USE a separate
vent system. Common vent systems are PROHIBITED.
INSPECT the external vent cap on a regular basis to
make sure that no debris, plants, trees, shrubs are
interfering with the air ow.
TURN OFF the gas before servicing this appliance.
It is recommended that a qualied service technician
perform an appliance check-up at the beginning of
each heating season.
Any safety screen or guard removed for servicing
MUST BE REPLACED before operating this appliance.
BE CAREFUL not to put any decorating objects
sensitive to heat to close above or around the replace
as it gets very hot when operating.
DO NOT use this heater as a temporary source of heat
during construction.
NOTE: When operating your new replace for the rst time, some vapors may be released due to the burning
of curing compounds used in the manufacture of the appliance. They may cause a slight odor and could cause
the ames to be the full height of the rebox, or even slightly higher, for the rst few hours of operation. It is also
possible that these vapors could set off any smoke detection alarms in the immediate vicinity. These vapors are
quite normal on new appliances. We recommend opening a window to vent the room. After a few hours use, the
vapors will have disappeared and the ames will be at their normal height.
55
Specications
Approvals and Codes
This appliance is certied to ANSI Z21.50b–2005/CSA 2.22b–2005 Vented Gas Fireplaces Standard for use in
Canada and USA.
The appliance complies with CGA P.4.1, Testing method for measuring annual replace efciencies.
The installation must conform with local codes or, in the absence of local codes with the National Fuel Gas Code,
ANSI Z223.1or the Natural Gas and Propane Installation Code CAN/CGA-B149. Only qualied licensed or trained
personnel should install the appliance.
Venting
This appliance must be connected to an approved venting system.
Ratings
*Tested to CAN/CGA - 2.17 Gas red appliances for use at high altitudes. In USA, installations may require deration
over 2000’—Check local codes.
Electrical
The unit does not require an electrical power source.
Supply Gas
Model 922ECN is for use only with natural gas. Model 922ECP is for use only with propane gas. The supply
pressure must be between the limits listed above.
The supply connection is 3/8”NPT male thread. The supply pipe connection is to a exible connector at the left hand
side of the appliance.
NG LPG
Altitude (Ft) 0-4500 *
Input Max. (Btu/h) 20,500 19,000
Input Min (Btu/h) 12,000 12,500
Manifold pressure (in.w.c.) 3.7 10.5
Min. Supply pressure (in. w.c.) 5 11
Max. Supply pressure (in. w.c.) 10.5 13
66

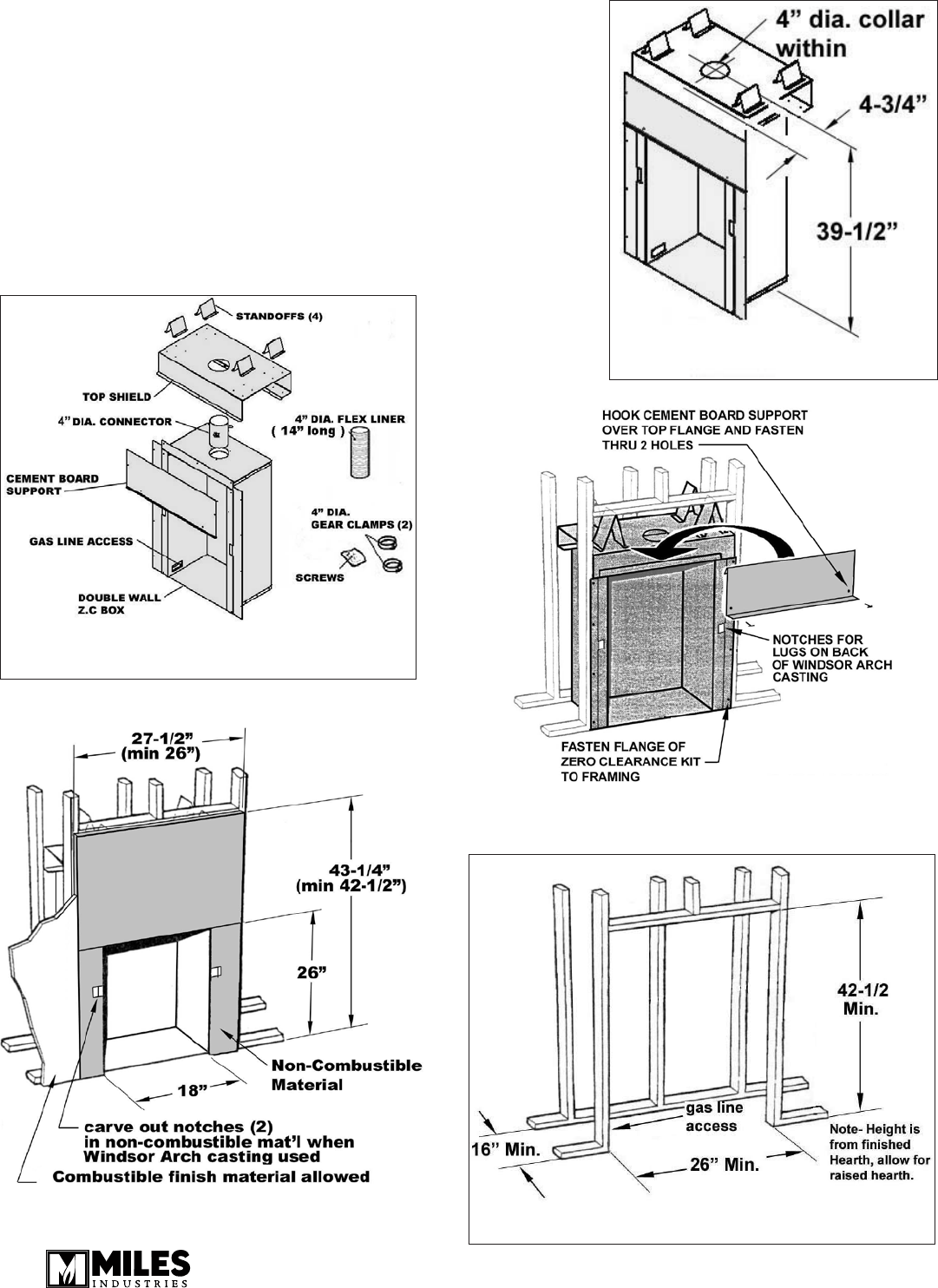

975ZCK Zero Clearance Kit—For installation into combustible type framing.
976BRK Bedroom Kit—Includes optional thermostat handset and wiring harness (for use in Canada only).
923ACF—Adorn Cast Front.
539 or 549 Cast Iron Arch Fronts—Also require #540WDK Wire Dress Guard, supplied separately.
3336 Closure Plate—For insert installations to cover up to 33” high x 36” wide.
Options
21-1/2” 39” 31”
30-1/4”
38”
34”
923 Adorn 539 Windsor Arch with Plate 549 Windsor Arch no Plate
Choice of Fronts
Note : the 539/549 Fronts require a 540 WDK Wire Dress Guard with the 922 heater.
Cast Iron Tolerances – Due to the nature of Cast Iron, dimensional consistency may vary from one unit to the next
and some variation in surface nish and atness is to be expected. We have done our best to control and make
allowance, however some variation is inevitable.
Closure plates may be required for insert applications where cast fronts do not cover entire openings.
Standard black 33” high x 36” wide closure plate with black aluminum extrusion edge is available.
For installation instructions with Adorn cast front, see Adorn cast front installation section.
For Windsor Arch cast fronts see instructions supplied with individual kit.
77
Location in the room
This appliance must not be connected to a chimney ue serving a separate solid-fuel burning appliance.
Note: The State of Massachusetts requires that any ue damper must be removed or permanently welded in the
open position.
The appliance can be installed in the following constructions:
Solid-fuel (non-combustible) replaces
As supplied, this appliance can be installed as an inset in an existing solid fuel type replace with a chimney and
4” dia. liner.
The replace must be built in accordance with the national, state provincial or territorial building code recognised by
the authority having jurisdiction, or in the absence of such a code, in accordance with the National Building Code
of Canada or the National Fire Protection Association code in the USA. The size of the replace recess must be
sufcient to accommodate the appliance as shown in gure below.
If previously used for burning solid-fuel, the chimney must be swept before installation of the appliance. Both
chimney and replace must be checked for soundness before installation of the appliance. The liner must be a type
approved by the enforcing authority and installed in accordance with the manufacturer’s instructions.
The appliance must be installed on a oor, which is sufciently at and level to ensure stability. Some replace
constructions have a well in the oor at the back that may need to be lled in.
Though not mandatory, we recommend that carpet, soft vinyl or other combustible oor coverings are kept at least
16” from the front of the appliance since these types of materials may be affected by the radiant heat output from
this appliance.
The minimum clearances from any combustible constructions at the front of the appliance are shown below.
The appliance must be connected to a vent that is a minimum of 9’-0” in height and must not have any 90
degrees elbows within 9’-0” of the ue outlet of the unit (see g. below). Radiused offsets in the ue liner of
less than 90 degrees are permitted.
Min vent liner Ht 9’-0”
Min Ht before 90 deg elbows
is 9’-0”. Radiused offsets in
liner are permitted
Ceiling
ceiling
See
mantel
table A
36” min.
to combust.
mat’l
BMin. 39-1/2”
Center line
Edge of
protruding
arch
4-3/4”
Mantel depth A 1” & 2” 3”-8”
Clearance from
base of heater B 40” 42-1/2”
88
Enclosures Constructed Using Combustible Materials
(ZC Installations)
Optional 975ZCK Zero Clearance Kit must be used when installing the 922
replace into any application other than as an insert into an approved solid-
fuel burning replace cavity and chimney. Complete installation instructions
are packed with the 975ZCK. See gure below for clearances in front of
appliance. The 975ZCK is approved for installation directly on combustible
type ooring such as plywood. Bottom of 975 must be installed at top of
nished hearth (including tile etc.) or the removable ashpan cover will not
rest at the proper height. Cast iron fronts must also rest on a secure hearth
or oor as the unit is not intended to carry the weight of the castings. The
975ZCK may be roughed-in, wall nishes applied, and the replace installed
at a later date or the replace and ZC kit may be installed at the same time.
975ZCK Assembled
975ZCK Components
Framing dimensions
975ZCK installed into framing
975ZCK Wall nish details
99

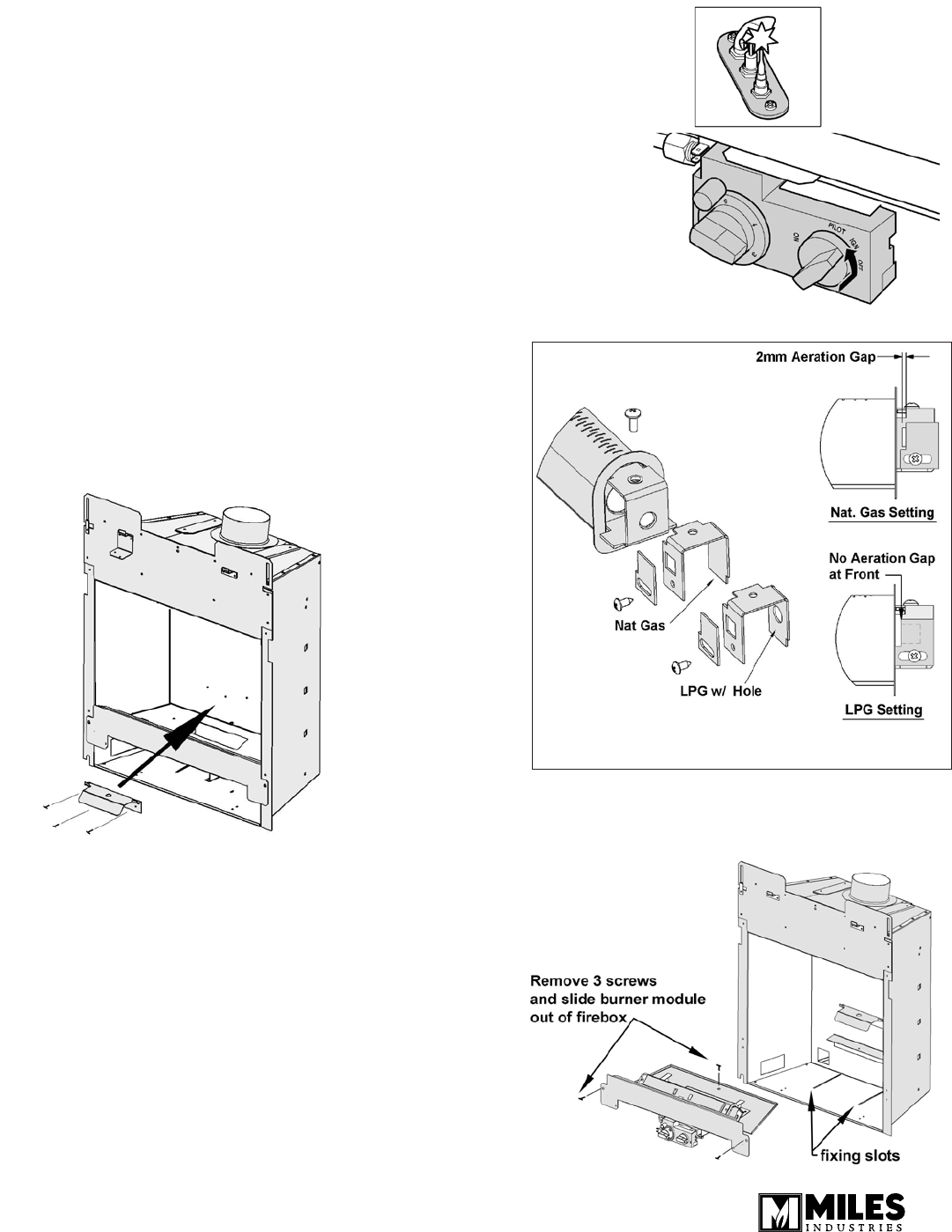

Appliance Preparation
Check ignition spark
The pilot burner and electrode unit is at the left end of the burner.
Push in the lighting knob and turn counter-clockwise through the “IGN”
position to “PILOT”. A spark should ash across from the pilot electrode
to the pilot burner shield.
Aeration Setting Check
The burner is equipped with an adjustable shutter to control primary
aeration. See gure below. The shutter is factory set at an aeration gap
which will give optimum performance for the vast majority of installations.
In a few unusual installations, performance may be improved by
adjusting the aeration. The need for adjustment should be determined
by operating the appliance with the ceramic fuel effects and window
installed. See the Final Checks section in this manual for adjustment
details.
The shutter setting is very critical. A small change can make a
substantial difference to the performance.
Install Base Coal Support
Install base coal support (packed loose) to back of rebox
using 3 screws as shown below.
Remove Burner Module (optional)
In some cases, to make gas piping easier, it may be
convenient to remove the burner module from the
rebox—note the location of the gas inlet before removing
the burner module. Remove 2 screws and pull the burner
module partially out of the rebox taking care not to pull on
the wire leads going to vent switch. With the module partly
removed, reach behind the module with a wrench and
loosen the thermocouple nut at the back of the valve. With
the thermocouple nut loose, pull the vent switch wire leads
out of the brass block at the back of the valve and pull the
burner module the rest of the way out of the rebox. Rough-
in the gas line, valves, or unions and reinstall the burner
module.
Aeration Settings
1010
Gas Supply Installation
The appliance is supplied for supply gas connection at the left hand side
of the case. There is also a gas line access at the rear of the rebox
for insert applications. The zero clearance kit does not have access at
the rear. Supply line connection to the exible adapter is 3/8”NPT male
thread.
Alternatively, the appliance inlet pipe may be removed and the supply line
routed directly to the control unit. An isolating valve could be tted within
the appliance case.
Use only new black iron or steel pipes or copper tubing if acceptable—
check local codes. Note that in USA, copper tubing must be internally
tinned for protection against sulfur compounds.
Ensure there is a pipe union (or are tting where permissible) ahead of
the burner module for future servicing. Unions in gas lines should be of
ground joint type.
The gas supply line must be sized and installed to provide a supply of gas sufcient to meet the maximum
demand of the appliance without undue loss of pressure.
Sealant used must be resistant to the action of all gas constituents including LP gas. Sealant should be applied
lightly to male threads to ensure excess sealant does not enter gas lines.
The supply line should include a manual shut-off valve to allow the appliance to be disconnected for servicing.
Pressure test the supply line for leaks.
The appliance and its individual shut-off valve must be disconnected from the gas supply piping system
during any pressure testing of that system at test pressures in excess of 1/2 psig (3.5kPa).
The appliance must be isolated from the gas supply piping system by closing its individual manual shut-off valve
during any pressure testing of the gas supply piping system at test pressures equal to or less than 1/2 psig
(3.5kPa).
Failure to either disconnect or isolate the appliance during pressure testing may result in regulator or valve
damage. Consult your dealer in this case.
The minimum supply pressure is given in Specications section of this manual.
All piping and connections must be tested for leaks after installation or servicing. All leaks must be corrected
immediately.
When testing for leaks:
Make sure that the appliance is turned off.
Open the manual shut-off valve.
Test for leaks by applying a liquid detergent or soap
solution to all joints. Bubbles forming indicate a gas
leak. Never use an open ame to check for leaks.
Correct any leak detected immediately.
The pressure test tapping locations are shown here. A
built-in regulator controls the burner manifold pressure.
The correct pressure range is shown in the table in the
Specications section of this manual. The pressure
check should be made with the burner alight and at its
highest setting. See Lighting Instructions section for full
operating details.
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
1111
Firebox Installation (insert application only)
Refer to 975ZCK installation manual for ZC rebox installation.
To aid chimney liner connection, it may be necessary to rst remove the vent collar connector from the top of the
rebox—see gure below.
Remove the burner module from the rebox.
Insert the convection box into the replace opening feeding the supply pipe through hole at back or side of the
rebox.
Mark the replace oor through the two slots in the base of the convection box (see gure below) and remove
the convection box. Drill two holes in the replace oor at the marked positions using a no.12 masonry drill.
Insert a wall plug into each hole.
Secure the collar on the vent connector unit to the 4” diameter chimney liner.
Slide the rebox into the replace making sure that the vent connection unit is above the convection box. Leave
the rebox front a few inches clear of the replace front to allow you to x the vent connector to the top of the
rebox.
With the vent connector started in the cleat pull the vent connector towards the front of the replace. Fix the front
of the vent connector plate to the rebox front ange using the screw previously removed.
Push the convection box fully home against the front face of the replace. Make sure that no sags or dips occur
in the liner.
Fit a woodscrew through each slot in the convection box base and tighten.
Re-install the burner module and connect the gas supply line to the module.
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
1212
Remote Control Installation
Caution! Do not t the batteries into the
remote control receiver until the wires are
connected to the burner control unit, as a
short circuit could result in the destruction
of the electrical components.
Connect the wiring harness to the receiver box, by
pushing the wire connector on to the receiver circuit
board. The plug will only go on one way so, please
ensure that the wires are pointing up and slot in the
board is in line with the tab on the wiring harness
plug.
Connect wires as shown below.
Please note that the “L” connectors are different
sizes, the smaller one ts to the lower connection
on the valve.
Remove the remote control receiver lid.
Fit four 1.5V batteries.
Place the remote control receiver on the Velcro pad.
Fit the 9V battery to the handset transmitter.
•
•
•
•
•
•
1313
Ceramic Fuel Bed Installation
Ceramic Walls Installation
Locate the ceramic rear wall on top of the base coal support as shown.
Insert the right hand sidewall at an approximate 30-degree angle between the rebox side and the burner. Swing
the top of the sidewall to the vertical position and locate behind the upper bafe—see gure below.
Repeat step 2 with left hand sidewall.
1.
2.
3.
Ceramic Coals Installation
Rest the base coal on the supports just behind the burner and let it rest against the base coal support at the back
of the rebox.
Place the left front coal in position behind the metal lip at the front of the rebox. The side projection on this coal
should be near the middle front of the rebox.
Place the right front coal behind the metal lip at the front of the rebox. Its left side should rest over the projection
on the left front coal.
The center right coal has letter “R” embossed underneath. Place this coal behind the front right coal.
The center left coal has letter “L” embossed underneath. Place this coal behind the front left coal.
1.
2.
3.
4.
5.
1414
1
2
4 5
3
Ceramic Coals Installation
Rest the base coal on the
supports just behind the
burner and let it rest against
the base coal support at the
back of the rebox.
Place the left front coal in
position behind the metal lip
at the front of the rebox. The
side projection on this coal
should be near the middle
front of the rebox.
Place the right front coal
behind the metal lip at the
front of the rebox. Its left
side should rest over the
projection on the left front
coal.
The center right coal
has letter “R” embossed
underneath. Place this coal
behind the front right coal.
The center left coal has letter
“L” embossed underneath.
Place this coal behind the
front left coal.
1.
2.
3.
4.
5.
Ceramic Fuel Bed Installation
1515
923ACF Adorn Cast Front Installation
Carefully lift the casting. Place it against the replace front surface so that the retaining strip at the back of the
casting is above the two upper retaining brackets at the top of the convection box.
Lower the casting making sure that the rear retaining strip locates fully over the retaining brackets on the
convection box—see gure below.
Slide the front casting/surround sideways, if necessary, to align the bottom xing holes with those in the
convection box. Fix the bottom of the casting/surround to the convection box with two screws—see gure below.
1.
2.
3.
Locate the guard bottom wires over the ash lip.
Hold the top springs down and swing the guard back.
Release the springs so that they locate behind the canopy—see gures below.
1.
2.
3.
Adorn Safety Guard Fitting
1616
Operation Checks
Final Checks
Check ignition, pilot stability, burner ames, and the full range of
movement of the ame adjustment knob. See owner’s lighting
instructions further on in this manual for full details.
Aeration adjustment
As described in manual, burner aeration is adjustable. For the
vast majority of installations, no adjustment will be necessary.
However, in a very few instances, performance may be improved
by adjusting the aeration by sliding the shutter page 10. Evaluate
the aeration only after the unit has warmed up – approximately 15
minutes.
The shutter setting is very sensitive. Small adjustments can make
a substantial difference to the ames
Increasing aeration will cause the ame to appear more
transparent and blue making the ceramic fuel effects glow more.
Decreasing aeration will cause the ames to appear more yellow
or orange making the fuel effects glow less. Too little aeration may
result in black carbon forming and dropping into the rebox.

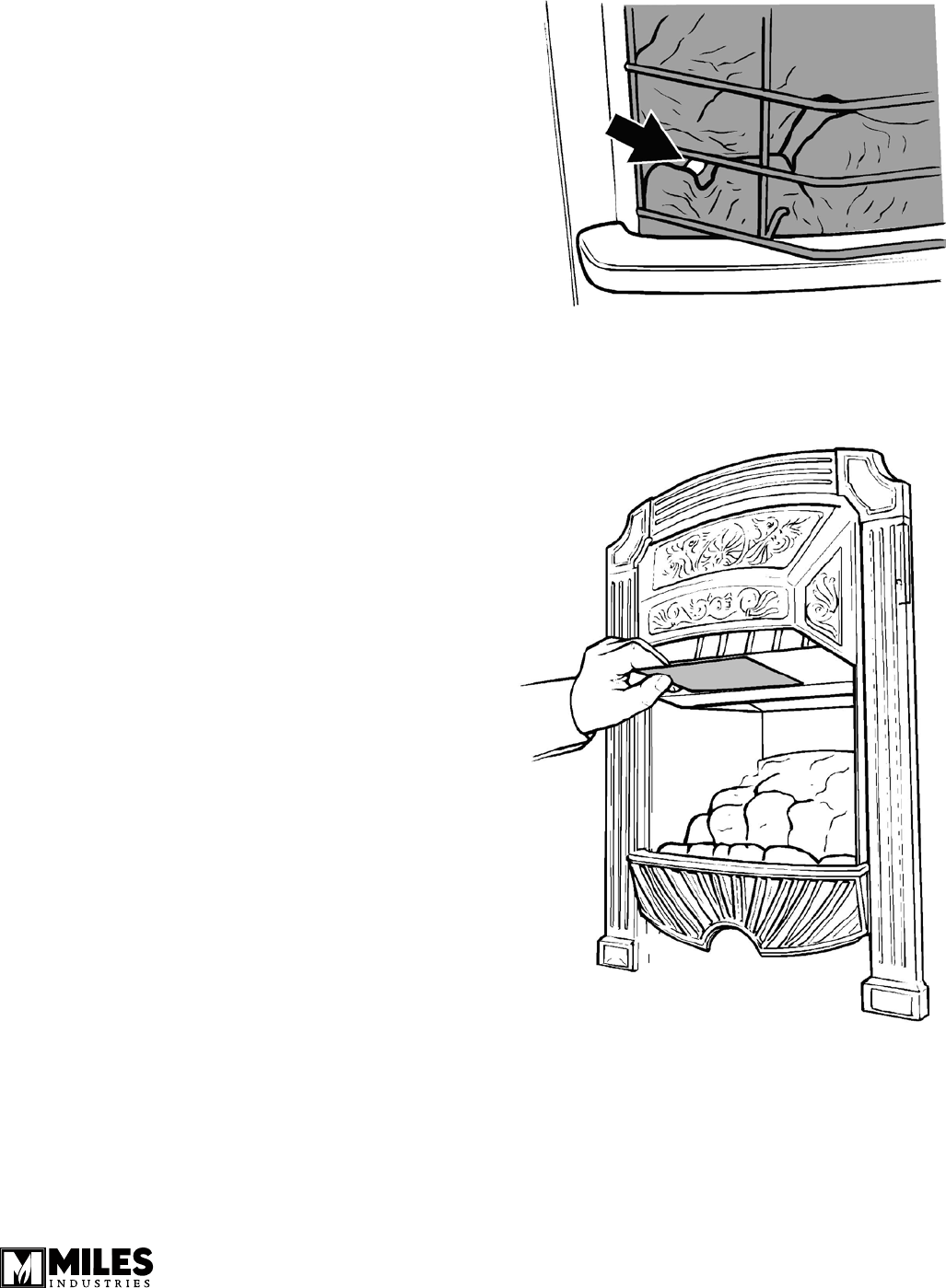

Check venting efciency
A check for correct venting of combustion products must be made
before the installed appliance is left with the customer. You will
need a mirror for this check.
The mirror must be cold and dry for the check so, keep in a cool
place such as a freezer compartment while the re is warming up.
Open the gas valve.
Light the appliance and set to high heat. Leave the appliance
on for ve minutes.
Make sure that the mirror is cold and dry. Place the mirror
face downwards touching the bottom front of the black cross
member and angled slightly upwards so that the mirror face
can be seen.
The mirror face should remain clear for at least 5 seconds.
If condensation appears over the mirror face within 5 seconds,
the venting is not functioning properly. Don’t allow the
appliance to be used until the problem is cured.
1.
2.
3.
4.
5.
1717
Owners Information
Please read the safety information and notes.
Operating Your Fire
The operating instructions are also on a chained plate inside the control access door.
For your safety this appliance is tted with a ame supervision device which will shut off the gas supply if, for any
reason, the pilot ames go out. This device incorporates a xed probe, which senses the heat from the pilot ame. If
the probe is cool, the device will prevent any gas ow unless the burner control knob is kept pushed in at the PILOT
position. See full lighting instructions on next page.
The Valor Remote Control System
Your Valor Remote Control helps you get the comfort, convenience and aesthetics you want from your Valor Gas
Fireplace.
Setting the Flame
a. Press either of the large “up” or “down” buttons.
b. To raise the ame, press and hold the “up” button until you come to the ame level you want. Let go.
c. To lower the ame, press and hold the down button until you come to the ame you want. Let go.
d. The ame level will remain just as you set it.
When rst turned on, the decorative ames will appear predominantly blue. After approximately 15 minutes, the
ames will turn yellow.
Cleaning
Turn the re off and allow it to cool before attempting any cleaning. Note that the re will retain heat for some time
after it has been turned off.
Metal parts
Clean the metal parts with a slightly damp cloth and then dry. Do not use abrasive cleaners, they could scratch the
surface.
Coals and ceramic rebox walls
Dust etc. can be brushed from the coals using a soft bristle paintbrush after removing the safety guard. We suggest
that you remove the coals in the reverse order to that shown in tting instructions. Make sure that no particles are
brushed into the ceramic burner slots.
1818
Thermocouple
probe must be
in flame
Owner’s Information
Checks
A periodic check of the pilot and burner ames should be made. Check after the
re has been on for at least 30 minutes. The pilot ame must cover the tip of the
thermocouple probe. The main burner ame pattern will vary from appliance to
appliance depending on the type of installation and climatic conditions—see gures
below.
The appliance area must always be kept clear and free from combustible materials,
gasoline and other ammable vapors and liquids.
Inspect the vent terminal outdoors regularly to make sure there are no obstructions from birds nests, insects or
rodents, trees, bushes, etc.
Examine the whole vent system regularly. We recommend annually.
Servicing
All appliances use four 1.5V AA batteries for thermostat control.
The batteries used in the remote control receiver are accessible by opening the bottom access panel and removing
the lid of the remote control receiver. The handset has a 9V battery.
General servicing
If you require any attention to your appliance, contact your supplier quoting the model number. It will be helpful if the
appliance serial number can also be quoted. This is on the rating plate, which is on a chained, plate accessible by
opening the bottom access panel.
Performance of LPG
appliances may be
affected by the quality
of commercial gas
supplied in your area.
1919
FO R Y O U R S A F E TY R E A D B E F O R E LIG H TIN G
W A R N IN G :
If you d o not follow thes e instruc tion s e xa ctly, a fire o r ex p losio n m ay result cau sin g
prope rty d am ag e , p erso n al in jury o r lo ss o f life .
A . T h is app lian ce h a s a p ilo t, w h ich m ust b e lig h te d b y h an d . W he n lig hting th e p ilo t, follow these
in stru ctio n s exactly. T o sa ve energy, tu rn th e p ilo t off w h en n ot u sin g the applian c e.
B . B E F O R E LIG H T IN G sm e ll all aro u n d th e a p plian c e area for gas. B e sure to sm e ll ne xt to the floor
be ca use s om e g as is h ea vier than a ir a n d w ill settle o n the flo o r.
W H A T TO D O IF Y O U S M E LL G A S
• D o n ot try to lig h t any a p p lianc e.
• D o n ot to u ch an y e lectric sw itch ; d o n o t use an y p h o n e in your b u ild in g.
• Im m e d iate ly call your gas s upplier from a n eig h b or’s p h one. F o llow th e g as su p p lie r’s
in stru ctio n s .
• If yo u ca nnot reac h you r g as su p p lier, c all th e fire d e p artm en t.
C . U se o n ly yo u r h an d to p u sh in o r tu rn th e c ontrol kn o b s. N e ver use too ls . If th e co n trols w ill not
pu s h in or turn b y han d , d o n ’t try to rep air th em , ca ll a q ualified service tech n ician . Fo rce o r
atte m p ted repair m a y res ult in a fire o r e xp lo sio n.
D . D o n o t us e th is ap p lia n ce if an y p art ha s b een u n d er w ate r. Im m e d iate ly c all a q u alified se rvice
tec hn ician to in spect th e a p plian c e an d to rep lace an y part o f th e control sys tem a n d an y g as
co n tro l, w hich h as been u n der w ater.
LIG H TIN G IN STR U C T IO N S
1. S T O P! R ead th e sa fety in fo rm atio n above.
2. S et th e flam e adju stm en t kn o b as fa r
clockw ise as p ossib le
*
.
3. Turn the ga s co n trol kn o b c lockw ise to O FF .
N O T E: Th e k nob can not b e tu rne d from P ILO T to
O FF u n les s it is push ed in p artia lly. D o n o t fo rc e.
4. W a it five (5) m in u te s to clea r o u t an y g as , th e n
sm e ll for g as, in c lud in g n e ar th e flo or. If yo u
sm e ll ga s, S T O P! F o llow “B ” in the safety
in fo rm atio n above. If yo u d on’t sm ell g as, g o to
the next step.
5. Fin d th e p ilo t. It is at th e left sid e o f the firebox
view ed thro ugh slo tte d h o le in fron t lo g .
6. P u sh in and tu rn the gas contro l knob co u n terclo ckw ise u n til resistance is felt jus t be fo re the
“IG N ” p o sitio n.
7. K eep pu she d in for a few seco n d s to a llow g as to flow then, ke ep in g k nob dep ressed , tu rn to
“P ILO T” to lig h t pilo t. H old k n ob in for a fu rthe r 5 se co n d s th en re lease . T h e kn o b sh o u ld pop
ba ck out. P ilo t sho u ld rem ain lit. If p ilot g o es o u t repeat step s 3 th rou g h 7 .
· If kno b does not p o p out w h en release d , stop a nd im m ediately call yo u r se rvic e tech n icia n or
ga s supp lier.
· If p ilo t lig h ts b u t w ill no t stay lit afte r se veral tries, turn th e g as c o ntro l kn ob to “O FF ” an d call
you r s ervice tech n ician or g as s u p plier.
8. W h e n p ilot is lit, p a rtially d ep ress the kn o b a n d turn to “O N” p o sitio n (B urne r alight).
· D o n ot leave k n o b s et betw een “P IL O T” a nd “O N ”.
9. S et th e flam e h eig h t to d e sire d settin g
*
.
TO T U R N O FF G A S T O A PP L IA N C E
1. S et th e flam e adju stm en t kn o b as fa r clo ckw ise as po s sib le
*
2. P u sh in g as co n tro l kn o b slig htly a n d turn clo ckw is e to “O FF ”. D o n ot fo rce.
*
T h e flam e h eig h t can be in c re ased or decreased b y dep ress in g th e rem ote con trol ha n d s et
button.
Lighting Instructions
2020
Warranty
1. Extended Warranty Coverage
For a period of up to ten (10) years, Miles Industries Ltd., (the “Company”) or its appointed distributor will at its option pay the
initial purchaser for the repair of, or will exchange the following parts or components which are found to be defective in material or
workmanship under normal conditions of use and service:
2. Two-Year Parts Warranty
In addition, for two (2) years from the date of purchase, the Company, at its option, can repair or exchange all parts and components
not listed above but that are found to have a bona de defect in material or workmanship under normal conditions of use.
3. Conditions and Limitations
The warranty registration card must be completed by the initial owner and returned to the Company within 90 days of purchase.
Installation and maintenance must be performed by an authorized and trained dealer in accordance with the Company’s installation
instructions.
This warranty is void where installation of the unit does not conform to all applicable codes including national and local gas
appliance installation codes and building and re codes.
The owner must comply with all operating instructions.
The Company is not responsible for the labor costs to remove defective parts or re-install repaired or replacement parts.
The rst purchaser or user of the unit will be responsible for any shipping charges for replacement parts as well as travel time
incurred by the dealer to perform the warranty work.
This warranty applies to non-commercial use and service and is void if it is apparent that there is abuse, misuse, alteration,
improper installation, accident or lack of maintenance to the unit.
This warranty does not cover damage to the unit through:
i) Improper installation, operational or environmental conditions.
ii) Inadequate ventilation in the area or competition for air from other household equipment or appliances.
iii) Damage due to chemicals, dampness, condensation, or sulphur in the fuel supply lines which exceeds industry standards.
This warranty does not cover glass, log breakage or damage to the unit while in transit.
The Company does not allow anyone to extend, alter or modify this warranty and assumes no responsibility for direct, indirect or
consequential damages caused by the unit. State or provincial laws where the rst purchaser or user resides may provide specic
rights to extend this warranty and, if so, the Company’s sole obligation under this warranty is to provide labor and/or materials in
accordance with those laws.
4. Discharge of Liability
After two (2) years from the date of purchase, the Company may, at its option, fully discharge all obligations under this warranty by
paying to the rst purchaser/user the wholesale price of any defective parts.
5. No Other Warranty
All obligations to repair this unit are dened in this warranty. Some states or provinces may specically mandate additional warranties
on the part of manufacturers, but in the absence of such specic legislation, there is no other warranty or obligation expressed or
implied.
a)
b)
c)
d)
e)
f)
g)
h)
i)
j)
Part or Component Defect Covered Maximum Warranty Period
Exterior steel casing Corrosion 10 years
Glass Loss of structural integrity 10 years
Cast iron parts Corrosion 10 years
Firebox and heat exchanger Corrosion (but not discoloration) causing
loss of structural integrity 10 years
W
A
R
R
A
N
T
Y
P
R
O
G
R
A
M
W
A
R
R
A
N
T
Y
P
R
O
G
R
A
M
V
A
L
O
R
C
O
M
F
O
R
T
V
A
L
O
R
C
O
M
F
O
R
T
V
A
L
O
R
C
O
M
F
O
R
T
If you have a problem with this unit, please contact your dealer or
supplier immediately. Under no circumstances should you attempt
to service the unit in any way by yourself. The warranties in
paragraphs 1 and 2 are provided only to the rst purchaser/user of
this unit, are not transferable and are subject to the conditions and
limitations in paragraphs 3, 4 and 5. Please review the conditions
and limitations carefully and strictly follow their requirements.
2121
Code Description Part no. Code Description Part no.
1 Drafthood retainer x2 4000166 40 Straight connector 220K891
2 Spigot slide plate assy 4000199 41 Valve mount bracket 4000275
3 Downdraft 4000359 42 Tube nut 420K385
4 Top plate 4000332AH 43 Brick set 4000362
5Mounting brkt Adorn x2 4000348 44 Brick panel left 4000358
6 Switch plate 4000360 45 Brick panel rear 4000356
7 Cable clamp 4000361 46 Brick panel right 4000357
8 Coal bed support 4000413 47 Coal set 000B245
9A Burner module NG 4000230 48 Front right coal 640K618
9B Burner module LPG 4000164 49 Front left coal 640K617
10 Remote control unit 030A217 50 Centre right coal 640K616
11 Wiring harness 720A556 51 Centre left coal 640K615
12 Remote handset 720A555 52 Base coal 650K237
13 Wall bracket N/A 53 Dressguard - Adorn 450K023
14 Control box 720A554 54 Front casting 4000293AH
15A Burner rail assy NG 3000025 55 Hearth trim casting 230K347
15B Burner rail assy LPG 740K185 56 Crossmember 330A600
16 Air shutter 4000268/3000220 57 Top bafe 4000437
17A Injector elbow NG 82-580 720A580 58 Floor heatshield 4000298AH
17B Injector elbow LPG 92-200 9730013 59 Ash pan door assembly 040A481
18 Olive 8mm 420K342 60 Chrome plated knob 220K993
19 Olive nut 220K567 61 Grommet - foot 620B291
20 Main burner pipe 030A225 62 M5 screw 100D196
21 Spacer angle x2 4000355 63 Ash pan cover painted 550K037AH
22 Ash bed support x2 330A894 64 Outer body 4000474
23 Module plate 4000297 65 Vent adapter 4000473
24 Pilot support bracket 330A904 66 Spacer 4000479
25A Pilot unit assy NG 4000062 67 Heat bafe 4000478
25B Pilot unit assy LPG 4000063 68 Outer top panel 4000477
26 Pilot bracket 720A542 69 Inner top panel 4000476
27 Electrode 720A543 70 Concrete board support 4000490
28 Thermocouple 4000061 71 Inner body 4000475
29 Extended nut 720A200 72 Base 4000472
30 Pilot pipe 030A226
31 Tubing nut 420K385
32 Pilot injector olive 720A196
33A Pilot injector NG #33 720A575
33B Pilot injector LPG #27 720A195
34 Flexible pipe assy 4000345
35 Bypass screw LPG 4000300
36 Control valve GV34 4000056
37 Interruptor block 4000202
38 Vent switch assy 4000366
39 Break off olive nut 220K913
Replacement Parts
2222
Replacement Parts
922 BODY
1
2
3
8
4
5
6
7
9A/B
10
11
12
13
14
16
17A/B
18
19
20
38
37
36
23
22
21
15A/B
24
25A/B
26
27
28
29 41
32 42
31
40
39
34 35
47
52
50
51
49
48
44 45
46
30
33A/B
43
23
Miles Industries Ltd.
190 – 2255 Dollarton Highway, North Vancouver B.C., CANADA V7H 3B1
Tel. 604-984-3496 Fax 604-984-0246
www.milesreplaces.com
© Copyright Miles Industries Ltd., 2008
23
53
54
57
56
58
55
59
60
61
62
63
64
72
71
70
69
68
67
66
65
