DIRECT-VENT FIREPLACE

®

OWNER’S OPERATION AND INSTALLATION MANUAL

NATURAL GAS MODEL BHDV34NB

PROPANE/LP GAS MODEL BHDV34PB

Save this manual for future reference.

FOR YOUR SAFETY

WHAT TO DO IF YOU SMELL GAS

• Do not try to light any appliance.

• Do not touch any electrical switch

• Do not use any phone in your building.

• Immediately call your gas supplier from a

neighbor’s phone. Follow the gas supplier’s

instructions.

• If you cannot reach your gas supplier, call the

fire department.

WARNING: Improper installation,

adjustment, alteration, service, or

maintenance can cause injury or

property damage. Refer to this

manual for correct installation and

operational procedures. For assis-

tance or additional information

consult a qualified installer, ser-

vice agency, or the gas supplier.

WARNING: If the information in this manual is

not followed exactly, a fire or explosion may

result causing property damage, personal in-

jury, or loss of life.

FOR YOUR SAFETY

Do not store or use gasoline or other flammable

vapors and liquids in the vicinity of this or any

other appliance.

— Installation and service must

be performed by a qualified in-

staller, service agency, or the gas

supplier.

This appliance may be installed in an aftermarket* manufactured (mobile) home, where

not prohibited by state or local codes.

— This appliance is only for use

with the type of gas indicated on

the rating plate. This appliance is

not convertible for use with other

gases, unless a certified kit is

used.

* Aftermarket: Completion of sale, not for purpose of resale, from the manufacturer.

2

106516

DIRECT-VENT FIREPLACE (NATURAL/PROPANE/LP)

®

BHDV34NB AND BHDV34PB

SAFETY

INFORMATION

1. This appliance is only for use with the

type of gas indicated on the rating plate.

This appliance is not convertible for use

with other gases unless a certified kit

is used.

2. For propane/LP fireplace, do not place

propane/LP supply tank(s) inside any

structure. Locate propane/LP supply

tank(s) outdoors. To prevent perfor-

mance problems, do not use propane/LP

fuel tank of less than 100 lbs. capacity.

3. If you smell gas

• shut off gas supply

• do not try to light any appliance

• do not touch any electrical switch; do

not use any phone in your building

• immediately call your gas supplier

from a neighbor’s phone. Follow the

gas supplier’s instructions

• if you cannot reach you gas supplier,

call the fire department.

4. Never install the fireplace

• in a recreational vehicle

• where curtains, furniture, clothing, or

other flammable objects are less than

42" from the front, top, or sides of

the fireplace

• in high traffic areas

• in windy or drafty areas

5. This fireplace reaches high tempera-

tures. Keep children and adults away

from hot surfaces to avoid burns or cloth-

ing ignition. Fireplace will remain hot

for a time after shutdown. Allow surfaces

to cool before touching.

6. Carefully supervise young children

when they are in the room with fireplace.

7. Do not modify this fireplace under any

circumstances. Any parts removed for

servicing must be replaced prior to op-

erating fireplace.

8. Turn fireplace off and let cool before

servicing, installing, or repairing. Only

a qualified service person should in-

stall, service, or repair this fireplace.

Have fireplace inspected annually by a

qualified service person.

9. You must keep control compartments,

burners, and circulating air passages

clean. More frequent cleaning may be

needed due to excessive lint and dust

from carpeting, bedding material, pet

hair, etc. Turn off the gas valve and pi-

lot light before cleaning fireplace.

IMPORTANT: Read this owner’s

manual carefully and completely

before trying to assemble, oper-

ate, or service this fireplace. Im-

proper use of this fireplace can

cause serious injury or death from

burns, fire, explosions, electrical

shock, and carbon monoxide

poisoning.

WARNING: Any change to

this fireplace or its controls can

be dangerous.

WARNINGS

DANGER: Carbon monoxide

poisoning may lead to death!

This fireplace is a vented product. This

fireplace will not produce any gas leakage

into your home if properly installed. This

fireplace must be properly installed by a

qualified service person. The glass door

must be properly seated and sealed. If this

unit is not properly installed by a qualified

service person with glass door properly

seated and sealed, gas leakage can occur.

Carbon Monoxide Poisoning: Early signs

of carbon monoxide poisoning resemble the

flu, with headaches, dizziness, or nausea. If

you have these signs, the fireplace may not

have been installed properly. Get fresh air

at once! Have fireplace inspected and ser-

viced by a qualified service person. Some

people are more affected by carbon monox-

ide than others. These include pregnant

women, people with heart or lung disease or

anemia, those under the influence of alcohol,

and those at high altitudes.

Propane/LP gas and natural gas are both

odorless. An odor-making agent is added to

each of these gases. The odor helps you

detect a gas leak. However, the odor added

to these gases can fade. Gas may be present

even though no odor exists.

Make certain you read and understand all

warnings. Keep this manual for reference. It

is your guide to safe and proper operation of

this fireplace.

10. Have venting system inspected annu-

ally by a qualified service person. If

needed, have venting system cleaned

or repaired. See Cleaning and Mainte-

nance, page 28.

11. Keep the area around your fireplace

clear of combustible materials, gaso-

line, and other flammable vapor and

liquids. Do not run fireplace where

these are used or stored. Do not place

items such as clothing or decorations

on or around fireplace.

12. Do not use this fireplace to cook food

or burn paper or other objects.

13. Do not use any solid fuels (wood, coal,

paper, cardboard, etc.) in this fireplace.

Use only the gas type indicated on fire-

place nameplate.

14. This appliance, when installed, must be

electrically grounded in accordance

with local codes or, in the absence of

local codes, with the National Electri-

cal Code, ANS/NFPA 70, or the Cana-

dian Electrical Code, CSA C22.1.

15. Do not obstruct the flow of combus-

tion and ventilation air in any way. Pro-

vide adequate clearances around air

openings into the combustion chamber

along with adequate accessibility clear-

ance for servicing and proper operation.

16. Do not install fireplace directly on car-

peting, vinyl tile, or any combustible

material other than wood. The fireplace

must set on a metal or wood panel ex-

tending the full width and depth of the

fireplace.

17. Do not use fireplace if any part has been

exposed to or under water. Immediately

call a qualified service person to ar-

range for replacement of the unit.

18. Do not operate fireplace if any log is

broken.

19. Do not use a blower insert, heat ex-

changer insert, or other accessory not

approved for use with this fireplace.

20. Do not operate fireplace with glass door

removed, cracked, or broken.

3

106516

OWNER’S MANUAL

PRODUCT

IDENTIFICATION Install and use fireplace with care. Follow

all local codes. In the absence to local codes,

use the current National Fuel Gas Code

ANS Z223.1, also known as NFPA 54*

(USA) or the current CAN/CGA-B149[.1 or

.2] Installation Codes (Canada).

*Available from:

American National Standards Institute, Inc.

1430 Broadway

New York, NY 10018

National Fire Protection Association, Inc.

Batterymarch Park

Quincy, MA 02269

LOCAL CODES

PRODUCT

FEATURES

OPERATION

This direct-vent fireplace is clean burning

and vents easily through outside walls or

vertically using outside air for combustion.

Heat is generated by both realistic flames

and glowing embers. When used without

the blower accessory, the fireplace requires

no electricity making it ideal for emergency

backup heat.

PIEZO IGNITOR

This fireplace has a piezo ignitor. This sys-

tem requires no matches, batteries, or other

sources to light fireplace.

Figure 1 - Vanguard Direct-Vent Fireplace BHDV Series

Glass Door

Assembly

Blower Adjustment

(Optional Installation)

Piezo Ignitor

Valve

Burner

Pilot Assembly

Log Set

Grate Assembly

Lava Rock

Glowing Embers

Top Louver

Panel

Lower Louver

Panel

Vent Opening

Nailing

Flange Standoff

GLOSSARY OF

TERMS

Chase - A boxlike enclosure to protect

venting from the elements when the venting

run is on the outside of a structure.

Mastic - A pliable sealant for use around the

vent terminal.

Snorkel Termination - A box that raises the

horizontal termination above ground level

clearances.

Vent Terminal - Mounted on an outside

wall or roof to separate the inlet and outlet of

the vent system and protect it from weather.

Vinyl Siding Standoff - A metal box that

separates the vent cap from vinyl siding.

Wall Thimble/Firestop - A metal plate used

to secure the vent pipe when it passes through

a wall or ceiling.

4

106516

DIRECT-VENT FIREPLACE (NATURAL/PROPANE/LP)

®

BHDV34NB AND BHDV34PB

Fireplace size D x FW x RW

34" 18 1/2" 34 3/8" 14"

PRE-INSTALLATION

PREPARATION

LOCATION AND SPACE

REQUIREMENTS

Determine the safest and most efficient loca-

tion for your Vanguard direct-vent fireplace.

Make sure that rafters and wall studs are not

in the way of the venting system. Choose a

location where the heat output is not affected

by drafts, air conditioning ducts, windows or

doors. Figure 2 shows some common loca-

tions. Read all venting information in this

manual. Be aware of all restrictions and

precautions before deciding the exact loca-

tion for your fireplace.

When deciding the location of your fire-

place, follow these rules:

1. Do not connect this fireplace to a chim-

ney flue serving a separate solid-fuel

burning fireplace or appliance.

2. Due to high temperatures, do not lo-

cate this fireplace in high traffic areas

or near furniture or draperies.

3. Proper clearances must be maintained.

4. If your fireplace is to be installed di-

rectly on carpeting, vinyl tile, or any

combustible material other than wood,

it must be installed on a metal or wood

panel extending the full width and

depth of the fireplace. See Figure 3.

34 3/4"

34 1/4"

20" Vertical Termination

19" Horizontal Termination

CLEARANCES

Minimum clearances to combustibles for

the fireplace are as follows:

Back, and sides 0"/mm

Perpendicular walls 6" (152mm)

Floor 0"/mm

Ceiling to louver opening 42" (1067mm)

Front 36" (914mm)

Top of Standoffs 0"/mm

See General Venting on page 5 for specific

venting clearances.

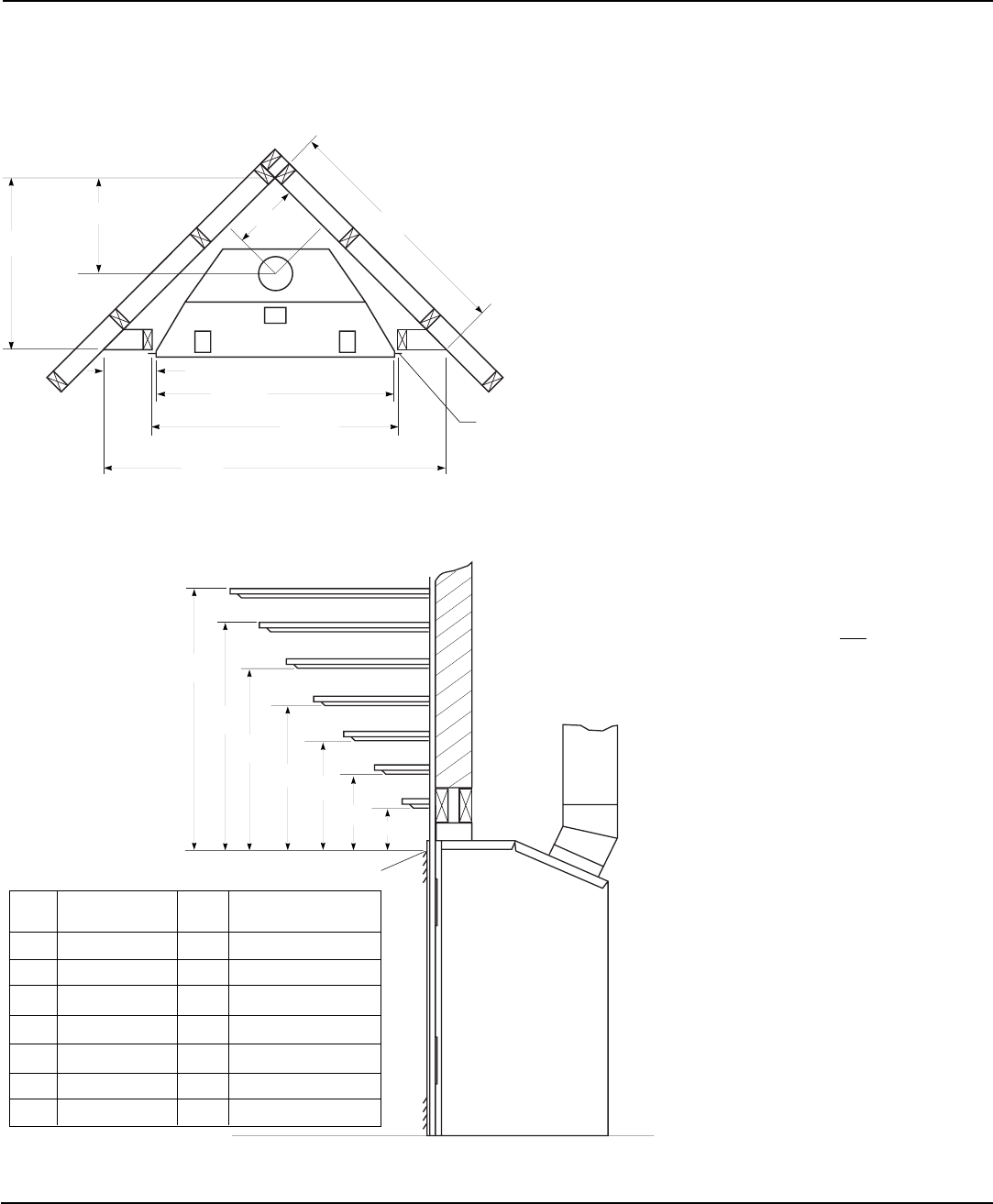

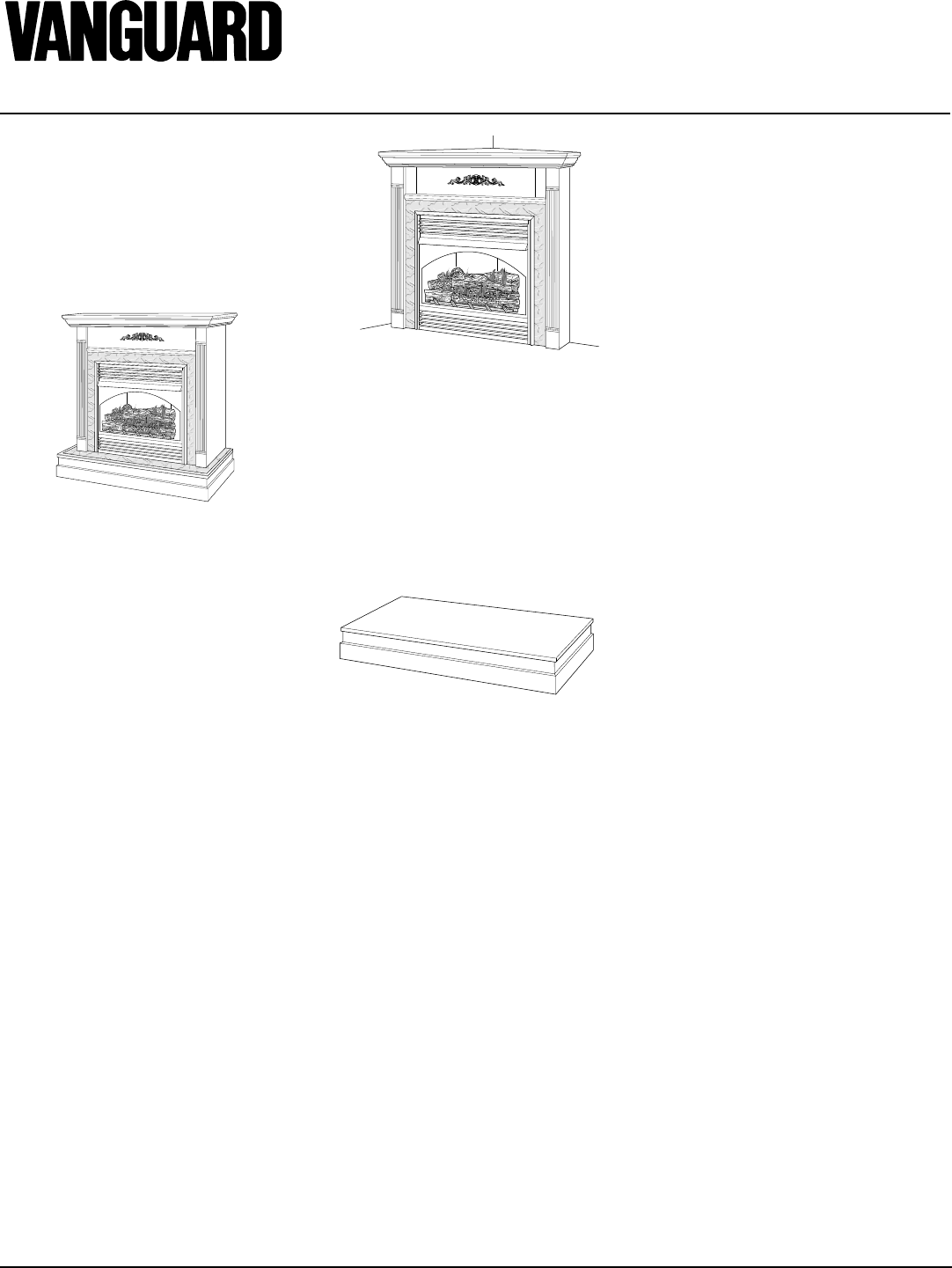

FRAMING AND FINISHING

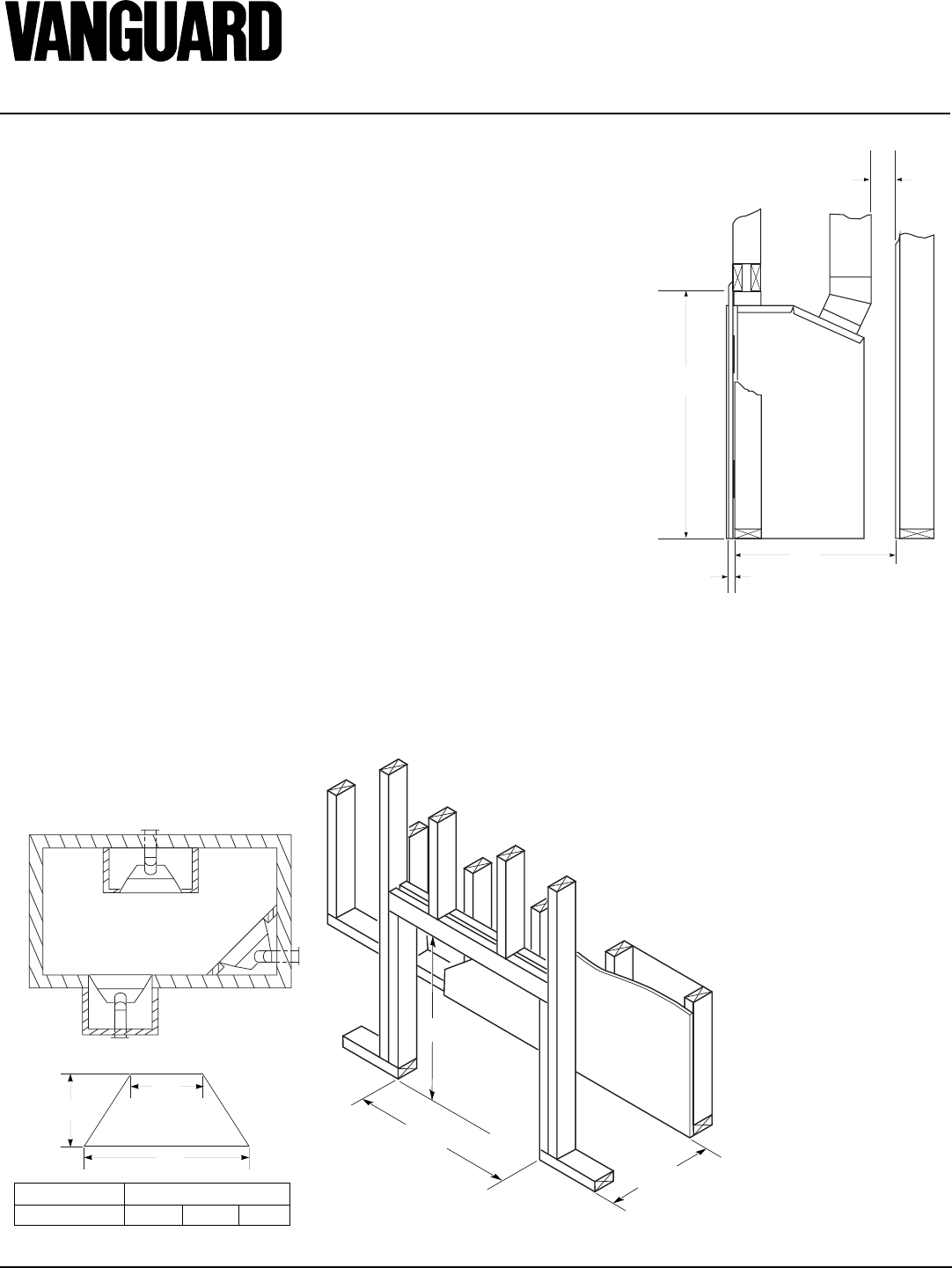

Figures 4 and 5 show typical framing of this

fireplace. Figure 6 on page 5 shows framing

for corner installation. All minimum clear-

ances must be met. Do not install fireplace

directly on carpeting, vinyl tile, or any com-

bustible material other than wood. The fire-

place must set on a metal or wood panel

extending the full width and depth of the

fireplace.

See Accessories on pages 34 and 35 for

mantel kits available for this fireplace. If you

are using a separate combustible mantel piece,

refer to Figure 7 on page 5 for proper instal-

lation height. You can install noncombustible

mantels at any height above the fireplace.

Note:

Noncombustible mantels may discolor!

Figure 2 - Common Fireplace Locations

Figure 4 - Framing Clearances for Installation Against an Exterior Wall

Figure 5 - Framing Clearances for Typical

Fireplace Installation

Flush with a wall

Through exterior wall

enclosed in a chase

Corner

installation

Figure 3 - Fireplace Bottom Dimensions

D

RW

FW

20"

34

"

5/8" for drywall facing

Must maintain a minimum

1" clearance to combustibles

5

106516

OWNER’S MANUAL

29"

13"

12

5

/

8

"

34

3

/

8

"

35

1

/

16

"

58"

9

1

/

4

"41"

Nailing Tabs

PRE-INSTALLATION

PREPARATION

Continued

Figure 6 - Framing Clearances for Corner Installation

LOCATION OF VENT

TERMINATION

When locating vent termination, it is impor-

tant to observe the minimum clearances

shown in Figure 8, page 6. You will avoid

extra framing by positioning your fireplace

against an already existing framing mem-

ber. The sides of the fireplace may be posi-

tioned directly against combustible walls.

*Check with local codes or with the current

CAN/CGA B149 [.1 or .2] Installation Codes

for Canada or the USA Installations follow

the current National Fuel Gas Code, ANS

Z223.1, also known as NFPA 54.

These models are approved for use with

Simpson Dura-Vent 6 5/8" direct-vent pipe

components and terminations as well as both

flex and rigid Vanguard vent components.

Your fireplace is approved to be vented either

through the side wall, or vertically using the

following guidelines:

• Only use Vanguard or Simpson Dura-

Vent GS venting components or kits spe-

cifically approved for this fireplace.

• Minimum clearance between vent pipes

and combustible materials is 1" (25 mm),

except where stated otherwise.

• Combustible material may be flush with

the top front of fireplace with a maxi-

mum thickness of 3/4".

• Do not recess venting terminals into a

wall or siding.

• You must install a vinyl siding standoff if

vinyl siding is covering the exterior wall.

• Install horizontal venting with a 1/4" rise for

every 12" of run toward the termination.

• You may paint the vent terminal with

450ºF (232ºC) heat-resistant paint to co-

ordinate with the exterior finish.

• There must not be any obstruction such

as bushes, garden sheds, fences, decks,

or utility buildings within 24" from the

front of the termination cap.

• Do not locate termination cap where ex-

cessive snow or ice build up may occur.

Be sure to clear vent termination area af-

ter snow falls to prevent accidental block-

age of venting system. When using snow

blowers, do not direct snow towards vent

termination area.

GENERAL VENTING

C

B

A

DE

FG

Top of Louver Opening

3

2

1

4

5

6

7

Wall

Figure 7 - Clearances for Combustible Mantels

Ref. Mantel Depth Ref. Mantel from Top

of Louver Opening

1 14" (356mm) A 16" (406mm)

2 12" (305mm) B 14" (356mm)

3 10" (254mm) C 12" (305mm)

4 8" (203mm) D 10" (254mm)

5 6" (152mm) E 8" (203mm)

6 4" (101mm) F 6" (152mm)

7 2" (51mm) G 4" (101mm)

Continued

Note:

There must be

a minimum clear-

ance of 18" above

top of louver

opening when

installing a television

or entertainment

center above the

fireplace.

6

106516

DIRECT-VENT FIREPLACE (NATURAL/PROPANE/LP)

®

BHDV34NB AND BHDV34PB

Fixed

Closed Openable Fixed

Closed

Openable

V

V

V

V

VV

V

V

X

X

VX

G

G

J

F

B

B

K

N

H

I

A

N

E

L

D

B

M

A

C

B

V

V

A

G

G

B

TERMINATION CAP AIR SUPPLY INLET GAS METER RESTRICTED AREA

(TERMINATION PROHIBITED)

A = clearance above grade, veranda, porch, deck, or balcony

[*12 inches (305mm) minimum]

B = clearance to window or door that may be opened

[12 inches (305mm) minimum]

C = clearance to permanently closed window [minimum 12 inches

(305mm) recommended to prevent condensation on window]

D = vertical clearance to ventilated soffit located above the terminal

within a horizontal distance of 24 inches (610mm) from the

center-line of the terminal [18 inches (457mm) minimum]

E = clearance to unventilated soffit [12 inches (305mm) minimum]

F = clearance to outside corner (see below)

G = clearance to inside corner (see below)

H = *not to be installed above a meter/regulator assembly within

36 inches (914mm) horizontally from the center-line of the regulator

I = clearance to service regulator vent outlet [*72 inches (1829mm)

minimum]

J = clearance to non-mechanical air supply inlet to building or the

combustion air inlet to any other fireplace [*12 inches (305mm)

minimum]

K = clearance to a mechanical air supply inlet [*72 inches (1829mm)

minimum]

L = † clearance above paved side-walk or a paved driveway located on

public property [*84 inches (2133mm) minimum]

M = clearance under veranda, porch, deck [*12 inches (305mm) minimum ‡]

N = clearance above a roof shall extend a minimum of 24 inches (610mm)

above the highest point when it passes through the roof surface and

any other obstruction within a horizontal distance of 18 inches (457mm)

† vent shall not terminate directly above a side-walk or paved driveway which is located between two

single family dwellings and serves both dwellings*

‡ only permitted if veranda, porch, deck or balconey is fully open on a minimum of 2 sides beneath the floor*

* as specified in CAN/SGA B149 (.1 or .2) Installation Codes (1991) for Canada or for U.S.A. installation follow

the current

National Fuel Gas Code, ANS Z223.1

Note: Local codes or regulations may require different clearances

A = 6" (152mm)

Inside Corner

V

B

E

V

B = 6" (152mm)

C = Maximum depth of 48" (1219mm) for

recessed location

D = Minimum width for back wall of

recessed location -

Combustible - 38" (965mm)

Noncombustible - 24" (610mm)

E = Clearance from corner in

recessed location-

Combustible - 6" (152mm)

Noncombustible - 2" (51mm)

Outside Corner Recessed Location

G

H

G = Combustible 24" (610mm)

Noncombustible 18" (457mm)

Balcony with No Side Wall

V

J

Combustible &

Noncombustible

H = 24" (610mm)

J = 20" (508mm)

Balcony with Perpendicular Side Wall

C

D

C

Termination Clearances for Buildings with Combustible and Noncombustible Exteriors

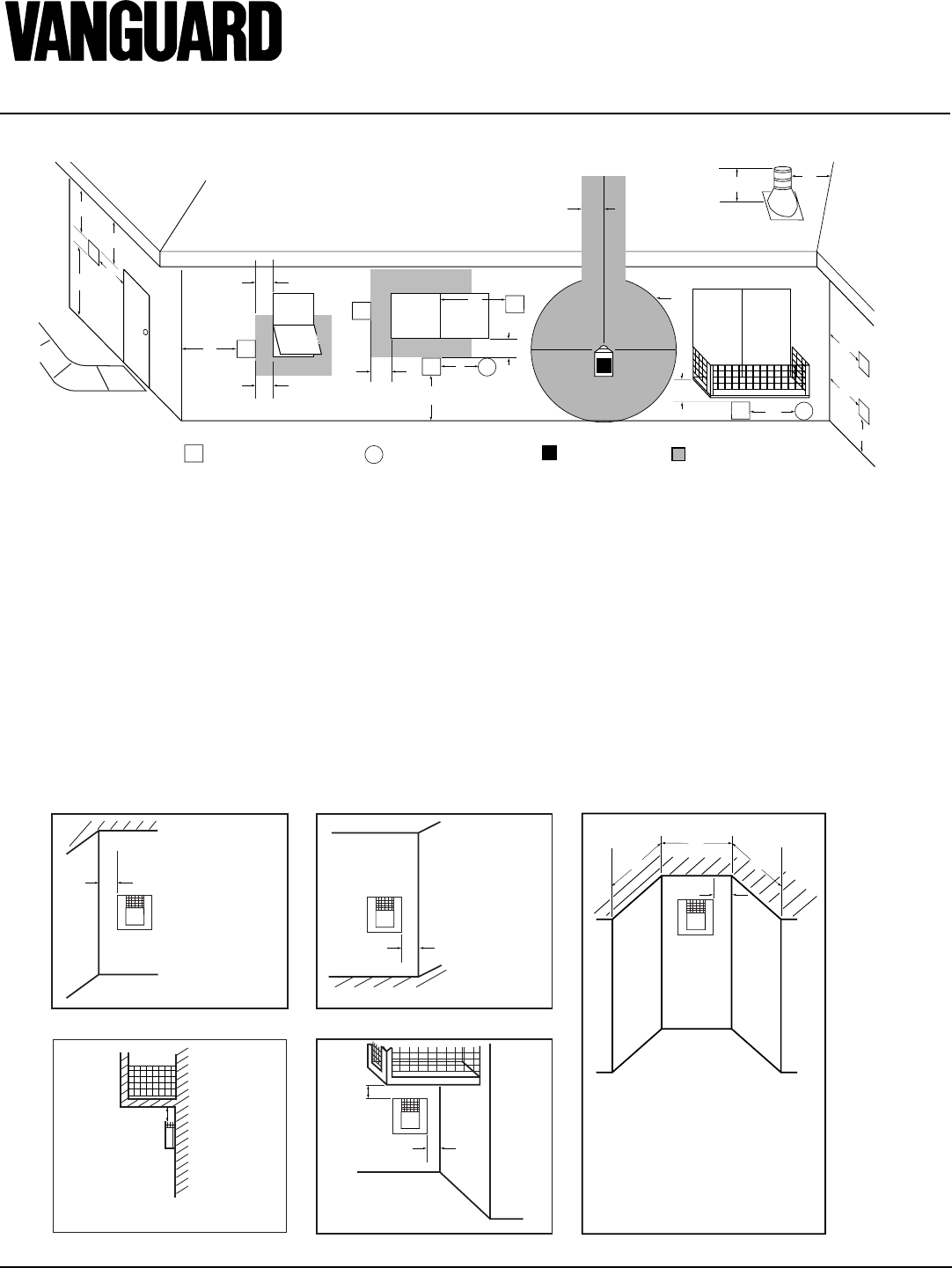

Figure 8 - Minimum Clearances for Vent Terminations

GENERAL VENTING

Continued

7

106516

OWNER’S MANUAL

WARNING: Read all instruc-

tions completely and thoroughly

before attempting installation.

Failure to do so could result in

serious injury, property damage

or loss of life. Operation of im-

properly installed and maintained

venting system could result in

serious injury, property damage

or loss of life.

WARNING: Seal all vent con-

nections. Seal only the outer pipe

connections with high temperature

silicone (600°F/316° C). Before join-

ing elbows and pipes, apply a bead

of high temperature silicone seal-

ant (GE RTV 106/Loctite RTV 81585)

to the male end of the elbow or

pipe. High temperature silicone

must also be used to re-seal any

connections after maintenance to

venting system.

NOTICE: Failure to follow these

instructions will void the warranty.

INSTALLATION

PRECAUTIONS

Consult local building codes before beginning

the installation. The installer must make sure

to select the proper vent system for installa-

tion. Before installing vent kit, the installer

must read this fireplace manual and vent kit

instructions.

Only a qualified service person should in-

stall venting system. The installer must fol-

low these safety rules:

• Wear gloves and safety glasses for

protection

• Use extreme caution when using ladders

or when on roof tops

• Be aware of electrical wiring locations

in walls and ceilings

The following actions will void the war-

ranty on your venting system:

• Installation of any damaged venting

component

• Unauthorized modification of the vent-

ing system

VENTING

INSTALLATION

WARNING: This gas fireplace

and vent assembly must be

vented directly to the outside.

The venting system must NEVER

be attached to a chimney serving

a separate solid fuel burning ap-

pliance. Each gas appliance must

use a separate vent system. Do

not use common vent systems.

WARNING: Horizontal sec-

tions of this vent system require a

minimum clearance of 2" from the

top of the pipe and 1" minimum to

the sides and bottom. 1 1/2" clear-

ance is required where the termi-

nation penetrates a combustible

wall. Vertical sections of this sys-

tem require a minimum of 1" clear-

ance to combustible materials on

all sides of the pipe.

• Installation of any component part not

manufactured or approved by DESA

International

• Installation other than as instructed by

these instructions

INSTALLATION PLANNING

There are two basic types of direct-vent

installation:

• Horizontal Termination

• Vertical Termination

It is important to select the proper length of

vent pipe for the type of termination you

choose. It is also important to note the wall

thickness.

For Horizontal Termination: Select the

amount of vertical rise desired. The horizon-

tal run of venting must have 1/4" rise for

every 12" of run towards the termination.

NOTICE: Treatment of firestops

and construction of the chase may

vary from building type to build-

ing type. These instructions are

not substitutes for the require-

ments of local building codes. You

must follow all local building

codes.

Note:

When installing in a chase, you should

insulate the chase as you would the outside

walls of your home. This is especially im-

portant in cold climates. Minimum clear-

ance between vent pipes and combustible

materials such as insulation is 1".

After framing the chase (see Framing and

Finishing on pages 4 and 5) install the vent

system by following the installation in-

structions.

Installing Vent System in a Chase

A chase is a vertical boxlike structure built

to enclose venting that runs along the out-

side of a building. A chase is not required for

such venting.

Continued

WARNING: Never run the vent

downward as this may cause ex-

cessive temperatures which

could cause a fire.

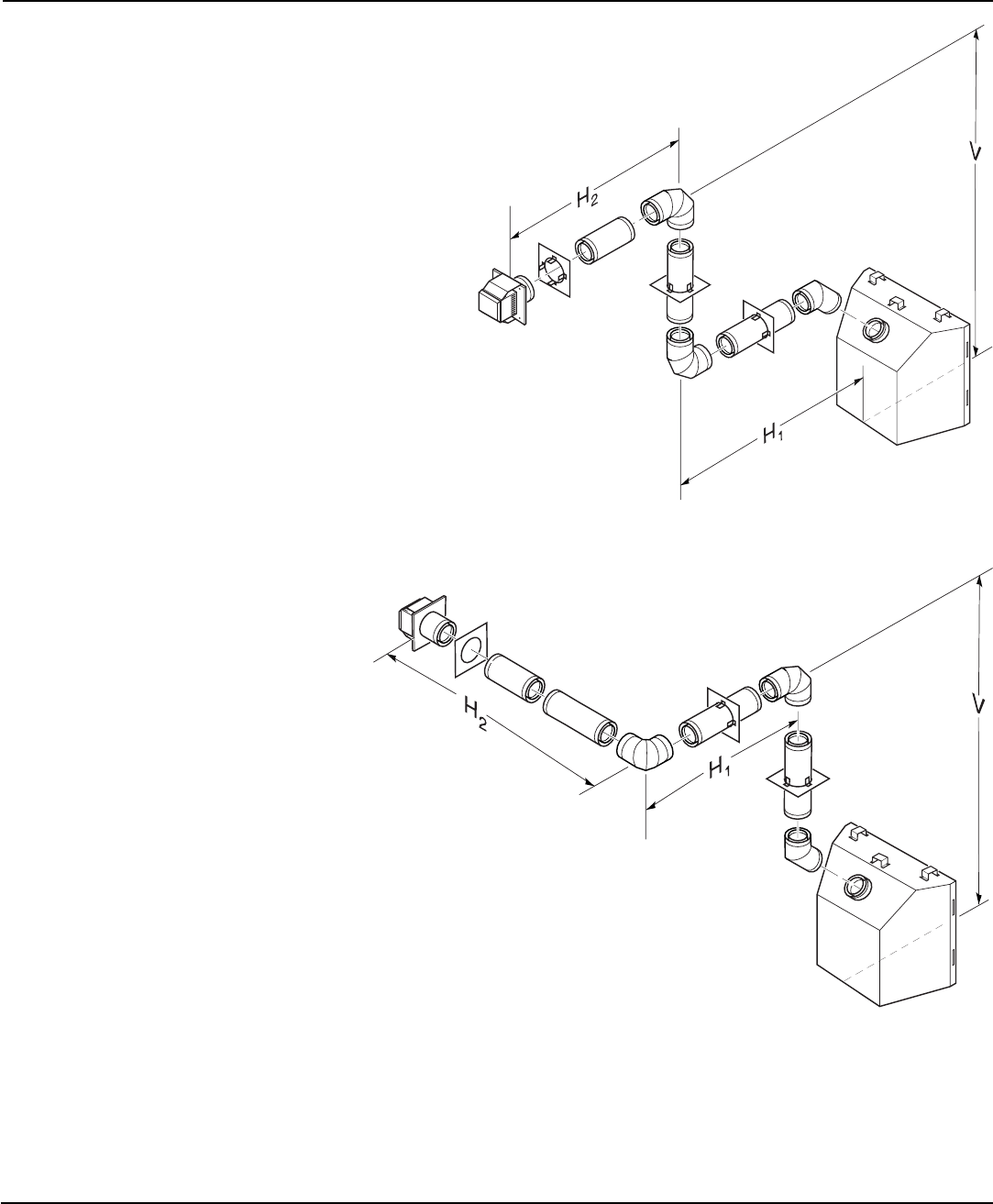

You may use one or two 90° elbows in this

vent configuration. See Horizontal Termina-

tion Configurations on pages 10 and 11.

For Vertical Termination: Measure the dis-

tance from the fireplace flue outlet to the

ceiling. Add the ceiling thickness, the verti-

cal rise in an attic or second story, and allow

for sufficient vent height above the roofline.

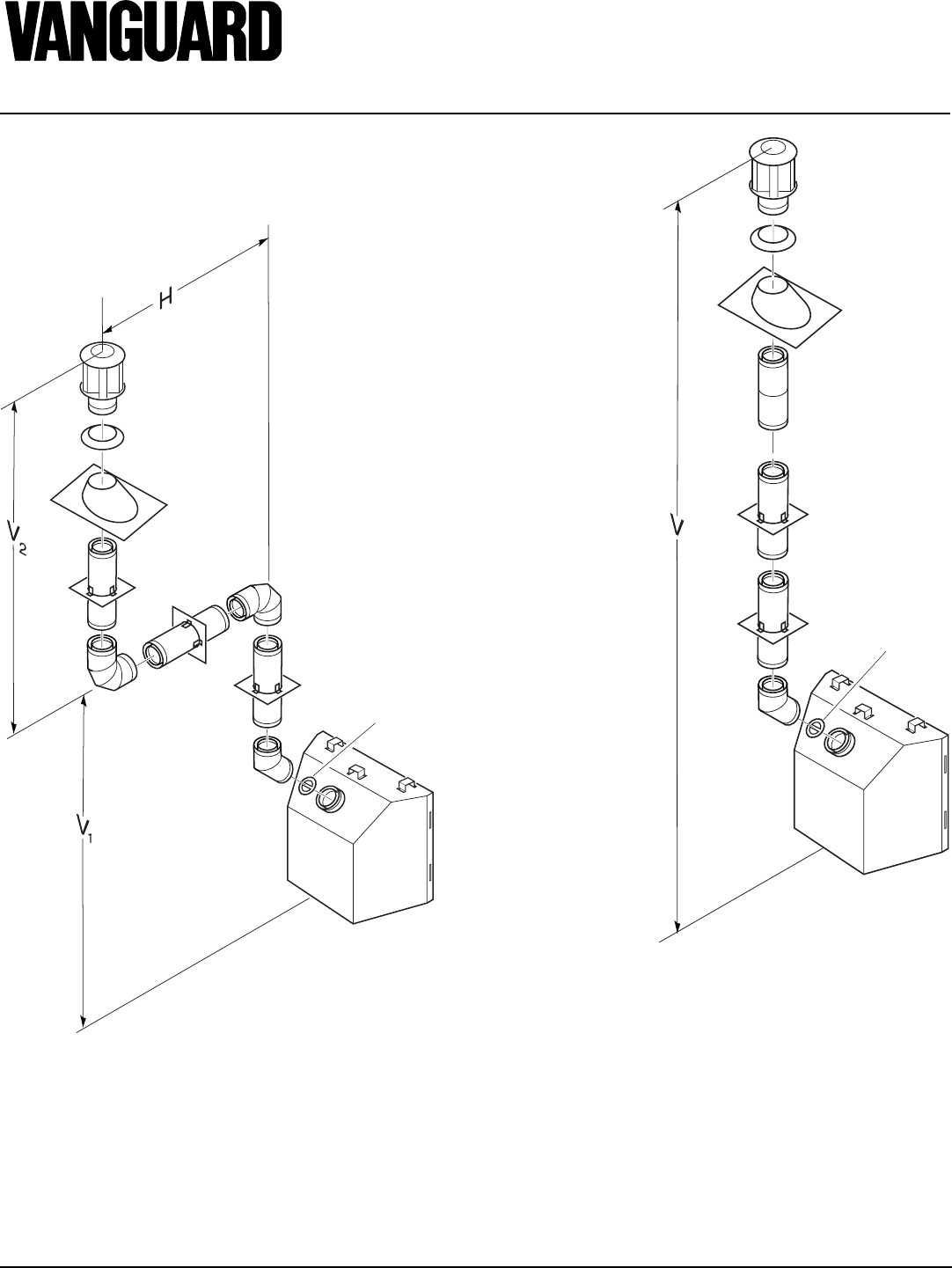

You may use one or two 90° elbows in this

vent configuration. See Vertical Termination

Configurations on pages 13 and 14.

Note:

You may use two 45° elbows in place

of a 90° elbow. You must follow rise to run

ratios when using 45° elbows.

For two-story applications, firestops are re-

quired at each floor level. If an offset is

needed in the attic, additional pipe and el-

bows will be required.

You may use a chase with a vent termination

with exposed pipe on the exterior of the house.

See Installing Vent System in a Chase, below.

Your Vanguard direct-vent fireplace has been

tested for a minimum 3' rise with a maximum

10" wall thickness. The maximum horizon-

tal run is 20' with 8' vertical rise (see Instal-

lation for Horizontal Termination, page 8).

The maximum vertical run is 30' (see Instal-

lation for Vertical Termination, page 12).

It is very important that the venting system

maintain its balance between the combus-

tion air intake and the flue gas exhaust.

Certain limitations apply to vent configura-

tions and must be strictly followed.

8

106516

DIRECT-VENT FIREPLACE (NATURAL/PROPANE/LP)

®

BHDV34NB AND BHDV34PB

INSTALLATION FOR

HORIZONTAL TERMINATION

1. Determine the route your horizontal

venting will take.

Note:

The location

of the horizontal vent termination on

the exterior wall must meet all local and

national building codes and must not

be easily blocked or obstructed.

Snorkel terminations are available for

terminations requiring a vertical rise on

the exterior of the building (see Figures

9 and 10). Snorkel kit SVK is also avail-

able (see page 15). Follow the same in-

stallation procedures used for standard

horizontal terminations. If installing the

snorkel termination below grade (base-

ment applications), you must provide

proper drainage to prevent water from

entering the snorkel termination (see

Figure 10). Do not back fill around the

snorkel termination.

2. Rigid vent pipes and fittings have spe-

cial twist-lock connections. Assemble

the desired combination of pipe and el-

bows to the appliance adaptor with pipe

seams oriented towards the wall or floor.

Twist-lock Procedure: The female

ends of the pipes and fittings have four

locking lugs (indentations). These lugs

will slide straight into matching slots on

the male ends of adjacent pipes and fit-

tings. (All connections must be sealed

with high temperature silicone sealant

as specified in the second warning state-

ment on page 7.) Push the pipe sections

together and twist one section clockwise

approximately one-quarter turn until the

sections are fully locked. See Figure 11,

page 9.

Note:

Horizontal runs of vent

must be supported every three feet. Use

wall straps for this purpose.

Flexible vent pipe must be installed with

spacer springs every 12". See Figure 11,

page 9. All connections must be clamped

tightly and sealed with high temperature

silicone sealant as specified in the sec-

ond warning statement on page 7.

VENTING

INSTALLATION

Continued

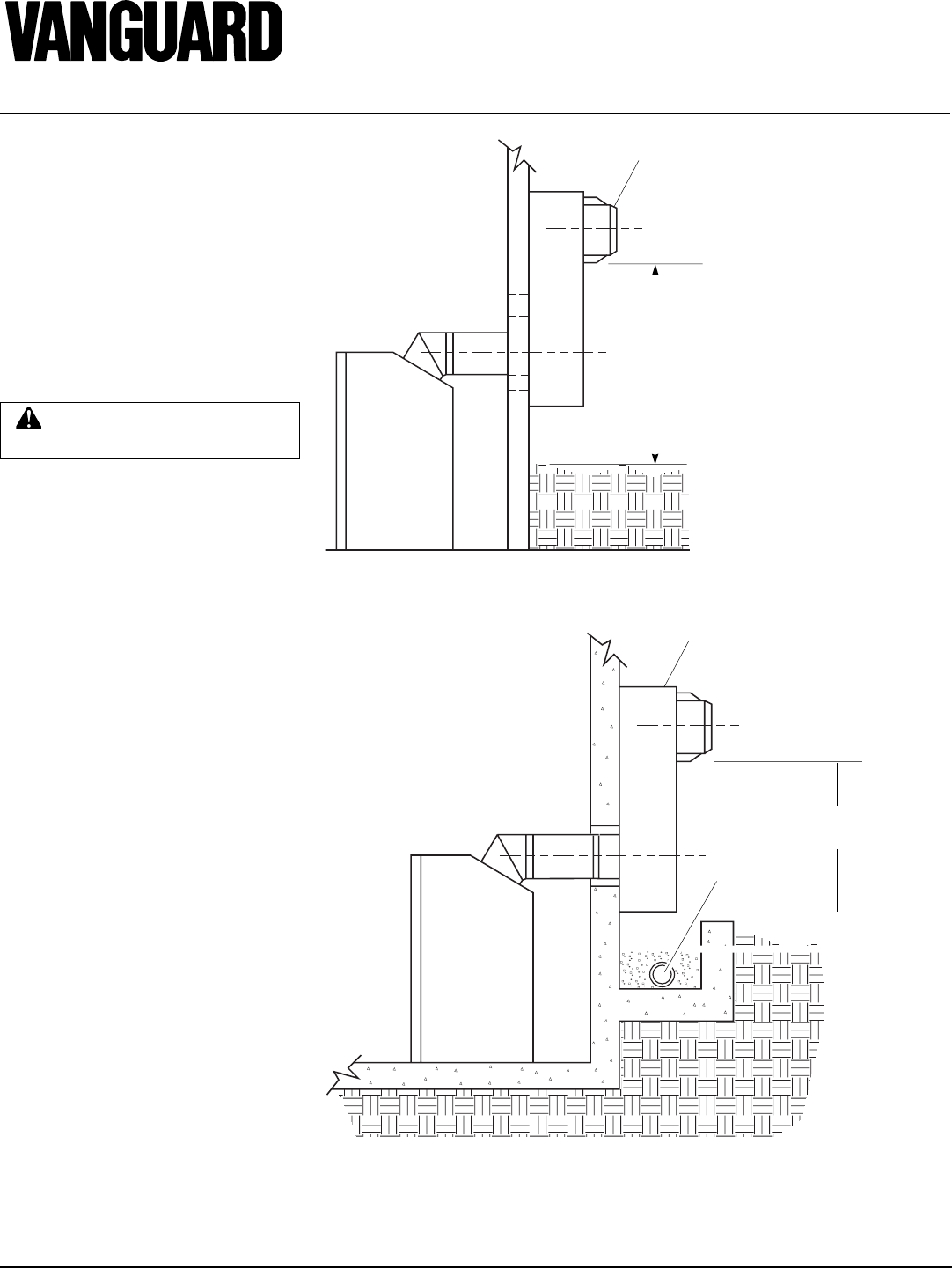

Figure 10 - Snorkel Termination with Drainage Pipe

Adequate drainage

Figure 9 - Snorkel Termination

Snorkel

12" Minimum

To Ground Level

WARNING: Do not recess vent

terminal into a wall or siding.

Snorkel

12" Minimum

To Ground Level

9

106516

OWNER’S MANUAL

UP

UP

VENTING

INSTALLATION

Continued

(Framing

Detail)

10"

(254mm)

10"

(254mm)

7

1

/

2

"

(190mm)

Vent Opening

Combustible Wall

Vent Opening

Noncombustible Wall

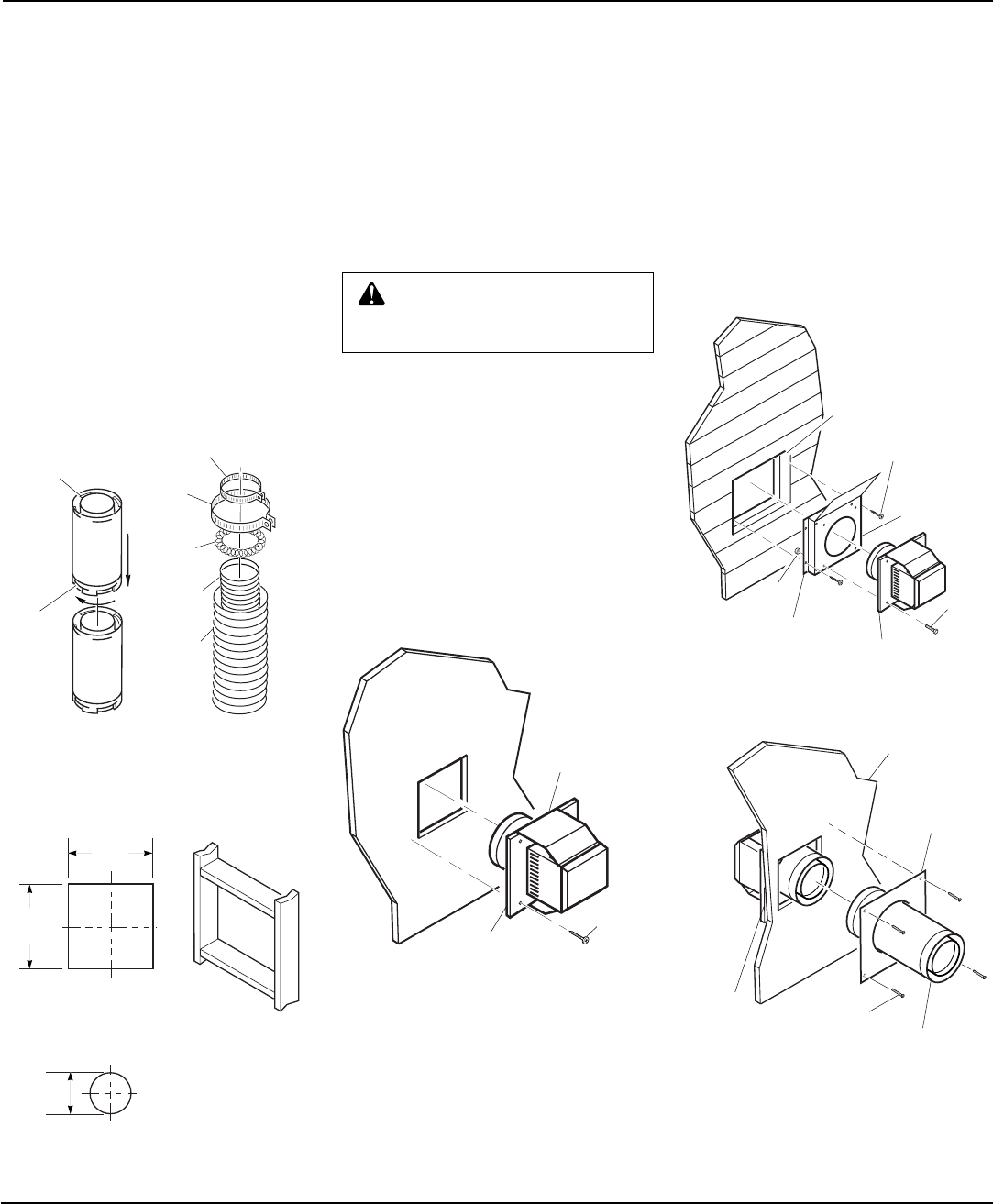

Figure 12 - Vent Opening Requirements

Continued

3. Attach vent pipe assembly to the fire-

place. Set fireplace in front of it’s per-

manent location to insure minimum

clearances. Mark the wall for a 10"

square hole (for noncombustible ma-

terial such as masonry block or con-

crete, a 7 1/2" diameter hole is accept-

able). See Figure 12. The center of the

hole should line up with the center-

line of the horizontal rigid vent pipe.

Cut a 10"x10" (254mm x 254mm)

square hole through combustible ex-

terior wall (7 1/2" [190mm] diameter

hole if noncombustible). Frame as nec-

essary (see Figure 12).

Figure 14 - Installing Vinyl Siding Standoff

Cut Vinyl Siding

Away to Fit

Standoff

Wood Screw

Nut Bolt

Standoff

Vent Cap

Figure 11 - Vent Pipe Connections

Female

Locking

Lugs

Male

Slots

Rigid Vent Pipe Flexible Vent Pipe

Spacer

Spring

4" Clamp

7" Clamp

4" Flex

Pipe

7" Flex

Pipe

Apply Mastic

to All Four Sides

Figure 13 - Installing Horizontal Vent Cap

Wood

Screw

Vent Cap

Apply Mastic

to All Four

Sides

WARNING: Do not recess vent

termination in to any wall. This

will cause a fire hazard.

4. Apply a bead of non-hardening mastic

around the outside edge of the vent cap.

Position the vent cap in the center of

the 7 1/2" or 10" hole on the exterior

wall with the arrow on the vent cap

pointing up. Insure proper clearance of

1" to combustibles is maintained. At-

tach the vent cap with four wood screws

supplied (see Figure 13).

Note

: Re-

place the wood screws with appropri-

ate fasteners for stucco, brick, concrete,

or other types of siding.

For vinyl siding use vinyl siding stand-

offs between vent cap and exterior wall.

The vinyl siding standoff prevents ex-

cessive heat from melting the vinyl sid-

ing material. Bolt the vent cap to the

standoff. Apply non-hardening mastic

around outside edge of the standoff in-

stead of the vent cap assembly. Use

wood screws provided to attach the

standoff. See Figure 14.

5. Slide the wall thimble over the vent pipe

before connecting the horizontal run to

the vent cap (see Figure 15).

6. Carefully move the fireplace with vent

assembly attached toward the wall and

insert the vent pipe into the horizontal

termination. The pipe overlap should

be a minimum of 1 1/4". Apply silicone

to the outer pipe connection. Fasten all

vent connections with screws provided.

Refer to Fireplace Installation on page

16 for instructions on securing unit to

framing or floor.

7. Slide the wall thimble against the inte-

rior wall surface and attach with screws

provided (see Figure 15).

Vent Cap

(Horizontal

Termination)

Interior Wall

Surface

Wall

Thimble

Horizontal

Vent Pipe

Figure 15 - Connecting Vent Cap with

Horizontal Vent Pipe

Screw

10

106516

DIRECT-VENT FIREPLACE (NATURAL/PROPANE/LP)

®

BHDV34NB AND BHDV34PB

VENTING

INSTALLATION

Continued

UP

UP

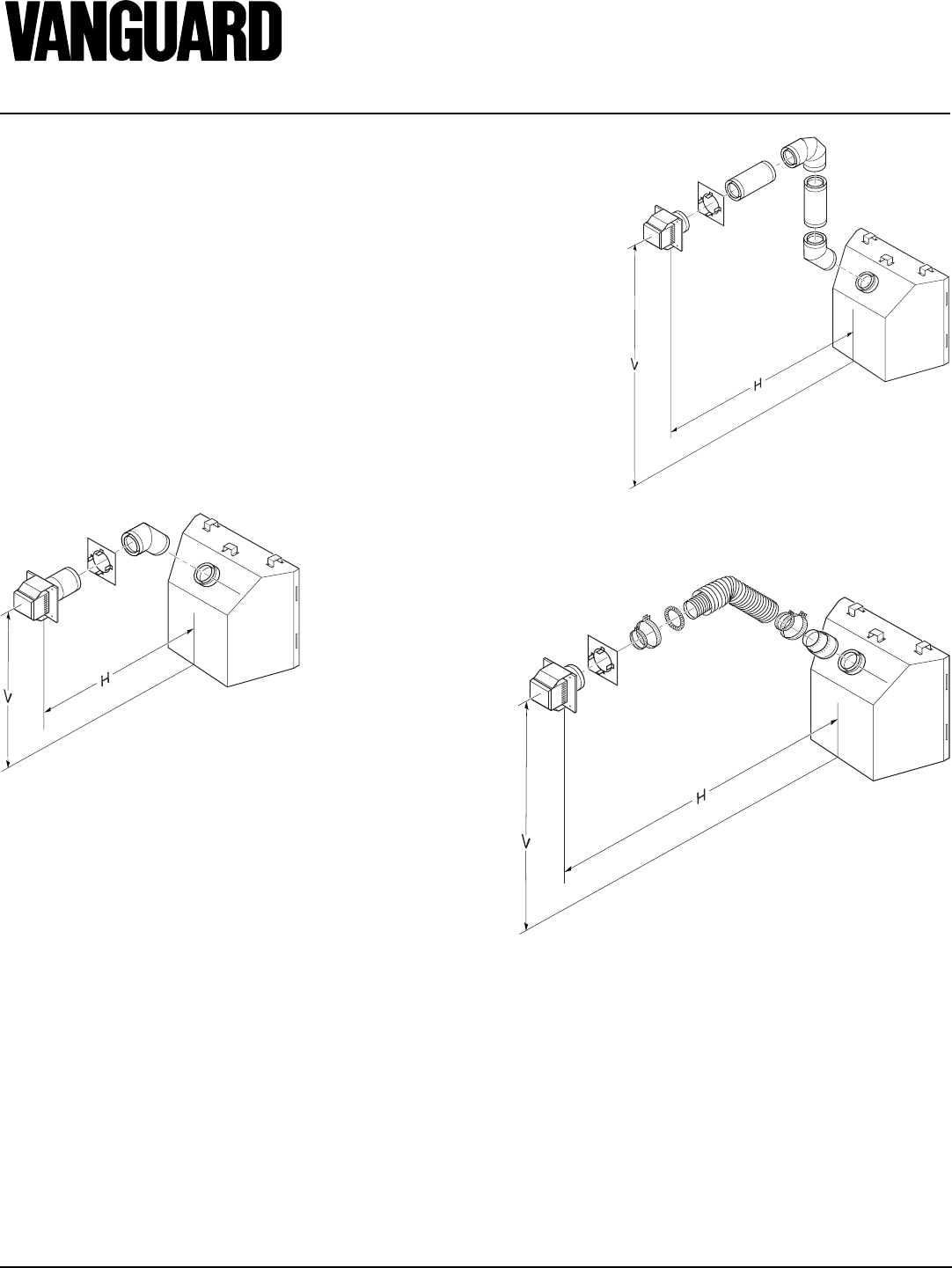

Horizontal Venting

Vertical (V) Horizontal (H)

37" min. 10" max.

Figure 16 - Horizontal Termination Con-

figuration for Rigid Venting

Figure 17 - Horizontal Termination Configuration for Rigid Venting Using One

90

°

Elbow

Figure 18 - Horizontal Termination Using Flexible Venting

Horizontal Venting

Vertical (V) Horizontal (H)

44" min. 29" max.

(30° and 90° only, no vertical pipe)

55" min. 41" max.

(30° elbow, 1' vertical pipe, 90° elbow)

67" min. 60" max.

79" min. 84" max.

96" min. 20' max.

Note:

This configuration for use with

corner installation.

UP

Horizontal Venting

See information in

Figure 17 for

Vertical(V) and

Horizontal(H) maxi-

mums and minimums.

The same amounts

apply for flexible

venting.

Note:

Figure 16

applies to rigid

venting only.

BGFVK Vent Kit Shown

(recommended for use

with cabinet mantels)

BVK Vent Kit Shown

BFGFVK and FGFVK

Vent Kits Shown

Horizontal Termination

Configurations

Figures 16 through 20 show different con-

figurations for venting with horizontal ter-

mination. Each figure includes a chart with

vertical minimum/maximum and horizon-

tal maximum dimensions which must be

met. Seal all connections with high tem-

perature silicone sealant (outer pipe only) as

specified in the second warning statement

on page 7. All horizontal terminations re-

quire 1/4" rise per 12" of horizontal run.

11

106516

OWNER’S MANUAL

VENTING

INSTALLATION

Continued

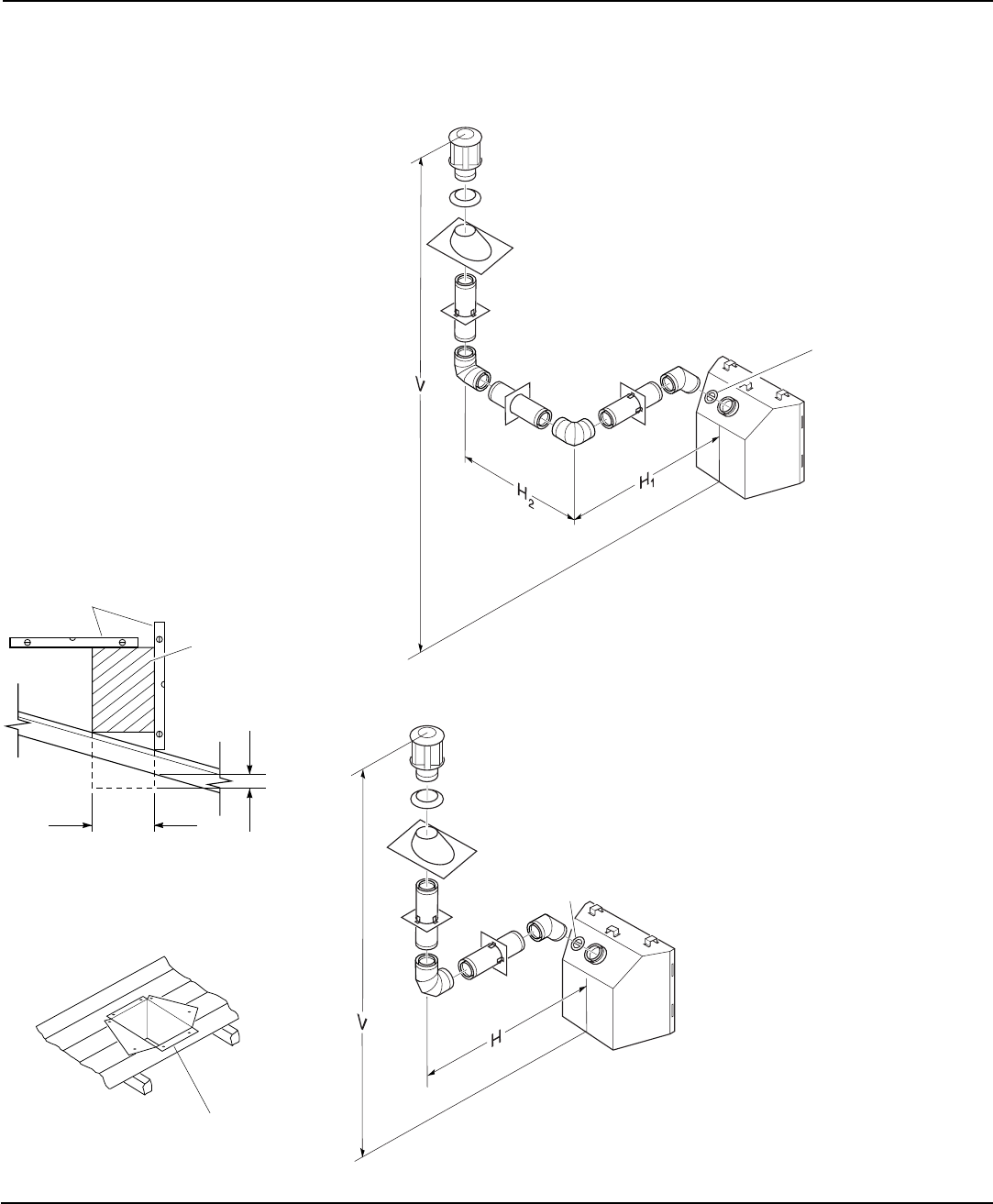

UP

Venting with Two 90° Elbows

Vertical (V) Horizontal (H1) Horizontal (H1) +

Horizontal (H2)

5' min. 2' max. 6' max.

6' min. 4' max. 12' max.

7' min. 6' max. 18' max.

8' min. 8' min. 20' max.

20' max. 8' max. 20' max.

Venting with Two 90° Elbows

Vertical (V) Horizontal (H1) +

Horizontal (H2)

5' min. 6' max.

6' min. 12' max.

7' min. 18' max.

8' min. 20' max.

20' max. 20' max.

Figure 19 - Horizontal Termination Configuration for Rigid Venting Using Two 90

°

Elbows

Figure 20 - Horizontal Termination Configuration for Rigid Venting Using Two 90

°

Elbows with Termination at 90

°

with Fireplace

Continued

12

106516

DIRECT-VENT FIREPLACE (NATURAL/PROPANE/LP)

®

BHDV34NB AND BHDV34PB

4. Connect a section of pipe and extend

up through the hole.

Note:

If an offset is needed to avoid

obstructions, you must support the vent

pipe every 3 feet. Use wall straps for

this purpose (see Figure 21). Whenever

possible, use 45° elbows instead of 90°

elbows. The 45° elbow offers less re-

striction to the flow of the flue gases

and intake air.

5. Place the flashing over the pipe

section(s) extending through the roof.

Secure the base of the flashing to the

roof and framing with roofing nails. Be

sure roofing material overlaps the top

edge of the flashing as shown in Figure

21. There must be a 1" clearance from

the vent pipe to combustible materials.

6. Continue to add pipe sections until the

height of the vent cap meets the mini-

mum building code requirements de-

scribed in Figure 8 on page 6.

Note:

You

must increase vent height for steep roof

pitches. Nearby trees, adjoining rooflines,

steep pitched roofs, and other similar fac-

tors may cause poor draft or down-draft-

ing in high winds. Increasing the vent

height may solve this problem.

7. Twist-lock the vent cap onto the last

section of vent pipe and seal outer pipe

connection with high temperature sili-

cone sealant as specified in the second

warning statement on page 7.

Note:

If the vent pipe passes through any

occupied areas above the first floor, including

storage spaces and closets, you must enclose

pipe. You may frame and sheetrock the enclo-

sure with standard construction material. Make

sure and meet the minimum allowable clear-

ances to combustibles. Do not fill any of the

required air spaces with insulation.

Cathedral Ceiling Installation

1. Remove shingles or other roof cover-

ing as necessary to cut the rectangular

hole for the support box. Mark the out-

line of the cathedral ceiling support box

on the roof sheathing using the locat-

ing hole as a center point.

2. Cut the hole 1/8" larger than the sup-

port box outline (see Figure 23, page 13).

1. Determine the route your vertical vent-

ing will take. If ceiling joists, roof

rafters, or other framing will obstruct the

venting system, consider an offset (see

Figure 21) to avoid cutting load bearing

members.

Note:

Pay special attention

to these installation instructions for re-

quired clearances (air space) to combus-

tibles when passing through ceilings,

walls, roofs, enclosures, attic rafters, etc.

Do not pack air spaces with insulation.

Also note maximum vertical rise of the

venting system and any maximum hori-

zontal offset limitations. Offsets must

fall within the parameters shown in

Figure 8 on page 6.

2. Set the fireplace in desired location.

Drop a plumb line down from the ceil-

ing to the position of the fireplace exit

flue. Mark the center point where the

vent will penetrate the ceiling. Drill a

small locating hole at this point.

Drop a plumb line from the inside of

the roof to the locating hole in the ceil-

ing. Mark the center point where the

vent will penetrate the roof. Drill a

small locating hole at this point.

Flat Ceiling Installation

1. Cut a 10" square hole in the ceiling us-

ing the locating hole as a center point.

The opening should be framed to

10"x10" (254mm x 254mm) inside di-

mensions, as shown in Figure 12 on

page 9 using framing lumber the same

size as the ceiling joists. If the area

above the ceiling is an insulated ceil-

ing or a room, nail firestop from the

top side. This prevents loose insulation

from falling into the required clearance

space. Otherwise, install firestop below

the framed hole. The firestop should be

installed with no less than three nails

per side (see Figure 22).

2. Assemble the desired lengths of pipe

and elbows necessary to reach from the

fireplace flue up through the firestop.

All connections must be sealed with

high temperature silicone sealant as

specified in the second warning state-

ment on page 7. Be sure all pipe and

elbow connections are fully twist-

locked (see Figure 11, page 9).

3. Cut a hole in the roof using the locating

hole as a center point. (Cover any ex-

posed open vent pipes before cutting

hole in roof.) The 10"x10" hole must

be measured on the horizontal; actual

length may be larger depending on the

pitch of the roof. There must be a 1"

clearance from the vent pipe to combus-

tible materials. Frame the opening as

shown in Figure 12 on page 9.

VENTING

INSTALLATION

Continued

Figure 21 - Offset with Wall Strap and 45

°

Elbows

45° Elbow

Wall Strap

Roof

Flashing

Ceiling Firestop

Figure 22 - Installing Firestop

If area above is not a room, install

firestop below framed hole.

If area above is a room, install firestop

above framed hole.

INSTALLATION FOR

VERTICAL TERMINATION

NOTICE: Use rigid pipe only. Flex

venting is not to be used with a

vertical termination.

13

106516

OWNER’S MANUAL

VENTING

INSTALLATION

Continued

Continued

Figure 23 - Cathedral Ceiling Support

Box Installation

Non-hardening Mastic under all

edges of support box before nailing

Figure 24 - Installed Cathedral Ceiling

Support Box

Vertical Termination Configurations

Figures 25 through 28 show four different configurations for vertical termination. All

connections must be sealed with high temperature silicone sealant as specified in the second

warning statement on page 7.

Venting with Two 90° Elbows

Vertical (V) Horizontal (H1) +

Horizontal (H2)

5' min. 2' max.

6' min. 4' max.

7' min. 6' max.

8' min. 8' max.

20' max. 8' max.

Figure 25 - Vertical Rigid Venting Configuration Using Two 90

°

Elbows with Two

Horizontal Runs

3. Lower the support box through the hole

in the roof until the bottom of the box

extends at least 2" below the ceiling

(see Figure 23). Align the support box

vertically and horizontally using a level.

Temporarily tack the support box in

place through the inside walls and into

the roof sheathing.

4. Using tin snips, cut the support box from

the top corners down to the roofline and

fold the resulting flaps over the roof

sheathing (see Figure 24). Apply a bead

of non-hardening mastic around the top

edges of the support box to make a seal

between the box and the roof. Nail in

place with roofing nails. Remove any

combustible material that might be in-

side of the support box.

5. Complete the cathedral ceiling instal-

lation by following the same proce-

dures outlined in steps 2 through 7 for

Flat Ceiling Installation, page 12

.

Venting with One 90° Elbow

Vertical (V) Horizontal (H)

5' min. 2' max.

6' min. 4' max.

7' min. 6' max.

8' min. 8' max.

20' max. 8' max.

Figure 26 - Vertical Rigid Venting Configuration Using One 90

°

Elbow

Cut hole 1/8" larger than support

box when projected onto roofline

2" minimum below

finished ceiling

Cathedral ceiling

support box

Level

Note:

Install

restrictor into 4"

collar of fireplace

as shown.

Note:

Install

restrictor into 4"

collar of fireplace

as shown.

14

106516

DIRECT-VENT FIREPLACE (NATURAL/PROPANE/LP)

®

BHDV34NB AND BHDV34PB

Vertical Venting

V = 40' max.

Figure 28 - Vertical Rigid Venting Con-

figuration With No Horizontal Run

VENTING

INSTALLATION

Continued

Venting with Two 90° Elbows

Vertical (V1) Horizontal (H)

5' min. 6' max.

6' min. 12' max.

7' min. 18' max.

8' min. 20' max.

Note:

Vertical (V1) +

Vertical (V2) = 20' max.

Figure 27 - Vertical Rigid Venting Configuration Using Two 90

°

Elbows

RVF Kit Shown

Note:

Install

restrictor into 4"

collar of fireplace

as shown.

Note:

Install

restrictor into

4" collar of

fireplace as

shown.

15

106516

OWNER’S MANUAL

VENTING

INSTALLATION

Continued

HIGH ALTITUDE

INSTALLATION

Your Vanguard direct-vent fireplace has

been AGA tested and approved for eleva-

tions from 0-2000 feet and CGA certified

for elevations from 0-4500 feet.

When installing this fireplace at an elevation

above 2000 feet (in the USA), you may need

to decrease the input rating by changing the

existing burner orifice to a smaller size. Re-

duce input 4% for each 1000 feet above sea

level. Check with your local gas company for

proper orifice size identification.

When installing this fireplace at an eleva-

tion above 4500 feet (in Canada), check

with local authorities.

Consult your local gas company to help de-

termine the proper orifice for your location.

For assistance with any high altitude instal-

lation contact DESA International’s Tech-

nical Service Department at 1-800-DESA-

LOG (1-800-337-2564).

PARTS LISTS FOR VENTING

KITS AND COMPONENTS

Vanguard Rigid Venting

Number Description

BGFVK Basic Ground Floor Rigid Vent Kit

Includes: 7" x 60° Elbow, Extended

Adjustable Horizontal Termination,

Wall Thimble and 14 Screws

CVK Corner Vent Kit

Includes: 7" x 30º Elbow, 7" x 90º

Elbow, 7" Adjustable Galvanized

Pipe (7-12"), 6" Pipe, Wall

Thimble, Horizontal Termination,

RTV Silicone and 20 Screws

BVK Basement Rigid Vent Kit

Includes: 7" x 30° Elbow, 7" x 4'

Galvanized Pipe, 7" x 90° Elbow, 7"

Adjustable Galvanized Pipe (7-12"),

Wall Thimble, Horizontal Termi-

nation, RTV Silicone and 20 Screws

SVK Snorkel Rigid Vent Kit

Includes: 7" x 30° Elbow, 7" x 4'

Galvanized Pipe, 7" x 90° Elbow, 7"

Adjustable Galvanized Pipe (7-12"),

Wall Thimble, 36" Snorkel Termi-

nation, RTV Silicone and 28 Screws

Number Description

RVF Roof Rigid Vent Kit

Includes: Flue Restrictor, Storm

Collar, 7" x 30° Elbow, 7" x 4'

Galvanized Pipe, 7" x 2' Galva-

nized Pipe, 7" Adjustable Galva-

nized Pipe (7-12"), Firestop Sup-

port, Roof Flashing, RTV Silicone,

Vertical Termination, and 26 screws

D1000 7" x 12" Galvanized Coaxial

Pipe (6 pcs.)

D1010 7" x 24" Galvanized Coaxial

Pipe (6 pcs.)

D1020 7" x 48" Galvanized Coaxial

Pipe (6 pcs.)

D1030 7" Adjustable (7-12")

Galvanized Coaxial Pipe

(6 pcs.)

D1050 7" x 6" Galvanized Coaxial

Pipe (6 pcs.)

D2000 7" x 90° Elbow (6 pcs.)

D2010 7" x 45° Elbow (6 pcs.)

D2020 7" x 30° Elbow (6 pcs.)

D2030 7" x 60° Elbow (6 pcs.)

D3000 Wall Strap/Offset Support

(6 pcs.)

D3010 Storm Collar (6 pcs.)

D3020 Wall Thimble (6 pcs.)

D3040 Vertical Vent Termination Cap

D3050 Vertical Restrictor (6 pcs.)

D3060 Ceiling Firestop/Support

(6 pcs.)

D3070 Rectangular Horizontal Rigid

Vent Termination Cap

D3071 Adjustable Horizontal Rigid

Vent Termination Cap

D3090 Cathedral Ceiling Support Box

D4000 Roof Flashing 6/12-9/12

D4010 Roof Flashing 9/12-12/12

D5000 Wood/Vinyl Siding Standoff

(6 pcs.)

SIMPSON DURA-VENT

GS 4" x 6 5/8 "

Number Description

Available from DESA International:

SD2040 Simpson Dura-Vent GS

30° Elbow (6 pcs.)

SD2050 Simpson Dura-Vent GS

60° Elbow (6 pcs.)

Available from Simpson Dura-Vent only:

902 7" x 48" Pipe

903 7" x 36" Pipe

904 7" x 24" Pipe

906 7" x 12" Pipe

907 7" x 9" Pipe

908 7" x 6" Pipe

911 7" Adjustable (11"-14 5/8") Pipe

940 Wall Thimble

941 Cathedral Ceiling Support Box

943 Roof Flashing 0/12-6/12

943S Roof Flashing 7/12-12/12

945 7" x 45° Elbow

950 Vinyl Siding Standoff

953 Storm Collar

963 Ceiling Firestop

981 36" Snorkel Termination

984 Horizontal Termination Vent Cap

988 Wall Strap

990 7" x 90° Elbow

991 Vertical High Wind Termination

Vanguard Flexible Venting

(Cont.)

Number Description

BFGFVK Basic Flex Ground Floor Vent Kit

Includes: Flex Adapter, 7" x 2'

Flexible Pipe, 4" x 2' Flexible

Pipe, Wall Thimble, Horizontal

Termination, (2) Spacer Springs,

(2) 4" Hose Clamps, (2) 7" Hose

Clamps, and 10 Screws

Vanguard Rigid Venting

(Cont.)

Vanguard Flexible Venting

Number Description

FGFVK Flex Ground Floor Vent Kit

Includes: Flex Adapter, 7" x 4'

Flexible Pipe, 4" x 4' Flexible Pipe,

Wall Thimble, Horizontal Termi-

nation, (4) Spacer Springs, (2) 4"

Hose Clamps, (2) 7" Hose Clamps,

RTV Silicone, and 10 Screws

D1040 7" x 25' Coaxial Flex Pipe

with Spacer Springs

D3080 Rectangular Horizontal

Flex Termination Cap

D4020 Flex Connector (6 pcs.)

D4030 Flex Wall Thimble (6 pcs.)

D4040 4" Hose Clamp (6 pcs.)

D4050 7" Hose Clamp (6 pcs.)

16

106516

DIRECT-VENT FIREPLACE (NATURAL/PROPANE/LP)

®

BHDV34NB AND BHDV34PB

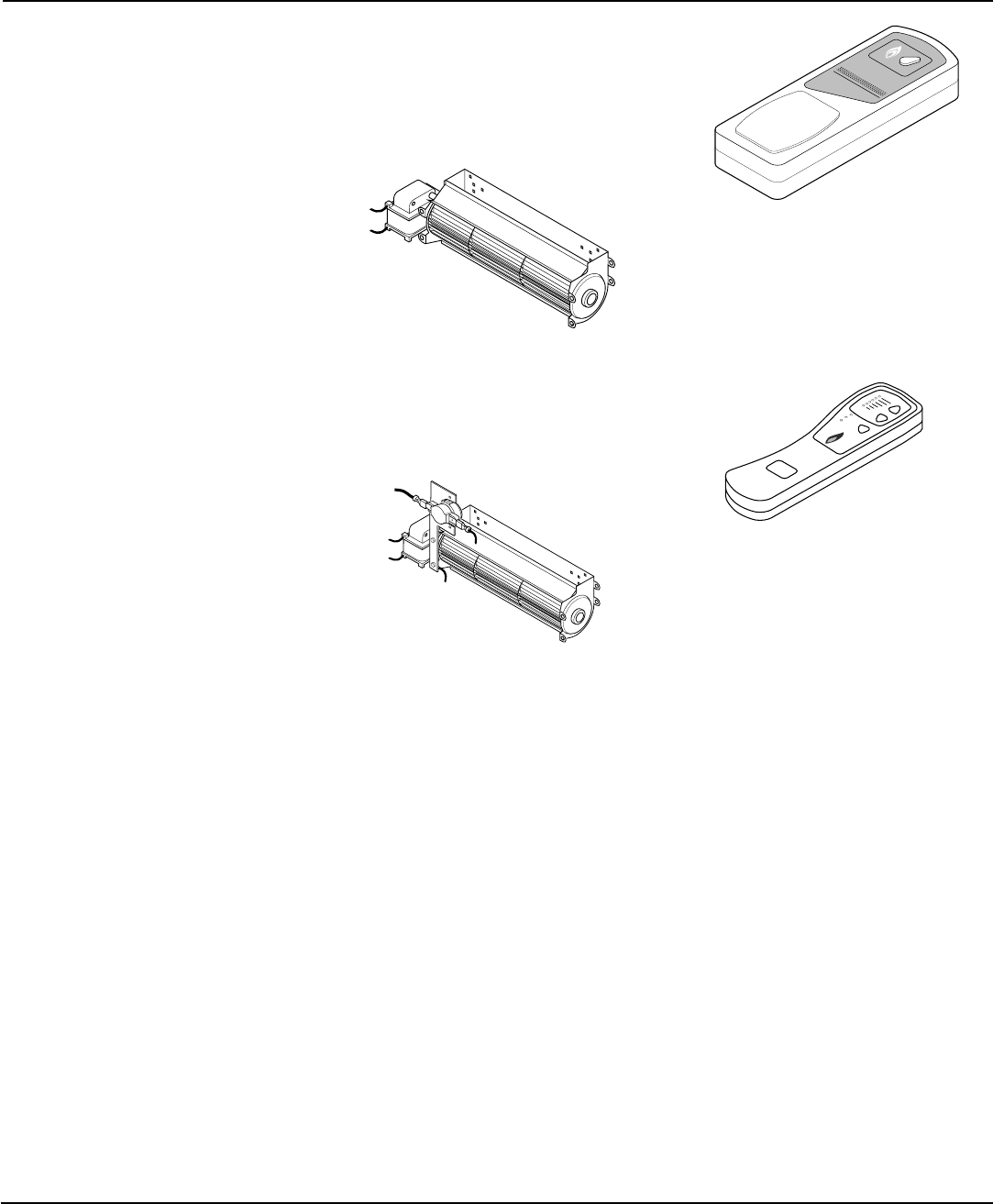

INSTALLING OPTIONAL

BLOWER ACCESSORY

IMPORTANT

: For clarity, gas valve assem-

bly and grate/burner assembly are not shown

in Figures 30 through 33, page 17. They will,

however, be in your fireplace when you are

installing the blower. Also for clarity the

firebox is shown with dotted lines.

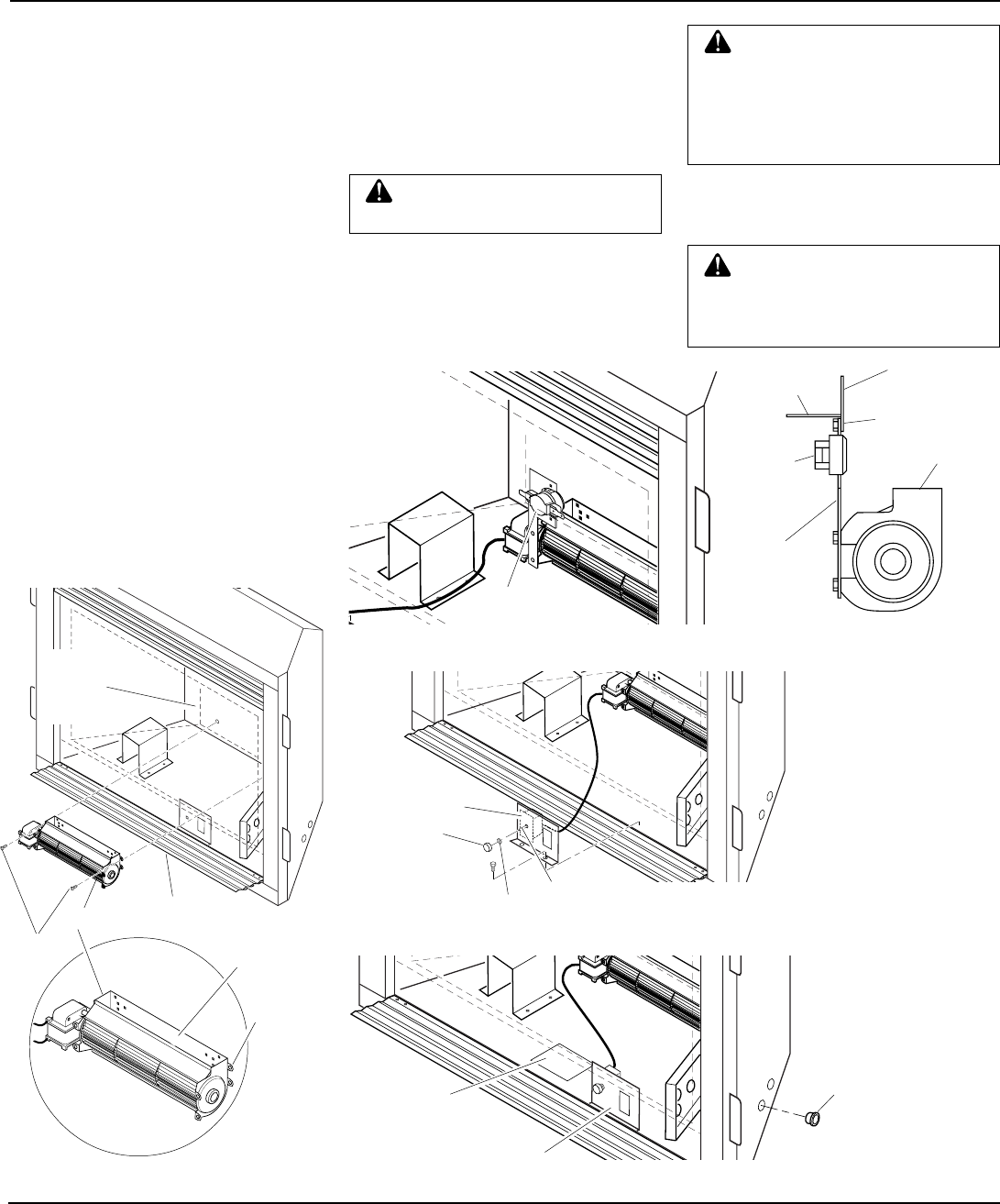

1. Open lower louver panel or remove for

easier access.

2. Place the blower against the lower rear

wall of firebox outer wrapper with the

exhaust port directed upward. Align the

holes in the top mounting tabs of blower

with holes in wall of wrapper (see Fig-

ure 30, page 17). Using the two screws

provided, mount blower and tighten

screws securely.

Note:

For DA3610TA, make sure the

thermal switch is comfortably under the

back of the firebox as shown in Figure

31, page 17.

3. Be sure to securely attach all wire ter-

minals to terminals on blower motor

(and thermal switch where applicable)

and that the screw retaining the green

ground wire is tight.

4. Remove screws securing the plate con-

taining the ON/OFF switch to the bot-

tom of the firebox and set aside.

5. Place speed control against back of this

plate and push the plastic control shaft

through opening (see Figure 32, page 17).

6. While supporting speed control, secure

control shaft with lock nut by pushing and

turning lock nut with pliers clockwise

until tight against the plate. Place control

knob provided onto shaft (see Figure 32,

page 17).

7. Replace plate containing switches and

tighten screws securely.

NOTICE: If installing blower in an

existing fireplace with gas con-

nections, shut off gas supply and

disconnect heater from gas sup-

ply. Contact a qualified service

person to do this.

CHECK GAS TYPE

Use proper gas type for the fireplace unit

you are installing. If you have conflicting

gas types, do not install fireplace. See dealer

where you purchased the fireplace for proper

fireplace according to your gas type.

FIREPLACE

INSTALLATION

WARNING: A qualified ser-

vice person must install fireplace.

Follow all local codes.

NOTICE: This fireplace is in-

tended for use as supplemental

heat. Use this fireplace along with

your primary heating system. Do

not install this fireplace as your

primary heat source. If you have

a central heating system, you may

run system's circulating blower

while using fireplace. This will

help circulate the heat through-

out the house. In the event of a

power outage, you can use this

fireplace as a heat source.

Note:

Your fireplace is designed to be used

in zero clearance installations. Wall or fram-

ing material can be placed directly against

any exterior surface on the rear, sides, or top

of your fireplace, except where standoff

spacers are integrally attached. If standoff

spacers are attached to your fireplace, these

spacers can be placed directly against wall

or framing material. See framing details on

page 4.

Place the fireplace into position and shim

with noncombustible material if needed.

Nail the side flanges to the framing to secure

the unit in place. There are two floor brack-

ets included with each unit. Use these as an

alternative method of securing the fireplace.

IMPORTANT:

Make sure fireplace is level

before securing. If fireplace is not level it

will not work properly.

Attaching Thermal Switch to

DA3610TA Thermostatically-

Controlled Blower

When installing the DA3610TA thermo-

statically-controlled blower accessory, you

must first secure the thermal switch to the

blower.

1. Remove the two hex head screws on the

blower assembly as shown in Figure 29.

2. Place the green wire between the bot-

tom hole on the thermal switch bracket

and the bottom hole on the blower as-

sembly. Insert one of the hex screws

into all three pieces and tighten.

3. Insert the top screw through the ther-

mal switch bracket and into the blower

assembly. Tighten screw.

4. Connect the blue wire on the blower

assembly to the right side of the ther-

mal switch.

5. Connect the black wire to the left side

of the thermal switch.

Installing GA3700/DA3610TA

Blowers

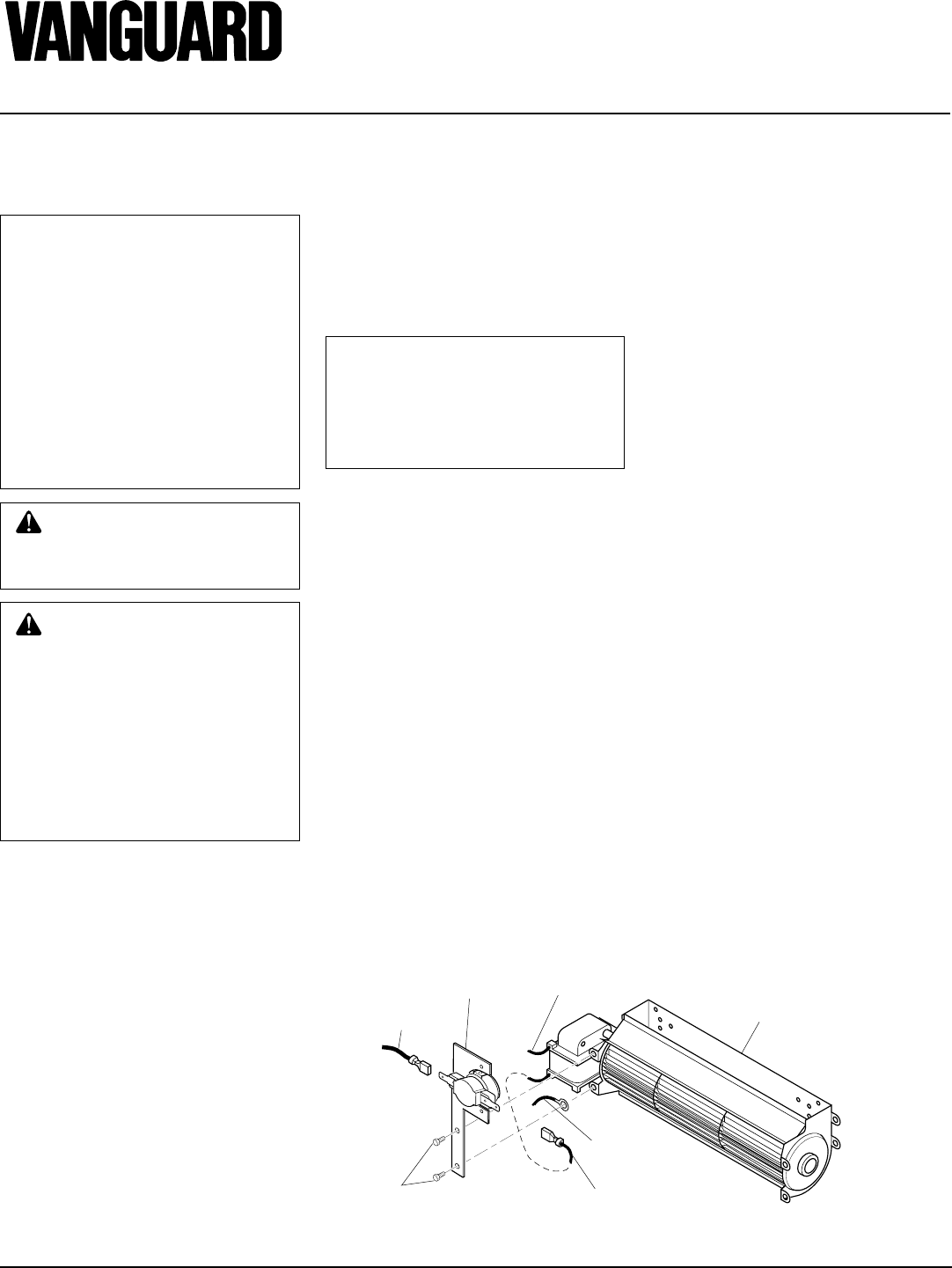

Figure 29 - Attaching Thermal Switch to DA3610TA Thermostatically-Controlled

Blower Accessory

Blower Assembly

Blue Wire

Green Wire

Black Wire

White Wire

Hex Head

Screws

Thermal Switch

with Bracket

CAUTION: This fireplace cre-

ates warm air currents. These cur-

rents move heat to wall surfaces

next to fireplace. Installing fire-

place next to vinyl or cloth wall

coverings or operating fireplace

where impurities (such as to-

bacco smoke, aromatic candles,

cleaning fluids, oil or kerosene

lamps, etc.) in the air exist, may

discolor walls.

17

106516

OWNER’S MANUAL

FIREPLACE

INSTALLATION

Continued

WARNING: Never touch the

blower wheel while in operation.

10. Peel off the backing paper and stick the

supplied wiring diagram decal on the

firebox bottom approximately 3" to the

right of the blower speed control

bracket (see Figure 33).

WARNING: Failure to position

the parts in accordance with sup-

plied diagrams or failure to use

only parts specifically approved

with this heater may result in dam-

age or personal injury.

11. Connect or reconnect gas supply to fire-

place per Connecting Fireplace to Gas

Supply on page 19 of this manual.

8. Plug in blower power cord.

a. If your fireplace system is installed

as a freestanding unit with an ac-

cessory mantel, determine whether

the power cord will exit the left side

or the right side of the firebox. In-

stall one plastic bushing provided

into the 1 1/2" hole in the outer cas-

ing through which the power cord

will exit. Install the second plastic

bushing provided into the floor sup-

port bracket if exiting through the

right side (see Figure 33). Route

power cord through (both) plastic

bushing(s) and plug the power cord

into a properly grounded 3-prong

wall receptacle near the firebox.

b. If your fireplace system installation

is recessed and/or pre-wired, a

qualified installer must make all elec-

trical connections for the outlet kit

included with the fireplace.

Figure 30 - Mounting Blower to Firebox

Top

Mounting

Tab

Exhaust Port

WARNING: A qualified ser-

vice person must connect fire-

place to gas supply. Follow all

local codes.

Screws

Blower Lower Louver

Panel

Lower Rear

Wall of

Firebox

Wrapper

Figure 31 - Locating Thermal Switch Against Back of Firebox

Figure 32 - Attaching Speed Control to Firebox

Control

Knob

Locknut Control Shaft

Plastic

Bushing

Figure 33 - Installing Plastic Bushing and Wiring Diagram Sticker

Wiring

Diagram

Continued

Speed

Control

9. Check to make sure that the power cord

is completely clear of the blower wheel

and that there are no other foreign ob-

jects in blower wheel. Turn blower on

and check for operation. Turn blower

off by rotating knob fully counterclock-

wise before continuing.

Blower Speed

Control Bracket

Firebox Back

Firebox Flange

Firebox

Bottom

Thermal

Switch

Blower

Side View

Thermal Switch

Thermal

Switch

Bracket

18

106516

DIRECT-VENT FIREPLACE (NATURAL/PROPANE/LP)

®

BHDV34NB AND BHDV34PB

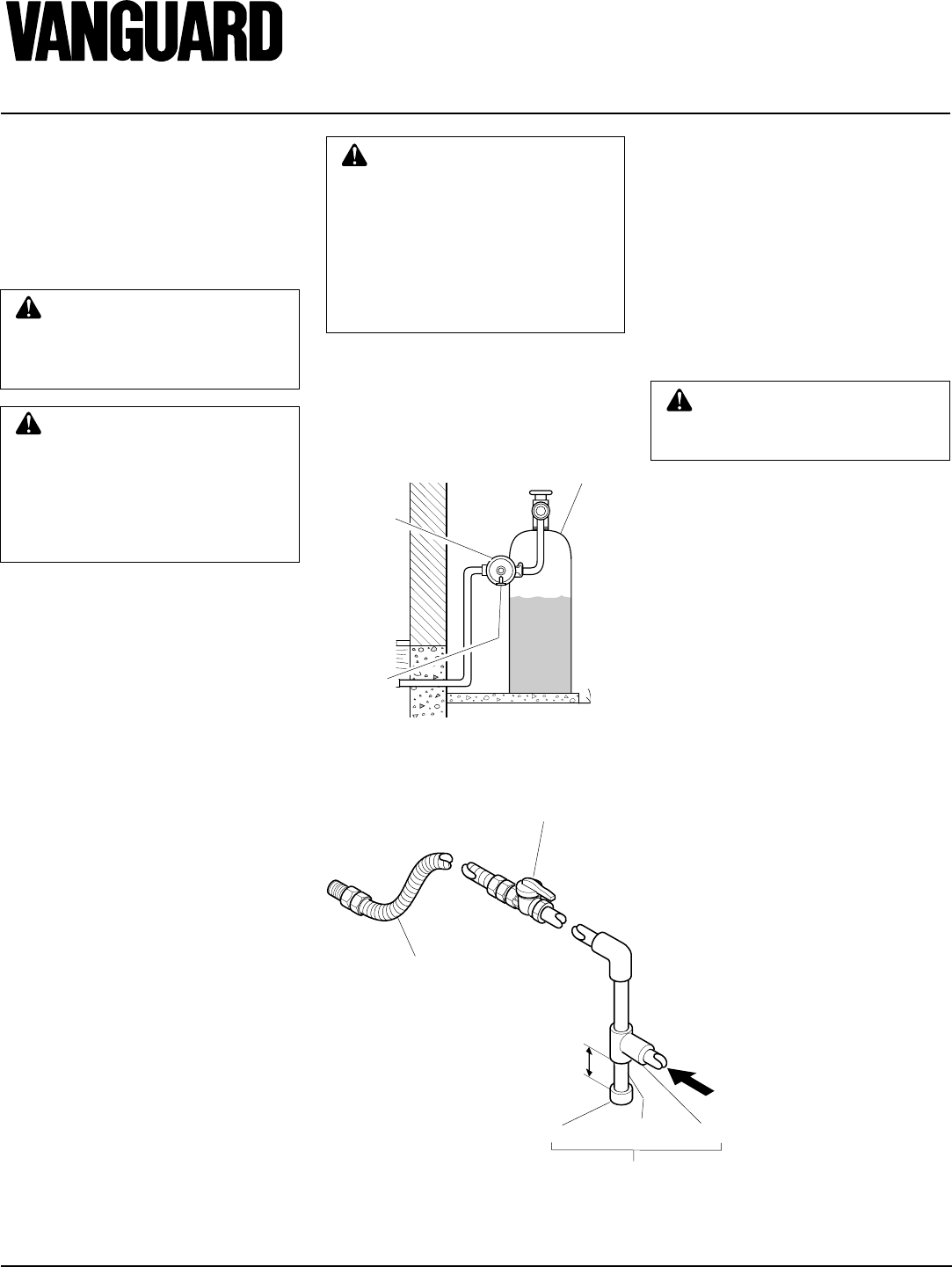

Figure 35 - Gas Connection

* The CSA/AGA design-certified equipment shutoff valve may be supplied with the

appliance or you can purchase it from your dealer.

CAUTION: Use only new,

black iron or steel pipe. Inter-

nally-tinned copper tubing may

be used in certain areas. Check

your local codes. Use pipe of 1/2"

diameter or greater to allow

proper gas volume to fireplace. If

pipe is too small, undue loss of

pressure will occur.

Installation must include an equipment

shutoff valve, union, and plugged 1/8" NPT

tap. Locate NPT tap within reach for test

gauge hook up. NPT tap must be upstream

from fireplace (see Figure 35).

For propane/LP connections only, the in-

staller must supply an external regulator.

The external regulator will reduce incoming

gas pressure. You must reduce incoming

gas pressure to between 11 and 14 inches of

water. If you do not reduce incoming gas

pressure, heater regulator damage could

occur. Install external regulator with the

vent pointing down as shown in Figure 34.

Pointing the vent down protects it from

freezing rain or sleet.

FIREPLACE

INSTALLATION

Continued

INSTALLING GAS PIPING TO

FIREPLACE LOCATION

Installation Items Needed

Before installing fireplace, make sure you

have the items listed below.

• external regulator (supplied by installer)

• piping (check local codes)

• sealant (resistant to propane/LP gas)

• equipment shutoff valve *

• test gauge connection *

• sediment trap

• tee joint

• pipe wrench

• approved flexible gas line with gas con-

nector (if allowed by local codes) (not

provided)

* An CSA/AGA design-certified equipment

shutoff valve with 1/8" NPT tap is an accept-

able alternative to test gauge connection.

Purchase the CSA/AGA design-certified

equipment shutoff valve from your dealer.

WARNING: A qualified ser-

vice person must connect fire-

place to gas supply. Follow all

local codes.

CAUTION: For propane/LP

units, never connect heater di-

rectly to the propane/LP supply.

This heater requires an external

regulator (not supplied). Install the

external regulator between the

heater and propane/LP supply.

CAUTION: Use pipe joint seal-

ant that is resistant to liquid pe-

troleum (LP) gas.

Figure 34 - External Regulator with Vent

Pointing Down (Propane/LP Only)

Propane/LP

Supply Tank

External

Regulator

Vent

Pointing

Down

We recommend that you install a sediment

trap/drip leg in supply line as shown in

Figure 35. Locate sediment trap/drip leg

where it is within reach for cleaning. Install

in piping system between fuel supply and

heater. Locate sediment trap/drip leg where

trapped matter is not likely to freeze. A

sediment trap traps moisture and contami-

nants. This keeps them from going into

fireplace gas controls. If sediment trap/drip

leg is not installed or is installed wrong,

fireplace may not run properly.

CSA/AGA Design-Certified

Equipment Shutoff Valve

with 1/8" NPT Tap*

3" Minimum

Natural - From Gas

Meter (5" W.C. to

10.5" W.C. Pressure )

Propane/LP - From

External Regulator

(11" W.C. to 14" W.C.

Pressure)

Approved Flexible

Gas Line

Cap Pipe Nipple Tee Joint

Sediment Trap/Drip Leg

IMPORTANT:

Install an equipment shutoff

valve in an accessible location. The equip-

ment shutoff valve is for turning on or

shutting off the gas to the appliance.

Check your building codes for any special

requirements for locating equipment shutoff

valve to fireplaces.

Apply pipe joint sealant lightly to male

threads. This will prevent excess sealant

from going into pipe. Excess sealant in pipe

could result in clogged fireplace valves.

19

106516

OWNER’S MANUAL

Pressure Testing Gas Supply

Piping System

Test Pressures In Excess Of 1/2 PSIG

(3.5 kPa)

1. Disconnect appliance with its appli-

ance main gas valve (control valve)

and equipment shutoff valve from gas

supply piping system. Pressures in

excess of 1/2 psig (3.5 kPa) will dam-

age heater regulator.

2. Cap off open end of gas pipe where

equipment shutoff valve was connected.

CHECKING GAS

CONNECTIONS

WARNING: Test all gas pip-

ing and connections for leaks

after installing or servicing. Cor-

rect all leaks at once.

WARNING: Never use an open

flame to check for a leak. Apply

commercial leak test solution to

all gas joints. Bubbles forming

show a leak. Correct all leaks at

once.

Installation Items Needed

• 5/16" hex socket wrench or nut-driver

• sealant (resistant to propane/LP gas, not

provided)

1. Open lower louver door panel by gen-

tly pulling forward.

2. Route flexible gas line (provided by

installer) from equipment shutoff valve

to fireplace. Route flexible gas supply

line through one of the access holes on

side of fireplace.

3. Attach flexible gas line from gas sup-

ply to control valve (see Figure 36).

4. Check all gas connections for leaks. See

Checking Gas Connections.

CONNECTING FIREPLACE

TO GAS SUPPLY

FIREPLACE

INSTALLATION

Continued

Flexible Gas Line from

Equipment Shutoff Valve

Provided by Installer

Equipment Shutoff Valve

To Gas Supply

(Natural)

To External Regulator

(Propane/LP)

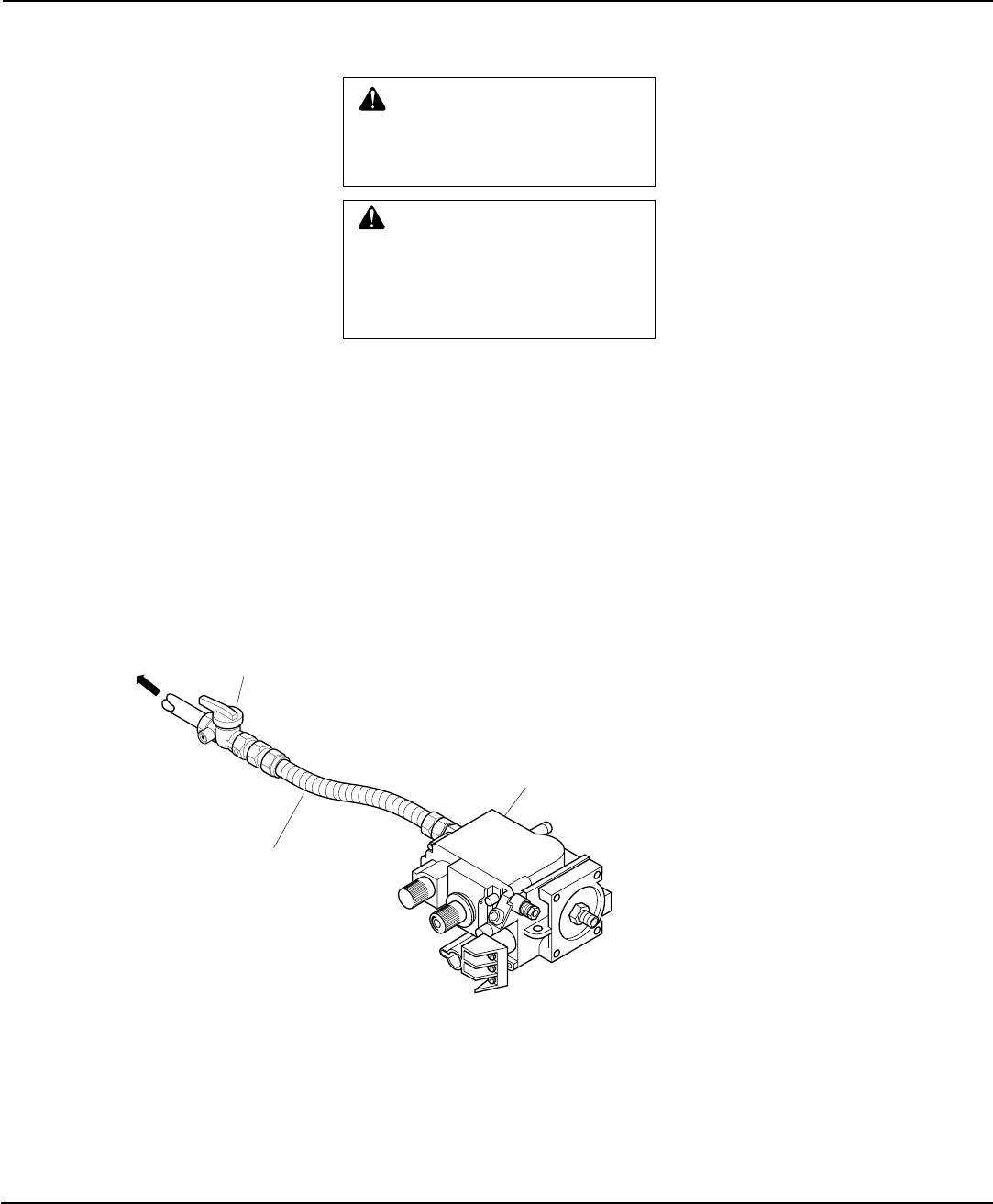

Figure 36 - Attaching Flexible Gas Line To Control Valve

Continued

3. Pressurize supply piping system by ei-

ther opening propane/LP supply tank

valve for propane/LP gas fireplace or

opening main gas valve located on or near

gas meter for natural gas fireplace,

or

using compressed air.

4. Check all joints of gas supply piping

system. Apply commercial leak test

solution to all gas joints. Bubbles form-

ing show a leak. Correct all leaks at

once.

5. Reconnect fireplace and equipment

shutoff valve to gas supply. Check re-

connected fittings for leaks.

Control Valve

20

106516

DIRECT-VENT FIREPLACE (NATURAL/PROPANE/LP)

®

BHDV34NB AND BHDV34PB

FIREPLACE

INSTALLATION

Continued

Test Pressures Equal To or Less Than

1/2 PSIG (3.5 kPa)

1. Close equipment shutoff valve (see Fig-

ure 37).

2. Pressurize supply piping system by ei-

ther opening propane/LP supply tank

valve for propane/LP gas fireplace or

opening main gas valve located on or near

gas meter for natural gas fireplace,

or

using compressed air.

3. Check all joints from propane/LP sup-

ply tank or gas meter to equipment

shutoff valve (see Figure 38 for pro-

pane/LP or Figure 39 for natural). Ap-

ply commercial leak test solution to all

gas joints. Bubbles forming show a

leak. Correct all leaks at once.

Pressure Testing Fireplace Gas

Connections

1. Open equipment shutoff valve (see Fig-

ure 37).

2. Open propane/LP supply tank valve for

propane/LP fireplace or main gas valve

located on or near gas meter for natu-

ral gas fireplace.

3. Make sure control knob of fireplace is

in the OFF position.

4. Check all joints from equipment shutoff

valve to thermostat gas valve (see Fig-

ure 38 for propane/LP or Figure 39 for

natural). Apply commercial leak test so-

lution to all gas joints. Bubbles forming

show a leak. Correct all leaks at once.

5. Light fireplace (see Operating Fire-

place, pages 25 through 27). Check all

other internal joints for leaks.

6. Turn off fireplace (see To Turn Off Gas

to Appliance, page 25).

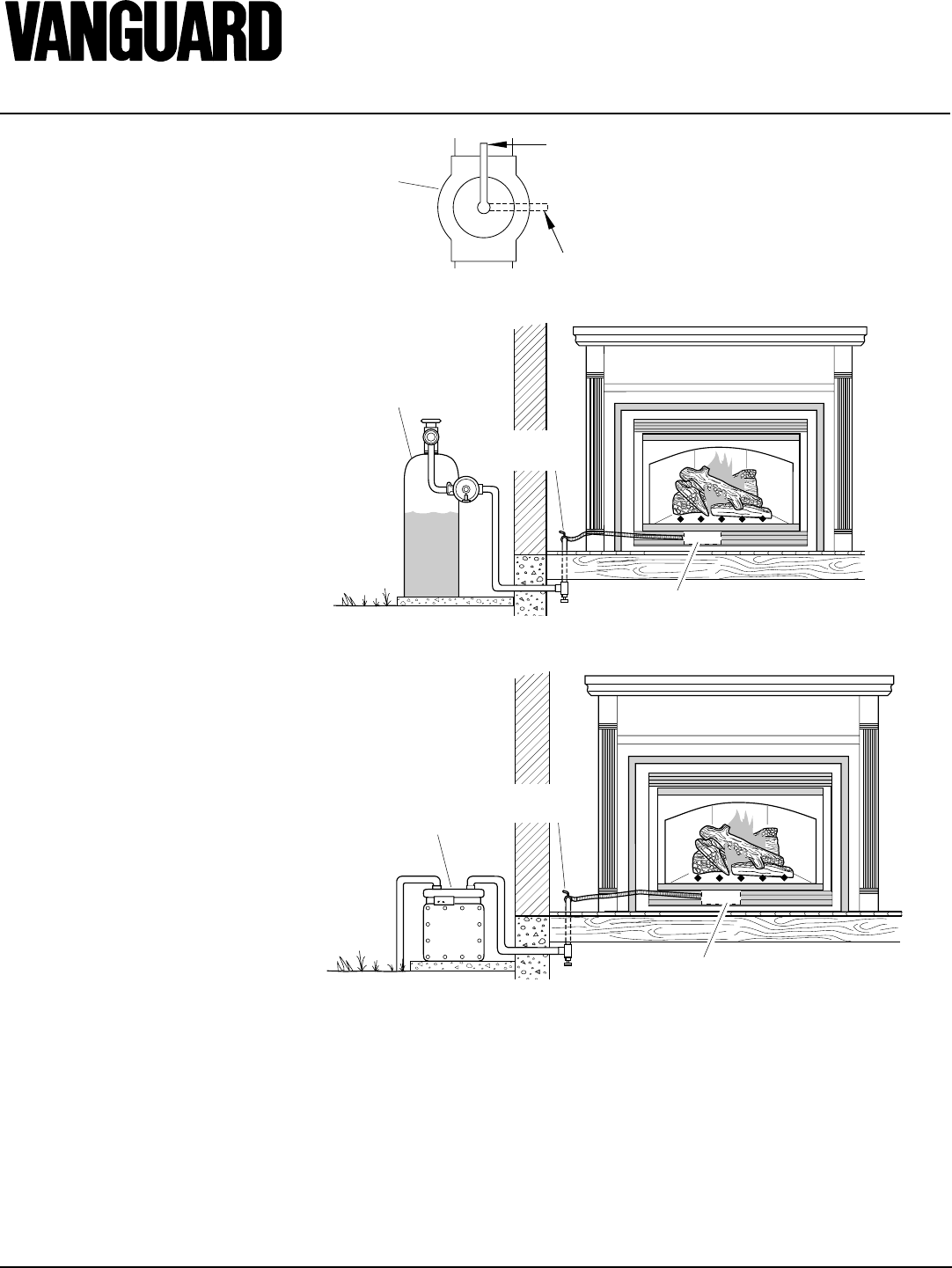

Figure 37 - Equipment Shutoff Valve

ON

POSITION

OFF

POSITION

Open

Closed

Equipment

Shutoff

Valve

Figure 39 - Checking Gas Joints for Natural Gas Fireplace

Figure 38 - Checking Gas Joints for Propane/LP Gas Fireplace

Propane/LP Supply

Tank

Gas Valve

Equipment

Shutoff Valve

Gas Meter

Gas Valve

Equipment

Shutoff Valve

21

106516

OWNER’S MANUAL

t

W

R

FIREPLACE

INSTALLATION

Continued

Continued

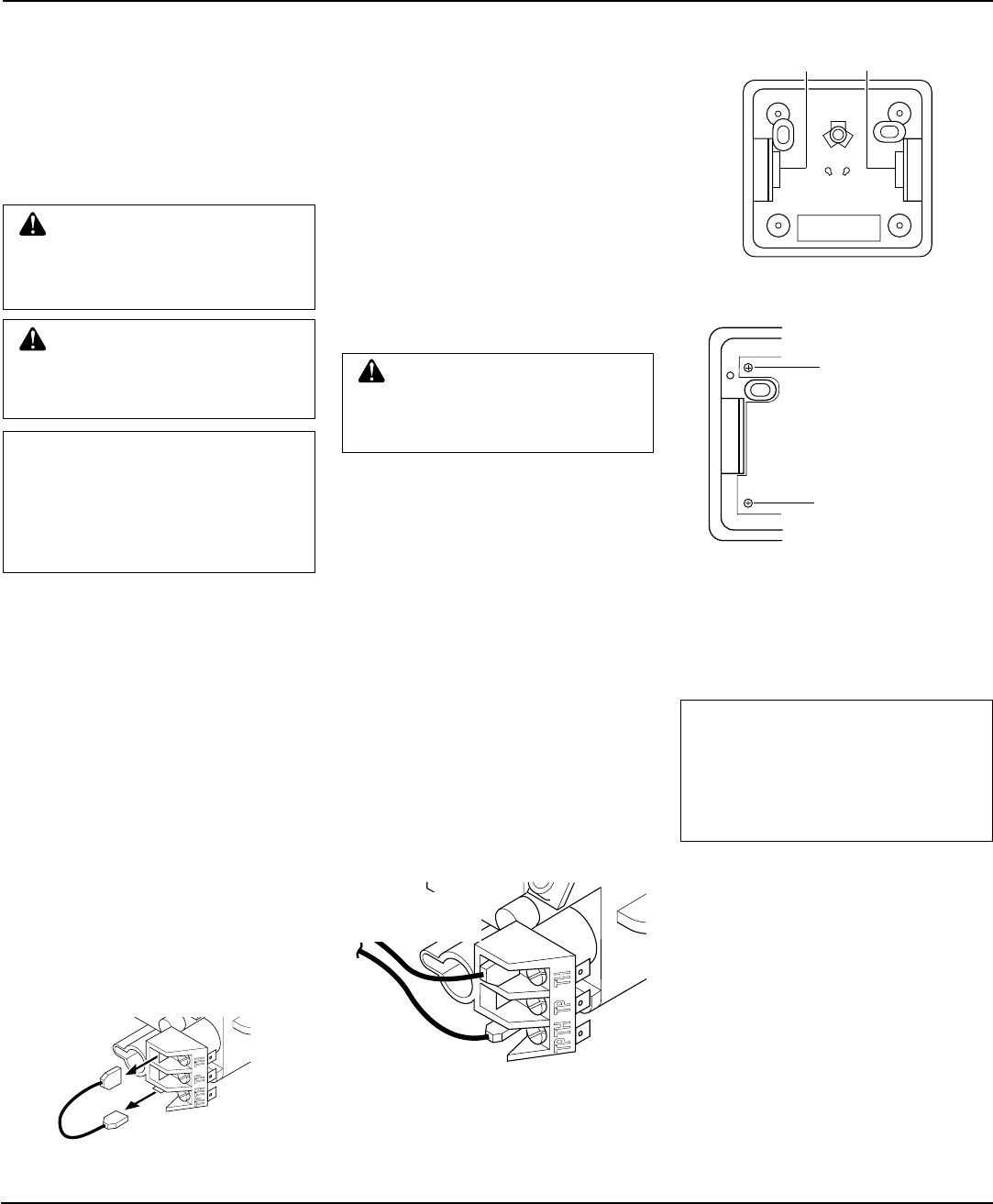

INSTALLING OPTIONAL

WALL MOUNTED

THERMOSTAT - GWMT1

WARNING: Installation must

be done by a qualified installer

familiar with low voltage wiring

procedures.

WARNING: Do not connect

this thermostat to any electrical

source! Electrical shock and/or

fire hazard will occur.

NOTICE: The GWMT1 includes 25'

of wire for installation. Your fire-

place includes 15' of wire for ac-

cessory installation. Choose the

length that best fits your needs

when installing this accessory.

1. Open lower louver panel. The valve is

attached to the underside of the firebox

assembly.

2. Disconnect the wire that runs from TH

to TPTH from the valve as shown in

Figure 40.

3. Connect one terminal of the provided

wire for the wall thermostat to the

TPTH terminal on the valve. Connect

remaining wire terminal to the TH ter-

minal on the valve. Make sure that the

wire terminals are in the positions on

the unit as pictured in Figure 41. If

wires are not connected as shown the

thermostat will not work.

4. Route the wire through openings pro-

vided on the sides of the fireplace to a

convenient location to mount your ther-

mostat (no outside wall).

Feed wires through

rectangular slots

Figure 42 - Back View of Thermostat Base

Figure 41 - Control Valve Terminals

To Wall Optional

Remote Accessory

Terminal “W”

Terminal “R”

Figure 43 - Thermostat Base Terminals

“W” and “R”

IMPORTANT:

The wire may be short-

ened but must not be lengthened.

The thermostat should be mounted 54"

above the floor in a location where there

is good air circulation. Avoid heat

sources such as lamps, direct sunlight,

fireplace, or heat and air conditioning

ducts.

5. Gently remove the cover of the ther-

mostat from the base. Grasp the sides

of the cover firmly and pull to separate

from the base.

6. Feed the electrical wires through the

rectangular slots (from the back) on

each side of the base (see Figure 42).

WARNING: Do not connect

this thermostat to a power source.

Electrical shock and/or fire haz-

ard will occur.

7. Connect one bare wire end to each ter-

minal (“W” and “R”) of the thermostat

base (see Figure 43).

8. Install the base to the wall with screws

provided with thermostat.

9. Move the temperature adjustment back

and forth to insure the bimetal is free

from restrictions.

10. Replace the cover onto the base. (Upon

installation, the thermostat must be al-

lowed to stabilize at room temperature

for a minimum of 30 minutes for proper

operation.)

11. Set the temperature adjustment to the

desired setting.

This thermostat has been electronically

calibrated at the factory. No adjustment

or leveling is necessary.

INSTALLING OPTIONAL

WALL MOUNT SWITCH

GWMS2

NOTICE: The GWMS2 includes

25' of wire for installation. Your

fireplace includes 15' of wire for

accessory installation. Choose the

length that best fits your needs

when installing this accessory.

1. Connect one terminal of the provided

wire for the wall switch to the TPTH ter-

minal on the valve. Connect remaining

wire terminal to the TH terminal on the

valve. Make sure that the wire terminals

are in the positions on the unit as pic-

tured in Figure 41. If wires are not con-

nected as shown the switch will not work.

2. Route the wire through openings pro-

vided on the sides of the fireplace to a

convenient location to mount your switch.

3. Connect one bare wire end to each of the

terminals of the GWMS2 wall switch.

4. Install the wall switch and cover in the

wall.

Figure 40 - Disconnecting TH to TPTH

Wire

22

106516

DIRECT-VENT FIREPLACE (NATURAL/PROPANE/LP)

®

BHDV34NB AND BHDV34PB

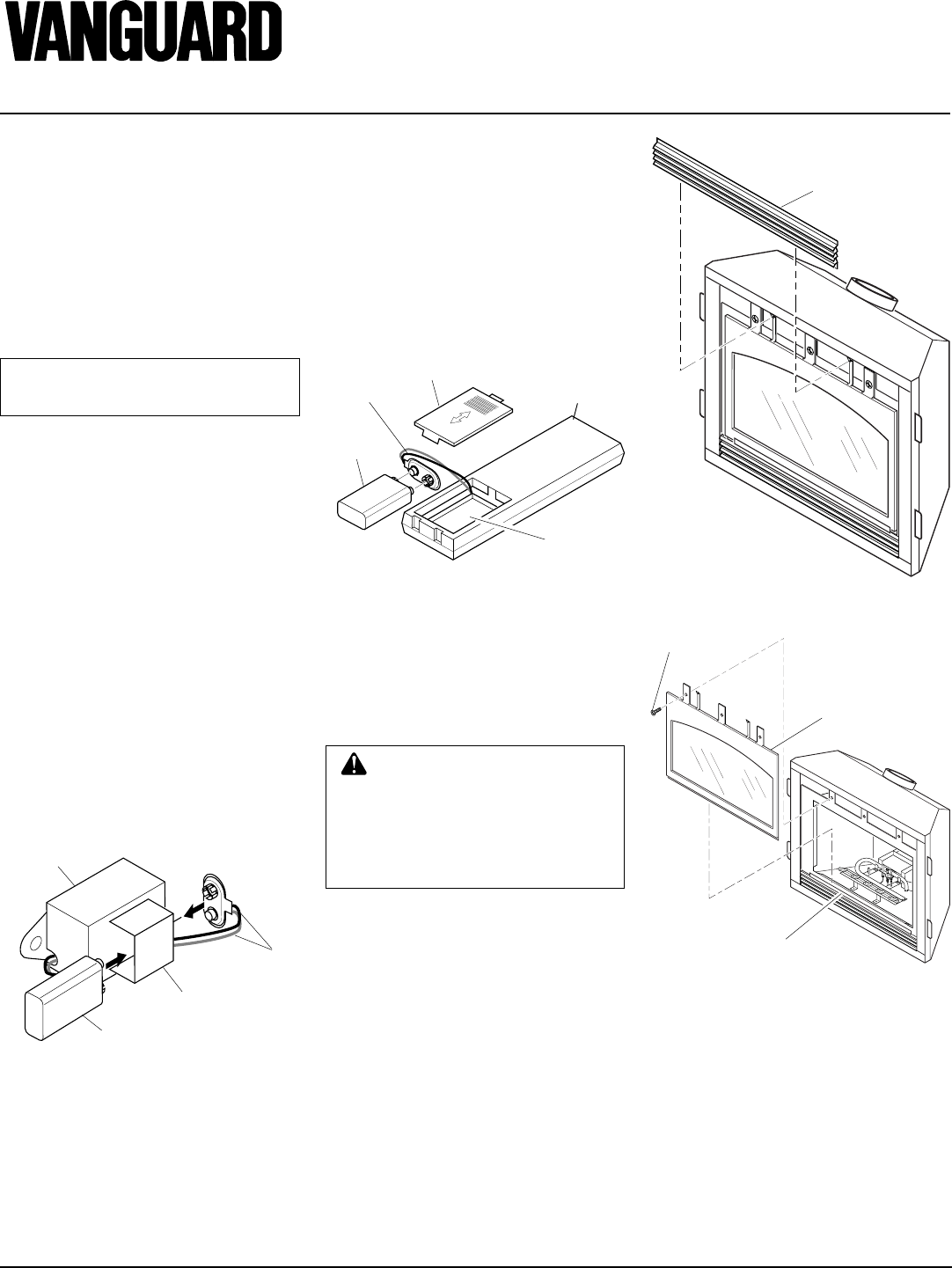

REMOVING/REPLACING

GLASS DOOR

CAUTION: Do not operate this

fireplace with a broken glass door

panel or without the glass door

panel securely in place. For re-

placement part information see

Replacement Parts

, page 32.

1. Remove the upper louver panel by lift-

ing upward and out (see Figure 46).

2. Remove the screws from the three tabs

at the top of the glass door while hold-

ing door securely keeping it from fall-

ing forward.

3. Grasp door by both sides and ease it

upward off of the lower bracket (see

Figure 47).

4. To replace glass door, follow the above

instructions in reverse.

Figure 47 - Removing/Replacing Glass

Door

Figure 46 - Removing Top Louver Panel

Top Louver

Panel

You must remove glass door to install op-

tional brick liners, logs, lava rock, and em-

ber material.

FIREPLACE

INSTALLATION

Continued

Installing 9-Volt Battery in Hand-

Held Remote Control Unit

1. Remove battery cover on back of re-

mote control unit.

2. Attach terminal wires to a 9-volt alka-

line battery (not included). Place bat-

tery into the battery housing.

3. Replace battery cover onto remote con-

trol unit.

Figure 45 - Installing Alkaline Battery in

Hand-Held Remote Control Unit

Battery

Cover

9-Volt

Battery

Terminal

Wires Remote

Control Unit

Battery

Housing

Installing 9-Volt Alkaline Battery

into Receiver

1. Open bottom louver and locate the

switch bracket on the left.

2. Unscrew the switch bracket. Lean

bracket forward so you are able to ac-

cess the back of the remote receiver.

3. Locate the battery clip mounted on the

back of the receiver. Slide a 9-volt al-

kaline battery (not included) through

the clip.

4. Attach the terminal wires to the battery.

5. Remove the wire that runs from TH to

TPTH from the valve (see Figure 40,

page 21).

6. Connect wires from receiver to TH and

TPTH on the valve (see Figure 41,

page 21).

7. Replace the switch bracket.

Figure 44 - Attaching Alkaline Battery to

Receiver

9-Volt Battery

Receiver

Terminal

Wires

Battery Clip

Glass Door

Assembly

Screw

Lower Bracket for

Glass Door Assembly

INSTALLING OPTIONAL

WIRELESS HAND-HELD

REMOTE CONTROL

ACCESSORIES - GHRC AND

GHRCT

NOTICE: Use only alkaline bat-

teries (not included).

23

106516

OWNER’S MANUAL

INSTALLING OPTIONAL

BRICK LINER D8037A

WARNING: If fireplace has

been running, turn off and un-

plug fireplace. Let cool before

installing brick liner.

This brick liner kit is optional. You may

purchase brick liner from your local dealer

or see Accessories, pages 34 and 35.

CAUTION: Always handle

brick panels with two hands. Do

not force brick panels into place.

Excessive force will break brick

panels.

1. Remove glass door. See Removing/Re-

placing Glass Door, page 22.

2. If installing brick liner in new fireplace,

go to step 3. If installing brick liner in

an existing fireplace, carefully remove

logs, lava rock, and ember material.

3. Install left side brick panel first by slid-

ing it between the grate and the side of

the firebox (see Figure 48).

4. Slide the left retainer bracket against

the left side brick panel. Loosely se-

cure the bracket screw. This secures the

left side brick panel.

5. Install the right brick panel using the

same method described in step 3.

6. Slide the right retainer bracket against

the right side brick panel. Loosely se-

cure the bracket screw. This secures the

right side brick panel.

7. Install rear brick panel. Rest bottom

edge of panel on back edge of grate (see

Figure 49).

8. Loosely secure retainer brackets to

grate. Brackets are adjustable left to

right to allow proper placement of

panel. These will hold rear panel in

place.

9. Tighten all bracket screws.

10. Follow instructions on page 24 to install

logs, lava rock, and ember material.

11. Replace glass door (see page 22).

Figure 49 - Installing Rear Brick Panel and Retainer Brackets

Figure 48 - Installing Left Side Brick Panel

FIREPLACE

INSTALLATION

Continued

Rear Brick Panel

Retaining Brackets

Left Side

Brick Panel

Continued

24

106516

DIRECT-VENT FIREPLACE (NATURAL/PROPANE/LP)

®

BHDV34NB AND BHDV34PB

WARNING: The glass door

must be securely in place before

running this fireplace. Do not run

this fireplace if glass is missing

or broken.

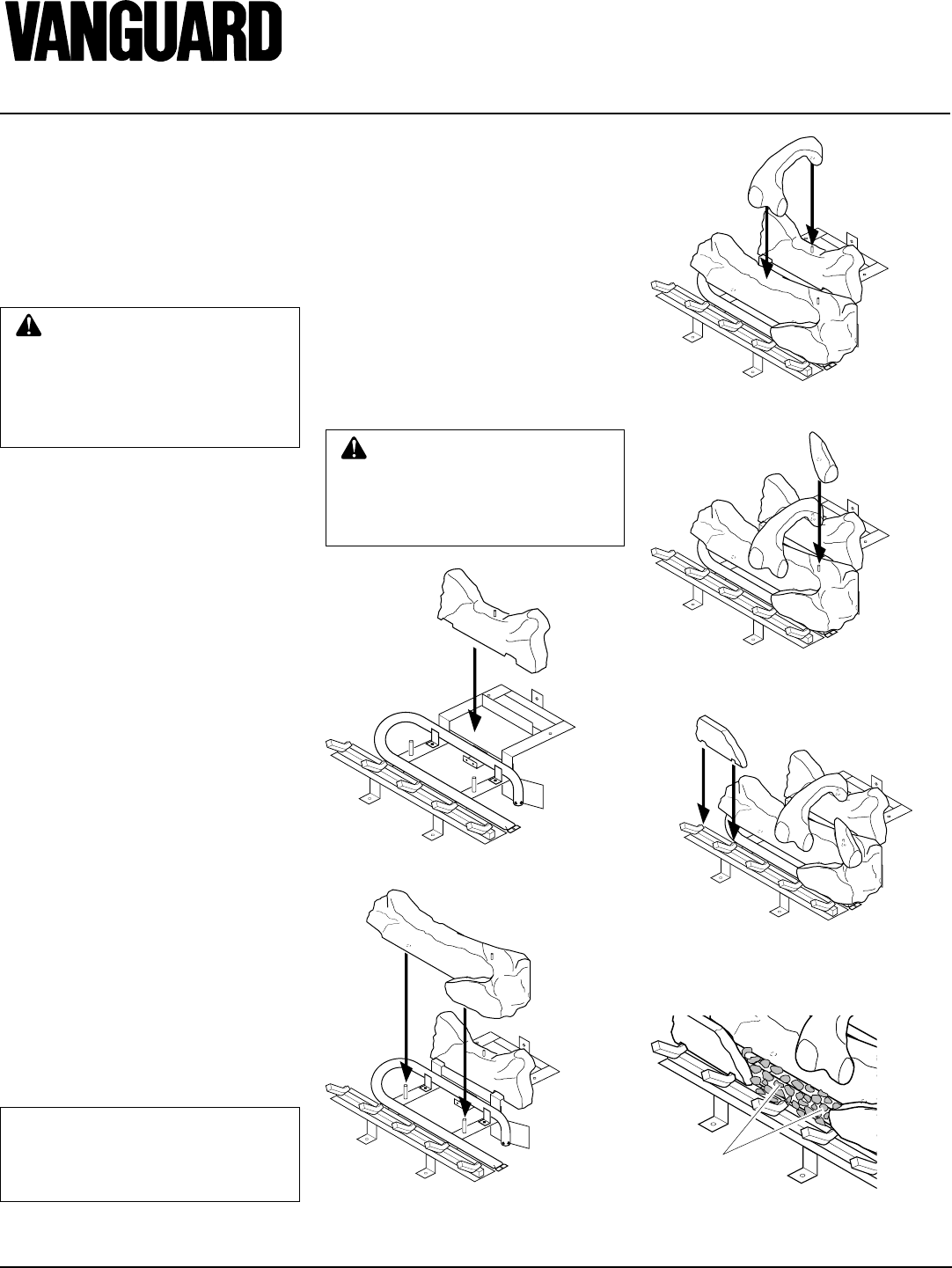

Each log is marked with a number. These

numbers will help you identify the log when

installing. It is very important to install

these logs exactly as instructed. Do not

modify logs. Only use logs supplied with

fireplace.

Remove glass door. See Removing/Replacing

Glass Door, page 22. Install logs according to

the following instructions.

WARNING: Failure to position

the parts in accordance with these

diagrams or failure to use only

parts specifically approved with

this heater may result in property

damage or personal injury.

1. Place log #1 (back log) on top of grate.

Make sure the notches in the bottom of

the log fit over the grate (see Figure 50).

2. Rest log #2 (large front log) on the pins on

the front part of the grate (see Figure 51).

3. Place log #3 (“C”-shaped crossover log)

onto the rear and front logs. Make sure

it is seated properly on the smooth sur-

face on the front log and on the pin on

the back log as shown in Figure 52.

4. Place log #4 (small, round log) on the

pin on the right side of front log as

shown in Figure 53

5. Place log #5 (small log) onto the front

left part of the grate making sure the

notches fit over the prongs of the grate .

See Figure 54.

6. Place lava rock along sides and front

of firebox bottom in areas that are vis-

ible only. It is not necessary to use all

of the lava rock provided.

INSTALLING LOGS, LAVA

ROCK AND GLOWING

EMBERS

FIREPLACE

INSTALLATION

Continued

NOTICE: Do not put lava rock on

burner or under burner. Placing

lava rock on burner could cause

performance problems.

1

2

3

5

Ember Material

Figure 55 - Placing Ember Material on

Burner

Figure 50 - Installing Log No. 1

Figure 51 - Installing Log No. 2

Figure 52 - Installing Log No. 3

Figure 54 - Installing Log No. 5

Figure 53 - Installing Log No. 4

4

7. Pull ember material apart into pieces

no larger than a dime. Place these

pieces loosely and sparingly directly

onto the exposed section of the front

burner and along the space between the

burner and grate prongs (see Figure 55).

This will create the glowing ember ap-

pearance as the flame touches the em-

ber material. Do not block air slots by

using too much ember material in one

area. It is not necessary to use all of the

ember material provided.

8. Replace the glass door. See Removing/

Replacing Glass Door, page 22.

25

106516

OWNER’S MANUAL

O

F

F

P

I

L

O

T

O

N

L

O

I

H

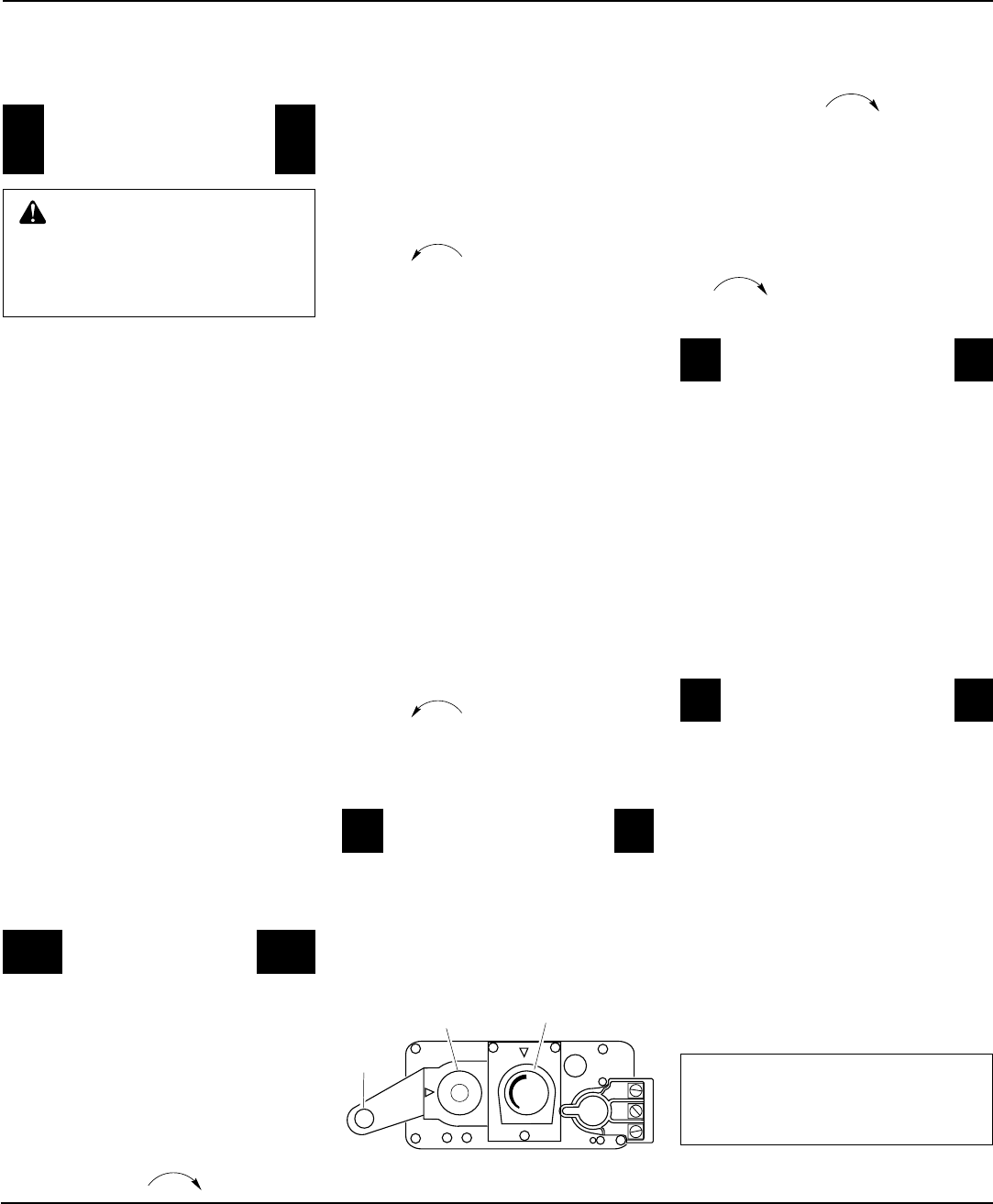

OPERATING

FIREPLACE

WARNING: If you do not fol-

low these instructions exactly, a

fire or explosion may result caus-

ing property damage, personal

injury or loss of life.

A. This appliance has a pilot which must

be lighted by hand. When lighting the

pilot, follow these instructions exactly.

B. BEFORE LIGHTING smell all around

the appliance area for gas. Be sure to

smell next to the floor because some gas

is heavier than air and will settle on

the floor.

WHAT TO DO IF YOU SMELL GAS

• Do not try to light any appliance.

• Do not touch any electric switch; do

not use any phone in your building.

• Immediately call your gas supplier

from a neighbor's phone. Follow the

gas supplier's instructions.

C. Use only your hand to push in or turn

the gas control knob. Never use tools.

If the knob will not push in or turn by

hand, don't try to repair it, call a quali-

fied service technician. Force or at-

tempted repair may result in a fire or

explosion.

D. Do not use this appliance if any part

has been under water. Immediately call

a qualified service technician to inspect

the appliance and to replace any part

of the control system and any gas con-

trol which has been under water.

FOR YOUR SAFETY

READ BEFORE

LIGHTING

LIGHTING

INSTRUCTIONS

1. STOP! Read the safety information in

column one.

2. Open lower louver panel.

3. Disconnect the wire that runs from TH

to TPTH from the valve.

4. Turn off all electric power to the

fireplace.

5. Push in gas control knob slightly and

turn clockwise to “OFF”.

TO TURN OFF GAS

TO APPLIANCE

1. Open lower louver panel.

2a. If Using Optional ON/OFF Switch:

Turn ON/OFF switch to “OFF”.

2b. If Using Optional Hand-Held Re-

mote: Set selector switch in the OFF

position to prevent draining battery.

Figure 56 - Control Valve

Piezo

Ignitor

Gas Control Knob Variable Control Knob

OPTIONAL REMOTE

OPERATION

Note:

All remote control accessories must

be purchased separately (See Accessories

on pages 34 and 35). Follow instructions

included with the remote control.

Thermostat Control Operation

(Optional GHRCT Only) The thermostat

control setting on the remote control unit

can be set to any comfort level between HI

and LO. The burners will turn on and off

automatically to maintain the comfort level

you select. The ideal comfort setting will

vary by household depending upon the

amount of space to be heated, the output of

the central heating system, etc.

NOTICE: You must light the pilot

before using the hand-held re-

mote control unit. See

Lighting

Instructions

.

6. Wait five (5) minutes to clear out any

gas. Then smell for gas, including near

the floor. If you smell gas, STOP! Fol-

low “B” in the safety information in

column one. If you don't smell gas, go

to the next step.

7. The pilot is located by the main burner

and should not require accessing for

lighting.

8. Turn gas control knob counterclock-

wise to “PILOT”.

9. Push in gas control knob all the way and

hold. Immediately light the pilot by re-

peatedly depressing the piezo spark ig-

nitor until a flame appears. Continue to

hold for about one (1) minute after the

pilot is lit. Release gas control knob and

it will pop back. Pilot should remain lit.

If it goes out, repeat steps 5 through 8.

• If gas control knob does not pop up when

released, stop and immediately call your

service technician or gas supplier.

• If the pilot will not stay lit after sev-

eral tries, turn the gas control knob

to “OFF” and call your service tech-

nician or gas supplier.

10. Reconnect the wire that runs from TH

to TPTH from the valve.

11. Turn on all electric power to the

fireplace.

12. Turn gas control knob counterclock-

wise to “ON”.

13. This valve is equipped with a HI/LO

feature. Set fireplace input as desired.

14. Close lower louver panel.

3. Turn off all electrical power to the ap-

pliance if service is to be performed.

4. Push in gas control knob slightly and

turn clockwise to “OFF”.

5. Close lower louver panel.

Shutting Off Burners Only (pilot

stays lit)

You may shut off the burners and keep the

pilot lit by doing one of the following:

1. Turn gas control knob clockwise

to the PILOT position.

2. Set selector switch in the OFF position.

MANUAL LIGHTING

PROCEDURE

1. Remove glass door (see Removing/Re-

placing Glass Door, page 22).

2. Follow steps 1 through 8 under Light-

ing Instructions.

3. Depress gas control knob and light pi-

lot with match.

4. Keep gas control knob pressed in for 30

seconds after lighting pilot. After 30 sec-

onds, release gas control knob. Now fol-

low steps 10 through 14, column 2.

5. Replace glass door (see Removing/Re-

placing Glass Door, page 22).

Continued

26

106516

DIRECT-VENT FIREPLACE (NATURAL/PROPANE/LP)

®

BHDV34NB AND BHDV34PB

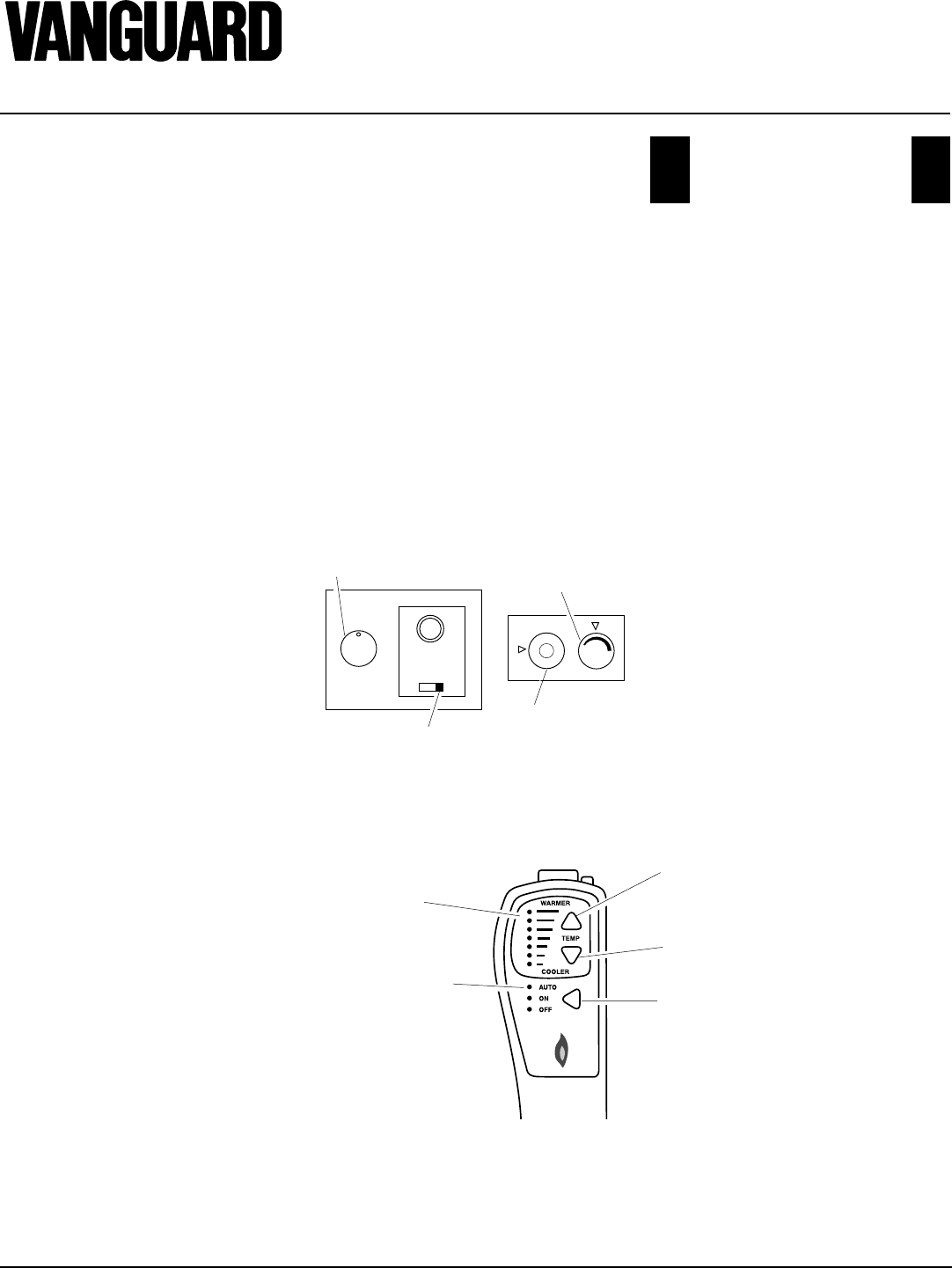

1. After lighting, let pilot flame burn for

about one minute. Turn gas control

knob on the control valve to ON posi-

tion. Turn variable control knob any-

where between WARMER and

COOLER. Slide the selector switch to

the REMOTE position.

Note:

The

burners may light if hand-held remote

ON button was on when selector switch

was last turned off. You can now turn

the burners on and off with either op-

tional hand-held remote control unit.

IMPORTANT:

Do not leave the se-

lector switch in the REMOTE posi-

tion when the pilot is not lit. This will

drain the battery.

IMPORTANT:

Be sure to press the

ON/OFF buttons on the hand-held

remote control unit for up to 3 sec-

onds to assure proper operation.

GHRC Series Operation:

2a. Press the ON/OFF button to turn the

burners on and off. When turning

burners off, the pilot will remain lit.

GHRCTA Series Operation:

2b. Press the AUTO/ON/OFF button on

the hand-held remote control (see

Figure 58). The lights to the left of

the button will show AUTO, ON, or

OFF.

• In the ON mode, the burners will

ignite. The heater is in manual

mode when ON is lit.

• In the AUTO mode, the thermostat

in the hand-held remote unit con-

trols the room temperature. To in-

crease the room temperature, press

the top arrow of the TEMP button.

To lower the room temperature,

press the bottom arrow of the

TEMP button. At higher settings

the heater will run longer.

OPERATING

FIREPLACE

Continued

O

F

F

P

I

L

O

T

O

N

L

O

I

H

ON

OFF

REMOTE

ON

OFF

OPERATING

OPTIONAL BLOWER

ACCESSORY

Locate the blower controls by opening

the lower louver panel on the fireplace.

Blower controls are located on the left

side of the switch bracket to the left just

inside the louver panel.

Both the GA3700 manual blower and the

DA3610TA thermostatically-controlled

blower have an ON setting and an OFF

setting. The blower will only run when the

switch is in the ON position. In the OFF

position, the blower will not operate.

Note for DA3610TA Only:

If you are

using DA3610TA blower with optional

thermostat (wall mount or remote con-

trol) for the fireplace, your fireplace and

blower will not turn on and off at the

same time. The fireplace may run for

several minutes before the blower turns

on. After the heater modulates to the pilot

position, the blower will continue to run.

The blower will shut off after the firebox

temperature decreases.

The blower helps distribute heated air

from the fireplace. Periodically check the

louvers of the firebox and remove any

dust, dirt, or other obstructions that will

hinder the flow of air.

Figure 57 - Setting the Selector Switch, Gas

Control Knob, and Variable Control Knob

for Remote Operation

Selector Switch in

Remote Position

Gas Control

Knob in On

Position

Variable

Control Knob

Blower Control Knob

(Optional Accessory)

IMPORTANT:

This remote control

has been specially engineered to take

an air temperature sample every 5.5

minutes in the auto mode. It will not

respond immediately to the tempera-

ture setting being turned up or down.

IMPORTANT:

The hand-held remote

control unit must be near the heater.

Do not keep the hand-held remote

control unit too close to the heater.

The thermostat on the hand-held re-

mote control unit will heat up too

quickly and turn the heater off.

3. To turn the burner off, press the

AUTO/ON/OFF button until OFF

lights. The pilot will remain lit.

IMPORTANT:

To turn the pilot off,

manually turn the control knob on the

heater to the OFF position.

Figure 58 - Hand-Held Thermostat Remote Control Unit Selections

(GHRCTA Only)

Increases Room

Temperature in

AUTO Mode

Decreases Room

Temperature in

AUTO Mode

Turns Burners

On or Off and

Allows You to

Choose the Auto

Setting

Shows Tempera-

ture Setting

The Log Heater

will Automatically

Cycle between

Pilot and the Heat

Setting that has

been Selected

27

106516

OWNER’S MANUAL

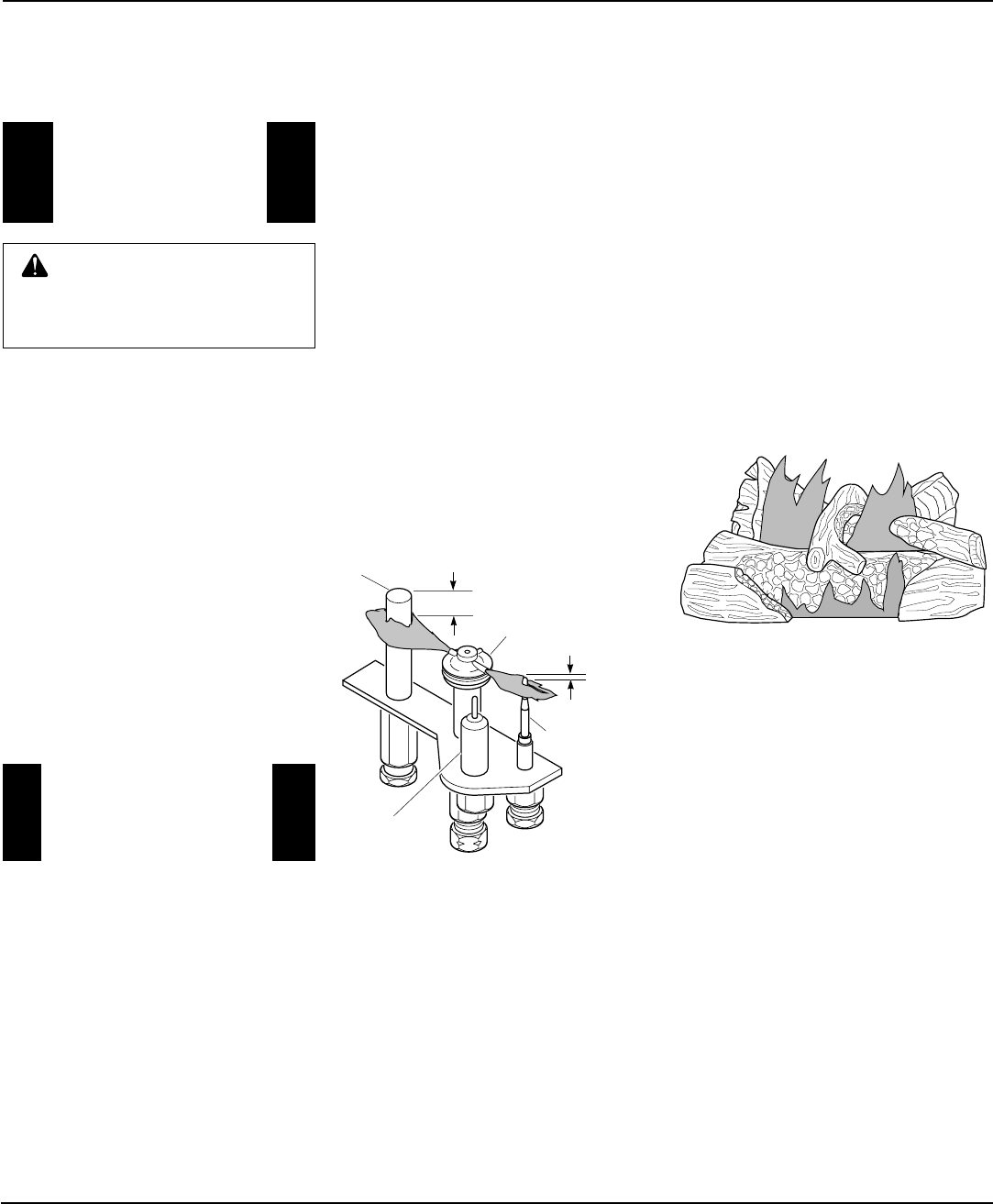

INSPECTING

BURNERS

Check pilot flame pattern and burner flame

patterns often.

PILOT ASSEMBLY

The pilot assembly is factory preset for the

proper flame height. Alterations may have

occurred during shipping and handling. Call

a qualified service person to readjust the

pilot if necessary.

The height of the thermopile must be 3/8" to

1/2" above the pilot flame as shown in Figure

59. The thermocouple must be at a height of

about 1/8" above the pilot flame. The flame

from the pilot burner must extend beyond

both the thermocouple and thermopile.

If your pilot assembly does not meet these

requirements:

• turn fireplace off (see To Turn Off Gas to

Appliance, page 25)

• see Troubleshooting, pages 29 through 31

BURNER FLAME PATTERN

Burner flames will be steady; not lifting or

floating. Flame patterns will be different

from unit to unit and will vary depending on

installation type and weather conditions.

If the vent configuration is installed incor-

rectly, the flames will lift or "ghost". This

can be dangerous. Inspect the flames after

installation to ensure proper installation and

performance.

Figure 60 shows a typical flame pattern for

BHDV34NB and BHDV34PB.

If burner flame pattern differs from that

described:

• turn fireplace off (see To Turn Off Gas to

Appliance, page 25)

• see Troubleshooting, pages 29 through 31

Figure 59 - Pilot Assembly

Figure 60 - Typical Flame Pattern for

models BHDV34NB and BHDV34PB

Thermocouple

Thermopile

3/8" to 1/2"

1/8"

Pilot Burner

Piezo

Ignitor

OPERATING

FIREPLACE

Continued

OPERATING

OPTIONAL GWMT1

WALL MOUNTED

THERMOSTAT

Light the fireplace as instructed in Light-

ing Instructions on page 25. Set wall ther-

mostat to desired temperature.

This thermostat has been electronically

calibrated at the factory and requires no

adjustment or leveling.

Upon installation, the thermostat must

be allowed to stabilize at room tempera-

ture for a minimum of 30 minutes for

proper operation.

To turn the fireplace off, adjust thermo-

stat to the lowest setting and turn the gas

control knob back to PILOT. The pilot

will remain lit.

IMPORTANT:

To turn the pilot off, turn

the gas control knob on the heater to the

OFF position.

WARNING: Do not connect

the thermostat to a power source.

Electrical shock and/or a fire haz-

ard will occur.

OPERATING

OPTIONAL GWMS2

WALL MOUNTED

SWITCH

Make sure the heater switch is on AUTO.

This wall switch works just like the con-

ventional light switch. Flip the switch up

for on and down for off.

Note:

Make sure that this switch is not in

a position to be mistaken for a light switch.

This may result in the heater being inad-

vertently turned on without the proper

precautions being taken. See installation

instructions on page 21 of this manual.

28

106516

DIRECT-VENT FIREPLACE (NATURAL/PROPANE/LP)

®

BHDV34NB AND BHDV34PB

PILOT AND BURNERS

• Remove ember material before cleaning

burners and replace when cleaning is

complete.

• Burner and controls should be cleaned

with compressed air to remove dust, dirt,

or lint.

• Use a vacuum cleaner or small, soft bristled

brush to remove excess dust, dirt, or lint.

WARNING: Only parts sup-

plied by the manufacturer should

be used when replacing broken

or damaged glass door panel (see

Replacement Parts

, page 32). This

glass door panel is a complete

unit. No substitute materials may

be used.

CLEANING AND

MAINTENANCE

If glass has been broken, carefully remove

glass door (see Removing/Replacing Glass

Door, page 22). Vacuum all glass pieces

with a shop vac.

CAUTION: Wear gloves and

safety glasses while handling or

removing broken glass. Do not

remove if glass is hot. Keep chil-

dren and pets away from glass.

WARNING: Do not operate

fireplace with the glass door re-

moved, cracked, or broken.

VENTING SYSTEM

Conduct annual inspection of the venting

system following these guidelines:

1. Check areas of venting system that are

exposed to the weather for corrosion (rust

spots or streaks and, in extreme cases,

holes). Have these items replaced imme-

diately by a qualified service person.

2. Remove the vent cap and shine a flash-

light into the vent. Remove any foreign

material.

3. Check for evidence of excessive con-

densation. Continuous condensation

can cause corrosion of caps, pipes, and

fittings and can be caused by having

excessive lateral runs, too many elbows,

or exterior portions of the system be-

ing exposed to cold weather.

4. Inspect joints to verify that no pipe sec-

tion or fitting has been disturbed and

loosened. Check mechanical supports

such as wall straps for rigidity.

WARNING: Turn off fireplace

and let cool before cleaning.

CAUTION: You must keep con-

trol areas, burners, and circulat-

ing air passageways of fireplace

clean. Inspect these areas of fire-

place before each use. Have fire-

place inspected yearly by a quali-

fied service person. Fireplace may

need more frequent cleaning due

to excessive lint from carpeting,

bedding material, pet hair, etc.

WARNING: Do not use abra-

sive cleaners as this may damage

glass. Use a nonabrasive house-

hold glass cleaner to clean glass.

Do not clean glass when hot.

WARNING: Handle glass door

panel with care. Do not strike,

slam, or otherwise abuse glass.

Do not operate fireplace with the

glass door removed, cracked, or

broken.

GLASS DOOR

Glass must be cleaned periodically. During

start-up it is normal for condensation to

form on the inside of the glass causing lint,

dust, and other airborne particles to cling to

the glass surface. During initial start-up a

slight film may form on the glass due to

paint curing. The glass should be cleaned

several times with a non-ammonia, non-

abrasive household cleaner and warm water

after the first two weeks of operation. There-

after, clean the glass two or three times

during each heating season, depending on

the usage and circumstances present. Refer

to Removing/Replacing Glass Door on page

22 of this manual when removing glass door

for cleaning.

Use only the ceramic glass door replace-

ment intended for this fireplace (see Re-

placement Parts, page 32 for detail on or-

dering). No substitutions may be made. See

Removing/Replacing Glass Door, page 22

for instructions for replacing glass door.

• If you remove logs for cleaning, refer to

Installing Logs, Lava Rock, and Glowing

Embers, page 24, to properly replace logs.

• Use a vacuum cleaner to remove any car-

bon buildup on logs.

• Replace log(s) if broken. See Replace-

ment Parts on page 32.

• Replace ember material periodically as

needed. See Replacement Parts on page 32.

CAUTION: Do not vacuum if

pieces are hot.

29

106516

OWNER’S MANUAL

TROUBLESHOOTING

Note:

All troubleshooting items are listed in

order of operation.

WARNING: Turn off heater

and let cool before servicing. Only

a qualified service person should

service and repair heater.

CAUTION: Never use a wire,

needle, or similar object to clean

pilot. This can damage pilot unit.

POSSIBLE CAUSE

1. Ignitor electrode not connected to igni-

tor cable

2. Ignitor cable pinched or wet

3. Piezo ignitor nut is loose

4. Broken ignitor cable

5. Bad piezo ignitor

6. Ignitor electrode broken

7. Ignitor electrode positioned wrong

1. Gas supply turned off or equipment

shutoff valve closed

2. Gas control knob not in PILOT position

3. Gas control knob not pressed in while

in PILOT position

4. Air in gas lines when installed

5. Depleted gas supply (propane/LP

models only)

6. Pilot is clogged

7. Gas regulator setting is not correct

1. Gas control knob not fully pressed in

2. Gas control knob not pressed in long

enough

3. Equipment shutoff valve not fully open

4. Pilot flame not touching thermocouple,

which allows thermocouple to cool,

causing pilot flame to go out. This prob-

lem could be caused by one or both of

the following:

A) Low gas pressure

B) Dirty or partially clogged pilot

5. Thermocouple connection loose at con-

trol valve

6. Thermocouple damaged

7. Control valve damaged

REMEDY

1. Reconnect ignitor cable

2. Free ignitor cable if pinched by any

metal or tubing. Keep ignitor cable dry

3. Tighten nut holding piezo ignitor. Nut

is located behind the mounting bracket

4. Replace ignitor cable

5. Replace piezo ignitor

6. Replace pilot assembly

7. Replace pilot assembly

1. Turn on gas supply or open equipment

shutoff valve

2. Turn gas control knob to PILOT position

3. Press in gas control knob while in PILOT

position

4. Continue holding down control knob.

Repeat igniting operation until air is

removed

5. Contact local propane/LP gas company

6. Clean pilot (see Cleaning and Mainte-

nance, page 28) or replace pilot assembly

7. Replace gas control

1. Press in gas control knob fully

2. After pilot lights, keep gas control knob

pressed in 30 seconds

3. Fully open equipment shutoff valve

4. A) Contact local gas company

B) Clean pilot (see Cleaning and

Maintenance, page 28) or replace pilot

assembly

5. Hand tighten until snug, then tighten

1/4 turn more

6. Replace thermocouple

7. Replace control valve

OBSERVED PROBLEM

When ignitor button is pressed, there is no

spark at pilot

When ignitor button is pressed, there is

spark at pilot but no ignition

Pilot lights but flame goes out when control

knob is released

Note:

For additional help, visit DESA

International’s technical service web

site at www.desatech.com.

www.desatech.com Continued

30

106516

DIRECT-VENT FIREPLACE (NATURAL/PROPANE/LP)

®

BHDV34NB AND BHDV34PB

OBSERVED PROBLEM

Burner does not light after pilot is lit

Delayed ignition burner

Burner backfiring during combustion

Slight smoke or odor during initial operation

Heater produces a whistling noise when

burner is lit

Glass soots

Fireplace produces a clicking/ticking noise

just after burners are lit or shut off

Remote does not function

REMEDY

1. Clean burner (see Cleaning and

Maintenance, page 28) or replace burner

orifice

2. Contact local propane/LP or natural gas

company

3. Reconnect leads (see Wiring Diagram,

page 32)

4. Replace thermopile

1. Contact local propane/LP or natural gas

company

2. Clean burner (see Cleaning and Main-

tenance, page 28) or replace burner orifice

1. Clean burner (see Cleaning and

Maintenance, page 28) or replace burner

orifice

2. Replace damaged burner

3. Replace gas control

1. Problem will stop after a few hours of

operation

1. Turn gas control knob to LO position and

let warm up for a minute

2. Operate burner until air is removed from

line. Have gas line checked by local pro-

pane/LP or natural gas company

3. Clean burner (see Cleaning and

Maintenance, page 28) or replace burner

orifice

1. Adjust the log set so that the flame does

not excessively impinge on it

2. Inspect the opening at the base of the

burner to see that it is NOT packed with

any type of material

1. This is common. If noise is excessive,

contact qualified service person

1. Replace 9-volt batteries in receiver and

remote control

TROUBLESHOOTING

Continued

POSSIBLE CAUSE

1. Burner orifice clogged

2. Inlet gas pressure is too low

3. Thermopile leads disconnected or im-

properly connected

4. Thermopile is defective

1. Manifold pressure is too low

2. Burner porting or orifice clogged

1. Burner orifice is clogged or damaged

2. Damaged burner

3. Gas regulator defective

1. Residues from manufacturing processes

and logs curing

1. Turning gas control knob to HI position

when burner is cold

2. Air in gas line

3. Dirty or partially clogged burner orifice

1. Flame impingement on logs

2. Debris around burner air mixer

1. Metal expanding while heating or con-

tracting while cooling

1. Battery is not installed or battery power

is low

www.desatech.com

31

106516

OWNER’S MANUAL

WARNING: If you smell gas

• Shut off gas supply.

• Do not try to light any appliance.

• Do not touch any electrical switch; do not use any phone in your building.

• Immediately call your gas supplier from a neighbor’s phone. Follow the gas

supplier’s instructions.

• If you cannot reach your gas supplier, call the fire department.

IMPORTANT:

Operating fireplace where impurities in air exist may create odors. Cleaning supplies,

paint, paint remover, cigarette smoke, cements and glues, new carpet or textiles, etc., create fumes. These

fumes may mix with combustion air and create odors. These odors will disappear over time.

POSSIBLE CAUSE

1. Gas leak. See Warning statement

above

1. High or gusting winds

2. Low line pressure

3. Pilot is partially clogged

4. Inner vent pipe leaking exhaust gasses

into system

5. Horizontal vent improperly pitched

6. Glass too loose and air tight gasket leaks

in corners after usage

7. Bad thermopile or thermocouple

8. Improper vent cap installation

1. Gas leak. See Warning statement

above

2. Control valve defective

1. Gas leak. See Warning statement

above

1. Improper log placement

2. Air holes at burner inlet blocked

3. Burner flame holes blocked

OBSERVED PROBLEM

Fireplace produces unwanted odors

Fireplace shuts off in use

Gas odor even when control knob is in OFF

position

Gas odor during combustion

Dark residue on logs or inside of fireplace

REMEDY

1. Locate and correct all leaks (see Check-

ing Gas Connections, pages 19 and 20)

1. Fireplace has been tested for up to

40mph winds. However, extreme con-

ditions may occur. See Lighting Instruc-

tions on page 25

2. Contact local propane/LP or natural gas

company

3. Clean pilot (see Cleaning and Mainte-

nance, page 28)

4. Locate and correct all leaks (see Check-

ing Gas Connections, pages 19 and 20)

5. Horizontal vent termination should slope

down only enough to prevent any water

from entering the unit. The maximum

downward slope of the vent termination

is 1/4" for any horizontal run

6. Tighten glass

7. Replace faulty component

8. Check for proper installation and free-

dom from debris or blockage

1. Locate and correct all leaks (see Check-

ing Gas Connections, pages 19 and 20)

2. Replace control valve

1. Locate and correct all leaks (see Check-

ing Gas Connections, pages 19 and 20)

1. Properly locate logs (see Installing Logs,

Lava Rock, and Glowing Embers, page 24)

2. Clean out air holes at burner inlets. Pe-

riodically repeat as needed

3. Remove blockage or replace burner

www.desatech.com

TROUBLESHOOTING

Continued

32

106516

DIRECT-VENT FIREPLACE (NATURAL/PROPANE/LP)

®

BHDV34NB AND BHDV34PB

SERVICE HINTS

When Gas Pressure Is Too Low

• pilot will not stay lit

• burners will have delayed ignition

• fireplace will not produce specified heat

• propane/LP gas supply might be low

(propane/LP units only)

When Gas Quality Is Bad

• pilot will not stay lit

• burners will produce flames and soot

• fireplace will backfire when lit

If you feel your gas pressure is too low or gas

quality is bad, contact your local natural or

propane/LP gas supplier.

TECHNICAL

SERVICE

You may have further questions about in-

stallation, operation, or troubleshooting. If

so, contact DESA International’s Technical

Service Department at 1-800-DESA LOG

(1-800-337-2564).

You can also visit DESA International’s

technical service web site at

www.desatech.com.

REPLACEMENT

PARTS

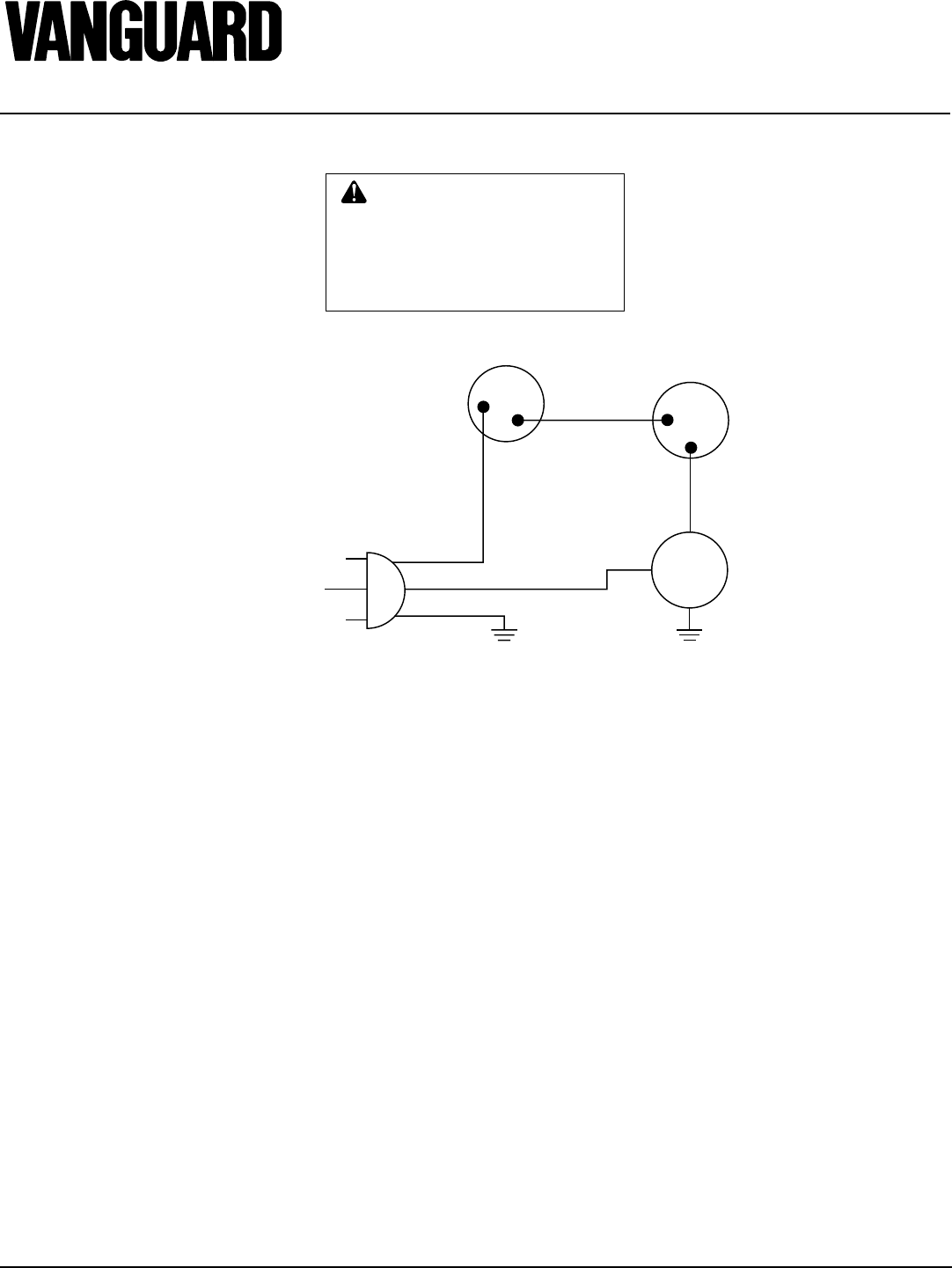

Figure 61 - Blower Wiring Diagram for Thermostat-Controlled Models

WIRING DIAGRAM

CAUTION: Label all wires prior

to disconnection when servicing

controls. Wiring errors can cause

improper and dangerous opera-

tion. Verify proper operation af-

ter servicing.

Note:

Use only original replacement parts.

This will protect your warranty coverage for

parts replaced under warranty.

PARTS UNDER WARRANTY

Contact authorized dealers of this product. If

they can not supply original replacement

part(s), call DESA International’s Technical

Service Department at 1-800-DESA LOG

(1-800-337-2564).

When calling DESA International, have ready

• your name

• your address

• model and serial numbers of your fireplace

• how fireplace was malfunctioning

• type of gas used (propane/LP or natural gas)

• purchase date

Usually, we will ask you to return the defec-

tive part to the factory.

PARTS NOT UNDER

WARRANTY

Contact authorized dealers of this product.

If they can not supply original replacement

part(s), call DESA International’s Parts De-

partment at 1-800-972-7879 for referral in-

formation.

When calling DESA International, have ready

• model number of your fireplace

• the replacement part number

Blue

Variable

Fan Switch Fan Switch

(N.O.)

Green

White

On

110/115

V.A.C.

Blower

Motor

Black

Off

1

2

Black

33

106516

OWNER’S MANUAL

SPECIFICATIONS

BHDV34NB BHDV34PB

17,000/24,000 Btu/hr 17,000/22,000 Btu/hr

Gas Type Natural Propane/LP

Ignition Piezo Piezo

Manifold Pressure 3.5" w.c. 10.0" w.c.

Minimum Inlet Supply Pressure 4.5" w.c. 11.0" w.c.

Thermal Efficiency 70% 70%

Dimension, Inches/mm (HxWxD)

Fireplace (Actual size of

firebox. Measurements do not 32 3/16" x 34 3/8" x 18 1/2" 32 3/16" x 34 3/8" x 18 1/2"

include nailing flanges or 817 x 873 x 470mm 817 x 873 x 470mm

stand-offs).

Carton 37" x 40" x 21" 37" x 40" x 21"

940 x 1016 x 533mm 940 x 1016 x 533mm

Weight, lbs/kg

Fireplace 123 lbs/56 kg 123 lbs/56 kg

Shipping 126 lbs/57 kg 126 lbs/57 kg

34

106516

DIRECT-VENT FIREPLACE (NATURAL/PROPANE/LP)

®

BHDV34NB AND BHDV34PB

ACCESSORIES

Purchase these fireplace accessories from

your local dealer. If they can not supply

these accessories, call DESA International’s

Sales Department at 1-800-432-2382 for

information. You can also write to the ad-

dress listed on the back page of this manual.

CABINET MANTEL

GM100FC Series - Walnut Fin-

ished

GM101UC Series - Unfinished

GM106FC Series - Oak Finished

with Medium Stain

GM107UC Series - Unfinished

GM102WC Series - Off White Paint

Shown with optional base and laminate

hearth and mantel trim accessories.

Dimensions (WxHxD): 56

3

/

4

" x 48

3

/

4

" x 22

3

/

4

"

IMPORTANT: The above mantel model

numbers must end with the letter "C" to

fit this fireplace.

HARDWOOD HEARTH BASE

G3000F Series- Walnut Finished

G3001U Series - Unfinished

G3006F Series - Oak Finished

with Medium Stain

G3007U Series - Unfinished Oak

G3004W Series- Off White Paint

The hearth base creates a handsome riser for

the fireplace (cannot be used with corner

mantel).

Dimensions (WxHxD): 58" x 6

1

/

2

" x 28

9

/

16

"

CORNER MANTEL

GM200F Series - Walnut Stained

Hardwood Veneer

GM201U Series - Unfinished

GM202F Series - Stained Oak

Veneer

Shown with optional laminate mantel trim

accessory.

Dimensions (WxHxD): 60

7

/

8

" x 48

3

/

4

" x 34

5

/

8

"

HEARTH BASE TRIM KIT

(Not Shown) - For Use With

Hardwood Hearth Base

G3003J Series - Jade Marble

Laminate

G3003S Series - Sandstone

Marble Laminate

G3003B Series - Black Onyx

Marble Laminate

SLIM HEARTH BASE

(Not Shown)

G3005J Series - Jade Marble

Laminate

G3005S Series - Sandstone

Marble Laminate

G3005B Series - Black Onyx

Marble Laminate

The slim hearth base allows you to further

customize your fireplace. Can be used with

cabinet or corner mantels.

Dimensions (WxHxD): 41 7/8" x 5/8" x 10"

HARDWOOD CORNER

HEARTH BASE

(Not Shown) - For Use With

Corner Mantels

G3008F Series - Walnut Stained

Hardwood Veneer

G3009U Series - Unfinished

G3010F Series - Stained Oak

Veneer

The hearth base creates a handsome riser for

the fireplace.

Dimensions (WxHxD): 52 1/2" x 6" x 23 3/4"

MANTEL TRIM (Not Shown)

G3002J Series - Jade Marble

Laminate

G3002S Series - Sandstone

Marble Laminate

G3002B Series - Black Onyx

Marble Laminate

35

106516

OWNER’S MANUAL

MANUAL BLOWER KIT

GA3700

Manual-variable control blower accessory.

THERMOSTATICALLY-

CONTROLLED BLOWER KIT

DA3610TA

Provides better heat distribution. Blower

turns off and on automatically, as needed.

Complete installation and operation instruc-

tions included in this manual.

ACCESSORIES

Continued

DUPLEX OUTLET KIT

GA3555 (Not Shown)

For recessed installation when accessory

blowers are used.

BRASS PERIMETER TRIM

KIT - GA6090 (Not Shown)

Optional three sided brass trim kit covers

unfinished edges around fireplace. Provides

a finished appearance with the class of brass.

BRASS LOUVER KIT

D6034 (Not Shown)

These louvers will give your fireplace an

elegant look and allows you to customize

your fireplace. They easily replace the stan-

dard black louvers by screwing into place.

DECORATIVE 2-PIECE

BRASS ACCENT TRIM

D5037 (Not Shown)

These strips have a magnetic backing which

makes installation and removal quick and

easy. They are designed to go at the top and

bottom of the glass door on BHDV units.

Note:

Remove the plastic film covering on

strips before installing on fireplace.

BRICK LINER

D8037A (Not Shown)

This brick liner adds a touch of style to your

direct-vent fireplace and comes with easy to

follow instructions for installation.

WALL MOUNTED

THERMOSTAT CONTROL KIT

GWMT1 (Not Shown)

Allows easy wall access to the operation of

your fireplace. This will allow you thermo-

static control with the convenience of a wall

switch.

RECEIVER AND HAND-HELD

REMOTE CONTROL KIT

GHRC SERIES

For all models. Allows the heater to be

turned on and off conveniently.

ON/OFF WALL MOUNT

SWITCH - GWMS2

(Not Shown)

For all models. Allows the heater to be

manually turned on and off.

AUTO

ON

OFF

COOLER

WARMER

TEMP

RECEIVER AND HAND-HELD

THERMOSTAT REMOTE

CONTROL KIT - GHRCTA

SERIES

Allows the fireplace to be operated in a

manually or thermostatically-controlled

mode. You can adjust your heat settings and

turn the heater on or off without leaving the

comfort of your easy chair.

36

106516

DIRECT-VENT FIREPLACE (NATURAL/PROPANE/LP)

®

BHDV34NB AND BHDV34PB

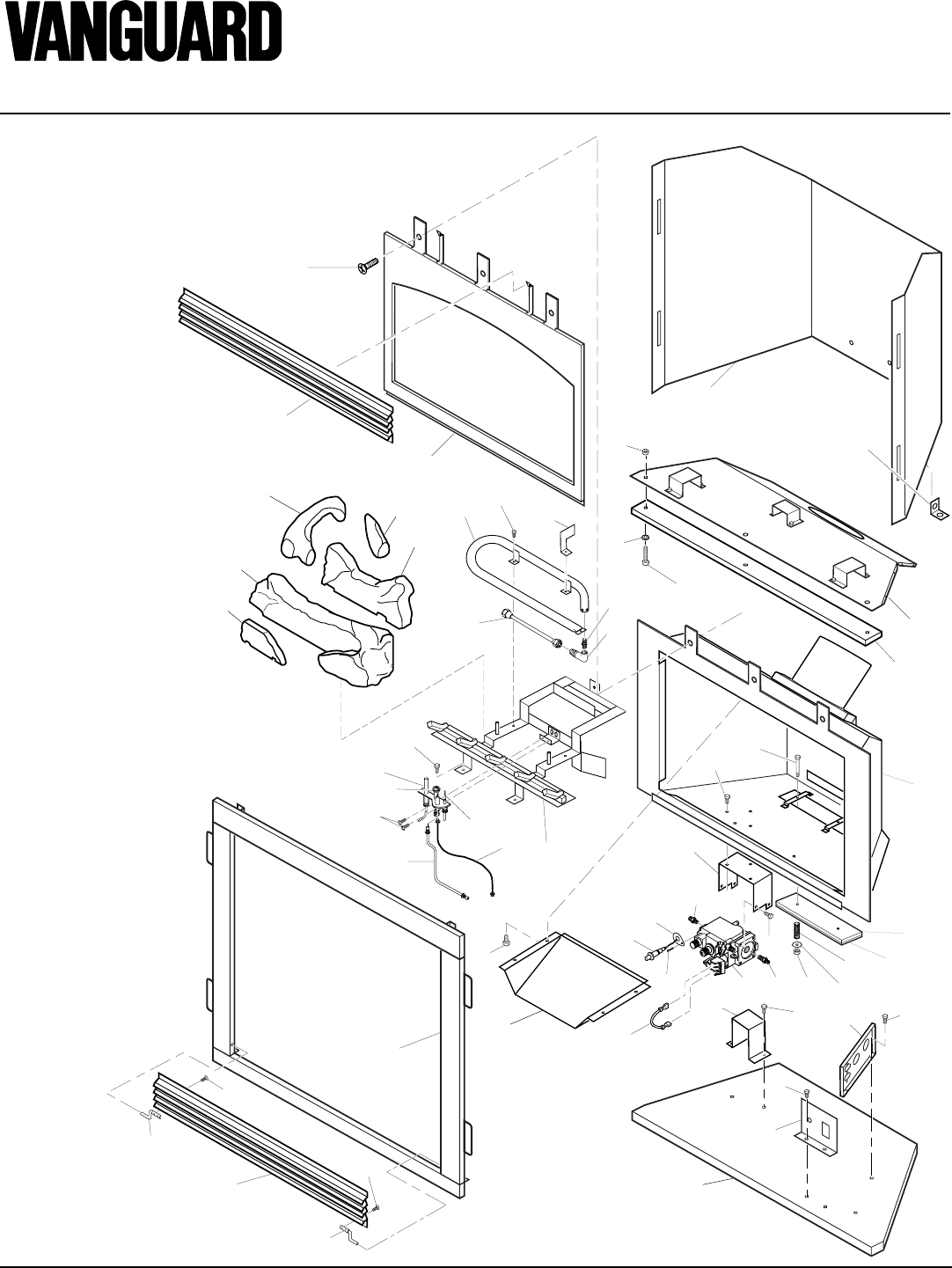

ILLUSTRATED

PARTS

BREAKDOWN

BHDV34NB

BHDV34PB

48

31-3

1

2

3

4

6

6

36

5

5

6

5

11 (Included in

Hardware Pack)

7

7

8

10

9

12

13

14

15

16

17

18

19

20

32

2122

23

24

25

26

27

28

28

29

30

33

32

32

34

35

40

37

38

41

39

44

42

43

6

46

45

47

31-2

31-4

31-1

31-5

37

106516

OWNER’S MANUAL

PARTS LIST

DIRECT-VENT FIREPLACE

BHDV34NB

BHDV34PB

This list contains replaceable parts used in your fireplace. When ordering parts, follow the

instructions listed under Replacement Parts on page 32 of this manual.

KEY

NO. PART NUMBER DESCRIPTION QTY.

1 104445-01 Top Outer Casing 1

2 105278-01 Outer Casing 1

3 105297-01 Bottom Outer Casing 1

4 104479-10BR Firebox Assembly 1

5 M11084-26 Screw, Hex 50

6 M11084-46 Screw, Hex 13

7 105394-01 Louver, Extruded 2

8 104443-01 Firebox Support, Right 1

9 104486-01 Firebox Support, Left 1

10 104482-01 Switch Bracket 1

11 104483-01 Floor Mounting Bracket 2

12 104491-01 Relief Cover 1

13 104518-01 Relief Cover Gasket 1

14 104527-01 Relief Spring 2

15 104528-01 Relief Washer 2

16 104537-01 Valve Bracket 1

17 104496-01 SIT Valve, Natural 1

104496-02 SIT Valve, Propane/LP 1

18 104497-01 SIT Pilot, Natural 1

104497-02 SIT Pilot, Propane/LP 1

19 104498-01 Thermocouple 1

20 104499-01 Thermopile 1

21 104500-01 Ignitor 1

22 104501-01 Ignitor Bracket 1

23 104502-01 Ignitor Screw 1

24 104503-01 Ignitor Wire 1

25 104504-01 Burner, Natural 1

104504-02 Burner, Propane/LP 1

26 104506-01 Orifice, Natural 1

104506-02 Orifice, Propane/LP 1

27 104507-01 Brass Elbow 1

KEY

NO. PART NUMBER DESCRIPTION QTY.

28 104508-01 Brass Fitting 2

29 104509-01 Aluminum Tubing Assy 1

30 104510-01 Pilot Tubing Assy 1

31 107165-01 Log Set

31-1 107344-02 Rear Log 1

31-2 107345-02 Front Log 1

31-3 107346-01 Crossover Log 1

31-4 107347-02 Log Piece 1

31-5 107348-01 Top Log 1

32 M10908-2 Screw 6

33 M12461-65 Screw 3

34 H5C4-20B Bolt 2

35 NTC-4C Locknut 2

36 M12461-26 Screw 4

37 104555-02CJ Grate Assembly 1

38 105775-14 Glass Door Assy 1

39 104615-02 Insulation 1

40 104490-02CJ Baffle 1

41 105450-01CK Front Assembly 1

42 104313-01 Hinge, Pin 1

43 104313-02 Hinge, Pin 1

44 104954-01 Screw 3

45 104963-01 Washer 3

46 104955-01 Nut 3

47 105575-01 Wire Harness 1

48 105325-01 Burner Baffle 1

PARTS AVAILABLE - NOT SHOWN

GA6060 Lava Rock 1

104529-01 Ember Material 1

LIMITED WARRANTY

DIRECT-VENT FIREPLACE

DESA International warrants this product to be free from defects in materials and components for four (4) years from the date of first

purchase, provided that the product has been properly installed, operated and maintained in accordance with all applicable instructions.

To make a claim under this warranty the Bill of Sale or cancelled check must be presented.

This warranty is extended only to the original retail purchaser. This warranty covers the cost of part(s) required to restore this heater

to proper operating condition and an allowance for labor when provided by a DESA Authorized Service Center. Warranty part(s) MUST

be obtained through authorized dealers of this product and/or DESA International who will provide original factory replacement parts.

Failure to use original factory replacement parts voids this warranty. The heater MUST be installed by a qualified installer in accordance

with all local codes and instructions furnished with the unit.

This warranty does not apply to parts that are not in original condition because of normal wear and tear, or parts that fail or become

damaged as a result of misuse, accidents, lack of proper maintenance or defects caused by improper installation. Travel, diagnostic cost,

labor, transportation and any and all such other costs related to repairing a defective heater will be the responsibility of the owner.

TO THE FULL EXTENT ALLOWED BY THE LAW OF THE JURISDICTION THAT GOVERNS THE SALE OF THE PRODUCT;

THIS EXPRESS WARRANTY EXCLUDES ANY AND ALL OTHER EXPRESSED WARRANTIES AND LIMITS THE DURA-

TION OF ANY AND ALL IMPLIED WARRANTIES, INCLUDING WARRANTIES OF MERCHANTABILITY AND FITNESS

FOR A PARTICULAR PURPOSE TO FOUR (4) YEARS ON ALL COMPONENTS FROM THE DATE OF FIRST PURCHASE;

AND DESA INTERNATIONAL’S LIABILITY IS HEREBY LIMITED TO THE PURCHASE PRICE OF THE PRODUCT AND

DESA INTERNATIONAL SHALL NOT BE LIABLE FOR ANY OTHER DAMAGES WHATSOEVER INCLUDING INDIRECT,

INCIDENTAL OR CONSEQUENTIAL DAMAGES.

Some states do not allow a limitation on how long an implied warranty lasts or an exclusion or limitation of incidental or consequential

damages, so the above limitation on implied warranties, or exclusion or limitation on damages may not apply to you.

This warranty gives you specific legal rights, and you may also have other rights that vary from state to state.

For information about this warranty write:

2701 Industrial Drive

P.O. Box 90004

Bowling Green, KY 42102-9004

www.desatech.com

INTERNATIONAL

KEEP THIS WARRANTY

WARRANTY INFORMATION

Model

Serial No.

Date Purchased

Always specify model and serial numbers when communicating with the factory.

We reserve the right to amend these specifications at any time without notice. The only warranty applicable is our standard written

warranty. We make no other warranty, expressed or implied.

106516-01

Rev. A

03/00

NOT A UPC

106516 01
