Vecima Networks TR700B TR700B UHF Transceiver User Manual TR700B Manual
Vecima Networks Inc. TR700B UHF Transceiver TR700B Manual
Users guide
UHF
Transceiver
TR700B
INSTALLATION AND OPERATION GUIDE
FOR SYSTEM OPERATORS
VCom Inc.
TR700B Manual; ml_tr700B_02 (March 2004)
Approved: C.H.
ii
Proprietary to VCom Inc.
All rights reserved.
No part of this publication may by reproduced in any form or by any means or used to make any derivative work (such as translation,
transformation or adaptation) without written permission from VCom Inc.
VCom Inc. reserves the right to revise this publication and to make changes in content from time to time without obligation on the part of VCom
Inc. to provide notification of such revision or change.
VCom Inc. provides this guide without warranty of any kind, either implied or expressed, including, but not limited to, the implied warranties of
merchantability and fitness for a particular purpose. VCom Inc. may make improvements or changes in the product(s) described in this
manual at any time.
TR700B Manual; ml_700B_02 (March 2004); Approved: C.H.
Specifications subject to change without notice — Printed in Canada
VCom Inc.
TR700B Manual; ml_tr700B_02 (March 2004)
Approved: C.H.
iii
Thank-you for purchasing this product
and welcome to VCom!
You have chosen an innovative solution from a leading
technology design center in the ongoing TV & data delivery
revolution.
No doubt you’ve been thinking that the future of your television delivery system includes new technologies such
as Digital TV, Internet Over Cable, Wireless Cable. By selecting VCom, you are benefiting from the same
design powerhouse that since 1988 has created custom RF and digital products for technology leaders such as
AT&T, Cisco Systems, Cogeco, Comcast, and Cox Communications.
VCom designs and manufactures:
✔
✔✔
✔Agile CATV Modulators ✔
✔✔
✔256 QAM Upconverters ✔
✔✔
✔Digital Video Modulators
✔
✔✔
✔Frequency Translators ✔
✔✔
✔Spread Spectrum Devices ✔
✔✔
✔Off-Air Demodulators
✔
✔✔
✔Video-On-Demand Products ✔
✔✔
✔Wireless Cable MMDS ✔
✔✔
✔Wireless Cable LMDS
✔
✔✔
✔Frequency Stackers ✔
✔✔
✔MMDS Transceivers ✔
✔✔
✔Satellite Receivers
and more! Designs to fill the market needs of the CATV industry – both foreign and domestic.
For additional product or corporate information, contact us:
On the web at: www.vcom.com
By sending email to: sales@vcom.com
By telephone: (306) 955-7075
By fax: (306) 955-9919
By snail mail: VCom Inc.
150 Cardinal Place
Saskatoon, SK Canada S7L 6H7
VCom's Corporate Mandate
is to be a leading worldwide designer and manufacturer of state-
of-the-art communications equipment and components. Through
the remarkable success of our customers and business partners,
VCom innovations are achieving this goal.
VCom Inc.
TR700B Manual; ml_tr700B_02 (March 2004)
Approved: C.H.
iv
SAFETY PRECAUTIONS
1. Before installing and operating this equipment, read all Safety, Installation and Operating sections. Retain this
manual for future reference.
2. Follow all instructions — Failure to do so may result in damage to the unit or severe personal injury.
3. Servicing should not be attempted by the user. There are no user serviceable parts inside. Refer all servicing
to factory qualified personnel.
4. Shock Hazard — An electrical shock hazard exists when the chassis cover is removed as is required to set
internal controls. Always disconnect power from the unit before removing the cover.
5. Cleaning — Do not use liquid or aerosol cleaners. Use a damp cloth for cleaning.
Warning
Do not work on the system or connect or disconnect cables during periods of lightning activity.
CAUTION:
To comply with FCC RF exposure requirements in section 1.1307, a minimum separation
distance of 1.5 meters is required between this antenna and all persons.
LES PRÉCAUTIONS DE SÉCURITÉ
1. Avant d'installer ou d'opérer cet équipement, lisez, toutes les sections de sécurités, d'installations et
d'opérations. Gardez ce manuel comme source de référence.
2. Suivez toutes instructions - si non, vous risquez d'endommager la machine ou de vous blesser
sérieusement.
3. N'essayez, pas de réparer cet équipement vous même. Référez toutes revisions nécessaire au personnel
qualifié de la manufacture.
4. Risque de choc - Il y a un risque de décharge électrique qui existe quand la couverture du châssis est
enlevée, comme est nécessaire pour ajuster les contrôlcs internes. Il faut toujours couper l'électricité avant
d'enlever le couvercle pour faire aucun ajustage.
5. Le nettoyage - n'utilisez pas de nettoyeurs aérosols ou liquides. Utilisez un tissu humide pour nettoyer.
Attention
Ne pas travailler sur le système ni brancher ou débrancher les câbles pendant un orage du
foudre.
CAUTION: To comply with FCC RF exposure requirements in section
1.1307, a minimum separation distance of 1.5 meters is required between
this antenna and all persons.
☛
Important Installation Instructions
VCom Inc.
TR700B Manual; ml_tr700B_02 (March 2004)
Approved: C.H.
v
INDEX
1.0 GENERAL INFORMATION .....................................................................................................6
1.1 Functional Overview ......................................................................................................................................6
1.2 Module Features .............................................................................................................................................6
1.3 Specifications...................................................................................................................................................7
2.0 INSTALLATION .......................................................................................................................8
2.1 Unpacking the Unit.........................................................................................................................................8
2.2 Mounting the Unit...........................................................................................................................................8
2.2.1 Mounting the TR700B ................................................................................................................................................ 8
2.2.2 Mounting the Antenna................................................................................................................................................. 9
2.3 Connection to the Antenna ............................................................................................................................9
2.4 Connection to the Power Inserter and Cable Modem..............................................................................11
2.5 Waterproofing Connections ........................................................................................................................12
3.0 WARRANTY STATEMENT AND SERVICE POLICY..........................................................14
3.1 Warranty Statement.....................................................................................................................................14
3.2 Service Policies: How to Return an Item for Service:..............................................................................14
3.3 Repair Charges and Warranty Exemptions..............................................................................................15
VCom Inc.
TR700B Manual; ml_tr700B_02 (March 2004)
Approved: C.H.
6
The VCom TR700B is an UHF Transceiver for use in wireless systems. The TR700B integrates an LNA,
upconverter, power amplifier, RF and IF diplexers to provide a one-box solution for two-way wireless RF
communications. The TR700B and antenna are situated outdoors and connected to a cable modem indoors
by standard RG-59 cable. A single RF connector on the weatherproofed enclosure provides the interface to the
transmit/receive antenna for rapid setup. The Transceiver is configured to work with standard cable modem
frequency plans and levels, permitting direct connection. The Transceiver also includes an RF mute function to
reduce power consumption and broadband noise emissions.
• +24 dBm output for high reverse channel system gain
• Low Phase Noise
• Automatic transmit RF mute (transmits only when an IF signal is present)
• Fully weatherized unit, suitable for outdoor mounting
VCom Inc.
TR700B Manual; ml_tr700B_02 (March 2004)
Approved: C.H.
7
!"
TRANSMITTER SPECIFICATIONS
IF Input Frequency 36-42 MHz (TR700B)
44.375-50.375 MHz (TR700B-IF1)
RF Output Frequency 710-716 MHz
Linear Output Power +24 dBm at RF port
Output P1dB +27 dBm at RF port
Spectral Mask FCC CFR 47 Part 27.53
Gain 20 ± 2 dB at 23°C
Gain Flatness (Frequency Response) ± 1.0 dB over 710-716 MHz
Gain Stability over Temperature ± 2.0 dB over -30 to +60°C ambient
Phase Noise -87 dBc/Hz @ 10 kHz
Spectral inversion No spectral inversion
IF Level for RF Activation -45 dBm maximum
RF Activation/Mute Response Time <2 microseconds
RECEIVER SPECIFICATIONS
Frequency 740-746 MHz
Gain 24 ± 2 dB at 23°C
Gain Flatness (Frequency Response) ± 1.0 dB over 740-746 MHz
Noise Figure <5 dB typical, 6.0 dB maximum
Transmit-Receive Isolation 88 dB (see IF port spurious specification below)
GENERAL
Frequency Stability ± 20 kHz (-30 to +60°C)
Frequency Stability over time < ±30 kHz over 10 years
RF Connector F female, 75 ohms
IF Connector F female, 75 ohms
Input/Output VSWR 2:1
DC Supply +18 to 28 V, (+24V nominal), +10W
Operating Ambient Temperature -30 to +60°C
Size 6" x 8" x 0.9" (15.24 x 20.32 x 2.29 cm)
Mounting Pole mount, 1” to 1.75” diameter pole
RF PORT SPECIFICATIONS
RF Return Loss Better than 9 dB in transmit and receive RF bands
RF Spurious Emissions FCC CFR 47 Part 27
IF PORT SPECIFICATIONS
IF Return Loss Better than 10 dB over transmit and receive IF bands
IF Spurious Emissions -50 dBm from 100-860 MHz except 740-746 MHz
-85 dBm, 740-746 MHz
Specifications subject to change without notice.
VCom Inc.
TR700B Manual; ml_tr700B_02 (March 2004)
Approved: C.H.
8
#!$%&#
Carefully remove the equipment from its packing material and set it on a solid surface, such as a table or desk.
If it appears damaged in any way, notify the carrier, and keep all packing materials for inspection by the carrier’s
agent.
%&#
%&'(

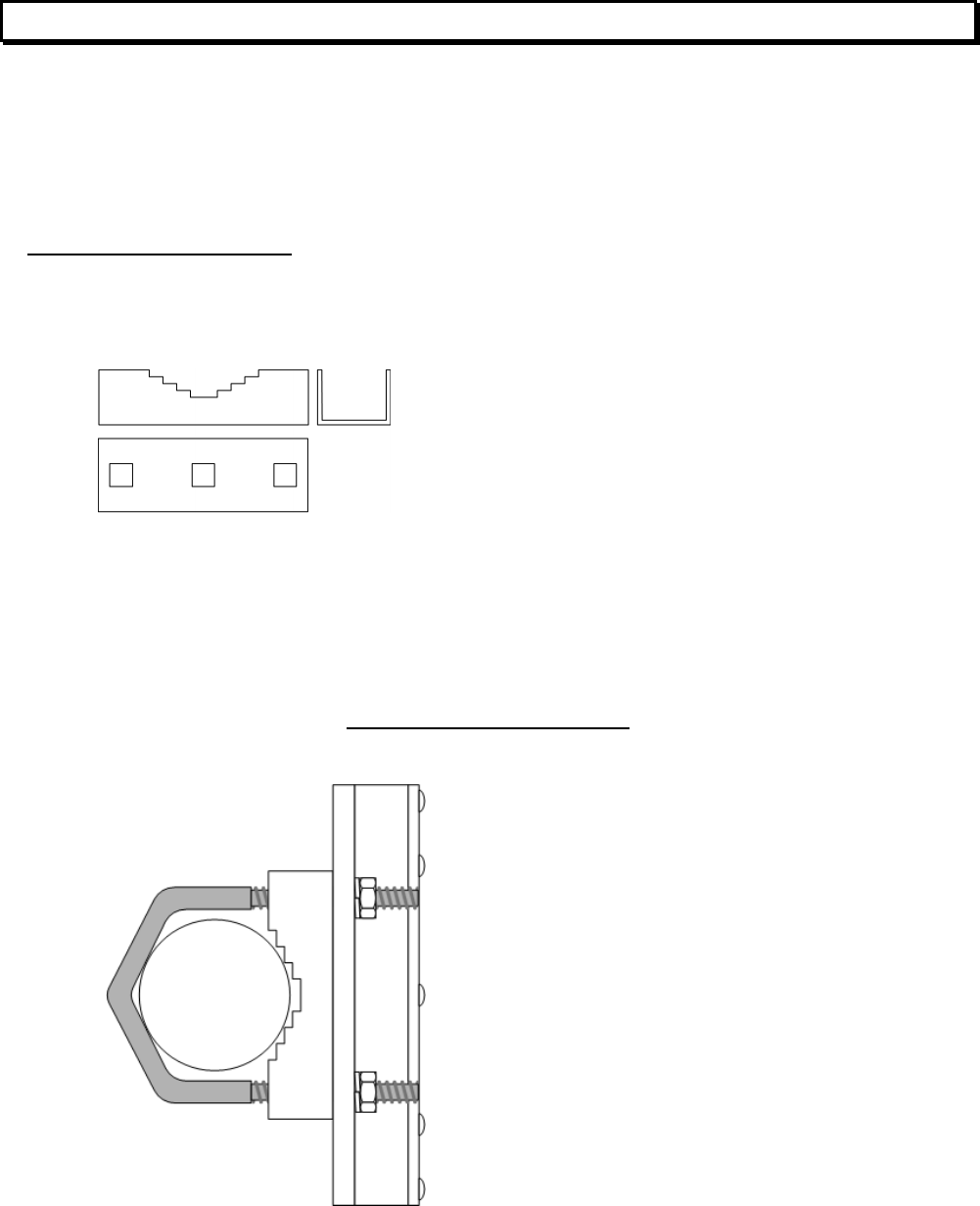

The following hardware is included in the box for mounting the TR700B to the pole:
• 1 pole catch
• 1 V-bolt
• 2 ¼”x20 flange locknuts for connecting V-bolt and pole catch to the pole
The TR700B was designed for mounting to a pole with a diameter of 1.0" to 1.75". Please ensure that the
pole used is attached securely to the building or other mounting location. Simply secure the TR700B unit to a
pole as shown in Figure 2.2A with F-Connector on the bottom.
DIAGRAM 2.2A: MOUNTING THE UNIT
Top View of TR700B
Mounted to the Pole
VCom Inc.
TR700B Manual; ml_tr700B_02 (March 2004)
Approved: C.H.
9
%&
Mount the antenna according to the manufacturer’s instructions.
The TR700B is intended for use with planar arrays and Yagi antennas. Please consult table 2.2B
for further information.
Table 2.2B: Antenna List
Transceiver Power Antenna Type Antenna Gain
[Watts] [dBm] [dBi]
0.25 +24 Yagi 10 dBi
0.25 +24 Flat planar array 9 dBi
0.25 +24 Window mount planar array 7 dBi

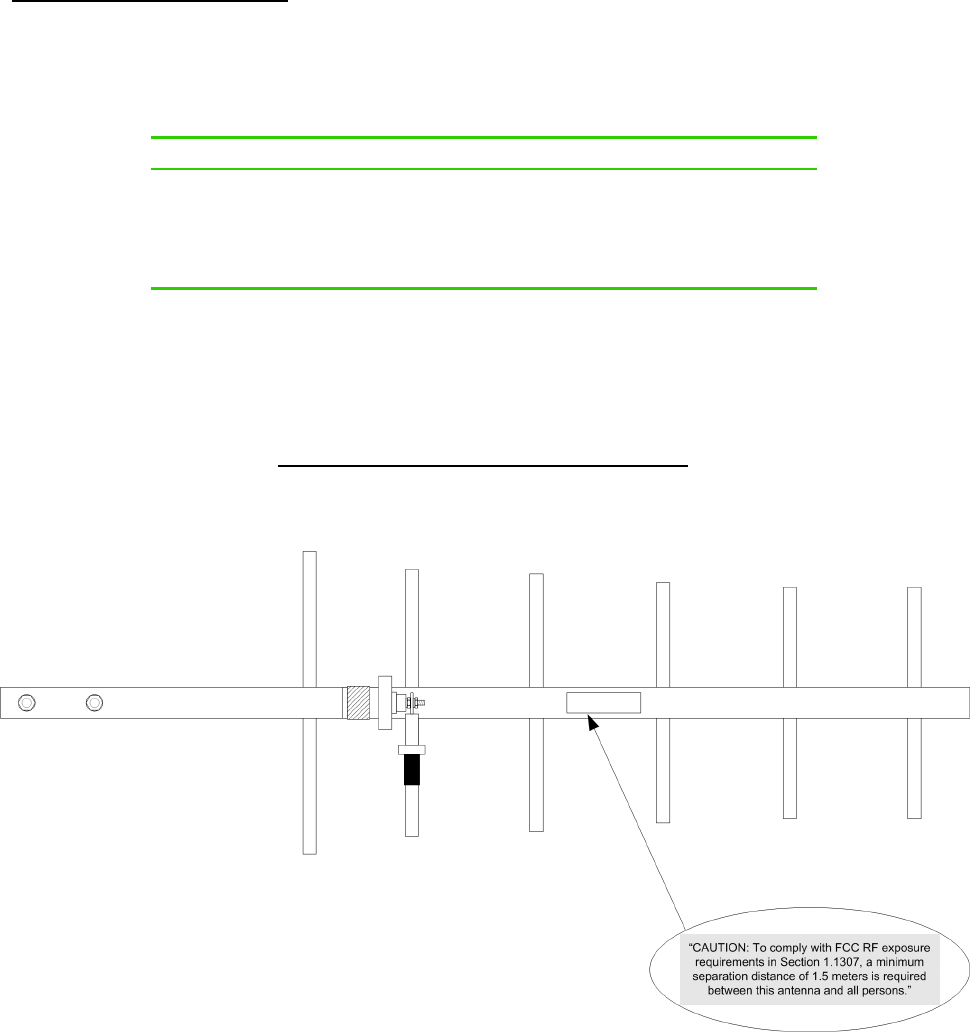

Included with the TR700B unit is a self-adhesive label for application to the antenna. To operate
the TR700B in compliance with FCC regulations, you must apply the included label to the antenna.
Peel off the protective backing from the label and affix it to the antenna such that the label is
readable from a distance of 5 feet.
DIAGRAM 2.2C: APPLYING THE SELF-ADHESIVE LABEL
VCom Inc.
TR700B Manual; ml_tr700B_02 (March 2004)
Approved: C.H.
10
)&
Connect the TR700B to the Antenna via the N-Connector
DIAGRAM 2.3A: CONNECTION TO THE ANTENNA
VCom Inc.
TR700B Manual; ml_tr700B_02 (March 2004)
Approved: C.H.
11
*)&+),-

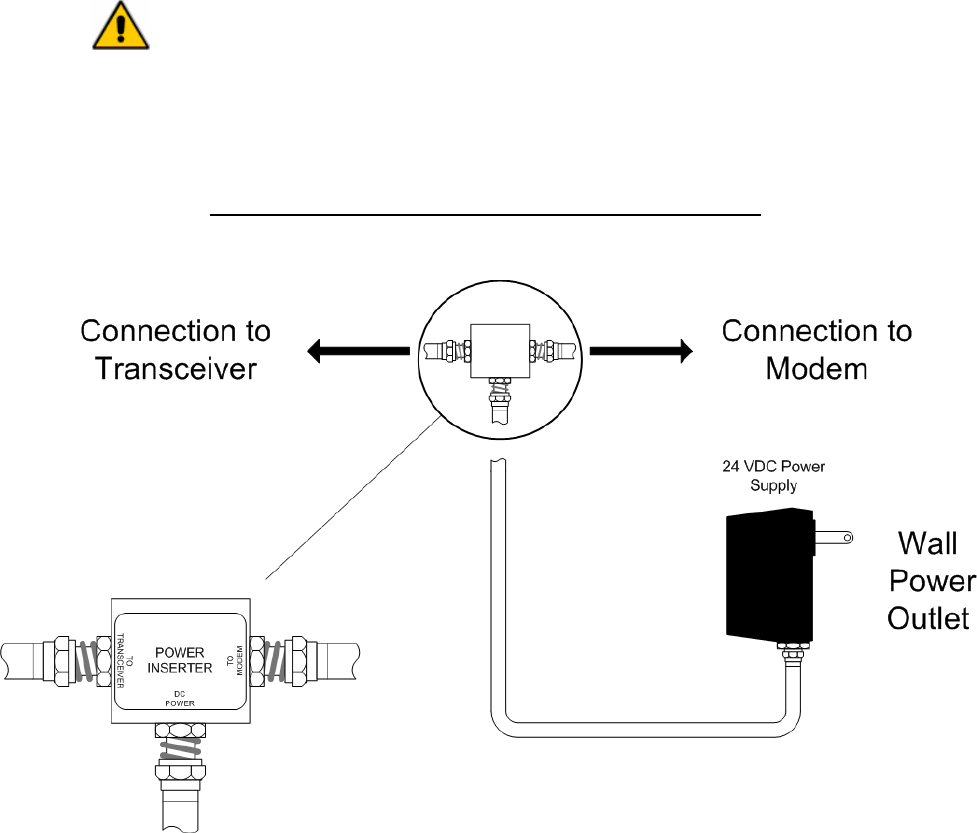

Connect the TR700B F-Connector to the power inserter, located indoors with the cable modem. Connect the
power inserter to the Cable Modem. If the TR700B is equipped with the optional self install feature, insure that
the power inserter is connected to the Cable Modem, only after the antenna is aligned.
The power inserter has three connections:
DC POWER Connect to wall adapter with RG-59 cable with F connectors
TO MODEM Connect to cable modem (install modem only after the antenna is aligned)
TO TRANSCEIVER Connect to TR700B
WARNING!
If the power inserter is not connected correctly, the TR700B will not
operate, and there is the potential to damage the cable modem.
Ensure that all wires and cables are hooked up before plugging into the
AC adapter/power supply (i.e. hook up to the power supply last).
DIAGRAM 2.4A: CONNECTION TO CABLE MODEM VIA POWER INSERTER
VCom Inc.
TR700B Manual; ml_tr700B_02 (March 2004)
Approved: C.H.
12
./!"%)
Many transceiver problems can be attributed to environmental conditions (including vibration), which can loosen
cables and permit moisture to penetrate the connectors. It is highly recommended to seal the connectors using
a technique similar to the one described below. This will provide moisture protection and keep the connections
tight. For your convenience, VCom has provided two 6 inch lengths of rubber self-amalgamating sealing tape
to use on the two connections of the TR700B. The diagrams below show the N connector, but the F connector
also should be sealed using the same technique.

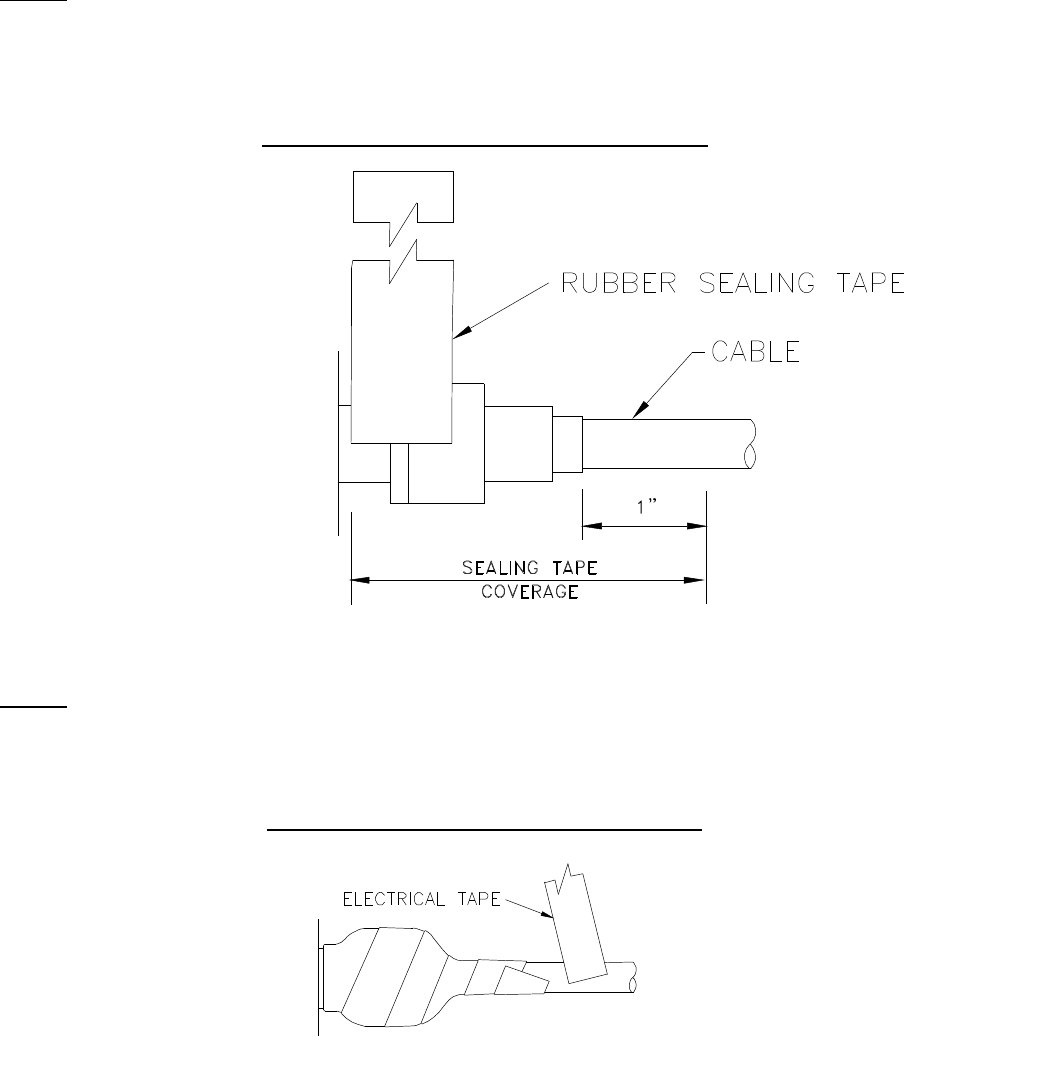

STEP 1
Use one 6” section of rubber sealing tape. Starting at the TR700B end, stretch the tape and wrap it around the
connector as close as possible to the wall of the TR700B. Overlap the tape by approximately one-half of it’s
width so that it can form a seal with itself. Extend the wrapping to approximately one inch past the end of the
connector.
DIAGRAM 2.5A: WATERPROOFING CONNECTION – STEP 1
STEP 2
Cover the sealing tape with electrical tape (not provided). Start approximately one inch further down the cable,
and stretch the tape, overlapping by one-half. Wrap to the TR700B end and without breaking the tape, wrap
back down to the cable end.
DIAGRAM 2.5B: WATEPROOFING CONNECTION – STEP 2
VCom Inc.
TR700B Manual; ml_tr700B_02 (March 2004)
Approved: C.H.
13

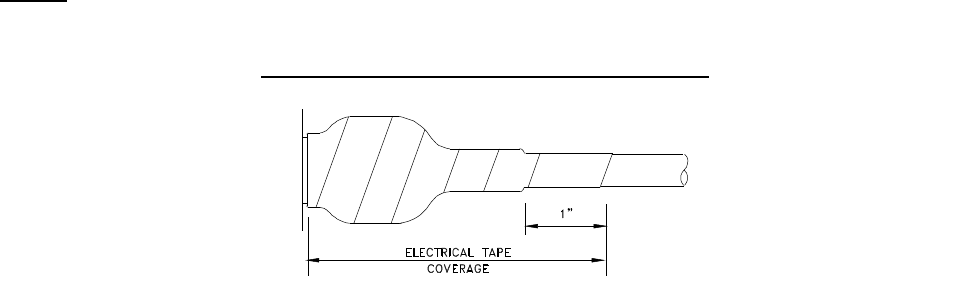

STEP 3
When done, the connection should be tightly wrapped with tape, with a good seal to the cable.
DIAGRAM 2.5C: WATERPROOFING CONNECTION – STEP 3
VCom Inc.
TR700B Manual; ml_tr700B_02 (March 2004)
Approved: C.H.
14
/0 1 2)+)0
/3 -
VCom warrants its products to be free from defects in workmanship or materials for a period of two years. The
warranty begins on the date of the original shipment from VCom to its customer. No claim may be allowed for
expenses incurred in installation or use. No other expressed or implied warranties shall apply to the goods sold.
VCom is not responsible for delayed shipments, other loss beyond VCom’s control, or consequential damages
of any kind arising in connection with the use of its products. This warranty is a return-to-factory warranty only.
During the warranty period VCom will at its option, replace, repair or refund the price paid for any item which is
returned for service. This warranty does not apply to units that have been physically or environmentally abused.
+45-" 4
Before returning any item for service, an R.M.A. (Returned Material Authorization) number must be assigned by
VCom. A unique R.M.A. number will be assigned for each item being returned. When requesting an R.M.A.
number, please be prepared to provide the model, VCom serial number, original invoice number, your
purchase order number and an adequate fault description. The serial number of a unit can be found on a
barcode label similar to the one pictured below. R.M.A. service is available Monday to Friday from 8:30 a.m. to
4:30 p.m. CST (statutory holidays excepted).
To obtain an R.M.A. number you may:
Call: (306) 955-7075, press ‘0’ for Operator, or ‘3’ for Service Dept.
Fax: (306) 384-0086 — Attention: R.M.A. Request
Email: support@vcom.com
Once an R.M.A. number has been assigned, please refer to it in all correspondence and make certain that all
applicable R.M.A. numbers are clearly marked on the outside of each package being returned. You must also
ensure that each product is shipped to VCom in its original shipping container (or equivalent) via Prepaid carrier,
with appropriate insurance and customs documentation (where required). VCom will not accept collect
shipments, damaged shipments or shipments unaccompanied by an R.M.A. number.
For items still under Warranty – Items will be returned from VCom Inc. to its customer via prepaid ground
carrier. The customer is responsible for any additional costs incurred, including custom clearance and duties.
Any alternate means of shipment must be requested by the customer and will be subject to additional charges.
For items no longer under Warranty – Items will be returned from VCom Inc. to its customer via prepaid
ground carrier at the customer’s expense. The customer is responsible for any additional costs incurred,
including custom clearance and duties. Any alternate means of shipment must be requested by the customer
and will be subject to additional charges.
Shipping Instructions will be provided by the repair center when the RMA number is sent to the
customer.
VCom Inc.
TR700B Manual; ml_tr700B_02 (March 2004)
Approved: C.H.
15
!)&%/36-!
Items returned beyond the warranty period or items that do not qualify for warranty service are subject to
additional out-of-warranty repair charges. Descriptions of these charges and warranty exemptions are below:
1) Repair turnaround time is typically 5-14 business days after receipt of the item at VCom. A Flat Rate Repair
Charge will apply to all out-of-warranty items. Flat Rate Repair Charges are subject to change without
notice.
2) Any faults due to customer error (ie - incorrect set-up or configuration settings) are subject to the current
Test Fee and will be exempt from warranty.
3) Items returned with inadequate fault descriptions are subject to the current Test Fee and are
exempt from warranty.
4) In the event that no fault is found, the item is subject to the current Test Fee and will be
exempt from warranty.
5) Any product exhibiting external damage (either from shipping, improper handling or use) will be subject to
inspection. If said damages are determined to be the cause of failure, the item will be exempt from warranty.
All repairs to correct the external damage are subject to Time & Materials Charges (parts and labor at
current rates).
6) Items with damage caused by unauthorized repairs or by external devices are subject to current out-of-
warranty Flat Rate Repair Charges and are exempt from warranty.
7) All products returned for Factory Optioning are subject to the applicable current Option Charge plus Test
Fee. Factory-optioned products carry the balance of the original warranty or a 90 day warranty, whichever is
greater.
All out-of-warranty repairs must be approved by the customer in writing. No repairs will be made until the
customer’s Purchase Order or Out-Of-Warranty Repair Authorization is received.
150 Cardinal Place
Saskatoon, Saskatchewan
S7L 6H7
Canada
Tel: (306) 955-7075
Fax: (306) 955-9919
www.vcom.com
sales@vcom.com
