Veebeam SC4113D Ripcord2 UWB IC User Manual Visio UG SC4113D vsd

Veebeam Limited Ripcord2 UWB IC Visio UG SC4113D vsd

Users Guide

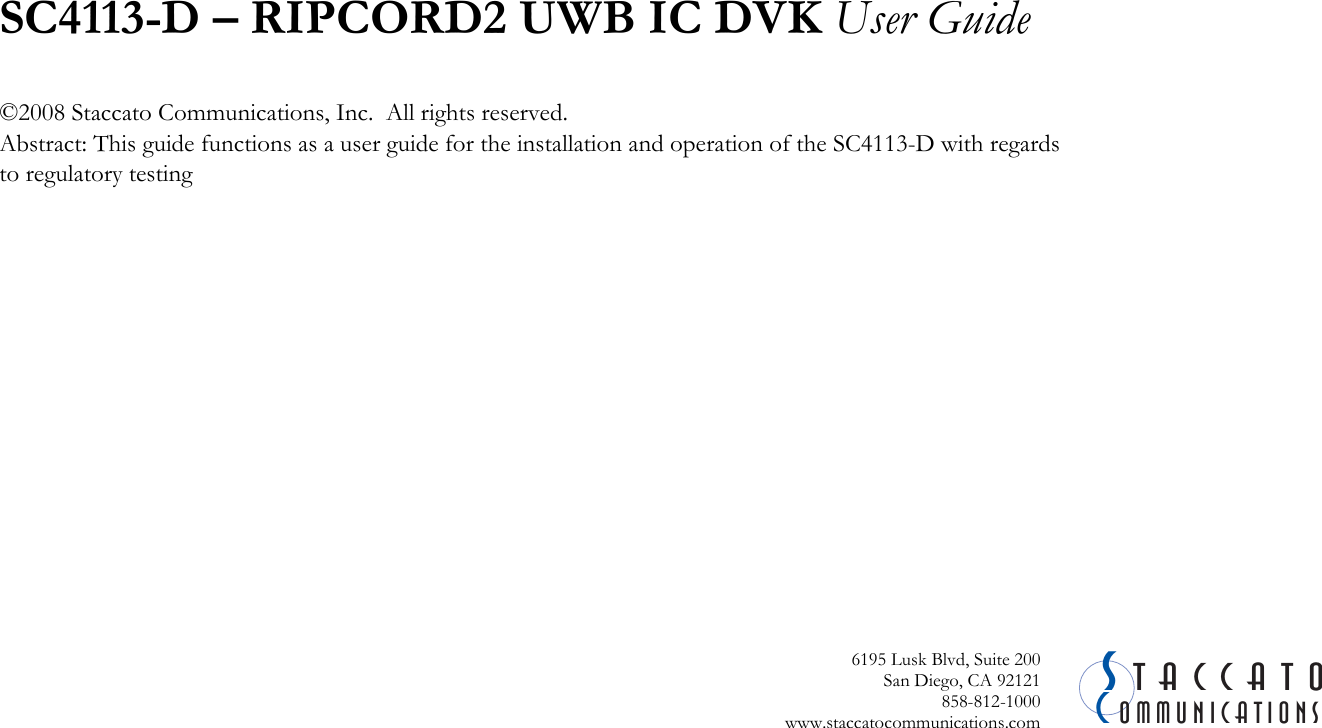

CSommunicationstaccato6195 Lusk Blvd, Suite 200San Diego, CA 92121 858-812-1000 www.staccatocommunications.com SC4113-D – RIPCORD2 UWB IC DVK User Guide©2008 Staccato Communications, Inc. All rights reserved.Abstract: This guide functions as a user guide for the installation and operation of the SC4113-D with regards to regulatory testing

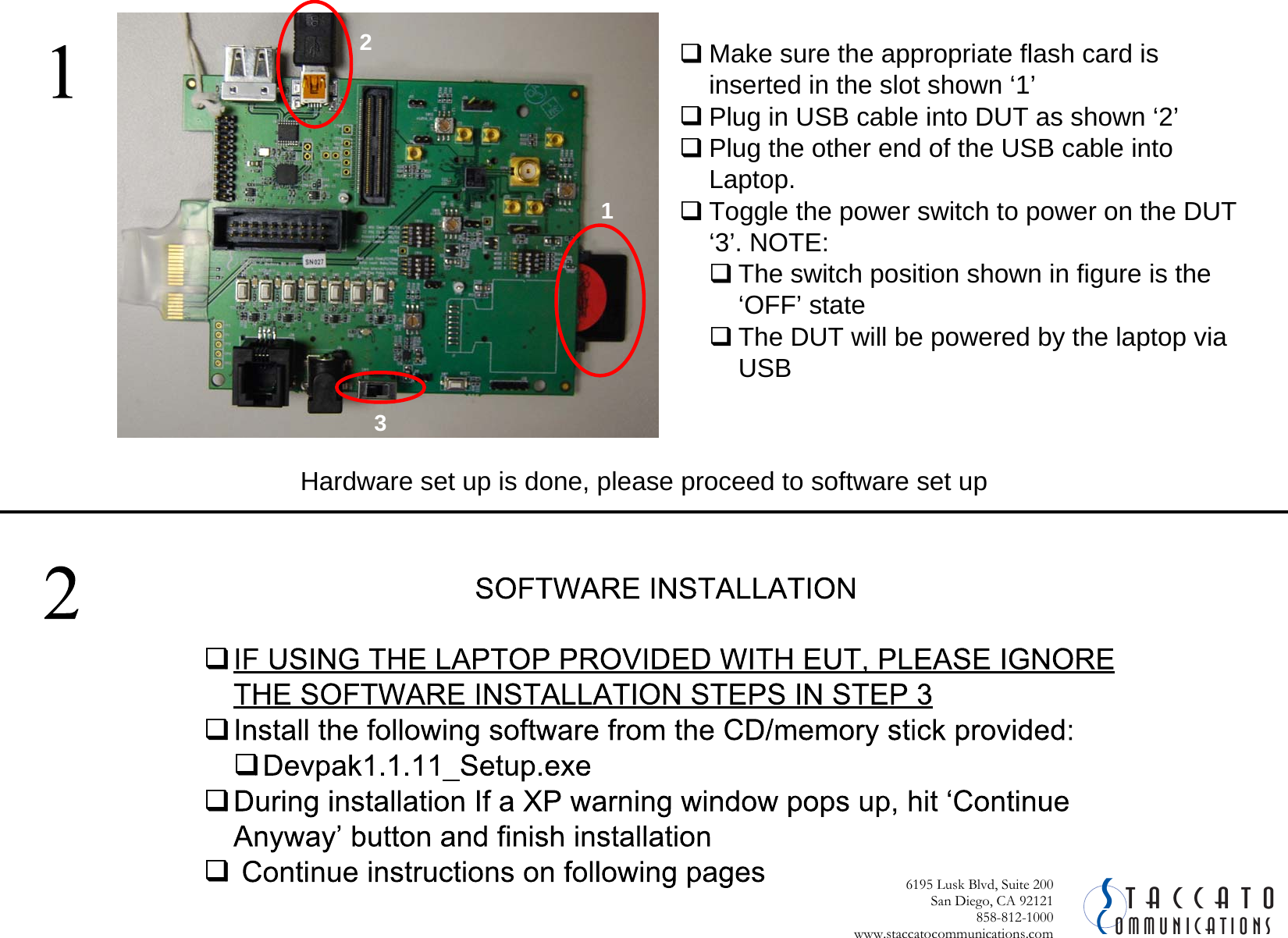

CSommunicationstaccato6195 Lusk Blvd, Suite 200San Diego, CA 92121 858-812-1000 www.staccatocommunications.com Make sure the appropriate flash card is inserted in the slot shown ‘1’Plug in USB cable into DUT as shown ‘2’Plug the other end of the USB cable into Laptop. Toggle the power switch to power on the DUT ‘3’. NOTE:The switch position shown in figure is the ‘OFF’ stateThe DUT will be powered by the laptop via USB Hardware set up is done, please proceed to software set up312

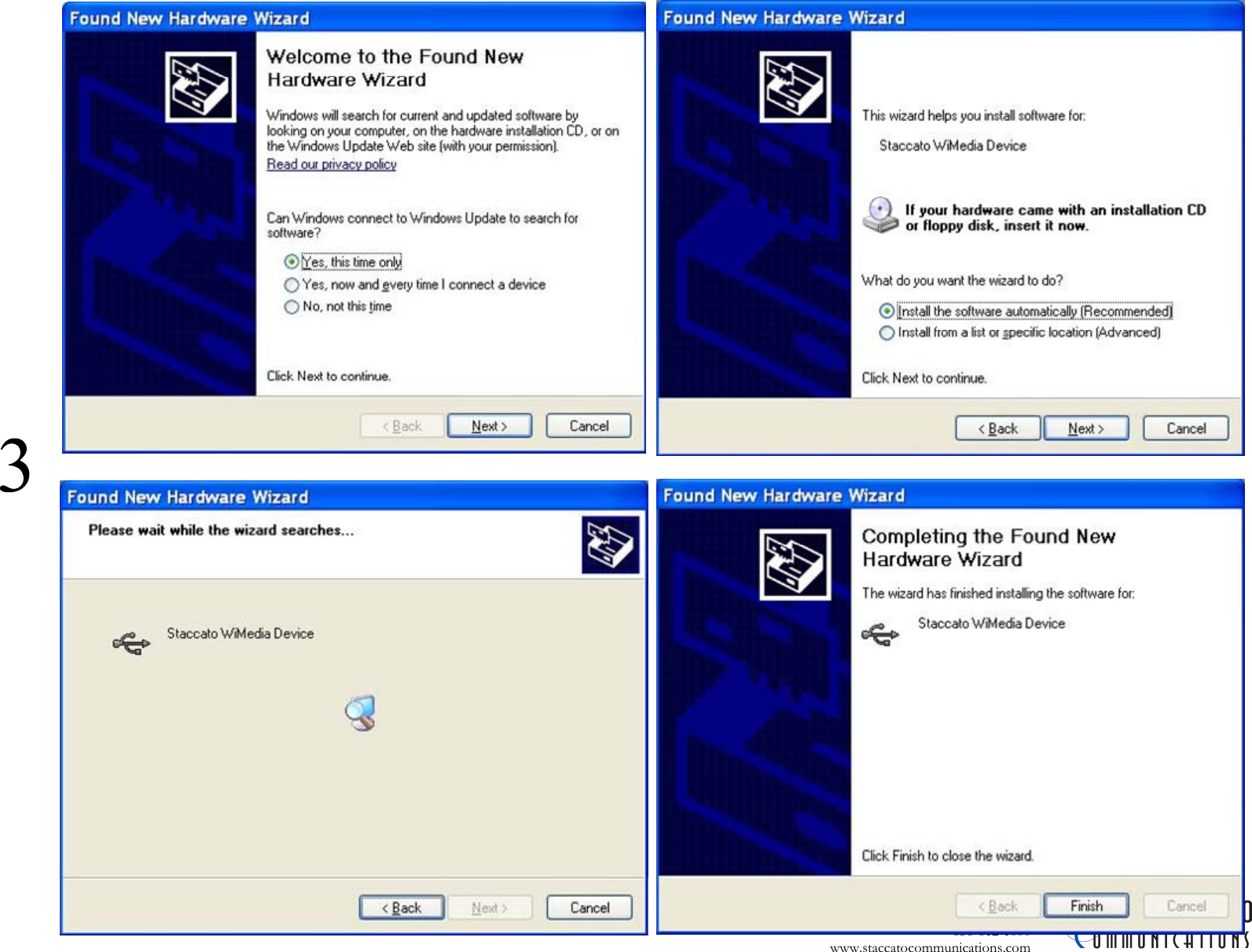

CSommunicationstaccato6195 Lusk Blvd, Suite 200San Diego, CA 92121 858-812-1000 www.staccatocommunications.com
CSommunicationstaccato6195 Lusk Blvd, Suite 200San Diego, CA 92121 858-812-1000 www.staccatocommunications.com Launch UWB PHY Diagonostics Start Programs >Staccato Developers Pak ScriptsEnter ‘0’ for connection via USB and press return ‘tk’ window should launch as shown above
CSommunicationstaccato6195 Lusk Blvd, Suite 200San Diego, CA 92121 858-812-1000 www.staccatocommunications.com
CSommunicationstaccato6195 Lusk Blvd, Suite 200San Diego, CA 92121 858-812-1000 www.staccatocommunications.com Select the appropriate BG(1/3/6)Select TFC(1-10) Hit ‘Check PLLs’ button At this point you should see the display indicated in the red block. PLL1, PLL2 and MAC PLL must indicate ‘Locked’ in order to proceed. At this point the DUT is ready to transmitHit Transmit to start continuous transmission

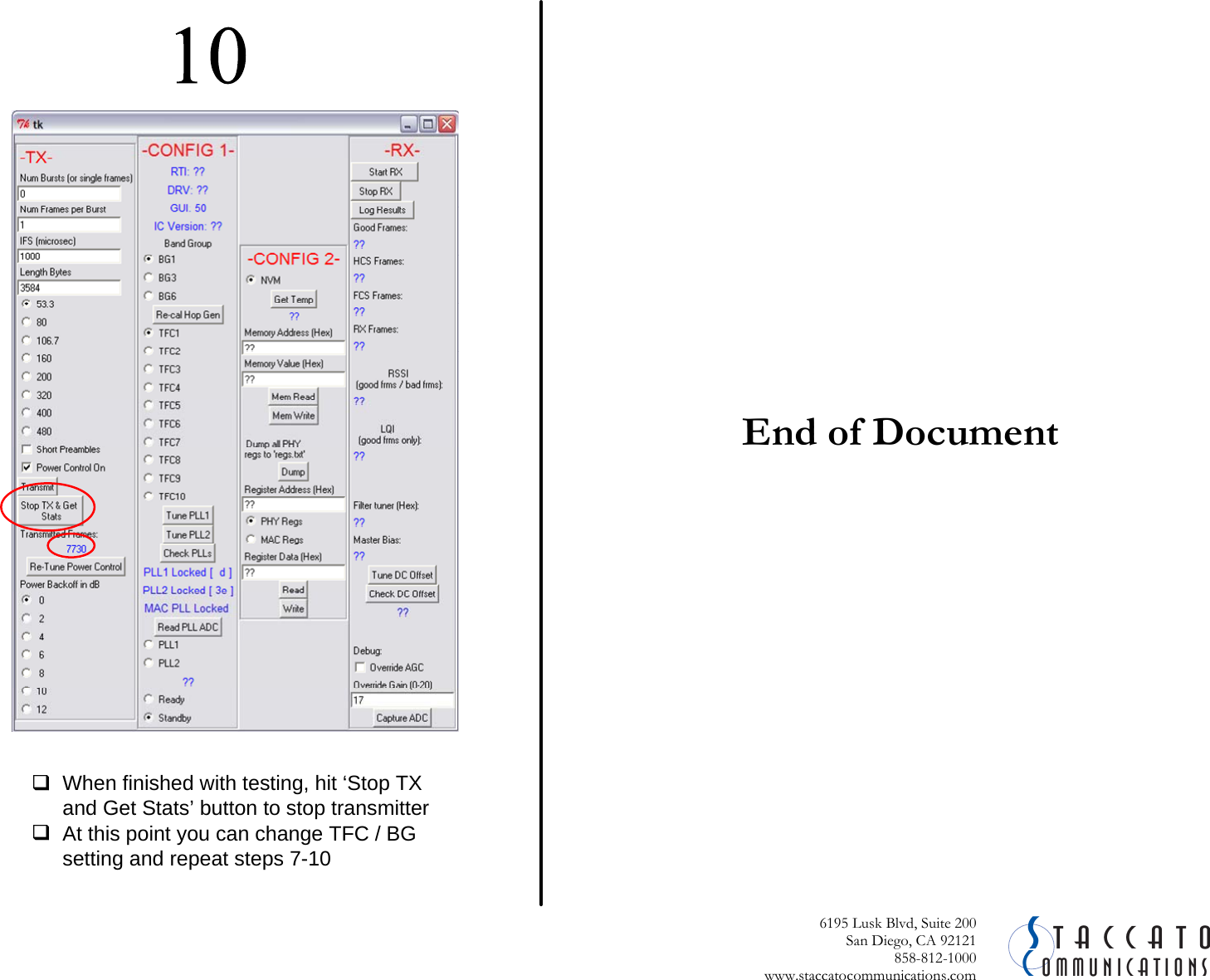

CSommunicationstaccato6195 Lusk Blvd, Suite 200San Diego, CA 92121 858-812-1000 www.staccatocommunications.com When finished with testing, hit ‘Stop TX and Get Stats’ button to stop transmitter At this point you can change TFC / BG setting and repeat steps 7-10 End of Document
