INSTALLER / CONSUMER

SAFETY INFORMATION

20004188 1/07 Rev. 18

PLEASE READ THIS MANUAL

BEFORE INSTALLING AND USING

APPLIANCE.

WARNING!

IF THE INFORMATION IN THIS

MANUAL IS NOT FOLLOWED

EXACTLY, A FIRE OR EXPLOSION

MAY RESULT CAUSING

PROPERTY DAMAGE, PERSONAL

INJURY OR LOSS OF LIFE.

FOR YOUR SAFETY

Installation and service must be

performed by a qualified installer,

service agency or the gas suppler.

WHAT TO DO IF

YOU SMELL GAS:

• Do not try to light any appliance.

• Do not touch any electric switch; do

not use any phone in your building.

• Immediately call your gas supplier

from your neighbor’s phone. Follow

the gas supplier’s instructions.

• If you cannot reach your gas supplier,

call the fire department.

DO NOT STORE OR USE

GASOLINE OR OTHER

FLAMMABLE VAPORS AND

LIQUIDS IN THE VICINITY OF THIS

OR ANY OTHER APPLIANCE.

This appliance may be installed in an

after market permanently located

manufactured (mobile) home where not

prohibited by local codes.

This appliance is only for use with the

type of gas indicated on the rating plate.

This appliance is not convertible for use

with other gases unless a certified kit is

used.

Radiance

Direct Vent/Natural Vent

Gas Heater

Model RDVOD: 3225 thru 3232,

3350 thru 3354, 3360 thru 3369,

3390 thru 3399

Homeowner’s Installation

and Operating Manual

CERTIFIED

D

E

S

I

G

N

C

E

R

T

I

F

I

E

D

4188

Radiance

cover

4/01

INSTALLER: Leave this manual with the appliance.

CONSUMER: Retain this manual for future reference.

22

Radiance Direct Vent/Natural Vent Gas Heater

20004188

PLEASE READ THE INSTALLATION & OPERATING INSTRUCTIONS BEFORE USING APPLIANCE.

Thank you and congratulations on your purchase of a Vermont Castings stove.

IMPORTANT: Read all instructions and warnings carefully before starting installation. Failure to follow these

instructions may result in a possible fire hazard and will void the warranty.

Table Of Contents

Installation & General Information ....................................................................................................3

Operating Instructions Stove Dimensions .......................................................................................................4

Installation Requirements ...........................................................................................5

Locating the Stove ......................................................................................................5

Clearance Requirements ............................................................................................5

Parallel Installation ......................................................................................................6

Corner Installation .......................................................................................................6

Wall and Ceiling Clearances .......................................................................................6

Hearth Requirements ..................................................................................................6

Gas Specifications ......................................................................................................7

Gas Inlet and Manifold Pressures ...............................................................................7

High Elevations ...........................................................................................................7

Horizontal Termination - Direct Vent ONLY .................................................................7

Vertical Termination - Direct Vent ONLY .....................................................................8

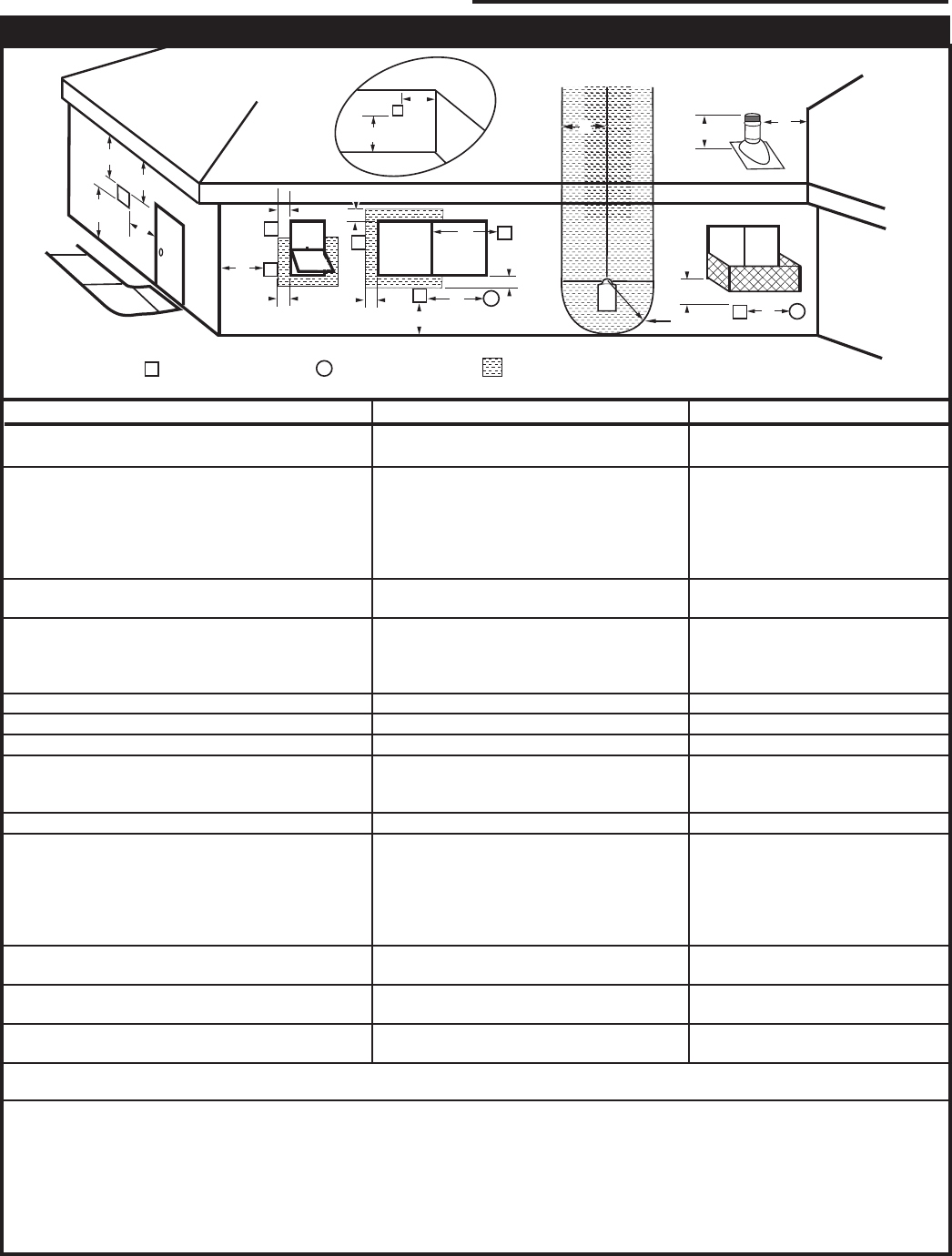

Vent Termination Clearances ......................................................................................9

General Venting Information - Termination Location .................................................10

Termination Clearances ............................................................................................11

Venting Requirements - Natural Vent ONLY ............................................................. 11

Venting Requirements and Options - Direct Vent ONLY ...........................................12

Assembly Procedures Tools Required ..........................................................................................................13

Parts Bag Contents ...................................................................................................13

Unpack and Assembly Legs ......................................................................................13

Install Optional Fan ...................................................................................................14

Venting System Assembly - Direct Vent ....................................................................15

Install Vent Adapter Pipe (CFM Corporation Components) ......................................15

Install Vent Adapter Pipe (Simpson Dura-Vent Components) ...................................16

Side Wall Termination Assembly ...............................................................................16

Vent Termination Below Grade .................................................................................18

Vertical (Through the Roof) Vent Assembly ..............................................................18

Venting System Assembly - Natural Vent .................................................................19

Install the Vent Pipe ..................................................................................................20

Install Rear Bracket and Log Set ..............................................................................20

Connect Gas Supply Line .........................................................................................21

Burner Information ....................................................................................................22

Install ON/OFF Switch ..............................................................................................22

Thermostat Connection (Optional) ............................................................................22

Install the Mesh and Grille ........................................................................................22

Operation Your First Fire ...........................................................................................................23

Pilot and Burner Information .....................................................................................23

Flame & Temperature Adjustment .............................................................................23

Flame Characteristics ...............................................................................................23

Lighting and Operating Instructions ..........................................................................24

Troubleshooting - Honeywell #8420 Gas Control System ........................................25

Instructions for RF Comfort Control Valve ................................................................26

Fuel Conversion Instructions ....................................................................................30

Maintenance Annual System Inspection ........................................................................................34

Logset and Burner/Cleaning and Inspection .............................................................34

Care of Cast Iron .......................................................................................................34

Cleaning the Glass ...................................................................................................34

Glass Replacement ...................................................................................................34

Gasket Replacement ................................................................................................35

Inspect the Vent System Annually ............................................................................35

Check the Gas Flame Regularly ...............................................................................35

Wiring Diagrams .......................................................................................................36

Replacement Parts ...................................................................................................................................37

Optional Accessories ...................................................................................................................................40

Warranty ...................................................................................................................................43

Energuide ...................................................................................................................................44

3

Radiance Direct Vent /Natural Vent Gas Heater

20004188

The Radiance Direct Vent/Natural Vent Room Heater, Model

Nos. 3350 thru 3354, 3360 thru 3369 and 3390 thru 3399, is a

vented gas appliance listed to the ANSI standard Z21.88b-2002

and CSA-2.33b-2002 for Vented Room Heaters, and CSA 2.17-

M91, Gas-Fired Appliances For Use at High Altitudes.

The installation of the Radiance Direct Vent/Natural Vent

Room Heater must conform with local codes, or in the absence

of local codes, with National Fuel Gas Code, ANSI Z223.1/NFPA

54 — latest edition and CSA B-149.1 Installation Code. (EX-

CEPTION: Do not derate this appliance for altitude. Maintain

the manifold pressure at 3.5 inches w.c. for Natural Gas and

10 inches w.c. for LP gas at maximum input.) Refer to Page

30 (RF only).

This appliance is only for use with the type of gas indicated

on the rating plate. This appliance is not convertible for use with

other gases unless a certified kit is used.

Installation and replacement of gas piping, gas utiliza-

tion equipment or accessories, and repair and servicing of

equipment shall be performed only by a qualified agency.

The term “qualified agency” means any individual, firm,

corporation, or company that either in person or through

a representative is engaged in and is responsible for (a)

installation or replacement of gas piping, or (b), the con-

nection, installation, repair, or servicing of equipment, who

is experienced in such work, familiar with all precautions

required, and has complied with all the requirements of the

authority having jurisdiction.

The Radiance Direct Vent/Natural Vent Room Heater

should be inspected before use and at least annually by a

qualified service agency. It is imperative that control com-

partments, burners, and circulating air passageways of the

appliance be kept clean.

The Radiance Direct Vent/Natural Vent Room Heater and

its individual shut-off valve must be disconnected from the gas

supply piping during any pressure testing of that system at test

pressures in excess of 1/2 psig (3.5 kPa).

The Radiance Direct Vent/Natural Vent Room Heater must

be isolated from the gas supply piping system by closing its

individual manual shutoff valve during any pressure testing of

the gas supply piping system at test pressures equal to or less

than 1/2 psig.

An accessible tap is located above the pilot/On-Off knob for

checking the inlet pressure.

‘Direct Vent’ describes a sealed combustion system in which

incoming outside air for combustion and outgoing exhaust enter

and exit through two separate concentric passages within the

same sealed vent system. The system does not use room air

to support combustion. The Direct Vent system permits the

gas appliance to be vented directly to the outside atmosphere

through the side of the house or vertically through the roof.

Conventional venting systems (Natural Vent) take air from the

room for combustion and vent the exhaust vertically through the

roof to the atmosphere.

This appliance is approved for bedroom installations in the

U.S. and Canada. Check local codes for natural vent require-

ments.

This appliance may be installed in an aftermarket* manu-

factured (mobile) home, where not prohibited by state or local

codes.

WARNING: Operation of this heater when not connected

to a properly installed and maintained venting system can

result in carbon monoxide (CO) poisoning and possible

death.

The Radiance Direct Vent/Natural Vent Room Heater, when

installed, must be electrically grounded in accordance with lo-

cal codes or, in the absence of local codes, with the National

Electrical Code ANSI/NFPA 70, (latest edition), or of the current

Canadian Electrical Code C22.1.

Due to high temperatures this appliance should be located

out of traffic and away from furniture and draperies.

WARNING: This appliance is hot while in operation. Keep

children, clothing, and furniture away. Contact may cause

burns or ignition of combustible materials.

Children and adults should be alerted to the hazards of

high surface temperatures and should stay away to avoid

burns or clothing ignition. Young children should be care-

fully supervised when they are in the same room as the

appliance.

Clothing or other flammable materials should not be

placed on or near the appliance.

Any safety screen, glass or guard removed for servic-

ing an appliance must be replaced prior to operating the

appliance.

The appliance area must be kept clear and free from

combustible materials, gasoline, and other flammable va-

pors and liquids.

The flow of combustion and ventilation air must not be

obstructed. The installation must include adequate acces-

sibility and clearance for servicing and proper operation.

WARNING: Do not operate the Room Heater with the

glass panel removed, cracked or broken. Replacement of

the panel should be done by a licensed or qualified service

person.

Do not use this appliance if any part has been under water.

Immediately call a qualified service technician to inspect the

appliance and to replace any part of the control system and

any gas control which has been under water.

Do not burn wood, trash or any other material for which

this appliance was not designed. This appliance is designed

to burn either natural gas or propane only.

This gas appliance must not be connected to a chimney

flue serving a separate solid-fuel burning appliance.

CAUTION: Label all wires prior to disconnection when

servicing controls. Wiring errors can cause improper and

dangerous operation.

Verify proper operation after servicing.

* Aftermarket: Completion of sale, nor for purpose of resale,

from the manufacturer.

Installation & Operating Instructions

Proposition 65 Warning: Fuels used in gas, woodburning

or oil fired appliances, and the products of combustion of

such fuels, contain chemicals known to the State of Cali-

fornia to cause cancer, birth defects and other reproductive

harm.

California Health & Safety Code Sec. 25249.6

44

Radiance Direct Vent/Natural Vent Gas Heater

20004188

29"

(7.6cm)

31"

(7.9cm)

7" Outer Dia.

(1.8cm)



 

4"

(1.2cm)

14"

(3.7cm)

ST126

RDV40 dimensions

10/99



28"

(711mm)

5"

(127mm)

9"

(241mm)

18"

(464mm)

Supply

Inlet

See Page 6 for Flue Collar

Centerline Dimensions.

4188

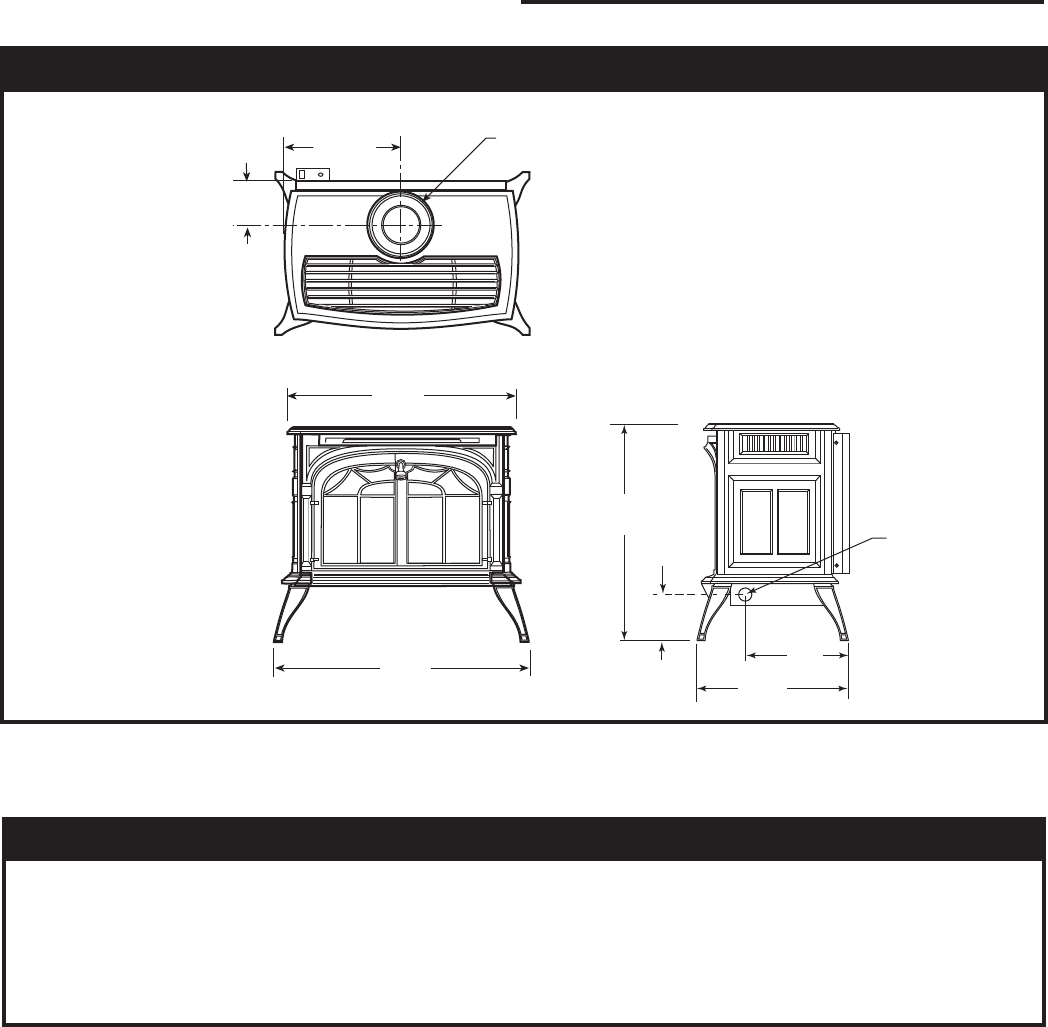

Fig. 1 Radiance dimensions.

Radiance Direct Vent/Natural Vent Stove Dimensions

Attention

The Radiance stove is shipped from the factory as a Direct Vent Gas Heater. This heater may be converted

into a Natural Vent unit in the field. If a Natural Vent Heater is desired, the Vermont Castings Z31D00 FSD-

HAG Draft Hood must be directly installed to the top of the unit according to the installation instructions.

The Draft Hood Adapter is available in the 7FSDHASK stove kit or as a separate item.

When the Radiance stove is converted to Natural Vent, it uses 4” vent pipe. For aesthetic purposes the CFM

direct vent system may be used up to the ceiling.

5

Radiance Direct Vent /Natural Vent Gas Heater

20004188

Installation Requirements

The installation must conform with local codes or, in

the absence of local codes, with the National Fuel Gas

Code, ANSI Z223.1/NFPA 54 - latest edition. (EXCEP-

TION: Do not derate this appliance for altitude. Main-

tain the manifold pressure at 3.5” w.c. for Natural Gas,

and 10” w.c. for Propane).

In Canada, installation must be in accordance with the

current CSA B-149.1 Installation Codes and/or local

codes.

The installation should be done by a qualified ser-

vice person who is familiar with the building codes

and installation techniques appropriate for your

area to accomplish a safe and effective installation.

Your dealer or your local gas supplier will be able to

refer a qualified service person.

WARNING: Due to high temperatures, the HEATER

should be located out of traffic and away from furni-

ture and draperies.

The surface of the Heater Is hot when it is in use.

Young children should be watched carefully when

they are in the same room when the Heater is in

use, and they should be taught to avoid the hot

surface. Keep any objects that can burn well away

from the Heater, and observe the recommended

clearances that follow.

Locating The Stove

In choosing a location for the stove, consider:

• The location of outside walls;

• Where additional heat is needed:

• Where family members gather most often;

• The vent system requirements.

NOTE: We do not recommend the use of wallpaper

next to this stove. Over time, radiant heat may cause

the wallpaper to shrink, or may adversely affect the

binders in the wallpaper adhesive.

ST207a

A. Flat on corner wall

B. Room Divider

C. Island

D. Cross Corner

E. Flat on wall

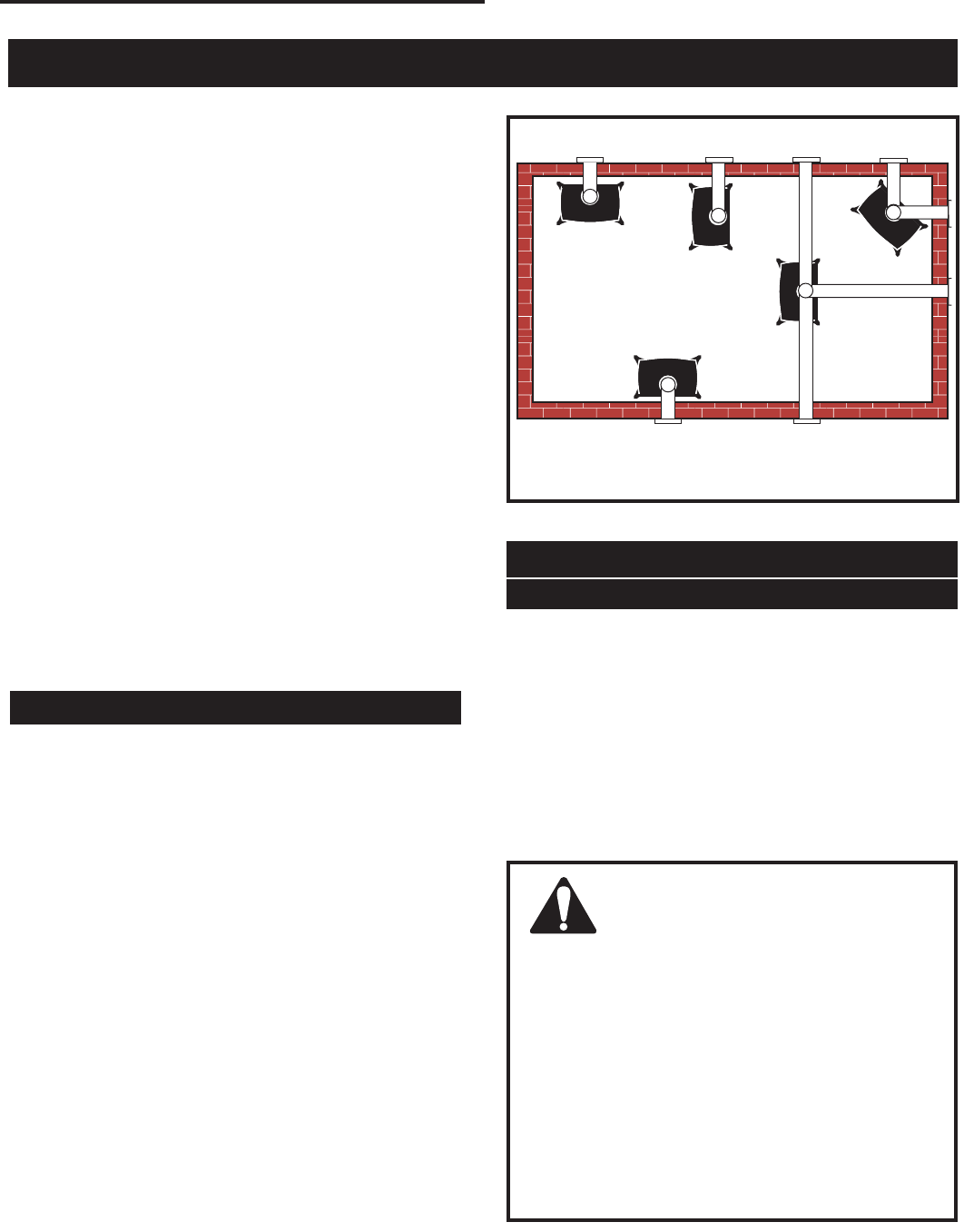

Fig. 2 Possible stove locations.

Direct Vent System Only

A

B

E

C

D

ST207a

Stardance

Stove locations

9/28/00 djt

Clearance Requirements

Minimum Clearances to Combustible Materials

Measure side clearances as shown in Figures 3, 4 and

5 from the outer edge of the cast iron stove top. Mea-

sure rear clearances from the outermost surface of the

steel rear skirt.

The Radiance heater is approved for installation into

an alcove constructed of combustible materials to the

dimensions and clearances shown on the next page.

The same clearances apply in a standard parallel instal-

lation.

WARNING:

• Always maintain required clearances

(air spaces) to nearby combustibles

to prevent fire hazard. Do not fill air

spaces with insulation. All venting components

must maintain a 1” (25mm) clearance to com-

bustible materials. Maintain a 6” (150mm) clear-

ance when using single wall pipe.

• The gas appliance and vent system must be

vented directly to the outside of the building

and never be attached to a chimney serving a

separate solid fuel or gas-burning appliance.

• Refer to the manufacturer’s instructions includ-

ed with the venting system for complete instal-

lation procedures.

66

Radiance Direct Vent/Natural Vent Gas Heater

20004188

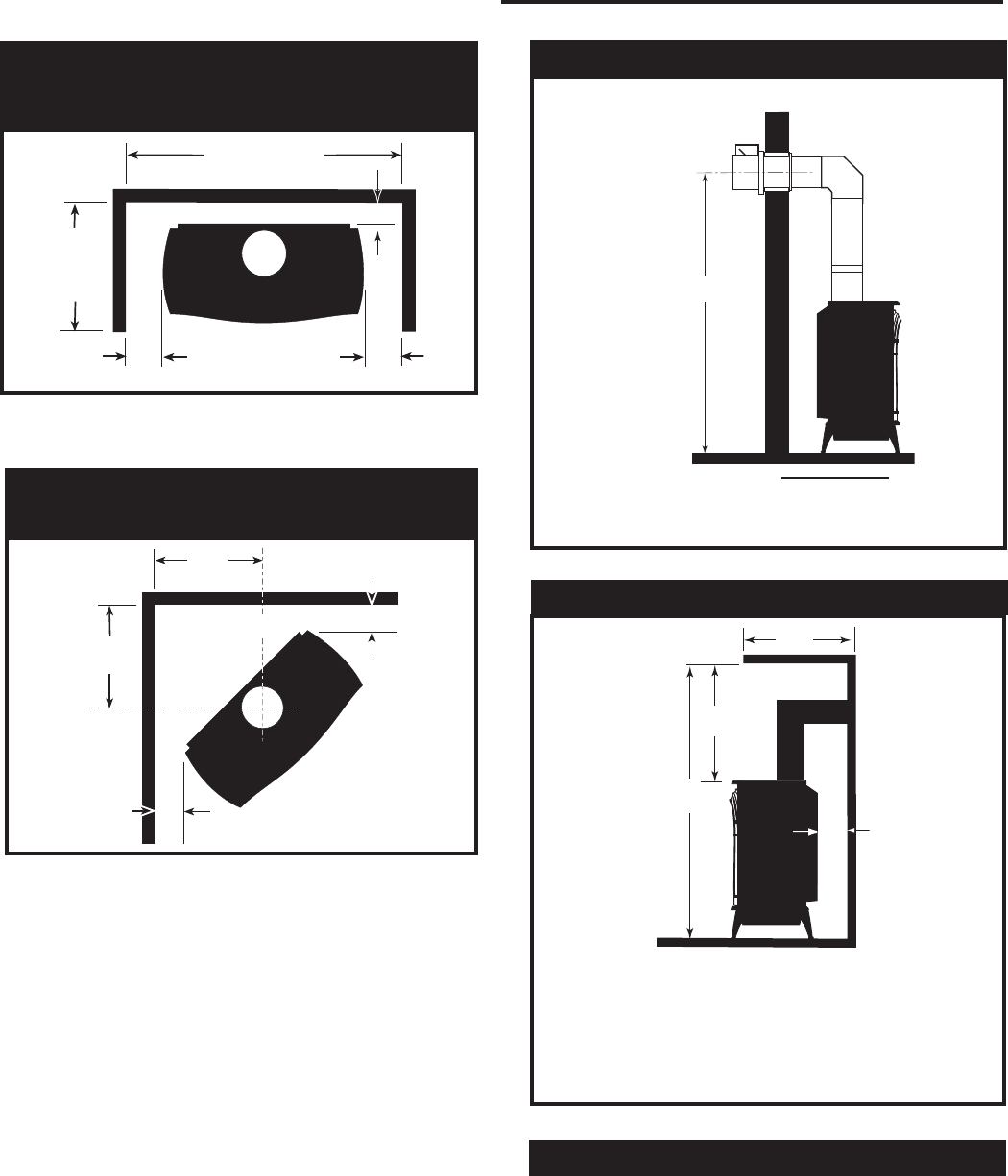

Parallel Installation: Minimum Clearance

and Flue Centerline, Direct Vent and Natu-

ral Vent

Fig. 3 Parallel installation, minimum back and side clear-

ances, and flue centerlines.

ST130







42" (1070mm)

Min. Alcove Width

48"

(1220mm)

Max. Alcove

Depth

6"

(150mm)

6"

(150mm)

4" (102mm)

ST129







18"

(457mm)

18"

(457mm)

6"

(150mm)

6"

(150mm)









Corner Installation: Minimum Clearance and

Flue Centerline, Direct Vent & Natural Vent

Fig. 4 Corner installation, minimum corner clearances and

flue centerline.

Wall Centerline from Floor

ST131b

Stardance

wall thimble

9/28/00 djt

A

A

Effective Minimum

Centerline 57” (1448 mm) (CFM Corporation Pipe)

55” (1399 mm) (Simpson DuraVent Pipe)

ST131b

Fig. 5 Minimum wall centerline.

Direct Vent Only

Hearth Requirements

The Radiance Heaters must be installed on rigid floor-

ing. When the heater is installed directly on any com-

bustible surface other than wood flooring, a metal or

wood panel extending the full width and depth of the

unit must be used as the hearth. There are no other

hearth requirements.

* needed for installing DuraVent Minimum Vent Kit #2792 or

CFM Corporation Minimum Vent Kit #7TFSMSK.

A

C

D

ST101b

Stardance

Direct Vent

Min. Clrnc

9/28/00 djt

B

A: Rear Wall 4” (102 mm)

B: Min. Clearance 44” (1118 mm)*

C: Min. Alcove Height 72” (1830 mm)*

D: Max. Alcove Depth 48” (1220 mm)

Sidewall Clearance 6” (150 mm)

ST101b

Fig. 6 Dimensions and clearances to ceiling or alcove.

Direct Vent Only

Wall and Ceiling Clearances

7

Radiance Direct Vent /Natural Vent Gas Heater

20004188

Radiance Direct Vent/Natural Vent

Certified to:

ANSI Z21.88-2005 / CSA 2.33-2005

Vented Gas Fireplace Heaters

Gas Specifications

Max. Min.

Input Input

Model Fuel Gas Control BTU/h BTU/h

RDVODRN Nat Millivolt 35,000 25,000

RDVODRP Prop Millivolt 35,000 27,500

RDVODRFN Nat Comfort Control 35,000 25,000

RDVODRFP Prop Comfort Control 35,000 27,500

Weight: Fully assembled; 350 lbs.

Natural LP (Propane)

Inlet Minimum 5.5” w.c. 11.0” w.c.

Inlet Maximum 14.0” w.c. 14.0” w.c.

Manifold Pressure 3.5” w.c. 10” w.c.

Gas Inlet and Manifold Pressures

The installation of your Vermont Castings stove

must conform with local codes, or in the absence of

local codes, with the National Fuel Gas Code ANSI

Z223.1/NFPA 54 - latest edition, or CSA B149.1

Installation code. (EXCEPTION: Do not derate this

appliance for altitude up to 4,500 feet (1,370m).

Maintain the manifold pressure at 3.5” w.c. for Natural

Gas and 10.0” w.c. for LP Gas.

High Elevations

Input ratings are shown in BTU per hour and are

certified without deration for elevations up to

4,500 feet (1,370m) above sea level.

For elevations above 4,500 feet (1,370m) in USA,

installations must be in accordance with the

current ANSI Z223.1/NFPA 54 and/or local codes

having jurisdiction.

In Canada, please consult provincial and/or local

authorities having jurisdiction for installations at

elevations above 4,500 feet (1,370m).

WARNING: Improper installation, adjust-

ment, alteration, service or maintenance

can cause injury or property damage. Refer

to this manual for correct installation and

operational procedures. For assistance or

additional information consult a qualified

installer, service agency, or the gas supplier.

Horizontal Termination -

Direct Vent ONLY

The vent must rise vertically a minimum of 24” (610mm)

off the top of the unit, before the first elbow. The hori-

zontal run may extend up to 20’ (6m) and include a

vertical rise of up to 40’ (12m). (Fig. 7) Horizontal termi-

nation must also meet the criteria shown in Figures 10

through 12.

• Approved vent systems must terminate above and

including the heavy line in Figure 7.

• Two 45˚ elbows may be substituted for each single

90˚ elbow.

• With a rise between 2’ - 5’, one 90˚ or two 45˚ elbows

may be used.









































                   

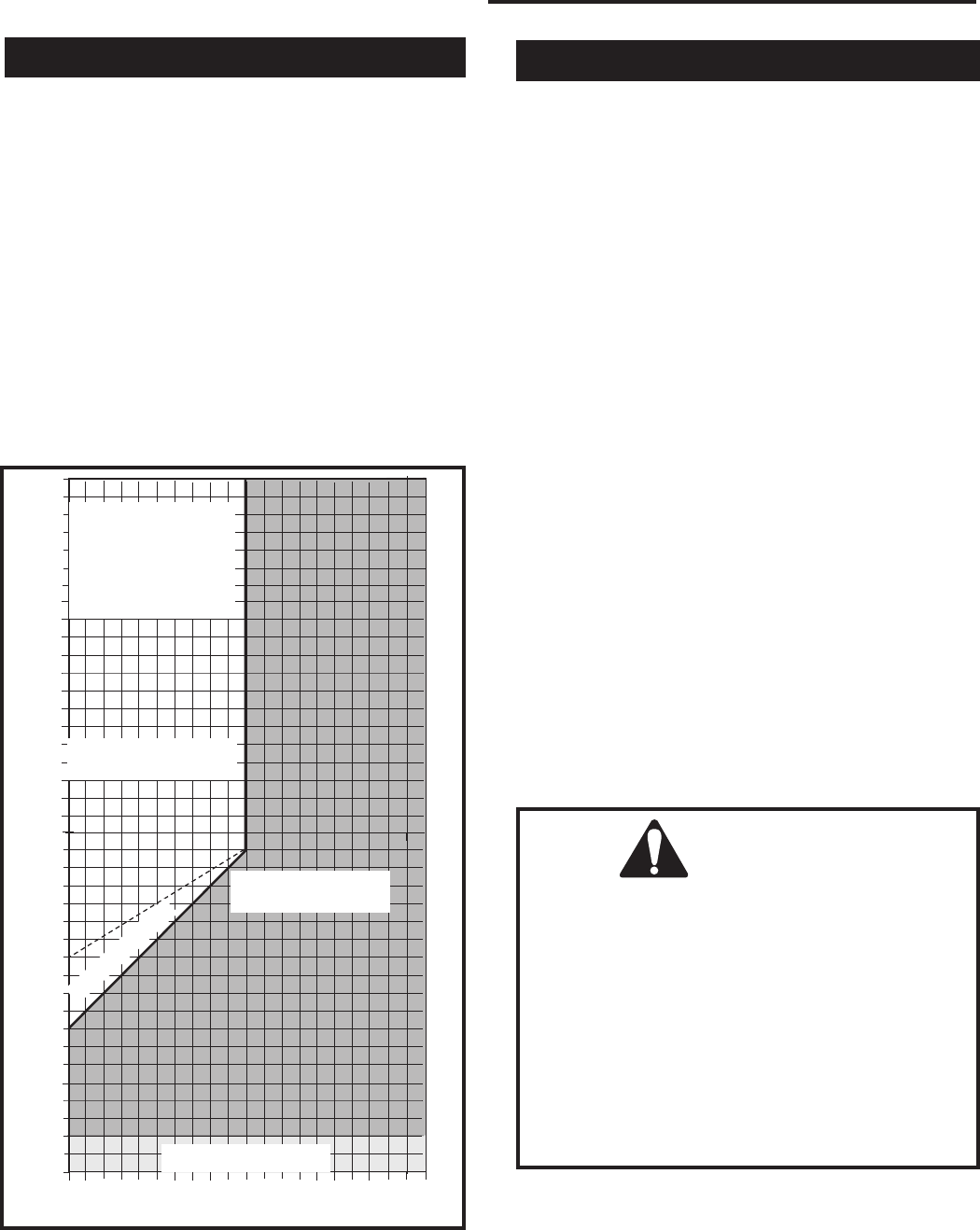

Vertical Run (in feet)

(Measured from the appliance flue collar to the top of the vent pipe.)

Horizontal Run (in feet)









































ST134a

FDV28

Horizontal

vent run

12/3/99 djt

areas modified

1/11/00 djt

ST134a

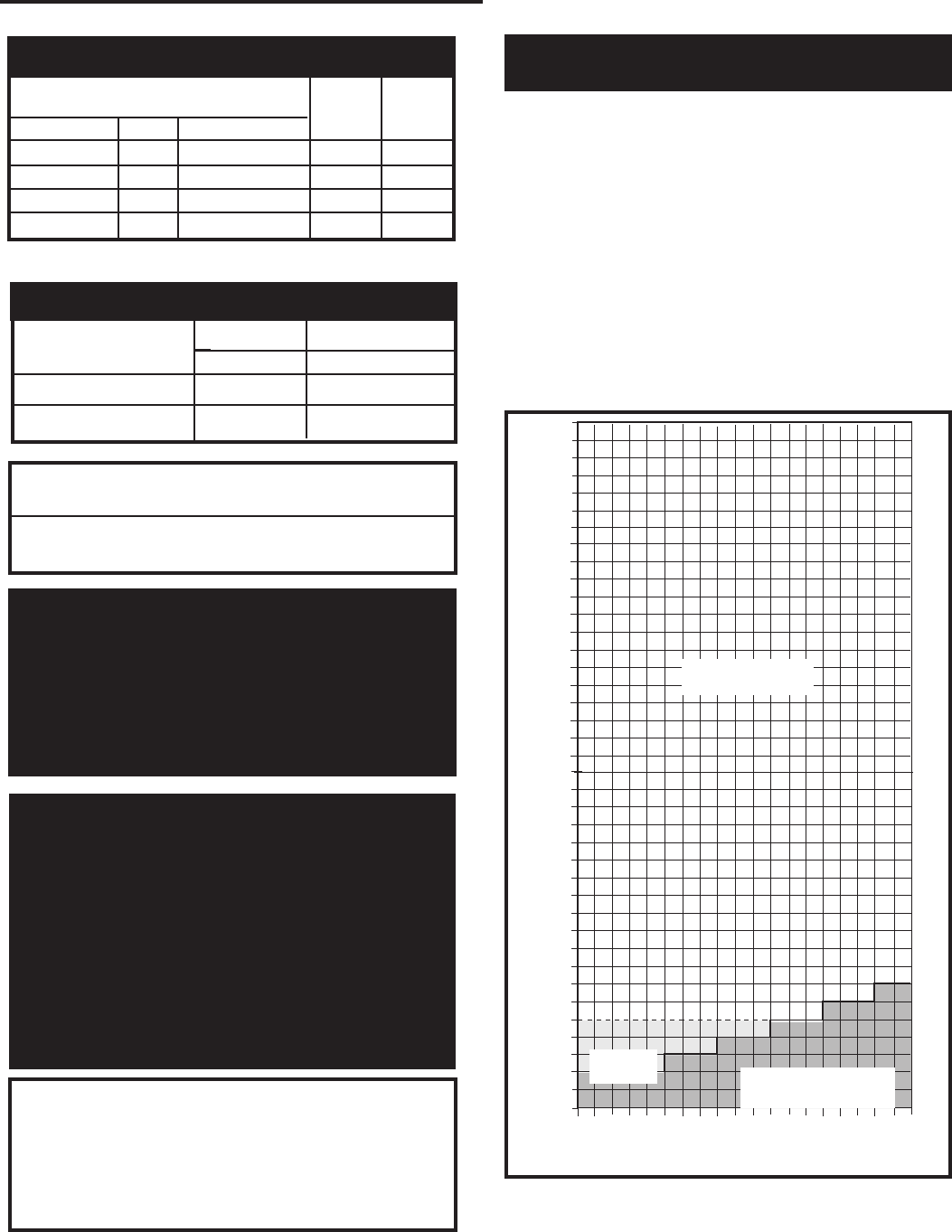

Fig. 7 Horizontal vent termination window.

May use up to

three 90° Elbows

One 90°

Elbow Unacceptable

Venting Configuration

88

Radiance Direct Vent/Natural Vent Gas Heater

20004188

Vent Termination Clearances

When planning the installation, consider the location

of the vent terminal and clearances. Some of the most

common clearances to keep in mind are shown in Figure 9.

Important: All vent clearances must be maintained.

Check your vent termination clearances against

Figures 9 through 11.

The vent should be placed so that people cannot be

burned by accidentally touching the vent surfaces when

the stove is operating.

The vent termination should be located where it cannot

be damaged by such things as automobile doors, lawn

mowers or snowblowers and it should be located away

from areas where it could become blocked by snow,

etc.

Some considerations are:

• Obstructions or impediments to venting.

• Nearby combustible materials that could come into

contact with combustion exhaust gases.

• Other nearby openings {within 12” (305 mm)}

through which exhaust gas could reenter the build-

ing.

• All vegetation within 3’ (76 mm) that may interfere

with the draft.

Other factors that influence where the installation will

be sited include the location of outside walls, where

additional heat may be desired in the home, where the

family members gather most regularly, and perhaps

most importantly, the distance limitations of the venting

system.

Vertical Termination - Direct Vent ONLY

A vertical vent system must terminate no less than 8’

(2.44m) and no more than 40’ (12m) above the appli-

ance flue collar. A 2¹⁄₄" restrictor plate (supplied) must

be used, where specified, in all vertically terminated

vent systems. (Refer to Figure 8) NOTE: The restrictor

plate supplied with the vertical termination should

be discarded. Install restrictor plate supplied with

stove directly at stove outlet. A vertically terminated

vent system must also conform to the following criteria:

• No more than three 90° elbows may be used.

• Two 45° elbows may be substituted for one 90˚

elbow. No more than six 45° elbows may be used.

• Vent must rise a minimum of 2 feet before offset is

used.

• Termination height must conform to roof clearance

as specified in Figure 9.











































                  

Vertical Run (in feet)

(Measure from the appliance flue collar to the top of the vent pipe.)

Horizontal Run (in feet)









































ST132a

FDV28

Vertical

vent run

12/3/99 djt

area

modified

1/11/00 djt

ST132a

Fig. 8 Vertical vent termination window.

All Vertical Termi-

nations in this area

Require use of

the 2¹⁄₄” Restrictor

Plate*

Vertical terminations

must be within this area

No offset may be used

within this area

Unacceptable

Venting Configuration

No Restrictor Plate

IMPORTANT

Direct Vent Only

• The horizontal termination must not be recessed

into the exterior wall or siding.

• Horizontal vent runs must be level toward the

vent termination.

• Clearances around the vent termination must be

maintained.

• For installations using Simpson DuraVent pipe,

parallel installations with minimum wall clearance

have restricted access for connecting the Hori-

zontal Vent Cap straps to the vent pipe. See the

maker’s instructions for recommended installa-

tion procedures.

*The Restictor Plate is used on Direct Vent

installations only.

9

Radiance Direct Vent /Natural Vent Gas Heater

20004188

Vent Termination Clearances

Your stove is approved to be vented either through the

side wall, or vertical through the roof.

• CFM Corporation does not require any opening

for inspection of vent pipe.

• Only CFM Corporation and Simpson DuraVent

venting components specifically approved and

labelled for this stove may be used.

• Minimum clearances between vent pipes and

combustible materials is one (1”) inch (25 mm),

except where stated otherwise.

• Venting terminals shall not be recessed into a wall or

siding.

• Horizontal venting must be installed on a level plane

without an inclining or declining slope.

There must not be any obstruction such as bushes,

garden sheds, fences, decks or utility buildings within

24” from the front of the termination hood.

Do not locate termination hood where excessive snow

or ice build up may occur. Be sure to check vent termi-

nation area after snow falls, and clear to prevent ac-

cidental blockage of venting system. When using snow

blowers, make sure snow is not directed towards vent

termination area.

Location of Vent Termination

It is imperative the vent termination be located observ-

ing the minimum clearances as shown on this page.

1010

Radiance Direct Vent/Natural Vent Gas Heater

20004188

V

V

V

V

V

V

V

X

X

X

D

E

B

B

B

C

B

M

B

A

J

K

F

L

VENT TERMINATION AIR SUPPLY INLET AREA WHERE TERMINAL IS NOT PERMITTED

H

I





Operable

Operable Fixed

Closed

V

B

CFM145a

DV Termin Location

5/01/01 Rev. 12/05/01

sta

INSIDE

CORNER DETAIL

V

A

G

N

N

CFM145a

General Venting Information - Termination Location

A = Clearance above grade, veranda, porch, 12” (30cm) 12” (30cm)

deck, or balcony

B = Clearance to window or door that may be 6” (15cm) for appliances 6” (15cm) for appliances

opened < 10,000Btuh (3kW), 12” (30cm) < 10,000 Btuh (3kW), 9”

for appliances > 10,000 Btuh (3kW) and (23cm) for appliances > 10,000

< 100,000 Btuh (30kW), 36” (91cm) Btuh (3kW) and < 50,000 Btuh

for appliances > 100,000 Btuh (30kW) (15kW), 12” (30cm) for

appliances > 50,000 Btuh (15kW)

C = Clearance to permanently closed window 12” (305mm) recommended to 12” (305mm) recommended to

prevent window condensation prevent window condensation

D = Vertical clearance to ventilated soffit located

above the terminal within a horizontal 18” (458mm) 18” (458mm)

distance of 2’ (610mm) from the center

line of the terminal

E = Clearance to unventilated soffit 12” (305mm) 12” (305mm)

F = Clearance to outside corner see next page see next page

G = Clearance to inside corner (see next page) see next page see next page

H = Clearance to each inside of center line 3’ (91cm) within a height of 15’ (5m) 3’ (91cm) within a height of 15’

extended above meter/regulator assembly above the meter/regulator assembly (5m) above the meter/regulator

assy

I = Clearance to service regulator vent outlet 3’ (91cm) 3’ (91cm)

J = Clearance to nonmechanical air supply inlet 6” (15cm) for appliances < 10,000 6” (15cm) for appliances

to building or the combustion air inlet to any Btuh (3kW), 12” (30cm) for < 10,000 Btuh (3kW), 9”

other appliances appliances > 10,000 Btuh (3kW) and < (23cm) for appliances > 10,000

100,000 Btuh (30kW), 36” (91cm) Btuh (3kW) and < 50,000 Btuh

for appliances > 100,000 Btuh (30kW) (15kW), 12” (30cm) for

appliances > 50,000 Btuh (15kW)

K = Clearance to a mechanical air supply inlet 6’ (1.83m) 3’ (91cm) above if within 10’

(3m) horizontally

L = Clearance above paved sidewalk or paved 7’ (2.13m)† 7’ (2.13m)†

driveway located on public property

M = Clearance under veranda, porch, deck or 12” (30cm)‡ 12” (30cm)‡

balcony

N = Clearance above a roof shall extend a minimum of 24” (610mm) above the highest point when it passes through the roof

surface, and any other obstruction within a horizontal distance of 18” (450mm).

1 In accordance with the current CSA-B149 Installation Codes

2 In accordance with the current ANSI Z223.1/NFPA 54 National Fuel Gas Codes

† A vent shall not terminate directly above a sidewalk or paved driveway which is located between two single family dwellings and serves both dwellings

‡ only permitted if veranda, porch, deck or balcony is fully open on a minimum 2 sides beneath the floor:

NOTE: 1. Local codes or regulations may require different clearances.

2. The special venting system used on Direct Vent Stoves are certified as part of the appliance, with clearances tested and approved by the list-

ing agency.

3. CFM Corporation assumes no responsibility for the improper performance of the appliance when the venting system does not

meet these requirements.

Canadian Installations1 US Installations2

Fig. 9 Vent termination clearances.

11

Radiance Direct Vent /Natural Vent Gas Heater

20004188

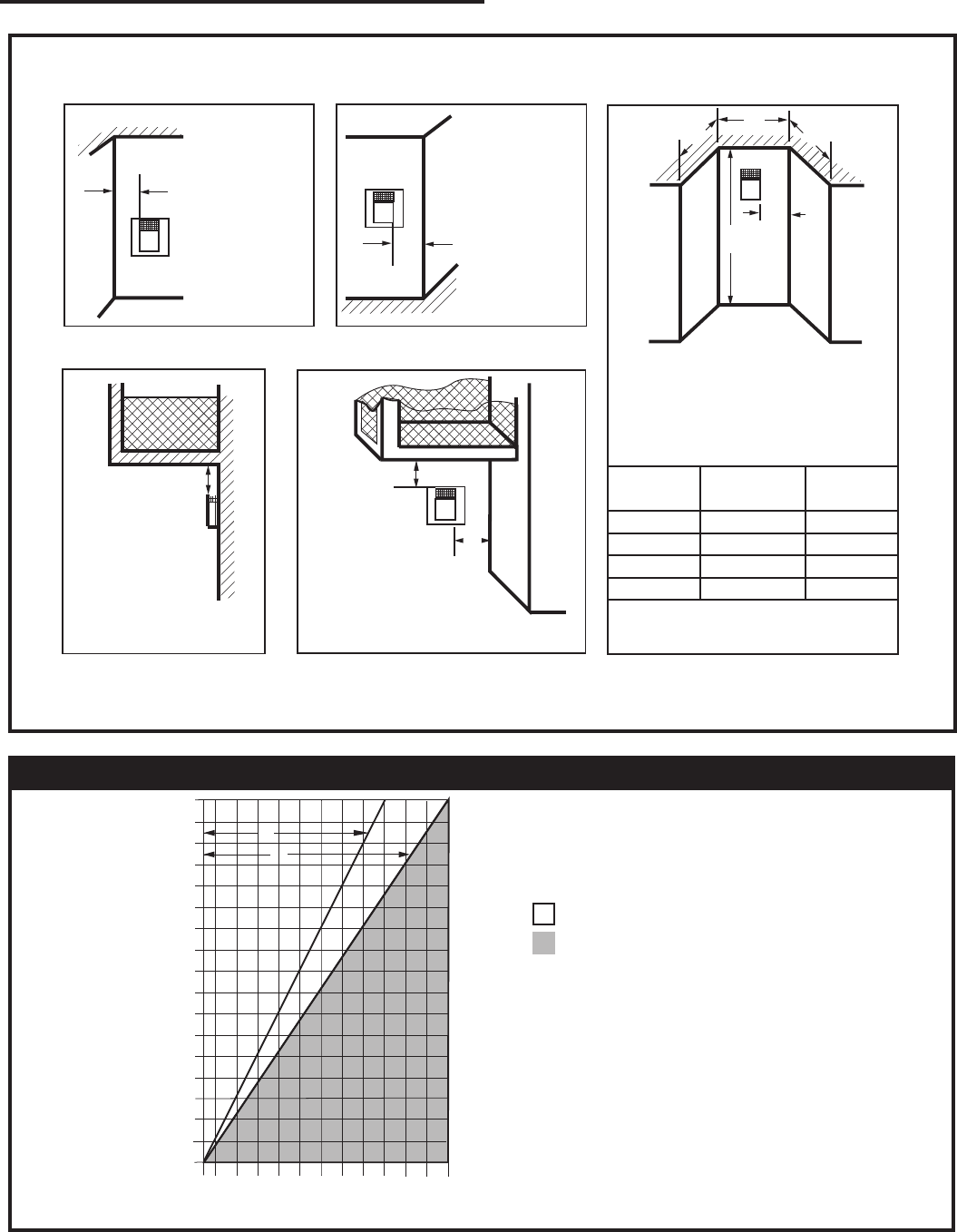

Fig. 10 Termination clearances.







Venting Runs

Horizontal Run (in feet)

Vertical Run (in feet)

(Measured from top of the unit before any elbow)

A: Vertical installations up to 36 feet (12m) in

height. Up to an 18 ft. horizontal vent run can be

installed within the vent system using a

maximum of two 90-degree elbows or four

45-degree elbows.

B: Vertical installations up to 36 feet (12m) in

height. Up to a 24 ft. horizontal vent run can be

installed within the vent system using a

maximum of two 45-degree elbows.

(Ratio = 2/3, Hor./Vert.)

= Acceptable venting configuration

= Unacceptable venting configuration







































A

B

NOTE: When venting staight vertical, without any

elbow, a minimum of 8 ft. vertical is required

off the top of the stove.

Venting Requirements - Natural Vent Only

Fig. 11 Vent termination window - Natural Vent ONLY. NOTE: When using the FSDHAG, the restrictor

plate supplied with the stove is not used.

Outside Corner

Inside Corner

Termination Clearances

Termination clearances for buildings with combustible and noncombustible exteriors.

G =

Combustible

6" (152 mm)

Noncombustible

2" (51 mm)

F =

Combustible

6" (152 mm)

Noncombustible

2" (51 mm)

G

Balcony -

with no side wall

M =

Combustible &

Noncombustible

12" (305 mm)

M

Balcony -

with perpendicular side wall

M = 24" (610 mm)

P = 20” (508 mm)

M

F

Alcove Applications*

C

D

C

E

V

V

Combustible &

Noncombustible

V

V

V

E = Min. 6” (152 mm) for

non-vinyl sidewalls

Min. 12” (305 mm) for

vinyl sidewalls

O = 8’ (2.4 m) Min.

O

P

584-15

No.

of Caps DMin. CMax.

1 3’ (.9 mm) 2 x DActual

2 6’ (1.8 m) 1 x DActual

3 9’ (2.7 m) 2/3 x DActual

4 12’ (3.7 m) 1/2 x DActual

DMin. = # of Termination caps x 3

CMax. = (2 / # termination caps) x DActual

*NOTE: Termination in an alcove space (spaces open only on one side and with an overhang) is permitted with the dimensions

specified for vinyl or non-vinyl siding and soffits. 1. There must be a 3’ (914 mm) minimum between termination caps. 2. All

mechanical air intakes within 10’ (1 m) of a termination cap must be a minimum of 3’ (914 mm) below the termination cap. 3. All

gravity air intakes within 3’ (914 mm) of a termination cap must be a minimum of 1’ (305 mm) below the termination cap.

1212

Radiance Direct Vent/Natural Vent Gas Heater

20004188

Venting Requirements and Options -

Direct Vent ONLY

Approved Vent System Components

The Stardance Heater must be vented to the outdoors

through an adjacent exterior wall or through the roof. The

venting system must be comprised of the appropriate

listed venting components specified on this page. These

parts are available from DuraVent Corporation or your

Vermont Castings Dealer.

See Figure 4 for dimensions relevant to the standard

minimum-vent kits.

Simpson DuraVent Components

Minimum Horizontal Vent Kit 2792

Starter Pipe Assembly (incl. inner & outer sections)

2768*

90° Elbow, Blk. 990B*

45° Elbow, Gal. 945

6” Straight, Blk. 908B*

9” Straight, Blk. 907B

11” - 14⁵⁄₈” Adjustable Straight Section 911B

12” Straight 906

24” Straight 904B*

36” Straight 903B

48” Straight 902

Horizontal Vent Cap 984*

Wall Plate 940*

Vinyl Siding Shield 950

Snorkel Termination - 14” 982

Snorkel Termination - 36” 981

Wall Strap 988

Cathedral Ceiling Support Box 941

Storm Collar 953

Firestop Spacer 963

Flashing 0/12 - 6/12 943

Flashing 6/12 - 12/12 943S

Steel Chimney

Kit A 931

Kit B 932

Kit C 933

Masonry Chimney Kit 934

Vertical Termination Cap (High Wind) 991

Vertical Termination Cap (Low Profile) 980

*Included in Minimum Horizontal Vent Kit #2792

All DuraVent Straight vent pipe sections have a net length

1¹⁄₂” (37mm) less than the nominal dimension; i.e., a 6”

(152mm) Straight pipe section has an effective length of 4¹⁄₂”

(115mm).

CFM Vent Components

The following kits are available to meet the needs of

most installations. All pipe has a 7” outer diameter and

includes a 4” diameter inner section. A (CG) designa-

tion indicates the part is finished in Charcoal Gray

paint. Consult your dealer about other vent parts that

may be appropriate to complete the installation.

Min. Through the Wall Vent Kit 7TFSSK

(1) 90-Degree Elbow (CG)

(1) 24” Straight pipe (CG)

(1) 24” - 42” Adjustable Straight Pipe

(1) Side Wall Termination

(1) Firestop

(1) Zero-clearance sleeve

(1) Hardware package

(1) Finishing plate (CG)

(1) Finishing collar (CG)

(4) Charcoal Gray flue pipe rings

Starter Kit for Below-Grade Termination 7TDVSKS

(1) Snorkel Termination (7TDVSNORK)

Vertical Termination Kit, 1/12-6/12 Pitch 7TDVSKVA

(1) Combination Horizontal Offset / Roof Support

(1) Vertical Termination

(1) Storm Collar

(1) 1/12-6/12 Flashing

(1) Finishing Plate (CG)

(1) Finishing Collar (CG)

(1) Polished Brass Flue Pipe Ring

(1) Hardware Package

Vertical Termination Kit, 7/12-12/12 Pitch 7TDVSKVB

(1) 7/12 - 12/12 Flashing

and all of the other Vertical Termination parts.

Vertical Termination, Flat Roof 7DVSKVF

(1) Flat Flashing

and all of the other Vertical Termination parts.

Twist Lock 12” Straight Pipe (CG) 7TFSDVP12

(1) 12” Non-adjustable Pipe

Twist Lock 12” - 18” Adjustable Pipe 7TFSDVP1218

(1) 12” - 18” Adjustable Pipe

Twist Lock 24” Straight Pipe (CG) 7TFSDVP24

(1) 24” Non-adjustable Pipe

Twist Lock 48” Straight Pipe (CG) 7TFSDVP48

(1) 48” Nonadjustable Pipe

Twist Lock 45-Degree Elbow (CG) 7TFSDVT45

for vertical offsets

(1) 45-degree Elbow

Draft Hood Adapter FSDHAG

NV Stove Kit 7FSSK

(1) 7” Diameter Polished Brass Trim Ring

(1) 48” Nonadjustable Pipe (CG)

(1) 24” Nonadjustable Pipe (CG)

(1) Finishing Plate

(1) Finishing Collar (CG)

(1) 90 Degree Elbow (CG)

Stove Kit 7FSDHASK

Includes all parts in the 7FSSK plus the Draft Hood Adapter

FSDHAG

Combination Offset/Roof Support 7DVCS

Attic Insulation Shield 7DVAIS

7” Charcoal Gray Pipe Rings, (4) 7FSDRG

7” Polished Brass Pipe Rings (4) 7FSDRP

Wall Thimble 942G

NOTE: Direct vent pipe may be used on the Natural

Vent system from the top of the draft hood adapter to

the ceiling.

13

Radiance Direct Vent /Natural Vent Gas Heater

20004188

ST720

Radiance

slide stove back

7/30/02 djt

ST720

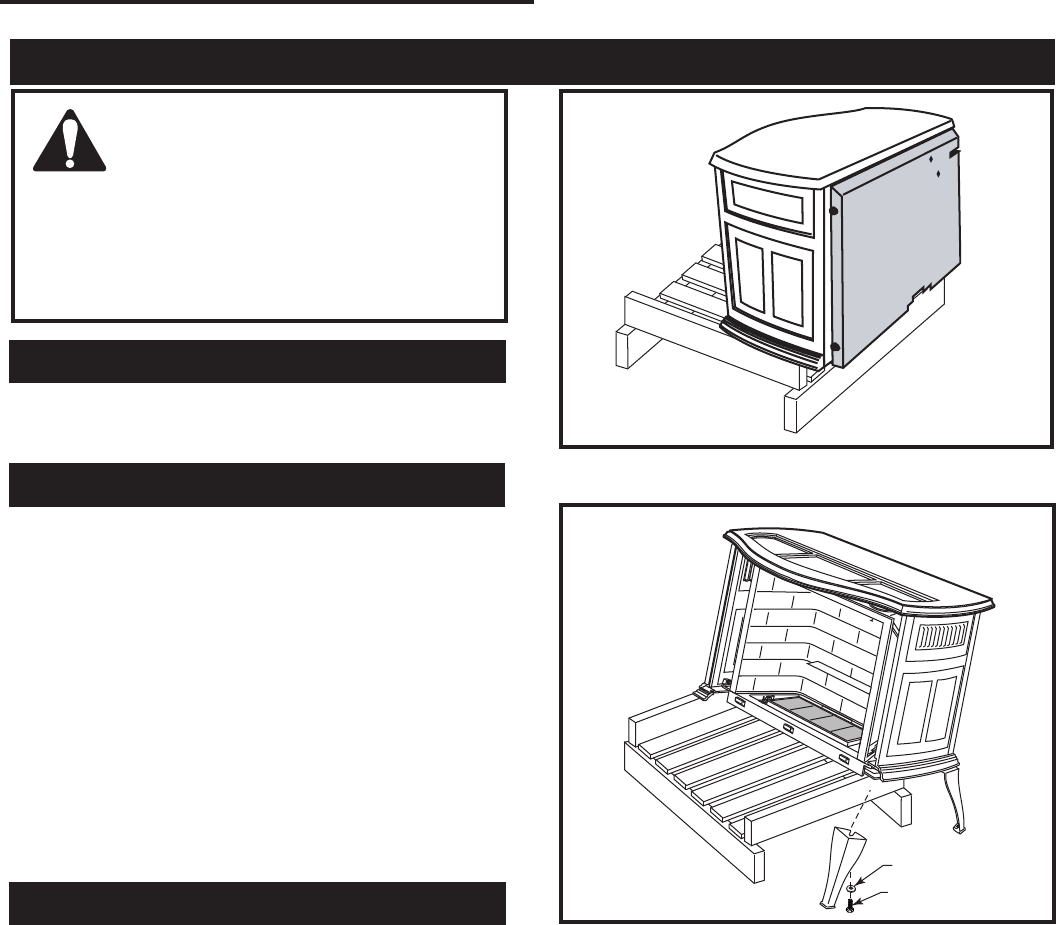

Fig. 12 Slide stove back just far enough to access rear leg

holes.

Assembly Procedures

Failure to position the parts in accor-

dance with these diagrams or failure to

use only parts specifically approved for

use with this heater may result in property dam-

age or personal injury.

This heater and components are heavy. Have

help available for assembly.

WARNING

Tools Required

• Phillips screwdriver (stub) • power drill

• utility knife • reciprocating saw

• metal drill bit: size 28 (.140”/3.5mm)

Parts Bag Contents:

• Control door handle/screw

• (3) Vent Screws

• (2) Switch bracket screws

• Ceramic handle w/insert lifter (handle for operable

door)

• On-Off switch, housing, and wiring harness

(3) Phillips round-head bolts, 1/4”- 20 x 1/2”

• (2) Bag of Lava Rocks

• (1) Tube of Vent Gasket Cement

• (1) Vent Restrictor Plate, 2¹⁄₄" inside diameter

• Owner Registration Card

• (4) CS, Hex Hd 3/8-16 x 1 Gr 2-Z

• (4) Washer, Fl 3/8-Z

Unpack and Assemble Legs

The Radiance is shipped upright. Cut the shipping

straps and set stove upright.

1. Slide stove to the rear of the pallet just far enough to

access rear leg holes. Make sure the stove does not

tip over backwards. (Fig. 12)

2. Attach the rear legs using 3/8” hex head bolts and

flat washer supplied. Tighten with a 9/16” wrench or

socket.

3. Carefully tip the stove onto its rear legs. Adjust

the pallet to allow access to one of the front leg

holes. Be sure to leave the pallet under the stove

to prevent the stove from falling fully forward. (Fig.

13) CAUTION: To prevent valve tubing from being

crushed or damaged, make sure to rest valve on

wooden pallet.

ST721

Radiance

attach

front legs

7/30/02 djt

Washer

Hex Head Bolt

Fig. 13 Carefully tip stove onto back legs. Leave pallet under

stove to keep stove from falling fully forward.

4. Have your assistant attach one leg using the hard-

ware described.

5. Move the pallet to allow access to the other front leg

hole. Attach remaining leg.

6. Remove pallet and allow stove to gently rest on all

four legs.

7. Adjust leg levelers to compensate for irregularities in

the hearth.

NOTE: Verify the two relief doors (located on top of

the firebox) are properly seated on the gasket. The

doors should sit flush on the gasket, and should lift

easily from the seal around the opening.

1414

Radiance Direct Vent/Natural Vent Gas Heater

20004188

ST347a

JUV

FK28

rheostat install

9/21/00

Rheostat

Retaining Collar

Rheostat Knob ST347a

Fig. 17 Attach the fan rheostat.

Rheostat

Install the Optional Fan

If you are installing the optional convection Fan Kit

#2767 (FK26), continue here. It is easiest to install fan

kit before connecting gas line. If you are not installing a

Fan Kit, go to Page 15, Venting System Assembly.

1. The fan kit includes a Blower Assembly and a Rheo-

stat Assembly, connected by a cable. (Fig. 14) The

Blower Assembly mounts to the bottom rear of the

stove, and the Rheostat mounts to the valve cover-

plate. The assembly includes a ‘snapstat’ which au-

tomatically turns the fan On (or Off) above (or below)

approximately 109˚. The Rheostat also provides a

range of fan speed settings from Off (which overrides

the snapstat function) to High. Unpack and inspect

the Blower assembly. Confirm that the fan spins

freely.

ST147

RDV40 remove rear shroud

10/99

Fig. 15 Remove rear shroud.

ST147

ST473

Fan parts

#2767 FK26

9/29/00

Not

Used On

Radiance

Snapstat

Bracket

Snapstat/

Extension

Assembly

Rheostat

Assembly

ST473

Blower

Assembly

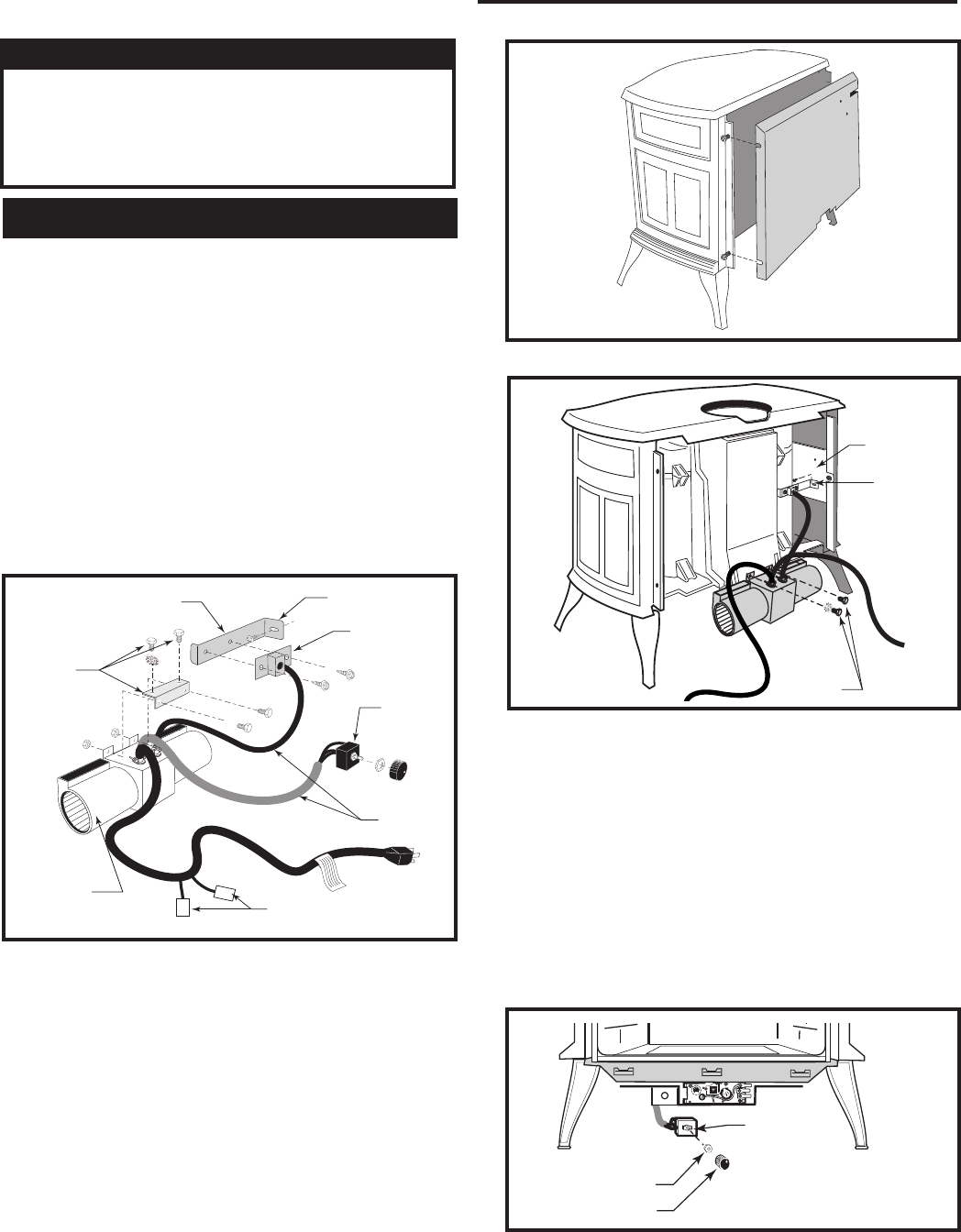

Fig. 14 Fan kit components.

Not Used On

RF Models

Not Used

On RF

Models

Connect to PC board on

RF models only

WARNING

This appliance is equipped with a three-prong

(grounded) plug for your protection against shock

hazard and should be plugged directly into a

properly grounded three-prong receptacle. Do not

cut or remove the grounding prong from this plug.

2. Remove the rear shroud panel (Fig. 15) and fasten

the blower assembly to the firebox back with the two

bolts provided. (Fig. 16)

NOTE: Steps 3 and 4 do not apply when the RF valve

is used. After attaching blower assembly to the fire-

box, run the spliced female leads to the front of the

stove and attach to back of RF valve. (Page 30, Fig.

57)

3. Attach the snapstat assembly to the snapstat bracket

with two sheet-metal screws. Attach the snapstat

bracket to the side shield. (Fig. 16)

4. The rheostat control switch attaches to the left side

of the valve bracket at the front of the stove. (Fig. 17)

ST149

rdv attach fan assy

10/99

Side Shield

Snapstat

Bolts ST149

Fig. 16 Attach blower assembly and snapstat.

• Remove retaining nut from shaft of rheostat. (if

preinstalled)

• Insert the rheostat through the hole in the back

of the left side of the valve bracket, aligning the

locator pin with the smaller hole in that bracket.

• Thread the retaining nut onto the shaft of the

rheostat, tightening with a wrench. Do not over-

tighten.

• Attach the control knob to the rheostat shaft.

• Use the wire tie to secure the fan and rheostat

wire harnesses together.

15

Radiance Direct Vent /Natural Vent Gas Heater

20004188

Venting System Assembly - Direct Vent

General Information

The Radiance is approved for installation only with the

vent components listed on Page 11. Follow the vent

component instructions exactly.

For U.S. installations: The venting system must con-

form with local codes and/or the current National Fuel

Gas Code, ANSI Z223.1/NFPA 54.

For Canadian installations: The venting system must

conform to the current CSA B149.1 installation code.

Install the Vent Adapter Pipe

(CFM Corporation Vent Components)

1. Install the Restrictor Plate. Consult Page 7, Figure

8 to determine whether the restrictor plate is needed.

If so, place the restrictor plate within the inner flue

collar as shown in Figure 18.

ST647install restrictor plate

4/20/01 djt

ST647

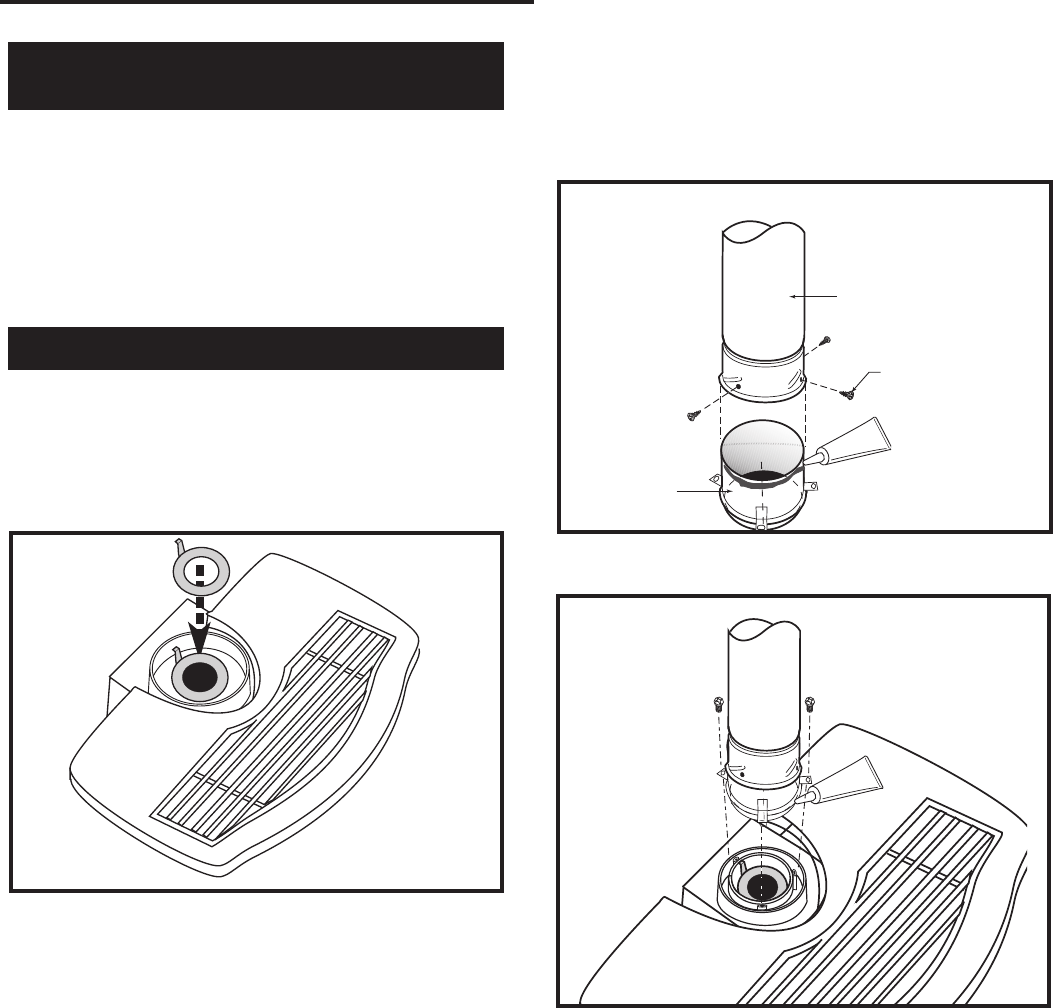

Fig. 18 Install the restrictor plate only if required for the vent-

ing configuration. Refer to Page 7.

4. Attach the Inner Vent Assembly to the stove.

• Run a bead of sealant around the bottom end of

the starter pipe and attach the assembly to the stove

using three 1/4-20 x 3/8” Phillips screws provided in

the parts bag. (Fig. 20)

2. Attach Inner Starter Pipe, (found in with the log-

set), to the next section of inner pipe.

• Run a bead of sealant about 1/2” from the upper

end of the Inner starter pipe and join the two sec-

tions together.

• Drill three pilot holes into the Inner Starter and

secure the assembly with three sheet metal screws.

(Fig. 19)

3. Dry fit the Inner Pipe assembly to the stove for

the purpose of determining the center line of the

pipe on the wall.

• Side Wall Terminations: Dry fit the outer elbow

with the vertical outer vent and confirm the centerline

alignment with the wall thimble opening.

CEMENT

ST211

attach inner pipe

to next section

12/4/99 djt

First Section of

Vent Pipe

1/4”-20 x 1/2”

Phillips Screw

4” Inner

Starter

Pipe

ST211

Fig. 19 Connect the inner starter with the next section of

inner vent pipe.

Fig. 20 Attach inner assembly to flue collar.

ST648

ST647

attach inner assy

4/20/01 djt

CEMENT

5. Install the Outer Adapter Pipe. Insert the pipe

over the stove flue collar, keeping the vertical seam

oriented to the back of the stove. Also, be sure to

align holes on the pipe with the holes on the flue

collar of the firebox. Fasten the pipe to the holes in

the flue collar with the #12 x 1/2” sheet metal screws

provided. (Fig. 21)

1616

Radiance Direct Vent/Natural Vent Gas Heater

20004188

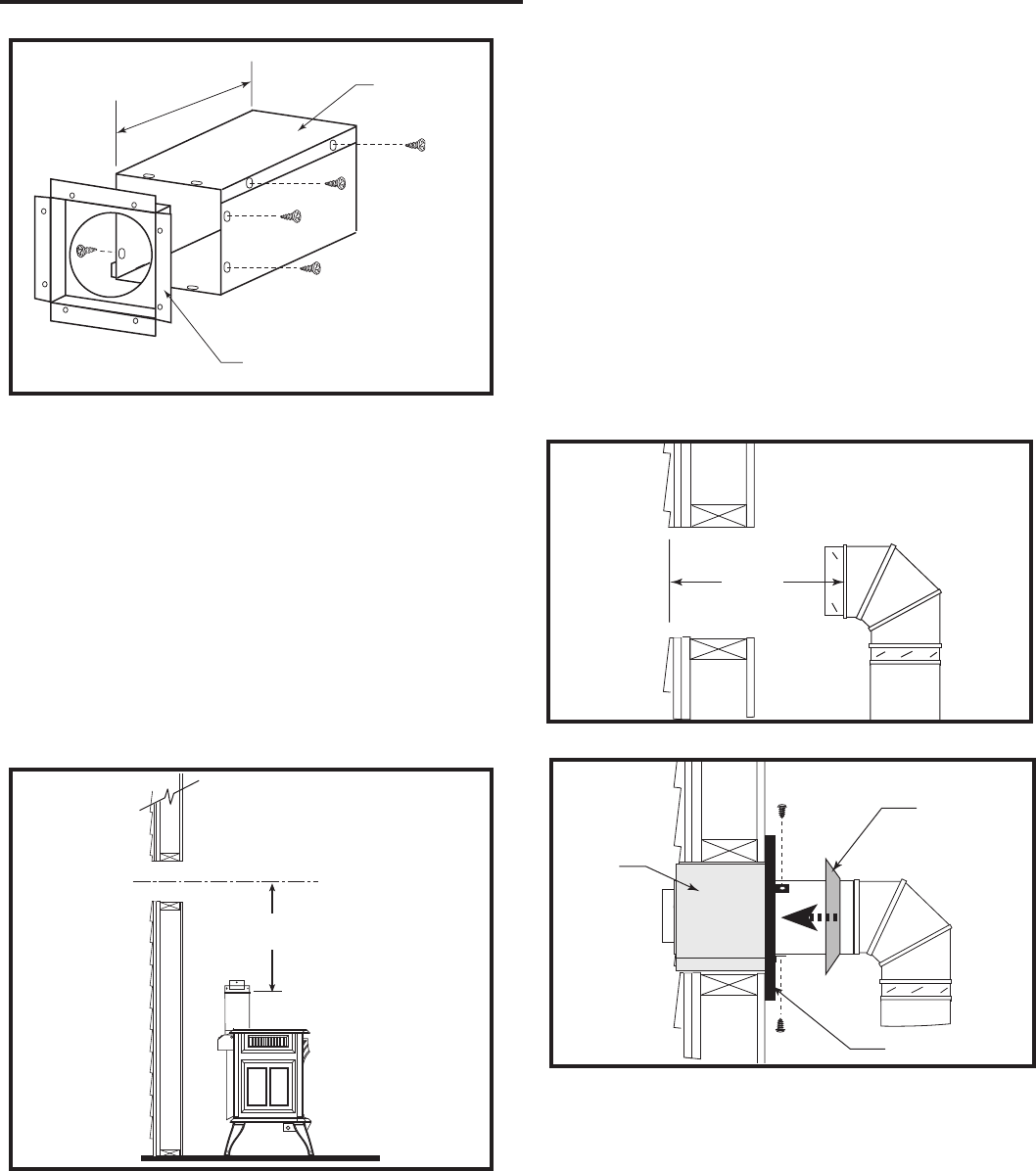

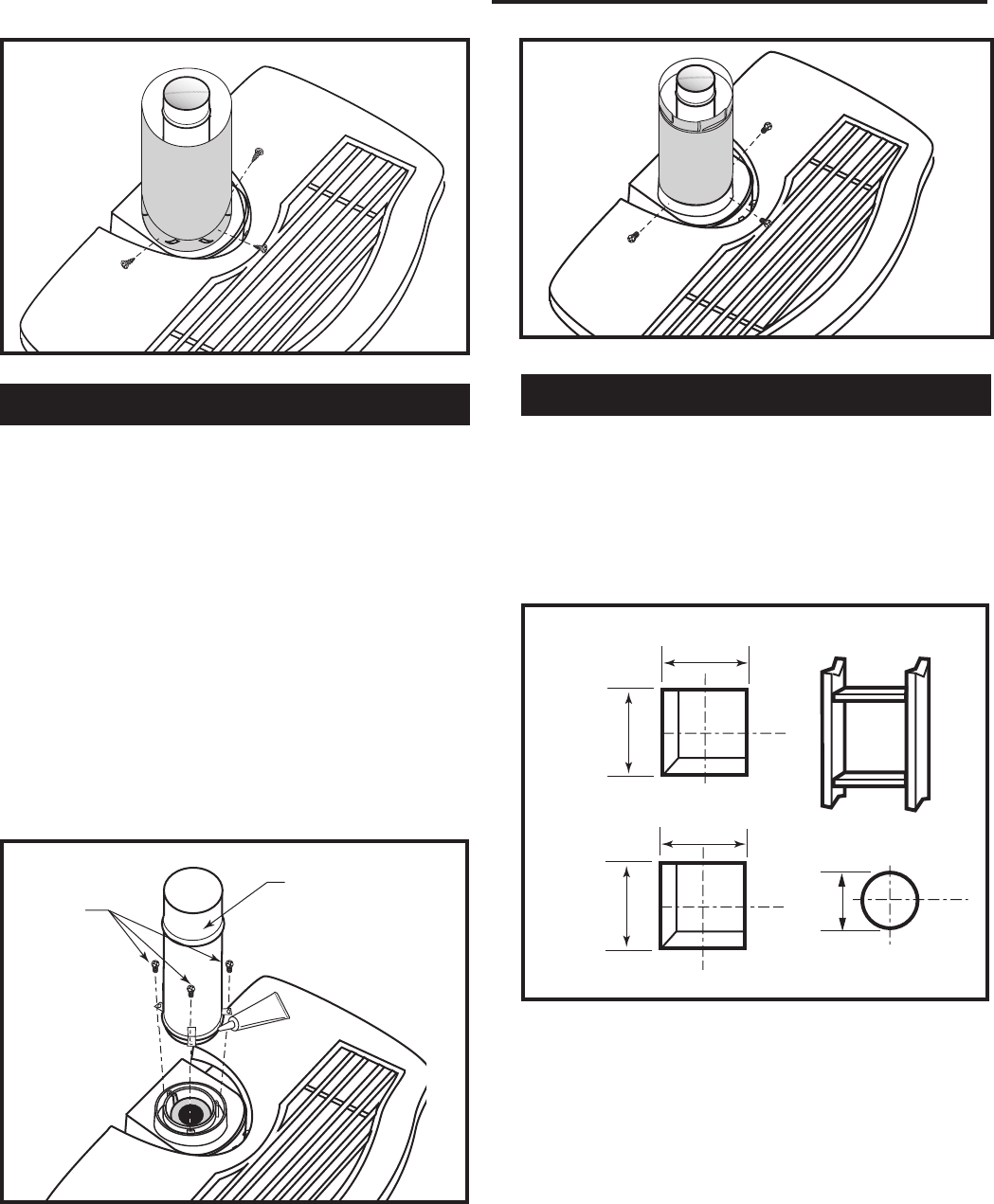

2. Measure the wall thickness and cut the wall sleeve

sections to proper length (MAXIMUM 12”). Assemble

the sleeve with the #8 sheet metal screws supplied.

Attach the firestop plate to the sleeve end with the

holes. (Fig. 25) NOTE: The wall sleeve is required

in combustible walls only.

3. Install the Wall Firestop/Sleeve assembly into the

wall cutout and fasten the firestop to the wall cutout

framing members. (Fig. 25)

Side Wall Termination Assembly

1. Locate the vent opening on the wall. Refer to Page

6, Figure 5, to determine the opening centerline.

It may be necessary to first position the stove and

measure to find the hole location. Depending on

whether the wall is made of combustible materi-

als, cut the opening to the size shown in Figure

24. Combustible wall openings must be framed as

shown in Figure 24.

Install the Vent Adapter Pipe

(Simpson Dura-Vent Components)

1. Install the Restrictor Plate. Consult Page 7 to de-

termine whether the restrictor plate is needed. If so,

place the restrictor plate within the inner flue collar

as shown in Figure 18.

2. Discard the inner starter pipe shipped with the log-

set. Using the starter pipe assembly listed on Page

12, slide the inner section out to allow access.

• Run a bead of sealant around the bottom end of

the starter pipe and attach the assembly to the stove

using three 1/4-20 x 3/8” Phillips screws provided in

the parts bag. (Fig. 22)

3. Install the Outer Adapter Pipe. Orient the verti-

cal seam to the rear, and insert the crimped end of

the outer pipe into the flue collar. Fasten with three

sheet metal screws provided. (Fig. 23)

Fig. 21 Fasten outer pipe with #12 x 1/2” sheet metal screw.

ST650

install outer adpater

4/20/01 djt

ST650

ST651

Fig. 23 Simpson Dura-Vent - install outer adapter pipe.

ST652

dura vent

attach outer assy

4/20/01 djt

ST649

dura vent

attach inner assy

4/20/01 djt

CEMENT

ST649

Inner Adpater Pipe

1/4-20 x

3/8” Phil-

lips Screws

Fig. 22 Simpson DuraVent - install inner adpater pipe.

VO584-100

Vent Opening

2/99 djt

9³⁄₈”

(240mm)

7¹⁄₂”

9³⁄₈”

(240mm)

Framing Detail

Combustible Wall

Noncombustible

Wall

VO584-100

Fig. 24 Locate vent opening.

CFM System

DuraVent

System

10”

(254mm)

10”

(254mm)

17

Radiance Direct Vent /Natural Vent Gas Heater

20004188

For DuraVent pipe only: Install vent pipe by align-

ing the locking system together, sliding the pipes

together and twisting clockwise.

• Install 90° elbow. Twist lock as before.

• Slide the wall plate over horizontal run before at-

taching the horizontal run to the elbow. Fasten wall

plate to wall.

4. For CFM Vent Pipe only: If necessary, measure

to determine the vertical length (X) of pipe required

from the adapter pipe to the wall cutout centerline,

including a 2” overlap at the joint. (Fig. 26) use a

hacksaw or tin snips to trim the pipe as needed.

ZCS103

Zero Clearance Sleeve

& Firestop

12/6/99 djt

12”

(305mm)

Max. Length Sleeve

#8 Sheet

Metal Screws

Firestop ZCS103

Fig. 25 Assemble the wall sleeve and firestop.

5. Install first the inner then the outer straight pipe

section(s), trimmed end down, to the point of the el-

bow. Drill 3 holes through each joint and fasten with

sheet metal screws.

ST214a

measure vertical vent

12/6/99 djt

RADIANCE

X

ST652

Fig. 26 Determine the vertical pipe length.

6. Install the elbow using 3 sheet metal screws at each

joint.

7. Measure, and cut if needed, the appropriate length

of pipe section needed to make the connection

through the wall. Include a 2” overlap; i.e. from the

elbow to the outside wall face, about 2” or the dis-

tance required if installing a second 90° elbow. (Fig.

27)

8. Slip the wall plate and trim collar over the interior

end of the horizontal pipe and install into the wall

sleeve. Seal the joint inside the wall plate if needed

to keep cold air from being drawn into the home.

9. Connect the horizontal pipe to the elbow. Fasten the

wall plate to the pipe with three sheet metal screws.

Slide the trim collar up against the wall plate to cover

the screws. (Fig. 28)

ST215

measure thru wall

12/6/99 djt

X

ST215

Fig. 27 Measure the horizontal length.

ST216

install pipe thru wall

12/6/99 djt

Trim Collar

Wall

Sleeve

Wall Plate

ST216

Fig. 28 Install the horizontal pipe and wall plate parts.

10. For both CFM and DuraVent Systems: Install the

vent terminal. (Fig. 29) Apply high temperature seal-

ant one inch from the ends of the inner and outer

collars. Guide the inner and outer vent termination

collars into the adjacent pipes. Double check that

the vent pipes overlap the collars by 2”. Fasten the

termination to the wall with the screws provided, and

caulk the joint with weatherproof sealant.

1818

Radiance Direct Vent/Natural Vent Gas Heater

20004188

Vertical (Through the Roof)

Vent Assembly

Note that all vertically terminated installations

must, where specified, use the restrictor plate to

comply with Vertical Termination Window (Page

7, Figure 8), included in the hardware bag. The plate

must be installed within the firebox inner flue collar to

insure a proper air/fuel ratio is maintained in an appli-

ance vented through the roof.

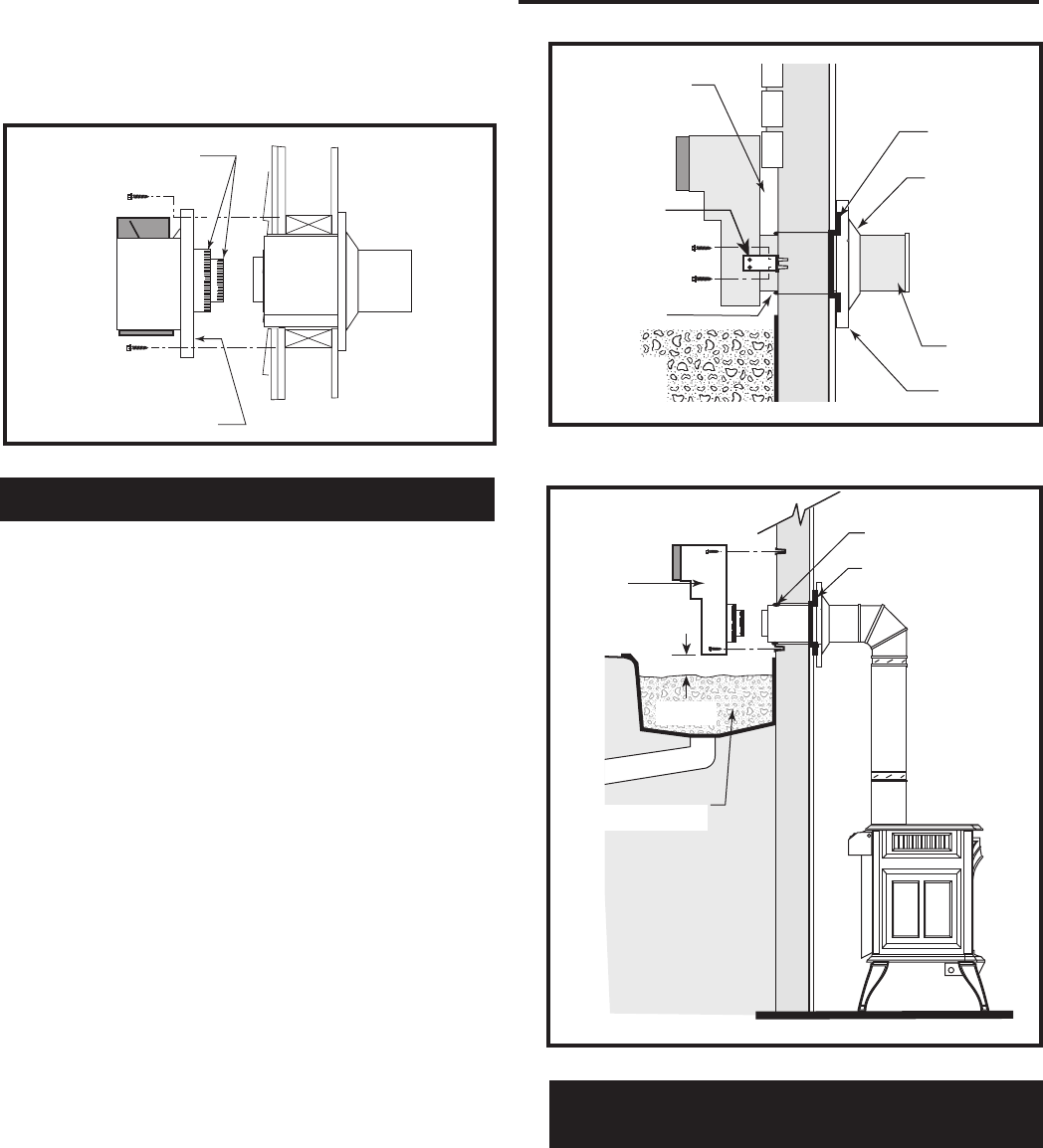

ST653

install snorkel

4/20/01 djt

RADIANCE

Waterproof Seal

Around Pipe

Firestop

Window Well

Drain

4” Clearance

Snorkel

Termination

Cap

Wall Screws

and Anchors

ST653

Gravel

Fig. 31 Snorkel kit installation.

Vent Termination Below Grade

Install Snorkel Kit #7FSDVSKS when it is not possible

to meet the required vent termination clearances of 12”

(305mm) above grade level. The snorkel kit will allow

installation depth of down to 7” (178mm) below grade

level. The seven inches is measured from the center of

the horizontal vent pipe as it penetrates the wall. If the

venting system is installed below grade, a window

well must be installed with adequate and proper

drainage. (Fig. 31)

NOTE: Be sure to maintain side wall clearances and

vent run restrictions. Refer to Page 6, Figures 3, 4, 5, 6.

1. Establish the vent hole through the wall.

2.

Remove soil to a depth of approximately 16” (406 mm)

below the base of the snorkel. Install a window well

(not supplied). Refill the hole with 12” (305mm) of

coarse gravel and maintain a clearance of at least 4”

(102 mm) below the snorkel. (Fig. 31)

3. Install the vent system as described on pages 15-18.

4. Be sure to make a watertight joint around the vent

pipe joint at the inside and outside wall joints.

5. Apply high temperature sealant around the inner

and outer snorkel collars. Join the pipes and fasten

the snorkel termination to the wall with the screws

provided.

6. Level the soil to maintain a 4” clearance below the

snorkel.

If the foundation is recessed, use extension brack-

ets (not supplied) to fasten the lower portion of the

snorkel. Fasten the brackets to the wall first, and

then fasten to the snorkel with self-tapping #8 x 1/2”

sheet metal screws. Extend the vent pipes out as far

as the protruding wall face. (Fig. 30)

ST219

snorkel detail

12/6/99 djt

Recessed Wall

Sheet Metal

Screws and

Bracket

Wall Screws

and Anchors

Waterproof Seal

Around Pipe

ST219

Fig. 30 Use extension brackets to mount snorkel against

recessed wall.

Firestop

Finishing

Collar

7” Pipe

Wall Plate

ST217

install wall terminal

12/6/99 djt

Seal Both Termi-

nal Ends

Caulk Plate Joint with

Weatherproof Sealant ST217

Fig. 29 Install the vent terminal.

11. For CFM only: Install Charcoal Gray Pipe Rings

(#7FSDRG) or Polished Brass Pipe Rings (#7FSDRP)

at pipe joints, if desired.

19

Radiance Direct Vent /Natural Vent Gas Heater

20004188

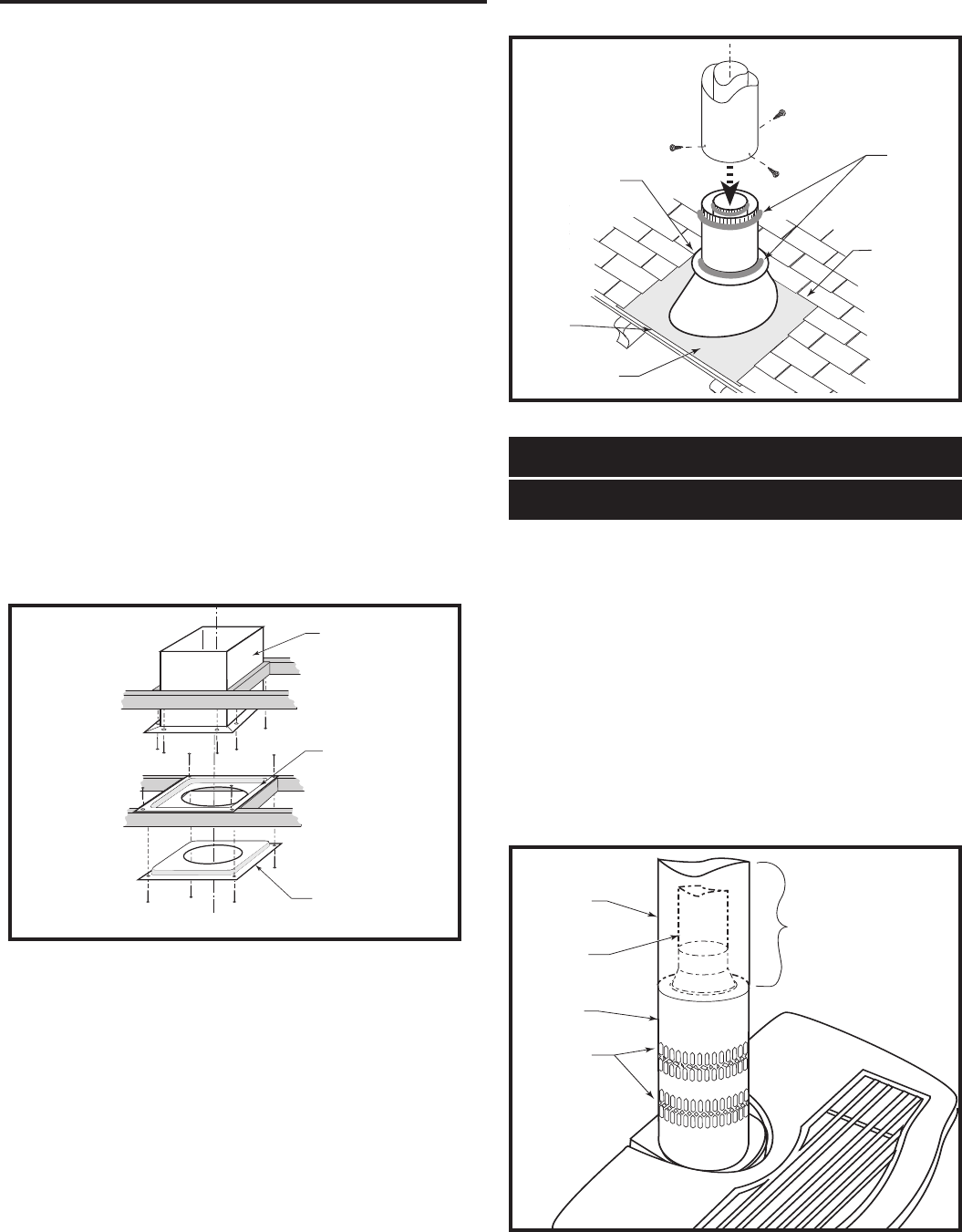

ST221

vent thru roof

12/99

Storm Collar

Sealant

Upper

edge of

flange goes

under upper

shingles

Flashing

#7DVSKV

(A, B, or

F) Roof

Support

Use three #5

sheet metal

screws at

each joint

ST221

Fig. 33 Roof support and flashing.

Make certain the vent system conforms to all other

requirements for vertical termination as specified on

Page 9.

This installation will require you to first determine the

roof pitch and use the appropriate vent components.

Refer to Figure 9 on page 9.

1. Locate the final position of the stove, observing all

clearances for both the vent and the stove.

2. Plumb to the center of the inner (4”) flue collar from

the ceiling above, and mark that location.

3. Cut the opening:

CFM System: 9³⁄₈” x 9³⁄₈” (240 x 240 mm)

DuraVent System: 10” x 10” (254 x 254 mm)

4. Plumb any additional opening through the roof or

other construction that may be needed. In all cases,

the opening must provide a minimum of 1” (25 mm)

clearance to the vent pipe.

5. Place the stove in its final position.

6. Install firestop(s) #7DVFS and Attic Insulation Shield

#7DVAIS as needed. (Fig. 32) If there is a room

above ceiling level, a firestop must be installed on

both the bottom and top sides of the ceiling joists.

If an attic is above ceiling level, an attic insulation

shield must be installed.

Venting System Assembly - Natural Vent

General Information

The Radiance Heater is shipped from the factory as a

Direct Vent Heater. It may be converted to a Natural

Vent heater by installing the Vermont Castings Model

Z31D00 FSDHAG Draft Hood Adapter.

The Radiance Heater is approved for installation as

a Natural Vent unit. Vermont Castings/Majestic Direct

Vent outer pipe (7FSSK) could be used directly after

the Draft Hood Adapter up to the ceiling, then B-vent

pipe must be used. Do not mix types of B-vent pipe;

use components from one maker or the another. Follow

the vent component maker’s instructions exactly. (Fig.

34)

NOTE: The restrictor plate supplied with the stove

is not used for Natural Vent applications.

7. Install the appropriate roof support and flashing,

making certain that the upper flange of the flashing

base is below the shingles. (Fig. 33)

8. Install appropriate pipe sections until the vent run

reaches above the flashing. The enlarged ends of

the vent sections always face downward.

9. Install the storm collar and seal around the joints.

(Fig. 33)

10. Add additional vent lengths to achieve the proper

overall height.

11. Apply cement to the inner and outer termination col-

lars and install the terminal cap.

ST222

vent thru ceiling

12/99

#7DVAIS

Attic Insulation

Shield

#7DVFS

Firestop in

Upper Floor

#7DVFS

Firestop in

Ceiling

Use Four

8d Nails

ST222

Fig. 32 Install firestops and attic insulation shield.

ST654

Decorative

pipe around b-vent

4/20/01 djt

Decorative 7”

Pipe

4” B-vent

Pipe

Draft Hood

Adapter

ST654

Fig. 34 Decorative 7” pipe may be fitted around the B-vent

pipe.

Vermont Castings/

Majestic outer pipe

(7FSSK) may be

used after Draft

Hood up to the

ceiling.

MUST Be

Kept Clear

2020

Radiance Direct Vent/Natural Vent Gas Heater

20004188

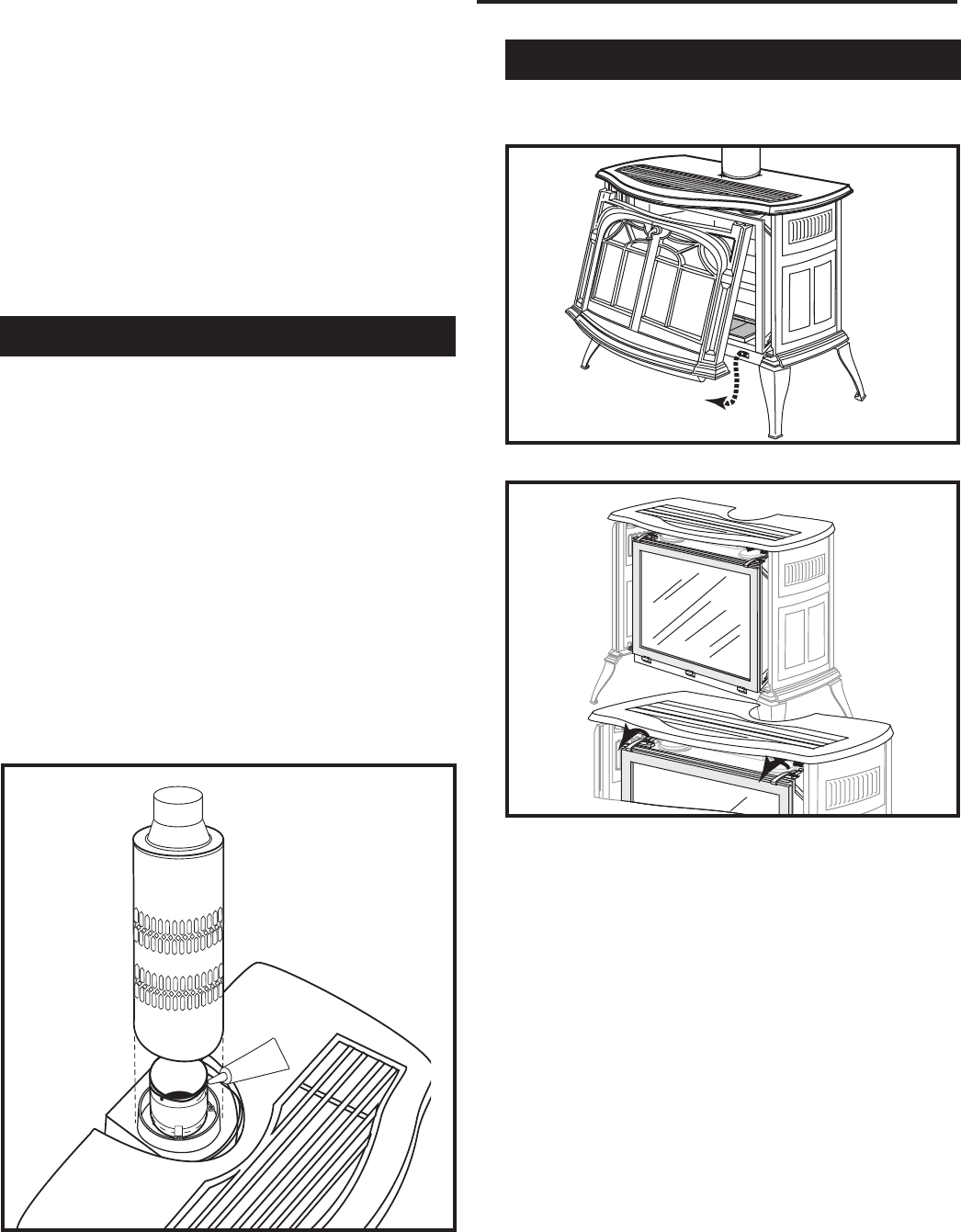

Install Log Set

Before beginning log installation, remove stove front

and glass frame. Refer to Figures 36 and 37.

ST139

Radiance

remove front

4/20/01 djt

ST139

Fig. 36 Remove the stove front.

ST141

pull glass latch

10/99

ST141

Fig. 37 Release the latches to remvoe the glass frame.

1. Remove the logs from their packaging, and inspect

each piece for damage. DO NOT INSTALL DAM-

AGED LOGS. The rear log bracket is shipped pack-

aged with the logs.

2. Install the rear left log by placing it on the sheet

metal shelf at the back of the firebox. (Fig. 39) The

log should touch the back wall of the firebox. Slide

the log to the left until the left side lines up with the

left bracket. (Fig. 39) When the log is in place the

left front corner of the log should rest on the decora-

tive grate.

3. Install the rear right log by placing it on the sheet

metal shelf at the back toward the right. Make

sure the right side of the log lines up with the right

bracket. (Fig. 39) NOTE: When the right and left rear

logs are in place, they should touch the back of the

firebox and each other.

The Radiance stove, when installed as a Natural vent

heater, includes a vent safety switch. (Page 34, Figure

67) Operating the stove when it is not connected to a

properly installed and maintained venting system, or

tampering with or disconnecting the vent safety switch,

can result in carbon monoxide (CO) poisoning and

possible death.

For U.S. installations: The venting system must

conform with local codes and/or the current National

Fuel Gas Code, ANSI Z22.1.

For Canadian installations: The venting system must

conform to the current CSA B149.1 installation code.

Install the Vent Pipe

Apply a bead of sealant around bottom end of inner

starter pipe (found in bag with logset) and attach to

stove. Apply a bead of sealant around top of inner

starter pipe and install the Z31D00 FSDHAG Draft

Hood according to Draft Hood instructions. (Fig. 35)

Attach the first section of venting to the draft hood.

Depending on the length of the individual venting

sections and the lengths of the decorative pipe (if

installed), you may need to slip the decorative pipe over

the venting sections before attaching upper sections

to lower ones. The sections of decorative pipe should

be oriented with their seams (if any) toward the wall;

sections usually do not need to be fastened at each

joint, other than slip sections. If the layout includes

a slip section, this should be the last section of pipe

visible in the room, at the ceiling. Complete the venting

according to the vent maker’s instructions.

ST357

attach draft hood

4/26/00 djt

�

�

�

�

�

�

CEMENT

Fig. 35 Install draft hood adpater (FSDHAG).

ST655

* Refer to FSDHAG

instructions for wiring

on Page 34

21

Radiance Direct Vent /Natural Vent Gas Heater

20004188

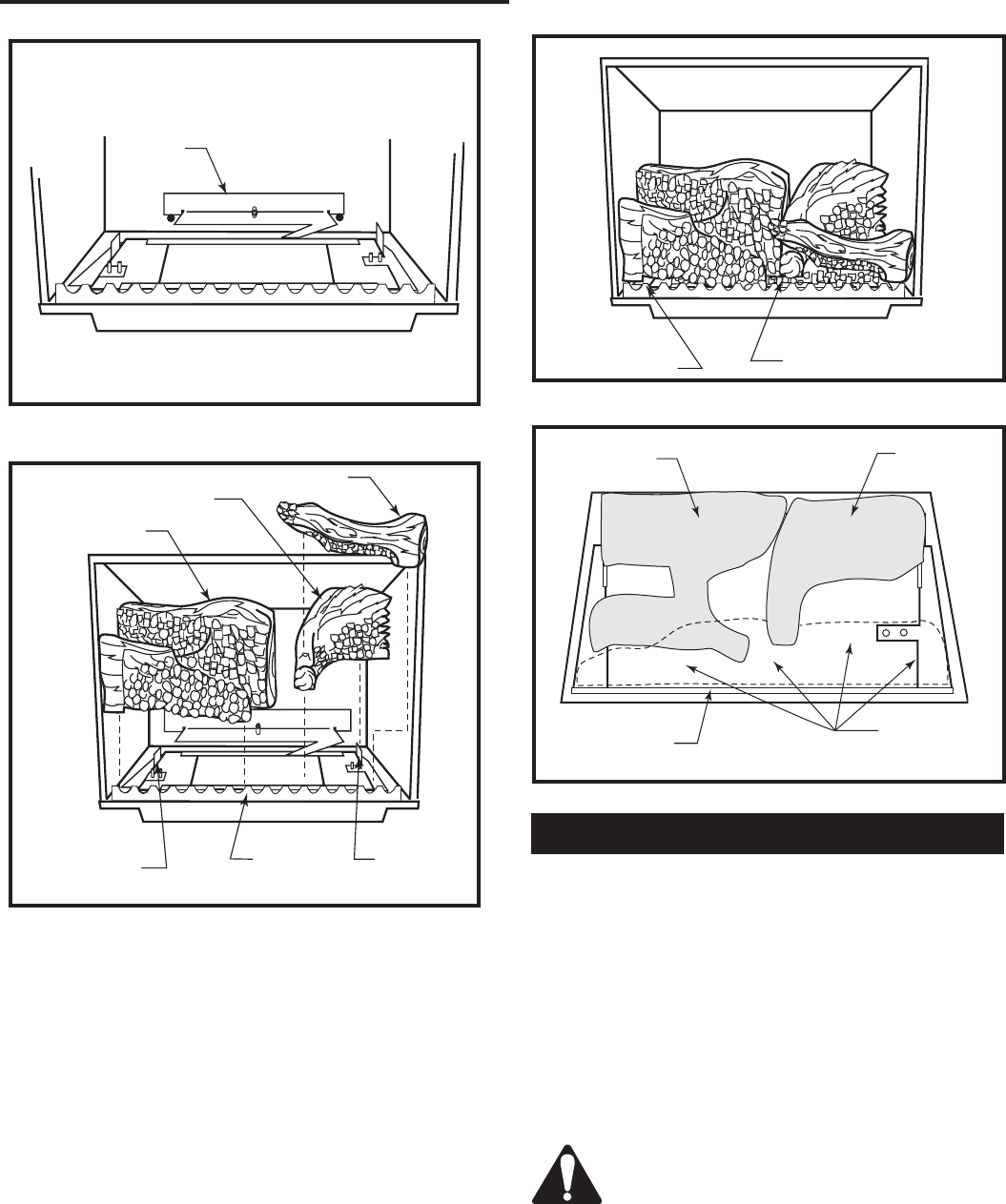

LG156

Radiance logs

4/23/01 djt

LG156

Fig. 39 Install the left and right rear logs and the right log.

Decorative

Grate

Right Log

Right Rear Log

Left Rear Log

Left Bracket Right

Bracket

4. Install the right log by engaging hole on the bottom

with pin on the right rear log. (Fig. 40) Set the bottom

of the log on the bracket and bring forward to come

in contact with decorative grate on right.

5. Loosely sprinkle the lava rocks directly on top of the

burner just behind decorative grate. (Fig. 41) Use

the lava rock to cover brackets on the burner. Do

not place lava rocks toward back of burner. The lava

rock is shipped inside the bag assembly.

Connect the Gas Supply Line

Check the Rating Plate attached by a steel cable to the

firebox, to confirm that you have the appropriate firebox

for the type of fuel to be used. The Radiance may be

converted from one gas to another using the appropri-

ate Fuel Conversion Kit listed on page 30.

In the U.S.; Gas connection should be made in ac-

cordance with current National Fuel Gas Code, ANSI

Z223.1/NFPA 54. Since some municipalities have addi-

tional local codes, be sure to consult your local authority.

In Canada; consult the local authority and CSA-B149.1

installation code.

Always check for gas leaks with a mild

soap and water solution. Do not use an

open flame for leak testing.

Light the pilot according to the directions on Page 24,

before going to the next step.

LG155

Radiance logs

installed

4/24/01 djt

LG155

Fig. 40 Completed log installation.

Lava Rock

Log rests on

decorative grate

LG160

RNV logs

top view

6/4/01 djt

Left Rear Log Right Rear

Log

Lava rock may

be placed in

this area

Decorative Grate

Top View

Fig. 41 Lava rock placement.

LG160

LG156

Radiance logs

4/23/01 djt

Rear Log

Bracket

LG158

Fig. 38 Radiance firebox.

2222

Radiance Direct Vent/Natural Vent Gas Heater

20004188

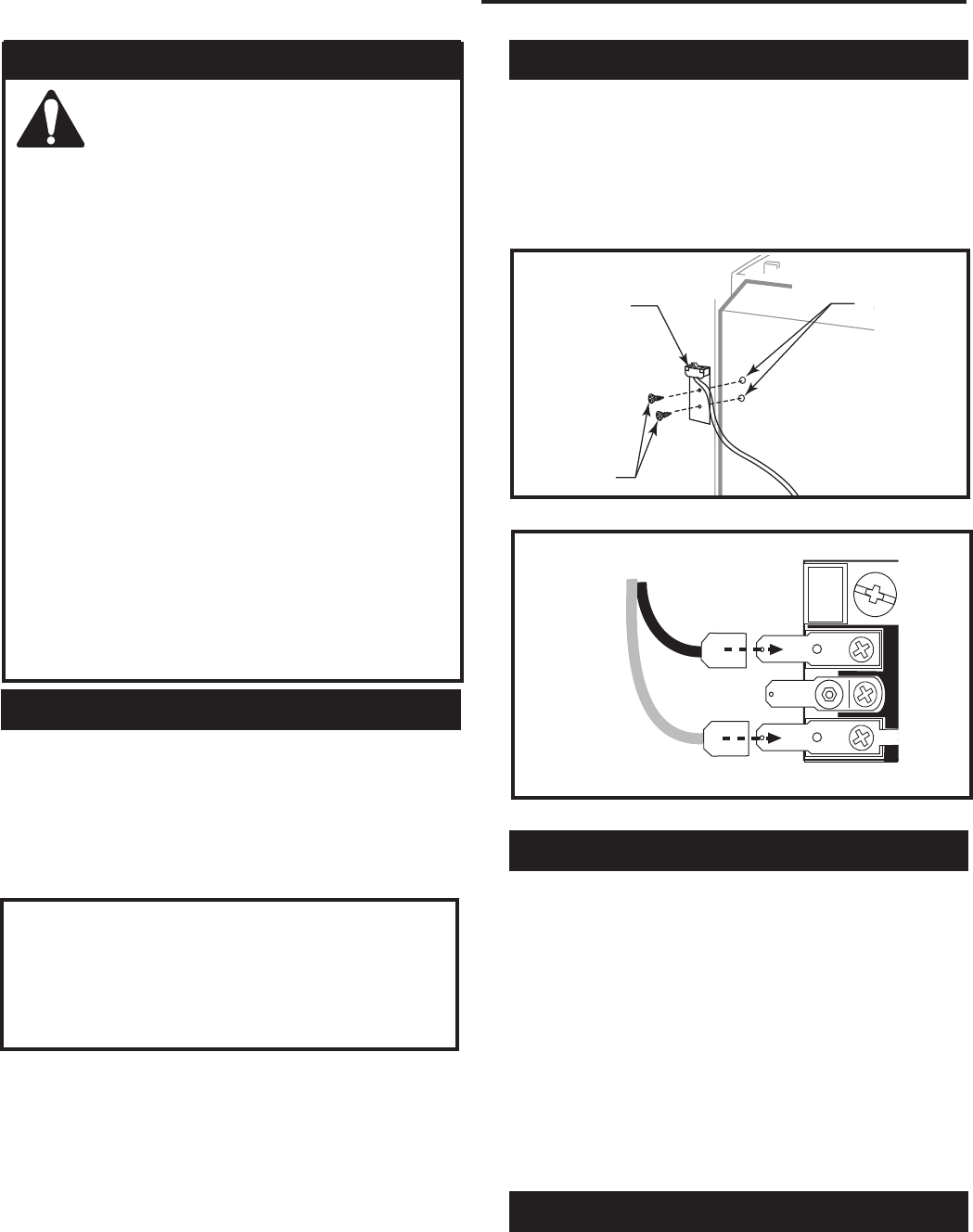

Thermostat Connection (optional)

Use only a thermostat rated for 500 - 750 millivolts.

Check the table below for the appropriate gauge ther-

mostat wire to use for the length of lead required in your

installation.

1. Install the wall thermostat in the desired location and

run the wires to the stove location. Terminate these

leads with 1/4” female connectors.

2. Connect the thermostat wires to the valve. (Fig. 43)

Install ON/OFF Switch

The switch assembly parts are found in the parts bag.

1. Attach switch assembly to left rear side of stove

shroud (when facing shroud) using two screws and

existing holes in shroud. (Fig. 42)

2. Run wires down back of stove, under bottom of rear

shroud to valve.

3. Attach wires to valve terminals. (Fig. 43)

PILOT

ADJ

TP TH

TPTH

ST228

attach switch

wires to valve

12/99

ST228

Fig. 43 Attach switch wires to valve.

Install the Mesh and Grille

Place the mesh and grille on the top of the Radiance

stove to complete assembly.

Burner Information

The appliance must only use the gas specified on the

rating plate, unless converted using a Vermont Castings

Fuel Conversion Kit. To convert from LP to Natural Gas

use Kit #000-5009. To convert from Natural Gas to LP

use Kit #000-5010.

Conversion instructions are provided with each kit and

beginning on Page 29 in this manual.

THIS APPLIANCE SHOULD BE CON-

NECTED TO THE GAS SUPPLY ONLY BY

A QUALIFIED GAS SERVICE TECHNICIAN.

FOLLOW ALL LOCAL CODES.

THERE MUST BE A GAS SHUT-OFF BE-

TWEEN THE STOVE AND THE SUPPLY.

In order to connect Natural Gas, use a fitting with 1/2”

NPT on the valve side and 1/2” natural gas supply line

with an input of 35,000 BTUs at a manifold pressure

of 3.5” between minimum inlet supply of 5.5” w.c. and

maximum of 14.0” w.c.

In order to connect Propane, use a fitting with 1/2”

NPT on the valve side and 1/2” propane gas supply line

with an input of 35,000 BTUs at a manifold pressure of

10.0” between a minimum inlet supply of 11.0” w.c. and

maximum of 14.0” w.c.

This appliance should only be connected

by a qualified gas technician. Test to

confirm manifold pressures as specified

below.

The Radiance Heater and its individual shutoff

valve must be disconnected from the gas supply

piping during any pressure testing of that system

at test pressures in excess of 1/2 psig (3.5 kPa).

The Radiance Heater must be isolated from the

gas supply piping system by closing its indi-

vidual manual shutoff valve during any pressure

testing of the gas supply piping system at test

pressure equal to or less than 1/2 psig.

There must be a gas shutoff between the stove

and the supply.

In order to connect Natural Gas, use a fitting

with 1/2” NPT on the valve side and 1/2” natural

gas supply line with an input of 35,000 BTUs at a

manifold pressure of 3.5” between minimum inlet

supply of 5.5” w.c. and maximum of 14.0” w.c.

In order to connect Propane, use a fitting with 1/2”

NPT on the valve side and 1/2” propane gas sup-

ply line with an input of 35,000 BTUs at a manifold

pressure of 10.0” between a minimum inlet supply

of 11.0” w.c. and maximum of 14.0” w.c.

CAUTION

ST315

attach switch assy

1/31/00 djt

Switch As-

sembly

Screws

Existing

Holes

ST315

Fig. 42 Attach switch assembly to rear shroud.

Thermostat

Wire / Gauge Maximum Run

18 20 feet

16 20 - 40 feet

14 up to 60 feet

23

Radiance Direct Vent /Natural Vent Gas Heater

20004188

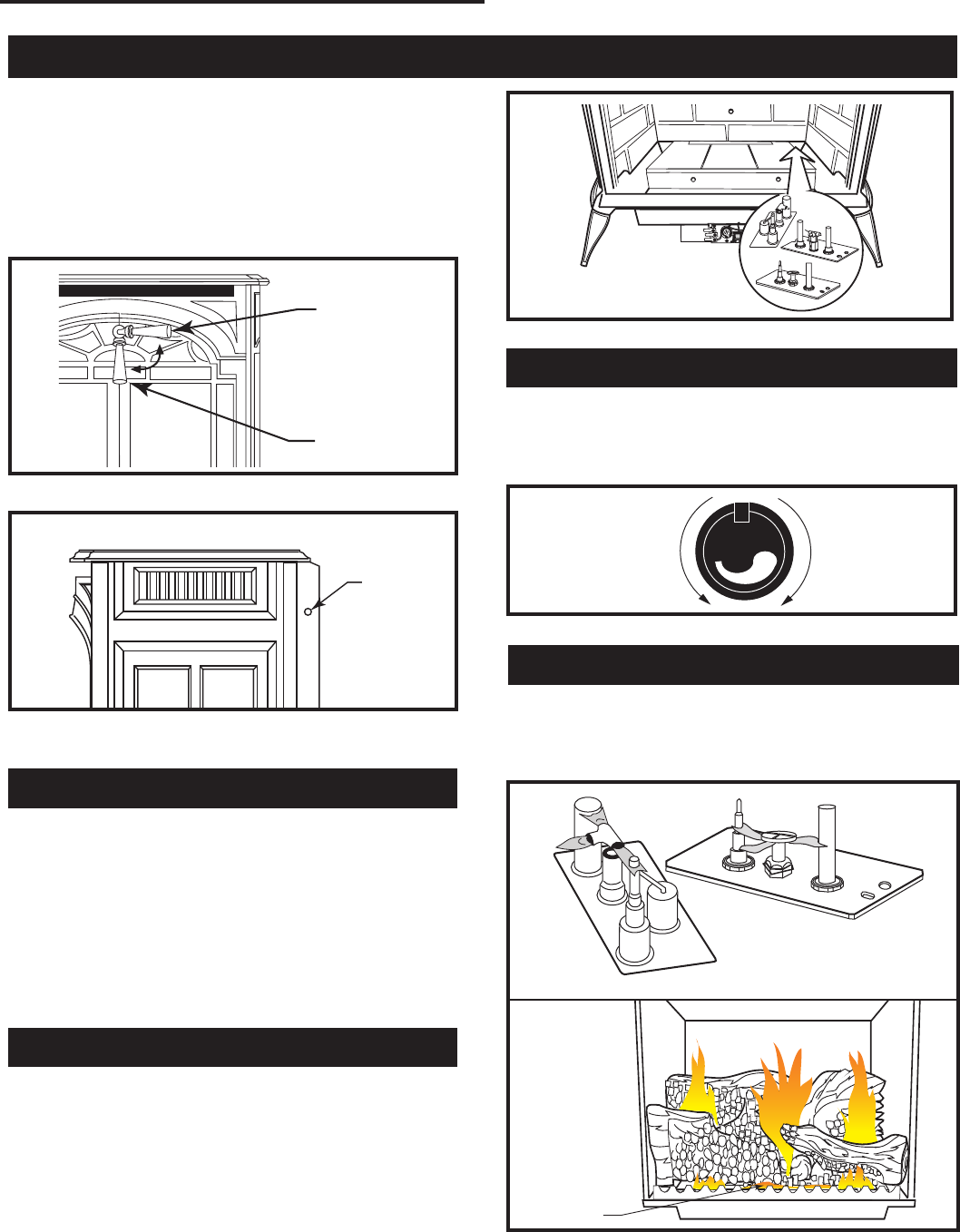

The Radiance is shipped with the operable door front

plate. The stove may be operated with the doors either

open or closed. To open the front doors, insert the

handle into the door latch stub and turn it to the right

and up. (Fig. 44) When not in use, the handle may be

stored in the handle holder on the right side of the rear

shroud. (Fig. 45)

Operation

Your First Fire

Read these instructions carefully and familiarize

yourself with the burner controls shown on Page 24.

Locate the pilot assembly, Figure 46. Follow the lighting

instructions on Page 24 exactly.

During the first fire, it is not unusual to smell some

odor associated with new logs, paint and metal being

heated. Odors should dissipate within the first eight to

ten hours, however, you can open a window to provide

fresh air to alleviate the condition.

Pilot and Burner Inspection

Each time you light your heater check that the pilot

flame and burner flame patterns are as shown in Figure

48. If flame patterns are incorrect, turn the heater off.

Contact your dealer or a qualified gas technician for as-

sistance. Do not operate the heater until the pilot flame

is correct.

Follow regular maintenance procedures as described

on Page 32.

ST624

handle holder

2/6/01

RADIANCE

Handle

Holder

ST656

Fig. 45 When not in use, store handle in the handle holder.

ST477

Stardance

pilot location

10/4/00

Fig. 46 Pilot Assembly location.

ST476

Pilot As-

sembly

ST621

Stardance

operable doors

1/31/01

Fig. 44 To open the front doors, turn handle counterclockwise.

Clockwise

to Close

Counterclockwise

to Open

ST621

Flame & Temperature Adjustment

For stoves equipped with HI/LO valves, flame adjust-

ment is accomplished by rotating the HI/LO adjustment

knob located near the center of the gas control valve.

(Fig. 47)





Turn

counterclockwise

to decrease

flame height

Turn clockwise

to increase

flame height

HV102

Honeywell hi/lo knob

4/5/99 djt

Fig. 47 Flame adjustment knob for Honeywell valve.

Flame Characteristics

It is important to periodically perform a visual check

of the pilot and the burner flames. Compare them to

Figure 48. If any of the flames appear abnormal, call a

service person.

Fig. 48 Correct pilot and burner flame patterns.

LG157

Radiance logs

flame

4/24/01 djt

Red Glow LG157

CO105c

Pilot flame

4/10/00 djt

CO105c

PSE

Pilot SIT Pilot

2424

Radiance Direct Vent/Natural Vent Gas Heater

20004188

3. Open control access panel.

4. Push in gas control knob slightly and turn clock-

wise to “OFF”. Do not force.

5. Close control access panel.

1. STOP! Read the safety information above.

2. Turn off all electrical power to the fireplace.

3. For MN/MP/TN/TP appliances ONLY, go on to

Step 4. For RN/RP appliances turn the On/Off

switch to “OFF” position or set thermostat to

lowest level.

4. Open control access panel.

5. Push in gas control knob slightly and turn

clockwise to “OFF”.

10. Push the control knob all the way in and hold.

Immediately light the pilot by repeatedly depress-

ing the piezo spark ignitor until a flame appears.

Continue to hold the control knob in for about one

(1) minute after the pilot is lit. Release knob and it

will pop back up. Pilot should remain lit. If it goes

out, repeat steps 5 through 8.

FOR YOUR SAFETY READ BEFORE LIGHTING

• If you cannot reach your gas supplier, call the

Fire Department

C. Use only your hand to push in or turn the gas

control knob. Never use tools. If the knob will not

push in or turn by hand, do not try to repair it, call a

qualified service technician. Applying force or any

attempted repair may result in a fire or explosion.

D. Do not use this fireplace if any part has been under

water. Immediately call a qualified service techni-

cian to inspect the heater and to replace any part of

the control system and any gas control which has

been under water.

A. This heater has a pilot which must be lit manu-

ally. When lighting the pilot follow these instruc-

tions exactly.

B. BEFORE LIGHTING smell all around the heater

area for gas. Be sure to smell next to the floor

because some gas is heavier than air and will

settle on the floor.

WHAT TO DO IF YOU SMELL GAS

• Do not try to light any fireplace

• Do not touch any electric switch

• Do not use any phone in your building

• Immediately call your gas supplier from a neigh-

bor’s phone. Follow the gas supplier’s instruc-

tions.

To Turn Off Gas To Heater

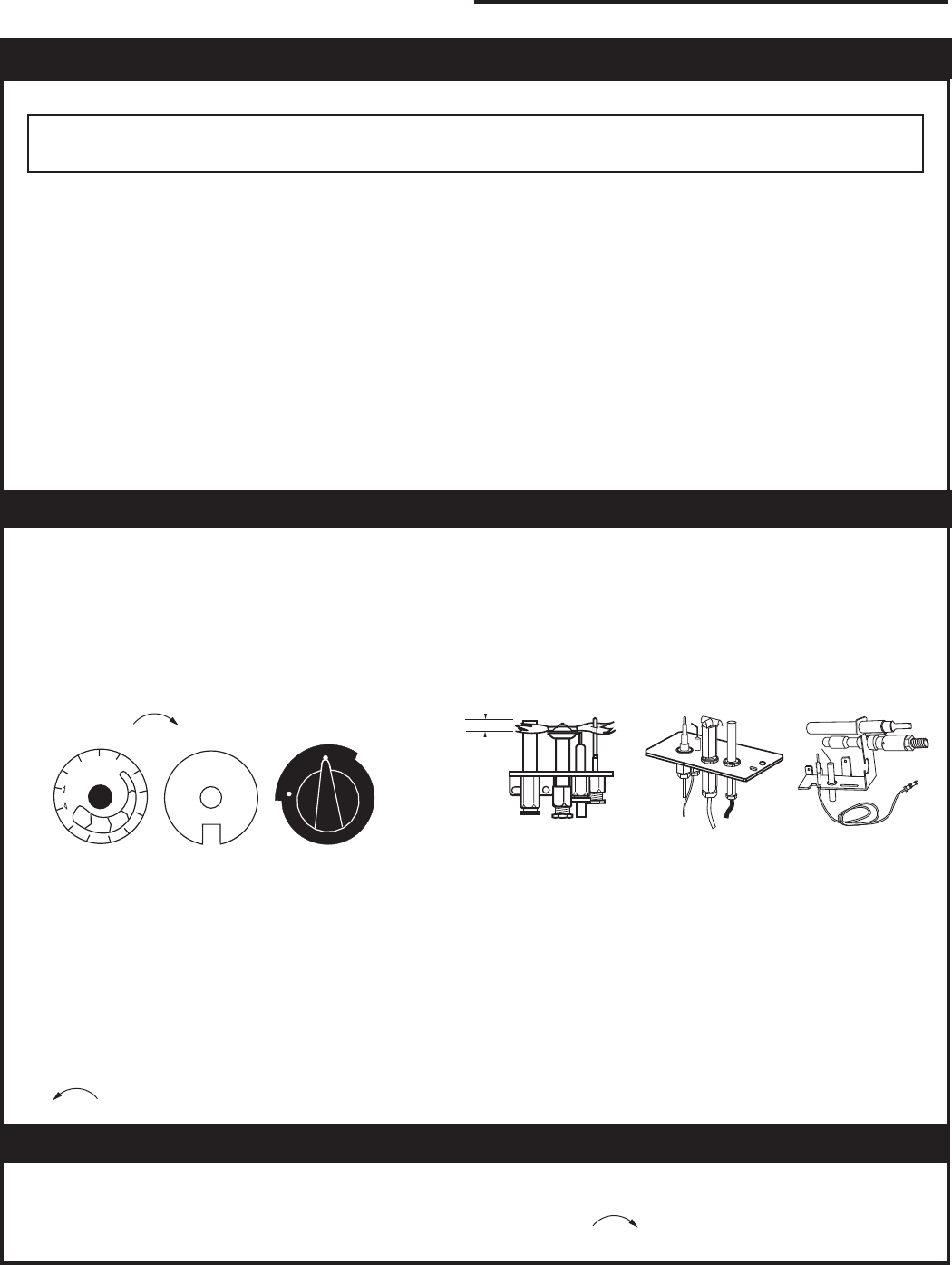

Lighting and Operating Instructions

1. Turn the On/Off switch to Off position or set the

thermostat to lowest setting.

2. Turn off all electric power to the fireplace if

service is to be performed.

Lighting Instructions

6. Wait five (5) minutes to clear out any gas. Then

smell for gas, including near the floor. If you

smell gas, STOP! Follow “B” in the safety infor-

mation above. If you do not smell gas, go to the

next step.

7. Remove glass door before lighting pilot. (See

Glass Frame Removal section).

8. Visibly locate pilot by the main burner.

9. Turn knob on gas control counterclockwise

to “PILOT”.

• If knob does not pop up when released, stop

and immediately call your service technician or

gas supplier.

• If after several tries, the pilot will not stay lit,

turn the gas control knob to “OFF” and call your

service technician or gas supplier.

11. Replace glass door.

12. Turn gas control knob to “ON” position.

13. For RN/RP appliances turn the On/Off switch to

“ON” position or set thermostat to desired setting.

14. Turn on all electrical power to the fireplace.

WARNING:If you do not follow these instructions exactly, a fire or explosion

may result causing property damage, personal injury or loss of life.

3/8" - 1/2"

FP1068

Lighting instructions

Pilots

Euro SIT SIT NOVA Honeywell

PILOT

ON

OFF

ON

P

I

L

O

T

O

F

F

O

F

F

FP1067

lighting instruction

knobs

3/9/01 djt

5

4

3

2

1

O

F

F

P

i

l

o

t

25

Radiance Direct Vent /Natural Vent Gas Heater

20004188

Troubleshooting / Honeywell #8420 Gas Control System

NOTE: Before troubleshooting the gas control system, be sure the external gas shutoff is in the “ON” position.

WARNING: REMOVE THE GLASS PANEL BEFORE PERFORMING ANY GAS CONTROL SERVICE WORK.

SYMPTOM POSSIBLE CAUSES CORRECTIVE ACTION

1. Spark ignitor will

not light

2. Pilot will not stay lit

after carefully fol-

lowing the lighting

instructions

3. Pilot lights, no gas

to burner, valve

knob ON, remote

switch (rocker

switch) ON

4. Frequent pilot out-

age

A. Defective or misaligned

electrode at the pilot

B. Defective ignitor (push but-

ton)

A. Defective pilot generator

(thermocouple)

B. Defective automatic valve

operator

A. Remote switch or wires

defective

B. Thermopile may not gener-

ate sufficient voltage

C. Plugged burner orifice

D. Defective automatic valve

operator

A. Pilot flame may be too low

or high, (blowing or lifting),

causing the pilot to drop out

B. Possible blockage of the

vent terminal

Using a match, light pilot. If pilot lights, turn off pilot and

push the ignitor button again. If pilot will not light, check

gap at electrode and pilot - it should be 1/8” to have a

strong spark.

Push piezo ignitor button. Check for spark at electrode

and pilot. If there is no spark at the pilot, and electrode

wire is properly connected, replace ignitor.

Check pilot flame. It must impinge on the thermocouple

or thermopile. NOTE: This pilot burner assembly uses

both a thermocouple and a thermopile. The thermocou-

ple operates the pilot flame. Tighten the thermocouple.

The thermopile operates the main valve (ON and OFF).

Clean and/or adjust pilot for maximum flame impinge-

ment on thermocouple and thermopile.

Turn valve knob to ‘Pilot’. Maintain flow to pilot; millivolt

meter should read greater than 10mV. If the reading

is okay and the pilot does not stay on, replace the gas

valve. NOTE: An interrupter block (not supplied) must be

used to conduct this test.

Check rocker switch and wires for proper connection.

Use jumper wires across terminals at rocker switch. If

burner lights, replace rocker switch. If okay, use jumper

wires across rocker switch wires at the valve; if burner

lights, wires are faulty or connections are bad.

1. Be sure wire connections from thermopile at gas valve

terminals are tight and thermopile is fully inserted into

pilot bracket.

2. One of the rocker switch wires may be grounded.

Remove rocker switch wires from valve terminals. If

burner now stays lit, trace rocker switch wiring from

ground. It may be grounded to the appliance or the

gas supply line.

3. Check the thermopile with a millivolt meter. Take read-

ing at thermopile (“TP” and “TP/TH”) terminals of gas

valve. Should read 325 millivolts minimum while hold-

ing valve knob depressed in PILOT position and with

rocker switch OFF. Replace faulty thermopile if reading

is below specified minimum.

Check burner orifices for debris, and remove.

Turn knob to ON, place rocker switch to ON, millivolt me-

ter should read greater than 10 mV. If the reading is okay

and the burner does not light, replace the valve.

Clean and/or adjust pilot flame for maximum flame im-

pingement on thermocouple and thermopile.

Check the vent terminal for blockage.

2626

Radiance Direct Vent/Natural Vent Gas Heater

20004188

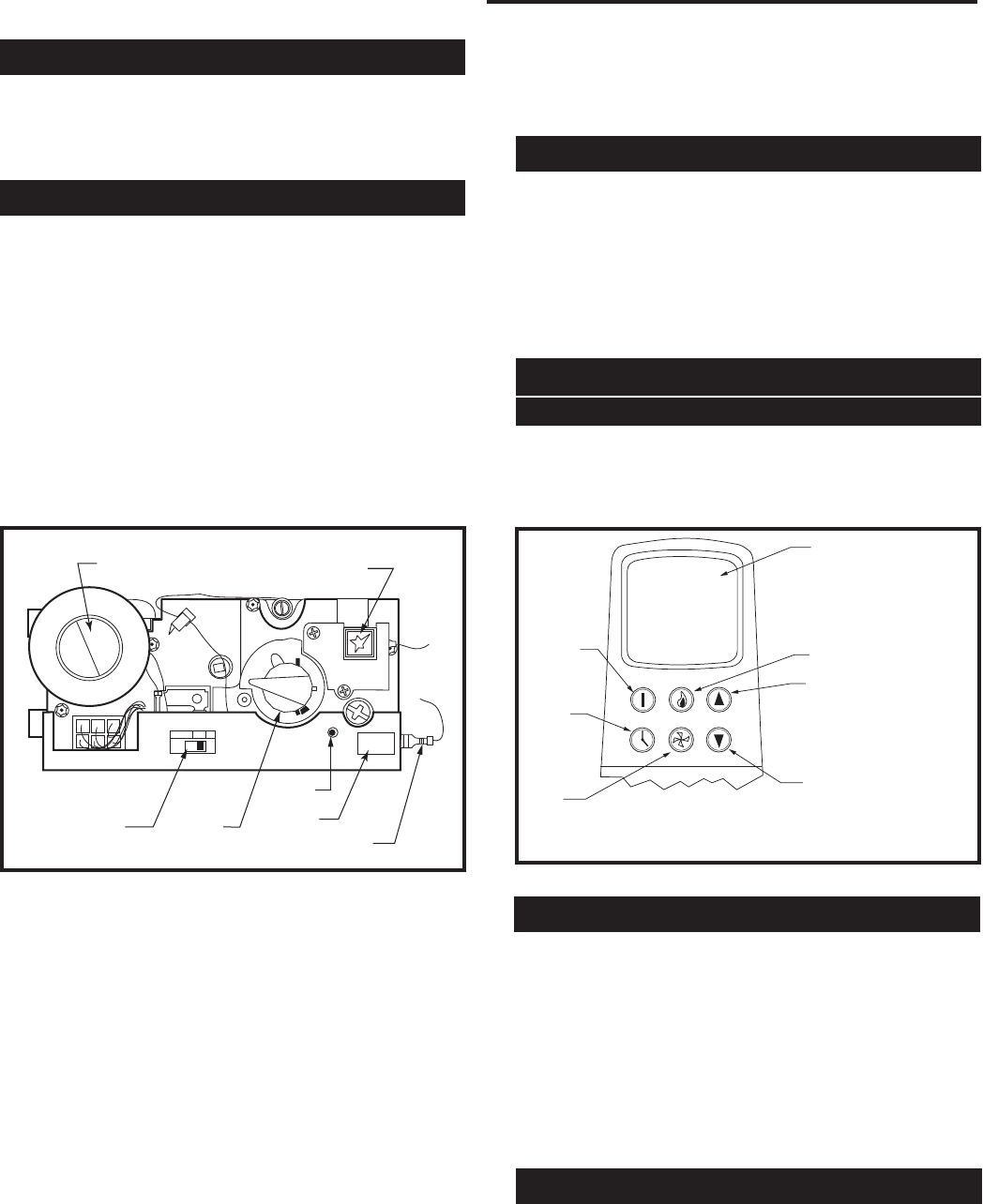

Instructions for RF Comfort Control Valve

The Comfort Control valve allows remote control of

temperature, fan and flame appearance.

NOTE: The antenna should hang in free air away from

grounded metal.

Operation

1. If the manual switch is in remote position, switch it to

LOCAL. (Fig. 49)

2. Turn the pilotstat knob counterclockwise from OFF

to the PILOT position, push the knob down, and hold

in position. The pilot valve opens and allows gas to

flow to the pilot burner.

3. Push plunger on the piezo until the pilot burner is lit.

When the pilot burner is lit, the LED on the control

will come on after approximately 40 seconds and

will provide 1 short blink continuously in the normal

mode. When the light turns off which will be approxi-

mately 10 seconds after it has been continuously

red, the receiver/valve is fully powered.

4. Release the knob. The shaft will move upward. The

pilot burner should now stay burning. If the pilot

burner goes out, repeat step 2.

5. Turn the knob counterclockwise to the ON position.

If the manual switch is in the LOCAL position, the

main burner will turn on immediately.

6. ON the initial use of a transmitter, a recognition

operation is required between the receiver/valve

and transmitter. Change the switch from LOCAL

to REMOTE. Press the fan or flame button on the

transmitter within 30 seconds. The LED will blink

indicating the transmitter will now work with the re-

ceiver/valve. If the switch continues in the REMOTE

position, the transmitter will now control the main

valve, flame modulation level and fan control.

7. If the manual switch is in the LOCAL position, the

valve will be at the highest fixed pressure setting

and the fan will be at the highest fixed speed. The

transmitter will control the fan only.

Shut Off Procedure

If the manual switch is in the REMOTE position, the

transmitter can shut off the main burner and fan. How-

ever, the control is still on and a command from the

transmitter can turn on the main burner or fan.

To shut off the system, turn the pilotstat knob clockwise

to the OFF position. This action closes the main gas

and safety valves. The transmitter cannot turn on the

main burner or fan.

Transmitter Operation

Off Mode

In the OFF mode, the fireplace flame and fan are

off, the display will show OFF and displays the room

temperature. If the receiver is in REMOTE mode, the

fireplace will shut off.

On (Manual) Mode

In the ON mode, the room temperature, flame and fan

levels will be shown. MANUAL will appear next to both

the flame and fan icons.

When the control is in the ON mode, the flame and fan

levels, and delay timer are changed with the up and

down buttons. To change the flame level, press the

flame button followed by an arrow key. To change the

fan level, press the fan key followed by an arrow key.

Pushing the arrow key once will change the level by

one unit.

Delay Timer Mode

The shut off delay timer has a maximum of 2 hours and

a minimum of zero minutes. To change the timer level,

press the time key followed by an arrow key. Pushing

the key once will change the timer by 10 minutes.

FP1039

comfort valve

transmitter

3/27/00 djt

Fig. 50 Transmitter diagram.

Display

Room Temperature

Set Temperature

Flame Height Level

Fan Speed Level

Countdown Timer

Low Battery

Flame

Up

Increases Flame

Height, Fan Speed

Timer, or Set Point

Down

Decrease

Flame, Fan

Speed Timer

or Set Point

Mode

Auto

On

Off

Countdown

Timer

Fan

FP1039

FP1037

Honeywell

comfort valve

3/22/00 djt

LOCAL

REMOTE

ON

•

PILOT

OFF

•

LED

Piezo Ignitor

Local/Remote

Switch

Pilotstat

Knob

LED

FP1037

Fig. 49 Comfort control valve.

Antenna

Motor Top Cap

Plug

27

Radiance Direct Vent /Natural Vent Gas Heater

20004188

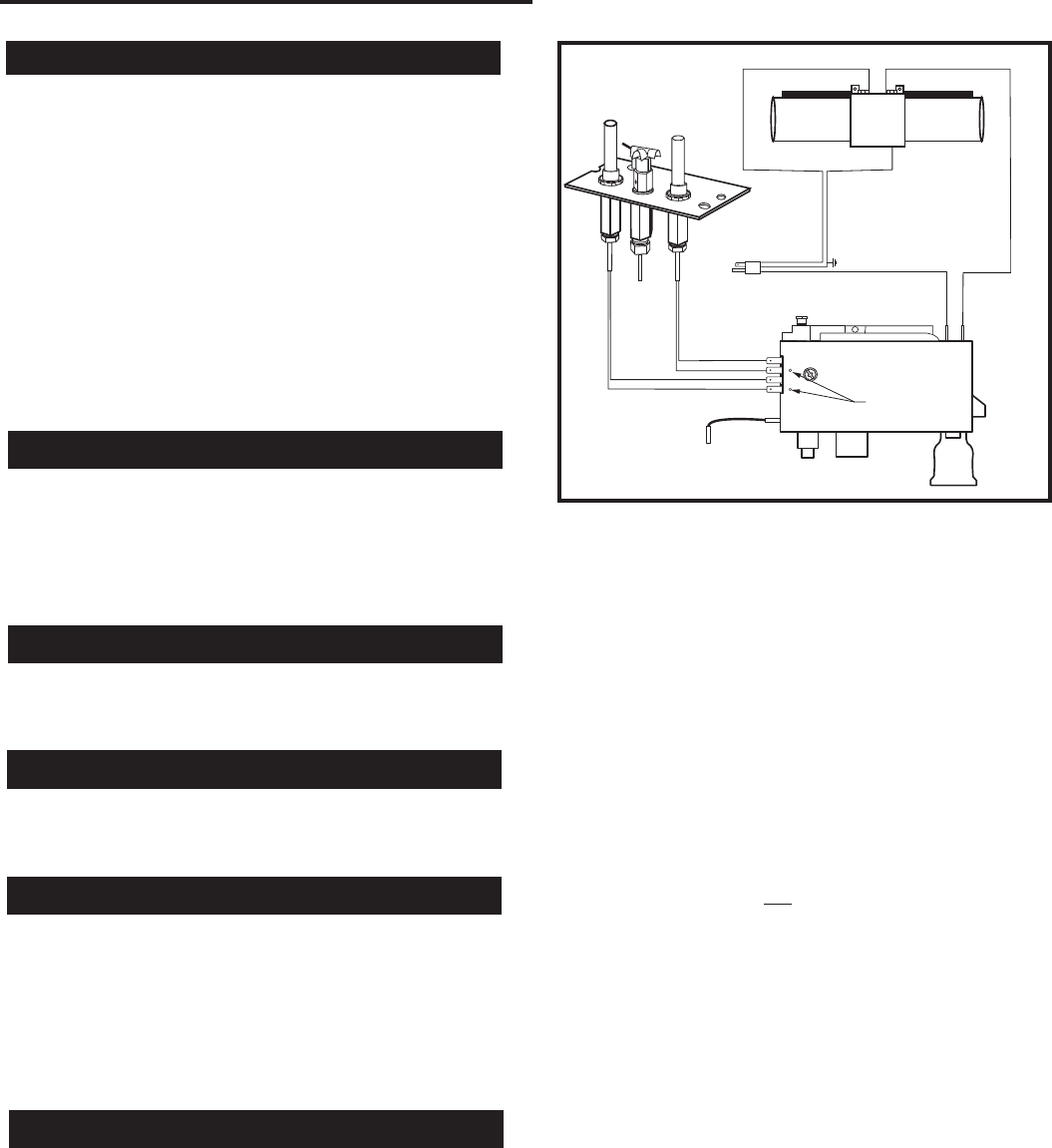

Auto Mode

In the AUTO mode, the room temperature, set tem-

perature, flame and fan levels will be shown. AUTO will

appear next to both the flame and fan icons.

When the control is in the AUTO mode, the main burner

will turn on/off or modulate based on the heat needed

to maintain the set temperature. The flame level will

change automatically to optimize the heat output

needed to maintain the set temperature. To change the

set temperature, press the up or down key. Pushing a

key once will change the temperature by one degree.

In the AUTO mode, the fan speed will increase with

increasing flame height or decrease with decreasing

flame height. “AUTO” is displayed next to the flame and

fan icons.

Fan Override During Auto Mode

If a lower or higher fan speed is desired when operating

in the AUTO mode, the fan speed can be overridden by

pushing the fan button followed by the up or down key.

Pushing a key once will change the fan level by one

unit. In this mode “AUTO” is displayed next to the flame

icon and “MANUAL” is displayed next to the fan icon.

Change Between F/C Temperature Units

Push the up and down arrow keys simultaneously for

at least 3 seconds to toggle between Fahrenheit and

Celsius units.

Disable Thermostat Function

To disable the thermostat function in the AUTO mode,

push the time and down keys simultaneously for at

least 3 seconds.

To Change Batteries

1. Remove cover on the backside of the transmitter.

Install 3 AAA batteries as shown and reattach cover.

2. Once steps 1-3 in OPERATION are completed,

receiver/valve and transmitter are now ready. Press

any button on transmitter for recognition process to

occur between the receiver/valve and transmitter.

3. Use functions as described in TRANSMITTER sec-

tion.

Troubleshooting

1. Locate LED light on valve.

2. LED will blink after every valid command received by

the transmitter; this is not an error.

3. Failure codes may occur anytime after pilot burner is

lit.

4. Sequence is failure code followed by light not blink-

ing for 30 seconds.

5. In the event of multiple failure codes, next failure

code follows previous failure code by approximately

3 seconds.

If an Error Code 3 is observed while performing the

testing, complete the following:

1. Make sure the spade connectors are pushed all the

way on. If rhe Error Code 3 is still showing, then go

to the next step.

2. Switch the front two thermopile leads with the back

two. Be sure the white lead is connected to the

spade with the white dot next to it. If the Error Code

3 is still showing, replace the thermopiles.

If an Error Code 8 is observed while performing the

testing, complete the following:

1. Confirm the valve is not in REMOTE mode.

• If the valve is producing Error Code 8 and in RE-

MOTE mode, the valve is defective and should be

replaced.

• If the valve is in LOCAL mode and producing Error

Code 8, then go to the next step.

2. Slide the Remote/Local switch to REMOTE and

teach the valve a transmitter (see item 6, page 32).

The Error Code will clear itself after approximately

1.5 minutes and return to normal operation.

LED Count Service Action

8 Replace valve

7 Confirm stepper motor connection exists

5 Confirm fan connection exists and works

4 Confirm gas type; jumper in place

3 Replace thermopiles

2 Turn fan ON

NOTE: Some keys are not active.

FAN

Antenna

Red

White

Red

White

FP1038

comfort valve

wiring diagram

3/24/00 djt

Valve

(Bottom View)

Blower

Pilot As-

sembly

FP1038

Fig. 51 Comfort Valve wiring diagram.

White Dots

2828

Radiance Direct Vent/Natural Vent Gas Heater

20004188

Light pilot burner

Set manual switch

to local or remote

Release pilotstat

knob.

Turn pilotstat knob

from PILOT to ON.

If manual switch is

set to LOCAL, did

main burner light

and fan turn on?

Turn pilotstat knob

to PILOT to turn

off main burner.

Turn pilotstat knob

to OFF to turn

valve completely

off.

Comfort Valve System Control Sequence Of Operation With Transmitter

Did the LED stop

blinking?

Review LED fail-

ure analysis.

Five minute wait

period

Cycle switch

once and leave in

remote. Press any

key on transmit-

ter for recognition

operation.

Local Path

Move switch from

local to remote.

Press any key on

transmitter. Move

switch back to

local.

Yes

If the manual switch

is set to REMOTE,

press the mode but-

ton to display “ON”.

does transmitter con-

trol the main burner

and fan?

Does transmitter

change levels of

flame height, fan

speed?

Set levels of flame

height and fan to

“0” to shut off main

burner and fan.

Turn pilotstat knob

to OFF to turn

valve completely

off.

On Path

Move switch from

manual to remote.

Press any key on

transmitter.

Yes

Yes

No

Choose Manual or

Remote path. Set

switch to manual or

remote.

Yes

No

29

Radiance Direct Vent /Natural Vent Gas Heater

20004188

If the manual switch is

set to REMOTE,

press the mode button

to display AUTO on the

transmitter. Does the

transmitter display the

room and temperture

setting?

If the settings is above

room temperture on the

transmitter, does the

main valve and fan

turn on?

Turn pilotstat knob to

OFF to turn valve com-

pletely off.

Auto Path

Move switch from

LOCAL to REMOTE.

Press any key within

30 seconds.

Yes

Yes

No

No

If the settings is below

room temperture on the

transmitter, does the

main valve and fan

turn off?

3030

Radiance Direct Vent/Natural Vent Gas Heater

20004188

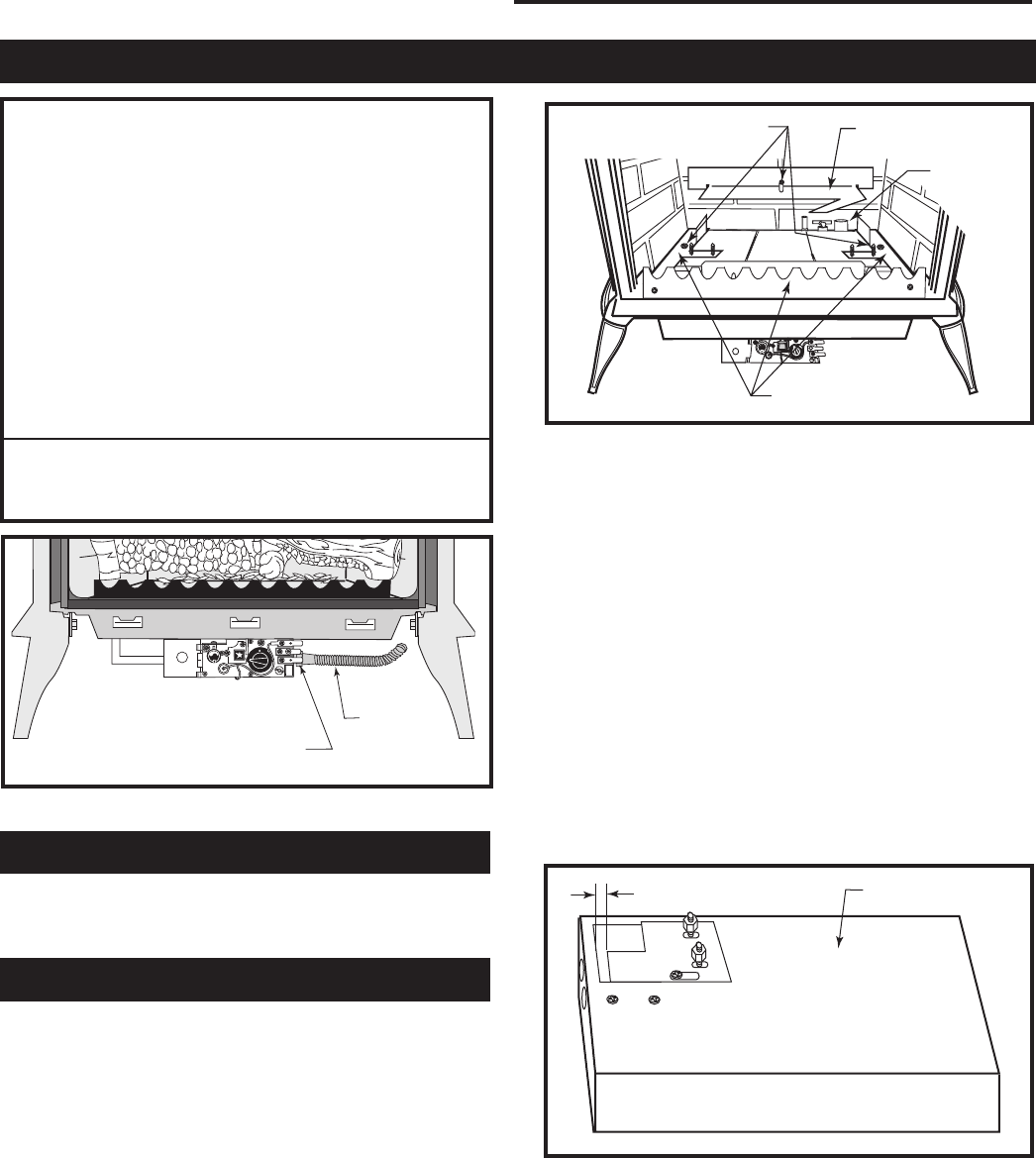

ST667

RNVOD

air shutter

converting

from NG to Lp

6/4/01 djt

Burner

Refer to Table 2

ST667

Fig. 54 Adjust air shutter according to Table 2.

Conversion Precautions

Before proceeding, turn control knob on valve to OFF

and turn gas supply OFF. Turn OFF any electricity that

may be going to the appliance.

Burner Orifice Conversion

1. Hold the burner at the right hand side and lift to clear

the right burner leg. Then pull to the right to clear the

injectors on the left hand side.

2. Remove injector orifices from left burner leg using

1/2” wrench. (Fig. 61)

3. Install conversion orifices. (Refer to Table 1)

4. Air shutter adjustment. The unit is shipped from the

factory with the air shutter open 1”. For LP units only,

the air shutter could be closed further. Refer to Table

2 for minimum air shutter opening. The air shutter

is located on the bottom of the burner to the left.

Unfasten the two nuts holding the shutter in place.

Adjust the air shutter as needed according to Table

2. (Fig. 54)

Fuel Conversion Instructions

WARNING! This conversion kit shall be installed

by a qualified service agency in accordance with

the manufacturer’s instructions and all applicable

codes and requirements of the authority having

jurisdiction. If the information in these instruc-

tions is not followed exactly, a fire, explosion

or production of carbon monoxide may result

causing property damage, personal injury or loss

of life. The qualified service agency is respon-

sible for the proper installation of this kit. The

installation is not proper and complete until the

operation of the converted appliance is checked

as specified in the manufacturer’s instructions

supplied with the kit.

CAUTION: The gas supply shall be shut off prior

to disconnecting the electrical power, before pro-

ceeding with the conversion.

ST226

attach gas line

12/8/99 djt

PILOT

ON

OFF

PILOT

ADJ

L

O

H

I

Main

Gas Line

Gas Supply Inlet

ST226

Fig. 52 Attach the gas line to the left side of the valve.

ST350

Jefferson

air shutter adj

3/20/00 djt

Remove Screws Rear Log Bracket

Pilot

Left & Right Log

Bracket Assembly ST350

Fig. 53 Remove rear log bracket and left and right log bracket

assembly.

Conversion Procedure

1. Remove stove front. Lift stove front up and then

swing bottom out and away to disengage from the

stove body. (Page 32, Fig. 62)

2. Undo the right and left latches at the top of the glass

frame. (Page 32, Fig. 63)

3. Pull the top edge of the glass and frame assembly

away from the firebox face. Place the assembly out

of the way on a flat, padded surface such as a coun-

ter protected by a towel.

4. Remove the logset from the firebox.

5. Remove the rear log bracket by loosening the screw

and lifting the bracket up and away. (Fig. 53)

6. Remove the right and left log bracket assembly by

unfastening the two screws which hold the burner in

place. (Fig. 53)

Models 3350, 3351, 3360 thru 3369 (R Models) Only

Honeywell Valve

1. Remove cap from Hi-Lo knob. This can be accom-

plished by lifting the plastic cap off the screw. (Fig.

55)

2. Remove the screw from center of Hi-Lo knob with

small screwdriver turning counterclockwise. (Fig. 55)

31

Radiance Direct Vent /Natural Vent Gas Heater

20004188

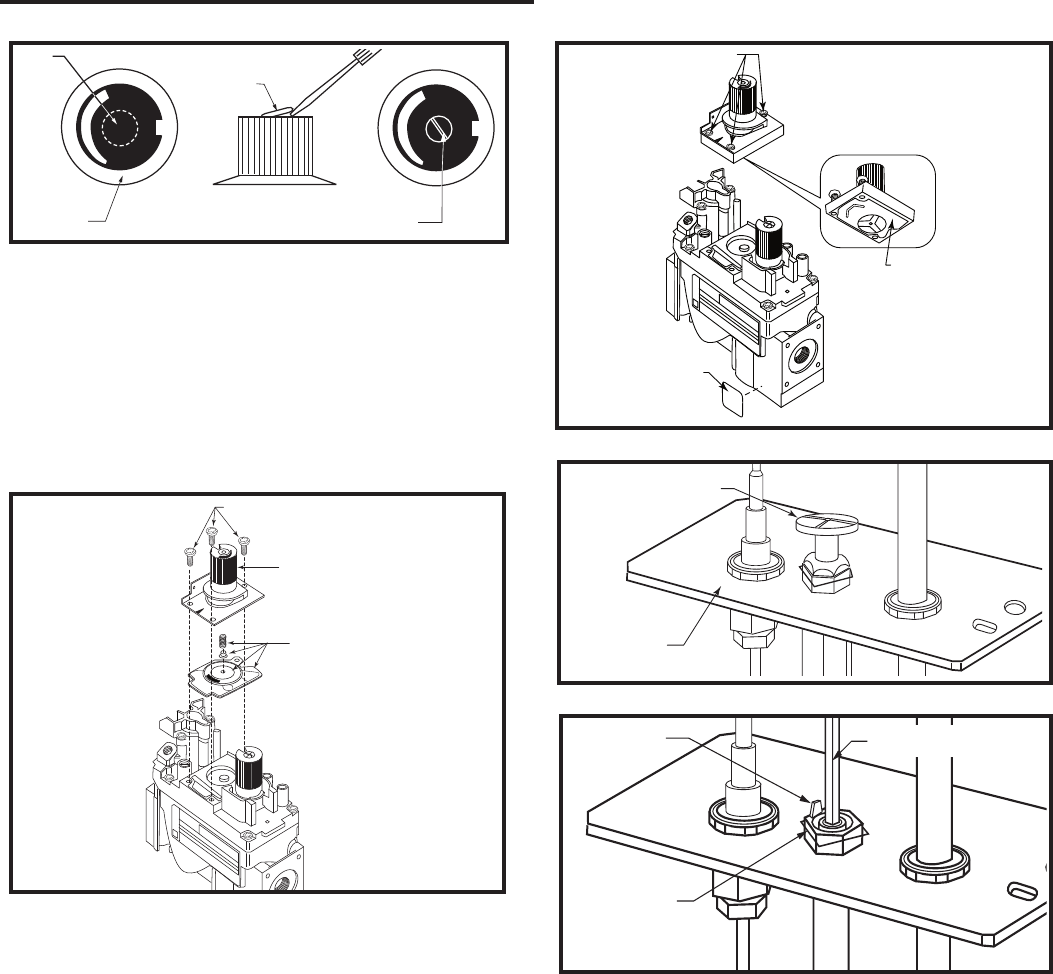

CO100

Gas conversion

HI-LO knob

3/15/99 djt

L

O

H

I

L

O

H

I

Cap

Hi-Lo

Knob

Lift Open

Center Screw CO100

Fig. 55 Remove center screw from Hi-Lo knob.

3. Insert blue painted screw when converting to natural

gas and red painted screw when converting to LP.

4. Tighten screw (do not over tighten), replace cap.

SIT 820 Valve

1. Using TORX T20 bit, remove and discard the three

(3) pressure regulator mounting screws (A), pressure

regulator tower (B) and the spring and diaphragm

assembly (C). (Fig. 56)

FC107

SIT820

valve conversion

10/03

A

B

C

O

F

F

P

I

L

O

T

O

Fig. 56 Remove mounting screws, pressure regulator tower

and spring and diaphragm assembly.

FC107

D

E

F

FC108

SIT

regulator

conversion

10/03

O

F

F

P

I

L

O

T

O

FC108

Fig. 57 Replace regulator.

2. Insure the rubber gasket (D) is properly positioned

and install the new HI/LO pressure regulator assem-

bly to the valve using the new screws (E) supplied

with the kit. Tighten the screws securely. (Ref. torque

= 25 in/lb) (Fig. 57)

3. Install the enclosed conversion label (F) to the valve

body where it can easily be seen. (Fig. 57)

Pilot Orifice Conversion

1. Locate pilot. (Fig. 53)

2. Replace pilot orifice.

Pilot Type 1 (SIT Pilot)

• Remove pilot hood by lifting up. (Fig. 58) Do not

remove the snap ring to remove the pilot hood.

NOTE: It is not necessary to remove the pilot tube

for conversion.

• Remove pilot orifice with allen wrench. (Fig. 59)

CO105a

gas conversion

Pilot

1/28/00 djt

Pilot Hood

Pilot

Bracket

CO105a

Fig. 58 Remove pilot hood.

CO106a

DV360/580

Gas Conversion

Pilot2

1/28/00 djt

Index Tab

Snap Ring

Allen Wrench

CO106a

Fig. 57 Remove pilot orifice.

• Install the conversion orifice.

• Reinstall pilot hood. Be sure to align hood with

index tab.

Pilot type 2 (Honeywell Pilot)

• Loosen pilot hood turning counterclockwise using a

7/16” wrench. (Fig. 60) NOTE: You may use pen-

etrating oil to prevent pilot hood threads from seizing

up.

• Remove pilot orifice with needlenose pliers. (Fig.

61) NOTE: Use a wrench to hold pilot tube in place

while removing the orifice.

• Install the conversion orifice.

• Reinstall pilot hood and tighten until mark on pilot

hood aligns with mark on pilot bracket.

3232

Radiance Direct Vent/Natural Vent Gas Heater

20004188

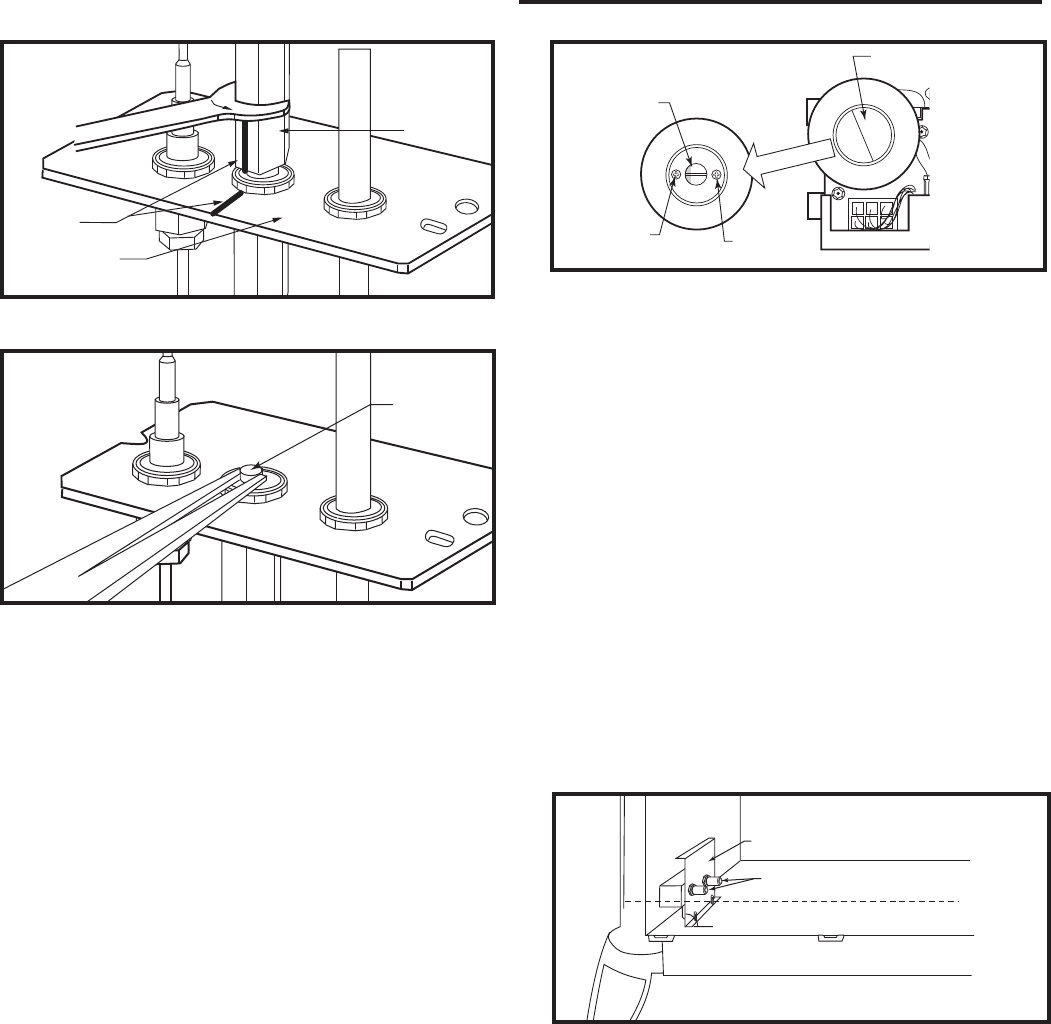

CO105

Gas Conversion

Pilot

2/15/99 djt

Pilot Hood

Index

Marks

Pilot Bracket

CO105

Fig. 60 Remove pilot hood. (Your pilot may have a different

appearance.)

CO106a

Gas Conversion

Pilot (Vermont)

7/19/99 djt

Pilot

Orifice

CO106b

Fig. 61 Remove pilot orifice.

NOTE: Be sure burner leg remains at a 90° angle to

firebox base after conversion.

Models 3352, 3354, 3390 thru 3399 (RF Models) Only

1. Follow procedure for pilot type 2 to replace pilot

orifice.

2. Remove and replace plug on lower right hand side

of the valve; Red for LP and Blue for NG. (Page 26,

Fig. 49)

3. Remove motor top cap. Depress and turn center

plunger until arrow points to correct screw. Red for

LP and Blue for NG. NOTE: Plunger will “snap” into

NG position when arrow is close to blue screw. It will

not “snap” at LP (Red) position. (Fig. 62)

4. Insure manifold pressure remains between 3.2” - 3.5”

w.c. for NG and 9.5” - 10” w.c. for LP. To adjust the

manifold pressure, for NG, using a torque #10 key

turn the blue screw clockwise to increase the manifold

pressure. Turn the screw counterclockwise to de-

crease the pressure. Use the red screw to adjust LP.

5. Replace motor top cap.

FP1037b

comfort valve

convert

3/6/01 djt

LOCAL

REMOTE

ON

•

PILOT

OFF

•

LED

Motor Top Cap

Center

Plunger

Blue - NG Red - LP FP1037b

Fig. 62 Depress and turn center plunger.

Valve

Fig. 63 Remove and replace injector orifices.

ST353a

injector orifice

replace

3/21/00 djt

90°

Left Burner Leg

Injector Orifices

ST353a

All Models

1. Replace burner. Slide the burner in at an angle

with left side lower than the right side. Slide the left

side onto the injectors, making sure the burner leg

remains at a 90° angle to the base. Lower the right

hand side down in to place. Make sure the burner is

as far left as possible and the injector shoulders are

inside the burner.

NOTE: It is very critical to keep the left burner leg,

which holds the injectors, at a 90° angle to the base.

(Fig. 63) This keeps the orifices aligned with the

tubes inside burner. Failure to do so could affect the

flame appearance and performance of the unit.

2. Place conversion label on valve.

3. Reinstall the right and left log bracket assembly.

4. Reinstall the rear log bracket.

5. Replace logs.

6. Replace glass and stove front.

Conversion is complete.

33

Radiance Direct Vent /Natural Vent Gas Heater

20004188

Model Natural Gas LP

RDVOD, RDVOD with

Vermont Castings Draft Hood Z31D00 FSDHAG 1” Fully Closed

Table 2. Air Shutter Adjustment

Minimum rear injector air inlet openings.

Conversion to Natural Gas Input (BTU/h)

Kit # Front Part # Rear Part # Minimum Maximum

000-5002

000-5009

#51 / .067” 30000449 #40 / .098” 20004263 25,000 35,000

Conversion to LP Input (BTU/h)

Kit # Front Part # Rear Part # Minimum Maximum

000-5003

000-5010

#57 / .043” 20004587 #54 / .055” 20000130 27,500 35,000

Table 1. Injector Orifice Size Matrix

3434

Radiance Direct Vent/Natural Vent Gas Heater

20004188

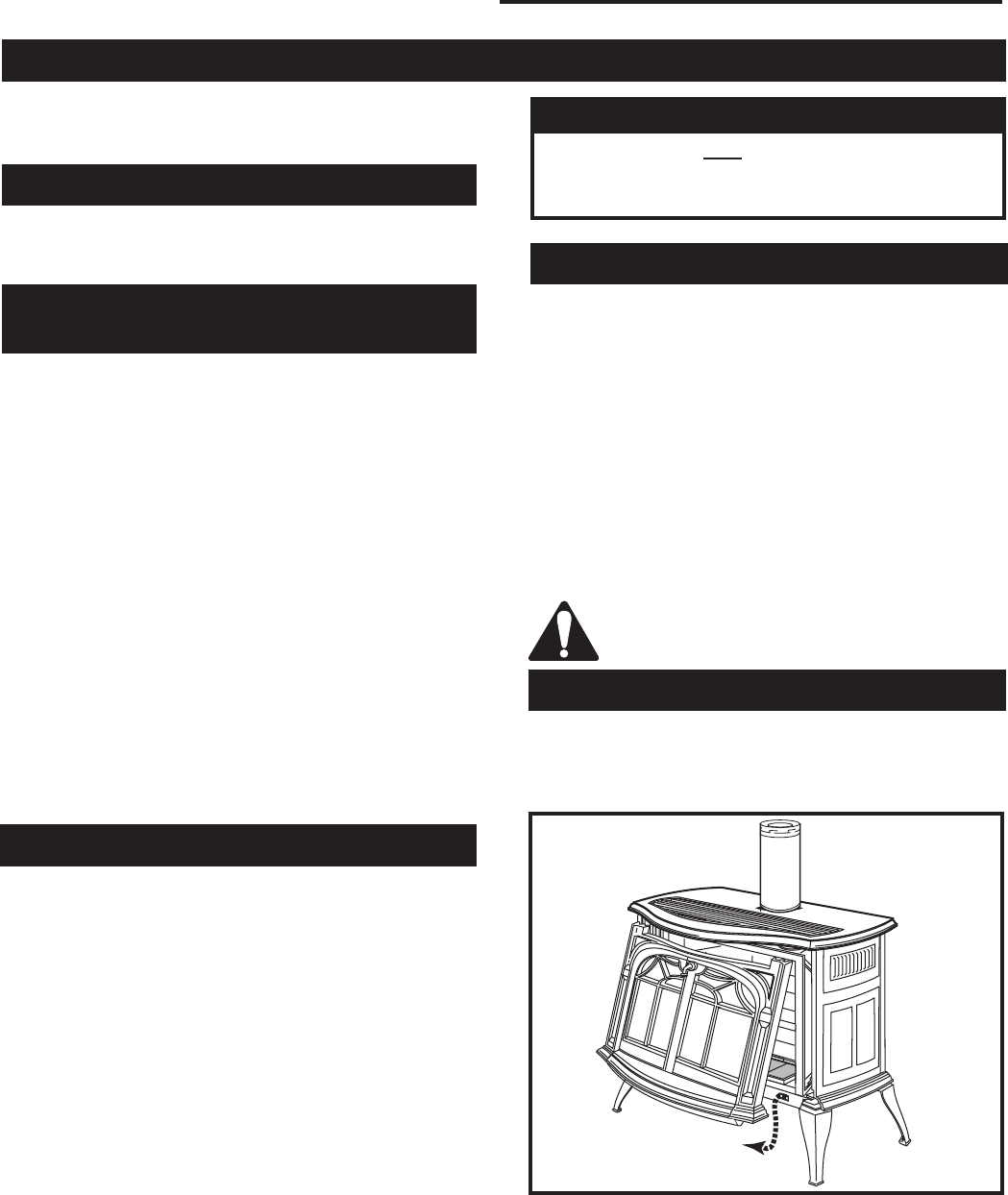

Maintenance

Your Radiance Gas Heater will provide years of service

with minimal upkeep. The following procedures will help

ensure that your stove continues to function properly.

Annual System Inspection

Have the entire heater and venting system inspected

annually by a qualified gas technician. Replace any

worn or broken parts.

Logset and Burner /

Cleaning and Inspection

Cleanliness is critical to the proper function of the

heater. The logset and burner must all be kept free of

dust and unobstructed by debris. Inspect these areas

before each use and clean as necessary.

1. Turn the burner OFF and let the heater cool com-

pletely before cleaning.

2. Lift the Stove Front up and then swing the bottom

out to disengage it from the heater shell. (Fig. 64)

3. Carefully remove the glass and frame assembly

and place it out of the way on a flat, padded surface

such as a counter protected by a towel.

4. Carefully inspect the Logs for damage. Contact your

local dealer if any damage is evident.

5. Use a soft bristled brush to sweep dust or debris

from the Logs, Pilot and Burner. Use care as the

logs are fragile and susceptible to damage.

6. Replace the glass panel and frame assembly.

7. Replace the Stove Front.

Care of Cast Iron

An occasional dusting with a dry rag will help keep the

painted surfaces looking new. Use high-temperature

stove paints, available through your local dealer, to

touch-up areas as needed. Clean areas to be painted

with a wire brush and be sure to cover the logs, burner

and valve assembly, glass and frame assembly. Apply

the paint sparingly; two light coats of paint will give bet-

ter results than a single heavy coat.

Clean porcelain enamel surfaces with a soft, damp

cloth. Do not use abrasive cleaning agents. If neces-

sary, use only a cleaning agent formulated especially

for use on porcelain enamel surfaces.

CAUTION

TURN THE PILOT OFF BEFORE PAINTING.

ALLOW THE HEATER TO COOL COMPLETELY

BEFORE PAINTING.

Cleaning the Glass

WARNING: Allow the glass cool completely before

attempting to clean.

It will be necessary to clean the glass periodically. Dur-

ing start-up, condensation, which is normal, forms on

the inside of the glass and causes lint, dust and other

airborne particles to cling to the glass surface. Also

initial paint curing may deposit a slight film on the glass.

It is therefore recommended that the glass be cleaned

two or three times with a non-ammonia household

cleaner and warm water (we recommend gas fireplace

glass cleaner). After that the glass should be cleaned

two or three times during each heating season depend-

ing on the circumstances present.

Clean glass after first two weeks of opera-

tion.

Glass Replacement

Replace glass only with CFM Corporation approved

parts. Refer to Page 37 for Replacement Parts. Refer to

Figure 65 and previous instructions for removal of the

damaged glass frame.

Fig. 64 Remove the Stove Front.

ST139

ST139

Radiance

remove front

4/20/01 djt

35

Radiance Direct Vent /Natural Vent Gas Heater

20004188

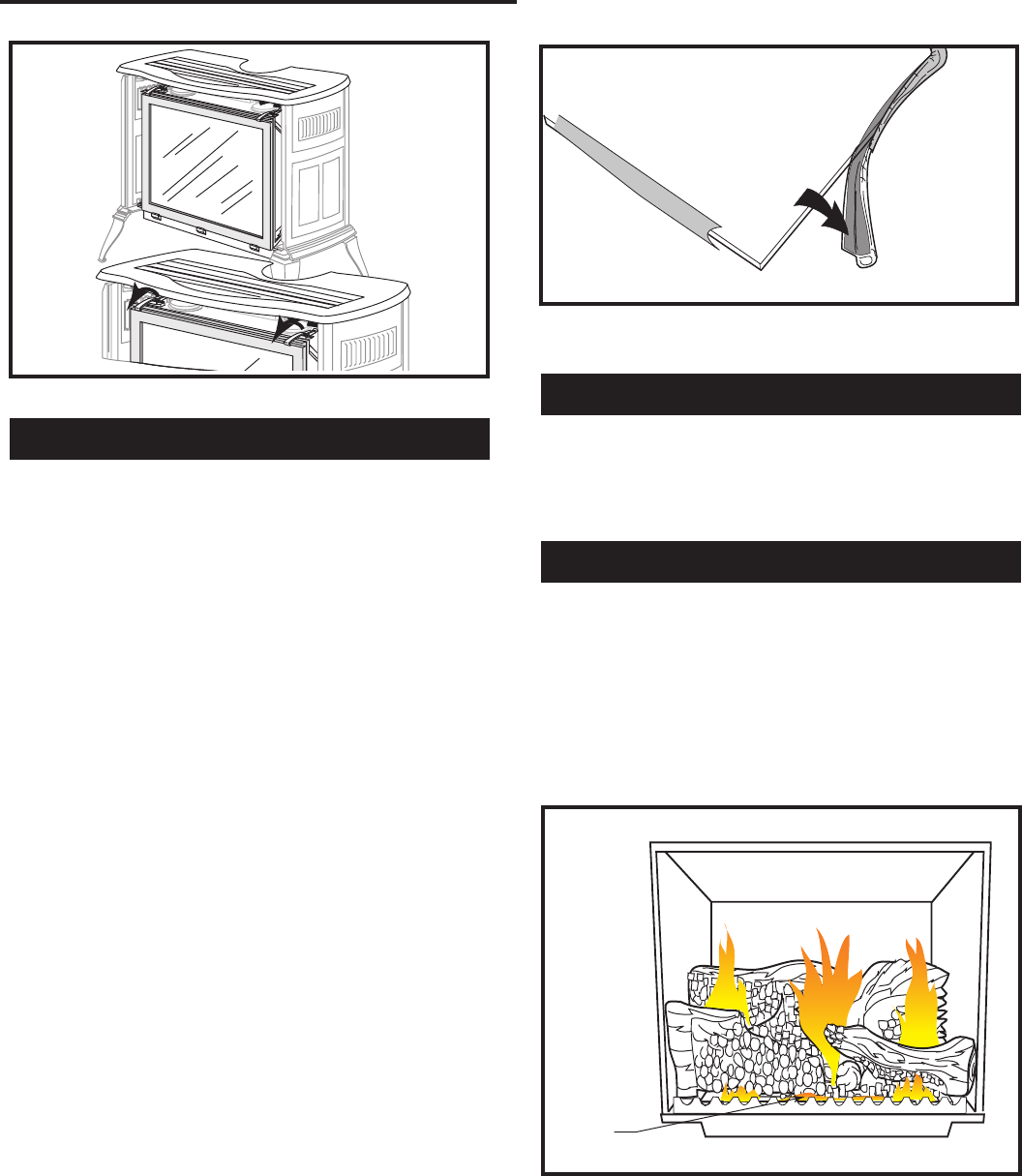

Gasket Replacement

The Radiance Gas Heater uses a ‘tadpole’ type gasket

to seal between the glass panel and the frame. In time,

this gasket can become brittle and compressed and

should be replaced. New gasket is available from your

dealer.

Shut off the gas supply and allow the stove to cool.

Wear safety goggles and a dust mask.

1. Remove the Front, Glass Frame and Glass Panel.

(Figs. 62 & 63) Remove the old gasket. Use a

razor blade to separate the glass and gasket from

the frame, and to clean the glass of any remaining

cement or bits of gasket. Use a cold chisel if neces-

sary.

2. Determine the correct length of gasket by laying it

out around the edge of the glass. Allow an extra 1

- 2” (25-50mm). Mark the spot to be cut. Use a utility

knife.

3. Starting on a long edge, remove about 6” of the pro-

tective paper strip and apply the flat adhesive face

of the gasket around the outside-facing edge of the

panel. Continue around the panel, applying a bout 6”

at a time and being careful to not stretch the mate-

rial. Do not overlap the gasket ends. (Fig. 66)

4. Apply a thin bead of high temperature silicone

rubber sealant along the inside corner of the glass

frame, all around the perimeter. Place the flat

gasketed side of the glass panel back into the steel

frame. Pinch the rounded inside-facing gasket mate-

rial to bulk it up.

5. Replace the glass frame and front panel as previ-

ously described.

Inspect the Vent System Annually

Have the vent system inspected annually by a quali-

fied technician. Shut off the main gas supply before

inspecting the system. Both the inner exhaust pipe and

the outer combustion supply pipe must be checked to

confirm that they are unblocked and in good condition.

Check the Gas Flame Regularly

To ensure that the stove is operating properly, check

the flames periodically to confirm that they match

Figure 67. The flames will be blue during the first 15-20

minutes of operation, and will gradually turn to yellow

after that.

Do not use your stove if the flame pattern differs from

that shown here. Contact your Vermont Castings dealer

or a qualified technician for help.

ST179

glass gasket detail

11/99

ST179

Fig. 66 Wrap the gasket material around the outside edge of

the glass.

LG157

Radiance logs

flame

4/24/01 djt

Fig. 67 Correct flame pattern.

LG157

Red

Glow

ST141

Fig. 65 Release the latches to remove the glass frame.

ST141

pull glass latch

10/99

3636

Radiance Direct Vent/Natural Vent Gas Heater

20004188

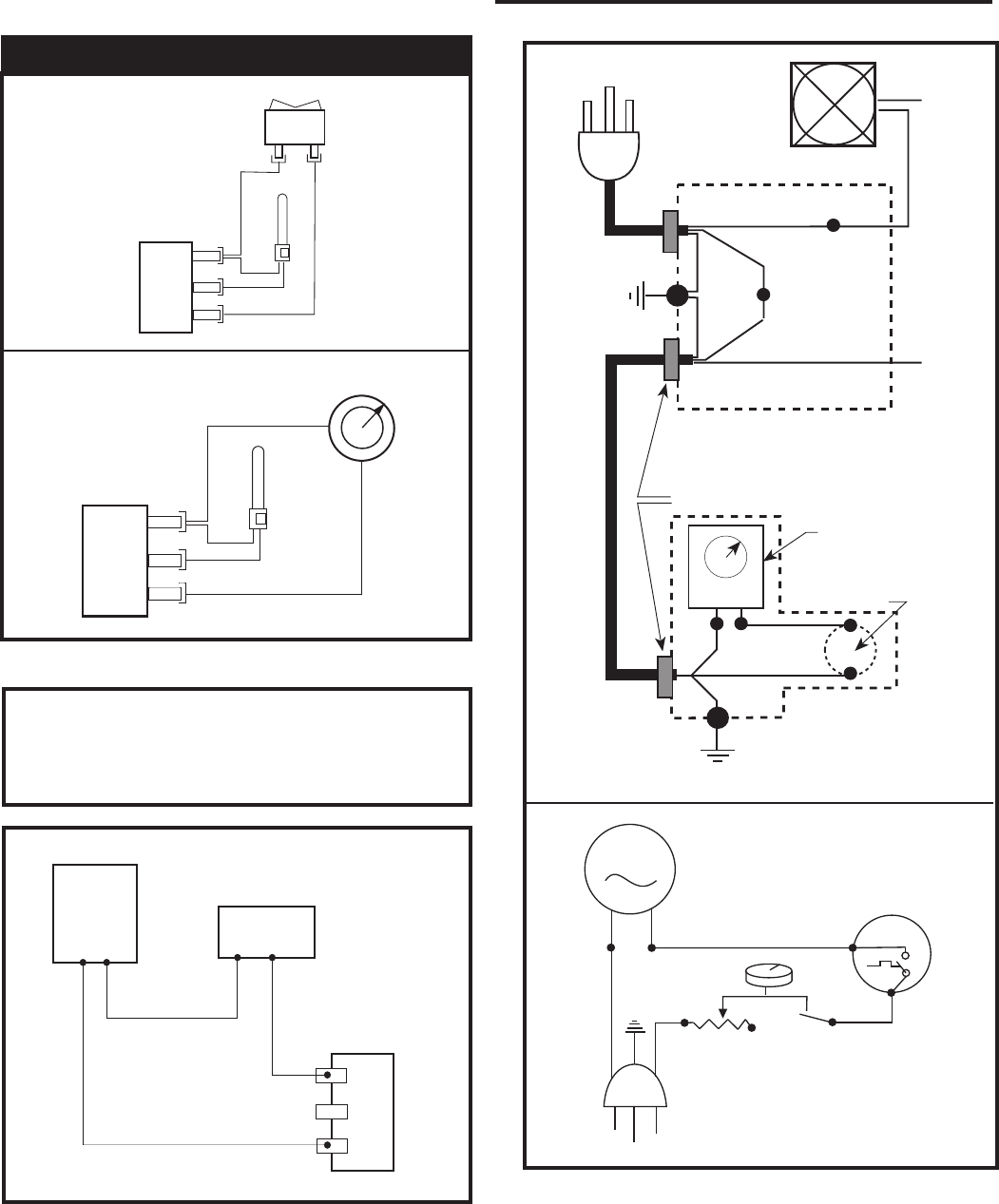

NOTE: IF ANY OF THE ORIGINAL WIRE, AS SUP-

PLIED WITH THE APPLIANCE, MUST BE RE-

PLACED, IT MUST BE REPLACED WITH TYPE

SF-2, 200°C WIRE OR ITS EQUIVALENT.

FAN JUNCTION BOX

FAN

POWER

CORD

Strain Relief

Chassis Ground

BLK

GRN

GRN

WHT

ON / OFF

Rheostat

Chassis

Ground

RHEOSTAT / SNAPSTAT

BOX

Snapstat

BLK

BLK

BLK

BLK

BLK

WHT

ST153

rdv connections diag.

10/99

Fig. 70 Fan circuit.

MOTOR

SNAPST

AT

ON/OFF

RHEOSTAT

WHT

WHT

BLK

BLK

BLK

GRN

BLK

ST236

FK26 wiring diagram

12/99

Schematic Diagram

ST236

ST153

Wiring Diagrams

ST124c

Fig. 68 On/off switch and optional thermostat circuit.

Optional Thermostat

Wiring

On/Off Switch

Wiring

ST124b

OFF ON

Thermostat

(Optional)



Thermopile

Black

Black

Millivolt

Gas Valve

St124b

on/off/switch

wiring

1/11/00 djt

TP/TH

TP

TH

Thermostat

(Optional)

Thermopile

Black

Black

Millivolt

Gas Valve

St124c

Thermostat

wiring

1/11/00 djt

TP/TH

TP

TH

TH

TP

TH

TP

ST359

DRAFT HOOD

WIRING

4/26/00 DJT

Draft Hood

Vent Safety Switch

Gas

Valve

ST359

Fig. 69 Draft Hood Adapter (FSDHAG) wiring. Used on

RN/RP models only.

37

Radiance Direct Vent /Natural Vent Gas Heater

20004188

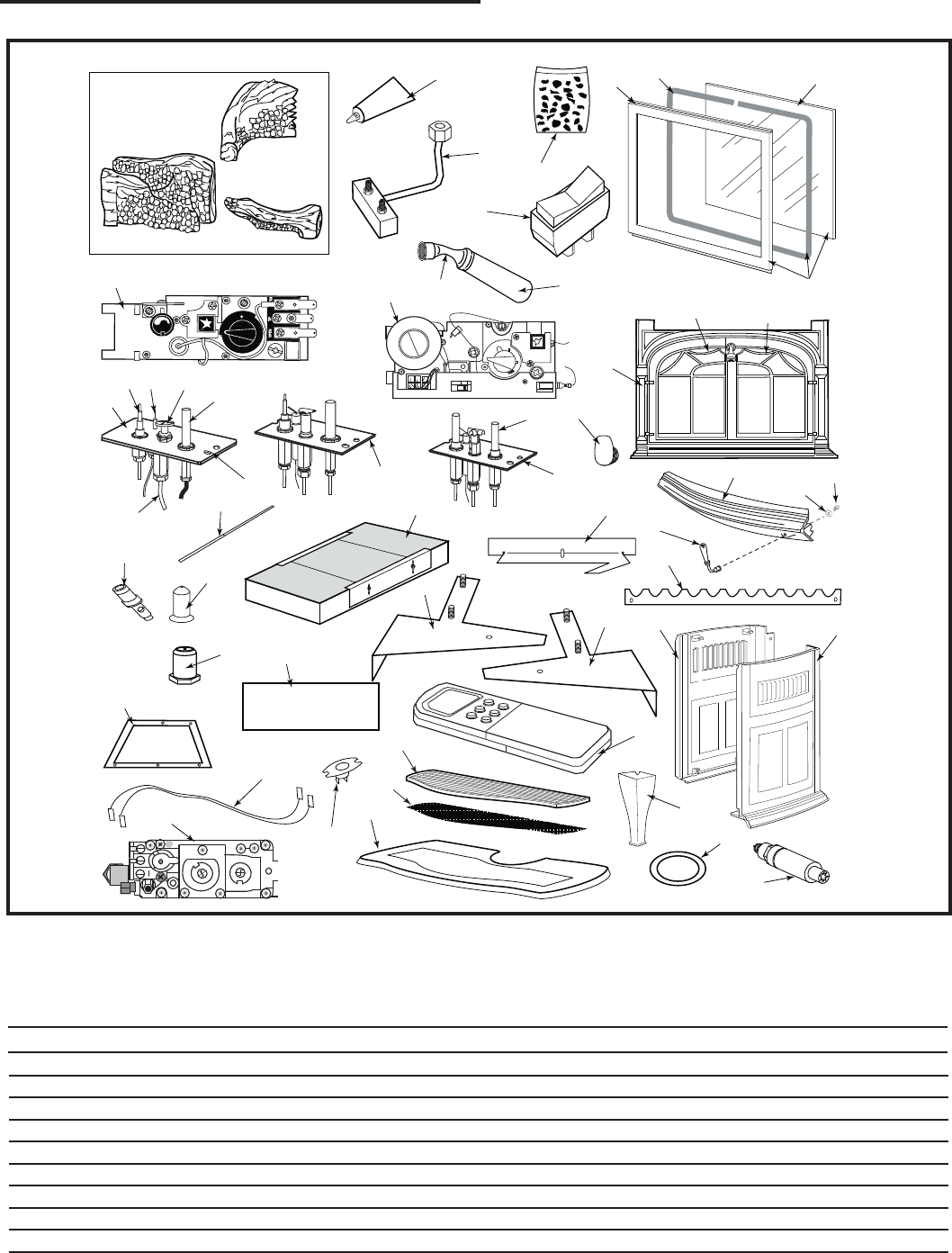

46

1a

1b 1c

PILOT

ON

OFF

PILOT

ADJ

L

O

H

I

CEMENT

2

3

68

7

5

34

4

35

4188

RDVOD parts

6/11/01 djt

32

33

29a,b,

c,d

9

30

LOCAL

REMOTE

ON

•

PILOT

OFF

•

LED

23

24 25

7

10a,b

11a,b

12a

12b 12c

13 14 15 16

18

17

19

20a,b

22

21a,b

31

27

26

36

38

45

39

37

41

44

47

48

28

49

50

51

53

52

55a,b

56

CFM Corporation reserves the right to make changes in design, materials, specifications, prices and discontinue colors and products at any time,

without notice.

Radiance Direct Vent/Natural Vent Gas Heater (RDVOD)

Models: 3225 thru 3232, 3350 thru 3354, 3360 thru 3369, 3390 thru 3399

Ref. Description RDVOD

1. Gas Log Set, RDVOD 20004184

1a. Log, Right Rear - RDVOD 20004185

1b. Log, Left Rear - RDVOD 20004186

1c. Log, Right - RDVOD 20004187

2. Gasker Cement, 3 oz. Tube 1206122

3. Manifold Assembly 20003739

4. Lava Rocks Burner 57897

5. Trim ON/OFF Switch - JDV 30000874

6. Frame, Glass - RDV40 1409112

3838

Radiance Direct Vent/Natural Vent Gas Heater

20004188

Radiance Direct Vent/Natural Vent Gas Heater (RDVOD)

Models: 3225 thru 3232, 3350 thru 3354, 3360 thru 3369, 3390 thru 3399 (continued)

Ref. Description RDVOD

7. Gasket, Glass Med. Knit - RDV40 1203702

8. Glass, GFP Firebox 1601290

9. Ceramic Handle w/Insert LFTR 0004345

10a. Valve RN Honeywell VS8420E 2038 (Serial #’s up to 4939)* 10001782

10b. Valve RP Honeywell VS8420E 2020 (Serial #’s up to 4939)** 10001759

11a. Valve Gas Honeywell Convertible RFN RV8310E 20003719

11b. Valve Gas Honeywell Convertible RFP RV8310E 20003720

12a. Pilot Assembly 3Way N/DV RN 0.199.706 10002264

Pilot Assembly 3Way N/DV RP 0.199.703 10002265

12b. PIlot PSE - NA175 20001115

Pilot PSE - LP175 20001116

12c. Pilot Assembly 3Way DV/RFN CS3003A2009 20002266

Pilot Assembly 3Way DV/RFP CS3003A2017 20002268

13. Thermocouple 24” 53373

7531137

14. Electrode Ignitor w/ Cable SIT24 10001297

15. Pilot Top Convertible 10002266

16. Thermopile 18” RS 51827

7533113

17. Nut Electrode SIT #0.974.144 57886

18. Tubing Pilot w/ Fitting 1/8 x 24” 10001296

19. Thermopile PSE for RF Pilots 20002400

20a. Pilot Orifice #62 - NG Top Convertible 10002268

20b. Pilot Orifice #35 - LP Top Convertible 10002269

21a. PIlot Orifice PSE RFN 20000908

21b. PIlot Orifice PSE RFP 20000907

22. Antennae, Honeywell 395783-1 20003561

23. Front II, RDVOD Refer to Enamel Parts Chart Page 38

24. Door Left - RDVOD Refer to Enamel Parts Chart Page 38

25. Door Right - RDVOD Refer to Enamel Parts Chart Page 38

26. Control Door, RDVOD Refer to Enamel Parts Chart Page 38

27. Burner Housing Assembly 20003526

28. Log Rear Bracket 20003577

29a. Orifice Hood (.043) - Front - LP 20004587

29b. Orifice Hood (.067”) - Front - NG 30000449

29c. Orifice Hood (.055”) - Rear - LP 20000130

29d. Orifice Hood (.098” ) - Rear - NG 20004263

30. Gasket Base Pan 20004287

31. Gasket Inner Base Pan 20004286

32. Bracket, Right Log 20005259

33. Bracket, Left Log 20005258

34. Grate Decorative Burner 20003536

35. Wire w/Straight Term 2 End 50” 10002582

36. Transmitter Honeywell RF 20002047

37. Sensor 2450 CMG-8184-0032 10002013

38. Damper Steel Handle/Screw 30002720

39. Latch, Front Door - RDV 30001249

41. Glass Frame Assembly - RDV40 5003075

44. Washer, Flat 1/4 - Blk. 266 x .629.064 1202473

45. CS, Hex Hd 1/4-20 x 5/8” - Blk 1201372

46. Left End Refer to Enamel Parts Chart Page 38

39

Radiance Direct Vent /Natural Vent Gas Heater

20004188

Radiance Direct Vent/Natural Vent Gas Heater (RDVOD)

Models: 3225 thru 3232, 3350 thru 3354, 3360 thru 3369, 3390 thru 3399 (continued)

Fuel Conversion Kits

Conversion Kit, NG to LP - RDVOD-RFN Kit #000-5003

Conversion Kit, NG to LP - RDVOD-RN Kit #000-5010

Conversion Kit, LP to NG - RDVOD-RFP Kit #000-5002

Conversion Kit, LP to NG - RDVOD-RP Kit #000-5009

Shell Enamel Parts - Radiance Direct Vent / Natural Vent

Enamel Model Top Left Right Front Left Right Control Leg

Color End End Door Door Door (4)

Classic 3360, 3365 1301194 30001751 30001752 30001376 30001378 30001377 30001413 30001753

3390, 3395

Biscuit 3225, 3229 30003244 30003239 30003238 30003240 30003242 30003241 30003243 30003245

Bordeaux 3361, 3366 2321194 30001771 30001770 30001416 30001418 30001417 30001419 30001772

3391, 3396

Chestnut 3226, 3230 30003253 30003248 30003247 30003249 30003251 30003250 30003252 30003254

Brown

Ebony 3227, 3231 30003262 30003257 30003256 30003258 30003260 30003259 30003261 30003263

Forest 3364, 3369 2311194 30001780 30001779 30001428 30001430 30001429 30001431 30001781

Green 3394, 3399

Midnight 3363, 3368 2371194 30001777 30001776 30001424 30001426 30001425 30001427 30001778

Blue 3393, 3398

Sand 3362, 3367 1321194 30001774 30001773 30001420 30001422 30001421 30001423 30001775

3392, 3397

Suede 3350, 3351 30002546 30002512 30002511 30002514 30002516 30002515 30002517 30002518

Brown 3352, 3354

Vermont 3228, 3232 30003271 30003266 30003265 30003267 30003269 30003268 30003270 30003272

Cl. Green

47. Right End Refer to Enamel Parts Chart Page 38

48. Leg Refer to Enamel Parts Chart Page 38

49. Control Door Handle Assembly 30002730

50. Gasket, HE Door 1203687

51. Top Refer to Enamel Parts Chart Page 38

52. FK26 Fan Subassembly (RF Only) 30000879

53. Grille, RDV40 1301195

54. Screen, Top RDV40 1601970

55a. Valve Nova SIT820.662 RN (Serial #’s starting with 4940) 20010563

55b. Valve Nova SIT820.653 RP (Serial #’s starting with 4940) 20010645

56. Ignitor Piezo w/Nut SIT 52464

57. Bracket Piezo Ignitor (not shown) 20010876

*When converting to SIT valve, must order RP275

**When converting to SIT valve, must order RP269

Ref. Description RDVOD

4040

Radiance Direct Vent/Natural Vent Gas Heater

20004188

Optional Accessories

Fan Kits

FK26 Fan

The FK26 fan helps distribute heated air from within

the firebox out into the room. The fan is controlled by a

snapstat that turns power on and off as the firebox tem-

perature rises above and falls below a preset tempera-

ture. A rheostat provides for variable fan speeds.

Specifications

115 Volt / 60Hz / .75 Amps

Maintenance

The fan itself does not require regular maintenance,

however, periodic cleaning of the fan and the surround-

ing area is required.

Installation

Refer to Page 14 for installation instructions.

Remote Controls

The remote control allows you to turn the heater on or

off from anywhere in the room. Refer to Page 35 for

wiring diagrams. These remote controls are for use with

RN/RP models.

Model Functions Controlled

RC1 ON/OFF

RC2 ON/OFF and Temperature

IMTFK Wall mounted thermostat control

Screen Kit

An optional screen, R40SK, for use with the operable

doors is available to allow the doors to be left in the

open position.

Warming Shelf

Warming shelves add versatility to your stove; they can

be used to keep foods warm at mealtime.

Model Color

1560 Classic Black

1555 Biscuit

1556 Chestnut Brown

1557 Ebony

1558 Vermont Classic Green

1562 Sand

1565 Bordeaux

1566 Forest Green

1567 Midnight Blue

1568 Suede Brown

The shelf installation is done in three stages. First you

attach the shelf loosely to the stove, leaving the screws

loose enough to allow final adjustments. Then, you po-

sition the shelf and adjust the brackets so the shelf fits

correctly. Finally, you tighten the screws.

Refer to the instructions included with each warming

shelf for complete installation procedures.

Decorative Rings

7” brass or charcoal gray rings are available to add a

decorative touch to the exposed stove pipe.

Model Description

7FSDRG/4 7” Charcoal Gray Rings (4)

7FSDRP/4 7” Polished Brass Rings (4)

41

Radiance Direct Vent /Natural Vent Gas Heater

20004188

4242

Radiance Direct Vent/Natural Vent Gas Heater

20004188

43

Radiance Direct Vent /Natural Vent Gas Heater

20004188

BASIC WARRANTY

CFM Corporation (hereinafter referred to collectively as the Company)

warrants that your new Vermont Castings or Majestic Gas Fireplace/

Stove is free from manufacturing and material defects for a period of

one year from the date of purchase, subject to the following conditions

and limitations.

EXTENDED LIFETIME WARRANTY

The heat exchanger, where applicable, and combustion chamber

of every Vermont Castings or Majestic gas product is warranted for

life against through wall perforation. All appliances equipped with an

Insta-Flame Ceramic Burner have limited lifetime coverage on the

ceramic burner plaque. Warrantees are made to the original owner

subject to proof of purchase and the conditions and limitations listed

on this Warranty Document

COMPONENT WARRANTY

CAST IRON: All external and internal cast iron parts are warranted for a

period of three years.

Note: On porcelain enamel finished external parts and accessories The

Company offers no Warranty on chipping of enamel surfaces. Inspect

all product prior to accepting it for any damage to the enamel.

The salt air environment of coastal areas or a high humidity environment

can be corrosive to the porcelain enamel finish. These conditions can

cause rusting of the cast iron beneath the porcelain enamel finish,

which will cause the finish to flake off.

Dye lot variations with replacement parts and/or accessories can occur

and are not covered by warranty.

GLASS DOORS: Glass doors are covered for a period of one year.

Glass doors are not warranted for breakage due to misuse or accident.

Glass doors are not covered for discoloration or burned in stains due to

environmental issues, or improper cleaning and maintenance.

BRASS PLATED PARTS AND ACCESSORIES: Brass parts should be

cleaned with Lemon oil only. Brass cleaners cannot be used. Mortar

mix and masonry cleaners may corrode the brass finish. The Company

will not be responsible for, nor will it warrant any brass parts which are

damaged by external chemicals or down draft conditions.

GAS VALVES: Gas valves are covered for a period of one year

ELECTRONIC AND MECHANICAL COMPONENTS: Electronic and

mechanical components of the burner assembly are covered for one year.

All steel tube burners are warranted for one year.

ACCESSORIES: Unless otherwise noted all components and CFM

Corporation company supplied accessories are covered for a period of

one year.

CONDITIONS AND LIMITATIONS

• This new Vermont Castings or Majestic product must be installed by

a competent, authorized, service contractor. A licensed technician, as

prescribed by the local jurisdiction must perform any installation/service

work. It must be installed and operated at all times in accordance with

the Installation and Operating instructions furnished with the product.

Any alteration, willful abuse, accident, or misuse of the product shall

nullify this warranty.

• This warranty is non-transferable, and is made to the original owner,

provided that the purchase was made through an authorized supplier

of the Company.

• The customer must pay for any Authorized Dealer in-home travel fees

or service charges for in-home repair work. It is the dealers option

whether the repair work will be done in the customer’s home or in the

dealer’s shop.

• If upon inspection, the damage is found to be the fault of the manufacturer,

repairs will be authorized at no charge to the customer parts and/or

labor.

• Any part and/or component replaced under the provisions of this

warranty is covered for six months or the remainder of the original

warranty, whichever is longest.

• This warranty is limited to the repair of or replacement of part(s) found

to be defective in material or workmanship, provided that such part(s)

have been subjected to normal conditions of use and service, after

said defect is confirmed by the Company’s inspection.

• The company may, at its discretion, fully discharge all obligations

with respect to this warranty by refunding the wholesale price of the

defective part(s)

• Any installation, labor, construction, transportation, or other related

costs/expenses arising from defective part(s), repair, replacement,

or otherwise of same, will not be covered by this warranty, nor shall

the Company assume responsibility for same. Further, the Company

will not be responsible for any incidental, indirect, or consequential

damages except as provided by law.

• SOME STATES DO NOT ALLOW FOR THE EXCLUSION OR

LIMITATIONS OF INCIDENTAL AND CONSEQUENTIAL DAMAGES

OR LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY

LASTS, SO THE ABOVE LIMITATIONS MAY NOT APPLY TO YOUR

CIRCUMSTANCES. THIS WARRANTY GIVES YOU SPECIFIC

RIGHTS AND YOU MAY HAVE OTHER RIGHTS WHICH VARY FROM

STATE TO STATE.

• All other warranties-expressed or implied- with respect to the product,

its components and accessories, or any obligations/liabilities on the

part of the Company are hereby expressly excluded.

• The Company neither assumes, nor authorizes any third party to

assume on its behalf, any other liabilities with respect to the sale of

this Vermont Castings or Majestic product

• The warranties as outlined within this document do not apply to

chimney components or other non CFM Corporation accessories used

in conjunction with the installation of this product..

• Damage to the unit while in transit is not covered by this warranty but

is subject to claim against the common carrier. Contact the dealer

from whom you purchased your fireplace/stove (do not operate the

appliance as this might negate the ability to process the claim with the

carrier).

• The Company will not be responsible for:

a) Down drafts or spillage caused by environmental conditions such

as near-by trees, buildings, roof tops, hills, or mountains.

b) Inadequate ventilation or negative air pressure caused by

mechanical systems such as furnaces, fans, clothes dryers, etc.

• This warranty is void if:

a) The fireplace has been operated in atmospheres contaminated by

chlorine, fluorine, or other damaging chemicals.

b) The fireplace has been subjected to prolonged periods of dampness

or condensation

c) Any damages to the fireplace, combustion chamber, heat exchanger

or other components due to water, or weather damage, which is the

result of but not limited to, improper chimney/venting installation.

d) Any alteration, willful abuse, accident, or misuse of the product

has occurred.

IF WARRANTY SERVICE IS NEEDED…

1) Contact your supplier. Make sure you have your warranty,

your sales receipt, and the model/serial number of your CFM

Corporation product.

2) DO NOT ATTEMPT TO DO ANY SERVICE WORK

YOURSELF.

LIMITED LIFETIME WARRANTY

PRODUCT COVERED BY THIS WARRANTY

All Vermont Castings gas stoves, gas inserts, and gas fireplaces, and all Majestic brand gas fireplaces equipped with

an Insta-Flame Ceramic Burner, or standard steel tube burner.

Efficiency Ratings

Model EnerGuide Ratings

Fireplace Efficiency (%)

RDVODRN 60.7

RDVODRP 60.7

RDVODRFN 60.7

RDVODRPN 60.7

410 Admiral Blvd. • Mississauga, Ontario, Canada L5T 2N6

800-668-5323 • www.cfmcorp.com

CFM Corporation
