Vertex Standard USA, Inc. Portable Radio

User Manual

EVX-531
Operating Manual
prOgraMMable FunctiOns/Features
 IP57Submersible(1m/30min.)
 3ProgrammableFunctionKeys
 2-ToneEncode/Decode
 MDC-1200®Encode/Decode
 Scan
 GroupScan
 DualWatch
 FM-Scan(Follow-MeScan)
 TAScan
 Privacy
 VOX
 TalkAround
 Emergency
 LoneWorker
 TXSaveDisable
 ARTSTM/ARTSIITM(AutoRangeTranspondSystem)



 BatteryPackInstallationandRemoval...............4
 BatteryCharging..................................................4
 LowBatteryIndication........................................5
 BeltClipInstallationandRemoval.....................6
 MIC/SPCapInstallation......................................6


 PreliminarySteps.................................................8
 OperationQuickStart..........................................8
 AutomaticTime-OutTimer...............................10
 
 ProgrammableKeyFunctions.......................... 11
 DescriptionofOperatingFunctions.................13





cOntents

Younowhaveatyourngertipsavaluablecommunicationstool-aVertexStandardtwo-wayradio!Rugged,reliable
andeasytouse,yourVertexStandardradiowillkeepyouinconstanttouchwithyourcolleaguesforyearstocome,
withnegligiblemaintenance down-time.Pleasetakeafewminutestoreadthismanualcarefully.Theinformation
presentedherewillallowyoutoderivemaximumperformancefromyourradio,incasequestionsariselateron.

r Therearenoowner-serviceablepartsinsidetheradio.Allservicejobsmustbereferredtoanauthorized
VertexStandardServiceRepresentative.
r Inordertomaintainthespeciedwaterintegrityperformance,periodicmaintenanceisrecommended.
r Shouldtheradiosustainasevereshock(e.g.ifitisdropped),thewaterintegritymaybecompromised,
requiringservice.Shouldthisoccur,contactyourAuthorizedVertexStandardDealer.
EVX-531 OpErating Manual 1
Important Notice for North American Users Regarding 406 MHz Guard Band
The U.S. Coast Guard and National Oceanographic and Atmospheric Administration have requested the
cooperation of the U.S. Federal Communications Commission in preserving the integrity of the protected
frequency range 406.0 to 406.1 MHz, which is reserved for use by distress beacons. Do not attempt to pro-
gram this apparatus, under any circumstances, for operation in the frequency range 406.0 - 406.1 MHz if
the apparatus is to be used in or near North America.
Warning - Frequency band 406 - 406.1 MHz is reserved for use ONLY as a distress beacon by the US Coast
Guard and NOAA. Under no circumstance should this frequency band be part of the pre programmed oper-
ating frequencies of this radio.
IntroductIon
The EVX-531 is full-featured Hand-Held Digital/Analog Transceiver designed for business communications in the
VHF/UHF Land Mobile bands. This transceiver is designed for reliable business communications in a wide variety
of applications with a wide range of operating capability provided by their leading-edge design.
The EVX-531 allows to 32-channel capacity and 2 groups. Important channel frequency data is stored in the ash
memory on the CPU, and is easily programmable by Vertex Standard dealers using a personal computer and the
Vertex Standard Programming Cable and CE142 Software.
The pages which follow will detail the many advanced features provided in the EVX-531 transceiver. After reading
this manual, you may wish to consult with your Network Administrator regarding precise details of the congura-
tion of this equipment for use in your application.
EVX-531 OpErating Manual
2
WarnIng! Fcc rF ExposurE rEquIrEmEnts
This Radio has been tested and complies with the Federal Communications Commission (FCC) RF exposure limits
for Occupational Use/Controlled exposure environment. In addition, it complies with the following Standards and
Guidelines:
FCC 96-326, Guidelines for Evaluating the Environmental Effects of Radio-Frequency Radiation.
FCC OET Bulletin 65 Edition 97-01 (2001) Supplement C, Evaluating Compliance with FCC Guidelines for
Human Exposure to Radio Frequency Electromagnetic Fields.
ANSI/IEEE C95.1-1992, IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequen-
cy Electromagnetic Fields, 3 kHz to 300 GHz.
ANSI/IEEE C95.3-1992, IEEE Recommended Practice for the Measurement of Potentially Hazardous Electro-
magnetic Fields - RF and Microwave.
WARNING:
This radio generates RF electromagnetic energy during transmit mode. This radio is designed for and clas-
sied as Occupational Use Only, meaning it must be used only during the course of employment by indi-
viduals aware of the hazards, and the ways to minimize such hazards. This radio is not intended for use by
the General Population in an uncontrolled environment.
CAUTION:
To ensure that your expose to RF electromagnetic energy is within the FCC allowable limits for occupa-
tional use, always adhere to the following guidelines:
This radio is NOT approved for use by the general population in an uncontrolled exposure environment.
This radio is restricted to occupational use, work related operations only where the radio operator must
have the knowledge to control his or her RF exposure conditions.
EVX-531 OpErating Manual
3
WarnIng! Fcc rF ExposurE rEquIrEmEnts
When transmitting, hold the radio in a vertical position with its microphone 2 inches (5 cm) away from
your mouth and keep the antenna at least 2 inches (5 cm) away from your head and body.
The radio must be used with a maximum operating duty cycle not exceeding 50%, in typical Push-to-
Talk congurations.
DO NOT transmit for more than 50% of total radio use time (50% duty cycle). Transmitting more than
50% of the time can cause FCC RF exposure compliance requirements to be exceeded. To keep the Body
Worn conguration with the Vertex Standard CLIP-20 belt-clip, reduce the maximum operating duty
cycle still more.
The radio is transmitting when the red LED on the top of the radio is illuminated. You can cause the ra-
dio to transmit by pressing the P-T-T button.
SAR compliance for body-worn use was only demonstrated for the specic belt-clip (CLIP-20). Other
body-worn accessories or congurations may NOT comply with the FCC RF exposure requirements and
should be avoided.
When operate the radio with the Vertex Standard CLIP-20 belt-clip, make the transmission time as short
as possible, to keep the Body Worn conguration.
Always use Vertex Standard authorized accessories.
The information listed above provides the user with the information needed to make him or her aware of
RF exposure, and what to do to assure that this radio operates with the FCC RF exposure limits of this
radio.
Electromagnetic Interference/Compatibility
During transmissions, this radio generates RF energy that can possibly cause interference with other de-
vices or systems. To avoid such interference, turn off the radio in areas where signs are posted to do so.
Do not operate the transmitter in areas that are sensitive to electromagnetic radiation such as hospitals,
health care facilities, aircraft, and blasting sites.
EVX-531 OpErating Manual
4
BEForE You BEgIn

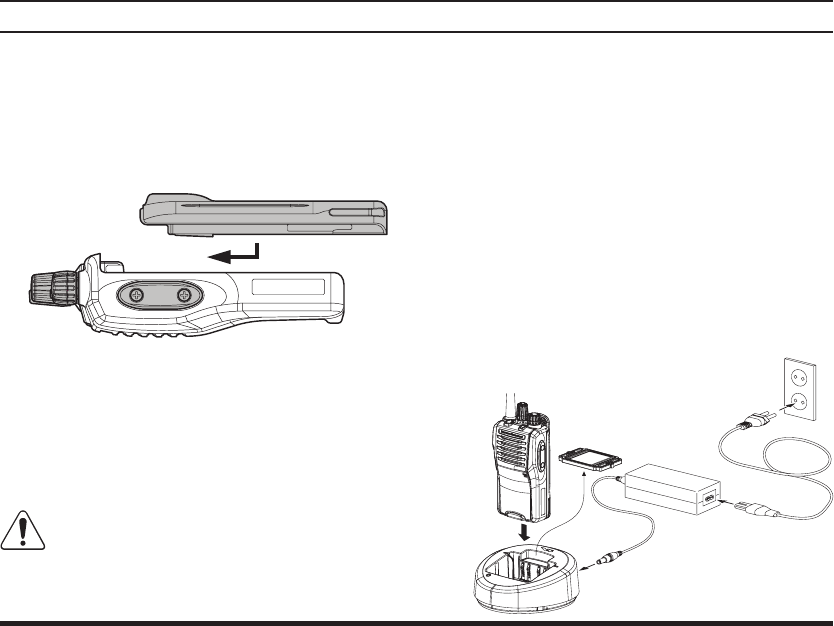

To remove the battery, turn the radio off and re-
move any protective cases. Slide the Battery Pack
Latch on the bottom of the radio toward the front
panel while sliding the battery down about 1/2
inch (1.5 cm). Then lift the battery out from the
radio.
Do not attempt to open any of the re-
chargeable Lithium-Ion packs, as they
could explode if accidentally short-circuited.
Battery Pack Installation and Removal
To install the battery pack, align the battery pack
to the radio with an offset about 1/2 inch (1.5 cm)
from the top edge of battery compartment, then
slide the battery pack upward until it locks in
place with a “Click.”
Battery Charging
Remove the Spacer Plate from the nest of the
optional CD-58 Desktop Charger, if the Battery
Spacer is installed.
Insert the DC plug from the optional PA-55 AC
Adapter into the DC jack on the rear panel of the
optional CD-58 Desktop Charger, and then con-
nect the AC power cable between the AC jacks on
the PA-55 AC Adapter and the AC line outlet.
Insert the battery pack into the CD-58 Desktop
Charger while aligning the slots of the battery
pack with the guides in the nest of the CD-58;
refer to the following illustration for details on
PA-55
CD-58
Spacer Plate
EVX-531 OpErating Manual
5
BEForE You BEgIn
proper positioning of the battery pack. If charging
with the transceiver attached, turn the transceiver
off. The antenna jack should be at the left side
when viewing the charger from the front.
If the battery pack is inserted correctly, the LED
indicator will glow red. A fully-discharged battery
pack will charge completely in 1.5 - 3.0 hours
(depending on the battery pack being charged).
When charging is completed, the LED indicator
will change to green.
Disconnect the battery pack from the CD-58
Desktop Charger and unplug the PA-55 AC
Adapter from the AC line outlet.
1) Always use the Vertex Standard FNB-
V133LI or FNB-V134LI Lithium-Ion Bat-
tery Pack.
2) Use only the Vertex Standard CD-58 Desktop
Charger and the Vertex Standard PA-55 AC Adapter.
3) To reduce the risk of explosion, recharge the bat-
teries outside of hazardous locations.
4) Perform the battery charging where the ambient
temperature range +41 °F to +104 °F (+5 °C to +40
°C). Charge out of this range could cause damage
to the battery pack.
5) Battery Pack shall not be exposed to excessive
heat such as sunshine, re, or the like.
6) Risk of explosion if battery is replaced by an in-
correct type. Dispose of used batteries according to
the instructions
7) For further details and cautions of the charging,
refer to the Operating Manual of the CD-58 Desk-
top Charger.
Low Battery Indication
As the battery discharges during use, the voltage
gradually becomes lower. When the battery voltage
becomes to low, substitute a freshly charged battery
and recharge the depleted pack. The LED indicator
on the top of the radio will blink red when the battery
voltage is low.
CAUTION
Danger of explosion if battery is replaced
with an incorrect battery. Replace only with
the same or equivalent type.
EVX-531 OpErating Manual
6

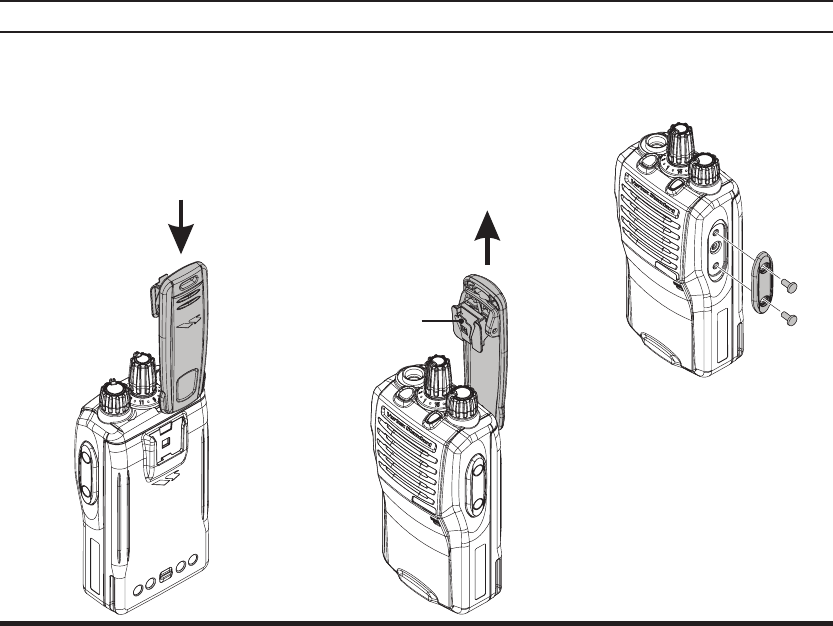

Belt Clip Installation and Removal
BEForE You BEgIn
To install the Belt Clip: align
the Belt Clip to the groove of
the Battery pack, then press
the Belt Clip downward until it
locks in place with a “Click.”
Belt Clip Tab
To remove the Belt Clip: use a
at head screw driver to press
the Belt Clip Tab away from
the battery pack to unlock the
Belt Clip, then slide the Belt
Clip upward to remove it.
MIC/SP CAP Installation
Install the MIC/SP cap with the
supplied screws.
Use only the supplied screws
when install the MIC/SP cap.
This radio does not keep the
water resist ance (IP57: 1
meter / 30 minutes) when the
MIC/SP cap is not installed
in the MIC/SP jack.
EVX-531 OpErating Manual
7
3

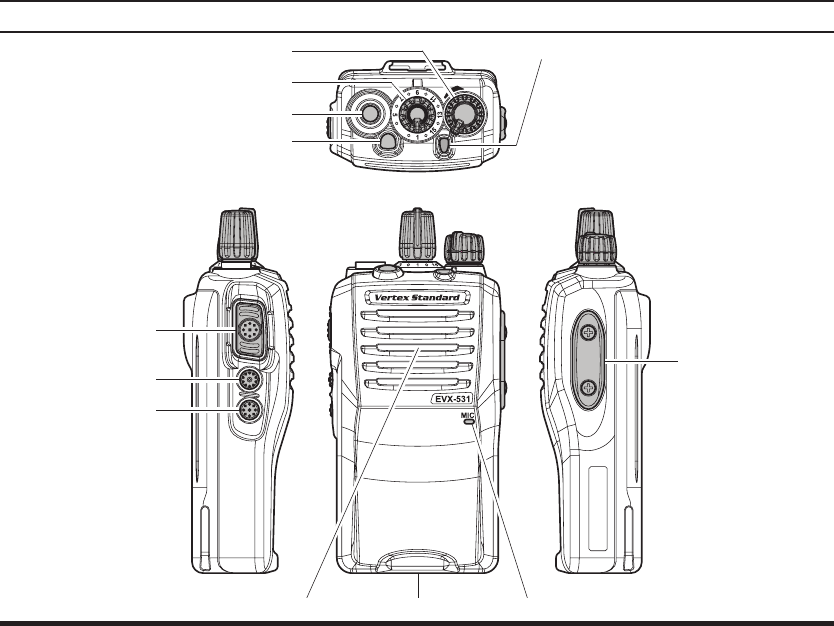

PTT Switch
SIDE-1 Button
SIDE-2 Button
MIC/SP Jack
(External MIC/SP)
Speaker Microphone
LED Indicator (Programmable)
Default settings are:
Steady Red:
Transmitting in progress (Analog)
Steady Blue:
Transmitting in progress (Digital)
Blinking Green:
Busy Channel
Steady Green:
Tone Squelch in defeated condition
Antenna Jack
TOP SEL Key
CH (Channel) Selector
VOL/PWR Knob
Battery Pack Latch
controls & connEctors
EVX-531 OpErating Manual
8
opEratIon

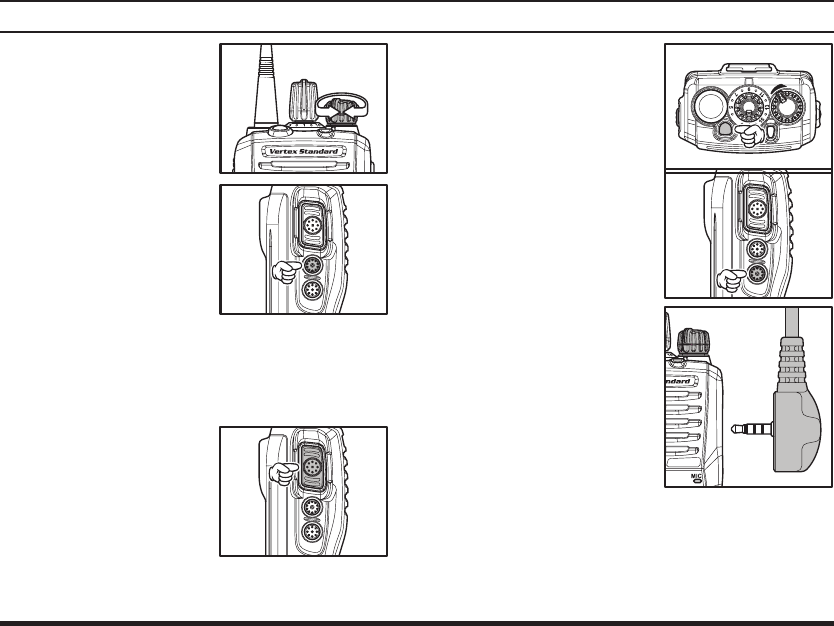

Operation Quick Start
Tu r n th e to p pan e l ’s
VOL/PWR knob clock-
wise to turn the radio
on.
Turn the top panel’s CH
Selector knob to choose
the desired operating
channel. The radio an-
nounces the channel
number, if the Channel
Announcement Feature is worked.
If you want to select the operating channel from a
different Channel Group, press (or press and hold)
the Programmable key (assigned to the “group
changE” function) to change the Channel Group
you want before selecting the operating channel.
Preliminary Steps
Install a charged battery pack onto the transceiver,
as described previously.

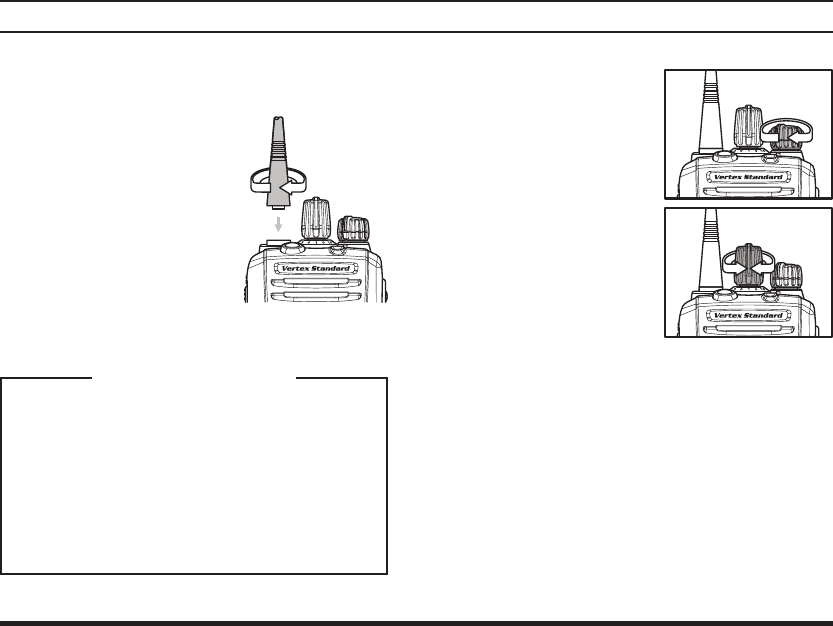

Screw the supplied antenna
onto the Antenna jack.
Never attempt to operate
this transceiver without an
antenna connected.
If you have a Speaker/Mi-
crophone, we recommend
that it not be connected un-
til you are familiar with the basic operation of the
EVX-531.
IMPORTANT NOTE
Water resistance of the transceiver (IP57: 1
meter / 30 minutes) is assured only when the
following conditions:
Battery pack is attached to the transceiver;
Antenna is connected to the antenna jack;

and MIC/SP cap is installed in the MIC/
SP jack.
EVX-531 OpErating Manual
9
Rotate the VOL/PWR
knob to set the volume
le vel . If no sig n al is
present on the analog
channel, press and hold
in the SIDE-1 button
(under the PTT switch)
more than 2 seconds;
background noise will
now be heard, and you
may use this to set the
VOL/PWR knob for the
desired audio level. Press and hold the SIDE-1
button more than 2 seconds (or press the SIDE-1
button twice) to quiet the noise and resume nor-
mal (quiet) monitoring.
To transmit, monitor the
channel and make sure it
is clear.
Press and hold the PTT
switch. Speak into the
microphone area of the
front panel grille in a normal voice level. To re-
turn to the Receive mode, release the PTT switch.
opEratIon
Press the (Orange) TOP
SEL k e y or SIDE-2
button to activate one
of the pre programmed
functions which may
have been enabled at the
time of programming
by the dealer. See the
next section for details
regarding the available
features.
If a Speaker/Microphone
is available, remove the
plastic cap and its two
mounting screws from
the right side of the
transceiver, then align
the connector of the
Speaker/Microphone
on the radio; secure the connector pin using the
screws supplied with the Speaker/Microphone.
Hold the speaker grille up next to your ear while
receiving. To transmit, press the PTT switch on
the Speaker/Microphone, just as you would on
3
EVX-531
EVX-531 OpErating Manual
10
opEratIon
the main transceiver’s body, and speak into the
microphone on a normal voice level.
Note 1): Save the original plastic cap and its
mounting screws. They should be reinstalled
when not using the Speaker/Microphone.
2) When you press the PTT switch on the Speak-
er/Microphone, it disables the internal micro-
phone, and vice versa.
If the BCLO (Busy Channel Lockout) feature
has been programmed on an analog channel, the
radio will not transmit when a carrier is present.
Instead, the radio will generate short beep three
times. Release the PTT switch and wait for the
channel to be clear of activity.
If the BTLO (Busy Tone Lockout) feature has
been programmed on an analog channel or
CCLO (Color Code Lockout) feature has been
programmed on a digital channel, the radio
can transmit only when there is no carrier be-
ing received or when the carrier being received
includes the correct tone (CTCSS tone or DCS
code) on an analog channel or correct code on a
digital channel.
Automatic Time-Out Timer
If the selected channel has been programmed for au-
tomatic time-out, you must limit the length of each
transmission. While transmitting, a beep will sound
10 seconds before time-out. Another beep will sound
just before the deadline; the top panel’s red LED (“TX”
indicator) will disappear and transmission will cease
soon thereafter. To resume transmitting, you must re-
lease the PTT switch and wait for the “penalty timer”
to expire.
EVX-531 OpErating Manual
11
advancEd opEratIon
Programmable Key Functions
The EVX-531 provides the programmable TOP
SEL, SIDE-1, and SIDE-2 function keys.
These Programmable Function keys can be custom-
ized, via programming by your Vertex Standard deal-
er, to meet your communications/network require-
ments.
The possible Programmable key programming fea-
tures are illustrated on the next page, and their func-
tions are explained beginning after page 13. For fur-
ther details, contact your Vertex Standard dealer.
In this chapter, the following icons are used to indi-
cate features supported in either the “Analog” mode
or “Digital” mode:
: Indicates a “Analog” mode only feature.
: Indicates a “Digital” mode only feature.
For features that are available in both “Analog” and
“Digital” modes, no icon is shown.
For future reference, check the box next to each func-
tion that has been assigned to the Programmable key
on your particular radio, and keep it handy.
EVX-531 OpErating Manual
12
advancEd opEratIon
FunctIon
programmaBlE KEY
(prEss KEY / prEss and hold KEY)
TOP SEL SIDE-1 SIDE-2
None / / /
Monitor / / /
Monitor -Momentarily- /--- /--- /---
Low Power / / /
Privacy / / /
SQL OFF / / /
SQL OFF -Momentarily- /--- /--- /---
Beep Off / / /
Whisper / / /
VOX / / /
VOX Anti-Trip / / /
Emergency /--- /--- /---
Lone Worker / / /
Group Change / / /
PRI-2 Set / / /
PRI-2 Disable / / /
FunctIon
programmaBlE KEY
(prEss KEY / prEss and hold KEY)
TOP SEL SIDE-1 SIDE-2
Scan / / /
Group Scan / / /
Dual Watch / / /
FM Scan
(Follow-Me Scan)
///
TA Scan / / /
SCAN Set / / /
Talk Around (TA) / / /
RESET / / /
Call 1 / / /
Call 2 / / /
Call 3 / / /
Speed Dial / / /
Call / / /
TX Save Disable / / /
Lock / / /
EVX-531 OpErating Manual
13
advancEd opEratIon
Description of Operating Functions
sql oFF
Press (or press and hold) the assigned programmable
key to open the SQL to hear background noise (unmute
the audio).
sql oFF -momEntarIlY-
Opens the SQL to hear background noise (unmute
the audio) while pressing the assigned programmable
key.
BEEp oFF
Press (or press and hold) the assigned Programmable
key to disable the radio beeps and the channel an-
nouncement (if activated) temporarily. Again press
(or press and hold) the assigned Programmable key
to enable the radio beeps and the channel announce-
ment.
WhIspEr
Press (or press and hold) the assigned Programmable
key to increase the microphone gain; thus you can
speak in a low voice (whisper) temporarily. Again
press (or press and hold) the assigned Programmable
key to resume normal microphone gain.
monItor
Press (or press and hold) the assigned Programmable
key to cancel any signaling features; the LED indica-
tor will glow with a pre-defined color (Factory de-
fault: green).
monItor -momEntarIlY-
Cancel any signaling features while pressing the as-
signed programmable key.
loW poWEr
Press (or press and hold) the assigned Programmable
key to set the radio’s transmitter to the “Low Power”
mode, thus extending battery life; the LED indicator
will glow with a pre-dened color. Press (or press and
hold) the key again to return to “Normal” transmit
power when in difcult terrain.
prIvacY
Press (or press and hold) the assigned Programmable
key to toggle the Privacy feature “On” and “Off”.
The privacy feature keep the secrecy of your commu-
nication contents.
EVX-531 OpErating Manual
14
advancEd opEratIon
vox
Press (or press and hold) the assigned programmable
key to turn the VOX function “On” or “Off”. When
the VOX function is activated, the LED indicator
will glow with a pre-dened color. You may disable
the VOX function temporarily by pressing the PTT
switch.
vox antI-trIp
Press (or press and hold) the assigned Programmable
key to toggle the VOX Anti-Trip feature “On” and
“Off”. When the VOX Anti-Trip feature is set to “On”,
the transceiver does not activate the transmitter sec-
tion from the receiver audio and own beep sound.
EmErgEncY
The EVX-531 include an “Emergency” feature which
may be useful for alerting another party monitoring
on the same frequency as your transceiver’s channel.
Press the assigned Programmable key to initiate an
emergency call on the pre-dened channel. For fur-
ther details contact your Vertex Standard dealer.
lonE WorKEr
Press (or press and hold) the assigned Programmable
key to toggle the Lone Worker feature “On” and “Off”.
The Lone Worker feature is designed to emit an
alarm for 30 seconds when the Lone Worker Timer
(programmed by your Vertex Standard dealer) has ex-
pired. If the user does not reset the timer by pressing
the PTT switch, the radio switches to the Emergency
mode.
group changE
The EVX-531 has two Channel Groups (Group 1 and
Group 2).
Press (or press and hold) the assigned Programmable
key to change the Channel Group to the opposite
Group. When there is a radio in the Group 2, the LED
indicator will blink with a pre-defined color. Once
the desired Group is reached, rotate the CH Selector
knob to select the desired channel within the selected
Group.
EVX-531 OpErating Manual
15
advancEd opEratIon
prI-2 sEt
Press (or press and hold) the assigned programmable
key to toggle the current channel to the priority chan-
nel 2 “enable” and “disable”.
prI-2 dIsaBlE
Press (or press and hold) the assigned programmable
key to disable the priority channel 2 of the group tem-
porarily.
scan
The Scanning feature is used to monitor multiple
signals programmed into the transceiver. While scan-
ning, the transceiver will check each channel for the
presence of a signal, and will stop on a channel if a
signal is present.
To activate scanning:
Press (or press and hold) the assigned Program-
mable key to activate scanning: the LED indicator
will glow with a pre-dened color.
The scanner will search the channels of each
channel, looking for active ones; it will pause
each time it nds a channel on which someone is
speaking.
Press (or press and hold) the assigned Program-
mable key again to disable scanning. Operation
will revert to the programmed revert channel.
Note: Your dealer may have programmed your radio
to stay on one of the following channels if you press
the PTT switch during scanning pause:
“Scan Pause” channel (“Talk Back”)
“Last Busy” channel
“Priority-2” channel
“User Programmed” channel (“Select Channel”)
The channel which dened in the CH Selector
knob.
group scan
The Scanning feature is used to monitor multiple
channels programmed into the transceiver. While
scanning, the transceiver will check each channel of
the programmed group for the presence of the signal,
and will stop on a channel if a signal is present.
Press (or press and hold) the assigned programmable
key to activate the scanning on the selected groups.
EVX-531 OpErating Manual
16
dual Watch
The Dual Watch feature is similar to the SCAN fea-
ture, except that only two channels are monitored:
The current operating channel; and
The Priority-2 channel.
To activate Dual Watch:
Press (or press and hold) the assigned Program-
mable key.
The scanner will search the two channels; it will
pause each time it nds a channel on which some-
one is speaking.
To stop Dual Watch:
Press (or press and hold) the assigned Program-
mable key.
Operation will revert to the “Dual Watch Revert”
channel.
Fm scan (FolloW-mE scan)
The FM Scan feature checks a User-assigned Priority
Channel regularly as you scan other channels. Thus,
if only Channels 1, 3, and 5 (of the 8 available chan-
nels) are designated for “Scanning”, the user may
nonetheless assign Channel 2 as the “User-assigned”
Priority Channel via the FM Scan.
To activate FM Scan, rst select the channel you want
to designate as the “User-Assigned Priority Channel”
and press (or press and hold) the assigned program-
mable key. Then rotate the CH Selector knob to re-
call to the “Scanning Start” channel which has been
programmed by your dealer to activate the scanner.
When the scanner stops on an “Active” channel, the
User-assigned Priority Channel will automatically be
checked every few seconds; if activity is found on the
User-assigned Priority Channel, the radio will switch
between it and the Dealer-Assigned Priority Channel,
if any.
advancEd opEratIon
EVX-531 OpErating Manual
17
advancEd opEratIon
ta scan
Press (or press and hold) the assigned Programmable
key to toggle the TA (Talk Around) scan feature “On”
and “Off”.
While TA scan is proceeding, the transceiver will
search both the transmit and receive frequencies.
When a signal is encountered on the receive frequen-
cy, the EVX-531 will pause until the signal disap-
pears. When a signal is encountered on the transmit
frequency, the transceiver will check for activity on
the receive frequency every few seconds (interval
programmed by your Vertex Standard dealer).
Note: The TA Scan feature does not activate on the
Simplex Channel.
scan sEt
Press (or press and hold) the assigned Programmable
key to add/delete the current channel to/from your
scanning list.
When the scanner is stopped, you may remove the
channel from the scan list temporarily by pressing (or
press and holding) this key.
talK around (ta)
Press (or press and hold) the assigned Programmable
key to activate the Talk Around feature when you are
operating on duplex channel systems (separate re-
ceive and transmit frequencies, utilizing a “repeater”
station). When the Talk Around feature is activated,
the LED indicator will glow with a pre-dened color.
The Talk Around feature allows you to bypass the
repeater station and talk directly to a station that is
nearby. This feature has no effect when you are oper-
ating on “simplex” channels, where the receive and
transmit frequencies are already the same.
Note that your dealer may have mode provision for
“Talk Around” channels by programming “repeater”
and “Talk Around” frequencies on two adjacent chan-
nels. If so, the key may be used for one of the other
Pre-Programmed Functions.
Note: The Talk Around feature does not activate on
the Simplex Channel.
EVX-531 OpErating Manual
18
advancEd opEratIon
rEsEt
Press (or press and hold) the assigned programmable
key to reset the RFC (Ready for Communication)
condition.
call 1 to call 3
Press (or press and hold) the assigned Programmable
key to send a pre-defined 2-tone Sequential Tone
Group (on an analog channel) or a pre-dened Digi-
tal Contact List (on a digital channel).
spEEd dIal
Press (or press and hold) the assigned Programmable
key to prepare the Speed Dial function. Press the PTT
switch within 5 seconds of releasing the key to send a
pre-dened DTMF tone.
call
Press (or press and hold) the assigned programmable
key to send a 2-tone sequential tone.
tx savE dIsaBlE
Press (or press and hold) the assigned Programmable
key to disable the Transmit Battery Saver, if you are
operating in a location where high power is almost
always needed.
The Transmit Battery Saver helps extend battery life
by reducing transmit power when a very strong signal
from an apparently nearby station is being received.
Under some circumstances, though, your hand-held
radio may not be heard well at the other end of the
communication path, and high power may be neces-
sary at all times.
locK
Press (or press and hold) the assigned Programmable
key to lock the CH Selector knob, Programmable
keys, and PTT switch. The precise lockout congura-
tion is programmed by your Vertex Standard Dealer.
EVX-531 OpErating Manual
19
locK
In order to prevent accidental channel change or
inadvertent transmission, various aspects of the
CH Selector knob, Programmable keys, and PTT
switch may be locked.
The precise lockout conguration is programmed by
your Dealer.
To locked out the key locking, turn the radio off.
Now, press and hold the PTT and SIDE-2 key while
turning the radio on again.
To cancel locking, repeat this process.
artstm
(auto rangE transpond sYstEm)
This system is designed to inform you when you and
another ARTSTM-equipped station are within commu-
nication range.
During ARTSTM operation, when the radio receives
an incoming ARTSTM signal, a short beep will sound.
If you move out of range for more than two minutes,
your radio senses that no signal has been received;
a short triple-beep will sound. If you subsequently
move back into communication range, as soon as the
other station transmits, a short beep will sound again.
artsIItm
(auto rangE transpond sYstEm)
The ARTSIITM system is enhanced feature of the
ARTSTM which can be nding out the communication
range of the radio individually by using the MDC-
1200® Encode/Decoder.
EVX-531 OpErating Manual20
optIonal accEssorIEs
FNB-V133LI
7.4V, 1380 mAh Li-Ion Battery Pack
FNB-V134LI
7.4V, 2300 mAh Li-Ion Battery Pack
CD-58
Desktop Charger
PA-51
AC Adapter
MH-66A4B
Submersible Speaker Microphone
MH-81A4B
Over-the-head VOX Compatible Headset
ATU-16B
UHF Antenna (400-420 MHz)
ATU-16C
UHF Antenna (420-450 MHz)
ATU-16D
UHF Antenna (450-470 MHz)
ATU-16F
UHF Antenna (470-520 MHz)
CSS450
Channel Selector Stopper
CLIP-20
Belt Clip
CE142
PC Programming Software
FIF-12
USB Programming Interface
CT-106
Connection Cable for FIF-12
CT-27
Radio to Radio Cloning
Cable
Availability of accessories may vary; some acces-
sories are supplied standard per local requirements,
others may be unavailable in some regions. Check
with your Vertex Standard Dealer for changes to
this list.
Part 15.21: Changes or modications to this device not expressly approved by Vertex Standard could void
the user’s authorization to operate this device.
Part15.21:ChangesormodicationstothisdevicenotexpresslyapprovedbyVertexStandardcouldvoid
theuser’sauthorizationtooperatethisdevice.
TheAMBE+2TMvoicecodingTechnologyembodiedinthisproductisprotectedbyintellectualproperty
rightsincludingpatentrights,copyrightsandtradesecretsofDigitalVoiceSystems,Inc.Thisvoicecoding
TechnologyislicensedsolelyforusewithinthisCommunicationsEquipment.TheuserofthisTechnology
isexplicitlyprohibitedfromattemptingtodecompile,reverseengineer,ordisassembletheObjectCode,or
inanyotherwayconverttheObjectCodeintoahuman-readableform.
U.S.Pat.Nos. #5,870,405,#5,826,222,#5,754,974,#5,701,390,#5,715,365,#5,649,050,#5,630,011,
#5,581,656,#5,517,511,#5,491,772,#5,247,579,#5,226,084and#5,195,166.
Copyright2012
VertexStandardLMR,Inc.
Allrightsreserved.
Noportionofthismanual
maybereproduced
withoutthepermissionof
VertexStandardLMR,Inc.
Vertex Standard LMR, Inc.

Navigation menu
