Vertex Wireless VW340 CDMA EV-DO Rev.A Mini Wi-Fi Hotspot User Manual VW300 EN V1 5
Vertex Wireless Co., Ltd. CDMA EV-DO Rev.A Mini Wi-Fi Hotspot VW300 EN V1 5
Contents
- 1. user manual
- 2. User manual
User manual
1.Product Overview 1
USER MANUAL V.1.5E
CDMA EV-DO Rev.A Mini Wi-Fi Hotspot VW300 series
Table of Contents
Technical Specification 03
1. Product Overview
Package Contents 05
System Requirements 05
Features 06
Hardware Overview 07
2. Installation 09
3. Configuration
Web-based Configuration 11
Basic Setup
Connection Setting 11
Status 12
Advanced Setup
IP Setup 13
Wireless Setup 15
Traffic Control 22
Security 25
Utility 29
4. Administrator 37
5. Status 39
6. Troubleshooting 43
1.Product Overview 3
Standards
IEEE 802.11g
IEEE 802.11b
Wireless Signal Rates
54Mbps 48Mbps
36Mbps 24Mbps
18Mbps 12Mbps
11Mbps 9Mbps
6Mbps 5.5Mbps
2Mbps 1Mbps
Security
64/128-bit WEP
WPA-PSK
WPA-PSK2
Frequency Range
2.4GHz to 2.483GHz
CDMA Frequency Range
VW310 Rx: 463 ~ 468MHz
Tx: 453 ~ 458MHz
VW340 Rx: 859.64 ~ 893.37MHz
Tx: 824.64 ~ 848.37MHz
Rx: 1930 ~ 1989.95MHz
Tx: 1850 ~ 1909.95MHz
Channel Bandwidth
CDMA 1.23MHz
AC Adaptor
AC 110~240V, 50~60Hz
DC 5.0V / 2.0A
LEDs
Power Signal
1x/EVDO WAN
WLAN
CDMA EV-DO Rev.A Mini Wi-Fi Hotspot VW300 series 4
Operating temperature
-20 °C ~ +60 °C
Storage temperature
-30 °C ~ +70 °C
Humidity
5 ~ 95%
Dimension
115(W)x64(D)x14.5(H)mm
Operating time
Working time: 2Hrs
Standby time: 3Hrs
1.Product Overview 5
Package Contents
○
1Main set
○
2AC adaptor
○
3User manual
System Requirements
• At least one computer with an installed wireless
network interface card or adaptor
• TCP/IP networking protocol installed on each
computer
• Internet browser
CDMA EV-DO Rev.A Mini Wi-Fi Hotspot VW300 series 6
Features
◆Faster Wireless Networking
The VW300 provides up to 54Mbps wireless connection
with other 802.11g wireless clients.
◆Compatible with 802.11b Devices
The VW300 is still fully compatible with the IEEE 802.11b
standards, so it can connect with existing 802.11b PCI,
USB and Cardbus adaptors.
◆Advanced Firewall feature
The Web-based user interface displays a number of
advanced network management features including:
Filter Scheduling
– These filters can be scheduled to be active on
certain days or for a duration of hours or minutes.
Parental Controls
– Easily applied content filtering based on MAC
Address, and/or URL.
Secure Multiple/Concurrent Sessions
– The VW300 can pass through VPN sessions. It
supports multiple and concurrent IPSec and PPTP
sessions, so users behind the VW300 can surely
access corporate network.
*Maximum wireless signal rate derived from IEEE Standard
specification. Actual data throughput will vary. CDMA Network
conditions and environmental factors, including volume of
network traffic, building materials and construction, and network
overhead, lower actual data throughput rate. Environmental
conditions will adversely affect wireless signal range.
1.Product Overview 7

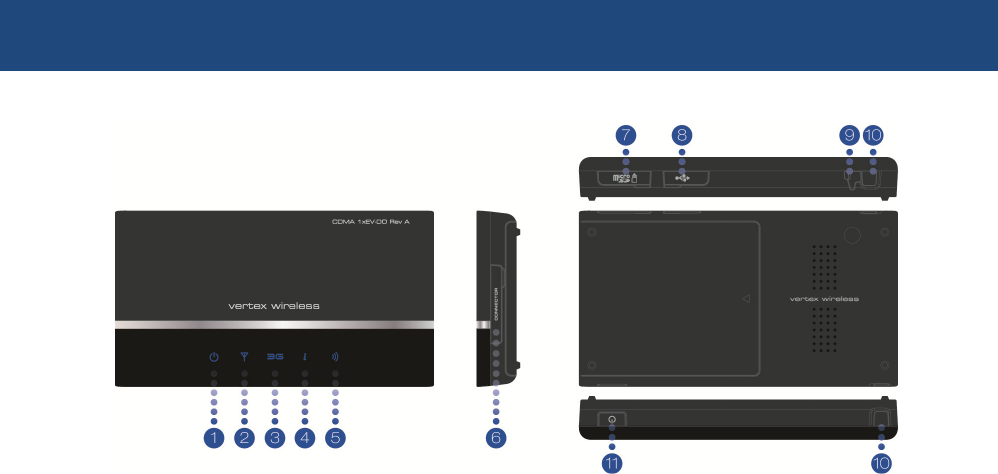

Hardware Overview
CDMA EV-DO Rev.A Mini Wi-Fi Hotspot VW300 series 8
○
1Power
A
ctivit
y
Description
OFF Power is not supplied to the route
r
Solid Blue Power is supplied to the router with either
Adaptor or Battery (Full charged)
Solid Violet Power is supplied to the router with half batter
y
Solid Red Power is supplied to the router with low batter
y
Blinking Blue Charging the batter
y
Blinking Red Error with charging battery (bad battery, etc)
○
2Signal
A
ctivit
y
Description
OFF No 1x or E
V
-DO signal
Solid Blue Strongest level
Solid Violet Medium level
Solid Red Low level
○
31x/EV-DO
A
ctivit
y
Description
OFF Router is connected to 1
x
Solid Blue Router is connected to E
V
-DO
○
4WAN
A
ctivit
y
Description
OFF Router is disconnected
Solid Blue Router is connected to WAN
○
5WLAN
A
ctivit
y
Description
OFF No Wi-Fi is used
Solid Blue Wi-Fi is activated
Blinking Blue
A
ctive data passed through Wi-Fi
○
6Connector
○
7micro SD slot for file sharing
○
8USB (Mini-B) slot for battery charging
○
9External antenna port
○
10 Antenna
○
11 ON/OFF Button
2.Installation 9
Wireless Installation Considerations
The VW300 wireless router let your network using a wireless connection from virtually anywhere within the operating
range of your wireless network. However, the number, thickness and location of walls, ceilings, or other objects that the
wireless signals must pass through, may limit the range. Typical ranges vary depending on the types of materials and
background RF noise in your home or business.
1. Router should be placed at the position with good CDMA signal.
2. Keep the number of walls and ceilings between the VW300 and other network devices to a minimum-each
wall or ceiling can reduce your adaptor’s range from 1~30 meters. Position your devices so that the number of
walls or ceilings is minimized.
3. Building Materials make a difference. A solid metal door or aluminum studs may have a negative effect on
range. Try to position access points, wireless routers, and computers so that the signal passes through drywall
or open doorways. Materials and objects such as glass, steel, metal, walls with insulation, water (fish tanks),
mirrors, file cabinets, brick, and concrete will degrade your wireless signal.
4. Keep your product away (at least 1~2 meters) from electrical devices or appliances that generate RF noise.
CDMA EV-DO Rev.A Mini Wi-Fi Hotspot VW300 series 10
5. If you are using 2.4GHz cordless phones or X – 10 (wireless products such as ceiling fans, lights, and home
security systems), your wireless connection may degrade dramatically or drop completely. Make sure your
2.4GHz phone base is as far away from your wireless devices as possible. The base transmits a signal even if
the phone is not in use
3.Configuration 11
Web-based Configuration

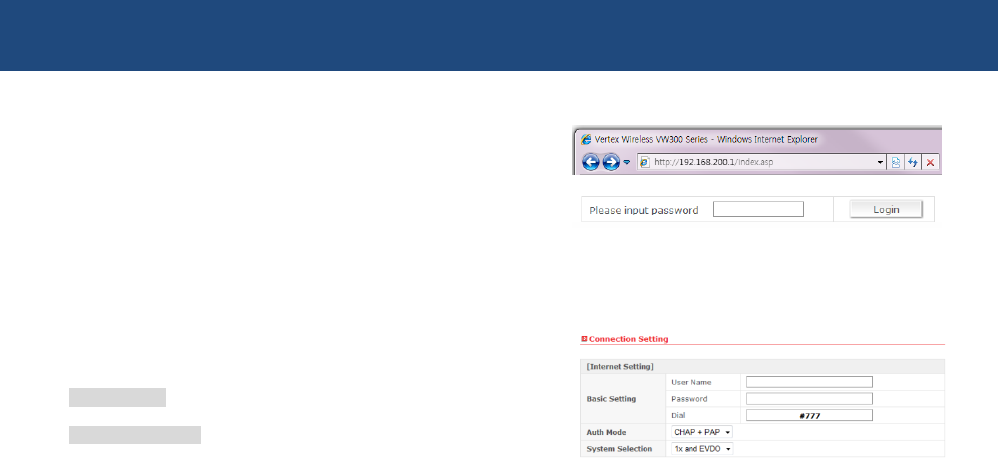

Please open a web-browser and enter the IP address of the router
(192.168.200.1)
You will see the Router’s login page in your browser window. Enter
login password and press “Login” button to log in.
** Note: The Router ships with no password entered. In the login screen, leave the password blank and click the “Login” button to log in.
Basic setup
□
▶Connection Setting
[Internet Setting]
Basic setting Enter your PPP user name, password and Dial
(Provided by operator. Default dial: #777)
System Selection Select the CDMA system from the drop-down
menu:1x and EVDO, 1x, and EVDO
CDMA EV-DO Rev.A Mini Wi-Fi Hotspot VW300 series 12

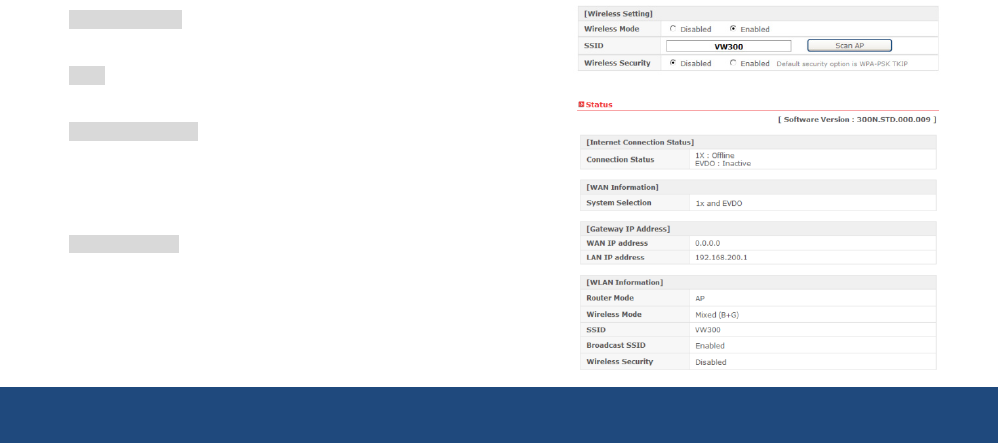

[Wireless Setting]
Wireless Mode Select enabled to use Wi-Fi feature otherwise
select disabled. If you select Enabled, SSID
and Wireless Security will be displayed below
SSID Service Set Identifier is the name of your
wireless network. Create a name using up to
32 characters.
Wireless Security Select Enabled to use Wireless Security
otherwise select Disabled. If you select
Enabled, Wireless Code will be displayed
below (Default security option is WPA-PSK
TKIP. If you want to have more option, go to
Wireless Setup under Advanced Setup)
Wireless Code Enter security code for WPA-PSK TKIP
encryption if you want to use Wi-Fi security
option
□
▶Status
You can check current Router status via this menu.
3.Configuration 13
Advanced Setup
This menu provides various enhanced network function configuration and recommend to expert user. It’s not necessary
for all users.
-IP Setup
□

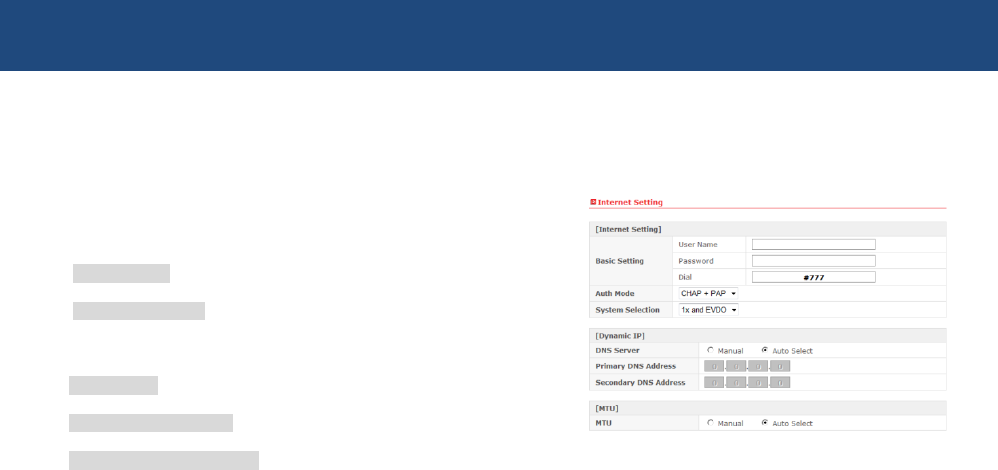

▶Internet Setting
[Internet Setting]
Basic setting Enter your PPP user name, password and
Dial (Provided by operator. Default dial: #777)
System Selection Select a CDMA system from the drop-
down menu: 1x and EVDO, 1x, and EVDO
[Dynamic IP]
DNS Server Select either Manual or Auto select for DNS
server.
Primary DNS Address Enter the Primary DNS server IP assigned
by your ISP
Secondary DNS Address Enter the Secondary DNS server IP assigned by your ISP (optional)
CDMA EV-DO Rev.A Mini Wi-Fi Hotspot VW300 series 14
MTU Maximum Transmission Unit – you may need to change the MTU for optimal
performance with your specific ISP.
Auto select is the default MTU
□

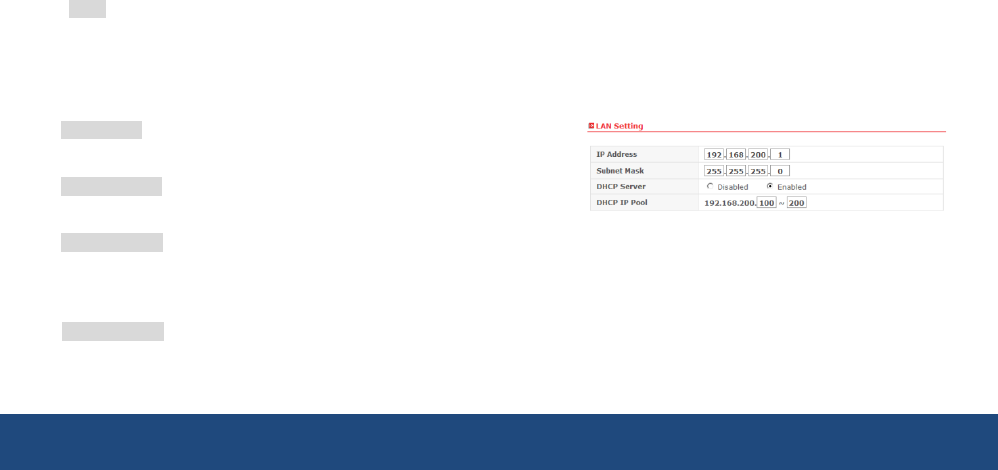

▶LAN Setting
IP Address This is the internal IP address of the Router.
The default IP address is “192.168.200.1” and it
can be changed if needed.
Subnet Mask This is a unique, advanced feature of the
Router. The default is “255.255.255.0” and it
can be changed if needed.

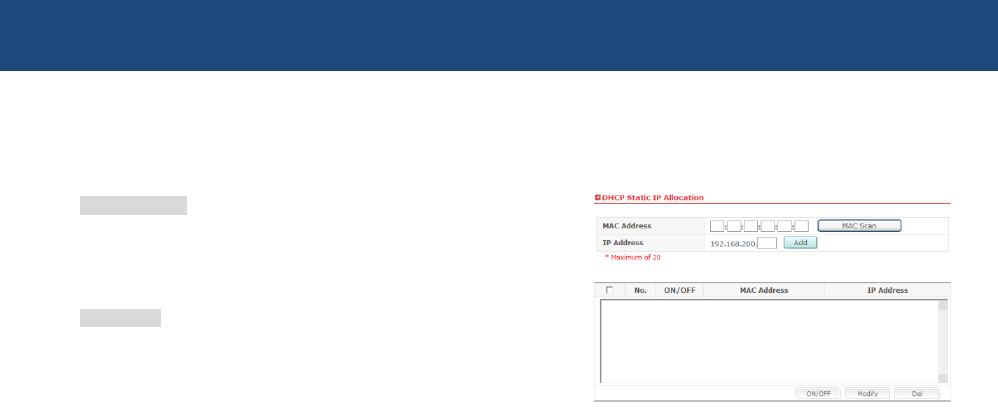

DHCP Server The Dynamic Host Control Protocol (DHCP) server will automatically assign an IP address to the
computers on the LAN/private network. Select Enabled to use DHCP server otherwise select
Disabled
** Note: To use DHCP server, be sure to set your computers to be DHCP clients by setting their TCP/IP settings to
“Obtain an IP Address Automatically.
DHCP IP Pool Enter the starting and ending IP addresses for the DHCP server’s IP assignment.
The default range is 100-200.
3.Configuration 15
-Wireless Setup
□

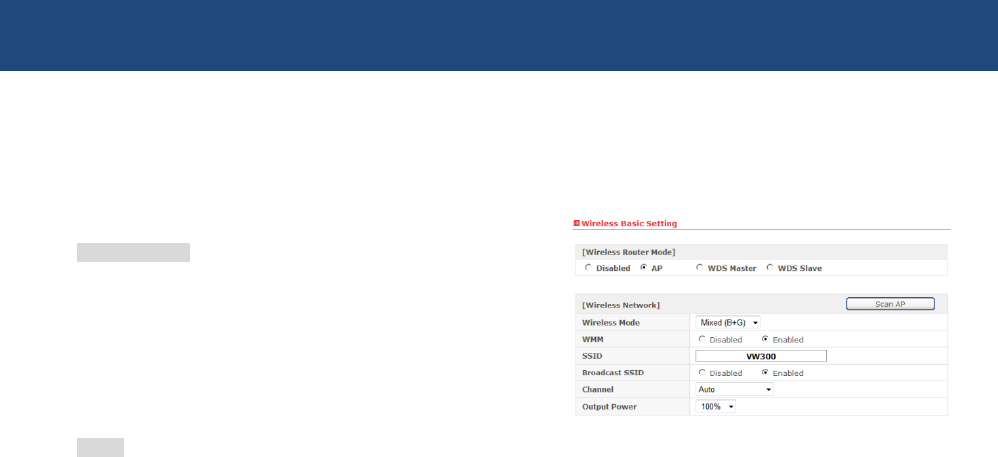

▶ Wireless Basic Setting
[Wireless Router Mode]
Select a Wireless Router mode from list : Disabled / AP / WDS Master/ WDS Slave
[Wireless Network]
Wireless Mode Select a Wireless Mode from the drop-down
menu:
◎ Mixed(B+G) Mode – Select if you are using both 802.11b
and 802.11g wireless clients.
◎ G only Mode – Select if you are using 802.11g wireless
clients only.
◎ B only Mode – Select if you are using 802.11b wireless
clients only.
WMM Wireless Multimedia Extension (WMM) mode is Power Save uses mechanisms from 802.11e and
CDMA EV-DO Rev.A Mini Wi-Fi Hotspot VW300 series 16
legacy 802.11 to save power (for battery powered equipment) and fine-tune power consumption.
Select Enabled to use WMM otherwise select Disabled
SSID Service Set Identifier is the name of your wireless network. The SSID must be identical for all devices
in the wireless network. Create a name using up to 32 characters. (It is case-sensitive and uses any
of the characters in the keyboard)
Broadcast SSID Select Disabled if you do not want the SSID of your wireless network to be broadcasted by the
router otherwise select Enabled. If Disabled is selected, the SSID will not be detected by site survey
so your wireless clients need to have the SSID manually entered to connect to the router.
Channel A number of operating channels can be selected. If there are other wireless networks operating
in your area, the channel will be set different from the channel of the other wireless networks. For
best performance, use a channel that is at least five channels away from the other wireless
network.
Output Power There are a number of operating output power you can choose from. The default output power
100%. The output power can be changed if needed. For best performance, use a 100%.
3.Configuration 17

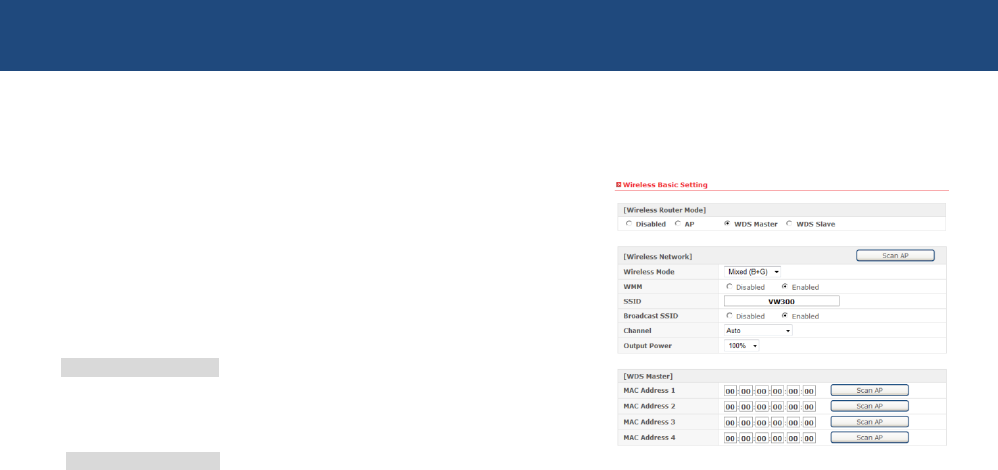

≫ Wireless Distribution System(WDS) Master & Slave
WDS is a system that enables the wireless interconnection of access points in network. It allows a wireless network to
be expanded using multiple access points without need for a wired backbone to link them. It is possible to extend
wireless coverage area by using more than two VW300 (Maximum
4). WDS can be either a WDS master or remote WDS slave. WDS
Master relays data between remote WDS slave, wireless clients or
other relay station to either a main or other relay WDS slave. WDS
Master & Slave must be configured as same SSID, Channel and
security.
** Note : When you setup WDS function, please disable wireless security
options of every AP’s. WDS function of VW300 series is applicable with
other APs which use Ralink chipset but function can be restricted for
other wireless chipset.
Setting Wi-Fi security Disable Wi-Fi security option in each units.
(You can set security option in WDS mode but
recommend to set security after WDS
configuration. Also you should set same
security option in each Master and Slave unit.)
WDS Master Setting Master mode should be set in the unit which is working with EVDO network for WAN.
CDMA EV-DO Rev.A Mini Wi-Fi Hotspot VW300 series 18
Connect to WEB UI using IP address, “192.168.200.1” → Go to [Advanced Set up] →
[Wireless Set up] → [Basic setting] → Click [WDS Master] → Set desired SSID and Channel.
(These SSID and Channel should be same with WDS slave device.) → Click “Scan AP” in
WDS Master section → Choose AP that you want to use as WDS Slave → Click “Apply” to
apply your configuration.
WDS Slave Setting Connect to WEB UI using IP address, “192.168.200.1” which you want to use as WDS slave.
Go to [Advanced Set up] → [Wireless Set up] → [Basic setting] → Click [WDS Slave] → Set
desired SSID and Channel.(These SSID and Channel should be same with WDS Master
device.) Set desired IP address of WEB UI.(Once device is operated as WDS slave, you can
access WEB UI via this address.) → Click “Scan AP” in WDS Slave section → Choose AP that
you want to use as WDS Master → Click “Apply” to apply your configuration.
3.Configuration 19
□

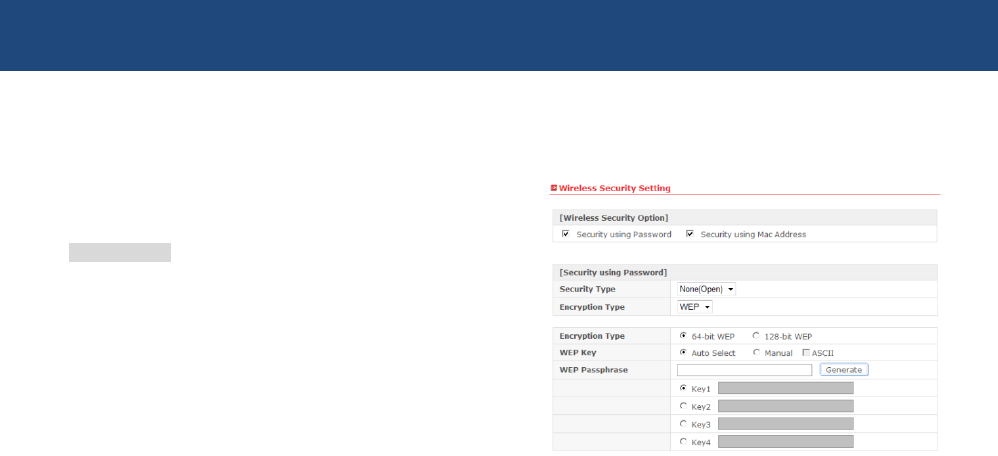

▶ Security Setting
Here are a few different ways you can maximize the security of your wireless network and protect your data from prying
eyes and ears. This section is intended for the home, home office, and small office user. At the time of this User Manual’s
publication, there are two encryption methods available.
[Security Using Password]
Security Type Select a Security Type from drop-down menu.
◎ None(open) & Shared
– In this mode, a wireless device must know the
WEP key to join the network.
◎ WPA-PSK & WPA-PSK2
– In this mode, Wi-Fi protected access with Pre-Shared
Key (WPA-PSK and WPA-PSK2) data encryption
provides extremely strong data security, very
effectively blocking eaves dropping. Uses a pass
phrase or key to authenticate your wireless connection.
The key is an alpha-numeric password between 8 and
CDMA EV-DO Rev.A Mini Wi-Fi Hotspot VW300 series 20
63 characters long. The password can include symbols and spaces.
Encryption Type Select an Encryption Type from drop-down menu
◎ None(open) & Shared
◎ WEP (Wired Equivalent Privacy)
- WEP provides security by encrypting data over your wireless network so that it its protected as it is
transmitted from one wireless device to another. To gain access to a WEP network, you must know the key.
The key is a string of characters that you create. When using WEP, you must determine the level of encryption.
The type of encryption determines the key length. In this mode, this is a common protocol that adds security to
all Wi-Fi compliant wireless products. WEP was designed to give wireless networks the equivalent level of
privacy protection as a comparable wired network.
◎ WPA-PSK & WPA-PSK2 TKIP & AES
- Improved data encryption through the Temporal Key Integrity Protocol(TKIP). TKIP scrambles the keys using
a hashing algorithm and, by adding an integrity-checking feature, ensures that the keys haven’t been
tampered with. WPA2 is based on 802.11i and uses Advanced Encryption Standard(AES) instead of TKIP.
3.Configuration 21
[Security using Mac Address]
The MAC address security is a powerful security feature
that allows you to specify which computers are allowed on
the network. When you use this feature, you must enter the
MAC address of each client (computer) on your network to
allow network access to each.
Policy Select a Policy from the three different modes:
◎ Open – In this mode, there is no restriction to any device connected to the Modem whether it is through Wi-Fi or
Ethernet ports.
◎ Deny – In this mode, the service table shows the client \MAC address being blocked by the Modem.
◎ Allow – In this mode, the service table shows the client MAC address allowed by the Modem.
** Note: You will not be able to delete the MAC address of the computer you are using to access the Router’s administrative functions
(the computer you are using now).
CDMA EV-DO Rev.A Mini Wi-Fi Hotspot VW300 series 22
-Traffic Control
□
▶ Port Forwarding
Using the port forwarding feature, you can allow certain types of incoming traffic to reach servers on your local
network. For example, you might make a local Web server, FTP server visible and available to the Internet. This
function will allow you to route external (Internet) calls for services such as a web server (port 80), FTP server (Port
21), or other applications through your Router to your internal network. You will need to contact the application
vendor to find out which port settings you need. To enter settings, select the Protocol from the dropdown box, you
will see a list of common applications (TCP,UCP). Select the desired applications, enter the IP address and the port
number in the space provided for the internal (server) machine and click “Add” & “Apply”.
□
▶ Demilitarized Zone (DMZ)
The DMZ feature is helpful when you using some on line WEB, FTP, Telnet, E-Mail conferencing application. The
modem is programmed to recognize some of these applications and to work correctly with them, but there are
other applications that might not function well. Incoming traffic from the internet is usually discarded by the modem
unless the traffic is a response to one of your local computers. The computer in the DMZ is NOT protected from
hacker attacks.
3.Configuration 23
□
▶ Irregular FTP
You can use this function if you wish to connect to external irregular FTP port. You can use maximum of five irregular
FTP port.
□
▶ Quality of Service (QOS)
The QOS Engine option helps improve your network performance by prioritizing applications. By default the QOS
Engine are disabled and application priority is not classified automatically. It guarantees the minimum speed by
setting either pc or port speed and it also limits the maximum speed. It is efficient use this function when you have
many users. It is only possible to manage setting for 10 pc.
Download, Upload It is current speed of CDMA service. It is possible to manage the speed of the internet
between 12Kbps and 3.1Mbps.
PC When using a service to limit the speed of the internet connection, and you have many
PCs connected to one router, then the speed of the internet slow down.
CDMA EV-DO Rev.A Mini Wi-Fi Hotspot VW300 series 24
Service Port You need to assign a unique port number to insure that you have the min speed required.
Download, Upload speed The speed at which data can be transferred from the modem.
You can limit the speed for both min & max.
3.Configuration 25
-Security
□

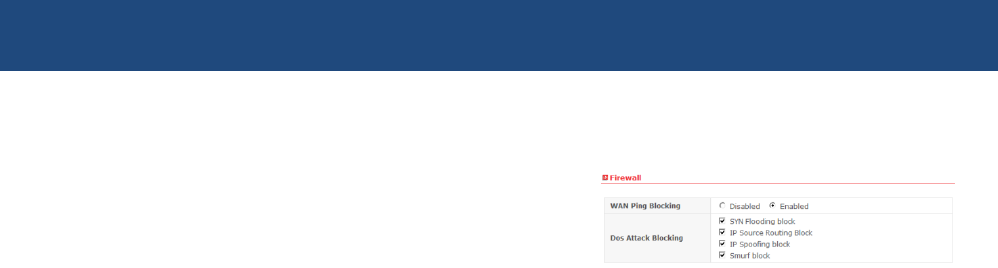

▶ Firewall
Your Router is equipped with a firewall that will protect your
network from a wide array of common hacker attacks including:
WAN Ping / SYN Flooding / IP Source Routing / IP Spoofing /
Smurf Attack
You can turn the firewall functions off if needed. Turning off the
firewall protection will not leave your network completely
vulnerable to hacker attacks, but it is recommended that you turn the firewall on whenever possible.
□
▶ IP/MAC Address Filtering
The Router can be configured to restrict access to the Internet, email, or other network services at specific days and
times. Restriction can be set for a single computer, a range of computers, or multiple computers by IP or MAC
address specification. Available up to 30ea configuration list.
CDMA EV-DO Rev.A Mini Wi-Fi Hotspot VW300 series 26

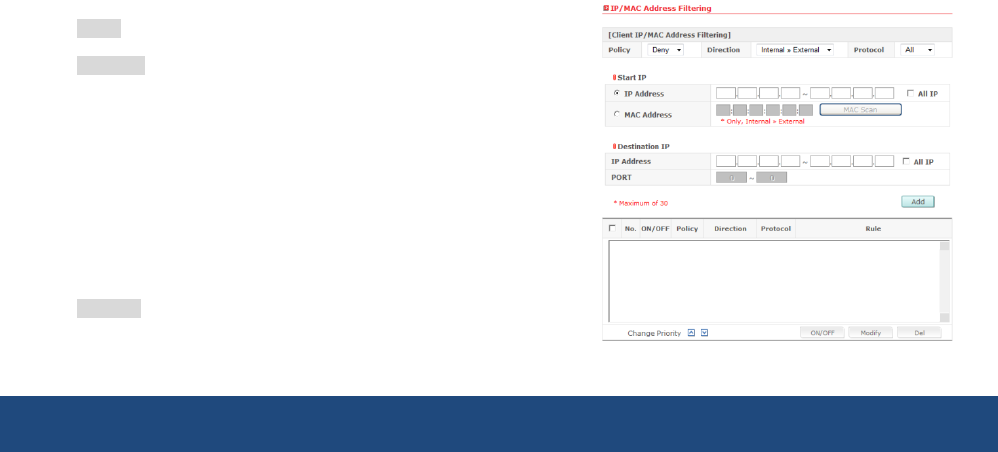

[Client IP/MAC Address Filtering]
Policy Select filtering policy Deny or Allow
Direction
◎ Internal to External : Select if you want to apply filtering policy in
the outgoing communication. (All clients
are allowed in case of outgoing
communication by default)
◎ External to Internal : Select if you want to apply filtering policy in
the incoming communication. (All clients
are restricted in case of incoming
communication by default. Hence this
option is valid in case of DMZ or IP
Forwarding)
Protocol Select one among of TCP / UDP / ALL. If you select ALL
option, filtering policy will be applied in all protocol.
3.Configuration 27
Start IP
◎ Internal to External
IP Address : Configure internal client IP address to be restricted by filtering policy.
All IP : Apply filtering policy in all clients.
MAC Address : Configure internal client MAC address to be restricted by filtering policy. You can scan client
MAC address using Scan AP button.
◎ External to Internal
IP Address : Configure external IP address to be restricted by filtering policy.
All IP : Apply filtering policy in all external IP address.
MAC Address : Not available in this option.
Destination IP
◎ Internal to External
IP Address/PORT : Configure external IP address and Port to be restricted.
All IP : Apply filtering in all external IP address.
◎ External to Internal
IP Address/PORT : Configure internal client IP address and Port to be restricted.
All IP : Apply filtering in all internal client IP address.
CDMA EV-DO Rev.A Mini Wi-Fi Hotspot VW300 series 28
□
▶ URL Filtering
You can block desired website URL. Once you register specified URL, clients can not access this address. Available
up to 10 URL registrations.
□

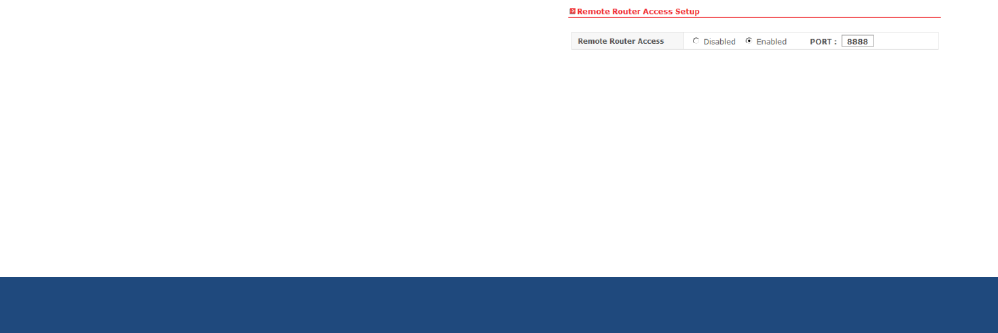

▶ Remote Router Access
Remote management allows you to make changes to your
Router’s settings from anywhere on the Internet.
Ex) If registered DDNS Domain name is
“vertexwireless.VW300.com” and you have set port
number “8888” in this menu, you can access the router with this address,
http://vertexwireless.VW300.com:8888.
3.Configuration 29
-Utility
□
▶ DHCP Static IP Allocation
Use this menu if you want to assign a fixed local IP address to a MAC address.
MAC Address Enter MAC address in the “MAC Address” field
that you want to assign fixed IP address. Or you can use MAC
address scan function. If you press “MAC Scan” button, router
will search currently connected client’s MAC address and list up
in the table.
IP Address Select one MAC address of the list and enter the IP
address you want to it to have in the “IP Address” field and press
“Add” to add static IP allocation information in the table. Make
sure the IP address is between the starting DHCP server’s IP
address and maximum number of DHCP users range.
A list of DHCP clients and their fixed local IP address will be displayed at the bottom of the screen. If you want to
remove a client from the list, click “Del”.
CDMA EV-DO Rev.A Mini Wi-Fi Hotspot VW300 series 30
□
▶ DDNS
The Dynamic DNS service allows you to alias a dynamic IP address to a static host name in any of the many domains
DynDNS.org offers, allowing your network computers to be more easily accessed from various locations on the
Internet. DynDNS.org provides this service, for up to five host names, free to the Internet community. The Dynamic
DNS service is ideal for a home website, file server, or to make it easy to access your home PC and stored files while
you’re at work. Using the service can ensure that your host name always points to your IP address, no matter how
often your ISP changes it. When your IP address changes, your friends and associates can always locate you by
visiting yourname.dyndns.org instead.
To register free for your Dynamic DNS host name, please visit http://www.dyndns.org.

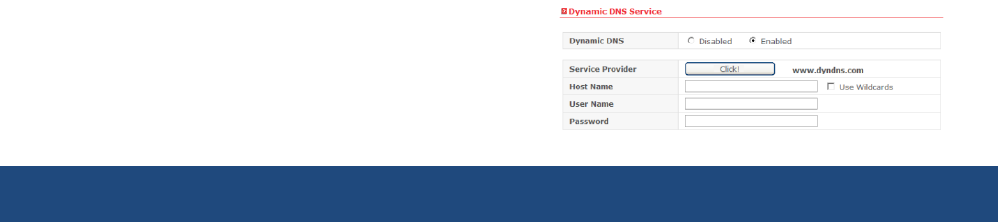

Setting up the Router’s Dynamic DNS update client
You must register with DynDNS.org’s free update service
before using this feature. Once you have your registration,
follow the directions below.
▷Select “Enabled” to activate DDNS service.
▷Press “Click” button to connect DynDNS.org’s web site.
▷Enter the DynDNS.org domain name you set up with
3.Configuration 31
DynDNS.org in the “Host Name” field
◎ Wildcards option: This setting enables or disables wildcards for your host.
◎ For example, if your DDNS address is VW300.dyndns.org and you enable wildcards, then x.VW300.dyndns.org
will work as well (x is the wildcard).
▷To enable wildcards, select “Use Wildcards” option.
▷Enter your DynDNS.org user name in the “User Name” field
▷Enter your DynDNS.org password in the “Password” field
▷Press “APPLY” to update your IP address
Whenever your IP address assigned by your ISP changes, the Router will automatically update DynDNS.org’s
servers with your new IP address. You can also do this manually by clicking the “APPLY” button.
□
▶ UPnP
Universal Plug and Play (UPnP) is a technology that offers seamless operation of voice messaging, video messaging,
games, and other applications that are UPnP-compliant. Some applications require the Router’s firewall to be
configured in a specific way to operate properly. This usually requires opening TCP and UDP ports. An application
CDMA EV-DO Rev.A Mini Wi-Fi Hotspot VW300 series 32
that is UPnP-compliant has the ability to communicate with the Router, basically “telling” the Router which way it
needs the firewall configured. The Router ships with the UPnP feature disabled. If you are using any applications that
are UPnP-compliant, and wish to take advantage of the UPnP features, you can enable the UPnP feature. Simply
select “Enabled” in the “UPnP” section of the “Utility” page. Click “APPLY” to save the change.
□
▶ NAT-T
If you are using VPN, VoIP or PPTP service you can enable or disable depending on your network environment.
□

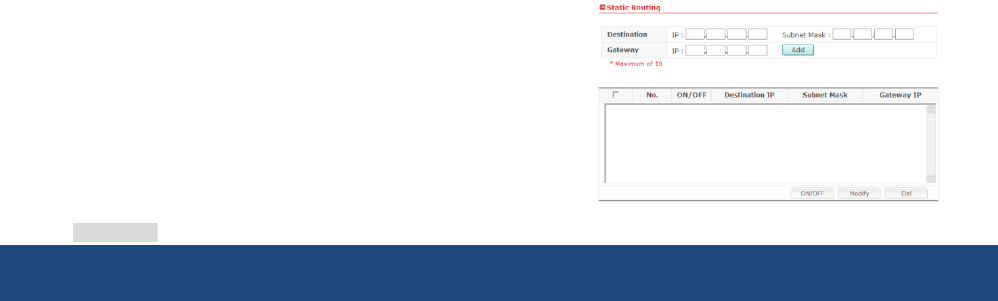

▶ Static Routing
A static IP address connection type is less common than other
connection types. This is pre-determined pathway that network
information must travel to reach a specific host or network.
If your ISP uses static IP addressing, you will need your IP address,
subnet mask, and ISP gateway address. This information is
available from your ISP or on the paperwork that your ISP left with
you.
Destination The Destination is LAN IP address of the remote network or host to which you want to assign a
3.Configuration 33
static route.
Subnet Mask This determines which portion of a Destination LAN IP address is the network portion, and which
portion is the host portion.
Gateway This is the IP address of the gateway device that allows for contact between the Router and the
remote network or host. A list of Static Routing table will be displayed at the bottom of the screen. If
you want to remove a client from the list, click “Del”
□

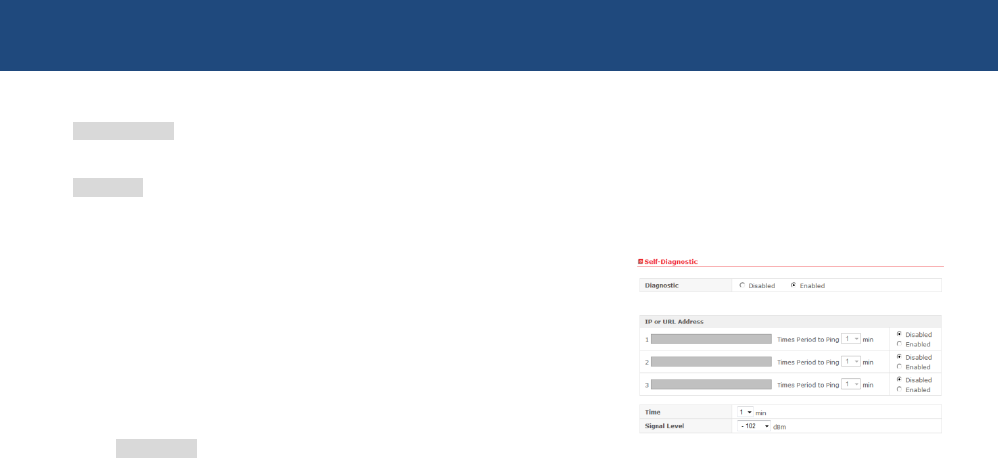

▶ Self-Diagnostic
In order for the gateway not to go to sleep during the long period when
activity is absent, the PING is performed on the addresses specified in
the settings field.
And in case PING does not come through any of addresses, it restart
itself the PPP session to be absent due to some reasons (gateway
failure or the session has been terminated on the operator side).
Diagnostic If you want use Self-Diagnostic function, please select “Enabled” option
CDMA EV-DO Rev.A Mini Wi-Fi Hotspot VW300 series 34
IP or URL Address The three addresses where PING is sent. For each of the address, set the PING time period
from 1 min to 30 min then select “Enabled” option.
Time Time interval for restart the PPP session when PING doesn’t have any response from any of
the IP addresses or URL addresses..
Signal Level The margin of the gateway’s RF sensitivity. In case of restart condition of PPP Session, if the
gateway’s RF sensitivity is lower than the specified dBm from -102 to -104, it doesn’t restart the PPP Session
because it is regarded as a weak area problem for RF.
□
▶ File Manager
This device supports a microSD card for file sharing and transfer or storage. The microSD slot is located on the same
side of the device as the USB connector.
1. Gently flip open the tab labeled “microSD” on the side of the device.
2. Gently insert the microSD card (label facing down) into the slot on the side of the device, until the microSD card
clicks into place.
Note: If your microSD card has not been formatted, or is in a format that your computer does not recognize, you may be
3.Configuration 35
prompted to format the microSD card. The formatting procedure erases all the data on the microSD card, after which the files
can’t be retrieved. To prevent the loss of information data, please check the contents before you format the microSD card.

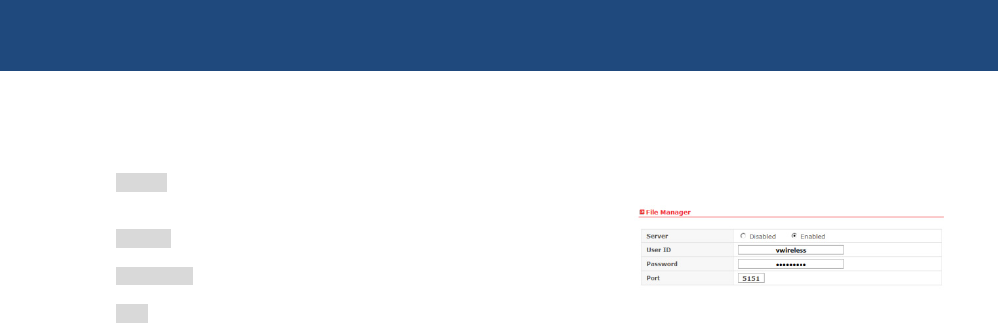

3. Ensure you’re logged in to the WEB Page, >> Advanced Setup Utility File Manager
Server If you want use file sharing function, please keep “Enabled” option. If you don’t want it, please
select “Disabled” option then click “APPLY” button.
User ID User ID for accessing the microSD card.
Password Password for accessing the microSD card.
Port Port for serving file sharing and transfer or storage.
Accessing the microSD Card
If the microSD card is inserted and enabled the File Manager on WEB Page, an inserted card appears in your FTP
applications.
CDMA EV-DO Rev.A Mini Wi-Fi Hotspot VW300 series 36

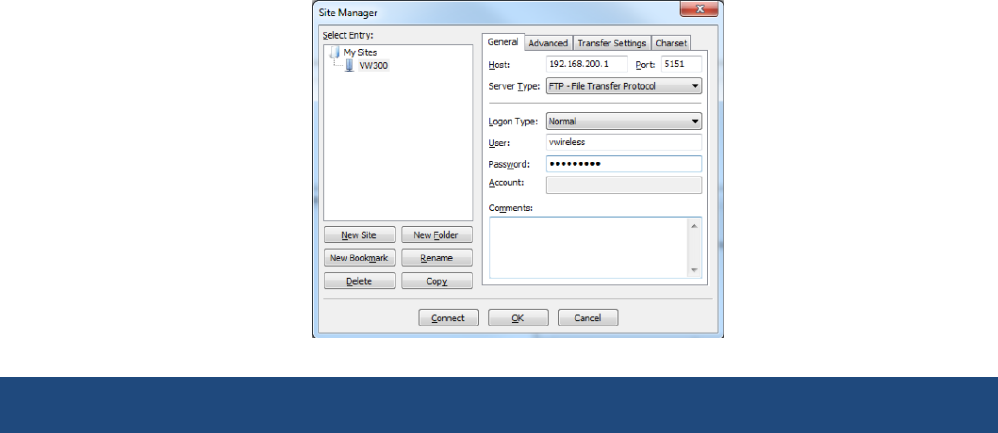

Set with User ID & Password and Port which is set in VW300 then connect to the FTP Server on VW300 like below.
4.Administrator 37
□
▶ Login Password
This menu is for setting up WEB UI login password.
The Router ships with NO password entered. If you wish to add a password for greater security, you can set a
password here. Write down your password and keep it in a safe place, as you will need it if you need to log into the
Router in the future. It is also recommended that you set a password if you plan to use the remote management
feature of your Router.
□
▶ System Management
Backup and Restore You can save your current configuration or restore a previously saved configuration
by using this feature. Saving your configuration will allow you to restore it later if your
settings are lost or changed. It is recommended that you back up your current
configuration before performing a firmware update.
Restart Router Sometimes it may be necessary to restart or reboot the Router if it begins working
improperly. Restarting or rebooting the Router will NOT delete any of your configuration
settings.
CDMA EV-DO Rev.A Mini Wi-Fi Hotspot VW300 series 38
Restore Factory Default Using this option will restore all of the settings in the Router to the factory (default)
settings. It is recommended that you back up your settings before you restore all of the
defaults.
□
▶ Firmware Upgrade
From time to time, your service provider may release new versions of the Router’s firmware. Firmware updates
contain feature improvements and fixes to problems that may exist. When service provider releases new firmware,
you can download the firmware from the service provider update website and update your Router’s firmware to the
latest version. In the “Firmware upgrade” page, click “Browse”. A window will open that allows you to select the
location of the firmware update file. A warning will be displayed while upgrading is progressed, please follow the
instruction.
5.Status 39
□
▶ Status Information
You can check current gateway connection status via this menu. Detailed WAN / LAN / WLAN descriptions can be
seen here.
□
▶ DHCP Allocation Information
You can view a list of the computers (known as clients), which are connected to your network. You are able to view
the IP address of the computer, the host name (if the computer has been assigned on), and the MAC address of the
computer’s network interface card.
□
▶ Traffic Information
A Router keeps statistics of traffic that passes through it. You are able to view the amount of packets that pass
through the Ethernet and wireless portions of the network. Using Refresh button, you can reset all packet volume.
CDMA EV-DO Rev.A Mini Wi-Fi Hotspot VW300 series 40
□
▶ System Log
This menu displays router system log and you can save this as text file using Save button. If you want to update or
reset system log, press Refresh or Delete button.
6.Troubleshooting 41
1. I am not able to access the web-based configuration utility
- Verify physical connectivity by checking for solid link lights on the device. If you do not get a solid link light, try using a
different cable on the device.
- Disable any internet security software running on the computer.
- Make sure you have an updated Java-enabled web browser. Recommend the following:
Internet Explorer 6.0 or higher
Firefox 1.5 or higher
Netscape 8 or higher
Mozilla 1.7.12 (5.0) or higher
Opera 8.5 or higher
Safari 1.2 or higher (with Java 1.3.1 or higher)
2. I forgot my password.
- Need to reset your router. Unfortunately this process will change all your settings back to the factory defaults. To
reset the router, hold the reset button for 10 seconds (reset button is placed at the bottom of the router). Release the
button and the router will go through its reboot process then wait for 30 seconds to access the router. The default IP
address is 192.168.200.1. (login password: leave as a blank box)
CDMA EV-DO Rev.A Mini Wi-Fi Hotspot VW300 series 42
3. I am not able to connect to certain sites or send and receive emails when connecting through my router.
- Suggest lowering the MTU in increments of ten (ex. 1492, 1482, 1472, etc)
4. I need to update the firmware
- First of all, prepare proper F/W to be downloaded into the router (it will be provided by Service provider if needed)
and go to “Firmware upgrade” page under Administrator in Web-UI.
NOTICE 43
This product is mobile device that needs to be connected with power adapter. The battery included is only used as
backup power during the power outage.
FCC ID : XAVVW340
Warning : Exposure to Radio Frequency Radiation The radiated output power of this device is far
below the FCC radio frequency exposure limits. Nevertheless, the device should be used in such
a manner that the potential for human contact during normal operation is minimized. In order to
avoid the possibility of exceeding the FCC radio frequency exposure limits, human proximity to
the antenna should not be less than 30Cm during normal operation. The gain of the antenna for
Cellular band must not exceed -0.36dBi.
The gain of the antenna for PCS band must not exceed 1.92dBi.
Information to the User
“Changes or modifications not expressly approved by Vertex Wireless could void the user’s authority to operate the
equipment.”
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to
CDMA EV-DO Rev.A Mini Wi-Fi Hotspot VW300 series 44
part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in
a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occurin a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off and on, the user
is encouraged to try to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
NOTE : This equipment has been tested and found to comply with the limits for a class B digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against
harmful interference
FCC Compliance Information
This device complies with Part 15 of FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received.
Including interference that may cause undesired operation.
Notice
