Vigil Health Solutions WRX01 Low Power Transmitter User Manual

Vigil Health Solutions Inc Low Power Transmitter Users Manual

Users Manual

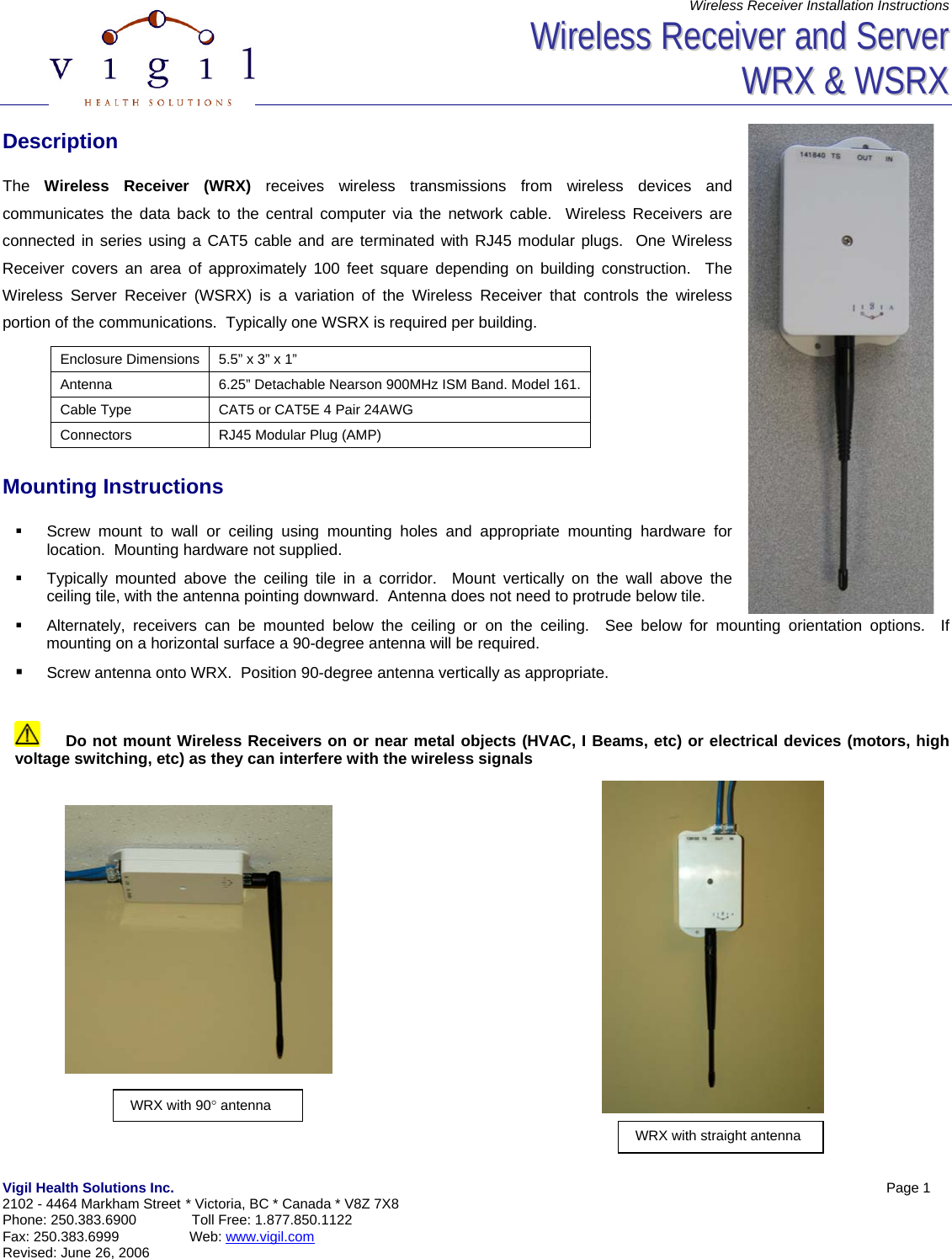

Wireless Receiver Installation Instructions Vigil Health Solutions Inc. Page 1 2102 - 4464 Markham Street * Victoria, BC * Canada * V8Z 7X8 Phone: 250.383.6900 Toll Free: 1.877.850.1122 Fax: 250.383.6999 Web: www.vigil.com Revised: June 26, 2006 WWiirreelleessss RReecceeiivveerr aanndd SSeerrvveerr WWRRXX && WWSSRRXX Description The Wireless Receiver (WRX) receives wireless transmissions from wireless devices and communicates the data back to the central computer via the network cable. Wireless Receivers are connected in series using a CAT5 cable and are terminated with RJ45 modular plugs. One Wireless Receiver covers an area of approximately 100 feet square depending on building construction. The Wireless Server Receiver (WSRX) is a variation of the Wireless Receiver that controls the wireless portion of the communications. Typically one WSRX is required per building. Mounting Instructions  Screw mount to wall or ceiling using mounting holes and appropriate mounting hardware for location. Mounting hardware not supplied.  Typically mounted above the ceiling tile in a corridor. Mount vertically on the wall above the ceiling tile, with the antenna pointing downward. Antenna does not need to protrude below tile.  Alternately, receivers can be mounted below the ceiling or on the ceiling. See below for mounting orientation options. If mounting on a horizontal surface a 90-degree antenna will be required.  Screw antenna onto WRX. Position 90-degree antenna vertically as appropriate. Do not mount Wireless Receivers on or near metal objects (HVAC, I Beams, etc) or electrical devices (motors, high voltage switching, etc) as they can interfere with the wireless signals Enclosure Dimensions 5.5” x 3” x 1” Antenna 6.25” Detachable Nearson 900MHz ISM Band. Model 161. Cable Type CAT5 or CAT5E 4 Pair 24AWG Connectors RJ45 Modular Plug (AMP) WRX with straight antenna WRX with 90° antenna

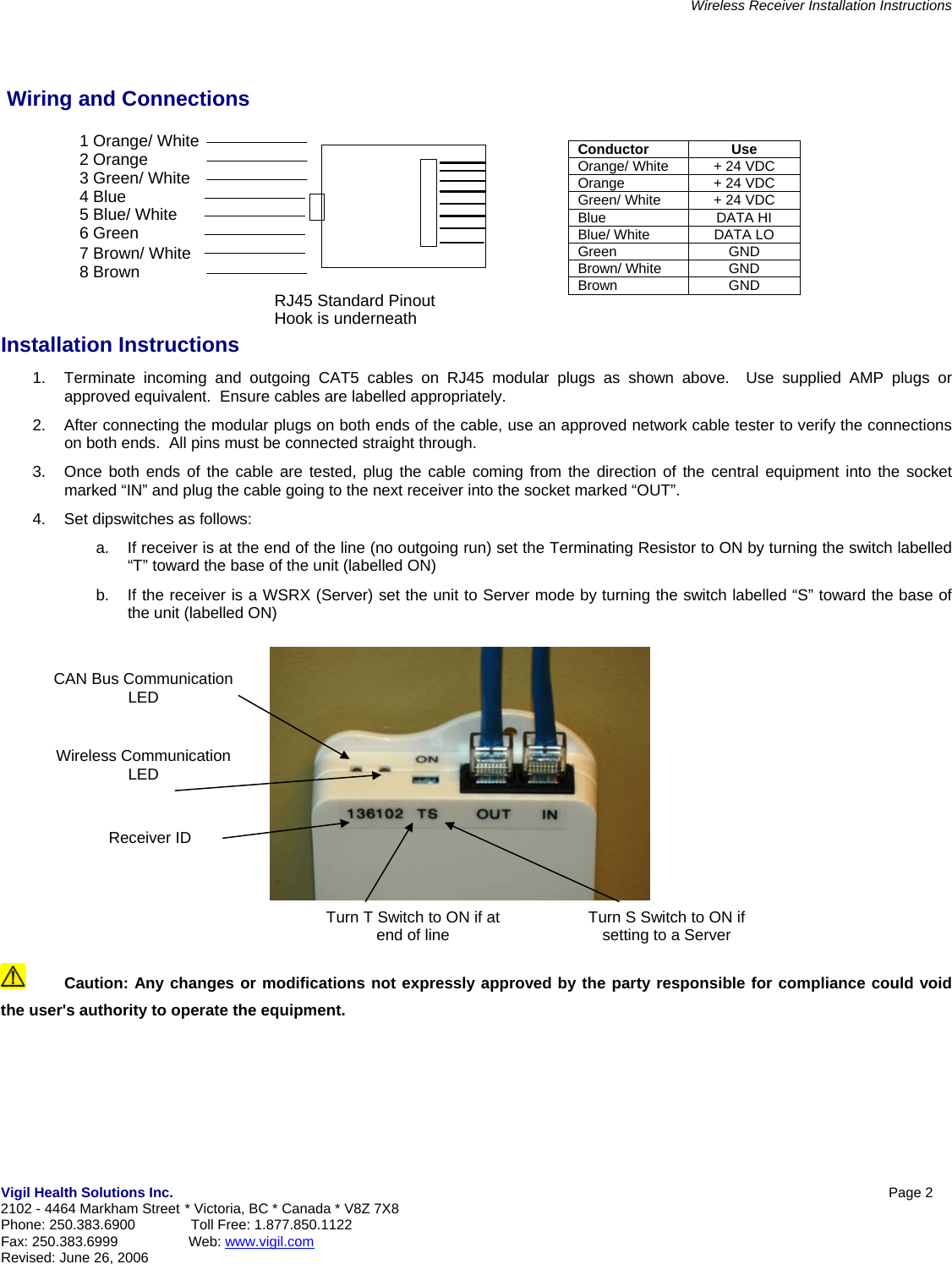

Wireless Receiver Installation Instructions Vigil Health Solutions Inc. Page 2 2102 - 4464 Markham Street * Victoria, BC * Canada * V8Z 7X8 Phone: 250.383.6900 Toll Free: 1.877.850.1122 Fax: 250.383.6999 Web: www.vigil.com Revised: June 26, 2006 Wiring and Connections Installation Instructions 1. Terminate incoming and outgoing CAT5 cables on RJ45 modular plugs as shown above. Use supplied AMP plugs or approved equivalent. Ensure cables are labelled appropriately. 2. After connecting the modular plugs on both ends of the cable, use an approved network cable tester to verify the connections on both ends. All pins must be connected straight through. 3. Once both ends of the cable are tested, plug the cable coming from the direction of the central equipment into the socket marked “IN” and plug the cable going to the next receiver into the socket marked “OUT”. 4. Set dipswitches as follows: a. If receiver is at the end of the line (no outgoing run) set the Terminating Resistor to ON by turning the switch labelled “T” toward the base of the unit (labelled ON) b. If the receiver is a WSRX (Server) set the unit to Server mode by turning the switch labelled “S” toward the base of the unit (labelled ON) Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Conductor Use Orange/ White + 24 VDC Orange + 24 VDC Green/ White + 24 VDC Blue DATA HI Blue/ White DATA LO Green GND Brown/ White GND Brown GND RJ45 Standard PinoutHook is underneath1 Orange/ White 2 Orange 3 Green/ White 4 Blue 5 Blue/ White 6 Green 7 Brown/ White8 Brown Receiver ID Turn T Switch to ON if at end of line Turn S Switch to ON if setting to a Server CAN Bus Communication LED Wireless Communication LED

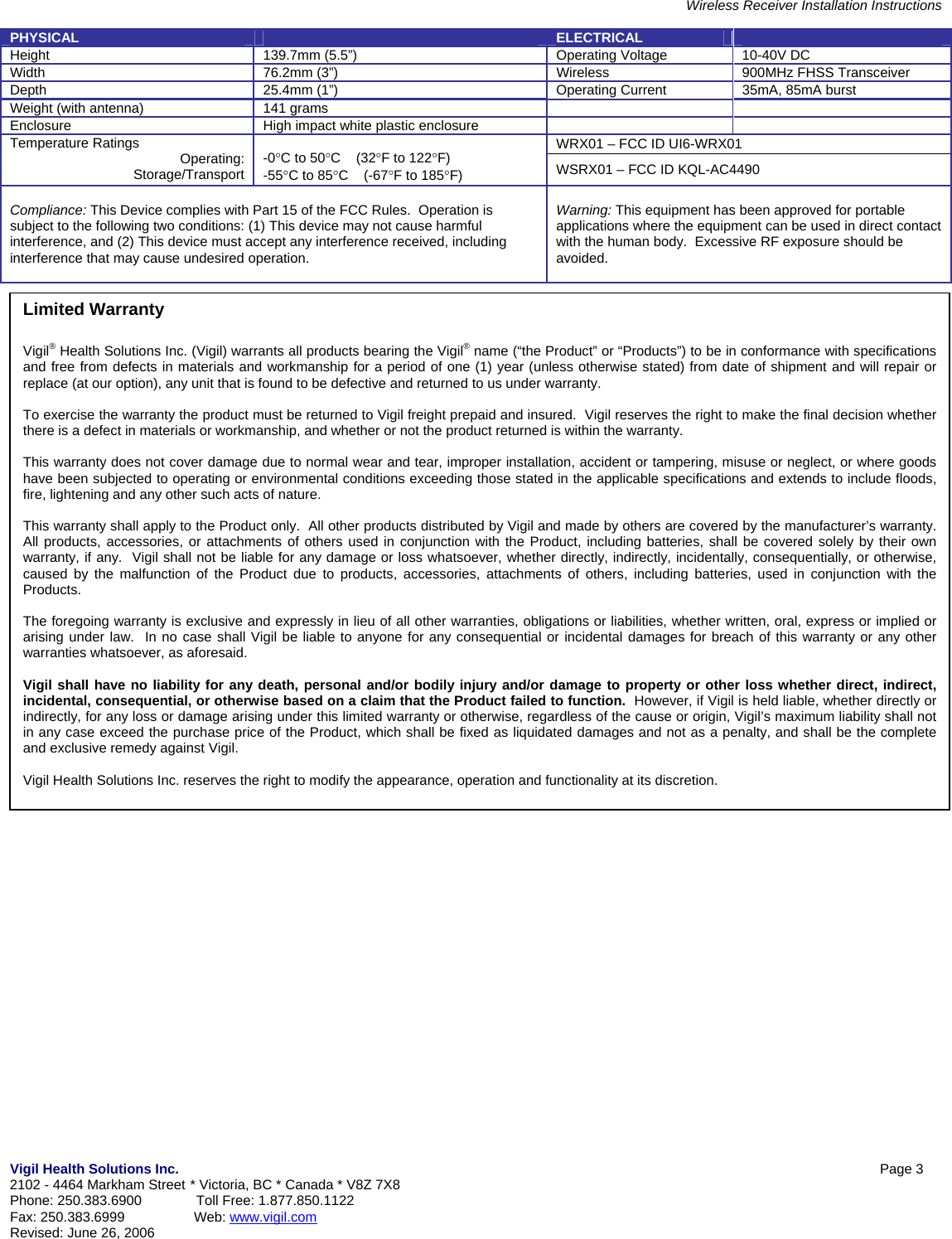

Wireless Receiver Installation Instructions Vigil Health Solutions Inc. Page 3 2102 - 4464 Markham Street * Victoria, BC * Canada * V8Z 7X8 Phone: 250.383.6900 Toll Free: 1.877.850.1122 Fax: 250.383.6999 Web: www.vigil.com Revised: June 26, 2006 PHYSICAL ELECTRICAL Height 139.7mm (5.5”) Operating Voltage 10-40V DC Width 76.2mm (3”) Wireless 900MHz FHSS Transceiver Depth 25.4mm (1”) Operating Current 35mA, 85mA burst Weight (with antenna) 141 grams Enclosure High impact white plastic enclosure WRX01 – FCC ID UI6-WRX01 Temperature Ratings Operating: Storage/Transport -0°C to 50°C (32°F to 122°F) -55°C to 85°C (-67°F to 185°F) WSRX01 – FCC ID KQL-AC4490 Compliance: This Device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Warning: This equipment has been approved for portable applications where the equipment can be used in direct contact with the human body. Excessive RF exposure should be avoided. Limited Warranty Vigil® Health Solutions Inc. (Vigil) warrants all products bearing the Vigil®name (“the Product” or “Products”) to be in conformance with specificationsand free from defects in materials and workmanship for a period of one (1) year (unless otherwise stated) from date of shipment and will repair orreplace (at our option), any unit that is found to be defective and returned to us under warranty. To exercise the warranty the product must be returned to Vigil freight prepaid and insured. Vigil reserves the right to make the final decision whetherthere is a defect in materials or workmanship, and whether or not the product returned is within the warranty. This warranty does not cover damage due to normal wear and tear, improper installation, accident or tampering, misuse or neglect, or where goodshave been subjected to operating or environmental conditions exceeding those stated in the applicable specifications and extends to include floods,fire, lightening and any other such acts of nature. This warranty shall apply to the Product only. All other products distributed by Vigil and made by others are covered by the manufacturer’s warranty.All products, accessories, or attachments of others used in conjunction with the Product, including batteries, shall be covered solely by their ownwarranty, if any. Vigil shall not be liable for any damage or loss whatsoever, whether directly, indirectly, incidentally, consequentially, orotherwise,caused by the malfunction of the Product due to products, accessories, attachments of others, including batteries, used in conjunction with theProducts. The foregoing warranty is exclusive and expressly in lieu of all other warranties, obligations or liabilities, whether written, oral, express or implied orarising under law. In no case shall Vigil be liable to anyone for any consequential or incidental damages for breach of this warranty or any otherwarranties whatsoever, as aforesaid. Vigil shall have no liability for any death, personal and/or bodily injury and/or damage to property or other loss whether direct, indirect,incidental, consequential, or otherwise based on a claim that the Product failed to function. However, if Vigil is held liable, whether directly orindirectly, for any loss or damage arising under this limited warranty or otherwise, regardless of the cause or origin, Vigil’s maximum liability shall notin any case exceed the purchase price of the Product, which shall be fixed as liquidated damages and not as a penalty, and shall be the completeand exclusive remedy against Vigil. Vigil Health Solutions Inc. reserves the right to modify the appearance, operation and functionality at its discretion.
