Supervised Vanishing Magnetic Contact Device
Installation Instructions
1. INTRODUCTION
1. INTRODUCTION1. INTRODUCTION
1. INTRODUCTION
The MC-302V PG2 is a very thin PowerG magnetic contact device
that is compatible with PowerMaster control panels. The device
includes a built-in reed switch (that opens upon removal of a
magnet placed near it). The MC-302V PG2 sends the alarm
message to the control panel using PowerG 2-way communications
protocol.
A periodic supervision or alarm message is transmitted
automatically. The control panel is thus informed, at regular
intervals, of the unit’s active participation in the system.
The LED lights green/yellow/red, according to signal strength,
upon first insertion of the battery and for the test period of 15 min.
LED does not light while a supervision message is being transmitted.
Operating power is obtained from an on-board 3 V Lithium
battery. When the battery voltage is low, a “low battery” message
is sent to the receiver.
The MC-302 V is available for 433 MHz, 868 MHz, and 915 MHz.
A. Transmission LED
B. Magnet
Figure 1:
External View
2
22
2. INSTALLATION
. INSTALLATION. INSTALLATION
. INSTALLATION
CAUTION: This equipment shall be installed by Service Personnel in non-hazardous indoor locations only.
2.1 Mounting
7
7
A. Enroll button B. Double-sided adhesive tape

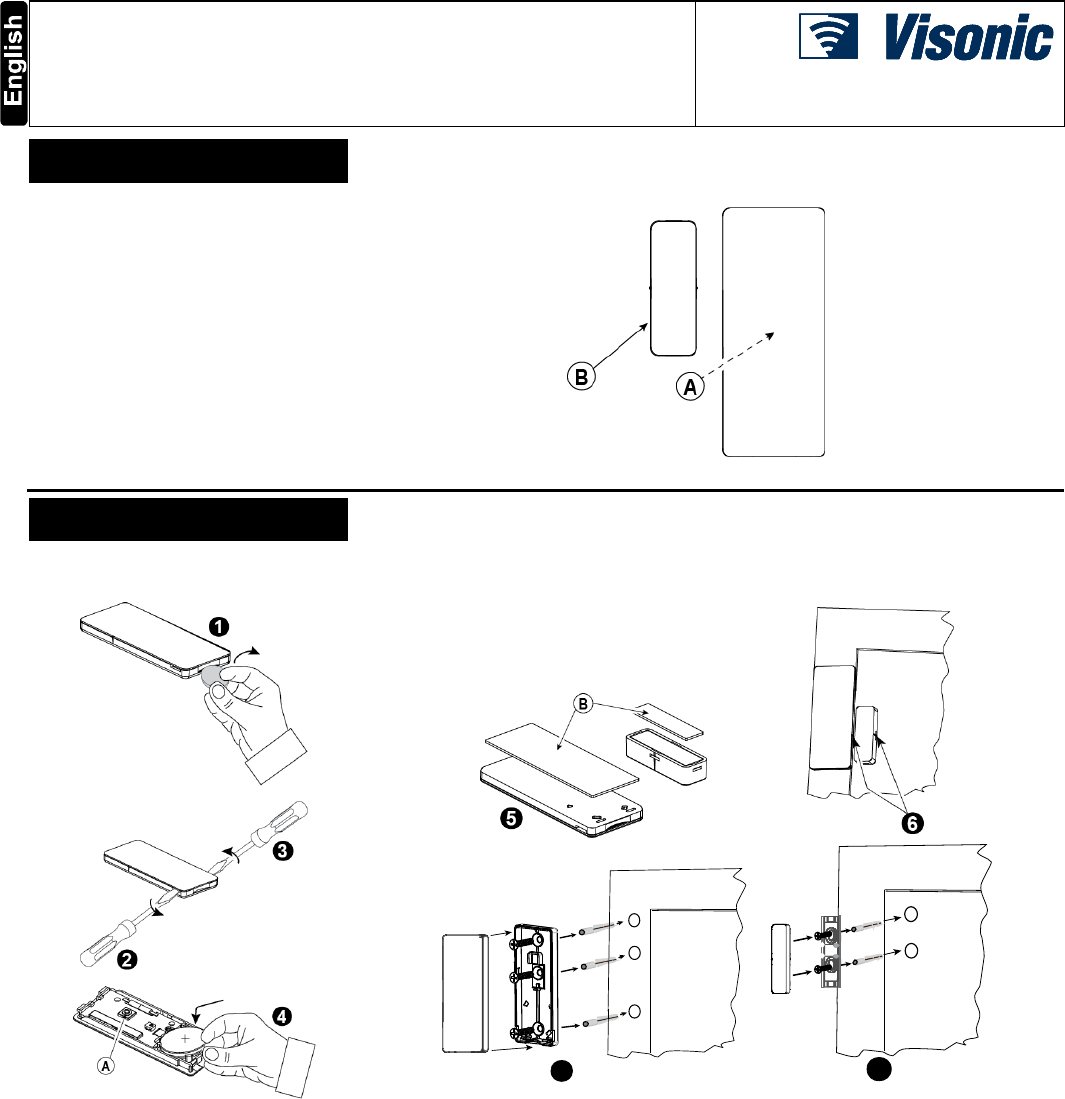

Figure 2: Mounting
Note: The required battery is CR2032 Lithium 3V, manufactured by VARTA or another UL-recognized manufacturer, purchased from a
Visonic-approved supplier.
Note: To comply with FCC and IC RF exposure compliance requirements, the device should be located at a distance of at least 20 cm
from all persons during normal operation. The antennas used for this product must not be co-located or operated in conjunction with
any other antenna or transmitter.
1. Insert a “quarter” coin in the slot, as shown in the drawing, and flex to remove the cover
- or, if a “quarter” coin is not available -
2. Insert a 4 mm flat screwdriver into the slot of the plastic cover, as shown in the drawing, and flex the slot to open that side of the
plastic cover.
3. Insert the screwdriver into the slot on the other side of the plastic cover and repeat the procedure, and then remove the cover.
4. Insert the battery at an angle (see drawing) while observing battery polarity and then press down on the battery.
Caution! Risk of explosion if battery is replaced by an incorrect type. Dispose of used batteries according to the manufacturer's instructions.
5. Peel away the release liners from the two strips of double-sided adhesive tape and attach to the device and magnet.
6. Align the device with the magnet according to the location marks and fasten the device and magnet to the mounting surface. The
transmitter should be mounted on the fixed surface and the magnet on the moving surface.
7. For installers of 433 or 868 MHz model:
Ensure that the heads of the tightened screws are flat perpendicular to the device surface.
2 D-304535 MC-302V PG2 Installation Guide
2.2. Enrollment
Refer to the PowerMaster panel's Installer Guide and follow the procedure under the "02:ZONES/DEVICES" option of the Installer Menu. The
following is a general description of the steps through the panel menu:
1. 02:ZONES/DEVICES
2. ADD NEW DEVICES > MODIFY DEVICES
3. ENROLL NOW or > ENTR ID:XXX-XXXX
4. Z06:Contact Sens > ID No. 104-XXXX
5. Z06:LOCATION > Z06:ZONE TYPE > Z06:SET CHIME > Z06:DEV SETTINGS
3
33
3.
. .
. LOCAL DIAGNOSTICS TEST
LOCAL DIAGNOSTICS TESTLOCAL DIAGNOSTICS TEST
LOCAL DIAGNOSTICS TEST
Before testing, separate the base from the cover (see Figure 2).
A. Put back the cover to return the tamper switch to its normal
(undisturbed) position.
B. Momentarily open the door or window and verify the red LED
blinks, indicating detection.
C. After 2 seconds one of the LED blinks 3 times.
The following table indicates received signal strength indication.
LED response Reception
Green LED blinks Strong
Yellow LED blinks Good
Red LED blinks Poor
No blinks No communication
IMPORTANT! Reliable reception must be assured. Therefore,
"poor" signal strength is not acceptable. If you receive a "poor"
signal from the device, re-locate it and re-test until a "good" or
"strong" signal strength is received.
Note: For detailed Diagnostics Test instructions refer to the
control panel Installer Guide.
4
44
4.
. .
. MISCELLANEOUS COMMENTS
MISCELLANEOUS COMMENTSMISCELLANEOUS COMMENTS
MISCELLANEOUS COMMENTS
Visonic Ltd. wireless systems are very reliable and are tested to
high standards. However, due to low transmitting power and
limited range (required by FCC and other regulatory authorities),
there are some limitations to be considered:
A. Receivers may be blocked by radio signals occurring on or
near their operating frequencies, regardless of the digital code
used.
B. A receiver responds only to one transmitted signal at a time.
C. Wireless devices should be tested regularly to determine
whether there are sources of interference and to protect
against faults.
5
55
5. COMPLIANCE WITH STANDARDS
. COMPLIANCE WITH STANDARDS. COMPLIANCE WITH STANDARDS
. COMPLIANCE WITH STANDARDS
Europe:
EN 300220, EN 301489
EN 50130
-
4, EN 61000
-
6
-
3, EN 60950
-
1
The MC-302V PG2 is compatible with the RTTE requirements - Directive 1999/5/EC of the
European Parliament and of the Council of 9 March 1999 and EN50131-1 Grade 2 Class I.
USA: CFR 47 part 15 (FCC)
Canada: RSS 210
The Power G peripheral devices have two- way communication functionality, providing additional
benefits as described in the technical brochure. This functionality has not been tested to comply with
the respective technical requirements and should therefore be considered outside the scope of the
product’s certification.
EN 50131-1 Security Grade According to EN 50131-1: this equipment can be applied in installed systems up to and including
Security Grade 2.
EN 50131-1 Environmental Class Class I
D-304535 MC-302V PG2 Installation Guide 3
FCC Compliance Statement
The digital circuitry of this device has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC
Rules. These limits are designed to provide reasonable protection against harmful interference in residential installations. This equipment
generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio and television reception. However, there is no guarantee that interference will not occur in a particular installation. If this
device does cause such interference, which can be verified by turning the device off and on, the user is encouraged to eliminate the interference
by one or more of the following measures:
– Re-orient or re-locate the receiving antenna.
– Increase the distance between the device and the receiver.
– Connect the device to an outlet on a circuit different from the one which supplies power to the receiver.
– Consult the dealer or an experienced radio/TV technician
WARNING! Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority
to operate the equipment.
This device complies with FCC Rules Part 15 and with Industry Canada licence-exempt RSS standard(s). Operation is subject to two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference that may be received or that
may cause undesired operation.
Le present appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisee
aux deux conditions suivantes :(1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage
radioelectrique subi, meme si le brouillage est susceptible d'en compromettre le fonctionnement.
Reed Switch Positions
Wood Supports Soft Iron
X
Y
Y
Z

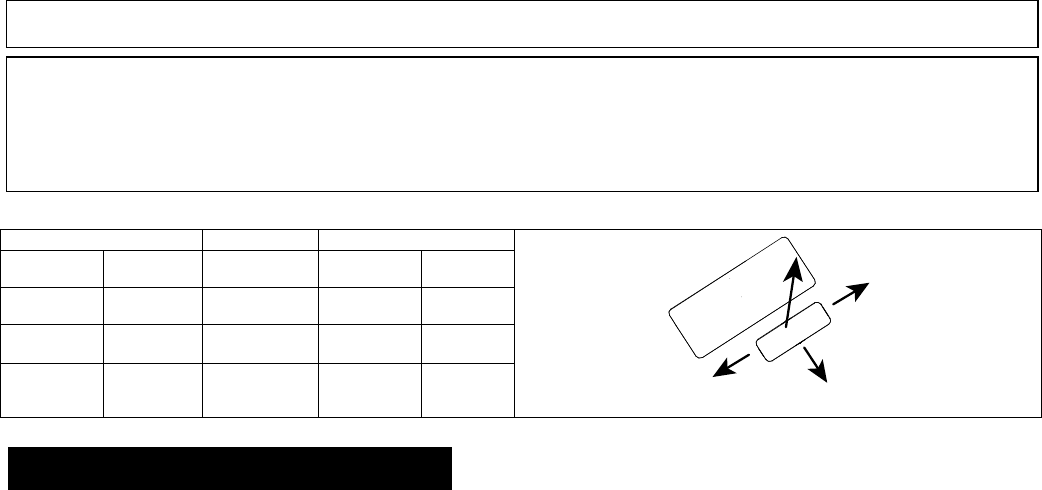

Fig. 3 Range Coverage Directions
Opening Closing Direction Opening Closing
>20mm <15 mm X >15mm <8mm
>13mm <10mm Y >13mm <10mm
>24mm <15mm Z >10mm <8mm
APPENDIX: SPECIFICATIONS
APPENDIX: SPECIFICATIONSAPPENDIX: SPECIFICATIONS
APPENDIX: SPECIFICATIONS
Frequency Band (MHz)
433, 868, 915
(in accordance with
the prevailing frequency of your region)
Modulation
GFSK
Antenna
Built
-
in
loaded inverted
-
F an
tenna
Communication Protocol
PowerG
Supervision
Signaling at
256 sec.
intervals
Battery type
Varta
3V Lithium CR
2032
type battery
Battery Life Expectancy
5
years
Low Battery Threshold
2.
1
V
Operating Temperature
0
°
C to
50
°
C (
32
°
F to 12
2
°
F)
Storage
Temperature
-
40
°
C to 85
°
C (
-
40
°
F to 185
°
F)
Relative
Humidity
(RH)
Up to 95% non
-
condensing
Dimensions
(LxWxD)
433/868 MHz model
:
62 x 25.4 x 7.7 mm (2
-
1/2 x 1 x
1/
3 in.)
915 MHz model
:
62
x
25.4
x
6.1
mm (
2
-
1
/
2
x 1 x 1
/4
in.)
Weight (including battery)
12
g (
0
.
42
oz)
Color
White or brown
4 D-304535 MC-302V PG2 Installation Guide
WARRANTY
Visonic Limited (the “Manufacturer") warrants this product only (the "Product") to the original purchaser only (the
“Purchaser”) against defective workmanship and materials under normal use of the Product for a period of
twelve (12) months from the date of shipment by the Manufacturer.
This Warranty is absolutely conditional upon the Product having been properly installed, maintained and
operated under conditions of normal use in accordance with the Manufacturers recommended installation and
operation instructions. Products which have become defective for any other reason, according to the
Manufacturers discretion, such as improper installation, failure to follow recommended installation and
operational instructions, neglect, willful damage, misuse or vandalism, accidental damage, alteration or
tampering, or repair by anyone other than the manufacturer, are not covered by this Warranty.
The Manufacturer does not represent that this Product may not be compromised and/or circumvented or that the
Product will prevent any death and/or personal injury and/or damage to property resulting from burglary,
robbery, fire or otherwise, or that the Product will in all cases provide adequate warning or protection. The
Product, properly installed and maintained, only reduces the risk of such events without warning and it is not a
guarantee or insurance that such events will not occur.
THIS WARRANTY IS EXCLUSIVE AND EXPRESSLY IN LIEU OF ALL OTHER WARRANTIES,
OBLIGATIONS OR LIABILITIES, WHETHER WRITTEN, ORAL, EXPRESS OR IMPLIED, INCLUDING ANY
WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, OR OTHERWISE. IN
NO CASE SHALL THE MANUFACTURER BE LIABLE TO ANYONE FOR ANY CONSEQUENTIAL OR
INCIDENTAL DAMAGES FOR BREACH OF THIS WARRANTY OR ANY OTHER WARRANTIES
WHATSOEVER, AS AFORESAID.
THE MANUFACTURER SHALL IN NO EVENT BE LIABLE FOR ANY SPECIAL, INDIRECT, INCIDENTAL,
CONSEQUENTIAL OR PUNITIVE DAMAGES OR FOR LOSS, DAMAGE, OR EXPENSE, INCLUDING LOSS
OF USE, PROFITS, REVENUE, OR GOODWILL, DIRECTLY OR INDIRECTLY ARISING FROM
PURCHASER’S USE OR INABILITY TO USE THE PRODUCT, OR FOR LOSS OR DESTRUCTION OF
OTHER PROPERTY OR FROM ANY OTHER CAUSE, EVEN IF MANUFACTURER HAS BEEN ADVISED OF
THE POSSIBILITY OF SUCH DAMAGE.
THE MANUFACTURER SHALL HAVE NO LIABILITY FOR ANY DEATH, PERSONAL AND/OR BODILY
INJURY AND/OR DAMAGE TO PROPERTY OR OTHER LOSS WHETHER DIRECT, INDIRECT,
INCIDENTAL, CONSEQUENTIAL OR OTHERWISE, BASED ON A CLAIM THAT THE PRODUCT FAILED TO
FUNCTION.
However, if the Manufacturer is held liable, whether directly or indirectly, for any loss or damage arising under
this limited warranty, THE MANUFACTURER'S MAXIMUM LIABILITY (IF ANY) SHALL NOT IN ANY CASE
EXCEED THE PURCHASE PRICE OF THE PRODUCT, which shall be fixed as liquidated damages and not as
a penalty, and shall be the complete and exclusive remedy against the Manufacturer.
When accepting the delivery of the Product, the Purchaser agrees to the said conditions of sale and warranty
and he recognizes having been informed of.
Some jurisdictions do not allow the exclusion or limitation of incidental or consequential damages, so these
limitations may not apply under certain circumstances.
The Manufacturer shall be under no liability whatsoever arising out of the corruption and/or malfunctioning of
any telecommunication or electronic equipment or any programs.
The Manufacturers obligations under this Warranty are limited solely to repair and/or replace at the
Manufacturer’s discretion any Product or part thereof that may prove defective. Any repair and/or replacement
shall not extend the original Warranty period. The Manufacturer shall not be responsible for dismantling and/or
reinstallation costs. To exercise this Warranty the Product must be returned to the Manufacturer freight pre-paid
and insured. All freight and insurance costs are the responsibility of the Purchaser and are not included in this
Warranty.
This warranty shall not be modified, varied or extended, and the Manufacturer does not authorize any person to
act on its behalf in the modification, variation or extension of this warranty. This warranty shall apply to the
Product only. All products, accessories or attachments of others used in conjunction with the Product, including
batteries, shall be covered solely by their own warranty, if any. The Manufacturer shall not be liable for any
damage or loss whatsoever, whether directly, indirectly, incidentally, consequentially or otherwise, caused by the
malfunction of the Product due to products, accessories, or attachments of others, including batteries, used in
conjunction with the Products. This Warranty is exclusive to the original Purchaser and is not assignable.
This Warranty is in addition to and does not affect your legal rights. Any provision in this warranty which is
contrary to the Law in the state or country were the Product is supplied shall not apply.
Warning: The user must follow the Manufacturer’s installation and operational instructions including testing the
Product and its whole system at least once a week and to take all necessary precautions for his/her safety and
the protection of his/her property.
1/08
W.E.E.E. Product Recycling Declaration
For information regarding the recycling of this product you must contact the company from which you orignially purchased it. If you are discarding this product and not
returning it for repair then you must ensure that it is returned as identified by your supplier. This product is not to be thrown away with everyday waste.
Directive 2002/96/EC Waste Electrical and Electronic Equipment.
EMAIL: info@visonic.com
INTERNET: www.visonic.com
VISONIC LTD. 2013 MC-302V (ROW) D-304535 (REV. 1, 10/13)
